1 Preface
Dear customer, Thank you very much for purchasing this product made by OPTIMUM. You
have purchased a product which has been designed according to state of the art.
It meets the requirements of the applicable European and national guidelines.
To maintain this condition and to ensure safe operation, you must observe as user these user
manual !
Damages caused by the disregard of this user manual are not subject to warranty. The dealer
will not accept liability for any resulting defects or problems.
Every person involved with the insta llation, operation and m aintenance of this workbenc h lumi-
naire have to:
be qualilfied,
follow the instructions of this manual.
2 Safety instructions
2.1 Classification of hazards

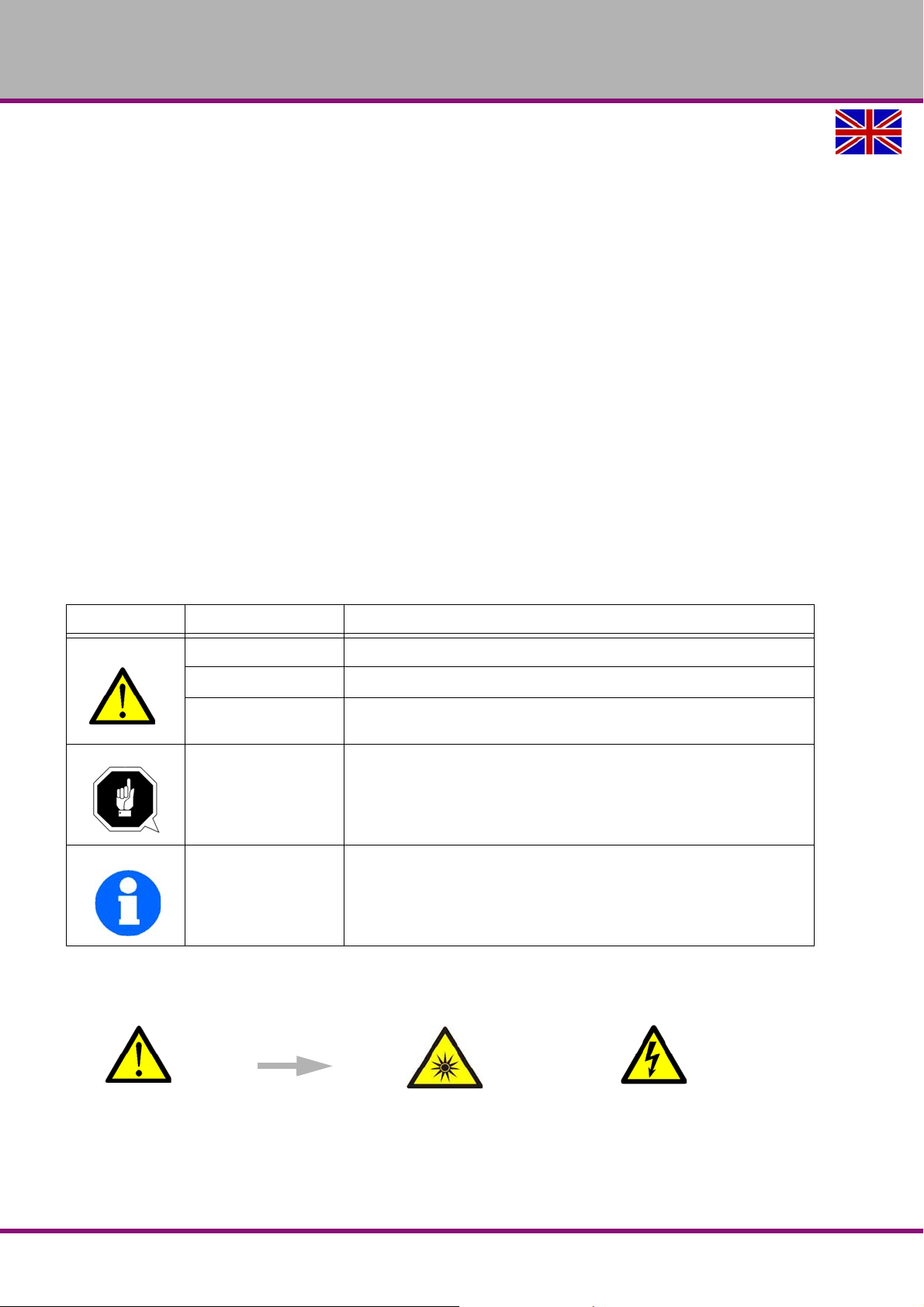

We classify the safety warnings into different categories. The table below gives an overview of
the classification of symbols (ideogram) and the warning signs for each specific danger and its
(possible) consequences.
Symbol Alarm expression Definition / consequence
DANGER!
WARNING!
CAUTION!
ATTENTION!
INFORMATION
Impending danger that will cause serious injury or death to people.
A danger that can cause serious injury or death.
A danger or unsafe procedure that can cause personal injury or damage
to property.
Situation that could cause damage to the product, as well as other types
of damage.
No risk of injury to persons.
Practical tips and other important or useful information and notes.
No dangerous or harmful consequences for people or objects.
In case of specific dangers, we replace the pictogram with
or
general danger with a warning of optical radiation hazardous electrical
voltage,
LED WBL3GB
Version 1.0 dated 2018-04-04Page 2 Translation of the original instructions
LED-WBL3_GB.fm
Preface
Page 3
OPTIMUM
MASCHINEN - GERMANY
2.2 For your own safety
The luminaire has been designed in accordance with state-of-the-art standards, manufactured
with utmost care using high-quality materials, and tested. Nevertheless, its use may constitute a
risk to persons or cause material damage.
Read all enclosed instructions and information.
Please observe the warnings included in the documentation and attached to the unit.
Use the workbench luminaire in a safety and hazard-conscious manner and only in a tech-
nically perfect condition.
Keep this document available near the device.
CAUTION!
Risk of blinding caused by bright light source. Looking directly into the light source may
cause temporarily impaired vision and afterimages. This may result in irritations,
inconveniences, impairments or even accidents.
Do not look into the light source.
Position luminaire in such a way that looking directly into the light source is avoided.
WARNING!
®
Explosion hazard. Operating the luminaire in rooms subject to explosion hazards can
trigger an explosion and result in serious injuries or death.
Do not operate the luminaire in rooms subject to explosion hazards.
CAUTION!
Electric shock from moisture penetration. Personal injury and damage to the main s plug.
Plug in the mains plug only outside humid environments.
CAUTION!
Safe mounting. A luminaire falling down can result in personal injuries and material
damage.
Use only the delivered fastening elements.
Mount the fastening elements correc tly.
WARNING!
Hazard caused by unsuitable spare parts. Unsuitable spare parts can result in injuries
and material damage.
Only spare parts released by the manufacturer may be used as spare parts.
3 Designated use
This luminaire is a workbench luminaire for illuminating objects. The lamp is not suitable for
humid and wet environments.
LED-WBL3_GB.fm
Designated use
Version 1.0 dated 2018-04-04 Page 3Translation of the original instructions
LED WBL3 GB
Page 4
®
1
2
0
Ø 75
520
4 x Ø 4,5
60
105
Diameter
Illuminance
Light point
distance
1W x 3 - 60°
Power LED
OPTIMUM
MASCHINEN - GERMANY
4 Technical specification
LED technology
Mains voltage 100V ~ 240V AC
Frequency 50Hz / 60Hz
Colour temperature 5600 - 6000 K
Beam ang le 60° (reflector)
Mounting by means of mounting bracket on the base
Maximum permissible ambient temperature Tmax. 50° C
Degree of protection IP20, protection class II
4.1 Dimensions
4.2 Illuminance
LED WBL3GB
LED-WBL3_GB.fm
Technical specification
Version 1.0 dated 2018-04-04Page 4 Translation of the original instructions
Page 5
OPTIMUM
4
x
M
4
60
60
70
40
6,5
MASCHINEN - GERMANY
5 Assembly
5.1 Mounting bracket
CAUTION!
Risk of impact through the edges of the mounting bracket when mounted on the side of
the workbench.
Fasten the workbench lamp to the side of the workbench or directly to the workbench using the
mounting bracket.
®
Img.5-1: Mounting bracket
5.1.1 Connection
ATTENTION!
Material damage caused by wrong mains voltage. Damage or destruction of the
luminaire.
Compare the mains voltage with the nominal voltage and the frequency specified on the rat-
ing plate and make sure that they are identical.
LED-WBL3_GB.fm
Assembly
Version 1.0 dated 2018-04-04 Page 5Translation of the original instructions
LED WBL3 GB
Page 6
®
180°
320°
OPTIMUM
MASCHINEN - GERMANY
6 Operation
ATTENTION!
Damage to property due to incorrect handling. Damage to the luminaire.
Do not turn joints over the possible swivel range.
Do not bend the flexible hose and avoid small bending radii.
The lamp has its own switch on the lamp head. The luminaire will switch on when the switch is
turned on.
The possible swivel angle is 320 degrees to the left and right and 180 degrees up and down.
7 Maintenance
7.1 Replacing the light source
WARNING!
Danger of death due to electric shock. Disconnect the luminaire from the power supply.
ATTENTION!
Material damage caused by using wrong cleaning agents. Damage to the luminaire.
Make sure the cleaning agent is compatible with the surface.
The light source is replaced by replacing the LED lamp soc ket .
LED WBL3GB
Version 1.0 dated 2018-04-04Page 6 Translation of the original instructions
Operation
LED-WBL3_GB.fm
Page 7
Img.7-1: LED lamp socket
Designation
LED lamp socket
®
OPTIMUM
MASCHINEN - GERMANY
Size Item no.
Size Item no.
Beam angle 30° 0335106230
Beam angle 45° 0335106245
Beam angle 60° 0335106260
8 Appendix
8.1 Liability claims/warranty
Besides the legal liability claims for defects of the customer towards the seller, the manufacturer of the product, OPTIMUM GmbH, Robert-Pfleger-Straße 26, D-96103 Hallstadt, does not
grant any further warranties unless they are listed below or were promised as part of a single
contractual provision.
Liability or warranty claims are processed at OPTIMUM GmbH's discretion either
directly or through one of its dealers.
Any defective products or components of such products will either be repaired or
replaced by components which are free from defects. Title to replaced products or
components is transferred to OPTIMUM Maschinen Germany GmbH.
The automatically generated original proof of purchase which shows the date of purchase,
the type of machine and the serial number, if applicable, is the precondition in order to
assert liability or warranty claims. If the original proof of purchase is not presented, we are
not able to perform any services.
Defects resulting from the following circumstances are excluded from liability and warranty
claims:
- Using the product beyond the technical options and proper use, in particular due to overstraining of the machine.
- Any defects arising by one's own fault due to faulty operations or if the operating manual
is disregarded.
- Inattentive or incorrect handling and use of improper equipment
- Unauthorized modifications and repairs
- Insufficient installation and safeguarding of the machine
- Disregarding the installation requirements and conditions of use
- atmospheric discharges, overvoltage and lightning strokes as well as chemical influences
Neither are the following items covered by liability or warranty claims:
- Wearing parts and components which are subject to normal and intended wear, such as
V-belts, ball bearings, lighting, filters, seals, etc.
- Non reproducible software errors
LED-WBL3_GB.fm
Appendix
Version 1.0 dated 2018-04-04 Page 7Translation of the original instructions
LED WBL3 GB
Page 8
®
OPTIMUM
MASCHINEN - GERMANY
Any services, which OPTIMUM Gmb H or one of its agen ts performs in orde r to fulfil any
additional warranty are neither an acceptance of the defects nor an acceptance of its obligation to compensate. These services neither delay nor interrupt the warranty period.
The court of jurisdiction for legal disputes between businessmen is Bamberg.
If any of the a forementi oned agreeme nts is totally or partially in operative and/o r invalid, a
provision which nearest approaches the intent of the guarantor and remains within the
framework of the limits of liability and warranty which are specified by this contract is
deemed agreed.
8.2 Disposal via municipal collection facilities
Disposal of used electrical and electronic components (Applicable in the countries of the European Union and other European countries with a separate collecti ng system for those devices).
The sign on the product or on its packing indicates that the product must not be handled as
common household waste, but that is needs to be disposed of at a central collection point for
recycling. Your contribution to the correct disposal of this product will protect the environment
and the public health. Incorrect disposal constitutes a risk to the environment and public health.
Recycling of material will help reduce the consumption of raw materials. For further information
about the recycling of this product, please consult your District Office, municipal waste collection station or the shop where you have purchased the product.
