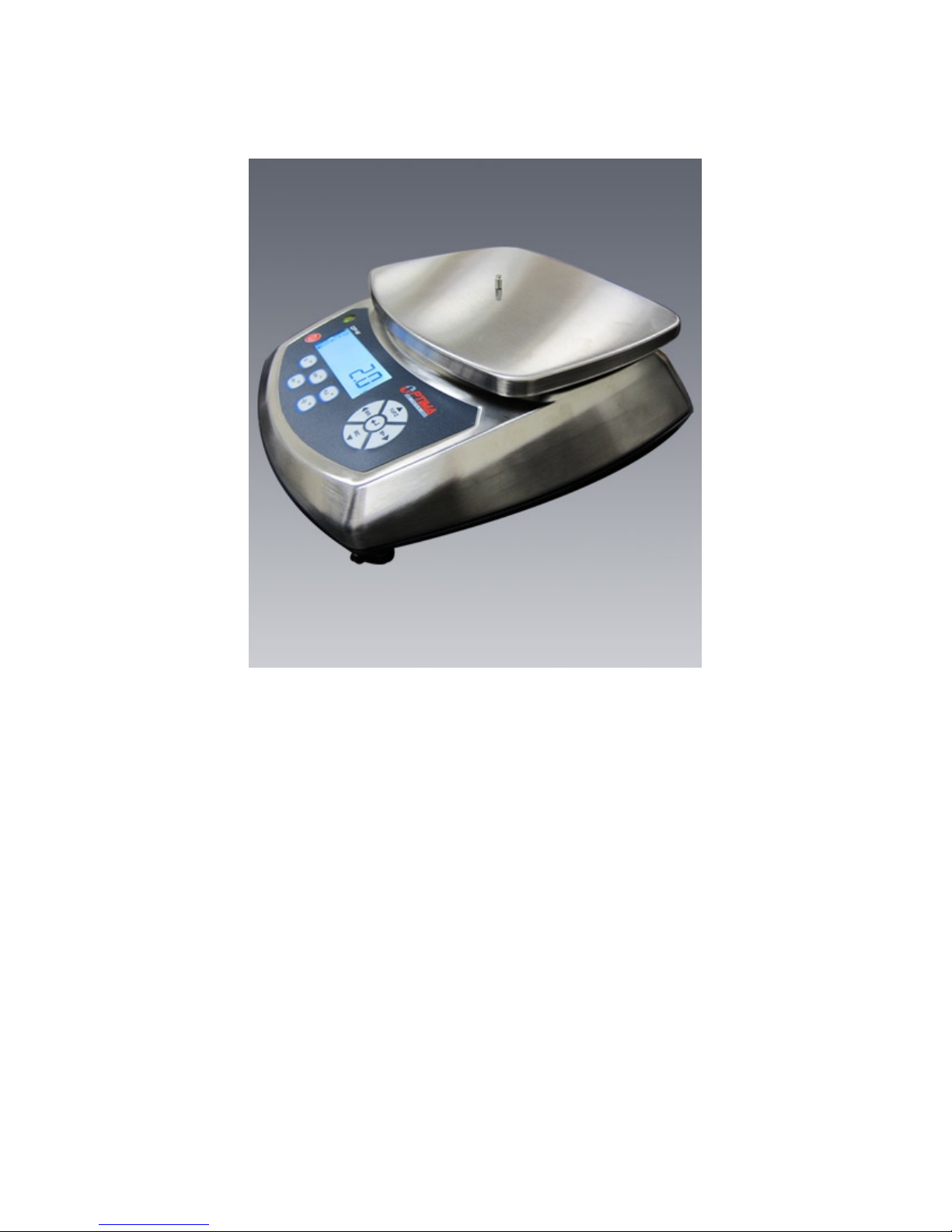

Optima OP-W User Manual

OP-W Series

User Manual

Warnings

Avoid using the balance in any harsh environment.

•
Only trained professionals are allowed to do repair work.

•
Turn power off before connecting/disconnecting the power source.

•
Avoid overloading or dropping material onto the platform as that could damage

•
the balance.

Material that has a static charge could influence the performance of the balance.

•
Electromagnetic interference can affect the reading of the balance.

•
Unplug the power before cleaning and use a piece of soft cloth (do not use any

•
aggressive cleaning agent); Make sure no liquid enters the balance.

! OP-W Series

! User Manual / Table of Contents

............................................................................................................Getting Started! 4

...........................................................................................................Overview! 4

............................................................................................................Contents! 5

........................................................................................................Preparation! 5

................................................................................................................Scale Settings! 6

....................................................................................................Settings Menu! 6

........................................................................................................Units Menu! 8

.............................................................................................Si.CAL-01 Menu! 11

....................................................................................................CALIB Menu! 15

...................................................................................................FILTER Menu! 17

.....................................................................................................OIML Menu! 17

.....................................................................................................QUIT Menu! 20

....................................................................................................RESET Menu! 20

....................................................................................................C1/C2 Menu! 21

......................................................................................................ADC Menu! 21

........................................................................................................RST Menu! 22

....................................................................................................ZERO Menu! 22

...................................................................................................G1SET Menu! 23

...................................................................................................G2SET Menu! 24

....................................................................................................................More Info! 25

!3/25

..............................................................................................Troubleshooting! 25

...........................................................................................Technical Support! 25

Model #

Max Weight (grams)

Accuracy (grams)

OPW-P3

3,000

0.2

OPW-P6

6,000

0.5

OPW-P15

15,000

1

OPW-P30

30,000

2

! OP-W Series

! User Manual / Getting Started

Getting Started

Overview

Thank you for using Optima scales for your impor tant application. Here is the list of
models this manual covers:

!4/25

! OP-W Series

! User Manual / Getting Started

Contents

Scale main unit

•

Scale pan

•

User Manual

•

AC adapter : 12V

•

Preparation

1. Carefully remove contents from the package which may include fragile parts.

2. Carefully assemble the scale by placing the scale pan.

3. Place the scale in a firm and flat surface, and avoid location where the scale

maybe subject to vibration, sunlight, airflow, contact with water, and strong
electromagnetic wave.

4. Level the scale by using the bubble level indicator (if available) and adjusting the

feet of the scale.

5. Locate scale in the following condition:

1. Temperature : 0oC ~ 40oC

6. Plug in the scale to a surge protected power outlet if using the AC adapter. You

may use the internal rechargeable batteries also once it has charged.

7. Press the ON/OFF key in the front panel to turn the scale on and wait for it to

finish initialization (i.e. when the display shows a weight of 0).

8. Let the scale warm up for 1 minute before calibration and use.

9. Make sure any weight placed on the scale is not beyond the rated maximum.

10.If scale is not used for an extended period of time, turn off the scale and unplug

the AC adapter (if it’s connected).

!5/25

! OP-W Series

! User Manual / Scale Settings

Scale Settings

Settings Menu

After the scale has been turned on and in the normal weighing mode, to get to the
settings menu, follow the procedures below:

Press the “PLU” key, holding it for more than 2 seconds.

•

Press “ENTER” key

•

1

!6/25

! OP-W Series

! User Manual / Scale Settings

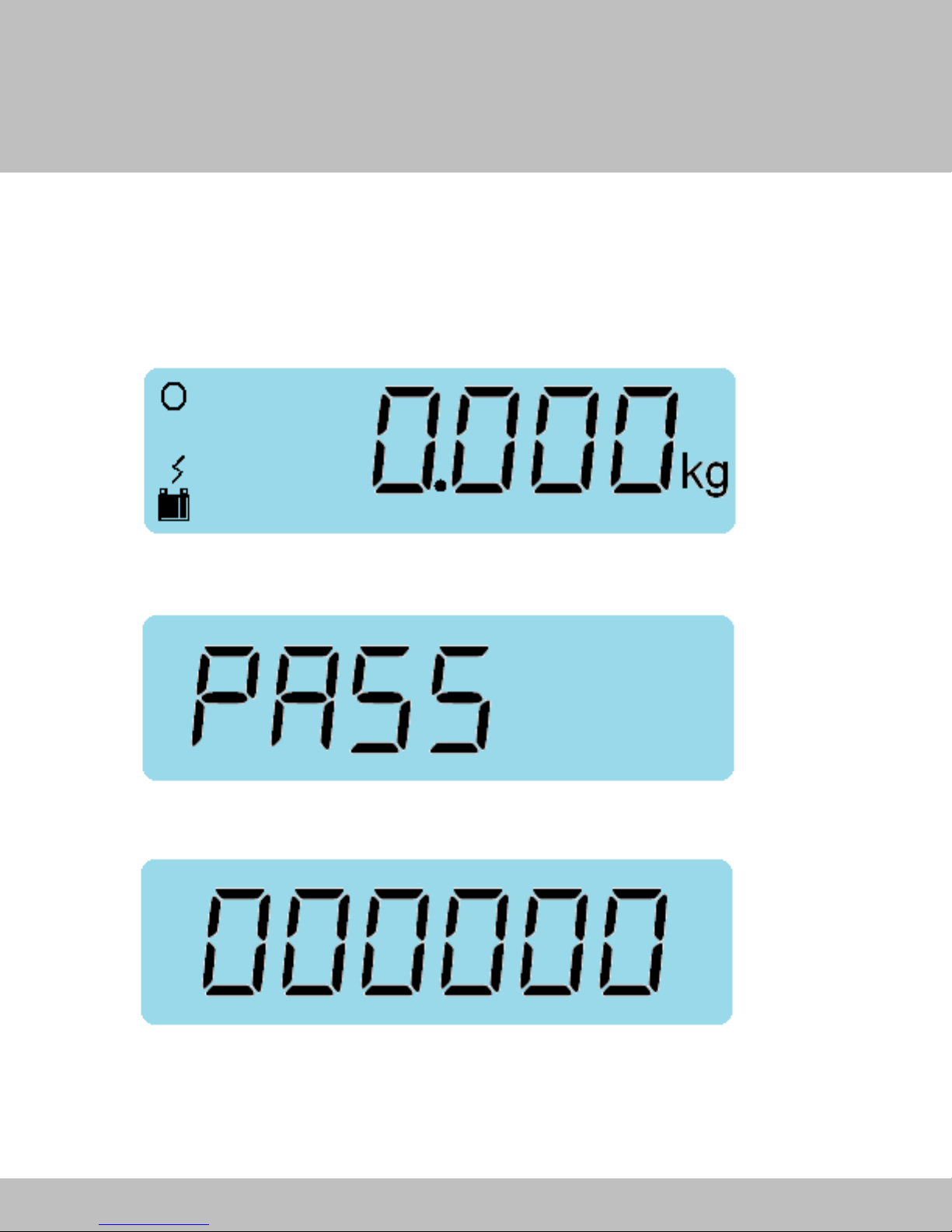

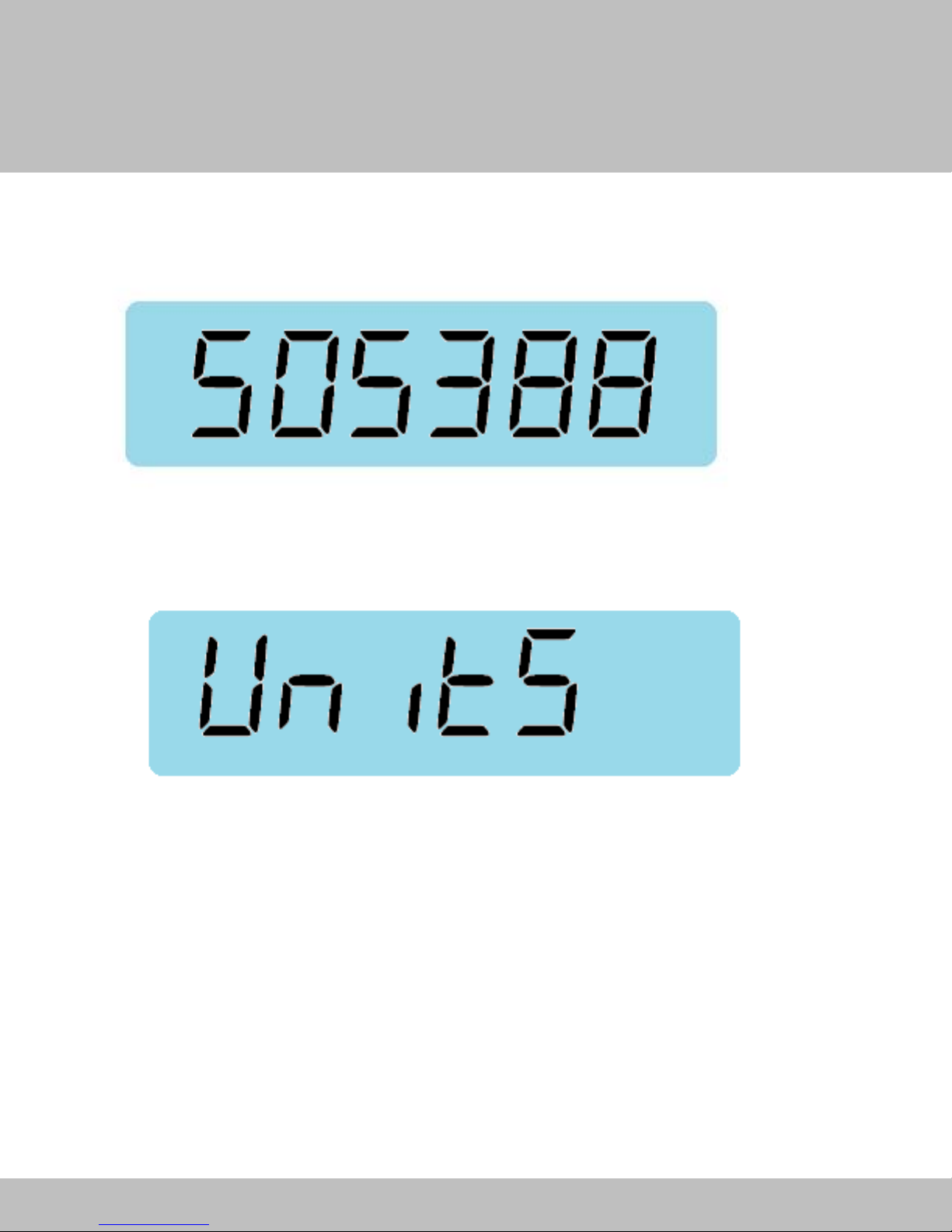

Enter the password “505388” by using the up/down arrow keys to increase/

•
decrease the number, and the left/right keys to traverse to the digits of interest.

Press “Enter” key, and now you are ready to change the settings of the scale. Units

•
will be the first configuration the user can change.

For each settings, press “Enter” key to change the value of that particular

•
parameters by using the up/down keys to increase/decrease the parameters.

Press “Enter” key to confirm.

•
Use the left/right arrows to traverse among the menu settings.

•
To exit without saving settings, press the “U” key (esc).

•
To exit with saving settings, select “Quit” from the menu and press the “Enter” key

•
as shown below:

1

!7/25

! OP-W Series

! User Manual / Scale Settings

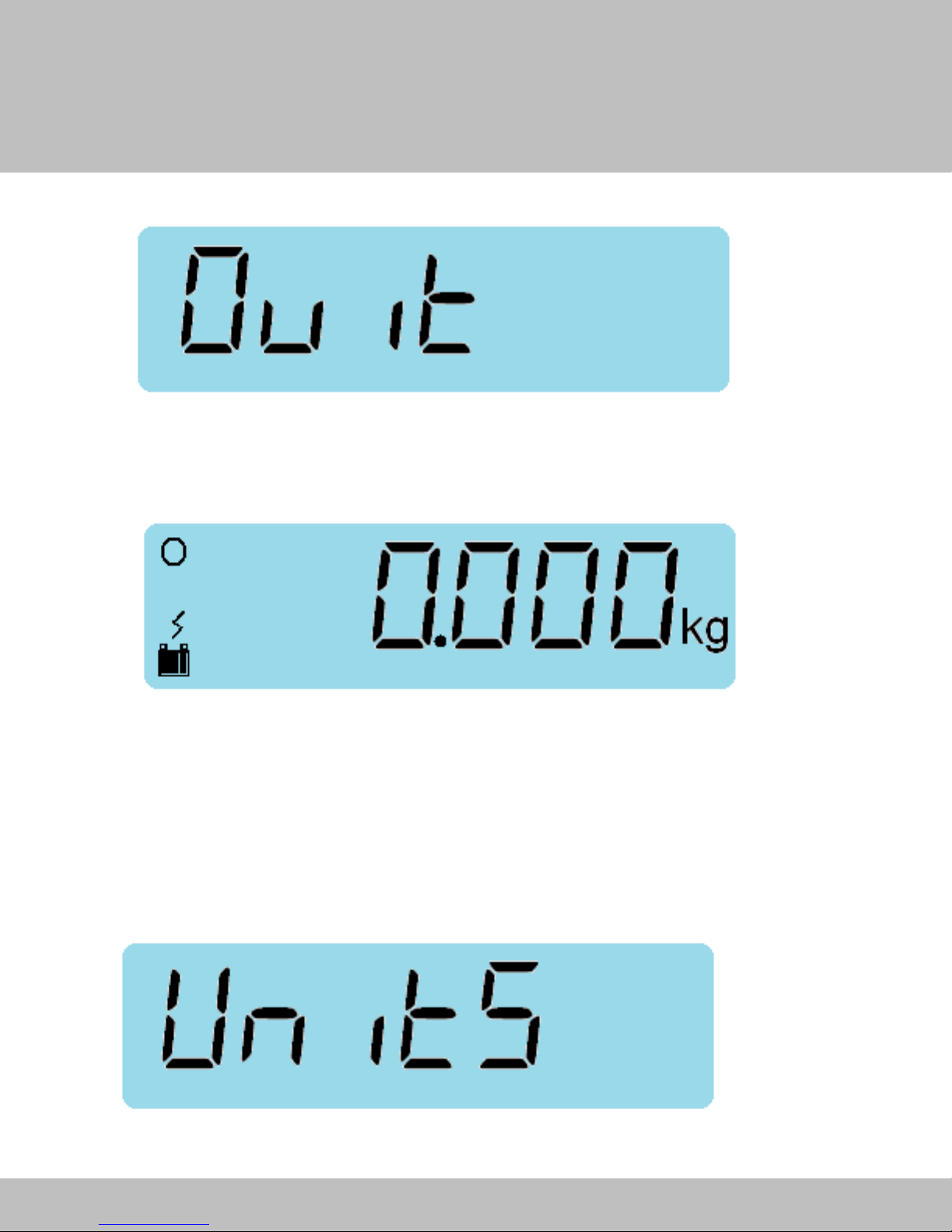

Press “Enter” key after “Quit” (as shown above), and the indicator will go back to

•
normal weighing mode.

Units Menu

Select the weighing unit, the place of the decimal, the maximum capcacity, and the
first rang division and the second rang division, if it exists.

Select the menu “Units”

1

!8/25

! OP-W Series

! User Manual / Scale Settings

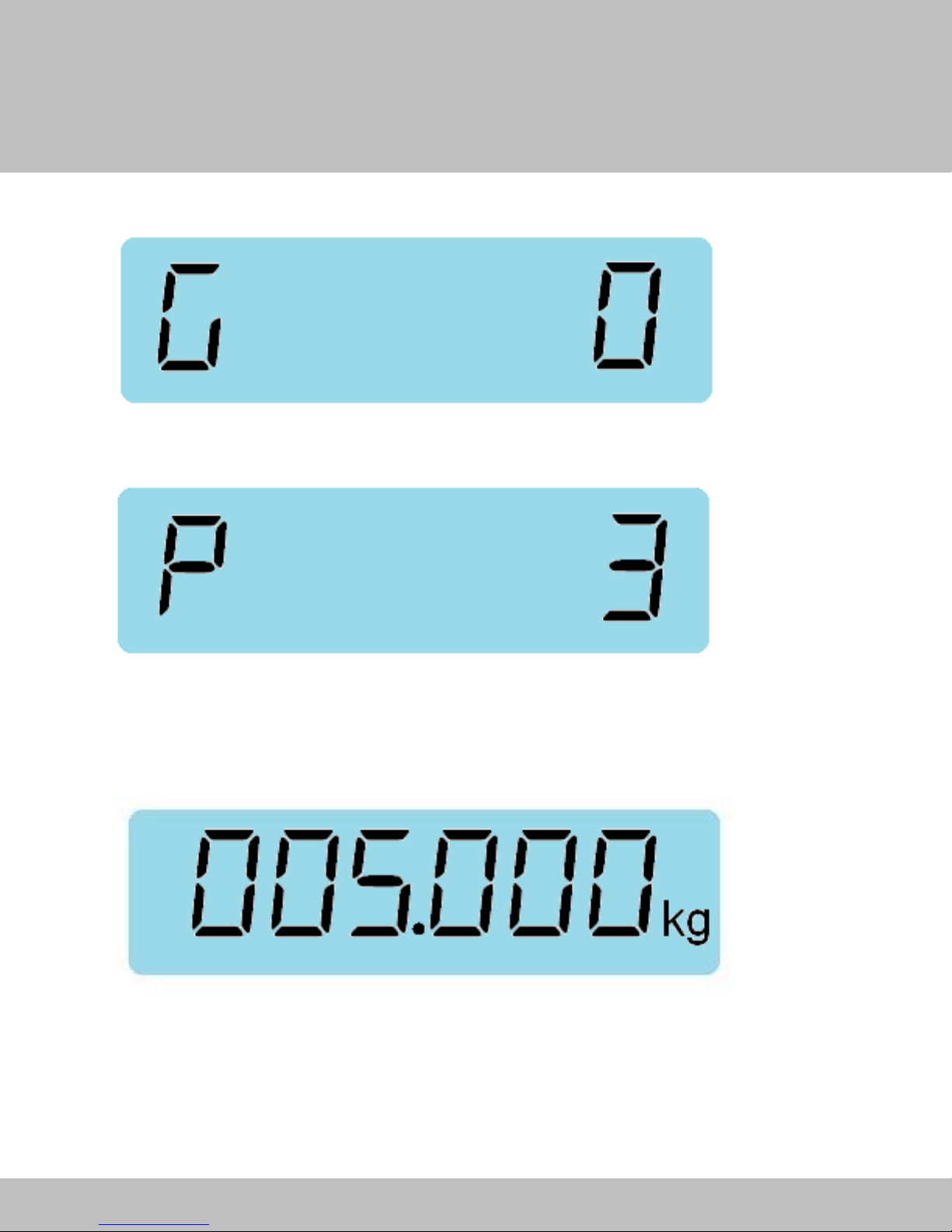

Press “Enter” key

Change the parameter to 0 (kg) or 1 (g).
Press “Enter” key.

Select 0 to 5 to choose the number of decimals after the decimal point
Press “Enter” key
On the following screen, enter the maximum capacity of the scale. For the example
below a 5kg max is set. Note the decimal places that was set in the previous step.

Press “Enter” key.

1

!9/25

! OP-W Series

! User Manual / Scale Settings

Press “Enter” key.

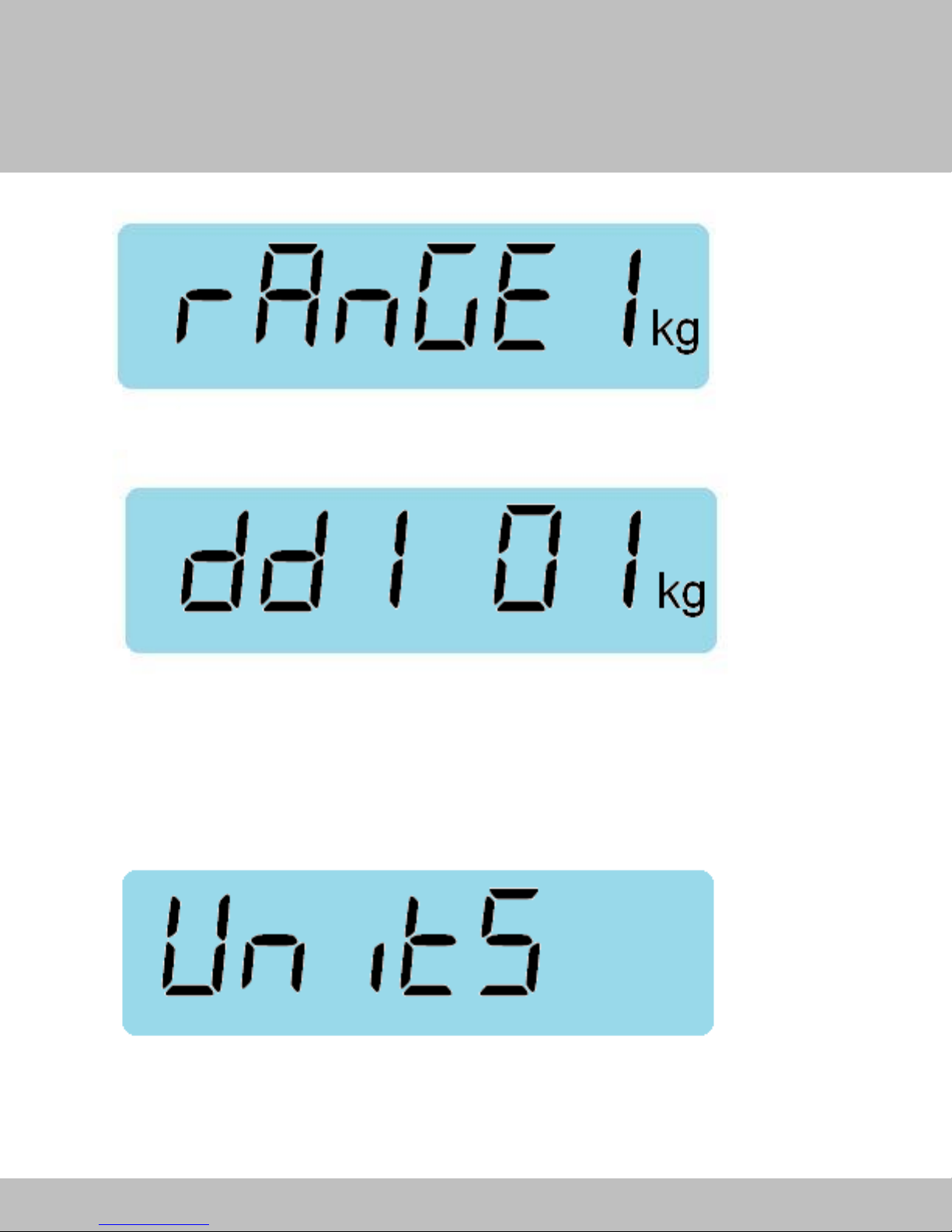

The screen above lets user enter the division of the scale. The options are 01, 02,
05, 10, 20, 50. If we follow the previous example, if we choose 01 we will obtain the
division/accuracy of 0.001 kg.
Press “Enter” key to configure the second rang or to exit from the “Units” menu. If
the unit does not have the second rang option, the message will not show (the
configuration of the second rang is the same as the configuration of the first rang).

To exit with saving, select the menu “Quit”, and press the “Enter” key.
To continue the rest of the scale configurations, use the left/right arrow keys to
select the setting of interest and press the “Enter” key.

1

!10/25

! OP-W Series

! User Manual / Scale Settings

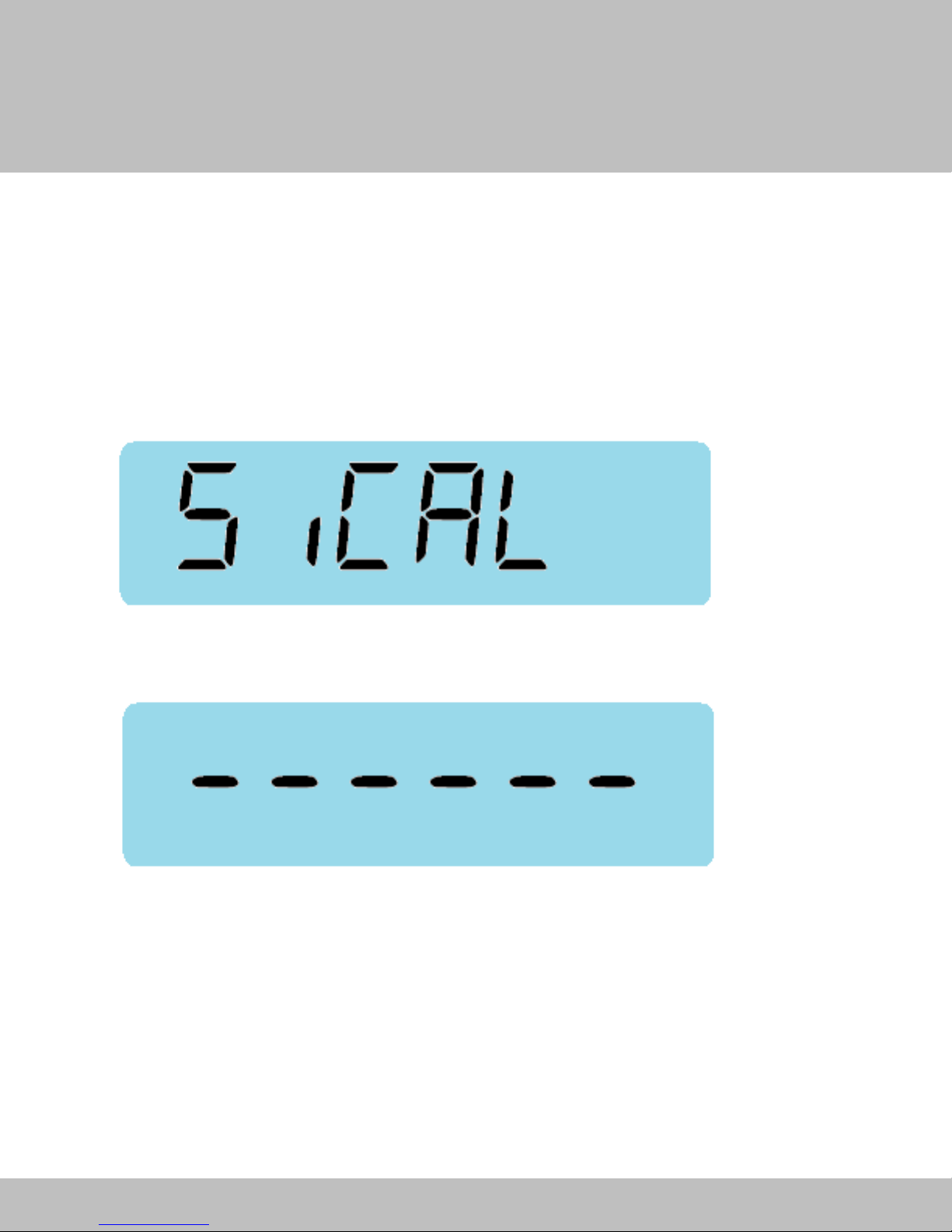

Si.CAL-01 Menu

This setting enables user to make a linear calibration.

Calibration can be done with 2 steps up to 10 steps maximum.

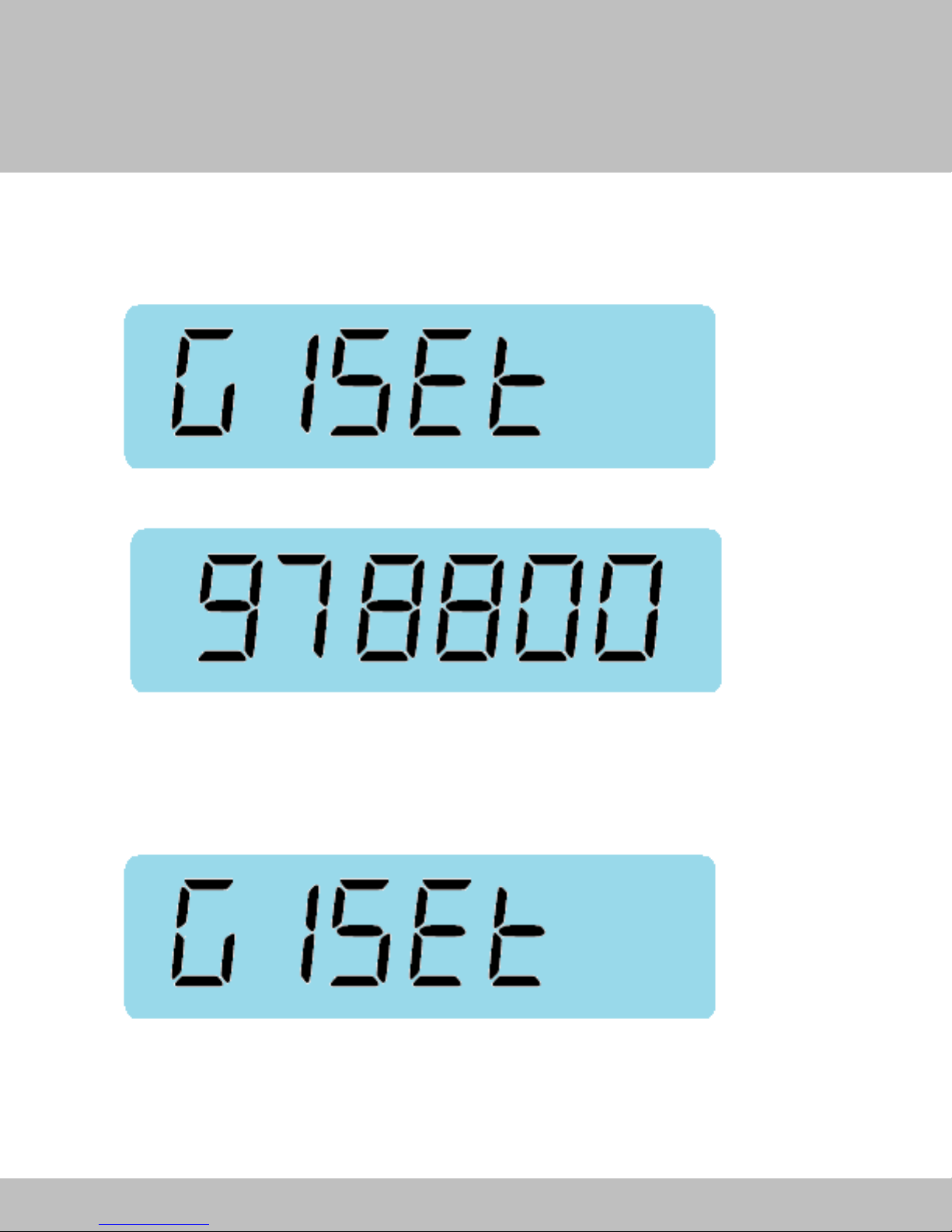

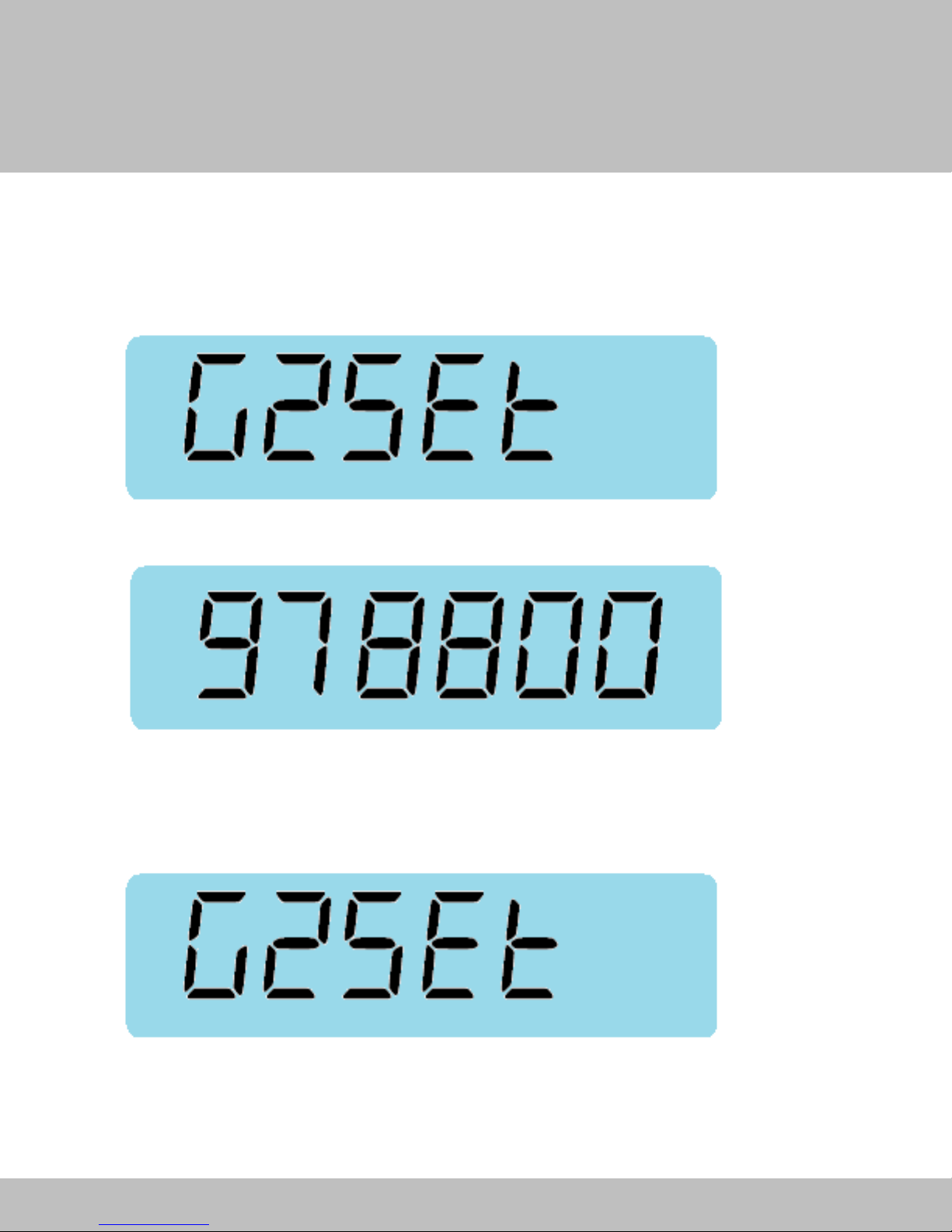

Take the Earth Gravity into consideration. The gravity parameters can be
programmed from the setting menu “G1set” and “G2set” (explained later in the
document)

For example, we will calibrate the scale in 3 steps: 0kg, 0.5kg, and 1kg.
When the pan is empty press “Enter” key.

The screen will the blinking while measuring zero.
“Si-01” is shown to indicate that the measure of zero has been taken and that the
unit is ready to take another measurement.

1

!11/25

! OP-W Series

! User Manual / Scale Settings

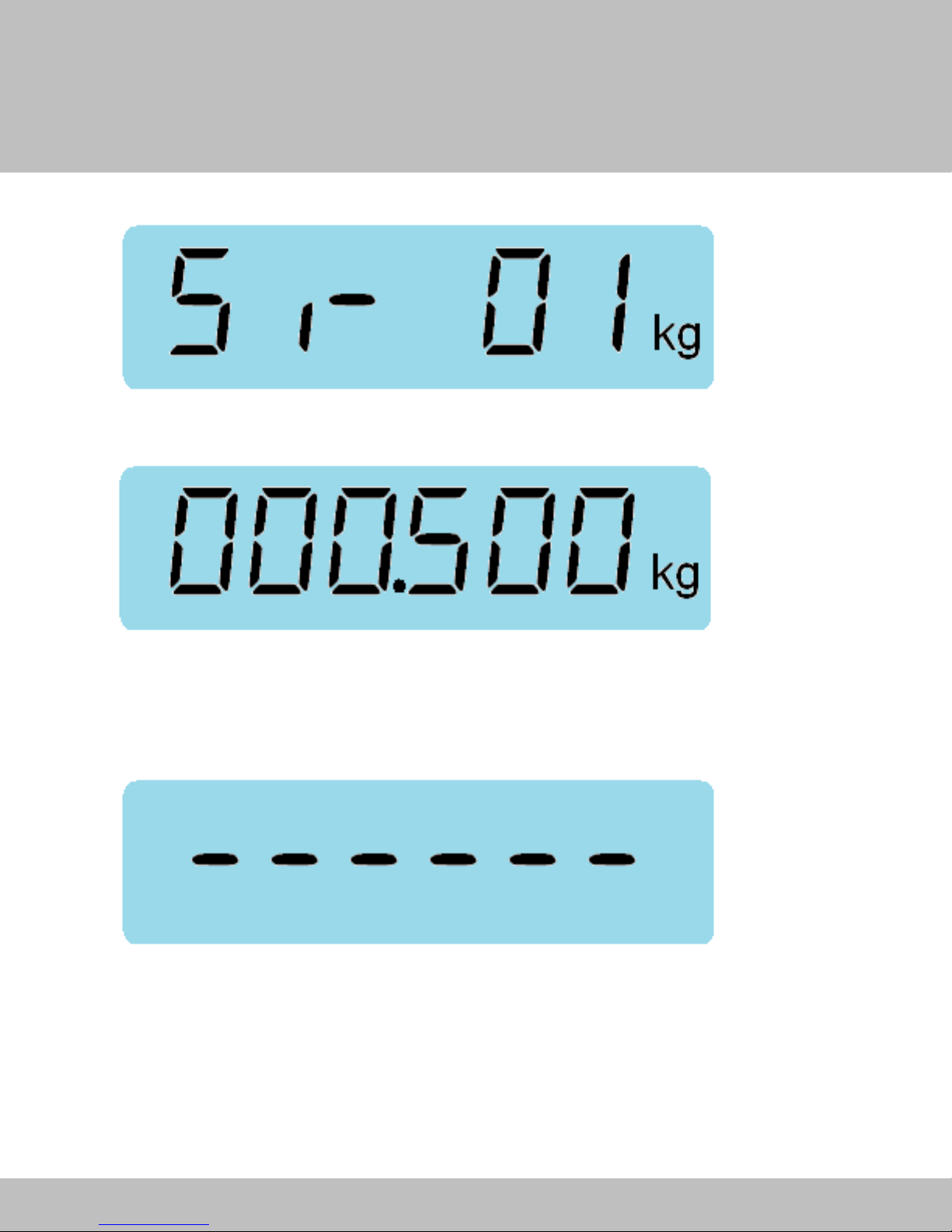

Press the “Enter” key to program the calibration value.

In the example above, the value 0.5kg has been programmed by using the arrow
keys.
Put the mass of 0.5kg on the pan, let it stabilize, and press “Enter” key.
The screen will blink while taking the value of the weight.

When the measurement is done, “Si-02” will be shown to indicate that it’s ready for
a 3rd measurement.

1

!12/25

! OP-W Series

! User Manual / Scale Settings

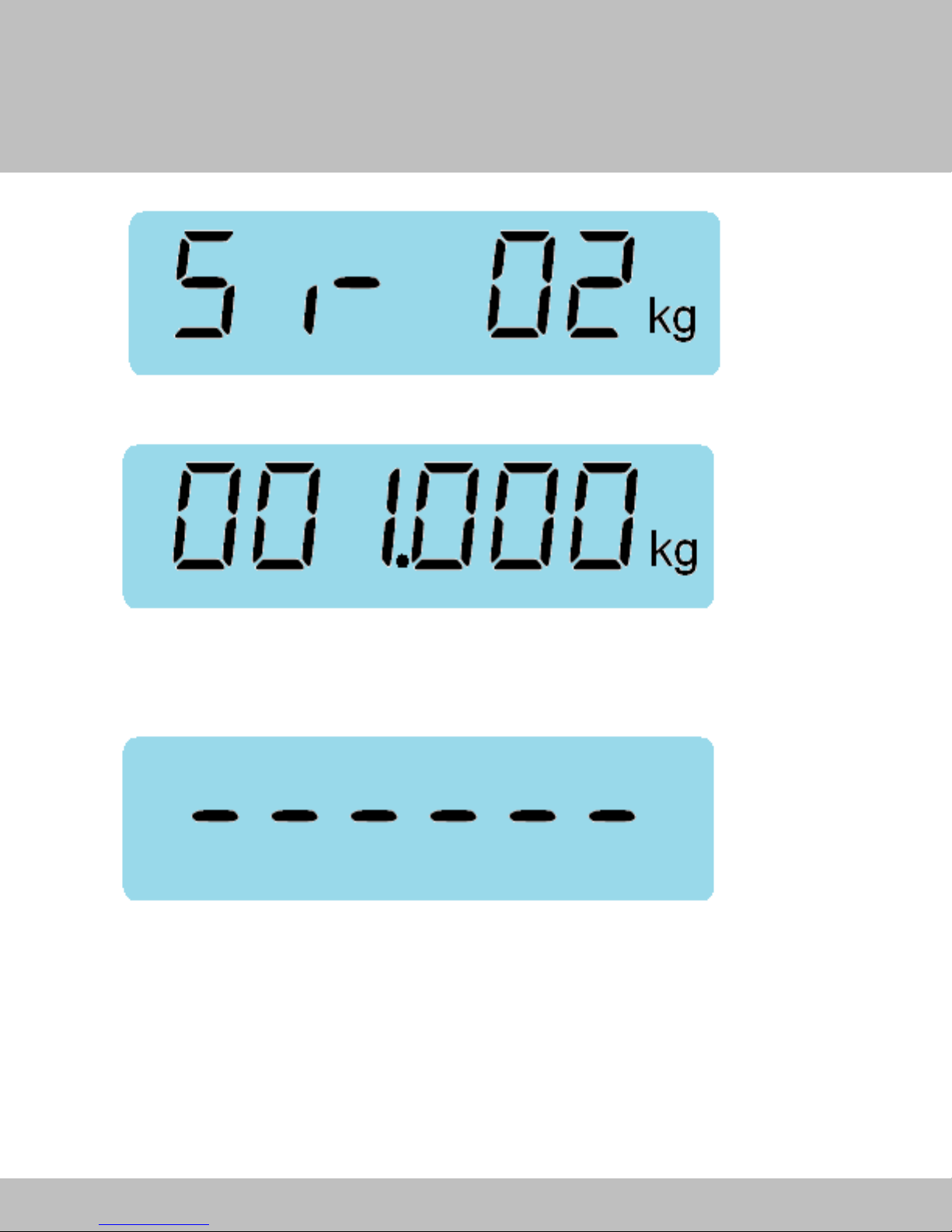

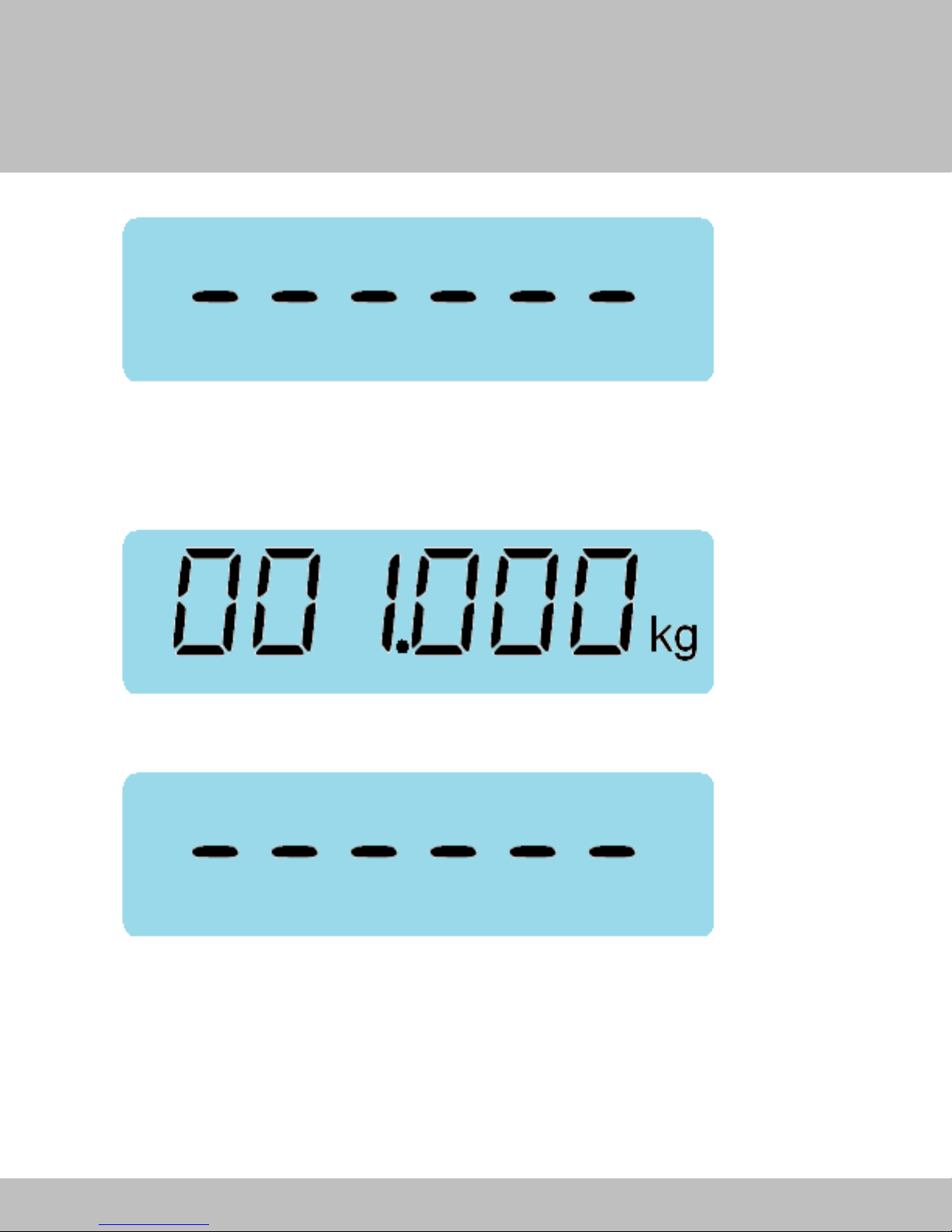

Press “Enter” key to program the 3rd calibration value.

The value of 1kg has been programmed (using the arrow keys).
Put the mass of 1kg on the pan, let it stabilize, and press “Enter” key.
The screen will blink while measuring the weight value.

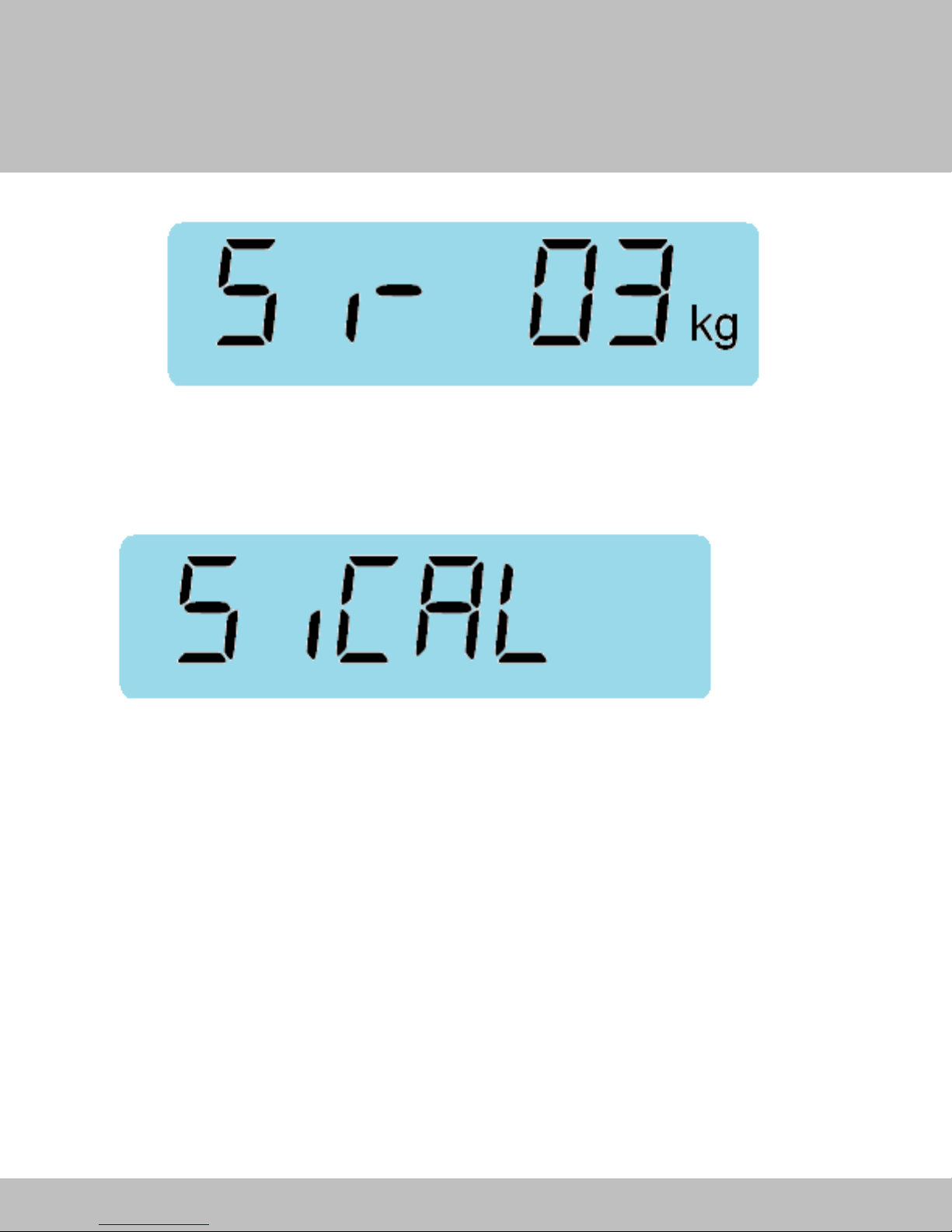

When the measurement is done, “Si-03” will be shown to indicator that it’s ready for
a 4th measurement.

1

!13/25

! OP-W Series

! User Manual / Scale Settings

Calibration can be done up to 10 values maximum.
To finish calibration and to go back to the main settings menu, press the left arrow
key.

To exit with saving configuration, select the menu “Quit” and press “Enter” key.
To continue with more configurations, using the left and right arrows to traverse, and
press “Enter” key to select the settings you want to change.

1

!14/25

! OP-W Series

! User Manual / Scale Settings

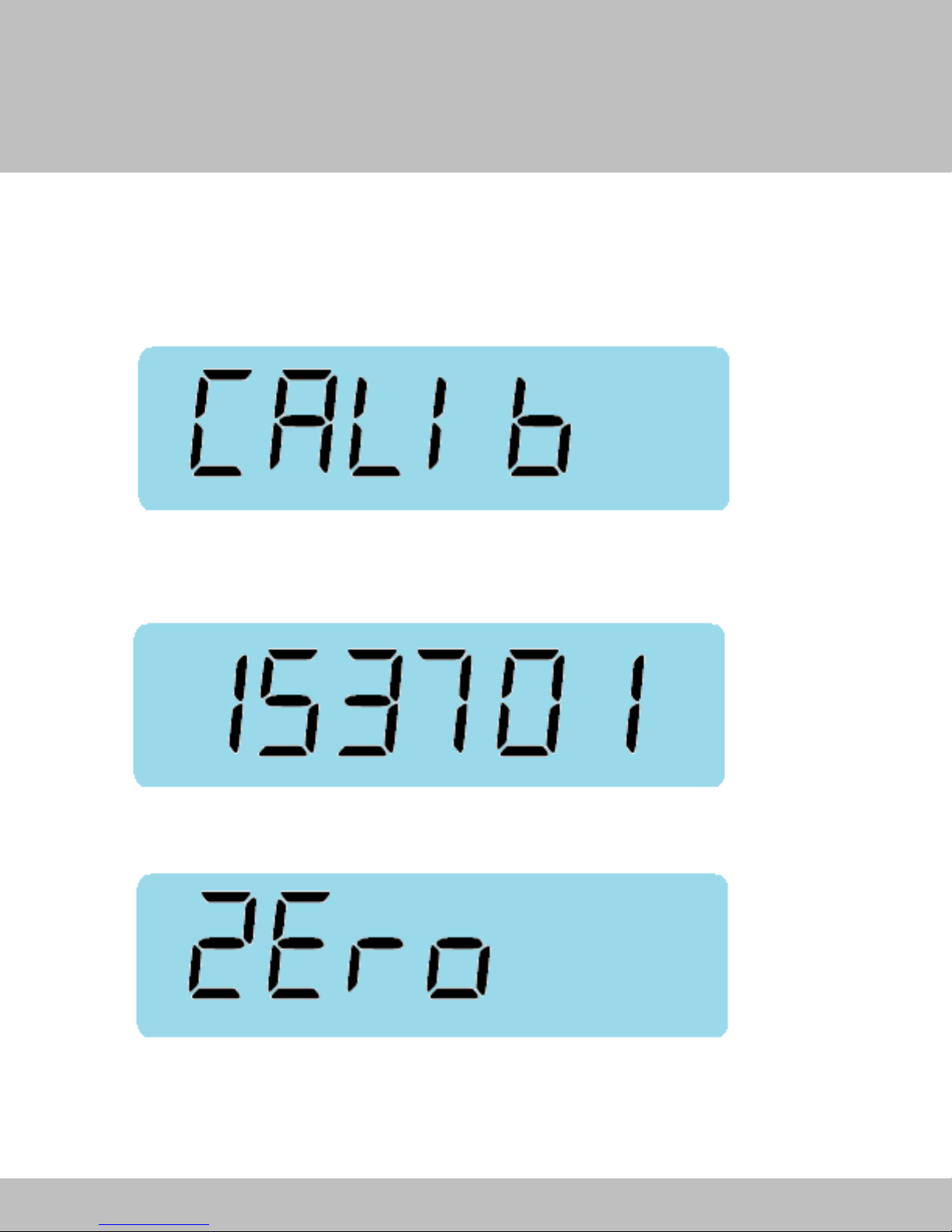

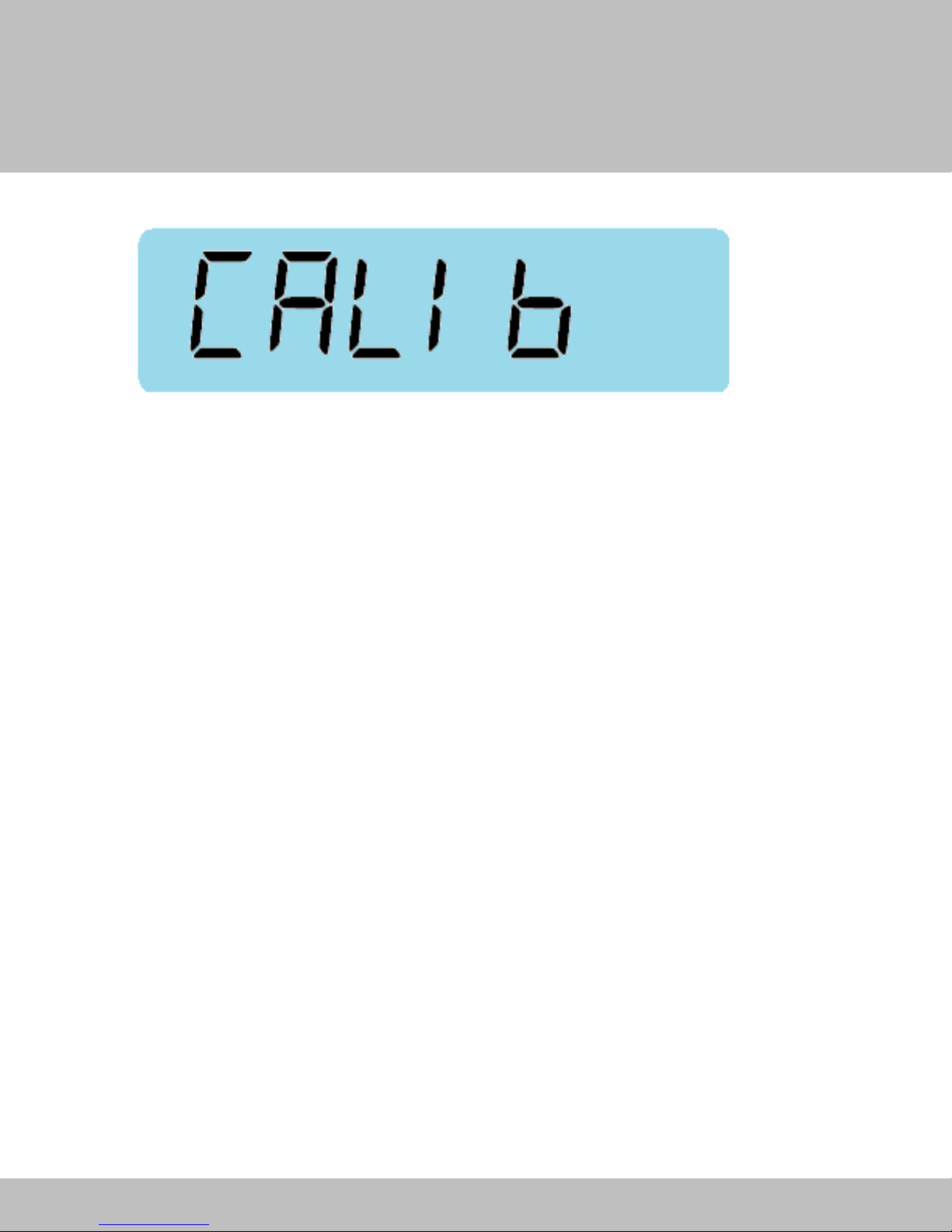

CALIB Menu

This setting enables the normal calibration in 2 steps.

Press the “Enter” key and the internal counts is displayed (Note: may not be exactly
the same as this number)

Press “Enter” key.

When the pan is empty, press the “Enter” key to calibration the zero value.

1

!15/25

! OP-W Series

! User Manual / Scale Settings

The screen will blink while taking the zero value.
For example, if we want to program the value of 1kg, use the arrow keys to change
to 1kg.

Put the calibration weight (in this case 1kg) on the pan and press “Enter” key.

The screen will blink while taking the value and the setting will exit automatically.

1

!16/25

! OP-W Series

! User Manual / Scale Settings

To exit with saving the configuration, select the “Quit” menu, and press “Enter” key.
To continue with other settings, use the left/right keys to traverse the menu, and
press “Enter” key to enter the menu of interest.

FILTER Menu

The FILTER menu must NOT be modified.

OIML Menu

This setting has two values:
0: Scale does NOT follow OIML recommendations
1: Scale does follow OIML recommendations

There are 3 sub-parameters:
RS: Manual zero limit - Adjusts 0-99% from the bottom of the scale; It’s the capacity
for zero-ing when pressing the Zero key
OR: Initial auto zero limit - Adjusts 0-99% from the bottom of the scale; It’s the
capacity for zero-ing when turning on the scale
OT: Zero tracking limit - Adjust 0-99% of the division [e]; Adjusts automatically of
zero drifting

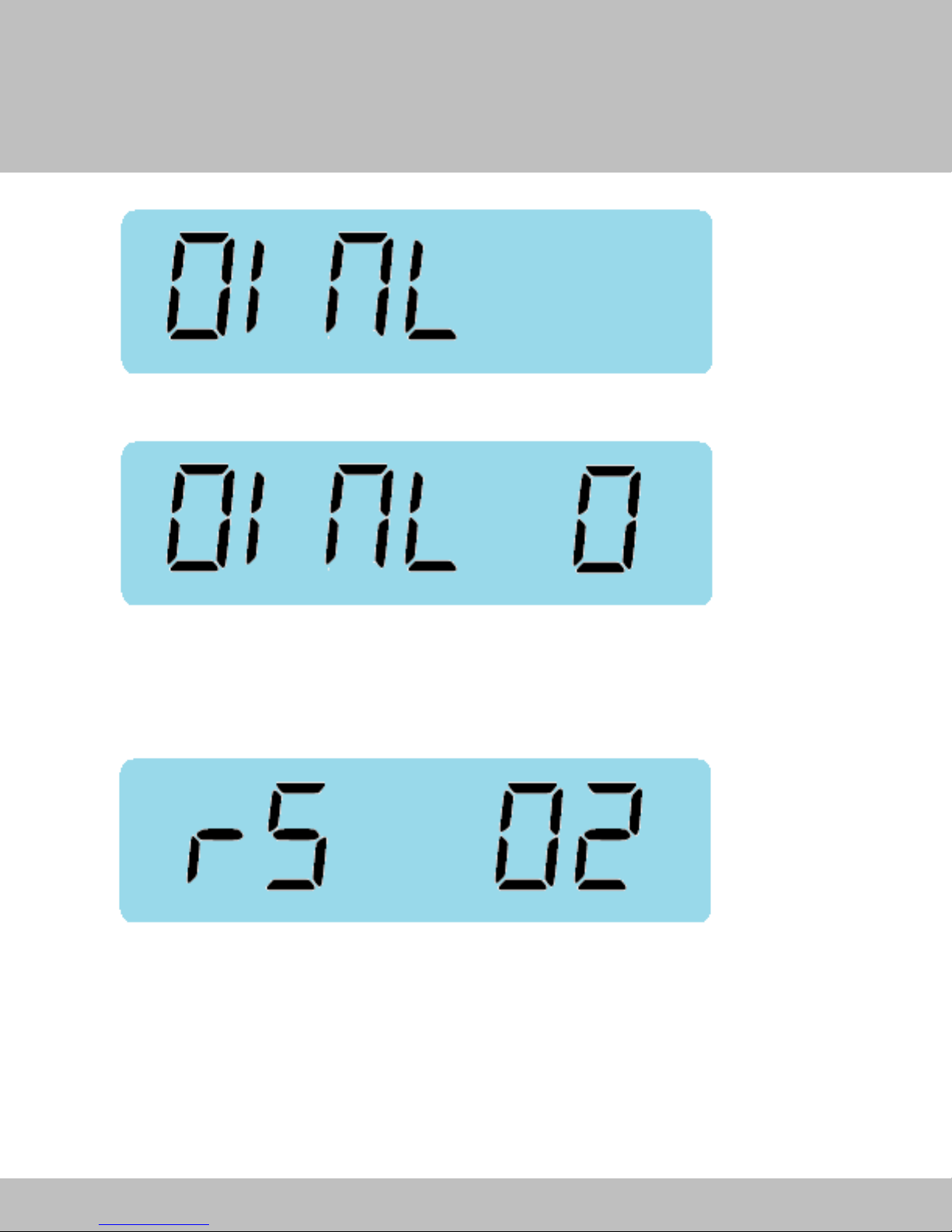

Here is an example

1

!17/25

! OP-W Series

! User Manual / Scale Settings

Press “Enter” key

The above mode indicators the scale does not follow the OIML recommendations
and the sub-parameters RS, OR and/or OT can be programmed.

Press “Enter” key

With this configuration of the RS sub-parameter, the scale is capable of absorbing the
zero deviation (2% from the bottom of the scale). For example, if the bottom of the
scale is 5.000 kg, the scale will absorb up to 0.100 kg b pressing the “Zero” key.

Press “Enter” key.

1

!18/25

! OP-W Series

! User Manual / Scale Settings

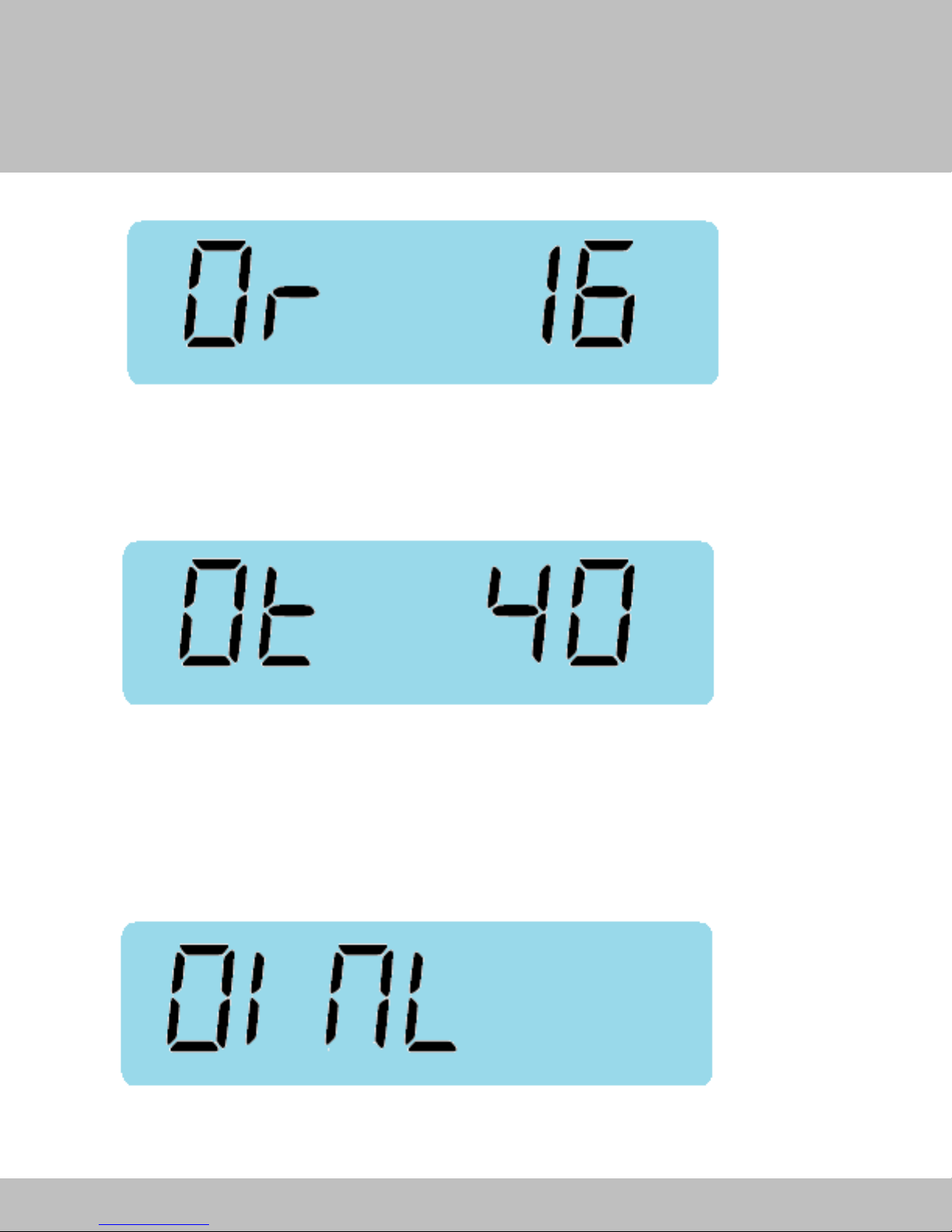

With this configuration of the OR sub-parameter, the scale is capable of staring with
an initial deviation of the load cell by 16% from the bottom of the scale.

Press “Enter” key.

With this configuration of the OT sub-parameter, the scale can absorb the zero
drifting which are inferior or equal to 40% of the division value.

For example, if the scale is configured for the division of 0.001 kg = 1 g, 0.4 g zero
deviations will be absorbed.

Press “Enter” key.

To exit and save the configuration, select “Quit” menu and press “Enter” key.

1

!19/25

! OP-W Series

! User Manual / Scale Settings

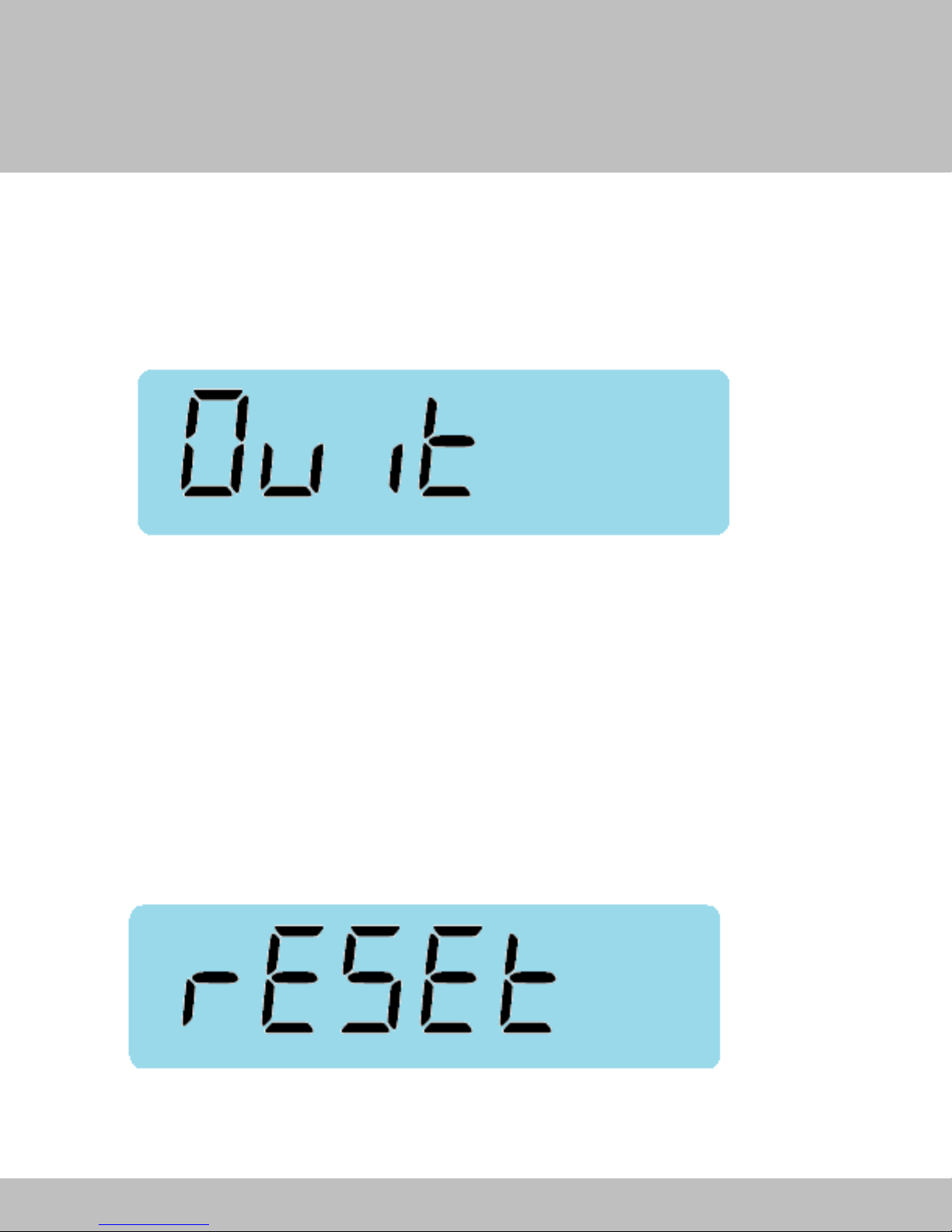

QUIT Menu

This menu allows quitting of the configuration menu while saving all the changes
made. Simply press “Enter” key at the menu Quit as shown below:

To quit configuration menu without saving changes, press “U” (esc) key.

RESET Menu

The RESET menu resets all the configuration to the default settings. Note that this
may leave the device unusable until the user re-calibrates the scale properly.

1

!20/25

! OP-W Series

! User Manual / Scale Settings

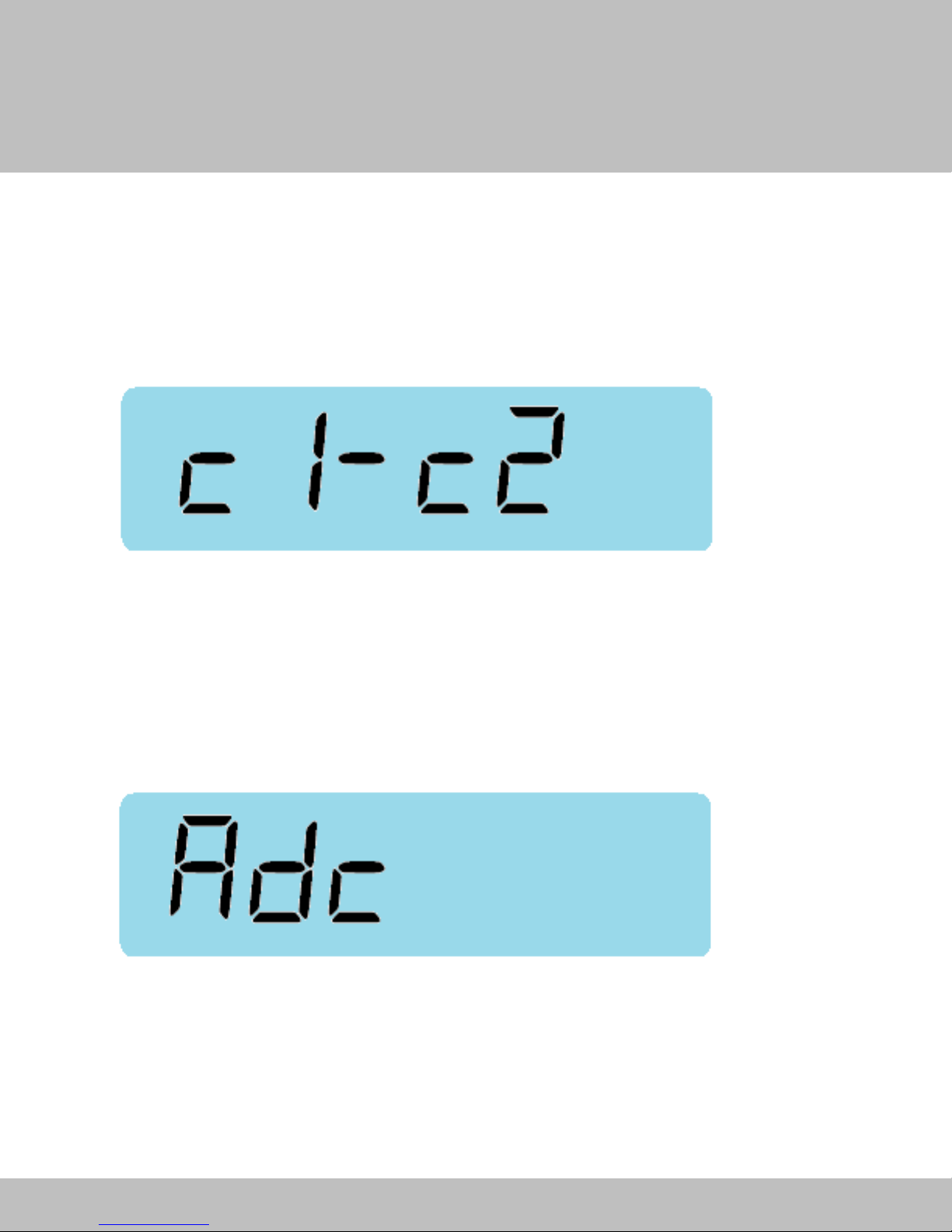

C1/C2 Menu

This configures the scale as an individual or double platform.
0: one platform
1: two platforms but only one work at a time
2: two platforms working simultaneously

ADC Menu

This menu is composed of two sub-menus.
SR: speed of ADC (5, 10, 20): 20 is the highest speed
GN: Amplification of load cell (1, 2): 2 is when increase of amplification is needed

To quit with save, select “Quit” menu and press “Enter” key. To quit menu without
changes, press “U” (esc) key.

1

!21/25

! OP-W Series

! User Manual / Scale Settings

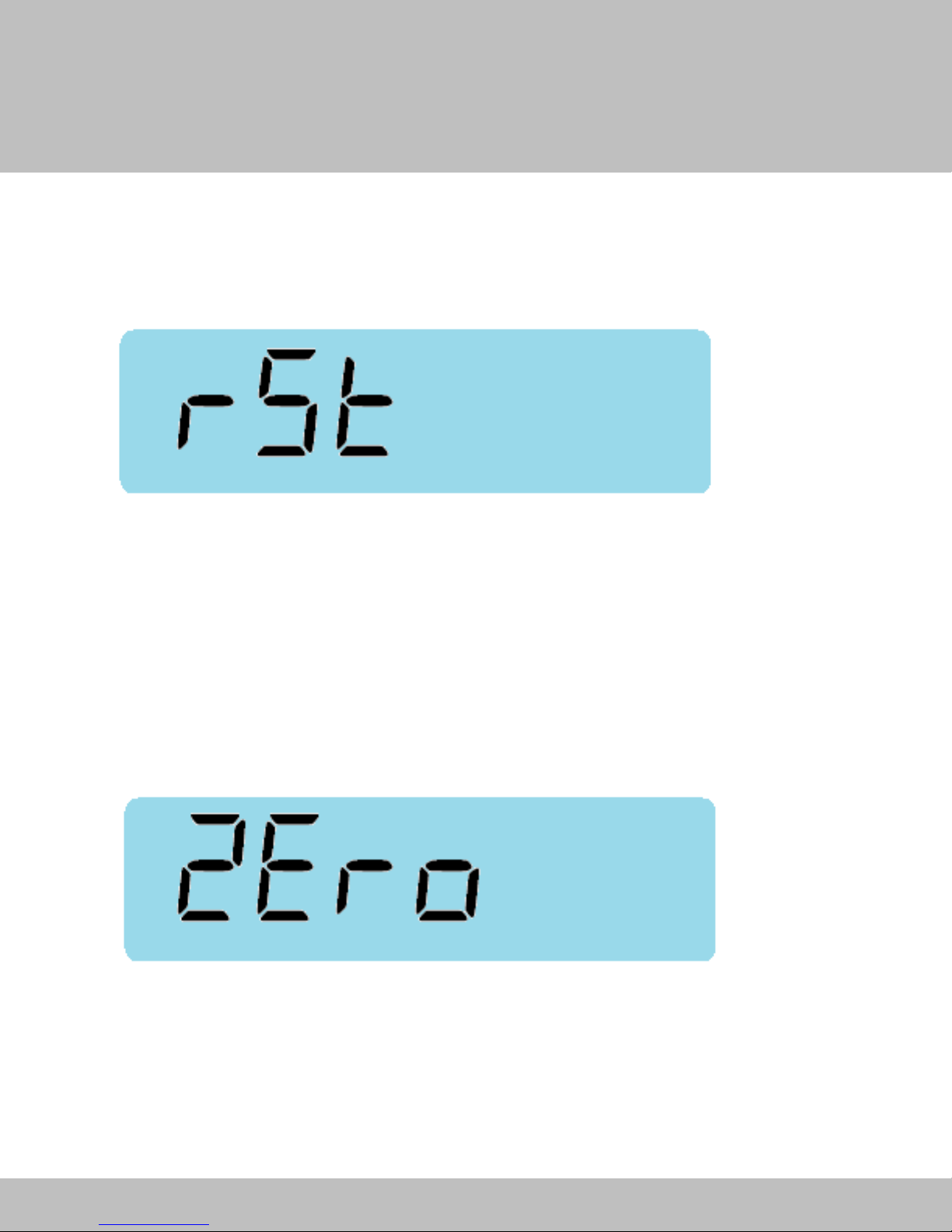

RST Menu

This menu allows reseting of the scale based on the offset value of the load cell.
With value of 1, it resets the offset value by initializing it.

To quit with save, select “Quit” menu and press “Enter” key. To quit menu without
changes, press “U” (esc) key.

ZERO Menu

This menu allows adjusting the number of divisions starting from which it will return
to zero. There can be 6 values, with 0 meaning that the function is not acting. The
values from 1 to 5 determines the number of divisions starting from which it will
return to zero.

To quit with save, select “Quit” menu and press “Enter” key. To quit menu without
changes, press “U” (esc) key.

1

!22/25

! OP-W Series

! User Manual / Scale Settings

G1SET Menu

This menu allows scale calibration based on earth’s gravity in different location.

Press “Enter” key.

Enter the gravity acceleration value without decimal point of the location you are
interested in. If this value is modified, a linear calibration (Menu Si.CAL-01) needs to
be performed.

Press “Enter” key.

To quit with save, select “Quit” menu and press “Enter” key. To quit menu without
changes, press “U” (esc) key.

1

!23/25

! OP-W Series

! User Manual / Scale Settings

G2SET Menu

This menu allows the scale to be used with a different earth’s gravity from where the
scale was initially calibrated without the need to re-calibrate.

Press “Enter” key.

Enter the gravity acceleration value without the decimal point of the new location’s
earth gravity.

Press “Enter” key.

To quit with save, select “Quit” menu and press “Enter” key. To quit menu without
changes, press “U” (esc) key.

1

!24/25

! OP-W Series

! User Manual / More Info

More Info

Troubleshooting

Q: The scale is not showing an accurate reading.
A: Make sure the scale is placed on a firm and flat surface and that there are no
external interference. Please revisit the “Preparation” section of this manual. Also,
please make sure the calibration procedure has been performed correctly. It won’t
hurt to run through the calibration process again when in doubt!!!!

Technical Support

Please email [e-mail] if you have any further questions.

1

!25/25
