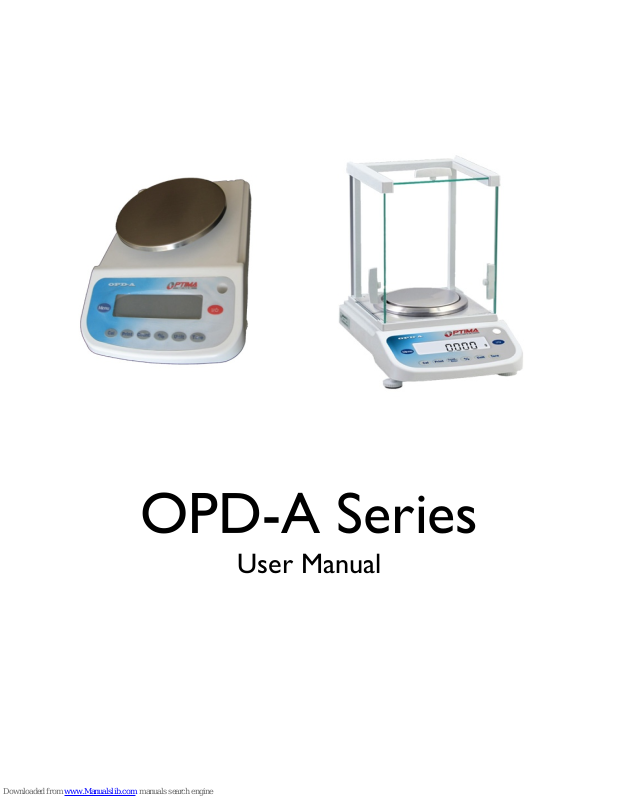

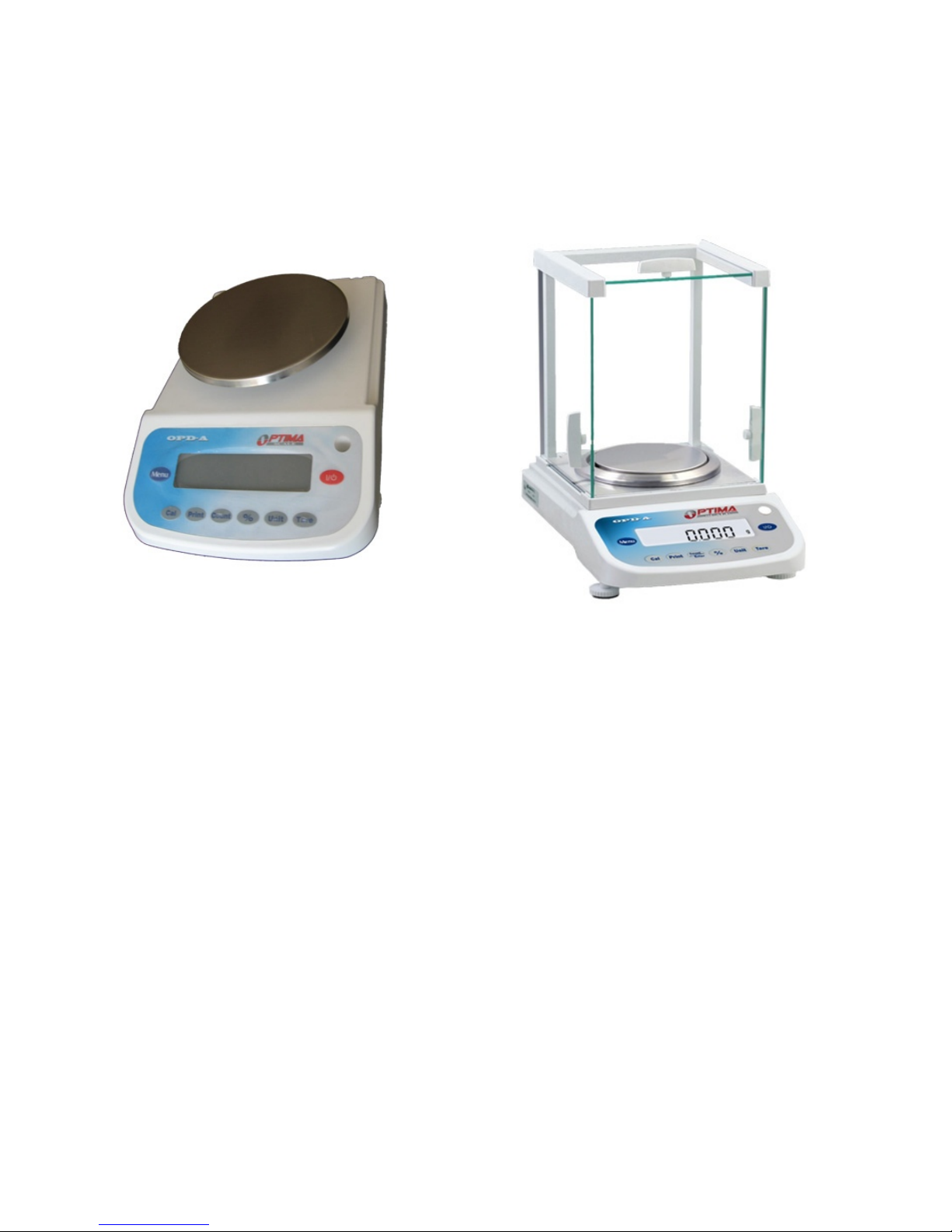

OPD-A Series
User Manual
Warnings
Avoid using the balance in any harsh environment.
•
Only trained professionals are allowed to do repair work.
•
Turn power off before connecting/disconnecting the power source.
•
Avoid overloading or dropping material onto the platform as that could damage
•
the balance.
Do not spill liquids on the balance as that could damage the balance.
•
Material that has a static charge could influence the performance of the balance.
•
Electromagnetic interference can affect the reading of the balance.
•
Unplug the power before cleaning and use a piece of soft cloth (do not use any
•
aggressive cleaning agent); Make sure no liquid enters the balance.
! OPD-A Series
! User Manual / Table of Contents
.....................................................................................Getting Started! 4
................................................................................................................................Overview! 4
.................................................................................................................................Contents! 5
............................................................................................................................Preparation! 5
.............................................................................................................................Calibration! 6
.............................................................................................Using Scale! 7
.......................................................................................................................Basic Weighing! 7
..........................................................................................................................................Ta re ! 7
......................................................................................................................Changing Units! 7
...............................................................................................................Counting Function! 7
...............................................................................................Percent Deviation Function! 8
.............................................................................................................Inspection Function! 8
...........................................................................................................................Print Setup! 10
.................................................................................................................Baud Rate Setup! 10
................................................................................................Enabling Units of Measure! 10
................................................................................................Restoring Factory Default! 11
...................................................................................................................Backlight Setup! 11
.........................................................................................................Additional Functions! 12
.....................................................................................................RS232 Communication! 13
.............................................................................................More Info! 15
.................................................................................................................Troubleshooting! 15
!3/15
...............................................................................................................Technical Support! 15
Model #
Max Weight (grams)
Accuracy (grams)
OPD-A103
120
0.001
OPD-A203
210
0.001
OPD-A303
310
0.001
OPD-A403
410
0.001
OPD-A503
510
0.001
OPD-A1002
1200
0.01
OPD-A2002
2100
0.01
OPD-A3002
3100
0.01
OPD-A4002
4100
0.01
OPD-A5002
5100
0.01
! OPD-A Series
! User Manual / Getting Started
Getting Started
Overview
Thank you for using Optima scales for your impor tant application. Here is the list of
models this manual covers:
!4/15
! OPD-A Series
! User Manual / Getting Started
Contents
Scale main unit
•
Scale pan
•
Scale pan support
•
User Manual
•
Bottom hook
•
Dust Shield
•
AC adapter
•
Calibration weight (optional)
•
Windshield (optional)
•
Shield ring (if applicable)
•
Shield plate (if applicable)
•
Preparation
1. Carefully remove contents from the package which may include fragile parts.
2. Carefully assemble the scale in the following sequence:
1. Shield plate (if applicable)
2. Shield ring (if applicable)
3. Scale pan support
4. Scale pan
3. Place the scale in a firm and flat surface, and avoid location where the scale
maybe subject to vibration, sunlight, airflow, contact with water, and strong
electromagnetic wave.
4. Level the scale by using the bubble level indicator (if available) and adjusting the
feet of the scale.
5. Locate scale in the following condition:
1. Temperature : 5oC ~ 40oC
2. When relocating the scale, warm up the scale for 30 minutes.
6. Plug in the scale to a surge protected power outlet.
7. Press the ON/OFF key in the front panel to turn the scale on and wait for it to
finish initialization (i.e. when the display shows a weight of 0).
8. Let the scale warm up for 30 minutes before calibration and use.
9. Make sure any weight placed on the scale is not beyond the rated maximum.
10.If scale is not used for an extended period of time, disconnect all power.
