Notebook Computer
User’s guide
Copyright © 2004
All Rights Reserved
Notebook Computer User’s guide
Original Issue: January 2004
Changes may be made periodically to the information in this publication without obligation to notify any
person of such revision or changes. Such changes will be incorporated in new editions of this manual or
supplementary documents and publications. This company makes no representations or warranties, either
expressed or implied, with respect to the contents hereof and specifically disclaims the implied warranties of
merchantability or fitness for a particular purpose.
Record the model number, serial number, purchase date, and place of purchase information in the space
provided below. The serial number and model number are recorded on the label affixed to your computer.
All correspondence concerning your unit should include the serial number, model number, and purchase
information.
Notebook Computer
Model Number : __________________________________
Serial Number:____________________________________
Purchase Date: ___________________________________
Place of Purchase: ________________________________
All trademarks and registered trademarks are the properties of their respective companies.
Preface vii
Connecting the computer vii
Care and maintenance ix
1 Getting familiar with your computer 1
A tour of your computer 3
Front view 3
Left view 5
Right view 6
Bottom view 7
Features 8
Display 10
Indicators 12
Keyboard 14
Special keys 14
Keyboard ergonomics 19
Touchpad 20
Launch keys 22
Storage 23
Hard disk 23
Optical drive 23
CF slot 25
Connectivity options 26
Ethernet and LAN 26
Fax/data modem 26
Audio 28
Securing your computer 29
Security notch 29
Passwords 29
2 Operating on battery power 31
Battery pack 33
Battery pack characteristics 33
Installing and removing the battery pack 34
Charging the battery 35
Checking the battery level 36
Optimizing battery life 36
Battery-low warning 36
Power management 38
Advanced Configuration and Power Interface 38
iv
3 Peripherals and options 39
External monitor 41
Using simultaneous display 41
S-video 42
USB devices 43
USB floppy drive 43
Audio devices 44
PC Card 45
PC Card slot 45
IEEE 1394 devices 47
Miscellaneous options 48
Additional power packs 48
Key component upgrades 49
Memory 49
Hard disk 50
4 Moving with your computer 51
Disconnecting from the desktop 53
Moving around 53
Preparing the computer 53
What to bring to short meetings 53
What to bring to long meetings 53
Taking the computer home 53
Preparing the computer 54
What to bring with you 54
Special considerations 54
Setting up a home office 54
Traveling with the computer 55
Preparing the computer 55
What to bring with you 55
Special considerations 55
Traveling internationally with the computer 55
Preparing the computer 55
What to bring with you 56
Special considerations 56
Contents
5 Software 57
System software 59
Launch Manager 60
BIOS Utility 61
Security 63
Exit 65
6 Troubleshooting 67
Frequently-asked questions 69
Error messages 72
A Specifications 77
Notices 83
Index 89
v
vi
Contents
Preface
This notebook computer incorporates such features as CardBus, internal pointing
device and Universal Serial Bus in an ultra-slim package.
This manual should answer most of the questions you have about the day-to-day
operation of your notebook computer.
You should also take advantage of the online help files that are available with
almost all of the programs shipped with your computer.
We hope you enjoy your notebook computer. With proper care, your computer
will provide you with years of productive service.
Connecting the computer
Connecting the computer is as easy as 1-2-3.

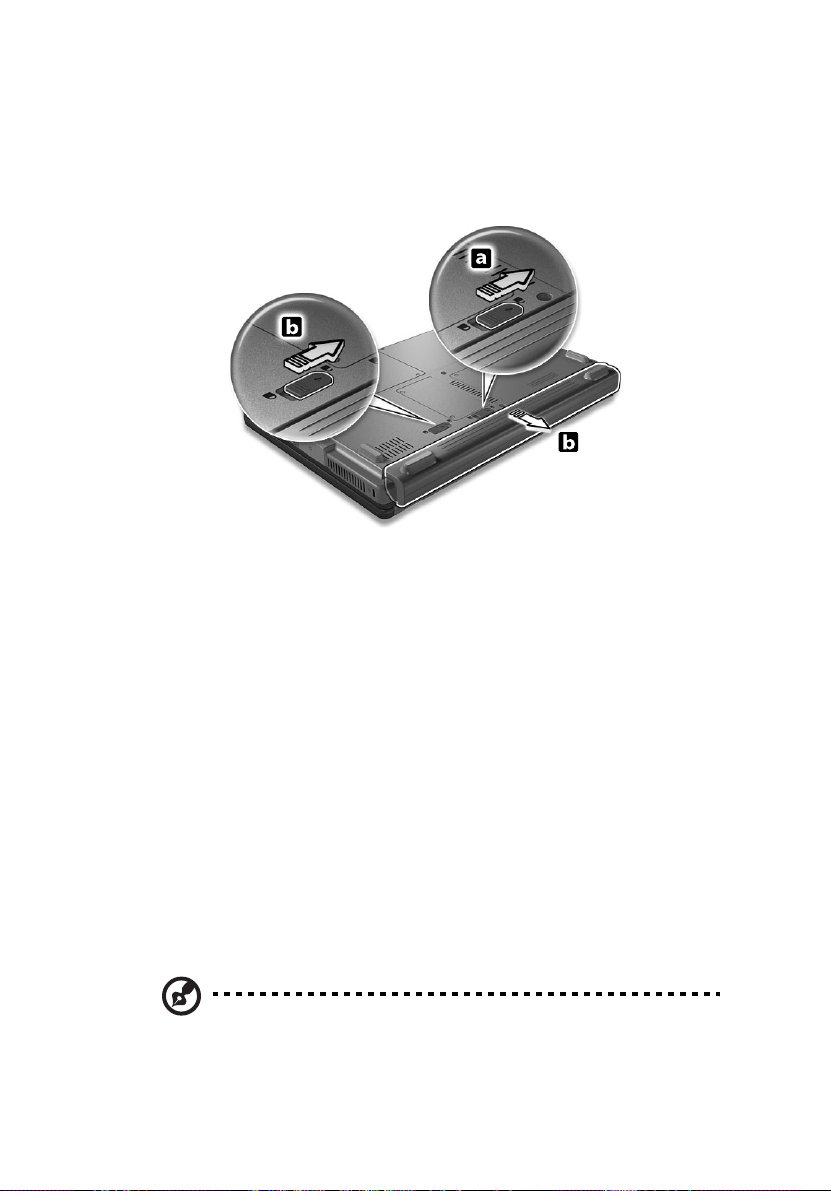

1. Make sure the battery lock/unlock latch is in the unlock position, then place
the battery pack into the battery compartment by aligning the contact pins on
the battery pack with the contact pins on the system; slide the battery release
latch into the unlock position and insert the battery pack into the battery
compartment (a); then slide the lock/unlock latch into the lock position (b).
vii
Note: When using a battery pack for the first time, fully recharge the battery,
then disconnect the adapter to use up the battery before recharging again.
Perform this action twice to condition the battery pack.
viii
2. Connect one end of the AC adapter to the DC-in port on the computer’s right
panel and the other end to a properly grounded power outlet.
3. Slide the display cover latch to the right (a) and open the display (b).
4. Press the power switch to turn on the power. The POST (power-on self-test)
routine executes and Windows begins loading.
Note: To turn off the power, use the Windows Turn Off command to shut
down the computer. If you are unable to shut down your computer normally,
press and hold the power switch for more than four seconds to turn off the
computer. If you turn off the computer and want to turn it on again, wait at
least two seconds before powering up.
ix
Care and maintenance
Taking care of your computer
Your computer will serve you well if you take care of it.
• Do not expose the computer to direct sunlight. Do not place it near sources of
heat, such as a radiator.
• Do not expose the computer to temperatures below 0ºC (32ºF) or above 50ºC
(122ºF).
• Do not subject the computer to magnetic fields.
• Do not expose the computer to rain or moisture.
• Do not spill water or any liquid on the computer.
• Do not subject the computer to heavy shock and vibration.
• Do not expose the computer to dust and dirt.
x
• Never place objects on top of the computer to avoid damaging the computer.
• Never place the computer on uneven surfaces.
Taking care of your AC adapter
Here are some ways to take care of your AC adapter:
• Do not connect the adapter to any other device.
• Do not step on the power cord or place heavy objects on top of it. Carefully
route the power cord and any cables away from all potential traffic.
• When unplugging the power cord, do not pull on the cord itself but pull on the
plug.
• The total ampere ratings of the equipment plugged in should not exceed the
ampere rating of the cord if you are using an extension cord. Also, the total
current rating of all equipment plugged into a single wall outlet should not
exceed the fuse rating.
Taking care of your battery pack
Here are some ways to take care of your battery pack:
• Use only batteries of the same kind as replacements. Turn the power off
before removing or replacing batteries.
• Do not tamper with batteries. Keep them away from children.
• Dispose of used batteries according to local regulations. Recycle if at all
possible.
Cleaning and servicing
When cleaning the computer, follow these steps:
1. Power off the computer and remove the battery pack.
2. Disconnect the AC adapter.
3. Use a soft cloth moistened with water. Do not use liquid or aerosol cleaners.
Contact your dealer or see your service technician if any of the following occurs:
• The computer has been dropped or the body has been damaged.
• Liquid has been spilled into the product.
• The computer does not operate normally.
1 Getting familiar with
your computer
This computer combines ultra-portability, high-performance,
versatility, power management features and multimedia
capabilities with a unique style and ergonomic design. Work
with unmatched productivity and reliability with your new
power computing partner.
This chapter gives an in-depth "tour" of the computer’s many
features.
A tour of your computer
Let us show you around your new notebook computer.
Front view
3
# Item Description
1 Display screen Also called LCD (liquid-crystal display), displays
computer output.
2 Status indicators LEDS (light-emitting diodes) that turn on and off to
show the status of the computer and its functions and
components.
3 Launch keys Buttons for launching frequently-used programs. See
“Launch keys” on page 22 for more details.
4 IEEE 1394 (4-pin)
port
Connects to an IEEE 1394-compatible device (e.g.,
digital video camera).
4
# Item Description
5 Line-out jack Connects to an audio line-out device (e.g., speakers,
headphones).
1 Getting familiar with your computer
6 Microphone-in/Line-
in jack
7 Click buttons (left
and right)
8 Touchpad Touch-sensitive pointing device which functions like a
9 Palmrest Comfortable support area for your hands when you use
10 Keyboard Inputs data into your computer.
11 Power button Turns on the computer power.
12 Speakers Outputs sound
Accepts a microphone or audio line-in device (e.g.,
audio CD player, stereo walkman).
The left and right buttons function like the left and
right mouse buttons.
computer mouse.
the computer.
Left view
# Item Description
1 Security keylock Connects to a Kensington-compatible computer
security lock.
2 External monitor port Connects to a display monitor (up to 1600x1200
resolution).
3 USB 2.0 ports (2) Connect to USB devices (e.g., USB digital camera).
5
4 PC Card slot Accepts one Type II 16-bit PC Card or 32-bit CardBus
PC Card.
5 CF media slot Accepts CF (Compact Flash) media card.
6 PC Card eject button Ejects the PC Card from its slot.
6
Right view
# Item Description
1 Getting familiar with your computer
1 Optical drive
module
2 Emergency eject
button
3 Optical drive
activity indicator
4 Eject button Ejects the optical disc from the drive.
5 Modem jack Connects a phone line.
6 Network jack Connects to an Ethernet 10/100-based network.
7 DC-in jack Connects to an AC adapter.
8 S-video out port Connects to a television or display device with S-video
Houses an internal optical drive module (DVD-ROM
or DVD/CD-RW combo drive).
Ejects the optical drive tray when the computer is
turned off. See page 70 for more details.
Lights up when the optical drive is active.
input.
Bottom view
# Item Description
1 Hard disk bay Houses the computer’s hard disk (secured by screws).
7
2 Optical disk module
release latch
3 Optical drive module Houses an internal optical drive module (DVD-ROM
4 Memory
compartment
5 Battery release latch Unlatches the battery to remove the battery pack.
6 Battery lock/unlock
latch
7 Battery bay Houses the computer’s battery pack.
Used to remove the optical disk module.
or DVD/CD-RW combo drive).
Houses the computer’s main memory.
Locks/unlocks the battery pack.
8
1 Getting familiar with your computer
Features
This computer was designed with the user in mind. Here are just a few of its many
features:
Performance
• Intel® Pentium® M Processor with 1 MB on-die cache
• Double Data Rate (DDR) memory, upgradeable to 1 GB
• High-capacity, Enhanced-IDE hard disk
• Lithium-Ion battery pack
• Power management system
Multimedia
• Built-in speaker and microphone
• Optical drive (DVD-ROM or DVD/CD-RW combo)
• Dual display capability
• Simultaneous LCD and CRT display
Connectivity
• High-speed fax/data software modem
• Onboard 10/100 Mbps LAN support
• USB (Universal Serial Bus) 2.0 ports
• IEEE 1394 port
• Optional 802.11a/b/g wireless LAN
Human-centric design and ergonomics
• Sleek, smooth and stylish design
• Ultrathin and ultralight
• Full-sized keyboard
• Sleek and ergonomically-centered touchpad pointing device
• Launch keys
Expansion
• Upgradeable memory and hard disk
• CF (Compact Flash) slot
9
10
1 Getting familiar with your computer
Display
The graphics display offers excellent viewing, display quality and desktopperformance graphics. The computer supports a Thin-Film Transistor (TFT)
liquid crystal display (LCD) displaying up to 16.7 million colors at 1280x800
Wide eXtended Graphics Array (WXGA) resolution.
Simultaneous display
The computer’s crisp display and multimedia capabilities are great for giving
presentations. If you prefer, you can also connect an external monitor when giving
presentations. This computer supports simultaneous LCD and CRT display.
Simultaneous display allows you to control the presentation from your computer
and at the same time face your audience. You can also connect other output
display devices such as LCD projection panels for large-audience presentations.
Power management
The power management system incorporates an "automatic LCD dim" feature that
automatically dims the LCD when the computer is powered by a battery pack to
conserve battery power. See “Power management” on page 38 for more
information on power management features.
Opening and closing the display
To open the display, slide the display cover latch to the right and lift up the cover,
then tilt it to a comfortable viewing position. The computer employs a
microswitch that turns off the display (e.g., enters standby mode) to conserve
power when you close the display cover, and turns it back on when you open the
display cover.
Note: If an external monitor is connected, the computer turns off the display
(but does not enter standby mode) when you close the display cover.
To close the display cover, fold it down gently until the display cover latch clicks
into place.
Caution: To avoid damaging the display, do not slam it when you close it.
Also, do not place any object on top of the computer when the display is
closed.
11
12
1 Getting familiar with your computer
Indicators
The computer has seven easy-to-read status indicators (LEDs) under the display
screen.
The Wireless, Power and Standby indicators are visible even when you close the
display cover so you can see the status of the computer while the cover is closed.
# Function Description
1 Wireless
communication
2 Power Lights when the computer is on.
3 Standby Blinks when computer enters hibernation mode.
4 Media activity Lights when the hard disk, or optical drive is active.
Lights when the Bluetooth/Wireless LAN (optional)
capabilities are enabled.
Blinks when a battery-low condition occurs.
# Function Description
5 Battery charge Lights when the battery is being charged.
6 Caps lock Lights when Caps Lock is activated.
13
7Num lock
(Fn-F11)
Lights when Numeric Lock is activated.
14
1 Getting familiar with your computer
Keyboard
The keyboard has full-sized keys with an embedded keypad, separate cursor keys,
two Windows keys and twelve function keys.
Special keys
Lock keys
The keyboard has three lock keys which you can toggle on and off.
Lock Key Description
Caps Lock When Caps Lock is on, all alphabetic characters typed are in
uppercase.
Num Lock (FnF11)
Scroll Lock
(Fn-F12)
When Num Lock is on, the embedded keypad is in numeric mode.
The keys function as a calculator (complete with the arithmetic
operators +, -, *, and /). Use this mode when you need to do a lot of
numeric data entry. A better solution would be to connect an
external keypad.
When Scroll Lock is on, the screen moves one line up or down when
you press ↑ or ↓ respectively. Scroll Lock does not work with some
applications.
15
Embedded numeric keypad
The embedded numeric keypad functions like a desktop numeric keypad. It is
indicated by small characters located on the upper right corner of the keycaps. To
simplify the keyboard legend, cursor-control key symbols are not printed on the
keys.
Desired Access Num Lock On Num Lock Off
Number keys on
embedded keypad
Cursor-control keys on
embedded keypad
Main keyboard keys Hold Fn while typing letters on
Note: If an external keyboard or keypad is connected to the computer, the
numlock feature automatically shifts from the internal keyboard to the
external keyboard or keypad.
Type numbers in a normal
manner.
Hold Shift while using cursorcontrol keys.
embedded keypad.
Hold Fn while using
cursor-control keys.
Type the letters in a
normal manner.
16
1 Getting familiar with your computer
Windows keys
The keyboard has two keys that perform Windows-specific functions.
Key Description
Windows logo key Start button. Combinations with this key perform special
functions. Below are a few examples:
+ Tab (Activates next Taskbar button)
+ E (Explores My Computer)
+ F (Finds Document)
+ M (Minimizes All)
Shift + + M (Undoes Minimize All)
+ R (Displays Run dialog box)
Application key Opens the application’s context menu (same as right-click).
Hotkeys
The computer employs hotkeys or key combinations to access most of the
computer’s controls like screen contrast and brightness, volume output and the
BIOS setup utility.
HotKey Function Description
Fn-F1 Hotkey help Displays a list of the hotkeys and their functions.
Fn-F2 Sleep Puts the computer in Sleep mode, which can be
defined via the advanced section of the Power
Management Properties in the Windows Control
Panel.
17
Fn-F3 Display toggle Switches display output between the display
screen, external monitor (if connected) and both
the display screen and external monitor.
Fn-F4 Screen blank Turns the display screen backlight off to save
power. Press any key to return.
Fn-F5 Speaker on/off Turns the speakers on and off; mutes the sound.
Fn-F6 Volume down Decreases the speaker volume.
18
HotKey Function Description
Fn-F7 Volume up Increases the speaker volume.
Fn-F8 Brightness down Decreases the screen brightness.
Fn-F9 Brightness up Increases the screen brightness.
Fn-↑ Page Up Functions as the “Page Up” key.
Fn-↓ Page Down Functions as the “Page Down” key.
Fn-→ End Functions as the “End” key.
1 Getting familiar with your computer
Fn-
←
Home Functions as the “Home” key.
Activating hotkeys
When activating hotkeys, press and hold the Fn key before pressing the other key
in the hotkey combination.
Keyboard ergonomics
Located below the keyboard, the wide and curved palm rest is ergonomically
designed to provide you with a very comfortable place to rest your hands while
you type.
19
20
1 Getting familiar with your computer
Touchpad
The built-in touchpad is a PS/2-compatible pointing device that senses movement
on its surface. This means the cursor responds as you move your finger on the
surface of the touchpad. The central location on the palm rest provides optimum
comfort and support.
Touchpad basics
The following teaches you how to use the touchpad:
• Move your finger across the touchpad to move the cursor.
• Press the left (1) and right (2) buttons located on the edge of the touchpad to
do selection and execution functions. These two buttons are similar to the left
and right buttons on a mouse. Tapping on the touchpad produces similar
results.
Function Left Button Right Button Tap
21
Execute Click twice
quickly.
Select Click once. Tap once.
Drag Click and hold,
then use finger
to drag the
cursor on the
touchpad.
Access
context menu
Note: Keep your fingers dry and clean when using the touchpad. Also keep
the touchpad dry and clean. The touchpad is sensitive to finger movements.
Hence, the lighter the touch, the better the response. Tapping too hard will
not increase the touchpad’s responsiveness.
Click once.
Tap twice (at the same speed as
double-clicking the mouse
button).
Tap twice (at the same speed as
double-clicking the mouse
button) and hold finger to the
touchpad on the second tap to
drag the cursor.
22
1 Getting familiar with your computer
Launch keys
Located at the top of the keyboard are 3 launch keys used to launch frequently used
applications.
# Item Description
1Wireless
communication
2 Email The mail button is used to launch the email application.
3 Internet browser By default, is used to launch your internet browser.
This button is used to enable or disable the wireless
LAN (optional) function.
23
Storage
This computer supplies you with the following media storage:
• High-capacity Enhanced-IDE hard disk
• Optical drive (DVD-ROM or DVD/CD-RW combo)
• Compact Flash (CF) slot
Hard disk
The high-capacity hard disk is where your programs and data are stored.
Optical drive
A high-speed DVD-ROM or DVD/CD-RW combo drive gives you portable
multimedia access. The DVD drive allows you to watch DVD movies, and the
combo drive, in addition, lets you burn your data onto a recordable CD.
Inserting the disc
To insert a disc into the optical drive, press the eject button to eject the drive tray.
Pull out the drive tray and place a disc securely on the spindle; then close the drive
tray.
24
1 Getting familiar with your computer
Removing a disc
Before ejecting a disc, make sure that no programs or applications are using the
disc. Then press the eject button to eject the drive tray. Pull out the drive tray and
remove the disc from the spindle. Close the drive tray.
Playing DVD movies
To play DVD movies in your computer, just insert a DVD movie disc into the
drive and the DVD movie will automatically play after a few seconds.
Important! When you launch the DVD player for the first time, the program
asks you to input the region code. DVD discs are divided into 6 regions.
Once your DVD drive is set to a region code, it will play DVD discs of that
region only. You can set the region code a maximum of five times (including
the first time), after which the last region code set will remain permanent.
Recovering your hard disk does not reset the number of times the region code
has been set. Refer to the table below for DVD movie region code
information.
Region code Country or region
1 U.S.A., Canada
2 Europe, Middle East, South Africa, Japan
3 Southeast Asia, Taiwan, Korea (South)
4 Latin America, Australia, New Zealand
5 Former U.S.S.R., parts of Africa, India
6 People's Republic of China
Note: To change the region code, insert a DVD movie of a different region
into the DVD drive. Please refer to the online help for more information.
25
Burning CDs
If your computer came with a combo drive, you can burn CDs on your computer.
The CD-RW drive accepts a CD-R (CD-Recordable) or CD-RW (CD-ReWritable)
for writing data. Please refer to the online help of the CD recording software on
your hard disk for more information.
CF slot
The Compact Flash (CF) card slot accepts memory cards which are used in a
variety of digital products (e.g., digital cameras, digital music players, hand-held
PCs, etc.) for data exchange. To use a CF card, insert it into the slot (you may need
to remove the dummy slot protector first). Before removing the card, make sure
you are not reading or writing to the card.
26
1 Getting familiar with your computer
Connectivity options
The computer has built-in features for connecting to a network and communicating
with other computers.
Ethernet and LAN
The built-in network feature allows you to connect your computer to an Ethernetbased (10/100 Mbps) network.
To use the network feature, connect an Ethernet cable from the network jack on the
right of the computer to a network jack or hub on your network.
Fax/data modem
The computer has a built-in fax/data modem (available in select countries).
Warning: This modem port is not compatible with digital phone lines.
Plugging this modem into a digital phone line will damage the modem.
To use the fax/data modem port, connect a phone cable from the modem port to a
telephone jack.
27
28
1 Getting familiar with your computer
Audio
Your computer includes 16-bit high-fidelity stereo audio. The speakers located
below the LCD screen, direct sound towards you to further enhance sound output.
There are audio ports on the front panel of the computer. See “Front view” on
page 3 for the location of these ports. Also see “Audio devices” on page 44 for
more information on connecting external audio devices.
Securing your computer
Security features include hardware and software locks — a security notch and
password.
Security notch
A security notch located on the left panel of the computer lets you connect a
Kensington-compatible computer security lock.
Wrap a computer security lock cable around an immovable object such as a table
or locked drawer handle. Insert the lock into the notch and turn the key to secure
the lock. Some keyless models are also available.
29
Passwords
Passwords protect your computer from unauthorized access. When set, no one can
access the computer without entering the correct password.
There are three types of passwords you can set:
• Supervisor Password secures your computer against unauthorized entry to
and use of the BIOS Utility.
• User Password secures your computer against unauthorized use.
• Hard Disk Password protects your data by preventing unauthorized access to
your hard disk.
See “BIOS Utility” on page 61 for details.
Important: Do not forget your Supervisor, User, and Hard Disk password!
If you forget your password, please get in touch with your dealer or an
authorized service center.
30
1 Getting familiar with your computer
Setting a password
You can set the password using the BIOS Utility. See page 61.
2 Operating on
battery power
The computer operates on AC or battery power. This chapter
contains the information you need to know to operate the
computer on battery power. It also includes information on
how your computer manages and saves power.
Battery pack
The computer uses a battery pack that gives you long use between charges.
Battery pack characteristics
The battery pack has the following characteristics:
• Employs current battery technology standards
The computer uses a Lithium-Ion battery pack which does not have the
memory effect problem of Nickel Cadmium (NiCd) batteries. Li-Ion
batteries consistently provide the longest battery life, best-suited for road
warriors.
• Battery-low warning
When the battery charge level becomes low, the status indicator of the
computer flashes at regular intervals. This tells you that the battery power is
critically low (and you should save your work). You can correct this situation
by recharging the battery pack.
Whenever possible, use the AC adapter. The battery will come in handy when you
travel or during a power failure. It is advisable to have an extra fully-charged
battery pack available as backup.
Using a battery pack for the first time
When using a battery pack for the first time, follow these steps:
1. Connect the AC adapter to a power source and to the computer and fully
recharge the battery.
2. Disconnect the adapter to use up the battery before recharging again.
You only need to do this once or twice with a new battery or with a battery that's
been stored without being used for a long time. If the computer is to be stored for
more than two weeks, we suggest you remove the battery pack. Battery power
from a fully charged battery pack depletes in roughly a day with the computer in
Standby mode, a month in Hibernation mode or when power is off.
33
Warning! Do not expose battery packs to temperatures below 0ºC (32ºF) or
above 60ºC (140ºF). This may adversely affect the battery pack.
34
2 Operating on battery power
Installing and removing the battery pack
Important! Before removing the battery pack, make sure that you have an
AC adapter connected to the computer; otherwise, turn off the computer.
To install a battery pack:
1. Make sure the battery lock/unlock latch is in the unlock position, then place
the battery pack into the battery compartment by aligning the contact pins on
the battery pack with the contact pins on the system; slide the battery release
latch into the unlock position and insert the battery pack into the battery
compartment (a); then slide the lock/unlock latch into the lock position (b).
To remove the battery pack:
Slide the lock/unlock latch into the unlock position (a); slide and hold the battery
release latch (b); then slide the battery pack out of the battery compartment to
remove it (b).
Charging the battery
To charge the battery, install the battery pack and plug the AC adapter into the
computer and an electrical outlet.
35
Charging modes
The adapter has two charging modes:
•Rapid mode
The computer uses rapid charging when power is turned off and a powered
AC adapter is connected to it. In rapid mode, a fully depleted battery gets
fully charged in approximately 1.5 hours.
• Charge-in-use mode
When the computer is in use with the AC adapter plugged in, the computer
also charges the battery pack if installed. This mode will take longer to fully
charge a battery than rapid mode. In charge-in-use mode, a fully depleted
battery gets fully charged in approximately 3.5 hours.
Note: We suggest that you charge the battery pack before retiring for the day,
letting it charge overnight before traveling. This ensures a fully charged
battery for use the next day.
36
2 Operating on battery power
Checking the battery level
The Windows battery meter indicates the present battery level. Simply rest your
cursor on the battery meter (or AC plug) icon on the taskbar to see the present
charge level of your battery.
Optimizing battery life
This section helps you get the most out of battery operation. Optimizing battery
life prolongs the charge/recharge cycle and improves recharge efficiency. Follow
these suggestions to optimize and maximize battery power:
• Purchase an extra battery pack.
• Use the AC adapter whenever possible so that the battery is reserved for onthe-go computing.
• Keep the battery pack in the computer powered by the AC adapter. The
constant trickle charge maintains the battery level to eliminate the battery
self-discharge effect. The charge-in-use function also charges the battery
pack.
• Eject the PC card from the card slot when it is not in use, since the PC card
draws extra power. See “Ejecting a card” on page 45.
• Store the battery pack in a cool, dry place. The recommended storage
temperature for battery packs ranges from 10 to 30 degrees Celsius. The
higher the storage temperature, the faster the battery pack self-discharges.
• The batteries can be recharged about 400 times when used as directed.
Excessive recharging decreases battery life.
• Take care of your battery pack and AC adapter. See “Care and maintenance”
on page ix of the preface.
• Unplug the external storage device connected to the computer when it is not
in use, since the external storage device draws extra power.
Battery-low warning
You never have to worry about battery power as long as you are using the AC
adapter. However, when you operate the computer on battery power, pay extra
attention to the power indicator on the display panel.
During a battery-low condition, the power indicator flashes at regular intervals
until battery power is depleted.
Warning! Connect the AC adapter to the computer as soon as possible. Data
is lost when computer power is cut off during Standby mode.
The following table shows the recommended course of action to take when you
encounter a battery-low condition.
Situation Recommended Action
37
AC adapter and power
outlet available
An extra fully-charged
battery pack available
AC adapter or power
outlet not available
1. Connect the AC adapter to the computer.
2. Save all necessary files.
3. Resume work.
Power off the computer if you wish to recharge the battery
rapidly.
1. Save all necessary files.
2. Exit the application.
3. Power off the computer.
4. Replace the battery pack.
5. Power on the computer and resume work.
1. Save all necessary files.
2. Exit the application.
3. Power off the computer.
38
2 Operating on battery power
Power management
This computer has a built-in power management unit that monitors system activity.
System activity refers to any activity involving one or more of the following
devices: keyboard, mouse, floppy drive, hard disk, peripherals connected to the
serial and parallel ports, and video memory. If no activity is detected for a period
of time (called an inactivity timeout), the computer stops some or all of these
devices in order to conserve energy.
This computer employs a power management scheme that supports ACPI
(Advanced Configuration and Power Interface) which allows for maximum power
conservation and maximum performance at the same time. Windows handles all
power-saving chores for your computer.
Advanced Configuration and Power Interface
Advanced Configuration and Power Interface (ACPI) is a power management
specification jointly developed by Compaq/Intel/Microsoft/Phoenix/Toshiba.
ACPI enables Windows to control the amount of power given to each device
attached to the computer. With ACPI, Windows can turn off peripheral devices
when they are not in use, thereby saving power.
Note: We recommend you enable power management to prolong your
battery life.
Refer to Windows help for more details.
3 Peripherals and
options
Your computer offers excellent expansion capabilities
with its built-in ports and connectors. This chapter
describes how to connect peripherals and hardware
options that help you use your computer with ease.
When connecting peripherals, read the manual
included with the peripheral for operating instructions.
You can purchase most of these and other options
directly from authorized dealers.
This chapter also includes sections on how to upgrade
key components. Key component upgradeability
helps keep your computer in step with the latest
technology.
41
External monitor
Flip up the rubber monitor port cover, then connect an external monitor to the CRT
port. Read the monitor manual for additional instructions.
Note: If an external monitor is not connected, closing the display cover puts
the computer into Standby mode.
Using simultaneous display
Your computer takes advantage of Windows multi-display capability, allowing
you to use your computer for presentation purposes. So whatever is displayed in
your computer will likewise be displayed on the other external display.
To use simultaneous display, you can choose to connect other display devices to
the computer through the CRT port.
42
3 Peripherals and options
S-video
The S-video port allows you to output to a television or display devices that
support S-video input. This is important if you want to do some presentations or
watch movies on a bigger screen.
USB devices
The computer has USB (Universal Serial Bus) 2.0 ports that allow you to connect
peripherals without occupying too many resources. Common USB devices
include a mouse, floppy drive, keyboard, keypad, printer and digital camera.
USB floppy drive
The external USB floppy drive reads and writes on standard 3.5-inch diskettes.
43
Connecting the external USB floppy drive
Connect the external USB floppy drive to any available USB port in your
computer.
Disconnecting the external USB floppy drive
To disconnect the external USB floppy drive, follow the steps below:
1. Click on the Safely remove Hardware icon on the Windows taskbar.
2. Select the external USB floppy drive.
A message will appear stating it is safe to remove the hardware.
3. Click on OK.
4. Disconnect the external USB floppy drive.
Note: Some USB devices such as external storage may require the same steps
described above before you disconnect it from the system.
44
3 Peripherals and options
Audio devices
Audio devices are easy to connect with the audio ports accessible from the front
panel of the computer. You can plug an external microphone into the line-in/
microphone-in jack. Amplified speakers or headphones connect to the line-out
jack.
45
PC Card
The computer has a built-in CardBus PC Card slot that can accommodate one type
II PC Card. Please consult your dealer for PC Card options available that you can
purchase for your computer.
PC Card slot
The type II CardBus PC Card slot found on the left panel of the computer accepts
credit-card-sized cards that enhance the usability and expandability of the
computer.
PC Cards (formerly PCMCIA) are add-on cards for portable computers, giving
you expansion possibilities long afforded by desktop PCs. Popular type II cards
include flash memory, SRAM, fax/data modem, LAN and SCSI cards. CardBus
improves on the 16-bit PC card technology by expanding the data path to 32 bits.
Note: Refer to your card’s manual for details on how to install and use the
card and its functions.
Inserting a card
Insert the card into the slot and make the proper connections (e.g., network cable),
if necessary. See your card manual for details.
Ejecting a card
Before ejecting a PC Card:
• Exit the application using the card.
46
3 Peripherals and options
• Left-click on the PC Card icon on the taskbar and stop the card operation.
Press the slot eject button once to pop it out (a); then press it again to eject the PC
Card (b).
IEEE 1394 devices
The computer's fast IEEE 1394 (4-pin) port allows you to connect IEEE 1394
devices such as a digital video camera or external storage.
See your peripheral's documentation for details.
47
48
3 Peripherals and options
Miscellaneous options
Additional power packs
You can order an AC adapter and spare batteries.
Battery pack
It is a good practice to have a spare battery around, especially when you travel.
The Li-ion battery, coupled with the power management features of your
computer, supplies you with more power on-the-go.
AC adapter
The compact AC adapter charges your battery pack and supplies power to your
computer. You can order a spare AC adapter so you do not need to carry it from
the office to your home or destination.
49
Key component upgrades
Your computer delivers superior power and performance. However, some users
and the applications they use may demand more. This computer allows you to
upgrade key components when you need increased performance.
Note: Contact your authorized dealer if you decide to perform a key
component upgrade.
Memory
This notebook computer comes with two DIMM sockets that accept 128/256/512MB PC 2100/2700 266/333 Mhz DDR (Double Data Rate) SDRAM (Synchronous
Dynamic Random Access Memory). Please consult your dealer if you need to add
more memory.
Installing memory
Follow these steps to install memory:
1. Turn off the computer and unplug the AC adapter. Then the computer over to
access its base.
2. Remove the screws from the compartment containing the memory (a); then
lift up and remove the cover (b). (See “Bottom view” on page 7 for the
location of the compartment).
50
3. Insert the memory module diagonally into the slot (a), then gently press down
until it clicks into place (b).
4. Replace the cover and secure it with the screws.
The computer automatically detects and reconfigures the total memory size.
3 Peripherals and options
Hard disk
It is possible to upgrade your hard disk with a higher capacity drive when you need
more storage space. The computer uses a 9.5mm 2.5-inch Enhanced-IDE hard
disk. Please consult your dealer if you need to upgrade your hard disk.
4 Moving with your
computer
This chapter gives you tips and hints on things to
consider when moving around or traveling with
your computer.
53
Disconnecting from the desktop
Follow these steps to disconnect your computer from external accessories:
1. Save your work in progress.
2. Shut down the operating system.
3. Turn off the computer.
4. Disconnect the cord from the AC adapter.
5. Disconnect the keyboard, pointing device, printer, external monitor, and other
external devices.
6. Disconnect the Kensington lock if you are using one to secure the computer.
Moving around
when you are just moving within short distances, for example, from your office
desk to a meeting room
Preparing the computer
Before moving the computer, close and latch the display cover to place it in
Standby mode. You can now safely take the computer anywhere you go within the
building.
To bring the computer out of Standby mode, open the display.
What to bring to short meetings
A fully charged battery runs the computer for 2.5 hours under most circumstances.
If your meeting is shorter than that, you probably do not need to bring anything
with you other than the computer.
What to bring to long meetings
If your meeting will last longer than 2.5 hours or if your battery is not fully
charged, you may want to bring the AC adapter with you to plug in your computer
in the meeting room.
If the meeting room does not have an electrical outlet, reduce the drain on the
battery by putting the computer in sleep mode. Press Fn-F2 or close the display
cover whenever you are not actively using the computer. Then tap any key or open
the display to resume.
Taking the computer home
when you are moving from your office to your home or vice versa
54
4 Moving with your computer
Preparing the computer
After disconnecting the computer from your desktop, follow these steps to prepare
the computer for the trip home:
1. Remove all media from the drives. Failure to remove the media can damage
the drive head.
2. Pack the computer in a protective case that can prevent the computer from
sliding around and cushion it if it should fall.
Caution: Avoid packing items next to the top cover of the computer.
Pressure against the top cover could damage the screen.
What to bring with you
Unless you already have some items at home, bring the following items with you:
• AC adapter and power cord
• The printed user’s manual
Special considerations
Follow these guidelines to protect your computer while traveling to and from
work:
• Minimize the effect of temperature changes by keeping the computer with
you.
• If you need to stop for an extended period of time and cannot bring the
computer with you, leave the computer in the trunk of the car to avoid
exposing the computer to excessive heat.
• Changes in temperature and humidity can cause condensation. Allow the
computer to return to room temperature, and inspect the screen for
condensation before turning on the computer. If the temperature change is
greater than 18°F (10°C), allow the computer to come to room temperature
slowly. If possible, leave the computer for 30 minutes in an environment with
a temperature between outside and room temperature.
Setting up a home office
If you frequently work on your computer at home, it may be worthwhile to
purchase a second AC adapter for use at home. With a second AC adapter, you
can avoid transporting the extra weight to and from home.
55
If you use your computer at home for significant periods of time, you might also
want to add an external keyboard, monitor, or mouse.
Traveling with the computer
when you are moving within a larger distance, for instance, from your office
building to a client’s office building or traveling locally
Preparing the computer
Prepare the computer as if you were taking it home. Be sure the battery in the
computer is charged. Airport security may require you to turn on your computer
when bringing it into the gate area.
What to bring with you
Bring the following items with you:
• AC adapter
• Spare, fully charged battery packs
• Additional printer driver files if you plan to use another printer
Special considerations
In addition to the guidelines for taking the computer home, follow these guidelines
to protect your computer while traveling:
• Always take the computer as carry-on luggage.
• If possible, have the computer inspected by hand. The computer can safely
pass through security X-ray machines, but never expose the computer to a
metal detector.
• Avoid exposing floppy disks to hand-held metal detectors.
Traveling internationally with the computer
when you are moving from country to country
Preparing the computer
Prepare the computer as you would normally prepare it for traveling.
56
4 Moving with your computer
What to bring with you
Bring the following items with you.
•AC adapter
• Power cords that are appropriate to the country to which you are traveling
• Spare, fully charged battery packs
• Additional printer driver files if you plan to use another printer
Special considerations
Follow the same special considerations as when traveling with the computer. In
addition, these tips are useful when traveling internationally.
• When traveling in another country, check that the local AC voltage and the
AC adapter power cord specifications are compatible. If not, purchase a
power cord that is compatible with the local AC voltage (e.g., power rating).
Do not use converter kits sold for appliances to power the computer.
• If you are using the modem, check if the modem and connector is compatible
with the telecommunication system of the country you are traveling in.
5 Software
This chapter discusses the important system utilities
bundled with your computer.
System software
The computer comes preloaded with the following software:
• Windows operating system
• DMI (Desktop Management Interface)-compliant hardware BIOS utility
• System utilities, drivers and application software
Note: To access Windows software applications, click on the Start button and
select the application folder. Then click on the application icon to run the
selected application. To learn about the software and utility, make use of the
online help provided by the software.
59
60
5 Software
Launch Manager
Launch Manager allows you to set the four launch keys and the wireless button
located above the keyboard. See “Launch keys” on page 22 for the location of
these keys.
You can access the Launch Manager by clicking on Start, Programs, and then
Launch Manager to start the application.
61
BIOS Utility
The BIOS Utility is a hardware configuration program built into your computer’s
BIOS (basic input/output system).
Your computer is already properly configured and optimized, and you do not need
to run this utility. However, if you encounter configuration problems, you may
need to run it. Please also refer to Chapter 6, Troubleshooting when a problem
arises.
To activate the BIOS Utility, press F2 during POST.
PhoenixBIOS Setup Utility
Information Main Advanced Security Boot Exit
CPU Type
CPU Speed
System Memory:
Extended Memory:
HDD Serial Number
System BIOS Version
VGA BIOS Version
KBC Version
Serial Number
Product Name
Manufacture Name
UUID Number
LAN Device
Intel (R)Pentium(R)M processor 1500MHz
1.50 Ghz
640 KB
238 MB
XXXXXX
RX-XXX
X.XX.XX.XX.XX
XX.XX.XX
XXXXXXXXXXXXXXXXX
XXXX
Wistron
00000000-0000-0000-0000-000000000000
Exist (MAC Address= XX:XX:XX:XX:XX:XX)
F1 Help Select Item F5/F6 Change Values F9 Setup Defaults
Esc Exit Select Menu Enter Select > Sub-Menu F10 Save and Exit
Note: The screen above is for reference only. Actual values may differ.
Navigating the BIOS Utility
These are the menu options: Information, Main, Advanced, Security, Boot and
Exit.
To enter a menu, highlight the item using the ← → keys.
Within a menu, navigate through the BIOS Utility by following these instructions:
• Press the cursor up/down keys (↑↓) to select item.
•Press the F5/F6 to change the value of a parameter.
•Press Enter to go to sub-menu.
•Press Esc while you are in any of the menu options to return to the main menu
62
5 Software
Note: You can change the value of a parameter if it is enclosed in square
brackets. Navigation keys for a particular menu are shown on the bottom of
the screen.
When you select an item in the BIOS Utility, the function description will appear
at the right side of the screen.
PhoenixBIOS Setup Utility
Information Advanced Security Boot ExitMain
System Time:
System Date:
Boot Display:
Screen Expansion:
Quick Boot Mode:
Boot-time Diagnostic Screen:
Boot on LAN:
Hotkey Beep:
Auto Dim:
F12 Multi-Boot Menu:
[10:10:35]
[01/14/2004]
[Auto]
[Enabled]
[Enabled]
[Disabled]
[Disabled]
[Enabled]
[Enabled]
[Enabled]
Item Specific Help
<Tab>, <Shift-Tab>,or
<Enter> selects field.
F1 Help Select Item F5/F6 Change Values F9 Setup Defaults
Esc Exit Select Menu Enter Select > Sub-Menu F10 Save and Exit
Caution: Some parameters in the BIOS Utility screens are for advanced
users only. Typically, you do not need to change the values in the screen
because these values are already optimized. To load setup defaults, press F9,
then press F10 to save and exit the BIOS Utility.
Security
The System Security screen contains parameters that help safeguard and protect
your computer from unauthorized use.
The table below describes the parameters in this screen. Settings in boldface are
the default and suggested parameter settings.
63
Parameter Description
Setup Supervisor
Password
Set User Password When set, this password protects the computer from
Password on Boot When enabled, a password is requested when the system boots
Set Primary Hard
Disk Password
When set, this password protects the BIOS Utility from
unauthorized entry, and protects critical BIOS parameters.
Press Enter to set this password.
unauthorized entry during boot-up or resume from Hibernation
mode.
Press Enter to set this password.
up.
Options: Enabled or Disabled
When set, this password prevents the primary hard disk from
unauthorized access. It consists of 8 alphanumeric characters.
Press Enter to set this password.
64
Parameter Description
5 Software
Processor Serial
Number
Note: Don’t forget your password. If you forget your password, you
may have to return your notebook computer to your dealer to reset it.
Controls detection of processor serial number.
Options: Enabled or Disabled
Setting a password
Follow these steps:
1. Use the
2. Type a password. The password may consist of up to eight alphanumeric
↑ and ↓ keys to highlight a password parameter (Supervisor, User,
Boot, or Hard Disk) and press the Enter key. The password box appears:
characters (A-Z, a-z, 0-9). Press Enter.
Important: Be very careful when typing your password because the
characters do not appear on the screen.
3. Retype the password to verify your first entry and press Enter.
After setting the password, the computer automatically sets the chosen
password parameter to Present and a dialog box appears confirming the
changes.
4. Press Esc to return to the main menu.
Changing a password
To change a password, follow the steps in “Setting a password” on page 64. Enter
the current password and then enter a new password.
Removing a password
To remove a password, follow the steps in “Setting a password” on page 64. Enter
the current password and then leave the Enter New Password and Confirm New
Password blank.
Exit
To exit the BIOS Utility, go the Exit screen and choose an item and press Enter.
Press Enter again to confirm the selection.
65
66
5 Software
6 Troubleshooting
This chapter instructs you on how to deal with
common system problems. Read it before calling a
technician if a problem occurs. Solutions to more
serious problems require opening up the computer.
Do not attempt to open and service the computer by
yourself. Contact your dealer or an authorized
service center for assistance.
69
Frequently-asked questions
This is a list of possible situations that may arise during the use of your computer,
and it gives easy answers and solutions to these questions.
I press the power switch, but the computer does not start or boot-up.
Look at the Power indicator:
• If it is not lit, no power is being applied to the computer. Check the
following:
• If you are running on battery power, it may be low and unable to power
the computer. Connect the AC adapter to recharge the battery pack.
• Make sure the AC adapter is plugged in properly to the computer and to
the power outlet.
• If it is lit, check the following:
• If the Standby indicator is lit, the computer is in Standby mode. Press
any key or tap on the touchpad to resume.
• Is a non-bootable (non-system) diskette in the external floppy drive?
Remove or replace it with a system diskette and press Ctrl-Alt-Del to
restart the system.
The operating system files may be damaged or missing. Insert the startup disk you
created during Windows setup into the external floppy drive and press Ctrl-Alt-Del
to restart the system. This will diagnose your system and make necessary fixes.
Nothing appears on the screen.
The computer’s power management system automatically blanks the screen to
save power. Press any key to turn the display back on.
If pressing a key does not turn the display back on, two things might be the cause:
• The brightness level might be too low. Press Fn-F8 and Fn-F9 to adjust the
brightness level.
• The display device might be set to an external monitor. Press the display
toggle hot key Fn-F3 to toggle the display back to the computer.
Image is not full-screen.
Make sure the resolution is set to a resolution your system supports. Right-click
on your Windows desktop and select Properties to bring up the Display Properties
dialogue box. Then click on the Settings tab to make sure the resolution is set to
the appropriate resolution. Resolutions lower than the specified resolution are not
full-screen on the computer or on an external monitor.
70
6 Troubleshooting
No audio from the computer.
Check the following:
• The volume may be muted. In Windows, look at the volume control icon on
the taskbar. If it is crossed-out, click on the icon and deselect the Mute
option.
• The speakers may be turned off. Press Fn-F5 to turn the speakers on (this
hotkey also turns the speakers off).
• The volume level may be too low. In Windows, look at the volume control
icon on the taskbar. Click on the icon or press Fn-F6 and Fn-F7 to adjust the
level.
If headphones, earphones or external speakers are connected to the line-out port on
the computer’s front panel, the internal speakers automatically turn off.
External microphone does not work.
Check the following:
• Make sure the external microphone is connected to the microphone-in jack on
the computer’s front panel.
• If you cannot hear playback, the speakers may be muted.
How do I eject the optical drive tray with the computer turned off?
There is a mechanical eject button on the optical drive. Simply insert the tip of a
pen or paperclip and push to eject the optical drive tray.
The keyboard does not respond.
Try attaching an external keyboard to the USB connector on the computer. If it
works, contact your dealer or an authorized service center as the internal keyboard
cable may be loose.
71
The printer does not work.
Check the following:
• Make sure that the printer is connected to a power outlet and it is turned on.
• Make sure the printer cable is connected securely to the computer’s USB port
and the corresponding port on the printer.
I want to set up my location to use the internal modem.
To properly use your communications software (e.g., HyperTerminal), you need to
set up your location:
1. Open the Windows Control Panel and double-click on the Phone and Modem
options.
2. Begin setting up your location.
Refer to the Windows manual.
Why can’t I charge my battery to 100% charged when it is 99-95%
charged?
To preserve the life of the battery, the system only lets you charge the battery when
its capacity falls below 95%. However, it is recommended that you bring an extra
battery and let the battery in the system use up its power before charging it.
72
6 Troubleshooting
Error messages
The following is a list of the messages that the BIOS can display. Most of them
occur during POST. Some of them display information about a hardware device,
e.g., the amount of memory installed. Others may indicate a problem with a
device, such as the way it has been configured. Following the list are explanations
of the messages and remedies for reported problems.
Note: If your system displays one of the messages marked below with an
asterisk (*), write down the message and contact your dealer. If your system
fails after you have made the changes in the Setup menus, reset the computer,
enter Setup and load the Setup defaults to correct the error.
Error Messages Corrective Action
0200 Failure Fixed Disk Fixed disk is not working or not configured properly.
Check to see if fixed disk is attached properly. Run Setup.
Find out if the fixed-disk type is correctly identified.
0210 Stuck key Stuck key on keyboard.
0211 Keyboard error Keyboard not working.
0212 Keyboard Controller
Failed*
0213 Keyboard locked Unlock key switch
0220 Monitor type does not
match CMOS - Run
SETUP
0230 Shadow Ram Failed
at offset: nnnn*
0231 System RAM Failed
at offset: nnnn*
0232 Extended RAM
Failed at offset: nnnn*
Keyboard controller failed test. May require replacing
keyboard controller.
Unlock the system to proceed.
Monitor type not correctly identified in Setup
Shadow RAM failed at offset nnnn of the 64k block at
which the error was detected.
System RAM failed at offset nnnn of in the 64k block at
which the error was detected.
Extended memory not working or not configured properly
at offset nnnn.
Error Messages Corrective Action
73
0250 System battery is
dead - Replace and run
SETUP
0251 System CMOS
checksum bad - Default
configuration used
0260 System timer error* The timer test failed. Requires repair of system board.
0270 Real time clock
error*
0271 Check date and time
settings
0280 Previous boot
incomplete - Default
configuration used
0281 Memory Size found
by POST differed from
CMOS
The CMOS clock battery indicator shows the battery is
dead. Replace the battery and run Setup to reconfigure the
system.
System CMOS has been corrupted or modified
incorrectly, perhaps by an application program that
changes data stored in CMOS. The BIOS installed
Default Setup Values. If you do not want these values,
enter Setup and enter your own values. If the error
persists, check the system battery or contact your dealer.
Real-Time Clock fails BIOS hardware test. May require
board repair.
BIOS found date or time out of range and reset the RealTime Clock. May require setting legal date (1991-2099).
Previous POST did not complete successfully. POST
loads default values and offers to run Setup. If the failure
was caused by incorrect values and they are not corrected,
the next boot will likely fail. On systems with control of
wait states, improper Setup settings can also terminate
POST and cause this error on the next boot. Run Setup
and verify that the wait-state configuration is correct. This
error is cleared the next time the system is booted.
Memory size found by POST differed from CMOS.
02B0 Diskette drive A
error
02B1 Diskette drive B error
02B2 Incorrect Drive A
type - run SETUP
02B3 Incorrect Drive B
type - run SETUP
Drive A: or B: is present but fails the BIOS POST diskette
tests. Check to see that the drive is defined with the
proper diskette type in Setup and that the diskette drive is
attached correctly.
Type of floppy drive A: not correctly identified in Setup.
Type of floppy drive B: not correctly identified in Setup.
74
Error Messages Corrective Action
6 Troubleshooting
02D0 System cache error Cache disabled
02F0: CPU ID: CPU socket number for Multi-Processor error.
02F4: EISA CMOS not
writeable*
02F5: DMA Test Failed* ServerBIOS2 test error: Cannot write to extended DMA
02F6: Software NMI
Failed*
02F7: Fail-Safe Timer NMI
Failed*
device Address Conflict Address conflict for specified device.
Allocation Error for: device Run ISA or EISA Configuration Utility to resolve
Failing Bits: nnnn* The hex number nnnn is a map of the bits at the RAM
RAM cache failed and BIOS disabled the cache. On older
boards, check the cache jumpers. You may have to
replace the cache. See your dealer. A disabled cache
slows system performance considerably.
ServerBIOS2 test error: Cannot write to EISA CMOS.
(Direct Memory Access) registers.
ServerBIOS2 test error: Cannot generate software NMI
(Non-Maskable Interrupt).
ServerBIOS2 test error: Fail-Safe Timer takes too long.
resource conflict for the specified device.
address which failed the memory test. Each 1 (one) in the
map indicates a failed bit. See errors 230, 231, or 232
above for offset address of the failure in System,
Extended, or Shadow memory.
Invalid System
Configuration Data
I/O device IRQ conflict I/O device IRQ conflict error.
One or more I2O Block
Storage Devices were
excluded from the Setup
Boot Menu
Operating system not found Operating system cannot be located on either drive A: or
Problem with NVRAM (CMOS) data.
There was not enough room in the IPL table to display all
installed I2O block-storage devices.
drive C:. Enter Setup and see if fixed disk and drive A:
are properly identified.
Error Messages Corrective Action
Parity Check 1 nnnn* Parity error found in the system bus. BIOS attempts to
locate the address and display it on the screen. If it cannot
locate the address, it displays nnnn. Parity is a method for
checking errors in binary data. A parity error indicates
that some data has been corrupted.
Parity Check 2 nnnn* Parity error found in the I/O bus. BIOS attempts to locate
the address and display it on the screen. If it cannot locate
the address, it displays nnnn.
75
Press <F1> to resume,
<F2> to Setup, <F3> for
previous
Run the I2O Configuration
Utility
Displayed after any recoverable error message. Press
<F1> to start the boot process or <F2> to enter Setup and
change the settings. Press <F3> to display the previous
screen (usually an initialization error of an Option ROM,
i.e., an add-on card). Write down and follow the
information shown on the screen.
One or more unclaimed block storage devices have the
Configuration Request bit set in the LCT. Run an I2O
Configuration Utility (e.g. the SAC utility).
If you still encounter problems after going through the corrective measures, please
contact your dealer or an authorized service center for assistance. Some problems
may be solved using the BIOS Setup Utility. See “BIOS Utility” on page 61.
76
6 Troubleshooting
A Specifications
This appendix lists the general specifications
of your computer.
Microprocessor
• Intel® Pentium® M Processor with 1 MB on-die cache
Memory
• Two 200-pin soDIMM socket for PC2100/2700 (DDR266/333) 128/256/512/
1024 MB DDR SDRAM
• 512 KB Flash ROM BIOS
Data storage
• One high-capacity, Enhanced-IDE hard disk
Display and video
• 12.1” 15:10 Thin Film Transistor (TFT) LCD
• 1280x800 Wide eXtended Graphics Array (WXGA) resolution, 16.7 million
colors
• Simultaneous LCD and CRT display
• Dual display support
Audio
• Built-in speakers
• AC’97 codec with 3D sound effect
• Separate audio ports for line-in/microphone-in and line-out (S/PDIF) devices
79
Keyboard and pointing device
• 82-/83-/86-key Windows keyboard
• Ergonomically-centered touchpad pointing device
I/O ports
• One type II/I CardBus PC Card slot
• One RJ-11 phone jack (V.90)
• One RJ-45 network jack (Ethernet 10/100)
• One DC-in jack
• One external monitor port (DDC 2.0)
• One line-out jack (S/PDIF) (3.5mm mini-jack)
80
• One audio line-in/microphone-in jack (3.5mm mini-jack)
• Two USB ports (2.0)
• One IEEE 1394 (4-pin) port
• One S-video port
•One CF slot
Weight and dimensions
• 1.58 kg (3.5 lbs)
• 296.8 x 205 x 24.7~27.7 mm (11.68 x 8.07 x 0.97~1.09 in.)
Environment
•Temperature
• Operating: 5°C ~ 35°C
• Non-operating: -10°C ~ 65°C
• Humidity (non-condensing)
• Operating: 20% ~ 80% RH
• Non-operating: 20% ~ 80% RH
System
• Windows XP Home and Professional
• Windows 2000 support
A Specifications
Power
• Battery pack
• 32.5-WattHour Li-Ion battery pack
• 1.5-hour rapid charge/3.5-hour charge-in-use
•AC adapter
•65-Watt
• Auto sensing 100~240Vac, 50~60Hz
Options
• PC2100/2700 (DDR266/333) 128/256/512/1024 MB DDR SDRAM memory
upgrade module
• Additional AC adapter
• Secondary battery
• Numeric keypad
• External USB FDD
• 802.11a/b/g wirelss module
81
82
A Specifications
Notices
FCC notice
This device has been tested and found to comply with the limits for a Class B
digital device pursuant to Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential
installation. This device generates, uses, and can radiate radio frequency energy
and, if not installed and used in accordance with the instructions, may cause
harmful interference to radio communications.
However, there is no guarantee that interference will not occur in a particular
installation. If this device does cause harmful interference to radio or television
reception, which can be determined by turning the device off and on, the user is
encouraged to try to correct the interference by one or more of the following
measures:
1. Reorient or relocate the receiving antenna
2. Increase the separation between the device and receiver
3. Connect the device into an outlet on a circuit different from that to which the
receiver is connected
4. Consult the dealer or an experienced radio/television technician for help
83
Notice: shield cables
All connections to other computing devices must be made using shielded cables to
maintain compliance with FCC regulations.
Notice: peripheral devices
Only peripherals (input/output devices, terminals, printers, etc.) certified to
comply with the Class B limits may be attached to this equipment. Operation with
non-certified peripherals is likely to result in interference to radio and TV
reception.
Caution
Changes or modifications not expressly approved by the manufacturer could void
the user’s authority, which is granted by the Federal Communications
Commission, to operate this computer.
Use conditions
This part complies with Part 15 of the FCC Rules. Operation is subject to the
following two conditions: (1) this device may not cause harmful interference, and
84
(2) this device must accept any interference received, including interference that
may cause undesired operation.
Notice: Canadian users
This Class B digital apparatus meets all requirements of the Canadian InterferenceCausing Equipment Regulations.
Remarque à l’intention des utilisateurs canadiens
Cet appareil numérique de la classe B respected toutes les exigences du Règlement
sur le matériel brouilleur du Canada.
Modem notices
FCC
This equipment complies with Part 68 of the FCC Rules. Located on the bottom
side of the modem is a label that contains, among other information, the FCC
Registration Number and Ringer Equivalence Number (REN) for this equipment.
Upon request, you must provide this information to your telephone company.
If your telephone equipment causes harm to the telephone network, the telephone
company may discontinue your service temporarily. If possible, they will notify
you in advance. But, if advance notice is not practical, you will be notified as soon
as possible. You will also be informed of your right to file a complaint with the
FCC.
Your telephone company may make changes in its facilities, equipment,
operations, or procedures that could affect the proper functioning of your
equipment. If they do, you will be notified in advance to give you an opportunity
to maintain uninterrupted telephone service.
If this equipment should fail to operate properly, disconnect the equipment from
the phone line to determine if it is causing the problem. If the problem is with the
equipment, discontinue use and contact your dealer or vendor.
TBR 21
This equipment has been approved to Council Division 98/482/EC - “TBR 21” for
pan-European single terminal connection to the Public Switched Telephone
Network (PSTN). However, due to differences between the individual PSTNs
provided in different countries, the approval does not, of itself, give an
unconditional assurance of successful operation on every PSTN termination point.
In the event of problems, you should contact your equipment supplier in the first
instance.
85
Important safety instructions
1. Read these instructions carefully. Save these instructions for future reference.
2. Follow all warnings and instructions marked on the product.
3. Unplug this product from the wall outlet before cleaning. Do not use liquid
cleaners or aerosol cleaners. Use a damp cloth for cleaning.
4. Do not use this product near water.
5. Do not place this product on an unstable cart, stand, or table. The product
may fall, causing serious damage to the product.
6. Slots and openings in the cabinet and the back or bottom are provided for
ventilation; to ensure reliable operation of the product and to protect it from
overheating, these openings must not be blocked or covered. The openings
should never be blocked by placing the product on a bed, sofa, rug, or other
similar surface. This product should never be placed near or over a radiator
or heat register, or in a built-in installation unless proper ventilation is
provided.
7. This product should be operated from the type of power indicated on the
marking label. If you are not sure of the type of power available, consult your
dealer or local power company.
8. Do not allow anything to rest on the power cord. Do not locate this product
where persons will walk on the cord.
9. If an extension cord is used with this product, make sure that the total ampere
rating of the equipment plugged into the extension cord does not exceed the
extension cord ampere rating. Also, make sure that the total rating of all
products plugged into the wall outlet does not exceed the fuse rating.
10. Never push objects of any kind into this product through cabinet slots as they
may touch dangerous voltage points or short out parts that could result in a
fire or electric shock. Never spill liquid of any kind on the product.
11. Do not attempt to service this product yourself, as opening or removing
covers may expose you to dangerous voltage points or other risks. Refer all
servicing to qualified service personnel.
12. Unplug this product from the wall outlet and refer servicing to qualified
service personnel under the following conditions:
a. When the power cord or plug is damaged or frayed
b. If liquid has been spilled into the product
c. If the product has been exposed to rain or water
86
d. If the product does not operate normally when the operating instructions
are followed. Adjust only those controls that are covered by the
operating instructions since improper adjustment of other controls may
result in damage and will often require extensive work by a qualified
technician to restore the product to normal condition.
e. If the product has been dropped or the cabinet has been damaged
f. If the product exhibits a distinct change in performance, indicating a
need for service.
13. Replace the battery with the same type as the product's battery we
recommend. Use of another battery may present a risk of fire or explosion.
Refer battery replacement to a qualified serviceman.
14. Warning! Batteries may explode if not handled properly. Do not disassemble
or dispose of them in fire. Keep them away from children and dispose of used
batteries promptly.
15. Use only the proper type of power supply cord set (provided in your
accessories box) for this unit. It should be a detachable type: UL listed/CSA
certified, type SPT-2, rated 7A 125V minimum, VDE approved or its
equivalent. Maximum length is 15 feet (4.6 meters).
Laser compliance statement
The optical drive in this computer is a laser product. The optical drive’s classification label (shown below) is located on the drive.
CLASS 1 LASER PRODUCT
CAUTION: VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN.
AVOID EXPOSURE TO BEAM.
APPAREIL A LASER DE CLASSE 1 PRODUIT
LASERATTENTION: RADIATION DU FAISCEAU LASER INVISIBLE EN
CAS D’OUVERTURE. EVITTER TOUTE EXPOSITION AUX RAYONS.
LUOKAN 1 LASERLAITE LASER KLASSE 1
VORSICHT: UNSICHTBARE LASERSTRAHLUNG, WENN ABDECKUNG
GEÖFFNET NICHT DEM STRAHLL AUSSETZEN
PRODUCTO LÁSER DE LA CLASE I
ADVERTENCIA: RADIACIÓN LÁSER INVISIBLE AL SER ABIERTO.
EVITE EXPONERSE A LOS RAYOS.
ADVARSEL: LASERSTRÅLING VEDÅBNING SE IKKE IND I STRÅLEN.
87
VARO! LAVATTAESSA OLET ALTTINA LASERSÅTEILYLLE.
VARNING: LASERSTRÅLNING NÅR DENNA DEL ÅR ÖPPNAD ÅLÅ TUIJOTA SÅTEESEENSTIRRA EJ IN I STRÅLEN
VARNING: LASERSTRÅLNING NAR DENNA DEL ÅR ÖPPNADSTIRRA EJ
IN I STRÅLEN
ADVARSEL: LASERSTRÅLING NAR DEKSEL ÅPNESSTIRR IKKE INN I
STRÅLEN
Battery statement
CAUTION
Danger of explosion if battery is incorrectly replaced. Replace only with the same
or equivalent type recommended by the manufacturer. Discard used batteries according to the manufacturer’s instructions.
ADVARSEL!
Lithiumbatteri - Eksplosionsfare ved fejlagtig håndtering. Udskiftning må kun ske
med batteri af samme fabrikat og type. Léver det brugte batteri tilbage til leverandøren.
ADVARSEL
Eksplosjonsfare ved feilaktig skifte av batteri. Benytt samme batteritype eller en
tilsvarende type anbefalt av apparatfabrikanten. Brukte batterier kasseres i henhold
til fabrikantens instruksjoner.
VARNING
Explosionsfara vid felaktigt batteribyte. Anvãnd samma batterityp eller en ekvivalent typ som rekommenderas av apparattillverkaren. Kassera anvãnt batteri enligt
fabrikantens instruktion.
VAROITUS
Päristo voi räjähtää, jos se on virheellisesti asennettu. Vaihda paristo ainoastaan
laitevalmistajan suosittelemaan tyyppiin. Hävitä käytetty paristo valmistajan ohjeiden mukaisesti.
VORSICHT!
Explosionsgefahr bei unsachgemäßen Austausch der Batterie Ersatz nur durch
denselben oder einem vom Hersteller empfohlenem ähnlichen Typ. Entsorgung gebrauchter Batterien nach Angaben des Herstellers.
88
Year 2000 compliance statement
This notebook computer carries the "Hardware NSTL Tested Year 2000
Compliant" logo, which certifies that this model has been tested by NSTL using
the YMark2000 test, and has been found to meet NSTL's standards for Year 2000
hardware compliance.
Macrovision copyright protection notice
This product incorporates copyright protection technology that is protected by
method claims of certain U.S. patents and other intellectual property rights owned
by Macrovision Corporation and other rights owners. Use of this copyright
protection technology must be authorized by Macrovision Corporation, and is
intended for home and other limited viewing uses only unless otherwise authorized
by Macrovision Corporation. Reverse engineering or disassembly is prohibited.
Apparatus Claims of U.S. Patent Nos. 4,631,603, 4,577,216, 4,819,098, and
4,907,093 licensed for limited viewing uses only.
LCD pixel statement
The LCD unit is produced with high-precision manufacturing techniques.
Nevertheless, some pixels may occasionally misfire or appear as black or colored
dots. This has no effect on the recorded image and does not constitute a
malfunction.
Index
A
AC adapter
caring for x
connecting viii
audio 28
connecting externally 44
troubleshooting 70
B
battery
installing vii
battery bay 7
battery pack
battery-low warning 36
caring for x
characteristics 33
charging 35
charging indicator 13
charging modes 35
checking charge level 36
installing 34
low conditions 37
optimizing 36
removing 35
using the first time 33
battery release latch 7
BIOS Utility 61– 65
entering 61
exit menu 65
navigating 61
security menu 63
bottom view 7
brightness
hotkeys 18
C
caps lock 14
on indicator 13
care
AC adapter x
battery pack x
computer ix
CD-ROM
ejecting manually 70
89
troubleshooting 70
charging
checking level 36
modes 35
cleaning
computer x
computer
bringing to meetings 53
caring for ix
cleaning x
connecting vii
disconnecting 53
features 8
moving around 53
on indicator 12
security 29
setting up a home office 54
taking home 53
traveling internationally 55
traveling on local trips 55
turning on viii
connections
AC adapter viii
audio 44
computer vii
monitor 41
USB 43
connectivity options 26
D
dc-in jack 6
diskette drive 43
display 10
hotkeys 17
opening and closing 10
power management 10
simultaneous 10
troubleshooting 69
E
error messages 72
ethernet connection 26
F
FAQ. See frequently-asked questions
floppy drive 43
frequently-asked questions 69
front view 3
90
H
hard disk
upgrading 50
Hibernation mode
hotkey 17
hotkeys 17
I
indicator lights 12
inserting the disc 23
K
keyboard 14
embedded numeric keypad 15
hotkeys 17
lock keys 14
troubleshooting 70
Windows keys 16
L
launch keys 3, 22
LEDs 12
left view 5
M
media access
on indicator 12
memory
upgrading 49
messages
error 72
microphone
troubleshooting 70
microphone-in/line-in jack 4
modem 26
monitor
connecting 41
N
notice
DVD copyright protection 88
num lock 14
on indicator 13
numeric keypad
embedded 15
O
optical drive 23
options
hard disk upgrade 50
memory upgrade 49
PC cards 45
spare AC adapter 48
spare battery 48
P
palm rest 19
password 29
changing in BIOS Utility 65
removing in BIOS Utility 65
setting in BIOS Utility 64
types 29
PC Card
ejecting 45
inserting 45
PC card 45
pc card slots 5
ports
external port 5
IEEE1394 port 3
modem jack 6
network jack 6
usb port 5
power
turning on viii
Power management 38
printer
troubleshooting 71
problems 69
audio 70
CD-ROM 70
display 69
keyboard 70
printer 71
startup 69
Q
questions
setting location for modem use 71
R
right view 6
S
security
keylock 29
passwords 29
security keylock 5
Loading...
