Opticon EBS30 Specification Manual

Electronic shelf label

EBS30

The EBS30 is a base station meant to serve
Opticon’s electronic shelf labels via two built-in

802.15.4 based radios.

Specifications Manual

Opticon

EBS30

Specifications Manual

2

All information subject to change without notice.

Document History

Model Number:

EBS30

Specification Number:

Edition:

1

Original Spec Number:

Date:

2012

Copyright 2012 Opticon. All rights reserved.

This manual may not, in whole or in part, be copied, photocopied, reproduced, translated or converted to any
electronic or machine readable form without prior written consent of Opticon.

Limited Warranty and Disclaimers
PLEASE READ THIS MANUAL CAREFULLY BEFORE INSTALLING OR USING THE

PRODUCT.
Serial Number

A serial number appears on all Opticon products. This official registration number is directly related to the device
purchased. Do not remove the serial number from your Opticon device. Removing the serial number voids the
warranty.

Warranty

Unless otherwise agreed in a written contract, all Opticon products are warranted against defects in materials and
workmanship for two years after purchase. Opticon will repair or, at its option, replace products that are defective in
materials or workmanship with proper use during the warranty period. Opticon is not liable for damages caused by
modifications made by a customer. In such cases, standard repair charges will apply. If a product is returned under
warranty and no defect is found, standard repair charges will apply. Opticon assumes no liability for any direct, indirect,
consequential or incidental damages arising out of use or inability to use both the hardware and software, even if
Opticon has been informed about the possibility of such damages.

Packaging

The packing materials are recyclable. We recommend that you save all packing material to use should you need to
transport your scanner or send it for service. Damage caused by improper packaging during shipment is not covered
by the warranty.

Trademarks

Trademarks used are the property of their respective owners.
Opticon Inc. and Opticon Sensors Europe B.V. are wholly owned subsidiaries of OPTOELECTRONICS Co., Ltd., 12-

17, Tsukagoshi 4-chome, Warabi-shi, Saitama, Japan 335-0002. T EL [phone]; FAX [phone]

SUPPORT

USA Europe

Phone: [phone]
Email: [e-mail] Email: [e-mail]
Web: www.opticonusa.com Web: www.opticon.com

Opticon

EBS30

Specifications Manual

3

Contents

1. Abstract ..................................................................................................................................... 5

2. Overview ................................................................................................................................... 5

3. Physical Features ..................................................................................................................... 6

3.1. Dimensions ....................................................................................................................... 6

3.2. Weight ............................................................................................................................... 6

4. Environmental Specifications .................................................................................................. 7

4.1. Operating Temperature and Humidity ................................................................................ 7

4.2. Storage Temperature and Humidity ................................................................................... 7

4.3. Static Electricity ................................................................................................................. 7

4.4. Drop resistance. ................................................................................................................ 7

4.5. Dust and Drip Proof ........................................................................................................... 7

5. Controls ..................................................................................................................................... 8

6. Electrical Specifications ........................................................................................................... 8

6.1. Electrical Characteristics ................................................................................................... 8

7. Radio Specifications ................................................................................................................ 9

7.1. Protocol ............................................................................................................................. 9

7.2. Security ............................................................................................................................. 9

8. Labeling ................................................................................................................................... 10

8.1. Product label ................................................................................................................... 10

8.2. White box label ................................................................................................................ 11

9. Packaging Specifications ....................................................................................................... 12

9.1. Individual Packaging Specification ................................................................................... 12

9.2. Collective Packaging Specification .................................................................................. 13

10. Accessories ............................................................................................................................ 14

11. Regulatory Compliance .......................................................................................................... 15

11.1. Product Safety ................................................................................................................. 15

11.2. EMC ................................................................................................................................ 15

11.3. RoHS .............................................................................................................................. 16

12. Safety ....................................................................................................................................... 17

12.1. Shock .............................................................................................................................. 17

12.2. Temperature Conditions .................................................................................................. 17

12.3. Foreign Materials ............................................................................................................. 17

12.4. Other ............................................................................................................................... 17

13. Mechanical Drawing ............................................................................................................... 18

Opticon

EBS30

Specifications Manual

4

Ta ble of Figures

Figure 1: Dimensions .................................................................................................................. 6

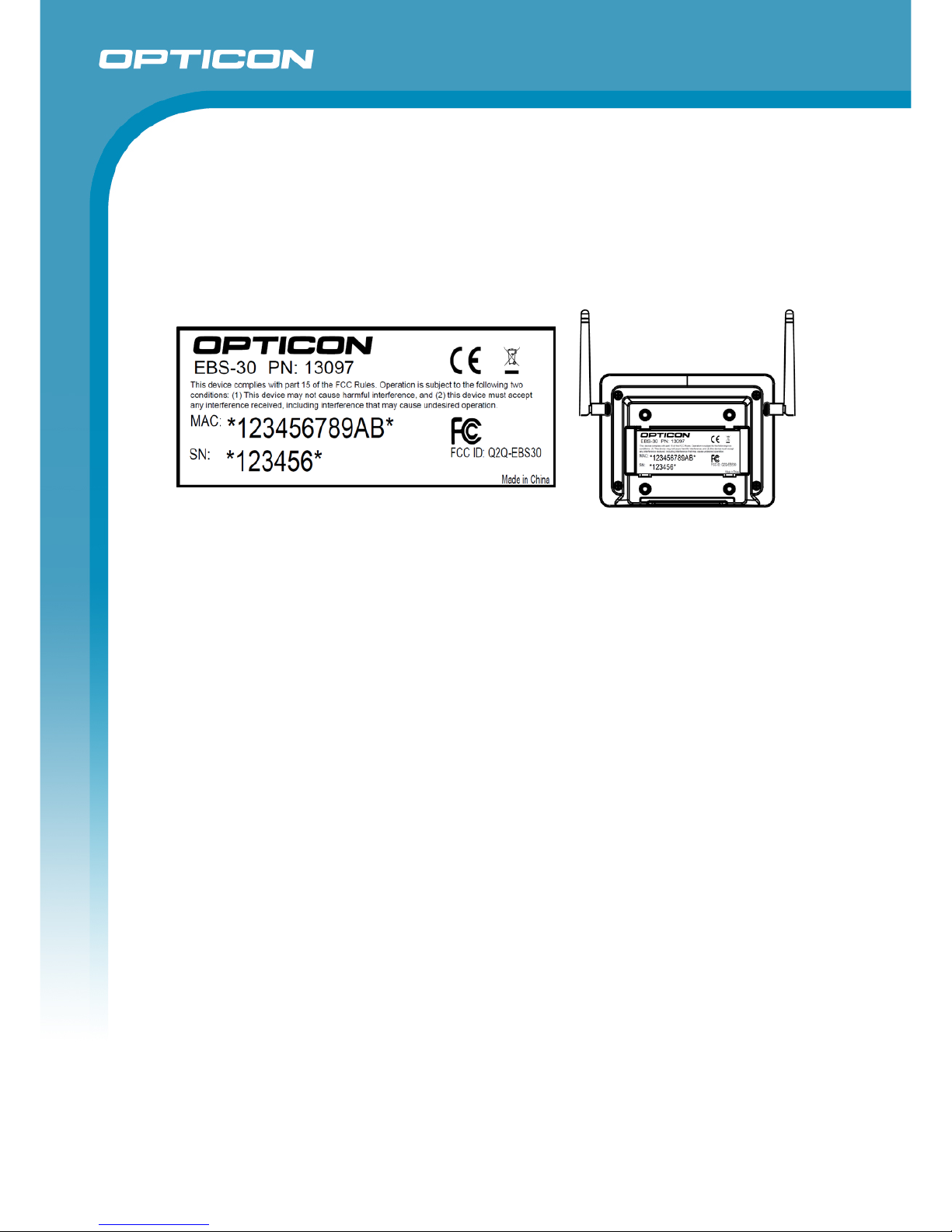

Figure 2: product label .............................................................................................................. 10

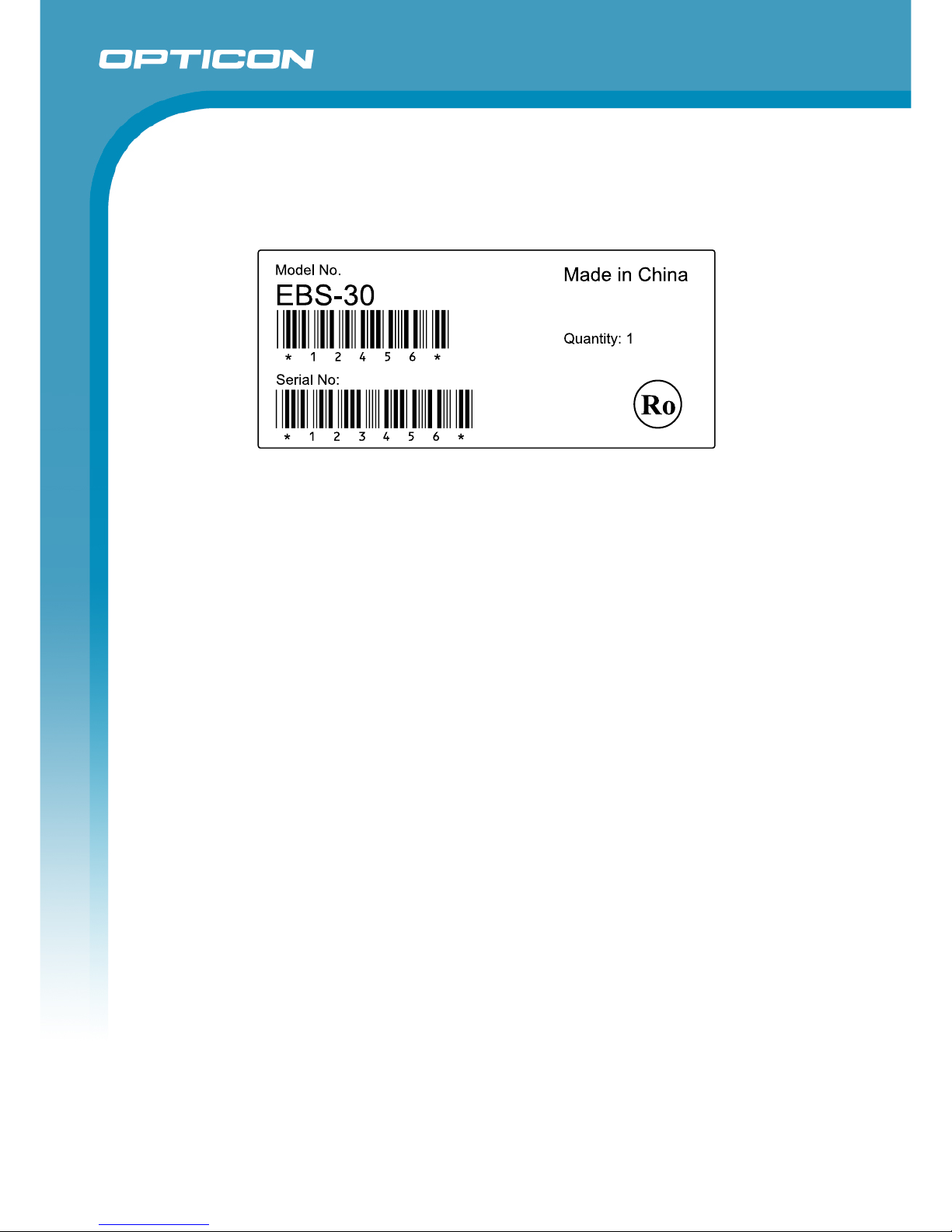

Figure 3: shipment box label ..................................................................................................... 11

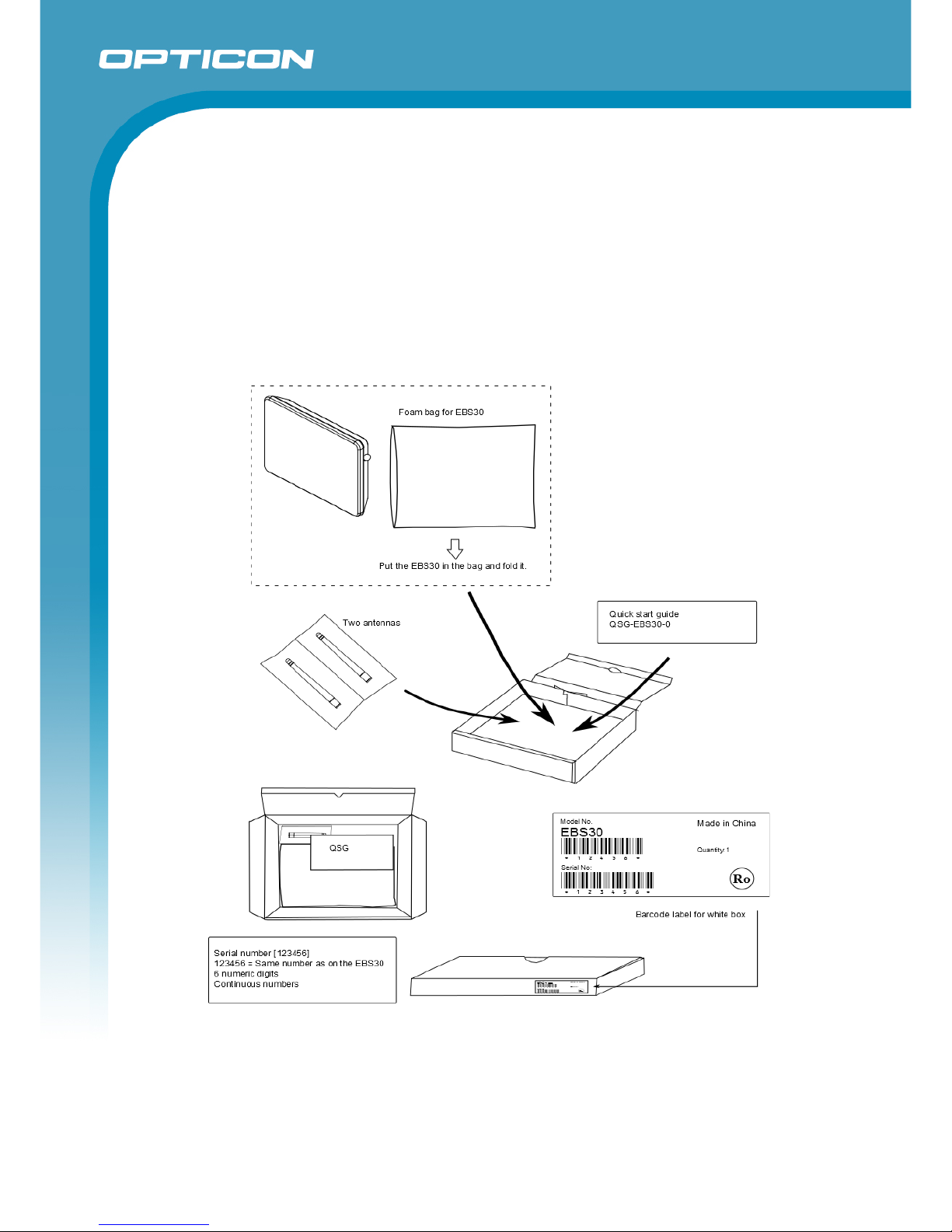

Figure 4: Individual Packing ...................................................................................................... 12

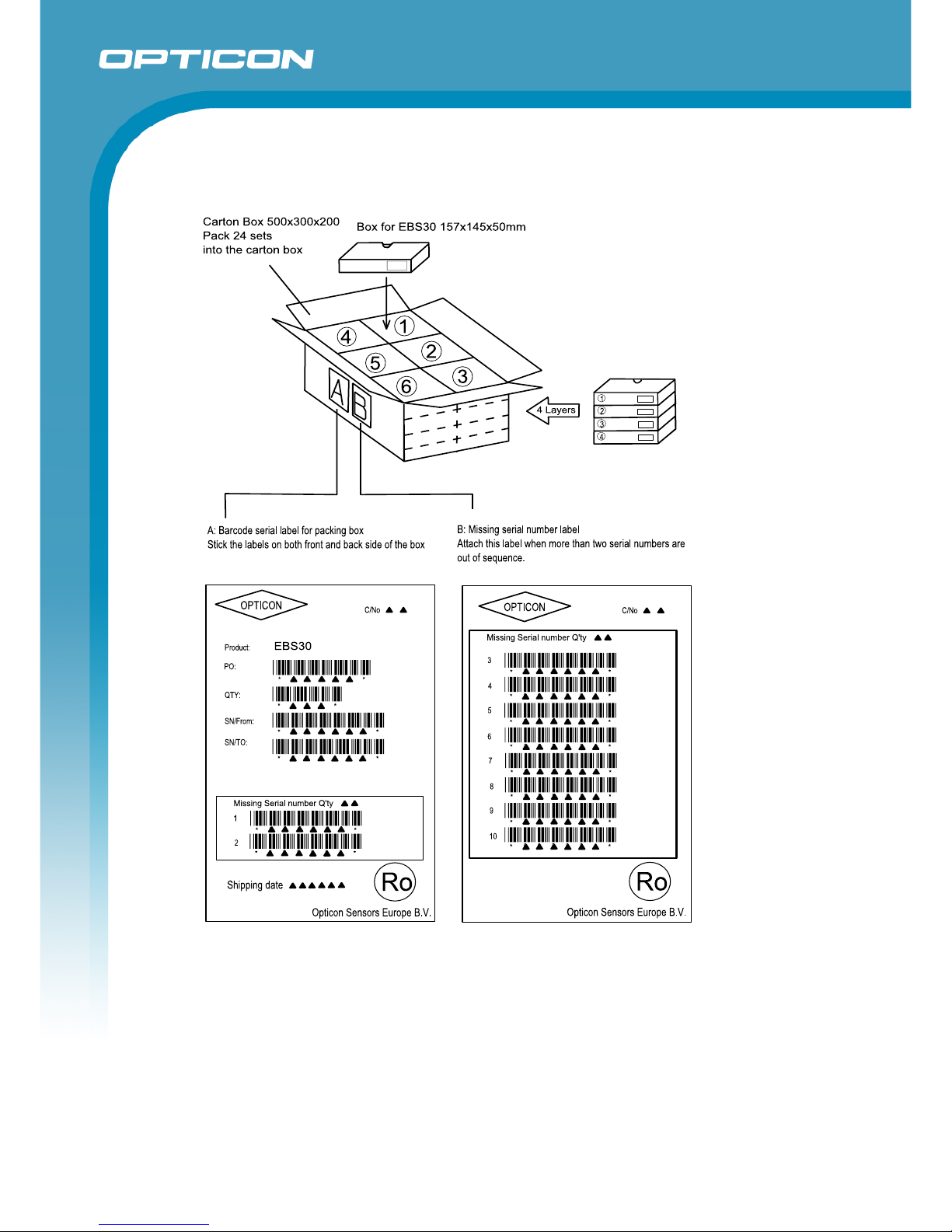

Figure 5: Collective packaging .................................................................................................. 13

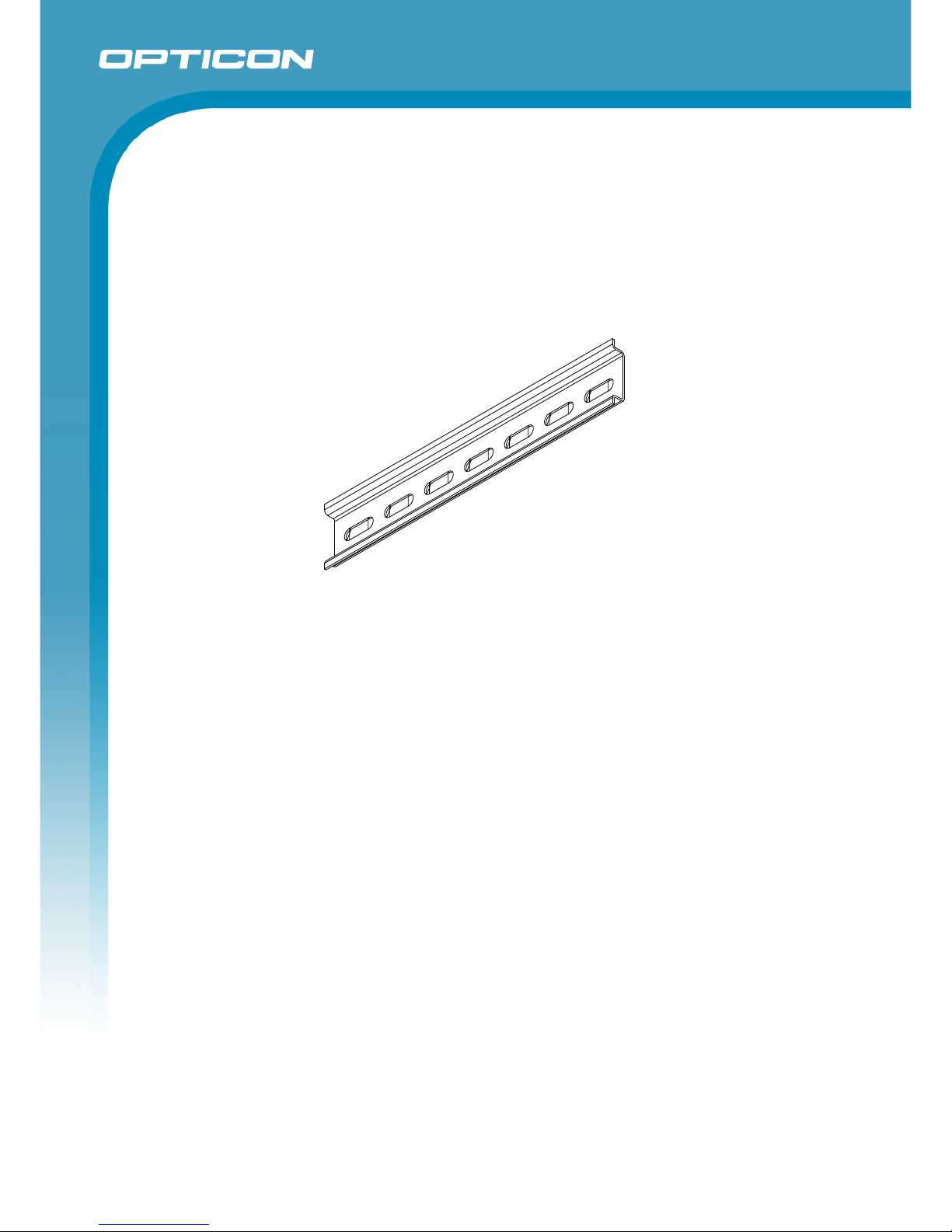

Figure 6: DIN rail to mount the EBS30. ..................................................................................... 14

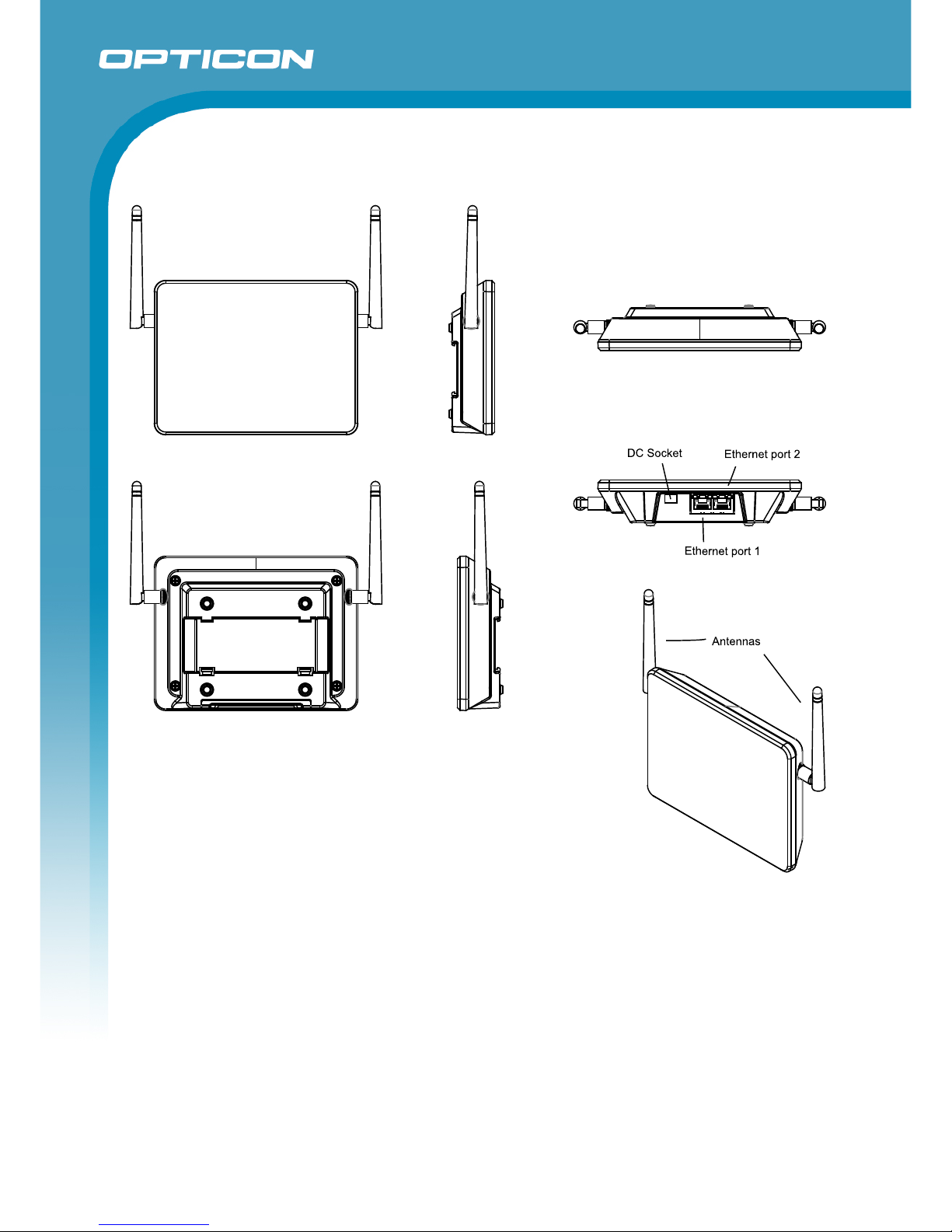

Figure 7: Mechanical drawing ................................................................................................... 18

Opticon

EBS30

Specifications Manual

5

1. Abstract

This manual provides specifications for the EBS30 base station that can serve Opticon’s
electronic shelf labels. (hereafter referred to as “Base Station”).

2. Overview

The EBS30 is a base station, equipped with two 2.4GHz radios for data communication with
Opticon’s electronic shelf labels. This product uses Direct Sequence Spread Spectrum RF
technology that allows for an ultra-low power consumption combined with a reduced
sensitivity to background noise. That means less interference by other radios that operate in
the 2.4GHz band. The radio protocol that is used is based on the IEEE 802.15.4 standard
that specifies the physical layer and media access control for low-rate wireless personal
area networks.

The base station provides the link between a back office system and the ESLs. The base
station is equipped with an Ethernet interface so that it can connect to a local area network.
It has a two port Ethernet switch built-in that allows for easy daisy chaining, enabling
simplified network cabling.

Opticon

EBS30

Specifications Manual

6

3. Physical Features

3.1. Dimensions

W 145.1 x H 110.1 x D 32.4 mm (without antennas)

3.2. Weight

250 g (including antennas)

Figure 1: Dimensions
