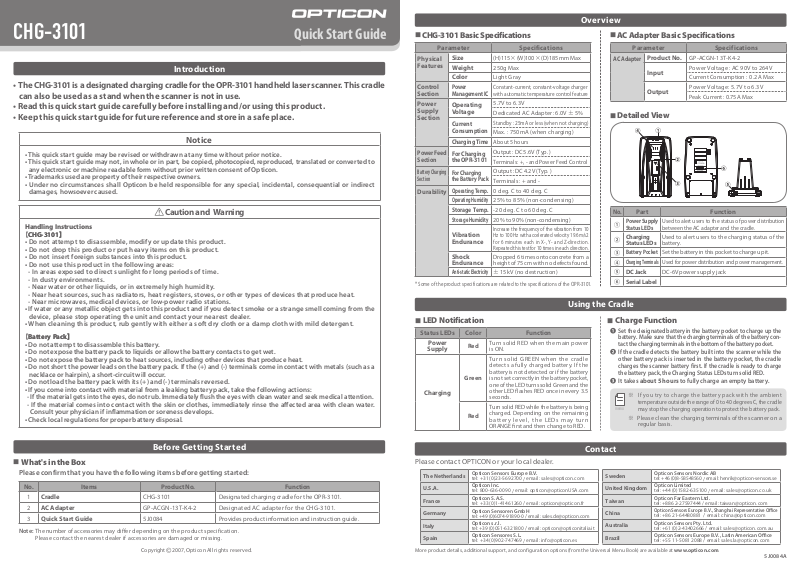

Opticon CHG 3101 User Manual

CHG-3101

Quick Start Guide

Introduction

• The CHG-3101 is a designated charging cradle for the OPR-3101 handheld laser scanner. This cradle
can also be used as a stand when the scanner is not in use.

• Read this quick start guide carefully before installing and/or using this product.

• Keep this quick start guide for future reference and store in a safe place.

Notice

• This quick start guide may be revised or withdrawn at any time without prior notice.

• This quick start guide may not, in whole or in part, be copied, photocopied, reproduced, translated or converted to
any electronic or machine readable form without prior written consent of Opticon.

• Trademarks used are property of their respective owners.

• Under no circumstances shall Opticon be held responsible for any special, incidental, consequential or indirect
damages, howsoever caused.

Caution and Warning

Handling Instructions

【

CHG-3101

CHG-3101

• Do not attempt to disassemble, modify or update this product.

• Do not drop this product or put heavy items on this produc t.

• Do not insert foreign substances into this product.

• Do not use this product in the following areas:

- In areas exposed to direct sunlight for long periods of time.

- In dusty environments.

- Near water or other liquids, or in extremely high humidity.

- Near heat sources, such as radiators, heat registers, stoves, or other types of devices that produce heat.

- Near microwaves, medical devices, or low-power radio stations.

• If water or any metallic object gets into this product and if you detect smoke or a strange smell coming from the
device, please stop operating the unit and contact your nearest dealer.

• When cleaning this product, rub gently with either a soft dry cloth or a damp cloth with mild detergent.

【

Battery Pack

Battery Pack

• Do not attempt to disassemble this battery.

• Do not expose the battery pack to liquids or allow the battery contacts to get wet.

• Do not expose the battery pack to heat sources, including other devices that produce heat.

• Do not short the power leads on the battery pack. If the (+) and (-) terminals come in contact with metals (such as a
necklace or hairpin), a short-circuit will occur.

• Do not load the battery pack with its (+) and (-) terminals reversed.

• If you come into contact with material from a leaking battery pack, take the following actions:

- If the material gets into the eyes, do not rub. Immediately flush the eyes with clean water and seek medical attention.

- If the material comes into contact with the skin or clothes, immediately rinse the affected area with clean water.

Consult your physician if inflammation or soreness develops.

• Check local regulations for proper battery disposal.

】

】】

】

】】

Before Getting Started

■

What's in the Box

Please confirm that you have the following items before getting started:

No. Items Product No. Function

1 Cradle CHG-3101 Designated charging cradle for the OPR-3101.

2 AC Adapter GP-ACGN-13T-K4-2 Designated AC adapter for the CHG-3101.

3 Quick Start Guide 5 J0084 Provides product information and instruction guide.

Note: The number of accessories may di ffer depending on the product specification.

P lease conta ct the nearest dealer if accessories are damage d or missing .

Copyright© 2007, Optico n All rights reserved .

■

CHG-3101 Basic Specifications

Parame ter Specif ications

Physical
Features

Size

Weight

Color

Control
Section

Power
Supply
Section

Power
Management IC

Operating
Voltage

Current
Consumption

Charging Time

Power Feed
Section

Battery Charging
Section

Durability

For Charging
the OPR-3101

For Charging
the Battery Pack

Operating Temp.

Operating Humidity

Storage Temp.

Storage Humidity

Vibration
Endurance

Shock
Endurance

Anti-static Electricity

Some of the product speci fications are related to the spe cifications of the OPR-3101.

*

(H)115×(W)100×(D)185 mm Max

250g M ax

Light Gray

Constant-current, constant-voltage charger
with automatic temperature control feature

5.7V t o 6.3V

Dedica ted AC Adapter: 6.0V ±5%

Standby : 25mA or less (when not charging)

Max. : 750mA (when charging)

About 5 hours

Output: DC 5.6V (Typ. )

Terminals: +, - and Power Feed Control

Output : DC 4.2V (Typ. )

Terminals : + and -

0 deg. C to 40 deg. C

25% to 85% (non-condensing)

-20 de g. C to 60 deg. C

20% to 90% (non-condensing)

Increase the frequency of the vibration from 10
Hz to 100 Hz with accelerated velocity 19.6m/s2
for 6 mi nutes each in X-, Y- an d Z-di rection.
Repeated this test for 10 times in each direction.

Dropped 6 times onto concrete from a
height of 75 cm with no defects found.

±

15k V (no destruction)

Overv iew

■

AC Adapter

■

No.

AC Adapter Basic Specifications

Param eter Specifications

Product No.

Input

Output

Detailed View

GP-ACGN -13T-K4-2

Power V oltage : AC 90 V to 264 V

Current Consumption : 0.2 A Max

Power Voltage : 5.7V t o 6.3V

Peak Current : 0.75A Max

Part Function

Power Supply

①

Status LEDs
Charging

②

Status LEDs

Battery Pocket

③

Charging Terminals

④

DC Jack DC-6V power supply jack

⑤

Serial Label

⑥

Used to alert users to the status of power distribution
between the AC adapter and the cradle.

Used to alert users to the charging status of the
battery.

Set the battery in this pocket to charge up it.

Used for power distribution and power management.

Using the Cradle

■

LED Notification

Status LEDs Color Function

Power

Supply

Charging

Turn solid RED when the main power

Red

is ON.

Tur n s oli d G REEN whe n t he cra dle
detec ts a fully charged b attery. If the
battery is not detected or if the battery

Green

is not set correctly in the battery pocket,
one of the LED turns solid Green and the
other LED flashes RED once in every 3.5
seconds.

Turn solid RED while the battery is being
charged. Depending on the remaining

Red

ba tt ery l ev el, th e LED s ma y turn
ORANGE first and then change to RED.

■

Charge Function

❶

Set the designated battery in the battery pocket to charge up the
battery. Make sure that the charging terminals of the battery con­tact the charging terminals in the bottom of the battery pocket.

❷

If the cradle detects the battery built into the scanner while the
other battery pack is inserted in the battery pocket, the cradle
charges the scanner battery first. If the cradle is ready to charge
the battery pack, the Charging Status LEDs turn solid RED.

❸

It takes about 5 hours to fully charge an empty battery.

※

If you try to char ge the bat tery pa ck with the ambi ent

temperature outside the range of 0 to 40 degrees C, the cradle

memo

may stop the charging operation to protect the battery pack.

※

Please clean the charging terminals of the scanner on a

regular b asis.

Contact

Please contact OPTICON or your local dealer.
