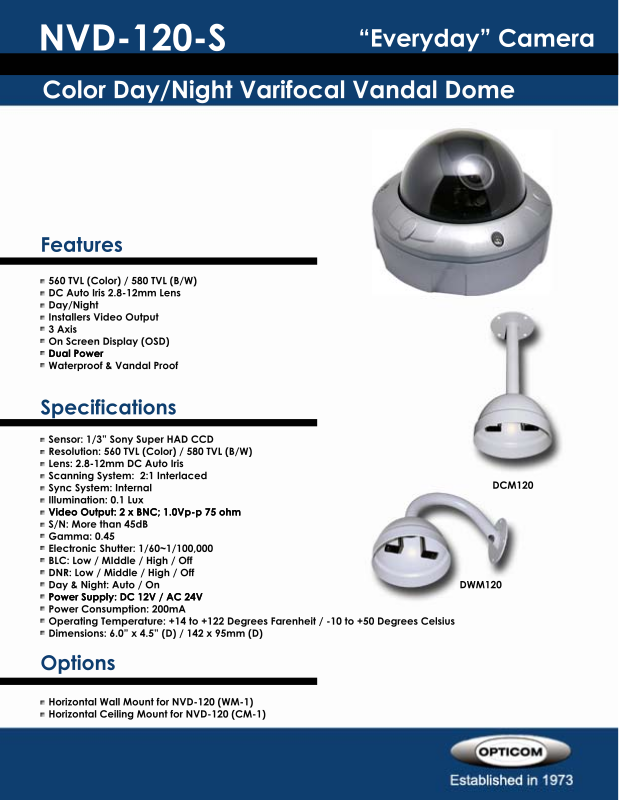

Opticom NVD-120-S DATASHEET

NVD-120-S

Day/Night Outdoor Vandal Dome

Color Day/Night Varifocal Vandal Dome

“Everyday” Camera

Features

560 TVL (Color) / 580 TVL (B/W)
DC Auto Iris 2.8-12mm Lens
Day/Night
Installers Video Output
3 Axis
On Screen Display (OSD)
Dual PowerDual Power
Waterproof & Vandal Proof

Specifications

Sensor: 1/3” Sony Super HAD CCD
Resolution: 560 TVL (Color) / 580 TVL (B/W)
Lens: 2.8-12mm DC Auto Iris
Scanning System: 2:1 Interlaced
Sync System: Internal
Illumination: 0.1 Lux
Video Output: 2 x BNC; 1.0Vp-p 75 ohmVideo Output: 2 x BNC; 1.0Vp-p 75 ohm
S/N: More than 45dB
Gamma: 0.45
Electronic Shutter: 1/60~1/100,000
BLC: Low / MIddle / High / Off
DNR: Low / Middle / High / Off
Day & Night: Auto / On
Power Supply: DC 12V / AC 24VPower Supply: DC 12V / AC 24V
Power Consumption: 200mA
Operating Temperature: +14 to +122 Degrees Farenheit / -10 to +50 Degrees Celsius
Dimensions: 6.0” x 4.5” (D) / 142 x 95mm (D)

Options

Horizontal Wall Mount for NVD-120 (WM-1)
Horizontal Ceiling Mount for NVD-120 (CM-1)

DCM120

DWM120
