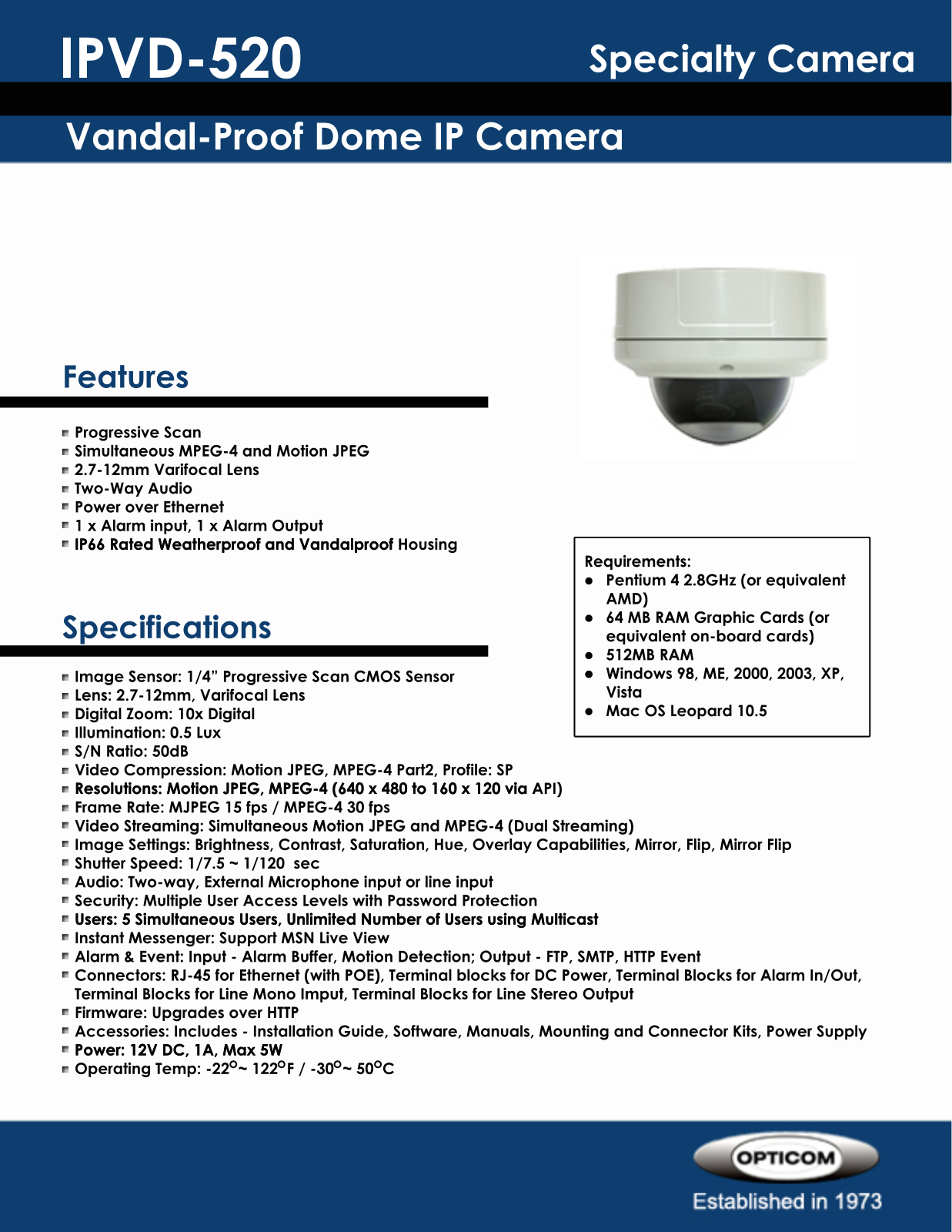

Opticom IPVD-520 DATASHEET

IPVD-520

Specialty Camera

Vandal-Proof Dome IP Camera

Features

Progressive Scan
Simultaneous MPEG-4 and Motion JPEG

2.7-12mm Varifocal Lens
Two-Way Audio
Power over Ethernet
1 x Alarm input, 1 x Alarm Output
IP66 Rated Weatherproof and Vandalproof HousingIP66 Rated Weatherproof and Vandalproof Housing

Requirements:



Pentium 4 2.8GHz (or equivalent

AMD)



Specifications

Image Sensor: 1/4” Progressive Scan CMOS Sensor
Lens: 2.7-12mm, Varifocal Lens
Digital Zoom: 10x Digital
Illumination: 0.5 Lux
S/N Ratio: 50dB
Video Compression: Motion JPEG, MPEG-4 Part2, Profile: SP
Resolutions: Motion JPEG, MPEG-4 (640 x 480 to 160 x 120 via API)Resolutions: Motion JPEG, MPEG-4 (640 x 480 to 160 x 120 via API)
Frame Rate: MJPEG 15 fps / MPEG-4 30 fps
Video Streaming: Simultaneous Motion JPEG and MPEG-4 (Dual Streaming)
Image Settings: Brightness, Contrast, Saturation, Hue, Overlay Capabilities, Mirror, Flip, Mirror Flip
Shutter Speed: 1/7.5 ~ 1/120 sec
Audio: Two-way, External Microphone input or line input
Security: Multiple User Access Levels with Password Protection
Users: 5 Simultaneous Users, Unlimited Number of Users using MulticastUsers: 5 Simultaneous Users, Unlimited Number of Users using Multicast
Instant Messenger: Support MSN Live View
Alarm & Event: Input - Alarm Buffer, Motion Detection; Output - FTP, SMTP, HTTP Event
Connectors: RJ-45 for Ethernet (with POE), Terminal blocks for DC Power, Terminal Blocks for Alarm In/Out,
Terminal Blocks for Line Mono Imput, Terminal Blocks for Line Stereo Output
Firmware: Upgrades over HTTP
Accessories: Includes - Installation Guide, Software, Manuals, Mounting and Connector Kits, Power Supply
Power: 12V DC, 1A, Max 5WPower: 12V DC, 1A, Max 5W
Operating Temp: -22 ~ 122 F / -30 ~ 50 C

64 MB RAM Graphic Cards (or

equivalent on-board cards)



512MB RAM

 

Windows 98, ME, 2000, 2003, XP,

Vista



Mac OS Leopard 10.5
