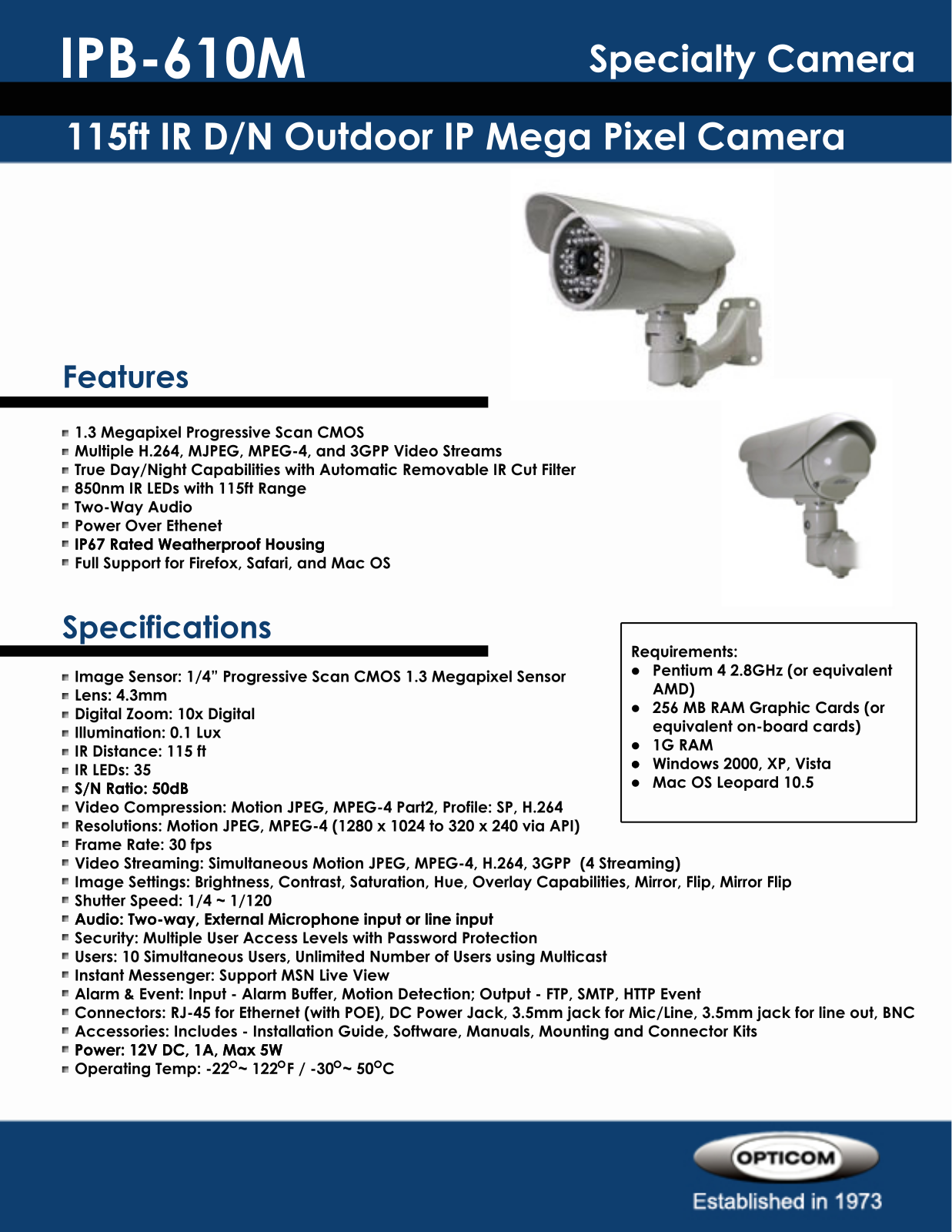

Opticom IPB-610M DATASHEET

IPB-610M

Specialty Camera

115ft IR D/N Outdoor IP Mega Pixel Camera

Features

1.3 Megapixel Progressive Scan CMOS
Multiple H.264, MJPEG, MPEG-4, and 3GPP Video Streams
True Day/Night Capabilities with Automatic Removable IR Cut Filter
850nm IR LEDs with 115ft Range
Two-Way Audio
Power Over Ethenet
IP67 Rated Weatherproof HousingIP67 Rated Weatherproof Housing
Full Support for Firefox, Safari, and Mac OS

Specifications

Requirements:



Image Sensor: 1/4” Progressive Scan CMOS 1.3 Megapixel Sensor
Lens: 4.3mm
Digital Zoom: 10x Digital
Illumination: 0.1 Lux
IR Distance: 115 ft
IR LEDs: 35
S/N Ratio: 50dBS/N Ratio: 50dB
Video Compression: Motion JPEG, MPEG-4 Part2, Profile: SP, H.264
Resolutions: Motion JPEG, MPEG-4 (1280 x 1024 to 320 x 240 via API)
Frame Rate: 30 fps
Video Streaming: Simultaneous Motion JPEG, MPEG-4, H.264, 3GPP (4 Streaming)
Image Settings: Brightness, Contrast, Saturation, Hue, Overlay Capabilities, Mirror, Flip, Mirror Flip
Shutter Speed: 1/4 ~ 1/120
Audio: Two-way, External Microphone input or line inputAudio: Two-way, External Microphone input or line input
Security: Multiple User Access Levels with Password Protection
Users: 10 Simultaneous Users, Unlimited Number of Users using Multicast
Instant Messenger: Support MSN Live View
Alarm & Event: Input - Alarm Buffer, Motion Detection; Output - FTP, SMTP, HTTP Event
Connectors: RJ-45 for Ethernet (with POE), DC Power Jack, 3.5mm jack for Mic/Line, 3.5mm jack for line out, BNC
Accessories: Includes - Installation Guide, Software, Manuals, Mounting and Connector Kits
Power: 12V DC, 1A, Max 5WPower: 12V DC, 1A, Max 5W
Operating Temp: -22 ~ 122 F / -30 ~ 50 C

Pentium 4 2.8GHz (or equivalent

AMD)



256 MB RAM Graphic Cards (or

equivalent on-board cards)



1G RAM

 

Windows 2000, XP, Vista



Mac OS Leopard 10.5
