Opticom Elite Series CMS User Manual
CMS
(Central Monitoring System)
USER’S MANUAL
For safe use of system and to prevent product failure or accident, please read this manual carefully
before use.
Central Monitoring System
CMS (Central Monitoring Software) is designed to control hundreds of local DVRs from the central
monitoring room.
Multiple DVRs are registered and monitored with maximum 128 split screens in a CMS. It can
draw the needed videos and effectively monitor the videos by extra monitoring function.
Especially, 16 E-MAP can be registered by multiple E-Map function and it provides the function
needed to monitoring such as automatic pop up etc per each event.
All the DVRs we provide are available to be monitored by CMS and it has functions to build the
central monitoring structure.
CMS presents advanced features as follows to fulfill effective central monitoring.
1. Multi-screen monitoring (Quadruple Display)
2. Maximum 1,024Ch display in one screen.
3. 16 E-MAP monitoring
4. Event Mapper : Special event caring windowns
5. Remote Search, Backup and full menu Setup
5. Dynamic IP support
6. Remote PTZ control
CMS User’s Manual
2
Central Monitoring System
CONTENTS
INTERODUCTION………………………………………………………………………………………………………………2
1. PC REQUIREMENT…….…………………………………………………………………………………………………..4
2. PROGRAM INSTALLATION……………….…………………………………………………………………………..5
3. CMS LOGIN………………………………………………………………………………….….……………..……………..6
4. MAIN GUI………………………………………………………………………………………..…………………………….7
5. DVR REGISTRATION………………………………………………………………...…….……………………………..8
6. DVR REGISTRATION, DELETE, MODIFICATION………...………………………………………………....9
7. DVR REMOTE CONNECTION/ DISCONNECTION………………………………………………………10
8. REGISTERED DVR LIST FUNCTION………………………………………………..……………………………11
9. MULTI-CHANNEL DISPLAY…………………………………….…………………………………………………..,12

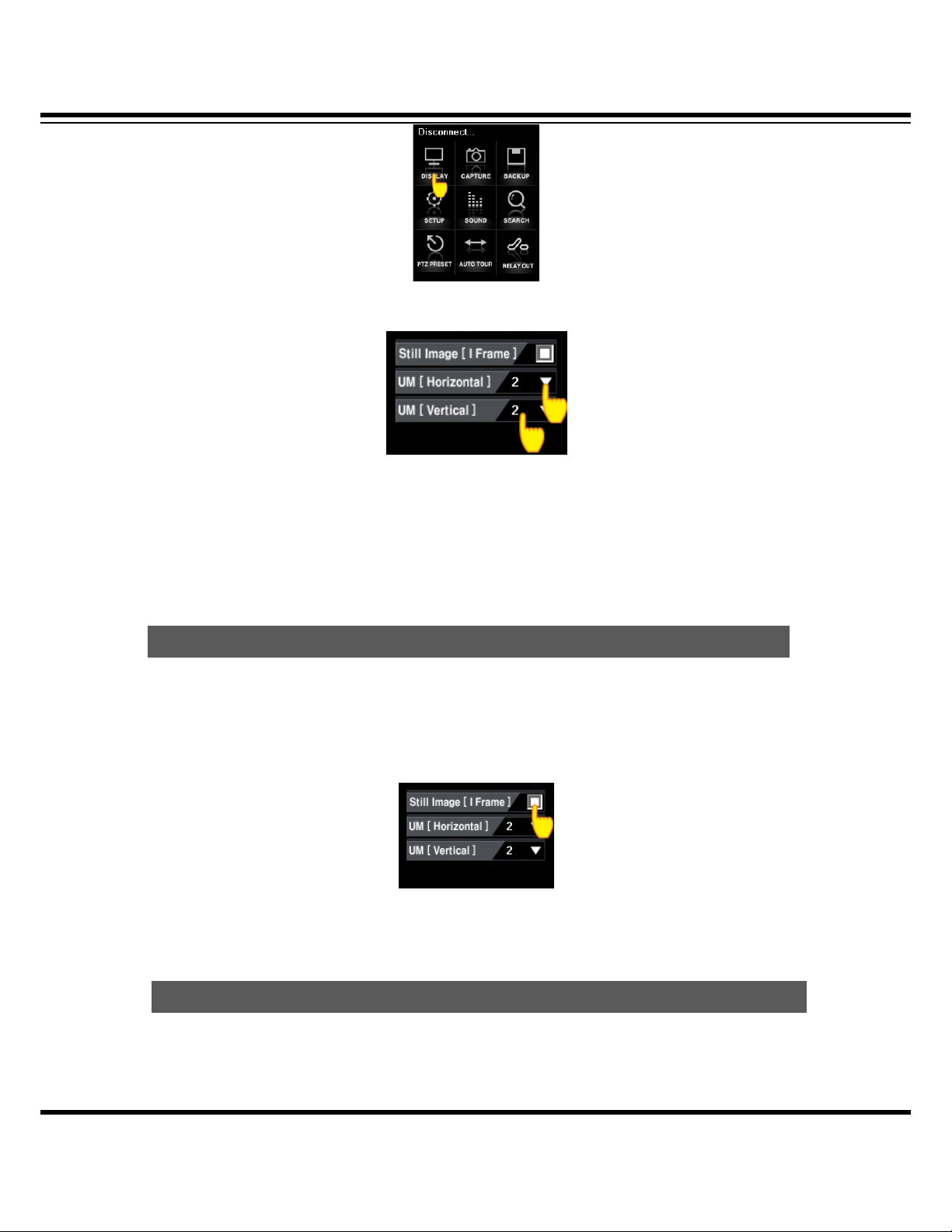

10. I FRAME STREAMING……………………………………………………………….……………….……………,.,14
11. CLONE………… …………………………………………………………………………………………………………….,,14
12. AUTO CON……………………………………………………………………………………………………….……..,,16
13. SEQ CON………………………………………………………………………………………………………….……...,16
14. SINGLE MODE....…………………………………………………………………………….…………….................17
15. EM(EVENT MAPPER)……………………………………………………………………………………..…….…...18
16. NASS(SCHEDULE BACKUP)……………………………………………………….……………………………..20
17. SCREEN CONTROL…………………………………………………………………..………………………………23

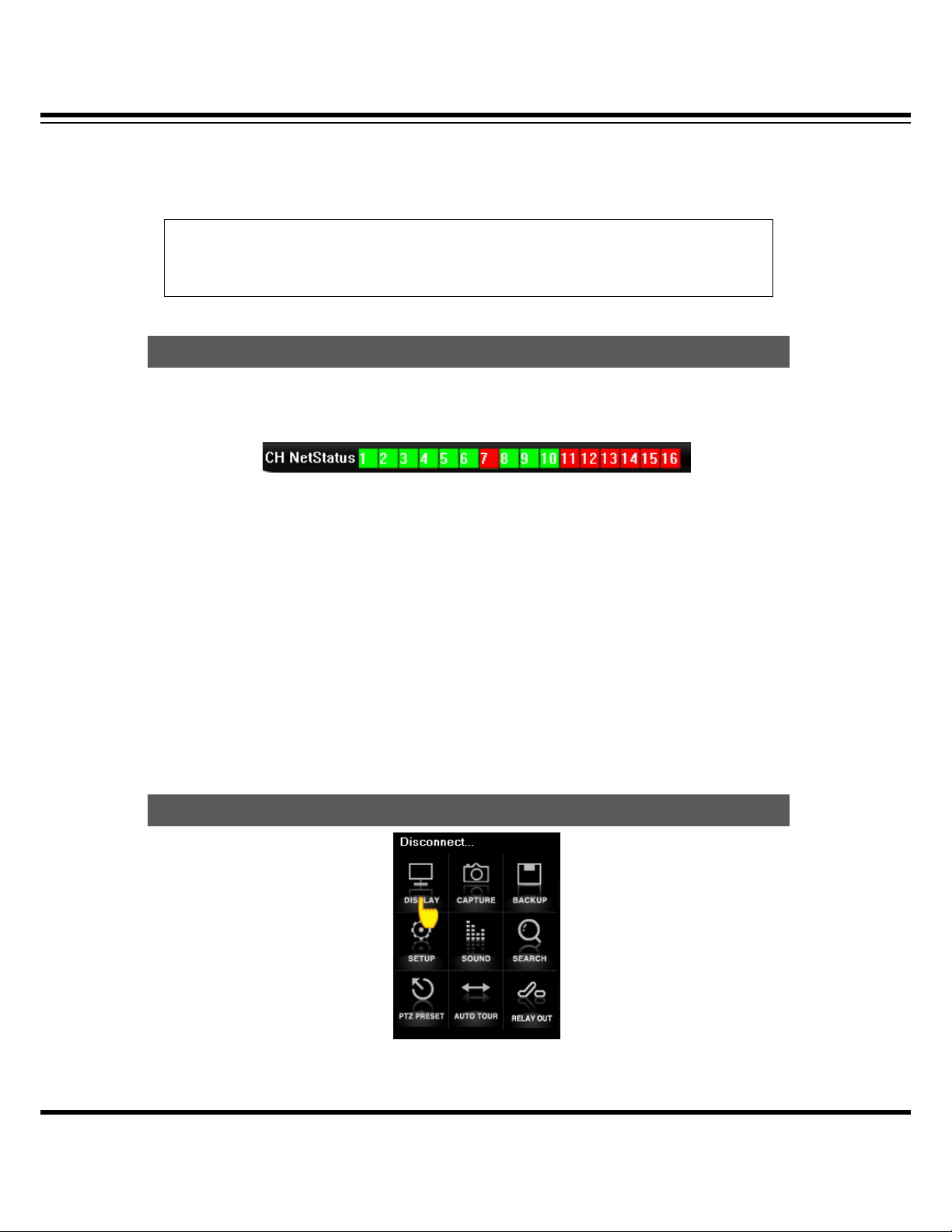

18. CH NET STATUS………………………….………………………………….……………………………….……….25
19. DISPLAY SETUP…………………………………………………………………………………………….…………..26
20. CAPTURE…………………………………….………………………………………………………….…….…………..26
21. BACKUP………………………………………………….………………………………………………………………...27
22. REMOTE SETUP…………………………………….………………………………………………………………….28
23. SOUND…………………………………………….…….…………………………………………………………………28
24. SEARCH………………………………….……….………………………………………………………………………...29

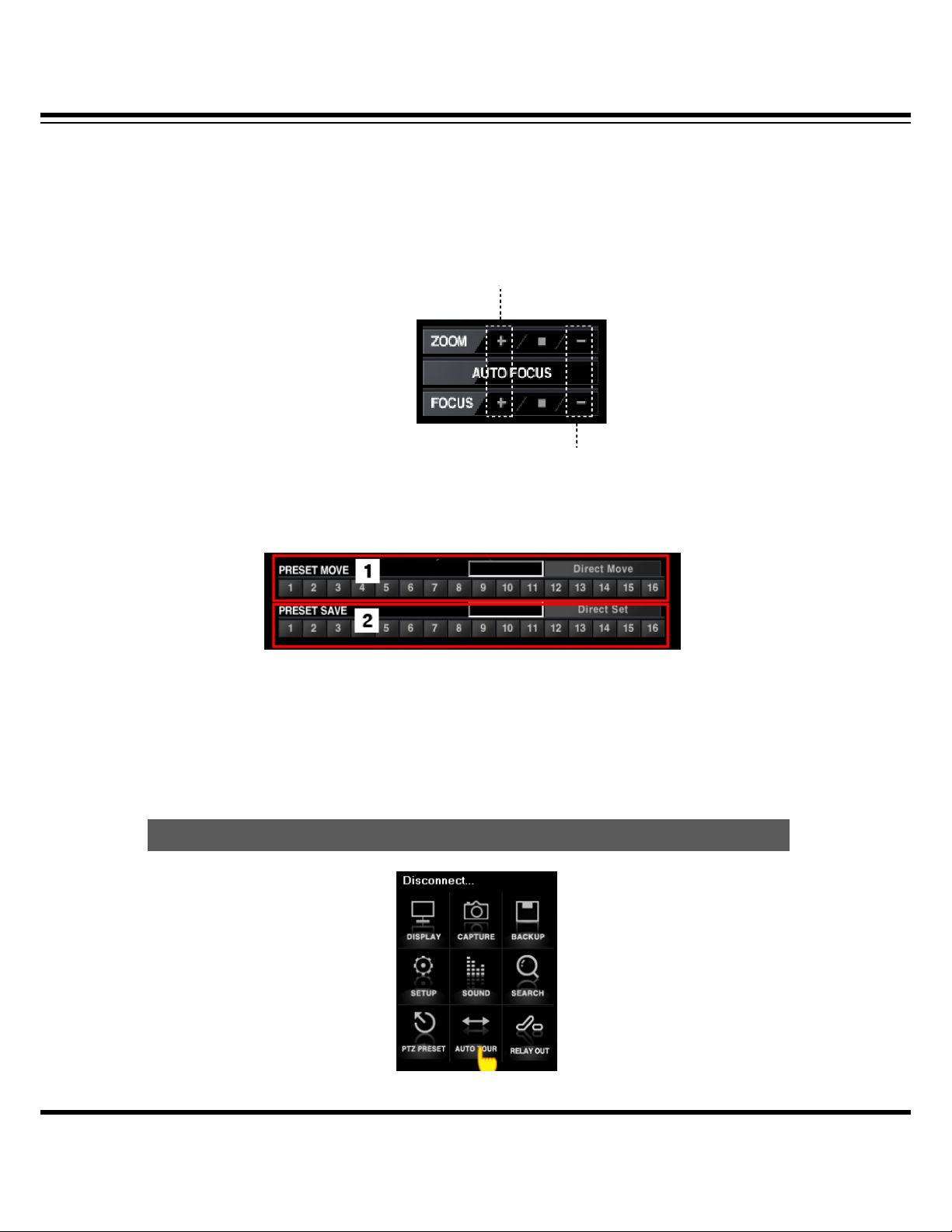

25. PTZ PRESET…………………………………………………………………………………………………………..……30
26. AUTO TOUR….……….……………………………….…………………………………………………….……...……32
27. RELAY OUT..…………………………………………………….………………………………………………………….33
28. E-MAP………..…………………………………………………….………………………………………………………….33
CMS User’s Manual
3
Central Monitoring System
1. PC REQUIREMENT
According to the PC specification and internet speed, the CMS function can be limited.
Minimum PC spec
ㆍ CPU : Pentium4 3GHz
ㆍ Memory : 1G
ㆍ VGA memory : 32M
ㆍ HDD : 10G
ㆍ OS: WINDOWS XP
ㆍ DirectX 9.0C
Recommended PC spec
ㆍ CPU : E6000
ㆍ Memory : 2G
ㆍ VGA memory : 256M
ㆍ HDD : 10G
ㆍ OS: WINDOWS VISTA
ㆍ DirectX 9.0C
QUAD(Quadraple display) Monitoring
Quadraple display is possible when the PC specification meets the requirements. It should be
possible to install the 2 VGA card.
[Note]
CMS function updates may need the enhanced PC specification.
4
CMS User’s Manual
Central Monitoring System
2. PROGRAM INSTALLATION
The installation CD is enclosed in product carton box. You may download the updated version in
future upon request.
[1] Execute the “install.exe” from the installation CD.
[2] If the installation program starts, execute the “CMS Program”. The language will be
recognized automatically. Install it as per popup messages
√ Read Me : Installation info is included.
√ Quick Install (Typical) : It installs all the programs in CD as an order.
√ CMS Program : It installs only the main CMS program.
√ MS Backup Viewer : It supports the playback of backup files.
√ Exit : It terminates the installation program.
☞ If the installation is completed, you can see the icon from the main screen. Please use
the program after rebooting your PC.
*Viewer program installation
If you backup the image from the DVR, the viewer program is saving together with the
image file but, if you didn’t save the viewer as an optional, you have to install the
viewer additionally on your PC.
CMS User’s Manual
5
Central Monitoring System
3. CMS LOGIN
If you click the CMS icon from the main screen on PC, below log-in window shows.
[1] The initial login password is NNNN. The login password is divided into 3 kinds of authority.
USER PASSWO RD AUTHORITY
ADMIN PASSWORD NNNN All function on CMS is possible to use
Except for the configuration (menu)
POWER USER PASSWORD PPPP
USER PASSWORD UUUU Only live monitoring is possible.
[2] CHANGE ADMIN PASSWORD : It changes ADMIN password “NNNN”
√ CHANGE POWER USER PASSWORD : It changes POWER USER password “PPPP”.
[Note] The authority for CMS is the top priority.
If you make the CMS log-in as ‘USER’, even if the DVR is logged-in as ADMIN,
you only can see the live image through CMS.
√ CHANGE USER PASSWORD : It changes USER password “UUUU”.
setup such as remote menu, E-Map,
DVR registration), all other function is
possible to use
6
CMS User’s Manual
Central Monitoring System
4. MAIN GUI
There are 9 control panels on main CMS screen.
[1] It shows CMS version.
[2] It shows CMS image pictures.
[3] DVR connection/ disconnection and registered DVR information.
[4] It is for DVR Setup, Search, Backup, PTZ control etc.,
[5] It changed the split mode.
[6] It is for the Registration, Delete or Modify the DVR information.
[7] It is for Schedule Backup, Auto Connection, Sequence etc.
[8] It shows network streaming status.
[9] It terminates the CMS.
7
CMS User’s Manual
Central Monitoring System
5. DVR Registration
[1] If you execute it for the first time, “no registered recording device. Do you want to register?”
message comes up. If you click “yes”, DVR registration menu opens. If you want to register the
DVR after click “NO”, select the “DVR INFO” located on right-upper side.
[Note] To register the DVR, CMS has to be logged on as ADMIN.
[2] When you register the DVR, static IP user and Dynamic IP user setup is different so, please
check it through your ISP.
STATIC IP USER
(Example)
√ DVR NAME : The name can be made as per user’s disposal
√ DVR ID : Input the same ID registered on the DVR.
√ DVR PASS : Input the same password registered on the DVR.
√ DVR IP : Input static IP of DVR ( If you don’t know, please check your ISP)
√ DVR PORT : Input the port number registered on the DVR.
√ DVR MODEL : Select the model name of the DVR you have.
√ USE DDNS and DDNS ID doesn’t have to be configured in STATIC IP setup.
√ When above process is finished, press the “ADD DVR” to complete the registration. Then, the
list shows up the DVR list located right side.
8
CMS User’s Manual
Central Monitoring System
DYNAMIC IP USER
(Example)
√ DVR NAME: The name can be made as per user’s disposal
√ DVR ID : Input the same ID registered on the DVR.
√ DVR PASS : Input the same password registered on the DVR.
√ DVR MODEL : Select the model name of the DVR you have.
√ DDNS PORT : Select it
√ DDNS ID : There is the own DDNS ID(Webcode) on each DVR. Please check from the DVR
menu and input it. (*Menu on DVR System Information Web code)
√ When above process is finished, press the “ADD DVR” to complete the registration. Then, the
list shows up the DVR list located right side.
6. DVR Registration, Delete and Modification
You can delete or modify the DVR registration info.
[1] Modify the DVR info
√ Select the DVR to be modified and click the “DVR INFO then, the relevant information show up
as below.
√ Once you modify the DVR information and click the “SAVE DVR”, the modified information is
saved.
(Example)
CMS User’s Manual
9
Central Monitoring System
[2] Delete DVR info
√ Select the DVR to be deleted and click the “DVR INFO then, the relevant information show up
as below.
√ Click the “DELETE DVR” from below DVR information menu.
(Example)
7. DVR Remote Connection/Disconnection
[1] DVR Remote Connection
There are two ways of DVR connection for remote monitoring.
Double click the DVR name from the LIST to connect DVR.
② Select the DVR from the list and click the “CONNECT” icon.
10
CMS User’s Manual
Central Monitoring System
[2] DVR Disconnection
√ Select the DVR list and click the “DISCONNECT”.
8. Registered DVR List
DVR registration list shows the registered DVR, connection status, camera connection information
etc.,
[1] DVR Information display
√ The “GP”, “G”, “H”, “HD” is the name of the DVR.
√ Alarm display : If the red alarm icon is blinking on the DVR list, it means the event
happened on the relevant DVR.
[2] Connection status display
√ If the DVR is connected or tries to connect, the icon is flickered.
(The icon flickers repeatedly)
[3] Alarm display
√ When an event is triggered, a red alarm icon is displayed on the DVR list. The event is
triggered by motion, sensor, video loss, HDD error, audio recording. The red alarm flickers
around 10 seconds and beeps as well.
CMS User’s Manual
11
Central Monitoring System
[4] If you click the “+” from the DVR list, you can see the camera information belongs to the
relevant DVR. Only blank-checked channel can see the image.(Default is checked all)
[5] Channel Covert
√ If you click the camera icon, it turns to “X” and the camera image doesn’t show up on CMS.
( It applies when it was re-connected)
√ It is nothing to do with the DVR unit but, it is concealing the image from the CMS itself.

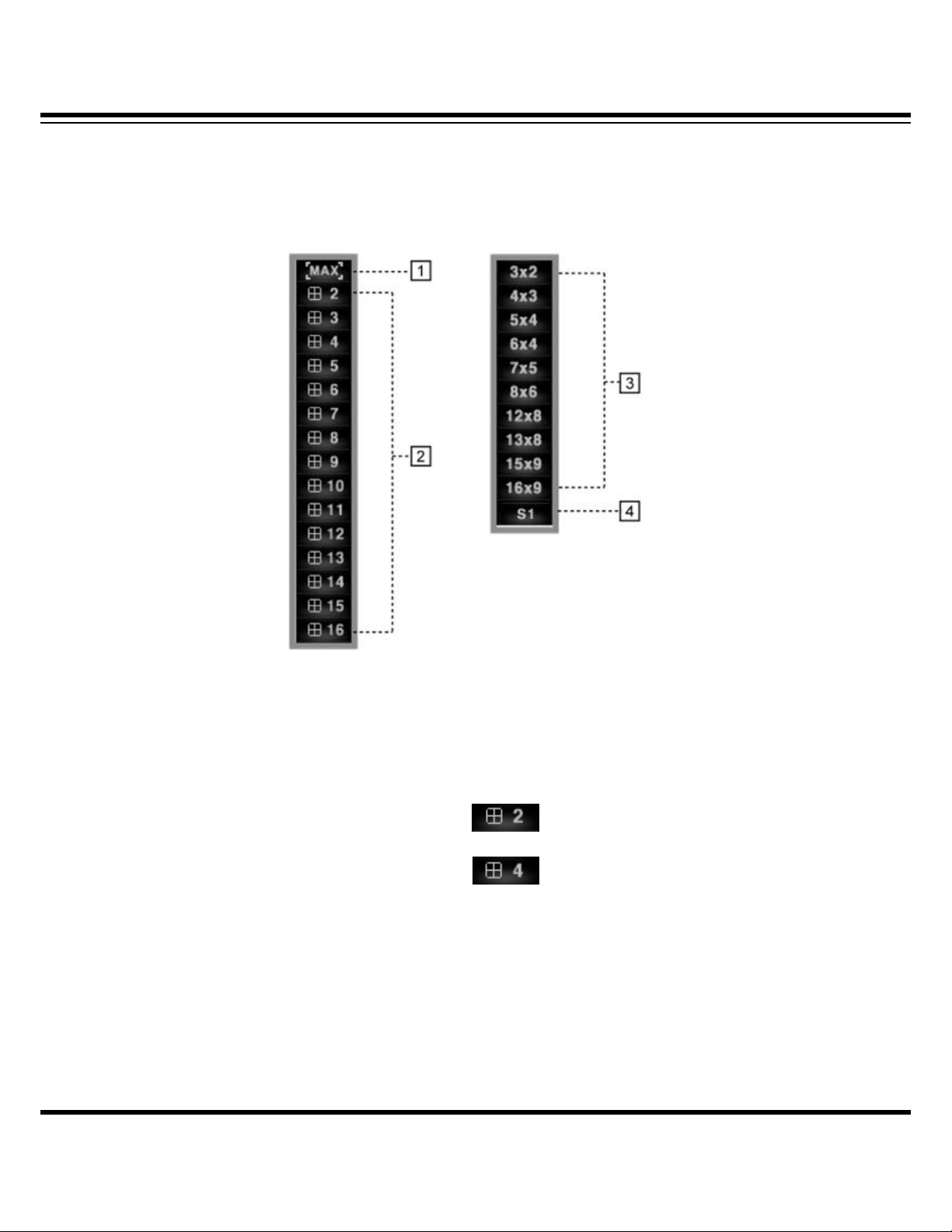

9. MULTI-CHANNEL DISPLAY
For multi-channel displaying in one screen when many DVRs are connected, it supports multi split
channel display mode. It is optimized in WIDE monitor as well.
12
CMS User’s Manual
