PHOTOELECTRIC DETECTOR
HARD-WIRED MODELS
ADVANCED MODELS
SL-200QDM
SL-350QDM
SL-650QDM
BASIC MODELS
SL-200QN
SL-350QN
SL-650QN
: 60m / 200ft.
: 100m/ 350ft.
: 200m/ 650ft.
: 60m / 200ft.
: 100m/ 350ft.
: 200m/ 650ft.
STANDARD MODELS
SL-200QDP
SL-350QDP
SL-650QDP
BATTERY OPERATED MODELS
STANDARD MODEL
SL-350QFR
BASIC MODEL
SL-350QNR
: 100m / 350ft.
: 100m / 350ft.
: 60m / 200ft.
: 100m/ 350ft.
: 200m/ 650ft.
Anyone can LOCK ON,
Automatically LOCK ON.
The IR transmitter and receiver must be perfectly aligned in order to achieve the optimal operation of the
photoelectric detector. However, a great deal of patience, time and effort is required to ensure that the
receiver is receiving the maximum amount of infrared signal possible from the transmitter.
Optex has the solution the SL series is designed to lighten your workload while achieving perfect alignment.
SNIPER VIEWFINDER
TM
X2 MAGNIFICATION LENS
The new telescope lens has a high level of
visibility for optical alignment work. Even over
long distances, a perfect installation and stable
performance can be achieved in a short period.
BEAM ALIGNMENT UNIT : BAU-4 (option)
The BAU-4 beam alignment unit
automatically and accurately adjusts
the optical axis. This allows peak
performance and gives one
technician the ability to install the
200 m (650 ft.) Smart Line detector
by himself.
first
THE world
OMATIC
AUT
BEAM ALIGNMENT
LED INDICATOR AND SOUND ASSIST
SL-QDM:TRANSMITTER AND RECEIVER
SL-QDP: RECEIVER only
The alignment level indicators have 5 LEDs, each LED represents the
level of alignment, ranging from poor to excellent. The optical alignment
level can also be checked by sound.
X2 magnification lensConventional model
HORIZONTAL
V
E
R
T
I
C
A
L
RECEIVERTRANSMITTER
UPPER/LOWER
BEAM SELECTION BUTTON
SL-QDM/SL-QDP only:
Optical alignment can be done without using a beam
blocking plate since the SL has upper/lower beam
selection button which enables to turn on and off the
upper and lower beam alternately in the installation mode.
TRANSMITTER AND RECEIVER
SHUT OUT ANY TROUBLES
Double Modulation Beam（SL-QDM/QDP only)
2nd Pulse
1st Pulse
Transmitter Receiver
The SL-QDM and SL-QDP series offer double modulation beams that differ in pulse
patterns. This can enhance signal discrimination against potential noise interference such
as sunlight or other external light sources, resulting in a reduction of missed or false alarms.
Together with OPTEX triple layered Sunshine Protection Technology, it ensures high
reliability under the severe outdoor security environment.
Sunlight
mercury-vapor lamp
QUAD BEAM & UNITED APPEARANCE
By employing quad beam, it dramatically reduces false alarm caused by birds and falling
leaves. Moreover, it is also important that the housing design of both long and short beams is
harmonised. 60m (200ft.) range models, SL-200QN/SL-200QDP/SL-200QDM with a wide
beam pitch is now available.
Smartline seriesConventional short beam
IP65 WATER/ DUST PROTECTION
Rubber seals is used for all conceivable
points where water or dust may
penetrate, such as wiring holes, wire
ports and the outer openings on chassis.
UV-resistant
POLY CARBONATE COVER
Front cover is not clouded by ultraviolet
ray during a long term. Therefore it will
maintain the transparency of IR beams.
SLIM BODY & LIGHT WEIGHT
20% reduction of the body size and 15%
reduction of the weight come together in
the SL series.
BEAM BLOCKING PLATE
The plate can firmly be fixed on the lens
unit without fear to be blown off by wind.
The plates can be stored in the back of
the front cover.
ANTI FROST DESIGN
(Hood design)
The hoods are positioned on both the
upper beam and the lower beam to
secure a high and stable beam power by
preventing frost from attaching to the
front cover.
VIVID INTERIOR COLOR
Easy-to-see vivid interior color for optical
alignment.
CONVENTIONAL SL series
ALIGNMENT DIAL
The alignment no longer requires a
screwdriver. All you need is touch with
your fingers for precise adjustment.
QUAD BEAM WITH
ASPHERICAL LENSES
The high-grade aspherical lens create
more sharply defined and precise active
infrared beams.
ENVIRONMENT RESISTANCE

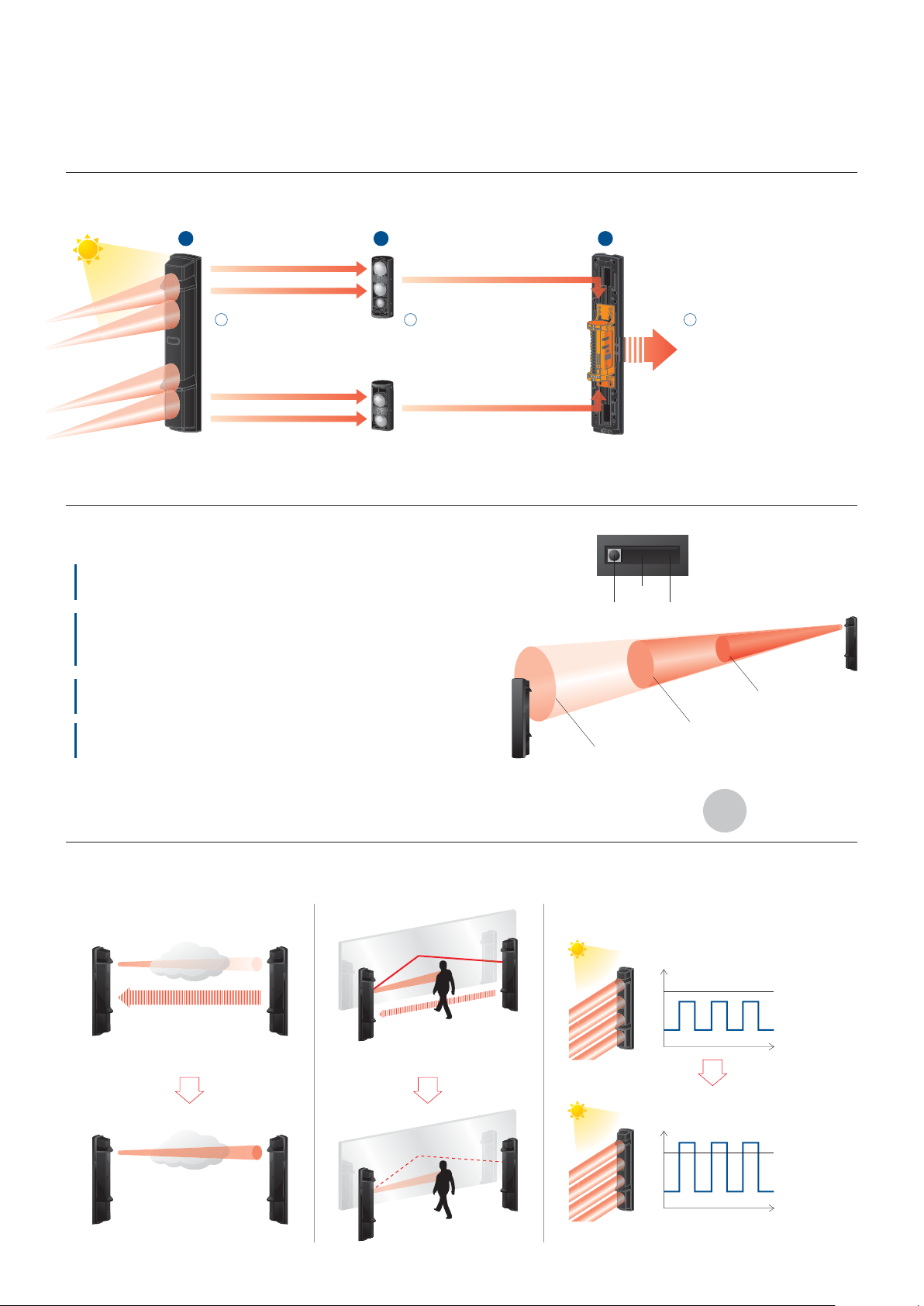

SUNSHINE PROTECTION TECHNOLOGY (SL-QDM/SL-QDP only)
The sunshine protection technology has a triple layer construction to give better performance against external light sources
(e.g.:The sun, mercury-vapour lamps, and fluorescent lights).
1 2
1 2 3
The front cover with
special filter materials
to remove visible
lights.
The photodiode
devices with IR bandpass
filter to transmit
only the same wavelength
of the IR beams.
BEAM POWER CONTROL SELECTOR (SL-QDM/SL-QDP only)
The beam power control selector allows you to manually adjust beam power from
NORMAL to LOW or VERY LOW. This function is effective for the following purposes:
For countermeasure against crosstalk due to reflection of
wall or floor by reducing beam power.
For countermeasure against interference due to unstable
S/N (signal / noise) ratio when using multiple photo beams
for long distance or beam stacking applications.
NORMAL
3
The light disturbance
compensation circuit
differentiates original
double modulated beams
from other external light
sources.
LOW
VERY LOW
To reduce beam power when using the detector
for a distance shorter than the rated distance.
To search the peak value when making optical
alignment to support perfect alignment.
NORMAL
A.T.P.C.-AUTOMATIC TRANSMIT POWER CONTROL (SL-QDM only)
Automatically controls, adjusts and optimizes the power of the beam and maintains optimal performance.
It decreases false and missed alarms caused by fog, frost, cross talk, and signal saturation.
Decreased beam power
because of dense fog
FOG
TX
Transmit power control signal
RX
POWER UP
Boost beam power
Caused over beam power by
the reflection from wall
TX
Transmit power control signal
POWER DOWN
Reduce beam power to avoid
unnecessary reflection
Decrease signal level (Signal saturation)
due to rising sun or sunset which enter to the receiver
at the same angle as the transmitted IR beams.
signal level
RX
Increase signal level to avoid signal saturation
signal level
LOW
Patent
pending
VERY LOW
Sun(noise)
IR Beams(signal)
Time
Sun(noise)
Beam Power UP
TX RX
IR Beams(signal)
RX
TX
Beam Power DOWN
Time

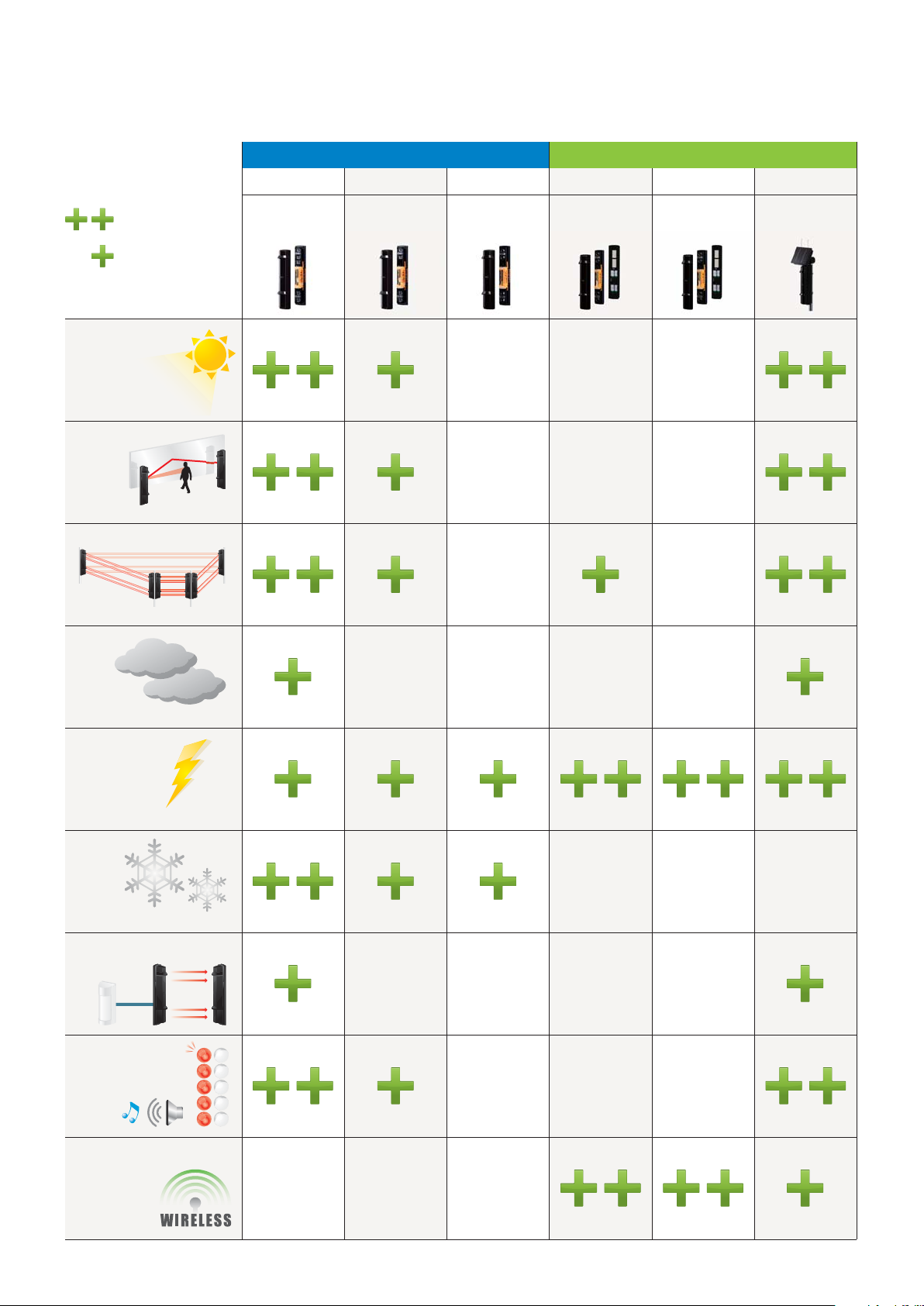

SELECTION GUIDE
Most appropriate
Appropriate
LIGHT
DISTURBANCE
(Expected impact :False alarm)
REFLECTION
(Expected impact :Missed alarm)
INTERFERENCE
HARD-WIRED MODELS
ADVANCED STANDARD BASIC STANDARD BASIC
SL-200QDM
SL-350QDM
SL-650QDM
SL-200QDP
SL-350QDP
SL-650QDP
SL-200QN
SL-350QN
SL-650QN
BATTERY OPERATED MODELS
SL-350QFR SL-350QNR
SOLAR
BATTERY
SBU-4+
SL-QDM series
(Expected impact :Missed alarm)
FOG
(Expected impact :False alarm)
LIGHTNING
(Expected impact :Unit damage)
FROST
(Expected impact :False alarm)
RE-TRANSMISSION
FUNCTION
LED INDICATOR
AND
SOUND ASSIST
WIRELESS
(BATTERY OPERATED)

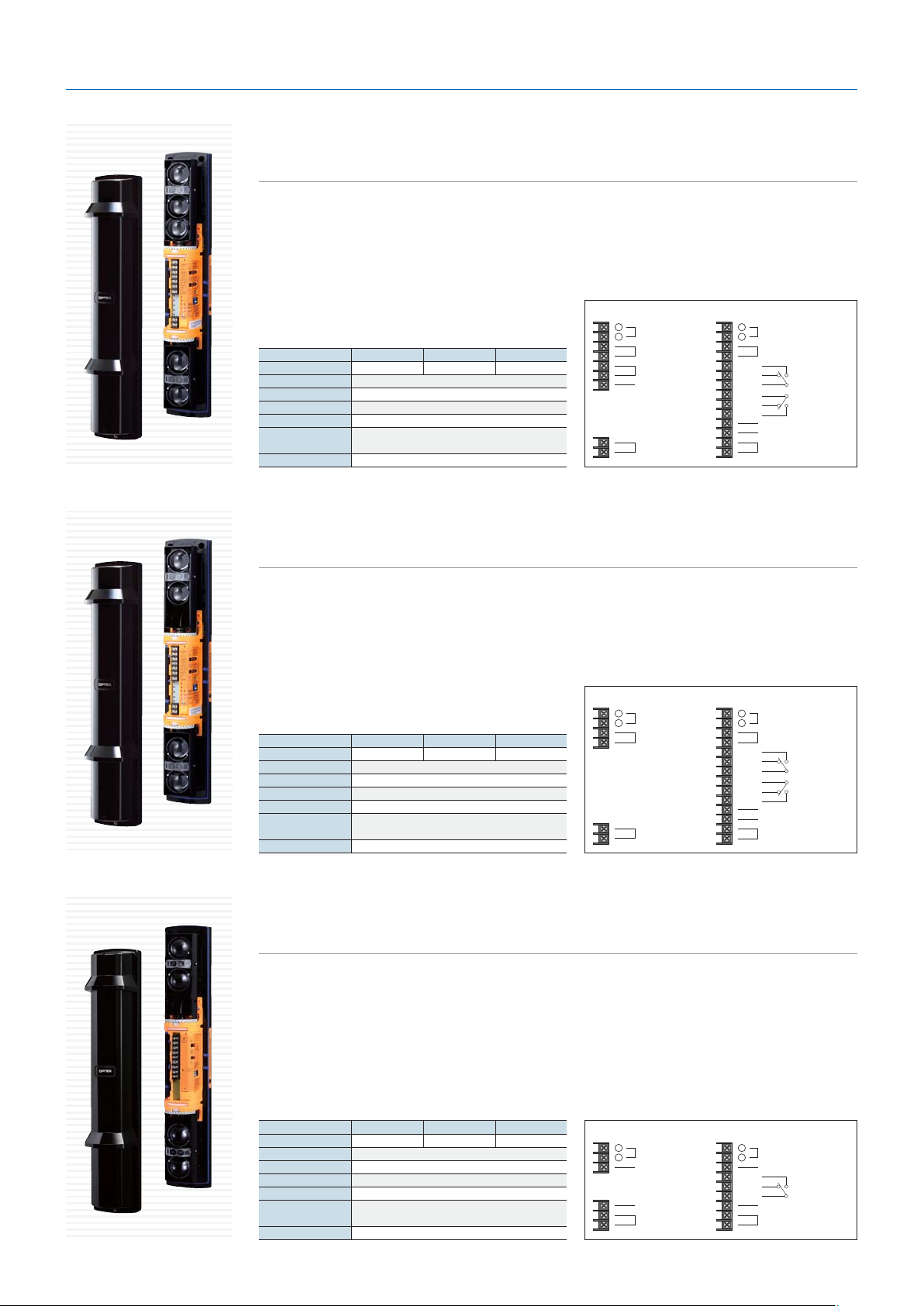

HARD-WIRED MODELS
ADVANCED MODEL
SL-200QDM/350QDM/650QDM
FEATURES
・Highpowerquadbeam
・Doublemodulation
・Beampowercontrolselector
・A.T.P.C.-Automatictransmitpowercontrol
・I.A.S.C.-Integratedalignmentstatuscommunication
・Upper/lowerbeamselectionbutton
・Beampowercontrolselector
・Solarbatteryunit(Option:SBU-4)
Specifications
Model
Detection range
Beam frequencies
Current consumption
Ambient temperature
Water protection
Dimensions
H х W х D
Weight
STANDARD MODEL
SL-200QDM
60m/200ft.
SL-350QDM
100m/350ft.
4ch selectable
Normal 26mA/Max. 60mA
-35°C - +60°C (-30°F - 140°F)
IP65
448 (17.6) x 79 (3.1) x 96 (3.8) mm(inch)
2500 g(88.2oz)
SL-650QDM
200m/650ft.
POWER INPUT
＋
10.5-30VDC [Normal]
−
3.6VDC [SBU-4]
SPARE
ALARM INPUT
LOW BATTERY INPUT
(using with SBU-4)
TAMPER
OUTPUT (N.C.)
RECEIVERTRANSMITTER
＋
−
N.O.
N.C.
COM.
N.O.
N.C.
COM.
POWER INPUT
10.5-30VDC [Normal]
3.6VDC [SBU-4]
SPARE
D.Q.OUTPUT/
LOW BATTERY
OUTPUT
ALARM OUTPUT
ALARM MEMORY INPUT
LOW BATTERY INPUT
(using with SBU-4)
TAMPER OUTPUT(N.C.)
SL-200QDP/350QDP/650QDP
FEATURES
・Highpowerquadbeam
・Doublemodulation
・Upper/lowerbeamselectionbutton
・Beampowercontrolselector
＋
POWER INPUT
10.5-30VDC
Specifications
Model
Detection range
Beam frequencies
Current consumption
Ambient temperature
Water protection
Dimensions
H х W х D
Weight
BASIC MODEL
SL-200QDP
60m/200ft.
SL-350QDP
100m/350ft.
SL-650QDP
200m/650ft.
4ch selectable
Normal 17mA/Max. 24mA
-35°C - +60°C (-30°F - 140°F)
IP65
448 (17.6) x 79 (3.1) x 96 (3.8) mm(inch)
2400g(84.6oz)
−
SPARE
TAMPER
OUTPUT (N.C.)
SL-200QN/350QN/650QN
FEATURES
・Highpowerquadbeam
・ Smart design
- Slim body
- Vivid interior color
RECEIVERTRANSMITTER
＋
−
N.O.
N.C.
COM.
COM
N.C.
N.O.
POWER INPUT
10.5-30VDC
SPARE
D.Q.OUTPUT
ALARM OUTPUT
ALARM MEMORY INPUT
SPARE
TAMPER OUTPUT(N.C.)
Specifications
Model
Detection range
Beam frequencies
Current consumption
Operating temperature
Water protection
Dimensions
H х W х D
Weight
SL-200QN
60m/200ft.
SL-350QN
100m/350ft.
SL-650QN
200m/650ft.
-
38-40mA
-25°C - +60°C (-13°F - 140°F)
IP65
448 (17.6) x 79 (3.1) x 96 (3.8) mm(inch)
2400g(84.6oz)
＋
−
POWER INPUT
10.5-30VDC
SPARE
SPARE
TAMPER
OUTPUT (N.C.)
RECEIVERTRANSMITTER
＋
POWER INPUT
10.5-30VDC
−
SPARE
N.O.
N.C.
COM.
SPARE
TAMPER OUTPUT(N.C.)
ALARM OUTPUT

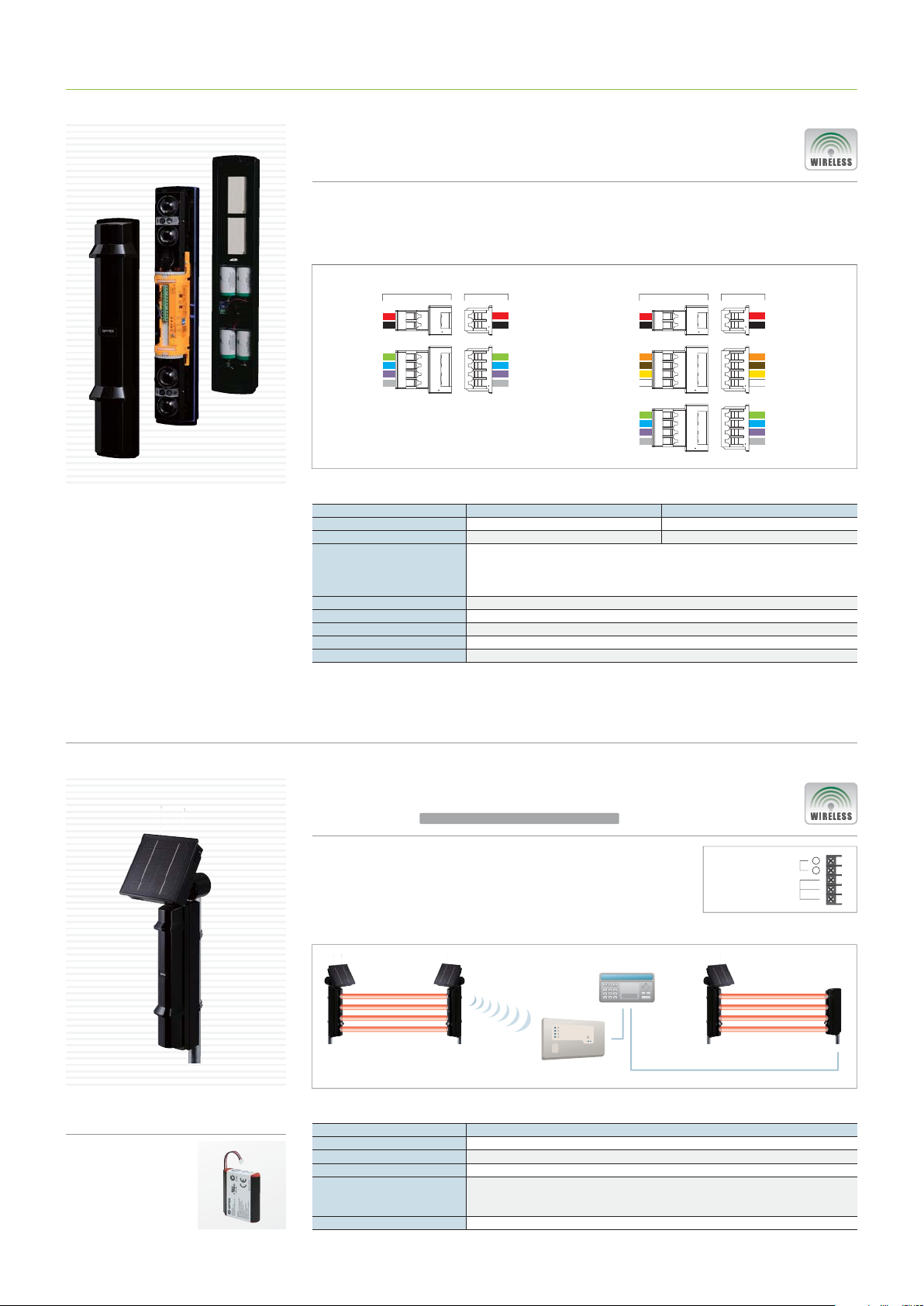

BATTERY OPERATED MODELS
NO WIRING for POWER,
NO WIRING for SIGNAL.
STANDARD MODEL
SL-350QFR
FEATURES
・ Long distance 100m / 350ft.
・ Long battery life - 4 to 8 years
・ Spacious back box for wireless transmitter
TRANSMITTER
Specifications
Beam frequencies
Current consumption
Operating temperature
Dimensions H х W х D
Main unit Back box
Model
Detection range
Power source
Water protection
Weight
Power input (+)
Power input (-)
Low Battery output
Low Battery output
Tamper output
Tamper output
BASIC MODEL
SL-350QNR
RECEIVER
SL350QFR
100m/350ft.
4ch selectable
Recommend: 3.6 V, 13.0Ah
LSH20 lithium batteries manufactured by SAFT
Operating range: 3.2 V - 4.0 V lithium batteries
Transmitter: 2 or 4 units, Receiver: 2 or 4 units
-20°C - +60°C (-4°F - 140°F)
452 (17.9) x 83 (3.3) x 138 (5.4) mm(inch)
Main unit Back box
745μA
IP65
3300 g
Power input (+)
Power input (-)
DQ output
DQ output
Alarm output
Alarm output
Low Battery output
Low Battery output
Tamper output
Tamper output
SL-350QNR
100m/350ft.
-
OPTION
LONG DISTANCE 200m,
WIRELESS READY.
＊The detector is sold separately.
Replacement battery
Rechargeable Li-ion Battery Pack
LB-4
Approx. 2900 mAh
SOLAR BATTERY UNIT (OPTION)
SBU-4
for SL-200QDM/SL-350QDM/SL-650QDM only
FEATURES
・ Small size and light weight Li-ion battery pack
・ Long battery life - Non-sunshine days : approx. 7 days
・ Spacious back box for wireless transmitter
・ Battery common use unit (BCU-4 option)
・ Anti-bird needle Included
WIRELESS RECEIVER
Specifications
Model
Recharging time
Charging battery protection circuit
Low battery output
Alignment angle
Mounting
Approx. 1 hour on sunshine day Approx. 6 hours on cloudy day
Charging is suspended at approx. -5°C or less,or approx. 60°C or more.
Form C relay: 28 VDC, 0.2 ALow battery detection voltage: 3.4 V
LOW BATTERY OUTPUT
HARD-WIRED PANEL
OK NG
ENTER
SBU-4
Horizontal : ±180°（30-degree pitch）
Vertical : +15 - +90° (5 °pitch）
Under eave mounting：+0 - +55°（5° pitch）
Wall/horizontalsurface/pole
POWER INPUT
＋
−
VARIOUS OPTIONS
Anti Bird Cap ABC-4
for all models
Prevents birds and small animals from sitting
on the detector. Protects the front of the
Back Cover BC-4
for all models
Conceals the back side of a
pole mounted detector.
detector from excessive rain and snow.
Heating Unit HU-3 Solar Battery Unit SBU-4
for Hard-wired models
Power input
Current draw
Thermo switch
24VAC/DC
420mA(max.) (Per 1 unit)
60°C (140°F)
for SL-QDM only for SL-QFR/QNR only
Supplies power by high efficiency solar battery.
Li-ion rechargeable battery and Anti-Bird
Needles are included.
Pole Side Cover PSC-4
for all models for all models
Conduit Bracket CBR-4
Conceals the gap between
two pole mounted detectors
in back to back.
Patent
pending
Extension Cable with Connector EC-4
Extension cables
between the back box
and the main unit.
When installing in a
beam tower.
SHORT RANGE MODELS
AX-100TFR/200TFR
BATTERY OPERATED PHOTOELECTRIC DETECTOR
AX-100TFR : Detection range 30m / 100ft.
AX-200TFR : Detection range 60m / 200ft.
Battery Common Unit BCU-4
for SL-QFR/QNR AX-TFR only
Shares power source and
low battery signals
between the main unit and
the wireless transmitter.
Input voltage
Current draw
Output voltage
Output current
Operating temperature
Operating humidity
3.2 - 4.0 VDC
Approx. 5 μA at 3.6 VDC (no load)
Normal
Low battery
Approx. 2.3 - 3.6 VDC
Approx. 2.0 - 2.6 VDC
100 mA (max.)
-20°C - +60°C (-40°F - +140°F)
95% (max.)
Cable length: 500 mm (19.7 inch)Wall mount Pole mount
Beam Alignment Unit BAU-4
for all models
Aligns optical axis automatically.
(SL-QDP/QN/QFR/QNR: applicable to receiver only)
Patent
pending
AX-70TN/130TN/200TN
SHORT RANGE PHOTOELECTRIC DETECTOR
AX-70TN : Detection range 20m / 70ft.
AX-130TN : Detection range 40m / 130ft.
AX-200TN : Detection range 60m / 200ft.
AX-100TF/200TF
4ch. BEAM FREQENCIES SELECTABLE MODELS
AX-100TF : Detection range 30m / 100ft.
AX-200TF : Detection range 60m / 200ft.
OPTEX INC. (U.S.)
URL: http://www.optexamerica.com/
OPTEX DO BRASIL LTDA. (Brazil)
URL: http://www.optex.net/br/es/sec/
OPTEX (EUROPE) LTD. / EMEA HQ (U.K.)
URL: http://www.optexeurope.com/
OPTEX CO., LTD. (JAPAN)
URL: http://www.optex.net/
OPTEX TECHNOLOGIES B.V.
(The Netherlands)
URL: http://www.optex.nl/
OPTEX SECURITY SAS (France)
URL: http://www.optex-security.com/
OPTEX SECURITY Sp.z o.o. (Poland)
URL: http://www.optex.com.pl/
OPTEX PINNACLE INDIA, PVT., LTD. (India)
URL: http://www.optex.net./in/en/sec/
OPTEX KOREA CO.,LTD. (Korea)
URL: http://www.optexkorea.com/
OPTEX (DONGGUAN) CO.,LTD.
SHANGHAI OFFICE (China)
URL: http://www.optexchina.com/
No. 77043‐01‐15747‐1405
Loading...
