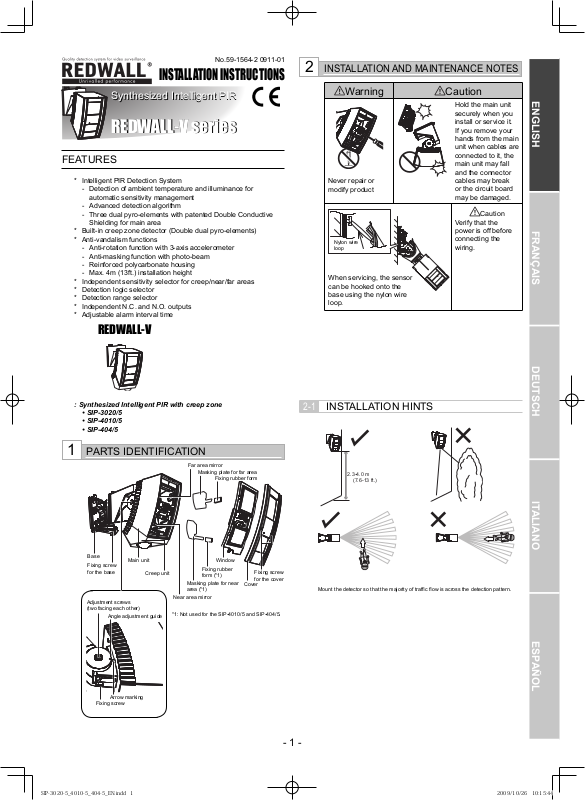

INSTALLATION INSTRUCTIONS

INSTALLATION AND MAINTENANCE NOTES

Synthesized Intelligent PIR

Synthesized Intelligent PIR

REDWALL-V series

REDWALL-V series

FEATURES

* Intelligent PIR Detection System

- Detection of ambient temperature and illuminance for
automatic sensitivity management

- Advanced detection algorithm

- Three dual pyro-elements with patented Double Conductive
Shielding for main area

* Built-in creep zone detector (Double dual pyro-elements)
* Anti-vandalism functions

- Anti-rotation function with 3-axis accelerometer

- Anti-masking function with photo-beam

- Reinforced polycarbonate housing

- Max. 4m (13ft.) installation height

* Independent sensitivity selector for creep/near/far areas
* Detection logic selector
* Detection range selector
* Independent N.C. and N.O. outputs
* Adjustable alarm interval time

REDWALL-V

Warning Caution

Never repair or
modify product

Nylon wire
loop

When servicing, the sensor
can be hooked onto the
base using the nylon wire
loop.

Hold the main unit
securely when you
install or service it.
If you remove your
hands from the main
unit when cables are
connected to it, the
main unit may fall
and the connector
cables may break
or the circuit board
may be damaged.

Caution
Verify that the
power is off before
connecting the
wiring.

ENGLISH FRANÇAIS DEUTSCH ITALIANO ESPAÑOL

: Synthesized Intelligent PIR with creep zone

SIP-3020/5

•
SIP-4010/5

•
SIP-404/5

•

1

PARTS IDENTIFICATION

Far area mirror

Masking plate for far area

Base

Fixing screw
for the base

Adjustment screws
(two facing each other)

Main unit

Creep unit

Angle adjustment guide

Masking plate for near
area (*1)

Near area mirror

*1: Not used for the SIP-4010/5 and SIP-404/5.

Fixing rubber form

Window

Fixing rubber
form (*1)

Fixing screw
for the cover

Cover

2-1

INSTALLATION HINTS

2.3-4.0 m
(7.6-13 ft.)

Mount the detector so that the majority of traffi c fl ow is across the detection pattern.

Arrow marking

Fixing screw

- 1 -

3

INSTALLATION AND ANGLE ADJUSTMENT

3-1

Wall Mounting

Attach the paper template (an accessory) onto the wall,

(1)

and drill a 6-mm dia. mounting hole and a cabling hole.
Insert the anchor bolt (an accessory) into the board mount
hole.

Distance from the ground to
the bottom of the template
must be between 2.3 m (7.6 ft.)
and 4 m (13 ft.).

Using an allen key, remove the main unit from the base.

(2)

4 Pull out.

2 Open.

3-2

Inside View of the Base

Main unit connector

Wall mounting hole

Wall mounting hole

Bushing of wiring
hole

Base

Waterproof seal
(Do not remove
this seal.)

Wiring terminals

Bushing of wiring
hole

Open wiring cap

1 Loosen the

fi xing screw
for the
base.

(3)

Drill through the bushing of the wiring hole, pass the cable
through the hole, and secure the base to the wall.

(4)

Connect the cable to the terminal block (see Step 3-3).

(5)

Mount the main unit onto the base.

1 Insert and

secure here.

Nylon
wire
loop

3 Unplug

4 Tighten and

3 Close.

2 Connect the

connector.

Cautions>>

When mounting the main unit, take care not to trap the
nylon wire loop. Also, take care not to get your fingers
caught.

(6)

Check to see that the various settings and operations are
correct.

Caution>>

When the red LED flashes after the power turns on,
this signifies that the system is warming up. Wait for
approximately 60 seconds.

the cable
connector.

secure the
fi xing screw
for the base.

- 2 -

3-3

WIRING

POWER INPUT

TAMPER OUTPUT *1

ALARM OUTPUT (N.C.)

ALARM OUTPUT (N.O.)

*1: TAMPER terminals to be connected to a 24 hour supervisory loop.

Name Function

Trouble out is used for anti-masking signal. When

TROUBLE

OUTPUT

TAMPER
OUTPUT

an object is placed close to the lens surface, for a
period of more than 20 seconds (approx.), the IR
anti-masking circuit will activate and generate a
trouble signal.

It is detected when the cover is opened.
It is detected when the main unit is removed from

its base.
Anti-Rotation:

Damage sustained by the main unit is detected.
When the system power switch is turned on while
the cover is closed, the mounting position of the
main unit itself will be determined and stored in
memory after approximately 10 seconds. Then,
if the main unit is impacted in a horizontal or
vertical direction and if the position of the main
unit has changed, damage sustained by the main
unit will be detected. However, if you remove the
cover while keeping the system power turned on,
and if you close the cover again after correcting
the position of the main unit, the new position
of the main unit will be stored in memory after
approximately 10 seconds.

TROUBLE OUTPUT

SPARE

CREEP
ALARM OUTPUT (N.C.)

ALARM OUTPUT (N.O.)

D

Power wires should not exceed the following lengths.

WIRE SIZE

0.33 mm
(AWG22)

0.52 mm
(AWG20)

0.83 mm
(AWG18)

4

2

2

2

DETECTION AREA SETTING

You can adjust the detection area by 90 degrees in a horizontal
direction and by 10 degrees in a vertical direction.
Correct the vertical detection angle according to the mounting
height of the sensor unit.

Applicable
models

SIP-3020/5, SIP-4010/5, SIP-404/5

12V DC 14V DC 24V AC

480

(1570)

760

(2490)

1210

(3970)

SIP-3020/5 SIP-4010/5 SIP-404/5

640

(2100)

1010

(3310)

1610

(5280)

1370

(4490)

2160

(7090)

3450

(11320)

m (ft.)

SIP-3020CAM

4-1

Main Detection Area Setting

Adjust the angle of the main unit in a horizontal direction so

(1)

that you can cover the desired detection area.

1 Loosen the fi xing screw

for the base.

Adjust the angle of the main unit in a vertical direction so

(2)

that you can cover the desired detection area.

3 Rotate the main unit.

2 Loosen the adjustment screw.
4 Tighten the adjustment screw slightly.

Align the arrow of the main
unit with the “Angle adjustment
guide” of the adjustment
screw. The main unit is usually
adjusted within the width of this
guide.

When mounted at a height of

2.3 meters (7.6ft.)

ENGLISH FRANÇAIS DEUTSCH ITALIANO ESPAÑOL

10°

10°

90°

90°

Cautions>>

To rotate the main unit counterclockwise, loosen the
RHside adjustment screw. To rotate the main unit
clockwise, loosen the LH-side adjustment screw.
Otherwise, you may find it difficult to tighten or you may
find that you cannot tighten the adjustment screw when
you are securing the main unit.

Adjustment
screw

To rotate the unit counterclockwise

To rotate the unit clockwise

When mounted at a height of

4.0 meters (13ft.)

Cautions>>

If the mounting wall is at an angle, the arrow of the
main unit may exceed the top or bottom limit of “Angle
adjustment guide”. Always check this using the area
viewfinder or the walk tester. If the detection area is
too high or too low, an object outside the detection
area may be detected or incorrect object detection may
occur.

Remove the cover.

(3)

Hooks

3 Slide the cover downward

and release the hooks.

1 Loosen two fi xing screws for

the cover and pull out the
cover until it stops.

Cover

2 Hold the heads of both cover fi xing screws with your

hands, and pull down and remove the bottom section
of the cover from the main unit.

Cautions>>

The cover is linked to the main unit by nylon wire loop so
that the cover does not fall. Do not pull the cover using
excessive force.

- 3 -

Mount the area viewfinder.

(4)

Put the red string

1

round the main unit.

Red string to
hold the main unit

Center circle
of the lens

2

Insert and
mount to
the main
unit.

Area viewfi nder AVF-1 (optional)

Inspection window

Mounting tips>>

Engage the convex section of the area viewfi nder fi xing

•
arms with the notches of the main unit, and insert and
mount the arms.

Sens.Select.SW.Sens.Select.SW.

57310505731050

Far areaFar areaNear areaNear area Creep zoneCreep zone

AlarmAlarmCreepCreep

UP DWN

Notch

Mount the area plate so that an arrow of the plate

•
center section faces upward and the letter surface can
be seen.
Insert the area plate into the top and bottom grooves of

•
the area viewfi nder until the plate is stopped by the ribs.

SIP-3020/5 SIP-4010/5

Arrow
marking

Determine the

3

detection direction

(see Step 5-

Grooves

Area plate
(an accessory)

* Peel off the

protection
seal from both
faces of the
area plate.

4

Insert the area
plate into the slot.

1).

Fixing arms

Convex
section

4010 (521204)

3 Locate the center circle of the area

plate on the center circle of the lens
of the area viewfi nder, and check the
detection area pattern on the area
plate and the background image.
* Each letter on the area plate

corresponds to each mirror number
(see Step 8-2).

* You cannot observe mirror

numbers B1 to F1 and B6 to F6
(shown at right) of the SIP-3020
area plate through the inspection
window. Check them using the
walk tester.

Invisible area

Center circle of the lens

Center circle of the
area plate

The detection area is
inside the frame
border.

Adjusting tips>>

If you experience any of the following, see Step 10.

Limit line of

detection area
The sensor area is extended
over the street where a person
walks or a car drives.

Branches of a tree and grass
move when the wind blows.

Cautions>>

•

The area viewfi nder is a supporting tool for detection
area adjustment.

•

After you have adjusted the detection area using the
area viewfi nder, always check the area using the walk
tester.

•

Never look directly into the sun through the area
view fi nder.

•

After you have used the area viewfi nder, store it away
from direct sunlight.

(6)

Securely tighten the adjustment screw that you have
loosened.

SIP-404/5

Ribs

Fine adjust the main unit angle in vertical and horizontal

(5)

direction by observing the target area through the area
viewfinder.

1 To change the direction of the inspection

window, rotate the area viewfi nder in a
horizontal direction until it clicks and stops.

2 Move your face close to the viewfi nder

so that your eye comes within 5 mm of
the inspection window (lens surface).

404 (521205)

- 4 -

(7)

Connect the walk tester (optional) to the sensor unit, and
check that the detection area is correct.

(OPM-WT) (AWT-3)

For creep zone

For near area

For far area

Use at “REDWALL”
position.

Power selector
switch

REDWAVE

REDWAVE

PIR NEAR

PIR FAR
REDWAVE
MICROWAVE

ALARM OUTPUT

CELL BATTERY

REDWAVE

POWER
SUPPLY

FROM

SENSOR
REDWALL
REDWIDE
MEGARED

REDWALL

MEGARED

REDWIDE

FAR

MEGARED

NEAR

CONNECTION

MODE

POWER

SELECT

SELECT

SELECT

SWITCH

SWITCH

SWITCH

WALKTESTER

OPM-WT

REDWAVE

POWER OFF

For creep zone

For near area

For all
areas

Use at “REDWALL”
position.

For far area

Power selector
switch

1 When the power selector switch is turned to “POWER

SUPPLY FROM SENSOR” position after plugging
the cable into the walk tester connector, a continuous
beeping sound will be heard.

2 When a pedestrian first enters the detection area, the

strong and weak beeps will sound alternately.

3 When the entirety of a pedestrian’s body is detected, the

strong beep will sound continuously.

4-2

]

REDWAVE

REDWAVE
MICROWAVE

REDWAVE

ALARM OUTPUT

CELL BATTERY

POWER
SUPPLY

FROM

SENSOR

POWER OFF

REDWAVE

PIR NEAR

REDWAVE

PIR FAR

MEGARED

FAR

MEGARED

NEAR

REDWALL
REDWIDE

WALKTESTER

REDWALL
REDWIDE

MEGARED

CONNECTION

SELECT
SWITCH

MODE
SELECT
SWITCH

POWER
SELECT
SWITCH

OPM-WT

Creep Zone Detection Area Setting

Adjust the creep zone horizontally.

(1)

The creep zone detection area can be adjusted between

-90° and 90° horizontally.

-90°

+90°

Creep zone
adjustment guides

If you want to adjust
the creep zone at
the angle of 0°,
align these guides.

(3)

Connect the walk tester (optional) to the sensor unit, and
check that the detection area is correct.

1 When the power selector switch is turned to “POWER

SUPPLY FROM SENSOR” position after plugging
the cable into the walk tester connector, a continuous
beeping sound will be heard.

2 When a pedestrian first enters the detection area, the

strong and weak beeps will sound alternately.

3 When the entirety of a pedestrian’s body is detected,

the strong beep will sound continuously.

(OPM-WT)

For creep zone

For near area

For far area

ENGLISH FRANÇAIS DEUTSCH ITALIANO ESPAÑOL

[m]

[ft.]

50

15

40

10

30

20

5

10

0

0

10

5

20

30

10

40

50

15

(2)

Adjust the creep zone vertically.

The creep zone detection area can be adjusted between

-3° and 3° vertically.

-3° +3°

[m]

[ft.]

413.2

10

2

Gently press to move

upward

Detection area at -3° adjusted.
Detection area at +3° adjusted.

Gently press to move
downward

Use at “REDWALL”
position.

Power selector
switch

Cautions>>

When you are checking the detection area, take care not
to cover the shaded area of the window with the walk
tester or its cable. If infrared beams to the sensor are
partially shielded, the detection sensitivity will drop and
the detection operation may fail.

If it is diffi cult to detect an object>>

1. Set the detection logic switch to the “OR” position (see
Step 5-2).
If the sensor is OK when you have completed the walk
test, return the logic switch to the “AND” position.

2. Adjust the sensor sensitivity switch (see Step 5-1).

To mask the detection area>>

Detection

area

Far area

Near
area

Creep zone cannot be masked.•

How to mask the area

Use the switch. 5-3
Use the masking plate (mounted

in the main unit).
Use the masking plate (mounted

in the main unit).
Attach the masking seal (an

accessory) to the area mirror
surface.

Reference

Step 7

8-1

8-2

0

0

010

[m

0 10 20 30 [ft.]

- 5 -

5

FUNCTION SETTING

Applicable
models

AlarmAlarm CreepCreep

SIP-3020/5 SIP-4010/5 SIP-404/5

Far area sensitivity selector
switch

Sens.Select.SW.Sens.Select.SW.

Far areaFar areaNear areaNear areaCreep zoneCreep zone

57310505731050

UP DWN

Walk tester

connector

AlarmAlarm CreepCreep

Operation indicator

(See Step 11.)

Cautions>>

If the red LED keeps blinking for approx. 60 seconds
after turning the power on, turn the power off and then on
again.

5-1

Sensitivity Selector Switch for Far
Area, Near Area and Creep Zone

Applicable
models

Sens.Select.SW.Sens.Select.SW.

Far areaFar area Near areaNear area

5-2

Detection Logic Selector Switch

Applicable
models

UP

DWN

SIP-3020/5 SIP-4010/5 SIP-404/5

You can change the sensitivity for far area
detection, near area detection and creep zone
detection independently.

SELECTOR

POSITION

Suitable for sites requiring a

SH

level of sensitivity higher than
“H”

Creep zoneCreep zone

H

Suitable for sites requiring a
level of sensitivity higher than
“M”

M

(Factory

default)

Suitable for standard
applications

Suitable for hostile and narrow

L

area

SIP-3020/5 SIP-4010/5 SIP-404/5

Detection area of SIP-3020/5, SIP-4010/5
and SIP-404/5 consist of two types of plane
detection areas in an alternative manner
constructed by two pairs of pyro-elements, for
the near and the creep zone.

SELECTOR

POSITION

STATUS

A sensor signal is output when an
object is detected in either of the two

OR

UP

detection areas.

Factory

* Use this mode when you adjust

( )

default

the detection area. Switch to AND
mode after you have finished the

detection area adjustment.
Use this mode to reduce instances
of incorrect detection of objects. The
sensor signal is output only when

DWN AND

an object is detected within the two
detection areas. If any objects are
blocking multiple detection areas,
use OR mode.

Near area sensitivity
selector switch

Creep zone
sensitivity selector
switch

Tamper

Sens.Select.SW.Sens.Select.SW.

57310505731050

Far areaFar area Near areaNear area Creep zoneCreep zone

1: Detection logic selector
(AND or OR)
2: Detection range selector switch
3,4: Alarm holding time selectors

switch

UP DWN

FUNCTION

Dip switch 1

FUNCTION

- 6 -

5-3

Detection Range Selector Switch

SELECTOR

UP

DWN

POSITION

UP OFF

STATUS

Cancels the far area detection. The
detection area is reduced as shown

FUNCTION

below.

DWNONFactory

Applicable
models

[m]

[ft.]

413

10

2

0

0

0102030
0 10 20 30 40 50 60 70 80 90 100 110 120 130[ft.]

Applicable
models

[m]2[ft.]

413

10

00

0102030
0 10 20 30 40 50 60 70 80 90 100 110 120 130[ft.]

SIP-3020/5 SIP-4010/5 SIP-404/5

SIP-3020/5 SIP-4010/5 SIP-404/5

Enables the far area detection.

( )

default

Far area detection is canceled.

Far area detection is canceled.

Cautions>>

If you cancel the far area detection, the detection
distance is limited to approximately 20 meters (65ft.). Be
sure to readjust and check the detection area using the
area viewfinder and the walk tester.

5-4

Alarm Interval Switch

Applicable
models

SIP-3020/5 SIP-4010/5 SIP-404/5

You can set an interval (4 different times) to
suspend the alarm signal output.
For example, if you set this interval to 30
seconds, no more alarm signals will be output
for 30 seconds after the output of the first alarm
signal. If no pedestrians are detected for more
than 30 seconds, the system returns to the
standby mode.
Then, when a pedestrian is detected, the alarm
signal will be output.

SELECTOR

POSITION

0 sec

FUNCTION

(Factory

15 sec 30 sec 60 sec

default)

Dip switch 2

40 [m]

40 [m]

Dip switch 3-4

6

DETECTION AREA

Applicable
models

TOP VIEW

[m]

[ft.]

15

50

40

10

30

20

5

10

0

0

10

5

20

30

10

40

15

50

SIDE VIEW (Installation height 4.0 m (13ft.))

[m]

[ft.]

413

10

2

0

0

0102030

0 10 20 30 40 50 60 70 80 90 100 110 120 130 [ft.]

SIP-3020/5 SIP-4010/5 SIP-404/5

(Installation height 4.0 m (13ft.))

: Near area : Far area : Creep zone

40 [m]

Applicable
models

SIP-3020/5 SIP-4010/5 SIP-404/5

TOP VIEW (Installation height 4.0 m (13ft.))

[m]

[ft.]

10

30

20

5

10

0

0

10

5

20

30

10

SIDE VIEW

[m]2[ft.]

413

10

00

0102030

0 10 20 30 40 50 60 70 80 90 100 110 120 130 [ft.]

(Installation height 4.0 m (13ft.))

: Near area : Far area : Creep zone

ENGLISH FRANÇAIS DEUTSCH ITALIANO ESPAÑOL

40 [m]

Applicable
models

SIP-3020/5 SIP-4010/5 SIP-404/5

TOP VIEW (Installation height 2.3 m (7.6ft.))

[m]

[ft.]

15

50

40

10

30

20

5

10

0

0

10

5

20

30

10

40

50

15

SIDE VIEW (Installation height 2.3 m (7.6ft.))

[m]

[ft.]

2.3

7.6

0

0

0102030

0 10 20 30 40 50 60 70 80 90 100 110 120 130 [ft.]

: Near area : Far area : Creep zone

40 [m]

- 7 -

Applicable
models

SIP-3020/5 SIP-4010/5 SIP-404/5

TOP VIEW (Installation height 2.3 m (7.6ft.))

[m]

[ft.]

10

30

20

5

10

0

0

10

5

20

30

10

SIDE VIEW (Installation height 2.3 m (7.6ft.))

[m]

[ft.]

2.3

7.6

0

0

0102030

0 10 20 30 40 50 60 70 80 90 100 110 120 130 [ft.]

: Near area : Far area : Creep zone

40 [m]

Applicable
models

SIP-3020/5 SIP-4010/5 SIP-404/5

TOP VIEW (Installation height 4.0 m (13ft.))

[m]

[ft.]

10

30

20

5

10

0

0

10

5

20

7

MASKING THE FAR AREA SENSOR

The far area mirror mounted in the main unit has 2 far masking
plates; one at the right side of this mirror and the other at the left
side of this mirror. You can mask the detection area by changing
the position of these masking plates.

Cautions>>

You can only mask the detection area from its outside to

•
its inside using the masking plates. You cannot mask only
the inside detection area.
However, if you need to mask the inside detection area

•
only, use the white space (margin) of the near area
masking seal (an accessory) for the masking. Attach the
seal and mask all mirrors that you need to shield.

30

10

SIDE VIEW

[m]2[ft.]

413

10

00

0102030

0 10 20 30 40 50 60 70 80 90 100 110 120 130 [ft.]

(Installation height 4.0 m (13ft.))

: Near area : Far area : Creep zone

40 [m]

Cautions>>

The window is linked to the main unit by nylon wire loop

•
so that the window does not fall. Do not pull the window
using excessive force.
After you have masked the detection areas, mount the

•
window and place the excessive nylon wire loop inside
the main unit.

How to remove the window>>

Window

Press the left bottom hole with your
fi nger, and pull the window up.

Applicable
models

1 Remove the masking plate from

the storage, and check the
detection area and the mirror you
use by referring to the area chart.

SIP-3020/5 SIP-4010/5 SIP-404/5

2 Attach the masking plate to the mirror,

and secure it to the ribs.

Far area mirror

Rib

Rib

Applicable
models

SIP-3020/5 SIP-4010/5 SIP-404/5

TOP VIEW (Installation height 2.3 m (7.6ft.))

[m]

[ft.]

10

30

20

5

10

0

0

10

5

20

30

10

SIDE VIEW (Installation height 2.3 m (7.6ft.))

[ft.]

[m]

2.3

7.6

0

0

0102030

0 10 20 30 40 50 60 70 80 90 100 110 120 130 [ft.]

: Near area : Far area : Creep zone

40 [m]

34 12567

40

15

1

10 0 10

20

2

3

If tree branches or other moving objects
are in the path of the detection beam.

3 Insert the fi xing rubber form to secure

the knob of the masking plate.

30 40

20

50510

6

5

4

5050

10 [m]

15

7

[ft.]30

- 8 -

8

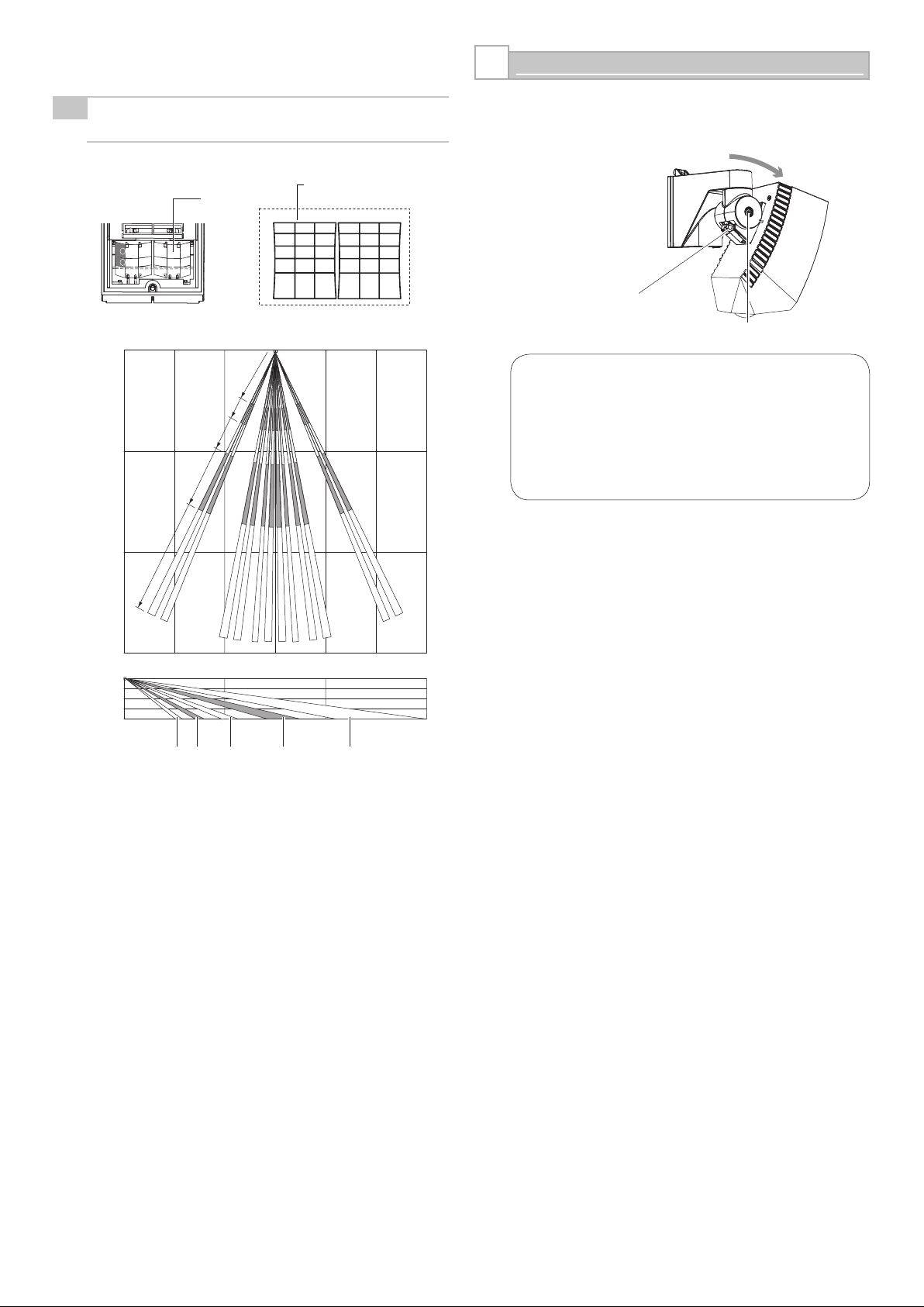

MASKING THE NEAR AREA SENSOR

Applicable
models

1 Remove the masking plate from the

storage, and check the detection
area and the mirror you use by
referring to the area chart.

Far area mirror

SIP-3020/5 SIP-4010/5 SIP-404/5

Rib

1234

SIP-4010/5 SIP-404/5

[ft.]10010

5

5

0

[m]

2 Attach the masking plate to the mirror,

and secure it to the ribs.

Rib

3 Insert the fi xing rubber form to secure

the knob of the masking plate.

[ft.]10 0 10
[m]505

8-1

Masking the Detection Areas using
Masking Plates

The near area mirror mounted in the main unit has 2 near
masking plates; one at the right side of this mirror and another
at the left side of this mirror. You can mask the detection area
by changing the position of these masking plates.

Cautions>>

You can mask the outside detection areas only; they are
areas 1 and 6. Use the area masking seals (an accessory)
to mask the other detection areas (see Step 8-2).

Applicable
models

1 Remove the masking plate

from the storage, and
check the detection area
and the mirror you use by
referring to the area chart.

Rib

664 2 5 3 1

SIP-3020/5 SIP-4010/5 SIP-404/5

2 Attach the masking plate to the mirror, and

secure it to the ribs.

3 Insert the fi xing rubber form to secure the

knob of the masking plate.

ENGLISH FRANÇAIS DEUTSCH ITALIANO ESPAÑOL

Rib

1

If tree branches or other moving objects
are in the path of the detection beam.

432

2

Near area mirror

10 [m]155051015

3

1

2

3

If tree branches or other moving objects
are in the path of the detection beam.

5

4

[ft.]30 20 10 0 10 20 30 40 5050 40

6

- 9 -

8-2

Masking the Detection Areas using
Masking Seals

Using the tweezers (an accessory), carefully attach the area
masking seals (an accessory) to the near area mirror.

Near area mirror

F 6

E 6

30 20 10 0 10 20 30 40

F

E

D

C

Area masking seals

MIRROR

642 53 1

F
E

D
C

B

F

F

F

642 53 1

E

D

642 53 1
642 53 1

C

642 53 1

B

F
E

E

E

D

D

D
C

C

C

B

B

B

50510

9

TERMINATION PROCEDURE

After you have adjusted all sensor items, securely tighten all

(1)

adjustment screws that you have loosened. Finally, securely
tighten the bottom fixing screws.

135246

F

F

E

E

D

D
C

C

B

B

2 Fixing screw

[ft.]

5050 40

[m]10 1515

Cautions>>

If you need to adjust the detection area again, be sure

•
to loosen the fi xing screw. If you try to move the main
unit without loosening the fi xing screw, the unit may be
damaged.
When you mount the cover, place the excessive nylon

•
wire loop in the main unit. If the wire has been pinched
by the window and the cover, rain drops may be able to
enter into the main unit.

1 Adjustment screw

(2)

Mount the cover.

B

1

2

3

[m]

[ft.]

4

13
10

2

0

0

0

10 20 30 40 50 60 70 80 90 100 [ft.]

0

10 20 30

5

4

6

[m]

BCDEF

- 10 -

10

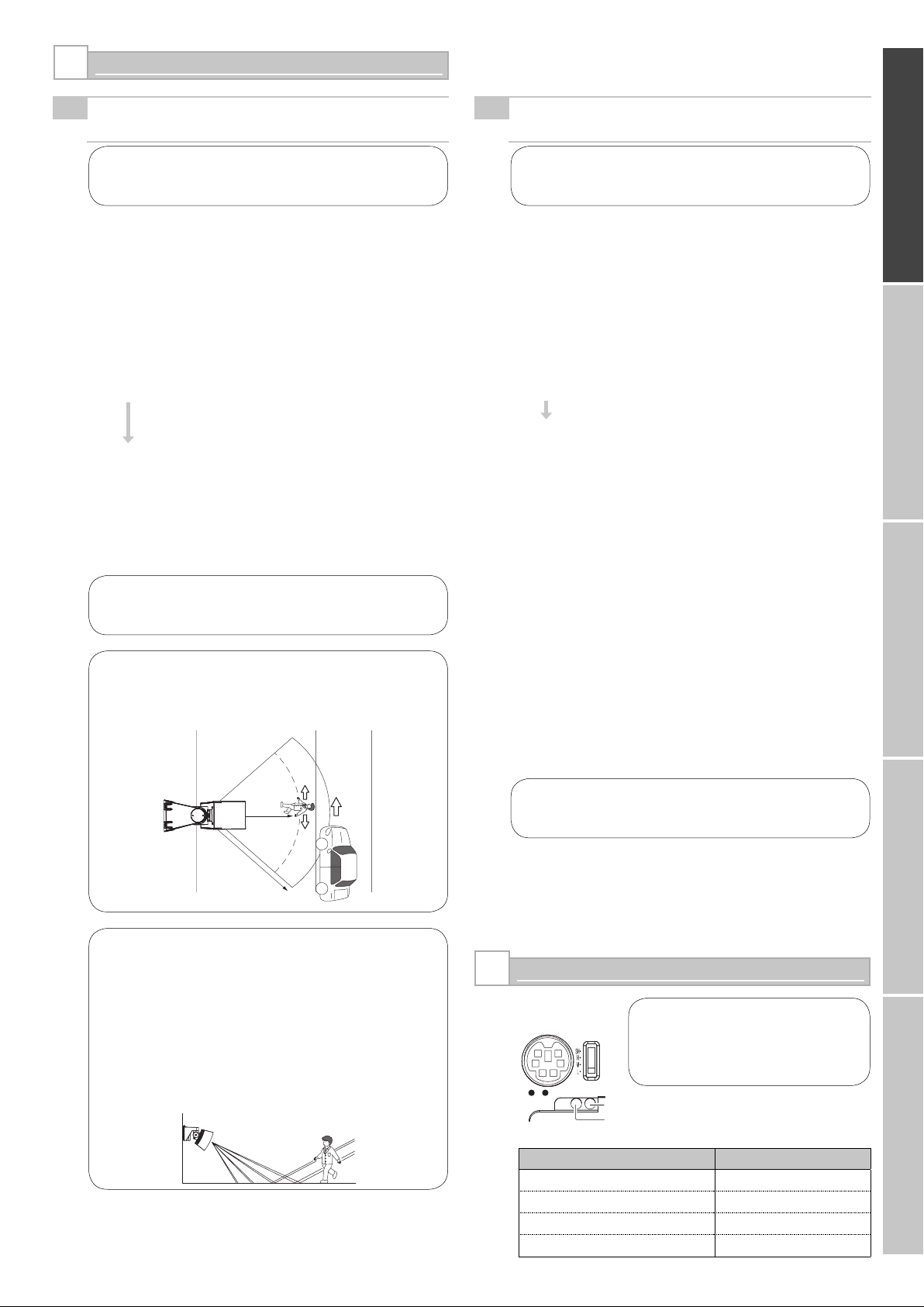

OPERATION TEST

10-1

If There is a Public Street Where People
Walk or Cars Drive by the Detection Area

10-2

If Tree Branches or Grass are Detected
When They Move Within the Detection Area

ENGLISH FRANÇAIS DEUTSCH ITALIANO ESPAÑOL

Points>>

Reduce the size of the detection area so that it does not
include any public streets.

Check to see that the arrow of the main unit is within the

(1)

width of “Angle adjustment guide” on the adjustment screw.

Using the area viewfinder, check to see that the detection

(2)

area does not include any public streets.

If the detection area does go beyond a public street,

(3)

correct the vertical angle of the main unit.
However, exercise care so that the arrow does not move
away significantly from the “Angle adjustment guide”
position.

If the arrow does move away signifi cantly from

the “Angle adjustment guide” position:

Mask the far area detection area using the masking plate
or by using the far area masking switch. You may be
required to also mask the near area detection area under
specific sensor installation conditions (see Steps 5 and 8).

When a person walks along the street or a car drives along

(4)

it, check the detection area using the walk tester.

Points>>

You cannot mount and use both the area viewfinder and
walk tester simultaneously.

Cautions>>

The detection area may increase if there is a large
difference in temperature between the moving object and
the background.

Points>>

Adjust the detection area so that it does not cover tree
branches or grass that move when the wind blows.

Check to see that the arrow of the main unit is within the

(1)

width of “Angle adjustment guide” on the adjustment screw.

Using the area viewfinder, check to see that the detection

(2)

area does not cover tree branches or grass that may move
when the wind blows.

Use the walk tester to listen for sound level changes when

(3)

there is no apparent activity in the detection area.
Adjust the detection area so that it does not detect
unwanted areas.

If the sound level changes, some part of the detection area
must be active (i.e.: an object is moving).

Use the walk tester and locate the part of the detection area

(4)

that is active. Change the walk tester selector switch
position and determine whether the active part of the
detection area is far or near.

Using the area viewfinder again, locate the active detection

(5)

area.

Mask the active detection area. To do this, mask the area

(6)

using the masking plate or the masking seal. Otherwise
mask the area using the far area masking switch (see Steps
5, 7, and 8). Creep zone cannot be masked. Adjust the
detection area again (see Step 4-2).

Using the walk tester again, check that the sound level

(7)

changes. If the sound level does not change excessively,
you can finish the adjustment.

Cautions>>

A heat source beyond the detection area may cause a
false alarm due to the reflection of heat off the ground.
Examples of types of surfaces that reflect include water
(puddles), wet roads, smooth concrete surfaces and
asphalt roads.
If the source of the heat is strong and/or the reflection
rate is high, the detection distance will be longer than
required and may detect unnecessary objects beyond the
target area. Therefore, select the detection range position
according to the ground conditions of the installation site.

- 11 -

Points>>

11

LED STATUS

AlarmAlarm CreepCreep

When detected (in far/near area) Lights.

When detected (in creep zone) Lights.

You cannot mount and use both the area viewfinder and
the walk tester simultaneously.

Cautions>>

If the red LED keeps blinking for
approx. 60 seconds after turning the
power on, turn the power off and
then on again.

Far areaFar area

Creep zone Operation indicator - Red LED

Far/Near area Operation indicator - Red LED

Detector Status LED Status

During power ON Blinks.

During standby Turns OFF.

12

SPECIFICATIONS

Applicable
models

SIP-3020/5 SIP-4010/5 SIP-404/5

Model SIP-3020/5 SIP-4010/5 SIP-404/5

Detection method Passive infrared

Coverage

(Main area)

Coverage

(Creep zone)

Number

of

detection

zones

Main area

Creep

zone

30 x 20m

(100 x 65ft.)

40 x 10m

(130 x 33ft.)

3×5 m (10×17 ft.) at 2.3 m (7.6ft.) height
6×9 m (20×30 ft.) at 4 m (13ft.) height
Detection angle adjustable

74 zones 48 zones 24 zones

36 zones

Mounting height 2.3 to 4m (7.6 to 13ft.)

Power input

With optional

heating unit

Current draw

With optional

heating unit

11 - 16V DC
22 - 26V AC

22 - 26V AC

40mA max. (12V DC)
75mA max. (24V AC)

415mA max. (24V AC)

Far alarm

Operation

indicator

and

Near alarm

Creep zone

alarm

Red LED

Red LED

Alarm period Approx. 2 sec.
Warm-up period Approx. 60 sec.

Detection range

selector

Alarm interval period

Detection logic

selector

Far area: ON / OFF

0 / 15 / 30 / 60 sec.

AND/OR

Tamper output N.C. 28V DC, 0.1A max.

Trouble output N.C. 28V DC, 0.2A max.

Alarm
output

Main area

Creep

zone

Sensitivity selector

N.C.28V DC, 0.2A max.
N.O.28V DC, 0.2A max.

N.C.28V DC, 0.2A max.
N.O.28V DC, 0.2A max.

Far: SH/H/M/L Near: SH/H/M/L

Creep zone: SH/H/M/L

Without

Operating

temperature

optional

heating

unit

With

optional

heating

-25 to +60°C (-13 to +140°F)

-40 to +60°C (-40 to +140°F)

unit

IP rating

Dimensions
(H × W × D)

Main unit :IP65
Chassis :IP55

248 x 102 x 266 mm

(9.8 x 4.0 x 10.5 in.)

Weight 1.4 kg (48 oz.)

Screws,
Paper template,
Allen key,

Accessories

Area masking seal,
Tweezers,
Instruction manual,
Area plate,
Fixing rubber form

40 x 4m

(130 x 13ft.)

DIMENSION

SIP-3020/5, 4010/5, 404/5

102

(4.0)

90

(3.6)

OPTION

OPM-WT, AWT-3 -Audio Walk Tester

•
AVF-1 -Area View Finder

•
SIP-MINIHOOD -Sun/Snow shield

•
SIP-HU -Heating unit

•

Cautions>>

When SIP-HU is used, the power for SIP unit should be
22 - 26V AC.

These units are designed to detect movement to activate CCTV
system. Being only part of a complete surveillance system,
we cannot accept responsibility for any damage or other
consequences resulting form the activation of the unit.
This product confirms to the EMC Directive 2004/108/EC.

Specifications and design are subject to change without prior
notice.

OPTEX CO., LTD. (JAPAN)

(ISO 9001 Certifi ed) (ISO 14001 Certifi ed)

5-8-12 Ogoto Otsu Shiga 520-0101 JAPAN
TEL:[phone] FAX:[phone]
URL:http://www.optex.co.jp/e/

OPTEX INCORPORATED (USA)

TEL:[phone]
Tech:[phone]
URL:http://www.optexamerica.com/

OPTEX (EUROPE) LTD. (UK)

TEL:[phone]
URL:http://www.optexeurope.com/

- 12 -

266

(10.5)

248

(9.8)

96

(3.78)

21

(0.83)

OPTEX SECURITY SAS (FRANCE)

TEL:[phone]
URL:http://www.optex-security.com/

OPTEX SECURITY Sp. z o. o.
(POLAND)

TEL:[phone]
URL:http://www.optex.com.pl/

21

(0.83)

75

17.1

(0.67)13(0.51)

(3.0)

Unit:mm (inch)

116

(4.57)
