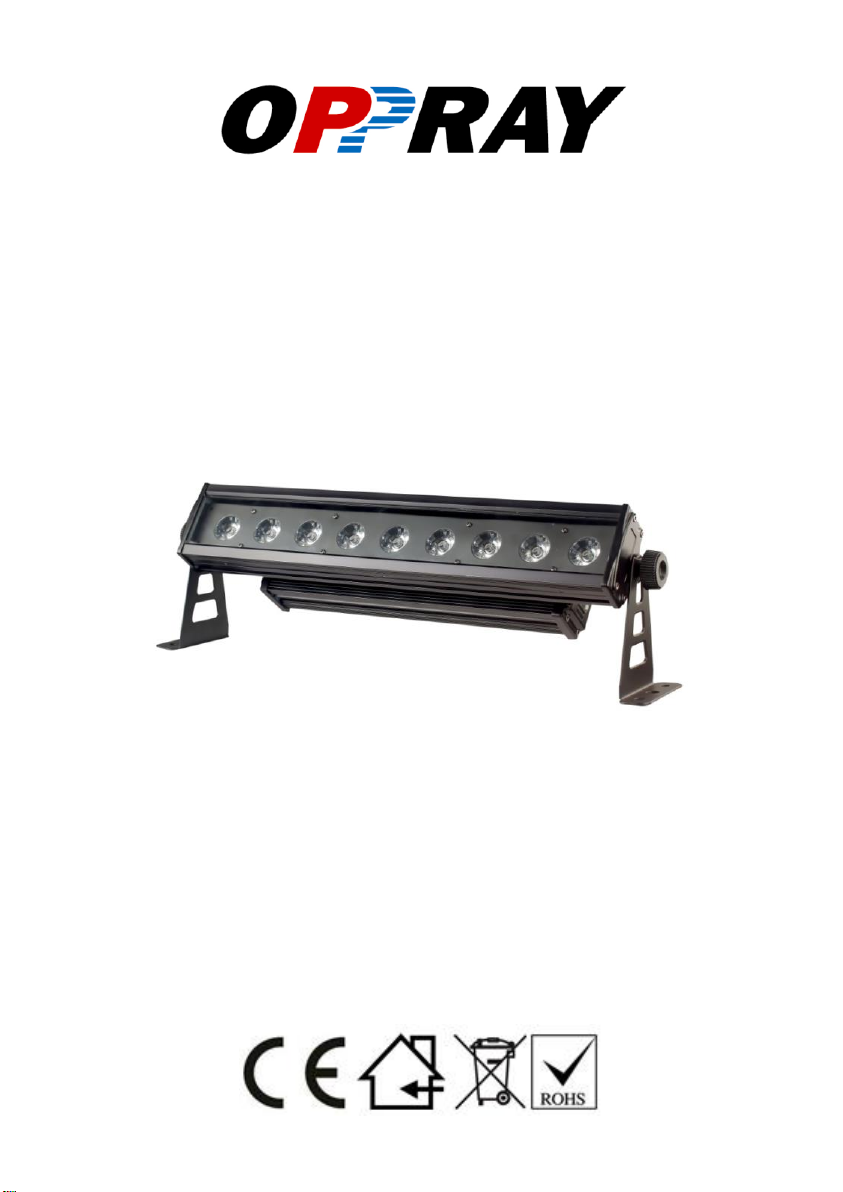

Oppray WL-W0096 IP65 User Manual

9×12W six-colour LEDs

(RGBWAP)

WL-W0096 IP65

User Manual

Please read this user manual before using this product.

2

www.oppray-light.com ML-W0096 IP65 9×12W six-colour LEDs User Manual

INDEX

STATEMENT 3

ACCESSORIES 4

SAFETY INSTRUCTION 5

UNDERSTANDING DMX 8

TECHNICAL SPECIFICATION 10

CONTROL SYSTEM 11

CLEANING AND MAINTENANCE 14

3

www.oppray-light.com ML-W0096 IP65 9×12W six-colour LEDs User Manual

STATEMENT

The product has well capability and intact packing when leave
factory. All of the user should comply with warning item and manual, any
misuse cause of the damages are not included in our guarantee, and
also cannot be responsible for any malfunction & problem owing to
ignore the manual.

IP65 RATED

An IP rated lighting fixture is one, which is commonly installed in outdoor
environments and has been designed with an enclosure that effectively protects
the ingress (entry) of external foreign objects such as dust and water. The
International Protection (IP) rating system is commonly expressed as "IP"
(Ingress Protection) followed by two numbers (i.e. IP65) where the numbers
define the degree of protection. The first digit (Foreign Bodies Protection)
indicates the extent of protection against particles entering the fixture and the
second digit (Water Protection) indicates the extent of protection against water
entering the fixture. An IP65 rated lighting fixture is one, which has been
designed and tested to protect against the ingress of dust (6) and high-pressure
water jets from any direction (5).

M A R I N E / CO A S T A L E N V I R O N M E N T I N S T A L L A T I O NS !

Please note although this fixture is IP rated, the fixture is NOT suitable for
marine and/or coastal environment installations. Installing this fixture in a
marine and/or coastal environment may cause corrosion and/or excessive
wear to the interior and/or exterior components of the fixture. Damages
and/or performance issues resulting from installation in a marine and/or

4

www.oppray-light.com ML-W0096 IP65 9×12W six-colour LEDs User Manual

coastal environment will void the manufactures warranty and will NOT be
subject to any warranty claims and/or repairs.

Ensure ALL connections and end caps are properly sealed with a non­conductive dielectric grease (available at most electrical suppliers) to
prevent water ingress/condensation and/or corrosion.

UNPACKING

Every wall washer has been thoroughly tested and has been shipped in perfect
operating condition. Carefully check the shipping carton for damage that may
have occurred during shipping. If the carton appears to be damaged, carefully
inspect your unit for damage and be sure all accessories necessary to operate
the unit have arrived intact. In the event damage has been found or parts are
missing, please contact our customer support team for further instructions.
Please do not discard the shipping carton in the trash. Please recycle whenever
possible.

ACCESSORIES

These items are packed together with the product:

Name

Quantity

Unit

Remark

USER MANUAL

1

PCS

POWER CABLE

1

PCS

5

www.oppray-light.com ML-W0096 IP65 9×12W six-colour LEDs User Manual

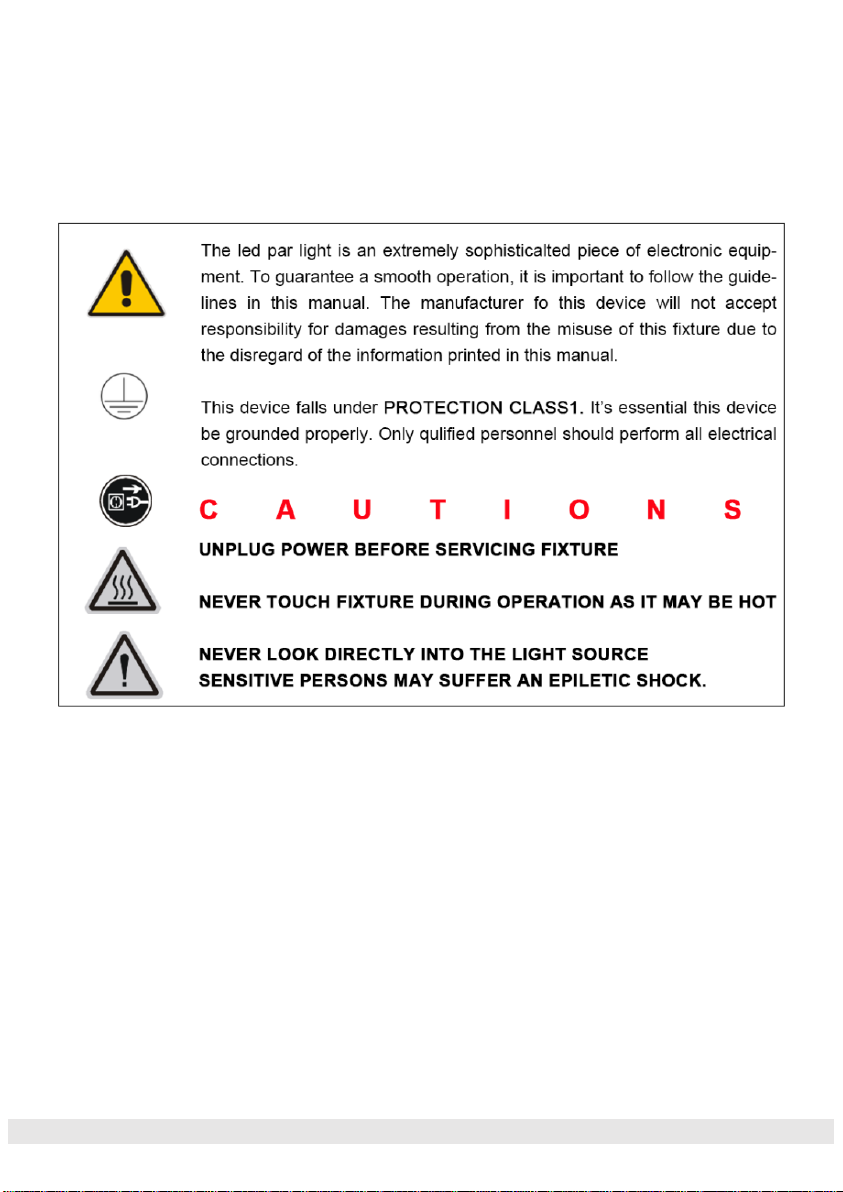

SAFETY INSTRUCTION

• For proper operation, follow the Installation guidelines described in this
manual. Only qualified and certified personnel should perform installation
of this fixture and only the original rigging parts (brackets) included with
this fixture should be used for installation. Any modifications will void the
original manufactures warranty and increase the risk of damage and/or
personal injury.

• Never look directly into the light source of this fixture to prevent risk of
injury to your retina, which may induce blindness. Those suffering from

EPILEPSY should avoid looking directly into the light source of this unit at

all times.

• Always disconnect from main power source before performing any type of

6

www.oppray-light.com ML-W0096 IP65 9×12W six-colour LEDs User Manual

service and/or cleaning procedure. Only handle the power cord by the plug
end, never pull out the plug by tugging the wire portion of the cord.

• Do not operate this fixture if the power cord has become frayed, crimped
and/or damaged. If the power cord is damaged, replace it immediately with
a new one of similar power rating.

N E V E R O P E N T H I S F I X T U R E W H I L E I N U S E !

• Ensure ALL connections and end caps are properly sealed with a

dielectric grease (available at most electrical suppliers) to prevent
water corrosion and/or electrical short circuit.

During the initial operation of this fixture, a light smoke or smell may emit from
the interior of the fixture. This is a normal process and is caused by excess paint
in the interior of the casing burning off from the heat associated with the lamp
and will decrease gradually over time.

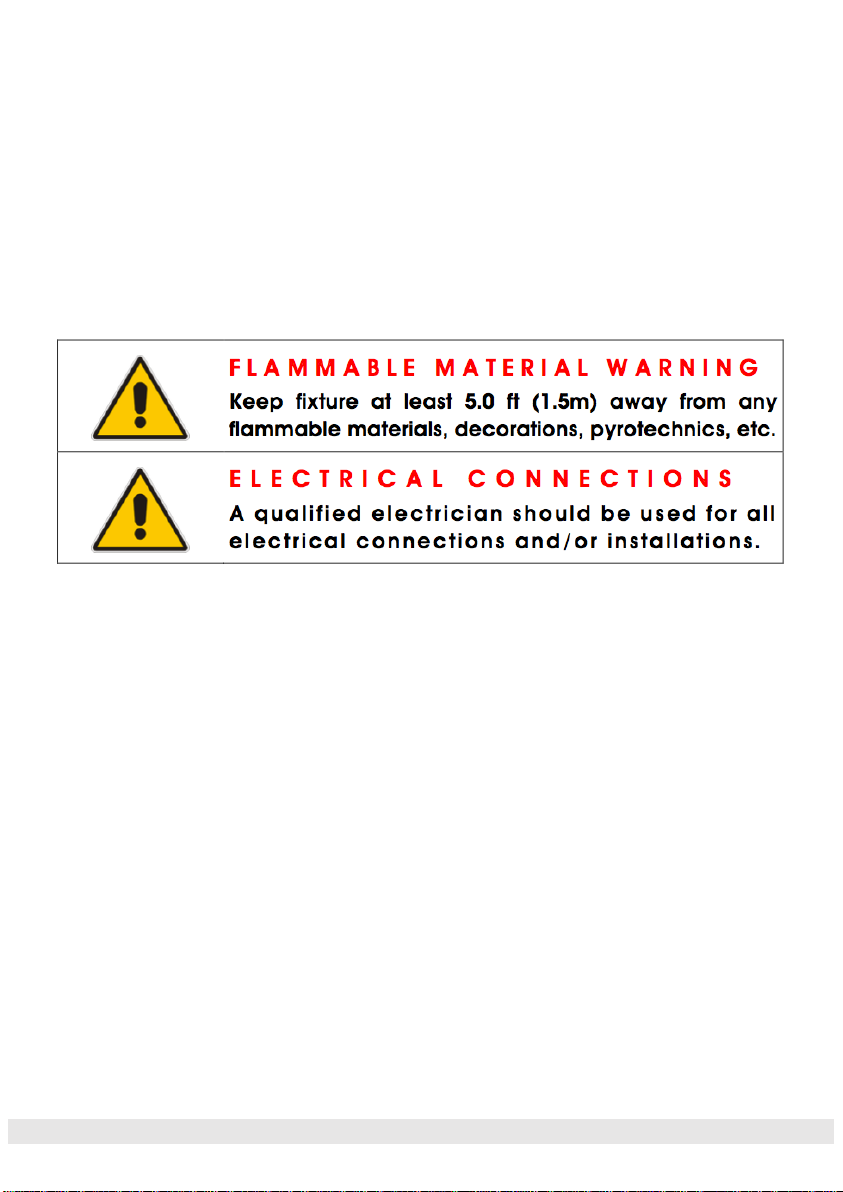

• Please make sure there are NO FLAMMABLE MATERIALS close to the
fixture while operating, to prevent any fire hazard.

• Minimum distance of inflammable materials from the surface 1.6 feet
(0.5m).

• DO NOT attempt installation and/or operation without knowledge how to
do so.

• DO NOT allow operation by persons who are not qualified to operate this
type of fixture. Most damages are the result of operations by
nonprofessionals.

• Consistent operational breaks may ensure the fixture will function properly
for many years to come.

• DO NOT shake fixture, avoid brute force when installing and/or operating
fixture.

• Always install the fixture with an appropriate safety cable. When installing
the fixture in a suspended environment, always use mounting hardware
that is no less than M10 x 25 mm, also be sure the hardware is insert in
the pre-arranged screw holes in the bracket of the fixture.

7

www.oppray-light.com ML-W0096 IP65 9×12W six-colour LEDs User Manual

• Use the original packaging and materials to transport the fixture in for
service.

• DO NOT TOUCH the housing bare-hand during its operation. Turn OFF
the power and allow approximately 15 minutes for the fixture to cool down
before replacing or serving.

INSTALLATION:

C A U T I O N S

• For added protection, mount the fixture in areas outside walking paths,
seating areas, or in areas were unauthorized personnel might reach the
fixture.

• Min/Max ambient operating temperature for this fixture is 5°F to 113°F (-
15°C to 45°C). Do not use the fixture under or above this temperature.

• Before mounting the fixture to any surface, make sure the installation area
can hold a minimum point load of 10 times the weight of the fixture.

• Fixture installation must always be secured with a secondary safety
attachment, such as an appropriate safety cable.

• Never stand directly below the device when mounting, removing or
servicing.

• Ensure ALL connections and end caps are properly sealed with a

dielectric grease (available at most electrical suppliers) to prevent
water corrosion and/or electrical short circuit.

8

www.oppray-light.com ML-W0096 IP65 9×12W six-colour LEDs User Manual

POWER LINKING

Max number of units that can be power linked is 10 units @110V-@240V.

CLAMP MOUNTING

When mounting this fixture to truss be sure to secure an appropriately rated
clamp using an M10 screw fitted through the center hole of the Dual Yoke /
Floor Stand.

SECURING

Regardless of the rigging option you choose for your wall washer always be
sure to secure your fixture with a safety cable.

MOUNTING POINTS

Overhead mounting requires extensive experience, including amongst others
calculating working load limits, installation material being used, and periodic
safety inspection of all installation material and the device. If you lack these
qualifications, do not attempt the installation yourself. Improper installation can
result in bodily injury.

SAFETY CABLE

Always use a Safety Cable whenever installing this fixture in a suspended
environment to ensure the fixture will not drop if the clamp fails.

UNDERSTANDING DMX

DMX-512

DMX is short for Digital Multiplex. This is a universal protocol used by most
lighting and controller manufactures as a form of communication between
intelligent fixtures and controllers. DMX allows all makes and models of different

9

www.oppray-light.com ML-W0096 IP65 9×12W six-colour LEDs User Manual

manufactures to be linked together and operate from a single controller. This is
possible as long as all the fixtures and the controller are DMX compliant. A DMX
controller sends the DMX data instructions to the fixture allowing the user to
control the different aspects of an intelligent light. DMX data is sent out as serial

data that travels from fixture to fixture via data “IN” and data “OUT” XLR

terminals located on the fixtures (most controllers will only have output jacks).

DMX LINKING

To ensure proper DMX data transmission, always use the IP rated DMX cables
listed in the ACCESSORIES section coming along with the par light. When
using several DMX fixtures try to use the shortest cable path possible. Never

split a DMX line with a “Y” style connector. The order in which the fixtures are

connected in a DMX line does not influence the DMX addressing. For example;
a fixture assigned a starting DMX address of 1 may be placed anywhere in the
DMX chain, at the beginning, at the end, or anywhere in the middle. The DMX
controller knows to send data assigned to address 1 to that fixture no matter
where it is located in the DMX chain. The wall washer can be controlled via
DMX-512 protocol and the DMX address is set via the control menu.

DATA CABLE (DMX Cable) REQUIREMENTS (For DMX and
Master/Slave Operation)

Your fixture and your DMX controller require a standard 3pin connector for data
input and data output. Also, remember that a DMX line must be daisy chained
and cannot be split.

DMX ADDRESSING

All fixtures should be given a DMX starting address when using a DMX
controller, so the correct fixture responds to the correct control signal. This
digital starting address is the channel number from which the fixture starts to

“listen” to the digital control information sent out from the DMX controller. The

10

www.oppray-light.com ML-W0096 IP65 9×12W six-colour LEDs User Manual

allocation of this starting DMX address is achieved by setting the correct DMX
address on the OLED display located on the back of the fixture.

You can set the same starting address for all fixtures or a group of fixtures, or
set different address for each individual fixture. Be advised that setting all
fixtures to the same DMX address will subsequently control all fixtures in the
same fashion, in other words, changing the settings of one channel will affect
all the fixtures simultaneously.

If you set each fixture to a different DMX address, each unit will start to “listen”

to the channel number you have set, based on the quantity of control channels
(DMX channels) of each fixture. That means changing the settings of one
channel will only affect the selected fixture.

In the case of the par light, when in the 6 Channel Mode you should set the
starting DMX address of the first unit to 1, the second unit to 7 (1 + 6), the third
unit to 13 (7 + 6), and so on.

TECHNICAL SPECIFICATION

Electronic

Power supply: Electronic auto-ranging
Input voltage range: supply 100-240V, 50/60Hz
Power: 160W

Light Sources

LED: 9 x 12W 6 IN1 LEDs (RGBWAUV)
LED life: 50000 hrs
Beam Angle: 40°

11

www.oppray-light.com ML-W0096 IP65 9×12W six-colour LEDs User Manual

Dimention

Size: 560*9*18cm
Weight: 4.6kg

Control

DMX Channel: 6/10Channel
Control Modes: DMX/Master-Slave/Auto

Construction

Display: Digital LED Display
Data In/Out socket: 3-pin XLR sockets
Protection Rating: IP65

Please Note: Specifications and improvements in the design of this unit and this manual are subject
to change without any prior written notice

CONTROL SYSTEM

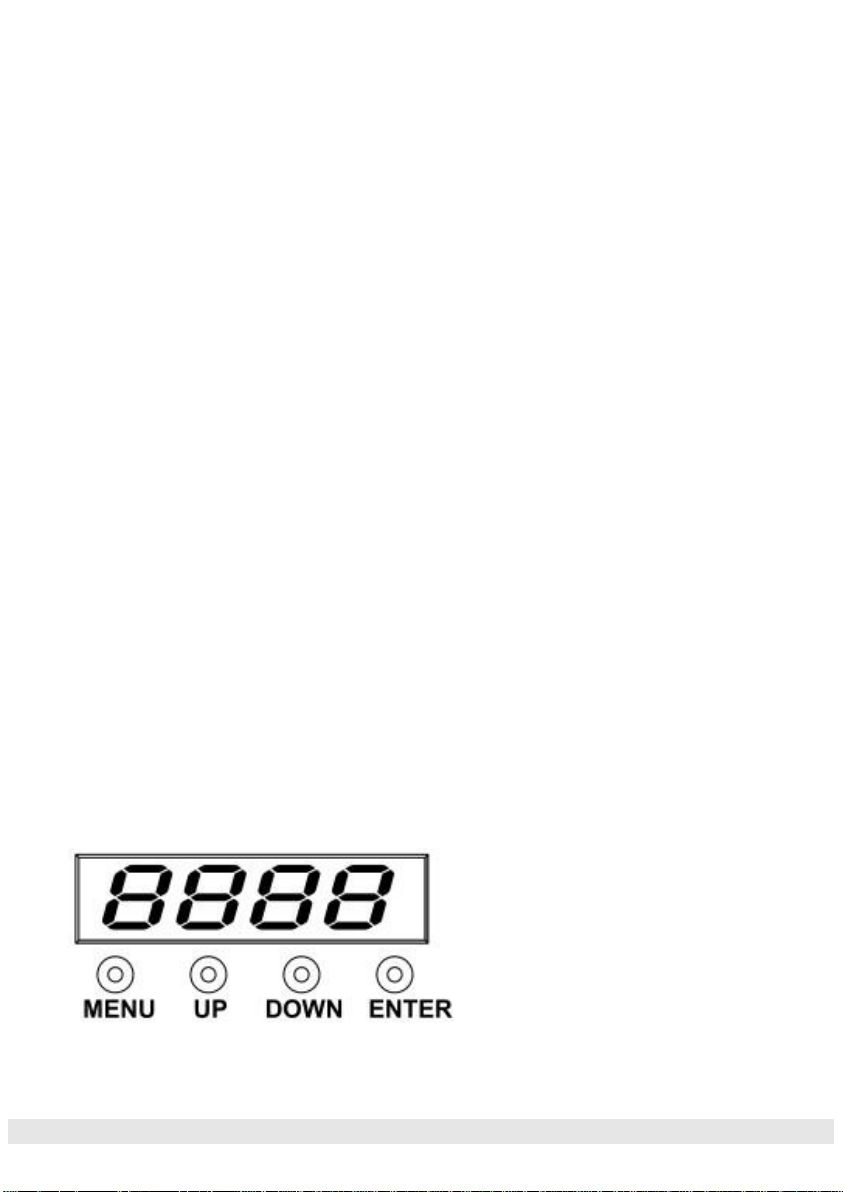

DISPLAY:

MENU To select the programming functions
UP To go forward in the selected functions
DOWN To go backward in the selected functions
ENTER To confirm the selected functions

12

www.oppray-light.com ML-W0096 IP65 9×12W six-colour LEDs User Manual

OPERATING INSTRUCTION

1. Press "Menu" to "Set DMX Address", and press "ENTER" keys to enter
into

2. Show "Set DMX Address DMX Address:001",Press the "UP and DOWN"
keys to amended

3. Press "ENTER" keys to save and Exit, Press the "MENU" Keys does not
save and Exit

FIXTURE MENU:

SYSTEM MENU

Specifications are subject to change without any prior written notice.

Display

Function

A001

10CH (001-512)

D001

6CH(001-512)

CC00

Colour change mode (00-99)

CP00

Colour fade mode (00-99)

DE00

Auto mode (00-99)

R220

RED (000-255)

G220

GREEN(000-255)

B220

BLUE(000-255)

W220

WHITE(000-255)

Y220

Amber(000-255)

P220

UV(000-255)

Notice: Waterproof lamp is not with sound control function.

OPERATING INSTRUCTION

Colour change mode:

To access colour change mode press “MENU” until the display shows CC-- on

the LED display. Press “ENTER” to confirm the setting. Use the “UP” and

“DOWN” buttons to ajust the speed between CC00 ~ CC99. Press the “ENTER”

13

www.oppray-light.com ML-W0096 IP65 9×12W six-colour LEDs User Manual

button to confirm the setting.
To exit out of any of the above options, press the “MENU” button.

Colour fade mode:

To access colour fade mode press “MENU” until the display shows CP-- on the

LED display. Press “ENTER” to confirm the setting. Use the “UP” and “DOWN”

buttons to ajust the speed between CP00 ~ CP99. Press the “ENTER” button
to confirm the setting.
To exit out of any of the above options, press the “MENU” button.

Auto mode:

To access auto mode press “MENU” until the display shows DE-- on the LED
display. Press “ENTER” to confirm the setting. Use the “UP” and “DOWN”

buttons to ajust the speed between DE00 ~ DE99. Press the “ENTER” button

to confirm the setting.
To exit out of any of the above options, press the “MENU” button.

Static colour mode:

To access the static colour mode press “MENU” until R.225shows on the LED
display.

Now use the “UP” and “DOWN” buttons to select the brightness between

R.000~ R.255.Press the “ENTER” button and repeat for green (G), blue (B) and

white (U)or Amber(Y)and UV(P)
Value: 000 - 255 (000 = low brightness, 255 = high brightness)
To exit out of any of the above options, press the “MENU” button.

Master/slave mode:

To set the master unit, press the “MENU” button on the rear of the master unit

to select your desired program (sound active, auto, static colour or colour fade).

To set the other units in slave mode, press the “MENU” button on the rear of

14

www.oppray-light.com ML-W0096 IP65 9×12W six-colour LEDs User Manual

the unit to show D001 on the LED display and press the “ENTER” button to

confirm the setting. The units will now run in sequence with the master unit.

DMX Channel Values / Functions

CHANNEL/MODE

VALUE

FUNCTION

10 6

CH1 000-255

Master dimmer (0-100%)

CH2 000-255

Strobe (slow-fast)

CH3

000-049

Manual DMX

050-099

Colour change

100-149

Colour fade

150-199

Colour fade in/out

200-255

NO Function

CH4 000-255

MACO speed (slow to fast)

CH5

CH1

000-255

Red (0-100%)

CH6

CH2

000-255

Green (0-100%)

CH7

CH3

000-255

Blue (0-100%)

CH8

CH4

000-255

White (0-100%)

CH9

CH5

000-255

Amber(0-100%)

CH10

CH6

000-255

UV(0-100%)

CLEANING AND MAINTENANCE

15

www.oppray-light.com ML-W0096 IP65 9×12W six-colour LEDs User Manual

CLEANING

Frequent cleaning is recommended to insure proper function, optimized light
output, and an extended life. The frequency of cleaning depends on the
environment in which the fixture operates: damp, smoky or particularly dirty
environments can cause greater accumulation of dirt on the fixture’s optics.

• Clean the external lens surface at least every 20 days with a soft cloth to
avoid dirt/debris accumulation. Never use alcohol, solvents, or ammonia
based cleaners.

MAINTENANCE

Regular inspections are recommended to insure proper function and extended
life. There are no user serviceable parts inside this fixture, please refer all other
service issues to our service technician. Should you need any spare parts,
please order genuine parts from your dealer.

Please refer to the following points during routine inspections:

• A detailed electric check by an approved electrical engineer every 3
months, to make sure the circuit contacts are in good condition and prevent
overheating.

• Be sure all screws and fasteners are securely tightened at all times. Lose
screws may fall out during normal operation resulting in damage or injury.

• Check for any deformations on the housing, color lenses, rigging hardware
and rigging points (ceiling, suspension, trussing). Deformations in the
housing could allow for dust to enter into the fixture. Damaged rigging points
or unsecured rigging could cause the fixture to fall and seriously injure a
person(s).

• Inspect all moving parts and make sure there are no signs of wear and
rotate/move without imbalances.

• Electric power supply cables must not show any damage, material fatigue or

16

www.oppray-light.com ML-W0096 IP65 9×12W six-colour LEDs User Manual

sediments. Never remove the ground prong from the power cable.
