PresentationTM Series

HD Projection Display

Installation and Setup Guide

for System Installer

Model

PRO900X

®

PresentationTM is a registered trademark of Zenith Electronics Corporation

SAFETY WARNINGS

WARNING

RISK OF ELECTRIC

DO NOT OPEN

WARNING:

TO REDUCE THE RISK OF ELECTRIC SHOCK DO NOT REMOVE COVER (OR BACK). NO USER

SERVICEABLE PARTS INSIDE.

REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING:

TO PREVENT FIRE OR SHOCK HAZARDS, DO NOT EXPOSE THIS PRODUCT TO RAIN OR MOISTURE.

NOTE TO CABLE/TV INSTALLER:

This reminder is provided to call the cable TV system installer’s attention to Article 820-40 of the National Electric Code (U.S.A.). The code provides guidelines for proper grounding and, in particular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of the cable entry as practical.

REGULATORY INFORMATION:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference when the equipment is operated in a residential installation. This equipment generates, uses and can radiate radio frequency

energy and, if not installed and used in accordance with the instruction manual, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning

the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures: Reorient or relocate the receiving antenna.

Increase the separation between the equipment and receiver.

Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

Consult the dealer or an experienced radio/TV technician for help.

CAUTION:

Do not attempt to modify this product in any way (except as noted herein) without written authorization from Zenith Electronics Corporation. Unauthorized modification could void the user’s authority to operate this product.

P A G E 2

C9WARN-B

CONTENTS

Safety Warnings

Safety Warnings . . . . . . . . . . . . . . . . . . . . . . . . . . . 2

Installation Overview

Installer’s Experience Level . . . . . . . . . . . . . . . . . . . 4

Installation Considerations . . . . . . . . . . . . . . . . . . . . 4

Power Cord Requirements . . . . . . . . . . . . . . . . . . . . . 4

Specifications

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5

Standard Connections

Connecting Computer Video Sources . . . . . . . . . . . . . . 6

Connecting Video and S-Video Sources . . . . . . . . . . . . 6

Connector Pin Wiring Reference . . . . . . . . . . . . . . . . . 7

Connection / Control Panel . . . . . . . . . . . . . . . . . . . 8

Selecting Input Source . . . . . . . . . . . . . . . . . . . . . . 8

Remote Control

Battery Installation . . . . . . . . . . . . . . . . . . . . . . . . 9

Choosing the Setup Function . . . . . . . . . . . . . . . . . . 9

Product Overview

Product Overview . . . . . . . . . . . . . . . . . . . . . . . . . 10

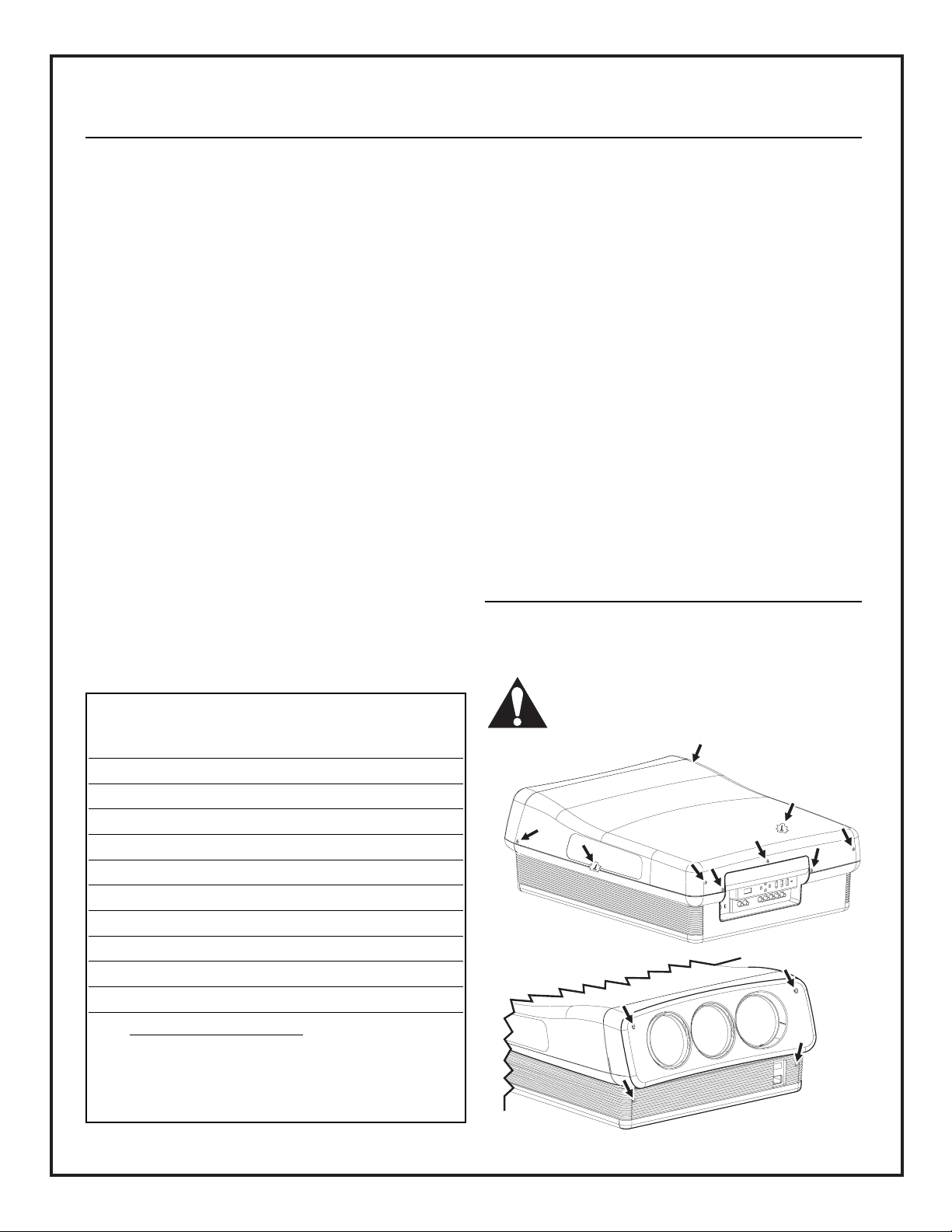

Monitor Cabinet Removal . . . . . . . . . . . . . . . . . . . . 10

Monitor Rear View . . . . . . . . . . . . . . . . . . . . . . . . 11

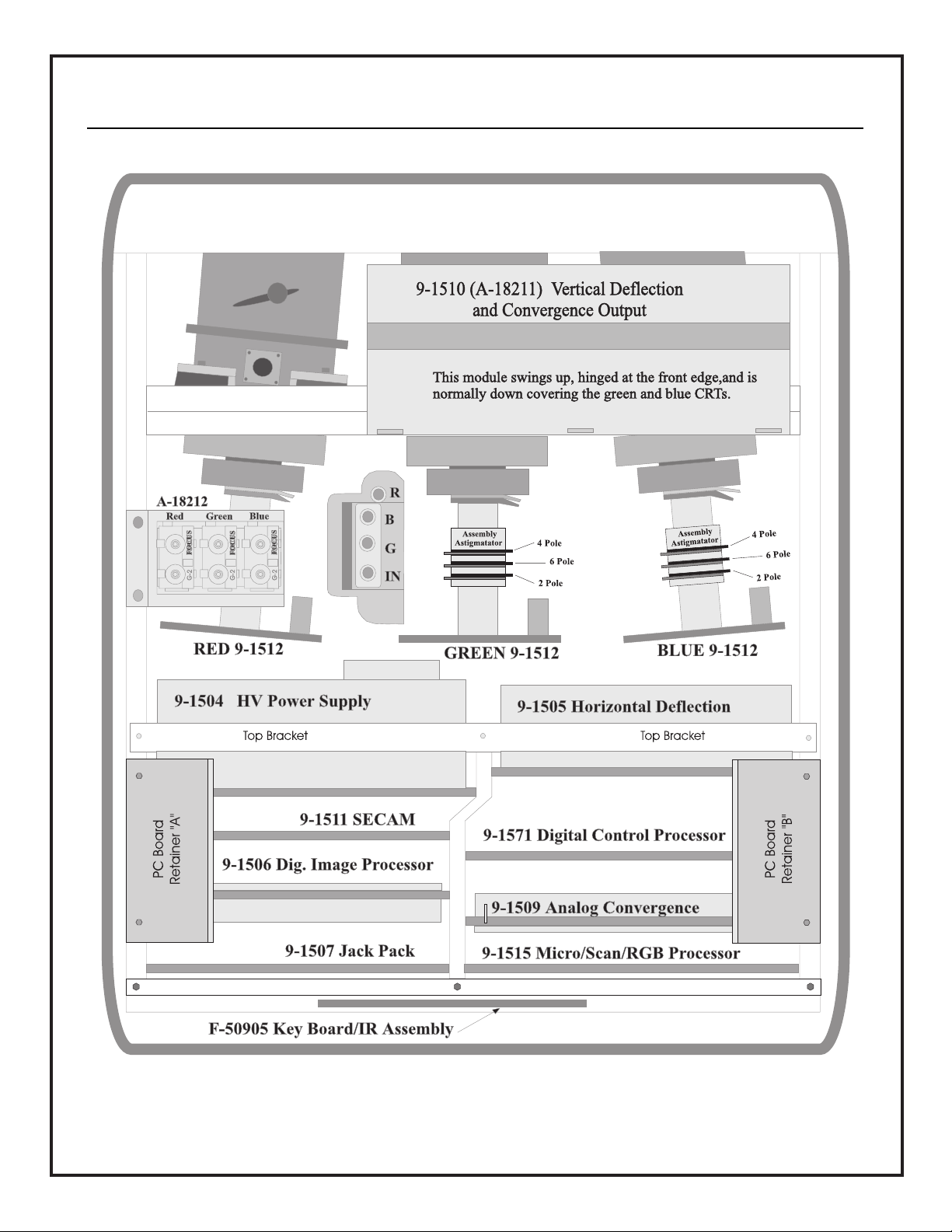

Monitor Top/ Inside View . . . . . . . . . . . . . . . . . . . . 12

Setup

Setup Remote Control Key Functions . . . . . . . . . . . . . 13 Setup Mode Notes and Cautions . . . . . . . . . . . . . . . . 14 Specifications for RGB Sync Inputs . . . . . . . . . . . . . . 15 Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 16 Screen Size Selection . . . . . . . . . . . . . . . . . . . . . . 17

Setup and Alignment Procedure

Procedure Overview . . . . . . . . . . . . . . . . . . . . . . . . 18 I. Installation Prerequisites . . . . . . . . . . . . . . . . . . 18 II. System Check and Physical Setup . . . . . . . . . . . . . 18 Setup Reference Illustrations . . . . . . . . . . . . . . . . . 19 Physical Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . 20 III. Preliminary Alignment Setup . . . . . . . . . . . . . . . 22 Geometry Convergence . . . . . . . . . . . . . . . . . . . . . . 25 Convergence Setup Controls . . . . . . . . . . . . . . . . . . 26 Convergence of Red and Blue onto Green . . . . . . . . . . 27 Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28



PLACEMENT CONSIDERATIONS





Room Light

Viewing Surface



Ideally, the PRO900X should be placed in a low-light envi-

We recommend a good quality screen having a matte white



ronment. Picture quality and the ability to see the project-

finish, which measures 80” in width (or more) diagonally.



ed images are adversely affected by bright-light conditions.

Contact your local dealer for assistance in purchasing an



Placement

appropriate screen.



Your PRO900X is shipped from the factory to provide an

Note: Use of a projection screen designed for a single



image with an 80” width as a ceiling-mounted front projec-

light source projection system may result in significant



tor. To ensure proper placement of the unit or to change

side-to-side color distortion.



the size of the projection image, refer to the “Physical





Setup” section.















Note to Installer

The purpose of this installation guide is to provide general guidelines for the proper installation and set up of the PRO900X. Actual operation of the unit is described in the separately supplied Operating Guide and Warranty.

This guide has been prepared for properly trained installers.

206-3634

© Copyright 2000 Zenith Electronics Corporation

P A G E 3



Standard North America (120 VAC)
North America (240 VAC)

INSTALLATION OVERVIEW

Installer’s Experience Level

The PRO900X is a sophisticated Entertainment MachineTM. In addition to making the necessary

connections, installation will most likely require a series of adjustments to ensure the projected image is not distorted. If these adjustments are not accu-

rate, the operation of the PRO900X could be adversely affected. For this reason, installation and setup should be performed by a qualified service person and should conform to all local codes. The installer must also adhere to the pertinent Articles of the National Electrical Code (NEC), pertinent Regulations of the Federal Communications Commission (FCC), and all relevant codes of local regulating agencies.

Installation Considerations

Before you install the PRO900X...

Ventilation -- Proper ventilation keeps the PRO900X running cool. Air circulates through

perforations on the sides of the cabinet. Do not block these vents or you will shorten the life of the PRO900X.

Power Cord -- The PRO900X has a three-wire grounding-type plug having a third (grounding)

pin. This plug will only fit into a grounding-type power outlet.

This is a safety feature. If you are unable to insert the plug into the outlet, contact an electrician to replace the obsolete outlet. Do not defeat the safety purpose of the grounding-type plug.

Power Source -- The PRO900X is designed to operate on normal household current, 120 volt 60 Hertz AC or 230 volt 50/60 Hertz AC. Do not attempt to operate it on DC current.

The PRO900X is configured at the factory for 120 volt, 60 Hz operation. A service adjustment is necessary to permit the unit to operate on 230 volt, 50/60 Hz. See Changing From 120 VAC To 230 VAC in the Setup and Alignment section for details.

National Power Cord Requirements U.S. / Canada

The power cord must be UL listed and CSA certified.

The minimum specifications for the power cord are as follows: No. 18 AWG, Type SV or SJ, 3 conductor.

The power cord must have a rated cur-

rent capacity of at least 10 amperes.

• The attachment plug must be an earth-grounding type with a NEMA 5-15P (15A, 125V) or NEMA 6-15P (15A, 250V) configuration.

Other Countries

• The cord set fittings must bear the

certification mark of the agency responsible for evaluation in a specific country. Acceptable agencies include the fol-

lowing:



BSI (United Kingdom)

Nemko (Norway)

CEBEC (Belgium)

OVE (Austria)

DEMKO (Denmark)

SEMKO (Sweden)

EANSW (Australia)

SEV (Switzerland)

SETI (Finland)

UTE (France)

IMQ (Italy)

VDE (Germany)

KEMA (The Netherlands)

MITI (Japan)

The flexible cord must be of a HAR (harmonized) type HO5VV-F 3-conductor cord with a minimum conductor size of .03 square inches (1.0 square millimeter).

The cord set must have a current capacity of at least 10 amperes and a nominal voltage rating of 125 or 250 VAC, as required by the specific country’s power system.

P A G E 4

Entertainment MachineTM is a registered trademark of Zenith Electronics Corporation

3276-A







SPECIFICATIONS

PRO900X

Note: Specifications are subject to change without prior notice.

Optical

PROJECTION SYSTEM — CRT; 7-inch High Performance Liquid Cooled Tubes, 5-inch active phosphor area, 90 degree deflection angle, Super Oxide Cathodes.

LENSES — High resolution color corrected multi-layered coating hybrid lens system. fl.03 Aperature.

LIGHT OUTPUT — 700 Lumens peak light output.

CONVERGENCE — Digitally controlled analog with 10 factory preset options, 5 customer memory locations plus a copy function feature.

CONVERGENCE LIMITS — Less than 0.2% of vertical height. SELF-GENERATED SET UP PATTERNS — Cross Hatch (coarse and fine), convergence color pattern, static adjust.

SCHIEMPFLUG FOCUS — For edge focusing.

Inputs

RGB INPUTS — 5 - BNC analog (RGB H/V) with full VGA and VESA Super VGA tracking compatibility.

COMPOSITE VIDEO INPUT — 1.0 Vp-p, 75 ohm (BNC jack), loop through (NTSC 3.58, NTSC 4.43, PAL M/N, PAL B/G).

S-VIDEO INPUT — Y: 1.0 Vp-p 75 ohm; C: 0.28 Vp-p color burst level (via mini DIN) connector.

DATA COMMUNICATIONS PORT — RS232 serial port.

POWER INPUT — Dual-range power supply 90-137 Vac, 180-264 Vac, 47-63 Hz.

Video Features

Three-dimensional Digital Comb Filter.

Two-dimensional Picture Sharpness Circuitry.

Digital Dynamic Video Noise Reduction.

Color Transient Improvement.

Black Level Expansion.

Auto Flesh Tone Correction.

Video Edge Enhancement.

Color Noise Reduction.

Advanced Video DSP with 5 megabit memory.

Extra Wide-band Video Amplifiers.

High Resolution AKB with programmable white balance control.

Picture setup via source selection.

World Wide Multi-standard Video System (PAL M/N, PAL B/G, NTSC).

Aspect Ratio Correction.

Multi-Frequency, Multi-Format High Definition System (15 to 50 kHz, 75 MHz dot clock).

Addressability via IR for multiple projection unit applications.

On-Screen Display capable of 13 x 32 character display resolution.

General

HORIZONTAL SCAN FREQUENCY — 15.0-50.0 kHz. VERTICAL SCAN FREQUENCY — 40.0 - 100 Hz.

RETRACE TIME — Horizontal: < 3.5 µS (15.0 - 50.0 kHz). Vertical: 450 µS (40.0 - 100 Hz).

BANDWIDTH — 37.5 MHZ (-3dB).

RGB RESOLUTION — 1920 x 1080 (interlace). VIDEO RESOLUTION — 800 TV Lines.

SIZE ADJUSTABLE — 48 - 192 inches wide.

SCREEN CONFIGURATION — Front or rear, floor or ceiling mount, with simple scan reversal.

COLOR BALANCE — Four user selectable settings: 3200/6500/9300/Custom.

HIGH VOLTAGE — 32 kV.

POWER CONSUMPTION — 600 Watts max. AC POWER CORD — 3 meters.

WEIGHT — 43.13 kg / 95 lbs.

ENVIRONMENT — Operating Temperature: 0 to 40º C (degrees); Humidity: 0 to 90 percent non-condensing;

Storage: 10 to 50º C (degrees)

SAFETY AND REGULATION —

UL: Complies with UL 1950.

CSA: Complies with CSA C22.2 No. 950.

FCC: Complies with FCC Class B Regulations.

European: CE Mark. Complies with IEC 950.

DHHS: Complies with X-Ray Emission Regulations.

NOM: Complies with Mexico Standards.

MECHANICAL DIMENSIONS — 12.90 inches (H), 25.75 inches (W), 33.28 inches (D).

REMOTE CONTROL SYSTEM — Two IR receivers for front and rear remote access. Installer’s remote provides full control of menus and convergence. Operators remote is point and click trackball.

Formats Supported

NTSC

3.58

NTSC

4.43

PAL

M, N, B, G.

VGA

IBM Standard

SVGA

VESA Standard, 1024 x 768

Mac II

640 x 480, 35kHz

Grand

HDTV Formats. 1280 x 720, progressive,

Alliance

16 x 9 aspect ratio. 1920 x 1080, interlaced, 16 x 9



aspect ratio, per SMPTE specification, tri-level sync.

3276-A

P A G E 5

STANDARD CONNECTIONS

CONNECTING COMPUTER VIDEO SOURCES

Connect a video source such as a computer: PC, Laptop, or Notebook type.

































































































































































































































To hook up a laptop or computer, use a cable with a



Note: Any special adapters, cables, or connectors shown









15-pin D-type connector on one end and BNC connectors



are not provided with the PRO900X. See your computer









on the other end.



dealer for your special requirements.

















































CONNECTING VIDEO AND S-VIDEO SOURCES

Connect video sources with a tuner, (VCR) or other video sources such as a DVD player or satellite receiver.

P A G E

6

To hook up a VCR, DVD player, or other video source, use standard video connectors as needed.

Connect the video source to the Video In jack on the PRO900X. If the video source has an S-Video connector, then connect to the S-Video jack on the PRO900X.

Notes: For audio capability, connect your Video sources’ Audio output to a separate audio amplifier like a stereo system; no audio capability is provided with the PRO900X. Use cables and adapters with the connector types and jacks available on the video source.

3276-A

STANDARD CONNECTIONS

CONNECTOR PIN WIRING REFERENCE

3276-A

P A G E 7

CONNECTIONS / CONTROL PANEL

SELECTS MENU OPTIONS

REMOTE CONTROL WINDOW

S-VIDEO INPUT JACK

COMMUNICATIONS PORT INTER-CONNECT JACK

(RJ-11)

Loop Out, Loop In, Setup Switch

(Set LOOP switch to “Out” if routing composite video to a second projector.)

Selecting the Input Source

The type of input signal determines which source is being viewed. Use the Source Menu to select the source you want to view. The options in the menu correspond to the connectors on the connection panel.

ENTER

Shows Source/Time Display

MENU

Accesses on-screen menus

POWER ON INDICATOR

POWER

On/Off Switch

Red, Green, Blue (RGB)

Horizontal/Vertical input jacks

COMPOSITE VIDEO INPUT

COMPOSITE VIDEO LOOP OUT JACK

(Set LOOP switch to “Out” if using loop through.)































P A G E 8







3276-A

REMOTE CONTROL

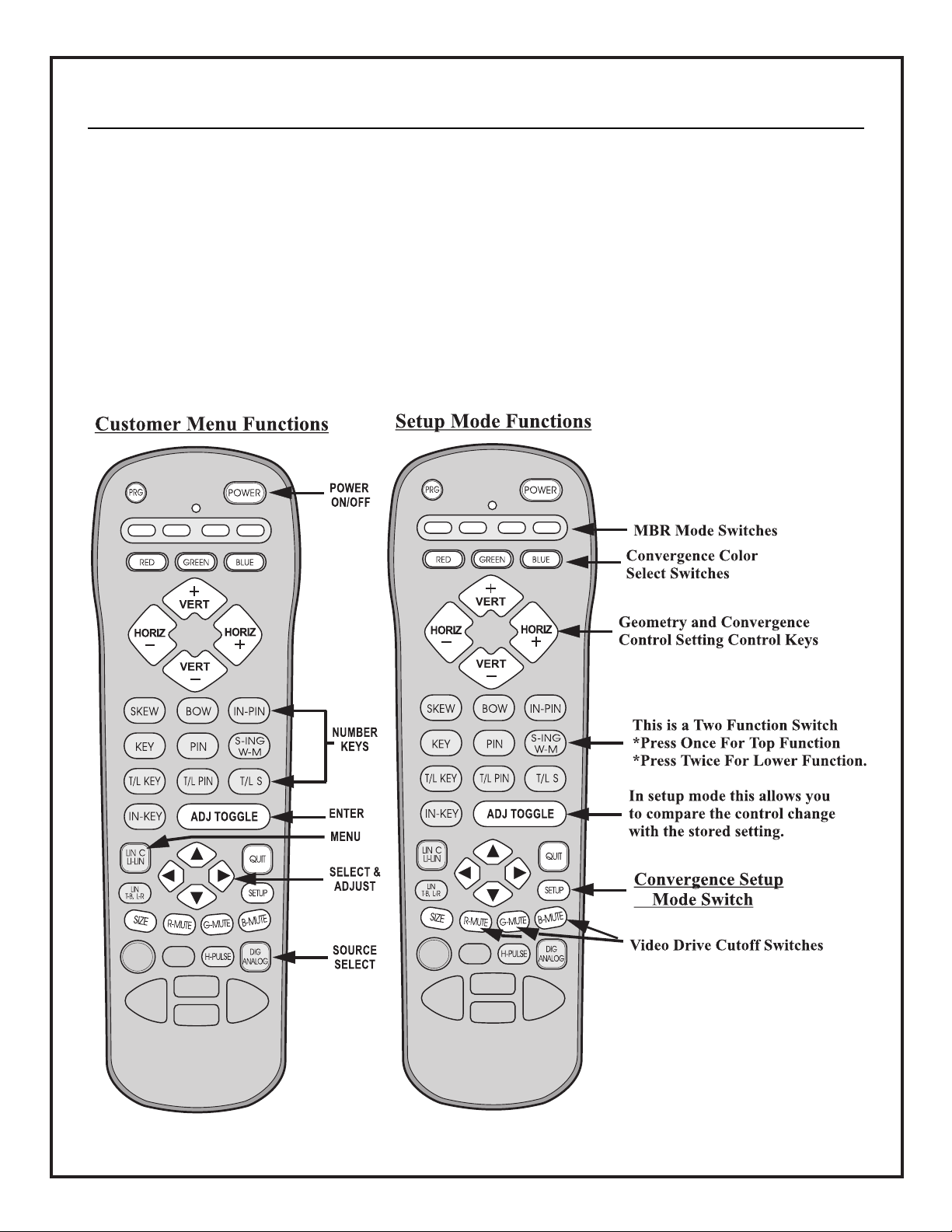

REMOTE CONTROL MBR3470T

The MBR3470T remote control is used specifically for servicing and setup adjustment. It provides the special functions needed for geometry, convergence, and system setup that other remotes cannot perform.







































































Red, Green, Blue











Vertical and Horizontal







Adjustment Select Keys











Selects formats, sets











Adjusts selected







Adjusts selected





Floor/Ceiling or a specific











geometry/convergence







geometry/convergence





color convergence.











characteristics.







characteristics.









































































































BATTERY INSTALLATION

Batteries are provided, but they must be installed before using the remote control. When it no longer functions normally, or when it loses memory, replace the batteries with two high-quality, alkaline, size AAA batteries.

To Install the Batteries

1.Open the battery compartment by pressing in on the tab and lifting the cover off.

2.Place the batteries into the compartment according to the markings shown in the compartment.

3.Replace the battery compartment cover.

Notes

Do not place heavy objects on top of the remote control keys. Prolonged unintentional operation of the remote shortens the usable life of the batteries.

Remove the batteries if the remote control will not be used for a month or more.

The remote manufacturer is not responsible for damage caused by battery leakage.

CHOOSING THE SETUP FUNCTION

Press SETUP to set the remote control in “setup” mode. In the setup mode, you have the following choice of which setup functions to perform:

Geometry Convergence -- Press SETUP, then RED.

Single Color Convergence -- Press SETUP, then RED, and a color key (Red, Green or Blue) to select color to converge.

Forced Signal Formats -- Press SETUP, then GREEN.

Ceiling/Floor Select -- Press SETUP, then BLUE.

Red, Green, Blue

Setup

3276-A

P A G E 9

+ 19 hidden pages
