OPPO Digital BDP-83 User Manual
®
Blu-ray Disc Player
Model No. BDP-83
USER MANUAL
READ CAREFULLY
BEFORE OPERATION
Table of Contents
Important Information...............................................................1
Important Safety Instructions .................................................................................... 1
Precautions ................................................................................................................. 2
FCC Statement ............................................................................................................ 2
Trademarks ................................................................................................................. 2
Compatible Disc Types ............................................................................................... 3
Discs that cannot be played.............................................................................................................3
Disc care and handling ....................................................................................................................3
Notes about BD-ROM compatibility ................................................................................................. 4
Copyright Protection...................................................................................................4
Region management information.....................................................................................................4
INSTALLATION .......................................................................... 5
Front Panel Controls ................................................................................................... 5
Front Panel Display Window .......................................................................................5
Rear Panel Connectors ............................................................................................... 6
Remote Control ........................................................................................................... 7
Remote Control Buttons ..................................................................................................................7
Back Side.........................................................................................................................................8
Battery Installation ...........................................................................................................................8
Using the Remote Control ...............................................................................................................8
Setting the Remote Code ................................................................................................................9
Connecting to a Display............................................................................................10
HDMI Connection...........................................................................................................................10
DVI Connection..............................................................................................................................11
Component Video Connection.......................................................................................................12
Connecting to an Audio System ............................................................................... 13
Connecting to a Receiver/Amplifier with HDMI Input/Output .........................................................13
Connecting to a Receiver/Amplifier with 7.1ch/5.1ch Audio Input .................................................14
Connecting to a Receiver/Amplifier with Dolby Digital or DTS Decoder........................................15
Connecting to a Stereo Audio System...........................................................................................16
Connecting to the Internet ....................................................................................... 17
Custom Installation................................................................................................... 18
External IR (Infrared Remote) Installation .....................................................................................18
Setting Up the Player - Easy Setup Wizard ..............................................................19
Access the Easy Setup Wizard......................................................................................................19
Choose the Primary Video Output ................................................................................................. 19
Select the Best Output Resolution.................................................................................................20
Determine the Display Aspect Ratio .............................................................................................. 21
i
Select the Audio Setting.................................................................................................................23
Complete the Easy Setup Wizard ..................................................................................................23
BASIC OPERATIONS................................................................ 24
Disc Playback............................................................................................................ 24
Fast Playback............................................................................................................ 24
Pause and Frame-by-Frame...................................................................................... 25
Slow Playback........................................................................................................... 25
Blu-ray Disc Menu Playback..................................................................................... 26
DVD Menu Playback.................................................................................................. 26
On-Screen Display..................................................................................................... 26
Volume Control ......................................................................................................... 27
Mute........................................................................................................................... 27
Audio Language/Track Selection ............................................................................. 27
Subtitle Selection ..................................................................................................... 28
Angle Selection......................................................................................................... 28
Picture-in-Picture and Secondary Audio .................................................................. 28
BD-Live ...................................................................................................................... 29
ADVANCED OPERATIONS ....................................................... 30
TV System Selection ................................................................................................ 30
Output Resolution..................................................................................................... 30
Zooming and Aspect Ratio Control .......................................................................... 31
Zoom Levels for HDMI Output .......................................................................................................31
Zoom Levels for Component Video Output....................................................................................34
Repeat Playback....................................................................................................... 35
Repeat a Selected Section....................................................................................... 35
Shuffle and Random Playback.................................................................................. 35
Playback by Chapter or Track Number.................................................................... 36
Playback from a Specific Location .......................................................................... 36
DVD and Blu-ray Discs ..................................................................................................................36
CD and SACD discs.......................................................................................................................37
Memory and Automatic Resume .............................................................................. 38
Viewing Pictures on DVD-Audio Discs ..................................................................... 39
Pure Audio Mode....................................................................................................... 39
MEDIA FILE PLAYBACK........................................................... 40
Playback from a USB Drive....................................................................................... 40
The Home Menu ........................................................................................................ 40
Playing Music Files ................................................................................................... 41
Playing Movie Files ................................................................................................... 42

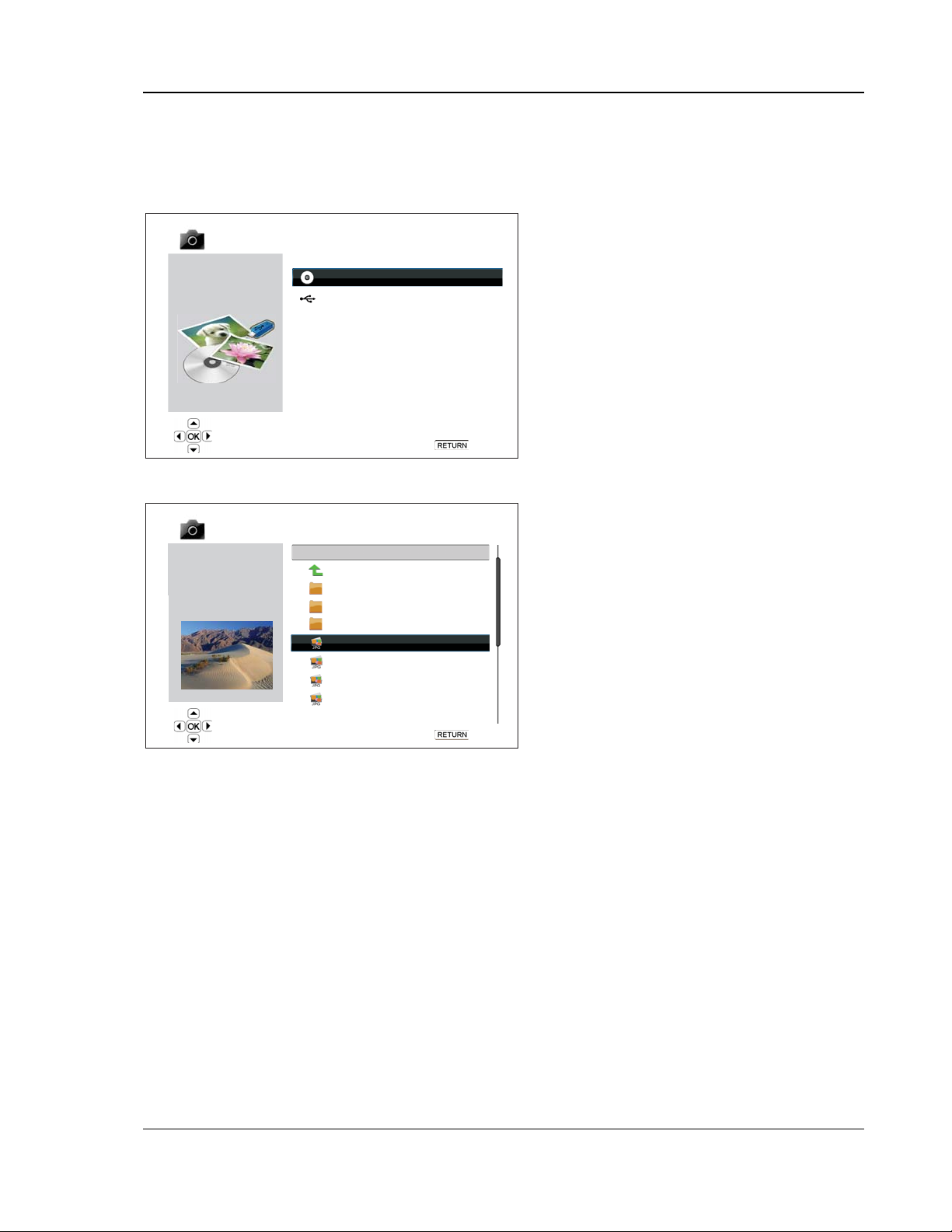

Viewing Photo Files .................................................................................................. 43
Adding Background Music .............................................................................................................43
ii
SETUP MENU OPTIONS...........................................................44
Using the Setup Menu System..................................................................................44
Playback Setup.......................................................................................................... 46
Video Setup ...............................................................................................................48
Picture Adjustment.........................................................................................................................52
Audio Format Setup...................................................................................................55
Audio Signal Reference Chart .......................................................................................................57
Recommended Audio Format Options ..........................................................................................58
Audio Processing Setup............................................................................................ 60
Speaker Configuration ................................................................................................................... 60
Other Audio Processing Settings...................................................................................................64
Device Setup ............................................................................................................. 65
Network Setup........................................................................................................... 68
REFERENCES...........................................................................70
Useful Notes.............................................................................................................. 70
Troubleshooting ........................................................................................................ 70
Specifications............................................................................................................ 71
Language Code List ..................................................................................................72
LIMITED WARRANTY...............................................................73
OPPO Digital, Inc. Limited One Year Warranty ........................................................73
iii
Important Information
CAUTION:
CAUTION
RISK OF ELECTRIC SHOCK.
DO NOT OPEN.
CAUTION: TO REDUCE THE RISK OF ELECTRIC
SHOCK, DO NOT REMOVE COVER (OR BACK).
NO USER-SERVICEABLE PARTS INSIDE. REFER
SERVICING TO QUALIFIED SERVICE
PERSONNEL.
The lightning flash with arrowhead symbol, within an
equilateral triangle, is intended to alert the user to the
the product's enclosure that may be of sufficient magnitude to
constitute a risk of electric shock to persons.
accompanying the appliance.
presence of uninsulated “dangerous voltage” within
The exclamation point within an equilateral
triangle is intended to alert the user to the
presence of important operation and maintenance
(servicing) instruction in the literature
WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK,
DO NOT EXPOSE THIS APPLIANCE TO RAIN OR
MOISTURE. DANGEROUS HIGH VOLTAGES ARE
PRESENT INSIDE THE ENCLOSURE. DO NOT OPEN
THE CABINET. REFER SERVICING TO QUALIFIED
PERSONNEL ONLY.
THE APPARATUS SHALL NOT BE EXPOSED TO
DRIPPING OR SPLASHING AND THAT NO OBJECTS
FILLED WITH LIQUIDS, SUCH AS VASES SHALL BE
PLACED ON THE APPARATUS.
DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY
REPLACED. REPLACE ONLY WITH THE SAME OR
EQUIVALENT TYPE.
THIS PRODUCT UTILIZES A LASER. USE OF CONTROLS
OR ADJUSTMENTS OR PERFORMANCE OF
PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN
MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.
DO NOT OPEN COVERS AND DO NOT REPAIR
YOURSELF. REFER SERVICING TO QUALIFIED
PERSONNEL.
This label is located on the laser protective housing inside the
product.
CLASS I LASER
PRODUCT
Important Safety Instructions
1) Read these instructions.
2) Keep these instructions.
3) Heed all warnings.
4) Follow all instructions.
5) Do not use this apparatus near water.
6) Clean only with dry cloth.
7) Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
8) Do not install near any heat sources such as radiators,
heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
9) Do not defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two blades
with one wider than the other. A grounding type plug
has two blades and a third grounding prong. The wide
blade or the third prong is provided for your safety. If
the provided plug does not fit into your outlet, consult
an electrician for replacement of the obsolete outlet.
10) Protect the power cord from being walked on or
pinched, particularly at plug, receptacle, and the point
where it exits from the apparatus.
11) Only use attachments/accessories specified by the
manufacturer.
12) Use only with the cart, stand, tripod,
bracket, or table specified by the
manufacturer, or sold with the
apparatus. When a cart is used, use
caution when moving the
cart/apparatus combination to avoid
injury from tip-over.
13) Unplug this apparatus during lightning storms or when
unused for long periods of time.
14) Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or plug
is damaged, liquid has been spilled or objects have fallen
into the apparatus, the apparatus has been exposed to
rain or moisture, does not operate normally, or has been
dropped.
1
IMPORTANT INFORMATION
Precautions
• Before connecting the AC power cord to the appliance,
make sure the voltage designation of the appliance
corresponds to the local electrical supply. If you are
unsure of your power supply, contact your local power
company. The acceptable power input range is AC ~
100V-240V, 50/60Hz
• The player is still receiving power from the AC power
source as long as it is connected to the wall outlet,
even if the player itself has been turned off.
• Unplug the power cord if you are not going to use the
product for an extended period of time. Hold the power
plug when unplugging. Do not pull on the cord.
• The main plug is used as the mechanism for cutting off
power, therefore make sure it is easy to unplug.
FCC Statement
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
This equipment generates, uses, and can radiate radio frequency
energy and, if not installed and used in accordance with the
instructions, may cause harmful interference to radio
communications. However, there is no guarantee that
interference will not occur in a particular installation. If this
equipment does cause harmful interference to radio or television
reception, which can be determined by turning the equipment off
and on, the user is encouraged to try to correct the interference
by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• To ensure proper ventilation around this product, do not
place this product on a sofa, bed or rug. When installing
this product on a wall or bookshelf, you need to provide
appropriate space.
• High temperature will lead to abnormal operation of this
unit. Do not expose this unit or batteries to direct sunlight
or near other heating objects.
• When moving the player from a cold location to a warm
one, or vice versa, moisture may condense on the laser
pickup unit inside the player. Should this occur, the
player may not operate properly. In such a case please
turn the unit on for 1-2 hours (without a disc) to facilitate
moisture evaporation.
• Increase the separation between the equipment and
receiver.
• Connect the equipment into an outlet on a circuit different
from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician
for help.
Any unauthorized changes or modifications to this equipment
would void the user’s authority to operate this device.
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) This device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation.
Trademarks
• “Blu-ray Disc”, “BONUSVIEW” and “BD-Live” are
trademarks of Blu-ray Disc Association.
• Java and all Java-based trademarks and logos are
trademarks or registered trademarks of Sun
Microsystems, Inc. in the United States and other
countries.
• DVD Logo is a trademark of DVD Format/Logo
Licensing Corp., registered in the U.S., Japan and
other countries.
• Super Audio CD, SACD and the SACD logo are joint
trademarks of Sony Corporation and Philips Electronics
N.V. Direct Stream Digital (DSD) is a trademark of
Sony Corporation.
• “AVCHD” and the “AVCHD” logo are trademarks of
Panasonic Corporation and Sony Corporation.
• Designed for Windows Media, Microsoft, HDCD, and
the HDCD logo are trademarks or registered
trademarks of Microsoft Corporation in the United
States and/or other countries.
• “480p/720p/1080i/1080p” up-converting arrow logo,
“Source Direct” and “True 24p” logos are trademarks of
OPPO Digital, Inc.
• VRS™, Video Reference Series™, Precision De-
interlacing™, Precision Video Scaling™, Progressive
Cadence Detection™ and AutoCUE-C™ are trademarks
of Anchor Bay Technologies Inc. All products bearing the
DVDO®, iScan™ and VRS™ trademarks are based
upon technologies, architectures, and product designs
originally created and developed by the Anchor Bay
Team.
• Manufactured under license under U.S. Patent #’s:
5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,226,616;
6,487,535; 7,392,195; 7,272,567; 7,333,929; 7,212,872 &
other U.S. and worldwide patents issued & pending. DTS
is a registered trademark and the DTS logos, Symbol,
DTS-HD and DTS-HD Master Audio | Essential are
trademarks of DTS, Inc. © 1996-2008 DTS, Inc. All
Rights Reserved.
• Manufactured under license from Dolby Laboratories.
“Dolby” and the double-D symbol are trademarks of
Dolby Laboratories.
• HDMI, the HDMI logo and High-Definition Multimedia
Interface are trademarks or registered trademarks of
HDMI Licensing LLC.
• All other trademarks are the properties of their respective
owners.
2
IMPORTANT INFORMATION
Compatible D isc Types
Type/Logo Features Manual Icon
High Definition (HD) movie and music discs
BD-ROM and BD-RE/BD-R discs in BDMV and BDAV mode, including 8cm
BD-Video
DVD-Video
discs (single layer) and DL discs.
- Discs supporting BONUSVIEW (BD-ROM version 2 Profile
1 version 1.1/Final Standard Profile) that allows Virtual packages or Picture-inPicture functions to be used.
- Discs supporting BD-Live (BD-ROM version 2 Profile 2) that provides
interactive features when the player is connected to the Internet.
High quality movie and music discs
Commercially released DVD discs, DVD+RW/DVD+R/DVD-RW/DVD-R using
Version 1.1 of the DVD Video Recording Format, finalized.
DVD-Audio
Super Audio CD
CD
AVCHD
Multi-channel or stereo high resolution audio with compressed digital video or
still pictures. Some DVD-Audio discs also contain a DVD-Video portion.
SACD: High resolution audio-only disc with stereo and/or multi-channel audio.
Hybrid disc with both high resolution and CD-compatible layers.
Compact Discs (CD) that contain audio and music.
High-definition digital video camera format using efficient data compression
coding technology.
Discs that cannot be played
• BDs with cartridge
• DVD-RAMs
• HD DVDs
• Data portion of CD-Extras
• BD-Video/DVD-Video with a different region code
Disc care and handling
DVD-A
SACD
• Some DualDiscs: A DualDisc is a two sided disc with
DVD on one side and digital audio on the other side. The
digital audio side does not meet the technical
specifications of the Compact Disc Digital Audio (CD-DA)
format so playback is not guaranteed.
• Music discs encoded with copyright protection
technologies: among such discs, some do not conform to
the CD standard and may not be usable on this player.
• To keep the disc clean from scratches or fingerprints,
handle the disc by its edge. Do not touch the recording
surface.
• Blu-ray Discs record data in very high density and the
record layer is very close to the disc surface. For this
reason, Blu-ray Discs are more sensitive to dust and
fingerprints than DVD. Should you encounter playback
problems and see dirty spots on the disc surface, clean
the disc with a cleaning cloth. Wipe the disc from the
center out along the radial direction. Do not wipe the
disc in a circular motion.
• Do not use record cleaning sprays or solvents such as
benzene, thinner and anti-static spray.
• Do not attach labels or stickers to discs as this may
cause the disc to warp, become imbalanced or too thick,
resulting in playback problems.
• Avoid exposing the discs to direct sunlight or heat
sources.
• Do not use the following discs:
o Discs with exposed adhesive from removed stickers
or labels. The disc may get stuck inside the player.
o Warped or cracked discs.
o Irregularly shaped discs, such as heart or business
card shapes.
3
IMPORTANT INFORMATION
Notes about BD-ROM compatibility
Since the Blu-ray Disc specifications are new and evolving, some discs may not play properly depending on the disc type, version
and encoding. It is possible that a Blu-ray disc manufactured after the player was manufactured uses certain new features of the
Blu-ray Disc specifications. To ensure the best possible viewing experience, the player may need a firmware or software update
from time to time. Please visit OPPO Digital’s web site
www.oppodigital.com to check if updates are available.
Copyright Protection
This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this
copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses
only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.
Region management information
This player is designed and manufactured to respond to the region management information. If the region number of a BD-Video
or DVD disc does not correspond to the region number of this player, this player cannot play the disc.
BD-Video: This player plays BD-Video with marks containing the region code A.
DVD-Video: This player plays DVD-Video with marks containing the region code 1 and ALL.
4
INST ALLA TION
Front Panel Controls
1 2 3 4 5 6 7
1. POWER Button
2. IR Remote Sensor
3. Disc Tray
4. Display Window
Front Panel Display Window
1 2 3 4 5 6 7 8 9
11 12 13 14
1. Disc Type Indication – Indicates the currently playing
disc type
2. Title/Group – When illuminated, the displayed time
applies to a title or group
3. Track/Chapter – When illuminated, the displayed time
applies to a track or chapter
4. Total – When illuminated, the displayed time is the total
play time
5. Remaining – When illuminated, the displayed time is
the remaining play time
6. Playback Status – Indicates playback status such as
Play, Pause, Repeat, Repeat All, Random/Shuffle, and
A-B Repeat
5. OPEN/CLOSE Button
6. Playback Control and
Navigation Buttons
7. USB Port
10
7. Angle Icon – Indicates that the scene contains additional
camera angle(s)
8. HDMI – Indicates that the HDMI output is active
9. Network – Indicates that a network cable is attached
10. Reserved – Not in use
11. Mute Icon – Indicates that the audio is muted
12. Audio Channel Indication – Indicates whether the audio is
2ch stereo or multi-channel surround
13. Main Display – Text messages and numeric display
14. Audio Type Indication – Indicates the type of audio tracks
playing
5
INSTALLATION
Rear Panel Connectors
1 2 3 4 5 6 7 8 9
1. 7.1CH/5.1CH Audio Output
2. Stereo Audio Output
3. Coaxial and Optical Digital Audio Output
4. Composite Video Output
5. Component Video Output
6. Ethernet LAN Port
7. USB 2.0 Port
8. HDMI Output
9. IR IN and OUT Ports
In addition to the above connectors, the AC power inlet is also located on the rear panel. The inlet is the
IEC60-320 C18 type. Only the included AC power cord or an approved power cord with an IEC60-320 C17
type plug should be used.
6
INSTALLATION
Remote Control
Remote Control Buttons
1
2
3
4
5
6
7
8
9
10
11
2
12
13
14
15
16
17
18
1. POWER: Toggle power
STANDBY and ON
2. ON/OFF: Discrete on/off
power buttons
3. PURE AUDIO: Turn
19
20
21
22
23
24
25
off/on video
4. NUMBER Buttons:
Enter numeric values
5. CLEAR: Clear numeric
input
6. TOP MENU: Show BD
top menu or DVD title
26
27
28
29
menu
7. ARROW and ENTER
Buttons: Navigate menu
selection
8. SETUP: Enter the
player Setup Menu
9. COLOR Buttons:
30
Function varies by
content
10. PLAY: Start playback
11. STOP: Stop playback
31
32
33
34
35
36
37
38
12. REV: Fast reverse play
13. PREV: Skip to previous
14. SUBTITLE: Change
subtitle language
15. AUDIO: Change audio
language or channel
16. SAP: Turn on/off
Secondary Audio
Program
17. A-B REPLAY: Repeat
play the selected
section
18. RESOLUTION: Switch
output resolution
19. SOURCE: Go to Home
Menu to select media
source
20. OPEN: Open/close the
disc tray
21. P/N: Switch output TV
system: NTSC, PAL or
MULTI
22. DIMMER: Dim front
panel display
23. VOLUME +/-:
Increase/Decrease
volume
24. MUTE: Mute audio
25. HOME: Go to Home
Menu to select media
source
26. PAGE UP/DOWN:
Show previous/next
page
27. GOTO: Play from a
specified location
28. DISPLAY: Show/hide
On-Screen Display
29. POP-UP MENU: Show
BD pop-up menu or
DVD menu
30. RETURN: Return to the
previous menu or mode
31. PAUSE: Pause
playback
32. FWD: Fast forward play
33. NEXT: Skip to next
34. ANGLE: Change
camera angle

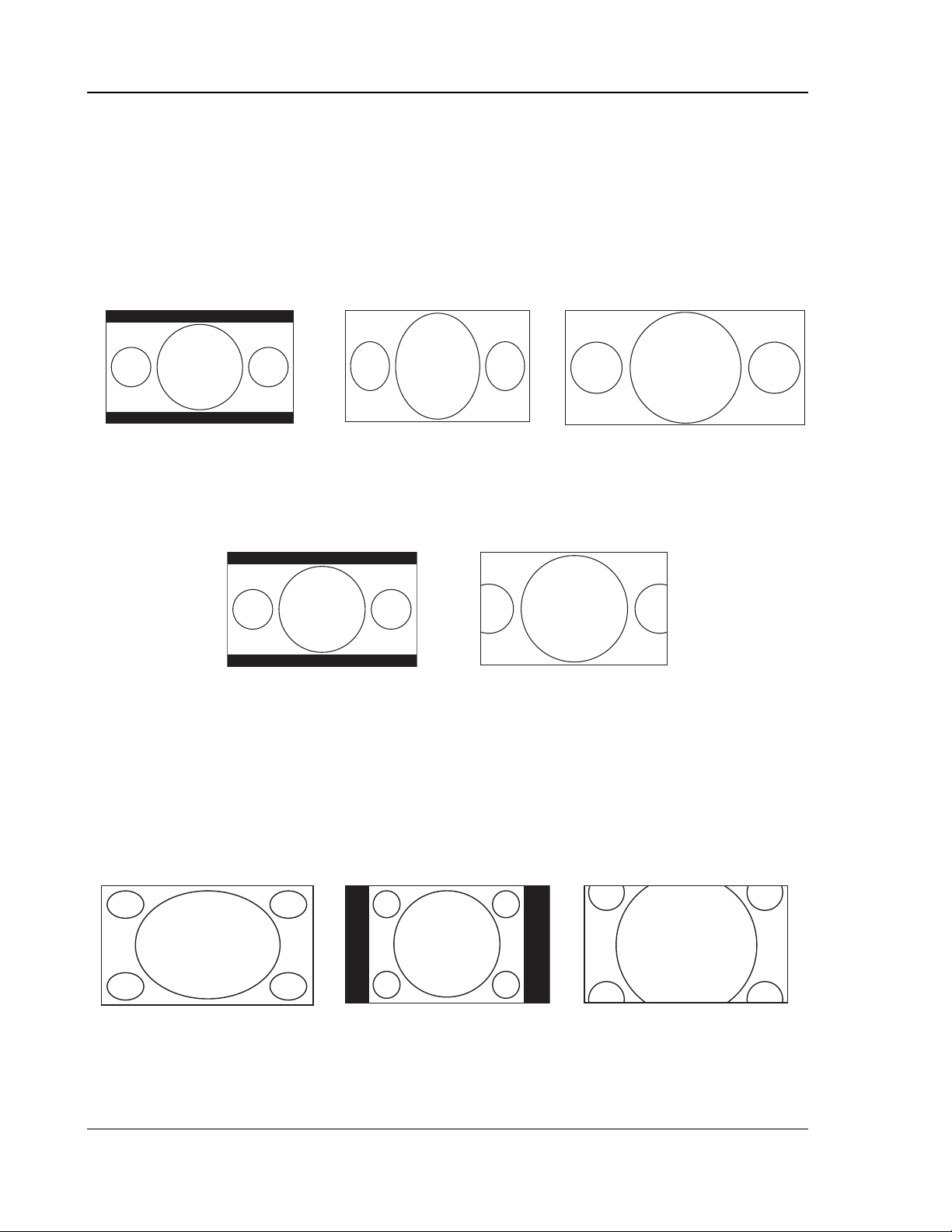

35. ZOOM: Zoom in/out
and adjust aspect ratio
36. PIP: Show/hide Picture-
in-Picture
37. REPEAT: Repeat play
38. LIGHT: Activate back
light for the remote
control
NOTE
When a button is pressed but its function is invalid or unavailable at the moment, the TV
screen displays a circle with a diagonal line:
7
INSTALLATION
Back Side
1
2
3
With Battery Cover Battery Cover Removed
Battery Installation
1. Index Finger Notch 1: When your index finger is
placed at this notch while holding the remote control,
your thumb is within easy reach to the navigation
buttons (ARROW, ENTER, TOP MENU and POPUP MENU).
2. Index Finger Notch 2: When your index finger is
placed at this notch while holding the remote control,
your thumb is within easy reach to the playback
control buttons (STOP, PLAY, PAUSE, PREV,
NEXT, REV, FWD).
3. Battery Cover: Remove to replace batteries or set
remote code.
4. Batteries: Use (2) size AA or LR6 batteries.
5. Remote Code Switch: Adjust the position of the
4
switch to set the remote control to use the indicated
remote code.
5
1. Remove the battery
compartment cover
2. Insert batteries
3. Replace the battery
compartment cover
Using the Remote Control
When using the remote control, the front window of the remote control should be pointed to the infrared sensor
on the front panel within an angle of ±30° and a range of about 26 ft.
Within about 26ft
8
INSTALLATION
Setting the Remote Code
The remote control supports one of three remote codes. The default is “Code 1”. If you have other OPPO
products placed close to the BDP-83, they may inadvertently respond to the BDP-83 remote control. In this
case you can select a different remote code to avoid conflicts.
To select a new remote code, open the battery compartment cover of the remote control, and then use a ball
point pen to flip the switch to one of the positions marked as “1”, “2”, or “3”. Close the battery compartment
cover. Make sure that the BDP-83 player is turned on and the disc tray is ejected. Aim the remote control at
the player. Press and hold the ENTER button for 5 seconds. The player will start using the new remote code.
Battery Compartment
Remote Code Switch
CAUTIONS
• Never drop the remote control or expose it to moisture.
• Never expose the infrared remote sensor on the front panel to direct sunlight or other
strong light sources.
• Remote may not operate consistently when batteries become low. Replace them if
operation deteriorates.
• If the remote control will not be used for a long time, please remove the batteries.
• Use the batteries correctly to avoid possible leakage and corrosion. Do not leave the
batteries exposed to direct sunlight or high temperature environment for a long
period of time. Do not heat or expose to flame. Do not mix old and new batteries.
Do not use batteries of different types at the same time. Do not attempt to recharge
the batteries.
• In case battery leakage occurs, do not touch the liquid with bare hands. Wipe out
any liquid inside the battery compartment, and insert new batteries.
9
INSTALLATION
Connecting to a Display
HDMI Connection
Rear Panel
Video In
HDMI In
Composite Video Cable (Optional)
HDMI Cable
Method 1 – HDMI Connection Directly to TV
• If your TV has an HDMI (High-Definition Multimedia Interface) input, you can use the included
HDMI cable to connect the player to the TV. This connection method delivers both video and
audio in a pure digital format via a single cable. The HDMI video output of the player allows for
the highest possible video quality and resolution.
• You may connect the composite video cable to the TV for troubleshooting purposes, just in case
there is a problem with HDMI. However it is not recommended to use the composite video as
the primary method of video delivery to the TV, because it only produces a standard definition
video signal and forfeits the advantage of high definition video.
10
INSTALLATION
DVI Connection
Rear Panel
DVI
Audio
DVI
Audio Cable
HDMI - DVI
Cable
Method 2 – DVI Connection to TV
• If your TV has a DVI input that supports HDCP*, you can purchase an HDMI-DVI adapter cable
to connect the player to the TV. This connection method delivers digital video to the TV without
any signal degradation. The HDMI video output of the OPPO Blu-ray Disc player presents the
highest possible video quality and resolution.
• Please use the Red/White audio cables to connect the STEREO AUDIO OUT terminals of the
player to the TV. Make sure the audio cables are connected to the same input terminal group
on the TV as the DVI input. Usually the input terminals are marked as “DVI Audio” or “PC
Audio”. On some TVs you may need to use an RCA-3.5mm Mini-Jack adapter cable to connect
the audio.
• You may connect the composite video cable to the TV for trouble-shooting purpose, just in case
there is a problem with DVI. However it is not recommended to use the composite video as the
primary method of video delivery to the TV, because it only produces a standard definition video
signal and forfeits the advantage of high definition video.
*NOTE
HDCP stands for High-bandwidth Digital Content Protection. The HDMI output of the OPPO
Blu-ray Disc player uses HDCP to encrypt the digital audio and video content. The TV needs
to support HDCP so it can decrypt the content and properly display it.
11
INSTALLATION
Component Video Connection
Rear Panel
Audio
Audio
Cable
Component
Video
Pb/Cb
Pr/Cr
Y
Component
Video Cable
Method 3 – Component Video Connection to TV
• If your TV has no digital video input but has component video inputs, please use a set of
component video cables to connect the component video output of the player to the TV. The
connectors are color coded, so please make sure the cable connections match on both ends.
The component video connection will produce a very clear picture with high color accuracy.
• Please use the Red/White audio cables to connect the STEREO AUDIO OUT terminals of the
player to the TV. Make sure the audio cables are connected to the same input terminal group
on the TV as the chosen component video input.
• When the “Primary Output” Setup Menu item in the “Video Setup” section is set to “HDMI”
(see page
48 for details), the component video connection will not output video when playing a
Blu-ray Disc with 1080p 24Hz content, or will only output video with a low resolution (480i/576i)
when playing a DVD. This is not a malfunction. You must set “Primary Output” to
“Component” in order to properly use the component video connection.
• When playing a Blu-ray Disc, video resolution over the component output can be up to 1080i.
1080p content will be interlaced into 1080i signal for the component output.
• Video up-conversion over the component output is only available for unencrypted discs such as
home video and consumer-created contents. Most commercially pressed DVD discs are CSSencrypted and will be limited to 480i/480p resolution. This restriction applies to the component
output only. The HDMI output is protected with HDCP and has no such restriction.
• You may connect the composite video cable to the TV for trouble-shooting purpose, just in case
there is a problem with component video. However it is not recommended to use the composite
video as the primary method of video delivery to the TV, because it only produces a standard
definition video signal and forfeits the advantage of high definition video.
12
INSTALLATION
Connecting to an Audio System
Connecting to a Receiver/Amplifier with HDMI Input/Output
Rear Panel
HDMI Cable
HDMI In
HDMI Cable
HDMI InHDMI Out
AUDIO/VIDEO MULTI-CHANNEL
RECEIVER
Method 4 – HDMI Connection to Receiver and TV
• HDMI can transmit both audio and video signals over a single cable. If you have an HDMI-
capable receiver that can support HDMI audio, you can simply run an HDMI cable from the
player to your receiver and enable HDMI audio on the receiver (see your receiver’s owners’
manual for more information). The receiver usually has an HDMI output that you can connect to
your TV to pass the video signal.
NOTE
HDMI is a wonderful thing. A single cable can transport both audio AND video from your
player to your display. Be aware, however, that HDMI is an evolving standard, and there
could be compatibility issues. A receiver that supports audio input over HDMI is required.
Some receivers offer HDMI ports solely for video switching. If your receiver does not have
audio input capability, please read the following sections regarding other connection
methods.
In order to play multi-channel audio for all formats, the receiver must support HDMI v1.1 or
later. For Blu-ray Disc, a receiver that supports HDMI v1.3 with decoding capability for Dolby
TrueHD and DTS-HD Master Audio is preferred. Please check the specifications of your
receiver to ensure that it meets the requirements.
13
INSTALLATION
Connecting to a Receiver/Amplifier with 7.1ch/5.1ch Audio Input
Rear Panel
Audio Interconnect Cables
L
L
R
FRONT SURROUND SUBWOOFER S. BACK
CENTER
R
Receiver/Amplifier with 7.1ch Audio Input
L
R
AUDIO/VIDEO MULTI-CHANNEL
RECEIVER
Method 5 – 7.1ch Analog Audio Connection
• Please use 8 RCA-style audio interconnect cables to connect the FL (Front Left), FR (Front
Right), SL (Surround Left), SR (Surround Right), C (Center), SW (SubWoofer), SBL (Surround
Back Left) and SBR (Surround Back Right) analog output terminals of the OPPO Blu-ray Disc
player to the corresponding multi-channel analog audio input jacks of your A/V receiver or
amplifier.
• If the A/V receiver or amplifier only has 5.1ch audio input, the SBL (Surround Back Left) and
SBR (Surround Back Right) terminals do not need to be connected.
14
INSTALLATION
Connecting to a Receiver/Amplifier with Dolby Digital or DTS Decoder
Rear Panel
Connect one of these cables:
Optical In
Coaxial In
AUDIO/VIDEO MULTI-CHANNEL
Optical Digital Audio Cable
Coaxial Digital Audio Cable
RECEIVER
Receiver/Amplifier with Dolby Digital or DTS Decoder
Method 6 – Digital Audio Connection
• Please use either a 75-Ohm coaxial digital audio cable with RCA-style connectors or an S/PDIF
optical digital audio cable to connect one of the digital audio outputs to the corresponding input
terminal on your A/V receiver.
NOTE
• Due to bandwidth limitations, high resolution audio formats such as Dolby Digital Plus,
Dolby TrueHD, DTS-HD High Resolution and DTS-HD Master Audio cannot be sent
through the coaxial or optical digital audio output. A reduced resolution version of the
same audio track will be output instead. To listen to high resolution audio formats in
their best quality, please use the HDMI connection if you have a receiver that handles
HDMI audio (see page 13) or use the multi-channel analog outputs if you do not (see
page 14).
• Due to copyright restrictions, SACD audio cannot be sent through the coaxial or
optical digital audio output. To listen to SACD, please use the HDMI or analog audio
connections.
• Due to copyright restrictions and bandwidth limitations, full resolution audio from DVD-
Audio discs cannot be sent through the coaxial or optical digital audio output. To listen
to DVD-Audio in full resolution, please use the HDMI or analog audio connections.
15
INSTALLATION
Connecting to a Stereo Audio System
Rear Panel
L
Audio Interconnect Cable
Stereo Audio System
AUDIO IN
AUDIO/VIDEO MULTI-CHANNEL
R
RECEIVER
Method 7 – Stereo Analog Audio Connection
• If your audio system only offers stereo audio inputs, or if you would like to connect a
dedicated stereo system in addition to the surround system, you can connect it to the
STEREO AUDIO OUT terminals of the player.
NOTE
• The STEREO AUDIO OUT terminals will always provide a down-mixed stereo signal

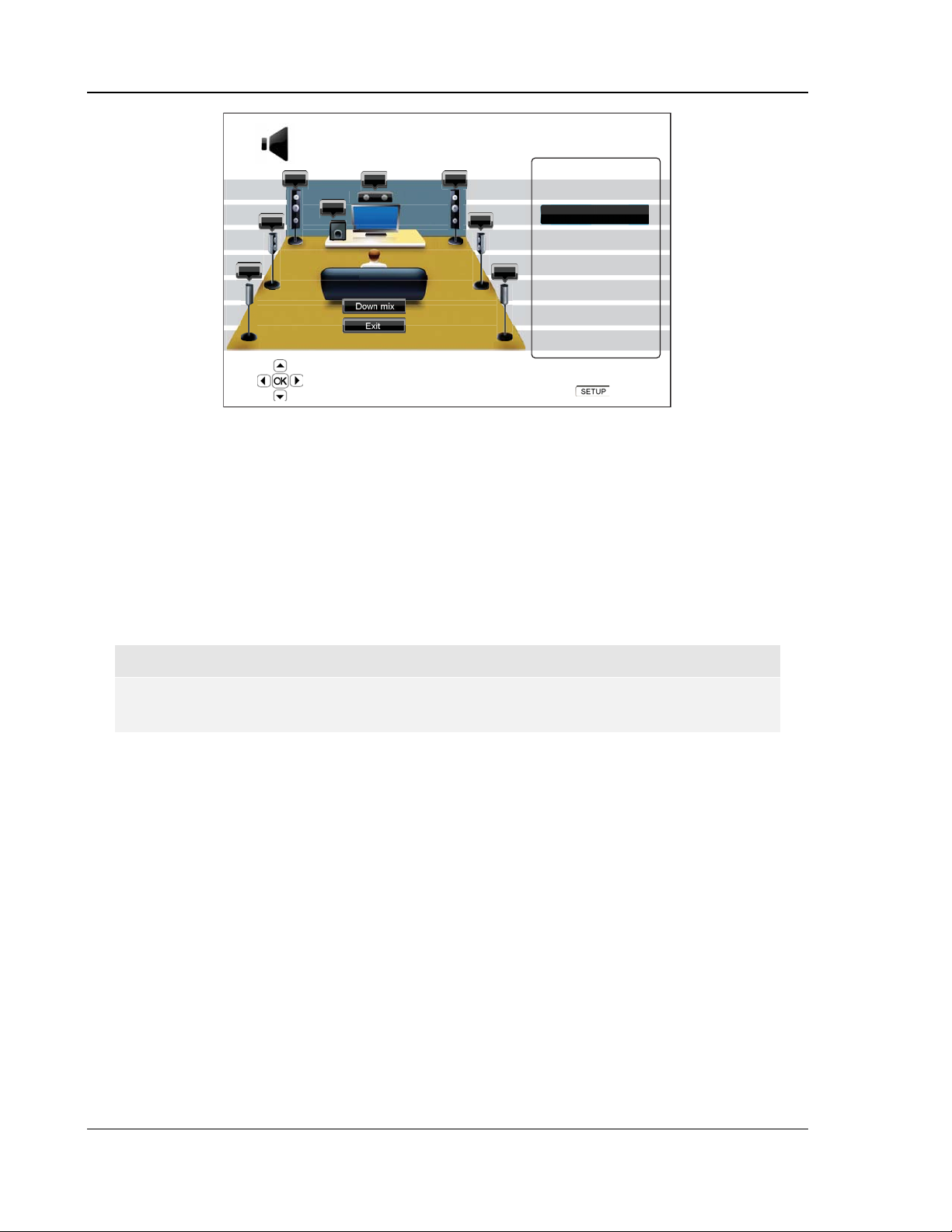

from multi-channel sources. The “Down Mix” and other speaker settings in the Audio
Processing Setup Menu (see page 60) do not affect the STEREO AUDIO OUT.
16
INSTALLATION
Connecting to the Internet
The OPPO BDP-83 Blu-Ray Disc Player supports the BD-Live feature offered on some Blu-ray Disc titles.
BD-Live offers extra downloadable content and additional online interactive programs. The available BD-Live
contents vary by discs and studios, and may include additional subtitles, commentaries, movie trailers, games,
and/or online chat.
Connecting the player to the Internet will also allow the player to obtain firmware updates via the Internet.
(See pages
In order to utilize the BD-Live feature or update firmware via the Internet, the player needs to be connected to
a broadband Internet connection. You must have access to a working broadband Internet service connection.
It is not necessary to connect to the Internet if you do not intend to use the BD-Live and online firmware
updating functionality.
4 and 67 for more information regarding firmware updates.)
Rear Panel
Broadband Internet
Connection
Internet
WAN 1 2 LAN 3 4
Broadband Router/Modem
Network Cable
(Ethernet)
• Plug one end of a network cable (Category 5/5E straight Ethernet cable) into the LAN port on
the back of the OPPO Blu-ray Disc player.
• Plug the other end of the network cable into a LAN port on the broadband router or modem.
• After physically connecting the player to a broadband Internet connection, some network
configuration may be required. Please refer to the
Network Setup section on page 68 of the
manual for details.
• If you would like to connect the player to a broadband Internet connection via a wireless LAN
router, please use an Ethernet/wireless LAN media converter (also called a wireless bridge or a
gaming adapter). Refer to the operating instructions supplied with the media converter for
details on how to configure it.
• Refer to the operating instructions supplied with the broadband router or modem, or contact the
Internet service provider for questions related to setting up the router or modem.
NOTE
• Only connect the LAN port of the player to an Ethernet port that supports 10BASE-T or
100BASE-TX. Connecting to any other ports or jacks, such as a phone jack, can
damage the player.
17
INSTALLATION
r
Custom Installation
External IR (Infrared Remote) Installation
The OPPO BDP-83 Blu-Ray Disc Player features IR IN and IR OUT ports on its back panel. If the player is to
be installed in an equipment cabinet where direct line-of-sight is not available for remote control, your custom
home theater installer can purchase an External IR Remote Sensor (OPPO part number IR-ES1) and plug it
into the IR IN port. Place the sensor head at a location where there is direct line-of-sight to ensure reliable
operation. The External IR Remote Sensor is available from your dealer or directly from OPPO Digital, Inc.
If you have another OPPO device that features an IR IN port, the IR OUT port on the BDP-83 can pass
through remote control signal to the next OPPO device. For example, if you use an OPPO HM-31 Advanced
3x1 HDMI Switch to expand the HDMI inputs on your TV, the IR IN port of the HM-31 can be connected to the
IR OUT port of the BDP-83 using a 3.5mm stereo cable.
BDP-83 Back Panel
3.5mm Stereo Cable
OPPO HM-31 HDMI Switch
NOTE
• OPPO cannot guarantee that the IR IN and IR OUT ports will be compatible with
devices that are not manufactured by OPPO.
• Connecting the IR IN or IR OUT port to an incompatible device may result in damage
to the connected device or the player.
• Please contact OPPO customer support if you plan to integrate the player into an IR
distribution system. Customer support can provide recommendations on how to
properly connect the control signals.
IR Sensor
IR IN Signal Identifications
3.5mm stereo plug
Tip: +5V from the playe
Ring: IR carrier signal
Sleeve: Ground
