OPPO Digital BDP-103 User Manual

Download

USER MANUAL

READ CAREFULLY BEFORE OPERATION

Blu-ray Disc Player BDP-103

Table of Contents

Important Information............................................................... 1

Important Safety Instructions .................................................................................... 1

Precautions ................................................................................................................. 2

FCC Statement ............................................................................................................ 2

Trademarks ................................................................................................................. 3

Compatible Disc Types ............................................................................................... 3

Discs that cannot be played.............................................................................................................4

Notes about BD-ROM compatibility .................................................................................................4

Disc care and handling ....................................................................................................................4

Copyright Protection ................................................................................................... 4

Cinavia Notice ............................................................................................................. 4

Gracenote Notice ........................................................................................................ 5

Region management information ............................................................................... 5

Accessories ................................................................................................................. 5

INSTALLATION .......................................................................... 6

Front Panel Controls ................................................................................................... 6

Front Panel Display Windows ..................................................................................... 6

Rear Panel Connectors ............................................................................................... 7

Remote Control ........................................................................................................... 8

Remote Control Buttons...................................................................................................................8

Back Side.........................................................................................................................................9

Battery Installation ...........................................................................................................................9

Using the Remote Control................................................................................................................9

Changing the Remote Code ..........................................................................................................10

Changing the Backlight Method ..................................................................................................... 10

Common Connection Methods.................................................................................. 11

Connecting to an A/V Receiver via HDMI ......................................................................................11

Connecting to a TV and A/V Receiver via Dual HDMI ...................................................................12

Connecting to a TV via HDMI ........................................................................................................13

Connecting to Two TVs via HDMI ..................................................................................................14

Connecting to a TV via DVI............................................................................................................15

Alternate Audio Connections.................................................................................... 16

Connecting to an A/V Receiver or Amplifier via Analog Outputs ...................................................16

Connecting to an A/V Receiver or Amplifier via S/PDIF (Coaxial / Optical)...................................17

HDMI / MHL INPUT to BDP-103 ................................................................................. 18

Connecting to the Internet ....................................................................................... 19

Internet connection through Ethernet cable ................................................................................... 19

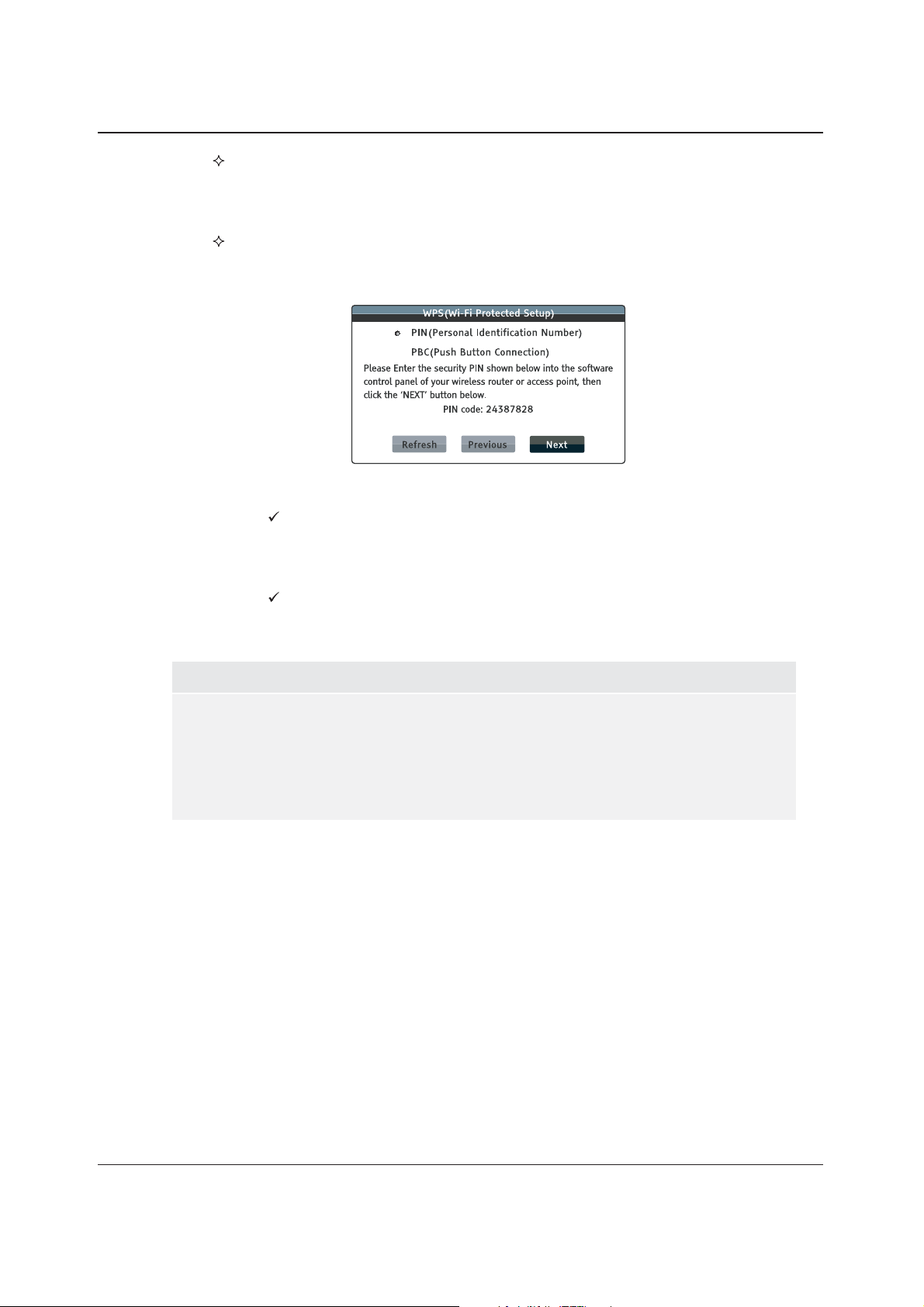

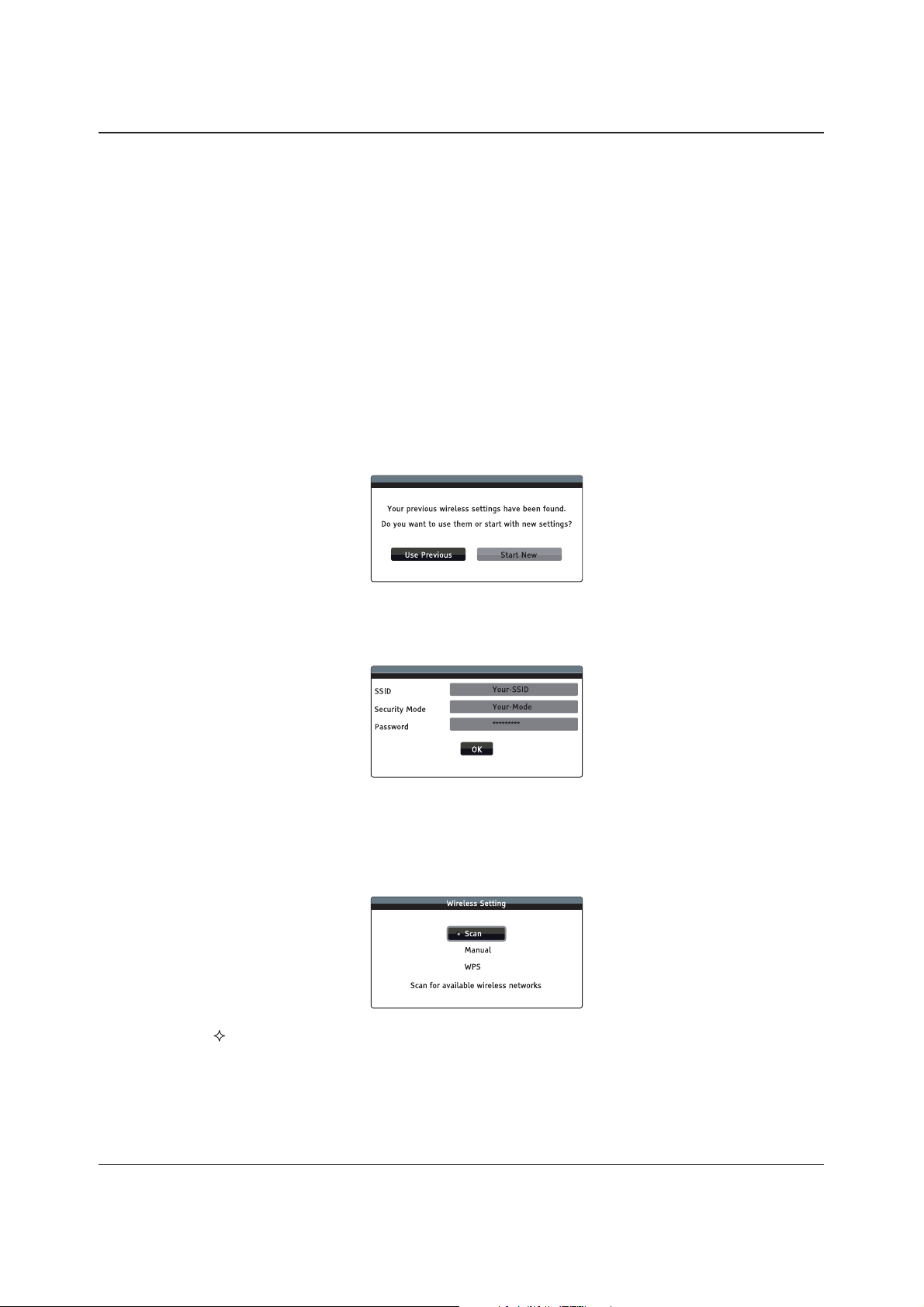

Internet connection through wireless adaptor ................................................................................2 0

Custom Installation ...................................................................................................21

External IR (Infrared Remote) Installation......................................................................................21

RS232 Control................................................................................................................................21

Quick Start Guide ......................................................................................................22

Power On and Play ........................................................................................................................22

Select the Best Output Resolution .................................................................................................22

Determine the Display Aspect Ratio ..............................................................................................23

BASIC OPERATIONS ................................................................24

Disc Playback ............................................................................................................24

OPTION Menu.............................................................................................................24

Fast Playback ............................................................................................................25

Pause and Frame-by-Frame .......................................................................................25

Slow Playback............................................................................................................26

Blu-ray Disc Menu Playback ......................................................................................26

DVD Menu Playback...................................................................................................26

On-Screen Display......................................................................................................27

Volume Control ..........................................................................................................27

Mute............................................................................................................................28

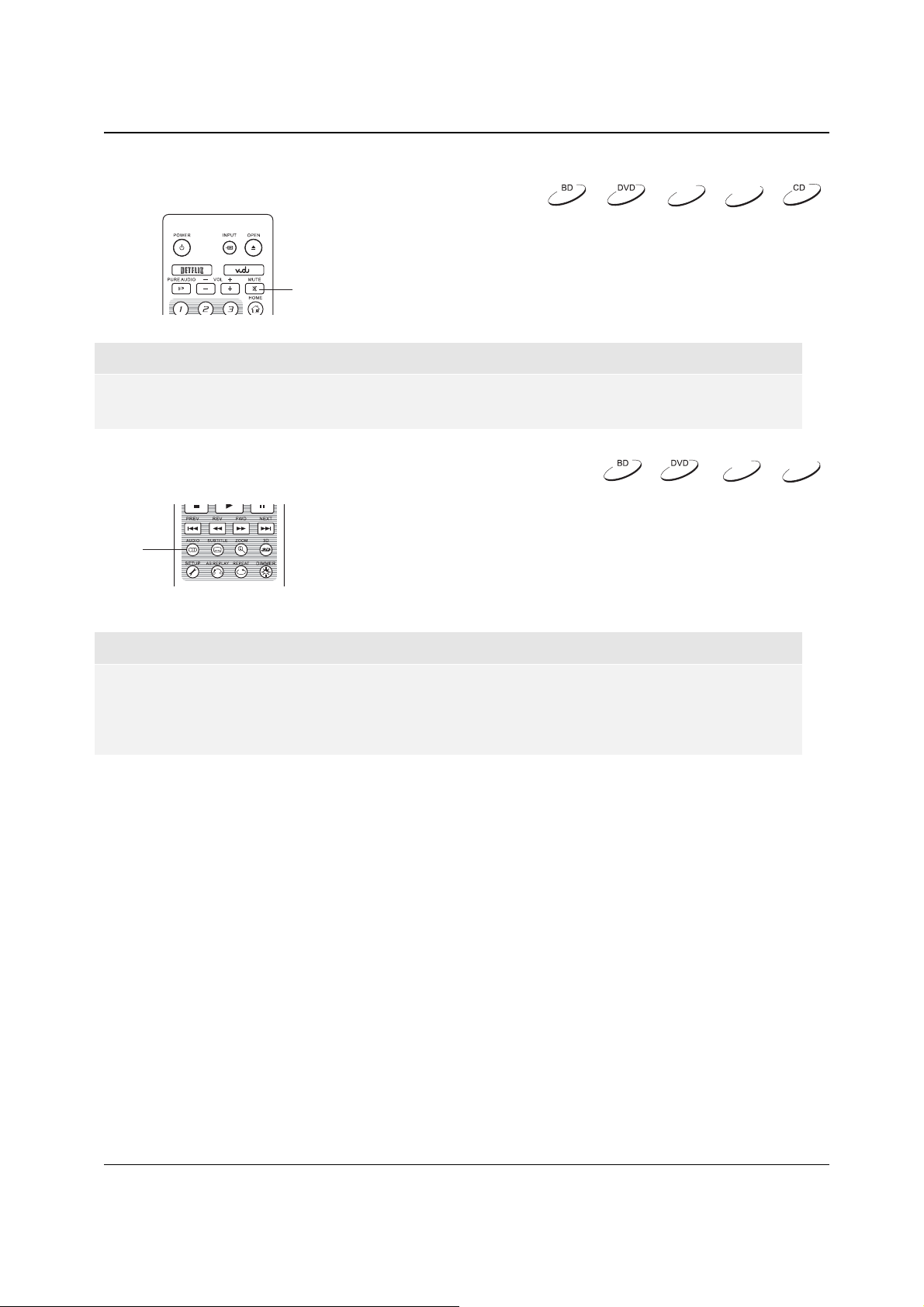

Audio Language/Track Selection ..............................................................................28

Subtitle Selection ......................................................................................................29

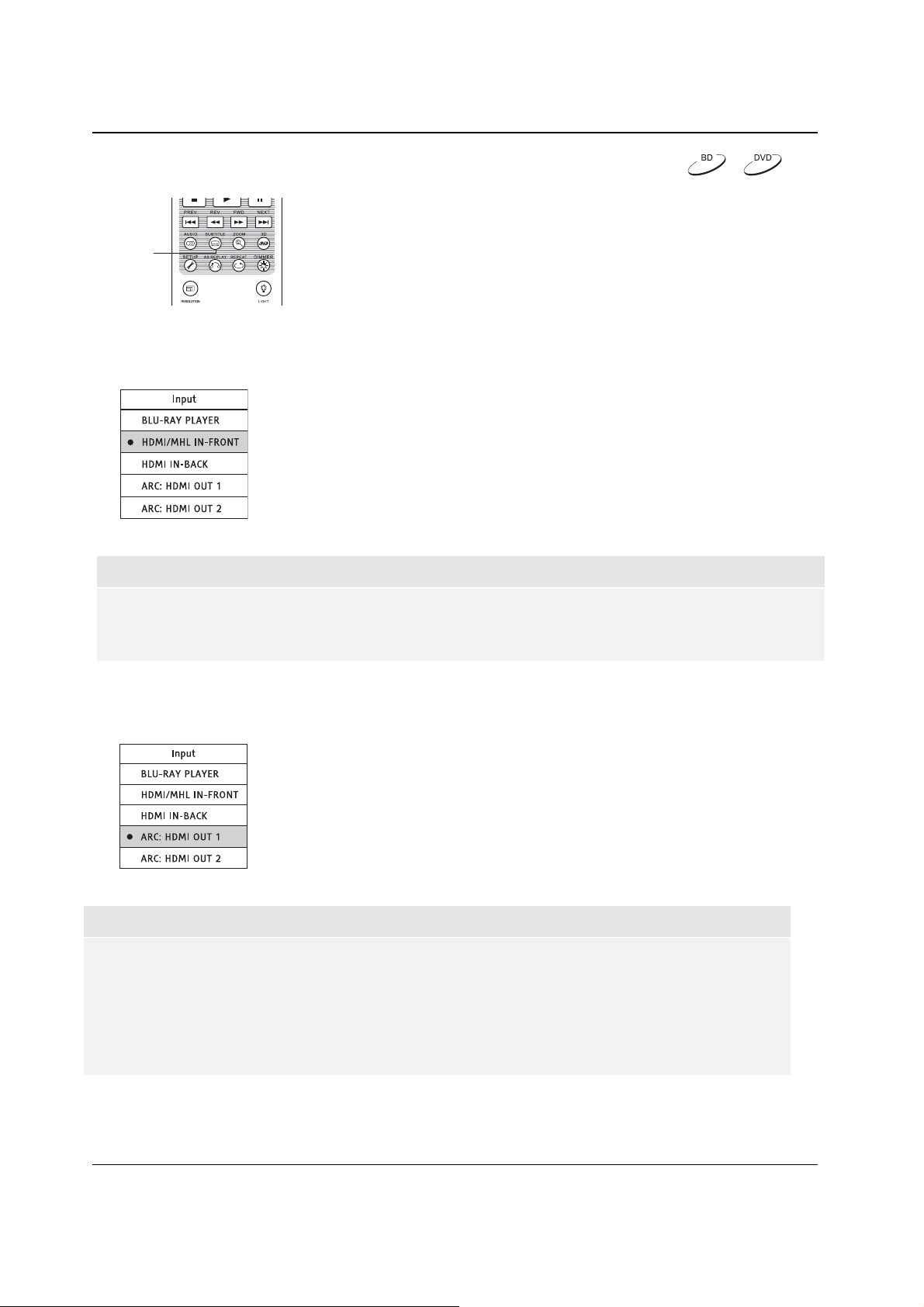

HDMI / MHL INPUT Selection ....................................................................................29

Audio Return Channel (ARC) Selection.....................................................................29

BD-Live .......................................................................................................................30

ADVANCED OPERATIONS ........................................................31

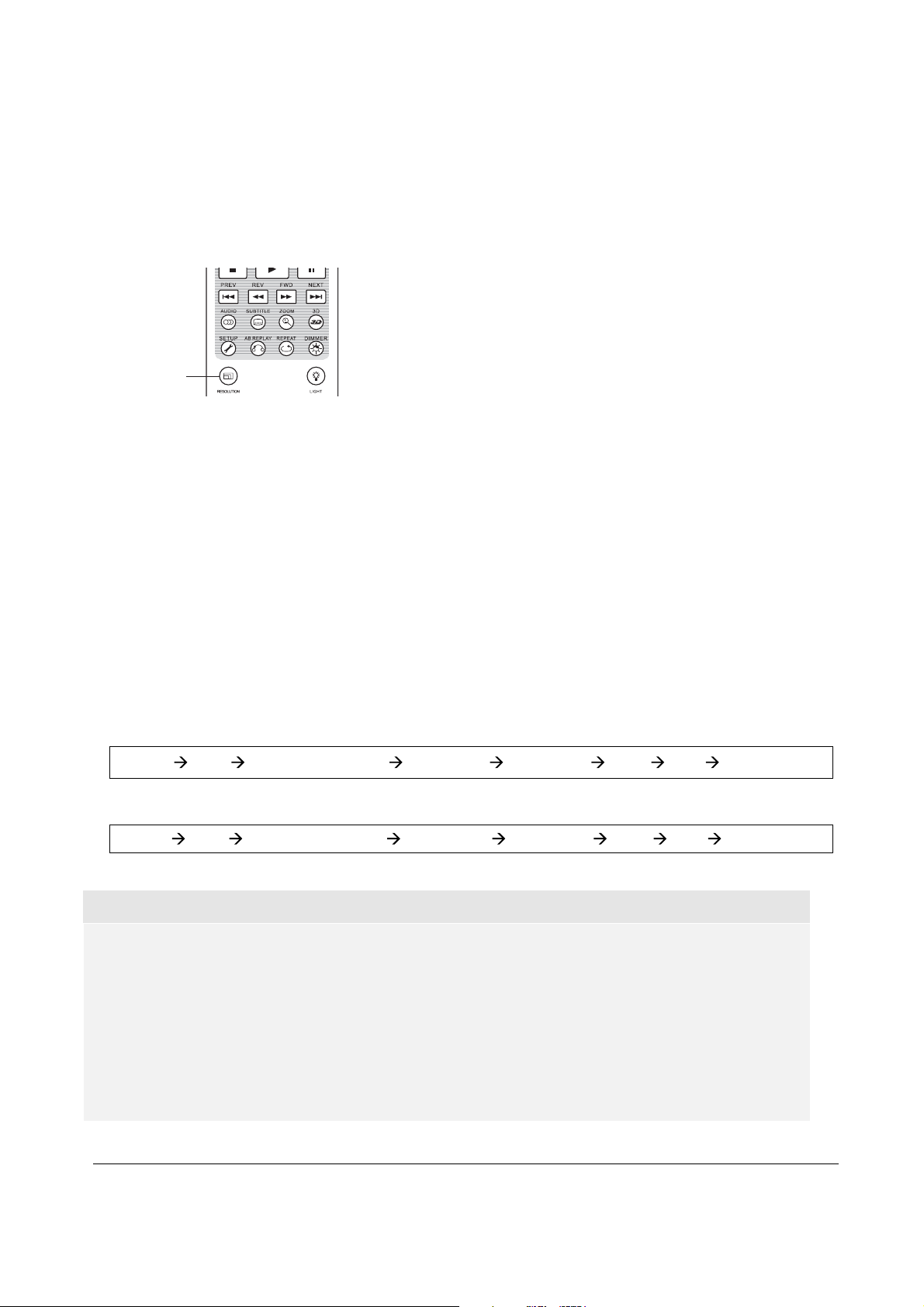

Output Resolution ......................................................................................................31

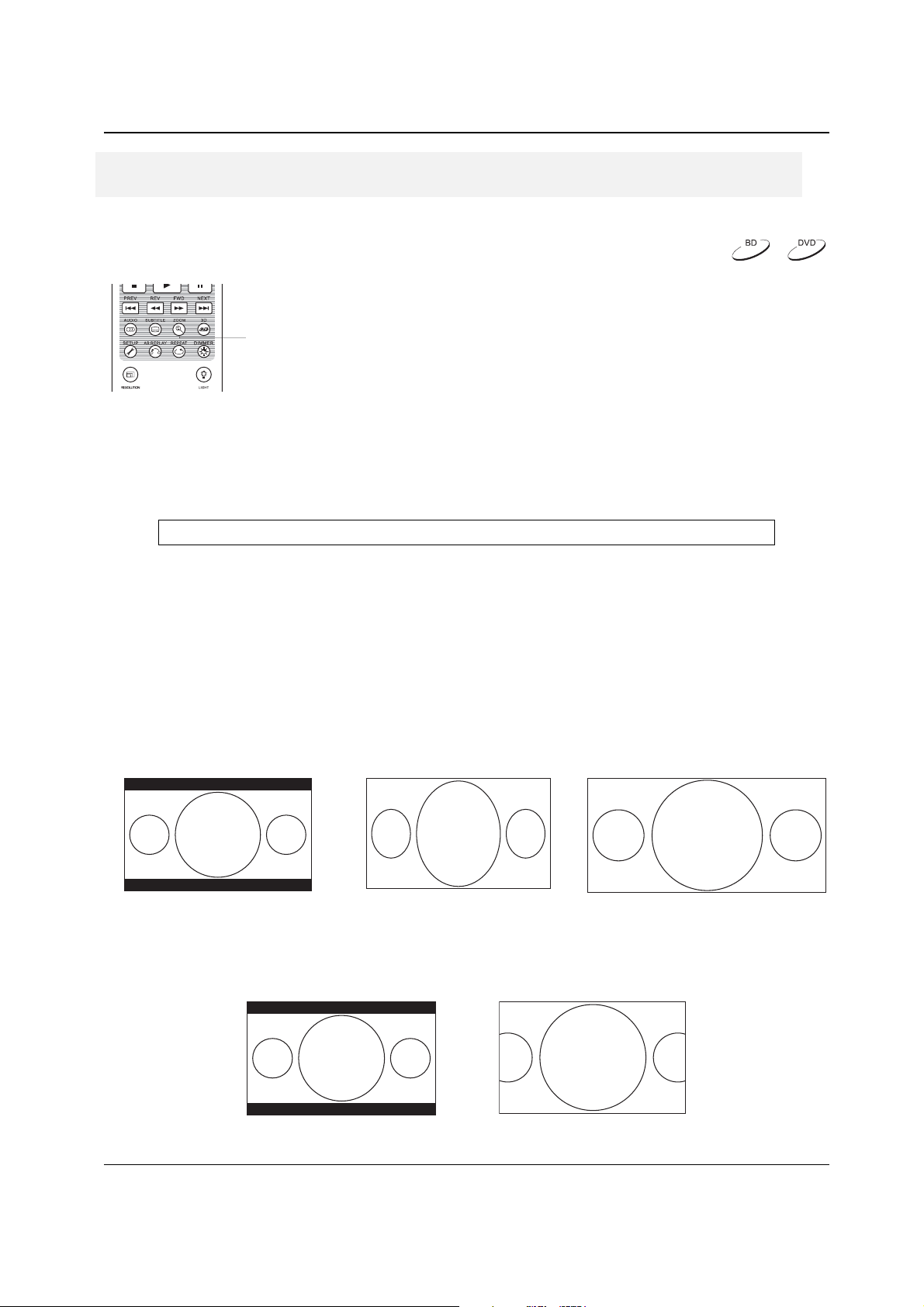

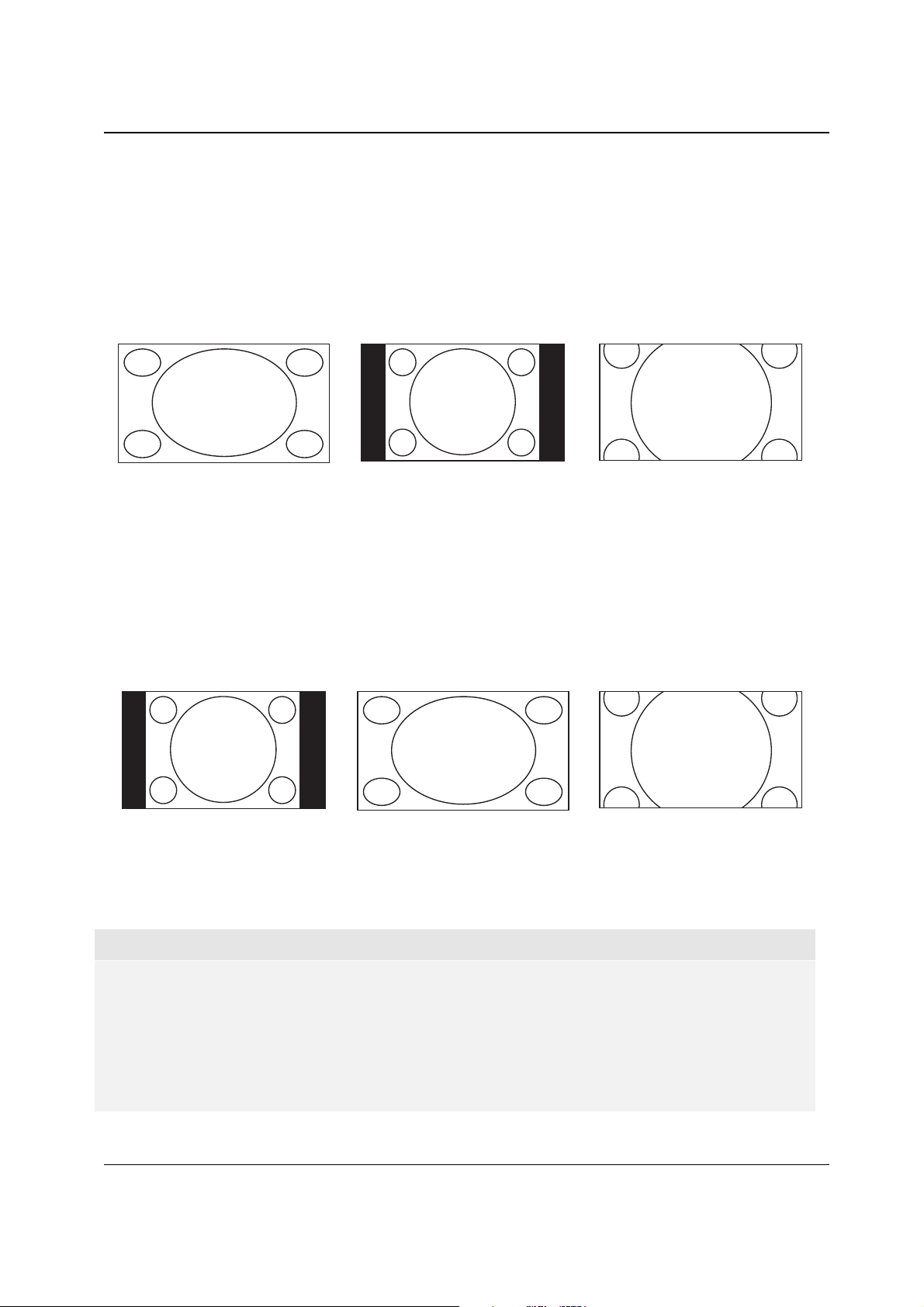

Zooming and Aspect Ratio Control ...........................................................................32

Zoom Levels for HDMI Output .......................................................................................................32

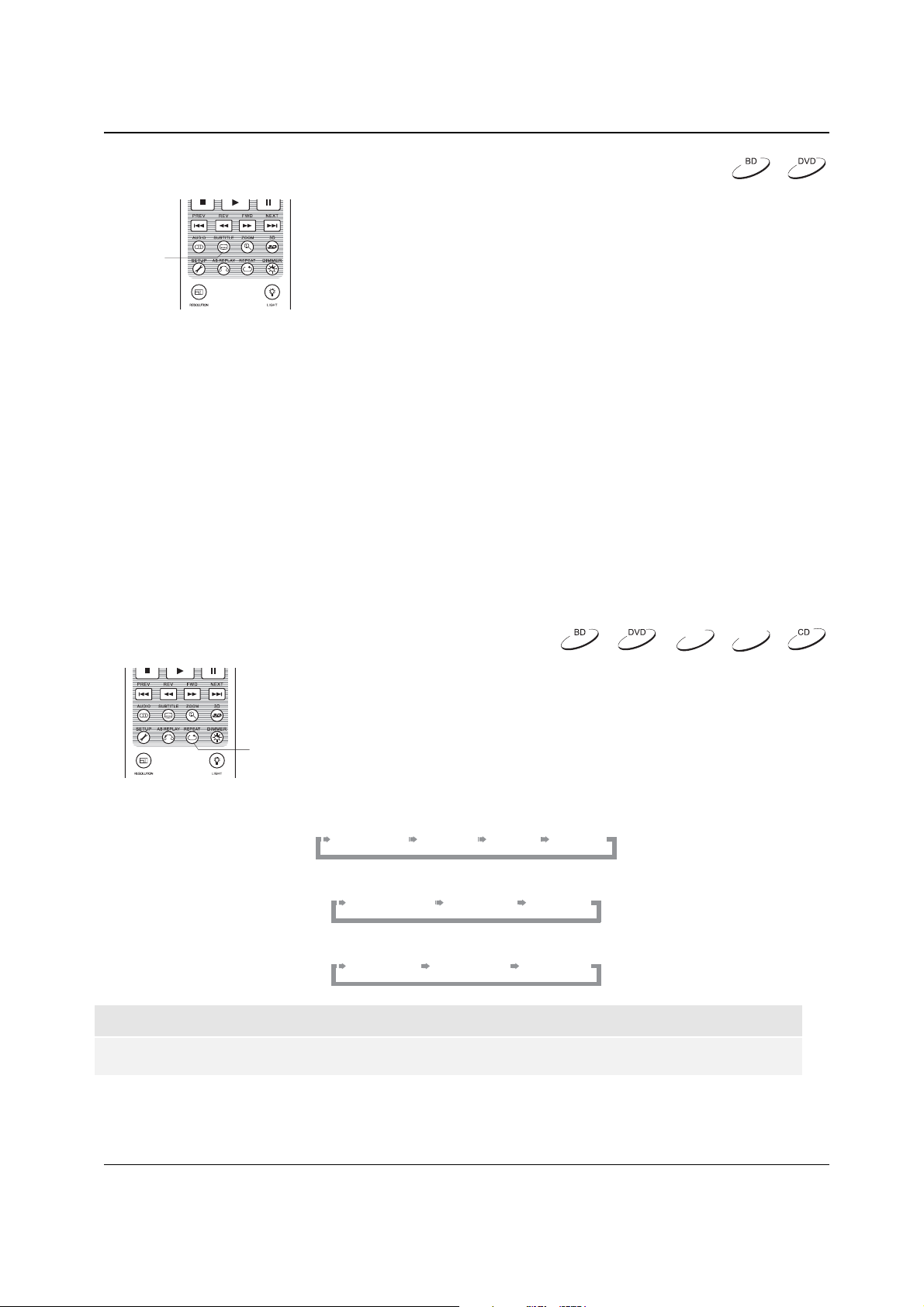

Subtitle Shift ..............................................................................................................34

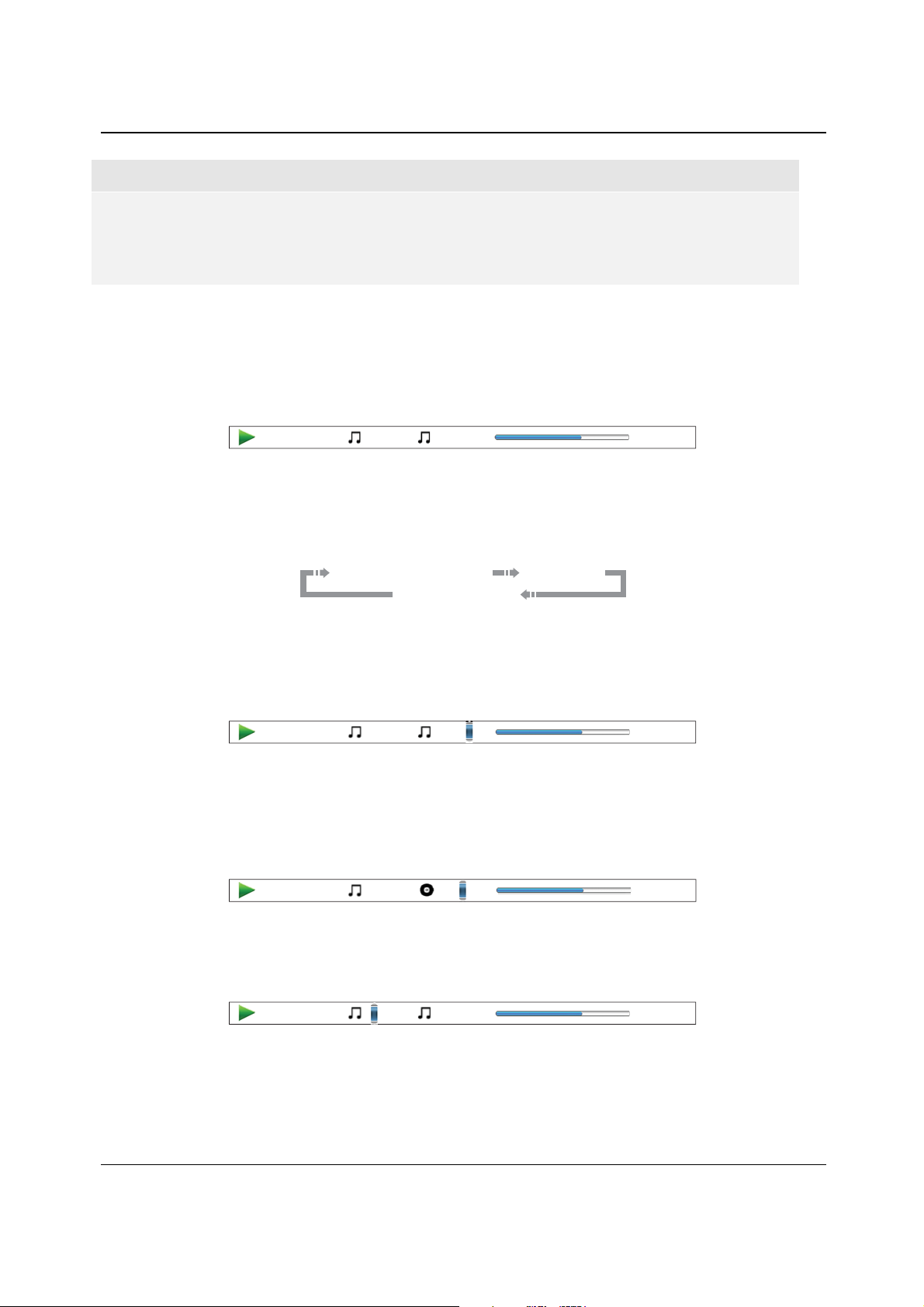

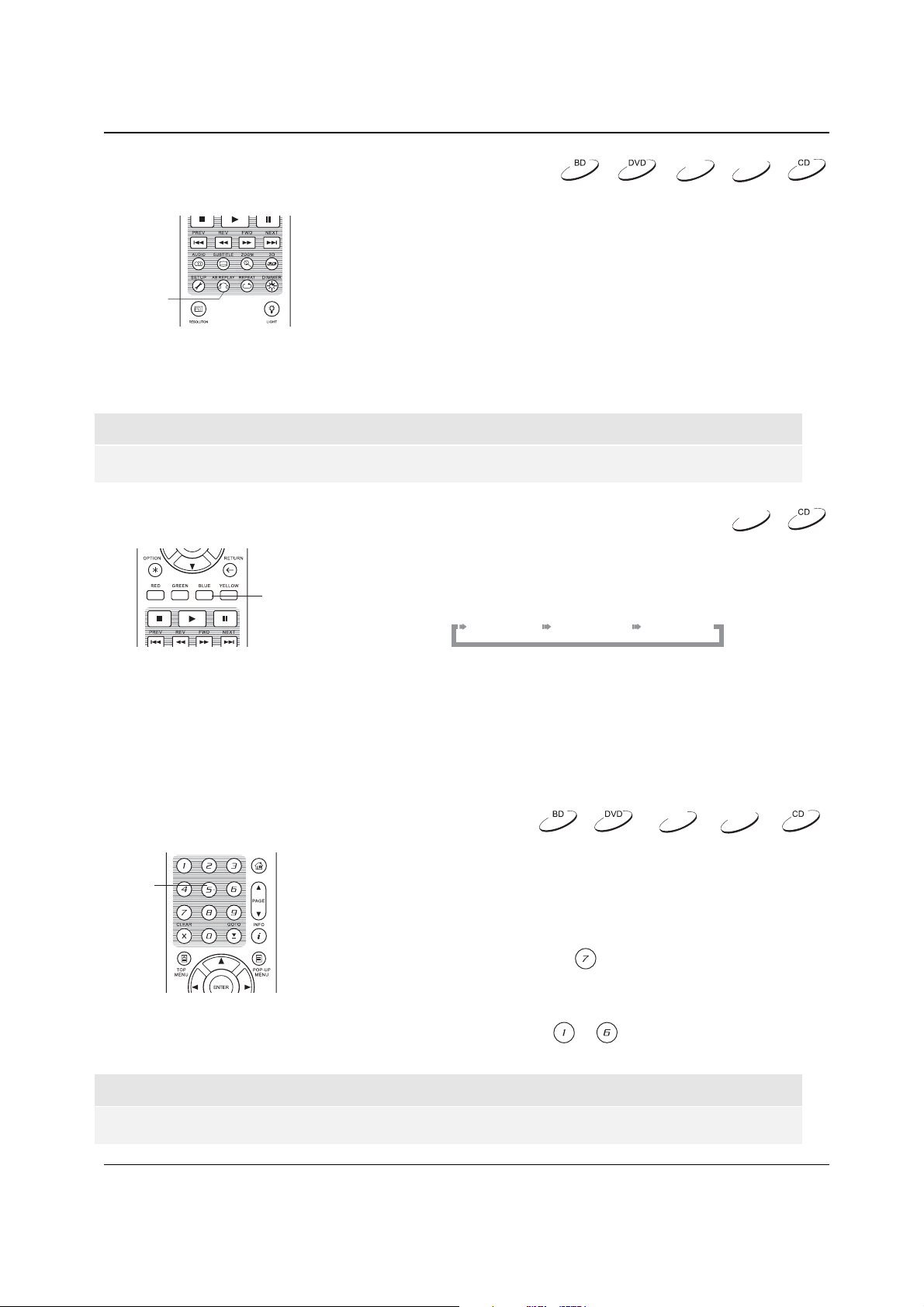

Repeat Playback ........................................................................................................34

Repeat a Selected Section........................................................................................35

Shuffle and Random Playback ..................................................................................35

Playback by Chapter or Track Number.....................................................................35

Playback from a Specific Location ...........................................................................36

DVD and Blu-ray Discs ..................................................................................................................36

CD and SACD discs.......................................................................................................................37

Memory and Automatic Resume ...............................................................................38

Viewing Pictures on DVD-Audio Discs ......................................................................38

Pure Audio Mode ........................................................................................................38

MEDIA FILE PLAYBACK ...........................................................40

Playback from USB Flash Drive ................................................................................ 40

Playback from HDMI / MHL INPUT............................................................................ 41

In-home Network Media Sharing .............................................................................. 41

Internet Streaming on HOME Menu.......................................................................... 42

Playing Music Files ................................................................................................... 43

Playing Movie Files ................................................................................................... 45

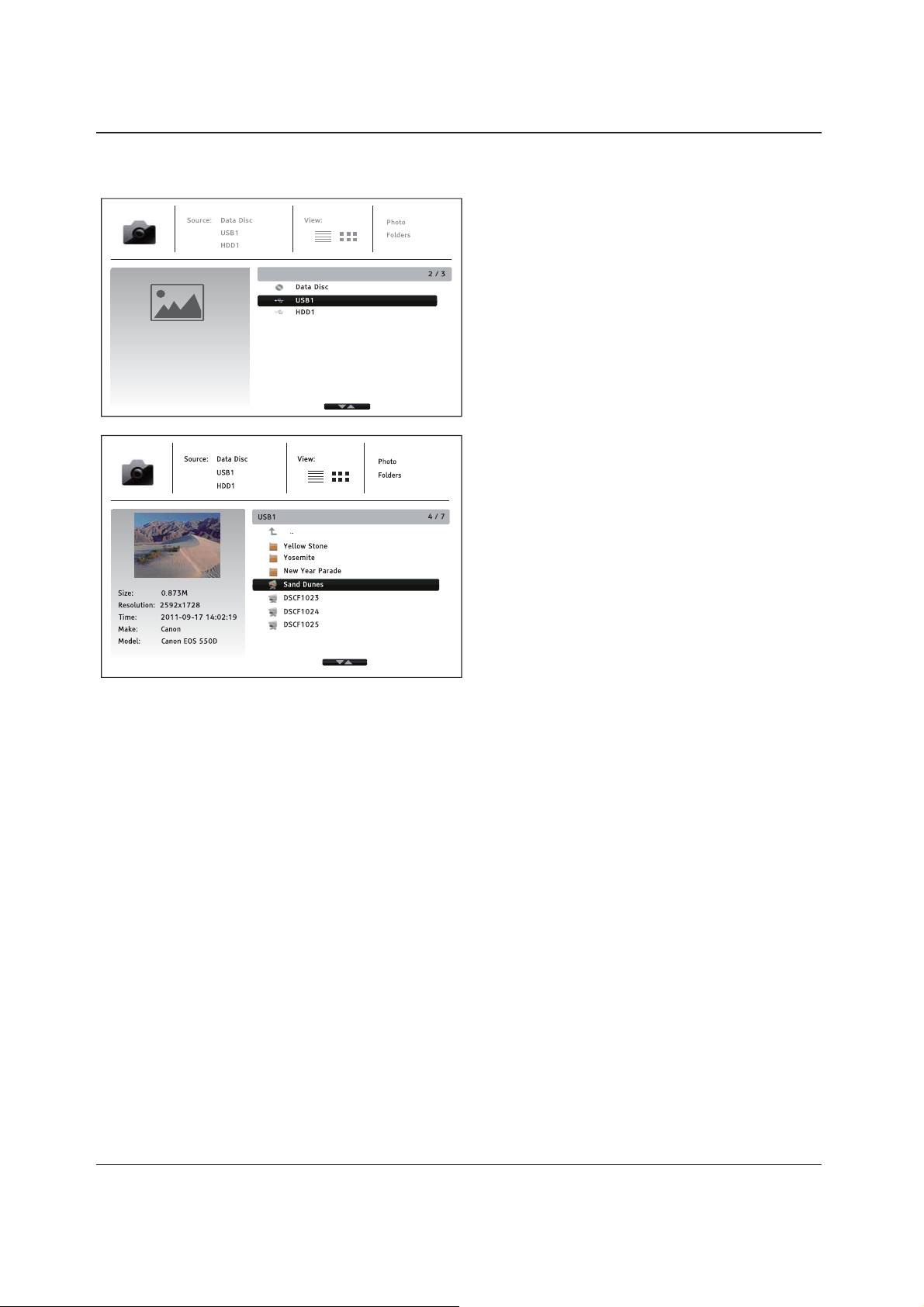

Viewing Photo Files .................................................................................................. 46

Adding Background Music ........................................................................................ 47

SETUP MENU OPTIONS .......................................................... 48

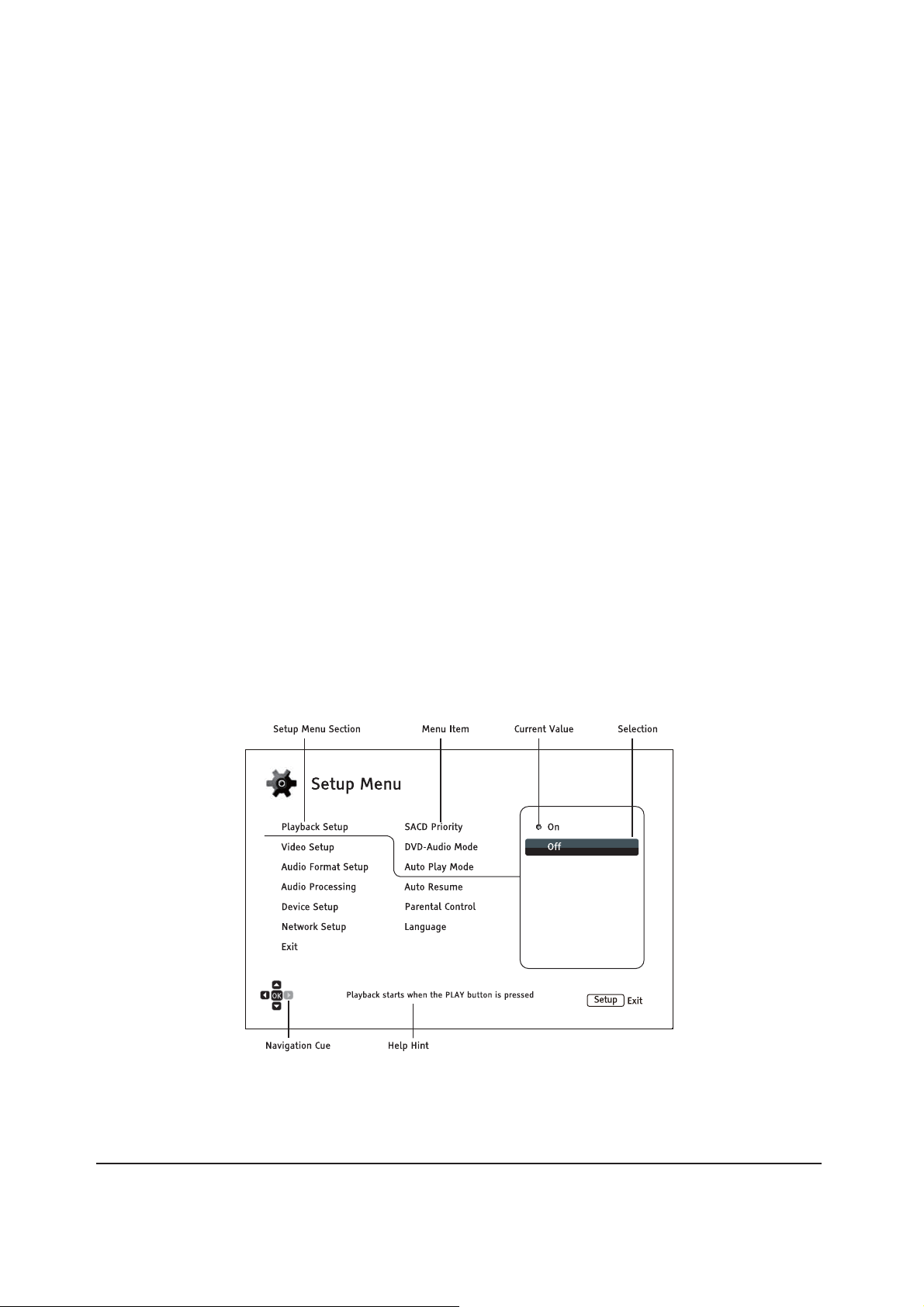

Using the Setup Menu System.................................................................................. 48

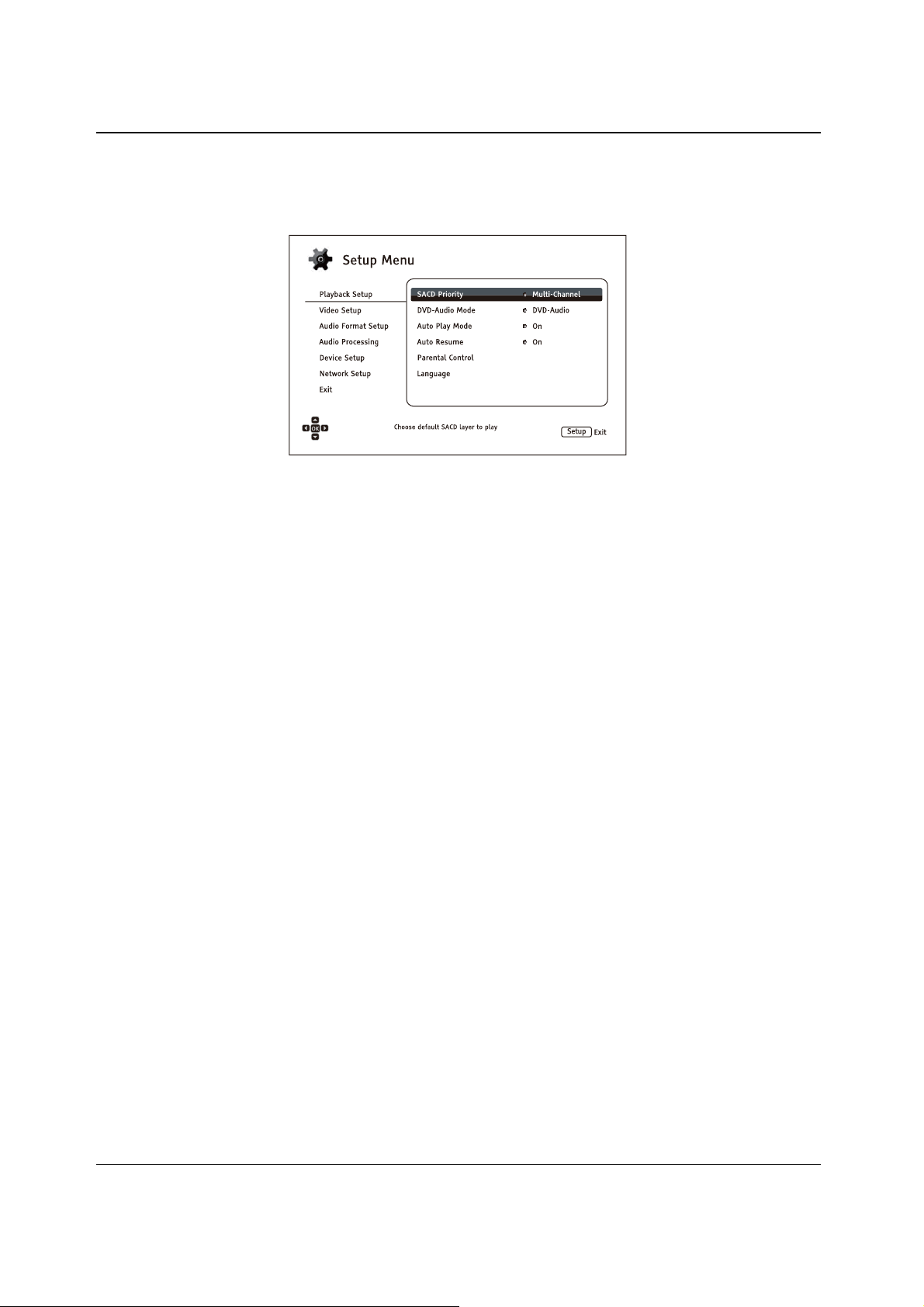

Playback Setup ......................................................................................................... 51

Video Setup ............................................................................................................... 53

Picture Adjustment.........................................................................................................................56

HDMI Options ................................................................................................................................59

Audio Format Setup .................................................................................................. 61

Audio Signal Reference Chart .......................................................................................................64

Recommended Audio Format Options ..........................................................................................65

Audio Processing Setup ............................................................................................ 67

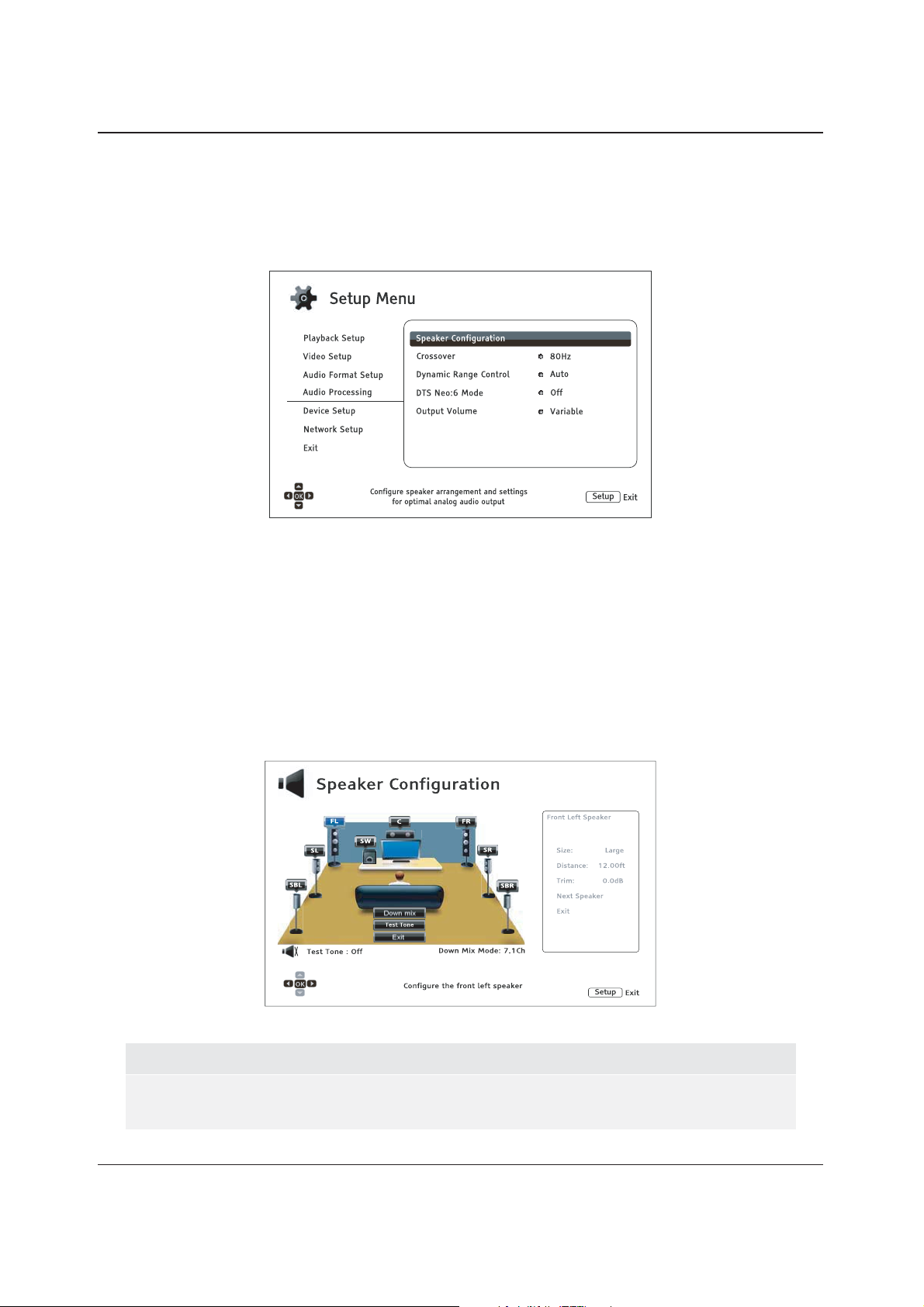

Speaker Configuration ...................................................................................................................67

Other Audio Processing Settings ...................................................................................................71

Device Setup ............................................................................................................. 72

Network Setup .......................................................................................................... 76

REFERENCES........................................................................... 80

Useful Notes.............................................................................................................. 80

Troubleshooting ........................................................................................................ 80

Specifications ........................................................................................................... 82

User Manual Updates Online .................................................................................... 82

Language Code List .................................................................................................. 83

Gracenote Terms of Use ............................................................................................84

LIMITED WARRANTY ................................................................85

OPPO Digital, Inc. Limited Two Years Warranty...................................................... 85

iii

Important Information

CAUTION

RISK OF ELECTRIC SHOCK.

DO NOT OPEN.

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the

the product's enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

accompanying the appliance.

WARNING:

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE. DA PRESENT INSIDE THE ENCLOSURE. DO NOT OPEN THE CABINET. REFER SERVICING TO QUALIFIED PERSONNEL ONLY.

THE APPARATUS SHALL NOT BE EXPOSED TO DRIPPING OR SPLASHING AND THAT NO OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES SHALL BE PLACED ON THE APPARATUS.

presence of uninsulated “dangerous voltage” within

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operation and maintenance (servicing) instruction in the literature

NGEROUS HIGH VOLTAGES ARE

CAUTION:

DANGER OF EXPLOSION IF BATTERY IS INCORRECTLY REPLACED. REPLACE ONLY WITH THE SAME OR EQUIVALENT TYPE.

THIS PRODUCT UTILIZES A LASER. USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE. DO NOT OPEN COVERS AND DO NOT REPAIR YOURSELF. REFER SERVICING TO QUALIFIED PERSONNEL.

CLASS I LASER

PRODUCT

This label is located on the laser protective housing inside the product.

Important Safety Instructions

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong is provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10) Protect the power cord from being walked on or pinched, particularly at plug, receptacle, and the point

where it exits from the

11) Only use attachments/accessories specified by the manufacturer.

12) Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13) Unplug this apparatus during lightning storms o unused for long periods of time.

14) Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

15) Batteries (battery pack or batteries installed) shall not be exposed to excessive heat such as sunshine, fire or the like.

apparatus.

r when

IMPORTANT INFORMATION

Precautions

x Before connecting the AC power cord to the appliance,

make sure the voltage designation of the appliance corresponds to the local electrical supply. If you are unsure of your power supply, contact your local power company. The acceptable power input range is AC ~ 100V-240V, 50/60Hz.

x The apparatus with CLASS I construction shall be

connected to a MAINS socket outlet with a protective earthing connection.

x The player is still receiving power from the AC power

source as long as it is connected to the wall outlet, even if the player itself has been turned off.

x Unplug the power cord if you are not going to use the

product for an extended period of time. Hold the power plug when unplugging. Do not pull on the cord.

x The main plug is used as the mechanism for cutting off

power, therefore make sure it is easy to unplug.

FCC Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular

allation. If this equipment does cause harmful interference to

inst radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

x Reorient or relocate the receiving antenna.

x To ensure proper ventilation around this product, do not

place this product on a sofa, bed or rug. When installing this product on a wall or bookshelf, you need to provide appropriate space: cm) of free space at the top, the sides and the rear.

x High temperature will lead to abnormal operation of this

unit. Do not expose this unit or batteries to direct sunlight or near other heating objects.

x When moving the player from a cold location to a warm

one, or vice versa, moisture may condense on the laser pickup unit inside the player. Should this occur, the player may not operate properly. In such a case please turn the unit on for 1-2 hours (without a disc) to facilitate moisture evaporation.

x Increase the separation between the equipment and

receiver.

x Connect the equipment into an outlet on a circuit different

from that to which the receiver is connected.

x Consult the dealer or an experienced radio/TV technician

for help.

Any unauthorized changes or modifications to this equipment would

void the user’s authority to operate this device.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two condi harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.

we recommend leaving 4 inches (10

tions: (1) This device may not cause

IMPORTANT INFORMATION

Trademarks

x “Blu-ray Disc”, “Blu-ray 3D”, “BONUSVIEW” and “BD-

Live” are trademarks of Blu-ray Disc Association.

x Java and all Java-based trademarks and logos are

trademarks or registered trademarks of Sun Microsystems, Inc. in the United States and other countries.

x DVD Logo is a trademark of DVD Format/Logo Licensing

Corp., registered in the U.S., Japan and other countries.

x Super Audio CD, SACD and the SACD logo are joint

trademarks of Sony Corporation and Philips Electronics N.V. Direct Stream Digital (DSD) is a trademark of Sony Corporation.

x “AVCHD” and the “AVCHD” logo are trademarks of

Panasonic Corporation and Sony Corporation.

x Designed for Windows Media, Microsoft, HDCD, and the

HDCD logo are trademarks or registered trademarks of Microsoft Corporation in the United States and/or other countries.

x “480p/720p/1080i/1080p” up-converting arrow logo,

“Source Direct” and “True 24p” logos are trademarks of OPPO Digital, Inc.

x “Netflix” is a registe

red trademark of Netflix, Inc.

Compatible Disc Types

x “Qdeo” is trademark of Marvell or its affiliates.

x Manufactured under license under U.S. Patent Nos:

5,956,674; 5,974,380; 6,226,616; 6,487,535; 7,212,872; 7,333,929; 7,392,195; 7,272,567 & other U.S. and worldwide patents issued & pending. DTSHD, the Symbol, & DTS-HD and the Symbol together are registered trademarks & DTS-HD Master Audio is a trademark of DTS, Inc. Product includes software. © DTS, Inc. All Rights Reserved.

x Manufactured under license from Dolby

Dolby and the double-D symbol are trademarks of Dolby Laboratories.

x HDMI, the HDMI logo and High-Definition Multimedia

Interface are trademarks or registered trademarks of HDMI Licensing LLC.

x “DivX” and “DivX Plus” are trademarks of DivX, Inc.

x “Pandora” is trademark of Pandora, Inc.

x “Gracenote” is trademark of Gracenote, Inc.

x “Cinavia” is trademark of Verance Corporation.

x All other trademarks are the properties of their

respective owners.

Laboratories.

BD: Supports Blu-ray with Bonus View and BD-Live content, including Blu-ray 3D discs. A 3D-capable display with compatible glasses is required for 3D playback. BD-R/RE, both single- and dual-layer are also supported.

DVD: Plays commercially-released DVDs, as well as finalized DVD±R/RW.

DVD-A: High-resolution stereo or multi-channel audio. Some DVD-Audio discs

also contain a DVD-Video portion.

SACD: High-resolution stereo or multi-channel audio. Note: some SACDs use a hybrid format with both a CD and a high resolution DSD layer.

CD: Supports standard Red Book CDs, as well as HDCD and CD-R/RW.

AVCHD: High-definition digital video camera format, often in the form of a

DVD±R or flash memory.

nocIlaunaMserutaeFogoL

DVD-A

SACD

IMPORTANT INFORMATION

Discs that cannot be played

x BDs with cartridge x DVD-RAMs x HD-DVDs x Data portion of CD-Extras x DVDs / Blu-Rays with a region code other than 1 or A

x Some Dual-Discs: A Dual-Disc is a two-sided disc with

DVD-video on one side and digital audio on the other side. The digital audio side does not meet the technical specifications of the Red Book CD format so playback is not guaranteed.

x Audio discs with copy-protection may not be playable.

Notes about BD-ROM compatibility

Since the Blu-ray Disc specifications are new and evolving, some discs may not play properly depending on the disc type, versio n and encoding. It is possible that a Blu-ray Disc manufactured after the player uses new features of the Blu-ray Disc specifications. To ensure the best possible viewing experience, the player may need a firmware or software update from time to time. Please visit OPPO Digital’s web site www.oppodigital.com

to check if updates are available.

Disc care and handling

x To keep the disc clean from scratches or fingerprints,

handle the disc by its edge. Do not touch the recorded surface.

x Blu-ray Discs record data in very high density and the

recorded layer is very close to the disc surface. For this reason, Blu-ray Discs are more sensitive to dust and fingerprints than DVD. Should you encounter playback problems and see dirty spots on the disc surface, clean the disc with a cleaning cloth. Wipe the disc from the center out along the radial direction. Do not wipe the disc in a circular motion.

x Do not use record cleaning sprays or solvents such as

benzene, thinner and anti-static spray.

x Do not attach labels or stickers to discs as this may

cause the disc to warp or become too thick, resulting in playback issues and a potentially stuck disc.

x Avoid exposing the discs to direct sunlight or heat

sources.

x Do not use the following discs:

o Discs with exposed adhesive from removed stickers

or labels. The disc may get stuck inside the player.

o Warped or cracked discs. o Irregularly shaped discs, such as heart or business

card shapes.

This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

Cinavia Notice

This product uses Cinavia technology to limit the use of unauthorized copies of some commercially-produced film and videos and their soundtracks. When a prohibited use of an unauthorized copy is detected, a message will be displayed and playback or copying will be interrupted.

More information about Cinavia technology is provided at the Cinavia Online Consumer Information Center at http://www.cinavia.com request additional information about Cinavia by mail, send a postcard with your mailing address to: Cinavia Consumer Information Center, P.O. Box 86851, San Diego, CA, 92138, USA.

.To

IMPORTANT INFORMATION

Gracenote Notice

Music and Video recognition technology and related data are provided by Gracenote®. Gracenote is the industry standard in music and video recognition technology and related content delivery. For more information visit www.gracenote.com.

CD, DVD, Blu-ray Disc, and music and video-related data from Gracenote, Inc., copyright © 2000 to present Gracenote. Gracenote Software, copyright © 2000 to present Gracenote. One or more patents owned by Gracenote may apply to this product and service. See the Gracenote website for a non-exhaustive list of applicable Gracenote patents. Gracenote, CDDB, MusicID, the Gracenote logo and logotype, and the "Powered by Gracenote" logo are either registered trademarks or trademarks of Gracenote in the United States and/or other countries.

Region management information

This player is designed and manufactured to respond to the region management information. If the region number of a BD-Video or DVD disc does not correspond to the region number of this player, this player cannot play the disc.

BD-Video: This player plays Blu-Ray Discs with marks containing the region code A.

DVD-Video: This player plays DVDs with marks containing the region code 1 and ALL.

Accessories

Please check that the following parts are included in your BDP-103 package:

User Manual HDMI 1.4 Cable, about 6 feet

USB Wireless-N Adapter (up to 150Mbps,

802.11b/g/n compatible, 2.4GHz)

Power Cable, about 4.5 feet

USB Extension Cable, about 4.5 feet

Remote Control with AA Batteries

INSTALLATION

Front Panel Controls

1 32 4 5 6 7 8 10 119

1. POWER Button

2. POWER Status Indicator

3. Front Panel Display Window

4. Disc Tray

5. OPEN/CLOSE Tray Button (with backlight)

6. IR Sensor Window

Front Panel Display Windows

1. Mute Icon – Indicates that the audio is muted

2. Audio Type Indication – Indicates the type of audio tracks being played

3. Disc Type Indication – Indicates the currently playing disc type

4. Main Display – Text messages and numeric display

5. Title – When illuminated, the displayed time applies to a title

6. Group – When illuminated, the displayed time applies to a group

7. Chapter – When illuminated, the displayed time applies to a chapter

7. USB 2.0 Input

8. 3D Output Active Indicator

9. 4K x 2K Output

Active Indicator

5 6

8. Track – When illuminated, the displayed time applies to

9. Audio Channel Indication – Indicates whether the audio

10. Remaining – When illuminated, the displayed time is

11. Playback Status – Indicates playback status such as

12. Ethernet - Indicates that an active Ethernet cable is

13. Wireless – Indicates that the player

7 8

a track

being played is 2ch stereo or multi-channel surround

the remaining play time

Play, Pause, Repeat, Repeat All, and Random Mode

attached

wireless network

10. MHL-Compatible

11. Playback Control

HDMI Input

and Navigation Buttons

is connected to a

INSTALLATION

Rear Panel Connectors

1. Ethernet LAN Port

2. HDMI Input (Back)

3. Diagnostic Video Output

4. Coaxial Digital Audio Output

5. Optical Digital Audio Output

6. HDMI 2 Output (3D Compatible)

7. HDMI 1 Output (3D Compatible)

8. USB 2.0 Input

9. USB 2.0 Input

10. IR (Infrared) Signal Input

8 10

11. RS-232C Serial Control Port

12. 7.1CH / 5.1CH / Stereo Analog Audio Outputs

In addition to the above connectors, the AC power inlet is also located on the rear panel. The inlet is the IEC60320 C14 type. Only the included AC power cord or an approved power cord with an IEC60-320 C14 type plug should be used.

INSTALLATION

Remote Control

Remote Control Buttons

1. POWER: Toggle power

STANDBY and ON

2. NETFLIX: Netflix access

button

3. PURE AUDIO: Turn

off/on video

4. NUMBER Buttons:

Enter numeric values

5. CLEAR: Clear numeric

input

6. TOP MENU: Show BD

top menu or DVD title menu

7. ARROW and ENTER

Buttons: Navigate menu

selection

8. OPTION: Brings up the

context-related menu

9. COLOR Buttons:

Function varies by

content

10. PLAY: Start playback

11. STOP: Stop playback

12. REV: Fast reverse play

13. PREV: Skip to previous

14. AUDIO: Change audio

language or channel

15. SUBTITLE: Change

subtitle language

16. SETUP: Enter the

play

er Setup Menu

17. A-B REPLAY: Repeat

play the selected section

18. RESOLUTION: Switch

output resolution

19. OPEN: Open/close the

disc tray

20. INPUT: Select the input

source

22. MUTE: Mute audio

23. VOLUME +/-:

Increase/Decrease volume

24. HOME: Go to Home

Menu to select media source

25. PAGE UP/DOWN

: Show the previous/next page

26. INFO: Show/hide the

On-Screen Display

27. GOTO: Play from a

specified location

28. POP-UP MENU: Show

BD pop-up menu or DVD menu

29. RETURN: Return to the

previous menu or mode

. PAUSE: Pause

playback

31. FWD: Fast forward play

32. NEXT: Skip to the next

33. 3D: Enable 2D->3D

conversion or bring the 3D adjustment menu

34. ZOOM: Zoom in/out

and adjust aspect ratio

35. DIMMER: Dim the front

panel display

36. REPEAT: Repeat play

37. LIGHT: Activate the

back light for the remote control

21. VUDU: VUDU access

button

NOTE

When a button is pressed but its function is invalid or unavailable at the moment, the TV screen displays a circle with a diagonal line:

INSTALLATION

Back Side

With Battery Cover Battery Cover Removed

1. Index Finger Notch 1: When your index finger is

placed at this notch while holding the remote control, your thumb is within easy reach of the navigation buttons (ARROW, ENTER, TOP MENU and POP-UP MENU).

2. Index Finger Notch 2: When your index finger is

placed at this notch while holding the remote control, your thumb is within easy reach of the playback control buttons (STOP, PLAY, PAUSE, PREV, NEXT, REV, FWD).

3. Battery Cover: Remove to replace batteries or set

remote code.

4. Batterie

5. Remote Code Switch: Adjust the position of the

s: Use 2 AA or LR6 batteries.

switch to set the remote control to use the indicated remote code (see details on page 10).

Battery Installation

1. Remove the battery compartment cover

2. Insert batteries 3. Replace the battery compartment cover

Using the Remote Control

When using the remote control, the front window of the remote control should be pointed to the infrared sensor on the front panel within an angle of ±30° and a range of about 26 ft.

Within about 26ft

INSTALLATION

Changing the Remote Code

The remote control contains three OPPO remote codes. The default is “Code 1”. If you have other OPPO products placed close to the BDP-103, they may inadvertently respond to the BDP-103 remote control. To prevent this, you can select a different remote code.

To select a new remote code, open the battery compartment cover of the remote control, and then use a ball point pen to flip the switch to one of the positions marked as “1”, “2”, or “3”. Close the battery compartment cover. Make sure that the BDP-103 player is at the player. Press and hold the ENTER button for 5 seconds. The player will start using the new remote code.

turned on and that the disc tray is ejected. Aim the remote control

Battery Compartment

Remote Code Switch

Changing the Backlight Method

The remote control supports one of two backlight methods. By default, pressing the LIGHT button will turn on the backlight, and pressing any other button within 10 seconds will keep the backlight on. The alternative method will activate the backlight whenever any button is pressed; in this mode, the light will stay on for 10 seconds, and pressing any other button will keep the backlight on. To switch between these two backlight methods, press and hold the LIGHT button for 5 seconds.

CAUTION

x Never drop the remote control or expose it to moisture. x Never expose the infrared remote sensor on the front panel to direct sunlight or other

strong light sources.

x Remote may not operate consistently when batteries become low. Replace them if

operation deteriorates.

x If the remote control will not be used for a long time, please remove the batteries. x Use the batteries correctly to avoid possible leakage and corrosion. Do not leave the

batteries exposed to direct sunlight or in a high temperature environment for a long period of time. Do not heat or expose to flame. Do not mix old and new batteries. Do not use batteries of different types at the same time. Do not attempt to recharge the batteries.

x If battery leakage occurs, do not touch the liquid with bare hands. Wipe out any liquid inside

the battery compartment, and insert new batteries.

INSTALLATION

Common Connection Methods

Connecting to an A/V Receiver via HDMI

Rear Panel

HDMI In

HDMI Cable

HDMI INHDMI OUT

AUDIO/VIDEOMULTI- CHANNEL

RECEIVER

HDMI Cable

(to HDMI 1 or 2)

x If you have an HDMI-capable receiver that can support HDMI audio, you can simply run an HDMI

cable from the player to your receiver and enable HDMI audio on the receiver (see your receiver’s owner’s manual for more information). The receiver usually has an HDMI output that you can connect to your TV to pass the video signal.

x Either of the HDMI output terminals (HDMI 1 OUT and/or HDMI 2 OUT) on the rear panel of the

BDP-103 can be connected to your receiver. Preference should be given to the HDMI 1 out

put for

video since it is the only output to benefit from the superior Marvell QDEO video processor.

NOTE

HDMI (High-Definition Multimedia Interface) is a single cable that can transport both audio and video from your player to your display. Be aware, however, that HDMI is an evolving standard, and there may be compatibility issues. A receiver that supports audio input over HDMI is required. Some receivers offer HDMI ports solely for video switching. If your receiver does not have audio input capability, please read the following sections regarding other connection methods.

In order to play multi-channel audio for all formats, the receiver must support HDMI v1.1 or later. For Blu-ray Discs, a receiver that supports HDMI v1.4 with decoding capability for Dolby TrueHD and DTS-HD Master Audio is preferred. Please check the specifications of your receiver to ensure that it meets these requirements.

The HDMI outputs on the BDP-103 are HDMI v1.4, which are compatible with HDMI v1.3 and earlier versions.

INSTALLATION

Connecting to a TV and A/V Receiver via Dual HDMI

Rear Panel

HDMI Cable 1

HDMI IN

HDMI Cable 2

AUDIO/VIDEO MULTI- CHANNEL

RECEIVER

x The BDP-103 provides a “Dual HDMI” connection to make sure you can enjoy the highest possible

video quality and resolution, in addition to high bit rate audio content. You can use the included HDMI cable to connect the HDMI 1 output to your HDTV and use another HDMI cable (not included) to connect the HDMI 2 output to your receiver by setting the Dual HDMI Output option in the Setup Menu to Split A/V (see page 53 for details). In this way you can utilize the dedicated video processor available for the HDMI 1 output, and allow your receiver which has no HDMI 1.4 inputs to work without any

loss to the digital audio signals.

x This configuration is recommended when you have a 3D-compatible display, but your receiver is

not 3D-compatible. This allows you to send the video signal (3D, in this case) directly to the TV and the audio signal to the receiver to be distributed to your speakers as it normally would.

NOTE

x Please refer to the notes on HDMI connections available on page 11.

x If your receiver does not have HDMI audio input capability, please try the alternate

connection methods discussed on pages 16 and 17.

INSTALLATION

Connecting to a TV via HDMI

Rear Panel

Video In

HDMI In

Composite Cable (Optional)

HDMI Cable (to HDMI 1 or 2)

x If your TV has an HDMI input, you can use the included HDMI cable to connect the player directly to

the TV. This connection method delivers both video and audio in a pure digital format via a single cable. The HDMI output of the player allows for the highest possible video quality and audio resolution.

x There are two HDMI output terminals (HDMI 1 OUT and HDMI 2 OUT) on the rear panel of BDP-

103, both of which can be connected to your TV. We recommend using HDMI 1 OUT since it benefits from the dedicated Marvell QDEO video processor.

x You may remove the HDMI cable and connect the DIAG (diagnostic) output to the TV through a

regular composite video cable (not included) when there is a problem with HDMI video. Only the Setup Menu will be visible on the TV when using this connection, so it is limited to troubleshooting purposes only.

NOTE

x This connection method will output sound via the TV’s speakers. For optimal sound

quality, it is recommended that audio be transferred from the BDP-103 to an A/V receiver with connected speakers.

x If your A/V receiver does not accept audio via HDMI, or if your receiver does not have

HDMI inputs at all, see pages 16 and 17 for instructions on how to output audio to a receiver using different connection types.

INSTALLATION

Connecting to Two TVs via HDMI

Rear Panel

HDMI In

TV 2

HDMI Cables

TV 1

HDMI In

x The two HDMI outputs (HDMI 1 OUT and HDMI 2 OUT) available on the rear panel of BDP-103 can

be connected to two TVs at the same time, and each output can deliver both digital video and audio signals.

x We recommend that you connect your main TV (the one with larger screen size or the one that you

would watch more often) to HDMI 1 OUT in order to benefit from the dedicated video processor, and set the DualHDMI option in the Setup Menu to Dual Display to make sure that the HDMI 2 OUT ca also send out audio an

d video signals (see more details on page 53).

x You may connect the DIAG (diagnostic) output to one of your TVs for troubleshooting purposes.

Refer to page 13 for more details.

INSTALLATION

Connecting to a TV via DVI

Rear Panel

DVI

Audio

DVI

HDMI

(from HDMI 1 or 2)

Audio Cable

- DVI Cable

x If your TV has a DVI input that supports HDCP, you can purchase an HDMI-DVI cable to connect the

player to the TV. This connection method delivers digital video to the TV without any signal degradation. We recommend that you use HDMI 1 OUT since it benefits from the dedicated video processor.

x Please use Red/White audio cables (not included) to connect the FL (Front Left) and FR (Front Right)

terminals of the player to the TV. Make sure the audio cables are connected to the sam

e input terminal group on the TV as the DVI input. Usually, the input terminals are marked as “DVI Audio” or “PC Audio”. On some TVs you may need to use an RCA-3.5mm Mini-Jack adapter cable to connect the audio.

x You may connect the DIAG (diagnostic) output to one of your TVs for troubleshooting purpose. Refer

to page 13 for more details.

NOTE

HDCP stands for High-bandwidth Digital Content Protection. The HDMI outputs of the BDP-103 use HDCP to encrypt the digital audio and video content. The TV must support HDCP in order to decrypt and properly display the content.

INSTALLATION

Alternate Audio Connections

Connecting to an A/V Receiver or Amplifier via Analog Outputs

Rear Panel

Audio Interconnect Cables

FRONT SURROUND SUBWOOFER S. BACK

CENTER

AUDIO/VIDEO MULTI- CHANNEL

RECEIVER

Receiver/Amplifier with 7.1ch Audio Input

x Please use up to 8 RCA-style audio interconnect cables (not included) to connect the FL (Front Left),

FR (Front Right), SL (Surround Left), SR (Surround Right), C (Center), SW (SubWoofer), SBL (Surround Back Left) and SBR (Surround Back Right) analog output terminals of the BDP-103 to the corresponding multi-channel analog audio input jacks of your A/V receiver or amplifier.

x If the A/V receiver or amplifier only has 5.1ch audio inputs, do not connect the SBL (Surround Back

Left) and SBR (Surround Back Right)

terminals, and set the Down Mix option in the Setup Menu to

5.1 to make sure that any 7.1 channel signals are converted to 5.1 channels (refer to Down Mix Mode on page 68).

x If your audio system offers only stereo audio inputs, or if you would like to connect a dedicated stereo

audio system in addition to the surround audio system which is already connected to the HDMI or S/PDIF outputs, you can connect the dedicated stereo audio system to the FL (Front Left) and FR (Front Right) terminals of the player.

x For the stereo ou

tputs, if the audio system you are connecting to does not have surround speakers,

set the Down Mix option in the Setup Menu to Stereo. If the audio system has surround speakers and Dolby Pro Logic or other surround audio decoding capabilities, set the down mix mode to “LT/RT”. (For more information, refer to “Down Mix Mode” on page 68).

INSTALLATION

Connecting to an A/V Receiver or Amplifier via S/PDIF (Coaxial / Optical)

Rear Panel

Connect one of these cables:

Coaxial In

Optical In

RECEIVER

AUDIO/VIDEO MULTI-CHANNEL

Receiver/Amplifier with Dolby Digital or DTS Decoder

Coaxial Digital Audio Cable

Optical Digital Audio Cable

x Please use either a 75-Ohm coaxial digital audio cable with RCA-style connectors or an S/PDIF

optical digital audio cable to connect one of the digital audio outputs to the corresponding input terminal on your A/V receiver. For detailed setup of coaxial/optical signals, refer to page 66.

NOTE

x Due to bandwidth limitations, high resolution audio formats such as Dolby Digital Plus, Dolby

TrueHD, DTS-HD High Resolution and DTS-HD Master Audio cannot be sent through the coaxial or optical digital audio output. A reduced resolution version of the same audio track will be output instead. To listen to high resolution audio formats in their best quality, please use the HDMI connection if you have a receiver that handles HDMI audio (see page 11) or use the multi-channel analog outputs if you do not (see page 16).

x Due to copyright restrictions, SACD audio cannot be sent through the coaxial or optical

digital audio output. To listen to SACDs, please use the HDMI or analog audio connections.

x Due to copyright restrictions and bandwidth limitations, full resolution audio from DVD-Audio

discs cannot be sent through the coaxial or optical digital audio output. To listen to DVDAudio in full resolution, please use the HDMI or analog audio connections.

INSTALLATION

HDMI / MHL INPUT to BDP-103

Front Panel Rear Panel

HDMI Cable

or HDMI/MHL Cable

Audio/Video Source

HDMI Cable

x The BDP-103 provides two HDMI input ports, located on the front panel and the back panel separately,

both of which can accept up to 1080p high-definition video and digital audio. You can use the included HDMI cable to connect a source device such as a digital TV box, mobile phone or camcorder to the HDMI IN port(s). You can use the INPUT button on the OPPO remote to open the Input Source Menu, which allows you to select the corresponding HDMI IN port.

x Keep in mind that the

HDMI IN port on the front panel is MHL (Mobile High-definition Link) compatible, which means if it is connected to another MHL-enabled device (like a smartphone) through a MHL cable or adaptor (not included), then this port is not only capable of accepting high-resolution digital signals, but can also simultaneously charge the connected device.

INSTALLATION

Connecting to the Internet

The BDP-103 has significantly improved its internet streaming capabilities compared to its predecessors. Currently, it supports both Netflix and VUDU, as well as in-home network media sharing via My Network which is capable of connecting with DLNA and SMB/CIFS clients. Additional online streaming applications may also be added with future firmware updates.

The BDP-103 also supports the BD-Live feature offered on some Blu-ray Disc titles. BD-Live offers extra downloadable content and additional online interactive programs. Co and studio, and may include additional subtitles, commentaries, movie trailers, games, and online chat.

Connecting the player to the Internet will also allow the player to obtain firmware updates. (See pages 4 and 72 for more information regarding firmware updates.)

In order to utilize the BD-Live feature or to update the firmware via the Internet, the player needs to be connected to a broadband Internet connection. It is not necessary to connect to the Internet if you do to use the network streaming, BD-Live or online firmware update features.

The BDP-103 provides two network connection methods: through Ethernet cable or through the external wireless adaptor included with the player. For the fastest and most stable network connection, we recommend using an Ethernet cable whenever possible.

ntent available on BD-Live varies by disc

not intend

Internet connection through Ethernet cable

Rear Panel

Broadband Internet Connection

Internet

WAN 1 2 LA N 3 4

Broadband Router/Modem

x Plug one end of a network cable (Category 5/5E straight Ethernet cable) into the LAN port on the

back of the BDP-103.

x Plug the other end of the network cable into a LAN port on the broadband router or modem.

x After physically connecting the player to a broadband Internet connection, some network

configuration may be required. Refer to the Network Setup section on page 76 for details.

Network Cable (Ethernet)

INSTALLATION

x Refer to the operating instructions supplied with the broadband router or modem, or contact the

Internet service provider for questions related to setting up the router or modem.

NOTE

x Only connect the LAN port of the player to an Ethernet port that supports 10BASE-T or

100BASE-TX. Connecting to any other ports or jacks, such as a phone jack, can damage the player.

x Streaming services such as Netflix and VUDU may require membership and may also be

limited to service in the US only.

Internet connection through wireless adaptor

Rear Panel

USB IN

Wireless Dongle

Broadband Internet Connection

Internet

Internet 1 2 LAN 3 4

WiFi

Wireless Router/Access Point

x The wireless adaptor included in the BDP-103 package has been pre-configured to work with your

player. It is compatible with 802.11B, G, and N (2.4GHz) wireless networks.

x Make sure a broadband Internet connection is available and the Wi-Fi function on your wireless router

or access point has been turned on, and plug the adaptor into one of the three USB ports available on your BDP-103 (one on the front panel, two on the back).

x After connecting the adaptor, some network configuration is re

quired. Refer to the Network Setup

section on page 76 for details.

x A USB extension cable is also included in the package. Connect it between the USB port on the player

and your wireless adaptor if needed.

INSTALLATION

Custom Installation

External IR (Infrared Remote) Installation

The BDP-103 features an IR IN port on its back panel. If the player is to be installed in an equipment cabinet where direct line-of-sight is not available for the remote control, you can purchase an external IR Remote Sensor and plug it into the IR IN port. Place the sensor head at a location where there is direct line-of-sight to ensure reliable operation.

Rear Panel

3.5mm Stereo Cable

External IR Remote Signal

IR IN Signal Identifications

3.5mm Mono Plug

Tip: IR carrier signal

Sleeve: Ground

NOTE

x When an external IR sensor is plugged in, the original IR sensor window on the front panel

will be disabled.

x The IR port on the BDP-103 is NOT compatible with the prior generation of external IR

Remote Sensor (IR-ES1) which is used on BDP-83.

x OPPO cannot guarantee that the IR IN port will be compatible with devices that are not

manufactured by OPPO. Connecting the IR IN port to an incompatible device may result in damage to the connected device or the player.

x Please contact OPPO customer support if you plan to integrate the player into an IR

distribution system. Customer support can provide recommendations on how to properly connect the control signals.

RS232 Control

The BDP-103 has an RS232 control port and can be integrated into most custom home theater control systems. Please ask your custom installer to contact OPPO for the RS232 control protocol, or check the OPPO Digital website (www.oppodigital.com

) for the latest version of RS-232 protocol document.

INSTALLATION

Quick Start Guide

Power On and Play

The BDP-103 is pre-configured with settings that have been optimized for most home theater systems, so it can fit into your audio/video system without any additional adjustment. To begin, please follow these steps:

1. Connect the OPPO player into your system.

2. Turn on the TV and/or receiver/amplifier, and then turn on the player.

3. Switch the input selection on your TV or receiver so that the TV displays the signal from the player.

Within a few seconds, the OPPO logo. The player is now ready for use. Enjoy your new OPPO Blu-ray Disc Player!

Please follow the rest of the user manual for information on basic and advanced operations.

player will load the factory default settings and you will see the Home Menu with an

Select the Best Output Resolution

One of the major advantages of the BDP-103 is its ability to play high-definition Blu-ray video and also upconvert standard definition video stored on DVD discs to high definition. The sophisticated video processor inside the player ensures that the video will h several standard and high definition video output resolutions. For best results, it is important to select an output resolution that best matches your TV or display.

The rule of thumb when selecting an output resolution is to match the “native resolution” of your TV or display as closely as possible. The “native resolution” is the resolution of the actual display component in the TV, such as the Plasma panel, LCD panel, or DLP™ chip. The TV may accept input signals with resolutions than its native resolution. In such cases, the electronics in the TV will upscale or downscale the video to fit its display component. Unfortunately, many TVs on the market only do an average job of scaling the video. On the other hand, if you set the BDP-103 to output a resolution that matches or is very close to the native resolution of the TV, you are more likely to get a great picture.

For most new displays on the market, the best output resolution will be 1080p. A few early model “1080p” displays did not accept a 1080p signal. For the digital TVs this will likely be 720p. For even earlier CRT tube or rear projection TVs this will likely be 1080i. For EDTV displays (very rare if they have HDMI or DVI) this will be 480p (NTSC) or 576p (PAL). These are general recommendations that work for most users, but there can be exceptions. Advanced users may want to try all supported resolutions and choose the one that provides the best result visually.

ave the best possible color, detail and motion. The player offers

lower or higher

se displays, the best output resolution is 1080i. For small screen

The BDP-103 supports a special Source Direct mode through its HDMI outputs. This resolution is recommended for works as a “transport”. It decodes video from the discs and then sends the raw video signal in its native resolution and format, without extra processing, to the external video processor or TV. The actual output resolution varies by content:

Most Blu-ray Movies (film-source) 1080p 23.976Hz or 1080p 24Hz Most Blu-ray TV shows or Concerts (video-source) SACD and DVD-Audio 1080i

use with external video processors or high-end TVs. In Source Direct mode, the player

noituloseRtuptuOtceriDecruoStnetnoC

i084DVDCSTN i675DVDLAP

1080i

INSTALLATION

For both HDMI outputs, the following output resolutions are available: 4Kx2K, Auto, 1080p, 1080i, 720p, 480p/576p, 480i/576i, and Source Direct. If Auto is selected, the player will determine the output resolution

based on the best signal resolution that the TV can display.

To change the output resolution, press the RESOLUTION button on the remote to bring the Resolution Menu, then press the UP/DOWN ARROW buttons to highlight the desired one, and press the ENTER button to confirm and return. If your TV does not support the selected resolution,

you may see a black screen or an error

message. In this case, try a different resolution that your TV can support.

Determine the Display Aspect Ratio

Standard Definition, or 4:3 TV Wide screen, or 16:9 TV

The TV Aspect Ratio is the proportional ratio of a TV screen’s width and height. Older television sets generally have a 4:3 aspect ratio – the width is 4/3 (or 1.33) times the height. Newer wide screen television sets have a 16:9 aspect ratio – the width is 16/9 (or 1.78) times the height. For best performance, the video output of your player needs to match the screen aspect ratio of your TV. Since most Blu-ray discs and many DVD discs are released in the wide screen format, it is highly recommended to use

a wide screen TV with the BDP-103.

The Aspect Ratio selections are 16:9 Wide and 16:9 Wide/Auto. Depending on your selection and the video format recorded on the discs, image appearance on the TV screen can be one of the following:

TV Screen Appearance

Original Content

Wide Wide/Auto

4:3

16:9

If you have a widescreen (16:9) display, select one of these options:

x 16:9 Wide – 16:9 (widescreen) sources will be displayed in their native aspect ratio, and 4:3

sources will be horizontally stretched.

x 16:9 Wide/Auto – 16:9 (widescreen) as well as 4:3 sources will be displayed in their native aspect

ratio. Please note that in this mode, 4:3 sources will be displayed with black borders on both left and right sides to maintain the correct 4:3 aspect ratio.

BASIC OPERATIONS

DVD-A

SACD

Disc Playback

1ˊ Press the POWER button to turn on the player.

NEPOREWOP

YALPPOTS

NOTE

x During DVD and some Blu-ray Disc playback, pressing the STOP button will stop the disc and

save the current stopped point. You can resume playback by pressing the PLAY button.

2ˊ Press the OPEN/CLOSE button to eject the disc tray. 3ˊ Place the disc with the label side facing up and the recorded

side facing down.

4ˊ Press the OPEN/CLOSE button again to retract the tray. 5ˊ The player will read the disc information and begin playback. 6ˊ Depending on the content of the disc, a menu or navigation

screen may appear. Use the navigation ARROW and SELECT buttons to select the content to play.

7ˊ To stop playback, press the STOP button. 8ˊ To turn off the player, press the POWER button.

x Certain Blu-ray Discs with BD-Java technology do not support resume playback. Pressing the

STOP button during playback of such discs will completely stop the disc. Pressing the PLAY button once the disc is stopped will restart it from the very beginning.

OPTION Menu

DVD-A

SACD

1. During media file navigation and playback, press the OPTION button on the remote to open the OPTION MENU, which allows

OPTION

you to conveniently access various settings and playback features.

2. When the OPTION MENU is displayed, press the LEFT/RIGHT ARROW buttons on the remote to highlight a particular item, then press the ENTER button to confirm.

The OPTION MENU selections may differ depending on content type. A summary of the selections and their functionality is described as follows:

Within Disc Playback (CD, DVD, BD):

x Disc i

nfo: Searches the Gracenote online database and display the available disc information (an

active internet connection is required).

BASIC OPERATIONS

Within Music File Playback:

x Music info: As with “Disc info”; searches and displays available music information from Gracenote.

Within Video Discs (DVD, BD) and Video File Playback:

x Subtitle shift: Adjusts the position of subtitles on the screen. See details on page 34. x Picture adjustment: Opens the Picture Adjustment menu. See details on page 56. x Zoom: Opens the image zoom level menu. See details on page 32. x ANGLE: Changes the viewing angle. This function is only available when the DVD/BD is recorded

with multiple angles.

Within Photo File playback:

x Zoom: Displays the image at different zoom levels. x Rotate – Left / Right / Mirror / Flip: Rotates the image on the screen.

Within HDMI INPUT playback:

x Picture adjustment: Opens the Picture Adjustment menu. See details on page 56.

Fast Playback

DVD-A

SACD

You may fast forward or reverse during playback.

REV FWD

1. Pressing the FWD button on the remote control to start fast forwarding playback. Each press of the FWD button increases the playback speed in the following increments:

123 4 5

2. Pressing the REV button on the remote control starts fast reverse playback. Each press of the REV

button reverses the playback speed in the following increments:

NOTE

x Certain Blu-ray Discs utilizing BD-Java technology may have their own fast forwarding and

reversing control. The actual speed varies by disc, and a progress scale may be displayed by the disc.

Pause and Frame-by-Frame

DVD-A

SACD

1. During playback, pressing the PAUSE button temporarily pauses

the program. In this mode, a PAUSE icon will appear on the TV screen.

ESUAPYALP

2. While a DVD or Blu-ray Disc is paused, pressing the PREV or NEXT button reverses or advances the video frame-by-frame.

3. Pressing the PLAY button resumes normal playback.

BASIC OPERATIONS

Slow Playback

To play the video in slow-motion, follow these steps:

1. Press the PAUSE button on the remote control to pause

PLAY

REV

PAUSE

FWD

3. Press the REV button to select a reverse slow playback speed. Each press of the REV button

reverses the playback speed in the following increments:

4. To exit the slow playback mode, press the PLAY button.

NOTE

playback.

2. Press the FWD button to select a forward slow playback speed. Each press of the FWD button increases the playback speed in the following increments:

1/16 1/8

1/41/2

1/16 1/8

1/41/2

x Certain Blu-ray Discs utilizing BD-Java technology may not support slow playback.

Blu-ray Disc Menu Playback

1. Blu-ray Discs usually contain a Top Menu and a Pop-up Menu. The Top Menu normally appears at the beginning of

TOP MENU

ARROW BUTTONS

COLOR BUTTONS

POP-UP MENU

ENTER

playback, after the previews and copyright messages. The Pop-up Menu can be accessed during the movie without interrupting playback.

2. During playback, press the POP-UP MENU button to access the Pop-up Menu. Press the TOP MENU button to access the Top Menu.

3. Navigate the menu using the ARROW buttons, and then press the ENTER button to make a selection.

4. Some menus make use of the COLOR buttons. You select menu functions by pressing the corresponding COLOR button on the remote control.

DVD Menu Playback

1. Some DVDs contain title menu or chapter menu functions.

TOP MENU (TITLE)

ARROW BUTTONS

POP-UP MENU (MENU)

ENTER

RETURN

2. During playback, press the TOP MENU button to return to the disc title menu. Press the POP-UP MENU button to display the chapter menu. Depending on the disc, one or both menus may not exist.

3. Navigate the menu using the ARROW buttons, and then press the ENTER button to make the selection.

4. Press the RETURN button to return to the previous menu.

The return location varies by disc.

can

DVD-A

BASIC OPERATIONS

On-Screen Display

1. During the playback of a DVD or Blu-ray Disc, press the

2. When the status information is shown, press the PAGE

3. Press the INFO button again to hide the on-screen display.

The following display formats are available:

DVD and Blu-ray Disc:

- Title elapsed time

–

CD and SACD:

–

- Title remaining time – - Chapter remaining time

- Track elapsed time - Disc elapsed time

- Track remaining time – - Disc remaining time

DVD-A

SACD

INFO button on the remote control to show its status information. For CDs and SACDs, the status information is shown automatically.

UP/DOWN buttons to scroll through several different display formats. The playback time information displayed on the front panel changes together with the on-screen display.

The playback time information display on the front panel

will

remain in the selected format.

- Chapter elapsed time

In addition to the playback time, the on-screen display may also contain the following information about the content currently playing:

x Playback status: an icon indicating play, pause, and fast forward/reverse status. x Bit rate meter: an indication of the bit rate of the audio and video stream. x Current and total title numbers. (DVD and Blu-ray Discs) x Current and total chapter numbers of the current title. (DVD and Blu-ray Discs) x Current and total tracks. (CDs and SACDs) x Aud

io information: current and total available number of audio tracks, language, format, and

channels.

x Subtitle information: current and total available number of subtitle tracks and language. x Video format information: encoding type, frame rate and original aspect ratio.

Volume Control

DVD-A

SACD

1. On the BDP-103, the volume control only affects the analog audio output. It does not apply to digital audio output (HDMI, Coaxial and Optical) either in raw bitstream format or in LPCM format.

2. The VOL +/- buttons on the player remote control are

VOL -

VOL +

provided as an alternative way of controlling the audio volume. It is recommended that you use this control to make the audio volume from the player the same as from other sources, such as TV programs or a VCR.

x Press the VOL – button to decrease the vol x Press the VOL + button to increase the

ume.

volume.

BASIC OPERATIONS

Mute

DVD-A

1. Press the MUTE button on the remote control during

content playback to turn off audio output. The TV screen displays a mute icon. The front panel MUTE indicator will

MUTE

also light up.

2. Press the MUTE button again to resume audio output.

NOTE

Check the MUTE status on the front panel display of the player when there is no audio output. You may also press the MUTE button to verify the MUTE status.

SACD

DVD-A

Audio Language/Track Selection

1. To select the audio language or track, press the AUDIO button on

the remote control during playback.

AUDIO

2. Repeat pressing the AUDIO button or use the UP/DOWN ARROW buttons to choose from all available language or audio

tracks.

SACD

NOTE

Availability of languages and audio channels varies by disc. Some DVD-Audio discs allow audio track selection with the AUDIO button, while others require the user to choose from the audio setup menu of the disc. When playing an SACD with both multi-channel and stereo contents, the AUDIO button can be used to switch between the two formats.

BASIC OPERATIONS

Subtitle Selection

1. When playing a DVD, Blu-ray Disc or other video programs

recorded with subtitles, press the SUBTITLE button on the

SUBTITLE

remote control to select the desired subtitle.

2. Repeatedly press the SUBTITLE button or use the UP/DOWN ARROW buttons to choose from all available subtitles.

3. To turn off subtitles, select Off from the list.

HDMI / MHL INPUT Selection

1. When sending external media sources to the BDP-103 through the front and back HDMI IN ports, press the INPUT button on the remote to bring the “Input Source” menu.

2. Use the UP/DOWN ARROW buttons to choose the required HDMI input port.

3. You can always select the BLU-RAY PLAYER to return to OPPO HOME menu.

NOTE

The front HDMI IN port is MHL (Mobile High-definition Link) compatible. Please refer to pages 18 and 41 for more details. A dedicated MHL cable or adapter is required (not included) and some configuration may be required on the mobile device.

Audio Return Channel (ARC) Selection

1. When sending a digital audio signal from the TV back to the BDP-103 through an HDMI connection, press the INPUT button on the remote to bring the Input Source menu.

2. Use the UP/DOWN ARROW buttons to choose the required ARC channel.

3. You can always select BLU-RAY PLAYER to return to OPPO HOME menu.

NOTE

x Audio Return Channel (ARC) is a feature introduced in HDMI v1.4, which allows you to send

digital audio signals from the television back to the player or receiver. Instead of listening through TV speakers, ARC allows the sound to be processed and produced by the home theater audio system.

x A HDMI 1.4 cable is required (included) and you need to make sure the HDMI input port on

the TV is ARC capable. Usually, ARC has to be enabled in the TV’s settings.

BASIC OPERATIONS

BD-Live

Some Blu-ray Disc titles are released with the BD-Live feature. BD-Live offers extra downloadable content and additional online interactive programs. BD-Live content varies by disc and studio, and may include additional subtitles, commentaries, preview trailers, games,

and online chat. A Broadband internet connection is required to enjoy BD-Live content (see page 19).

Depending on how the studios organize their BD-Live content, some Blu-ray Discs may start downloading BDLive content when playback starts, have a BD-Live selection on the m you would like to start downloading, or ask you to sign up for a membership or account. Please follow the instructions that come with the disc to enjoy BD-Live contents.

Your Internet connection speed and the capacity of the BD-Live content servers can all affect how fast BD-Live content is downloaded. If you encounter slow downloading or intermittent playback, please play the disc without accessing the BD-Live features, or try again at a different time.

ain menu, show a prompt asking whether

When you use the the content provider via the Internet. Generally, no personally identifiable information is sent. However technologies exist to match your IP address to a certain geographical area or service provider. Your Internet service provider also has the knowledge of who is using a particular IP address. If the BD-Live content provider requires you to log in using a membership or account, the content provider will have access to your membership or account information. Check with your I providers for their privacy policy.

You can choose to restrict BD-Live Network Access in the Setup Menu (details on page 76).

BD-Live feature, the player or disc ID and your IP (Internet Protocol) address may be sent to

nternet service provider and the BD-Live content

ADVANCED OPERATIONS

Output Resolution

The BDP-103 supports multiple output resolutions. For a detailed discussion on how to choose the best output resolution, please refer to the Select the Best Output Resolution section on page 22 of this manual.

RESOLUTION

1. Make sure the HDMI cable is properly connected.

2. Turn on the TV and adjust the TV to use its HDMI input port.

3. Make sure that the player is turned on. Although the ou playing, it is recommended that you stop playback and take out the disc before changing the output resolution. Press the RESOLUTION button. The Resolution Menu appears on the TV screen. If the TV does not support the current resolution and you cannot see the Resolution Menu, the current resolution is also displayed on the player’s front panel.

4. Use the UP/DOWN ARROW buttons to select the new output resolution. You may also press the RESOLUTION button multiple times to c

5. Press the ENTER button to apply the selected output resolution. If you do not want to change the output resolution, press the RETURN button to exit and return.

The following output resolutions are available:

NTSC output:

4Kx2K

PAL output:

Auto 1080p(60Hz/24Hz) 1080i 60Hz 720p 60Hz 480p 480i Source Direct

If you would like to change the output resolution, you may do so by pressing the RESOLUTION button on the remote.

tput resolution can be changed while a disc is

ycle through the available output resolutions.

4Kx2K

NOTE

x Some TV sets may not support one or more output resolutions. If an incompatible output

x If you cannot get a picture using HDMI, please remove the HDMI cable and connect the

x Due to the “Analog Sunset” provision, as of January 1, 2011 all Blu-ray Disc players made

Auto 1080p(50Hz/24Hz) 1080i 50Hz 720p 50Hz 576p 576i Source Direct

resolution is selected, you will get a blank screen or an error message. If this occurs, please select an output resolution that is supported by the TV.

player’s DIAG (diagnostic) output to the TV using a regular composite video cable, and then use the Setup Menu to adjust the player settings.

and sold going forward will not be able to pass high definition video (720p, 1080i, or 1080p) via Component Video outputs. Because of this, we have removed the Component and

ADVANCED OPERATIONS

Composite video outputs on the BDP-103, and only kept a standard definition DIAG video output for troubleshooting purposes.

Zooming and Aspect Ratio Control

This feature zooms in and out of the displayed frame and also changes the aspect ratio (image width vs. height).

ZOOM

Zoom Levels for HDMI Output

The available zoom levels depend on the TV Aspect Ratio setting in the Setup Menu and the encoded aspect ratio on the BD/DVD Disc:

1:1 (No zoom), Stretch/Compress, Full Screen, Under Scan, 1.2X, 1.3X, 1.5X, 2X, 1/2X

To change the zoom level, press the ZOOM button on the remote control. Each press of the ZOOM button will switch the zoom level in sequence.

The zoom level is reset to 1:1 when the disc is ejected, or when the player is turned off.

The following zoom levels may be useful for specific applications:

1) Playing 16:9 BD or DVD when TV Aspect Ratio is set to 16:9 Wide or 16:9 Wide/Auto

x Stretch – The image is vertically stretched 1.33 times. For movies with 2.35:1 aspect ratio, this zoom

level cuts off the black borders at the top and bottom of the image. Users of a projector with an anamorphic lens may find this mode helpful.

Original 2.35:1

Widescreen Movie

“Stretch” Zoom Projected through

an Anamorphic Lens

x Full Screen – The image is stretched by 1.33 times for both vertical and horizontal directions. For

movies with 2.35:1 aspect ratio, this zoom level cuts off the black borders at the top and bottom of the image while maintaining the correct aspect ratio. The left/right sides of the image are slightly cropped.

Original 2.35:1 Widescreen Movie “Full Screen” Zoom

ADVANCED OPERATIONS

2) Playing 4:3 BD or DVD when TV Aspect Ratio is set to 16:9 Wide

x 1:1 – The image fills up the entire 16:9 screen but is horizontally stretched. Figures may look shorter

and wider than they should be.

x Compress – The player maintains the correct 4:3 aspect ratio and adds borders to the left and right

sides of the image.

x Full Screen – This zoom level maintains the correct aspect ratio but crops the top and bottom slightly

in order to fit the 4:3 image to the 16:9 screen.

mooZ”neercSlluF“mooZ”sserpmoC“1:1

3) Playing 4:3 BD or DVD when TV Aspect Ratio is set to 16:9 Wide/Auto

x 1:1 – The player maintains the correct 4:3 aspect ratio and adds borders to the left and right sides of

the image.

x Stretch – The image is horizontally stretched 1.33 times. This zoom level fills up the 16:9 screen, but

figures may look shorter and wider than they should be.

x Full Screen – This zoom level maintains the correct aspect ratio but crops the top and bottom slightly

in order to fit the 4:3 image to the 16:9 screen.

mooZ”neercSlluF“mooZ”hctertS“1:1

The “Under Scan” zoom level shrinks the image by 5%. This zoom level may be used to compensate for TVs that over scan, so the viewer can see the entire image area with no cropping. All other zoom levels are indicated by their respective zoom ratio.

NOTE

x Some early DVD titles (released from 1997 until early 2000’s) use a 4:3 non-anamorphic

widescreen aspect ratio. When played on a 16:9 display, the content is shown in a small window with black borders on all four sides. The top and bottom borders are encoded into the video. The left and right borders are added by the player to maintain the correct aspect ratio. For these types of discs, the Full Screen zoom mode can be used to eliminate the borders.

x The ZOOM feature may not be available when certain DVD or Blu-ray Discs are played if the

disc’s author has chosen to disable ZOOM.

ADVANCED OPERATIONS

Subtitle Shift

For customersusinga2.35:1“Constant Image Height” video projection system, subtitles may get cut off because they are

SUBTITLE

To shift the display position of subtitles, please follow these steps:

1. When playing a DVD, Blu-ray Disc or other video programs recorded with subtitles, select the desired subtitle from the disc menu or by using the re

2. Press and hold the SUBTITLE button on the remote control until the Shift Subtitle Position prompt appears on the screen.

3. Wait until subtitle text is shown on the screen, and then use the UP/DOWN ARROW buttons to move the subtitle text to the desired position.

4. Press the ENTER button to set the subtitle display position.

Once the Subtitle Shift position is set, it is saved by the player in the Video Setup > Display Options > Subtitle Shift setup menu option. The setting will be applied to subtitles of all future DVD and Blu-ray Discs. You

can also change the setup menu item directly. Refer to the Video Setup section beginning on

page 53 for more information.

positioned outside of the active video area.

The Subtitle Shift feature can be used to shift subtitles up or down so

they are displayed within the active video area.

mote. (Refer to page 29 for more information.)

Repeat Playback

To repeat a certain chapter, title, track or disc, press the REPEAT button on the remote control.

REPEAT

DVD and DVD-Audio:

Blu-ray Disc:

CD and SACD:

NOTE

x Certain Blu-ray Discs may not allow for repeating.

Each press of the REPEAT button changes the repeat mode using the following sequence:

Repeat Chapter Repeat Title Repeat OffRepeat All

Repeat Chapter Repeat Title Repeat Off

Repeat One Repeat All Repeat Off

DVD-A

SACD

ADVANCED OPERATIONS

Repeat a Selected Section

DVD-A

To repeatedly play a specific section, please follow these steps:

1. During normal playback, press the AB REPLAY button on

the remote at the desired beginning point (Point A) for the repeat play. The TV screen displays “A-”.

AB REPLAY

2. When playback reaches the desired ending point (Point B)

for the repeat play, press the AB REPLAY button again. The player now repeatedly plays back the specified section (A-B). The TV screen displays “A-B”.

3. Press the AB REPLAY button for the third time to resume normal playback.

NOTE

Not available for all disc formats or content. Certain Blu-ray Discs may not allow for repeating.

Shuffle and Random Playback

When playing a CD or SACD, press the BLUE button on the remote control to activate the Shuffle and Random modes. Each press of the

BLUE

BLUE button switches the playback mode in the following sequence:

SACD

Shuffle Random Normal

In normal playback mode, each track is played back in sequential order. As the name implies, the Random playback mode randomly selects a track to play. The Shuffle mode also plays back the tracks in random order, but it ensures that each track is played only once.

Selecting the Shuffle or Random mode cancels any Repeat mode you may be using. Similarly, selecting a Repeat mode cancels any Shuffle or Random mode.

Playback by Chapter or Track Number

NUMBER

BUTTONS

During the playback of a disc, you can use the NUMBER buttons on the remote control to directly jump to a specified chapter or track

DVD-A

SACD

number. For example:

x To select the seventh track, press the [7] button.

x To select the 16th track, press [1] followed by [6] in quick

succession:

NOTE

x Certain DVD-Audio and Blu-ray Discs may not allow for direct chapter selection.

ADVANCED OPERATIONS

Playback from a Specific Location

DVD and Blu-ray Discs

During the playback of a DVD or Blu-ray Disc, you may specify a location to start playback by entering the title, chapter or time directly. Press the GOTO button to bring up the on-screen display.

1 / 7 5 / 25 00:22:14 00:40:06

On top of the video screen, the on-screen display information has the following components (from left to right): Playing Status, Title, Chapter, Time Counter, Progress Indicator, and Total Time. After pressing the GOTO button for the first time, the cursor will be positioned at the Time Counter. This is the Time Search mode. Each subsequent press of the GOTO button will switch the search mode in the following sequence:

(Title or Chapter) Time Search Chapter Search

On-Screen Display

1. Title time search. Searches for a specific time within the currently playing title.

Title Search

DVD-A

SACD

x Press the GOTO button to bring up the on-screen display. The cursor will be positioned at the

Time Counter. Use the NUMBER or ARROW buttons to enter the hours, minutes and seconds for your specific search and press the ENTER button.

1 / 7 5 / 25 00:22:14 00:40:06

2. Chapter time search. Searches for a specific time within the currently playing chapter.

x Press the INFO button to bring up the on-screen display. Use the PAGE UP or PAGE DOWN

button to switch the display to Chapter Time mode (note the icon placed on the left of the Time Counter changes from the Title icon to the Chapter icon). Press the GOTO button to position the cursor at the Time Counter, then use the NUMBER or ARROW buttons to enter the hours, minutes and seconds for your specified search and press the ENTER button.

1 / 7 5 / 25 00:06:48 00:08:33

3. Chapter search. Allows you to search for a particular chapter.

x Repeatedly press the GOTO button until the cursor is positioned at the Chapter location. Use the

NUMBER or ARROW buttons to enter or select the chapter number and press the ENTER button.

1 / 7 5 / 25 00:22:14 00:40:06

4. Title search. Allows you to search for a particular title.

x Repeatedly press the GOTO button until the cursor is positioned at the Title location. Use the

NUMBER or ARROW buttons to enter or select the title number and press the ENTER button.

1 / 7 5 / 25 00:22:14 00:40:06

ADVANCED OPERATIONS

NOTE

x Some discs may prohibit the search operation. You will not be able to select a search location,

or you may get an “invalid operation” icon after specifying a search location.

x Some Blu-ray Discs feature their own search function. Follow the on-screen instructions to use

the search function provided by such discs.

CD and SACD discs

You may specify a point to start playback by entering the disc elapsed time, track elapsed time or track number directly. When playing CDs and SACDs, the on-screen display automatically shows on the TV screen:

1 / 8 00:08:16 00:12:33

The on-screen display has the following components (from left to right): Playing Status, Track Number, Time Counter, Progress Indicator, and Total Time.

To specify a playback location using one of the following search modes, press the GOTO button. Each press of the GOTO button switches the search mode in the following sequence:

(Track or Disc)Time Search Track Search

On-screen Display

1. Track time search. Searches for a specific time within the currently playing track.

x Press the GOTO button to place the cursor on the track Time Counter. Use the NUMBER or

ARROW buttons to enter the hours, minutes and seconds for your specified search and press the ENTER button.

33:21:008/1 00:08:16

2. Disc time search. Navigates you to a particular timestamp.

x While the on-screen display is shown, press the PAGE UP or PAGE DOWN button to switch the

Time Counter to Disc Time mode. Press the GOTO button to place the cursor at the Disc Time Counter. Use the NUMBER or ARROW buttons to enter the hours, minutes and seconds for your specified search and press the ENTER button.

33:20:108/5 00:40:46

3. Select a track. To navigate to a particular track:

x Repeatedly press the GOTO button until the cursor is placed on the Track Number position. Use

the NUMBER or ARROW buttons to enter or select the track number and press the ENTER button.

00:12:3300:08:161 / 8

ADVANCED OPERATIONS

Memory and Automatic Resume

DVD-A

1. The player automatically saves the current position when playback

POWER

OPEN

is interrupted. Operations such as STOP, OPEN, and POWER cause the player to save the current playing position.

2. This position is saved even after turning off the unit or changing the disc.

3. The next time a disc with a saved playing position is inserted, the player will resume playback from that point. If you wish to cancel the automatic resume and start playback from the beginning, you must press the STOP button when prompted.

The player can save the playback position for up to 5 discs. When the position from the sixth disc is saved, the oldest saved position is replaced.

YALPPOTS

NOTE

x Some Blu-ray Discs do not support resuming and will always play from the beginning.

Viewing Pictures on DVD-Audio Discs

SACD

DVD-A

Some DVD-Audio discs contain static pictures, such as photos of the

PAGE UP/DOWN

band as well as album narration. When a DVD-Audio track is playing,

you may use the PAGE UP button to select the previous picture or the PAGE DOWN button to select the next picture.

NOTE

x Availability of static pictures depends on the DVD-Audio disc.

Pure Audio Mode

You can enjoy higher quality audio by turning off the video processing and output. The Pure Audio mode reduces any potential interference between the video and audio signals.

1. Press the PURE AUDIO button on the remote control to turn off video and enter Pure Audio mode. Video output will cease, the power light will dim and the front panel displays will turn off.

2. Press the PURE AUDIO button again to resume video and cancel Pure Audio mode.

DVD-A

SACD

NOTE

x Pure Audio mode is automatically canceled when the unit is switched off or when playback is

stopped.

ADVANCED OPERATIONS

Because HDMI carries audio together with video, the HDMI video signal cannot be completely turned off. A black screen is transmitted instead to minimize any potential interference.

MEDIA FILE PLAYBACK

In addition to playing standard disc-based formats such as Blu-ray, DVD, CD and SACD, the BDP-103 can play media files. You can enjoy digital music, movies and photos stored on a data disc (recordable CD, DVD or Blu-ray) or an external USB drive. Due to the variation of media, encoding software and techniques used, compatibility cannot be guaranteed for all user-created or downloaded content. Support for such content is on a best effort basis.

Playback from USB Flash Drive

USB

Device

The BDP-103 is equipped with three USB ports: one on the front panel and two on the back. You may use any of the available USB ports to plug in a USB drive.

The USB ports are rated to provide a maximum of 5V, 1000mA power to the USB drive. It is sufficient for USB thumb drives and flash memory card readers, but may not be sufficient for USB hard disks. It is recommended to check with your drive manufacturer for power requirements, or use an external power supply.

Device

NOTE

x This unit supports “USB Mass Storage Class Bulk-Only Transport” devices only. Most USB

thumbs drives, portable hard disk drives and card readers conform to this device class. Other USB devices such as MP3 players, digital cameras, and mobile phones may not be compatible.

x Supported USB drives can be formatted with the FAT (File Allocation Table), FAT32 or NTFS

(New Technology File System) file system.

x In some cases, an incompatible USB device may cause the player to stop responding. If this

occurs, simply turn off the power, remove the USB device, and turn the player back on.

x The player accesses the USB drive in read-only mode. In order to minimize the risk of data

corruption, it is recommended that you only unplug the USB device when playback is completely stopped.

MEDIA FILE PLAYBACK

Playback from HDMI / MHL INPUT

The BDP-103 is equipped with two HDMI INPUT ports: one on the front panel and the other on the back. You can use the included HDMI cable to connect a source device such as a tuner, set top box, mobile phone or digital camcorder to the HDMI INPUT port(s). To select an input, press the INPUT button on the OPPO remote to bring the Input Source Menu, and then select the corresponding HDMI IN port.

NOTE

x Both HDMI INPUT ports are HDMI v1.4 compatible and can accept up to 1080p high-definition

video signal, however, due to internal bandwidth limits, the audio signal is up to 6ch/192kHz or 8ch/96kHz PCM, Dolby Digital, Dolby Digital Plus, and DTS.

x To utilize the MHL capability of the front HDMI input port, the source device needs to be MHL

enabled and a MHL cable/adaptor is required. Refer to page 18 and 29 for more details.

In-home Network Media Sharing

MEDIA FILE PLAYBACK

The BDP-103 can remotely play back music, photo, and video files stored on media devices that are connected to the same home network. You will need to prepare hardware such as a computer or NAS

(Network Attached Storage) and install and configure software which is functionally equivalent to DLNA or SMB/CIFS (a network file sharing protocol) client. Set the My Network selection to On in the Setup Menu (details on page 76), press the HOME button on the remote to bring the Home Menu,selecttheNetwork icon and press ENTER button to show the list of available servers. In some case, you might need to disable the firewall on the hardware to allow BDP-103 to see the server.

The BDP-103 player can perform network sharing in one of the following three ways:

x As a digital media player (DMP): the player can actively search, access and pull content from

local media servers which is functionally equivalent to DLNA.

x As a digital media renderer (DMR): the player plays content received (“pushed”) from a digital

media controller (DMC). A DMC-capable media server is required. Refer to the server’s respective user instructions for correct configuration and operation.

x Accessing a SMB/CIFS client: the player can directly access files shared through SMB/CIFS

clients over

the network, as if accessing an external USB hard drive. Most computers, especially those installed with Windows, already have an SMB client embedded. Please refer to respective OS instructions to set up the SMB/CIFS shared file/folder.

NOTE

x NAS is a networked appliance that provides file-based data storage services to other devices

on the network. Commercial products are available on the market.

x SMB (Server Message Block) or CIFS (Common Internet File System) is mostly known as

Microsoft Windows Network. It does not require an extra media server or perform any media format transcoding, which reduces the processing load and keeps the original content quality.

x Compatibility with local network sharing hardware/software is on a best effort basis with no

guarantee, due to variations in NAS devices, media servers and their configurations.

Internet Streaming on HOME Menu

The BDP-103 presents a Home Menu to assist you in navigating and playing media files from an inserted optical disc, USB flash drive, external hard drive, home network sharing and internet streaming. Basically, the Home Menu is the starting point for accessing media files.

ᶃᶅ ᶎᶶᶴᶪᶤ ᶑᶩᶰᶵᶰ ᶎᶰᶷᶪᶦ ᶏᶦᶵᶸᶰᶳᶬ ᶔᶦᶵᶶᶱ

HOME

ᶑᶪᶤᶢᶴᶢᶑᶢᶯᶥᶰᶳᶢᶚᶰᶶᶕᶶᶣᶦᶇᶪᶭᶮᵡᶇᶳᶦᶴᶩᶗᶖᶅᶖᶏᶦᶵᶧᶭᶪᶹ

You can bring up the Home Menu with the HOME button on the remote control. Currently there are twelve selections:

x Disc enables the player to start playback of an inserted optical disc.

MEDIA FILE PLAYBACK

x Music, Movie and Photo allow you to access corresponding type of media files from a

connected USB drive and inserted data disc.

x Network enables the player to stream audio, video and photos from media servers on the home

network. Capable hardware and software may be required.

x Setup brings the player’s Setup Menu, just like pressing the SETUP button on the remote.

x Netflix connects you to your Netflix account and provides online movie streaming capabilities.

x VUDU connects you to your VUDU HD Movies account and provides online movie and TV Show

rental, purchasing and streaming capabilities.

x Film Fresh connects you to your Film Fresh account and provides online movie and TV Show

rental, purchasing and streaming capabilities.

x YouTube provides an uninterrupted stream of HD videos from YouTube as though you were

watching a normal television channel.

x Pandora connects you to your Pandora account and provides personalized internet radio

services.

x Picasa connects you to your Picasa account and provides online photo viewing and sharing

capabilities.

NOTE

The Network feature is not officially supported due to the variation in hardware and software configurations. OPPO does not offer technical support via email or phone for this feature. The OPPO Wiki located at wiki.oppodigital.com can be a useful resource to learn about this feature.

Different internet streaming applications may have different function mappings on the BDP-103 remote control. To exit Netflix or Youtube, press HOME button. To exit VUDU, Film Fresh and Picasa, either press HOME button or repeatedly press RETURN button until the Home Menu appears. To exit Pandora, either press HOME button or select Exit Pandora in Pandora’s Menu selection. Please contact OPPO customer support if you need assistance.

Playing Music Files

To play digital music files stored on an optical disc or USB drive, select Music from the Home Menu. A file browser will appear to assist you in navigating the files and folders.

The first step is to select the Data Disc or USB device that contains the music files. The player will take a moment to read the media and list the folders and music files.

MEDIA FILE PLAYBACK

In the music browser, you can perform the following operations:

x Press the UP/DOWN ARROW or PAGE

UP/DOWN buttons to move the cursor and

select music files.

x Press the OPTION button to gain access

to features such as music information and sort order. Details can be found on page

24.

x Press the TOP MENU button to move the cursor to the category menu in the top of the screen. This

menu contains the following choices:

o Source – Allows you to switch between different connected st o View –Allow

s you to switch between List View and Folder View modes.

orage devices.

o Sort – Lists music files/folders by different categories, such as Song name, Artist, Album and

Genre.

x When a music file is highlighted by the cursor, press the ENTER or PLAY button to start playback.

NOTE

x When a data disc or USB drive is inserted, the player automatically starts to index files and

build a database in the background. Depending on the number and size of files, this process could take up to several minutes. Customers can only access the Category list (Artist, Album and Genre) when the database has been built, otherwise, a warning message will appear.

If a music file starts playing and there is no other user operation, the Now Playing screen will appear after a few seconds. You can also get to this screen by pressing the OPTION button and then selecting Now Playing. This screen provides the following information:

x Shows playback status: Play, Stop, Pause, Track and Time. x Display and change playback mode: Shuffle/Random, Repeat One/All. x Music information: Displays information like album art and tags, either embedded in the original

file or found onlin

e from the Grace

note database.

The following operations are available while the Now Playing screen is shown:

x Normal playback control: PLAY, STOP,

PAUSE, PREV/NEXT, REV, and FWD

x Special playback modes: REPEAT and

Shuffle/Random (BLUE color button)

x Press the OPTION button to access the

Option menu. (More details on page 24)

x Return to the Browser without stopping

the music: RETURN

x Stop playback and return to the

Browser: Press STOP

MEDIA FILE PLAYBACK

Playing Movie Files

To play movie files stored on an optical disc or USB drive, select Movie from the Home Menu.Afile browser will appear to assist you in navigating through the files and folders.

The first step is to select the Data Disc or USB device that contains the movie files. The player will take a moment to read the media and list the folders and movie files.

In the movie browser, you can perform the following

operations:

x Press the UP/DOWN ARROW or PAGE

UP/DOWN buttons to move the cursor and

select movie files.

x Press the OPTION button to access

features like video information. Details can be found on page 24.

x Press the TOP MENU button to move the

cursor to the category menu in the top of the screen. This menu functions the same as the one discussed in Playing Music Files on page 43.

x When a movie file is highlighted by the cursor, press the ENTER or PLAY buttons to start

playbac

ce a movie file starts playing, the normal playback control functions are available:

x To stop the movie and return to the file browser, press the STOP button. You can also press

the HOME button at any time to stop the playback and return to the Home Menu.

x Press the OPTION button to access features such as Video Information, Subtitle Shift,

Picture Adjustment and Picture Zooming. Details can be found on page 24.

MEDIA FILE PLAYBACK

Viewing Photo Files

To view digital photo files stored on an optical disc or USB drive, select Photo from the Home Menu. A file browser will appear to assist you in navigate the files and folders.

The first step is to select the Data Disc or USB device that contains the photo files. The player will take a moment to read the media and list the folders and photo files.

In the photo browser, you can perform the

following operations:

x Press the UP/DOWN ARROW or PAGE

UP/DOWN buttons to move the cursor and

select photo files.

x Press the OPTION button to access

features like sort order.

x Press the TOP MENU button to move the

cursor to the category menu in the top of the screen.

x When a photo file is highlighted by the cursor, press the ENTER or PLAY button to play back

the photos as a full screen slideshow.

The following operations are available during the photo slideshow:

x Display the help x Normal playback controls: PLAY, STOP, PAUSE, and PREV/NEXT x Adjust slideshow speed: REV and FWD x Zoom: ZOOM. Once zoomed in, the ARROW buttons can be used to pan around the photo. x Reflect (flips the photo horizontally to make it upside-down): UP ARROW x Mirror (flips the photo vertically to make it a mirror image): DOWN ARROW x Rotate left (counterclockwise): LEFT ARROW x Rotate right (clockwise): RIGHT ARROW x Repeat: REPEAT x Show photos in Digest mode: RED color button. The Digest mode shows the photo

thumbnails on the screen to make visual navigation

x Show EXIF information: GREEN color button x Play in random sequence: BLUE color button x Change slideshow transition effect: YELLOW color button. x Press the OPTION buttontoaccesstofeatureslikeImageZoomingandImageRotation.

Details can be found on page 24.

screen: INFO

easy.

MEDIA FILE PLAYBACK

Adding Background Music

You can also add background music to the photo slideshow. To do so, you will need to prepare digital music files. The music files can be stored on the same disk as the photos, or on a different USB drive. Start music playback first by selecting Music from the Home Menu. Once the music is playing, press the HOME button to get back to the Home Menu, and start the photo slideshow by selecting Photo in the usual manner.

SETUP MENU OPTIONS

The Setup Menu of the BPD-103 presents many setup and configuration options. For most users, the default configuration will be sufficient and you will not require any changes to the settings. However, if you need to configure the player to perfectly match your home theater setup and viewing preferences, please refer to the following sections for details about each configuration option.

Using the Setup Menu System

Like many other sections listed in this guide, the player’s Setup Menu allowsyoutomakeadjustmentsto match your specific audio/video configuration. When performing menu adjustments, we will use the following terminology to indicate the location of the desired function:

Setup Menu Section > Menu Item > Selection

Setup Menu Section is the uppermost Setup Menu level. Within the BDP-103, there are six Setup Menu sections listed in the left column of the Setup Menu: Playback Setup, Video Setup, Audio Format Setup, Audio Processing, Device Setup, and Network Setup.

Menu Item is the parameter to be adjusted which appears in the center column of the Setup Menu.Onceyou

enter a Setup Men

Selection is the actual numeric or descriptive element that represents the change being made to the selected parameter. It is the item located to the right of its corresponding Menu Item.

uSection,the list of Menu Items and their current value are displayed in a box.

A Scroll Mark appears at the top or bottom of the menu when there are more Menu Items or Selections than what can fit in a screen. You may use the UP and DOWN ARROW buttons to scroll the display in order to access additional items.

The preceding diagram should give a good description of the various elements and their context. In this screen we could, for example, instruct To indicate where we were, you would see the following: Playback Setup > Auto Play Mode > Off.

you to set the Auto Play Mode parameter to Off in the Playback Setup section.

SETUP MENU OPTIONS

NOTE

It is possible that some setup items may be grayed-out and inaccessible. This can be caused by a disc being played back or having changed a prerequisite setup item. Please stop playback or eject the disc before trying to change these setup items. If you still cannot access the setup item, please check for configuration conflicts and consistency. For example, if Video

Setup > 3D Output is set to Off, the 3D Setting menu item will be grayed-out. Setting 3D Output to On (or Auto) will enable the 3D Setting menu.

To access the player’s Setup Menu simply press the SETUP button on the remote control. Since some Setup Menu options can become inaccessible when a disc is being played, it is recommended that you operate the

Setup Menu when playback is fully stopped or when there is no disc in the player.

1. Press the SETUP button on the remote control, and the TV screen displays the following:

2. Press the UP/DOWN ARROW buttons to select the section. Press the ENTER button or the RIGHT ARROW button to enter the selected section.

3. Press the UP/DOWN ARROW buttons to select the setup item to be changed, and press the ENTER or RIGHT ARROW button to change the setting. When the scroll icon is shown at the top or bottom of the Setup Menu, it indicates that there are more menu items that can be accessed by scrolling with the UP/DOWN ARROW buttons.

For example, in the Playback Setup section, you may us

etheUP/DOWN

ARROW buttons to select the Auto Play Mode setup item, and press the ENTER

button to change the Auto Play Mode setting.

SETUP MENU OPTIONS

4. To select a value from the list of available settings, press the UP/DOWN ARROW buttons and then press the ENTER button to confirm.

For example, to select Off for Auto Play Mode, use the UP/DOWN ARROW buttons to highlight the Off selection and press the ENTER button.

5. To exit the Setup Menu at any time, press the SETUP button on the remote control or select Exit from the Setup Menu sections.

Settings are permanently saved when the player is turned off using either the front panel power button or

the remote control. If the AC power is interrupted before the player enters s

tandby, the sett

ings will not

be saved. To ensure that the settings are saved, please turn off the player and turn it back on after you make major changes to the Setup Menu options.

SETUP MENU OPTIONS

Playback Setup

The Playback Setup section is designed to configure playback preferences. The setup items in this section are:

1. SACD Priority: Select which audio layer to play for SACD (Super Audio CD).

x Multi-Channel – Play the high resolution multi-channel surround audio layer x Stereo – Play the high resolution 2-channel stereo audio layer x CD Mode – Play the CD layer of a hybrid SACD disc

2. DVD-Audio Mode: Select which portion of a DVD-Audio disc to play.

x DVD-Audio – Play the DVD-Audio portion of the disc with high-resolution audio x DVD-Video – Play the DVD-Video portion of the disc with Dolby Digital or DTS audio

3. Auto Play Mode: Select whether the player will st

automatically.

x On – The disc starts playing upon insertion into the player. x Off – The player waits for the user to start playback by pressing the PLAY button.

4. Auto Resume: Select whether disc playback will start from the previously saved point or not.

This setting applies to CDs, SACDs, DVDs and certain Blu-ray Discs.

x On – Playback automatically starts from the previously saved point. x Off – Playback starts from the beginning.

5. Parental Control: Sets parental co

inappropriate content. This function depends on whether the disc has been properly rated and encoded.

x Press the ENTER button to bring up the rating selection menu. x Adjust the parental control settings by entering the current parental control password. If you

have not yet set a parental control password, default the password is “0000”.

x The Parental Control Menu contains the following sub-items:

x BD Ratings – Press the UP/DOWN ARROW buttons to select t

ray Discs. Off means no ratings control and all discs are allowed to play. Numbers 1 to 21 corresponds to the age limit. Discs encoded with an age limit that is equal to or less than the selected age will be allowed, and any rating above the selected age will be blocked.

ntrol ratings in order to prevent minors from watching

art playing an audio CD or SACD

he rating allowed for Blu-

x DVD Ratings – Press the UP/DOWN ARROW buttons to select the rating to allow for

DVDs. The available ratings are Kid, G, PG, PG-13, PGR, R, NC-17, Adult and Off. The

SETUP MENU OPTIONS

selected rating and below will be allowed, and any rating above will be blocked. If Off is selected, all discs are allowed to play.

x Area Code – Some Blu-ray Discs may have different parental control ratings for different

geographical areas. At this time the player only supports parental control ratings used in the United States.

x Change Password – To change the parental control password, enter a 4-digit number

as the new password. Enter the new password again to confirm. If the two entries match, the

new password replaces the old parental control password.

6. Language: Configures language preferences. This menu contains the following sub-items:

x Player Language – Allows you to choose the language for the player’s Setup Menu and the

on-screen display. Currently the player only supports English.

x Disc Menu Language – Allows you to choose the preferred language for displaying DVD

and Blu-ray Disc menus. If a disc menu of the selected language is available, that menu will

be shown instead of the default disc

menu.

x Audio Language – Allows you to choose the preferred audio language for DVD and Blu-ray

Discs. If an audio track of the selected language is available on the disc, the audio track will be played back.

x Subtitle Language – Allows you to choose the preferred subtitle language for DVDs. If a

subtitle of the selected language is available, it will be displayed. When Auto is selected, the subtitle display is determined by the disc.

NOTE

If your preferred language is not listed in the Audio, Subtitle or Disc Menu options, select “Other” and enter the Language Code found on page 83 of this manual.

SETUP MENU OPTIONS

Video Setup

The Video Setup section of the Setup Menu allows you to configure video output options.

1. Picture Adjustment: Adjusts picture control settings. The BDP-103 provides a wide array of picture controls. Please refer to the Picture Adjustment section on page 56 for details about each control.

2. Dual HDMI Output: Allows you to select the output mode when both HDMI Output ports are in use. If only one HDMI Output is active, this selection will not apply.

x Split A/V (recommended) – Use HDMI 1 OUTas the dedicated video output port and

HDMI 2 OUT as the dedicated audio output port. Th is setting will ensure the best possible

picture quality an

x Dual Display – Send digital audio and video signals to both HDMI Outputs simultaneously.

This setting is only recommended when two HDMI displays are required, since the surround sound audio signal may be down-mixed to stereo and the original audio quality may be lost.

NOTE

x The player can automatically adjust the resolution of digital audio and video signals depending

on the capabilities of the connected television and receivers.

x For HDMI 1 OUT, the dedicated QDEO video processor will be used unless Source Direct is

selected, in which case QDEO is bypassed.

3. 3D Output: Allows you to choose the video output mode for 3D content.

x Auto – Outputs 3D if supported both by both the disc content and the display. The player

automatically checks for the existence of 3D content on the disc and the 3D compatibility of the TV or projector. If both criteria are met, the player sends 3D video from its HDMI output terminals; otherwise, only 2D video is sent out. Active shutter 3D glasses (which are not sold by OPPO) are required to enjoy the 3D movie on your TV.

x Off – Always output 2D video format, even when 3D video exists

guarantees the video quality if your TV is not 3D compatible, or if some necessary components (such as the 3D glasses) are missing.

d the highest possible audio resolution.

on the disc. This

x Forced – Always output 3D video format for 3D Blu-ray Discs. You may experience a black

screen (no video output) if your TV is not 3D compatible.

SETUP MENU OPTIONS

4. 3D Setting: Adjusts the playback settings for better 3D visual quality.

x 2D->3D Depth – Adjusts the 3D depth perception when performing 2D-to-3D conversion

(also called “simulated 3D”). The default value is 8.

x 3D TV Size – Allows you to enter the diagonal screen size of the 3D HDTV. This option

applies to 3D mode only. Use the number buttons on the remote to enter the actual diagonal size of the TV screen, and then press the ENTER button to confirm. The default value is 46 inches.

5. TV Aspect Ratio: Sets the aspect ratio of the player’s output image.

x 16:9 Wide – Choose when the display is widescreen 16:9. 16:9

material will be displayed in

its native aspect ratio, and 4:3 materials will be stretched horizontally.

x 16:9 Wide/Auto – Choose when the display is widescreen 16:9. 16:9 material will be

displayed in its native aspect ratio, and 4:3 materials will be displayed with black borders on both sides in order to maintain the original 4:3 aspect ratio.

For a detailed description on how to choose a proper TV Aspect Ratio, please refer to the Determine the Display Aspect Ratio section on page 23 of this manual.

6. TV System: Allow

s you to choose the output video system or broadcast standard (PAL/NTSC) to

match the type of TV.

x NTSC (default) – When playing NTSC-encoded discs, no system conversion is performed.

PAL-encoded content is converted to NTSC output. Blu-ray Discs encoded at a 24Hz frame rate are converted to a 60Hz frame rate if neither 1080p24 Output nor Source Direct output resolution is enabled.

x PAL – When playing PAL-encoded discs, no system conversion is performed. NTSC-

encoded content is converted to PAL output. Blu-

ray Discs encoded with a 24Hz frame rate are converted to a 50Hz frame rate if neither 1080p24 Output nor Source Direct output resolution is enabled.

x Multi-system – No system conversion is performed. The output video system is the same as

that encoded on the disc. Blu-ray Discs encoded with a 24Hz frame rate are converted to a 60Hz frame rate if neither the 1080p24 Output nor Source Direct output resolution is enabled. Requires a TV that supports both NTSC and PAL systems.

NOTE

DO NOT select Multi-system if your TV does not support both NTSC and PAL systems. The TV display may become a black screen when you insert a disc encoded in a different system than your TV supports. Should this happen, you can press the OPEN button to eject the disc tray, and then use the Setup Menu to correct the TV System setting.

7. Output Resolution: Allows you to choose the output resolution that best matches your

television’s native resolution. For a detailed description on how to choose a proper output resolution, please refer to the Select the Best Output Resolution section on page 22 of this manual.

8. 1080p24 Output: Allows you to set the 1080p 24Hz output options. This option only applies to

the HDMI output at 1080p resolution. Many Blu-ray Discs of theatrical movies are encoded using 24Hz frame rate, the same number of frames per secon

d as the original theatrical film. If the TV

SETUP MENU OPTIONS

properly supports 1080p 24Hz, smoother motion can be achieved by enabling 1080p24 Output for these discs.

x Auto (default) – Video encoded at a 24Hz frame rate will be output as 1080p 24Hz if the TV

informs the player that it can support the 1080p24 signal.

x On – Video encoded at a 24Hz frame rate will be output as 1080p 24Hz without regard to

whether the TV can support the 1080p24 signal or not. This is useful if the TV can actually support 1080p24 but does not properly state its capability. Please note that if the TV cannot support 1080p24, selecting this option will

result in no video.

x Off – Video encoded at a 24Hz frame rate will be converted to 60Hz (NTSC) or 50Hz (PAL)

9. DVD 24p Conversion: Allows you to enable 24Hz frame rate conversion for DVD. This option is only available when 1080p24 Output is enabled (set to Auto or On). Many DVDs that originate from theatrical movies are encoded with a technique called “3:2 telecine” in order to convert the 24 frames per second film to 60Hz video signal. The player can convert the 60Hz video signal back to 24 frame

s per second film and output as 1080P/24Hz. Smoother motion may be achieved by enabling this option, if both the TV and the DVD disc meet the conversion conditions. The available options are:

x On – Converts DVD to 24Hz frame rate when possible. Remember that motion errors may

be observed if the DVD is not suitable for such conversion.

x Off (default) – Does not convert DVD to 24Hz frame rate.

10. HDMI Options: Configures video options that apply only to the HDMI output.

This item contains

a sub-menu with multiple configuration options. Please refer to the HDMI Options section on page 59 of this manual for details of each option.

11. Display Options: Configures the options for displaying on-screen information.

x Subtitle Shift – Sets the display position for subtitles.

When the Subtitle Shift is set at 0 (default), subtitles are displayed at the original position as specified on the disc. When it is set at a value between 1 and 5, subtitles are shifted up. When it is set at a value between -1 and -5, sub

titles are shifted down.

This feature is helpful for customers using a 2.35:1 “Constant Image Height” video projection system. Subtitles can be shifted to the active video area so they do not get cut off. You can also press and hold the SUBTITLE button for 3 seconds to activate this selection.

x OSD Position – Allows you to set the display position for the on-screen display (OSD).

When the OSD Position is set to 0, the OSD is shown at the top and bottom of the video screen. When it is set at a value between 1 and 5

, the OSD is shifted towards the center of

the video screen.

Similar to the subtitle shift setting above, the OSD Position feature is helpful for customers using a 2.35:1 “Constant Image Height” video projection system.

x OSD Mode – Allows you to select how long the on-screen display (OSD) information, such

as playback operation icons (PAUSE, STOP, SKIP, etc.), stays on the TV screen.

x Normal – OSD information stays on the TV screen until the user cancels it.

x Minimal

– OSD information stays on the TV screen for a

few seconds and then

disappears. The front panel display still maintains the selected display information.

x Remaining – OSD information stays on the TV screen until the user cancels it. By

default, displays remaining time instead of elapsed time.

SETUP MENU OPTIONS

x Angle Mark (On/Off) – Turns on/off the display of the angle icon when a DVD or Blu-ray

Disc with multiple angles is played. Keeping the angle mark off avoids distraction from normal movie watching.

x Screen Saver – Allows you to turn on/off the screen saver function. The screen saver is

designed to minimize burn-in concerns for plasma and CRT display devices.

x On (recommended) – After about 3 minutes of inactivity, the player will show an

animated OPPO logo moving on a black background. This allows most areas of the screen time to rest and gives

x Off – The screen saver will not be activated. Only use this option if your TV does not

have any burn-in issues.

x Energy Saver – Video output will be turned off after 3 minutes of inactivity. Many

projectors and LCD TVs will go into a standby or sleep mode and turn off their projection lamp or LCD backlight lamp, thus saving energy and prolonging the lamp life. When you press any button on the OPPO remote control or saver will be canceled and video output will be restored. If your TV is already in standby or sleep mode, you may need to wake up the TV by pressing a button on its remote or control panel.

Picture Adjustment

all areas an equal opportunity to refresh.

the player’s front panel, the screen

Picture Adjustment is a special section of the Video Setup menu. It allows you to fine tune many picture control parameters in order to achieve optimal picture quality. To enter the Picture Adjustment menu, press the SETUP button on the remote control to enter the player’s Setup Menu and cho

ose Video Setup > Picture

Adjustment and select the video output to be adjusted:

Use the LEFT/RIGHT ARROW to select the video output, and press the ENTER button to bring up the Picture Adjustment menu. Depending on the selected video output, the Picture Adjustment menu may be slightly different:

Picture Adjustment Menu for HDMI 1

SETUP MENU OPTIONS

Picture Adjustment Menu for HDMI 2

To change a picture adjustment parameter, use the UP/DOWN ARROW buttons to highlight the parameter, and use the LEFT/RIGHT ARROW buttons to change its value.

To aid in the adjustment of picture control parameters, the picture adjustment menu will be reduced to only show the parameter being adjusted once you press the LEFT/RIGHT ARROW buttons (except the

Picture Mode, which you will directly see the mode name switches between Mode 1, 2 and 3, and all the other parameters are adjusted automatically to the stored value). The reduced m

enu will be positioned

near the bottom of the screen.

You can continue adjusting the current parameter by pressing the LEFT/RIGHT ARROW buttons. To select another parameter, press the UP/DOWN ARROW buttons. Press the ENTER button to return to

the main Picture Adjustment menu.

To exit the Picture Adjustment menu and return to the Setup Menu, either select Exit in the menu, or

press the RETURN button.

The following picture adjustment controls are available for both HDMI 1 and 2:

1. Picture Mode: Allows you to choose a customized picture mode saved by you. The BDP-103

allows you to save up t

o three customized modes. Press the LEFT/RIGHT ARROW buttons to

switch the mode and all parameters will be automatically adjusted to their stored values. Changes to the current parameter values will be stored automatically when you exit the Picture Adjustment screen or switch to another Picture Mode.

2. Brightness: Allows you to adjust the brightness (black level) of the video output.

3. Contrast: Allows you to adjust the contrast (white level) of the video output.

NOTE

Proper brightness and contrast settings are necessary for a quality video output. If you do not have the correct black and white levels, your images can appear washed out or can lose detail in shadows when watching darker scenes. Televisions have brightness (black level) and contrast (white level) controls; however, it may require a combination of tweaking both the player and your television to get the optimal result. We recommend using a calibration disc such as the Spears & Munsil™ High Definition Benchmark Blu-ray Edition or Digital Video

SETUP MENU OPTIONS

Essentials HD Basics as aids for adjusting. First adjust the television’s picture controls for the best possible picture. Once that is done, try changing the player’s settings to further refine the picture to the optimal result.

4. Hue: Allows you to adjust the hue (tint) of the video output.

5. Saturation: Allows you to adjust the saturation (color intensity level) of the video output.

6. Sharpness: Allows you to set the sharpness of video output. Sharpness (also called Detail/Edge

Enhancement in previous OPPO players) is a video processing function that can control the image sharpness but at the same time may cause unwanted artifacts.

For HDMI 1, the sharpness level can be set between -16 and +16. The default is level 0, which turns off sharpness enhancement. The negative

levels may be used to reduce or eliminate overly sharpened video. However, the picture may appear soft. The positive levels increase the sharpness.

At level 1, the player applies low level Detail Enhancement, during which the video processor isolates the detailed parts from the original image, processes them separately and integrates back before the final output.

At level 2, the player increases Detail Enhancement to a higher level. Generally, to make an image “sharper”, we recommend using level 1 and 2.

At level 3 and above, the player adds Luminance Transition Improvement (LTI) and Chroma Transition Improvement (CTI), which further sharpen the luminance transition and chroma transition. However, we do not recommend using level 3 and above unless the source content is poorly produced and blurry.

For HDMI 2 OUT, the sharpness level can be set between 0 and +2. The default is level 0. The higher the level, the sharper the video details are. However, too high a sharpness level may cause white lines

or halo-like effects to appear around objects.

7. Noise Reduction: Allows you to select whether the player will apply video noise reduction

processing.

For HDMI 1, the noise reduction level can be set between 0 and 8. The default is level 0, which turns off noise reduction.

When set to level 1, the player adjusts the picture quality by reducing the “mosquito noise” (artifacts around the outlines of objects) and “block noise” (mosaic-like patterns caused by video compression). These two noise reduction methods are also called Compression Artifacts Reduction (CAR) and have several levels of aggressiveness.

When set to level 2, the player applies the Motion Adaptive Video Noise Reduction (VNR), which handles the random noise and the film-grain noise (natural variation of picture intensity caused by film grain). Its level is automatic because there is noise estimator circuitry in the video processor that calculates how much noise is present and adjusts the level of VNR accordingly.

When set to 3 or 4, the player applies both CAR and Motion Adaptive VNR, with more aggressive “block noise” reduction at level 4.

At level 5, the player applies aggressive CAR for low quality video content, and adds Motion Adaptive VNR at level 6.

At level 7, the player applies the most aggressive CAR for very low quality video, and adds Motion Adaptive VNR at level 8.

SETUP MENU OPTIONS

Remember that excessive noise reduction may cause a loss of details. We recommend using the noise reduction function only when you encounter poorly encoded or compressed video that has apparent noise artifacts.

For HDMI 2, the noise reduction level can be set between 0 and +3. The default is level 0. When this level is increased, the player adjusts the picture quality by applying mosquito noise reduction, random noise reduction and MPEG block noise reduction at the same time. The higher the level, the more aggressive noise r

eduction functions apply.

The following picture adjustment controls are only available for HDMI 1 video output:

8. Color Enhancement: Allows you to adjust the color enhancement level on the video output.

This enhances certain colors in the spectrum and enables vivid colors in outdoor scenes without causing hue shifts, loss of detail or changes in skin tones.

9. Contrast Enhancement: Allows you to adjust the contrast enhancement level on the video

output. This expands detail in shadows.

HDMI Options

HDMI Options is a sub-menu of the Video Setup menu. It allows you to configure some video settings that are unique to the HDMI output. To enter this sub-menu, select HDMI Options from the Video Setup menu. To exit this sub-menu, press the RETURN button or the LEFT ARROW key. The following HDMI options are available:

1. Color Space (HDMI 1) – Allows you to select the color space for the HDMI 1 output. The

available options are:

x Auto (recommended) – The player checks with the display device to automatically

determine what color space to use. If the display device supports YCbCr 4:4:4, then

it will be

used to avoid extra color space conversion.

x RGB Video Level – The HDMI output uses RGB color space and normal signal range

suitable for video displays.

x RGB PC Level – The HDMI output uses RGB color space and expands the signal range.

The expanded signal range is suitable for personal computer (PC) displays. Some TVs are designed to be used as a PC monitor, and expect signal in expanded RGB range when the DVI input is selected. For these displays if the video signal uses the normal RGB range, the black-wh

ite contrast will be reduced. You can set the player to use the RGB PC Level output

and restore proper contrast.

x YCbCr 4:4:4 – The HDMI output uses YCbCr 4:4:4 color space.

x YCbCr 4:2:2 – The HDMI output uses YCbCr 4:2:2 color space. Generally this is the color

space that is closest to the color space encoded on the discs. (All discs are encoded in YCbCr 4:2:0 color space, and the video decoder decodes it into YCbCr 4:2:2.)

2. Color Space (HDMI 2) – Allows you to select the color space for the HDMI 2 output. The

available optio

ns are the same as those for Color Space (HDMI 1).

3. Deep Color (HDMI 1) – Allows you to select the Deep Color mode for the HDMI 1 output. Deep

Color is an option for some TVs or projectors that feature HDMI v1.3 or higher input. Normally, each pixel of the video image is transmitted using 24-bit data (8-bit per channel for R, G, B or Y, Cb, Cr). If Deep Color is supported, each pixel of the video image can be transmitted using 30-bit (10-bit per channel) or 36-bit (12-bit per channel) data. The increased bit

depth should result in

smoother color transitions and better gradients.

x 36 Bits – Uses the 36-bit per pixel Deep Color mode.

SETUP MENU OPTIONS

x 30 Bits (Dithered) – Uses the 30-bit per pixel Deep Color mode with dithering technique.

x 30 Bits – Uses the 30-bit per pixel Deep Color mode.

x Off (Dithered) – Does not use Deep Color, but applies the dithering technique.

x Off (default) – Does not use Deep Color.

4. Deep Color (HDMI 2) – Allows you to select the Deep Color mode for the HDMI 2 output. The available options are the same as those for HDMI Deep Color (HDMI 1).

NOTE

x Since the Deep Color feature is optional and may not be supported by all TVs, enabling

Deep Color while connected to a TV without this feature may result in no effect or no video.

x At this time, no disc is encoded with Deep Color. Enabling Deep Color will not magically

make colors richer, but will help preserve the maximum precision as a result of video processing and picture control adjustment.

x Dithering is a technique to improve the image color depth with limited color quantization.

SETUP MENU OPTIONS

Audio Format Setup

The Audio Format Setup section of the Setup Menu allows you to configure preferences for audio output formats.

1. Secondary Audio: Allows you to set the Secondary Audio Program mixing option. Some Blu-ray Discs contain a secondary audio and video program, such as a director’s commentary. Some Blu-ray Discs have a sound effect when you make menu choices. This Setup Menu item allows you to decide whether to mix the Secondary Audio Program and menu sounds into the primary audio.

x On – The Secondary Audio Program and menu sounds are mixed into the primary audio.

Usually this will cause the primary audio volume to be slightly reduced.

x Off – The Secondary Audio Program and menu sounds

and you cannot hear the secondary audio or menu sounds. This setting preserves the highest possible audio quality for the primary audio.

2. HDMI Audio: Allows you to select the digital audio output format from the HDMI port. The options are:

x Auto (default) – The player checks with the device connecting to the HDMI output to

automatically determine which audio format to use.

x LPCM – Digital audio output via HDMI will be in the multi-channel Linear PCM format. When

this option is selected, compressed audio bit streams will be decoded by t setting is recommended when connecting the HDMI output directly to a TV or to a receiver without advanced audio decoding capabilities.

x Bitstream – Digital audio output via HDMI will be in bitstream format. This option is

recommended when connecting the HDMI output to an A/V receiver or processor that supports advanced audio decoding, such as Dolby TrueHD and DTS-HD Master Audio.

x Off – No digital audio output via HDMI.

NOTE

If you use HDMI to connect audio to an HDMI A/V receiver or audio processor, it is important that you choose 720p or higher HDMI output resolution when playing high resolution audio content (DVD-Audio, SACD, Dolby TrueHD and DTS-HD Master Audio). According to the HDMI specification, the bandwidth available for audio is proportional to the total bandwidth used by video. At 480p/576p resolution, the HDMI specification can only support 2 channels of audio with high sample rate (up to 192kHz), or 8 channels of audio with standard sample rate (up to

are not mixed into the primary audio

he player. This

SETUP MENU OPTIONS

48kHz). If you play high resolution audio content at the 480p/576p resolution, you may get reduced audio resolution, incomplete audio channels, or even no audio/video output at all. Choosing a higher output resolution such as 720p or above allows enough bandwidth for all high sample rate audio channels.

3. Coaxial/Optical Output: Allows you to set the audio format and the upper sample rate limit for

coaxial/optical (S/PDIF) digital outputs. The upper sample rate limit is used to decide whether the player will down-sample audio (the player does not up-sample audio to higher sample rates).

x 48k LPCM – Forces down-mixed 2-channel, linear PCM (LPCM) digital audio format, and sets

the maximum sample rate to 48kHz. This is supported by most receivers/amplifiers.

x 96k LPCM – Forces down-mixed 2-channel, linear PCM (LPCM) digital audio format and sets

the maximum sample rate to 96kHz. It can result in better audio quality but ensure the receiver/amplifier can support it.

x 192k LPCM – Forces down-mixed 2-channel, linear PCM (LPCM) digital audio format and sets

the maximum sample rate to 192kHz. It can result in better audio quality but ensure the receiver/amplifier can support it.

x Bitstream – Passes audio as compressed bit-stream format to the receiver/amplifier. Choose

this setting if your receiver/amplifier is capable of decoding Dolby Digital and/or DTS.

NOTE

Due to copyright restrictions and bandwidth limitations, SACD audio cannot be sent through the coaxial/optical audio output, and the high resolution audio on DVD-Audio and Blu-ray discs will be sent out at reduced resolution. Details can be found on page 17.

4. SACD Output: Allows you to select HDMI the audio output format for SACD playback.

x PCM – SACD data is converted into multi-channel, high-resolution PCM data. The converted

PCM data is then output through HDMI or the internal DAC (Digital to Analog Converter) for the analog audio output ports. If you use a receiver that supports HDMI v1.1 to listen to SACD, please select this option. You may also want to select this option if you prefer the sound quality of the DSD-to-PCM conversion.

x DSD – SACD Direct Stream Digital (DSD) data is output over HDMI without any conversion.

For the analog audio outputs, DSD data is converted into an analog signal directly by the internal DAC. If you use a receiver that supports HDMI v1.2a with DSD over HDMI, or you prefer the sound quality of straight DSD to analog, please select this option.

NOTE

Due to the hardware limitation, DSD output is only available from the HDMI 2 OUT port. To listen to SACD using the HDMI 1 OUT port, please set SACD Output to PCM.

5. HDCD Decoding: Allows you to set the audio decoding option for HDCD (High Definition

Compatible Digital) discs.

x On – HDCD is decoded by the player. You can enjoy expanded dynamic range and improved

audio resolution.

x Off – HDCD is treated as regular CD. This is useful when the player is connected to an HDCD-

capable A/V receiver via a digital audio output link (Coaxial, Optical, or HDMI) so the A/V receiver can perform HDCD decoding.

SETUP MENU OPTIONS

NOTE

If your receiver is capable of HDCD decoding, it is recommended that you set the HDCD Decoding setting to Off on the BDP-103 in order to avoid decoding HDCD twice. This will

prevent the occasional pop or crackle sounds that occur when HDCD is decoded twice.

SETUP MENU OPTIONS

Audio Signal Reference Chart

Blu-ray Discs may contain many types of audio signal formats, some of which are high resolution types such as Dolby TrueHD and DTS-HD Master Audio. Blu-ray Discs also have many optional audio components such as the Secondary Audio Program and menu clicking sound. The player’s Audio Format setup menu allows you to configure the audio output to meet your specific preference. The following chart provides a reference to what type of audio signal can be expected.

When Secondary Audio is set to Off:

Output Ports tuptuOlacitpO/laixaoC

SettingSource

Format

LPCM 2ch LPCM 5.1ch LPCM 7.1ch Dolby Digital Dolby Digital Plus

Dolby TrueHD

DTS DTS-HD High Resolution

DTS-HD Master Audio

Bitstream LPCM Bitstream LPCM

LPCM 2ch LPCM 2ch LPCM 2ch LPCM 2ch 2ch LPCM 5.1ch LPCM 5.1ch LPCM 2ch LPCM 2ch 5.1ch LPCM 7.1ch LPCM 7.1ch LPCM 2ch LPCM 2ch 7.1ch Dolby Digital LPCM 5.1ch Dolby Digital LPCM 2ch 5.1ch Dolby Digital Plus

Dolby TrueHD

DTS LPCM up to 7.1ch DTS LPCM 2ch Up to 7.1ch DTS-HD High Resolution

DTS-HD Master Audio

HDMI Output

LPCM up to 7.1ch Dolby Digital LPCM 2ch Up to 7.1ch

LPCM up to 192kHz 24-bit 7.1ch

LPCM up to 7.1ch DTS (core) LPCM 2ch Up to 7.1ch

LPCM up to 96kHz 24-bit 7.1ch or 192kHz 24-bit 2ch

Dolby Digital LPCM 2ch Up to 7.1ch

DTS (core) LPCM 2ch Up to 7.1ch

Analog Multi-Channel Output

When Secondary Audio is set to On and the player encounters a disc with a secondary audio track or menu sounds:

tuptuOlacitpO/laixaoCtuptuOIMDHstroPtuptuO

Analog

SettingSource

Format

LPCM 2ch LPCM 5.1ch LPCM 7.1ch Dolby Digital Dolby Digital Plus

Dolby TrueHD

DTS DTS-HD High Resolution DTS-HD Master Audio

Bitstream LPCM Bitstream LPCM

LPCM 2ch LPCM 2ch LPCM 2ch LPCM 2ch 2ch LPCM 5.1ch LPCM 5.1ch LPCM 2ch LPCM 2ch 5.1ch LPCM 7.1ch LPCM 7.1ch LPCM 2ch LPCM 2ch 7.1ch Dolby Digital* LPCM up to 5.1ch Dolby Digital* LPCM 2ch 5.1ch

Dolby Digital* LPCM up to 7.1ch Dolby Digital* LPCM 2ch Up to 7.1ch

Dolby Digital*

DTS* LPCM up to 7.1ch DTS* LPCM 2ch Up to 7.1ch

LPCM up to 192kHz 24-bit 7.1ch

Dolby Digital* LPCM 2ch Up to 7.1ch

Multi-Channel Output

Note: All audio output signals are mixed with primary, second audio and menu sounds. “Dolby Digital*” and “DTS*” denote mixed audio re-encoded into the original bitstream audio format.

SETUP MENU OPTIONS

Recommended Audio Format Options

Depending on your specific audio/video connection method, the audio format options of the BDP-103 may need to be adjusted to match your configuration. Refer to the video and audio connection methods described

previously in this guide and the following audio setup guidelines.

Audio Connection Directly to TV

If the player is connected directly to the TV through HDMI (as described on page 13) or through DVI and analog L/R audio cables (as described on page 15), it is recommended that you use the following audio format

options:

o Secondary Audio: On o HDMI Audio: LPCM o SACD Output: PCM o HDCD Decoding: On o Coaxial Optical Output: (any – not in use)

Multi-Channel Digital Audio to Receiver through HDMI

If the player is connected to an A/V receiver or processor with HDMI inputs (as described on page 11), you can send all current audio formats to your receiver in pure digital form. To get the best possible audio via HDMI, you may need to set the following options on the player’s Audio Format setup menu:

x If your receiver supports HDMI v1.3 with decoding capability for high resolution lossless audio

formats such as Dolby TrueHD and DTS-HD Master Audio, please use the following audio format

options:

o Secondary Audio: Off (or On if you need secondary audio) o HDMI Audio: Bitstream o SACD Output: PCM (or DSD if the receiver supports DSD over HDMI) o HDCD Decoding: On (or Off if the receiver can decode HDCD) o Coaxial Optical Output: (any – not in use)

x If your receiver supports HDMI v1.1/1.2 Multi-Channel PCM audio, but not high resolution

lossless audio formats such as Dolby TrueHD and DTS-HD Master Audio, please use the following audio format options:

o Secondary Audio: Off (or On if you need secondary audio) o HDMI Audio: LPCM o SACD Output: PCM (or DSD if the receiver supports DSD over HDMI) o HDCD Decoding: On (or Off if the receiver can decode HDCD) o Coaxial Optical Output: (any – not in use)

Multi-Channel Analog Audio to Receiver

If the player is connected to an A/V receiver through the 7.1ch or 5.1ch analog audio jacks using 8 or 6 RCA cables (as described on page 16), you can play all supported audio formats and listen to them with your A/V receiver and surround sound systems. The following audio format setup options are recommended:

o Secondary Audio: Off (or On if you need secondary audio) o

HDMI Audio: Off

o SACD Output: PCM or DSD (depending on your listening preference)

SETUP MENU OPTIONS

o HDCD Decoding: On o Coaxial Optical Output: (any – not in use)

Also set the Speaker Configuration in the Audio Processing menu:

x Set Down Mix to 7.1Ch or 5.1Ch. x Set the speaker size and subwoofer according to your actual audio hardware. (see page 69) x Enable or select the multi-channel analog inputs on your receiver

Coaxial or Optical Digital Audio to Receiver

If the player is connected to an A/V receiver with Coaxial/Optical inputs (as described on page 17), and the A/V receiver supports Dolby Digital and DTS decoding, the following audio format setup options are recommended:

o Secondary Audio: Off (or On if you need secondary audio) o HDMI Audio: Off o SACD Output: (any – SACD is not available through optical/coaxial

outputs)

o HDCD Decoding: On (or Off if the receiver can decode HDCD) o Coaxial Optical Output: Bitstream

Stereo Analog Audio to Receiver

If you primarily listen to stereo content or if your receiver only offers stereo audio connections, please use the analog RCA-style cables to connect the FL (Front Left) and FR (Front Right) terminals of the player to your receiver (as described on page 16). The following audio format options are recommended:

o Secondary Audio: Off (or On if you need secondary audio) o HDMI Audio: Off o SACD Output: PCM or DSD (depending on your listening preference) o HDCD Decoding: On o Coaxial Optical Output: (any – set to 192k LPCM may help to get the best

analog audio quality)

SETUP MENU OPTIONS

Audio Processing Setup

The Audio Processing section of the Setup Menu allows you to configure how the player will process audio signals before sending them to the output. In this section, all of the settings only affect the analog audio outputs, except for Dynamic Range Control (DRC), which also affects HDMI audio.

Speaker Configuration

In the Speaker Configuration menu you can configure speaker settings such as down-mix mode, number of speakers, their distance, size and trim level. The Speaker Configuration menu shows an illustration of speaker placement to assist you in properly configuring your speakers.

Upon entering this menu, the cursor is positioned on the front left speaker. You may use the LEFT/RIGHT ARROW buttons to move the cursor. The RIGHT ARROW button moves the cursor clockwise, and the LEFT ARROW button moves the cursor counterclockwise. When the Down Mix, Test Tone or Exit options, you can also use the UP/DOWN ARROW buttons to highlight these options.

the cursor is over

NOTE

Speaker Configuration applies to the multi-channel analog audio outputs only. All digital (bitstream and LPCM) outputs are unaffected by these settings.

SETUP MENU OPTIONS

Down Mix Mode

Downmixing is the process of converting multi-channel audio to a lesser number of channels. For example, converting a 5.1ch source to stereo or converting a 7.1ch source to 5.1ch. Downmixing allows the audio output from the player to match the exact number of speakers available in your home theater.

The current down mix mode is displayed in the lower right corner of the speaker placement illustration. To change the audio down mix setting, press the ENTER button while the cursor is over the Down Mix option. The following down mix modes are available:

x LT/RT – Left Total/Right Total. The center and surround channels are mixed into the two front

channels according to the LT/RT matrix. A Dolby Pro Logic receiver will decode the two-channel audio into surround audio.

x Stereo – This mode down mixes multi-channel audio to 2-channel stereo output. For original

stereo content the output will not change. For original multi-channel content the surround and center channels will be mixed with the left and right front channels. This is recommended for use with TV sets or stereo receiver/amplifiers.

x 5.1Ch – This mode enables 5.1ch decoded audio o

utput. The number of actual output channels depends on the disc. If the source content has more channels, the surround back channels will be mixed into the surround channels.

x 7.1Ch – This mode enables 7.1ch decoded audio output. The number of actual output channels

depends on the disc. For 6.1ch contents, the left and right surround back speakers will both output the same surround back audio channel.

Test Tone

Test tones are artificially-created sounds that are used to test your audio speaker system and help to identify any wiring faults. By

default the Test Tone is set to Off, with the status displayed in the lower left corner of the

screen.

To begin the test, press the ARROW buttons to highlight the Test Tone option, and press the Enter button to change the test tone status to On.PresstheARROW buttons to select a speaker, and you will hear the test sounds. To stop the test process, press the ARROW buttons to highlight the Test Tone option and press the Enter button to switch the status back to Off. Please note these test tones only apply on multi-channel audio

outputs.

SETUP MENU OPTIONS

Speaker Settings

You can set the size, distance and trim level for each speaker by using the LEFT/RIGHT ARROW buttons to move the cursor to highlight the speaker and then press the ENTER button. The Speaker

Settings menu on the right side of the screen will be activated. In Speaker Settings, use the UP/DOWN ARROW buttons to select a parameter, and then press the ENTER button to change it. To exit the Speaker Settings menu and return to the Speaker Configuration illustration, press the LEFT ARROW

button or select the Exit option. You can also move on to configure the next speaker by selecting

the

Next Speaker option.

The following speaker parameters can be configured:

1. Size: The following speaker size parameters control bass filtering for the speakers.

x Large – All audio content is passed to the appropriate speaker.

x Small – All audio content, except for bass frequencies, is passed to the appropriate speaker.

The purpose is to reduce possible distortion. If a subwoofer is available, bass frequencies are redirected to the subwoofer, otherwise, they are discarded. The bass frequency upper limit is set by the Crossover Frequency selection in the Setup Menu (see

page 71 for details).

x Off – Speaker for the corresponding position does not exist. Audio for the missing speaker is

redirected to other speakers or discarded if redirection is not possible.

x On (for Subwoofer only) – Specifies that a subwoofer is available.

NOTE

The Size for Front, Surround and Surround Back speakers is configured in pairs. Changes to the size of one speaker will automatically change the other of the pair.

2. Distance: The speaker distance parameters set delay control for the corresponding audio channel.

The delay is to compensate for the audio propagation time difference caused by the placement of speakers.

Speaker distance compensation is not required if the A/V receiver has the capability to adjust

channel delay and compensate for speaker distance differences. However, if your receiver does not have such functions (most receivers do not offer these functions for their multi-channel analog input), you may adjust them through the player. Speaker distance delay is only a

pplied if the player is decoding multi-channel audio. If you use bitstream audio output to your A/V receiver, the bitstream audio is not adjusted for speaker distance delay.

SETUP MENU OPTIONS

A typical 7.1-channel speaker layout and their speaker distance measurements are displayed as below:

Speaker Icons:

FL - Front Left FR - Front Right C - Center SW - Subwoofer SL - Surround Left SR - Surround Right SBL - Surround Back Left SBR - Surround Back Right

SBL SBR

Distances:

1 - Listener to Front 2 - Listener to Center 3 - Listener to Surround Left

In the above diagram, measure the distance (in feet) from the primary listening position to the Front Left or Front Right Speaker. Enter the distance of the Front Speakers (

in the above picture) into

the Speaker Configuration menu.

Next, measure the distance (in feet) from center speaker (

) to the listening position. Move the cursor to highlight the Center speaker in the Channel Delay setup page, and enter the distance (as close as possible) in feet. Repeat for each speaker in the system (Center, Surround Left, Surround Right, Surround Back Left, Surround Back Right and Subwoofer) as available. The player will insert appropriate delay to make sure sound waves from different speakers arrive at the listener at the

same time.

It is possible to independently set distances for each speaker. Speaker distances can be set to the actual spatial distanc

e of the speakers.

If the channel delay settings cannot match your speaker configuration, please set all distances to the same and use your receiver/amplifier to set the channel delay.

3. Trim: The speaker trim level parameters sets the volume of each individual channel. Channel trim

is generally not required since most A/V receivers have the capability to adjust channel trim and compensate for speaker sensitivity differences. However, if your receiver does not have such functions (many receivers do not support

channel trim for their multi-channel analog inputs), you may adjust channel trim through the player. For most accurate results, it is recommended that you use test tones from a calibration disc, such as Digital Video Essentials HD Basics, and a SPL (Sound

Pressure Level) meter. The trim level can be set to +/- 10dB in 0.5dB increments.

NOTE

x Increasing the Trim Level above 0dB may result in distortion if the original audio level is

already high. When this occurs the waveform becomes clipped and audible distortion can be heard. In this situation, it is necessary to reduce the Trim Level until the distortion is removed. When using the Trim Level for speakers, it is recommended that you set the least sensitive speaker’s Trim Level to 0dB, and set other speakers’ Trim Level to negative values.

x The Test Tone can be used in conjunction with the player’s trim control. Each speaker

can be set to independent trim levels and there is no linked pair limitation.

SETUP MENU OPTIONS

Other Audio Processing Settings

In addition to Speaker Configuration, Crossover Frequency and Dynamic Range Control are audio processing settings that can be configured:

1. Crossover: Allows you to set the Bass Management kick-in frequency for all speakers. When the speaker size is set to Small in Speaker Configuration (see page 69), bass information below this frequency is not passed to the speakers to reduce possible distortion, and if the subwoofer is available, bass information will be redirected to the subwoofer. When all speaker sizes Large, there is no Bass Management.

x 40Hz / 60Hz / 80Hz / 90Hz / 100Hz / 110Hz / 120Hz / 150Hz / 200Hz / 250Hz – These are

the available crossover frequencies. You can press the UP/DOWN ARROW buttons and the ENTER buttons to select it. This option applies to all speakers (center, front, surround, and surround back speakers). By default the crossover frequency is 80Hz.

2. Dynamic Range Control: Allows you to set the Dynamic Range Compression (DRC). DRC can smooth out the sonic peak

s and valleys common with wide-range digital audio. Enabling DRC may make low level audio more audible during low-level listening. Turning off DRC restores the sonic energy present in the original recording.

x Auto – Plays at the dynamic range specified by the disc. This option applies to certain Blu-

ray Discs only, which have DRC instructions encoded in the Dolby TrueHD audio tracks.

are set to

x On – Turn on DRC for all Dolby and DTS audio formats. This option applies to all DVD and

Blu-ray Discs.

x Off – Turn off DRC.

NOTE

Dynamic Range Compression is applied to the analog audio output and digital audio outputs (HDMI, Coaxial and Optical) when the audio format is set to PCM.

3. DTS Neo:6 Mode: Allows you to enable DTS Neo:6 audio processing and select the listening mode.

DTS Neo:6 is a digital signal processing that can expand the original stereo source to 7.0 (L, R, C, L R

, LR, RR) or 7.1 (with Bass Management) surround.

x Music – Enables DTS Neo:6 audio processing for stereo music sources.

x Cinema – Enables DTS Neo:6 audio processing for digital TV box or stereo movie sources.

x Off (default) – Turns off the DTS Neo:6 to keep the original audio quality.

4. Output

Volume: Allows you to enable or disable the analog volume controls (also known as Variable

Audio). The available options are:

x Variable – Enables the analog volume control. Use the VOL-/+ buttons on the remote to

decrease/increase the analog audio output level (the maximum is 100).

x Fixed – Disables the analog volume control. The VOL-/+ buttons on the remote will no

longer affect the analog audio output, and the volume level is fixed to 100.

SETUP MENU OPTIONS

Device Setup

The Device Setup section of the Setup Menu system allows you to configure additional player options related to the hardware and control functions.

ᶆᶯᶦᶳᶨᶺᵡᶆᶧᶧᶪᶤᶪᶦᶯᶵᶔᶵᶢᶯᶥᶣᶺᵡᶎᶰᶥᶦ

1. Firmware Information: Displays the currently installed firmware version.

2. Firmware Upgrade: Upgrades the player’s firmware. This operation is only available when the

playback is completely stopped or when there is no disc loaded.

The firmware is the system software that controls the features and functions of the player. Since the Blu-ray Disc specifications are new and evolving, it is possible that a Blu-ray Disc manufactured after the player was manufactured uses certain new features of th

e Blu-ray Disc specifications. To ensure the best possible viewing experience, the player may need a firmware update from time to time. Please visit the OPPO Digital web site www.oppodigital.com

to check for firmware updates and

instructions on installing the updates.

There are three ways to upgrade the player’s firmware:

x Via USB – You may download the firmware files from the OPPO Digital web site to a USB

drive and then use the USB drive to upgrade the player. Please follow the instructions on the firmware download web page.

x Via Disc – You may requests a firmware upgrade disc from OPPO Digital or download a disc

image from the OPPO Digital web site and burn an upgrade disc. Please follow the instructions that come with the upgrade disc.

x Via Net

work – If the player has a working Internet connection (see pages 19 and 76), you

may upgrade the player directly over the Internet. Please follow the instructions on your TV screen.

3. Firmware Notification: Allows you to set whether the player should automatically check for new

firmware versions on the Internet server and notifies you about new firmware.

x On – Checks for firmware updates automatically and notifies the user about new firmware.

Requires a working network connection.

x Off

– Does not check for new firmware version automatically.

4. Remote Control Code: The BDP-103 can respond to one of four sets of remote control codes. The

default is “Code 1”. If you have other OPPO products in the vicinity of the BDP-103, the other products may respond to the BDP-103 remote control. To prevent this, you can select a different remote code. The available codes are:

SETUP MENU OPTIONS

x Code 1 – OPPO disc player remote code is set to 1. This is the default remote code.

x Code 2 – OPPO disc player remote code is set to 2. Use this code if you have other OPPO

products placed close to the BDP-103EU.

x Code 3 – OPPO disc player remote code is set to 3. Use this code if you have other OPPO

products placed close to the BDP-103EU.

x Alt. Code – Alternative remote code. The alternative remote control code enables users to

program their universal remote controls that come with TV, projector or A/V receiver to operate the OPPO player. If the universal remote control has a DVD player control function, please program it with the code for Toshiba, Philips, Magnavox, Marantz or Zenith DVD players. Since each brand of remote control may have several sets of codes, you may need to try several times using different codes to find a working code.

If you have selected a new remote code, you must set the remote control handset to use the same code. Please refer to the Changing the Remote Code section on page 10 of this manual for details. If you have selected Alt. Code, the supplied handset will not operate the player, and you must use a universal remote control with the properly configured code set.

5. HDMI CEC: Allows you to set the HDMI Consumer Electronics Control (CEC) mode. CEC is an

optional HDMI feature that enables convenient remote control and automatic setup of consumer electronics over the HDMI connection. The remote control function allows you to use a single remote handset to operate multiple devices connected via HDMI. For example, you may use the TV remote to control playback of the Blu-ray Disc player. The automatic setup function can automatically turn on the TV and change to the proper input when you start playing a disc in the Blu-ray Disc player. It can also turn off the player automatically when you turn off the TV. The implementation and compatibility of this feature varies by device manufacturer. Each may only implement part of the features or add their own proprietary functions. The manufacturer-specific implementation of the HDMI CEC function is often given a proprietary name of “…Link” or “…Sync”. The BDP-103EU provides three HDMI CEC function modes for each of its HDMI outputs:

x HDMI 1 – HDMI CEC is enabled on HDMI 1 output. Use this mode if your other devices are

compatible with the player.

x HDMI 1 (Limited) – HDMI CEC is enabled on HDMI 1 output, but the BDP-103EU will only

respond to playback control commands. It will not respond or issue power on/off and input selection commands. Use this mode if you do not want the automatic setup function to turn on/off your devices.

x HDMI 2 – HDMI CEC is enabled on HDMI 2 output. Similar to HDMI 1.

x HDMI 2 (Limited) – HDMI CEC is enabled on HDMI 2 output, but the BDP-103EU will only

respond to playback control commands. Similar to HDMI 1 (Limited).

xxOff (default) – HDMI CEC feature is turned off on both HDMI output terminals. The player will

not respond to HDMI CEC commands from other devices, nor will it setup other devices automatically.

Standby Mode: Allows you to choose between two standby modes. In Energy Efficient mode, the player consumes a minimal amount of power but takes more time to get ready for operation after being turned on. In Quick Start mode, the player can start up significantly faster at the expense of additional power consumption during the standby period.

Energy Efficient (default) – The player will take slightly longer to start up, but will consume less power in standby mode. This mode is recommended for regular use.

SETUP MENU OPTIONS

Quick Start – The player takes less time to start up but consumes more power in standby mode. This mode is recommended if the player is used frequently, or if you need to supply power to a device connected to the player’s MHL port during the standby period.

7. Front Panel Brightness: Allows you to control the display intensity of the front panel Vacuum Fluorescent Display (VFD) information window and the OPEN/CLOSE tray button backlight. If you feel that the display becomes a distraction to your enjoyment of the video, this option allows you to dim it or turn it off.

xxStandard (default) – The VFD window and theOPEN/CLOSE tray button backlight are at full

brightness.

x Dim – The VFD window and theOPEN/CLOSE tray button backlight are at reduced

brightness.

x Off – The VFD window and the OPEN/CLOSE tray bu

tton backlight are turned off. In this

mode, the display and backlight will resume momentarily if there is any user operation.

8. Persistent Storage: Allows you to manage the persistent storage for BD-Video content. The persistent storage is a data storage area that holds additional content for BonusView and BD-Live features. The data will be kept even if you turn off the player. The following persistent storage

management options are available:

x Storage Device – Allows you to select which storage device should be used as the persistent

storage. The BDP-1

03 preserves about 1GB of internal flash memory that can be used for persistent storage. There are also three USB ports on the player that can accept a USB drive to be used as the persistent storage. You may choose from the following:

x Internal Flash – Uses the internal flash memory for persistent storage.

x USB Drive – Uses a USB drive for persistent storage. To meet the specification for BD-Live,

a USB flash drive of 1GB or larger is required. A USB hard drive is not recommended.

NOTE

The new storage device choice becomes effective only after the player is restarted. Please make sure that you turn off the player and then turn it back on after changing the Storage Device option.

x Space Used – Displays the used space of the persistent storage. If too much space is used and

the available space becomes too low, some Blu-ray Discs may not play properly.

x Erase Persistent Storage – Erases the BD-Video data from the persistent storage or initializes

a USB drive so it can be used for persistent storage.

9. Netflix: Allows you to de-activate your Netflix account.

x Netflix ESN – Displays the Netflix ESN (Electronic Serial Number) for your player.

x De-activate Netflix – De-activates the Netflix account on your player. Once de-activated, you

have to go to t

he Home menu, select Netflix, and go through the activation procedure again to

be able to access Netflix from your player.

10. VUDU: Allows you to de-activate your VUDU HD Movies account.

SETUP MENU OPTIONS

11. Reset Factory Defaults: To reset all settings to the factory default value. This operation also set BD-Live Network Access to be Off (details on page 76) and performs Erase Persistent Storage

(details on page 74). However, the remote control code, parental control password and ratings will not be reset. This operation is only available when the playback is completely stopped or when there is no disc loaded.

x Erase Accounts and Settings (default) – Resets all settings to the factory default value and

remove a

ll application activations and account information, such as your Netflix and VUDU

accounts.

x Erase Settings – Resets all settings to the factory default value, but keeps the application

activations and account information.

SETUP MENU OPTIONS

Network Setup

The Network Setup section of the Setup Menu system allows you to configure the player’s network connection, test the connection, and enable or disable BD-Live access.

1. Connection Information: Displays the current internet connection information, such as connection

type, IP address, Ethernet MAC, Wireless MAC, etc.

2. BD-Live Network Access: Used to permit or restrict BD-Live content access.

x On – BD-Live access is permitted.

x Limited – BD-Live access is permitted only for content that has a valid content owner

certificate. Internet access is prohibited if the BD-Live contents does not have a certificate. This option ensures that you are accessing only authentic content, although it may block your access to smaller

x Off (recommended) – BD-Live access is prohibited.

3. My Network: Configures the My Network (in-home media sharing) client. My Network enables the player to stream audio, video, and photos from media servers within the home network.

x On (default) – Enables local network streaming. A broadband internet connection is required

(details on page 19), and special hardware/software configurations are required (see Inhome Network Media Sharing Network option of the Home Menu (details on page 42).

x Off – Disables local network streaming. No media servers will be shown in the Network

menu, and a warning message will pop up once you try to enter the Network menu.

4. Gracenote Lookup: Allows you to access the Gracenote online database for additional media

information such as Disc Title, Genre, Year, Album, Artist and Cover Art.

x On (default) – Enables the Gracenote service and allows the player to look up media

information and cover art from the Gracenote database. A broadband internet co required (details on page 19).

independent content providers.

on page 41). The available media servers are listed inside the

nnection is

x Off – Disables the Gracenote service.

SETUP MENU OPTIONS

5. Internet Connection: Allows you to select the internet connection type.

x Ethernet (default) – Connect to the internet through an Ethernet cable. Please refer to the

connection instructions on page 19. Selecting this will make the Wireless Setting option gray and un-selectable.

x Wireless – Connect to the internet through the external wireless adaptor. Please refer to the

connection instructions on page 20. Choosing Wireless will start the Wireless Setup Assistant, and will also make the Wireless Setting option in the

next row selectable.

x Off – Internet access is prohibited. This will make all the remaining options in the Network

Setup screen gray and un-selectable.

6. Wireless Setting – Start the Wireless Setup Assistant. You can start the Wireless Setup Assistant by selecting the Wireless Setting option, or by selecting Wireless in Internet Connection menu. The procedure is described as follows:

x The player first searches for the last successful wireless settings. If they exist, a message

will pop up to remind you.

x Use Previous – Uses the last successful wireless settings. A summary of the previous

wireless settings will display, showing information such as the SSID (network name), Security Mode and Security Key (password).

After verifying the previous settings, the player will test the connection and display the results.

x Start New – Creates a new wireless configuration. The BDP-103 supports three wireless

configuration methods:

Scan – Scans for an available wireless network. The player automatically scans for any available wireless networks and displays the search results in a window. You can press the UP/DOWN ARROW buttons to highlight a network and then press the ENTER button to select it. If this network is secured, you will need to input the security key using the remote control. The player will then test the connection and display the results.

SETUP MENU OPTIONS

Manual – Allows you to manually enter the information for a wireless network. You

need to use the remote control to input the SSID, select the Security Mode and input the Security Key. The player will then test the connection and display the results.

WPS – Starts the Wi-Fi Protected Setup. The BDP-103 supports the WPS standard to provide an easy and secure establishment of a wireless home network. You may choose from the following setup options:

PIN – Configures the WPS using a Personal Identification Number. The BDP-103 will generate a PIN code and you will need to input it into the software control panel of your wireless router or access point. Please follow the on-screen instructions.

PBC – Configures the WPS using Push Button Control. You need to push a PBC button on your wireless router or access point to initiate the wireless connection. Please follow the on-screen instructions.

NOTE

SSID is short for Service Set Identifier. It is an identifier for each wireless router or access point, and is also referred as a network name.

WPS is short for Wi-Fi Protected Setup (WPS). It is the latest standard for easy and secure wireless home network configuration. It is also named Wi-Fi Simple Config.To use WPS, a WPS compatible router or access point is required.

7. IP Setting: Determines how the player obtains its IP address.

x Auto (DHCP) – The player automatically obtains its IP address information using DHCP

(Dynamic Host Configuration Protocol). This is the default setting. In most cases, automatic IP configuration should be used.

x Manual – Allows you to manually enter the numeric IP address. Set the IP configuration

manually only when the router has no DHCP server functions or when the router’s DHCP server function is disabled. For more information on how to manually configure the Internet connection and

what values to use, please consult your broadband router/modem instruction

manuals or call your Internet service provider.

x Internet Connection – Depending on the setting in Internet Connection, this can be

either “Wireless” or “Ethernet”.

x IP Address: The Internet Protocol address of the player. When IP Setting is set to Auto

(DHCP), the value displayed here is obtained using DHCP and cannot be changed.

SETUP MENU OPTIONS

x Subnet Mask: Each IP address has an associated subnet mask. It is used by the player

to decide whether to route network traffic through the router or directly to another device on the same network. When IP Setting is set to Auto (DHCP), the value displayed here is obtained using DHCP and cannot be changed.

x Gateway: The IP address of the router. It is also called “default gateway” or “default

router”. When IP Setting is set to Auto (DHCP), the value displayed here is obtained using DHCP and cannot be change

x DNS 1: The IP address of the primary DNS (Domain Name System) server. DNS is the

mechanism used to translate human-readable addresses (such as www.oppodigital.com to numeric IP addresses. When IP Setting is set to Auto (DHCP), the value displayed here is obtained using DHCP and cannot be changed.

x DNS 2: The IP address of the secondary DNS server. When IP Setting is set to Auto

(DHCP), the value displayed here is obtained using DHCP and cannot be changed.

8. Proxy Setting: Allows you to configure the proxy server settings. The proxy server works as an

intermediary for network communication between clients and other servers, which can provide benefits like security, anonymity, or e

ven circumvention of regional restrictions.

x On – Accesses the Internet via a proxy server.

x Proxy Host: Input the proxy host name using the remote control.

x Proxy Port: Input the proxy host port number using the remote control.

)

x Off (default) – Disables the use of a proxy server.

We recommend keeping Proxy Setting set to Off, unless you have a working Proxy Host and Proxy Port, and have to use the proxy server in order to access the internet.

9. Connection Test: Allows you to test the Internet connection. It is recommended that you test the

connection when you

initially connect the player to the Internet, or whenever changes to Connection

Method, Wireless Setting, IP Setting and other network parameters are made.

REFERENCES

Useful Notes

x In order to prolong the life of your player, it is recommended that you wait at least 30 seconds

before you power it on after switching it off.

x Remove discs and turn the power off after operation. x Some functions of the player may not be applicable to certain discs. x Some discs with special features may not be fully supported by the player. This is not a

malfunction of the unit.

x In the case of player malfunction, please turn it off, wait for 30 seconds and turn it back on. If the

m still exists

proble center.

Troubleshooting

Use this chart to resolve general operational problems. If there are any problems that you cannot resolve, please contact your OPPO service center.

, please follow the troubleshooting instructions or contact an OPPO service

Symptom Possible Cause Solution

Audio cable is not properly connected Mute is activated Press the MUTE button to cancel the mute. 28 Volume is too low Press the VOL + button to increase the volume to 100. 27

No sound

No picture

No color

Incorrect color Incorrect color space setting

Picture rolling or split picture

“No Disc” or “Unknown Disc” error

SACD is played and the audio connection is coaxial or optical digital audio

DVD-Audio is played and the audio connection is coaxial or optical digital audio

Video cable is not properly connected TV input is not correctly selected “Pure Audio” mode engaged Press the PURE button to cancel this mode. 38 Video output format is not support by the TV Video system is not supported by the TV Video system is not supported by the TV Saturation set too low Check the saturation setting on TV and player. 58

Incorrect video output port

Video system is not supported by the TV No disc or incompatible disc loaded in player Dirty disc recording surface Eject the disc and clean any dirt or fingerprints. 4

Disc not properly loaded

Condensation on the Laser pick-up head

Check audio cable, and then reconnect if necessary. 11, 16

This is not supported due to copyright restrictions of SACD. Please use the analog or HDMI audio output. Alternatively, you may set SACD Priority to CD mode and the player will play the CD layer. This is not supported due to copyright restrictions of DVD-Audio. Please use the analog or HDMI audio output. Alternatively, you may switch to the DVDVideo playback mode.

Check video cable; reconnect if necessary. 12

Select the input to which the player is connected.

Select a proper output resolution that is supported by your TV. When playback is completely stopped, set the correct TV System in the Setup Menu. When playback is completely stopped, set the correct TV System in the Setup Menu.

If using “DIAG.” output, check that the cable is not incorrectly plugged into a component video jack. If using HDMI for video output, check the color space setting on the TV and player. When playback is completely stopped, set the correct TV System in the Setup Menu.

Eject disc and make sure the label side is facing up and the record side is facing down. Turn on the player, eject the disc and leave the player on for about an hour.

Reference Page

17, 51

42.kcehcdnacsidtcejE

REFERENCES

Remote control failure

Temporary function failure

Some Setup Menu items are grayed out

“Connection Test” fails

“Network” shows no server

Internet streaming fails

Remote control is out of range Use the remote control within the effective range. 9

Incorrect remote control code

Scratched or damaged disc is used Some functions are not available during playback

Interference from other devices

Some setup options cannot be changed while a disc is playing. Some setup options may be mutually exclusive with other setup options.

No internet connection.

No network connection. Media server not properly configured. Connected to wrong network.

Poor wireless signal. Incorrect network settings.

Open the disc tray. Aim the remote at the player. Press and hold the ENTER button on the remote for 5 seconds to set the remote code.

Stop playback completely, then try again. 24

Identify interference by turning off other devices, and then relocate or replace the offending device

Fully stop playback, eject the disc and try the Setup Menu again.

Verify that your router has a connection to the internet. Try power cycling the modem and router. Try a direct Ethernet connection if possible. Verify that other network features are functional on the device (YouTube, Netflix, etc.) If the network issues are isolated to the “Network” feature, consult your media server’s documentation to ensure proper configuration. Verify that the player is communicating with the router (Setup Menu > Network Setup > Connection Information). Change the DNS server information (Google Public DNS / OpenDNS). If connecting wirelessly, verify that your connection strength is > 50%. If it is lower, connect via Ethernet or use the USB extension cable to move the Wi-Fi adapter closer to your router.

9.seirettabehtecalpeRyrettabwoL

24.csidehtecalpeR

19, 20, 77

19, 41

19, 42

REFERENCES

Specifications

Designs and specifications are subject to change without notice.

Disc Types*

BD Profile BD-ROM Version 2.5 Profile 5 (also compatible with Profile 1 Version 1.0 and 1.1)

Internal Storage 1GB (Actual space available for persistent storage varies due to system usage)

Output

Input

Audio Characteristics**

General Specification

BD-Video, Blu-ray 3D, DVD-Video, DVD-Audio, AVCHD, SACD, CD, HDCD, Kodak Picture CD, CD-R/RW, DVD±R/RW, DVD±R DL, BD-R/RE

Analog Audio: 7.1ch, 5.1ch, stereo. Coaxial/Optical Audio: up to 2ch/192kHz PCM, Dolby Digital, DTS. HDMI Audio: up to 7.1ch/192kHz PCM, up to 5.1ch DSD, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, DTS, DTS-HD High Resolution and DTS-HD Master Audio. HDMI Video: 480i/480p/576i/576p/720p/1080i/1080p/1080p24/4Kx2K, 3D frame-packing 720p/1080p24.

HDMI Audio: up to 5.1ch/192kHz or 7.1ch/96kHz PCM, Dolby Digital, Dolby Digital Plus, DTS and AAC. HDMI Video: 480i/480p/576i/576p/720p/1080i/1080p/1080p24/1080p25/1080p30, 3D frame-packing 720p/1080p24. MHL Audio: up to 5.1ch/192kHz PCM, Dolby Digital, Dolby Digital Plus, DTS. MHL Video: 480i/480p/576i/576p/720p/1080i/1080p24/1080p25/1080p30, 3D frame-packing 720p/1080p24.

Frequency: 20Hz – 20kHz (±0.05dB), 20Hz – 96kHz (-4.5dB ~ +0.05dB) Signal-to-Noise Ratio: >115dB (A-weighted) THD+N: < 0.006% (1kHz at 0dBFS, 20kHz LPF)

Power Supply: ~100V – 240V, 50/60Hz AC Power Consumption: 35W (Standby: 0.5W in Energy Efficient Mode) Dimensions: 16.8 x 12.2 x 3.1 inches (430mm x 311mm x 79mm) Mass: 10.8 lbs (4.9kg)

Operating Temperature

Operating Humidity

41°F - 95°F 5°C - 35°C

15% - 75% No condensation

* Compatibility with user-encoded contents or user-created discs is on a best effort basis with no guarantee due to the variation of media, software and techniques used.

**Nominal specification.

User Manual Updates Online

An updated version of the User Manual may be available online at the OPPO Digital web site (www.oppodigital.com product, and open its “Support” tab.

Occasional updates are needed to reflect new features added to the player since the User Manual was printed. As future firmware updates brings in new features and functions, the online version of the User Manual will be updated accordingly.

). To read or download the latest online User Manual, Click on the BDP-103

REFERENCES

Language Code List

Code Language Name

6565 Afar 6566 Abkhazian 6570 Afrikaans 6577 Amharic 6582 Arabic 6583 Assamese 6588 Aymara 6590 Azerbaijani 6665 Bashkir 6669 Byelorussian 6671 Bulgarian 6672 Bihari 6678 Bengali, Bangla 6679 Tibetan 6682 Breton 6765 Catalan 6779 Corsican 6783 Czech 6789 Welsh 6865 Danish 6869 German 6890 Bhutani 6976 Greek 6978 English 6979 Esperanto 6983 Spanish 6984 Estonian 6985 Basque 7065 Persian 7073 Finnish 7074 Fi jian 7079 Faroese 7082 French 7089 Frisian 7165 Irish 7168 Scots Gaelic 7176 Galician 7178 Guarani 7185 Gujarati 7265 Hausa 7273 Hindi 7282 Croatian

Code Language Name

7285 Hungarian 7289 Armenian 7365 Interlingua 7378 Indonesian 7383 Icelandic 7384 Italian 7387 Hebrew 7465 Japanese 7473 Yiddish 7487 Javanese 7565 Georgian 7575 Kazakh 7576 Greenlandic 7577 Cambodian 7578 Kannada 7579 Korean 7583 Kashmiri 7585 Kurdish 7589 Kirghiz 7665 Latin 7678 Lingala 7679 Laothian 7684 Lithuanian 7686 Latvian,Lettish 7771 Malagasy 7773 Maori 7775 Macedonian 7776 Malayalam 7778 Mongolian 7779 Moldavian 7782 Marathi 7783 Malay 7784 Maltese 7789 Burmese 7865 Nauru 7869 Nepali 7876 Dutch 7879 Norwegian 7982 Oriya 8065 Panjabi 8076 Polish 8083 Pashto, Pushto

Code Language Name

8084 Portuguese 8185 Quechua 8277 Rhaeto-Romance 8279 Romanian 8285 Russian 8365 Sanskrit 8368 Sindhi 8372 Serbo-Croatian 8373 Singhalese 8375 Slovak 8376 Slovenian 8377 Samoan 8378 Shona 8379 Somali 8381 Albanian 8382 Serbian 8385 Sundanese 8386 Swedish 8387 Swahili 8465 Tamil 8469 Telugu 8471 Tajik 8472 Thai 8473 Tigrinya 8475 Turkmen 8476 Tagalog 8479 Tonga 8482 Turkish 8484 Tatar 8487 Twi 8575 Ukrainian 8582 Urdu 8590 Uzbek 8673 Vietnamese 8679 Volapuk 8779 Wolof 8872 Xhosa 8979 Yoruba 9072 Chinese 9085 Zulu

Gracenote Terms of Use

This application or device contains software from Gracenote, Inc. of Emeryville, California (“Gracenote”). The software from Gracenote (the “Gracenote Software”) enables this application to do disc or file identification and obtain music-related information, including name, artist, track, and title information (“Gracenote Data”) from online servers or embedded databases (collectively, “Gracenote Servers”) and to perform other functions. You may use Gracenote Data only by means of the intended End-User functions of this application or device.

This application or device may contain content belonging to Gracenote’s providers. If so, all of the restrictions set forth herein with respect to Gracenote Data shall also apply to such content and such content providers shall be entitled to all of the benefits and protections set forth herein that are available to Gracenote.

You agree that you will use Gracenote Data, the Gracenote Software, and Gracenote Servers for your own personal non-commercial use only. You agree not to assign, copy, transfer or transmit the Gracenote Software or any Gracenote Data to any third party. YOU AGREE NOT TO USE OR EXPLOIT GRACENOTE DATA, THE GRACENOTE SOFTWARE, OR GRACENOTE SERVERS, EXCEPT AS EXPRESSLY PERMITTED HEREIN.

You agree that your non-exclusive license to use the Gracenote Data, the Gracenote Software, and Gracenote Servers will terminate if you violate these restrictions. If your license terminates, you agree to cease any and all use of the Gracenote Data, the Gracenote Software, and Gracenote Servers. Gracenote reserves all rights in Gracenote Data, the Gracenote Software, and the Gracenote Servers, including all ownership rights. Under no circumstances will Gracenote become liable for any payment to you for any information that you provide. You agree that Gracenote may enforce its rights under this Agreement against you directly in its own name.

The Gracenote service uses a unique identifier to track queries for statistical purposes. The purpose of a randomly assigned numeric identifier is to allow the Gracenote service to count queries without knowing anything about who you are. For more information, see the web page for the Gracenote Privacy Policy for the Gracenote service.

The Gracenote Software and each item of Gracenote Data are licensed to you “AS IS.” Gracenote makes no representations or warranties, express or implied, regarding the accuracy of any Gracenote Data. Gracenote reserves the right to delete data from the Gracenote Servers or to change data categories for any cause that Gracenote deems sufficient. No warranty is made that the Gracenote Software or Gracenote Servers are error-free or that functioning of Gracenote Software or Gracenote Servers will be uninterrupted. Gracenote is not obligated to provide you with new enhanced or additional data types or categories that Gracenote may provide in the future and is free to discontinue its services at any time.

GRACENOTE DISCLAIMS ALL WARRANTIES EXPRESS OR IMPLIED, INCLUDING, BUT NOT LIMITED TO, IMPLIED WARRANTIES OF MERCHANTABILITY, FITNESS FOR A PARTICULAR PURPOSE, TITLE, AND NON-INFRINGEMENT. GRACENOTE DOES NOT WARRANT THE RESULTS THAT WILL BE OBTAINED BY YOUR USE OF THE GRACENOTE SOFTWARE OR ANY GRACENOTE SERVER. IN NO CASE WILL GRACENOTE BE LIABLE FOR ANY CONSEQUENTIAL OR INCIDENTAL DAMAGES OR FOR ANY LOST PROFITS OR LOST REVENUES.

LIMITED WARRANTY

OPPO Digital, Inc. Limited Two Years Warranty

Your OPPO product has been manufactured to precise standards, and with rigid quality control through every process of manufacturing. It is warranted by OPPO DIGITAL, INC. against defective workmanship or materials for two (2) full years from the original date of purchase. This warranty applies only to OPPO brand products imported or manufactured by OPPO Digital, Inc. and sold to the original consumer purchaser in the U.S.A. or Canada by either OPPO Digital, Inc. or an OPPO authorized reseller. This warranty does not apply to OPPO brand products imported and sold by unauthorized dealers, distributors, or other sellers. This warranty does not apply to products purchased or shipped outside of the U.S.A. and Canada. OPPO Digital, Inc. may at its sole discretion, refuse to honor the warranty of any such unauthorized product that may be presented for service.

Warranty service can only be performed by OPPO Digital, Inc. or an OPPO authorized service center. The original dated bill of sale must be presented upon request as proof of purchase.

OPPO Digital, Inc. will, at its option and at no charge as stipulated herein, repair or replace product which is returned either in person or postpaid and insured to an OPPO service center, with new or reconditioned parts or products. Replacement parts and products assume the remaining original warranty, or ninety (90) days, whichever is longer.

This limited warranty covers noncommercial use of this product, and shall not apply to the following, including, but not limited to: applications and uses for which this product was not intended; altered product or serial numbers; cosmetic damage or exterior finish; batteries and cable accessories; accidents, abuse, neglect, fire, water, lightning or other acts of nature; incorrect electrical line voltage, fluctuations and surges; failure to follow operating or maintenance instructions. OPPO Digital, Inc. does not warrant uninterrupted or error-free operation of the product. This limited warranty shall not extend to anyone other than the original purchaser of the product. It is nontransferable and states your exclusive remedy.

THE FOREGOING WARRANTY IS THE ONLY WARRANTY WITH RESPECT TO THE PRODUCT AND OPPO DIGITAL, INC. MAKES NO OTHER WARRANTY WHATSOEVER, EXPRESS OR IMPLIED, REGARDING THE PRODUCT INCLUDING MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE. IN NO EVENT WILL OPPO DIGITAL, INC. OR ITS AUTHORIZED RESELLERS BE LIABLE FOR INCIDENTAL, CONSEQUENTIAL OR SPECIAL DAMAGES, EVEN IF SUCH DAMAGES RESULT FROM NEGLIGENCE OR OTHER FAULT.

Some states do not allow limitation on how long an implied warranty lasts, or the exclusion or limitation of incidental or consequential damages, so the above limitations or exclusions may not apply to you. This warranty gives you specific legal rights, and you may

TO REGISTER YOUR PURCHASE FOR WARRANTY, please visit the following Web site:

http://www.oppodigital.com/registration.asp

TO OBTAIN WARRANTY SERVICE, please follow these instructions:

x Contact OPPO customer service via email at service@oppodigital.com or by phone at (650) 961-

1118 with details of the defect claimed, product model, serial number, date and place of the original purchase.

also have other rights which vary from state to state.

x If it is determined that your product needs service, a Return Merchandise Authorization (RMA)

number will be issued to you along with return instructions and address of an OPPO service center.

x Pack the product securely, preferably in the original packaging, with your assigned RMA number

marked clearly on the outside of the package. Send the package postpaid and insured to the OPPO service center to obtain warranty service.

Thank you for choosing OPPO. Your satisfaction is our

highest priority.

OPPO Digital, Inc. 2629 Terminal Blvd, Suite B Mountain View, CA 94043, U.S.A.

www.oppodigital.com service@oppodigital.com (650) 961-1118

51976398 V1.2

www.oppodigital.com

OPPO Digital BDP-103 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
