ONYX C67 User Manual

BOOX C67

SMART READING

User Manual

SERIES

V1.6

—————————————————————————————————————————————————————————

www.onyx-international.com

Content

1. About ONYX .............................................................3

2. Standard Accessories ...............................................5

3. Safety Guide.............................................................6

4. Product View ...........................................................8

5. Startup Guide.........................................................12

6. Interface Introduction............................................14

7. FAQ ........................................................................43

8. Warranty ................................................................47

9. Product Specification .............................................51

10. Declaration ..........................................................53

__________________________________________________________________________________________________________________

www.onyx-international.com

1. About ONYX

BOOX is presented by Onyx International Inc., which has a group

of professionals who are dedicated themselves to developing

state-of-the-art reading devices.

The beauty of the BOOX is embodied in both its simplicity and its

power. As we are going to show you, BOOX is an open and flexible

platform for both consumers and content providers.

BOOX is powered by a 16-level grayscale e-ink screen that looks

and feels like paper. Passive lighting and diffusing surface relaxes

your eyes and reduces eye strain. By the hand-writing system, you

can take notes while reading or draw up ideas that occur to you.

BOOX takes full advantage of new-generation e-ink screens:

extremely low power consumption, no glare. Each full charge can

sustain 7-10 days' reading(8000 pageturns). By reducing paper

consumption while providing a realistic paper-like reading

experience, e-ink eReaders helps to protect the environment

__________________________________________________________________________________________________________________

www.onyx-international.com

without sacrificing convenience or life style.

BOOX comes with viewers for most popular ebook and image

formats, including PDF/HTML/DJVU/DJV/CHM/EPUP/TXT/FB2/RTF

and MobiPocket (NON-DRM). For content partners, we also

provide support for custom formats and digital rights

management solutions. All of our users enjoy the standard

features of our devices such as layout management, font

adjustment, search, zooming, and reflow, annotation, scribble etc.

For a next-generation information device, connectivity is essential.

The user can connect to the Internet by built-in Wi-Fi to

download new contents or surf online. Our browser allows users

to go to any webs they want. Mobile mode of the browser

provides better performance of surfing online.

BOOX is bringing you all-new reading experience.

__________________________________________________________________________________________________________________

www.onyx-international.com

2. Standard Accessories

The package contains the following components:

1. BOOX C67 Device x1

2. USB cable x1

3. Quick Start Guide x1

4. Warranty Card x1

Optional Accessories (Purchased separately)

1. Adapter

2. Earphone

3. Protective cover

__________________________________________________________________________________________________________________

www.onyx-international.com

3. Safety Guide

Please read the Safety Guide carefully before you start to use the device. Contact your BOOX retailer if you have any technical problem; or you can dial our official service line at 4008-869-830 .

Screen protection

The device is equipped with Eink screen, which is very fragile. Please

have no shocking, squeezing, pressing against the screen, or dropping the

device from higher place. If the screen is already broken, stop using it and

contact the professional or other qualified staff to replace the screen for you.

Please don’t dismantle the device without our permission;

Standard accessories

Only the battery, adapter, and other accessories meeting our

standard safety rules can be used for the device. For details, please refer to

Product Specification. We will not be responsible for any damage caused by

incompatible accessories;

__________________________________________________________________________________________________________________

www.onyx-international.com

Stay away from liquids

The device is not waterproof. Don’t expose the device to humid

environment or use it in the rain. Please keep it away from any corrosive

liquids;

Don’t dismantle the device

Please don’t dismantle the device in case of any damage ;

Using environment

The using environment of the device is 0°C-50°C ;

__________________________________________________________________________________________________________________

www.onyx-international.com

Prev.

4. Product View

Front view

__________________________________________________________________________________________________________________

www.onyx-international.com

LOGO

Model info

Back View

__________________________________________________________________________________________________________________

www.onyx-international.com

3.5mm Audio Jack

MicroSD slot

MicroUSB Connector

Power button

Reset

Top view

Bottom View

__________________________________________________________________________________________________________________

www.onyx-international.com

Power button

 Press the power button and hold it for fewq

seconds to turn the device on/off

 Press the power button and release quickly

to let the device go standby or wake up

Back button

 Exit the current apps  Exit the current view or dialog  Go back to previous directory

*Press Back button for few seconds to turn on/off the

front light (applied only to C67ML)

Next button

 Turn to next page when reading or viewing

files

Prev. button

 Turn to previous page when reading or

viewing file

LED light

 When the device is starting, LED is in blue  When the device is charging or connecting

with USB, LED is in orange

Reset button

 Reset the device by a small pin to push the

reset button on the top of the device when

the device is dead, then restart the device

Button Function

__________________________________________________________________________________________________________________

www.onyx-international.com

5. Startup Guide

1. Press power button and hold it for few seconds to turn the

device on;

2. Copy books to the device by connecting it with PC via USB

cable;

__________________________________________________________________________________________________________________

www.onyx-international.com

3. Download books through wireless internet (Wi-Fi);

4. Start to enjoy your reading.

__________________________________________________________________________________________________________________

www.onyx-international.com

Status bar Now Reading

Recently

Added

Function Area

6. Interface Introduction

6.1 Main interface

The main interface contains “Status Bar”, “Now Reading”, “Recently Added”and “Function Area”

__________________________________________________________________________________________________________________

www.onyx-international.com

Status bar

This section displays the current state of the device, including: home icon, battery usage, notification, time, A2 mode on/off, Menu etc. ;

 A2 mode refreshment

Two-grey level refreshment mode is good for fast refreshment of text page. It enables fast pageturn, no screen flashing and less ghost background. When A2 mode is on, reading articles with images, graphics, texts mixed are not suggested because of blur image would occur;

When A2 is on： When A2 is off：

__________________________________________________________________________________________________________________

www.onyx-international.com

Now Reading

 The recently read books information is displayed in this

section, including book cover, book title, author, page number, last read time, reading progress etc.;

 Tap book cover or book title can open the books;  Only those read books can display book covers while

those unread books shall display BOOX cover by default；

__________________________________________________________________________________________________________________

www.onyx-international.com

Recently Added

The newly added four books will be listed here chronologically. There are total 5 pages of the list. Slide to left/right is for turning pages;

Function Area

This section displays some frequently used function icons, including Library, Storage, Apps, Setting, Browser;

 Library

All books copied/downloaded to the device will be displayed here, including books from local storage and MicroSD card. It is non-file management mode; But user can only choose to display the books from directory “Books” by User Preference of Setting;

__________________________________________________________________________________________________________________

www.onyx-international.com

 APPS management

Going to Apps lists page, users can manage or uninstall the apps;

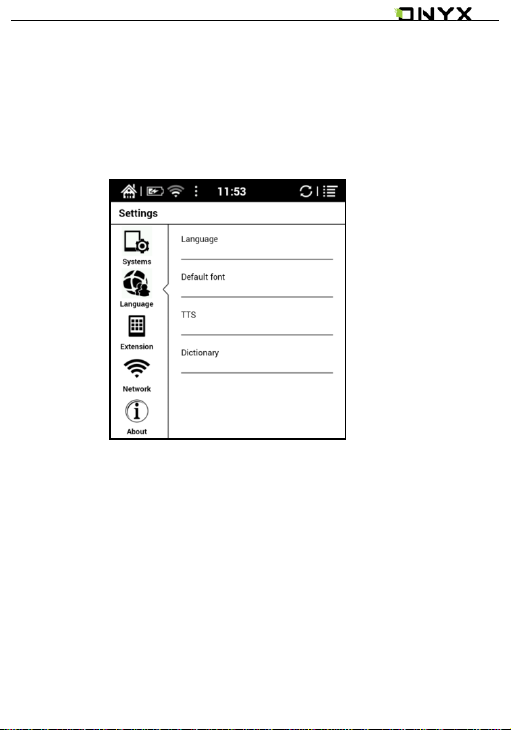

 Setting

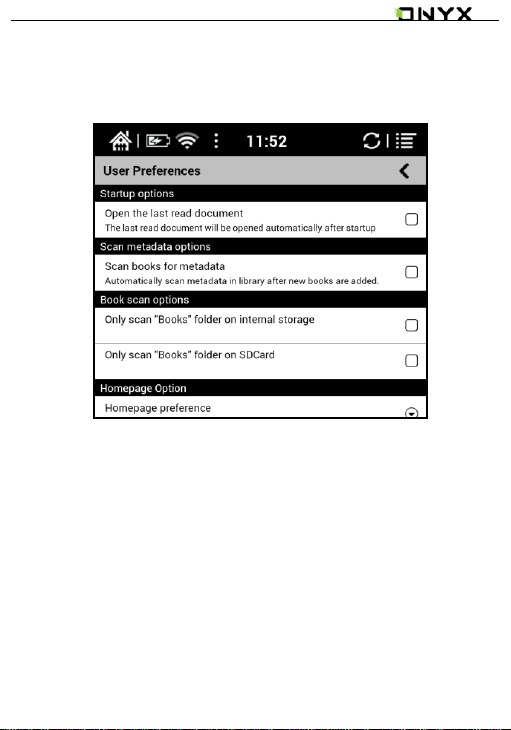

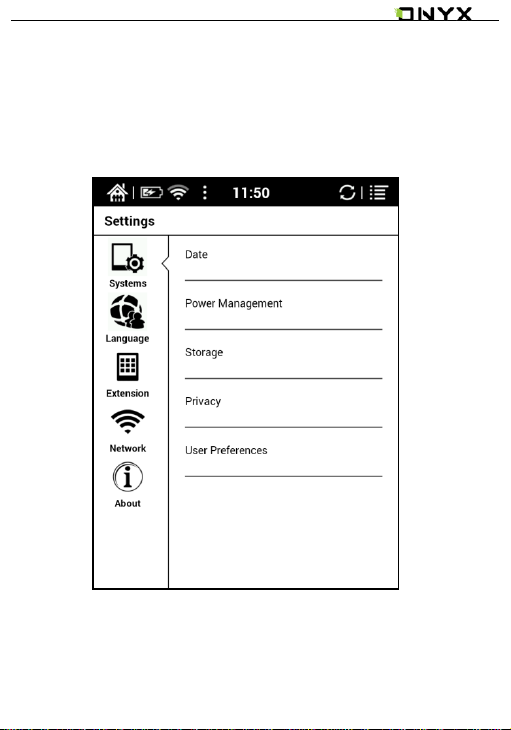

Going to Setting page, users can select their preferred setting for the whole system;

 Storage

It displays all files both from local storage and MicroSD card. Users can manage all files by customized folders;

 Browser

When WiFi is on, users can browse webs or download files from internet via Browser.

__________________________________________________________________________________________________________________

www.onyx-international.com

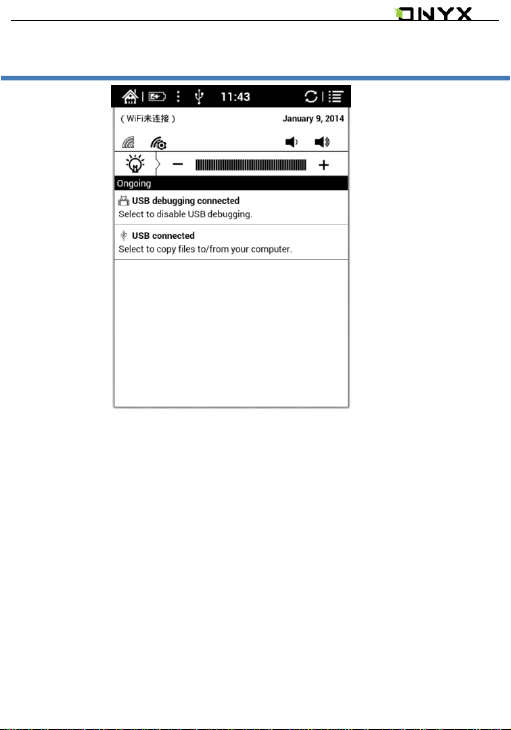

6.2 Notification board

Tap middle part of the Status Bar can drop down

Notification board ;

Press Back button or tap Home icon can exit Notification

board;

Notification page contains: WiFi setting, date, volume

control, front light control, and other new msg notice etc.;

__________________________________________________________________________________________________________________

www.onyx-international.com

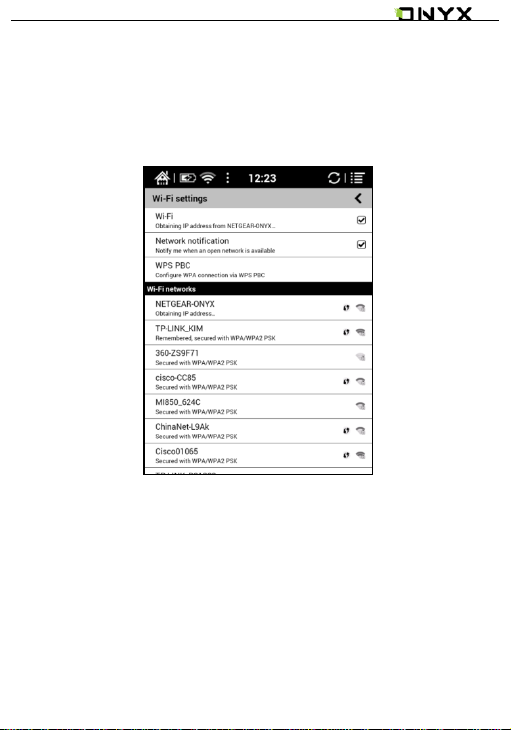

 WIFI Setting

If WiFi is first used, users need to choose to go to WiFi setting page; Users can also go to WiFi setting page by Setting page; When WiFi configuration is done, the WiFi will be saved automatically. Users will only need to turn WiFi on/off for same WiFi connection next time ;

 Volume control

Tap either volume button to pop up volume control bar for

volume decrease/ increase ;

 Front light setting

This means light is off; Users can long press Back button to turn the light on; Or users can tap on drop-down notification page to turn ; Light contrast is adjustable on light control bar;

*Only applied to C67ML

__________________________________________________________________________________________________________________

www.onyx-international.com

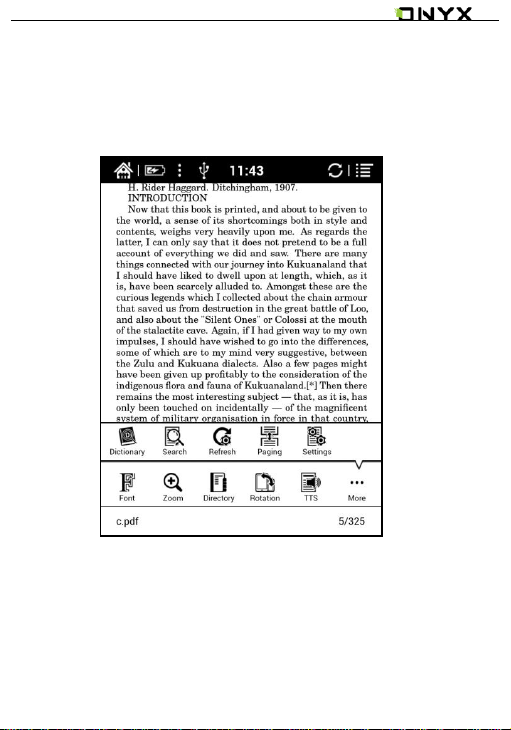

6.3 Reading page

Select any book to go to reading page, which only displays book content, page number, prev./next page icon ;

Tap middle column of the book content to pop up reading

menu and status bar ;

Reading menu contains: fonts, zoom, directory, rotation, TTS,

dictionary, search, refreshment, pagination view, setting etc. ;

__________________________________________________________________________________________________________________

www.onyx-international.com

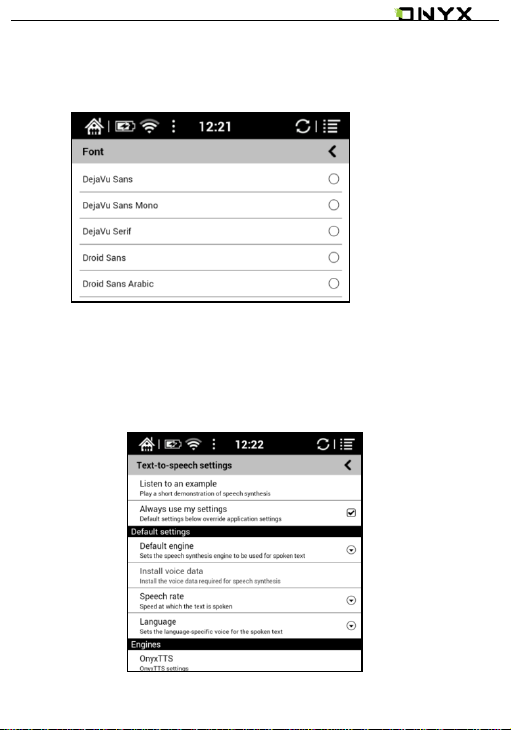

Font

Fonts can be adjustable (reflow mode is supported): font size, bold type, font change(only some formats supported), spacing(only some formats supported) etc. ;

Zoom

User can zoom in/out the page freely; Other zoom shortcuts are available: To width, To page, Crop, Selection to zoom ;

Directory

TOC, Bookmark, Annotation can be checked here ;

Rotation Users can select the direction of the screen display ;

TTS Users can listen to the books(only some formats are supported) by TTS, powered by well-known voice company IVONA ;

__________________________________________________________________________________________________________________

www.onyx-international.com

Dictionary

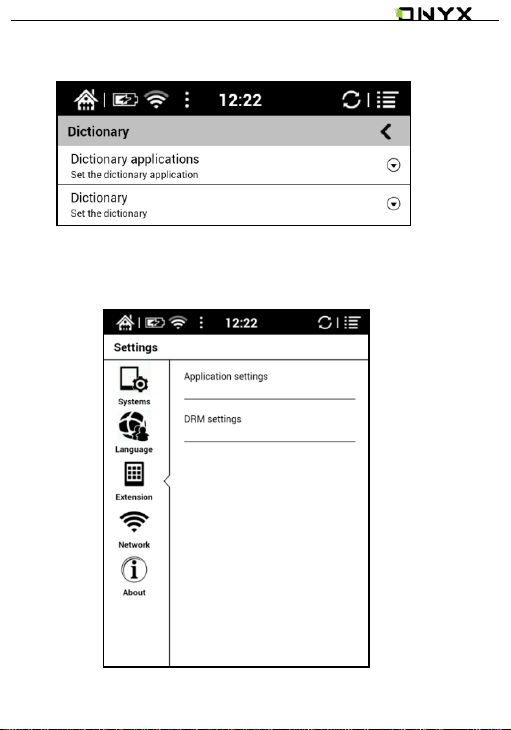

Stardict can be supported. Users can download Stardict dictionary and put it into folder“dictionary” on MicroSD card, then the dictionary can be used when reading ;

Search

User can search the targeting texts ;

Refreshment

Users can select screen refreshment rate by their

preference. Six refreshment rates are available to choose. Every 7 pages to refresh is system default ;

Pagination

There are two modes for pagination: single page and

scroll page ;

Setting

Page margin, footer, time, navigation and dictionary for current content are shown for setting. (Only Onyxdict is supported currently, but can call stardicts files ;

__________________________________________________________________________________________________________________

www.onyx-international.com

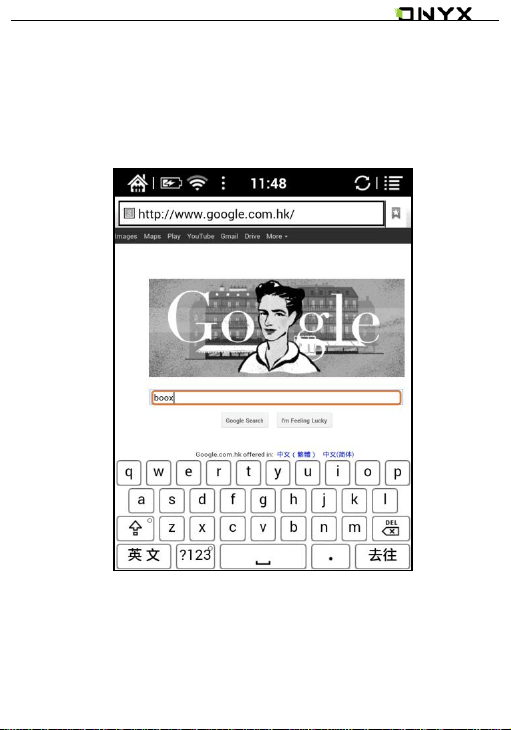

6.4 Browser interface

When WiFi is on, please tap Browser icon to start browsing

online ;

__________________________________________________________________________________________________________________

www.onyx-international.com

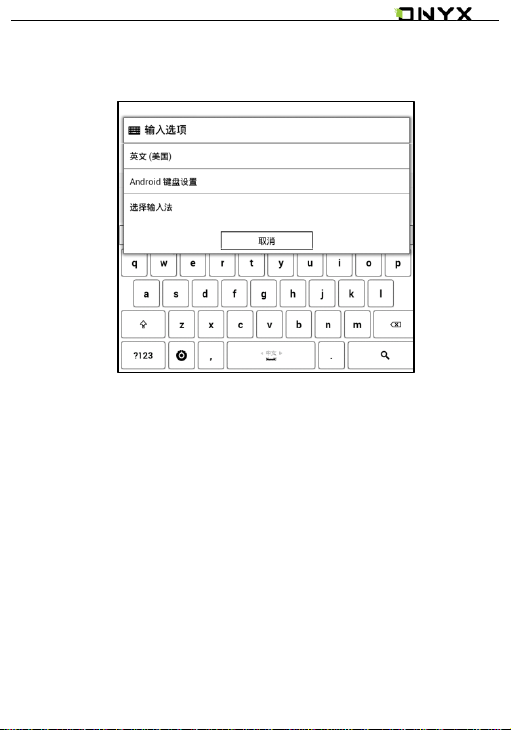

At browsing page, tap text box can pop up virtue keyboards More input methods can be installed by users;

__________________________________________________________________________________________________________________

www.onyx-international.com

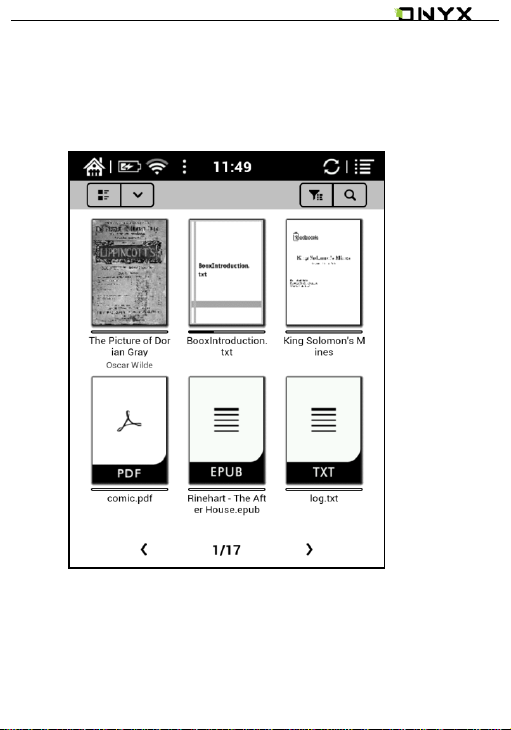

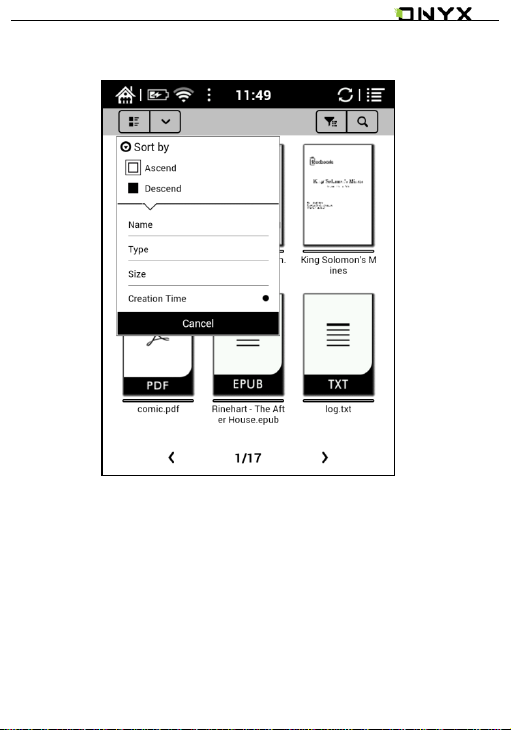

6.5 Library interface

The library can only display supported-format books; The

books will be displayed by thumbnail view chronologically;

Users can change from thumbnail view to other views; Users can sort the books by ascending, descending, name, type, size,

__________________________________________________________________________________________________________________

www.onyx-international.com

creation time, book title, author, publisher;

__________________________________________________________________________________________________________________

www.onyx-international.com

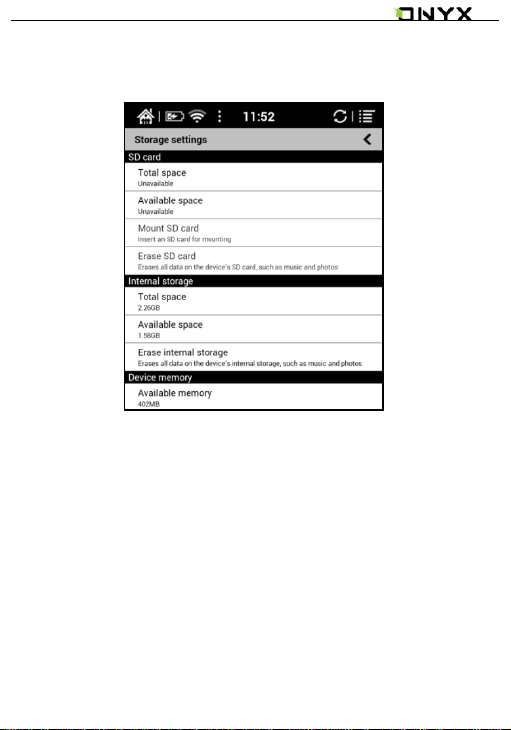

6.6 Storage

Storage displays all files from both local storage and MiscroSD cards; Files will be displayed in alphabetical order by default;

__________________________________________________________________________________________________________________

www.onyx-international.com

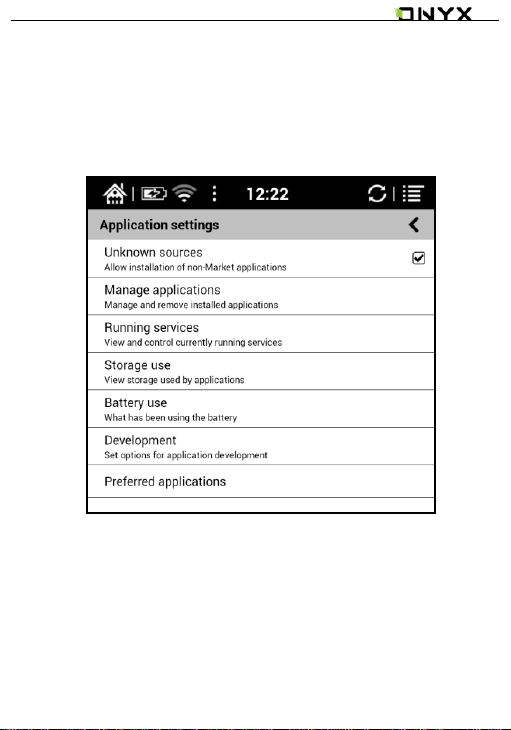

6.7 Apps

Here it will display all installed apps in alphabetical order. Long press on each app can pop up menu to manage the

Apps setting;

__________________________________________________________________________________________________________________

www.onyx-international.com

6.8 Setting page

Users can set up general settings for the device, including

System, Language, Extension, Networks and About;

__________________________________________________________________________________________________________________

www.onyx-international.com

6.8.1 System

Users can set date, display option, storage, privacy, startup

options of the device.

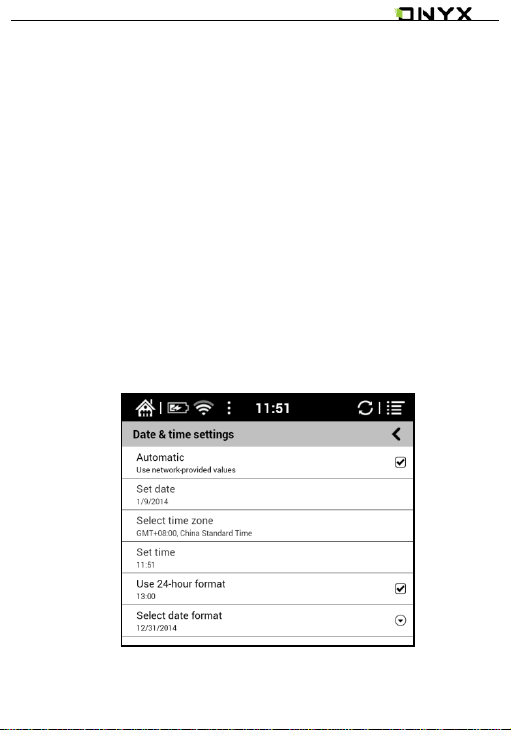

 Date

Users can set date, time, time zone manually; Or users can select Auto setting to update date, time, time zone automatically when the device is connected with wireless internet;

Users can select preferred ways for date and time display;

__________________________________________________________________________________________________________________

www.onyx-international.com

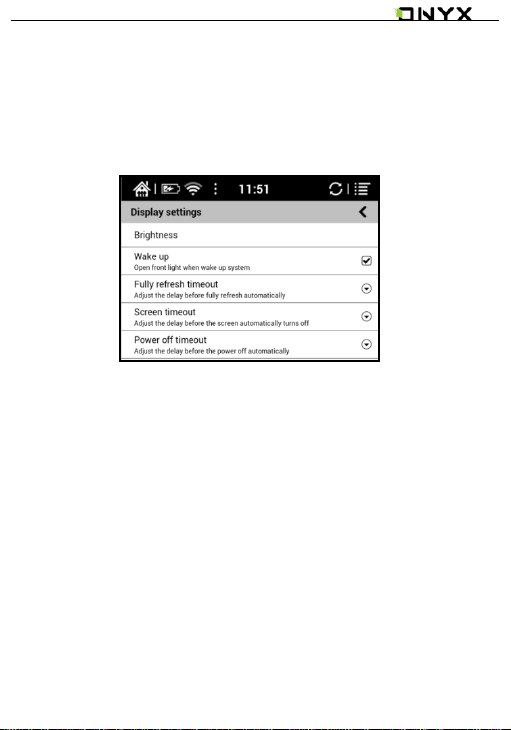

 Display

Users can adjust the brightness of front light, turn the light on(only applied to C67ML), and set full-screen refreshment timeout, screen timeout, shutdown delay etc.;

__________________________________________________________________________________________________________________

www.onyx-international.com

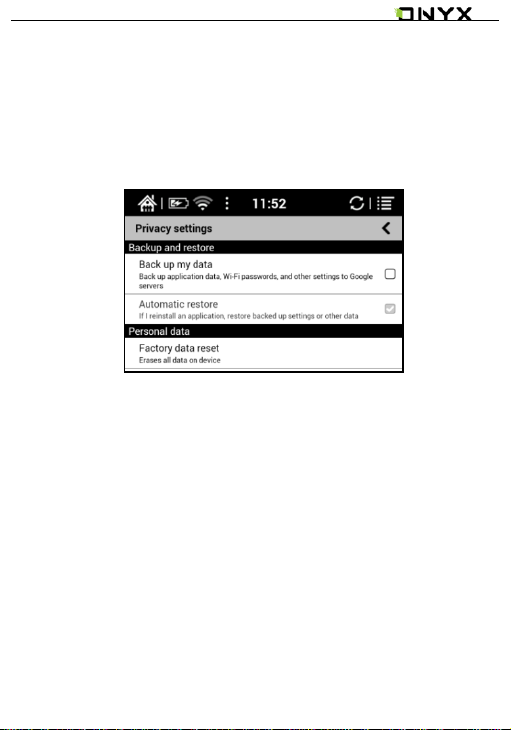

 Privacy

This contains settings of data backup, data recovery and

factory resetting etc.;

Factory resetting will erase all user data. Please back up all

user data before performing factory resetting;

__________________________________________________________________________________________________________________

www.onyx-international.com

 Storage This displays usage of MicroSD card, local storage, RAM etc.;

 User preference

1. Users can choose whether to open the last read

book when starting the device; It will go directly to the main interface by default;

2. Users can select the path to scan books

automatically;

3. Users can choose to display “recently read books

__________________________________________________________________________________________________________________

www.onyx-international.com

or recently added books” at the main interface; Recently added books is default setting of the device;

__________________________________________________________________________________________________________________

www.onyx-international.com

6.8.2 Language setting

Users can set system language, default fonts, TTS reading,

dictionary on this page;

__________________________________________________________________________________________________________________

www.onyx-international.com

 Language setting

Users can set languages of the system and virtue keyboard. The system has Android keyboard by default. Users can install third-party apps for more input methods ;

__________________________________________________________________________________________________________________

www.onyx-international.com

 Default fonts

Users can set the system fonts on this page, but reading fonts can be only set on reading page;

 TTS setting

Users can set reading voice, speed and language by TTS (text-to-speech) setting;

__________________________________________________________________________________________________________________

www.onyx-international.com

 Dictionary

User can select the installed dictionary apps here;

6.8.3 Extension

This contains Apps setting and DRM setting;

__________________________________________________________________________________________________________________

www.onyx-international.com

 Apps setting

Users can select whether to allow installing unknown

source Apks and debugging, manage and delete Apps, check the running apps and storage usage, battery usage, and preferred Apps;

__________________________________________________________________________________________________________________

www.onyx-international.com

6.8.4 Networks

This is for WiFi setting. When WiFi is connected, users can

browse webs and download books via internet on the device;

When“turn WiFi on”is selected, the device will search WiFi hotspot. When all available WLAN are listed, users can choose a network, input password to connect with internet. WiFi signal will be displayed at “Status bar” when WiFi is connected;

After WiFi is connected successfully at the first time, the device will save WiFi information automatically. Users only

__________________________________________________________________________________________________________________

www.onyx-international.com

need to turn WiFi on and off if using same WiFi next time. Users can turn WiFi on and off by shortcuts on Notification board ;

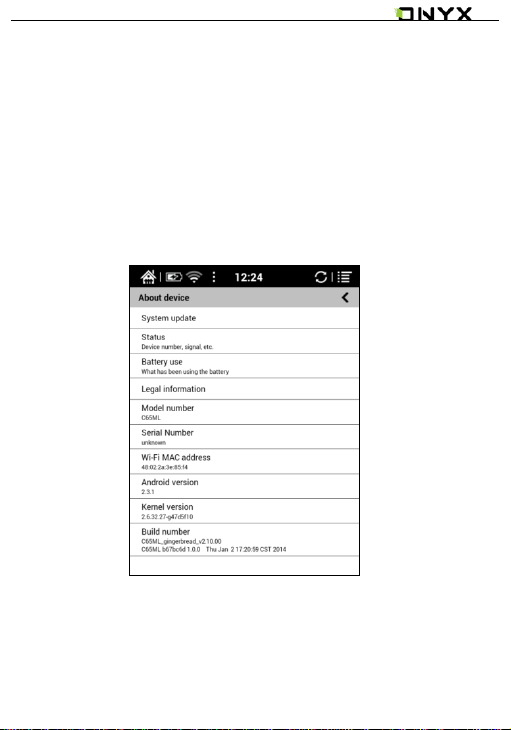

6.8.5 About

More information about the devices are listed here, including system update, notification, battery usage, legal info, model, firmware version etc. ;

__________________________________________________________________________________________________________________

www.onyx-international.com

7. FAQ

7.1 How to turn the device on/off

When the device is off, press power button for 3-5 seconds to turn the device on; When the device is on, press power button for 3-5 seconds to turn the device off;

7.2 How to charge

 Recharge the device by connecting it with PC by USB

cable;

 Recharge the device by connecting with power

adapter(5V=1A, optional accessories);

 Orange light is on when the device is charging. The light

will be off after battery is fully charged;

 Full single charge will take around 3 hours;

7.3 How to transfer data

 Transfer data by connecting the device with PC via USB

cable；

__________________________________________________________________________________________________________________

www.onyx-international.com

 Transfer data by third-party sync apps between PC and

the device via WiFi;

 Download data or read online by browsing via WiFi;  Download data or read online by log-in of reading apps

from third party via WiFi;

7.4 How to install dictionary

The device supports stardict dictionary. Users can download the language package of stardict, copy it to folder “dictionary”on MicroSD card. Dictionary is available to use after that when users are reading;

7.5 How to add fonts

Users can download fonts online, then copy the fonts to the

folder “/adobe/resources/fonts”on MicroSD card; Users

can select the installed fonts when reading, but the fonts are

only available for some book formats;

__________________________________________________________________________________________________________________

www.onyx-international.com

7.6 How to update

7.6.1 Update locally

a. Download firmware update.zip from our official web b. Copy the firmware to MicroSD card. The device will

detect the firmware automatically after MicroSD card is inserted into the device

c. Follow the instruction to update the device d. When update is successful, the device will restart

automatically

e. Remove MicroSD card

Note: Please connect the device with power source or PC to make sure of enough power for update ;

7.6.2 Update by OTA Users can update the firmware online via OTA (Setting—About —System update). Please connect WiFi when updating the device by OTA;

__________________________________________________________________________________________________________________

www.onyx-international.com

7.7 How to protect the device

 To use protective covers for the device and avoid

crashing, shocking, pressing against the screen;

 Put the screen side downwards when the device is not in

use;

 Don’t put rigid stuff in-between of the screen and

other flat surface;

 Don’t pile up or store heavy stuff above the device  Keep the device away from all types of liquids;

__________________________________________________________________________________________________________________

www.onyx-international.com

8. Warranty

8.1 Scope of Warranty

8.1.1 The device：One-year warranty；

8.1.2 If in 15 days from the date of purchase, any faults caused by quality problem of the product itself under normal operation and without overhaul, you can replace the same type of product or enjoy maintenance services for free；

8.1.3 If in one year from the date of purchase, any faults caused by quality problem of the product itself under normal operation and without overhaul, you can enjoy maintenance services for free；

8.1.4 If in three-years from the date of purchase, the product has any faults, you can get maintenance services with a fee；

8.1.5 Above warranty or maintenance are limited to the fault of electrical components, including the hardware mainboard and display, not including housing, brochures, package, headphones and other consumables and accessories.

8.2 Beyond the scope of warranty

The following conditions are not covered by the warranty,

even if in the applicable time period, the warranty will no

__________________________________________________________________________________________________________________

www.onyx-international.com

longer works for it, but still can enjoy the fee-based services.

8.2.1 Faulted device without ONYX BOOX brand；

8.2.2 Faulted device caused by dismantling and repairing without permission.

8.2.3 The serial number of the faulted device has been changed or lost.；

8.2.4 The device is damaged due to personal factors or not being used under specific environment. For example, use the device in the environment where too wet or too dry, in high temperature or with instable voltage or current, etc.；

8.2.5 The device is damaged by accident or improper use, including devices filled with warter, rupture ， collision, unnormal pluging, pests, ect.

8.2.6 Due to natural consumption, including natural consumption, wear and aging of housing and accessories.

8.2.7 Damage caused by force majeure, such as fires , floods , earthquakes and other natural disasters

8.2.8 The device is faulted by operating the software beyond the range that SDK permitted.

8.2.9 The device has been identified that it is not produced by ONYX.

__________________________________________________________________________________________________________________

www.onyx-international.com

8.3 Precautions for repair

8.3.1 Users need to contact our after-sales department to confirm whether it is in the scope of warranty, whether it is fault and the fault cause.

8.3.2 Users need to provide proof of purchase (invoice or receipt) , warranty card consistent with the original barcode. Fill out the repair request form (download from official website) and then send to our maintaining department together with the device.

8.3.3 Due to the special properties of the product screen, for non- screen maintenance equipments, please ensure that the screen is intact and reinforce the packing before send it to us. Please avoid damage in transportation. We do not receive a damaged screen products for free maintenance.

8.3.4 Please only send the device and the materials required above to us. Do not send the headphones, adapters and other accessories. If lost, our company is not liable for damages;

8.3.5 Please backup data before send it to repair. We are not liable for the data loss due to maintenance.

This provision only applies to mainland China. It is

__________________________________________________________________________________________________________________

www.onyx-international.com

protected by the Chinese consumer protection law; If the same model is purchased in other regions, it cannot enjoy the above terms. Please consult related consumer protection law and dealers of the country where you purchase the device.

ONYX International Inc. reserves the right of final

interpretation of this warranty.

__________________________________________________________________________________________________________________

www.onyx-international.com

Processor

Dual cortex A9,1.2G

RAM

DDR3 512MB

O.S

Android 4.2.2

Storage

4G

Screen

E-ink display

Screen size

6 inch

Resolution

1024x758(HD)

Touch

Capacitive touch

Front light

Only for C67ML

Wireless

WIFI

Battery

1600 mAh

USB

Micro usb 2.0

Audio Jack

3.5mm

TF slot

Expandable up to 32GB

Product Size

170X117X8.7mm

Weight

≤200g

Operating

0°C- 50°C

9. Product Specification

__________________________________________________________________________________________________________________

www.onyx-international.com

Supports

book formats

PDF, EPUB , TXT, DJVU, HTML,

RTF, FB2, DOC, MOBI, CHM, PDB

Supported

image formats

PNG, JPG, GIF ,BMP

Supported

audio formats

WAV , MP3

Apps

Third-parties APKS installation is

supported

Browser

Support

Language

Multi-language supported

File directory

Support

Dictionary

Support

TTS

Support

DRM

Support

Firmware

update

Locally update and OTA update are

available

Certification

CE、Rohs

__________________________________________________________________________________________________________________

www.onyx-international.com

10. Declaration

Onyx International Inc. reserves the right to modify the content of the Quick Start Guide and User Manual without further notice .

For more information, please visit our website at

www.onyx-international.com

__________________________________________________________________________________________________________________

Federal Communications Commission (FCC) Interference Statement

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part

15 of the FCC Rules.

These limits are designed to provide reasonable protection against harmful interference in a residential

installation. This equipment generate, uses and can radiate radio frequency energy and, if not installed and used

in accordance with the instructions, may cause harmful interference to radio communications.

However, there is no guarantee that interference will not occur in a particular installation. If this equipment does

cause harmful interference to radio or television reception, which can be determined by turning the equipment

off and on, the user is encouraged to try to correct the interference by one of the following measures:

 Reorient or relocate the receiving antenna.  Increase the separation between the equipment and receiver.  Connect the equipment into an outlet on a circuit different from that to which the receiver is

connected.

 Consult the dealer or an experienced radio/TV technician for help.

This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions:

(1) This device may not cause harmful interference, and (2) this device must accept any interference received,

including interference that may cause undesired operation.

FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could

void the user’s authority to operate this equipment.

RF exposure warning

This equipment complies with FCC radiation exposure limits set forth for an uncontrolled environment.
