Onyx BE181 User Manual

Healthcare Infotainment ONYX-BE181

ONYX-BE181

18.5” Bedside Terminal

Intel

®

Atom Dual Core D525 Processor

High Performance

Low Power Consumption

Wide LCD with Multimedia

ONYX-BE181 Manual 1st Edition

Dec. 2011

Healthcare Infotainment ONYX-BE181

Copyright Notice

This document is copyrighted, 2011. All rights are reserved. The
original manufacturer reserves the right to make improvements to
the products described in this manual at any time without notice.

No part of this manual may be reproduced, copied, translated, or
transmitted in any form or by any means without the prior written
permission of the original manufacturer. Information provided in
this manual is intended to be accurate and reliable. However, the
original manufacturer assumes no responsibility for its use, nor
for any infringements upon the rights of third parties, which may
result from its use.

The material in this document is for product information only and
is subject to change without notice. While reasonable efforts have
been made in the preparation of this document to assure its
accuracy, ONYX Healthcare Inc., assumes no liabilities resulting
from errors or omissions in this document, or from the use of the
information contained herein

ONYX Healthcare Inc. reserves the right to make changes in the
product design without notice to its users

Healthcare Infotainment ONYX-BE181

Acknowledgments

 Intel

®

Atom Dual Core D525 is a registered trademarks of

Intel

®

Corporation.

 IBM, PC/AT, PS/2 are trademarks of International Business

Machines Corporation.

 Microsoft

®

Windows is a registered trademark of Microsoft ®

Corporation.

 RTL is a trademark of Realtek Semi-Conductor Co., Ltd.
 C&T is a trademark of Chips and Technologies, Inc.
 UMC is a trademark of United Microelectronics Corporation.
 ITE is a trademark of Integrated Technology Express, Inc.
 SiS is a trademark of Silicon Integrated Systems Corp.
 VIA is a trademark of VIA Technology, Inc.

All other product names or trademarks are properties of their
respective owners.

Healthcare Infotainment ONYX-BE181

Packing List

Before you begin installing your Bedside Terminal, please make

sure that the following items have been shipped:

 BE181 Healthcare Infotainment.
 VESA Mount Screws
 Utility CD-ROM (Please insert the ONYX-BE181 CD-ROM into

external CD-ROM drive.) which contains User’s Manual (in
PDF format), Drivers and Utilities

If any of these items are missing or damaged, you should contact
your distributor or sales representative immediately.

Headquarters
Onyx Healthcare Inc.
2F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist.,
New Taipei City 231, Taiwan (R.O.C.)
TEL: [phone]
FAX: [phone]
E-mail: [e-mail]
http://www.onyx-healthcare.com

Healthcare Infotainment ONYX-BE181

Worldwide Offices:
Onyx Healthcare, USA Inc.
2693 Saturn Street,Brea,CA 92821, USA
Tel: [phone]
Fax [phone]
Email: [e-mail]

Onyx Healthcare EUROPE

B.V.
Ekkersrijt 4002, 5692 DA Son, The Netherlands
Tel : [phone]
Fax: [phone]
Email: [e-mail]

Onyx Health

care Technology GmbH
An der Trift65d
63303 Dreieich , Germany
TEL: [phone]
Fax: [phone]
Email: [e-mail]

Healthcare Infotainment ONYX-BE181

Onyx Healthcare (Nanjing) INC.
Room 1318, Metallurgy Building , East Zhongshan Road,
Nanjing, China
Tel: [phone]
Fax: [phone]
Email: [e-mail]

Onyx Health

care Singapore PTE LTD
57 Genting Lane, #07-00, Singapore 349564
Tel: [phone]
Fax [phone]
Email: [e-mail]

Healthcare Infotainment ONYX-BE181

Safety & Warranty

1. Read these safety instructions carefully.

2. Keep this user's manual for later reference.

3. Disconnect this equipment from any AC outlet before cleaning. Do not

use liquid or spray detergents for cleaning. Use a damp cloth.

4. For pluggable equipment, the power outlet must be installed near the

equipment and must be easily accessible.

5. Keep this equipment away from humidity.

6. Put this equipment on a reliable surface during installation. Dropping it

or letting it fall could cause damage.

7. The openings on the enclosure are for air convection. Protect the

equipment from overheating. DO NOT COVER THE OPENINGS.

8. Make sure the voltage of the power source is correct before

connecting the equipment to the power outlet.

9. Position the power cord so that people cannot step on it. Do not place

anything over the power cord.

10. All cautions and warnings on the equipment should be noted.

11. If the equipment is not used for a long time, disconnect it from the

power source to avoid damage by transient over-voltage.

12. Never pour any liquid into an opening. This could cause fire or

electrical shock.

13. Never open the equipment. For safety reasons, only qualified service

personnel should open the equipment.

Healthcare Infotainment ONYX-BE181

14.

If any of the following situations arise, get the equipment checked by
service personnel:

a. The power cord or plug is damaged.
b. Liquid has penetrated into the equipment.
c. The equipment has been exposed to moisture.
d. The equipment does not work well, or you cannot get it to

work according to the user’s manual.
e. The equipment has been dropped and damaged.
f. The equipment has obvious signs of breakage.

15.

DO NOT LEAVE THIS EQUIPMENT IN AN UNCONTROLLED
ENVIRONMENT WHERE THE STORAGE TEMPERATURE IS
BELOW -20° C (-4°F) OR ABOVE 60° C (140° F). IT MAY DAMAGE
THE EQUIPMENT.

16.

External equipment intended for connection to signal
input/output or other connectors, shall comply with relevant UL /
IEC standard (e.g. UL 1950 for IT equipment and UL 60601-1 /
IEC 60601 series for systems – shall comply with the standard
IEC 60601-1-1, Safety requirements for medical electrical systems.
Equipment not complying with UL 60601 -1 shall be kept outside
the patient environment, as defined in the standard.

17. Unplug the power cord from the power adapter jack to disconnect the

device.

Healthcare Infotainment ONYX-BE181

Caution:

It may cause the danger of explosion if battery is incorrectly
replaced. Replace only with same or equivalent type recommended
by the manufacturer.

Healthcare Infotainment ONYX-BE181

Classification

1. Degree of production against electric shock: not classified

2. Equipment not suitable for use in the presence of a flammable

anesthetic mixture with air or with oxygen or nitrous oxide.

3. Mode of operation: Continuous

4. Type of protection against electric shock: Class I equipment

5. Class I: No Applied part, No AP / APG

Healthcare Infotainment ONYX-BE181

FCC

This device complies with Part 18 FCC
Rules. Operation is subject to the
following two conditions: (1) this device
may not cause harmful interference, and (2)
this device must accept any interference
received including interference that may
cause undesired operation.

Healthcare Infotainment ONYX-BE181

UL Module Description

BE181 AC modules are developed to suitable
for the Classification Mark requirement

Healthcare Infotainment ONYX-BE181

Safety Symbol Description

The following safety symbols are the further explanations for your
reference.

Medical equipment with respect to electric shock,
fire and mechanical hazards only in accordance
with UL 60601-1, and CAN/CSA C22.2 NO.

601.1
Attention, consult ACCOMPANYING

DOCUMENTS.

Ground wire
Protective Ground wire.

Medical equipment with respect to electric shock,
fire and mechanical hazards only in accordance
with ANSI/AAMI ES 60601-1, and CSA C22.2
NO 60601-1-08-CAN/CSA
Touch Panel and Plastic Enclosure treat as Type
B applied part.

Healthcare Infotainment ONYX-BE181

Contents

Chapter 1 General Information

1.1 Introduction ....................................................................1-2

1.2 Feature ............................................................................1-3

1.3 Specification...................................................................1-4

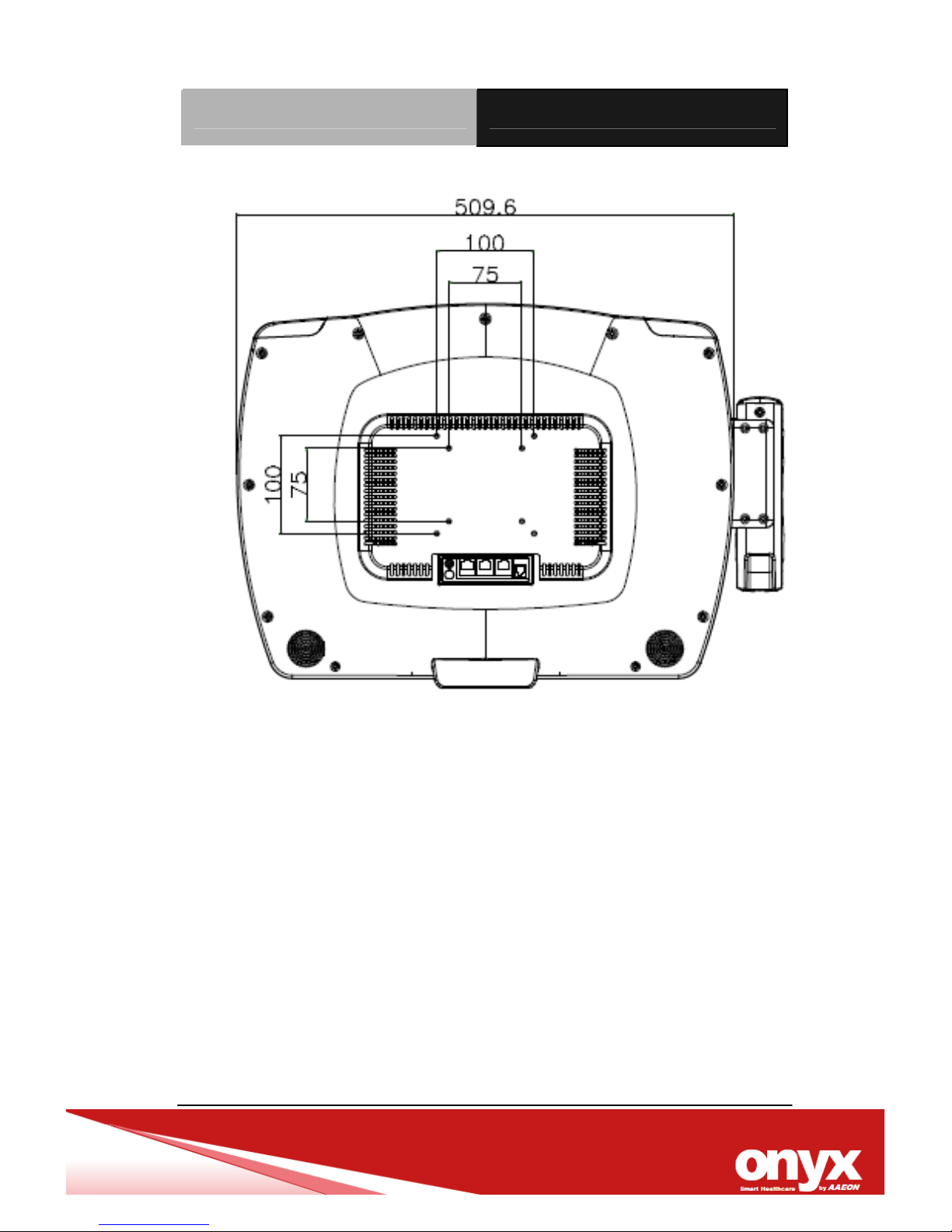

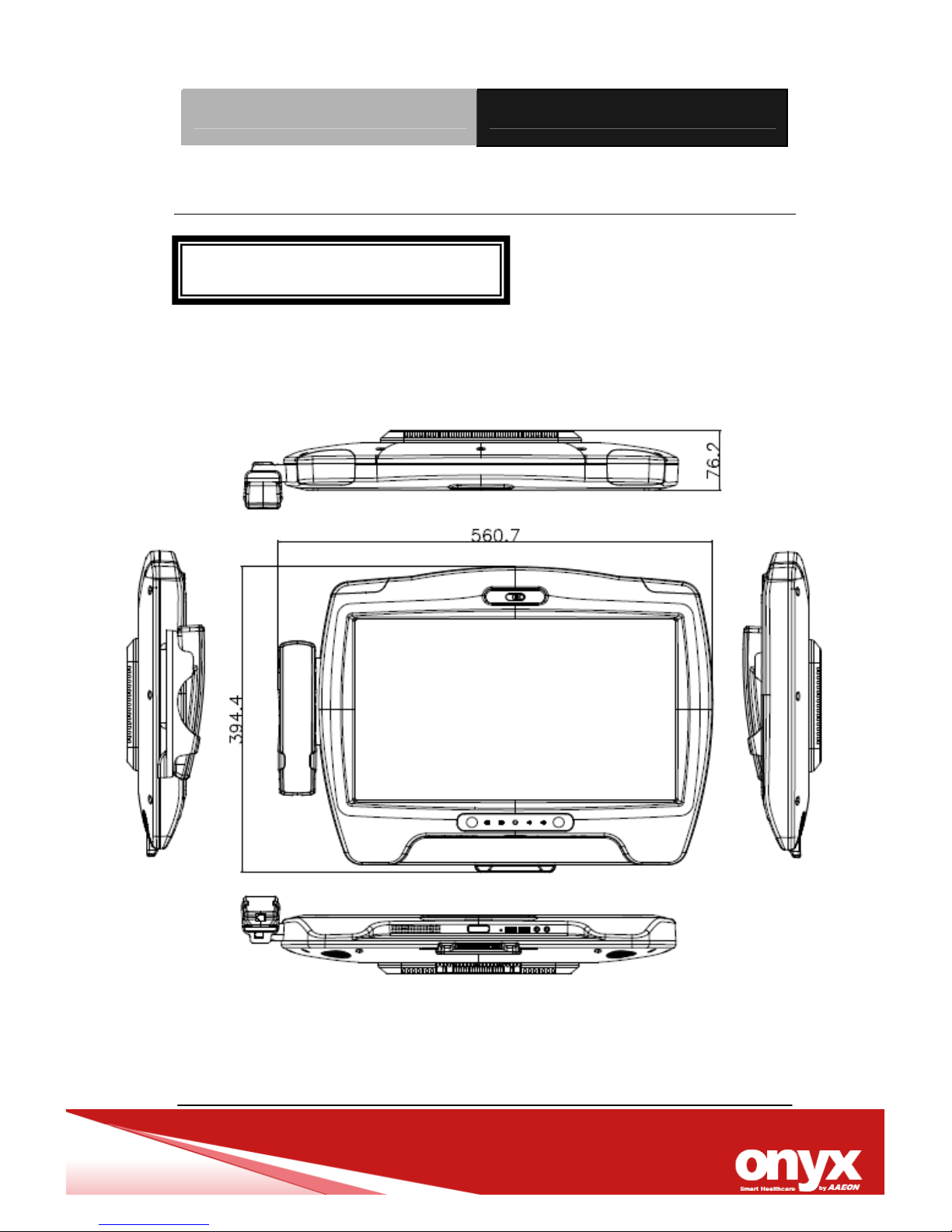

1.4 Dimension.....................................................................1-10

Chapter 2 Hardware Installation

2.1 Safety Precautions.........................................................2-2

2.2 A Quick Tour of the BE181............................................2-3

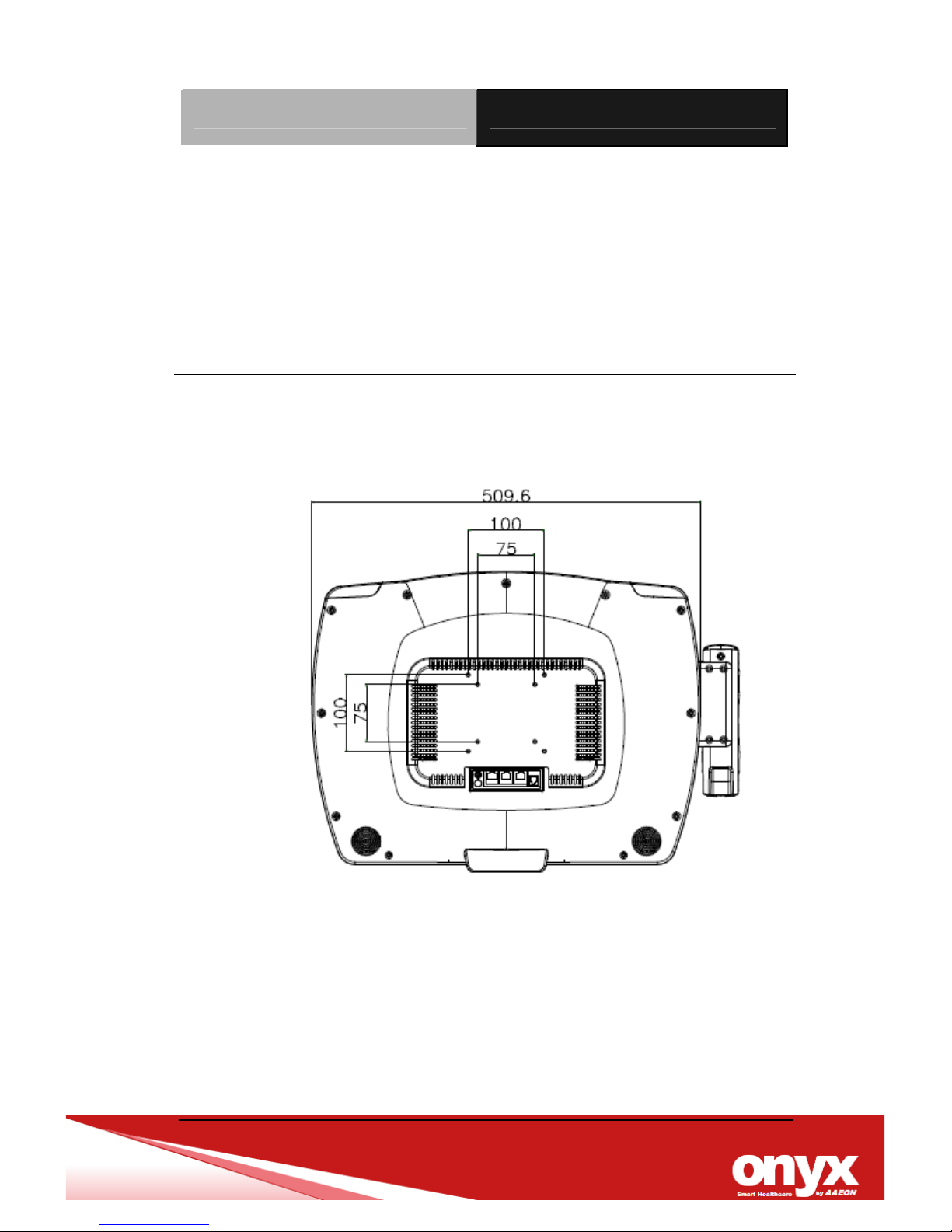

2.3 Mounting Installing........................................................2-5

Chapter 3 American Megatrends BIOS Setup

3.1 System Test and Initialization.......................................3-2

3.2 American Megatrends

BIOS Setup...............................3-3

3.3 Main Features.................................................................3-3

3.4 Advanced Features........................................................3-3

3.5 Chipset Features............................................................3-3

3.6 Boot Features.................................................................3-4

3.7 Security Features...........................................................3-5

3.8 Save & Exit Setup...........................................................3-6

Chapter 4 Driver Installation

4.1 Installation ......................................................................4-3

Appendix A I/O Information

Healthcare Infotainment ONYX-BE181

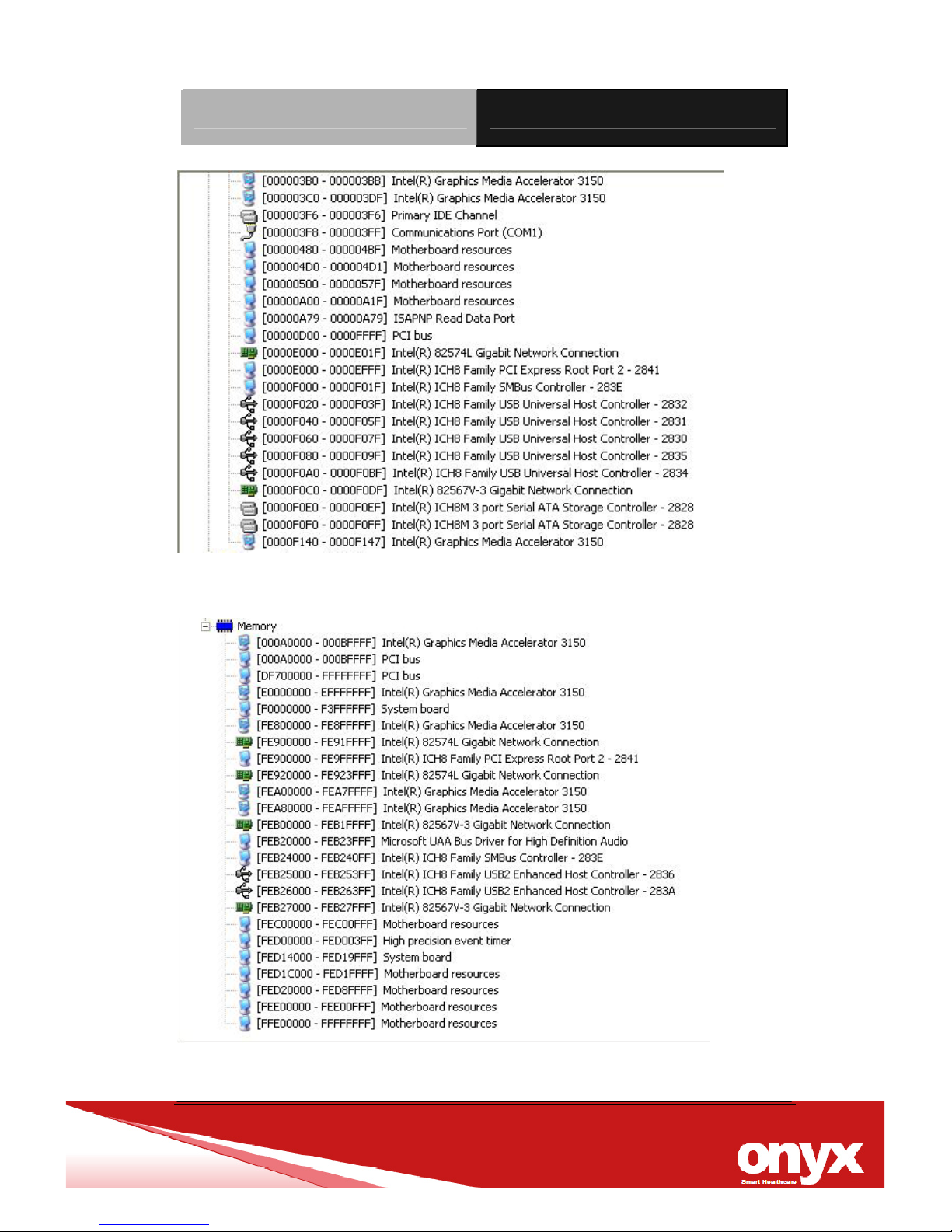

A.1 I/O Address Map...........................................................A-2

A.2 Memory Address Map..................................................A-3

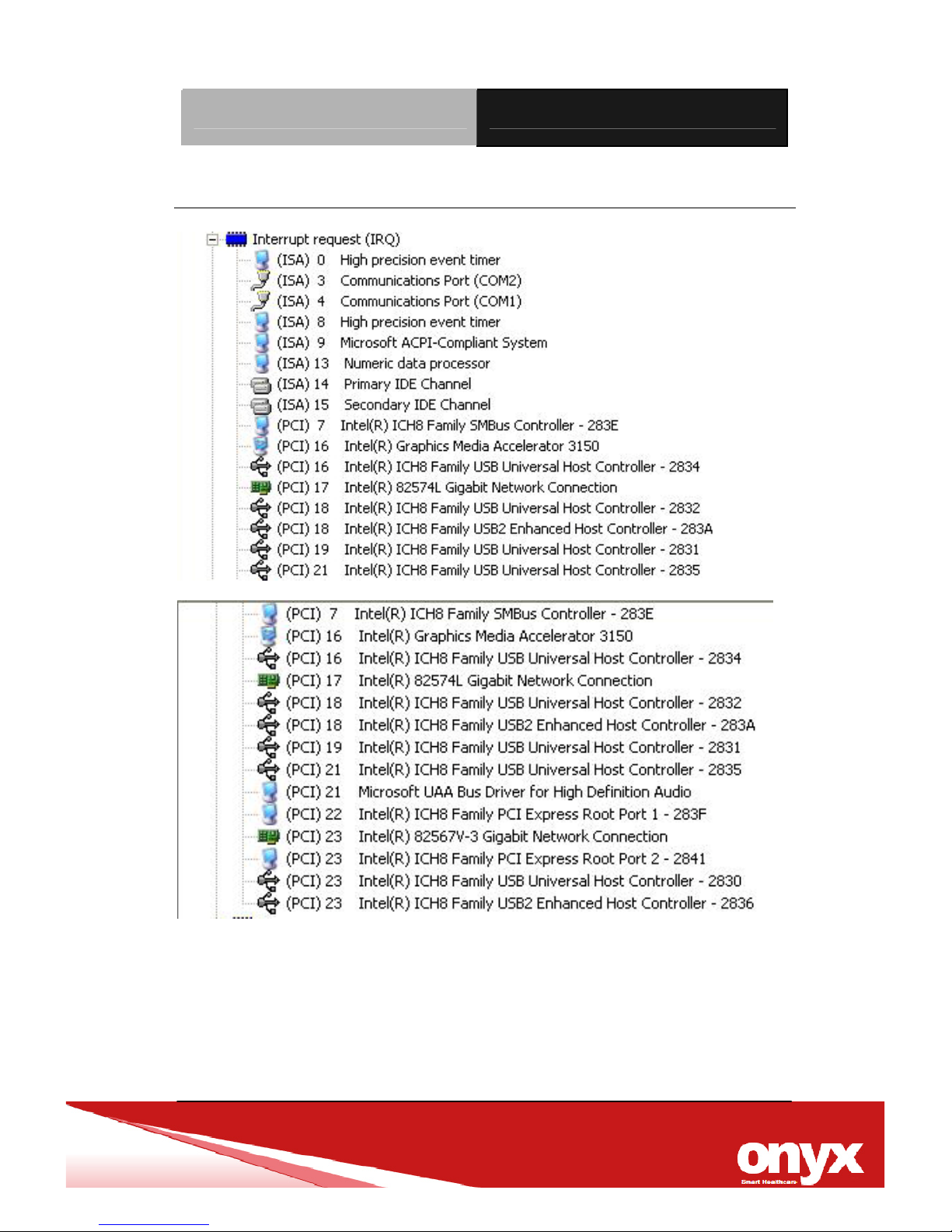

A.3 IRQ Mapping Chart.......................................................A-4

Appendix B Miscellanea

B.1 General Cleaning Tips..................................................B-2

B.2 Cleaning Tools..............................................................B-3

B.3 Scrap Computer Recycling ........................................B-5

Healthcare Infotainment ONYX-BE181

Chapter 1 General Information 1-1

General

Information

Chapter

1

Healthcare Infotainment ONYX-BE181

Chapter 1 General Information 1-2

1.1 Introduction

—A bedside terminal solution for ultimate patient services that
boosts patient satisfaction and well-beings.

ONYX-BE181 offers a highly scalable bedside infotainment solutio n
to enhance patient experiences within the hospital. Packaged with
renowned software solution partners, ONYX-BE181 bedside
terminals provide patients with capabilities like Entertainment on
Demand, Online Access, VoIP Phone, Nurse Notification, etc.

Clinical Applications

 Ward, Nursing Station/Cart

Service Capabilities – BE181

 Hospital Information Access –

 Patient Record Access
 Treatment Progress Reporting (i.e. Medical Charting)
 Dietary/Meal Ordering Service

 Monitoring/Communication –

 Doctor Consultation by Video Conference
 Internet Access
 VoIP Telephone Access

 Entertainment on Demand

 Video-on-Demand

Healthcare Infotainment ONYX-BE181

Chapter 1 General Information 1-3

 TV/Radio Broadcasting

1.2 Feature

 18.5” Wide Color TFT LCD display
 Intel® Atom™ Dual Core D525 1.8GHz Processor
 Fanless & Compact Design
 VoIP phone, Web Camera , and High Quality Speaker
 Smart Card Reader
 Optional Features:

- Magnetic Stripe reader

- RFID / 2

nd

Smart Card Reader / Barcode Scanner

- Nurse Notification / TV Tuning / HD Decoding Function

- Bluetooth / WLAN b/g/n

 Multimedia Entertainment: TV, Game, VoIP, Web Radio

Healthcare Infotainment ONYX-BE181

Chapter 1 General Information 1-4

1.3 Specification

Model Number

ONYX-BE181

Model Description

18.5” Intel® Atom™ Dual core High Performance Bedside Terminal with
Multimedia

Main Specification

CPU Processor

Intel® Atom™ Dual Core D525 1.8GHz on board
Processor

LCD Controller

Intel® Atom™ Dual Core D525, Shared memory
up to 224MB

System Memory

Up to 4GB DDRIII 1066/1333

Display

BE181: 18.5” Wide Color TFT LCD

with WLED

Backlight

OS Support

Windows® 7 (32 bit & 64 bit )
Windows® XP Pro Embedded
Windows® XP Embedded
Linux Fedora Core

Expansion

2 x Internal Mini Card
Magnetic Stripe Reader (Optional)
1D / 2D Barcode Scanner (Optional)
VoIP Phone / Web Camera

Main Specification (Cont.)

Storage Disk Drive

1 x 2.5” HDD (SATA)

Healthcare Infotainment ONYX-BE181

Chapter 1 General Information 1-5

1 x Compact Fast
1 x Smart Card Reader (OK-3121)
1 x 2nd Smart Card Reader / RFID Module
(Optional)(OK-5121)

Button

Volume +
Volume –
Brightness +
Brightness –
LCD On/Off
Programmable Function Key

Accessory

1 x Web Camera (2M Pixel)
2 x Alarm Light (optional)
1 x Nurse Notification Connector (optional)
1 x Buzzer (GPIO Controllable – On/Off/Volume)

Accessory (Optional)

1 x MSR (RS-232 Interface)
1 x Bottom Barcode Reader (TTL Interface)
1 x RFID (USB Interface shared with Smart Card
Reader)

Support Content

IP TV, Web Gaming, MPEG 2/3/4, Web Radio

I/O

Audio

1 x Line out / MIC in / Internal MIC

USB

2 x External USB2.0 on bottom I/O

Serial port

Internal COM 1: 1 x RS-232 (Internal pin header)
Internal COM 2: 1 x RS-232 (for Barcode Reader)

Healthcare Infotainment ONYX-BE181

Chapter 1 General Information 1-6

Internal GPIO Pin

1 x GPIO pins for LED light

* Blue LED for phone ring
1 x GPIO pin for hook on/off
1 x GPIO pin for software triggered nursing call

External GPIO Pin
RJ-45

6 x Programmable GPIO pins

Ethernet (RJ-45 on
Back I/O)

2 x Gigabit Ethernet (Support WOL)

Membrane Function

Audio control (Volume+, Volume -)
LCD on/off
Brightness control (Brightness+, Brightness-)
Programmable function key

I/O (Cont.)

Video

1 x Video-in
(Optional via Mini Card/USB Dongle)

Speaker

2 x 3W High Quality Speakers

VoIP/Analog Phone

1 x RJ-11 connector for VoIP

Support Content

IP TV, HD TV, Digital TV
Web Gaming/Radio
Video Streaming (MPEG2, 3, 4)

LCD Specification

Model

BE181 Series

Display Type

18.5” Color TFT LCD

with WLED Backlight

Max. Resolution

1366 x 768

Healthcare Infotainment ONYX-BE181

Chapter 1 General Information 1-7

Max. Colors

16.7M

Dot Size (mm)

0.3 x 0.3

Luminance (cd/m2)

250 nits
85/85(H right/Left)

View Angle

80/80 (V upper/lower)

Contrast Ratio

1000:1

Back Light MTBF

30,000 Hrs

Note:

All ONYX's LCD products are manufactured with High precision technology. However,
there are a small number of defective pixels in all LCD panels that are not able to
change color. This is a normal occurrence for all LCD displays from all manufacturers
and should not be noticeable or objectionable under normal operation. ONYX LCD
panels are qualified for industry standard conditions in the following: total 7 dead pixels
on a screen or if there are 3 within 1 inch square area of each other on the display.

Touch Screen

Type

5 Wire Resistive

Resolution

2048 x 2048

Light Transmission

> 80%

Lifetime

35 million activities

Mechanical Specifications

Model

BE181 Series

Architecture

Close-Frame Design

Front Bezel

Complete flat for easy cleaning

Color

White/Gray

Healthcare Infotainment ONYX-BE181

Chapter 1 General Information 1-8

Mounting / Holder

VESA 75/100mm, Desk Top, Wall Mount, Ceiling
Mount

Construction

3mm ABS + PC Plastic Housing

Dimension (WxHxD)

510 x 385 x 60.9 (mm)

Carton Dimension

806 x 327 x 612 (mm)

Net Weight

6 kg

Gross Weight

10 kg

Packing Filler

PE foam

Buttons

On front bezel, membrane key design

Infection control
design

Anti-microbial design (Optional)

Telephone

Left side of Bedside Terminal

Front I/O (2USB,
Mic/Headset)

Cover with plastic cover to avoid patient direct
access

Web Camera

Top Center Position on the Bedside Terminal

IP/Analog Phone
Hand Set

Mounted on the left side of the unit while facing the
front bezel

MSR

Mounted on the right side of the unit while facing
the front bezel

RFID Scanner

Bottom Center Position on the Bedside Terminal

Smart Card Readers

1 x Bottom Smart Card Reader
1 x 2nd Bottom Smart Card Readers (Optional)

Accessory Bay

N/A

HDD Bay

Internal

Healthcare Infotainment ONYX-BE181

Chapter 1 General Information 1-9

Power Supply Requirement

Model No. GMPU70A-6 (Eljintek Inc)
WD Part No.

GMPU70A-6-L

Input Voltage

100 ~ 240 Vac, 50/60 Hz, 1.8~0.8A

Output Voltages

24VDC-2.91A70WMAX

MTBF

61320 Calculated Hours (7 years)

Environmental Specification

Operating
Temperature

0°C ~ 40°C (32°F ~ 104°F)

Storage Temperature

-20°C ~ 60°C (-4°F ~140°F)

Pressure

850~1000hPa(Operating) /
850~1000hPa(Transport / Storage)

Storage Humidity

5% ~ 95% @ 40°C, Non-Condensing

Vibration

Random Operation 0.5G, 5~500Hz

Shock

15G Peak Acceleration (11ms. Duration)

Drop

76cm (1 Corner, 3 Edge, 6 Surface)

Noise

Fanless

EMC

CE/FCC Class B, UL 60601-1, EN60601-1

Infection Control

Anti-microbial bezel material

Healthcare Infotainment ONYX-BE181

Chapter 1 General Information 1-10

1.4 Dimension

Bedside Terminal BE181

Healthcare Infotainment ONYX-BE181

Chapter 1 General Information 1-11

Healthcare Infotainment ONYX-BE181

Chapter 2 Hardware Installation 2-1

Hardware

Inst

allation

Chapter

2

Healthcare Infotainment ONYX-BE181

Chapter 2 Hardware Installation 2-2

2.1 Safety Precautions

 Always completely disconnect the power

cord from your board whenever you are
working on it.

 Do not make connections while the power

is on, because a sudden rush of power
can damage sensitive electronic
components.

 Always ground yourself to remove any

static charge before touching the board.

 Modern electronic devices are very

sensitive to static electric charges; please
remember to use a grounding wrist strap
at all times.

 Place all electronic components on a

static-dissipative surface or in a
static-shielded bag when they are not in
the chassis.

Healthcare Infotainment ONYX-BE181

Chapter 2 Hardware Installation 2-3

2.2 A Quick Tour of the ONYX-BE181

Before you start to set up the ONYX-BE181, please take a moment
to familiarize yourself with the locations and purposes of the
controls, drives, connections and ports. The following figures
illustrate the fully loaded bedside terminal with all applicable
options.

Picture 2.1: ONYX-BE181 Bedside Terminal Front Panel View

Camera (with shelter for privacy)

Anti-Bacteria Case

SIP Phone

Healthcare Infotainment ONYX-BE181

Chapter 2 Hardware Installation 2-4

On the back of BE181 Bedside Terminal, the back I/O section
(Digital IO, USB, LAN, and Power connector) is just below the
VESA mounting area.

Picture 224: Bedside Terminal Rear View

Isolated Gigabit
LAN

GPIO

DC-in

Phone Line

Barcode Scanner (Optional)

USB 2.0 x 2

Mac in / Line out

Smart Card Reader
(for OK-5121)

Smart Card Reader
(for OK-3121)

Healthcare Infotainment ONYX-BE181

Chapter 2 Hardware Installation 2-5

In addition, ONYX-BE181 offers a Magnetic Stripe Reader (MSR)
option up

on request. Please refer to the following figure for

installation location on the ONYX-BE181 Bedside Terminal.

2.3 Mounting Installing

Onyx-BE181 is suitable for VESA75/100mm interface pads for
desktop stand.

Attention: Wh

en operating the Medical PC, please allow 15cm

clearance area for optimal heat dissipation.

Healthcare Infotainment ONYX-BE181

Chapter 3 Award BIOS Setup 3-1

American Megatrends

BIOS Setup

Chapter

3

Healthcare Infotainment ONYX-BE181

Chapter 3 Award BIOS Setup 3-2

3.1 System Test and Initialization

These routines test and initialize board hardware. If the
routines encounter an error during the tests, you will either
hear a few short beeps or see an error message on the
screen. There are two kinds of errors: fatal and non-fatal. The
system can usually continue the boot up sequence with
non-fatal errors. Non-fatal error messages usually appear on
the screen along with the following instructions:

Press <F1> to RESUME
Write down the message and press the F1 key to continue

the boot up sequence.

System configuration verification

These routines check the current system configuration
against the values stored in the CMOS memory. If they do not
match, the program outputs an error message. You will then
need to run the BIOS setup program to set the configuration
information in memory.

There are three situations in which you will need to change
the CMOS settings:

1. You are starting your system for the first time

2. You have changed the hardware attached to your system

3. The CMOS memory has lost power and the configuration
information has been erased.

The ONYX-BE181 SD CMOS memory has an integral lithium
battery backup for data retention. However, you will need to
replace the complete unit when it finally runs down.

Healthcare Infotainment ONYX-BE181

Chapter 3 Award BIOS Setup 3-3

3.2 American Megatrends BIOS Setup

BIOS ROM has a built-in Setup program that allows users to
modify the basic system configuration. This type of
information is stored in battery-backed CMOS RAM so that it
retains the Setup information when the power is turned off.

Entering setup

Power on the computer and press <Del> immediately. This
will allow you to enter Setup.

Main Features

Use this menu for checking BIOS and build version. Basic
system configuration can be done under this tab. (Date and
Time.)

Advanced Features

Use this menu to set the advanced features available on your
system.

Chipset Features

Use this menu to change the values in the chipset registers
and optimize your system performance.

Boot Features

Use this menu to specify your boot device

Security

Use this menu to set Supervisor/User Passwords.

Save and Exit Setup

Save CMOS value changes to CMOS and exit setup.

Healthcare Infotainment ONYX-BE181

Chapter 3 Award BIOS Setup 3-4

3.3 Main Features

Choosing the Main Features option from the INITIAL SETUP
SCREEN menu, and the Setup Menu allows users to
configure system components such as date and time. Once a
field is highlighted, on-line help information is displayed in the
right box of the Menu screen.

3.4 Advanced Features

Choosing the Advanced Features option from the INITIAL
SETUP SCREEN menu, and you will see this screen
contains the manufacturer’s default values for the
ONYX-BE181.

3.5 Chipset Features

Choosing the Chipset Features option from the INITIAL
SETUP SCREEN menu, and you will see the screen contains
the manufacturer’s default values for the ONYX-BE181.

3.6 Boot Features

Choosing the Boot Features from the INITIAL SETUP
SCREEN menu, and you will see the screen contains the
boot device for the ONYX-BE181, which the user can
configure

Healthcare Infotainment ONYX-BE181

Chapter 3 Award BIOS Setup 3-5

3.7 Security Features

You can set either Administrator or USER PASSWORD, or
both of them. The difference between the two is that the
Administrator password allows unrestricted access to enter
and change the options of the setup menus, while the user
password only allows entry to the program, but not modify

options.
To abort the process at any time, press Esc.
In the Security Option item in the BIOS Features Setup screen,

select System or Setup:
System Enter a password each time the system boots and

whenever you enter Setup.

Setup Enter a password whenever you enter Setup.

NOTE:

To clear the password, simply press Enter when
asked to enter a password. Then the password function is
disabled.

3.8 Save & Exit Setup

If you select this option and press <Enter>, the values entered
in the setup utilities will be recorded in the chipset’s CMOS
memory. The microprocessor will check this every time you
turn on your system and compare this to what it finds as it
checks the system. This record is required for the system to
operate.

For more detailed information, you can refer to the
"ONYX BIOS Item Description.pdf" file in the CD for the
meaning of each setting in this chapter.

Healthcare Infotainment ONYX-BE181

Chapter 4 Driver Installation 4-1

Driver

Installation

Chapter

4

Healthcare Infotainment ONYX-BE181

Chapter 4 Driver Installation 4-2

There are several installation ways depending on the driver
package under different Operating System application. Please
insert the BE-181 Utility CD-ROM into the UL approved external
CD-ROM drive.

Please follow the sequence below to install the drivers:

Step 1 – Install INF Driver
Step 2 – Install VGA Driver
Step 3 – Install LAN Driver
Step 4 – Install AUDIO Driver
Step 5 – Install Touch Screen Driver
Step 6 – Install Smart Card Driver

Optional Features:
Step 7 – Install MSR Driver
Step 8 – Install TV Tuner Driver
Step 9 – Install Barcode Scanner Test Tool
Step 10 – Install HD Decoder Driver
Step 11 – Install WiFi & BT Combo Driver

USB 2.0 Drivers are available for download using Windows Update
for both Windows XP and Windows 2000. For additional information
regarding USB 2.0 support in Windows XP and Windows 2000,
please visit www.microsoft.com/hwdev/usb/.

For installation procedures of each driver, you may see the details
in the following.

Healthcare Infotainment ONYX-BE181

Chapter 4 Driver Installation 4-3

4.1 Installation

Insert the ONYX-BE181 CD-ROM into the CD-ROM drive
and install the drivers from Step 1 to Step 11 in order. (Other
drivers will be optional).

Step 1 – Install INF Driver

1. Click on the Step 1- INF driver folder and double click on
infinst_autol.exe

2. Follow the instructions that the window shows

3. The system will help you install the driver automatically

Step 2 – Install VGA Driver

1. Click on the Step 2 –VGA driver folder and select the

corresponding folder for your operating system and
double click on Setup.exe file

2. Follow the instructions that the window shows

3. The system will help you install the driver automatically

Step 3 – Install Intel LAN Driver

1. Click on the Step 3 – LAN driver folder and select the

Winx32 folder and double click on .exe for x86 (32bit) OS;
if the OS is Windows 64bit OS, please select the Winx64
folder and double click on .exe file

2. Follow the instructions that the window shows

Healthcare Infotainment ONYX-BE181

Chapter 4 Driver Installation 4-4

3. The system will help you install the driver automatically

Step 4 – Install Audio Driver

1. Click on the Step 4 –AUDIO driver folder and select the

corresponding folder for your operating system and
double click on Setup.exe file

2. Follow the instructions that the window shows

3. The system will help you install the driver automatically

Step 5 – Install Touch Driver

1. Click on the PenMount Windows Universal Driver

V2.2.0.283 ( Win7_32_64bit_WHQL) folder and double
click on Setup.exe file

2. Follow the instructions that the window shows

3. The system will help you install the driver automatically

Step 6 – Install Smart Card Driver

1. Click on the Step 6 –Smart Card driver folder and select

the corresponding folder for your operating system.

a. If you have one smart card, please choice OK-3121

folder and click on WinXP folder to click on
OMNIKEY3x21_x86_for_R1_2_2_8 file.

b. If you have 2nd smart cards, please also choice

OK-5121 folder and click on WinXP folder to click on
OK-5121OMNIKEY5x2x_x86_for_R1_2_0_6 file

Healthcare Infotainment ONYX-BE181

Chapter 4 Driver Installation 4-5

2. Follow the instructions that the window shows

3. The system will help you install the driver automatically

Step 7 – Install MSR Driver

1. Click on the Step 7 – MSR driver folder an d select the
corresponding folder for your operating system. Click on
MSRCfgSetup_PSW00025 file.

2. Follow the instructions that the window shows

3. The system will help you install the driver automatically

Step 8 – Install TV Tuner Driver

1. Click on the Step 8 – TV Tuner driver folder and select the
corresponding folder for your Local TV signal.

a. Click on H339_Install_DVBT folder and select setup.exe
if you have a DVBT Tuner installed
b. Click on H339_Install_ATSC folder and select setup.exe
if you have a ATSC Tuner installed

3. Follow the instructions that the window shows

4. The system will help you install the driver automatically

Step 9 – Install Barcode Scanner Test Tool

1. Click on the Step 9 – Barcode Scanner test tool folder
and select the corresponding folder for your operating
system.

2. Click on Intermec folder and select intermec-setup file

Healthcare Infotainment ONYX-BE181

Chapter 4 Driver Installation 4-6

3. Follow the instructions that the window shows

4. The system will help you install the driver automatically

Step 10 – Install HD Decoder Driver

1. Click on the Step 10 – HD Decoder driver folder a nd select
the corresponding folder for your operating system.

2. Select the Winx32 folder and double click on setup.exe for
x86 (32bit) OS; if the OS is Windows 64bit OS, please
select the Winx64 folder and double click on setup.exe file.

3. Follow the instructions that the window shows

4. The system will help you install the driver automatically

Step 11 – Install WiFi_BT Driver

1. Click on the Step 11 – WiFi_BT driver folder and select the
corresponding folder for your operating system.

2. Click on Install_CD folder and select setup.exe file

3. Follow the instructions that the window shows

4. The system will help you install the driver automatically

Healthcare Infotainment ONYX-BE181

Appendix A I/O Information A-1

I/O Information

Appendix

A

Healthcare Infotainment ONYX-BE181

Appendix A I/O Information A-2

A.1 I/O Address Map

Healthcare Infotainment ONYX-BE181

Appendix A I/O Information A-3

A.2 Memory Address Map

Healthcare Infotainment ONYX-BE181

Appendix A I/O Information A-4

A.3 IRQ Mapping Chart

Healthcare Infotainment ONYX-BE181

Appendix B Miscellaneous B-1

Miscellaneous

Appendix

B

Healthcare Infotainment ONYX-BE181

Appendix B Miscellaneous B-2

B.1 General Cleaning Tips

Please refer to the following precautions and fully understand the
warning details prior to cleaning the device.

1. Never spray or squirt the liquids directly onto any computer
component. If you need to clean the device, please rub it
with a piece of dry cloth.

2. Be cautious of the tiny removable components when you
use a vacuum cleaner to absorb the dirt on the floor.

3. Turn the system off before you start to clean up the
component or computer.

4. Never drop the components inside the computer or get
circuit board damp or wet.

5. Be cautious of all kinds of cleaning solvents or chemicals

that are used to clean the unit. Some individuals may be
allergic to the ingredients.

6. Try not to put any food, drink or cigarettes around the

computer.

7. Please remember to clean up the computer by weekly.

8. ONYX Healthcare Inc. has tested and verified these

cleaning disinfectants, CIDEX, Viraguard, Control III
Disinfectant Germicide, Caviwipes, Dispatch Disinfectant
Cleaner CLH69101, Puregreen 24 Disinfectant, as safe to
be used with the BE181. Use of any other disinfectants will
void the warranty.

Healthcare Infotainment ONYX-BE181

Appendix B Miscellaneous B-3

B.2 Cleaning Tools

Although many companies have created products to help improve
the process of cleaning your computer and peripherals users can
also use household items for cleaning purposes. Below is a list of
items you may need or want to use while cleaning your computer or
computer peripherals.

Keep in mind that some components in your computer may only be
able to be cleaned using a product designed for cleaning that
component. If this is the case it will be mentioned in the cleaning
tips.

 Cloth - A piece of cloth is the best tool to use when rubbing

up a component. Although paper towels or tissues can be
used on most hardware as well, using a piece of cloth is still
recommend.

 Water or rubbing alcohol – You may moisten a piece of

cloth a bit with some water or rubbing alcohol and rub it on
the computer. Unknown solvents may be harmful to the
plastics part s.

 Vacuum cleaner – Using a force to remove the dust, dirt,

hair and other particles from a computer can be one of the
best methods of cleaning. Over time, these items can
restrict the airflow in a computer and cause circuitry to
corrode.

Healthcare Infotainment ONYX-BE181

Appendix B Miscellaneous B-4

 Cotton swabs - Cotton swabs moistened with rubbing

alcohol or water are excellent tools for wiping hard to reach
areas in your keyboard, mouse, and other locations.

 Foam swabs - Whenever possible it is better to use lint

free swabs such as foam swabs.

Please follow the steps below before cleaning the device.

1. Close all application programs.

2. Close operating software.

3. Turn off power switch

4. Remove all device

5. Pull out power cable

Note:

1. We strongly recommended that you should shut down the
system before you start to clean any components.

2. It is recommended that the computer is cleaned daily.

Healthcare Infotainment ONYX-BE181

Appendix B Miscellaneous B-5

B.3 Scrap Computer Recycling

If any computer equipments needs maintenance or is beyond repair,
we strongly recommended that we are informed as soon as
possible, enabling us to find a suitable solution. For computers that
are no longer useful, please contact worldwide distributors for
recycling.

The worldwide distributors are shown on the following website:

http://www.onyx-healthcare.com.tw/Contact.php

Note:

Please follow the national requirement for unit disposal.
