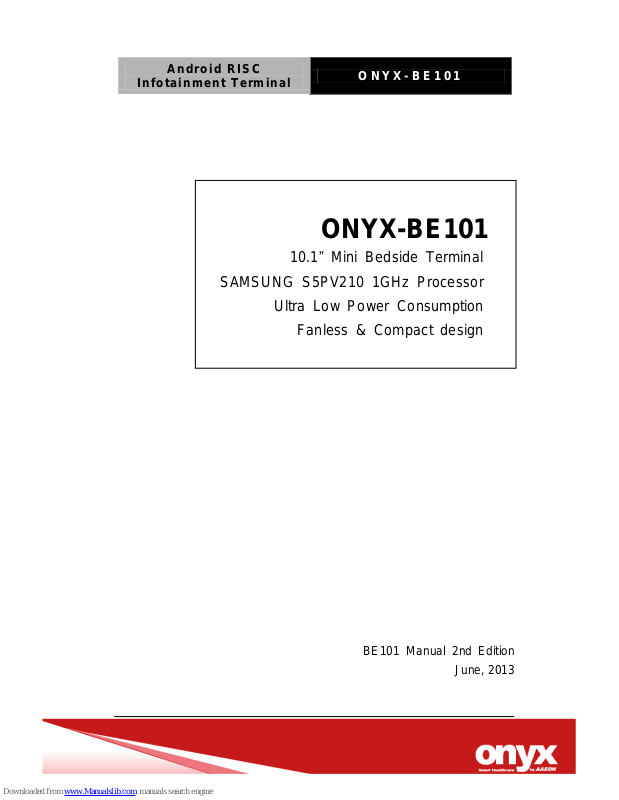

Page 1
Android RISC
Infotainment Terminal
O N Y X - B E 1 0 1
ONYX-BE101
10.1” Mini Bedside Terminal
SAMSUNG S5PV210 1GHz Processor
Ultra Low Power Consumption
Fanless & Compact design
BE101 Manual 2nd Edition
June, 2013
Page 2
Android RISC
Infotainment Terminal
O N Y X - B E 1 0 1
Copyright Notice
This document is copyrighted, 2013. All rights are reserved. The
original manufacturer reserves the right to make improvements to
the products described in this manual at any time without notice.
No part of this manual may be reproduced, copied, translated, or
transmitted in any form or by any means without the prior written
permission of the original manufacturer. Information provided in
this manual is intended to be accurate and reliable. However, the
original manufacturer assumes no responsibility for its use, nor
for any infringements upon the rights of third parties, which may
result from its use.
The material in this document is for product information only and
is subject to change without notice. While reasonable efforts have
been made in the preparation of this document to assure its
accuracy, ONYX Healthcare Inc., assumes no liabilities resulting
from errors or omissions in this document, or from the use of the
information contained herein
ONYX Healthcare Inc. reserves the right to make changes in the
product design without notice to its users
Page 3
Android RISC
Infotainment Terminal
O N Y X - B E 1 0 1
Acknowledgments
SAMSUNG S5PV210 1GHz Process are registered
trademarks of SAMSUNG.
IBM, PC/AT, PS/2 are trademarks of International Business
Machines Corporation.
Microsoft
®
Windows is a registered trademark of Microsoft ®
Corporation.
RTL is a trademark of Realtek Semi-Conductor Co., Ltd.
C&T is a trademark of Chips and Technologies, Inc.
UMC is a trademark of United Microelectronics Corporation.
ITE is a trademark of Integrated Technology Express, Inc.
SiS is a trademark of Silicon Integrated Systems Corp.
VIA is a trademark of VIA Technology, Inc.
All other product names or trademarks are properties of their
respective owners.
Page 4
Android RISC
Infotainment Terminal
O N Y X - B E 1 0 1
Packing List
Before you begin installing your Bedside Terminal, please make
sure that the following items have been shipped:
BE101 Bedside Terminal.
VESA Mount Screws
Utility CD-ROM (Please insert the ONYX-BE101 CD-ROM into
external CD-ROM drive.) which Contains User’s Manual (in
PDF format), Drivers and Utilities
If any of these items are missing or damaged, you should contact
your distributor or sales representative immediately.
Headquarters
Onyx Healthcare Inc.
2F., No.135, Ln. 235, Baoqiao Rd., Xindian Dist.,
New Taipei City 231, Taiwan (R.O.C.).
TEL: +886-2-8919-2188
FAX: +886-2-8919-1699
E-mail: sales@onyx-healthcare.com
http://www.onyx-healthcare.com
Page 5
Android RISC
Infotainment Terminal
O N Y X - B E 1 0 1
Worldwide Offices:
Onyx Healthcare, USA Inc.
2663 Saturn street, Brea, CA 92821, USA
Tel : +1-714-996-1800
Fax: +1-714-996-1811
Email: usasales@onyx-healthcare.com
Onyx Healthcare EUROPE B.V.
Ekkersrijt 4002, 5692 DA Son, The Netherlands
Tel : +31-(0)499-462020
Fax: +31-(0)499-462010
Email: eusales@onyx-healthcare.com
Onyx Healthcare Technology GmbH
An der Trift65d
63303 Dreieich , Germany
TEL: +49-(0)61033-7479-00
Fax: +49-(0)61033-7479-49
Email: eusales@onyx-healthcare.com
Page 6
Android RISC
Infotainment Terminal
O N Y X - B E 1 0 1
Onyx Healthcare (Nanjing) INC.
Room 1318, Metallurgy Building , East Zhongshan Road,
Nanjing, China
Tel: +86-025-58859841
Fax: +86-025-85088070
Email: Jonwang@onyx-healthcare.com
Onyx Healthcare Singapore PTE LTD
57 Genting Lane, #07-00, Singapore 349564
Tel: +65-67498749
Fax +65-67461595
Email: sgsales@onyx-healthcare.com
Page 7
Android RISC
Infotainment Terminal
O N Y X - B E 1 0 1
Safety & Warranty
1. Read these safety instructions carefully.
2. Keep this user's manual for later reference.
3. Disconnect this equipment from any AC outlet before cleaning. Do
not use liquid or spray detergents for cleaning. Use a damp cloth.
4. For pluggable equipment, the power outlet must be installed near the
equipment and must be easily accessible.
5. Keep this equipment away from humidity.
6. Put this equipment on a reliable surface during installation. Dropping
it or letting it fall could cause damage.
7. The openings on the enclosure are for air convection. Protect the
equipment from overheating. DO NOT COVER THE OPENINGS.
8. Make sure the voltage of the power source is correct before
connecting the equipment to the power outlet.
9. Position the power cord so that people cannot step on it. Do not
place anything over the power cord.
10. All cautions and warnings on the equipment should be noted.
11. If the equipment is not used for a long time, disconnect it from the
power source to avoid damage by transient over-voltage.
12. Never pour any liquid into an opening. This could cause fire or
electrical shock.
13. Never open the equipment. For safety reasons, only qualified service
personnel should open the equipment.
Page 8
Android RISC
Infotainment Terminal
O N Y X - B E 1 0 1
14. If any of the following situations arises, get the equipment checked
by service personnel:
a. The power cord or plug is damaged.
b. Liquid has penetrated into the equipment.
c. The equipment has been exposed to moisture.
d. The equipment does not work well, or you cannot get it to
work according to the user’s manual.
e. The equipment has been dropped and damaged.
f. The equipment has obvious signs of breakage.
15. DO NOT LEAVE THIS EQUIPMENT IN AN UNCONTROLLED
ENVIRONMENT WHERE THE STORAGE TEMPERATURE IS
BELOW -20° C (-4°F) OR ABOVE 60° C (140° F). IT MAY DAMAGE
THE EQUIPMENT.
16. External equipment intended for connection to signal
input/output or other connectors, shall comply with relevant UL
/ IEC standard (e.g. EN 60950-1 for IT equipment and ES 60601-1
series for systems.
17. WARNING: To avoid the risk of electric shock, this equipment
must only be connected to supply mains with protective earth.
18. “ WARNING: No modification of this equipment is allowed”
19. Replaceable Batteries: The equipment contains replaceable
lithium battery, user replaceable type: The following warning in
Page 9
Android RISC
Infotainment Terminal
O N Y X - B E 1 0 1
user manual and service instructions.
* Caution: Danger of explosion if battery is incorrectly
replaced. Replace only with the same or equivalent type of battery
recommended by the manufacturer. Dispose of used batteries
according to the manufacturer instruction.
Page 10
Android RISC
Infotainment Terminal
O N Y X - B E 1 0 1
Classification
1. Degree of production against electric shock: not classified
2. Equipment not suitable for use in the presence of a flammable
anesthetic mixture with air or with oxygen or nitrous oxide.
3. Mode of operation: Continuous
4. Type of protection against electric shock: Class I equipment
5. ME EQUIPMENT must be connected to an appropriate power
source, if loss of the power source would result in an
unacceptable RISK.
Page 11
Android RISC
Infotainment Terminal
O N Y X - B E 1 0 1
FCC
This device complies with Part 15 FCC
Rules. Operation is subject to the
following two conditions: (1) this device
may not cause harmful interference, and (2)
this device must accept any interference
received including interference that may
cause undesired operation.
Page 12
Android RISC
Infotainment Terminal
O N Y X - B E 1 0 1

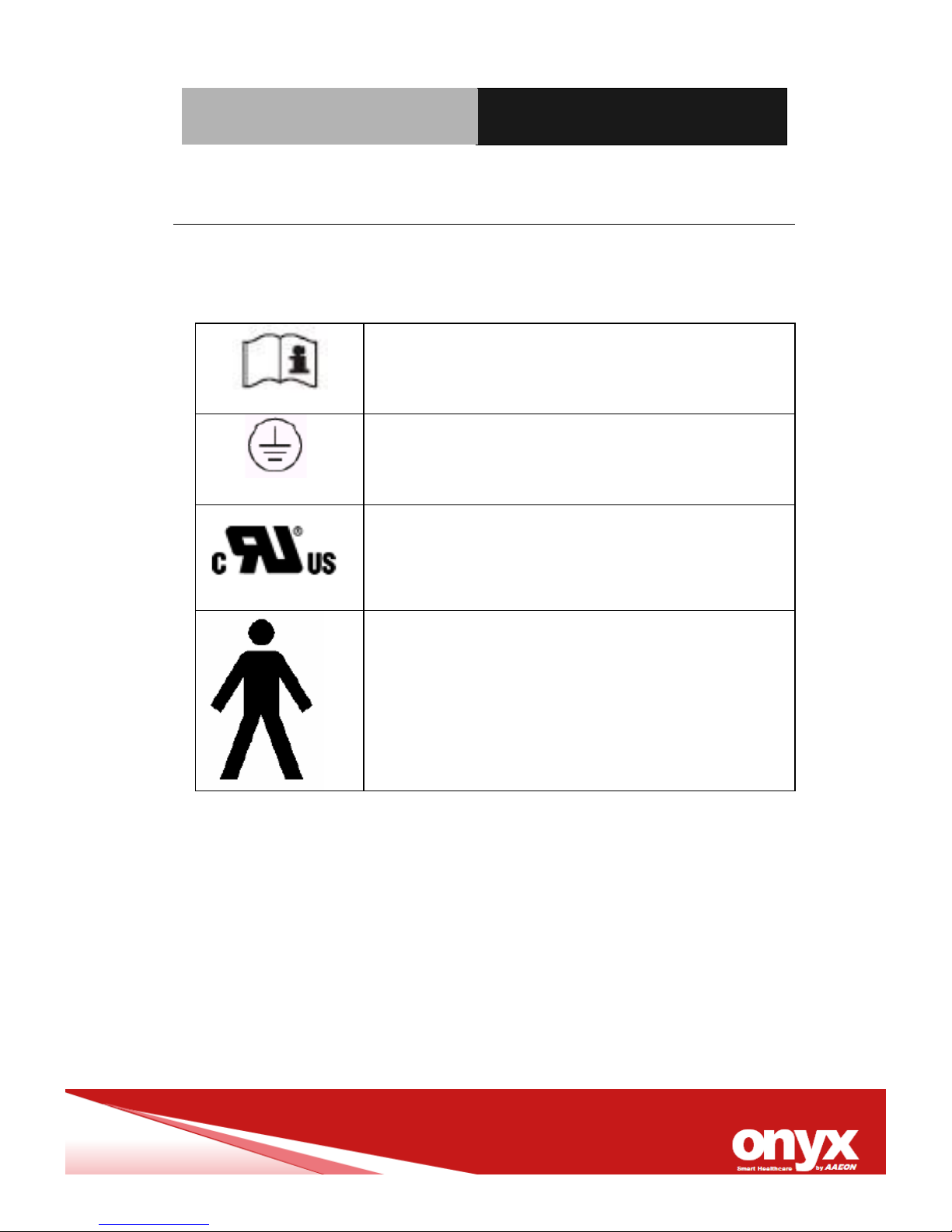

Safety Symbol Description
The following safety symbols are the further explanations for your
reference.
Attention, consult ACCOMPANYING
DOCUMENTS.
Ground wire
Protective Ground wire.
Medical equipment with respect to electric
shock, fire and mechanical hazards only in
accordance with ANSI/AAMI ES 60601-1,
and CSA C22.2 NO 60601-1-08-CAN/CSA
Touch Panel and Plastic Enclosure treat
as Type B applied part.
Page 13
Android RISC
Infotainment Terminal
O N Y X - B E 1 0 1
Contents
Chapter 1 General Information
1.1 Introduction..................................................................1-2
1.2 Feature .........................................................................1-3
1.3 Specification ................................................................1-4

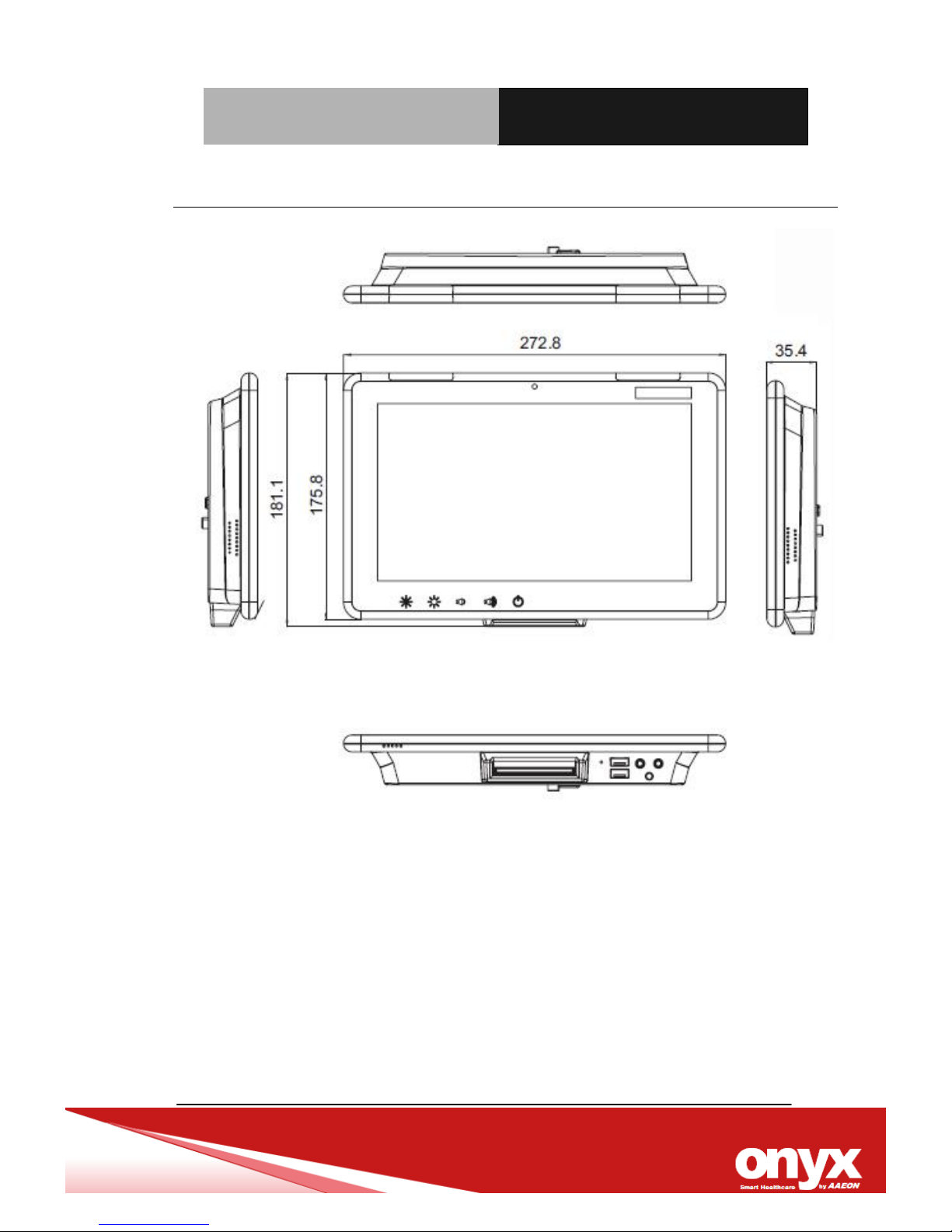

1.4 Dimension ....................................................................1-8
Chapter 2 Hardware Installation
2.1 Safety Precautions ......................................................2-2

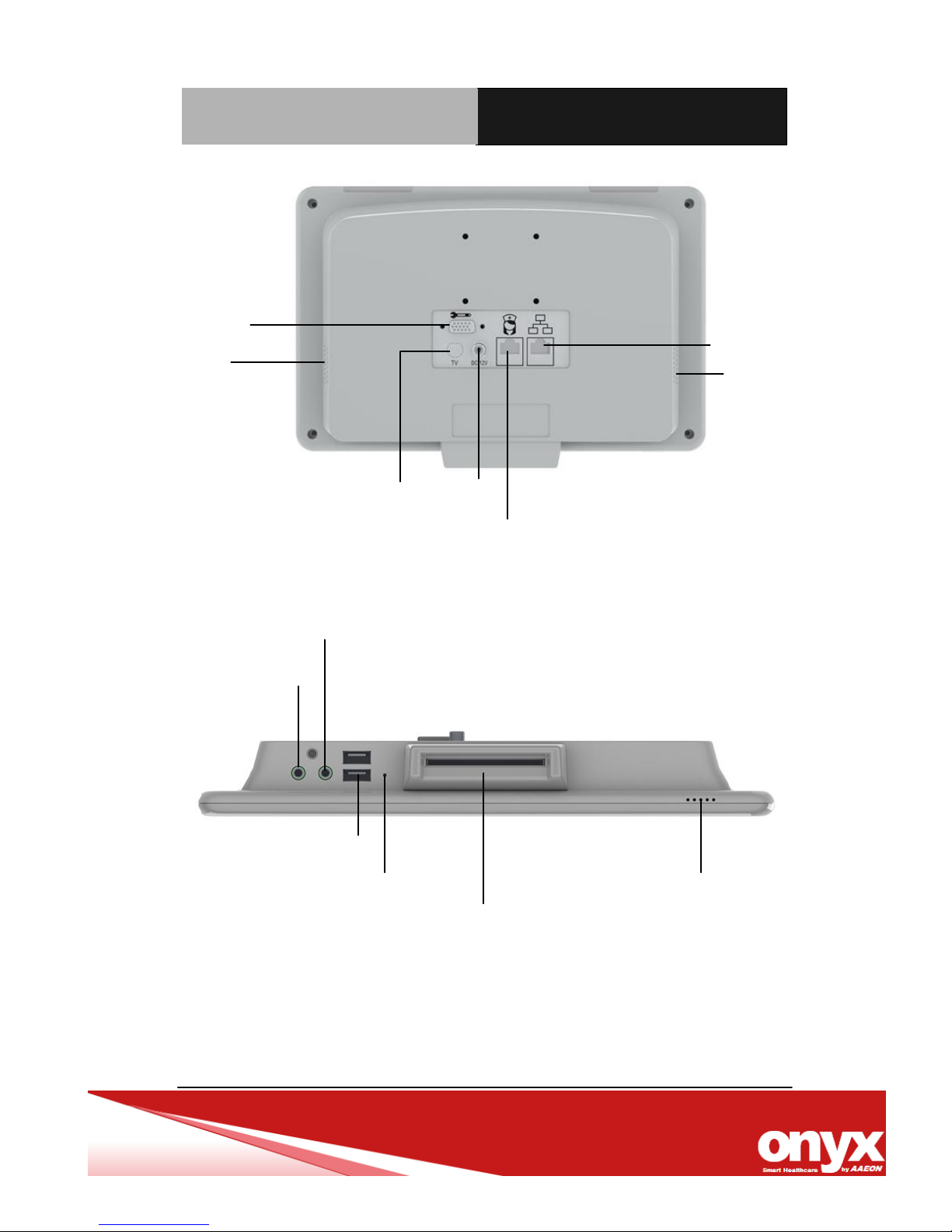

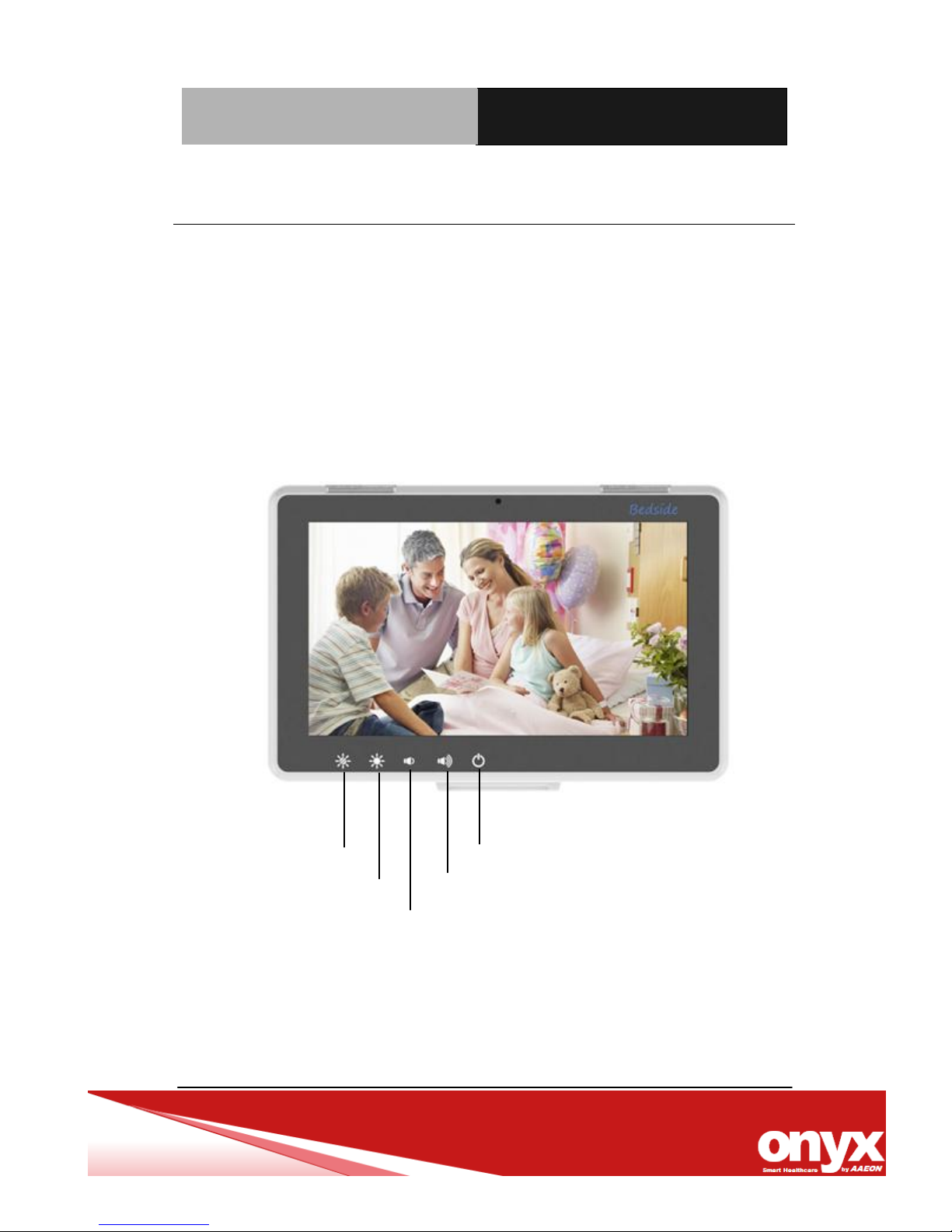

2.2 A Quick Tour of the ONYX-BE101 ...............................2-3

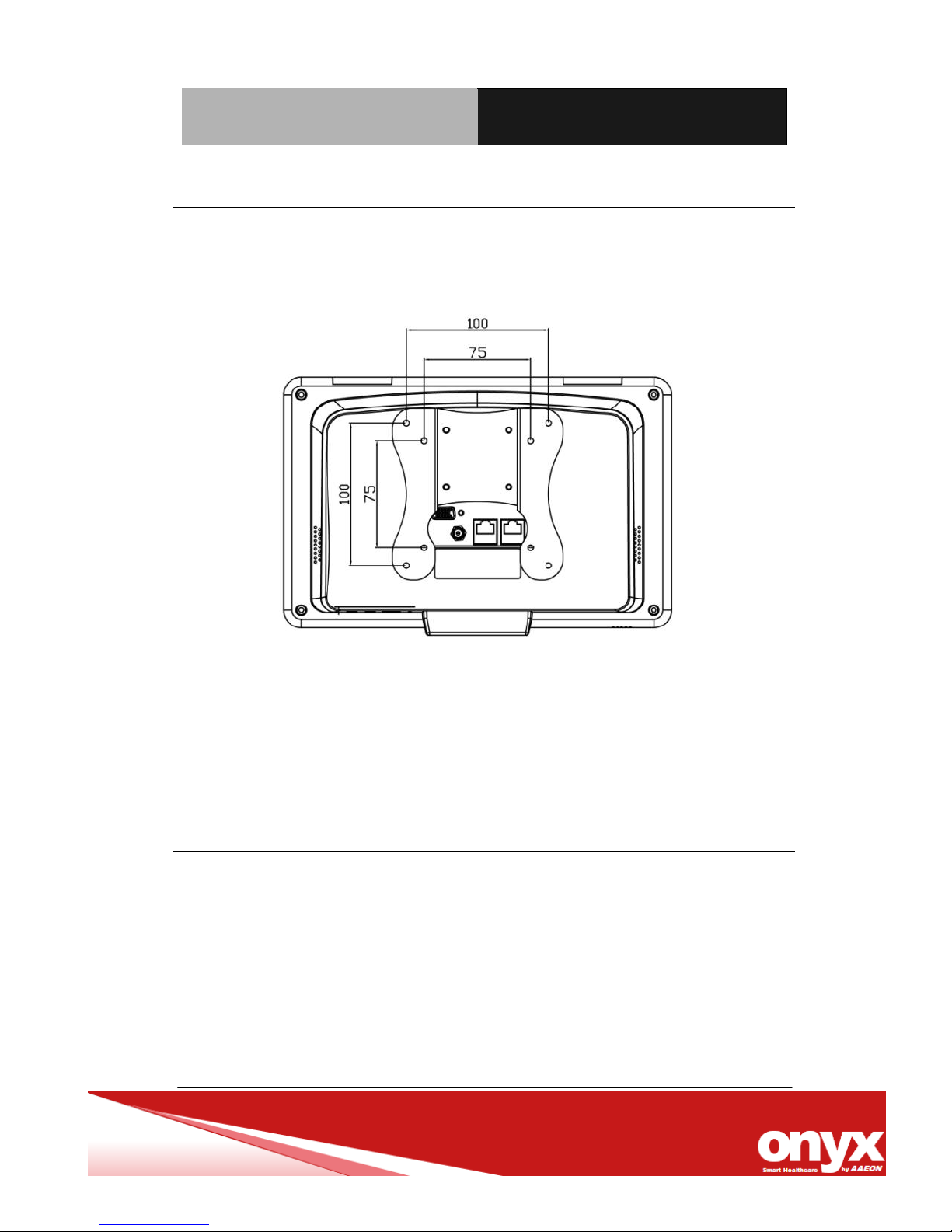

2.3 Mounting Installing ......................................................2-5
2.4 Powering on the unit ...................................................2-5
2.5 Connecting the unit .....................................................2-6
2.6 Operating the unit……………………………………….…2-7
Appendix A Miscellanea
A.1 General Cleaning Tips................................................ A-2
A.2 Cleaning Tools ................................ ........................... A-3
A.3 Scrap Computer Recycling ...................................... A-5
Page 14
Android RISC
Infotainment Terminal
O N Y X - B E 1 0 1
Chapter 1 General Information 1-1
General
Information
Chapter
1
Page 15
Android RISC
Infotainment Terminal
O N Y X - B E 1 0 1
Chapter 1 General Information 1-2
1.1 Introduction
—A bedside terminal solution for ultimate patient services that
boosts patient satisfaction and well-beings.
ONYX-BE101 offers the highly scalable bedside infotainment
solution to enhance patient experiences within the hospital.
Packaged with renowned software solution partners,10.1”
ONYX-BE101 bedside terminals provides patients with capabilities
like Entertainment on Demand, Online Access, VoIP Phone, etc.
Clinical Applications
Ward, Nursing Station/Cart
Service Capabilities – BE101
Hospital Information Access –
Patient Record Access
Treatment Progress Reporting (i.e. Medical Charting)
Dietary/Meal Ordering Service
Entertainment on Demand
Video-on-Demand
TV/Radio Broadcasting
Page 16
Android RISC
Infotainment Terminal
O N Y X - B E 1 0 1
Chapter 1 General Information 1-3
1.2 Feature
* Samsung S5PV210 1GHz Processor
* 10.1” (16:9) wide color TFT LED LCD display (1024 x 600)
* 512MB DDR2 RAM
* Fanless & Compact Design
* Smart Card Reader
* 2 x 2external USB ports (works with keyboard, mouse and USB disk)
* High quality stereo speakers ( 2 x 2W speakers, 90dB audible)
* Built-in Microphone
* Proximity sensor (Power saving)
* Power over Ethernet
* Optional features:
-- Internal RFID
-- Bluetooth 2.1 + EDR and 802.11 b/g w/ internal wireless antenna
-- 2MP USB Camera(UVC)
* Multimedia entertainment: TV/ Movie, VOIP, Web, Web Radio
* Hardware Decoder: H.264 up to 720p, MPEG4 up to 720p, MPEG2 up
to D1
Page 17
Android RISC
Infotainment Terminal
O N Y X - B E 1 0 1
Chapter 1 General Information 1-4
1.3 Specification
Model Number
ONYX-BE101
Model Description
10.1” Low Power Multi-touch Mini Bedside Terminal with Multimedia support
Main Specification
CPU Processor
SAMSUNG S5PV210 1GHz
System Memory
512MB DDR2-533MHz
Display
10.1” Color TFT LED LCD
Expansion
1 x Smart Card Reader
1 x RFID (RS-232 Interface)
OS Support
Android 2.3 Froyo (SDK for SW party developing
AP & UI)
Main Specification (Cont.)
System Storage
512MB NAND Flash - (Boot loader and Kernel)
User Storage
1 x Internal SD socket
Button
Volume +/ Volume –
Brightness + / Brightness –
LCD On/Off
Reset
Support Content
IP TV, Web/Gaming, Internet Radio
H.264 up to 720p, MPEG4 up to 720p, MPEG2 up
to D1
I/O
Page 18
Android RISC
Infotainment Terminal
O N Y X - B E 1 0 1
Chapter 1 General Information 1-5
Audio
1 x Line out (3.5mm Jack)
1 x Internal MIC
1x Line in (3.5mm Jack)
USB
2 x External USB2.0 on bottom I/O
1 x Internal USB2.0 (UVC Camera)
WiFi
802.11 b/g (SDIO Interface)
Debug Port
1 x RS-232 (development purpose)
Touch Key Function
Audio control (Volume+, Volume-)
LCD on/off
Brightness control (Brightness+, Brightness-)
Video
1 x Video-in through TV Tuner Card
Camera
UVC Camera (D1 resolution)
Speaker
2 x 1W high quality speakers
Support Content
IPTV, Web/ Gaming, Internet Radio
H.264 up to 720p, MPEG4 up to 720p, MPEG2 up
to D1
I/O (Cont.)
Speaker
2 x 2W High Quality Speakers
Microphone
1 x Internal Microphone
LCD Specification
Model
ONYX-BE101 Series
Display Type
10.1” Color TFT LCD
Max. Resolution
1024 x 600
Max. Colors
16.7M
Page 19
Android RISC
Infotainment Terminal
O N Y X - B E 1 0 1
Chapter 1 General Information 1-6
Dot Size (mm)
0.3 x 0.3
Luminance (cd/m2)
300 nits
View Angle
55/55(H right/Left)
30/55 (V upper/lower)
Contrast Ratio
1000:1
Back Light MTBF
50,000 Hrs
Note:
All ONYX's LCD products are manufactured with High precision technology. However,
there are a small number of defective pixels in all LCD panels that are not able to
change color. This is a normal occurrence for all LCD displays from all manufacturers
and should not be noticeable or objectionable under normal operation. ONYX LCD
panels are qualified for industry standard conditions in the following: total 7 dead pixels
on a screen or if there are 3 within 1 inch square area of each other on the display.
Touch Screen
Type
4 Wire Resistive
Resolution
1024 x 600
Light Transmission
> 78%
Lifetime
10 million activities
Mechanical Specifications
Model
ONYX-BE101 Series
Architecture
Close-Frame Design
Front Bezel
IP65 in front for easy cleaning
Color
Front and back with RAL9003 White color
Mounting / Holder
VESA 75/100mm, Desk Top, Wall Mount\
Page 20
Android RISC
Infotainment Terminal
O N Y X - B E 1 0 1
Chapter 1 General Information 1-7
Construction
3mm ABS + PC Plastic Housing
Dimension (WxHxD)
265 mm x 195.5 mm x 37mm
Carton Dimension
403 mm x 370 mm x 367 mm (4 pcs /Carton)
Net Weight
830g
Gross Weight
5 Kg (4 pcs/ Carton)
Packing Filler
PE foam
Buttons
5 membrane keys design on front touch panel
Infection control design
Anti-microbial design (Optional)
Smart Card Readers
Bottom center placement on the unit
Power Supply Requirement
Power Supply
DC 12V (Eljintek Inc)
Model No.
MPU30A-3-B
Input Voltage
AC: 100 – 240V @ 0.8A - 0.4A; 50-60Hz
Output Voltage
DC: 12V @ 2.5A
MTBF
150,000 hrs minimum at full load @ 25°C
Environmental Specification
Operating
Temperature
0°C ~ 40°C (32°F ~ 104°F)
Storage Temperature
-20°C ~ 60°C (-4°F ~140°F)
Pressure
850~1000hPa(Operating) /
700~1060hPa(Transport / Storage)
Storage Humidity
5% ~ 95% @ 40°C, Non-Condensing
Vibration
Random Operation 0.5G, 5~500Hz
Shock
15G Peak Acceleration (11ms. Duration)
Page 21
Android RISC
Infotainment Terminal
O N Y X - B E 1 0 1
Chapter 1 General Information 1-8
Degree of Protection
IP65 on Front Panel/IPX1 on Ward Terminal
Drop
92cm (1 Corner, 3 Edge, 6 Surface)
Noise
Fanless
EMC
CE/FCC Class B, EN60950, Applied Part
Infection Control
Anti-microbial bezel material (optional)
Page 22
Android RISC
Infotainment Terminal
O N Y X - B E 1 0 1
Chapter 1 General Information 1-9
1.4 Dimension
Page 23
Android RISC
Infotainment Terminal
O N Y X - B E 1 0 1
Chapter 2 Hardware Installation 2-1
Hardware
Installation
Chapter
2
Page 24
Android RISC
Infotainment Terminal
O N Y X - B E 1 0 1
Chapter 2 Hardware Installation 2-2
2.1 Safety Precautions
Always completely disconnect the power
cord from your board whenever you are
working on it.
Do not make connections while the power
is on, because a sudden rush of power
can damage sensitive electronic
components.
Always ground yourself to remove any
static charge before touching the board.
Modern electronic devices are very
sensitive to static electric charges; please
remember to use a grounding wrist strap
at all times.
Place all electronic components on a
static-dissipative surface or in a
static-shielded bag when they are not in
the chassis.
Page 25
Android RISC
Infotainment Terminal
O N Y X - B E 1 0 1
Chapter 2 Hardware Installation 2-3
2.2 A Quick Tour of the ONYX-BE101
Before you start to set up the ONYX-BE101, please take a moment
to familiarize yourself with the locations and purposes of the
controls, drives, connections and ports. The following figures
illustrate the fully loaded bedside terminal with all applicable
options.
Picture 2.1: The Front Panel View of ONYX-BE101 Bedside Terminal
Brightness Down
Brightness Up
LCD on/off
Volume Up
Volume Down
Page 26
Android RISC
Infotainment Terminal
O N Y X - B E 1 0 1
Chapter 2 Hardware Installation 2-4
Picture 2.2: The Rear View of ONYX-BE101 Bedside Terminal
10/100 M LAN
(Optional POE)
Speaker
Speaker
Debug Port
Nurse Call Jack
(reversed)
Power
Jack
Card Reader
Reset
USB2.0 x 2
Line out
Mic in
Build-in
Microphone
TV Tuner
(Optional)
Page 27
Android RISC
Infotainment Terminal
O N Y X - B E 1 0 1
Chapter 2 Hardware Installation 2-5
2.3 Mounting Installing
ONYX-BE101 is suitable for VESA75/100mm interface pads for
desktop stand.
Attention: When operating the Medical PC, please allow 15cm
clearance area for optimal heat dissipation
2.4 Powering on the unit
1. Connect the 12 DC adaptor to the DC jack of ONYX-BE101
2. The system will boot up automatically
3. You will see the system boot up with a penguin logo on the top
left screen
Page 28
Android RISC
Infotainment Terminal
O N Y X - B E 1 0 1
Chapter 2 Hardware Installation 2-6
2.5 Connecting the Unit
1. The unit can be connected to the internet thru the LAN port
2. It should be connected to a DHCP router for automatic IP
assignment
3. If it’s connected to a Ethernet switch, than you would need to
manual enter the static IP address under the Android network
setting
4. The unit can be connected to the RS232 port of a PC. However
this should be done only by Maintenance technician for debugging
purpose
5. There are 2 x USB type A port that can connect to USB disk,
mouse, keyboard which is only accessible to the medical staff
6. Line-out/ Mic-in can be connected to the earphone and external
microphone which is only accessible to the medical staff
Connect to the Router, Ethernet Switch, or Ethernet
modem
Only accessible to the medical staff
Only accessible to the maintenance technician
Page 29
Android RISC
Infotainment Terminal
O N Y X - B E 1 0 1
Chapter 2 Hardware Installation 2-7
2.6 Operating the Unit
1. The devices connecting to the unit can all be hot plugged.
2. Shutting down the system can be done by simply removing the power
adaptor from the unit
Page 30
Android RISC
Infotainment Terminal
O N Y X - B E 1 0 1
Appendix A Miscellanea A-1
Miscellanea
Appendix
A
Page 31
Android RISC
Infotainment Terminal
O N Y X - B E 1 0 1
Appendix A Miscellanea A-2
A.1 General Cleaning Tips
Please refer to the following precautions and fully understand the
warning details prior to cleaning the device.
1. Never spray or squirt the liquids directly onto any computer
component. If you need to clean the device, please rub it
with a piece of dry cloth.
2. Be cautious of the tiny removable components when you
use a vacuum cleaner to absorb the dirt on the floor.
3. Turn the system off before you start to clean up the
component or computer.
4. Never drop the components inside the computer or get
circuit board damp or wet.
5. Be cautious of all kinds of cleaning solvents or chemicals
when you use it for the sake of cleaning. Some individuals
may be allergic to the ingredients.
6. Try not to put any food, drink or cigarette around the
computer.
7. Please remember to clean up the computer by weekly.
8. ONYX Healthcare Inc. has tested and verified these
cleaning disinfectants, CIDEX, Viraguard, Control III
Disinfectant Germicide, Caviwipes, Dispatch Disinfectant
Cleaner CLH69101, Puregreen 24 Disinfectant, can be
used with the BE100. Use of any other disinfectants will
void the warranty.
Page 32
Android RISC
Infotainment Terminal
O N Y X - B E 1 0 1
Appendix A Miscellanea A-3
A.2 Cleaning Tools
Although many companies have created products to help improve
the process of cleaning your computer and peripherals users can
also use household items to clean their computers and peripherals.
Below is a listing of items you may need or want to use while
cleaning your computer or computer peripherals.
Keep in mind that some components in your computer may only be
able to be cleaned using a product designed for cleaning that
component, if this is the case it will be mentioned in the cleaning
tips.
Cloth - A piece of cloth is the best tool to use when rubbing
up a component. Although paper towels or tissues can be
used on most hardware as well, we still recommend you to
rub it with a piece of cloth.
Water or rubbing alcohol – You may moisten a piece of
cloth a bit with some water or rubbing alcohol and rub it on
the computer. Unknown solvents may be harmful to the
plastics parts.
Vacuum cleaner - Absorb the dust, dirt, hair, cigarette
particles, and other particles out of a computer can be one
of the best methods of cleaning a computer. Over time
these items can restrict the airflow in a computer and cause
circuitry to corrode.
Page 33
Android RISC
Infotainment Terminal
O N Y X - B E 1 0 1
Appendix A Miscellanea A-4
Cotton swabs - Cotton swaps moistened with rubbing
alcohol or water are excellent tools for wiping hard to reach
areas in your keyboard, mouse, and other locations.
Foam swabs - Whenever possible it is better to use lint
free swabs such as foam swabs.
Please follow the steps below before cleaning the device.
1. Close all application programs.
2. Close operating software.
3. Turn off power switch
4. Remove all device
5. Unplug power adaptor from the machine
Note:
1. We strongly recommended that you should shut down the
system before you start to clean any components.
2. Please remember to clean up your computer every day.
Page 34
Android RISC
Infotainment Terminal
O N Y X - B E 1 0 1
Appendix A Miscellanea A-5
A.3 Scrap Computer Recycling
If the computer equipments need the maintenance or are beyond
repair, we strongly recommended that you should inform us as
soon as possible for the suitable solution. For the computers that
are no longer useful or work well, please contact with worldwide
distributors for recycling.
The worldwide distributors show on the following website:
http://www.onyx-healthcare.com.tw/Contact.php
Note:
Please follow the national requirement for unit disposal.
Loading...
