Page 1
ONKYO SERVICE MANUAL
AUTOMATIC 4-CHANNEL RECEIVER
TS-500
INDEX
| Item | Page |
|---|---|
|
Specifications
Chassis Layout FM AM Alignment Procedure Demodulator Alignment Procedure Mechanical Disassemblies Front View Rear View |
1
2 - 3 4 - 5 6 - 7 |
|
Front Panel Rear View

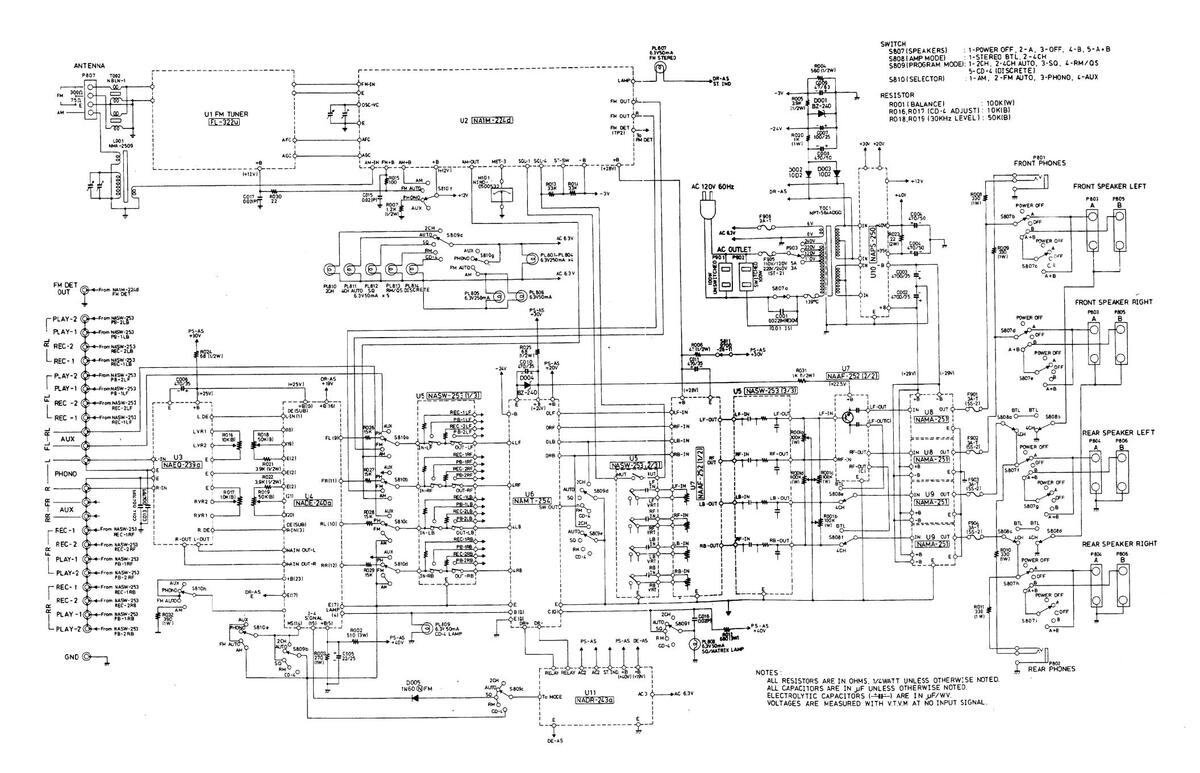

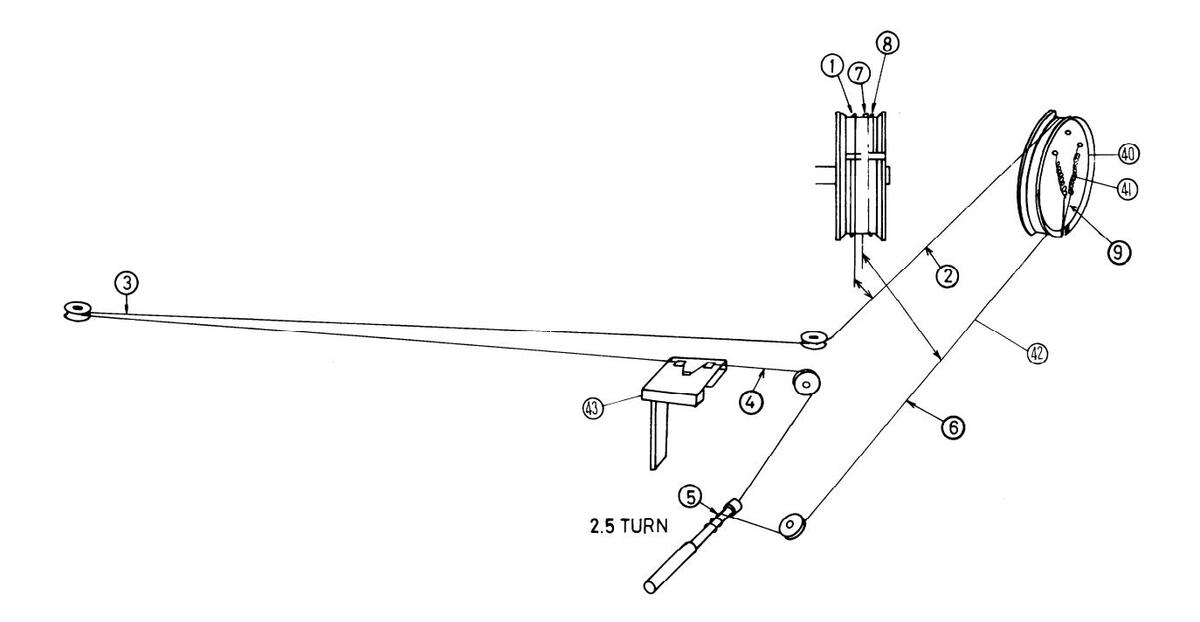

Dial Cord Arrangement Cabinet Parts List Parts List Circuit Diagram & Circuit Board – Component Location Line Voltage and Fuse Service Notes Circuit Diagram Packing Procedure |
8
9 - 11 12 - 22 23 24 - 25 26 - 27 |
Page 2
SPECIFICATIONS
| TUNER SECTION | |||
|---|---|---|---|
| Tuning Range | FM:88-108MHz | Frequency Response | 20-30,000Hz (±1dB) |
| AM:530–1605kHz | Power Bandwidth | 20–20,000Hz (–3dB, | |
| Sensitivity | FM:1.8µV(IHF) | THD 0.5%) | |
| AM:40µV 150µV/m | Sensitivity and | PHONO:2.5mV/50kΩ | |
| Intermediate | FM:10.7MHz | Impedance | AUX:200mV/50kΩ |
| Frequency | AM:455kHz | - | TAPE PLAY-1/-2:200mV/ |
| Capture Ratio | FM:2dB | 50kΩ | |
| Image Rejection Ratio | FM:70dB | TAPE REC-1/-2:200mV/ | |
| AM:35dB | 100kΩ | ||
| IF Rejection Ratio | FM:90dB | BASS Control | ±8dB at 100Hz |
| AM:40dB | TREBLE Control | ±8dB at 10kHz | |
| Signal to Noise Ratio | FM:70dB | Signal to Noise Ratio | PHONO:65dB (IHF |
| AM:40dB | C NETWORK) | ||
| Alternate Channel att. | FM:65dB | AUX, TAPE:75dB(IHF | |
| AM Suppression Ratio | FM:50dB | C NETWORK) | |
| Harmonic Distortion | FM MONO:0.4% | Loudness Control | +7dB at 100Hz, |
| FM ST:0.8% AM:1% | +4.5dB at 10kHz | ||
| Frequency Response | FM:20-15,000Hz | Filter Low | 70Hz (6dB/oct) |
| ±1.5dB | High | 6kHz (6dB/oct) | |
| Stereo Separation | FM ST:40dB at 400Hz | Dimensions | 534W × 425D × 140Hmm |
| 30dB at 100- | 21″ 16-3/4″ 5-1/2″ | ||
| 10,000Hz | Weight | 15.5Kgr. 34lbs. | |
| Muting Level | FM:20µV | Semiconductors | FET:9 Transistors:94 Diodes:66 |
| Stereo Lamp Level | FM ST:20µV | ICs:8 | |
| Tuning Meter | Signal Strength Meter | ||
| Specifications and f | eatures are subject to change | ||
| Amplifier Section | without notice. | ||
| Power Output | 200W (IHF 4Ω) | ||
| Dynamic | 140W(IHF 8Ω) | ||
| Continuous | 30W×4 (4Ω 4-channel | ||
| driven at 1kHz) | |||
| 25W×4 (8Ω 4-channel | |||
| driven at 1kHz) | |||
| 19W×4 (8Ω 4-channel | |||
| driven at 20-20,000Hz) | |||
| 50W×2 (8Ω 2-channel driven | |||
| at 1kHz, BTL connection) | |||
| Total Harmonic | 0.5% at Rated Power | ||
| Distortion | |||
| Damping Factor | 30 (8Ω 1kHz) |
Page 3

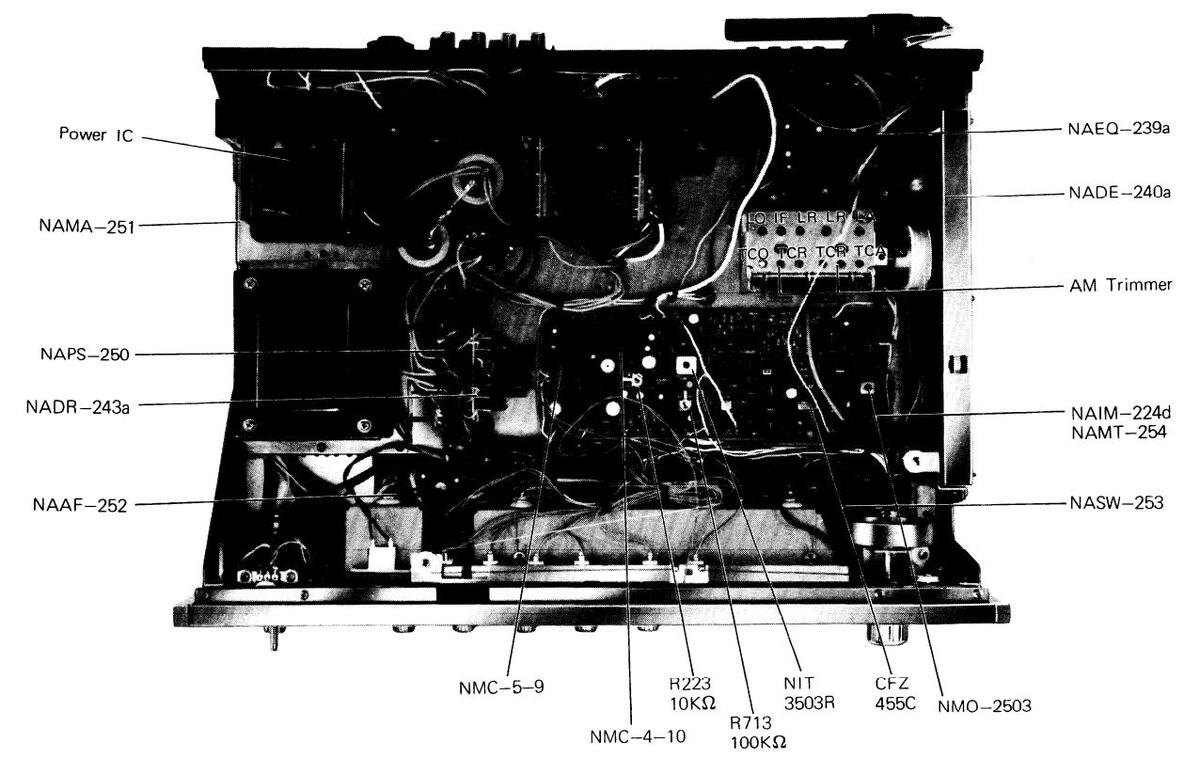

CHASSIS LAYOUT TOP VIEW
FM, AM, ALIGNMENT PROCEDURE
INSTRUMENT REQUIRED
- 1. AM and FM sweep generator
- 2. AM and FM signal generator
- 3. Vacuum tube voltmeter (V.T.V.M.) AC.DC
- 4. Oscilloscope
- 5. Distortion meter
- 6. Stereo Modulator
GENERAL ALIGNMENT CONDITIONS
- 1. Signal input should be kept low as possible.
-
2. Standard modulation is 400Hz 30% (AM)
- 400Hz 100% (FM.MONO), pilot 10% Sub & Main 90% (FM.ST)
- 3. Standard output is 500mW (2.0V, 8Ω)
| STEP |
CONNECT SIGNAL
SOURCE TO- |
SET SIGNAL
TO- |
CONNECT OUTPUT
INDICATOR TO- |
SET RADIO
DIAL TO- |
ADJUST |
ADJUST
FOR |
REMARKS | STEP |
|---|---|---|---|---|---|---|---|---|
| 1 |
Set Program Mode Switch to "Auto"
Set Selector Switch to "AUX" |
|||||||
| 2 | No Signal |
V.T.V.M. to
across "SW-OUT" terminal (NAMT-254) |
, |
Variable
Resistor R1302 (2.2KΩ) (NAMT-254) |
Adjust
the voltage to - 1V. |
2 | ||
| 3 |
Set Program Mode Switch to "DISCRETE" (CD-4)
Set Amp Mode Switch to "4ch" Set Selector Switch to "AM" |
3 | ||||||
| 4 |
AM Sweep
Generator to-AM Ant. |
455KHz |
Oscilloscope to-
across "AM OUT" terminal (NAIM-224d) |
Quiet Point
on Band |
X104
CFZ-455C |
Maximum
Symmertrical response |
Usually
not necessary to adjust |
4 |
| 5 |
AM Signal
Generator to- AM Ant |
515KHz
(modulated) |
V.T.V.M. or
oscilloscope to- |
Lower end |
L107
NMO-2503 (Red) |
Maximum |
Repeat steps
3 and 4 as necessary to |
5 |
| 6 through action as the standard action acti |
across "SPEAKER"
terminal |
Upper end |
AM Trimmer
(OSC. side) |
Maximum |
obtain Maximum
sensitivity on stations |
6 | ||
Page 4
| STEP |
CONNECT SIGNAL
SOURCE TO- |
SET SIGNAL
TO- |
CONNECT OUTPUT
INDICATOR TO- |
SET RADIO
DIAL TO- |
ADJUST |
ADJUST
FOR |
REMARKS | STEP |
|---|---|---|---|---|---|---|---|---|
| 7 |
600KHz
(modulated) |
600KHz
(Tuned to Signal) |
L001
NMA-2509 (Coil Antenna) |
Maximum |
Repeat steps
5 and 6 as necessary |
7 | ||
| 8 | " |
1400KHz
(modulated) |
1400KHz
(Tuned to Signal) |
AM Trimmer
(Ant. side) |
Maximum | 8 | ||
| 9 | Set Radio Selector Sv | vitch to "FM" | Set Muting Switch t | o "OFF" | 9 | |||
| 10 |
FM Sweep
Generator to "FM IN" terminal (NAIM-224d) |
±0.3MHz
Sweep Centered at 10.7MHz |
Oscilloscope
to-across "TP2" (FM DET) terminal (NAIM-224d) |
Quiet Point
on Band |
L105
NIT-3503R Top Bottom |
Maximum
"S" curve Lineality |
Not necessary
to adjust for Symmetrical response or Zero Voltage |
10 |
| 11 | No Signal |
Tuning
Indicator may be used as the output indicator. |
Quiet Point
Where FM Signals are not received |
L105
NIT-3503R Top |
The Tuning
Indicator comes to the center. |
11 | ||
| . 12 |
FM Signal
Generator to- |
92MHz
(100% Mod.) |
V.T.V.M. to-
across |
92MHz |
LO
on FM Front end |
Maximum |
Repeat steps
10 and 11 |
12 |
| 13 |
Ant. terminal
through a matching |
104MHz
(100% Mod.) |
terminal | 104MHz |
TCO
on FM Front end |
Maximum | as necessary | 13 |
| 14 | network |
88MHz
(100% Mod.) |
88MHz
(Tuned to Signal) |
LA
LR (2 points) on FM Front end |
Maximum |
Repeat steps
12 and 13 as necessary |
14 | |
| 15 |
108MHz
(100% Mod.) |
108MHz
(Tuned to Signal) |
TCA
TCR (2 points) on FM Front end |
Maximum | 15 | |||
| 16 |
98MHz
(100% Mod.) |
98MHz
(Tuned to Signal) |
IF (TOP &
Bottom) on FM Front end |
Maximum | 16 | |||
| 17 |
98MHz
(100% Mod.) |
Distortion
meter to- across "SPEAKER" terminal |
Tuned
to Signal |
L105
NIT-3503R Bottom |
Minimum
Distortion |
Less than
0.3% |
17 | |
| 18 | Set Radio Selector Sw | vitch to "FM" | Set Muting Switch to | » "ON" | 18 | |||
| 19 |
FM Signal
Generator to- across FM Ant. terminal through a matching network |
98MHz
(100% Mod.) |
Oscilloscope
to- across "SPEAKER" terminal |
Tuned in
and out |
Variable
Resistor R713 (100KΩ) |
When tuned
out, no noise. When tuned in, Signal. |
Signals are
not necessarily Squelching by turning R713 counter clockwise. |
19 |
| 20 | Set Radio Selector Sw | itch to "FM AU | то" | Set Muting Switch to | "OFF" | 20 | ||
| 21 | " |
98MHz
(Pilot Sig. 19KHz 10%) 1mv input |
V.T.V.M. to-
across "TP3" terminal (NAIM-224d) |
Tuned to
Signal |
L201
NMC-4-10 |
Maximum |
R223 (10KΩ)
œnter |
21 |
| 22 | " |
98MHz
(Pilot Sig. 19KHz 1KHz R ch 90% |
V.T.V.M. to-
across "SPEAKER" terminal (R ch) |
. " |
L202
NMC5-9 |
Maximum | 22 | |
| 23 | " |
98MHz
(Pilot Sig. 19KHz 10%) Main & Sub Sig. 1KHz L ch 90% |
,,
(R ch) |
" |
Variable
Resistor R223 (10KΩ) |
Minimum |
Retouch slightly
Repeat Steps 23 and 24 as necessary |
23 |
| 24 | " |
,,
R ch 90% |
,,
(L ch) |
" | " | " | 24 |
Page 5

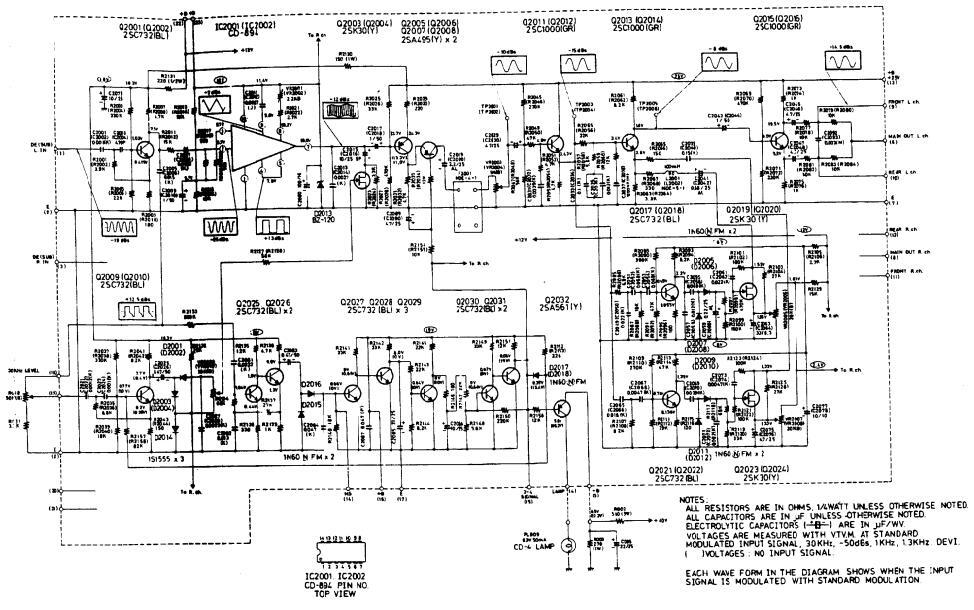

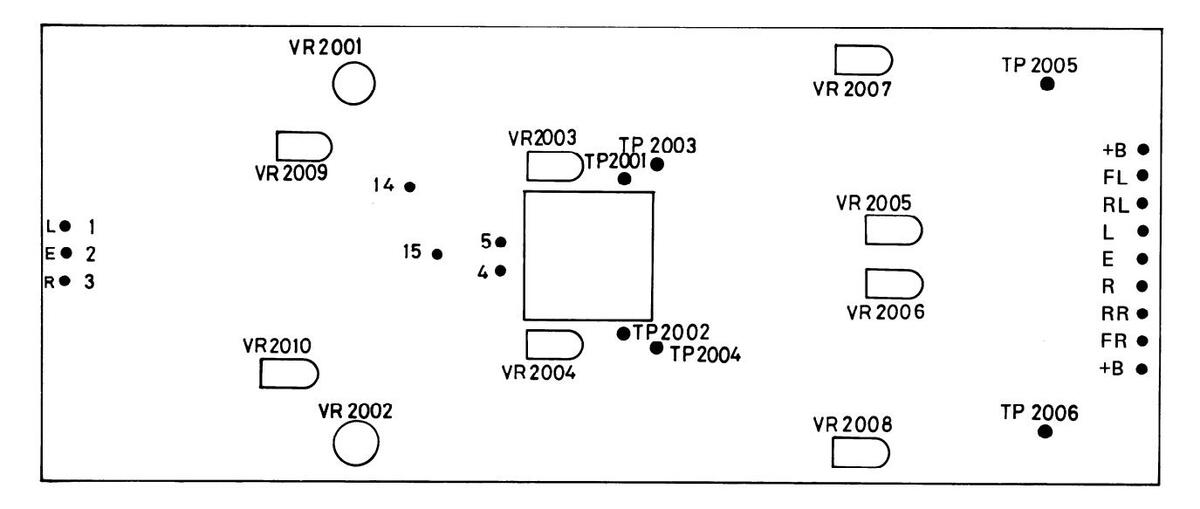

DEMODULATOR ALIGNMENT PROCEDURE
- (1) Voltage Controlled Oscillator (V.C.O.) Alignment
- (2) 30KHz Level Adjustment
- (3) Demodulated Voltage Alignment
- (4) Automatic Noise Reduction System (A.N.R.S.) Alignment
INSTRUMENT REQUIRED
- CR oscillator
- SCA signal generator
- Oscilloscope
- Vacuum tube voltmeter (V.T.V.M.)
- Attenuator
- Test record (4DE-503, RG-1256, RG-1257)

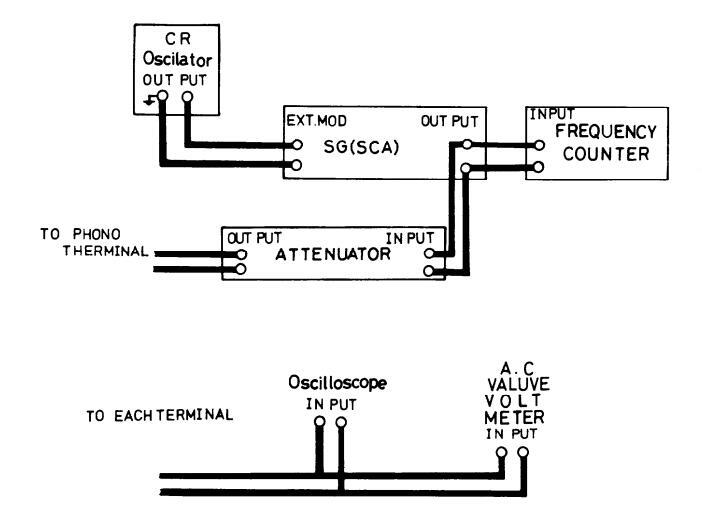

Preliminary
- 1. Connect instruments.
- 2. Set the receiver's selector switch to PHONO.
- 3. Set program mode switch to DISCRETE.
- 4. Connect lead wire between the junction of pin 15 on the printed circuit board (NADE-240a) and chassis ground. Then MUTING ON works.
Page 6
| STEP |
CONNECT SIGNAL
SOURCE TO- |
SET SIG
SCA S.G. |
NAL TO-
TEST RECORD |
CONNECT OUTPUT
INDICATOR TO- |
ADJUST |
ADJUST
FOR |
REMARKS |
|---|---|---|---|---|---|---|---|
| V.C. | .O. Alignment | LL | |||||
| Tune VCO'S frequ | ency to SCA SG | 's frequency. | |||||
| 1 |
PHONO terminal
(L) |
30KHz
— 1 10dBS |
RG1256
Band 9 |
Oscilloscope to-
across TP2003 |
VR2001
(2.2KB) |
Zero beat | VCO = 30 KHz |
| 2 |
PHONO terminal
(R) |
Oscilloscope to-
across TP2004 |
VR2002
(2.2KB) |
VCO > 30 KHz | |||
| 30 k | KHz Level Adjustment | ||||||
| 3 |
PHONO terminal
(L) |
30KHz
-57dBS Modulation is 400Hz, deviation is 4KHz. |
RG1257
Band 4 & 5 or 4DE503 Side A No 5 |
Oscilloscope to-
across TP2003 |
VR2009 |
Just before
distorted. |
-58dB |
| 4 |
PHONO terminal
(R) |
Oscilloscope to-
across TP2004 |
VR2010 | -57dBS | |||
| Dem | odulated Voltage Align | ment | ] | 0 0 | |||
| 5 |
PHONO terminal
(L) |
30KHz
-50dBS |
RG1256
Band 8 |
V.T.V.M. to-
across TP2003 |
VR2003 | Output is | |
| 6 |
PHONO terminal
(R) |
Modulation is
1KHz, deviation is 1.3KHz. |
V.T.V.M to-
across TP2004 |
VR2004 | – –15dBS. | ||
|
ANR
Rer |
S Alignment
nove lead wire betw |
ween the junc | tion of pin 15 ar | nd chassis ground. | 1 | ||
| 7 |
CR oscillator to-
TP2001 |
15KHz,
-25dBS |
VTVM to
across TP2003 |
VTVM to
across TP2005 |
VR2007 | -22.5dBS | |
| 8 |
600Hz
-25dBS |
(INPUT
INDICATOR) |
VR2005 | -23.5dBS | |||
| 9 |
CR oscillator to-
TP2002 |
15KHz
- 25dBS |
VTVM to
across TP2004 |
VTVM to
across TP2006 |
VR2008 | -22.5dBS | |
| 10 | - |
600Hz
- 25dBS |
(INPUT
INDICATOR) |
VR2006 | -23.5dBS |
Page 7
MECHANICAL DISASSEMBLIES
Front View

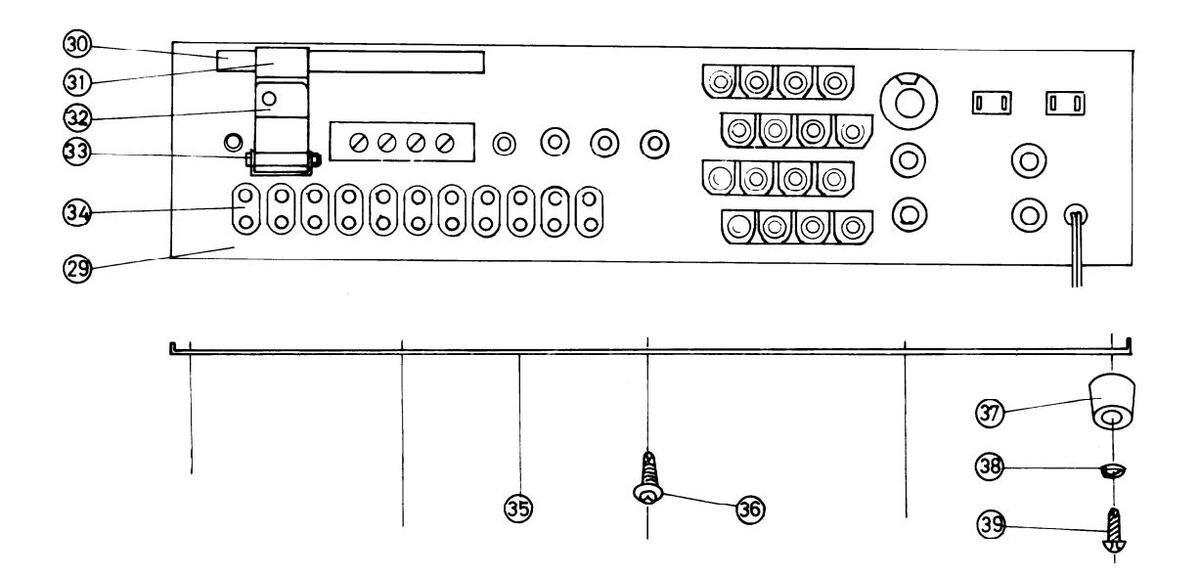

Rear View
Page 8
Front Panel Rear View
Page 9

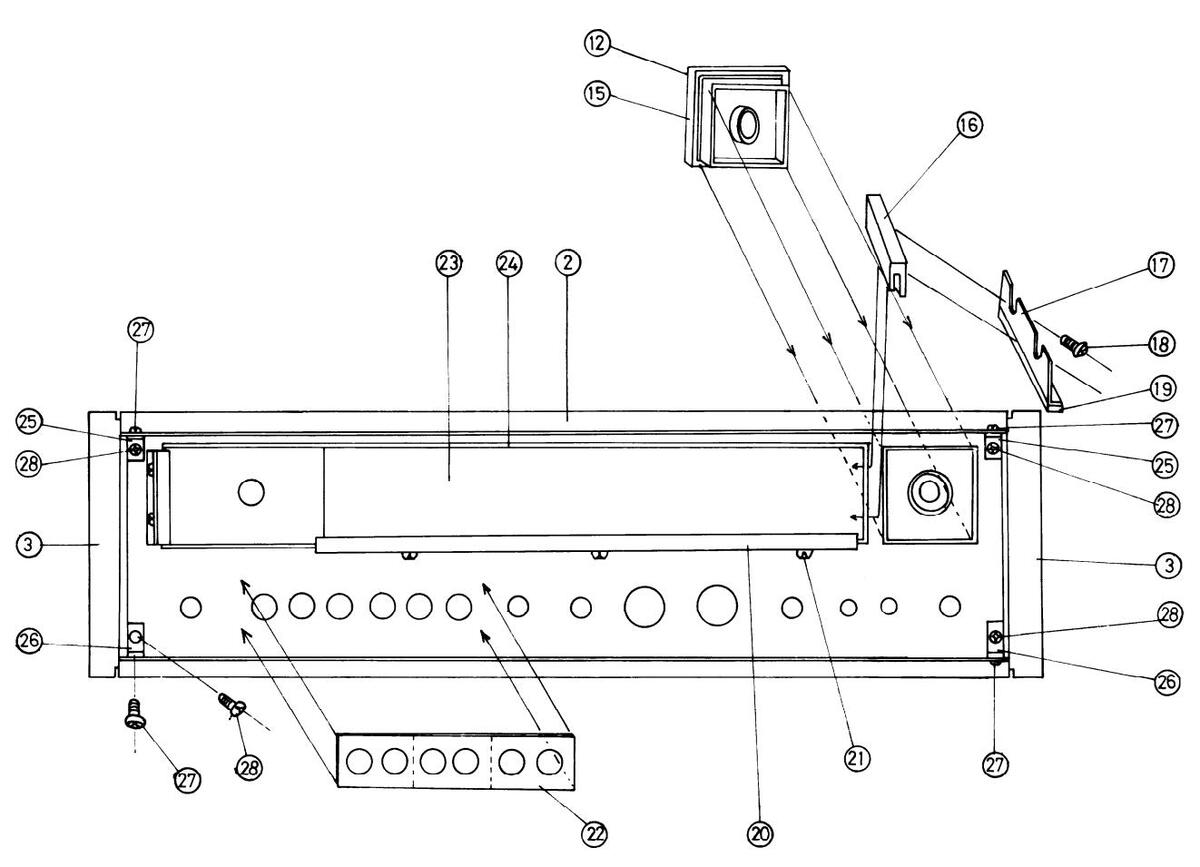

CABINET PARTS LIST
| KEY NO. | PARTS NO. | DESCRIPTION | SPECIFICATIONS | Q'TY | STOCK NO. | REMARKS |
|---|---|---|---|---|---|---|
| 1 | A501 | AMP BOX assembly | 1 | 281014-1 | ||
| 2 | A514 | Front Panel | 1 | 281016 | ||
| 3 | A515 | End Cap | 2 | 280319 | ||
| 4 | A802 | Knob-Speaker | 4 | 283056 |
Speakers
Amp mode Program mode Selector |
|
| 5 | A803 | Knob-Bass (Small) | 2 | 283053 |
Bass
Treble |
|
| 6 | A804 | Knob-Bass (Large) | 2 | 283054-3 |
Bass
Treble |
|
| 7 | A806 | Knob-Volume | 1 | 283050 | Volume | |
| 8 | A807 | Knob-Push | 6 | 283123 | ||
| 9 | A801 | Knob-Tuning | 1 | 283051 | Tuning | |
| 10 | A533 | Washer | W3x10F(t=0.5) | 2 | 87619014 | |
| 11 | A532 | Nut | N-9F(P=0.75) | 2 | 8631901 | |
| 12 | A531 | Plate-Balance | 1 | 281018 | ||
| 13 | A503 | Toothed lock Washer | M5-AB | 4 | 87555015 | |
| 14 | A502 | Truss Screw | 4T+20F-N | 4 | 82454020 | |
| 15 | A530 | Panel-Balance | 1 | 281017 | ||
| 16 | A522 | Flame Holder-S | 2 | 280323 | ||
| 17 | A523 | Bracket-Flame | 2 | 280339-1 | ||
| 18 | A519 | Binder Screw | 3B+6F-N | 6 | 82543006 | |
| 19 | A524 | Neoprene Sheet | 2 | 280261 | ||
| 20 | A521 | Flame Holder-L | 1 | 280338 | ||
| 21 | A526 | Binder Screw | 3B+5F-N | 7 | 82513005 | |
| 22 | A528 | Knob Guide | 3/2 | 280502-1 | ||
| 23 | A525 | Glass Plate | 1 | 280259-1 | ||
| 24 | A520 | Dial Flame | 1 | 280322-1 | ||
| 25 | A516 | Joiner-L | 2 | 280352-1 | ||
| 26 | A517 | Joiner-B | 2 | 280449 | ||
| 27 | A519 | Binder Screw | 3B+6F-N | 6 | 82543006 | (18) |
| 28 | A518 | Tapping Screw | 3STS+6BQ | 4 | 834130062 | |
| 29 | A071 | Back Panel | 1 | 270778 | ||
| 30 | L001 | Coil-Antenna | NMA-2509 | 1 | 232025 | |
| 31 | A072 | Antenna Holder | 1 | 270204 | ||
| 32 | A073 | Antenna Stay | 1 | 270205 | ||
| 33 | A075 | Antenna Screw | 1 | 801112 | ||
| 34 | P809 | Jack-Pin | NTM-2WPBL-E1 | 2 | 250170 | |
| 35 | A506 | Bottom Cover | 1 | 280951 | ||
| 36 | A510 | Tapping Screw | 3STW+8BQ | 4 | 831130082 | |
| 37 | A507 | Rubber Cushion | 4 | 280560 | ||
| 38 | A508 | Washer | W4x10F | 4 | 87614010 | |
| 39 | A509 | Tapping Screw | 4STS+12BQ | 4 | 834140122 | |
| 40 | A004 | Dial Drum | L1 | 270220-1 | ||
| 41 | A007 | Spring-Dial Drum | SP-14A | 2 | 273803 | |
| 42 | A009 | Dial String | Nylon 0.3mm | 1.2m | 273902 | |
| 43 | A103 | Pointer assembly | 1 | 270535 | ||
| A033 | Dial Plate | 1 | 270780 | |||
| A034 | Back Plate | 1 | 2670781 | |||
| A037 | Drive Shaft | 1 | 270218 |
Page 10
PARTS LIST
| PARTS NO. | DESCRIPTION | SPECIFICATION | Q'TY | STOCK NO. | |
|---|---|---|---|---|---|
| U1 | IF & MPX Amp assembly | NA-IM224d | 1 | 13872524d | |
| U2 | EQ Amp assembly | NAEO-239a | ī | 13872539a | |
| U3 | DE Amp assembly | NADE-240a | i | 13872540a | |
| U4 | SW Amp assembly | NASW-253 | Î | 13872553 | |
| U5 | MT Amp assembly | NAMT-254 | ī | 13872554 | |
| U6 | AF Amp assembly | NAAF-252 | 1 | 13872552 | |
| U7 | PA Amp assembly | NAMA-251R | 1 | 13872551r | |
| U8 | PA Amp assembly | NAMA-251L | î | 138725511 | |
| U9 | PS Amp assembly | NAPS-250 | 1 | 13872550 | |
| U10 | DR Amp assembly | NADR - 243a | 1 | 138725439 | 1 |
| ŪĪĪ | FM Front End | FL-322U | i | 240005 | |
| D001, D004 | Zener Diode | BZ-240 | 2 | 223907 | |
| D002, D003 | Silicon Diode | 10D2 | 2 | 223805 | |
| D005 | Germanium Diode | 1N60FM | ĩ | 2231031 | |
| PL801 - PL805 | Pilot lamp | 6 3V250mA | ŝ | 210001 | |
| PL806 | Pilot lamp | 6 3V0 05AW-3S | 1 | 210001 | |
| PL807 - PL809 | 1 | 210010 | |||
| PL811 | Pilot lamp | 6.3V0.05AW-3 | 4 | 210015 | |
| PL810 | D11 (1 | ||||
| PL812 - PL814 | Pilot lamp | 6.3V0.05AW-2 | 4 | 210014 | |
| T001 | Transformer-Power | NPT-564ADGO | 1 | 230064 | |
| L001 | Coil-Antenna | NMA-2509UL | ī | 232025 | |
| T002 | Coil-Balloon | NBLN-1 | ī | 233026 | |
| C002, C003 | Capacitor-Electrolytic | CE62W35V4700S-R | 2 | 3504030A | |
| C004 | Capacitor-Electrolytic | CE62W50V470X2S-R | 1 | 3504037A | |
| C006 | Capacitor-Electrolytic | OF A DWA SWARAD | |||
| C010, C011 | cupacitor Electrony ne | CE02w35w470B | 3 | 351764711A | |
| C008 | Capacitor-Electrolytic | CE02W50V470B | 1 | 351784711A | |
| R001 | Control Resistor Variable | CVS100KW35A | 1 | 5104015A | BALANCE |
| R016, R017 | Resistor Variable | N24R10KB10M | 2 | 5171004 | CD-4 ADJUST |
| R018 (R019) | Resistor Variable | N24RG50KB10M | 1 | 5177003 | 30KHz LEVEL |
| S807 | Switch-Rotary | NRS-485-30Y-APUL | 1 | 250264 | SPEAKERS |
| S808 | Switch-Rotary | NRS-282-30Y-AS | 1 | 250265 | AMP MODE |
| S809 | Switch-Rotary | NRS-365-30Y-A | 1 | 250266 | PROGRAM MODE |
| S81 0 | Switch-Rotary | NRS-484-30Y-A | 1 | 250267 | SELECTOR |
| S811 | Klixon | 9700-26-11 | 1 | 252009 | |
| P801, P802 | Jack-Stereo Headphone | XG-7716 | 2 | 250078 | |
| M101 | Tuning Indicator | NIND-0500S32 | 1 | 243023 | |
| PL801a, PL805a | Socket Pilot lamp | PLS-G1 | 5 | 213002 | |

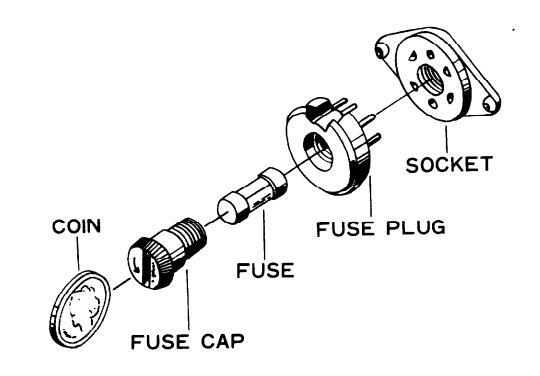

| F901 – F904 | Fuse | 3A-T(SS-2) | 4 | 252006 | |
| F905 | Fuse | 5A-T(ST-2)UL | 1 | 252004 | AC110V/120V |
| F906 | Fuse | 3A-T(Leadtype) | 1 | 252021 | · |
| F905 | Fuse | 3A | |||
| F901a – F904a | Fuseholder | S-N1301 | 4 | 250080 | |
| P-807 | Terminal | NTM-4PUNI | 1 | 250136 | |
| P-808 | Jack-Pin | NTM-1PBL1-H1 | 1 | 250141 | |
| P-809, P-810 | Jack-Pin | NTM-2WPBL-E1 | 2 | 250170 | |
| P-811 | Jack-Pin | NTM-6WPBL-E1 | 3 | 250171 | |
| r812, r813 | - | ž | |||

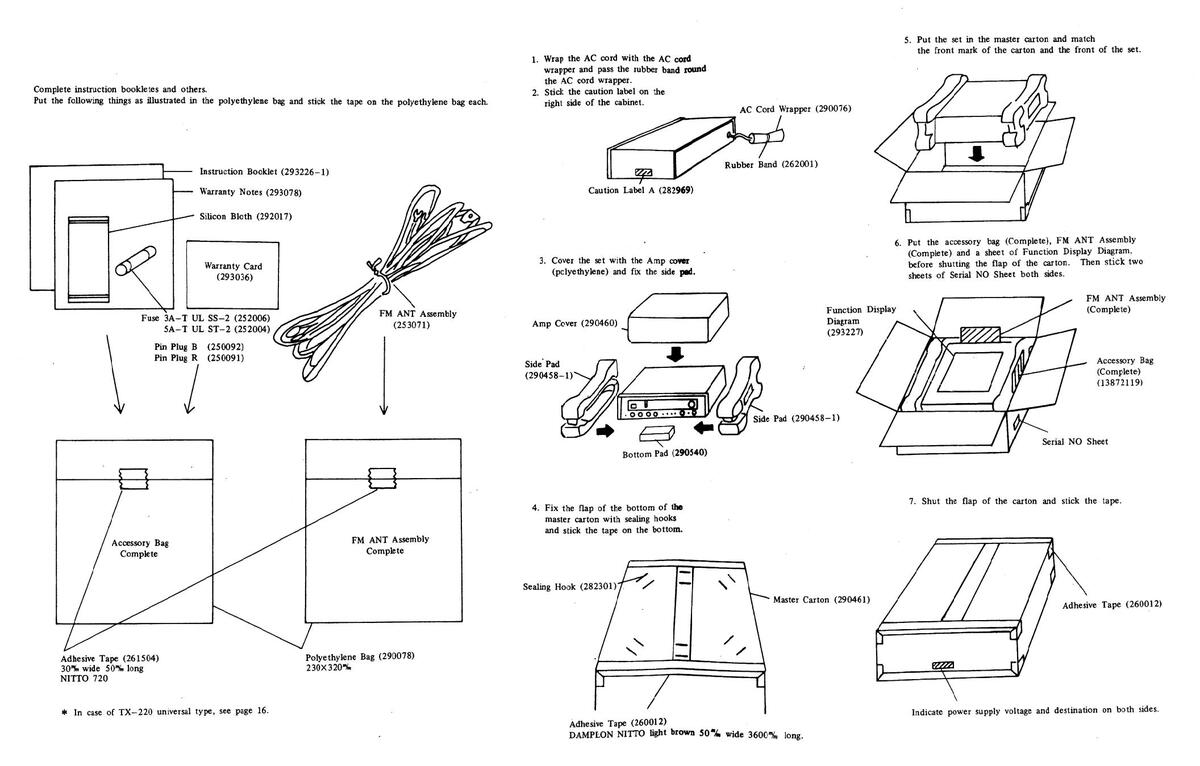

| PRINTED MATTER & PACKING | |||||
A851 Master Carton Box 1 290461 A852 Side Pad 2 290458-1 A853 Amp Cover 1 290460 A907 Instruction Booklet 1 293226-1 A902 Warranty Card 1 293036 A903 Caution Label 1 293041 A906 Warranty Notes 1 293078 A910 Silicon Cloth 1 292017 A912 Polyethylen Bag 230X320 3 290078 A913 Shorted Pinplug PO-107 2 250153 A914 Pinplug (Red) SQ-4151 4 250091 A915 Pinplug (Black) SQ-4152 4 250092

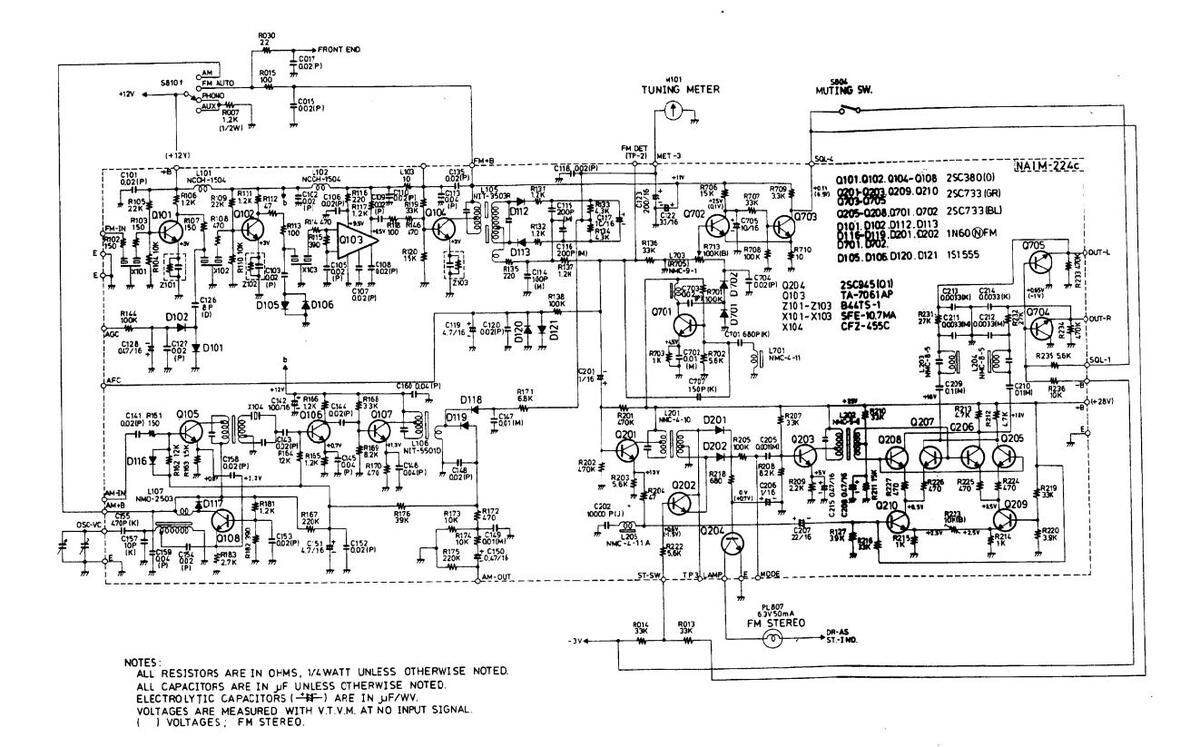

NAIM-224d
|
Q101, Q102
Q104 – Q108 |
Transistor | 2SC380(0) | 7 ′ | 2210123 | |
|
Q201 – Q203
Q209 – Q210 Q703 – Q705 |
Transistor | 2SC733(GR) | 8 | 2210085 | |
|
Q205 – Q208
Q701 – Q702 |
Transistor | 2SC733(BL) | 6 | 2210086 | |
| Q204 | Transistor | 2SC945(Q1) | 1 | 2210355 | |
| Q103 | TA-7061AP | 1 | 222402 | ||
| D112, D113 | |||||
| D116 – D119 | Germanium Diode | 1N60(N)FM | 12 | 2231031 | |
| D201, D202 | |||||
| D ,01 | 1 | 1 |
Page 11
| PARTS NO. | DESCRIPTION | SPECIFICATION | Q'TY | STOCK NO. | ||
|
D105, D106
D120, D121 L101, L102 L105 L106 L107 L201 L202 L203, L204 L205 L701 C119, C151 C122 C123 C128, C150 C208, C215 C142 C201, C206 C207 C705 R223 R713 |
Silicon Diode
Coil-Choke Transformer-IFT Transformer-IFT Coil-OSC Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX Coil-MPX |
1S1555
NCCH-1504 NET-3503R NIT-5501D NMO-2503 NMC-4-10 NMC-5-9 NMC-8-5 NMC-4-11-A NMC-4-11 CE04W25V4.7S CE04W16V33S CE04W6V33S CE04W6V33S CE04W6V33S CE04W6V33S CE04W16V100S CE04W16V10S CE04W16V10S R-HK10KB3L R-HK100KB3L |
4
2 1 1 1 1 2 1 1 2 1 1 2 1 1 1 2 1 1 1 1 2 1 1 1 1 2 1 1 1 1 2 1 1 1 1 1 2 1 1 1 1 1 2 1 1 1 1 1 2 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 1 |
223105
233040 233022 232012 232013 233017 233019 233021 233041 233041 233018 352750471A 352743301A 352743301A 352741011A 352741011A 352741001A 352742001A 352742001A 352742001A |
||
| ) |
X101 - X103
X104 Z101 - Z103 |
Ceramic Filter
Ceramic Filter CR Composite |
SFE-10.7MA
7/2 SFE-455C B44TS-1 |
3
1 3 |
3010003
3010004 Witt 3020001 |
+ CERAMIN FILTERS |

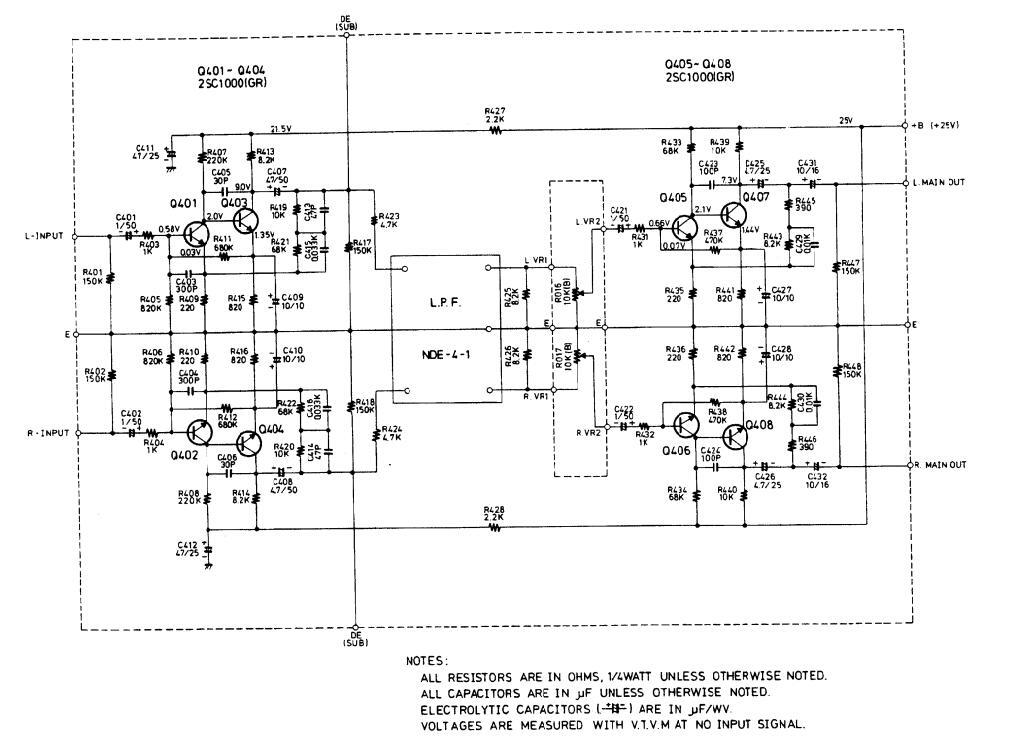

| _ | NAEQ-239a | |||||
|
Q401 – Q408
C401, C402 C421, C422 |
Transistor
Capacitor-Electrolytic |
2SC1000(GR)
CE04W50V1S |
8
4 |
2210285
352780101A |
||
|
C407, C408
C425, C426 C409, C410 |
Capacitor-Electrolytic | CE04W50V4.7S | 4 | 352780471A | ||
|
C427, C428
C431, C432 |
Capacitor-Electrolytic | CE04W16V10S | 6 | 352741001A | ||
| C411, C412 |
Capacitor-Electrolytic
Low Pass Filter |
CE04W25V47S
NDE-4-1 |
2
1 |
352754701A
233038 |
||
| NADE-240a | ||||||
|
Q2025 - Q2031
Q2001, Q2002 Q2009, Q2010 Q2017, Q2018 Q2017, Q2018 |
Transistor | 2SC732(BL) | 15 | 2210046-1 | ||
|
Q2021, Q2022
Q2011 – Q2016 Q2003 Q2004 |
Transistor | 2SC1000(GR) | 6 | 2210285 | ||
|
Q2003, Q2004
Q2019, Q2020 Q2023, Q2024 |
Transistor | 2SK 30(Y) | 6 | 2210274 | ||
| , | |
Q2005 – Q2008
Q2032 IC2001, IC2002 |
Transistor
Transistor IC |
2SA495(Y)
2SA561(Y) CD-894 |
4
1 2 |
2210404
2210074 222403 |
|
|
D2001 – D2004
D2014 |
Silicon Diode | 1s1555 | 5 | 223105 | ||
|
D2005 – D2012
D2015 – D2018 |
Germanium Diode | 1N60(N)FM | 12 | 2231031 | ||
|
D2013
F2001 L2001, L2002 |
Zenor Diode
Low Pass Filter Low Pass Filter |
BZ-120
NDE-4-1 NDE-5-1 |
1
1 2 |
223918
233038 233039 |
|
D2001 – D2004
D2014 |
Silicon Diode | 1s1555 | 5 | 223105 |
|---|---|---|---|---|
|
D2005 – D2012
D2015 – D2018 |
Germanium Diode | 1N60(N)FM | 12 | 2231031 |
| D2013 | Zenor Diode | BZ-120 | 1 | 223918 |
| F2001 | Low Pass Filter | NDE-4-1 | 1 | 233038 |
| L2001, L2002 | Low Pass Filter | NDE-5-1 | 2 | 233039 |
| C2009, C2010 | ||||
| C2017, C2018 | Capacitor-Electrolytic | CE04W50V1S | 6 | 352780101A |
| C2043, C2044 | ||||
| C2025, C2026 | Compatition Electrolatio | CEOAWGONO 475 | 2 | 2527947014 |
| C2083 | Capacitor-Electrolytic | CE04w50v0.475 | 3 | 332/04/91A |
| C2029, C2030 | ||||
| C2045 – C2048 | Capacitor Electrolytic | CEDAW25VA 75 | 10 | 352750471 |
| C2075, C2076 | Capacitor-Electrony fic | CE04W23V4.73 | 10 | 332730471 |
| C2089, C2090 | ||||
| C2077 - C2079 | OF AWAEWING | 2527510014 | ||
| C2086 | Capacitor-Electrolytic | CE04w25v105 | 4 | 352/51001A |
| C2063, C2064 | OF AWAGWAAR | 2 | 2527522014 | |
| C2085 | Capacitor-Electrolytic | CE04w25v335 | 3 | 352755501A |
| C2080 | Capacitor-Electrolytic | CE04W16V100S | 1 | 352741011A |
| C2041, C2042 | Capacitor-Aluminium | AL04B25V0.68MS | 2 | 392156897 |
| C2019, C2020 | Capacitor-Aluminium | AL04B25V2.2MS | 2 | 392150227 |
| C2059, C2060 | Capacitor-Aluminium | AL04B25V0.22MS | 2 | 392152297 |
| C2015, C2016 | Capacitor-Plastic | SP04C25V-10XS | 2 | 392251009 |
| VR2001, VR2002 | Resistor-Semi Fixed | R-HK2.2KB | 2 | 5225005 |
| VR2003, VR2004 | Resistor-Semi Fixed | R-HK5KB3P | 2 | 5225010 |
| VR2005-VR2008 | Resistor-Semi Fixed | R-HK20KB3P | 4 | 5225011 |
| VR2009, VR2010 | Resistor-Semi Fixed | R-HK10KB3P | 2 | 5225012 |
| S2001, S2002 | Socket-IC | NICS-14PS | 2 | 250179 |
| 1 | L | I | l | |
Page 12
| PARTS NO. | DESCRIPTION | SPECIFICATION | Q'TY | STOCK NO. | |
|---|---|---|---|---|---|

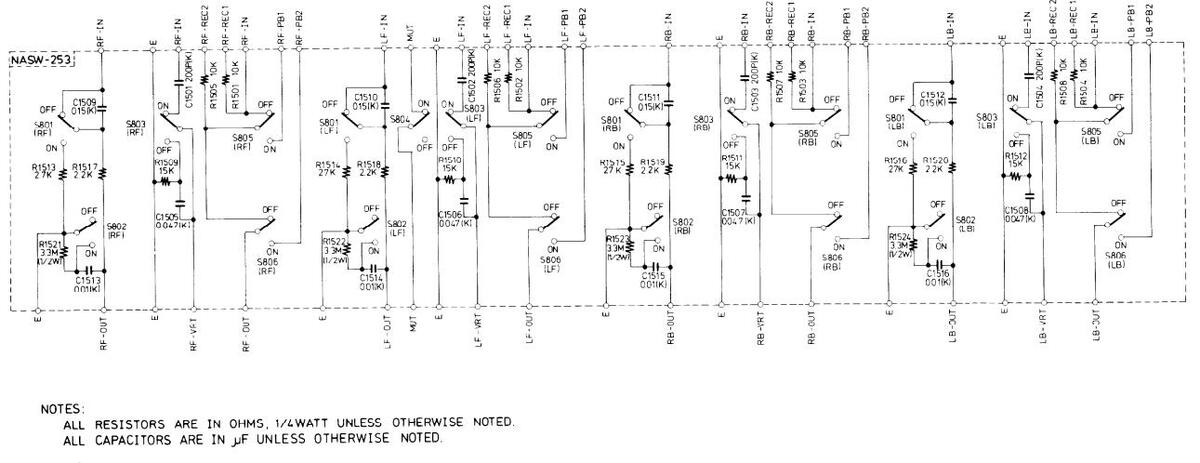

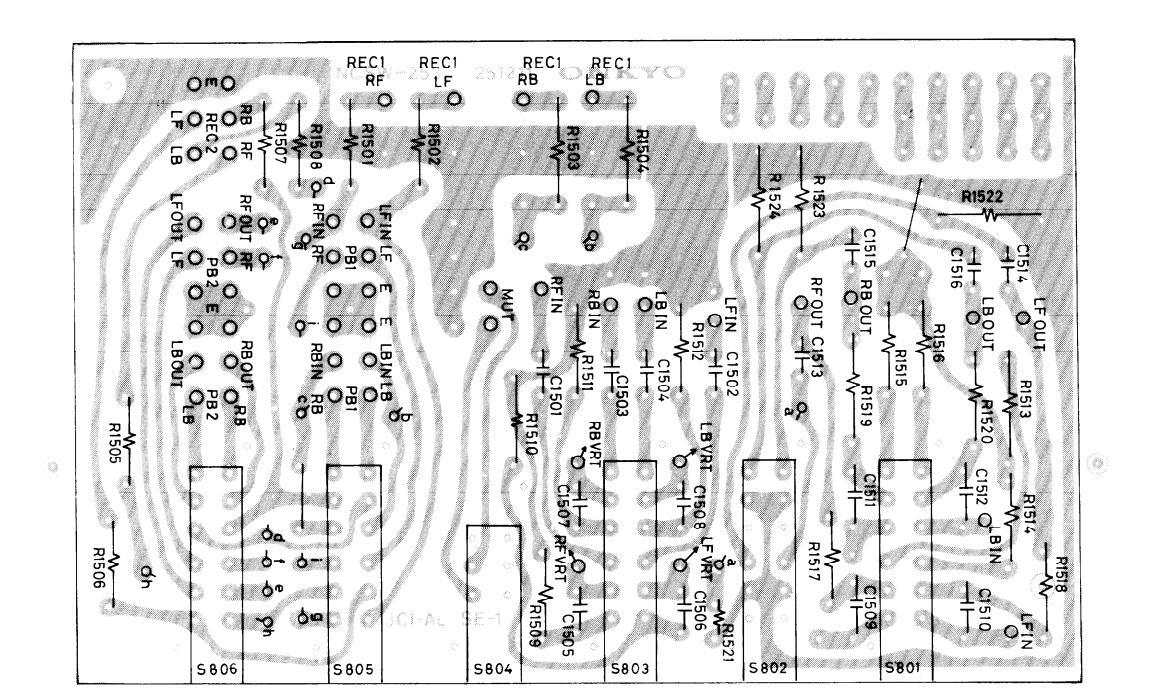

| NASW-253 | + | · | |||
| S801 – S806 | Switch-Push | NPS-142LA2 | 6 | 250262 | |

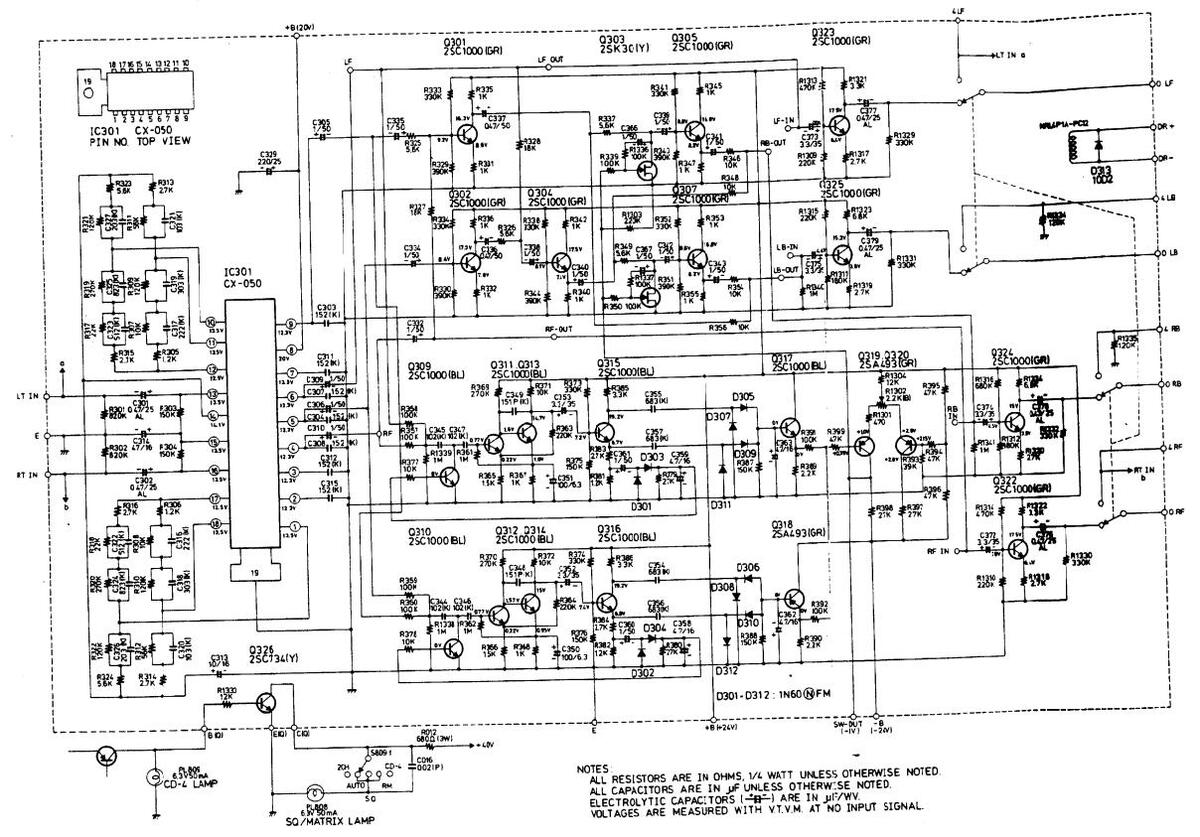

| NAMT-254 | |||||
|
Q301, Q302
Q304, Q305 Q307 |
Transistor | 2SC1000(GR) | 9 | 2210285 | |
|
Q322 - Q325
Q309 - Q317 Q303, Q306 Q318 - Q320 Q326 D301 - D312 |
Transistor
Transistor Transistor Transistor Germanium Diode |
2SC1000(BL)
2SK30(Y) 2SA493(GR) 2SC734(Y) 1N60(N)FM |
9
2 3 1 12 |
2210286
2210274 2210235 2210064 2231031 |
|
|
D313
C301, C302 |
Silicon Diode
Capacitor-Aluminium |
10D2
AL04B25V0 47MS |
1 | 223805 | |
|
C376 – C379
C360, C361 C305, C306 C309, C310 |
CE04W50V1S | 15 | 3527801014 | ||
|
C322 – C335
C338 – C343 |
CLOTWSOVIS | 15 | 552760101A | ||
|
C336, C337
C352, C353 |
Capacitor-Electrolytic | CE04W50V0.47S | 352784791A | ||
|
C372 – C375
C329 C314 |
Capacitor-Electrolytic
Capacitor-Electrolytic Capacitor-Electrolytic |
CE04W30V3.3S
CE04W25W220S CE04W16V47S |
6
1 1 |
352780331
352752211A 352744701A |
|
|
C313
C358, C359 |
Capacitor-Electrolytic | CE04W16V10S | 1 | 352741001A | , |
|
C362, C363
C350, C351 C366, C367 R1302 |
Capacitor-Electrolytic
Capacitor-Electrolytic Capacitor-Electrolytic Resistor-Semi Fixed |
CE04W25V4.7S
CE04W6.3V100S CE02W50V1B R-HK 2.2KB |
4
2 2 1 |
352750471A
352721011A 351780101 5225005 |
|
| Relay | NRL4P1A-DC12 | 1 | 250255 | ||

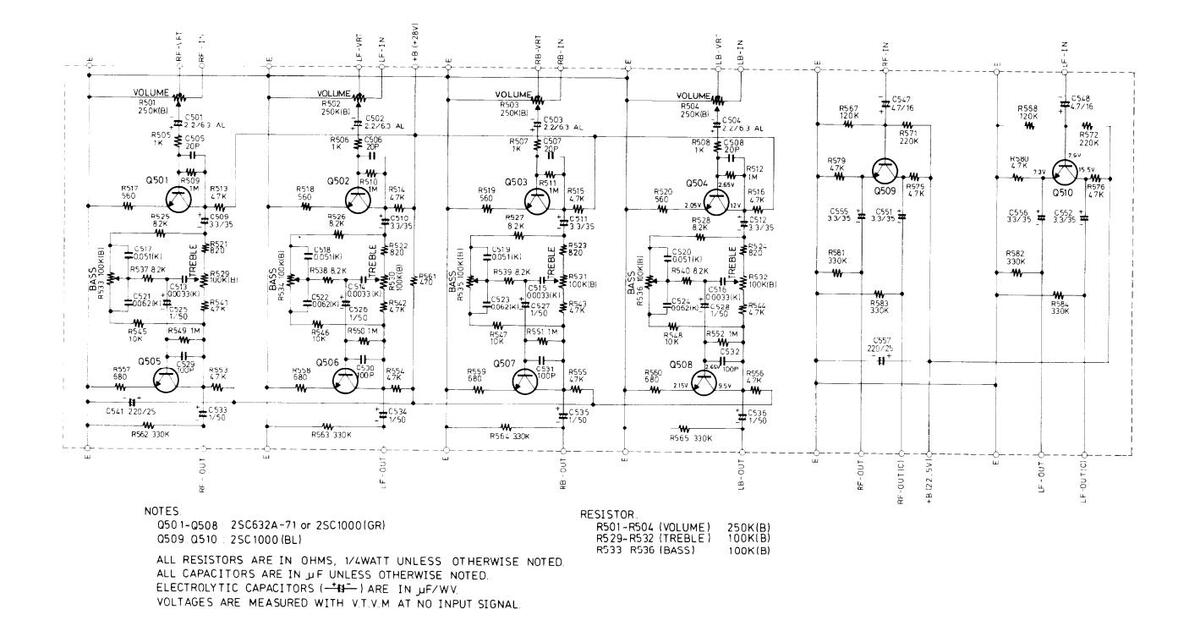

| NAAF-252 | 1 | ||||
|
Q501 – Q508
Q509, Q510 C501 – C504 |
Transistor
Transistor Capacitor-Aluminium |
2SC1000(GR)
2SC1000(BL) AL04B6.3V2.2MS |
8
2 4 |
2210285
2210286 392120227 |
|
|
C509 – C512
C551, C552 C555, C556 |
Capacitor-Electrolytic | CE04W50V3.3S | 8 | 352780331A | |
|
C525 - C528
C533 - C536 C541, C557 C547, C548 |
Capacitor-Electrolytic
Capacitor-Electrolytic Capacitor-Electrolytic Pacitor-Variable |
CE04W50V1S
CE04W25V220S CE04W25V4.7S N24PQL 250VPT20 |
8
2 2 |
352780101A
352752211A 352750471A |
A gang Volume |
| R529 – R533 | Resistor-Variable |
N24RQL250KB150
N24RKL100KB3020H |
5104014 | 4 gang Bass Treble | |

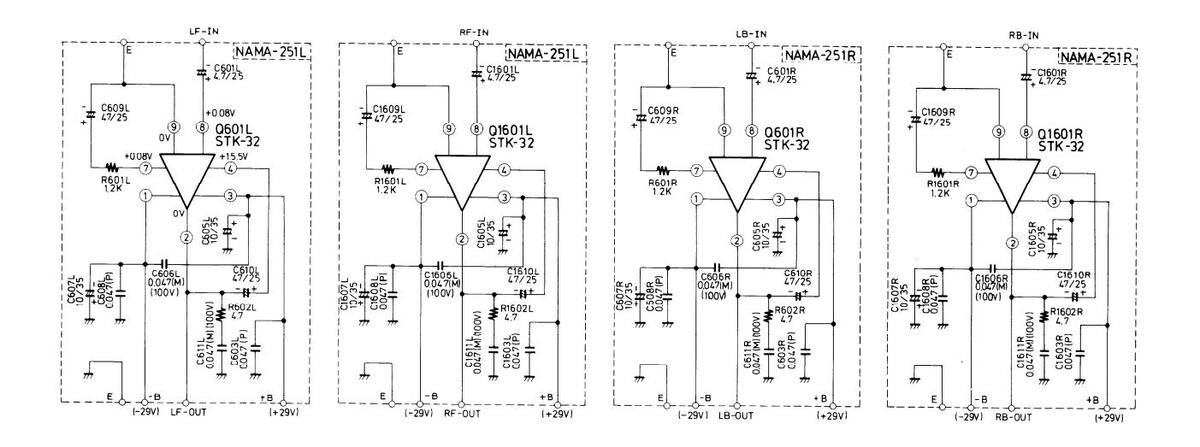

| NAMA-251R & L | ······ | ||||
|
Q601R,L
Q1601R,L |
IC | STK-032 | 4 | 222003 | |
|
C601R,L
C1601R,L C605R,L |
Capacitor-Electrolytic | CE04W25V4.7S | 4 | 35270471A | |
|
C607R,L
C1605R,L C1607R,L C609P L |
Capacitor-Electrolytic | CE04W35V10S | 8 | 352761001A | |
|
C610R,L
C1609R,L C1610R,L |
Capacitor-Electrolytic | CE04W25V47S | 8 | 352754701A | |

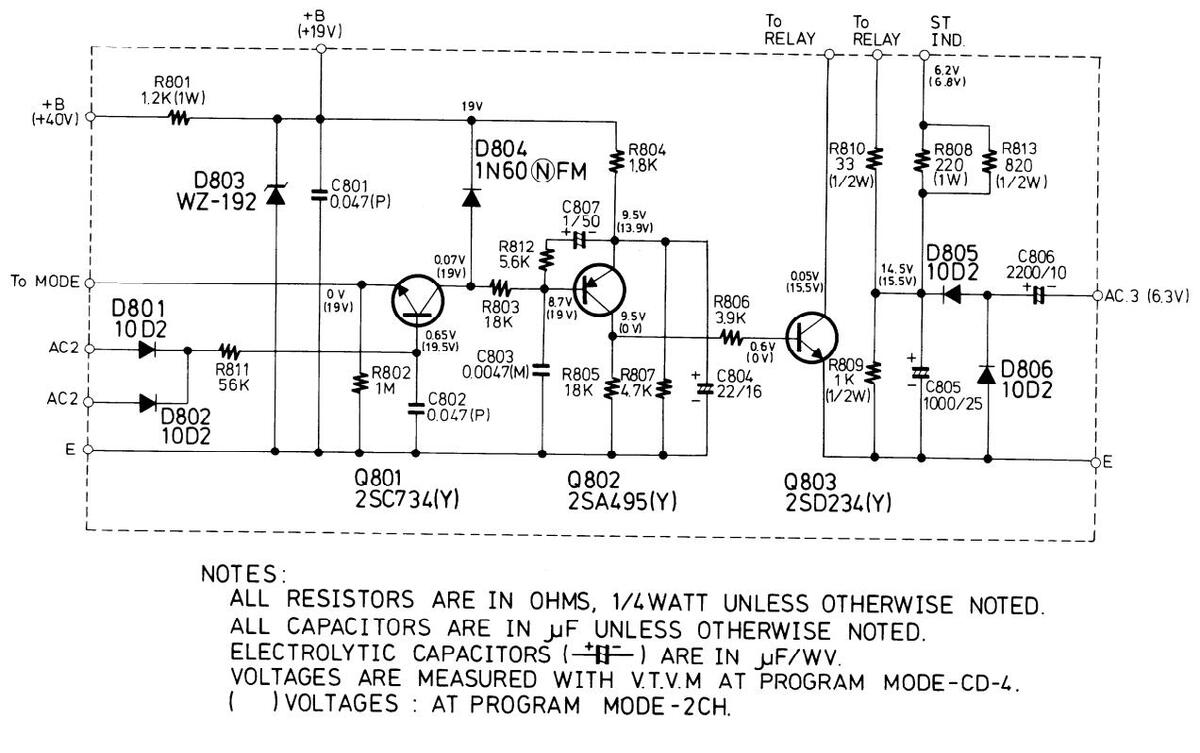

| NADR-243a | |||||
|
Q801
Q802 Q803 |
Transistor
Transistor Transistor |
2SC734(Y)
2SA495(Y) 2SD234(Y) |
1
1 1 |
2210064
2210404 2200020 |
|
|
D801, D802
D805, D806 |
Diode-Cilicon | 10D2 | 4 | 223805 | |
|
D803
C805 C806 C807 |
Diode-Zener
Capacitor-Electrolytic Capacitor-Electrolytic Capacitor-Electrolytic |
WZ-192
CE04W25V1000S CE04W10V2200S CE02W50V1B |
1
1 1 1 |
223927
352751021A 352732221A 351780101 |
|

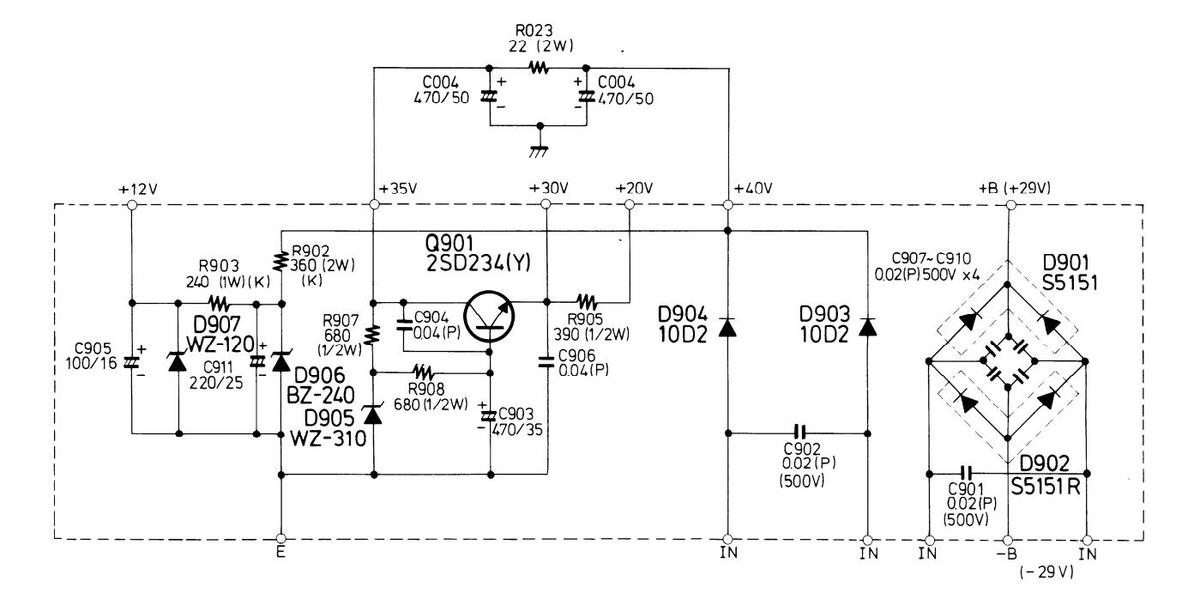

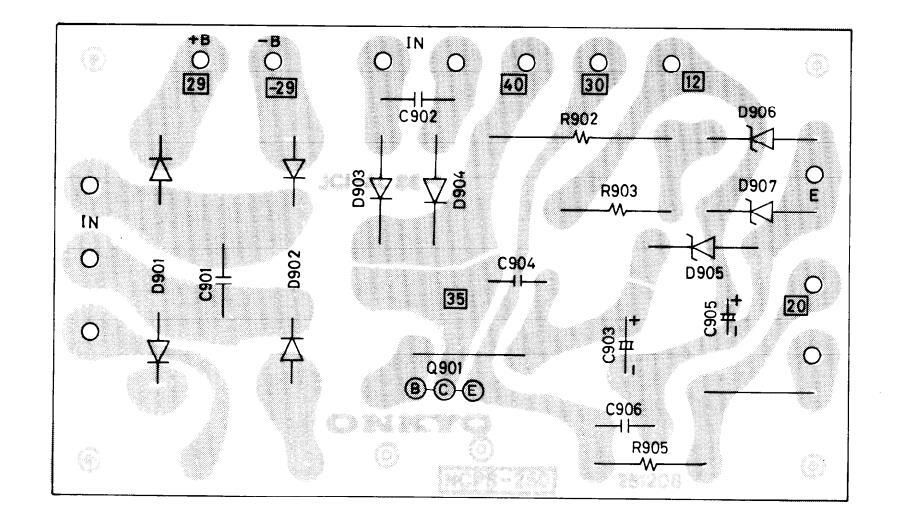

| NAPS-250 | |||||
|
Q901
D901, D902 D903, D904 D905 D907 D906 C903 C011 |
Transistor
Diode-Silicon Diode-Silicon Diode-Zener Diode-Zener Capacitor-Electrolytic Compation Electrolytic |
2SD234(Y)
S5151 10D2 WZ-310 WZ-120 BZ-240 CE04W35V470S CE04W35V230S |
1
2 1 1 1 1 |
2200020
223819 223805 223909 223910 223907 352764711A 3527522114 |
|
|
C911
C905 |
Capacitor-Electrolytic
Capacitor-Electrolytic |
CE04W25V2205
CE04W16V100S |
352741011A |
Page 13
CIRCUIT DIAGRAM and CIRCUIT BOARD-COMPONENT LOCATION
NAIM-224d(IF&MRX Amp assembly)
Page 14
NAEQ-239a(Equalizer Amp assembly)
NADE-240a(Demodulator Amp assembly)
Page 15
NAMT-254(Matrix Amp assembly)
Page 16
NASW-253(Switch assembly)
-
ALL CAPACITURS AND TO THE AND THE SAME SWITCH S800 (LOW FILTER) S803 (LOUDNESS) S804 (MUTING) S805 (TAPE MONITOR) OFF SOURCE ON TAPE 1 S805 (TAPE MONITOR) OFF SOURCE ON TAPE 2
Page 17
NOTES: ALL RESISTORS ARE IN OHMS, 1/4WATT UNLESS OTHERWISE NOTED. ALL CAPACITORS ARE IN الر UNLESS OTHERWISE NOTED. ELECTROLYTIC CAPACITORS (카) ARE IN المريكر VOLTAGES ARE MEASURED WITH V.T.V.M AT NO INPUT SIGNAL.
Page 18
NAAF-252(Pre-Amp assembly)
R517 Ôĕ ° •® Ē C 50 RSO DS -WR5. C30 . ‡ 12 Om D530 ç ORBIN OLFIN ±₫ [ -0 ORFIN di a Me
Page 19
NOTES: ALL RESISTORS ARE IN OHMS, 1/4WATT UNLESS OTHERWISE NOTED. ALL CAPACITORS ARE IN JF UNLESS OTHERWISE NOTED. ELECTROLYTIC CAPACITORS (-*N=-) ARE IN JF/WV. VOLTAGES ARE MEASURED WITH V.T.V.M AT NO INPUT SIGNAL.
Page 20
Page 21
LINE VOLTAGE AND FUSE
The model TS-500 operates on one of the four line voltages, 110V, 120V, 220V and 240V. Set the unit to the proper line voltage by following the procedure described below.
CHANGING LINE VOLTAGE SETTING AND FUSE
Turn the fuse cap located on the line voltage selector counter-clockwise.
Then remove the fuse plug from the unit. Put the fuse plug back so that the proper line voltage mark can be seen through the cut on the edge of the plug.
Whenever the position of the selector is changed, check the rating of the fuse. A 3.0A fuse is for 220V or 240V operation and a 5.0A fuse for 110V or 120V operation.
FUSE REPLACEMENT
When the fuse has blown, remove the fuse cap and replace the fuse with new one. See Fig. 1. The fuses are as follows.
| AC fuse | 3A-T(ST-2)UL(220/240V) |
|---|---|
| 5A-T(ST-2)UL(110/120V) | |
| Pilot lamp fuse | 3A-T(lead type)UL |
| Speaker fuse | 3A-T(SS-2)UL |
REPLACEMENT OF THE POWER IC.
- 1 Take off the Back Panel. (off 4 screws)
- 2 Take off the Heat Sink.
- 3 Replace the Power IC.
Page 22
Page 23
Page 1
Page 2
Page 3
Page 4
Page 5
Page 6
Page 7
Page 8
Page 9
Page 10
Page 11
Page 12
Page 13
Page 14
Page 15
Page 16
Page 17
Page 18
Page 19
Page 20
Page 21
Page 22
Page 23
Loading...
