A little over thirty years ago, the release of Betamax and
VHS revolutionized the world of home entertainment by
bringing prerecorded video content into the home.
Ten years later, the next breakthrough format,
Laserdisc, first made its way onto our screens. Fast­forward to 1997, and the DVD format amazed us with its
visual clarity and portability.
Needless to say, we’ve witnessed some astonishing A/V
progress in a very short period of time. The launch of

the HD DVD and Blu-ray Disc formats in 2006
represents a quantum leap in recorded high-definition
media.
2006 also marks Onkyo’s 60th year in the A/V industry.
With our roots steeped in audio excellence and home
theater innovation, Onkyo looks forward to melding the
promise of high-definition technology with A/V
components that draw their strength from build quality,
proven expertise and emotive reproduction.

3

3 Significant Benefits
You Get from WRAT

2006-2007Home Theater Components

inhibit an amplifier’s transient response—the ability to respond to large
signal gains (e.g. explosions and musical finales)—and actually distort
sound at high frequencies. That’s why our engineers use a low negative­feedback design, with audiophile-grade, close-tolerance components at
critical points in the signal path, to achieve a frequency response out to
100 kHz. That means you can fully enjoy the sonic benefits from such
high-resolution formats as DVD-Audio and Super Audio CD as well as
your regular CDs and DVDs.

Benefit 2: Closed Ground­Loop Circuits—so you’ll
enjoy greater maximum
volume without distortion

If an amplifier’s ground
potential (voltage) fluctuates
during playback of movie
soundtracks or musical
performances, you wind up
with unpleasant noise. In an
open-loop circuit design, all
circuits are connected to the
power supply via one loop. If
all circuits share the same loop
(like on many amplifiers), the noise multiplies exponentially. Onkyo’s
sophisticated closed-circuit design allows each circuit to go and return
directly to the power supply. This cancels any individual circuit noise, and
keeps the ground potential free of distortion.

Benefit 3: High Instantaneous-Current
Capability—so you’ll enjoy film
soundtracks with greater impact

Audio signals are very complex. After the
amplifier outputs such signals to a speaker, the
speaker itself accumulates energy. When the
speaker reflexes, it sends energy back to the
amplifier. The amplifier must immediately be
able to supply a large amount of high current to
cancel the speaker’s reflex energy, and
instantaneously send out the next signal. The
same high current is also necessary to handle

speaker impedance fluctuations, which on
occasion force an amplifier to provide four to six times its usual current
load. The instantaneous current capability of even Onkyo’s least
expensive WRAT receivers is far better than that of most conventional
units. This is because competing designs commonly have less than half
the current capability. The result? The high-current capability incorporated
into all Onkyo receivers means your receiver can deliver movie
soundtracks with theatre-like dynamics and clarity—so you’ll get the same
exciting sonic slam that you experienced in the cinema.

Benefit 1: Uncommonly
Low Negative-Feedback
Design—so you’ll enjoy
cleaner sound on
programme peaks

Although NFB (negative
feedback) is the most cost­effective way to reduce noise
at lower frequencies, there’s a
sonic price to pay: larger
amounts of NFB severely

Net-Tune™

What is Net-Tune™?

Do you have MP3, WAV, or WMA files on your computer? Add new life to
this existing content and enjoy it in surround sound glory. With one of
Onkyo's exclusive line of home network receivers connected to your
computer via a broadband router, you can easily access all your
computer’s music files. Simply download Net-Tune™ to your PC and,
through the Net-Tune™ Central application, you’re ready to truly fill your
room with music. If you’ve already upgraded to a broadband Internet
connection, then there are even more possibilities for you. Have the urge
to hear pop music from Japan or the latest songs soaring up the
American charts? How does instant access to radio stations around the
world sound to you? Well, it’s possible through the mini-revolution in the
music world called Internet radio. The process is simple. Hook up your
home network receiver to a router connected to your broadband modem
via a high-speed Ethernet cable. Press the Net Audio button on the front
of your receiver and you’ll be welcomed to a world of music in your home
through Internet radio.

Net-Tune™ Central

Your media distribution software. Up to now, you
may have looked upon your PC as a means of
sending e-mail, making spreadsheets and
playing the occasional game, but when it came to music, the sound was
second best. Now Onkyo can add astounding depth to your hard drive’s
MP3, WAV or WMA music files. Simply download Net-Tune™ Central to
your PC and your music files will be liberated from the limitations of your
computer’s speakers. Hook your PC up to a router and then connect your
home network receiver for fast and easy access to your computer’s music
files. Now you have transformed your computer into a music server ready
to deliver sparkling surround sound.

Internet Radio

Perhaps you’ve been wondering how your kids
are getting radio reception from Asia. Or how your

flatmate always seems to find those great stations
you can’t find on the radio. What’s the secret? It’s not coming from your
local FM/AM tuner. It’s coming from the Internet. Even if you’re an old pro
at surfing the airwaves of cyberspace, the benefits of Internet radio will
continue to amaze you. No longer are you limited to local access. Now
you have the freedom of the kind of music you want to hear when you
want to hear it. The drawback? Until now this has been limited to the
audio playback capability of your computer and its speakers. We’re sure
you’ll agree with us when we say your music deserves more.

RF-EX6

RF Receiver for TX-NR5000E

• RF receiver for use with the Onkyo RF capable remote
control • The RF receiver allows your RF remote to
control your devices by radio frequency • Up to 16 units
in one system • Integrated IR-blaster • 4 outputs for IR­emitters • Range up to 30 m • 4 selectable channels •
Easy installation • For top mounting and stand alone

(available only in selected countries)

4

TX-NR5000E

THX™ Ultra2™ 7.1-Channel A/V Home Network Receiver

What Hi-Fi, United Kingdom

2005-04

Lloxx, Germany

2005-04

HomeVision, Germany

2005-04

Heimkino, Germany

2005-04

2006-2007Home Theater Components

Home Cinema Choice,

United Kingdom

2005-04

Audiovision, Germany

2005-02

elcome to the full potential of what a home theater

W

receiver can be. Onkyo, the company that brought you
the world’s first 7.1-channel, THX™-certified receiver, now
unveils what a flagship receiver should be. The TX-NR5000E
provides technology and design that will impress all, from the
audiophile to the casual listener. The THX™ Ultra2 badge on
the front means that this receiver provides the guarantee of the
highest quality product available. Onkyo’s Premium Digital
concept takes on a new state-of-the-art look with the addition
of HDMI (High-Definition Multimedia Interface) and i.LINK
(IEEE1394) pure digital ports. All the latest encoding formats-­THX™ Surround EX, DTS® 96/24, Dolby® Pro Logic® IIx, and
more--are here along with the knowledge that you’re ready for
the future with upgradable flash memory. Onkyo’s exclusive
Net-Tune™ protocol provides streaming music from your
computer or Internet radio from the waves of cyberspace. So,
for truly breathtaking performance and features from a receiver
that truly deserves to be christened as a flagship, audition the
TX-NR5000E and find out what true home entertainment is like.

• 200 W/Ch, Continuous 6 Ù, 1 kHz, DIN

• THX™ Ultra2™ Certified

• THX™ Surround EX™, DTS®-ES™
Discrete/Matrix, DTS® Neo:6, DTS®
96/24, Dolby® Digital EX™, Dolby® Pro
Logic® IIx, Dolby® Headphone, Dolby®
Virtual Speaker

• VLSC (Vector Linear Shaping Circuitry)

• Net-Tune™ Function with
MP3/WMA/WAV Decoding

• Ethernet Cable Plug-in Capability

• 2 High-Quality HDMI Inputs and
1 Output

• 2 i.LINK (IEEE1394) Digital Ports

• Speaker A and B Mode for 7.1 Channels

• BTL and Bi-Wiring Connectable for
FL/FR with SBR/SBL

• High-Precision 32-Bit Dual DSP Chips

• 192 kHz/24-Bit DAC for all channels

• 4 Wideband Component Video Inputs
(3 RCA/1 BNC) and 2 Outputs
(RCA/BNC)

• Composite and S-Video to Component
Video Upconversion

• Powered Zone 2 and Zone 3

• 5 12V Trigger Outputs and
3 IR Inputs/Outputs

• Bi-Directional RS232 Port for Interface
Control

• Two Sets of Color-Coded Heavy-Duty
Dual Banana Plug Compatible
Transparent Speaker Posts

• Color-Coded 7.1 Multichannel Inputs
and Pre Outs

• Elegant Aluminum-Faced Remote
Control with Scroll Wheel and
LCD Display

5

TX-SR804E

2006-2007Home Theater Components

THX™Select2™Certified 7.1-Channel A/V Surround Home Theater Receiver

ith such complete home entertainment functionality, it

W

would seem wrong to define the TX-SR804E by only two
words—Power and Simplicity. Take power, at a rock-solid
175 watts per channel. It’s only a rating, but it’s something
completely different when you realize that the TX-SR804E is
built on Onkyo’s Wide Range Amplifier Technology. WRAT
provides a sound amplification framework that combines a
high instantaneous current capability with a distortion­preventing circuit design to channel power for the demanding
sound requirements of today’s high-definition movie sources.
Simplicity might not be a word that you associate with an A/V
receiver of this class, but with HDMI, that perception quickly
changes. HDMI is not only the most technologically advanced
transport available for delivering movies, music and gaming,
it’s also the most straightforward. Virtually any component can
be connected to the TX-SR804E, upconverted, and outputted
via a single HDMI cable. Just what you need to complement
your HD ready display.

• 140 W/Ch, Continuous 6 Ù, 1 kHz, DIN

• 175 W/Ch, 6 Ù, 1 kHz, 1 Channel
Driven, IEC

• THX™ Select2™ Certified

• THX™ Surround EX™, DTS®-ES™
Discrete/Matrix, DTS® Neo:6, DTS®
96/24, Dolby® Digital EX™, Dolby® Pro
Logic® IIx

• VLSC (Vector Linear Shaping Circuitry)
for All Channels

• H.C.P.S. (High Current Power Supply)
Massive High Power Transformer

• 192 kHz/24-Bit DACs for All Channels

• HDMI Video Upconversion (Passes
Progressive Signals)

• Time Base Corrector (TBC) for
Upconversion

• HDTV-Capable HDMI Video Switching
(2 Inputs and 1 Output)

• HDTV-Capable (50 MHz) Component
Video Switching (3 Inputs and 1 Output)

• WRAT (Wide Range Amplifier
Technology)

• Advanced 32-Bit Processing DSP Chip

• 7 Digital Inputs (5 Optical/2 Coaxial) and
1 Output (Optical)

• 5 S-Video Inputs and 3 Outputs

• RS232 Port for Interface Control

• Powered Zone 2 and 12 V Trigger

• IR Input and Output

• Pure Audio Mode

• Optimum Gain Volume Circuitry

• Color-Coded 7.1 Multichannel Inputs
(Ready for Dolby® Digital and DTS®
Audio Formats for High-Definition
Discs) and Pre Outs

• Color-Coded Dual Banana Plug­Compatible Speaker Posts

• Independent Crossover Adjustment for
F/C/S/SB
(40/60/70/80/90/100/120/150/200 Hz)

• A/V Sync Control Function
(Up to 250 ms)

• Auto Speaker Set-up with Microphone

• Compatible with RI Dock for the iPod

• Backlit/Preprogrammed RI (Remote
Interactive) Learning Remote with
3 Macros and Mode-Key LEDs

6

TX-SR674E

7.1-Channel A/V Surround Receiver

Video, Germany

2006-09

AREA DVD

2006-08

Audiovision, Germany

09-2006

2006-2007Home Theater Components

o move to a level beyond purely functional home theater, the TX-SR674E

T

gives you everything you need for audibly powerful, visually expressive
home entertainment. The first consideration should be the essentials—like
rock-steady amplifier power and performance through Wide Range Amplifier
Technology (WRAT) and the cleanest audio signals generated by Vector Linear
Shaping Circuitry (VLSC). And with HDTV in mind, the TX-SR674E also offers
High-Definition Multimedia Interface (HDMI) and connectivity with the latest
high-definition disc formats. Capping it off with Audyssey 2EQ™ room
acoustics correction technology, the TX-SR674E stands out as one of the more
complete A/V receivers in its class.

TX-SR604E

7.1-Channel A/V Surround Receiver

• 150 W/Ch., 6 Ù, 1 kHz, IEC (1 channel driven)

• Powered Zone 2/Zone 2 lineout with 12 V trigger

• DTS®,DTS® 96/24,DTS®-ES Discrete/Matrix, DTS® Neo:6
decoding

• Dolby® Digital, Dolby® Digital EX, Dolby® Pro Logic IIx
decoding

• HDTV-Capable HDMI Video Switching
(2 Inputs and 1 Output)

• Composite to S-Video upconversion

• HDMI and Component Video Upconversion (Passes
progressive Signals)

• Time Base Corrector (TBC) for Upconversion

• Audyssey 2EQ™ to correct room acoustic problems

• A/V synchronization function
(up to 100 ms in 10-ms steps)

s a centerpiece of home entertainment, the TX-SR604E presents superb

A

functionality that will be hard to match. With connectivity to virtually any
A/V source or playback component you can imagine, your entertainment
choices are impressive. The TX-SR604E also packs some exclusive
technologies like the Audyssey 2EQ™ function which measures and corrects the
room acoustics in your home—like having your own sound engineer at your
command. Moreover, this 7.1-channel home theater receiver is ready for the
high-definition revolution with High-Definition Multimedia Interface (HDMI)
effortlessly transporting sublime video and audio, as well as 7.1-multichannel
inputs accepting the most advanced surround sound formats available.

• 140 W/Ch., 6 Ù, 1 kHz, IEC (1 channel driven)

• Powered Zone 2/Zone 2 lineout with 12 V trigger

• DTS®,DTS® 96/24,DTS®-ES Discrete/Matrix, DTS® Neo:6
decoding

• Dolby® Digital, Dolby® Digital EX, Dolby® Pro Logic IIx
decoding

• 2 HDMI inputs and 1 output

• Component video upconversion with Time Base Corrector
(TBC)

• Composite to S-Video upconversion

• Audyssey 2EQ™ to correct room acoustic problems

• A/V synchronization function (up to 100 ms [10-ms steps])

7

TX-SR504E

2006-2007Home Theater Components

7.1-Channel A/V Surround Receiver

ant more than a superb balance of precise surround sound processing,

W

powerful amplification and signal-enhancing technologies to bring out
the very best in your home theater? The TX-SR504E goes above and beyond by
giving you the capability to switch up to three high-definition components for
simple connection to HDTVs. So, on top of sensational DVD movies and your
own music catalog, the TX-SR504E easily integrates recorded video content,
live high-definition broadcasts and the most gripping console games. A
perfectly laid out rear panel features color-coded ports, while the
preprogrammed RI (Remote Interactive) remote control and accessible front
panel controls do all the work for you.

TX-SR304E

5.1-Channel A/V Surround Receiver

• 130 W/Ch., 6 Ù, 1 kHz, IEC (1 channel driven)

• H.C.P.S.—high current power supply

• DTS®,DTS® 96/24,DTS®-ES Discrete/Matrix, DTS® Neo:6
decoding

• Dolby® Digital, Dolby® Digital EX, Dolby® Pro Logic IIx
decoding

• HDTV-capable (50 MHz) component video switching
(3 inputs/1 output)

• Crossover adjustment (40/50/60/80/100/120/150/200 Hz)
for bass management

• A/V synchronization function (set at 0/20/40/60/80/100 ms)

he TX-SR304E 5.1-channel home theater receiver doesn’t follow that well-

T

trodden path. By giving you the connections to the A/V components on
everyone’s lips today—HDTVs, digital video recorders, gaming consoles, etc—
the TX-SR304E wants to broaden your entertainment possibilities, not limit
them to basic DVD and CD playback. Naturally, you’ll want the audio quality
associated with the Onkyo name. That’s why we’ve included the circuitry and
quality parts found in other Onkyo home theater receivers: Optimum Gain
Volume Circuitry, 192 kHz/24-bit DACs, a 32-bit DSP chip, and an H.C.P.S.
(High Current Power Supply) transformer.

8

• 100 W/Ch., 6 Ù, 1 kHz, IEC (1 channel driven)

• H.C.P.S.—high current power supply

• DTS®, DTS® Neo:6 5.1, Dolby® Digital, Dolby® Pro Logic II

• 192 kHz/24-bit DACs for all channels

• Advanced 32-bit processing DSP chip

• HDTV-capable (50 MHz) component video switching
(3 inputs/1 output)

• 3 digital inputs (2 optical/1 coaxial)

• 4 composite video inputs and 2 outputs

• Crossover adjustment (40/50/60/80/100/120/150/200 Hz)
for bass management

• A/V synchronization function (0/20/40 ms)

DV-SP1000E

THX™ Ultra™ Certified Universal DVD-Audio/Super Audio CD Player

HomeVision, Germany

2005-04

What Home Cinema, United

Kingdom

2005-04

Home Cinema, United

Kingdom

2005-02

Essential Hi-Fi & Home

Cinema, United Kingdom

2005-01

2006-2007Home Theater Components

Home Cinema Choice,

United Kingdom

2004-12

Audiovision, Germany

2004-10

ven though the receiver drives your home theater, it’s still

E

important that audio and video signals are delivered to it as
effectively as possible. This is where the DV-SP1000E steps
up: a rugged but sophisticated universal player that’s built to
perform. The DV-SP1000E’s sturdy chassis and loading
mechanism are specifically designed for the smoothest delivery
of your movies and music and for the minimization of
vibrations. And to understand the meaning of “universal”,
think DVD Audio and Super Audio CD, as well as analog and
pure digital reproduction. The inclusion of HDMI (High­Definition Multimedia Interface) and i.LINK (IEEE1394)
interface technology enables the transfer of large amounts (up
to 5 Gbps) of audio and video data and easily connectable,
multichannel music, respectively. Onkyo’s proprietary VLSC
(Vector Linear Shaping Circuitry) and Oplus’ FlexScale™, which
enables video scaling of PAL and NTSC discs from 480i/576i to
480p/576p/720p and 1080i, give this player the A/V playback
edge that other makers fail to match. Such a remarkable
universal player can’t go without recognition, which is why it’s
THX™ Ultra™-certified for its superb standards in audio and
video playback.

• THX™ Ultra Certified

• DTS® and Dolby® Digital Decoders
Built in

• Plays DVD-Audio and Video, DVD-Rs,
DVD-RWs, Super Audio CDs, MP3 CDs,
CD-Rs, CD-RWs, Video CDs, Audio
CDs, and JPEG/Picture CDs*

• Oplus® FlexScale™ Video Scaling
Capability

• 216 MHz/14-Bit Analog Devices NSV®
Video DAC

• Wolfson® 192 kHz/24-Bit Audio DACs

• Dual Direct Digital Path

• Optical & Coaxial Digital Outputs

• High Quality HDMI Output

• 2 i.LINK (IEEE1394) Digital Ports

• 2 Component Video (RCA/BNC),
S-Video, SCART & Composite Video

Outputs/S-Video & Composite Video
Inputs

• 12 V Trigger Input and IR Input/Output

• Bi-Directional RS232 Port for Interface
Control

• Rigid Aluminum Front/Side Panel with
Brass Stabilizers

• PAL and NTSC Veridic Progressive Scan

• On-Screen Display (English, French,
Spanish, German, Italian)

• Elegant Aluminum-Faced Backlit
Preprogrammed, Learning Remote
Control

* Discs that have not been properly

finalized may only be partially playable
or not playable at all.

OOPPLLUUSS®® FFlleexxssccaallee™™ VViiddeeoo SSccaalliinngg
CCaappaabbiilliittyy

Progressive scan players can at most, output an
NTSC 480p signal or PAL 576p signal to
compatible TVs or projectors. The DV-SP1000E
will upscale conventional DVD (NTSC 480i or
PAL 576i) to 480p/576p/720p or 1080i via the

result is a crystal clear, ultra-sharp image on HDTV compliant playback
devices that will take your viewing experience to previously unattainable
levels.

built-in FlexScale video scaler from Oplus. The

9

DV-SP504E

2006-2007Home Theater Components

Universal DVD/CD Player

n the back of its award-winning predecessors, the DV-SP504E universal

O

DVD/CD player stands out as a versatile player well-positioned for the
emergence of high-definition entertainment. It’s the inclusion of the HDMI
interface that makes the DV-SP504E a superb choice for delivering movies,
high-resolution music, and more recent formats like HD JPEG (for megapixel
images with enhanced resolution). Onkyo technology comes into play with
Vector Linear Shaping Circuitry (VLSC) and Direct Digital Path to protect audio
signals from the single most destructive elements to quality movies and
music—pulse noise and noise emanating from a player’s internal components.

DV-SP404E

DVD-Player

• DTS® and Dolby® Digital Decoders Built-in

• Plays DVD-Audio and Video, DVD-R/RWs, DVD+R/RWs,
Super Audio CDs, MP3-Encoded CDs, WMA-Encoded CDs,
CD-R/RWs, Video CDs, Audio CDs, and JPEG- and HD
JPEG-Encoded CDs

• HDMI Output for Video and Audio

• DivX® Video Playable

• HD Conversion to 720p/1080i

• 192 kHz/24-Bit Audio DAC

• 108 MHz/12-Bit Video DAC

• Direct Digital Path

• VLSC (Vector Linear Shaping Circuitry)

ith most entry-level DVD players, you’re only able to watch video

W

playback in standard definition. The DV-SP404E, though, will playback
your DVDs on HDTVs with 720p or 1080i resolution, by transmitting through
HDMI (setting required). Also, with a 108 MHz/12-bit video DAC supporting
progressive scan, you’re assured of spectacular viewing, time after time. The
DV-SP404E does what you expect from a higher-priced player, and it also
serves as a capable playback device for all the CDs in your library, as well as
for your computer-based digital audio files.

10

• DTS® Digital Out and Dolby® Digital

• Plays DVD-Video, DVD-R/RWs, DVD+R/RWs, MP3-Encoded
CDs, WMA-Encoded CDs, CD-R/RWs, Video CDs, Audio
CDs, and JPEG-Encoded CDs

• DivX® Video Playable

• HDMI Output for Video and Audio

• HD Upconversion to 720p/1080i

• 96 kHz/24-Bit Audio DAC

• 108 MHz/12-Bit Video DAC

• Coaxial Digital Outputs

• RI (Remote Interactive) Compatible Remote Control

VL Digital -- Hear What You've Been Searching For

2006-2007Home Theater Components

Analog versus digital audio--there seems to be
no end to this debate. However, there is one
thing that is sure--audio signals are often
tainted with unwanted noise in conventional
amplifiers. Specifically designed to enhance
the Pure Hi-Fi component range, Onkyo's
digital amplifier design employs PWM (Pulse

Width Modulation) amplification and adds its
exclusive VL (Vector Linear) technology to
mask the noise and smooth the spikes in audio
signals to reveal the subtlest nuances in
movies and music. Features like this make the
world of difference to quality hi-fi.

11

2006-2007Home Theater Package

he HT-S990THX is the first system to
meet the parameters set by THX for

T

overall system performance as opposed to
separate loudspeaker and amplifier
performance. In effect, the HT-S990THX
represents a high-performance, powerful
multichannel solution that combines the
convenience of all-in-one systems with the
performance of much higher priced separate
components. With full THX processing
capabilities —THX ASA-derived playback
modes (THX Cinema2, THX Music Mode,
THX Games Mode)— you can be assured
that this system brings out the full potential
of surround sound for all entertainment
options. Equally as important, Onkyo’s Wide
Range Amplifier Technology (WRAT) gives
the system a perfect base for stellar amplifier
performance.

HT-S990THX

THX™ Certified 7.1-Channel Receiver/Speaker Package

HT-R940

THX™ Certified 7.1-Channel A/V Surround Home
Theater Receiver

• 130 W/Ch, 8 Ù, 1 kHz, IEC

• THX™ Certified

• Surround EX™, DTS®-ES™ Discrete/Matrix, DTS® Neo:6,
DTS® 96/24, Dolby® Digital EX™, Dolby® Pro Logic® Ilx

• H.C.P.S. (High Current Power Supply) massive high power
transformer

• 192 kHz/24-bit DACs for all channels

• HDTV-capable (50 MHz) component video switching
(3 inputs/1 output)

• Component video upconversion with TBC (Time Base
Corrector)

• WRAT (Wide Range Amplifier Technology)

• 3 S-Video inputs and 2 outputs

• 4 digital inputs (3 optical/1 coaxial)

• Subwoofer pre out

• Optimum gain volume circuitry

• Advanced 32-bit processing DSP chip

• Non-scaling configuration

• Color-coded 7.1 multichannel inputs (ready for Dolby® Digital
and DTS® audio formats for high-definition discs)

• Speaker A/B drive

• Color-coded dual banana plug-compatible speaker posts
(except speaker B)

• Crossover adjustment (40/50/60/80/100/120/150/200 Hz)

• A/V sync control function (up to 100 ms)

• Compatible with RI Dock for the iPod

• Preprogrammed RI (Remote Interactive) remote control

• WHD: 435 x 151 x 377 mm

• 10.2 kg

HTP-940

7.1-Channel Speaker System

SSKKFF--994400FF 22--WWaayy AAccoouussttiicc--SSuussppeennssiioonn FFrroonntt SSppeeaakkeerrss

• 12 cm A-OMF diaphragm woofer x 2

• 2.5 cm soft-dome tweeter

• Magnetically shielded

• Impedance: 8 Ù

• Frequency response: 50 Hz–45 kHz

• Max. input power: 130 W

• WHD: 158 x 433 x 199 mm

• 5.3 kg
SSKKCC--994400CC 22--WWaayy AAccoouussttiicc--SSuussppeennssiioonn CCeenntteerr SSppeeaakke

• 12 cm A-OMF diaphragm woofer x 2

• 2.5 cm soft-dome tweeter

• Magnetically shielded

• Impedance: 8 Ù

• Frequency response: 50 Hz–45 kHz

• Max. input power: 130 W

• WHD: 433 x 158 x 199 mm

• 5.3 kg
SSKKMM--994400SS//SSKKBB--994400 22--WWaayy AAccoouussttiicc--SSuussppeennssiioonn

SSuurrrroouunndd//SSuurrrroouunndd BBaacckk SSppeeaakkeerrss

• 13 cm A-OMF diaphragm woofer

• 2.5 cm soft-dome tweeter

• Impedance: 8 Ù

• Frequency response: 50 Hz–45 kHz

• Max. input power: 130 W

• WHD: 200 x 275 x 169 mm

• 3.5 kg

SSKKWW--994400

Acoustic-Suspension Powered Subwoofer

• Built-in 230 W amplifier

• 30 cm cone woofer

• Auto-standby/On circuitry

• Frequency response: 20 Hz–100 Hz

• WHD: 380 x 444 x 429 mm

• 15.5 kg

* All speakers include color-coded speaker terminals and

speaker cable

err

12

T-S890 steps up—a 5.1-channel
receiver/speaker package focused on

H

providing quality sound for all entertainment
sources, including high-definition DVD, HD
programming, digital music and gaming. And
with HDTV on everyone’s lips, HDMI is the
ideal connection for the world’s most
advanced video and audio formats. Also
featuring fine-tuning options such as wide­ranging independent crossover adjustment
and A/V synchronization, this package keeps
the control entirely in your hands.

HT-S890

5.1-Channel A/V Surround Home Theater Receiver/Speaker Package

HT-R640

5.1-Channel A/V Receiver

• 140 W/Ch, 6 Ù, 1 kHz, IEC

• DTS®, DTS® 96/24, DTS® Neo:6 5.1, Dolby® Digital,
Dolby® Pro Logic® II

• H.C.P.S. (High Current Power Supply) massive high power
transformer

• 192 kHz/24-bit DACs for all channels

• 2 HDMI inputs and 1 output

• Component video upconversion with TBC (Time Base
Corrector)

• WRAT (Wide Range Amplifier Technology)

• HDTV-capable (50 MHz) component video switching
(3 inputs/1 output)

• Advanced 32-bit processing DSP chip

• 6 digital inputs (4 optical/2 coaxial) and I optical output

• CinemaFILTER™

• Optimum gain volume circuitry

• Color-coded 5.1 multichannel inputs (ready for Dolby® Digital
and DTS® audio formats for high-definition discs)

• Color-coded dual banana plug-compatible speaker posts

• Crossover adjustment (40/50/60/80/100/120/150/200 Hz)

• A/V sync control function (up to 100 ms [10-ms steps])

• Compatible with RI Dock for the iPod

• Preprogrammed RI (Remote Interactive) remote control

• WHD: 435 x 174 x 377 mm

• 11.1 kg

HTP-440

5.1-Channel Speaker Package

SSKKFF--333300XXFF 22--WWaayy BBaassss RReefflleexx FFrroonntt SSppeeaakkeerrss

• 8 cm cone woofer

• 2 cm ceramic tweeter

• Magnetically shielded

• Impedance: 6 Ù

• Max. input power: 120 W

• Frequency response: 80 Hz–22 kHz

• WHD: 148 x 202 x 101 mm

• 0.9 kg
SSKKCC--333300XXCC 22--WWaayy BBaassss RReefflleexx CCeenntteerr SSppeeaakkeerr

• 8 cm cone woofer x 2

• 2 cm ceramic tweeter

• Magnetically shielded

• Impedance: 6 Ù

• Max. input power: 120 W

• Frequency response: 80 Hz–22 kHz

• WHD: 360 x 127 x 131 mm

• 1.6 kg
SSKKMM--333300X

XSS 22--WWaayy BBaassss RReefflleexx SSuurrrroouunndd SSppeeaakkeerrss

• 8 cm cone woofer

• 2 cm ceramic tweeter

• Impedance: 6 Ù

• Max. input power: 120 W

• Frequency response: 80 Hz–22 kHz

• WHD: 148 x 202 x 101 mm

• 0.7 kg
SSKKWW--115500XX BBaassss RReefflleexx PPoowweerreedd SSuubbwwooooffeerr

• 20 cm cone woofer

• Max. output power: 150W

• Frequency response: 30 Hz–150 Hz

• WHD: 235 x 518 x 411 mm

• 12.8 kg

2006-2007Home Theater Package

isplaying every quality you’d want from a
home theater receiver package—

D

versatility, user friendliness, and quality
sound—the HT-S590 should be given serious
consideration. Versatile in its ability to take
all your components for output to HDTV;
user friendly in its ease of set-up and
operation; and quality in sound from its
balanced blend of controlled power and
competent digital signal processing. With a
combined 660 watts power output, this
package packs the drive and power to make
your home entertainment a memorable
experience. The HT-R340 5.1-channel
receiver shares a similar amplification design
as Onkyo’s separate home theater receivers.
Also, the accompanying HTP-340 speaker
package’s compactness enables you to bring
this package to a range of different room
sizes.

HT-S590

5.1-Channel Receiver/Speaker Package

HT-R340

5.1-Channel Receiver

• 110 W/Ch. 6 Ù, 1 kHz, IEC (1 channel driven)

• DTS®, DTS® Neo:6 5.1, Dolby® Digital,
Dolby® Pro Logic® II

• 192 kHz/24-bit DACs for all channels

• HDTV-capable (50 MHz) component video switching
(3 inputs/1 output)

• Crossover adjustment (40/50/60/80/100/120/150/200 Hz) for
bass management

• Compatible with RI (Remote Interactive) Dock for the iPod

• A/V synchronization function (0/20/40 ms)

• Full-function RI (Remote Interactive) remote control

HTP-340

5.1-Channel Speaker Package

SSKKFF--334400FF 22--WWaayy BBaassss RReefflleexx FFrroonntt SSppeeaakkeerrss

• 8 cm cone woofer

• 2 cm ceramic tweeter

• 120 watts max. input

• Magnetically shielded
SSKKCC--334400CC 22--WWaayy BBaassss RReefflleexx CCeenntteerr SSppeeaakkeerr

• 8 cm cone woofer x 2

• 2 cm ceramic tweeter

• 120 watts max. input

• Magnetically shielded
SSKKMM--334400SS 22--W

• 8 cm cone woofer

• 2 cm ceramic tweeter

• 120 watts max. input
SSKKWW--334400 BBaassss RReefflleexx SSuubbwwooooffeerr

• 20 cm cone woofer

• 125 watts max. input

• Color-coded speaker terminals and speaker cables

Waayy BBaassss RReefflleexx SSuurrrroouunndd SSppeeaakkeerrss

13

A Superb Series Offering Dedicated Audio Engineering with

2006-2007Pure HI-FI Components

Versatile Music Playback

ithout a doubt, digital technology is making some noise in the audio industry. But rest assured that any noise--particularly signal

W

noise--is noticeably absent from the A-933 integrated amplifier and C-733 CD player thanks to Onkyo’s commitment to promoting the
cleanest signals through its proprietary technologies like VL Digital, VLSC (Vector Linear Shaping Technology) and Direct Digital Path. The
A-933’s dual toroidal power transformers and thick bus plate support a large, stable flow of current and also work to reduce impedance. The
C-733 CD player’s impressive engineering enables a super signal-to-noise ratio ensuring supreme playback quality. Capping off this series is
the T-433 FM/AM RDS tuner, which uses RDS and Accuclock to deliver radio frequencies that will surprise you with their precision and
clarity. Use these components as they best meet your needs.

PHA-933

Amplifier, CD Player & Tuner Package

A-933

Integrated Digital Amplifier

• 80 W/Ch, Continuous 8 Ù, 1 kHz, DIN

• Exclusive Onkyo VL (Vector Linear) Digital
Technology

• All Discrete Output Stage Circuitry

• Dual Toroidal Power Transformers

• Low Impedance, Thick Bus Plate

• Tone Control (Bass/Treble/Super Bass)

• Source Direct Mode

• 6 Audio Inputs and 2 Outputs

• Precision Motor-Driven Volume Control

• A/B Speaker Selector and Outputs

• Banana Plug-Compatible Speaker Posts

• Brushed Hairline Aluminum Front Panel

• Full-Function RI (Remote Interactive) Remote
Control

C-733

CD-Player

• Plays CD, CD-R and CD-RW

• VLSC (Vector Linear Shaping Circuitry)

• 192 kHz/24-bit DAC

• DLA Link

• Super Precision Clock (+/-1,5 ppm)

• 2 Optical Digital Outputs

• 25-Track Programming

• Repeat/Random/Memory Playback

• Brushed Hairline Aluminum Front Panel

• Ultra-Smooth CD Loading Mechanism

• Direct Digital Path

• Blue FL Display

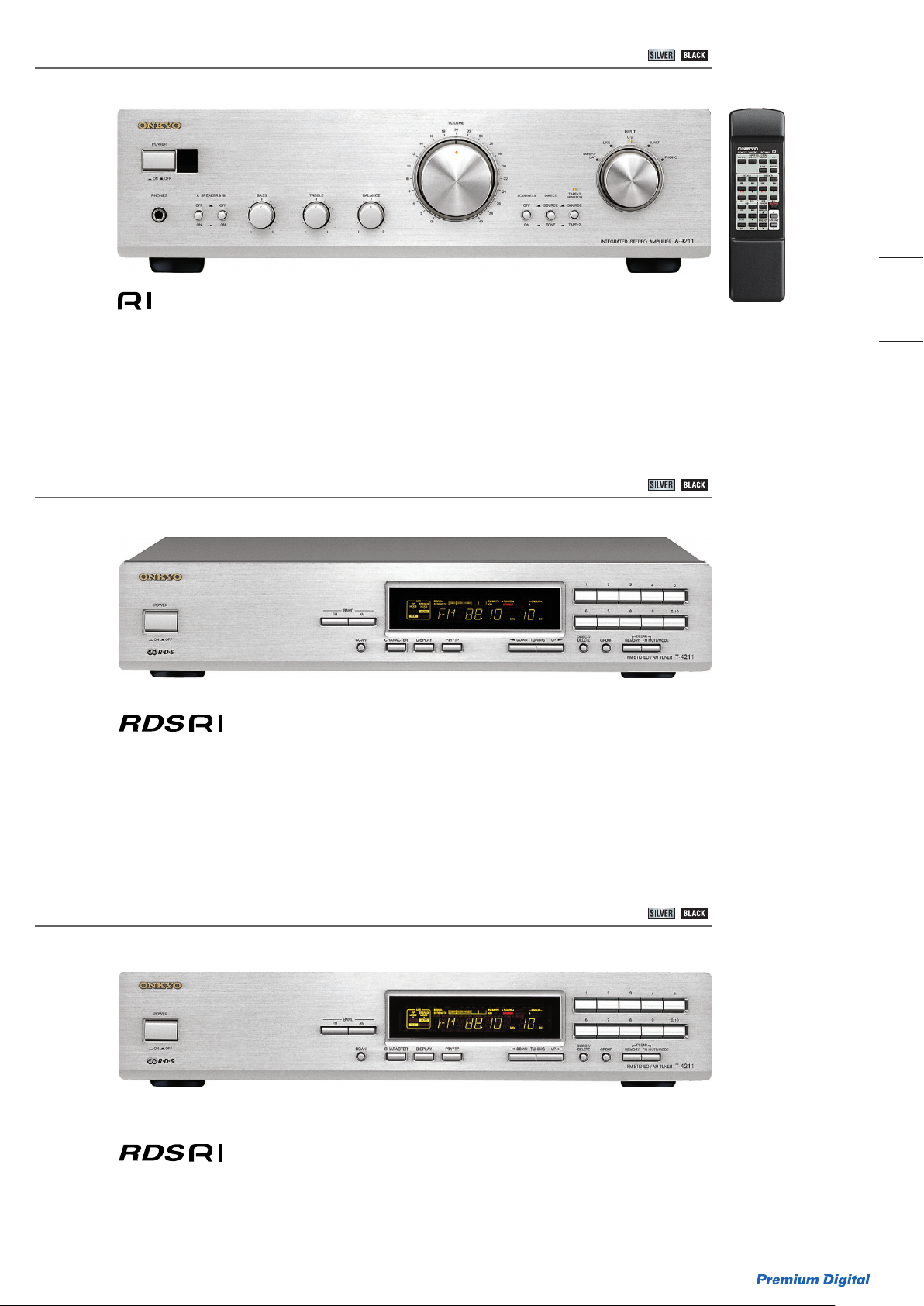

T-433

FM/AM Tuner

• Automatic FM/AM Scan Tuning

• 30 FM/AM Presets

• RDS (CT/PS/RT)

• Accuclock Function

• A-933 Remote Control Compatible

• 5-Timer Mode Settings
(Sleep/Play/Rec/Once/Every)

• Hi-Rigidity, Anti-Resonant Chassis

• Blue FL Display

• Brushed Hairline Aluminum Front Panel

Optional

DS-A1/DS-A2

Remote Interactive (RI) Dock for the iPod

• Connects with Onkyo RI-compatible
Receivers/Amplifiers and Audio-Video Systems

• Charges iPod through AC adapter

• Brings Audiophile Quality to Digital Music Files

• Enables iPod photo Slide Shows

• Brings Remote Control to the iPod

• Auto Selector Function

• Time Play/Sleep Timer Function

• Alarm Function

PPaacckkaaggee CCoonntteennttss

• DS-A1 Remote Interactive Dock

• AC Adapter

• Audio, S-Video and RI Cables

• iPod Adapters

• Instruction manual

14

A-1VL

Integrated Digital Amplifier

2006-2007Pure HI-FI Components

nkyo’s A-1VL digital stereo amplifier provides superior audio performance

O

without sacrificing quality audiophile parts and build quality. This slim,
futuristic digital amplifier possesses a low-impedance design with carefully
selected audio parts—large capacity, separate toroidal transformers, thick
copper bus plates and high-grade transparent speaker terminals. Also, the
A-1VL combines PWM (Pulse Width Modulation) amplification and exclusive VL
(Vector Linear) technology to smooth the ripples (fluctuations) and eliminate
the noise inherent in analog or other PWM technologies. The result is 90%
efficient amplification for wide dynamic and frequency ranges as well as
noticeable sound harmony.

C-1VL

Audiophile-Grade CD Player

• 100 W/Ch, 1 kHz, 8 Ù, DIN

• Exclusive Onkyo VL Digital 2-Channel Amplifier

• Separate Toroidal Transformers for L/R Channels

• High-Grade, Banana-Plug Capable, Transparent Speaker
Posts

• Low-Impedance, Copper Bus Plate

• Precision Motor-Driven Volume Control

• Brass Stabilizers

• Brass Pin Jacks

• Heavy-Duty, Inlet Power Cord

• RI (Remote Interactive) Compatible Remote Control

he C-1VL CD player brings together superb audio reproduction, user-

T

friendly operability and modern design sensibility. Displaying a range of
technological advancements, this player effortlessly works with and
complements the A-1VL digital stereo amplifier. Onkyo’s exclusive VLSC (Vector
Linear Shaping Circuitry) and high-grade Wolfson™ D/A converters ensure that
the signal is free from the noise that taints other players. Also, a high-purity,
heavy-gauge, shielded cable guarantees a digital audio signal that is noise-free
and less susceptible to flux. The C-1VL CD player appeals to the music
enthusiast who won’t settle for anything less than the Onkyo approach to audio
excellence.

• VLSC (Vector Linear Shaping Circuitry)

• Wolfson™ 192 kHz/24 bit DAC

• Direct Digital Path

• Digital Out On/Off

• Brass Stabilizers

• Brass Pin Jacks

• Heavy-Duty, Inlet Power Cord

• High-Grade Pin Cable Included

• 3 Digital Outputs (2 Optical/1 Coaxial)

• RI (Remote Interactive) Compatible Remote Control

15

A-9755

2006-2007Pure HI-FI Components

Integrated Digital Amplifier

he benefits of digital amplification have been recognized by the audio

T

industry for some time. With minimal power leakage, digital amplifiers can
achieve a power efficiency of up to 90%. Without the need for large heat sinks,
manufacturers can focus on introducing more compact, sleeker designs. By
considering the fundamentals of audio reproduction and accurate
analogue-to-digital conversion, Onkyo has introduced a better solution to
integrated digital amplifiers--the A-9755. Utilizing Onkyo’s own Vector Linear
(VL) Digital technology in conjunction with a Pure Stream Power Supply
concept (comprising two large transformers), the A-9755 represents a truly
unique approach to digital amplifier design.

A-9555

Integrated Digital Amplifier

• 150 W/Ch, continuous 8 Ù, 1 kHz, DIN

• Pure Stream Power Supply (two transformers)

• All discrete output stage circuitry

• Tone control (Bass, Treble, Loudness On/Off)

• Discrete phono equalizer (hybrid type circuitry)

• 7 gold-plated audio inputs and 2 outputs

• Main in terminal

• Speaker A/B posts

• Compatible with RI dock for the iPod

• RI (Remote Interactive) remote control

igital amplification enables significant power efficiency savings and

D

supports smaller, more compact designs—obvious benefits for today’s
home lifestyles. With the A-9555 integrated digital amplifier, sound quality
takes precedence over all else. By using Onkyo’s exclusive Vector Linear (VL)
Digital technology to remove any spike noise before it introduces errors into the
inversion timing, it is possible to get a highly accurate analog-to-digital
conversion. Also, at the heart of the A-9555 is a Pure Stream Power Supply-­essentially a large power transformer--that ensures that you always have the
on-demand power for the clarity and detail of a range of musical genres.

16

• 100 W/Ch, continuous 8 Ù, 1 kHz, DIN

• All discrete output stage circuitry

• Optimum gain volume circuitry

• Tone control (Bass, Treble, Loudness On/Off)

• Discrete phono equalizer (hybrid type circuitry)

• 7 audio inputs and 2 outputs

• Speaker A/B posts

• Banana plug-compatible speaker posts

• Compatible with RI dock for the iPod

• RI (Remote Interactive) remote control

A-9211

Integrated Amplifier

2006-2007Pure HI-FI Components

• 60 W/Ch, Continuous 4 Ù, 1 kHz, DIN

• High-Current, Low-Impedance Drive

• Shielded Heavy-Duty Power Supply

• Discrete Output Stage Circuitry

• Aluminium-Extruded Heat Sink

T-4555

FM/AM RDS Tuner

• Tuner Board (DAB) Upgrade Capability

• FM/AM Auto Tuning

• 40 FM/AM Presets

• RDS (RT/PTY/TP)

• Direct Access Tuning (via Remote)

• A/B Speaker Selector & Outputs

• Direct Source/Tone Bypass Switch

• 5 Audio Inputs and 2 Outputs

• Aluminium Front Panel

• RI (Remote Interactive) Compatible Remote Control

• RS232 Port

• IR Input/Output

• 12V Trigger Input/Output

• Brushed Hairline Aluminum Front Panel

• RI (Remote Interactive) System Compatible

T-4211

Quartz Synthesized FM/AM Stereo Tuner

• Digital Synthesized Tuning

• High Sensitivity & Superb Selectivity

• High-Quality Front End

• 2-Mode APR (Automatic Precision Tuning)

• RDS (PTY, TP, RT, CT, PS)

• 30 RDS FM/AM Random Presets

• Selectable Character Display Input

• 3 Station-Group Presets (10 Stations Each)

• Aluminium Front Panel

• RI (Remote Interactive) System Compatible

17

TX-8522

RDS FM/AM Stereo Receiver

2006-2007Pure HI-FI Components

• 100 W/Ch., 4 Ù, 1 kHz, DIN; 100 W/Ch., 4 Ù, 1 kHz, IEC (2
channels driven); 65 W/Ch. , 8 Ù, 1 kHz, IEC (2 channels driven)

• Wide Range Amplifier Technology (WRAT)

• High-current, low-impedance drive

• Discrete output stage circuitry

TX-8222

RDS FM/AM Stereo Receiver

• 70 W/Ch., 4 Ù, 1 kHz, DIN; 70 W/Ch., 4 Ù, 1 kHz,
IEC (2 channels driven)

• Wide Range Amplifier Technology (WRAT)

• High-current, low-impedance drive

• Discrete output stage circuitry

• A/B speaker selector and outputs to hook up an additional
pair of speakers

• IR input and output for second room and other component control

• Independent treble, bass and balance controls

• 3 audio and 2 A/V inputs

• A/B speaker selector and outputs to hook-up an additional
pair of speakers

• IR input and output for second room and other component control

• Independent treble, bass and balance controls

• Cassette tape dubbing capability

TA-RW255

Double Cassette Deck

• Auto-reverse on both Decks; Auto-Reverse Record on Deck B

• Dolby® B and C Noise Reduction

• CD Synchro Recording

• 8-Segment FL Peak Level Meters

• Peak Hold

18

• Auto Tape Selector

• Auto Spacing

• 4-digit Electronic Tape Counter

• Aluminium Front Panel

• RI (Remote Interactive) System Compatible

DX-7555

CD Player

2006-2007Pure HI-FI Components

• Plays audio CDs, MP3 CDs, CD-Rs/CD-RWs

• VLSC (Vector Linear Shaping Circuitry)

• Super Precision Clock (±1.5 ppm)

• Digital filter and phase control

• Wolfson® 192 kHz/24-bit DAC

DX-7333

CD Player

• Proprietary AccuPulse Quartz System

• Unique Next Selection Feature

• Memory Reverse (Program Delete)

• Peak-Level Search via Remote

• 36-Track Random Memory

• Direct Digital Path

• Headphone jack with volume control

• Quick navigation for MP3 CD playback

• 25-step memory playback and 4 repeat modes

• RI (Remote Interactive) system compatible

• 5 Repeat Modes (Full/Single/Memory/Shuffle/A-B)

• 2 Optical Digital Outputs

• Headphone Jack with Volume Control

• Brushed Hairline Aluminium Front Panel

• RI (Remote Interactive) Remote Control

DX-C390

6-Disc CD Carousel Changer

• Plays Audio CDs, MP3 CDs, CD-R/RWs

• VLSC (Vector Linear Shaping Circuitry)

• VQA (Vector Quantizer Audio) Conversion Technology

• Change up to 5 Discs During Play

• 192 kHz/24-Bit Audio DAC

• Direct Digital Path

• 2 Digital Outputs (Optical/Coaxial)

• 40-Track Programming

• Brushed Hairline Aluminum Front Panel

• RI (Remote Interactive) Remote Control

19

CS-V815

2006-2007Separate Collection

Universal A/V Receiver System

or a relatively diminutive A/V receiver system, the CS-V815

F

really does cover all the bases. The ability to handle
breakthrough audio formats, DVD-Audio and Super Audio CD,
regular CDs, and recorded digital MP3 files is impressive
enough. But the CS-V720 will also enable you to playback
progressive scan DVD sources with a virtual surround sound­field, and it also takes DTS® and Dolby® Digital sources into
the full 5.1-channel realm with connection to a power (main)
amplifier and speakers. With its space-saving qualities and
versatility, the CS-V815 will neatly integrate into virtually any
space of your choice and give you greater entertainment
options.

• 18 W/Ch, Continuous 4 Ù, 1 kHz

• Plays DVD-Audio & Video, DVD-R/RWs,
Super Audio CDs, MP3-Encoded CDs,
WMA-Encoded CDs, CD-R/RWs, Video
CDs, Audio CDs, and JPEG-Encoded
CDs*

• DTS®, Dolby® Digital, Dolby® Pro
Logic® II

• VLSC (Vector Linear Shaping Circuitry)

• WRAT (Wide Range Amplifier
Technology)

• 192 kHz/24-Bit DAC

• 108 MHz/12-Bit Video DAC

• Advanced 32-Bit Processing DSP Chip

• Discrete Output Stage Circuitry

• Optimum Gain Volume Circuitry

• Component Video Output

• Front Virtual Surround Function

• Progressive Scan Video Output

• 40 FM/AM Presets

• Compatible with RI Dock for the iPod

• WHD: 205 x 147 x 353 mm

• 5.4 kg
* Discs that have not been properly

finalized may only be partially playable

or not playable at all.
Note: Specifications subject to change
DD--NN77BBXX((YY)) 22--WWaayy BBaassss RReefflleexx SSppeeaakkeerrss

• 13 cm A-OMF Monocoque Diaphragm

Woofer

• 3 cm Ring-Drive Tweeter

• Aero Acoustic Drive for Powerful and

Natural Sound

• V-Line Edge to Counteract Unwanted

Diaphragm Vibration

• Banana Plug-Compatible Speaker Posts

• Magnetically Shielded

• Impedance: 4 Ù

• Max. Input Power: 70 W

• Frequency Response: 50 Hz–100 kHz

• WHD: 167 x 290 x 246 mm

• 3.9 kg

20

CS-715

CD-Receiver System

TITANIUM

2006-2007Separate Collection

t first glance, the CS-715 will impress you with its

A

handsome, titanium-colored aluminum front panel and a
robustness of build rarely seen among mini audio systems.
Give it some airplay, and you’ll find its switching amplifier
design—employing VL (Vector Linear) Digital technology for
accurate conversion—reproduces music with remarkable
clarity. On the CD drive side, Vector Linear Shaping Circuitry
(VLSC) further ensures you’re getting the purest sound
possible. With an emphasis on high-instantaneous current
capability, the CS-715 has the power to achieve the high
performance standards that most mini systems fail to reach.

• 50 W/Ch, Continuous 4 Ù, 1 kHz

• Plays CDs and MP3-Encoded CDs

• VL (Vector Linear) Digital Technology

• Wolfson® 192 kHz/24-Bit DAC

• VLSC (Vector Linear Shaping Circuitry)

• High Instantaneous Current Capability

• Discrete Output Stage Circuitry

• 3 Gold-Plated Audio Inputs and 2
Outputs

• 1 Front-Panel Audio Input

• Subwoofer Pre-Out

• Super Bass

• Tone Control

• 25-Track Programming

• 4 Timer Mode Settings (Play or
Rec/Once or Every)

• Sleep Timer

• 40 FM Presets

• RDS (PS/RT)

• Aluminum Front Panel

• Flat Underside Designed to Prevent
Vibrations

• Compatible with RI Dock for the iPod

• Full-Function RI (Remote Interactive)
Remote Control

• WHD: 205 x 116 x 335 mm

• 4.6 kg

DD--NN1100BBXX((DD//BB//SS)) 22--WWaayy BBaassss RReefflleexx
SSppeeaakkeerrss

• 13 cm A-OMF Monocoque Diaphragm
Woofer

• 3 cm Ring-Drive Tweeter

• Aero Acoustic Drive for Powerful and
Natural Sound

• V-Line Edge to Counteract Unwanted
Diaphragm Vibration

• Banana Plug-Compatible Speaker Posts

• Magnetically Shielded

• Impedance: 4 Ù

• Max. Input Power: 70 W

• Frequency Response: 45 Hz–100 kHz

• WHD: 167 x 298 x 247 mm

• 4.2 kg

21

CS-515A

CD Receiver System

Separate Collection 2006-2007

ike its predecessor, the CS-515 CD receiver system

L

embodies an approach to sound—detailed, balanced and
spacious—that belies its size. The CD receiver itself exudes an
air of solidity, with its concave aluminum front panel. In the
engine room, audio quality is promoted with the inclusion of a
Wolfson® 192 kHz/24-bit DAC. The CS-515’s relative power
enlivens CD playback and gives your MP3 files an edge they’ve
been missing. It's improvement by increments for the receiver,
but a brand new direction for the D-N9BX 2-way, bass reflex
speakers that round out this system and make it a fine
investment for the home.
(Available in Silver / Beech in selected markets only.)

• 20 W/Ch, Continuous 4 Ù, 1 kHz, IEC

• Plays CDs and MP3-Encoded CDs

• Wolfson® 192 kHz/24-Bit DAC

• WRAT (Wide Range Amplifier
Technology)

• VLSC (Vector Linear Shaping Circuitry)

• High-Current, Low-Impedance Drive

• Discrete Output Stage Circuitry

• 4 Audio Inputs and 2 Outputs

• Direct Mode

• Subwoofer Pre-Out

• Super Bass

• Tone Control

• 25-Track Programming

• 4 Timer Mode Settings (Play or
Rec/Once or Every)

• Sleep Timer

• 40 FM/AM Presets

• RDS (PS/RT)

• Aluminum Front Panel

• Compatible with RI Dock for the iPod

• Full-Function RI (Remote Interactive)
Remote Control

• WHD: 205 x 116 x 353 mm

• 4.3 kg

DD--NN99BBXX((DD//BB//SS)) 22--WWaayy BBaassss RReefflleexx
SSppeeaakkeerrss

• 13 cm A-OMF Monocoque Diaphragm
Woofer

• 3 cm Ring-Drive Tweeter

• Aero Acoustic Drive for Powerful and
Natural Sound

• V-Line Edge to Counteract Unwanted
Diaphragm Vibration

• Banana Plug-Compatible Speaker Posts

• Magnetically Shielded

• Impedance: 4 Ù

• Max. Input Power: 70 W

• Frequency Response: 45 Hz–100 kHz

• WHD: 167 x 298 x 247 mm

• 4.1 kg

22

CS-315

CD Receiver System

2006-2007Separate Collection

he biggest challenge for compact audio systems is to take

T

any music genre and reproduce a detailed, balanced audio
output. Judging the CS-315 CD receiver system on that basis
alone, we have a winner. Anchored around Onkyo’s Wide Range
Amplifier Technology (WRAT), the CS-315 excels in revealing
the nuance of CDs and MP3 tracks recorded to disc, and even
your iPod’s tracks. Don’t forget its mobility—this system will
easily slot into most spaces that you choose. Forming a
competent audio chain with the distinctive D-N7BX 2-way, bass
reflex speakers, the CS-315 creates all the right impressions.

AAmmpplliiffiieerr FFeeaattuurreess

• 19 watts per channel minimum into
4 Ù, 1 kHz, IEC (2 channels driven)

• Wide Range Amplifier Technology
(WRAT)

• High-current, low-impedance drive

• Discrete output stage circuitry

• Optimum Gain Volume Circuitry

• 3 audio inputs (1 front panel) and
1 output

• Subwoofer pre out

CCDD PPllaayyeerr FFeeaattuurreess

• Plays audio CDs and MP3s burnt to
CD-Rs and CD-RWs

• Single-bit DAC

• 4 play modes
(Normal/Memory/Random/Repeat)

• Navigation/All Folder modes for
selecting and playing MP3 files

• Memory playback (25-track
programming)

TTuunneerr && OOtthheerr FFeeaattuurreess

• Direct function

• Super Bass function

• 4-mode timer (Play or Rec/Once or
Every)

• Sleep timer

• Accuclock

• RDS (PS/RT)

• Auto preset function with 40 FM/AM
selections

• Preset naming (up to 8 characters)

• Aluminum front panel

• Headphone jack

• Screw-type banana plug-compatible
binding posts

• Compatible with RI Dock for the iPod

• RI (Remote Interactive) remote control

DD--NN77BBXX 22--WWaay

• 13 cm A-OMF Monocoque diaphragm
woofer

• 3 cm ring-drive tweeter

• Aero Acoustic Drive for powerful and
natural sound

• V-Line Edge for responsive, hi-fidelity
sound

• Magnetically shielded

• Screw-type banana plug-compatible
binding posts

• Impedance: 4 Ù

• Max. input power: 70 W

• Frequency response: 50 Hz-100 kHz

y BBaassss RReefflleexx LLoouuddssppeeaakkeerrss

23

2006-2007Home Style Components

CBX-100

CD Receiver System

ometimes the best mini audio systems come right out of left field. The

S

CBX-100 is a perfect example. With its retro-modern styling, this CD
receiver system is designed to provide the perfect mix of CD, MP3, iPod or
radio playback. Easily placed where you wish, the CBX-100 would feel equally
as comfortable in your bedroom, living room, kitchen or office. Remember,
there’s no need for stand-alone speakers—this all-inclusive system packs
everything into its two-tone, vented design. The speakers even include Onkyo’s
OMF diaphragms—a distinct advantage over the low-cost materials found in
other all-in-one mini systems. With enough functionality for you to tune the
sound to your own preferences, the CBX-100 is a delight to the senses.

24

CCDD RReecceeiivveerr FFeeaattuurreess

• 5 Watts for Each Channel

• Plays CDs, MP3-Encoded CDs and WMA-Encoded CDs

• Slot-in CD Loading Mechanism

• 3-Mode Preset EQ Function (Dynamic/Vocal/Smooth)

• Tone Control (Bass/Treble) and Super Bass Function

• 25-Track Programming

• Random/Memory Play Modes

• 2 Repeat Modes (Track/Full)
TTuunneerr && OOtthheerr FFeeaattuurreess

• 4 Time Mode Settings (Play or Rec/Once or Every)

• Sleep Timer

• Snooze Function

• 30 FM/AM Presets

• Automatic FM/AM Scan Tuning

• RDS & AccuClock

• Battery-Free Memory Backup

• Headphone Jack

• Compatible with RI Dock for the iPod

• RI (Remote Interactive) Compatible Remote Control
SSppeeaakkeerr FFeeaattuurreess

• 8 cm OMF Diaphragm Woofer

• Aero Acoustic Drive for Powerful and Natural Sound

• Separated Speaker Enclosures for Improved Sound Quality

(iPod functionality via optional Remote Interactive Dock)

DS-A1

Doing More with Your iPod -- Through

RI Technology Offers Remote Control of iPod

DS-A1

Remote Interactive (RI) Dock for the iPod

• Connects with Onkyo RI-compatible Receivers/Amplifiers and Audio-Video
Systems

• Charges iPod through AC adapter

• Brings Audiophile Quality to Digital Music Files

• Enables iPod photo Slide Shows

• Brings Remote Control to the iPod

• Auto Selector Function

• Time Play/Sleep Timer Function

• Alarm Function

PPaacckkaaggee CCoonntteennttss

• DS-A1 Remote Interactive Dock

• AC Adapter

• Audio, S-Video and RI Cables

• iPod Adapters

• Instruction manual

Onkyo’s Imaginative Sight and Sound

2006-2007Home Style Components

DS-A2

DS-A2

Remote Interactive Dock

• Superb Audio and Video Playback - Not just for music, but video and photos too

• Control From Afar - Now with its own dedicated remote control

• Charged and Ready to Go - Perfect as a charging station

• Easier Viewing of Your Track Lists

• Displays music track lists with information about artists, albums, songs and
genres

• Remote Interactive (RI) Capabilities

• Brings Auto Selector, Time Play/Sleep Timer, Alarm functions

• WHD: 112 x 60 x 112 mm

• 230 g

• iPod Models Compatible with the DS-A2 (as of July 2006), 5th generation iPod,
iPod nano, iPod photo, iPod mini, 4th generation iPod with click wheel, 3rd
generation iPod with touch wheel

25

D-312E

2006-2007Speaker Systems

2-Way, Bass Reflex Speakers

D-302E

2-Way, Bass Reflex Speaker

• New, improved A-OMF diaphragm for better transient response

• Supported by a large voice coil (65 mm) for power handling

• Oversized, high-strength ferrite magnet to maintain drive power

• Die cast frame construction to prevent vibrations

• New V-Line Edge to remove damaging vibrations from diaphragm’s surface

• Highly responsive ring-drive tweeter for high-frequency sounds

• Aero Acoustic Drive to cut off high frequency interference

• Wood-finished MDF cabinet

• Independent network circuit to mitigate woofer/tweeter interference

• Banana-plug compatible, bi-wiring speaker posts

• Frequency Response: 34 Hz-100 kHz

• Maximum Input Power: 200 W

D-TK10

2-Way, Bass Reflex Speakers

• New A-OMF diaphragm for better transient response

• Supported by a large voice coil (6,5 cm)

• Implementing a large, high-strength ferrite magnet

• Die cast frame construction to prevent vibrations

• New “V-Line” Edge to remove mitigating vibrations

• Highly responsive ring-drive tweeter for high-frequency sounds

• Equalizer for improved transient response

• Aero Acoustic Drive to cut off high frequency interference

• Wood-finished MDF cabinet

• Network circuit to mitigate woofer/tweeter interference

• Gold-plated, banana-plug compatible speaker posts

• Frequency Response: 34 Hz-100 kHz

• Maximum Input Power: 200 W

D-112E

2-Way, Bass Reflex Speaker

• Takamine Voicing Acoustic Technology construction

• Solid, stylish mahogany cabinet with enhanced musicality

• New, improved 10 cm A-OMF Monocoque diaphragm to support piston motion range

• Highly responsive 3 cm ring-drive tweeter to take frequency response out to 100 kHz

• Aero Acoustic Drive to cut off low and high frequency interference

• High-quality network circuit supported by quality parts

• Magnetically shielded

• Gold-plated, banana-plug compatible speaker posts

26

• New, improved 10-cm A-OMF Monocoque diaphragm to support wider piston motion
range

• Highly responsive 3-cm ring-drive tweeter to prevent breakup

• Heavy-duty 3.8-cm voice coil for woofer

• V-Line Edge to remove unnecessary sounds from the diaphragm’s surface

• Aero Acoustic Drive to cut off low and high frequency interference

• High-quality network circuit with S.G.L. (Steady Ground Level)

• Magnetically shielded

• Gold-plated, banana plug-compatible speaker posts

HDMI™ (High-Definition
Multimedia Interface)

The latest in digital interface technology is here
and it goes by the name of HDMI (High­Definition Multimedia Interface). This high­bandwidth interface supports not only
remarkable amounts of uncompressed digital
video but audio as well. Up to 5 Gbps of data,
more than twice what’s needed for a high­definition movie with surround sound, can be
handled with room for future requirements.

All this data is kept in the digital domain as there are no D/A or
A/D conversions needed to ensure the highest sound and
video quality available. Unparalleled amounts of compressed or
uncompressed digital audio and video—up to 5 Gbps of
data—can be handled with just one high-speed cable.

i.LINK™ Digital Audio Interface
(a.k.a. IEEE1394)

The reduction of up to six analogue cables to one single
digital cable capable of carrying multi-channel audio is here.
i.LINK (a.k.a. IEEE1394) provides the high-bandwidth, high-

resolution signal transfer of audio that multi-channel formats
like DVD-Audio and Super Audio CD have been waiting for. Even better,
content stays in the pure digital realm as there are no unnecessary D/A or
A/D conversions performed. Experience the pure digital multi-channel
music experience you’ve been waiting for.

Premium Digital
Philosophy

This philosophy represents Onkyo’s all-inclusive approach to building
digital components that incorporate our core technologies, high-quality
parts and a focus on performance. It’s all part of a comprehensive formula
that enables us to offer products recognized for audio excellence,
superior construction, a high level of reliability and ease of use.

2006-2007Glossary

192 kHz/24-Bit Audio
DACs

Performing at a full 192 kHz/24-bit level of resolution,
these state-of-the-art digital-to-analog converters
deliver audio performance that is second to none. They
boast a higher dynamic range than standard D/A
converters, and are virtually resistant to clock jitter --

which means you’ll enjoy the best performance
possible from DVD-Audio discs and Super Audio CDs and cleaner sound
from your regular DVDs and CDs.

CinemaFILTER™

The tonal balance of a film soundtrack can be edgy and bright when
played back over audio equipment in your home - this is because film
soundtracks are designed to be played back in large theaters, using
commercial equipment. Onkyo has developed its own solution that
restores the correct tonal balance of a movie soundtrack in the smaller
environs of your home theater.

DVD-Audio -- Unprecedented
Fidelity

DVD-Audio’s dataloss-free reproduction of 192 kHz/24-bit 2-channel
stereo or 96 kHz/24-bit 6-channel surround sound recreates music with
such detail and clarity, it sounds as if every recording is being played live
in your home. DVD-Audio can store 1,100 times more information per
second than a CD. And with a super-high frequency rate of 192,000
samples per second -- 4.3 times greater than an audio CD -- you get
256 times the resolution, a frequency response up to 96 kHz, and an
extraordinary dynamic range of up to 144 dB -- which translates into a
musical experience that goes beyond just listening!

ONKYO'S Micro Fiber
(OMF), A-OMF & A-OMF
Monocoque

OMF, made from a pure cotton weave to absorb
vibrations, was first developed to create a thick yet
rigid diaphragm that enables an extremely fast,
accurate response. The next stage saw the advent of

A-OMF, which incorporates a PEN (polyethylene
naphthalate) layer with a flexible cotton weave that makes speaker cones
even stronger and more resistant to heat. We then added an aramid layer
to create NEW A-OMF. The evolution has been taken a step further with
A-OMF Monocoque--essentially sharing the same material composition as
A-OMF but forming a single, continuous cover over the cone. All
diaphragm types achieve improved midrange clarity and imaging for an
astonishingly vivid, natural sound.

PAL/NTSC Veridic
Progressive Scan

Most DVDs are “progressive” -- meaning they produce video in complete
frames. But to be compatible with all TVs, the DVD signal must be
interlaced -- a method where the picture is split into two fields and then
blurred together to look like one. Progressive Scan, however, retrieves the
original progressive signal, and on such compatible displays as HDTV,
Plasma or digital TV and high-end projectors, “paints” all the visible lines
on the screen in a single pass -- so you’ll enjoy a scan-line-free image,
with spectacularly clear color, no motion artifacts, and details so sharp
they seem as if they’re etched onto the screen.

Analog Devices® 216 MHz/14­Bit NSV™ Video DAC

A crucial factor in achieving clear, pristine digital video
playback is the video D/A converter in your DVD player. The
state-of-the-art 216 MHz/14-bit video DAC from Analog

Devices featured in the DV-SP1000E gives you the finest
artifact-free picture available. Features such as 4x oversampling and
Noise Shaped Video (NSV®) dramatically reduce noise interference to the
video signal, so you can enjoy even the most subtle of nuances in your
favorite movies.

Oplus® FlexScale™ Video
Scaling Capability

While HD-DVD with a native resolution of over NTSC
480p or PAL 576p is still on the drawing board, you
can experience HD level 720p and 1080i via
FlexScale™ video scaling capability from Oplus®.
Built in to the DV-SP1000E, and thus eliminating the

need for costly external scalers, FlexScale™ takes
NTSC 480i or PAL 576i DVDs beyond normal progressive scan players
and into the HD domain by enabling 720p or 1080i output through the
HDMI (High-Definition Multimedia Interface) out on the rear.

Super Audio CD -- Precision
Clarity

Super Audio CD gives you the next step in the evolution of pristine sound.
All channels provide for up to 100 kHz frequency response and a
sampling rate of 2.822 MHz—that’s 64 times that of a regular CD! A
multichannel SACD disc can provide you with up to 6 channels of high­resolution audio in addition to a regular CD layer for playback on any
existing CD player.

27

FEATURES

POWER SPECIFICATIONS

POWER OUTPUT*

DYNAMIC POWER*

AMPLIFIER DESIGN

IDENTICAL FULL
REDUCED NFB (NEGATIVE FEEDBACK
WRAT (WIDE RANGE AMPLIFIER TECHNOLOGY

Features 2006-2007

VLSC (VECTOR LINEAR SHAPING CIRCUITRY)
NON
DACS
HIGH CURRENT, LOW IMPEDANCE DRIVE
ALL DISCRETE OUTPUT STAGE CIRCUITRY
OPTIMUM GAIN VOLUME CIRCUITRY
DIGITAL UPSAMPLING

1

2

-

ANDWIDTH CHANNELS

B

-

CALING CONFIGURATION

S

FRONT L/R (6 , 1 kHZ, DIN

CENTER

SURROUND L/R (6 , 1 kHZ, DIN

SURROUND BACK

4 (FRONT
8 (FRONT

)

D

ESIGN

)

HOME THEATER FEATURES

A/V RECEIVERS

THX™CERTIFIED
EXTENDED FREQUENCY RESPONSE

®

™

-

DTS®, DTS
DTS® NEO
DOLBY®DIGITAL, DOLBY®DIGITAL EX
DOLBY®PRO LOGIC®IIX
AUTO SPEAKER SET-UP WITH MICROPHONE
A-FORM LISTENING MODE MEMORY
HDMI UPCONVERSION
COMPOSITE TO S-VIDEO UPCONVERSION
COMPOSITE AND S-VIDEO TO COMPONENT VIDEO UPCONVERSION
TBC (TIME BASE CORRECTOR)
MULTICHANNEL INPUTS
CINEMAFILTER
DIGITAL SOUNDFIELD PROCESSING
LATE NIGHT MODE
COLOR-CODED SPEAKER TERMINALS
ON-SCREEN DISPLAY
ADJUSTABLE DIGITAL DELAY
CROSSOVER ADJUSTMENT
INDEPENDENT CROSSOVER ADJUSTMENT FOR F/C/S/SB
A/V SYNC

NETWORK FEATURES

NET-TUNE
ETHERNET PORT
NUMBER OF PRESETS (INTERNET RADIO)

ES

:

6

™

™

(+

DISCRETE/MATRIX, DTS®96/24

1 dB, -3 dB

™

INPUTS/OUTPUTS

i.LINK DIGITAL PORTS
HDMI INPUTS/OUTPUT
AUDIO AND AV INPUTS
HDTV-READY COMPONENT VIDEO INPUTS/OUTPUTS

-

FRONT

ANEL VIDEO INPUT(WITH S

P
S-VIDEO INPUTS/OUTPUTS
DIGITAL INPUTS

DIGITAL OUTPUTS
RS232 CONTROL PORT
IR INPUTS/OUTPUTS

-

VIDEO

)

PRE OUTS

FRONT L/R, CENTER
SURROUND L/R
SURROUND BACK
SUBWOOFER

OTHER FEATURES

-

DOT

ATRIX DISPLAY

M
DISPLAY DIMMER
PURE AUDIO MODE
DUAL BANANA PLUG-COMPATIBLE SPEAKER POSTS

(

SLEEP TIMER
PHONO INPUT
H
ZONE 2 LINE OUT
P
12 VOLT TRIGGERS
SPEAKER A/B DRIVE

90

EADPHONE JACK

OWERED ZONE 2

MINUTES; 10-MIN STEPS

)

TUNER FEATURES

DAB (DIGITAL AUDIO BROADCASTING)
NUMBER OF PRESETS (FM/AM)
RDS (RADIO DATA SYSTEM)

CONTROL

RI REMOTE CONTROL

MACRO FUNCTION
ABSOLUTE/RELATIVE VOLUME DISPLAY
INTELLIVOLUME
COLOR

(

6 , 1 kH

(

6 , 1 kH

)

TX-NR5000E

)
)

Z, DIN

)
)

Z, DIN

)
)

200 W/Ch

200 W

200 W/Ch

200 W/Ch (L/R

260 W/Ch
175 W/Ch

7

✓
✓
✓
✓

192 kHz/24-Bit x 8

✓
✓

✓ (Linear

✓

✓ (Ultra2

5 Hz-100 kHz

✓
✓
✓
✓

✓
✓
✓
✓
✓

7.1 x 2

✓
✓
✓
✓
✓
✓
✓
✓

✓
✓

30

2
2/1
9/5
4/2

✓

7/4

7 Optical

(

1 Front panel

6 Coaxial

2 Optical/2 Coaxial

✓

3/3

✓
✓

✓(L/R

)

✓ (2

✓

4 Levels

✓
✓
✓
✓
✓

(Audio/Video)

✓

(and Zone 3)

✓

5

✓

40

✓

Prepro/Learning/

Backlit

✓
✓
✓

Silver or Black

140 W/Ch; 175 W/Ch
140 W/Ch; 175 W/Ch
140 W/Ch; 175 W/Ch

)

140 W/Ch (L/R); 175 W/Ch (L/R)*

180 W/Ch
125 W/Ch

192 kHz/24-Bit x 8

)

)

)

)

✓ (Select2

5 Hz-100 kHz

5 Optical

(

1 Front panel

2 Coaxial
1 Optical

✓(L/R

3 Levels

1 (Zone 2

Prepro/Learning/

Backlit

Silver or Black

7

✓
✓
✓
✓

✓
✓
✓
✓

✓
✓
✓
✓
✓
✓
✓
✓
✓
✓

7.1

✓
✓
✓
✓
✓
✓
✓
✓

2/1
3/5
3/1

✓

5/3

✓

1/1

✓
✓

)

✓

✓

✓
✓
✓
✓
✓
✓
✓

)

40

✓

✓
✓
✓

TX-SR674E

3

125 W/Ch; 150 W/Ch*

3

125 W; 150 W*

3

125 W/Ch; 150 W/Ch*

3

125 W/Ch (L/R); 150 W/Ch (L/R)*

165 W/Ch
105 W/Ch

7

✓
✓
✓
✓

192 kHz/24-Bit x 8

✓
✓
✓
✓

)

)

10 Hz-100 kHz

✓
✓
✓
✓

✓ (Audyssey 2EQ™)

✓
✓
✓
✓
✓

7.1

✓
✓
✓
✓
✓
✓
✓
✓
✓

2/1
2/5
3/1

✓

5/3

4 Optical

(

1 Front panel

2 Coaxial

1 Optical

1/0

✓

✓

3 Levels

✓
✓
✓

✓
✓
✓

1 (Zone 2

40

✓

Prepro

✓
✓

Silver or Black

)

TX-SR604E

3

125 W/Ch; 140 W/Ch*

3

125 W; 140 W*

3

125 W/Ch; 140 W/Ch*

3

125 W/Ch (L/R); 140 W/Ch (L/R)*

165 W/Ch
105 W/Ch

7

✓
✓
✓
✓

192 kHz/24-Bit x 8

✓
✓
✓
✓

10 Hz-100 kHz

✓
✓
✓
✓

✓ (Audyssey 2EQ™)

✓

✓
✓
✓

7.1

✓
✓
✓
✓
✓
✓
✓
✓
✓

2/1
2/5
3/1

✓

5/3

)

4 Optical

(

1 Front panel

2 Coaxial
1 Optical

1/0

✓

✓

3 Levels

✓
✓
✓

✓
✓
✓

1 (Zone 2

40

✓

Prepro

✓
✓

Silver or Black

)

TX-SR504ETX-SR804E

3

100 W/Ch; 130 W/Ch*

3

100 W; 130 W*

3

100 W/Ch; 130 W/Ch*

3

100 W/Ch (L/R); 130 W/Ch (L/R)*

140 W/Ch

95 W/Ch

7

✓
✓

✓

192 kHz/24-Bit x 8

✓
✓
✓
✓

5 Hz-100 kHz

✓
✓
✓
✓

✓

7.1

✓
✓
✓
✓

✓
✓

✓

2/4
3/1

(Composite)

✓

3/2

)

3 Optical
1 Coaxial

✓

✓

3 Levels

✓

✓ (Except SP-B)

✓

✓

✓

30

✓

Prepro

Absolute

Silver or Black

TX-SR304E

3

90 W/Ch; 100 W/Ch*

3

3

90 W/Ch; 100 W/Ch*

3

192 kHz/24-Bit x 6

✓(Dolby®Digital)

90 W; 100 W*

125 W/Ch

85 W/Ch

5

✓

✓
✓

10 Hz-50 kHz

✓(DTS®)

✓(5.1)

✓(Pro Logic II)

✓

5.1

✓
✓
✓
✓

✓
✓

✓

2/4
3/1

2 Optical
1 Coaxial

✓

✓

3 Levels

✓

✓

✓

30

✓

✓

Absolute

Silver

3

3

3

1

*

Channels are measured separately.

28

2

*

Calculated on basis of IHF Dynamic headroom.

3

*

1 channel driven, IEC.

FEATURES

DVD/CD PLAYERS

THX™CERTIFIED
DVD-AUDIO PLAYBACK
SUPER AUDIO CD PLAYBACK
DTS®/DOLBY®DIGITAL/MPEG/DIGITAL AUDIO OUTPUT
DIRECT DIGITAL PATH
VLSC (VECTOR LINEAR SHAPING CIRCUITRY)
PROGRESSIVE SCAN (PAL/NTSC)
HDMI OUTPUT
OPLUS®FLEXSCALE™VIDEO SCALING
i.LINK DIGITAL PORT

-

96 kHZ
COMPOSITE VIDEO OUTPUT
S-VIDEO OUTPUT
COMPONENT VIDEO OUTPUT
RGB VIDEO OUTPUT
MP3 PLAYBACK
WMA PLAYBACK
DIVX®VIDEO PL AYABLE
AUDIO DAC
VIDEO DAC
VIDEO CIRCUIT ON/OFF CONTROL
DYNAMIC RANGE CONTROL
VIDEO BLACK LEVEL CONTROL
DIGITAL OUTPUTS
ANALOG AUDIO OUTPUT
CD-R/RW PLAYBACK CAPABILITY
DVD-R/RW PLAYBACK CAPABILITY*
PASSES PLUGE SIGNALS
PROGRAMMED MEMORY PLAYBACK
8-LANGUAGE SOUNDTRACK CAPABILITY
DIMMABLE DISPLAY
COLOR

Z SELECTABLE DIGITAL OUTPUT

48 kH

2

INTEGRATED AMPLIFIERS A-9211

(

POWER OUTPUT
DYNAMIC POWER*
VL DIGITAL TECHNOLOGY
DISCRETE OUTPUT STAGE CIRCUITRY
AUDIO INPUTS/OUTPUTS
PRE OUT
MAIN IN
PHONO INPUT
DIRECT FUNCTION
SPEAKER A/B DRIVE
HEAVY
HEADPHONE JACK
RI REMOTE CONTROL
COLOR

8 , 1 kHz, DIN

1

(4 )

-

UTY SPEAKER BINDING POSTS

D

)

CD PLAYERS C-733

VLSC (VECTOR LINEAR SHAPING CIRCUITRY)
DIRECT DIGITAL PATH
SUPER HIGH-PRECISION CLOCK
MP3 CD PLAYBACK
PEAK SEARCH
DIGITAL OUTPUT ON/OFF
NUMBER OF REPEAT MODES
RANDOM TRACK MEMORY
SHUFFLE/RANDOM PLAY
NEXT SELECTION

IME EDIT

T
DIGITAL OUTPUT
ANALOG OUTPUT
HEADPHONE JACK WITH VOLUME CONTROL
RI REMOTE CONTROL
COLOR

DV-SP1000E

)

✓ (Ultra

✓
✓
✓

)

✓ (Dual

✓
✓
✓
✓
✓
✓
✓
✓

2 (RCA/BNC)

✓
✓

192 kHz/24-Bit

216 MHz/14-Bit

✓
✓
✓

2 Optical/2 Coaxial

✓
✓
✓
✓
✓
✓

4-Mode

Silver or Black

A-9755

150 W/Ch
270 W/Ch

✓
✓

6/2

✓
✓
✓
✓
✓
✓
✓

Silver or Black

DX-7555

✓
✓
✓
✓

✓

4

25

By Remote

1 Optical/1 Coaxial

✓
✓
✓

Silver or Black

DV-SP504E

✓
✓
✓
✓
✓
✓
✓

✓
✓
✓
✓
✓
✓
✓
✓

192 kHz/24-Bit

108 MHz/12-Bit

✓
✓

1 Optical/1 Coaxial

✓
✓
✓
✓
✓
✓

3-Mode

Silver or Black

A-9555

100 W/Ch
200 W/Ch

✓
✓

6/2

✓
✓
✓
✓
✓
✓

Silver or Black

DX-7333

✓

5

36

By Remote

✓
✓

2 Optical

✓
✓
✓

Silver or Black

DV-SP404E

96 kHz/24-Bit

108 MHz/12-Bit

1 Coaxial

Silver or Black

A-1VL

100 W/Ch
240 W/Ch

✓
✓

4/1

✓
✓
✓
✓

✓

Silver

C-1VL

✓
✓
✓

✓

4

25

By Remote

2 Optical/1 Coaxial

✓

Silver

✓

✓
✓

✓
✓

✓
✓
✓
✓
✓

✓
✓

✓
✓
✓
✓
✓
✓

✓ (Subwoofer)

Silver or Black

✓ (DLA Link

Silver or Black

POWER OUTPUT STEREO
POWER OUTPUT STEREO (4 , 1 kHZ, IEC)
DYNAMIC POWER*
WRAT (WIDE RANGE AMPLIFIER TECHNOLOGY)
DISCRETE OUTPUT STAGE CIRCUITRY
HIGH-CURRENT, LOW-IMPEDANCE DRIVE
RDS (RADIO DATA SYSTEM
AUDIO INPUT/OUTPUT TERMINALS
PHONO INPUT
IR INPUT/OUTPUT
NUMBER OF PRESETS
DIRECT ACCESS TUNING
HEADPHONE JACK
SLEEP TIMER
BANANA PLUG-COMPATIBLE SPEAKER POSTS
RI REMOTE CONTROL
COLOR

RDS (RADIO DATA SYSTEM
NUMBER OF PRESETS
APR (AUTOMATIC PRECISION RECEPTION
GROUP MEMORY
DIRECT ACCESS TUNING
AUTOMATIC/MANUAL TUNING
PRESET SCAN
SIGNAL STRENGTH INDICATOR
RECEPTION MODE INDICATORS
RI REMOTE SYSTEM
COLOR

A-933

80 W/Ch

220 W/Ch

✓
✓

5/2

✓
✓
✓
✓
✓
✓
✓

✓

✓

4

25

✓

2 Optical

✓

HI

Silver or Black

DX-C390

)

1 Optical/1 Coaxial

Silver or Black

-

F

I RECEIVERS TX

(

4 , 1 kHz, DIN

1

(4 )

)

)

)

)

TX-8522

100 W/Ch
100 W/Ch
120 W/Ch

✓
✓
✓
✓

5/3

✓
✓

40

✓
✓
✓
✓
✓

Silver or Black

T-433TUNERS

✓

30

✓
✓
✓

✓
✓

Silver or Black

T-4555

✓

40

✓
✓
✓

✓
✓

Silver or Black

CD RECEIVER

45 W/Ch
80 W/Ch

✓

5/2

✓
✓
✓
✓
✓
✓

✓
✓

✓

6

40

✓
✓

✓

✓

R

ECEIVER/CONTROLCENTERSECTION

POWER OUTPUT STEREO*
POWER OUTPUT STEREO*
WRAT (WIDE RANGE AMPLIFIER TECHNOLOGY
VLSC (VECTOR LINEAR SHAPING CIRCUITRY)
DISCRETE OUTPUT STAGE CIRCUITRY
HIGH-CURRENT, LOW-IMPEDANCE DRIVE
RDS (RADIO DATA SYSTEM
AUDIO INPUT/OUTPUT TERMINALS
DIGITAL OUTPUTS
SUBWOOFER PRE OUT
NUMBER OF PRESETS
PRESET STATION NAMING
DIRECT ACCESS TUNING
AUTOMATIC/MANUAL TUNING
SLEEP TIMER
HEADPHONE JACK
RI REMOTE CONTROL

CD PLAYBACK

NUMBER OF REPEAT MODES

SHUFFLE/RANDOM PLAY
AUDIO DAC
COLOR

3

(

6 , 1 kHz, DIN

3

(

4 , 1 kHz, DIN

)

)
)

)

Silver or Black

-

8222

70 W/Ch
70 W/Ch
90 W/Ch

✓
✓
✓
✓

5/2

✓
✓

40

✓
✓
✓
✓
✓

T-4211

✓

30

2-Mode

3

✓
✓
✓

5-Segment

✓
✓

Silver or Black

CR-L5

41 W/Ch
50 W/Ch

✓
✓
✓
✓
✓

3/2

1 Optical/1 Coaxial

✓

40

✓
✓
✓
✓
✓
✓

3

(

Entire side/

Memory/Random

✓

Single-Bit

Silver

Features 2006-2007

)

N

CASSETTE DECK

UMBER OF MOTORS

NUMBER OF TAPE HEADS
DOUBLE CASSETTE DECK

-

HIGH

PEED DUBBING

S
DOUBLE AUTO REVERSE
A

UTO REVERSE

CONTINUOUS PLAY
R

EC LEVEL CONTROLS

CD SYNCHRO RECORDING
REPEAT PLAY
MUSIC SEARCH
DOLBY®B AND C NOISE REDUCTION
DOLBY®HX PRO
ELECTRONIC COUNTER
FLUORESCENT DISPLAY
RI REMOTE SYSTEM
COLOR

1

*

Calculated on basis of IHF Dynamic headroom.

TA-RW255

1 +1
1 +2

✓
✓
✓
✓
✓
✓
✓
✓

✓

✓
✓
✓

Silver or Black

2

*

Discs that have not been properly finalized may only be partially playable or not playable at all.

3

*

Channels are measured separately.

29

SPECIFICATIONS

A/V RECEIVERS

AMPLIFIER SECTION

Power Output*

Dynamic Power*

THD (Rated Power
Damping Factor (1 kHz, 8
Input Sensitivity and Impedance

Output Level and Impedance

Specifications 2006-2007

Frequency Response

S/N Ratio

Phono Overload (1 kHz
Tone Controls

TUNER SECTION

Usable Sensitivity

S/N Ratio

THD

FM Stereo Separation

GENERAL

Dimensions (W x H x D
Weight

1

(

Front L/R
Center
Surround L/R
Surround Back

4 ; 8 (Front

PHONO (MM)
CD and TAPE Play

TAPE REC
PRE OUT

6 , 1 kHz, DIN

2

)

Audio (CD in Direct Mode)

)

PHONO (MM
CD/TAPE

BASS
MID
TREBLE

FM Mono
FM Stereo
AM

FM Mono
FM Stereo
AM

FM Mono
FM Stereo
AM

TX-NR5000E

)

)

)

)

)

200 W/Ch
200 W
200 W/Ch
200 W/Ch (L/R)

260 W/Ch; 175 W/Ch

0.05 % (All channels
60

2.5 mV, 50 k
200 mV, 50 k

200 mV, 470

1.0 V, 470

)

5 Hz-100 kHz: +1 dB, -3 dB

80 dB (IHF-A, 5 mV input
95 dB (IHF-A, 0.5 V input

120 mV RMS, 0.5 % THD

±

12 dB at 50 Hz

±

12 dB at 1 kHz

±

12 dB at 20 kHz

11.2 dBf, 1.0 µV (75 IHF

17.2 dBf, 2.0 µV (75 IHF
30 µV

)

76 dB (IHF-A

)

70 dB (IHF-A
40 dB

0.2 %

0.3 %

0.7 %
45 dB at 1 kHz

30 dB at 100 Hz-10 kHz

435 x 220 x 480.5 mm

33.0 kg

TX-SR804E

140 W/Ch; 175 W/Ch*
140 W/Ch; 175 W/Ch*
140 W/Ch; 175 W/Ch*
140 W/Ch (L/R); 175 W/Ch (L/R)*

180 W/Ch; 125 W/Ch

0.08 % (All channels
60

2.5 mV, 47 k
200 mV, 47 k

200 mV, 470

1.0 V, 470

5 Hz-100 kHz: +1 dB, -3 dB

)

80 dB (IHF-A, 5 mV input

)

106 dB (IHF-A, 0.5 V input
70 mV RMS, 0.5 % THD

±

10 dB at 50 Hz

—

±

10 dB at 20 kHz

)

15.2 dBf, 1.0 µV (75 IHF

)

22.2 dBf, 2.0 µV (75 IHF
300 µV/m

)

73 dB (IHF-A

)

67 dB (IHF-A
40 dB

0.3 %

0.5 %

0.7 %
40 dB at 1 kHz

435 x 173.5 x 430 mm

13.5 kg

3

3

3

)

TX-SR674E

125 W/Ch; 150 W/Ch*
125 W; 150 W*
125 W/Ch; 150 W/Ch*

3

125 W/Ch (L/R); 150 W/Ch (L/R)*

165 W/Ch; 105 W/Ch

0.08 % (All channels
60

—

200 mV, 47 k

200 mV, 470

1.0 V, 470

10 Hz-100 kHz: +1 dB, - 3 dB

)

)

)
)

—

106 dB (IHF-A, 0.5 V input

±

±

15.2 dBf, 1.0 µV (75 IHF

22.2 dBf, 2.0 µV (75 IHF
300 µV/m

73 dB (IHF-A
67 dB (IHF-A
40 dB

0.3 %

0.5 %

0.7 %
40 dB at 1 kHz

—

10 dB at 80 Hz

—

10 dB at 20 kHz

)
)

435 x 174 x 377 mm

11.4 kg

3

3

3

)

TX-SR604E

125 W/Ch; 140 W/Ch*
125 W; 140 W*
125 W/Ch; 140 W/Ch*

3

125 W/Ch (L/R); 140 W/Ch (L/R)*

165 W/Ch; 105 W/Ch

0.08 % (All channels
60

200 mV, 47 k

200 mV, 470

1.0 V, 470

10 Hz-100 kHz: +1 dB, - 3 dB

)

106 dB (IHF-A, 0.5 V input

±

10 dB at 80 Hz

±

10 dB at 20 kHz

)

15.2 dBf, 1.0 µV (75 IHF

)

22.2 dBf, 2.0 µV (75 IHF
300 µV/m

73 dB (IHF-A
67 dB (IHF-A
40 dB

0.3 %

0.5 %

0.7 %
40 dB at 1 kHz

435 x 174 x 377 mm

11.0 kg

3

—

—

—

—

)
)

TX-SR504E

3

100 W/Ch; 130 W/Ch*
100 W; 130 W*

3

100 W/Ch; 130 W/Ch*

3

100 W/Ch (L/R); 130 W/Ch (L/R)*

140 W/Ch; 95 W/Ch

)

0.08 % (All channels
60

200 mV, 47 k

200 mV, 470

1.0 V, 470

5 Hz-100 kHz: +1 dB, -3 dB

)

100 dB (IHF-A, 0.5 V input

±

10 dB at 80 Hz

±

10 dB at 20 kHz

)

15.2 dBf, 1.0 µV (75 IHF

)

22.2 dBf, 2.0 µV (75 IHF
300 µV/m

73 dB (IHF-A
67 dB (IHF-A
40 dB

0.3 %

0.5 %

0.7 %
40 dB at 1 kHz

435 x 151 x 377 mm

10.3 kg

TX-SR304E

3

3

)

90 W/Ch; 100 W/Ch*
90 W; 100 W*
90 W/Ch; 100 W/Ch*

3

125 W/Ch; 85 W/Ch

0.7 % (All channels
60

200 mV, 47 k

200 mV, 470

1.0 V, 470

3

—

10 Hz-50 kHz: +1 dB, -3 dB

—

—

)

—

)
)

100 dB (IHF-A, 0.5 V input

±

10 dB at 80 Hz

±

10 dB at 20 kHz

)

15.2 dBf, 1.0 µV (75 IHF

)

22.2 dBf, 2.0 µV (75 IHF
300 µV/m

73 dB (IHF-A
67 dB (IHF-A
40 dB

0.3 %

0.5 %

0.7 %
40 dB at 1 kHz

435 x 150 x 369 mm

8.4 kg

3

3

3

)

—

—

)

—

—

)
)

)
)

Linear Velocity

Single layer
Dual layer

Frequency Range (Digital Audio

DVD-Audio
DVD Linear Sound

Audio CD

S/N Ratio (Digital Audio
Audio Dynamic Range (Digital Audio
THD (Digital Audio
Wow and Flutter
Composite Video Output

)

)

)

)

(

1 kHz

S-Video Output

Component Video Output

RGB Video Output
Audio Output

Digital (Optical)
Digital (Coaxial)
Analog Audio

Power Supply
Power Consumption
Dimensions (W x H x D
Weight
Supplied Accessories

)

DV-SP1000E DV-SP504E

3.49 m/s

3.84 m/s

4 Hz-88 kHz (192 kHz)
4 Hz-44 kHz (96 kHz),
4 Hz-22 kHz (48 kHz)
4 Hz-20 kHz (44.1 kHz)

118 dB

)

100 dB

0.001 %
Below threshold of measurability

1.0 V p-p, 75 , negative sync.,
pin jack x 2, SCART x 1
(Y)

1.0 V p-p, 75 ,

(C)

0.286 V p-p 75 ,
negative sync., Mini DIN 4-pin x
2, SCART x 1

(Y) 1.0 V p-p, 75 ,
negative sync., pin jack x 2,

B)/(PR) 0.7 V p-p, 75 ,

(P
SCART x 1

0.7 V p-p, 75 , SCART x 1

-

22.5 dBm x 2

0.5 V p-p, 75 , pin jack x 2

2.0 V RMS, 320 ,
pin jack (5.1 ch)x 1,
pin jack (L/R)x 1, SCART x 1

230-240 V AC, 50 Hz
48 W
435 x 123 x 374 mm

12.1 kg
Audio/Video cable x 1,

S-Video cable x 1,
SCART cable x 1,
Remote control (RC-563DV)x 1,
HDMI cable x 1, i.LINK cable x 1

3.49 m/s

3.84 m/s

4 Hz-88 kHz (192 kHz)
4 Hz-44 kHz (96 kHz),
4 Hz-22 kHz (48 kHz)
4 Hz-20 kHz (44.1 kHz)

106 dB
96 dB

0.003 %
Below threshold of measurability

1.0 V p-p, 75 , negative sync.,
pin jack x1, SCART x 1
(Y)

1.0 V p-p, 75 ,

(C)

0.286 V p-p, 75 ,
negative sync., Mini DIN 4-pin
1, SCART x 1

(Y) 1.0 V p-p, 75 ,
negative sync., pin jack x 1,

B)/(PR) 0.7 V p-p, 75 ,

(P
SCART x 1

0.7 V p-p, 75 , SCART x 1

- 22.5 dBm x 1

0.5 V p-p, 75 , pin jack x 1

2.0 V RMS, 470 ,
pin jack (5.1 ch)x 1,

)

pin jack (L/R
100-240 V AC, 50/60 Hz
17 W
435 x81 x309 mm

3.7 kg
Audio/Video cable x1,

Coaxial cable x 1,
Remote control (RC-657DV

x

1, SCART x 1

x

)

x

1

DV-SP404EDVD PLAYERS

3.49 m/s

3.84 m/s

—

4 Hz-44 kHz (96 kHz),
4 Hz-22 kHz (48 kHz)
4 Hz-20 kHz (44.1 kHz)

115 dB
88 dB

0.0065 %
Below threshold of measurability

1.0 V p-p, 75 , negative sync.,
pin jack x1, SCART x 1

SCART x 1

(Y) 1.0 V p-p, 75 ,
negative sync., pin jack x 1,

B)/(PR) 0.7 V p-p, 75 ,

(P
SCART x 1

0.7 V p-p, 75 , SCART x 1

—

0.5 V p-p, 75 , pin jack x 1

2.0 V RMS, 470 ,
)

x

pin jack (L/R

1, SCART x 1

220-240 V AC, 50/60 Hz
7 W
435 x61 x215.5 mm

1.9 kg

Audio/Video cable x1,
Coaxial cable x 1,
Remote control (RC-616DV

)

x

1

-

F

HI

I RECEIVERS

AMPLIFIER SECTION

Power Output (4 , 1 kHz, DIN
Power Output (4 , 1 kHz, IEC)
Dynamic Power*

4 ; 8 (Front

THD (Rated Power
Frequency Response
S/N Ratio

CD/TAPE

2

)

)

TUNER SECTION

Usable Sensitivity

FM Mono
FM Stereo
AM

S/N Ratio

FM Mono
FM Stereo
AM

THD

FM Mono
FM Stereo
AM

FM Stereo Separation

GENERAL

Dimensions (W x H x D
Weight

)

TX-8522

)

100 W/Ch
100 W/Ch

120 W/Ch; 75 W/Ch

0.08 %
10 Hz-100 kHz (± 1 dB, - 3 dB)

100 dB (IHF-A

15.2 dBf (75 IHF

22.2 dBf (75 IHF
300 µV/m

)

73 dB (IHF-A

)

67 dB (IHF-A
40 dB

0.3 %

0.5 %

0.7 %
40 dB at 1 kHz

435 x 150 x 332 mm

8.4 kg

TX-8222

70 W/Ch
70 W/Ch

90 W/Ch; 55 W/Ch

0.08 %
10 Hz-100 kHz (± 1 dB, - 3 dB)

)

)
)

100 dB (IHF-A

15.2 dBf (75 IHF

22.2 dBf (75 IHF
300 µV/m

73 dB (IHF-A
67 dB (IHF-A
40 dB

0.3 %

0.5 %

0.7 %
40 dB at 1 kHz

435 x 150 x 332 mm

7.5 kg

)

)
)

)
)

1

*

Channels are measured separately.

30

2

*

Calculated on basis of IHF Dynamic headroom.

3

*

1 channel driven, IEC.

SPECIFICATIONS

INTEGRATED AMPLIFIERS

Power Output (8 , 1 kHz, DIN
Dynamic Power*

4 ; 8

(1 kHz, 1 W)

THD
Damping Factor (8 , 1 kHz
Sensitivity and Impedance

Phono MM
CD, Tuner, Tape Play
Rec Out

Tone Controls

Bass
Treble
Loudness

Frequency Response

S/N Ratio (IHF-A

Phono MM
CD

Phono Overload (MM 1 kHz 0.5%
Dimensions (W x H x D
Weight

)

2

)

)

)

)

A-9755

150 W/Ch

270 W/Ch; 170 W/Ch

0.08 %
25

2.5 mV (50 k
200 mV (50 k
200 mV (2.2 k

±
±
+ 10

10 Hz-60 kHz/+ 1 dB,

- 3 dB (CD)

70 dB
100 dB

70 mV
435 x 144 x 431 mm

17.6 kg

)

)

)

10 dB at 100 Hz
10 dB at 20 kHz

dB at 50 Hz/+2 dB at 10 kHz

A-9555

100 W/Ch

200 W/Ch; 120 W/Ch

0.08 %
25

2.5 mV (50 k
200 mV (50 k
200 mV (2.2 k

±
±
+ 10

10 Hz-60 kHz/+ 1 dB,

- 3 dB (CD)

70 dB
100 dB

70 mV
435 x 148 x 431 mm

13.0 kg

)

)

)

10 dB at 100 Hz
10 dB at 20 kHz

dB at 50 Hz/+2 dB at 10 kHz

A-1VL

100 W/Ch

240 W/Ch; 130 W/Ch

0.08 %
25

2.5 mV (50 k
200 mV (50 k)(LINE
200 mV (2.2 k

10 Hz-60 kHz/+ 1 dB,

- 3 dB (CD)

70 dB
100 dB

130 mV
435 x 82 x 390 mm

11.3 kg

)

)

—
—
—

Specifications 2006-2007

A-933

80 W/Ch

220 W/Ch; 110 W/Ch

0.08 %
25

8 dB at 100 Hz
8 dB at 20 kHz

—

)

)

)

)

2.5 mV (50 k
200 mV (50 k
200 mV (2.2 k

±
±

10 Hz-60 kHz/+1 dB,

- 3 dB (CD)

70 dB
100 dB

130 mV
275 x 103 x 328 mm

7.5 kg

A-9211

45 W/Ch

80 W/Ch; 55 W/Ch

0.08 % (Rated Power)
60

2.5 mV (47 k
150 mV (25 k
150 mV (3 k

±
±
±

15 Hz-50 kHz

80 dB
102 dB

130 mV
435 x 120 x 331 mm

6.7 kg

)

)

)

8 dB at 100 Hz
8 dB at 10 kHz
8 dB at 100 Hz/+2 dB at 10 kHz

(

)

±

1 dB

Frequency Response
S/N Ratio
Dynamic Range

)

THD (1 kHz
Channel Separation (1 kHz
Wow and Flutter
Dimensions (W x H x D
Weight

Tuning Range

FM

AM

Usable Sensitivity

FM Mono
FM Stereo
AM

S/N Ratio

FM Mono (IHF
FM Stereo (IHF
AM

THD

FM Mono
FM Stereo
AM

Frequency Response (FM
FM Stereo Separation
Dimensions (W x H x D
Weight

)

)

)

)

)

)

CD RECEIVER

R

ECEIVER/CONTROLCENTERSECTION

AMPLIFIER SECTION

Power Output*
THD (Rated Power/1 W Output
Frequency Response
S/N Ratio

TUNER SECTION

Usable Sensitivity

S/N Ratio

THD

FM Stereo Separation

Signal Readout System
Reading Rotation

Linear Velocity

Error Correction System
DAC
Number of Channels
Digital Filter
Frequency Response
Wow and Flutter

GENERAL

Power Supply
Power Consumption
Dimensions (W x H x D
Weight
Supplied Accessories

1

(

4 , 1 kHz, DIN

FM Mono
FM Stereo
AM

FM Mono
FM Stereo
AM

FM Mono/FM Stereo/AM

CD SECTION

)

)

)

DX-7555

2 Hz-20 kHz
111 dB
100 dB

0.0027 %

Below threshold of measurability
435 x 111 x 405 mm

8.0 kg

—

T-433TUNERS

87.50-108.00 MHz
(

)

50 kHz steps
522-1611 kHz
(

)

9 kHz steps

11.2 dBf, 1.0 µV 75 IMF

17.2 dBf, 2.0 µV 75 IMF
30 µV

76 dB
70 dB
50 dB

0.2 %

0.3 %

0.7 %
20 Hz-15 kHz
45 dB at 1 kHz
275 x 78 x 309 mm

3.0 kg

(

±

1.5 dB

)

CR-L5

50 W/Ch
1 %/0.2 %
10 Hz-100 kHz
100 dB (IHF-A

11.2 dBf, 1.0 µV (75 IHF

17.2 dBf, 2.0 µV (75 IHF
30 µV

73 dB
67 dB
40 dB

0.2 %/0.3 %/ 0.7 %
35 dB at 1 kHz,

25 dB at 100 Hz-10 kHz

Optical non-contact
About 200-500 r.p.m.

(

Constant linear velocity

3.49 m/s (Single layer

3.84 m/s (Dual layer
Reed Solomon Product Code
96 kHz/24-Bit
2 (Stereo

352.8 kHz, 8x oversampling
5 Hz-20 kHz
Below threshold of measurability

230-240 V AC, 50 Hz
130 W
435 x 81.5 x 382 mm

6.8 kg
Remote control (RC-535

-

(

)

3 dB

)

)
)

)

),

)

)

) x 1

DX-7333

5 Hz-20 kHz
90 dB
96 dB

0.005 %
85 dB
Below threshold of measurability
435 x 91 x 308 mm

4.1 kg

T-4555

87.50-108.00 MHz
(

)

50 kHz steps
522-1611 kHz
(

)

9 kHz steps

11.2 dBf, 1.0 µV 75 IMF

17.2 dBf, 2.0 µV 75 IMF
30 µV

76 dB
70 dB
40 dB

0.2 %

0.3 %

0.7 %
30 Hz-15 kHz
45 dB at 1 kHz
435 x 81 x 310 mm

4.6 kg

(

±

1.0 dB

)

C-1VL

5 Hz-20 kHz
110 dB
96 dB

0.002 %
100 dB
Below threshold of measurability
435 x 81.5 x 356 mm

6.8 kg

T-4211

87.50-108.00 MHz
(

522-1611 kHz
(

11.2 dBf, 0.9 µV 75 DIN

17.2 dBf, 20.0 µV 75 DIN
25 µV

73 dB
66 dB
40 dB

0.1 %

0.2 %

0.8 %
30 Hz-15 kHz
40 dB at 1 kHz
435 x 91 x 305 mm

3.6 kg

50 kHz steps

9 kHz steps

)

)

(

)

±

1.5 dB

C-733CD PLAYERS

5 Hz-20 kHz
110 dB
96 dB

0.003 %

Below threshold of measurability
275 x 103 x 304 mm

4.5 kg

Wow and Flutter (WRMS
Frequency Response

S/N Ratio (METAL, Dolby®NR off
Heads

Motors
Dimensions(W x H x D
Weight

METAL
HIGH
NORMAL

Rec & Pb.
Erase

—

)

)

DX-C390

5 Hz-20 kHz
98 dB
96 dB

0.005 %
92 dB
Below threshold of measurability
435 x 131 x 432 mm

6.9 kg

TA-RW255CASSETTE DECK

0.13 %

30 Hz-15 kHz ± 3 dB
30 Hz-14 kHz ± 3 dB
30 Hz-14 kHz ± 3 dB

)

56 dB

Special hard permalloy x 2
Ferrite x 1

DC servo motor x 2
435 x 121 x 303 mm

4.9 kg

1

*

Channels are measured separately.

2

*

Calculated on basis of IHF Dynamic headroom.

31

OOnnkkyyoo CCoorrppoorraattiioonn

2-1 Nisshin-cho, Neyagawa-shi, Osaka 572-8540, JAPAN
Tel: [phone] Fax: [phone] http://www.onkyo.com/

OOnnkkyyoo EEuurrooppee EElleeccttrroonniiccss GGmmbbHH

Liegnitzerstrasse 6, 82194 Groebenzell, GERMANY
Tel: [phone] Fax: [phone] http://www.eu.onkyo.com/

OOnnkkyyoo EEuurrooppee UUKK OOffffiiccee

Suite 1, Gregories Court, Gregories Road, Beaconsfield,
Buckinghamshire HP9 1HQ, UNITED KINGDOM
Tel: [phone] Fax: [phone] http://www.onkyo.co.uk/

EEuurrooppee

GGBB

Catalog No. 06C13
01-0608

Due to a policy of continuous product improvement, Onkyo reserves the right to change specifications and appearance
without notice.
THX, THX Select2, THX Ultra2, THX Ultra and THX Surround are trademarks of THX Ltd. THX may be registered in some
jurisdictions. All rights reserved.
THX Surround EX/Dolby Digital Surround EX is a joint development of Dolby Laboratories and THX Ltd.
Dolby, Pro Logic, Digital EX and the double-D symbol are trademarks of Dolby Laboratories.
Dolby Virtual Speaker and Dolby Headphone are trademarks of Dolby Laboratories.
DTS, DTS-ES Extended Surround, DTS 96/24 and Neo:6 are trademarks of Digital Theater Systems, Inc.
HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing
LLC.
Manufactured under license from Audyssey Laboratories.U.S. and foreign patents pending. 2EQ is a trademark of
Audyssey Laboratories.
iPod is a trademark of Apple Computer, Inc., registered in the U.S. and other countries.
NSV is a trademark of Analog Devices, Inc.
DivX® is a registered trademark of DivX, Inc.
Theater Dimensional, CinemaFILTER, Net-Tune, ExperienCinema, OR-EQ and VLSC are trademarks of Onkyo
Corporation.
All other trademarks and registered trademarks are the property of their respective holders.
