Onkyo R-805X User Manual

FM STEREO/AM TUNER AMPLIFIER
R-805X
Instruction Manual
ENERGY SAVE
STANDBY/ON
PHONES
ENERGY SAVE
STANDBY/ON
PHONES
FM STEREO / AM TUNER AMPLIFIER
MEMORY
FM MODE
CLEAR
FM STEREO / AM TUNER AMPLIFIER
MEMORY
FM MODE
CLEAR
ACCUCLOCK
CD MD CDR LINE/DVD
FM AM TAPE
CD MD CDR LINE/DVD
FM AM TAPE
INPUT
INPUT
ACOUSTIC PRESENCE
OFF/1/2/3
ACOUSTIC PRESENCE
OFF/1/2/3
DISPLAY
DISPLAY
VOLUME
VOLUME
PRESET
TUNING
PRESET
TUNING
R-805X
R-805X
Before using Connections Preparations Operation Other Information
Thank you for purchasing the ONKYO R-805X FM Stereo/AM Tuner Amplifier. Please read this manual thoroughly before making any connection or turning on the power. Follow these instructions to obtain optimum performance and maximum listening enjoyment from your new R-805X. Please retain this manual for future reference.
1.
WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.
CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
WARNING
RISK OF ELECTRIC SHOCK
DO NOT OPEN
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude
to constitute a risk of electric shock to persons.
The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the
appliance.
RISQUE DE CHOC ELECTRIQUE
NE PAS
Important Safeguards
Read Instructions – All the safety and
operating instructions should be read before the appliance is operated.
2.
Retain Instructions – The safety and oper-
ating instructions should be retained for future reference.
3.
Heed Warnings – All warnings on the
appliance and in the operating instruc­tions should be adhered to.
4.
Follow Instructions – All operating and
use instructions should be followed.
5.
Cleaning – Unplug the appliance from the
wall outlet before cleaning. The appliance should be cleaned only as recommended by the manufacturer.
Attachments – Do not use attachments
6. not recommended by the appliance man­ufacturer as they may cause hazards.
7.
Water and Moisture – Do not use the
appliance near water –for example, near a bath tub, wash bowl, kitchen sink, or laundry tub; in a wet basement; or near a swimming pool; and the like.
8.
Accessories – Do not place the appliance
on an unstable cart, stand, tripod, bracket, or table.The appliance may fall, causing serious injury to a child or adult, and serious damage to the appliance. Use only with a cart, stand, tripod, bracket, or table recommended by the manufacturer, or sold with the appliance. Any mounting of the appliance should follow the manu­facturer’s instructions, and should use a mounting accessory recommended by the manufacturer.
9. An appliance and cart combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.
2
PORTABLE CART WARNING
S3125A
10.
Ventilation – Slots and openings in the cabi-
net are provided for ventilation and to ensure reliable operation of the appliance and to protect it from overheating, and these openings must not be blocked or cov­ered. The openings should never be blocked by placing the appliance on a bed, sofa, rug, or other similar surface. The appliance should not be placed in a built-in installa­tion such as a bookcase or rack unless proper ventilation is provided. There should be free space of at least 20 cm (8 in.) and an opening behind the appliance.
11.
Power Sources – The appliance should be
operated only from the type of power source indicated on the marking label. If you are not sure of the type of power sup­ply to your home, consult your appliance dealer or local power company.
Grounding or Polarization – The appliance
12. may be equipped with a polarized alter­nating current line plug (a plug having one blade wider than the other). This plug will fit into the power outlet only one way. This is a safety feature. If you are unable to insert the plug fully into the outlet, try reversing the plug. If the plug should still fail to fit, contact your electri­cian to replace your obsolete outlet. Do not defeat the safety purpose of the polarized plug.
13.
Power-Cord Protection – Power-supply
cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, pay­ing particular attention to cords at plugs, convenience receptacles, and the point where they exit from the appliance.
AVIS
OUVRIR
14. Outdoor Antenna Grounding – If an out­side antenna or cable system is connected to the appliance, be sure the antenna or cable system is grounded so as to provide some protection against voltage surges and built-up static charges. Article 810 of the National Electrical Code, ANSI/NFPA 70, provides information with regard to proper grounding of the mast and sup­porting structure, grounding of the lead­in wire to an antenna-discharge unit, size of grounding conductors, location of antenna-discharge unit, connection to grounding electrodes, and requirements for the grounding electrode. See Figure 1.
15.
Lightning – For added protection for the
appliance during a lightning storm, or when it is left unattended and unused for long periods of time, unplug it from the wall outlet and disconnect the antenna or cable system. This will prevent damage to the appliance due to lightning and power-line surges.
16.
Power Lines – An outside antenna system
should not be located in the vicinity of overhead power lines or other electric light or power circuits, or where it can fall into such power lines or circuits. When installing an outside antenna system, extreme care should be taken to keep from touching such power lines or circuits as contact with them might be fatal.
17.
Overloading – Do not overload wall out-
lets, extension cords, or integral conve­nience receptacles as this can result in a risk of fire or electric shock.
Object and Liquid Entry – Never push
18. objects of any kind into the appliance through openings as they may touch dan­gerous voltage points or short-out parts that could result in a fire or electric shock. Never spill liquid of any kind on the appli­ance.
19.
Servicing – Do not attempt to service the
appliance yourself as opening or remov­ing covers may expose you to dangerous voltage or other hazards. Refer all servic­ing to qualified service personnel.
20.
Damage Requiring Service – Unplug the
appliance form the wall outlet and refer servicing to qualified service personnel under the following conditions: A. When the power-supply cord or plug is
damaged,
B. If liquid has been spilled, or objects
have fallen into the appliance,
C. If the appliance has been exposed to
rain or water,
D. If the appliance does not operate nor-
mally by following the operating instructions. Adjust only those con­trols that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the appliance to its normal operation,
E. If the appliance has been dropped or
damaged in any way, and
F. When the appliance exhibits a distinct
change in performance – this indicates a need for service.
21.
Replacement Parts – When replacement
parts are required, be sure the service technician has used replacement parts specified by the manufacturer or have the same characteristics as the original part. Unauthorized substitutions may result in fire, electric shock, or other hazards.
22.
Safety Check – Upon completion of any
service or repairs to the appliance, ask the service technician to perform safety checks to determine that the appliance is in proper operation condition.
Wall or Ceiling Mounting – The appliance
23. should be mounted to a wall or ceiling only as recommended by the manufacturer.
24.
Heat – The appliance should be situated
away from heat sources such as radiators, heat registers, stoves, or other appliances (including amplifiers) that produce heat.
FIGURE 1: EXAMPLE OF ANTENNA GROUNDING AS PER NATIONAL ELECTRICAL CODE, ANSI/NFPA 70
ELECTRIC SERVICE EQUIPMENT
NEC – NATIONAL ELECTRICAL CODE
S2898A
GROUND CLAMP
ANTENNA LEAD IN WIRE
ANTENNA DISCHARGE UNIT (NEC SECTION 810-20)
GROUNDING CONDUCTORS (NEC SECTION 810-21)
GROUND CLAMPS
POWER SERVICE GROUNDING ELECTRODE SYSTEM (NEC ART 250, PART H)
3

Precautions

1. Warranty Claim
You can find the serial number on the rear panel of this unit. In case of warranty claim, please report this number.
2. Recording Copyright
Recording of copyrighted material for other than personal use is illegal without permis­sion of the copyright holder.
3. AC Fuse
The fuse is located inside the chassis and is not user-serviceable. If power does not come on, contact your Onkyo authorized service station.
4. Care
From time to time you should wipe the front and rear panels and the cabinet with a soft cloth. For heavier dirt, dampen a soft cloth in a weak solution of mild detergent and water, wring it out dry, and wipe off the dirt. Following this, dry immediately with a clean cloth. Do not use rough material, thinners, alcohol or other chemical solvents or cloths since these could damage the finish or remove the panel lettering.
5. Power
WARNING
BEFORE PLUGGING IN THE UNIT FOR THE FIRST TIME, READ THE FOLLOWING SECTION CAREFULLY.
The voltage of the available power supply differs according to country or region. Be sure that the power supply voltage of the area where this unit will be used meets the required voltage (e.g., AC 230 V, 50 Hz or AC 120 V, 60 Hz) written on the rear panel. Setting the STANDBY button to standby does not shut off the power completely. So the power cord should be removed from the AC outlet when the unit is not used for a pro­longed time.

For British model

Replacement and mounting of an AC plug on the power supply cord of this unit should be performed only by qualified service per­sonnel.
IMPORTANT
The wires in the mains lead are coloured in accordance with the following code:
Blue : Neutral
Brown : Live As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the termi­nals in your plug, proceed as follows: The wire which is coloured blue must be con­nected to the terminal which is marked with the letter N or coloured black. The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.
IMPORTANT
A 5 ampere fuse is fitted in this plug. Should the fuse need to be replaced, please ensure that the replacement fuse has a rating of 5 amperes and that it is approved by ASTA or BSI to BS1362. Check for the ASTA mark or the BSI mark on the body of the fuse. IF THE FITTED MOULDED PLUG IS UNSUIT­ABLE FOR THE SOCKET OUTLET IN YOUR HOME THEN THE FUSE SHOULD BE REMOVED AND THE PLUG CUT OFF AND DIS­POSED OF SAFELY. THERE IS A DANGER OF SEVERE ELECTRICAL SHOCK IF THE CUT OFF PLUG IS INSERTED INTO ANY 13 AMPERE SOCKET. If in any doubt, please consult a qualified electrician.
4

For U.S. model

Note to CATV system installer:
This reminder is provided to call the CATV system installer’s attention to Article 820-40 of the NEC, ANSI/NFPA 70, which provides guidelines for proper grounding and, in par­ticular, specifies that the cable ground shall be connected to the grounding system of the building, as close to the point of cable entry as practical.

FCC Information for User

CAUTION:
The user changes or modifications not expressly approved by the party responsible for compliance could void the user’s author­ity to operate the equipment.
NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reason­able protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio fre­quency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio commu­nications. However, there is no guarantee that interference will not occur in a particu­lar installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turn­ing the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.

For Canadian model

NOTE:
THIS CLASS B DIGITAL APPARATUS COMPLIES WITH CANADIAN ICES-003.
For models having a power cord with a polarized plug:
CAUTION:
SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.
TO PREVENT ELECTRIC

Modele pour les Canadien

REMARQUE:
CET APPAREIL NUMÉRIQUE DE LA CLASSE B EST CONFORME À LA NORME NMB-003 DU CANADA.
Sur les modèles dont la fiche est polarisée:
ATTENTION:
ÉLECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU’AU FOND.
Memory Preservation
This unit does not require memory preserva­tion batteries. A built-in memory power back­up system preserves the contents of the mem­ory during power failures and even when the unit is unplugged. The unit must be plugged in order to charge the back-up system. The memory preservation period after the unit has been unplugged varies depending on climate and placement of the unit. On the average, memory contents are protected over a period of a few weeks after the last time the unit has been unplugged. This period is shorter when the unit is exposed to a highly humid climate.
POUR ÉVITER LES CHOCS
5
Main Features
• 20 Watts per channel into 4 ohms DIN
• Low impedance drive discrete output stage
• Accoustic Presence
• RDS (Radio Data System) PS only (Euro­pean model)
• FM/AM random 30 Stations Preset Tuning
• Timer Play (Weekday,Weekend),Sleep & Timer Rec
• Automatic Scan Tuning (FM only)
• Subwoofer Pre Out (U.S. & Canadian mod­els)
• FM TUNED Indicator
• Audio Muting (operable via remote con­trol)
• Battery-free Backup System to Protect Memory Contents
• Motor driven Volume control
• Head phone Jack
Compatible Remote Control Included
• Blushed Alminume Front Panel
• Processor In/Out (other than U.S. & Cana­dian models)

Supplied accessories

Check that the following accessories are supplied with this unit.
AM loop antenna x 1
Remote controller x 1 (RC-456S) Batteries x 2 (Size AA, R6, or UM-3)
FM indoor antenna x 1
75/300 ohm antenna adapter x 1 (Available on the models other than U.S., Canadian, and European models)
Declaration of Conformity
We,
ONKYO EUROPE ELECTRONICS GmbH INDUSTRIESTRASSE 20 82110 GERMERING, GERMANY
declare in own responsibility, that the ONKYO product described in this instruction manual is in compliance with the corresponding technical standards such as EN60065, EN55013, EN55020 and EN61000-3-2, -3-3.
GERMERING, GERMANY
6
ONKYO EUROPE ELECTRONICS GmbH
A.HORIUCHI
Table of contents
Before using
Supplied accessories ............................................................................................................6
Connections
Connecting to the ONKYO Separate Collection Series components ............................... 8
Connecting to components other than the Separate Collection Series ........................ 13
Connecting speaker systems............................................................................................. 16
Antenna connections ........................................................................................................ 17
Connecting the AC power cord (mains lead) .................................................................. 20
Preparations
Preparing the remote controller ...................................................................................... 21
Operation
Setting the Clock...............................................................................................................22
Choosing the required source .......................................................................................... 26
Adjusting the sound.......................................................................................................... 27
Muting/Listening with the headphones .......................................................................... 28
Recording........................................................................................................................... 29
Receiving stations..............................................................................................................30
Naming a preset station ................................................................................................... 33
Receiving RDS (European models only) ........................................................................... 36
Using the timer.................................................................................................................. 37
Other Information
Troubleshooting................................................................................................................ 44
Specifications..................................................................................................................... 46
Index to parts and controls............................................................................................... 48
7
8

Connecting to the ONKYO Separate Collection Series components

This section introduces you to the other Separate Collection Series system components and their convenient system functions, followed by connecting instructions.
The following Separate Collection Series components are commercially available:
• K-505X .............. Stereo Cassette Tape Deck (Not available in U.S. and Canada)
• C-705X .............. Compact Disc (CD) Player (Not available in U.S. and Canada)
• C-707CH............ Compact Disc (CD) Changer (Only available in U.S. and Canada)
• MD-105X .......... Minidisc (MD) Recorder (Not available in U.S. and Canada)
• CD-recorder...... Compact Disc (CD) Recorder (Not available in U.S. and Canada)
Note that the available components may vary according to the area.
Combination use of the unit with the above system components enables you to operate the following convenient functions:
• Auto Power On
– You can turn on the unit by pressing the STANDBY/ON switch on one of the system com-
ponents.
– You can turn on all the system components at the same time by pressing the STANDBY/
ON switch on the unit. You can turn off each component not in use independently afterwards.
• Direct Change
Press the following button on the component you want to operate to switch the unit’s input selector automatically to that component: – The play button on the CD player (or changer), MD recorder or stereo cassette tape
deck.
• Remote Control Operation
All the system components can be operated using the supplied remote controller.
• Program Timer
You can operate timer playback and recording using this unit.
• Sleep Timer
You can fall asleep to a music/radio program using this unit.
• CD Dubbing
Simple CD dubbing using a stereo cassette tape deck or MD recorder is possible with the pressing of a single button (CD dubbing function using an MD recorder is not available on the C-707CH). (Refer to the K-505X or MD-105X Instruction Manual for more information).
• CD/MD Synchro Recording
When using a stereo cassette tape deck or MD recorder to record from the CD player or when using a stereo cassette tape deck to record from an MD recorder, you can record with simply starting on a CD player or MD recorder. (Refer to the K-505X or MD-105X instruction manual for more information.)
• Dubbing a specific track from CD
You can specify a track on a CD and easily dub it to a connected MD recorder. (Refer to the MD-105X instruction manual for more information.)

Arranging the system components

Combination example 1

Select the CD player C-705X (or CD changer C-707CH), CD recorder, and stereo cassette tape deck K-505X in addition to this unit. When you arrange these components, stack them as shown below.
Vertical way stacking Horizontal way stacking
This unit (R-805X)
Stereo cassette tape deck (K-505X)
CD recorder
CD player (C-705X) or CD changer (C-707CH)
This unit (R-805X) CD recorder
Stereo cassette tape
deck (K-505X)
CD player (C-705X) or
CD changer (C-707CH)

Combination example 2

Select the CD player C-705X, CD recorder and MD recorder MD-105X in addition to this unit. When you arrange these components, stack them as shown below.
Vertical way stacking Horizontal way stacking
This unit (R-805X)
MD recorder (MD-105X)
CD recorder
CD player (C-705X)
This unit (R-805X) CD recorder
MD recorder (MD-105X)
CD player (C-705X)
Tip
In addition to the above combination examples, you can also connect both the MD recorder MD-105X and stereo cassette tape deck K-505X with the CD recorder, CD player C-705X, and this unit.
9
Connecting to the ONKYO Separate Collection Series components

Connecting to the audio connector

Before connecting
• Do not connect the unit’s AC power cord (mains lead) to a wall outlet (the mains) until you have completed all the other connections, including and AC OUTLET connections on page 12 and “Connecting speaker systems” on page 16.
• On each pair of connectors, a red connector (marked R) corresponds to the right channel, and a white connector (marked L) to the left channel. Connect white plugs of audio con­nection cables to L connectors and connect red plugs of audio connection cables to R con­nectors.
• Please refer to the instruction manual for each component when you make any connec­tions.
Audio connection
To L connector (White) To R connector (Red)
• Insert the plug securely. If the connection is incomplete, noise or malfunction may result.
Improper connection
Insert completely
• When you use a digital audio optical cable, do not bend it sharply nor coil it tightly.
• Bundling an audio connection cable with the power cord or speaker cord may degrade the sound quality.
• Be sure to use the cable, supplied with each component (except for the R-805X) to con­nect to the remote control connector. If the connection is incomplete, you will be unable to operate the device using the remote controller.
• CD players and MD recorders use heat-sensitive parts. Do not place them on top of the amplifier.
cable
(White) To L connector (Red) To R connector
Note:
To connect both the MD recorder MD-105X and stereo cassette tape deck K-505X to the unit: Connect the MD recorder to the unit following the “Connections for combination example 2” on the next page and connect the stereo cassette tape deck to the unit following the “Con­nections for combination example 1.”
The 230 V model is shown in the following illustrations.
10

Connections for combination example 1

CDR TAPE
OUT
IN
CD recorder (option) (Refer to the CD recorder instruction manual)
L
R
(
)
(
)
REC
PLAY
OUT
MD
CD
L
R
(
)
(
REC
PLAY
OUT
IN
L
R
REMOTE
(
)(
)
PLAY
REC
IN
LINE/DVD
CONTROL
PROCESSOR
L
CDR TAPE
ANTENNA
OUTINOUT
IN
L
R
(
)
(
)
REC
PLAY
OUT
MD
CDINLINE/DVD
L
R
(
)
REC
L
R
REMOTE
(
)
PLAY)(REC
CONTROL
PROCESSOR
(
)
PLAY
OUT
AM
FM 75
FM STEREO/AM TUNER AMPLIFIER
MODEL NO. R-805X
RATING:AC230V 50Hz 54W
This unit (R-805X)
L
R
SPEAKERS
L
R
AC OUTLET
AC230V 50Hz
SWITCHED
IN
100W MAX.
R
)
IN
OUT
ANALOG OUTPUT
COMPACT DISC PLAYER
MODEL NO. C-705X
L
R
REMOTE CONTROL
DIGITAL OUTPUT
OPTICAL
12
AC OUTLET
AC230V 50Hz UNSWITCHED
100W MAX.
"CLASS 1 LASER
PRODUCT"
CD player (C-705X) or
L
R
ANALOG OUTPUT
CD changer (C-707CH)
: Signal flow

Connections for combination example 2

OUT
ANALOG
INPUT OUTPUT (REC) (PLAY)
L
R
(
REC
INPUT OUTPUT
(REC) (PLAY)
L
R
REMOTE
CONTROL
L
R
MDCD
)
ANALOG
DIGITAL INPUT
12
ANALOG OUTPUT
L
R
ANALOG OUTPUT
COMPACT DISC PLAYER
MODEL NO. C-705X
L
R
REMOTE CONTROL
DIGITAL OUTPUT
OPTICAL
12
AC OUTLET
AC230V 50Hz UNSWITCHED 100W MAX.
"CLASS 1 LASER PRODUCT"
CD player (C-705X)
DIGITAL OUTPUT
OPTICAL
12
L
R
MD recorder (MD-105X)
INPUT OUTPUT
(REC) (PLAY)
L
R
INPUT OUTPUT
REMOTE
STEREO CASSETTE TAPE DECK
(REC) (PLAY)
CONTROL
K-505X
L
R
Stereo cassette tape
AC OUTLET
AC230V 50Hz UNSWITCHED
100W MAX.
deck (K-505X)
(
PLAY
IN
LINE/DVD
)
PROCESSOR
OUT
CDR TAPE
ANTENNA
OUTINOUT
IN
L
AM
FM
75
R
L
R
FM STEREO/AM TUNER AMPLIFIER
MODEL NO. R-805X
RATING:AC230V 50Hz 54W
(
)
(
)
PLAY
REC
OUT
MD
CDINLINE/DVD
(
)
(
REC
PLAY
L
R
IN
L
L
R
REMOTE
R
(
)
PLAY)(REC
CONTROL
SPEAKERS
PROCESSOR
L
R
AC OUTLET
AC230V 50Hz
)
OUT
SWITCHED
IN
100W MAX.
This unit (R-805X)
DIGITAL INPUT
L
R
OPTICAL
MINIDISC RECORDER
MD-105X
AC OUTLET
AC230V 50Hz
UNSWITCHED
100W MAX.
OPTICAL
12
: Signal flow
Optical cable
11
Connecting to the ONKYO Separate Collection Series components

Connecting the connectors and AC OUTLETS

Before connecting
• The hookups on page 11 is needed in addition to the (for remote control operations) and AC OUTLET (for power supply to each component) hookups on this page.
• Each component has two connectors. There is no difference between those connectors. The components may be connected in any order.
• The remote control cable for connecting the connectors is supplied with each com­ponent (not supplied with the unit).

Connections

To use the Clock/Timer function of this unit’s, connect the power cord as shown below and connect the remote control cable and audio connection cables (see page 11). Be sure to connect the power cord of this unit to an AC outlet that supplies continuous power.
ANALOG
REMOTE
INPUT OUTPUT
CONTROL
(REC) (PLAY)
DIGITAL INPUT
OPTICAL
L
L
MD recorder (MD-105X)
12
R
R
AC OUTLET
AC230V 50Hz UNSWITCHED
MINIDISC RECORDER
MD-105X
100W MAX.
CD recorder
CD player (C-705X) or CD changer (C-707CH)
CDR TAPE
ANTENNA
IN
L
AM
FM 75
L
R
INPUT OUTPUT
(REC) (PLAY)
MODEL NO. R-805X
R
(
)
(
)
PLAY
REC
OUT
MD
CDINLINE/DVD
L
R
(
)
REC
REMOTE
STEREO CASSETTE TAPE DECK
CONTROL
ANALOG
REMOTE CONTROL
INPUT OUTPUT
(REC) (PLAY)
DIGITAL
L
L
OPTICAL
INPUT 1 INPUT 2
OUTPUT
R
R
ANALOG OUTPUT
COMPACT DISC PLAYER
MODEL NO. C-705X
L
R
REMOTE
CONTROL
DIGITAL OUTPUT
OPTICAL
12
AC OUTLET
AC230V 50Hz UNSWITCHED
100W MAX.
"CLASS 1 LASER PRODUCT "
L
OUTINOUT
L
R
REMOTE
R
(
)
PLAY)(REC
CONTROL
SPEAKERS
PROCESSOR
L
R
(
)
IN
PLAY
OUT
K-505X
To wall outlet
This unit (R-805X)
AC OUTLET
AC230V 50Hz
SWITCHED 100W MAX.
Stereo cassette tape deck (K-505X)
AC OUTLET
AC230V 50Hz UNSWITCHED
100W MAX.
• If the R-805X is in Standby mode (only the display is lit) in the system, a small amount of power (for standby mode) is being supplied to the connected devices. If you do not wish to supply this power to the connected devices to save energy, press the ENERGY SAVE button on the R-805X. (See page 20.)
12

Connecting to components other than the Separate Collection Series

Connecting audio/video equipment to audio connectors

Before connecting
• Do not connect the AC power cord (mains lead) to the wall outlet (the mains) until you have completed all the other connections including the sound processor connections on the next page, the connections on page 15, and the speaker connections on page 16.
• On each pair of connectors, a red connector (marked R) corresponds to the right channel, and a white connector (marked L) to the left channel.Connect white plugs of audio connec­tion cables to L connectors and connect red plugs of audio connection cables to R connec­tors.
Audio connection
To L connector (White)
cable
To R connector (Red)
• Please refer to the instruction manual for each compo­nent when you make any connections.
• Insert the plug securely. If the connection is incomplete, noise or malfunction may result.

Connections

(White) To L connector (Red) To R connector
Improper connection
Insert completely
CD recorder
Stereo cassette
tape deck
PROCESSOR
REC INPUT
This unit (R-805X)
CDR TAPE
ANTENNA
OUTINOUT
IN
L
AM
R
(
)
(
)
REC
PLAY
OUT
MD
CDINLINE/DVD
L
FM
75
R
(
)
(
REC
PLAY
FM STEREO/AM TUNER AMPLIFIER
MODEL NO. R-805X
RATING:AC230V 50Hz 54W
L
(illustration is 230 V model)
R
IN
PLAY OUTPUT
L
R
REMOTE
(
)
PLAY)(REC
CONTROL
PROCESSOR
)
OUT
L
R
SPEAKERS
L
R
AC OUTLET
AC230V 50Hz
SWITCHED
IN
100W MAX.
REC INPUT
PLAY OUTPUT
CDR TAPE
OUT
L
R
(
)
REC
CD
L
R
(
PLAY
(
OUT
IN
)
OUT
MD
)
REC
(
PLAY
IN
L
R
REMOTE
(
)(
)
PLAY
REC
IN
LINE/DVD
)
CONTROL
OUT
: Signal flow
OUTPUT
REC INPUT
PLAY OUTPUT
AUDIO OUTPUT
CD player MD recorder DVD, LD or Video equipment
• Refer to page 14 for more information on how to connect a processing device such as a sur­round processor.
13
Connecting to components other than the Separate Collection Series

Connecting a subwoofer (U.S. & Canadian models only)

Before connecting
• If your subwoofer isn’t equipped with an amplifier, connect a separate amplifier to the unit first, then connect the subwoofer to that amplifier.
• The SUBWOOFER PRE OUT connector supplies the left and right mixed monaural signals to the subwoofer.

Connections

This unit (R-805X)
CDR TAPE
ANTENNA
OUTINOUT
IN
L
R
(
)
(
)
REC
PLAY OUT
MD
CDINLINE/DVD
L
R
(
)
REC
L
R
REMOTE
(
)
PLAY)(REC
CONTROL
L
R
(
)
PLAY
AM
FM 75
FM STEREO/AM TUNER AMPLIFIER
MODEL NO. R-805X
RATING:AC120V 60Hz 61W
SUBWOOFER
PRE OUT
L
R
SPEAKERS
AC OUTLET
AC 120V 60Hz SWITCHED 120W 1A MAX.
When connecting a subwoofer with a built-in amplifier
Subwoofer
Audio connection cable
SUBWOOFER
PRE OUT
or
When connecting a subwoofer with no built-in amplifier
Subwoofer
Audio connection cable
Amplifier

Connecting a sound processor (other than U.S. & Canadian models)

You can connect a sound processor (e.g. surround processor, graphic equalizer, etc.) to the unit.
Before connecting
• Disconnect the jumper plugs using the PROCESSOR connectors. – Please retain them for future use. – Never connect the jumper plugs to the other connectors, as this may cause the unit to
malfunction, so that the sound is not reproduced.
– If you do not use the PROCESSOR connectors, connect two jumper plugs horizontally to
the IN and OUT jacks firmly.

Connections

1 Remove the jumper plugs.
PROCESSOR
Jumper plug
OUT
IN
2 Connect the sound processor to the unit.
14
This unit (R-805X)
CDR TAPE
ANTENNA
OUTINOUT
IN
L
R
(
)
(
)
REC
PLAY
OUT
MD
CDINLINE/DVD
L
R
(
)
(
REC
PLAY
L
R
REMOTE
(
)
PLAY)(REC
CONTROL
PROCESSOR
)
OUT
AM
FM
75
FM STEREO/AM TUNER AMPLIFIER
MODEL NO. R-805X
RATING:AC230V 50Hz 54W
INPUT
Sound processor
L
R
SPEAKERS
L
R
AC OUTLET
AC230V 50Hz
SWITCHED
IN
100W MAX.
PROCESSOR
OUT
L
R
IN
OUTPUT
: Signal flow

Connecting the remote control cables

If your other components are made by ONKYO and those components are equipped with connectors, you can control the -connected components with the supplied remote control­ler.
Before connecting
• The unit must be connected in the system hookups for control operations.
• Each component has two connectors. There is no difference between these connectors.
• The components may be connected in any order.
• The hookups on the previous page are necessary independently of the system hookups.
The illustration below is an example of a hookup.

Connections

This unit (R-805X)
MD recorder
Stereo cassette
tape deck
remote control cable (supplied with every ONKYO component that has connectors except for the amplifier and
CD recorder
receiver)
• This is not an example of stacking the
CD player
components. For the example, refer to page 9.

AC outlet connection

You can connect the power cord from another audio device to the rear of the R­805X. If the R-805X is connected via an remote control cable to another Onkyo audio device that has a STANDBY/ON but­ton, you can use the STANDBY/ON button on the R-805X to turn on and off the power to both R-805X and connected device, or place both devices in standby mode. When the R-805X is turned on or placed in standby mode, electric current is always supplied to the AC connector on the rear panel. If you press the ENERGY SAVE button while the R-805X is in standby mode, the power to the connected audio device will be turned off one minute later. (See page 20.) The shape and capacity of the AC outlet may differ depending on the area of purchase. Make sure that the capacity of other components connected to this unit does not exceed the capac­ity that is printed on the rear panel.
CDR TAPE
ANTENNA
OUTINOUT
IN
L
R
(
)
(
REC
PLAY
OUT
CDINLINE/DVD
L
R
(
REC
L
R
REMOTE
)
(
)
PLAY)(REC
CONTROL
MD
PROCESSOR
)
(
)
IN
PLAY
OUT
AM
FM
75
FM STEREO/AM TUNER AMPLIFIER
MODEL NO. R-805X
RATING:AC230V 50Hz 54W
Capacity is 100 watts.
L
R
SPEAKERS
L
R
AC OUTLET
AC230V 50Hz
SWITCHED 100W MAX.
120 V, 60 Hz models230 V, 50 Hz models
Capacity is 120 watts.
15

Connecting speaker systems

Connecting left and right speakers

Before connecting
• The load impedance of each speaker must be at least 4 ohms.
• Do not use unnecessarily long or extremely thin speaker cords. Otherwise, the DC resis­tance of the speaker cords may become too high, lowering the damping factor and causing the sound quality to deteriorate.
• Do not connect the speaker cord to the L and R connectors at the same time and do not connect two or more speakers to the same speaker connectors.
L
L
R
SPEAKERS

Preparing the speaker cords for connection

1 Strip 15 mm from
the end of each cord.
15mm
2 Twist the stripped
end of the cord.
Note
To prevent dam­age to circuits never short-circuit the positive (+) and negative (–) speaker wires.

Connecting the speaker cords to the speaker connectors

L
Right
speaker
-
R
SPEAKERS
+
CDR TAPE
1 Turn the knob counter-
clockwise to loosen.
ANTENNA
AM
FM 75
2 Insert the stripped end
of the cord.
L
R
L
R
FM STEREO/AM TUNER AMPLIFIER
MODEL NO. R-805X
RATING:AC230V 50Hz 54W
OUTINOUT
IN
(
)
(
)
REC
PLAY
OUT
MD
CDINLINE/DVD
(
)
(
REC
PLAY
L
R
REMOTE
(
)
PLAY)(REC
CONTROL
PROCESSOR
L
R
)
IN
OUT
R
SPEAKERS
NO
Left
speaker
-
+
L
R
SPEAKERS
3 Turn the knob clockwise
This unit
AC OUTLET
AC230V 50Hz
SWITCHED 100W MAX.
to tighten.
16

Antenna connections

Connecting the AM antenna

Assembling the AM loop antenna

Assemble the loop antenna as shown in the illustration.
Insert into the hole.

Connecting the antenna cable

1. Press down the lever. 2. Insert the wire into the hole.

Connecting the AM loop antenna

The AM loop antenna is for indoor use only. Set it in the direction and position where you receive the clearest sound. Put it as far as pos­sible away from this unit, TV, speaker cables, and power cords.
3. Release the lever to replace it.
ANTENNA
AM

Connecting an AM outdoor antenna

When reception is not satisfactory with the supplied AM loop antenna alone, connection of an outdoor antenna is recommended. The outdoor antenna will be more effective if it is stretched horizontally above a window or outside.
• Do not remove the AM loop antenna.
• To avoid the risk of lightning and electrical shock, grounding is necessary. Follow item 14 of the “Important Safeguards” on page 3 when you install the outdoor antenna.
FM
75
ANTENNA
AM
FM
75
Outdoor antenna
17
Antenna connections

Connecting the FM antenna

FM indoor antenna

The supplied FM antenna is for indoor use only. Move the antenna in various directions until the clearest signal is received. Fix it with push pins or similar implements in the position that will cause the least amount of distortion.
U.S and Canadian models
Other models
ANTENNA
ANTENNA
Remove the insulation at the tip of the cable, and insert the cable securely, fully to the end
AM
AM
of the exposed tip.
FM
75
FM
75

FM outdoor antenna

If the reception is not very clear with the supplied FM antenna, the use of an outdoor antenna is recommended. Please make sure that you follow the considerations below regarding the location.
• Keep the antenna away from noise sources (neon signs, busy roads etc.).
• It is dangerous to put the antenna close to power lines. Keep it well away from power lines, etc.
• To avoid the risk of lightning and electrical shock, grounding is necessary. Follow item 14 of the “Important Safeguards” on page 3 when you install the outdoor antenna.
ANTENNA
AM
FM
75
18

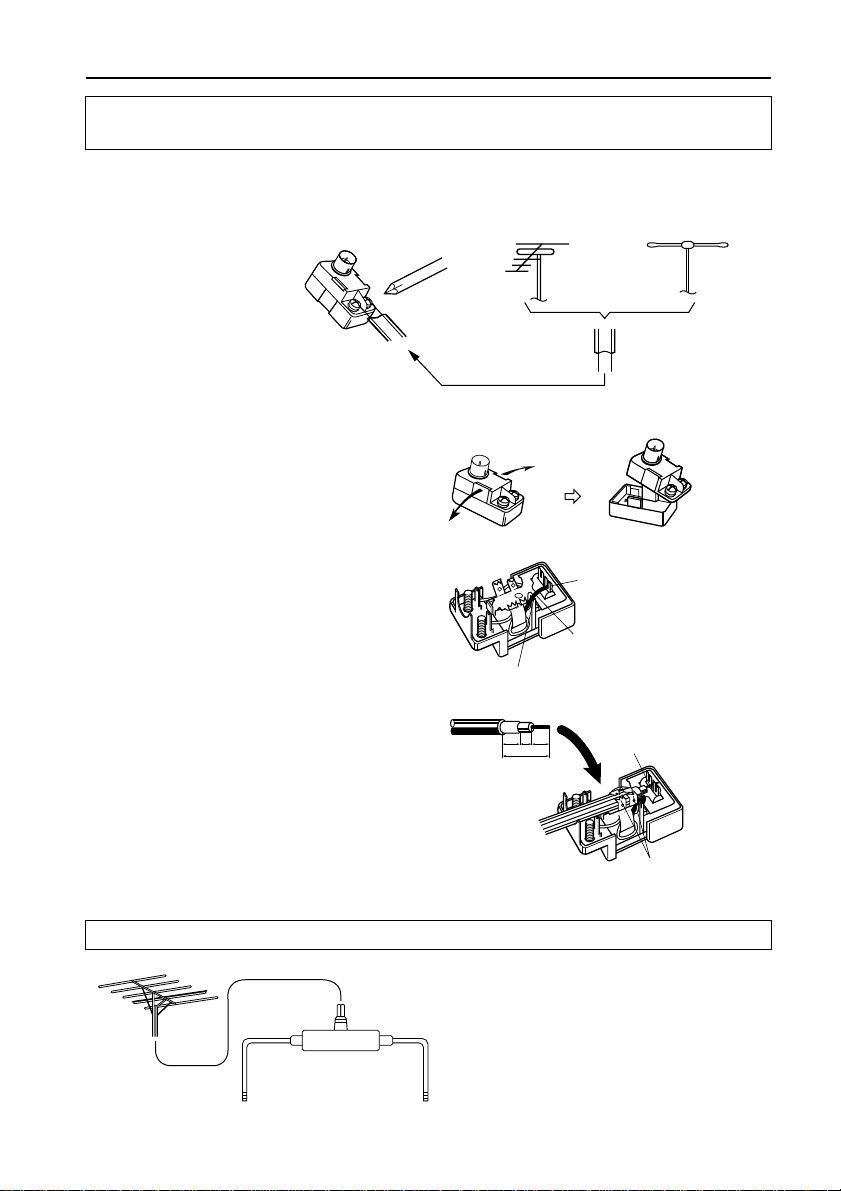

Connecting the antenna cable to the 75/300 ohm antenna adapter (Non­U.S., Canadian and European models)
Connecting the 300 ohm ribbon wire:
Loosen the screws and wrap the wire around these screws. Then tighten the screws with a screwdriver.
Connecting the coaxial cable:
1. With your fingernail or a small screw­driver, press the stoppers outward and remove the cover.
2. Remove the transformer wire A from slit B and insert it into slit C.
Outdoor antenna
300 ohms ribbon wire
Slit B
Wire A
Slit C
Indoor antenna
3. Prepare the coaxial cable as shown in the diagram. Connect the 75/300 ohm antenna adapter to the coaxial cable.
1 Insert the end of the cable. 2 Clamp it in place with pliers.
4. Re-install the cover.

Directional Iinkage

Directional Iinkage type splitter
To R-805X To TV (or VCR)
6mm3mm6
15mm
mm
1
2
Do not use the same antenna for both FM and TV (or VCR) reception since the FM and TV (or VCR) signals can inter­fere with each other. If you must use a common FM/TV (or VCR) antenna, use a directional linkage type splitter.
19

Connecting the AC power cord (mains lead)

STANDBY/ ON
GRAPHIC EQ
REPEAT
PLAY MODE
REPEAT
MEMORY
REPEAT
TONE
TIMER
UP/DOWN
ENTER
CLOCK SLEEP EFFECT
PRESET
SCROLL
CLEAR
RANDOM
CLEAR
PLAY MODE
CLEAR
123
456
789
- - / - - -
DISC
10 / 0
F MA M
REC
REC
PAUSE / STEP
ACOUSTIC PRESENCE
ENERGY SAVE indicator
ENERGY SAVE
STANDBY/ON
ENERGY SAVE
STANDBY/ON
PHONES
MEMORY
CLEAR
ACCUCLOCK
FM STEREO / AM TUNER AMPLIFIER
CD MD CDR LINE/DVD
FM MODE
FM AM TAPE
STANDBY/
ON
ACOUSTIC PRESENCE
OFF/1/2/3
VOLUME
DISPLAY
PRESET
TUNING
R-805X
INPUT
MODE
INPUTTUNER
TAPE
DVD
M D
C D
CDR
MUTING
VOLUME

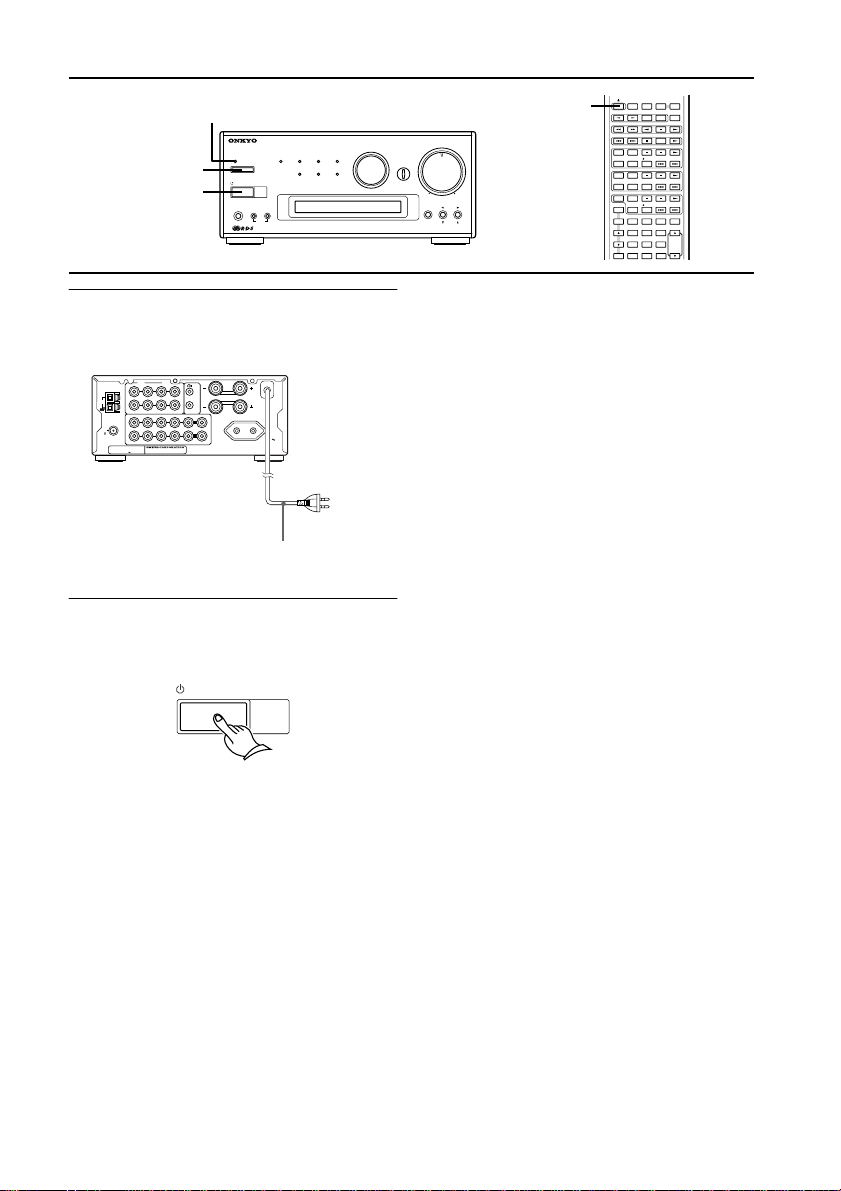

1 Connect the AC power cord (mains
lead) to the wall outlet (the mains).
“– –:– –” appears on the display.
ANTENNA
AM
FM
75
L
R
L
R
FM STEREO/AM TUNER AMPLIFIER
MODEL NO. R-805X
RATING:AC230V 50Hz 54W
CDR TAPE
OUTINOUT
IN
(
)
(
)
REC
PLAY OUT
MD
CDINLINE/DVD
(
)
(
REC
PLAY
)
)
L
L
R
REMOTE
R
(
PLAY)(REC
CONTROL
SPEAKERS
PROCESSOR
L
R
AC OUTLET
AC230V 50Hz
IN
OUT
SWITCHED 100W MAX.
To wall outlet
AC power cord (mains lead)
(illustration is 230 V models)
2 Press the STANDBY/ON button.
The indicator of the selected input source lights up.
STANDBY/ ON
Notes
• If the AC power cord (mains lead) is con­nected to the AC outlet of another com­ponent, that component’s AC power cord (mains lead) must be connected to the wall outlet (the mains) to supply power to the unit. If the component has a power switch, it must be set to On.
• If you do not use the unit for a long time, remove the power cord of the R-805X from the AC outlet.
• The unit may cause a power surge on your home circuit when you turn it on. If this interferes with any other devices con­nected to the same circuit, plug this unit into another outlet on a separate circuit.

About the ENERGY SAVE button:

The power to all devices connected to the R­805X will be turned off one minute after you press the ENERGY SAVE button while the unit is in Standby mode.
When you press the ENERGY SAVE button:
• The ENERGY SAVE indicator starts flash­ing. After one minute, it lights up steadily.
• The display scrolls words “ENERGY SAVE,” then turns off. However, the timer on the R-805X is still functioning.
20
When the power to other components is turned off, the Direct Play function is dis­abled. To turn on the power to the compo­nents again, press the STANDBY/ON button on the R-805X. (With a slight delay, the power to the components connected to the R-805X will be turned on.) Energy Save mode is cancelled when you press the ENERGY SAVE button while the ENERGY SAVE indicator is flashing.

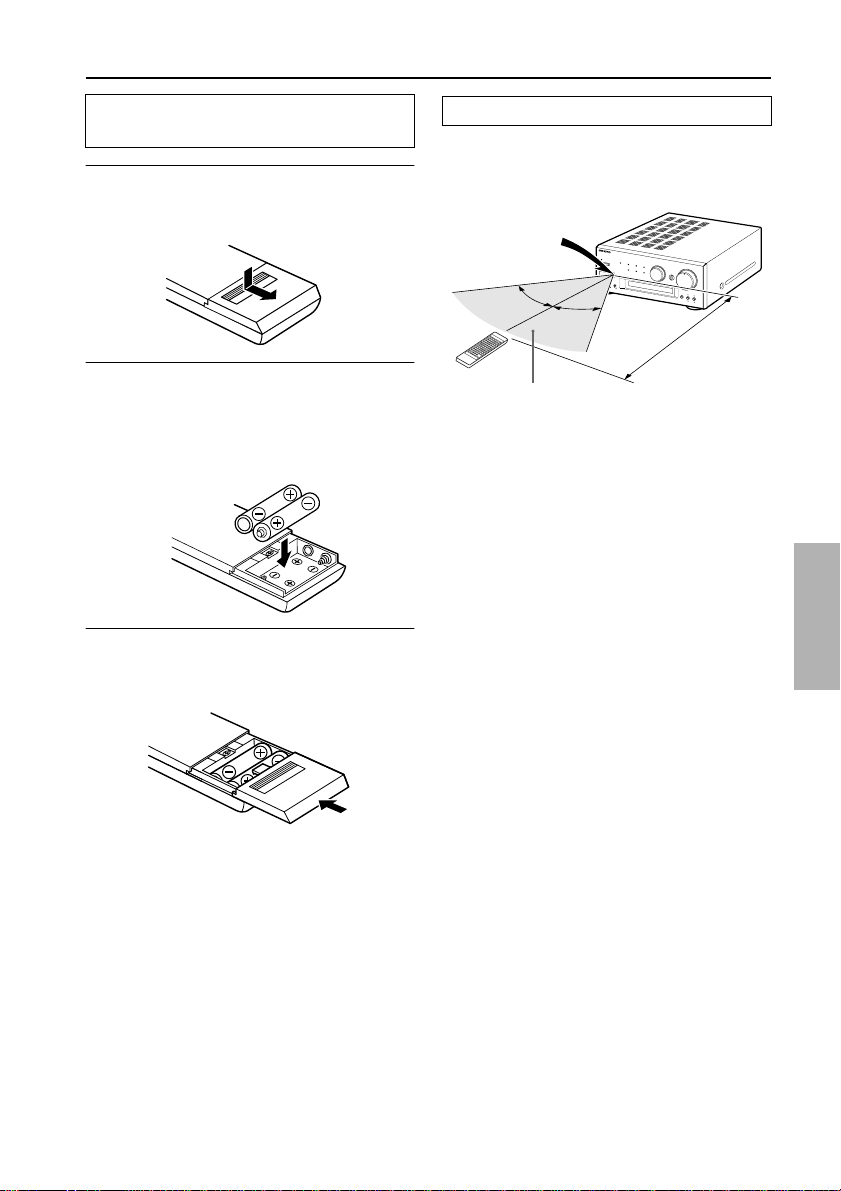

Preparing the remote controller

Installing the remote controller batteries

1 Remove the battery compartment
cover by pressing and sliding it away from the remote controller unit.
2 Insert two AA-size batteries into the
battery compartment.
Carefully follow the polarity diagram (positive + and negative - symbols) inside the battery compartment.
3 After batteries are installed and
seated correctly, replace the compart­ment cover.
Notes
• Do not mix new batteries with old batter­ies or different kinds of batteries.
• To avoid corrosion, remove the batteries if the remote controller is not to be used for a long time.
• Remove dead batteries immediately to avoid damage from corrosion. If the remote controller doesn’t operate smoothly, replace both the batteries at the same time.
• The life of the batteries supplied is about six months but this will vary depending on usage.

Using the remote controller

Point the remote controller toward the remote control sensor.

INPUT
VOLUME
ACOUSTIC PRESENCE
OFF/1/2/3
DISPLAY
PRESET
TUNING
R-805X
About 5 m (16 feet)
R-805X
Remote control sensor
30˚
30˚
FM STEREO / AM TUNER AMPLIFIER
ENERGY SAVE
CD MD CDR LINE/DVD
FM AM TAPE
STANDBY/ON
PHONES
MEMORY
FM MODE
CLEAR
Control range
Notes
• Place the unit away from strong light such as direct sunlight or inverted fluorescent light which can prevent proper operation of the remote controller.
• Using another remote controller of the same type in the same room or using the unit near equipment which uses infrared rays may cause operational interference.
• Do not put any object such as a book on the remote controller. The buttons of the remote controller may be pressed by mis­take and drain the batteries.
• Make sure the audio rack doors do not have colored glass. Placing the unit behind such doors may prevent proper remote controller operation.
• If there is any obstacle between the remote controller and the remote control sensor, the remote controller will not operate.
21

Setting the Clock

The ”ACCUCLOCK“ features an automatic clock adjusting function automatically sets the clock time by means of RDS broadcast signals.
• The “ACCUCLOCK” feature is available only on the European model, and only in areas where RDS broadcasts are available.
• Adjust the clock as explained in “Setting the clock manually” on page 24 if you are using U.S. or Canadian models or if you are using the unit in the area where RDS broadcasts are unavailable.

Setting the clock automatically (European models only)

ACCUCLOCK starts operating as soon as the power cord is plugged in. It then searches for an RDS broadcasting station which regularly sends time signals and waits to receive such time information. Do not operate any but­tons until the clock setting is complete. The R-805X retains the clock setting until you unplug the power cord. The following steps describe how to set the clock automatically:
1. Plug in the power cord.
“AUTO” flashes slowly on the display.
• It may take about 5 minutes for the time information to be received and displayed after you plug in the power cord.
6. After the clock is initially set, it will be adjusted periodically when the R-805X is in Standby mode (all input source indica­tors are turned off) or in ENERGY SAVE mode (the ENERGY SAVE indicator is lit).
Notes on using the “ACCUCLOCK” function:
• Make sure that your FM antenna has been properly connected as explained on page 18. It is strongly recommended that you install an outdoor FM antenna since the FM indoor antenna may not receive RDS broadcasts well enough to allow ACCUCLOCK to function properly.
• The clock will display the time in a 24 hour cycle. For example, 5:30 pm will be displayed as “17:30”. (You can select a 12 hour cycle display setting. For more infor­mation, see page 25.)
• If RDS signals cannot be received, no RDS station will be found. Or if an RDS signal is present but the sig­nal is not strong enough to allow the ACCUCLOCK to automatically set the time, “- -:- -” will lit on the display as shown below. If this occurs, set the clock manually. (See page 24.)
flashes slowly
2. Once an RDS station that sends time sig­nals is detected, the indicator flashes more rapidly.
flashes rapidly
3. Once the time signal is received from the RDS station, “CLOCK ADJUSTED” will scroll on the display.
4. The received time information (the day of the week and the time) appears.
5. The clock starts running.
22
Adjust the clock manually.
• You may wish to adjust the clock manually because the time information may differ depending on the RDS station detected. If so, follow the manual clock adjustment procedure described on page 24.
• There may be cases in which you can lis­ten to radio broadcasts but cannot use the ACCUCLOCK function.
• Once activated, ACCUCLOCK will remem­ber the RDS station it uses for several weeks even if the power cord of this unit is unplugged. If you move outside the service area of the memorized RDS station and find out that ACCUCLOCK is not function­ing, see “Confirming/changing the RDS Sta­tion used by ACCUCLOCK” on page 23 to change the memorized RDS station.
TIMER
ENTER
STANDBY/ ON
REPEAT
PLAY MODE
REPEAT
MEMORY
REPEAT
TIMER
UP/DOWN
ENTER
PRESET
PLAY MODE
TONE
CLOCK SLEEP EFFECT
F MA M
SCROLL
CLEAR
REC
RANDOM
CLEAR
DISC
REC
CLEAR
123
456
789
- - / - - -
10 / 0
GRAPHIC EQ
MODE
INPUTTUNER
TAPE
PAUSE / STEP
DVD
M D
C D
CDR
MUTING
UPπ/DOWN†
VOLUME
ACOUSTIC PRESENCE
Confirming/changing the RDS station used by ACCUCLOCK
If you wish to know which RDS station has been used to set the clock by ACCUCLOCK, or to use a different RDS station signal to set the clock, follow the steps below:

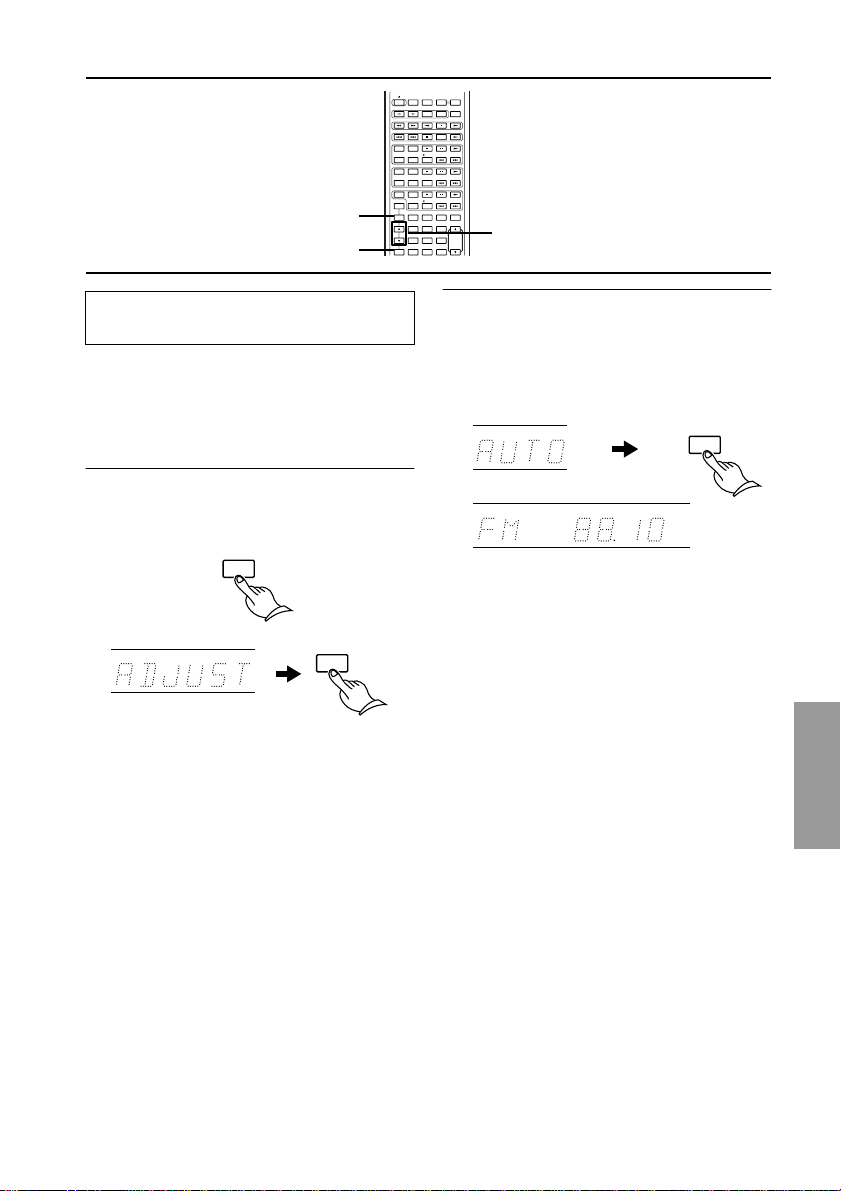

1 Press the TIMER button repeatedly
until “ADJUST” is selected on the dis­play, then press the ENTER button.
TIMER
ENTER
“AUTO” or “MANUAL” appears on the display.
2 If “AUTO” appears on the display,
press the ENTER button. If “MANUAL” appears on the display, press the UP π or DOWN † button to select “AUTO,” then press the ENTER button.
ENTER
MHz
The example shown above indicates that the ACCUCLOCK function uses the RDS station whose information appears on the display (FM 88.10 MHz). If the frequency of the RDS station has not been specified, “--:--” appears instead of the frequency of the sta­tion. If you wish to change the selected RDS station or if no RDS station is selected, choose the desired RDS station by using the UP π or DOWN button, then press the ENTER button.
23
Setting the Clock
UPπ/DOWN†
TIMER
ENTER
STANDBY/ ON
REPEAT
PLAY MODE
REPEAT
MEMORY
REPEAT
UP/DOWN
TONE
TIMER
ENTER
CLOCK SLEEP EFFECT
PRESET
SCROLL
CLEAR
RANDOM
CLEAR
PLAY MODE
CLEAR
123
456
789
- - / - - -
GRAPHIC EQ
MODE
INPUTTUNER
F MA M
TAPE
PAUSE / STEP
DVD
M D
REC
C D
DISC
CDR
REC
MUTING
Number buttons
VOLUME
ACOUSTIC PRESENCE
10 / 0

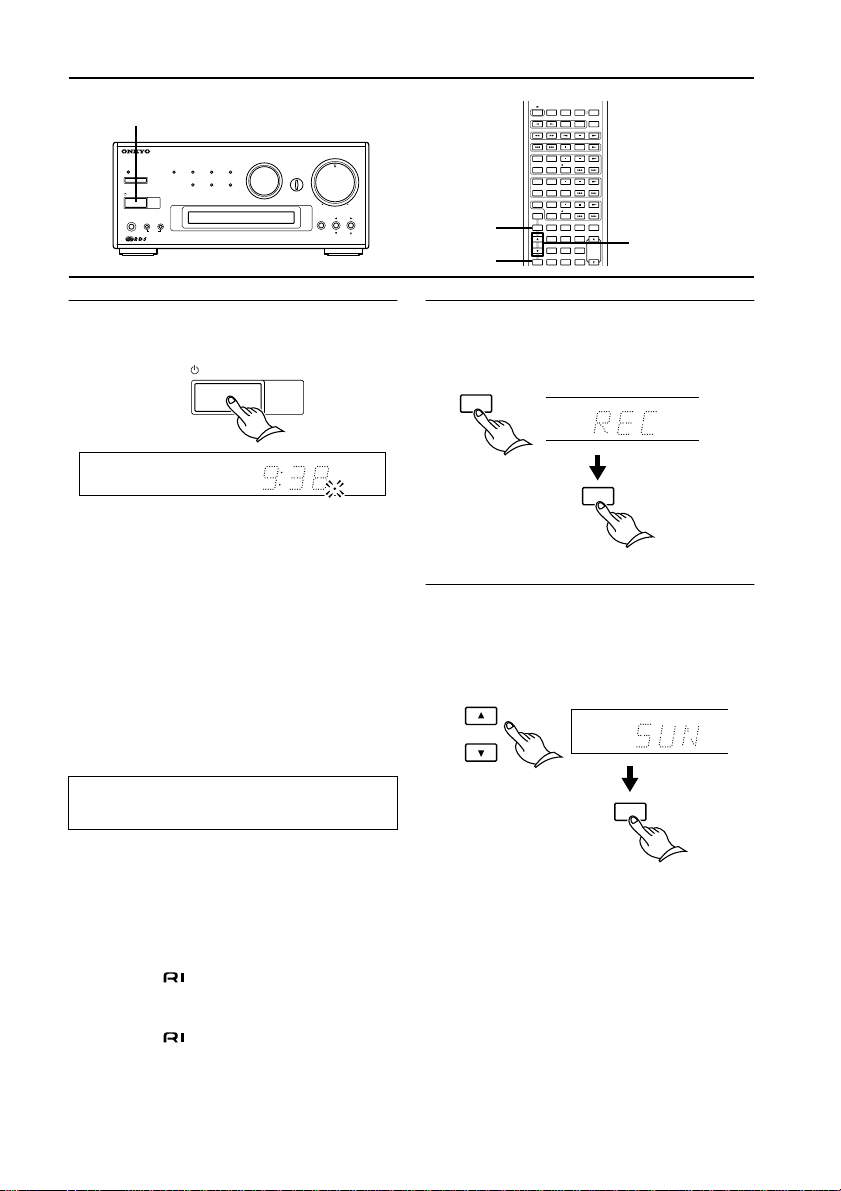

Setting the clock manually

1 Press the TIMER button until “AD-
JUST” is selected on the display, then press the ENTER button.
TIMER
ENTER
The day of the week will flash on the dis­play.
Non-U.S. and non-Canadian models:
“AUTO” or “MANUAL” appears on the display in Standby mode. If “MANUAL” appears on the display, press the ENTER button. If “AUTO” appears on the display, press the UP π or DOWN button to select “MANUAL,” then press the ENTER button. The day of the week will flash on the dis­play.
2 Press the UP π or DOWN button or
the number buttons until the desired day of the week is selected, then press the ENTER button.
The time will flash on the display.
123
456
UP/DOWN
or
789
- - / - - -
10 / 0
ENTER
The number buttons on the remote con­troller: 1: SUN 3: TUE 5: THU 7: SAT 2: MON 4: WED 6: FRI
3 Use the UP π or DOWN button or
the number buttons to set the desired time.
123
UP/DOWN
or
456
789
- - / - - -
10 / 0
24
Entering the time value using the number buttons on the remote controller:
To set 9:38 am, press 10/0, 9, 3, 8, then ENTER. To set 11:00 am, press 1, 1, 10/0, 10/0, then ENTER. * “10/0” stands for “0.”
CLOCK
TIMER
ENTER
STANDBY/ ON
REPEAT
PLAY MODE
REPEAT
MEMORY
REPEAT
UP/DOWN
TONE
TIMER
ENTER
CLOCK SLEEP EFFECT
PRESET
SCROLL
CLEAR
RANDOM
CLEAR
PLAY MODE
CLEAR
123
456
789
- - / - - -
DISC
10 / 0
F MA M
REC
REC
PAUSE / STEP
GRAPHIC EQ
MODE
INPUTTUNER
TAPE
DVD
M D
C D
CDR
MUTING
UPπ/DOWN†
VOLUME
ACOUSTIC PRESENCE
4 Press the ENTER button.
ENTER
The clock will start operating.
Tip
Switching between the 24 hour and 12 hour display settings:
1. Press the TIMER button repeatedly to dis­play “24H/12H.”
2. Press the ENTER button.
3. Use the UP π or DOWN button to select 24H (24 hour display) or 12H (12 hour display).
4. Press the ENTER button to confirm the setting.
Notes
• To use the number buttons instead of the UP π or DOWN † button to set the desired day of the week and time, select the 24-hour display. If you select the 12­hour display, you cannot use the number buttons to set the day and time.
• The ACCUCLOCK function is disabled if you set the clock manually. If you wish to enable the ACCUCLOCK function, refer to the previous section “Confirming/chang­ing the RDS station used by ACCU­CLOCK”.

Clock Call function

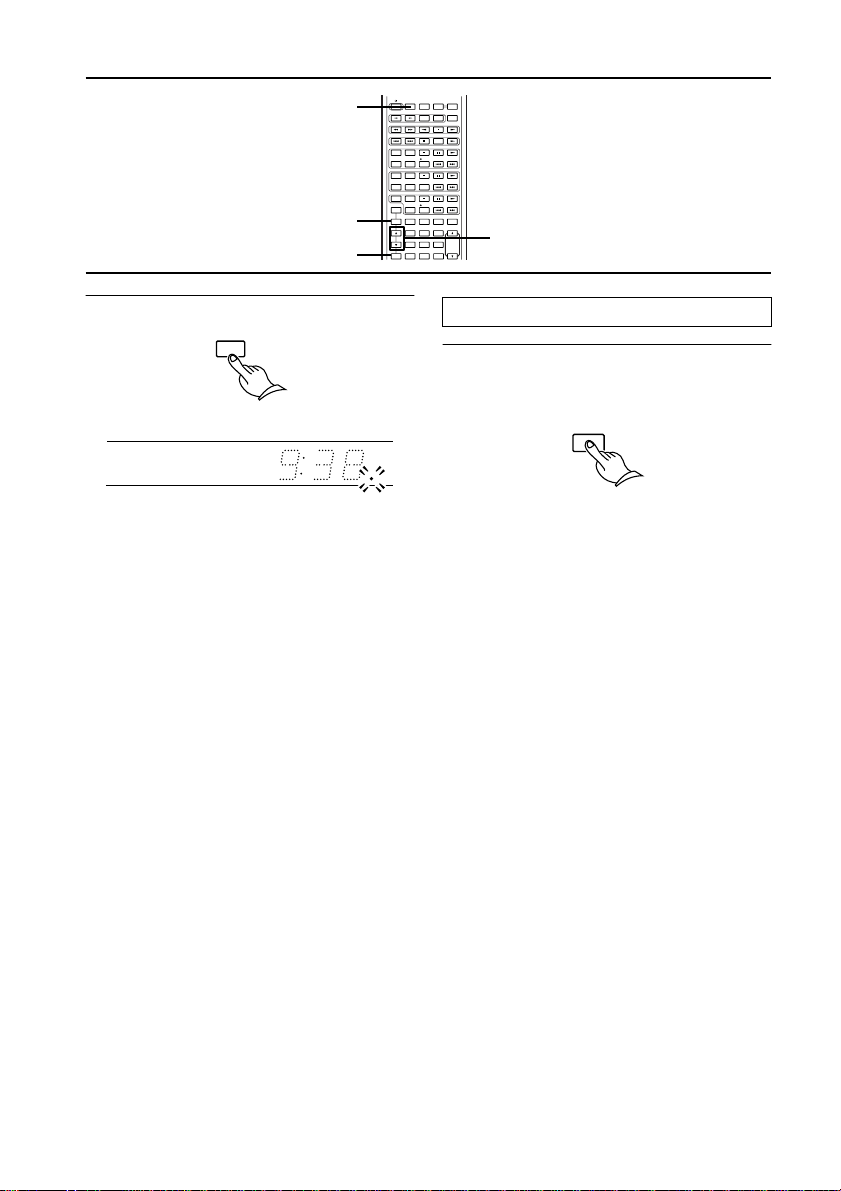

1 Press the CLOCK button to display the
time, press again to cancel the time display.
CLOCK
Note
If the time has not been set, “ADJUST” will flash on the display.
25

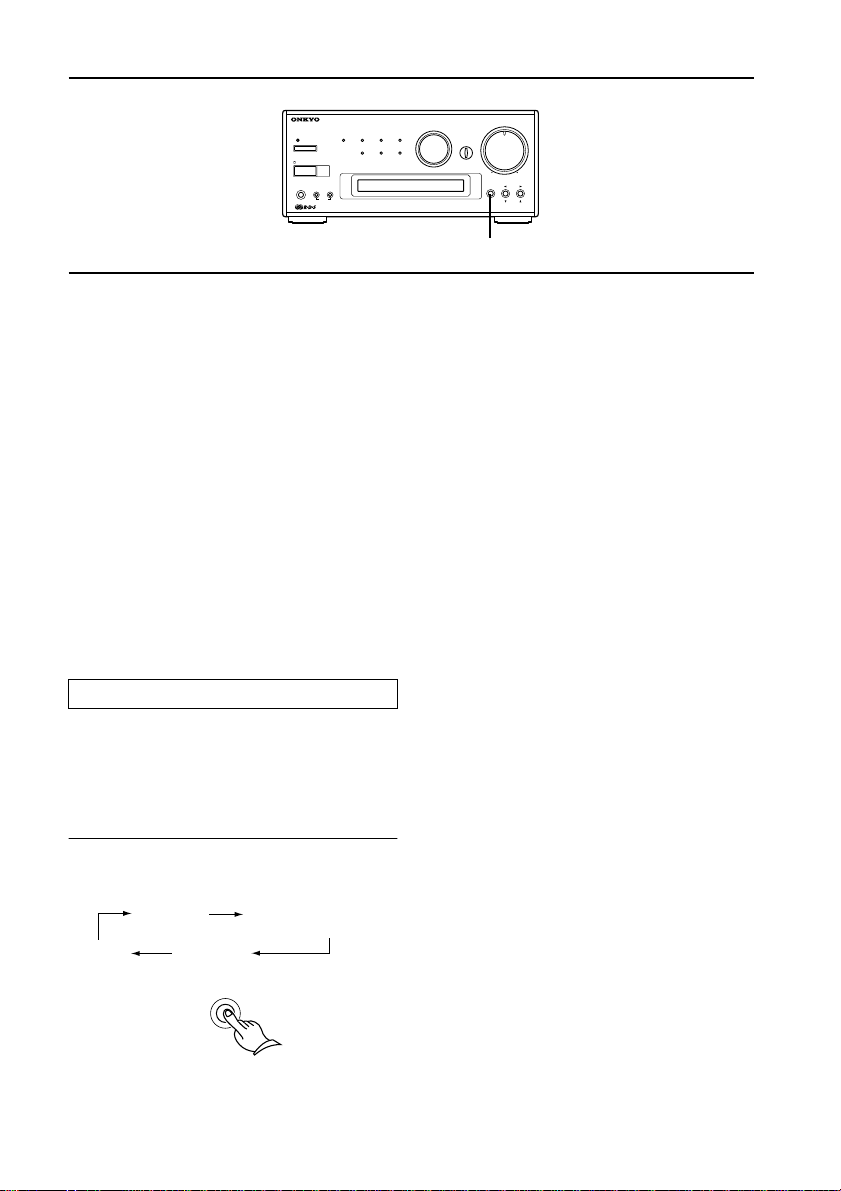

Choosing the required source

Input source indicators
INPUT VOLUME
ENERGY SAVE
STANDBY/ON
PHONES
FM STEREO / AM TUNER AMPLIFIER
MEMORY
FM MODE
CLEAR
ACCUCLOCK
CD MD CDR LINE/DVD
FM AM TAPE
INPUT
PRESENCE
OFF/1/2/3
VOLUME
ACOUSTIC
DISPLAY
PRESET
TUNING
R-805X
STANDBY/ ON
REPEAT
MEMORY
UP/DOWN
REPEAT
PLAY MODE
REPEAT
TONE
TIMER
ENTER
CLOCK SLEEP EFFECT
PRESET
SCROLL
CLEAR
RANDOM
CLEAR
PLAY MODE
CLEAR
123
456
789
- - / - - -
F MA M
REC
DISC
REC
10 / 0
GRAPHIC EQ
MODE
INPUTTUNER
INPUT
TAPE
PAUSE / STEP
DVD
M D
C D
CDR
MUTING
VOLUME
VOLUME π/†
ACOUSTIC
PRESENCE
1 Turn the INPUT selector clockwise or
counterclockwise until the input indi­cator of the source you wish to listen to lights.
INPUT
The indicators light in the following order:
CD MD CDR LINE/DVD
TAPE AM FM
e.g. The CD player is selected.
CD MD CDR LINE/DVD
FM AM TAPE
Or press the INPUT button on the remote controller. If you press the INPUT button on the remote controller repeatedly, the indica­tors light up sequentially left-to-right as reflected in the figure.
INPUT
2 Start playing the source you selected
in step 1.
3 Set the volume to appropriate level
using the VOLUME control or the VOL­UME π (up)/ (down) buttons on the remote controller.
Turn the VOLUME control clockwise to increase the volume or counterclockwise to decrease the volume.
VOLUME
or
Remote
controller
VOLUME
26

Adjusting the sound

ACOUSTIC PRESENCE

ENERGY SAVE
STANDBY/ON
PHONES
FM STEREO / AM TUNER AMPLIFIER
MEMORY
FM MODE
CLEAR
ACCUCLOCK
CD MD CDR LINE/DVD
FM AM TAPE
INPUT
ACOUSTIC PRESENCE
OFF/1/2/3
VOLUME
DISPLAY
PRESET
TUNING
STANDBY/ ON
GRAPHIC EQ
CLOCK SLEEP EFFECT
MODE
INPUTTUNER
PRESET
F MA M
TAPE
PAUSE / STEP
DVD
REPEAT
SCROLL
CLEAR
RANDOM
CLEAR
PLAY MODE
CLEAR
123
456
789
- - / - - -
M D
REC
C D
DISC
CDR
REC
MUTING
ACOUSTIC
VOLUME
ACOUSTIC
PRESENCE
10 / 0
PRESENCE
PLAY MODE
REPEAT
TONE
UPπ/
R-805X
DOWN†
ENTER
MEMORY
REPEAT
TONE
TIMER
UP/DOWN
ENTER
Adjusting the tone (remote con­troller only)

Adjusting the bass:

1. Press the TONE button repeatedly until “BAS” is displayed.
2. Press the UP π or DOWNbutton to adjust the bass.
The bass can be adjusted from –10 to +10.
TONE
UP/DOWN
3. Press the ENTER button to return to the previous display.
ENTER

Adjusting the treble:

1. Press the TONE button repeatedly until “TRE” is displayed.
2. Press the UP π or DOWNbutton to adjust the treble.
The treble can be adjusted from –10 to +10.
TONE
ACOUSTIC PRESENCE
Acoustic Presence adds realness to music through the use of exclusive Onkyo circuitry. Presence settings 1, 2 and 3 are ideally suited for use with compact speakers.

Press the ACOUSTIC PRESENCE on the unit or the remote controller.

ACOUSTIC PRESENCE
OFF/1/2/3
Each press changes the mode as follows:
Acoustic Presence is off and the
OFF
indicator is off.
Acoustic Presence is applied and
1
the indicator lights up green.
Acoustic Presence stronger than
2
setting 1 is applied and the indi­cator lights up orange.
3
Acoustic Presence stronger than setting 2 is applied and the indi­cator lights up red.
Remote controller
or
ACOUSTIC
PRESENCE
UP/DOWN
3. Press the ENTER button to return to the previous display.
ENTER
27

Muting/Listening with the headphones

STANDBY/ ON
GRAPHIC EQ
CLOCK SLEEP EFFECT
MODE
INPUTTUNER
PRESET
F MA M
REPEAT
PLAY MODE
REPEAT
MEMORY
REPEAT
UP/DOWN
TONE
TIMER
ENTER
SCROLL
CLEAR
RANDOM
CLEAR
PLAY MODE
CLEAR
123
456
789
- - / - - -
TAPE
PAUSE / STEP
DVD
M D
REC
C D
DISC
CDR
REC
MUTING
MUTING
VOLUME
ACOUSTIC PRESENCE
10 / 0
VOLUME π/†
FM STEREO / AM TUNER AMPLIFIER
ENERGY SAVE
STANDBY/ON
PHONES
MEMORY
FM MODE
CLEAR
ACCUCLOCK
PHONES
CD MD CDR LINE/DVD
FM AM TAPE
INPUT
ACOUSTIC PRESENCE
OFF/1/2/3
VOLUME
DISPLAY
PRESET
TUNING
R-805X

Muting the sound

Press the MUTING button on the remote controller to mute the sound.

The MUTING indicator flashes on the display. To restore the sound, press the MUTING but­ton again.
MUTING
MUTING
Tip
During muting:
• if you press the VOLUME π or button on the remote controller, the MUTING indicator disappears then the sound will be restored, and
• if you turn off the unit, and turn it on again, the sound will be restored.

Listening with the headphones

Connect the stereo headphones mini plug to the PHONES jack.

The speakers will reproduce no sound while the headphones are connected.
FM STEREO / AM TU
ENERGY SAVE
STANDBY/ON
PHONES
MEMORY
FM MODE
CLEAR
ACCUCLOCK
Tip
You can adjust the sound through the head­phones as well as through the speakers. See “Adjusting the sound” on the previous page for operations.
28

Recording

Input source indicators
FM STEREO / AM TUNER AMPLIFIER
ENERGY SAVE
STANDBY/ON
PHONES
MEMORY
FM MODE
CLEAR
ACCUCLOCK
CD MD CDR LINE/DVD
FM AM TAPE
INPUT
INPUT
ACOUSTIC PRESENCE
OFF/1/2/3
STANDBY/ ON
GRAPHIC EQ
CLOCK SLEEP EFFECT
MODE
INPUTTUNER
PRESET
F MA M
PAUSE / STEP
REPEAT
VOLUME
DISPLAY
PRESET
TUNING
R-805X
SCROLL
PLAY MODE
CLEAR
REC
RANDOM
REPEAT
MEMORY
CLEAR
DISC
PLAY MODE
REPEAT
TONE
REC
CLEAR
TIMER
123
456
UP/DOWN
789
ACOUSTIC PRESENCE
ENTER
- - / - - -
10 / 0
INPUT
TAPE
DVD
M D
C D
CDR
MUTING
VOLUME

Before recording

Refer to the instruction manuals of the related components for detailed recording operations.
Note
Do not turn the INPUT selector during recording.
1 Turn the INPUT selector clockwise or
counterclockwise until the input indi­cator of the source you wish to record from lights. Or press the INPUT button on the remote controller.
INPUT
or
Remote
controller
The indicators light in the following order:
CD MD CDR LINE/DVD
INPUT
2 Prepare the playing source.
e.g. Insert the CD you want to record
from into the CD player.
ONKYO
CD PLAYER
CD PLAYER
3 Prepare the recording component.
e.g. 1 Insert an MD into the MD recorder.
e.g. 2 Insert a cassette into the stereo
cassette tape deck.
e.g. 3 Insert a CD-R into the CD recorder.
TAPE AM FM
e.g. The CD player is selected.
CD MD CDR LINE/DVD
FM AM TAPE
Note
If you press the INPUT button on the remote controller repeatedly, the indicators light up sequentially left-to-right as reflected in the figure.
ONKYO
CD PLAYER
CD PLAYER
4 Start recording with the component
prepared in step 3, then start playing the source prepared in step 2.
29

Receiving stations

ENERGY SAVE
STANDBY/ON
PHONES
FM STEREO / AM TUNER AMPLIFIER
MEMORY
FM MODE
CLEAR
ACCUCLOCK
CD MD CDR LINE/DVD
FM AM TAPE
INPUT
ACOUSTIC PRESENCE
OFF/1/2/3
STANDBY/ ON
GRAPHIC EQ
CLOCK SLEEP EFFECT
MODE
INPUTTUNER
PRESET
DISPLAYINPUTMEMORY
VOLUME
DISPLAY
PRESET
TUNINGπ
TUNING
R-805X
F MA M
TAPE
PAUSE / STEP
REPEAT
SCROLL
PLAY MODE
CLEAR
REC
RANDOM
REPEAT
MEMORY
CLEAR
DISC
PLAY MODE
REPEAT
TONE
REC
CLEAR
TIMER
123
456
UP/DOWN
789
PRESENCE
ENTER
- - / - - -
10 / 0
FM
DVD
AM
M D
C D
CDR
MUTING
VOLUME
ACOUSTIC

Tuning the radio

1 Select FM or AM using the INPUT
selector or the FM or AM button on the remote controller.
INPUT
Remote controller
F MA M
or
2 Use the TUNING or π button to
change the frequency.
TUNING
The indoor antenna should be installed on a wall or other surface in the position which gives the best reception. For more informa­tion on how to install the antenna, refer to page 17, 19.

Display Options:

When you are listening to radio broadcasts, the display usually shows the radio fre­quency of the selected station. You can, however, change to the current time or char­acter information for the selected station. To do so, press the DISPLAY button repeatedly until the desired indication appears. For more information on how to enter char­acter information, see “Naming a preset sta­tion” on page 33.

Using Auto Memory (FM only)

This function enables you to store the fre­quencies into memory automatically, with­out having to go through and store each frequency manually.
1 In FM mode, hold down the MEMORY
button for a few seconds. The MEM­ORY indicator appears on the display and “AUTO” will start flashing on the display. Keep holding down the but­ton for a few more seconds to start the Auto Memory function.
MEMORY
MEMORY
Hold down
The frequencies are scanned from low to high. Up to 30 FM stations with the best sig­nal quality are selected, sorted in order from low to high frequency, and stored into the preset memory.
Note
All stations previously stored in memory will be replaced with new Auto Memory stations.
AUTO
30
ENERGY SAVE
STANDBY/ON
PHONES
FM STEREO / AM TUNER AMPLIFIER
MEMORY
FM MODE
CLEAR
ACCUCLOCK
CD MD CDR LINE/DVD
FM AM TAPE
STANDBY/ ON
GRAPHIC EQ
CLOCK SLEEP EFFECT
MODE
INPUTTUNER
INPUTMEMORY
ACOUSTIC PRESENCE
OFF/1/2/3
VOLUME
DISPLAY
PRESET
PRESET®
TUNING
R-805X
TUNINGπ
INPUT
PRESET
F MA M
TAPE
PAUSE / STEP
REPEAT
SCROLL
PLAY MODE
CLEAR
REC
RANDOM
REPEAT
MEMORY
CLEAR
DISC
PLAY MODE
REPEAT
TONE
REC
CLEAR
TIMER
123
456
UP/DOWN
789
ACOUSTIC PRESENCE
ENTER
- - / - - -
10 / 0
FM
DVD
AM
M D
C D
CDR
MUTING
VOLUME

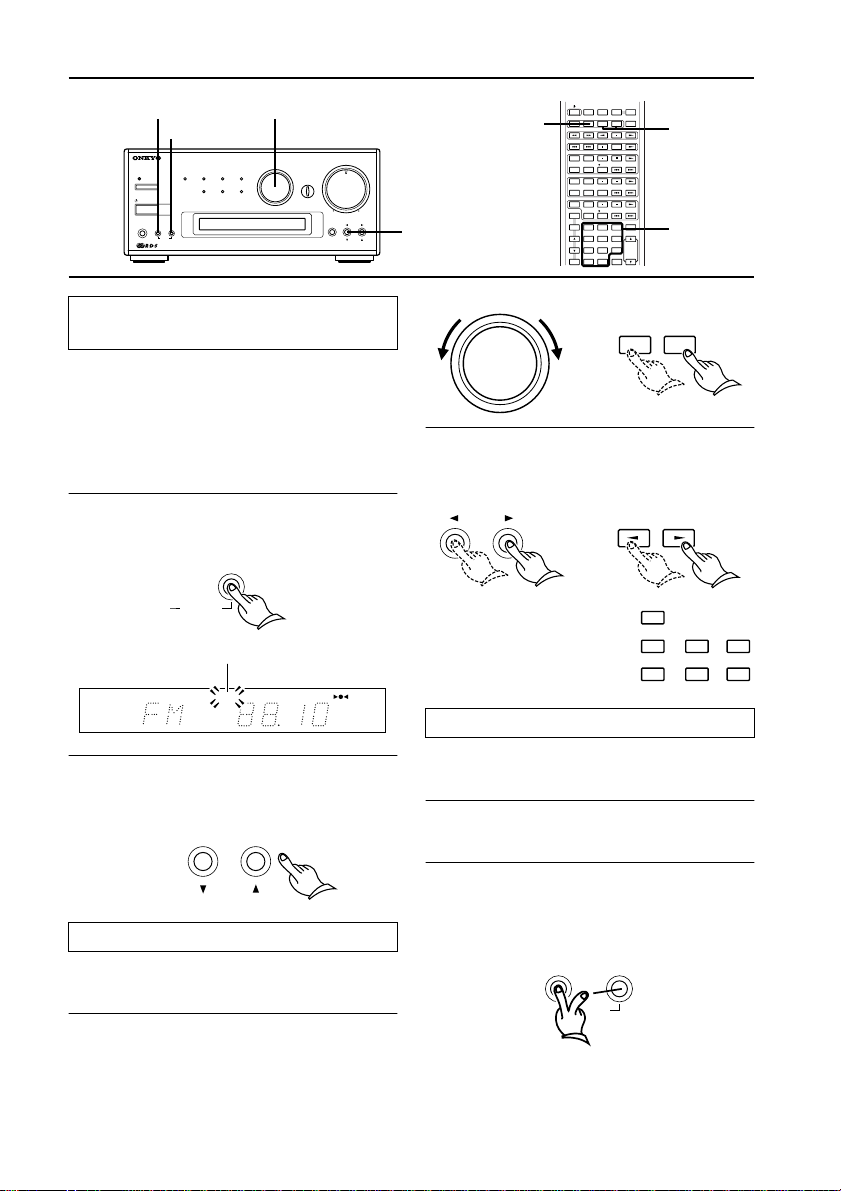

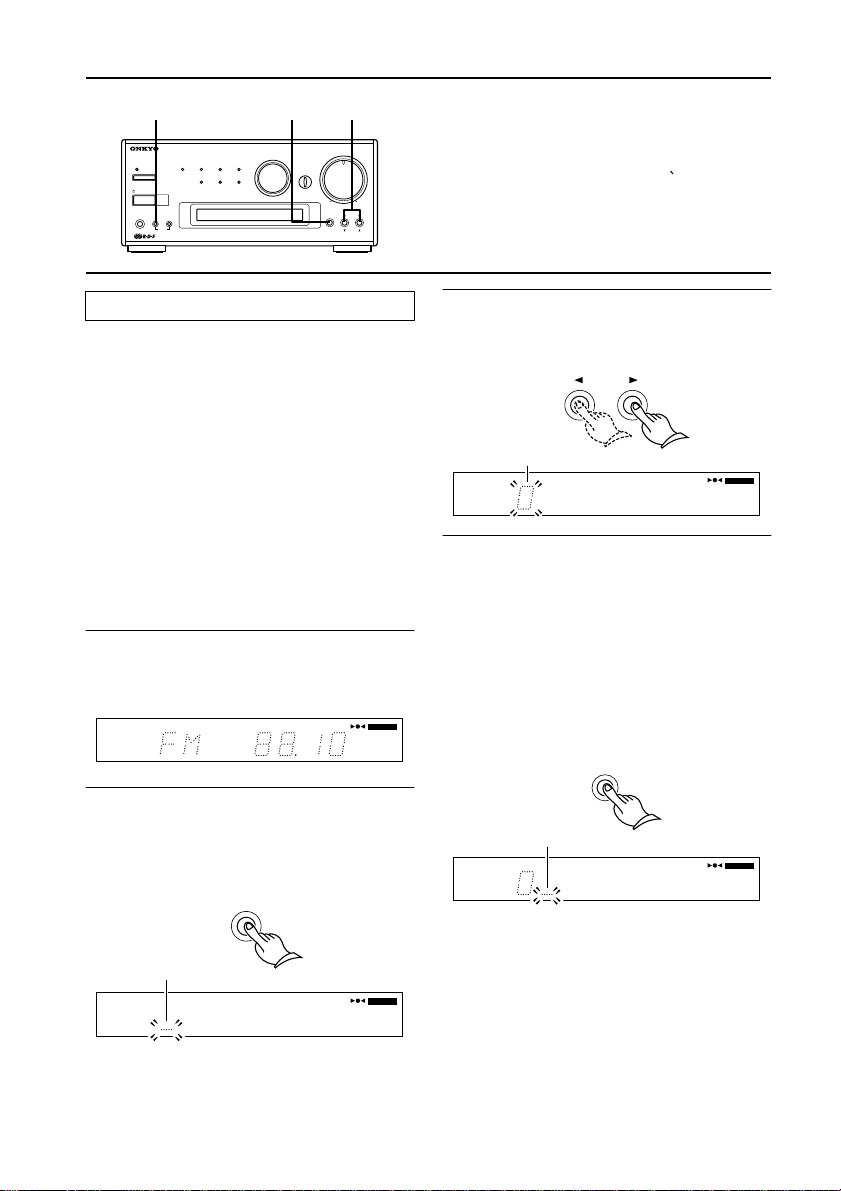

Presetting your favorite stations

You can store your favorite stations in the preset memory. Follow the procedure below:
1 Select FM or AM using the INPUT
selector, or FM or AM button on the remote controller.
INPUT
Remote controller
F MA M
or
2 Use the TUNING † or π button to
select the frequency of your favor­ite station.
Press and hold down to lower the frequency.
The indicator lights up on the display when the broadcasting station is properly tuned in. The frequency is changed in 200kHz (or 50kHz) steps in FM and 10kHz (or 9kHz) steps in AM. To automatic
down the TUNING or π b
than 0.5 seconds, then release the button, scanning will stop when a station is tuned in.
Press and hold down to raise the frequency.
TUNING
ally scan the FM stations, hold
utton for more
3 Press the MEMORY button.
The MEMORY indicator lights up and
“..... .....” will flash.
MEMORY
Lit
MEMORY
Flash
STEREO
4 While “..... .....” is flashing, use the
PRESET √ or ® button to select the preset number into which to store the station frequency.
The preset number will flash on the display.
PRESET
Lit
MEMORY
AUTO
Flash
STEREO
MHz
Note
If you select a preset number into which a station has already been programmed, the number will flash rapidly. If you proceed with this number, the original station will be replaced by a new station.
5 While the number is flashing, press
the MEMORY button.
The frequency will be stored into the selected preset.
MEMORY
Disappear
AUTO
Notes
• Up to 30 stations can be stored in the pre­set memory.
• If you try to store more than 30 stations, “FULL” appears on the display and you cannot store any more.
• If the FM station received is an RDS sta­tion that has a PS (Program Service Name), the frequency display will change to the PS display. (Refer to page 36 for more information on the RDS function.) RDS reception is available only on the European models.
Selected preset number
STEREO
MHz
31
Receiving stations
5:
12: + +
++25:
1 2
255
- - / - - -
- - / - - -
FM MODE
FM STEREO / AM TUNER AMPLIFIER
ENERGY SAVE
STANDBY/ON
PHONES
MEMORY
FM MODE
CLEAR
ACCUCLOCK
CD MD CDR LINE/DVD
INPUTMEMORY
FM AM TAPE
STANDBY/ ON
GRAPHIC EQ
CLOCK SLEEP EFFECT
MODE
INPUTTUNER
PRESET
PRESET®
PRESENCE
OFF/1/2/3
VOLUME
ACOUSTIC
DISPLAY
PRESET
PRESET®
TUNING
R-805X
TUNINGπ
INPUT
F MA M
TAPE
DVD
M D
C D
CDR
MUTING
VOLUME
FM AM
Number buttons
PAUSE / STEP
REPEAT
SCROLL
PLAY MODE
CLEAR
REC
RANDOM
REPEAT
MEMORY
CLEAR
DISC
PLAY MODE
REPEAT
TONE
REC
CLEAR
TIMER
123
456
UP/DOWN
789
ACOUSTIC
PRESENCE
ENTER
- - / - - -
10 / 0
Listening to a stereo radio sta­tion
When you tune in a stereo FM station, the STEREO indicator lights up if the signal is suf­ficiently strong. If the signal is weak, you can still listen to the station in mono mode. In this case, tune in as follows.
1 Press the FM MODE button.
The MONO indicator lights up.
MEMORY
FM MODE
CLEAR
Displayed
MONO
STEREO
MHz
2 Select the station you would like to
listen to using the TUNING or π button.
INPUT
Remote controller
F MA M
or
2 Use the PRESET √ or ® button or the
number buttons on the remote control­ler to select the desired preset station.
PRESET
Remote controller
PRESET
The number but­tons on the remote controller:

Clearing preset stations

You can clear preset stations from the preset memory.
1 Select the station as explained in the
previous section.
TUNING

Selecting preset stations

Follow the procedure below to select a pre­set station stored in memory.
1 Select FM or AM using the INPUT
selector or FM or AM button on the remote controller.
32
2 Press and hold the MEMORY button
and press the FM MODE button within a second.
“..... ..... ” appears on the display.
MEMORY
Note
If you fail to press the FM MODE button while holding down the MEMORY button immediately, the AUTO MEMORY function will start operating.
FM MODE
CLEAR

Naming a preset station

DISPLAY PRESET®MEMORY
ENERGY SAVE
STANDBY/ON
PHONES
FM STEREO / AM TUNER AMPLIFIER
MEMORY
FM MODE
CLEAR
ACCUCLOCK
CD MD CDR LINE/DVD
FM AM TAPE
INPUT
OFF/1/2/3
VOLUME
ACOUSTIC PRESENCE
DISPLAY
PRESET
TUNING
R-805X

Naming a preset station

You can name the preset stations so that the name, instead of the frequency, appears on the display when you press the DISPLAY but­ton. (For more information, see “Display options” on page 30.)
Note
You cannot enter characters for an RDS sta­tion that has a program service (PS) name, since the PS name has priority over other character information. (For more informa­tion on RDS stations, see page 36.)
• RDS reception is available only on the European models.
1 Select the station you wish to name.
(See “Selecting preset stations” on page 32.)
AUTO
STEREO
MHz
The following 54 characters can be used:
A B C D E F G H I J K L M N O P Q R S
[
T U V W X Y Z “ & ‘ ( ) * + , - . / = ? [ \ ] | 0 1 2 3 4 5 6 7 8 9
3 Use the PRESET or ® button to
select a character.
The character flashes on the display.
PRESET
Flash
AUTO
STEREO
4 Press the MEMORY button to store
the character.
Flashing “.....” mark appears next to the
stored character. Repeat the steps 3 and 4 to store more characters. You can store up to 8 charac­ters. To enter a space between characters, press the MEMORY button. The bar cursor moves on to the next position.
MEMORY
2 Press and hold down the DISPLAY but-
ton for more than two seconds.
The R-805X enters character input mode,
and “.....” flashes on the display.
DISPLAY
Flash
AUTO
STEREO
Flash
AUTO
(continued on the next page)
STEREO
33

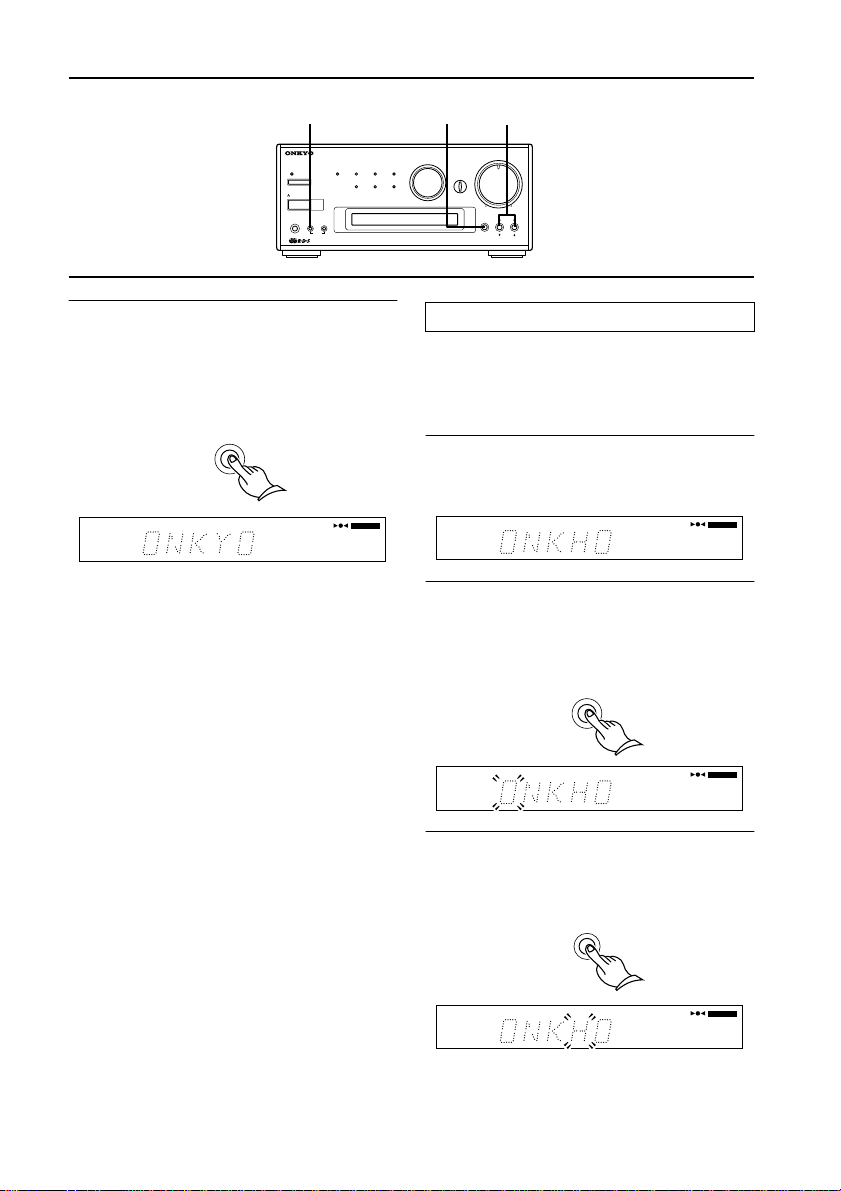

Naming preset stations
MEMORY DISPLAY PRESET®
FM STEREO / AM TUNER AMPLIFIER
CD MD CDR LINE/DVD
ENERGY SAVE
STANDBY/ON
PHONES
FM AM TAPE
MEMORY
FM MODE
CLEAR
ACCUCLOCK
5 When you finish entering all neces-
sary characters, press and hold down the DISPLAY button for more than two seconds to complete the opera­tion.
DISPLAY
AUTO
Note
If you have not pressed any button for 16 seconds during the procedure, the operation will complete automatically.
STEREO
ACOUSTIC PRESENCE
OFF/1/2/3
VOLUME
DISPLAY
PRESET
TUNING
R-805X
INPUT

Changing the existing characters

Follow the procedure below to change the existing characters or rename the preset sta­tion.
1 Select the station you wish to modify.
(See “Selecting preset stations” on page
32.)
AUTO
STEREO
2 Press and hold the DISPLAY button for
a few seconds.
The R-805X enters character input mode, and the first character flashes.
DISPLAY
34

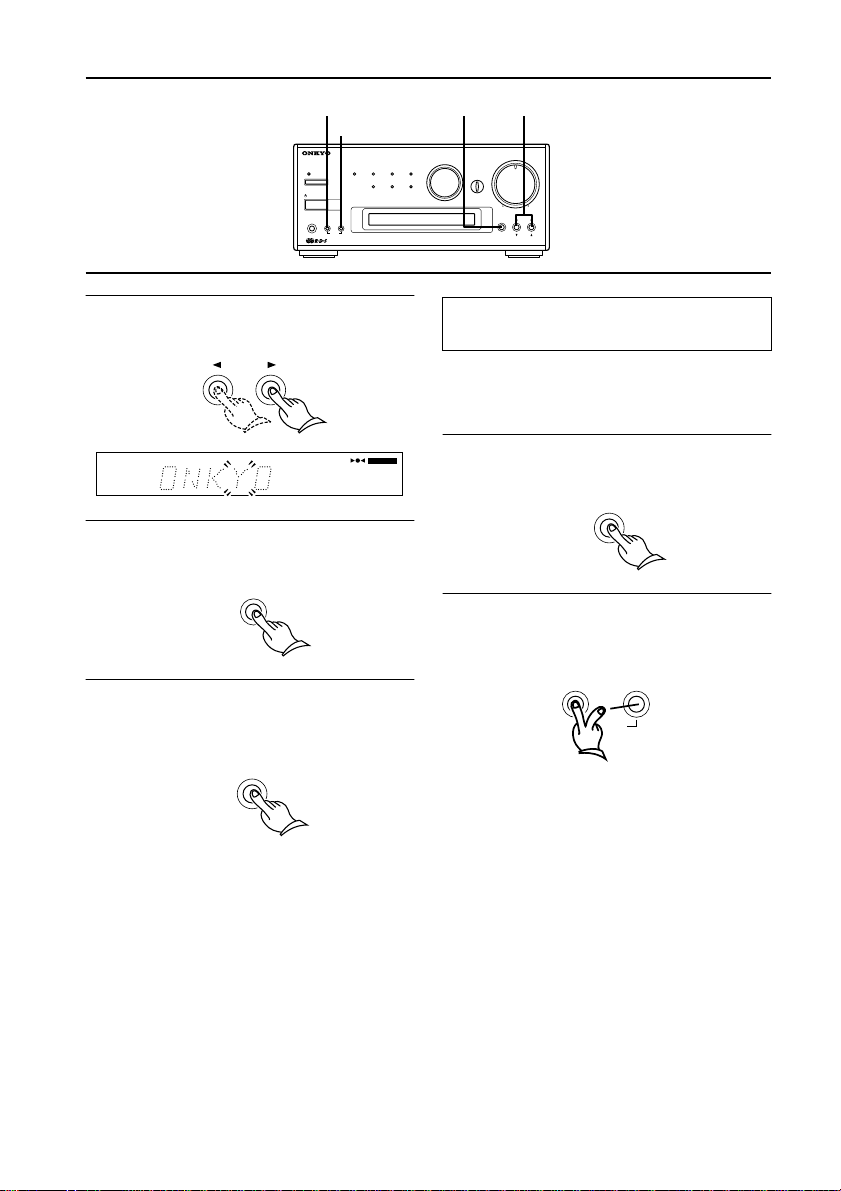

AUTO
STEREO
3 Press the MEMORY button repeatedly
until the character that you want to change flashes.
MEMORY
AUTO
STEREO
MEMORY DISPLAY PRESET®
FM MODE
ENERGY SAVE
STANDBY/ON
PHONES
FM STEREO / AM TUNER AMPLIFIER
MEMORY
FM MODE
CLEAR
ACCUCLOCK
CD MD CDR LINE/DVD
FM AM TAPE
INPUT
OFF/1/2/3
VOLUME
ACOUSTIC PRESENCE
DISPLAY
PRESET
TUNING
R-805X
4 Use the PRESET or ® button to
change the character.
PRESET
AUTO
STEREO
5 Press the MEMORY button to store
the character.
MEMORY
6 Press and hold down the DISPLAY but-
ton for more than two seconds to complete the operation.
DISPLAY

Clearing all names stored in memory

Follow the procedure below to delete the name of the selected preset station.
1 Press and hold the DISPLAY button for
a few seconds.
DISPLAY
2 While holding down the MEMORY
button, press and hold the FM MODE button for a few seconds.
MEMORY
FM MODE
CLEAR
The name will be deleted.
35

Receiving RDS (European models only)

FM STEREO / AM TUNER AMPLIFIER
CD MD CDR LINE/DVD
ENERGY SAVE
STANDBY/ON
PHONES
FM AM TAPE
MEMORY
FM MODE
CLEAR
ACCUCLOCK
RDS reception is available only on the Euro­pean model, and only in areas where RDS broadcasts are available.

What is RDS?

Many FM stations now transmit RDS signals which contain additional information. RDS provides you with various services so that you can choose a station broadcasting your favorite categories of music or other infor­mation. The information below is available through the R-805X.
PS: Program Service Name RT: Radio Text
Note
If radio signals are weak, RDS may not be received.

Displaying Radio Text (RT)

ACOUSTIC PRESENCE
OFF/1/2/3
VOLUME
DISPLAY
PRESET
TUNING
R-805X
INPUT
DISPLAY
If the current station you are listening to is not an RDS station, only the frequency of the station and the characters (see page 33) appear. (If no characters have been entered, only the frequency information will appear.)
When RT is received, it can sometimes take between a few seconds and 15 seconds (more or less) to display.
Sometimes the following messages will be shown on the display.
WAIT: This message indicates that it requires more time to receive the RT information. When the information is received, the char­acters will scroll across the display.
NO TEXT: This message appears for three seconds and indicates that even though an RDS station is being received, the signal does not contain RT information.
Radio Text can be displayed as follows.
Note
If the station you are listening to is not an RDS station, no Radio Text will be displayed.
1 Each time you press the DISPLAY but-
ton, the display changes as follows.
36
Frequency Entered Character or
Clock
Radio Text
Program service name
DISPLAY

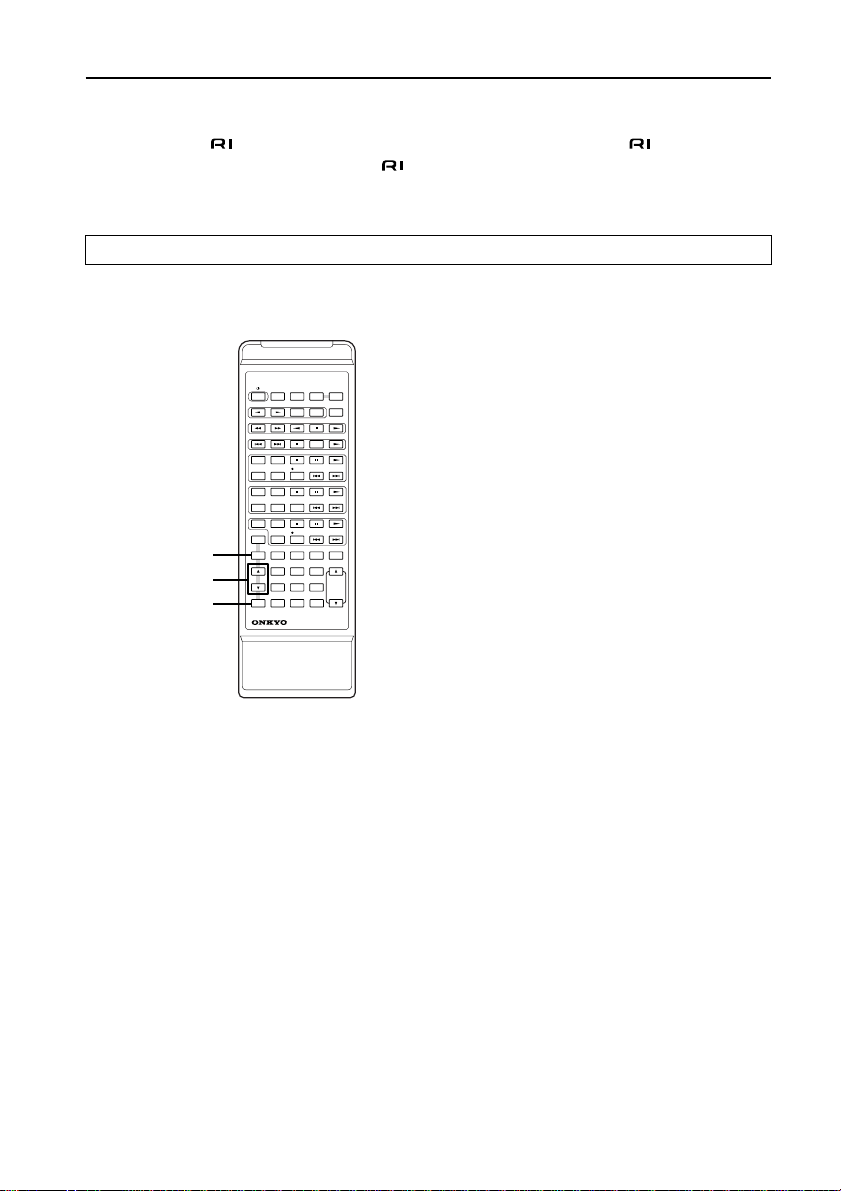

Using the timer

The R-805X features a Timer function that enables you to start playing or recording a specified component at a specified time. To use this function, you need to connect this unit to other components via REMOTE CONTROL jacks. Refer to “Connecting the connectors and AC OUTLETS” through “Connecting the remote control cables” on pages 12 – 15 for more information on making the connections. The timer function can be performed only by using the remote controller.

Buttons and modes for the Timer function (remote controller only)

The following buttons and setting modes are used to operate the Timer function.
TIMER button
Use this button to select a timer mode. The timer mode will change each time you press this button.
UP/DOWN (π/†) buttons
Use these buttons to select the details of the mode or to change values.
ENTER button
Use this button to enter the selected mode or numbers.

Timer setting modes:

WEEKDAY: This mode enables you to lis- ten to a specified component at a desig­nated time on weekdays. You can change the day of the week in DAY SET mode.
WEEKEND: This mode enables you to lis­ten to a specified component at a desig­nated time on weekends. You can change the day of the week in DAY SET mode. You can define the same day of the week as both WEEKDAY and WEEKEND. To set two programs for one day, specify the same day of the week as WEEKDAY and WEEKEND and se the time for each pro­gram.
REC: This mode enables you to record your favorite broadcasting program(s) starting at a designated time.
DAY SET: This mode enables you to change the day setting (definition) of WEEKDAY or WEEKEND.
ADJUST: This mode enables you to set and adjust the clock. If you have adjusted the clock, you do not need to set it again.
TIMER
UPπ/DOWN†
ENTER
STANDBY/ ON
REPEAT
PLAY MODE
REPEAT
MEMORY
REPEAT
TONE
TIMER
UP/DOWN
ENTER
CLOCK SLEEP EFFECT
PRESET
SCROLL
CLEAR
RANDOM
CLEAR
PLAY MODE
CLEAR
123
456
789
- - / - - -
F MA M
PAUSE / STEP
REC
DISC
REC
ACOUSTIC PRESENCE
10 / 0
REMOTE CONTROLLER
GRAPHIC EQ
MODE
INPUTTUNER
TAPE
DVD
M D
C D
CDR
MUTING
VOLUME
-
RC
456S
37

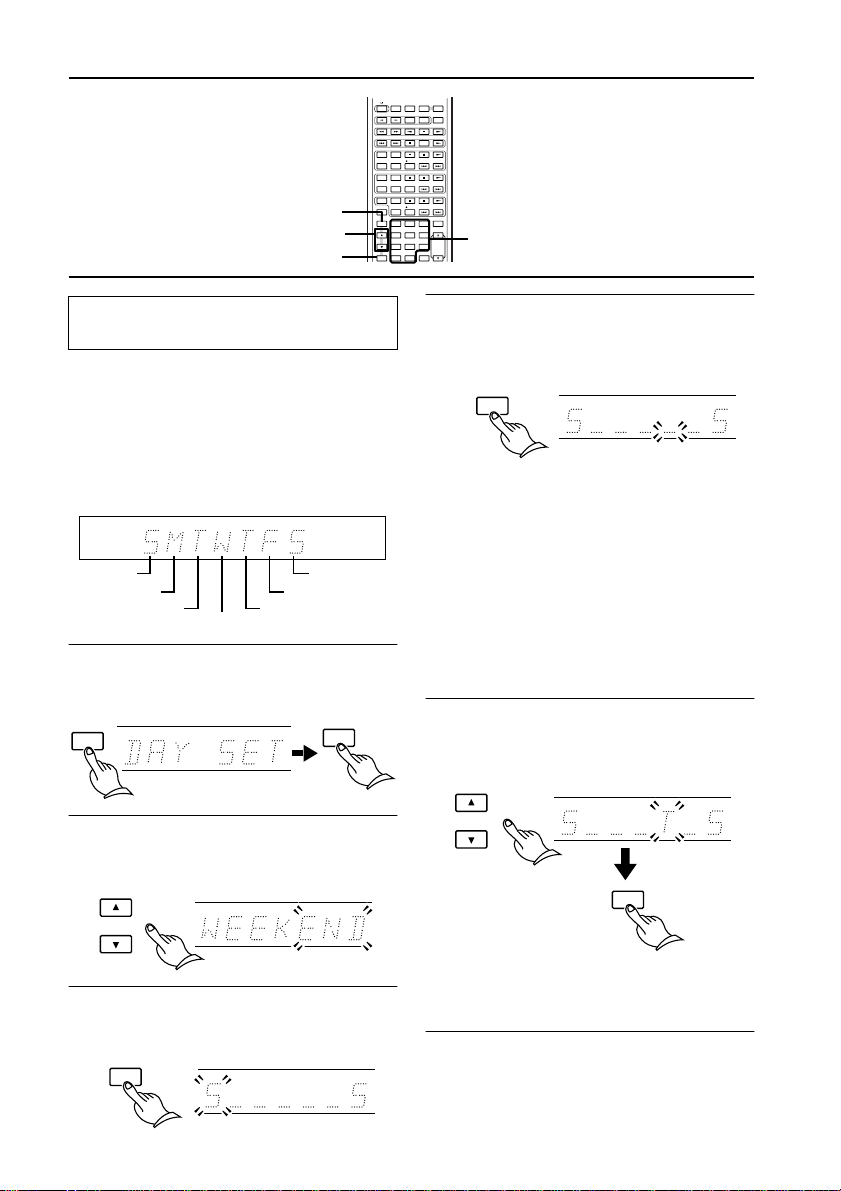

Using the timer
TIMER
UPπ/DOWN†
ENTER
STANDBY/ ON
REPEAT
PLAY MODE
REPEAT
MEMORY
REPEAT
TONE
TIMER
UP/DOWN
ENTER
CLOCK SLEEP EFFECT
PRESET
SCROLL
CLEAR
RANDOM
CLEAR
PLAY MODE
CLEAR
123
456
789
- - / - - -
GRAPHIC EQ
MODE
INPUTTUNER
F MA M
TAPE
PAUSE / STEP
DVD
M D
REC
C D
DISC
CDR
REC
MUTING
Number buttons
VOLUME
ACOUSTIC PRESENCE
10 / 0

Changing the WEEKDAY and WEEKEND settings

You can define or change which day is WEEK­DAY or WEEKEND. You can also define the day as both WEEKDAY and WEEKEND in order to program two timer settings on the same day.
The initial factory settings are:
WEEKDAY: Monday – Friday WEEKEND : Saturday and Sunday
Sunday
Monday
Tuesday
Wednesday
Saturday
Friday
Thursday
1 Press the TIMER button repeatedly
until “DAY SET” appears on the dis­play, then press the ENTER button.
TIMER
ENTER
2 Press the UP π or DOWN button to
select “WEEKEND” or “WEEKDAY”.
“END” or “DAY” flashes.
UP/DOWN
4 Press the ENTER button repeatedly to
display the flashing bar cursor of the day you wish to select, or simply press the corresponding number buttons.
ENTER
The number button on the remote con­troller: 1:S (Sunday) 5:T (Thursday) 2:M (Monday) 6:F (Friday) 3:T (Tuesday) 7:S (Saturday) 4: W (Wednesday)
Note
To use the number buttons, select the 24­hour display. If you select the 12-hour dis­play, you cannot use the number buttons to set the day.
5 Press the UP π or DOWN button to
display the desired day of the week, and press the ENTER button.
UP/DOWN
ENTER
3 Press the ENTER button.
The current WEEKDAY or WEEKEND set­ting will be displayed.
ENTER
38
Pressing the UP π or DOWN button repeatedly toggles between the day indi-
cation and the bar cursor (.....).
6 Press the ENTER button repeatedly to
display the flashing character or bar cursor at the right end and press the ENTER button, the unit completes the setting.
TIMER
ENTER
STANDBY/ ON
REPEAT
PLAY MODE
REPEAT
MEMORY
REPEAT
TONE
TIMER
UP/DOWN
ENTER
CLOCK SLEEP EFFECT
PRESET
SCROLL
CLEAR
RANDOM
CLEAR
PLAY MODE
CLEAR
123
456
789
- - / - - -
10 / 0
F MA M
REC
DISC
REC
GRAPHIC EQ
MODE
INPUTTUNER
TAPE
PAUSE / STEP
DVD
M D
C D
CDR
MUTING
UPπ/DOWN†
VOLUME
ACOUSTIC PRESENCE
Programming to play at a speci­fied time
Before using the timer for listening to or recording broadcast programs, you need to store the preset stations. (Refer to “Receiv­ing stations” on page 30, 31 for information how to preset stations.)
1 Press the TIMER button repeatedly
until “WEEKDAY” or “WEEKEND” is dis­played, and press the ENTER button.
TIMER
ENTER
2
Press the UP π or DOWN button to set the ON time, and press the ENTER button
UP/DOWN
TIMER W.DAY
STEREO
• When you store the ON time, the display automatically indicates that the OFF time is one hour after the ON time you speci­fied.
3 Press the UP π or DOWN button to
select the OFF time, and press the ENTER button.
UP/DOWN
TIMER W.DAY
ENTER
4 Press the UP π or DOWN button to
.
select the source (CD, MD, CDR, LINE/ DVD, FM, AM, TAPE), and press the ENTER button.
UP/DOWN
W.DAY
STEREO
AUTOTIMER
ENTER
Notes
• You can also use the number buttons instead of the UP π or DOWN button to set the desired playing ON and OFF times. To do so, refer to step 3 on page 24 and select the 24-hour display. You can­not use the number buttons if you select the 12-hour display.
ENTER
If you select “FM” or “AM”, press the UP π or DOWN button again to select the preset number and press the ENTER but­ton.
(continued on the next page)
39
Using the timer
STANDBY/ON
FM STEREO / AM TUNER AMPLIFIER
CD MD CDR LINE/DVD
ENERGY SAVE
STANDBY/ON
PHONES
FM AM TAPE
MEMORY
FM MODE
CLEAR
ACCUCLOCK
STANDBY/ ON
GRAPHIC EQ
CLOCK SLEEP EFFECT
MODE
INPUTTUNER
PRESET
F MA M
TAPE
PAUSE / STEP
TONE
TIMER
ENTER
SCROLL
CLEAR
RANDOM
CLEAR
PLAY MODE
CLEAR
123
456
789
- - / - - -
DVD
M D
REC
C D
DISC
CDR
REC
MUTING
UPπ/
VOLUME
ACOUSTIC
PRESENCE
10 / 0
DOWN†
ACOUSTIC PRESENCE
OFF/1/2/3
VOLUME
DISPLAY
PRESET
TUNING
R-805X
TIMER
INPUT
REPEAT
PLAY MODE
REPEAT
MEMORY
REPEAT
UP/DOWN
ENTER
5 Press the STANDBY/ON button on this
unit to set the Standby mode.
STANDBY/ ON
TIMER W.DAY
REC
Notes
• The clock of this unit must be set correctly before programming the timer.
• Make sure that the specified source com­ponent is connected to this unit, and that the CD, MD, CDR, or cassette tape has been inserted into the appropriate com­ponent.
• The timer playback function still works while the ENERGY SAVE is on.
Programming to record at a spec­ified time
REC mode of the Timer function enables you to record a specified source at a specified time.
Notes
• To perform timer recording to a tape, you need to use a cassette tape deck that fea­tures the mark, such as the K-505X.
• To perform timer recording to a mini disc, you need to use an MD recorder that fea­tures the mark, such as the MD-105X.
STEREO
1 Press the TIMER button repeatedly
until “REC” appears on the display, then press the ENTER button.
TIMER
ENTER
2 Press the UP π or DOWN button to
select the day of the week when you wish to start recording, then press the ENTER button.
UP/DOWN
You can select “NEXT” instead of the day of the week. If you do so, recording will start at the next occurrence of the indi­cated time.
TIMER
REC
ENTER
40
TIMER
ENTER
3
Press the UP π or DOWN † button to set the ON time, and press the ENTER button.
UP/DOWN
TIMER
REC
STANDBY/ ON
STEREO
REPEAT
PLAY MODE
REPEAT
MEMORY
REPEAT
TONE
TIMER
UP/DOWN
ENTER
GRAPHIC EQ
CLOCK SLEEP EFFECT
MODE
INPUTTUNER
PRESET
F MA M
TAPE
PAUSE / STEP
DVD
SCROLL
M D
CLEAR
REC
RANDOM
C D
CLEAR
DISC
CDR
PLAY MODE
REC
CLEAR
MUTING
123
456
789
- - / - - -
10 / 0
ACOUSTIC PRESENCE
VOLUME
UPπ/DOWN†
5 Press the UP π or DOWN button to
select the source (FM, AM, LINE/DVD), and press the ENTER button.
UP/DOWN
TIMER
REC
STEREO
MHz
ENTER
Notes
• You can also use the number buttons instead of the UP π or DOWN † button to set the desired recording ON and OFF time. To do so, refer to step 3 on page 24 and select the 24-hour display. You cannot use the number buttons if you select the 12-hour display.
• When you store the ON time, the display automatically indicates that the OFF time is one hour after the ON time you specified.
4 P
ress the UP π or DOWN button to set
the OFF time, then press the ENTER button.
UP/DOWN
TIMER
REC
ENTER
STEREO
ENTER
If you select “FM” or ”AM“, press the UP π or DOWN buttons again to select the pre­set number, then press the ENTER button.
6 Press the UP π or DOWN button to
select the recording component (TAPE REC, MD REC, or MD/TAPE), and press the ENTER button.
UP/DOWN
AUTOTIMER
REC
ENTER
• When you record analog FM or AM sig­nals to an MD recorder, be sure to use Analog In on the MD recorder.
(continued on the next page)
STEREO
41
Using the timer
STANDBY/ON
FM STEREO / AM TUNER AMPLIFIER
CD MD CDR LINE/DVD
ENERGY SAVE
STANDBY/ON
PHONES
FM AM TAPE
MEMORY
FM MODE
CLEAR
ACCUCLOCK
STANDBY/ ON
GRAPHIC EQ
CLOCK SLEEP EFFECT
MODE
INPUTTUNER
PRESET
F MA M
TAPE
PAUSE / STEP
TONE
TIMER
ENTER
SCROLL
CLEAR
RANDOM
CLEAR
PLAY MODE
CLEAR
123
456
789
- - / - - -
DVD
M D
REC
C D
DISC
CDR
REC
MUTING
UPπ/
VOLUME
ACOUSTIC
PRESENCE
10 / 0
DOWN†
ACOUSTIC PRESENCE
OFF/1/2/3
VOLUME
DISPLAY
PRESET
TUNING
R-805X
TIMER
INPUT
REPEAT
PLAY MODE
REPEAT
MEMORY
REPEAT
UP/DOWN
ENTER
7 Press the STANDBY/ON button on this
unit to set the Standby mode.
STANDBY/ ON
TIMER
REC
Notes
• Since muting is automatically turned on when the timer is used to record, the sound cannot be heard during recording. To monitor recording, press the MUTING button on the remote controller to cancel muting.
• Timer recording is activated once. After recording, the REC mode setting will be cancelled.
• Timer recording functions even while the unit is in Energy Save mode.

Switching the timer ON/OFF

You can switch the timer ON/OFF to cancel the timer setting, to enable the timer again, or to perform timer recording again. When the Timer function is enabled, the selected timer mode such as “W.DAY”, “W.END”, and “REC” appears in the upper left corner of the display.
STEREO
1 Press the TIMER button repeatedly
until the timer mode (WEEKDAY, WEEKEND or REC) that you wish to enable or disable appears on the upper left corner of the display.
TIMER
2 Press the UP π or DOWN button to
switch the selected mode ON or OFF.
UP/DOWN
W.DAY
AUTOTIMER
3 Press the ENTER button to confirm the
selection.
ENTER
Note
To switch the timer ON, first you need to pro­gram the time value.
42
SLEEP
STANDBY/ ON
REPEAT
PLAY MODE
REPEAT
MEMORY
REPEAT
TONE
TIMER
UP/DOWN
ENTER
CLOCK SLEEP EFFECT
PRESET
SCROLL
CLEAR
RANDOM
CLEAR
PLAY MODE
CLEAR
123
456
789
- - / - - -
DISC
10 / 0
F MA M
REC
REC
GRAPHIC EQ
MODE
INPUTTUNER
TAPE
PAUSE / STEP
DVD
M D
C D
CDR
MUTING
VOLUME
ACOUSTIC PRESENCE

Sleep function

The Sleep function can be performed only by using remote controller. The SLEEP timer automatically sets the entire system to Standby mode after a specified period of time.
1 Start playing something you would
like to listen to.
(CD, tape, MD or radio broadcast).
2 Press the SLEEP button repeatedly to
set the desired sleep time.
SLEEP
AUTOTIMER
SLEEP
The time value will decrease from 90 min­utes to 10 minutes in steps of 10 minutes. After a specified period of time, the unit will be automatically placed in Standby mode.
• To check the remaining time while the SLEEP function is active, press the SLEEP button.
• After CD dubbing is complete, the unit will be placed in Standby mode.
STEREO
MIN

Notes for timer setting

• Make sure that the clock has been set cor­rectly before setting the timer.
• After setting the timer, be sure to set this unit in Standby mode. If this unit is not in Standby mode, the timer will not work.
• When the power is turned on by one of the timer mode settings, the other timer modes may not be activated at their ON time. The power will be switched off by the first timer mode at its OFF time. Set a gap of one minute or more between the OFF time and ON time for each timer set­ting. (See the figure below.)
• If you press the SLEEP button during timer play or timer recording, the power will be switched off at the SLEEP timer’s OFF time.
• If more than two timer mode settings are made at the same time, the “WEEKDAY” setting has the priority over the “WEEK­END” setting. The “REC” mode setting has no priority.
• The timer recording setting will be can­celled if the recording does not start at the ON time (for example, if the power is already on).
REC
activate
9:00
not activate
10:00ON11:00
activate
12:00
Time
WEEKDAY
WEEKEND

Cancelling the SLEEP setting

Press the SLEEP button repeatedly until the SLEEP indicator on the display disappears.
ON
OFF
OFF
43

Troubleshooting

If you have any problems with the unit, please check the troubleshooting table below first. For any problems not covered in the table, please consult your nearest ONKYO authorized service center.
Symptom Cause Remedy
The unit doesn’t turn on.
Sound is reproduced from neither left or right speaker.
Sound is reproduced from only one speaker.
No sound is repro­duced when the (wake-up) timer oper­ates.
The remote control doesn’t operate.
• The AC power cord is not fully inserted into the wall outlet.
• The wire of the speaker cord is touching the other jacks, con­nectors, or metal parts.
• The volume level is turned down to the minimum.
• The sound is muted with the muting function.
• The headphones are connected to the PHONES jack.
• Jumper plugs are not con­nected to the PROCESSOR con­nectors.
• The speaker cord is not con­nected properly or firmly, or is disconnected.
• Jumper plug is not connected to the PROCESSOR connectors.
• The volume level is turned down to the minimum.
• The batteries in the remote controller are dead.
• The remote controller is out of the control range.
• There is some obstruction between the remote controller and the unit.
• Insert the AC power cord (mains lead) plug into the wall outlet (the mains) securely.
• Check the speaker connections (see page 16).
• Adjust the volume level (see page 26).
• Press MUTING button on the remote controller to restore the sound (see page 28).
• Turn down the volume level first, then disconnect the head­phones. Then, readjust the vol­ume level.
• Connect the jumper plugs to PROCESSOR connectors.
• Check the speaker connections (see page 16).
• Connect the jumper plug to PROCESSOR connectors.
• Adjust the volume to the proper level when you set the timer (see page 26).
• Replace the batteries with new ones (see page 21).
• Operate the remote controller within the control range (see page 21).
• Try to operate the remote con­troller from a different angle, or remove the obstruction.
44
Symptom Cause Remedy
AM stations cannot be received.
Buzzing noise on AM (particularly conspicu­ous at night or with weak stations).
High-pitched noise or buzzing noise on AM.
Crackling noise on AM, FM.
Tuning indicators and stereo indicator light but sound is distorted and sepa-
• AM loop antenna is not attached.
• Noise from electrical appa­ratus such as fluorescent lamp.
• Noise from TV set. • Place the AM loop antenna as far as
• Noise caused by turning a fluorescent lamp on and off.
• Noise from automobile igni­tion.
• Station is too strong.
• Multiple reflection of the radio waves because of tall buildings or mountains.
• Connect the supplied AM loop antenna to the AM antenna termi­nals.
• Move the AM loop antenna to dif­ferent position.
• Set up an outdoor AM antenna.
possible from the TV.
• Move unit away from TV set.
• Move the antenna as far away as possible from the fluorescent lamp.
• Install an outdoor FM antenna as far away as possible from the road.
• Change to FM indoor antenna.
• Use antenna that has better direc­tivity and select a point with the least distortion.
ration is bad. Tuning indicators
and stereo indicator flicker and hiss is heard on FM.
No station or undes­ired station is recalled when a Pre­set button is pressed.
The RDS function does not work.
ACCUCLOCK func­tion does not work.
• Station is too weak.
• Stereo FM broadcasts cover only about half the distance of an ordinary broadcast.
• The power cord has been unplugged for a long time.
• The station is not an RDS station.
• The reception station signal is too weak.
• Too much interference.
• The station is not an RDS station, or received signal is too weak.
• RDS broadcasts cannot be received.
• Install an outdoor FM antenna.
• Change the position or direction of the outdoor antenna.
• Switch to mono reception. (Even stereo broadcasts will be heard in mono.)
• The memory contents are lost if the power is not turned on and off a few times each month. Store all sta­tions in the memory again and remember to turn the power on and off a few times each month.
• Receive an RDS station.
• Install an outdoor FM antenna.
• Change the position or direction of the outdoor antenna.
• Move the antenna as far away as possible from fluorescent lamps.
• Install an outdoor FM antenna.
• See the remedies for the RDS func­tion problem above.
• Set and adjust according to instruc­tions above.
• Excessive electrical interference may temporarily render this system’s sensitive microcom­puter inoperable. If this happens, unplug the system for at least five seconds.
45
Specifications
Amplifier Section Power output
20 watts per channel, min RMS, at 4 ohms, both channels driven 1 kHz, with no more than 0.6% THD 15 watt per channel, min RMS, at 8 ohms, both channels driven 1 kHz, with no more than 0.6% THD
2 X 20 watts at 4 ohms, 1 kHz, DIN 2 X 17 watts at 6 ohms, 1 kHz, DIN 2 X 15 watts at 8 ohms, 1 kHz, DIN 2 X 29 watts at 4 ohms, 1 kHz, EIAJ
Dynamic power output
2 X 24 watts at 4 ohms 2 X 17 watts at 8 ohms
Total harmonic distortion
0.6% at rated power
IM distortion
0.6% at rated power
Damping factor
30 at 8 ohms
Input Sensitivity and Impedance
TAPE/MD PLAY: 150 mV, 50 kohms LINE IN: 150 mV, 50 kohms
Frequency and response
10 to 50,000 Hz +0 / –3 dB
Tone control
ACOUSTIC PRESENCE 1
+4 dB at 82 Hz
ACOUSTIC PRESENCE 2
+3 dB at 20.5 Hz, + 3 dB at 82 Hz
ACOUSTIC PRESENCE 3
+3 dB at 20.5 Hz, + 6 dB at 82 Hz
BASS
±8 dB at 100 Hz
TREBLE
±8 dB at 10 kHz
Signal to noise ratio
TAPE: 100 dB (IHF-A)
Muting
dB
46
Tuner Section Tuning range
FM: 87.9 to 107.9 MHz (200 kHz steps)
(U.S. & Canadian models)
87.5 to 108.00 MHz (50 kHz steps) (Other area models)
AM: 530 to 1710 kHz (10 kHz steps)
(U.S. & Canadian models) 522 to 1611 kHz (9 kHz steps) (Other area models)
Usable sensitivity
FM: Mono 11.2 dBf,
1.0 µV (75 ohms IHF)
0.9 µV (75 ohms DIN)
Stereo 17.2 dBf,
2.0 µV (75 ohms IHF)
23.0 µV (75 ohms DIN)
AM: 30 µV
50 dB Quieting sensitivity
FM: Mono 17.2 dBf, 2.0 µV (75 ohms)
Stereo 37.2 dBf, 20.0 µV (75 ohms)
Capture ratio
FM: 2.0 dB
Image rejection ratio
FM: 40 dB (U.S. & Canadian models)
85 dB (Other area models)
AM: 40 dB
IF rejection ratio
FM: 90 dB AM: 40 dB
Signal to noise ratio
FM: Mono 73 dB, IHF
Stereo 67 dB, IHF
AM: 40 dB
Selectivity
FM: 50 dB DIN
(±300 kHz at 40 kHz Devi.)
AM Suppression Ratio
50 dB
Harmonic distortion
FM: Mono 0.2%
Stereo 0.3%
AM: 0.7 %
Frequency response
FM: 30 to 15,000 Hz (±1.5 dB)
Stereo separation
FM: 45 dB at 1,000 Hz
30 dB at 100 to 10,000 Hz
Stereo threshold
FM: 17.2 dBf, 2.0 µV (75 ohms)
General Clock precision
monthly error: +/-30 seconds
(at 25 degrees Celsius)
Power supply
AC 120 V, 60 Hz AC 230 V, 50 Hz
Power consumption
61 W (120 V, 60 Hz) 54 W (230 V, 50 Hz)
Dimensions (W X H X D)
205 X 91 X 302 mm 8-1/16" X 3-9/16" X 11-7/8"
Weight
3.4 kg, 7.5 lbs
Specifications and external appearance are subject to change without notice as a result of product improvement.
47

Index to parts and controls

Front panel

For more information about buttons, turn to the page number in the brackets [ ].
STANDBY/ON button [20, 40, 42]
Input source indicators [26, 29]
ENERGY SAVE indicator [20]
ENERGY SAVE button [20]
Remote control sensor [21]
FM STEREO / AM TUNER AMPLIFIER
ENERGY SAVE
STANDBY/ ON
PHONES
MEMORY
CD MD CDR LINE/DVD
FM MODE
CLEAR
ACCUCLOCK
CLEAR or FM MODE button [32, 35]
MEMORY button [30~35]
PHONES jack [28]
Display
FM AM TAPE
AM/PM indicator
INPUT selector [26, 29~32]
ACOUSTIC PRESENCE button [27]
VOLUME control [26]
DISPLAY
VOLUME
PRESET
TUNING
R-805X
INPUT
ACOUSTIC PRESENCE
OFF/1/2/3
DISPLAY button [33~36]
PRESET ® buttons [31~33, 35]TUNINGπ buttons [30~32]
European models front panel shown.
RDS indicator (non-U.S., non-Canadian models only)
Tuning indicator
48
AUTO/MONO indicatorMEMORY indicator
AM
MONO PM RDS W.DAY W.END
MEMORY REC SLEEP
Timer setting Frequency
Multi display
indicators
AUTOTIMER
indicators
STEREO indicator
STEREO MUTING
MIN
kHz
MHz
MUTING indicator
Sleep time indicator

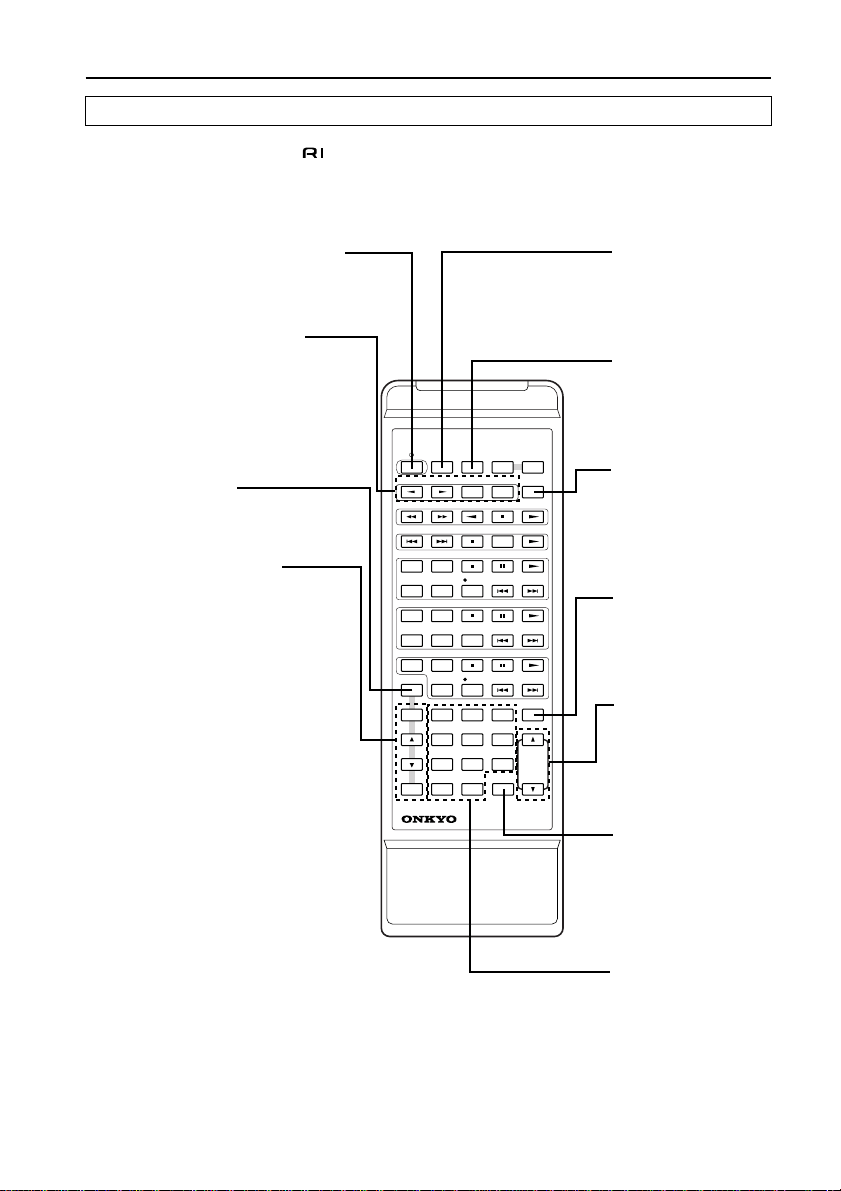

Remote controller

• You can control the other -connected components with the supplied remote controller.
• The remote controller buttons operate in the same way as the buttons on each component with the same indication.
• For actual operations, please refer to the Instruction Manual for each component.
STANDBY/ON button [20, 40, 42]
Tuner control [31~33, 35]
PRESET®:Tuner preset select
buttons
FM :
FM band select button
AM :
AM band select button
TONE button [27]
Enables you to set the tone.
Mode Select buttons [23, 24, 38~42]
TIMER :Pressing this button
repeatedly to select one of the following eight settings.
WEEKDAY: Timer playback on the specified day(s) of the week.
WEEKEND: Timer playback on the specified day(s) of the week.
REC: Timer record setting DAYSET: Sets the day of the
week (WEEKDAY & WEEKEND). ADJUST: Sets the current time
and the day of the week. 24H/12H:Enables you to select
24-hour display or 12-hour dis­play by pressing the ENTER but­ton and using the UP π/DOWN buttons.
UPπ/DOWN† : Enables you to
select a parameter after you press the TIMER or TONE but­ton. Press the ENTER button to confirm the selection.
ENTER :Press this button to con-
firm the selection made via the TIMER, TONE, UP π, or DOWN button.
STANDBY/ ON
PRESET
REPEAT
PLAY MODE
REPEAT
MEMORY
REPEAT
TONE
TIMER
UP/DOWN
ENTER
CLOCK SLEEP EFFECT
F MA M
SCROLL
CLEAR
REC
RANDOM
CLEAR
DISC
PLAY MODE
CLEAR
REC
123
456
789
- - / - - -
10 / 0
REMOTE CONTROLLER
GRAPHIC EQ
PAUSE / STEP
ACOUSTIC
PRESENCE
MODE
INPUTTUNER
TAPE
DVD
CDR
MUTING
VOLUME
RC
CLOCK button [25]
Press this button to display the current time.
SLEEP button [43]
Enables you to make the Sleep time setting.
INPUT button [26, 29]
Enables you to select a listening
M D
C D
source.
MUTING button [28]
Mutes the sound temporarily.
VOLUME π/ but­tons [26]
Enables you to increase or decrease the volume level.
-
456S
ACOUSTIC PRES­ENCE button [27]
Switches acoustic presence off and types.
Number buttons [24, 32, 38]
Used to set the time/day and select the PRESET stations.
49

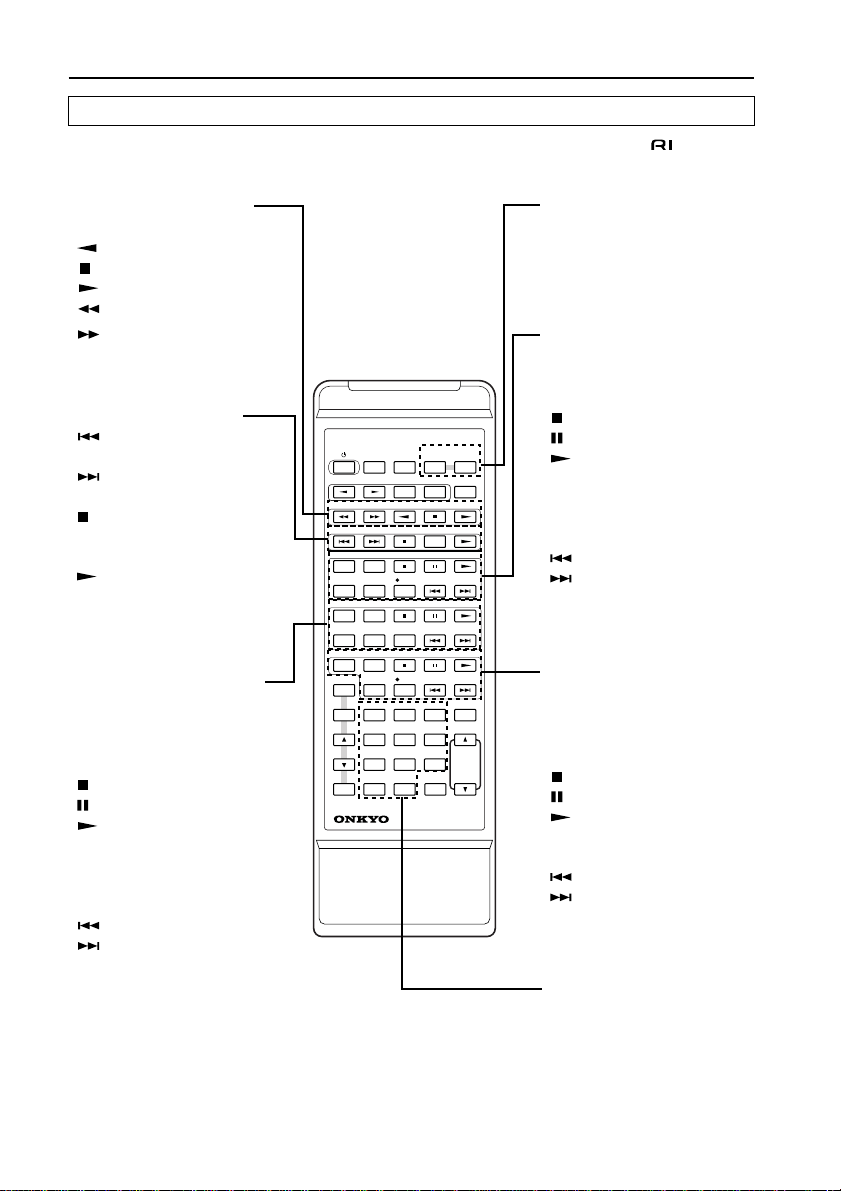

Remote controller

• Use the following buttons to control components that are connected to the - system.
Stereo cassette tape deck control
: Reverse play button : Stop button : Play button : Rewind button
: Fast-forward button
DVD player control
: Chapter/track down
button
: Chapter/track up
button
: Stop button
PAUSE/STEP : Pause/Step
forward button
: Play button
CD player (or changer) control
REPEAT: Repeat mode button RANDOM :Random play
button : Stop button : Pause button : Play button
MEMORY:Memory button CLEAR : Clear button DISC : Disc button for CD
changer : Track down button : Track up button
STANDBY/ ON
PRESET
REPEAT
PLAY MODE
REPEAT
MEMORY
REPEAT
TONE
TIMER
UP/DOWN
ENTER
CLOCK SLEEP EFFECT
F MA M
PAUSE / STEP
SCROLL
CLEAR
REC
RANDOM
CLEAR
DISC
PLAY MODE
CLEAR
REC
123
456
789
- - / - - -
10 / 0
REMOTE CONTROLLER
GRAPHIC EQ
ACOUSTIC PRESENCE
MODE
INPUTTUNER
TAPE
DVD
CDR
MUTING
VOLUME
RC
Graphic equalizer con­trol
EFFECT:Effect select button MODE: Mode select button
MD recorder control
REPEAT: Repeat mode
button
SCROLL: Scroll button
: Stop button : Pause button : Play button
PLAY MODE:Play mode
selection button
CLEAR :Clear button
M D
REC: Recording button
: Track down button : Track up button
C D
CD recorder control
REPEAT: Repeat mode
button
PLAY MODE : Play mode
selection button : Stop button : Pause button
-
456S
: Play button
CLEAR :Clear button
REC: Recording button
: Track down button : Track up button
50
CD player (or changer) / MD recorder/ CD recorder control
1~9, 10/0: Number buttons
--/--- : Ten’s hold button
MEMO
51
Sales & Product Planning Div. : 2-1, Nisshin-cho, Neyagawa-shi, OSAKA 572-8540, JAPAN Tel: 072-831-8111 Fax: 072-833-5222 http://www.onkyo-intl.com
ONKYO U.S.A. CORPORATION
18 Park Way, Upper Saddle River, N.J. 07458, U.S.A. Tel: 201-785-2600 Fax: 201-785-2650 http://www.onkyousa.com
ONKYO EUROPE ELECTRONICS GmbH
Liegnitzerstrasse 6, 82194 Groebenzell, GERMANY Tel: +49-8142-4401-0 Fax: +49-8142-4401-555 http://www.onkyo.net
ONKYO CHINA LIMITED
Units 2102-2107, Metroplaza Tower I, 223 Hing Fong Road, Kwai Chung, N.T., HONG KONG Tel: 852-2429-3118 Fax: 852-2428-9039
HOMEPAGE
http://www.onkyo.co.jp/
SN 29342838B
Printed in Japan
I0104-3
E
Loading...
