Onkyo LS5200 User Manual
E
N
> Before Start > Part Names > Install > Initial Setup > Playback
Supplementary Information | Advanced Setup | Others
Before Start
What's in the box .................................................................... 2
Part Names
2.1ch HOME CINEMA SYSTEM
LS5200
Instruction
Manual
Front Panel ............................................................................. 4
Rear Panel .............................................................................. 5
Remote Controller .................................................................. 6
Display .................................................................................... 7
Front speakers ........................................................................ 8
Subwoofer .............................................................................. 9
Install
1. Connect the Speakers ...................................................... 10
2. Connect the TV ................................................................. 12
3. Connect the HDMI AV Components ................................. 13
4. Connect the Audio Components ....................................... 14
5. Connect Other Cables ...................................................... 15
Initial Setup
Initial Setup with Auto Start-up Wizard ................................. 16
Playback
AV Component Playback ...................................................... 18
Internet Radio ....................................................................... 19
Spotify ................................................................................... 20
Music Server ......................................................................... 21
USB Storage Device ............................................................. 23
®

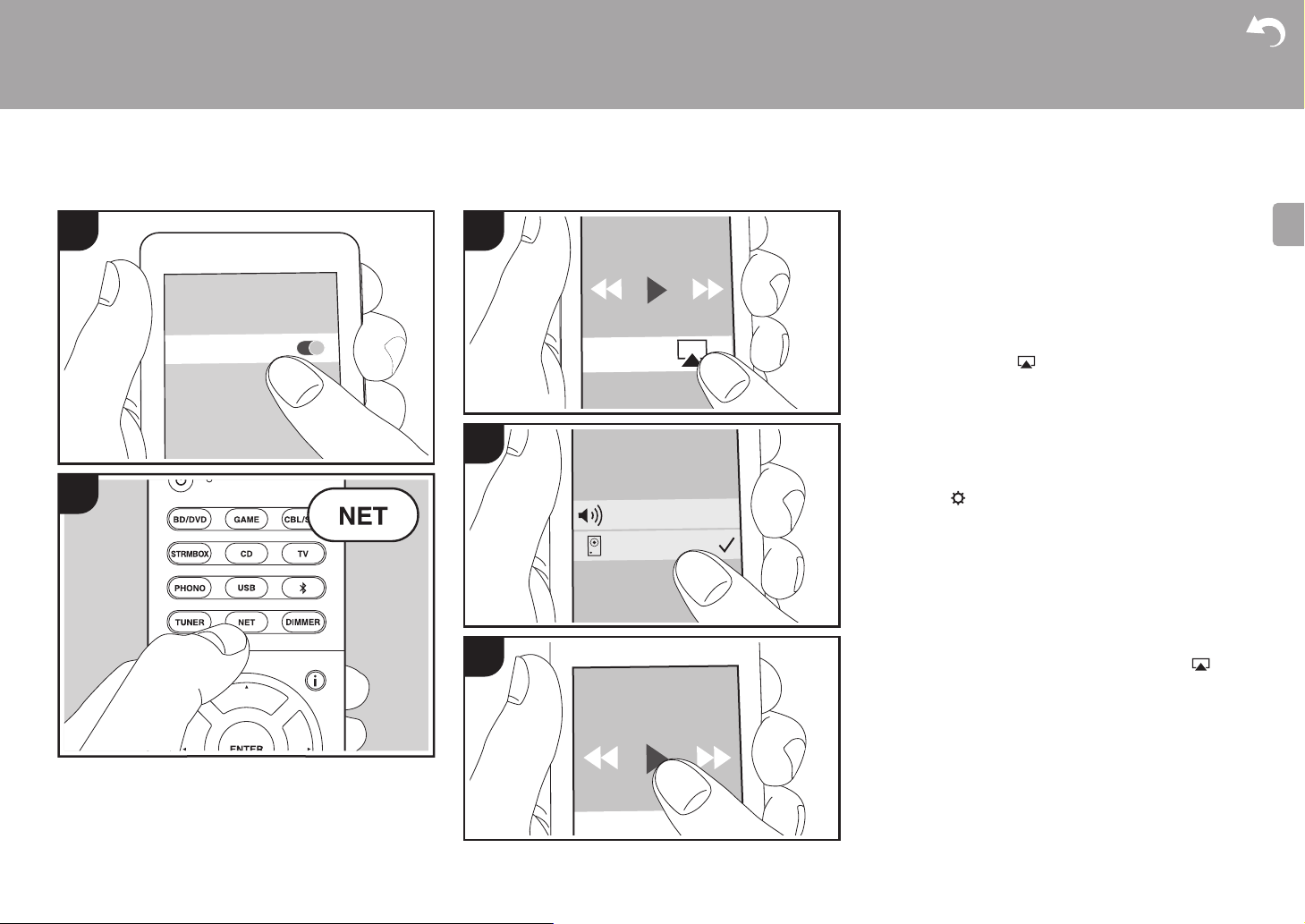

AirPlay

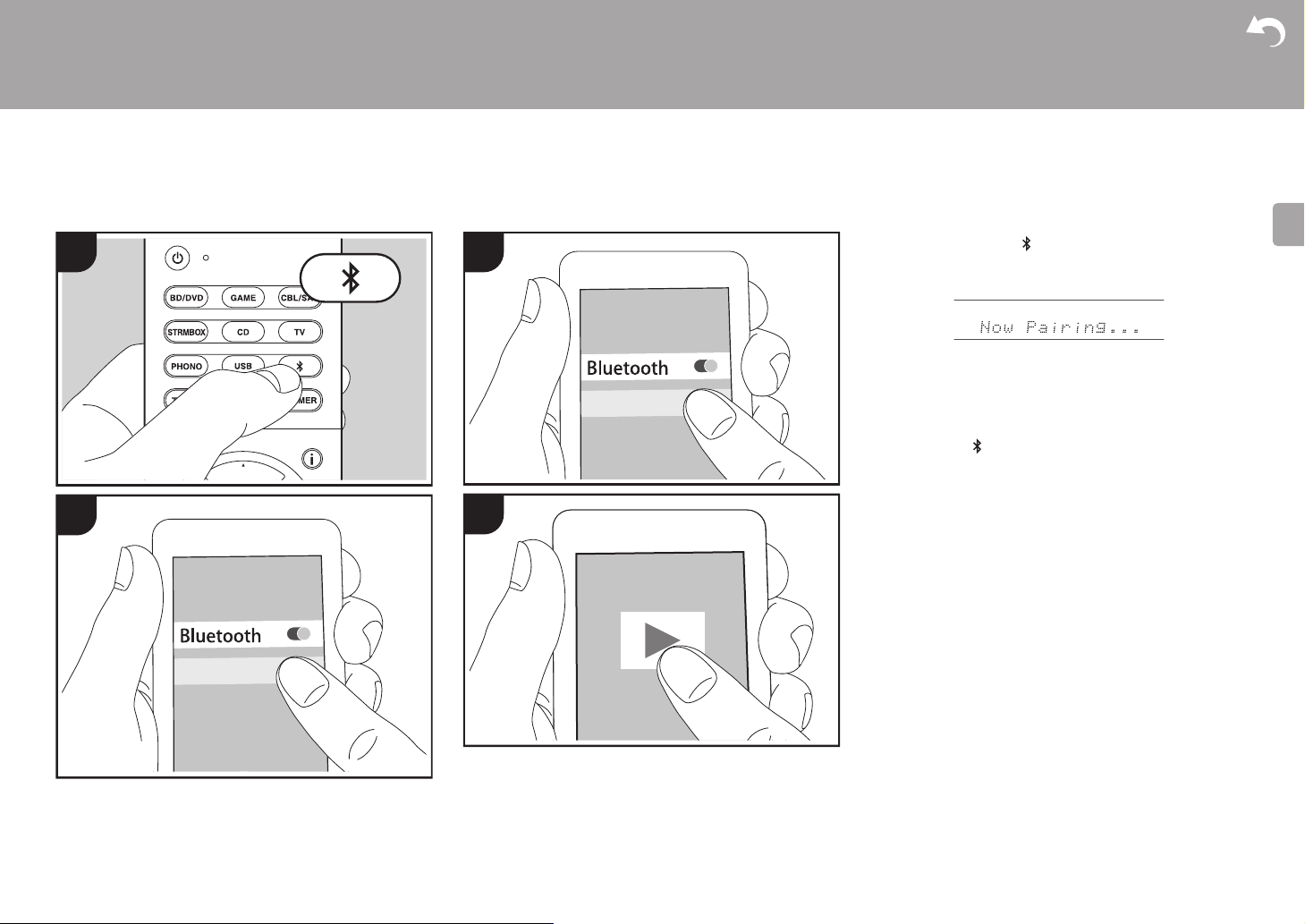

BLUETOOTH
Listening to the FM/DAB Radio ............................................ 27
Listening Modes ................................................................... 30
Quick Menu .......................................................................... 31
Other Functions .................................................................... 32
Supplementary Information
Supplementary information for player functions .................... 33
Advanced Setup
Setup Menu ........................................................................... 34
Firmware Update .................................................................. 46
Others
Troubleshooting .................................................................... 49
General Specifications .......................................................... 54
About HDMI .......................................................................... 56
License and Trademark Information ..................................... 57
................................................................................ 25
®
Playback ......................................................26
> Before Start > Part Names > Install > Initial Setup > Playback
E
N
Supplementary Information | Advanced Setup | Others
Before Start
What's in the box
Main unit (TX-L20DWL) (1)
Front speakers (SKM-648) (2)
Subwoofer (SKW-B50) (1)
DAB/FM antenna (1)
Speaker cables (3 m) (2)
Spacers for front speakers (8)
Wall mount bracket for front speakers (2)
Screw for wall mount bracket (M5k10) (2)
Remote controller (RC-934R) (1), batteries (AAA/R03) (2)
2
> Before Start > Part Names > Install > Initial Setup > Playback
E
N
Supplementary Information | Advanced Setup | Others
0 The power cord must be connected only after all other cable connections are completed.
0 We will not accept responsibility for damage arising from the connection of equipment
manufactured by other companies.
Power cord (for subwoofer) (1)
Spacers for subwoofer (4)
0 Functionality may be introduced by firmware updates and service providers may cease
services, meaning that some network services and content may become unavailable in
the future. Furthermore, available services may vary depending on your area of
residence.
0 Specifications and appearance are subject to change without prior notice.
3
> Before Start >Part Names > Install > Initial Setup > Playback
E
N
Supplementary Information | Advanced Setup | Others
Part Names
Front Panel
1. Í ON/STANDBY button: Turns the unit on or into standby mode.
2. HYBRID STANDBY indicator: Lights if the unit enters standby mode when the features
are enabled that continue to work when this unit is in standby, such as HDMI Standby
Through and Network Standby.
3. Display (ÄP7)
4. Remote control sensor
5. Volume dial: Allows you to adjust the volume.
6. USB port: A USB storage device is connected so that music files stored in it can be
played. You can also supply power (maximum 5 V/1 A) to USB devices with a USB cable.
7. PHONES jack: Stereo headphones with a mini plug (φ3.5 mm) are connected.
8. INPUT43 button: Switches the input to be played. (BD/DVD / CBL/SAT / GAME /
STRM BOX / CD / TV / PHONO / DAB / FM / NET / USB / BLUETOOTH)
9. TUNING43buttons: Select the frequency of FM/DAB radio stations.
4
> Before Start >Part Names > Install > Initial Setup > Playback
E
N
180°
90°
Supplementary Information | Advanced Setup | Others
Rear Panel
1. ANTENNA DAB/FM jack: Connect the supplied antenna.
2. Wireless antenna: Raise for Wi-Fi connection or when using a BLUETOOTH enabled
device. The diagram shows the movable range for the wireless antenna. Do not try to
force it beyond this range otherwise you may break it.
3. AUDIO IN jacks: Input AV component audio signals with an analog audio cable.
4. GND terminal: The ground wire of the turntable is connected.
5. DIGITAL IN OPTICAL/COAXIAL jacks: Input TV or AV component digital audio signals
with a digital optical cable or digital coaxial cable.
6. Power cord
7. ETHERNET port: Connect to the network with an Ethernet cable.
8. HDMI OUT jack: Connect a HDMI cable to transfer video signals and audio signals to a
TV.
9. HDMI IN jacks: Input video signals and audio signals with a HDMI cable connected to an
AV component.
10.
SPEAKERS terminals: Connect speakers with the supplied speaker cables.
11.
SUBWOOFER PRE OUT jack: Connect a powered subwoofer with a subwoofer cable.
5
> Before Start >Part Names > Install > Initial Setup > Playback
E
N
30°
30°
Approx.5 m
(16 ft.)
Remote Controller
1. Í button: Turns the unit on or into standby mode.
2. Input selector buttons: Switches the input to be played.
3. Q (QUICK MENU) button: You can perform common settings on the TV screen. (ÄP31)
4. Cursors, ENTER button: Select the item with the cursors and press ENTER to confirm.
5. button: Displays the Setup menu.
6. Volume buttons: Allows you to adjust the volume. This button also cancels the muting.
7. button: Temporarily mutes audio. Press again to cancel muting.
8. Listening mode buttons: Allows you to select the listening mode. (ÄP30)
9. Play buttons: You can start play of the Music Server or USB.
10.
11.
12.
13.
14.
15.
button: You can start repeat or random play of the Music Server or USB.
CLEAR button: Deletes all characters you have entered when entering text on the TV
screen.
DIMMER button: You can adjust the brightness of the display in three steps. It cannot be
turned off completely.
button: Switches the information on the display.
button: Returns the display to the previous state during setting.
MODE button: Switches tuning to an FM station between automatic tuning and manual
tuning.
MEMORY button: Used to register FM/DAB radio stations.
Supplementary Information | Advanced Setup | Others
(ÄP34)
6
> Before Start >Part Names > Install > Initial Setup > Playback
E
N
Neo:6
Supplementary Information | Advanced Setup | Others
Display
1. Lights in the following conditions.
HDMI: HDMI signals are input and selected.
ARC: Audio signals from the ARC compatible TV are input and selected.
USB: When "USB" is selected with the input selector and the unit is connected by USB
and the USB device is selected. Flashes if the USB is not properly connected.
NET: When "NET" is selected with the input selector and the unit is connected to the
network. It will flash if the connection to the network is not correct.
DIGITAL: Digital signals are input and the digital input selector is selected.
2. Lights when operating the "NET" or "USB" input selector indicating remote controller
cursor operations are possible in screens showing list of tracks, for example.
3. Lights when headphones are connected.
4. Lights when operating the "NET" or "USB" input selector when tracks are played or
paused.
5. Lights according to the type of input digital audio signals and the listening mode.
6. Lights in the following conditions.
RDS: Receiving RDS broadcasting.
AUTO: When FM tuning mode is auto.
TUNED: Receiving FM radio.
FM STEREO: Receiving FM stereo.
SLEEP: Sleep timer has been set.
ASb: When Auto Standby function is enabled. (ÄP44)
7. Flashes when muting is on.
8. Displays various information of the input signals. Characters that cannot be displayed on
this unit are replaced with asterisks ( ＊ ).
7
> Before Start >Part Names > Install > Initial Setup > Playback
E
N
1
2
Supplementary Information | Advanced Setup | Others
Front speakers
There is no distinction between left and right with the included speaker system. There will be
no difference in sound quality whichever side you choose to put each speaker.
1. Tweeter: Plays the mid range and treble.
2. Woofer: Plays the bass.
3. Grill net fittings: Used to attach the grill nets. When removing the grill net, hold the top of
the grill net and pull gently forward, then gently pull the bottom of the grill out to remove.
To attach the grill net, match the four pins on the grill net to the fittings, then press into
place.
4. Screw hole for fitting wall mount bracket (M5): Use this to attach the wall mount bracket.
(ÄP11)
5. Speaker terminals: Connect speakers to the main unit with the supplied speaker cables.
8
> Before Start >Part Names > Install > Initial Setup > Playback
E
N
Supplementary Information | Advanced Setup | Others
Subwoofer
1. LINK LED: Lights when paired with the main unit.
2. LINK button: Used to pair the subwoofer and the main unit.
3. AC INLET: The supplied power cord is connected.
The wireless connection setting between the subwoofer and the main unit was completed at
the time of shipping. You need only connect the power cord to start using the unit.
0 If LINK LED is flashing and you do not hear sound from the subwoofer, go to
"Troubleshooting" and check "The subwoofer produces no sound" (ÄP50).
9
> Before Start > Part Names >Install > Initial Setup > Playback
E
N
1
2
1
3 4
2
a
a
b
b
c
c
c
RED
RED
Install
1. Connect the Speakers
Supplementary Information | Advanced Setup | Others
Before Installing
Attach the included spacers to the four corners of the bases
of the front speakers and subwoofer. This makes the
speakers less likely to slip, improve the stability of the
installation, and enables better sound.
0 The front speakers may also be attached to the wall with
the included wall mount brackets. (ÄP11)
Instructions on how to Connect Speakers
Connect the included speaker cables with ends with the red
tubing attached to the + jacks on the main unit and the front
speakers. If connection is wrong, the phase reverses and
this makes it harder to output bass. After inserting the
speaker cables, tighten the terminals firmly by turning to the
right. Also make sure the exposed wires of the speaker
cable do not stick out of the speaker terminals when
connecting. If the exposed wires of the speaker cable touch
the rear panel or the + and – wires touch each other, the
protection circuit may be activated and the power may turn
off. (ÄP49)
a Spacers for front speakers, b Spacers for subwoofer, c Speaker cable
10
The connection between the main unit and the subwoofer is
wireless. Put the subwoofer within 32 ft. (10 m) of the main
unit. The directionality of subwoofers, where hearing
discerns the direction of sound, is weak, so you will get the
same effect from the subwoofer wherever you decide to put
it in the room.
> Before Start > Part Names >Install > Initial Setup > Playback
E
N
4 mm
1
3
2
a
c
b
3 mm
or less
Supplementary Information | Advanced Setup | Others
When Fitting the Front Speakers to the Wall
1. Use commercially available screws to install the included
wall mount brackets.
0 The screws to fit the brackets to the wall are not
included. Consult with a professional to make sure you
select the type, material, length, etc., that will provide
sufficient support. Add a reinforcing plate or anchor if
reinforcement is necessary.
0 Onkyo accepts no responsibility for damage or injury
that arises due to incorrect fitting, incomplete fitting,
incorrect use, or acts of nature.
2. Connect the included speaker cables to the speaker
terminals.
3. Use the included screws (M5k10) to attach the speakers
to the wall mount brackets.
a Wall mount bracket for front speakers, b Speaker cable, c Screw for wall mount bracket (M5k10)
11
> Before Start > Part Names >Install > Initial Setup > Playback
E
N
a
b
DIGITAL
OPTICAL OUT
1
2. Connect the TV
Supplementary Information | Advanced Setup | Others
To ARC TV
For a TV that supports the ARC (Audio Return Channel)
(ÄP56) feature, use an HDMI cable and connect according
to illustration "a". Choose an HDMI IN jack on the TV that
supports ARC when connecting.
To Non-ARC TV
For a TV that does not support the ARC (Audio Return
Channel) feature, connect both the HDMI cable in illustration
"a" and the digital optical cable in "b".
Setup
0 Settings are required to use the ARC function. Select
"Yes" in "3. Audio Return Channel" (ÄP17) in the Initial
Setup.
0 Please refer to the TV’s operation manual for directions on
connections and setup for the TV.
12
a HDMI cable, b Digital optical cable
> Before Start > Part Names >Install > Initial Setup > Playback
E
N
e.g. BD
a
HDMI OUT
1
BD/DVD GAME
a
Cable/Satellite
set-top box
Streaming media
player
3. Connect the HDMI AV Components
Supplementary Information | Advanced Setup | Others
This is an example of connection with an AV component
that has an HDMI jack. With connection to an AV
component that conforms with the CEC (Consumer
a HDMI cable
Electronics Control) standard, you can use features such as
the HDMI CEC feature that links with the input selector, and
the HDMI Standby Through feature which allows you to
play video and audio from AV components on the TV even
when this unit is in standby mode. (ÄP56)
0 To play 4K or 1080p video, use the high speed HDMI
cable.
Setup
0 Settings are required to use the HDMI CEC and HDMI
Standby Through features. (ÄP40) Make settings after all
connections are complete.
0 To enjoy digital surround sound including Dolby Digital,
audio output should be set to "Bitstream output" on the
connected Blu-ray Disc player or other device.
13
> Before Start > Part Names >Install > Initial Setup > Playback
E
N
CD
a
b
Tur ntabl e
Supplementary Information | Advanced Setup | Others
4. Connect the Audio Components
Connecting a CD player
Use a digital coaxial cable to connect a CD player to the
DIGITAL IN COAXIAL jack.
Connecting a turntable
You can also connect a turntable that has an MM-type
cartridge to the PHONO jack.
0 If the turntable has a built-in audio equalizer, connect it to
an AUDIO IN jack other than the PHONO jack. Further, if
the turntable uses an MC type cartridge, install an audio
equalizer compatible with the MC type cartridge between
the unit and the turntable, then connect to any AUDIO IN
jack other than the PHONO jack.
14
a Digital coaxial cable, b Analog audio cable
If the turntable has a ground wire, connect it to the GND
terminal of this unit.
> Before Start > Part Names >Install > Initial Setup > Playback
E
N
b
c
d
d
c
a
1
3 4
2
Supplementary Information | Advanced Setup | Others
5. Connect Other Cables
Antenna Hookup
Connect the supplied DAB/FM antenna to the ANTENNA
DAB/FM terminal. Make sure the plug is pushed in all the
way, then fix in place by turning the nut to the right. Use a
tack or similar to fix the antenna to a wall.
a DAB/FM antenna, b Ethernet cable, c Power cord (main unit), d Power cord (for subwoofer)
Network Hookup
Connect this unit to the network using wired LAN or Wi-Fi
(wireless LAN). You can enjoy network features such as
internet radio by connecting the unit to the network. If you
connect by wired LAN, connect with an Ethernet cable to the
ETHERNET port as shown in the illustration. To connect by
Wi-Fi, then after selecting "Wireless" in "2. Network
Connection" (ÄP17) in Initial Setup, select the desired
setting method and follow the onscreen instructions to
configure the connection.
Power Cord Hookup
Connect the power cord of this unit and subwoofer after all
other connections are completed.
15
> Before Start > Part Names > Install > Initial Setup >Playback
E
N
1
3 4
2
TV's remote controller
Exit
Initial Setup
Language Select
English
Deutsch
Français
Español
Italiano
Nederlands
Svenska
Русский язык
中文
Initial Setup
Initial Setup with Auto Start-up Wizard
Supplementary Information | Advanced Setup | Others
Initial Setup starts automatically
1. Switch the input on the TV to that assigned to the unit.
2. Put batteries into the remote controller of this unit.
3. Press Í on the remote controller. When power is turn on
for the first time, an Initial Setup screen is automatically
displayed on the TV to allow you to make settings
required for start up.
4. Follow the on-screen instructions to select the item with
the cursors of the remote controller and press ENTER to
confirm your selection.
0 To return to the previous screen, press .
To redo Initial Setup: If you terminate the procedure on the
way or want to change a setting made during Initial Setup,
press on the remote controller, select "6. Miscellaneous"
- "Initial Setup" in the Setup menu and press ENTER. To
select the language displayed again, change "OSD
Language". (ÄP34)
16
> Before Start > Part Names > Install > Initial Setup >Playback
E
N
Wi-Fi Setup
Рбуучптд
When finished, select the "OK" key.
A/aAll Erase
OKA/a
a b cdefghi jklm
nopqr stu vwxy z
1 2 34567890 -^\
, . /;:@[]
Hide/Show
Supplementary Information | Advanced Setup | Others
1. Source Connection
Check that each input source is connected correctly. Follow
the guidance, select the input you want to confirm, start play
of the selected player, and confirm that the images appear
on the TV and that sound is played.
2. Network Connection
Set up Wi-Fi connection with an access point such as a
wireless LAN router. There are the following two methods of
connecting by Wi-Fi:
"Scan Networks": Search for an access point from this
unit. Find out the SSID of the access point beforehand.
"Use iOS Device (iOS7 or later)": Share the iOS device's
Wi-Fi settings with this unit.
If you select "Scan Networks", there are a further two
choices of connection method. Check the following.
0 "Enter Password": Enter the password (or key) of the
access point to connect.
0 "Push Button": If the access point has an automatic
connection button, you can connect without entering a
password.
0 If the SSID of the access point is not displayed, then in
the screen listing the SSIDs, select "Other..." with the X
button on the remote controller and press ENTER, then
follow the on-screen instructions.
select "A/a" on the screen and press ENTER. To select
whether to mask the password with "＊" or display it in plain
text, press MEMORY on the remote controller. Pressing
CLEAR will delete all the input characters.
Privacy policy: A confirmation screen asking you to agree
to the privacy policy is displayed during network setting.
Select "Yes" and press ENTER to indicate agreement.
3. Audio Return Channel
If you have connected a TV that supports ARC, select
"Yes". This unit's ARC setting turns on and you can listen to
the TV's audio through this unit.
0 If you select "Yes", the HDMI CEC function is enabled
and power consumption increases during standby.
Keyboard input: To switch between upper and lower case,
17
> Before Start > Part Names > Install > Initial Setup >Playback
E
N
a
b
Supplementary Information | Advanced Setup | Others
Playback
AV Component Playback
Basic operations
Play an AV component or TV connected to this unit with an
HDMI cable or other cable.
1. Switch the input on the TV to that assigned to the unit.
2. Press the input selector (a) on the remote controller with
the same name as the jack to which you connected the
player to switch the input.
For example, press BD/DVD to play the player connected
to the BD/DVD jack. Press TV to listen the TV's sound.
0 Note that when the CEC link function works, the input
switches automatically when you have connected a
CEC compliant TV and player to this unit using HDMI
connection.
3. Start play on the player.
4. Use VOL+/– (b) to adjust the volume.
18
Loading...
