Instruction Manual
Safety Information and Introduction ............2
Table of Contents...........................................6
Turning On & Basic Operations..................20
Advanced Operations ..................................37
Controlling Other Components...................48
Appendix.......................................................54
Speaker Package
E
n
WARNING:
G
TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE.
CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.
WARNING
RISK OF ELECTRIC SHOCK
DO NOT OPEN
The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to
persons. The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.
AVIS
RISQUE DE CHOC ELECTRIQUE
NE PAS OUVRIR

Important Safety Instructions

1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the manufacturer.
12. Use only with the cart, stand,
PORTABLE CART WARNIN
tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.
S3125A
13. Unplug this apparatus during lightning storms or when unused for long periods of time.
14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.
15. Damage Requiring Service Unplug the apparatus from the wall outlet and refer servicing to qualified service personnel under the following conditions:
A. When the power-supply cord or plug is damaged, B. If liquid has been spilled, or objects have fallen
into the apparatus,
C. If the apparatus has been exposed to rain or water,

Safety Information and Introduction

D. If the apparatus does not operate normally by
following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the apparatus to its normal operation,
E. If the apparatus has been dropped or damaged in
any way, and
F. When the apparatus exhibits a distinct change in
performance this indicates a need for service.
16. Object and Liquid Entry Never push objects of any kind into the apparatus through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. The apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases shall be placed on the apparatus. Don’t put candles or other burning objects on top of this unit.
17. Batteries Always consider the environmental issues and follow local regulations when disposing of batteries.
18. If you install the apparatus in a built-in installation, such as a bookcase or rack, ensure that there is adequate ventilation. Leave 20 cm (8") of free space at the top and sides and 10 cm (4") at the rear. The rear edge of the shelf or board above the apparatus shall be set 10 cm (4") away from the rear panel or wall, creating a flue-like gap for warm air to escape. The temperature protection operates if the apparatus attain an abnormal high temperature. The apparatus cannot operate until it has cooled down.
En-2

Precautions

1. Recording Copyright—Unless it’s for personal use only, recording copyrighted material is illegal without the permission of the copyright holder.
2. AC Fuse—The AC fuse inside the unit is not user­serviceable. If you cannot turn on the unit, contact your Onkyo dealer.
3. Care—Occasionally you should dust the unit all over with a soft cloth. For stubborn stains, use a soft cloth dampened with a weak solution of mild detergent and water. Dry the unit immediately afterwards with a clean cloth. Don’t use abrasive cloths, thinners, alcohol, or other chemical solvents, because they may damage the finish or remove the panel lettering.
4. Power WARNING
BEFORE PLUGGING IN THE UNIT FOR THE FIRST TIME, READ THE FOLLOWING SECTION CAREFULLY. AC outlet voltages vary from country to country. Make sure that the voltage in your area meets the voltage requirements printed on the unit’s rear panel (e.g., AC 230 V, 50 Hz or AC 120 V, 60 Hz).
The power cord plug is used to disconnect this unit from the AC power source. Make sure that the plug is readily operable (easily accessible) at all times.
For models with [POWER] button, or with both [POWER] and [ON/STANDBY] buttons: Pressing the [POWER] button to select OFF mode does not fully disconnect from the mains. If you do not intend to use the unit for an extended period, remove the power cord from the AC outlet.
For models with [ON/STANDBY] button only: Pressing the [ON/STANDBY] button to select Standby mode does not fully disconnect from the mains. If you do not intend to use the unit for an extended period, remove the power cord from the AC outlet.
5. Preventing Hearing Loss Caution
Excessive sound pressure from earphones and headphones can cause hearing loss.
6. Batteries and Heat Exposure Warning
Batteries (battery pack or batteries installed) shall not be exposed to excessive heat as sunshine, fire or the like.
7. Never Touch this Unit with Wet Hands—Never handle this unit or its power cord while your hands are wet or damp. If water or any other liquid gets inside this unit, have it checked by your Onkyo dealer.
8. Handling Notes
• If you need to transport this unit, use the original
packaging to pack it how it was when you originally bought it.
• Do not leave rubber or plastic items on this unit for a
long time, because they may leave marks on the case.
• This unit’s top and rear panels may get warm after
prolonged use. This is normal.
• If you do not use this unit for a long time, it may not
work properly the next time you turn it on, so be sure to use it occasionally.
Safety Information and Introduction
For U.S. models
FCC Information for User CAUTION:
The user changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.
NOTE:
This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
En-3
For Canadian Models
NOTE: THIS CLASS B DIGITAL APPARATUS
COMPLIES WITH CANADIAN ICES-003. For models having a power cord with a polarized plug:
CAUTION: TO PREVENT ELECTRIC SHOCK,
MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.
Modèle pour les Canadien
REMARQUE: CET APPAREIL NUMÉRIQUE DE LA
CLASSE B EST CONFORME À LA NORME NMB-003 DU CANADA.
Sur les modèles dont la fiche est polarisée:
ATTENTION: POUR ÉVITER LES CHOCS
ÉLECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU’AU FOND.
Safety Information and Introduction
En-4

Supplied Accessories

Make sure you have the following accessories:
Indoor FM antenna (➔ page 19)
AM loop antenna (➔ page 19)
Power cord (Brazilian models) (➔ page 19)
Remote controller (RC-799M) and two batteries (AA/R6)
Quick Start Guide
*
In catalogs and on packaging, the letter at the end of the product name indicates the color. Specifications and operations are the same regardless of color.
Installing the batteries
Batteries (AA/R6)
Note
• If the remote controller doesn’t work reliably, try replacing the batteries.
• Don’t mix new and old batteries or different types of batteries.
• If you intend not to use the remote controller for a long time, remove the batteries to prevent damage from leakage or corrosion.
• Remove expired batteries as soon as possible to prevent damage from leakage or corrosion.
Safety Information and Introduction
Aiming the remote controller
To use the remote controller, point it at the AV receiver’s remote control sensor, as shown below.
Remote control sensor
AV receiver
Approx. 16 ft. (5 m)
En-5
Thank you for purchasing an Onkyo AV Receiver. Please read this manual thoroughly before making connections and plugging in the unit. Following the instructions in this manual will enable you to obtain optimum performance and listening enjoyment from your new AV Receiver. Please retain this manual for future reference.

Table of Contents

Safety Information and Introduction
Important Safety Instructions ......................................2
Precautions ...................................................................3
Supplied Accessories...................................................5
Table of Contents..........................................................6
Features .........................................................................7
Front & Rear Panels......................................................8
Front Panel..................................................................8
Display ........................................................................9
Rear Panel ................................................................10
Remote Controller.......................................................11
Controlling the AV Receiver ......................................11
Connections
Connecting the AV Receiver......................................12
Connecting Your Speakers .......................................12
About AV Connections..............................................15
Connecting Components with HDMI .........................16
Connecting Your Components ..................................17
Connecting Onkyo u Components .........................18
Connecting a Recording Component ........................18
Connecting the Antennas..........................................19
Connecting the Power Cord ......................................19
Using Basic Functions ............................................... 28
Using the Listening Modes .......................................28
Using the Home Menu .............................................. 33
Selecting Speakers A and B ..................................... 33
Using the Sleep Timer ..............................................34
Setting the Display Brightness.................................. 34
Displaying Source Information.................................. 34
Changing the Input Display....................................... 35
Using the Music Optimizer........................................ 35
Muting the AV Receiver ............................................ 35
Using Headphones ...................................................36
Recording .................................................................36
Advanced Operations
On-screen Setup......................................................... 37
Common Procedures in Setup Menu........................ 37
Setup menu items..................................................... 38
HDMI Input................................................................ 39
Component (Component Video Input) ...................... 39
Digital Audio (Digital Audio Input) ............................. 40
Sp Config (Speaker Configuration)........................... 40
Sp Distance (Speaker Distance)............................... 41
Level Cal (Level Calibration)..................................... 41
Audio Adjust.............................................................. 42
Source Setup ............................................................ 43
Hardware ..................................................................44
HDMI Setup ..............................................................45
Using the Audio Settings ..........................................46
Safety Information and Introduction
Appendix
Troubleshooting ......................................................... 54
Connection Tips and Video Signal Path .................. 59
Using an RIHD-compatible TV, Player,
or Recorder .............................................................. 60
About HDMI................................................................. 62
USB Features.............................................................. 63
License and Trademark Information ........................ 64
Specifications ............................................................. 65
To reset the AV receiver to its factory defaults, turn it on and, while holding down VCR/DVR, press
8ON/STANDBY (➔ page 54).
Turning On & Basic Operations
Turning On/Off the AV Receiver ................................20
Turning On ................................................................20
Turning Off ................................................................20
Playback ......................................................................21
Playing the Connected Component ..........................21
Controlling Contents of USB Devices .......................22
Understanding Icons on the Display .........................23
Playing an iPod/iPhone via USB ...............................23
Playing a USB Device ...............................................24
Listening to AM/FM Radio.........................................25
Controlling Other Components
iPod/iPhone Playback via Onkyo Dock ....................48
Using the Onkyo Dock .............................................. 48
Controlling Your iPod/iPhone.................................... 49
Controlling Other Onkyo Components.....................50
Preprogrammed Remote Control Codes ..................50
Entering Remote Control Codes............................... 50
Remote Control Codes for Onkyo Components
Connected via u ..................................................50
Resetting the REMOTE MODE Buttons ...................51
Resetting the Remote Controller ..............................51
Controlling Other Components .................................52
En-6
Safety Information and Introduction

Features

Amplifier
• 110 Watts/Channel @ 6 ohms (FTC)
• 100 Watts/Channel @ 6 ohms (IEC)
• 120 Watts/Channel @ 6 ohms (JEITA)
• Optimum Gain Volume Circuitry
• H.C.P.S. (High Current Power Supply) Massive High Power Transformer
Processing
• HDMI (Audio Return Channel, 3D, DeepColor, x.v.Color, Lip Sync, DTS-HD Master Audio, DTS-HD High Resolution Audio, Dolby TrueHD, Dolby Digital Plus, DSD and Multi-CH PCM)
• Non-Scaling Configuration
• A-Form Listening Mode Memory
•Direct Mode
• Music Optimizer for Compressed Digital Music files
• 192 kHz/24-bit D/A Converters
• Powerful and Highly Accurate 32-bit Processing DSP
• Jitter Cleaning Circuit Technology
Connections
• 4 HDMI Inputs and 1 Output
• Onkyo p for System Control
• 3 Digital Inputs (2 Optical/1 Coaxial)
• Component Video Switching (2 Inputs/1 Output)
• Front-Panel USB Input for Memory Devices and
®
iPod
/iPhone® models
Miscellaneous
• 40 FM/AM Presets
• EX.BASS for natural deeper bass
• Crossover Adjustment (40/50/60/70/80/90/100/120/150/200 Hz)
• A/V Sync Control Function (up to 400 ms)
• Auto Standby Function
• On-Screen Display via HDMI
En-7

Front & Rear Panels

Front Panel

(North American and Brazilian models) (Asian models)
Safety Information and Introduction
a
b c
p
For detailed information, see the pages in parentheses.
a 8ON/STANDBY button (20) b HDMI THRU indicator (45) c SPEAKERS A and B buttons (33) d Remote control sensor (5) e LISTENING MODE buttons (28) f Display (9) g DIMMER button (North American and Brazilian
models) (34)
h MEMORY button (26) i TUNING MODE button (25)
d
qo
e gf h ij k lm n
r s
t
j DISPLAY button (34) k SETUP button (37) l TUNING q/w, PRESET e/r (25), cursor and
ENTER buttons
m RETURN button n MASTER VOLUME control (21) o MUSIC OPTIMIZER button (35, 47) p PHONES jack (36) q TONE and Level buttons (46) r Input selector buttons (21) s AUX INPUT AUDIO and VIDEO jacks (17)
u
t USB port (17) u RT/PTY/TP button (Asian models) (26)
En-8

Display

Safety Information and Introduction
bcae
f
For detailed information, see the pages in parentheses.
a A and B speaker indicators (33) b M.Opt indicator (35, 47) c Listening mode and format indicators (28, 44) d Tuning indicators
RDS indicator (excluding North American and Brazilian models) (26)
AUTO indicator (25) TUNED indicator (25) FM STEREO indicator (25)
e SLEEP indicator (34) f HDMI indicator (45, 59) g MUTING indicator (35) h Message area
d
g
h
En-9

Rear Panel

(North American and Asian models) (Brazilian models)
Safety Information and Introduction
a b c
g
a DIGITAL IN COAXIAL and OPTICAL jacks b COMPONENT VIDEO IN and OUT jacks c HDMI IN and OUT jacks d FM ANTENNA jack and AM ANTENNA terminal e SPEAKERS terminals
(FRONT A, CENTER, SURROUND, SUBWOOFER, FRONT B)
f Power cord (North American and Asian models) g uREMOTE CONTROL jack
h i
d
e
h Composite video and analog audio jacks
(BD/DVD IN, VCR/DVR IN and OUT, CBL/SAT IN, GAME IN, TV/CD IN)
i MONITOR OUT V jack j AC INLET (Brazilian models)
See “Connecting the AV Receiver” for connection (pages 12 to 19).
f
j
En-10

Remote Controller

Controlling the AV Receiver

a b
c
d
ae
f
g
ic
j
k
d
l m
To control the AV receiver, press RECEIVER to select Receiver mode. You can also use the remote controller to control Onkyo Blu-ray Disc/DVD player, CD player, and other components. See “Entering Remote Control Codes” for more details (page 50).
For detailed information, see the pages in parentheses.
a 8 button (20) b REMOTE MODE/INPUT SELECTOR buttons (21) c TONE and Level buttons (46) d SP A/B button (33) e q/w/e/r and ENTER buttons f SETUP button (37) g Listening Mode buttons (28) h DIMMER button (34) i DISPLAY button (34) j MUTING button (35) k VOL q/w button (21) l RETURN button m HOME button (33) n SLEEP button (34)
Safety Information and Introduction
Controlling the tuner
To control the AV receiver’s tuner, press AM or FM (or RECEIVER).
a q/w buttons (25) b D.TUN button (25) c DISPLAY button d CH +/– button (26) e Number buttons (25)
bh
e
n
En-11

Connecting the AV Receiver

Connecting Your Speakers

Connecting the Speaker Cables
The following illustration shows how to connect the speakers to each pair of terminals.
Using a Passive Subwoofer
Corner position
1/3 of wall
position
To find the best position for your subwoofer, while playing a movie or some music with good bass, experiment by placing your subwoofer at various positions within the room, and choose the one that provides the most satisfying results.
Push-type speaker terminals
Strip 3/8" to 1/2" (10 to 12 mm) of insulation from the ends of the speaker cables, and twist the bare wires tightly, as shown (Supplied speaker cables are already stripped).
3/8" to 1/2" (10 to 12 mm)
Passive
Subwoofer
Front B right Front B left Front A leftFront A right Center
Surround
right
Speakers ASpeakers B

Connections

Surround
left
En-12
Connections
Speaker Configuration
The following table indicates the channels you should use depending on the number of speakers that you have. No matter how many speakers you use, a passive subwoofer is recommended for a really powerful and solid bass. To get the best from your surround sound system, you need to set the speaker settings manually (page 40).
Number of speakers 2 3 4 5
Front speakers ✔✔✔✔ Center speaker ✔✔ Surround speakers ✔✔
Connecting the Speaker Cables
The speaker terminals are color-coded for identification purpose.
Speaker Color
Front left White Front right Red Center Green Surround left Blue Surround right Gray Subwoofer Purple
En-13
Speaker Connection Precautions
Read the following before connecting your speakers:
• You can connect speakers with an impedance of between 6 and 16 ohms. If you use speakers with a lower impedance, and use the amplifier at high volume levels for a long period of time, the built-in amp protection circuit may be activated.
• Disconnect the power cord from the wall outlet before making any connections.
• Read the instructions supplied with your speakers.
• Pay close attention to speaker wiring polarity. In other words, connect positive (+) terminals only to positive (+) terminals, and negative (–) terminals only to negative (–) terminals. If you get them the wrong way around, the sound will be out of phase and will sound unnatural.
• Unnecessarily long, or very thin speaker cables may affect the sound quality and should be avoided.
• Be careful not to short the positive and negative wires. Doing so may damage the AV receiver.
• Make sure the metal core of the wire does not have contact with the AV receiver’s rear panel. Doing so may damage the AV receiver.
Connections
• Don’t connect more than one cable to each speaker terminal. Doing so may damage the AV receiver.
• Don’t connect one speaker to several terminals.
En-14

About AV Connections

Connecting AV components
a
HDMI cable
TV, projector, etc.
: Video & Audio
AV Cables and Jacks
HDMI
HDMI connections can carry digital video and audio.
Connections
Optical digital audio
Optical digital connections allow you to enjoy digital sound such as PCM
*1
, Dolby Digital or DTS. The audio
quality is the same as coaxial.
AV receiver
Blu-ray Disc/
DVD player
Other cables
TV, projector, etc.
Blu-ray Disc/
DVD player
Game console
: Video : Audio
AV receiver
Game console
• Before making any AV connections, read the manuals supplied with your AV components.
• Don’t connect the power cord until you’ve completed and double-checked all AV connections.
• Push plugs in all the way to make
Right!
good connections (loose connections can cause noise or malfunctions).
• To prevent interference, keep audio and video cables away from power
Wrong!
cords and speaker cables.
Component video
Component video separates the luminance (Y) and color difference signals (PB, PR), providing the best picture quality (some TV manufacturers label their component video sockets slightly differently).
Y
P
B
PR
Green
Blue
Red
Composite video
Composite video is commonly used on TVs, VCRs, and other video equipment.
Yellow
Coaxial digital audio
Coaxial digital connections allow you to enjoy digital
*1
sound such as PCM
, Dolby Digital or DTS. The audio
quality is the same as optical.
Orange
Analog audio (RCA)
Analog audio connections (RCA) carry analog audio.
White
Red
*1
Available sampling rate for PCM input signal (stereo/mono) is 32/44.1/48/88.2/96 kHz. In case of an HDMI connection,
176.4/192 kHz is also available.
Note
• The AV receiver does not support SCART plugs.
• The AV receiver’s optical digital jacks have shutter-type covers that open when an optical plug is inserted and close when it’s removed. Push plugs in all the way.
Caution
• To prevent shutter damage, hold the optical plug straight when inserting and removing.
En-15

Connecting Components with HDMI

VCR or DVD recorder/digital video recorder
Connections
Game console
Satellite/cable set-top box, etc. Blu-ray Disc/DVD player
*
If your TV doesn’t support Audio Return Channel (ARC), you need to connect an optical digital cable together with the HDMI cable to the AV receiver.
*
When listening to an HDMI component through the AV receiver, set the HDMI component so that its video can be seen on the TV screen (on the TV, select the input of the HDMI component connected to the AV receiver). If the TV power is off or the TV is set to another input source, this may result in no sound from the AV receiver or the sound may be cut off.
Connect your components to the appropriate jacks. The default input assignments are shown below.
: Assignment can be changed (➔ page 39).
Jack Components
HDMI IN1 Blu-ray Disc/DVD player HDMI IN2 VCR or DVD recorder/digital video recorder HDMI IN3 Satellite/cable set-top box, etc. HDMI IN4 Game console HDMI OUT TV, projector, etc.
See also:
• “Connection Tips and Video Signal Path” (page 59)
• “Using an RIHD-compatible TV, Player, or Recorder” (page 60)
• “About HDMI” (page 62)
Tip
• To listen to the audio of a component connected via HDMI through your TV’s speakers, enable “HDMI Through” (page 45) and set the AV receiver to standby mode.
Note
• In the case of Blu-ray Disc/DVD players, if no sound is output despite following the above-mentioned procedure, set your Blu­ray Disc/DVD player’s HDMI audio settings to PCM.
TV, projector, etc.
Audio Return Channel (ARC) function
Audio Return Channel (ARC) function enables an HDMI capable TV to send the audio stream to the HDMI OUT of the AV receiver.
• This function can be used when: – Your TV is ARC capable, and –The TV/CD input selector is selected, and –“HDMI Ctrl (RIHD)” is set to “On” (page 45), and –“Audio Return Ch (ARC)” is set to “Auto” (page 46).
En-16
Connections

Connecting Your Components

A CB
ED F
Connect your components to the appropriate jacks. The default input assignments are shown below. See “Connection Tips and Video Signal Path” for more information (page 59).
The on-screen menus appear only on a TV that is connected to the HDMI OUT. If your TV is connected to other video outputs, use the AV receiver’s display when changing settings.
: Assignment can be changed (➔ pages 39, 40).
No. Jack/Port Components
AUX INPUT
A
VIDEO Camcorder, etc. AUDIO L/R USB, AUX INPUT
B
C
D
E
F
*1
VIDEO
*2
USB
DIGITAL IN OPTICAL 1 (GAME) Game console OPTICAL 2 (TV/CD) TV, CD player COAXIAL (BD/DVD) Blu-ray Disc/DVD player COMPONENT VIDEO IN 1 (BD/DVD) Blu-ray Disc/DVD player,
IN 2 (CBL/SAT) Satellite/cable set-top box,
OUT TV, projector, etc. MONITOR OUT TV, projector, etc. BD/DVD IN Blu-ray Disc/DVD player VCR/DVR IN VCR, DVD recorder/
CBL/SAT IN Satellite/cable set-top box,
GAME IN Game console, RI dock TV/CD IN TV, CD player, cassette
iPod/iPhone (video playback)
iPod/iPhone, MP3 player, USB flash drive
RI dock
RI dock, etc.
digital video recorder, RI dock
etc.
tape deck, MD, CD-R, Turntable
*3
, RI dock
Note
*1
When USB input is selected, you can input video signals from the AUX INPUT VIDEO jack. Video signals input from AUX INPUT VIDEO will be output from the MONITOR OUT jack.
*2
Do not connect the AV receiver’s USB port to a USB port on your computer. Music on your computer cannot be played through the AV receiver in this way.
*3
Connect a turntable (MM) that has a phono preamp built-in. If your turntable (MM) doesn’t have it, you’ll need a commercially available phono preamp. If your turntable has a moving coil (MC) type cartridge, you’ll need a commercially available MC head amp or MC transformer as well as a phono preamp. See your turntable’s manual for details.
• With connection D, you can enjoy Dolby Digital and DTS.
• With connection F, if your Blu-ray Disc/DVD player has both the main stereo and multichannel outputs, be sure to connect to the main stereo.
How to record a video source
With the connections described above, you cannot record
the videos through the AV receiver. See “Recording” about connections for video recording (page 36).
En-17
Connections
Connecting Onkyo u Components
Make sure that each Onkyo component is
1
connected with an analog audio cable (connection F in the hookup examples) (page 17).
Make the u connection (see the illustration).
2
If you’re using an RI Dock or cassette tape deck,
3
change the Input Display (page 35).
With u (Remote Interactive), you can use the following special functions:
System On/Auto Power On
When you start playback on a component connected via u while the AV receiver is on standby, the AV
receiver will automatically turn on and select that component as the input source.
Direct Change
When playback is started on a component connected via u, the AV receiver automatically selects that
component as the input source.
Remote Control
You can use the AV receiver’s remote controller to control your other u-capable Onkyo components,
pointing the remote controller at the AV receiver’s remote control sensor instead of the component. You must enter the appropriate remote control code first (page 50).
LR
ANALOG
e.g., cassette tape deck
RI Dock
Note
•Use only u cables for u connections. u cables are supplied with Onkyo components.
• Some components have two u jacks. You can connect either one to the AV receiver. The other jack is for connecting
additional u-capable components.
• Connect only Onkyo components to u jacks. Connecting other manufacturer’s components may cause a malfunction.
• Some components may not support all u functions. Refer to the manuals supplied with your other Onkyo components.
AUDIO OUT
ANALOG
AUDIO OUT
LR

Connecting a Recording Component

See “Recording” for details on recording (➔ page 36).
LR
AUDI O
VCR, DVD recorder,
cassette tape deck,
CDR, MD recorder, etc.
Note
• The AV receiver must be turned on for recording. Recording is not possible while it’s in standby mode.
• If you want to record directly from your TV or playback VCR to the recording VCR without going through the AV receiver, connect the TV/VCR’s audio and video outputs directly to the recording VCR’s audio and video inputs. See the manuals supplied with your TV and VCR for details.
• Video signals connected to composite video inputs can be recorded only via composite video outputs. For example, if your TV/VCR is connected to a composite video input, the recording VCR must be connected to a composite video output.
• The surround sound and DSP listening modes cannot be recorded.
• Copy-protected Blu-ray Discs and DVDs cannot be recorded.
• Sources connected to a digital input cannot be recorded. Only analog inputs can be recorded.
• DTS signals will be recorded as noise, so don’t attempt analog recording of DTS CDs or LDs.
VIDEO
IN
IN
En-18
Connections

Connecting the Antennas

This section explains how to connect the supplied indoor FM antenna and AM loop antenna. The AV receiver won’t pick up any radio signals without any antenna connected, so you must connect the antenna to use
the tuner.
North American and Brazilian models
Push. Insert wire. Release.
Assembling the AM loop antenna
Insert the plug fully into the jack.
Caution
• Be careful not to injure yourself when using thumbtacks.
Indoor FM antenna (supplied)AM loop antenna (supplied)
Note
• Once your AV receiver is ready for use, you’ll need to tune into a radio station and position the antenna to achieve the best possible reception.
• Keep the AM loop antenna as far away as possible from your AV receiver, TV, speaker cables, and power cords.
Tip
• If you cannot achieve good reception with the supplied indoor FM antenna, try a commercially available outdoor FM antenna instead.
• If you cannot achieve good reception with the supplied indoor AM loop antenna, try using it with a commercially available outdoor AM antenna.
Asian models
Insert the plug fully into the jack.
Thumbtacks, etc.

Connecting the Power Cord

(Brazilian models)
1
Connect the supplied power cord to the AV receiver’s AC INLET.
To AC wall outlet
Plug the power cord into an AC wall outlet.
2
Note
• Before connecting the power cord, connect all of your speakers and AV components.
• Turning on the AV receiver may cause a momentary power surge that might interfere with other electrical equipment on the same circuit. If this is a problem, plug the AV receiver into a different branch circuit.
• Do not use a power cord other than the one supplied with the AV receiver. The supplied power cord is designed exclusively for use with the AV receiver and should not be used with any other equipment.
• Never disconnect the power cord from the AV receiver while the other end is still plugged into a wall outlet. Doing so may cause an electric shock. Always disconnect the power cord from the wall outlet first, and then the AV receiver.
En-19

Turning On & Basic Operations

Turning On/Off the AV Receiver

8ON/STANDBY
8

Turning On

Press 8ON/STANDBY on the front panel.
1
or
Press RECEIVER followed by 8 on the remote controller.
The AV receiver comes on, and its display lights.

Turning Off

Press 8ON/STANDBY on the front panel.
1
or
Press RECEIVER followed by 8 on the remote controller.
The AV receiver will enter standby mode. To prevent any loud surprises when you turn on the AV receiver, always turn down the volume before you turn it off.
Tip
• For details on power management settings, see “Auto Standby” (page 44).
RECEIVER
En-20

Playback

The on-screen menus appear only on a TV that is connected to the HDMI OUT. If your TV is connected to other video outputs, use the AV receiver’s display when changing settings.
This section describes the procedure for using the remote controller unless otherwise specified.

Playing the Connected Component

Operating with the remote controller
INPUT SELECTOR
RECEIVER
VOL q/w
Listening mode buttons
Press RECEIVER followed by an INPUT
1
SELECTOR button.
Start playback on the source component.
2
See also:
• “Playing an iPod/iPhone via USB” (page 23)
• “Playing a USB Device” (page 24)
• “Listening to AM/FM Radio” (page 25)
• “iPod/iPhone Playback via Onkyo Dock” (page 48)
• “Controlling Other Onkyo Components” (page 50)
To adjust the volume, use VOL q/w.
3
Select a listening mode and enjoy!
4
See also:
• “Using the Listening Modes” (page 28)
Turning On & Basic Operations
Operating on the AV receiver
Input selector buttons
MASTER VOLUME LISTENING MODE
Use the input selector buttons to select the input
1
source.
Start playback on the source component.
2
To adjust the volume, use the MASTER VOLUME
3
control.
Select a listening mode and enjoy!
4
En-21
Turning On & Basic Operations

Controlling Contents of USB Devices

h
Press USB
first.
i
a
b
j
c d
e f
g
k l
m
n o p
TOP MENU
a
This button displays the top menu for each media or service.
b
q/w and ENTER
These buttons navigate through the menus.
e/r
This button cycles through pages.
PLAYLIST e/r
In Standard Mode (iPod/iPhone), this button selects playlists.
c
1
This button starts playback.
d
7
This button selects the beginning of the current song. Pressing this button twice selects the previous song.
e
5
This button fast-reverses the current song.
f
3
This button pauses playback.
SEARCH
g
You can toggle between the playback screen and the list screen during playback.
DISPLAY
h
This button switches between song information.
CH +/–
i
In Standard Mode (iPod/iPhone), this button selects albums.
RETURN
j
This button returns to the previous menu.
k
6
This button selects the next song.
l
4
This button fast-forwards the current song.
m
2
This button stops playback.
MODE
n
You can switch between Extended Mode and Standard Mode during iPod/iPhone playback.
RANDOM
o
This button performs random playback.
REPEAT
p
Press this button repeatedly to cycle through the repeat modes.
Tip
• See “Controlling Other Onkyo Components” about the operation of other components (page 50).
Note
• The buttons you can use will differ depending on the devices and media used for playback.
En-22
Turning On & Basic Operations

Understanding Icons on the Display

This section describes icons that appear on the AV receiver’s display during media playback.
Icon Description
Folder
Track
Playback
Pause
Fast Forward
Fast Reverse
Artist
Album
Repeat One Track
Repeat Folder (USB Device)
Repeat
Shuffle
Shuffle Album (iPod/iPhone)

Playing an iPod/iPhone via USB

The on-screen menus appear only on a TV that is connected to the HDMI OUT.
This section explains how to play music files on the iPod/iPhone. Compatible iPod/iPhone models Made for: iPod touch (1st, 2nd, 3rd and 4th generation), iPod classic, iPod nano (2nd, 3rd, 4th, 5th and 6th generation), iPhone 4S, iPhone 4, iPhone 3GS, iPhone 3G, iPhone
Press USB to select the “USB” input.
1
Connect the USB cable that comes with the
2
iPod/iPhone to the USB port on the front of the AV receiver.
While reading the contents of your iPod/iPhone, the message “Connecting...” appears on the AV receiver’s display. A list of your iPod/iPhone model’s contents appears (Extended Mode).
Use q/w to select a folder, and then press ENTER to
3
open it.
Tip
• If you want to operate using the iPod/iPhone or the remote controller, press MODE to switch to Standard mode.
• When you disconnect the iPod/iPhone, the AV receiver remembers the current mode. This means that if you disconnect when in Extended Mode, the AV receiver will start in Extended Mode the next time you connect the iPod/iPhone.
• You can also use the q/w, ENTER and TUNING MODE buttons on the front panel. TUNING MODE allows you to switch modes.
• When connecting your iPod/iPhone with a USB cable, we recommend you use an official USB cable from Apple Inc.
Use q/w to select a music file, and press ENTER or
4
1 to start playback.
Note
• While the message “Connecting...” appears on the AV receiver’s display, do not disconnect the USB cable supplied with your iPod/iPhone or the USB device from the USB port.
• If you connect an iPod or iPhone to the USB port, no sound will be output from the headphones jack.
Extended Mode Control
The content information is displayed (lists are displayed), and you can control the content while looking at the screen. Top screen list: Playlists, Artists, Albums, Genres, Songs, Composers, Shuffle Songs, Now Playing.
Standard Mode Control
The content information is not displayed, but can be operated using the iPod/iPhone or the remote controller.
En-23

Playing a USB Device

The on-screen menus appear only on a TV that is connected to the HDMI OUT.
This section explains how to play music files from a USB device (e.g., USB flash drives and MP3 players). See also:
• “USB Features” (page 63).
Press USB to select the “USB” input.
1
Plug your USB device into the AV receiver’s USB
2
port.
While reading the contents of your USB device, the message “Connecting...” appears on the AV receiver’s display.
Press ENTER.
3
A list of the device’s contents appears. To open a folder, use q/w to select it, and then press ENTER.
Use q/w to select a music file, and press ENTER or
4
1 to start playback.
Turning On & Basic Operations
Note
• While the message “Connecting...” appears on the AV receiver’s display, do not disconnect the USB cable supplied with your iPod/iPhone or the USB device from the USB port.
En-24

Listening to AM/FM Radio

This section describes the procedure using the buttons on the front panel unless otherwise specified.
Using the Tuner
With the built-in tuner you can enjoy AM and FM radio stations. You can store your favorite stations as presets for quick selection.
You can also change the frequency steps (page 44).
Press AM or FM to select either “AM” or “FM”.
1
In this example, FM has been selected.
Band Frequency
Tuning into Radio Stations
Auto tuning mode
Press TUNING MODE so that the AUTO indicator
1
lights on the AV receiver’s display.
Press TUNING q/w.
2
Searching stops when a station is found. When tuned into a station, the TUNED indicator
lights. When tuned into a stereo FM station, the FM STEREO indicator lights as shown.
FM STEREO
AUTO
TUNED
Turning On & Basic Operations
Manual tuning mode
In manual tuning mode, FM stations will be in mono.
Press TUNING MODE so that the AUTO indicator
1
goes off on the AV receiver’s display.
Press and hold TUNING q/w.
2
The frequency stops changing when you release the button. Press the buttons repeatedly to change the frequency one step at a time.
Tuning into stations by frequency
You can tune into AM and FM stations directly by entering the appropriate frequency.
On the remote controller, press AM or FM to select
1
“AM” or “FM”, followed by D.TUN.
(Actual display depends on the country.)
Tip
• Tuning into weak FM stereo stations
If the signal from a stereo FM station is weak, it may be impossible to get good reception. In this case, switch to manual tuning mode and listen to the station in mono.
En-25
(Actual display depends on the country.)
Within 8 seconds, use the number buttons to enter
2
the frequency of the radio station.
For example, to tune to 87.5 (FM), press 8, 7, 5. If you have entered the wrong number, you can retry after 8 seconds.
Presetting AM/FM Stations
You can store a combination of up to 40 of your favorite AM/FM radio stations as presets.
Tune into the AM/FM station that you want to store
1
as a preset.
See the previous section.
Press MEMORY.
2
The preset number flashes.
(Actual display depends on the country.)
While the preset number is flashing (about 8
3
seconds), use PRESET e/r to select a preset from 1 through 40.
Press MEMORY again to store the station or
4
channel.
The station or channel is stored and the preset number stops flashing. Repeat this procedure for all of your favorite AM/FM radio stations.
Selecting Presets
To select a preset, use PRESET e/r on the AV
1
receiver, or the remote controller’s CH +/–.
Tip
• You can also use the remote controller’s number buttons to select a preset directly.
Deleting Presets
Select the preset that you want to delete.
1
See the previous section.
While holding down MEMORY, press TUNING
2
MODE.
The preset is deleted and its number disappears from the AV receiver’s display.
Turning On & Basic Operations
Using RDS (excluding North American and Brazilian models)
RDS works only in areas where RDS broadcasts are available.
When tuned into an RDS station, the RDS indicator lights. When the station is broadcasting text information, the text can be displayed.
What is RDS?
RDS stands for Radio Data System and is a method of transmitting data in FM radio signals. It was developed by the European Broadcasting Union (EBU) and is available in most European countries. Many FM stations use it these days. In addition to displaying text information, RDS can also help you find radio stations by type (e.g., news, sport, rock, etc.).
The AV receiver supports four types of RDS information:
PS (Program Service)
When tuned to an RDS station that’s broadcasting PS information, the station’s name will be displayed. Pressing DISPLAY will display the frequency for 3 seconds.
RT (Radio Text)
When tuned to an RDS station that’s broadcasting text information, the text will be shown on the AV receiver’s display as described in the next section.
PTY (Program Type)
This allows you to search for RDS radio stations by type (page 27).
TP (Traffic Program)
This allows you to search for RDS radio stations that broadcast traffic information (page 27).
En-26
To be continued
Note
• In some cases, the text characters displayed on the AV receiver may not be identical to those broadcast by the radio station. Also, unexpected characters may be displayed when unsupported characters are received. This is not a malfunction.
• If the signal from an RDS station is weak, RDS data may be displayed intermittently or not at all.
Displaying Radio Text (RT)
Press RT/PTY/TP once.
1
The RT information scrolls across the AV receiver’s display.
Note
• The message “Waiting” may appear while the AV receiver waits for the RT information.
• If the message “No Text Data” appears, no RT information is available.
Finding Stations by Type (PTY)
You can search for radio stations by type.
Press RT/PTY/TP twice.
1
The current program type appears on the AV receiver’s display.
Use PRESET e/r to select the type of program
2
you want.
See the table shown later in this chapter.
To start the search, press ENTER.
3
The AV receiver searches until it finds a station of the type you specified, at which point it stops briefly before continuing with the search.
When a station you want to listen to is found, press
4
ENTER.
If no stations are found, the message “Not Found” appears.
Listening to Traffic News (TP)
You can search for stations that broadcast traffic news.
Press RT/PTY/TP three times.
1
If the current radio station is broadcasting TP (Traffic Program), “[TP]” will appear on the AV receiver’s display. If “TP” without square brackets appears, this means that the station is not broadcasting TP.
To locate a station that is broadcasting TP, press
2
ENTER.
The AV receiver searches until it finds a station that’s broadcasting TP. If no stations are found, the message “Not Found” appears.
Turning On & Basic Operations
RDS program types (PTY)
Type Display
None None News reports News Current affairs Affairs Information Info Sport Sport Education Educate Drama Drama Culture Culture Science and technology Science Varied Varied Pop music Pop M Rock music Rock M Middle of the road music Easy M Light classics Light M Serious classics Classics Other music Other M Weather Weather Finance Finance Children’s programmes Children Social affairs Social Religion Religion Phone in Phone In Travel Travel Leisure Leisure Jazz music Jazz Country music Country National music Nation M Oldies music Oldies Folk music Folk M Documentary Document Alarm test TEST Alarm Alarm!
En-27

Using Basic Functions

Using the Listening Modes

Selecting Listening Modes
See “About Listening Modes” for detailed information about the listening modes (page 29).
Listening Mode Buttons
Press RECEIVER first.
MOVIE/TV, MUSIC, GAME
Turning On & Basic Operations
MOVIE/TV button
This button selects the listening modes intended for use with movies and TV.
MUSIC button
This button selects the listening modes intended for use with music.
GAME button
This button selects the listening modes intended for use with video games.
STEREO button
This button selects the Stereo listening mode and All Channel Stereo listening mode.
• The Dolby Digital and DTS listening modes can only be selected if your Blu-ray Disc/DVD player is connected to the AV receiver with a digital audio connection (coaxial, optical, or HDMI).
• The listening modes you can select depends on the format of the input signal. To check the format, see “Displaying Source Information” (page 34).
• While a pair of headphones is connected, you can select the following listening modes: Direct, Stereo, and Mono.
• While Speakers A and B are on, you can select only the Direct, Stereo, Mono, or T-D (Theater-Dimensional) listening mode.
MUSIC
MOVIE/TV
GAME STEREO
En-28
About Listening Modes
The AV receiver’s listening modes can transform your listening room into a movie theater or concert hall, with high fidelity and stunning surround sound.
Explanatory Notes
b
a
c
d
a Front speakers b Center speaker c Surround speakers d Subwoofer
Input Source
The following audio formats are supported by the listening mode.
A S
D
F
*1
The AV receiver outputs this source in 5.1-channel surround sound.
This is mono (monophonic) sound. This is stereo (stereophonic) sound. Two
independent audio signal channels are reproduced through two speakers.
This is 5.1-channel surround sound. This surround system has five main channels of sound and a sixth subwoofer channel (called the point-one channel).
*1
This is 7.1-channel surround sound. This is a further sound enhancement to 5.1-channel sound with two additional speakers that provide greater sound envelopment and more accurate positioning of sounds.
Turning On & Basic Operations
Speaker Layout
The illustration shows which speakers are activated in each channel. See “Sp Config (Speaker Configuration)” for the speaker setup (page 40).
Z
X
C
En-29
Onkyo-Original DSP Listening Modes
Listening Mode Description Input
Orchestra
Or c e s t rah
*1
Suitable for classical or operatic music, this mode emphasizes the surround channels in order to widen the stereo image, and simulates the natural reverberation of a large hall.
Unplugged
Unp u gg edl
*1
Suitable for acoustic instruments, vocals, and jazz, this mode emphasizes the front stereo image, giving the impression of being right in front of the stage.
Studio-Mix
Stu ioMi xd
*1
Suitable for rock or pop music, listening to music in this mode creates a lively sound field with a powerful acoustic image, like being at a club or rock concert.
TV Logic
TV og i cL
*1
This mode adds realistic acoustics to TV shows produced in a TV studio, surround effects to the entire sound, and clarity to voices.
Game-RPG
Gam R P Ge
*1
Game-Action
Gam –A c t i one
Game-Rock
Gam –Ro c ke
Gam Ro c ke
Game-Sports
Gam S p ortse
*1
*1
*1
In this mode, the sound has a dramatic feel with a similar atmosphere to Orchestra mode.
In this mode, sound localization is distinct with emphasis on bass.
In this mode, sound pressure is emphasized to heighten live feel.
In this mode, reverberation is increased and sound localization decreased slightly.
All Ch Stereo Ideal for background music, this mode fills
Al l Ch Stereo
the entire listening area with stereo sound from the front and surround speakers.
Full Mono In this mode, all speakers output the same
Fu l Monol
sound in mono, so the sound you hear is the same regardless of where you are within the listening room.
Source
A S D F
Speaker Layout
C
XC
Turning On & Basic Operations
Listening Mode Description Input
T-D (Theater­Dimensional)
T D
*1
With this mode you can enjoy a virtual surround sound even with only two or three speakers. This works by controlling how sounds reach the listener’s left and right ears. Good results may not be possible if there’s too much reverb, so we recommend that you use this mode in an environment with little or no natural reverb.
Source
A S D F
Speaker Layout
ZXC
En-30
Listening Modes
Listening Mode Description Input
Direct In this mode, audio from the input source is
Di rec t
output without surround-sound processing. The speaker configuration (presence of speakers) and speaker distance settings are enabled, but much of the processing set via Home menu is disabled. A/V Sync does not have effect on the analog audio. See “On­screen Setup” for more details (page 37).
Stereo Sound is output from the front left and right
Stereo
speakers and subwoofer.
Mono Use this mode when watching an old movie
Mono
with a mono soundtrack, or use it with the foreign language soundtracks recorded in the left and right channels of some movies. It can also be used with DVDs or other sources containing multiplexed audio, such as karaoke DVDs.
Multichannel This mode is for use with PCM multichannel
Mu l t i ch
sources.
Source
A S D F
D F
Speaker Layout
ZXC
XC
Turning On & Basic Operations
Listening Mode Description Input
*2
DSD
DSD
Dolby Digital
Dolby D
Dolby Digital Plus
Dolby D +
In this mode, audio from the input source is output without surround-sound processing. The speaker configuration (presence of speakers), crossover frequency, speaker distance, A/V Sync and much of the processing set via Home menu are enabled.
*3
See “On-screen Setup” for more details (page 37).
Dolby TrueHD
Dolby TrueHD
DTS
DTS
DTS-HD High Resolution Audio
DTSHD HR
DTS-HD Master Audio
DTSHD MS TR
DTS Express
DTS E xp r e s s
DTS 96/24 This mode is for use with DTS 96/24
DTS 96 / 2 4
sources. This is high-resolution DTS with a 96 kHz sampling rate and 24-bit resolution, providing superior fidelity. Use it with DVDs that bear the DTS 96/24 logo.
Source
DXC
D F
DXC
D F
DXC
DXC
Speaker Layout
XC
XC
En-31
Turning On & Basic Operations
Listening Mode Description Input
Source
Dolby Pro Logic II Dolby Pro Logic II expands any 2-channel
source for 5.1-channel playback. It provides a very natural and seamless surround-sound experience that fully envelops the listener. As well as music and movies, video games can also benefit from the dramatic spatial effects and vivid imaging.
PL Mov i e
PL Mus i c
PL Game
• Dolby PLII Movie
Use this mode with DVDs and videos that bear the Dolby Surround logo or TV shows that feature Dolby Surround. You can also use this mode with stereo movies or TV shows and the AV receiver will create a 5.1
SXC
surround mix from the 2-channel stereo.
•Dolby PLII Music
Use this mode to add 5.1 surround to stereo sources such as music CDs and DVDs.
•Dolby PLII Game
Use this mode when playing game discs.
Neo:6 This mode expands any 2-channel source for
up to 5.1-channel playback. It uses seven full-bandwidth channels of matrix decoding for matrix-encoded material, providing a very natural and seamless surround sound experience that fully envelops the listener.
Neo 6 C i nema:
Neo 6 Music:
•Neo:6 Cinema
Use this mode with any stereo movie (e.g., TV, DVD, VHS).
•Neo:6 Music
SXC
Use this mode with any stereo music source (e.g., CD, radio, cassette, TV, VHS, DVD).
Speaker Layout
Note
*1
These listening modes cannot be selected during USB or iPod playback.
*2
The AV receiver can input the DSD signal from HDMI IN. Setting the output setting on the player side to PCM might obtain a better sound according to the player. In that case, set the output setting on the player side to PCM.
*3
For the Blu-ray Discs, Dolby Digital is used.
• The listening modes cannot be selected with some source formats.
En-32

Using the Home Menu

The Home menu provides quick access to frequently used settings. You can change settings and view the current information.
The on-screen menus appear only on a TV that is connected to the HDMI OUT. If your TV is connected to other video outputs, use the AV receiver’s display when changing settings.
Note
• The on-screen menus are displayed when: – There is no video input, or – The video input is 480p, 576p, 720p, 1080i, or 1080p.
Press RECEIVER followed by HOME.
1
The Home menu will be superimposed on the TV screen.
Use q/w and ENTER to make the desired selection.
2
Input
` You can select the input source.
Use q/w to select the desired input source. Pressing ENTER switches to the selected input source.
Audio
` You can change the following settings: “Bass”,
Treble”, “Subwoofer Level”, “Center Level”, “EX.BASS”, “Late Night”, “Music Optimizer”, and “Cinema Filter”.
See also:
• “Using the Audio Settings” (page 46)
*1
Info
` You can view the information of the following
items: “Input” and “Output”.
Listening Mode
*2
` You can select the listening modes that are
grouped in the following categories: “MOVIE/TV”, “MUSIC” and “GAME”.
Use q/w to select the category and e/r to select the listening mode. Press ENTER to switch to the selected listening mode.
Note
*1
Depending on the input source and listening mode, not all channels shown here output the sound.
*2
• This setting is not available in either of the following cases: –The “Audio TV Out” setting is set to “On” (page 45). –“HDMI Ctrl (RIHD)” is set to “On” (page 45) and
you’re listening through your TV speakers.
Turning On & Basic Operations

Selecting Speakers A and B

You can use two sets of front speakers with the AV receiver: Speakers A for up to 5.1-channel playback in your main listening room and Speakers B for 2-channel stereo playback in another room.
Press RECEIVER once followed by SP A/B
1
repeatedly to cycle through the selection:
Speakers A → Speakers A&B → Speakers B
Speaker indicators and output channels are shown below.
Speaker indicators Output channel
A
A B
B
*3
While Speakers B is on, channels are reduced to 2.1 in the main room.
Tip
• Alternatively, you can use the AV receiver’s SPEAKERS A and B.
Off
Speakers A: 5.1 channels
Speakers A: 2.1 channels Speakers B: 2 channels
Speakers B: 2 channels
No sound
*3
En-33
Turning On & Basic Operations

Using the Sleep Timer

With the sleep timer, you can set the AV receiver to turn off automatically after a specified period.
Press RECEIVER once followed by SLEEP
1
repeatedly to select the required sleep time.
The sleep time can be set from 90 to 10 minutes in 10 minute steps.
The SLEEP indicator lights on the AV receiver’s display when the sleep timer has been set. The specified sleep time appears for about 5 seconds, then the previous display reappears.
Tip
• If you need to cancel the sleep timer, press SLEEP repeatedly until the SLEEP indicator goes off.
• To check the time remaining until the AV receiver sleeps, press SLEEP. Note that if you press again on SLEEP as the time being displayed is equal to 10 minutes or less, the sleep timer will go off.

Setting the Display Brightness

Displaying Source Information

You can adjust the brightness of the AV receiver’s display. You can display various information about the current
input source as follows.
Press RECEIVER once followed by DIMMER
1
repeatedly to switch between: normal, dim, or dimmer brightness.
Tip
(North American and Brazilian models) Alternatively, you can use the AV receiver’s DIMMER.
Press RECEIVER once followed by DISPLAY
1
repeatedly to cycle through the available information.
Tip
• Alternatively, you can use the AV receiver’s DISPLAY.
The following information can typically be displayed.
Input source &
*1
volume
Listening mode
Signal format*2 or sampling frequency
*1
When AM or FM radio is used, the band, frequency, and preset number are displayed.
*2
If the input signal is digital, the signal format is displayed. Information is displayed for about three seconds, then the previously displayed information reappears.
En-34
Turning On & Basic Operations

Changing the Input Display

When you connect an u-capable Onkyo component, you must configure the input display so that u can work
properly. This setting can be done only from the front panel.
Press TV/CD, GAME or VCR/DVR.
1
TV/CD”, “GAME” or “VCR/DVR” appears on the AV receiver’s display.
Press and hold down the same button (about
2
3 seconds) to change the input display.
Repeat this step to select the desired input display.
TV/CD:
Note
•“DOCK” can be selected for the “TV/CD”, “GAME” or VCR/DVR” input selector, but not at the same time.
• Enter the appropriate remote control code before using the remote controller for the first time (page 50).
TV/CD DOCK
TAPE
GAME DOCKGAME:
VCR/DVR DOCKVCR/DVR:

Using the Music Optimizer

The Music Optimizer function enhances the sound quality of compressed music files.
Press MUSIC OPTIMIZER on the front panel.
1
The M.Opt indicator lights on the AV receiver’s display.
Tip
• Alternatively, you can use the remote controller’s HOME.
• See “Music Optimizer” for more details (page 47).

Muting the AV Receiver

You can temporarily mute the output of the AV receiver.
Press RECEIVER followed by MUTING.
1
The output is muted and the MUTING indicator flashes on the AV receiver’s display.
Tip
• To unmute, press MUTING again or adjust the volume.
• Muting is automatically cancelled when the AV receiver is set to standby.
En-35
Turning On & Basic Operations

Using Headphones

Connect a pair of stereo headphones with a
1
standard plug (1/4 inch or 6.3 mm) to the PHONES jack.
Note
• Always turn down the volume before connecting your headphones.
• While the headphones plug is inserted in the PHONES jack, the speakers are turned off.
• When you connect a pair of headphones, the listening mode is set to Stereo, unless it’s already set to Stereo, Mono, or Direct.
• If you connect an iPod or iPhone to the USB port on the AV receiver, no sound will be output from the headphones jack.

Recording

This section explains how to record the selected input source to a component with recording capability.
AV Recording
Audio sources can be recorded to a recorder (e.g., cassette tape deck, CDR, MD recorder). Video sources can be recorded to a video recorder (e.g., VCR, DVD recorder).
Use the input selector buttons to select the source
1
that you want to record.
You can watch the source while recording. The AV receiver’s MASTER VOLUME control has no effect on recording.
On your recorder, start recording.
2
On the source component, start playback.
3
If you select another input source during recording, that input source will be recorded.
En-36

Advanced Operations

On-screen Setup

The setup menus provides a convenient way to change the AV receiver’s various settings. Settings are organized into 10 categories.
The on-screen menus appear only on a TV that is connected to the HDMI OUT. If your TV is connected to other video outputs, use the AV receiver’s display when changing settings.
This section describes the procedure for using the remote controller unless otherwise specified.
Note
• The on-screen menus are displayed when: – There is no video input, or – The video input is 480p, 576p, 720p, 1080i, or 1080p.

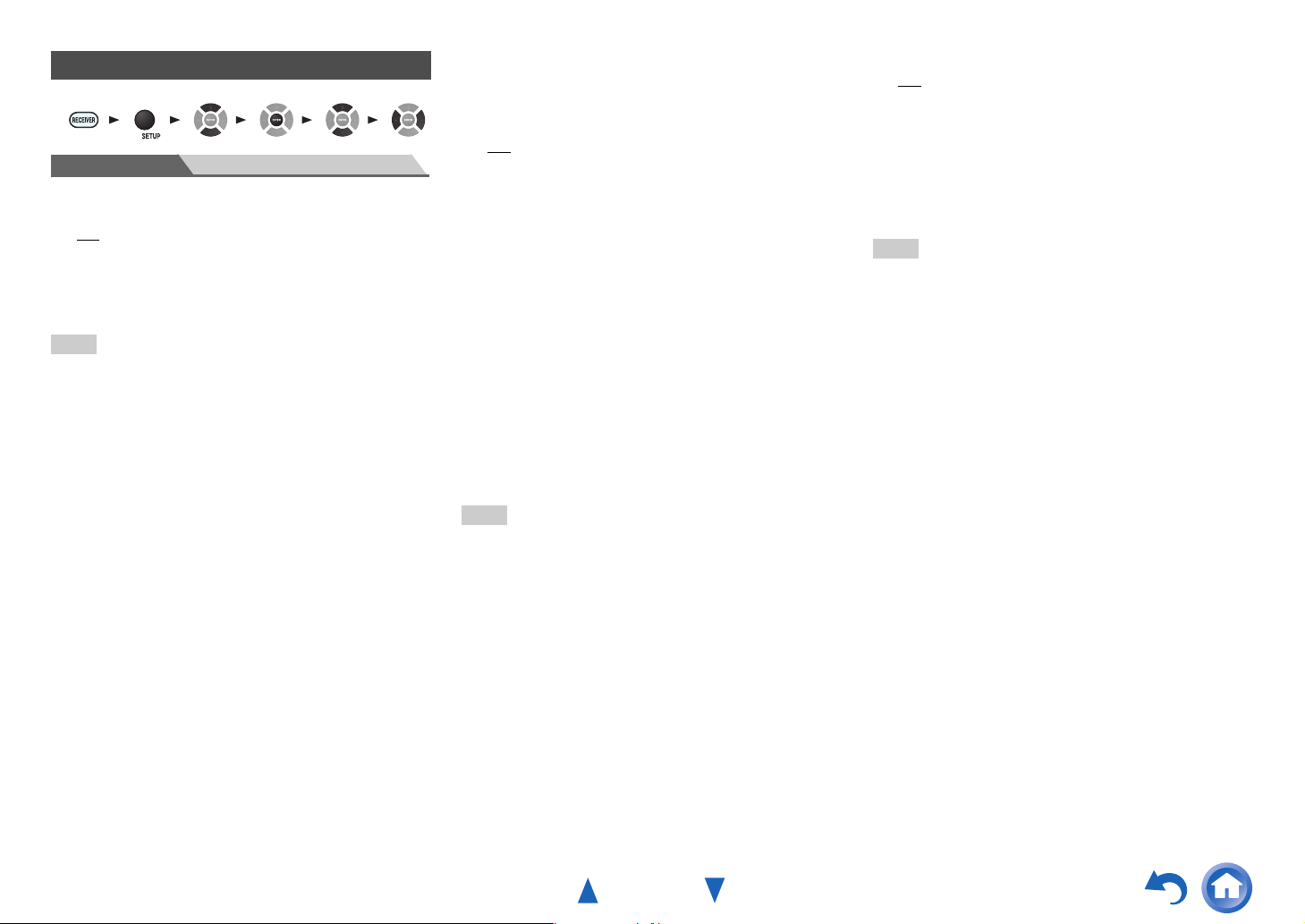

Common Procedures in Setup Menu

Remote indicator
RECEIVER
ENTER
q/w/e/r
SETUP
Press RECEIVER followed by SETUP.
1
Use q/w to select a menu item, and then press
2
ENTER.
Use q/w to select a setting target, and use e/r to
3
change the setting.
Press SETUP to close the menu. Press RETURN to return to the previous menu.
RETURN
Explanatory Notes
a
b c
a Menu selection b Setting target c Setting options (default setting underlined)
Menu Sp Config
Subwoofer
` Yes ` No
Menu
1. HDMI Input
2. Component
3. Digital Audio
4. Sp Config
5. Sp Distance
6. Level Cal
7. Audio Adjust
8. Source Setup
9. Hardware
10. HDMI Setup
Menu
BD/DVD VCR/DVR CBL/SAT GAME
AUX TUNER TV/CD
Setting target
Note
• This procedure can also be performed on the AV receiver by using SETUP, the cursor buttons, and ENTER.
En-37
Advanced Operations

Setup menu items

Menu item Setting target
HDMI Input
(page 39)
Component
(page 39)
Digital Audio
(page 40)
Sp Config
(page 40)
Sp Distance
(page 41)
BD/DVD
VCR/DVR
CBL/SAT
GAME
AUX
TV/CD
BD/DVD
VCR/DVR
CBL/SAT
GAME
AUX
TV/CD
BD/DVD
VCR/DVR
CBL/SAT
GAME
AUX
TV/CD
Subwoofer
Front
Center
Surround
Crossover
Double Bass
Unit
Left
Center
Right
Surround Right
Surround Left
Subwoofer
Menu item Setting target
Level Cal
(page 41)
Audio Adjust
(page 42)
Source Setup
(page 43)
Hardware
(page 44)
HDMI Setup
(page 45)
Left
Center
Right
Surround Right
Surround Left
Subwoofer
Input Ch (Mux)
Input Ch (Mono)
Panorama
Dimension
Center Width
Center Image
Listening Angle
A/V Sync
Name
Audio Selector
Fixed Mode
Volume OSD
Remote ID
AM/FM Freq Step AM Freq Step
Auto Standby
HDMI Ctrl (RIHD)
HDMI Through
Audio TV Out
Audio Return Ch
LipSync
En-38
Advanced Operations

HDMI Input

123456
Menu HDMI Input
If you connect a video component to an HDMI input, you must assign that input to an input selector. For example, if you connect your Blu-ray Disc/DVD player to HDMI IN 2, you must assign “HDMI2” to the “BD/DVD” input selector.
Here are the default assignments.
Input selector Default assignment
BD/DVD HDMI1
VCR/DVR HDMI2
CBL/SAT HDMI3
GAME HDMI4
AUX - - - - -
TV/CD -----
BD/DVD, VCR/DVR, CBL/SAT, GAME, AUX,
TV/CD
` HDMI1, HDMI2, HDMI3, HDMI4:
Select the input to which the component has been connected.
` -----:
Select if you’re not using the HDMI OUT. Each HDMI input cannot be assigned to two input selectors or more. When HDMI1 - HDMI4 have already
been assigned, you must first set any unused input selectors to “-----” or you will be unable to assign HDMI1 - HDMI4 to input selector.
Note
• If no video component is connected to HDMI output (even if the HDMI input is assigned), the AV receiver selects the video source based on the setting of “Component (Component Video Input)”.
• When an HDMI IN is assigned to an input selector as explained here, the same HDMI IN will be set as a priority in the “Digital Audio (Digital Audio Input)” (page 40). In this case, if you want to use the coaxial or optical audio input, make the appropriate selection in the “Audio Selector” setting (page 43).
• Do not assign an HDMI IN to the TV/CD selector while “HDMI Ctrl (RIHD)” is set to “On” (page 45), otherwise appropriate CEC (Consumer Electronics Control) operation will not be guaranteed.
• If you assign “-----” to an input selector that is currently selected in “HDMI Through” (page 45), the “HDMI Through” setting will be automatically switched to “Off”.
•The “TUNER” selector cannot be assigned and is fixed at the -----” option.

Component (Component Video Input)

123456
Menu Component
If you connect a video component to a component video input, you must assign that input to an input selector. For example, if you connect your Blu-ray Disc/DVD player to COMPONENT VIDEO IN 2, you must assign “IN2” to the “BD/DVD” input selector.
Here are the default assignments.
Input selector Default assignment
BD/DVD IN1
VCR/DVR -----
CBL/SAT IN2
GAME -----
AUX -----
TV/CD -----
BD/DVD, VCR/DVR, CBL/SAT, GAME, AUX,
TV/CD
` IN1, IN2:
Select the input to which the component has been connected.
` -----:
Select if you’re not using the COMPONENT
VIDEO OUT.
Note
•The “TUNER” selector cannot be assigned and is fixed at the -----” option.
En-39

Digital Audio (Digital Audio Input)

123456
Menu Digital Audio
If you connect a component to a digital audio input, you must assign that input to an input selector. For example, if you connect your CD player to the OPTICAL IN 1, you must assign “OPTICAL1” to the “TV/CD” input selector.
Here are the default assignments.
Input selector Default assignment
BD/DVD COAXIAL
VCR/DVR - - - - -
CBL/SAT - - - - -
GAME OPTICAL1
AUX - - - - -
TV/CD OPTICAL2
BD/DVD, VCR/DVR, CBL/SAT, GAME, AUX,
TV/CD
` COAXIAL, OPTICAL1, OPTICAL2:
Select the input to which the component has been connected.
` -----:
Select if the component is connected to an analog audio input.
Note
•When an HDMI IN is assigned to an input selector in “HDMI Input” (page 39), the same HDMI IN will be set as a priority in this assignment. In this case, if you want to use the coaxial or optical audio input, make the appropriate selection in the “Audio Selector” (page 43).
• Available sampling rates for PCM signals (stereo/mono) from a digital input (optical and coaxial) are 32/44.1/48/88.2/96 kHz/16, 20, 24 bit.
•The “TUNER” selector cannot be assigned and is fixed at the -----” option.

Sp Config (Speaker Configuration)

123456
Menu Sp Config
This section explains how to specify which speakers are connected and their sizes.
Cone diameter
For speakers with a cone diameter larger than 6-1/2 inches (16 cm), specify Large (full band). For those with a smaller diameter, specify Small (default crossover 120 Hz).
The crossover frequency can be changed in the “Crossover (Crossover Frequency)”.
Note
• These settings are not available in either of the following cases: – A pair of headphones is connected. –The “Audio TV Out” setting is set to “On” (page 45). –“HDMI Ctrl (RIHD)” is set to “On” (page 45) and you’re
listening through your TV speakers. – Speakers B is on. – Speakers A is off.
Subwoofer
` Yes ` No
Advanced Operations
Front
` Small
:
` Large:
Select based on the cone diameter.
Note
• If the “Subwoofer” setting is set to “No”, this setting is fixed to “Large”.
Center*1, Surround
*1
` Small: ` Large:
Select based on the cone diameter.
` None
Note
*1
If the “Front” setting is set to “Small”, the “Large” option cannot be selected.
Crossover (Crossover Frequency)
This setting is advantageous for the speakers that you specified as “Small” in the “Sp Config (Speaker Configuration)”. To get the best bass performance from your speaker system, you need to set the crossover frequency according to the size and frequency response of your speakers.
` 40Hz, 50Hz, 60Hz, 70Hz, 80Hz, 90Hz, 100Hz,
120Hz, 150Hz, 200Hz
Use the diameter of the smallest speaker in your system when choosing the crossover frequency.
Speaker cone diameter Crossover frequency
Over 8 in. (20 cm) 6-1/2 to 8 in. (16 to 20 cm) 5-1/4 to 6-1/2 in. (13 to 16 cm) 100 Hz 3-1/2 to 5-1/4 in. (9 to 13 cm) 120 Hz Under 3-1/2 in. (9 cm)
*2
Choose the setting suitable for the speaker.
40/50/60 Hz 70/80/90 Hz
150/200 Hz
*2
*2
*2
To be continued
En-40
Advanced Operations
Note
• For a more accurate setting, look up the frequency response in the manuals supplied with your speakers and set accordingly.
• Choose a higher crossover frequency if you want more sound from your subwoofer.
Double Bass
` On ` Off
Turn this setting on to boost bass output by feeding bass sounds from the front left, right, and center channels to the subwoofer.
Note
•When the “Subwoofer” setting is set to “No” or the “Front” setting to “Small”, this setting is fixed to “Off” (page 40).
• This setting is set to “On” automatically when the “Subwoofer” and “Front” settings are set for the first time to “Yes” and “Large” respectively.

Sp Distance (Speaker Distance)

123456
Menu Sp Distance
Here you can specify the distance from each speaker to the listening position so that the sound from each speaker arrives at the listener’s ears as the sound designer intended.
Note
• These settings are not available in either of the following cases: – A pair of headphones is connected. –The “Audio TV Out” setting is set to “On” (page 45). –“HDMI Ctrl (RIHD)” is set to “On” (page 45) and you’re
listening through your TV speakers. – Speakers B is on. – Speakers A is off.
Unit
` feet:
Distances can be set in feet. Range: 1ft to 30ft in 1 foot steps.
` meters:
Distances can be set in meters. Range: 0.3m to 9.0m in 0.3 meter steps.
(The default setting varies from country to country.)
Left, Center, Right, Surround Right, Surround
Left, Subwoofer
` Specify the distance from the each speaker to your
listening position.
Note
• Speakers that you set to “No” or “None” in the “Sp Config (Speaker Configuration)” (page 40) cannot be selected.

Level Cal (Level Calibration)

123456
Menu Level Cal
Here you can adjust the level of each speaker with the built-in test tone so that the volume of each speaker is the same at the listening position.
Note
• These settings cannot be calibrated in either of the following cases: – A pair of headphones is connected. –The “Audio TV Out” setting is set to “On” (page 45). –“HDMI Ctrl (RIHD)” is set to “On” (page 45) and you’re
listening through your TV speakers. – Speakers B is on. – Speakers A is off. – The AV receiver is muted.
Left, Center*1, Right, Surround Right, Surround
Left
` –12 dB to 0dB
Subwoofer
` –15 dB to 0dB to +12 dB in 1 dB step.
Note
• Speakers that you set to “No” or “None” in the “Sp Config (Speaker Configuration)” (page 40) cannot be selected.
*1
For the center speaker and subwoofer, the level settings made by using the Home menu are saved in this menu (page 33).
Tip
• If you’re using a handheld sound level meter, adjust the level of each speaker so that it reads 75 dB SPL at the listening position, measured with C-weighting and slow reading.
to +12 dB in 1 dB step.
*1
En-41
Advanced Operations

Audio Adjust

123456
Menu Audio Adjust
With the Audio Adjust functions and settings, you can adjust the sound and listening modes as you like.
Multiplex/Mono
Multiplex
Input Ch (Mux)
` Main ` Sub ` Main/Sub
This setting determines which channel of a stereo multiplex source is output. Use it to select audio channels or languages with multiplex sources, multilingual TV broadcasts, and so on.
Mono
Input Ch (Mono)
` Left + Right ` Left ` Right
This setting specifies the channel to be used for playing any 2-channel digital source such as Dolby Digital, or 2­channel analog/PCM source in the Mono listening mode.
Dolby
PL II Music (2ch Input)
These settings apply to only 2-channel stereo sources.
Panorama
` On ` Off
With this setting, you can broaden the width of the front stereo image when using the Dolby Pro Logic II Music listening mode.
Dimension
` –3 to 0
With this setting, you can move the sound field forward or backward when using the Dolby Pro Logic II Music listening mode. Higher settings move the sound field backward. Lower settings move it forward.
If the stereo image feels too wide, or there’s too much surround sound, move the sound field forward to improve the balance. Conversely, if the stereo image feels like it’s in mono, or there’s not enough surround sound, move it backward.
Center Width
` 0 to 3
With this setting, you can adjust the width of the sound from the center speaker when using the Dolby Pro Logic II Music listening mode. Normally, if you’re using a center speaker, the center channel sound is output from only the center speaker. (If you’re not using a center speaker, the center channel sound will be distributed to the front left and right speakers to create a phantom center). This setting controls the front left, right, and center mix, allowing you to adjust the weight of the center channel sound.
to +3
to 7
DTS
Neo:6 Music
Center Image
` 0 to 2
to 5
With this setting, you can specify by how much the front left and right channel output is attenuated in order to create the center channel.
Changing the value from “0” to “5” will spread the sound of the center channel to left and right (outwards).
Theater-Dimensional
Listening Angle
` Wide:
Select if the listening angle is 40 degrees.
` Narrow:
Select if the listening angle is 20 degrees. With this setting, you can optimize the Theater­Dimensional listening mode by specifying the angle of the
front left and right speakers relative to the listening position. Ideally, the front left and right speakers should be equidistant from the listening position and at an angle close to one of the two available settings.
Front left speaker Front right speaker
20°/40°
En-42
Advanced Operations

Source Setup

123456
Items can be set individually for each input selector.
Preparation
Press the input selector buttons to select an input source.
Menu Source Setup
A/V Sync
A/V Sync
` 0ms
to 400 ms in 10 msec steps When using progressive scanning on your Blu-ray Disc/DVD player, you may find that the picture and sound
are out of sync. With this setting, you can correct this by delaying the audio signals.
To view the TV picture while setting the delay, press ENTER. To return to the previous screen, press RETURN.
The range of values you can adjust will depend on whether your TV supports HDMI Lip Sync and if the “LipSync” setting is set to “On” or not (page 46).
Note
• A/V Sync is disabled when the Direct listening mode is used with
an analog input source.
Preset Name For Input Selector
Name
` ---
, Blu-ray, DVD, HD DVD, VCR, DVR, Tivo, CableSTB, SAT STB, PS3, Wii, Xbox, PC, TV, CD, TAPE, iPod:
To reset to the default, select “---”.
You can enter a preset name for each individual input selector for easy identification. When entered, the preset name will be displayed.
Note
• You can’t assign the same preset name to multiple input selectors.
• This setting cannot be used for the AM, FM or USB input selector.
Audio Selector
Audio Selector
` ARC:
The audio signal from your TV tuner can be sent to the HDMI OUT of the AV receiver. With this selection, the TV’s audio can be automatically selected as a priority among other assignments.
` HDMI:
This can be selected when HDMI IN has been assigned as an input source. If both HDMI (HDMI
IN) and digital audio inputs (COAXIAL IN or OPTICAL IN) have been assigned, HDMI input is
automatically selected as a priority.
` COAXIAL:
This can be selected when COAXIAL IN has been assigned as an input source. If both coaxial and HDMI inputs have been assigned, coaxial input is automatically selected as a priority.
` OPTICAL:
This can be selected when OPTICAL IN has been assigned as an input source. If both optical and HDMI inputs have been assigned, optical input is automatically selected as a priority.
` Analog:
The AV receiver always outputs analog signals.
You can set priorities of audio output when there are both digital and analog inputs.
Note
• This setting can be made only for the input source that is assigned as HDMI IN, COAXIAL IN, or OPTICAL IN.
*1
You can select “ARC” if you select the TV/CD input selector. But you cannot if you’ve selected “Off” in the “Audio Return Ch” setting (page 46).
*1
En-43
Setting the Incoming Digital Signal (Fixed Mode)
Fixed Mode
` Off
: The format is detected automatically. If no digital input signal is present, the corresponding analog input is used instead.
` PCM:
Only 2-channel PCM format input signals will be heard. If the input signal is not PCM, the PCM indicator will flash and noise may also be produced.
` DTS:
Only DTS (but not DTS-HD) format input signals will be heard. If the input signal is not DTS, the dts indicator will flash and there will be no sound.
When “HDMI”, “COAXIAL” or “OPTICAL” is selected in the “Audio Selector” setting, you can then specify the signal type in “Fixed Mode”.
Normally, the AV receiver detects the signal format automatically. However, if you experience either of the following issues when playing PCM or DTS material, you can manually set the signal format to PCM or DTS.
• If the beginnings of tracks from a PCM source are cut off, try setting the format to PCM.
• If noise is produced when fast forwarding or reversing a DTS CD, try setting the format to DTS.
Note
• The setting will be reset to “Off” when you change the setting in the “Audio Selector” (page 43).
.

Hardware

123456
Menu Hardware
OSD
Volume OSD
` On ` Off
Turn this setting on to display the volume level on the TV screen while it is adjusted.
Remote ID
Remote ID
` 1
, 2, or 3 When several Onkyo components are used in the same room, their remote ID codes may overlap. To differentiate
the AV receiver from the other components, you can change its remote ID from “1”, to “2” or “3”.
Note
• If you do change the AV receiver’s remote ID, be sure to change
the remote controller to the same ID (see below), otherwise, you won’t be able to control it with the remote controller.
Changing the remote controller’s ID
While holding down RECEIVER, press and hold
1
down SETUP until the remote indicator lights (about 3 seconds).
Use the number buttons to enter ID 1, 2, or 3.
2
The remote indicator flashes twice.
Advanced Operations
Tuner
AM/FM Freq Step (North American and Brazilian
models)
` 10kHz/200kHz ` 9kHz/50kHz:
Select the frequency step according to your area.
AM Freq Step (Asian models)
` 10kHz: ` 9kHz
:
Select the frequency step according to your area.
For AM/FM tuning to work properly, you must specify the AM/FM frequency step used in your area.
Note
• When this setting is changed, all radio presets will be deleted.
:
Auto Standby
Auto Standby
` Off ` On
When “Auto Standby” is set to “On”, the AV receiver will automatically enter standby mode if there is no operation for 30 minutes with no audio and no video signal input. “Auto Standby” will appear on the AV receiver’s display and OSD 30 seconds before the Auto Standby comes on. Default setting: On (Asian models), Off (North American and Brazilian models)
Note
On, the Auto Standby function may activate itself during
•Set to “ playback with some sources.
En-44

HDMI Setup

123456
Menu HDMI Setup
HDMI Ctrl (RIHD)
` Off ` On
Turn this setting on to allow p-compatible components connected via HDMI to be controlled by the AV receiver (page 60).
Note
• When the setting is set to “On” and the menu is closed, the names of connected p-compatible components and “RIHD On”
are displayed on the AV receiver. “Search…(name)RIHD On” When the AV receiver cannot receive the name of the component, it is displayed as “Player and indicates the number of components, when two or more are received).
•When an p-compatible component is connected to the AV receiver via an HDMI cable, the name of the connected component is displayed on the AV receiver display. For example, while you are watching TV broadcasting, if you operate a Blu-ray Disc/DVD player (being powered on) with the remote control of the AV receiver, the name of the Blu-ray Disc/DVD player will be displayed on the AV receiver.
• Set it to
• If operation is not normal when set to
Off when a connected piece of equipment is not
compatible or it is unclear whether the equipment is compatible or not.
Off.
• Refer to the connected component’s instruction manual for details.
•When the “HDMI Ctrl (RIHD)” setting is set to “On”, the power consumption in standby mode slightly increases. (Depending on the TV status, the AV receiver will enter standby mode as usual.)
*
” or “Recorder*”, etc (“*” shows up
On, change the setting to
• When the source equipment is connected with the u connection, it may malfunction if “HDMI Ctrl (RIHD)” is set to “On”.
HDMI Through
` Off ` BD/DVD, VCR/DVR, CBL/SAT, GAME, AUX,
TV/CD:
Selects the input source for which the HDMI Through function is enabled.
` Last:
The HDMI Through function is activated on the input source selected at the time of setting the AV receiver to standby mode.
When enabling the HDMI Through function, regardless of whether the AV receiver is on or in standby, both audio and video streams from an HDMI input will be output to the TV or other components via HDMI connection. In standby mode, the HDMI THRU and HDMI indicators will light (HDMI will be dimly-lit).
This setting is fixed to “Auto” automatically when the above “HDMI Ctrl (RIHD)” setting is set to “On”, resulting in automatic input source selection.
Note
• Only the input source assigned to the HDMI IN via “HDMI Input” is enabled (page 39).
• The power consumption in standby mode will increase during the HDMI Through function; however in the following cases, the power consumption can be saved: – The TV is in standby mode. – You are watching a TV program.
• Refer to the connected component’s instruction manual for details.
• Depending on the connected component, the correct input source may not be selected with the setting fixed to “Auto”.
• This setting is set to “Off” automatically when the “HDMI Ctrl (RIHD)” setting is set to “Off”.
Advanced Operations
Audio TV Out
` Off ` On
This preference determines whether the incoming audio signal is output from the HDMI output. You may want to turn this preference on if your TV is connected to the HDMI output and you want to listen to the audio from a connected component through your TV’s speakers. Normally, this should be set to “Off”.
Note
• If “On” is selected and the audio can be output from the TV, the AV receiver will output no sound through its speakers. In this case, “TV Speaker” appears on the AV receiver’s display by pressing DISPLAY.
• When
HDMI Ctrl (RIHD) is set to On, this setting is fixed
Auto.
to
• With some TVs and input signals, no sound may be output even when this setting is set to
• When “Audio TV Out” or and you’re listening through your TV’s speakers (page 16), turning up the AV receiver’s volume control will make the sound be output from the AV receiver’s front left and right speakers. To stop the AV receiver’s speakers producing sound, change the settings, change your TV’s settings, or turn down the AV receiver’s volume.
• Listening mode cannot be changed when this setting is set to “On” and the input source is not HDMI.
On.
HDMI Ctrl (RIHD)” is set to On
En-45
Audio Return Ch (ARC)
` Off ` Auto:
The audio signal from your TV tuner can be sent to the HDMI OUT of the AV receiver.
The audio return channel (ARC) function allows an ARC capable TV to send the audio stream to the HDMI OUT of the AV receiver. To use this function, you must select the
TV/CD input selector and your TV must be ARC capable.
Note
• This setting is fixed to “----” when the “HDMI Ctrl (RIHD) setting is set to “Off”.
• This setting is set to “Auto” automatically when the “HDMI Ctrl (RIHD)” setting is set to “On” for the first time.
• If you set “Audio Return Ch” to “Auto”, the “Audio Selector” settings of the TV/CD input selector will be automatically switched to “ARC” (page 43).
LipSync
` Off ` On
This function allows the AV receiver to automatically correct any delay between the video and the audio, based on the data from the connected monitor.
Note
• This function works only if your HDMI-compatible TV supports HDMI Lip Sync.
After changing the settings of the HDMI Ctrl
(RIHD), HDMI Through or “Audio Return Ch”
turn off the power on all connected pieces of equipment and then turn them on again. Refer to the user’s manuals for all connected pieces of equipment.

Using the Audio Settings

You can change various audio settings from the Home menu (page 33).
Press RECEIVER followed by HOME.
1
Use q/w and ENTER to select “Audio”, and then
2
use q/w/e/r to make the desired selection.
Note
• These settings are not available in either of the following cases: –The “Audio TV Out” setting is set to “On” (page 45). –“HDMI Ctrl (RIHD)” is set to “On” (page 45) and you’re
listening through your TV speakers.
Tone Control
Bass
` –10 dB to 0dB
You can boost or cut low-frequency sounds output from the front speakers.
Treble
` –10 dB to 0dB
You can boost or cut high-frequency sounds output
from the front speakers. You can adjust the bass and treble for Speakers A and B front speakers, except when the Direct listening mode is
selected.
Operating on the remote controller directly
Press RECEIVER once followed by TONE
1
repeatedly to select either “Bass” or “Treble”.
Use – and + to adjust.
2
to +10 dB in 2 dB steps
to +10 dB in 2 dB steps
Advanced Operations
Speaker Levels
Subwoofer Level
` –15 dB to 0dB
Operating on the remote controller directly
Press RECEIVER once followed by TONE
1
repeatedly to select “Subwoofer”.
Use – and + to adjust.
2
Tip
• Alternatively, you can use the AV receiver’s TONE and /+.
Center Level
` –12 dB to 0dB
You can adjust the volume of each speaker while listening to an input source.
These temporary adjustments are cancelled when the AV receiver is set to standby. To save the setting you made here, go to “Level Cal (Level Calibration)” (page 41) before setting the AV receiver to standby.
Note
• These settings cannot be calibrated in either of the following cases: – A pair of headphones is connected. – The AV receiver is muted.
• Speakers that are set to “No” or “None” in the “Sp Config (Speaker Configuration)” (page 40) cannot be adjusted.
to +12 dB in 1 dB steps
to +12 dB in 1 dB steps
Tip
• Alternatively, you can use the AV receiver’s TONE and /+.
En-46
Advanced Operations
EX.BASS
EX.BASS
` Off ` On
EX.BASS is a technology that have developed by experiments and listening tests to reproduce a natural deeper bass. When you turn the mode on, you can get dynamic and deeper presence on your movies and music.
Note
• This setting is not available in either of the following cases: – A pair of headphones is connected. – Speakers B is on. – Speakers A is off. – Direct listening mode is selected. –The “Subwoofer” setting is set to “No” (page 40).
Late Night
Late Night
For Dolby Digital and Dolby Digital Plus sources, the options are:
` Off ` Low:
Small reduction in dynamic range.
` High:
Large reduction in dynamic range.
For Dolby TrueHD sources, the options are:
` Auto
: The Late Night function is set to “On” or “Off” automatically.
` Off ` On
Turn this setting on to reduce the dynamic range of Dolby Digital material so that you can still hear quiet parts even when listening at low volume levels—ideal for watching movies late at night when you don’t want to disturb anyone.
Note
• The effect of the Late Night function depends on the material that you are playing and the intention of the original sound designer, and with some material there will be little or no effect when you select the different options.
• The Late Night function can be used only when the input source is Dolby Digital, Dolby Digital Plus, or Dolby TrueHD.
• The Late Night function is set to “Off” when the AV receiver is set to standby. For Dolby TrueHD sources, it will be set to “Auto”.
Music Optimizer
Music Optimizer
` Off ` On
The Music Optimizer function enhances the sound quality of compressed music files. The M.Opt indicator lights on the AV receiver’s display.
Tip
• Alternatively, you can use the AV receiver’s MUSIC OPTIMIZER.
Note
• The Music Optimizer function only works with PCM digital audio input signals with a sampling rate below 48 kHz and analog audio input signals.
• The Music Optimizer is disabled when the Direct listening mode is selected.
• The setting is stored individually for each input selector.
CinemaFILTER
Cinema Filter
` Off ` On
Turn this setting on to soften overly bright movie soundtracks, which are typically mixed for reproduction in a movie theater. CinemaFILTER can be used with the following listening modes: Dolby Digital, Dolby Digital Plus, Dolby TrueHD, Dolby Pro Logic II Movie, Multichannel, DTS, DTS Neo:6 Cinema, DTS 96/24, DTS-HD High Resolution Audio, DTS-HD Master Audio and DTS Express.
Note
• The CinemaFILTER may not work when used with certain input sources.
En-47

iPod/iPhone Playback via Onkyo Dock

Using the Onkyo Dock

The Dock is sold separately. Models sold are different depending on the region. For the latest information on the Onkyo Dock components, see the Onkyo web site at: http://www.onkyo.com Before using the Onkyo Dock components, update your iPod/iPhone with the latest software, available from the Apple web site. For supported iPod/iPhone models, see the instruction manual of the Onkyo Dock.
RI Dock
With the RI Dock, you can easily play the music stored on your Apple iPod/iPhone through the AV receiver and enjoy great sound, and watch iPod/iPhone slideshows and videos on your TV. In addition, the on-screen display (OSD) allows you to view, navigate, and select your iPod/iPhone model’s contents on your TV, and with the supplied remote controller, you can control your iPod/iPhone from the comfort of your sofa. You can even use the AV receiver’s remote controller to operate your iPod/iPhone.
Note
• Enter the appropriate remote control code before using the AV receiver’s remote controller for the first time (page 50).
• Connect the RI Dock to the AV receiver with an u cable (page 18).
• Set the RI Dock’s RI MODE switch to “HDD” or “HDD/DOCK”.
• Set the AV receiver’s Input Display to “DOCK” (page 35).
System Function
System On
When you turn on the AV receiver, the RI Dock and iPod/iPhone turn on automatically. In addition, when RI Dock and iPod/iPhone are on, the AV receiver can be
turned on by pressing 8.
Auto Power On
If you press the remote controller’s 1 (Playback) while the AV receiver is on automatically turn on, select your iPod/iPhone as the input source, and your iPod/iPhone will start playback.
Direct Change
If you start iPod/iPhone playback while listening to another input source, the AV receiver will automatically switch to the input to which RI Dock is connected.
Other Remote Operations
You can use the remote controller that came with the AV receiver to control other iPod/iPhone functions. The available functionality depends on the AV receiver.
iPod/iPhone Alarm
If you use the Alarm function on your iPod/iPhone to start playback, the AV receiver will turn on at the specified time and select your iPod/iPhone as the input source automatically.
Note
• Linked operations do not work with video playback or when the alarm is set to play a sound.
• If you use your iPod/iPhone with any other accessories, iPod/iPhone playback detection may not work.
• The System On function may not work depending on the RI Dock.
standby, the AV receiver will

Controlling Other Components

Operating Notes
• Use the AV receiver’s volume control to adjust the playback volume.
• While your iPod/iPhone is inserted in the RI Dock, its volume control has no effect.
• If you do adjust the volume control on your iPod/iPhone while it’s inserted in the RI Dock, be careful that it’s not set too loud before you reconnect your headphones.
En-48
Controlling Other Components

Controlling Your iPod/iPhone

By pressing the REMOTE MODE button that’s been programmed with the remote control code for your Dock, you can control your iPod/iPhone in the Dock with the buttons described further in this section.
See “Entering Remote Control Codes” for details on entering a remote control code (page 50).
See the Dock’s instruction manual for more information.
RI Dock
• Set the RI Dock’s RI MODE switch to “HDD” or “HDD/DOCK”.
8 may not work with a remote control code (without u). In this case, make an u connection and enter the remote control code 81993 (with u).
With the RI Control
Make an u connection and enter the remote control code 81993 (with u).
• Set the AV receiver’s Input Display to “DOCK” (page 35).
Without the RI Control
You must enter the remote control code 82990 first (page 51).
Press the appropriate REMOTE MODE button first.
a
b c
d
e
f
g h
i
j
k
u Dock operation
Available buttons
*1
a 8
TOP MENU
b c q/w/e/r, ENTER h
PLAYLIST e/r i VOL q/w
d 1, 3, 2, 5, 4,
7, 6
REPEAT
e
RANDOM
Note
• With some iPod/iPhone models, generations and RI Docks, certain buttons may not work as expected.
• For detailed operation of iPod/iPhone, please refer to the instruction manual of the RI Dock.
*1
This button does not turn the Onkyo DS-A2 or DS-A2X RI Dock on or off. Also, your iPod/iPhone may not respond the first time you press this button, in which case you should press it again. This is because the remote controller transmits the On and Standby commands alternately, so if your iPod/iPhone is already on, it will remain on when the remote controller transmits the On command. Similarly, if your iPod/iPhone is already off, it will remain off when the remote controller transmits the Off command.
*2
TOP MENU works as the mode button when used with the DS-A2 RI Dock.
*3
DISPLAY turns on backlight for a second.
*4
Resume mode
With the Resume function, you can resume playback of the song that was playing when you removed your iPod/iPhone from the RI Dock.
*2
DISPLAY
f
MUTING
g
ALBUM +/–
MENU
j
MODE
k
*3
*4
En-49
Controlling Other Components

Controlling Other Onkyo Components

You can use the AV receiver’s remote controller to control your other Onkyo AV components. This section explains how to enter the remote control code for a component that you want to control: DVD, CD, etc.

Preprogrammed Remote Control Codes

The following REMOTE MODE butttons are preprogrammed with remote control codes for controlling the components listed. You do not need to enter a remote control code to control these components.
For details on controlling these components, see the indicated pages.
BD/DVD Onkyo Blu-ray Disc player (➔ page 52) TV/CD Onkyo CD player (➔ page 53)

Entering Remote Control Codes

You’ll need to enter a code for each component that you want to control.
Look up the appropriate remote control code in the
1
Remote Control Codes for Onkyo Components Connected via u.
While holding down the REMOTE MODE button to
2
which you want to assign a code, press and hold down DISPLAY (about 3 seconds).
The remote indicator lights.
Note
• Remote control codes cannot be entered for RECEIVER.
• Except for RECEIVER remote control codes from any category can be assigned to the REMOTE MODE button. However, these buttons also work as input selector buttons (page 21), so choose a REMOTE MODE button that corresponds with the input to which you connect your component. For example, if you connect your CD player to the CD input, choose TV/CD when entering its remote control code.
Within 30 seconds, use the number buttons to enter
3
the 5-digit remote control code.
The remote indicator flashes twice. If the remote control code is not entered successfully,
the remote indicator will flash once slowly.
Remote Control Codes for Onkyo Components Connected via u
Onkyo components that are connected via u are controlled by pointing the remote controller at the AV receiver, not the component. This allows you to control components that are out of view, in a rack, for example.
Make sure the Onkyo component is connected with
1
an u cable and an analog audio cable (RCA).
See “Connecting Onkyo u Components” for details (page 18).
Enter the appropriate remote control code for a
2
REMOTE MODE button, by referring to the previous section.
` 42157:
Onkyo cassette tape deck with u
` 81993:
Onkyo Dock with u
Press the REMOTE MODE button, point the
3
remote controller at the AV receiver, and operate the component.
To be continued
En-50
Controlling Other Components
Controlling Onkyo components without u
If you want to control an Onkyo component by pointing the remote controller directly at it, or you want to control an
Onkyo component that’s not connected via u, use the following remote control codes:
` 30627:
Onkyo DVD player without u
` 71817:
Onkyo CD player without u
` 32900/33000:
Onkyo Blu-ray Disc player
` 32901/33004:
Onkyo HD DVD player
` 70868:
Onkyo MD recorder without u
` 71323:
Onkyo CD recorder without u
` 82990:
Onkyo Dock without u

Resetting the REMOTE MODE Buttons

You can reset a REMOTE MODE button to its default remote control code.
While holding down the REMOTE MODE button
1
that you want to reset, press and hold down HOME until the remote indicator lights (about 3 seconds).
Within 30 seconds, press the REMOTE MODE
2
button again.
The remote indicator flashes twice, indicating that the button has been reset. Each REMOTE MODE button is preprogrammed with a remote control code. When a button is reset, its preprogrammed code is restored.

Resetting the Remote Controller

You can reset the remote controller to its default settings.
While holding down RECEIVER, press and hold
1
down HOME until the remote indicator lights (about 3 seconds).
Within 30 seconds, press RECEIVER again.
2
The remote indicator flashes twice, indicating that the remote controller has been reset.
En-51

Controlling Other Components

By pressing the REMOTE MODE button that’s been programmed with the remote control code for your component, you can control Onkyo component as described below.
For details on entering a remote control code for other components, see “Entering Remote Control Codes” (page 50).
Controlling a Blu-ray Disc/DVD Player, HD DVD Player
BD/DVD is preprogrammed with the remote control code
for controlling a component that supports the p (limited to some models). The component must be able to
receive remote control commands via p and be connected to the AV receiver via HDMI.
Use the following remote control codes:
` 32910/33001/31612:
Blu-ray Disc/DVD player with p
*1
The p supported by the AV receiver is the CEC system control function of the HDMI standard.
*1
Controlling Other Components
Press the appropriate REMOTE MODE button first.
a
h
i j
b
k
c d
l m
e
f
Blu-ray Disc player / HD-DVD player operation
Available buttons
a 8 g
TOP MENU
b c q/w/e/r, ENTER h
SETUP
d e 1, 3, 2, 5, 4,
7, 6 Red (A)
f
Green (B) Yellow (C) Blue (D)
Number: 1 to 9, 0 Number: +10
DISPLAY
MUTING
i
DISC +/–
j
MENU
k
RETURN
l
AUDIO
m
CLR
n
*1
*1
DVD player operation
Available buttons
a 8 g
TOP MENU
b c q/w/e/r, ENTER h
SETUP
d e 1, 3, 2, 5, 4,
7, 6
f
SEARCH
REPEAT
RANDOM
MODE
*1
*1
*1
Number: 1 to 9, 0 Number: +10
DISPLAY
MUTING
i
DISC +/–
j
MENU
k
RETURN
l
AUDIO
m
CLR
n
*1
*1
g
n
En-52
Press the appropriate REMOTE MODE button first.
a
c d
e
f
h
i j
CD player / CD recorder / MD recorder operation
Available buttons
a 8 g c q/w/e/r, ENTER
SETUP
d e 1, 3, 2, 5, 4,
7, 6
SEARCH
f
REPEAT
RANDOM
MODE
Number: 1 to 9, 0 Number: +10
DISPLAY
h
MUTING
i
DISC +/–
j
CLR
n
Cassette tape deck operation
Available buttons
a 8 i e 1, t (reverse
playback), 2, 5, 4, 7, 6
Note
• With some components, certain buttons may not work as expected, and some may not work at all.
• See “Controlling Your iPod/iPhone” about the operation of iPod/iPhone (page 49).
*1
The p function is not supported. The p supported by the AV receiver is the CEC system control function of the HDMI standard.
MUTING
Controlling Other Components
g
n
En-53

Appendix

Troubleshooting

If you have any trouble using the AV receiver, look for a solution in this section. If you can’t resolve the issue yourself, contact your Onkyo dealer.
If you can’t resolve the issue yourself, try resetting the AV receiver before contacting your Onkyo dealer.
To reset the AV receiver to its factory defaults, turn it on and, while holding down VCR/DVR, press
8ON/STANDBY. “Clear” will appear on the AV receiver’s display and the AV receiver will enter standby mode.
Note that resetting the AV receiver will delete your radio presets and custom settings.
Remote indicator
RECEIVER
HOME
To reset the remote controller to its factory defaults, while holding down RECEIVER, press and hold down HOME until the remote indicator lights (about 3 seconds). Within 30 seconds, press RECEIVER again.
The on-screen menus appear only on a TV that is connected to the HDMI OUT. If your TV is connected to other video outputs, use the AV receiver’s display when changing settings.
Power
Can’t turn on the AV receiver
Make sure that the power cord is properly plugged into the wall outlet.
Unplug the power cord from the wall outlet, wait five seconds or more, then plug it in again.
The AV receiver turns off unexpectedly
The AV receiver will automatically enter standby mode when Auto Standby has been set and launches.
The AV receiver turns off and after restoring the
power, it turns off again
The protection circuit has been activated. Remove the power cord from the wall outlet immediately. Make sure that all speaker cables and input sources are properly connected, and leave the AV receiver with its power cord disconnected for 1 hour. After that, reconnect the power cord and turn the power on. If the AV receiver turns off again, unplug the power cord and contact your Onkyo dealer. Caution: If “CHECK SP WIRE” appears on the AV receiver’s display, the speaker cables may be shorting.
WARNING
If smoke, smell or abnormal noise is produced by the AV receiver, unplug the power cord from the wall outlet immediately and contact your Onkyo dealer.
44
14
Audio
There’s no sound, or it’s very quiet
Press SPEAKERS A or B to turn on the speaker indicator that you want to output sound.
Make sure that the digital input source is selected properly.
Make sure that all audio connecting plugs are pushed in all the way.
Make sure that the inputs and outputs of all components are connected properly.
Make sure that the polarity of the speaker cables is correct, and that the bare wires are in contact with the metal part of each speaker terminal.
Make sure that the input source is properly selected. 21 Make sure that the speaker cables are not shorting. 14 Check the volume. The AV receiver is designed for
home theater enjoyment. It has a wide volume range, allowing precise adjustment.
If the MUTING indicator is flashing on the AV receiver’s display, press the remote controller’s MUTING to unmute the AV receiver.
While a pair of headphones is connected to the PHONES jack, no sound is output from the speakers.
If there’s no sound from a DVD player connected to an HDMI IN, check the DVD player’s output settings, and be sure to select a supported audio format.
Check the digital audio output setting on the connected device. On some game consoles, such as those that support DVD, the default setting is off.
With some DVD-Video discs, you need to select an audio output format from a menu.
If your turntable uses an MC cartridge, you must connect an MC head amp, or an MC transformer.
Make sure that none of the connecting cables are bent, twisted, or damaged.
Not all listening modes use all speakers. 29 Specify the speaker distances and adjust the
individual speaker levels.
33
40
15
16-18
14
35
36
41
En-54
If the input signal format is set to “PCM” or “DTS”. Set it to “Off”.
Only the front speakers produce sound
When the Stereo or Mono listening mode is selected, only the front speakers and subwoofer produce sound.
Check the Speaker Configuration. 40
Only the center speaker produces sound
If you use the Dolby Pro Logic II Movie, Dolby Pro Logic II Music, or Dolby Pro Logic II Game listening mode with a mono source, such as an AM radio station or mono TV program, the sound is concentrated in the center speaker.
Make sure the speakers are configured correctly. 40
The surround speakers produce no sound
When the T-D (Theater-Dimensional), Stereo or Mono listening mode is selected, the surround speakers produce no sound.
Depending on the source and current listening mode, not much sound may be produced by the surround speakers. Try selecting another listening mode.
Make sure the speakers are configured correctly. 40
The center speaker produces no sound
When the Stereo or Mono listening mode is selected, the center speaker produces no sound.
Make sure the speakers are configured correctly. 40
44
31
28
There’s no sound with a certain signal format
Check the digital audio output setting on the connected device. On some game consoles, such as those that support DVD, the default setting is off.
With some DVD-Video discs, you need to select an audio output format from a menu.
Depending on the input signal, some listening modes cannot be selected.
29-30
Can’t get 5.1 playback
When Speaker B is turned on, Speakers A is reduced to 2.1-channel playback.
Depending on the number of connected speakers, it is not always possible to select all of the listening modes.
33
29-30
The speaker volume cannot be set as required
After the volume level of each individual speaker has been adjusted, the maximum volume may be reduced.
41
Noise can be heard
Using cable ties to bundle audio cables with power cords, speaker cables, and the like may degrade the audio performance, so refrain from doing it.
An audio cable may be picking up interference. Try repositioning your cables.
The Late Night function doesn’t work
Make sure the source material is Dolby Digital, Dolby Digital Plus, or Dolby TrueHD.
47
Appendix
About DTS signals
When DTS program material ends and the DTS bitstream stops, the AV receiver remains in DTS listening mode and the dts indicator remains on. This is to prevent noise when you use the pause, fast forward, or fast reverse function on your player. If you switch your player from DTS to PCM, because the AV receiver does not switch formats immediately, you may not hear any sound, in which case you should stop your player for about three seconds, and then resume playback.
With some CD and LD players, you won’t be able to playback DTS material properly even though your player is connected to a digital input on the AV receiver. This is usually because the DTS bitstream has been processed (e.g., output level, sampling rate, or frequency response changed) and the AV receiver doesn’t recognize it as a genuine DTS signal. In such cases, you may hear noise.
Playing DTS program material, using the pause, fast forward, or fast reverse function on your player may produce a short audible noise. This is not a malfunction.
The beginning of audio received by an HDMI IN
can’t be heard
Since it takes longer to identify the format of an HDMI signal than it does for other digital audio signals, audio output may not start immediately.
The subwoofer produces no sound
The subwoofer outputs no sound while only Speakers B is on. Turn on Speakers A.
When you play source material that contains no information in the LFE channel, the subwoofer produces no sound.
Make sure the speakers are configured correctly. 40
33
En-55
Video
There’s no picture
Make sure that all video connecting plugs are pushed in all the way.
Make sure that each video component is properly connected.
If the video source is connected to a component video input, you must assign that input to an input selector, and your TV must be connected to COMPONENT VIDEO OUT.
If the video source is connected to a composite video input, your TV must be connected to the corresponding composite video output.
If the video source is connected to an HDMI input, you must assign that input to an input selector, and your TV must be connected to the HDMI OUT.
On your TV, make sure that the video input to which the AV receiver is connected is selected.
There’s no picture from a source connected to
an HDMI IN
Reliable operation with an HDMI-to-DVI adapter is not guaranteed. In addition, video signals from a PC are not guaranteed.
The on-screen menus don’t appear
On your TV, make sure that the video input to which the AV receiver is connected is selected.
When the AV receiver is not connected to a TV via
HDMI OUT, on-screen menus are not displayed.
15
16, 18
17, 39
17
16, 39
62
Tuner
Reception is noisy, FM stereo reception is noisy,
or the FM STEREO indicator doesn’t light
Relocate your antenna. — Move the AV receiver away from your TV or
computer. Listen to the station in mono. 25 When listening to an AM station, operating the
remote controller may cause noise. Passing cars and airplanes can cause interference. — Concrete walls weaken radio signals. — If nothing improves the reception, install an outdoor
antenna.
Remote Controller
The remote controller doesn’t work
Before operating this unit, be sure to press RECEIVER.
Make sure that the batteries are installed with the correct polarity.
Install new batteries. Don’t mix different types of batteries, or old and new batteries.
Make sure that the remote controller is not too far away from the AV receiver, and that there’s no obstruction between the remote controller and the AV receiver’s remote control sensor.
Make sure that the AV receiver is not subjected to direct sunshine or inverter-type fluorescent lights. Relocate if necessary.
If the AV receiver is installed in a rack or cabinet with colored-glass doors, the remote controller may not work reliably when the doors are closed.
Make sure you’ve selected the correct remote controller mode.
Make sure you’ve entered the correct remote control code.
Make sure to set the same ID on both the AV receiver and remote controller.
5
5
5
11, 50
50
44
Can’t control other components
If it’s an Onkyo component, make sure that the u cable and analog audio cable are connected properly.
Connecting only an u cable won’t be enough. Make sure you’ve selected the correct remote
controller mode. For a proper operation of the remote controller as a
cassette tape deck is connected to the TV/CD IN jack, or as an RI Dock is connected to the TV/CD IN, VCR/DVR IN or GAME IN jacks, you must set the input display accordingly.
If you cannot operate it, you will need to enter the appropriate remote control code.
To control an Onkyo component that’s connected via u, point the remote controller at the AV receiver.
Be sure to enter the appropriate remote control code first.
To control an Onkyo component that’s not connected via u, point the remote controller at the component.
Be sure to enter the appropriate remote control code first.
u Dock for iPod/iPhone
There’s no sound
Make sure your iPod/iPhone is actually playing. — Make sure your iPod/iPhone is properly inserted in
the Dock. Make sure the AV receiver is turned on, the correct
input source is selected, and the volume is turned up. Make sure the plugs are pushed in all the way. — Try resetting your iPod/iPhone.
There’s no video
Make sure that your iPod/iPhone model’s TV OUT setting is set to On.
Make sure the correct input is selected on your TV or the AV receiver.
Some versions of the iPod/iPhone do not output video.
Appendix
18
11, 52
35
50
50
51
En-56
The AV receiver’s remote controller doesn’t
control my iPod/iPhone
Make sure your iPod/iPhone is properly inserted in the Dock. If your iPod/iPhone is in a case, it may not connect properly to the Dock. Always remove your iPod/iPhone from the case before inserting it into the Dock.
The iPod/iPhone cannot be operated while it’s displaying the Apple logo.
Make sure you’ve selected the right remote mode. 49 When you use the AV receiver’s remote controller,
point it toward your AV receiver. If you still can’t control your iPod/iPhone, start
playback by pressing your iPod/iPhone model’s Play button. Remote operation should then be possible.
Try resetting your iPod/iPhone. — Depending on your iPod/iPhone, some buttons may
not work as expected.
The AV receiver unexpectedly selects my
iPod/iPhone as the input source
Always pause iPod/iPhone playback before selecting a different input source. If playback is not paused, the Direct Change function may select your iPod/iPhone as the input source by mistake during the transition between tracks.
iPod/iPhone doesn’t work properly
Try reconnecting your iPod/iPhone.
Recording
Can’t record
On your recorder, make sure the correct input is selected.
To prevent signal loops and damage to the AV receiver, input signals are not fed through to outputs with the same name (e.g., VCR/DVR IN to VCR/DVR OUT).
USB Device Playback
Can’t access the music files on a USB device
Make sure the USB device is plugged in properly. — The AV receiver supports USB devices that support
the USB mass storage device class. However, playback may not be possible with some USB devices even if they conform to the USB mass storage device class.
USB memory devices with security functions cannot be played.
63
24
Others
Standby power consumption
In the following cases, the power consumption in standby mode may reach up to a maximum of 31 W:
–“HDMI Ctrl (RIHD)” setting is set to “On”.
(Depending on the TV status, the AV receiver will enter standby mode as usual.)
–The “HDMI Through” setting is set to other than
Off”.
The sound changes when I connect my
headphones
When a pair of headphones is connected, the listening mode is set to Stereo, unless it’s already set to Stereo, Mono, or Direct.
How do I change the language of a multiplex
source
Use the “Input Ch (Mux)” setting on the “Audio Adjust” menu to select “Main” or “Sub”.
The u functions don’t work
To use u, you must make an u connection and an analog audio connection (RCA) between the component and AV receiver, even if they are connected digitally.
45
42
18
Appendix
The following settings can be made for the
composite video inputs
You must use the buttons on the unit to make these settings. On the AV receiver, press the input selector for the input source that you want to set and the SETUP button simultaneously. While holding down the input selector button, press SETUP until “Video ATT :On” appears on the AV receiver’s display. Then, release both buttons. To turn the setting off, repeat the above process so that “Video ATT :Off” appears on the AV receiver’s display, and release the buttons.
• Video Attenuation
This setting can be made for the BD/DVD, VCR/DVR, CBL/SAT, GAME, AUX, or USB input.
If you have a games console connected to the composite video input, and the picture isn’t very clear, you can attenuate the gain.
Video ATT :Off: (default). Video ATT :On: Gain is reduced by 2 dB.
If the picture on your TV/monitor connected to
the HDMI OUT is unstable, try switching the DeepColor function off
To turn off the DeepColor function, simultaneously press the CBL/SAT and 8ON/STANDBY buttons on
the AV receiver. While holding down CBL/SAT, press 8ON/STANDBY until “Deep Color: Off” appears on
the AV receiver’s display. Then, release both buttons. To reactivate the DeepColor function, repeat the above process until “Deep Color: On” appears on the AV receiver’s display and release the buttons.
En-57
The AV receiver contains a microcomputer for signal processing and control functions. In very rare situations, severe interference, noise from an external source, or static electricity may cause it to lockup. In the unlikely event that this happens, unplug the power cord from the wall outlet, wait at least five seconds, and then plug it back in.
Onkyo is not responsible for damages (such as CD rental fees) due to unsuccessful recordings caused by the unit’s malfunction. Before you record important data, make sure that the material will be recorded correctly.
Before disconnecting the power cord from the wall outlet, set the AV receiver to standby.
Appendix
En-58
Appendix

Connection Tips and Video Signal Path

The AV receiver supports several connection formats for compatibility with a wide range of AV equipment. The format you choose will depend on the formats supported by your components. Use the following sections as a guide.
The on-screen menus appear only on a TV that is connected to the HDMI OUT. If your TV is connected to other video outputs, use the AV receiver’s display when changing settings.
Note
• The on-screen setup menus are displayed when: – There is no video input, or – The video input is 480p, 576p, 720p, 1080i, or 1080p.
Video Connection Formats
Video components can be connected by using any one of the following video connection formats: composite video, component video, or HDMI, the latter offering the best picture quality.
When choosing a connection format, bear in mind that the AV receiver doesn’t convert between formats, so only outputs of the same format as the input will output the signal.
Video Signal Flow Chart
Blu-ray Disc/DVD player, etc.
Composite
AV receiver
Composite
Component
IN
MONITOR OUT
Component
TV, projector, etc.
HDMI
HDMI
Audio Connection Formats
Audio components can be connected by using any of the following audio connection formats: analog, optical, coaxial, or HDMI. When choosing a connection format, bear in mind that the AV receiver does not convert digital input signals for analog line outputs and vice versa. For example, audio signals connected to an optical or coaxial digital input are not output by the analog VCR/DVR OUT.
If signals are present at more than one input, the inputs will be selected automatically in the following order of priority: HDMI, digital, analog.
Audio Signal Flow Chart
Blu-ray Disc/DVD player, etc.
HDMICoaxial Analog
*1
HDMI Analog
*1
AV receiver
Optical
IN
*1
*1
OUT
TV, projector, etc.
*2
En-59
*1
Depends on the “Audio TV Out” setting (page 45).
*2
This is possible, when “Audio Return Ch” is set to “Auto” (page 46), the TV/CD input selector is selected, and your TV is ARC capable.
Tip
• When a signal is input via HDMI and the corresponding input selector is selected, the HDMI indicator lights.
Appendix
Using an RIHD­compatible TV, Player, or Recorder
p, which stands for Remote Interactive over HDMI, is the name of the system control function found on Onkyo components. The AV receiver can be used with CEC (Consumer Electronics Control), which allows system control over HDMI and is part of the HDMI standard. CEC provides interoperability between various components, however, operation with components other
than p-compatible components cannot be guaranteed.
About p-compatible components
The following components are p-compatible (As of January 2012).
TV
• Toshiba TV
•Sharp TV
Players/Recorders
• Onkyo and Integra p-compatible players
• Toshiba players and recorders (only when used together with Toshiba TV)
• Sharp players and recorders (only when used together with Sharp TV)
*
Models other than those mentioned above may have some interoperability if compatible with CEC which is part of the HDMI Standard, but operation cannot be guaranteed.
Note
• For proper linked operations, do not connect more p- compatible components than the quantities specified below, to the HDMI input terminal. – Blu-ray Disc/DVD players: up to three. – Blu-ray Disc/DVD recorders/Digital Video Recorders: up to
three.
– Cable/Satellite Set-top boxes: up to four.
• Do not connect the AV receiver to the other AV receiver/AV amplifier via HDMI.
• Proper linked operations are not guaranteed when more p-compatible components than the above-mentioned
quantities are connected.
Operations that can be performed with p connection
For p-compatible TV
The following linked operations are enabled by connecting the AV receiver to an p-compatible TV.
• The AV receiver will enter standby mode when the power of the TV is turned to standby.
• You can set on the menu screen of the TV to either output the audio from the speakers connected to the AV receiver, or from the speakers of the TV.
• It is possible to output the video/audio coming from the antenna or from the input jack of the TV from the speakers connected to the AV receiver. (A connection such as optical digital cable or similar is required above the HDMI cable.)
• Input to the AV receiver can be selected with the remote controller of the TV.
• Operations such as volume adjustment or similar for the AV receiver can be performed from the remote controller of the TV.
For p-compatible players/recorders
The following linked operations are enabled by connecting the AV receiver to an p-compatible
player/recorder.
• When the playback is started on the player/recorder, input of the AV receiver will switch to the HDMI input of the player/recorder that is playing back.
• Operation of the player/recorder is possible using the remote controller supplied with the AV receiver.
*
Depending on the model used, not all operations may be available.
En-60
To be continued
How to connect and setup
Confirm the connecting and setting.
1
1. Connect the HDMI OUT jack to the HDMI input jack of the TV.
Blu-ray Disc/DVD player, etc.
HDMI connection
AV receiver
DIGITAL AUDIO connection (OPTICAL)
TV, projector, etc.
HDMI connection
2. Connect the audio output from the TV to the OPTICAL IN 2 jack of the AV receiver using an optical digital cable.
Note
• When the audio return channel (ARC) function is used with
an ARC capable TV, this connection is not necessary (page 46).
3. Connect the HDMI output of the Blu-ray Disc/DVD player/recorder to the HDMI IN 1 jack of the AV receiver.
Note
• It is necessary to assign the HDMI input when connecting
the Blu-ray Disc/DVD player/recorder to other jacks (page 39). Do not assign the components connected to the HDMI IN to the TV/CD input at this time. Appropriate CEC (Consumer Electronics Control) operation can not be guaranteed.
Change each item in the “HDMI Setup” menu
2
according to the following settings:
HDMI Ctrl (RIHD): On
Audio Return Ch (ARC): Auto
See details of each setting (pages 45, 46).
Confirm the settings.
3
1. Turn on the power for all connected components.
2. Turn off the power of the TV, and confirm that the power of the connected components is turned off automatically with the link operation.
3. Turn on the power of the Blu-ray Disc/DVD player/recorder.
4. Start playback on the Blu-ray Disc/DVD player/recorder, and verify the following.
• The AV receiver automatically turns on, and
selects the input to which the Blu-ray Disc/DVD player/recorder is connected.
• The TV automatically turns on, and selects the
input to which the AV receiver is connected.
5. Following the operating instructions of the TV, select “Use the TV speakers” from the menu screen of the TV, and confirm that the audio is output from the speakers of the TV, and not from the speakers connected to the AV receiver.
6. Select “Use the speakers connected from the AV receiver” from the menu screen of the TV, and confirm that the audio is output from the speakers connected to the AV receiver, and not from the TV speakers.
Note
• Perform the above operations when you use the AV receiver
for the first time, when the settings of each component are changed, when the main power of each component is turned off, when the power cable is disconnected from the power supply, or when there has been a power outage.
Operate with the remote controller.
4
For buttons that can be operated (➔ page 50).
Note
• Audio from DVD-Audio or Super Audio CD may not output from the TV speakers. You will be able to output the audio from the TV speakers by setting the audio output of the DVD player to 2ch PCM. (It may not be possible depending on the player models.)
• Even if you set to output audio on the TV speakers, audio will be output from the speakers connected to the AV receiver when you adjust the volume or switch the input on the AV receiver. To output audio from the TV speakers, re­do the operations on the TV.
• In case of an p connection with u and u audio control compatible components, do not connect the u
cable at the same time.
• On the TV, when you select anything other than the HDMI jack to which the AV receiver is connected, the input on the AV receiver will be switched to “TV/CD”.
• The AV receiver will automatically power on in conjunction when it determines it to be necessary. Even if the AV
receiver is connected to an p compatible TV or player/recorder, it will not power on if it is not necessary. It may not power on in conjunction when the TV is set to output audio from the TV.
• Linked functions with the AV receiver may not work depending on the component model connected. In such cases, operate the AV receiver directly.
Appendix
En-61
Appendix

About HDMI

Designed to meet the increased demands of digital TV, HDMI (High Definition Multimedia Interface) is a new digital interface standard for connecting TVs, projectors, Blu-ray Disc/DVD players, set-top boxes, and other video components. Until now, several separate video and audio cables have been required to connect AV components. With HDMI, a single cable can carry control signals, digital video, and up to eight channels of digital audio (2­channel PCM, multichannel digital audio, and multichannel PCM).
The HDMI video stream (i.e., video signal) is compatible with DVI (Digital Visual Interface) with a DVI input can be connected by using an HDMI-to­DVI adapter cable. (This may not work with some TVs and displays, resulting in no picture.) The AV receiver uses HDCP (High-bandwidth Digital Content Protection)*2, so only HDCP-compatible components can display the picture.
The AV receiver’s HDMI interface is based on the following:
Audio Return Channel, 3D, x.v.Color, DeepColor, Lip Sync, DTS-HD Master Audio, DTS-HD High Resolution Audio, Dolby TrueHD, Dolby Digital Plus, DSD and Multichannel PCM.
*1
, so TVs and displays
Supported Audio Formats About Copyright Protection
• 2-channel linear PCM (32–192 kHz, 16/20/24 bit)
• Multichannel linear PCM (up to 7.1 ch, 32–192 kHz, 16/20/24 bit)
• Bitstream (DSD, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, DTS, DTS-HD High Resolution Audio, DTS-HD Master Audio)
Your Blu-ray Disc/DVD player must also support HDMI output of the above audio formats.
The AV receiver supports HDCP (High-bandwidth Digital
*2
Content Protection)
, a copy-protection system for digital video signals. Other devices connected to the AV receiver via HDMI must also support HDCP.
*1
DVI (Digital Visual Interface): The digital display interface standard set by the DDWG
*2
HDCP (High-bandwidth Digital Content Protection): The video encryption technology developed by Intel for HDMI/DVI. It’s designed to protect video content and requires a HDCP-compatible device to display the encrypted video.
*3
DDWG (Digital Display Working Group): Lead by Intel, Compaq, Fujitsu, Hewlett Packard, IBM, NEC, and Silicon Image, this open industry group’s objective is to address the industry’s requirements for a digital connectivity specification for high-performance PCs and digital displays.
Note
• The HDMI video stream is compatible with DVI (Digital Visual
Interface), so TVs and displays with a DVI input can be connected by using an HDMI-to-DVI adapter cable. (Note that DVI connections only carry video, so you’ll need to make a separate connection for audio.) However, reliable operation with such an adapter is not guaranteed. In addition, video signals from a PC are not supported.
• The HDMI audio signal (sampling rate, bit length, etc.) may be
restricted by the connected source component. If the picture is poor or there’s no sound from a component connected via HDMI, check its setup. Refer to the connected component’s instruction manual for details.
*3
in 1999.
En-62
Appendix

USB Features

USB Device Requirements
• USB mass storage device class (but not always guaranteed).
• FAT16 or FAT32 file system format.
• Up to 255 folders can be displayed, and folders may be nested up to 8 levels deep.
• USB hubs and USB devices with hub functions are not supported.
Note
• If the media you connect is not supported, the message “No Storage” will be displayed.
• If you connect a USB hard disk drive to the AV receiver’s USB port, we recommend that you use its AC adapter to power it.
• The AV receiver supports USB MP3 players that support the USB Mass Storage Class standard, which allows USB devices to be connected to computers without the need for special drivers or software. Note that not all USB MP3 players support the USB Mass Storage Class standard. Refer to your USB MP3 player’s instruction manual for details.
• Protected WMA music files on an MP3 player cannot be played.
• Onkyo accepts no responsibility whatsoever for the loss or damage to data stored on a USB device when that device is used with the AV receiver. We recommend that you back up your important music files beforehand.
• MP3 players containing music files that are managed with special music software are not supported.
• Operation is not guaranteed for all USB devices, which includes the ability to power them.
• Do not connect your USB device via a USB hub. The USB device must be connected directly to the AV receiver’s USB port.
• If the USB device contains a lot of data, the AV receiver may take a while to read it.
• USB devices with security functions cannot be played.
Supported Audio File Formats
For playback from a USB device, the AV receiver supports the following music file formats. Variable bit-rate (VBR) files are supported. However, playback time may not be display correctly.
MP3 (.mp3 or .MP3)
• MP3 files must be MPEG-1/MPEG-2.5 Audio Layer 3 format with a sampling rate of 8 kHz, 11.025 kHz, 12 kHz, 16 kHz, 22.05 kHz, 24 kHz, 32 kHz, 44.1 kHz, 48 kHz and bitrates of between 8 kbps and 320 kbps. Incompatible files cannot be played.
WMA (.wma or .WMA)
WMA stands for Windows Media Audio and is an audio compression technology developed by Microsoft Corporation. Audio can be encoded in WMA format by using Windows Media
• WMA files must have the copyright option turned off.
• Sampling rates of 32 kHz, 44.1 kHz, 48 kHz, bitrates of between 48 kbps and 320 kbps are supported.
• WMA DRM/Pro/Voice formats are not supported.
AAC (.aac/.m4a/.mp4/.AAC/.M4A or .MP4)
AAC stands for MPEG-2/MPEG-4 Audio.
• Sampling rates of 16 kHz, 22.05 kHz, 24 kHz, 32 kHz,
44.1 kHz, 48 kHz and bitrates of between 8 kbps and 320 kbps are supported.
FLAC (.flac or .FLAC)
FLAC is a file format for lossless audio data compression.
• Sampling rates of 32 kHz, 44.1 kHz and 48 kHz are supported.
• Quantization bit: 16 bit, 24 bit
®
Player.
En-63

License and Trademark Information

“x.v.Color” is a trademark of Sony Corporation.
Manufactured under license under U.S. Patent Nos: 5,956,674; 5,974,380; 6,226,616; 6,487,535; 7,212,872; 7,333,929; 7,392,195; 7,272,567 & other U.S. and worldwide patents issued & pending. DTS-HD, the Symbol, & DTS-HD and the Symbol together are registered trademarks of DTS, Inc. Product includes software. © DTS, Inc. All Rights Reserved.
Manufactured under license from Dolby Laboratories. Dolby, Pro Logic and the double-D symbol are trademarks of Dolby Laboratories.
Music Optimizer™ is a trademark of Onkyo Corporation.
“HDMI, the HDMI Logo, and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in the United States and other countries.”
Appendix
iPhone, iPod, iPod classic, iPod nano, iPod shuffle, and iPod touch are trademarks of Apple Inc., registered in the U.S. and other countries. “Made for iPod” and “Made for iPhone” mean that an electronic accessory has been designed to connect specifically to iPod or iPhone, respectively, and has been certified by the developer to meet Apple performance standards. Apple is not responsible for the operation of this device or its compliance with safety and regulatory standards. Please note that the use of this accessory with iPod or iPhone may affect wireless performance.
En-64

Specifications

Amplifier Section
Rated Output Power All channels: (North American and Brazilian)
Maximum Effective Output Power
Dynamic Power
*
IEC60268-Short-term maximum output power
THD+N (Total Harmonic Distortion+Noise)
Damping Factor 60 (Front, 1 kHz, 8 Ω) Input Sensitivity and Impedance (Unbalance)
Rated RCA Output Level and Impedance
Maximum RCA Output Level and Impedance
Frequency Response 5 Hz - 100 kHz/+1 dB, –3 dB (DSP bypass) Tone Control Characteristics
Signal to Noise Ratio 100 dB (LINE, IHF-A) Speaker Impedance 6 - 16
110 watts minimum continuous power per channel, 6 ohm loads, 1 channel driven at 1 kHz, with a maximum total harmonic distortion of 1% (FTC)
(Asian)
6 ch × 100 W at 6 ohms, 1 kHz, 1 ch driven of 1 % (IEC)
(Asian)
6 ch × 120 W at 6 ohms, 1 kHz, 1 ch driven (JEITA)
*
160 W (3 , Front) 125 W (4 , Front) 85 W (8 , Front)
0.08% (20 Hz - 20 kHz, half power)
200 mV/47 k (LINE)
200 mV/2.2 k (REC OUT)
2 V/2.2 k (REC OUT)
±10 dB, 50 Hz (BASS) ±10 dB, 20 kHz (TREBLE)
Video Section
Input Sensitivity/Output Level and Impedance
1 Vp-p/75 (Component Y)
0.7 Vp-p/75 (Component PB/CB, PR/CR) 1 Vp-p/75 (Composite)
Component Video Frequency Response
5 Hz - 100 MHz/+0 dB, -3 dB
Tuner Section
FM Tuning Frequency Range
(North American and Brazilian)
87.5 MHz - 107.9 MHz (Asian)
87.5 MHz - 108.0 MHz, RDS
AM Tuning Frequency Range
522/530 kHz - 1611/1710 kHz
Preset Channel 40
General
Power Supply (North American and Brazilian)
Power Consumption (North American and Brazilian) 3.7 A
No-sound Power Consumption
Stand-by Power Consumption
Dimensions (W × H × D)
Weight (North American and Brazilian)
AC 120 V, 60 Hz
(Asian) AC 220 - 240 V, 50/60 Hz
(Asian) 370 W
(North American and Brazilian) 40 W (Asian)
35 W (230 V) 40 W (240 V)
(North American and Brazilian) 0.2 W (Asian) 0.3 W
435 mm × 150 mm × 318 mm 17-1/8" × 5-7/8" × 12-1/2"
7.6 kg (16.8 lbs.) (Asian)
7.8 kg (17.2 lbs)
Appendix
HDMI
Input IN 1, IN 2, IN 3, IN 4 Output OUT Video Resolution 1080p Audio Format Dolby TrueHD, DTS-HD Master Audio,
Supported 3D, Audio Return Channel, DeepColor,
DVD-Audio, DSD
x.v.Color, LipSync, CEC (RIHD)
Video Inputs
Component IN 1, IN 2 Composite BD/DVD, VCR/DVR, CBL/SAT, GAME,
AUX
Video Outputs
Component OUT Composite MONITOR OUT, VCR/DVR OUT
Audio Inputs
Digital Optical: 2
Analog BD/DVD, VCR/DVR, CBL/SAT, GAME,
Coaxial: 1
TV/CD, AUX
Audio Outputs
Analog VCR/DVR Speaker Outputs SP-A (L, R, C, SL, SR, SW) + SP-B (L, R) Phones 1 (6.3 ø)
Others
USB 1 (Front) RI 1
Specifications and features are subject to change without notice.
En-65
Memo
Appendix
En-66
Memo
Appendix
En-67
2-1, Nisshin-cho, Neyagawa-shi, OSAKA 572-8540, JAPAN Tel: 072-831-8023 Fax: 072-831-8163 http://www.onkyo.com/
18 Park Way, Upper Saddle River, N.J. 07458, U.S.A. Tel: 800-229-1687, 201-785-2600 Fax: 201-785-2650 http://www.us.onkyo.com/
Liegnitzerstrasse 6, 82194 Groebenzell, GERMANY Tel: +49-8142-4401-0 Fax: +49-8142-4401-555 http://www.eu.onkyo.com/
The Coach House 81A High Street, Marlow, Buckinghamshire, SL7 1AB, UK Tel: +44-(0)1628-473-350 Fax: +44-(0)1628-401-700
Unit 1033, 10/F, Star House, No 3, Salisbury Road, Tsim Sha Tsui Kowloon, Hong Kong. Tel: 852-2429-3118 Fax: 852-2428-9039 http://www.onkyochina.com/
1301, 555 Tower, No.555 West NanJin Road, Jin an, Shanghai, China 200041, Tel: 86-21-52131366 Fax: 86-21-52130396
http://www.cn.onkyo.com/
SN 29401049
(C) Copyright 2012 ONKYO SOUND & VISION CORPORATION Japan. All rights reserved.
Y1112-1
* 2 9 4 0 1 0 4 9 *

5.1ch Home Theater Speaker Package

E
n
HTP-391

Supplied Accessories

Make sure you have the following accessories.
Front speaker (SKF-391)
(White)
Front speakers
20 rubber stoppers*1
(For Front/Center/
Surround speakers)
*1
Configuration of the rubber stoppers may be different from the figure, such as being 2 sheets instead of 1 sheet, but the total number will be same.
Speaker cables 10 ft. (3.0 m)
Center speaker (SKC-391/SKC-391C)
(Red)
Surround speaker (SKR-391)
Surround speakers
Speaker cables 26 ft. (8.0 m)
Subwoofer (SKW-391)
Subwoofer Speaker cable 10 ft. (3.0 m)
4 floor pads
(Blue)
(Purple)
(Gray)

Part Names

Keyhole slot
Speaker terminals
SKF-391/SKR-391
Speaker terminals
SKC-391/ SKC-391C
Keyhole slots
Caution
• The front grilles are not designed to be removed so do not attempt to remove them forcibly, as this will damage them.
(Green)
Center speaker Speaker cable 10 ft. (3.0 m)
SKC-391 (North American and Brazilian) SKC-391C (Asian)
Speaker terminals
SKW-391
En-1

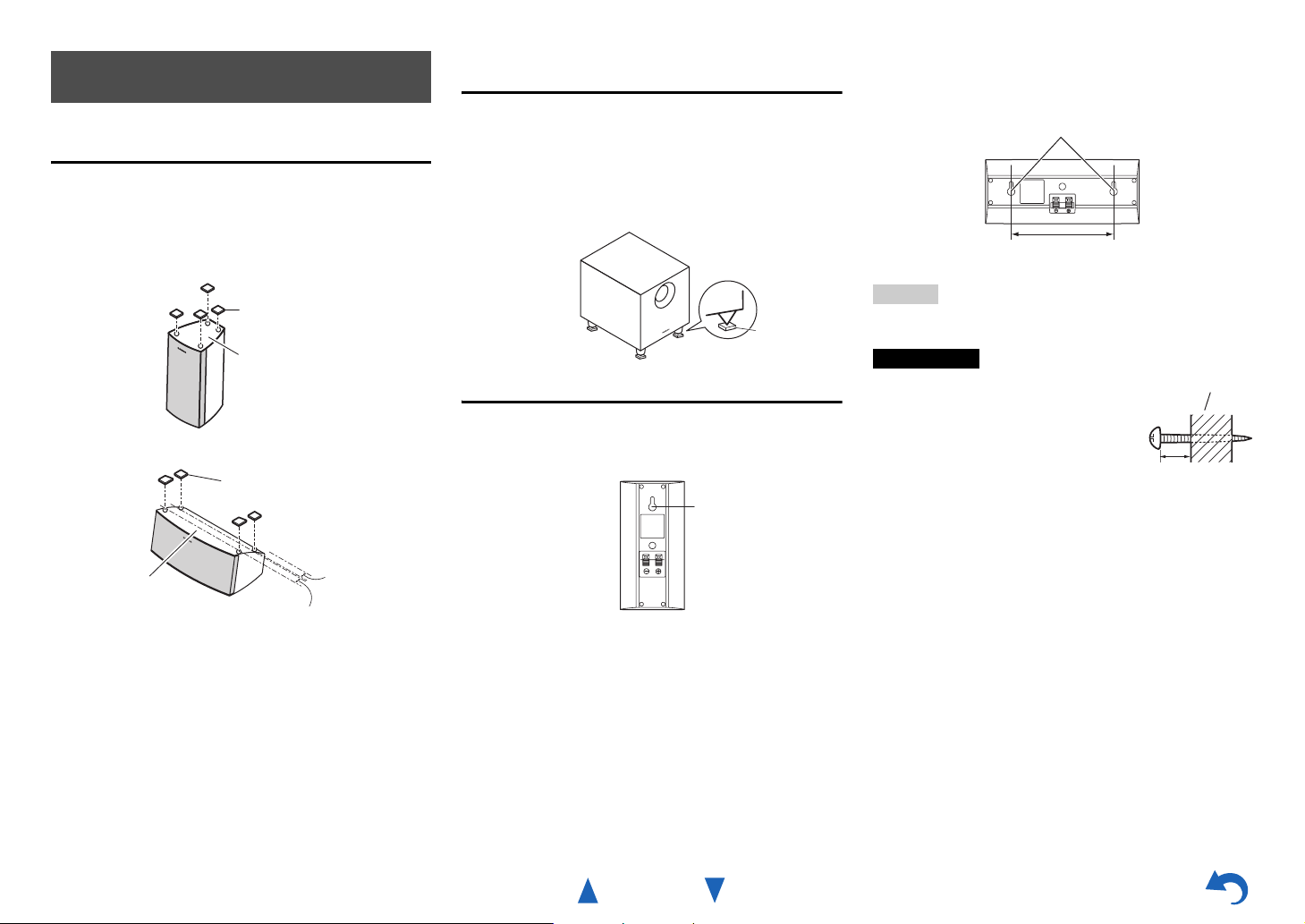

Before Using the Home Theater Speaker Package

Using the Rubber Stoppers for a More Stable Platform
We recommend using the supplied rubber stoppers to achieve the best possible sound from your speakers. The rubber stoppers prevent the speakers from moving, providing a more stable platform.
Using the Floor Pads for Subwoofer
If the subwoofer is placed on a hard floor (wood, vinyl, tile, etc.) and playback is very loud, the subwoofer’s feet may damage the flooring. To prevent this, place the supplied pads underneath the subwoofer’s feet. The pads also provide a stable base for the subwoofer.
To mount the center speaker horizontally, use the two keyhole slots shown to hang the speaker on two screws that are securely screwed into the wall.
Keyhole slots for wall mounting
SKC-391/ SKC-391C
6-5/16" (160 mm)
Bottom of the SKC-391/SKC-391C
Rubber stoppers
Bottom of the SKF-391/ SKR-391
Rubber stoppers
1-3/16" (30 mm)
1" (25 mm)
Pad
Wall Mounting
To mount the front/surround speakers vertically, use the keyhole slot shown to hang each speaker on a screw that’s securely screwed into the wall.
Keyhole slot for wall mounting
SKF-391/SKR-391
Tip
• If the center speaker is tilted, loosen the screw on the declined side to move upward so that the speaker could be adjusted vertically.
Caution
• A mounting screw’s ability to support a
Wall
speaker depends on how well it’s anchored to the wall. If you have hollow walls, screw each mounting screw into a stud. If there are no studs, or the walls are solid, use suitable wall anchors. Use screws with a head
3/16" to 7/16" (5 to 10 mm)
diameter of 5/16" (9 mm) or less and a shank diameter of 1/8" (4 mm) or less. With hollow walls, use a cable/pipe detector to check for any power cables or water pipes before making any holes.
• Leave a gap of between 3/16" (5 mm) and 7/16" (10 mm) between the wall and the base of the screw head, as shown (We recommend that you consult a home installation professional).
En-2

Enjoying Home Theater

d
ab
c

Connecting the Speakers

The Home Theater means that you can enjoy surround sound with a real sense of movement in your own home — just like being in a movie theater or concert hall.
a Front left and right speakers (SKF-391)
They should be positioned facing the listener at about ear level, and equally spaced from the TV. Angle them inward slightly so as to create a triangle, with the listener at the apex.
b Center speaker (SKC-391/SKC-391C)
Position it close to your TV (preferably on top) facing forward at about ear level, or at the same height as the front left and right speakers.
c Surround left and right speakers (SKR-391)
Position them at the sides of the listener, or slightly behind, about 2 to 3 feet (60 to 100 cm) above ear level. Ideally they should be equally spaced from the listener.
d Subwoofer (SKW-391)
The subwoofer handles the bass sounds of the LFE (Low-Frequency Effects) channel and bass from the satellite speakers when a crossover is specified. The volume and quality of the bass output from your subwoofer will depend on its position, the shape of your listening room, and your listening position. In general, a good bass sound can be obtained by installing the subwoofer in a front corner, or at one­third the way along the front wall, as shown.
Corner position
1/3 of wall position
Speaker Connection Precautions
Read the following before connecting your speakers:
• Turn off your receiver before making any connections.
• Pay close attention to speaker wiring polarity. Connect positive (+) terminals to only positive (+) terminals, and negative (–) terminals to only negative (–) terminals. If the speakers are wired incorrectly, the sound will be out of phase and will sound unnatural.
• Be careful not to short the positive and negative wires. Doing so may damage your amp.
Front right
speaker
Subwoofer
Red
Center speaker
Green
Purple
Gray
Front left speaker
Blue
White
En-3
Surround
right
speaker
Surround
left
speaker

Specifications

Passive Subwoofer (SKW-391)
Type Bass-reflex type Passive subwoofer Impedance 6 Maximum input power 130 W Sensitivity 83 dB/W/m Frequency response 30 Hz to 150 Hz Cabinet capacity 0.88 cubic feet (25 L) Dimensions (W × H × D) 11-5/8" × 13-9/16" × 14-1/2"
Weight 14.1 lbs. (6.4 kg) Drivers unit 8" (20 cm) Cone × 1 Terminal Spring type color coded Other Non-magnetic shielding
Front Speakers (SKF-391)
Type Full Range Bass-reflex Impedance 6 Maximum input power 120 W Sensitivity 80 dB/W/m Frequency response 80 Hz to 20 kHz Cabinet capacity 0.039 cubic feet (1.1 L) Dimensions (W × H × D) 4" × 7-7/8" × 4-1/2"
Weight 1.5 lbs (0.7 kg) Drivers unit 3-1/4" (8 cm) Cone × 1 Terminal Spring type color coded Keyhole slot Available Grille Fixed Other Non-magnetic shielding
(295 mm × 345 mm × 368 mm) (incl. projection)
(101 mm × 200 mm × 114 mm) (incl. grille and projection)
Center Speaker Surround Speakers (SKR-391)
SKC-391 (North American and Brazilian) Type Full Range Bass-reflex Impedance 6 Maximum input power 120 W Sensitivity 80 dB/W/m Frequency response 80 Hz to 20 kHz Cabinet capacity 0.064 cubic feet (1.8 L) Dimensions (W × H × D) 9-7/16" × 4" × 4-3/4"
Weight 1.8 lbs (0.8 kg) Drivers unit 3-1/4" (8 cm) Cone × 1 Terminal Spring type color coded Keyhole slot Available Grille Fixed Other Non-magnetic shielding
SKC-391C (Asian) Type Full Range Closed Box Impedance 6 Maximum input power 120 W Sensitivity 84.5 dB/W/m Frequency response 80 Hz to 20 kHz Cabinet capacity 0.064 cubic feet (1.8 L) Dimensions (W × H × D) 9-7/16" × 4" × 4-3/4"
Weight 2.9 lbs (1.3 kg) Drivers unit 3-1/4" (8 cm) Cone × 2 Terminal Spring type color coded Keyhole slot Available Grille Fixed Other Magnetic shielding
(240 mm × 102 mm × 121 mm) (incl. grille and projection)
(240 mm × 102 mm × 121 mm) (incl. grille and projection)
Type Full Range Bass-reflex Impedance 6 Maximum input power 120 W Sensitivity 80 dB/W/m Frequency response 80 Hz to 20 kHz Cabinet capacity 0.039 cubic feet (1.1 L) Dimensions (W × H × D) 4" × 7-7/8" × 4-1/2"
Weight 1.5 lbs. (0.7 kg) Drivers unit 3-1/4" (8 cm) Cone × 1 Terminal Spring type color coded Keyhole slot Available Grille Fixed Other Non-magnetic shielding
(101 mm × 200 mm × 114 mm) (incl. grille and projection)
Specifications and appearance are subject to change without prior notice.
Note
For non-magnetic shielded speakers:
Try moving the speakers away from your TV or monitor. If discoloration should occur, turn off your TV or monitor, wait 15 to 30 minutes, and then turn it back on again. This normally activates the degaussing function, which neutralizes the magnetic field, thereby removing any discoloration effects.
En-4
F
r

Ensemble d’enceintes du Home cinéma 5.1 can.

HTP-391

Accessoires fournis

Assurez-vous que le carton contient bien les accessoires suivants.
Enceinte avant (SKF-391)
(Blanc)
Enceintes avant
20 bouchons de
caoutchouc
(Pour enceintes avant/
centrale/surround)
*1
La configuration des bouchons de caoutchouc peut être différente de la figure, en comportant par exemple 2 feuilles au lieu d’une, mais leur nombre total est identique.
*1
Câbles d’enceinte
Enceinte centrale (SKC-391/SKC-391C)
(Rouge)
3,0 m
Enceinte surround (SKR-391)
Enceintes surround
Câbles d’enceinte 8,0 m
Subwoofer (SKW-391)
Subwoofer Câble d’enceinte 3,0 m
4 tampons de protection
(Bleu)
(violet)
(Gris)

Noms des pièces

Encoche en trou de serrure
Bornes d’enceinte
SKF-391/SKR-391
Bornes d’enceinte
SKC-391/ SKC-391C
Encoches en trou de serrure
Mise en garde
• Les grilles avant ne sont pas faites pour être retirées, aussi n’essayez pas de les retirer de force, car ceci les endommagera.
(Vert)
Enceinte centrale Câble d’enceinte 3,0 m
SKC-391 (Nord-américains et brésiliens) SKC-391C (Asie)
Bornes d’enceinte
SKW-391
Fr-1

Avant d’utiliser l’Ensemble d’enceintes du Home cinéma

Utilisation des bouchons en caoutchouc pour une meilleure stabilité
Nous vous recommandons d’utiliser les bouchons en caoutchouc fournis pour obtenir le meilleur son possible de vos enceintes. Les bouchons en caoutchouc empêchent les enceintes de bouger, en procurant une meilleure stabilité.
Utilisation des tampons de protection pour le subwoofer
Si le subwoofer est placé sur un sol dur (bois, vinyle, carrelage, etc.) et si le niveau sonore de la lecture est élevé, les pieds du subwoofer peuvent endommager le sol. Pour empêcher ceci, placez les tampons fournis sous les pieds du subwoofer. Les tampons fournissent également une base stable au subwoofer.
Pour fixer l’enceinte centrale de façon horizontale, utilisez les deux encoches en trou de serrure indiquées pour accrocher l’enceinte à deux vis bien fixées au mur.
Encoche en trou de serrure pour la fixation au mur
SKC-391/ SKC-391C
160 mm
Bas de la SKC-391/SKC-391C
Bouchons de caoutchouc
Dessous de la SKF-391/ SKR-391
Bouchons de caoutchouc
25 mm
30 mm
Tampon
Fixation au mur
Pour fixer les enceintes avant/surround de façon verticale, utilisez l’encoche en trou de serrure pour accrocher chaque enceinte sur une vis bien vissée au mur.
Encoche en trou de serrure pour la fixation au mur
SKF-391/SKR-391
Conseil
• Si l’enceinte centrale est inclinée, dévissez la vis du côté incliné pour régler la position verticale de l’enceinte et la redresser.
Mise en garde
• La capacité de la vis de fixation
Mur
permettant de supporter une enceinte dépend de la façon dont elle est fixée au mur. Si vos murs sont creux, vissez chaque vis de fixation dans un montant. S’il n’y a aucun montant, ou si les murs
5 à 10 mm
sont pleins, utilisez des fixations murales adéquates. Utilisez des vis dont la tête a un diamètre de 9 mm maximum et un diamètre de la partie lisse de la tige de 4 mm maximum. Pour les murs creux, utilisez un détecteur de câbles/canalisations pour vérifier la présence éventuelle de câbles d’alimentation ou de canalisations d’eau avant d’effectuer des percements.
• Laissez un espace de 5 à 10 mm entre le mur et la base de la tête de la vis, comme indiqué (Nous vous recommandons de consulter un professionnel de l’installation domestique).
Fr-2
Vivez une expérience
d
cinématographique à domicile
Grâce au Home Cinema, vous pouvez profiter d’un son surround très réaliste à votre domicile — comme si vous étiez dans une salle de cinéma ou de concert.
a Enceintes avant gauche et droite (SKF-391)
Elles doivent être positionnées face à l’auditeur, à la hauteur des oreilles et être situées à distance égale du téléviseur. Orientez-les légèrement vers l’intérieur de manière à créer un triangle avec l’auditeur.
b Enceinte centrale (SKC-391/SKC-391C)
Positionnez-la à proximité de votre téléviseur (de préférence dessus), face à vous, à la hauteur des oreilles ou à la même hauteur que les enceintes avant gauche et droite.
c Enceintes surround gauche et droite (SKR-391)
Placez-les sur les côtés de l’auditeur, ou légèrement derrière lui, 60 à 100 cm environ au-dessus du niveau des oreilles. Idéalement, elles doivent se situer à égale distance de l’auditeur.
d Subwoofer (SKW-391)
Le subwoofer gère les graves du canal chargé des effets LFE (effets basse fréquence) et les graves des enceintes satellites lorsqu’un crossover est spécifié. Le volume et la qualité des sons graves émis par le subwoofer dépendent de sa position, de la forme de la pièce où le système est installé et de votre position d’écoute. En général, il est possible d’obtenir un bon son grave en installant le subwoofer dans un coin situé devant l’auditeur ou à environ un tiers de la largeur du mur (cf. illustration).
ab
1/3 de la position murale
Position angulaire
c

Branchement des enceintes

Précautions concernant le branchement des enceintes
Lisez ce qui suit avant de brancher vos enceintes :
Éteignez votre récepteur avant d’effectuer les branchements.
Faites très attention à respecter la polarité des câbles de vos enceintes. Ne branchez les bornes positives (+) que sur les bornes positives (+) et les bornes négatives (–) que sur les bornes négatives (–). Si les enceintes sont branchées de façon incorrecte, le son sera déphasé et ne semblera pas naturel.
• Veillez à ne pas mettre ne pas mettre les fils positifs et négatifs en court-circuit. Vous risqueriez d’endommager votre amplificateur.
Enceinte
avant droite
Subwoofer
Rouge
Enceinte centrale
Vert
Violet
Gris
Enceinte
avant gauche
Blanc
Bleu
Fr-3
Enceinte surround
droite
Enceinte surround
gauche

Caractéristiques techniques

Subwoofer passif (SKW-391)
Type Subwoofer passif de type bass-reflex Impédance 6 Puissance d’entrée maximale
130 W
Sensibilité 83 dB/W/m Distorsion de fréquence 30 Hz à 150 Hz Capacité du coffrage 0,88 pieds cubiques (25 L) Dimensions (L × H × P) 11-5/8" × 13-9/16" × 14-1/2"
Poids 14,1 lbs. (6,4 kg) Amplificateur Cône de 8" (20 cm) × 1 Borne À ressort et à code couleur Autre Protection non-magnétique
Enceintes avant (SKF-391)
Type Bass-reflex à large bande Impédance 6 Puissance d’entrée maximale
Sensibilité 80 dB/W/m Distorsion de fréquence 80 Hz à 20 kHz Capacité du coffrage 0,039 pieds cubiques (1,1 L) Dimensions (L × H × P) 4" × 7-7/8" × 4-1/2"
Poids 1,5 lbs (0,7 kg) Amplificateur Cône de 3-1/4" (8 cm) × 1 Borne À ressort et à code couleur Encoche en trou de serrure
Grille Fixe Autre Protection non-magnétique
(295 mm × 345 mm × 368 mm) (y compris la projection)
120 W
(101 mm × 200 mm × 114 mm) (y compris la grille et la projection)
Disponible
Enceinte centrale Enceintes surround (SKR-391)
SKC-391 (Nord-américains et brésiliens) Type Bass-reflex à large bande Impédance 6 Puissance d’entrée maximale
120 W
Sensibilité 80 dB/W/m Distorsion de fréquence 80 Hz à 20 kHz Capacité du coffrage 0,064 pieds cubiques (1,8 L) Dimensions (L × H × P) 9-7/16" × 4" × 4-3/4"
Poids 1,8 lbs (0,8 kg) Amplificateur Cône de 3-1/4" (8 cm) × 1 Borne À ressort et à code couleur Encoche en trou de serrure
Grille Fixe Autre Protection non-magnétique
SKC-391C (Asie) Type Large Bande à Coffrage Fermé Impédance 6 Puissance d’entrée maximale
Sensibilité 84,5 dB/W/m Distorsion de fréquence 80 Hz à 20 kHz Capacité du coffrage 0,064 pieds cubiques (1,8 L) Dimensions (L × H × P) 9-7/16" × 4" × 4-3/4"
Poids 2,9 lbs (1,3 kg) Amplificateur Cône de 3-1/4" (8 cm) × 2 Borne À ressort et à code couleur Encoche en trou de serrure
Grille Fixe Autre Protection magnétique
(240 mm × 102 mm × 121 mm) (y compris la grille et la projection)
Disponible
120 W
(240 mm × 102 mm × 121 mm) (y compris la grille et la projection)
Disponible
Type Bass-reflex à large bande Impédance 6 Puissance d’entrée maximale
120 W
Sensibilité 80 dB/W/m Distorsion de fréquence 80 Hz à 20 kHz Capacité du coffrage 0,039 pieds cubiques (1,1 L) Dimensions (L × H × P) 4" × 7-7/8" × 4-1/2"
Poids 1,5 lbs. (0,7 kg) Amplificateur Cône de 3-1/4" (8 cm) × 1 Borne À ressort et à code couleur Encoche en trou de serrure
Grille Fixe Autre Protection non-magnétique
(101 mm × 200 mm × 114 mm) (y compris la grille et la projection)
Disponible
Les caractéristiques techniques et l’apparence de cet appareil sont susceptibles d’être modifiées sans préavis.
Remarque
Pour enceintes blindées non magnétiques :
Essayez d’éloigner les enceintes de votre téléviseur ou de votre moniteur. Si une décoloration se produit, éteignez votre téléviseur ou votre moniteur, attendez 15 à 30 minutes, puis rallumez le téléviseur ou le moniteur. Ceci active normalement la fonction de démagnétisation, qui neutralise le champ magnétique, supprimant ainsi les effets de décoloration.
SN 29400972
(C) Copyright 2012 ONKYO SOUND & VISION CORPORATION Japan. All rights reserved.
Y1112-1
* 2 9 4 0 0 9 7 2 *

5.1ch Home Theater Speaker Package

E
n
HTP-391
Supplied Accessories
Make sure you have the following accessories.
Front speaker (SKF-391)
(White)
Front speakers
20 rubber stoppers*1
(For Front/Center/
Surround speakers)
*1
Configuration of the rubber stoppers may be different from the figure, such as being 2 sheets instead of 1 sheet, but the total number will be same.
Speaker cables 10 ft. (3.0 m)
Center speaker (SKC-391/SKC-391C)
(Red)
Surround speaker (SKR-391)
Surround speakers
Speaker cables 26 ft. (8.0 m)
Subwoofer (SKW-391)
Subwoofer Speaker cable 10 ft. (3.0 m)
4 floor pads
(Blue)
(Purple)
(Gray)
Part Names
Keyhole slot
Speaker terminals
SKF-391/SKR-391
Speaker terminals
SKC-391/ SKC-391C
Keyhole slots
Caution
• The front grilles are not designed to be removed so do not attempt to remove them forcibly, as this will damage them.
(Green)
Center speaker Speaker cable 10 ft. (3.0 m)
SKC-391 (North American and Brazilian) SKC-391C (Asian)
Speaker terminals
SKW-391
En-1
Before Using the Home Theater Speaker Package
Using the Rubber Stoppers for a More Stable Platform
We recommend using the supplied rubber stoppers to achieve the best possible sound from your speakers. The rubber stoppers prevent the speakers from moving, providing a more stable platform.
Using the Floor Pads for Subwoofer
If the subwoofer is placed on a hard floor (wood, vinyl, tile, etc.) and playback is very loud, the subwoofer’s feet may damage the flooring. To prevent this, place the supplied pads underneath the subwoofer’s feet. The pads also provide a stable base for the subwoofer.
To mount the center speaker horizontally, use the two keyhole slots shown to hang the speaker on two screws that are securely screwed into the wall.
Keyhole slots for wall mounting
SKC-391/ SKC-391C
6-5/16" (160 mm)
Bottom of the SKC-391/SKC-391C
Rubber stoppers
Bottom of the SKF-391/ SKR-391
Rubber stoppers
1-3/16" (30 mm)
1" (25 mm)
Pad
Wall Mounting
To mount the front/surround speakers vertically, use the keyhole slot shown to hang each speaker on a screw that’s securely screwed into the wall.
Keyhole slot for wall mounting
SKF-391/SKR-391
Tip
• If the center speaker is tilted, loosen the screw on the declined side to move upward so that the speaker could be adjusted vertically.
Caution
• A mounting screw’s ability to support a
Wall
speaker depends on how well it’s anchored to the wall. If you have hollow walls, screw each mounting screw into a stud. If there are no studs, or the walls are solid, use suitable wall anchors. Use screws with a head
3/16" to 7/16" (5 to 10 mm)
diameter of 5/16" (9 mm) or less and a shank diameter of 1/8" (4 mm) or less. With hollow walls, use a cable/pipe detector to check for any power cables or water pipes before making any holes.
• Leave a gap of between 3/16" (5 mm) and 7/16" (10 mm) between the wall and the base of the screw head, as shown (We recommend that you consult a home installation professional).
En-2
Enjoying Home Theater
d
ab
c
Connecting the Speakers
The Home Theater means that you can enjoy surround sound with a real sense of movement in your own home — just like being in a movie theater or concert hall.
a Front left and right speakers (SKF-391)
They should be positioned facing the listener at about ear level, and equally spaced from the TV. Angle them inward slightly so as to create a triangle, with the listener at the apex.
b Center speaker (SKC-391/SKC-391C)
Position it close to your TV (preferably on top) facing forward at about ear level, or at the same height as the front left and right speakers.
c Surround left and right speakers (SKR-391)
Position them at the sides of the listener, or slightly behind, about 2 to 3 feet (60 to 100 cm) above ear level. Ideally they should be equally spaced from the listener.
d Subwoofer (SKW-391)
The subwoofer handles the bass sounds of the LFE (Low-Frequency Effects) channel and bass from the satellite speakers when a crossover is specified. The volume and quality of the bass output from your subwoofer will depend on its position, the shape of your listening room, and your listening position. In general, a good bass sound can be obtained by installing the subwoofer in a front corner, or at one­third the way along the front wall, as shown.
Corner position
1/3 of wall position
Speaker Connection Precautions
Read the following before connecting your speakers:
• Turn off your receiver before making any connections.
• Pay close attention to speaker wiring polarity. Connect positive (+) terminals to only positive (+) terminals, and negative (–) terminals to only negative (–) terminals. If the speakers are wired incorrectly, the sound will be out of phase and will sound unnatural.
• Be careful not to short the positive and negative wires. Doing so may damage your amp.
Front right
speaker
Subwoofer
Red
Center speaker
Green
Purple
Gray
Front left
speaker
Blue
White
En-3
Surround
right
speaker
Surround
left
speaker
Specifications
Passive Subwoofer (SKW-391)
Type Bass-reflex type Passive subwoofer Impedance 6 Maximum input power 130 W Sensitivity 83 dB/W/m Frequency response 30 Hz to 150 Hz Cabinet capacity 0.88 cubic feet (25 L) Dimensions (W × H × D) 11-5/8" × 13-9/16" × 14-1/2"
Weight 14.1 lbs. (6.4 kg) Drivers unit 8" (20 cm) Cone × 1 Terminal Spring type color coded Other Non-magnetic shielding
Front Speakers (SKF-391)
Type Full Range Bass-reflex Impedance 6 Maximum input power 120 W Sensitivity 80 dB/W/m Frequency response 80 Hz to 20 kHz Cabinet capacity 0.039 cubic feet (1.1 L) Dimensions (W × H × D) 4" × 7-7/8" × 4-1/2"
Weight 1.5 lbs (0.7 kg) Drivers unit 3-1/4" (8 cm) Cone × 1 Terminal Spring type color coded Keyhole slot Available Grille Fixed Other Non-magnetic shielding
(295 mm × 345 mm × 368 mm) (incl. projection)
(101 mm × 200 mm × 114 mm) (incl. grille and projection)
Center Speaker Surround Speakers (SKR-391)
SKC-391 (North American and Brazilian) Type Full Range Bass-reflex Impedance 6 Maximum input power 120 W Sensitivity 80 dB/W/m Frequency response 80 Hz to 20 kHz Cabinet capacity 0.064 cubic feet (1.8 L) Dimensions (W × H × D) 9-7/16" × 4" × 4-3/4"
Weight 1.8 lbs (0.8 kg) Drivers unit 3-1/4" (8 cm) Cone × 1 Terminal Spring type color coded Keyhole slot Available Grille Fixed Other Non-magnetic shielding
SKC-391C (Asian) Type Full Range Closed Box Impedance 6 Maximum input power 120 W Sensitivity 84.5 dB/W/m Frequency response 80 Hz to 20 kHz Cabinet capacity 0.064 cubic feet (1.8 L) Dimensions (W × H × D) 9-7/16" × 4" × 4-3/4"
Weight 2.9 lbs (1.3 kg) Drivers unit 3-1/4" (8 cm) Cone × 2 Terminal Spring type color coded Keyhole slot Available Grille Fixed Other Magnetic shielding
(240 mm × 102 mm × 121 mm) (incl. grille and projection)
(240 mm × 102 mm × 121 mm) (incl. grille and projection)
Type Full Range Bass-reflex Impedance 6 Maximum input power 120 W Sensitivity 80 dB/W/m Frequency response 80 Hz to 20 kHz Cabinet capacity 0.039 cubic feet (1.1 L) Dimensions (W × H × D) 4" × 7-7/8" × 4-1/2"
Weight 1.5 lbs. (0.7 kg) Drivers unit 3-1/4" (8 cm) Cone × 1 Terminal Spring type color coded Keyhole slot Available Grille Fixed Other Non-magnetic shielding
(101 mm × 200 mm × 114 mm) (incl. grille and projection)
Specifications and appearance are subject to change without prior notice.
Note
For non-magnetic shielded speakers:
Try moving the speakers away from your TV or monitor. If discoloration should occur, turn off your TV or monitor, wait 15 to 30 minutes, and then turn it back on again. This normally activates the degaussing function, which neutralizes the magnetic field, thereby removing any discoloration effects.
En-4
F
r

Ensemble d’enceintes du Home cinéma 5.1 can.

HTP-391
Accessoires fournis
Assurez-vous que le carton contient bien les accessoires suivants.
Enceinte avant (SKF-391)
(Blanc)
Enceintes avant
20 bouchons de
caoutchouc
(Pour enceintes avant/
centrale/surround)
*1
La configuration des bouchons de caoutchouc peut être différente de la figure, en comportant par exemple 2 feuilles au lieu d’une, mais leur nombre total est identique.
*1
Câbles d’enceinte
Enceinte centrale (SKC-391/SKC-391C)
(Rouge)
3,0 m
Enceinte surround (SKR-391)
Enceintes surround
Câbles d’enceinte 8,0 m
Subwoofer (SKW-391)
Subwoofer Câble d’enceinte 3,0 m
4 tampons de protection
(Bleu)
(violet)
(Gris)
Noms des pièces
Encoche en trou de serrure
Bornes d’enceinte
SKF-391/SKR-391
Bornes d’enceinte
SKC-391/ SKC-391C
Encoches en trou de serrure
Mise en garde
• Les grilles avant ne sont pas faites pour être retirées, aussi n’essayez pas de les retirer de force, car ceci les endommagera.
(Vert)
Enceinte centrale Câble d’enceinte 3,0 m
SKC-391 (Nord-américains et brésiliens) SKC-391C (Asie)
Bornes d’enceinte
SKW-391
Fr-1
Avant d’utiliser l’Ensemble d’enceintes du Home cinéma
Utilisation des bouchons en caoutchouc pour une meilleure stabilité
Nous vous recommandons d’utiliser les bouchons en caoutchouc fournis pour obtenir le meilleur son possible de vos enceintes. Les bouchons en caoutchouc empêchent les enceintes de bouger, en procurant une meilleure stabilité.
Utilisation des tampons de protection pour le subwoofer
Si le subwoofer est placé sur un sol dur (bois, vinyle, carrelage, etc.) et si le niveau sonore de la lecture est élevé, les pieds du subwoofer peuvent endommager le sol. Pour empêcher ceci, placez les tampons fournis sous les pieds du subwoofer. Les tampons fournissent également une base stable au subwoofer.
Pour fixer l’enceinte centrale de façon horizontale, utilisez les deux encoches en trou de serrure indiquées pour accrocher l’enceinte à deux vis bien fixées au mur.
Encoche en trou de serrure pour la fixation au mur
SKC-391/ SKC-391C
160 mm
Bas de la SKC-391/SKC-391C
Bouchons de caoutchouc
Dessous de la SKF-391/ SKR-391
Bouchons de caoutchouc
25 mm
30 mm
Tampon
Fixation au mur
Pour fixer les enceintes avant/surround de façon verticale, utilisez l’encoche en trou de serrure pour accrocher chaque enceinte sur une vis bien vissée au mur.
Encoche en trou de serrure pour la fixation au mur
SKF-391/SKR-391
Conseil
• Si l’enceinte centrale est inclinée, dévissez la vis du côté incliné pour régler la position verticale de l’enceinte et la redresser.
Mise en garde
• La capacité de la vis de fixation
Mur
permettant de supporter une enceinte dépend de la façon dont elle est fixée au mur. Si vos murs sont creux, vissez chaque vis de fixation dans un montant. S’il n’y a aucun montant, ou si les murs
5 à 10 mm
sont pleins, utilisez des fixations murales adéquates. Utilisez des vis dont la tête a un diamètre de 9 mm maximum et un diamètre de la partie lisse de la tige de 4 mm maximum. Pour les murs creux, utilisez un détecteur de câbles/canalisations pour vérifier la présence éventuelle de câbles d’alimentation ou de canalisations d’eau avant d’effectuer des percements.
• Laissez un espace de 5 à 10 mm entre le mur et la base de la tête de la vis, comme indiqué (Nous vous recommandons de consulter un professionnel de l’installation domestique).
Fr-2
Vivez une expérience
d
cinématographique à domicile
Grâce au Home Cinema, vous pouvez profiter d’un son surround très réaliste à votre domicile — comme si vous étiez dans une salle de cinéma ou de concert.
a Enceintes avant gauche et droite (SKF-391)
Elles doivent être positionnées face à l’auditeur, à la hauteur des oreilles et être situées à distance égale du téléviseur. Orientez-les légèrement vers l’intérieur de manière à créer un triangle avec l’auditeur.
b Enceinte centrale (SKC-391/SKC-391C)
Positionnez-la à proximité de votre téléviseur (de préférence dessus), face à vous, à la hauteur des oreilles ou à la même hauteur que les enceintes avant gauche et droite.
c Enceintes surround gauche et droite (SKR-391)
Placez-les sur les côtés de l’auditeur, ou légèrement derrière lui, 60 à 100 cm environ au-dessus du niveau des oreilles. Idéalement, elles doivent se situer à égale distance de l’auditeur.
d Subwoofer (SKW-391)
Le subwoofer gère les graves du canal chargé des effets LFE (effets basse fréquence) et les graves des enceintes satellites lorsqu’un crossover est spécifié. Le volume et la qualité des sons graves émis par le subwoofer dépendent de sa position, de la forme de la pièce où le système est installé et de votre position d’écoute. En général, il est possible d’obtenir un bon son grave en installant le subwoofer dans un coin situé devant l’auditeur ou à environ un tiers de la largeur du mur (cf. illustration).
ab
1/3 de la position murale
Position angulaire
c
Branchement des enceintes
Précautions concernant le branchement des enceintes
Lisez ce qui suit avant de brancher vos enceintes :
Éteignez votre récepteur avant d’effectuer les branchements.
Faites très attention à respecter la polarité des câbles de vos enceintes. Ne branchez les bornes positives (+) que sur les bornes positives (+) et les bornes négatives (–) que sur les bornes négatives (–). Si les enceintes sont branchées de façon incorrecte, le son sera déphasé et ne semblera pas naturel.
• Veillez à ne pas mettre ne pas mettre les fils positifs et négatifs en court-circuit. Vous risqueriez d’endommager votre amplificateur.
Enceinte
avant droite
Subwoofer
Rouge
Enceinte centrale
Vert
Violet
Gris
Enceinte
avant gauche
Blanc
Bleu
Fr-3
Enceinte surround
droite
Enceinte surround
gauche
Caractéristiques techniques
Subwoofer passif (SKW-391)
Type Subwoofer passif de type bass-reflex Impédance 6 Puissance d’entrée maximale
130 W
Sensibilité 83 dB/W/m Distorsion de fréquence 30 Hz à 150 Hz Capacité du coffrage 0,88 pieds cubiques (25 L) Dimensions (L × H × P) 11-5/8" × 13-9/16" × 14-1/2"
Poids 14,1 lbs. (6,4 kg) Amplificateur Cône de 8" (20 cm) × 1 Borne À ressort et à code couleur Autre Protection non-magnétique
Enceintes avant (SKF-391)
Type Bass-reflex à large bande Impédance 6 Puissance d’entrée maximale
Sensibilité 80 dB/W/m Distorsion de fréquence 80 Hz à 20 kHz Capacité du coffrage 0,039 pieds cubiques (1,1 L) Dimensions (L × H × P) 4" × 7-7/8" × 4-1/2"
Poids 1,5 lbs (0,7 kg) Amplificateur Cône de 3-1/4" (8 cm) × 1 Borne À ressort et à code couleur Encoche en trou de serrure
Grille Fixe Autre Protection non-magnétique
(295 mm × 345 mm × 368 mm) (y compris la projection)
120 W
(101 mm × 200 mm × 114 mm) (y compris la grille et la projection)
Disponible
Enceinte centrale Enceintes surround (SKR-391)
SKC-391 (Nord-américains et brésiliens) Type Bass-reflex à large bande Impédance 6 Puissance d’entrée maximale
120 W
Sensibilité 80 dB/W/m Distorsion de fréquence 80 Hz à 20 kHz Capacité du coffrage 0,064 pieds cubiques (1,8 L) Dimensions (L × H × P) 9-7/16" × 4" × 4-3/4"
Poids 1,8 lbs (0,8 kg) Amplificateur Cône de 3-1/4" (8 cm) × 1 Borne À ressort et à code couleur Encoche en trou de serrure
Grille Fixe Autre Protection non-magnétique
SKC-391C (Asie) Type Large Bande à Coffrage Fermé Impédance 6 Puissance d’entrée maximale
Sensibilité 84,5 dB/W/m Distorsion de fréquence 80 Hz à 20 kHz Capacité du coffrage 0,064 pieds cubiques (1,8 L) Dimensions (L × H × P) 9-7/16" × 4" × 4-3/4"
Poids 2,9 lbs (1,3 kg) Amplificateur Cône de 3-1/4" (8 cm) × 2 Borne À ressort et à code couleur Encoche en trou de serrure
Grille Fixe Autre Protection magnétique
(240 mm × 102 mm × 121 mm) (y compris la grille et la projection)
Disponible
120 W
(240 mm × 102 mm × 121 mm) (y compris la grille et la projection)
Disponible
Type Bass-reflex à large bande Impédance 6 Puissance d’entrée maximale
120 W
Sensibilité 80 dB/W/m Distorsion de fréquence 80 Hz à 20 kHz Capacité du coffrage 0,039 pieds cubiques (1,1 L) Dimensions (L × H × P) 4" × 7-7/8" × 4-1/2"
Poids 1,5 lbs. (0,7 kg) Amplificateur Cône de 3-1/4" (8 cm) × 1 Borne À ressort et à code couleur Encoche en trou de serrure
Grille Fixe Autre Protection non-magnétique
(101 mm × 200 mm × 114 mm) (y compris la grille et la projection)
Disponible
Les caractéristiques techniques et l’apparence de cet appareil sont susceptibles d’être modifiées sans préavis.
Remarque
Pour enceintes blindées non magnétiques :
Essayez d’éloigner les enceintes de votre téléviseur ou de votre moniteur. Si une décoloration se produit, éteignez votre téléviseur ou votre moniteur, attendez 15 à 30 minutes, puis rallumez le téléviseur ou le moniteur. Ceci active normalement la fonction de démagnétisation, qui neutralise le champ magnétique, supprimant ainsi les effets de décoloration.
