Thank you for purchasing the Onkyo DV-SP504/
DV-SP504E Super Audio CD & DVD Audio/
Video player. Read this manual carefully before
using your new DVD player. A good understanding of its features and operation will allow you to
achieve optimum performance and enjoyment.
TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK, DO NOT EXPOSE THIS APPARATUS
TO RAIN OR MOISTURE.
CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK). NO
USER-SERVICEABLE PARTS INSIDE. REFER
SERVICING TO QUALIFIED SERVICE
PERSONNEL.
Important Safety Instructions
WARNING
RISK OF ELECTRIC SHOCK
DO NOT OPEN
The lightning flash with arrowhead symbol, within an
equilateral triangle, is intended to alert the user to the
presence of uninsulated “dangerous voltage” within
the product’s enclosure that may be of sufficient
magnitude to constitute a risk of electric shock to
persons.
The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in
the literature accompanying the appliance.
AVIS
RISQUE DE CHOC ELECTRIQUE
NE PAS
OUVRIR
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two
blades with one wider than the other. A grounding
type plug has two blades and a third grounding
prong. The wide blade or the third prong are provided for your safety. If the provided plug does not
fit into your outlet, consult an electrician for
replacement of the obsolete outlet.
10. Protect the power cord from being walked on or
pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the
manufacturer.
12.
Use only with the cart, stand,
PORTABLE CART WARNING
tripod, bracket, or table specified by the manufacturer, or
sold with the apparatus.
When a cart is used, use caution when moving the cart/
apparatus combination to
avoid injury from tip-over.
S3125A
13. Unplug this apparatus during lightning storms or
when unused for long periods of time.
14. Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or
plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has
been exposed to rain or moisture, does not operate
normally, or has been dropped.
15. Damage Requiring Service
Unplug the apparatus from the wall outlet and refer
servicing to qualified service personnel under the
following conditions:
A. When the power-supply cord or plug is damaged,
B. If liquid has been spilled, or objects have fallen
into the apparatus,
C. If the apparatus has been exposed to rain or
water,
D. If the apparatus does not operate normally by
following the operating instructions. Adjust only
those controls that are covered by the operating
instructions as an improper adjustment of other
controls may result in damage and will often
require extensive work by a qualified technician
to restore the apparatus to its normal operation,
E. If the apparatus has been dropped or damaged in
any way, and
F. When the apparatus exhibits a distinct change in
performance this indicates a need for service.
16. Object and Liquid Entry
Never push objects of any kind into the apparatus
through openings as they may touch dangerous voltage points or short-out parts that could result in a
fire or electric shock.
The apparatus shall not be exposed to dripping or
splashing and no objects filled with liquids, such as
vases shall be placed on the apparatus.
Don’t put candles or other burning objects on top of
this unit.
17. Batteries
Always consider the environmental issues and follow local regulations when disposing of batteries.
18. If you install the apparatus in a built-in installation,
such as a bookcase or rack, ensure that there is adequate ventilation.
Leave 20 cm (8") of free space at the top and sides
and 10 cm (4") at the rear. The rear edge of the shelf
or board above the apparatus shall be set 10 cm (4")
away from the rear panel or wall, creating a flue-like
gap for warm air to escape.
2
Precautions
1. Recording Copyright
only, recording copyrighted material is illegal without the permission of the copyright holder.
2. AC Fuse
serviceable. If you cannot turn on the unit, contact
your Onkyo dealer.
3. Care
over with a soft cloth. For stubborn stains, use a soft
cloth dampened with a weak solution of mild detergent and water. Dry the unit immediately afterwards
with a clean cloth. Don’t use abrasive cloths, thinners, alcohol, or other chemical solvents, because
they may damage the finish or remove the panel lettering.
4. Power
WARNING
BEFORE PLUGGING IN THE UNIT FOR THE
FIRST TIME, READ THE FOLLOWING SECTION CAREFULLY.
AC outlet voltages vary from country to country.
Make sure that the voltage in your area meets the
voltage requirements printed on the unit’s rear panel
(e.g., AC 230 V, 50 Hz or AC 120 V, 60 Hz).
The power cord plug is used to disconnect this unit
from the AC power source. Make sure that the plug
is readily operable (easily accessible) at all times.
Pressing the [STANDBY/ON] button to select
Standby mode does not fully shutdown the unit. If
you do not intend to use the unit for an extended
period, remove the power cord from the AC outlet.
5. Never Touch this Unit with Wet Hands
handle this unit or its power cord while your hands
are wet or damp. If water or any other liquid gets
inside this unit, have it checked by your Onkyo
dealer.
6. Handling Notes
• If you need to transport this unit, use the original
• Do not leave rubber or plastic items on this unit
• This unit’s top and rear panels may get warm
• If you do not use this unit for a long time, it may
• When you’ve finished using this unit, remove all
7. Installing this Unit
• Install this unit in a well-ventilated location.
• Ensure that there’s adequate ventilation all
—The AC fuse inside the unit is not user-
—Occasionally you should dust the unit all
packaging to pack it how it was when you originally bought it.
for a long time, because they may leave marks on
the case.
after prolonged use. This is normal.
not work properly the next time you turn it on, so
be sure to use it occasionally.
discs and turn off the power.
around this unit, especially if it’s installed in an
audio rack. If the ventilation is inadequate, the
unit may overheat, leading to malfunction.
—Unless it’s for personal use
—Never
• Do not expose this unit to direct sunlight or heat
sources, because its internal temperature may
rise, shortening the life of the optical pickup.
•Avoid damp and dusty places, and places subject
to vibrations from loudspeakers. Never put the
unit on top of, or directly above a loudspeaker.
• Install this unit horizontally. Never use it on its
side or on a sloping surface, because it may cause
a malfunction.
• If you install this unit near a TV, radio, or VCR,
the picture and sound quality may be affected. If
this occurs, move this unit away from the TV,
radio, or VCR.
8. To Obtain a Clear Picture
tech, precision device. If the lens on the optical
pickup, or the disc drive mechanism becomes dirty
or worn, the picture quality may be affected. To
maintain the best picture quality, we recommend
regular inspection and maintenance (cleaning or
worn part replacement) every 1,000 hours of use
depending on the operating environment. Contact
your Onkyo dealer for details.
9. Moisture Condensation
Moisture condensation may damage this unit.
Read the following carefully:
Moisture may condense on the lens of the optical
pickup, one of the most important parts inside this
unit.
• Moisture condensation can occur in the following
situations:
– The unit is moved from a cold place to a warm
place.
–A heater is turned on, or cold air from an air
conditioner is hitting the unit.
– In the summer, when this unit is moved from an
air conditioned room to a hot and humid place.
– The unit is used in a humid place.
• Do not use this unit when there’s the possibility
of moisture condensation occurring. Doing so
may damage your discs and certain parts inside
this unit.
If condensation does occur, remove all discs and
leave this unit turned on for two to three hours. By
this time, the unit will have warmed up and any condensation will have evaporated.
—This unit is a high-
3
Precautions
—Continued
10. Region Numbers
—The DVD standard uses region
numbers to control how discs can be played around
the world, the world being divided into six regions.
This unit will only play DVD discs that match its
region number, which can be found on its rear panel
ALL
1
(e.g., , ).
11. About this Manual
—This manual explains how to
use all of this unit’s functions. Although the DVD
standard offers many special features, not all discs
use them all, so depending on the disc being played,
this unit may not respond to certain functions. See
the disc’s sleeve notes for supported features.
This unit contains a semiconductor laser system and is
classified as a “CLASS 1 LASER PRODUCT”. So, to
use this model properly, read this Instruction Manual
carefully. In case of any trouble, please contact the store
where you purchased the unit.
To prevent being exposed to the laser beam, do not try
to open the enclosure.
CAUTION:
CLASS 1M VISIBLE AND INVISIBLE LASER
RADIATION WHEN OPEN. DO NOT VIEW
DIRECTLY WITH OPTICAL INSTRUMENTS.
THIS PRODUCT UTILIZES A LASER. USE OF
CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE
SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.
For U.S. models
FCC Information for User
CAUTION:
The user changes or modifications not expressly
approved by the party responsible for compliance could
void the user’s authority to operate the equipment.
NOTE:
This equipment has been tested and found to comply
with the limits for a Class B digital device, pursuant to
Part 15 of the FCC Rules. These limits are designed to
provide reasonable protection against harmful interference in a residential installation.
This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no
guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful interference to radio or television reception, which can be
determined by turning the equipment off and on, the
user is encouraged to try to correct the interference by
one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and
receiver.
• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician for help.
The label on the right is
applied on the rear panel.
1. This unit is a CLASS 1
LASER PRODUCT and
employs a laser inside the cabinet.
2. To prevent the laser from being exposed, do not remove the
cover. Refer servicing to qualified personnel.
4
For European Models
Declaration of Conformity
We,
ONKYO EUROPE
ELECTRONICS GmbH
LIEGNITZERSTRASSE 6,
82194 GROEBENZELL,
GERMANY
declare in own responsibility, that the ONKYO product
described in this instruction manual is in compliance with the
corresponding technical standards such as EN60065,
EN55013, EN55020 and EN61000-3-2, -3-3.
GROEBENZELL, GERMANY
K. MIYAGI
ONKYO EUROPE ELECTRONICS GmbH
Precautions
—Continued
Supplied Accessories
For Canadian Models
NOTE:
COMPLIES WITH CANADIAN ICES-003.
For models having a power cord with a polarized plug:
CAUTION:
MATCH WIDE BLADE OF PLUG TO WIDE SLOT,
FULLY INSERT.
THIS CLASS B DIGITAL APPARATUS
TO PREVENT ELECTRIC SHOCK,
Modèle pour les Canadien
REMARQUE:
LA CLASSE B EST CONFORME À LA NORME
NMB-003 DU CANADA.
Sur les modèles dont la fiche est polarisée:
ATTENTION:
TRIQUES, INTRODUIRE LA LAME LA PLUS
LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER
JUSQU’AU FOND.
CET APPAREIL NUMÉRIQUE DE
POUR ÉVITER LES CHOCS ÉLEC-
For British models
Replacement and mounting of an AC plug on the power
supply cord of this unit should be performed only by
qualified service personnel.
IMPORTANT
The wires in the mains lead are coloured in accordance
with the following code:
Blue: Neutral
Brown: Live
As the colours of the wires in the mains lead of this
apparatus may not correspond with the coloured markings identifying the terminals in your plug, proceed as
follows:
The wire which is coloured blue must be connected to
the terminal which is marked with the letter N or
coloured black.
The wire which is coloured brown must be connected to
the terminal which is marked with the letter L or
coloured red.
IMPORTANT
The plug is fitted with an appropriate fuse. If the fuse
needs to be replaced, the replacement fuse must
approved by ASTA or BSI to BS1362 and have the same
ampere rating as that indicated on the plug. Check for
the ASTA mark or the BSI mark on the body of the fuse.
If the power cord’s plug is not suitable for your socket
outlets, cut it off and fit a suitable plug. Fit a suitable
fuse in the plug.
Make sure you have the following accessories:
RC-657DV
Remote controller & 2 batteries (AA/R6)
AV cable (RCA) (1.5 m)
Coaxial cable (1.0 m)
cable (0.8 m)
This cable is used to connect the DVD player to other
-compatible Onkyo components for (Remote
Interactive) control.
To use , in addition to an connection, you must
make an analog audio connection (RCA) between the
DVD player and your Onkyo AV receiver.
Power cord (1.8 m, 2 m for Australian model)
Power-plug adapter
Only supplied in certain countries. Use this adapter if
your AC outlet does not match with the plug on the DVD
player’s power cord. (Adapter varies from country to
country.)
5
Introduction
Features
Highlights
• Dolby*1 Digital, DTS
•DVD-Video, Video CD, audio CD
• MP3, WMA,*3 JPEG, DivX
ican model)
•DVD-Audio and Super Audio CD
• CD-R/RW, DVD-R/RW, and DVD+R/RW compatible
• HDMI
*5
digital interface
• 5.1-channel analog audio output
*2
®*4
(not North Amer-
Video
• Advanced 108 MHz/14-bit video D/A converter
• Component, S-Video, and composite video outputs
• Repeat/A-B Repeat/Random/Memory playback
• Supports 4:3 and 16:9 aspect ratio TVs
•Parental Lock function
• Screen Saver function
Audio
• 192 kHz/24-bit D/A converter
• Optical / Coaxial digital output
• VLSC
• Dynamic Range Control setting
*6
channels
(Vector Linear Shaping Circuitry) on all
*1 Manufactured under license from Dolby Laboratories.
“Dolby”, “Pro Logic” and the double-D symbol are trademarks
of Dolby Laboratories.
*2 “DTS” and “DTS Digital Surround” are registered trademarks
of Digital Theater Systems, Inc.
*3 Windows Media, and the Win-
dows logo are trademarks, or
registered trademarks of
Microsoft Corporation in the
United States and/or other countries.
*4 DivX, DivX Certified, and asso-
ciated logos are trademarks of
DivX, Inc. and are used under
license.
*5 HDMI, the HDMI logo and
High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI licensing LLC.
*6 VLSC and the VLSC logo are registered trademarks of Onkyo
Corporation.
Others
• Adjustable display brightness
• Full-function remote controller
6
Contents
Basic Operation
Overview
Important Safety Instructions ..............................2
• The DVD player does not support disc types not listed.
• The DVD player supports 8 cm and 12 cm discs.
• Don’t use discs with an unusual shape, such as those
shown below, because you may damage the DVD
player.
• Don’t use discs that have residue from adhesive tape,
rental discs with peeling labels, or discs with custommade labels or stickers. Doing so may damage the
DVD player and you may not be able to remove the
disc properly.
About playing copy-controlled CDs
Some copy-controlled CDs may not conform to official
CD standards. They are special discs and may not play
on the DVD player.
Function Support
The following icons are used throughout this manual to
indicate which functions can be used with the various
disc formats and file types.
IconDisc format or file type
DVD-V
DVD-Video
*2
CD-RW
JPEG CD
– DVD+R/RW –
The DVD player supports DVD+R/RW discs
recorded in the following formats:
Audio CD, MP3, WMA,
JPEG
JPEG
• Discs recorded in DVD-Video mode.
• Discs recorded in ISO 9660 Level 2 or Joliet format containing MP3, WMA, or JPEG files.
*1 The DVD player’s region number is printed on the rear panel.
If you attempt to play a disc intended for another region, the
message appears onscreen.
*2 MP3, WMA, and JPEG files are supported on discs recorded in
ISO 9660 Level 2 or Joliet format. (See “MP3/WMA/JPEG
Compatibility” on page 9 for more details.) However, some
CD-R, CD-RW, DVD-R, and DVD-RW discs may not work
properly for any of the following reasons: incomplete disc
finalization, disc burner characteristics, disc characteristics, the
disc is damaged or dirty, the disc contains only a small amount
of data. Discs that contain different types of files, JPEG, MP3,
WMA, DivX, and so on, are not supported. See the manual supplied with your disc burner for more information. Condensation or dirt on the optical pickup lens can also affect playback.
*3 The DVD player does not support DVD-VR discs that use
CPRM (Content Protection for Recordable Media).
*4 Some audio CDs feature copy protection that doesn’t conform
to the official CD standard. Since these are nonstandard discs,
they may not play properly in the DVD player.
DVD-A
SACD
VCD
CD
MP3
WMA
JPEG
DivX
DivX
DVD-Audio
Super Audio CD
Video CD
Audio CD
MP3 file
WMA file
JPEG file
®
(not North American model)
About this Manual
This manual explains how to use all of the DVD player’s
functions. Although the DVD standard offers many special features, not all discs use them all, so depending on
the disc being played, the DVD player may not respond
to certain functions. See your disc’s sleeve notes for supported features.
When you attempt to use a DVD feature that is
not available, this logo may appear onscreen,
indicating that the feature is not supported by
the current disc or by the DVD player.
8
Introduction
—Continued
MP3/WMA/JPEG Compatibility
• The DVD player can play/display MP3, WMA, and
JPEG files recorded on CD-R, CD-RW, DVD-R,
DVD-RW, DVD+R and DVD+RW discs.
• Discs must be in ISO 9660 Level 2 or Joliet format
(folders can be up to eight levels deep). Music files
recorded on discs that use the HFS (hierarchical file
system) cannot be played.
• Discs must be finalized.
• The DVD player can only recognize the first session
on multisession discs.
•You can determine the order in which the DVD player
plays/displays your MP3/WMA songs and JPEG pictures by prefixing file and folder names with a threedigit number. For example 001.Root, 002.Folder, and
so on, and 001.Track.mp3, 002.Track.mp3, and so on.
• Only the first eight characters of folder and track names
(excluding the filename extension) are displayed.
• The folder numbered “001” appears as “ROOT” in the
Disc Navigator.
• The DVD player supports up to 255 folders and up to
255 files per folder.
• If you try to play an incompatible file, the message
“This format cannot be played” appears on the display.
■
MP3
• MP3 files must be MPEG1 Audio Layer 3 format, 44.1
or 48 kHz, fixed bit-rate.
• MP3 files must have a “.mp3” or “.MP3” filename
extension.
•Variable bit-rates (VBR) from 32 kbps to 320 kbps are
supported. (Playing times may display incorrectly
with VBR.)
About DivX
DivX is a compressed digital video format created by the
DivX® video codec from DivXNetworks, Inc. This
player can play DivX video files burned on CD-R discs.
When naming files on a disc prior to burning, keep in
mind that by default they will be played in alphabetical
order.
Note:
• North American models do not support DivX Video.
DivX video compatibility
•Official DivX® Certified product.
• Plays DivX® 5, DivX® 4, DivX® 3 and DivX® VOD
video content (in compliance with DivX
technical requirements).
DivX® disc compatibility with this player is limited as
follows:
Playable discs
File system
File name
Total number of
folders
Total number of
files
CD-R
CD-RW not recommended
ISO9660 Level 1, 2, or Joliet
A file name should be in alphabet
and numerals only, and must incorporate “AVI” extension.
e.g. “*****.AVI”
Less than 255
Less than 255
®
Certified
■
WMA
• WMA files must have the copyright option turned off.
• Sampling rates 44.1/48 kHz are supported.
•Variable bit-rates (VBR) from 48 kbps to 192 kbps
(44.1 kHz) and 128 kbps to 192 kbps (48 kHz) are supported. (Playing times may display incorrectly with
VBR.)
• WMA files must have a “.wma” or “.WMA” filename
extension.
■
JPEG
• JPEG files must have a “.jpg” or “.JPG” filename
extension.
• JPEG files must be less than 5 megabytes in size.
• JPEG files up to 5,700 x 3,800 pixels are supported.
About WMA
WMA is an acronym for Windows Media Audio and
refers to an audio compression technology developed by
Microsoft Corporation. WMA content can be encoded
by using Windows Media
®
Player version 7/7.1 or 8.
9
Introduction
—Continued
Handling Discs
•Never touch the underside of a disc. Always hold discs
by the edge, as shown.
Underside
•Never attach adhesive tape or sticky labels to discs.
Cleaning Discs
•For best results, keep your discs clean. Fingerprints
and dust can affect the sound and picture quality and
should be removed as follows. Using a clean soft
cloth, wipe from the center outwards, as shown. Never
wipe in a circular direction.
Copyright
It is forbidden by law to copy, broadcast, show, broadcast
on cable, play in public, or rent copyrighted material
without permission.
DVD-Video discs are copy-protected, and any recordings made from these discs will be distorted.
This product incorporates copyright protection technology that is protected by method claims of certain U.S.
patents and other intellectual property rights owned by
Macrovision Corporation and other rights owners. Use
of this copyright-protection technology must be authorized by Macrovision Corporation, and is intended for
home and other limited viewing uses only, unless otherwise authorized by Macrovision Corporation. Reverse
engineering or disassembly is prohibited.
✔
•To remove stubborn dust or dirt, wipe the disc with a
damp soft cloth, and then dry it with a dry cloth.
•Never use solvent-based cleaning fluids, such as thinner or benzine, commercially available cleaners, or
antistatic sprays intended for vinyl records, because
they may damage the disc.
Storing Discs
• Don’t store discs in places subject to direct sunlight, or
near heat sources.
• Don’t store discs in places subject to moisture or dust,
such as in a bathroom or near a humidifier.
•Always store discs in their cases and vertically. Stacking, or putting objects on unprotected discs may cause
warping, scratches, or other damage.
10
Before Using the DVD player
Installing the Batteries
Open the battery compartment, as shown.
1
Insert the two supplied batteries (AA/R6)
2
in accordance with the polarity diagram
inside the battery compartment.
Close the battery compartment.
3
Notes:
• If the remote controller doesn’t work reliably, try
replacing both batteries.
• Don’t mix new and old batteries, or different types of
batteries.
• If you intend not to use the remote controller for a long
time, remove the batteries to prevent possible leakage
and corrosion.
• Flat batteries should be removed as soon as possible to
prevent possible leakage and corrosion.
Using the Remote Controller
To use the remote controller, point it at the DVD player’s
remote control sensor, as shown below.
Remote control sensor
DVD player
30˚
Notes:
• The remote controller may not work reliably if the
DVD player is subjected to bright light, such as direct
sunlight or inverter-type fluorescent lights. Keep this
in mind when installing the DVD player.
• If another remote controller of the same type is used in
the same room, or the DVD player is installed close to
equipment that uses infrared rays, the remote controller may not work reliably.
• Don’t put anything, such as a book, on the remote controller, because the buttons may be pressed inadvertently, thereby draining the batteries.
• The remote controller may not work reliably if the
DVD player is installed in a rack behind colored glass
doors. Keep this in mind when installing the DVD
player.
• The remote controller will not work if there’s an obstacle between it and the DVD player’s remote control
sensor.
30˚
x. 16 ft. (5 m)
Appro
11
Front & Rear Panels
For detailed information, refer to the pages in brackets.
Front Panel
123 4 567 8 9J
TOP MENUMENU
RETURNSETUP
S RQ
A
STANDBY/ON button [26]
This button is used to set the DVD player to On or
Standby.
B
STANDBY indicator [26]
This indicator lights up when the DVD player is in
Standby.
C
RESOLUTION button [43]
This button is used to select the video resolution for
the HDMI output, and select progressive or interlaced scanning.
D
HDMI button [43]
This button is used to turn HDMI on or off.
E
HDMI indicator [43]
This indicator lights up when a HDMI signal is
being output.
F
Disc tray [28]
Discs are loaded here.
TOP MENU button [31, 33]
G
With DVD discs, this button displays the main
menu. With a JPEG disc, it displays thumbnails of
the images. With a Video CD, it turns PBC on or off.
H
Cursor /// & ENTER buttons [45]
The four cursor buttons located around the central
[ENTER] button are used to navigate DVD-Video
menus and the onscreen setup menus.
The central [ENTER] button is used to start playback of the selected title, chapter, or track and to
confirm settings.
I
MENU button [31, 33]
This button is used to display a menu on a DVD or
to open the Disc Navigator when using a JPEG disc.
PON
(open/close) button [28]
J
This button is used to open and close the disc tray.
K
(pause) button [28, 30]
This button is used to pause playback.
(stop) button [29]
L
This button is used to stop playback.
(play) button [28]
M
This button is used to start playback.
Previous/Next / buttons [29]
N
The Previous button is used to select the previous
chapter or track. During playback it selects the
beginning of the current track.
The Next button is used to select the next chapter or
track.
O
SETUP button [45]
This button is used to open and close the onscreen
setup menus.
P
RETURN button
This button is used to exit the onscreen setup.
Q
Remote control sensor [11]
This sensor receives control signals from the remote
controller.
R
DISPLAY button [42]
This button is used to display information about the
title, chapter, or track, including the elapsed time,
remaining time, total time, and so on. Press it
repeatedly to display more information.
DIMMER button [55]
S
This button is used to adjust the display brightness.
KLM
S
O
R
R
U
C
P
R
U
E
S
T
H
N
T
E
O
normaldimdimmer
12
Front & Rear Panels
Display
—Continued
12C
ED
1
2
3
4
5
6
7
8
D PRO LOGIC indicator
The D indicator appears when playing Dolby
Digital material. The PRO LOGIC indicator appears
when the DVD player’s Dolby Pro Logic decoder is
on.
Disc type indicators
These indicators show the type of disc loaded.
TITLE indicator
While stopped, the total number of titles on the current DVD-Video disc is displayed here. During
playback, the number of the current title is displayed.
GROUP indicator
While stopped, the total number of groups on the
current DVD-Audio disc is displayed here. During
playback, the number of the current group is displayed.
TRACK indicator
This indicator appears while track numbers are
being displayed. While stopped, the total number of
tracks on the current SACD, Video CD, audio CD,
or MP3/WMA disc are displayed. During playback,
the number of the current track is displayed.
5.1 CH indicator
This indicator appears when playing 5.1-channel
material.
CHP indicator
This indicator appears while the number of the current chapter is being displayed.
D.MIX indicator
During multichannel audio playback, indicates that
the output signal has been down mixed from the
original audio source. This is an automatic function
performed by the player in order to present the most
appropriate audio mix to the speakers present in
your system.
G
H
3
4
75 689A
0
B
IF
9
RANDOM indicator
This indicator appears when using the Random
function.
0
REMAIN indicator
This indicator appears while the remaining time is
being displayed.
A
Repeat indicator
This indicator appears when A-B playback or repeat
playback is used.
B
A-B indicator
These indicators appear when using the A-B Repeat
function.
Camera angle indicator
C
This indicator appears if the DVD-Video disc being
played features multiple camera angles.
PROGRESSIVE indicator
D
This indicator appears when progressive video is
being output by the component video output.
DTS indicator
E
This indicator appears when playing DTS material.
F
Play indicator
This indicator is shown during playback.
Pause indicator
G
This indicator appears when playback is paused.
H
MP3 indicator
This indicator appears when playing an MP3 disc.
I
Message & time area
Time information, such as total time, remaining
time, and so on, is displayed here in hours, minutes,
and seconds. Other messages are also displayed.
13
Front & Rear Panels
Rear Panel
■
North American model
—Continued
■
European model
43276J5
LK
276J5
M
981
981
■
Other models
LK
276J5
LK
981
14
Front & Rear Panels
—Continued
AUDIO OUTPUT [20, 22, 23]
A
These jacks make up the multichannel analog audio
output. The FRONT/D.MIX jacks can be connected
to a stereo input on a TV, hi-fi amp, or other component. The 1 and 2 jacks output the same signals, so
use either pair. If you use this connection, in the
Speaker Configuration (page 48), set the Subwoofer, Center Speaker, and Surround Speaker settings to Off, so that 5.1-channel DVD audio is down
mixed into two channels.
If you’re using an AV receiver or surround decoder
with a 5.1-channel analog audio input, use the
FRONT/D.MIX 1 or 2 jacks and the SURR 1 L/R,
CENTER, and SUBWOOFER jacks.
If you’re using an AV receiver or surround decoder
with a 7.1-channel analog audio input, connect the
SURR 2 L/R jacks to your amp’s surround back L/R
jacks, and set the SURR MODE switch to “1+2.”
The SURR 1 and SURR 2 jacks output the same
signals.
jack [23]
B
These (Remote Interactive) connectors can be
connected to the connectors on your other
Onkyo AV components for interactive control.
Connecting an cable only does not make the
system operational. You must also connect the audio
cables as well.
RS 232 (North American model only)
C
This port is for servicing.
D
IR IN/OUT (North American model only) [25]
A commercially available IR receiver can be connected to the IR IN jack, allowing you to control the
DVD player when it's out of sight, for example,
installed in a cabinet.
A commercially available IR emitter can be connected to the IR OUT jack to pass IR (infrared)
remote control signals along to other components.
E
S VIDEO OUTPUT [21]
This connector can be used to connect a TV or projector with an S-Video input.
F
VIDEO OUTPUT [20]
This RCA connector can be used to connect a TV or
projector with a composite video input.
G
COMPONENT VIDEO OUTPUT [21]
These jacks output component video and can be
connected to an component video input on a TV or
projector.
OPTICAL DIGITAL AUDIO OUTPUT [22]
H
This optical digital audio output can be connected to
an optical digital audio input on a hi-fi amp, AV
receiver, or surround sound decoder (Dolby Digital,
DTS).
COAXIAL DIGITAL AUDIO OUTPUT [22]
I
This coaxial digital audio output can be connected
to a coaxial digital audio input on a hi-fi amp, AV
receiver, or surround sound decoder (Dolby Digital,
DTS) with supplied coaxial cable.
J
AC INLET [26]
The supplied power cord is connected here. The
other of the power cord should be connected to a
suitable wall outlet.
SURR MODE switch [23]
K
This switch is used to turn the AUDIO OUTPUT
SURR 2 on or off. To use this output, set the switch
to “1+2.” The SURR 2 jacks output the same signals
as the SURR 1 jacks.
L
HDMI OUT [24]
This HDMI output can be used to connect a TV or
projector with an HDMI input. This HDMI connector outputs digital audio and digital video.
M
AV CONNECTOR (European model only) [21]
This SCART output can be connected to a TV or
projector with a SCART input. This SCART connector outputs 2-channel stereo audio (same signals
as the FRONT/D.MIX jacks), composite video,
S-Video, and RGB video.
15
Front & Rear Panels
Remote Controller
1
2
3
4
5
6
7
8
9
J
K
L
M
—Continued
N
O
P
Q
R
S
T
U
V
W
X
Y
Z
a
b
c
A
STANDBY button [26]
This button is used to set the DVD player to
Standby.
B
ON button [26]
This button is used to turn on the DVD player.
Don’t turn on the DVD player until you’ve completed, and double checked all connections
(pages 20–25).
C
Number buttons [34, 35, 53]
These buttons are used to enter title, chapter, and
track numbers and to enter times for locating specific points in time.
AUDIO button [41]
D
This button is used to select foreign language
soundtracks and audio formats (e.g., Dolby Digital
or DTS) on DVD-Video discs.
For Video CDs, you can select left-channel, rightchannel, mix, or stereo.
E
SUBTITLE button [41]
This button is used to select subtitles on
DVD-Video discs.
F
RANDOM button [37]
This button is used with the Random function.

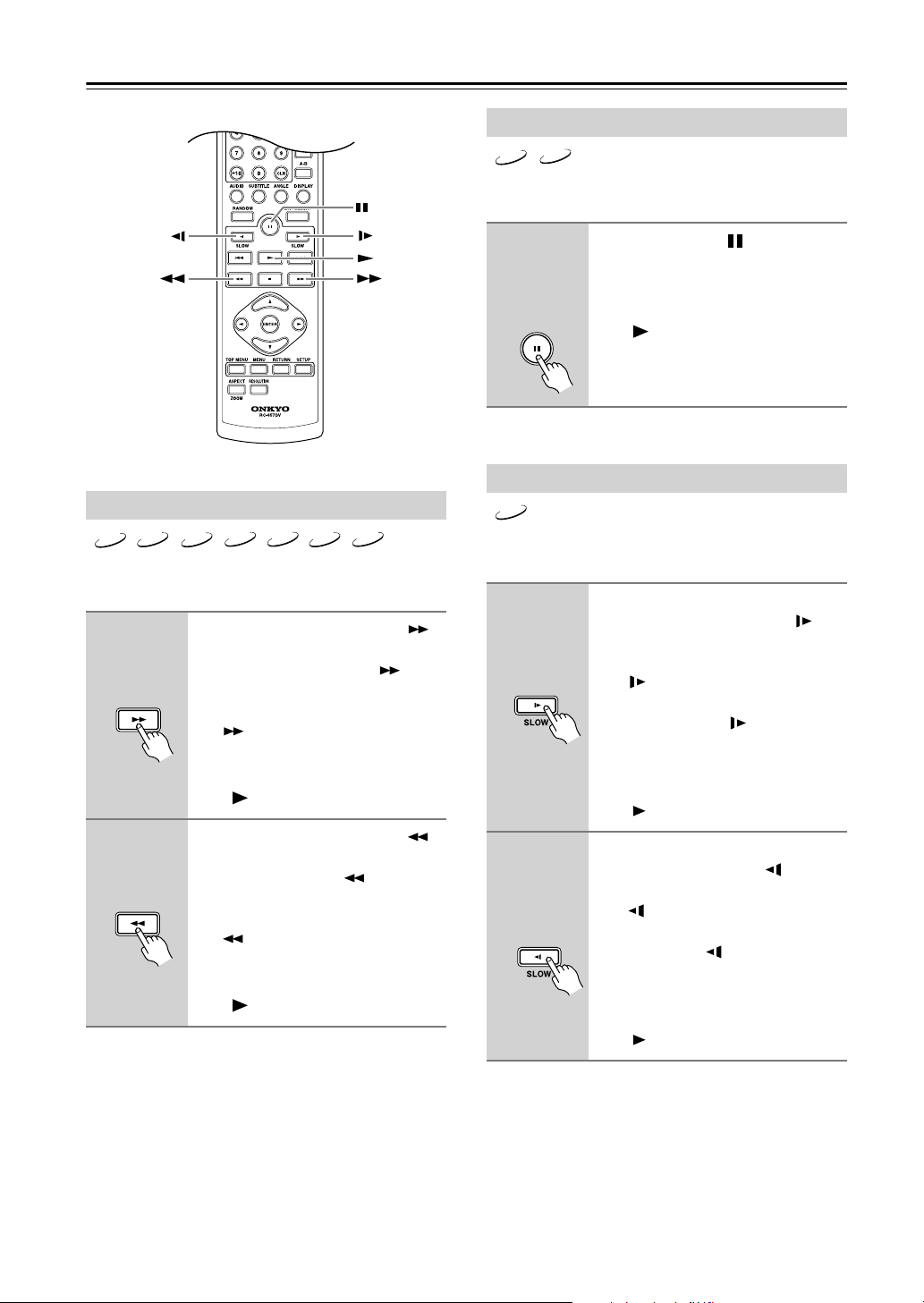

SLOW / buttons [30]
G
These buttons are used for slow-motion playback.
Previous/Next / buttons [29]
H
The Previous button is used to select the previous
chapter or track. During playback it selects the
beginning of the current track.
The Next button is used to select the next chapter or
track.
Fast Reverse/Fast Forward / buttons
I
[30]
These buttons are used for fast reverse and fast forward.
J
Cursor /// buttons [45]
These buttons are used to navigate onscreen menus.
MENU button [31, 33]
K
This button is used to display a menu on a DVD or
to open the Disc Navigator when using a JPEG disc.
TOP MENU button [31, 33]
L
With DVD discs, this button displays the main
menu. With a JPEG disc, it displays thumbnails of
the images. With a Video CD, it turns PBC on or off.
M
ASPECT/ZOOM button [40, 46]
This button is used to change the view mode. Pressing and holding it for a few seconds selects Zoom
mode.
16
Front & Rear Panels
OPEN/CLOSE button [28]
N
This button is used to open and close the disc tray.
O
SEARCH button [34, 35]
This button is used to search for titles, chapters,
groups, folders, tracks, and specific points in time.
P
MEMORY button [38]
This button is used with the Memory function.
Q
REPEAT button [36]
This button is used to set the Repeat function.
A-B button [36]
R
This button is used to set the A-B Repeat function.
CLR button [34, 35, 39]
S
This button is used to cancel various functions.
T
DISPLAY button [42]
This button is used to display information about the
title, chapter, or track, including the elapsed time,
remaining time, total time, and so on. Press it
repeatedly to display more information.
ANGLE button [40]
U
This button is used to select camera angles on
DVD-Video discs.
LAST MEMORY button [39]
V
This button is used with the Last Memory function.
W
Pause button [28, 30]
This button is used to pause playback. While playback is paused, pressing this button moves the video
forward one frame at a time.
Play button [28]
X
This button is used to start playback.
Y
Stop button [29]
This button is used to stop playback.
Z
ENTER button [45]
This button is used to start playback of the selected
title, chapter, or track, and to confirm settings.
a
RETURN button
This button is used to exit the onscreen setup.
SETUP button [45]
b
This button is used to open and close the onscreen
setup menus.
RESOLUTION button [43]
c
This button is used to select a video resolution for
the HDMI OUT.
—Continued
17
Connecting the DVD player
AV Cables & Connectors
Video
CableJackDescription
HDMI
Y
//
C
B
P
B
C
R
P
R
S VIDEO
VIDEO
AV CONNECTOR
Component
video
S-Video
Composite
video
(supplied)
Scart
(European
model only)
Y
C
B
P
B
C
R
P//
R
HDMI connections can carry uncompressed, standard or high definition digital video and digital
audio, for the best picture and sound quality.
Component video separates the luminance (Y) and
color difference signals (PR, PB), providing the best
picture quality. Some TV manufacturers label their
component video inputs differently.
S-Video provides better picture quality than composite video.
Composite video can be found on virtually all TVs,
VCRs, and video equipment.
SCART connections carry analog audio and video
(composite, S-Video, RGB) all in one cable.
Audio
Optical digital
Coaxial digital
(supplied)
Analog
(supplied)
Multichannel
analog audio
cable (RCA)
CableJackDescription
Optical digital audio connections provide better
OPTICAL
COAXIAL
audio quality than analog connections.
Coaxial digital audio connections provide better
audio quality than analog connections.
L
R
RCA analog audio connectors can be found on virtually all AV components.
This cable carries multichannel analog audio and
FRONT/D. MIX
SURR1 CENTER
it’s typically used to connect DVD players with
individual 5.1 channel analog audio outputs. Sev-
12
eral standard analog audio cables can be used
SUB
WOOFER
instead of a multichannel cable.
18
Connecting the DVD player
—Continued
Video Output/Video Setting Matrix
The following matrix shows how the video outputs work in relation to the various video settings.
Setting
HD Resolution setting (page 43)
Video output
HDMI
Component
S-Video
Composite
*4
SCART
model only)
*1 Depending on the native resolution of your TV, you may get no picture.
*2 If your TV doesn’t support progressive scanning, you’ll get no picture.
*3 If your TV doesn’t support the HD Resolution settings of 720p and 1080i, you’ll get no picture.
*4 With the SCART Output Setting, you can choose RGB, S-Video, or composite video for the SCART output. However, when
(European
HDMI is on, you cannot select RGB. Also, when RGB is selected, nothing will be output by the component video output (see
page 48).
Auto
✓✓
*1
✓
*1
✓
*1
✓
*1
✓
On (default)Off
HDMI Output Setting (page 27)
480p/576p
(default)
720p, 1080iProgressiveInterlaced
✓
*2
✓
✓
✓
✓
No output
No output
No output
No output
Progressive Setting (page 43)
*3
No outputNo output
*2
✓
✓
✓✓
✓✓
✓✓
Audio Output/Audio Setting Matrixes
■
Digital Audio Output/Audio Setting Matrix
The following matrix shows how the digital audio outputs work in relation to the Digital/HDMI Audio Out setting.
Setting
Digital
audio output
HDMI
Digital (optical & coaxial)
Audio from SACDs is not output by the HDMI OUT or optical or coaxial digital audio outputs. It’s only output by the analog
audio outputs. Audio from the multichannel area of a DVD-Audio disc is also only output by the analog audio outputs.
*a If your TV or amp doesn’t support higher sampling rates, set the Linear PCM Out setting to Down Sample On (page 48).
*b Dolby Digital and DTS sources will be converted to PCM. If your TV or amp doesn’t support Dolby Digital and DTS, choose this
option.
■
Analog Audio Output/Audio Setting Matrix
The following matrix shows the recommended audio settings for each analog audio output.
Analog audio output
2-channel (FRONT/D.MIX)
Multichannel
SCART (European model only)
Digital/HDMI Audio Out setting (page 48)
All (default)
Setting
*a
✓✓
✓✓
Speaker Configuration (page 48)
5.1 channel (default):
Subwoofer: On
Front: Small
Center: Small
Surround: Small
PCM
*a
*b
*b
✓
Off
No output
No output
2 channel:
Subwoofer: Off
Front: Large
Center: Off
Surround: Off
*c
✓
*c
✓
For 5.1-channel playback with an SACD, press the [AUDIO] button to select the multichannel area of the disc. For 2-channel playback,
select the 2-channel area.
*c If your TV or multichannel amp has a Dolby Pro Logic decoder built in, by setting the Downmix Setting (page 50) to Lt/Rt,
multichannel sources can be down mixed and output as an Lt/Rt mix.
19
Connecting the DVD player
—Continued
Before Making Any Connections
• Read the manuals supplied with your AV components.
• Don’t connect the power cord until you’ve completed
all audio and video connections.
Optical Digital Outputs
The DVD player’s optical digital connectors have a shutter-type cover that opens when an optical plug is
inserted, and closes when it’s removed. Push the plug in
all the way.
Caution:
To prevent shutter damage, hold the optical
plug straight when inserting and removing.
RCA AV Connection Color Coding
RCA AV connections are usually color coded: red,
white, and yellow. Use red plugs to connect right-channel audio inputs and outputs (typically labeled “R”). Use
white plugs to connect left-channel audio inputs and outputs (typically labeled “L”). And use yellow plugs to
connect composite video inputs and outputs.
Basic Setup
The supplied AV cable is made up of an analog audio
cable and a composite video cable.
Right (red)
Left (white)
(Yellow)
• Push each plug in all the way to
make a good connection (loose
Analog audio
Right (red)
Left (white)
Composite video
(Yellow)
Right!
connections can cause noise or
malfunctions).
•To prevent interference, keep
audio and video cables away from
Wrong!
power cords and speaker cables.
The setup described here is a basic setup that allows you to play discs using just the cables supplied with the player. In
this setup, stereo audio is played through the speakers in your TV.
AV cable
(Supplied)
To power outlet
This player is equipped with copy protection technology. Do not connect this player to your TV via a VCR
using AV cables, as the picture from this player will
not appear properly on your TV. (This player may
also not be compatible with some combination TV/
VCRs for the same reason; refer to the manufacturer
for more information.)
L
R
ANALOG
INPUT
VIDEO IN
TV
Power cord
(Supplied)
1. Connect the VIDEO OUTPUT and AUDIO OUT-
PUT FRONT/D.MIX 1 jacks to a set of AV inputs
on your TV.
Use the supplied AV cable (RCA), connecting the
red and white plugs to the audio outputs and the yellow plug to the video output.
See the following page if you want to use other cable
for the video connection.
2. Connect the supplied AC power cord to the AC
INLET, then plug into a power outlet.
20
