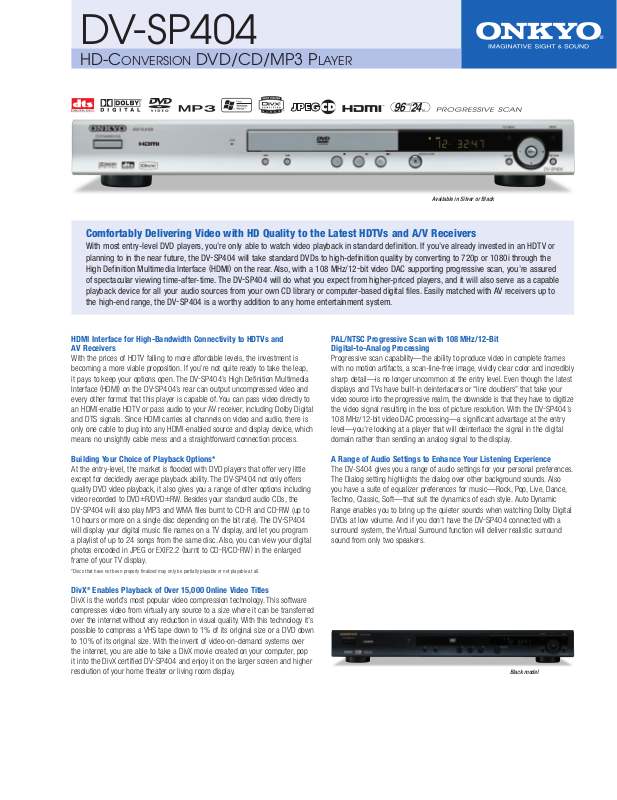

DV-SP404

HD-CONVERSION DVD/CD/MP3 PLAYER

Available in Silver or Black

Comfortably Delivering Video with HD Quality to the Latest HDTVs and A/V Receivers

With most entry-level DVD players, you’re only able to watch video playback in standard definition. If you’ve already invested in an HDTV or
planning to in the near future, the DV-SP404 will take standard DVDs to high-definition quality by converting to 720p or 1080i through the
High Definition Multimedia Interface (HDMI)on the rear. Also, with a 108 MHz/12-bit video DAC supporting progressive scan, you’re assured
of spectacular viewing time-after-time. The DV-SP404 will do what you expect from higher-priced players, and it will also serve as a capable
playback device for all your audio sources from your own CD library or computer-based digital files. Easily matched with AV receivers up to
the high-end range, the DV-SP404 is a worthy addition to any home entertainment system.

HDMI Interface for High-Bandwidth Connectivity to HDTVs and
AV Receivers

With the prices of HDTV falling to more affordable levels, the investment is
becoming a more viable proposition. If you’re not quite ready to take the leap,
it pays to keep your options open. The DV-SP404’s High Definition Multimedia
Interface (HDMI)on the DV-SP404’s rear can output uncompressed video and
every other format that this player is capable of. You can pass video directly to
an HDMI-enable HDTV or pass audio to your AV receiver, including Dolby Digital
and DTS signals. Since HDMI carries all channels on video and audio, there is
only one cable to plug into any HDMI-enabled source and display device, which
means no unsightly cable mess and a straightforward connection process.

Building Your Choice of Playback Options*

At the entry-level, the market is flooded with DVD players that offer very little
except for decidedly average playback ability. The DV-SP404 not only offers
quality DVD video playback, it also gives you a range of other options including
video recorded to DVD±R/DVD±RW. Besides your standard audio CDs, the
DV-SP404 will also play MP3 and WMA files burnt to CD-R and CD-RW (up to
10 hours or more on a single disc depending on the bit rate). The DV-SP404
will display your digital music file names on a TV display, and let you program
a playlist of up to 24 songs from the same disc. Also, you can view your digital
photos encoded in JPEG or EXIF2.2 (burnt to CD-R/CD-RW)in the enlarged
frame of your TV display.

*Discs that have not been properly finalized may only be partially playable or not playable at all.

DivX®Enables Playback of Over 15,000 Online Video Titles

DivX is the world’s most popular video compression technology. This software
compresses video from virtually any source to a size where it can be transferred
over the internet without any reduction in visual quality. With this technology it’s
possible to compress a VHS tape down to 1% of its original size or a DVD down
to 10% of its original size. With the invent of video-on-demand systems over
the internet, you are able to take a DivX movie created on your computer, pop
it into the DivX certified DV-SP404 and enjoy it on the larger screen and higher
resolution of your home theater or living room display.

PAL/NTSC Progressive Scan with 108 MHz/12-Bit
Digital-to-Analog Processing

Progressive scan capability—the ability to produce video in complete frames
with no motion artifacts, a scan-line-free image, vividly clear color and incredibly
sharp detail—is no longer uncommon at the entry level. Even though the latest
displays and TVs have built-in deinterlacers or “line doublers” that take your
video source into the progressive realm, the downside is that they have to digitize
the video signal resulting in the loss of picture resolution. With the DV-SP404’s
108 MHz/12-bit video DAC processing—a significant advantage at the entry
level—you’re looking at a player that will deinterlace the signal in the digital
domain rather than sending an analog signal to the display.

A Range of Audio Settings to Enhance Your Listening Experience

The DV-S404 gives you a range of audio settings for your personal preferences.
The Dialog setting highlights the dialog over other background sounds. Also
you have a suite of equalizer preferences for music—Rock, Pop, Live, Dance,
Techno, Classic, Soft—that suit the dynamics of each style. Auto Dynamic
Range enables you to bring up the quieter sounds when watching Dolby Digital
DVDs at low volume. And if you don’t have the DV-SP404 connected with a
surround system, the Virtual Surround function will deliver realistic surround
sound from only two speakers.

Black model

DV-SP404

HD-CONVERSION DVD/CD/MP3 P

LAYER

Audio & Video Features

• DTS Digital Out & Dolby Digital

• Plays DVD video, Video CD, MP3 disc, WMA disc, CD-R/RW,

DVD±R/DVD±RW, DivX-encoded disc, JPEG-encoded disc, and
PCM audio CD*

• HDMI digital interface

• Component, S-Video and composite video outputs

• 96 kHz/24-bit audio DAC

• 108 MHz/12-bit video DAC

• PAL/NTSC progressive scan video output

• Optical/coaxial digital outputs

• Last play memory (DVD/CD)and resume function

• Program memory and playback

• Disc Navigator for browsing video contents and disc files

• DVD and audio CD fast forward and reverse (4 speeds

• Slow motion DVD playback (1/2, 1/4, 1/8 or 1/16 speed

• Repeat play (title, chapter

)

• Random play for video and audio (title, chapter

)

)

)

• Subtitle and language switching function

• Zoom function (2x, 4x

• Multi-aspect ratio (16:9, 4:3

)

)

• Multi-camera angle

• Screen saver

*Discs that have not been properly finalized may only be partially playable or not

playable at all.

Other Performance Features

• High-resolution onscreen display (English, Spanish, French,

German, Italian

)

• Audio dynamic range control

• Virtual surround setting

• 7 equalizer settings

• Front panel control cursor

• Supplied A/V and coaxial cables

• Full-function remote control

Full-function remote

SPECIFICATIONS

VIDEO SECTION

Signal System........................................................ NTSC/PAL/Auto

Composite Video Output/Impedance................. 1 Vp-p/75 Ω negative sync.

S-Video Output/Impedance ................................. Y: 1 Vp-p/75 Ω negative sync.,

Component Video Output/Impedance ............... Y: 1 Vp-p/75 Ω

HDMI........................................................................ 19-pin connector

AUDIO SECTION

Frequency Response

DVD Linear Sound................................................ 4 Hz-44 kHz (96 kHz

Audio CD.............................................................. 4 Hz-20 kHz (44.1 kHz

S/N Ratio................................................................. 115 dB

Audio Dynamic Range.......................................... 88 dB

THD (Total Harmonic Distortion

Wow and Flutter.................................................... Below threshold of measurability

Audio Output/Impedance

Optical.................................................................. - 22.5 dBm

Coaxial.................................................................. 0.5 Vp-p/75 Ω

Analog.................................................................. 2 V (rms)/440 Ω

GENERAL

Power Supply......................................................... AC 110-240 V, 50/60 Hz

Power Consumption.............................................. 7 W

Standby Power Consumption.............................. 0.7 W

Dimensions (W x H x D

Weight..................................................................... 1.9 kg

)

...................................... 435 x 61 x 215.5 mm

4-pin mini DIN
C: 0.286 Vp-p/75 Ω

B/PR: 0.7 Vp-p/75 Ω

P

4 Hz-22 kHz (48 kHz

)

........................ 0.0065 % (1 kHz

)
)

)

)

Due to a policy of continuous product improvement, Onkyo reserves the right to change specifications and appearance without notice. Dolby and the double-D symbol are trademarks of Dolby Laboratories.
DTS and DTS Digital Out are trademarks of Digital Theater Systems, Inc. Windows Media and the Windows logo are trademarks, or registered trademarks of Microsoft Corporation in the United States and/or other countries. HDMI, the HDMI logo and
High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC. DivX, DivX Certified, and associated logos are trademarks of DivX Networks, Inc. and are used under license. All other trademarks and registered
trademarks are the property of their respective holders.
