Onkyo DVSP-1000 Owners manual

Super Audio CD & DVD Audio/ Video Player

Contents

Important Safety Instructions ........ 2

Introduction ..................................... 7

DV-SP1000

DV-SP1000E

Instruction Manual

Thank you for purchasing the Onkyo DV-SP1000/ DV-SP1000E Super Audio CD & DVD Audio/Video Player. Read this manual carefully before using your new player. A good understanding of its features and operation will allow you to achieve optimum performance and enjoyment.

Before Use ..................................... 14

Getting to Know the DV-SP1000 .. 15

Connecting .................................... 26

Initial Setup.................................... 43

Basic Playback.............................. 45

Advanced Playback....................... 56

Conﬁguring the DV-SP1000.......... 68

Keep this manual for future reference.

Controlling Other Components ... 86

Troubleshooting ............................ 93

WARNING:

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE.

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

Important Safety Instructions

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including ampliﬁers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not ﬁt into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories speciﬁed by the manufacturer.

12.

Use only with the cart, stand,

PORTABLE CART WARNING

tripod, bracket, or table speciﬁed by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/ apparatus combination to avoid injury from tip-over.

S3125A

13. Unplug this apparatus during lightning storms or when unused for long periods of time.

14. Refer all servicing to qualiﬁed service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

15. Damage Requiring Service

16. Object and Liquid Entry

17. Batteries

18. If you install the apparatus in a built-in installation,

WARNING

RISK OF ELECTRIC SHOCK

DO NOT OPEN

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to

persons. The exclamation point within an equilateral triangle is

intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

AVIS

RISQUE DE CHOC ELECTRIQUE

NE PAS

OUVRIR

Unplug the apparatus form the wall outlet and refer servicing to qualiﬁed service personnel under the following conditions: A. When the power-supply cord or plug is damaged, B. If liquid has been spilled, or objects have fallen

into the apparatus,

C. If the apparatus has been exposed to rain or

water,

D. If the apparatus does not operate normally by

following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualiﬁed technician to restore the apparatus to its normal operation,

E. If the apparatus has been dropped or damaged in

any way, and

F. When the apparatus exhibits a distinct change in

performance this indicates a need for service.

Never push objects of any kind into the apparatus through openings as they may touch dangerous voltage points or short-out parts that could result in a ﬁre or electric shock. The apparatus shall not be exposed to dripping or splashing and no objects ﬁlled with liquids, such as vases shall be placed on the apparatus. Don’t put candles or other burning objects on top of this unit.

Always consider the environmental issues and follow local regulations when disposing of batteries.

such as a bookcase or rack, ensure that there is adequate ventilation. Leave 20 cm (8") of free space at the top and sides and 10 cm (4") at the rear. The rear edge of the shelf or board above the apparatus shall be set 10 cm (4") away from the rear panel or wall, creating a ﬂue-like gap for warm air to escape.

Precautions

This unit contains a semiconductor laser system and is classiﬁed as a “CLASS 1 LASER PRODUCT”. So, to use this model properly, read this Instruction Manual carefully. In case of any trouble, please contact the store where you purchased the unit. To prevent being exposed to the laser beam, do not try to open the enclosure.

DANGER:

VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCK FAILED OR DEFEATED. DO NOT STARE INTO BEAM.

CAUTION:

THIS PRODUCT UTILIZES A LASER. USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

The label on the right is applied on the rear panel except for USA and Canadian models.

1. This unit is a CLASS 1 LASER PRODUCT and employs a laser inside the cabinet.

2. To prevent the laser from being exposed, do not remove the cover. Refer servicing to qualiﬁed personnel.

Dette mærke på bagpladen angiver, at:

Denne enhed er et KLASSE 1 LASERPRODUKT,

hvor der anvendes en laser, der er placeret inde i kabinette.

2. For at undgå at laseren afdækkes må afskærmningen aldrig fjernes. Overlad al servicering til kvaliﬁceret personale.

FARE:

USYNLIG LASERSTRÅLING I ÅBEN TILSTAND ELLER NÅR SIKKERHEDSAFBRYDER FEJLER ELLER OMGÅS. UNDGÅ BESTRÅLING FRA LASERSTRÅLEN.

Denne etiketten som er å ﬁnne på baksidepanelet erklærer at:

1. Denne enheten er et KLASSE 1 LASER PRODUKT og benytter laser inni kabinettet.

2. For å forhindre eksponering av laser, må dekslet ikke fjernes. Overlat alt servicearbeid til kvaliﬁsert fagpersonell.

FARE:

UNSYNLIG BESTRÅLING NÅR ENHETEN ER ÅPEN OG LÅSEN SVIKTER ELLER ER UTE AV FUNKSJON. UNNGÅ DIREKTE BESTRÅLING.

Takaseinässä oleva tarra limoittaa, että:

1. Tämä laite on LUOKAN 1 LASERLAITE ja sen sisällä on laser.

2. Jotta et joudu alttiiksi säteele, älä irrota laitteen kantta. Huoltotoimet on jätettävä ammattihenkilön suoritettavaksi.

VAARA:

NÄKYMÄTÖNTÄ LASERSÄTEILYÄ, KUN LAITE ON AVATTU JA SISÄLUKITUS EPÄKUNNOSSA TAI SÄÄDETTY TOIMIMATTOMAKSI. VÄLTÄ SUORAA ALTISTUMISTA SÄTEELE.

For U.S. model

The laser is covered by a housing which prevents exposure during operation or maintenance. However, this product is classiﬁed as a Laser Product by CDRH (Center for Devices and Radiological Health) which is a department of the Food and Drug Administration. According to their regulations 21 CFR section 1002.30, all manufactures who sell Laser Products must maintain records of written communications between the manufacturer, dealers and customers concerning radiation safety. If you have any complaints about instructions or explanations affecting the use of this product, please feel free to write to the address on the back page of this manual. When you write us, please include the model number and serial number of your unit. In compliance with Federal Regulations, the certiﬁcation, identiﬁcation and the period of manufacture are indicated on the rear panel.

FCC INFORMATION FOR USER

CAUTION:

The user changes or modiﬁcations not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

NOTE:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from

• that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

Precautions —Continued

For Canadian model

NOTE:

Canadian ICES-003. For models having a power cord with a polarized plug:

CAUTION:

MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

This class B digital apparatus complies with

TO PREVENT ELECTRIC SHOCK,

Modèle pour les Canadien

REMARQUE:

est conforme à la norme NMB-003 du Canada. Sur les modèles dont la ﬁche est polarisee:

ATTENTION:

TRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU’AU FOND.

Cet appareil numérique de la classe B

POUR ÉVITER LES CHOCS ÉLEC-

For British models

Replacement and mounting of an AC plug on the power supply cord of this unit should be performed only by qualiﬁed service personnel.

IMPORTANT

The wires in the mains lead are coloured in accordance with the following code: Blue: Neutral Brown: Live As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows: The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black. The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.

IMPORTANT

A 5 ampere fuse is ﬁtted in this plug. Should the fuse need to be replaced, please ensure that the replacement fuse has a rating of 5 amperes and that it is approved by ASTA or BSI to BS1362. Check for the ASTA mark or the BSI mark on the body of the fuse. IF THE FITTED MOULDED PLUG IS UNSUITABLE FOR THE SOCKET OUTLET IN YOUR HOME THEN THE FUSE SHOULD BE REMOVED AND THE PLUG CUT OFF AND DISPOSED OF SAFELY. THERE IS A DANGER OF SEVERE ELECTRICAL SHOCK IF THE CUT OFF PLUG IS INSERTED INTO ANY 13 AMPERE SOCKET. If in any doubt, consult a qualiﬁed electrician.

For European Models

Declaration of Conformity

We,

ONKYO EUROPE ELECTRONICS GmbH LIEGNITZERSTRASSE 6, 82194 GROEBENZELL, GERMANY

declare in own responsibility, that the ONKYO product described in this instruction manual is in compliance with the corresponding technical standards such as EN60065, EN55013, EN55020 and EN61000-3-2, -3-3.

GROEBENZELL, GERMANY

I. MORI

ONKYO EUROPE ELECTRONICS GmbH

1. Region Numbers

The DVD standard uses region numbers to control how discs can be played around the world, the world being divided into six regions. This unit will only play DVD discs that match its region number, which can be found

on its rear panel (e.g., ).

2. About this Manual

This manual explains how to use all of this unit’s functions. Although the DVD standard offers many special features, not all discs use them all, so depending on the disc being played, this unit may not respond to certain functions. See the disc’s sleeve notes for supported features. When you attempt to use a DVD feature that is not available, this logo may appear onscreen, indicating that the feature is not supported by the current disc or this unit.

3. Recording Copyright

Unless it’s for personal use only, recording copyrighted material is illegal without the permission of the copyright holder.

4. Power

WARNING

BEFORE PLUGGING IN THE UNIT FOR THE FIRST TIME, READ THE FOLLOWING SECTION CAREFULLY. AC outlet voltages vary from country to country. Make sure that the voltage in your area meets the voltage requirements printed on this unit’s rear panel (e.g., AC 120 V, 60 Hz).

Precautions —Continued

5. Never Touch this Unit with Wet Hands

Never handle this unit or its power cord while your hands are wet or damp. If water or any other liquid gets inside this unit, have it checked by your Onkyo dealer.

6. Installing this Unit

• Install this unit in a well-ventilated location. Ensure that there’s adequate ventilation all around this unit, especially if it’s installed in an audio rack. If the ventilation is inadequate, the unit may overheat, leading to malfunction.

• Do not expose this unit to direct sunlight or heat sources, because its internal temperature may rise, shortening the life of the optical pickup.

•Avoid damp and dusty places, and places subject to vibrations from loudspeakers. Never put the unit on top of, or directly above a loudspeaker.

• Install this unit horizontally. Never use it on its side or on a sloping surface, because it may cause a malfunction.

• If you install this unit near a TV, radio, or VCR, the picture and sound quality may be affected. If this occurs, move this unit away from the TV, radio, or VCR.

7. Care

Occasionally, you should dust this unit all over with a soft cloth. For stubborn stains, use a soft cloth dampened with a weak solution of mild detergent and water. Dry the unit immediately afterwards with a clean cloth. Do not use abrasive cloths, thinners, alcohol, or other chemical solvents, because they may damage the ﬁnish or remove the panel lettering.

8. Handling Notes

• If you need to transport this unit, use the original packaging to pack it how it was when you originally bought it.

• Do not use volatile liquids, such as insect sprays, near this unit. Do not leave rubber or plastic items on this unit for a long time, because they may leave marks on the case.

• This unit’s top and rear panels may get warm after prolonged use. This is normal.

• When you’ve ﬁnished using this unit, remove all discs and turn off the power.

• If you do not use this unit for a long time, it may not work properly the next time you turn it on, so be sure to use it occasionally.

9. To Obtain a Clear Picture

This unit is a high-tech, precision device. If the lens on the optical pickup, or the disc drive mechanism becomes dirty or worn, the picture quality may be affected. To maintain the best picture quality, we recommend regular inspection and maintenance (cleaning or worn part replacement) every 1,000 hours of use depending on the operating environment. Contact your Onkyo dealer for details.

10. Moisture Condensation

Moisture condensation may damage this unit.

Read the following carefully: When you take a glass containing a cold drink outside on a summer’s day, drops of water, called condensation, form on the outside of the glass. Similarly, moisture may condense on the lens of the optical pickup, one of the most important parts inside this unit.

• Moisture condensation can occur in the following sit-

uations: — The unit is moved from a cold place to a warm

place.

—A heater is turned on, or cold air from an air con-

ditioner is hitting the unit.

— In the summer, when this unit is moved from an

air conditioned room to a hot and humid place.

— The unit is used in a humid place.

• Do not use this unit when there’s the possibility of

moisture condensation occurring. Doing so may damage your discs and certain parts inside this unit. If condensation does occur, remove all discs and leave this unit turned on for two to three hours. By this time, the unit will have warmed up and any condensation will have evaporated. To reduce the risk of condensation, keep this unit connected to a wall outlet.

Contents

Important Safety Instructions ................... 2

Precautions................................................. 3

Introduction ................................................ 7

DV-SP1000/DV-SP1000E Features............. 7

Supplied Accessories................................... 8

Disc Notes.................................................... 9

Terminology ............................................... 12

Before Use ................................................ 14

Setting the Voltage Selector

(Worldwide model only) .......................... 14

Installing the Remote’s Batteries................ 14

Using the Remote Controller...................... 14

Getting to Know the DV-SP1000/

DV-SP1000E........................................... 15

Front Panel................................................. 15

Display ....................................................... 17

Rear Panel ................................................. 18

Remote Controller ...................................... 23

Connecting ............................................... 26

Before Making Any Connections................ 26

AV Cables & Connectors ........................... 26

Video Formats & DV-SP1000/

DV-SP1000E Inputs & Outputs............... 27

Audio Formats & DV-SP1000/

DV-SP1000E Outputs............................. 28

Getting Connected ..................................... 29

Connecting a Standard TV......................... 30

Connecting an HDTV or Projector.............. 31

Connecting a SCART-compatible TV

(European model only) ........................... 32

Connecting a Component with

an HDMI Input......................................... 32

Connecting an AV Receiver’s

video Inputs ............................................ 34

Connecting i.LINK-compatible

Components (not Chinese model) .......... 35

Connecting to an AV Receiver’s

Audio Inputs............................................ 36

Connecting a Stereo Amp .......................... 38

Connecting Standard Video Equipment for

Progressive Upconversion

(not Canadian model) ............................. 39

Connecting Components with .............. 40

Controlling Components That Are Out

of Range ................................................. 40

Connecting the Power Cord ....................... 41

Turning On the DV-SP1000/

DV-SP1000E .......................................... 42

Turning On the DV-SP1000/DV-SP1000E

with the Remote Controller ..................... 42

Basic Playback .........................................45

Loading Discs............................................. 45

Starting, Pausing & Stopping Playback...... 46

Navigating Disc Menus............................... 47

Selecting Chapters & Titles by Number...... 48

Selecting Tracks by Number ...................... 49

Fast Forward & Reverse............................. 50

Frame-by-Frame Playback ......................... 50

Slow-motion Playback ................................ 51

Adjusting the Display Brightness................ 51

Navigating MP3 Discs ................................ 52

Viewing a Slideshow of JPEG Images ....... 53

Making a Playlist with the Disc Navigator... 54

Advanced Playback..................................56

Zooming...................................................... 56

Time Search ............................................... 56

Repeat Playback ........................................ 57

A–B Repeat Playback................................. 57

Random Playback ...................................... 58

Memory Playback....................................... 59

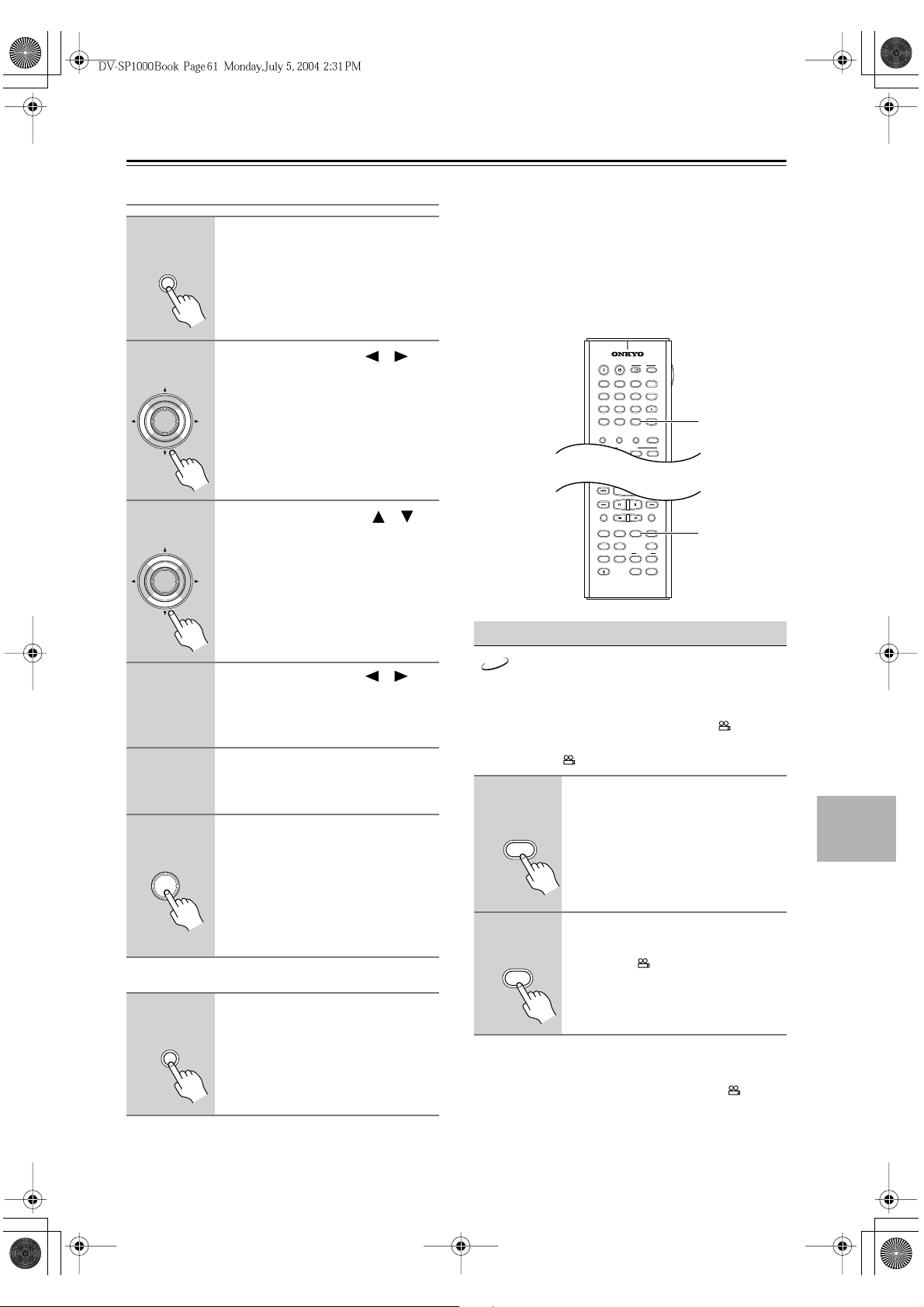

Selecting Camera Angles........................... 61

Selecting Soundtracks................................ 62

Selecting Subtitles...................................... 62

Last Memory............................................... 63

Displaying Information................................ 63

Turning Off the Video Circuits .................... 66

Selecting the Video Input Source

(not Canadian model).............................. 66

Setting the HDMI Output Resolution .......... 66

Setting the Picture’s Aspect Ratio .............. 67

Using the Picture Control Menu.................. 67

Configuring the DV-SP1000/

DV-SP1000E ...........................................68

Using the Onscreen Setup Menus.............. 70

Picture Menu .............................................. 72

Audio Menu ................................................ 74

Language Menu.......................................... 81

Display Menu.............................................. 82

Operation Menu.......................................... 82

Initial Setup Menu....................................... 84

Selecting Other Languages........................ 84

Language Code List ................................... 85

Controlling Other Components...............86

Entering Remote Control Codes................. 86

Learning the Commands of Other Remote

Controllers............................................... 91

Deleting the Learnt Commands of One

Mode ....................................................... 92

Deleting the Learnt Commands

of All Modes ............................................ 92

Troubleshooting ....................................... 93

Initial Setup............................................... 43

First Time Setup......................................... 43

Specifications ........................................... 96

Introduction

DV-SP1000/DV-SP1000E Features

Highlights

• THX Ultra certiﬁcation

•DVD-Video, DVD-Audio, and SACD universal player

• Dual-laser pickup

• VCD, DVD-VR, CD, and MP3 playback

• JPEG picture display and slideshow

• CD-R/RW, DVD-R/RW

• Backlit, preprogrammed leaning remote controller

Processing

• Dolby

• 192 kHz/24-bit audio D/A converters

• 216 MHz/14-bit video D/A converters

• Progressive upconversion with 3:2 and 2:2 reverse

• Direct Digital Path

• VLSC—Vector Linear Shaping Circuitry

Digital and DTS

pulldown

Connections

• HDMI digital video and digital audio out

•2 i.LINK multichannel digital audio sockets (not Chinese model)

•4 digital audio outputs—2 optical, 2 coaxial

• HD component video output

•1 component video output, 2 S-Video outputs, 2 composite video outputs

• 5.1-channel analog audio output

• Dedicated downmix analog audio output

• S-Video and composite video inputs with progressive upconversion (not Canadian model)

• Bidirectional RS-232 port

• IR in/out (not Canadian model)

• compatible

• 12 V trigger input (not Canadian model)

1. THX is a trademark or registered trademark of THX Ltd. All

rights reserved.

2. Manufactured under license from Dolby Laboratories.

“Dolby”, “Pro Logic” and the double-D symbol are trademarks of Dolby Laboratories.

3. “DTS” and “DTS Digital Surround” are registered trademarks

of Digital Theater Systems, Inc.

4. VLSC is a trademark of Onkyo Corporation.

5. HDMI, the HDMI logo and High-Deﬁnition Multimedia Inter-

face are trademarks or registered trademarks of HDMI Licensing, LLC.

6. The i.LINK logo is a trademark of Sony Corporation, regis-

tered in the U.S. and other countries.

7. Niles is a registered trademark of Niles Audio Corporation.

8. Xantech is a registered trademark of Xantech Corporation.

Functions

• Disc Navigator for MP3 and JPEG discs

•Title, chapter, group, track, folder (MP3) and time search

• Frame-by-frame playback

• Slow motion playback

•Fast forward and reverse

• Last Memory function allows you to resume playback from a speciﬁc point on a DVD-Video disc or VCD

• Repeat playback: title, chapter, group, track, folder (MP3/JPEG)

• Random playback: title, chapter, group, track, folder (MP3/JPEG)

• Supports 4:3 and 16:9 aspect ratio TVs

• Supports up to 8 soundtracks/languages

• Supports up to 32 subtitle languages

• Multiple camera angles

•Parental Lock

• Screen Saver

Others

• Auto Power Off function

•Toroidal power supply transformer

• Silent slide disc tray

• Aluminium front panel

• Adjustable display brightness with off setting

THX Ultra

Before any home theater component can be THX Ultra certiﬁed, it must pass a rigorous series of quality and performance tests. Only then can a product feature the THX Ultra logo, which is your guarantee that the Home Theater products you purchase will give you superb performance for many years to come.

THX notice

Please note that the analog audio output setup features of this player have not been evaluated by THX engineers and did not certify their technical performance. For optimum results THX recommends the use of the digital audio outputs.

Introduction —Continued

Supplied Accessories

Make sure you have the following accessories. If anything is missing, contact your Onkyo dealer.

Remote controller (RC-563DV) & three batteries (AA/R6)

SCART cable

(European model only)

cable

This cable is used to connect the DVD player to other

-compatible Onkyo components for (Remote

Interactive) control.

To use , in addition to an connection, you must make an analog audio connection (RCA) between the DVD player and your Onkyo AV receiver.

HDMI cable

i.LINK cable (not Chinese model)

AV cable (RCA)

Power cord

(Plug type varies from country to country.)

Power-plug adapter

Only supplied in certain countries. Use this adapter if your AC outlet does not match with the plug on the DV-SP1000/DV-SP1000E’s power cord. (Adapter varies from country to country.)

* In catalogs and on packaging, the letter added to the end of

the product name indicates the color of the DV-SP1000/ DV-SP1000E. Speciﬁcations and operation are the same regardless of color.

S-Video cable

Introduction —Continued

Disc Notes

Supported Discs

The DV-SP1000/DV-SP1000E supports the following discs.

Disc Logo Format or ﬁle type

DVD-Video

DVD-Audio

SACD

DVD-R

DVD-RW

VCD

CD-R

CD-RW

JPEG CD

DVD-Video

DVD-Audio

Super Audio CD (single layer, dual layer, hybrid)

DVD-Video

DVD-Video, DVD-VR

Video CD (Version 1.1 and 2.0)

Audio CD (PCM and DTS)

Video CD, audio CD, MP3, JPEG

JPEG

• The DV-SP1000/DV-SP1000E supports 8 cm and 12 cm discs.

• Don’t use discs with an unusual shape, such as those shown below, because they may damage the DV-SP1000/DV-SP1000E.

• Don’t use discs that have residue from adhesive tape, rental discs with peeling labels, or discs with custommade labels or stickers. Doing so may damage the DV-SP1000/DV-SP1000E and you may not be able to remove the disc properly.

DVD-Video Regions

The DVD-Video standard uses region numbers to control how discs can be played around the world, the world being divided into six regions, as shown. The DV-SP1000/DV-SP1000E will only play DVD-Video discs that match its region number, which can be found on the rear panel (e.g., ). If you attempt to play a disc intended for another region, a message saying that the disc cannot be played appears. Discs marked ALL will play in any DVD player.

• Some audio CDs feature copy protection that doesn’t conform to the ofﬁcial CD standard. Since these are nonstandard discs, they may not play properly in the DV-SP1000/DV-SP1000E.

• The DV-SP1000/DV-SP1000E supports CD-R and CD-RW discs recorded in Video CD format, audio CD format, or ISO9660 Level 2 format with MP3 or JPEG ﬁles. It also supports DVD-R and DVD-RW discs recorded in DVD-Video or DVD-Audio format, and DVD-RW discs recorded in DVD-VR format. However, some CD-R/RW and DVD-R/RW discs may not work properly for any of the following reasons: incomplete disc ﬁnalization, disc burner characteristics, disc characteristics, the disc is damaged or dirty. See the manual supplied with your disc burner for more information. Condensation or dirt on the optical pickup lens can also affect playback.

• Since the DV-SP1000/DV-SP1000E does not support DVD-VR discs with CPRM (Content Protection for Recordable Media), do not attempt to play such discs.

• The DV-SP1000/DV-SP1000E does not support disc types not listed.

Unsupported DVD Features

DVD offers many special features, including multiple soundtracks, subtitles, camera angles, and so on. However, not all discs use all of these features. When you attempt to use a feature that is not supported by the current disc, for example, you press the remote controller’s [AUDIO] button while playing a disc with only one soundtrack, this icon will appear onscreen, indicating that the disc doesn’t support that feature.

Similarly, if a disc uses features that are not supported by the DV-SP1000/DV-SP1000E, for example, special interactive menu functions, this icon will appear onscreen, indicating that the feature is not supported by the DV-SP1000/ DV-SP1000E.

Introduction —Continued

■

Video CDs

The DV-SP1000/DV-SP1000E supports Version 1.1 and Version 2.0 of the Video CD standard. Version 2.0 supports PBC (Playback Control).

•

Video CD (Version 1.1)

On the DV-SP1000/DV-SP1000E, the contents of Video CDs that conform to Version 1.1 of the Video CD standard are handled as tracks.

•

Video CD with PBC (Version 2.0)

In addition to the functions supported by Version 1.1, Version 2.0 offers playback control via interactive menus and search functions. Note that the DV-SP1000/DV-SP1000E doesn’t support all PBC functions.

MP3 & JPEG Compatibility

• The DV-SP1000/DV-SP1000E can play/display MP3 and JPEG ﬁles recorded on CD-R and CD-RW discs.

• Discs must be in ISO9660 Level 2 format (folders can be up to eight levels deep).

• Discs must be ﬁnalized.

• The DV-SP1000/DV-SP1000E can only recognize the ﬁrst session on multisession discs.

•You can determine the order in which the DV-SP1000/ DV-SP1000E plays/displays your MP3 songs and JPEG pictures by preﬁxing ﬁle and folder names with a three-digit number. For example 001.Root,

002.Folder, and so on, and 001.Track.mp3,

002.Track.mp3, and so on.

• Only the ﬁrst eight characters of folder and track names (excluding the ﬁlename extension) appear on the display.

• The folder numbered “001” appears as “ROOT” in the Disc Navigator.

• The DV-SP1000/DV-SP1000E supports up to 999 folders and up to 671 ﬁles.

• If you try to play an incompatible ﬁle, the message “This format cannot be played” appears on the display.

MP3

• MP3 ﬁles must be MPEG1 Audio Layer 3 format, 44.1 or 48 kHz, ﬁxed bit-rate.

• MP3 ﬁles must have a “.mp3” or “.MP3” ﬁlename extension.

•Variable bit-rates (VBR) from 64 kbps to 384 kbps are supported. (Playing times of VBR ﬁles may be displayed incorrectly.)

JPEG

• JPEG ﬁles must have a “.jpg” or “.jpeg” ﬁlename extension (either uppercase or lowercase is OK).

• Baseline JPEG ﬁles are supported. Progressive JPEG ﬁles are not.

• Only JPEG ﬁles with the following brightness/color difference ratios are supported: 4:4:4, 4:2:2, and 4:1:1.

• JPEG ﬁles must be less than 5 MB in size.

Function Support

The following icons are used throughout this manual to indicate which discs can be used with each function.

Icon Disc type Icon Disc type

DVD-Video Video CD

DVD-V

DVD-Audio Audio CD

DVD-A

Super Audio CD MP3

SACD

DVD-VR JPEG

DVD-VR

VCD

MP3

JPEG

Disc Content Organization

DVD-Video

DVD-Video discs typically contain one or more titles, which may be subdivided into chapters.

Title 1

Chapter 1 Chapter 2

DVD-Video

DVD-Audio

DVD-Audio discs contain groups and tracks.

Group 1 Group 2

Track 1

Track 2

DVD-Audio

Track 3

SACD

SACDs have two separate areas for storing audio tracks—one for multichannel audio, the other for 2channel stereo audio. In addition, hybrid SACDs have an extra layer for playback in standard CD players. You can specify how the DV-SP1000/ DV-SP1000E handles SACDs on page 80.

Multichannel area

Track 1

Track 2

Track 3

CD layer of a hybrid SACD

SACD

VCD

VCDs contain video tracks.

Track 1 Track 2 Track 3 Track 4

“”

Video CD

Chapter 1

Track 1

Title 2

Chapter 2

Stereo area

Track 2

Track 2Track 1

Track 3

Introduction —Continued

■

■ CD

■

DVD-VR

DVD-VR discs contain programs, which may be subdivided into cells. They may also contain playlists.

Program 1

Cell 1 Cell 2

DVD-VR

Cell 1

Program 2

Cell 2

CDs contain tracks.

Track 2 Track 4Track 3Track 1 Track 5

Audio CD

MP3

MP3 discs contain MP3 tracks organized into folders.

Folder 1 Folder 2

Track 1

Track 2

Track 3

MP3 (CD-R/CD-RW)

Track 2Track 1

JPEG

JPEG discs contain pictures organized into folders. On the DV-SP1000/DV-SP1000E, JPEG ﬁles as handled as tracks.

Folder 1 Folder 2

Track 1

Track 2

Track 3

JPEG (CD-R/CD-RW)

Track 2Track 1

Handling Discs

•Never touch the underside of a disc. Always hold a disc by the edge, as shown.

Cleaning Discs

•For best results, keep your discs clean. Fingerprints and dust can affect the sound and picture quality and should be removed as follows. Using a clean, soft cloth, wipe from the center outwards, as shown. Never wipe in a circular direction.

✔

•To remove stubborn dust or dirt, wipe the disc with a damp, soft cloth, and then dry it with a dry cloth.

•Never use solvent-based cleaning ﬂuids, such as thinner or benzine, commercially available cleaners, or antistatic sprays intended for vinyl records, because they may damage the disc.

Storing Discs

• Don’t store discs in places subject to direct sunlight, or near heat sources.

• Don’t store discs in places subject to moisture or dust, such as in a bathroom or near a humidiﬁer.

•Always store discs in their cases and vertically. Stacking, or putting objects on unprotected discs may cause warping, scratches, or other damage.

It is forbidden by law to copy, broadcast, show, broadcast on cable, play in public, or rent copyrighted material without permission.

Commercial DVD-Video discs are copy-protected, and any recordings made from these discs will be distorted.

This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.

Underside

•Never attach adhesive tape or sticky labels to discs.

Introduction —Continued

■

Terminology

CD-R (compact disc recordable): A type of CD

that can be recorded only once. Can be used for VCD, CD, MP3, or JPEG.

CD-RW (compact disc rewritable): A type of

CD that can be recorded over and over again. Can be used for VCD, CD, MP3, or JPEG.

Chapter: Titles on DVD-Video discs can be subdi-

vided into chapters.

Component video: A video connection format

that separates the luminance (Y) and color difference signals (P S-Video.

combines the luminance and color signals together.

that uses dedicated shielded cables to connect the digital audio outputs, protecting the digital output signals against the possibility of noise and interference.

ignated surround sound format for DVD-Video, HDTV, and select digital broadcasts (cable, satellite, over-theair). A Dolby Digital bitstream may contain mono, stereo, Dolby Surround, or 5.1-channel audio information.

ater equipment to decode Dolby Surround material. See Dolby Surround.

sound format uses matrix encoding to deliver four channels (left, right, center, and surround) over two audio channels. Can be used with VHS video, analog TV, and other analog stereo systems. The movie theater version is known as Dolby Stereo .

audio channels into fewer channels. For example, a 5.1channel surround mix can be downmixed to two channels for reproduction on stereo systems.

pling rate of digital audio.

Digital, the DTS surround-sound format offers up to 5.1channels of information, but uses less compression for a more faithful sound.

(5.1) channels of 24-bit/96 kHz digital audio or two channels of 24-bit/192 kHz digital audio.

that can be recorded only once. Can be used for DVD-Video or DVD-Audio.

, P

), providing better picture quality than

Composite video: A video connection format that

Direct Digital Path: Unique Onkyo technology

Dolby Digital: Once known as AC-3, this is the des-

Dolby Pro Logic: The decoders used in home the-

Dolby Surround: The original Dolby surround-

Downmixing: The process of mixing multiple

Downsampling: The process of reducing the sam-

DTS (Digital Theater Systems): Like Dolby

DVD-Audio: The DVD format for storing up to six

DVD-R (DVD recordable): A type of DVD disc

DVD-RW (DVD rewritable): A type of DVD disc

that can be recorded over and over again. Can be used for DVD-Video, DVD-Audio, or DVD-VR.

DVD-Video: The format for storing MPEG2 video

on DVD, with interactive menus, multiple soundtracks, subtitles, camera angles, and so on.

DVD-VR (DVD Video Recording): The DVD for-

mat used by DVD recorders for storing video on DVD-RW discs. Recorded programs can be deleted or arranged into playlists.

Field: In interlaced scanning, a ﬁeld is a single scan

of the screen. There are two ﬁelds per frame. See Interlaced Scanning and Progressive Scanning.

Frame: An individual TV picture is called a frame.

With the NTSC color system there are 30 frames per second (25 for PAL).

HD: Abbreviation for high deﬁnition , as in HDTV

(high-deﬁnition TV).

HDMI (High Deﬁnition Multimedia Interface):

A new connection format that greatly simpliﬁes AV connections by carrying uncompressed SD or HD digital video and up to eight channels of digital audio all in one cable.

i.LINK: Another name for the IEEE 1394 connection

format. Commonly used on AV equipment. It’s a bidirectional format, so connected components can talk to each other for optimal setup and perfectly synchronized audio transmission. The Chinese model doesn’t support i.LINK.

i.LINK Audio: The protocol for carrying up to six

(5.1) channels and up to 24-bit/192 kHz digital audio over i.LINK (IEEE 1394). Ofﬁcially known as the A&M Protocol— Audio and Music Data Transmission Proto-

col . The Chinese model doesn’t support i.LINK.

IEEE 1394: High-speed digital connection format

used for video, audio, and computer applications. See

also A&M Protocol and i.LINK. The Chinese model

doesn’t support i.LINK.

Interlaced scanning: TV pictures are made by

scanning the screen in horizontal lines from top to bottom. With Interlaced scanning, two scans ( ﬁelds ) are used to make each picture ( frame ). Contrast with Progressive scanning.

JPEG (Joint Photographic Experts Group):

The acronym commonly used to refer to the compressed ﬁle format used to store digital images.

LFE (low-frequency effects): The surround-

sound channel used for low-frequency effects.

Linear PCM: The uncompressed digital audio for-

mat used for audio CDs. PCM stands for Pulse Code

Modulation.

■

Introduction —Continued

MP3 (MPEG 1 Audio Layer 3): Popular com-

pressed ﬁle format for storing digital music.

MPEG1 (Moving Picture Experts Group 1):

The compressed digital video format used for VCDs.

MPEG2 (Moving Picture Experts Group 2):

The compressed digital video format used for DVDs, offering better picture quality than MPEG1.

NTSC: The color TV system used in the United

States, Japan, Taiwan, and Korea.

PAL: The color TV system used in most of Europe,

the United Kingdom, Australia, Brazil, and China.

PBC (Playback Control): Version 2.0 of the VCD

standard supports interactive menus and search functions.

Progressive scanning: TV pictures are made by

scanning the screen in horizontal lines from top to bottom. With progressive scanning, each picture ( frame ) is made by scanning the entire screen from top to bottom in one go, resulting is a clearer and stabler picture. Contrast

with Interlaced scanning.

S-Video: A video connection format that separates

the luminance (Y) and color (C) signals, providing better picture quality than composite video.

SACD (Super Audio CD): SACD uses Direct

Stream Digital (DSD) technology for audio performance superior to that of standard CDs. It also supports multichannel audio, and hybrid discs can be played in standard CD players.

SD: Abbreviation for standard deﬁnition , as in

SDTV (standard-deﬁnition TV)

THX: Founded in 1983 by George Lucas, THX

develops quality assurance programs to ensure that movies are experienced as the director intended.

THX Ultra: A quality assurance program developed

by THX to ensure faithful sound and picture reproduction of movies in cinemas and home theaters.

Title: The contents of DVD-Video discs are orga-

nized into titles.

Upconversion: The process of converting video to

a higher quality. For example, converting S-Video to component video, or standard deﬁnition TV pictures to HDTV.

Upsampling: The process of converting digital

audio to a higher sampling rate.

VCD (Video CD): The format for storing MPEG1

video on CD.

VLSC (Vector Linear Shaping Circuitry):

Unique Onkyo circuitry that reduces pulse noise in analog audio signals converted from digital sources.

■

Before Use

Setting the Voltage Selector (Worldwide model only)

The Worldwide model has a voltage selector for compatibility with power systems around the world. Before you plug in this model, make sure that the voltage selector is set to the correct voltage for your area. If it isn’t, use a small screwdriver to set it as appropriate. For example, if the voltage in your area is 120 volts, set the selector to “120V.” If it’s between 220 and 230 volts, set it to “220230V.”

HDMI

VIDEO OUT

232

COMPONENT

OUT

COAXIAL OPTICAL OPTICALCOAXIAL

VIDEO IN

S400

(

)

AUDIO

VIDEO

S VIDEO VIDEO

VIDEO

1+21

SURR MODE

(

)

AUDIO OUT

DIGITAL 1DIGITAL

220-230

D. MIX FRONT SURR 1CENTER SURR

OUT

REMOTE

CONTROL

AUDIO OUT

HD VIDEO OUT

COMPONENT

YPB PR

VOLTAGE SELECTOR

SUPER AUDIO CD & DVD AUDIO/

VIDEO PLAYER

MODEL NO. DV

SUB WOOFER

VOLTAGE SELECTOR

220-230V120

TRIGGER

120

1000

AC INLET

Installing the Remote’s Batteries

To open the battery compartment, press

the small hollow and slide off the cover.

Notes:

• The supplied batteries should last for about six months, although this will vary with usage.

• If the remote controller doesn’t work reliably, try replacing both batteries.

• Don’t mix new and old batteries, or different types of batteries.

• If you intend not to use the remote controller for a long time, remove the batteries to prevent possible leakage and corrosion.

• Flat batteries should be removed as soon as possible to prevent possible leakage and corrosion.

Using the Remote Controller

To use the remote controller, point it at the DV-SP1000/ DV-SP1000E’s remote control sensor, as shown below.

Remote control sensor

DV-SP1000/ DV-SP1000E

30˚

(5 m)

Approx. 16 ft.

Insert the three supplied batteries (AA/R6)

in accordance with the polarity markings inside the battery compartment.

Put the cover onto the remote controller

and slide it shut.

Notes:

• The remote controller may not work reliably if the DV-SP1000/DV-SP1000E is subjected to bright light, such as direct sunlight or inverter-type ﬂuorescent lights. Keep this in mind when installing the DV-SP1000/DV-SP1000E.

• If another remote controller of the same type is used in the same room, or the DV-SP1000/DV-SP1000E is installed close to equipment that uses infrared rays, the remote controller may not work reliably.

• Don’t put anything, such as a book, on the remote controller, because the buttons may be pressed inadvertently, thereby draining the batteries.

• The remote controller may not work reliably if the DV-SP1000/DV-SP1000E is installed in a rack behind colored glass doors. Keep this in mind when installing the DV-SP1000/DV-SP1000E.

• The remote controller will not work if there’s an obstacle between it and the DV-SP1000/DV-SP1000E’s remote control sensor.

Getting to Know the DV-SP1000/DV-SP1000E

Front Panel

B1C D E F G H

L M N OKJI

See page 16 for Canadian model.

For detailed information, refer to the pages in parenthesis.

POWER switch (42)

This is the main power switch. When set to OFF, the DV-SP1000/DV-SP1000E is completely shutdown. When set to ON, the DV-SP1000/DV-SP1000E can be set to On or Standby.

STANDBY indicator (42)

The Standby indicator lights up when the DV-SP1000/DV-SP1000E is set to Standby.

STANDBY/ON button (42)

This button is used to set the DV-SP1000/ DV-SP1000E to On or Standby.

Display

See “Display” on page 17 for more information.

Remote control sensor (14)

This sensor receives control signals from the remote controller.

DISPLAY button (63)

This button is used to display information about the disc, title, chapter, group, or track, including the elapsed time, remaining time, total time, and so on.

Previous [ ] button (48, 49, 52)

This button is used to select the previous chapter or track. During playback it selects the beginning of the current chapter or track.

Next [ ] button (48, 49, 52)

This button is used to select the next chapter or track.

VIDEO CIRCUIT OFF button & indicator (66)

This button is used to turn off all of the internal video circuitry, eliminating the possibility of interference when playing audio-only discs. The OFF indicator lights up when the video circuitry is turned off.

VIDEO INPUT button (66)

This button is used to select the video input source: DVD (the DV-SP1000/DV-SP1000E) or EXTERNAL (S-Video input or composite video input).

DVD & EXTERNAL indicators (66)

These indicators show the currently selected video input source: DVD or EXTERNAL.

Disc tray (45)

Discs are loaded onto the disc tray.

Open/Close [ ] button (45)

This button is used to open and close the disc tray.

Stop [ ] button (46)

This button is used to stop playback.

Play [ ] button (46)

This button is used to start playback.

■

Getting to Know the DV-SP1000/DV-SP1000E —Continued

Canadian Model

B134567

9 J K L8

For detailed information, refer to the pages in parenthesis.

STANDBY indicator (42)

The Standby indicator lights up when the DV-SP1000/DV-SP1000E is set to Standby.

STANDBY/ON button (42)

This button is used to set the DV-SP1000/ DV-SP1000E to On or Standby.

Display

See “Display” on page 17 for more information.

Remote control sensor (14)

This sensor receives control signals from the remote controller.

DISPLAY button (63)

This button is used to display information about the disc, title, chapter, group, or track, including the elapsed time, remaining time, total time, and so on.

Previous [ ] button (48, 49, 52)

This button is used to select the previous chapter or track. During playback it selects the beginning of the current chapter or track.

Next [ ] button (48, 49, 52)

This button is used to select the next chapter or track.

VIDEO CIRCUIT OFF button & indicator (66)

Disc tray (45)

Discs are loaded onto the disc tray.

Open/Close [ ] button (45)

This button is used to open and close the disc tray.

Stop [ ] button (46)

This button is used to stop playback.

Play [ ] button (46)

This button is used to start playback.

Getting to Know the DV-SP1000/DV-SP1000E —Continued

Display

09B

5 G

6 E

1394

IEEE

MEMORY RANDOM

DISC TITLE GROUP CHP TRACK TOTAL REMAIN

PBC

LAST M

REPEAT

V.OFF

RGB

HDMI

JPEG

EXT VIDEO

D PL

DVD

SACD V C D

AUDIO

JK1 2 3 4 8 AC D F H I7

L M NRQ

For detailed information, refer to the pages in parenthesis.

DISC indicator (57, 58)

This indicator appears when using the Repeat function’s Disc Repeat option or the Random function’s Disc Random option.

TITLE indicator

While stopped, the total number of titles on the current DVD-Video disc is displayed here. During playback, the number of the current title is displayed.

GROUP indicator

While stopped, the total number of groups on the current DVD-Audio disc is displayed here. During playback, the number of the current group is displayed.

PBC indicator

This indicator appears when the VCD currently playing supports PBC (Playback Control).

MEMORY indicator (59)

This indicator appears when using the Memory function.

CHP indicator

This indicator appears while the number of the current chapter is being displayed.

RANDOM indicator (58)

This indicator appears when using the Random function.

TRACK indicator

This indicator appears while track numbers are being displayed. While stopped, the total number of tracks on a VCD, SACD, DVD-Audio group, audio CD, or MP3 disc are displayed. During playback, the number of the current track is displayed.

LAST M indicator (63)

This indicator appears when using the Last Memory function.

REPEAT indicator (57)

This indicator appears when using the Repeat function.

A-B indicators (57)

These indicators appear when using the A-B Repeat function.

V.OFF indicator (66)

This indicator appears while the video circuits are turned off.

Camera angle indicator (61)

This indicator appears if the DVD-Video title currently playing features multiple camera angles.

RGB indicator (European model only) (74)

This indicator appears when the SCART Output Setting is set to RGB.

TOTAL indicator (63)

This indicator appears while the total time is being displayed.

IEEE 1394 indicator (not Chinese model)

This indicator appears when the DV-SP1000/ DV-SP1000E is properly connected to an i.LINK (IEEE 1394) component.

REMAIN indicator (63)

This indicator appears while the remaining time is being displayed.

HDMI indicator

This indicator appears when the DV-SP1000/ DV-SP1000E is properly connected to an HDMI component.

EXT VIDEO indicator (66) (not Canadian model)

The EXT VIDEO indicator appears when the EXTERNAL video source is selected.

Play indicator (46)

This indicator appears during playback.

Pause indicator (46)

This indicator appears when playback is paused.

Title/Group number

Title and group numbers appears here.

Chapter & track number

Chapter and track numbers appears here.

■

Getting to Know the DV-SP1000/DV-SP1000E —Continued

Time display

Time information, such as total time, remaining time, and so on, is displayed here in hours, minutes, and seconds. Other messages are also displayed.

JPEG indicator

This indicator appears while a JPEG picture is being displayed.

MP3 indicator

This indicator appears when playing an MP3 track.

Dolby Digital ( D), Dolby Pro Logic

( PL) & DTS ( ) indicators

The Dolby Digital indicator ( D) appears when

Rear Panel

European Model

VIDEO IN

VIDEO

VIDEO OUT

S VIDEO VIDEO

1B 34 J

HDMI

232

OUT

S400

(

)

AUDIO

SURR MODE

(

AUDIO OUT

VIDEO

1+21

)

COMPONENT

AUDIO OUT

DIGITAL 1DIGITAL

COAXIAL OPTICAL OPTICALCOAXIAL

AV CONNECTOR

a Dolby Digital soundtrack is selected. The Dolby Pro Logic ( PL) indicator appears when the

DV-SP1000/DV-SP1000E’s Dolby Pro Logic decoder is on. The DTS indicator appears when a DTS soundtrack is selected.

DVD-AUDIO & SACD VCD indicators

These indicators show the type of disc loaded.

DVD: DVD-Video, DVD-VR

DVD-AUDIO: DVD-Audio

SACD: Super Audio CD

VCD: Video CD

CD: Audio CD, MP3, JPEG

OUT

REMOTE CONTROL

D. MIX FRONT SURR 1CENTER SURR

YPB PR

AUDIO OUT

HD VIDEO OUT

COMPONENT

SUB WOOFER

TRIGGER

SUPER AUDIO CD & DVD AUDIO/

VIDEO PLAYER

MODEL NO. DV

1000E

AC INLET

See page 20 for the Canadian model. See page 21 for other models.

For detailed information, refer to the pages in parenthesis.

i.LINK S400 (AUDIO) (35)

These sockets can output up to

to 192 kHz/24-bit digital audio in and can be connected to the i.LINK

six channels and up

i.LINK format

on a

sockets compatible AV receiver or other component. The actual output signal depends on the disc currently playing. Since

i.LINK is a bidirectional connection, connected components can talk to each other for optimal setup and perfectly synchronized audio transmission.

RS 232

This bidirectional RS-232 port can be connected to an external controller.

HDMI OUT (32)

This HDMI socket outputs digital video and audio and can be connected to an HDMI input on a compatible TV or other component.

VIDEO IN S VIDEO (39)

This input accepts S-Video and can be connected to an S-Video output on a TV, camcorder, or other component.

When the video input source is set to EXTERNAL, video signals received here are upconverted to progressive video and output by the HD VIDEO OUT COMPONENT output.

VIDEO IN VIDEO (39)

This input accepts composite video and can be connected to a composite video output on a TV, camcorder, or other component.

When the video input source is set to EXTERNAL, video signals received here are upconverted to progressive video and output by the HD VIDEO OUT COMPONENT output.

VIDEO OUT COMPONENT (Y, P

, P

These sockets output component video and can be connected to a component video input on a TV or projector. They output only interlaced video.

) (30)

Getting to Know the DV-SP1000/DV-SP1000E —Continued

VIDEO OUT S VIDEO (30)

These two sockets output S-Video and can be connected to an S-Video input on a TV or projector.

VIDEO OUT VIDEO (30)

These two sockets output composite video and can be connected to a composite video input on a TV or projector.

DIGITAL 1 AUDIO OUT (36, 38)

These sockets output digital audio and can be connected to the digital audio input on a hi-ﬁ amp, AV receiver, surround sound decoder (Dolby Digital, DTS), or other component. There’s a coaxial output and an optical output.

DIGITAL 2 AUDIO OUT (36, 38)

These sockets output digital audio and can be connected to the digital audio inputs on a hi-ﬁ amp, AV receiver, surround sound decoder (Dolby Digital, DTS), or other component. There’s a coaxial output and an optical output.

IR IN/OUT (40)

The IR IN socket can be used to connect a commercially available IR receiver, which can be used to pickup signals from the remote controller when the DV-SP1000/DV-SP1000E is located in another room, installed in a rack, or is out of range of the remote controller

The IR OUT connector can be used to connect a commercially available IR emitter, which can be used to pass remote controller signals received by the IR IN along to other components.

REMOTE CONTROL (40)

These (Remote Interactive) sockets can be connected to the sockets on other Onkyo AV components for interactive control.

To use you must make an analog audio connection between the DV-SP1000/DV-SP1000E and your Onkyo AV receiver, even if they are connected digitally.

D.MIX AUDIO OUT (30, 31, 38)

These sockets output analog audio and can be connected to a stereo analog audio input on a TV, hi-ﬁ amp, or other component. If the source audio is multichannel (Dolby Digital, DTS, DVD-Audio, SACD), they output a 2-channel downmix.

FRONT, SURR 1, CENTER & SUBWOOFER AUDIO OUT (37)

These sockets output 5.1-channel analog audio and can be connected to a 5.1-channel analog audio input on an AV receiver, surround sound decoder (Dolby Pro Logic), or other component.

SURR 2 AUDIO OUT (37)

These sockets output the same analog audio as the SURR1 outputs and can be connected to the analog surround back left and right inputs on a 7.1-channel AV receiver or other component. When using these sockets, the SURR MODE switch should be set to 1+2.

SURR MODE (AUDIO OUT) switch (37)

This switch is used to set the surround output mode of the analog multichannel audio outputs. If you connect the SURR 2 outputs to a 7.1-channel AV receiver or amp, set this switch to 1+2. This reduces the output level by 3 dB. If you’re not using the SURR 2 outputs, set this switch to 1.

AV CONNECTOR (32)

This SCART socket outputs RGB video, S-Video, composite video, and analog stereo audio and can be connected to the SCART socket on a TV, projector, or other component.

HD VIDEO OUT COMPONENT (31)

These BNC sockets output HD component video and can be connected to the HD component video input on an HDTV or projector.

When a video signal is fed to a VIDEO IN socket (S-Video or composite), and the video input source is set to EXTERNAL, that video signal is upconverted to progressive and output here.

12V TRIGGER IN

This socket can be connected to the 12-volt trigger output on an AV receiver or other component so that the DV-SP1000/DV-SP1000E can be turned on remotely.

AC INLET (41)

The supplied power cord should be connected here.

■

Getting to Know the DV-SP1000/DV-SP1000E —Continued

Canadian Model

1B 38

HDMI

232

OUT

S400

(

)

AUDIO

1+21

SURR MODE

(

)

AUDIO OUT

VIDEO OUT

S VIDEO VIDEO

COMPONENT

DIGITAL 1DIGITAL

COAXIAL OPTICAL OPTICALCOAXIAL

AUDIO OUT

D. MIX FRONT SURR 1CENTER SURR

REMOTE

CONTROL

YPB PR

For detailed information, refer to the pages in parenthesis.

i.LINK S400 (AUDIO) (35)

These sockets can output up to

to 192 kHz/24-bit digital audio in and can be connected to the i.LINK

six channels and up

i.LINK format

on a

sockets compatible AV receiver or other component. The actual output signal depends on the disc currently playing. Since

i.LINK is a bidirectional connection, connected components can talk to each other for optimal setup and perfectly synchronized audio transmission.

RS 232

This bidirectional RS-232 port can be connected to an external controller.

HDMI OUT (32)

This HDMI socket outputs digital video and audio and can be connected to an HDMI input on a compatible TV or other component.

VIDEO OUT COMPONENT (Y, P

, P

) (30)

These sockets output component video and can be connected to a component video input on a TV or projector. They output only interlaced video.

VIDEO OUT S VIDEO (30)

These two sockets output S-Video and can be connected to an S-Video input on a TV or projector.

VIDEO OUT VIDEO (30)

These two sockets output composite video and can be connected to a composite video input on a TV or projector.

DIGITAL 1 AUDIO OUT (36, 38)

DIGITAL 2 AUDIO OUT (36, 38)

These (Remote Interactive) sockets can be connected to the sockets on other Onkyo AV components for interactive control.

To use you must make an analog audio connection between the DV-SP1000/DV-SP1000E and your Onkyo AV receiver, even if they are connected digitally.

D.MIX AUDIO OUT (30, 31, 38)

FRONT, SURR 1, CENTER & SUBWOOFER AUDIO OUT (37)

These sockets output 5.1-channel analog audio and can be connected to a 5.1-channel analog audio input on an AV receiver, surround sound decoder (Dolby Pro Logic), or other component.

SURR 2 AUDIO OUT (37)

SUB WOOFER

AUDIO OUT

HD VIDEO OUT

COMPONENT

REMOTE CONTROL (40)

SUPER AUDIO CD & DVD AUDIO/

VIDEO PLAYER

MODEL NO. DV

1000

AC INLET

■

Getting to Know the DV-SP1000/DV-SP1000E —Continued

SURR MODE (AUDIO OUT) switch (37)

Other Models

VIDEO IN

VIDEO

S VIDEO VIDEO

VIDEO OUT

COMPONENT

AUDIO OUT

DIGITAL 1DIGITAL

COAXIAL OPTICAL OPTICALCOAXIAL

1B 34 J

HDMI

232

OUT

S400

(

)

AUDIO

1+21

SURR MODE

(

)

AUDIO OUT

i.LINK S400 (AUDIO) (35) (not Chinese

model)

These sockets can output up to

to 192 kHz/24-bit digital audio in and can be connected to the i.LINK

compatible AV receiver or other component. The actual output signal depends on the disc currently playing. Since

i.LINK is a bidirectional connection, connected components can talk to each other for optimal setup and perfectly synchronized audio transmission.

RS 232

This bidirectional RS-232 port can be connected to an external controller.

HDMI OUT (32)

This HDMI socket outputs digital video and audio and can be connected to an HDMI input on a compatible TV or other component.

VIDEO IN S VIDEO (39)

This input accepts S-Video and can be connected to an S-Video output on a TV, camcorder, or other component.

When the video input source is set to EXTERNAL, video signals received here are upconverted to progressive video and output by the HD VIDEO OUT COMPONENT output.

VIDEO IN VIDEO (39)

This input accepts composite video and can be connected to a composite video output on a TV, camcorder, or other component.

six channels and up

i.LINK format

sockets

on a

OUT

REMOTE

CONTROL

HD VIDEO OUT COMPONENT (31)

These RCA sockets output HD component video and can be connected to the HD component video input on an HDTV or projector.

AC INLET (41)

The supplied power cord should be connected here.

D. MIX FRONT SURR 1CENTER SURR

AUDIO OUT

HD VIDEO OUT

COMPONENT

YPB PR

SUB WOOFER

TRIGGER

SUPER AUDIO CD & DVD AUDIO/

VIDEO PLAYER

MODEL NO. DV

1000

AC INLET

When the video input source is set to EXTERNAL, video signals received here are upconverted to progressive video and output by the HD VIDEO OUT COMPONENT output.

VIDEO OUT COMPONENT (Y, P

, P

These sockets output component video and can be connected to a component video input on a TV or projector. They output only interlaced video.

VIDEO OUT S VIDEO (30)

These two sockets output S-Video and can be connected to an S-Video input on a TV or projector.

VIDEO OUT VIDEO (30)

These two sockets output composite video and can be connected to a composite video input on a TV or projector.

DIGITAL 1 AUDIO OUT (36, 38)

DIGITAL 2 AUDIO OUT (36, 38)

) (30)

Getting to Know the DV-SP1000/DV-SP1000E —Continued

IR IN/OUT (40)

The IR OUT connector can be used to connect a commercially available IR emitter, which can be used to pass remote controller signals received by the IR IN along to other components.

REMOTE CONTROL (40)

These (Remote Interactive) sockets can be connected to the sockets on other Onkyo AV components for interactive control.

To use you must make an analog audio connection between the DV-SP1000/DV-SP1000E and your Onkyo AV receiver, even if they are connected digitally.

D.MIX AUDIO OUT (30, 31, 38)

FRONT, SURR 1, CENTER & SUBWOOFER AUDIO OUT (37)

These sockets output 5.1-channel analog audio and can be connected to a 5.1-channel analog audio input on an AV receiver, surround sound decoder (Dolby Pro Logic), or other component.

SURR 2 AUDIO OUT (37)

SURR MODE (AUDIO OUT) switch (37)

HD VIDEO OUT COMPONENT (31)

These BNC sockets output HD component video and can be connected to the HD component video input on an HDTV or projector.

When a video signal is fed to a VIDEO IN socket (S-Video or composite), and the video input source is set to EXTERNAL, that video signal is upconverted to progressive and output here.

12V TRIGGER IN

This socket can be connected to the 12-volt trigger output on an AV receiver or other component so that the DV-SP1000/DV-SP1000E can be turned on remotely.

AC INLET (41)

The supplied power cord should be connected here.

Getting to Know the DV-SP1000/DV-SP1000E —Continued

Remote Controller

The DV-SP1000/DV-SP1000E’s remote controller is a multipurpose device that can be used to control not just the DV-SP1000/DV-SP1000E but an Onkyo AV receiver, TV, and VCR. This section explains how it’s used to control the DV-SP1000/DV-SP1000E or an Onkyo AV receiver. See page 90 for information on using it to control TVs and VCRs.

Controlling the DV-SP1000/DV-SP1000E (DVD Mode)

In DVD mode, the remote controller controls the DV-SP1000/DV-SP1000E. To select DVD mode, press the [DVD] MODE button.

Q S

B C

E F

I J

K L

M N

ON STANDBY

123

456

789

10 0

SEARCH MEMORY DIMMER AMP INPUT

AMP INPUT

DVD

V1 V2

DVD AMP VCR

ZOOM ON

AUDIO SEL

ZOOM

L MODE

DISPLAY

LAST

REC

VIDEO INPUT VIDEO OFF

OPEN/CLOSE

STEP/SLOW

MEMORY

LM RD

SBTTL

AUDIO

A-B

REPEAT

V OFFV IN

RC-563DV

MODE

ENTER

CLEAR

ANGLESUBTITLEAUDIO

LEARNING

INPUT

T V CH

V VOL

INPUTDMS

PICTURE CONTROL

VOL

MUTING

RANDOM

RESOLUTION

RSLTNANGLE

ASPECTA-BREPEAT

ASPECT

L2L1

f g

h i j

For detailed information, refer to the pages in parenthesis.

Tx/Learn indicator (86)

This indicator lights up when the remote controller is transmitting commands. It’s also used when conﬁguring the remote controller for use with a TV or VCR.

ON button (42)

This button is used to turn on the DV-SP1000/ DV-SP1000E.

STANDBY button (42)

This button is used to set the DV-SP1000/ DV-SP1000E to Standby.

Number buttons (48, 49, 56)

These buttons are used to enter title, chapter, group, and track numbers and to enter times for locating speciﬁc points in time.

To enter a single-digit number, simply press the corresponding button. To enter a double-digit number, enter the numbers in order from left-to-right (e.g., to enter 14, press [1] then [4].

The [+10] button is used to enter multiples of ten (i.e., 10, 20, 30, and so on). For example, to enter the number 25, press the [+10] button twice followed by the [5] button.

DIMMER button (51)

This button is used to adjust the display brightness.

SEARCH button (48, 49, 56)

This button is used to search for titles, chapters, groups, tracks, and speciﬁc points in time.

MEMORY button (59)

This button is used with the Memory function.

DVD MODE button

This button is used to select the remote controller’s DVD mode.

ZOOM ON button (56)

This button is used to turn the Zoom function on and off.

Arrow [ ]/[ ]/[ ]/[ ] & ENTER buttons (43)

The arrow buttons are mainly used to navigate onscreen menus. The [ENTER] button is used to conﬁrm choices.

ZOOM [+/–] button (56)

This button is used with the Zoom function to zoom in and out.

RETURN button (47, 52, 70)

This button is used to return to the previously displayed onscreen setup menu.

DISPLAY button (63)

This button is used to display information about the current disc, title, chapter, group, or track, including the elapsed time, remaining time, total time, and so on.

Getting to Know the DV-SP1000/DV-SP1000E —Continued

Play [ ] button (46)

This button is used to start playback.

Previous/Next [ ]/[ ] buttons (48, 49, 52)

The Previous [ ] button is used to select the previous chapter or track. During playback it selects the beginning of the current chapter or track. The Next [ ] button is used to select the next chapter or track.

Pause [ ] button (46)

This button is used to pause playback.

LAST MEMORY button (63)

This button is used with the Last Memory function.

STEP/SLOW [ ]/[ ] buttons (50, 51)

These buttons are used for frame-by-frame playback and slow-motion playback.

SUBTITLE button (62)

This button is used to select subtitles.

AUDIO button (62)

This button is used to select foreign language soundtracks and audio formats (e.g., Dolby Digital or DTS). It’s also used to select the multichannel area, 2-channel area, or CD layer on SACDs.

A-B button (57)

This button is used to set the A–B Repeat function.

REPEAT button (57)

This button is used to set the Repeat function.

VIDEO OFF button (66)

This button is used to turn off all of the internal video circuitry for pure audio playback.

VIDEO INPUT button (66)

(This button is not used on the Canadian model.) This button is used to select the video input source:

DVD (the DV-SP1000/DV-SP1000E) or EXTERNAL (S-Video input or composite video input).

OPEN/CLOSE [ ] button (45)

This button is used to open and close the disc tray.

LIGHT button

This button is used to turn on or off the remote controller’s illuminated buttons.

CLEAR button (48, 49)

This button is used to cancel functions and to clear entered numbers.

TOP MENU button (47)

This button is used to select a DVD’s top menu.

MENU button (47)

This button is used to select a DVD’s menu.

PICTURE CONTROL button (67)

This button is used to open the Picture Control menu.

SETUP button (70)

This button is used to access the onscreen setup menus (OSD).

FR/FF [ ]/[ ] buttons (50)

The FR [ ] button is used to start fast reverse. The FF [ ] button is used to start fast forward.

Stop [ ] button (46)

This button is used to stop playback.

RANDOM button (58)

This button is used with the Random function.

ANGLE button (61)

This button is used to select different camera angles.

RESOLUTION button (66)

This button is used to select a video resolution for the HDMI OUT.

ASPECT button (67)

This button is used to set the picture’s aspect ratio.

Getting to Know the DV-SP1000/DV-SP1000E —Continued

Controlling an Onkyo AV Receiver (Amp Mode)

In Amp mode, the remote controller can be used to control an Onkyo AV receiver connected to the DV-SP1000/ DV-SP1000E via . To select Amp mode, press the [AMP] MODE button.

A B

D E

F G

ON STANDBY

123

456

789

10 0

SEARCH MEMORY DIMMER AMP INPUT

AMP INPUT

DVD

V1 V2

DVD AMP VCR

ZOOM ON

AUDIO SEL

ZOOM

L MODE

DISPLAY

LAST

REC

VIDEO INPUT VIDEO OFF

OPEN/CLOSE

STEP/SLOW

MEMORY

LM RD

SBTTL

AUDIO

A-B

REPEAT

V OFFV IN

MODE

ENTER

CLEAR

ANGLESUBTITLEAUDIO

LEARNING

INPUT

T V CH

V VOL

INPUTDMS

PICTURE CONTROL

VOL

MUTING

RANDOM

RESOLUTION

RSLTNANGLE

ASPECTA-BREPEAT

ASPECT

L2L1

I J

M N

ON button

This button is used to turn the AV receiver on.

STANDBY button

This button is used to set the AV receiver to Standby.

AMP MODE button

This button is used to select the remote controller’s Amp mode.

AUDIO SEL button

This button is used to select the audio input signal format on the AV receiver.

Arrow [ ]/[ ]/[ ]/[ ] & ENTER buttons

The arrow buttons are mainly used to navigate onscreen menus. The [ENTER] button is used to conﬁrm choices.

L MODE [+/–] button

This button is used to select listening modes on the AV receiver.

RETURN button

This button is used to return to the previously displayed menu of the AV receiver’s onscreen setup menus (OSD).

DISPLAY button

This button is used to display various information about the input source currently selected on the AV receiver.

DIMMER button

This button is used to adjust the display brightness on the AV receiver.

AMP INPUT button

This button is used to select the input source on the AV receiver.

Amp Input (DVD, V1, V2, V3) buttons

These buttons are used to select the input source on the AV receiver: DVD, Video 1, Video 2, or Video 3.

VOL button

This button is used to set the volume of the AV receiver.

SETUP button

This button is used to access the AV receiver’s onscreen setup menus (OSD).

MUTING button

This button is used to mute the AV receiver.

RC-563DV

Connecting

This chapter explains how to connect the DV-SP1000/ DV-SP1000E to your other AV components.

Before Making Any Connections

• Read the manuals supplied with your AV components.

• Don’t connect the power cord until you’ve completed all audio and video connections.

Optical Digital Outputs

The DV-SP1000/DV-SP1000E’s optical digital output sockets have dust caps for keeping out dust and dirt when they’re not in use. Remove the cap before inserting an optical plug, and push the plug in all the way to make a good connection. Keep the dust cap in a safe place for future use.

AV Cables & Connectors

RCA AV Connection Color Coding

RCA-type AV connections are usually color coded: red, white, and yellow. Use red plugs to connect right-channel audio inputs and outputs (typically labeled “R”). Use white plugs to connect left-channel audio inputs and outputs (typically labeled “L”). And use yellow plugs to connect composite video inputs and outputs.

Right (red)

Left (white)

(Yellow)

• Push each plug in all the way to make a good connection (loose connections can cause noise or malfunctions).

•To prevent interference, keep audio and video cables away from power cords and speaker cables.

Video

Analog audio

Composite video

Right (red)

Left (white)

(Yellow)

Right!

Wrong!

HDMI

Component video

S-Video

Composite video

SCART (European model only)

HDMI

standard or high deﬁnition digital video and up to eight channels of digital audio, for the best picture and sound quality.

HDMI connections can carry uncompressed,

Component video connections separate the luminance (Y) and color difference signals (P

) and provide picture quality better than

S-Video and composite video. (Some manufac-

turers label their component video sockets

PBYPR

slightly differently.) The DV-SP1000/DV-SP1000E’s HD VIDEO

OUT COMPONENT sockets are BNC connectors, except on the Canadian model, which has RCA sockets.

S VIDEO

S-Video connections provide better picture quality than composite video.

VIDEO

Composite video is commonly used on TVs, VCRs, and other video equipment. Use only dedicated composite video cables.

SCART connections carry video (RGB, S-Video, and composite) and analog stereo

AV CONNECTOR

audio all in one cable.

Connecting —Continued

Audio

i.LINK

Optical digital

Coaxial digital

Analog

Multichannel analog audio cable (RCA)

OPTICAL

COAXIAL

FRONT SURR 1CENTER SURR

SUB WOOFER

i.LINK (IEEE 1394) connections can

to six (5.1) channels and up to 24-bit/ 192 kHz digital audio, and can be used for multichannel digital audio (DVD-Video, DVD-Audio, SACD) and stereo digital audio (VCD, CD, MP3).

The Chinese model doesn’t support i.LINK.

Optical digital audio connections can carry

Dolby Digital or DTS multichannel digital

(DVD-Video,

audio

DVD-Audio

) or

digital audio (DVD-Video, DVD-Audio, SACD, VCD, CD, MP3)

Coaxial digital audio connections can carry

Dolby Digital or DTS multichannel digital

(DVD-Video,

audio

DVD-Audio

) or

digital audio (DVD-Video, DVD-Audio, SACD, VCD, CD, MP3)

RCA analog audio connectors can be found on virtually all AV components.

This cable carries multichannel analog audio and it’s typically used to connect DVD players

with individual 5.1/7.1-channel analog audio outputs. Several standard analog audio cables

can be used instead of a multichannel cable.

carry up

stereo

Video Formats & DV-SP1000/DV-SP1000E Inputs & Outputs

The DV-SP1000/DV-SP1000E supports several video input formats. The following table shows what’s output by each video output when each of the video inputs is selected. It also shows whether or not the video is upconverted to progressive video. (The Canadian model has no video inputs.)

DV-SP1000/DV-SP1000E video output

Selected video input

DVD (i.e., DV-SP1000/ DV-SP1000E)

S VIDEO VIDEO IN

External

VIDEO VIDEO IN

a. Only works with components that support HDCP (High-bandwidth Digital Content Protection). b. European model only. Outputs RGB (i.e., component video), S-Video, or composite video. When set to RGB, nothing is output by the

component video output (see page 74). c. The picture can be adjusted by using the Progressive Setting (see page 73). d. The picture can be adjusted by using the Interlaced Setting (see page 72). e. Resolutions supported by the connected TV can be selected by pressing the [RESOLUTION] button (see page 66).

HDMI OUT

DVD

External

HD VIDEO OUT

COMPONENT

DVD

(progressive)

External

(progressive)

External

(progressive)

COMPONENT VIDEO OUT

S VIDEO VIDEO OUT

DVD (interlaced)

VIDEO VIDEO OUT

SCART

Connecting —Continued

Audio Formats & DV-SP1000/DV-SP1000E Outputs

The DV-SP1000/DV-SP1000E supports many digital audio formats. The following table shows which outputs work with each format. The Chinese model doesn’t support i.LINK.

Disc type

DVD-Video

DVD-Audio

SACD

VCD

MP3

a. The Digital Out/Digital 2 settings apply to the HDMI OUT (see page 75). Components must support HDCP (High-bandwidth Digital

Content Protection) in order to play DVD-Video. The DV-SP1000/DV-SP1000E does.

b. The Digital Out/Digital 1 settings apply to the i.LINK sockets (see page 74). Components must support DTCP (Digital Transmission

Content Protection) in order to play DVD-Video, DVD-Audio, and SACD. The DV-SP1000/DV-SP1000E does (not Chinese model).. c. If the Digital Out setting is set to Off, nothing is output by these outputs (see page 75). d. 2-channel stereo sources are output only by the FRONT AUDIO OUT sockets. For multichannel sources, the Downmix Setting determines

how the FRONT AUDIO OUT sockets work (see page 76). e. 2-channel sources, including Dolby Surround, are output as they are. Multichannel sources are down mixed. f. European model only. 2-channel sources, including Dolby Surround, are output as they are. Multichannel sources can be down mixed to

stereo or Lt/Rt (see page 76). g. To output PCM at sampling rates other than 44.1 kHz and 48 kHz, set the Linear PCM Out setting to Down Sample On (see page 75). h. Protected high sampling rate digital audio (96 kHz) will be down sampled to 48 kHz. i. You can choose whether or not to downsample 96 kHz audio to 48 kHz (see page 75). j. Set the Dolby Pro Logic setting to On to add surround sound (see page 76). k. To use with an HDMI TV that does not support this format, set the appropriate Digital Out/Digital 2 setting (i.e., Dolby Digital Out, DTS

Out, or MPEG Out) to downmix to PCM (see page 75). l. Set the Dolby Pro Logic setting to Auto or On to decode Dolby Surround material. Set it to On to add surround sound to 2-channel Dolby

Digital material (see page 76). m. Only the 2-channel audio information is used. n. High sampling rate DVD-Audio (192 kHz/176 kHz) will be down sampled to 96 kHz, 88.2 kHz, 48 kHz, or 44.1 kHz depending on the

disc. o. Some DVD-Audio discs may not allow PCM output from the DIGITAL 1/2 AUDIO OUTs. p. Multichannel DVD-Audio will be down mixed to stereo. q. By default the DV-SP1000/DV-SP1000E plays the multichannel area, although you can change this (see page 80). r. When the i.LINK Output Setting is set to On, SACD audio is output from the i.LINK sockets, but not the analog audio outputs. When it’s

set to Off, SACD audio is output from the analog audio outputs, but not the i.LINK sockets (see page 76) (not Chinese model).

Audio format

PCM

Dolby Digital

DTS

MPEG

PCM

Dolby Digital

DTS

MPEG

Stereo area

Multichannel area

Hybrid disc CD layer

MPEG1

PCM

DTS

MP3

HDMI OUT (digital)

i.LINK*

(digital)

✓

✓✓

✗✓

✗

✓

✓✓ ✓ ✓ ✓ ✓

✓✓ ✓

✓✓

✓

✓✓ ✓ ✓ ✓ ✓

DV-SP1000/DV-SP1000E audio output

DIGITAL 1 & 2 AUDIO OUT

(digital)

✓

FRONT, SURR 1, CENTER, SUBWOOFER, SURR 2

(analog)

✓✓

✓

o, i

✓

✗✓✓✓

✓

D.MIX AUDIO OUT

(analog)

✓

SCART

(analog)

✓✓

✓✓✓

✓

✓✓

✓✓✓

✓

✓✓

✓✓✓

▼

Connecting —Continued

Getting Connected

If you’re not sure how to connect the DV-SP1000/DV-SP1000E to your other components, check what type of sockets they have and use the following map to locate the appropriate hookup information.

Video Output Connections

Components with an HDMI input - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - page 32 (F)

Components with a component video input

Digital HDTV or projector - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - page 31 (D)

Components that support progressive scanning - - - - - - - - - - - - - - - - - - - - - - - - - - - - - page 31 (D)

Components that do not support progressive scanning - - - - - - - - - - - - - - page 30 (A), page 34 (G)

Components with a SCART socket - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - page 32 (E)

Components with an S-Video input - - - - - - - - - - - - - - - - - - - - - - page 30 (B), page 34 (H)

Components with a composite video input - - - - - - - - - - - - - - - - - - page 30 (C), page 34 (I)

Audio Output Connections

Components with digital audio inputs

Components that support Dolby Digital and DTS - - - - - - - - - - - - - - - - - - - - - - - - - - - - page 36 (K)

Components that do not support Dolby Digital and DTS - - - - - - - - - - - - - - - - - - - - - - - page 38 (N)

Components with analog audio inputs

Components with a multichannel audio input - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - page 37 (L)

Components with a 2-channel audio input - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - page 38 (M)

i.LINK (AUDIO) Components (not Chinese model) - - - - - - - - - - - - - - - page 35 (J)

Video Input Connections (not Canadian model)

Components with an S-Video output - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - - page 39 (O)

Components with a composite video output - - - - - - - - - - - - - - - - - - - - - - - - - - page 39 (O)
