Onkyo DV-S717 User Manual

Download

DV-S717

DVD Player

Instruction Manual

Introduction

Connections

STANDBY/ ON

STANDBY

POWER

OFF

PHONER PHONER LEVEL

MIN MAX

THIS DVD PLAYER IS MANUFACTURED FOR PLAYBACK OF REGION 1 (USA, CANADA) ENCODED DVD SOFTWARE. USE OF SOFTWARE NOT INTENDED FOR REGION 1 PLAYBACK MAY RESULT IN UNDESIRABLE PLAYER PERFORMANCE.

TITLE MENU DIMMER

CINEMA SCAN

OPEN/CLOSE

ENTER

RETURN

STOP

PAUSE

DVD / VIDEO CD / CD PLAYER

PLAY

DV-S717

Basic Playback

Advanced Playback

Thank you for your purchase of the Onkyo DVD

player. Please read this manual thoroughly before making connections and turning on the power. Following the instructions in this manual will enable you to obtain optimum performance and listening enjoyment from your new DVD player. Please retain this manual for future reference.

Others Function Setup

Safety Precautions

“WARNING”

“TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.”

CAUTION:

“TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.”

WARNING AVIS

RISK OF ELECTRIC SHOCK

DO NOT OPEN

RISQUE DE CHOC ELECTRIQUE

Important Safeguards

1. Read Instructions – All the safety and operating instructions should be read before the appliance is operated.

2. Retain Instructions – The safety and operating instructions should be retained for future reference.

3. Heed Warnings – All warnings on the appliance and in the operating instructions should be adhered to.

4. Follow Instructions – All operating and use instructions should be followed.

5. Water and Moisture – The appliance should not be used near water – for example, near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool, and the like.

6. Carts and Stands – The appliance should be used only with a cart or stand that is recommended by the manufacturer.

6A. An appliance and cart

combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.

7. Wall or Ceiling Mounting – The appliance should be mounted to a wall or ceiling only as recommended by the manufacturer.

8. Ventilation – The appliance should be situated so that its location or position does not interfere with its proper ventilation. For example, the appliance should not be situated on a bed, sofa, rug, or similar surface that may block the ventilation openings; or if placed in a built-in installation, such as a book case or cabinet that may impede the flow of air through the ventilation openings, there should be free space of at least 5 cm (2 in.) and open up behind the appliance.

9. Heat – The appliance should be situated away from heat sources such as radiators, heat registers, stoves, or other appliances (including amplifiers) that produce heat.

PORTABLE CART WARNING

S3125A

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that ma y be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the product.

NE PAS OUVRIR

10.Power Sources – The appliance should be connected to a power supply only of the type described in the operating instructions or as marked on the appliance.

11.Polarization – If the appliance is provided with a polarized plug having one blade wider than the other, please read the following information: The polarization of the plug is a safety feature. The polarized plug will only fit the outlet one way. If the plug does not fit fully into the outlet, try reversing it. If there is still trouble, the user should seek the services of a qualified electrician. Under no circumstances should the user attempt to defeat the polarization of the plug.

12.Power- Cord Protection – Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, especially wear plugs, convenience receptacles, and the point where they exit from the appliance.

13.Cleaning – The appliance should be cleaned only as recommended by the manufacturer.

14.Nonuse Periods – The power cord of the appliance should be unplugged from the outlet when left unused for a long period of time.

15.Object and Liquid Entry – Care should be taken so that objects do not fall and liquids are not spilled into the enclosure through openings.

16.Damage Requiring Service – The appliance should be serviced by qualified service personnel when: A. The power-supply cord or the plug has been

damaged; or

B. Objects have fallen, or liquid has been spilled into

the appliance; or C. The appliance has been exposed to rain; or D. The appliance does not appear to operate normally

or exhibits a marked change in performance; or E. The appliance has been dropped, or the enclosure

damaged.

17.Servicing – The user should not attempt to service the appliance beyond that described in the operating instructions. All other servicing should be referred to qualified service personnel.

Precautions

DANGER:

INVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCK FAILED OR DEFEATED. AVOID DIRECT EXPOSURE TO BEAM.

CAUTION:

THIS PRODUCT UTILIZES A LASER. USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

FOR U.S.A. MODEL:

1.This laser is covered by a housing which prevents exposure during operation or maintenance. However, this product is classified as a Laser Product by CDRH (Center for Devices and Radiological Health) which is a department of the Food and Drug Administration. According to their regulations 21 CFR section 1002.30, all manufactures who sell Laser Products must maintain records of written communications between the manufacturer, dealers and customers concerning radiation safety. If you have any complaints about instructions or explanations affecting the use of this product, please feel free to write to the address on the back page of this manual. When you write us, please include the model number and serial number of your DVD player.

2.In compliance with Federal Regulations, the certification, identification and the period of manufacture are indicated on the real panel.

Introduction

3.FCC INFORMATION FOR USER

CAUTION:

Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

NOTE:

This equipment has been tested and found to comply with the limits for a Class B digital device pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, it not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

WARNING: Changes or modifications made to this equipment, not expressly approved by Onkyo, or parties authorized by

Onkyo, could void the user’s warrantee of the equipment.

This label on the rear panel of the unit states that:

“CLASS 1 LASER PRODUCT”

1.This unit is a CLASS 1 LASER PRODUCT and employs a laser inside the cabinet.

2.To prevent the laser from being exposed, do not remove the cover. Refer servicing to qualified personnel.

FOR CANADIAN MODEL: (POUR LE MODELE CANADIEN)

• THIS DIGITAL APPARATUS DOES NOT EXCEED THE CLASS B LIMITS FOR RADIO NOISE EMISSION FROM DIGITAL APPARATUS SET OUT IN THE RADIO INTERFERENCE REGULATIONS OF THE CANADIAN DEPARTMENT OF COMMUNICATIONS.

• L'INTERFERENCE, RADIO ELECTRIQUE GENEREE PAR CET APPAREIL NUMERIQUE DE TYPE B NE DEPASSE PAS LES LIMITES ENONCEES DANS LE REGLEMENT SUL LES PERTURBATIONS RADIO ELECTRIQUES, SECTION APPAREIL NUMERIQUE, DU MINISTERE DES COMMUNICATIONS.

Precautions

FOR CANADIAN MODEL: POUR LE MODELE CANADIEN:

For models having a power cord with a polarized plug.

CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

Sur les modèles dont la fiche est polarisée.

ATTENTION: POUR ÉVITER LES CHOCS ÉLECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA

BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU’AU FOND.

• L’INTERFERENCE, RADIO ELECTRIQUE GENEREE PAR CET APPAREIL NUMERIQUE DE TYPE B NE DEPASSE PAS LES LIMITE ENONCEES DANS LE REGLEMENT SUL LES PERTURBATIONS RADIO ELECTRIQUES, SECTION APPAREIL NUMERIQUE, DU MINISTERE DES COMMUNICATIONS.

Warranty Claim

Notes on Moisture Condensation

You can find the serial number on the rear panel. In case of warranty claim, please report this number.

Notes on Handling

When shipping the DVD player, the original shipping carton and packing materials come in handy. For maximum protection, repack the unit as it was originally packed at the factory. Do not use volatile liquids, such as insect spray, near the DVD player. Do not leave rubber or plastic products in contact with the DVD player for a long time. They will leave marks on the finish. The top and rear panels of the DVD player may become

warm after a long period of use. This is not a malfunction.

When the DVD player is not in use, be sure to remove the disc and turn off the power. If you do not use the DVD player for a long period, the unit may not function properly in the future. Turn on and use the DVD player occasionally.

Notes on Placement

When you place this DVD player near a TV, radio, or VCR, the playback picture may become poor and the sound may be distorted. In this case, place the DVD player away from the TV, radio, or VCR.

Moisture condensation damages the DVD player. Please read the following carefully.

Moisture condensation occurs, for example, when you pour a cold drink into a glass on a warm day. Drops of water form on the outside of the glass. In the same way, moisture may condense on the optical pick-up lens inside this unit, one of the most crucial internal parts of the DVD player.

Moisture condensation occurs during the following cases.

When you bring the DVD player directly from a cold place to a warm place. When you use the DVD player in a room where you just turned on the heater, or a place where the cold wind from the air conditioner directly hits the unit. In summer, when you use the DVD player in a hot and humid place just after you move the unit from an air conditioned room. When you use the DVD player in a humid place.

Introduction

Notes on Cleaning

Use a soft, dry cloth for cleaning.

For stubborn dirt, soak the cloth in a weak detergent solution, wring well and wipe. Use a dry cloth to wipe it dry. Do not use any type of solvent, such as thinner and benzine, as they may damage the surface of the DVD player. If you use a chemical saturated cloth to clean the unit, follow that product’s instructions.

To Obtain a Clear Picture

The DVD player is a high technology, precision device. If the optical pick-up lens and disc drive parts are dirty or worn down, the picture quality becomes poor. To obtain a clear picture, we recommend regular inspection and maintenance (cleaning or parts replacement) every 1,000 hours of use depending on the operating environment. For details, contact your nearest dealer.

Do not use the DVD player when moisture condensation may occur.

If you use the DVD player in such a situation, it may damage discs and internal parts. Remove the disc, connect the power cord of the DVD player to the wall outlet, turn on the DVD player, and leave it for two or three hours. After two or three hours, the DVD player will have warmed up and evaporated any moisture. Keep the DVD player connected to the wall outlet and moisture condensation will seldom occur.

Features

Audiophile-class DVD/VIDEO CD/CD player Component Video Outputs (Gold-Plated) Dolby* Digital Audio Output 10-Bit Video D/A conversion Optical & Coaxial digital audio output Complete front-panel control 4-power picture zoom Brushed aluminum front panel DTS** Bitstream Digital Out 3D DNR function

* Manufactured under license from Dolby Laboratories. “Dolby”,

** "DTS" and "DTS Digital Surround" are trademarks of Digital

Theater Systems, Inc.

Introduction

Safety Precautions.................................... 2

Important Safeguards ...............................2

Precautions............................................3-5

Features.................................................... 6

Connections

Connecting to a TV ................................. 12

Connecting to an Audio System and TV with

COMPONENT VIDEO Inputs.................. 13

Basic Playback

Playing a Disc ....................................16-19

Basic Playback Using the Shuttle Ring Using the Jog Dial Fast Reverse Playback, Fast Forward Playback Playing in Slow-Motion Resuming Playback from the Same Location

Advanced Playback

Identification of Controls ...................... 8-11

Front Panel/Rear Panel/DVD display Remote Controller Preparing the Remote Controller Operating with the Remote Controller

Connecting to Optional Equipment ... 14, 15

onnecting to an Amplifier Equipped with a Dolby Digital Decoder Connecting to an Amplifier Equipped with a Dolby Pro Logic Surround Connecting to an Amplifier Equipped with a DTS Decoder Connecting to an Amplifier Equipped with a Digital Audio Input

Locating a Specific Title, Chapter,

or Track.............................................20, 21

Locating a Title Using the Title Menu Locating a Title Locating a Specific Chapter or Track Directly Locating a Specific Chapter or Track

Introduction

IntroductionOthers Function Setup

Connections

Basic Playback

Playing From the Desired Location......... 22

storing Locations in the Memory Locating a Specific Location by Entering the Time

Playing Repeatedly.................................23

Repeating a Title, Chapter, or Track Repeating a Specific Segment

Playing in a Favorite Order .....................24

Setting Titles, Chapters, or Tracks in a Favorite Order

Playing in Random Order............................... 25

Playing Titles in Random Order Playing Chapters or Tracks in Random Order

Selecting 3D DNR Picture Enhancement....... 26

Selecting 3D DNR On/Off

Function Setup

Customizing the Function Settings ....32-45

Selecting a Setting Category LANGUAGE Setting PICTURE Setting AUDIO Setting DISPLAY Setting OPERATION Setting

Others

Zooming a Picture .......................................... 27

Zooming a Picture

Selecting the Camera Angle ................... 28

Changing the Camera Angle

Selecting a Language ............................. 29

Selecting a Playback Audio Setting

Selecting Subtitles ..................................30

Turning Subtitles On or Off Selecting a Subtitle Language

Using the On-Screen Display..................31

Checking the Operational Status Checking the Remaining Time and Setting Status

Table of Languages ................................46

Table of Languages and Their Abbreviations

Advanced Playback

Notes on Discs........................................ 47

On Handling Discs On Cleaning Discs On Storing Discs About This Instruction Manual Notes on Region Numbers Playable Discs

On VIDEO CDs Notes on Copyright

Before Calling Service Personnel ........... 48

Symptoms and Correction

Specifications.......................................... 49

Identification of Controls

See the page in for details.

Front Panel/Rear Panel/DVD Display

■ Front Panel

STANDBY/ON button

STANDBY indicator

PHONER PHONER LEVEL

PHONES jack

PHONES LEVEL knob

■ Rear Panel

POWER switch

STANDBY/ ON

STANDBY

POWER

OFF

MIN MAX

TITLE MENU DIMMER

TITLE button

DIMMER button

MENU button

Shuttle ring

DVD display

Jog dial

Disc tray

CINEMA SCAN

ENTER

RETURN

OPEN/CLOSE

OPEN/CLOSE button

ENTER button , - RETURN button , ,

PLAY

STOP

PAUSE

DVD / VIDEO CD / CD PLAYER DV-S717

Up/Down buttons

Direction buttons ( y/u,

a/s

30 44

, -

PLAY button

STOP button

PAUSE button 17

30 38

37 41

)

Power cord

Power plug

COMPONENT VIDEO OUT jacks

Y•CB•CR

S VIDEO OUT jack

VIDEO OUT jack , ,

VIDEO OUT

B CR

S VIDEO VIDEO

14 15

ANALOG OUTPUT

DIGITAL OUTPUT

COAXIAL OPTICAL

REMOTE CONTROL

z REMOTE CONTROL jacks

DIGITAL OPTICAL AUDIO OUT terminal ,

DIGITAL COAXIAL AUDIO OUT jack ,

ANALOG AUDIO OUT (L/R) jacks , ,12 13

14 15

Connections for remote control ( z )

When connecting ONKYO products, it is necessary to attach the z cable to be able to use the remote controller of the main component to control the entire system.

1.To use this DVD player with an amplifier (or receiver), cassette tape deck and tuner with the z symbol, insert the remote control cable plugs into the REMOTE CONTROL jacks.

2.As the exact connection sequence of the z cable is unimportant, you can connect from the amplifier (or receiver) to either the tuner, the cassette tape deck or to the compact disc player.

3.If using an z equipped ONKYO amplifier (or receiver), to operate correctly, the remote control must face towards the remote control sensor of the amplifier (or receiver).

Notes:

• The upper and lower z remote control jacks have the same function.

• Remote control operation is not possible when only the remote control cable is connected — the audio connection cables must also be connected.

• An z remote control cable equipped with a 1/8" (3.5mm) diameter miniature two-conductor phone plug is included with the DV-S717 and with every tuner, compact disc player or cassette tape deck with the z symbol.

■ DVD Display

• Pressing of the DIMMER button changes the brightness of the Display.

Normal Dimmed Off

Introduction

Repeat playback mode indicators

RANDOM indicator

Title number indicator

Operating status indicator

PBC indicator

MEMORY indicator

RANDOM TITLE CHP/TR TOTAL REMAIN PBC MEMORY

VCD

DVD

REPEAT

A-B ALL

VCD/Audio CD indicator

DVD indicator

Angle icon indicator

Chapter/track number indicator

Total playing time/remaining time/PBC/elapsed time indicators

■ The indicators var y depending on the kinds of discs you play.

■ DVD Video disc ■ Audio CD

• When closing the disc tray:

Example

RANDOM TITLE CHP/TR TOTAL REMAIN PB C MEMORY VCD

DVD

Total number of titles

• During playback:

Example

RANDOM TITLE CHP/TR REMAIN PBC MEMORY VCD

DVD

■ VIDEO CD

• When closing the disc tray:

Example

RANDOM TITLE CHP/TR TOTAL REMAIN PBC MEMORY

REPEAT

VCD

A-B ALL

DVD

Total number of tracks

Lights up when using a PBC-controllable VIDEO CD.

• During playback:

Example

RANDOM TITLE CHP/TR REMAIN PBC MEMORY

REPEAT

VCD

A-B ALL

DVD

Total playing time of the disc

• When closing the disc tray:

Example

RANDOM TITLE CHP/TR TOTAL REMAIN PBC MEMORY

REPEAT

V CD

A-B ALL

DVD

Total number of tracks

• During playback:

Example

RANDOM TITLE CHP/TR REMAIN PBC MEMORY

REPEAT

V CD

A-B ALL

DVD

REPEAT

A-B ALL

Total playing time of the disc

REPEAT

A-B ALL

Connections

Playing chapter 3 in title 2

Elapsed time of the current title

Some DVD video discs may not display the chapter numbers or elapsed time.

■ Other indicators

REPEAT

When playing back the same title, chapter or track repeatedly. 23

When playback is paused. 17

RANDOM

During random playback. 25

Playing track 6

Elaplsed time of the current track

Some VIDEO CDs may not display the track numbers or elapsed time.

When playing back a specific

REPEAT A-B

segment repeatedly. (A-B repeat) 23

MEMORY

During memory playback. 22

REPEAT

ALL

Playing track 6

Elaplsed time of the current track

When playing back the entire disc repeatedly. 23

When the camera angle can be changed. 28

Identification of Controls (continued)

The instructions in this manual describe the controls on the remote controller. See the page in for details.

Remote Controller

SET UP button

POWER button

AUDIO button

ANGLE button

Direction buttons

, -

32 41

ENTER button RETURN button

Number buttons

SEARCH button

, -

FR (fast reverse) button

32 41

OWER

AUDIO

RETURN

F R

SET UP

ANGLE

ENTER

010

PLAY F

DISPLAY

SUBTITLE

OPEN

SUB

TITLE

OFF

TLE

ZOOM

DISC MEMORY

CLEAR

3D DNR

DIMMERSEARCH

AUSE

DISPLAY button

OPEN/CLOSE button

SUBTITLE ON/OFF button

SUBTITLE button MENU button*

TITLE button

ZOOM button

DISC MEMORY button

CLEAR button

3D DNR button

DIMMER button PAUSE button

PLAY button

DOWN button STOP button

REPEAT button A-B button

STOPDOWN

REPEAT

REMOTE CONTROLLER RC-388 DV

MEMORY RANDOM

LOWUP

FF (fast forward) button SLOW button UP button

RANDOM button MEMORY button

25 24

∗MENU button

Use the MENU button to display the menu screen included on DVD video discs. To operate a menu screen, follow the instructions in “Locating a Title Using the Title Menu” 20 .

Preparing the Remote Controller

Operating with the Remote Controller

Insert the batteries into the remote controller so you can use it to operate the DVD player.

Open the cover.

Insert batteries (AA size).

Make sure to match the + and – on the batteries to the marks inside the battery compartment.

Close the cover.

This section shows you how to use the remote controller.

Introduction

Point the remote controller at the remote sensor and press the buttons.

Connections

30°30°

Within about 5 m (16-11/16 feet)

Distance: About 5 m(16-11/16 feet) from

the front of the remote sensor

Angle: About 30° in each direction of

the front of the remote sensor

* Do not expose the remote sensor of the

DVD player to a strong light source such as direct sunlight or illumination. If you do so, you may not be able to operate the DVD player with the remote controller.

Notes on batteries:

Improper use of batteries may cause battery leakage and corrosion. To operate the remote controller correctly, follow the instructions below.

• Do not insert the batteries into the remote controller in the wrong direction.

• Do not charge, heat, open, or short-circuit the batteries. Do not throw the batteries into a fire.

• Do not leave dead or exhausted batteries in the remote controller.

• Do not use different types of batteries together, or mix old and new

batteries.

• If you do not use the remote controller for a long period of time, remove the batteries to avoid possible damage from battery corrosion.

• If the remote controller does not function correctly or if the operating range becomes reduced, replace all batteries with new ones.

• If battery leakage occurs, wipe the battery liquid from the battery compartment, then insert new batteries.

• The batteries should last about one year with normal use.

Notes on the remote controller:

• Direct the remote controller at the remote sensor of the DVD player.

• Do not drop or give the remote controller a shock.

• Do not leave the remote controller near an extremely hot or humid

place.

• Do not spill water or put anything wet on the remote controller.

• Do not open the remote controller.

Connecting to a TV

For details of Output sound, see .29

Connect the DVD player to your TV.

Connecting to a TV

■ Setting of the output sound type

From the on-screen displays, set the “Audio Out Select” to “Analog 2ch”.

To wall outlet

Power plug

VIDEO OUT

B CR

S VIDEO VIDEO

ANALOG OUTPUT

DIGITAL OUTPUT

COAXIAL OPTICAL

REMOTE

CONTROL

To ANALOG AUDIO OUT

To S VIDEO OUT

(yellow)

(white)

(red)

To VIDEO OUT

Signal flow

Audio·video cable (supplied)

To video input

(yellow)

(white)

To audio inputs

(red)

S video cable (supplied)

To S video input

If the TV has an S video input, connect the DVD player with the supplied S video cable.

TV or monitor with audio video inputs

Notes:

• Refer to the instruction manual of the connected TV and how to activate TV input as well.

• When you connect the DVD player to your TV, be sure to turn off the power and unplug both units from the wall outlet before making any

connections.

• If your television set has one audio input, connect the DVD player to a Y cable adapter (not supplied) and then connect to your TV.

• Connect the DVD player to your TV directly. If you connect the DVD player to a VCR, TV/VCR combination or video selector, the playback

picture may be distorted as DVD discs are copy protected.

Connecting headphones

Connect headphones to the PHONES jack on the front panel using a stereo plug. Before connecting, temporarily turn down the volume with the PHONES LEVEL volume. Readjust to your preference when playback begins.

SYSTEM

STANDBY

POWER

PHONES LEVEL

PHONES

TITLE

MIN MAX

PHONES LEVEL

DIMMER

MIN

OPE

MAX

Connecting to an Audio System or TV with COMPONENT VIDEO Inputs

For details of Output sound, see .29

You can listen to the sound of audio CDs and DVD video discs in stereo and enjoy the enhanced picture quality of DVD video discs on a TV with COMPONENT VIDEO inputs.

Connecting to an Audio System and TV with COMPONENT VIDEO Inputs

■ Setting of the output sound type

From the on-screen displays, set the “Audio Out Select” to “Analog 2ch”. 38

ANALOG

DIGITAL OUTPUT

REMOTE

CONTROL

(red)

Signal flow

To Y VIDEO OUT

VIDEO OUT

BCR

To CB VIDEO OUT

S VIDEO VIDEO

To C R VIDEO OUT

OUTPUT

COAXIAL OPTICAL

To ANALOG AUDIO OUT

(white)

(red)

To audio inputs of the amplifier

Introduction

To wall outlet

Connections

Power plug

(white)

To CR video input To CB video input

To Y video input

Audio system

TV or monitor with component signal inputs

COMPONENT VIDEO OUT (COLOR DIFFERENCE):

Some TVs or monitors are equipped with color difference inputs. Connecting to these inputs allows you to enjoy higher quality picture playback. Actual labels for color difference inputs may vary depending on the TV manufacturer. (ex. Y, B-Y, R-Y etc.) In some TVs or monitors, the color levels of the playback picture may be reduced slightly or the tint may change. In such a case, adjust the TV or monitor for optimum performance.

Notes:

• Refer to the instruction manual of the connected equipment as well.

• When you connect the DVD player to other equipment, be sure to turn off the power and unplug all of the equipment from the wall outlet

before making any connections.

• If you place the DVD player near a tuner or radio, the radio broadcast sound might be distorted. In this case, place the DVD player away from the tuner and radio.

• The output sound of the DVD player has a wide dynamic range. Be sure to adjust the receiver’s volume to a moderate listening level. Otherwise, the speakers may be damaged by a sudden high volume sound.

• Turn off the amplifier before you connect or disconnect the DVD player’s power cord. If you leave the amplifier power on, the speakers may be damaged.

Connecting to Optional Equipment

You can enjoy high quality dynamic sounds by connecting the DVD player to optional audio equipment.

For connection to your TV, see pages 12 and 13. Select the connection type depending on your audio equipment.

When connecting the optical digital cable, remove the cap and fit the connector into the jack firmly. When not using the jack, keep it capped to protect it from dust intrusion.

Connecting to an Amplifier Equipped With a Dolby Digital Decoder

Dolby Digital

Dolby Digital is the surround sound technology used in theaters showing the latest movies, and is now available to reproduce this realistic effect in the home. You can enjoy motion picture and live concert DVD video discs with this dynamic realistic sound by connecting the DVD player to a 6 channel amplifier equipped with a Dolby Digital decoder or Dolby Digital processor. If you have a Dolby Pro Logic Surround decoder, you will obtain the full benefit of Pro Logic from the same DVD movies that provide full 5.1-channel Dolby Digital soundtracks, as well as from titles with the Dolby Surround mark.

• Use DVD video discs encoded via the Dolby Digital recording system.

• Make the following setting

Setting Select: Page

Audio Out Select Bitstream 38

Recording system j 29

Signal flow

Connection example

Rear speaker (left surround)

To COAXIAL type digital audio input

Front speaker (left)

Center speaker

B CR

VIDEO OUT

ANALOG

OUTPUT

COAXIAL OPTICAL

S VIDEO VIDEO

75 Ω coaxial cable

To OPTICAL type digital audio input

Amplifier equipped with a Dolby Digital decoder

DIGITAL

REMOTE

OUTPUT

CONTROL

Optical digital cable

Front speaker (right)

Rear speaker (right surround)

Sub woofer

Connecting to an Amplifier Equipped With a Dolby Pro Logic Surround

Dolby Pro Logic Surround

ANALOG

DIGITAL

REMOTE

OUTPUT

CONTROL

VIDEO OUT

S VIDEO VIDEO

B CR

Signal flow

Connection

To audio input

example

Front speaker (left)

Rear speaker

Connect one or two rear speakers. The output sound from the rear speakers will be monaural even if you connect two rear speakers.

COAXIAL OPTICAL

Audio cable

Amplifier equipped with Dolby Pro Logic surround

Center speaker

Front speaker (right)

You can enjoy the dynamic realistic sound of Dolby Pro Logic Surround by connecting an amplifier and speaker system (right and left front speakers, a center speaker, and one or two rear speakers).

• With an amplifier equipped with Dolby Digital

Connect the equipment the same way as described in “Connecting to an Amplifier equipped with a Dolby Digital Decoder.” Refer to that amplifier’s owner’s manual and set the amplifier so you can enjoy Dolby Pro Logic Surround sound.

• With an amplifier not equipped with Dolby Digital

Connect the equipment as follows.

• Make the following setting

Setting Select: Page

Audio Out Select Analog 2ch 38

Note:

• Be sure to set "Audio Out Select" to "Analog 2ch" when you enjoy sounds of Dolby Pro Logic Surround using this connection.

Warning

• Do not set “Audio Out Select to “Bitstream” from the menu 32 38 unless you are connecting (via the DIGITAL OUTPUT jack) an AV decoder that has the Dolby Digital or Digital Theater System (DTS) decoding function. High volume sound may damage your hearing as well as the speakers.

• When playing DTS-encoded discs (DVD videodisc and audio CDs), excessive noise may be exhibited from the analog stereo jacks. To avoid possible damage to the audio system, you should take proper precautions when the ANALOG OUTPUT jacks of the DVD player is connected to an amplification system. To enjoy DTS Digital Surround™ playback, an external 5.1 channel DTS Digital Surround™ decoder system must be connected to the DIGITAL OUTPUT jack of the DVD player.

Connecting to an Amplifier Equipped With a DTS Decoder

Digital Theater Systems (DTS)

DTS is a high quality surround technology used in theaters and now available for home use, on DVD video discs or audio CDs. If you have a DTS decoder or processor, you can obtain the full benefit or 5.1 channel DTS encoded sound tracks on DVD video discs or audio CDs.

• Use DVD video discs or audio CDs encoded via the DTS recording system.

• Make the following setting

Setting Select: Page

Audio Out Select Bitstream 38

Recording system DTS 29

Signal flow

Connection example

Center speaker

Rear speaker (left surround)

To COAXIAL type digital audio input

Front speaker (left)

B CR

VIDEO OUT

ANALOG OUTPUT

COAXIAL OPTICAL

S VIDEO VIDEO

75 Ω coaxial cable

To OPTICAL type digital audio input

Amplifier equipped with a DTS decoder

DIGITAL

REMOTE

OUTPUT

CONTROL

Optical digital cable

Front speaker (right)

Rear speaker (right surround)

Sub woofer

Connecting to an Amplifier Equipped With a Digital Audio Input

Introduction

Connections

2 Channel Digital Stereo

You can enjoy the dynamic sound of 2 Channel Digital Stereo

ANALOG

DIGITAL

REMOTE

OUTPUT

Signal flow

Connection example

Front speaker (left)

VIDEO OUT

S VIDEO VIDEO

BCR

To COAXIAL type digital audio input

OUTPUT

CONTROL

COAXIAL OPTICAL

75 Ω coaxial cable

Optical digital cable

To OPTICAL type digital audio input

Amplifier equipped with a Digital Audio Input

Front speaker (right)

by connecting an amplifier equipped with a digital audio input and speaker system (right and left front speakers).

• Make the following setting

Setting Select: Page

Audio Out Select PCM 38

Notes:

• DO NOT connect the DIGITAL OUTPUT jack of the DVD player to the AC-3 RF input of a Dolby Digital Receiver. This input on you’re A/V Receiver is reserved for Laserdisc use only and is incompatible with the DIGITAL OUTPUT jack of the DVD player.

• Connect the DIGITAL OUTPUT jack of the DVD player to the “DIGITAL” or “COAXIAL” input of a Receiver or Processor.

• Refer to the Instruction manual of the connected equipment as well.

• When you connect the DVD player to other equipment, be sure to turn off the power and unplug all of the equipment from the wall outlet before

making any connections.

• Turn off the amplifier before you connect or disconnect the D VD pla y er’s power cord. If y ou lea v e the amplifier po wer on, the speak ers may be damaged.

CAUTION

Keep your fingers well clear of the disc tray as it is closing.

Playing a Disc

STANDBY/ON button

This section shows you the basics on how to play back a disc.

Neglecting to may cause serious personal injury.

POWER switch

STANDBY/ ON

STANDBY

POWER

OFF

PHONES LEVEL

PHONES

TITLE MENU

MIN MAX

STANDBY indicator

DIMMER

DVD display

CINEMA SCAN

ENTER

RETURN

PAUSE

/CLOSE

OPEN

STOP PLAY

DVD / VIDEO CD / CD PLAYER

DV-S717

PAUSE

Up/Down

Basic Playback

Preparations

•When you want to view a disc, turn on the TV and select the video input connected to the DVD player.

•When you want to enjoy the sound of discs from the audio system, turn on the audio system and select the input connected to the DVD

player.

•For connection details, see "Connections". 12 – 15

STOP

2 3

POWER

STANDBY/ON

OPEN CLOSE

PLAY

Connecting the power supply.

1. Plug the power cord into an AC wall outlet.

2. Press the POWER switch. The STANDBY indicator on the player illuminates.

3. Press the STANDBY/ON button or POWER button on the remote controller to turn on the DVD player. The display lights up and the STANDBY indicator goes off.

Press OPEN/CLOSE.

The disc tray opens.

Place the disc on the disc tray.

With the playback side down

Press PLAY.

The disc tray closes and playback starts. If you insert a DVD video disc that contains a title menu, or insert

a PBC (Playback Control)-equipped VIDEO CD, a menu screen may appear . See “To start playback from the menu screen” 17 . To start playback of a PBC-equipped VIDEO CD from the menu screen, set “PBC” to “ON” via the on-screen displays. 32 44

Note:

You cannot use the remote controller if the POWER button on the DVD player is set to OFF.

Note:

You can open the disc tray by pressing this button even if the DVD player is turned off.

Notes:

CINEMA SCAN

ENTER

• There are two different disc sizes. Place the

RETURN

STOP

PAUSE

/CLOSE

OPEN

disc in the correct guide on the disc tray. If the

PLAYER

DVD

disc is out of the guide, it may damage the disc and cause the DVD player to malfunction.

• Do not place anything except DVD video discs or audio CDs on the disc tray.

Note:

• For PBC (Playback Control) of VIDEO CDs, see “On VIDEO CD” 47 .

• You may need to press the TITLE or MENU button to display the menu screen depending on the DVD video discs.

First Setup screen

The First Setup screen appears only once when the DVD player is turned on for the first time. From this screen, make the following settings.

On-screen Language: Select the appropriate on-screen language.

TV Shape: Select a picture size according to the aspect ratio of your TV (See 36 f or details .)

ONKYO

Thank you for your purchase of our DVD-Video Player. Please make a selection for On-Screen Language and your TV shape and press ENTER button on your remote control.

FIRST SETUP

On-Screen Language

TV Shape

ENTER

ENG

4:3LB

To select the items on the screen.

After selecting an items, press this.

Press the / buttons to select “On-Screen Language,” and press the ENTER button.

Select a language using the / buttons, and press the ENTER button.

Press the button to select “TV Shape,” and press the ENTER button.

Select a picture size (see 36 ) using the / buttons, and press the ENTER button.

Finally press the SETUP button. All your selections are entered and the First Setup screen disappears.

To change your settings, see “Customizing the Function Settings.” 32

CINEMA SCAN

ENTER

RETURN

PAUSE

STO

OPEN

/CLOSE

DVD

PLA

REMOTE CONTROLLER

To obtain a higher quality picture

1 2

/ / /

MENU TITLE

010

ENTER

PAUSE

STOP

Occasionally, some picture noise not usually visible during a normal broadcast may appear on the TV screen while playing a DVD video disc because the high resolution pictures on these discs include a lot of information. While the amount of noise depends on the TV you use with this DVD player, you should generally reduce the sharpness adjustment on your TV when viewing DVD video discs.

DVD

VCD

About

The

DVD

VCD

icons on the heading bar show the playable

discs for the function described under that heading.

DVD

: You can use this function with DVD video discs

VCD

: You can use this function with VIDEO CDs

: You can use this function with audio CDs

DVD

VCD

To start playback from the menu screen

1 Press / / / or the number

buttons to select the title you want.

ENTER

e.g.

TITLE

2 Press ENTER.

TITLE

The DVD player starts playback from the selected title.

• When not using the menu screen of a PBC-controllable VIDEO CD, set “PBC” to “Off” via the on-screen displays. 32 44

To pause playback (still mode)

PAUSE

Press PAUSE during playback.

To resume normal playback, press the PLAY button.

• The sound is muted during still mode.

To stop playback

STOP

Press STOP.

To remove the disc

OPEN CLOSE

Press OPEN/CLOSE.

Remove the disc after the disc tray opens completely.

• Be sure to press the OPEN/CLOSE button to close the disc tray after you remove the disc.

Basic Playback

Notes:

• Do not move the DVD player during playback. Doing so may damage the disc.

• Use the OPEN/CLOSE button on the remote controller or DVD player to open and close the disc tr ay. Do not push the disc tray while it is moving. Doing so may cause the DVD player to malfunction.

• Do not push up on the disc tr ay or put any objects other than discs on the disc tray. Doing so ma y cause the DVD player to malfunction.

• In many instances, a menu screen will appear after playback of a movie is completed. Prolonged display of an on-screen menu may damage your television set, permanently etching that image onto its screen. To avoid this, be sure to press the STOP button on your remote controller once the movie is completed.

• If you pause a picture and leave it still for a long while, the screen saver of the DVD player automatically appears (when “Screen Saver” is set to “On” 41 ). To turn off the screen saver, press the PLAY button.

About This Instruction Manual

This Instruction manual explains the basic instructions of this DVD player. Some DVD video discs are produced in a manner that allows specific or limited operation during playback. As such, the DVD player may not respond to all operating commands. This is not a defect in the DVD player. Refer to the instruction notes of discs.

” may appear on the TV screen during operation. A “ ” means that the operation is not permitted by the DVD player or the disc.

“

Playing a Disc (continued)

FR1

FR2

Shuttle Ring

Jog Dial

You can play back discs at various speeds, and resume playback from the location where you stopped playback.

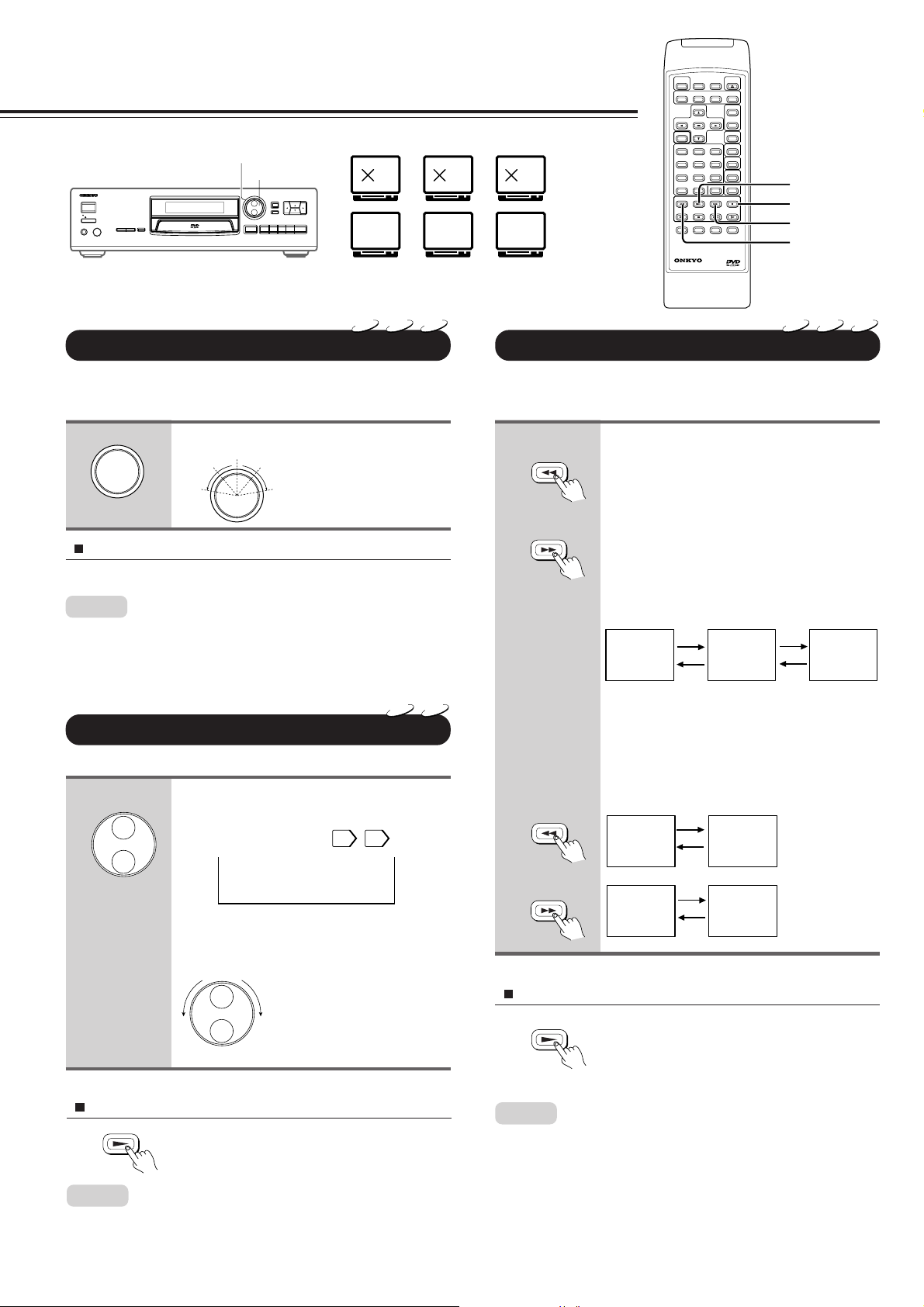

Using the Shuttle Ring

2 8

Fast reverse Fast forward

DVD

VCD

Slow-

Motion

010

PLAY PAUSE

DVD

FF FR

VCD

Last Play

REMOTE CONTROLLER

Fast Reverse Pla yback, F ast Forwar d Playback

You can play discs at various speeds by turning the shuttle ring.

Turn the shuttle ring during playback.

Slow

Fast

Reverse

The playback speed

Fast

can be controlled by the extent of the wheel

Forward

rotation.

To resume normal playback

Release the shuttle ring.

Notes:

• The playback speed may differ depending on the disc.

•

If you slow down the playback speed of a DVD video disc by turning the ring leftward, the D VD player performs reverse frame playback. The re verse frame playback may advance more rapidly than in the forward direction.

DVD

VCD

Using the Jog Dial

You can advance or reverse a picture frame by frame from the jog dial.

Turn the jog dial.

"Jog On" appears when "On-Screen Display" is set to "On."

You can play back a disc at ×2, ×8 or ×30 the normal speed.

Press FR or FF during playback.

F R

F F

F R

• DVD video disc The playback speed becomes x2 the normal speed. Each time you press the FR or FF button, the playback speed changes.

FR: Fast reverse playback FF: Fast forward playback

TV screen

× 2 × 8 × 30

×2 the ×8 the ×30 the

normal speed normal speed normal speed

• VIDEO CD/Audio CD The fast reverse or fast forward playback alternates between two speeds.

TV screen

Fast reverse playback

Prolonged absence of operation may automatically cancel this function.

Rightward: To adv ance the

picture frame by frame.

Leftward:

To reverse the picture frame by frame. (Only when using a DVD disc.)

To resume normal playback

PLAY

Press PLAY.

Notes:

• The sound is muted during frame by frame playback.

• The reverse frame playback may advance more rapidly than in the

forward direction.

Jog On

F F

FF1

FF2

Fast forward playback

To resume normal playback

PLAY

Press PLAY.

Notes:

• The DVD player does not play back sound and subtitles during scan reverse and forward of DVD video discs. However, the DVD player plays back sound during fast forward or fast reverse playback of audio CDs.

• The ×2, ×8 and ×30 speeds are only approximate speeds. These speeds may vary slightly from disc to disc.

010

PLAY

010

SLOW

REMOTE CONTROLLER

Playing in Slow-Motion

You can play a disc in slow-motion.

S LOW

To resume normal playback

PLAY

Press SLOW during playback.

Each time you press the SLOW button, the slow-motion speed changes.

TV screen

1/2 1/4 1/8

1/2 the 1/4 the 1/8 the normal speed normal speed normal speed

Press PLAY.

DVD

VCD

REMOTE CONTROLLER

DVD

VCD

Resuming Playback from the Same Location

You can stop playback and resume playback later from the same location on the disc.

STOP

PLAY

To start playback from the beginning regardless of the location where you stopped playback.

1. Press STOP twice.

STOP

Press STOP e at the location where you want to interrupt playback.

• The DVD player memorizes the location where playback is stopped.

Press PLAY.

The DVD player resumes playback from the location where you stopped playback.

The DVD player’s memory is cleared.

Basic Playback

Note:

The sound is muted during slow-motion playback.

2. Press PLAY.

PLAY

If you are using a DVD video disc, playback starts form the beginning of the current title. If you are using a VIDEO CD/audio CD, playback starts from the beginning of the disc.

• If you want to return to the beginning of a DVD video disc, open and close the disc tray once with the OPEN/CLOSE button before pressing the PLAY button.

Notes:

• The DVD player’s memory is also cleared when: – you unplug the DVD player from the wall outlet after you stop

playback. – you open the disc tray. – You adjust/change parental lock 42 or select a disc menu

language setting 34 .

• There may be a difference of the location where playback resumes depending on the disc.

• Settings you changed using the menu screens while the DVD player keeps a location in the memory may function only after the memory is cleared.

Locating a Specific Title, Chapter, or Track

010

Title

Chapter

DVD video disc

Title 1

Chapter 1 Chapter 2 Chapter 1 Chapter 2 Chapter 3

Normally, DVD video discs are divided into titles, and the titles are sub-divided into chapters. VIDEO CDs and audio CDs are divided into tracks. You can quickly locate any specific title, chapter, or track.

Locating a Title Using the Title Menu

Title 2

VIDEO CD/ Audio CD

Track 2

DVD DVD

Track 3 Track 4 Track 5Track 1

Locating a Title

If a DVD video disc contains a title menu, you can locate a specific title using the title menu function.

T I TLE

Press TITLE.

The title menu appears on the TV screen. Example of a title menu

TITLE

ENTER

TITLE

Press / / / to select the title you want.

If the titles in the title menu are assigned a number, you can directly locate a specific title by pressing its assigned number with the number buttons.

If a DVD video disc contains title numbers, you can locate a specific title by directly selecting a title number.

Press SEARCH.

Make sure that the space next to Title is highlighted. e.g.

Title

Chapter

Press the corresponding number buttons for the title you want.

e.g. To select title 2

To select title 12

Title

Chapter

ENTER

Press ENTER.

The DVD player starts playback from chapter 1 of the selected title.

Notes: Notes:

• The instructions above describe basic procedures which may vary depending on the contents of the DVD video disc. If different instructions appear on the TV screen, follow those instructions.

• If you display the title menu during playback and press the TITLE button again without selecting any title, the DVD player resumes playback from the point where you first pressed the TITLE button.

PLAY

Press PLAY.

The DVD player starts playback from chapter 1 of the selected title.

• You can shift the highlight space between Title and Chapter by pressing the / buttons.

• Pressing the CLEAR button resets the Title and Chapter numbers. To clear the Title , Chapter display, press the SEARCH button several times.

• You can select a preferred language for on-screen displays. 32 , 34

REMOTE CONTROLLER

/ / /

ENTER TITLE

010

Number buttons CLEAR

SEARCH PLAY UP

DOWN

DVD

VCD

Locating a Specific Chapter or Track Directly

If you know the chapter or track number you want to play, you can locate it directly.

PLAY

010

Press SEARCH.

Skip steps 1 and 2 if you are using an VIDEO CD/audio CD.

e.g. DVD video disc

Title

Chapter

Press to highlight the space next to Chapter.

e.g. DVD video disc

Title

Chapter

Press the corresponding number

buttons of the chapter or track you want.

You can use the

button to select

numbers from 10 through 99. e.g. To select chapter or track 25

(DVD video disc)

•

Title

Chapter

Press PLAY.

The DVD player starts playback from the selected chapter or track.

(VIDEO/

Audio CD)

Track

DVD

VCD

Locating a Specific Chapter or Track

You can locate consecutive chapters or tracks.

DOWN

Notes:

•Some titles may not display chapter numbers.

•When you set “Title Stop” to “Off” 44 , you can access to locate chapters in another title. If you go back to the preceding title by pressing the DOWN q button, the DVD player locates the first chapter of the title. When "Title Stop" is set to "On", you can access chapters only within the current title.

Press Down or Up repeatedly to display the chapter or track number you want.

The DVD player starts playback from the selected chapter or track.

: To locate preceding chapters or

tracks

When you press the DOWN button, the DVD player starts playback from the beginning of the current chapter or track. When you press the DOWN button twice, the DVD player starts playback from the beginning of the preceding chapter or track.

:To locate succeeding chapters or

tracks

Basic Playback

To select a title and chapter number at the same time

e.g. To select chapter 25 in title 2

Title number Chapter number

Title Chapter

PLAY

Note:

Pressing the CLEAR button resets the Title and Chapter numbers. To clear the Title, Chapter display, press the SEARCH button several times.

Playing From the Desired

010

REMOTE CONTROLLER

010

Location

You can play a disc from the desired location.

DVD

Storing Locations in the Memory

DISC MEMORY NUMBER

SEARCH PLAY

DVD

VCD

Locating a Specific Location by Entering the Time

The DVD player memorizes a location of a disc, so that you can start playback from there later.

DISC MEMORY

Press DISC MEMORY at the location where you want to start playback later.

The DVD player memorizes the location.

Disc Memory Set

The DISC MEMORY button can be pressed also while you are playing in slowmotion or the picture is pausing.

To start playback from the location you stored.

DISC MEMORY

Insert the disc that contains the location you stored, and press DISC MEMORY during stop.

Some discs may be played automatically after inserted. In such a case, first stop playback by pressing the STOP button.

You can locate a specific location by entering its corresponding time (hours, minutes, seconds).

Press SEARCH twice.

You may have to press further depending on the disc. Press the button repeatedly until the following

indication appears.

–:––:––

TIME

Press the number buttons to enter the time.

e.g.

1:25:30

TIME

PLAY

Press PLAY.

The DVD player starts playback from the desired location.

Notes:

• The DVD player memorizes only one location at each side of a DVD video disc. It has the capability to memorize 3 different locations (eg. 3 single sided discs). Storing the fourth memory location erases the first.

• Storing a new location erases the old one of the disc.

• If you start playback of a DVD video disc equipped with the parental lock feature, after changing the parental lock level 42 on the DVD player, the display of the parental lock level may return to the previous one. In this case, set the parental lock level back to it.

• Some discs or scenes (especially menu screens included on the disc) may not permit this operation.

Notes:

• Some discs may not respond to this process.

• Some scenes may not be located precisely as you specified.

• This method for accessing specific locations is available only within the current title of the DVD video disc or within the current track of the VIDEO CD/audio CD.

Playing Repeatedly

010

REMOTE CONTROLLER

You can play back a specific title, chapter, track, or segment repeatedly. (Title repeat, chapter/track repeat, A-B repeat)

DVD

VCD

Repeating a Title, Chapter, or Track

Repeating a Specific Segment

CLEAR

PLAY

A-B REPEAT

DVD

VCD

You can play back the same title, chapter, or track repeatedly. (Title, chapter/track repeat)

1 1

Select the title, chapter, or track you

You can play back a specific segment repeatedly. (A-B repeat)

want to repeat.

20 , 21

REPEAT

Press REPEAT.

Each time you press the REPEAT button, the repeat mode changes as follows.

• DVD video disc

Chapter Repeat

Repeats the same chapter.

Title Repeat

Repeat Off

• VIDEO CD / Audio CD

Repeat

Track

Repeat

All

Repeats the same title.

Resumes normal playback.

Repeats the same track.

Repeats the entire disc.

A - B

Press A-B at the beginning of the segment (point A) you want to play repeatedly.

A–

Press A-B again at the end of the segment (point B).

A–B

The DVD player automatically returns to point A and starts repeat playback of the selected segment (A-B).

Advanced Playback

Repeat Off

To resume normal playback

CLEAR

Press CLEAR.

Note:

Some discs may not permit repeat operation.

Resumes normal playback.

To resume normal playback

CLEAR

Press CLEAR.

Notes:

• Some discs may not permit A-B repeat operation.

• You can specify a segment only within the current title.

• You cannot set the A-B repeat function for segment that include multiple camera angles.

• There may be a slight difference between point A and the location where playback actually resumes depending on the discs.

2 3 4 5 6 7

MEMORY

2S 020212 01 – – 04 02 – – – – – – – – – –

9 10 11 12 13 14

– – – – – – – – – – – – – – – – – – – – – – – – – – – –

16 17 18 19 20 21

– – – – – – – – – – – – – – – – – – – – – – – – – – – –

23 24 25 26 27 28

– – – – – – – – – – – – – – – – – – – – – – – – – – – –

– –

Playing in a Favorite Order

/ / /

Title : 2

Chapter : 25

Title : 2

Chapter : 12

Title : 1

Title : 1 Chapter : 1

Chapter : 1

You can combine your favorite titles, chapters, or tracks and play them in any order. You can program up to 28 items into the memory. (Memory playback)

Setting Titles, Chapters, or Tracks in a Favorite Order

The DVD player automatically plays back titles, chapters, or tracks in the order you program.

MEMORY

ENTER

010

Insert a disc and press MEMORY during stop.

The following menu appears.

MEMORY

– – – –

1 2 3 4 5 6 7

– – – – – – – – – – – – – – – – – – – – – – – –

9 10 11 12 13

– – – – – – – – – – – – – – – – – – – – – – – –

– – – –

T: Title number C: Chapter number

Select the items in the order you

want by pressing the number

buttons, then ENTER for each item.

Each time you press the / button, the

-- indication next to T and C is highlighted in turn. Highlight where you want to enter, then press the number buttons.

e.g. To play back chapter 25 in title 2, chapter

12 in title 2, all the chapters in title 1, and chapter 2 in title 4.

Title number

Memory 1

Memory 2

Memory 3

Memory 4

To select tracks from a VIDEO CD/audio CD in order, press the number buttons for the track, then press the ENTER button for each selection you want.

22 23 24 25 26 27 28

TC – – – – – – – – – – – – – – – – – – – – – – – – – – – –

Chapter number

To select another chapter in the same title, you do not need to select the title number.

PLAY

Press PLAY while the MEMORY menu appears on the TV screen.

The DVD player starts memory playback.

To change the programmed selections

1 While the MEMORY menu appears on the TV screen,

press

/ to move the highlighted bar to the item

you want to change.

2 Change the selection following the instructions in step 2.

To cancel the programmed selections

1 While the MEMORY menu appears on the TV screen,

ENTER

press you want to cancel.

/ to move the highlighted bar to the item

2 Press the CLEAR button.

ENTER

To resume normal playback from memory playback

ENTER

CLEAR

Press CLEAR.

The MEMORY indicator disappears.

To program during playback

If you press the MEMORY button during playback, a menu appears to accept your programming. If you further press the DISPLAY button, you can display the MEMORY menu also. Follow step 2 and 3.

REMOTE CONTROLLER

010

CLEAR

3 1

DVD

VCD

Notes:

• Some discs may not permit memory playback operation.

• If you press the REPEAT button during memory playback, the DVD player repeats the current memory playback.

• You cannot select title, chapter, and track numbers not included on the disc.

• If you press the MEMORY or RETURN button while the MEMORY menu appears on the TV screen, the MEMORY menu disappears.

• The programmed selections will be cleared when:

- you turn off the DVD player, or

- you remove the disc.

Playing in Random Order

010

REMOTE CONTROLLER

Title

Chap t e r

Ra ndom

Cha pt er

Ti tle

Chapter

Ra ndom

Track Track :

TITLE : 1

Title : 1 CHAPTER : 3

Chapter : 3

You can play back titles, chapters within a title, or tracks in random order. (Random playback)

Playing Titles in Random Order

Title : 2

Title : 2 Chapter : 2

Chapter : 2

Title : 3

Title : 3 Chapter : 1

Chapter : 1

DVD

Playing Chapters or Tracks in Random Order

Number buttons CLEAR

SEARCH PLAY

UP RANDOM

DVD

VCD

The DVD player automatically selects the titles in a DVD video disc and plays them randomly.

RANDOM

Press RANDOM twice during stop.

Tit le Random

If you press the RANDOM button during playback, the DVD player automatically starts random playback after finishing the current title.

PLAY

Press PLAY.

The DVD player starts random playback. Press the PLAY button within about 5

seconds after you press the RANDOM button.

The DVD player automatically selects chapters within a title, or tracks in a video CD/audio CD, and plays them randomly.

010

Press the appropriate number

buttons for the title which contains

the chapters you want to play back in random order.

Skip this step if you are using VIDEO CD/ audio CD.

e.g. To play back the chapters in title 2 in

RANDOM

random order

Press RANDOM during stop.

(DVD video disc) (VIDEO CD/audio CD)

(DVD video disc)

If you press the RANDOM button during playback, the DVD player automatically starts random playback after finishing the current chapter or track.

PLAY

Press PLAY.

The DVD player starts random playback. Press the PLAY button within about 5

seconds after you press the RANDOM button.

Advanced Playback

To resume normal playback

CLEAR

Press CLEAR.

Notes: Notes:

• Some discs may not permit random playback operation.

• You cannot use the random playback function in conjunction with the

memory playback function.

To resume normal playback

CLEAR

Press CLEAR.

• Some discs may not permit random playback operation.

• You cannot use the random playback function in conjunction with the

memory playback function.

• If you press the UP button during random playback, the DVD player goes to another chapter or track and starts random playback.

Selecting 3D DNR Picture Enhancement

3D DNR

You can enhance picture quality during playback. (3D DNR)

DVD

Selecting 3D DNR On/Off

You can view a picture with less video noise.

3D DNR

Press 3D DNR during playback.

The current setting appears. Each time you press the 3D DNR button,

the effect changes as follows.

3D DNR On

Normal level effect

VCD

REMOTE CONTROLLER

/ / /

010

ZOOM

3D DNR

3D DNR Expanded

Expanded level effect

3D DNR Off

Off

3D DNR: Three Dimension Digital Noise Reduction

Notes:

• Actual picture enhancement may vary depending on the quality of the disc.

• While the expanded level can provide additional improvement in the reduction of noise in the video signal, it may produce undesirable picture artifacts on some discs. Should this occur, select a more appropriate 3D DNR level (off or normal).

• Depending on the disc, some kinds of picture details may be lost by the picture enhancement.

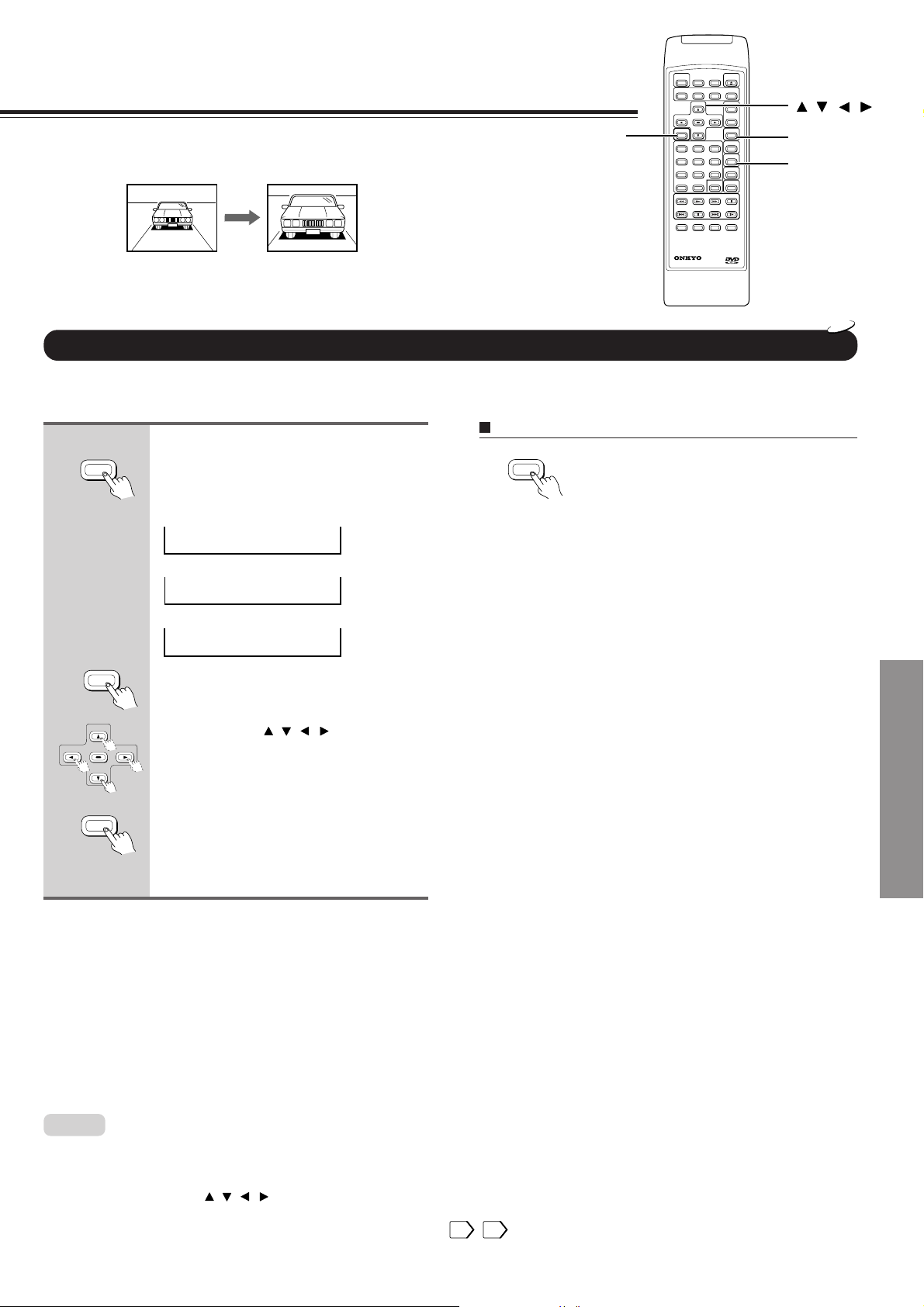

Zooming a Picture

/ / /

You can magnify areas within a picture.

Zooming a Picture

You can zoom in on a picture. You can shift the zoom point as well.

ZOOM

Press ZOOM during normal, slow or still playback.

If you further press the ZOOM button repeatedly, the magnification level increases.

Zoom 1

↓

RETURN

REMOTE CONTROLLER

To resume normal playback

ZOOM

Press ZOOM repeatedly so that "Zoom" disappears.

010

ZOOM CLEAR

DVD

RETURN

ENTER

CLEAR

Zoom 2

↓

Zoom 3

To reduce the magnification level, press the RETURN button.

If you press the

/ / / buttons, the zoom point shifts. When the zoom point reaches an edge of the picture, the color of “Zoom” changes.

Pressing the CLEAR button restores the zoom point to the center of the picture.

Advanced Playback

Notes:

• Some discs may not respond to zoom feature.

• During some scenes, the buttons may not work as described above.

• Zooming does not work on subtitles or menu screens included on DVD video discs.

• During zoom playback, the / / / buttons cannot work one menu screens included on the DVD video discs. If you want to use the menu screens, cancel the zoom playback.

• The magnification level varies depending on the picture size you select. 32 36

Selecting the Camera Angle

010

Angle : 2 Angle : 3Angle : 1

REMOTE CONTROLLER

You can select a preferred camera angle to watch a scene.

Changing the Camera Angle

If the scene was recorded from multiple angles, you can easily change the camera angle of the scene you are watching.

1, 2 2

CLEAR

DVD

ANGLE

ENTER

Press ANGLE while playing a scene recorded with multiple angles.

While playing a scene recorded with multiple angles, the angle icon (

) appears in the DVD display and on the TV screen. Press the ANGLE button while the angle icon is displayed.

Angle:

Angle icon

Current angle number

Press ANGLE or while the angle number appears on the TV screen.

Each time you press the ANGLE or button, the camera angle changes.

Angle:

To turn off the angle number indication

CLEAR

Press CLEAR.

To disable the angle icon display on the TV

From the on-screen displays, set “On-Screen Displays” to “Off”. 32 40 Monitor the DVD display when you want to change the camera angle.

Angle:

: Cycles backwards

You can change the camera angle directly by pressing the number buttons corresponding to its angle number instead of using the

/ buttons.

Notes:

• You can change the camera angle during still playback. The camera angle changes to the new setting when you resume normal playback.

• If you pause a picture immediately after changing the camera angle, the resumed playback picture may not use the new camera angle.

Selecting a Language

010

REMOTE CONTROLLER

Good morning!

Bon jour!

You can select a preferred language.

Selecting a Playback Audio Setting

You can select a preferred language and sound recording system from those included on the DVD video disc.

¡Buenos días!

1, 2 2

CLEAR

DVD

AUDIO

Press AUDIO during playback.

The current audio setting appears for about 3 seconds.

Audio: ENG PCM 2CH

Recording system

Language

Position number

The abbreviation of the language appears instead of the language name. Refer to the list of languages and their abbreviations.

AUDIO

Press AUDIO or while the audio setting appears on the TV screen.

Each time you press the AUDIO or button, the audio settings included on the DVD video disc change.

ENTER

e.g.

AUDIO: ENG PCM 2CH

AUDIO: FRE 6CH

AUDIO: SPA PCM 2CH

: Cycles backwards

To turn off the audio setting display

CLEAR

Press CLEAR.

Audio channel

About recording systems

This DVD player uses the Dolby Digital, DTS, and PCM recording systems and cannot play back DVD video discs recorded in any other recording system.

Dolby Digital 5.1 Channel is displayed as “ j 6CH.”

Selecting sound channels of VIDEO CDs

A VIDEO CD may have left and right sound channels and contain sounds or languages on each. You can switch these two channels to hear a preferred sound or language.

During playback, press AUDIO repeatedly to select the sound cannel.

AUDIO

→

L. R

Both the left and right

→

channel are heard.

The left channel is heard.

→

The right channel is heard.

Notes:

• Some discs allow you to change audio selections only via the disc menu. If this is the case, press the MENU button and choose the appropriate language from the selections on the disc menu.

• When you turn on the DVD player or replace a disc, player returns to the initial default setting. 35

• When you select a sound track which is not Included on the disc, the DVD player plays a prior sound track programmed on the disc.

Advanced Playback

Output sound conversion table (sampling frequency/quantization bit)

Audio s. on the setting screen 32 38

Bitstream Analog 2ch Stereo Output PCM

DIGITAL

Bitstream

ANALOG

OUTPUT jack

48 kHz/16 bit 48 kHz/16 bit 48 kHz/16 bit 48 kHz/16 bit 48 kHz/16 bit 48 kHz/16 bit 48 kHz/16 bit

–

44.1 kHz/16 bit

Discs

DVD

video discs

VIDEO CDs

Audio CDs

Sound recording system

Dolby Digital

48 kHz/16 bit

Linear

PCM

Linear PCM 44.1 kHz/16 bit

48 kHz/20 bit 48 kHz/24 bit 96 kHz/16 bit 96 kHz/20bit 96 kHz/24 bit

DTS

MPEG1

OUTPUT jack

48 kHz/16 bit 48 kHz/16 bit 48 kHz/16 bit 48 kHz/16 bit 48 kHz/16 bit 48 kHz/16 bit

44.1 kHz/16 bit

DIGITAL

OUTPUT jack

Bitstream 48 kHz/16 bit 48 kHz/16 bit

– – – –

Bitstream

44.1 kHz/16 bit

ANALOG

OUTPUT jack

48 kHz/16 bit 48 kHz/16 bit 48 kHz/20 bit 48 kHz/24 bit 96 kHz/16 bit 96 kHz/20 bit 96 kHz/24 bit

–

44.1 kHz/16 bit

DIGITAL

OUTPUT jack

48 kHz/16 bit 48 kHz/16 bit 48 kHz/16 bit 48 kHz/16 bit 48 kHz/16 bit 48 kHz/16 bit 48 kHz/16 bit

–

44.1 kHz/16 bit

ANALOG

OUTPUT jack

48 kHz/16 bit 48 kHz/16 bit 48 kHz/16 bit 48 kHz/16 bit 48 kHz/16 bit 48 kHz/16 bit 48 kHz/16 bit

–

44.1 kHz/16 bit

Selecting Subtitles

Subtitle: ENG On

SUBTITLE SUBTITLE ON/OFF

010

CLEAR

Good evening!

Bon soir! ¡Buenas tardes!

You can display subtitles on the TV screen and select a preferred subtitle language.

DVD

Turning Subtitles On or Off

You can select whether to display subtitles or not.

SUB

TITLE

OFF

To turn off the subtitles

SUB

TITLE

OFF

Press SUBTITLE ON/OFF during playback.

Subtitle ENG:On

Good

Press SUBTITLE ON/OFF.

The subtitles disappear.

morning!

Appears for about 3 seconds

Subtitles

REMOTE CONTROLLER

DVD

Selecting a Subtitle Language

You can select a subtitle language from those included on the DVD video disc.

SUBTITLE

ENTER

Press SUBTITLE during playback.

Current subtitle setting appears for about 3 seconds.

Language

Position number

The abbreviation of the language appears instead of the language name. Refer to the list of languages and their abbreviations. 46

Press SUBTITLE or while the subtitle setting appears on the TV screen.

Each time you press the SUBTITLE or button, the subtitle languages included on the DVD video disc change.

e.g.

Subtitle1ENG :

Notes:

• Some DVD video discs are set to display subtitles automatically, and you cannot turn them off even if you set the subtitle function to off.

• During some scenes, the subtitles may not appear immediately after you select “On.”

• Some DVD video discs will allow you to make subtitle selections and turn subtitles on or off only via the disc menu.

Subtitle:

ENG O f f

Appears for about 3 seconds

Subtitle2FRE :

Subtitle3SPA :

: Cycles backwards

To turn off the subtitle setting indication

CLEAR

Press CLEAR.

Notes:

• When you turn on the DVD player or replace a disc, player returns to the initial default setting. 35 When you select a subtitle language which is not included on the disc, the DVD player plays a prior language programmed on the disc.

• During some scenes, the subtitles may not appear immediately after you change the subtitle language by pressing the / buttons.

Using the On-Screen Display

Bit Rate: 6.0 Mbps

010

You can view information about a disc and its operational status on the TV screen.

DVD

VCD

Checking the Operational Status

Checking the Remaining Time and Setting Status

REMOTE CONTROLLER

DISPLAY

010

DVD

VCD

You can view the current title number, track number, and total playing time of the disc on the TV screen.

DISPLAY

Press DISPLAY during stop.

Each time you press the DISPLAY button, the on-screen display changes as follows.

DVD video disc

e.g.

Title

Chapter

↓

Turns off.

→

VIDEO CD/Audio CD

e.g.

→

Turns off.

Track

Total

↓

0:46:30

Current title number Current chapter number

Operational

Stop

status

Current track number

Operational

Stop

status

Total playing time of the disc

You can view the elapsed time, remaining time, and setting status of the disc on the TV screen.

DISPLAY

Press DISPLAY during playback.

Each time you press the DISPLAY button, the on-screen display changes as follows.

DVD video disc

Current title number

Playback mode

e.g.

Chapter : 2

→

3D DNR : On

Audio : 1 ENG j 2CH

Subtitle : 12 ENG Off

Angle : 1

The abbreviation of the language (e.g. ENG) appears instead of the language name. Refer to the list of languages and their abbreviations. 46

Current chapter number

Elapsed Remain

Title : 3

0:10:15 0:03:08

Chapter Repeat

Operational status

Elapsed time and remaining time of

Play 0:50:45

0:10:24

the current title Elapsed time and remaining time of the current chapter

Current 3D DNR

setting Current audio setting Current subtitle setting Current angle setting

↓

Data transfer rate (Mbit/s) = Amount of picture, sound and subtitle data in the DVD video disc transferred per second. The larger the value is, the more data processed, but this does not necessarily insure better picture quality.

↓

Turns off.

Advanced Playback

VIDEO CD/Audio CD

Current track number

Playback mode e.g.

Track : 3 Disc

Track Repeat

→

3D DNR : On

↓

Turns off.

Operational status

Play

Elapsed Remain

0:01:20

0:02:00

0:05:12

0:43:00

Elapsed time and

remaining time of

the current track

Elapsed time and

remaining time of

the disc

Current 3D DNR

setting (only when

using a VIDEO CD)

ENTER


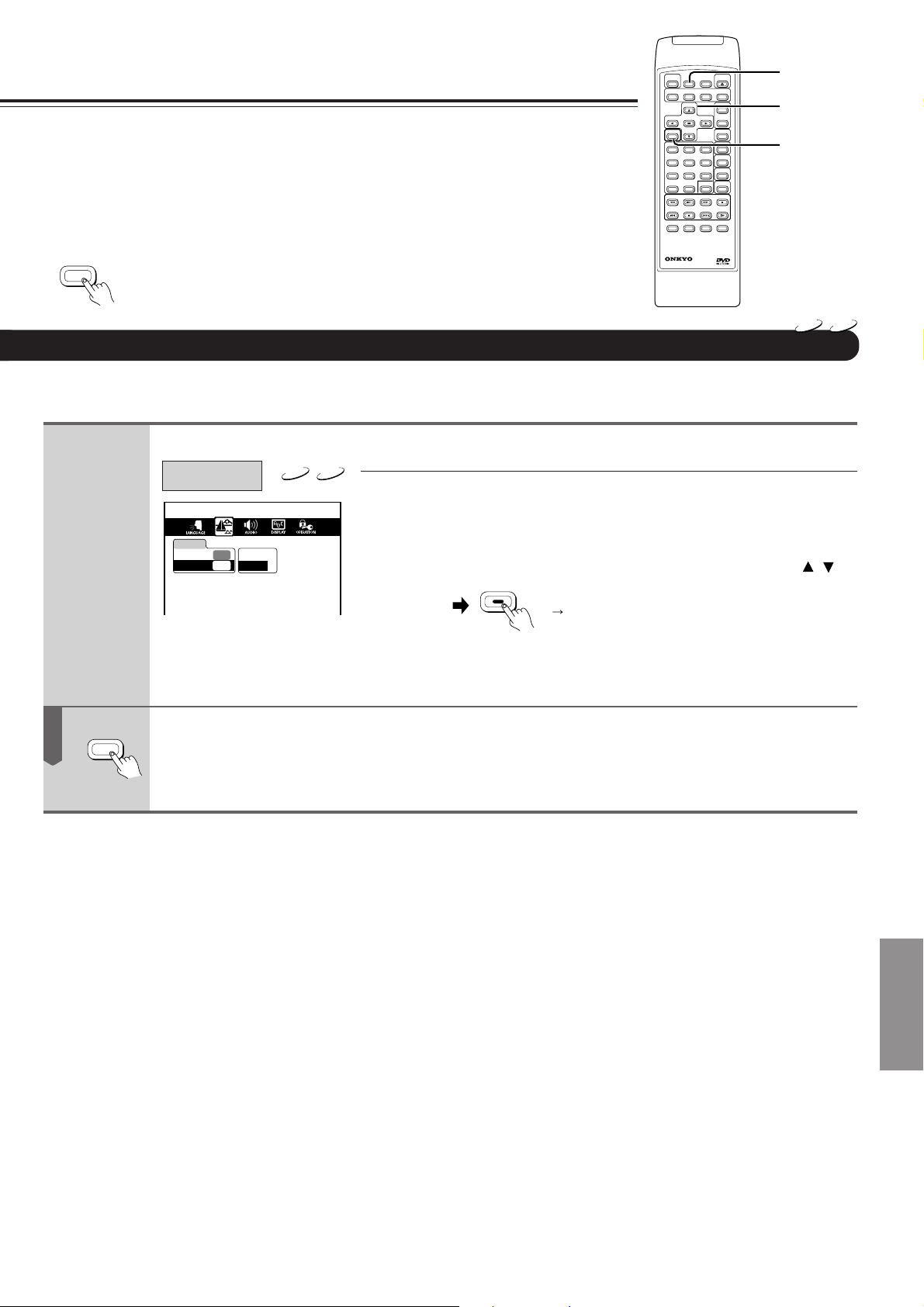

Black Level

Nrml

TV Shape

4:3LB

AUDIO

Dynamic Range Control

Karaoke Vocal

Off

Extended Audio Feature

Off

Audio Out Select

Bitstream

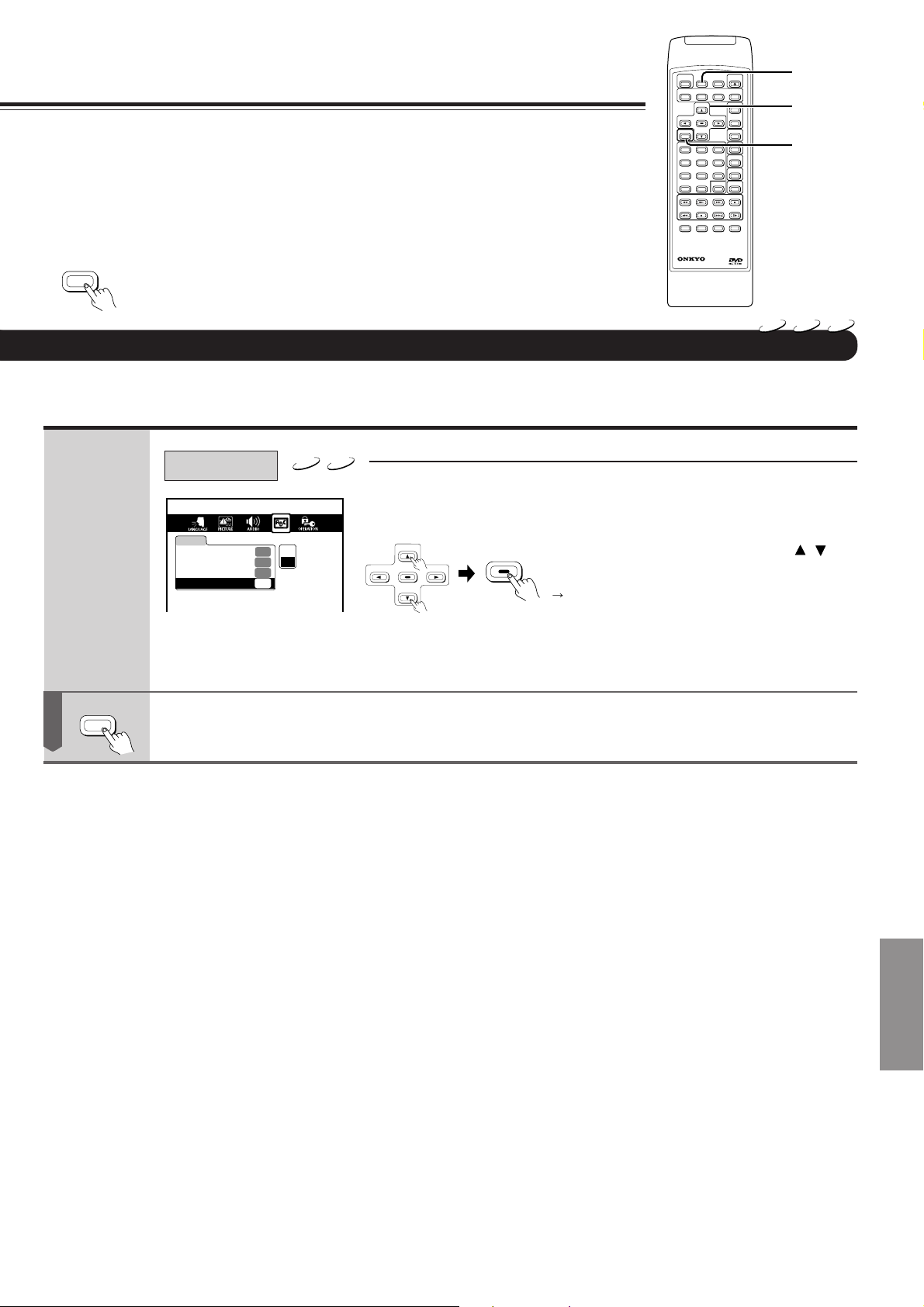

DISPLAY

OSD Background Color

Gray

Extended Subtitle Features

Off

Screen Saver

On-Screen Displays

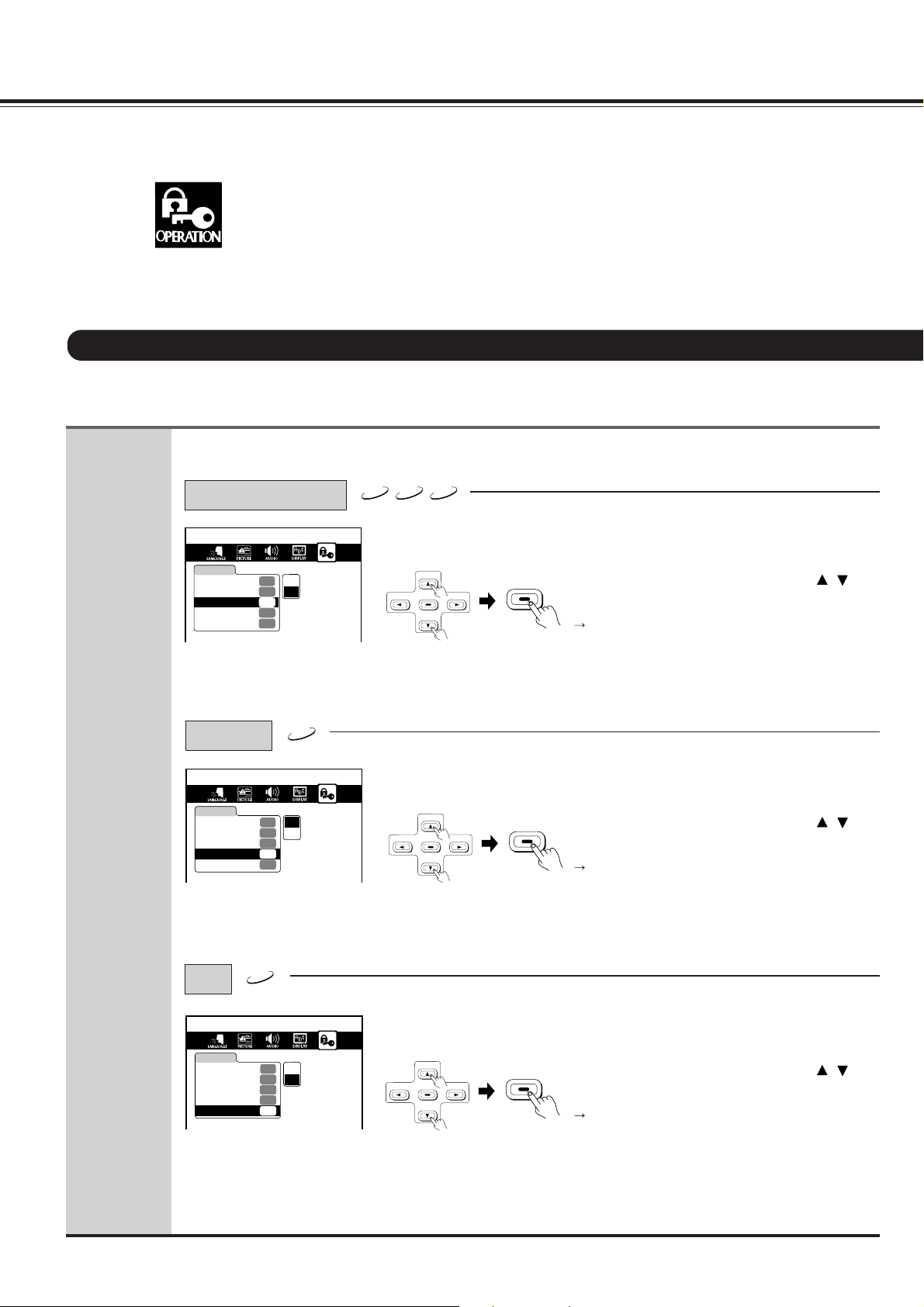

OPERATION

Parental Lock

Off

Remote Confirmation

Title Stop PBC

Off

Pause/Still

Auto

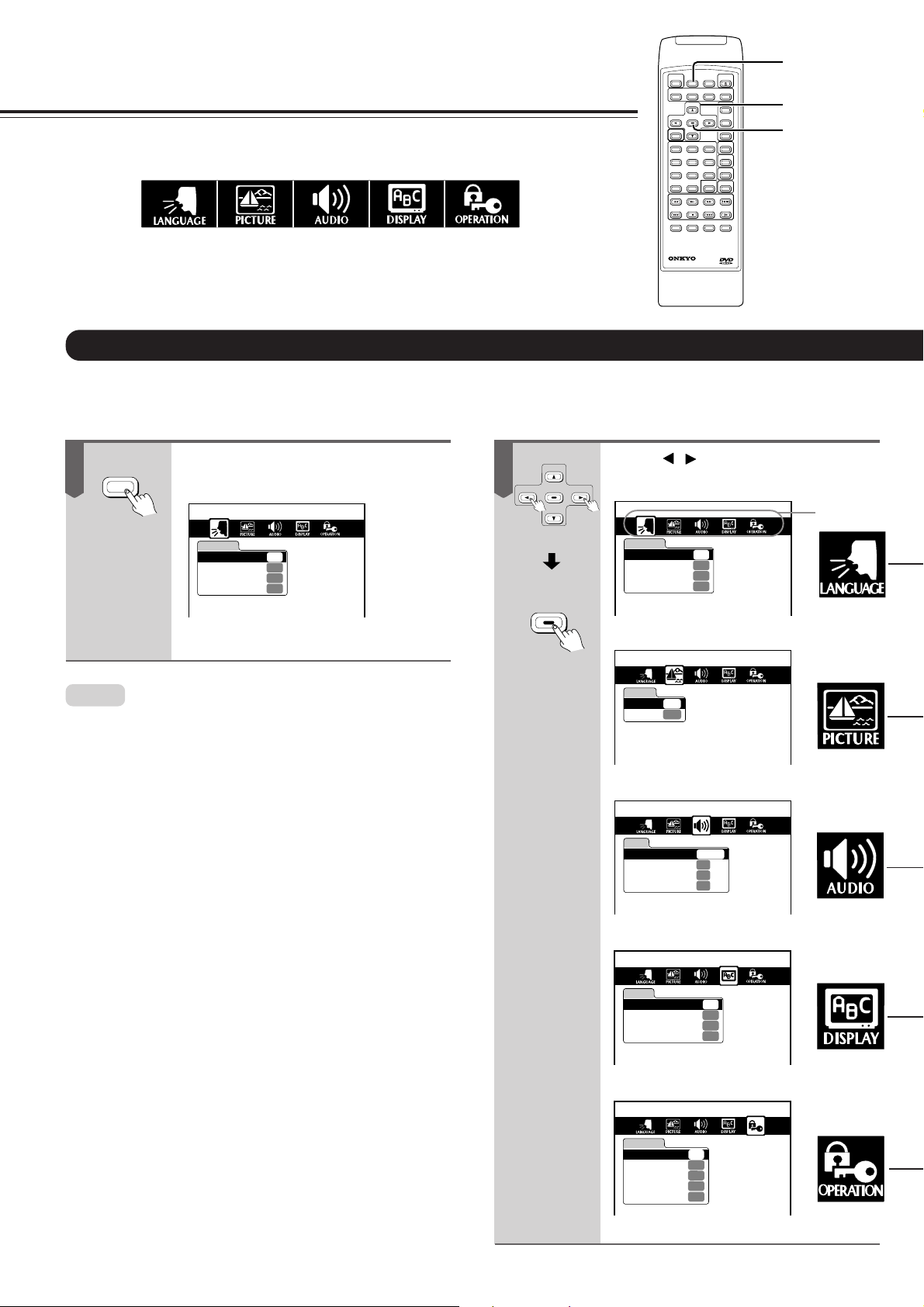

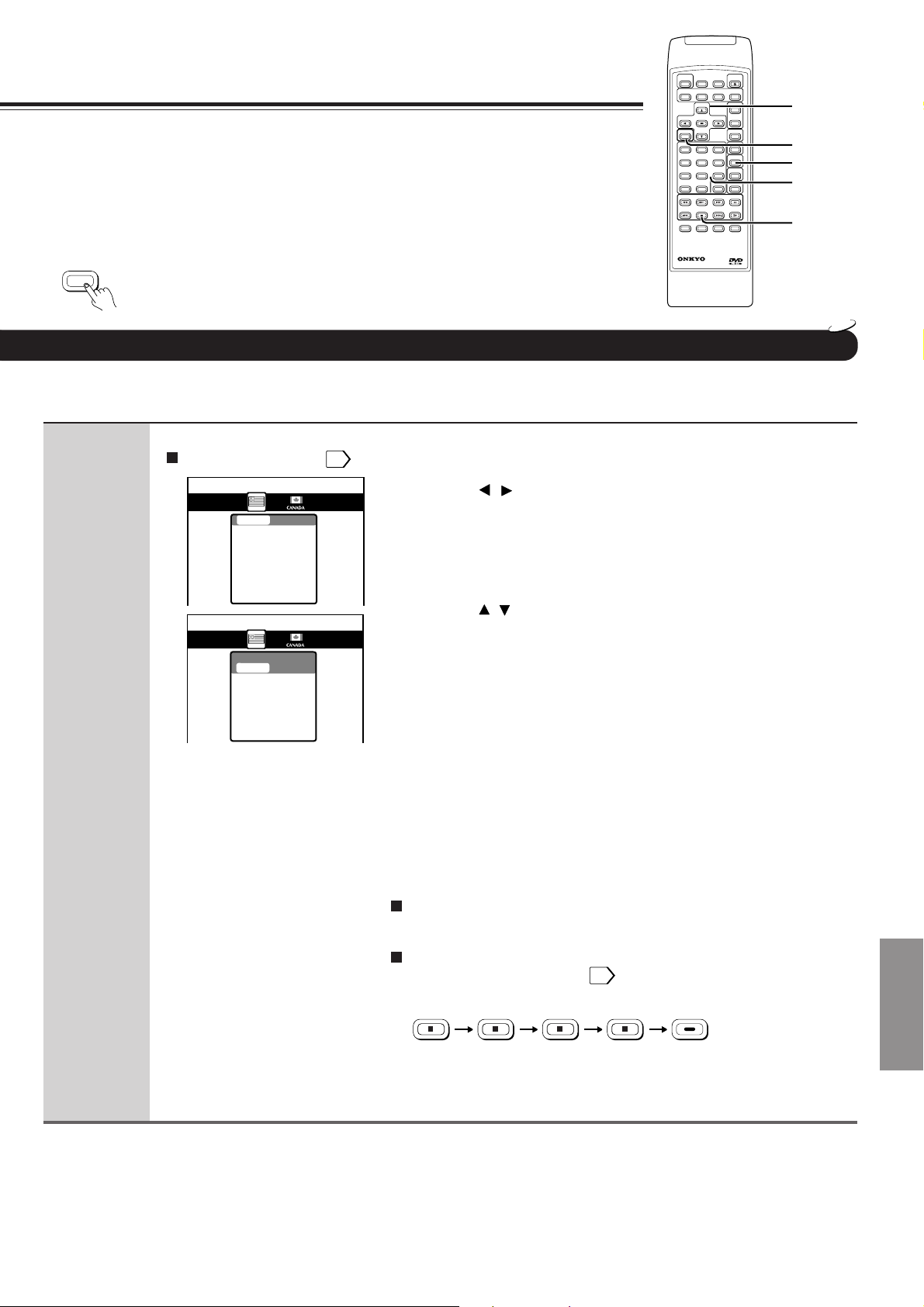

Customizing the Function Settings

REMOTE CONTROLLER

010

2 2

You can change the default settings to customize performance to your preference.

Selecting a Setting Category

The setting menu asks you to select a setting category from LANGUAGE, PICTURE, AUDIO, DISPLAY and OPERATION, Each selected category will provide you setting details.

SET UP

Press SET UP during stop.

The setting menu appears.

LANGUAGE

On-Screen Language

Disc Menu Language Audio Language Subtitle Language

ENG

ENG ENG

---

ENTER

Press / to select the category, then press ENTER.

Notes on Discs

This section shows you how to handle, clean, and store discs.

On Handling Discs

• Do not touch the playback side of the disc.

Playback side

• Do not attach paper or tape to discs.

On Cleaning Discs

• Fingerprints and dust on the disc cause picture and sound deterioration. Wipe the disc from the center outwards with a soft cloth. Always keep the disc clean.

• If you cannot wipe off the dust with a soft cloth, wipe the disc lightly with a slightly moistened soft cloth and finish with a dry cloth.

• Do not use any type of solvent such as thinner, benzine, commercially available cleaners or antistatic spray for vinyl LPs. It may damage the disc.

On Storing Discs

• Do not store discs in a place subject to direct sunlight or near heat sources.

• Do not store discs in places subject to moisture and dust such as a bathroom or near a humidifier.

• Store discs vertically in a case. Stacking or placing objects on discs outside of their case may cause warping.

About This Instruction Manual

This instruction manual explains the basic instructions of this DVD player. Some DVD video discs are produced in a manner that allows specific or limited operation during playback, As such, the DVD player may not respond to all operating commands. Refer to instruction notes of discs.

” may appear on the TV screen during operation. A “ ”

“ means that the operation is not permitted by the DVD player or the disc.

Notes on Region Numbers

The region number of this DVD player is 1. If region numbers, which stand for their playable area, are printed on your DVD

video disc and you do not find not be allowed by the player. (In this case, the DVD player displays the message.)

or , disc playback will

Playable Discs

This DVD video player can play back the following discs.

Disc mark

DVD video discs

VIDEO CDs

Audio CDs

You cannot play back discs other than those listed above. This D VD video player uses the PAL/NTSC color system, and cannot play

back DVD video discs recorded in any other color system (SECAM, etc.).

Avoid using heart-shaped or octagonal discs. Playing irregularly shaped discs may damage the internal mechanism of the DVD player.

Do not use discs on which adhesive from adhesive tape or a disc label (if it is a rental disc) remains. Otherwise , y ou ma y not be a ble to eject the discs or the DVD pla y er ma y become inoperative.

Contents

Audio

Video

(moving

pictures)

Audio +

Video

(moving

pictures)

Audio

Disc

size

12 cm

8 cm

12 cm

8 cm

12 cm

8 cm (CD

single)

Maximum

playback time

Approx. 4 hours

(single sided disc)

Approx. 8 hours

(double sided disc) Approx. 80 minutes

(single sided disc)

Approx. 160 minutes (double sided disc)

Approx. 74 minutes Approx. 20 minutes Approx. 74 minutes Approx. 20 minutes

On VIDEO CDs

This DVD video player supports the VIDEO CDs equipped with the PBC (Version 2.0) function. (PBC is the abbreviation of Playback Control.) You can enjoy two playback variations depending on types of discs.

•

VIDEO CD not equipped with PBC function (Version 1.1)

Sound and movie can be played on this DVD video player in the same way as an audio CD.

•

VIDEO CD equipped with PBC function (Version 2.0)

In addition to operation of the VIDEO CD not equipped with the PBC function, you can enjoy playback with interactive software and with search function by using the menu displayed on the TV screen (Menu Playback). Some of the functions described in this owner’s manual may not work with some discs.

Notes on Copyright

It is forbidden by law to copy, broadcast, show, broadcast on cable, play in public, and rent copyrighted material without permission.

DVD video discs are copy protected, and any recordings made from these discs will be distorted.

This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reverse engineering or disassembly is prohibited.

Others

Before Calling Service Personnel

Check the following guide for the possible cause of a problem before contacting service.

Symptoms and Correction

Symptom

No power.

No picture.

No sound.

The playback picture has occasional distortion.

Brightness is unstable or noises are produced on playback pictures.

The DVD player does not start playback.

Buttons do not work.

Cause

The power plug is disconnected.

• The TV is not set to receive DVD signal output.

• The video cable is not connected securely.

• The equipment connected with the audio cable is not set to receive DVD signal output.

• The audio cables are not connected securely.

• The power of the equipment connected with the audio cable is turned off.

• The setting of output sound type is not correct.

• The disc is dirty.

• It is in fast forward or fast reverse playback.

• The copy protection's effect.

• No disc is inserted.

• An unplayable disc is inserted.

• The disc is placed upside down.

• The disc is not placed within the guide.

• The disc is dirty.

• The parental lock function is set.

Power supply fluctuations or other abnormalities such as static electricity may interrupt correct operation.

Correction

Connect the power plug into the wall outlet securely.

• Select the appropriate video input mode on the TV so the picture from the DVD player appears on the TV screen.

• Connect the video cable into the jacks securely.

• Select the correct input mode of the audio receiver so you can listen to the sound from the DVD player.

• Connect the audio cable into the jacks securely.

• Turn on the equipment connected with the audio cable.

• Set the audio setting correctly.

• Eject the disc and clean it.

• Sometimes a small amount of picture distortion may appear. This is not a malfunction.

• Connect the DVD player directly to the TV. Avoid connecting the DVD player to a VCR or TV/VCR combination.

• Insert a disc. ( CD/audio CD indicator in the DVD display is lit.

• Insert a playable disc. (Check the disc type and color system.)

• Place the disc with the playback side down.

• Place the disc on the disc tray correctly inside the guide.

• Clean the disc.

• Cancel the parental lock function or change the parental lock level.

Turn the power on or off with the POWER button. Or disconnect the power plug and insert it into the wall outlet again.

Check that the DVD or VIDEO

Page

12, 13

12-15

–

29, 32,

–

)

16 16

32, 42

–

The remote controller does not work properly.

• The remote controller is not pointed at the remote sensor of the DVD player.

• The remote controller is too far from the DVD player.

• The batteries in the remote controller are exhausted.

• Point the remote controller at the remote sensor of the DVD player.

• Operate the remote controller within about 5 m.

• Replace the batteries with new ones.

This unit contains a sensitive microcomputer, which under certain circumstances might fail to operate due to excessive noise interference. In such case, disconnect the AC power from the electrical outlet, wait five seconds and replace.

Specifications

DVD Player/Outputs/Supplied Accessories

DVD Player

Power supply AC120 V, 60 Hz Power consumption 20 W Weight 4.5 kg External dimensions 435 × 121 × 306 mm (W/H/D) Signal system Standard NTSC Laser Semiconductor laser, wavelength 650 nm Frequency range (digital audio) DVD linear sound : 48 kHz sampling 4 Hz to 22 kHz

96 kHz sampling 4 Hz to 44 kHz

Audio CD : 4 Hz to 20 kHz Signal-to-noise ratio (digital audio) More than 106 dB (EIAJ) Audio dynamic range (digital audio) More than 96 dB (EIAJ) Harmonic distortion (digital audio) Less than 0.005 % Wow and flutter Below measurable level (less than ±0.001 % (W.PEAK)) (EIAJ) Operating conditions Temperature: 5 °C to 35 °C (41 to 95 Degree), Operation status: Horizontal

Outputs

Video output 1.0 V (p-p), 75 Ω, negative sync., pin jack × 1 S video output (Y) 1.0 V (p-p), 75 Ω, negative sync., Mini DIN 4-pin × 1

(Cb)/(Cr) 0.7 V (p-p), 75 Ω Audio output (optical audio) Optical connector × 1 Audio output (digital audio) 0.5 V (p-p), 75 Ω, pin jack × 1 Audio output (analog audio) 2.0 V (rms), 470 Ω, pin jack (L, R) × 1 Headphone terminal 32 Ω (10mW), Impedance; more than 8 Ω

Supplied Accessories

S video cable ....................................................................... 1

Audio·video connection cable .............................................. 1

Remote controller (RC-388DV)............................................ 1

Batteries (AA) ...................................................................... 2

z cable .............................................................................. 1

• Designs and specifications are subject to change without notice.

Others

Memo

Others

http://www.onkyo.co.jp/

HOMEPAGE

Sales & Product Planning Div.: 2-1, Nisshin-cho, Neyagawa-shi, OSAKA 572-8540, JAPAN Tel: 0720-31-8111 Fax: 0720-33-5222

ONKYO U.S.A. CORPORATION

200 Williams Drive, Ramsey, N.J. 07446, U.S.A. Tel: 201-825-7950 Fax: 201-825-8150 E-mail: onkyo@onkyousa.com

ONKYO EUROPE ELECTRONICS GmbH

Industriestrasse 20, 82110 Germering, GERMANY Tel: 089 84 93 20 Fax: 089 84 93 226 E-mail: info@onkyo.de

ONKYO EUROPE FRANCE BRANCH

Domaine Technologique de Saclay 4, Rue René Razel, SACLAY-91892 ORSAY CEDEX, FRANCE Tel: (1) 69 33 14 00 Fax: (1) 69 41 35 84

ONKYO CHINA LIMITED

Units 2102-7 Metroplaza Tower I, 223 Hing Fong Road, Kwai Chung, N.T., HONG KONG Tel: 852 2429 3118 Fax: 852 2428 9039

SN 29342658

Printed in Japan D9808-1

Onkyo DV-S717 User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

DV-S717

Safety Precautions

Important Safeguards

Precautions

Features

Table of Contents

Introduction

Connections

Basic Playback

Advanced Playback

Function Setup

Others

Table of Languages ................................46

Connecting to a TV

Connecting to Optional Equipment

Playing a Disc

Locating a Specific Title, Chapter, or Track

Playing Repeatedly

Playing in a Favorite Order

Playing in Random Order

Selecting 3D DNR Picture Enhancement

Zooming a Picture

Selecting the Camera Angle

Selecting a Language

Selecting Subtitles

Customizing the Function Settings

Notes on Discs

Before Calling Service Personnel

Specifications
