SERVICE MANUAL
SERVICE MANUAL
SPEAKER SYSTEM
D-L5
D-L5
Ref. No.SS0123
082001
SPECIFICATION
Type Full Range Bass Reflex
Impedance 6 ohm
Maximum Input Power 40W
Output sound pressure level 83dB/W/m
Frequency Response 125Hz - 25kHz
Cabinet Capacity 0.8 Litter
Speaker 8cm OMF Cone
Dimensions (W x H x D) 85 x 120 x 112 mm
Wegiht 0.7kg
EXPLODED VIEW
A2
D-L5
A4
A7
A3
REF NO. PART NO. DESCRIPTION
A1 AB077007-01 Speaker unit ass'y
A2 99-077-004-01 Net ass'y
(Net frame+Net+Badge+Push nuts)
A3 59-000-189-01 Badge
A4 61-000-642-01 Cord
A6 60-001-849-01 Rating label
A7 PD8177A Full range unit
A1
A6
)

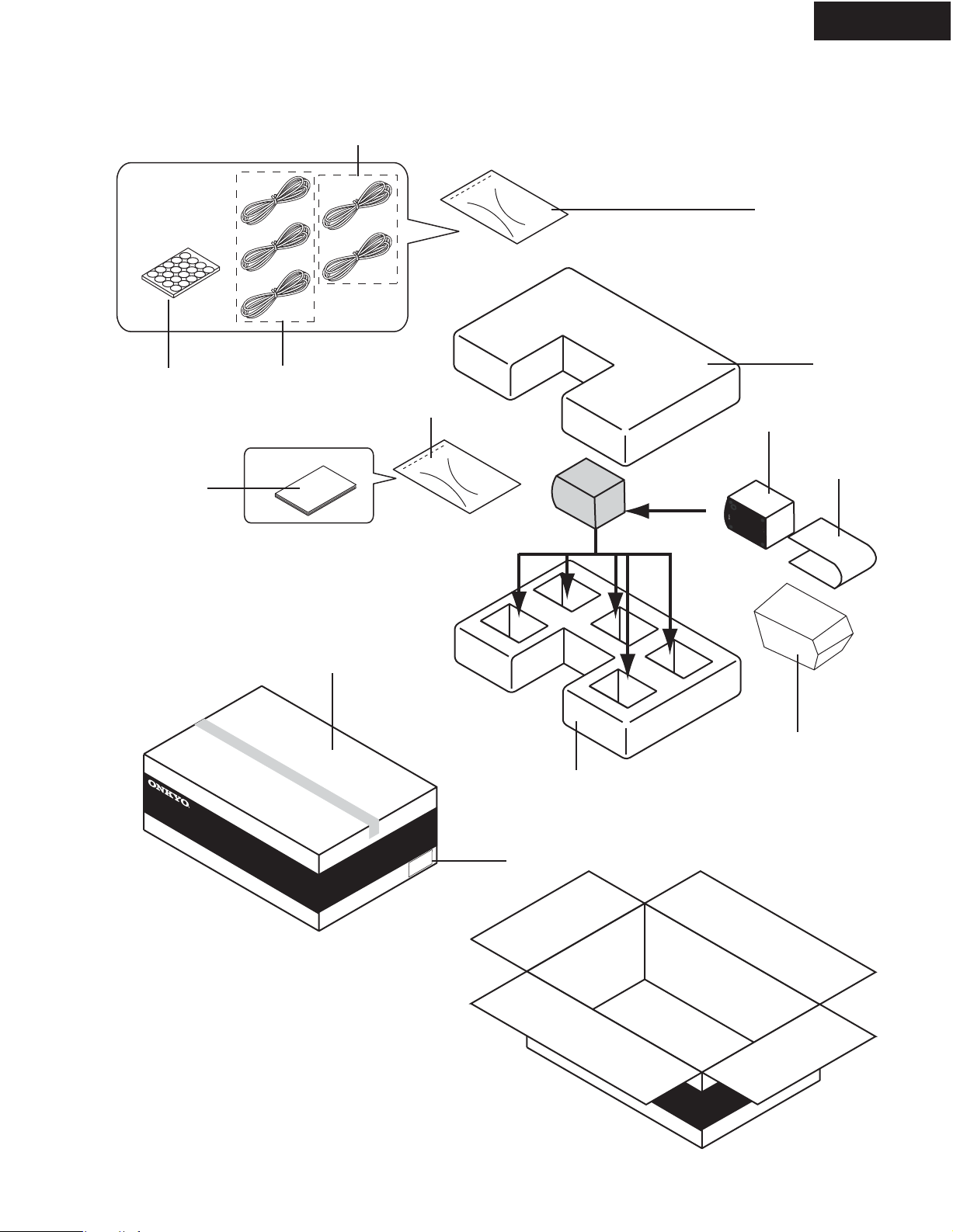

P A CKING VIEW
D-L5
B9
B4
B10
B8
B12
B4
5'6#5
B2
B7
B1
B3
B13
D-L5
D-L5
PARTS LIST
B1 84-001-936-01 Carton
B2 85-000-400-21 Protection sheet (0.5t x 460 x 150
B3 85-000-376-71 Poly bag (0.0015t x 250 x 280)
B4 29100097 Poly bag (0.003t x 350 x 250)
B6 89-000-492-01 Label EAN
B7 87-001-006-01 Instruction manual
B8 62-000-402-01 Speaker cable(3.5m)
B9 62-000-402-11 Speaker cable(8m)
B10 65-000-216-01 Foot
B12 80-000-472-01 Cusshion
B13 80-000-472-11 Cusshion
B6
D-L5
D-L5
D-L5
ONKYO CORPORATION
Sales & Product Planning Div. : 2-1, Nisshin-cho, Neyagawa-shi, OSAKA 572-8540, JAPAN
Tel: 072-831-8111 Fax: 072-833-5222
ONKYO EUROPE ELECTRONICS GmbH
Industriestrasse 20, 82110 Germering, GERMANY
Tel: 089-849-320 Fax: 089-849-3265 E-mail: info@onkyo.de
ONKYO CHINA LIMITED
Units 2102-2107, Metroplaza Tower I, 223 Hing Fong Road, Kwai Chung,
N.T., HONG KONG Tel: 852-2429-3118 Fax: 852-2428-9039
HOMEPAG
http://www.onkyo.co.jp/
