Onkyo CS-V645 Instruction Manual
DVD Receiver
DR-645
Instruction Manual
Thank you for purchasing an Onkyo DVD Receiver.
Please read this manual thoroughly before making
connections and plugging in the unit.
Following the instructions in this manual will enable
you to obtain optimum performance and listening
enjoyment from your new DVD Receiver.
Please retain this manual for future reference.
Contents
Introduction ...................................2
Connections...................................8
Basic Operation...........................18
Settings ........................................25
Listening to the FM Radio ..........29
Troubleshooting ..........................31
E
n
2
En
Introduction
Important Safety Instructions
1. Read these instructions.
2. Keep these instructions.
3. Heed all warnings.
4. Follow all instructions.
5. Do not use this apparatus near water.
6. Clean only with dry cloth.
7. Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.
8. Do not install near any heat sources such as radiators,
heat registers, stoves, or other apparatus (including
amplifiers) that produce heat.
9. Do not defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two blades
with one wider than the other. A grounding type plug
has two blades and a third grounding prong. The wide
blade or the third prong are provided for your safety. If
the provided plug does not fit into your outlet, consult
an electrician for replacement of the obsolete outlet.
10. Protect the power cord from being walked on or
pinched particularly at plugs, convenience receptacles,
and the point where they exit from the apparatus.
11. Only use attachments/accessories specified by the
manufacturer.
12. Use only with the cart, stand,
tripod, bracket, or table
specified by the manufacturer,
or sold with the apparatus.
When a cart is used, use
caution when moving the
cart/apparatus combination to
avoid injury from tip-over.
13. Unplug this apparatus during lightning storms or when
unused for long periods of time.
14. Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or
plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has been
exposed to rain or moisture, does not operate
normally, or has been dropped.
15. Damage Requiring Service
Unplug the apparatus from the wall outlet and refer
servicing to qualified service personnel under the
following conditions:
A. When the power-supply cord or plug is damaged,
B. If liquid has been spilled, or objects have fallen
into the apparatus,
C. If the apparatus has been exposed to rain or water,
D. If the apparatus does not operate normally by
following the operating instructions. Adjust only
those controls that are covered by the operating
instructions as an improper adjustment of other
controls may result in damage and will often
require extensive work by a qualified technician to
restore the apparatus to its normal operation,
E. If the apparatus has been dropped or damaged in
any way, and
F. When the apparatus exhibits a distinct change in
performance this indicates a need for service.
16. Object and Liquid Entry
Never push objects of any kind into the apparatus
through openings as they may touch dangerous
voltage points or short-out parts that could result in a
fire or electric shock.
The apparatus shall not be exposed to dripping or
splashing and no objects filled with liquids, such as
vases shall be placed on the apparatus.
Don’t put candles or other burning objects on top of
this unit.
17. Batteries
Always consider the environmental issues and follow
local regulations when disposing of batteries.
18. If you install the apparatus in a built-in installation,
such as a bookcase or rack, ensure that there is
adequate ventilation.
Leave 20 cm (8") of free space at the top and sides and
10 cm (4") at the rear. The rear edge of the shelf or
board above the apparatus shall be set 10 cm (4")
away from the rear panel or wall, creating a flue-like
gap for warm air to escape.
WARNING:
TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK, DO NOT EXPOSE THIS APPARATUS TO
RAIN OR MOISTURE.
CAUTION:
TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK). NO
USER-SERVICEABLE PARTS INSIDE. REFER
SERVICING TO QUALIFIED SERVICE
PERSONNEL.
The lightning flash with arrowhead symbol, within an
equilateral triangle, is intended to alert the user to the
presence of uninsulated “dangerous voltage” within
the product’s enclosure that may be of sufficient
magnitude to constitute a risk of electric shock to
persons.
The exclamation point within an equilateral triangle is
intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in
the literature accompanying the appliance.
WARNING
RISK OF ELECTRIC SHOCK
DO NOT OPEN
RISQUE DE CHOC ELECTRIQUE
NE PAS
OUVRIR
AVIS
PORTABLE CART WARNIN
G
S3125A
3
En
Precautions
1. Recording Copyright—Unless it’s for personal use
only, recording copyrighted material is illegal without
the permission of the copyright holder.
2. AC Fuse—The AC fuse inside the unit is not userserviceable. If you cannot turn on the unit, contact
your Onkyo dealer.
3. Care—Occasionally you should dust the unit all over
with a soft cloth. For stubborn stains, use a soft cloth
dampened with a weak solution of mild detergent and
water. Dry the unit immediately afterwards with a
clean cloth. Don’t use abrasive cloths, thinners,
alcohol, or other chemical solvents, because they may
damage the finish or remove the panel lettering.
4. Power
WARNING
BEFORE PLUGGING IN THE UNIT FOR THE
FIRST TIME, READ THE FOLLOWING SECTION
CAREFULLY.
AC outlet voltages vary from country to country.
Make sure that the voltage in your area meets the
voltage requirements printed on the unit’s rear panel
(e.g., AC 200-240 V, 50/60 Hz or AC 120 V, 60 Hz).
The power cord plug is used to disconnect this unit
from the AC power source. Make sure that the plug is
readily operable (easily accessible) at all times.
Pressing ON/STANDBY to select Standby mode does
not fully shutdown the unit. If you do not intend to use
the unit for an extended period, remove the power cord
from the AC outlet.
5. Preventing Hearing Loss
Caution
Excessive sound pressure from earphones and
headphones can cause hearing loss.
6. Batteries and Heat Exposure
War nin g
Batteries (battery pack or batteries installed) shall not
be exposed to excessive heat as sunshine, fire or the
like.
7. Never Touch this Unit with Wet Hands—Never
handle this unit or its power cord while your hands are
wet or damp. If water or any other liquid gets inside
this unit, have it checked by your Onkyo dealer.
8. Handling Notes
• If you need to transport this unit, use the original
packaging to pack it how it was when you originally
bought it.
• Do not leave rubber or plastic items on this unit for
a long time, because they may leave marks on the
case.
• This unit’s top and rear panels may get warm after
prolonged use. This is normal.
• If you do not use this unit for a long time, it may not
work properly the next time you turn it on, so be
sure to use it occasionally.
• When you’ve finished using this unit, remove all
discs and turn off the power.
9. Installing this Unit
• Install this unit in a well-ventilated location.
• Ensure that there’s adequate ventilation all around
this unit, especially if it’s installed in an audio rack.
If the ventilation is inadequate, the unit may
overheat, leading to malfunction.
• Do not expose this unit to direct sunlight or heat
sources, because its internal temperature may rise,
shortening the life of the optical pickup.
• Avoid damp and dusty places, and places subject to
vibrations from loudspeakers. Never put the unit on
top of, or directly above a loudspeaker.
• Install this unit horizontally. Never use it on its side
or on a sloping surface, because it may cause a
malfunction.
• If you install this unit near a TV, radio, or VCR, the
picture and sound quality may be affected. If this
occurs, move this unit away from the TV, radio, or
VCR.
10. To Obtain a Clear Picture—This unit is a hightech,
precision device. If the lens on the optical pickup, or
the disc drive mechanism becomes dirty or worn, the
picture quality may be affected. To maintain the best
picture quality, we recommend regular inspection and
maintenance (cleaning or worn part replacement)
every 1,000 hours of use depending on the operating
environment. Contact your Onkyo dealer for details.
11. Moisture Condensation
Moisture condensation may damage this unit.
Read the following carefully:
Moisture may condense on the lens of the optical
pickup, one of the most important parts inside this
unit.
• Moisture condensation can occur in the following
situations:
– The unit is moved from a cold place to a warm
place.
– A heater is turned on, or cold air from an air
conditioner is hitting the unit.
– In the summer, when this unit is moved from an
air conditioned room to a hot and humid place.
– The unit is used in a humid place.
• Do not use this unit when there’s the possibility of
moisture condensation occurring. Doing so may
damage your discs and certain parts inside this unit.
If condensation does occur, unplug the power cord and
leave the unit for two to three hours in the room
temperature.
12. Region Numbers—The DVD standard uses region
numbers to control how discs can be played around
the world, the world being divided into six regions.
This unit will only play DVD discs that match its
region number, which can be found on its rear panel
(e.g., , ).
13. About this Manual—This manual explains how to
use all of this unit’s functions. Although the DVD
standard offers many special features, not all discs use
them all, so depending on the disc being played, this
unit may not respond to certain functions. See the
disc’s sleeve notes for supported features.
1
ALL
4
En
This unit contains a semiconductor laser system and is
classified as a “CLASS 1 LASER PRODUCT”. So, to use
this model properly, read this Instruction Manual
carefully. In case of any trouble, please contact the store
where you purchased the unit.
To prevent being exposed to the laser beam, do not try to
open the enclosure.
CAUTION:
CLASS 1M VISIBLE AND INVISIBLE LASER
RADIATION WHEN OPEN. DO NOT VIEW
DIRECTLY WITH OPTICAL INSTRUMENTS.
THIS PRODUCT UTILIZES A LASER. USE OF
CONTROLS OR ADJUSTMENTS OR
PERFORMANCE OF PROCEDURES OTHER THAN
THOSE SPECIFIED HEREIN MAY RESULT IN
HAZARDOUS RADIATION EXPOSURE.
The label on the right is applied
on the rear panel.
1. This unit is a CLASS 1
LASER PRODUCT and
employs a laser inside the cabinet.
2. To prevent the laser from being exposed, do not
remove the cover. Refer servicing to qualified
personnel.
For U.S. models
FCC Information for User
CAUTION:
The user changes or modifications not expressly approved
by the party responsible for compliance could void the
user’s authority to operate the equipment.
NOTE:
This equipment has been tested and found to comply with
the limits for a Class B digital device, pursuant to Part 15
of the FCC Rules. These limits are designed to provide
reasonable protection against harmful interference in a
residential installation.
This equipment generates, uses and can radiate radio
frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful
interference to radio communications. However, there is
no guarantee that interference will not occur in a particular
installation. If this equipment does cause harmful
interference to radio or television reception, which can be
determined by turning the equipment off and on, the user
is encouraged to try to correct the interference by one or
more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and
receiver.
• Connect the equipment into an outlet on a circuit
different from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV
technician for help.
For Canadian Models
NOTE: THIS CLASS B DIGITAL APPARATUS
COMPLIES WITH CANADIAN ICES-003.
For models having a power cord with a polarized plug:
CAUTION: TO PREVENT ELECTRIC SHOCK,
MATCH WIDE BLADE OF PLUG TO WIDE SLOT,
FULLY INSERT.
Modèle pour les Canadien
REMARQUE: CET APPAREIL NUMÉRIQUE DE
LA CLASSE B EST CONFORME À LA NORME NMB003 DU CANADA.
Sur les modèles dont la fiche est polarisée:
ATTENTION: POUR ÉVITER LES CHOCS
ÉLECTRIQUES, INTRODUIRE LA LAME LA PLUS
LARGE DE LA FICHE DANS LA BORNE
CORRESPONDANTE DE LA PRISE ET POUSSER
JUSQU’AU FOND.
For British models
Replacement and mounting of an AC plug on the power
supply cord of this unit should be performed only by
qualified service personnel.
IMPORTANT
The wires in the mains lead are coloured in accordance
with the following code:
Blue: Neutral
Brown: Live
As the colours of the wires in the mains lead of this
apparatus may not correspond with the coloured markings
identifying the terminals in your plug, proceed as follows:
The wire which is coloured blue must be connected to the
terminal which is marked with the letter N or coloured
black.
The wire which is coloured brown must be connected to the
terminal which is marked with the letter L or coloured red.
IMPORTANT
The plug is fitted with an appropriate fuse. If the fuse
needs to be replaced, the replacement fuse must approved
by ASTA or BSI to BS1362 and have the same ampere
rating as that indicated on the plug. Check for the ASTA
mark or the BSI mark on the body of the fuse.
If the power cord’s plug is not suitable for your socket
outlets, cut it off and fit a suitable plug. Fit a suitable fuse
in the plug.
For European Models
Declaration of Conformity
We,
ONKYO EUROPE
ELECTRONICS GmbH
LIEGNITZERSTRASSE 6,
82194 GROEBENZELL,
GERMANY
GROEBENZELL, GERMANY
ONKYO EUROPE ELECTRONICS GmbH
K. MIYAGI
declare in own responsibility, that the ONKYO product
described in this instruction manual is in compliance with the
corresponding technical standards such as EN60065,
EN55013, EN55020 and EN61000-3-2, -3-3.
5
En
Standard Accessories
*
Note
• In catalogs and on packaging, the letter at the end of the product
name indicates the color. Specifications and operations are the
same regardless of color.
Installing the Batteries
Note
• If the remote control doesn’t work reliably, try replacing the
batteries.
• Don’t mix new and old batteries or different types of batteries.
• If you intend not to use the remote controller for a long time,
remove the batteries to prevent damage from leakage or
corrosion.
• Remove expired batteries as soon as possible to prevent damage
from leakage or corrosion.
Aiming the Remote Control
To use the remote control, point it at the DVD receiver’s
remote control sensor, as shown below.
FM antenna × 1
RCA video cable × 1
AC power cord × 1
Batteries (AAA, R03, UM-4) × 2
Remote control (RC-798S) × 1
Instruction manual (this document) × 1
Using Remote Control
Batteries
Remote control sensor
DVD r eceiver
Approx. 16 ft. (5 m)
6
En
Features
Highlights
• Compact-Size Home Entertainment DVD Systems for
iPod
• iPod Direct Connection via Top Panel
• Front Panel USB Interface for Flash Drives
Amplifier / DVD Player / USB Features
(North American)
• 20 W/Ch, 8 ohms, 20 kHz, 2Ch Driven (FTC)
(Others)
• 40 W/Ch, 4 ohms, 1 kHz, 1Ch Driven (IEC)
• Digital Amplifier Circuitry to Maintain Clean Audio
Signals
• 1080p Video Upscaling via HDMI*3 Output
• Front-Panel Audio Input for Portable Devices
• 1 Audio Input and 1 Output
• 1 Component Video Output
• 1 Digital Output (Coaxial)
• 1 Video Output
• 1 Subwoofer Pre Out
• Tone Control (Bass/Treble)
• Super Bass Function
• Plays DVD-Video
*1
, Video CD, Audio CD, CD-R and
CD-RW, DVD-R and DVD-RW
• MP3, WMA, JPEG
•DivX
*4
(excluding North American models)
• CD 4 Play Modes (Normal/Memory/Random/Folder)
• Memory Playback
• 3 Repeat Modes (Track/Full/Folders (for MP3 and
WMA formats))
Tuner & Other Features
• Preset Function with 20 FM Selections
• Wake-up Timer
• Aluminum Front Panel and Volume Knob
iPod Dock Features
• Recharges iPod
*5
• Composite video output or component video output is
possible only with iPod that support video output.
*1
is a trademark of DVD Format/Logo Licensing
Corporation.
*2
Manufactured under license from Dolby Laboratories. Dolby
and the double-D symbol are trademarks of Dolby
Laboratories.
*3
“HDMI, the HDMI Logo, and High-Definition Multimedia
Interface are trademarks or registered trademarks of HDMI
Licensing LLC in the United States and other countries.”
*4
“DivX®, DivX Certified® and associated logos are registered
trademarks of DivX, Inc. and are used under license.”
*5
iPod, iPod classic, iPod nano, iPod shuffle, and iPod touch are
trademarks of Apple Inc., registered in the U.S. and other
countries.
“Made for iPod” means that an electronic accessory has been
designed to connect specifically to iPod and has been certified
by the developer to meet Apple performance standards.
Apple is not responsible for the operation of this device or its
compliance with safety and regulatory standards.
*6
Manufactured under license under U.S. Patent #’s: 5,451,942;
5,956,674; 5,974,380; 5,978,762; 6,487,535 & other U.S. and
worldwide patents issued & pending.
DTS and the Symbol are registered trademarks, & DTS 2.0+
Digital Out and the DTS logos are trademarks of DTS, Inc.
Product includes software. © DTS, Inc. All Rights Reserved.
MPEG Layer-3 audio coding technology licensed from
Fraunhofer IIS and Thomson.
This product is protected by certain intellectual property
rights of Microsoft.
Use or distribution of such technology outside of this
product is prohibited without a license from Microsoft.
Windows Media is either a registered trademark or
trademark of Microsoft Corporation in the United States
and/or other countries.
It is forbidden by law to copy, broadcast, show, broadcast
on cable, play in public, and rent copyrighted material
without permission.
DVD videos are copy protected, and any recordings made
from these discs will be distorted.
This item incorporates copy protection technology that is
protected by U.S. patents and other intellectual property
rights of Rovi Corporation.
Reverse engineering and disassembly are prohibited.
7
En
Contents
Important Safety Instructions ......................................... 2
Precautions....................................................................... 3
Standard Accessories ..................................................... 5
Using Remote Control .................................................... 5
Features ............................................................................ 6
Connecting the DVD receiver.......................................... 8
FM Antenna Connection................................................. 8
Speaker Connection....................................................... 8
Connection to a TV......................................................... 9
Connection to Audio Components etc.......................... 10
Identifying the Parts....................................................... 11
Main Unit ...................................................................... 11
Remote Control ............................................................ 12
Discs................................................................................ 14
iPod ................................................................................. 16
USB flash drive compatibility ....................................... 17
Basic Operation.............................................................. 18
Setting the Clock .......................................................... 18
Basic Operation............................................................ 19
Listening to a Disc ........................................................ 19
Listening to an iPod...................................................... 19
Listening to a USB Flash Drive .................................... 19
On-screen Menu........................................................... 20
Basic Operations for iPod, Disc
and USB Flash Drive ................................................. 21
Skipping Playback ........................................................ 21
Searching for a part of a chapter or track..................... 21
Selecting a Chapter or Track........................................ 21
Selecting the menu item (iPod) .................................... 21
Selecting Video Output (iPod) ...................................... 21
Selecting Audio ............................................................ 21
Selecting Subtitles........................................................ 22
Changing Camera Angle .............................................. 22
Picture Zoom ................................................................ 22
Slow Motion.................................................................. 22
Repeat and Shuffle Playback ....................................... 22
A-B Repeat Playback ................................................... 22
Changing the Display Mode ......................................... 23
Time Search (VCD/CD)................................................ 23
Time Search (MP3/WMA) ............................................ 23
Chapter Search/Time Search (DVD)............................ 23
Chapter Search/Time Search (DivX
®
)
– excluding North American models .......................... 23
Programmed Playback (DVD/VCD/CD) ....................... 24
Programmed Playback (MP3/WMA) ............................ 24
Programmed Playback (DivX
®
)
– excluding North American models .......................... 24
Settings ........................................................................... 25
Introduction................................................................... 25
GENERAL SETUP ....................................................... 25
AUDIO SETUP ............................................................. 26
VIDEO SETUP ............................................................. 27
PREFERENCE............................................................. 28
PASSWORD SETUP ................................................... 28
Listening to the FM Radio ............................................. 29
Preset Tuning ...............................................................29
RDS (Display Setting of the FM)
– excluding North American models ..........................29
Listening to an External Source.................................... 30
Sleep Timer ..................................................................30
Wake Up Timer............................................................. 30
Troubleshooting .............................................................31
Specifications .................................................................33
Introduction
Connections
Basic Operation
Settings
Listening to the FM Radio
Troubleshooting
8
En
Connections
Connecting the DVD receiver
Connect the supplied FM antenna to the FM ANTENNA
socket on the unit.
If reception is poor, connect the outdoor antenna.
Note
• Before attaching a 75 ohm coaxial cable, disconnect the supplied
FM antenna.
Caution
• To avoid noise, keep antennas away from the system, the
connecting cord and the AC power cord.
Caution
• To avoid damaging the speakers with a sudden high-level
signal, be sure to switch the power off before connecting
the speakers.
Before connection
Check the impedance of your speakers. Connect speaker
with an impedance of 4 Ω ~ 16 Ω.
The black speaker terminals are “-” (negative).
Generally, the “+” side of the speaker cable is marked to
make it distinguishable from the “-” side of the cable.
Connect this marked side to the “+” terminal and the
unmarked side to the black “-” terminal.
How to connect
Subwoofer
Connect a subwoofer using a commercially-available
RCA cable. Use a subwoofer with built-in amplifier
referred to as a “powered subwoofer”.
FM Antenna Connection Speaker Connection
1
Turn the terminal cap counterclockwise to loosen
it. The speaker terminal caps cannot be fully re
moved from the base.
2
Insert the wire into the terminal fully and turn the
terminal cap clockwise to securely connect it:
Subwoofer
9
En
Caution
• Turn the power off to all components before making
connections.
• Read the instructions of each component you intend to
use with this unit.
• Be sure to insert each plug securely. To prevent hum and
noise, avoid bundling the signal interconnection cables
together with the AC power cord or speaker cables.
• Adjust the video aspect ratio to match that of the
television.
• This unit adopts analog copy protection features. If the
unit is connected to a TV through a VCR (video cassette
recorder), the resulting playback may be affected.
Connect the unit directly to the television.
• In all cases, use the highest quality cables for the best
possible picture.
• Select proper setting in the “VIDEO SETUP”.
A HDMI video/audio output jack
Use an HDMI cable to connect the unit to an HDMI
compatible television or monitor.
• If the television or monitor is equipped only with a DVI
terminal, a suitable adapter cable or adapters should be
used. Note that the television connected in this way must
be HDCP compatible. Also note that this connection
outputs no sound.
• Make sure that you read and understand the
documentation provided with the HDMI component.
■ HDMI video output formats
• 480p (60Hz)
• 576p (50Hz)
• 720p (50Hz) or 720p (60Hz)
• 1080i (50Hz) or 1080i (60Hz)
• 1080p (50Hz) or 1080p (60Hz)
■ To output audio from the HDMI jack
If the connected HDMI component is capable of inputting
HDMI audio, digital audio can be output from the HDMI
jack.
• Only PCM digital audio can be output from the HDMI
jack.
B Component video output jacks
Use component video cables to connect the unit to the
component video inputs of a suitably equipped television
or monitor to enjoy a high-quality picture. Use these
terminals in preference to composite video connections.
• If the component video terminals are connected to a
television with progressive scan capabilities, the output
can be set to match this.
• Note that these jacks cannot be connected to high
definition component jacks.
C Composite video output jack
Use a RCA (pin) video cable to connect the unit to the
composite video connector of a television or monitor.
Use this connection only if no other video connection
method is available.
Connection to a TV
ABC
HDMI cable
RCA video cable
Component
video cable
TV (Monitor)
10
En
Caution
• Turn the power off to all components before making
connections.
• Read the instructions of each component you intend to
use with this unit.
• Be sure to insert each plug securely. To prevent hum and
noise, avoid bundling the signal interconnection cables
together with the AC power cord or speaker cables.
D Digital audio output jack
Digital audio from DVD-Video, CD and Video CD is
output from this jack. Connect an amplifiers including a
decoder, or digital audio components such as CD recorder,
etc. to this jack using commercially-available coaxial
digital audio cable.
• Select “ALL” or “PCM only” in the “DIGITAL
AUDIO SETUP”.
E LINE 1 IN/LINE OUT jacks
Analog 2-channel audio signal is input or output from
these jacks. Connect a cassette tape deck etc. to these
jacks using commercially-available RCA cables.
Make sure to connect:
• white plug: white jack (L: left channel)
• red plug: red jack (R: right channel)
F Power cord receptacle
After all other connections have been made, insert the
supplied AC power cord into this receptacle, then connect
the other end of the power cord into the wall socket.
• In order to avoid the risk of electric shock, fire, and so
on, only use the supplied power cord.
• If you are not going to use the unit for some time,
disconnect the power cord from the wall socket.
Connection to Audio Components etc.
DEF
RCA coaxial digital
audio cable
RCA audio cable
Digital audio component
(CD recorder,
MD deck, etc.)
Cassette tape
deck, etc.
To AC wall outlet
11
En
Identifying the Parts
■ Top view
a Remote control sensor
Receives signals from the remote control. Point the
remote control at this sensor when operating the
remote control.
b Display
c Disc tray
d VOLUME knob
Turn this knob (or press q VOL w of the remote
control) to adjust the volume level.
e 9 ON/STANDBY button/STANDBY indicator
Use this button to turn the unit on and standby. The
STANDBY indicator lights in the standby mode. It
turns off when the unit is turned on.
The equipment draws nominal non-operating
power from the AC outlet with its
9 ON/STANDBY in the standby mode.
f INPUT button
Use this button to select an input source as follows:
DVD, iPod, USB, FM, LINE1 or LINE2
g (headphones) jack
For private listening, insert the headphones plug into
this jack, and adjust the volume using the VOLUME
knob.
h LINE 2 IN jack
You can connect a portable audio player to this jack.
i USB port
You can connect a USB flash drive to this port.
j 7 button
In DVD, iPod or USB mode, use 7 to skip
tracks/files/songs.
e PRESET button
In FM mode, use e PRESET to select a preset
channel.
k 6 button
In DVD, iPod or USB mode, use 6 to skip
tracks/files/songs.
PRESET r button
In FM mode, use PRESET r to select a preset
channel.
l 2 button
In DVD or USB mode, use this button to stop
playback.
In iPod mode, use this button to pause playback.
In FM mode, use this button to select Auto mode or
Mono mode.
m 1/3 button
In DVD, iPod or USB mode, use this button to start or
pause playback.
n 0 button
Use this button to open and close the disc tray.

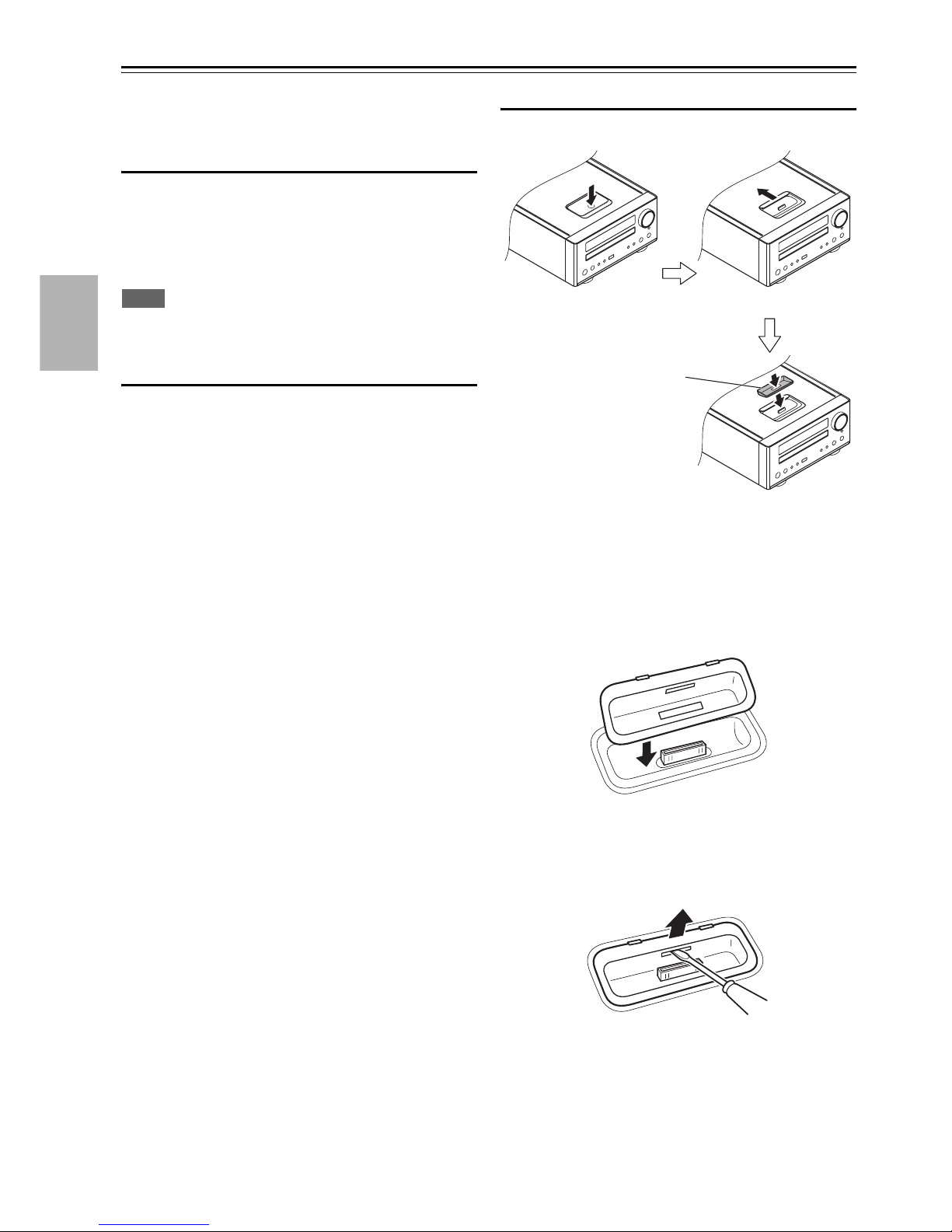

o iPod dock connector
Connects to your iPod.
Main Unit
a
feghijklmn
bdc
o
