CD Receiver

CR-505

Instruction Manual

Introduction 2

Connections 11

Getting Started 16

CD/MP3 Playback 20

Radio 24

Thank you for purchasing an Onkyo CD Receiver. Please read this manual thoroughly before making connections and turning on the power. Following the instructions in this manual will enable you to obtain optimum performance and listening enjoyment from your new CD Receiver. Please retain this manual for future reference.

Using Other Functions 27

Appendix 31

WARNING:

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE.

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

Important Safety Instructions

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including ampliﬁers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not ﬁt into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories speciﬁed by the manufacturer.

12.

Use only with the cart, stand, tripod, bracket, or table speciﬁed by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/ apparatus combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or when unused for long periods of time.

14. Refer all servicing to qualiﬁed service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

PORTABLE CART WARNING

S3125A

WARNING

RISK OF ELECTRIC SHOCK

DO NOT OPEN

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to

persons. The exclamation point within an equilateral triangle is

intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

AVIS

RISQUE DE CHOC ELECTRIQUE

NE PAS

OUVRIR

15. Damage Requiring Service Unplug the apparatus from the wall outlet and refer servicing to qualiﬁed service personnel under the following conditions: A. When the power-supply cord or plug is dam-

aged,

B. If liquid has been spilled, or objects have fallen

into the apparatus,

C. If the apparatus has been exposed to rain or

water,

D. If the apparatus does not operate normally by

following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualiﬁed technician to restore the apparatus to its normal operation,

E. If the apparatus has been dropped or damaged in

any way, and

F. When the apparatus exhibits a distinct change in

performance this indicates a need for service.

16. Object and Liquid Entry Never push objects of any kind into the apparatus through openings as they may touch dangerous voltage points or short-out parts that could result in a ﬁre or electric shock. The apparatus shall not be exposed to dripping or splashing and no objects ﬁlled with liquids, such as vases shall be placed on the apparatus. Don’t put candles or other burning objects on top of this unit.

17. Batteries Always consider the environmental issues and follow local regulations when disposing of batteries.

18. If you install the apparatus in a built-in installation, such as a bookcase or rack, ensure that there is adequate ventilation. Leave 20 cm (8") of free space at the top and sides and 10 cm (4") at the rear. The rear edge of the shelf or board above the apparatus shall be set 10 cm (4") away from the rear panel or wall, creating a ﬂue-like gap for warm air to escape.

Precautions

Recording Copyright

Unless it’s for personal use only, recording copyrighted material is illegal without the permission of the copyright holder.

AC Fuse

The AC fuse inside the CR-505 is not user-serviceable. If you cannot turn on the CR-505, contact your Onkyo dealer.

Care

Occasionally you should dust the CR-505 all over with a soft cloth. For stubborn stains, use a soft cloth dampened with a weak solution of mild detergent and water. Dry the CR-505 immediately afterwards with a clean cloth. Don’t use abrasive cloths, thinners, alcohol, or other chemical solvents, because they may damage the ﬁnish or remove the panel lettering.

Power WARNING

BEFORE PLUGGING IN THE UNIT FOR THE FIRST TIME, READ THE FOLLOWING SECTION CAREFULLY.

AC outlet voltages vary from country to country. Make sure that the voltage in your area meets the voltage requirements printed on the CR-505’s rear panel (AC 230-240 V, 50 Hz).

Setting the [STANDBY/ON] switch to STANDBY does not fully shutdown the CR-505. If you do not intend to use the CR-505 for an extended period, remove the power cord from the AC outlet.

Never Touch This Unit

Never handle this unit or its power cord while your hands are wet or damp. If water or any other liquid gets inside this unit, have it checked by your Onkyo dealer.

Installing This Unit

• Install this unit in a well-ventilated location.

• Ensure that there’s adequate ventilation all around

this unit, especially if it’s installed in an audio rack. If the ventilation is inadequate, the unit may overheat, leading to malfunction.

• Do not expose this unit to direct sunlight or heat sources, because its internal temperature may rise, shortening the life of the optical pickup.

• Avoid damp and dusty places, and places subject to vibrations from loudspeakers. Never put the unit on top of, or directly above, a loudspeaker.

• Install this unit horizontally. Never use it on its side or on a sloping surface, because it may cause a malfunction.

• If you install this unit near a TV, radio, or VCR, the sound quality may be affected. If this occurs, move this unit away from the TV, radio, or VCR.

with Wet Hands

Moisture Condensation Moisture condensation may damage this unit.

Read the following carefully: When you take a glass containing a cold drink outside

on a summer’s day, drops of water, called condensation, form on the outside of the glass. Similarly, moisture may condense on the lens of the optical pickup, one of the most important parts inside this unit.

• Moisture condensation can occur in the following situations:

— The unit is moved from a cold place to a warm

place.

— A heater is turned on, or cold air from an air con-

ditioner is hitting the unit.

— In the summer, when this unit is moved from an

air conditioned room to a hot and humid place.

— The unit is used in a humid place.

• Do not use this unit when there’s the possibility of

moisture condensation occurring. Doing so may damage your discs and certain parts inside this unit.

If condensation does occur, remove all discs and leave this unit turned on for two to three hours. By this time, the unit will have warmed up and any condensation will have evaporated. To reduce the risk of condensation, keep this unit connected to a wall outlet.

For British models

Replacement and mounting of an AC plug on the power supply cord of this unit should be performed only by qualiﬁed service personnel.

IMPORTANT

The wires in the mains lead are coloured in accordance with the following code:

Blue: Neutral Brown: Live As the colours of the wires in the mains lead of this appara-

tus may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows:

The wire that is coloured blue must be connected to the terminal that is marked with the letter N or coloured black.

The wire that is coloured brown must be connected to the terminal that is marked with the letter L or coloured red.

IMPORTANT

A 3, 5 or 13 ampere fuse is ﬁtted in this plug. Should the fuse need to be replaced, please ensure that the replacement fuse has a rating of 3, 5 or 13 amperes and that it is approved by ASTA or BSI to BS1362. Check for the ASTA mark or the BSI mark on the body of the fuse.

IF THE FITTED MOULDED PLUG IS UNSUITABLE FOR THE SOCKET OUTLET IN YOUR HOME THEN THE FUSE SHOULD BE REMOVED AND THE PLUG CUT OFF AND DISPOSED OF SAFELY. THERE IS A DANGER OF SEVERE ELECTRICAL SHOCK IF THE CUT OFF PLUG IS INSERTED INTO ANY 13 AMPERE SOCKET.

If in any doubt, consult a qualiﬁed electrician.

Precautions— Continued

This unit contains a semiconductor laser system and is classiﬁed as a “CLASS 1 LASER PRODUCT.” So, to use this model properly, read this Instruction Manual carefully. In case of any trouble, please contact the store where you purchased the unit. To prevent exposure to the laser beam, do not try to open the enclosure.

DANGER:

VISIBLE AND INVISIBLE LASER RADIATION WHEN OPEN AND INTERLOCK FAILED OR DEFEATED. DO NOT STARE INTO BEAM.

CAUTION:

THIS PRODUCT UTILIZES A LASER. USE OF CONTROLS OR ADJUSTMENTS OR PERFORMANCE OF PROCEDURES OTHER THAN THOSE SPECIFIED HEREIN MAY RESULT IN HAZARDOUS RADIATION EXPOSURE.

This label is located on the side of the unit. It indicates that:

1. This unit is a CLASS 1 LASER PRODUCT and employs a laser inside the cabinet.

2. To prevent the laser from being exposed, do not remove the cover. Refer servicing to qualiﬁed personnel.

Declaration of Conformity

We,

ONKYO EUROPE ELECTRONICS GmbH LIEGNITZERSTRASSE 6, 82194 GROEBENZELL, GERMANY

declare in own responsibility, that the ONKYO product described in this instruction manual is in compliance with the corresponding technical standards such as EN60065, EN55013, EN55020 and EN61000-3-2, -3-3.

GROEBENZELL, GERMANY

I. MORI

ONKYO EUROPE ELECTRONICS GmbH

Memory backup

The CR-505 uses a battery-less memory backup system in order to retain radio presets and other settings when it’s unplugged or in case of a power failure. Although no batteries are required, the CR-505 must be plugged into an AC outlet in order to charge the backup system.

Once it has been charged, the CR-505 will retain the settings for several weeks, although this depends on the environment and retention will be shorter in humid climates. The clock setting is not retained by the backup system.

Table of Contents

Introduction

Important Safety Instructions ................ 2

Precautions ............................................. 3

Features................................................... 6

Supplied Accessories............................. 6

Before Using the CR-505........................ 7

Installing the Remote Controller Batteries...... 7

Using the Remote Controller .......................... 7

Controls & Connectors........................... 8

Front Panel..................................................... 8

Display............................................................ 8

Rear Panel ..................................................... 9

Remote Controller ........................................ 10

Connections

Connecting Your Speakers.................. 11

Connecting the Speaker Cords to the

Speaker Connectors .................................. 11

Connecting an Antenna........................ 12

Connecting the Indoor FM Antenna ............. 12

Connecting the AM Loop Antenna ............... 12

Connecting an Outdoor FM Antenna............ 13

Connecting an Outdoor AM Antenna ........... 13

Connecting Your Other Components to

the CR-505 ........................................... 14

Before Making Any Connections .................. 14

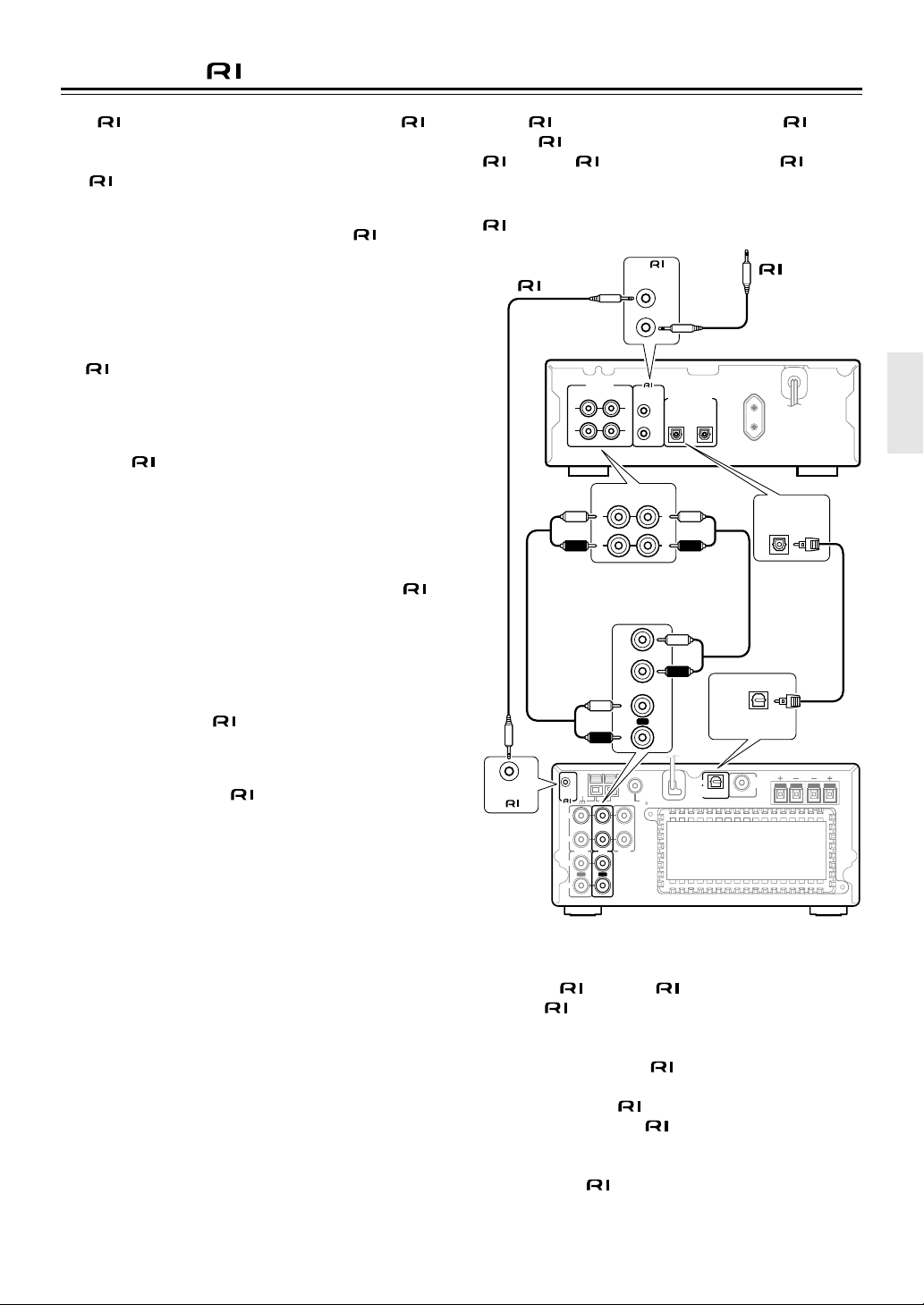

Connecting -compatible

Components........................................ 15

Getting Started

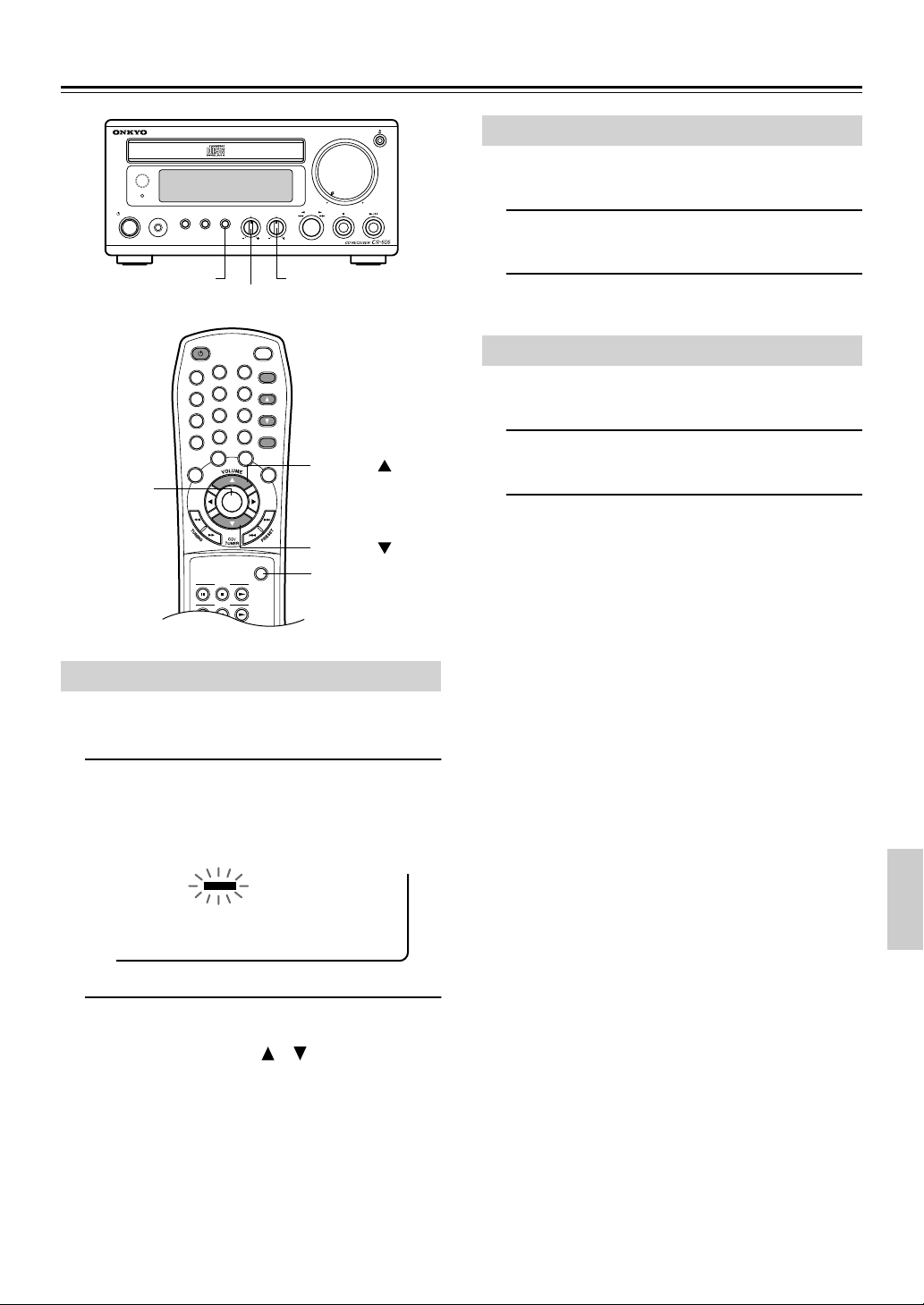

Powering Up and Setting the Clock .... 16

Powering Up the CR-505 ............................. 16

ACCUCLOCK Function ................................ 16

Setting the Clock Manually........................... 18

Displaying the Date & Time.......................... 18

Displaying the Time in Standby Mode.......... 18

Using the CR-505 .................................. 19

Selecting Sound Sources ............................. 19

Adjusting the Volume ................................... 19

Using Headphones....................................... 19

CD/MP3 Playback

Playing CDs........................................... 20

Playing CDs.................................................. 20

Selecting Tracks by Number ........................ 20

Displaying Information.................................. 21

Various Playback .................................. 22

Repeat Playback .......................................... 22

Random Playback ........................................ 22

Memory Playback......................................... 23

Radio

Using the Radio..................................... 24

Listening to the Radio................................... 24

Tuning the Radio .......................................... 24

Presetting FM Stations Automatically........... 25

Presetting Stations Manually........................ 25

Selecting Presets ......................................... 25

Deleting Presets ........................................... 26

Copying Preset Channels............................. 26

RDS (Radio Data System) ........................... 26

Using Other Functions

Other Functions .................................... 27

Muting the CR-505 ....................................... 27

Adjusting the Bass & Treble ......................... 27

Using Direct Mode........................................ 27

Timers .................................................... 28

About the Timers .......................................... 28

Setting the Timers ........................................ 28

Turning Timers Off ....................................... 30

Checking Timer Settings .............................. 30

Using the Sleep Timer.................................. 30

Appendix

Disc Notes ............................................. 31

Troubleshooting.................................... 33

Specifications........................................ 36

Features

5 8

■

Amp

25W/Ch into 6 ohms (1 kHz, 10%)

High Current, Low Impedance Drive

Discrete Output Stage Circuitry

Tone Control for Treble and Bass

Tone Direct

3 Audio Inputs and 2 Outputs for TAPE, MD, LINE

Optical Digital Output

CD Player

Plays Music CDs and MP3 CDs

Wolfson Single-Bit D/A Converter

20 Track Memory Playback

Supplied Accessories

Check that the following accessories are supplied with this unit.

Tuner

40 Presets

Automatic FM Scan Tuning

RDS (CT/PS/RT) for European models

Others

Aluminum Volume Knob & Front Panel

-Compatible Remote Control

5-Mode Timer (Timer 1, 2, 3, 4/Sleep)

AM loop antenna FM indoor antenna Remote controller (RC-580S)

*In catalogs and on packaging, the letter added to the end of the product name indicates the color of the CR-505. Speciﬁcations and operation

are the same regardless of color.

two batteries (AAA/R03)

Before Using the CR-505

Installing the Remote Controller Batteries

Open the battery compartment, as shown.

Insert the two supplied batteries (AAA/ R03) in accordance with the polarity diagram inside the battery compartment.

Close the battery compartment.

Notes:

• The supplied batteries should last for about six months, although this will vary with usage.

• If the remote controller doesn’t work reliably, try replacing both batteries.

• Don’t mix new and old batteries, or different types of batteries.

• If you intend not to use the remote controller for a long time, remove the batteries to prevent possible leakage and corrosion.

• Drained batteries should be removed as soon as possible to prevent possible leakage and corrosion.

Using the Remote Controller

To use the remote controller, point it at the CR-505’s remote control sensor, as shown below.

Remote control

sensor

5 8

Notes:

• The remote controller may not work reliably if the CR-505 is subjected to bright light, such as direct sunlight or inverter type ﬂuorescent lights. Keep this in mind when installing the CR-505.

• If another remote controller of the same type is used in the same room, or the CR-505 is installed close to equipment that uses infrared rays, the remote controller may not work reliably.

• Don’t put anything, such as a book, on the remote controller, because the buttons may be pressed inadvertently, thereby draining the batteries.

• The remote controller may not work reliably if the CR-505 is installed in a rack behind colored glass doors. Keep this in mind when installing the CR-505.

• The remote controller will not work if there’s an obstacle between it and the CR-505’s remote control sensor.

CR-505

5 m

Controls & Connectors

Front Panel

For detailed information, refer to the pages in parentheses.

Disc Tray

INPUT

Remote control sensor (7)

21 43

STANDBY / ON

PHONES

Receives control signals from the remote controller.

Standby indicator (16)

Lights up when the CR-505 is in Standby mode.

VOLUME control (19)

Adjusts the volume.

[ ] button (20)

Opens and closes the disc tray.

STANDBY/ON button (16)

Sets the CR-505 to On or Standby.

PHONES jack (19)

Used to connect a pair of stereo headphones.

INPUT selector button (19, 24)

Used to select sound sources: CD, FM, AM, TAPE, MD or LINE.

DIRECT

Display

VOLUME

MIN MAX

BASS

TREBLE

PRESET

PUSH TO ENTER

C6 0 A B5 7 8 9

MENU button (22-26)

Displays the Tuner menu. Selects the play mode for CD or MP3.

DIRECT button (27)

Used to select “DIRECT ON” or “DIRECT OFF.”

BASS control (27)

Adjusts the Bass sound while the DIRECT OFF is selected.

TREBLE control (27)

Adjusts the Treble sound while the DIRECT OFF is selected.

[ ] (PRESET [ / ]) control (20, 23–26)

Turn this to select the track, and push to start playing. You can also select the Preset while the FM or AM is selected.

Stop [ ] & Play/Pause [ / ] buttons (20)

Used to stop, start, and pause playback.

Display

For detailed information, refer to the pages in parentheses.

TIMER

REPEAT MEMORY RANDOM

FOLDER

MUTING

TRACK TOTAL

FM STEREO

NAME

REMAIN

RDS

SLEEP

MIN kHz

MHz

Controls & Connectors—Continued

1 RANDOM indicator (22)

Lights up when random playback is used.

2 MEMORY indicator (23)

Lights up when memory playback is used.

3 REPEAT indicator (22)

Lights up when repeat playback is used.

4 TIMER indicators (29)

Lights up when a timer has been set.

5 Disc indicator CD/MP3 (21)

Lights up when CD or MP3 has been read.

6 MUTING indicator (27)

Lights up when the CR-505 is muted.

7 FM STEREO indicator (24)

Lights up when tuned to a stereo FM station.

Rear Panel

For detailed information, refer to the pages in parentheses.

ANTENNA

REMOTE CONTROL

IN IN IN

TAPE LINEMD

OUT OUT

FM 75

8 Tuned indicator (24)

Lights up when the CR-505 is properly tuned to a radio station.

9 RDS indicator (26) (European models only)

Lights up when the CR-505 is tuned to a radio station that supports RDS (Radio Data System).

0 Play/Pause / indicators (20)

Lights up for playback and pause.

A FOLDER/TRACK indicators (21)

Lights up when playing CD or MP3.

B NAME indicator (21)

Lights up when displaying the track name or folder name for the MP3 disc.

C TOTAL/REMAIN indicators (21)

Lights up when displaying the remaining time of the disc.

D SLEEP indicator (30)

Lights up when the Sleep function has been set.

5 6

SPEAKERS

PRE OUT

SUB WOOFER

OPTICAL

DIGITAL

OUT

7 8 9

1 REMOTE CONTROL (15)

This (Remote Interactive) connector can be connected to the connector on another Onkyo component. To use , you must make an analog RCA/phono connection between the CR-505 and your other component, even if they are connected digitally.

2 AM ANTENNA (12, 13)

These push terminals are for connecting an AM antenna.

3 FM 75 Ω ANTENNA (12, 13)

This connector is for connecting an FM antenna.

4 OPTICAL DIGITAL OUT (14, 15)

This connector can be used to connect a Mini Disc recorder or other component with digital input.

5 SUBWOOFER PRE OUT (11)

This RCA/phono connector can be used to connect an active subwoofer.

6 SPEAKERS (11)

These terminals are for connecting left and right speakers.

7 TAPE IN/OUT (14)

These RCA/phono connectors can be used to connect a cassette tape deck or other recorder with analog inputs and outputs.

8 MD IN/OUT (14, 15)

These RCA/phono connectors can be used to connect a Mini Disc recorder or other recorder with analog inputs and outputs.

9 LINE IN (14)

These RCA/phono connectors can be used to connect another component.

Controls & Connectors—Continued

MUTING

INPUT

Remote Controller

STANDBY/ ON

---

10/ 0

DISPLAY

SLEEP

TAPE

MUTING

CLEAR

MODE

CLOCK

CALL

TIMER

ENTER

DIRECT

REPEAT

INPUT

A CLEAR button— Used with memory playback. B ENTER button— Used to set the timers. C MODE button— Used to set Random Play or Mem-

ory Play.

D REPEAT button— Used with repeat playback. E INPUT [ ] [ ] selector buttons— Used to select

sound sources.

F MUTING button— Used to mute the CR-505. G Previous [ ] & Next [ ] buttons (PRESET

buttons)— Used to select the previous or next track when playing CDs, or to select presets when using the radio.

H DIRECT button— Used to select “DIRECT ON” or

“DIRECT OFF.”

Controlling an Onkyo Cassette Tape Deck

An Onkyo Cassette Tape Deck connected via (page 15) can be controlled as follows:

1. Use the INPUT [ ]/[ ] selector buttons to select the

TAPE source.

2. Use the following buttons.

[ ] .................. Fast reverse

DIRECT

TAPE

[ ] .................. Fast forward

[ ]..................... Other-side play

[ ] ...................... Stop

[ ]..................... Play

580

1 STANDBY/ON button— Sets the CR-505 to On or

Standby.

2 Number buttons— Used to select CD tracks. 3 DISPLAY button— Used to display information. 4 SLEEP button— Used with the Sleep function. 5 VOLUME UP [ ] & DOWN [ ] buttons— Used

to set the volume.

6 Fast Reverse [ ] & Fast Forward [ ] buttons

(TUNING buttons)— Used for fast reverse and fast forward when playing CDs, or for tuning when using the radio.

7 CD control buttons— Used to control CD playback. 8 CLOCK CALL button— Used to display the current

time.

9 TIMER button— Used to set the timers. 0 Up [ ] & Down [ ] buttons— Used to set the tim-

ers.

Controlling an Onkyo Mini Disc Recorder

An Onkyo Mini Disc Recorder connected via (page 15) can be controlled as follows:

1. Use the INPUT [ ]/[ ] selector buttons to select the

MD source.

2. Use the following buttons.

SLEEP

REPEAT

MUTING

INPUT

DIRECT

TAPE

[ ] ................... Fast reverse

[ ] ................... Fast forward

[ ] .................. Previous track

[ ] .................. Next track

[ ]...................... Pause

[ ] ...................... Stop

[ ]..................... Play

[REPEAT] .......... Repeat mode

Connecting Your Speakers

Before you connect your speakers, read the following:

• Disconnect the power cord from the wall outlet.

• Read the instructions supplied with your speakers.

• Pay close attention to speaker wiring polarity. In other

words, connect positive (+) terminals only to positive (+) terminals, and negative (–) terminals only to negative (–) terminals. If you get them the wrong way around, the sound will be out of phase and will sound odd.

• Only use speakers with an impedance of 4 ohms or higher. If you use speakers with a lower impedance, and use the ampliﬁer at high volume levels for a long period of time, the built-in protection circuit may be activated.

• Unnecessarily long or very thin speaker cables may affect the sound quality and should be avoided.

• Be careful not to short the positive and negative connections.

Doing so may damage the CD Receiver.

• Don’t connect more than one cable to each speaker terminal. Doing so may damage the CD Receiver.

• If you want to connect a single speaker instead of a pair, connect it to either the left or right speaker terminals, not both.

NONO

SPEAKERS

Connecting the Speaker Cords to the Speaker Connectors

Strip 10 mm from the end of each cord.

Twist the stripped end of the cord.

Push the lever up.

Insert the stripped end of the cord.

Press down the lever. The wire of the stripped end of the cord should appear slightly.

10 mm (7/16“)

Powered

subwoofer

REMOTE

CONTROL

LINE INPUT

IN IN IN

TAPE LINEMD

OUT OUT

LINE INPUT

ANTENNA

OPTICAL

DIGITAL

OUT

FM 75

PRE OUT

SUB WOOFER

PRE OUT

SPEAKERS

The SUBWOOFER PRE OUT should be connected to the input on your powered subwoofer. If your subwoofer doesn’t have an amp built-in, you’ll need to use an external amp. See the manual supplied with your subwoofer for more information.

Right

speaker

Left

speaker

+ 25 hidden pages
