Onkyo A-9155, A-9355 Instruction Manual

Integrated Amplifier

A-9355/A-9155

Instruction Manual

Contents

Introduction.................................... 2

Connections ................................. 10

Thank you for purchasing an Onkyo Integrated Ampli­fier. Please read this manual thoroughly before making
connections and plugging in the unit.
Following the instructions in this manual will enable
you to obtain optimum performance and listening
enjoyment from your new Integrated Amplifier.
Please retain this manual for future reference.

Enjoying Audio Sources.............. 14

Troubleshooting ........................... 17

Specifications .............................. 19

E

n

WARNING:

TO REDUCE THE RISK OF FIRE OR ELECTRIC
SHOCK, DO NOT EXPOSE THIS APPARATUS
TO RAIN OR MOISTURE.

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK,
DO NOT REMOVE COVER (OR BACK). NO
USER-SERVICEABLE PARTS INSIDE. REFER
SERVICING TO QUALIFIED SERVICE
PERSONNEL.

Important Safety Instructions

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in
accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as radia­tors, heat registers, stoves, or other apparatus
(including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or
grounding-type plug. A polarized plug has two
blades with one wider than the other. A grounding
type plug has two blades and a third grounding
prong. The wide blade or the third prong are pro­vided for your safety. If the provided plug does not
fit into your outlet, consult an electrician for
replacement of the obsolete outlet.

10. Protect the power cord from being walked on or
pinched particularly at plugs, convenience recepta­cles, and the point where they exit from the appara­tus.

11. Only use attachments/accessories specified by the
manufacturer.

12.

Use only with the cart, stand,
tripod, bracket, or table spec­ified by the manufacturer, or
sold with the apparatus.
When a cart is used, use cau­tion when moving the
cart/apparatus combination
to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or
when unused for long periods of time.

14. Refer all servicing to qualified service personnel.
Servicing is required when the apparatus has been
damaged in any way, such as power-supply cord or
plug is damaged, liquid has been spilled or objects
have fallen into the apparatus, the apparatus has
been exposed to rain or moisture, does not operate
normally, or has been dropped.

PORTABLE CART WARNING

S3125A

WARNING

RISK OF ELECTRIC SHOCK

DO NOT OPEN

The lightning flash with arrowhead symbol, within an
equilateral triangle, is intended to alert the user to the
presence of uninsulated “dangerous voltage” within
the product’s enclosure that may be of sufficient
magnitude to constitute a risk of electric shock to

persons.
The exclamation point within an equilateral triangle is

intended to alert the user to the presence of important
operating and maintenance (servicing) instructions in
the literature accompanying the appliance.

AVIS

RISQUE DE CHOC ELECTRIQUE

NE PAS

OUVRIR

15. Damage Requiring Service
Unplug the apparatus from the wall outlet and refer
servicing to qualified service personnel under the
following conditions:
A. When the power-supply cord or plug is dam-

aged,

B. If liquid has been spilled, or objects have fallen

into the apparatus,

C. If the apparatus has been exposed to rain or

water,

D. If the apparatus does not operate normally by

following the operating instructions. Adjust only
those controls that are covered by the operating
instructions as an improper adjustment of other
controls may result in damage and will often
require extensive work by a qualified technician
to restore the apparatus to its normal operation,

E. If the apparatus has been dropped or damaged in

any way, and

F. When the apparatus exhibits a distinct change in

performance this indicates a need for service.

16. Object and Liquid Entry
Never push objects of any kind into the apparatus
through openings as they may touch dangerous volt­age points or short-out parts that could result in a
fire or electric shock.
The apparatus shall not be exposed to dripping or
splashing and no objects filled with liquids, such as
vases shall be placed on the apparatus.
Don’t put candles or other burning objects on top of
this unit.

17. Batteries
Always consider the environmental issues and fol­low local regulations when disposing of batteries.

18. If you install the apparatus in a built-in installation,
such as a bookcase or rack, ensure that there is ade­quate ventilation.
Leave 20 cm (8") of free space at the top and sides
and 10 cm (4") at the rear. The rear edge of the shelf
or board above the apparatus shall be set 10 cm (4")
away from the rear panel or wall, creating a flue-like
gap for warm air to escape.

2

Precautions

1. Recording Copyright —Unless it’s for personal use

only, recording copyrighted material is illegal with­out the permission of the copyright holder.

2. AC Fuse —The AC fuse inside the unit is not user-

serviceable. If you cannot turn on the unit, contact
your Onkyo dealer.

3. Care —Occasionally you should dust the unit all

over with a soft cloth. For stubborn stains, use a soft
cloth dampened with a weak solution of mild deter­gent and water. Dry the unit immediately afterwards
with a clean cloth. Don’t use abrasive cloths, thin­ners, alcohol, or other chemical solvents, because
they may damage the finish or remove the panel let­tering.

4. Power
WARNING

BEFORE PLUGGING IN THE UNIT FOR THE
FIRST TIME, READ THE FOLLOWING SEC­TION CAREFULLY.
AC outlet voltages vary from country to country.
Make sure that the voltage in your area meets the
voltage requirements printed on the unit’s rear panel
(e.g., AC 230 V, 50 Hz or AC 120 V, 60 Hz).

The power cord plug is used to disconnect this unit
from the AC power source. Make sure that the plug
is readily operable (easily accessible) at all times.

Some models have a voltage selector switch for
compatibility with power systems around the world.
Before you plug in such a model, make sure that the
voltage selector is set to the correct voltage for your
area.

Pressing the [STANDBY/ON] button on the remote
controller to select Standby mode does not fully
shutdown the unit. If you do not intend to use the
unit for an extended period, remove the power cord
from the AC outlet.

5. Never Touch this Unit with Wet Hands—

handle this unit or its power cord while your hands
are wet or damp. If water or any other liquid gets
inside this unit, have it checked by your Onkyo
dealer.

6. Handling Notes

• If you need to transport this unit, use the original

packaging to pack it how it was when you origi­nally bought it.

• Do not leave rubber or plastic items on this unit

for a long time, because they may leave marks on
the case.

• This unit’s top and rear panels may get warm

after prolonged use. This is normal.

• If you do not use this unit for a long time, it may

not work properly the next time you turn it on, so
be sure to use it occasionally.

Never

For British models

Replacement and mounting of an AC plug on the power
supply cord of this unit should be performed only by
qualified service personnel.

IMPORTANT

The wires in the mains lead are coloured in accordance
with the following code:

Blue: Neutral
Brown: Live

As the colours of the wires in the mains lead of this
apparatus may not correspond with the coloured mark­ings identifying the terminals in your plug, proceed as
follows:
The wire which is coloured blue must be connected to
the terminal which is marked with the letter N or
coloured black.
The wire which is coloured brown must be connected to
the terminal which is marked with the letter L or
coloured red.

IMPORTANT

The plug is fitted with an appropriate fuse. If the fuse
needs to be replaced, the replacement fuse must
approved by ASTA or BSI to BS1362 and have the
same ampere rating as that indicated on the plug. Check
for the ASTA mark or the BSI mark on the body of the
fuse.
If the power cord’s plug is not suitable for your socket
outlets, cut it off and fit a suitable plug. Fit a suitable
fuse in the plug.

For European Models

Declaration of Conformity

We,

ONKYO EUROPE
ELECTRONICS GmbH
LIEGNITZERSTRASSE 6,
82194 GROEBENZELL,
GERMANY

declare in own responsibility, that the ONKYO product
described in this instruction manual is in compliance with the
corresponding technical standards such as EN60065,
EN55013, EN55020 and EN61000-3-2, -3-3.

GROEBENZELL, GERMANY

K. MIYAGI

ONKYO EUROPE ELECTRONICS GmbH

3

❑

❑

❑

❑

❑

❑

❑

❑

❑

❑

❑

❑

❑

❑

❑

❑

❑

❑

❑

❑

❑

❑

❑

❑

❑

❑

❑

❑

❑

❑

❑

❑

❑

❑

Table of Contents

Introduction

Important Safety Instructions ...................2

Precautions ................................................3

Table of Contents.......................................4

Features ......................................................4

Supplied Accessories................................5

Using the Remote Controller ................... 5

Installing the Remote Controller’s Batteries..... 5

Front & Rear Panels...................................6

Front Panel .............................................. 6

Rear Panel............................................... 7

Remote Controller......................................8

Remote Controller (Buttons to control the

A-9355/A-9155) ..........................................8

Remote Controller (Buttons to control Onkyo

products other than A-9355/A-9155).........8

Connections

Connecting the A-9355/A-9155............... 10

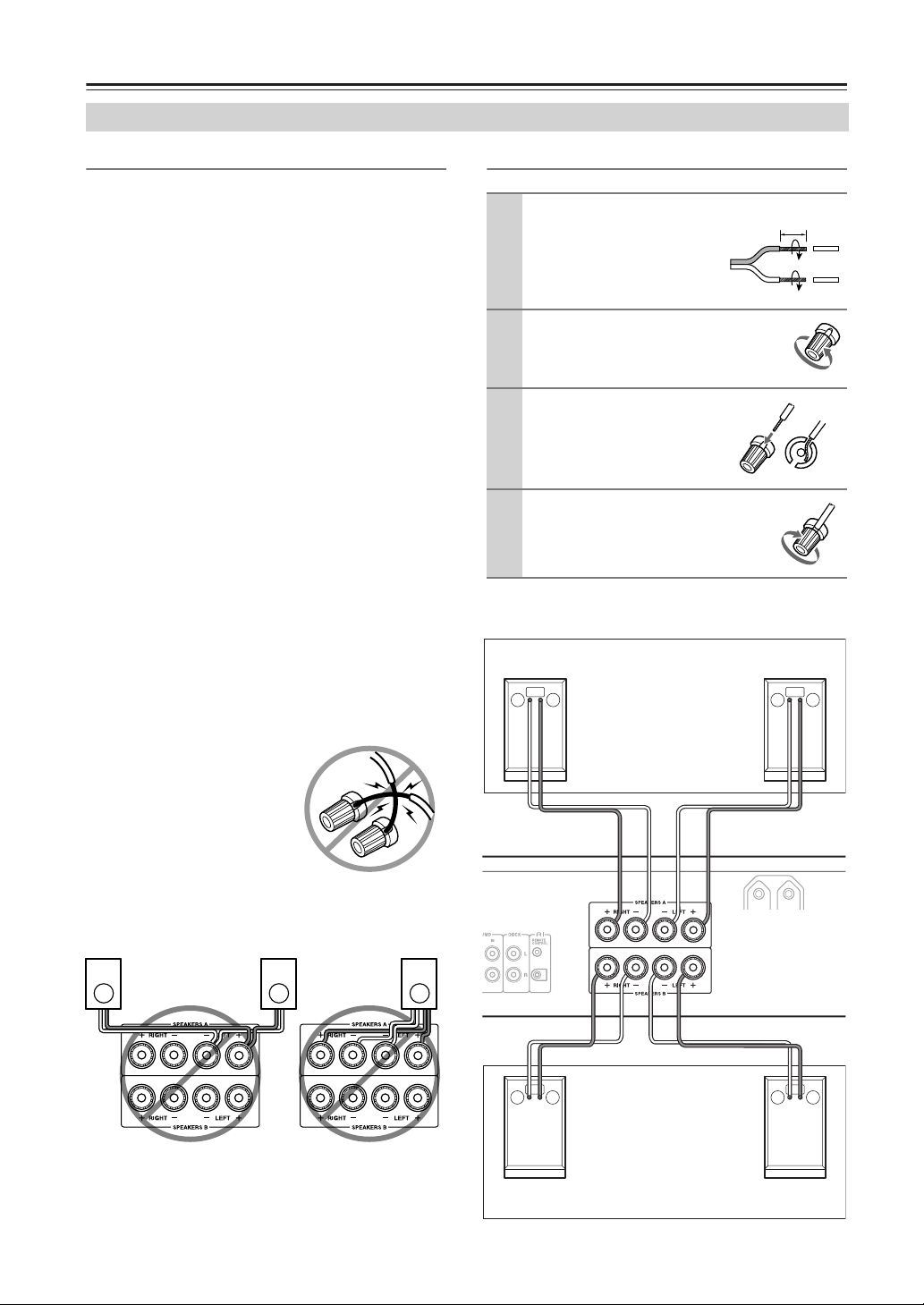

Connecting Your Speakers ...................10

Before Making any Connections ...........11

Audio Components................................11

Connecting a Turntable ...................... 11

Connecting a CD Player ..................... 11

Connecting a Tuner ............................ 12

Connecting a Cassette Deck .............. 12

Connecting an MD Recorder .............. 12

Connecting a Remote Interactive Dock

(RI Dock)....................................... 12

Connecting a TV or Other Component

with an Audio Output..................... 12

Connecting Components.............. 13

Connecting Another Component’s

Power Cord................................13

Enjoying Audio Sources

Connecting the Power Cord.................. 14

Turning On the A-9355/A-9155............. 14

Selecting Speaker Set A or B ...............14

Listening to Components ...................... 15

Muting the A-9355/A-9155 (remote

controller only) .............................. 15

Using Headphones............................. 15

Using the Tone Controls ....................... 16

Setting the PURE DIRECT Function (A-

9355) ............................................ 16

Setting the DIRECT Function (A-9155) ...16

Adjusting the Bass ............................. 16

Adjusting the Treble ........................... 16

Loudness Control .................................. 16

Recording .............................................. 16

Features

A-9355 Integrated Digital Amplifier

Exclusive Onkyo VL Digital 2-Channel
Amplifier

70 W/Ch into 8 ohms (IEC)

85 W/Ch into 8 ohms (JEITA)

Massive Power Transformer

All Discrete Output Stage Circuitry

Low-impedance, Thick Bus Plate

Optimum Gain Volume Circuitry

Audiophile-Grade Capacitors

Precision Motor Volume Control

Tone Control (Bass/ Treble/ Loudness
On/Off)

Pure Direct Mode

Discrete Phono Equalizer Circuitry

6 Audio Inputs and 2 Outputs

Speaker A / B Drive

Thick, Hi-Rigidity, Anti-Resonant Flat
Chassis

Aluminum Front Panel and Volume Knob

Gold-Plated Headphone Jack

AC Outlet Installed

RI-Dock Compatible Remote Control

A-9155 Integrated Amplifier

65 W/Ch into 4 ohms (IEC)

All Discrete Output Stage Circuitry

Optimum Gain Volume Circuitry

Audiophile-Grade Capacitors

Precision Motor Volume Control

Tone Control (Bass/ Treble/ Loudness
On/Off)

Direct Mode

Phono Equalizer Circuitry

5 Audio Inputs and 2 Outputs

Speaker A/B Drive

Hi-Rigidity, Anti-Resonant Chassis

Aluminum Front Panel and Volume Knob

Gold Plated Headphone Jack

AC Outlet Installed

RI-Dock Compatible Remote Control

Others

Troubleshooting.......................................17

Specifications...........................................19

4

Supplied Accessories

Make sure you have the following accessories:

Remote controller & two batteries (AA/R6)

In catalogs and on packaging, the letter added to the end
of the product name indicates the color of the
A-9355/A-9155. Specifications and operation are the
same regardless of color.

Using the Remote Controller

Point the remote controller toward the remote control
sensor.

Remote control sensor

About 5 m
(16 feet)

Installing the Remote Controller’s
Batteries

To open the battery compartment, press

1

the small hollow and slide open the cover.

Insert the two supplied batteries (AA/R6)

2

in accordance with the polarity diagram
inside the battery compartment.

Slide the cover shut.

3

Notes:

• The remote controller may not work reliably if the
A-9355/A-9155 is subjected to bright light, such as
direct sunlight or inverter-type fluorescent lights.
Keep this in mind when installing.

• If another remote controller of the same type is used
in the same room, or the A-9355/A-9155 is installed
close to equipment that uses infrared rays, the remote
controller may not work reliably.

• Don’t put anything, such as a book, on the remote con­troller, because the buttons may be pressed inadvert­ently, thereby draining the batteries.

• The remote controller may not work reliably if the
A-9355/A-9155 is installed in a rack behind colored
glass doors. Keep this in mind when installing.

• The remote controller will not work if there’s an
obstacle between it and the A-9355/A-9155’s remote
control sensor.

Notes:

• If the remote controller doesn’t work reliably, try
replacing the batteries.

• Don’t mix new and old batteries or different types of
batteries.

• If you intend not to use the remote controller for a
long time, remove the batteries to prevent damage
from leakage or corrosion.

• Flat batteries should be removed as soon as possible
to prevent damage from leakage or corrosion.

5

Front & Rear Panels

Front Panel

1234 5678 9JK L

For detailed information, refer to the pages in parentheses.

This illustration is for A-9355.

A

POWER switch (14)

This is the main power switch. When set to OFF, the
A-9355/A-9155 is completely shutdown. When set
to ON, the A-9355/A-9155 can be set to On or
Standby.

STANDBY indicator (14)

B

This indicator lights up when the A-9355/A-9155 is
in Standby mode (Only the remote controller can be
used to set the A-9355/A-9155 to Standby).

PHONES jack (15)

C

This phone jack is for connecting a standard pair of
stereo headphones for private listening.

SPEAKERS A/B buttons and indicators (14)

D

These buttons are used to select which speaker set,
A or B, outputs sound. The indicators show if each
speaker set is on or off.

E

BASS control (16)

This control is for adjusting the level of bass
sounds.

F

TREBLE control (16)

This control is for adjusting the level of treble
sounds.

G

MUTING indicator (15)

The indicator lights up while muting function is
activated.

H

Volume control (15)

This control is used to adjust the volume of the
A-9355/A-9155.

I

(A-9355) PURE DIRECT button and indicator
(16)

This button turns the PURE DIRECT function on
and off. The indicator lights up when the PURE
DIRECT function is on.

(A-9155) DIRECT button and indicator (16)

This button turns the DIRECT function on and off.
The indicator lights up when the DIRECT function
is on.

LOUDNESS button and indicator (16)

J

This button is for reinforcing both treble and bass
when the volume is turned down low. Pressing the
button turns the LOUDNESS function on and off.
The indicator lights up when the LOUDNESS func­tion is on.

Input selector and indicators (15)

K

This control is used to select the input sources.
These indicators show the currently selected input
source.

L Remote control sensor (5)

This sensor receives control signals from the remote
controller.

6

Front & Rear Panels—Continued

879JK6

L

1

Rear Panel

1 43

A-9355

*

A-9155

8796JL

A Grounding terminal

This terminal is for connecting a turntable’s ground
wire.

B SPEAKERS A

These terminal posts are for connecting speaker set
A.

C SPEAKERS B

These terminal posts are for connecting speaker set
B.

D AC OUTLETS

These AC outlets can be used to supply power to
another audio components. The type of outlets
depend on the country in which you purchased the
A-9355/A-9155.

E Power Cord

After finished all the required connections, plug the
power cord into a wall socket.

F PHONO (MM) input

This analog audio input is for connecting a turntable
with a moving-magnet cartridge.

*

2

* Note that the number and geometry of each terminal may vary depending

on product numbers and/or destined countries or lands.
The above illustration depicts a European model.

** *

5

G CD input

This analog audio input is for connecting a CD
player’s analog audio output.

H TUNER input

This analog audio input is for connecting a tuner’s
analog audio output.

I TAPE IN/OUT

This analog audio input and output are for connect­ing a cassette deck with an analog audio output and
input.

J (A-9355) LINE/MD IN/OUT

(A-9155) LINE/DOCK IN/OUT

This analog audio input and output are for connect­ing a component’s with an analog audio output and
input. (MD recorder, TV, RI Dock, etc.)

K DOCK IN (A-9355 only)

This analog audio input is for connecting a compo­nent’s analog audio output (RI Dock, etc.).

L REMOTE CONTROL jacks

The A-9355 has two jacks and the A-9155 has one.
These (Remote Interactive) jacks can be con­nected to the jacks on your other Onkyo audio

components. The A-9355/A-9155’s remote control­ler can then be used to control all of your compo-

nents. To use , you must make an analog audio
connection between the A-9355/A-9155 and each
component.

See pages 10–14 for connection information.

7

Remote Controller

1
2

1

2

3

3

9

10

11

12
13

4

14

Remote Controller (Buttons to control
the A-9355/A-9155)

This section describes the function of the buttons to
control the A-9355/A-9155.

A STANDBY button (14)

This button is used to set the A-9355/A-9155 to
Standby.

B ON button (14)

This button is used to turn on the A-9355/A-9155.

C VOLUME [ ]/[ ] buttons (15)

These buttons adjust the volume of the
A-9355/A-9155.

D INPUT [ ]/[ ] buttons (15)

These buttons are used to select from the following
input sources: LINE, HDD, PHONO, CD, TUNER,
TAPE or MD.

E MUTING button (15)

This button is used to mute the A- 9355/A- 9155.

5

Remote Controller (Buttons to control
Onkyo products other than

4

5

6

7
8

15

16

A-9355/A-9155)

When other Onkyo audio components are connected to
the A-9355/A-9155 via , you can control them by

using the corresponding buttons for each component
listed in the following table.

Example: For 6 - Random button

• When the A-9355 has a MD player connected to the
LINE/MD terminal, or a CD player to the CD termi­nal, the button functions as “RANDOM” control.

• When the A-9355 has a RI dock connected to the
DOCK terminal, or the A-9155 has a RI dock con­nected to the LINE/DOCK terminal, the button func­tions as “SHUFFLE” control.

• The button functions as “DOLBY NR” control, when
a cassette deck is connected to the TAPE terminal.

8

Remote Controller —Continued

DOCK

Connecting

Terminal

Component

and

(Input

Name)
Button
on Remote
Controller

1 - 9 1 - 9 1 - 9

1

2

3 DIMMER DIMMER

4

5

6

7 REPEAT REPEAT REPEAT REPEAT REV MODE

8

10/0 10/0 10//0

>10 >10 >10

BAND BAND

FM MODE FM MODE

PRESET +/– PRESET +/–

TUNING /

////

RANDOM RANDOM

PLAYLIST /

ALBUM /

MENU/SELECT/

LINE/MD
(A-9355)

MD

Recorder

(MD)

(A-9355)

LINE/DOCK

(A-9155)

RI Dock
(DOCK)

SHUFFLE

PLAYLIST /

ALBUM /

MENU/SELECT/

CD TUNER TAPE

CD Player

(CD)

RANDOM DOLBY NR

Tuner

(TUNER)

TUNING /

Cassette Tape

Deck

(TAPE)

/

*

*

*

/

9 PLAY MODE PLAY MODE PLAY MODE

GROUP/SEARCH GROUP SEARCH

10

11 MEMORY MEMORY MEMORY

12 ENTER ENTER ENTER

13 CLR CLR CLR

14 DISPLAY DISPLAY BACKLIGHT DISPLAY

15

16 SCROLL SCROLL BACKLIGHT

//// /

(MP3 CD)

• Note also that some of the connected products may not be controlled with these buttons. For detailed informa­tion, refer to the relevant manuals provided for the individual products.

•For detailed information on the function of individual buttons, see Instruction Manual of the listed components.

• In the table above, blank cells indicate no function is available by pressing the button.

*For a dual cassette deck, only the deck-B can be controlled.

9

Connecting the A-9355/A-9155

Connecting Your Speakers

Speaker Connection Precautions

You can connect one or two sets of speakers (A/B) to
the A-9355/A-9155, and select which set outputs sound,
or use both sets at the same time.
For both speakers A and B, make sure to connect them
with Left and Right in pairs.

• If you connect both speaker sets to terminal A and B
respectively to deliver sound at the same time, only
connect speakers with an impedance of 8 ohms or
more but less than 16 ohms. If you use speakers with
a lower impedance, and use the A-9355/A-9155 at
high volume levels for a long period of time, the
built-in protection circuit may be activated.

• If you use speakers with an impedance of 4 to 8
ohms, connect them to either terminal A or B, or oth­erwise do not use both speaker sets simultaneously to
deliver sound.

• Disconnect the power cord from the wall outlet
before making any connections.

• Read the instructions supplied with your speakers.

•Pay close attention to speaker wiring polarity. In other
words, connect positive (+) terminals only to positive
(+) terminals, and negative (–) terminals only to nega­tive (–) terminals. If you get them the wrong way
around, the sound will be out of phase and will sound
unnatural.

• Unnecessarily long or very thin speaker cables may
affect the sound quality and should be avoided.

• Be careful not to short the
positive and negative wires.
Make sure also the wires do
not touch the rear panel.
Doing so may damage the
A-9355/A-9155.

• Don’t connect more than one
cable to each speaker terminal. Doing so may damage
the A-9355/A-9155.

• Don’t connect a speaker to more than one pair of
speaker terminals.

Connecting the Speaker Cables

Strip about 15 mm (5/8

1

inch) of insulation from
the ends of the speaker
cables, and twist the bare
wires tightly, as shown.

Unscrew the terminal.

2

Fully insert the bare

3

wires.

Screw the terminal tight.

4

The following illustration shows which speaker should
be connected to each pair of terminals.

Right

speaker

Speaker set A

+–

The illustration repre­sents the A-9355; how­ever, it is also applicable
to the A-9155. So use
the same connection
procedures.

15 mm

(5/8")

Left

speaker

+–

10

A-9355

Right

speaker

+– +–

Speaker set B

Left

speaker

Connecting the A-9355/A-9155—Continued

Before Making any Connections

•Always refer to the instructions that came with the
component that you are connecting.

• Do not plug in the power cord until all connec­tions have been properly made.

• Do not bind audio cables with power cords and
speaker cables. Doing so may adversely affect the
sound quality.

•To prevent interference, keep power cords and
speaker cables away from the tuner’s antenna.

Audio Components

Connecting a Turntable

The A-9355/A-9155’s PHONO input jacks are for use
with moving-magnet (MM) type cartridges.
Use an analog audio cable to connect the
A-9355/A-9155’s PHONO L/R jacks to the audio out­put jacks on the turntable, as shown.

If your amplifier has shorting pin plugs, remove the
shorting pin plugs before connecting your turntable.

RCA Audio Connection Color Coding

• Red connectors are used for the right channel, and
white connectors are used for the left channel.

Left (white)

Right (red)

L

R

• Push each plug in all the way to make a good con­nection (loose connections can cause noise or
malfunctions).

Right!

Wrong!

Connecting a CD Player

Use an analog audio cable to connect the
A-9355/A-9155’s CD L/R jacks to the analog audio out­put jacks on the CD player, as shown.

AUDIO OUT

Ground wire

Notes:

• If the turntable has a ground wire, connect it to
A-9355/A-9155’s GND terminal. With some turnta­bles, connecting the ground wire may cause hum, in
which case it should be disconnected.

• If the turntable has a moving-coil (MC) type car­tridge, you’ll need a commercially available MC
phono preamp. In this case, connect the turntable to
the phono preamp’s input, and connect the phono
preamp’s output to the A-9355/A-9155’s PHONO
L/R jacks.

ANALOG

OUT

11

Connecting the A-9355/A-9155—Continued

Connecting a Tuner

Use an analog audio cable to connect the
A-9355/A-9155’s TUNER L/R jacks to the analog
audio output jacks on the tuner, as shown.

OUT

Connecting a Cassette Deck

Use an analog audio cable to connect the
A-9355/A-9155’s TAPE IN L/R jacks to the cassette
deck’s analog audio output jacks, and use another ana­log audio cable to connect the A-9355/A-9155’s TAPE
OUT L/R jacks to the cassette deck’s analog audio input
jacks, as shown.

Connecting a Remote Interactive Dock
(RI Dock)

Use an analog audio cable to connect the A-9355’s
DOCK Jack or A-9155’s LINE/DOCK IN jack to the RI

Dock’s analog audio output jacks, and use an cable
to connect the A-9355/A-9155’s jack to the RI
Dock’s jack, as shown.

*

Remote Interactive
Dock

* See page 13 to connect multiple audio components using

jacks.

Note:

If you use the Onkyo Remote Interactive Dock (DS­A1), flip the RI MODE switch to “HDD” which is
located on the underside.

----

R

AUDIO OUT

L

/

REC

PLAY

(IN)

(OUT)

Connecting an MD Recorder

Use an analog audio cable to connect the
A-9355/A-9155’s MD IN L/R jacks to the MD
recorder’s analog audio output jacks, and use another
analog audio cable to connect the A-9355/A-9155’s MD
OUT L/R jacks to the MD recorder’s analog audio input
jacks, as shown.

REC

PLAY

(IN)

(OUT)

Connecting a TV or Other Component with
an Audio Output

Use an analog audio cable to connect the A-9355’s
LINE/MD IN jack or A-9155’s LINE/DOCK IN jack to
the analog audio output jacks on the TV or other com­ponent, as shown.

AUDIO OUT

Note:

If your TV has no audio output, you can connect the
A-9355/A-9155 to an audio output on your VCR and
use its tuner.

12

Connecting the A-9355/A-9155—Continued

Connecting Components

With (Remote Interactive), you can control your

-compatible Onkyo CD player, Tuner, and so on
with the A-9355/A-9155’s remote controller.
If you connect other Onkyo components to the

A-9355/A-9155 with the appropriate and audio
cables, you can use the following system functions.

cables are special cables solely for use with Onkyo
products (no cables are supplied with the

A-9355/A-9155).

When you set the A-9355/A-9155 to Standby, all con­nected components will go on Standby as well (the
A-9355/A-9155’s POWER switch must be set to ON for
this to work).

Direct Change

When playback is started on an audio component con­nected via , the A-9355/A-9155 will automatically

select that component as the input source.

Remote Control Operation

You can control all components in your system by using
the A-9355/A-9155’s remote controller. See page 8 and
9 for more information.

•To use , you must make an analog audio con-

nection between the A-9355/A-9155 and each
audio component.

A-9355/A-9155

connector

• A-9355: The A-9355 has two jacks. If you want
to connect two or more audio components to the A­9355, it is advisable to connect any of two compo­nents directly to the A-9355 for better audio quality,
in stead of linking all the components using the daisy
chain method.

• Use only dedicated cables for connections
(no cables are supplied with the

A-9355/A-9155).

• The A-9355 has two jacks. They’re all the same,
so you can use either of them.

• jacks should be connected only to Onkyo compo­nents. Connecting them to another manufacturer’s
component may cause the A-9355/A-9155 to mal­function.

• Some components may not support all functions.
See the manuals supplied with your other Onkyo
components for more information.

Connecting Another Component’s Power
Cord

The A-9355/A-9155 has a switched AC OUTLETS on
its rear panel. These can be used to connect the power
cord of another audio component that you intend to use
with the A-9355/A-9155.
After you power on the A-9355/A-9155, you can feed or
shut off power to the connected component by turning
on or off the remote controller switch. Use the AC outlet
of the A-9355/A-9155 to feed only components that
have no STANDBY/ON function, like Onkyo DX-7355

CD player. For Onkyo products equipped with ter­minals that have a STANDBY/ON function, allocate a
normal outlet that is energized on a steady basis.

Note:

Do not connect any other devices than audio compo­nents.

Onkyo CD player
(DX-7355), etc.

Onkyo Tuner, etc.

Remote Interactive
Dock, etc.

Notes:

• Push each plug in all the way to make a good connec­tion.

connector

connector

Remote control cable

A-9355

Caution:

Make sure that the maximum power requirement of the
component connected to the AC OUTLETS do not
exceed the capacity printed on the A-9355/A-9155’s
rear panel (100W).

13

Enjoying Audio Sources

Remote

controller

14

Connecting the Power Cord

• Before connecting the power cord, connect all your
speakers and audio components.

•Turning on the A-9355/A-9155 may cause a momen­tary power surge, which might interfere with other
electrical equipment on the same circuit. If this is a
problem, plug the A-9355/A-9155 into a different
branch circuit.

To wall outlet

For home electric appliances which require a measure­ble amount of power, do not use the same wall outlet in
which the A-9355/A-9155 is plugged so that the
A-9355/A-9155 may operate under optimum condi­tions. Allocate them another wall outlet.

Turning On the A-9355/A-9155

POWER

1

A-9355/

A-9155

STANDBY
indicator

STANDBY

ON

Press the [POWER] switch.

The A-9355/A-9155 retains the power
mode (on/standby) in which the ampli­fier was the last time you turned off the
system.

Notes:

• The A-9355/A-9155 is shipped with
the [POWER] switch in the OFF

position ( ). When the power cord
is connected for the very first time or
the [POWER] switch is set to ON

() position, the A-9355/A-9155
will turn on.

• When it’s turned on, the
A-9355/A-9155 outputs no sound
for about five seconds. This allows
the circuits to stabilize.

2

Notes:

•To shut down the A-9355/A-9155 completely, set the
[POWER] switch to the OFF position ( ).

•For the sake of speaker protection, the A-9355/A-9155
waits for approximately 10 seconds after powered on
before the system becomes stable to start delivering
sound.

To turn the A-9355/A-9155 on,
press the [ON] button on the
remote controller.

The STANDBY indicator goes off.

To set the A-9355/A-9155 to
Standby, press the [STANDBY]
button on the remote controller.

The STANDBY indicator lights up.

Powering on the whole system

This operation is available when you have Onkyo products
with STANDBY/ON function connected through

Press first the ON button on the remote controller to turn
the A-9355/A-9155 on. Press once again the ON button on
the remote controller to power on every Onkyo component

that is connected to the A-9355/A-9155 via .

.

Powering on the all the components at a time
that are connected to the A-9355/A-9155

With the A-9355/A-9155 powered on, press and hold the
ON button on the remote controller for more than 16 sec­onds.The system goes Standby. Now you can power on all
the components connected to the A-9355/A-9155 at a time
by pressing the ON button on the remote controller.

•To restore the setting, use the same procedure mentioned
above.

Selecting Speaker Set A or B

SPEAKER selector

You can select which set of speakers outputs sound, or
you can use both sets at the same time.

To output sound from the speakers connected to the
SPEAKERS A terminals, press the SPEAKERS [A]
button. The indicator above that button will light up.
To output sound from the speakers connected to the
SPEAKERS B terminals, press the SPEAKERS [B]
button. The indicator above that button will light up.
To output sound from all connected speakers, press the
SPEAKERS [A] and SPEAKERS [B] button so that
both indicators are on.

Enjoying Audio Sources—Continued

Listening to Components

Volume

VOLUME

/

1

A-9355/
A-9155

Remote

controller

Turn the input selector to select
the component that you want to
listen to.

LINE/MD (A-9355): Select to listen
to the component connected to the
LINE/MD jacks.
DOCK (A-9355): Select to listen to
the component connected to the
DOCK jacks.
LINE/DOCK (A-9155): Select to lis­ten to the component connected to the
LINE/DOCK jacks.
PHONO: Select to listen to the turnta­ble connected to the PHONO jacks.
CD: Select to listen to the component
connected to the CD jacks.
TUNER: Select to listen to the compo­nent connected to the TUNER jacks.

TAPE: Select to hear the component
connected to the TAPE IN jacks.

When selecting with the remote con­troller, use the INPUT [ ]/[ ] but-

tons.

Input selector

INPUT

/

MUTING

3

A-9355/
A-9155

Remote

controller

To adjust the volume, use the
A-9355/A-9155’s Volume control,
or the remote controller’s VOL-

UME [ ]/[ ] buttons.

Turn Volume control clockwise to
increase the volume or counterclock­wise to decrease the volume.

Muting the A-9355/A-9155 (remote
controller only)

You can temporarily mute the output of the
A-9355/A-9155.

1

Press the remote controller’s
[MUTING] button.

The A-9355/A-9155 is muted. The
MUTING indicator flashes.

To unmute the A-9355/A-9155,
press the [MUTING] button again.

Note:

The Mute function will be cancelled if
the remote controller’s VOLUME but­tons are pressed.

Using Headphones

You can connect a pair of stereo headphones (1/4-inch
phone plug) to the A-9355/A-9155’s PHONES jack for
private listening.

2

Start playback on the selected
component.

Notes:

•Always turn down the volume before connecting your
headphones.

• (A-9355) All connected speakers are turned off while
the headphones plug is inserted in the PHONES jack.

• (A-9155) All connected speakers are not turned off
even when the headphones plug is inserted in the
PHONES jack. Press the SPEAKERS [A] or [B] but­ton to mute the speakers.

15

Enjoying Audio Sources—Continued

Using the Tone Controls

(A-9355) PURE DIRECT
(A-9155) DIRECT

TREBLE

BASS

Setting the PURE DIRECT Function
(A-9355)

The [PURE DIRECT] button turns the
PURE DIRECT function on and off.
When the PURE DIRECT function is
off, the tone controls can be used to
adjust the sound, and the PURE DIRECT indicator goes
off.
When the PURE DIRECT function is on, the tone con­trols are bypassed, so you can enjoy a pure sound. The
PURE DIRECT indicator lights up.

Setting the DIRECT Function (A-9155)

The [DIRECT] button turns the
DIRECT function on and off.
When the DIRECT function is off, the
tone controls can be used to adjust the
sound, and the DIRECT indicator goes off.
When the DIRECT function is on, the tone controls are
bypassed, so you can enjoy a pure sound. The DIRECT
indicator lights up.

Adjusting the Bass

The BASS control adjusts bass
sounds. Turn it up to make them
louder. Turn it down to make them
quieter.

Adjusting the Treble

The TREBLE control adjusts treble
sounds. Turn it up to make them
louder. Turn it down to make them
quieter.

Loudness Control

By pressing the [LOUDNESS] button,
both treble and bass are reinforced
when the volume is turned down low.
Use this button according to the music
source and according to the listening area. Its purpose is
to enrich the natural sound effects of both the treble and
bass.

16

The indicator lights up when the LOUDNESS function
is on.

• When the PURE DIRECT (or DIRECT) function is
on, turn the function off to use the LOUDNESS
effect.

Recording

Unless you have the full consent of the
copyright holder, copyright laws prohibit
using your recordings for anything other
than personal enjoyment!

Input selector

1

2

3

Notes:

• (A-9355) You can record on a recorder that’s con­nected to the LINE/MD OUT or TAPE OUT L/R
jacks.

• (A-9155) You can record on a recorder that’s con­nected to the TAPE OUT L/R or LINE/DOCK OUT
L/R jacks.

• The tone controls have no effect on the signal being
recorded.

Use the input selector to select
the component that you want to
record from.

Prepare the recorder:

• Set the recorder so that it’s ready for
recording.

• If necessary, adjust the recording
level on the recorder.

• See the recorder’s manual for more
information.

Start playback on the component
selected in step 1.

Note:

If you select another input source dur­ing recording, the newly selected input
source will be recorded.

Troubleshooting

If you have any trouble using the A-9355/A-9155, look for a solution here. If you can’t resolve the issue yourself,
contact your Onkyo dealer.

Power

Can’t turn on the A-9355/A-9155.

• Make sure that the power cord is properly plugged into the wall outlet.

• Unplug the power cord from the wall outlet, wait ten seconds or more, then plug it in again.

The STANDBY indicator is flashing.

• The amp protection circuit has been activated. Remove the power cord from the wall outlet immediately and contact
your Onkyo dealer.

Turning on the system from Standby without using remote controller.

•Begin by turning the POWER switch off ( ). Next, with the SPEAKERS A button pressed, turn the POWER switch
on ( ).

Audio

There’s no sound or it’s very quiet.

• Make sure that all audio plugs are pushed in all the way (page 11).

• Make sure that the inputs and outputs of all components are connected properly.

• Make sure that the polarity of the speaker cables is correct and that the bare wires are in contact with the metal part
of each speaker terminal (page 10).

• Make sure that the correct input source is selected (page 15).

• If the MUTING indicator flashes, press the remote controller’s [MUTING] button to unmute the A-9355/A-9155
(page 15).

• Make sure that none of the cables are bent, twisted, or damaged.

•To use a turntable with a moving-coil (MC) type cartridge, you need a commercially available MC phono preamp
(page 11).

•Verify if the SPEAKERS selector is configured correctly. If “OFF” is selected, no sound will be output from any of
the speakers (page 14).

Noise can be heard.

• Using cable ties to bundle audio cables with power cords, speaker cables, and so on may degrade the audio perfor­mance, so don’t bundle them together.

• An audio cable may be picking up interference. Try repositioning your cables.

The tone controls have no effect.

• (A-9355) If the PURE DIRECT indicator lights up, the PURE DIRECT function is on and the tone controls have no
effect. Press the [PURE DIRECT] button to turn the function off. The PURE DIRECT indicator will go off (page 16).

• (A-9155) If the DIRECT indicator lights up, the DIRECT function is on and the tone controls have no effect. Press
the [DIRECT] button to turn the function off. The DIRECT indicator will go off (page 16).

Remote Controller

The remote controller doesn’t work.

• Make sure that the batteries are installed with the correct polarity (page 5).

• Install new batteries. Don’t mix different types of batteries or old and new batteries (page 5).

• Make sure that the remote controller is not too far away from the A-9355/A-9155 and that there’s no obstruction
between the remote controller and the A-9355/A-9155’s remote control sensor (page 5).

• Make sure that the A-9355/A-9155 is not subjected to direct sunshine or inverter-type florescent lights. Relocate if
necessary (page 5).

• If the A-9355/A-9155 is installed in a rack or cabinet with colored glass doors, the remote controller may not work
reliably when the doors are closed (page 5).

Can’t control other components?

• If it’s an Onkyo component, make sure that the cable and analog audio cable are connected properly. Connecting
only an cable won’t work. (page 13)

17

Troubleshooting—Continued

The A-9355/A-9155 contains a microcomputer for signal processing and control functions. In very
rare situations, severe interference, noise from an external source, or static electricity may cause
it to lock up. In the unlikely event that this happens, unplug the power cord from the wall outlet,
wait at least ten seconds, and then plug it back in again.

Onkyo is not responsible for damages (such as CD rental fees) due to unsuccessful recordings
caused by the unit’s malfunction. Before you record important data, make sure that the material
will be recorded correctly.

How to reset:

Begin by turning the POWER switch off ( ). Next, with the SPEAKERS A and B buttons pressed at the
same time, turn the POWER switch on ( ). The whole display lights up and then the A-9355/A-9155 is

reset, with the system turned on.

18

Specifications

A-9355
Integrated Digital Amplifier

Rated Output Power

European (IEC): 2ch × 70 W at 4 Ω, 1kHz, 2ch driven
Maximum Output Power (JEITA): 2ch × 85 W at 4 Ω, 1kHz, 2ch driven

Dynamic power: 75 W + 75 W (4 Ω)

38 W + 38 W (8 Ω)

THD (total harmonic distortion): 0.08 % (1 kHz, 1 W)

Damping factor: 60 (1 kHz, 8 Ω)
Input sensitivity and impedance: 200 mV, 50 kΩ (LINE)

2.5 mV, 50 kΩ (PHONO MM)

Output level and impedance: 200 mV, 2.2 kΩ (REC OUT)
Phono overload: 70 mV (MM, 1 kHz, 0.5 %)
Frequency response: 10 Hz–60 kHz, +1 dB–3 dB (CD)
Tone control: +10 dB, –10 dB, 100 Hz (BASS)

+10 dB, –10 dB, 10 kHz (TREBLE)
+8 dB, 100 Hz (LOUDNESS)
+4 dB, 10 kHz (LOUDNESS)

SN ratio: 100 dB (CD, IHF-A)

70 dB (PHONO, IHF-A)

Speaker impedance: 4–16 Ω

Power supply: AC 230 V, 50 Hz

AC 120 V, 60 Hz
AC 220-230 V, 50/60 Hz

Power consumption

European: 46 W
Asian: 45 W (120 V)

51 W (220V)

Stand-by power consumption: 0.2 W
Dimensions (W × H × D): 435 × 124 × 344 mm

17-1/8" × 4-7/8" × 13-9/16"

Weight: 7.3 kg (16.1 lbs)

A-9155
Integrated Amplifier

2ch × 65 W at 4 Ω, 1kHz, 2ch driven
2ch × 80 W at 4 Ω, 1kHz, 2ch driven
90 W + 90 W (4 Ω)
55 W + 55W (8 Ω)

0.08 % (Power Rated)

0.08 % (1 kHz, 1 W)
60 (1 kHz, 8 Ω)
150 mV, 50 kΩ (LINE)

2.5 mV, 50 kΩ (PHONO MM)
150 mV, 2.2 kΩ (REC OUT)
64 mV (MM, 1 kHz, 0.5 %)
10 Hz–100 kHz, +1 dB–3 dB (CD)
+10 dB, –10 dB, 100 Hz (BASS)
+10 dB, –10 dB, 10 kHz (TREBLE)
+8 dB, 100 Hz (LOUDNESS)
+4 dB, 10 kHz (LOUDNESS)
100 dB (CD, IHF-A)
70 dB (PHONO, IHF-A)
4–16 Ω

AC 230 V, 50 Hz

160 W

0.2 W
435 × 121 × 344 mm
17-1/8" × 4-3/4" × 13-9/16"

6.8 kg (15.0 lbs)

Analog inputs: PHONO, CD, TUNER,

TAPE, LINE/MD, DOCK

Analog outputs: LINE/MD, TAPE
Speaker outputs: 2 (A, B)
Phones: 1

Specifications and features are subject to change without notice.

PHONO, CD, TUNER,
TAPE, LINE/DOCK
LINE/DOCK, TAPE
2 (A, B)
1

19

Sales & Product Planning Div. : 2-1, Nisshin-cho, Neyagawa-shi, OSAKA 572-8540, JAPAN
Tel: [phone] Fax: [phone]

ONKYO U.S.A. CORPORATION

18 Park Way, Upper Saddle River, N.J. 07458, U.S.A.
Tel: [phone] Fax: [phone] http://www.us.onkyo.com/

ONKYO EUROPE ELECTRONICS GmbH

Liegnitzerstrasse 6, 82194 Groebenzell, GERMANY
Tel: [phone] Fax: [phone] http://www.eu.onkyo.com/

ONKYO EUROPE UK Office

Suite 1, Gregories Court, Gregories Road, Beaconsfield, Buckinghamshire, HP9 1HQ
UNITED KINGDOM Tel: [phone] Fax: [phone]

ONKYO CHINA LIMITED

Unit 1 & 12, 9/F, Ever Gain PlazaTower 1, 88, Container Port Road, Kwai Chung,
N.T., HONG KONG Tel: [phone] Fax: [phone]
http://www.ch.onkyo.com/

SN 29344443

(C) Copyright 2007 ONKYO CORPORATION Japan. All rights reserved.

20

HOMEPAGE

http://www.onkyo.com/

D0702-1

* 2 9 3 4 4 4 4 3 *
