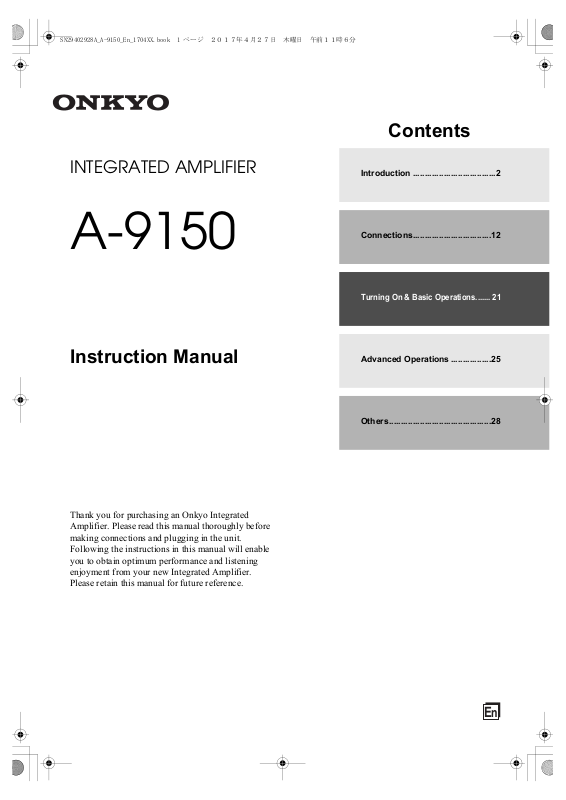

INTEGRATED AMPLIFIER

A-9150

Instruction Manual

Introduction ...................................2

Connections.................................12

Turning On & Basic Operations....... 21

Advanced Operations .................25

Others...........................................28

Thank you for purchasing an Onkyo Integrated Amplifier. Please read this manual thoroughly before making connections and plugging in the unit. Following the instructions in this manual will enable you to obtain optimum performance and listening enjoyment from your new Integrated Amplifier. Please retain this manual for future reference.

Introduction

WARNING:

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE.

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to

persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

WARNING

RISK OF ELECTRIC SHOCK

DO NOT OPEN

RISQUE DE CHOC ELECTRIQUE

NE PAS OUVRIR

AVIS

PORTABLE CART WARNING

S3125A

Important Safety Instructions

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in

accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or when unused for long periods of time.

14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

15. Damage Requiring Service Unplug the apparatus from the wall outlet and refer servicing to qualified service personnel under the following conditions:

A. When the power-supply cord or plug is damaged, B. If liquid has been spilled, or objects have fallen

into the apparatus,

C. If the apparatus has been exposed to rain or water, D. If the apparatus does not operate normally by

following the operating instructions. Adjust only those controls that are covered by the operating instructions as an improper adjustment of other controls may result in damage and will often require extensive work by a qualified technician to restore the apparatus to its normal op

E. If the apparatus has been dropped or damaged in

any way, and

F. When the apparatus exhibits a distinct change in

performance this indicates a need for service.

16. Object and Liquid Entry Never push objects of any kind into the apparatus through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. The apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases shall be placed on the apparatus. Don’t put candles or other burning objects on top of this unit.

17. Batteries Always consider the environmental issues and follow local regulations when disposing of batteries.

18. If you install the apparatus in a built-in installation, such as a bookcase or rack, ensure that there is adequate ventilation. Leave 20 cm (8") of free space at the top and sides and 10 cm (4") at the rear. The rear edge of the shelf or board above the apparatus shall be set 10 cm (4") away from the rear panel or wall, creating a flue-like gap for warm air to escape.

eration,

Precautions

1. Recording Copyright—Unless it’s for personal use only, recording copyrighted material is illegal without the permission of the copyright holder.

2. AC Fuse—The AC fuse inside the unit is not userserviceable. If you cannot turn on the unit, contact your Onkyo dealer.

3. Care—Occasionally you should dust the unit all over with a soft cloth. For stubborn stains, use a soft cloth dampened with a weak solution of mild detergent and water. Dry the unit immediately afterwards with a clean cloth. Don’t use abrasive cloths, thinners, alcohol, or other chemical solvents, because they may damage the finish or remove the panel lettering.

4. Power WARNING

BEFORE PLUGGING IN THE UNIT FOR THE FIRST TIME, READ THE FOLLOWING SECTION CAREFULLY. AC outlet voltages vary from country to country. Make sure that the voltage in your area meets the voltage requirements printed on the unit’s rear panel (e.g., AC 230 V, 50 Hz or AC 120 V, 60 Hz).

The power cord plug is used to disconnect this unit from the AC power source. Make sure that the plug is readily operable (easily accessible) at all times.

For models with [POWER] button, or with both [POWER] and [ON/STANDBY] buttons: Pressing the [POWER] button to select OFF mode does not fully disconnect from the mains. If you do not intend to use the unit for an extended period, remove the power cord from the AC outlet.

For models with [ON/STANDBY] button only: Pressing the [ON/STANDBY] button to select Standby mode does not fully disconnect from the mains. If you do not intend to use the unit for an extended period, remove the power cord from the AC outlet.

5. Preventing Hearing Loss Caution

Excessive sound pressure from earphones and headphones can cause hearing loss.

6. Batteries and Heat Exposure Warning

Batteries (battery pack or batteries installed) shall not be exposed to excessive heat as sunshine, fire or the like.

7. Never Touch this Unit with Wet Hands—Never handle this unit or its power cord while your hands are wet or damp. If water or any other liquid gets inside this unit, have it checked by your Onkyo dealer.

8. Handling Notes

• If you need to transport this unit, use the original

packaging to pack it how it was when you originally bought it.

• Do not leave rubber or plastic items on this unit for

a long time, because they may leave mar case.

ks on the

• This unit’s top and rear panels may get warm after prolonged use. This is normal.

• If you do not use this unit for a long time, it may not work properly the next time you turn it on, so be sure to use it occasionally.

For U.S. models

FCC Information for User CAUTION:

The user changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

NOTE:

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

• Reorient or relocate the receiving antenna.

• Increase the separation between the equipment and receiver.

• Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

• Consult the dealer or an experienced radio/TV technician for help.

For Canadian Models

NOTE:

CAN ICES-3 B/NMB-3 B. For models having a power cord with a polarized plug:

CAUTION:

MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

TO PREVENT ELECTRIC SHOCK,

Modèle pour les Canadien

REMARQUE:

CAN ICES-3 B/NMB-3 B. Sur les modèles dont la fiche est polarisée:

ATTENTION:

ÉLECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU’AU FOND.

POUR ÉVITER LES CHOCS

For British models

Replacement and mounting of an AC plug on the power supply cord of this unit should be performed only by qualified service personnel.

IMPORTANT

The wires in the mains lead are coloured in accordance with the following code:

Blue: Neutral

Brown: Live

As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows: The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black. The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.

IMPORTANT

The plug is fitted with an appropriate fuse. If the fuse needs to be replaced, the replacement fuse must approved by ASTA or BSI to BS1362 and have the same ampere rating as that indicated on the plug. Check for the ASTA mark or the BSI mark on the body of the fuse. If the power cord’s plug is not suitable for your socket outlets, cut it off and fit a suitable plug. Fit a suitable fuse in the plug.

Supplied Accessories

Make sure you have the following accessories:

Remote controller and two batteries

Remote controller (RC-959S) . . . . . . . . . . . . . . . . . . . . (1)

Batteries (R03/AAA). . . . . . . . . . . . . . . . . . . . . . . . . . . (2)

(Note for China: The battery for the remote controller is not supplied for this unit.)

Power cord

For European Models

Declaration of Conformity We declare, under our sole

responsibility, that this product complies with the standards:

– Safety – Limits and methods of

measurement of radio disturbance

characteristics – Limits for harmonic current emissions – Limitation of voltage changes, voltage fluctuations and flicker – RoHS Directive, 2011/65/EU

WEEE

http://www.onkyo.com/manual/weee/weee.pdf

Power cord (5.9 ft/1.8 m). . . . . . . . . . . . . . . . . . . . . . . . (1)

(Plug type varies from country to country.)

In catalogs and on packaging, the letter at the end of the product name indicates the color. Specifications and operations are the same regardless of color.

Features

• Three-stage Inverted Darlington Circuitry

• Digital input capable of handling 192 kHz sampling rate (2 COAXIAL/2 Optical)

• 384 kHz/32 bit D/A converter from Asahi Kasei

• Phase Matching Bass Technology

• 1.6 mm Full Flat Chassis

• 60 W/ch (4 ohms, from 20 Hz - 20 kHz, 0.08 % THD, 2ch Driven)

• DIDRC (Dynamic Intermodulation Distortion Reduction Circuiry)

• High Current Low Impedance Drive

• Optimum Gain Volume

• Aluminum Front Panels and Volume Knob

• Direct Mode Switch

• Newly developed SPECTRA amplifier module

• New custom high sound quality 10,000uF capacitor

• Designed for sound quality: digital circuit power is shut off when analog input channels are working

Contents

Introduction

Important Safety Instructions ..........................................2

Precautions .......................................................................3

Supplied Accessories ......................................................4

Features.............................................................................5

Before Using the Integrated Amplifier ............................7

Installing the Batteries.....................................................7

Using the Remote Controller...........................................7

Installing the Integrated Amplifier....................................7

Getting to Know the Integrated Amplifier.......................8

Front Panel .....................................................................8

Rear Panel ......................................................................9

Remote Controller.........................................................10

Connections

Connections ....................................................................12

Connecting Your Speakers ...........................................12

Cable and Jacks ...........................................................14

Connecting a CD Player ...............................................15

Connecting a Tuner ......................................................16

Connecting a Network Audio Player and an RI dock ....17

Connecting a Turntable.................................................18

Connecting a Cassette Tape Deck ...............................18

Connecting a Recording Component............................18

Using the Integrated Amplifier as a Preamplifier...........19

Using the Integrated Amplifier as a Power Amplifier.....19

Connecting the Power Cord..........................................20

Turning On & Basic Operations

Basic Operations ............................................................21

Turning On/Off the Integrated Amplifier ........................21

Selecting Speakers A and Speakers B .........................22

Adjusting the Volume ....................................................22

Selecting the Input Source............................................23

Using the Direct Function..............................................23

Using the PHASE MATCHING BASS Function ............23

Adjusting the Bass, Treble and Balance .......................24

Muting the Sound..........................................................24

Using Headphones .......................................................24

Advanced Operations

Custom Setup .................................................................25

Setting the Auto Standby Function ...............................25

Setting the speaker impedance ....................................25

Connecting with Onkyo RI Components .......................26

Changing the input setting from a turntable to MC .......27

Others

Troubleshooting .............................................................28

Specifications .................................................................30

Before Using the Integrated Amplifier

Note

Remote control sensor

Integrated amplifier

Approx. 16 ft. (5 m)

Approx. 8 in.

(20 cm)

Ensure proper ventilation.

Approx. 8 in.

(20 cm)

Approx. 8 in. (20 cm)

Approx. 4 in. (10 cm)

Installing the Batteries

To open the battery compartment, press the small

hollow and slide the cover.

Insert the two supplied batteries (R03/AAA) in

accordance with the polarity diagram inside the battery compartment.

Replace the cover and slide it shut.

Using the Remote Controller

To use the remote controller, point it at the integrated amplifier’s remote control sensor, as shown below.

• The remote controller may not work reliably if the integrated amplifier is subjected to bright light, such as direct sunlight or inverter-type fluorescent lights. Keep this in mind when installing.

• If another remote controller of the same type is used in the same room, or the integrated amplifier is installed close to equipment that uses infrared rays, the remote controller may not work reliably.

• Don’t put anything, such as a book, on the remote controller, because the buttons may be pressed inadvertently, thereby draining the batteries.

• The remote controller may not work reliably if the integrated amplifier is installed in a rack behind colored glass doors. Keep this in mind when installing.

• The remote controller will not work if there’s an obstacle between it and the integrated amplifier’s remote control sensor.

• If the remote controller doesn’t work reliably, try replacing the

• Don’t mix new and old batteries or different types of batteries.

• If you intend not to use the remote controller for a long time,

• Remove expired batteries as soon as possible to prevent damage

batteries.

remove the batteries to prevent damage from leakage or corrosion.

from leakage or corrosion.

Installing the Integrated Amplifier

Install the integrated amplifier on a sturdy rack or shelf. Position it so that its weight is evenly dispersed on its four legs. Do not install the integrated amplifier in a place with vibration or an unstable location.

The integrated amplifier is designed to have high conversion efficiency, however, its temperature will become much higher than other audio equipment. not to hamper heat dissipation by ensuring proper ventilation.

Therefore, make sure

Getting to Know the Integrated Amplifier

Front Panel

  

For detailed information, see the pages in parentheses.

1 ÍON/STANDBY button (

Sets the integrated amplifier to On or Standby.

2 Remote control sensor (

Receives control signals from the remote controller.

3 MAIN IN LED (

Lights when the settings are enabled to use this unit as a power amplifier.

4 Volume controller (

Adjusts the volume.

5 Input source LEDs (

Lights according to the selected input source.

6 INPUT selector (

Selects the input sources in sequence.

7 SPEAKERS button (

Selects Speakers A, Speakers B, or both.

8 A/B LEDs (

Lights according to the selected speaker output.

9 BASS –/+ controller (

Adjusts the level of bass sounds.





Ä page 22



Ä page 7

Ä page 19

Ä page 22

Ä page 23

Ä page 22

)

Ä page 24

Ä page 21

)





)

: TREBLE –/+ controller (

Adjusts the level of treble sounds.

; BALANCE L/R controller (

Adjusts the balance of left and right channels.

< DIRECT LED (

Lights when the integrated amplifier is in Direct mode.

= DIRECT button (

Enables or disables the Direct function. Also used when this unit is used as a power amplifier.

> PHASE MATCHING BASS LED (

Lights when the integrated amplifier is in Phase matching bass mode.

? PHASE MATCHING BASS button (

Enables or disables the Phase matching bass function.

@ PHONO/MC button, MC LED (

Switch the input setting to match the type of cartridge used in the turntable.

A PHONES jack (

Connects headphones with a standard plug (1/4 inch or 6.3 mm).

Ä page 23

Ä page 24

)

Ä page 19, page 23

Ä page 27

Ä page 24

)

Ä page 23

)

Rear Panel



1 DIGITAL IN OPTICAL D3/D4 jack

Connects components such as CD players with optical digital audio output.



REMOTE CONTROL jack

Connect Onkyo components such as Network Audio Player, Onkyo Docks, CD Players, or Tuner with

(Remote Interactive) jacks.

3 PHONO (MM/MC) L/R jacks

Connect a turntable with analog audio output.

4 GND screw

Connects the turntable’s ground wire.

5 MAIN IN L/R jacks

Connect a pre-amplifier when the integrated amplifier is used as a power amplifier.

6 PRE OUT L/R jacks

Connect a power amplifier when the integrated amplifier is used as a preamplifier (Pre mode).

7 DIGITAL IN COAXIAL D1/D2 jacks

Connect components such as CD players with coaxial digital audio output.



  

 



8 AUTO STANDBY selector

Switch the auto standby function ( off.

9 LINE IN 1/2/3/4 L/R jacks

Connect playback devices with analog audio output.

: LINE OUT L/R jacks

Connect components such as analog line-level sources. The input signals are output with no level adjustment.

; SPEAKERS A terminals

Connect Speakers A.

< SPEAKERS B terminals

Connect Speakers B.

= AC INLET

Connects the supplied power cord. The other end of the power cord should be connected to a suitable wall outlet.

See "Connections" for connection information

Ä page 12

(

Ä page 25

) on or

Note

Remote Controller

* Not used with the integrated amplifier























5 SETUP button (

Switch to the mode for setting speaker impedance and selecting the jacks for RI docking.

6 RETURN button

Returns to the previous display when changing settings.

7 MUTING button (

Mutes or unmutes the integrated amplifier.

You can also use the remote controller to control your Onkyo CD Player, Onkyo Network Audio Player, Onkyo

Dock, or Onkyo Tuner.

• With some components, the remote controller may not work, or only partially.

• To control the Onkyo Dock and Onkyo Tuner, an connection is required

• When connecting a network audio player and an dock simultaneously, the feature will work with only one of the devices, so connect the cable to the device you have selected

to be linked.

• Refer to the manuals supplied with your Onkyo CD Players, Tuner, Network Audio Player or Docks.

∫Controlling the Onkyo CD player

2 DIMMER button

D/C/B/A

3 4 Í CD button 5 DISPLAY button 6 Playback mode buttons 8 INPUT SELECTOR button

Ä page 25, page 26

Ä page 24

(

Ä page 26).

and ENTER buttons

)

For detailed information, see the pages in parentheses.

1 Í button (

Sets the integrated amplifier to On or Standby.

2D/C/B/A and ENTER buttons

Select and adjust settings.

3 VOLUME 3/4 buttons (

Adjust the volume of the integrated amplifier.

4 INPUT

Select an input source.

Ä page 21

D/C

buttons (

)

Ä page 22

Ä page 23

• Point the remote controller at the CD player when pressing 4 and 6.



∫Controlling the Onkyo Tuner

1 Í button 2 DIMMER button

D/C/B/A

3 5 DISPLAY button 7 Tuner control buttons 8 INPUT SELECTOR or BAND buttons

∫Controlling the Onkyo Network Audio Player

1 Í button 2 DIMMER button

D/C

3 5 DISPLAY button 7 Network Audio Player control buttons 8 INPUT SELECTOR button

)

∫Controlling the Onkyo Dock

)

1 Í button

D/C

3 7 Dock control buttons

and ENTER buttons

Connecting Terminal LINE1/D1 LINE2/D2 LINE3/D3

Button on Remote Controller

1 Í ÍÍÍ

2 DIMMER DIMMER DIMMER DIMMER

4 Í CD Í

5 DISPLAY

8 INPUT INPUT SELECTOR

Component

D/CD/C

B/AB/A

ENTER ENTER ENTER ENTER ENTER

RANDOM RANDOM

REPEAT REPEAT

;;

∫∫

SHUFFLE SHUFFLE SHUFFLE SHUFFLE

MENU MENU Go back one. MENU

REPEAT REPEAT REPEAT REPEAT

: :::

1/;1/;1/;1/;

9 999

CD Player TUNER

(Tuning Up/Down)

(Preset Up/Down)

Display the current

input and settings.

Display the current

input and settings.

INPUT SELECTOR

D/C

B/A

/ BAND

NETWORK

AUDIO PLAYER

D/CD/C

Display the current

input and settings.

INPUT SELECTOR

DOCK

Connections

Speakers A

Speakers B

Right Left

Integrated Amplifier

1/2" to 5/8" (12 to 15 mm)

Connections

The power cord must be connected only after all other cable connections are completed.

Connecting Your Speakers

∫Screw-type speaker terminals

Strip 1/2" to 5/8" (12 to 15 mm) of insulation from the ends of the speaker cables, and twist the bare wires tightly, as shown.

∫Banana Plugs (North American models)

• If you are using banana plugs, tighten the speaker terminal before inserting the banana plug.

• Do not insert the speaker code directly into the center hole of the speaker terminal.

Note

• Make sure that the wires do not touch metal parts on the back

Tip

Right

speaker

Left

speaker

Tweeter (high)

Woofer (low)

Integrated Amplifier

panel or elsewhere.

• Y plugs cannot be connected.

• Two sets of speakers (Speakers A and Speakers B) can be connected to the integrated amplifier. You can select which speakers to output audio to when listening to music. You can also output audio from both sets of speakers.

• If you use Speakers A or Speakers B, make sure to use speakers with an impedance of 4 to 16 ohms. If you use Speakers A and Speakers B, make sure to use speakers with an impedance of 8 to 16 ohms. Connecting speakers with an impedance less than 8 ohms may cause the protection circuit to activate.

• When using only one speaker, or when playing back monaural audio, don’t connect a single speaker to both the left and right speaker terminals.

• Pay close attention to speaker wiring polarity. In other words, connect positive (+) terminals only to positive (+) terminals, and negative (–) terminals only to negative (–) terminals. If you get them the wrong way around, the sound will be out of phase and will feel unnatural.

• Be careful not to short the positive and negative wires. Doing so may damage the integrated amplifier.

• Make sure the metal core of the wire does not have contact with the integrated amplifier’s rear panel. Doing so may damage the integrated amplifier.

Bi-wiring Connection

Bi-wiring provides improved bass and treble performance. Using terminals of both SPEAKERS A and SPEAKERS B, it separates high frequency from low frequency signals.

Important:

• Bi-wiring can be used only with speakers that support biwiring and that have an impedance of 4-16 ohms.

• When making the bi-wiring connections, be sure to remove the jumper bars that link the speakers’ tweeter (high) and woofer (low) terminals.

• When making the bi-wiring connections, set SPEAKERS to A+B (Ä page 22).

• Don’t connect more than one speaker wire to a single speaker terminal. Doing so could damage the integrated amplifier or cause it to malfunction.

• As shown on the illustration, the wiring terminals of

SPEAKERS A are connected to the woofer and SPEAKERS B are connected to the tweeter. However, wiring

them the other way around is also possible.

Note

Cable and Jacks

OPTICAL

Orange

White

Red

Right!

Wrong!

Optical digital audio

PCM. The maximum sampling rate for PCM input is 192 kHz/24 bit, 2ch.

Coaxial digital connections allow you to enjoy digital sound such as

Optical digital connections allow you to enjoy digital sound such as

Coaxial digital audio

PCM. The maximum sampling rate for PCM input is 192 kHz/24 bit, 2ch. The integrated amplifier provides 75-ohm impedance matching.

Analog audio (RCA) Analog audio connections (RCA) carry analog audio.

To use (Remote Interactive), you need to connect your Onkyo CD Player, Tuner, Network Audio Player, or Dock to the integrated amplifier with an cable.

• Push plugs in all the way to make good connections (loose connections can cause noise or malfunctions).

• To prevent interference, keep audio cables away from power cords and speaker cables.

• The integrated amplifier’s optical digital jack have shutter-type covers that open when an optical plug is inserted and close when it’s removed. Push plugs in all the way.

• To prevent shutter damage, hold the optical plug straight when inserting and removing.

• Do not use digital audio signals other than PCM.

An analog audio cable can be used instead of a coaxial cable. However, we recommend that you use a coaxial or a composite video cable.

Tip

Connecting a CD Player

Integrated Amplifier

CD Player

Integrated Amplifier

CD Player

This is an example of connection using the CD Player.

Digital Connection

Analog Connection

Connect an audio pin cable to the LINE IN 1 jack.

Connect the coaxial digital cable to the COAXIAL

D1 jack.

• The CD player can be connected to the COAXIAL D1 or D2 jack or the OPTICAL D3 or D4 jack. However, when using the

interlock function, be sure to connect the CD player to the

COAXIAL D1 jack.

• Refer to “Connecting with Onkyo RI Components” (

Ä page 26

) to use the RI dock function.

• The CD player can be connected to the LINE IN 1/2/3/4 jack. However, when using the interlock function, be sure to

connect the CD player to the LINE IN 1 jack.

• Refer to “Connecting with Onkyo RI Components” (

Ä page 26

) to use the RI dock function.

Tip

Connecting a Tuner

Integrated Amplifier

Tuner

Integrated Amplifier

Tuner

This is an example of connection using the Tuner.

Digital Connection

Analog Connection

Connect an audio pin cable to the LINE IN 2 jack.

Connect coaxial digital cable to the COAXIAL D2

jack.

• The Tuner can be connected to the COAXIAL D1 or D2 jack or the OPTICAL D3 or D4 jack. However, when using the

interlock function, be sure to connect the Tuner to the COAXIAL D2 jack.

• Refer to “Connecting with Onkyo RI Components” (

Ä page 26

) to use the RI dock function.

• A Tuner can be connected to the LINE IN 1/2/3/4 jack. However, when using the interlock function, be sure to

connect the Tuner to the LINE IN 2 jack.

• Refer to “Connecting with Onkyo RI Components” (

Ä page 26

) to use the RI dock function.

Tip

Connecting a Network Audio Player

Integrated Amplifier

Network Audio Player, Digital Media

Transport, Dock

Integrated Amplifier

Network Audio Player, Digital Media

Transport, Dock

and an RI dock

This is an example of connection using the Network Audio Player and Onkyo Dock. Note that when connecting a network audio player and an dock simultaneously, the feature will work with only one of the devices, so connect the cable to the device you have selected to be linked.

Digital Connection

Analog Connection

----

AUDIO OUT

Connect the audio pin cable to the LINE IN 3 jack.

OPTICAL

Connect the optical digital cable to the OPTICAL

D3 jack.

• An Onkyo Dock can be connected to the COAXIAL D1 or D2 jack or the OPTICAL D3 or D4 jack. However, when using the

interlock function, be sure to connect the Onkyo Dock to the

OPTICAL D3 jack.

• Refer to “Connecting with Onkyo RI Components” (

Ä page 26

) to use the RI dock function.

• An Onkyo Dock can be connected to the LINE IN 1/2/3/4 jack. However, when using the interlock function, be sure to

connect the Onkyo Dock to the LINE IN 3 jack.

• Refer to “Connecting with Onkyo RI Components” (

Ä page 26

) to use the RI dock function.

Note

Tip

Note

Connecting a Turntable

AUDIO

OUTPUT

Ground wire

Integrated Amplifier Integrated Amplifier

Cassette tape deck

Integrated Amplifier

Cassette tape deck

This unit is compatible with turntables using either MM cartridges or MC cartridges. You will need to switch the input setting to match the type of cartridge you are using. Refer to “Changing the input setting from a turntable to

Ä page 27

MC” (

Use an analog audio cable to connect the PHONO

(MM/MC) L/R j ac ks to the audio output jacks on the turntable, as shown.

A shorting pin has been inserted in the

(MM/MC) L/R

) for how to switch.

PHONO

jack. Remove the shorting pin to connect.

• Connect your cassette tape deck to either of the following jacks: LINE IN 1/2/3/4.

Connecting a Recording Component

Important:

• Unless you have the full consent of the copyright holder, copyright laws prohibit using your recordings for anything other than personal enjoyment!

• Do not change the integrated amplifier’s input while recording. Doing so will cause the audio from the selected component to be recorded.

• Volume adjustments and use of the muting function are not reflected in the signal output from LINE OUT.

• Manual tone adjustments using the BASS –/+ controller, TREBLE –/+ controller, BALANCE L/R controller, direct function, and phase matching bass function are not reflected in the signal output from LINE OUT.

• See the manual of the recording component for instructions on correct use.

• Keep the shorting pin in a safe place.

• Do not insert the shorting pin in any jacks other than the PHONO (MM/MC) L/R jack. Doing so may cause the unit to malfunction.

• If the turntable has a ground wire, connect it to GND terminal. With some turntables, connecting the ground wire may cause hum, in which case it should be disconnected.

• If your turntable has a built-in phono preamp, connect to other analog inputs such as

Connecting a Cassette Tape Deck

LINE IN

AUDIO

OUT

AUDIO

Tip

Using the Integrated Amplifier as a

Integrated Amplifier

Power Amplifier

Integrated Amplifier

Preamplifier

Using the Integrated Amplifier as a Power Amplifier

The integrated amplifier can be used as a preamplifier (Pre mode). This is an example of connection using the power amplifier.

The integrated amplifier can be used as a power amplifier. This is an example of connection using the Onkyo pre-

amplifier (sold separately). Only the MAIN IN jacks and SPEAKERS jacks are used.

Connect an RCA cable to the MAIN IN jacks.

Refer to “Connecting Your Speakers” ( for how to connect speakers.

After all connections are complete, turn on the

power (

Ä page 21

Turn the INPUT dial to change the input source to

"MAIN IN" (

The MAIN IN LED flashes.

Press DIRECT or ENTER on the remote

controller.

The MAIN IN LED lights.

• Do not connect a source device (CD device, etc.) to the MAIN IN jack. Doing so may produce high-volume sound that can damage the unit, speakers, and various other devices.

• When this unit is to be used as a power amplifier, "Adjusting the Bass, Treble and Balance" (Ä page 24) and “Using the PHASE MATCHING BASS Function” (Ä page 23) are not available. Headphones (Ä page 24) also cannot be used.

• Adjust the volume on the pre-amplifier as you will not be able to adjust it on this unit.

• If this unit is being used as a power amplifier and input is switched to "MAIN IN", then if the volume of the connected preamplifier is low, auto standby (Ä page 25) may function and the power may automatically switch to standby. If this happens, you may be able to fix it by increasing the volume on the pre-

amplifier.

Ä page 23

Ä page 12

)

Tip

Note

Connecting the Power Cord

To an AC wall outlet (Plug type varies from country to country.)

Supplied power cord

Integrated Amplifier

AC INLET

Connect all of your speakers and components.

Connect the supplied power cord to the integrated

amplifier’s AC INLET.

Plug the power cord into an AC wall outlet.

• To reduce noise, do not tie signal cables together with the power cable. Wire them so that they are away from each other.

• Depending on the country, the integrated amplifier may be polarity-sensitive. In this case, plug the power cord in a way that provides the best sound quality.

• Never disconnect the power cord from the integrated

amplifier while the other end is still plugged into a wall outlet. Doing so may cause an electric shock. Always

disconnect the power cord from the wall outlet first, and then the integrated amplifier.

• Turning on the integrated amplifier may cause a momentary power surge that might interfere with other electrical equipment on the same circuit. If this is a problem, plug the integrated amplifier into a different branch circuit.

• Do not use a power cord other than the one supplied with the integrated amplifier. The supplied power cord is designed exclusively for use with the integrated amplifier and should not be used with any other equipment.

• Turn the unit's power to standby before disconnecting the power cord from the outlet.

Turning On & Basic Operations

Tip

ÍON/STANDBY button

Basic Operations

Turning On/Off the Integrated Amplifier

Turning On the Integrated Amplifier

∫Operating with the remote controller

Press Í.

The SPEAKERS (A/B) and Input source LEDs blink, then light up after a short time.

∫Operating on the integrated amplifier

Press ÍON/STANDBY.

The SPEAKERS (A/B) and Input source LEDs blink, then light up after a short time.

• After a certain time of warming up, the internal temperature of the integrated amplifier stabilizes, and the sound is softened.

• The integrated amplifier remembers the state when power was last turned off, and returns to that state.

Turning Off the Integrated Amplifier

∫Operating with the remote controller

Press Í.

The integrated amplifier enters Standby mode and the LED goes off.

∫Operating on the integrated amplifier

Press ÍON/STANDBY.

The integrated amplifier enters Standby mode and the LED goes off.

• For details on power management settings, see "Setting the Auto Standby Function" (Ä page 25).

Note

Selecting Speakers A and Speakers B

SPEAKERS

button

A LED B LED

VOLUME /

Volume controller

Adjusting the Volume

You can select to output sound from Speakers A, Speakers B, or both A + B (Default value is "Speaker A").

Press SPEAKERS repeatedly on the integrated

amplifier.

The LED of the selected speakers lights.

• While headphones are connected, this setting is disabled.

• When this setting is set to A + B, the impedance of speakers is restricted. For further details, see "Connecting Your Speakers" (Ä page 12).

The default level is 0.

∫Operating with the remote controller

Press VOLUME 3/4 repeatedly.

∫Operating on the integrated amplifier

Use the volume controller.

Tip

Selecting the Input Source

INPUTD/C

INPUT selector

DIRECT LED DIRECT button

PHASE MATCHING BASS LED

PHASE MATCHING BASS button

Using the Direct Function

You can switch inputs to select the desired source component. Choose an input from the following:

D1 (Default value), D2, D3, D4, LINE1, LINE2, LINE3, LINE4, PHONO, MAIN IN

The LED corresponding to the selected input will light up.

• The LED will blink when D1, D2, D3 or D4 is selected and a signal is not input.

∫Operating with the remote controller

Press INPUTD/C repeatedly.

∫Operating on the integrated amplifier

By bypassing the tone control circuit, the Direct function uses the shortest path for enhanced sound quality (Default value is "On"). Also, since the left/right balance setting uses a system that doesn’t affect the sound quality, the balance can be adjusted even if the Direct function is enabled (

Ä page 24

Press the DIRECT button.

The DIRECT LED lights.

Using the PHASE MATCHING BASS Function

From the warm low notes produced by a cello to the deep frequencies of electronic music, a good compact audio system should be able to deliver plenty of bass resonance.

While traditional enhancement systems effectively boost low-frequency sound, they are often prone to the effects of phase shifting, which can overwhelm mid-range frequencies and muddy the sound.

Our Phase-Matching Bass Boost technology effectively preserves mid-range clarity-allowing vocals and strings to shine-while maintaining a smooth, powerful bass response at all volume levels (Default value is "Off").

Use the INPUT selector.

Press the PHASE MATCHING BASS button.

The PHASE MATCHING BASS LED lights up.

• When the DIRECT function (

Note

BASS –/+ TREBLE –/+ BALANCE L/R

PHONES jack

function off to use the PHASE MATCHING BASS effect.

Ä page 23

) is on, turn the

Adjusting the Bass, Treble and Balance

You can adjust the bass, treble and left/right output balance respectively (Default value is "Center").

∫Operating on the integrated amplifier

Muting the Sound

You can temporarily mute the output of the integrated amplifier.

MUTING

Press MUTING.

The SPEAKERS (A/B) and SELECTOR LEDs blink. To unmute the integrated amplifier, press MUTING

again.

Turn the BASS –/+, TREBLE –/+ and BALANCE

L/R knobs.

• While the Direct function is enabled, bass and treble are disabled.

• While the integrated amplifier is muted: Adjusting the volume or setting the integrated amplifier to Standby will unmute the integrated amplifier.

Using Headphones

Connect a pair of stereo headphones with a

standard plug (1/4 inch or 6.3 mm) to the PHONES jack.

When connecting the headphones, the SPEAKERS (A/B) LEDs go off.

You can adjust the volume and mute the sound, by using VOLUME 3/4.

While headphones are connected, no sound is output from the speakers and PRE OUT jacks.

• Always turn down the volume before connecting your headphones.

• When headphones are connected, the SPEAKERS button cannot be used.

Advanced Operations

AUTO STANDBY selector

D/C/B/A

SETUP

D1 to D4 LED

D1 to D4 and LINE1 to LINE4 LED

Custom Setup

Setting the Auto Standby Function

When the Auto Standby (ASb) function is activated, the integrated amplifier will automatically enter Standby mode if there is no operation for 20 minutes with no audio signal input (Default value: "Off" for North American models, "On" for Other Countries).

Switch the AUTO STANDBY selector on the unit’s

rear panel.

[ON]

Enables auto standby.

[OFF]

Disables auto standby.

Setting the speaker impedance

You can set the impedance of the speakers that you connect to the unit (Default value is "8 Ω").

Press SETUP on the remote controller.

SETUP does not work when MAIN IN input is selected. Select an input other than MAIN IN to operate.

Press D/C on the remote controller so the "D1" to

"D4" and "LINE1" to "LINE4" LEDs flash.

Press

B/A

impedance.

The flashing of the input source LEDs changes each time you change the setting.

on the remote controller to switch the

∫When using speakers with impedance of

4 Ω or more to less than 8 Ω

Make it so only the "D1" to "D4" LEDs are flashing.

∫When using speakers with impedance of

8 Ω or more to less than 16 Ω

Make it so the "D1" to "D4" and "LINE1" to "LINE4" LEDs are flashing.

Press SETUP on the remote controller.

Note

Connecting with Onkyo RI

CD Player

D/C/B/A

SETUP

Components

By connecting an Onkyo component with jack to the unit by using an cable and a digital cable or an RCA

cable, you can link the unit's power and input selection and enable operation with this unit's remote controller (*). After connecting the unit and the Onkyo component with a digital cable or RCA cable ( the following operations.

Ä page 15

to 17), perform

Press

B/A

jack to use for linking.

The flashing of the input source LEDs changes each time you change the setting.

Press SETUP on the remote controller.

A connection to the jack is not enough for the units to operate as a system. The units must also be connect properly by a digital cable or an RCA cable.

Refer to “Remote Controller” ( of connected devices.

on the remote controller to select the

When linking with a CD player

When connected to the D1 jack, make it so only the "D1" LED is flashing (the default value is "D1"). When connected to the LINE 1 jack, make it so only the "LINE 1" LED is flashing.

When linking with a tuner

When connected to the D2 jack, make it so only the "D2" LED is flashing (the default value is "D2"). When connected to the LINE 2 jack, make it so only the "LINE 2" LED is flashing.

When linking with a dock or network audio player

When connected to the D3 jack, make it so only the "D3" LED is flashing (the default value is "D3"). When connected to the LINE 3 jack, make it so only the "LINE 3" LED is flashing.

Ä page 10

) for operation

Connect the cable.

When there are two jacks, both jacks work in the same way. You can connect either one.

Press SETUP on the remote controller.

SETUP does not work when MAIN IN input is selected. Select an input other than MAIN IN to operate.

Repeatedly press D/C on the remote controller.

When linking with a CD player

Select so that D1 and LINE 1 light (or flash).

When linking with a tuner

Select so that D2 and LINE 2 light (or flash).

When linking with a dock or network audio player

Select so that D3 and LINE 3 light (or flash).

• cables can be connected in any order.

• Some functions may not be supported depending on the product even when an connection is used.

• The feature on this unit supports Onkyo CD players, tuners, network audio players, and docks only. It does not work properly with other devices such as MD

recorders.

• Only auto-power on and direct change are supported for CD players.

• Refer to the instruction manual of the component with the

jack for details.

* With (Remote Interactive), you can use the

following special functions:

∫Auto Power On

When you start playback on a component connected via

while the integrated amplifier is on Standby, the integrated amplifier will automatically turn on and select that component as the input source.

∫Direct Change

When playback is started on a component connected via

, the integrated amplifier automatically selects that component as the input source.

∫System Off

When you turn off the integrated amplifier, the components turn off automatically.

∫Remote Control

PHONO/MC button, MC LED

You can use the integrated amplifier’s remote controller to control your other -capable Onkyo Components, pointing the remote controller at the integrated

amplifier’s remote control sensor instead of the component.

To operate the CD player, point the remote controller at the CD player.

Changing the input setting from a turntable to MC

After connecting the turntable to this unit ( perform the following operation to match the setting to the type of cartridge in your turntable (the default value is "MM").

• When performing the following operation with PHONO selected as the input source, the volume must be reduced to the lowest level. It is possible that loud noises will be output from the speakers.

Press and hold PHONO/MC.

The MC LED lights and the feature switches to MC. When using an MM cartridge, press and hold PHONO/MC again. The MC LED goes out and the feature switches to MM.

Ä page 18

Others

Tip

Troubleshooting

First check the followings. Since the issue may be caused by other components that

are connected, be sure to also check them while referring to their manuals. Further product operating procedures and FAQs (frequently asked questions) are available from the Onkyo web site.

Before requesting repairs

If the integrated amplifier is no longer working or functioning, any issues may be resolved by resetting the microcomputer contained in the integrated amplifier to revert all settings to their defaults.

Before requesting repairs, follow the procedure below to reset the microcomputer.

With the integrated amplifier turned on, hold down DIRECT and press ÍON/STANDBY.

Power

Can’t turn on the Integrated Amplifier.

• Make sure that the power cord is properly plugged into the wall outlet (

• Unplug the power cord from the wall outlet, wait 5 seconds or more, then plug it in again.

Ä page 20

Audio

There’s no sound.

• Make sure the integrated amplifier’s volume control is not set to minimum (

• Make sure the correct input source is selected

Ä page 23

(

• Make sure the integrated amplifier is not muted (

Ä page 24

• Make sure the speakers are connected correctly (

Ä page 12

• Check all connections and correct as necessary

Ä page 12

(

• While headphones are connected, the speakers output no sound (

Ä page 24

• The integrated amplifier does not support digital formats other than PCM. Inputting a digital format other than PCM will cause loud noise.

Ä page 22

The sound quality is not good.

• Make sure the speaker cables are connected with the correct polarity (

• Make sure all audio connecting plugs are pushed in all the way (

Ä page 14

• The sound quality can be affected by strong magnetic fields, such as those from a TV. Try moving any such devices away from the integrated amplifier.

• If you have any devices that emit high-intensity radio waves near the integrated amplifier, such as a cellular phone that’s being used to make a call, the integrated amplifier may output noise.

Ä page 12

The Integrated Amplifier turns off unexpectedly.

• When the protection circuit is activated (because of speaker short-circuit, overload, or over-current), the integrated amplifier enters Standby mode. Remove the source of the problem and turn the integrated amplifier back on.

• Check that the switch on the back of the integrated amplifier is set to the correct setting (

• The settings are not enabled when the switch is changed during the Standby mode. To change a setting, be sure to turn on the unit prior to making any changes.

• If this unit is being used as a power amplifier and input is switched to " connected pre-amplifier is low, auto standby ( may function and the power may automatically switch to standby. If this happens, you may be able to fix it by increasing the volume on the pre-amplifier.

MAIN IN

", then if the volume of the

Ä page 25

Headphone output is intermittent or there’s no sound.

• This may be due to dirty contacts. Clean the headphones plug. See your headphones’ instruction manual for cleaning information. Also, make sure that the headphones cable is not broken or damaged.

Audio performance

• Audio performance will be at its best about 10 to 30 minutes after the integrated amplifier has been turned on and had time to warm up.

• Using cable ties to bundle audio cables with speaker or power cables may degrade the sound quality, so refrain

)

from doing it.

• Depending on the country, the integrated amplifier may be polarity-sensitive. In this case, plug the power cord in a way that provides the best sound quality.

• Install the integrated amplifier on a sturdy rack or shelf. Position it so that its weight is evenly dispersed on its four legs. Do not install the integrated amplifier in a place with vibration or an unstable location.

• Plug the power cord into an AC wall outlet.

Onkyo Dock

Remote Controller

There’s no sound.

• Make sure that the Onkyo Dock is connected to the integrated amplifier properly.

• Make sure that no video content is being played.

• Reset the iPod.

Other

• When the Auto Standby (ASb) function is activated, the power of the Onkyo Dock connected via is automatically turned off (

Ä page 25

Can’t control properly by using the remote controller.

• Make sure that the cable is connected to the integrated amplifier correctly.

External Components

No sound is heard from a connected component.

• Make sure the correct input source is selected (

Ä page 23

• Make sure the analog audio cable is connected correctly (

Ä page 14

When the interlock does not function properly

The remote controller doesn’t work properly.

• Make sure the batteries have been installed with the correct polarity (+/–) (

• Replace both batteries with new ones. (Do not mix different types of batteries or new and old batteries.)

• The remote controller is too far away from the integrated amplifier, or there’s an obstacle between them (

• The integrated amplifier’s remote control sensor is being subjected to bright light (inverter-type fluorescent light or sunlight).

• The integrated amplifier is located behind the glass doors of an audio rack or cabinet.

Onkyo is not responsible for damages (such as CD rental fees) due to unsuccessful recordings caused by the unit’s malfunction. Before you record important data, make sure that the material will be recorded correctly.

The integrated amplifier contains a microcomputer for signal processing and control functions. In very rare situations, severe interference, noise from an external source, or static electricity may cause it to lockup. In the unlikely event that this should happen, unplug the power cord, wait at least 5 seconds, and then plug it again.

Ä page 7

• Check that each device is connected correctly and that the

RI MODE

• The connecting method may vary depending on the device that will be connected. Please refer to the connection

section in the owner’s manual of the connected device.

is set correctly (

Ä page 26

The sound from turntable is distorted.

• If your turntable has a built-in phono preamp, connect to other analog inputs such as

• If your turntable does not have a built-in phono preamp, connect a turntable to

• Make sure that the ground wire is connected. Otherwise, it may produce an audible hum and noise.

• Confirm that the MM/MC input setting is correct for the type of cartridge in the turntable.

LINE IN

PHONO

(

Ä page 18

Before disconnecting the power cord from the wall outlet, set the integrated amplifier to Standby.

If during idling the cover is too hot to touch, then ventilation needs to be improved.

Specifications

Rated Output Power (North American)

THD+N (Total Harmonic Distortion+N)

Input Sensitivity and Impedance

Rated RCA Output Level and Impedance

Phono Overload 70 mV (MM 1 kHz 0.5 %)

Frequency Response 10 Hz - 100 kHz/+1 dB, –3 dB (LINE1, DIRECT)

Tone Control Characteristies

Signal to Noise Ratio 107 dB (LINE 1 IN, SP OUT, IHF-A)

Speaker Impedance 4 Ω – 16 Ω Headphone output Impedance 390 Ω Headphone Rated Output 70 mW (32 Ω, 1 kHz, 10% THD)

(FTC) With 8 ohm loads, both channels driven, from 20 - 20,000 Hz; rated 30 watts per channel minimum RMS power, with no more than 0.08% total harmonic distortion from 250 milliwatts to rated output. (FTC) With 4 ohm loads, both channels driven, from 20 - 20,000 Hz; rated 60 watts per channel minimum RMS power, with no more than 0.08% total harmonic distortion from 250 milliwatts to rated output. (JEITA) Output Power (4 ohms, 1 kHz THD 10%) 90 W 2ch Driven

(Other)

(IEC) 2 ch × 60 W at 4 ohms, 1 kHz, 2 ch Driven of 0.08 % THD (JEITA) Output Power (4 ohms, 1 kHz THD 10%) 90 W 2ch Driven *Power output specification is for when power supply is 230V.

0.08 %, 20 - 20,000 Hz (Rated Output Power)

200 mV/220 kΩ (LINE 1) 4mV/47kΩ (PHONO MM)

0.4 mV/120 Ω (PHONO MC)

1V/500Ω (PRE OUT)

0.2 V/2.3 kΩ (LINE OUT)

7 mV (MC 1 kHz 0.5 %)

+10 dB, –10 dB, 100 Hz (BASS) +10 dB, –10 dB, 10 kHz (TREBLE)

82 dB (PHONO IN, MM 5mV, SP OUT, IHF-A) 73 dB (PHONO IN, MC 0.5mV, SP OUT, IHF-A)

Power Supply (North American) AC 120 V, 60 Hz

Power Consumption (North American) 170 W

No-sound Power Consumption

Standby Mode Power Consumption

Dimensions (W × H × D) 435 mm × 139 mm × 331 mm

Weight 9.2 kg (20.3 lbs)

(Other) AC 220 - 230 V, 50/60 Hz

(Other) 160 W

(North American) 35 W (Other) 35 W

(North American) 0.15 W (Other) 0.2 W

17-1/8" × 5-1/2" × 13-1/16"

∫Audio Inputs

Digital Inputs 2 (Rear Optical)

Analog Stereo Inputs LINE1, LINE2, LINE3, LINE4, MAIN IN, PHONO

2 (Rear Coaxial)

∫Audio Outputs

Analog Stereo Outputs LINE OUT, PRE OUT Speaker Outputs SPEAKER A, B Phones 1 (Front, ø6.3 mm)

∫Others

Specifications and features are subject to change without notice. We will not accept responsibility for damage arising from the connection of equipment manufactured by other

companies.

MEMO

2-3-12 Yaesu, Chuo-ku, Tokyo 104-0028 JAPAN http://ww

w.onkyo.com/

<U.S.A.>

18 Park Way, Upper Saddle River, N.J. 07458, U.S.A. For Dealer, Service, Order and all other Business Inquiries: Tel: 201-785-2600 Fax: 201-785-2650 http://www.us.onkyo.com/

For Product Support Team Only: 1-800-229-1687 http://www.us.onkyo.com/

Gutenbergstrasse 3, 82178 Puchheim, Germany Tel: +49-8142-4401-0 Fax: +49-8142-4208-213 http://www.eu.onkyo.com/

<UK>

Anteros Building, Odyssey Business Park, West End Road, South Ruislip, Middlesex, HA4 6QQ United Kingdom Tel: +44 (0)871-200-1996 Fax: +44 (0)871-200-1995 For Product Support only: +44 (0)208-836-3510 http://www.uk.onkyo.com/en/

6, Avenue de Marais F - 95816 Argenteuil Cedex FRANCE For Product Support only: +33 969 368 138 http://www.fr.onkyo.com/fr/

Unit 1033, 10/F, Star House, No 3, Salisbury Road, Tsim Sha Tsui Kowloon, Hong Kong. Tel: +852-2429-3118 Fax: +852-2428-9039 http://www.hk.onkyo.com/

<PRC>

302, Building 1, 20 North Chaling Rd., Xuhui District, Shanghai, China 200032, Tel: +86-21-52131366 Fax: +86-21-52130396 http://www.cn.onkyo.com/

<Asia, Oceania, Middle East, Africa>

Please contact an Onkyo distributor referring to Onkyo SUPPORT site. http://www.intl.onkyo.com/support/

Корпорация О энд Пи 2-3-12, Яэсу, Чуо-ку, г. Токио, 104-0028, ЯПОНИЯ

The above-mentioned information is subject to change without prior notice. Visit the Onkyo web site for the latest update.

Printed in Malaysia / Imprimé en Malaisie

SN 29402928A

F1704-1

*29402928A*

Onkyo A-9150 operation manual

Specifications and Main Features

Frequently Asked Questions

User Manual
