Onkyo A-9110 operation manual

Before use

INTEGRATED AMPLIFIER

A-9110

Instruction Manual

Preparations

Basic Operations

Others

Before u se

Table of Contents What’s in the box

Before use

What’s in the box ................................................ 2

Safety Information .............................................. 3

Part Names ............................................................5

Front Panel ........................................................ 5

Rear Panel ......................................................... 6

Remote Controller ..............................................7

Preparations

Connections .......................................................... 9

Connecting speakers ......................................... 9

Connecting a Powered subwoofer ................... 10

Connecting players (LINE IN connection) ........ 10

Connecting players (Turntable connection) ......11

Connecting with Onkyo RI Components ...........11

Power Cord Hookup.......................................... 12

Setup .................................................................... 13

Remote controller preparations ........................ 13

Turn on the power of the unit ........................... 13

Speaker impedance settings ............................ 14

Basic Operations

Playback .............................................................. 15

Switching input and adjusting the volume ........ 15

Subwoofer output settings ............................... 16

Using the Direct Function ................................. 17

Adjusting the sound quality and balance ......... 17

Others





1. Main unit (1)

2. Remote controller (RC-968S) (1), batteries (AAA/R03) (2) ≥ Instruction Manual (This document)

0 Connect speakers with 4 ≠ to 16 ≠ impedance. 0 The power cord must be connected only after all other

cable connections are completed.

0 We will not accept responsibility for damage arising from

the connection of equipment manufactured by other companies.

0 Specifications and appearance are subject to change

without prior notice.

Useful functions ................................................. 19

Setting auto standby ........................................ 19

Troubleshooting ................................................. 20

Specifications ..................................................... 22

Safety Information

WARNING

RISK OF ELECTRIC SHOCK

DO NOT OPEN

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated "dangerous voltage" within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

CAUTION:

TO PREVENT THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USERSERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

AVIS

RISQUE DE CHOC ELECTRIQUE

NE PAS OUVRIR

Before use

This product is for general household purposes. Any failure due to use for other than household purposes (such as long-term use for business purposes in a restaurant or use in a car or ship) and which requires repair will be charged for even during the warranty period.

Power-Cord Caution

Handle the power cord by the plug. Do not pull out the plug by tugging the cord and never touch the power cord when your hands are wet as this could cause a short circuit or electric shock. Do not place the unit, a piece of furniture, etc., on the power cord, or pinch the cord. Never make a knot in the cord or tie it with other cords. The power cords should be routed such that they are not likely to be stepped on. A damaged power cord can cause a fire or give you an electrical shock. Check the power cord once in a while. When you find it damaged, ask your nearest our authorized service center or your dealer for a replacement.

For European models

Information for users on collection and disposal of old equipment and used batteries

Symbol for

equipment

Symbol examples

for batteries

WARNING

TO PREVENT THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

This equipment is not waterproof. To prevent a fire or shock hazard, do not place any container filled with liquid near this equipment (such as a vase or flower pot) or expose it to dripping, splashing, rain or moisture.

To prevent a fire hazard, do not place any naked flame sources (such as a lighted candle) on the equipment.

Store small parts out of the reach of children and infants. If accidentally swallowed, contact a doctor immediately.

Slots and openings in the cabinet are provided for ventilation to ensure reliable operation of the product, and to protect it from overheating. To prevent fire hazard, the openings should never be blocked or covered with items (such as newspapers, tablecloths, curtains) or by operating the equipment on thick carpet or a bed.

Do not use or store batteries in direct sunlight or other excessively hot place, such as inside a car or near a heater. This can cause batteries to leak, overheat, explode or catch fire. It can also reduce the life or performance of batteries.

Risk of explosion if battery is replaced by an incorrect type. Risk of explosion If disposal of a battery into fire or a hot oven, or mechanically crushing or cutting of a battery.

Precautions

If you install the apparatus in a built-in installation, such as a bookcase or rack, ensure that there is adequate ventilation. Leave 20 cm (8”) of free space at the top and sides and 10 cm (4”) at the rear. The rear edge of the shelf or board above the apparatus shall be set 10 cm (4”) away from the rear panel or wall, creating a flue-like gap for warm air to escape.

Operating Environment

Operating environment temperature and humidity: +5 °C to +35 °C (+41 °F to +95 °F); less than 85 %RH (cooling vents not blocked) Do not install this unit in a poorly ventilated area, or in locations exposed to high humidity or direct sunlight (or strong artificial light).

Important Notice

The model number and serial number of this equipment are on the rear or bottom. Record these numbers on your enclosed warranty card and keep in a safe place for future reference.

CAUTION

The power switch on this unit will not completely shut off all power from the AC outlet. Since the power cord serves as the main disconnect device for the unit, you will need to unplug it from the AC outlet to shut down all power. Therefore, make sure the unit has been installed so that the power cord can be easily unplugged from the AC outlet in case of an accident. To avoid fire hazard, the power cord should also be unplugged from the AC outlet when left unused for a long period of time (for example, when on vacation).

These symbols on the products, packaging, and/or accompanying documents mean that used electrical and electronic products and batteries should not be mixed with general household waste. For proper treatment, recovery and recycling of old products and used batteries, please take them to applicable collection points in accordance with your national legislation. By disposing of these products and batteries correctly, you will help to save valuable resources and prevent any potential negative effects on human health and the environment which could otherwise arise from inappropriate waste handling. For more information about collection and recycling of old products and batteries, please contact your local municipality, your waste disposal service or the point of sale where you purchased the items.

These symbols are only valid in the European Union. For countries outside the European Union:

If you wish to discard these items, please contact your local authorities or dealer and ask for the correct method of disposal.

WEEE

http://www.onkyo.com/manual/weee/weee.pdf

Before use

For U.S. and Canadian Models

IMPORTANT SAFETY INSTRUCTIONS

1) Read these instructions.

2) Keep these instructions.

3) Heed all warnings.

4) Follow all instructions.

5) Do not use this apparatus near water.

6) Clean only with dry cloth.

7) Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8) Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9) Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10)

Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11)

Only use attachments/accessories specified by the manufacturer.

12)

Use only with the cart, stand, tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13)

Unplug this apparatus during lightning storms or when unused for long periods of time.

14)

Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as powersupply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

The Safety of Your Ears is in Your Hands

Get the most out of your equipment by playing it at a safe level - a level that lets the sound come through clearly without annoying blaring or distortion and, most importantly, without affecting your sensitive hearing. Sound can be deceiving. Over time, your hearing “comfort level” adapts to higher volumes of sound, so what sounds “normal” can actually be loud and harmful to your hearing. Guard against this by setting your equipment at a safe level BEFORE your hearing adapts.

Be Sure To Observe The Following Guidelines:

0 Do not turn up the volume so high that you can’t hear what’s around

you.

0 Use caution or temporarily discontinue use in potentially hazardous

situations.

0 Do not use headphones while operating a motorized vehicle; the use

of headphones may create a traffic hazard and is illegal in many areas.

Establish a Safe Level:

0 Set your volume control at a low setting. 0 Slowly increase the sound until you can hear it comfortably and

clearly, without distortion.

0 Once you have established a comfortable sound level, set the dial

and leave it there.

When disposing of used batteries, please comply with governmental regulations or environmental public institution’s rules that apply in your country/area.

PORTABLE CART WARNING

For U.S. and Canadian Models

FEDERAL COMMUNICATIONS COMMISSION DECLARATION OF CONFORMITY

Product Name: Premain Amplifier Model Number: A-9110 Responsible Party Name: Onkyo U.S.A. Corporation Address: 18 PARK WAY, UPPER SADDLE RIVER, NEW JERSEY 07458, USA Phone: 1-800-229-1687

This device complies with Part 15 of FCC Rules and Industry Canada licence-exempt RSS standard(s). Operation is subject to the following two conditions: (1) this device may not cause interference, and (2) this device must accept any interference, including interference that may cause undesired operation of this device. Le present appareil est conforme aux la partie 15 des regles de la FCC et CNR d'Industrie Canada applicables aux appareils radio exempts de licence. L'exploitation est autorisee aux deux conditions suivantes: (1) l'appareil ne doit pas produire de brouillage, et (2) l'utilisateur de l'appareil doit accepter tout brouillage radioelectrique subi, meme si le brouillage est susceptible d'en compromettre le fonctionnement.

This device complies with following standard and class CAN ICES-3 B/ NMB-3 B

Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment.

NOTE: This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment off and on, the user is encouraged to try to correct the interference by one or more of the following measures:

--Reorient or relocate the receiving antenna.

--Increase the separation between the equipment and receiver.

--Connect the equipment into an outlet on a circuit different from that to which the receiver is connected.

--Consult the dealer or an experienced radio/TV technician for help.

Front Panel

Part Names

Before use

 

1. Í ON/STANDBY button

2. Remote control sensor: Receives signals from the remote controller.

0 The signal range of the remote controller is within

about 16y/5 m, at an angle of 20° on the perpendicular axis and 30° to either side.

3. Volume controller

4. Input source indicators: The indicators light according to the selected input source.

0 The indicator for the selected input source blinks when

MUTING (p7) is active.

5. INPUT dial: Switches the input source to be played.

6. BASS -/+ controller: Enhance or moderate the bass range of the speakers. (p17)

7. TREBLE -/+ controller: Enhance or moderate the treble range of the speakers. (p17)

8. BALANCE L/R controller: Adjust the left/right audio balance. (p18)

9. DIRECT button/indicator: Switch the DIRECT feature on and off. The indicator lights when the DIRECT feature is on. (p17)

10.

PHASE MATCHING BASS button/indicator: Switch the

PHASE MATCHING BASS feature on and off. The indicator lights when the PHASE MATCHING BASS feature is on. (p17)

11.

PHONES jack: Connect stereo headphones with a

standard plug (Ø1/4"/6.3 mm diameter).





Rear Panel

Before use



 

1. SPEAKERS terminals: Connect speakers with speaker cables. (p9)

0 North American models are banana plug ready. Use

plugs with a diameter of 1/8" (4 mm).

0 Not all models support connection with Y plugs.

2. Power cord (p12)

3. GND terminal: The ground wire of the turntable is connected.

4. PHONO MM jacks: Use an Analog audio cable to connect a Turntable that uses an MM type cartridge. (p11)

5. LINE IN jacks: Input audio signals from a playback device with an analog audio cable. (p10)

6. LINE OUT jacks: Use an Analog audio cable to output audio signals to recording equipment, such as a cassette tape deck. To select the input source for recording, use the INPUT dial on this unit or use the remote controller.

7. SUBWOOFER PRE OUT jack: Connect a powered subwoofer with a subwoofer cable. (p10)

8. RI REMOTE CONTROL jack: This jack is for linking when you connect an Onkyo CD player, tuner, network audio player, or RI dock that has an RI (“Remote Interactive”) jack. (p11)

 













 



Before use

Remote Controller

Operating this unit

1. Í button: Sets this unit to On or Standby.

2. Cursors (D/C/B/A), ENTER button: Select the item with the cursors and press ENTER to confirm.

3. VOLUME buttons

4. INPUT(D/C) buttons: Switches the input source to be played.

5. SETUP button: Switches to the settings menu. Make speaker impedance settings (p14), subwoofer output settings (p16), and auto standby settings (p19).

6. RETURN button: Returns the display to the previous display/state during setting.

7. MUTING button: Temporarily mutes audio. Press again to cancel muting.

8. DIRECT button: Switch the DIRECT feature on and off. (p17)

9. PM BASS button: Switch the PHASE MATCHING BASS feature on and off. (p17)

Before use





Operating other components

You can operate Onkyo CD players, tuners, network audio players, and RI docks with the remote controller of this unit.

∫ Operating an Onkyo CD player

Point the remote controller at the CD player.

10.

CD Í button

11.

Play mode buttons

0 If you have a Network CD player, then the RI function

enables use of the < and > buttons when you connect it with an RI cable (p11). When using these buttons, point the remote controller at the remote control sensor of this unit.

∫ Operating an Onkyo tuner, network audio

player, or RI dock







You can use the RI function to centrally control with the remote controller of this unit by connecting this unit and the other audio components with an RI cable (p11). Point the remote controller at the remote control sensor of this unit to operate.

12.

Cursor buttons (D/C/B/A), ENTER button: Select items

with the cursor buttons and press ENTER to confirm.

13.

Play mode buttons

0 When using a network audio player, the MENU button

works as a back button that takes you back one step in the settings to the previous display or state.

14.

INPUT button

0 When using a tuner, this works as a BAND button. 0 The INPUT button is not used for RI docks.

Connecting speakers

Connections

1/2”~5/8”

(12~15 mm)

Right Left

a Speaker Cable

Preparations

(Note) Speaker Impedance

Connect speakers with an impedance of 4 ≠ to 16 ≠.

Setup: You have to change the setting on this unit if any of the connected speakers have 4 ≠ or more to less than 8 ≠ impedance. Change the speaker impedance setting to 4 ≠. (p14)

Connect the Speaker Cables

Make correct connection between the unit’s jacks and speaker’s jacks (+ side to + side, and - side to - side) for each channel. If the connection is wrong, a bass sound will not be reproduced properly due to reverse phase. Twist the wires exposed from the tip of the speaker cable so that the wires do not stick out of the speaker terminal when connecting. If the exposed wires touch the rear panel, or the + side and - side wires touch each other, the protection circuit will be activated.

Preparations

Powered subwoofer

Tuner

Connecting a Powered subwoofer

a Subwoofer Cable

Connecting players (LINE IN connection)

a Analog Audio Cable

You can also connect a Powered subwoofer to the SUBWOOFER PRE OUT jack to boost bass playback even more. Use a subwoofer cable for connection. You can switch the subwoofer output setting between auto/ on/off according to your preference. Refer to "Subwoofer output settings" (p16) for details.

0 It is recommended to set this off if you are not using a

subwoofer.

Use an Analog audio cable to connect a player to one of the LINE IN 1/2/3/4 jacks. Refer to "Connecting with Onkyo RI Components" (p11) to use the RI linking function.

Preparations

Turntable

Connecting players (Turntable connection)

a Analog Audio Cable

Connecting with Onkyo RI Components

a RI Cable, b Analog audio cable

Use an analog audio cable to connect a turntable that uses an MM-type cartridge to the PHONO jack. If the turntable has a ground wire, connect it to the GND terminal. With some turntables, connecting the ground wire may cause hum, in which case it should be disconnected.

0 If the turntable has a built-in audio equalizer, connect it to

an LINE IN jack other than the PHONO jack. Also, if the turntable uses an MC type cartridge, install an audio equalizer compatible with the MC type cartridge between the unit and the turntable, then connect to any LINE IN jack other than the PHONO jack.

If you have an Onkyo CD player, tuner, network audio player, or RI dock, if these have RI jacks, then you can connect them to this unit and link switching between on and standby, and use the remote controller of this unit to centrally control the equipment. (RI function) These linked operations are enabled by the connection with an RI cable between the equipment with an RI jack and this unit, and the connection using an Analog audio cable. Refer to the following table for connections.

Equipment connected Jack to connect to

CD player LINE IN 1 Tuner LINE IN 2 Network audio player / RI

dock

LINE IN 3

The RI function

The follow system functions can be used with the RI function.

0 Some functions may not be supported depending on the

product even when an RI connection is used.

∫ Auto Power On

When this unit is in standby mode, if a component connected by an RI cable is turned on, this unit automatically turns on.

Preparations

∫ Direct change

When playback is started on a component connected via RI, the unit selects that component as the input source.

∫ System off

When this unit is turned off, components connected by an RI cable are automatically turned off.

∫ Remote controller operations

You can use the remote controller of this unit to centrally control components by connecting with an RI cable. Refer to "Remote Controller" - "Operating other components" (p8) for information about the buttons and operations for the components.

0 The RI feature on this unit supports Onkyo CD players,

tuners, network audio players, and RI docks only. It does not work properly with other devices such as MD recorders. Refer to the instruction manual of the component with the RI jack for details.

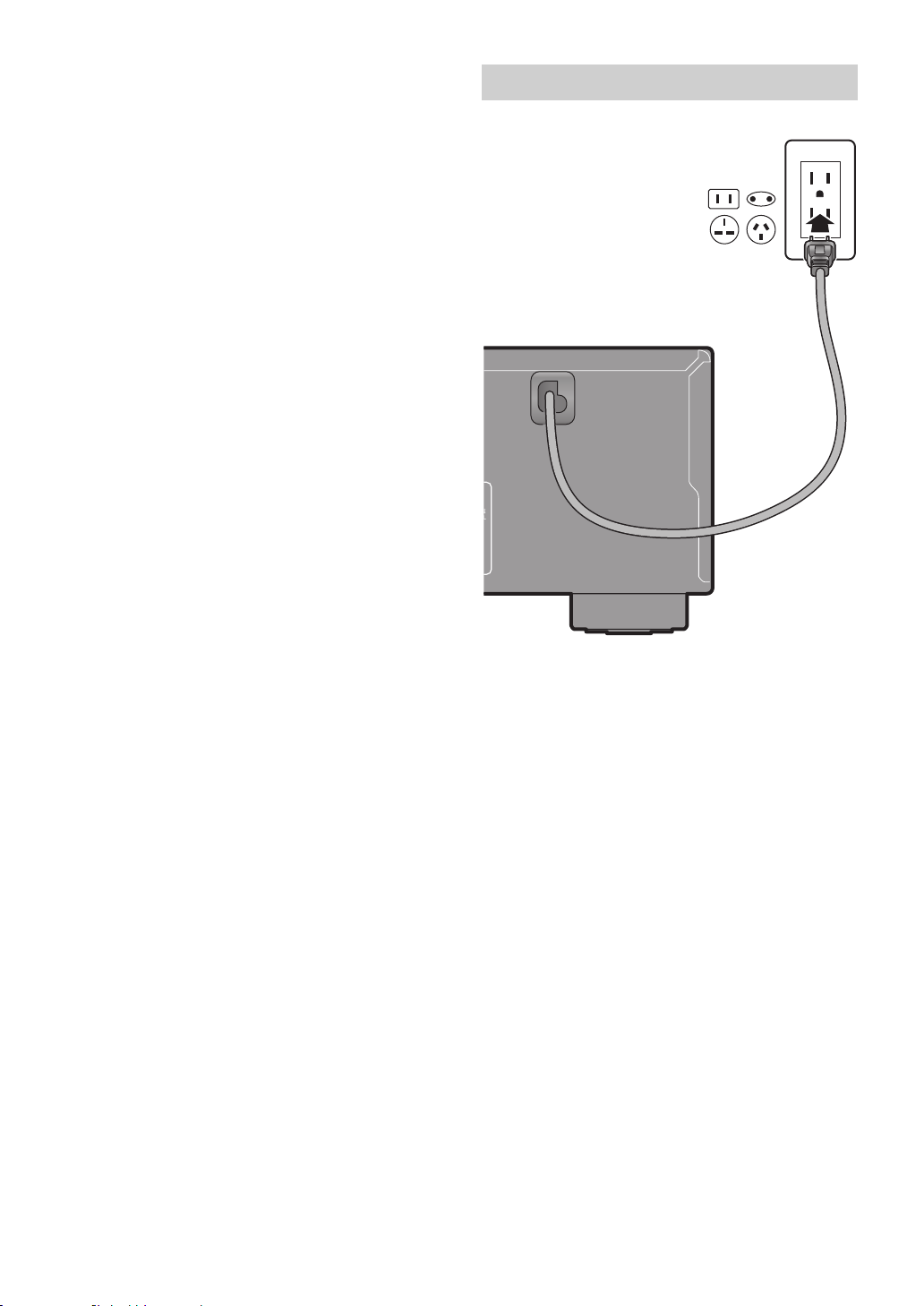

Power Cord Hookup

a Power Cord

The power cord must be connected only after all other connections are completed.

Preparations

Setup

Remote controller preparations

Match the polarity when inserting the batteries.

Turn on the power of the unit

Press Í ON/STANDBY on this unit or Í on the remote controller.

Preparations

8Ω

4Ω

Speaker impedance settings

///

SETUP

Depending on the speakers you connect, you may need to change the speaker impedance setting on this unit. Refer to the page describing speaker connection (p9) and do the following procedures if the change is required.

1. Press SETUP on the remote controller.

2. Press D/C on the remote controller several times so that input source indicators on the unit, such as "LINE 1" and "LINE 2", start blinking.

(BLINKING)

0 The indicators blink and the current setting is

displayed.

3. Press B/A on the remote controller to change the setting.

-4 ≠: "LINE 1" and "LINE 2" indicators are blinking

-8 ≠ (default value): "LINE 1", "LINE 2", "LINE 3" and "LINE 4" indicators are blinking

4. To exit the settings, press SETUP. 0 The setting mode ends after 5 seconds elapse with no

operations performed.

Playback

Switching input and adjusting the

VOLUME

INPUT

volume

Basic Operations

Perform the following procedure when the unit is on.

1. Press INPUTD/C on the remote controller to switch to the input with the same name as the jack to which you have connected the player. For example, switch to LINE 1 to play the device connected to the LINE IN 1 jack. When operating on the main unit, turn the INPUT dial to switch the input.

0 The indicator for the selected input source lights.

2. Start play on the connected player.

3. Press VOLUME on the remote controller or turn the volume controller on the main unit to adjust the volume.

Subwoofer output settings

OFF

AUTO

Basic Operations

///

SETUP

This unit enables you to choose the subwoofer output mode,

with the choices being "Auto" (default setting), "On", and "Off".

Auto : The subwoofer signal is not output when the

DIRECT function (p11) is on.

: The subwoofer signal is always output.

On Off : The subwoofer signal output is stopped, and the

0 There is no audio output from the subwoofer when

1. Press SETUP on the remote controller.

2. Press D/C on the remote controller several times so

effect on sound quality can be moderated within the unit. It is recommended to set this off if you are not using a subwoofer.

headphones are connected, irrespective of the setting.

that some input source indicators, such as "LINE 1" and "LINE 2", light on the unit.

(LIGHTING)

0 The indicators light and the current setting is displayed.

3. Press B/A on the remote controller to change the setting.

- Auto (default value): "LINE 1" and "LINE 2" indicators light

- On: "LINE 1", "LINE 2" and, "LINE 3" indicators light

- Off: "LINE 1", "LINE 2", "LINE 3", and "LINE 4" indicators light

4. To exit the settings, press SETUP. 0 The setting mode ends after 5 seconds elapse with no

operations performed.

Basic Operations

Using the Direct Function

DIRECT

Adjusting the sound quality and balance

PMBASS

When you turn the DIRECT feature on (default value), the unit bi-passes the tone control circuits that adjust the bass and treble, taking the shortest route which favors sound quality.

0 PHASE MATCHING BASS/BASS/TREBLE cannot be

adjusted when DIRECT feature is on.

1. Press DIRECT on the main unit or the remote controller to switch on or off. The DIRECT indicator lights when on.

PHASE MATCHING BASS

Turning the PHASE MATCHING BASS function on maintains smooth and powerful bass reproduction while effectively keeping the mid-range clear and making vocals and strings stand out (The default value is “off”).

0 This cannot be set when DIRECT is on (default value).

Press DIRECT to turn the DIRECT indicator off before operating. Note that the PHASE MATCHING BASS setting reverts to the previous setting when the DIRECT function is turned off.

1. Press PHASE MATCHING BASS on the main unit or PM BASS on the remote controller to switch on or off. The PHASE MATCHING BASS indicator lights when on.

BASS (main unit only)

0 This cannot be set when DIRECT is on (default value).

Press DIRECT to turn the DIRECT indicator off before operating.

1. Turn the BASS -/+ controller to enhance or moderate the bass.

TREBLE (main unit only)

0 This cannot be set when DIRECT is on (default value).

Press DIRECT to turn the DIRECT indicator off before operating.

1. Turn the TREBLE -/+ controller to enhance or moderate the treble.

BALANCE (main unit only)

1. Turn the BALANCE L/R controller on the main unit to adjust the balance of the sounds output from the left and right speakers.

Basic Operations

Useful functions

Setting auto standby

(LIGHTING)

OFF

(BLINKING)

Others

///

SETUP

When automatic standby is on, the unit automatically switches to standby mode after 20 minutes of no audio input without any operations (Default value: North American models are "Off", others are "On".).

1. Press SETUP on the remote controller.

2. Press D/C on the remote controller several times to make the "DIRECT" and "PHASE MATCHING BASS" indicators either blink or light.

0 The indicators blink or light and the current setting

value is displayed.

3. Press B/A on the remote controller to switch auto standby on or off.

- On: "DIRECT" and "PHASE MATCHING BASS" indicators are blinking

- Off: "DIRECT" and "PHASE MATCHING BASS" indicators light

4. To exit the settings, press SETUP. 0 The setting mode ends after 5 seconds elapse with no

operations performed.

0 60 seconds before switching to standby mode, the input

source indicator for the currently selected source starts blinking.

0 Depending on the connected device, the auto standby

feature may not engage due to factors such as noise.

Troubleshooting

Before starting the procedure

Problems may be solved by simply turning the power on/off or disconnecting/connecting the power cord, which is easier than working on the connection, setting and operating procedure. Try the simple measures on both the unit and the connected device. After reconnecting, turn off and on the unit and the connected device.

0 This unit contains a microPC for signal processing and

control functions. In very rare situations, severe interference, noise from an external source, or static electricity may cause it to lockup. In the unlikely event that this happens, unplug the power cord from the wall outlet, wait at least 5 seconds, and then plug it back in.

0 We are not responsible for reparations for damages (such

as CD rental fees) due to unsuccessful recordings caused by the unit’s malfunction. Before you record important data, make sure that the material will be recorded correctly.

∫ Resetting the unit (this resets the unit settings

to the default)

Resetting the unit to the status at the time of shipment may solve the problem. If the unit is reset, your settings are restored to the default values. Be sure to note down your setting contents before performing the following operations.

1. While the power is on, press Í ON/STANDBY while pressing DIRECT.

Others

speaker wires are not touching each other or the back panel of the unit, then turn the unit on again. If this unit does not turn on, immediately unplug the power cord from the wall outlet and contact your dealer.

0 The protective circuit function may have been activated

because the temperature of the unit rose abnormally. If this happens, then the power will continue to turn off after you have turned the unit on again. Make sure the unit has plenty of space for ventilation around it, wait for the unit to cool down sufficiently, and then try turning it on again.

WARNING: If smoke, smell or abnormal noise is produced by the unit, unplug the power cord from the wall outlet immediately and contact the dealer or customer support.

Audio

0 Confirm that the connection between the output jack on

the device and the input jack on this unit is correct.

0 Make sure that none of the connecting cables are bent,

twisted, or damaged.

0 If MUTING is active, press MUTING on the remote

controller to cancel. MUTING is active when the indicator for the selected input source is blinking.

0 While headphones are connected to the PHONES jack,

no sound is output from the speakers or subwoofer.

∫ Audio performance

0 Audio performance will be at its best about 10 to 30

minutes after the integrated amplifier has been turned on and had time to warm up.

0 The sound quality can be affected by strong magnetic

fields, such as those from a TV. Try moving any such devices away from the integrated amplifier.

0 If you have any devices that emit high-intensity radio

waves near the integrated amplifier, such as a cellular phone that’s being used to make a call, the integrated amplifier may output noise.

0 Install the integrated amplifier on a sturdy rack or shelf.

Position it so that its weight is evenly dispersed on its four insulators. Do not install the integrated amplifier in a place with vibration or an unstable location.

Power

∫ Cannot turn on the unit

0 Make sure that the power cord is properly plugged into

the wall outlet.

0 Unplug the power cord from the wall outlet, wait 5

seconds or more, then plug it in again.

∫ The unit turns off unexpectedly

0 The unit automatically enters standby mode when auto

standby (p19) is activated.

0 A speaker cable may have shorted and the protective

circuit function may have been activated. Make sure bare

∫ No sound from a connected playback device

0 Change the input selector on this unit to the position of

the terminal to which the playback device is connected.

∫ A speaker produces no sound

0 Make sure that the polarity of the speaker cables (+/-) is

correct, and that no bare wires are in contact with the metal part of speaker terminals.

0 Make sure that the speaker cables have not shorted. 0 Make sure the speakers are connected correctly. (p9)

∫ Noise can be heard

0 Using cable ties to bundle analog audio cables, power

cords, speaker cables, etc. may degrade the audio performance. Do not bundle cords.

0 An audio cable may be picking up interference. Try

repositioning your cables.

∫ Headphone output is intermittent or there’s no

sound

0 The connection part may be dirty. Clean the headphones

plug. See your headphones’ instruction manual for cleaning information. Also, make sure that the headphones cable is not broken or damaged.

The RI linking feature

∫ RI linking isn't working properly

0 Make sure that the RI REMOTE CONTROL jacks are

properly connected.

0 A connection to the RI REMOTE CONTROL jack is not

enough for the units to operate as a system. Connect the Analog audio cable properly. (p11)

Remote Controller

0 Make sure that the batteries are installed with the correct

polarity.

0 Install new batteries. Do not mix different types of

batteries, or old and new batteries.

0 Make sure that the unit is not subjected to direct sunshine

or inverter-type fluorescent lights. Relocate if necessary.

0 If the unit is installed in a rack or cabinet with colored-

glass doors or if the doors are closed, the remote controller may not work reliably.

Others

∫ Strange noises can be heard from the unit

0 If you have connected another unit to the same wall outlet

as this unit, this noise may be an effect from the other unit. If the symptoms improve by unplugging the power cord of the other unit, use different wall outlets for this unit and the other unit.

+ 47 hidden pages
