Integrated Stereo Amplifier

A-905X

Instruction Manual

STANDBY/ON

STANDBY

POWER

ON OFF

INTEGRATED STEREO AMPLIFIER

MD TUNER

LINE-1/DVD

PHONES

TREBLEBASS BALANCE

− ＋ − ＋ LR

VOLUME

TAPE

LINE-2

DIRECT

SOURCE DIRECT

DIRECT

WIDE RANGE AMP TECHNOLOGY

TONE

INPUT

ACOUSTIC PRESENCE

OFF/1/2

Before using

Connections Preparations

Operation

A-905X

Other Information

Before using

Thank you for purchasing ...

Thank you for purchasing the ONKYO A-905X Integrated Stereo Amplifier. Please read this manual thoroughly before making any connection or turning on the power. Follow these instructions to obtain optimum performance and maximum listening enjoyment from your new A-905X. Please retain this manual for future reference.

Main Features

• Individually designed as the high-quality Separate Collection Series

• 4 ohm-drive capability with discrete output stage circuit

Memory Preservation

This unit does not require memory preservation batteries. A built-in memory power back-up system preserves the contents of the memory during power failures and even when the unit is unplugged. The unit must be plugged in order to charge the back-up system.

WARNING:

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPLIANCE TO RAIN OR MOISTURE.

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

• Input selector for six audio sources

• Remote control operable with

-con-

nected ONKYO components

The memory preservation period after the unit has been unplugged varies depending on climate and placement of the unit. On the average, memory contents are protected over a period of a few weeks after the last time the unit has been unplugged. This period is shorter when the unit is exposed to a highly humid climate.

WARNING

RISK OF ELECTRIC SHOCK

DO NOT OPEN

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of

electric shock to persons. The exclamation point within an equilateral

triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature

accompanying the appliance.

AVIS

RISQUE DE CHOC ELECTRIQUE

NE PAS

OUVRIR

Important Safeguards

1. Read Instructions – All the safety and operating instructions should be read before the appliance is operated.

2. Retain Instructions – The safety and operating instructions should be retained for future reference.

3. Heed Warnings – All warnings on the appliance and in the operating instructions should be adhered to.

4. Follow Instructions – All operating and use instructions should be followed.

5. Water and Moisture – The appliance should not be used near water – for example, near a bathtub, washbowl, kitchen sink, laundry tub, in a wet basement, or near a swimming pool, and the like.

6. Carts and Stands – The appliance should be used only with a cart or stand that is recommended by the manufacturer.

6A. An appliance and cart

combination should be moved with care. Quick stops, excessive force, and uneven surfaces may cause the appliance and cart combination to overturn.

7. Wall or Ceiling Mounting – The appliance should be mounted to a wall or ceiling only as recommended by the manufacturer.

8. Ventilation – The appliance should be situ- ated so that its location or position does not interfere with its proper ventilation. For example, the appliance should not be situated on a bed, sofa, rug, or similar surface that may block the ventilation openings; or if placed in a built-in installation, such as a bookcase or cabinet that may impede the flow of air through the ventilation openings, there should be free space of at least 20 cm (8 in.) and an opening behind the appliance.

9. Heat – The appliance should be situated away from heat sources such as radiators, heat registers, stoves, or other appliances (including amplifiers) that produce heat.

PORTABLE CART WARNING

S3125A

10. Power Sources – The appliance should be connected to a power supply only of the type described in the operating instructions or as marked on the appliance.

–

11. Polarization a polarized plug having one blade wider than the other , please read the following information:

The polarization of the plug is a safety feature. The polarized plug will only fit the outlet one way . If the plug does not fit fully into the outlet, try reversing it. If there is still trouble, the user should seek the services of a qualified electrician. Under no circumstances should the user attempt to defeat the polarization of the plug.

12. Power-Cord Protection – Power-supply cords should be routed so that they are not likely to be walked on or pinched by items placed upon or against them, especially near plugs, convenience receptacles, and the point where they exit from the appliance.

13. Cleaning – The appliance should be cleaned only as recommended by the manufacturer.

14. Nonuse Periods – The power cord of the ap- pliance should be unplugged from the outlet when left unused for a long period of time.

15. Object and Liquid Entry – Care should be taken so that objects do not fall and liquids are not spilled into the enclosure through openings.

16. Damage Requiring Service – The appliance should be serviced by qualified service personnel when: A. The power-supply cord or the plug has

been damaged; or

B. Objects have fallen, or liquid has been

spilled into the appliance; or C. The appliance has been exposed to rain; or D. The appliance does not appear to oper-

ate normally or exhibits a marked change

in performance; or E. The appliance has been dropped, or the

enclosure damaged.

17. Servicing – The user should not attempt to ser- vice the appliance beyond that described in the operating instructions. All other servicing should be referred to qualified service personnel.

If the appliance is provided with

Before using

Precautions

1. Warranty Claim

You can find the serial number on the rear panel of this unit. In case of warranty claim, please report this number.

2. Recording Copyright

Recording of copyrighted material for other than personal use is illegal without permission of the copyright holder.

3. AC Fuse

The fuse is located inside the chassis and is not user-serviceable. If power does not come on, contact your Onkyo authorized service station.

4. Care

From time to time you should wipe the front and rear panels and the cabinet with a soft cloth. For heavier dirt, dampen a soft cloth in a weak solution of mild detergent and water , wring it out dry, and wipe off the dirt. Following this, dry immediately with a clean cloth. Do not use rough material, thinners, alcohol or other chemical solvents or cloths since these could damage the finish or remove the panel lettering.

5. Power WARNING

BEFORE PLUGGING IN THE UNIT FOR THE FIRST TIME, READ THE FOLLOWING SECTION CAREFULLY.

The voltage of the available power supply differs according to country or region. Be sure that the power supply voltage of the area where this unit will be used meets the required voltage (e.g., AC 230 V, 50 Hz or AC 120 V, 60 Hz) written on the rear panel.

Declaration of Conformity

We,

ONKYO EUROPE ELECTRONICS GmbH INDUSTRIESTRASSE 20 82110 GERMERING, GERMANY

declare in own responsibility, that the ONKYO product described in this instruction manual is in compliance with the corresponding technical standards such as EN60065, EN55013, EN55020 and EN61000-3-2, -3-3 (or EN60555-2, -3)

GERMERING, GERMANY

ONKYO EUROPE ELECTRONICS GmbH

K.OTSU

For British model

Replacement and mounting of an AC plug on the power supply cord of this unit should be performed only by qualified service personnel.

IMPORTANT

The wires in the mains lead are coloured in accordance with the following code:

Blue : Neutral

Brown : Live As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows: The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black. The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.

IMPORTANT

A 5 amp fuse is fitted in this plug. Should the fuse need to be replaced, please ensure that the replacement fuse has a rating of 5 amps and that it is approved by AST A or BSI to BS1362. Check for the ASTA mark or the BSI mark on the body of the fuse. IF THE FITTED MOULDED PLUG IS UNSUITABLE FOR THE SOCKET OUTLET IN YOUR HOME THEN THE FUSE SHOULD BE REMOVED AND THE PLUG CUT OFF AND DISPOSED OF SAFELY. THERE IS A DANGER OF SEVERE ELECTRICAL SHOCK IF THE CUT OFF PLUG IS INSERTED INTO ANY 13 AMP SOCKET . If in any doubt, please consult a qualified electrician.

For Canadian model

For models having a power cord with a polarized plug: CAUTION: TO PREVENT ELECTRIC SHOCK, MATCH WIDE BLADE OF PLUG TO WIDE SLOT, FULLY INSERT.

Modele pour les Canadien

Sur les modèles dont la fiche est polarisée: ATTENTION: POUR ÉVITER LES CHOCS ÉLECTRIQUES, INTRODUIRE LA LAME LA PLUS LARGE DE LA FICHE DANS LA BORNE CORRESPONDANTE DE LA PRISE ET POUSSER JUSQU’AU FOND.

Table of contents

Connections

Connecting to the ONKYO Separate Collection Series components .... 6

Connecting to components other than the Separate Collection Series....

Connecting speaker systems ............................................................ 14

Connecting the AC power cord (mains lead) .................................... 16

Preparations

Preparing the remote controller........................................................ 17

Operation

Turning the unit on .......................................................................... 18

Choosing the required source .......................................................... 19

Adjusting the sound......................................................................... 20

Muting/Listening through the headphones....................................... 21

Recording ........................................................................................ 22

Other Information

Troubleshooting ............................................................................... 23

Specifications ................................................................................... 24

Index to parts and controls............................................................... 25

Before using

Supplied accessories

Check that the following accessories are supplied with this unit.

P O

E R

C R

O C

C A

L L

L E

L I C

I Z

P E

P L

A Y

O D

E R E P

E A

/ / D

N E N

7 T E

- 6

- 89

- 1 0

/ 0

T I

O N

T R

L E

R C

- 3

8 S

Remote controller x 1 (RC-398S)

I S

U M

E E A

D R O

L L

A U

P R E

C C D

Batteries x 2 (Size AA, R6, or UM-3)

Connections

Connecting to the ONKYO Separate Collection Series components

This section introduces you to the other Separate Collection Series system components and their convenient system functions, followed by connecting instructions.

The following Separate Collection Series components are commercially available:

• T-405X ........ Stereo Tuner

• K-505X ....... Stereo Cassette Tape Deck

• C-705X....... Compact Disc (CD) Player (Not available in U.S.A and Canada)

• C-707CH .... Compact Disc (CD) Changer (Only available in U.S.A and Canada)

• MD-105X ... Minidisc (MD) Recorder (Not available in U.S.A and Canada) Note that the available components may vary according to the area.

Combination use of the unit with the above system components enables you to operate the following convenient functions:

• Auto Power On

– You can turn on the unit by pressing the STANDBY/ON switch on one of the system components.

(The unit's POWER switch must be set to ON.)

– You can turn on all the system components at the same time by pressing the STANDBY/ON switch

on the unit. (The unit's POWER switch must be set to ON.) You can turn off each component not in use independently afterwards.

• Direct Change

Press the following button on the component you want to operate to switch the unit’s input selector automatically to that component: – The play button on the CD player (or changer), MD recorder, or stereo cassette tape deck, or – The PRESET

• Remote Control Operation

All the system components can be operated using the supplied remote controller (see “Remote control – Operating buttons for other components” on page 27). The remote control buttons operate in the same way as the buttons on each component with the same indication.

• Program Timer

Y ou can operate timer playback and recording using T-405X. (Refer to the T-405X instruction manual for more information.)

• Sleep Timer

Y ou can fall asleep to a music/radio program using the timer. (Refer to the T-405X instruction manual for more information.)

• CD Dubbing

Simple CD dubbing using the stereo cassette tape deck is possible with the pressing of a single button. (Refer to the K-505X instruction manual for more information.)

• CD/MD Synchro Recording

When using the stereo cassette tape deck to record from the CD player or MD r ecorder, you can start recording automatically (while the stereo cassette tape deck is in recor ding standby) at the same time as you start playing a CD or MD. (Refer to the K-505X instruction manual for more information.)

• Dubbing a specific track from CD

Y ou can specify a track on a CD and easily dub it to a connected MD recorder. (Refer to the MD-105X instruction manual for more information.)

/ buttons on the tuner.

Arranging the system components

Combination example 1

Select the tuner T-405X, CD player C-705X (or CD changer C-707CH), and stereo cassette tape deck K505X in addition to this unit. When you arrange these components, stack them as shown below.

Vertical way stacking Horizontal way stacking

Before using

Tuner (T-405X)

Amplifier – this unit (A-905X)

Stereo cassette tape deck (K-505X)

CD player (C-705X) or CD changer (C-707CH)

Tuner

(T-405X)

Amplifier – this unit

(A-905X)

Stereo cassette tape

deck (K-505X)

CD player (C-705X) or CD changer (C-707CH)

Combination example 2

Select the tuner T-405X, CD player C-705X and MD recorder MD-105X in addition to this unit. When you arrange these components, stack them as shown below.

Vertical way stacking Horizontal way stacking

Tuner (T-405X)

Amplifier – this unit (A-905X)

Tuner

(T-405X)

MD recorder

(MD-105X)

PreparationsConnections

Operation

MD recorder (MD-105X)

CD player (C-705X)

Tip

In addition to the above combination examples, you can also connect both the MD recorder MD-105X and stereo cassette tape deck K-505X with the tuner T-405X, CD player C-705X, and this unit.

Amplifier – this unit

(A-905X)

CD player (C-705X)

Other Information

Connecting to the ONKYO Separate Collection Series components

Connecting to the audio connector

Before connecting

• Do not connect the unit’s AC power cord (mains lead) to a wall outlet (the mains) until you have completed all the other connections, including “Connecting to components other than the Separate Collection Series” on page 11 and “Connecting speaker systems” on page 14.

• On each pair of connectors, a red connector (marked R) corresponds to the right channel, and a white connector (marked L) to the left channel. Connect white plugs of audio cables to L connectors and connect red plugs of audio cables to R connectors.

To L connector (White) To R connector

• Please refer to the instruction manual for each component when you make any connections.

• Insert the plug securely. If the connection is incomplete, noise or malfunction may result.

Improper connection

Insert completely

• When you use a digital audio optical cable, do not bend it sharply nor coil it tightly.

• Bundling an audio connection cable with the power cord or speaker cord may degrade the sound quality.

• Be sure to use the with each component (not supplied with the A-905X) to connect to the remote control jack. If the connection is incomplete, you will be unable to operate the device using the remote controller.

• CD players and MD recorders use heat-sensitive parts. Do not place them on top of the amplifier.

(Red)

Audio connection cable

and AC OUTLET connections on page 10. Refer to

(White) (Red)

To L connector To R connector

Note:

To connect both the MD recorder MD-105X and stereo cassette tape deck K-505X to the unit Connect the MD recorder to the unit following the “Connections for combination example 2” on the next page and connect the stereo cassette tape deck to the unit following the “Connections for combination example 1.”

Connections for combination example 1

OUTPUT

MODEL NO. T-405X

FM STEREO TUNER

OUTPUT

ANTENNA

Tuner (T-405X)

REMOTE

CONTROL

AC OUTLET

AC230V 50Hz UNSWITCHED100W MAX.

LINE-1LINE-2

TUNER

OUT(REC)

TAPE

IN(PLAY)

OUT(REC)

IN(PLAY)

OUT(REC)

TAPE

LINE-1LINE-2

TUNER

Amplifier – this unit (A-905X)

OUT

PROCESSOR

SUBWOOFER

PRE OUT

IN(PLAY)

SPEAKERS

INTEGRATED STEREO AMPLIFIER

OUT

PROCESSOR

A-905XMODEL NO.

RATING;

AC OUTLET

AC230V 50Hz

SUBWOOFER

SWITCHED 100W MAX.

PRE OUT

REMOTE

CONTROL

IN(PLAY)

OUT(REC)

Before using

ANALOG

OUTPUT

COMPACT DISC PLAYER

MODEL NO. C-705X

REMOTE CONTROL

DIGITAL OUTPUT

OPTICAL

AC OUTLET

AC230V 50Hz UNSWITCHED

100W MAX.

"CLASS 1 LASER

PRODUCT"

CD player (C-705X) or

ANALOG OUTPUT

CD changer (C-707CH)

: Signal flow

Connections for combination example 2

OUTPUT

ANALOG

OUTPUT

ANALOG OUTPUT

COMPACT DISC PLAYER

MODEL NO. C-705X

REMOTE

DIGITAL OUTPUT

CONTROL

OPTICAL

CD player (C-705X)

Tuner (T-405X)

MODEL NO. T-405X

FM STEREO TUNER

ANTENNA

DIGITAL OUTPUT

AC OUTLET

AC230V 50Hz

UNSWITCHED

100W MAX.

"CLASS 1 LASER PRODUCT"

OUTPUT

REMOTE CONTROL

OPTICAL

AC OUTLET

AC230V 50Hz UNSWITCHED100W MAX.

INPUT OUTPUT

(REC) (PLAY)

OUT(REC)

IN(PLAY)

TUNER

ANALOG

INPUT OUTPUT (REC) (PLAY)

ANALOG

REMOTE

INPUT OUTPUT

CONTROL

(REC) (PLAY)

DIGITAL INPUT

OPTICAL

MD recorder (MD-105X)

INPUT OUTPUT

(REC) (PLAY)

Stereo cassette tape deck (K-505X)

Amplifier – this unit (A-905X)

LINE-1LINE-2

TUNER

DIGITAL INPUT

MINIDISC RECORDER

MD-105X

AC OUTLET

AC230V 50Hz UNSWITCHED

100W MAX.

REMOTE

STEREO CASSETTE TAPE DECK

CONTROL

K-505X

IN(PLAY)

OUT(REC)

SPEAKERS

REMOTE

TAPE

CONTROL

IN(PLAY)

OUT(REC)

OUT

SUBWOOFER

PRE OUT

PROCESSOR

OPTICAL

INTEGRATED STEREO AMPLIFIER

MODEL NO.

RATING;

AC OUTLET

AC230V 50Hz UNSWITCHED

100W MAX.

PreparationsConnections

A-905X

AC OUTLET

AC230V 50Hz

SWITCHED 100W MAX.

Operation

Other Information

: Signal flow

Optical cable

Connecting to the ONKYO Separate Collection Series components

Connecting the connectors and AC OUTLETS

Before connecting

• The hookups on page 8 or 9 are needed in addition to the OUTLET (for power supply to each component) hookups on this page.

• Each component has two

connectors. There is no difference between those connectors. The

components may be connected in any order.

• The

cable for connecting the connectors is supplied with each component (not supplied with

the unit).

Connections

To use the Clock/Timer function of the tuner T-405X’s, connect the power cord as shown below and connect the cord of the T-405X to an AC outlet that supplies continuous power . Also, turn on the POWER switch on the A-905X to use the Timer function.

cable and audio connection cables (see pages 8 and 9). Be sure to connect the power

(for remote control operations) and AC

Stereo cassette tape deck (K-505X) or MD recorder (MD105X)

ANALOG

REMOTE

INPUT OUTPUT

CONTROL

(REC) (PLAY)

DIGITAL INPUT

OPTICAL

AC OUTLET

AC230V 50Hz

UNSWITCHED

MINIDISC RECORDER

MD-105X

100W MAX.

MODEL NO. T-405X

FM STEREO TUNER

OUTPUT

REMOTE

CONTROL

ANTENNA

AC OUTLET

AC230V 50Hz UNSWITCHED100W MAX.

To wall outlet

Tuner (T-405X)

(The illustration is MD105X.)

CD player (C-705X) or CD changer (C-707CH)

ANALOG OUTPUT

COMPACT DISC PLAYER

MODEL NO. C-705X

REMOTE CONTROL

DIGITAL OUTPUT

OPTICAL

AC OUTLET

AC230V 50Hz UNSWITCHED

100W MAX.

"CLASS 1 LASER

PRODUCT "

OUT(REC)

LINE-1LINE-2

TUNER

IN(PLAY)

SPEAKERS

INTEGRATED STEREO AMPLIFIER

REMOTE

TAPE

CONTROL

OUT(REC)

IN(PLAY)

OUT

PROCESSOR

A-905XMODEL NO.

RATING;

SUBWOOFER

PRE OUT

Amplifier – this unit (A-905X)

AC OUTLET

AC230V 50Hz

SWITCHED 100W MAX.

If you connect the power cord as shown below, you can turn off the power to the entire system by simply turning off the POWER switch on the amplifier A-905X.

Note:

If the system is connected so that you can use the tuner’s T-405X Clock/Timer function, turning off the power to the entire system will turn off the power to the tuner, and the Clock and Timer functions will no longer function. If you wish to use the clock or Timer function, leave the POWER switch set to ON.

K-505X or MD-105X

ANALOG

REMOTE

INPUT OUTPUT

CONTROL

(REC) (PLAY)

DIGITAL INPUT

OPTICAL

AC OUTLET

AC230V 50Hz

UNSWITCHED

100W MAX.

MINIDISC RECORDER

MD-105X

T-405X

FM STEREO TUNER

ANTENNA

C-705X or C-707CH A-905X

ANALOG OUTPUT

COMPACT DISC PLAYER

MODEL NO.

C-705X

AC OUTLET

AC230V 50Hz UNSWITCHED

DIGITAL OUTPUT

OPTICAL

100W MAX.

"CLASS 1 LASER

PRODUCT "

REMOTE CONTROL

OUT(REC)

LINE-1LINE-2

TUNER

MODEL NO.

T-405X

OUTPUT

REMOTE CONTROL

IN(PLAY)

SPEAKERS

REMOTE

TAPE

CONTROL

IN(PLAY)

OUT(REC)

OUT

PROCESSOR

AC OUTLET

AC230V 50Hz UNSWITCHED100W MAX.

INTEGRATED STEREO AMPLIFIER

A-905X

MODEL NO.

RATING;

AC OUTLET

AC230V 50Hz

SUBWOOFER

SWITCHED 100W MAX.

PRE OUT

TO wall outlet

Connecting to components other than the

Improper connection

Insert completely

Separate Collection Series

Connecting audio/video equipment to audio cables

Before connecting

• Do not connect the AC power cord (mains lead) to the wall outlet (the mains) until you have completed all the other connections including the sound processor connections on the next page, the connections on page 13, and the speaker connections on page 14.

• On each pair of connectors, a red connector (marked R) corresponds to the right channel, and a white connector (marked L) to the left channel.Connect white plugs of audio cables to L connectors and connect red plugs of audio cables to R connectors .

To L connector (White) To R connector

(Red)

• Please refer to the instruction manual for each component when you make any connections.

• Insert the plug securely . If the connection is incomplete, noise or malfunction may result.

Connections

Audio connection cable

(White) (Red)

To L connector To R connector

Before using

LD player

AUDIO OUT

: Signal flow

OUTPUT

Video cassette

recorder

AUDIO OUT

OUT(REC)

IN(PLAY)

LINE-1LINE-2

TAPE

OUT(REC)

IN(PLAY)

Stereo cassette tape

deck

REC INPUT

Amplifier – this unit (A-905X)

IN(PLAY)

OUT(REC)

TAPE

LINE-1LINE-2

OUT(REC)

TUNER

SPEAKERS

INTEGRATED

OUT

PROCESSOR

STEREO AMPLIFIER

RATING;

SUBWOOFER

PRE OUT

REMOTE

CONTROL

IN(PLAY)

PLAY OUTPUT

A-905XMODEL NO.

AC OUTLET

AC230V 50Hz

SWITCHED 100W MAX.

PreparationsConnections

Operation

Other Information

TUNER

OUTPUT

REC INPUT

PLAY OUTPUT

Tuner

CD player

MD recorder

Connecting to components other than the Separate Collection Series

Connecting a sound processor

You can connect a sound processor (e.g. graphic equalizer, surround processor, etc.) to the unit.

Before connecting

• Disconnect the jumper plugs using the PROCESSOR connectors. – Please retain them for future use. – Never connect the jumper plugs to the other connectors, as this may cause the unit to malfunc-

tion, so that the sound is not reproduced.

– If you do not use the PROCESSOR connectors, reconnect the jumper plugs to them firmly.

Connections

1 Remove the jumper plugs.

Jumper plug

OUT

PROCESSOR

2 Connect the sound processor to the unit.

This unit

OUT(REC)

IN(PLAY)

TAPE

LINE-1LINE-2

OUT(REC)

TUNER

: Signal flow

REMOTE

CONTROL

IN(PLAY)

TUNER

SPEAKERS

OUT

PROCESSOR

INTEGRATED STEREO AMPLIFIER

A-905X

MODEL NO.

RATING;

AC OUTLET

AC230V 50Hz

SUBWOOFER

PRE OUT

SWITCHED 100W MAX.

INPUT

Sound processor

OUTPUT

OUT(REC)

IN(PLAY)

OUT

PROCESSOR

SUBWOOFER

PRE OUT

Connecting the cables

If your other components are made by ONKYO and those components are equipped with connectors, you can control the

-connected components with the supplied remote controller.

Before connecting

• The unit must be connected in the

• Each component has two

connectors. There is no difference between these connectors.

system hookups for control operations.

• The components may be connected in any order.

• The hookups on the previous page are necessary independently of the The illustration below is an example of a

hookup.

system hookups.

Connections

Tuner

Amplifier

– this unit

Before using

MD recorder

Stereo cassette

tape deck

CD player

AC outlet connection

You can connect the power cord from another audio device to the rear of the A-905X. Since the AC outlet on the unit is a SWITCHED type outlet, you can use the POWER switch to turn on/off the power to both the A-905X and the connected audio device. The shape and capacity of the AC outlet may differ depending on the area of purchase. Make sure that the capacity of other components connected to this unit does not exceed the capacity that is printed on the rear panel.

cable (supplied with every ONKYO component that has plifier and receiver)

IN(PLAY)

OUT(REC)

SPEAKERS

REMOTE

TAPE

LINE-1LINE-2

CONTROL

OUT(REC)

IN(PLAY)

TUNER

OUT

PROCESSOR

Capacity is total 100 watts.

connectors except for the am-

INTEGRATED STEREO AMPLIFIER

A-905X

MODEL NO.

RATING;

AC OUTLET

AC230V 50Hz

SUBWOOFER

PRE OUT

SWITCHED 100W MAX.

120 V, 60 Hz models230 V, 50 Hz models

Capacity is total 120 watts.

PreparationsConnections

Operation

Other Information

Connecting speaker systems

Connecting left and right speakers

Before connecting

• The load impedance of each speaker must be at least 4 ohms.

• Do not use unnecessarily long or extremely thin speaker cords. Otherwise, the DC resistance of the speaker cords may become too high, lowering the damping factor and causing the sound quality to deteriorate.

• Do not connect the speaker cord to the L and R connectors at the same time and do not connect two or more speakers to the same speaker connectors.

SPEAKERS

Preparing the speaker cords for connection

1 Strip 15 mm from

the end of each cord.

15mm

2 Twist the stripped

end of the cord.

Note

To prevent damage to circuits never short-circuit the positive (+) and negative (–) speaker wires.

Connecting the speaker cords to the speaker connectors

SPEAKERS

Right speaker

IN(PLAY)

OUT(REC)

SPEAKERS

INTEGRATED STEREO AMPLIFIER

OUT

PROCESSOR

MODEL NO.

RATING;

SUBWOOFER

PRE OUT

REMOTE

TAPE

LINE-1LINE-2

CONTROL

IN(PLAY)

OUT(REC)

TUNER

Left speaker

A-905X

AC OUTLET

AC230V 50Hz

SWITCHED 100W MAX.

This unit

1 Turn the knob

counterclockwise to loosen.

2 Insert the stripped

end of the cord.

3 Turn the knob

clockwise to tighten.

Connecting a sub-woofer

Before connecting

• If your sub-woofer isn’t equipped with an amplifier, connect a separate amplifier to the unit first, then connect the sub-woofer to that amplifier.

• The SUBWOOFER PRE OUT connector supplies the left and right mixed monaural signals to the subwoofer .

Connections

This unit

IN(PLAY)

OUT(REC)

TAPE

LINE-1LINE-2

OUT(REC)

TUNER

SPEAKERS

INTEGRATED STEREO AMPLIFIER

A-905X

OUT

PROCESSOR

MODEL NO.

RATING;

AC OUTLET

AC230V 50Hz

SUBWOOFER

PRE OUT

SWITCHED 100W MAX.

When connecting a sub-woofer with a builtin amplifier

REMOTE CONTROL

IN(PLAY)

Before using

OUT

PROCESSOR

SUBWOOFER

PRE OUT

Audio connection cable

When connecting a sub-woofer with no builtin amplifier

Amplifier

Sub-

woofer

PreparationsConnections

Operation

Sub-

woofer

Other Information

Connecting the AC power cord (mains lead)

STANDBY/ON

POWER

ON OFF

INTEGRATED STEREO AMPLIFIER

STANDBY

PHONES

MD TUNER

TAPE

LINE-1/DVD

LINE-2

TREBLEBASS BALANCE

− ＋ − ＋ LR

VOLUME

DIRECT

SOURCE DIRECT

DIRECT

TONE

WIDE RANGE AMP TECHNOLOGY

INPUT

ACOUSTIC PRESENCE

OFF/1/2

A-905X

POWER switch

STANDBY indicator

1 Connect the AC power cord (mains

lead) to the wall outlet (the mains).

IN(PLAY)

OUT(REC)

SPEAKERS

INTEGRATED STEREO AMPLIFIER

A-905X

OUT

PROCESSOR

MODEL NO.

RATING;

AC OUTLET

AC230V 50Hz

SUBWOOFER

PRE OUT

SWITCHED 100W MAX.

REMOTE

TAPE

LINE-1LINE-2

CONTROL

IN(PLAY)

OUT(REC)

TUNER

AC power cord (mains lead)

(illustration is 230V models)

2 Press the POWER switch to supply

power to the unit.

The STANDBY indicator lights.

Notes

• If the AC power cord (mains lead) is connected to the AC outlet of another component, that component’ s AC power cor d (mains lead) must be connected to the wall outlet (the mains) to supply power to the unit. If the component has a power switch, it must be set to On.

• Leave POWER switch on. If you set POWER switch to off: – the remote controller will not operate, and – the timer functions will not operate.

• If you do not use the unit for a long time, set POWER to off by pressing POWER switch again.

POWER

ON OFF

Preparations

Preparing the remote controller

Installing the remote controller batteries

1 Remove the battery compartment

cover by pressing the tab and lifting up the cover.

2 Insert two AA (R6 or UM-3)-size

batteries into the battery compartment.

Carefully follow the polarity diagram (positive + and negative - symbols) inside the battery compartment.

3 Replace the compartment cover.

Using the remote controller

Point the remote controller toward the remote control sensor.

The STANDBY indicator lights up when the unit receives a signal from the remote controller.

Remote control sensor

30°

P O

W E

R C R O C

K C A L L S L

E T

E U

A R

L I C

O G E

C A T L

I Z

A T

D I S

D W N

7 T E R

- 6

9 0 / 0

V O

L U

E C O N

T R O L

L E R R

30°

Control range

Notes

• Place the unit away from strong light such as direct sunlight or inverted fluorescent light which can prevent proper operation of the remote controller.

• Using another remote controller of the same type in the same room or using the unit near equipment which uses infrared rays may cause operational interference.

• Do not put any object such as a book on the remote controller. The buttons of the remote controller may be pressed by mistake and drain the batteries.

• Make sure the audio rack doors do not have colored glass. Placing the unit behind such doors may prevent proper remote controller operation.

• If there is any obstacle between the remote controller and the remote control sensor, the remote controller will not operate.

T A N

D B

Y /

O N

S T A

N D

B Y

O W

P H

O N E

O N

F F

I N T E

G R

A T E

D S

T E

R E

A M

L I F I E

C D

T U

N E

L I N

1 /D

A S S

R E

B L E

− 

＋



− 

＋



V O

L U M

P E

L I N

D I

T A N

C E

S O

R C

E D

T D I

R E C

About 5 m

(16 feet)

W I D

E R A N

G E

A M P

T E C H

N O L

O G Y

I N P U

C O U

S T

I C

R E S

E N C

N /B

O O S

0 5

Before using

PreparationsConnections

Operation

Notes

• Do not mix new batteries with old batteries or different kinds of batteries.

• To avoid corrosion, remove the batteries if the remote controller is not to be used for a long time.

• Remove dead batteries immediately to avoid damage from corrosion. If the remote controller doesn’ t operate smoothly , replace both the batteries at the same time.

• The life of the batteries supplied is about six months but this will vary depending on usage.

Other Information

Operation

POWER

CLOCK CALL

TUNER PRESET

SLEEP

FM AM

REPEAT SCROLL

PLAY MODE

CLEAR

REC

REPEAT RANDOM

MEMORY CLEAR

TIMER

ACOUSTIC PRESENCE

DVD

DISC

CD/MD

EFFECT

PAUSE/STEP

456

UP/DOWN

789

ENTER - - / - - - 10/0 MUTING

VOLUME

G.EQUALIZER

TAPE

MODE

INPUT SELECTOR

RC-398SREMOTE CONTROLLER

Turning the unit on

STANDBY/ON

POWER

ON OFF

STANDBY

INTEGRATED STEREO AMPLIFIER

PHONES

MD TUNER

TAPE

LINE-1/DVD

LINE-2

TREBLEBASS BALANCE

− ＋ − ＋ LR

VOLUME

DIRECT

SOURCE DIRECT

DIRECT

TONE

WIDE RANGE AMP TECHNOLOGY

INPUT

ACOUSTIC PRESENCE

OFF/1/2

A-905X

STANDBY/ON

STANDBY indicator

Before turning the unit on

Turn VOLUME control to the leftmost position to avoid damaging the speakers.

Press STANDBY/ON button or POWER button on the remote controller to turn on the unit.

The STANDBY indicator goes of f, and the power/ muting lamp above the VOLUME control lights.

STANDBY/ON

POWER

STANDBY

VOLUME

Power/muting

lamp

Power/muting

POWER lamp VOLUME

Note

The unit may cause a power surge on your home circuit when you turn it on. If this interferes with any other devices connected to the same circuit, plug this unit into another outlet on a separate circuit.

Choosing the required source

Input source indicators

INTEGRATED STEREO AMPLIFIER

MD TUNER

TAPE

LINE-1/DVD

LINE-2

TREBLEBASS BALANCE

ON OFF

STANDBY/ON

STANDBY

POWER

PHONES

− ＋ − ＋ LR

PRESENCE

ACOUSTIC

OFF/1/2

A-905X

VOLUME

INPUT

DIRECT

SOURCE DIRECT

DIRECT

TONE

WIDE RANGE AMP TECHNOLOGY

INPUT

VOLUME

POWER

SLEEP

CLOCK CALL

TUNER PRESET

FM AM

REPEAT SCROLL

PLAY MODE

CLEAR

REPEAT RANDOM

MEMORY CLEAR

TIMER

UP/DOWN

ENTER - - / - - - 10/0 MUTING

ACOUSTIC

EFFECT

PRESENCE

DVD

PAUSE/STEP

REC

DISC

CD/MD

456

789

INPUT SELECTOR

G.EQUALIZER

TAPE

INPUT SELECTOR

MODE

VOLUME

VOLUME /

RC-398SREMOTE CONTROLLER

Before using

1 Turn INPUT selector clockwise or

counterclockwise until the input indicator of the source you wish to listen to lights.

Or press INPUT SELECTOR button on the remote controller.

The indicators light in the following order:

CD MD TUNER

LINE-2 LINE-1/DVD TAPE

INPUT

INPUT SELECTOR

2 Start playing the source you se-

lected in step 1.

3 Set the volume to appropriate

level using the VOLUME control or VOLUME on the remote controller.

T urn VOLUME control clockwise to increase the volume or counterclockwise to decrease the volume.

(up)/ (down) buttons

VOLUME

PreparationsConnections

Operation

Other Information

MD TUNER

LINE-1/ DVD

TAPE

LINE-2

Adjusting the sound

The indicator turns off.

The indicator lights up in orange. A minor presence effect is applied.

The indicator lights up in green. A stronger presence effect is applied.

OFF

STANDBY/ON

POWER

ON OFF

STANDBY

INTEGRATED STEREO AMPLIFIER

PHONES

BASS

CD MD TUNER

TAPE

LINE-1/DVD

LINE-2

TREBLEBASS BALANCE

− ＋ − ＋ LR

BALANCE

TREBLE

VOLUME

DIRECT

SOURCE DIRECT

DIRECT

TONE

WIDE RANGE AMP TECHNOLOGY

INPUT

ACOUSTIC PRESENCE

OFF/1/2

A-905X

ACOUSTIC PRESENCE

Indicator

POWER

ACOUSTIC

CLOCK CALL

SLEEP

PRESENCE

TUNER

PRESET

FM AM

REPEAT SCROLL

PLAY MODE

CLEAR

REPEAT RANDOM

MEMORY CLEAR

TIMER

456

UP/DOWN

789

ENTER - - / - - - 10/0 MUTING

INPUT SELECTOR

G.EQUALIZER

EFFECT

MODE

TAPE

DVD

PAUSE/STEP

REC

DISC

CD/MD

ACOUSTIC PRESENCE

VOLUME

RC-398SREMOTE CONTROLLER

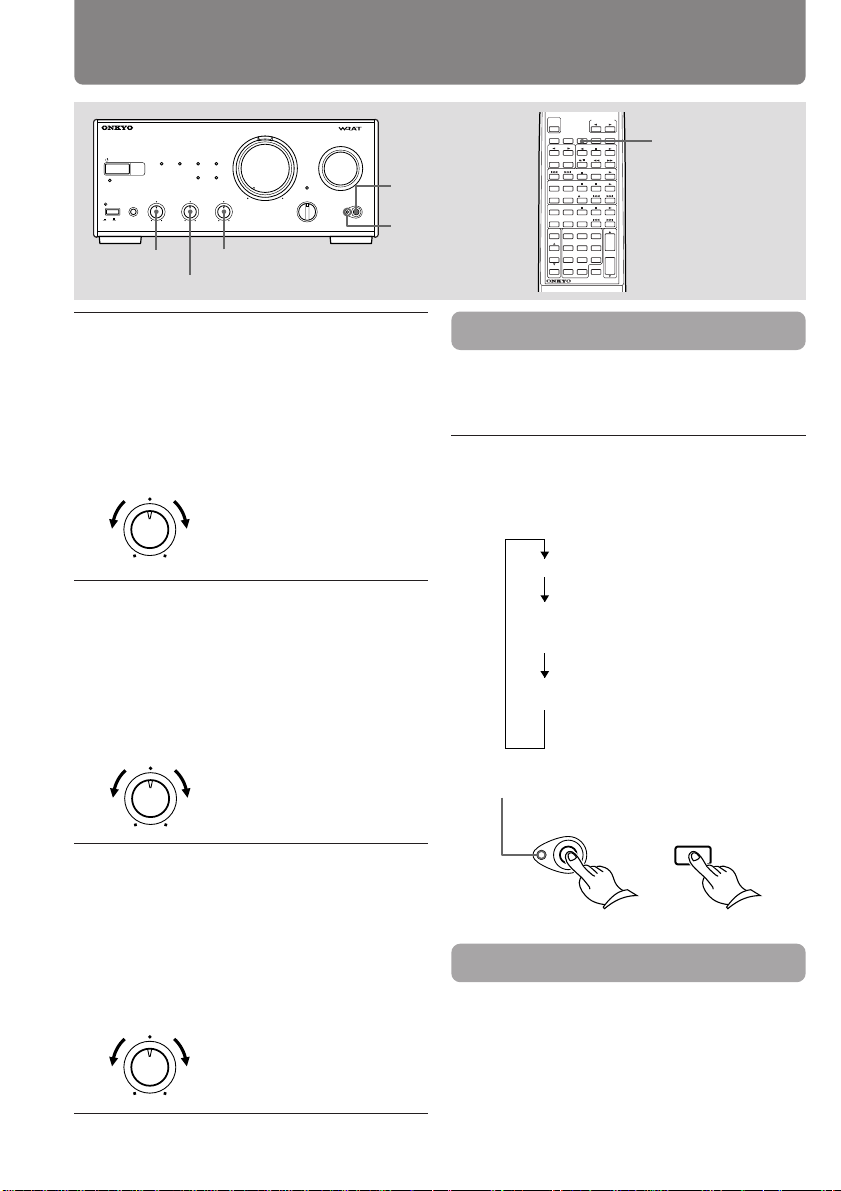

1 Adjust left and right speaker bal-

ance. Turn BALANCE control to “L” to

lower the volume level of the right speaker , or “R” to lower the volume level of the left speaker.

BALANCE

2 Adjust low frequencies.

Turn BASS control to “+” to reinforce the level of the low frequencies, or “–” to attenuate it.

There is no low frequency control at the center position.

BASS

− ＋

3 Adjust high frequencies.

Turn TREBLE control to “+” to reinforce the level of the high frequencies, or “–” to attenuate it.

There is no high frequency control at the

center position.

TREBLE

− ＋

Adjusting the super bass sounds

Acoustic Presence is increases the richness and depth of the sound by enriching the super bass sounds.

Press ACOUSTIC PRESENCE on the unit or remote control.

Each press changes the mode as follows:

The indicator

ACOUSTIC PRESENCE

OFF/1/2

ACOUSTIC

PRESENCE

Press SOURCE DIRECT on the unit

You can select input signals using the SOURCE DIRECT knob. DIRECT: A signal selected via the Input Selector

will bypass the BASS, TREBLE, and BALANCE controls, enabling you to enjoy a sound very close to the original.

Muting/Listening through the headphones

STANDBY/ON

PHONES

STANDBY

INTEGRATED STEREO

BASS

POWER

− ＋

ON OFF

INPUT SELECTOR

POWER

G.EQUALIZER

ACOUSTIC

CLOCK CALL

SLEEP

EFFECT

MODE

PRESENCE

TUNER PRESET

FM AM

DVD

REPEAT SCROLL

PLAY MODE

CLEAR

REC

REPEAT RANDOM

DISC

MEMORY CLEAR

CD/MD

TIMER

456

UP/DOWN

789

ENTER - - / - - - 10/0 MUTING

PAUSE/STEP

TAPE

VOLUME

MUTING

RC-398SREMOTE CONTROLLER

STANDBY/ON

STANDBY

PHONES

POWER

ON OFF

PHONES

INTEGRATED STEREO AMPLIFIER

MD TUNER

TAPE

LINE-1/DVD

LINE-2

TREBLEBASS BALANCE

− ＋ − ＋ LR

VOLUME

WIDE RANGE AMP TECHNOLOGY

INPUT

Power/muting lamp

DIRECT

SOURCE DIRECT

DIRECT

TONE

PRESENCE

ACOUSTIC

OFF/1/2

A-905X

VOLUME

Before using

TONE: You can adjust the tonal quality of the

signal selected by the Input Selector using the BASS, TREBLE, and BALANCE controls.

DIRECT

SOURCE DIRECT

DIRECT

SOURCE DIRECT indicator (This indicator lights up when the knob is set to

TONE

“DIRECT.”)

Note

If you set the SOURCE DIRECT knob to “DIRECT”, you cannot use the tone control function. However , Acoustic Presence mode is enabled. (Y ou can turn it off if you want.)

Muting the sound

Press MUTING button on the remote controller to mute the sound.

The power/muting lamp above the VOLUME control flashes. To restore the sound, press MUTING button again.

MUTING

VOLUME

Tip

During muting:

• if you press VOLUME or button on the remote controller, the sound will be restored, and

• if you turn off the unit, and turn it on again, the sound will be restored.

Listening through the headphones

Connect the stereo headphones mini plug to the PHONES jack.

The speakers will reproduce no sound while the headphones are connected.

PreparationsConnections

Operation

Other Information

Tip

You can adjust the sound through the headphones as well as through the speakers. See “Adjusting the sound” on the previous page for operations.

Recording

Input source indicators

INTEGRATED STEREO AMPLIFIER

MD TUNER

STANDBY/ON

POWER

ON OFF

STANDBY

PHONES

− ＋ − ＋ LR

TAPE

LINE-1/DVD

LINE-2

TREBLEBASS BALANCE

INPUT SELECTOR

POWER

G.EQUALIZER

ACOUSTIC

CLOCK CALL

SLEEP

EFFECT

VOLUME

DIRECT

SOURCE DIRECT

DIRECT

TONE

WIDE RANGE AMP TECHNOLOGY

INPUT

ACOUSTIC PRESENCE

OFF/1/2

A-905X

INPUT

VOLUME

PRESENCE

TUNER

PRESET

FM AM

DVD

REPEAT SCROLL

PLAY MODE

CLEAR

REC

REPEAT RANDOM

DISC

MEMORY CLEAR

CD/MD

TIMER

456

UP/DOWN

789

ENTER - - / - - - 10/0 MUTING

TAPE

PAUSE/STEP

INPUT SELECTOR

MODE

VOLUME

RC-398SREMOTE CONTROLLER

Before recording

Refer to the instruction manuals of the related components for detailed recording operations.

1 Turn INPUT selector clockwise or

counterclockwise until the input indicator of the source you wish to record from lights.

Or press INPUT SELECTOR or button on the remote controller.

The indicators light in the following order:

CD MD TUNER

LINE-2 LINE-1/DVD TAPE

INPUT

INPUT SELECTOR

2 Prepare the playing source.

e.g. Insert the CD you want to record from

into the CD player.

ONKYO

CD PLAYER

3 Prepare the recording component.

e.g. 1 Insert an MD into the MD recorder.

e.g. 2 Insert a cassette into the stereo cas-

sette tape deck.

e.g. The CD player is selected.

MD TUNER

LINE-1/ DVD

TAPE

LINE-2

4 Start recording with the compo-

nent prepared in step 3, then start playing the source prepared in step 2.

Other Information

Troubleshooting

If you have any problems with the unit, please check the troubleshooting table below first. For any problems not covered in the table, please consult your nearest ONKYO authorized service center.

Symptom

The unit doesn’t turn on.

Sound is reproduced from neither left or right speaker.

Sound is reproduced from only one speaker.

No sound is reproduced when the (wake-up) timer operates.

The remote control doesn’t operate.

Cause

The AC power cord is not fully inserted into the wall outlet.

• The wire of the speaker cord is touching the other jacks, connectors, or metal parts.

• The volume level is turned down to the minimum.

• The sound is muted with the muting function.

• The headphones are connected to the PHONES jack.

• The speaker cord is not connected properly or firmly, or is disconnected.

• The sound is unbalanced between the left and right speakers.

• The volume level is turned down to the minimum.

• The muting function was on when you set the timer.

• The batteries in the remote controller are dead.

• The remote controller is out of the control range.

• There is some obstruction between the remote controller and the unit.

Remedy

Insert the AC power cord (mains lead) plug into the wall outlet (the mains) securely.

• Check the speaker connections (see page 14).

• Adjust the volume level (see page

19).

• Press MUTING button on the remote controller to restore the sound (see page 21).

• Turn down the volume level first, then disconnect the headphones. Then, readjust the volume level.

• Check the speaker connections (see page 14).

• Adjust the sound balance (see page

20).

• Adjust the volume to the proper level when you set the timer (see page 19).

• Press MUTING button on the remote controller to restore the sound (see page 21) before you set the timer.

• Replace the batteries with new ones (see page 17).

• Operate the remote controller within the control range (see page

17).

• Try to operate the remote controller from a different angle, or remove the obstruction.

Before using

PreparationsConnections

Operation

Other Information

Specifications

Power output

15 watts per channel, min RMS, at 8 ohms, both channels driven 1 kHz, with no more than 0.2% THD

2 × 20 watts at 4 ohms, 1 kHz (DIN) 2 × 15 watts at 8 ohms, 1 kHz (DIN)

Total harmonic distortion

0.2% at rated power

IM distortion

0.2% at rated power

Damping factor

30 at 8 ohms

Frequency and response

15 to 30,000 Hz ± 1 dB

Input sensitivity/impedance

TUNER/CD/LINE: 180 mV/50 kohms TAPE PLAY: 180 mV/50 kohms MD PLAY: 180 mV/50 kohms

Output sensitivity/impedance

TAPE REC: 180 mV/2.2 kohms MD REC: 180 mV/2.2 kohms

Bass control

± 8 dB at 50 Hz

Treble control

± 8 dB at 10,000 Hz

Acoustic Presence

1: +3 dB at 20.5 Hz, +3 dB at 82 Hz 2: +3 dB at 20.5 Hz, +6 dB at 82 Hz

Signal to noise ratio (IHF-A)

CD/TAPE: 100 dB

Muting

–50 dB

General

Power supply

AC 230V, 50Hz AC 120V, 60Hz

Dimensions (W × H × D)

205 × 91 × 302 mm (Width × Height × Depth) 8-1/16" × 3-9/16" × 11-7/8"

Weight

3.4 kg, 7.5 lbs

Specifications and external appearance are subject to change without notice as a result of product improvement.

Index to parts and controls

For operational instructions, refer to the page indicated in square parentheses.

Rear panel

LINE-1 jacks [11]

LINE-2 jacks [11]

TUNER jacks [8, 9, 11]

Front panel

STANDBY/ON button [18]

STANDBY indicator [16, 18]

POWER ON/OFF switch [16]

PHONES jack [21]

TAPE OUTPUT (REC)/INPUT (PLAY) jacks [9, 11]

OUT(REC)

LINE-1LINE-2

TUNER

IN(PLAY)

SPEAKERS

REMOTE

TAPE

CONTROL

OUT(REC)

IN(PLAY)

OUT

PROCESSOR

CD jacks [8, 9, 11]

Input source indicators [19, 22]

Remote control sensor [17]

INTEGRATED STEREO AMPLIFIER

STANDBY/ON

STANDBY

POWER

ON OFF

PHONES

MD TUNER

LINE-1/DVD

TREBLEBASS BALANCE

− ＋ − ＋ LR

BASS control [20]

TREBLE control [20]

connectors

[10, 13]

INTEGRATED STEREO AMPLIFIER

MODEL NO.

RATING;

SUBWOOFER

PRE OUT

MD OUTPUT (REC)/INPUT (PLAY) jacks [8, 11]

Power/muting lamp [18, 21]

VOLUME

TAPE

LINE-2

BALANCE control [20]

AC power cord (mains lead) [16]

A-905X

SPEAKERS connectors [14]

AC OUTLET

AC230V 50Hz

SWITCHED 100W MAX.

SUBWOOFER PRE OUT jack [15]

PROCESSOR OUT/IN jacks [12]

WIDE RANGE AMP TECHNOLOGY

INPUT

DIRECT

SOURCE DIRECT

DIRECT

ACOUSTIC PRESENCE

TONE

OFF/1/2

A-905X

SOURCE DIRECT indicator

SOURCE DIRECT selector

VOLUME control [19]

INPUT selector [19, 22]

ACOUSTIC PRESENCE button/indicator [20]

Before using

PreparationsConnections

Operation

Other Information

Index to parts and controls

Remote control – The unit operation buttons

POWER button [18]

POWER

ACOUSTIC

SLEEP

CLOCK CALL

FM AM

REPEAT SCROLL

PLAY MODE

REPEAT RANDOM

MEMORY CLEAR

TIMER

UP/DOWN

ENTER - - / - - - 10/0 MUTING

PRESENCE

TUNER

PRESET

DVD

CLEAR

REC

DISC

CD/MD

456

789

PAUSE/STEP

INPUT SELECTOR

G.EQUALIZER

EFFECT

TAPE

VOLUME

MODE

RC-398SREMOTE CONTROLLER

INPUT SELECTOR buttons [19, 22]

ACOUSTIC PRESENCE button [20]

VOLUME

/ buttons [19]

MUTING button [21]

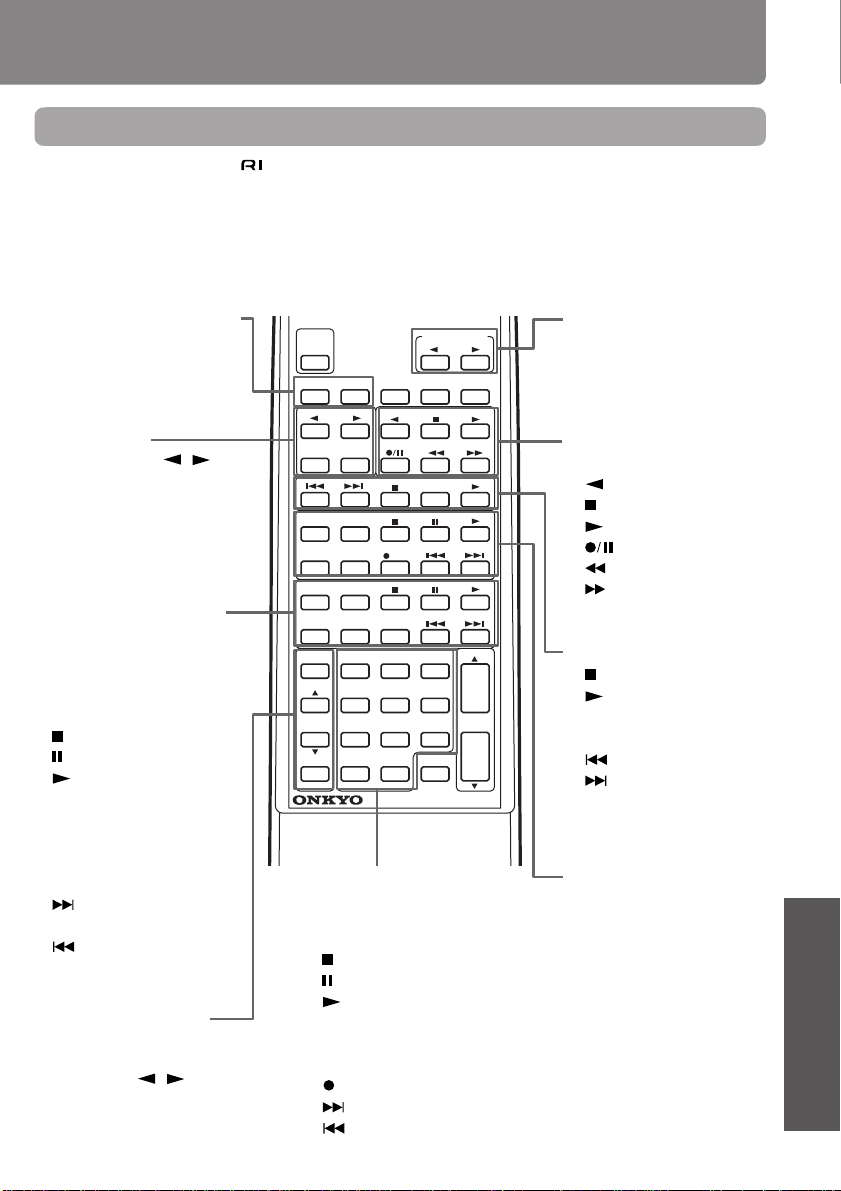

Remote control – Operating buttons for other components

• You can control the other -connected components with the supplied remote controller.

• The remote controller buttons operate in the same way as the buttons on each component with the same indication.

• For actual operations, please refer to the Instruction Manual for each component.

• Buttons marked with an asterisk “*” cannot be used when the unit is combined with the Separate Collection Series, C-705X, K-505X, MD-105X, and T-405X.

Before using

Clock/Sleep timer control

• CLOCK CALL : Clock call button

• SLEEP : Sleep timer button

Tuner control

• TUNER PRESET

/ :

Tuner preset select buttons

• FM : FM band select button

• AM : AM band select button

CD player (or changer) control

• REPEAT : Repeat mode button

• RANDOM : Random play button

: Stop button

•

: Pause button

: Play button

•

• MEMORY : Memory button

• CLEAR : Clear button

• DISC : Disc button for CD changer

: Search forward

• button

: Search reverse button

•

Timer setting control

• TIMER : Timer select button

• UP/DOWN

/ :

Setting select buttons

• ENTER : Enter button

ACOUSTIC

PRESENCE

DVD

REC

DISC

CD/MD

INPUT SELECTOR

G.EQUALIZER

EFFECT

TAPE

PAUSE/STEP

VOLUME

POWER

CLOCK CALL

SLEEP

TUNER

PRESET

FM AM

REPEAT SCROLL

PLAY MODE

CLEAR

REPEAT RANDOM

MEMORY CLEAR

TIMER

456

UP/DOWN

789

ENTER - - / - - - 10/0 MUTING

MD recorder control

• REPEAT : Repeat mode button

• SCROLL : Scroll button

• : Stop button

•

: Pause button

: Play button

•

• PLAY MODE : Play mode selection button

• CLEAR : Clear button

REC : Recording button

•

: Search forward button : Search reverse button

•

MODE

RC-398SREMOTE CONTROLLER

Graphic equalizer control*

G.EQUALIZER

• EFFECT : Effect select button

• MODE : Mode select button

Stereo cassette tape deck control

: Reverse play button

•

: Stop button

: Play button

•

: Rec/pause button

: Rewind button

•

: Fast-forward button

DVD player control

: Stop button

•

: Start button

• PAUSE/STEP : Pause or Step Forward button

: Search reverse button

•

: Search forward

button

CD player (or changer) / MD recorder control

1~9, 10/0 : Number buttons

--/--- : Ten key button

PreparationsConnections

Operation

Other Information

Sales & Product Planning Div. : 2-1, Nisshin-cho, Neyagawa-shi, OSAKA 572-8540, JAPAN Tel: 072-831-8111 Fax: 072-833-5222 http://www.onkyosa.com

ONKYO U.S.A. CORPORATION

18 Park Way, Upper Saddle River, N.J. 07458, U.S.A. Tel: 201-785-2600 Fax: 201-785-2650 http://www.onkyousa.com

ONKYO EUROPE ELECTRONICS GmbH

Liegnitzerstrasse 6, 82194 Groebenzell, GERMANY Tel: 49-8142-4401-0 Fax: 49-8142-4401-555 http://www.onkyo.net

ONKYO CHINA LIMITED

Units 2102-2107, Metroplaza Tower I, 223 Hing Fong Road, Kwai Chung, N.T., HONG KONG Tel: 852 2429 3118 Fax: 852 2428 9039

HOMEPAGE

http://www.onkyo.co.jp/

SN 29342717

Printed in Japan

I990X-1

Onkyo A-905X User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
