Onkyo A-5VL User Manual

Integrated Amplifier

A-5VL

Instruction Manual

Contents

Important Safety Instructions 2

Precations 3

4serutaeF

Before Using This Product 5

Thank you for purchasing an Onkyo A-5VL Integrated Amplifier. Please read this manual thoroughly before making connections and plugging in the unit. Following the instructions in this manual will enable you to obtain optimum performance and listening enjoyment from your new A-5VL. Please retain this manual for future reference.

Connecting to Other Devices 10

Enjoying Audio Sources

(Operating the Unit) 15

Troubleshooting 17

81xidneppA

WARNING:

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS APPARATUS TO RAIN OR MOISTURE.

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

Important Safety Instructions

WARNING

RISK OF ELECTRIC SHOCK

DO NOT OPEN

The lightning flash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage” within the product’s enclosure that may be of sufficient magnitude to constitute a risk of electric shock to

persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

AVIS

RISQUE DE CHOC ELECTRIQUE

NE PAS

OUVRIR

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in accordance with the manufacturer’s instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including amplifiers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not fit into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specified by the manufacturer.

12. Use only with the cart, stand,

PORTABLE CART WARNING

tripod, bracket, or table specified by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/ apparatus combination to avoid injury from tip-over.

S3125A

13. Unplug this apparatus during lightning storms or when unused for long periods of time.

14. Refer all servicing to qualified service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

15. Damage Requiring Service Unplug the apparatus from the wall outlet and refer servicing to qualified service personnel under the following conditions:

A. When the power-supply cord or plug is damaged,

B. If liquid has been spilled, or objects have fallen into

the apparatus, C. If the apparatus has been exposed to rain or water, D. If the apparatus does not operate normally by

following the operating instructions. Adjust only

those controls that are covered by the operating

instructions as an improper adjustment of other

controls may result in damage and will often require

extensive work by a qualified technician to restore

the apparatus to its normal operation, E. If the apparatus has been dropped or damaged in any

way, and F. When the apparatus exhibits a distinct change in

performance this indicates a need for service.

16. Object and Liquid Entry Never push objects of any kind into the apparatus through openings as they may touch dangerous voltage points or short-out parts that could result in a fire or electric shock. The apparatus shall not be exposed to dripping or splashing and no objects filled with liquids, such as vases shall be placed on the apparatus. Don’t put candles or other burning objects on top of this unit.

17. Batteries Always consider the environmental issues and follow local regulations when disposing of batteries.

18. If you install the apparatus in a built-in installation, such as a bookcase or rack, ensure that there is adequate ventilation. Leave 20 cm (8") of free space at the top and sides and 10 cm (4") at the rear. The rear edge of the shelf or board above the apparatus shall be set 10 cm (4") away from the rear panel or wall, creating a flue-like gap for warm air to escape.

Precautions

1. Recording Copyright—Unless it’s for personal use

only, recording copyrighted material is illegal without the permission of the copyright holder.

AC Fuse—The AC fuse inside the unit is not user

2. serviceable. If you cannot turn on the unit, contact your Onkyo dealer.

Care—Occasionally you should dust the unit all over

3. with a soft cloth. For stubborn stains, use a soft cloth dampened with a weak solution of mild detergent and water. Dry the unit immediately afterwards with a clean cloth. Don’t use abrasive cloths, thinners, alcohol, or other chemical solvents, because they may damage the finish or remove the panel lettering.

Power WARNING

BEFORE PLUGGING IN THE UNIT FOR THE FIRST TIME, READ THE FOLLOWING SECTION CAREFULLY. AC outlet voltages vary from country to country. Make sure that the voltage in your area meets the voltage requirements printed on the unit’s rear panel (e.g., AC 120 V, 60 Hz or AC 220-240 V, 50/60 Hz). The power cord plug is used to disconnect this unit from the AC power source. Make sure that the plug is readily operable (easily accessible) at all times. Pressing the [POWER] button to select OFF mode does not fully shutdown the unit. If you do not intend to use the unit for an extended period, remove the power cord from the AC outlet.

Never Touch this Unit with Wet Hands—Never

handle this unit or its power cord while your hands are wet or damp. If water or any other liquid gets inside this unit, have it checked by your Onkyo dealer.

Handling Notes

• If you need to transport this unit, use the original packaging to pack it how it was when you originally bought it.

• Do not leave rubber or plastic items on this unit for a long time, because they may leave marks on the case.

• This unit’s top and rear panels may get warm after prolonged use. This is normal.

• If you do not use this unit for a long time, it may not work properly the next time you turn it on, so be sure to use it occasionally.

For British models

Replacement and mounting of an AC plug on the power supply cord of this unit should be performed only by qualified service personnel.

IMPORTANT

The wires in the mains lead are coloured in accordance with the following code:

Blue:Neutral Brown:Live

As the colours of the wires in the mains lead of this apparatus may not correspond with the coloured markings identifying the terminals in your plug, proceed as follows: The wire which is coloured blue must be connected to the terminal which is marked with the letter N or coloured black. The wire which is coloured brown must be connected to the terminal which is marked with the letter L or coloured red.

IMPORTANT

The plug is fitted with an appropriate fuse. If the fuse needs to be replaced, the replacement fuse must approved by ASTA or BSI to BS1362 and have the same ampere rating as that indicated on the plug. Check for the ASTA mark or the BSI mark on the body of the fuse. If the power cord’s plug is not suitable for your socket outlets, cut it off and fit a suitable plug. Fit a suitable fuse in the plug.

For European Models

Declaration of Conformity

We,

ONKYO EUROPE ELECTRONICS GmbH LIEGNITZERSTRASSE 6, 82194 GROEBENZELL, GERMANY

declare in own responsibility, that the ONKYO product described in this instruction manual is in compliance with the corresponding technical standards such as EN60065, EN55013, EN55020 and EN61000-3-2, -3-3.

GROEBENZELL, GERMANY

K. MIYAGI

ONKYO EUROPE ELECTRONICS GmbH

Features

- Exclusive Onkyo VLSC Technology

- Independent Transformers for L/R Channels

- New Custom-Designed, Audio Tuned Reference Capacitors

- Low-Impedance, Copper Bus Plates for Perfect Ground Potential

- 40 W/Ch into 8 (FTC)-North American model, 60 W/Ch into 4 (IEC)-European, other models

- 2 High-Grade 192 kHz/24-Bit D/A Converters

- Optimum Gain Volume Circuitry

- Precision Motor-Driven Volume Control

- Tone Control (Bass/Treble On/Off)

- Direct Mode

- Discrete Phono Equalizer Circuitry

- 4 Audio Inputs and 1 Output

Table of Contents

Important Safety Instructions ............................... 2

Precautions .............................................................. 3

Features.................................................................... 4

Before Using This Product ..................................... 5

Check the Supplied Accessories ........................... 5

Getting the Remote Controller Ready................... 5

Names of Each Part ............................................... 6

Remote Controller................................................. 8

Using the Remote Controller ................................ 9

Connecting to Other Devices................................ 10

Precautions for Making Connections.................. 10

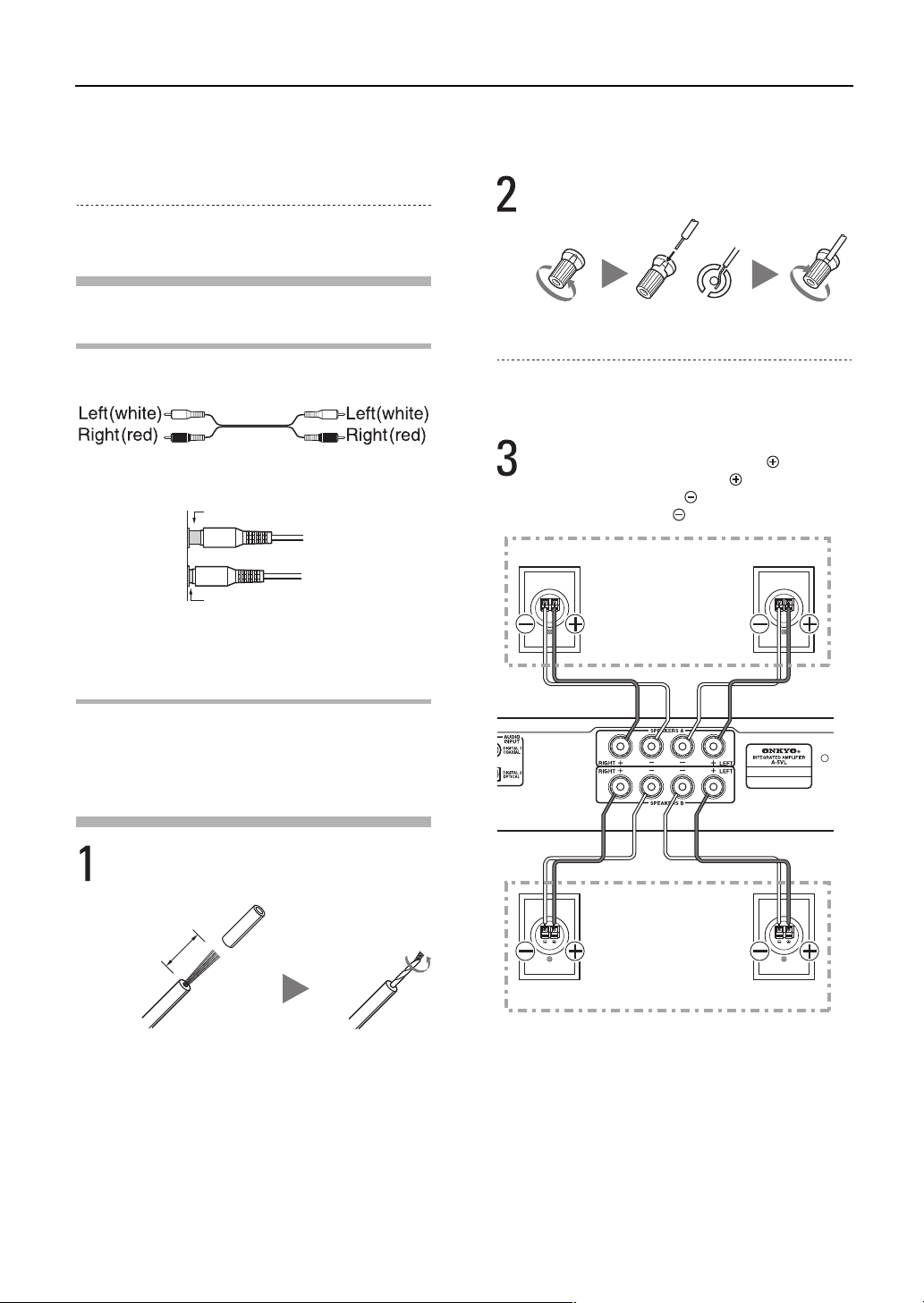

Connecting Speakers........................................... 10

Connecting Audio Components .......................... 11

Connecting the Power Cord ................................ 14

Enjoying Audio Sources

(Operating the Unit) ............................................. 15

Adjusting the Tone and Left/Right

Volume Balance................................................... 16

Recording ............................................................ 16

Troubleshooting..................................................... 17

Power................................................................... 17

Audio................................................................... 17

Remote controller................................................ 17

Recording ............................................................ 17

Appendix ................................................................ 18

Specifications ...................................................... 18

Block Diagram .................................................... 19

- Phono Input (MM/MC)

- 2 Digital Inputs (Optical/Coaxial)

- 19 mm(3/4")-pitch Audio Terminals for High-Grade Cable

- Speaker A/B Drive

- Gold-Plated Transparent Speaker Posts

- Bi-Amping Capability

- Hi-Rigidity, Anti-Resonant Chassis

- Aluminum Front Panel and Volume Knob

- Headphone Jack

- Compatible with Onkyo RI-Dock for the iPod*

- Heavy-Duty Inlet Power Cord

- RI-Compatible Remote Control

*Depending on the model

Before Using This Product

This section describes things to check and important information to know before using this product.

Check the Supplied Accessories

After opening the package, make sure that all the supplied accessories are included.

- Remote controller (RC-751S)[1]

- AA (R6) batteries ..................[2]

(Not supplied with products for China.)

- Power cord (2 m / 6.5ft)

European models.................. [2]

Other models ........................ [1]

(The shape differs depending on region.)

Getting the Remote Controller Ready

Press in the direction of the arrow and lift to remove the cover.

Insert the two supplied batteries, making sure to line up the plus and minus ends of the batteries with the symbols in the battery compartment. (The battery is not supplied with products for China.)

Close the cover.

If the remote controller becomes unresponsive, replace the batteries with two new dry-cell batteries (AA).

- Be sure to insert the batteries correctly, in line with the charge symbols ( and ).

- Avoid mixing new batteries with old batteries, or mixing battery types.

- If you will not be using the remote controller for a prolonged period, remove the batteries in order to prevent corrosion.

Before Using This Product—Continued

Names of Each Part

Front Panel

POWER button

This button is used to turn the unit on and off.

POWER indicator

Illuminates when the amp is on.

Input selector control

This control is used to select the playback device.

LOCKED indicator

Illuminates when there is audio signal input from the device connected to DIGITAL1 (COAXIAL) or DIGITAL2 (OPTICAL).

SPEAKERS control

This control sets the speaker output to A, B, A+B, or OFF.

BASS control

This control is used to adjust the bass volume.

TREBLE control

This control is used to adjust the treble volume.

BALANCE control

This control is used to adjust the left-right audio balance.

MUTING indicator

Illuminates when the volume is muted.

VOLUME control

This control adjusts the volume.

DIRECT indicator

Illuminates when there is direct output.

DIRECT button

This button selects whether to output the audiosignal input directly, or to output it through the amp, adjusting the BASS, TREBLE, and BALANCE.

Remote control sensor

PHONES jack

Stereo headphones with a standard plug can be plugged into this jack.
