Page 1

Displacement Sensor

Confocal Fiber Type

ZW Series

User’s Manual

Cat. No.

Z322-E1-01A

Page 2

Introduction

This manual provides information regarding functions, performance and operating methods that are required for using the ZW Series.

• The ZW Displacement Sensor must be operated by personnel knowledgeable in electrical engineering.

• To ensure correct use, please read this manual thoroughly to deepen your understanding of the product.

• Please keep this manual in a safe place so that it can be referred to whenever necessary.

Page 3

䈲䈛䉄䈮 ╙㩷㪈㩷┨ ╙㩷㪉㩷┨ ╙㩷㪊㩷┨ ╙㩷㪋㩷┨

INTRODUCTION

Chapter 1

Chapter 2

Chapter 3

Chapter 4

Chapter 5

Chapter 6

Chapter 7

㪘㪧㪧㪣㪠㪚㪘㪫㪠㪦㪥㩷㪚㪦㪥㪪㪠㪛㪜㪩㪘㪫㪠㪦㪥㪪㩷㩿㪧㫃㪼㪸㫊㪼㩷㪩㪼㪸㪻㪀

㪤㪜㪘㪪㪬㪩㪜㪤㪜㪥㪫㩷㪪㪜㪫㪬㪧

㪙㪘㪪㪠㪚㩷㪦㪧㪜㪩㪘㪫㪠㪦㪥

㪪㪜㪫㪫㪠㪥㪞㪪㩷㪝㪦㪩㩷㪝㪬㪥㪚㪫㪠㪦㪥㪪

㪠㪆㪦㩷㪪㪜㪫㪫㪠㪥㪞㪪

㪜㫋㪿㪼㫉㫅㪼㫋㪆㪩㪪㪄㪉㪊㪉㪚㩷㪚㪦㪤㪤㪬㪥㪠㪚㪘㪫㪠㪦㪥

Introduction

Chapter 1 Chapter 2 Chapter 3 Chapter 4 Chapter 5 Chapter 6 Chapter 7

㪪㪧㪜㪚㪠㪝㪠㪚㪘㪫㪠㪦㪥㪪㩷㪘㪥㪛㩷㪜㪯㪫㪜㪩㪥㪘㪣㩷㪛㪠㪤㪜㪥㪪㪠㪦㪥㪪

㪘㪧㪧㪜㪥㪛㪠㪯

User's Manual

Confocal Fiber Displacement Sensor ZW Series

Page 4

Introduction

READ AND UNDERSTAND THIS DOCUMENT

Please read and understand this document before using the products. Please consult your OMRON representative if you have any questions or comments.

WARRANTY

OMRON’s exclusive warranty is that the products are free from defects in materials and workmanship for a period of one year (or other period if specified) from date of sale by OMRON.

OMRON MAKES NO WARRANTY OR REPRESENTATION, EXPRESS OR IMPLIED, REGARDING NON-INFRINGEMENT, MERCHANTABILITY, OR FITNESS FOR PARTICULAR PURPOSE OF THE PRODUCTS. ANY BUYER OR USER ACKNOWLEDGES THAT THE BUYER OR USER ALONE HAS DETERMINED THAT THE PRODUCTS WILL SUITABLY MEET THE REQUIREMENTS OF THEIR INTENDED USE. OMRON DISCLAIMS ALL OTHER WARRANTIES, EXPRESS OR IMPLIED.

LIMITATIONS OF LIABILITY

OMRON SHALL NOT BE RESPONSIBLE FOR SPECIAL, INDIRECT, OR CONSEQUENTIAL DAMAGES, LOSS OF PROFITS OR COMMERCIAL LOSS IN ANY WAY CONNECTED WITH THE PRODUCTS, WHETHER SUCH CLAIM IS BASED ON CONTRACT, WARRANTY, NEGLIGENCE, OR STRICT LIABILITY.

In no event shall responsibility of OMRON for any act exceed the individual price of the product on which liability is asserted.

IN NO EVENT SHALL OMRON BE RESPONSIBLE FOR WARRANTY, REPAIR, OR OTHER CLAIMS REGARDING THE PRODUCTS UNLESS OMRON’S ANALYSIS CONFIRMS THAT THE PRODUCTS WERE PROPERLY HANDLED, STORED, INSTALLED, AND MAINTAINED AND NOT SUBJECT TO CONTAMINATION, ABUSE, MISUSE, OR INAPPROPRIATE MODIFICATION OR REPAIR.

SUITABILITY FOR USE

THE PRODUCTS CONTAINED IN THIS DOCUMENT ARE NOT SAFETY RATED. THEY ARE NOT DESIGNED OR RATED FOR ENSURING SAFETY OF PERSONS, AND SHOULD NOT BE RELIED UPON AS A SAFETY COMPONENT OR PROTECTIVE DEVICE FOR SUCH PURPOSES. Please refer to separate catalogs for OMRON’s safety rated products.

OMRON shall not be responsible for conformity with any standards, codes, or regulations that apply to the combination of products in the customer’s application or use of the product.

At the customer’s request, OMRON will provide applicable third party certification documents identifying ratings and limitations of use that apply to the products. This information by itself is not sufficient for a complete determination of the suitability of the products in combination with the end product, machine, system, or other application or use.

The following are some examples of applications for which particular attention must be given. This is not intended to be an exhaustive list of all possible uses of the products, nor is it intended to imply that the uses listed may be suitable for the products:

• Outdoor use, uses involving potential chemical contamination or electrical interference, or conditions or uses not described in this document.

User's Manual

Page 5

Introduction

• Nuclear energy control systems, combustion systems, railroad systems, aviation systems, medical equipment, amusement machines, vehicles, safety equipment, and installations subject to separate industry or government regulations.

• Systems, machines, and equipment that could present a risk to life or property.

Please know and observe all prohibitions of use applicable to the products. NEVER USE THE PRODUCTS FOR AN APPLICATION INVOLVING SERIOUS RISK TO LIFE OR PROPERTY WITHOUT ENSURING THAT THE SYSTEM AS A WHOLE HAS BEEN DESIGNED TO ADDRESS THE RISKS, AND THAT THE OMRON PRODUCT IS PROPERLY RATED AND INSTALLED FOR THE INTENDED USE WITHIN THE OVERALL EQUIPMENT OR SYSTEM.

PERFORMANCE DATA

Performance data given in this document is provided as a guide for the user in determining suitability and does not constitute a warranty. It may represent the result of OMRON’s test conditions, and the users must correlate it to actual application requirements. Actual performance is subject to the OMRON Warranty and Limitations of Liability.

CHANGE IN SPECIFICATIONS

Product specifications and accessories may be changed at any time based on improvements and other reasons.

Introduction

It is our practice to change model numbers when published ratings or features are changed, or when significant construction changes are made. However, some specifications of the product may be changed without any notice. When in doubt, special model numbers may be assigned to fix or establish key specifications for your application on your request. Please consult with your OMRON representative at any time to confirm actual specifications of purchased products.

DIMENSIONS AND WEIGHTS

Dimensions and weights are nominal and are not to be used for manufacturing purposes, even when tolerances are shown.

ERRORS AND OMISSIONS

The information in this document has been carefully checked and is believed to be accurate; however, no responsibility is assumed for clerical, typographical, or proofreading errors, or omissions.

PROGRAMMABLE PRODUCTS

OMRON shall not be responsible for the user’s programming of a programmable product, or any consequence thereof.

This document shall not be copied for sales or promotions without permission.

This document is protected by copyright and is intended solely for use in conjunction with the product. Please notify us before copying or reproducing this document in any manner, for any other purpose. If copying or transmitting this document to another, please copy or transmit it in its entirety.

User’s Manual

Page 6

Introduction

Warning

Caution

Meanings of Signal Words

Introduction

Meanings of Signal Words

The following signal words are used in this manual.

Indicates a potentially hazardous situation which, if not avoided, will result in minor or moderate injury, or may result in serious injury or death. Additionally there may be significant property damage.

Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury or in property damage.

Meanings of Alert Symbols

The following alert symbols are used in this manual.

Indicates general prohibitions for which there is no specific symbol.

Indicates prohibition when there is a risk of minor injury from electrical shock or other source if the product is disassembled.

Indicates the possibility of fire under specific conditions.

Indicates the possibility of explosion under specific conditions.

Indicates the possibility of LED radiation.

User's Manual

Page 7

Meanings of Alert Symbols

Warning

Meanings of Alert Symbols

The following alert symbols are used in this manual.

This product is not designed or rated for ensuring safety of persons. Do not use it for such purposes.

Doing so may cause high-voltage section to be exposed, resulting in the electrical shock, and may cause burn from a high temperature. Never attempt to disassemble, repair, modify, apply pressure to deform or burn up the body.

Introduction

Caution

Doing so may cause breakdown or ignition. Do not operate the product in excess of the rated voltage.

Doing so may cause an explosion. Never operate the product with an AC power supply.

If you keep looking at LED light, in rare cases visual impairment may occur. Do not look directly at LED light.

User’s Manual

Page 8

Introduction Precautions for Safe Use

Introduction

Precautions for Safe Use

Please observe the following precautions for safe use of the products.

(1) Installation Environment

• Do not use the product in environments where it can be exposed to inflammable/ explosive gas.

• To secure the safety of operation and maintenance, do not install the product close to high-voltage devices and power devices.

(2) Power Supply and Wiring

• Take care when using a power supply with an overcurrent detector, because this sensor uses DC-DC converter for its power supply circuit and inrush current may activate the protective circuit for a power supply with an overcurrent detector. Recommended power supply: S8VS-06024 (Omron, DC24 V 2.5 A 60 W)

• The supply voltage must be within the rated range (DC24 V ± 10 %).

• Reverse connection of the power supply is not allowed.

• Open-collector outputs should not be short-circuited.

• Use the power supply within the rated load.

• High-voltage lines and power lines must be wired separately from this product. Wiring them together or placing them in the same duct may cause induction, resulting in malfunction or damage.

• Use adequate safety measures, for example fail-safe circuits.

• Attach a specified-sized crimp-type terminal at the end of a wire. Do not connect a wire with an only twisted end directly to a power supply or terminal block.

• For a power supply, use a DC power supply unit provided with a remedy, for example, safety ultralow voltage circuit, to prevent a high voltage from being generated.

• Route so that power supply wires are as short as possible.

• Use D-type grounding (ground resistance of 100  or less). Make the ground point as close as possible and make the ground wire used as short as possible.

• Never a ground wire with other equipment and never ground to building beams. Doing so could cause negative impacts.

• Use a power supply dedicated for this product, without sharing it with other products.

• Tighten fixing screws securely at a torque specified in this manual.

• Before performing any of the following activities, be sure to turn off the product, or breakdown may result.

- Connecting or wiring cables

- Connecting or disconnecting connectors

- Installing or removing Calibration ROM

(3) Others

• Do not use this product for nuclear facilities, or safety circuits involving human lives.

• Do not attempt to disassemble, repair, modify, apply pressure to deform or burn up the body.

• Dispose of this product as industrial waste.

User's Manual

Page 9

Introduction

Precautions for Safe Use

• Use exclusive devices, including a sensor head, Calibration ROM, fiber cable or RS232C cable, to connect, or ignition, burst, false operation or breakdown may be caused.

•Do not cut fiber cable. Glass at the cut section may cause injury. Also, if cut, it will not

work normally anymore.

• Whenever any trouble, including, strange odor smelled, the body overheated or smoke escaped, was found, immediately stop the operation, and consult an OMRON branch or sales office with the system shut down.

• Do not drop or make a strong impact on the unit.

• Before using any equipment provided with a lock mechanism, make sure that it has been locked.

(4) Regulations and Standards

This sensor conforms to the following EMC directive and EN standard:

• EMC directive, No. 2004, 108, EC

• EN standard, EN61326

(5) Notice for Korea Radio Law

౗匏匶匶 ా櫋怺殯愯暧皻柦匶沖沲ి 決匶匶垚櫋怺殯  ౗匏 洊沖砒洇穯匶匶嵢昢砖廪沖嬖垚斲殯沖垚決洖汊渂汞穞柢匶愚岂彶  儆洛歾汞滆櫳櫖昢斲殯穞垚冉汊徯洇求嵢穯城埪

Introduction

User’s Manual

Page 10

Introduction Precautions for Correct Use

Introduction

Precautions for Correct Use

Please observe the following precautions to prevent failure to operate, malfunctions, or undesirable effects on product performance.

(1) Installation Site

Do not install the product in locations subjected to the following conditions:

• Ambient temperature outside the rating

• Rapid temperature fluctuations (causing condensation)

• Relative humidity outside the range of 35 to 85 %

• Presence of corrosive or flammable gases

• Presence of dust, salt, or iron particles

• Direct vibration or shock

• Reflection of intense light (such as other laser beams, electric arc-welding machines or ultraviolet shine)

• Direct sunlight or near heaters

• Water, oil, or chemical fumes, spray or mist atmospherics

• Strong magnetic or electric field

(2) Power Supply and Wiring

• When using a commercially available switching regulator, make sure that the FG terminal is grounded.

• If surge currents are present in the power lines, connect surge absorbers that suit the operating environment.

• Before turning ON the power after the product is connected, make sure that the power supply voltage is correct, there are no incorrect connections (e.g. load short-circuit) and the load current is appropriate. Incorrect wiring may result in breakdown of the product.

• Use the specified voltage. If voltage exceeding the rating or AC voltage is applied, circuit parts may be burnt or rupture.

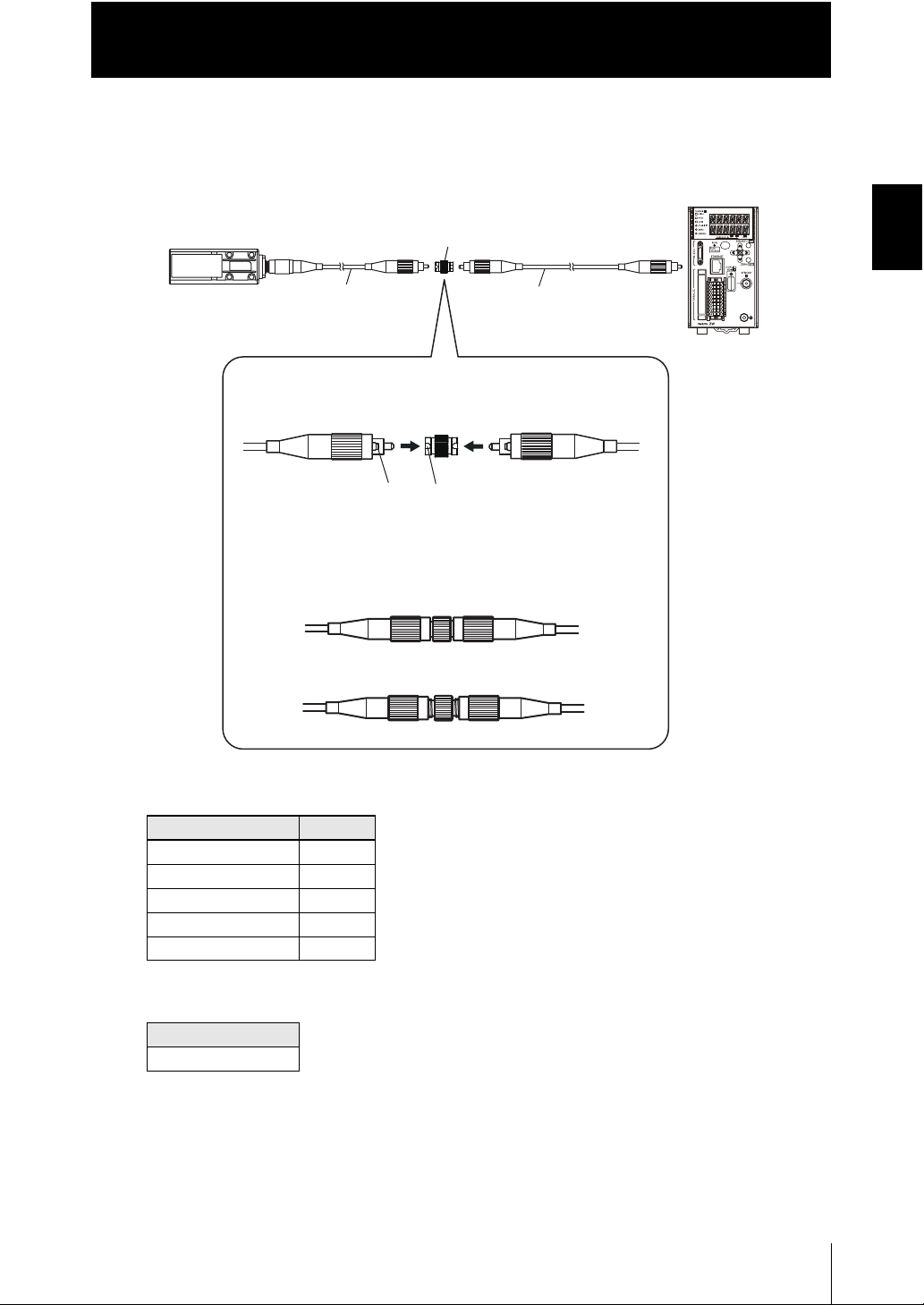

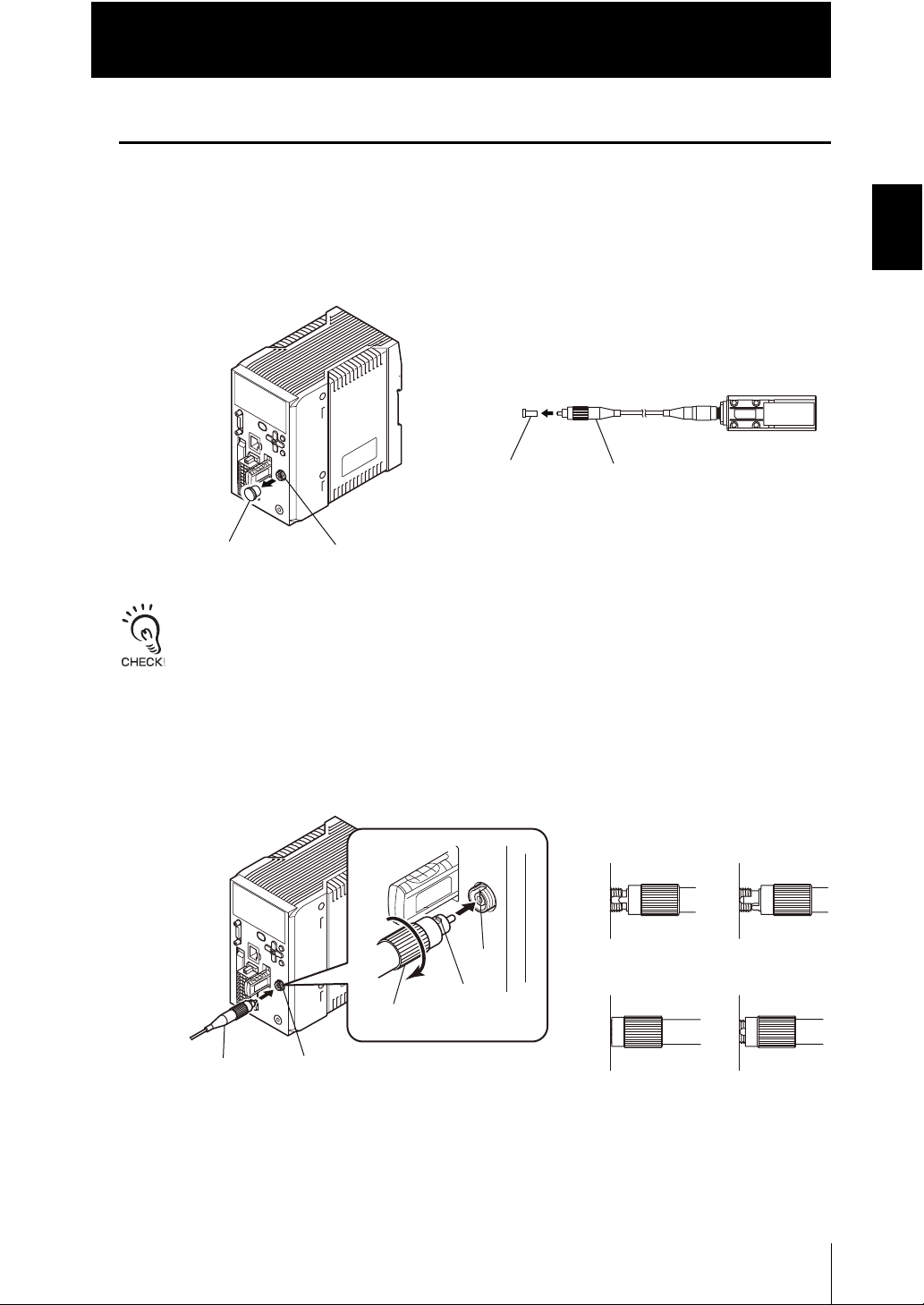

• Use the Extension Fiber Cable (ZW-XF_ _R) for extending the fiber cable between the Sensor extension fiber cable, five total lengths, 2, 5, 10, 20 or 30 m, are available.

• Handling fiber cables Use them in compliance with the following.

-Fiber cable bend radiuses must be at least 20 mm.

- Do not let bending cause stress at the root section of a fiber connector.

-Do not yank hard on a fiber cable.

-Do not step on a fiber cable or place anything heavy on it.

• Be sure to use a Sensor Head and Calibration ROM with the same serial number. A pair with different serial numbers cannot operate normally.

• Use the configuration software with the combination specified in this manual, or the system may operate faultily.

• Do not shut down the power supply when saving any data into the memory built in the controller, or the data may be corrupted.

User's Manual

Page 11

Introduction

Precautions for Correct Use

• While a fiber cable is disconnected, be sure to attach the included protective cap on both the controller side and the fiber cable side. Leaving the fiber cable with the protective cap not attached, the optical fiber may fail due to any adhered foreign matter.

(3) Warming Up

After turning ON the power supply, allow the product to stand for at least 30 minutes before use. The circuits are still unstable immediately after the power supply is turned ON, so measured values may fluctuate gradually.

(4) Maintenance and Inspection

Do not use thinner, benzene, acetone or kerosene to clean the Sensor Head, fiber cable and controller. If large dust particles adhere to the emitter/receiver of the Sensor Head or controller, use a blower brush (used to clean camera lenses) to blow them off. Do not blow the dust particles with your mouth. To remove smaller dust particles, dirt, oil, and fat, wipe gently with a soft cloth (for cleaning lenses). Do not use excessive force to wipe off dust particles. Scratches on the emitter/receiver may cause false operations or measuring errors. For details on the method for cleaning the ends of fiber cables, refer to "Connecting Fiber Cables" (p.1-15).

Introduction

(5) Sensing Objects

The product sometimes cannot accurately measure the following types of objects: Transparent objects, objects with an extremely low reflection factor, objects smaller than the spot diameter, objects with a large curvature, excessively inclined objects, target objects with a thin film on the surface etc.

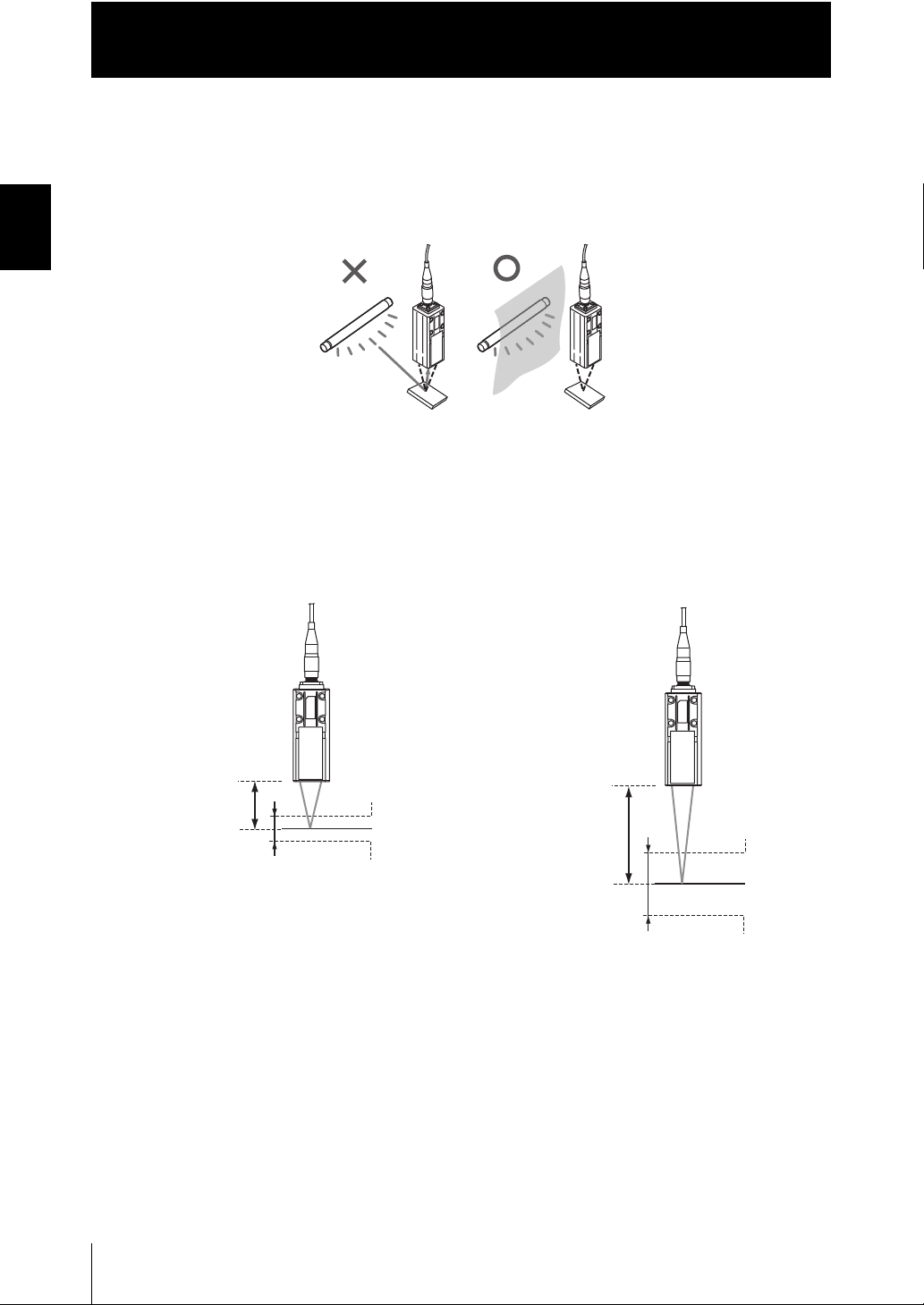

(6) Effect caused by peripheral lights

Do not install the Sensor Head in a place where strong light hits the laser emitter/ receiver section of the Sensor Head. Also, if a workpiece has a shiny surface, the light from the lighting will be reflected and a malfunction may occur. In such a case, prevent reflection by, for example, covering the light to stop reflection.

p.1-8

(7) Influence by Air Turbulences

Slow air turbulences around the Sensor Head may disperse measured values. To avoid these possible air turbulences, wrap the Sensor Head with an appropriate cover.

User’s Manual

Page 12

Introduction

╙㩷㩷

╙㪋┨ 䇭㪠㪆㪦⸳ቯ ౉಴ജ䈮㑐䈜䉎⸳ቯ

౉಴ജ䈮㑐䈜䉎 ⸳ቯ

4-12

Chapter 4 I/O SETTINGS

User’s Manual

Settings for Analog Output

The following describes the settings for outputting the current measurement results from the analog output of the 20-pole terminal block.

Output destination setting

With analog output, the measurement results can be output converted into a current from 4 to 20 mA or a voltage from -10 to +10 V. Selects which to output, the current or the voltage.

The same output destination is set for all banks. The output destination cannot be set separately for individual banks.

As an example, here is an explanation of the procedure for outputting the voltage.

RUN

FUN

TEACH

H L

RUN

FUN

TEACH

ZERORST/

ESC

ZERO/

SET

ZERO/

SET

ZERO/

SET

ZERO/

SET

Title of each chapter

Header

Index label

Supplementary Explanation

Explanation of Explanation of options

Explanation of Operating procedure

Cross-header

Indicates the chapter number and title.

Helpful information regarding operation and reference pages are introduced here using symbols.

Quasi Cross-header

Editor's Note

Introduction

Editor's Note

Page Format

Chapter 4 Settings for I/O

Settings for I/O

The following describes settings for I/O.

╙

┨

Setting [Display] Description [Display]

Voltage output [VOLT] (Default value)

Current output [CUR.] Current output

Voltage output

Operating procedure

Steps

Key operation Display Description

RUN

FUN

TEACH

ESC

ZERORST/

SET

ZERO/

UNLIT

mode.

RUN

press key.

and press

and press key.

RUN

FUN

TEACH

ZERO/

es ot syek ro sserP3 lect either of "ANALOG"

key.

SET

ZERO/

SET

ZERO/

NUF eht retne ot sdnoces owt rof yek sserP1

dna "O/I" fo rehtie tceles ot syek ro sserP2

"C RO V" fo rehtie tceles ot syek ro sserP4

■ Meaning of Symbols

Menu items that are displayed on the main or sub-display, and windows, dialog boxes and other GUI elements displayed on the personal computer are indicated enclosed by brackets [ ].

User’s Manual

Page 13

■ Visual Aids

Mark Means

Introduction

Editor's Note

Introduction

Indicates points that are important to ensure full product performance, such as operational precautions and application procedures.

Indicates pages where related information can be found.

Indicates information helpful in operation.

Optional

Indicates that the setting is optional in a configuration procedure.

User’s Manual

Page 14

Introduction Editor's Note

Introduction

Notice

•Photocopying, duplication, or copying of all or part of this manual without permission is

prohibited.

•Please understand that the specifications and other contents of this manual are sub-

ject to change for improvement without notice.

•Every effort has been made to ensure the accuracy of the contents of this manual, but

if you should notice any mistake, questionable section, or the like in this manual,

please contact an OMRON branch or sales office.

•If you do so, please also tell us the manual number, which is found at the end of the

manual.

User’s Manual

Page 15

Related Manuals

The following manual is related to the ZW series. Use this manual for reference.

Introduction

Related Manuals

Introduction

Manual name Cat. No.

Smart Monitor ZW Operation manual

Z323-E1-01 ZW-SW_ _ To learn about the

Model

numbers

Application Description

This describes the operation methods and functions of the Smart Monitor ZW

operation methods for

the Smart Monitor ZW.

User’s Manual

Page 16

Introduction Related Manuals

Introduction

User’s Manual

Page 17

Introduction

Meanings of Signal Words 4

Meanings of Alert Symbols 4

Meanings of Alert Symbols 5

Precautions for Safe Use 6

Precautions for Correct Use 8

Editor's Note 10

Page Format 10

Notice 12

Related Manuals 13

Search from Menu Tree 20

Section 1 MEASUREMENT SETUP 1-1

CONTENTS

Section 1 Section 2 Section 3 Section 4 Section 5 Section 6 Section 7 Section 8 Section 9

System Configuration 1-2

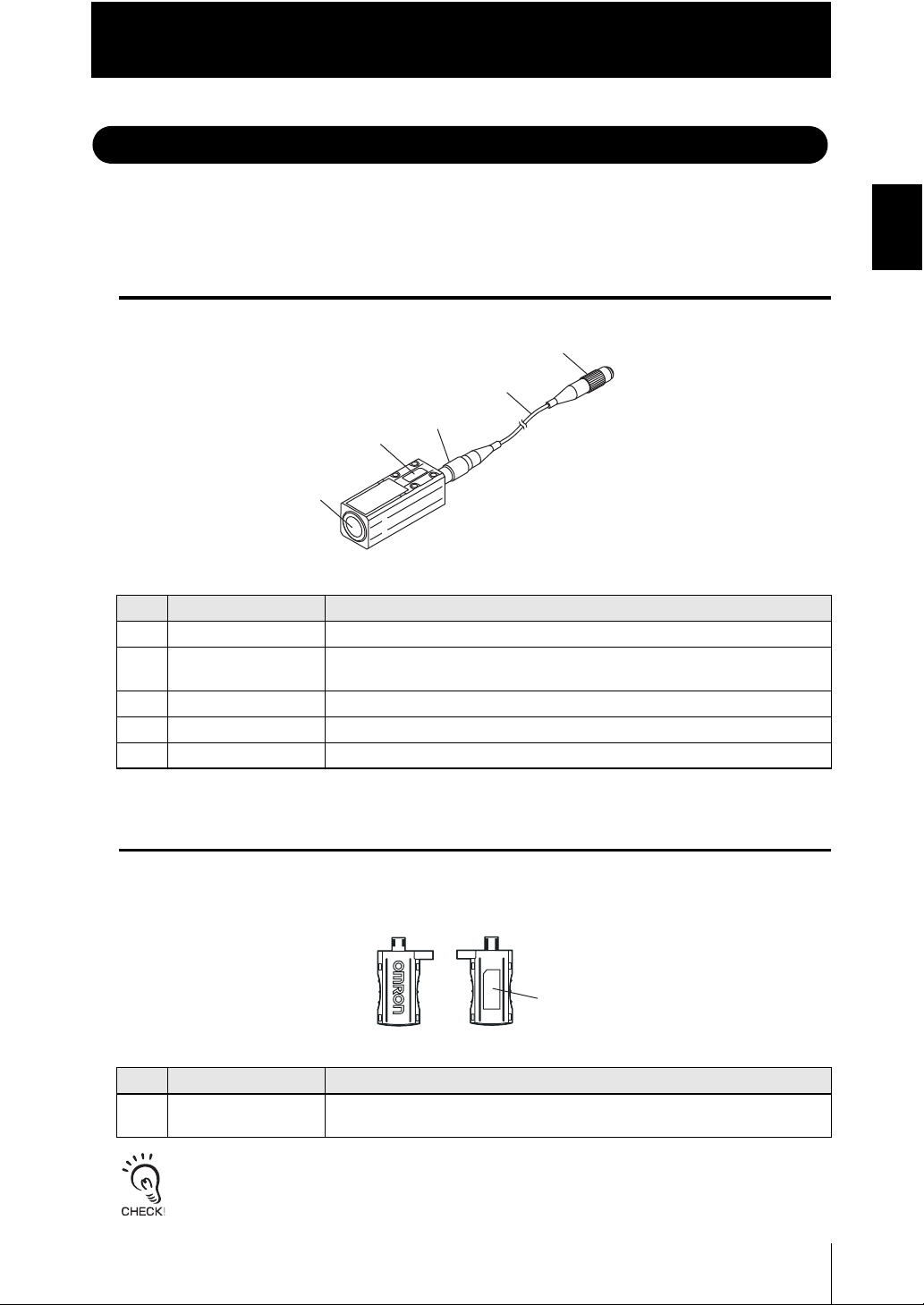

Part Names and Functions 1-3

Sensor Head 1-3

Calibration ROM 1-3

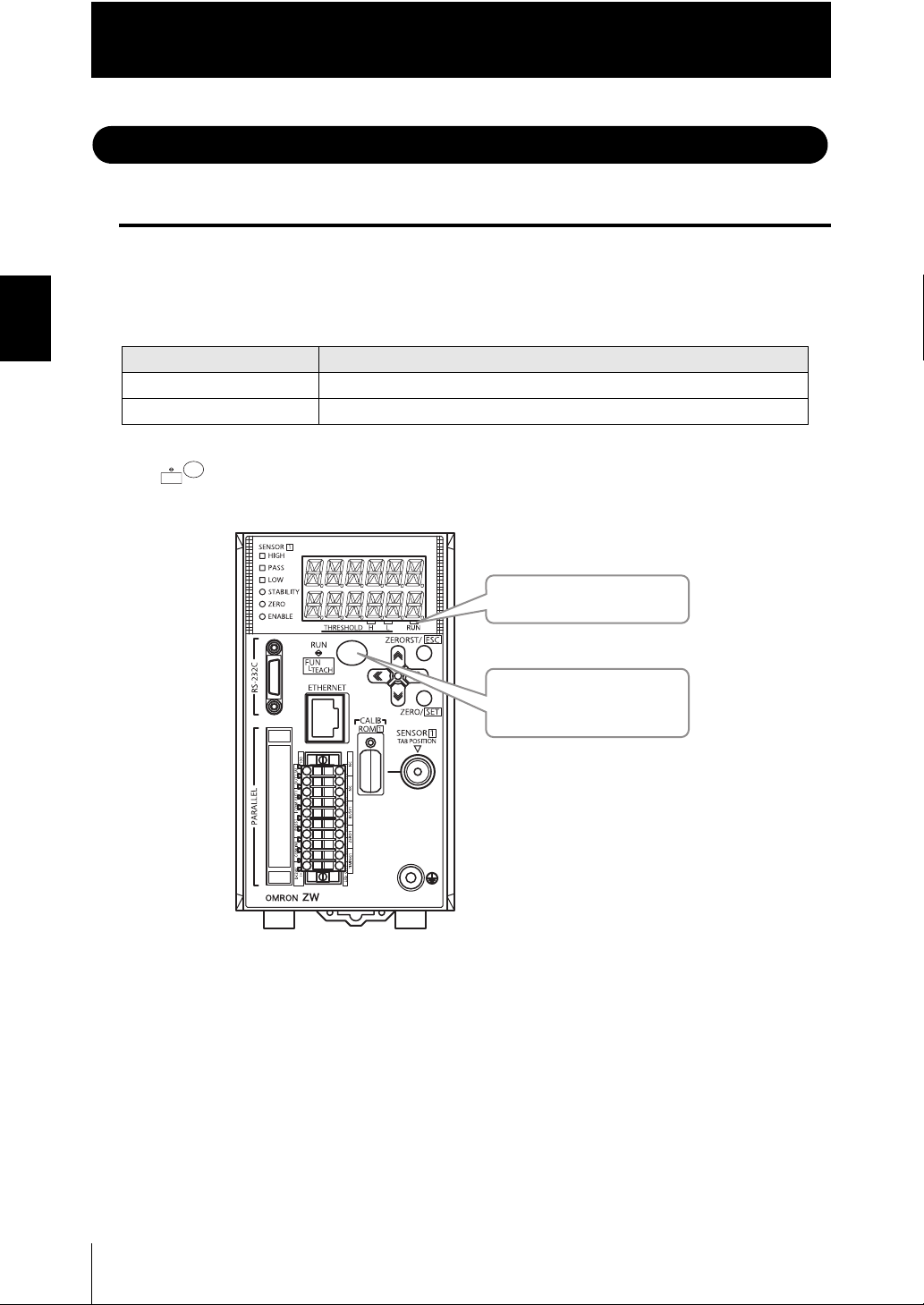

Controller 1-4

About Installation and Connection 1-7

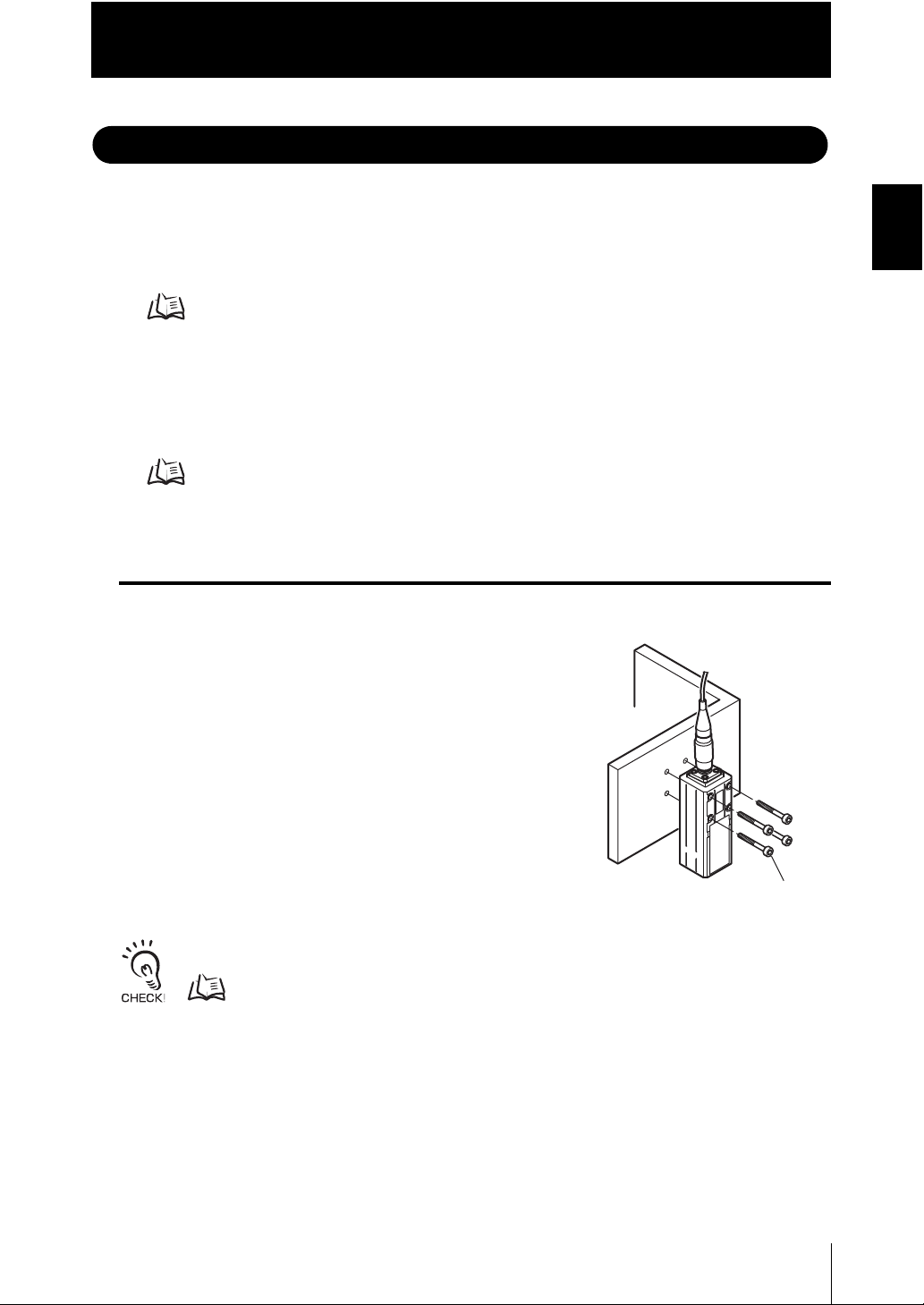

Installation of Sensor Head 1-7

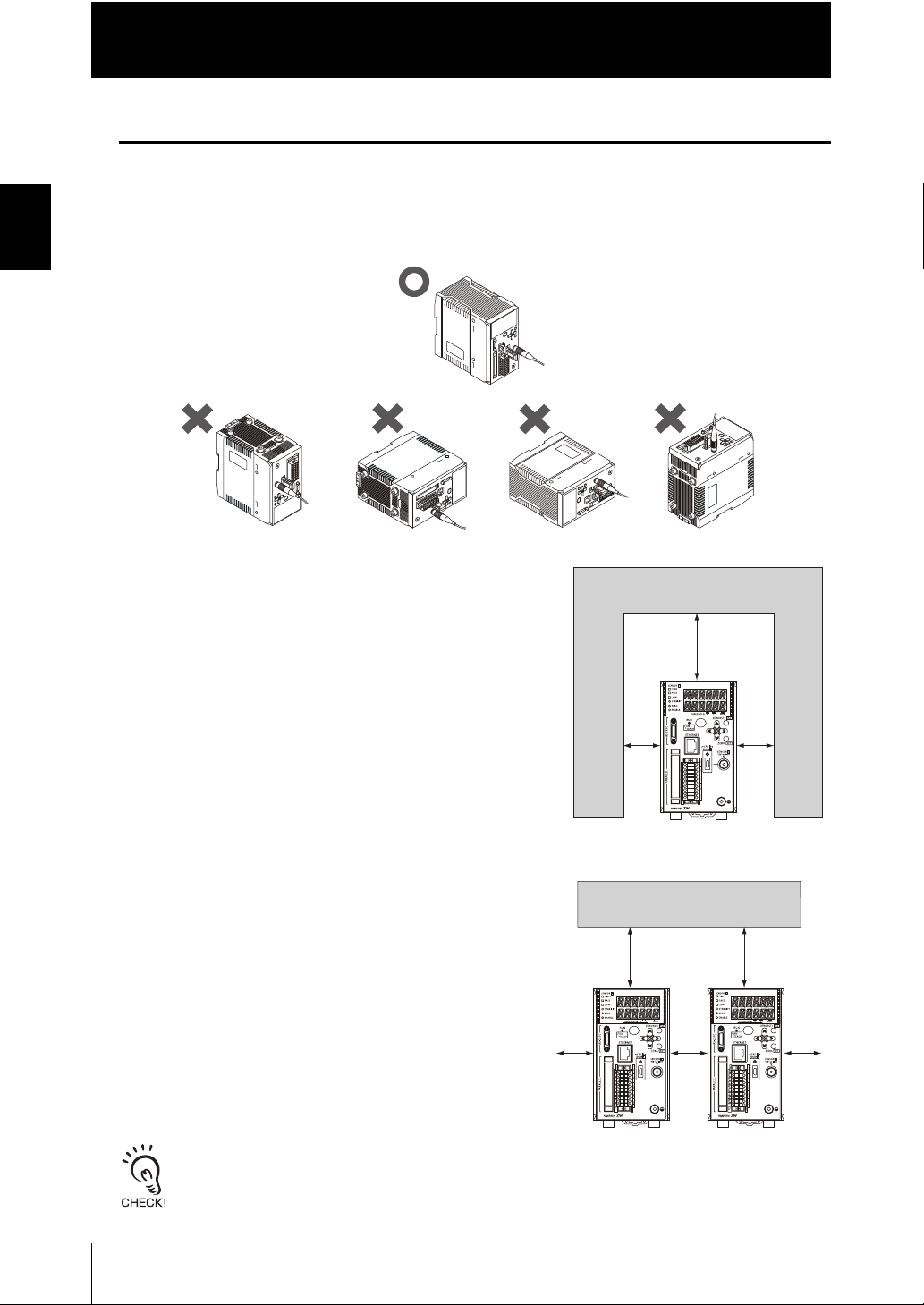

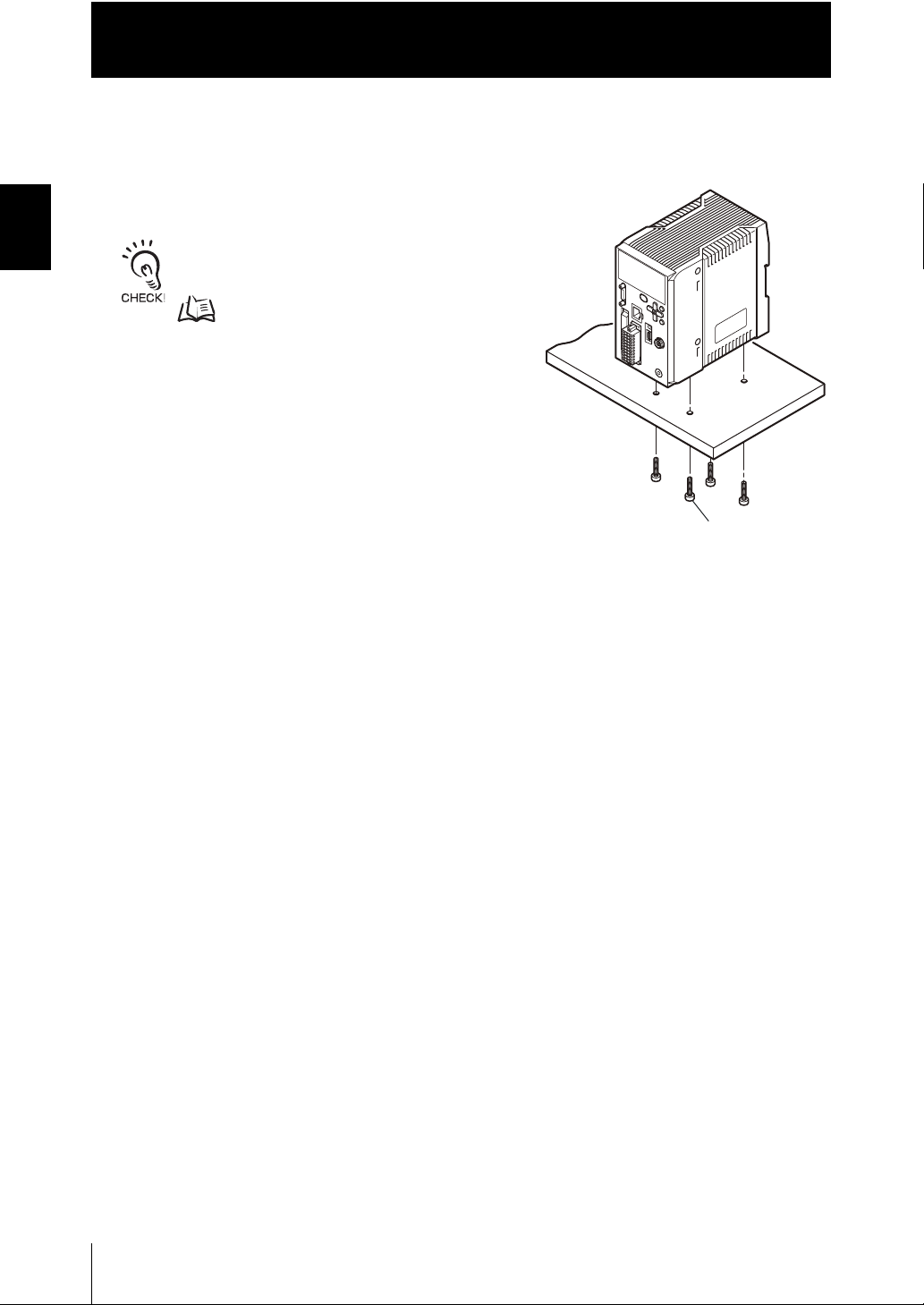

Installation of Controller 1-10

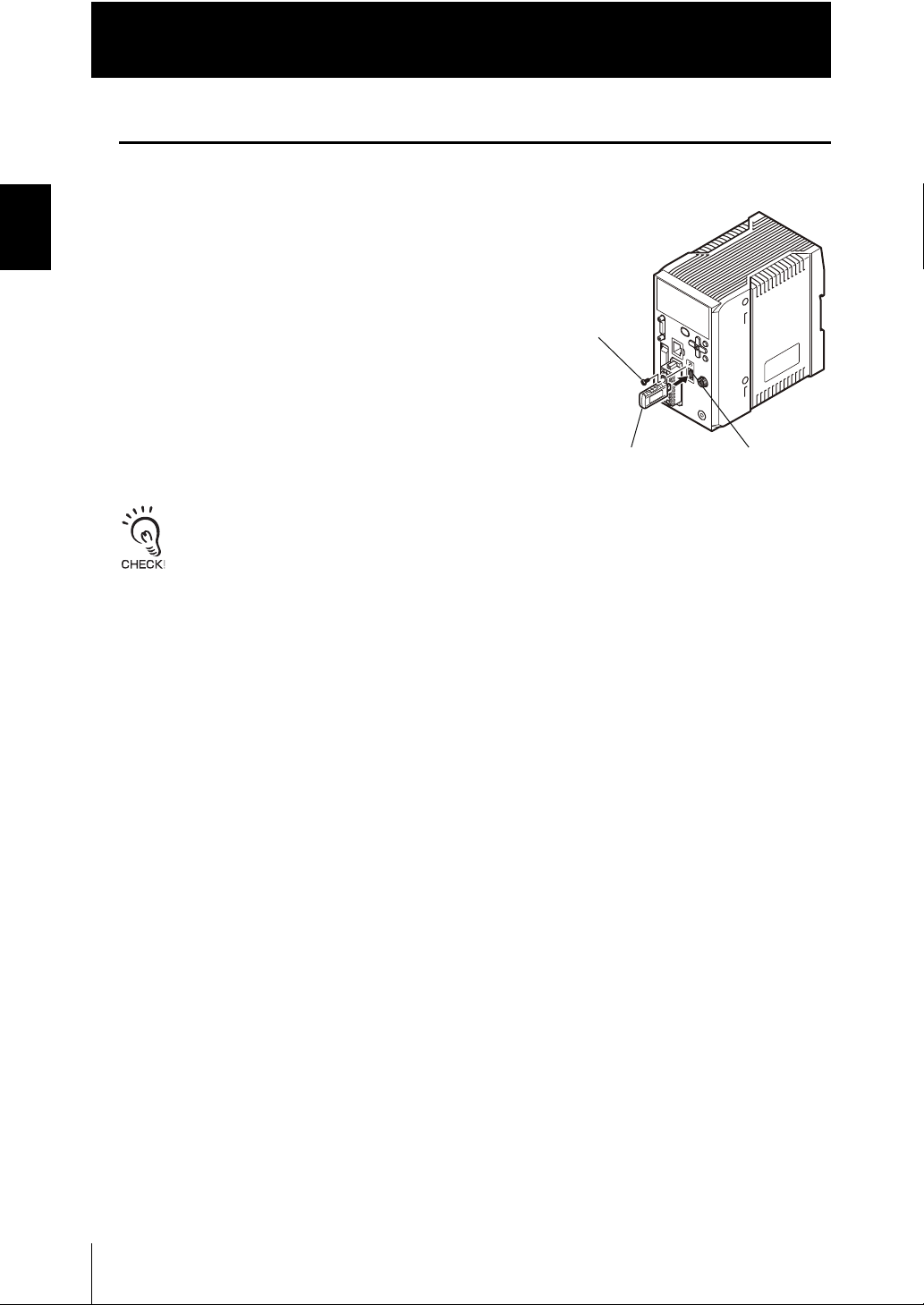

Connecting Calibration ROM 1-14

Connecting Fiber Cable 1-15

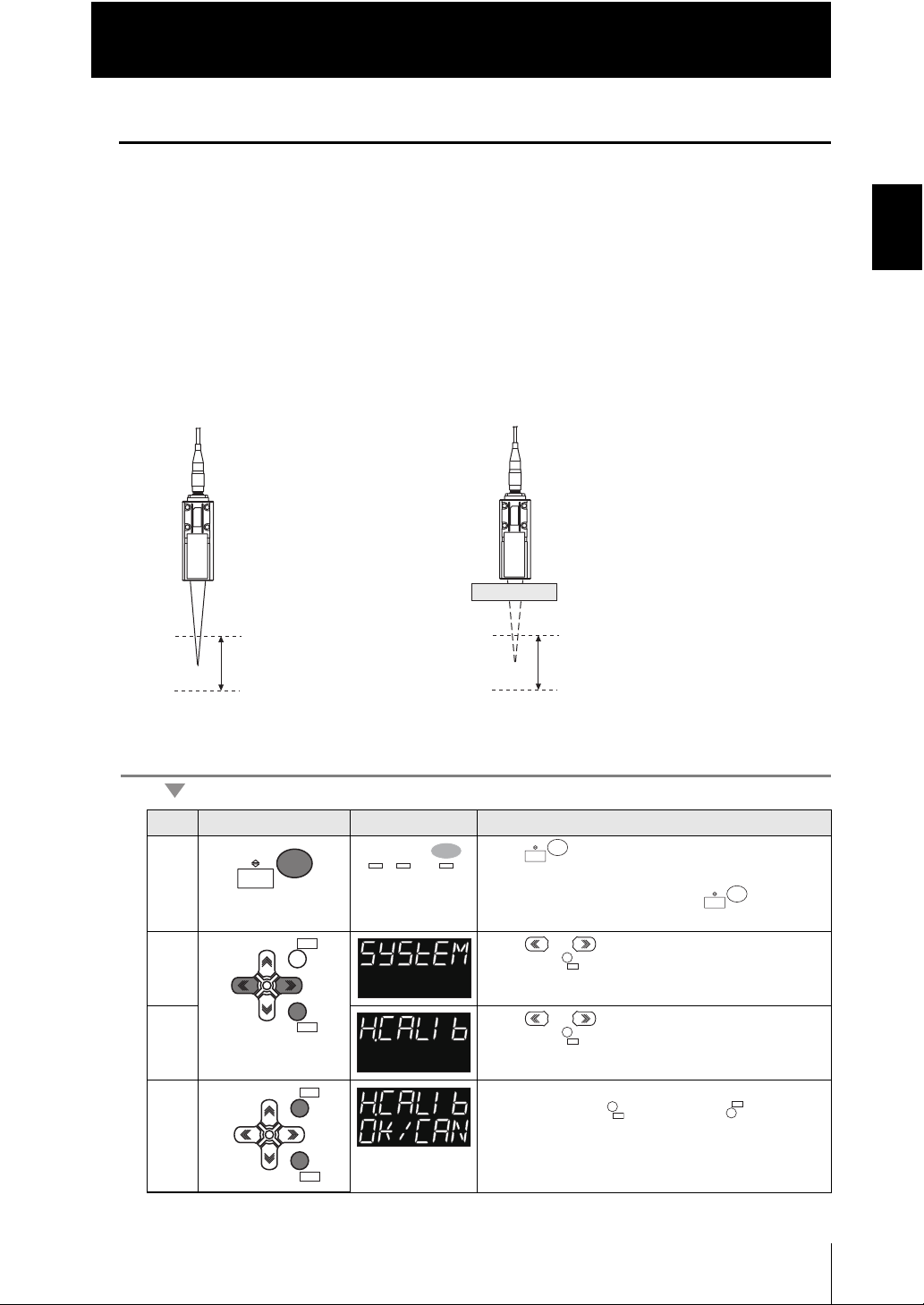

Calibrating Sensor Head 1-19

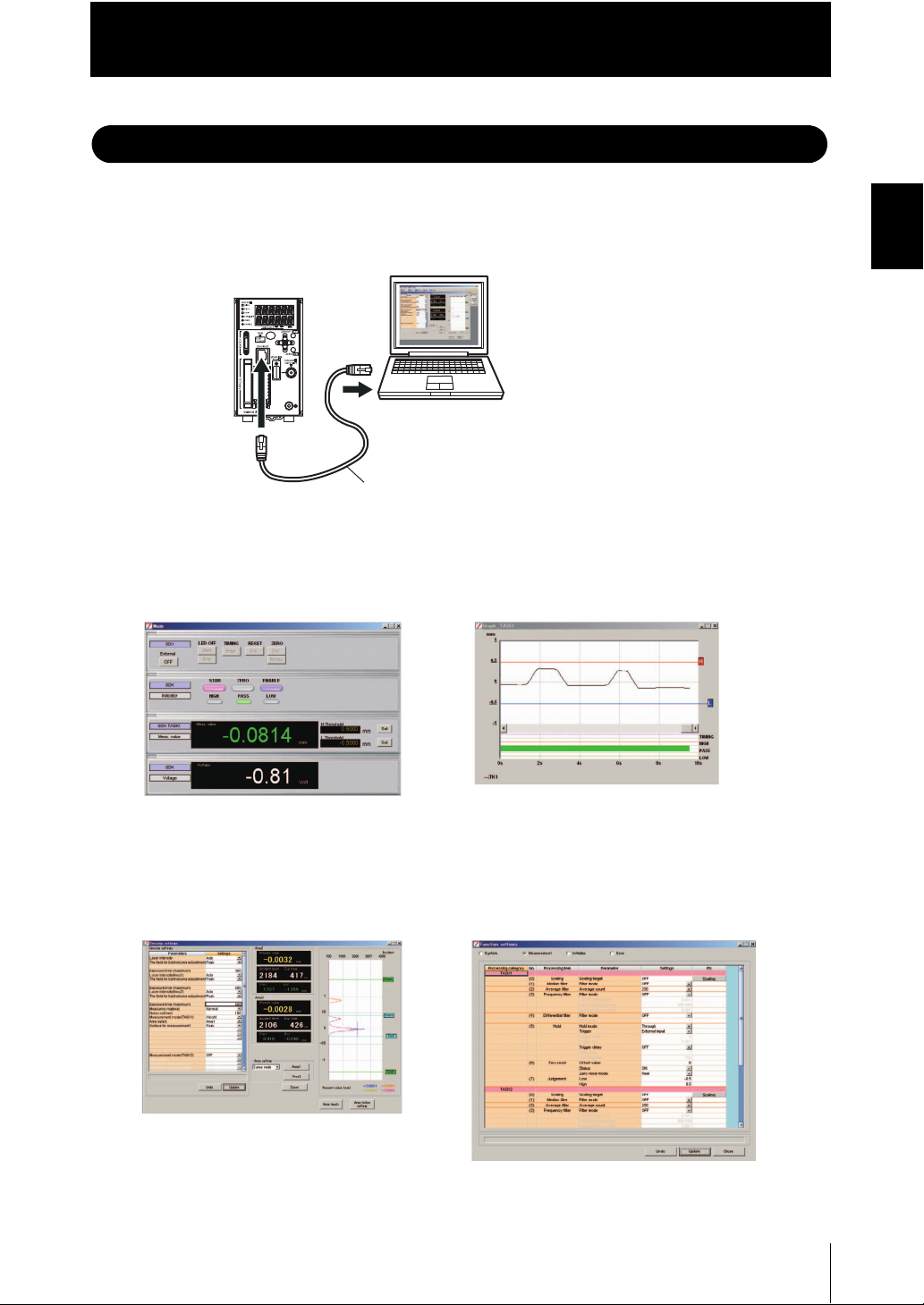

Smart Monitor ZW 1-21

Operating Environment 1-22

Installation/Uninstallation Method 1-23

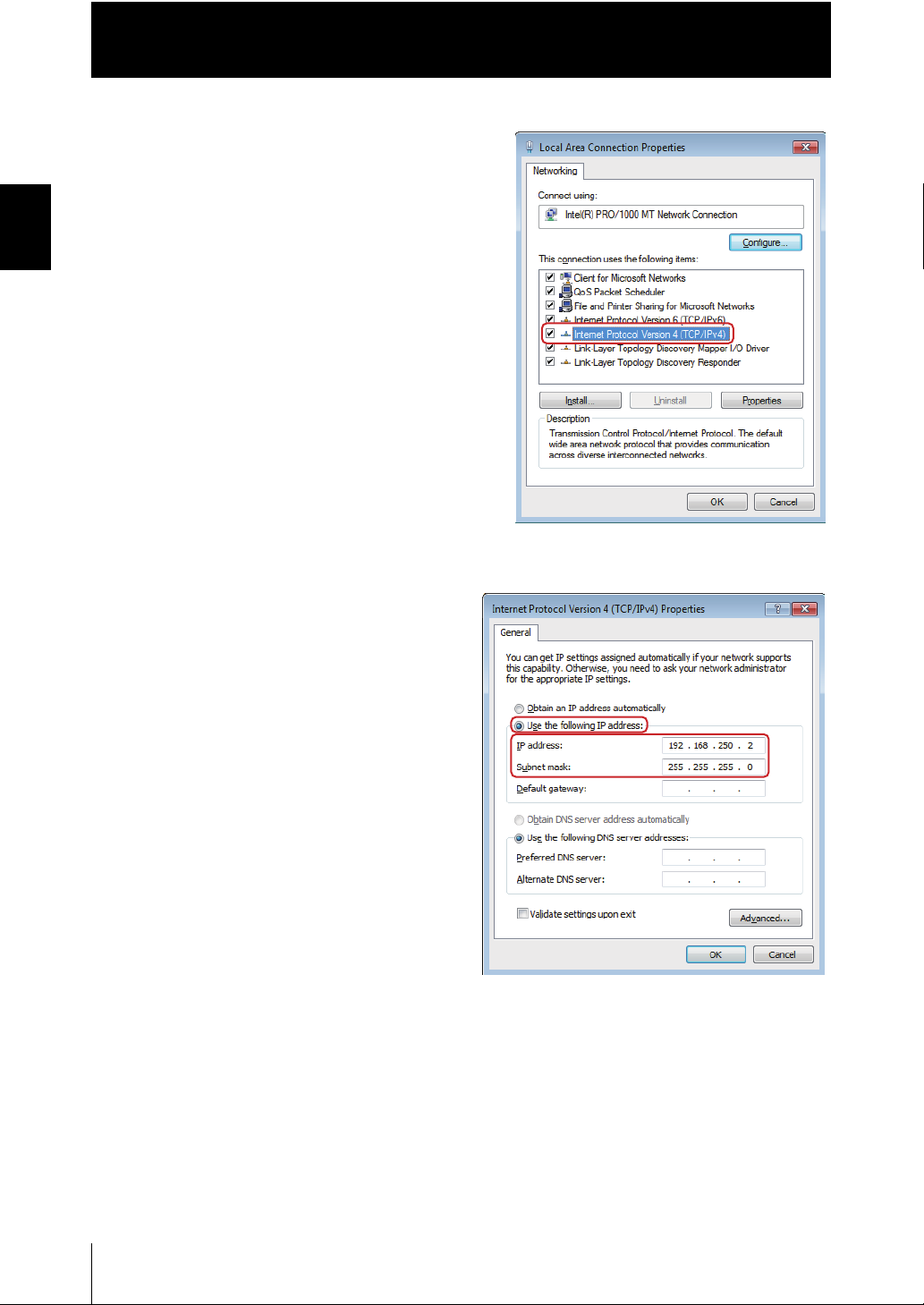

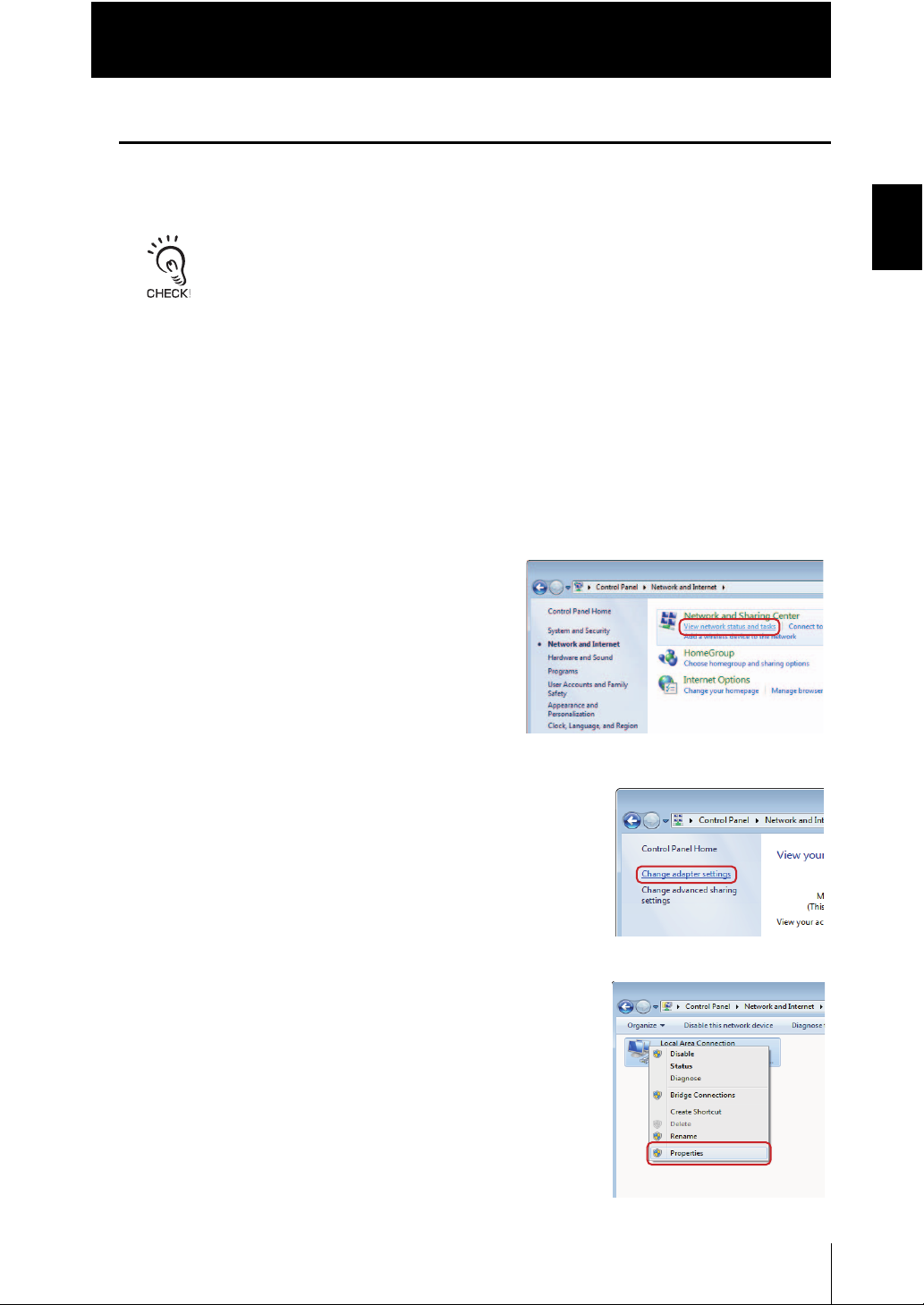

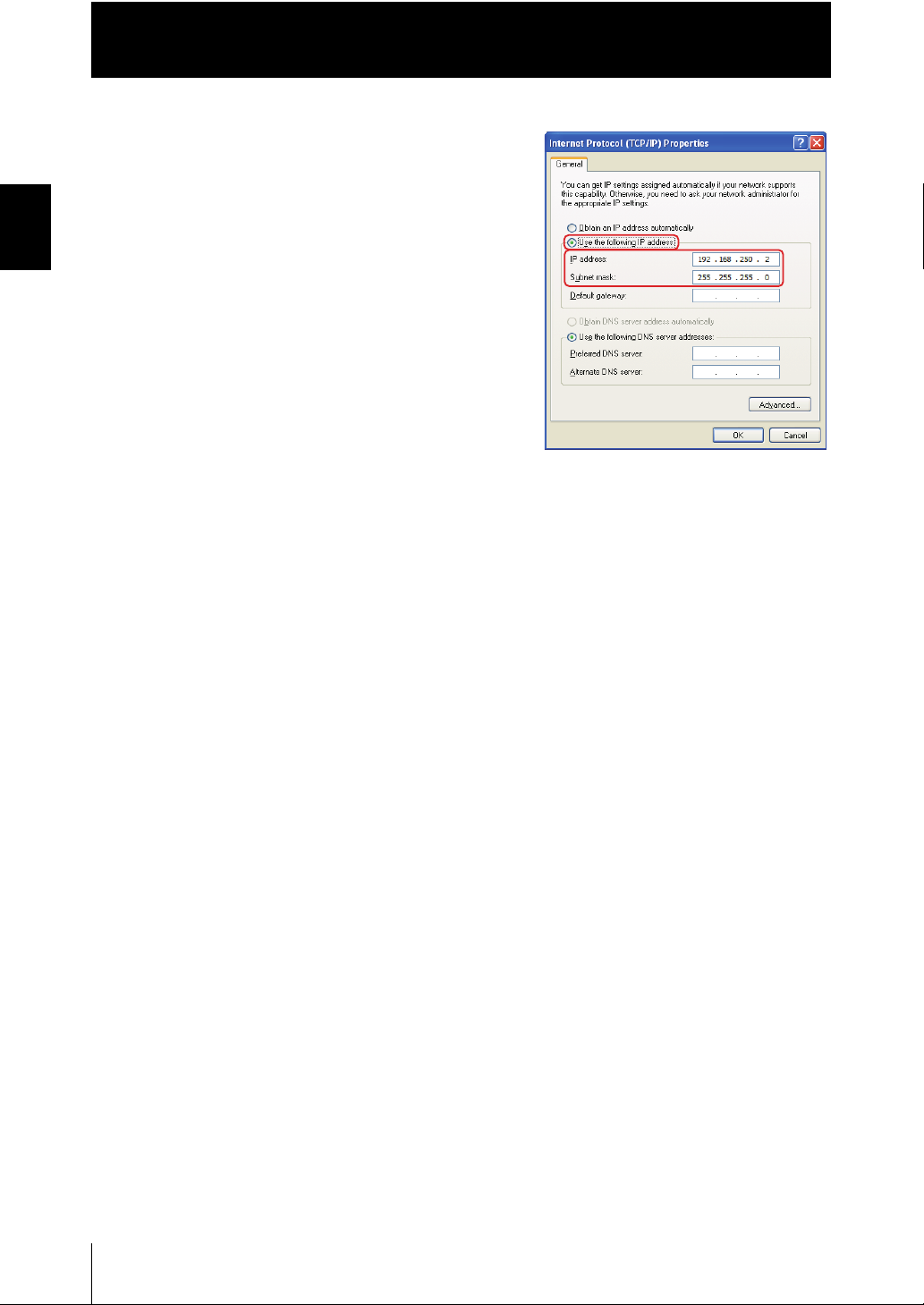

Settings when Connecting Personal Computer with Controller 1-25

Starting and Exiting 1-29

Section 2 BASIC OPERATION 2-1

Overview of Setting and Measurement 2-2

Operation Modes 2-2

User’s Manual

Page 18

Introduction

CONTENTS

Section 3 SETTINGS FOR FUNCTIONS 3-1

Functions of Operating Keys 2-3

Digital Displays 2-4

Multi-task and Bank Data 2-6

Setting Flow 2-8

Functions and Operations during Measurement 2-10

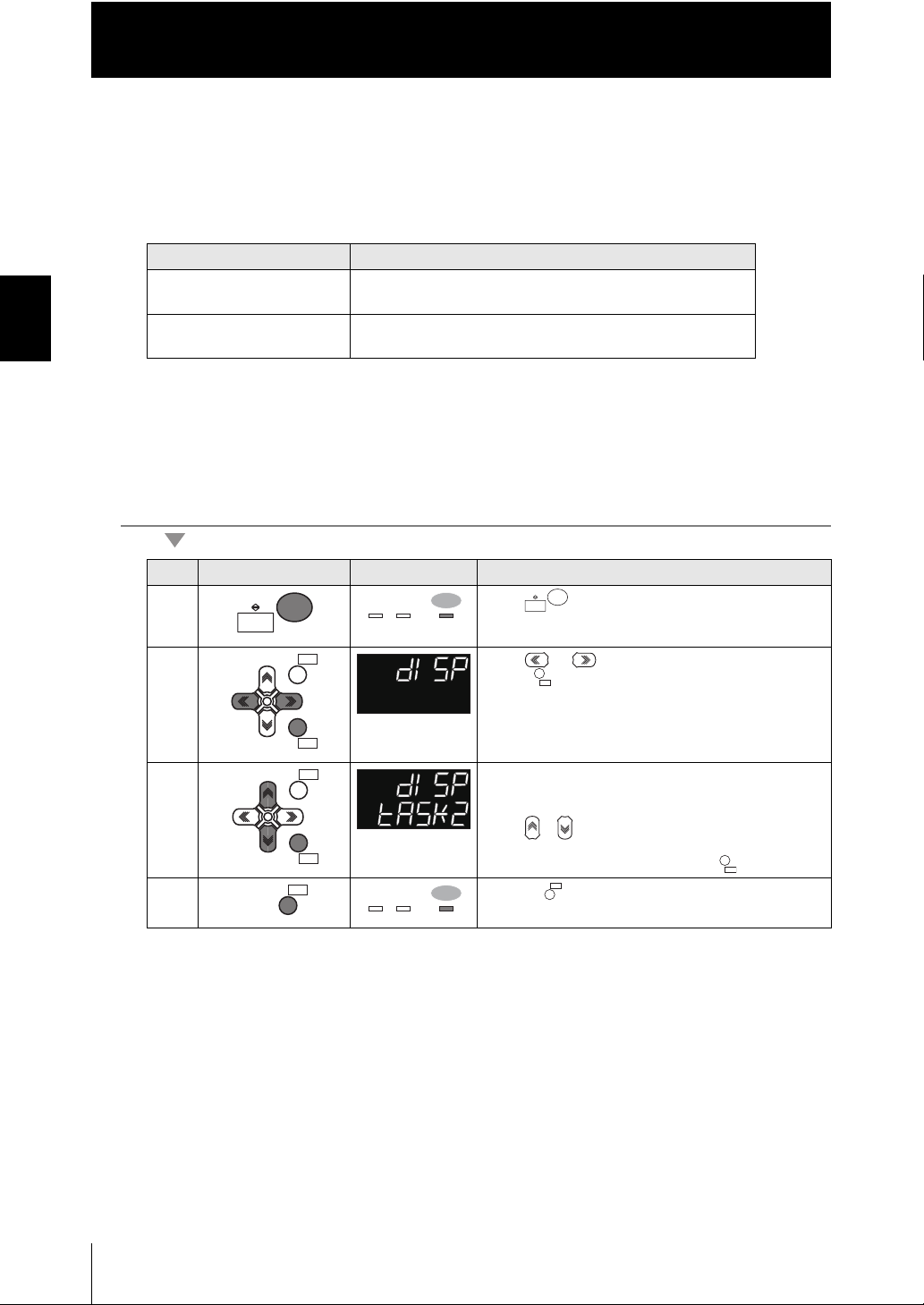

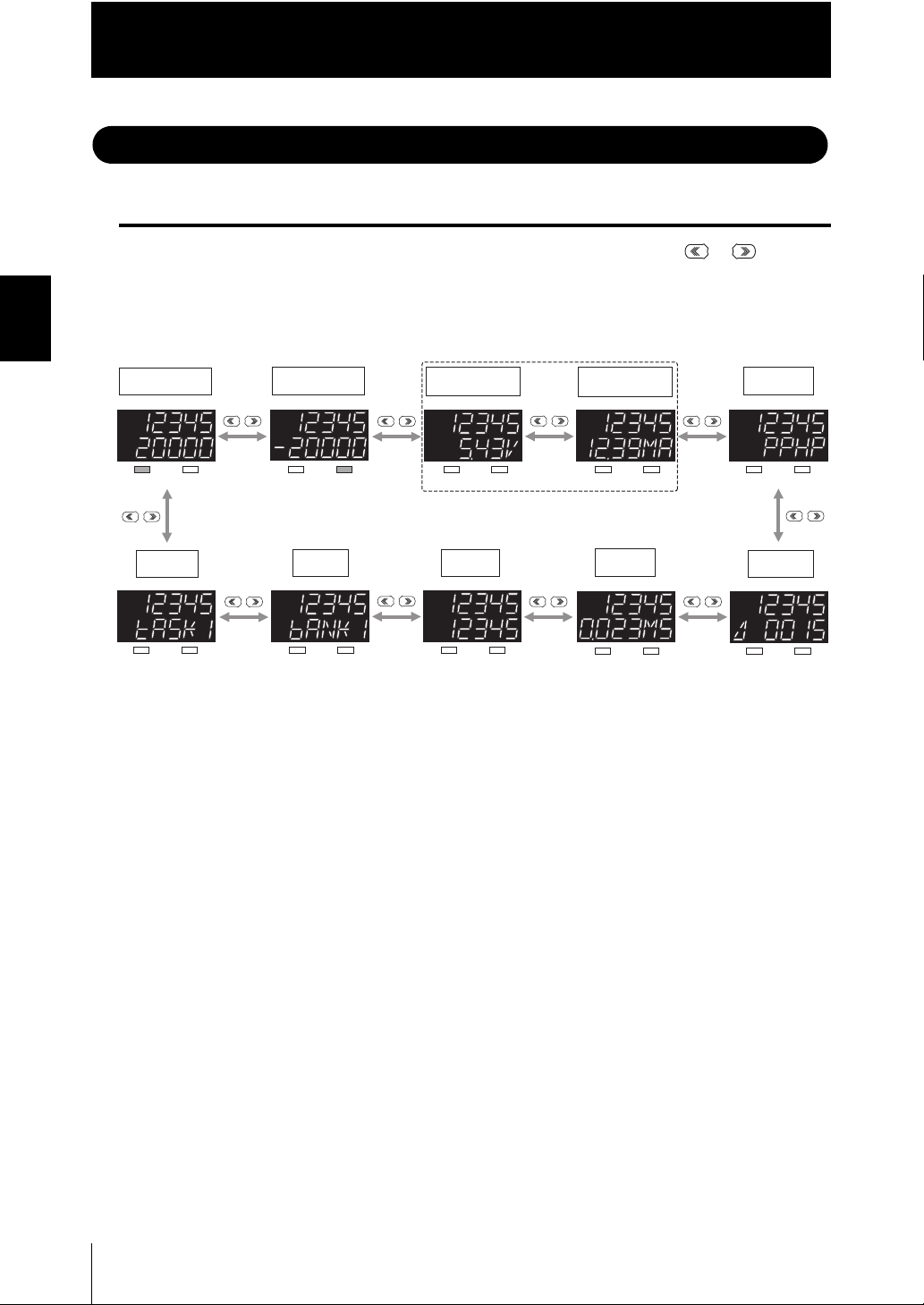

Switching the Display during RUN mode 2-10

Zero Reset 2-14

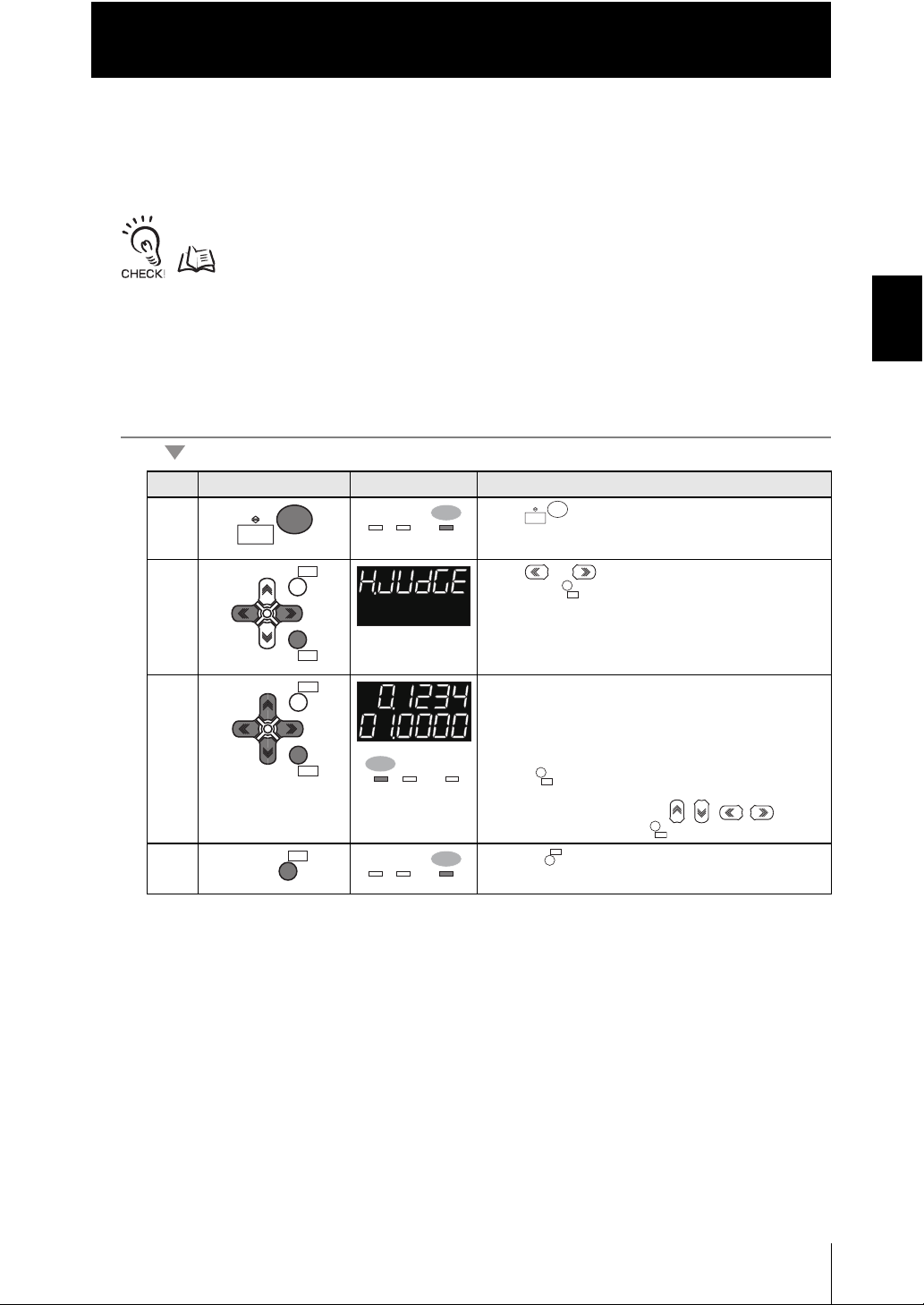

Setting Threshold Value 2-17

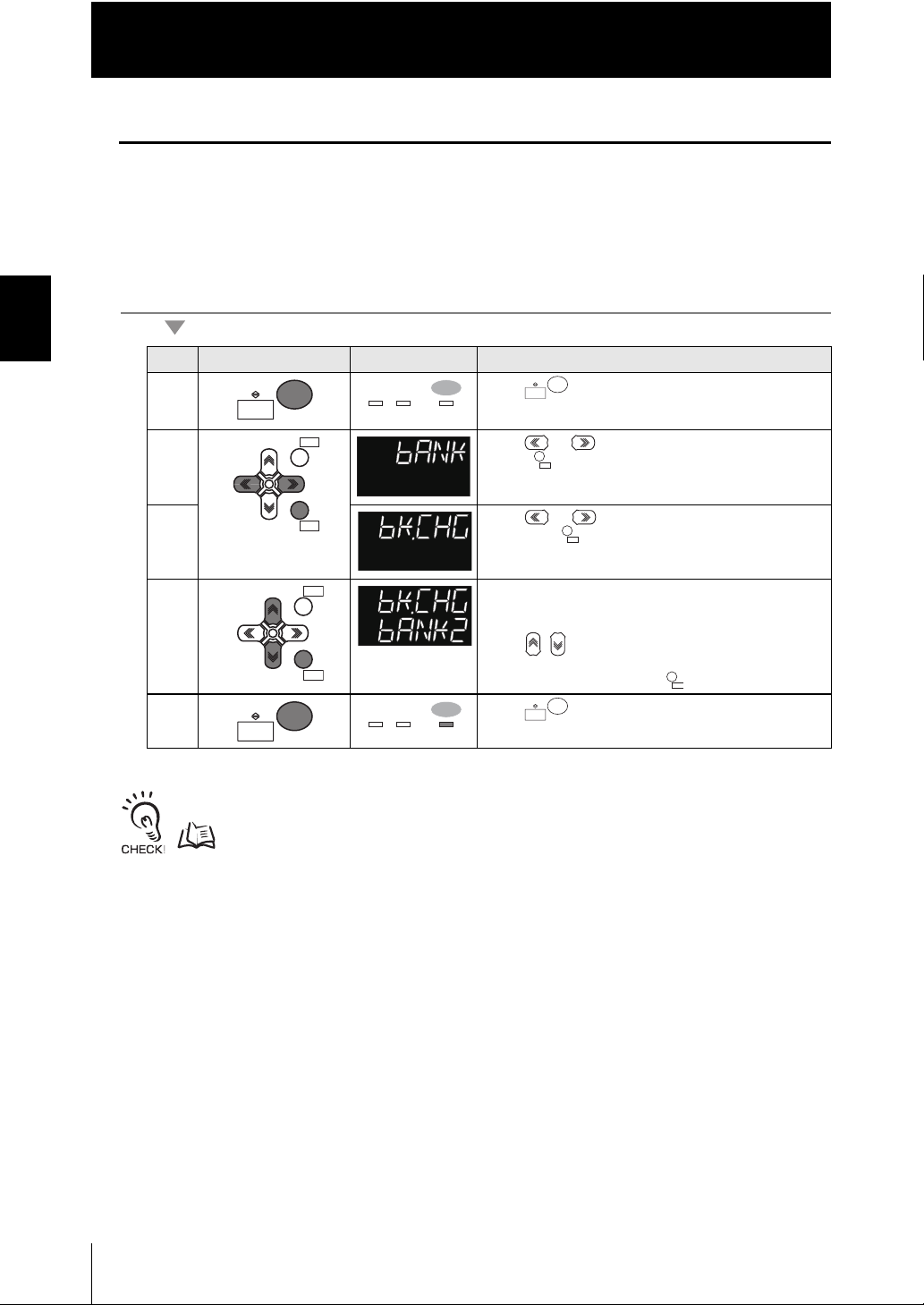

Bank Switching 2-20

Setting Sensing 3-2

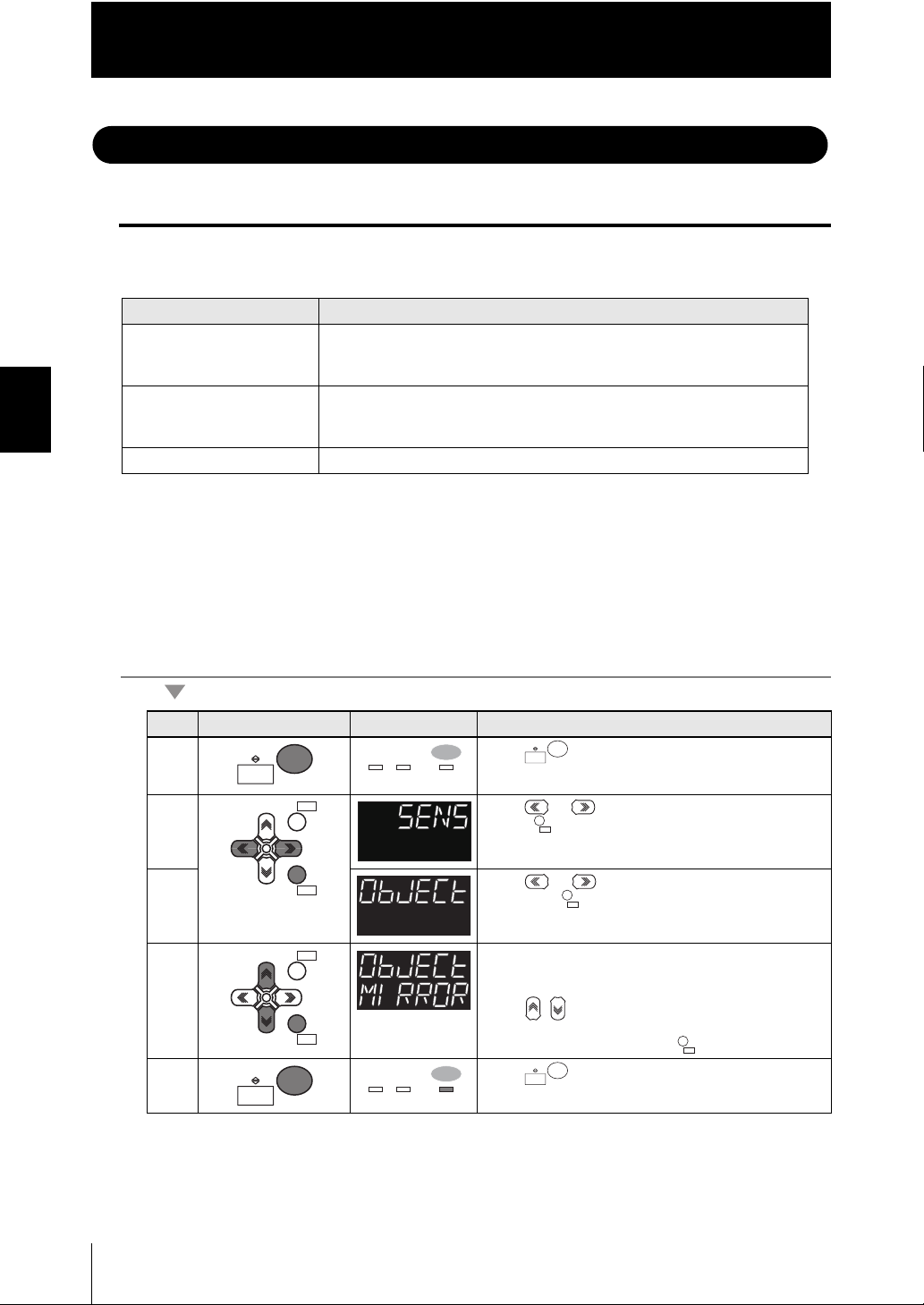

Setting the Material for the Target to Measure 3-2

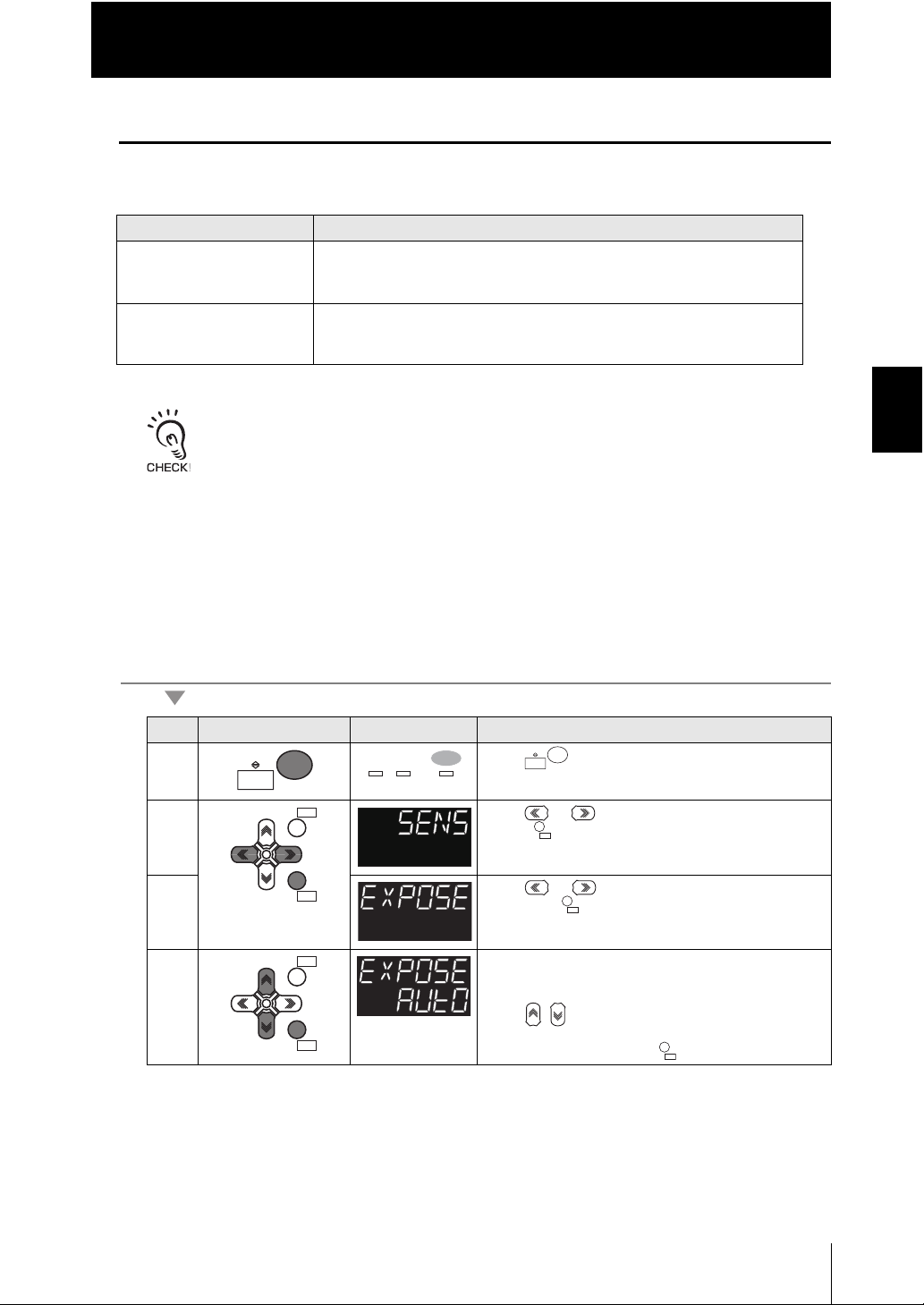

Setting Exposure Time Control Mode 3-3

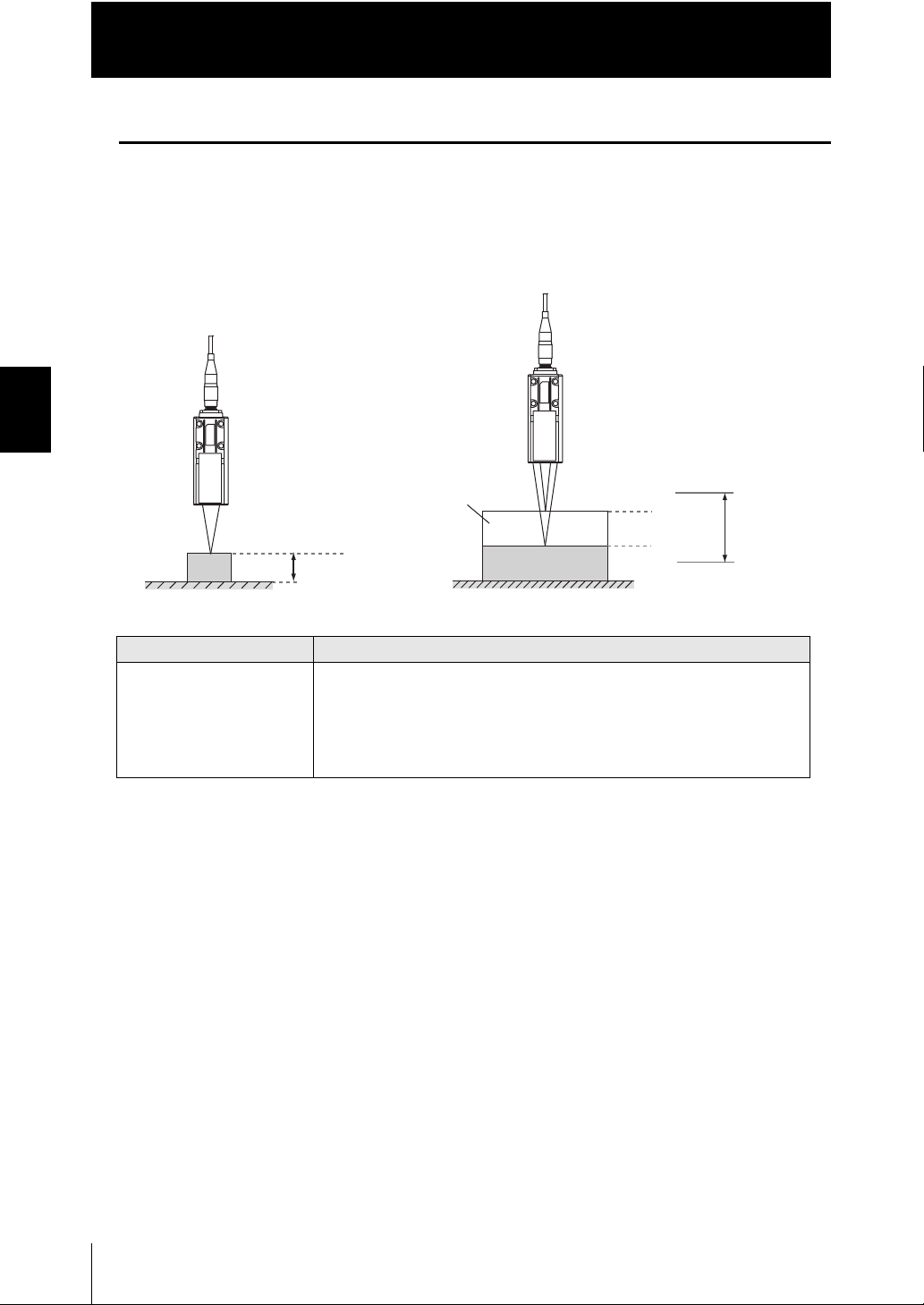

Setting Measurement Items 3-5

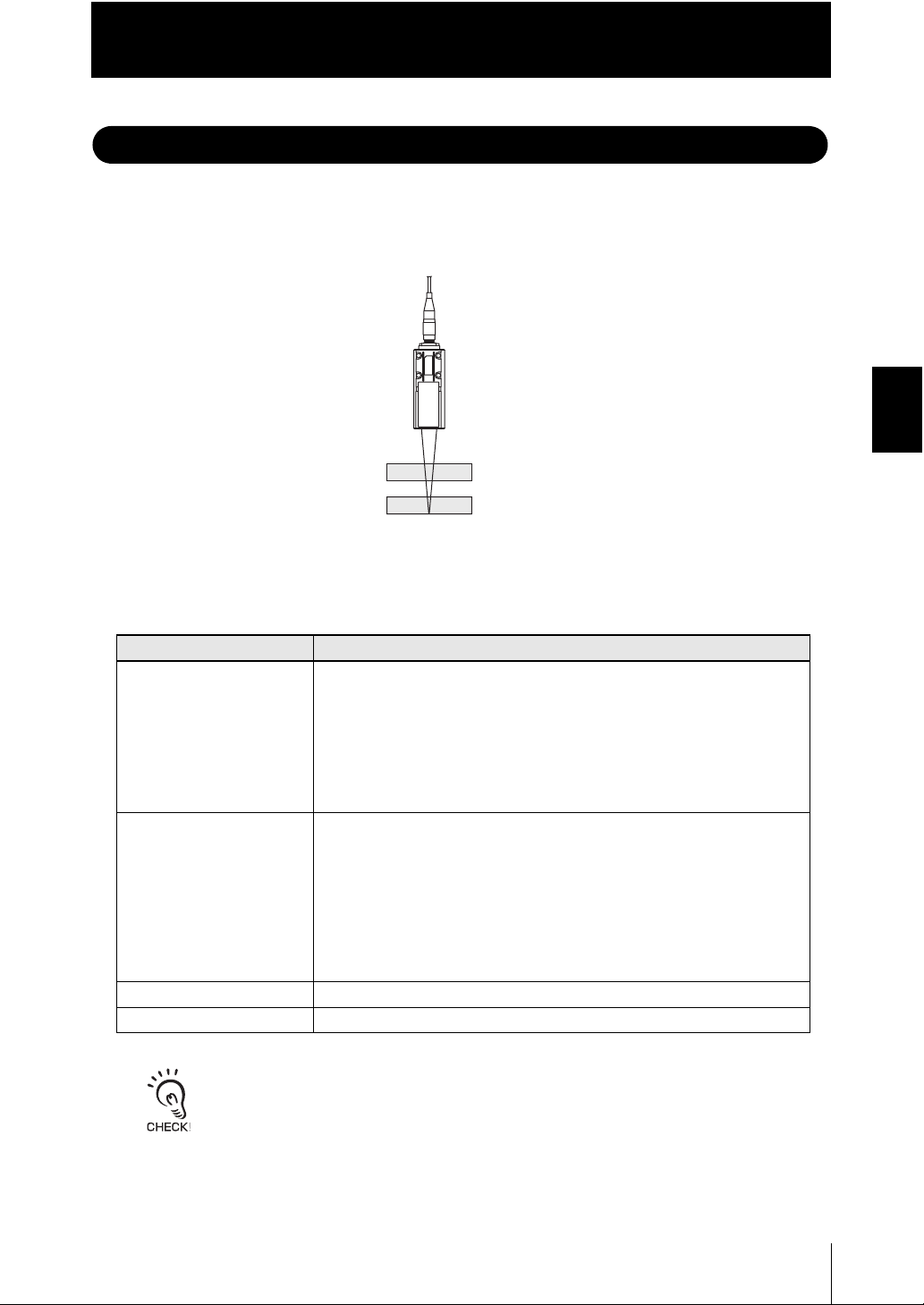

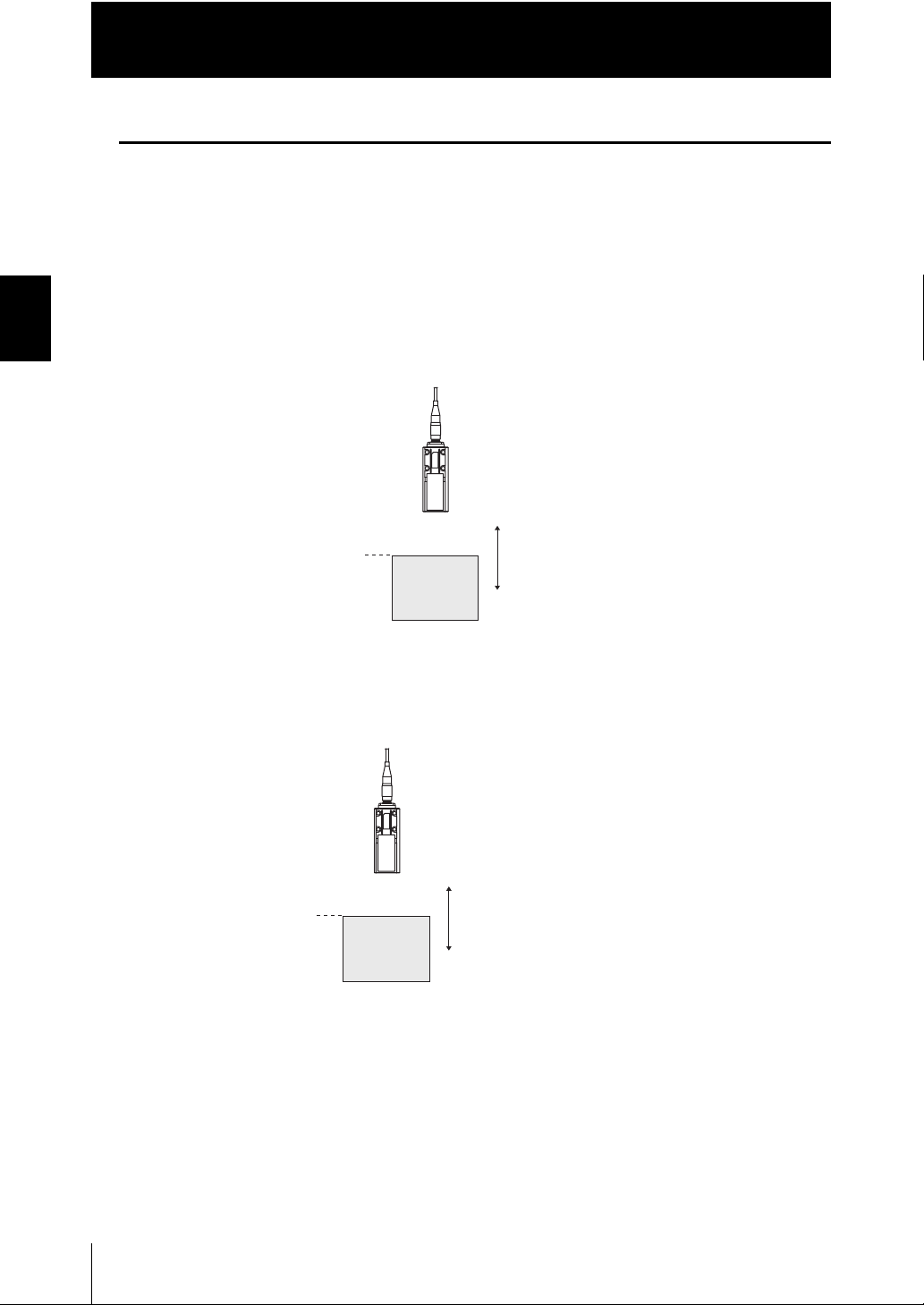

Measuring the Height 3-6

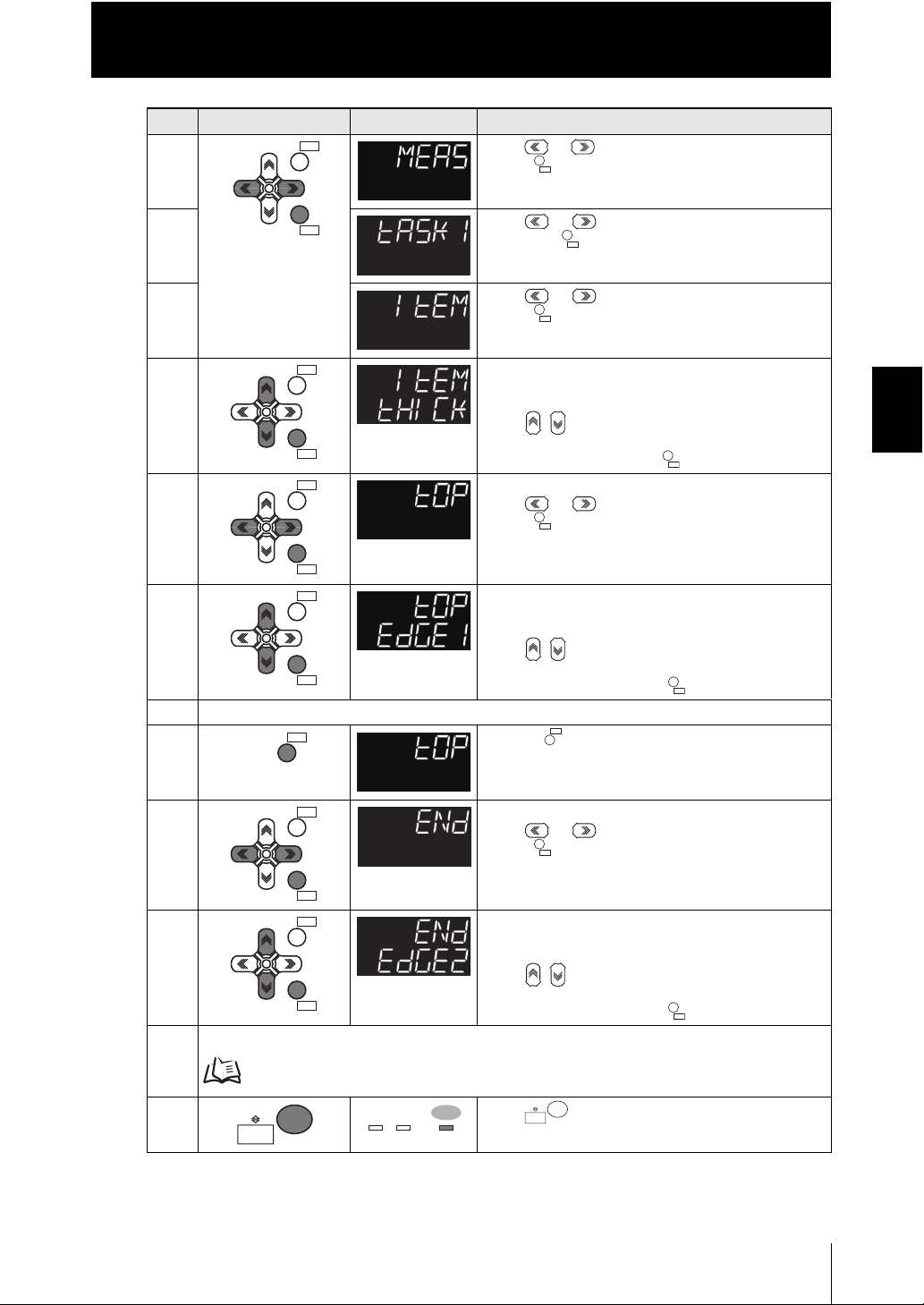

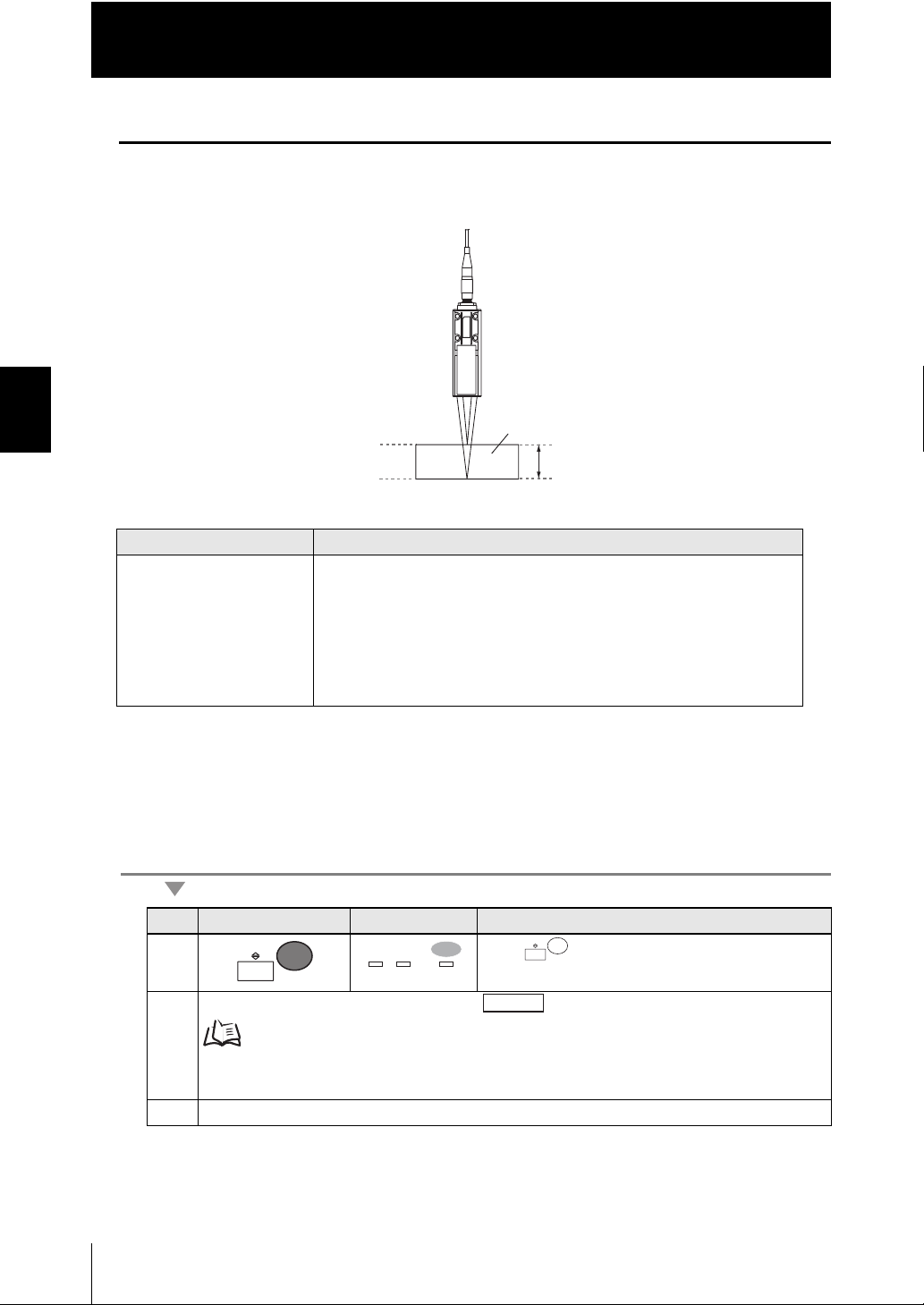

Measuring the Thickness 3-8

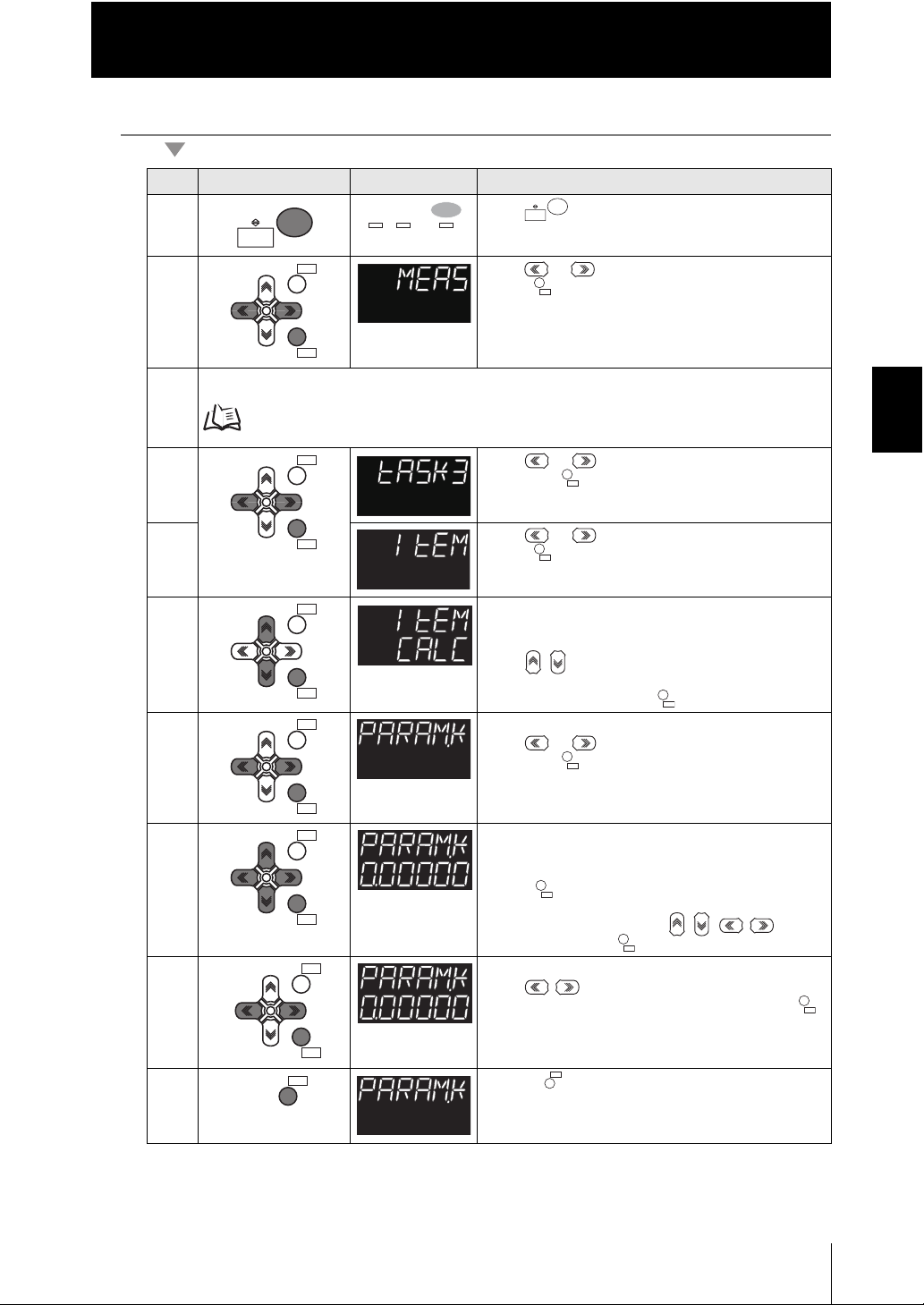

Calculating 3-10

Setting the Output Conditions 3-14

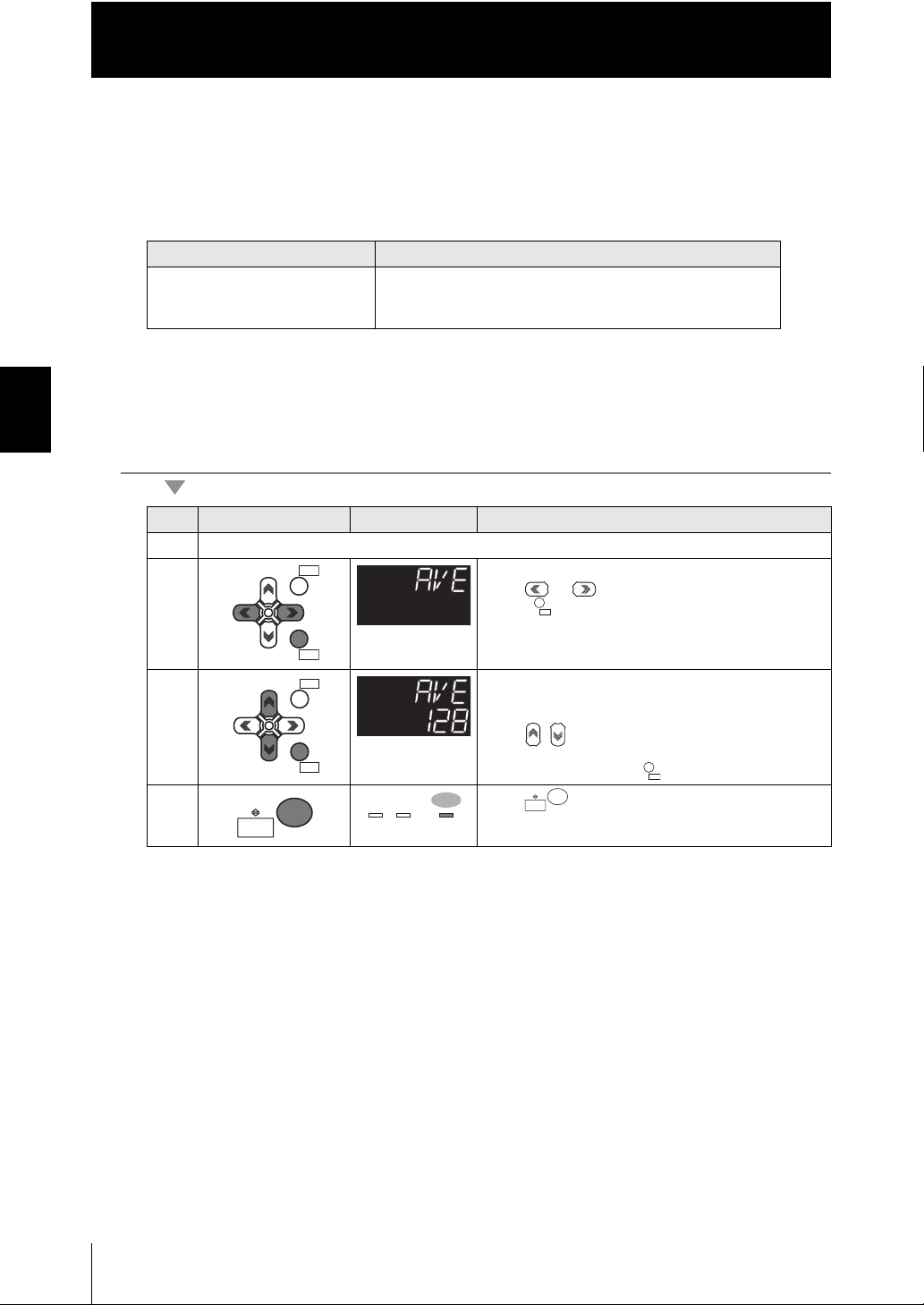

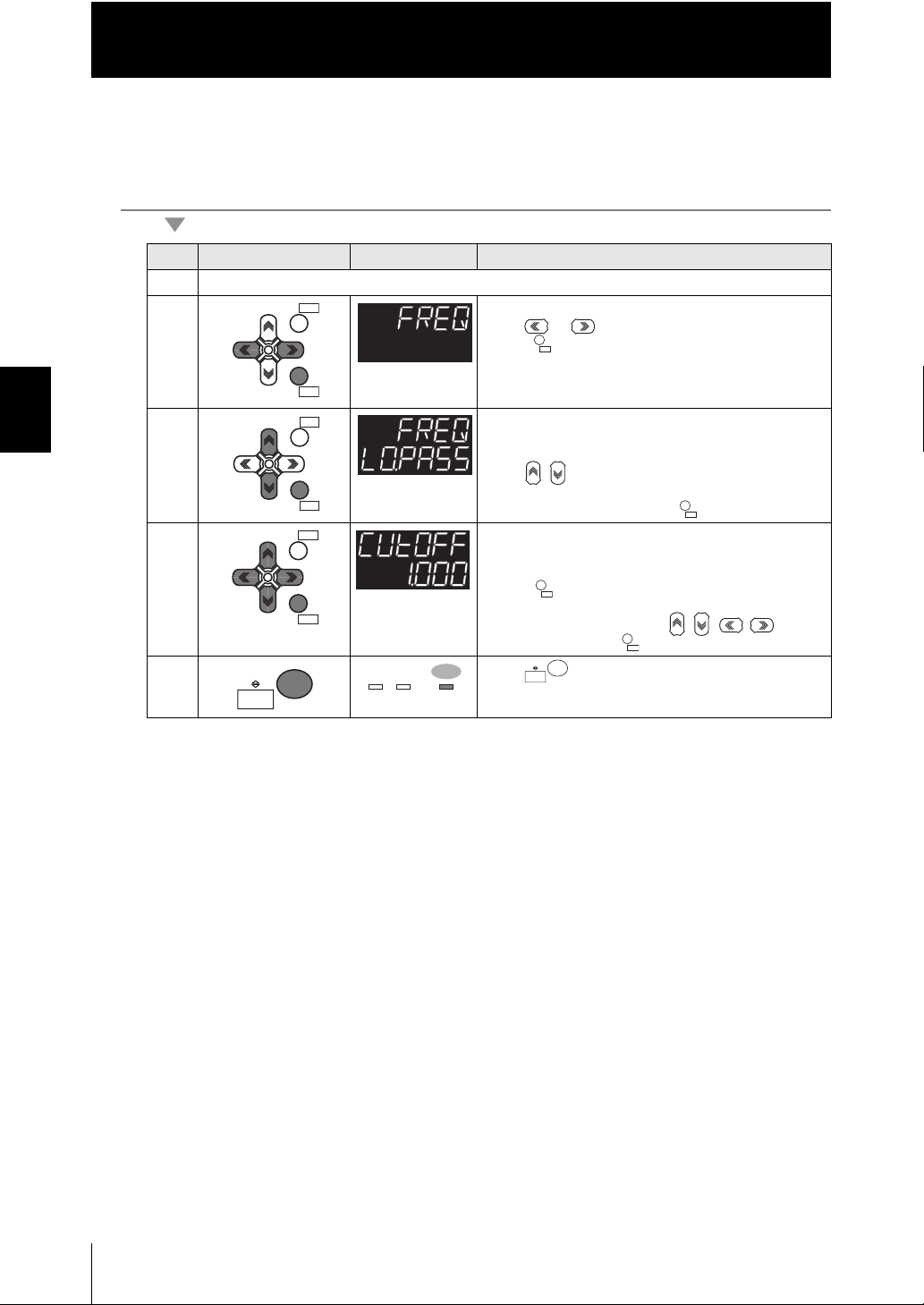

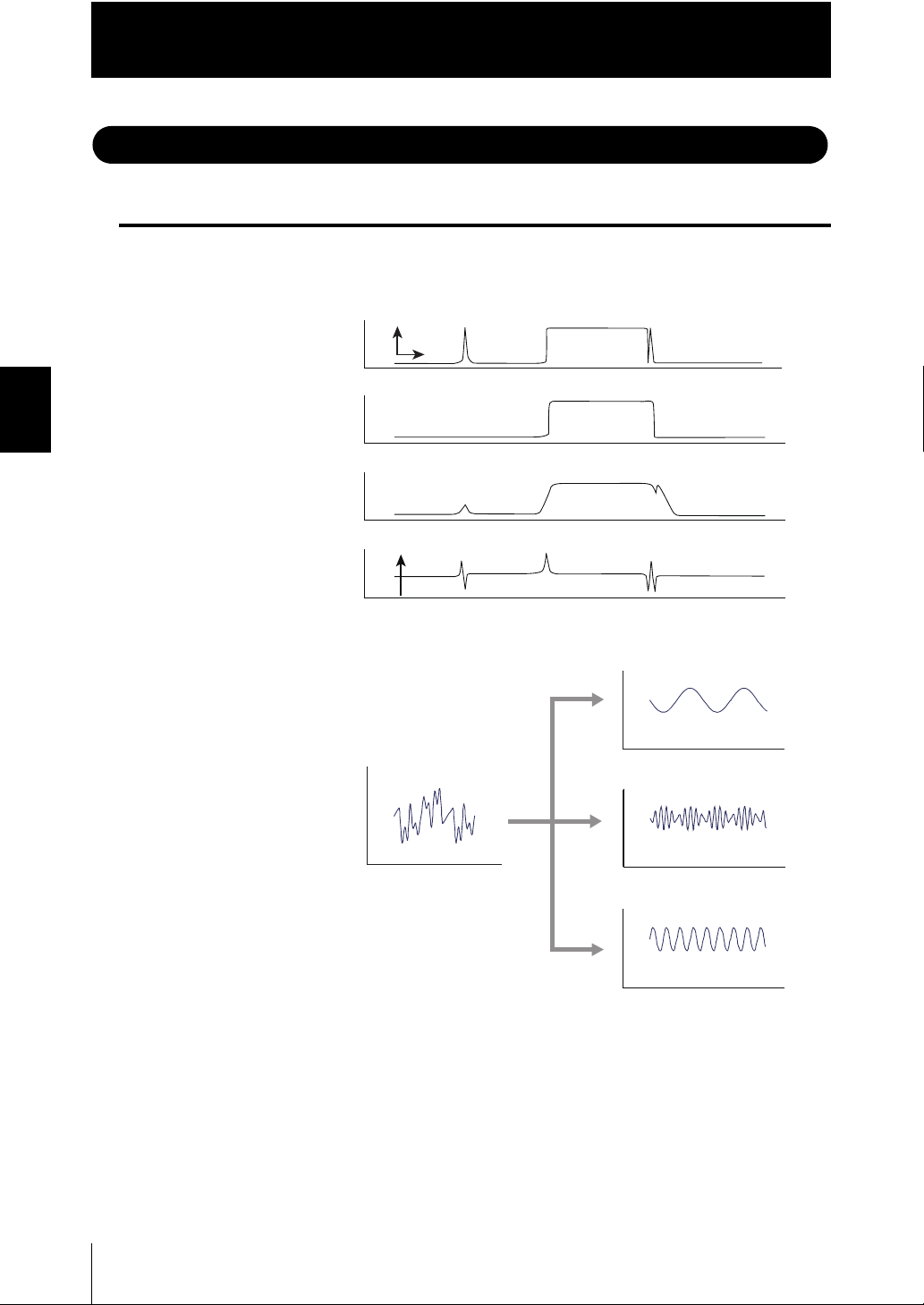

Setting the Filter 3-14

Setting the Scaling 3-21

Setting the Hold 3-28

Setting the Zero Reset 3-37

Setting the Banks 3-43

Changing the Bank Mode 3-43

Copying the Bank Settings 3-44

Saving the Bank/System Settings 3-45

Clearing the Bank Settings 3-46

Setting the System 3-47

Checking Information 3-47

Setting the Key Lock 3-49

Initializing Settings 3-50

User’s Manual

Page 19

Introduction

Section 4 I/O SETTINGS 4-1

I/O Terminal Names and Functions 4-2

I/O Terminal Functions 4-2

Electrical Specifications 4-5

I/O Signal Functions 4-7

Settings for I/O 4-12

Settings for Analog Output 4-12

Settings for Judgment Output 4-18

Settings for Binary Output 4-22

Settings for Processing when Measurement Cannot be Performed 4-28

Settings for I/O Signals 4-31

Timing Charts 4-33

Section 5 Ethernet/RS-232C COMMUNICATION 5-1

CONTENTS

Section 1 Section 2 Section 3 Section 4 Section 5 Section 6 Section 7 Section 8 Section 9

Overview 5-2

Ethernet Communication 5-2

RS-232C Communication 5-4

Connecting Using Ethernet Cable 5-5

Connection Method 5-5

Communication Settings 5-5

Connecting Using RS-232C Cable 5-7

Connection Method 5-7

Communication Settings 5-10

Communication Command List 5-12

Command format 5-14

Section 6 SPECIFICATIONS AND EXTERNAL DIMENSIONS 6-1

Sensor Head 6-2

Specifications 

External Dimensions 6-3

Spot Diameter 6-4

Linearity Characteristic by Materials 6-5

Angle Characteristic 6-6

Controller 6-8

User’s Manual

Page 20

Introduction

CONTENTS

Section 7 APPENDIX 7-1

Specifications 

Status Indicators for Controller 6-10

External Dimensions 6-11

Accessories 6-12

Extension Fiber Cable 6-12

Connecting Adapter (For Fiber Cable Connection) 6-13

RS-232C Cable 6-14

Parallel Cable 6-15

Troubleshooting 7-2

Error Messages and Countermeasures 7-5

EMC Directive Conformity 7-7

Updating Firmware 7-8

Flow of Updating Firmware 7-8

Processing Item Data List 7-13

Index 7-19

Revision History 7-23

User’s Manual

Page 21

Introduction

CONTENTS

User’s Manual

Page 22

CONTENTS

Introduction CONTENTS

Search from Menu Tree

■FUN mode

Sensing

setting

[SENS]

Measurement

setting

[MEAS]

Material

[OBJECT]

Exposure

Time Control

Mode

[EXPOSE]

TAS K1

[TASK1]

Auto

[AUTO]

Manual

[MANUAL]

Measurement

item

[ITEM]

Filter

[FILTER]

Height

[HEIGHT]

Thick

[THICK]

Calculation

[CALC]

None

[NONE]

* - Default value

Setting Option/Setting range Pages

Material

[OBJECT]

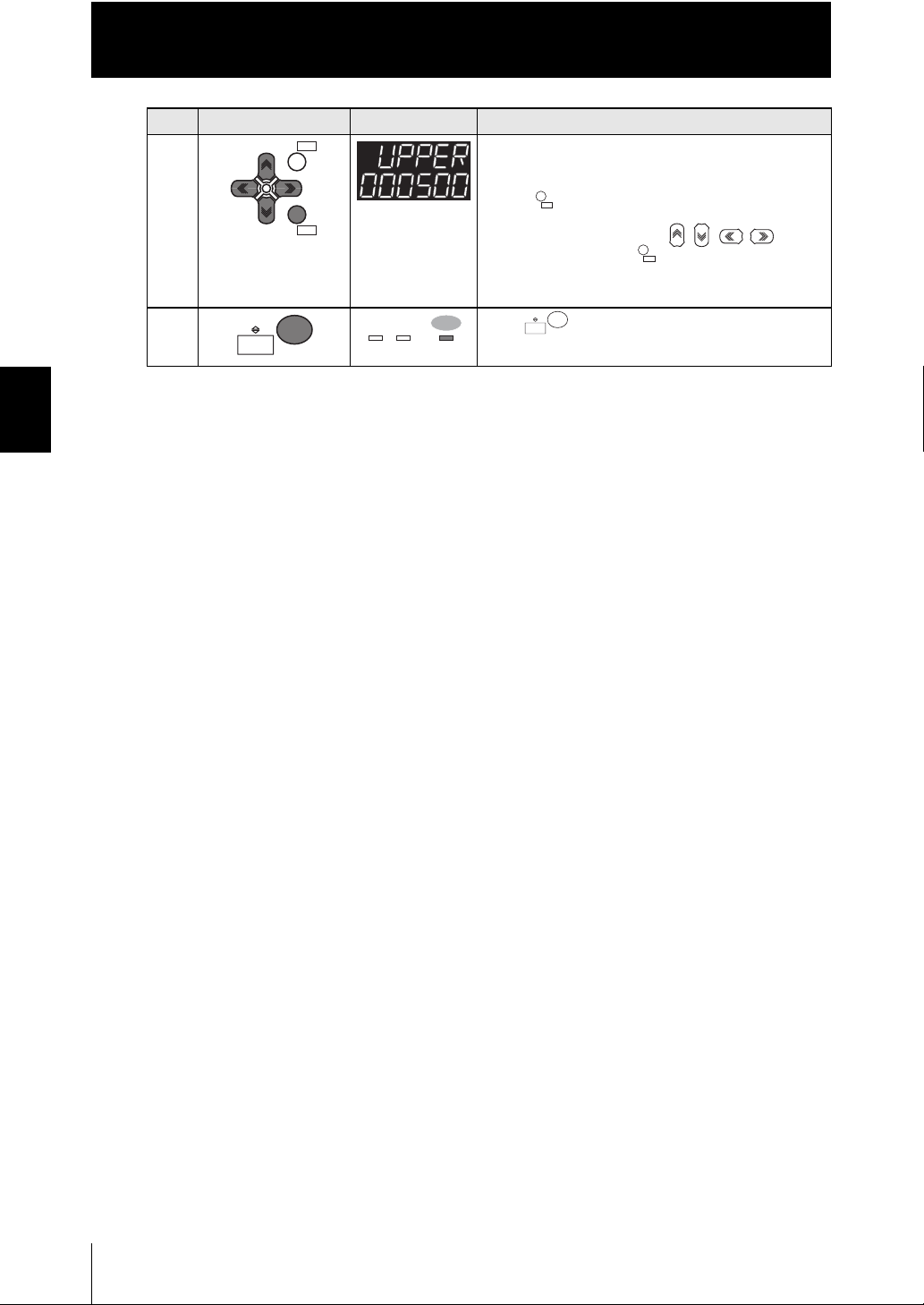

Upper limit

[UPPER]

Fixed

exposure time

[TIME]

Measurement

Surface

[SUR]

Surface 1

[TOP]

Surface 2

[END]

Parameter K

[PARAM.K]

Parameter m

[PARAM.M]

Parameter n

[PARAM.N]

Parameter X

[PARAM.X]

Parameter Y

[PARAM.Y]

Median

[MEDIAN]

Average

[AVE]

Differ

[DIFFER]

Differ cycle

[CYCLE]

Frequency

[FREQ]

Cutoff frequency [CUTOFF]

Normal [NORMAL] [MIRROR]/Diffusion surface [DIFF]

1 to 5000 ms (Default: 1000) p.3-3

Edge 1st [EDGE1]/Edge 2nd [EDGE2]/Edge 3rd [EDGE3]/Edge 4th [EDGE4]/

-999.999999 to 999.999999 mm (Default: 0)

-10.0 to 10.0 (Default: 0)

None [OFF] TASK2 [TASK2]/TASK3 [TASK3]/ TASK4 [TASK4]

- - p.3-5

OFF [OFF] [MID]/HIGH [HIGH]

1/2/4/8/16/32/64/128/256 1024/2048/4096

Off [OFF]

1 to 5000 ms (Default: 1)

OFF [OFF] Highpass [HIPASS]/Bandpass [BDPASS]

Lowpass/Highpass: 0.001 to

999.999 Hz (Default: 0.001) Bandpass: 0.001 to 999.999 Hz (Default: Upper limit 999.999/ Lower limit: 0.001)

/Mirror surface

Light Peak

/TASK1 [TASK1]/

/LOW [LOW]/MID

/On [ON]

/Lowpass [LOPASS]/

[PEAK]

/512/

p.3-2

p.3-6

p.3-8

p.3-10

p.3-15

p.3-16

p.3-17

p.3-19

User's Manual

Page 23

Measurement

setting

[MEAS]

TAS K1

[TASK1]

Output

[OUTPUT]

Scaling

[SCALE]

(Cont'd) (Cont'd) One-point

Hold

[HOLD]

Zero reset

[ZERO]

TAS K2

[TASK2]

TAS K3

[TASK3]

TAS K4

[TASK4]

Threshold

[JUDGE]

(same as TASK1)

Teaching [TEACH]

Direct

[DIRECT]

Introduction

CONTENTS

Setting Option/Setting range Pages

Auto

[AUTO]

scaling

[1PT]

Direction

Two-point

scaling

[2PT]

Manual

[MANUAL]

Span

[SPAN]

Offset [OFFSET]

Thick

[THICK]

Off

[OFF]

Type

[TYPE]

Trigger [TRIG]

Trigger

[LEVEL]

Trigger hys

[HYS]

Delay

[DELAY]

Delay time

[DLY.TIM] Sampling

[SMP.TIM]

Type

[TYPE]

Offset

[OFFSET]

Status

[STATUS]

High

threshold

[H.JUDGE]

Low threshold

[L.JUDGE]

High

threshold

[H.JUDGE]

Low threshold

[L.JUDGE]

Forward [FWD]

[DIR]

-2.0000 to 2.0000 (Default: 1.0000)

-999.999999 to 999.999999 mm (Default: 0)

Off [OFF] [BOTTOM]/Peak to peak [P-P]/Auto peak [AUTOPK]/Auto bottom [AUTOBT]/Auto peak to peak [AUTOPP]/Average [AVE]/Sample [SAMPLE]

Timing [TIMING] [SELF-U]/Selfdown trigger [SELFD]

-999.999999 to 999.999999 mm

level

(Default: 0)

0 to 999.999999mm (Default: 0.05 % of measurement range)

Off [OFF]

/Peak [PEAK]/Bottom

/On [ON]

1 to 5000 ms (Default: 1 ms)

time

1 to 5000 ms (Default: 100 ms)

Real value [REAL] [HOLD]

-999.999999 to 999.999999 mm (Default: 0)

Off [OFF]/On [ON]

-999.999999 to 999.999999 mm (Default: +25 % of measurement range)

-999.999999 to 999.999999 mm (Default: -25 % of measurement range)

-999.999999 to 999.999999 mm (Default: +25 % of measurement range)

-999.999999 to 999.999999 mm (Default: -25 % of measurement range)

/Reverse [REV]

/Selfup trigger

/Hold value

CONTENTS

p.3-21

p.3-28

p.3-32

p.3-35

p.3-37

p.3-39

p.3-40

p.2-18

p.2-19

User’s Manual

Page 24

CONTENTS

Introduction CONTENTS

Setting Option/Setting range Pages

I/O setting

[I/O]

The same output destination is set for all banks. The output destination cannot be set separately for individual banks.

Non

measurement

setting

[HLD.RST]

Judgment

[JUDGE]

Analog output

[ANALOG]

Output object

[OUTPUT]

Hysteresis

[HYS]

Timer

[TIMER]

Voltage or

current

[V OR C]

Output object

[OUTPUT]

Focus

[FOCUS]

Calibration

[CALIB]

Non

measurement

setting

[HLD.RST]

Analog

output

[ANALOG]

Binary output

[BINARY]

Output object

[OUTPUT]

Hysteresis

[HYS]

Timer

[TIMER]

Timer time

[TIME]

Voltage or

current

[V OR C]

Output object

[OUTPUT]

Focus

[FOCUS]

Focus

Current/

Voltage 1

[CUR1]/ [VOLT1]

Measurem

ent value 1

[MEAS1]

Focus

Current/

Voltage 2

[CUR2]/ [VOLT2]

Measurem

ent value 2

[MEAS2]

Calibration

[CALIB]

Calibration

Current/

Voltage 1

[CUR1]/ [VOLT1]

Calibration

value 1

[ADJ1]

Calibration

Current/

Voltage 2

[CUR2]/ [VOLT2]

Calibration

value 2

[ADJ2]

Keep [KEEP]/Clamp [CLAMP]

Current output: MIN [MIN] (Approx. 3.4 mA)/4 mA/5 mA/.../19 mA/20 mA/MAX [MAX] (Approx. 21 mA) (Default: MAX) Voltage output: MIN [MIN] (Approx. -10.8 V)/-10 V/-9 V/.../9 V/ 10 V/MAX [MAX] (Approx. 10.8 V) (Default: MAX)

MAX [MAX]

TASK1 [TASK1] TASK3 [TASK3]/TASK4 [TASK4]

0 to 99.9999 mm (Default: 0.05 % of measurement range)

Off delay [ONDLY]/1 shot [1SHOT]

/MIN [MIN]

/TASK2 [TASK2]/

[OFF]/Off delay [OFF.DLY]/On

1 to 5000 ms (Default: 1)

Voltage output

OFF [OFF]/TASK1 [TASK1] TASK2 [TASK2]/TASK3 [TASK3]/ TASK4 [TASK4]

Off [OFF]

Current: 4/5/6/7/8/9/10/11/12/13/14/ 15/16/17/18/19/20 mA (Default: 4 mA) Voltage: -10/-9/-8/-7/-6/-5/-4/-3/-2/1/0/1/2/3/4/5/6/7/8/9/10 V (Default: -10 V)

-999.999999 to 999.999999 mm (Default: -0.5)

Current: 4/5/6/7/8/9/10/11/12/13/14/ 15/16/17/18/19/20 mA (Default: 20 mA) Voltage: -10/-9/-8/-7/-6/-5/-4/-3/-2/1/0/1/2/3/4/5/6/7/8/9/10 V (Default: 10 V)

-999.999999 to 999.999999 mm (Default: 0.5)

/On

Off

Current: 4/5/6/7/8/9/10/11/12/13/14/ 15/16/17/18/19/20 mA (Default: 4 mA) Voltage: -10/-9/-8/-7/-6/-5/-4/-3/-2/1/0/1/2/3/4/5/6/7/8/9/10 V (Default: -10 V)

/Current output

/On [ON]

-999 to 999 (Default: 0)

Current: 4/5/6/7/8/9/10/11/12/13/14/ 15/16/17/18/19/20 mA (Default: 20 mA) Voltage: -10/-9/-8/-7/-6/-5/-4/-3/-2/1/0/1/2/3/4/5/6/7/8/9/10 V (Default: 10 V)

-999 to 999 (Default: 0)

p.4-28

p.4-30

p.4-18

p.4-19

p.4-12

p.4-13

p.4-14

p.4-16

User's Manual

Page 25

I/O setting

[I/O]

Binary output

[BINARY]

Output object

[OUTPUT]

Output object

(Cont'd) TASK1 to 4

Bank setting

[BANK]

System

setting

[SYSTEM]

Save

[SAVE]

Initialize

[INIT]

Communication

[COM]

Decimal point

digit

[DEC.NUM]

Output cycle

[CYCLE]

GATE Period

[GATE]

Bank change

[BK.CHG]

Bank mode [BK.MODE]

Bank copy

[BK.COPY]

Bank clear

[BK.CLR]

RS-232C

[RS232C]

Ethernet

[ETN]

Decimal point

GATE Period

Bank number

Subnet mask

Delimiter [DELIMI]

Introduction

CONTENTS

Setting Option/Setting range Pages

[OUTPUT]

[TASK1] to

[TASK4]

digit

[DEC.NUM]

Output cycle

[CYCLE]

[GATE]

[BANK]

Bank mode [BK.MODE]

From

[FROM]

[TO]

Bank clear

[BK.CLR]

Save

[SAVE]

Initialize

[INIT]

Data length

[DATA]

Parity

[PARITY]

Stop bit [STOP]

Baud rate

[BAUD.RT]

CS/RS

[CS/RS]

IP address 1

[IPADDR]

[IP1]

IP address 2

[IP2]

IP address 3

[IP3]

IP address 4

[IP4]

[SUBNET]

[SUB1]

[SUB2]

[SUB3]

[SUB4]

Delimiter [DELIMI]

Measurement value 1 [MEAS1] (TASK1(ON TAS K4 (O N/OFF value 2 [MEAS2]/Judgment value [JUDGE]/Off [OFF]

Off [OFF]

0 [0DIG] to 6 [6DIG] (Default: 5 [5DIG])

1 to 100 (Default: 1) p.4-26

0.1 to 100.0 ms (Default: 0.1) p.4-27

BANK1 [BANK1] to BANK8 [BANK8] (Default: BANK1) If bank mode is "Judge mode", selection is possible to BANK32.

Normal mode [NORMAL] mode [JUDGE]

BANK1 [BANK1] to BANK8 [BANK8]

OK [OK]/Cancel [CAN] p.3-46

OK [OK]/Cancel [CAN] p.3-45

OK [OK]/Cancel [CAN] p.3-50

7 bit [7BIT] /8 bit [8BIT]

None [OFF] Even [EVEN]

1 bit [1BIT]

9600/19200/38400

Off [OFF]

1 to 223 (Default: 192)

0 to 255 (Default: 168)

0 to 255 (Default: 250)

1 to 255 (Default: 50)

0 to 255 (Default: 255)

CR [CR]

/OFF), TASK2 to

))/Measurement

/On [ON]

/Judge

/Odd [ODD]/

/2 bit [2BIT]

/57600/115200

/On [ON]

/LF [LF]/CR+LF [CRLF]

CONTENTS

p.4-22

p.4-25

p.2-20

p.3-43

p.3-44

p.5-10

p.5-5

p.5-11

User’s Manual

Page 26

CONTENTS

Introduction CONTENTS

System

setting

[SYSTEM]

(Cont'd)

Sensor head

calibration [H.CALIB]

Key lock

[LOCK]

Zero reset

memory

[ZER.MEM]

Timing/Reset

key input

[KEY.IN]

Measurement

cycle

[CYCLE]

Controller

information

[C.INFO]

Sensor head

information

[H.INFO]

Setting

Sensor head

calibration [H.CALIB]

Key lock

[LOCK]

Zero reset

memory

[ZER.MEM]

Timing/Reset

key input

[KEY.IN]

Measurement

cycle

[CYCLE]

Vers ion

[VER]

MAC address

[MAC.ADR]

Model

[MODEL]

Serial No. [SER.NO]

Option/Setting range

OK [OK]/Cancel [CAN] p.1-19

Off [OFF]

Display current measurement cycle 500 to 10000 s (Default: 500)

Display version

Display current MAC address

Display model

Display serial No.

/On [ON]

Pages

p.3-49

p.3-41

p.3-34

p.3-47

User's Manual

Page 27

Introduction

CONTENTS

■RUN mode

Setting [Display] Option/Setting range [Display] Pages

Display target task [DISP] TASK1/TASK2/TASK3/TASK4 p.2-12

HIGH threshold value [H.JUDGE]

LOW threshold value [L.JUDGE]

Decimal point digit [DEC.NUM]

Controller: -999.99 to 999.999 Smart Monitor ZW: -999.999999 to 999.999999

0 [0DIG]/1 [1DIG]/2 [2DIG]/3 [3DIG]/4 [4DIG]/5 [5DIG] p.2-12

CONTENTS

p.2-13

User’s Manual

Page 28

Introduction CONTENTS

CONTENTS

User’s Manual

Page 29

Chapter 1 MEASUREMENT SETUP

System Configuration 1-2

Part Names and Functions 1-3

Sensor Head 1-3

Calibration ROM 1-3

Controller 1-4

About Installation and Connection 1-7

Installation of Sensor Head 1-7

Installation of Controller 1-10

Connecting Calibration ROM 1-14

Connecting Fiber Cable 1-15

Calibrating Sensor Head 1-19

Smart Monitor ZW 1-21

Chapter 1 MEASUREMENT SETUP

Operating Environment 1-22

Installation/Uninstallation Method 1-23

Settings when Connecting Personal Computer with Controller 1-25

Starting and Exiting 1-29

User’s Manual

1-1

Page 30

Chapter 1 System Configuration

System Configuration

Chapter 1 MEASUREMENT SETUP

In addition to operations with the basic configuration, ZW series displacement sensors can support various measurement applications when combined with numerous peripheral devices.

Photoelectric and adjacent sensors

The system receives trigger signals to control measuring timings.

ZW series

Basic configuration

Sensor head

Detects a target to measure.

ZW-S20 ZW-S40

Calibration ROM (included with sensor head)

Associated with the sensor on a one-to-one basis

Controller

Perfor ms measurements and outputs the result.

ZW-C10T/C10AT ZW-C15T/C15AT

Measurement data can be easily loaded into a PLC or personal c omputer through Ethernet connections. The Controlle r can be remotely contr olled from a personal computer; including switching between or changing setting data and entering measuring triggers. (Communication with multiple devices simultaneously cannot be achieved via Ethernet.)

Ethernet (note1)

Various Controll er operations, including, taking measured values and judgment results, switching between or changing setting data or entering measuring triggers, are available.

RS-232C cable 䇭䇭䇭䇭䇭䇭(note 2)

PLC

Ethernet (note1)

Smart Monitor ZW (Exclusive personal

Personal computer

Allows making advanced settings and checking up measured values easily using exclusive personal computer software. Accessory for the Controller ZW-C10T/C15T.

(Note1)㩷Ethernet cable (sold separately)

Prepare commercially available Ethernet cable satisfying the following requirements:

- Category 5e or more, 30 m or less

- RJ45 conne ctor (8-pin modular jack)

- For direct connection: Select cross cable.

- For connection through a netwo rk hub: Select strai ght cable.

Extension fiber cable (optional)

A exclusive extension fiber cable is available to place the Sensor Head and Controller far apart than the normal distance to each other. Use the exclusive product for correct measurements.

Connecting adapter (included with the fiber cable for extension) ZW-XFC

computer software)

ZW-SW_ _

Extension f iber cable ZW-XF_ _R (2 m/5 m/10 m/20 m/30 m)

Displaying analog signals in waveform from measured values or judgment results in color is available.

Analog output

Outputting measured values or judgment results at a high speed in parallel is available.

Parallel output (note3)

Data loggers, etc.

High-speed input board

(Note2)㩷RS-232C cable (optional)

Depending on connecting devices, exclusive cables may be supplied.

For PLC/programmable terminal: ZW-XPT2 For personal computer: ZW-XRS2

(Note3)㩷Parallel cable (optional)

A parallel cabl e for 52-pole extensio n connector (ZW-XCP2) with 2 m cable is available.

1-2

User’s Manual

Page 31

Part Names and Functions

㪈

㪌

㪋

㪉

㪊

㪈

Chapter 1

Part Names and Functions

The following describes the names and functions of parts of the Sensor Head, Calibration ROM and Controller.

Sensor Head

No. Names Functions

1 Projector/receiver Projects and receives light.

2 Serial number Serial number.

Only a calibration ROM with the same serial number is available.

3 Fiber interface Interfaces the Sensor Head and optical fiber (unremovable).

4 Fiber Cable Sends or receives light signals to/from the Controller.

5 Fiber Connector Couples the Controller and fiber cable.

Chapter 1 MEASUREMENT SETUP

Calibration ROM

This ROM is associated with the sensor on a one-to-one basis, and operates connected to the Controller.

No. Names Functions

1 Serial number Serial number.

Use with the Calibration ROM always connected. If the Calibration ROM is not connected, an error is

displayed.

Only a Sensor Head with the same serial number is available.

User’s Manual

1-3

Page 32

Chapter 1

1 2 3 4

5 6

9 10 11

䋼

Bottom view

䋾

Display

Control panel

Connectors/ terminals

Part Names and Functions

Controller

Chapter 1 MEASUREMENT SETUP

1-4

User’s Manual

Page 33

Chapter 1

Part Names and Functions

■ Front view

● Display

No. Names (light color) Functions

1 HIGH indicator (orange) The HIGH indicator is lit while judgment is resulted in HIGH (HIGH

threshold value  measured value).

2 PASS indicator (green) The PASS indicator is lit while judgment is resulted in PASS (LOW

threshold value  measured value  HIGH threshold value).

3 LOW indicator (orange) The LOW indicator is lit while judgment is resulted in LOW (measured

4 STABILITY indicator

(green)

5 ZERO indicator (green) The Zero Reset indicator is lit while the zero reset function is enabled.

6 ENABLE indicator (green) The ENABLE indicator lights when the Sensor is ready for measurement. It

7 Main display (red) The main display shows measured values and/or function names.

8 Sub-display (green) The sub-display shows additional information for measured values or

9 RUN indicator (green) The RUN indicator is lit in the RUN mode, and goes out in the FUN mode.

10 THRESHOLD-L indicator

(orange)

11 THRESHOLD-H indicator

(orange)

value  LOW threshold value).

The STABILITY indicator is lit while a measured value is within the measuring range. It goes out if a measured value is out of the measuring range.

goes off when measurement is not possible (e.g. when the received light amount is excessive or insufficient, when the measuring range is exceeded, when the calibration ROM is not connected, or when measurement is not being performed in FUN mode).

setting values for functions.

The LOW threshold value indicator is lit when the Sub-display indicates a LOW threshold value.

The HIGH threshold value indicator is lit when the Sub-display indicates a HIGH threshold value.

Chapter 1 MEASUREMENT SETUP

● Control panel

No. Names Functions

12 ZERORST/ESC key These keys function differently depending on operation modes.

13 (LEFT) key

(RIGHT) key (UP) key (DOWN) key

14 ZERO/SET key

15 Mode switching key

Functions of Operating Keys p.2-3

User’s Manual

1-5

Page 34

Chapter 1 Part Names and Functions

● Connectors/terminals

Chapter 1 MEASUREMENT SETUP

No. Names Functions

16 RS-232C connector Connect the RS-232C cable when you are connecting the system with a

PLC or personal computer through RS-232C. For the RS-232C cable, please use the following exclusive products: If you use a cable not included in the exclusive products, a false operation or breakdown may result.

• For connecting to a PLC or programmable terminal: ZW-XPT2

• For connecting to a PC: ZW-XRS2

17 Ethernet connector This connector is used to connect with a personal computer through

Ethernet. Prepare commercially available Ethernet cable satisfying the following requirements:

• Category 5e or more, 30 m or less

• RJ45 connector (8-pin modular jack)

• For one-to-one connection: Select cross cable.

• For connection through a network hub: Select straight cable.

18 52-pole expansion

connector

19 20-pole terminal block The 20-pole terminal block connects the Controller DC24 V power supply

20 Fiber connector The fiber connector connects the fiber cable.

21 ROM connector The ROM connector connects the calibration ROM.

22 Frame ground terminal This is the connector for frame ground. It connects grounding wire.

The 52-pole expansion connector is used to utilize extended functions, such as binary I/Os, including output for measured value, GATE signal or binary output task number outputs, or binary output object task selection input signals; or bank I/O, including bank number output or bank select input . A parallel cable for 52-pole extension connector (ZW-XCP2) with 2 m cable is available.

and basic I/Os, including output for analog voltage, analog current, judgment, ALARM, BUSY or ENABLE, or input for ZERO, RESET, TIMING or LED-OFF.

1-6

■ Rear view

No. Names Functions

DIN track attachment

hook

Used when fixing the controller on DIN track.

■ Bottom view

No. Names Functions

24 Installation hole Used when fixing the controller with screws.

User’s Manual

Page 35

About Installation and Connection

■ Checking the installation environment

Read “Precautions for safe use” at the beginning of this manual, and check the installation environment.

Precautions for safe use p.6

■ Checking the installation site

Read “Precautions for correct use” at the beginning of this manual, and check the installation site.

Precautions for correct use p.8

Chapter 1

Chapter 1 MEASUREMENT SETUP

Installation of Sensor Head

■ Installation procedure

Place the Sensor Head with an appropriate distance from the target to measure, fixing it by tightening four M3 screw inserted into their respective installation holes.

Tightening torque: 0.54 N࡮m

• For the location screw holes, see the external dimensions.

External Dimensions p.6-3

• When measuring on a high-reflectivity workpiece, such as a mirror or wafer, false measured values

beyond the measuring range may be outputted. When a workpiece with diffuse reflection is used, we

recommend installing and adjusting while watching the position of the spot.

M3 screw×4

User’s Manual

1-7

Page 36

Chapter 1 About Installation and Connection

● Basic precautions for installation

Do not install the Sensor Head in a place where strong light hits the laser emitter/ receiver section of the Sensor Head. Also, if a workpiece has a shiny surface, the light

Chapter 1 MEASUREMENT SETUP

from the lighting will be reflected and a malfunction may occur. In such a case, prevent reflection by, for example, covering the light to stop reflection.

■ Measuring range

With the ZW series, the measurement center distance is expressed as 0 with the NEAR side as + and the FAR side as -.

●ZW-S20

Measurement center distance㪑㩷20 mm

Measuring range

NEAR side㪑㩷㪂1 mm

Measuring center㪑㩷0 mm

FAR side㪑㩷㪄1 mm

●ZW-S40

Measurement center distance㪑㩷40 mm

Measuring range

NEAR side㪑㩷㪂6 mm

Measuring center㪑㩷0 mm

FAR side㪑㩷㪄6 mm

1-8

User’s Manual

Page 37

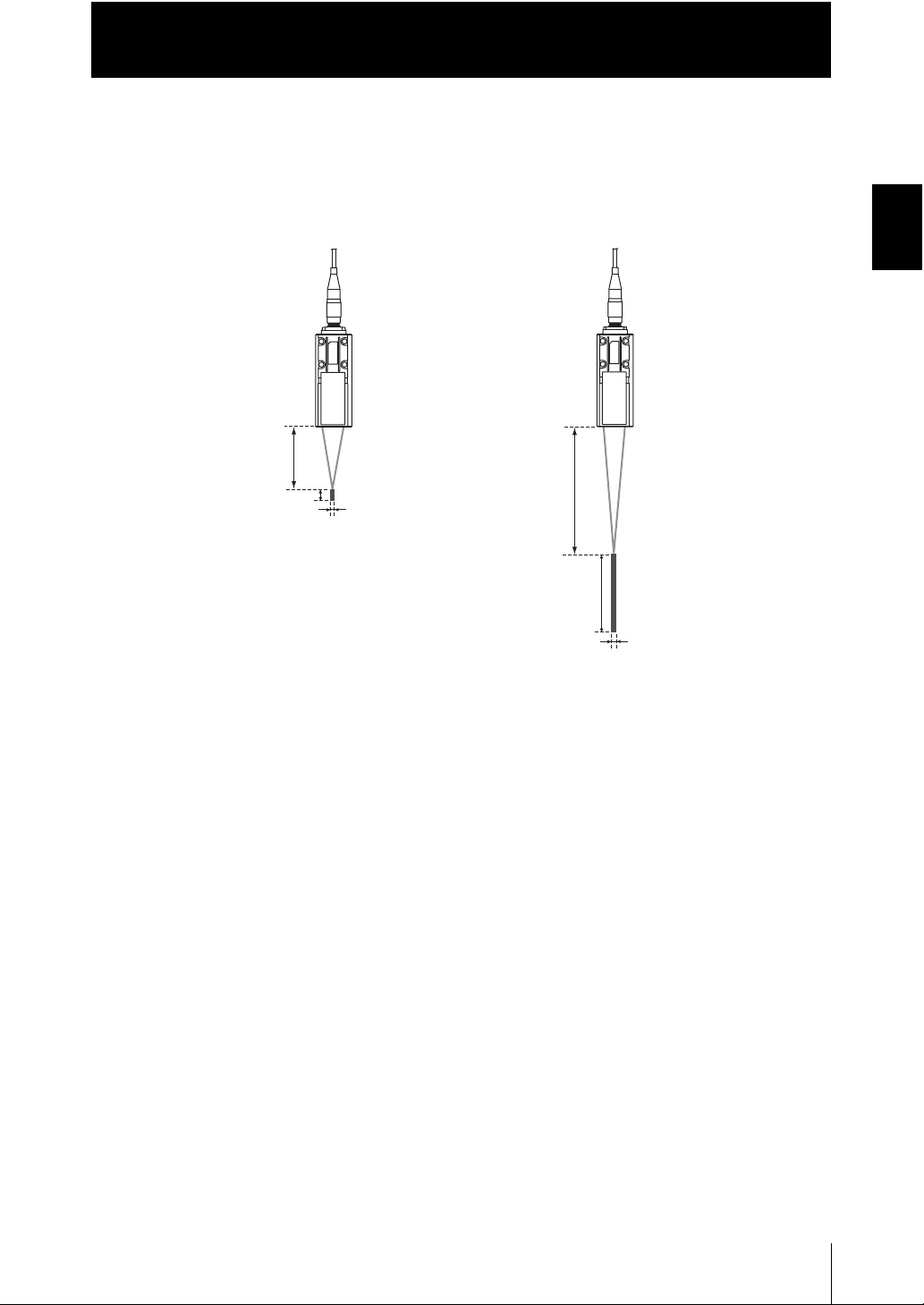

Chapter 1

19 mm

●ZW-S20

●ZW-S40

2 mm

300 μm

34 mm

12 mm

800 μm

About Installation and Connection

■ Mutual interference

When using two or more Sensor Heads next to each other, mutual interference will not occur if other beam spots are outside the 䂓 areas in the following diagrams.

Chapter 1 MEASUREMENT SETUP

User’s Manual

1-9

Page 38

Chapter 1

30 mm

About Installation and Connection

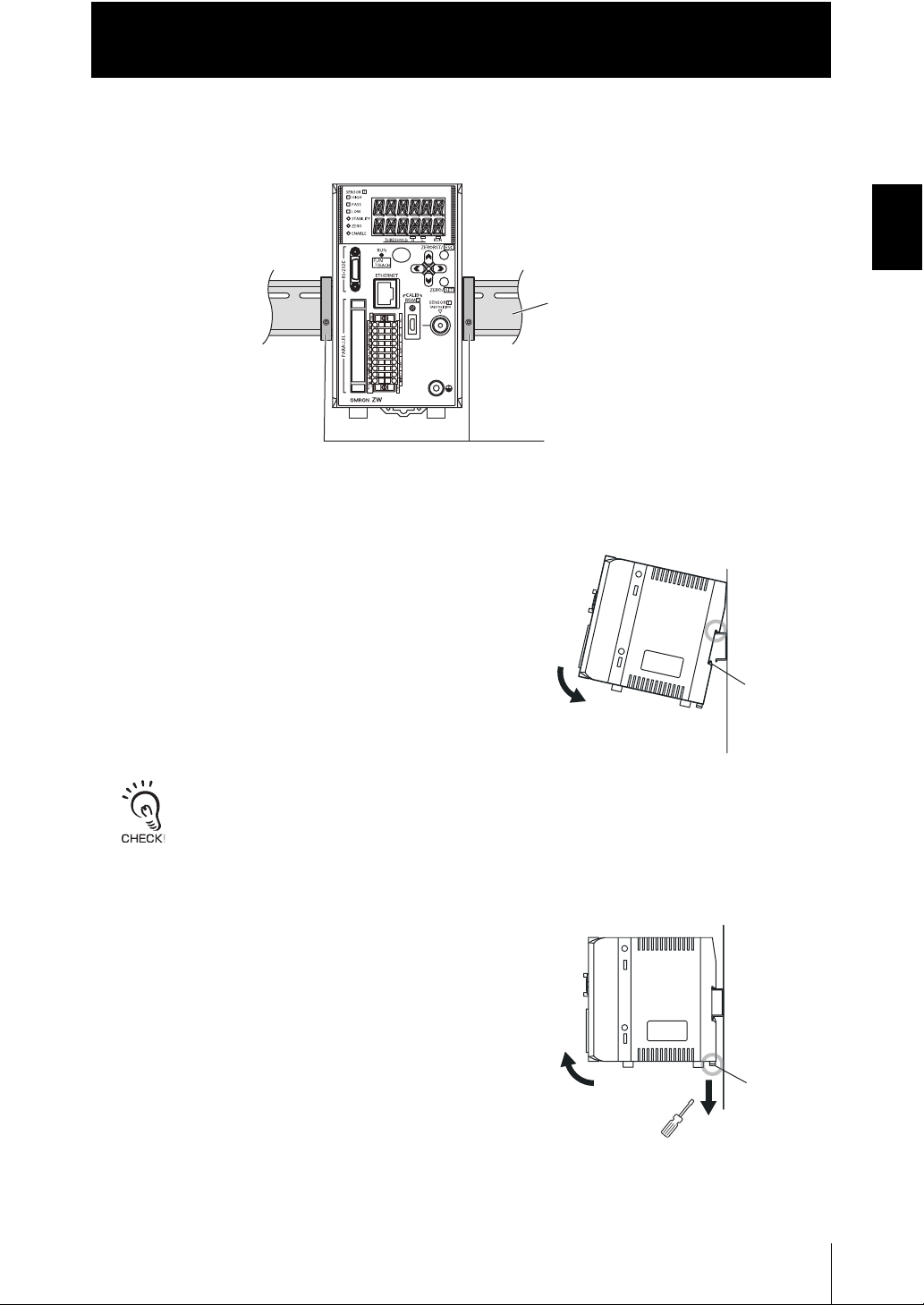

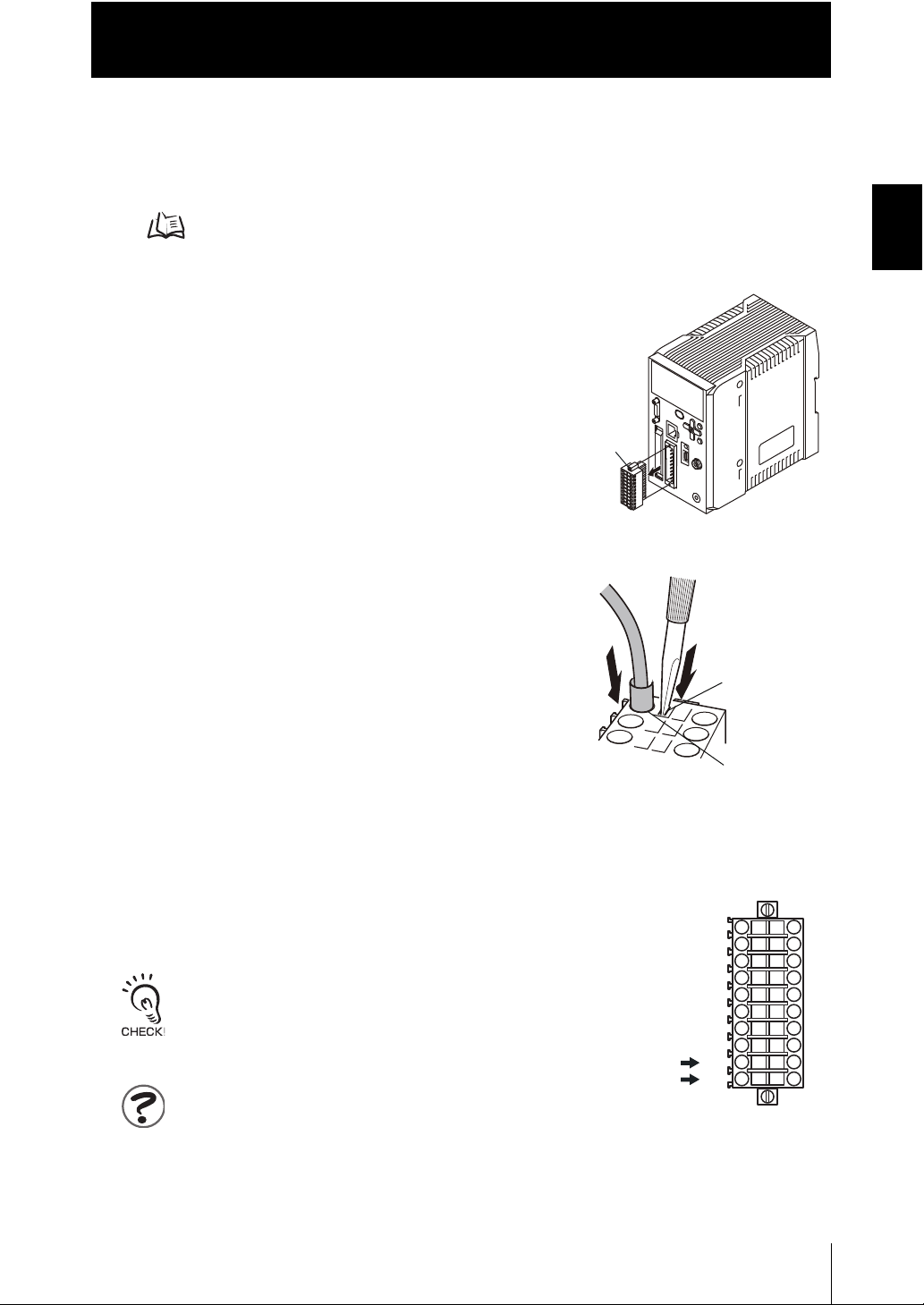

Installation of Controller

Chapter 1 MEASUREMENT SETUP

■ Precautions for installation

Install the Controller in the orientation indicated by the circle mark in the following figure. Do not install it laying on its side or upside down.

For adequate intake and/or exhaust, keep the Controller clear by 30 mm or more on its top, and by 10 mm or more from either side. To secure the Sensor Head and cables connected

30 mm

safely, keep the front of the Controller clear by 65 mm or more.

1-10

User’s Manual

If more than one Controller must be placed in parallel, place them 10 mm or more apart each other, keep them clear by 30 mm or more on their top and 30 mm or more under them.

Do everything possible to avoid installation in a location with vibration.

Page 39

About Installation and Connection

DIN track (option) PFP-100N (1 m) PFP-50N (0.5 m) PFP-100N2 (1 m)

End plate (option) PFP-M

DIN track attachment hook

■ Installing on the DIN track

The following describes how to attach the Controller on a 35 mm-wide DIN track.

● Installation procedure

йКЗЛпtЗШп°с@

1. Hook the upper edge of the Controller's

back slot onto the upper edge of the DIN track.

Chapter 1

Chapter 1 MEASUREMENT SETUP

2. Push the Controller down onto the DIN

track until the DIN track attachment hook is locked.

Push down until you hear it snap into place.

Always hook the upper edge of the slot on the Controller's back first onto the DIN track. Hooking the

Controller starting from the lower edge of the slot may impair the mounting strength. After completely

installing the Controller, make sure that it is securely fixed.

● Removal procedure

1. Pull DIN track attachment hook

downwards using a slotted screwdriver or an equivalent.

2. Lift up the Controller from the lower side,

and remove it from the DIN track.

DIN track attachment hook

User’s Manual

1-11

Page 40

Chapter 1

M4 screw×4

About Installation and Connection

■ Installing on bottom

The following describes how to attach the Controller on its bottom.

Chapter 1 MEASUREMENT SETUP

1. Drill four installation holes on the base.

For the location installation holes, see the external

dimensions.

External Dimensions p.6-11

2. Tighten four M4 screws to fix the

Controller on the base.

Tightening torque: 1.2 N࡮m Controller thread depth: 6 mm

1-12

User’s Manual

Page 41

Chapter 1

fixing screws 䋨both end䋩

Release button

Terminal hole

About Installation and Connection

■ Connecting to 20-pole terminal block

To connect the Controller power supply and signal line to the 20-pole terminal block, follow the steps below:

20-pole terminal block p.4-2

1. Loosen the two fixing screws using a

screwdriver to remove 20-pole terminal block from the Controller.

Chapter 1 MEASUREMENT SETUP

2. Push in and hold the release button next to

the terminal hole using a screwdriver while pushing the wire fully into the terminal hole and remove the screwdriver.

After the connection has been established, pull the wire gently, to make sure that the connection has been made securely.

3. Reinstall the 20-pole terminal block to the Controller.

● Connecting Controller power supply

Connects 24 VDC power supply to terminals 9 and 10 on the 20-pole terminal block.

When connecting the power supply, be sure to adhere to the

following requirements:

• For the power supply, use AWG18 to 28 cables.

• Make the cable tip exposed by approx. 7 mm.

The following product is recommended for the 24 VDC power

supply:

S8VS-06024 (Omron, 2.5 A, 60 W)

0 V

DC24 V

1 2 3 4 5 6 7 8 9

11 12 13 14 15 16 17 18 19 20

User’s Manual

1-13

Page 42

Chapter 1 About Installation and Connection

Connecting Calibration ROM

Chapter 1 MEASUREMENT SETUP

To connect the calibration ROM to the Controller, follow the steps below:

1. Connect the calibration ROM to the ROM

connector on the Controller.

2. Fix the calibration ROM by tightening the

supplied M2 screw.

Tightening torque: 0.15 N࡮m max.

• Before connecting or disconnecting the calibration ROM, make sure that the Controller's power supply

is turned OFF. The Controller may break down if the calibration ROM is connected while the power is

ON.

• Use with the Calibration ROM always connected. If the Calibration ROM is not connected, an error is

displayed.

• Only a calibration ROM and Sensor Head with a same serial number are compatible. When

connecting a calibration ROM with a Sensor Head, make sure that they have a same serial number, or

measurement cannot be performed correctly.

M2 screw

Calibration ROM

ROM connector

1-14

User’s Manual

Page 43

Connecting Fiber Cable

Protective cap Fiber connector

Fiber cable

Protective cap

(Figure 1)

(Figure 2)

(Figure 3)

Threaded section

Convex section

Groove

Fiber cable Fiber

connector

Good

No good

Good

No good

Chapter 1

About Installation and Connection

Connect the fiber cable on the Sensor Head to the Sensor Head connector on the Controller as follows:

1. Remove the protective caps from the controller's fiber connector and the

fiber cable.

Do not discard but keep the protective cap handy.

Chapter 1 MEASUREMENT SETUP

2. Mate the convex section on the fiber cable with the groove on the fiber

connector and turn the threaded section clockwise while pushing in (see figure 1).

In the "No good" status in figure 2 and figure 3, optic signals cannot be transmitted and correct measurement is not possible. Always check that the system is in the "Good" status.

User’s Manual

1-15

Page 44

Chapter 1 About Installation and Connection

• Handling fiber cables

Use them in compliance with the following.

Chapter 1 MEASUREMENT SETUP

-Fiber cable bend radiuses must be at least 20 mm.

-Do not let bending cause stress at the root section of a fiber connector.

-Do not yank hard on a fiber cable.

-Do not step on a fiber cable or place anything heavy on it.

• Do not touch the end surface of a fiber cable, or the cable may be degraded in performance. Should

the end surface be touched or soiled, wipe the dirt away using a commercially available cleaner

exclusive for fiber connectors or dry and soft cloth. Do not use a cloth moistened with alcohol, or the

dirt may be reattached.

Point Item Model Manufacturer

Sensor Head side Fiber connector

Controller side Fiber connector

• The fiber cable and fiber connectors should not be left with their protective caps removed, not even for

a short period of time. Leaving them unprotected can let dirt get on the end surface and cause

performance deterioration.

• Calibrate the Sensor Head after removing and inserting a fiber cable.

OPTIPOP R1 ATC-RE-01

NEOCLEAN S250 ATC-ST-02N

NTT Advanced Technology Corporation

Calibrating Sensor Head p.1-19

1-16

User’s Manual

Page 45

About Installation and Connection

Extension fiber cable

㩷㩷ZW-XF_ _R䋺㩷㩷䋨2 m/5 m/10 m/20 m/30 m䋩

Connecting adapter 䇭ZW-XFC

Mate the convex section on the fiber cable with the groove on the connection adapter and turn the threaded section clockwise while pushing in.

Sensor Head fiber cable

In the "No good" status in figure below, optic signals cannot be transmitted and correct measurement is not possible. Always check that the system is in the "Good" status.

Convex section

Groove

Good

No good

■ Extending fiber cable

To extend the fiber cable on the Sensor Head, use an extension fiber cable and connecting adapter.

Chapter 1

Chapter 1 MEASUREMENT SETUP

Extension fiber cable (option)

ZW-XF02R 2 m

ZW-XF05R 5 m

ZW-XF10R 10 m

ZW-XF20R 20 m

ZW-XF30R 30 m

Model Length

Connecting adapter (option)

Model

ZW-XFC

User’s Manual

1-17

Page 46

Chapter 1 About Installation and Connection

• The connection adapter (ZW-XFC) comes packed together with the extension fiber cable

(ZW-XF_ _R).

Chapter 1 MEASUREMENT SETUP

• Never use any extension fiber cable and/or connecting adapter other than those specified in the

above.

• Hold the combined length of the normal and extension fiber cables to no more than 32 m.

• Only one fiber cable is allowed to extend the normal fiber cable. Never use two or more extension fiber cable connected together.

• Do not touch the end surface of a fiber cable, or the cable may be degraded in performance. Should

the end surface be touched or soiled, wipe the dirt away using a commercially available cleaner

exclusive for fiber connectors or dry and soft cloth. Do not use a cloth moistened with alcohol, or the

dirt may be reattached.

Point Item Model Manufacturer

Sensor Head side Fiber connector

Controller side Fiber connector

• The fiber cable and fiber connectors should not be left with their protective caps removed, not even for

a short period of time. Leaving them unprotected can let dirt get on the end surface and cause

performance deterioration.

• Calibrate the Sensor Head after removing and inserting an optical fiber.

OPTIPOP R1 ATC-RE-01

NEOCLEAN S250 ATC-ST-02N

NTT Advanced Technology Corporation

Calibrating Sensor Head p.1-19

1-18

User’s Manual

Page 47

Calibrating Sensor Head

Sensor head

Measuring range

䊶Without any workpiece

within the measuring range

䊶With light shielded

Install an object with diffuse reflection (metal, paper, plastic, etc.) than the measurement range.

Sensor head

Measuring range

RUNRUN

FUNFUN

TEACHTEACH

H L RUNRUN

UNLIT

RUN

FUN

TEACH

RUNRUN

FUNFUN

TEACHTEACH

ZERORST/

ESC

ZERO/

SET

ZERO/ZERO/

SETSET

ZERO/ZERO/

SETSET

ZERORST/ZERORST/

ESCESC

ZERO/ZERO/

SETSET

ZERO/ZERO/

SETSET

ZERORST/

ESC

Chapter 1

About Installation and Connection

Calibrate the Sensor Head by obtaining the dark data in the no-incoming light status.

• When using the sensor for the first time.

• When removing and inserting a fiber cable from/to the Controller.

• When extending a fiber cable. The Sensor Head should be calibrated without any workpiece within the measuring range or with the tip of the Sensor Head shielded from light with an object with diffuse reflection. (Correct calibration is not possible with a transparent object, semi-transparent object, or

mirror. )

Chapter 1 MEASUREMENT SETUP

Operating procedure

Steps

1 Press key for two seconds to enter the FUN

2 Press or keys to select either of "SYSTEM"

3 Press or keys to select either of "H.CALIB"

4 "OK/CAN" appears on the sub-display.

Key operation Display Description

RUN

FUN

TEACH

mode.

(For details on the functions of the key, see

p.2-3.)

ESC

ZERORST/

and press key.

SET

ZERO/

and press key.

To execute press key, or the key to cancel.

ESC

ZERORST/

User’s Manual

1-19

Page 48

Chapter 1

RUNRUN

FUNFUN

TEACHTEACH

H L RUNRUN

LIT

RUN

FUN

TEACH

ZERORST/ZERORST/

ESCESC

About Installation and Connection

Steps

5 Press key for two seconds to enter the RUN

Chapter 1 MEASUREMENT SETUP

Key operation Display Description

RUN

FUN

TEACH

mode.

When Sensor Head calibration fails

If the Sensor Head is calibrated in an inappropriate environment, an error is displayed on the main

display. If this happens, press key to return to the previous screen and try again. If an error

continues even after calibrating the Sensor Head in an appropriate environment, the fiber connector on the Sensor Head or controller may be stained. Clean the fiber cable referring to p.1-16.

1-20

User’s Manual

Page 49

Smart Monitor ZW

Smart Monitor ZW ZW-SW_ _ (Accessory for the Controller ZW-C10AT/C15AT.)

Ethernet cable

Checks the measured value of the gang-mounted controller in the list.

Displays the change of the time series for the measured value in a graph.

Sets the sensing conditions in detail while checking the receiving status of the Sensor Head (sensitivity).

Displays and sets the settings for the controller in the list.

Chapter 1

Smart Monitor ZW

ZW series is provided with the Smart Monitor ZW software utility. This utility allows you to set up sensing functions and monitor the waveforms of measurement results on a personal computer.

● Monitoring the measurement state

Chapter 1 MEASUREMENT SETUP

● Setting support for functions

User’s Manual

1-21

Page 50

Chapter 1 Smart Monitor ZW

Operating Environment

Chapter 1 MEASUREMENT SETUP

The following describes the operating environment for Smart Monitor ZW. Before starting installation on a personal computer, make sure that it satisfies the following requirements:

Item Condition

OS Windows 7 (32 or 64-bit version)

Windows XP (Service Pack3 or more, 32-bit version)

CPU Intel Pentium III, 850 MHz or more (2 GHz or more is recommended.)

Memory 1 GB or more

Free hard disk space 50 MB or more

Display 1024 x 768 dots or more, 16 million colors or more

Supported languages Japanese/English

Communication port Ethernet port

• Windows is a trademark or registered trademark of Microsoft Corporation.

• The system and product names are trademarks or registered trademarks of their respective companies.

1-22

User’s Manual

Page 51

Installation/Uninstallation Method

Chapter 1

Smart Monitor ZW

The following describes the preparations for using Smart Monitor ZW.

■ Installing Smart Monitor ZW

• Before you install Smart Monitor ZW, quit all other programs that are running. If virus detection

software is enabled, installation may take time to complete.

• Log on as an Administrator or a user with system access rights.

1. Turn your PC ON and startup up Windows.

2. Insert your "Smart Monitor ZW" CD-ROM into the CD-DOM drive on your

personal computer.

3. Auto-run automatically displays the installation screen. Follow the on-

screen instructions to install Smart Monitor ZW.

■ Uninstalling Smart Monitor ZW

• Before you uninstall Smart Monitor ZW, quit all other programs that are running. If virus detection

software is enabled, uninstallation may take time to complete.

• Log on as an Administrator or a user with system access rights.

Chapter 1 MEASUREMENT SETUP

● For Windows 7

1. Turn your PC ON and startup up Windows.

2. Select [Control Panel] from the start menu.

3. Double-click [Uninstall a program].

4. Right-click [SmartMonitorZW] from the list and select [Uninstall].

5. Click the [Yes].

User’s Manual

1-23

Page 52

Chapter 1 Smart Monitor ZW

● For Windows XP

1. Turn your PC ON and startup up Windows.

Chapter 1 MEASUREMENT SETUP

2. Select [Control Panel] from the start menu.

3. Double-click [Add/Remove Programs].

4. Select [SmartMonitorZW] from the list and click the [Remove].

5. Click the [Yes].

1-24

User’s Manual

Page 53

Chapter 1

Smart Monitor ZW

Settings when Connecting Personal Computer with Controller

To connect a personal computer with the Controller directly through an Ethernet cable, set up the network on the personal computer as follows:

Specify a network address appropriate for the Controller settings as the IP address for the personal

computer.

The controller default settings are as follows:

• IP address: 192 168.250.50

• Subnet mask: 255.255.255.0

● For Windows 7

1. Select [Control Panel] from the start menu.

The [Control Panel] dialog box appears.

2. Click [Network and Internet], and

[View network status and tasks].

Chapter 1 MEASUREMENT SETUP

3. Click [Change adapter settings].

4. Right-click [Local Area Connection] and select

[Properties] from the displayed menu.

The [Local Area Connection Properties] dialog box appears.

User’s Manual

1-25

Page 54

Chapter 1 Smart Monitor ZW

5. Under the [Network] tab, double-

Chapter 1 MEASUREMENT SETUP

click [Internet Protocol Version 4 (TCP/IPv4)].

The [Internet Protocol Version 4 (TCP/ IPv4) Properties] dialog box appears.

6. Click the [Use the following IP

address] option and enter an IP address and subnet mask.

Example: When matching the computer settings to the controller's network address and setting the following values: IP address: 192.168.250.2 Subnet mask: 255.255.255.0

7. Click [OK] to complete the configuration.

1-26

User’s Manual

Page 55

● For Windows XP

1. Select [Control Panel] from the start menu.

The [Control Panel] dialog box appears.

2. Click [Network and Internet

Connection], and [Network Connections].

The [Network Connections] dialog box appears.

3. Right-click [Local Area Connection] and select

[Properties] from the displayed menu.

The [Local Area Connection Properties] dialog box appears.

Chapter 1

Smart Monitor ZW

Chapter 1 MEASUREMENT SETUP

4. Under the [General] tab, double-click

[Internet Protocol (TCP/IP)].

The [Internet Protocol (TCP/IP) Properties] dialog box appears.

User’s Manual

1-27

Page 56

Chapter 1 Smart Monitor ZW

5. Click the [Use the following IP address]

Chapter 1 MEASUREMENT SETUP

option and enter an IP address and subnet mask.

Example: When matching the computer settings to the controller's network address and setting the following values: IP address: 192.168.250.2 Subnet mask: 255.255.255.0

6. Click [OK] to complete the configuration.

1-28

User’s Manual

Page 57

Starting and Exiting

Chapter 1

Smart Monitor ZW

■ Start-up of Smart Monitor ZW

After installation is completed, start up Smart Monitor ZW by the following procedure.

1. Make sure that the Controller is connected to the personal computer.

2. Turn the Controller ON and set it to the RUN mode.

3. Select [Programs]-[OMRON]-[ZW]-[SmartMonitorZW] from the Windows

[Start] menu.

■ Exiting Smart Monitor ZW

1. Select [File]-[Close] in the Smart Monitor ZW menu bar.

Chapter 1 MEASUREMENT SETUP

User’s Manual

1-29

Page 58

Chapter 1 Smart Monitor ZW

Chapter 1 MEASUREMENT SETUP

1-30

User’s Manual

Page 59

Chapter 2 BASIC OPERATION

Overview of Setting and Measurement 2-2

Operation Modes 2-2

Functions of Operating Keys 2-3

Digital Displays 2-4

Multi-task and Bank Data 2-6

Setting Flow 2-8

Functions and Operations during Measurement 2-10

Switching the Display during RUN mode 2-10

Zero Reset 2-14

Setting Threshold Value 2-17

Bank Switching 2-20

Chapter 2 BASIC OPERATION

User’s Manual

2-1

Page 60

Chapter 2 BASIC OPERATION

RUNRUN

FUNFUN

TEACHTEACH

Chapter 2 About Installation and Connection/Sensor Head

Overview of Setting and Measurement

Operation Modes

The controller has the following three operating modes. Switch to the desired mode before you start operation. (The controller starts up in the RUN mode whenever turning it on.)

Mode Description

RUN Mode Normal operating mode.

FUN Mode Mode for setting the measurement conditions.

Use key to switch between the operating modes. The RUN indicator identifies the current operating mode.

RUN mode: Turned on. FUN mode: Turned off.

To switch between the RUN and FUN modes, press and hold the button for two seconds.

2-2

User’s Manual

Page 61

Chapter 2

RUNRUN

FUNFUN

TEACHTEACH

ZERO/

SET

ZERORST/

ESC

Overview of Setting and Measurement

Functions of Operating Keys

The following table lists the names and functions of the operating keys on the controller:

Functions

Functions differently depending on the settings.

(LEFT) key (RIGHT) key

Name

RUN mode FUN mode

Changes sub-display content.

- Toggles functional displays.

- Selects a digit for values.

- Cancels settings.

(UP) key (DOWN) key

key: Executes trigger

input.

key: Executes reset

input.

Functions differently depending on the settings.

- Switches between selecting menus.

- Selects setting values.

* These keys are only

available if key inputs for the hold functions have been enabled in the FUN mode. (See Page p.3-

34).

Mode switching key Hold down for at least two

seconds to enter the FUN mode.

Hold down for at least two seconds to enter the RUN mode.

- For operating mode switching, "SWITCH" is displayed on the main display and "OK/ CAN" is displayed on the sub-display. Press the ZERO/SET key to switch the mode.

- When the mode is switched from FUN mode to RUN mode, "SAVE" is displayed on the main display and "OK/CAN" is displayed on the sub-display. Press the ZERO/SET key to save the settings and switch the operating mode. Press the ZERORST/ESC key to switch the operating mode without saving the settings.

If you press for less than 2 seconds, the display shifts to RUN mode task switching and the threshold value setting menu. Also, this starts teaching to set threshold values when setting a threshold value.

ZERO/SET key Executes a zero reset. Functions differently depending on the

selections.

SET

ZERO/

- Applies the selected conditions or values.

- Switches to a lower menu.

Chapter 2 BASIC OPERATION

ZERORST/ESC key Hold down for at least two

ZERORST/

ESC

seconds to cancel a zero reset.

Functions differently depending on the selections.

- Cancels a selected condition or value.

- Switches to an upper menu.

Hold down for at least two seconds to jump to the top menu on the FUN mode.

User’s Manual

2-3

Page 62

Chapter 2 BASIC OPERATION

RUNRUN

FUNFUN

TEACHTEACH

-

Chapter 2 Overview of Setting and Measurement

Digital Displays

The theme displayed on the main or sub-display varies depending on the currently selected operating mode. The following table lists the theme displayed, when turning the controller on, or in the RUN or FUN mode.

Operating

mode

When turning onThe controller model name, "ZW-C_ _"

The system enters the RUN mode after displaying "INIT" for a few seconds.

RUN mode The task measurement result appears.

Press and hold key for two seconds or more to switch between the RUN and FUN modes.

Main display (upper line, in red) Sub-display (lower line, in green)

During the initialization, "INIT" is displayed.

appears.

Press / key to cycle through the

The task to display can be toggled (see p.2-

12).

sequence of the HIGH and LOW threshold values, analog output (voltage/current), judgment result, resolution (the max. and min. values for one-min measured value), exposure time, distance (sensor to the object to measure), effective bank and displayed task in descending or ascending order.

FUN mode Press / keys to cycle through the

function names in descending or ascending order.

When reaching the lowest layer, the setting value displayed on the main display appears.

■ Alphabetical notation

Alphabets are displayed on the main and sub-display as follows:

A B C D E F G H I J K L M

#$%&'()*+, ./

N O P Q R S T U V W X Y Z

023456789:;<

2-4

User’s Manual

Page 63

Chapter 2

ZERO/ZERO/

SETSET

Apply

Select

digit

Sub-display (Parameter)

Select

value

ZERO/ZERO/

SETSET

ZERO/ZERO/

SETSET

Apply

Select

position

Sub-display (Parameter)

ZERO/ZERO/

SETSET

Overview of Setting and Measurement

■ Entering numerical values

To enter numerical values, including parameters, for the sub-display, follow the steps below:

(1) When entering numerical values, the sub-display displays the current setting value

and its uppermost digit flashes.

(2) Press the / keys to select a digit to enter a number.

Press the key on the rightmost digit moves blinking to the leftmost digit.

Press the key on the leftmost digit moves blinking to the rightmost digit.

(3) Press the / keys to select a number to enter.

Chapter 2 BASIC OPERATION

(4) Press the key to apply the entered value.

● Positioning decimal point

To position a decimal point, follow the steps below:

(1) If a decimal point has been defined, it flashes on the sub-display.

(2) Press the / keys to position the decimal point.

Position the decimal point at the rightmost digit to erase it.

Press the key on the rightmost digit moves blinking to the leftmost digit.

Press the key on the leftmost digit moves blinking to the rightmost digit.

(3) Press the key to apply the position of the decimal point.

User’s Manual

2-5

Page 64

Chapter 2

Height (TASK1)

Surface fluctuation (TASK2)

Measurement processing flow in TASK1

* For the output, the following four types are supported:

䇭㪄Analog output 䇭䇭

Select one TASK that you want to output.

䇭㪄Judgment output 䇭䇭

Select one TASK that you want to output.

䇭䇭䇭㪄Binary output 䇭 Can output data from four tasks at a

time.

䇭㪄Serial output (Ethernet/RS-232C) 䇭䇭Can output data from four tasks at a

time.

Sensing setting

Measurement processing flow in TASK4

Measurement item

Filter

Scaling

Hold

Zero reset

Judge

Measurement item

Filter

Scaling

Hold

Zero reset

Judge

Output * Output *

Measurement result

Overview of Setting and Measurement

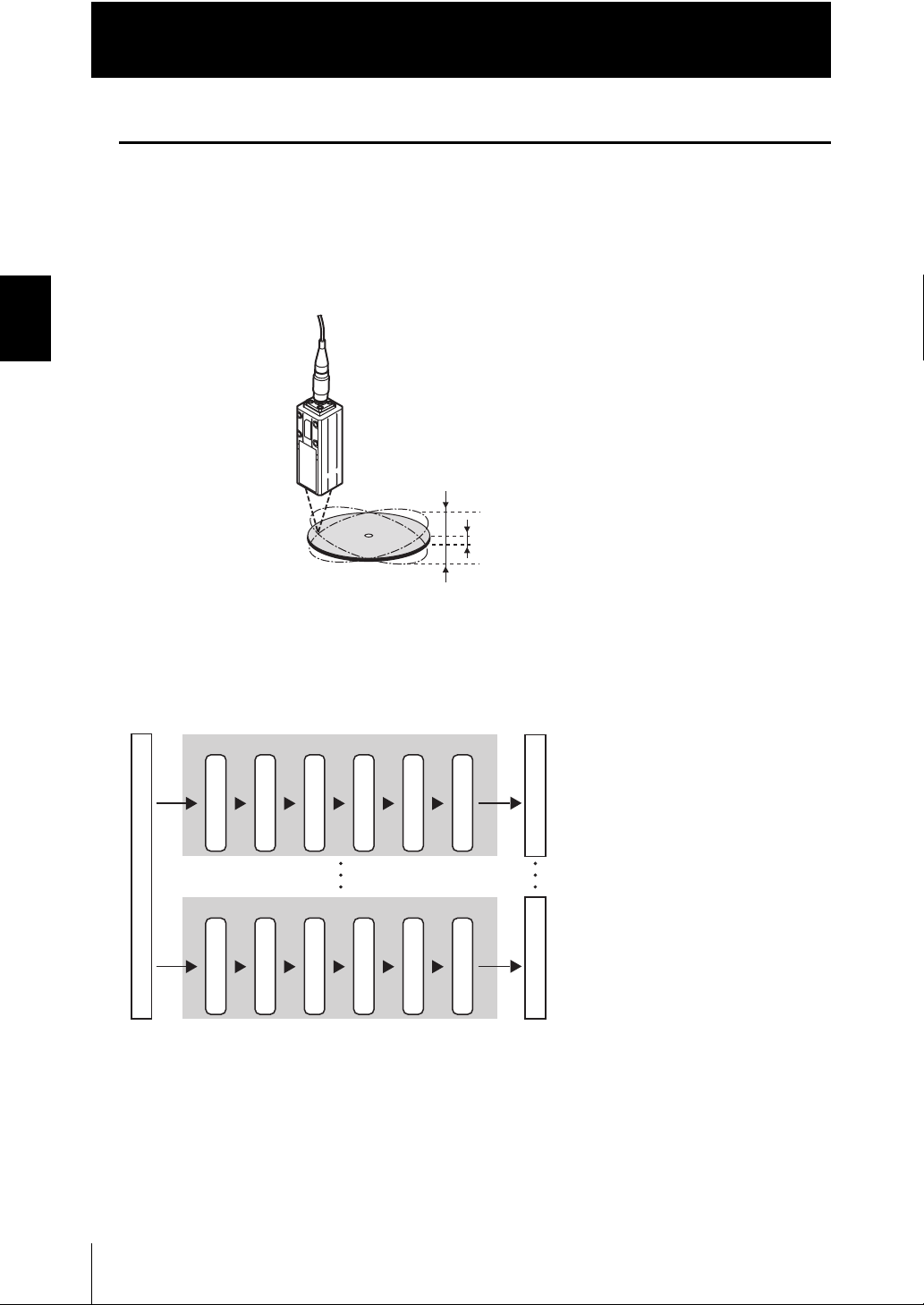

Multi-task and Bank Data

■ Multi-task function

In the ZW Series, you can set multiple measurement processing for one sensing setting. This measurement processing is called a "task (TASK)."

Chapter 2 BASIC OPERATION

Example: Measure the height and surface fluctuation simultaneously

For tasks, "TASK1" to "TASK4" are available for registration. You can measure and judge up to four characteristic points simultaneously because you can measure the desired measurement items such as peak, bottom, and average for each task.

2-6

User’s Manual

Page 65

Overview of Setting and Measurement

䉶䊮䉲䊮䉫 󰶚ቯὐ 䊐䉞䊦䉺

䈚䈐䈇୯

BANK8

䉶䊮䉲䊮䉫 󰶚ቯὐ 䊐䉞䊦䉺

಴ജ I/O⸳ቯ 䈚䈐䈇୯

BANK3

䉶䊮䉲䊮䉫 󰶚ቯὐ 䊐䉞䊦䉺

಴ജ I/O⸳ቯ 䈚䈐䈇୯

BANK2

BANK1

䉶䊮䉲䊮䉫 󰶚ቯὐ 䊐䉞䊦䉺

䈚䈐䈇୯

BANK8

䉶䊮䉲䊮䉫 󰶚ቯὐ 䊐䉞䊦䉺

಴ജ I/O⸳ቯ 䈚䈐䈇୯

BANK3

䉶䊮䉲䊮䉫 󰶚ቯὐ 䊐䉞䊦䉺

಴ജ I/O⸳ቯ 䈚䈐䈇୯

BANK1

BANK2

BANK1

TASK1

TASK4

䊶䊶䊶

Sensing

Filter

Threshold value

Output

I/O

Sensing

Filter

Threshold value

Output

Sensing

Filter

Threshold value

Output

I/O

Measurement point

Filter

Threshold value

Output

Measurement point

Sensing setting for product class B

If you register settings of various classes,

Measuring operation with the contents set in BANK1

Switch to BANK2.

Measuring operation with the contents set in BANK2

It is easy to change the device setup.

TASK1 to TASK4 are specified in the settings for each bank.

Sensing setting for product class A

■ Bank data

ZW series can hold up to eight sets of settings, which are called a "bank (BANK)". When the device setup is changed, you can switch the bank externally.

● What is bank?

Chapter 2

The sensing settings for measurement

Sensing

Output

Filter

I/O

Threshold value

● Example of bank switching for settings

are held as one bank.

Sensing

Output

Filter

I/O

Chapter 2 BASIC OPERATION

Threshold value

BANK

• If only the "threshold value" is different in the settings for a bank, by changing the mode of the bank,

you can increase the number of banks from 4 to 32.

Changing the Bank Mode p.3-43

• The output destination (current output value/voltage output value) in the I/O setting parameters is set

the same for all banks. The output destination cannot be set separately for individual banks.

User’s Manual

2-7

Page 66

Chapter 2 BASIC OPERATION

Chapter 1 MEASUREMENT SETUP About Installation and Connection

Power ON

Calibrate the Sensor Head.

Attach a Sensor Head.

Installation & Connection

Save the Settings Data

Make sure that you always save the data after you set it. If you turn OFF the power without saving the data, all the settings data will be cleared.

Save the data you have set.

Preparation for measurement

Setting for output processing

Saving the Settings

Default setting when connect sensor head

Setting measurement items

Select task(s) from TASK1 to TASK4, and set up measurement items, including height, thickness and calculation.

Setting the Scaling

Correct the display of the measured value.

Setting HOLD

Set the hold conditions.

Setting the Zero Reset

Set zero reset.

Chapter 1 MEASUREMENT SETUP Calibrating Sensor Head

Chapter 3 SETTINGS FOR FUNCTIONS

- Setting Measurement Items

Chapter 3 SETTINGS FOR FUNCTIONS

- Setting the Scaling

Chapter 3 SETTINGS FOR FUNCTIONS

- Setting the Hold

Chapter 3 SETTINGS FOR FUNCTIONS

- Zero Reset

Chapter 3 SETTINGS FOR FUNCTIONS

- Saving the Bank/System Settings

Chapter 2 Setting Flow

Setting Flow

2-8

User’s Manual

Page 67

Chapter 2

Setting Banks

Setting the System Environment

Setting Filter

Executing Zero Reset

Threshold Setting

Bank Switching

When The Smart Sensor Does Not Operate Correctly

When An Error Message Appears

Functions Used During

Operation

If You Cannot Perform a

Measurement Smoothly

Operations and Settings as

Required

I/O Setting (Analog, Judgement, and Binary output)

Using Ethernet/RS-232C Communications

Changing Material Settings

Changing Exposure Time Control Mode Settings

When a problem occurs...

Chapter 2 BASIC OPERATION Setting Threshold Value

Chapter 2 BASIC OPERATION Bank Switching

Chapter 2 BASIC OPERATION Zero Reset

Chapter 4 I/O SETTINGS

Chapter 3 SETTINGS FOR FUNCTIONS

- Changing the Bank Mode

Chapter 3 SETTINGS FOR FUNCTIONS

- Setting the System

Chapter 3 SETTINGS FOR FUNCTIONS

- Setting the Material for the Target to Measure

Chapter 3 SETTINGS FOR FUNCTIONS

- Setting Exposure Time Control Mode

Chapter 3 SETTINGS FOR FUNCTIONS

- Setting the Filter

Chapter 5 Ethernet/RS-232C COMMUNICATION

Chapter 7 APPENDIX - Troubleshooting

Chapter 7 APPENDIX - Error Messages and Countermeasures

Setting Flow

Chapter 2 BASIC OPERATION

User’s Manual

2-9

Page 68

Chapter 2 BASIC OPERATION

H lit

HIGH threshold

value

LOW threshold

value

Analog voltage

output value

Analog current

output value

Judgement

result

Exposure

time

Resolution

Distance

Displayed

task

Effective

bank

Effective

bank

L unlit

H unlit L lit H unlit L unlit

H unlit L unlit H unlit L unlit

H unlit L unlit

(Note)

Chapter 2 Functions and Operations during Measurement

Functions and Operations during Measurement

Switching the Display during RUN mode

In RUN mode, you can switch measured value display by pressing the / keys during the operation. You can check the threshold value and analog output value while displaying the measured value on the main display.

• "Displayed task" can be selected from TASK1 to TASK4.

• The above display screenshots are only samples and may different from actual displays.

(Note) An output item not selected on the analog output (Voltage output/Current output) is displayed as "------" on the sub-display. For example, if "Voltage output" is selected on the analog output, the analog current output value is displayed as "------" on the sub-display.

■ Details displayed on the main display

The measured values always appear on the main display. The measured values are initialized as follows:

• Reference value 0: measurement center distance

• + display: NEAR (close range) side

• - display: FAR (far range) side

2-10

User’s Manual

Page 69

Chapter 2

Functions and Operations during Measurement

■ Details displayed on the sub-display

The items listed in the following table appears on the sub-display.

Press the / keys to toggle the display.

Display Details Description

Threshold Displays the HIGH and LOW threshold values.

When displaying a HIGH threshold value, the THRESHOLD-H indicator lights up, while for a LOW threshold value, the THRESHOLD-L indicator lights up.

Analog output Displays the voltage or current value output in analog format.

The display details for the output destination setting are different for voltage output and for current output. (Values displayed here are reference values only. These values differ from actual analog output values.)

Judgment result The judgment result for each task appears.

The TASK1, 2, 3 and 4 judgment results are displayed starting from the left. H: HIGH P: PASS L: LOW E: ERROR

Resolution Displays the fluctuation width (peak to peak) of the measured value over a fixed

amount of time.

Exposure time Displays the current exposure time.

It ranges from 1 to 5000 s.

Distance Displays the distance from the sensor to a target to measure.

Effective bank Displays the current bank number.

Displayed task Displays the currently selected task number, from TASK1 to TASK4.

The measured value for the selected task appears on the main display.

Chapter 2 BASIC OPERATION

User’s Manual

2-11

Page 70

Chapter 2

RUN

FUN

TEACH

H L RUNRUN

LIT

RUN

FUN

TEACH

ZERORST/

ESC

ZERO/

SET

ZERO/ZERO/

SETSET

ZERORST/ZERORST/

ESCESC

ZERO/ZERO/

SETSET

ZERO/ZERO/

SETSET

ZERORST/

ESC

H L RUNRUN

LIT

ZERORST/

ESC

Functions and Operations during Measurement

■ Display details change

The measurement result displayed on the main display in RUN mode can be selected from TASK 1 to 4. The number of digits displayed can also be changed.

Chapter 2 BASIC OPERATION

Settings [Display] Description [Display]

Task for displayed target

TASK1/TASK2/TASK3/TASK4

[DISP]

Decimal point digit

0 [0DIG]/1 [1DIG]/2 [2DIG]/3 [3DIG]/4 [4DIG]/5 [5DIG]

[DEC.NUM]

As an example, here is an explanation of the procedure for setting TASK2 as the task to be displayed target.

Operating procedure

Steps

1 Press key in the RUN mode to display the

2 Press or keys to select either of "DISP" and

3 Select the task to be displayed target.

Key operation Display Description

RUN

FUN

TEACH

setting menu.

FUN

RUN

TEACH

ZERORST/

ESC

press key.

SET

ZERO/

The current setting value is displayed on the subdisplay. Press / key to enter the editing mode, and the sub-display blinks. Select either of "TASK2" and press key.

ESC

ZERORST/

ESC

ZERORST/

Press key in the RUN mode to exit the setting menu.

2-12

User’s Manual

Page 71

Chapter 2

RUN

FUN

TEACH

H L RUNRUN

LIT

RUN

FUN

TEACH

ZERORST/

ESC

ZERO/

SET

ZERO/ZERO/

SETSET

ZERORST/

ESC

ZERO/

SET

H L

RUN

ZERO/

SET

ZERO/

SET

ZERORST/

ESC

H L RUNRUN

LIT

ZERORST/

ESC

Functions and Operations during Measurement

■ Threshold values change

The threshold value for the task displayed on the main display in RUN mode can be changed.

To change the target task, change the task displayed on the main display.

Display details change p.2-12

As an example, here is an explanation of the procedure for setting the HIGH threshold value by entering "1.000" directly.

Operating procedure

Steps

1 Press key in the RUN mode to display the

2 Press or keys to select either of "H.JUDGE"

3 Set "1.000" as the HIGH threshold value.

Key operation Display Description

RUN

FUN

TEACH

setting menu.

FUN

RUN

TEACH

ZERORST/

ESC

and press key.

SET

ZERO/

ESC

ZERORST/

The current measured value is displayed on the main display and the current set threshold value is displayed on the sub-display. (At that time, the

ZERO/

SET

LIT

THRESHOLD-H indicator lights up.) Press key to enter the editing mode, and the

RUN

sub-display blinks.

SET

ZERO/

To edit numerical values use / / / keys.

ZERORST/

ESC

Enter "1.000" and press key.

ESC

ZERORST/

Press key in the RUN mode to exit the setting

SET

ZERO/

menu.

Chapter 2 BASIC OPERATION

User’s Manual

2-13

Page 72

Chapter 2 BASIC OPERATION

+2 (HIGH threshold value)

-2 (LOW threshold value)

Sensor head

(reference value)

㪪㪼㫅㫊㫀㫅㪾

㫆㪹㫁㪼㪺㫋

+12 (HIGH threshold value)

+8 (LOW threshold value)

Sensor head

㪪㪼㫅㫊㫀㫅㪾

㫆㪹㫁㪼㪺㫋

Chapter 2 Functions and Operations during Measurement

Zero Reset

■ What is zero reset?

This function allows resetting the measured value to "0" at any timing during measurement in the RUN mode. The measured value can be displayed and output as a positive or negative deviation (tolerance) from the set reference value "0".

Example 1:Using the height of sensing object registered as the reference value and the

tolerance output as the measured value

Example 2:Using the height of sensing object as the measured value with an offset set

to 10

2-14

User’s Manual

Page 73

Chapter 2

Sensor head

Zero reset executed

Direction of movement

This step is measured.

Functions and Operations during Measurement

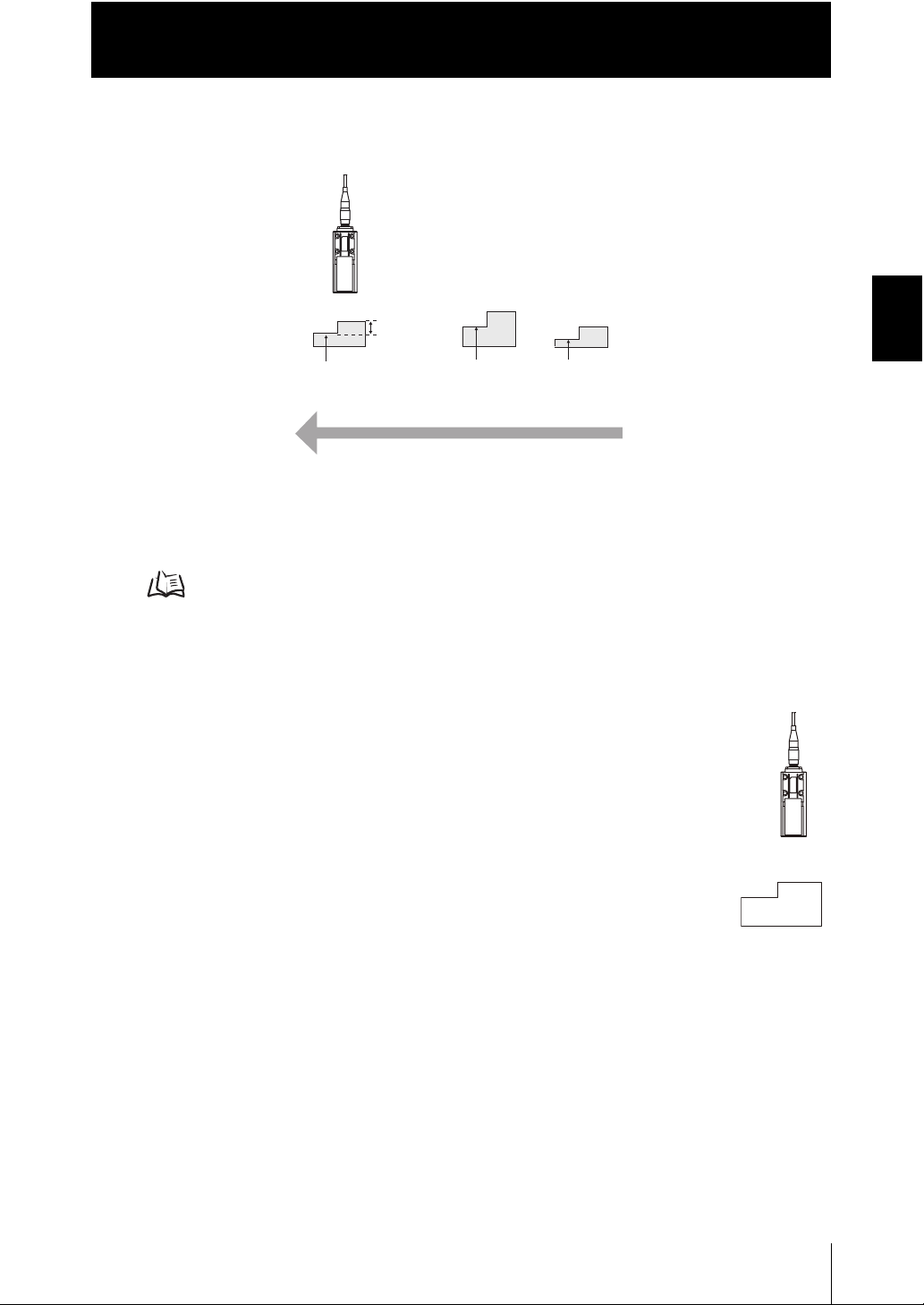

Example 3:Using zero reset to measure steps in sensing object (zero reset at each

measurement

The zero reset function also allows setting the reference value to the hold value for a hold measurement or any value other than zero.

Chapter 2 BASIC OPERATION

Setting the Zero Reset p.3-37

■ Executing zero reset

1. Place the reference sensing object in position.

User’s Manual

2-15

Page 74

Chapter 2 BASIC OPERATION

ZERO/ZERO/

SETSET

ZERORST/

ESC

Chapter 2 Functions and Operations during Measurement

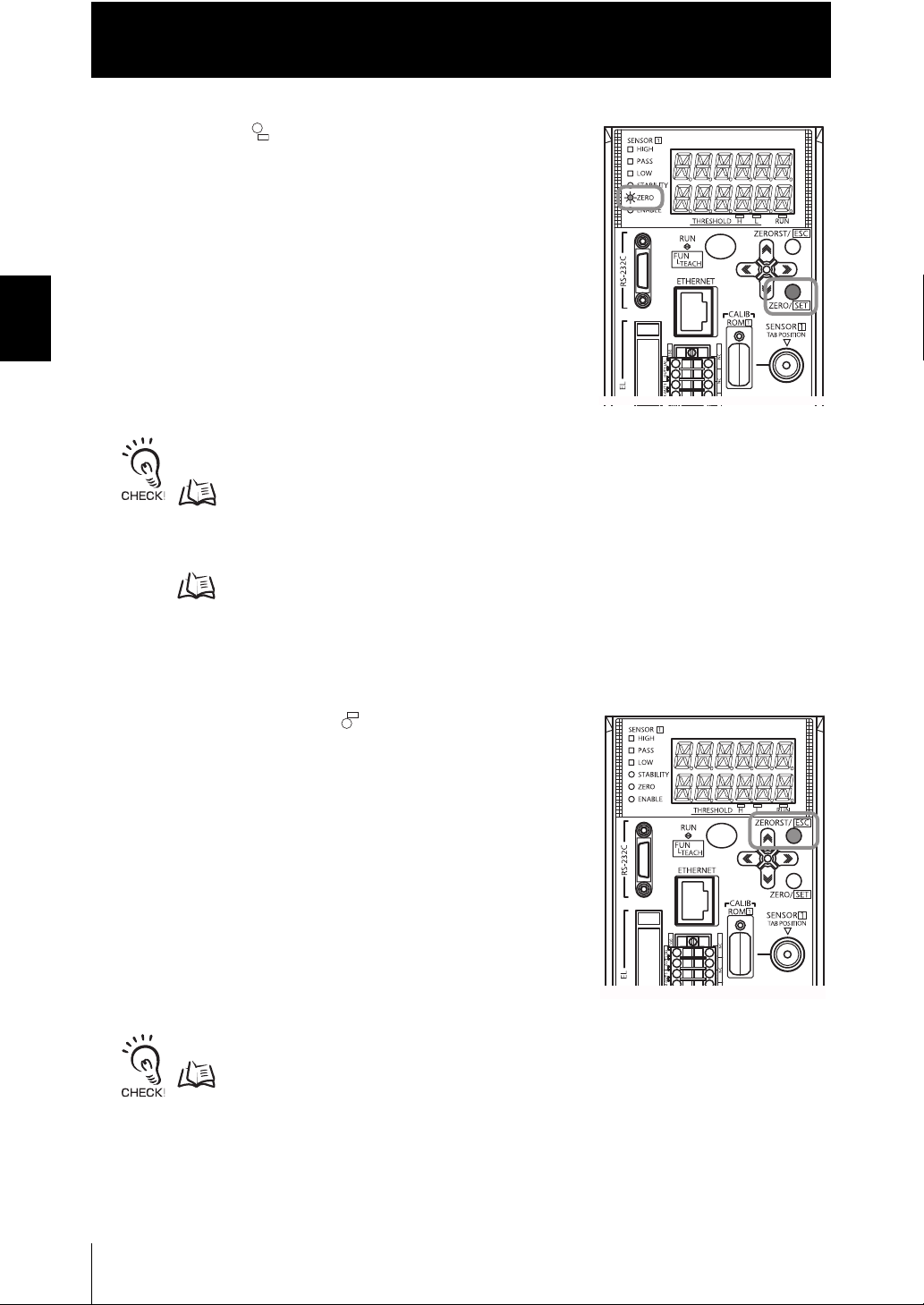

2. Press key.

The ZERO indicator illuminates and the current

measured value is registered as 0 (zero).

• When a zero reset is executed, the analog output becomes the voltage or current value at the center of the two preset points. Analog output becomes roughly 0 V or 12 mA when focus is not set.

Setting focus p.4-14

• The Zero Reset function can also be executed by supplying a ZERO signal to the 20-pole terminal block.

20-pole terminal block p.4-2

ZERO input p.4-8

■ Canceling zero reset

ESC

1. Press and hold key for two seconds.

The zero reset function can also be canceled by supplying a ZERO signal to the 20-pole terminal block.

20-pole terminal block p.4-2 ZERO input p.4-8

ZERORST/

2-16

User’s Manual

Page 75

Chapter 2

HIGH

ON OFF

LOW

PASS

Measured value

LOW threshold value

HIGH threshold value

Output

ON when Measurement result > HIGH threshold value

ON when LOW threshold value < Measurement result < HIGH threshold value

ON when Measurement result <LOW threshold value

RUN

FUN

TEACH

Functions and Operations during Measurement

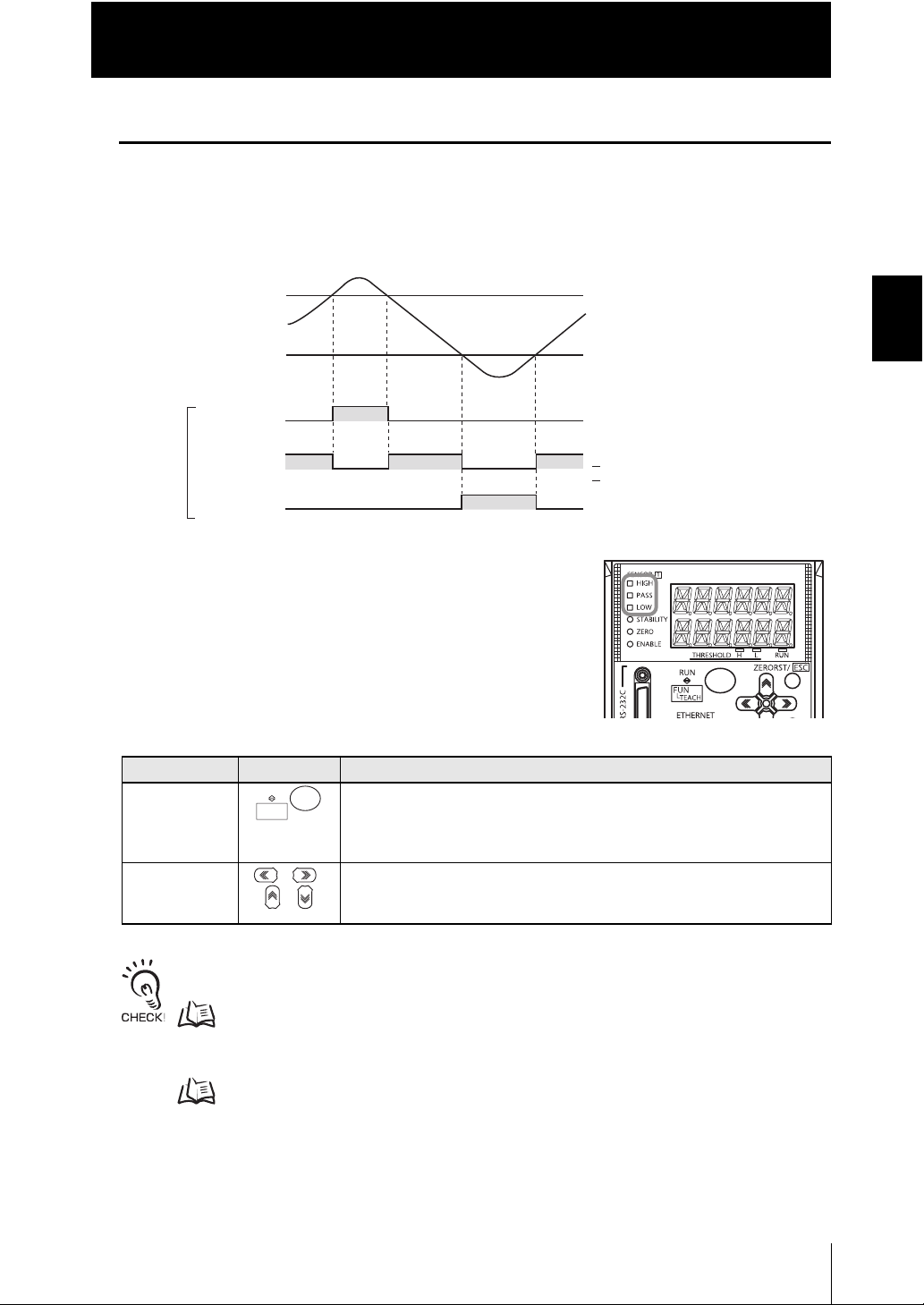

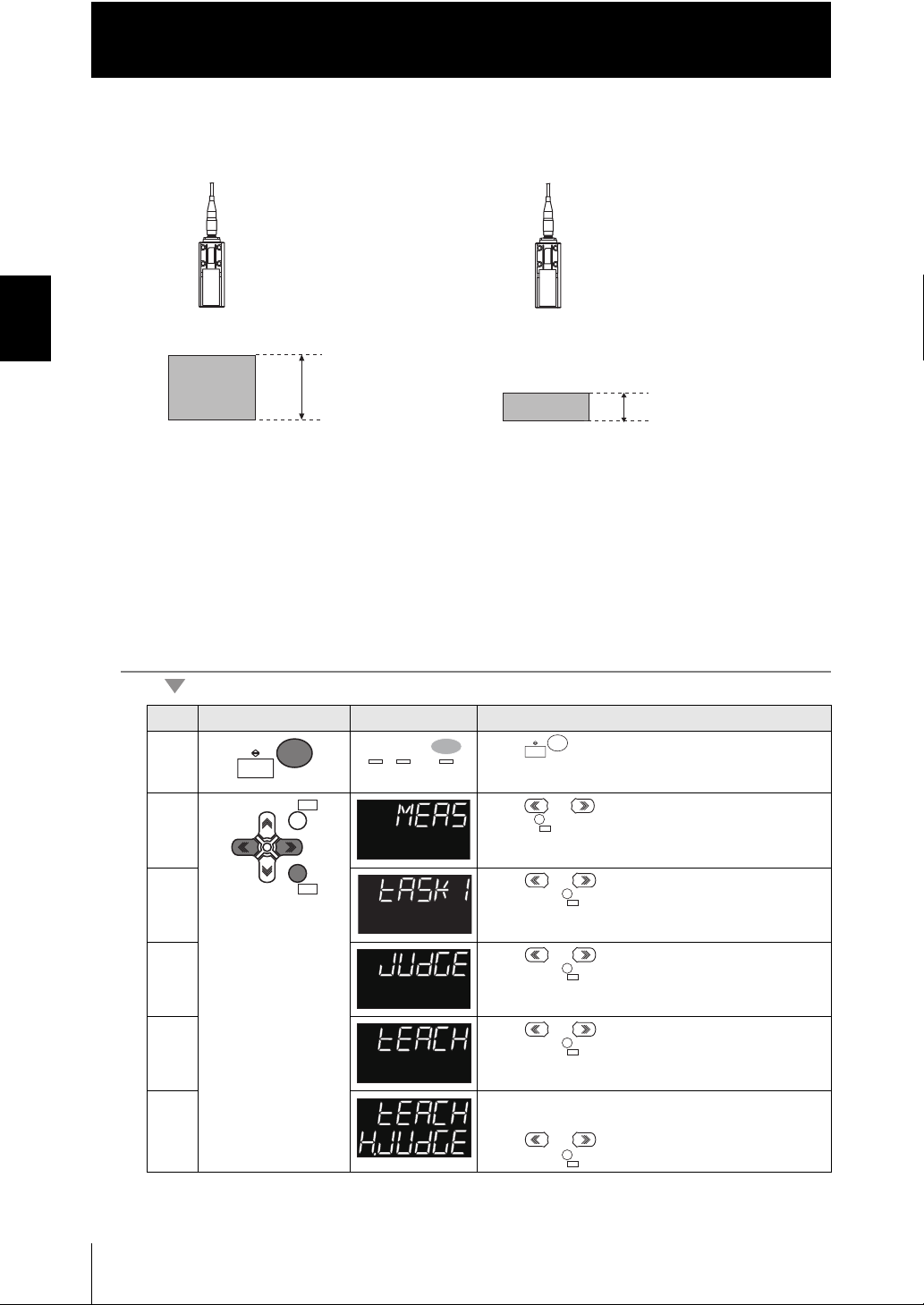

Setting Threshold Value

Switch the controller to the FUN mode and set the range in order for the measured value to be judged as PASS. Both HIGH and LOW threshold values are set. As a judgment result, HIGH, PASS or LOW is output.

Chapter 2 BASIC OPERATION

A judgment result appears on the controller as follows:

• For judgment result HIGH: The HIGH indicator lights up.

• For judgment result PASS: The PASS indicator lights up.

• For judgment result LOW: The LOW indicator lights up.

There are two ways of setting the threshold value.

Method Operating key Details

Teaching Performs measurement and uses the measurement results to set threshold

Direct / /

• Hysteresis (hysteresis width) can also be set to threshold values. Set hysteresis when measured values are dispersed around a threshold value, and judgments are unstable, to prevent chattering.

• Threshold values can also be adjusted by directly entering values in the RUN mode. This helps you to make fine adjustments without shutting down the system.

RUN

FUN

TEACH

Settings for Judgment Output p.4-18

Threshold values change p.2-13

values. Position teaching is useful when threshold samples, i.e., with the upper and lower limits, can be obtained beforehand.

The threshold values can be set by directly inputting numerical values. Direct input is useful when you know the dimensions for an OK judgment or when you want to fine-tune threshold values after teaching.

User’s Manual

2-17

Page 76

Chapter 2 BASIC OPERATION

Sensor head

Teaching point = HIGH threshold value

Threshold sample

(upper limit)

Threshold sample

(lower limit)

Teaching point = LOW threshold value

RUN

FUN

TEACH

H L RUNRUN

UNLIT

RUN

FUN

TEACH

ZERORST/

ESC

ZERO/

SET

ZERO/

SET

ZERO/ZERO/

SETSET

ZERO/ZERO/

SETSET

ZERO/ZERO/

SETSET

ZERO/ZERO/

SETSET

Chapter 2 Functions and Operations during Measurement

■ Teaching

Performs measurement and uses the measurement results to set threshold values.

Hold, trigger, and scaling settings that have been made before teaching are reflected in the teaching measurements.

As an example, here is an explanation of the procedure for setting the current measured value as a HIGH threshold value.

Operating procedure

Steps

1 Press key for two seconds to enter the FUN

2 Press or keys to select either of "MEAS" and

3 Press or keys to select either of "TASK1"

4 Press or keys to select either of "JUDGE"

5 Press or keys to select either of "TEACH"

6 Select "HIGH threshold value" as the threshold value

Key operation Display Description

RUN

FUN

TEACH

mode.

press key.

SET

ZERO/

and press key.

FUN

RUN

TEACH

ZERORST/

ZERO/

ESC

SET

and press key.

type. Press or keys to select either of "H.JUDGE"

and press key.

2-18

User’s Manual

Page 77

Chapter 2

RUNRUN

FUNFUN

TEACHTEACH

H L

RUN

RUNRUN

FUNFUN

TEACHTEACH

ZERO/ZERO/

SETSET

ZERO/

SET

RUNRUN

FUNFUN

TEACHTEACH

H L RUNRUN

LIT

RUN

FUN

TEACH

ZERORST/

ESC

ZERO/

SET

ZERO/ZERO/

SETSET

ZERO/ZERO/

SETSET

ZERORST/

ESC

ZERO/

SET

H L

RUN

ZERO/

SET

ZERO/

SET

RUN

FUN

TEACH

H L RUNRUN

LIT

RUN

FUN

TEACH

Functions and Operations during Measurement

Steps

Key operation Display Description

7 The current measured value is displayed on the main

display and the current set threshold value is displayed on the sub-display. (At that time, the THRESHOLD-H indicator lights up.)

LIT

8 - Press key to start a teaching.

Press key to display the current measured

value on the lower line.

RUN

SET

ZERO/

The indicator for the current measured value on the main display lights up, applying the value as a threshold value.

9 Press key for two seconds to enter the RUN

RUN

FUN

TEACH

mode.

■ Direct

The threshold values can be set by directly inputting numerical values.

As an example, here is an explanation of the procedure for setting a HIGH threshold value by entering "40.000" directly.

Operating procedure

Chapter 2 BASIC OPERATION

Steps

Key operation Display Description

1 - 4 For moving to “JUDGE” see steps 1 to 4 in p.2-18

ESC

5 Press or keys to select either of "DIRECT"

ZERORST/

and press key.

6 Select "HIGH threshold value" as the threshold value

ZERO/

SET

type. Press or keys to select either of "H.JUDGE" and press key.

ESC

7 Set "40.00" as the HIGH threshold value.

ZERORST/

The current measured value is displayed on the main display and the current set threshold value is displayed on the sub-display. (At that time, the

ZERO/

SET

LIT

THRESHOLD-H indicator lights up.) Press key to enter the editing mode, and the

RUN

sub-display blinks.

SET

ZERO/

To edit numerical values use / / / keys. Enter "40.00" and press key.

FUN

RUN

TEACH

8 Press key for two seconds to enter the RUN

mode.

RUN

FUN

TEACH

SET

ZERO/

User’s Manual

2-19

Page 78

Chapter 2 BASIC OPERATION

RUN

FUN

TEACH

H L RUNRUN

UNLIT

RUNRUN

FUNFUN

TEACHTEACH

ZERORST/

ESC

ZERO/

SET

ZERO/

SET

ZERO/ZERO/

SETSET

ZERORST/ZERORST/

ESCESC

ZERO/ZERO/

SETSET

ZERO/ZERO/

SETSET

RUN

FUN

TEACH

H L RUNRUN

LIT

RUN

FUN

TEACH

Chapter 2 Functions and Operations during Measurement

Bank Switching

Switches banks.

As an example, here is an explanation of the procedure for setting BANK2:

Operating procedure

Steps

1 Press key for two seconds to enter the FUN

2 Press or keys to select either of "BANK" and

3 Press or keys to select either of "BK.CHG"

Key operation Display Description

RUN

FUN

TEACH

ZERORST/

ZERO/

ESC

SET

mode.

press key.

SET

ZERO/

and press key.

4 Select BANK2 for the bank number.

The current setting value is displayed on the subdisplay. Press / keys to enter the editing mode, and the sub-display blinks. Select "BANK2" and press key.

FUN

RUN

TEACH

5 Press key for two seconds to enter the RUN

mode.

RUN

FUN

TEACH

You can also switch the bank by entering the non-procedural command or from Smart Monitor ZW.

Current bank setting command <BS command> p.5-20 Smart Monitor ZW Operation Manual

2-20

User’s Manual

Page 79

Chapter 3 SETTINGS FOR FUNCTIONS

Setting Sensing 3-2

Setting the Material for the Target to Measure 3-2

Setting Exposure Time Control Mode 3-3

Setting Measurement Items 3-5

Measuring the Height 3-6

Measuring the Thickness 3-8

Calculating 3-10

Setting the Output Conditions 3-14

Setting the Filter 3-14

Setting the Scaling 3-21

Setting the Hold 3-28

Setting the Zero Reset 3-37

Setting the Banks 3-43

Chapter 3 SETTINGS FOR FUNCTIONS

Changing the Bank Mode 3-43

Copying the Bank Settings 3-44

Saving the Bank/System Settings 3-45

Clearing the Bank Settings 3-46

Setting the System 3-47

Checking Information 3-47

Setting the Key Lock 3-49

Initializing Settings 3-50

User’s Manual

3-1

Page 80

Chapter 3

RUN

FUN

TEACH

H L RUNRUN

UNLIT

RUN

FUN

TEACH

ZERORST/

ESC

ZERO/

SET

ZERO/ZERO/

SETSET

ZERO/ZERO/

SETSET

ZERORST/

ESC

ZERO/

SET

ZERO/

SET

RUN

FUN

TEACH

H L RUNRUN

LIT

RUNRUN

FUNFUN

TEACHTEACH

Setting Sensing

Setting the Material for the Target to Measure

Set the material for the target to measure.

Setting [Display]

Normal [NORMAL] A measurement can be performed with a certain performance level

Chapter 3 SETTINGS FOR FUNCTIONS

Mirror surface [MIRROR] Select this mode when specular reflection (regular reflection) occurs on the

Diffusion surface [DIFF] Select this mode when diffuse reflection occurs on the surface.

* [ ] following each setting indicates the main/sub-displays when that setting is selected. For example, if

"Normal" is selected as the material, [NORMAL] will be displayed on the main display.

As an example, here is an explanation of the procedure for the "Mirror" setting as the material.

Operating procedure

Steps

1 Press key for two seconds to enter the FUN

2 Press or keys to select either of "SENS" and

Key operation Display Description

RUN

FUN

TEACH

ZERORST/

regardless of the type of target to measure. Usually, select this setting.

surface. (Glass, wafer, lustrous metal, etc.)

mode.

ESC

press key.

Description

RUN

FUN

TEACH

3-2

User’s Manual

3 Press or keys to select either of "OBJECT"

4 Select "Mirror" as the material.

ZERO/

ZERORST/

SET

ESC

and press key.

The current setting value is displayed on the subdisplay. Press / keys to enter the editing mode, and the

SET

ZERO/

FUN

RUN

TEACH

5 Press key for two seconds to enter the RUN

sub-display blinks. Select "MIRROR" and press key.

SET

ZERO/

mode.

Page 81

Chapter 3

RUN

FUN

TEACH

H L RUNRUN

UNLIT

RUN

FUN

TEACH

ZERORST/ZERORST/

ESCESC

ZERO/ZERO/

SETSET

ZERO/

SET

ZERO/ZERO/

SETSET

ZERORST/

ESC

ZERO/

SET

ZERO/ZERO/

SETSET

Setting Sensing

Setting Exposure Time Control Mode

Set the exposure time control mode and exposure time (upper limit or fixed value).

Setting [Display] Description

Auto [AUTO] Automatically sets the exposure time within the range that does not exceed

the specified upper limit. Usually, select this setting. Upper limit range: 1 to 5,000 s (default value: 1,000)

Manual [MANUAL] Select this mode when you want to specify the exposure time, and set the

exposure time (fixed value). range: 1 to 5,000 s (default value: 1,000)

Exposure time and measuring cycle

• In "Auto" exposure time control mode, the measuring cycle twice the specified upper limit of the exposure time is used (The measuring cycle remains the same even if the actual exposure time is less than the upper limit).

• For the "Manual" exposure time control mode, the measuring cycle twice the exposure time is used. If the exposure time is 250 s or less, the measuring cycle is set to 500 s.

Chapter 3 SETTINGS FOR FUNCTIONS

As an example, here is an explanation of the procedure for setting the exposure time control mode to "Auto" and the exposure time upper limit to "500 s."

Operating procedure

Steps

1 Press key for two seconds to enter the FUN

2 Press or keys to select either of "SENS" and

3 Press or keys to select either of "EXPOSE"

4 Select "AUTO" in the exposure time control mode.

Key operation Display Description

RUN

FUN

TEACH

mode.

press key.

SET

ZERO/

FUN

RUN

TEACH

and press key.

ESC

ZERORST/

The current setting value is displayed on the subdisplay. Press / keys to enter the editing mode, and the

ZERO/

SET

sub-display blinks. Select "AUTO" and press key.

User’s Manual

3-3

Page 82

Chapter 3

ZERORST/

ESC

ZERO/

SET

ZERO/

SET

ZERO/

SET

RUN

FUN

TEACH

H L RUNRUN

LIT

RUN

FUN

TEACH

Setting Sensing

Steps

5 Set "500" as the upper limit for the exposure time.

6 Press key for two seconds to enter the RUN

Key operation Display Description

ZERORST/

RUN

FUN

TEACH

Chapter 3 SETTINGS FOR FUNCTIONS

ZERO/

ESC

SET

"UPPER" is displayed on the main display and the current setting value is displayed on the sub-display. Press key to enter the editing mode, and the

SET

ZERO/

sub-display blinks. To edit numerical values use / / / keys. Enter "500" and press key.

RUN

FUN

TEACH

SET

ZERO/

mode.

3-4

User’s Manual

Page 83

Chapter 3

Setting Measurement Items

Obtain the waveform data based on the specified sensing condition, and calculate the height/thickness of up to four surfaces included in the measuring range. Count the measurement surface closest to the Sensor Head first.

Sensor head

Edge 1st Edge 2nd Edge 3rd Edge 4th

Set the following measurement item based on the desired output for each task.

Setting [Display] Description [Display]

Height [HEIGHT] Measures the height.

Specifies either of the following:

- Edge 1st [EDGE1]

- Edge 2nd [EDGE2]

- Edge 3rd [EDGE3]

- Edge 4th [EDGE4]

- Light Peak [PEAK] (default value) (the surface receiving the largest amount of received light within the measuring range)

Thick [THICK] Measures the thickness.

Specifies either of the following for each of SURFACE1 [TOP] and SURFACE2 [END]:

- Edge 1st [EDGE1]

- Edge 2nd [EDGE2]

- Edge 3rd [EDGE3]

- Edge 4th [EDGE4]

- Light Peak [PEAK] (default value) (the surface receiving the largest amount of received light within the measuring range)

Calculation [CALC] Performs calculations using the output for each task.

None [NONE] Select this when you don't perform the measurement.

Chapter 3 SETTINGS FOR FUNCTIONS

• The following are the initial values preset for the tasks.

-TASK1: HEIGHT [HEIGHT]

-TASK2 - TASK4: NONE [NONE]

• To check the measurement surface, use the SmartMonitor ZW to check the light reception waveform status. (Refer to Smart Monitor ZW Operation Manual).

User’s Manual

3-5

Page 84

Chapter 3

The setting for common height measurements as shown in the following diagram is registered for TASK1 in advance. In such a case, this setting is not required.

Set this item when measuring the height of an object below a transparent object as shown in the following diagram.

Edge 1st

Height

Edge 1st

Edge 2nd

Measurement range

Transparent object

Sensor head

Setting Measurement Items

Measuring the Height

Chapter 3 SETTINGS FOR FUNCTIONS

Setting [Display] Description [Display]

Measurement Surface [SUR] Sets the measurement surface.

- Edge 1st [EDGE1]

- Edge 2nd [EDGE2]

- Edge 3rd [EDGE3]

- Edge 4th [EDGE4]

- Light Peak [PEAK] (default value)

3-6

User’s Manual

Page 85

Chapter 3

RUNRUN

FUNFUN

TEACHTEACH

H L RUNRUN

UNLIT

RUN

FUN

TEACH

ZERORST/ZERORST/

ESCESC

ZERO/ZERO/

SETSET

ZERO/

SET

ZERO/ZERO/

SETSET

ZERO/

SET

ZERORST/

ESC

ZERO/

SET

ZERO/

SET

ZERO/ZERO/

SETSET

RUNRUN

FUNFUN

TEACHTEACH

H L RUNRUN

LIT

RUN

FUN

TEACH

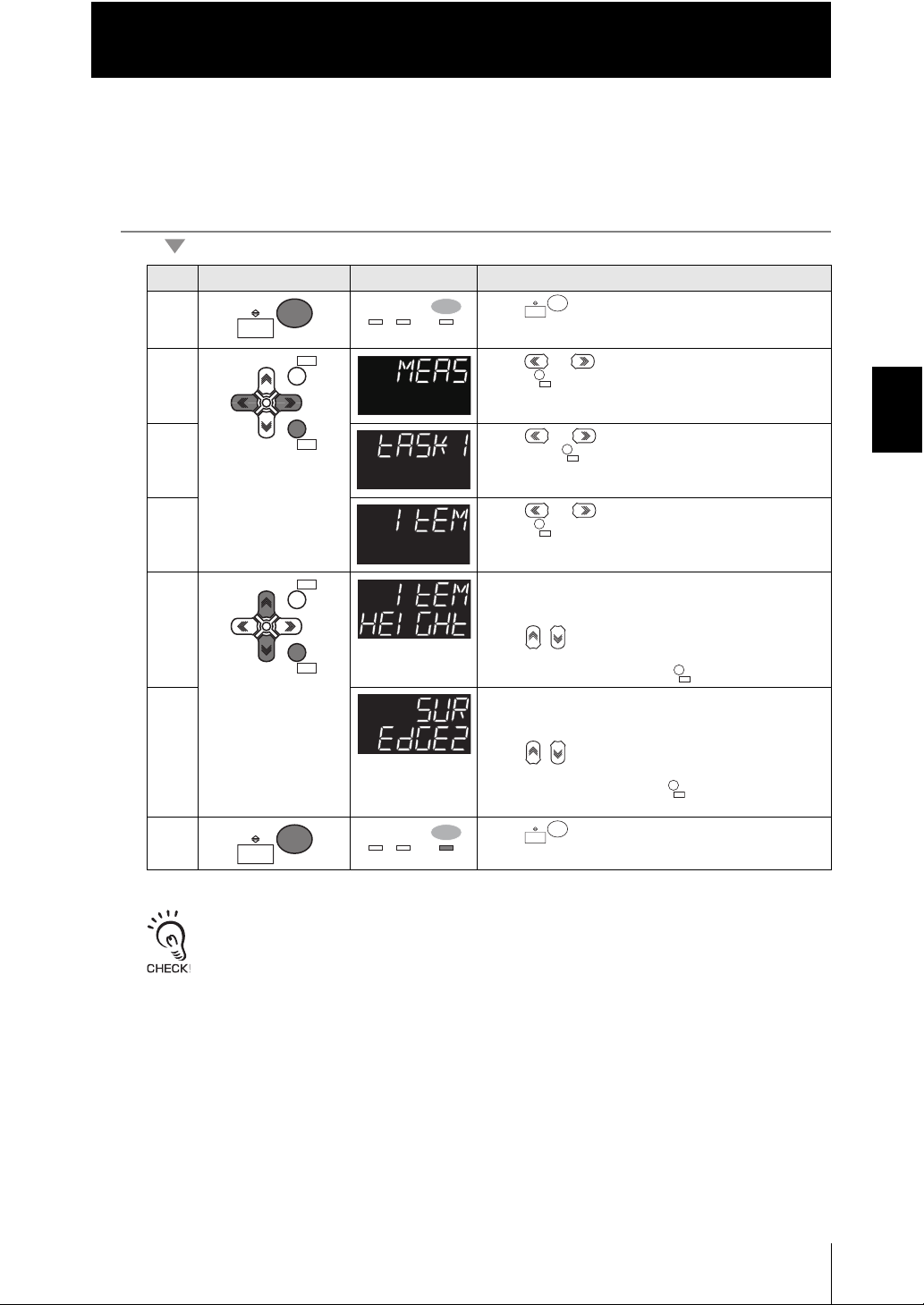

Setting Measurement Items

As an example, here is an explanation of the procedure for measuring the height of the surface (edge 2nd) below a transparent object (as shown in the diagram on the right on the previous page).

Operating procedure

Steps

1 Press key for two seconds to enter the FUN

Key operation Display Description

RUN

FUN

TEACH

mode.

2 Press or keys to select either of "MEAS" and

press key.

SET

ZERO/

3 Press or keys to select either of "TASK1"

and press key.

4 Press or keys to select either of "ITEM" and

press key.

ESC

5 Select "Height" as the measurement item.

ZERORST/

SET

ZERO/

The current setting value is displayed on the subdisplay. Press / keys to enter the editing mode, and the

ZERO/

SET

sub-display blinks. Select "HEIGHT" and press key.

SET

ZERO/

6 Select "Edge 2nd" as the measurement item.

"SUR" is displayed on the main display and the current setting value is displayed on the sub-display. Press / keys to enter the editing mode, and the sub-display blinks. Select "EDGE2" and press key.

Chapter 3 SETTINGS FOR FUNCTIONS

7 Press key for two seconds to enter the RUN

RUN

FUN

TEACH

mode.

The Height [HEIGHT] in the Measurement Item [ITEM], and the Edge 1st [EDGE1] as the Measurement Surface [SUR] are specified in advance for TASK1. To measure the height in TASK2 to TASK4, set Edge 1st [EDGE1] first.

User’s Manual

3-7

Page 86

Chapter 3

RUNRUN

FUNFUN

TEACHTEACH

H L RUNRUN

UNLIT

RUN

FUN

TEACH

Optional

Setting Measurement Items

Measuring the Thickness

If you already know the glass thickness, you can adjust the scaling with reference to the thickness, and easily measure the thickness of a transparent object.

Chapter 3 SETTINGS FOR FUNCTIONS

Setting [Display] Description [Display]

Measurement Surface [TOP/ END]

Sensor head

Transparent object

Edge 1st

Thickness

Edge 2nd

Measures the thickness. Specifies either of the following for each of SURFACE1 [TOP] and SURFACE2 [END]:

- Edge 1st [EDGE1] (default value (TOP))

- Edge 2nd [EDGE2] (default value (END))

- Edge 3rd [EDGE3]

- Edge 4th [EDGE4]

- Light Peak [PEAK]

3-8

As an example, here is an explanation of the procedure for selecting the setting for the measurement described in the diagram above.

Operating procedure

Steps

1 Press key for two seconds to enter the FUN

2 Set the material of the target to "MIRROR."

3 Set the top to "Edge 1st."

Key operation Display Description

RUN

FUN

TEACH

mode.

Setting the Material for the Target to Measure p.3-2

If the target object is a transparent object, such as glass, on which specular reflection occurs, set the material of the measurement object to "MIRROR" to obtain more accurate measurement result.

User’s Manual

Page 87

Chapter 3

ZERORST/

ESC

ZERO/

SET

ZERO/ZERO/

SETSET

ZERO/ZERO/

SETSET

ZERO/

SET

ZERORST/ZERORST/

ESCESC

ZERO/ZERO/

SETSET

ZERO/ZERO/

SETSET

ZERORST/ZERORST/

ESCESC

ZERO/ZERO/

SETSET

ZERO/ZERO/

SETSET

ZERORST/

ESC

ZERO/

SET

ZERO/ZERO/

SETSET

ZERORST/ZERORST/

ESCESC

ZERORST/

ESC

ZERORST/ZERORST/

ESCESC

ZERO/ZERO/

SETSET

ZERO/ZERO/

SETSET

ZERORST/ZERORST/

ESCESC

ZERO/ZERO/

SETSET

ZERO/ZERO/

SETSET

RUN

FUN

TEACH

H L RUNRUN

LIT

RUN

FUN

TEACH

Setting Measurement Items

Steps

3-1 Press or keys to select either of "MEAS" and

Key operation Display Description

ESC

ZERORST/

press key.

3-2 Press or keys to select either of "TASK1"

ZERO/

SET

and press key.

3-3 Press or keys to select either of "ITEM" and

press key.

SET

ZERO/

3-4 Select "Thick" as the measurement item.

The current setting value is displayed on the subdisplay. Press / keys to enter the editing mode, and the sub-display blinks. Select "THICK" and press key.

3-5 Select "Top."

Press or keys to select either of "TOP" and press key.

ESC

3-6 Select "Edge 1st" as the measurement surface.

ZERORST/

The current setting value is displayed on the subdisplay. Press / keys to enter the editing mode, and the

ZERO/

SET

sub-display blinks. Select "EDGE1" and press key.

4 Set the end to "Edge 2nd."

ESC

4-1 Press key to return to the previous menu.

ZERORST/

Chapter 3 SETTINGS FOR FUNCTIONS

4-2 Select "End."

Press or keys to select either of "END" and press key.

4-3 Select "Edge 2nd" as the measurement surface.

The current setting value is displayed on the subdisplay. Press / keys to enter the editing mode, and the sub-display blinks. Select "EDGE2" and press key.

5 Set scaling

Setting the Scaling p.3-21

FUN

RUN

TEACH

6 Press key for two seconds to enter the RUN

mode.

RUN

FUN

TEACH

User’s Manual

3-9

Page 88

Chapter 3 Setting Measurement Items

Calculating

Perform calculations using the results calculated by the tasks.

Setting [Display] Description [Display]

Calculation [CALC] K + mX + nY

Chapter 3 SETTINGS FOR FUNCTIONS

As an example, here is an explanation of the output of the calculation result below.

(Example)

When calculating the amount of convexity and concavity on the workpiece surface from the difference between the average value and the peaks and outputting this to Task 3 TASK1: Surface peak hold TASK2: Surface average hold TASK3: Set TASK1 - TASK2

• Parameter K: 0

• Parameter m: 1

• Parameter n: -1

• Parameter X: TASK1

• Parameter Y: TASK2

Select this to perform logic operations on X and Y with the parameter freely set. In addition, you can assign, to TASK, the measurement of characteristic points you have set, and measure multiple points or perform calculations.

- Parameter K range [PARAM.K]: -999.999999 to 999.999999 mm (default value: 0)

- Parameter m range [PARAM.M]: -10.0 to 10.0 (default value: 0)

- Parameter n range [PARAM.N]: -10.0 to 10.0 (default value: 0)

- Parameter X range [PARAM.X]: None (default value), TASK1 to TASK4

- Parameter Y range [PARAM.Y]: None (default value), TASK1 to TASK4

3-10

User’s Manual

Page 89

Operating procedure

RUNRUN

FUNFUN

TEACHTEACH

H L RUNRUN

UNLIT

RUN

FUN

TEACH

ZERORST/ZERORST/

ESCESC

ZERO/ZERO/

SETSET

ZERO/

SET

ZERORST/

ESC

ZERO/

SET

ZERO/ZERO/

SETSET

ZERO/

SET

ZERORST/ZERORST/

ESCESC

ZERO/ZERO/

SETSET

ZERO/ZERO/

SETSET

ZERORST/ZERORST/

ESCESC

ZERO/ZERO/

SETSET

ZERO/ZERO/

SETSET

ZERORST/

ESC

ZERO/

SET

ZERO/ZERO/

SETSET

ZERO/ZERO/

SETSET

ZERORST/ZERORST/

ESCESC

ZERO/ZERO/

SETSET

ZERO/ZERO/

SETSET

ZERORST/

ESC

ZERORST/

ESC

Chapter 3

Setting Measurement Items

Steps

1 Press key for two seconds to enter the FUN

Key operation Display Description

RUN

FUN

TEACH

mode.

2 Press or keys to select either of "MEAS" and

press key.

SET

ZERO/

3 Sets the surface peak hold for TASK1 and the surface average hold for TASK2.

Setting the Hold p.3-28

ESC

4 Press or keys to select either of "TASK3"

ZERORST/

and press key.

5 Press or keys to select either of "ITEM" and

ZERO/

SET

press key.

SET

ZERO/

6 Select "Calculation" as the measurement item.

The current setting value is displayed on the subdisplay. Press / keys to enter the editing mode, and the sub-display blinks. Select "CALC" and press key.

7 Select "Parameter K" for the parameter type.

Press or keys to select either of "PARAM.K" and press key.

Chapter 3 SETTINGS FOR FUNCTIONS

ESC

8 Set the parameter to "0."

ZERORST/

The current setting value is displayed on the subdisplay. Press key to enter the editing mode, and the

ZERO/

SET

sub-display blinks. To edit numerical values use / / / keys. Enter "0" and press key.

9 The decimal point is displayed.

Press / key to move the decimal point. Determine the decimal point and then press the key.

ESC

10 Press key to return to the previous menu.

ZERORST/

User’s Manual

3-11

Page 90

Chapter 3

ZERORST/

ESC

ZERO/

SET

ZERO/ZERO/

SETSET

ZERORST/

ESC

ZERO/

SET

ZERO/

SET

ZERO/

SET

ZERORST/

ESC

ZERORST/ZERORST/

ESCESC

ZERORST/

ESC

ZERO/

SET

ZERO/ZERO/

SETSET

ZERORST/

ESC

ZERO/

SET

ZERO/

SET

ZERO/

SET

ZERORST/

ESC

ZERORST/

ESC

ZERORST/ZERORST/

ESCESC

ZERO/ZERO/

SETSET

ZERO/ZERO/

SETSET

ZERORST/ZERORST/

ESCESC

ZERO/ZERO/

SETSET

ZERO/ZERO/

SETSET

ZERORST/

ESC

ZERORST/ZERORST/

ESCESC

ZERORST/ZERORST/

ESCESC

ZERO/ZERO/

SETSET

ZERO/ZERO/

SETSET

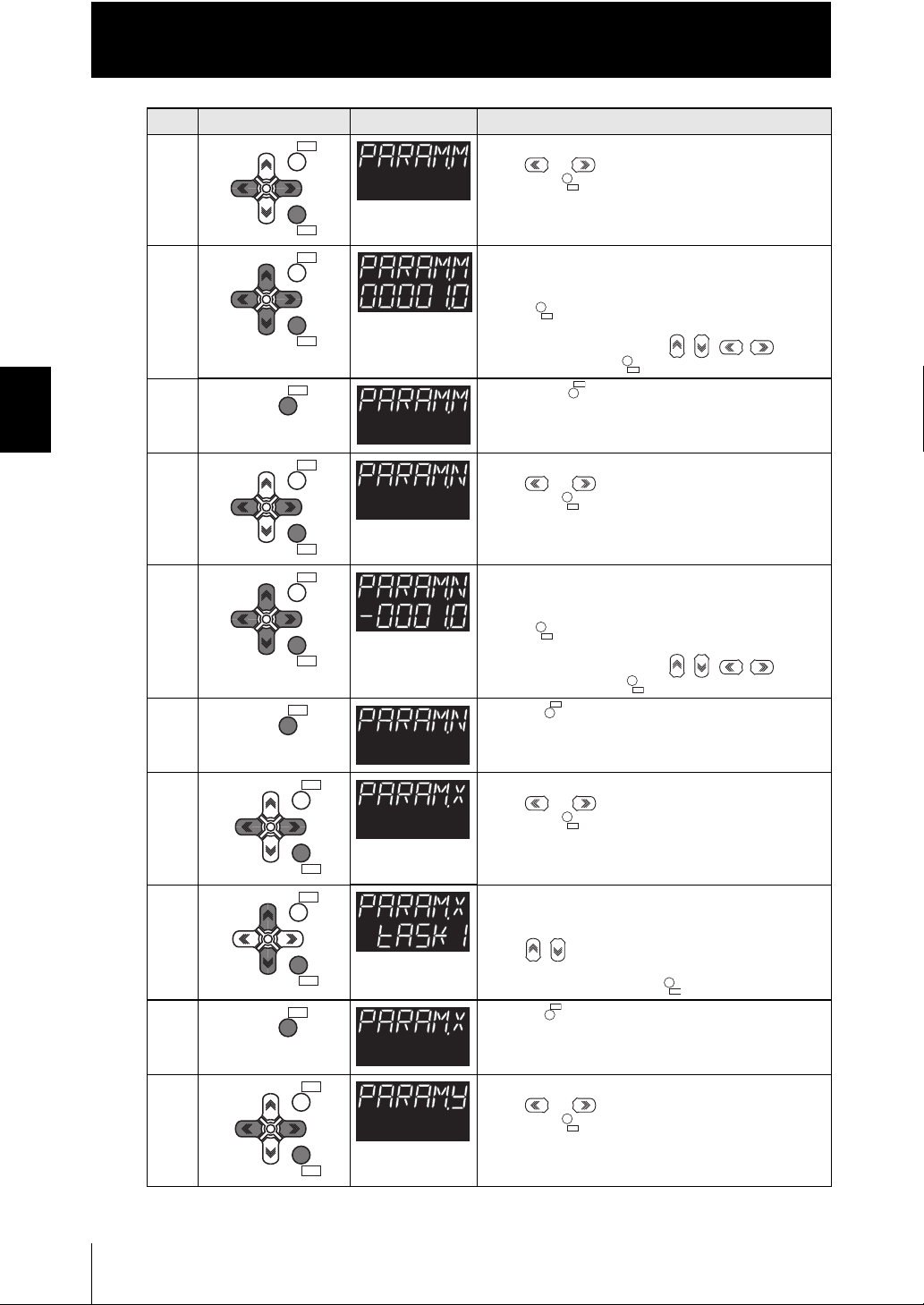

Setting Measurement Items

Steps

11 Select "Parameter m" for the parameter type.

12 Set the parameter to "1."

Key operation Display Description

ZERORST/

Chapter 3 SETTINGS FOR FUNCTIONS

13 Press the key to return to the previous menu.

14 Select "Parameter n" for the parameter type.

15 Set the parameter to "-1."

16 Press key to return to the previous menu.

ZERORST/

ZERO/

ESC

SET

ESC

SET

ESC

SET

ESC

SET

Press or keys to select either of "PARAM.M" and press key.

The current setting value is displayed on the subdisplay. Press key to enter the editing mode, and the

SET

ZERO/

sub-display blinks. To edit numerical values use / / / keys. Enter "1" and press key.

SET

ZERO/

Press or keys to select either of "PARAM.N" and press key.

The current setting value is displayed on the subdisplay. Press key to enter the editing mode, and the

SET

ZERO/

sub-display blinks. To edit numerical values use / / / keys. Enter "-1" and press key.

ESC

ZERORST/

SET

ZERO/

3-12

User’s Manual

17 Select "Parameter X" for the parameter type.

Press or keys to select either of "PARAM.X" and press key.

18 Set the parameter to "TASK1."

The current setting value is displayed on the subdisplay. Press / keys to enter the editing mode, and the sub-display blinks. Select "TASK1" and press key.

ESC

19 Press key to return to the previous menu.

ZERORST/

20 Select "Parameter Y" for the parameter type.

Press or keys to select either of "PARAM.Y" and press key.

Page 91

Chapter 3

ZERORST/ZERORST/

ESCESC

ZERO/ZERO/

SETSET

ZERO/

SET

RUN

FUN

TEACH

H L RUNRUN

LIT

RUN

FUN

TEACH

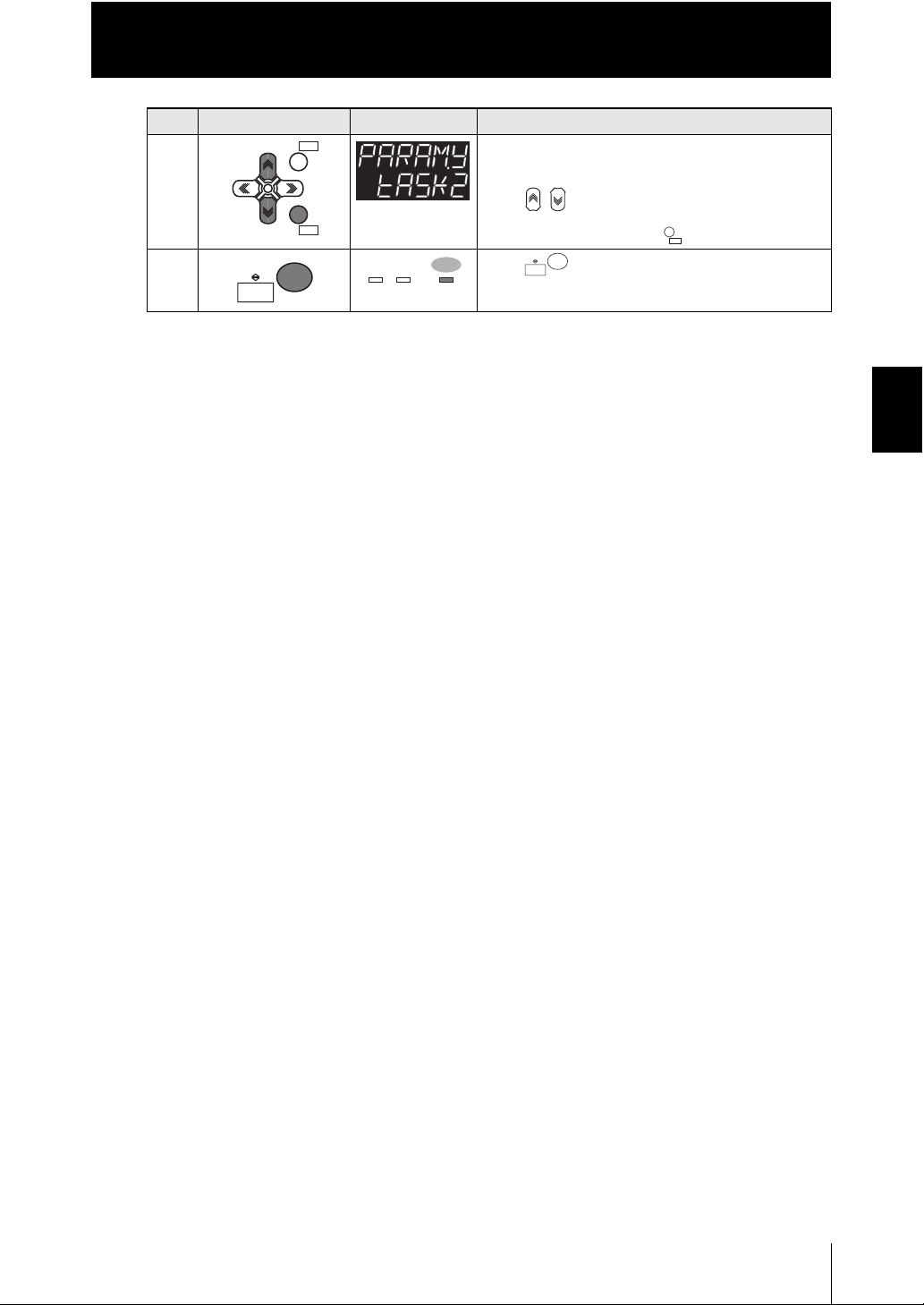

Setting Measurement Items

Steps

Key operation Display Description

21 Set the parameter to "TASK2."

The current setting value is displayed on the subdisplay. Press / keys to enter the editing mode, and the sub-display blinks. Select "TASK2" and press key.

mode.

RUN

FUN

TEACH

22 Press key for two seconds to enter the RUN

FUN

RUN

TEACH

SET

ZERO/

Chapter 3 SETTINGS FOR FUNCTIONS

User’s Manual

3-13

Page 92

Chapter 3

Waveform when filter is not set

㪇

Median filter [MEDIAN]

Average filter

[AVE] Median filter [MEDIAN]

Differ filter

[DIFFER]

Frequency filter

[FREQ]

Waveform when filter is not set

Lowpass filter [LOPASS]

Highpass filter [HIPASS]

Bandpass filter [BDPASS]

Displacement

Smooth

Spike-like changes are removed.

Displacement

Changes are smoothed out.

Changes are extracted to eliminate displacement value.

Sudden changes are removed.

Gradual changes are removed.

A given change is detected.

Three frequency variations are mixed.

Setting the Output Conditions

Setting the Filter

Set the filter condition when filtering information obtained from the sensor. The following types of filters can be set depending on purpose.

Chapter 3 SETTINGS FOR FUNCTIONS

3-14

User’s Manual

Page 93

Chapter 3

RUN

FUN

TEACH

H L RUNRUN

UNLIT

RUN

FUN

TEACH

ZERORST/

ESC

ZERO/

SET

ZERO/

SET

ZERO/ZERO/

SETSET

ZERO/ZERO/

SETSET

ZERO/ZERO/

SETSET

ZERORST/ZERORST/

ESCESC

ZERO/ZERO/

SETSET

ZERO/

SET

RUN

FUN

TEACH

H L RUNRUN

LIT

RUNRUN

FUNFUN

TEACHTEACH

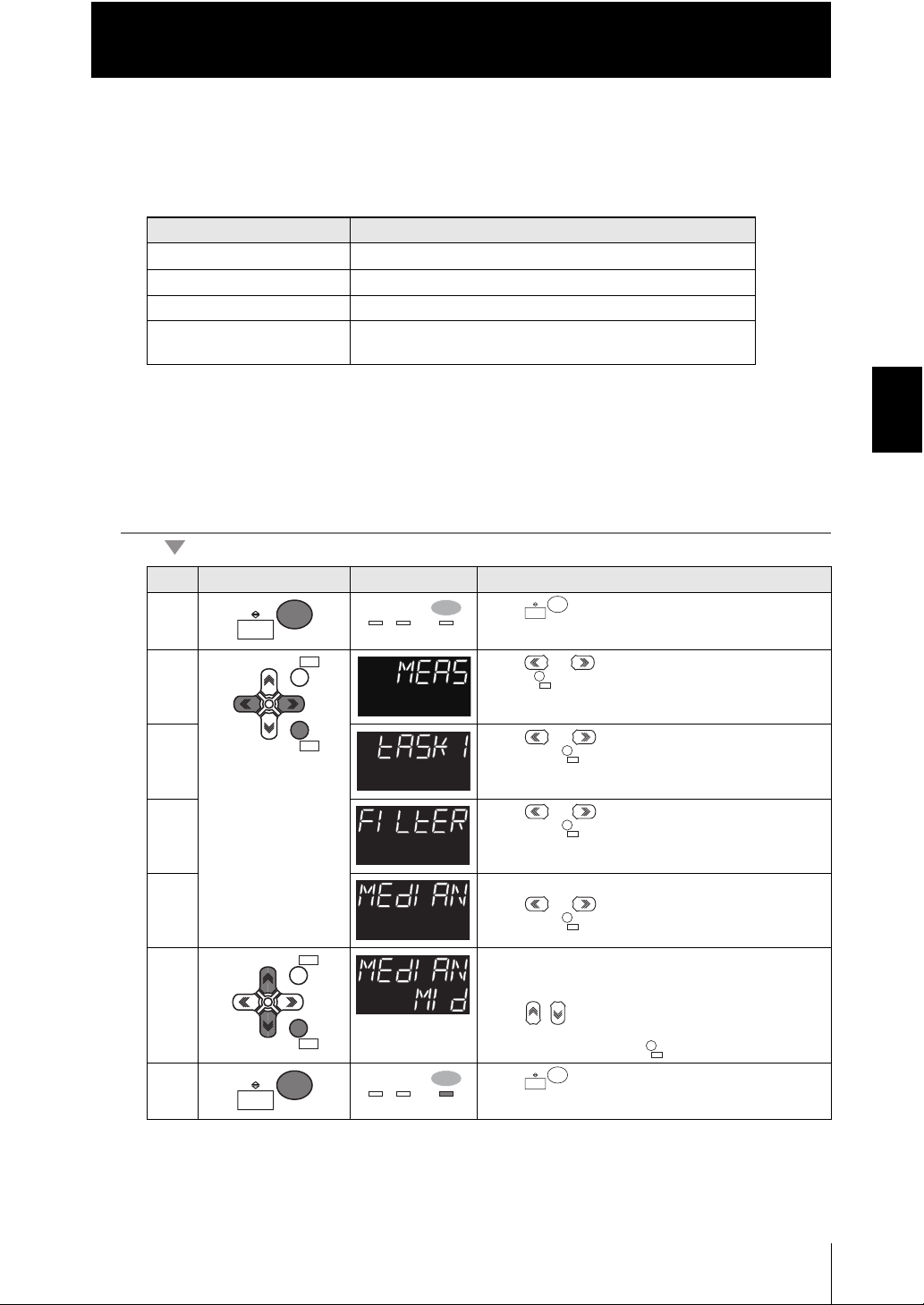

Setting the Output Conditions

■ Setting the median filter

The intermediate value of multiple sets of data can be output as the measurement result.

Setting [Display] Description

Low [LOW] Outputs the intermediate value of the last 3 measurements.

Mid [MID] Outputs the intermediate value of the last 9 measurements.

High [HIGH] Outputs the intermediate value of the last 15 measurements.

Off [OFF] (Default value)

As an example, here is an explanation of the procedure for selecting the "Mid" median filter setting.

Operating procedure

Median filter is not used.

Chapter 3 SETTINGS FOR FUNCTIONS

Steps

1 Press key for two seconds to enter the FUN

2 Press or keys to select either of "MEAS" and

3 Press or keys to select either of "TASK1"

Key operation Display Description

RUN

FUN

TEACH

mode.

press key.

SET

ZERO/

and press key.

FUN

RUN

TEACH

ZERORST/

ZERO/

ESC

SET

4 Press or keys to select either of "FILTER"

and press key.

5 Select "Median filter" as the filter type.

Press or keys to select either of "MEDIAN" and press key.

6 Select "Mid" as the median filter type.

The current setting value is displayed on the subdisplay. Press / keys to enter the editing mode, and the sub-display blinks. Select "MID" and press key.

FUN

RUN

TEACH

mode.

7 Press key for two seconds to enter the RUN

SET

ZERO/

User’s Manual

3-15

Page 94

Chapter 3

ZERORST/

ESC

ZERO/

SET

ZERO/

SET

ZERORST/

ESC

ZERO/

SET

ZERO/ZERO/

SETSET

RUNRUN

FUNFUN

TEACHTEACH

H L RUNRUN

LIT

RUN

FUN

TEACH

Setting the Output Conditions

■ Setting the average value filter

The average of the measured values obtained based on the preset number of samples can be output. Select this setting when you want to ignore sudden changes in measured values.

Setting Description

1/2/4/8/16/32/64/128/256/512/ 1024/2048/4096 (Default value: 256)

Sets the average count.

Chapter 3 SETTINGS FOR FUNCTIONS

As an example, here is an explanation of the procedure for selecting the "128" average count setting.

Operating procedure

Steps

1 - 4 For moving to FILTER, see steps 1 to 4 in p.3-15

5 Select "Average filter" as the filter type.

6 Select "128" as the average count.

7 Press key for two seconds to enter the RUN

Key operation Display Description

ZERORST/

ZERO/

ESC

SET

ESC

SET

Press or keys to select either of "AVE" and press key.

SET

ZERO/

The current setting value is displayed on the subdisplay. Press / keys to enter the editing mode, and the sub-display blinks. Select "128" and press key.

RUN

FUN

TEACH

mode.

3-16

User’s Manual

Page 95

Chapter 3

ZERORST/

ESC

ZERO/

SET

ZERO/ZERO/

SETSET

ZERORST/ZERORST/

ESCESC

ZERO/ZERO/

SETSET

ZERO/ZERO/

SETSET

ZERORST/

ESC

ZERO/

SET

ZERO/

SET

ZERO/

SET

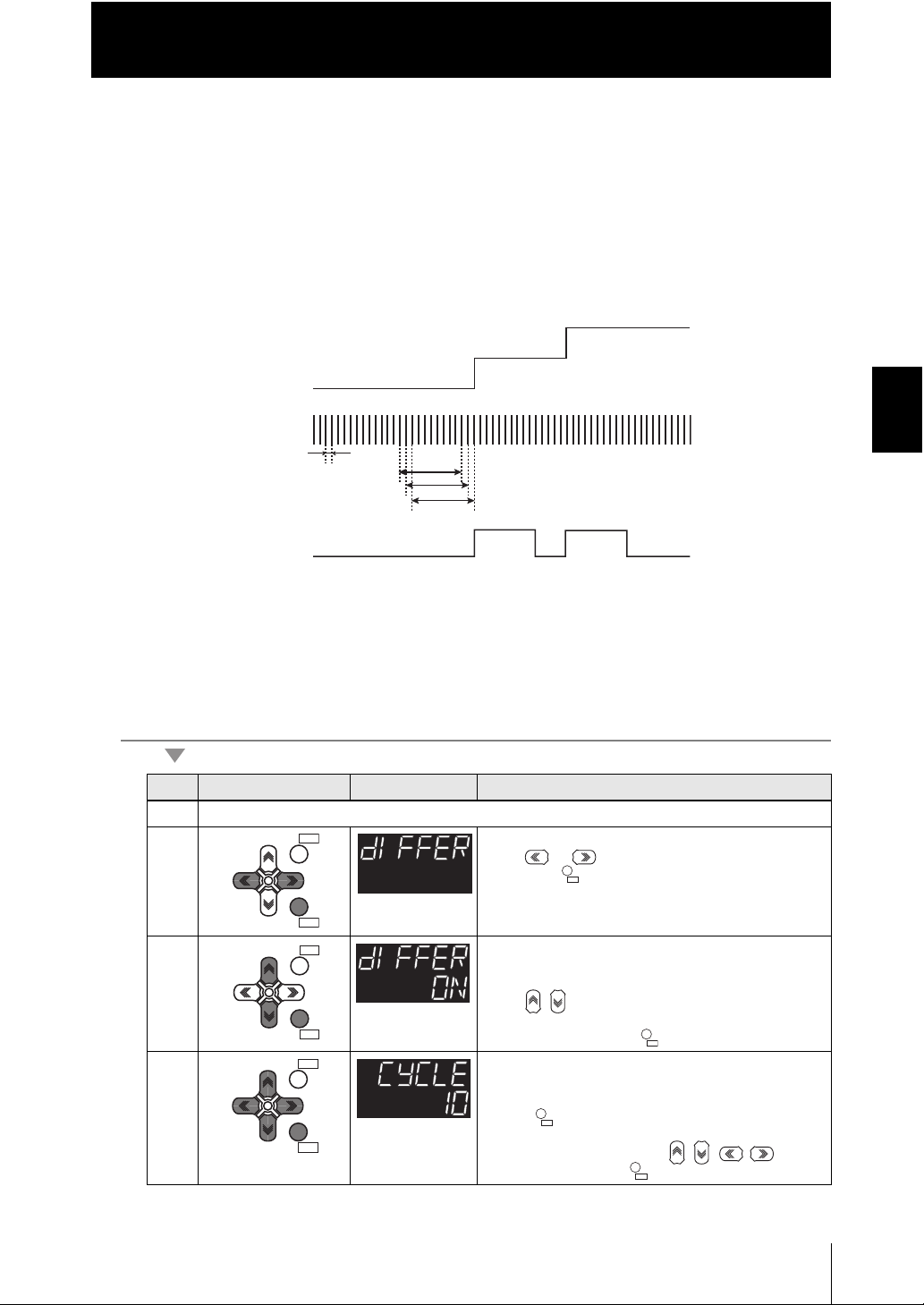

Setting the Output Conditions

■ Setting the differ filter

Use the differentiation function to detect only sudden changes in the measured values that occur during very short periods of time. The differentiation function detects changes between the present value and the measured value that is in effect just before the comparing pitch. The coefficient of this comparing pitch is defined as the differentiation cycle.

Example: Differentiation cycle = 10 ms

Present value

Sampling

Chapter 3 SETTINGS FOR FUNCTIONS

Measuring cycle

Display value (differentiation result)

Comparison interval: 10 ms

As an example, here is an explanation of the procedure for selecting the "10 ms" differentiation filter cycle setting.

Operating procedure

Steps

1 - 4 For moving to FILTER, see steps 1 to 4 in p.3-15

5 Select "Differ filter" as the filter type.

6 Enable the differential filter.

7 Set "10" as the differential cycle.

Key operation Display Description

ESC

ZERORST/

Press or keys to select either of "DIFFER" and press key.

SET

ZERO/

The current setting value is displayed on the subdisplay. Press / keys to enter the editing mode, and the sub-display blinks. Select "ON" and press key.

ESC

ZERORST/

"CYCLE" is displayed on the main display and the current setting value is displayed on the sub-display.

ZERO/

Press key to enter the editing mode, and the

SET

sub-display blinks. To edit numerical values use / / / keys. Enter "10" and press key.

SET

ZERO/

SET

ZERO/

User’s Manual

3-17

Page 96

Chapter 3

RUN

FUN

TEACH

H L RUNRUN

LIT

RUN

FUN

TEACH

Setting the Output Conditions

Steps

8 Press key for two seconds to enter the RUN

Key operation Display Description

RUN

FUN

TEACH

Chapter 3 SETTINGS FOR FUNCTIONS

mode.

RUN

FUN

TEACH

3-18

User’s Manual

Page 97

Chapter 3

Setting the Output Conditions

■ Setting the frequency filter

Set a filter to ignore or detect the changes in a specific frequency in the measured data.

Setting [Display] Description

Lowpass Filter [LO.PASS] Ignores frequency components larger than the specified

cut-off frequency. (Only gradual changes are captured.) Range of cut-off frequency: 0.001 - 999.999 Hz (Default value: 0.001)

Highpass Filter [HI.PASS] Detects frequency components smaller than the

specified cut-off frequency. (Sudden changes are captured.) Range of cut-off frequency: 0.001 - 999.999 Hz (Default value: 0.001)

Bandpass Filter [BD.PASS] Detects the frequency components between the cut-off

frequency (lower limit) and the cut-off frequency (upper limit). Sets the upper and lower limits of the frequency bandwidth to be detected. Range: Upper limit 0.001 - 999.999 Hz

(Default value: 999.999)

Lower limit 0.001 - 999.999 Hz

(Default value: 0.001)

Off [OFF]

Frequency filter is not used.

(Default value)

Chapter 3 SETTINGS FOR FUNCTIONS

*1 Set the cut-off frequency to a value smaller than one-half of the sampling frequency. Otherwise, the

frequency filter will not function properly. If a value outside of the appropriate range is set, the frequency filter will be applied with the values included in the range.

*2 If the cut-off frequency values (upper/lower limits) are too close, the frequency bandwidth to be

detected cannot be properly detected.

• The sampling frequency is the inverse of the sampling cycle.

• The measuring cycle can be viewed in the "System Information" menu.

Checking Information p.3-47

User’s Manual

3-19

Page 98

Chapter 3

ZERORST/

ESC

ZERO/

SET

ZERO/

SET

ZERORST/

ESC

ZERO/

SET

ZERO/

SET

ZERORST/

ESC

ZERO/

SET

ZERO/ZERO/

SETSET

ZERO/ZERO/

SETSET

RUN

FUN

TEACH

H L RUNRUN

LIT

RUN

FUN

TEACH

Setting the Output Conditions

As an example, here is an explanation of the procedure for selecting the "Lopass filter" setting for the frequency filter type, and the "1 Hz" cut-off frequency filter setting.

Operating procedure

Steps

Key operation Display Description

1 - 4 For moving to FILTER, see steps 1 to 4 in p.3-15

5 Select "Frequency filter" as the filter type.

ZERORST/

Chapter 3 SETTINGS FOR FUNCTIONS

6 Select "Lowpass filter" as the frequency filter type.

7 Set "1" as the cut-off frequency.

8 Press key for two seconds to enter the RUN

FUN

RUN

TEACH

ZERORST/

ZERO/

ESC

SET

ESC

SET

Press or keys to select either of "FREQ" and press key.

SET

ZERO/

The current setting value is displayed on the subdisplay. Press / keys to enter the editing mode, and the sub-display blinks. Select "LO.PASS" and press key.

SET

ZERO/

"CUTOFF" is displayed on the main display and the current setting value is displayed on the sub-display. Press key to enter the editing mode, and the sub-display blinks. To edit numerical values use / / / keys. Enter "1" and press key.

RUN

FUN

TEACH

mode.

3-20

User’s Manual

Page 99

Chapter 3

4.5

Sensor head

Measured value:

4.5 mm

0 mm

Measuring center distance

Sensing

object

Target display value: Relative reference value from the sensor with this distance as the reference.

Default display

Display value

(mm)

Measured value (mm)

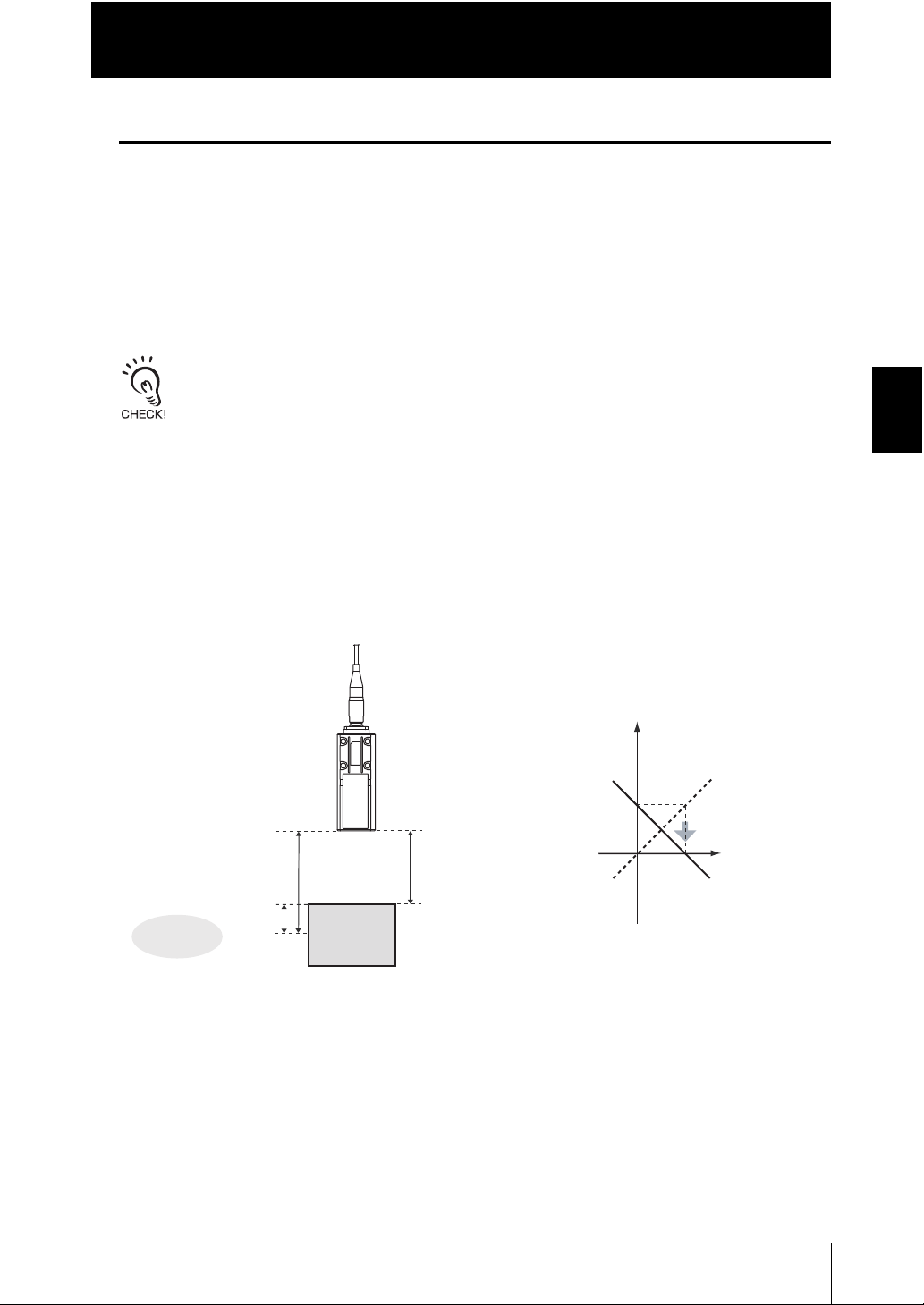

Setting the Output Conditions

Setting the Scaling

This setting is used when you want to correct any errors that are generated due to the installation status of the Sensor Head, and display the corrected value on the main display as a measured value. There are three types of setting: "auto scaling" ("one-point scaling" and "two-point scaling") that automatically sets the correction value of a placed sensing object, "manual scaling" that manually sets the correction value and "thickness scaling" that sets the sensing object (transparent object) and automatically sets the correction value.

The "zero Reset" (p.3-37) settings return to the default settings when scaling is set. If scaling is set,

perform a zero reset as necessary.

● One-point scaling

A measurement is performed at one position and offset values are set for that measured value. The offset and increment/decrement inversion can be set. (Default value: OFF)

Example: When displaying the distance to the sensing object

Chapter 3 SETTINGS FOR FUNCTIONS

User’s Manual

3-21

Page 100

Chapter 3

RUNRUN

FUNFUN

TEACHTEACH

H L RUNRUN

UNLIT

RUN

FUN

TEACH

ZERORST/ZERORST/

ESCESC

ZERO/ZERO/

SETSET

ZERO/

SET

ZERO/ZERO/

SETSET

ZERO/ZERO/

SETSET

ZERO/ZERO/

SETSET

ZERORST/ZERORST/

ESCESC

ZERO/ZERO/

SETSET

ZERO/ZERO/

SETSET

ZERORST/ZERORST/

ESCESC

ZERO/ZERO/

SETSET

ZERO/ZERO/

SETSET

ZERO/ZERO/

SETSET

ZERO/

SET

ZERORST/

ESC

ZERO/

SET

ZERO/ZERO/

SETSET

ZERORST/ZERORST/

ESCESC

ZERO/ZERO/

SETSET

ZERO/ZERO/

SETSET

Setting the Output Conditions

Operating procedure

Steps

Key operation Display Description

1 Press key for two seconds to enter the FUN

2 Press or keys to select either of "MEAS" and

3 Press or keys to select either of "TASK1"

Chapter 3 SETTINGS FOR FUNCTIONS

4 Press or keys to select either of "OUTPUT"

5 Press or keys to select either of "SCALE"

6 Select "AUTO" as the scaling type.

7 Select "One point."

RUN

FUN

TEACH

mode.

press key.

SET

ZERO/

and press key.

The current setting value is displayed on the subdisplay. Press / keys to enter the editing mode, and the sub-display blinks. Select "AUTO" and press key.

Press or keys to select either of "1PT" and press key.

3-22

8 Press key when the main display shows

9 The current measured value is displayed on the main

10 Set the increment/decrement direction.

User’s Manual

ZERORST/

ZERO/

ESC

SET

ZERO/

"POINT1."

display and the current setting value is displayed on the sub-display. To edit numerical values use / / / keys. Enter the setting value and then press key.

"DIR" is displayed on the main display and the incremental/decremental directions ("FWD": the NEAR side as + and "REV": the FAR side as +) are displayed on the sub-display. Press / keys to enter the editing mode, and the sub-display blinks. Select "AUTO" and press key.
