Omron SYSMAC C200HS Operation Manual

Download

Page 1

Cat. No. W235-E1-05

SYSMAC Programmable Controllers

C200HS

Page 2

C200HS Programmable Controllers

Operation Manual

Revised February 2002

Page 3

Page 4

Notice:

OMRON products are manufactured for use according to proper procedures by a qualified operator and only for the purposes described in this manual.

The following conventions are used to indicate and classify precautions in this manual. Always heed the information provided with them. Failure to heed precautions can result in injury to people or damage to property.

DANGER Indicates an imminently hazardous situation which, if not avoided, will result in death or

serious injury.

WARNING Indicates a potentially hazardous situation which, if not avoided, could result in death or

serious injury.

Caution Indicates a potentially hazardous situation which, if not avoided, may result in minor or

moderate injury, or property damage.

OMRON Product References

All OMRON products are capitalized in this manual. The word “Unit” is also capitalized when it refers to an OMRON product, regardless of whether or not it appears in the proper name of the product.

The abbreviation “Ch,” which appears in some displays and on some OMRON products, often means “word” and is abbreviated “Wd” in documentation in this sense.

The abbreviation “PC” means Programmable Controller and is not used as an abbreviation for anything else.

Visual Aids

The following headings appear in the left column of the manual to help you locate different types of information.

Note Indicates

information of particular interest for ef

ficient and convenient operation

of the product.

1, 2, 3... 1. Indicates lists of one sort or another, such as procedures, checklists, etc.

 OMRON, 1994

All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form, or by any means, mechanical, electronic, photocopying, recording, or otherwise, without the prior written permission of OMRON.

No patent liability is assumed with respect to the use of the information contained herein. Moreover, because OMRON is constantly striving to improve its high-quality products, the information contained in this manual is subject to change without notice. Every precaution has been taken in the preparation of this manual. Nevertheless, OMRON assumes no responsibility for errors or omissions. Neither is any liability assumed for damages resulting from the use of the information contained in this publication.

Page 5

Page 6

TABLE OF CONTENTS

vii

PRECAUTIONS xiii. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1 Intended Audience xiv. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2 General Precautions xiv. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3 Safety Precautions xiv. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4 Operating Environment Precautions xiv. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5 Application Precautions xv. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

6 Conformance to EC Directives xvi. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SECTION 1

Introduction 1. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1-1 Overview 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1-2 The Origins of PC Logic 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1-3 PC Terminology 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1-4 OMRON Product Terminology 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1-5 Overview of PC Operation 4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1-6 Peripheral Devices 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1-7 Available Manuals 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1-8 New C200HS Features 6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SECTION 2

Hardware Considerations 15. . . . . . . . . . . . . . . . . . . . . . . . .

2-1 CPU Components 16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2-2 PC Configuration 18. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2-3 CPU Capabilities 19. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2-4 Memory Cassettes 20. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2-5 Installing Memory Cassettes 21. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2-6 CPU DIP Switch 23. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SECTION 3

Memory Areas 25. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3-1 Introduction 26. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3-2 Data Area Structure 27. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3-3 IR (Internal Relay) Area 31. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3-4 SR (Special Relay) Area 33. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3-5 AR (Auxiliary Relay) Area 48. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3-6 DM (Data Memory) Area 55. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3-7 HR (Holding Relay) Area 60. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3-8 TC (Timer/Counter) Area 60. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3-9 LR (Link Relay) Area 61. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3-10 UM Area 61. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3-11 TR (Temporary Relay) Area 61. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SECTION 4

Writing and Inputting the Program 63. . . . . . . . . . . . . . . . .

4-1 Basic Procedure 64. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4-2 Instruction Terminology 64. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4-3 Program Capacity 65. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4-4 Basic Ladder Diagrams 65. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4-5 The Programming Console 78. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4-6 Preparation for Operation 80. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4-7 Inputting, Modifying, and Checking the Program 92. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4-8 Controlling Bit Status 108. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4-9 Work Bits (Internal Relays) 110. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4-10 Programming Precautions 112. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4-11 Program Execution 114. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Page 7

TABLE OF CONTENTS

viii

SECTION 5

Instruction Set 115. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5-1 Notation 118. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5-2 Instruction Format 118. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5-3 Data Areas, Definer Values, and Flags 118. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5-4 Differentiated Instructions 119. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5-5 Expansion Instructions 120. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5-6 Coding Right-hand Instructions 122. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5-7 Instruction Set Lists 125. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5-8 Ladder Diagram Instructions 129. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5-9 Bit Control Instructions 130. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5-10 INTERLOCK and INTERLOCK CLEAR – IL(02) and ILC(03) 135. . . . . . . . . . . . . . . . . . .

5-11 JUMP and JUMP END – JMP(04) and JME(05) 137. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5-12 END – END(01) 138. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5-13 NO OPERATION – NOP(00) 138. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5-14 Timer and Counter Instructions 138. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5-15 Data Shifting 150. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5-16 Data Movement 158. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5-17 Data Comparison 169. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5-18 Data Conversion 181. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5-19 BCD Calculations 205. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5-20 Binary Calculations 220. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5-21 Special Math Instructions 234. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5-22 Logic Instructions 250. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5-23 Subroutines and Interrupt Control 254. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5-24 Step Instructions 267. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5-25 Special Instructions 276. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5-26 Network Instructions 292. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5-27 Serial Communications Instructions 298. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5-28 Advanced I/O Instructions 302. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SECTION 6

Program Execution Timing 317. . . . . . . . . . . . . . . . . . . . . . . .

6-1 Cycle Time 318. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

6-2 Calculating Cycle Time 322. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

6-3 Instruction Execution Times 324. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

6-4 I/O Response Time 333. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SECTION 7

Program Monitoring and Execution 345. . . . . . . . . . . . . . . .

7-1 Monitoring Operation and Modifying Data 346. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SECTION 8

Communications 373. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

8-1 Introduction 374. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

8-2 Parameters for Host Link and RS-232C Communications 374. . . . . . . . . . . . . . . . . . . . . . . .

SECTION 9

Memory Cassette Operations 385. . . . . . . . . . . . . . . . . . . . . .

9-1 Memory Cassettes 386. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

9-2 Memory Cassette Settings and Flags 386. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

9-3 UM Area Data 387. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

9-4 IOM Area Data 388. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Page 8

TABLE OF CONTENTS

SECTION 10

Troubleshooting 391. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

10-1 Alarm Indicators 392. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

10-2 Programmed Alarms and Error Messages 392. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

10-3 Reading and Clearing Errors and Messages 392. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

10-4 Error Messages 392. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

10-5 Error Flags 397. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

10-6 Host Link Errors 399. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

SECTION 11

Host Link Commands 401. . . . . . . . . . . . . . . . . . . . . . . . . . . .

11-1 Communications Procedure 402. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

11-2 Command and Response Formats 404. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

11-3 Host Link Commands 407. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

11-4 Host Link Errors 431. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Appendices

A Standard Models 433. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

B Programming Instructions 443. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

C Error and Arithmetic Flag Operation 449. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

D Memory Areas 453. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

E PC Setup 461. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

F Word Assignment Recording Sheets 465. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

G Program Coding Sheet 471. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

H Data Conversion Tables 473. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

I Extended ASCII 475. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Glossary 477. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Index 493. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Revision History 499. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Page 9

About this Manual:

This

manual describes the operation of the C200HS C-series Programmable Controllers, and it includes

the

sections described below. Installation information is provided in the

C200HS Programmable Control

ler

Installation Guide

. A table of other manuals that can

be used in conjunction with this manual is provided in Section 1 Introduction. Provided in Section 2 Hardware Considerations is a description of the differ- ences between the older CPUs and the new CPUs described in this manual.

Please

read this manual completely and be sure

you understand the information provided before attempt

ing to operate the C200HS. Be sure to read the precautions in the following section. Section 1 Introduction explains the background and some of the basic terms used in ladder-diagram

programming.

It also provides an overview of the process of programming and operating a PC and ex

plains basic terminology used with OMRON PCs. Descriptions of Peripheral Devices used with the C200HS

PCs and a table of other manuals available to use with this manual for special PC applications

are also provided. Section 2 Hardware Considerations explains basic aspects of the overall PC configuration and de-

scribes the indicators that are referred to in other sections of this manual.

Section

3 Memory Areas

takes a look at the way memory is divided and allocated and explains the infor

mation

provided there to aid in programming. It explains how I/O is managed in memory and how bits in

memory

correspond to specific I/O points. It also provides information

on System DM, a special area in

C200HS PCs that provides the user with flexible control of PC operating parameters.

Section

4 W

riting and Entering Programs

explains the basics of

ladder-diagram programming, looking

the elements that make up the parts of a ladder-diagram program and explaining how execution of this program is controlled. It also explains how to convert ladder diagrams into mnemonic code so that the programs can be entered using a Programming Console.

Section 5 Instruction Set describes all of the instructions used in programming. Section

6 Program Execution T

iming explains the cycling process used to execute the program and

tells how to coordinate inputs and outputs so that they occur at the proper times.

Section

7 Program Debugging and Execution explains the Programming Console procedures used to

input and debug the program and to monitor and control operation. Section 8 Communications provides an overview of the communications features provided by the

C200HS. Section 9 Memory Cassette Operations describes how to manage both UM Area and IOM data via

Memory Cassettes. mounted in the CPU.

Section

10 T

roubleshooting

provides information on

error indications and other means of reducing down-

time. Information in this section is also useful when debugging programs.

Section

1 Host Link Commands

explains the methods

and procedures for using host link commands,

which can be used for host link communications via the C200HS ports. The

Appendices

provide tables of standard OMRON products available for the C200HS PCs,

reference tables of instructions and Programming Console operations, coding sheet to help in programming and parameter input, and other information helpful in PC operation.

WARNING Failure to read and understand the information provided in this manual may result in

personal injury or death, damage to the product, or product failure. Please read each section

in its entirety and be sure you understand the information provided

in the section

and related sections before attempting any of the procedures or operations given.

Page 10

xiii

PRECAUTIONS

This section provides general precautions for using the Programmable Controller (PC) and related devices.

The

information contained in this section is important for the safe and r

eliable application of the PC. Y

ou must read

this section and understand the information contained before attempting to set up or operate a PC system.

1 Intended Audience xiv. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2 General Precautions xiv. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3 Safety Precautions xiv. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4 Operating Environment Precautions xiv. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5 Application Precautions xv. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

6 Conformance to EC Directives xvi. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Page 11

xiv

1 Intended Audience

This

manual is intended for the following personnel, who must also have knowl

edge of electrical systems (an electrical engineer or the equivalent).

• Personnel in charge of installing FA systems.

• Personnel in charge of designing FA systems.

• Personnel in charge of managing FA systems and facilities.

2 General Precautions

The

user must operate the product according to the performance specifications

described in the operation manuals. Before

using the product under conditions which are

not described in the manual or applying the product to nuclear control systems, railroad systems, aviation systems, vehicles, combustion systems, medical equipment, amusement machines,

safety equipment, and other systems, machines,

and equipment that

may

have a serious influence on lives and property if

used improperly

, consult

your OMRON representative. Make sure that the ratings and performance characteristics of the product are

sufficient

for

the systems, machines, and equipment, and be sure to provide the

systems, machines, and equipment with double safety mechanisms. This

manual provides

information for programming and operating OMRON PCs.

sure

to read this manual before attempting to use the software and keep this

manual close at hand for reference during operation.

WARNING It is extremely important that a PC and all PC Units be used for the specified

purpose

and under the specified conditions, especially in applications that can directly or indirectly affect human life. You must consult with your OMRON representative before applying a PC System to the abovementioned applications.

3 Safety Precautions

WARNING Never

attempt to disassemble any Units while power is being supplied. Doing so

may result in serious electrical shock or electrocution.

WARNING Never

touch any of the terminals while power is

being supplied. Doing so may

result in serious electrical shock or electrocution.

4 Operating Environment Precautions

Do not operate the control system in the following places.

• Where the PC is exposed to direct sunlight.

• Where the ambient temperature is below 0°C or over 55°C.

• Where the PC may be affected by condensation due to radical temperature

changes.

• Where the ambient humidity is below 10% or over 90%.

• Where there is any corrosive or inflammable gas.

• Where there is excessive dust, saline air, or metal powder.

• Where the PC is affected by vibration or shock.

• Where any water, oil, or chemical may splash on the PC.

Operating Environment Precautions

Page 12

Caution The

operating environment of the PC

System can have a large ef

fect on the lon

gevity

and reliability of the system. Improper operating environments can lead to

malfunction,

failure, and other

unforeseeable problems with the PC System. Be

sure

that the operating environment is within the specified conditions at installa

tion and remains within the specified conditions during the life of the system.

5 Application Precautions

Observe the following precautions when using the PC.

WARNING Failure to abide by the following precautions could lead to serious or possibly

fatal injury. Always heed these precautions.

• Always

ground the system to 100

Ω or less when installing the system to pro

tect against electrical shock.

• Always

turn of

f the power supply to the PC before attempting any of the follow

ing.

Performing any of the following with the power supply turned

on may lead

to electrical shock:

• Mounting or dismounting Power Supply Units, I/O Units, CPU Units, Memory Units, or any other Units.

• Assembling any devices or racks.

• Connecting or disconnecting any cables or wiring.

Caution Failure

to abide by the following precautions could lead to faulty operation or the

or the system or could damage the PC or PC Units. Always

heed these pre

cautions.

• Use

the Units only with the power supplies and voltages specified in the opera

tion manuals. Other power supplies and voltages may damage the Units.

• Take

measures to stabilize the power supply to conform to the rated supply if it

is not stable.

• Provide circuit breakers and other safety measures to provide protection against shorts in external wiring.

• Do not apply voltages exceeding the rated input voltage to Input Units. The Input Units may be destroyed.

• Do not apply voltages exceeding the maximum switching capacity to Output Units. The Output Units may be destroyed.

• Always

disconnect the LG terminal when performing withstand voltage tests.

• Install all Units according to instructions in the operation manuals. Improper installation may cause faulty operation.

• Provide proper shielding when installing in the following locations:

• Locations subject to static electricity or other sources of noise.

• Locations subject to strong electromagnetic fields.

• Locations subject to possible exposure to radiation.

• Locations near to power supply lines.

• Be sure to tighten Backplane screws, terminal screws, and cable connector

screws securely.

• Do not attempt to take any Units apart, to repair any Units, or to modify any Units in any way.

Caution The

following precautions are necessary to ensure the general safety of the sys

tem. Always heed these precautions.

• Provide double safety mechanisms to handle incorrect signals that can be generated by broken signal lines or momentary power interruptions.

• Provide external interlock circuits, limit circuits, and other safety circuits in addition to any provided within the PC to ensure safety.

Application Precautions

Page 13

xvi

6 Conformance to EC Directives

Observe

the following precautions when installing the C200HS-CPU01-EC and

C200HS-CPU21-EC that conform to the EC Directives. Provide

reinforced insulation

or double insulation for the DC power source con

nected to the DC I/O Unit and for the Power Supply Unit. Use

a separate power source for the DC I/O Unit from the external power supply

for the Relay Output Unit.

Conformance to EC Directives

Section 6

Page 14

SECTION 1

Introduction

This

section gives a brief overview of the history of Programmable Controllers and explains terms commonly used in ladder

diagram

programming. It also provides an overview of the process of programming and operating

a PC and explains basic terminology used with OMRON PCs. Descriptions of peripheral devices used with the C200HS, a table of other manuals available

to use with this manual for special PC applications, and a description of the new features of the C200HS are also

provided.

1-1 Overview 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1-2 The Origins of PC Logic 2. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1-3 PC Terminology 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1-4 OMRON Product Terminology 3. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1-5 Overview of PC Operation 4. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1-6 Peripheral Devices 5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1-7 A

vailable Manuals

5. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1-8

New C200HS Features

6. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1-8-1 Improved Memory Capabilities 7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1-8-2 Faster Execution Times 7. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1-8-3 Larger Instruction Set 8. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1-8-4 Wide Selection of Special I/O Units 9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1-8-5 Improved Interrupt Functions 9. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1-8-6 SYSMAC NET Link and SYSMAC LINK Capabilities 9. . . . . . . . . . . . . . . . . . . .

1-8-7 Built-in RS-232C Connector 10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1-8-8 More Flexible PC Settings 10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1-8-9

Debugging and Maintenance

10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1-8-10 New Programming Console Operations 10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1-8-11 Peripheral Devices 10. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1-8-12 Using C200H Programs 11. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Page 15

1-1 Overview

A PC (Programmable Controller) is basically a CPU (Central Processing Unit) containing

a program and connected to input and

output (I/O) devices. The pro

gram

controls the PC so

that when an input signal from an input device turns ON,

the

appropriate response is made. The response normally involves turning ON

output signal to some sort of output device. The input devices could be photo

electric

sensors, pushbuttons

on control panels, limit switches, or any other de

vice that can produce a signal that can be input into the PC. The output devices could be solenoids, switches activating indicator lamps, relays turning on motors,

or any other devices that can be activated by signals output from the PC.

For

example, a sensor detecting a passing product turns ON an input

to the PC.

The

PC responds by turning ON an output that activates a pusher that pushes

the

product onto another conveyor for further processing. Another sensor

, posi

tioned

higher than the first, turns ON a dif

ferent input to indicate that the product

too tall. The PC responds by turning on another pusher positioned before the

pusher mentioned above to push the too-tall product into a rejection box. Although

this example involves only two inputs and two outputs, it is typical of the type of control operation that PCs can achieve. Actually even this example is much

more complex than it may at first appear because of the timing that would be required, i.e., “How does the PC know when to activate each pusher?” Much more

complicated operations, however

, are also possible. The problem is how

to get the desired control signals from available inputs at appropriate times. To

achieve proper control, the C200HS uses a form of PC logic called ladder-dia

gram

programming. This manual is written to explain ladder-diagram program

ming and to prepare the reader to program and operate the C200HS.

1-2 The Origins of PC Logic

PCs

historically originate in relay-based control

systems. And although the inte

grated

circuits and internal logic of the PC have taken the place of the discrete

relays,

timers,

counters, and other such devices, actual PC operation proceeds as if those discrete devices were still in place. PC control, however, also provides

computer capabilities and accuracy to achieve a great deal more flexibility

and reliability than is possible with relays. The symbols and other control concepts used to describe PC operation also

come from relay-based control and form the basis of the ladder-diagram programming

method. Most of the terms used to describe these symbols and

con

cepts, however, have come in from computer terminology.

Relay vs. PC Terminology The

terminology

used throughout this manual is somewhat dif

ferent from relay

terminology, but the concepts are the same. The following table shows the relationship between relay terms and the PC

terms used for OMRON PCs.

Relay term PC equivalent

contact input or condition coil output or work bit NO relay normally open condition NC relay normally closed condition

Actually

there is not a total equivalence between these terms. The term

condi

tion

is only used to describe ladder diagram programs in general

and is specifi

cally

equivalent to one of certain set of basic instructions. The terms input

and output are not used in programming per se, except in reference to I/O bits that are assigned to input and output signals coming into and leaving the PC. Normally

open conditions

and normally closed conditions are explained in

4-4 Basic

Ladder Diagrams.

The Origins of PC Logic Section 1-2

Page 16

1-3 PC Terminology

Although

also provided in the

Glossary

at the back of this manual, the following

terms are crucial to understanding PC operation and are thus explained here.

PC Because the C200HS is a Rack PC, there is

no one product that is a C200HS PC. That is why we talk about the configuration of the PC, because a PC is a configuration of smaller Units.

have a functional PC, you would need to have a CPU Rack with at least one

Unit

mounted to it that provides I/O points. When we refer to the PC, however

, we

are

generally talking about the CPU and all of the

Units directly controlled by it

through

the program. This does not include the I/O devices connected

to PC in

puts and outputs. If

you are not

familiar with the terms used above to describe a PC, refer to

Sec-

tion 2 Hardware Considerations for explanations.

Inputs and Outputs A device connected to the PC that sends a signal to the PC is called an input

device; the signal it sends is called an input signal. A signal enters the PC

through

terminals or through pins on a connector on a Unit. The place where a

signal

enters the PC is called an

input point

. This input

point is allocated a loca

tion

in memory that reflects its

status, i.e., either ON or OFF

. This memory loca

tion

is called an

input bit

. The CPU, in its

normal processing cycle, monitors the

status

of all input points and turns ON or OFF corresponding

input bits accord

ingly. There are also output bits in memory that are allocated to output points on

Units

through which

output signals

are sent to

output devices, i.e., an output

bit

is turned ON to send a signal to an output device through an output point.

The CPU periodically turns output points ON or OFF according to the status of the output bits.

These

terms are used when describing dif

ferent aspects of PC operation. When

programming, one is concerned with what information is held in memory

, and so

I/O

bits are referred to. When talking

about the Units that connect the PC to the

controlled system and the places on these Units where signals enter

and

leave the PC, I/O points are referred to. When wiring these I/O points, the physical counterparts

of the I/O points, either terminals or connector pins,

are referred to. When talking about the signals that enter or leave the PC, one refers to input signals

and output signals, or sometimes just inputs and outputs. It all depends

on what aspect of PC operation is being talked about. The

Control System

includes the PC and all I/O devices it uses to control an ex

ternal

system.

A sensor that provides information to achieve control is an input device that is clearly part of the Control System. The controlled system is the external system that is being controlled by the PC program through these I/O devices. I/O devices can sometimes be considered part of the controlled system, e.g., a motor used to drive a conveyor belt.

1-4 OMRON Product Terminology

OMRON

products are divided into several functional groups that have generic names. Appendix A Standard Models list products according to these groups. The

term Unit

is used to refer to all of the OMRON PC products. Although a Unit is any one of the building blocks that goes together to form a C200HS PC, its meaning

is generally

, but not always, limited in context to refer to the Units that

are

mounted to a Rack. Most, but not all, of these products have names that end

with the word Unit. The

largest group of OMRON products

is the

I/O Units

. These include all of the

Rack-mounting

Units that provide non-dedicated input or output points for gen

eral

use. I/O Units come with a variety of point connections and specifications.

Controlled System and Control System

OMRON Product Terminology Section 1-4

Page 17

High-density I/O Units

are designed to provide high-density I/O capability and

include

Group 2 High-density I/O Units and Special I/O High-density I/O

Units.

Special

I/O Units

are dedicated Units

that are designed to meet specific needs.

These

include some of the

High-density I/O Units, Position Control Units, High-

speed Counter Units, and Analog I/O Units.

Link

Units

are used to create Link Systems that link more than one PC or link a single PC to remote I/O points. Link Units include Remote I/O Units, PC Link Units, Host Link Units, SYSMAC NET Link Units, and SYSMAC LINK Units. SYSMAC

NET Link and SYSMAC LINK Units can be used with the CPU1

1 only

Other product groups include Programming Devices, Peripheral Devices, and DIN Rail Products.

1-5 Overview of PC Operation

The following are the basic steps involved in programming and operating a C200HS.

Assuming you have already purchased one or more of these PCs, you

must

have a reasonable idea of the required information for steps one and two,

which are discussed briefly below

. This manual is written

explain steps three through six, eight, and nine. The relevant sections of this manual that provide more information are listed with each of these steps.

1, 2, 3... 1. Determine

what the controlled system must do, in what order

, and at what

times.

2. Determine

what Racks and what Units will be required. Refer to the

C200HS

Installation

Guide

. If a Link System is required,

refer to the appropriate

Sys-

tem Manual.

3. On

paper

, assign all input and output devices to I/O points on Units and de

termine

which I/O bits will be allocated to each. If

the PC includes Special I/O

Units

or Link Systems, refer to the individual

Operation Manuals

System

Manuals for details on I/O bit allocation. (Section 3 Memory Areas)

4. Using

relay ladder symbols, write a program that

represents the sequence

required operations and their inter-relationships. Be sure to also

program

appropriate responses for all possible emergency situations. (Section 4

Writing

and Inputting the Program, Section

5 Instruction Set, Section

6 Pro

gram Execution Timing)

5. Input

the program and all required operating

parameters into the PC. (

Sec-

tion 4-7 Inputting, Modifying, and Checking the Program.)

6. Debug

the program, first to eliminate any syntax errors, and then to find ex

ecution errors. (Section 4-7 Inputting, Modifying, and Checking the Pro-

gram, Section 7 Program Monitoring and Execution, and Section 10 Troubleshooting)

7. Wire the PC to the controlled system. This step can actually be started

soon

as step 3 has been completed. Refer

to the

C200HS Installation Guide

and to Operation Manuals and System Manuals for details on individual Units.

8. Test

the program in an actual control situation and carry out fine tuning as required. (Section 7 Program Monitoring and Execution and Section 10 Troubleshooting)

9. Record

two copies of the finished program on masters and store them safely in different locations. (Section 4-7 Inputting, Modifying, and Checking the Program)

Control System Design Designing

the Control System is the first step in automating any

process. A PC

can

be programmed and operated only after the overall Control System is fully understood. Designing the Control System requires, first of all, a thorough understanding of the system that is to be controlled. The first step in designing a Control

System is thus determining the requirements of the controlled system.

Overview of PC Operation Section 1-5

Page 18

Input/Output Requirements The first thing that must be assessed is the number of input and output points

that the controlled system will require. This is done by identifying each device that

is to send an input signal to the PC or which is to receive an output signal from

the PC. Keep in mind that the number of I/O points available depends on

the

configuration of the PC. Refer to

3-3 IR Area

for details on I/O capacity and

the allocation of I/O bits to I/O points. Next,

determine the sequence in which control operations are to occur and the

relative

timing

of the operations. Identify the physical relationships between the

I/O

devices as well as the kinds of responses that should occur between them.

For

instance, a photoelectric switch might be functionally tied to a motor by

way

of a counter within the PC. When the PC

receives

an input from a start switch, it

could

start the motor

. The PC could then stop the motor when the counter has

received a specified number of input signals from the photoelectric switch. Each

of the related tasks must be similarly determined, from the beginning of the

control operation to the end.

Unit Requirements The

actual Units that will be mounted or connected to PC Racks must be deter

mined

according to the requirements of the

I/O devices. Actual hardware specifi

cations,

such as

voltage and current levels, as well as functional considerations,

such

as those that require Special I/O Units or Link Systems will need to be con

sidered.

In many cases, Special I/O Units, Intelligent I/O Units,

or Link Systems can greatly reduce the programming burden. Details on these Units and Link Systems

are available in appropriate

Operation Manuals

and

System Manuals.

Once the entire Control System has been designed, the task of programming, debugging,

and operation as described in the remaining sections of this

manual

can begin.

1-6 Peripheral Devices

The following peripheral devices can be used in programming, either to input/ debug/monitor

the PC program or to interface the PC to external devices to out

put

the program or memory area data. Model numbers for all devices listed be

low

are provided

Appendix A Standard Models

. OMRON product names have

been placed in bold when introduced in the following descriptions.

Programming Console A Programming Console is the simplest form of programming device for OM-

RON

PCs. All Programming Consoles are connected directly to the CPU without

requiring a separate interface. LSS

is designed to run on

IBM A

T/XT compatibles and allows you to perform all

the

operations of the Programming Console as well as many additional ones. PC programs can be written on-screen in ladder-diagram form as well as in mnemonic

form. As the program is written, it is displayed on a display

, making confir

mation

and modification quick and easy

. Syntax checks may also be performed

on the programs before they are downloaded to the PC. The LSS is available on either 5” or 3.5” disks. A

computer running the LSS is connected to the

C200HS via the Peripheral Port

on the CPU using the CQM1-CIF02 cable.

1-7 Available Manuals

The

following table lists other manuals that may be required to program and/or

operate

the

C200HS.

Operation Manuals

and/or

Operation Guides

are also pro

vided

with individual Units and are required

for wiring and other specifications.

Name Cat. No. Contents

GPC Operation Manual W84 Programming procedures for the GPC

(Graphics Programming Console)

FIT Operation Manual W150 Programming procedures for using the FIT

(Factory Intelligent Terminal

Sequence, Timing, and Relationships

Ladder Support Software: LSS

Available Manuals Section 1-7

Page 19

Name ContentsCat. No.

SYSMAC Support Software Operation Manuals W247/W248 Programming procedures for using the SSS Data Access Console Operation Guide W173 Data area monitoring and data modification

procedures for the Data Access Console Printer Interface Unit Operation Guide W107 Procedures for interfacing a PC to a printer PROM Writer Operation Guide W155 Procedures for writing programs to EPROM chips Floppy Disk Interface Unit Operation Guide W119 Procedures for interfacing PCs to floppy disk drives Wired Remote I/O System Manual

(SYSMAC BUS)

W120 Information on building a Wired Remote I/O System

to enable remote I/O capability Optical Remote I/O System Manual

(SYSMAC BUS)

W136 Information on building an Optical Remote I/O

System to enable remote I/O capability PC Link System Manual W135 Information on building a PC Link System to

automatically transfer data between PCs Host Link System Manual

(SYSMAC WAY)

W143 Information on building a Host Link System to

manage PCs from a ‘host’ computer SYSMAC NET Link Unit Operation Manual W114 Information on building a SYSMAC NET Link

System and thus create an optical LAN integrating

PCs with computers and other peripheral devices SYSMAC LINK System Manual W174 Information on building a SYSMAC LINK System to

enable automatic data transfer, programming, and

programmed data transfer between the PCs in the

System High-speed Counter Unit Operation Manual W141 Information on High-speed Counter Unit Position Control Unit Operation Manuals NC111: W137

NC112: W128 NC211: W166

Information on Position Control Unit

Analog I/O Units Operation Guide W127 Information on the C200H-AD001, C200H-DA001

Analog I/O Units Analog Input Unit Operation Manual W229 Information on the C200H-AD002 Analog Input Unit Temperature Sensor Unit Operation Guide W124 Information on Temperature Sensor Unit ASCII Unit Operation Manual W165 Information on ASCII Unit ID Sensor Unit Operation Guide W153 Information on ID Sensor Unit Voice Unit Operation Manual W172 Information on Voice Unit Fuzzy Logic Unit Operation Manual W208 Information on Fuzzy Logic Unit Fuzzy Support Software Operation Manual W210 Information on the Fuzzy Support Software which

supports the Fuzzy Logic Units Temperature Control Unit Operation Manual W225 Information on Temperature Control Unit Heat/Cool Temperature Control Unit Operation

Manual

W240 Information on Heating and Cooling Temperature

Control Unit PID Control Unit Operation Manual W241 Information on PID Control Unit Cam Positioner Unit Operation Manual W224 Information on Cam Positioner Unit

1-8 New C200HS Features

The C200HS CPUs (C200HS-CPU01-E, C200HS-CPU03-E, C200HSCPU21-E, C200HS-CPU23-E, C200HS-CPU31-E, and C200HS-CPU33-E) have

a number of new features that the C200H CPUs lacked. The new C200HS

features

are described briefly in

this section. The C200HS-CPU01-E, C200HSCPU21-E, C200HS-CPU31-E use an AC power supply and the C200HSCPU03-E, C200HS-CPU23-E, and C200HS-CPU33-E use DC.

In addition, the C200HS-CPU21-E, C200HS-CPU23-E, C200HS-CPU31-E, and C200HS-CPU33-E CPUs have an RS-232C connector. The C200HSCPU31-E and C200HS-CPU33-E CPUs support the SYSMAC NET Link Unit and

SYSMAC LINK Unit.

New C200HS Features Section 1-8

Page 20

1-8-1 Improved Memory Capabilities

Internal Memory (UM) The

C200HS CPUs come equipped with 16 KW of RAM in the PC itself, so a very

large

memory capacity is

available without purchasing a separate Memory Unit.

Furthermore, the Ladder Program Area has been increased to 15.2 KW.

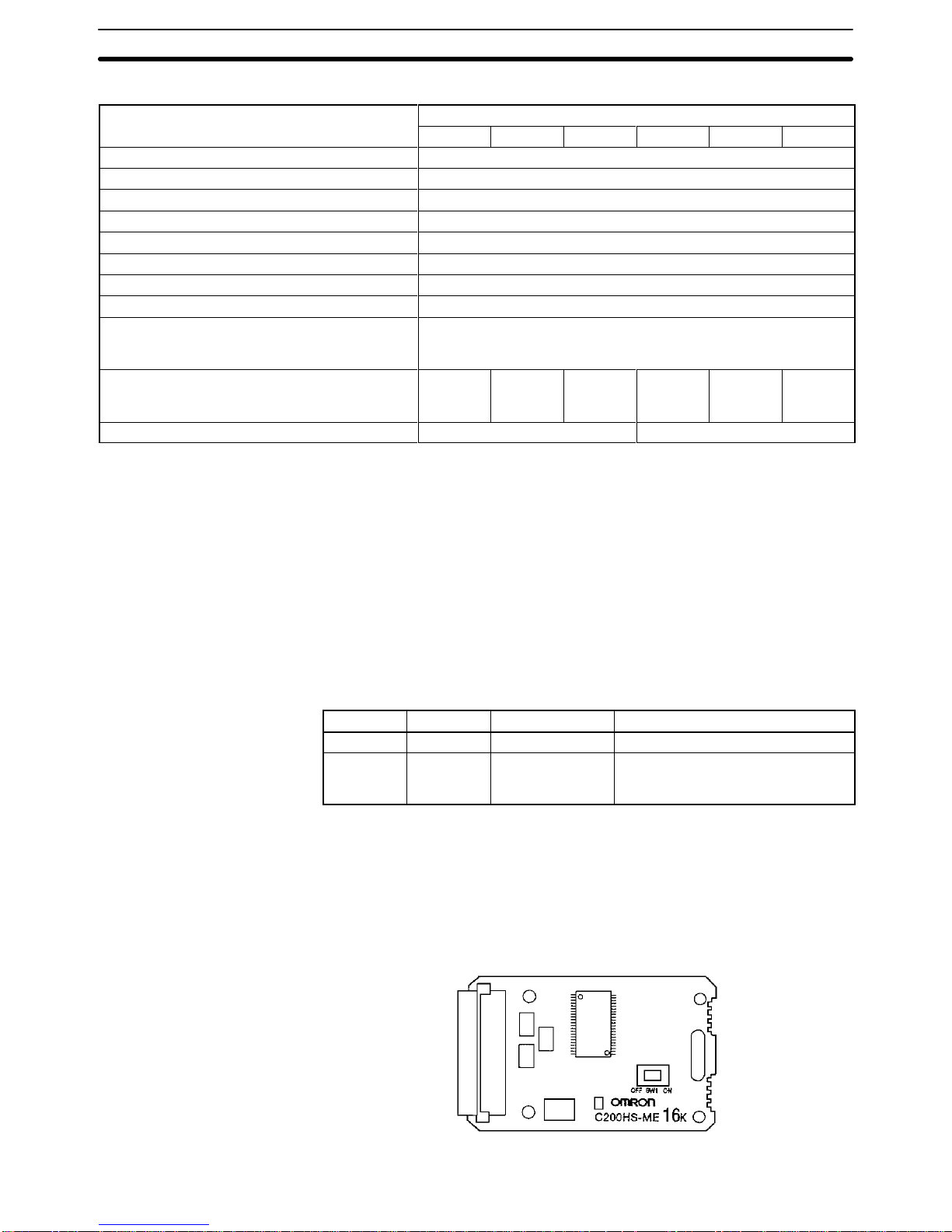

Memory Cassettes Two types of Memory Cassettes are available for storage of data such as the

program.

The PC can be set to transfer data from the Memory

Cassette to UM

automatically when the PC is turned on.

Model Specifications

C200HS-ME16K 16-K Word EEPROM C200HS-MP16K 16-K Word EPROM

Note C200H Memory Cassettes cannot be used in the C200HS.

Clock Function The C200HS CPUs have a built-in clock. It is not necessary to purchase a

Memory Unit equipped with a clock, as it was with the C200H-CPU21-E.

Increased SR Area In addition to the conventional areas of the C200H, the following areas have

been added for the internal auxiliary relays and special auxiliary relays of the C200H. The SR area has been increased substantially to provide more work words

and words dedicated to new

instructions. The SR area now ranges from SR 236 to SR 299. (The SR area ends at SR 255 in C200H CPUs.) By using additional

areas, the user can use Special I/O Units

and Remote I/O Units with

out worrying the empty areas.

Conventional areas IR Area 1 (without I/O area): IR 030 to 235

SR Area 1: SR 236 to 255

Additional areas IR Area 2: IR 300 to 511

SR Area 2: SR 256 to 299

The

number of operands and instruction execution time will be increased when

SR 256 to SR 511 are used in basic instructions.

Increased DM Area The

Read/W

rite DM area has been increased substantially

, too. It now ranges

from

DM 0000 to DM 6143, compared to DM 0000 to

DM 0999 in C200H CPUs.

The

6000 words from DM 0000 to DM 5999 are available for use in the program.

(DM 6000 to DM 6143 are used for the History Log and other functions.) The

Fixed DM Area, used to store initializing data for Special I/O Units, has been decreased in size. It now contains the 512 words from DM 6144 to DM 6655, compared to 1000 words (DM 1000 to DM 1999) in C200H CPUs.

the other hand, up to 3000 words of UM can be allocated as expansion DM.

Expansion DM is allocated in 1000-word units in DM 7000 to DM 9999. C200H

data stored in words DM 1000 to DM 1999 can be used in C200HS PCs

converting these 1000 words to ROM in the C200HS’

s DM area

(DM 7000 to DM 7999) and then automatically transferring them to DM 1000 to DM 1999 when the C200HS is turned on.

1-8-2 Faster Execution Times

Instruction Execution Time Basic

instructions in the C200HS are executed in

!@2

of the time required in the

C200H. Other instructions are executed in just !@4 of the time.

END Processing Time The time required for the cycle’s overhead processes depend on the system

configuration,

but these processes are executed in about

!@4

of the time required

in the C200H.

Fixed DM and Expansion DM Areas

New C200HS Features Section 1-8

Page 21

I/O Refreshing Time The

I/O refreshing time has been reduced for all units, as shown

in the following

table.

I/O Unit Time Required for Refreshing

Standard I/O Units !@3 of the C200H I/O refreshing time Group-2 High-density I/O Units !@3 of the C200H I/O refreshing time Special I/O Units $@5 of the C200H I/O refreshing time

1-8-3 Larger Instruction Set

Advanced programming is facilitated by the 225 application instructions available with the C200HS-CPU01-E, C200HS-CPU03-E, C200HS-CPU21-E, and C200HS-CPU23-E, or the 229 application instructions available with the C200HS-CPU31-E

and C200HS-CPU33-E. In addition, programming has been simplified by the addition of convenient instructions and macro functions. The new

instructions and functions are covered in detail in

Section

5 Instruction Set

Improved Instructions Additional

functions have been

added to the 7 instructions in the following table.

Instruction Additional Function(s)

DIST(80) Stack operation. The stack can contain up to 999 words. COLL(81) FIFO/LIFO stack operation. The stack can contain up to 999 words. MLPX(76) 4-to-256 decoder capability. DMPX(77) 256-to-8 encoder capability. ADB(50) Signed binary data can be added. SBB(51) Signed binary data can be subtracted. INT(89) Can be used to set scheduled interrupts in 1 ms units and control

input interrupts.

Expansion Instructions A

group of 47 instructions have been designated as expansion instructions. An

expansion

instruction does not have a fixed function code; one of the 18 expan

sion

instruction function codes must be assigned to it before it can be used in a program. An instructions tables, which allocates functions codes to expansion instructions, must be transferred to the C200HS before the expansion instructions can be used.

New Instructions A

total of 36 new instructions have been added to the C200HS. These instruc

tions are listed below. (Instructions with (--) for function codes are expansion instructions,

which do not have fixed function codes. Some expansion instruc

tion

have default function codes. The SET and RESET instructions are basic

instructions,

MACRO and TRACE MEMOR

Y SAMPLE instructions are

applied

instructions,

and the other

instructions are expansion applied instructions. A de

fault function number is assigned to the TOTALIZING TIMER, TRANSFER BITS,

AREA RANGE COMP

ARE, MACRO, AND TRACE MEMOR

Y SAMPLE

instructions.

New C200HS Features Section 1-8

Page 22

TRSM(45) TRACE MEMOR

Y SAMPLE MCRO(99) MACRO MAX(--) FIND MAXIMUM MIN(--) FIND MINIMUM SUM(--) SUM SRCH(--) DAT

A SEARCH FPD(--) FAILURE POINT DETECTION PID(--) PID CONTROL HEX(--) ASCII T

O HEX

XDMR(--) EXP

ANSION DM READ DSW(--) DIGITAL SWITCH INPUT TKY(--)

TEN-KEY INPUT MTR(--) MATRIX INPUT HKY(--)

16-KEY INPUT ADBL(--)

DOUBLE BINAR

Y ADD

SBBL(--)

DOUBLE BINAR

Y SUBTRACT

MBSL(--)

DOUBLE SIGNED BINAR

Y MULTIPL

DBSL(--)

DOUBLE SIGNED BINAR

Y DIVIDE

MBS(--)

SIGNED BINAR

Y MULTIPL

DBS(--)

SIGNED BINAR

Y DIVIDE

FCS(--)

FRAME CHECKSUM

7SEG(--)

7-SEGMENT DISPLA

Y OUTPUT RXD(--) RECEIVE TXD(--) TRANSMIT CPS(--)

SIGNED BINAR

Y COMP

ARE

CPSL(--)

SIGNED DOUBLE

BINAR

Y COMP

ARE NEG(--) 2’S COMPLEMENT NEGL(--) DOUBLE 2’S COMPLEMENT ZCPL(--)

DOUBLE AREA RANGE COMP

ARE

AVG(--) A

VERAGE V

ALUE SCL(--) SCALE SET SET RSET RESET TTIM(87) TOTALIZING TIMER XFRB(62)

TRANSFER BITS

ZCP(88)

AREA RANGE COMP

ARE

1-8-4 Wide Selection of Special I/O Units

C200HS

Systems can be configured in a variety of ways, using High-density

I/O

Units, High-speed Counters, Position Control Units, Analog I/O Units, T

empera-

ture Sensor Units, ASCII Units, V

oice Units, ID Sensor

Units,

Fuzzy Logic Units,

Cam Positioner Units, and so on.

1-8-5 Improved Interrupt Functions

Scheduled Interrupts The

C200HS’

s scheduled interrupt function

has been improved so that the inter

rupt

interval can be set in 1

ms units rather than the 10 ms units in the C200H.

When

the interrupt mode is

set to C200HS mode, the interrupt response time is

only 1 ms max. (excluding the input

ON/OFF delays). When a Communications

Unit

is used with the C200HS-CPU31-E/CPU33-E CPU, the interrupt response

time is 10 ms max.

Input Interrupts Up

to 8 interrupt subroutines

can be executed by inputs to a C200HS-INT01 In

terrupt Input Unit mounted to the C200HS. When the interrupt mode is set to C200HS

mode, the interrupt response time is only 1 ms max. (excluding the in

put ON/OFF delays). When a Communications Unit is used with the C200HSCPU31-E/CPU33-E CPU, the interrupt response time is 10 ms max.

1-8-6 SYSMAC NET Link and SYSMAC LINK Capabilities

The SYSMAC NET Link and SYSMAC LINK Systems are high-speed FA networks which can be used with the C200HS-CPU31-E and C200HS-CPU33-E CPUs and the following Units:

SYSMAC NET Link Unit: C200HS-SNT32 SYSMAC LINK Units:

C200HS-SLK12 (optical fiber cable) C200HS-SLK22 (coaxial cable)

Data

can be exchanged with the PCs in a SYSMAC NET Link or SYSMAC LINK

System using the SEND and RECV instructions.

New C200HS Features Section 1-8

Page 23

1-8-7 Built-in RS-232C Connector

Host

link

communications are possible using the RS-232C connector built into the C200HS-CPU21-E/CPU23-E/CPU31-E/CPU33-E CPU. By using the TXD and

RXD instructions, RS-232C communications is possible without using timeconsuming procedures. A 1-to-1 link using the LR Area or an NT link with the Programmable Terminal (PT) allows high-speed communications.

1-8-8 More Flexible PC Settings

With its default settings, the C200HS can be used like a C200H PC, but the C200HS’s

new settings provide more flexibility and allow it to be

adjusted to fit

particular applications. These new settings are described below.

DIP Switch Settings The

6 pins on the C200HS’

s DIP switch are

used to write-protect part of UM, set

the

CPU to automatically transfer Memory Card data to UM, and other functions.

UM Area Allocation Portions

of the

UM area can be allocated for use as the Expansion DM Area and

I/O

Comment Area. (Most of the UM area is used to store the ladder program.)

PC Setup DM

6600 to DM 6655 is set aside for PC Setup data. The PC Setup determines many operating parameters, including the startup mode and initial Special I/O Unit area.

1-8-9 Debugging and Maintenance

Data Trace A

data trace function has been added, allowing bit status or word

content to be

traced in real time.

Differential Monitor The

C200HS supports dif

ferential monitoring from either the Programming Con

sole or LSS. The operator can detect OFF-to-ON or ON-to-OFF transition in a specified bit.

Error Log

Area

The C200HS supports all of the C200H-CPU31-E error history area functions and

also records the time and date of power interruptions. The C200HS’

s error log area is DM 6000 to DM 6030 (not DM 0969 to DM 0999 as in the C200HCPU31-E).

1-8-10New Programming Console Operations

The

following Programming Console operations are supported

by the C200HS

in addition to those supported by the C200H.

• Constants can be input in decimal form.

• Monitor displays can be switched between hexadecimal and normal or long

decimal form.

• OFF

to ON and ON to OFF transitions in bit status can be monitored (dif

feren-

tial monitoring).

• Function codes can be allocated to expansion instructions and current func-

tion code allocations can be read.

• UM area allocations can be set.

• The clock in the C200HS can be read and set.

• In

addition to the TERMINAL mode

supported in the C200H, the C200HS has

EXTENDED TERMINAL mode in which all of the Programming Console’

keys can be used to the status of Key Bits.

• The

memory clear operation has been separated into an operation to clear the user program excluding I/O comments and UM area allocation information, and

one

to clear the user program, I/O comments , and UM area allocation in

formation.

1-8-11 Peripheral Devices

With

the C200H a Peripheral Device had to be connected through a

Peripheral

Interface

Unit or Host Link Unit, but with the C200HS Peripheral Devices can be

connected to the PC through a CQM1-CIF02 Connecting Cable.

Peripheral Device Connection

New C200HS Features Section 1-8

Page 24

I/O Comments Stored in PC By

allocating a part of UM as the I/O Comment area, it is no longer necessary to

read

I/O Comments from a Peripheral Device’

s floppy disk. If

the Peripheral De

vice

is connected to the C200HS online, the ladder diagram can be viewed with

I/O comments.

Online Editing A

“CYCLE TIME OVER” error will no longer be

generated when the program in

the PC itself is being edited online.

1-8-12Using C200H Programs

Programs

developed for the C200H can be very easily transferred for use in the

C200HS. This section provides the steps necessary to achieve this. T

wo proce

dures are provided: one for transferring using only internal CPU memory and one for transferring via Memory Cassettes.

Detailed procedures for the individual steps involved in transferring programs can be found in the Version-3 LSS Operation Manuals. You will also require a CQM1-CIF02 Connecting Cable to connect the computer running LSS to the C200HS.

Precautions Observe the following precautions when transferring C200H programs to the

C200HS.

• If

a C200H program including the SET

SYSTEM instruction (SYS(49)) is trans

ferred

to the C200HS, the operating parameters set by this instruction will be transferred to the C200HS’s PC Setup area (DM 6600, DM 6601, and DM 6655)

and overwrite any current settings. Be sure to confirm that the set

tings

in these words are correct before using the C200HS after program trans

fer.

• If

the C200H program accesses the C200H’

s error log in DM 0969 to DM 0999,

the

addresses of the words being accessed must be changed to DM 6000 to

DM 6030, which is the error log area for the C200HS.

• Any

programs that rely

on the execution cycle time (i.e., on the time require to

execute

any one part of all of

the program) must be adjusted when used on the

C200HS, which provides a much faster cycle time.

Using Internal Memory The following procedure outlines the steps to transfer C200H programs to the

user memory inside the C200HS.

1, 2, 3... 1. Transfer

the program and any other required data to the LSS work area. This data can be transferred from a C200H CPU, from floppy disk, or from a C200HS Memory Unit.

transfer from a C200H CPU, set the PC for the LSS to the C200H, con

nect

the LSS to

the C200H, go online, and transfer the program and any oth

require data to the LSS work area. Y

ou will probably want to transfer DM

data and the I/O table, if you have created an I/O table for the C200H.

or To

transfer from floppy disk, set the PC for the LSS to the C200H in the of

fline mode and load the program and any other require data to the LSS work area.

ou will probably want to load DM data

and the I/O table, if you have

created an I/O table for the C200H.

or To

transfer from a C200H-MP831, set the PC for the LSS to the C200H in the

offline mode and read data from the Memory Unit into the LSS work area.

2. Go offline if the LSS is not already offline.

3. Change the PC setting for the LSS to the C200HS.

4. If you want to transfer I/O comments together with the program to the C200HS, allocate UM area for I/O comments.

5. Connect the LSS to the C200HS and go online.

6. Make

sure that pin 1 on the C200HS’

s CPU is OFF to enable writing to

the

UM area.

New C200HS Features Section 1-8

Page 25

7. Transfer the program and and any other require data to the C200HS. You will

probably want to transfer DM data and the I/O table, if you have

created

an I/O table for the C200H.

8. Turn the C200HS off and then back on to reset it.

9. Test program execution before attempting actual operation.

Using Memory Cassettes The following procedure outlines the steps to transfer C200H programs to the

C200HS

via EEPROM or EPROM Memory Cassettes. This will allow you to read

the

program data from the Memory Cassette automatically at C200HS startup. The first four steps of this procedure is the same as those used for transferring directly to the C200HS’s internal memory (UM area).

1, 2, 3... 1. Transfer

the program and any other required data to the LSS work area. This data can be transferred from a C200H CPU, from floppy disk, or from a C200HS Memory Unit.

transfer from a C200H CPU, set the PC for the LSS to the C200H, con

nect

the LSS to

the C200H, go online, and transfer the program and any oth

require data to the LSS work area. Y

ou will probably want to transfer DM

data and the I/O table, if you have created an I/O table for the C200H.

or To

transfer from floppy disk, set the PC for the LSS to the C200H in the of

fline mode and load the program and any other require data to the LSS work area.

ou will probably want to load DM data

and the I/O table, if you have

created an I/O table for the C200H.

or To

transfer from a C200H-MP831, set the PC for the LSS to the C200H in the

offline mode and read data from the Memory Unit into the LSS work area.

2. Go offline if the LSS is not already offline.

3. Change the PC setting for the LSS to the C200HS.

4. If you want to transfer I/O comments together with the program to the C200HS, allocate UM area for I/O comments.

5. Allocate

expansion DM words DM 7000 to DM 7999 in the UM area using

the

UM allocation operation from the LSS.

6. Copy DM 1000 through DM 1999 to DM 7000 through DM 7999.

7. Write

“0100” to DM 6602 to automatically transfer the contents

of DM 7000

through DM 7999 to DM 1000 through DM 1999 at startup.

8. To

transfer to an EEPROM Memory Cassette, use the following procedure. a) Connect the LSS to the C200HS and go online. b) Make

sure that pin 1 on the C200HS’

s CPU is OFF to enable writing to

the UM area.

c) Transfer

the program and any other require data

to the C200HS. Y

ou will

probably

want to transfer DM data and the I/O table, if you have created

I/O table

for the C200H. Make sure you specify transfer of the Expan

sion DM Area and, if desired, the I/O Comment Area.

d) Turn

ON SR 27000 from the LSS to transfer UM

data to the Memory Cas

sette and continue from step 9.

or To transfer to an EPROM Memory Cassette, use the following procedure.

a) Connect

an PROM W

riter to the LSS and write the data to the EPROM

chip using the LSS EPROM writing operation.

e) Set

the ROM type selector on the Memory Cassette to the correct capac

ity. f) Mount the ROM chip to the Memory Cassette. g) Mount a EPROM Memory Cassette to the C200HS.

9. Turn

ON pin 2 on the C200HS’s DIP switch to enable automatic transfer of

Memory Cassette data to the CPU at startup.

New C200HS Features Section 1-8

Page 26

10. Turn

the C200HS of

f and

then back on to reset it and transfer data from the

Memory Cassette to the CPU.

11. Test program execution before attempting actual operation.

New C200HS Features Section 1-8

Page 27

SECTION 2

Hardware Considerations

This

section provides

information on hardware aspects of the C200HS that are relevant to programming and software opera

tion.

These include CPU Components, basic PC configuration, CPU capabilities, and Memory Cassettes. This information is

covered in detail in the C200HS Installation Guide.

2-1

CPU Components

16. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2-1-1 CPU Indicators 17. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2-1-2 Peripheral Device Connection 18. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2-2 PC Configuration 18. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2-3

CPU Capabilities

19. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2-4

Memory Cassettes

20. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2-5

Installing Memory Cassettes

21. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2-6 CPU DIP Switch 23. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Page 28

2-1 CPU Components

There

are two groups of CPUs available, one that uses an AC power supply

, and

one

that

uses a DC power supply

. Select one of the models shown below accord

ing to requirements of your control system.

CPU model Power supply voltage

C200HS-CPU01-E/CPU21-E/CPU31-E 100 to 120 VAC or 200 to 240 VAC

(voltage selector)

C200HS-CPU03-E/CPU23-E/CPU33-E 24 VDC

The CPU21-E, CPU23-E, CPU31-E, and CPU33-E CPUs have an RS-232C connector.

The CPU31-E and CPU33-E CPUs support the SYSMAC NET Link

Unit and SYSMAC LINK Unit.

Caution Be

sure to check the power supply used by the CPU. Absolutely

do not provide an AC power sup

ply to a DC-type CPU.

The following diagram shows the main CPU components.

Power fuse (MF51NR, 5.2 dia. x 20 mm) C200HS-CPU01-E: 2 A, 250 V C200HS-CPU03-E: 5 A, 125 V

Indicators

Removable terminal block

Cable connector for Peripheral Devices (Peripheral port)

Battery/switch compartment

The backup lithium battery (C200H-BAT09) and the DIP switch for setting C200HS operations are contained. An optional Memory Cassette can also be mounted.

CPU Components Section 2-1

Page 29

C200HS-CPU21-E/CPU23-E/CPU31-E/CPU33-E

Memory Casette compartment

Bus connector: Available only with the CPU31-E and CPU33-E. Use this connector when SYSMAC NET Link Unit or SYSMAC LINK Unit is used.

RS-232C connector

Cable connector for peripheral devices

Battery/Switch compartment

Power fuse (MF51NR, 5.2 dia. x 20 mm): C200HS-CPU21-E/CPU31-E: 2 A, 250 V C200HS-CPU23-E/CPU33-E: 5 A, 125 V

Indicators

Removable terminal block

2-1-1 CPU Indicators

CPU indicators provide visual information on the general operation of the PC. Although

not substitutes for proper

error programming using the flags and other

error

indicators provided in the data areas of memory

, these indicators provide

ready confirmation of proper operation.

CPU Indicators CPU

indicators are shown and described below

. (CPU01-E/03-E shown below

COMM/COMM1 (orange): Lights when a peripheral device is in operation. COMM2 (orange): Available only with the CPU21-E, CPU23-E, CPU31-E, and CPU33-E. Lights when the CPU is communicating via the RS-232C connector.

RUN indicator (green) Lights when the PC is operating normally.

POWER (green) Lights when power is supplied to the CPU.

OUT INHIBIT (red) Lights when the Load OFF flag (SR bit 25215) turns ON, at which time all the outputs are turned OFF.

ALM (blinking red) Blinks if an error occurs that does not stop the CPU.

ERR (solid red) Lights if an error occurs that stops the CPU, at which time the RUN indicator turns OFF and the outputs are turned OFF.

COMM

CPU Components Section 2-1

Page 30

2-1-2 Peripheral Device Connection

A Programming Console or IBM PC/AT running LSS can be used to program and monitor the C200HS PCs.

Programming Console A C200H-PR027-E or CQM1-PRO01-E Programming Console can be con-

nected as shown in the following diagram. The C200H-PR027-E is connected via the C200H-CN222 or C200H-CN422 Programming Console Connecting Cable, which must be purchased separately. A Connecting Cable is provided with the CQM1-PRO01-E.

Connecting

Cable

Programming Console

IBM

PC/A

T with LSS An

IBM PC/A

T or compatible computer can be connected as shown in the follow

ing diagram. The LSS is available on either 3.5” disks (C500-SF312-EV3) or

5.25” disks (C500-SF711-EV3). Only version 3 or later of the LSS supports C200HS functionality.

Connecting

Cable

(CQM1-CIF02)

IBM PC/AT

2-2 PC Configuration

The

basic PC configuration consists of two types of Rack: a CPU Rack and Ex

pansion

I/O Racks. The Expansion I/O Racks are

not a required part of the basic system. They are used to increase the number of I/O points. An illustration of these

Racks is provided in

3-3 IR Area.

A third type of Rack, called a Slave Rack,

can be used when the PC is provided with a Remote I/O System.

CPU Racks A

C200HS CPU Rack

consists of three components: (1) The CPU Backplane, to

which

the CPU and other Units are mounted. (2)

The CPU, which executes the program and controls the PC. (3) Other Units, such as I/O Units, Special I/O Units,

and Link Units, which provide the physical I/O terminals corresponding to

I/O points. A

C200HS CPU Rack can be used alone or it can be connected to other Racks to provide additional I/O points. The CPU Rack provides three, five, eight, or ten slots to which these other Units can be mounted depending on the backplane used.

PC Configuration Section 2-2

Page 31

Expansion I/O Racks An

Expansion I/O Rack can be thought of as an extension of the PC because it

provides

additional slots to which other Units can be mounted. It is built onto an

Expansion

I/O Backplane to which a

Power Supply and up to ten other Units are

mounted. An

Expansion I/O Rack is always connected

to the CPU via the connectors on

the

Backplanes, allowing communication between the two Racks. Up to two Ex

pansion I/O Racks can be connected in series to the CPU Rack.

Unit Mounting Position Only I/O Units and Special I/O Units can be mounted to Slave Racks. All I/O

Units, Special I/O Units, Group-2 High-density I/O Units, Remote I/O Master Units, PC and Host Link Units, can be mounted to any slot on all other Racks. Interrupt Input Units must be mounted to C200H-BCjj1-V2 Backplanes.

Refer

to the

C200HS Installation Guide

for details about which slots can be used

for

which Units

and other details about PC configuration. The way in which I/O

points on Units are allocated in memory is described in 3-3 IR Area.

2-3 CPU Capabilities

The following tables compare the capabilities of C200H and C200HS CPUs.

C200H

Function C200H

CPU21-E CPU23-E CPU31-E

Built-in clock/calendar No (see note) No (see note) Yes Error log No No Yes Data Trace No No No Dif

ferential Monitor

No No No Expansion DM No No No General-use DM 1000 words 970 words Ladder Program capacity 6974 words (in Memory Unit) SR Area SR 236 to SR 255 New instructions:

(See 1-8-3 Larger Instruction Set for a list of the 36 new instructions.)

No No No

Network Instructions: NETWORK SEND - SEND(90) NETWORK RECEIVE - RECV(98)

No No Yes

Power Supply AC DC AC

Note The C200H-CPU21-E/CPU23-E can use the C200H-MR433/MR833/

ME432/ME832 Memory Units’ clock.

CPU Capabilities Section 2-3

Page 32

C200HS

Function C200HS

CPU01-E CPU21-E CPU31-E CPU03-E CPU23-E CPU33-E

Built-in clock/calendar Yes Error log Yes

Data Trace Yes Dif

ferential Monitor

Yes Expansion DM 3K words max.

General-use DM 6K words Ladder Program capacity 15.2K words max

SR Area SR 236 to SR 255 and SR 256 to SR 299 New instructions:

(See 1-8-3 Larger Instruction Set for a list of the 36 new instructions.)

Yes

Network Instructions: NETWORK SEND - SEND(90) NETWORK RECEIVE - RECV(98)

No No Yes No No Yes

Power Supply AC DC

Note 1. The C200HS CPUs record the time and date of power interruptions.

2. Part

of the 16K-word UM can be allocated to Expansion DM and I/O com

ments.

2-4 Memory Cassettes

The

C200HS comes equipped with a built-in RAM for the user’s program, so a

normal

program be created even without installing a Memory

Cassette. An op

tional

Memory Cassette, however

, can be used. There are two types of Memory

Cassette

available, each with a capacity of 16K

words. For instructions on instal

ling Memory Cassettes, refer to 2-5 Installing Memory Cassettes. The following table shows the Memory Cassettes which can be used with the

C200HS PCs. These Memory Cassettes cannot be used in C200H PCs.

Memory Capacity Model number Comments

EEPROM 16K words C200HS-ME16K --EPROM 16K words C200HS-MP16K The EPROM chip is not included

with the Memory Cassette; it must be purchased separately.

Note Memory Cassettes for the C200HS cannot be used with the C200H, and

Memory Units for the C200H cannot be used with the C200HS.

When a Memory Cassette is installed in the CPU, reading and writing of the user memory (UM) and I/O data is made possible. There is no need for a backup power supply. The Memory Cassette can be removed from the CPU and used for storing data.

C200HS-MEj16K (EEPROM)

Memory Cassettes Section 2-4

Page 33

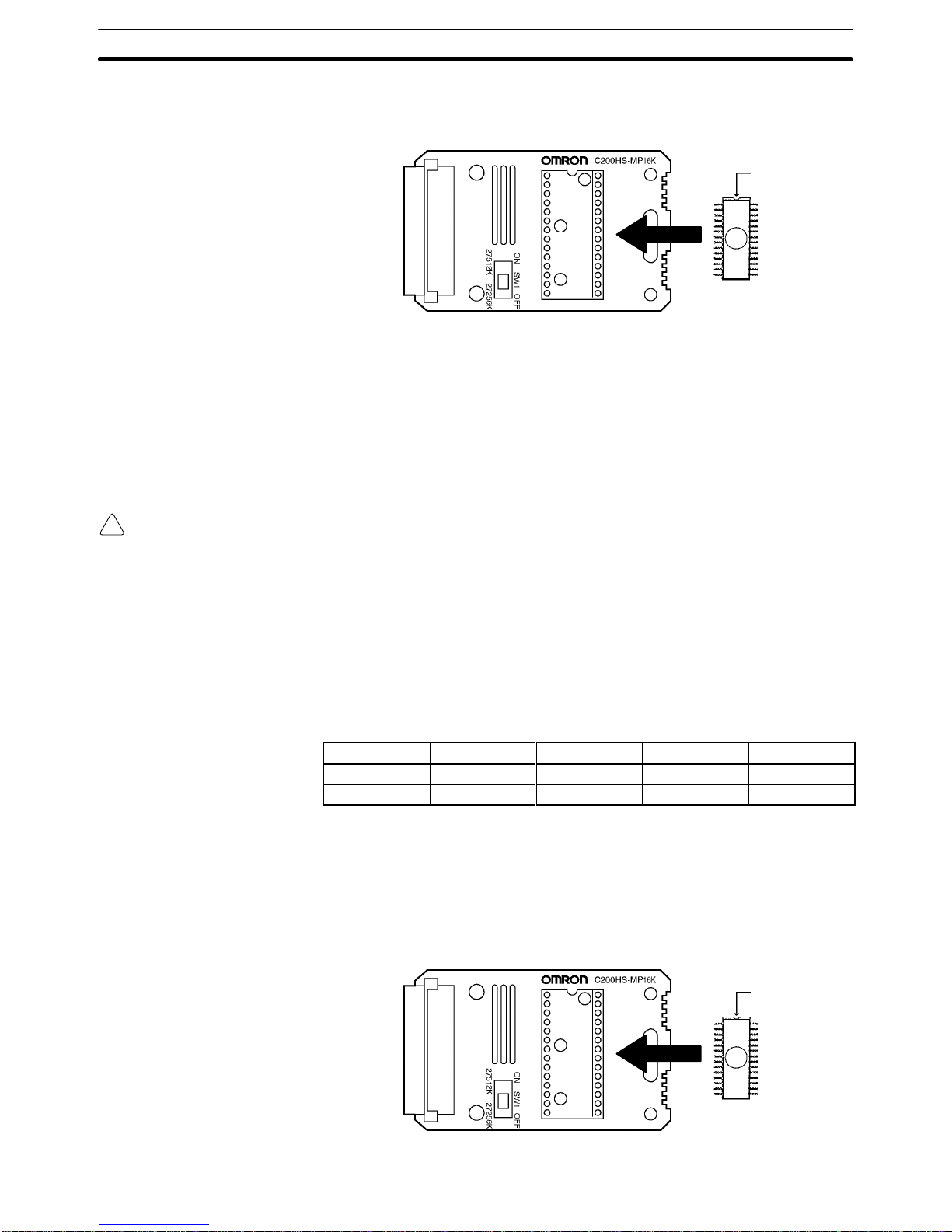

C200HS-MPj16K (EPROM) The program is written using a PROM Writer. The ROM is mounted to the

Memory Casette and then installed in the CPU. I/O data cannot be stored.

Notch

2-5 Installing Memory Cassettes

An optional Memory Cassette can be installed in the C200HS. (The C200H Memory

Unit cannot be used with the C200HS.) The two types of Memory

Cas

settes are described in 2-4 Memory Cassettes. To install a Memory Cassette, follow the procedure outlined below.

Caution Be careful to always turn the power off before inserting or removing a Memory Cassette. If a

Memory

Cassette is inserted into or removed from the CPU with the power on, it may cause the

CPU to malfunction or cause damage to the memory.

1, 2, 3... 1. Set

the DIP switch. For an EEPROM Memory Cassette,

set pin no. 1 (write

protect) to either ON or OFF

. Setting it to ON will protect the program in the

memory

from being overwritten. Setting it to OFF will allow the program to

be overwritten. (The factory setting is OFF.) For an EPROM Memory Cassette, set pin no. 1 (ROM Type Selector) ac-

cording to the type of ROM that is to be mounted.

Pin no. 1 ROM type Model Capacity Access speed

OFF 27256 ROM-JD-B 16K words 150 ns

ON 27512 ROM-KD-B 32K words* 150 ns

Note *Only 16K words accessible.

2. Write to EPROM (if using an EPROM Memory Cassette). Using a PROM Writer, write the program to EPROM. Then mount the EPROM chip to the Memory

Cassette, with the notched end facing upwards as shown in the il

lustration below.

Notch

Installing Memory Cassettes Section 2-5

Page 34

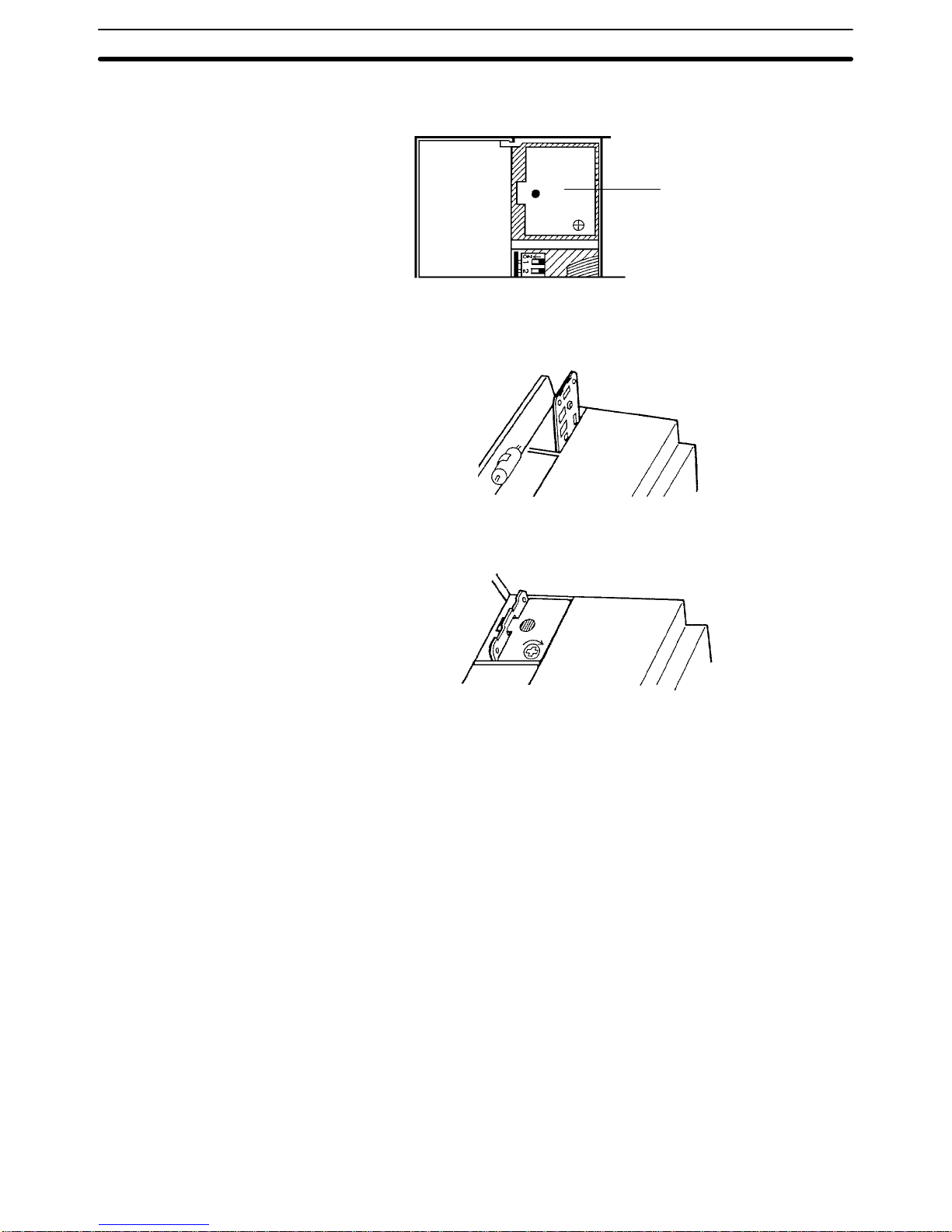

3. Remove

the bracket from the Memory Cassette, as shown in the illustration

below.

Metal bracket

4. Check that the connector side goes in first and that the Cassette’s circuit components

face right and then insert the Cassette into the CPU. The Cas

sette slides in along a track in the CPU.

5. Replace the Memory Cassette bracket over the Cassette and tighten the screw that holds the bracket.

Installing Memory Cassettes Section 2-5

Page 35

2-6 CPU DIP Switch

The DIP switch on C200HS CPUs is located between the Memory Cassette compartment and battery.

The 6 pins on the DIP switch control 6 of the CPU’s operating parameters.

Pin no. Item Setting Function

1 Memory protect

ON Program Memory and read-only DM (DM 6144 to DM 6655)

data cannot be overwritten from a Peripheral Device.

OFF Program Memory and read-only DM (DM 6144 to DM 6655)

data can be overwritten from a Peripheral Device.

2 Automatic transfer of Memory

Cassette contents

ON The contents of the Memory Cassette will be automatically

transferred to the internal RAM at start-up.

OFF The contents will not be automatically transferred.

3 Message language

ON Programming Console messages will be displayed in English.

ggg

OFF Programming Console messages will be displayed in the

language stored in system ROM. (Messages will be displayed in Japanese with the Japanese version of system ROM.)

4 Expansion instruction setting

ON Expansion instructions set by user. Normally ON when using a

host computer for programming/monitoring.

OFF Expansion instructions set to defaults.

5 Communications parameters

ON Standard communications parameters (see note) will be set for

the following serial communications ports.

• Built-in RS-232C port

• Peripheral port (only when a CQM1-CIF01/-CIF02 Cable is

connected. Does not apply to Programming Console.)

Note 1. Standard communications parameters are as fol-

lows: Serial

communications mode: Host Link or peripher

al bus; start bits: 1; data length: 7 bits; parity: even; stop bits: 2; baud rate: 9,600 bps

2. The

CX-Programmer

running on a personal comput

can be connected to the peripheral port via the pe

ripheral bus using the above standard communications parameters.

OFF The communications parameters for the following serial

communications ports will be set in PC Setup as follows:

• Built-in RS-232C port: DM 6645 and DM 6646

• Peripheral port: DM 6650 and DM 6651

Note When

the CX-Programmer is connected

to the peripheral

port

with the peripheral bus, either set bits

00 to 03 of DM

6650

to 0 Hex (for standard parameters), or set bits 12 to

of DM 6650 to 0 Hex and bits 00 to 03 of DM

6650 to 1

Hex (for Host Link or peripheral bus) separately.

6 Expansion TERMINAL mode

ON Expansion TERMINAL mode; AR 0712 ON.

setting when AR 0709 is ON

OFF Normal mode; AR 0712: OFF

Note The

above settings apply to CPUs manufactured from July 1995 (lot number **75 for July 1995). For CPUs

manufactured

before July 1995 (lot number **65 for

June 1995), only 1 stop bit will be set and the baud rate

will be 2,400 bps.

CPU DIP Switch Section 2-6

Page 36

SECTION 3

Memory Areas

Various

types of data are required to achieve ef

fective and correct control. T

o facilitate

managing this data, the PC is provided

with

various

memory ar

eas

for data, each of which performs a dif

ferent function. The areas generally accessible by the user

for use in programming are classified as data areas. The other memory area is the UM Area, where the user’s program is actually

stored. This section describes these areas individually and provides information that will be necessary to use them.

a matter of convention, the TR area is described in this section, even though it is not strictly a memory area.

3-1 Introduction 26. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3-2 Data Area Structure 27. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3-3 IR (Internal Relay) Area 31. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3-4 SR (Special Relay) Area 33. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3-4-1 SYSMAC NET/SYSMAC LINK System 37. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3-4-2 Remote I/O Systems 39. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3-4-3 Link System Flags and Control Bits 39. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3-4-4 Forced Status Hold Bit 41. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3-4-5 I/O Status Hold Bit 42. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3-4-6 Output OFF Bit 42. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3-4-7 FAL (Failure Alarm) Area 42. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3-4-8 Low Battery Flag 42. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3-4-9 Cycle Time Error Flag 43. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3-4-10 I/O Verification Error Flag 43. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3-4-11 First Cycle Flag 43. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3-4-12 Clock Pulse Bits 43. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3-4-13 Step Flag 44. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3-4-14 Group-2 Error Flag 44. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3-4-15 Special Unit Error Flag 44. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3-4-16 Instruction Execution Error Flag, ER 44. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3-4-17 Arithmetic Flags 44. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3-4-18 Interrupt Subroutine Areas 45. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3-4-19 RS-232C Port Communications Areas 45. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3-4-20 Peripheral Port Communications Areas 46. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3-4-21 Memory Cassette Areas 46. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3-4-22 Data Transfer Error Bits 47. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3-4-23 Ladder Diagram Memory Areas 47. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3-4-24 Memory Error Flags 47. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3-4-25 Data Save Flags 47. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3-4-26 Transfer Error Flags 48. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3-4-27 PC Setup Error Flags 48. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3-5 AR (Auxiliary Relay) Area 48. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3-5-1 Restarting Special I/O Units 50. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3-5-2 Slave Rack Error Flags 50. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3-5-3 Group-2 Error Flags 50. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3-5-4 Optical I/O Unit and I/O Terminal Error Flags 50. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3-5-5 SYSMAC LINK System Data Link Settings 51. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3-5-6 Error History Bits 51. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3-5-7 Active Node Flags 52. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3-5-8 SYSMAC LINK/SYSMAC NET Link System Service Time 52. . . . . . . . . . . . . . . . . . . . . .

3-5-9 Calendar/Clock Area and Bits 52. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3-5-10 TERMINAL Mode Key Bits 53. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3-5-11 Power OFF Counter 54. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3-5-12 Cycle Time Flag 54. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3-5-13 Link Unit Mounted Flags 54. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3-5-14 CPU-mounting Device Mounted Flag 54. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3-5-15 FPD Trigger Bit 54. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3-5-16 Data Tracing Flags and Control Bits 54. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3-5-17 Cycle Time Indicators 54. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3-6 DM (Data Memory) Area 55. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3-6-1 Expansion DM Area 56. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3-6-2 Special I/O Unit Data 56. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3-6-3 Error History Area 57. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3-6-4 PC Setup 58. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3-7 HR (Holding Relay) Area 60. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3-8 TC (Timer/Counter) Area 60. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3-9 LR (Link Relay) Area 61. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3-10 UM Area 61. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3-11 TR (Temporary Relay) Area 61. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Page 37

3-1 Introduction

Details,

including the name, size, and range of each area are summarized in the

following

table. Data and

memory areas are normally referred to by their acro

nyms, e.g., the IR Area, the SR Area, etc.

Area Size Range Comments

I/O Area 480 bits IR 000 to IR 029 I/O words are allocated to the CPU Rack and

Expansion I/O Racks by slot position.

Group-2 High-density I/O Unit and B7A Interface Unit Area

320 bits IR 030 to IR 049 Allocated to Group-2 High-density I/O Units and

to Group-2 B7A Interface Units 0 to 9

SYSMAC BUS Area 800 bits IR 050 to IR 099 Allocated to Remote I/O Slave Racks 0 to 4.

Special I/O Unit Area 1,600 bits IR 100 to IR 199 Allocated to Special I/O Units 0 to 9.

Optical I/O Unit and I/O Terminal Area

512 bits IR 200 to IR 231 Allocated to Optical I/O Units and I/O

Terminals.

Work Area 1 64 bits IR 232 to IR 235 For use as work bits in the program. Special Relay Area 1 312 bits SR 23600 to SR

25507

Contains system clocks, flags, control bits, and status information.

Special Relay Area 2 704 bits SR 256 to SR 299

(298 to 299 reserved by system)

Contains flags, control bits, and status information.

Macro Area

64 bits SR 290 to SR 293 Inputs

64 bits SR 294 to SR 297 Outputs Work Area 2 3,392 bits IR 300 to IR 511 For use as work bits in the program. Temporary Relay Area 8 bits TR 00 to TR 07 Used to temporarily store and retrieve execution

conditions when programming certain types of branching ladder diagrams.

Holding Relay Area 1,600 bits HR 00 to HR 99 Used to store data and to retain the data values

when the power to the PC is turned off.

Auxiliary Relay Area 448 buts AR 00 to AR 27 Contains flags and bits for special functions. Re-

tains status during power failure.

Link Relay Area 1,024 bits LR 00 to LR 63 Used for data links in the PC Link System.

Timer/Counter Area 512 counters/

timers

TC 000 to TC 511 Used to define timers and counters, and to

access completion flags, PV, and SV. Interval timers 0 through 2 and high-speed

counters 0 through 2 provided in separate area. TIM 000 through TIM 015 can be refreshed via

interrupt processing as high-speed timers.

Data Memory Area

6,144 words DM 0000 to DM 6143 Read/Write

1,000 words DM 0000 to DM 0999 Normal DM. 1,000 words DM 1000 to DM 1999 Special I/O Unit Area

4,000 words DM 2000 to DM 5999 Normal DM. 31 words DM 6000 to DM 6030 History Log (44 words) DM 6100 to DM 6143 Link test area (reserved)

Fixed DM Area

512 words DM 6144 to DM 6599 Fixed DM Area (read only)

56 words DM 6600 to DM 6655 PC Setup

Expansion DM Area 3,000 words max. DM 7000 to DM 9999 Read only

Note 1. These

can be used as work words and bits when not used for their allocated

purposes.

2. The

PC Setup can be set to use DM

7000 through DM 7999 as the Special

I/O Area.

Introduction Section 3-1

Page 38

Work Bits and Words When

some bits and words in certain data areas are not being used for their

tended

purpose, they can be used in programming as required to control other

bits. W

ords and bits available for use in this fashion are called work words and

work

bits. Most, but not all, unused bits can be used as work bits. Those that can

used are described area-by-area in the remainder of this section. Actual ap

plication

work bits and work words is described in

Section

4 Writing and Input

ting the Program.

Flags and Control Bits Some

data areas contain flags and/or control bits. Flags are bits that are auto

matically turned ON and OFF to indicate particular operation status. Although some

flags can be turned ON and OFF by the user

, most flags are

read only; they

cannot be controlled directly. Control

bits are bits turned ON and OFF by the user to control

specific aspects of

operation.

Any bit given a name using the word bit rather than the word flag is a

control bit, e.g., Restart bits are control bits.

3-2 Data Area Structure

When

designating a data area, the acronym for the area is always required for

any

but the IR and SR areas. Although the acronyms for the

IR and SR areas are

often

given for clarity in text explanations, they are not required, and not entered,

when

programming.

Any data area designation without an acronym is assumed

be in either the IR or SR area. Because IR and SR addresses run consecu

tively, the word or bit addresses are sufficient to differentiate these two areas.

actual data location within any data area but the TC area is designated by its

address.

The address

designates the bit or word within the area where the de

sired

data is located. The TC area consists of TC numbers, each of which is

used

for

a specific timer or counter defined in the program. Refer to

3-8 TC Area

for

details on TC numbers

and to

5-14 T

imer and Counter Instructions

for in

formation on their application.

The

rest of the data areas (i.e., the IR, SR, HR,

DM, AR, and LR areas) consist of

words,

each of which consists of 16 bits numbered 00 through 15 from right to

left.

IR words 000

and 001 are shown below with bit numbers. Here, the content

each word is shown as all zeros. Bit 00 is

called the rightmost bit; bit 15, the

leftmost bit. The

term least significant bit is often used for rightmost bit; the term most signifi

cant bit, for leftmost bit. These terms are not used in this manual because a single

data word is often split into two or more parts, with each part used for dif

ferent

parameters or

operands. When this is done, the rightmost bits of a word may actually become the most significant bits, i.e., the leftmost bits in another word,when combined with other bits to form a new word.

Bit number IR word 000 0000000000000000 IR word 001 0000000000000000

15 14 13 12 11 10 09 08 07 06 05 04 03 02 01 00

The

DM area is accessible by word only; you cannot designate an individual bit

within

a DM word. Data in the IR, SR, HR, AR, and LR areas is accessible either

word or by bit, depending on the instruction in which the data is being used.

designate one of these areas by word, all that is necessary is the acronym (if

required)

and the two-,

three-, or four-digit word address. T

o designate an area

bit, the word address is combined with the bit number as a single four- or five-

digit

address. The following table show examples of this. The two rightmost dig

its

of a bit designation must indicate a bit between 00 and 15, i.e., the rightmost

digit must be 5 or less the next digit to the left, either 0 or 1.

Data Area Structure Section 3-2

Page 39

The

same TC number can be used to designate either

the present value (PV) of

the

timer or counter

, or a bit that functions as the Completion Flag for

the timer or

counter. This is explained in more detail in 3-8 TC Area.

Area Word designation Bit designation

IR 000 00015

(leftmost bit in word 000)

SR 252

25200 (rightmost bit in word 252)

DM 1250

Not possible

TC 215 (designates PV)

TC 215 (designates completion flag)

LR 12

LR 1200

Data Structure Word data input as decimal values is stored in binary-coded decimal (BCD);

word data entered as hexadecimal is stored in binary form. Each four bits of a word represents one digit, either a hexadecimal or decimal digit, numerically equivalent to the value of the binary bits. One word of data thus contains four digits,

which are numbered from right to

left. These digit numbers and the corre

sponding bit numbers for one word are shown below.

Bit number Contents 0000000000000000

15 14 13 12 11 10 09 08 07 06 05 04 03 02 01 00

Digit number 3210

When referring to the entire word, the digit numbered 0 is called the rightmost digit; the one numbered 3, the leftmost digit.

When

inputting data into data areas, it must be input in the proper form for the intended purpose. This is no problem when designating individual bits, which are

merely turned ON (equivalent to a binary value of 1) or

OFF (a binary value of

0).

When inputting word data, however

, it is important to input it either as decimal

as hexadecimal, depending on what is called for by the instruction it is to be

used

for. Section

5 Instruction Set

specifies when a particular form of data is re

quired for an instruction. Binary

and hexadecimal can be easily converted back and forth because

each

four

bits of a binary number

is numerically equivalent to one digit of a hexadeci

mal number. The binary number 0101111101011111 is converted to hexadecimal by considering each set of four bits in order from the right. Binary 1111 is hexadecimal F; binary 0101 is hexadecimal 5. The hexadecimal equivalent would thus be 5F5F, or 24,415 in decimal (16

x 5 + 162 x 15 + 16 x 5 + 15).

Decimal

and BCD are easily

converted back and forth. In this case, each BCD digit (i.e., each group of four BCD bits) is numerically equivalent of the corresponding

decimal digit. The BCD bits 010101

110101011

1 are converted to

deci

mal

by considering each four bits from the right. Binary 0101 is decimal 5; binary

0111

is decimal 7. The decimal equivalent would thus be

5,757. Note that this is not the same numeric value as the hexadecimal equivalent of 0101011101010111, which would be 5,757 hexadecimal, or 22,359 in decimal (16

x 5 + 162 x 7 + 16 x 5 + 7).

Because

the numeric equivalent of each four BCD binary bits must be numeri

cally

equivalent to a decimal value, any four bit combination numerically greater

then

9 cannot be used, e.g., 101

1 is not allowed because it is numerically equiva

lent

to 1

1, which cannot be expressed as a single digit in decimal notation. The binary bits 1011 are of course allowed in hexadecimal are a equivalent to the hexadecimal digit C.

There are instructions provided to convert data either direction between BCD and hexadecimal. Refer to 5-18 Data Conversion for details. Tables of binary equivalents

to hexadecimal and BCD

digits are provided in the appendices for

reference.

Converting Different Forms of Data

Data Area Structure Section 3-2

Page 40

Decimal Points Decimal points are used in timers only. The least significant digit represents

tenths of a second. All arithmetic instructions operate on integers only.

Signed and Unsigned Binary Data

This section explains signed and unsigned binary data formats. Many instructions can use either signed or unsigned data and a few (CPS(––), CPSL(––), DBS(––), DBSL(––), MBS(––), and MBSL(––)) use signed data exclusively.

Unsigned binary Unsigned

binary is the standard format used in OMRON PCs. Data in this manu

al are unsigned unless otherwise stated. Unsigned binary values are always positive

and range from 0 ($0000) to 65,535 ($FFFF). Eight-digit values range

from 0 ($0000 0000) to 4,294,967,295 ($FFFF FFFF).

Bit number Contents 0000000000000000

15 14 13 12 11 10 09 08 07 06 05 04 03 02 01 00

Digit value 16

Signed Binary Signed binary data can have either a positive and negative value. The sign is

indicated

by the status of bit 15. If bit 15 is OFF

, the number is positive and if bit 15 is ON, the number is negative. Positive signed binary values range from 0 ($0000) to 32,767 ($7FFF), and negative signed binary values range from –32,768 ($8000) to –1 ($FFFF).

Bit number Contents 0000000000000000

15 14 13 12 11 10 09 08 07 06 05 04 03 02 01 00

Digit value 16

Sign indicator

Eight-digit

positive values range from 0 ($0000 0000) to 2,147,483,647 ($7FFF

FFFF), and eight-digit negative values range from –2,147,483,648 ($8000

0000) to –1 ($FFFF FFFF).

Data Area Structure Section 3-2

Page 41

The

following table shows the

corresponding decimal, 16-bit hexadecimal, and

32-bit hexadecimal values.

Decimal 16-bit Hex 32-bit Hex

2147483647 2147483646

. .

32768 32767 32766

. .

. 2 1 0

–1 –2

–32767 –32768

–32769

–2147483647 –2147483648

––– –––

. .

–––

7FFF

7FFE

. .

. 0002 0001 0000

FFFF FFFE

. 8001 8000

–––

––– –––

7FFFFFFF 7FFFFFFE

. . .

00008000

00007FFF

00007FFE

. .

. 00000002 00000001 00000000

FFFFFFFF

FFFFFFFE

FFFF8001 FFFF8000

FFFF7FFF

. 80000001 80000000

Positive signed binary data is identical to unsigned binary data (up to 32,767) and

can be converted using BIN(100). The following procedure converts nega

tive decimal values between –32,768 and –1 to signed binary. In this example –12345 is converted to CFC7.

Bit number Contents 0011000000111001

15 14 13 12 11 10 09 08 07 06 05 04 03 02 01 00

1. First take the absolute value (12345) and convert to unsigned binary:

Bit number Contents 1100111111000110

15 14 13 12 11 10 09 08 07 06 05 04 03 02 01 00

2. Next take the complement:

Bit number Contents 1100111111000111

15 14 13 12 11 10 09 08 07 06 05 04 03 02 01 00

3. Finally add one:

Reverse the procedure to convert negative signed binary data to decimal.

Converting Decimal to Signed Binary

Data Area Structure Section 3-2

Page 42

3-3 IR (Internal Relay) Area

The

IR area is used both as data to control I/O points, and as work bits to manipu

late and store data internally. It is accessible both by bit and by word. In the C200HS PC, the IR area is comprised of words 000 to 235 and 298 to 511.

Words

in the IR area that are used to control I/O points are called I/O words. Bits

I/O words are called I/O bits. Bits in

the IR area which are not assigned as I/O

bits

can be used as work bits. IR area work bits are reset when power is

inter

rupted or PC operation is stopped.

I/O Words If

a Unit brings inputs into the PC, the bit assigned to it is an input bit; if the Unit sends an output from the PC, the bit is an output bit. To turn on an output, the output

bit assigned to it must be turned ON. When an input

turns on, the input bit

assigned

to it also turns ON. These

facts can be used in the program to access

input status and control output status through I/O bits.

Input Bit Usage Input

bits can be used to directly input external signals to the PC and can be used

any order in programming. Each input bit can also be

used in as many instruc

tions

as required to achieve ef

fective and proper control. They cannot be used in instructions that control bit status, e.g., the OUTPUT, DIFFERENTIATION UP, and KEEP instructions.

Output Bit Usage Output

bits are used to output program execution results and can be used in any order in programming. Because outputs are refreshed only once during each cycle

(i.e., once each time the program is executed), any output bit can be used in only one instruction that controls its status, including OUT, KEEP(11), DIFU(13),

DIFD(14) and SFT(10). If an output bit is used in more than one such

instruction,

only the status

determined by the last instruction will actually be out

put from the PC. See

5-15-1 Shift

for an example that uses an output bit in two

‘bit-control’ instructions.

Word Allocation for Racks I/O

words

are allocated to the CPU Rack and Expansion I/O Racks by slot posi

tion.

One I/O word is allocated to each slot, as shown in the following table. Since

each

slot is allocated only one I/O word, a 3-slot rack uses only the first 3 words,

5-slot rack

uses only the first 5 words, and an 8-slot rack uses only the first 8

words. Words that are allocated to

unused or nonexistent slots are available as

work words.

← Left side of rack Right side of a 10-slot rack →

Rack Slot 1 Slot 2 Slot 3 Slot 4 Slot 5 Slot 6 Slot 7 Slot 8 Slot 9 Slot 10

CPU IR 000 IR 001 IR 002 IR 003 IR 004 IR 005 IR 006 IR 007 IR 008 IR 009 1st Expansion IR 010 IR 011 IR 012 IR 013 IR 014 IR 015 IR 016 IR 017 IR 018 IR 019 2nd Expansion IR 020 IR 021 IR 022 IR 023 IR 024 IR 025 IR 026 IR 027 IR 028 IR 029

Unused Words Any

words allocated to a Unit that does not use them can be

used in program

ming as work words and bits. Units that do not used the words assigned to the slot

they are mounted to include Link Units (e.g., Host Link Units, PC Link Units, SYSMAC NET Link Units, etc.), Remote I/O Master Units, Special I/O Units, Group-2 High-density I/O Units, Group-2 B7A Interface Units, and Auxiliary Power Supply Units.

IR Area Section 3-3

Page 43

to ten Special I/O Units may be mounted in any slot of

the CPU Rack or Ex

pansion I/O Racks. Up to five Slave Racks may be used, whether one or two Masters are used. IR area words are allocated to Special I/O Units and Slave Racks by the unit number on the Unit, as shown in the following tables.

Special I/O Units Slave Racks

Unit number IR address Unit number IR address

100 to 109

050 to 059

10 to 1

19 1

060 to 069

120 to 129

070 to 079

130 to 139

080 to 089

140 to 149

090 to 099

150 to 159

160 to 169

170 to 179

180 to 189

190 to 199

The C500-RT001/002-(P)V1 Remote I/O Slave Rack may be used, but it requires

20 I/O words, not 10, and therefore occupies the I/O words allocated to 2

C200H

Slave Racks, both the words allocated to the unit number set on the rack and the words allocated to the following unit number. When using a C200HS CPU,

do not set the unit number

on a C500 Slave Rack to 4, because there is no

unit

number 5. I/O words are allocated only to installed Units, from left to right,

and not to slots as in the C200HS system. I/O

words between IR 200 and IR 231 are

allocated to Optical I/O Units and I/O Terminals by unit number. The I/O word allocated to each Unit is IR 200+n, where n is the unit number set on the Unit.

Remote

Master I/O Units and Host Link Units do not use I/O words, and the PC

Link Units

use

the LR area, so words allocated to the slots in which these Units

are mounted are available as work words.

Bit Allocation for I/O Units An I/O Unit may require anywhere from 8 to 16 bits, depending on the model.

With

most I/O Units, any bits not used for input or output are available as

work

bits. Transistor Output Units

C200H-OD213 and C200H-OD41

1, as well as T

riac

Output

Unit

C200H-OA221, however

, uses bit 08 for the Blown Fuse Flag. T

ran-

sistor Output Unit C200H-OD214 uses bits 08 to 1

1 for the Alarm Flag. Bits 08 to

of any word allocated to these Units, therefore, cannot be used as work bits.

The

Interrupt Input Unit uses the 8 bits of the first I/O word allocated to its slot in the CPU Rack. (An Interrupt Input Unit will operate as a normal Input Unit when installed

in an Expansion I/O Rack.) The other 24 bits allocated to its slot in the

CPU Rack can be used as work bits.

Allocation for Special I/O Units and Slave Racks

Allocation for Optical I/O Units and I/O Terminals

Allocation for Remote I/O Master and Link Units

Bit Allocation for Interrupt Input Units

IR Area Section 3-3

Page 44

Group-2

High-density I/O Units and B7A Interface Units are allocated words be

tween

IR 030 and IR 049 according to I/O number settings

made on them and do

not

use the words allocated to the slots in which they are mounted. For 32-point

Units,

each Unit is allocated two words; for 64-point Units, each Unit is allocated

four

words. The words allocated for each I/O number are in the following tables. Any words or part of words not used for I/O can be used as work words or bits in programming.

32-point Units 64-point Units

I/O number

Words I/O number Words

0 IR 30 to IR 31 0 IR 30 to IR 33 1 IR 32 to IR 33 1 IR 32 to IR 35 2 IR 34 to IR 35 2 IR 34 to IR 37 3 IR 36 to IR 37 3 IR 36 to IR 39 4 IR 38 to IR 39 4 IR 38 to IR 41 5 IR 40 to IR 41 5 IR 40 to IR 43 6 IR 42 to IR 43 6 IR 42 to IR 45 7 IR 44 to IR 45 7 IR 44 to IR 47 8 IR 46 to IR 47 8 IR 46 to IR 49 9 IR 48 to IR 49 9 Cannot be used.

When setting I/O numbers on the High-density I/O Units and B7A Interface Units,

be sure that the settings will not cause the same words to be allocated to

than one Unit. For example, if I/O number 0 is allocated to a 64-point Unit,

I/O number 1 cannot be used for any Unit in the system. Group-2

High-density I/O Units and B7A Interface

Units are not considered Spe

cial I/O Units and do not af

fect the limit to the number of Special I/O Units allowed

in the System, regardless of the number used. The words allocated to Group-2 High-density I/O Units correspond to the con-

nectors on the Units as shown in the following table.

Unit Word Connector/row

32-point Units

First Row A

Second Row B

64-point Units

First CN1, row A

Second CN1, row B Third CN2, row A Fourth CN2, row B

Note Group-2

High-density I/O Units and B7A Interface

Units cannot be mounted to

Slave Racks.

3-4 SR (Special Relay) Area

The

SR area contains

flags and control bits used for monitoring PC operation, accessing clock pulses, and signalling errors. SR area word addresses range from 236 through 511; bit addresses, from 23600 through 51115.

The

following table lists the functions of SR area flags and control bits. Most of these bits are described in more detail following the table. Descriptions are in order by bit number except that Link System bits are grouped together.

Unless

otherwise stated, flags are OFF until

the specified condition arises, when

they

are turned ON. Restart bits are usually

OFF

, but when the user turns one

then OFF

, the specified Link Unit will be restarted. Other control bits are OFF

until set by the user.

Allocation for Group-2 High-density I/O Units and B7 Interface Units

SR Area Section 3-4

Page 45

Note

all SR words and bits are writeable by the user

. Be sure to check the func

tion of a bit or word before attempting to use it in programming.

Word(s) Bit(s) Function

236 00

to 07

Node loop status output area for operating level 0 of SYSMAC NET Link System

08 to 15

Node loop status output area for operating level 1 of SYSMAC NET Link System

237

00 to 07

Completion code output area for operating level 0 following execution of SEND(90)/RECV(98) SYSMAC LINK/SYSMAC NET Link System

08 to 15

Completion code output area for operating level 1 following execution of SEND(90)/RECV(98) SYSMAC LINK/SYSMAC NET Link System

238 and 241 00 to 15

Data link status output area for operating level 0 of SYSMAC LINK or SYSMAC NET Link System

242 and 245 00 to 15

Data link status output area for operating level 1 of SYSMAC LINK or SYSMAC NET Link System

246

00 to 15

Reserved by system

247 and 248 00 to 07

PC Link Unit Run Flags for Units 16 through 31 or data link status for operating level 1

08 to 15

PC Link Unit Error Flags for Units 16 through 31 or data link status for operating level 1

249 and 250 00 to 07

PC Link Unit Run Flags for Units 00 through 15 or data link status for operating level 0

08 to 15

PC Link Unit Error Flags for Units 00 through 15 or data link status for operating level 0

251

00 Remote I/O Error Read Bit

Writeable

01 and 02

Not used

Writeable

03 Remote I/O Error Flag 04 to 06

Unit number of Remote I/O Unit, Optical I/O Unit, or I/O Terminal with error 07 Not used 08 to 15

Word allocated to Remote I/O Unit, Optical I/O Unit, or I/O Terminal with error (BCD)

252 00 SEND(90)/RECV(98) Error Flag for operating level 0 of SYSMAC LINK or SYSMAC NET

Link System 01 SEND(90)/RECV(98) Enable Flag for operating level 0 of SYSMAC LINK or SYSMAC NET

Link System 02 Operating Level 0 Data Link Operating Flag 03 SEND(90)/RECV(98) Error Flag for operating level 1 of SYSMAC LINK or SYSMAC NET

Link System 04 SEND(90)/RECV(98) Enable Flag for operating level 1 of SYSMAC LINK or SYSMAC NET

Link System 05 Operating Level 1 Data Link Operating Flag 06 Rack-mounting Host Link Unit Level 1 Communications Error Flag 07 Rack-mounting Host Link Unit Level 1 Restart Bit 08 Peripheral Port Restart Bit 09 RS-232C Port Restart Bit 10 PC Setup Clear Bit 11 Forced Status Hold Bit 12 Data Retention Control Bit 13 Rack-mounting Host Link Unit Level 0 Restart Bit 14 Not used. 15 Output OFF Bit

253

00 to 07

FAL number output area (see error information provided elsewhere) 08 Low Battery Flag 09 Cycle Time Error Flag 10 I/O Verification Error Flag 11 Rack-mounting Host Link Unit Level 0 Communications Error Flag 12 Remote I/O Error Flag 13 Always ON Flag 14 Always OFF Flag 15 First Cycle Flag

SR Area Section 3-4

Page 46

Word(s) FunctionBit(s)

254 00 1-minute clock pulse bit

01 0.02-second clock pulse bit 02 and 03

Reserved for function expansion. Do not use. 04 Overflow Flag (for signed binary calculations) 05 Underflow Flag (for signed binary calculations) 06 Differential Monitor End Flag 07 Step Flag 08 MTR Execution Flag 09 7SEG Execution Flag 10 DSW Execution Flag 11 Interrupt Input Unit Error Flag 12 Reserved by system 13 Interrupt Programming Error Flag 14 Group-2 Error Flag 15 Special Unit Error Flag (includes Special I/O, PC Link, Host Link, Remote I/O Master Units)

255 00 0.1-second clock pulse bit

01 0.2-second clock pulse bit 02 1.0-second clock pulse bit 03 Instruction Execution Error (ER) Flag 04 Carry (CY) Flag 05 Greater Than (GR) Flag 06 Equals (EQ) Flag 07 Less Than (LE) Flag 08 to 15

Reserved by system (used for TR bits)

256 to 261 00 to 15

Reserved by system

262

00 to 15

Longest interrupt subroutine (action) execution time (0.1 ms)

263

00 to 15

Number of interrupt subroutine (action) with longest execution time.

(8000 to 8512) 8000 to 8007, 8099

Bit 15: Interrupt Flag

264

00 to 03

RS-232C Port Error Code

0: No error

2: Framing error

1: Parity error

3: Overrun error 04 RS-232C Port Communications Error 05 RS-232C Port Send Ready Flag 06 RS-232C Port Reception Completed Flag 07 RS-232C Port Reception Overflow Flag 08 to 1

1 Peripheral Port Error Code in General I/O Mode

0: No error 2: Framing error F: When in Peripheral Bus Mode

1: Parity error

3: Overrun error

12 Peripheral Port Communications Error in General I/O Mode 13 Peripheral Port Send Ready Flag in General I/O Mode 14 Peripheral Port Reception Completed Flag in General I/O Mode 15 Peripheral Port Reception Overflow Flag in General I/O Mode

265

00 to 15

RS-232C Port Reception Counter in General I/O Mode

266

00 to 15

Peripheral Reception Counter in General I/O Mode (BCD)

SR Area Section 3-4

Page 47

Word(s) FunctionBit(s)

267

to 04

Reserved by system (not accessible by user) 05 Host Link Level 0 Send Ready Flag 06 to 12

Reserved by system (not accessible by user) 13 Host Link Level 1 Send Ready Flag 14 and 15

Reserved by system (not accessible by user)

268

00 to 15

Reserved by system (not accessible by user)

269

00 to 07

Memory Cassette Contents 00: Nothing; 01: UM; 02: IOM (03: HIS) 08 to 10

Memory Cassette Capacity

0: 0 KW (no cassette); 3: 16 KW 1

1 to 13

Reserved by system (not accessible by user) 14 EEPROM Memory Cassette Protected or EPROM Memory Cassette Mounted Flag 15 Memory Cassette Flag

270

00 Save UM to Cassette Bit

Data transferred to Memory Cassette when Bit is turned

01 Load UM from Cassette Bit

ON in PROGRAM mode. Bit will automatically turn OFF.

02 Compare UM to Cassette Bit

An error will be produced if turned ON in any other

mode.

03 Comparison Results

0: Contents identical; 1: Contents differ or comparison not possible 04 to 10

Reserved by system (not accessible by user) 11 Transfer Error Flag:

Transferring SYSMAC NET

data link table on UM during

active data link.

Data will not be transferred from UM to the Memory Cassette if an error occurs (except for Board Checksum Error). Detailed information on checksum errors occurring in the Memory Cassette will not be output to

12 Transfer Error Flag: Not

PROGRAM mode

gyC p

SR 272 because the information is not needed. Repeat the transmission if SR 27015 is ON.

13 Transfer Error Flag: Read Only 14 Transfer Error Flag: Insufficient

Capacity or No UM 15 Transfer Error Flag: Board

Checksum Error

271

00 to 07

Ladder program size stored in Memory Cassette

Ladder-only File: 04: 4 KW; 08: 8 KW; 12: 12 KW; ... (64: 64 KW)

00: No ladder program or no file

Data updated at data transfer from CPU at startup. The file must begin in segment 0. 08 to 15

Ladder program size and type in CPU (Specifications are the same as for bits 00 to 07.)

Data updated when indexes generated. Default value (after clearing memory) is 16.

272

00 to 10

Reserved by system (not accessible by user) 11 Memory Error Flag: PC Setup Checksum Error 12 Memory Error Flag: Ladder Checksum Error 13 Memory Error Flag: Instruction Change Vector Area Checksum Error 14 Memory Error Flag: Memory Cassette Online Disconnection 15 Memory Error Flag: Autoboot Error

SR Area Section 3-4

Page 48

Word(s) FunctionBit(s)

273

00 Save IOM to Cassette Bit

Data transferred to Memory Cassette when Bit is turned ON in PROGRAM mode. Bit will automaticall

turn OFF.

01 Load IOM from Cassette Bit

ON in PROGRAM mode. Bit will automatically turn OFF

. An error will be produced if turned ON in any other mode.

02 to 1

1 Reserved by system (not accessible by user)

12 Transfer Error Flag: Not

PROGRAM mode

Data will not be transferred from IOM to the Memory Cassette if an error occurs (except for Read Only Error).

13 Transfer Error Flag: Read Only

(p y )

14 Transfer Error Flag: Insufficient

Capacity or No IOM

15 Transfer Error Flag: Checksum

Error

274 00 Special I/O Unit #0 Restart Flag

These flags will turn ON during restart processing.

01 Special I/O Unit #1 Restart Flag

ggpg

These flags will not turn ON for Units on Slave Racks.

02 Special I/O Unit #2 Restart Flag 03 Special I/O Unit #3 Restart Flag 04 Special I/O Unit #4 Restart Flag 05 Special I/O Unit #5 Restart Flag 06 Special I/O Unit #6 Restart Flag 07 Special I/O Unit #7 Restart Flag 08 Special I/O Unit #8 Restart Flag 09 Special I/O Unit #9 Restart Flag 10 to 15

Reserved by system (not accessible by user)

275

00 PC Setup Startup Error (DM 6600 to DM 6614) 01 PC Setup RUN Error (DM 6615 to DM 6644) 02 PC Setup Communications/Error Setting/Misc. Error (DM 6645 to DM 6655) 03 to 15

Reserved by system (not accessible by user)

276

00 to 07

Minutes (00 to 59)

Used for time increments.

08 to 15

Hours (00 to 23)

277 to 279 00 to 15

Used for keyboard mapping. See page 368.

280 to 289 00 to 15

Reserved by system (not accessible by user)

290 to 293 00 to 15

Macro Area inputs.

294 to 297 00 to 15

Macro Area outputs.

298 to 299 00 to 15

Reserved by system (not accessible by user)

3-4-1 SYSMAC NET/SYSMAC LINK System

Loop Status SR 236 provides the local node loop status for SYSMAC NET Systems, as

shown below.

––– Bit in SR 236 Level 0 07 06 05 04 03 02 01 00 Level 1 15 14 13 12 11 10 09 08 Status/

Meaning

1 1 Central Power Supply

0: Connected 1: Not connected

1 Loop Status

11: Normal loop 10: Downstream backloop 01: Upstream backloop 00: Loop error

Reception Status 0: Reception enabled

1: Reception disabled

Completion Codes SR

23700 to SR23707 provide the SEND/RECV completion

code for operating

level

0 and SR 23708 to SR 23215 provide the SEND/RECV completion code for

operating level 1. The completion codes are as given in the following tables.

SR Area Section 3-4

Page 49

SYSMAC LINK

Code Item Meaning

00 Normal

end

Processing ended normally.

01 Parameter error Parameters for network communication instruction is

not within acceptable ranges.

02 Unable to send Unit reset during command processing or local node

in not in network.

03 Destination not in

network

Destination node is not in network.

04 Busy error The destination node is processing data and cannot

receive the command. 05 Response timeout The response monitoring time was exceeded. 06 Response error There was an error in the response received from

the destination node. 07 Communications

controller error

An error occurred in the communications controller.

08 Setting error There is an error in the node address settings. 09 PC error An error occurred in the CPU of the destination

node.

SYSMAC NET

Code Item Meaning

00 Normal

end

Processing ended normally. 01 Parameter error Parameters for network communication instruction is

not within acceptable ranges. 02 Routing error There is a mistake in the routing tables for

connection to a remote network. 03 Busy error The destination node is processing data and cannot

receive the command. 04 Send error (token

lost)

The token was not received from the Line Server.

05 Loop error An error occurred in the communications loop. 06 No response The destination node does not exist or the response

monitoring time was exceeded. 07 Response error There is an error in the response format.

Data Link Status SR

238 to SR 245 contain the data link status for SYSMAC LINK/SYSMAC

NET

Systems.

The data

structure depends on the system used to create the data link.

SYSMAC LINK

Operating

Bit

level 0

level 1

12 to 15 11 to 08 04 to 07 00 to 03

SR 238 SR 242 Node 4 Node 3 Node 2 Node 1 SR 239 SR 243 Node 8 Node 7 Node 6 Node 5 SR 240 SR 244 Node 12 Node 11 Node 10 Node 9 SR 241 SR 245 Node 16 Node 15 Node 14 Node 13

Leftmost bit Rightmost bit

1: PC RUN status 1: PC CPU error 1: Communica-

tions error

1: Data link operating

SR Area Section 3-4

Page 50

SYSMAC NET

Operating

Bit (Node numbers below)

level 0

level 1

15 14 13 12 11 10 09 08 07 06 05 04 03 02 01 00

SR 238 SR 242 8 7 6 5 4 3 2 1 8 7 6 5 4 3 2 1 SR 239 SR 243 16 15 14 13 12 11 10 9 16 15 14 13 12 11 10 9 SR 240 SR 244 24 23 22 21 20 19 18 17 24 23 22 21 20 19 18 17 SR 241 SR 245 32 31 30 29 28 27 26 25 32 31 30 29 28 27 26 25

1: PC CPU error 1: PC RUN status

3-4-2 Remote I/O Systems

SR 25312 turns ON to indicate an error has occurred in Remote I/O Systems. The ALM/ERR indicator will flash, but PC operation will continue. SR 251, as well as AR 0014 and AR 0015, contain information on the source and type of error.

The function of each bit is described below

. Refer to

Optical

and Wired Re

mote I/O System Manuals for details.

Bit 00 – Error Check Bit If

there are errors in more than one Remote I/O Unit, word 251 will contain

error information for only the first one. Data for the remaining Units will be stored in memory and can be accessed by turning the Error Check bit ON and OFF

. Be

sure

to record data for the first error

, which will

be cleared when data for the next

error is displayed.

Bits 01 and 02 Not used.

Bit 03 Remote

I/O Error Flag: Bit 03 turns ON when an error has occurred in a Remote

I/O Unit.

Bits 04 to 15 The

content of bits 04 to 06 is a 3-digit binary number (04: 20, 05: 21, 06: 22) and

the

content of bits 08 to 15 is a 2-digit BCD number (08 to 1

1: 100, 12 to 15: 101).

the content of bits 12 through 15 is B, an error has occurred in a Remote I/O

Master

or Slave Unit, and the content of bits 08 through 1

1 will

indicate the unit

number,

either 0 or 1, of the Master involved. In this case, bits 04 to 06 contain

the unit number of the Slave Rack involved. If the content of bits 12 through 15 is a number from 0 to 31, an error has oc-

curred

in an Optical I/O Unit or I/O T

erminal. The number is the unit number of the

Optical

I/O Unit or I/O T

erminal involved, and bit 04 will be ON if the Unit is as

signed leftmost word bits (08 through 15), and OFF if it is assigned rightmost word bits (00 through 07).

3-4-3 Link System Flags and Control Bits

Use

of the following SR bits depends on the configuration of any Link Systems to

which

your PC belongs. These flags and control bits

are used when Link Units,

such

as PC Link Units,

Remote I/O Units, or Host Link Units, are mounted to the PC Racks or to the CPU. For additional information, consult the System Manual for the particular Units involved.

The

following bits can be employed as work bits when the PC does not belong to

the Link System associated with them.

SR Area Section 3-4

Page 51

Host Link Systems

Both

Error flags and Restart bits are

provided for Host Link Systems. Error flags

turn

ON to indicate errors in Host Link Units. Restart bits are turned ON and then

OFF

to restart a Host Link Unit. SR bits used with Host Link Systems are summa

rized in the following table. Rack-mounting Host Link Unit Restart bits are

not

effective for the Multilevel Rack-mounting Host Link Units.

Refer to the

Host Link System Manual for details.

Bit Flag

25206 Rack-mounting Host Link Unit Level 1 Error Flag 25207 Rack-mounting Host Link Unit Level 1 Restart Bit 25213 Rack-mounting Host Link Unit Level 0 Restart Bit 25311 Rack-mounting Host Link Unit Level 0 Error Flag

PC Link Systems

When

the PC belongs to a PC Link System, words 247

through 250 are used to

monitor

the operating status of all

PC Link Units connected to the PC Link Sys

tem.

This includes a maximum of 32 PC Link Units. If the PC is in a Multilevel PC

Link

System, half of the PC Link Units will be in a PC Link Subsystem in operating

level

0; the other half, in a Subsystem in operating level 1. The actual bit assign

ments depend on whether the PC is in a Single-level PC Link System or a Multi

level

PC Link System. Refer to the

PC Link System Manual

for details. Error and

Run Flag bit assignments are described below. Bits

00 through 07 of each word are the Run flags, which are ON when the

Link Unit is in RUN mode. Bits 08 through 15

are the Error flags, which are ON when an error has occurred in the PC Link Unit. The following table shows bit assignments for Single-level and Multi-level PC Link Systems.

Flag type Bit no. SR 247 SR 248 SR 249 SR 250

Run flags 00 Unit #24 Unit #16 Unit #8 Unit #0

01 Unit #25 Unit #17 Unit #9 Unit #1 02 Unit #26 Unit #18 Unit #10 Unit #2 03 Unit #27 Unit #19 Unit #11 Unit #3 04 Unit #28 Unit #20 Unit #12 Unit #4 05 Unit #29 Unit #21 Unit #13 Unit #5 06 Unit #30 Unit #22 Unit #14 Unit #6 07 Unit #31 Unit #23 Unit #15 Unit #7

Error flags 08 Unit #24 Unit #16 Unit #8 Unit #0

09 Unit #25 Unit #17 Unit #9 Unit #1 10 Unit #26 Unit #18 Unit #10 Unit #2 11 Unit #27 Unit #19 Unit #11 Unit #3 12 Unit #28 Unit #20 Unit #12 Unit #4 13 Unit #29 Unit #21 Unit #13 Unit #5 14 Unit #30 Unit #22 Unit #14 Unit #6 15 Unit #31 Unit #23 Unit #15 Unit #7

PC Link Unit Error and Run Flags

Single-level PC Link Systems

SR Area Section 3-4

Page 52

Flag type Bit no. SR 247 SR 248 SR 249 SR 250

Run flags 00 Unit #8,

level 1

Unit #0, level 1

Unit #8, level 0

Unit #0, level 0

01 Unit #9,

level 1

Unit #1, level 1

Unit #9, level 0

Unit #1, level 0

02 Unit #10,

level 1

Unit #2, level 1

Unit #10, level 0

Unit #2, level 0

03 Unit #11,

level 1

Unit #3, level 1

Unit #11, level 0

Unit #3, level 0

04 Unit #12,

level 1

Unit #4, level 1

Unit #12, level 0

Unit #4, level 0

05 Unit #13,

level 1

Unit #5, level 1

Unit #13, level 0

Unit #5, level 0

06 Unit #14,

level 1

Unit #6, level 1

Unit #14, level 0

Unit #6, level 0

07 Unit #15,

level 1

Unit #7, level 1

Unit #15, level 0

Unit #7, level 0

Error flags 08 Unit #8,

level 1

Unit #0, level 1

Unit #8, level 0

Unit #0, level 0

09 Unit #9,

level 1

Unit #1, level 1

Unit #9, level 0

Unit #1, level 0

10 Unit #10,

level 1

Unit #2, level 1

Unit #10, level 0

Unit #2, level 0

11 Unit #11,

level 1

Unit #3, level 1

Unit #11, level 0

Unit #3, level 0

12 Unit #12,

level 1

Unit #4, level 1

Unit #12, level 0

Unit #4, level 0

13 Unit #13,

level 1

Unit #5, level 1

Unit #13, level 0

Unit #5, level 0

14 Unit #14,

level 1

Unit #6, level 1

Unit #14, level 0

Unit #6, level 0

15 Unit #15,

level 1

Unit #7, level 1

Unit #15, level 0

Unit #7, level 0

Application Example If

the PC is in a Multilevel

PC Link System and the content of word 248 is 02FF

then

PC Link Units #0 through #7 of in the PC Link Subsystem assigned operat

ing

level 1 would be in RUN mode, and PC Link Unit #1 in the same

Subsystem would have an error. The hexadecimal digits and corresponding binary bits of word 248 would be as shown below.

Bit no. 15 00.

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Binary 0

0 0 0 0 0 1 0 1 1 1 1 1 1 1 1

Hex

2 F F

3-4-4 Forced Status Hold Bit

2521

1 determines whether or not the status of bits that have been force-set or force-reset is maintained when switching between PROGRAM and MONITOR

mode to start or stop

operation. If SR 2521

1 is ON, bit status will be main

tained;

if SR 2521

1 is OFF

, all bits will return to default status when operation is

started

or stopped. The Forced Status Hold Bit is only ef

fective when enabled in

the PC Setup. The status of SR 25211 in not affected by a power interruption unless the I/O

table is registered; in that case, SR 25211 will go OFF. SR 25211 is not effective when switching to RUN mode. SR 25211 should be manipulated from a Peripheral Device, e.g., a Program-

ming Console or LSS.

Multilevel PC Link Systems

SR Area Section 3-4

Page 53

The

status of SR 2521

1 and thus the status of force-set and force-reset bits can

maintained when power is turned of

f and on by enabling

the Forced Status

Hold

Bit in the PC Setup. If the Forced Status Hold Bit is enabled, the status of

2521

1 will be preserved when power is turned of

f and on. If this is done and

2521

1 is ON, then the status of force-set and force-reset bits will also be pre

served, as shown in the following table.

Status before shutdown Status at next startup

SR 25211 SR 25211 Force-set/reset bits

ON ON Status maintained OFF OFF Reset

Note Refer to 3-6-4 PC Setup for details on enabling the Forced Status Hold Bit.

3-4-5 I/O Status Hold Bit

25212 determines whether or not the status of IR and LR area bits is main

tained

when operation is started or stopped,

when operation begins by switching

from

PROGRAM mode to MONIT

OR or RUN modes. If SR 25212 is ON, bit

sta

tus

will be

maintained; if SR 25212 is OFF

, all IR and LR area bits will be reset.

The I/O Status Hold Bit is effective only if enabled in the PC Setup. The status of SR 25212 in not affected by a power interruption unless the I/O

table is registered; in that case, SR 25212 will go OFF. SR 25212 should be manipulated from a Peripheral Device, e.g., a Program-

ming Console or LSS. The

status of SR 25212 and thus the status of IR and LR area bits can be main

tained

when power is turned of

f and on by enabling the I/O Status Hold Bit in the PC Setup. If the I/O Status Hold Bit is enabled, the status of SR 25212 will be preserved

when power is

turned of

f and on. If this is done and SR 25212 is ON, then the status of IR and LR area bits will also be preserved, as shown in the following table.

Status before shutdown Status at next startup

SR 25212 SR 25212 IR and LR bits

ON ON Status maintained OFF OFF Reset

Note Refer to 3-6-4 PC Setup for details on enabling the I/O Status Hold Bit.

3-4-6 Output OFF Bit

bit 25215 is turned ON

to turn OFF all outputs from the PC. The OUT INHIBIT

indicator on the front panel of the CPU will light. When the Output OFF Bit is OFF

all output bits will be refreshed in the usual way. The

status of the Output OFF Bit is maintained for power interruptions or when PC operation is stopped, unless the I/O table has been registered, or the I/O table

has been registered and either the Forced Status Hold Bit or the I/O Status

Hold Bit has not been enabled in the PC Setup.

3-4-7 FAL (Failure Alarm) Area

2-digit BCD F

AL code is output to bits 25300 to 25307 when the F

AL or F

ALS

instruction

is executed. These codes are user defined for use in error diagnosis,

although the PC also outputs F

AL codes to these bits, such as one caused by

battery voltage drop. This

area can be reset by executing the FAL instruction with an operand of 00 or

by performing a Failure Read Operation from the Programming Console.

3-4-8 Low Battery Flag

SR bit 25308 turns ON if the voltage of the CPU’s backup battery drops. The ALM/ERR indicator on the front of the CPU will also flash.

Maintaining Status during Startup

SR Area Section 3-4

Page 54

This

bit can be programmed to activate an external warning

for a low battery volt

age. The operation of the battery alarm can be disabled in the PC Setup if desired.

Refer to 3-6-4 PC Setup for details.

3-4-9 Cycle Time Error Flag

bit 25309 turns ON if the cycle time exceeds 100 ms. The ALM/ERR indicator

the front of the CPU

will also flash. Program execution will not stop, however

unless

the maximum time limit set for the watchdog timer is exceeded. T

iming

may become inaccurate after the cycle time exceeds 100 ms.

3-4-10I/O Verification Error Flag

bit 25310 turns ON when the Units mounted in the system disagree with the

I/O

table registered in the CPU. The ALM/ERR indicator on the front of the CPU

will also flash, but PC operation will continue. To ensure proper operation, PC operation should be stopped, Units checked,

and the I/O table corrected whenever this flag goes ON.

3-4-11 First Cycle Flag

bit 25315 turns

ON when PC operation begins and then turns OFF after one

cycle

of the program. The First Cycle Flag is useful in initializing counter values

and other operations. An example of this

is provided in

5-14 T

imer and Counter

Instructions.

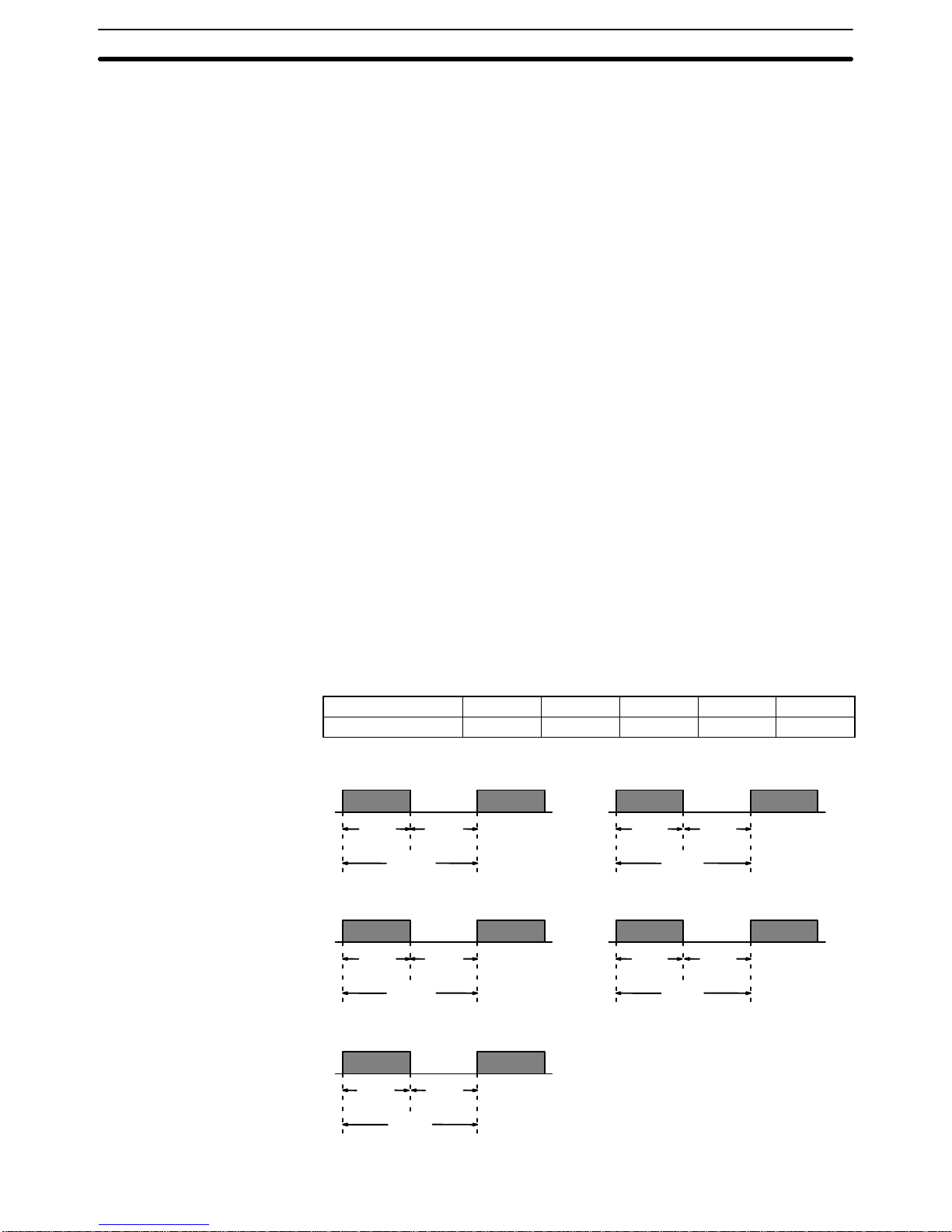

3-4-12Clock Pulse Bits

Five

clock pulses are available to control program timing. Each clock pulse bit is

for the first half of the rated pulse time, then OFF for the second

half. In other

words, each clock pulse has a duty factor of 50%. These

clock pulse bits

are often used with counter instructions to create timers.

Refer to 5-14 Timer and Counter Instructions for an example of this.

Pulse width

1 min

0.02 s 0.1 s 0.2 s 1.0 s

Bit 25400 25401 25500 25501 25502

Bit

25400

1-min clock pulse

Bit 25401

0.02-s clock pulse

Bit 25500

0.1-s clock pulse

Bit 25501

0.2-s clock pulse

Bit 25502

1.0-s clock pulse

Caution: Because the 0.1-second and

0.02-second clock pulse bits have ON times of 50 and 10 ms, respectively, the CPU may not be able to accurately read the pulses if program execution time is too long.

0.1 s

.05 s .05 s

1.0 s

0.5 s 0.5 s

0.2 s

0.1 s 0.1 s

1 min.

30 s 30 s

.02 s

.01 s .01 s

SR Area Section 3-4

Page 55

3-4-13Step Flag

SR bit 25407 turns ON for one cycle when step execution is started with the STEP(08) instruction.

3-4-14Group-2 Error Flag

bit 25414 turns ON for any of the following errors for Group-2 High-density I/O Units and B7A Interface Units: the same I/O number set twice, the same words

allocated to more than one Unit, refresh errors. If one of these errors oc

curs,

the Unit will stop operation and the

ALARM indicator will flash, but the over

all PC will continue operation. When

the Group-2 Error Flag is ON, the number of the Unit with the

error will be provided in AR 0205 to AR 0214. If the Unit cannot be started properly even though

the I/O number is set correctly and the Unit is installed properly

, a fuse may be blown or the Unit may contain a hardware failure. If this should occur, replace the Unit with a spare and try to start the system again.

There

is also an error flag for High-density I/O Units and B7A Interface Units

the AR area, AR 0215.

3-4-15Special Unit Error Flag

bit

25415 turns ON to indicate errors in the following Units: Special I/O, PC

Link,

Host Link, and Remote I/O Master Units. SR bit 25415 will turn ON for any

of the following errors.

• When more than one Special I/O Unit is set to the same unit number.

• When an error occurs in refreshing data between a Special I/O Unit and the

PC’s

CPU.

• When an error occurs between a Host Link Unit and the PC’

s CPU.

• When an error occurs in a Remote I/O Master Unit. Although

the PC will continue operation if SR 25415 turns ON,

the Units causing

the

error will stop operation and

the ALM indicator will flash. Check the status of

0000 to AR 0015 to obtain the unit numbers of the Units for which the error

occurred and investigate the cause of the error. Unit

operation can be restarted by using the Restart Bits

(AR 0100 to AR 01

15,

25207, and SR 25213), but will not be ef

fective if the same unit

number is set for more than one Special I/O Unit. Turn off the power supply, correct the unit number settings, and turn of the power supply again to restart.

25415 will not turn OFF even if AR 0100 to AR 01

15 (Restart Bits) are turned

ON.

It can be turned OFF

by reading errors from a Programming Device or by

executing FAL(06) 00 from the ladder program.

3-4-16Instruction Execution Error Flag, ER

bit 25503

turns ON if an attempt is made to execute an instruction with incor

rect

operand data. Common causes of an instruction error are non-BCD oper

and

data when BCD data is required, or an indirectly addressed DM word that is

non-existent. When the ER Flag is ON, the current instruction will not be

executed.

3-4-17Arithmetic Flags

The

following flags are used

in data shifting, arithmetic calculation, and compari

son

instructions. They are generally referred to only by their two-letter

abbrevia

tions.

Caution These

flags are all reset

when the END(01) instruction is executed, and therefore cannot be moni

tored from a programming device.

Refer

5-15

Data Shifting, 5-17 Data Comparison, 5-19 BCD Calculations

, and

5-20 Binary Calculations for details.

SR Area Section 3-4

Page 56

Overflow Flag, OF SR bit 25404 turns ON when the result of a binary addition or subtraction ex-

ceeds 7FFF or 7FFFFFFF.

Underflow Flag, UF SR

bit

25405 turns ON when the result of a signed binary addition or subtraction

exceeds 8000 or 80000000.

Carry Flag, CY SR

bit 25504 turns ON when there is a carry in the result of

an arithmetic opera

tion

or when a rotate or shift

instruction moves a “1” into CY

. The content of CY is also used in some arithmetic operations, e.g., it is added or subtracted along with

other operands. This flag can be set and cleared from the program using the

Set Carry and Clear Carry instructions.

Greater Than Flag, GR SR bit 25505 turns ON when the result of a comparison shows the first of two

operands to be greater than the second.

Equal Flag, EQ SR

bit 25506 turns ON when the result of a comparison shows two operands to

be equal or when the result of an arithmetic operation is zero.

Less Than Flag, LE SR bit 25507 turns ON when the result of a comparison shows the first of two

operands to be less than the second.

Note The four arithmetic flags are turned OFF when END(01) is executed.

3-4-18Interrupt Subroutine Areas

The following areas are used in subroutine interrupt processing. SR

bits 26200 to 26215 are used to set the maximum processing time of the in

terrupt subroutine. Processing times are determined to within 0.1 ms increments.

bits 26300 to 26315 contain the maximum processing time interrupt

subrou

tine number. Bit 15 will be ON if there is an interruption.

3-4-19RS-232C Port Communications Areas

RS-232C Port Error Code SR bits 26400 to 26403 set when there is a RS-232C port error.

Setting Error type

0 No error 1 Parity error 2 Framing error 3 Overrun error

SR bit 26404 turns ON when there is a RS-232C port communication error.

SR bit 26405 turns ON when the C200HS is ready to transmit data.

SR bit 26406 turns ON when the C200HS has completed reading data from a RS-232C device.

SR bit 26407 turns ON when data overflow occurs following the reception of data.

SR areas 26500 to 26515 contains the number of RS-232C port receptions in General I/O Mode.

bit 26705 turns ON when the C200HS is ready to transmit to the Host Link

Unit.

bit 26713 turns ON when the C200HS is ready to transmit to the Host Link.

Interrupt Subroutine Maximum Processing Time Area

Maximum Processing Time Interrupt Subroutine Number Area

RS-232C Port Communication Error Bit

RS-232C Port Send Ready Flag

RS-232C Port Reception Completed Flag

RS-232C Port Reception Overflow Flag

RS-232C Reception Counter

Host Link Level 0 Send Ready Flag

Host Link Level 1 Send Ready Flag

SR Area Section 3-4

Page 57

3-4-20Peripheral Port Communications Areas

Peripheral Port Error Code SR

bits 26408 to 2641

1 are

set when there is a peripheral port error in the Gener

al I/O Mode.

Setting Error type

0 No error 1 Parity error 2 Framing error 3 Overrun error F Connected in Peripheral Mode

bit 26412

turns ON when there is a peripheral port communication error (ef

fective in General I/O Mode).

bit 26413 turns ON when the

C200HS is ready to transmit data in General I/O

Mode. SR bit 26414 turns ON when the C200HS has completed reading data from a

peripheral device. Effective in General I/O Mode. SR bit 26415 turns ON when data overflow occurs following the reception of

data.

fective in General I/O Mode.

areas 26600 to 26615 contains the number of peripheral port receptions in

General I/O Mode (BCD). SR

bit 26705 turns ON when the C200HS is ready to transmit to the Host Link

Unit.

bit 26713 turns ON when the C200HS is ready to receive data from the Host

Link.

3-4-21Memory Cassette Areas

Memory Cassette Contents SR

areas 26900 to 26907 indicate memory type contained on the Memory Cas

sette.

Memory Type Code

Nothing 00 UM 01 IOM 02

Memory Cassette Capacity SR areas 26908 to 26910 indicate memory capacity of the Memory Cassette.

Capacity Code

0 KW (no board mounted) 0 16 KW 3

SR bit 26914 turns ON when EEPROM Memory Cassette is protected or EPROM Memory Cassette is mounted.

Memory Cassette Flag SR bit 26915 turns ON when a Memory Cassette is mounted. Save UM to Cassette Flag SR

bit 27000 turns ON when UM data is read to

a Memory Cassette in Program

Mode.

Bit will automatically turn OFF

. An error will be produced if turned ON in

any other mode. SR

bit 27001 turns ON when data is loaded into UM from a Memory Cassette in Program Mode. Bit will automatically turn OFF. An error will be produced if turned ON in any other mode.

Peripheral Port Communication Error Bit

Peripheral Port Send Ready Flag

Peripheral Port Reception Completed Flag

Peripheral Port Reception Overflow Flag

Peripheral Reception Counter

Host Link Level 0 Send Ready Flag

Host Link Level 1 Receive Ready Flag

EEPROM/EPROM Memory Cassette Mounted Flag

Load UM from Cassette Flag

SR Area Section 3-4

Page 58

bit 27002 turns ON when data is verified between DM and a Memory Cas

sette.

SR bit 27003 turns OFF when the contents of the verification coincide and

turns ON when the contents of the verification do not coincide.

3-4-22Data Transfer Error Bits

Data

will not be transferred from UM to the Memory

Cassette if an error occurs (except for Board Checksum Error). Detailed information on checksum errors occurring

in the Memory Cassette will not be output to SR 272 because the in

formation is not needed. Repeat the transmission if SR 27015 is ON SR bit 27012 turns ON when the C200HS is not in Program Mode and data

transfer is attempted. SR

bit 27013 turns ON when the C200HS is in Read-only Mode and data trans

fer is attempted. SR

bit 27014 turns ON when data transfer is attempted and available UM is

sufficient.

bit 27015 turns ON when data transfer is attempted and a Board

Checksum

error occurs.

3-4-23Ladder Diagram Memory Areas

SR areas 27100 to 27107 indicate the amount of ladder program stored in a Memory Cassette.

Ladder-only File: 04: 4 KW; 08: 8 KW; 12: 12 KW; ... (64: 64 KW) (Ladder File (Bit 07 will be ON): 84: 4 KW; 88: 8 KW; 92: 12 KW; ... (E4: 64 KW))

00: No ladder program or no file Data updated at data transfer from CPU at startup. The file must begin in

segment 0.

SR areas 27108 to 27115 indicate the CPU’s ladder program size and type. Specifications are the same as for bits 00 to 07.

3-4-24Memory Error Flags

SR bit 27211 turns ON when a PC Setup Checksum error occurs.

SR bit 27212 turns ON when a Ladder Checksum error occurs.

SR bit 27213 turns ON when an instruction change vector area error occurs.

bit

27214 turns ON when a Memory Cassette is connected or disconnected

during operations.

SR bit 27215 turns ON when an autoboot error occurs.

3-4-25Data Save Flags

Data transferred to Memory Cassette when Bit is turned ON in PROGRAM mode.

Bit will automatically turn OFF

. An error will be produced if turned ON in

any other mode.

Collation (Between DM and Memory Cassette)

Transfer Error Flag: Not PROGRAM Mode

Transfer Error Flag: Read Only

Transfer Error Flag: Insufficient Capacity or No UM

Transfer Error Flag: Board Checksum Error

Memory Cassette Ladder Diagram Size Area

CPU Ladder Diagram Size and Type

Memory Error Flag: PC Setup Error

Memory Error Flag: Ladder Checksum Error

Memory Error Flag: Instruction Change Error

Memory Error Flag: Memory Cassette Disconnect Error

Memory Error Flag: Autoboot Error

SR Area Section 3-4

Page 59

Save IOM to Cassette Bit SR bit 27300 turns ON when IOM is saved to a Memory Cassette. Load IOM from Cassette Bit SR bit 27301 turns ON when loading to IOM from a Memory Cassette.

3-4-26Transfer Error Flags

Data

will not be

transferred from IOM to the Memory Cassette if an error occurs

(except for Read Only Error). SR

bit 27312 turns ON when attempting to transfer data in

other than Program

Mode.

Transfer Error Flag SR bit 27313 turns ON when attempting to transfer data in Read-only Mode. Transfer Error Flag SR

bit 27314 turns ON when attempting to transfer data and IOM capacity is in

sufficient.

3-4-27PC Setup Error Flags

PC Setup Startup Error SR bit 27500 turns ON when a PC Setup Startup error occurs (DM6600 to

DM6614).

PC Setup RUN Error SR bit 27501 turns ON when a PC Setup Run error occurs (DM6615 to

DM6644). SR

bit 27501

turns ON when a PC Setup Communications, Error setting or Mis

cellaneous error occurs (DM6645 to DM6655).

Minutes (00 to 59) SR bits 27600 to 27607 set the PC Clock to minutes (00 to 59). Hours (00 to 23) SR bits 27608 to 27615 set the PC Clock to hours (0 to 23). Keyboard Map Used for keyboard mapping.

3-5 AR (Auxiliary Relay) Area

word addresses extend from AR 00 to

AR 27; AR bit addresses extend from AR 0000 to AR 2715. Most AR area words and bits are dedicated to specific uses,

such as transmission counters, flags,

and control bits, and words AR 00

through

AR 07 and AR 23 through AR 27 cannot be used for any other purpose.

Words

and bits from AR 08 to AR 22 are available as work words and

work bits if

not used for the following assigned purposes.

Word Use

AR 0713 to AR 0715 Error History Area AR 07 to 15 SYSMAC LINK Units AR 16, AR 17 SYSMAC LINK and SYSMAC NET Link Units AR 18 to AR 21 Calendar/clock Area AR 0708, AR 0709,

and AR 22

TERMINAL Mode Key Bits

The AR area retains status during power interruptions, when switching from MONITOR or RUN mode to PROGRAM mode, or when PC operation is stopped.

Bit allocations are shown in the

following table and described in the fol

lowing pages in order of bit number.

AR Area Flags and Control Bits

Word(s) Bit(s) Function

00 00

to 09

Error Flags for Special I/O Units 0 to 9 (also function as Error Flags for PC Link Units) 10 Error Flag for operating level 1 of SYSMAC LINK or SYSMAC NET Link System 11 Error Flag for operating level 0 of SYSMAC LINK or SYSMAC NET Link System 12 Host Computer to Rack-mounting Host Link Unit Level 1 Error Flag 13 Host Computer to Rack-mounting Host Link Unit Level 0 Error Flag 14 Remote I/O Master Unit 1 Error Flag 15 Remote I/O Master Unit 0 Error Flag

Transfer Error Flag: Not PROGRAM mode

PC Setup Communications/Error Setting/Misc. Error

AR Area Section 3-5

Page 60

Word(s) FunctionBit(s)

01 00

to 09

Restart Bits for Special I/O Units 0 to 9 (also function as Restart Bits for PC Link Units) 10 Restart Bit for operating level 1 of SYSMAC LINK or SYSMAC NET Link System 11 Restart Bit for operating level 0 of SYSMAC LINK or SYSMAC NET Link System 12, 13

Not used. 14 Remote I/O Master Unit 1 Restart Flag. 15 Remote I/O Master Unit 0 Restart Flag.

00 to 04

Slave Rack Error Flags (#0 to #4) 05 to 14

Group-2 Error Flags 15 Group-2 Error Flag

00 to 15

Error Flags for Optical I/O Units and I/O Terminals 0 to 7

00 to 15

Error Flags for Optical I/O Units and I/O Terminals 8 to 15

00 to 15

Error Flags for Optical I/O Units and I/O Terminals 16 to 23

00 to 15

Error Flags for Optical I/O Units and I/O Terminals 24 to 31

00 to 03

Data Link setting for operating level 0 of SYSMAC LINK System 04 to 07

Data Link setting for operating level 1 of SYSMAC LINK System 08 Normal TERMINAL Mode/Expansion TERMINAL Mode Input Cancel Bit 09 Expansion TERMINAL Mode Changeover Flag 10 and 1

1 Reserved by system.

12 T

erminal Mode Flag

ON: Expansion; OFF: Normal (Same as status of pin 6 on CPU’s DIP switch) 13 Error History Overwrite Bit 14 Error History Reset Bit 15 Error History Enable Bit

08 to 1

00 to 15

Active Node Flags for SYSMAC LINK System nodes of operating level 0

12 to 15 00 to 15

Active Node Flags for SYSMAC LINK System nodes of operating level 1

00 to 15

SYSMAC LINK/SYSMAC NET Link System operating level 0 service time per cycle

00 to 15

SYSMAC LINK/SYSMAC NET Link System operating level 1 service time per cycle

00 to 07

Seconds: 00 to 99

Writeable

08 to 15

Minutes: 00 to 59

00 to 07

Hours: 00 to 23 (24-hour system)

Writeable

08 to 15

Day of Month: 01 to 31 (adjusted by month and for leap year)

00 to 07

Month: 1 to 12

Writeable

08 to 15

Year: 00 to 99 (Rightmost two digits of year)

21 Wri

teable

00 to 07

Day of Week: 00 to 06 (00: Sunday; 01: Monday; 02: Tuesday; 03: Wednesday; 04:

Thursday; 05: Friday; 06: Saturday)

Writeable

08 to 12

Not used. 13 30-second Compensation Bit 14 Clock Stop Bit 15 Clock Set Bit

00 to 15

Keyboard Mapping

00 to 15

Power Off Counter (BCD)

AR Area Section 3-5

Page 61

Word(s) FunctionBit(s)

24 00

to 04

Reserved by system. 05 Cycle T

ime Flag 06 SYSMAC LINK System Network Parameter Flag for operating level 1 07 SYSMAC LINK System Network Parameter Flag for operating level 0 08 SYSMAC/SYSMAC NET Link Unit Level 1 Mounted Flag 09 SYSMAC/SYSMAC NET Link Unit Level 0 Mounted Flag 10 Reserved by system. 1

1 and 12

PC Link Level 13 Rack-mounting Host Link Unit Level 1 Mounted Flag 14 Rack-mounting Host Link Unit Level 0 Mounted Flag 15 CPU-mounting Device Mounted Flag

00 to 1

1 Reserved by system. 12 Trace End Flag 13 Tracing Flag 14 Trace Trigger Bit (writeable) 15 Trace Start Bit (writeable)

00 to 15

Maximum Cycle Time (0.1 ms)

00 to 15

Present Cycle Time (0.1 ms)

3-5-1 Restarting Special I/O Units

restart Special I/O Units (including PC Link Units) turn the corresponding bit

and OFF (or turn power ON and OFF). Do not access data refreshed for Spe

cial

I/O Units during restart processing (see SR

27400 to SR 27409 on page

37).

3-5-2 Slave Rack Error Flags

bits 0200 to AR 0204 correspond to the unit numbers of Remote I/O Slave

Units

#0 to #4 and AR bits 0710 to AR 0712 correspond to the

unit numbers of

Remote

I/O Slave Units #5 to #7. These flags will turn ON if the same number is allocated to more then one Slave or if a transmission error occurs when starting the

System. Refer to SR 251

for errors that occur after the System has started

normally.

3-5-3 Group-2 Error Flags

bits 0205 to AR 0215 correspond to Group-2

High-density I/O Units and B7A

Interface

Units 0 to 9

(I/O numbers) and will turn ON when the same number is

set

for more than one Unit, when the same word is allocated to more than one

Unit,

when I/O number 9 is set for a 64-point Unit, or when the fuse burns out in a

Transistor

High-density I/O Unit. AR bit 0215 will turn ON when a Unit is not rec

ognized as a Group-2 High-density I/O Unit.

3-5-4 Optical I/O Unit and I/O Terminal Error Flags

03 through AR 06 contain the Error Flags for Optical I/O Units and I/O T

ermi-

nals. An error indicates a duplication of a unit number

. Up to 64 Optical I/O Units

and

I/O T

erminals can be connected to the PC.

Units are distinguished by unit

AR Area Section 3-5

Page 62

number,

0 through 31, and a letter

, L or H. Bits are allocated as shown in the fol

lowing table.

Bits AR03

allocation

AR04

allocation

AR05

allocation

AR06

allocation

0 L 8 L 16 L 24 L 01 0 H 8 H 16 H 24 H 02

1 L 9 L 17 L 25 L 03 1 H 9 H 17 H 25 H 04

2 L 10 L 18 L 26 L 05 2 H 10 H 18 H 26 H 06

3 L

1 L 19 L 27 L 07 3 H 11 H 19 H 27 H 08

4 L 12 L 20 L 28 L 09 4 H 12 H 20 H 28 H 10

5 L 13 L 21 L 29 L 11 5 H 13 H 21 H 29 H 12

6 L 14 L 22 L 30 L 13 6 H 14 H 22 H 30 H 14

7 L 15 L 23 L 31 L 15 7 H 15 H 23 H 31 H

3-5-5 SYSMAC LINK System Data Link Settings

0700 to AR 0703 and AR 0704 to AR 0707 are used to designate word alloca

tions

for operating levels 0 and 1 of the SYSMAC LINK System. Allocation can

set to occur either according to settings from an FIT

or automatically in the LR

and/or

DM areas. If automatic allocation is designated, the number of words to

allocated to each node is also designated. These settings are shown below

Operating

level 0

Operating level 1 Setting

AR 0700 AR 0701 AR 0704 AR 0705

0 0 0 0 Words set externally (FIT) 1 0 1 0 Automatic LR area only 0 1 0 1 allocation DM area only 1 1 1 1 LR and DM

areas

Words per Node The following setting is necessary if automatic allocation is designated above.

Operating

level 0

Operating level 1 Words per node Max. no.

AR 0702 AR 0703 AR 0706 AR 0707 LR area DM area

of nodes

0 0 0 0 4 8 16 1 0 1 0 8 16 8 0 1 0 1 16 32 4 1 1 1 1 32 64 2

The above settings are read every cycle while the SYSMAC LINK System is in operation.

3-5-6 Error History Bits

0713 (Error History Overwrite Bit) is turned ON or OFF by the user to control

overwriting

of records in the Error History Area in the DM area. T

urn AR 0713 ON

overwrite the oldest error record each time an error occurs after

10 have been recorded. Turn OFF AR 0713 to store only the first 10 records that occur each time after the history area is cleared.

Optical I/O Unit and I/O Terminal Error Flags

External/Automatic Allocation

AR Area Section 3-5

Page 63

0714 (Error History Reset Bit) is turned ON and then OFF by the user to reset

the

Error Record Pointer (DM 0969) and thus restart recording error records at

the beginning of the history area. AR

0715 (Error History Enable

Bit) is turned ON by the user to enable error histo

ry storage and turned OFF to disable error history storage. Refer to 3-6 DM Area for details on the Error History Area. Error history bits are refreshed each cycle.

3-5-7 Active Node Flags

08 through AR 1

1 and AR 12 through AR 15 provide flags that indicate which

nodes

are active in the

SYSMAC LINK System at the current time. These flags

are refreshed every cycle while the SYSMAC LINK System is operating. The

body of the following table show the node number assigned to each

bit. If the

bit is ON, the node is currently active.

Level 0 Level 1 Bit (body of table shows node numbers)

00 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15

AR 08 AR 12 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 AR 09 AR 13 17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 AR 10 AR 14 33 34 35 36 37 38 39 40 41 42 43 44 45 46 47 48 AR 11 AR 15 49 50 51 52 53 54 55 56 57 58 59 60 61 62 * **

*Communication Controller Error Flag **EEPROM Error Flag

3-5-8 SYSMAC LINK/SYSMAC NET Link System Service Time

16 provides the time

allocated to servicing operating level 0 of the SYSMAC

LINK

System and/or SYSMAC NET Link System during each cycle when a SYS

MAC LINK Unit and/or SYSMAC NET Link Unit is mounted to a Rack. AR

17 provides the time

allocated to servicing operating level 1 of the SYSMAC

LINK

System and/or SYSMAC NET Link System during each cycle when a SYS

MAC LINK Unit and/or SYSMAC NET Link Unit is mounted to a Rack. These

times are recorded in 4-digit BCD to tenths of a millisecond (000.0 ms to

999.9 ms) and are refreshed every cycle.

Bits

15 to 12 11 to 08 07 to 04 03 to 00

–1

3-5-9 Calendar/Clock Area and Bits

Calendar/Clock Area A

clock is built into the C200HS CPUs. If AR

14 (Clock Stop Bit) is OFF

, then

the

date, day

, and time will be available in BCD in AR 18 to AR 20 and

AR 2100 to

2108 as shown below

. This area can

also be controlled with AR 21

13 (30-se

cond Compensation Bit) and AR 2115 (Clock Set Bit).

Calendar/Clock Bits

Bits Contents Possible values

AR 1800 to AR 1807 Seconds

00 to 59

AR 1808 to AR 1815 Minutes

00 to 59 AR 1900 to AR 1907 Hours 00 to 23 (24-hour system) AR 1908 to AR 1915 Day of month 01 to 31 (adjusted by month and for leap year) AR 2000 to AR 2007 Month

1 to 12 AR 2008 to AR 2015 Year 00 to 99 (Rightmost two digits of year) AR 2100 to AR 2107 Day of week 00 to 06 (00: Sunday; 01: Monday; 02: Tuesday; 03: Wednesday; 04:

Thursday; 05: Friday; 06: Saturday)

AR Area Section 3-5

Page 64

30-second Compensation Bit AR

13 is turned ON to

round the seconds of the Calendar/clock Area to zero,

i.e.,

if the seconds is 29 or less, it is merely set to 00; if the seconds is 30 or great

er, the minutes is incremented by 1 and the seconds is set to 00.

Clock Stop Bit AR

14 is turned OFF

to enable the operation of the Calendar/clock Area and

ON to stop the operation.

Clock Set Bit AR

15 is used to set the Calendar/clock Area as described below

. This data must be in BCD and must be set within the limits for the Calendar/clock Area given above.

1, 2, 3... 1. Turn ON AR 2114 (Stop Bit).

2. Set

the desired date, day

, and

time, being careful not to turn OFF AR 21

(Clock

Stop Bit) when setting the day of

the week (they’re in the same word). (On the Programming Console, the Bit/Digit Monitor and Force Set/Reset Operations are the easiest ways to set this data.)

3. Turn

ON AR 21

15 (Clock

Set Bit). The Calendar/clock will automatically start

operating

with the designated

settings and AR 21

14 and AR 21

15 will both

be turned OFF.

The Calendar/clock Area and Bits are refreshed each cycle while operational.

Clock Accuracy Clock

accuracy is af

fected by the ambient temperature

as shown in the following

table.

Ambient

temperature

Accuracy (loss or

gain per month)

55°C –3 to 0 minutes 25°C ±

1 minute

0°C –2 to 0 minutes

3-5-10TERMINAL Mode Key Bits

the Programming Console is mounted to the PC and is in TERMINAL mode, any inputs on keys 0 through 9 (including characters A through F, i.e, keys 0 through 5 with SHIFT) will turn on a corresponding bit in AR 22. TERMINAL mode is entered by a Programming Console operation.

The bits in AR 22 correspond to Programming Console inputs as follows:

Bit Programming Console input

AR 2200 0 AR 2201 1 AR 2202 2 AR 2203 3 AR 2204 4 AR 2205 5 AR 2206 6 AR 2207 7 AR 2208 8 AR 2209 9 AR 2210 A AR 2211 B AR 2212 C AR 2213 D AR 2214 E AR 2215 F

Refer

Section

7 Program Monitoring and Execution

for details on the TERMI

NAL mode.

AR Area Section 3-5

Page 65

3-5-11 Power OFF Counter

23 provides in 4-digit BCD the number of times that the PC power has been

turned

f. This counter can be reset as necessary using the PV

Change 1 op

eration

from the Programming Console. (Refer to

7-1-4 Hexadecimal/BCD

Data

Modification

for details.) The Power OFF Counter is refreshed every time power

is turned on.

3-5-12Cycle Time Flag

AR 2405 turns ON when the cycle time set with SCAN(18) is shorter than the actual cycle time.

AR 2405 is refreshed every cycle while the PC is in RUN or MONITOR mode.

3-5-13Link Unit Mounted Flags

The following flags indicate when the specified Link Units are mounted to the Racks.

(Refer to

3-5-14 CPU-mounting Device Mounted

Flag

for CPU-mounting

Host Link Units.) These flags are refreshed every cycle.

Name Bit Link Unit

PC Link Unit Level 1 AR 2411 PC Link Unit in operating level 1 PC Link Unit Level 0 AR 2412 PC Link Unit in operating level 0 Rack-mounting Host Link Unit Level 1 AR 2413 Rack-mounting Host Link Unit in operating level 1 Rack-mounting Host Link Unit Level 0 AR 2414 Rack-mounting Host Link Unit in operating level 0

3-5-14CPU-mounting Device Mounted Flag

AR 2415 turns ON when any device is mounted directly to the CPU. This includes CPU-mounting Host Link Units, Programming Consoles, and Interface Units. This flag is refreshed every cycle.

3-5-15FPD Trigger Bit

2508 is used to adjust the monitoring time of FPD(––) automatically

. Refer to

5-25-12 FAILURE POINT DETECT – FPD(––) for details.

3-5-16Data Tracing Flags and Control Bits

The

following control bits and flags

are used during data tracing with TRSM(45). The Tracing Flag will be ON during tracing operations. The Trace Completed Flag will turn ON when enough data has been traced to fill Trace Memory.

Bit Name

2512

Trace Completed Flag AR 2513 Tracing Flag AR 2514 Trace Trigger Bit (writeable) AR 2515 Sampling Start Bit (writeable)

Note Refer to 5-25-3 TRACE MEMORY SAMPLING – TRSM(45) for details.

3-5-17Cycle Time Indicators

26 contains the maximum cycle time that has occurred since program execu

tion was begun. AR 27 contains the present cycle time. Both

times are to tenths of a millisecond in 4-digit BCD (000.0 ms to 999.9 ms),

and are refreshed every cycle.

AR Area Section 3-5

Page 66

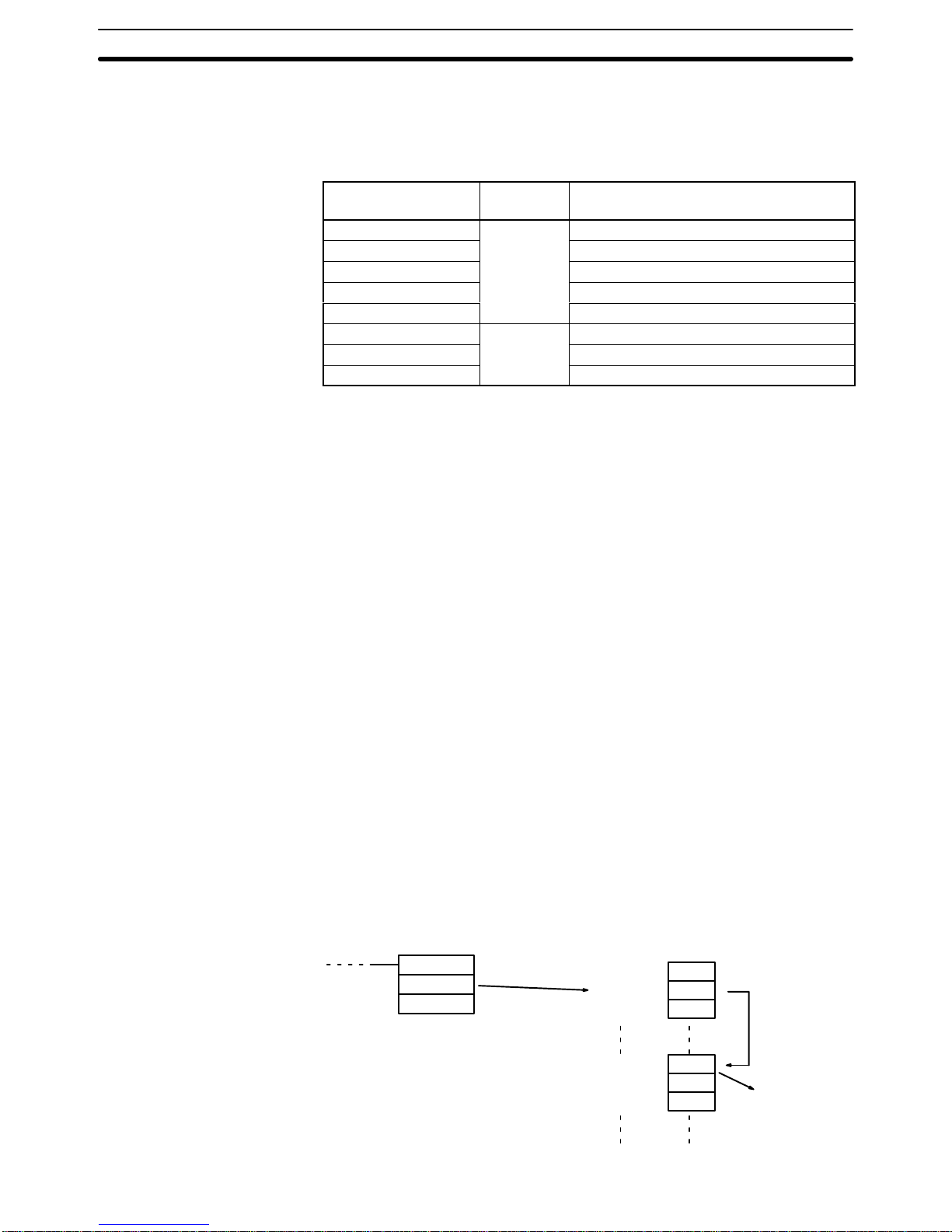

3-6 DM (Data Memory) Area

The

DM area is divided into

various parts as described in the following table. A

portion

of UM (up to 3,000 words in 1,000-word

increments) can be allocated as

Expansion DM.

Addresses User

read/write

Usage

DM 0000 to DM 0999 Read/Write Normal DM. DM 1000 to DM 1999 Special I/O Unit Area

DM 2000 to DM 5999 Normal DM. DM 6000 to DM 6030 History Log DM 6100 to DM 6143 Link test area (reserved) DM 6144 to DM 6599 Read only System Settings DM 6600 to DM 6655 PC Setup DM 7000 to DM 9999 Expansion DM

Note 1. The

PC Setup can be set to use DM

7000 through DM 7999 as the Special

I/O

Area instead

of DM 1000 to DM 1999. Refer to

3-6-4 PC Setup

for de

tails.

2. The

UM ALLOCA

TION Programming Console operation can be used to al

locate up to 3000 words of UM as Expansion DM.

Although

composed of 16-bit words like any other data area, data in the DM area

cannot

be specified by bit for use in instructions with bit operands. DM 0000 to

6143 can be written to by the program, but DM 6144 to DM 6655 can be over

written

only from a Peripheral Device, such as a Programming Console or

host

computer

with LSS.

The DM area retains status during power interruptions.

Indirect Addressing Normally,

when the content of a data area word is

specified for an instruction, the

instruction

is performed directly on the content of that word. For example, sup

pose

MOV(21) is performed with DM 0100 as the

first operand and LR 20 as the second operand. When this instruction is executed, the content of DM 0100 is moved to LR 20.

Note Expansion DM cannot be used for indirect addressing.

is possible, however

, to use indirect DM addresses as the operands for many

instructions. To indicate an indirect DM

address, :DM is input with the address

the operand. With an indirect address, with content of this

operand does not

contain

the actual data to be used. Instead, it’

s contents is assumed to hold the address of another DM word, the content of which will actually be used in the instruction.

If :DM 0100 was used in our example above and the content of DM

0100

is 0324, then :DM 0100 actually means that the content of DM

0324 is to be used as the operand in the instruction, and the content of DM 0324 will be moved to LR 20.

MOV(21)

:DM 0100

LR 00

Word Content

DM 0099 4C59 DM 0100 0324 DM 0101 F35A

DM 0324 5555 DM 0325 2506 DM 0326 D541

5555 moved to LR 00.

Indicates DM 0324

Indirect address

DM Area Section 3-6

Page 67

3-6-1 Expansion DM Area

The

expansion DM area is designed to provide memory space for storing oper

ating

parameters and other operating data for Link Units and

Special I/O Units.

Up to 3,000 words of UM can be allocated as Expansion DM

(in 1K-word incre

ments)

using the UM ALLOCA

TION operation

in the Programming Console or

LSS. Expansion DM area addresses run from DM 7000 to DM 9999. The data in the expansion DM area can be transferred to the Special I/O Unit

Default

Area (DM 1000 to DM 1999) when starting the PC or via programming

instruction

to easily change operating parameters, enabling rapid switching be

tween

control processes. The expansion DM area can also be used to store pa

rameters for other devices connected in the PC system, e.g., Programmable Terminal character string or numeral tables.

The expansion DM area is used to store operating parameters and cannot be used

in programming like the normal DM area. Expansion DM can

only be over

written

from a Peripheral Device, retains status during power interruptions, and

cannot be used for indirect addressing. The

UM area can be allocated as expansion DM area in increments of 1K words.

Once

expansion DM area has been created, it is saved

and transferred as part of the program, i.e., no special procedures are required when saving or transferring the program.

UM ALLOCATION Operation The

procedure for the Programming Console’

s UM

ALLOCA

TION operation is

shown

below

. Refer to

1-8-10 New

Programming Console Operations

for details

on the DATA CLEAR and UM ALLOCATION instructions.

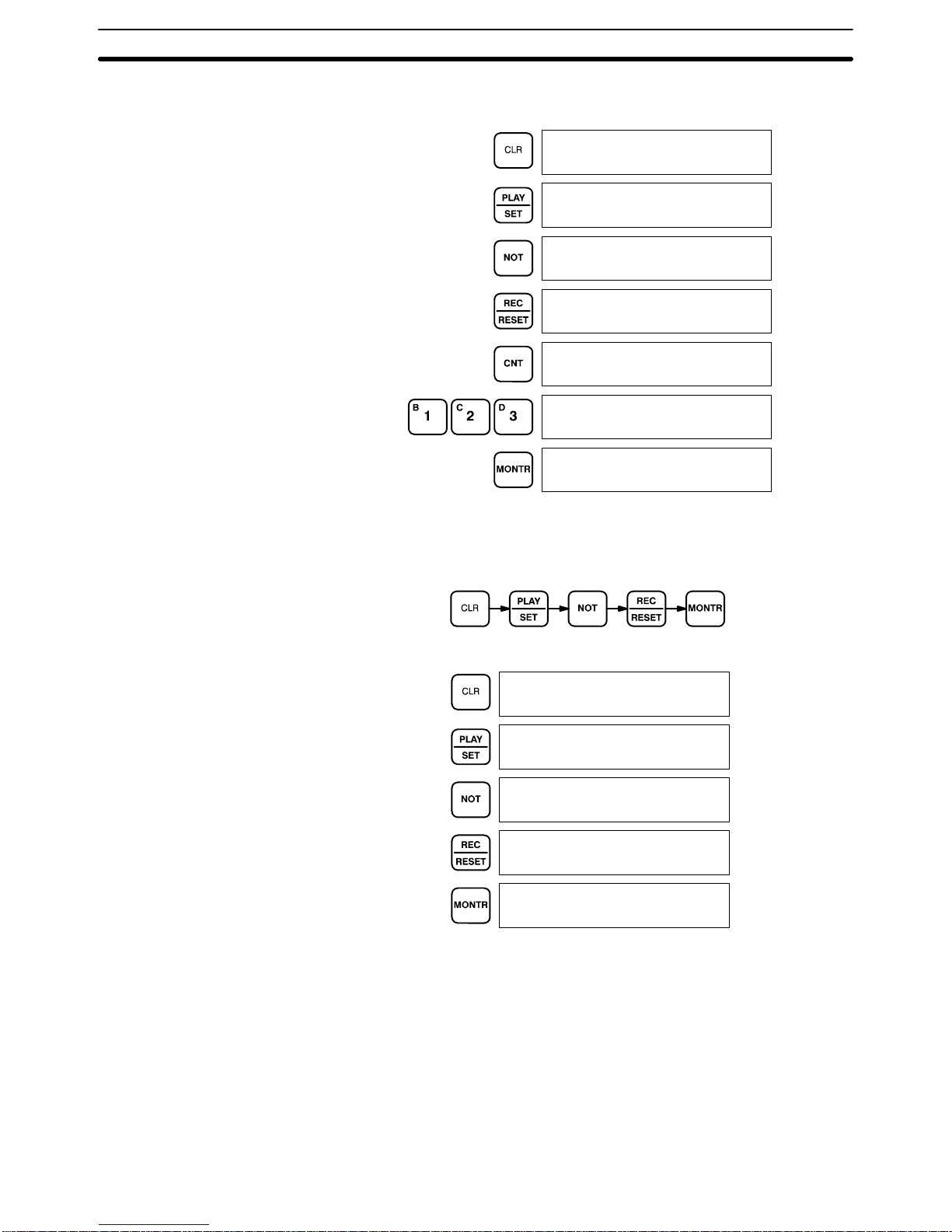

1, 2, 3... 1. Clear memory.

CLR

RESETSET

NOT

EXT MONTR

Note UM allocation is not possible unless memory is cleared first.

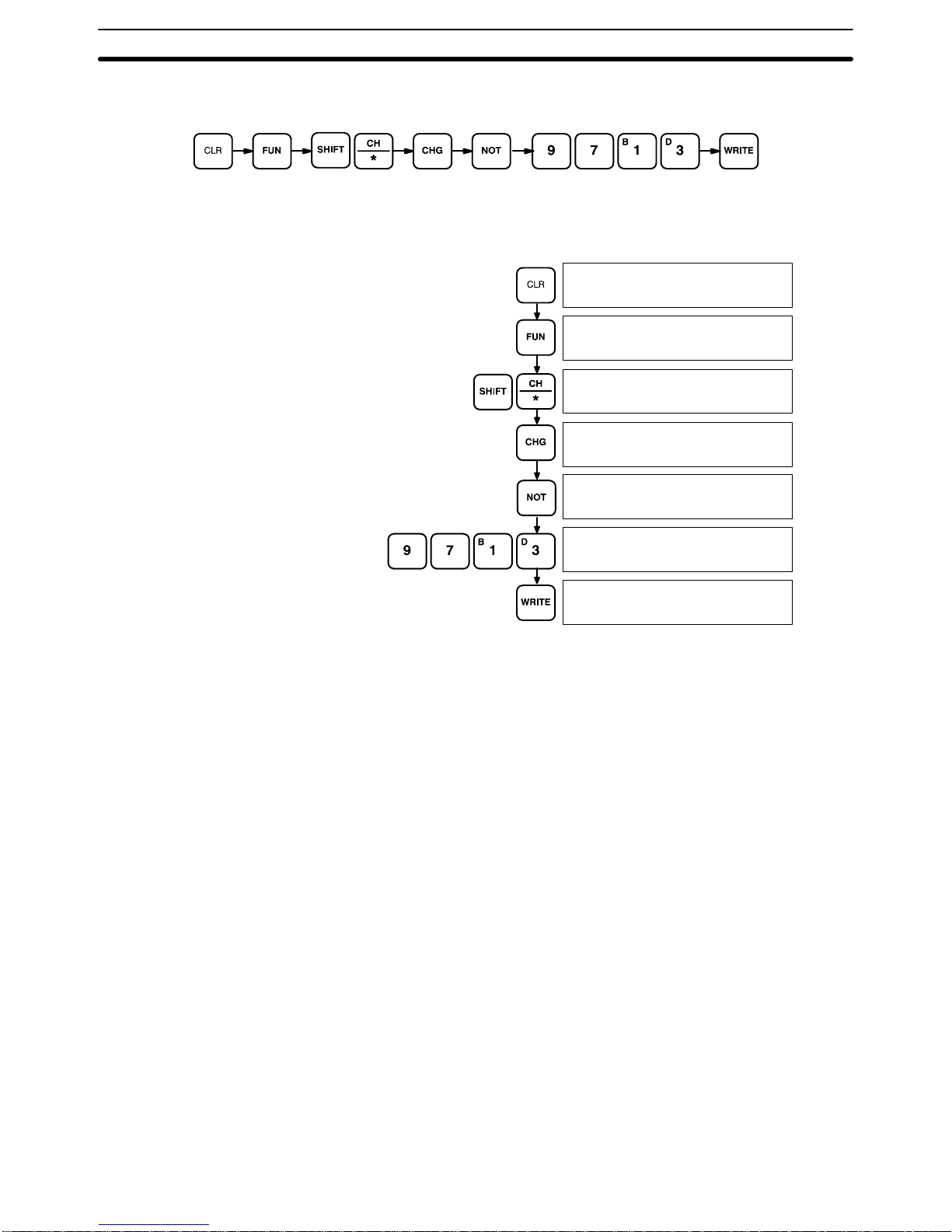

2. The

expansion DM area can be set to 0, 1, 2, or 3 K words. The following key

sequence creates a 2-KW expansion DM area (DM 7000 to DM 8999).

WRITECLR FUN VER CHG 2 SET 9 7 1 3

Press the 0 Key to eliminate the expansion DM area (0 KW).

or Press the 1 Key to allocate DM 7000 to DM 7999 (1 KW). or Press the 2 Key to allocate DM 7000 to DM 8999 (2 KW). or Press the 3 Key to allocate DM 7000 to DM 9999 (3 KW).

3-6-2 Special I/O Unit Data

Special

I/O Units are allocated 1000 words in the DM Area as shown in the fol

lowing

table. The value set in the PC Setup (DM 6602 bits 08 to 15) determines

DM Area Section 3-6

Page 68

whether

DM 1000 to DM 1999 or DM 7000 to 7999 will be used. Refer to

3-6-4

PC Setup for details.

Unit Addresses

0 DM 1000 to DM 1099 or DM 7000 to DM 7099 1 DM 1100 to DM 1199 or DM 7100 to DM 7199 2 DM 1200 to DM 1299 or DM 7200 to DM 7299 3 DM 1300 to DM 1399 or DM 7300 to DM 7399 4 DM 1400 to DM 1499 or DM 7400 to DM 7499 5 DM 1500 to DM 1599 or DM 7500 to DM 7599 6 DM 1600 to DM 1699 or DM 7600 to DM 7699 7 DM 1700 to DM 1799 or DM 7700 to DM 7799 8 DM 1800 to DM 1899 or DM 7800 to DM 7899 9 DM 1900 to DM 1999 or DM 7900 to DM 7999

Note These

DM words can be used for other purposes when not allocated to Special

I/O Units.

3-6-3 Error History Area

6000 to DM 6030 are used to store up to 10 records that show the nature,

time, and date of errors that have occurred in the PC. The

Error History Area will store system-generated or F

AL(06)/FALS(07)-gener-

ated

error codes whenever AR 0715 (Error History Enable

Bit) is ON. Refer to

Section 10 Troubleshooting for details on error codes.

Area Structure Error

records occupy three words each stored between DM 6001 and DM 6030.

The

last record that was stored can

be obtained via the content of DM 6000 (Er

ror

Record Pointer). The record number

, DM words, and pointer value for each

the ten records are as follows:

Record Addresses Pointer value

None N.A. 0000 1 DM 6001 to DM 6003 0001 2 DM 6004 to DM 6006 0002 3 DM 6007 to DM 6009 0003 4 DM 6010 to DM 6012 0004 5 DM 6013 to DM 6015 0005 6 DM 6016 to DM 6018 0006 7 DM 6019 to DM 6021 0007 8 DM 6022 to DM 6024 0008 9 DM 6025 to DM 6027 0009 10 DM 6028 to DM 6030 000A

Although

each of them contains a dif

ferent record, the structure of each record is

the

same: the first word contains the error code; the second and third words, the

day

and time. The error code will be either

one generated by the system or by

FAL(06)/FALS(07);

the time and

date will be the date and time from AR 18 and

19 (Calender/date Area). Also

recorded with the error code is an indication of

whether the error is fatal (08) or non-fatal (00). This structure is shown below.

Word Bit Content

First 00

to 07

Error code

08 to 15

00 (non-fatal) or 80 (fatal)

Second

00 to 07

Seconds

08 to 15

Minutes

Third

00 to 07

Hours

08 to 15

Day of month

DM Area Section 3-6

Page 69

The following table lists the possible error codes and corresponding errors.

Error severity Error code Error

Fatal errors 00 Power Interruption

01 to 99

System error (FALS) 9F Cycle time error C0 to C2 I/O bus error E0 Input-output I/O table error E1 Too many Units F0 No END(01) instruction F1 Memory error

Non-fatal errors

01 to 99

System error (FAL) 8A Interrupt Input error 8B Interrupt program error 9A Group 2 High-density I/O error 9B PC Setup error 9D UM Memory Cassette transfer error B0 to B1 Remote I/O error D0 Special I/O error E7 I/O table verification error F7 Battery error F8 Cycle time overrun

Operation When

the first error code is generated with AR 0715 (Error History Enable Bit)

turned

ON, the relevant data will be placed in the error record after the one

indi

cated

by the History Record Pointer (initially this will be

record 1) and the Pointer will be incremented. Any other error codes generated thereafter will be placed in consecutive

records until the last one is used. Processing of further error

records

is based on the status of AR 0713 (Error History Overwrite Bit). If

0713 is ON and the Pointer contains 000A, the next error will be written into record 10, the contents of record 10 will be moved to record 9, and so on until the contents

of record 1 is moved of

f the end and lost, i.e., the area functions like

shift register. The Record Pointer will remain set to 000A. If

AR 0713 is OFF and the Pointer reaches 000A, the contents of the Error Histo

ry Error will remain as it is and any error codes generate thereafter will not be recorded until AR 0713 is turned OFF or until the Error History Area is reset.

The Error History Area can be reset by turning ON and then OFF AR

0714 (Error History Reset Bit). When this is done,

the Record Pointer will be

reset

to 0000, the Error History Area will be reset (i.e., cleared), and any further error codes will be recorded from the beginning of the Error History Area. AR 0715

(Error History

Enable Bit) must be ON to reset the Error History Area.

3-6-4 PC Setup

The

PC Setup contains settings that determine C200HS operation. Data in the PC Setup can be changed with a Programming Console or LSS if UM is not write-protected

by pin 1 of the CPU’

s DIP switch. Refer to page

23 for details on

changing DIP switch pin settings. The PC can be operated with the default PC Setup, which requires changing

only when customizing the PC’s operating environment to application needs. The

PC Setup parameters are described in the following table. Refer to

Appen-

dix

E PC Setup

for more details on these parameters.

DM Area Section 3-6

Page 70

The PC Setup is allocated to DM 6600 through DM 6655.

Parameter Default Settings Remarks

STARTUP MODE

Programming Console mode selector

Programming Console mode selector, previous mode (i.e., the mode in use last time power was interrupted), PROGRAM, MONITOR, or RUN

Determines the operating mode the PC will start in when power is turned ON.

This setting is required for restart continuation. Setting is effective from next time power is turned on

to the PC.

FORCED STATUS

Don’t hold Hold or don’t hold Determines whether or not the status of the Forced

Status Hold Bit is maintained after power interruptions. If the status of the Forced Status Hold Bit is not set to be held, it will be turned OFF the next time the PC is started and forced status will be cleared.

Setting is effective from next time power is turned on to the PC.

IOM HOLD BIT STATUS

Don’t hold Hold or don’t hold Determines whether or not the status of the IOM Hold

Bit is maintained after power interruptions. If the status of the IOM Hold Bit is not set to be held, it will be turned OFF the next time the PC is started and I/O status will be cleared.

This setting is required for restart continuation. Setting is effective from next time power is turned on

to the PC.

CYCLE TIME Variable V

ariable or minimum

Minimum setting: 1 to 9,999 ms

Determines whether or not a minimum cycle time is to be used for user program execution. If a minimum time is set, the PC will wait until the minimum time has expired before starting program execution again. The entire program will be executed even if the minimum time is exceeded.

This setting can be used to reduce variations in I/O response times.

An error of approximately 3 to 4 ms, plus the execution time required for any interrupt programs, can occur.

Setting is effective immediately.

Detect Long Cycles

120 ms 0 to 99,000 ms If the set time is exceeded, the Cycle Time Exceeded

Flag will turn ON and a fatal error will occur. An error of approximately 3 to 4 ms can occur. Setting is effective immediately.

RS-232C SETUP

METHOD Host link Host Link, RS-232C with

no protocol, 1:1 link master, or 1:1 link slave

Determines the settings used when a device, such as a Programmable Terminal or bar code reader is connected to the RS-232C port.

NODE NO 0

00 to 31

Do not set the node number to a number already used

DELAY 0 0 to 9,999 ms

by another Unit connected in the same

START CODE None 00 to FF

communications system (e.g

Host Link System). All

other settings must match those of the device being

END CODE None 00 to FF or CR, LF

other settings must match those of the device being

communicated with.

DATA LINK AREAS

None LR 00 to LR 63, LR 00 to

LR 31, or LR 00 to LR 15

Settings are effective immediately.

BAUD RATE 9,600 bps

1200, 2400, 4800, 9600, or 19200

STOP BITS 2 bits 1 or 2 bits PARITY Even parity Even, odd, or none DATA LENGTH 7 bits 7 or 8 bits

PC SETUP, HEX INPUT

Used to set the above parameters on a binary display.

DM Area Section 3-6

Page 71

3-7 HR (Holding Relay) Area

The HR area is used to store/manipulate various kinds of data and can be accessed

either by word

or by bit. W

ord addresses range from HR 00 through HR

99;

bit addresses, from HR 0000 through

HR 9915. HR bits can be used in any

order required and can be programmed as often as required. The

HR area retains status when the system

operating mode is changed, when

power is interrupted, or when PC operation is stopped. HR

area

bits and words can be used to preserve data whenever PC operation is

stopped.

HR bits also have various special applications, such

as creating latch

ing relays with the Keep instruction and

forming self-holding outputs. These are

discussed

Section

4 Writing and Inputting the Program

and

Section

5 Instruc

tion Set.

Note The

required number of words is allocated between HR 00 and HR 42 for

routing

tables and to monitor timers when using SYSMAC NET Systems.

3-8 TC

imer/Counter) Area

The

area is used to create and program timers and counters and holds the Completion flags, set values (SV), and present values (PV) for all timers and counters.

All of these are accessed through TC numbers ranging

from TC 000

through

1. Each TC number is defined as either a timer or counter using

one

of the following instructions: TIM, TIMH, CNT

, CNTR(12), and TTIM(87). No

prefix is required when using a TC number in a timer or counter instruction. Once

a TC number has

been defined using one of these instructions, it cannot be redefined elsewhere in the program either using the same or a different instruction. If the same TC number is defined in more than one of these instructions

or in the same instruction twice, an error will be generated during the pro

gram

check. There are no restrictions on the order in which TC numbers can be

used. Once defined, a TC number

can be designated as an operand in one or more of

certain

set of instructions other than those listed above. When defined as a timer

, a TC number designated as an operand takes a TIM prefix. The TIM prefix is used

regardless of the timer instruction that was used to define

the timer

. Once defined as a counter, the TC number designated as an operand takes a CNT prefix.

The CNT is also

used regardless of the counter instruction that was used

to define the counter. TC

numbers can be designated for operands that require bit data

or for operands

that

require word data.

When designated as an operand that requires bit data,

the

TC number accesses the completion flag of the timer or counter

. When des

ignated

as an operand that requires word data, the TC number accesses a

mem

ory location that holds the PV of the timer or counter. TC

numbers are also used to access the SV of timers and counters from a Pro

gramming

Device. The procedures

for doing so using the Programming Console

are provided in 7-1 Monitoring Operation and Modifying Data. The

TC area retains the SVs of both timers and counters during power interrup

tions.

The PVs of timers are reset when PC operation is begun and when reset in

interlocked program sections. Refer to 5-10 INTERLOCK and INTERLOCK

CLEAR

– IL(02) and ILC(03)

for details on timer and counter operation in inter

locked program sections. The PVs of counters are not reset at these times. Note

that in programming “TIM 000” is used to designate three things: the T

imer

instruction defined with TC number 000, the completion flag for this timer

, and

the

PV of this timer

. The meaning in context should

be clear

, i.e., the first is al

ways an instruction, the second is always a bit, and the third is always a word. The same is true of all other TC numbers prefixed with TIM or CNT.

TC Area Section 3-8

Page 72

3-9 LR (Link Relay) Area

The LR area is used as a common data area to transfer information between PCs. This data transfer is achieved through a PC Link System.

Certain

words will be allocated as the write words of

each PC. These words are written by the PC and automatically transferred to the same LR words in the other

PCs in the System. The write words of

the other PCs are transferred in as read words so that each PC can access the data written by the other PCs in the PC

Link System. Only the write

words allocated to the particular PC will be avail

able

for writing; all other words may be read only

. Refer to the PC Link System

Manual for details. The LR area is accessible either by bit or by word. LR area word addresses

range

from LR 00 to LR 63; LR area bit addresses, from LR 0000 to LR 6315. Any

part

of the LR area that is not used by the PC Link System can be used as work

words or work bits. LR area data is not retained when the power is interrupted, when the PC is

changed

to PROGRAM mode, or when it is reset in an interlocked program

sec

tion.

Refer to

5-10 INTERLOCK and INTERLOCK

CLEAR – IL(02) and ILC(03)

for details on interlocks.

3-10 UM Area

With

the C200HS, the UM area is defined as the part of memory that can be con

verted

and transferred to ROM. The UM area is 16 KW of RAM which is backed up by the CPU’s battery. Some of the UM area is reserved to system use, so 15,488

words can be used by the operator

. The structure of the C200HS DM and

UM areas is shown in the following illustration.

0000

DM 6144 DM 6600 DM 6655 DM 7000 DM 9999

PC Setup

Reserved

Expansion DM Area

I/O Comment Area

Ladder program

ariable size

Ladder Program Area (15.1 KW)

Fixed DM Area

UM Area (16.0 KW)

Normal DM Area

Special I/O Unit Default Area

DM 1000 to DM 1999

Note Allocating

UM area for an expansion DM and/or

I/O Comment Area will reduce

program

capacity

. Check program capacity requirements before allocating the

UM area.

3-11 TR

emporary Relay) Area

The

TR area provides eight bits that are used only with the LD and OUT instruc

tions

to enable

certain types of branching ladder diagram programming. The use

of TR bits is described in Section 4 Writing and Inputting the Program. TR

addresses range from TR 0 though TR 7. Each of these bits can be used as

many

times as required and in any order required as long as the same LR bit is

not used twice in the same instruction block.

TR Area Section 3-11

Page 73

SECTION 4

Writing and Inputting the Program

This

section explains the basic steps and concepts involved in writing a basic ladder diagram program, inputting the program

into

memory

, and executing it. It introduces

the instructions that are used to build the basic structure of the ladder diagram and

control its execution. The entire set of instructions used in programming is described in Section

5 Instruction Set

4-1

Basic Procedure

64. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4-2 Instruction Terminology 64. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4-3 Program Capacity 65. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4-4

Basic Ladder Diagrams

65. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4-4-1

Basic T

erms 66. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4-4-2

Mnemonic Code

66. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4-4-3 Ladder Instructions 67. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4-4-4 OUTPUT and OUTPUT NOT 70. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4-4-5 The END Instruction 70. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4-4-6 Logic Block Instructions 71. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4-4-7 Coding Multiple Right-hand Instructions 78. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4-5 The Programming Console 78. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4-5-1 The Keyboard 78. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4-5-2

PC Modes

80. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4-5-3

The Display Message Switch

80. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4-6 Preparation for Operation 80. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4-6-1 Entering the Password 81. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4-6-2 Buzzer 81. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4-6-3 Clearing Memory 82. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4-6-4 Registering the I/O Table 84. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4-6-5

Clearing Error Messages

85. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4-6-6 Verifying the I/O Table 86. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4-6-7 Reading the I/O Table 87. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4-6-8 Clearing the I/O Table 89. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4-6-9 SYSMAC NET Link Table Transfer (CPU31/33-E Only) 90. . . . . . . . . . . . . . . . . .

4-7 Inputting, Modifying, and Checking the Program 92. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4-7-1 Setting and Reading from Program Memory Address 92. . . . . . . . . . . . . . . . . . . . .

4-7-2 Entering and Editing Programs 93. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4-7-3 Checking the Program 96. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4-7-4

Displaying the Cycle T

ime 98. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4-7-5 Program Searches 99. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4-7-6 Inserting and Deleting Instructions 100. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4-7-7 Branching Instruction Lines 103. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4-7-8 Jumps 107. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4-8 Controlling Bit Status 108. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4-8-1 DIFFERENTIATE UP and DIFFERENTIATE DOWN 109. . . . . . . . . . . . . . . . . . . .

4-8-2 KEEP 109. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4-8-3 Self-maintaining Bits (Seal) 109. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4-9 Work Bits (Internal Relays) 110. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4-10 Programming Precautions 112. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4-11 Program Execution 114. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Page 74

4-1 Basic Procedure

There

are several basic steps

involved in writing a program. Sheets that can be

copied

to aid in programming are provided in

Appendix F Word Assignment Re

cording Sheets and Appendix G Program Coding Sheet.

1, 2, 3... 1. Obtain

a list of all I/O devices and the I/O points

that have been assigned to

them

and prepare a table that shows the

I/O bit allocated to each I/O device.

2. If

the PC has any Units that are allocated words in data areas other than the

area or are allocated IR words in which the function of each bit is specified by the Unit, prepare similar tables to show what words are used for which Units

and what function is served by each bit within the words. These

Units

include Special I/O Units and Link Units.

3. Determine what words are available for work bits and prepare a table in which you can allocate these as you use them.

4. Also

prepare tables of TC numbers and jump numbers so that you can allo

cate

these as you

use them. Remember

, the function of a TC number can be

defined

only once within the program; jump numbers 01 through 99 can be

used

only once each. (TC number are described

5-14 T

imer and Counter

Instructions; jump numbers are described later in this section.)

5. Draw the ladder diagram.

6. Input

the program into the CPU. When using the Programming Console, this

will involve converting the program to mnemonic form.

7. Check the program for syntax errors and correct these.

8. Execute the program to check for execution errors and correct these.

9. After

the entire Control System has been installed and

is ready for use, exe

cute the program and fine tune it if required.

10. Make a backup copy of the program. The

basics of ladder-diagram programming and conversion to mnemonic code

are

described

4-4 Basic Ladder Diagrams

. Preparing for and inputting the pro

gram via the Programming Console are described in 4-5 The Programming

Console

through

4-7 Inputting, Modifying, and Checking the Program

. The rest of Section 4 covers more advanced programming, programming precautions, and

program

execution. All special application instructions are covered in

Sec-

tion

5 Instruction Set

. Debugging is described in

Section

7 Program Monitoring

and

Execution. Section

10 T

roubleshooting

also provides information required

for debugging.

4-2 Instruction Terminology

There are basically two types of instructions used in ladder-diagram programming:

instructions that correspond to

the conditions on the ladder diagram and

are

used in instruction form only

when converting a program to mnemonic code and instructions that are used on the right side of the ladder diagram and are executed according to the conditions on the instruction lines leading to them.

Most

instructions have at least one or more operands associated with them. Op

erands

indicate or provide the data on which an instruction is to be performed.

These

are sometimes

input as the actual numeric values, but are usually the ad

dresses of data area words or bits that contain the data to be used. For instance, a MOVE instruction that has IR 000 designated as the source operand will move the

contents of IR 000 to some other location. The other location is also

desig

nated

as an operand. A bit whose address is designated

as an operand is called

operand bit; a word whose

address is designated as an operand is called an operand word. If the actual value is entered as a constant, it is preceded by # to indicate that it is not an address.

Other

terms used in describing instructions are introduced in

Section

5 Instruc

tion Set.

Instruction Terminology Section 4-2

Page 75

4-3 Program Capacity

The

maximum user program size varies with the amount of UM allocated to ex

pansion

and the I/O Comment Area. Approximately 10.1 KW are available

for

the ladder program when 3 KW are allocated to expansion

DM and 2 KW are

allocated

to I/O comments as shown below

. Refer to the

3-10 UM

Area

for further

information on UM allocation.

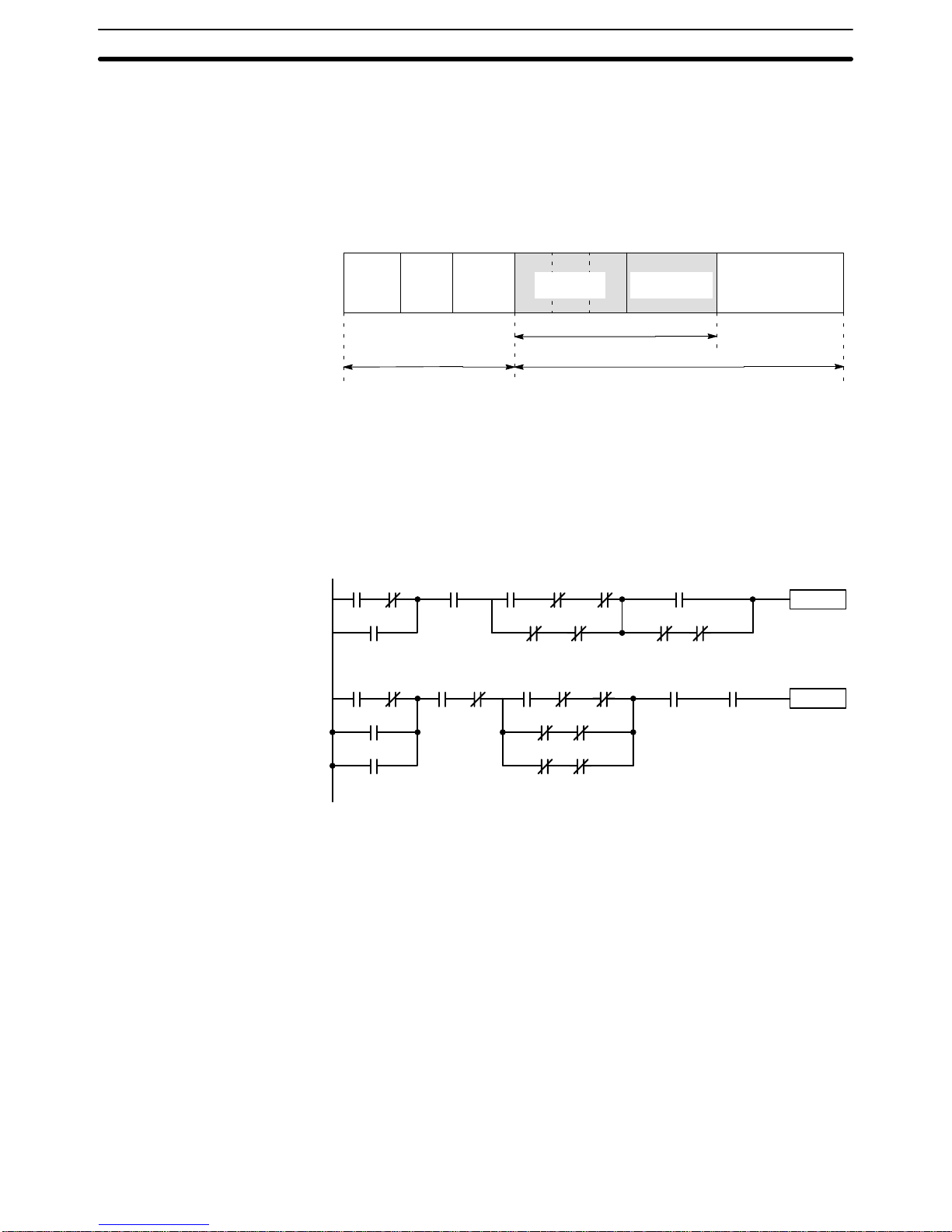

DM 6144

PC Setup

Reserved

Expansion DM Area

I/O Comment Area

Ladder program

ariable size

Ladder Program Area (15.1 KW)

Fixed DM Area

DM 6600DM6655

DM 7000

DM 9999

4-4 Basic Ladder Diagrams

A ladder diagram consists of one line running down the left side with lines branching

f to the right. The line on the left is called the bus bar; the branching

lines,

instruction lines or rungs. Along the instruction lines are placed conditions

that

lead to other instructions on the right side. The logical combinations of these

conditions

determine

when and how the instructions at the right are executed. A

ladder diagram is shown below.

00000 06315

Instruction

00403

00001

HR 0109 LR 250325208 24400

00501 00502 00503 00504

24401

00100 00002

00010

00011

00003 HR 0050 00007 TIM 001 LR 0515

21001 21002

00405

21005 21007

shown in the diagram above, instruction lines can branch apart and they can join back together. The vertical pairs of lines are called conditions. Conditions without diagonal lines through them are called normally open conditions and correspond to a LOAD, AND, or OR instruction. The conditions with diagonal lines through them are called normally closed conditions and correspond to a LOAD

NOT

, AND NOT

, or OR NOT instruction. The number above each condi

tion indicates the operand bit for the instruction. It is the status of the bit associated

with

each condition that determines the execution condition for following

instructions.

The way the operation of each of the instructions corresponds to a condition is described below. Before we consider these, however, there are some basic terms that must be explained.

Note When

displaying ladder diagrams with LSS, a second bus bar will be shown on

the

right side of the ladder diagram and will be connected to all instructions on the right side. This does not change the ladder-diagram program in any functional

sense. No conditions can be placed between the instructions on the right side and the right bus bar, i.e., all instructions on the right must be connected directly to the right bus bar. Refer to the LSS Operation Manual for details.

Basic Ladder Diagrams Section 4-4

Page 76

4-4-1 Basic Terms

Each

condition in a ladder diagram is either ON or OFF depending on the status

the operand bit that has been assigned to it. A normally

open condition is ON if

the

operand bit is ON; OFF if the operand bit is OFF

. A

normally closed condition

ON if the operand bit is OFF; OFF if the operand bit is ON. Generally speaking,

you

use a normally open

condition when you want something to happen when a

bit

is ON, and a normally closed condition when you want something to happen

when a bit is OFF.

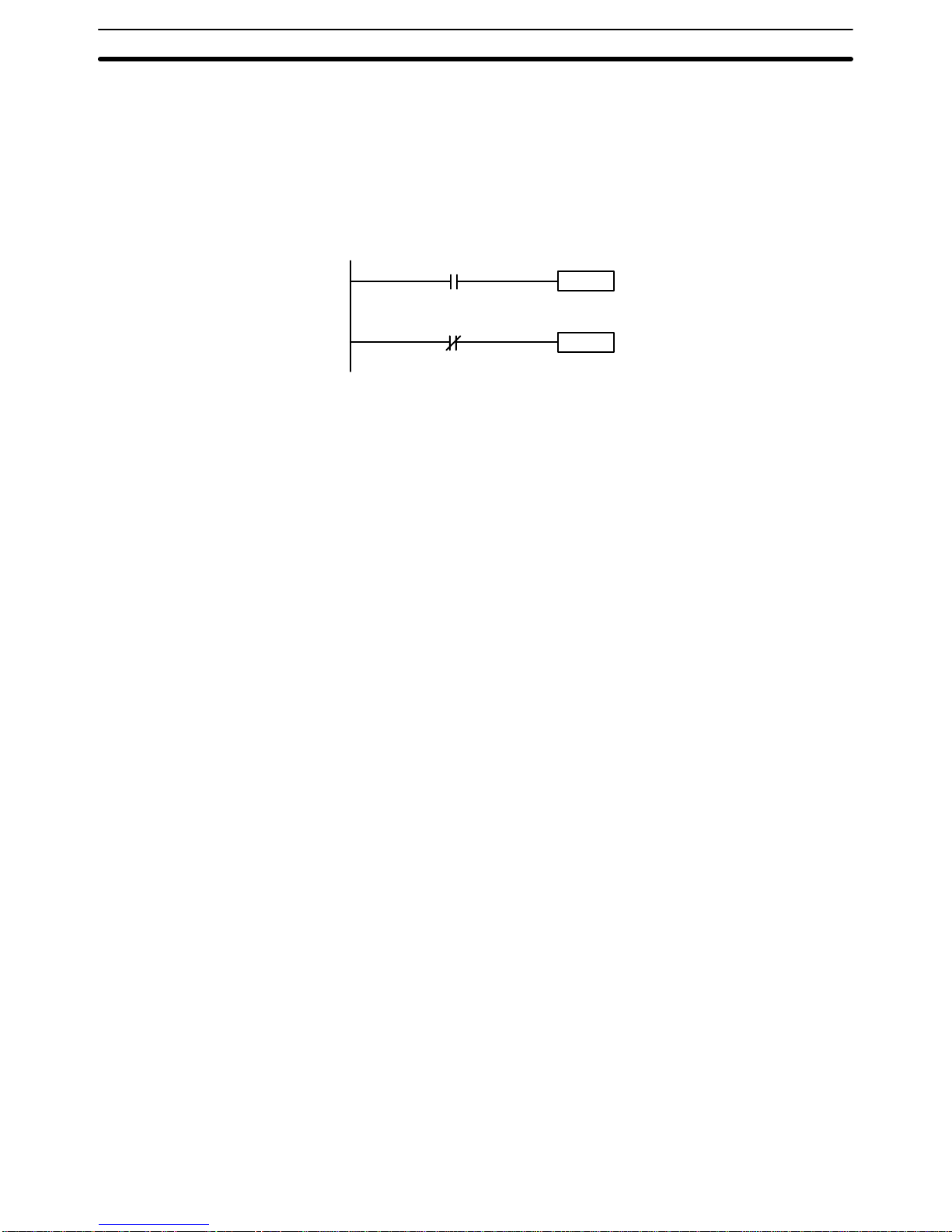

Instruction

00000

Instruction is executed when IR bit 00000 is ON.

Instruction is executed when IR bit 00000 is OFF.

Normally

open

condition

Normally closed condition

Execution Conditions In

ladder diagram programming, the logical combination of ON and OFF condi

tions

before an instruction determines the compound condition under which the

instruction

is executed. This condition, which is either ON or OFF

, is called the

execution

condition for the

instruction. All instructions other than LOAD instruc

tions have execution conditions.

Operand Bits The

operands designated for

any of the ladder instructions can be any bit in the

IR,

SR, HR, AR,

LR, or TC areas. This means that the conditions in a ladder dia

gram

can be determined by I/O bits, flags, work bits, timers/counters, etc.

LOAD

and

OUTPUT instructions can also use TR area bits, but they do so only in spe

cial applications. Refer to 4-7-7 Branching Instruction Lines for details.

Logic Blocks The way that conditions correspond to what instructions is determined by the

relationship between the conditions within the instruction lines that connect them.

Any group of conditions that go together to

create a logic result is called a

logic

block. Although ladder

diagrams can be written without actually analyzing

individual

logic blocks, understanding logic blocks is necessary for ef

ficient pro

gramming and is essential when programs are to be input in mnemonic code.

4-4-2 Mnemonic Code

The

ladder diagram cannot be directly input into the PC via a Programming Con

sole;

LSS is required. T

o input from a Programming Console, it is necessary to convert the ladder diagram to mnemonic code. The mnemonic code provides exactly the same information as the ladder diagram, but in a form that can be typed

directly into the PC. Actually you can program directly in mnemonic code, although it in not recommended for beginners or for complex programs. Also, regardless

of the Programming Device used, the program is stored in memory in

mnemonic form, making it important to understand mnemonic code. Because

of the importance of

the Programming Console as a peripheral device

and

because of the importance of mnemonic code in complete understanding of a program, we will introduce and describe the mnemonic code along with the ladder

diagram. Remember

, you will

not need to use the mnemonic code if you

are inputting via LSS (although you can use it with LSS too, if you prefer).

Program Memory Structure The

program is input into addresses in

Program Memory

. Addresses in Program

Memory

are

slightly dif

ferent to those in other memory areas because each ad

dress

does not necessarily hold the same amount of data. Rather

, each address holds one instruction and all of the definers and operands (described in more detail

later) required for that instruction. Because some instructions require no

operands,

while others require up to three operands, Program Memory address

es can be from one to four words long.

Normally Open and Normally Closed Conditions

Basic Ladder Diagrams Section 4-4

Page 77

Program

Memory addresses start at 00000

and run until the capacity of Program

Memory has been exhausted. The first word at each address defines the instruc

tion. Any definers used by the instruction are also contained in the first word. Also,

if an instruction requires only a single bit operand (with no definer), the bit

operand

is also programmed on the same line as the instruction. The rest of the

words

required by an instruction contain the operands that specify

what data is

be used. When converting to mnemonic code, all but ladder diagram instruc

tions

are written in the

same form, one word to a line, just as they appear in the ladder diagram symbols. An example of mnemonic code is shown below. The instructions used in it are described later in the manual.

Address Instruction Operands

00000 LD HR 0001 00001 AND 00001 00002 OR 00002 00003 LD NOT 00100 00004 AND 00101 00005 AND LD 00102 00006 MOV(21)

000

DM 0000

00007 CMP(20)

DM 0000

HR 00 00008 LD 25505 00009 OUT 00501 00010 MOV(21)

DM 0000

DM 0500 00011 DIFU(13) 00502 00012 AND 00005 00013 OUT 00503

The

address and

instruction columns of the mnemonic code table are filled in for

the

instruction word only

. For all other lines, the left two columns are left blank. If the instruction requires no definer or bit operand, the operand column is left blank for first line. It is a good idea to cross through any blank data column spaces

(for all instruction

words that do not require data) so that the data column

can be quickly scanned to see if any addresses have been left out. When

programming, addresses are automatically displayed and do not have to

input unless for some reason a dif

ferent location

is desired for the instruction.

When converting to mnemonic code,

it is best to start at Program Memory ad

dress 00000 unless there is a specific reason for starting elsewhere.

4-4-3 Ladder Instructions

The

ladder instructions are those instructions that correspond to the conditions

the ladder diagram. Ladder instructions, either independently or in combina

tion with the logic block instructions described next, form the execution conditions upon which the execution of all other instructions are based.

Basic Ladder Diagrams Section 4-4

Page 78

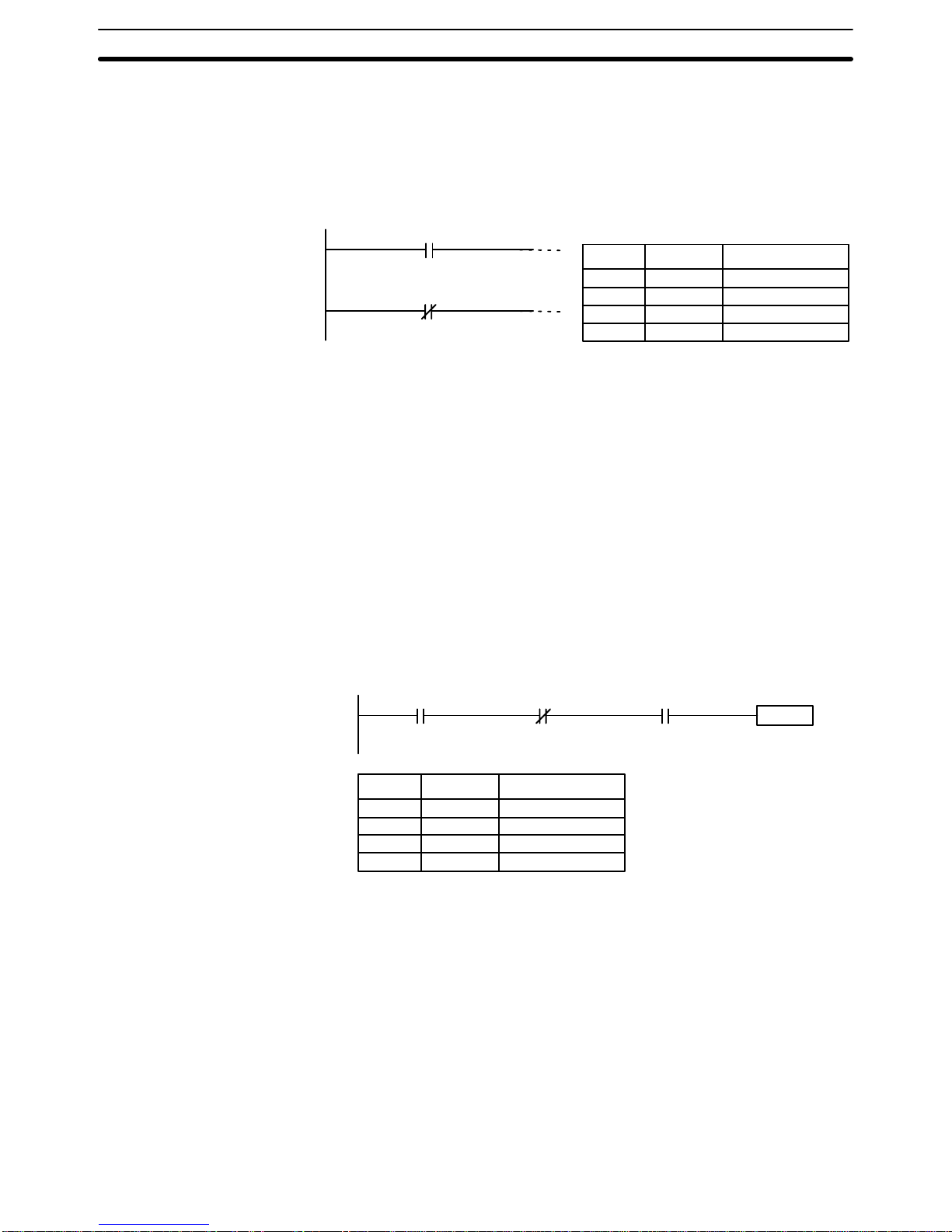

LOAD and LOAD NOT The first condition that starts any logic block within a ladder diagram corre-

sponds

to a LOAD or LOAD NOT instruction.

Each of these instruction requires

one

line of mnemonic code. “Instruction” is used as a dummy instruction in the

following

examples and could be any of

the right-hand instructions described lat

er in this manual.

00000

A LOAD instruction.

A LOAD NOT instruction.

Address Instruction Operands

00000 LD 00000 00001 Instruction 00002 LD NOT 00000 00003 Instruction

When

this is the only condition on

the instruction line, the execution condition for

the instruction at the right is ON when the condition is ON. For the LOAD instruc

tion (i.e., a normally open condition), the execution condition will be ON when IR 00000

is ON; for the LOAD NOT instruction (i.e., a normally closed condition), it

will be ON when 00000 is OFF.

AND and AND NOT When

two or more conditions lie in series

on the same instruction line, the first

one

corresponds

to a LOAD or LOAD NOT instruction; and the rest of the condi

tions correspond to AND or AND NOT instructions. The following example shows three conditions which correspond in order from the left to a LOAD, an AND NOT, and an AND instruction. Again, each of these instructions requires one line of mnemonic code.

00000 00100 LR 0000

Instruction

Address Instruction Operands

00000 LD 00000 00001 AND NOT 00100 00002 AND LR 0000 00003 Instruction

The instruction will have an ON execution condition only when all three conditions

are ON, i.e., when IR 00000

is ON, IR 00100 is OFF

, and LR 0000 is ON.

AND

instructions in series can be considered individually

, with each taking the

logical

AND of the execution condition (i.e., the total of

all conditions up to that

point)

and the status of the AND instruction’

s operand bit. If both of these are ON, an ON execution condition will be produced for the next instruction. If either is OFF, the result will also be OFF. The execution condition for the first AND instruction in a series is the first condition on the instruction line.

Each

AND NOT instruction in series takes the logical AND of its execution

condi

tion and the inverse of its operand bit.

Basic Ladder Diagrams Section 4-4

Page 79

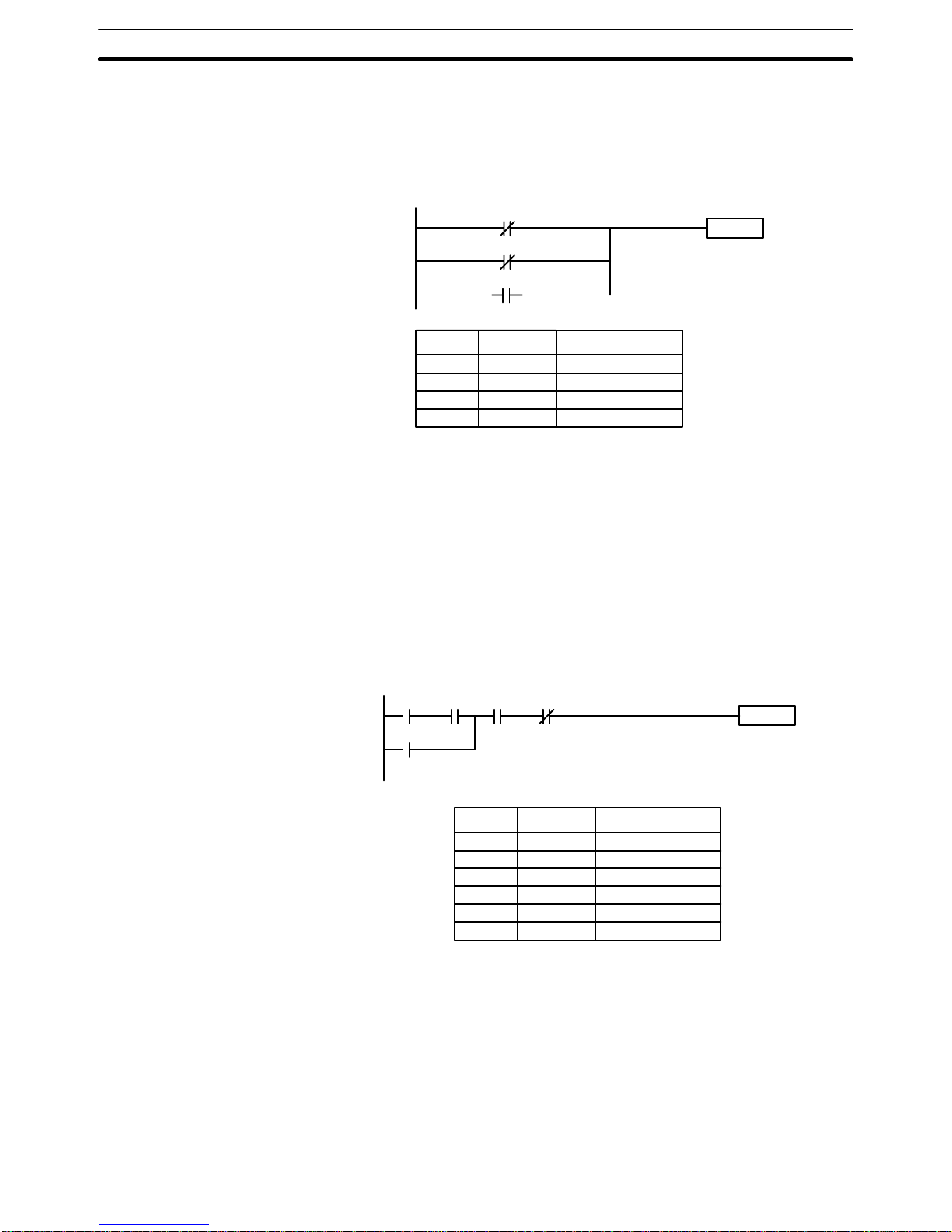

OR and OR NOT When

two or more conditions lie on separate instruction lines which run in paral

lel and then join together, the first condition corresponds to a LOAD or LOAD NOT

instruction; the other conditions correspond to OR or OR NOT instructions.

The

following example shows three conditions which correspond (in order from the top) to a LOAD NOT, an OR NOT, and an OR instruction. Again, each of these instructions requires one line of mnemonic code.

Instruction

00100

LR 0000

00000

Address Instruction Operands

00000 LD 00000 00001 OR NOT 00100 00002 OR LR 0000 00003 Instruction

The

instruction will have an ON execution condition when any one of the three conditions

is ON, i.e., when IR 00000 is OFF

, when

IR 00100 is OFF

, or when LR

0000 is ON. OR and OR NOT instructions can be considered individually, each taking the

logical

OR between its execution condition

and the status of the OR instruction’

s operand bit. If either one of these were ON, an ON execution condition will be produced for the next instruction.

When AND and OR instructions are combined in more complicated diagrams, they

can sometimes be considered individually

, with each instruction performing a logic operation on the execution condition and the status of the operand bit. The

following is one example. Study

this example until you are convinced that

the mnemonic code follows the same logic flow as the ladder diagram.

Instruction

00002 0000300000 00001

00200

Address Instruction Operands

00000 LD 00000 00001 AND 00001 00002 OR 00200 00003 AND 00002 00004 AND NOT 00003 00005 Instruction

Here,

an AND is taken between the status of IR 00000 and that of IR 00001 to determine the execution condition for an OR with the status of IR 00200. The result

of this operation determines the execution condition for an AND with the status

of IR 00002, which in turn

determines the execution condition for an AND

with the inverse (i.e., and AND NOT) of the status of IR 00003. In

more complicated diagrams, however

, it is necessary to consider logic blocks before an execution condition can be determined for the final instruction, and that’s

where AND LOAD and OR LOAD instructions are used. Before we consid

more complicated diagrams, however

, we’ll look

at the instructions required to

complete a simple “input-output” program.

Combining AND and OR Instructions

Basic Ladder Diagrams Section 4-4

Page 80

4-4-4 OUTPUT and OUTPUT NOT

The simplest way to output the results of combining execution conditions is to output it directly with the OUTPUT and OUTPUT NOT. These instructions are used

to control the status of the designated operand

bit according to the execu

tion

condition. With the OUTPUT instruction, the operand bit will be turned ON

long as the execution condition is ON

and will be turned OFF as long as the

execution

condition is OFF

. With the OUTPUT NOT instruction, the operand bit will be turned ON as long as the execution condition is OFF and turned OFF as long

as the execution condition is ON. These appear as shown below

. In mne

monic code, each of these instructions requires one line.

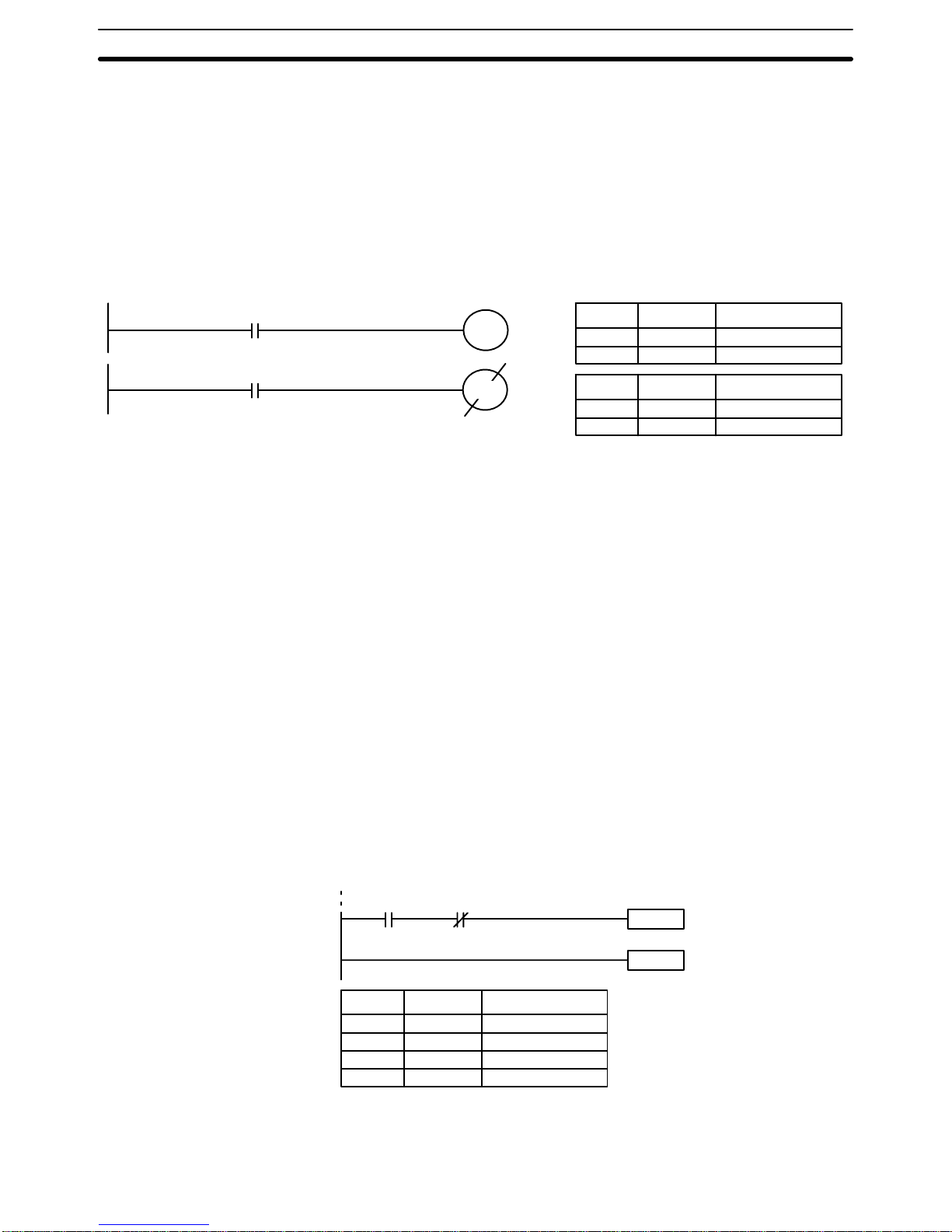

00000

00201

00200

00001

Address Instruction Operands

00000 LD 00000 00001 OUT 00200

Address Instruction Operands

00000 LD 00001 00001 OUT NOT 00201

the above examples, IR 00200 will

be ON as long as IR 00000 is ON and IR

00201

will be OFF as long as IR 00001

is ON. Here, IR 00000 and IR 00001 will

input bits and IR 00200 and IR 00201 output bits assigned to the Units

con

trolled

by the PC, i.e., the signals coming in through the input

points assigned IR

00000

and IR 00001 are controlling the output points assigned IR 00200 and IR

00201, respectively. The length of time that a bit is ON or OFF can be controlled by combining the

OUTPUT

or OUTPUT NOT instruction with TIMER instructions.

Refer to Exam

ples under 5-14-1 TIMER – TIM for details.

4-4-5 The END Instruction

The

last instruction required to complete a simple

program is the END instruc

tion.

When the CPU cycles the program, it executes all

instruction up to the first

END

instruction before returning to

the beginning of the program and beginning execution again. Although an END instruction can be placed at any point in a program, which is sometimes done when debugging, no instructions past the first

END instruction will be executed until it is removed. The number

following the END instruction in the mnemonic code is its function code, which is used when

inputted most instruction

into the PC. These are described later

. The END

instruction

requires no operands

and no conditions can be placed on the same

instruction line with it.

Instruction

00000 00001

END(01)

Program execution ends here.

Address Instruction Operands

00000 LD 00000 00001 AND NOT 00001 00002 Instruction 00003 END(01) ---

there is no END instruction anywhere in the program, the program

will not be

executed at all.

Basic Ladder Diagrams Section 4-4

Page 81

Now you have all of the instructions required to write simple input-output programs.

Before we finish with ladder diagram basic and go onto inputting the pro

gram

into the PC, let’

s look at logic

block instruction (AND LOAD and OR LOAD),

which are sometimes necessary even with simple diagrams.

4-4-6 Logic Block Instructions

Logic block instructions do not correspond to specific conditions on the ladder diagram; rather, they describe relationships between logic blocks. The AND LOAD

instruction logically ANDs the execution conditions produced by two logic blocks. The OR LOAD instruction logically ORs the execution conditions produced by two logic blocks.

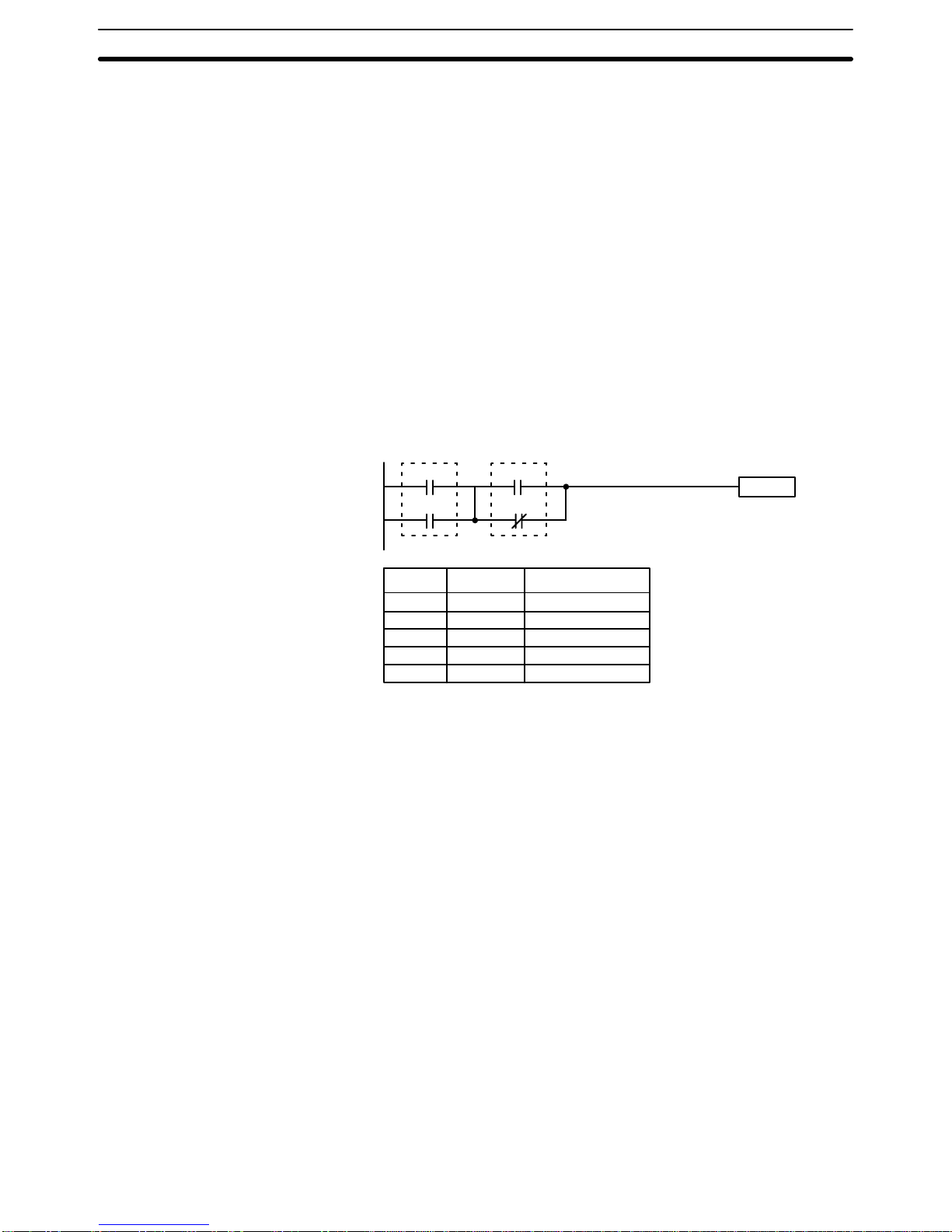

AND LOAD Although

simple in appearance, the diagram below requires an AND LOAD

struction.

Instruction

00002

00003

00000

00001

Address Instruction Operands

00000 LD 00000 00001 OR 00001 00002 LD 00002 00003 OR NOT 00003 00004 AND LD ---

The

two

logic blocks are indicated by dotted lines. Studying this example shows

that

an ON execution condition will be produced when: either of the conditions

in the left logic block is ON (i.e., when either IR 00000 or IR 00001 is ON), and when

either of the conditions in the right logic block is ON (i.e., when either

00002 is ON or IR 00003 is OFF). The above ladder diagram cannot, however, be converted to mnemonic code

using

AND and OR instructions alone. If an AND between IR 00002 and the re

sults

of an OR between IR 00000 and IR 00001 is attempted, the OR NOT be

tween

IR 00002 and IR 00003 is lost and the OR

NOT ends up being an OR NOT

between

just IR 00003 and the result of an AND between IR 00002 and the first

OR.

What we need is a way

to do the OR (NOT)’

s independently and then com

bine the results. To

do this, we can use the LOAD or LOAD NOT instruction in the middle of an

instruction

line. When LOAD or

LOAD NOT is executed in this way

, the current execution condition is saved in a special buffer and the logic process is restarted.

o combine the results

of the current execution condition with that of a

“unused” execution

condition, an AND LOAD or an OR LOAD instruc

tion

is used. Here “LOAD” refers to loading the last unused execution condition.

An unused execution condition

is produced by using the LOAD or LOAD NOT

instruction for any but the first condition on an instruction line.

Basic Ladder Diagrams Section 4-4

Page 82

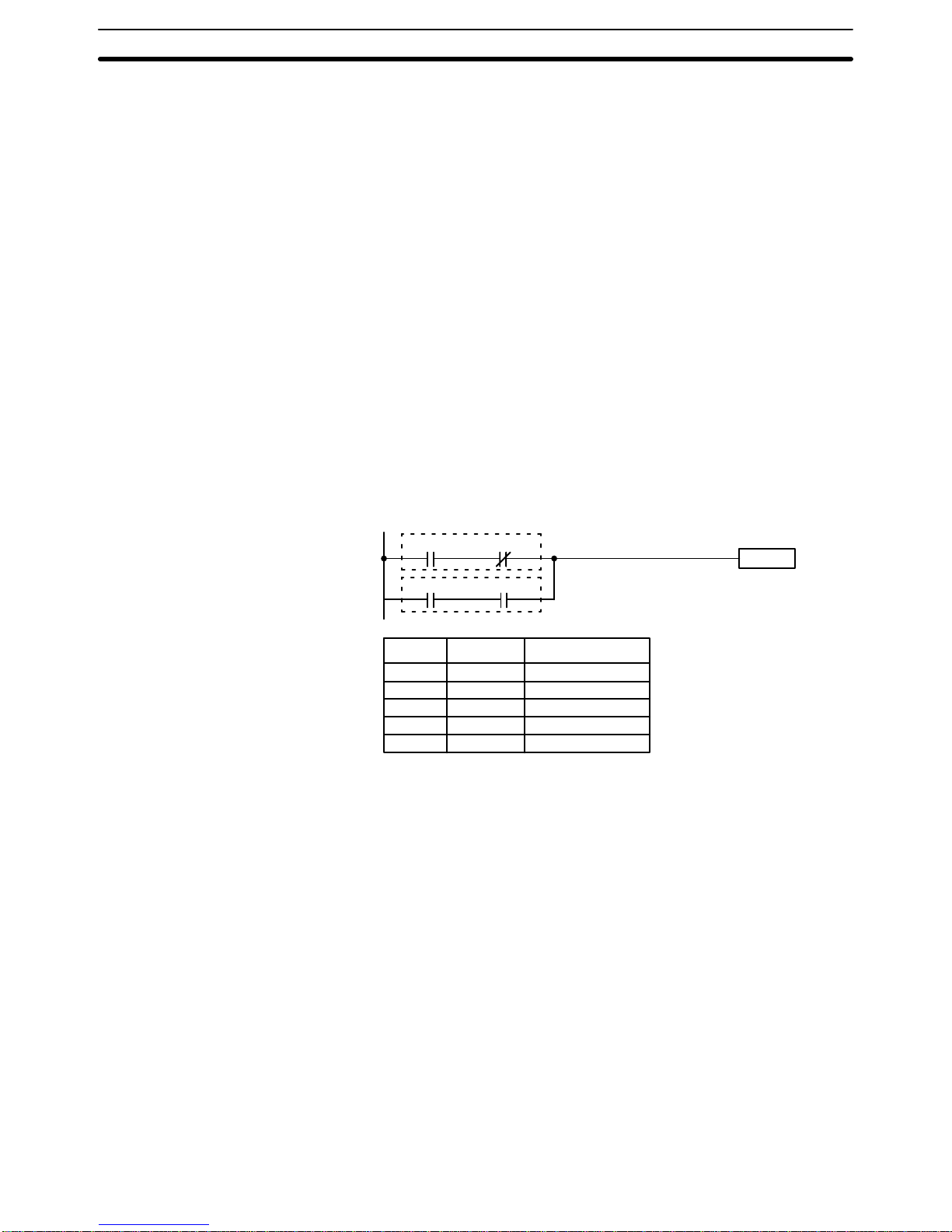

Analyzing

the above ladder diagram in terms of mnemonic instructions, the con

dition

for IR 00000 is a LOAD instruction and the condition below it is an OR in

struction between the status of IR 00000 and

that of IR 00001. The condition at IR 00002 is another LOAD instruction and the condition below is an OR NOT instruction, i.e., an OR between the status of IR 00002 and the inverse of the status

of IR 00003. T

o arrive at the execution condition for the instruction at the

right,

the logical AND

of the execution conditions resulting from these two blocks

will

have to be taken. AND LOAD does this. The mnemonic code for the ladder

diagram

is shown below

. The AND

LOAD instruction requires no operands of its

own,

because it operates on

previously determined execution conditions. Here

too, dashes are used to indicate that no operands needs designated or input.

OR LOAD The

following diagram requires an

OR LOAD instruction between the top logic

block

and the bottom logic block. An ON execution condition will be produced for

the

instruction at the right either when IR 00000 is ON and IR 00001 is OFF

, or

when

IR 00002 and IR 00003 are both ON. The operation of the OR LOAD in

struction

and its mnemonic code is exactly the same as that for an AND LOAD

instruction,

except that the current execution condition is

ORed

with the last un

used execution condition.

Instruction

00000 00001

00002 00003

Address Instruction Operands

00000 LD 00000 00001 AND NOT 00001 00002 LD 00002 00003 AND 00003 00004 OR LD ---

Naturally, some diagrams will require both AND LOAD and OR LOAD instructions.

To code diagrams with logic block instructions in series, the diagram must be divided

into logic blocks. Each block is coded using a LOAD instruction to code

the

first condition, and then AND LOAD or OR LOAD is used

to logically combine

the

blocks. With both AND LOAD and OR LOAD there are two ways to achieve

this. One is to code the logic block instruction

after the first two blocks and then

after

each additional block. The other is to code all of the blocks to be combined,

starting

each block with

LOAD or LOAD NOT

, and then to code the logic block

instructions

which combine them. In this case, the instructions for the last pair of

blocks should be combined first, and then each preceding block should be com

bined, working progressively back to the first block. Although either of these methods

will produce exactly the same result, the second method, that of coding

all

logic block instructions together

, can

be used only if eight or fewer blocks are

being combined, i.e., if seven or fewer logic block instructions are required.

Logic Block Instructions in Series

Basic Ladder Diagrams Section 4-4

Page 83

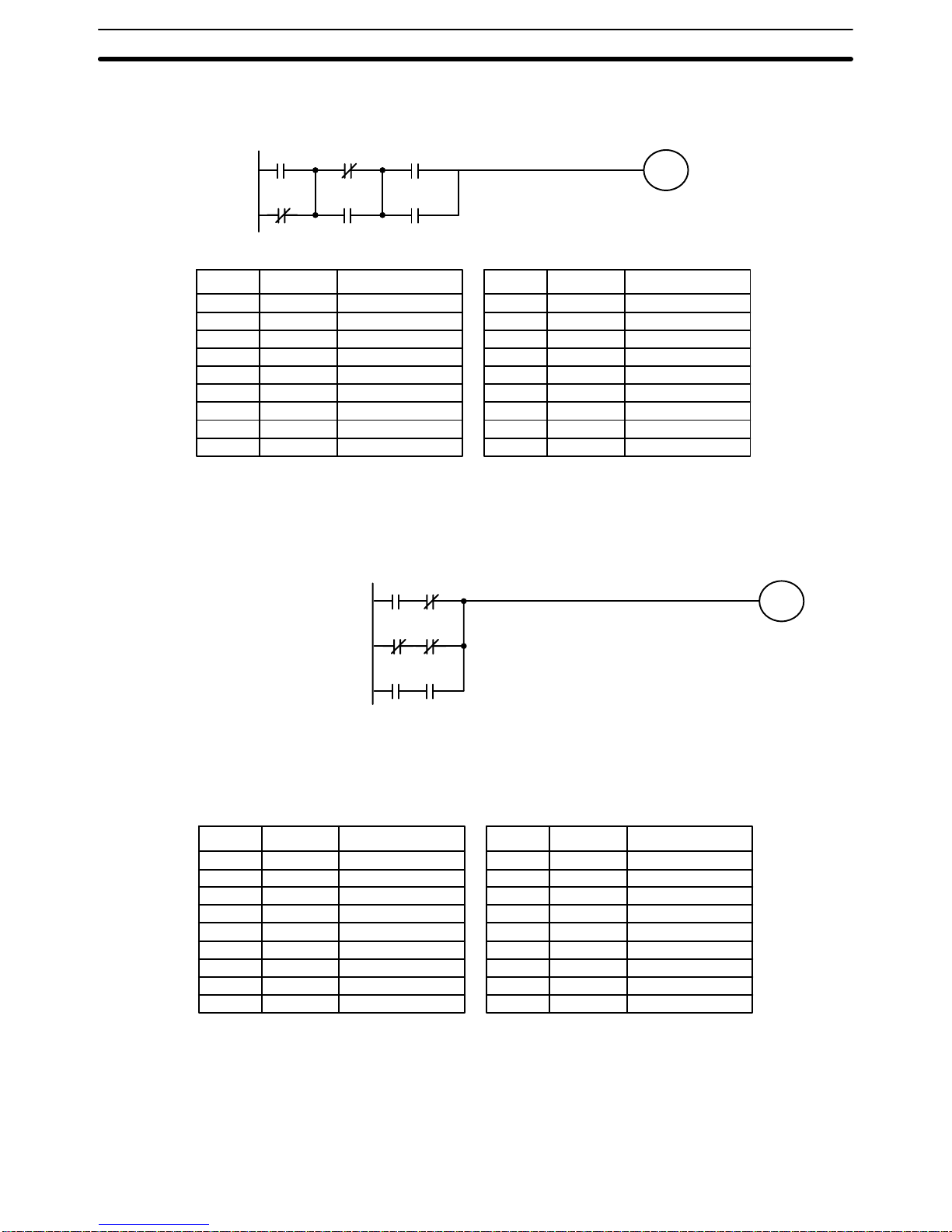

The

following diagram requires AND LOAD to be converted to mnemonic code

because

three pairs of parallel conditions lie in series. The two

options for coding

the programs are also shown.

00000 00002 00004

00001 00003 00005

00500

Address Instruction Operands Address Instruction Operands

00000 LD 00000 00001 OR NOT 00001 00002 LD NOT 00002 00003 OR 00003 00004 AND LD — 00005 LD 00004 00006 OR 00005 00007 AND LD — 00008 OUT 00500

00000 LD 00000 00001 OR NOT 00001 00002 LD NOT 00002 00003 OR 00003 00004 LD 00004 00005 OR 00005 00006 AND LD — 00007 AND LD — 00008 OUT 00500

Again, with the method on the right, a maximum of eight blocks can be combined. There is no limit to the number of blocks that can be combined with the first method.

The

following diagram requires OR LOAD instructions to be converted to mne

monic

code because three pairs of series conditions lie in parallel to each other

00000 00001

00002 00003

00040 00005

00501

The first of each pair of conditions is converted to LOAD with the assigned bit operand and then ANDed with the other condition. The first two blocks can be coded

first, followed by OR LOAD, the last block, and another OR LOAD; or the three blocks can be coded first followed by two OR LOADs. The mnemonic codes for both methods are shown below.

00000 LD 00000 00001 AND NOT 00001 00002 LD NOT 00002 00003 AND NOT 00003 00004 OR LD — 00005 LD 00004 00006 AND 00005 00007 OR LD — 00008 OUT 00501

00000 LD 00000 00001 AND NOT 00001 00002 LD NOT 00002 00003 AND NOT 00003 00004 LD 00004 00005 AND 00005 00006 OR LD — 00007 OR LD — 00008 OUT 00501

Address Instruction Operands Address Instruction Operands

Again, with the method on the right, a maximum of eight blocks can be combined. There is no limit to the number of blocks that can be combined with the first method.

Both

of the coding methods described above can also be used when using AND

LOAD

and

OR LOAD, as long as the number of blocks being combined does not

exceed eight.

Combining AND LOAD and OR LOAD

Basic Ladder Diagrams Section 4-4

Page 84

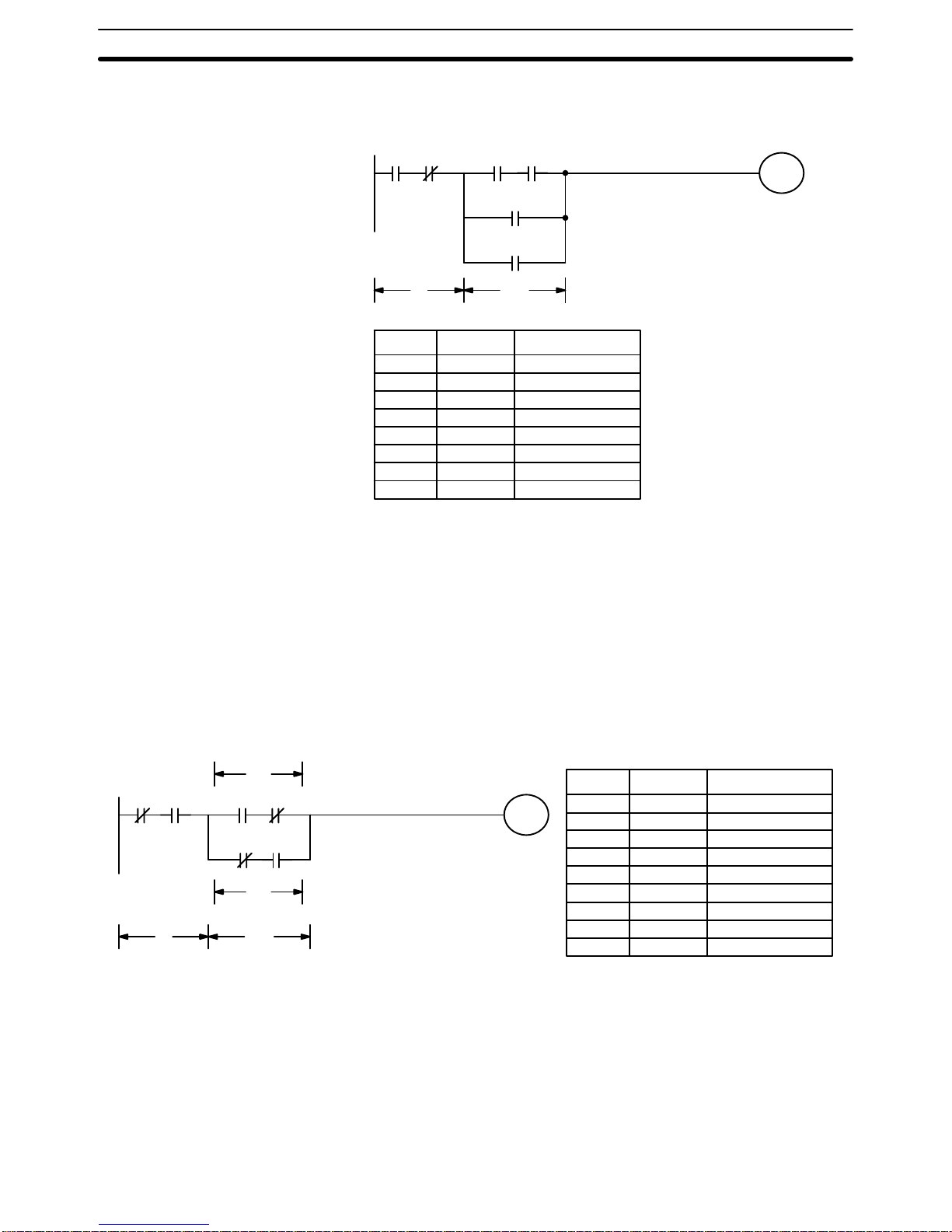

The

following diagram

contains only two logic blocks as shown. It is not neces

sary

further separate block b components, because it can be coded directly

using only AND and OR.

00000 00001 00002 00003

00201

00501

00004

Block

Address Instruction Operands

00000 LD 00000 00001 AND NOT 00001 00002 LD 00002 00003 AND 00003 00004 OR 00201 00005 OR 00004 00006 AND LD — 00007 OUT 00501

Although

the following diagram is similar to the one above, block b in the diagram

below

cannot be coded without separating it into two blocks combined with OR LOAD. In this example, the three blocks have been coded first and then OR LOAD

has been used to combine the last two blocks, followed by

AND LOAD to

combine

the execution condition produced by the OR LOAD with the execution

condition of block a. When

coding the logic block instructions together at the end of the logic blocks they

are combining, they must,

as shown below

, be coded in reverse order

, i.e., the logic block instruction for the last two blocks is coded first, followed by the one to combine the execution condition resulting from the first logic block instruction

and the execution condition of the logic block third from the end, and

back to the first logic block that is being combined.

00000 00001 00002 00003

00502

00004 00202

Block

Address Instruction Operands

00000 LD NOT 00000 00001 AND 00001 00002 LD 00002 00003 AND NOT 00003 00004 LD NOT 00004 00005 AND 00202 00006 OR LD — 00007 AND LD — 00008 OUT 00502

Complicated Diagrams When determining what logic block instructions will be required to code a dia-

gram,

it is sometimes necessary to break the diagram into large blocks and then continue breaking the large blocks down until logic blocks that can be coded without

logic block instructions have

been formed. These blocks are then coded, combining the small blocks first, and then combining the larger blocks. Either AND

LOAD or OR LOAD is used to combine the blocks, i.e., AND LOAD or OR

LOAD

always

combines the last two execution conditions that existed, regard

less

of whether

the execution conditions resulted from a single condition, from

logic blocks, or from previous logic block instructions.

Basic Ladder Diagrams Section 4-4

Page 85

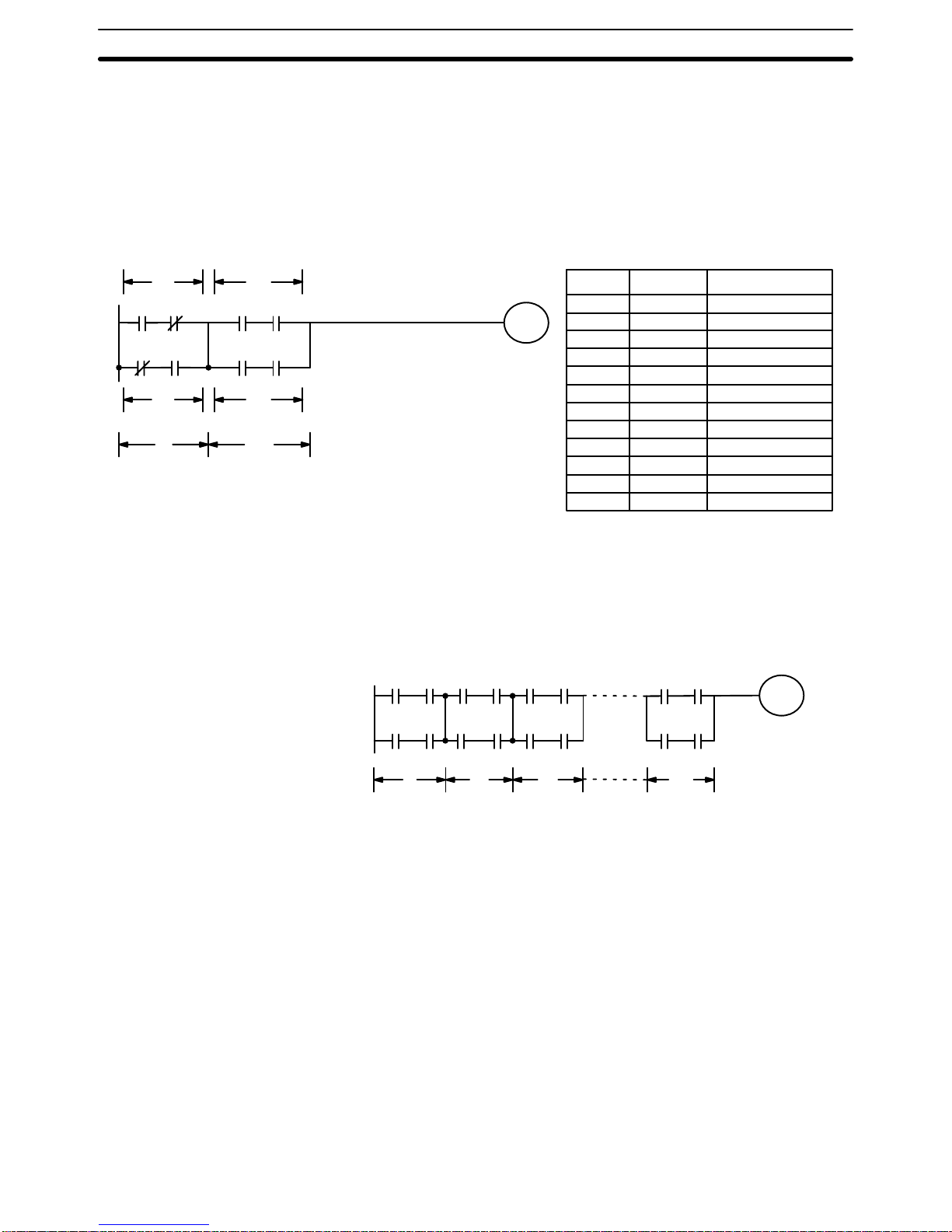

When

working with complicated diagrams, blocks

will ultimately be coded start

ing at the top left and moving down before moving across. This will generally mean

that, when there might be a choice,

OR LOAD will be coded before AND

LOAD. The following diagram must be broken down into two blocks and each of these

then broken into two blocks before it can be coded. As shown below, blocks a and b require an AND LOAD. Before AND LOAD can be used, however, OR LOAD

must be used to combine the top and bottom blocks on both sides, i.e., to

combine a1 and a2; b1 and b2.

00000 00001 00004 00005

00503

Block

00006 00007

Block

00002 00003

Block

Blocks

a1 and a2

Blocks b1 and b2

Blocks a and b

Address Instruction Operands

00000 LD 00000 00001 AND NOT 00001 00002 LD NOT 00002 00003 AND 00003 00004 OR LD — 00005 LD 00004 00006 AND 00005 00007 LD 00006 00008 AND 00007 00009 OR LD — 00010 AND LD — 00011 OUT 00503

The

following type of diagram can be coded easily if each block is coded in

order:

first

top to bottom and then left to right. In the following diagram, blocks a and b

would

combined using AND LOAD as shown above, and then block c would be

coded

and a second AND LOAD would be used to combined it with the execution

condition

from the first AND LOAD. Then block d would be coded,

a third AND

LOAD would be used to combine the execution condition

from block d with the

execution

condition from the second AND LOAD, and so on through to block n.

Block

00500

Block

Basic Ladder Diagrams Section 4-4

Page 86

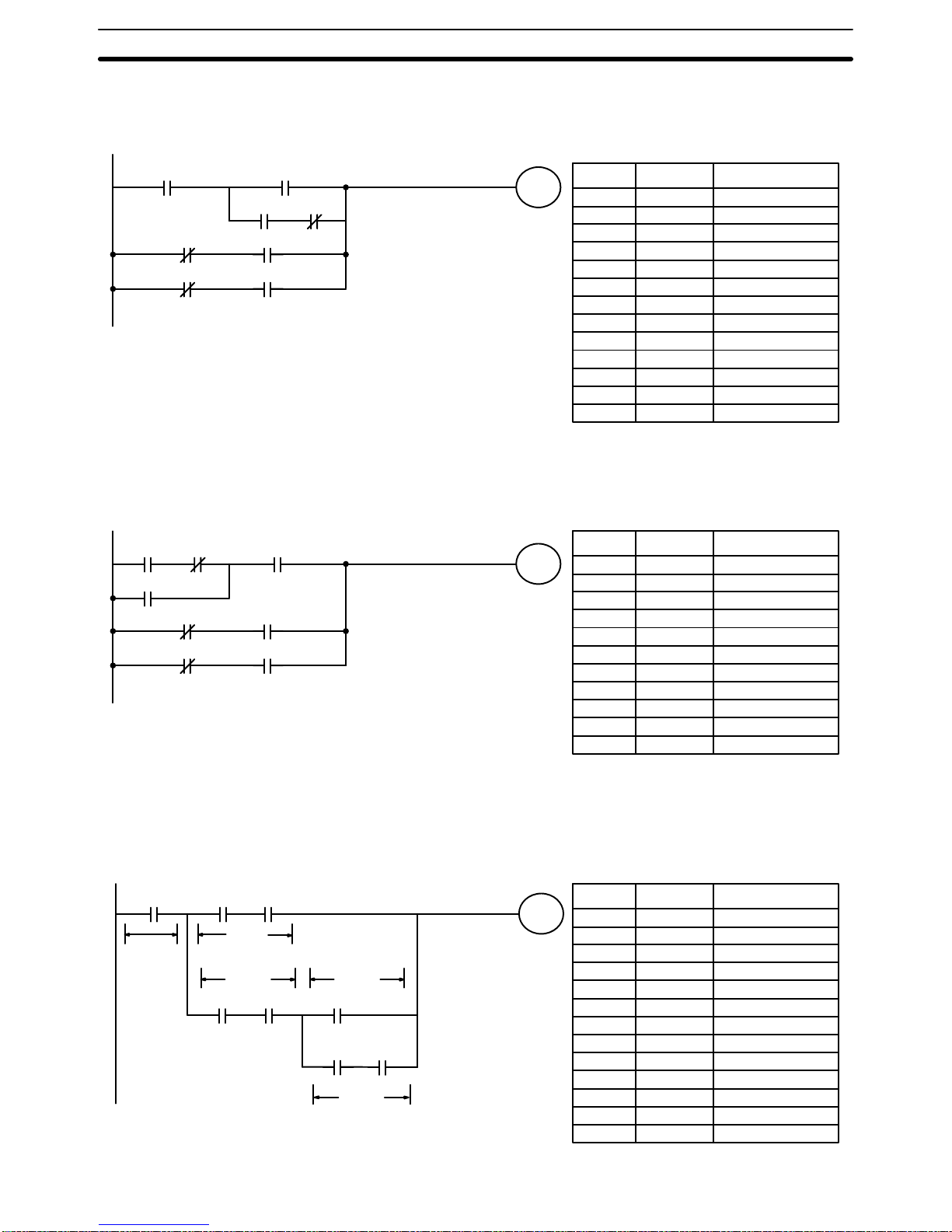

The

following diagram requires an OR LOAD followed by an AND

LOAD to code

the

top of the three blocks, and then two

more OR LOADs to complete the mne

monic code.

00002 00003

LR 0000

00000

00001

00004 00005

00006 00007

Address Instruction Operands

00000 LD 00000 00001 LD 00001 00002 LD 00002 00003 AND NOT 00003 00004 OR LD –– 00005 AND LD –– 00006 LD NOT 00004 00007 AND 00005 00008 OR LD –– 00009 LD NOT 00006 00010 AND 00007 00011 OR LD –– 00012 OUT LR 0000

Although the program will execute as written, this diagram could be drawn as shown

below to eliminate the need for the first OR LOAD and the AND LOAD,

simplifying the program and saving memory space.

00002 00003

LR 0000

00001

00000

00004 00005

00006 00007

Address Instruction Operands

00000 LD 00002 00001 AND NOT 00003 00002 OR 00001 00003 AND 00000 00004 LD NOT 00004 00005 AND 00005 00006 OR LD –– 00007 LD NOT 00006 00008 AND 00007 00009 OR LD –– 00010 OUT LR 0000

The

following diagram requires five blocks, which here are coded in order before using OR LOAD and AND LOAD to combine them starting from the last two blocks

and working backward. The OR LOAD at program address 00008 com

bines blocks blocks d and e, the following AND LOAD combines the resulting execution condition with that of block c, etc.

LR 0000

00000

00003

00004

00006 00007

00001 00002

00005

Block e

Block dBlock c

Block b

Block a

Address Instruction Operands

Blocks d and e

Block c with result of above

Block b with result of above

Block a with result of above

00000 LD 00000 00001 LD 00001 00002 AND 00002 00003 LD 00003 00004 AND 00004 00005 LD 00005 00006 LD 00006 00007 AND 00007 00008 OR

–– 00009 AND LD –– 00010 OR LD –– 00011 AND LD –– 00012 OUT LR 0000

Basic Ladder Diagrams Section 4-4

Page 87

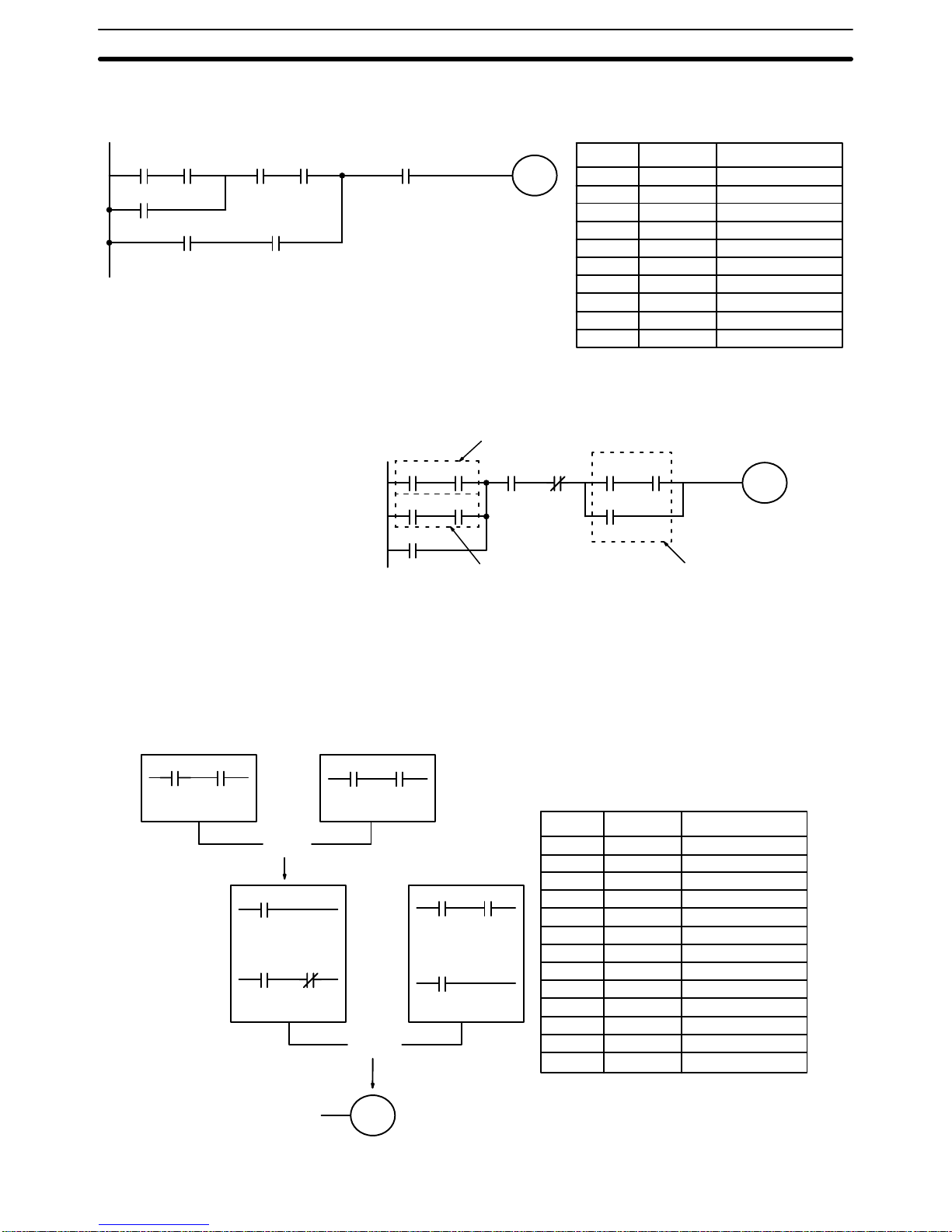

Again,

this

diagram can be redrawn as follows to simplify program structure and

coding and to save memory space.

00006 00007

LR 0000

00005

00001 00002

00003 00004 00000

Address Instruction Operands

00000 LD 00006 00001 AND 00007 00002 OR 00005 00003 AND 00003 00004 AND 00004 00005 LD 00001 00006 AND 00002 00007 OR

–– 00008 AND 00000 00009 OUT LR 0000

The next and final example may at first appear very complicated but can be coded

using only two logic block instructions. The diagram appears as follows:

00000 00001

00500

00002 00003

01000 01001

00004 00005

00500

00006

Block

Block b

Block a

The

first logic block instruction is used to combine the execution conditions re

sulting

from blocks a and b, and the second one is to combine the execution con

dition

of block c with the execution condition

resulting from the normally closed condition assigned IR 00003. The rest of the diagram can be coded with OR, AND,

and AND NOT instructions. The logical flow for this and the resulting code

are shown below.

00000 00001

00500

00002 00003

01000 01001

00004 00005

00500

00006

Block

Block bBlock a

LD 00000 AND 00001

OR 00500

AND 00002 AND NOT 00003

LD 01000 AND 01001

LD 00006

LD 00004 AND 00005

AND

Address Instruction Operands

00000 LD 00000 00001 AND 00001 00002 LD 01000 00003 AND 01001 00004 OR LD –– 00005 OR 00500 00006 AND 00002 00007 AND NOT 00003 00008 LD 00004 00009 AND 00005 00010 OR 00006 00011 AND LD –– 00012 OUT 00500

Basic Ladder Diagrams Section 4-4

Page 88

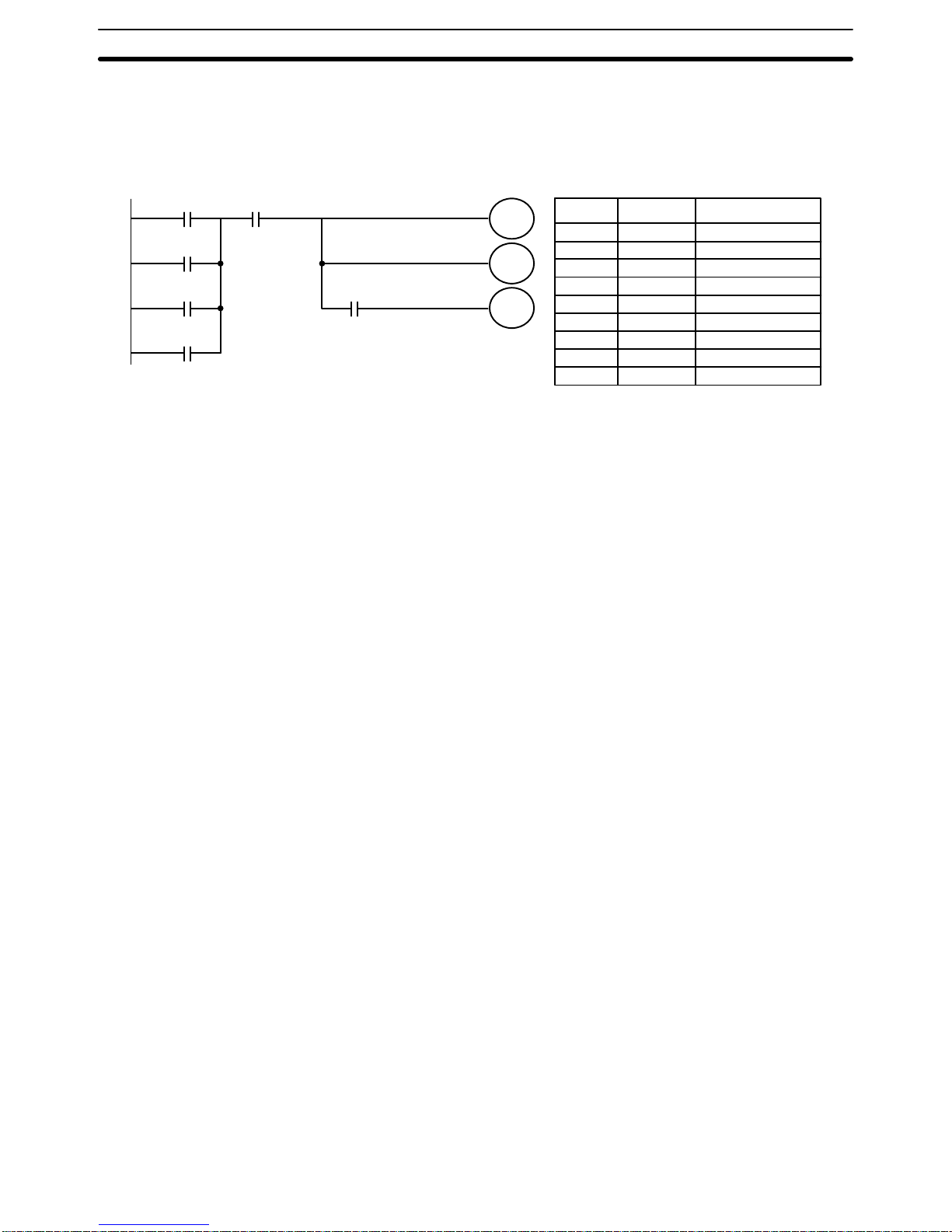

4-4-7 Coding Multiple Right-hand Instructions

there is more than one right-hand instruction executed with the same execu

tion

condition, they

are coded consecutively following the last condition on the instruction line. In the following example, the last instruction line contains one more condition that corresponds to an AND with IR 00004.

00000 00003

00001

0000400002

HR 0000

0001

00500

00506

Address Instruction Operands

00000 LD 00000 00001 OR 00001 00002 OR 00002 00003 OR HR 0000 00004 AND 00003 00005 OUT HR 0001 00006 OUT 00500 00007 AND 00004 00008 OUT 00506

4-5 The Programming Console

This and the next section describe the Programming Console and the operations necessary to prepare for program input. 4-7 Inputting, Modifying, and Checking the Program describes actual procedures for inputting the program into memory.

Although

the Programming Console can be

used to write ladder programs, it is primarily used to support LSS operations and is very useful for on-site editing and

maintenance. The main Programming Console functions are listed below

1, 2, 3... 1. Displaying operating messages and the results of diagnostic checks.

2. Writing and reading ladder programs, inserting and deleting instructions, searching for data or instructions, and monitoring I/O bit status.

3. Monitoring I/O status, force-setting/resetting bits.

4. The Programming Console can be connected

to or disconnected from the

PC with the power on.

5. The Programming Console can be used with C-series PCs.

6. Supports TERMINAL mode, which allows the display of a 32-character message,

as well as operation of the keyboard mapping function. Refer to

5-25-6 TERMINAL MODE – TERM(––) for details.

Note The Programming Console does not support all of the LSS operations, only

those required for on-site editing and maintenance.

4-5-1 The Keyboard

The

keyboard of the Programming Console is

functionally divided by key color

into the following four areas:

White: Numeric Keys The ten white keys are used to input numeric program data such as program

addresses, data area addresses, and operand values. The numeric keys are also

used in combination with the function key (FUN) to

enter instructions with

function codes.

Red: CLR Key The

CLR key clears the display and cancels current Programming Console op

erations.

It is

also used when you key in the password at the beginning of pro

gramming operations. Any Programming Console operation can be cancelled by

pressing the CLR key

, although the CLR key may have to be pressed two

three times to cancel the operation and clear the display.

Yellow: Operation Keys The

yellow keys are used for writing and correcting programs. Detailed explana

tions of their functions are given later in this section.

The Programming Console Section 4-5

Page 89

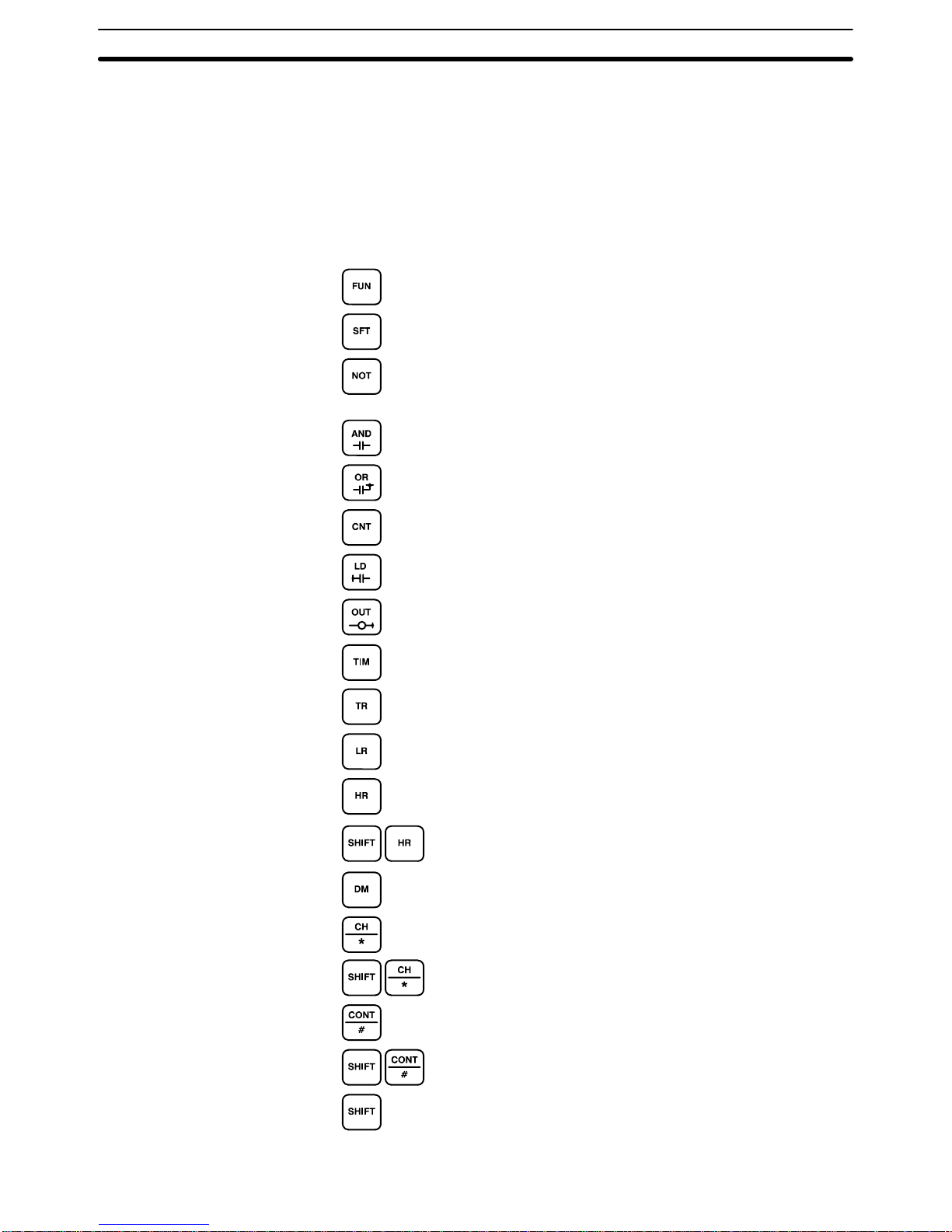

Except

for the SHIFT key on the upper right, the

gray keys are used to input in

structions and designate data area prefixes when inputting or changing a program.

The SHIFT key is similar to the shift key of a typewriter

, and is used to alter

the

function of the next key pressed. (It is not necessary to hold the SHIFT

key

down; just press it once and then press the key to be used with it.) The

gray keys other

than the SHIFT key have either the mnemonic name of the

instruction

or the abbreviation of the data area written on them. The functions of

these keys are described below.

Pressed before the function code when inputting an instruction via its function code.

Pressed to enter SFT (the Shift Register instruction).

Input either after a function code to designate the differentiated form of an instruction or after a ladder instruction to designate an inverse condition.

Pressed to enter AND (the AND instruction) or used with NOT to enter AND NOT.

Pressed to enter OR (the OR instruction) or used with NOT to enter OR NOT.

Pressed to enter CNT (the Counter instruction) or to designate a TC number that has already been defined as a counter.

Pressed to enter LD (the Load instruction) or used with NOT to enter LD NOT. Also pressed to indicate an input bit.

Pressed to enter OUT (the Output instruction) or used with NOT to enter OUT NOT. Also pressed to indicate an output bit.

Pressed to enter TIM (the Timer instruction) or to designate a TC number that has already been defined as a timer.

Pressed before designating an address in the TR area.

Pressed before designating an address in the LR area.

Pressed before designating an address in the HR area.

Pressed before designating an address in the AR area.

Pressed before designating an address in the DM area.

Pressed before designating an indirect DM address.

Pressed before designating a word address.

Pressed before designating an operand as a constant.

Pressed before designating a bit address.

Pressed before function codes for block programming instructions, i.e., those placed between pointed parentheses <>.

Gray: Instruction and Data Area Keys

The Programming Console Section 4-5

Page 90

4-5-2 PC Modes

The

Programming Console is equipped with a switch to control the PC mode. T

o select one of the three operating modes—RUN, MONITOR, or PROGRAM— use

the mode switch. The mode that you select will determine PC operation as

well as the procedures that are possible from the Programming Console. RUN

mode is the mode used for normal program execution. When the switch

set

to RUN and the START input on the CPU Power Supply

Unit is ON, the CPU

will

begin executing the program according to the program written in its Program Memory. Although monitoring PC operation from the Programming Console is possible in RUN mode, no data in any of the memory areas can be input or changed.

MONITOR

mode allows you to visually monitor in-progress program execution while controlling I/O status, changing PV (present values) or SV (set values), etc.

In MONIT

OR mode, I/O processing is handled in the same way as in

RUN

mode.

MONIT

OR mode is generally used for trial system operation and final pro

gram adjustments. In

PROGRAM mode, the PC does not execute the program. PROGRAM mode is for creating and changing programs, clearing memory areas, and registering and changing the I/O table. A special Debug operation is also available within PROGRAM

mode that enables

checking a program for correct execution before

trial operation of the system.

DANGER Do

not leave the Programming Console connected to the PC by an extension cable when in

RUN

mode. Noise picked up by the extension cable can enter the PC,

fecting the program

and thus the controlled system.

4-5-3 The Display Message Switch

Pin 3 of the CPU’s DIP switch determines whether Japanese or English language

messages will be displayed on the Programming Console. It is factory set

to ON, which causes English language messages to be displayed.

4-6 Preparation for Operation

This

section describes the procedures required to begin Programming Console operation. These include password entry, clearing memory, error message clearing, and I/O table operations. I/O table operations are also necessary at other

times, e.g., when changes are to be made in Units

used in the PC configu

ration.

DANGER Always

confirm that the Programming Console is in PROGRAM mode when

turning on the PC with a Programming Console connected unless another mode is desired for a specific purpose. If the Programming Console is in RUN mode when PC power is turned on, any program

in Program Memory will be executed, possibly causing a PC-controlled system to

begin operation.

The

following sequence of operations must be performed before beginning in

itial program input.

1, 2, 3... 1. Insert the mode key into the Programming Console.

2. Set the mode switch to PROGRAM mode. (The mode key cannot be removed while set to PROGRAM mode.)

3. Turn on PC power. Note When

I/O Units are installed, turn on those Units also. The Program

ming Console will not operate if these Units are not turned on.

Preparation for Operation Section 4-6

Page 91

4. Confirm

that the CPU’

s POWER LED is lit and the following display appears

the Programming Console

screen. (If the ALM/ERR LED is lit or flashing

or an error message is displayed, clear the error that has occurred.)

<PROGRAM> PASSWORD!

5. Enter the password. See 4-6-1 Entering the Password for details.

6. Clear memory. Skip this step if the program does not need to be cleared. See 4-6-3 Clearing Memory for details.

4-6-1 Entering the Password

gain access to the PC’

s programming functions, you must first

enter the pass

word. The password prevents unauthorized access to the program. The

PC prompts you for a password when PC power is turned on or

, if PC power

is already on, after the

Programming Console has been connected to the PC. T

gain

access to the system when the

“Password!” message appears, press CLR

and then MONTR. Then press CLR to clear the display. If

the Programming Console is connected to the PC when PC power is already

on,

the first display below will indicate

the mode the PC was in before the Pro

gramming

Console was connected.

Ensure that the PC is in PROGRAM mode

before you enter the password. When the password is entered, the PC will

shift to the mode set on the mode switch, causing PC operation to begin if the mode

is set to RUN or MONIT

OR.

The mode can be changed to RUN or MONI

TOR with the mode switch after entering the password.

Indicates

the mode set by the mode selector switch.

<PROGRAM> PASSWORD!

<PROGRAM> BZ

4-6-2 Buzzer

Immediately

after the password is input or anytime immediately after the

mode

has

been changed, SHIFT and then the 1 key can be pressed to turn on and of

the

buzzer that sounds when Programming Console keys are pressed. If BZ is

displayed

in the upper

right corner

, the buzzer is operative. If BZ is not displayed,

the buzzer is not operative. This

buzzer also will also sound whenever an error occurs during PC operation.

Buzzer operation for errors is not affected by the above setting.

Preparation for Operation Section 4-6

Page 92

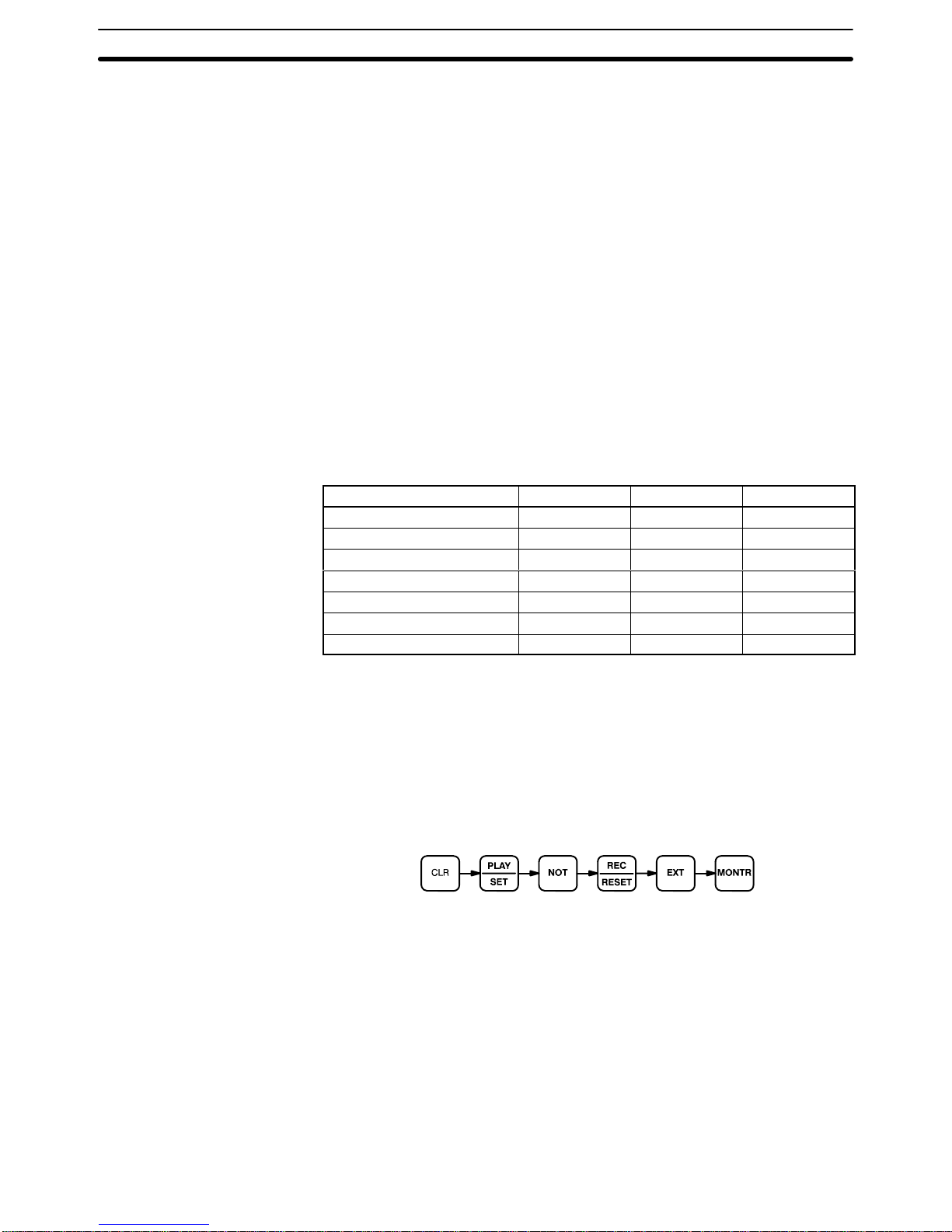

4-6-3 Clearing Memory

Using

the Memory Clear operation it is possible to clear all or part of the UM area

(RAM

or EEPROM), and the IR, HR, AR, DM and TC areas. Unless otherwise

specified,

the clear operation will clear all of the above memory areas. The UM

area

will not be cleared if the write-protect switch (pin 1 of the

CPU’

s DIP switch)

is set to ON. Before

beginning to

programming for the first time or when installing a new pro

gram, all areas should normally be cleared. Before clearing memory, check to see

if a program is

already loaded that you need. If you need the program, clear

only

the memory areas that you do not need, and be sure to check the existing program with the program check key sequence before using it. The check sequence is provided later in this section. Further debugging methods are provided

Section

7 Program Monitoring

and Execution

. T

o clear all memory areas

press

CLR until all zeros are displayed, and then input the keystrokes given in the top line of the following key sequence. The branch lines shown in the sequence are used only when performing a partial memory clear, which is described below.

Memory can be cleared in PROGRAM mode only. The following table shows which memory areas will be cleared for the 3 memory clearing operations (all clear, partial clear, memory clear).

Memory Area All clear Partial clear Memory clear

I/O words Cleared Cleared Cleared Work words Cleared --- Cleared HR, AR, TC, DM, fixed DM Cleared Cleared Cleared Expansion DM Cleared --- Cleared I/O comments Cleared --- --Ladder program Cleared Cleared Cleared UM Allocation information Cleared --- ---

Note 1. The

error history area (DM 6000 to DM 6030) will not be cleared when

the

DM area is cleared.

2. When

the PC Setup area (DM 6600 to DM 6655 in fixed DM) is cleared, the

settings will be returned to their factory-set defaults.

3. When the All Clear operation is executed, the ladder program

area will be

allocated

entirely to the ladder program. (The expansion DM and I/O com

ment areas will be set to 0 KW.)

All Clear The key sequence for all clear is shown below.

Preparation for Operation Section 4-6

Page 93

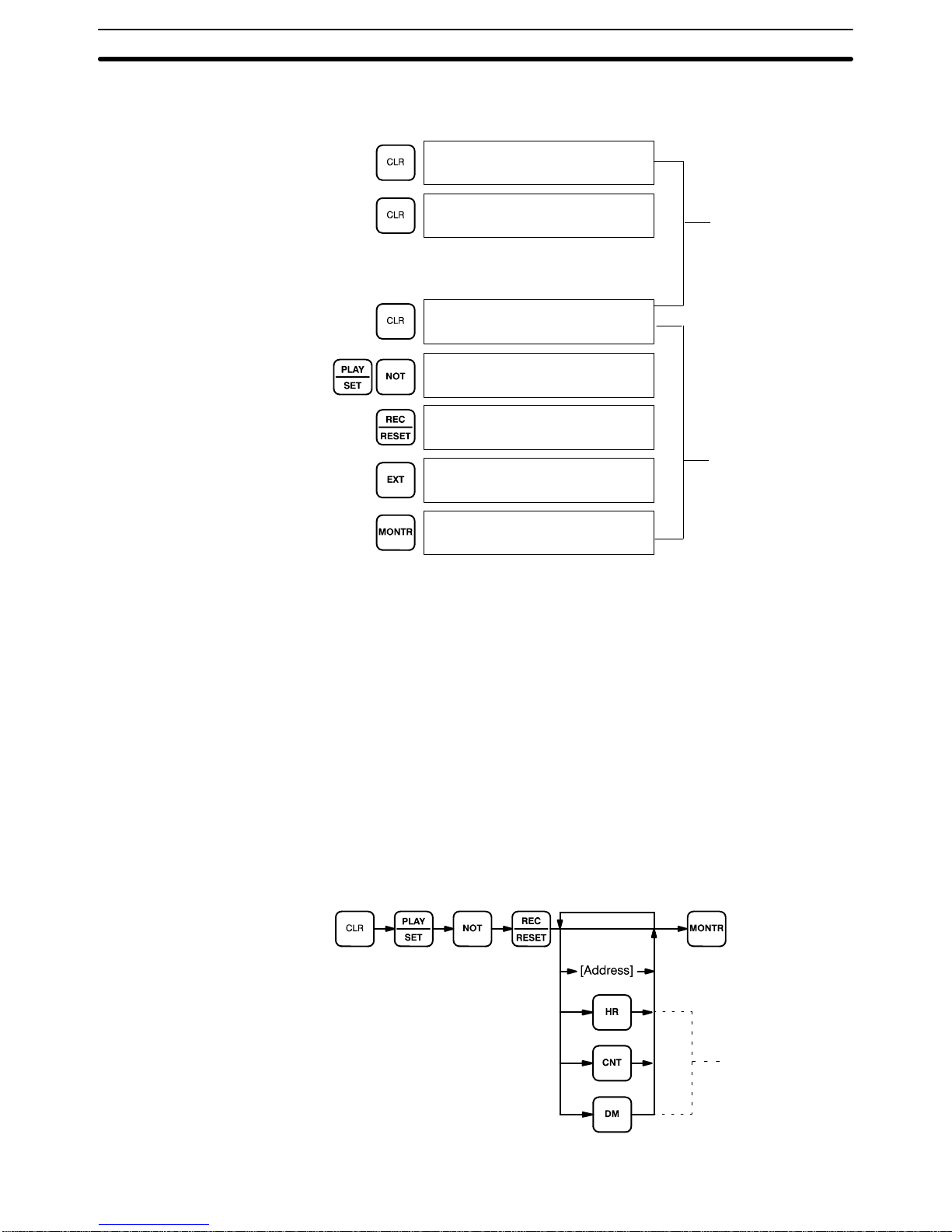

The following procedure is used to clear memory completely.

Continue

pressing the CLR key once for each error message until “00000” appears on the display

All clear

MEMORY ERR

I/O VER ERR

00000

00000MEMORY CLR? HR CNT DM

00000MEM ALLCLR?

00000

00000MEM ALLCLR END

Partial Clear It

is possible to retain the data in specified areas or part of the ladder program. T

retain

the data in the HR and AR,

TC, and/or DM areas, press the appropriate

key

after entering REC/RESET

. HR is pressed

to designate both the HR and AR

areas.

In other words, specifying that HR is to be retained will ensure that AR is retained also. If not specified for retention, both areas will be cleared. CNT is used for the entire TC area. The display will show those areas that will be cleared.

is also possible to retain a portion of the ladder program from the beginning to a specified address. After designating the data areas to be retained, specify the first

program address to be cleared.

For example, to leave addresses 00000 to 00122 untouched, but to clear addresses from 00123 to the end of Program Memory, input 00123.

The key sequence for a partial memory clear is shown below.

Both

AR and HR areas

TC area

DM area

Program Memory cleared from designated address.

Retained if pressed

Preparation for Operation Section 4-6

Page 94

leave the TC area uncleared and retain Program

Memory addresses 00000

through 00122, input as follows:

00000

00000MEMORY CLR? HR CNT DM

00000MEMORY CLR? HR DM

00123MEMORY CLR? HR DM

00000MEMORY CLR END HR DM

Memory Clear The

memory clear operation clears all memory areas except the I/O comments

and UM Allocation information. The key sequence for a partial memory clear is shown below.

The Programming Console will display the following screens:

00000

00000MEMORY CLR? HR CNT DM

00000MEMORY CLR END HR CNT DM

Note When

the write-protect switch (pin 1 of the CPU’

s DIP

switch) is set to ON the UM

area

(from DM 6144 through the ladder program) will not be cleared. Other data

areas,

such as HR, AR, CNT

, and DM from DM 0000 to DM 6143 will be cleared.

4-6-4 Registering the I/O Table

The

I/O Table Registration operation records the types of I/O Units controlled by

the PC and the Rack locations of the I/O Units. It also clears all I/O bits. It

is not absolutely necessary to register the I/O table with the C200HS. When the

I/O

table has not been registered, the PC

will operate according to the I/O Units

mounted when power is applied. The I/O verification/setting error will not occur

Preparation for Operation Section 4-6

Page 95

is necessary to register the I/O table if I/O Units

are changed, otherwise an I/O verification error message, “I/O VER ERR” or “I/O SET ERROR”, will appear when starting programming operations.

I/O

able Registration can be performed only in

PROGRAM mode with the write-

protection switch (pin 1 of the CPU’s DIP switch) set to OFF (OFF=“WRITE”). Group-2 HIgh-density I/O Units will not be displayed in the I/O table when it is

displayed

using a host computer

. Four asterisks (

∗∗∗∗

), indicating no Unit, will

displayed instead.

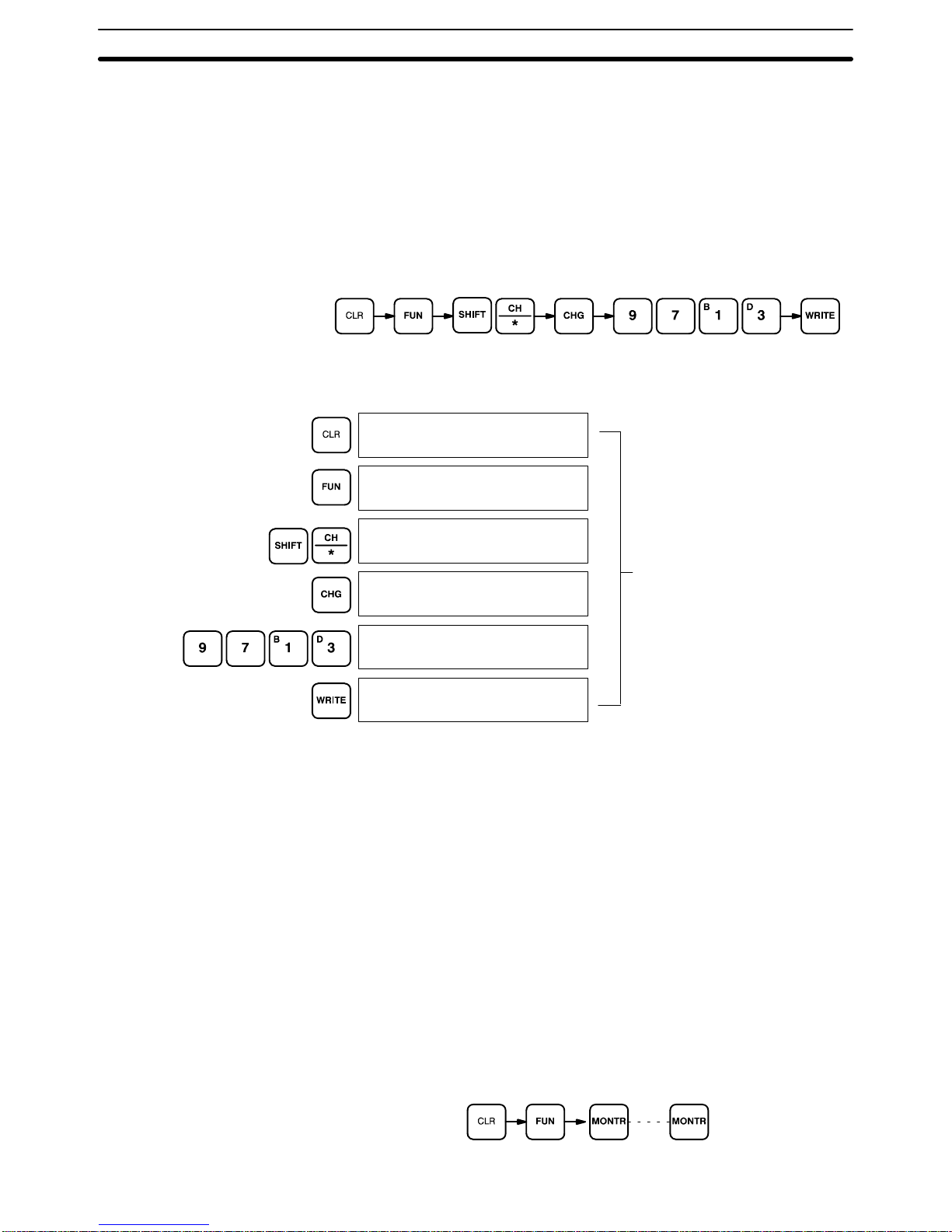

Key Sequence

Initial I/O Table Registration

00000

00000 FUN (??)

00000IOTBL ? ?-?U=

00000IOTBL WRIT ????

00000IOTBL WRIT 9713

00000IOTBL WRIT OK

4-6-5 Clearing Error Messages

After

the I/O table has been registered, any error messages recorded in memory should be cleared. It is assumed here that the causes of any of the errors for which error messages appear have already been taken care of. If the beeper sounds

when an attempt is made to clear an

error message, eliminate the cause

the error

, and then clear the error message (refer to Section

10 T

roubleshoot-

ing).

display any recorded error messages, press CLR, FUN, and then MONTR. The first message will appear. Pressing MONTR again will clear the present message

and display the next error message. Continue pressing MONTR until

all messages have been cleared. Although error messages can be accessed in any mode, they can be cleared

only in PROGRAM mode.

Key Sequence

Preparation for Operation Section 4-6

Page 96

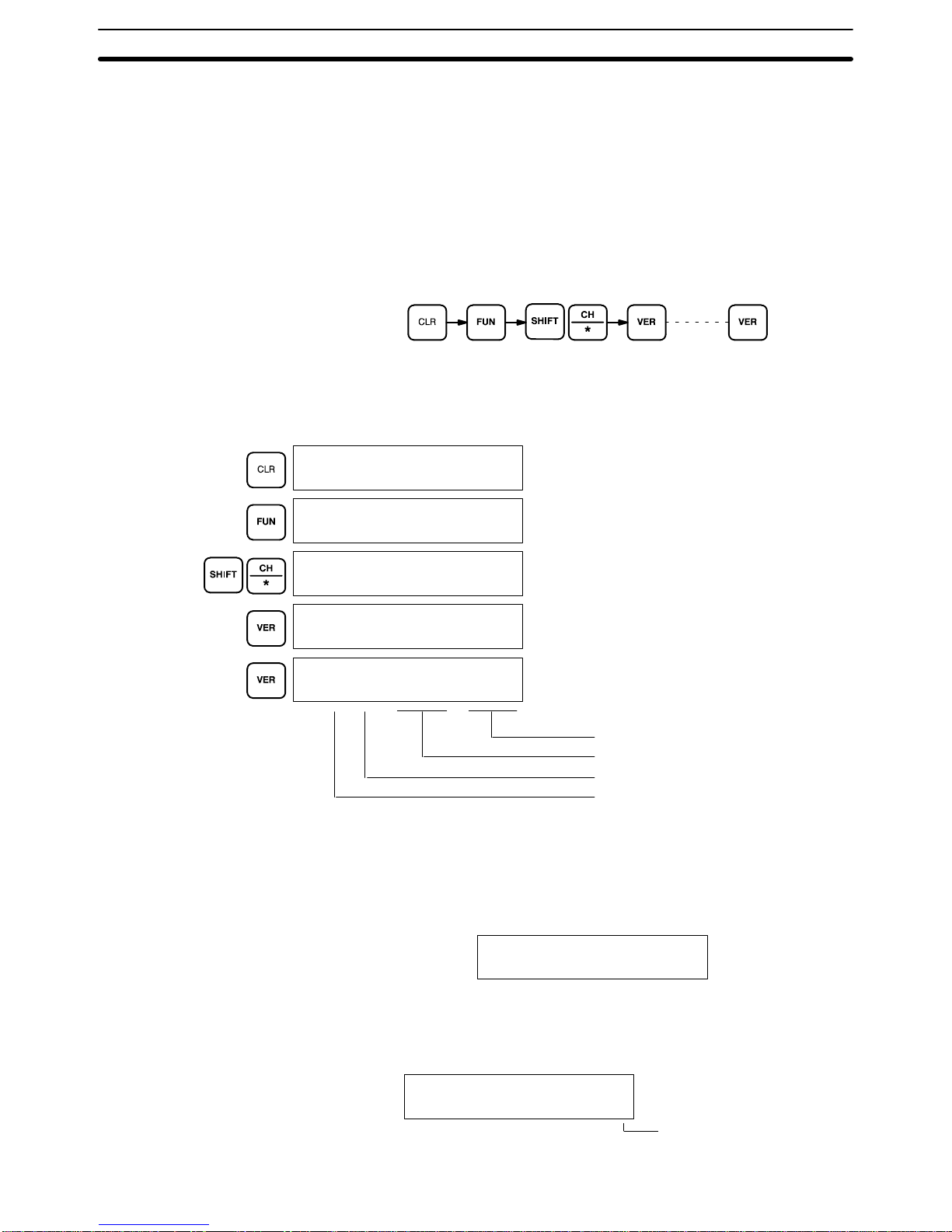

4-6-6 Verifying the I/O Table

The

I/O T

able V

erification operation is used

to check the I/O table registered in

memory

to see if it matches

the actual sequence of I/O Units mounted. The first

inconsistency

discovered will be displayed as shown below

. Every subsequent

pressing of VER displays the next inconsistency.

Note This operation can be executed only when the I/O table has been registered.

Key Sequence

Example

(No errors)

(An error occurred)

Actual I/O words Registered I/O table words I/O slot number Rack number

00000

00000 FUN (??)

00000IOTBL ? ?-?U=

00000IOTBL CHK OK

00000IOTBL CHK 0-1U=O*** I***

Meaning of Displays The following display indicates a C500, C1000H, or C2000H and C200H or

C200HS have the same unit number on a Remote I/O Slave Rack.

00000I/OTBL CHK *-*U=----

The following display indicates a duplication in Optical I/O Unit unit numbers.

Indicates

duplication

00000I/OTBL CHK 2**HU=R*-I R*-W

Preparation for Operation Section 4-6

Page 97

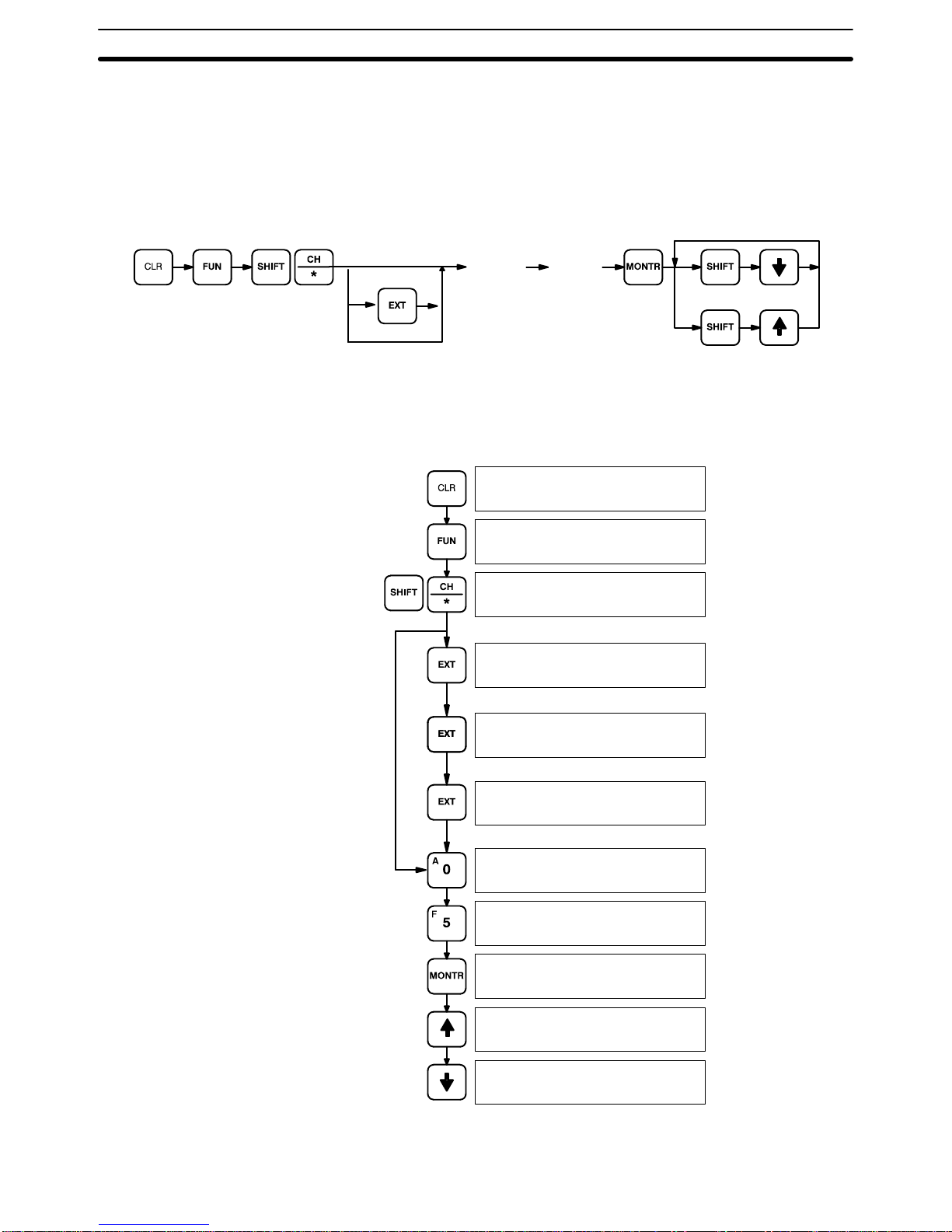

4-6-7 Reading the I/O Table

The I/O Table Read operation is used to access the I/O table that is currently registered in the CPU memory. This operation can be performed in any PC mode.

Key Sequence

to 2] [0 to 9]

Rack number

Unit number

Press the EXT key to select Remote I/O Slave Racks or Optical I/O Units.

00000

00000 FUN (??)

00000IOTBL ? ?-?U=

(Main Rack)

00000IOTBL ? 0-?U=

00000IOTBL ? 0-5U=

00000IOTBL READ 0-5U=i*** 005

00000IOTBL READ 0-4U=o*** 004

00000IOTBL READ 0-5U=i*** 005

00000IOTBL ? R??-?U=

00000IOTBL ? 2??LU=

(Slave Rack Units)

(Optical I/O Unit)

00000IOTBL ? ?-?U=

(Main Rack)

Example

Preparation for Operation Section 4-6

Page 98

Meaning of Displays

I/O Unit Designations for Displays

(see I/O Units Mounted in Remote Slave Racks, page 89)

No.

of points

16 32 64

Input Unit Output Unit

C500, 1000H/C2000H I/O Units

No.

of points

8 16

Input Unit Output Unit

0 0 0 0

0 0 * *

0 * * *

I * * * I I * *

I I I I

i(*)* * i i * *

o o * *

o * * *

C200H I/O Units

Note:

(∗) is i for non-fatal errors or F_

I/O word number I/O type:

i: (input), o: (output) Unit number (0 to 9) Rack number (0 to 2)

00000IOTBL READ *-*U=**** ***

00000IOTBL READ *-*U=****

INT0:

Mounted to CPU Rack. IN**: Mounted to Expansion I/O Rack. (T

reated as an 8-point Input Unit.)

Unit number (0 to 9) Indicates Special I/O Unit

00000IOTBL READ *-*U=$***

Blank: Unit 1 exclusively W: Unit 2 exclusively

Special I/O Unit type:

C: High-speed Counter N: Position Control Unit A: Other

Remote I/O Master no. (0 or

00000IOTBL READ *-*U=RMT*

I/O Units

Interrupt Input Units

Special I/O Units

Remote I/O Master Units

Preparation for Operation Section 4-6

Page 99

I/O

word number

I/O type:

I, O i, o (see tables on previous page)

Unit number (0 to 9) Remote I/O Slave Unit number (0 to 4) Remote I/O Master Unit number (0 or 1) Indicates a Remote I/O Rack

00000IOTBL READ R**-*U=**** ***

Unit

number (0 to 9)

Indicates Group-2 HIgh-density I/O Unit

00000IOTBL READ *-*U=#***

2 words (32 pts)

4 words (64 pts)

Input Unit

Output Unit

Note Group-2 HIgh-density I/O Units will not be displayed in the I/O table when it is

displayed

using

LSS (host computer). Four asterisks (

∗∗∗∗

), indicating no Unit,

will be displayed instead.

I/O

word number (200 to 231)

I/O type:

I (input), O (output), or

W (input/output) Remote I/O Master Unit number (0 to 1) W

ord (H: leftmost 8 bits; L: rightmost 8 bits)

00000IOTBL READ 2**HU=R*-*

4-6-8 Clearing the I/O Table

The

I/O T

able Clear operation is used to delete the contents of the I/O table that is currently registered in the CPU memory. The PC will be set for operation based on the I/O Units mounted when the I/O Table Clear operation is performed.

The I/O Table Clear operation will reset all Special I/O Units and Link Units mounted

at the time. Do not perform the I/O T

able Clear operation when a Host or PC Link Unit, Remote I/O Master Unit, High-speed Counter Unit, Position Control Unit, or other Special I/O Unit is in operation.

Note This

operation can

be performed only in PROGRAM mode with the write-protec

tion switch (pin 1 of the CPU’s DIP switch) set to OFF (OFF=“WRITE”).

Remote I/O Slave Racks

Group-2 HIgh-density I/O Units

Optical I/O Units and Remote Terminals

Preparation for Operation Section 4-6

Page 100

Key Sequence

00000

00000 FUN (??)

00000IOTBL ?-?U=

00000IOTBL CANC ????

00000IOTBL CANC 9713

00000IOTBL CANC OK

00000IOTBL WRIT ????

4-6-9 SYSMAC NET Link Table Transfer (CPU31/33-E Only)

The

SYSMAC NET Link T

able T

ransfer operation transfers a copy of the

SYS

MAC

NET Link Data Link table to RAM or EEPROM program memory

.This al

lows

the user program and SYSMAC NET

Link table to be written into EPROM

together. This operation is applicable to the CPU31-E and CPU33-E only.

Note When

power

is applied to a PC which has a copy of a SYSMAC NET Link table

stored

in its program memory

, the SYSMAC NET Link table of the

CPU will be overwritten. Changes made in the SYSMAC NET Link table do not affect the copy

of the SYSMAC NET Link table in program memory; SYSMAC NET Link

Table Transfer must be repeated to change the copy in program memory.

The SYSMAC NET Link Table Transfer operation will not work if:

• The

Memory Unit is not RAM or EEPROM, or the write protect switch is not set

to write.

• There isn’t an END(01) instruction.

• The

contents of program memory exceeds 14.7K words. (T

o find the size of the

contents of program memory, do an instruction search for END(01).)

SYSMAC NET Link table transfer can only be done in PROGRAM mode.

Example

Preparation for Operation Section 4-6

Omron SYSMAC C200HS Operation Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
