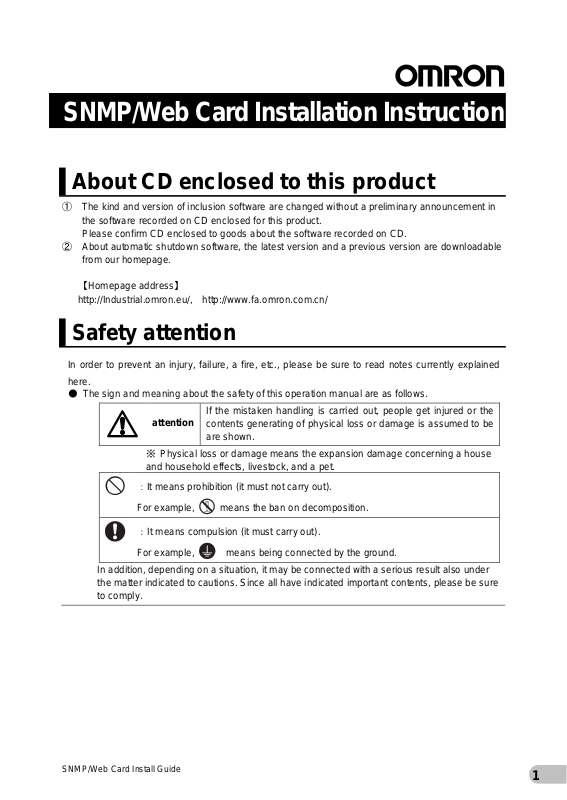

Omron SC20G2 Installation Instruction
SNMP/Web Card Installation Instruction
In order to prevent an injury, failure, a fire, etc., please be sure to read notes currently explained
here.
If the mistaken handling is carried out, people get injured or the
contents generating of physical loss or damage is assumed to be
About CD enclosed to this product
① The kind and version of inclusion software are changed without a preliminary announcement in
the software recorded on CD enclosed for this product.
Please confirm CD enclosed to goods about the software recorded on CD.
② About automatic shutdown software, the latest version and a previous version are downloadable
from our homepage.
【Homepage address】
http://Industrial.omron.eu/, http://www.fa.omron.com.cn/
Safety attention
● The sign and meaning about the safety of this operation manual are as follows.
attention
In addition, depending on a situation, it may be connected with a serious result also under
the matter indicated to cautions. Sin ce all have indi cated important contents, please be sure
to comply.
※ Physical loss or damage means the expansion damage concerning a house
and household effects, livesto ck, and a pet.
：It means prohibition (it must not carry out).
For example,
： It means compulsion (it must carry out).
For example,
are shown.
means the ban on decomposition.
means being connected by the ground.
SNMP/Web Card Install Guide
1
注
意
When you perform insertion and removal of this product , be sure to turn
(UPS) with which it is equipped are kept.
off the main part of an uninterruptible power supply (UPS) and
connection apparatus, and to carry out in the state "AC input" plug is
pulled out from a power receptacle.
● There is fear of an electric shock.
Do not decomposition, repair, and reconstruction.
● There is a risk of receiving an electric shock or starting a fire.
When you perform attachment and removal of thi s product to an
uninterruptible power supply (UPS), please work by installing an
uninterruptible power supply (UPS) in the stable place and the direction
which is not reversed.
● It may be injured if a falling and tumble occur.
The uninterruptible power supply (UPS) furnished with this product
should be carried out ground connection (grounding) certainly.
● If an uninterruptible power supply and other apparatus contact simultaneously,
without connecting a ground, an electric shock may be received.
It is being unable to touch the parts on a substrate end face or a
substrate, when performing the insertion and removal of this product.
● Since a substrate end face and parts are sharp, it may be injured if it touches.
● There is a possibility of burning oneself if parts are high temperature.
● Parts sensitive to static electricity are being used for this product.
Please do not touch the contact port and other parts of a connector in particularly
empty-handed.
A liquid cannot be touched even if a liquid is on an internal board.
● There is a possibility of carrying out loss of eyesight and a burn.
● If it adheres to eyes or the skin, please wash away with a lot of clean water
immediately, and receive a medical examination of a doctor.
The "power supply" switch of the connected uni nterruptible power supply
(UPS) should be turned off and pulling out "AC input" plug from a power
receptacle, when smoke, a nasty smell, and an abnormal sound occur
from this product.
● If it will be in such a state, please do not use it by any means. But please request
the check and repair to the store or our company of a purchase .
An operating condition and environment given in this description, and the
operating condition and environment of the uninte rruptible power supply
The removed battery should not be put on the place which infants' hand
reaches.
● There is a risk that the infant swallow
2
SNMP/Web Card Install Guide
注意
A battery is not used for other uses.
。
■
■
Do not disassemble, heated or dispose of in a fire
● There is a risk of starting a burst and a fire.
+ and - of a battery are not short-circuited with wire etc.
● There is a risk of starting generation of heat and a fire.
Do not soak or do not pour water.
● May cause a fire or electric shock
● When you soak in water, please stop use of this product immediately, and request
check and repair.
Do not leave the place to be come the hi gh tempe rature and a str ong pla ce
of the direct lays of the sun.
● Battery gets very hot, and there is a danger of explosion or fire
About disclaimer
Even if it is an accident resulting from use of our products, it cannot respond to the
guarantee of all the damage including the abnor malities of equipment, connection
apparatus, and software, the damage to failure, and other secondary damage.
Request for before using
When disposing of this product, please handle correctly according to the disposal
method of each local government.
SNMP/Web Card Install Guide
3
The check of enclosed items
Please check whether there is any damage in the appearance of this product, or all the following
packing articles are included.
＊ When a packing article h as fault an d shortage, please ask the store of a purchase, or the OMRON
electronic device customer support center.
1. SNMP/Web card .............................................................................................. 1 piece
(bracket attached for
BU50SW/BU75SW/BU100SW/BU150SW,
BU1002SW/BU3002SW, BU75RW/BU100RW/
BU200RW/BU300RW, BU60RE/BU100RE,
BU150R,BN75R/BN150R/BN300R,BN50T/
BN75T/BN100T/BN150T/BN220T/BN300T,
BU1002RW,BU2002RWL/BU3002RWL/
BU5002RWL, BU1002SWG/BU3002SWG,
BU1002SWCL/BU3002SWCL,BU2002RWLG/
BU3002RWLG/BU5002RWLG)
2. Bracket for BN150XR ..................................................................................... 1 piece
3. Serial connection cable.................................................................................... 1 piece
4. CD-ROM（Instruction manual、shutdown software, etc） ............................. 1 piece
5. Installation instruction （thi s book Japanese/English） ................................... 2 piece
6. warrant card（in end of this book Japanese/English） ................................... 2 piece
4
The name of each part of a main part
SNMP/Web Card Install Guide
Exchange of a bracket
Brackets are exchanged if needed.
● Replacement is unnecessary when connecting to
BU50SW/BU75SW/BU100SW/BU150SW, BU1002SW/BU3002SW, BU75RW/BU100RW/
BU200RW/BU300RW, BU60RE/BU100RE,BU150R,BN75R/BN150R/BN300R,
BN50T/BN75T/BN100T/BN150T/BN220T/BN300T,BU1002RW,
BU2002RWL/BU3002RWL/BU5002RWL,BU1002SWG/BU3002SWG,
BU1002SWCL/BU3002SWCL,BU2002RWLG/BU3002RWLG/BU5002RWLG
BU50SW/BU75SW /BU100SW/BU150SW, BU1002SW/
BU3002SW, BU75RW/BU100RW/BU200RW/BU300RW,
BU60RE/BU100RE,BU150R,BN75R/BN150R/BN300R,
BN50T/BN75T/BN100T/BN150T/BN220T/BN300T,
BU1002RW/BU2002RWL/ BU3002RWL/BU5002RWL,
BU1002SWG/BU3002SWG, BU1002SWCL/BU3002SWCL,
BU2002RWLG/ BU3002RWLG/BU5002RWLG
● Please exchange for an attached exclusive bracket when you connect it with BN150XR
Bracket for BU50SW/BU75SW/BU100SW/BU150SW,
BU1002SW/ BU3002SW,BU75RW/BU100RW/
BU200RW/BU300RW, BU60RE/BU100RE,
BU150R,BN75R/BN150R/BN300R,
BN50T/BN75T/BN100T/BN150T/BN220T/BN300T,
BU1002RW,BU2002RWL/BU3002RWL/BU5002RWL,
BU1002SWG/BU3002SWG, BU1002SWCL/BU3002SWCL,
BU2002RWLG/BU3002RWLG/BU5002RWLG
Bracket for BN150XR
SNMP/Web Card Install Guide
5
Insertion of a SNMP/Web card
Insert after the contact signal card of
BU1002SWCL/BU3002SWCL,
Insert after the contact signal
Insert after the contact signal card
Insert to the slot
Insert to the slot of
Insert to the slot of
Insert to the slot of
Insert to the slot
1. Please che ck th at the power of an uninterruptible power supply (UPS) is of f , a nd that it is in the
state where AC input cable was removed from the electric socket or the terminal board, and
electric power is off.
Please pull out a power receptacle after turning off the "power supply" switch and being in a
shutdown state, when UPS is operating (refer to the operation manual of UPS for the check of
a shutdown state).
2. Please check that each of two DIP switches in the back of this product is off.
3. Please remove the contact signal input -and-output card of an uninterruptible power supply
(UPS), or two screws of the cover of a "signal card extension" slot, insert this product in a slot
firmly and carry out a screw stop to it.
(The position of a slot and the direction at the time of insertion change with model of an
uninterruptible power supply (UPS).)
※ When you insert in following models, please insert after removing the contact signal
input-and-output card preinstalled.
BU50SW/BU75SW/BU100SW/BU150SW,BU1002SW/BU3002SW,BU75RW/BU100RW/
BU200RW/BU300RW,BU1002SWG/BU3002SWG, BU1002SWCL/BU3002SWCL
(Please refer to (UPS) an uninterruptible power supply operation manual for details)
following UPS is removed
BU50SW/BU75SW/BU100SW/
BU150SW/ BU1002SW/BU3002SW/
BU1002SWG/BU3002SWG,
of BU150R
BN300R
card of following UPS is
removed BU100RW
of BN75R
BU1002RW
of following UPS is removed
BU200RW/BU300RW
BN150R
