Omron NX-AD, NX-DA User Manual

Download

Machine Automation Controller

NX-series

Analog I/O Units

User’s Manual for Analog Input Units and Analog Output Units

NX-AD NX-DA

Analog I/O Units

W522-E1-07

NOTE

All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form, or by any means, mechanical, electronic, photocopying, recording, or otherwise, without the prior written permission of OMRON.

No patent liability is assumed with respect to the use of the information contained herein. Moreover, because OMRON is constantly striving to improve its high-quality products, the information contained in this manual is subject to change without notice. Every precaution has been taken in the preparation of this manual. Nevertheless, OMRON assumes no responsibility for errors or omissions. Neither is any liability assumed for damages resulting from the use of the information contained in this publication.

Trademarks

• Sysmac and SYSMAC are trademarks or registered trademarks of OMRON Corporation in Japan and other countries for OMRON factory automation products.

• Microsoft, Windows, Windows Vista, Excel, and Visual Basic are either registered trademarks or trademarks of Microsoft Corporation in the United States and other countries.

• EtherCAT® is registered trademark and patented technology, licensed by Beckhoff Automation GmbH, Germany.

• Safety over EtherCAT® is registered trademark and patented technology, licensed by Beckhoff Automation GmbH, Germany.

• ODVA, CIP, CompoNet, DeviceNet, and EtherNet/IP are trademarks of ODVA.

• The SD and SDHC logos are trademarks of SD-3C, LLC.

Other company names and product names in this document are the trademarks or registered trademarks of their respective companies.

Copyrights

Microsoft product screen shots reprinted with permission from Microsoft Corporation.

Introduction

Thank you for purchasing an Analog Input Unit or Analog Output Unit.

This manual contains information that is necessary to use these Analog Input Units and Analog Output Units, which are classified as NX-series Analog I/O Units. Please read this manual and make sure you understand the functionality and performance of the NX-series Analog I/O Unit before you attempt to use it in a control system.

Keep this manual in a safe place where it will be available for reference during operation.

Intended Audience

This manual is intended for the following personnel, who must also have knowledge of electrical systems (an electrical engineer or the equivalent).

• Personnel in charge of introducing FA systems.

• Personnel in charge of designing FA systems.

• Personnel in charge of installing and maintaining FA systems.

• Personnel in charge of managing FA systems and facilities.

For programming, this manual is intended for personnel who understand the programming language specifications in international standard IEC 61131-3 or Japanese standard JIS B 3503.

Introduction

Applicable Products

This manual covers the following product.

• NX-series Analog Input Units

NX-AD

• NX-series Analog Output Units

NX-DA

NX-series Analog I/O Units User’s Manual for Analog Input Units and Analog Output Units (W522)

CONTENTS

Introduction ..............................................................................................................1

Intended Audience....................................................................................................................................... 1

Applicable Products..................................................................................................................................... 1

Relevant Manuals .....................................................................................................6

Manual Structure ......................................................................................................7

Page Structure and Icons ............................................................................................................................ 7

Special Information...................................................................................................................................... 8

Precaution on Terminology .......................................................................................................................... 8

Terms and Conditions Agreement........................................................................10

Warranty, Limitations of Liability ................................................................................................................ 10

Application Considerations ........................................................................................................................ 11

Disclaimers ................................................................................................................................................ 11

Safety Precautions .................................................................................................12

Definition of Precautionary Information...................................................................................................... 12

Symbols..................................................................................................................................................... 12

Warnings.................................................................................................................................................... 13

Cautions..................................................................................................................................................... 14

Precautions for Safe Use.......................................................................................16

Precautions for Correct Use..................................................................................21

Regulations and Standards...................................................................................22

Conformance to EU Directives .................................................................................................................. 22

Conformance Requirement to EU Directives............................................................................................. 23

Conformance to UL and CSA Standards ................................................................................................... 23

Conformance to Shipbuilding Standards ................................................................................................... 23

Conformance to KC Standards.................................................................................................................. 24

Software Licenses and Copyrights ............................................................................................................ 24

Unit Versions ..........................................................................................................25

Unit Versions.............................................................................................................................................. 25

Unit Versions and Support Software Versions ........................................................................................... 26

Related Manuals ..................................................................................................... 27

Terminology ............................................................................................................31

Revision History .....................................................................................................33

Sections in this Manual .........................................................................................35

Section 1 Features and System Configuration

1-1 Features and Applications....................................................................................................1-2

1-1-1 Features of the Analog Input Units and Analog Output Units .....................................................1-2

1-1-2 Applications of the Analog Input Units and Analog Output Units ................................................ 1-3

1-2 System Configuration ........................................................................................................... 1-4

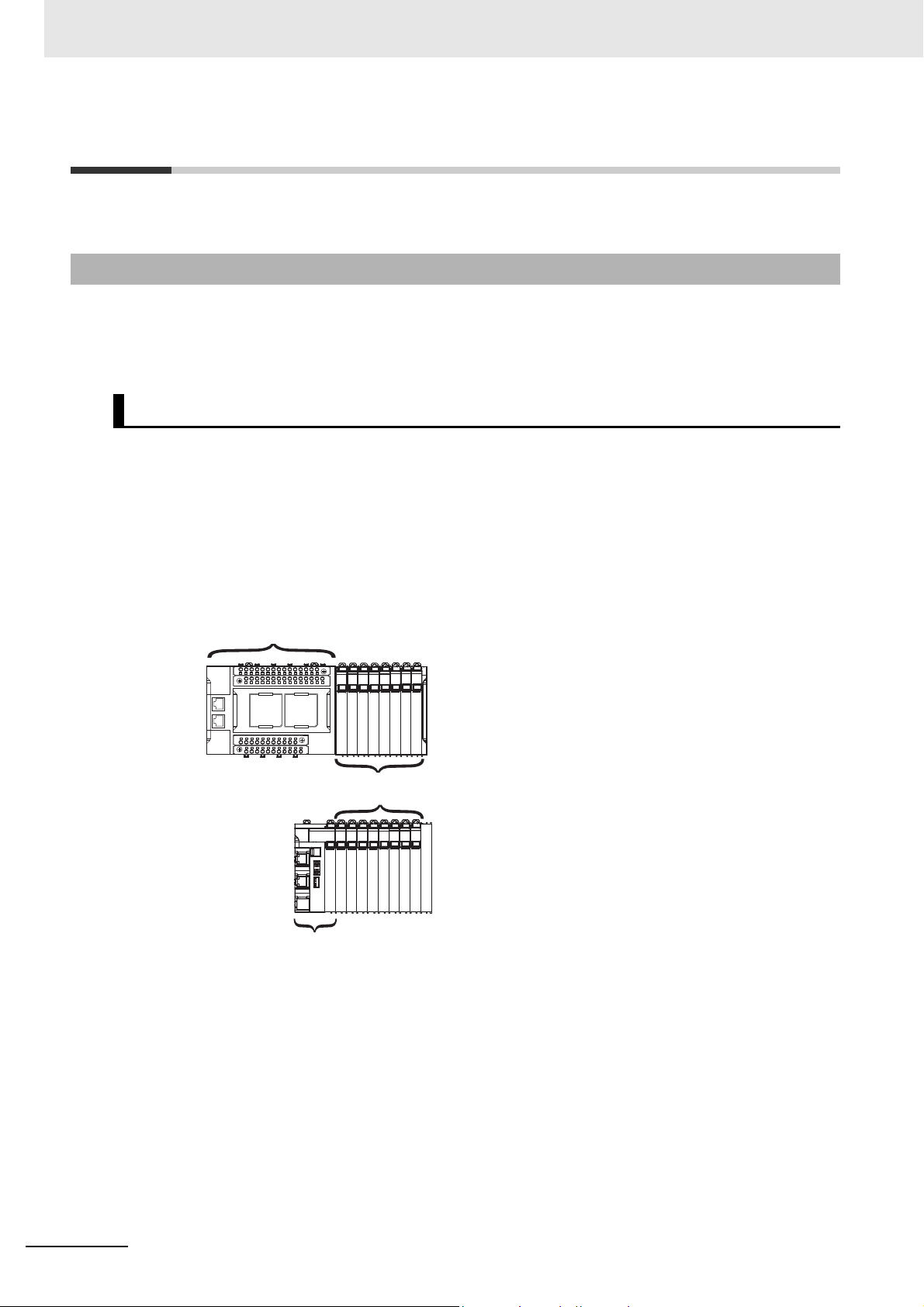

1-2-1 System Configuration in the Case of a CPU Unit........................................................................1-4

1-2-2 System Configuration of Slave Terminals ...................................................................................1-5

NX-series Analog I/O Units User’s Manual for Analog Input Units and Analog Output Units (W522)

1-3 Model List............................................................................................................................... 1-7

1-3-1 Model Notation............................................................................................................................ 1-7

1-3-2 Analog Input Units ...................................................................................................................... 1-9

1-3-3 Analog Output Units...................................................................................................................1-11

1-4 List of Functions.................................................................................................................. 1-12

1-4-1 Analog Input Units .................................................................................................................... 1-12

1-4-2 Analog Output Units.................................................................................................................. 1-13

1-5 Support Software................................................................................................................. 1-14

Section 2 Specifications

2-1 General Specifications.......................................................................................................... 2-2

2-2 Individual Specifications ...................................................................................................... 2-3

Section 3 Part Names and Functions

CONTENTS

3-1 Part Names............................................................................................................................. 3-2

3-1-1 Screwless Clamping Terminal Block Type.................................................................................. 3-2

3-2 Indicators ............................................................................................................................... 3-6

3-2-1 TS Indicator ................................................................................................................................ 3-7

Section 4 Installation and Wiring

4-1 Installing NX Units................................................................................................................. 4-2

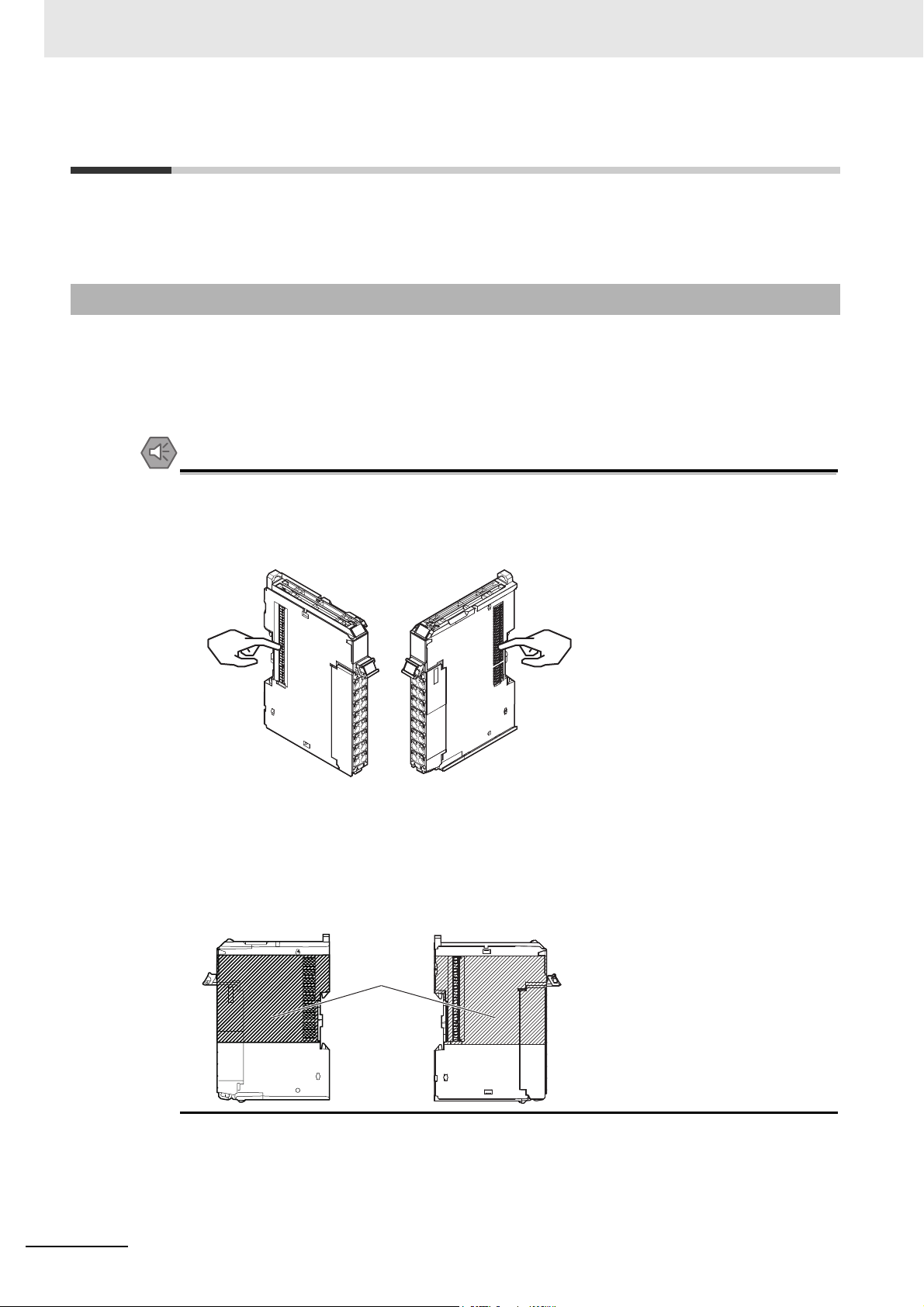

4-1-1 Installing NX Units ...................................................................................................................... 4-2

4-1-2 Attaching Markers....................................................................................................................... 4-4

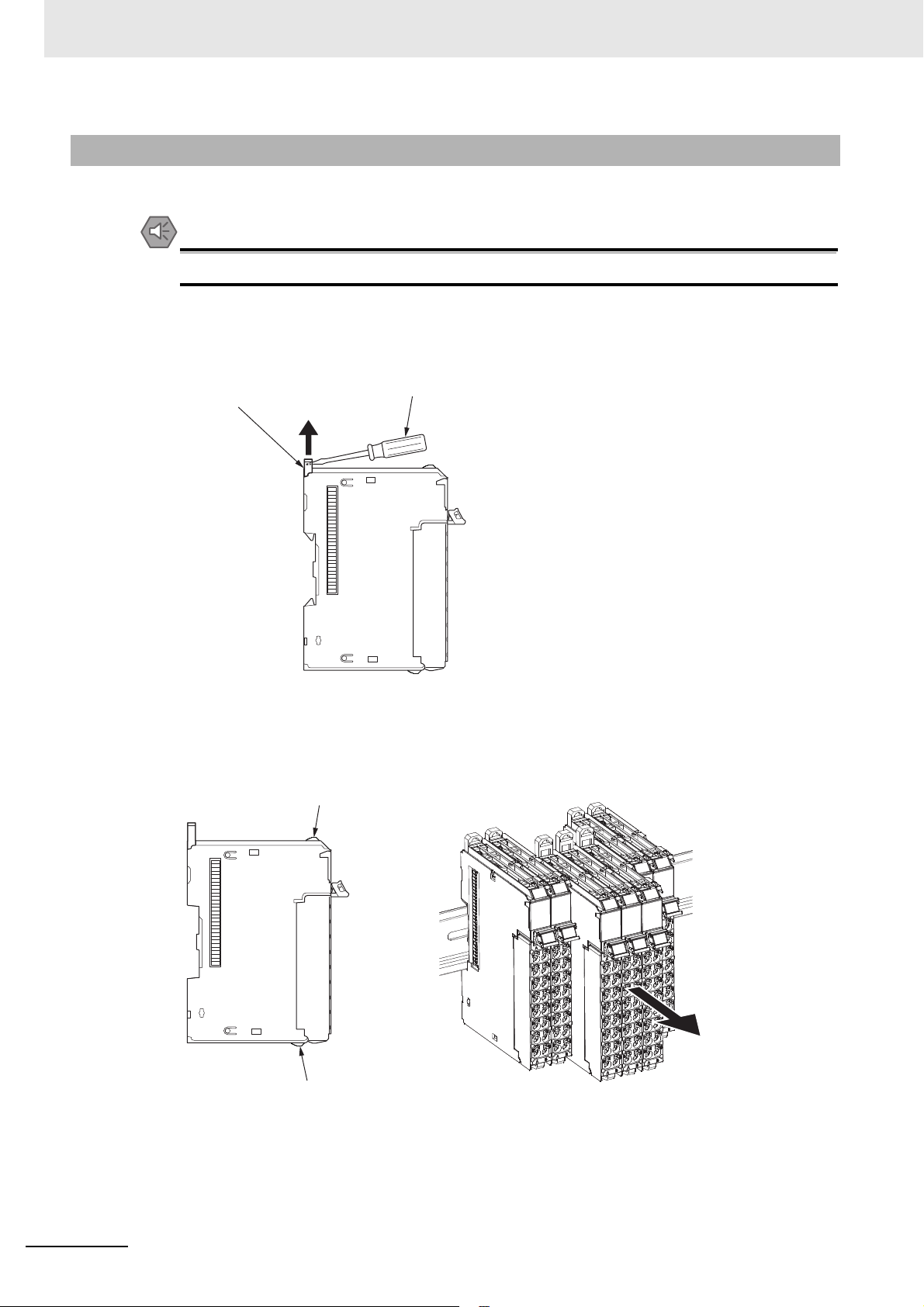

4-1-3 Removing NX Units .................................................................................................................... 4-6

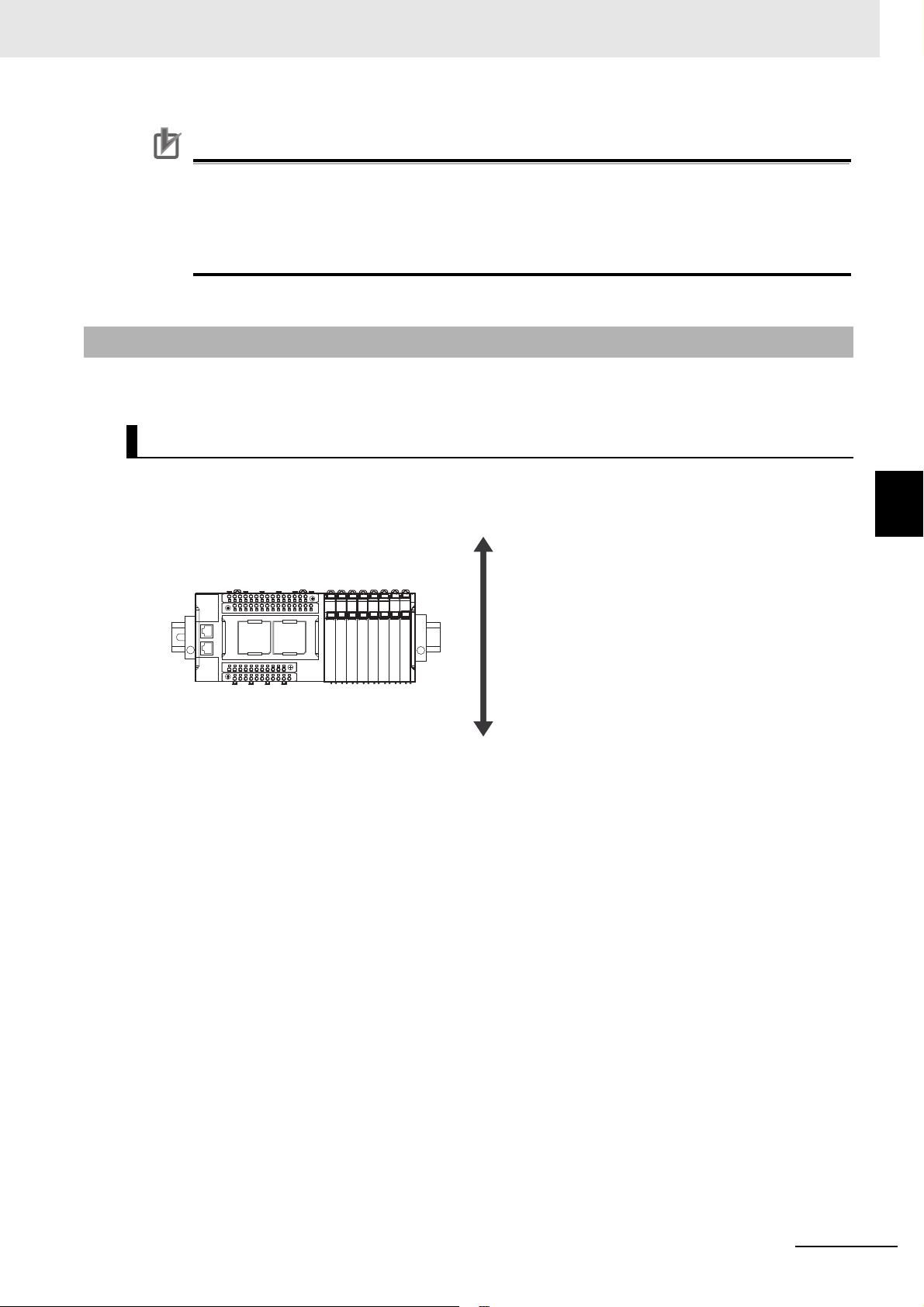

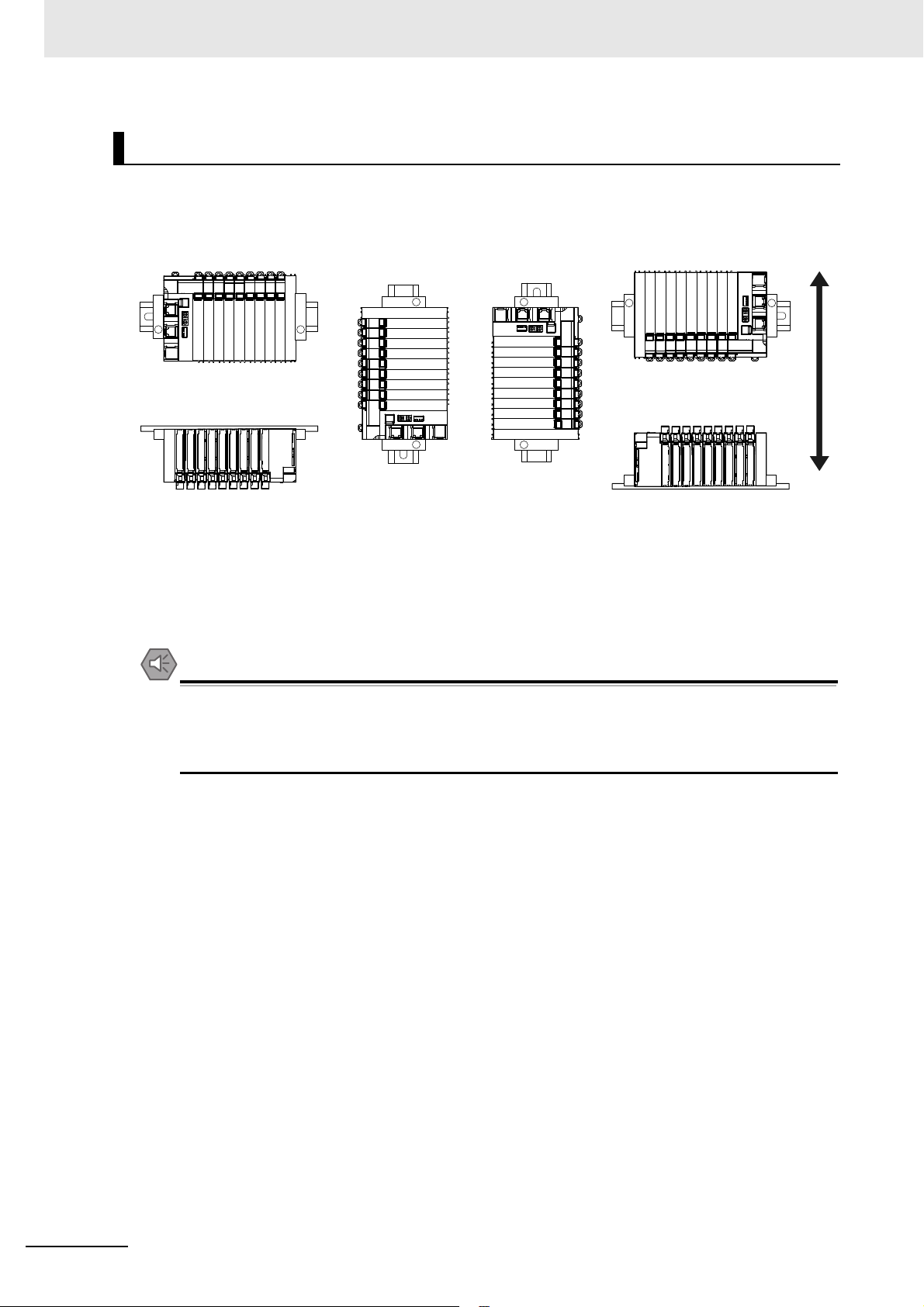

4-1-4 Installation Orientation................................................................................................................ 4-7

4-2 Power Supply Types and Wiring .......................................................................................... 4-9

4-2-1 Applications of I/O Power Supply and Supply Methods.............................................................. 4-9

4-2-2 Calculating the Total Current Consumption from I/O Power Supply ..........................................4-11

4-3 Wiring the Terminals ........................................................................................................... 4-12

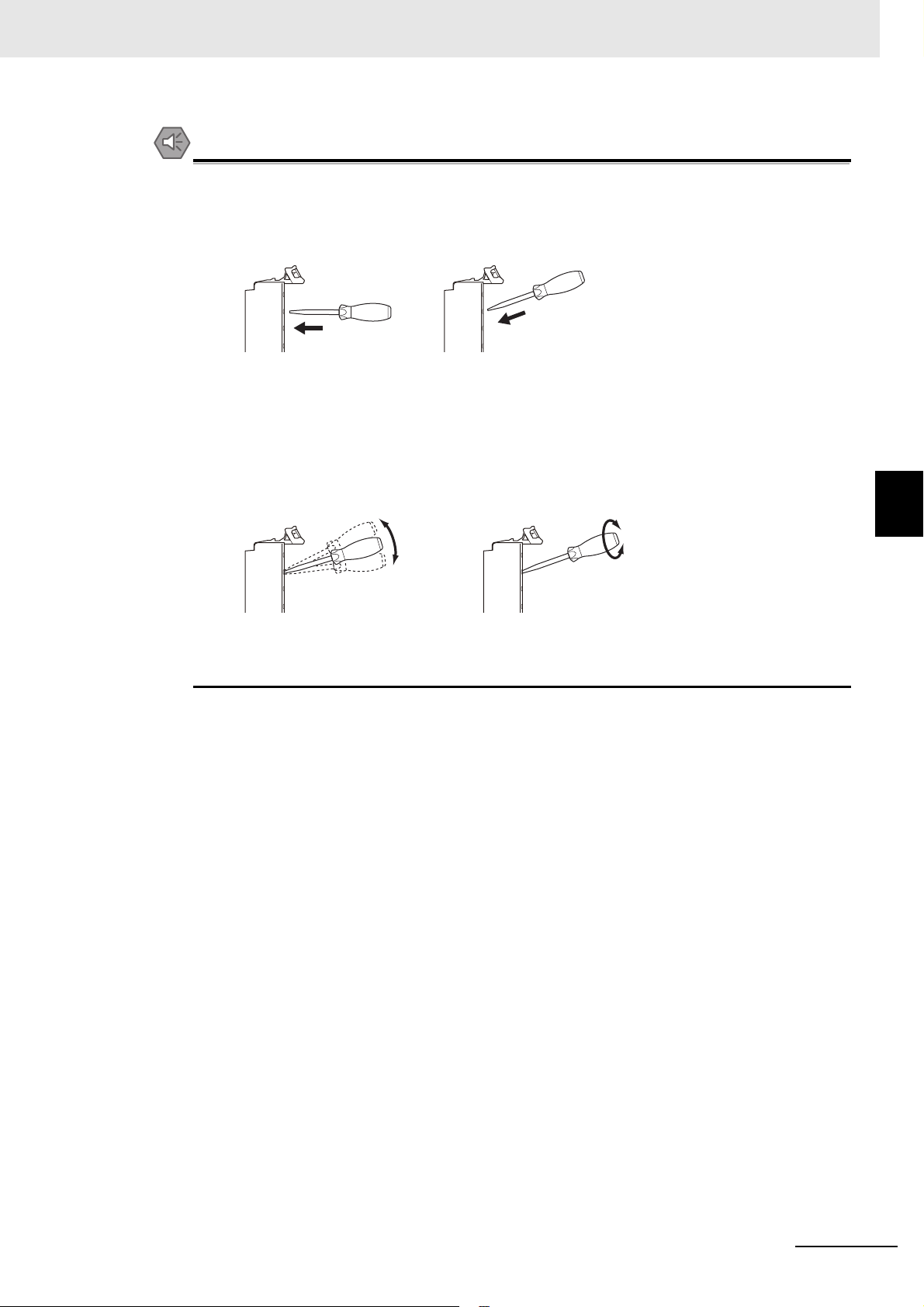

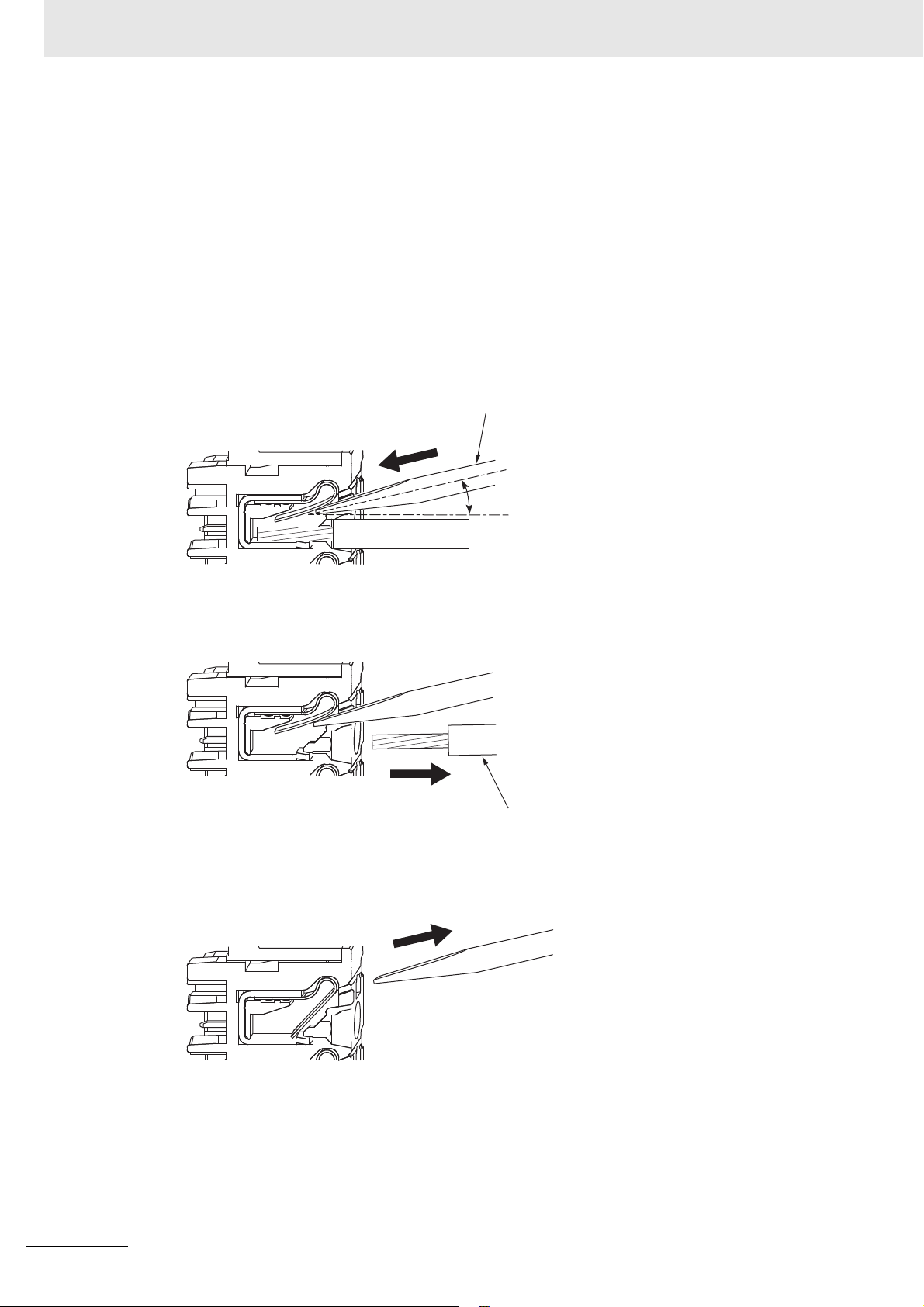

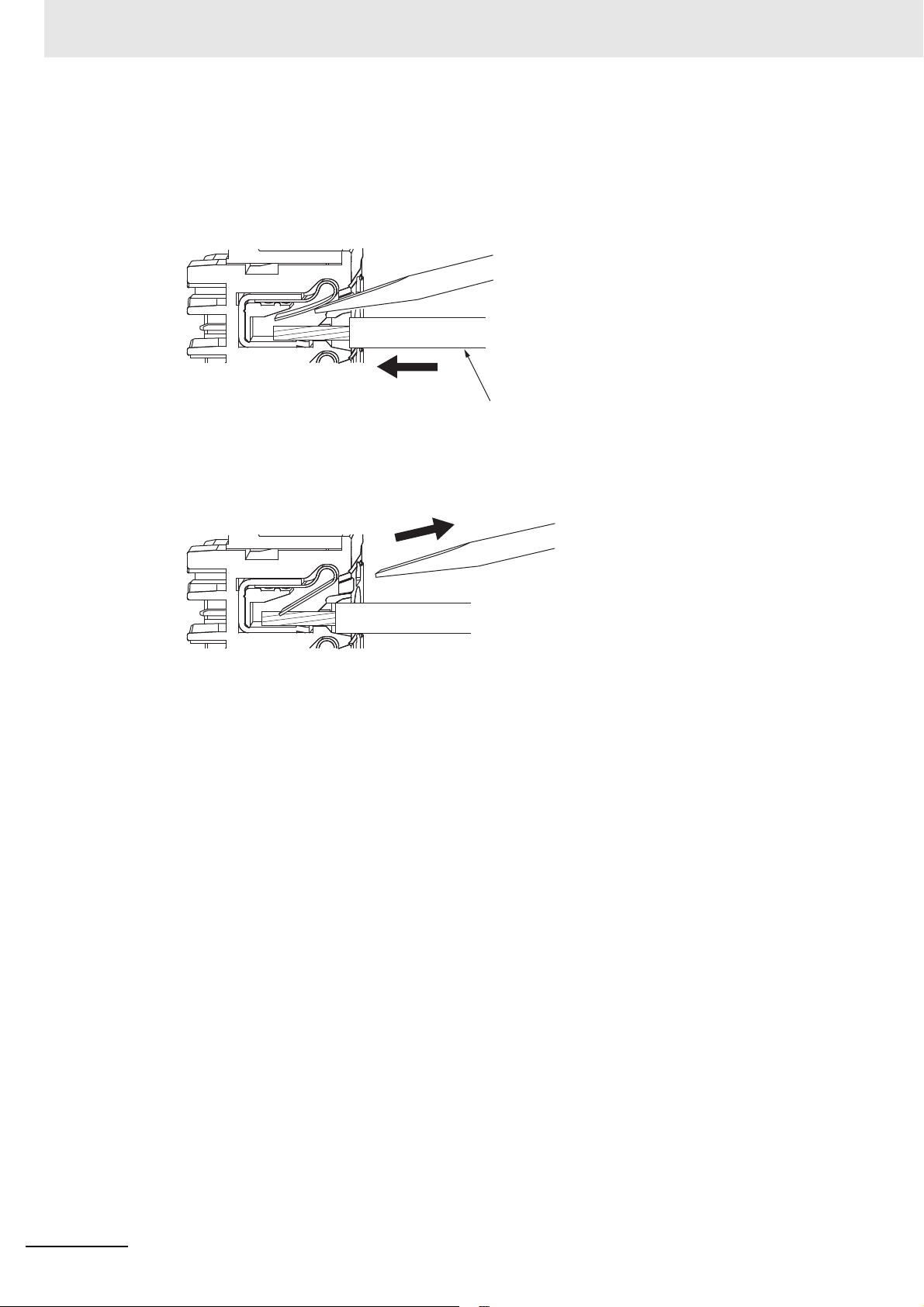

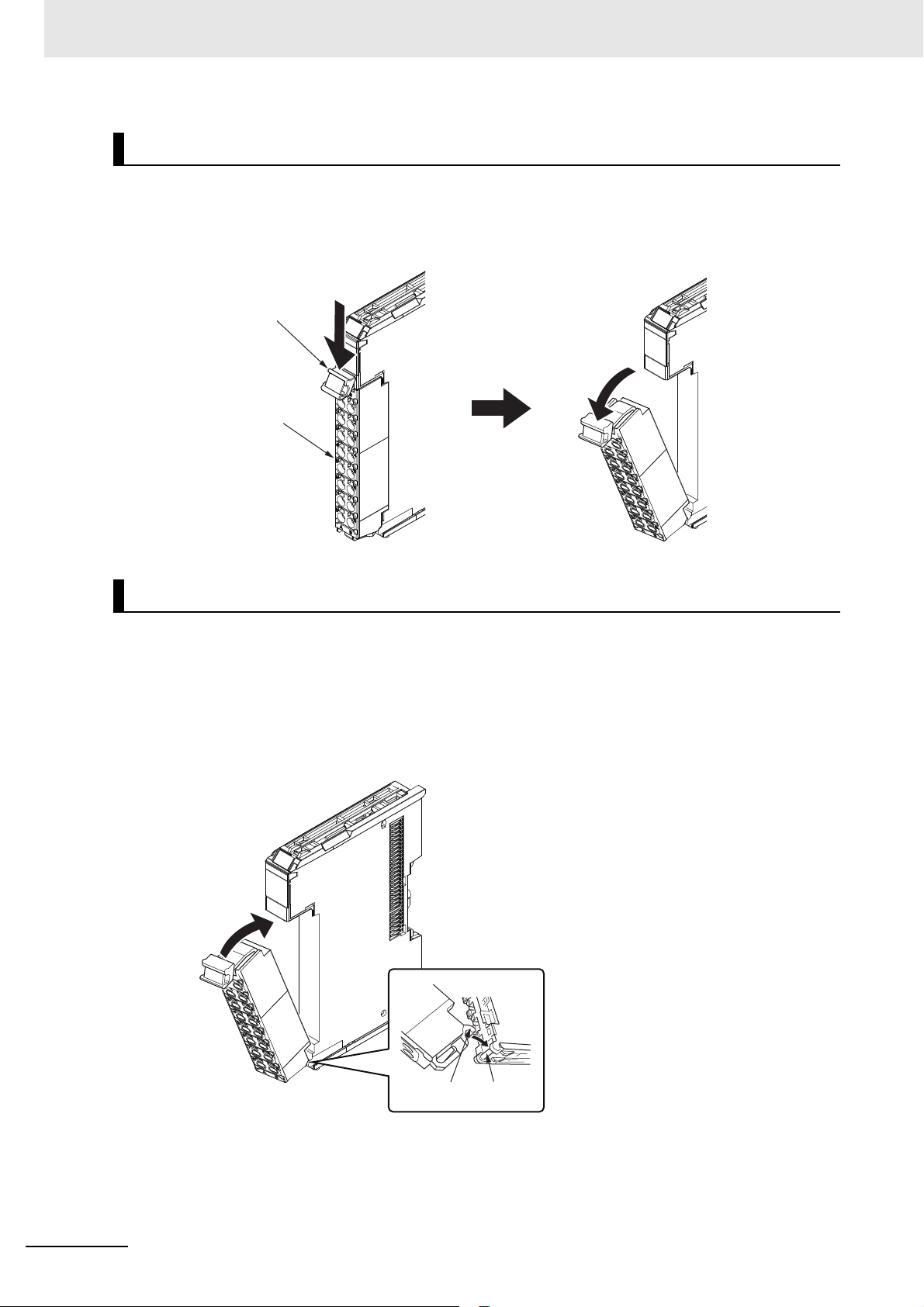

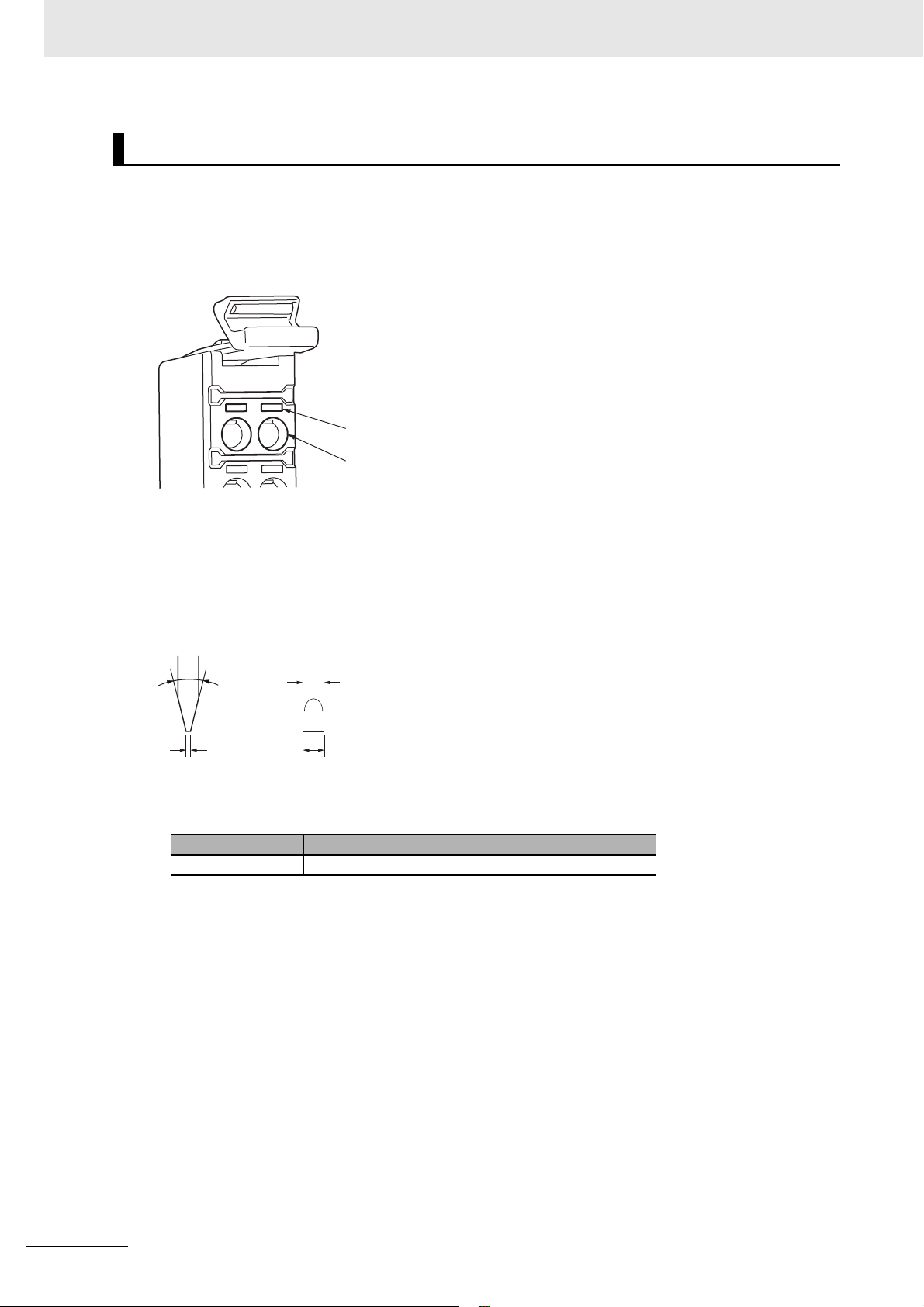

4-3-1 Wiring to the Screwless Clamping Terminal Block.................................................................... 4-12

4-3-2 Checking the Wiring.................................................................................................................. 4-28

4-4 Wiring Examples.................................................................................................................. 4-29

4-4-1 Wiring the Analog Input Units ................................................................................................... 4-29

4-4-2 Wiring the Analog Output Units ................................................................................................ 4-31

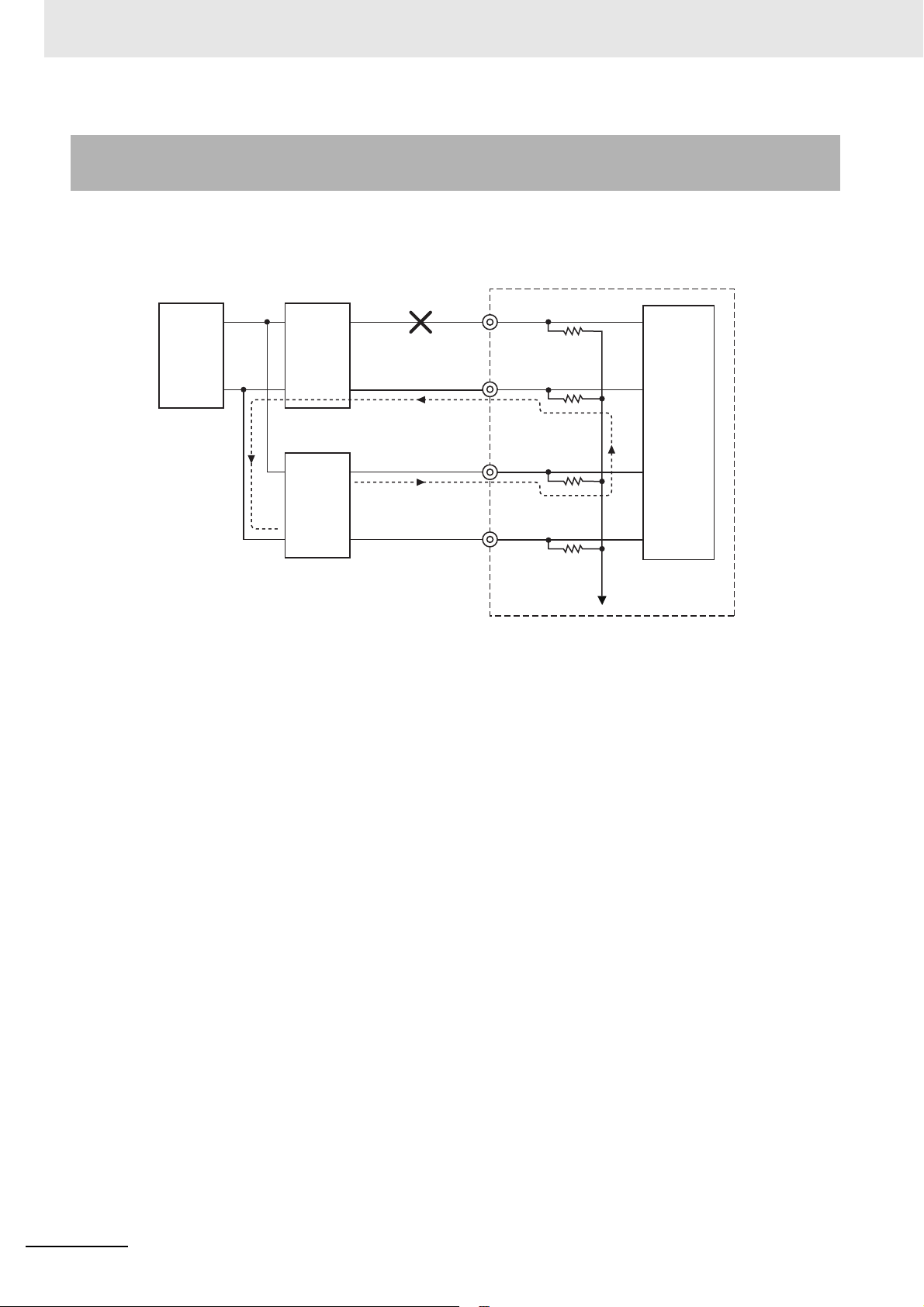

4-4-3 Precautions when Using Common Power Supply for Input Devices of Analog Input Units ...... 4-32

Section 5 I/O Refreshing

5-1 I/O Refreshing ........................................................................................................................ 5-2

5-1-1 I/O Refreshing from CPU Units to NX Units ............................................................................... 5-2

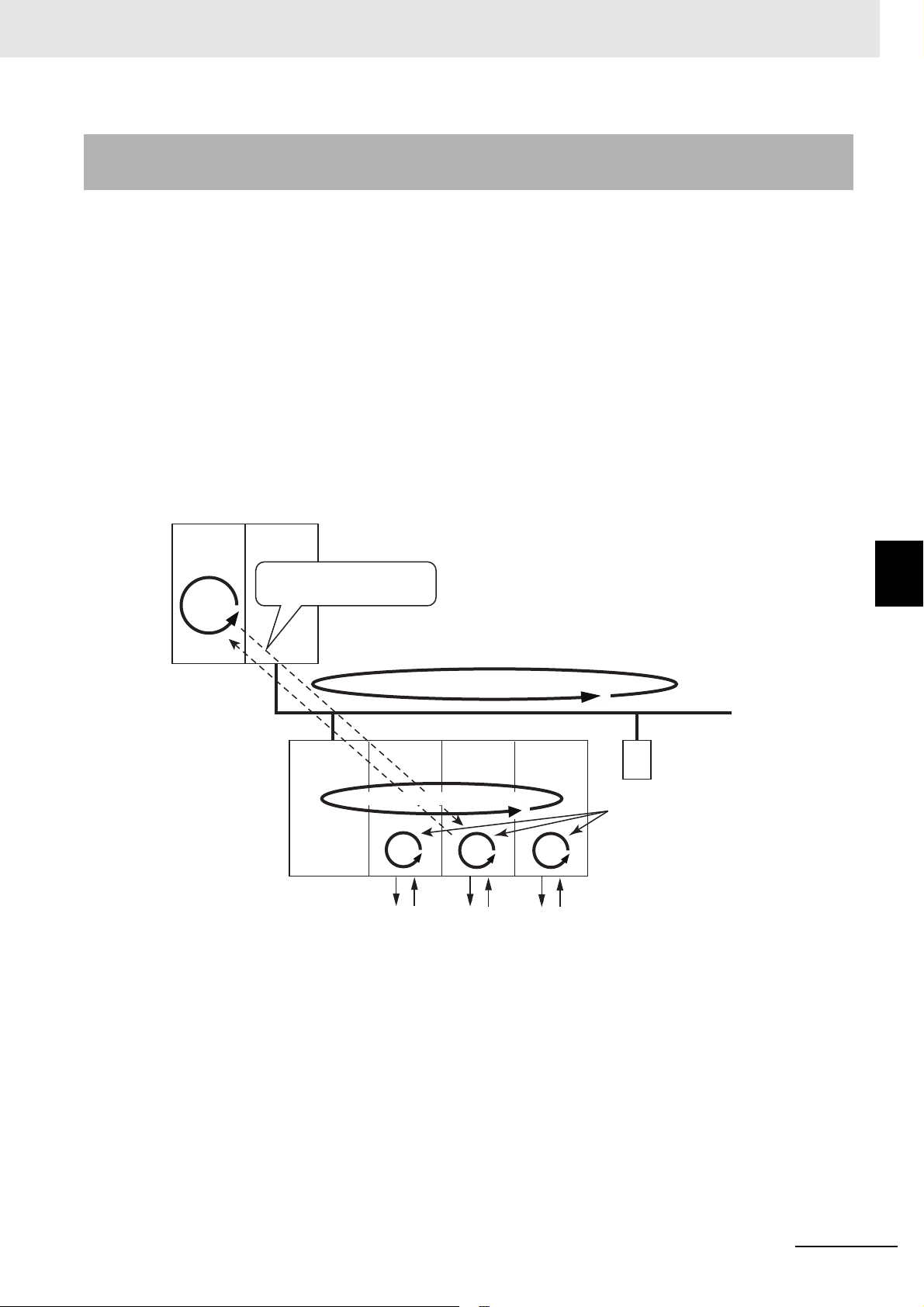

5-1-2 I/O Refreshing from CPU Units or Industrial PCs to Slave Terminal .......................................... 5-3

5-2 I/O Refreshing Methods ........................................................................................................ 5-5

5-2-1 Types of I/O Refreshing Methods ............................................................................................... 5-5

5-2-2 Setting the I/O Refreshing Methods............................................................................................ 5-7

5-2-3 Selecting NX Units...................................................................................................................... 5-8

5-2-4 Free-Run Refreshing .................................................................................................................. 5-8

5-2-5 Synchronous Input Refreshing ................................................................................................. 5-12

5-2-6 Synchronous Output Refreshing............................................................................................... 5-16

NX-series Analog I/O Units User’s Manual for Analog Input Units and Analog Output Units (W522)

CONTENTS

Section 6 Analog Input Units

6-1 Types of Analog Input Units ................................................................................................. 6-2

6-2 Input Range and Converted Values ..................................................................................... 6-4

6-3 Specifications of I/O Data ..................................................................................................... 6-6

6-3-1 Allocable I/O Data ....................................................................................................................... 6-6

6-4 List of Settings....................................................................................................................... 6-8

6-5 Function ............................................................................................................................... 6-12

6-5-1 List of Analog Input Unit Functions ...........................................................................................6-12

6-5-2 Selecting Channel To Use.........................................................................................................6-13

6-5-3 Moving Average ........................................................................................................................ 6-17

6-5-4 Input Disconnection Detection .................................................................................................. 6-23

6-5-5 Over Range/Under Range Detection ........................................................................................ 6-24

6-5-6 User Calibration ........................................................................................................................6-25

Section 7 Analog Output Units

7-1 Types of Analog Output Units .............................................................................................. 7-2

7-2 Output Range and Output Set Values.................................................................................. 7-3

7-3 Specifications of I/O Data ..................................................................................................... 7-5

7-3-1 Allocable I/O Data ....................................................................................................................... 7-5

7-4 List of Settings....................................................................................................................... 7-6

7-5 Functions ............................................................................................................................... 7-9

7-5-1 List of Analog Output Unit Functions...........................................................................................7-9

7-5-2 Selecting Channel To Use.........................................................................................................7-10

7-5-3 Load Rejection Output Setting .................................................................................................. 7-14

7-5-4 Over Range/Under Range Detection ........................................................................................ 7-19

7-5-5 User Calibration ........................................................................................................................7-20

Section 8 Troubleshooting

8-1 How to Check for Errors ....................................................................................................... 8-2

8-2 Checking for Errors with the Indicators .............................................................................. 8-3

8-3 Checking for Errors and Troubleshooting on the Support Software................................ 8-5

8-3-1 Checking for Errors from the Sysmac Studio..............................................................................8-5

8-3-2 Checking for Errors from Support Software Other Than the Sysmac Studio .............................. 8-6

8-3-3 Event Codes and Corrections for Errors .....................................................................................8-7

8-3-4 Meaning of Error ....................................................................................................................... 8-13

8-4 Resetting Errors .................................................................................................................. 8-35

8-5 Troubles Specific to Each Type of NX Units ..................................................................... 8-36

8-5-1 Troubles Common to All Analog Input Units and Analog Output Units ..................................... 8-36

8-5-2 Analog Input Units..................................................................................................................... 8-36

8-5-3 Analog Output Units.................................................................................................................. 8-37

8-6 Troubleshooting Flowchart ................................................................................................ 8-38

Section 9 Inspection and Maintenance

9-1 Cleaning and Inspection ....................................................................................................... 9-2

9-1-1 Cleaning...................................................................................................................................... 9-2

9-1-2 Periodic Inspection...................................................................................................................... 9-2

NX-series Analog I/O Units User’s Manual for Analog Input Units and Analog Output Units (W522)

9-2 Maintenance Procedures ...................................................................................................... 9-5

Appendices

A-1 Data Sheet ..............................................................................................................................A-2

A-1-1 Model List ................................................................................................................................... A-2

A-1-2 Analog Input Units ...................................................................................................................... A-4

A-1-3 Analog Output Units.................................................................................................................. A-24

A-2 Dimensions ..........................................................................................................................A-37

A-2-1 Screwless Clamping Terminal Block Type ................................................................................ A-37

A-3 List of NX Objects................................................................................................................A-39

A-3-1 Format of Object Descriptions .................................................................................................. A-39

A-3-2 Analog Input Units .................................................................................................................... A-40

A-3-3 Analog Output Units.................................................................................................................. A-49

A-4 List of Screwless Clamping Terminal Block Models........................................................A-54

A-4-1 Model Notation.......................................................................................................................... A-54

A-4-2 List of Terminal Block Models ................................................................................................... A-54

A-5 Version Information with CPU Units ..................................................................................A-55

A-5-1 Relationship between Unit Versions of Units............................................................................A-55

A-6 Version Information with Communications Coupler Units ..............................................A-57

A-6-1 Connection to an EtherCAT Coupler Unit................................................................................. A-57

A-6-2 Connection to an EtherNet/IP Coupler Unit..............................................................................A-59

A-7 Displaying the Edit Unit Operation Settings Tab Page ....................................................A-61

A-7-1 Connection to the CPU Unit...................................................................................................... A-61

A-7-2 Slave Terminal ..........................................................................................................................A-63

CONTENTS

Index

NX-series Analog I/O Units User’s Manual for Analog Input Units and Analog Output Units (W522)

Relevant Manuals

The table below provides the relevant manuals for the NX-series Analog I/O Units.

Read all of the manuals that are relevant to your system configuration and application to make the most of the NX-series Analog I/O Units.

Other manuals, such as related product manuals, are necessary for specific system configurations and applications. Refer to Related Manuals on page 27 for the related manuals.

Manual name Application

NX-series Analog I/O Units User’s Manual for Analog Input

Units and Analog Output Units NX-series Data Reference Man-

ual

*1. From revision 05 of this manual, information on the NX-series Temperature Input Units (NX-TS) that

were included in previous revisions was moved to the following manual: NX-series Analog I/O Units User’s Manual for Temperature Input Units and Heater Burnout Detection Units (Cat. No. W566). Accompanying that change, the name of this manual was changed from the NX-series Analog I/O Units User’s Manual (Cat. No. W522) to the NX-series Analog I/O Units User's Manual for Analog Input Units and Analog Output Units (Cat. No. W522).

Learning how to use NX-series Analog Input Units and Analog Output Units

Referencing lists of the data that is required to configure systems with NX-series Units

NX-series Analog I/O Units User’s Manual for Analog Input Units and Analog Output Units (W522)

Manual Structure

4-9

4 Installation and Wiring

NJ-series CPU Unit Hardware User’s Manual (W500)

stinU gnitnuoM 3-4

stnenopmoC rellortnoC gnitcennoC 1-3-4

4-3 Mounting Units

The Units that make up an NJ-series Controller can be connected simply by pressing the Units together and lock ing the slide rs by moving the m toward the back of the U nits. The End Cover is connect ed in the same way to the Unit on the far right side of the Controller.

1 Join the Units so that the connectors fit exactly.

2 The yellow sliders at the top and bottom of each Unit lock the Units together. Move the sliders

toward the back of the Units as shown below until they click into place.

Precautions for Correct UsePrecautions for Correct Use

4-3-1 Connecting Controller Components

Connector

Hook

Hook holes

Slider

Lock

Release

Move the sliders toward the back until they lock into place.

Level 1 heading Level 2 heading Level 3 heading

Level 2 heading

A step in a procedure

Manual name

Special information

Level 3 heading

Page tab

Gives the current headings.

Indicates a procedure.

Icons indicate precautions, additional information, or reference information.

Gives the number of the main section.

The sliders on the tops and bottoms of the Power Supply Unit, CPU Unit, I/O Units, Special I/O Units, and CPU Bus Units must be completely locked (until they click into place) after connecting the adjacent Unit connectors.

Page Structure and Icons

The following page structure and icons are used in this manual.

Manual Structure

Note This illustration is provided only as a sample. It may not literally appear in this manual.

NX-series Analog I/O Units User’s Manual for Analog Input Units and Analog Output Units (W522)

Manual Structure

Precautions for Safe Use

Precautions for Correct Use

Additional Information

Version Information

RightLeft

Down

Special Information

Special information in this manual is classified as follows:

Precautions on what to do and what not to do to ensure safe usage of the product.

Precautions on what to do and what not to do to ensure proper operation and performance.

Additional information to read as required.

This information is provided to increase understanding or make operation easier.

Information on differences in specifications and functionality for CPU Units, Industrial PCs, and Communications Coupler Units with different unit versions and for different versions of the Support Software is given.

Note References are provided to more detailed or related information.

Precaution on Terminology

• In this manual, “download” refers to transferring data from the Support Software to a physical device and “upload” refers to transferring data from a physical device to the Support Software.

• In this manual, the directions in relation to the Units are given in the following figure, which shows upright installation.

• This user's manual refers to the NY-series IPC Machine Controller Industrial Panel PCs and Industrial Box PCs as simply Industrial PCs or as NY-series Industrial PCs.

NX-series Analog I/O Units User’s Manual for Analog Input Units and Analog Output Units (W522)

Manual Structure

• This user's manual refers to the built-in EtherCAT port on an NJ/NX-series Controller or NY-series Industrial PC as simple a built-in EtherCAT port.

• This user's manual may omit manual names and manual numbers in places that refer to the user's manuals for CPU Units and Industrial PCs. The following table gives some examples. When necessary, refer to Related Manuals on page 27 to determine the appropriate manual based on the common text for the omitted contents.

Examples:

Manual name Omitted contents Common text

NJ/NX-series CPU Unit Software User's Manual

NY-series IPC Machine Controller Industrial Panel PC / Industrial Box PC Software User’s Manual

NJ/NX-series CPU Unit Built-in EtherCAT® Port User's Manual NY-series IPC Machine Controller Industrial Panel PC / Industrial Box PC Built-in EtherCAT® Port User’s Manual

Software user's manual for the connected CPU Unit or Industrial PC

User's manual for built-in EtherCAT port on the connected CPU Unit or Industrial PC

Software User's Manual

Built-in EtherCAT port

• This user’s manual may omit manual names and manual numbers in places that refer to the user’s manuals for Communications Coupler Units. If you will use a Communications Coupler Unit, refer to Related Manuals on page 27 to identify the manual for your Unit.

NX-series Analog I/O Units User’s Manual for Analog Input Units and Analog Output Units (W522)

Terms and Conditions Agreement

Warranty, Limitations of Liability

Warranties

z Exclusive Warranty

Omron’s exclusive warranty is that the Products will be free from defects in materials and workmanship for a period of twelve months from the date of sale by Omron (or such other period expressed in writing by Omron). Omron disclaims all other warranties, express or implied.

z Limitations

OMRON MAKES NO WARRANTY OR REPRESENTATION, EXPRESS OR IMPLIED, ABOUT NON-INFRINGEMENT, MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE OF THE PRODUCTS. BUYER ACKNOWLEDGES THAT IT ALONE HAS DETERMINED THAT THE PRODUCTS WILL SUITABLY MEET THE REQUIREMENTS OF THEIR INTENDED USE.

Omron further disclaims all warranties and responsibility of any type for claims or expenses based on infringement by the Products or otherwise of any intellectual property right.

z Buyer Remedy

Omron’s sole obligation hereunder shall be, at Omron’s election, to (i) replace (in the form originally shipped with Buyer responsible for labor charges for removal or replacement thereof) the non-complying Product, (ii) repair the non-complying Product, or (iii) repay or credit Buyer an amount equal to the purchase price of the non-complying Product; provided that in no event shall Omron be responsible for warranty, repair, indemnity or any other claims or expenses regarding the Products unless Omron’s analysis confirms that the Products were properly handled, stored, installed and maintained and not subject to contamination, abuse, misuse or inappropriate modification. Return of any Products by Buyer must be approved in writing by Omron before shipment. Omron Companies shall not be liable for the suitability or unsuitability or the results from the use of Products in combination with any electrical or electronic components, circuits, system assemblies or any other materials or substances or environments. Any advice, recommendations or information given orally or in writing, are not to be construed as an amendment or addition to the above warranty.

See http://www.omron.com/global/ or contact your Omron representative for published information.

Limitation on Liability; Etc

OMRON COMPANIES SHALL NOT BE LIABLE FOR SPECIAL, INDIRECT, INCIDENTAL, OR CONSEQUENTIAL DAMAGES, LOSS OF PROFITS OR PRODUCTION OR COMMERCIAL LOSS IN ANY WAY CONNECTED WITH THE PRODUCTS, WHETHER SUCH CLAIM IS BASED IN CONTRACT, WARRANTY, NEGLIGENCE OR STRICT LIABILITY.

Further, in no event shall liability of Omron Companies exceed the individual price of the Product on which liability is asserted.

NX-series Analog I/O Units User’s Manual for Analog Input Units and Analog Output Units (W522)

Application Considerations

Suitability of Use

Omron Companies shall not be responsible for conformity with any standards, codes or regulations which apply to the combination of the Product in the Buyer’s application or use of the Product. At Buyer’s request, Omron will provide applicable third party certification documents identifying ratings and limitations of use which apply to the Product. This information by itself is not sufficient for a complete determination of the suitability of the Product in combination with the end product, machine, system, or other application or use. Buyer shall be solely responsible for determining appropriateness of the particular Product with respect to Buyer’s application, product or system. Buyer shall take application responsibility in all cases.

NEVER USE THE PRODUCT FOR AN APPLICATION INVOLVING SERIOUS RISK TO LIFE OR PROPERTY WITHOUT ENSURING THAT THE SYSTEM AS A WHOLE HAS BEEN DESIGNED TO ADDRESS THE RISKS, AND THAT THE OMRON PRODUCT(S) IS PROPERLY RATED AND INSTALLED FOR THE INTENDED USE WITHIN THE OVERALL EQUIPMENT OR SYSTEM.

Terms and Conditions Agreement

Programmable Products

Omron Companies shall not be responsible for the user’s programming of a programmable Product, or any consequence thereof.

Disclaimers

Performance Data

Data presented in Omron Company websites, catalogs and other materials is provided as a guide for the user in determining suitability and does not constitute a warranty. It may represent the result of Omron’s test conditions, and the user must correlate it to actual application requirements. Actual performance is subject to the Omron’s Warranty and Limitations of Liability.

Change in Specifications

Product specifications and accessories may be changed at any time based on improvements and other reasons. It is our practice to change part numbers when published ratings or features are changed, or when significant construction changes are made. However, some specifications of the Product may be changed without any notice. When in doubt, special part numbers may be assigned to fix or establish key specifications for your application. Please consult with your Omron’s representative at any time to confirm actual specifications of purchased Product.

Errors and Omissions

Information presented by Omron Companies has been checked and is believed to be accurate; however, no responsibility is assumed for clerical, typographical or proofreading errors or omissions.

NX-series Analog I/O Units User’s Manual for Analog Input Units and Analog Output Units (W522)

Safety Precautions

WARNING

Caution

Indicates a potentially hazardous situation which, if not avoided, could result in death or serious injury. Additionally, there may be severe property damage.

Indicates a potentially hazardous situation which, if not avoided, may result in minor or moderate injury, or property damage.

Safety Precautions

Definition of Precautionary Information

The following notation is used in this manual to provide precautions required to ensure safe usage of the NX-series Analog Input Units and Analog Output Units.

The safety precautions that are provided are extremely important to safety. Always read and heed the information provided in all safety precautions.

The following notation is used.

Symbols

The circle and slash symbol indicates operations that you must not do.

The specific operation is shown in the circle and explained in text.

This example indicates prohibiting disassembly.

The triangle symbol indicates precautions (including warnings).

The specific operation is shown in the triangle and explained in text.

This example indicates a precaution for electric shock.

The triangle symbol indicates precautions (including warnings).

The specific operation is shown in the triangle and explained in text.

This example indicates a general precaution.

The filled circle symbol indicates operations that you must do.

The specific operation is shown in the circle and explained in text.

This example shows a general precaution for something that you must do.

NX-series Analog I/O Units User’s Manual for Analog Input Units and Analog Output Units (W522)

Warnings

WARNING

During Power Supply

Do not touch the terminal section while power is ON.

Electric shock may occur.

Do not attempt to take any Unit apart.

In particular, high-voltage parts are present in Units that supply power while power is supplied or immediately after power is turned OFF. Touching any of these parts may result in electric shock. There are sharp parts inside the Unit that may cause injury.

Safety Precautions

Fail-safe Measures

Provide safety measures in external circuits to ensure safety in the system if an abnormality occurs due to malfunction of the CPU Unit, Industrial PC, other Units, or slaves or due to other external factors affecting operation.

Not doing so may result in serious accidents due to incorrect operation. Emergency stop circuits, interlock circuits, limit circuits, and similar safety measures must

be provided in external control circuits.

The CPU Unit or Industrial PC will turn OFF all outputs from Output Units in the following cases. The remote I/O slaves will operate according to the settings in the slaves.

• If a power supply error occurs.

• If the power supply connection becomes faulty.

• If a CPU watchdog timer error or CPU reset occurs.

• If a Controller error in the major fault level occurs.

• While the CPU Unit is on standby until RUN mode is entered after the power is turned ON

External safety measures must be provided to ensure safe operation of the system in such cases.

The outputs may remain ON or OFF due to deposition or burning of the output relays or destruction of the output transistors. As a countermeasure for such problems, external safety measures must be provided to ensure safe operation of the system.

If external power supplies for slaves or other devices are overloaded or short-circuited, the voltage will drop, outputs will turn OFF, and the system may be unable to read inputs. Provide external safety measures in control with monitoring of external power supply voltage as required so that the system operates safely in such a case.

You must take fail-safe measures to ensure safety in the event of incorrect, missing, or abnormal signals caused by broken signal lines, momentary power interruptions, or other causes.

Not doing so may result in serious accidents due to incorrect operation.

NX-series Analog I/O Units User’s Manual for Analog Input Units and Analog Output Units (W522)

Safety Precautions

Caution

Peripheral device

(e.g., computer)

Non-isolated DC power

supply (internal power

supply circuit)

24 V

0 V

Peripheral device

cable

Ground terminal

Communications Coupler Unit

NX Unit power supply

Unit power supply

Voltage and Current Inputs

Make sure that the voltages and currents that are input to the Units and slaves are within the specified ranges.

Inputting voltages or currents that are outside of the specified ranges may cause accidents or fire.

Transferring

Always confirm safety at the destination node before you transfer Unit configuration information, parameters, settings, or other data from tools such as the Sysmac Studio.

The devices or machines may operate unexpectedly, regardless of the operating mode of the Controller.

Cautions

Wiring

When you connect a computer or other peripheral device to a Communications Coupler Unit that has a non-isolated DC power supply, either ground the 0-V side of the external power supply (i.e. Unit power supply) or do not ground it at all.

If the peripheral devices are grounded incorrectly, the external power supply (i.e. Unit power supply) may be short-circuited.

Never ground the 24-V side of the power supply, as shown in the following figure.

Be sure that all terminal screws and cable connector screws are tightened to the torque specified in the relevant manuals. The loose screws may result in fire or malfunction.

NX-series Analog I/O Units User’s Manual for Analog Input Units and Analog Output Units (W522)

Safety Precautions

Online Editing

Execute online editing only after confirming that no adverse effects will be caused by deviations in the timing of I/O. If you perform online editing, the task execution time may exceed the task period, I/O may not be refreshed with external devices, input signals may not be read, and output timing may change.

NX-series Analog I/O Units User’s Manual for Analog Input Units and Analog Output Units (W522)

Precautions for Safe Use

Example: NX Unit (12 mm width)

NG NG

Precautions for Safe Use

Transporting

• When transporting any Unit, use the special packing box for it. Also, do not subject the Unit to excessive vibration or shock during transportation.

• Do not drop any Unit or subject it to abnormal vibration or shock. Doing so may result in Unit malfunction or burning.

Mounting

• Mount terminal blocks and connectors only after checking the mounting location carefully.

• Be sure that the terminal blocks, expansion cables, and other items with locking devices are properly locked into place.

Installation

• Do not apply labels or tape to the Unit. When the Unit is installed or removed, adhesive or scraps may adhere to the pins in the NX bus connector, which may result in malfunctions.

• Do not touch the pins in the NX bus connector on the Unit. Dirt may adhere to the pins in the NX bus connector, which may result in malfunctions.

NX-series Analog I/O Units User’s Manual for Analog Input Units and Analog Output Units (W522)

Precautions for Safe Use

Restricted

region (shaded

portion)

Down

• Do not write on an NX Unit with ink within the restricted region that is shown in the following figure. Also do not get this area dirty. When the Unit is installed or removed, ink or dirt may adhere to the pins in the NX bus connector, which may result in malfunctions in the CPU Rack or the Slave Terminal. Refer to the user’s manual for the connected CPU Unit or Communications Coupler Unit for the restricted region of CPU Unit and Communications Coupler Unit.

• For the installation orientations in the following figure, support the cables, e.g., with a duct, so that the End Plate on the bottom is not subjected to the weight of the cables. The weight of the cables may cause the bottom End Plate to slide downward so that the Slave Terminal is no longer secured to the DIN Track, which may result in malfunctions.

NX-series Analog I/O Units User’s Manual for Analog Input Units and Analog Output Units (W522)

Precautions for Safe Use

Wiring

• Double-check all switches and other settings and double-check all wiring to make sure that they are correct before turning ON the power supply. Use the correct wiring parts and tools when you wire the system.

• Do not pull on the cables or bend the cables beyond their natural limit. Also, do not place heavy objects on top of the cables or other wiring lines. Doing so may break the cable.

• When wiring or installing the Units, do not allow metal fragments to enter the Units.

• Do not press the flat-blade screwdriver straight into the release holes on a screwless clamping terminal block. Doing so may damage the terminal block.

NG OK

• When you insert a flat-blade screwdriver into a release hole on a screwless clamping terminal block, press it down with a force of 30N or less. Applying excessive force may damage the terminal block.

• Do not incline or twist the flat-blade screwdriver while it is in a release hole on a screwless clamping terminal block. Doing so may damage the terminal block.

NG NG

• Use crimp terminals for wiring the M3 screw terminal blocks. Do not connect bare stranded wires directly to the M3 screw terminal blocks.

Power Supply Design

• Use all Units within the I/O power supply ranges that are given in the specifications.

• Use the I/O power supply current for the CPU Rack of the NX-series NX1P2 CPU Unit at 4 A or less. Using the currents that are outside of the specifications may cause failure or damage.

• Supply sufficient power according to the contents of this manual.

• Use the power supply voltage that is specified in this manual.

• Do not apply voltages that exceed the rated value to any Input Unit.

• Do not apply voltages or connect loads to the Output Units or slaves in excess of the maximum ratings.

• Inrush current occurs when the power supply is turned ON. When selecting fuses or breakers for external circuits, consider their fusing and detection characteristics as well as the above precautions and allow sufficient margin in shut-off performance.

• Install external breakers and take other safety measures against short-circuiting and overcurrents in external wiring.

Turning ON the Power Supply

• When you set the Operating Mode at Startup, confirm that no adverse effect will occur in the system.

NX-series Analog I/O Units User’s Manual for Analog Input Units and Analog Output Units (W522)

Precautions for Safe Use

Actual Operation

• Before you start operation, always register the NX Units that are connected to the Communications Coupler Unit in the host communications master as the Unit Configuration Information.

• Check the user program, data, and parameter settings for proper execution before you use them for actual operation.

• If you change the fail-soft operation setting, the output status when the error occurs may also change. Confirm safety before you change the fail-soft operation setting.

• If you use fail-soft operation, write programming to determine whether Unit I/O data is valid. Without such programming, the user program cannot distinguish between Units for which I/O refreshing is continued and Units for which I/O refreshing is stopped.

Turning OFF the Power Supply

• Do not disconnect the cable or turn OFF the power supply to the Controller or a Slave Terminal when downloading data or the user program from the Support Software.

• Always turn OFF the external power supply to the Units before attempting any of the following.

Mounting or removing an NX Unit, Communications Coupler Unit, CPU Unit, or Industrial PC Assembling Units Setting DIP switches or rotary switches Connecting or wiring cables Attaching or removing terminal blocks or connectors

Units that supply power continue to supply power to the Units for up to several seconds after the power supply is turned OFF. The PWR indicator remains lit as long as power is supplied. Confirm that the PWR indicator is not lit before you perform any of the above.

Operation

• Confirm that the controlled system will not be adversely affected before you perform any of the following operations.

Changing the operating mode of the CPU Unit or the Industrial PC (including changing the setting of the Operating Mode at Startup) Changing the user program or settings Changing set values or present values Forced refreshing

• Always sufficiently check the safety at the connected devices before you change the settings of a slave or Unit.

General Communications

• Do not exceed the ranges that are given in the specifications for the communications distance and number of connected Units.

• Refer to the user’s manual for the Communications Coupler Unit for precautions for the safe use of communications with the connected Communications Coupler Unit.

Unit Replacement

• When you replace a Unit, start operation only after you transfer the settings and variables that are required for operation to the new Unit.

NX-series Analog I/O Units User’s Manual for Analog Input Units and Analog Output Units (W522)

Precautions for Safe Use

Disposal

• Dispose of the product according to local ordinances as they apply.

NX-series Analog I/O Units User’s Manual for Analog Input Units and Analog Output Units (W522)

Precautions for Correct Use

Storage, Mounting, and Wiring

• Follow the instructions in this manual to correctly perform installation and wiring.

• Do not operate or store the Units in the following locations. Doing so may result in malfunction, in operation stopping, or in burning.

Locations subject to direct sunlight Locations subject to temperatures or humidity outside the range specified in the specifications Locations subject to condensation as the result of severe changes in temperature Locations subject to corrosive or flammable gases Locations subject to dust (especially iron dust) or salts Locations subject to exposure to water, oil, or chemicals Locations subject to shock or vibration

• Take appropriate and sufficient countermeasures during installation in the following locations.

Locations subject to strong, high-frequency noise Locations subject to static electricity or other forms of noise Locations subject to strong electromagnetic fields Locations subject to possible exposure to radioactivity Locations close to power lines

• Before touching a Unit, be sure to first touch a grounded metallic object in order to discharge any static build-up.

• Use the rated power supply voltage for the Units that supply power. Take appropriate measures to ensure that the specified power with the rated voltage and frequency is supplied in places where the power supply is unstable.

• Install the Units away from sources of heat and ensure proper ventilation. Not doing so may result in malfunction, in operation stopping, or in burning.

• Do not allow foreign matter to enter the openings in the Unit. Doing so may result in Unit burning, electric shock, or failure.

Precautions for Correct Use

Actual Operation

• If you change the event level of an error, the output status when the error occurs may also change. Confirm safety before you change an event level.

Turning OFF the Power Supply

• Do not turn OFF the power supply while data is being transferred.

• Do not turn OFF the power supply while parameters are being written to the CPU Unit, the Communications Coupler Unit or NX Units.

General Communications

• Refer to the user’s manual for the Communications Coupler Unit for precautions for the correct use of communications with the connected Communications Coupler Unit.

NX-series Analog I/O Units User’s Manual for Analog Input Units and Analog Output Units (W522)

Regulations and Standards

Conformance to EU Directives

Applicable Directives

• EMC Directives

• Low Voltage Directive

Concepts

z EMC Directives

OMRON devices that comply with EU Directives also conform to the related EMC standards so that they can be more easily built into other devices or the overall machine. The actual products have been checked for conformity to EMC standards.*1

Whether the products conform to the standards in the system used by the customer, however, must be checked by the customer. EMC-related performance of the OMRON devices that comply with EU Directives will vary depending on the configuration, wiring, and other conditions of the equipment or control panel on which the OMRON devices are installed. The customer must, therefore, perform the final check to confirm that devices and the overall machine conform to EMC standards.

*1. Applicable EMC (Electromagnetic Compatibility) standards are as follows:

EMS (Electromagnetic Susceptibility): EN 61131-2 EMI (Electromagnetic Interference): EN 61131-2 (Radiated emission: 10-m regulations).

z Low Voltage Directive

Always ensure that devices operating at voltages of 50 to 1,000 VAC and 75 to 1,500 VDC meet the required safety standards. The applicable directive is EN 61010-2-201.

z Conformance to EU Directives

The NX-series Units comply with EU Directives. To ensure that the machine or device in which the NX-series Units are used complies with EU Directives, the following precautions must be observed.

• The NX-series Units must be installed within a control panel.

• You must use SELV power supply for the DC power supplies that are connected as the Unit power supplies and I/O power supplies for the NX-series Units.

We recommend that you use the OMRON S8VK-S series Power Supplies for the CPU Racks with NX-series NX1P2 CPU Units. We recommend that you use the OMRON S8JX-series Power Supplies for Slave Terminals. EMC standard compliance was confirmed for these recommended Power Supplies.

• NX-series Units that comply with EU Directives also conform to the Common Emission Standard (EN 61131-2). Radiated emission characteristics (10-m regulations) may vary depending on the configuration of the control panel used, other devices connected to the control panel, wiring, and other conditions.

You must therefore confirm that the overall machine or equipment in which the NX-series Units are used complies with EU Directives.

• You must use power supplies with an output hold time of 10 ms or longer for the DC power supplies that are connected as the Unit power supplies and I/O power supplies for the NX-series Units.

NX-series Analog I/O Units User’s Manual for Analog Input Units and Analog Output Units (W522)

• This is a Class A product (for industrial environments). In a residential environment, it may cause radio interference. If radio interference occurs, the user may be required to take appropriate measures.

Conformance Requirement to EU Directives

The immunity test conditions for the NX-series Analog Input Units and Analog Output Units are as follows:

Unit Type Conversion time Overall accuracy

Analog Input Units

Analog Output Units

Use a shield wire (2 conductors, twisted wire) or a shield wire (3 conductors) to connect the Analog Input Units and Analog Output Units. The compatibility was confirmed in a condition that the shield wire was not connected.

250 μs/point 10 μs/point 250 μs/point 10 μs/point

Regulations and Standards

+3% / -6% +6% / -6% +4% / -4% +4.5% / -4.5%

Conformance to UL and CSA Standards

Some NX-series products comply with UL and CSA standards. If you use an NX-series product that complies with UL or CSA standards and the machinery or system in which you use the NX-series product must also comply with the standards, refer to the Instruction Sheet that is provided with the product. The Instruction Sheet provides the application conditions for complying with the standards.

Conformance to Shipbuilding Standards

Some NX-series products comply with shipbuilding standards. If you use an NX-series product that complies with shipbuilding standards and the machinery or system in which you use the NX-series product must also comply with the standards, consult with your OMRON representative. Application conditions are defined according to the installation location. Application may not be possible for some installation locations.

For usage conditions for shipbuilding standards, refer to Conformance to Shipping Standards in the user's manual for the CPU Unit or Communications Coupler Unit that the NX Units are connected to.

NX-series Analog I/O Units User’s Manual for Analog Input Units and Analog Output Units (W522)

Regulations and Standards

Conformance to KC Standards

Observe the following precaution if you use NX-series Units in Korea.

Class A Device (Broadcasting Communications Device for Office Use)

This device obtained EMC registration for office use (Class A), and it is intended to be used in places other than homes.

Sellers and/or users need to take note of this.

Software Licenses and Copyrights

This product incorporates certain third party software. The license and copyright information associated with this software is available at http://www.fa.omron.co.jp/nj_info_e/.

NX-series Analog I/O Units User’s Manual for Analog Input Units and Analog Output Units (W522)

Unit Versions

Notched

area

Unit

specifications

LOT No.

Unit version

Lot number

Unit model number

Lot number and unit version

This section describes the notation that is used for unit versions, the confirmation method for unit versions, and the relationship between unit versions and Support Software versions.

Unit Versions

A “unit version” has been introduced to manage the Units in the NX Series according to differences in functionality accompanying Unit upgrades.

An example is provided below for Communications Coupler Units and NX Units. For the notation that is used for the unit versions of CPU Units or Industrial PCs and the confirmation method for unit versions, refer to the user's manual for each Unit.

Notation of Unit Versions on Products

Unit Versions

The unit version is given with the Unit specifications on the side of the Unit or in the notched area.

NX-series Analog I/O Units User’s Manual for Analog Input Units and Analog Output Units (W522)

Unit Versions

The following information is provided in the Unit specifications on the Unit.

Unit model number Gives the model of the Unit.

Unit version Gives the unit version of the Unit.

Lot number Gives the lot number of the Unit.

The following information is provided in the notched area on the Unit.

Name Function

Lot number and unit version

Name Function

DDMYY: Lot number, : Used by OMRON.

“M” gives the month (1 to 9: January to September, X: October, Y: November, Z: December)

Gives the lot number and unit version of the Unit.

• DDMYY: Lot number, : Used by OMRON. “M” gives the month (1 to 9: January to September, X: October, Y: November, Z: December)

•1: Unit version The decimal portion of the unit version is omitted. (It is provided in the Unit specifications.)

Confirming Unit Versions with the Support Software

If your NX Unit is connected to a CPU Unit, refer to the user’s manual of the connected CPU Unit for the confirmation method for the unit version of the NX Unit.

If your NX Unit is connected to a Communications Coupler Unit, refer to the user’s manual of the connected Communications Coupler Unit for the confirmation method for the unit version of the Communications Coupler Unit and NX Unit.

Unit Versions and Support Software Versions

The functions that are supported depend on the unit version of the Unit. The version of Support Software that supports the functions that were added for an upgrade is also required to use those functions.

Refer to A-5 Version Information with CPU Units on page A-55 or A-6 Version Information with Communications Coupler Units on page A-57 for the functions that are supported by each unit version.

NX-series Analog I/O Units User’s Manual for Analog Input Units and Analog Output Units (W522)

Related Manuals

The following table shows related manuals. Use these manuals for reference.

Manual name Cat. No. Model numbers Application Description

NX-series Analog I/O Units User’s Manual for Analog Input Units and

Analog Output Units

NX-series Data Reference Manual

NX-series System Units User’s Manual

Sysmac Studio Version 1 Operation Manual

NX-IO Configurator Operation Manual

NJ/NX-series Troubleshooting Manual

NY-series Troubleshooting Manual

NX-series EtherCAT® Coupler Unit User’s Manual

W522 NX-AD

NX-DA

W525 NX- Referencing lists of

W523 NX-PD1

NX-PF0

NX-PC0

NX-TBX01

W504 SYSMAC-

SE2

W585 CXONE-

ALD-V4

W503 NX701-

NJ501-

NJ301-

NJ101-

NX1P2-

W564 NY532-

NY512-

W519 NX-ECC20 Learning how to

Learning how to use NX-series Analog Input Units and Analog Output Units

the data that is required to configure systems with NX-series Units Learning how to use NX-series System Units

Learning about the operating procedures and functions of the Sysmac Studio

Learning about the operating procedures and functions of the NX-IO Configurator.

Learning about the errors that may be detected in an NJ/NX-series Controller

Learning about the errors that may be detected in an NY-series Industrial PC

use an NX-series EtherCAT Coupler Unit and EtherCAT Slave Terminals

The hardware, setup methods, and functions of the NX-series Analog Input Units and Analog Output Units are described.

Lists of the power consumptions, weights, and other NX Unit data that is required to configure systems with NX-series Units are provided.

The hardware and functions of the NX-series System Units are described.

Describes the operating procedures of the Sysmac Studio.

Describes the operating procedures of the NX-IO Configurator.

Concepts on managing errors that may be detected in an NJ/NX-series Controller and information on individual errors are described.

Concepts on managing errors that may be detected in an NY-series Controller and information on individual errors are described.

The following items are described: the overall system and configuration methods of an EtherCAT Slave Terminal (which consists of an NX-series EtherCAT Coupler Unit and NX Units), and information on hardware, setup, and functions to set up, control, and monitor NX Units through EtherCAT.

Related Manuals

NX-series Analog I/O Units User’s Manual for Analog Input Units and Analog Output Units (W522)

Related Manuals

Manual name Cat. No. Model numbers Application Description

NX-series Ether-

Net/IPTM Coupler Unit User’s Manual

NX-series CPU Unit Hardware User’s Manual

NX-series NX1P2 CPU Unit Hardware User’s Manual

NJ-series CPU Unit Hardware User’s Manual

NY-series IPC Machine Controller Industrial Panel PC Hardware User’s Manual

W536 NX-EIC202 Learning how to

use an NX-series EtherNet/IP Coupler Unit and EtherNet/IP Slave Terminals

W535 NX701- Learning the basic

specifications of the NX-series NX701 CPU Units, including introductory information, designing, installation, and maintenance.

Mainly hardware information is provided.

W578 NX1P2- Learning the basic

specifications of the NX-series NX1P2 CPU Units, including introductory information, designing, installation, and maintenance. Mainly hardware information is provided.

W500 NJ501-

NJ301-

NJ101-

W557 NY532- Learning the basic

Learning the basic specifications of the NJ-series CPU Units, including introductory information, designing, installation, and maintenance.

Mainly hardware information is provided.

specifications of the NY-series Industrial Panel PCs, including introductory information, designing, installation, and maintenance. Mainly hardware information is provided.

The following items are described: the overall system and configuration methods of an EtherNet/IP Slave Terminal (which consists of an NX-series EtherNet/IP Coupler Unit and NX Units), and information on hardware, setup, and functions to set up, control, and monitor NX Units. An introduction to the entire NX701 CPU Unit system is provided along with the following information on the CPU Unit.

• Features and system configuration

• Overview

• Part names and functions

• General specifications

• Installation and wiring

• Maintenance and Inspection

An introduction to the entire NX1P2 CPU Unit system is provided along with the following information on the CPU Unit.

• Features and system configuration

• Overview

• Part names and functions

• General specifications

• Installation and wiring

• Maintenance and Inspection An introduction to the entire NJ-series system is provided along with the following information on the CPU Unit.

• Features and system configuration

• Overview

• Part names and functions

• General specifications

• Installation and wiring

• Maintenance and Inspection

Use this manual together with the

NJ-series CPU Unit Software User's Manual (Cat. No. W501).

An introduction to the entire NY-series system is provided along with the following information on the Industrial Panel PC.

• Features and system configuration

• Introduction

• Part names and functions

• General specifications

• Installation and wiring

• Maintenance and inspection

NX-series Analog I/O Units User’s Manual for Analog Input Units and Analog Output Units (W522)

Manual name Cat. No. Model numbers Application Description

NY-series IPC Machine Controller Industrial Box PC Hardware User’s Manual

NJ/NX-series CPU Unit Software User’s Manual

NY-series IPC Machine Controller Industrial Panel PC / Industrial Box PC Software User’s Manual

NJ/NX-series CPU Unit Built-in EtherCAT® Port User’s Manual

NY-series IPC Machine Controller Industrial Panel PC / Industrial Box PC Built-in EtherCAT® Port User’s Manual

NJ/NX-series Instructions Reference Manual

NY-series Instructions Reference Manual

W556 NY512- Learning the basic

specifications of the NY-series Industrial Box PCs, including introductory information, designing, installation, and maintenance. Mainly hardware information is provided.

W501 NX701-

NJ501-

NJ301-

NJ101-

NX1P2-

W558 NY532-

NY512-

W505 NX701-

NJ501-

NJ301-

NJ101-

NX1P2-

W562 NY532-

NY512-

W502 NX701-

NJ501-

NJ301-

NJ101-

NX1P2-

W560 NY532-

NY512-

Learning how to program and set up an NJ/NX-series CPU Unit.

Mainly software information is provided.

Learning how to program and set up the Controller functions of an NY-series Industrial PC

Using the built-in EtherCAT port on an NJ/NX-series CPU Unit

Using the built-in EtherCAT port on an NY-series Industrial PC

Learning detailed specifications on the basic instructions of an NJ/NX-series CPU Unit Learning detailed specifications on the basic instructions of an NY-series Industrial PC

An introduction to the entire NY-series system is provided along with the following information on the Industrial Box PC.

• Features and system configuration

• Introduction

• Part names and functions

• General specifications

• Installation and wiring

• Maintenance and inspection The following information is provided

on an NJ/NX-series CPU Unit.

• CPU Unit operation

• CPU Unit features

• Initial settings

• Programming based on IEC 61131-3 language specifications

The following information is provided on NY-series Machine Automation Control Software.

• Controller operation

• Controller features

• Controller settings

• Programming based on IEC 61131-3 language specifications Information on the built-in EtherCAT port is provided.

This manual provides an introduction and provides information on the configuration, features, and setup.

Information on the built-in EtherCAT port is provided.

This manual provides an introduction and provides information on the configuration, features, and setup.

The instructions in the instruction set (IEC 61131-3 specifications) are described.

The instructions in the instruction set (IEC 61131-3 specifications) are de

scri

bed.

Related Manuals

NX-series Analog I/O Units User’s Manual for Analog Input Units and Analog Output Units (W522)

Related Manuals

*1. From revision 05 of this manual, information on the NX-series Temperature Input Units (NX-TS) that were includ-

ed in previous revisions was moved to the following manual: NX-series Analog I/O Units User’s Manual for Temperature Input Units and Heater Burnout Detection Units (Cat. No. W566). Accompanying that change, the name of this manual was changed from the NX-series Analog I/O Units User’s Manual (Cat. No. W522) to the NX-series Analog I/O Units Us- er's Manual for Analog Input Units and Analog Output Units (Cat. No. W522).

NX-series Analog I/O Units User’s Manual for Analog Input Units and Analog Output Units (W522)

Terminology

Term

application layer status, AL status --- Status for indicating information on errors that occur in an application on

CAN application protocol over EtherCAT CAN in Automation CiA CiA is the international users' and manufacturers' group that develops

Communications Coupler Units --- The generic name of an interface unit for remote I/O communications on

CPU Rack --- A rack to which a CPU Unit is mounted. For an NX-series NX1P2 CPU

DC time --- Time indicated by the clock shared between the CPU Unit and the NX

device profile --- A collection of device dependent information and functionality providing

device variable --- A variable that is used to access a specific device through an I/O port by

distributed clock DC Clock distribution mechanism used to synchronize EtherCAT slaves and

EtherCAT slave controller ESC A controller for EtherCAT slave communications. EtherCAT slave information ESI An XML file that contains setting information for an EtherCAT slave. EtherCAT state machine ESM An EtherCAT communications state machine. EtherCAT Technology Group ETG The ETG is a global organization in which OEM, end users, and technol-

I/O map settings --- Settings that assign variables to I/O ports. Assignment information

I/O port --- A logical interface that is used by the NJ/NX-series CPU Unit or

I/O refreshing --- Cyclic data exchange with external devices that is performed with prede-

index --- Address of an object within an application process. network configuration information --- The EtherCAT network configuration information held by the EtherCAT

NX bus --- The NX-series internal bus. object --- An abstract representation of a particular component within a device,

object dictionary OD Data structure that contains description of data type objects, communi-

Abbreviation

a slave.

CoE A CAN application protocol service implemented on EtherCAT.

and supports higher-layer protocols.

a network between NX Units and a host network master.

Unit, a CPU Rack has a CPU Unit with NX Units and an End Cover mounted to it.

Units in a CPU Rack for an NX-series NX1P2 CPU Unit.

EtherCAT slaves that support distributed clock synchronization have a clock that is shared by all slaves in the network. The time that is based on this distributed clock is called the DC time. The same clock is shared by an NX-series NX1P2 CPU Unit, NX Units connected to the CPU Unit, and applicable EtherCAT slaves.

consistency between similar devices of the same device type.

an NJ/NX-series CPU Unit or NY-series Industrial PC. Process data on an EtherCAT slave is allocated to this variable. For an NX-series NX1P2 CPU Unit, I/O data for the NX Units on a CPU Unit is allocated. A user application on a CPU Unit or Industrial PC accesses a device that can be connected, by directly reading and writing this device variable.

the EtherCAT master.

ogy providers join forces to support and promote the further technology development.

between I/O ports and variables.

NY-series Industrial PC to exchange data with an external device (slave or Unit).

termined memory addresses.

master.

which consists of data, parameters, and methods.

cation objects and application objects.

Description

NX-series Analog I/O Units User’s Manual for Analog Input Units and Analog Output Units (W522)

Terminology

Term

Operational --- A state in EtherCAT communications where SDO communications and

PDO communications --- An acronym for process data communications. Pre-Operational --- A state in EtherCAT communications where only SDO communications

primary periodic task --- The task with the highest priority. process data --- Collection of application objects designated to be downloaded cyclically

process data communications --- One type of EtherCAT communications in which process data objects

process data object PDO A structure that describes the mappings of parameters that have one or

receive PDO RxPDO A process data object received by an EtherCAT slave. Safe-Operational --- A state in EtherCAT communications where only SDO communications

SDO communications --- One type of EtherCAT communications in which service data objects

service data object SDO CoE asynchronous mailbox communications where all objects in the

Slave Information Interface SII Slave information that is stored in non-volatile memory in the slave. Slave Terminal --- A building-block remote I/O terminal to which a Communications Cou-

subindex --- Sub-address of an object within the object dictionary. Sync0 --- A signal that gives the interrupt timing based on the distributed clock

Sync Manager SM Collection of control elements to coordinate access to concurrently used

task period --- The interval at which the primary periodic task or a periodic task is exe-

transmit PDO TxPDO A process data object sent from an EtherCAT slave.

Abbreviation

Description

I/O are possible.

are possible with the slaves, i.e., no I/O can be performed.

or acyclically for the purpose of measurement and control.

(PDOs) are used to exchange information cyclically and in realtime. This is also called PDO communications.

more process data entities.

and reading input data from slaves are possible. Outputs from slaves are not performed.

(SDOs) are used to transmit information whenever required.

object dictionary can be read and written.

pler Unit and NX Units are mounted

(DC) in EtherCAT communications. The slaves execute controls according to this interrupt timing.

objects.

cuted.

NX-series Analog I/O Units User’s Manual for Analog Input Units and Analog Output Units (W522)

Revision History

Cat. No.

W522-E1-07

Revision code

A manual revision code appears as a suffix to the catalog number on the front and back covers of the manual.

Revision code Date Revised content

01 April 2013 Original production 02 June 2013 Corrected mistakes 03 September 2013 • Made changes accompanying release to unit version 1.1 of the Tem-

04 April 2015 • Made changes accompanying the addition of the NX-series CPU Unit

05 April 2016 • Deleted information on Temperature Input Units because it was moved

06 October 2016 • Made changes accompanying the addition of NY-series IPC Machine

07 June 2017 • Made changes accompanying the upgrade of the NX-ECC203 unit ver-

Revision History

perature Input Units.

• Added information on the NX-TS02/TS04.

• Corrected mistakes.

and EtherNet/IP Coupler Unit.

• Corrected mistakes.

to the NX-series Analog I/O Units User’s Manual for Temperature Input Units and Heater Burnout Detection Units (Cat. No. W566).

• Corrected mistakes.

Controller Industrial Panel PCs and Industrial Box PCs.

• Made changes accompanying the addition of the NX-series NX1P2 CPU Unit.

• Corrected mistakes.

sion to version 1.5.

• Made changes accompanying the upgrade of the NX-EIC202 unit version to version 1.2.

• Corrected mistakes.

NX-series Analog I/O Units User’s Manual for Analog Input Units and Analog Output Units (W522)

Revision History

NX-series Analog I/O Units User’s Manual for Analog Input Units and Analog Output Units (W522)

Features and System Configuration

Specifications

Part Names and Functions

Installation and Wiring

Index

I/O Refreshing

Appendices

Analog Output Units

Analog Input Units

Troubleshooting

Inspection and Maintenance

Sections in this Manual

NX-series Analog I/O Units User’s Manual for Analog Input Units and Analog Output Units (W522)

Sections in this Manual

NX-series Analog I/O Units User’s Manual for Analog Input Units and Analog Output Units (W522)

Features and System Configuration

This section describes NX system configuration and the applications of the Analog Input Units and Analog Output Units.

1-1 Features and Applications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-2

1-1-1 Features of the Analog Input Units and Analog Output Units . . . . . . . . . . . . . . 1-2

1-1-2 Applications of the Analog Input Units and Analog Output Units . . . . . . . . . . . 1-3

1-2 System Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-4

1-2-1 System Configuration in the Case of a CPU Unit . . . . . . . . . . . . . . . . . . . . . . . 1-4

1-2-2 System Configuration of Slave Terminals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-5

1-3 Model List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7

1-3-1 Model Notation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-7

1-3-2 Analog Input Units . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-9

1-3-3 Analog Output Units . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .1-11

1-4 List of Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-12

1-4-1 Analog Input Units . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-12

1-4-2 Analog Output Units . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-13

1-5 Support Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 1-14

NX-series Analog I/O Units User’s Manual for Analog Input Units and Analog Output Units (W522)

1 - 1

1 Features and System Configuration

1-1 Features and Applications

This section describes the features and applications of the Analog Input Units and Analog Output Units.

1-1-1 Features of the Analog Input Units and Analog Output Units

The Analog Input Units and Analog Output Units are used to process inputs and outputs of analog signals.

The NX-series Analog Input Units and Analog Output Units have the following features.

Can be Connected to a CPU Unit or Communications Coupler Unit

NX Unit NX-series Analog Input Units and Analog Output Units can be connected to the following

Units.

• NX-series CPU Unit

• NX-series Communications Coupler Unit

When a CPU Unit and a Communications Coupler Unit are used together, you can unify the methods for installing, wiring, and setting up NX Units, and eventually reduce design costs.

Example:

NX-series NX1P2 CPU Unit

NX Units: NX-series Analog Input Units and

Analog Output Units

NX-series EtherCAT Coupler Unit

*1. For whether NX Units can be connected to the CPU Unit or Communications Coupler Unit to be used, refer to

the user's manual for the CPU Unit or Communications Coupler Unit to be used.

1 - 2

NX-series Analog I/O Units User’s Manual for Analog Input Units and Analog Output Units (W522)

1 Features and System Configuration

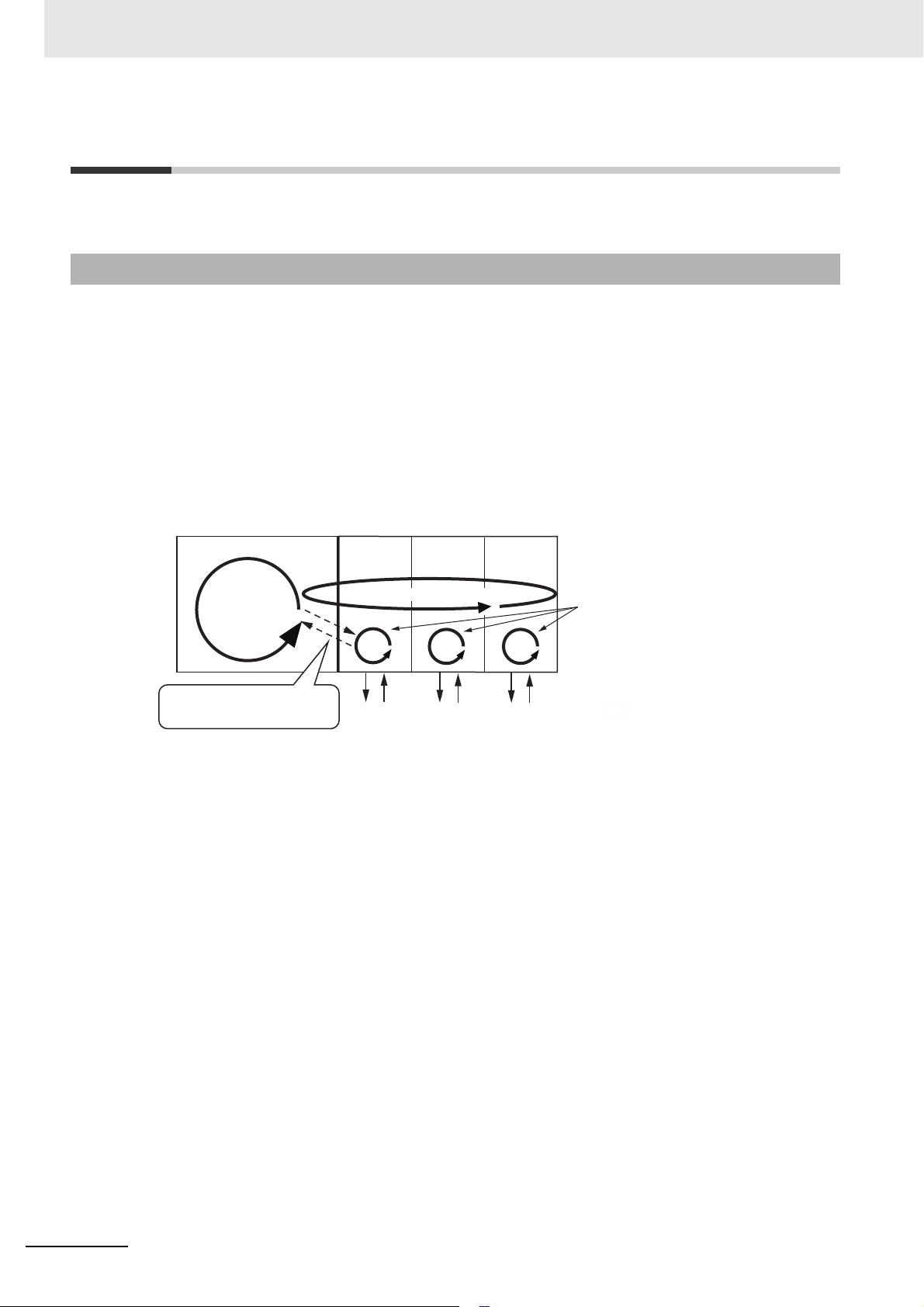

Synchronous I/O with Refresh Cycle of the NX Bus

When the NX-series CPU Unit or EtherCAT Coupler Unit is used together with NX Units that support synchronous I/O refreshing, the I/O control of multiple NX Units can be synchronized at the time to synchronize with the refresh cycle of the NX bus.

This provides an accurate I/O control because it suppresses jitter in the I/O timing of multiple NX Units.

1-1 Features and Applications

Simple I/O Wiring with a Screwless Clamping Terminal Block

The terminal block is a screwless clamping terminal block.

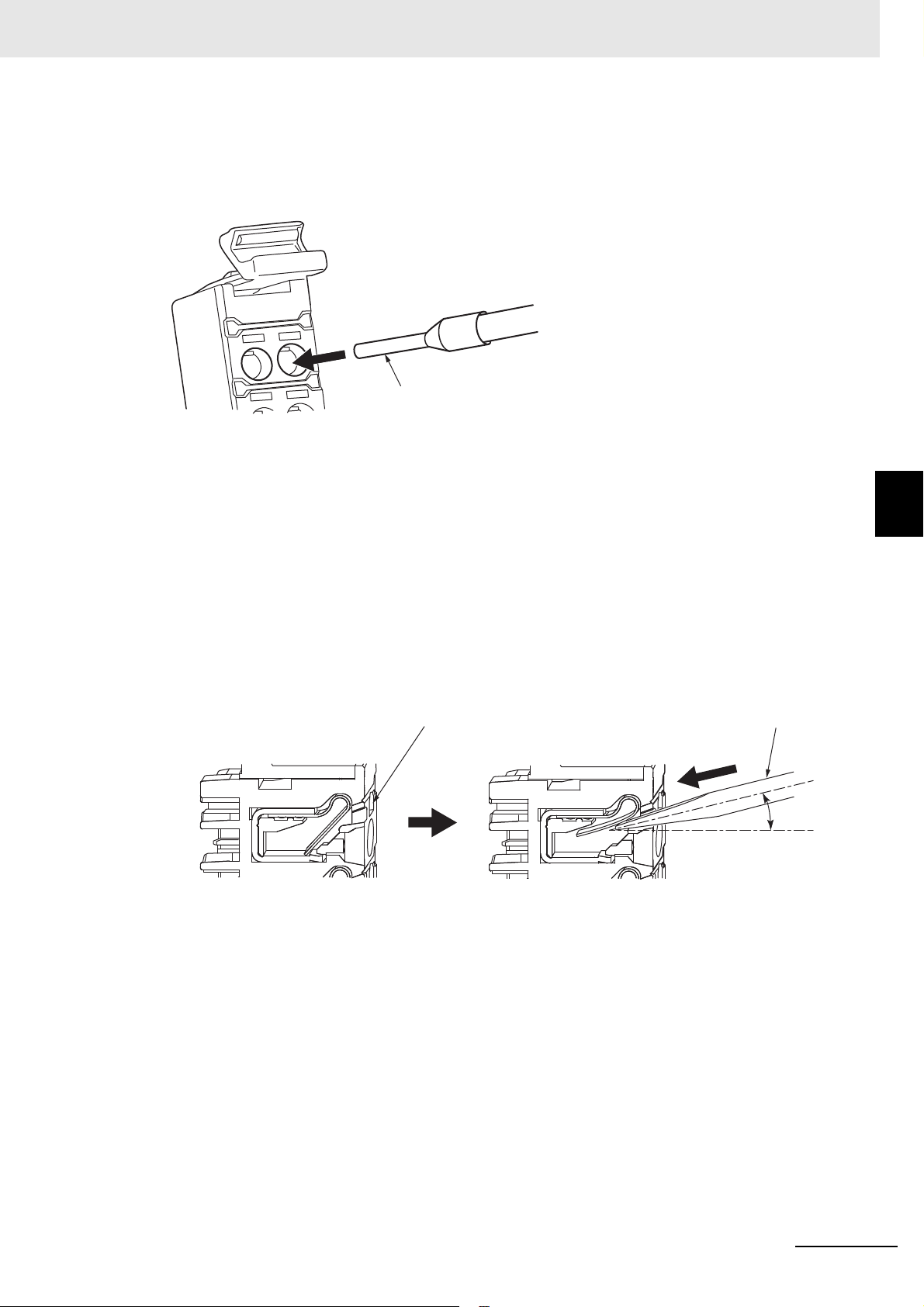

You can connect the wires simply by pushing the ferrules into the terminals. The amount of wiring work is reduced without requiring the use of screws.

1-1-2 Applications of the Analog Input Units and Analog Output Units

This section describes the applications of the Analog Input Units and Analog Output Units.

Type Application

Analog Input Units These are Units with functionality to convert analog input signals to digital values. Analog Output Units These are Units with functionality to convert output set values set by a user program

etc. to analog signals.

Refer to 1-3 Model List on page 1-7 for details on the models of the Analog Input Units and Analog Output Units and to 1-4 List of Functions on page 1-12 for details on their functions.

1-1-2 Applications of the Analog Input Units and Analog Output Units

NX-series Analog I/O Units User’s Manual for Analog Input Units and Analog Output Units (W522)

1 - 3

1 Features and System Configuration

(A) NX-series CPU Unit

EtherCAT Slave Terminal

(D) Support Software Sysmac Studio

Built-in EtherCAT port

Connect to built-in EtherNet/IP port

(B) NX Units

● CPU Rack

NX1P2-

EtherCAT

NX Units

EtherCAT Coupler Unit

1-2 System Configuration

NX Unit NX-series Analog Input Units and Analog Output Units can be connected to the following Units.

• NX-series CPU Unit

• NX-series Communications Coupler Unit

The following explains the system configuration for each NX Unit connection destination.

1-2-1 System Configuration in the Case of a CPU Unit

The following figure shows a system configuration when a group of NX Units is connected to an NX-series CPU Unit.

You can connect the EtherCAT Slave Terminal to the built-in EtherCAT port on the CPU Unit. Refer to 1-2-2 System Configuration of Slave Terminals on page 1-5 for details on the system configuration of a Slave Terminal.

Symbol Item Description

(A) NX-series CPU Unit The Unit that serves as the center of control for a Machine Automation Con-

troller. It executes tasks, refreshes I/O for other Units and slaves, etc. NX Units

(B) NX Units The NX Units perform I/O processing with connected external devices. The

can be connected to an NX1P2 CPU Unit.

NX Units exchange data with the CPU Unit through I/O refreshing. A maximum of eight NX Units can be connected to an NX1P2 CPU Unit.

1 - 4

NX-series Analog I/O Units User’s Manual for Analog Input Units and Analog Output Units (W522)

1 Features and System Configuration

(A) EtherCAT master

NJ/NX-series CPU Unit, NY-series Industrial PC, or master from another manufacturer

(G) Communications cable

Ethernet cables

(B) NX Series

EtherCAT Coupler Unit NX-ECC20

• EtherCAT Slave Terminal

(E) Support Software

(F) ESI files

(D) End Cover

EtherCAT port

(F) ESI files

Peripheral USB port

.xml

Connection to peripheral USB port on EtherCAT Coupler Unit

Symbol Item Description

(D) Support Software

(Sysmac Studio)

A computer software application for setting, programming, debugging, and troubleshooting NJ/NX/NY-series Controllers.

For an NX1P2 CPU Unit, this application performs setting operation by making a connection to a built-in EtherNet/IP port.

1-2 System Configuration

1-2-2 System Configuration of Slave Terminals

A building-block remote I/O slave provided with a group of NX Units connected to a Communications Coupler Unit is generically called a Slave Terminal.

The NX Units can be flexibly combined with a Communications Coupler Unit to achieve the optimum remote I/O slave for the application with less wiring, less work, and less space.

The following figure shows an example of the system configuration when an EtherCAT Coupler Unit is used as a Communications Coupler Unit.

Refer to the user’s manual for the connected Communications Coupler Unit for details on how to configure the system when any other type of Communications Coupler Unit is used.

1-2-2 System Configuration of Slave Terminals

*1. The connection method for the Support Software depends on the model of the CPU Unit or Industrial PC.

NX-series Analog I/O Units User’s Manual for Analog Input Units and Analog Output Units (W522)

1 - 5

1 Features and System Configuration

Let-

ter

(A)

EtherCAT master

Item Description

The EtherCAT master manages the network, monitors the status of slaves, and exchanges I/O data with slaves.

(B) EtherCAT Coupler Unit The EtherCAT Coupler Unit serves as an interface for process data communi-

cations on the EtherCAT network between the NX Units and the EtherCAT master.

The I/O data for the NX Units is accumulated in the EtherCAT Coupler Unit and then all of the data is exchanged with the EtherCAT master at the same time.

The EtherCAT Coupler Unit can also perform message communications (SDO communications) with the EtherCAT master.

The NX Units perform process data communications with the EtherCAT mas-

ter through the EtherCAT Coupler Unit. (D) End Cover The End Cover is attached to the end of the Slave Terminal. (E)

Support Software *2

The Support Software runs on a personal computer and it is used to configure

the EtherCAT network and EtherCAT Slave Terminal, and to program, monitor,

and troubleshoot the Controllers. (F) ESI (EtherCAT Slave

Information) file

The ESI file contains information that is unique to the EtherCAT Slave Termi-

nal in XML format. You can load an ESI file into the Support Software to easily

allocate Slave Terminal process data and make other settings.

The ESI files for OMRON EtherCAT slaves are installed in the Support Soft-

ware. You can obtain the ESI files for the latest models through the Support

Software’s automatic update function. (G) Communications cable Use a double-shielded cable with aluminum tape and braiding of Ethernet cat-

egory 5 (100Base-TX) or higher, and use straight wiring.

*1. An EtherCAT Slave Terminal cannot be connected to any of the OMRON CJ1W-NC81/82 Position Control

Units even though they can operate as EtherCAT masters.

*2. The term Support Software indicates software that is provided by OMRON. If you connect to a master from

another company, use the software tool corresponding to that master.

*3. Refer to 1-5 Support Software on page 1-14 for information on Support Software.

1 - 6

NX-series Analog I/O Units User’s Manual for Analog Input Units and Analog Output Units (W522)

1 Features and System Configuration

Number of points

I/O range

−

Unit type

AD : Analog input DA : Analog output

NX - -      

Number AD/DA

4 to 20 mA

−10 to +10 V

2 : 2 points 3 : 4 points 4 : 8 points

Other specifications Refer to Other specifications on the next page.

1-3 Model List

1-3-1 Model Notation

The model numbers of the Analog Input Units and Analog Output Units are assigned based on the following rules.

1-3 Model List

1-3-1 Model Notation

NX-series Analog I/O Units User’s Manual for Analog Input Units and Analog Output Units (W522)

1 - 7

1 Features and System Configuration

Other Specifications

z Analog Input Units

Num

ber

03 1/8000 250 μs/point Single-ended Yes --04 1/8000 250 μs/point Differential Yes --08 1/30000 10 μs/point Differential --- Yes

*1. Free-Run refreshing

*2. Synchronous I/O refreshing

Resolution Conversion time Input method

I/O refreshing method

Free-Run refresh-

ing *1 only

Switching Syn-

chronous I/O

ing

and

refreshing

Free-Run refresh-

z Analog Output Units

I/O refreshing method

Switching Syn-

Num

ber

03 1/8000 250 μs/point Yes --05 1/30000 10 μs/point --- Yes

*1. Free-Run refreshing

*2. Synchronous I/O refreshing

Resolution Conversion time

Free-Run refresh-

ing *1 only

Refer to Section 5 I/O Refreshing for details on the I/O refreshing method.

chronous I/O

refreshing

Free-Run refresh-

ing

and

1 - 8

NX-series Analog I/O Units User’s Manual for Analog Input Units and Analog Output Units (W522)

1 Features and System Configuration

1-3-2 Analog Input Units

This section shows the specifications for Analog Input Units.

Refer to A-1-2 Analog Input Units on page A-4 for details on the specifications of individual Analog Input Units.

Analog Input Units (Screwless Clamping Terminal Block, 12 mm Width)

Num

ber

Model

NX-AD2203

NX-AD2204

NX-AD2208

NX-AD2603

NX-AD2604

NX-AD2608

NX-AD3203

NX-AD3204

NX-AD3208

NX-AD3603

NX-AD3604

NX-AD3608

point

2 point s

4 point s

Input range

4 to 20 mA

-10 to +10 V

4 to 20 mA

-10 to +10 V

Resolu-

tion

1/8000

1/30000

1/8000

1/30000

1/8000

1/30000

1/8000

1/30000

Input

method

Single-ende d

Differential

Single-ende d

Differential

Single-ende d

Differential

Single-ende d

Differential

I/O refreshing method

Free-Run refreshing

Switching Synchronous I/O refreshing and Free-Run refreshing

Free-Run refreshing

Switching Synchronous I/O refreshing and Free-Run refreshing

Free-Run refreshing

Switching Synchronous I/O refreshing and Free-Run refreshing

Free-Run refreshing

Switching Synchronous I/O refreshing and Free-Run refreshing

Conver-

sion time

250 μs/point

10 μs/point

250 μs/point

10 μs/point

250 μs/point

10 μs/point

250 μs/point

10 μs/point

1-3 Model List

1-3-2 Analog Input Units

Reference

P. A-5

P. A-7

P. A-8

P. A-9

P. A-10

P. A-11

P. A-12

P. A-13

P. A-14

P. A-15

P. A-16

P. A-17

NX-series Analog I/O Units User’s Manual for Analog Input Units and Analog Output Units (W522)

1 - 9

1 Features and System Configuration

Num

ber

Model

NX-AD4203

NX-AD4204

NX-AD4208

NX-AD4603

NX-AD4604

NX-AD4608

point

8 point s

Input range

4 to 20 mA

-10 to +10 V

Resolu-

tion

1/8000

1/30000

1/8000

1/30000

Input

method

Single-ende d

Differential

Single-ende d

Differential

I/O refreshing method

Free-Run refreshing

Switching Synchronous I/O refreshing and Free-Run refreshing

Free-Run refreshing

Switching Synchronous I/O refreshing and Free-Run refreshing

Conver-

sion time

250 μs/point

10 μs/point

250 μs/point

10 μs/point

Reference

P. A -18

P. A -19

P. A -20

P. A -21

P. A -22

P. A -23

1 - 10

NX-series Analog I/O Units User’s Manual for Analog Input Units and Analog Output Units (W522)

1 Features and System Configuration

1-3-3 Analog Output Units

This section shows the specifications for Analog Output Units.

Refer to A-1-3 Analog Output Units on page A-24 for details on the specifications of individual Analog Output Units.

Analog Output Units (Screwless Clamping Terminal Block, 12 mm Width)

Num

ber

Model

NX-DA2203

NX-DA2205

NX-DA2603

NX-DA2605

NX-DA3203

NX-DA3205

NX-DA3603

NX-DA3605

point

2 point s

4 point s

Output range

4 to 20 mA

-10 to +10 V

4 to 20 mA

-10 to +10 V

Resolu-

tion

1/8000 Free-Run refreshing

1/30000

1/8000 Free-Run refreshing

1/30000

1/8000 Free-Run refreshing

1/30000

1/8000 Free-Run refreshing

1/30000

I/O refreshing method

Switching Synchronous I/O refreshing and Free-Run refreshing

Conversion

time

250 μs/point

10 μs/point

250 μs/point

10 μs/point

250 μs/point

10 μs/point

250 μs/point

10 μs/point

1-3 Model List

1-3-3 Analog Output Units

Reference

P. A-25

P. A-27

P. A-29

P. A-30

P. A-31

P. A-33

P. A-35

P. A-36

NX-series Analog I/O Units User’s Manual for Analog Input Units and Analog Output Units (W522)

1 - 11

1 Features and System Configuration

1-4 List of Functions

This section provides an overview of functions that Analog Input Units and Analog Output Units have.

Refer to the specifications of each model in A-1 Data Sheet on page A-2 for details on the functions.

1-4-1 Analog Input Units

Function name Description Reference

Free-Run Refreshing With this I/O refreshing method, the refresh cycle of the NX

bus and the I/O refresh cycles of the NX Units are asynchronous.

Synchronous I/O Refreshing

Selecting Channel To Use This function omits the conversion processing for unused

Moving Average This function uses the average value of inputs of the set time

Input Disconnection Detection

Over Range/Under Range Detection

User Calibration This function corrects offsets in the converted values that

With this I/O refreshing method, the timing to read inputs or to refresh outputs is synchronized on a fixed interval between more than one NX Unit connected to a CPU Unit.

In addition, with this I/O refreshing method, the timing to read inputs or to refresh outputs is synchronized on a fixed interval between more than one NX Unit on more than one Slave Terminal.

inputs. It is used to reduce the conversion cycle for its own Unit.

as the converted value. When the input value fluctuates frequently due to noises, averaging can be used to obtain a stable converted value.

This function can be used only for Free-Run refreshing. This function detects disconnections of the analog input signal lines. It can be used only for models with an input range of 4 to 20 mA. This function detects when the input signal exceeds the range for which conversion is possible.

occur due to the deterioration of the NX Units and calibrate the Units.

5-2-4 Free-Run Refreshing on

page 5-8

5-2-5 Synchronous Input Refreshing on

page 5-12

6-5-2 Selecting Channel To Use on

page 6-13

6-5-3 Moving Average on page 6-17

6-5-4 Input Disconnection Detection

on page 6-23

6-5-5 Over Range/Under Range Detection

on page 6-24

6-5-6 User Calibration on page 6-25

1 - 12

NX-series Analog I/O Units User’s Manual for Analog Input Units and Analog Output Units (W522)

1-4-2 Analog Output Units

Function name Description Reference

Free-Run Refreshing With this I/O refreshing method, the refresh cycle of the NX

bus and the I/O refresh cycles of the NX Units are asynchronous.

Synchronous I/O Refreshing

Selecting Channel To Use This function omits the conversion processing for unused

Load Rejection Output Setting

Over Range/Under Range Detection

User Calibration This function corrects offsets in the converted values that

With this I/O refreshing method, the timing to read inputs or to refresh outputs is synchronized on a fixed interval between more than one NX Unit connected to a CPU Unit.

In addition, with this I/O refreshing method, the timing to read inputs or to refresh outputs is synchronized on a fixed interval between more than one NX Unit on more than one Slave Terminal.

inputs. It is used to reduce the conversion cycle for its own Unit.

A function that performs the preset output operation when the Analog Output Unit cannot receive output data due to an NX bus error or CPU Unit watchdog timer error, in the case of Units connected to a CPU Unit.

A function that performs the preset output operation when the Analog Output Unit cannot receive output data due to a host error on the Communications Coupler Unit or an error on the NX bus, in the case of Slave Terminals. This function detects when the output set value exceeds the range for which conversion is possible.

occur due to the deterioration of the NX Units and calibrate the Units.

1 Features and System Configuration

5-2-4 Free-Run Refreshing on

page 5-8

5-2-6 Synchronous Output Refreshing on

page 5-16

7-5-2 Selecting Channel To Use on

page 7-10

7-5-3 Load Rejection Output Setting

on page 7-14

7-5-4 Over Range/Under Range Detection

on page 7-19

7-5-5 User Calibration on page 7-20

1-4 List of Functions

1-4-2 Analog Output Units

NX-series Analog I/O Units User’s Manual for Analog Input Units and Analog Output Units (W522)

1 - 13

1 Features and System Configuration

1-5 Support Software

The Support Software that is used depends on the system configuration.

z Support Software for a System Configured with a CPU Unit

If your system is configured by connecting an NX Unit to a CPU Unit, the Sysmac Studio is used as the Support Software.

z Support Software for a System Configured with a Slave Terminal

If your system is configured by connecting an NX Unit to a Communications Coupler Unit, refer to the user’s manual for the Communications Coupler Unit for information on the Support Software.

Refer to A-5 Version Information with CPU Units on page A-55 or A-6 Version Information with Commu- nications Coupler Units on page A-57 for information on the Support Software versions.

1 - 14

NX-series Analog I/O Units User’s Manual for Analog Input Units and Analog Output Units (W522)

Specifications

This section describes the general specifications and individual specifications of the Analog Input Units and Analog Output Units.

2-1 General Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-2

2-2 Individual Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2-3

NX-series Analog I/O Units User’s Manual for Analog Input Units and Analog Output Units (W522)

2 - 1

2 Specifications

2-1 General Specifications

This section provides the general specifications of the Analog Input Units and Analog Output Units.

Item Specification

Enclosure Grounding methods

Ambient operating temperature

Ambient operating humidity

Atmosphere Must be free from corrosive gases. Ambient storage tempera-

ture Altitude 2,000 m max. Pollution degree Pollution degree 2 or less: Conforms to JIS B 3502 and IEC 61131-2.

Operating environment

Applicable standards

*1. Varies with NX Unit Models. Refer to A-1 Data Sheet on page A-2 for the specifications of individual NX Units.

*2. Refer to the OMRON website (www.ia.omron.com) or ask your OMRON representative for the most recent ap-

plicable standards for each model.

Noise immunity Conforms to IEC 61000-4-4, 2 kV (power supply line) Overvoltage category Category II: Conforms to JIS B 3502 and IEC 61131-2. EMC immunity level Zone B

Vibration resistance

Shock resistance

Insulation resistance Dielectric strength

Mounted in a panel Ground of 100 Ω or less

0 to 55°C

10 to 95% RH (with no icing or condensation)

-25 to 70°C (with no icing or condensation)

Conforms to IEC 60068-2-6. 5 to 8.4 Hz with amplitude of 3.5 mm,

8.4 to 150 Hz, acceleration of 9.8 m/s 100 min each in X, Y, and Z directions (10 sweeps of 10 min each = 100 min total)

Conforms to IEC 60068-2-27, 147 m/s directions

cULus: Listed (UL 508), ANSI/ISA 12.12.01, EU: EN 61131-2, C-Tick, KC (KC Registration), NK, and LR

, 3 times each in X, Y, and Z

2 - 2

NX-series Analog I/O Units User’s Manual for Analog Input Units and Analog Output Units (W522)

2 Specifications

2-2 Individual Specifications

Refer to A-1 Data Sheet on page A-2 for the specifications of individual Analog Input Units and Analog Output Units.

2-2 Individual Specifications

NX-series Analog I/O Units User’s Manual for Analog Input Units and Analog Output Units (W522)

2 - 3

2 Specifications

2 - 4

NX-series Analog I/O Units User’s Manual for Analog Input Units and Analog Output Units (W522)

Part Names and Functions

This section describes the names and functions of the parts of the Analog Input Units and Analog Output Units.

3-1 Part Names . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2

3-1-1 Screwless Clamping Terminal Block Type . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-2

3-2 Indicators . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-6

3-2-1 TS Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 3-7

NX-series Analog I/O Units User’s Manual for Analog Input Units and Analog Output Units (W522)

3 - 1

3 Part Names and Functions

(C)(D)

(H)

(G)

(F)

(C)

(A)

(E)

(C)(E)

(C)

(B)

3-1 Part Names

This section describes the names and functions of the parts of the Analog Input Units and Analog Output Units.

3-1-1 Screwless Clamping Terminal Block Type

z 12 mm Width

Let-

ter

(A) Marker attachment loca-

tions

(B) NX bus connector This connector is used to connect each Unit. (C) Unit hookup guides These guides are used to connect two Units. (D) DIN Track mounting hooks These hooks are used to mount the NX Unit to a DIN Track. (E) Protrusions for removing

the Unit

(F) Indicators The indicators show the current operating status of the Unit.

(G) Terminal block The terminal block is used to connect external devices.

(H) Unit specifications The specifications of the Unit are given.

Name Function

The locations where markers are attached. The markers made by OMRON are installed for the factory setting. Commercially available markers can also be installed.

Refer to 4-1-2 Attaching Markers on page 4-4

The protrusions to hold when removing the Unit.

Refer to 3-2 Indicators on page 3-6

The number of terminals depends on the type of Unit.

3 - 2

NX-series Analog I/O Units User’s Manual for Analog Input Units and Analog Output Units (W522)

3 Part Names and Functions

12 mm width

8-terminal type

(B)

12 mm width

12-terminal type

12 mm width

16-terminal type

(C)

(A)

12 mm width

8-terminal type

12 mm width

12-terminal type

12 mm width

16-terminal type

(A)

(B)

(C)

Terminal Blocks

There are two models of screwless clamping terminal blocks: NX-TB2 and NX-TB1. Each model has three types of terminal blocks: 8-terminal type, 12-terminal type, and 16-terminal type.

z NX-TB2

3-1 Part Names

3-1-1 Screwless Clamping Terminal Block Type

z NX-TB1

NX-series Analog I/O Units User’s Manual for Analog Input Units and Analog Output Units (W522)

3 - 3

3 Part Names and Functions

Additional Information

Let-

ter

(A) Terminal number indi-

cations

(B) Release holes Insert a flat-blade screwdriver into these holes to connect and remove the

Name Function

Terminal numbers for which A to D indicate the column, and 1 to 8 indicate the line are displayed.

The terminal number is a combination of column and line, i.e. A1 to A8 and B1 to B8.

The terminal number indications are the same regardless of the number of terminals on the terminal block.

wires.

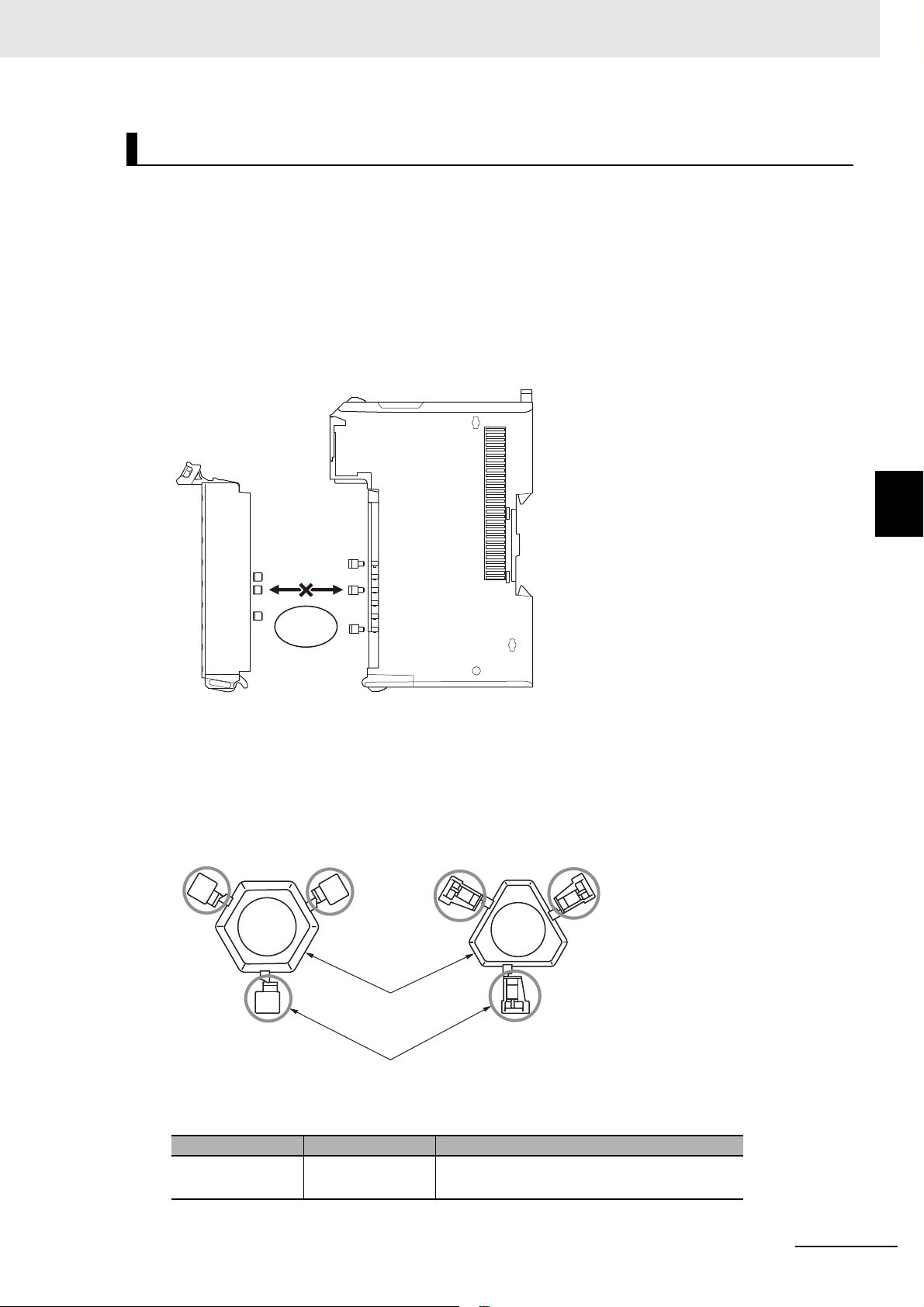

The NX-TB2 and NX-TB1 Terminal Blocks have different terminal current capacities. The NX-TB2 has 10 A and NX-TB1 has 4 A.

To differentiate between the two models of terminal blocks, use the terminal number column indications. The terminal block with white letters on a dark background is the NX-TB2.

You can mount either NX-TB1 or NX-TB2 Terminal Blocks to the Units that the current capacity specification of the terminals is 4 A or less.

You can only mount the NX-TB2 Terminal Block to the Units that the current capacity specification of the terminals is greater than 4 A.

• Each of the Analog Input Units and Analog Output Units is compatible with only one of three types of terminal blocks. You cannot use a terminal block with a number of terminals that differs from the specifications for a particular Unit.

• The 8-terminal type and 12-terminal type do not have terminal holes and release holes for following terminal numbers.

8-terminal type: A2, A4, A6, A8, B2, B4, B6, and B8

12-terminal type: A7, A8, B7, and B8

3 - 4

NX-series Analog I/O Units User’s Manual for Analog Input Units and Analog Output Units (W522)

3 Part Names and Functions

Precautions for Correct Use

z Applicable Terminal Blocks for Each Unit Model

The following indicates the terminal blocks that are applicable to each Unit.

Unit model num-

ber

NX-AD2 NX-TBA081 8 Not provided 4 A

NX-AD3 NX-TBA121 12 4 A

NX-AD4 NX-TBA161 16 4 A

NX-DA2 NX-TBA081 8 4 A

NX-DA3 NX-TBA121 12 4 A

Model

NX-TBA082 10 A

NX-TBA122 10 A

NX-TBA162 10 A

NX-TBA082 10 A

NX-TBA122 10 A

Number of

terminals

Terminal block

Ground terminal

mark

Current capacity

You can mount either NX-TB1 or NX-TB2 Terminal Blocks to the Units that the current capacity specification of the terminals is 4 A or less.

However, even if you mount the NX-TB2 Terminal Block, the current specification does not change because the current capacity specification of the terminals on the Units is 4 A or less.

3-1 Part Names

3-1-1 Screwless Clamping Terminal Block Type

Refer to A-4 List of Screwless Clamping Terminal Block Models on page A-54 for information on the models of terminal blocks.

NX-series Analog I/O Units User’s Manual for Analog Input Units and Analog Output Units (W522)

3 - 5

3 Part Names and Functions

(A)

(B)

12 mm width

3-2 Indicators

There is an indicator that shows the current operating status of the Analog Input Unit or Analog Output Unit. The indicator is shown below.

Let-

ter

(A) Model number indications The model numbers of the NX Unit are displayed.

(B) TS indicator The indicator shows the current operating status of the NX Unit.

The following section describes the specifications of the TS indicator.

Name Function

(Example) "AD2603" in the case of NX-AD2603

The NX Units are separated in the following color depending on the type of inputs and outputs.

• Analog Input Unit: Orange

• Analog Output Unit: Yellow

3 - 6

NX-series Analog I/O Units User’s Manual for Analog Input Units and Analog Output Units (W522)

3-2-1 TS Indicator

This indicator shows the current status of the Analog Input Unit or Analog Output Unit and its communication status with the CPU Unit or Communications Coupler Unit.

The meanings of light statuses are described as follows:

Color Status Description

Green Lit • The Unit is operating normally.

Red Lit A hardware failure, WDT error, or other fatal error that is common to

Flashing at 2-s intervals.

3 Part Names and Functions

• The Unit is ready for I/O refreshing.

• I/O checking is operating.

• Initializing

• Restarting is in progress for the Unit.

• Downloading

all I/O Units occurred.

3-2 Indicators

3-2-1 TS Indicator

Flashing at 1-s intervals.

---

*1. Refer to the manual for the Communications Coupler Unit for the status of the indicator on the Communications

Coupler Units when I/O checking is in progress.

Not lit • No Unit power supply

A communications error or other NX bus-related error that is common to all I/O Units occurred.

• Restarting is in progress for the Unit.

• Waiting for initialization to start

NX-series Analog I/O Units User’s Manual for Analog Input Units and Analog Output Units (W522)

3 - 7

3 Part Names and Functions

3 - 8

NX-series Analog I/O Units User’s Manual for Analog Input Units and Analog Output Units (W522)

Installation and Wiring

This section describes how to install the NX Units, the types of power supplies provided to the NX Units and wiring methods, and how to wire the NX Units.

4-1 Installing NX Units . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2

4-1-1 Installing NX Units . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-2

4-1-2 Attaching Markers . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-4

4-1-3 Removing NX Units . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-6

4-1-4 Installation Orientation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-7

4-2 Power Supply Types and Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-9

4-2-1 Applications of I/O Power Supply and Supply Methods . . . . . . . . . . . . . . . . . . 4-9

4-2-2 Calculating the Total Current Consumption from I/O Power Supply . . . . . . . . .4-11

4-3 Wiring the Terminals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-12

4-3-1 Wiring to the Screwless Clamping Terminal Block . . . . . . . . . . . . . . . . . . . . . 4-12

4-3-2 Checking the Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-28

4-4 Wiring Examples . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-29

4-4-1 Wiring the Analog Input Units . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-29

4-4-2 Wiring the Analog Output Units . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-31

4-4-3 Precautions when Using Common Power Supply for Input Devices

of Analog Input Units . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 4-32

NX-series Analog I/O Units User’s Manual for Analog Input Units and Analog Output Units (W522)

4 - 1

4 Installation and Wiring

Precautions for Safe Use

4-1 Installing NX Units

This section describes how to install NX Units.

Refer to the user's manual for the CPU Unit or Communications Coupler Unit to which NX Units are connected for information on preparations of installation and installation in a control panel.

4-1-1 Installing NX Units

This section describes how to mount two NX Units to each other.

Always turn OFF the power supply before you mount NX Units.

Always mount NX Units one at a time. If you attempt to mount multiple NX Units that are already connected together, the connections between the NX Units may separate from each other and fall.

• Do not apply labels or tape on the NX Units. When the Unit is installed or removed, adhesive or scrap may adhere to the pins of the NX bus connector, which may cause malfunctions.

• Do not touch the pins in the NX bus connector on the Unit. Dirt may adhere to the pins in the NX bus connector, which may result in malfunctions.

Example: NX Unit (12 mm width)

• Do not write on an NX Unit with ink within the restricted region that is shown in the following figure. Also do not get this area dirty. When the Unit is installed or removed, ink or dirt may adhere to the pins in the NX bus connector, which may result in malfunctions in the Slave Te rm i na l . Refer to the user's manual for the connected CPU Unit or Communications Coupler Unit for the restricted region of CPU Unit and Communications Coupler Unit.

Restricted

region (shaded

portion)

4 - 2

NX-series Analog I/O Units User’s Manual for Analog Input Units and Analog Output Units (W522)

4 Installation and Wiring

Precautions for Correct Use

• When you install an NX Unit, do not touch or bump the pins in the NX bus connector.

• When you handle an NX Unit, be careful not to apply any stress to the pins in the NX bus connector. If you install an NX Unit and turns ON the power supply when the pins in the NX bus connector are deformed, a contact defect may cause malfunctions.

1 From the front of the previously mounted NX Unit, engage the Unit hookup guides on a new Unit

with the Unit hookup guides on the previously mounted NX Unit.

Unit hookup guides

4-1 Installing NX Units

2 Slide the NX Unit in on the hookup guides.

Unit hookup guides

4-1-1 Installing NX Units

3 Press the NX Unit with a certain amount of force against the DIN Track until you hear the DIN

Track mounting hook lock into place.

When you mount the NX Unit, it is not necessary to release the DIN track mounting hook on the NX Unit.

After you mount the NX Unit, make sure that it is locked to the DIN Track.

NX-series Analog I/O Units User’s Manual for Analog Input Units and Analog Output Units (W522)

4 - 3

4 Installation and Wiring

Additional Information

• Normally, it is not necessary to release the DIN track mounting hook when you mount the NX Unit. However, if you mount the NX Unit on a DIN Track that is not a recommended DIN Track, the DIN track mounting hook may not lock correctly. If that happens, first unlock the DIN track mounting hook, mount the NX Unit to the DIN Track, then lock the DIN track mounting hook.

• Refer to the user's manual for the CPU Unit to which NX Units can be connected for information on how to mount the CPU Unit, and how to mount NX Units to the CPU Unit.

• Refer to the user's manual for the Communications Coupler Unit for information on how to mount the Communications Coupler Unit, and how to mount the NX Unit to the Communications Coupler Unit.

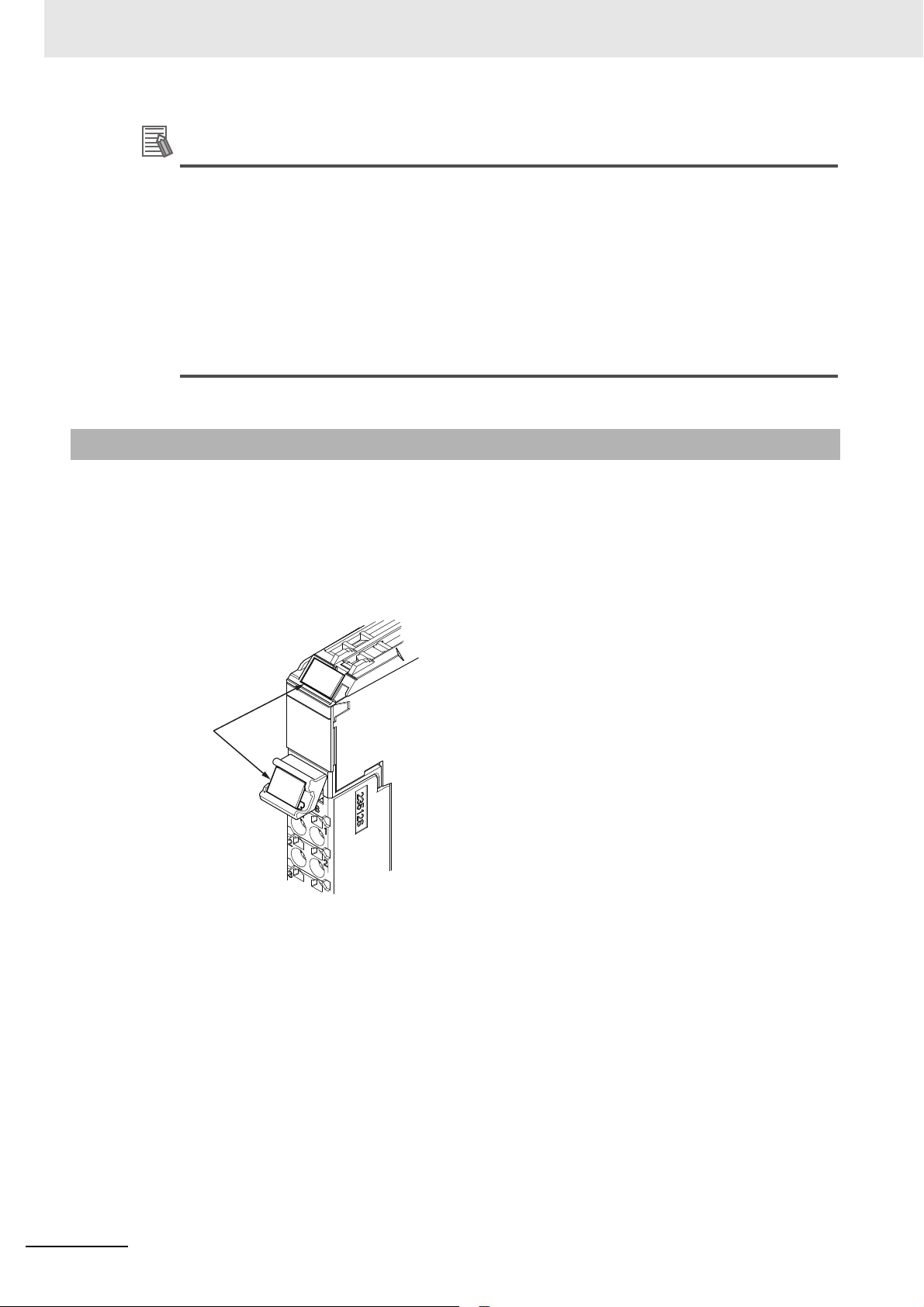

4-1-2 Attaching Markers

Markers can be attached to the NX Units and terminal blocks on NX Units to identify them.

The plastic markers made by OMRON are installed for the factory setting. The ID information can be written on them.

Commercially available markers can also be installed.

Replace the markers made by OMRON if you use commercially available markers now.

Markers

4 - 4

NX-series Analog I/O Units User’s Manual for Analog Input Units and Analog Output Units (W522)

4 Installation and Wiring

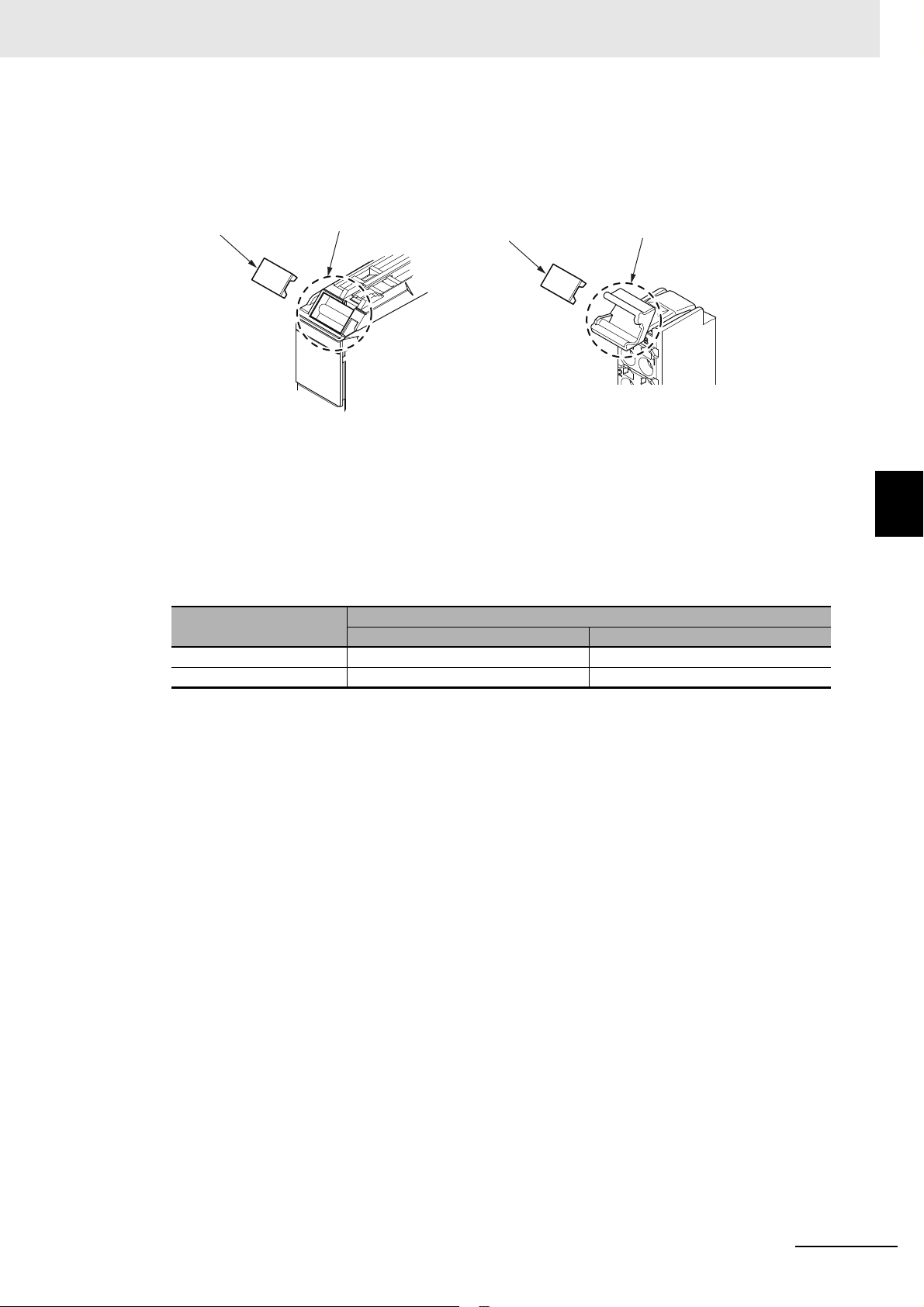

Marker

Marker attachment location

Marker

Marker attachment location

z Installation Method

Insert the protrusions on the markers into the marker attachment locations on the NX Units and terminal blocks on NX Units.

4-1 Installing NX Units

z Commercially Available Markers

Commercially available markers are made of plastic and can be printed on with a special printer.

To use commercially available markers, purchase the following products.

Product name

Markers UC1-TMF8 DEK 5/8 Special marker printer UM EN BLUEMARK X1 PrintJet PRO

Manufactured by Phoenix Contact Manufactured by Weidmuller

The markers made by OMRON cannot be printed on with commercially available special printers.

Model number

4-1-2 Attaching Markers

NX-series Analog I/O Units User’s Manual for Analog Input Units and Analog Output Units (W522)

4 - 5

4 Installation and Wiring

Precautions for Safe Use

Protrusion for removing the Unit

4-1-3 Removing NX Units

Always turn OFF the Unit power supply and I/O power supply before you remove the NX Unit.

1 Use a flat-blade screwdriver to pull up the DIN Track mounting hook on the Unit to remove.

DIN track mounting hook

Flat-blade screwdriver

2 Put your fingers on the protrusions for removing multiple NX Units including the Unit to be

removed, then pull out straight forward to remove.

4 - 6

NX-series Analog I/O Units User’s Manual for Analog Input Units and Analog Output Units (W522)

Precautions for Correct Use

• When removing an NX Unit, remove multiple Units together which include the one you want

Upper

Lower

to remove. If you attempt to remove only one Unit, it is stuck and hard to pull out.

• Do not unlock the DIN track mounting hooks on all of the NX Units at the same time. If you unlock the DIN Track mounting hooks on all of the NX Units at the same time, all of the Units may come off.

4-1-4 Installation Orientation

The following explains the installation orientation for each NX Unit connection destination.

Installation Orientation in the Case of a CPU Unit

Orientation is possible only in the upright installation orientation.

4 Installation and Wiring

4-1 Installing NX Units

However, there are restrictions on the specifications depending on the NX Units to be used.

Refer to the user's manuals for the NX Units and System Units that you will use for details on restrictions.

4-1-4 Installation Orientation

NX-series Analog I/O Units User’s Manual for Analog Input Units and Analog Output Units (W522)

4 - 7

4 Installation and Wiring

Precautions for Safe Use

(A)

(B)

(E)

Upper

Lower

(C)

(F)

(D)

Installation Orientation in the Case of a Slave Terminal

Orientation is possible in the following six directions.

(A) is the upright orientation and (B) to (F) are other orientations.

However, there are restrictions on the installation orientation and restrictions to the specifications that can result from the Communications Coupler Units and NX Units that are used.

Refer to the user's manuals for the Communications Coupler Units, NX Units and System Units that you will use for details on restrictions.

For installation orientations (C) and (D) in the above figure, support the cables, e.g., with a duct, so that the End Plate on the bottom is not subjected to the weight of the cables. The weight of the cables may cause the bottom End Plate to slide downward so that the Slave Terminal is no longer secured to the DIN Track, which may cause malfunctions.

4 - 8

NX-series Analog I/O Units User’s Manual for Analog Input Units and Analog Output Units (W522)

4 Installation and Wiring

4-2 Power Supply Types and Wiring

There are the following two types of power supplies that supply power to the NX Units.

Power supply

name

NX Unit power supply I/O power supply This power supply is used for driving the I/O circuits of the NX Units and for the connected

The method for supplying power to the NX Units and the wiring method depend on the specifications for the CPU Unit to which NX Units are connected or the specifications for the Slave Terminal. Refer to Designing the Power Supply System or Wiring, which are described both in the hardware user's manual for the CPU Unit to which NX Units are connected and user's manual for the Communications Coupler Unit, for details on the method for supplying power to the NX Units and the wiring method.

The subsequent sections describe the applications of I/O power supply for the Analog Input Units and Analog Output Units and supply methods, and how to calculate the total current consumption from the I/O power supply.

This power supply is used for operating the NX Units.

external devices.

Description

4-2-1 Applications of I/O Power Supply and Supply Methods

The applications of I/O power supply and supply methods for the Analog Input Units and Analog Output Units are given as follows:

4-2 Power Supply Types and Wiring

4-2-1 Applications of I/O Power Supply and Supply Methods

Applications of I/O Power Supply

The I/O power supply is used for the following applications.

• Driving the I/O circuits of the Analog Input Units and Analog Output Units

• Power supply for the connected external devices

I/O Power Supply Method

This power is supplied by one of the following two methods. Refer to A-1 Data Sheet on page A-2 for the supply methods for the individual Analog Input Units and Analog Output Units.

z Supply from the NX Bus

This power is supplied through the NX bus connectors by connecting an I/O power supply to the I/O power supply terminals on the Communications Coupler Unit or Additional I/O Power Supply Unit.

For the Units to which I/O power supply is provided by a CPU Rack, refer to Designing the Power Supply System or Wiring in the hardware user's manual for the CPU Unit to which NX Units are connected.

For the Units to which I/O power supply is provided by a Slave Terminal, refer to Designing the Power Supply System or Wiring in the user's manual for the Communications Coupler Unit to be connected.

NX-series Analog I/O Units User’s Manual for Analog Input Units and Analog Output Units (W522)

4 - 9

4 Installation and Wiring

Additional Information

z Supply from External Source

This power is supplied to the Units from an external source.

I/O power is supplied by connecting an I/O power supply to the I/O power supply terminals on the Units.

Power Supply-related Units for the NX-series

The following three NX-series Units are related to power supply.

• Additional NX Unit Power Supply Unit

• Additional I/O Power Supply Unit

• I/O Power Supply Connection Unit

Refer to the NX-series System Unit User's Manual (Cat. No. W523) for the specifications of these Units.

For a complete list of the latest power supply Units in the NX Series, refer to the product catalog or OMRON websites, or contact your OMRON representatives.

4 - 10

NX-series Analog I/O Units User’s Manual for Analog Input Units and Analog Output Units (W522)

4 Installation and Wiring

Precautions for Safe Use

4-2-2 Calculating the Total Current Consumption from I/O Power Sup-

ply

The total current consumption of I/O power supplied from the NX bus must be within the range of the maximum I/O power supply current of the Communications Coupler Unit or the Additional I/O Power Supply Unit. However, for a CPU Rack, the specification for the maximum I/O power supply current is restricted regardless of the model of the Additional I/O Power Supply Unit. Refer to the hardware user's manual for the CPU Unit to which NX Units are connected for information on the restrictions for the CPU Rack.

To confirm this and to calculate the I/O power supply capacity, calculate the total current consumption from I/O power supply from the NX bus.

The total current consumption from I/O power supply from the NX bus is the total sum of current consumption from I/O power supply of the NX Unit that supplies the I/O power from the NX bus, the current of each applicable I/O circuit, and current consumption of any connected external devices.

4-2 Power Supply Types and Wiring

Note that the current consumption from I/O power supply indicated in the data sheet for each Unit type does not include the load current of any external connection load and current consumption of any connected external devices.

The total current consumption from I/O power supply of the Analog Input Units and Analog Output Units is calculated as follows:

z Total Current Consumption from I/O Power Supply of the Analog Input Units

= (Current consumption from I/O power supply of the Analog Input Units) + (Total current consumption of connected external devices)

z Total Current Consumption from I/O Power Supply of the Analog Output Units

= (Current consumption from I/O power supply of the Analog Output Units) + (Total current consumption of connected external devices)

Refer to A-1 Data Sheet on page A-2 for the current consumption from the I/O power supply for the individual Analog Input Units and Analog Output Units.

4-2-2 Calculating the Total Current Consumption from I/O Power Supply

Use the I/O power supply current for the CPU Rack of the NX-series NX1P2 CPU Unit at 4 A or less. Using the currents that are outside of the specifications may cause failure or damage.

NX-series Analog I/O Units User’s Manual for Analog Input Units and Analog Output Units (W522)

4 - 11

4 Installation and Wiring

WARNING

4-3 Wiring the Terminals

This section describes how to wire the terminals on the Analog Input Units and Analog Output Units.

Make sure that the voltages and currents that are input to the Units and slaves are within the specified ranges.

Inputting voltages or currents that are outside of the specified ranges may cause accidents or fire.

4-3-1 Wiring to the Screwless Clamping Terminal Block

This section describes how to connect wires to the screwless clamping terminal block, the installation and removing methods, and functions for preventing incorrect attachment.

You can connect ferrules that are attached to the twisted wires to the screwless clamping terminal block. You can also connect the twisted wires or the solid wires to the screwless clamping terminal block. If you connect the ferrules, all you need to do to connect the wires is to insert the ferrules into the terminal holes.

Wiring Terminals

The terminals to be wired are as follows.

• I/O power supply terminals

• I/O terminals

4 - 12

NX-series Analog I/O Units User’s Manual for Analog Input Units and Analog Output Units (W522)

4 Installation and Wiring

1.6 mm max. (Terminals other than ground terminals)

2.0 mm max. (Ground terminals)

2.4 mm max. (Terminals other than ground terminals)

2.7 mm max. (Ground terminals)

Applicable Wires

The wires that you can connect to the screwless clamping terminal block are twisted wires, solid wires, and ferrules that are attached to the twisted wires. The following section describes the dimensions and processed methods for applicable wires.

z Dimensions of Wires Connected to the Terminal Block

The dimensions of wires that you can connect into the terminal holes of the screwless clamping terminal block are as in the figure below.

Process the applicable wires that are specified in the following description to apply the dimensions.

4-3 Wiring the Terminals

4-3-1 Wiring to the Screwless Clamping Terminal Block

NX-series Analog I/O Units User’s Manual for Analog Input Units and Analog Output Units (W522)

4 - 13

4 Installation and Wiring

8 to 10mm

2.4 mm max. (Terminals other than ground terminals)

2.7 mm max. (Ground terminals)

1.6 mm max. (Terminals other than ground terminals)

2.0 mm max. (Ground terminals)

z Using Ferrules

If you use ferrules, attach the twisted wires to them.

Observe the application instructions for your ferrules for the wire stripping length when attaching ferrules.

Always use plated one-pin ferrules. Do not use unplated ferrules or two-pin ferrules.

The applicable ferrules, wires, and crimping tools are listed in the following table.

Ter min al

types

Terminals other than ground terminals

Ground terminals

Terminals other than ground terminals

*1. Some AWG14 wires exceed 2.0 mm2 and cannot be used in the screwless clamping terminal block.

Manufac-

Phoenix Contact

Weidmuller H0.14/12 0.14 (#26) Weidmuller (The figure in parentheses is the appli-

turer

Applica-

Ferrule

model

AI0,34-8 0.34 (#22) Phoenix Contact (The figure in parentheses is the AI0,5-8 0.5 (#20) AI0,5-10 AI0,75-8 0.75 (#18) AI0,75-10 AI1,0-8 1.0 (#18) AI1,0-10 AI1,5-8 1.5 (#16) AI1,5-10 AI2,5-10

H0.25/12 0.25 (#24) H0.34/12 0.34 (#22) H0.5/14 0.5 (#20) H0.5/16 H0.75/14 0.75 (#18) H0.75/16 H1.0/14 1.0 (#18) H1.0/16 H1.5/14 1.5 (#16) H1.5/16

ble wire

(mm

(AWG))

2.0

applicable wire size.)

CRIMPFOX 6 (0.25 to 6 mm

cable wire size.)

PZ6 Roto (0.14 to 6 mm

Crimping tool

, AWG24 to 10)

, AWG26 to 10)

When you use any ferrules other than those in the above table, crimp them to the twisted wires so that the following processed dimensions are achieved.

4 - 14

NX-series Analog I/O Units User’s Manual for Analog Input Units and Analog Output Units (W522)

4 Installation and Wiring

Precautions for Correct Use

Additional Information

Conductor length (stripping length)

z Using Twisted Wires/Solid Wires

If you use twisted wires or solid wires, use the following table to determine the correct wire specifications.

Ter min als Wire type

Wire size

(AWG

28 to 16)

2.0 mm

Classifica-

tion

All terminals except ground terminals

Ground terminals

*1. Secure wires to the screwless clamping terminal block. Refer to Securing Wires on page 4-20 for how to

secure wires.

*2. With the NX-TB1 Terminal Block, use twisted wires to connect the ground terminal. Do not use a solid

wire.

Current

capacity

2 A max. Possible Possible Possible Possible 0.08 to 1.5 Greater than 2 A and 4 A or less Greater than 4 A

--- Possible Possible Possible

Twisted w ir es Solid wire

Plated Unplated Plated Unplated

Possible

Not possible

Possible

Not possible

Possible

Conductor

length (strip-

ping length)

8 to 10 mm

9 to 10 mm

4-3 Wiring the Terminals

4-3-1 Wiring to the Screwless Clamping Terminal Block

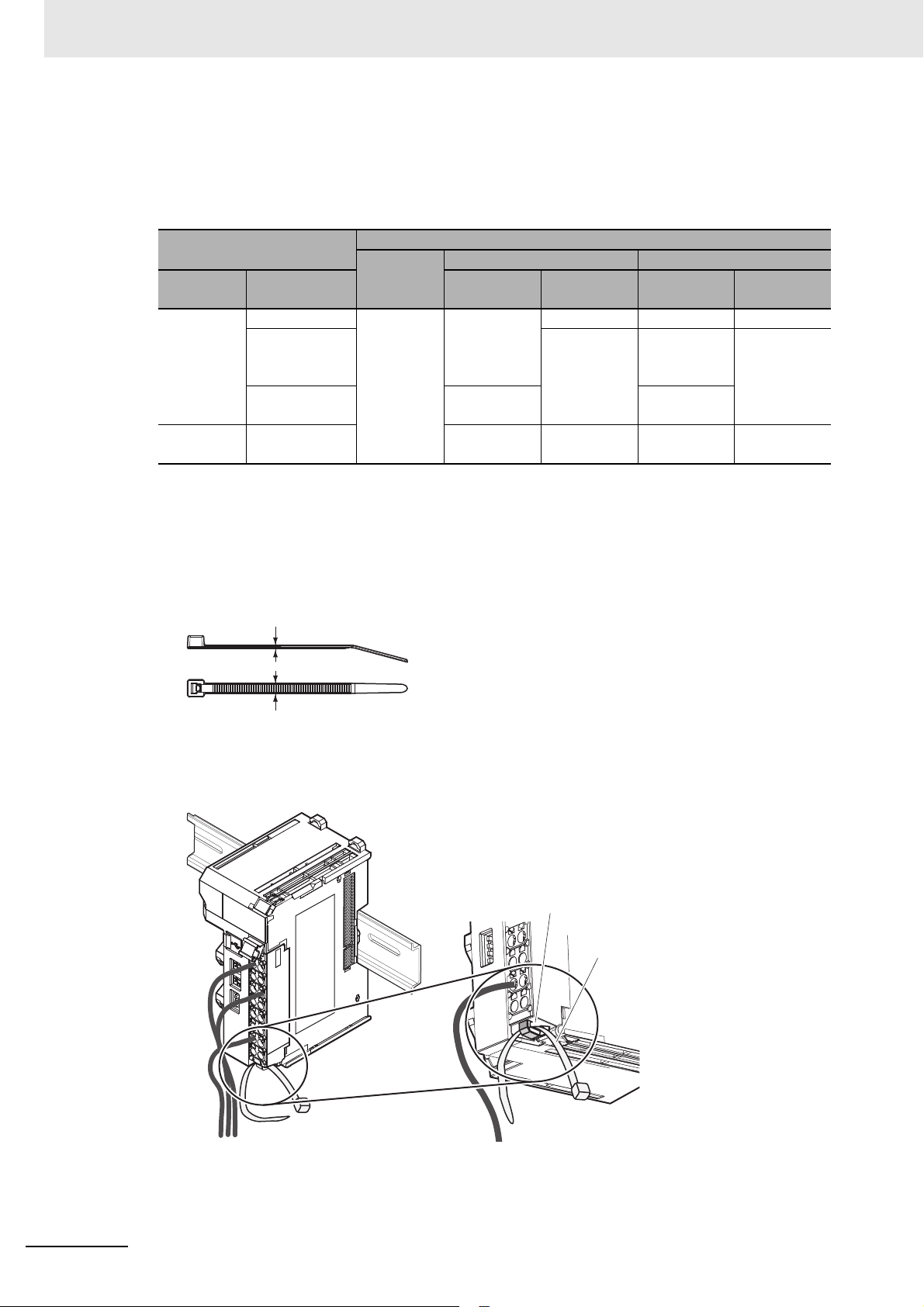

• Use cables with suitable wire sizes for the carrying current. There are also restrictions on the current due to the ambient temperature. Refer to the manuals for the cables and use the cables correctly for the operating environment.

• For twisted wires, strip the sheath and twist the conductor portion. Do not unravel or bend the conductor portion of twisted wires or solid wires.

Unravel wires Bend wires

If more than 2 A will flow on the wires, use plated wires or use ferrules.

NX-series Analog I/O Units User’s Manual for Analog Input Units and Analog Output Units (W522)

4 - 15

4 Installation and Wiring

2.5 mm0.4 mm

Front view

8 to 12

Side view

2.5-mm dia.

Connecting/Removing Wires

This section describes how to connect and remove wires.

z Terminal Block Parts and Names

Release hole

Terminal hole

z Required Tools

Use a flat-blade screwdriver to connect and remove wires.

Use the following flat-blade screwdriver.

Recommended screwdriver

Model Manufacturer

SZF 0-0,4×2,5 Phoenix Contact

4 - 16

NX-series Analog I/O Units User’s Manual for Analog Input Units and Analog Output Units (W522)

4 Installation and Wiring

Ferrule

10 to 15

Release hole Flat-blade screwdriver

z Connecting Ferrules

Insert the ferrule straight into the terminal hole.

It is not necessary to press a flat-blade screwdriver into the release hole.

After you make a connection, make sure that the ferrule is securely connected to the terminal block.

4-3 Wiring the Terminals

z Connecting Twisted Wires/Solid Wires

Use the following procedure to connect the twisted wires or solid wires to the terminal block.

1 Press a flat-blade screwdriver diagonally into the release hole.

Press at an angle of 10° to 15°.

If you press in the screwdriver correctly, you will feel the spring in the release hole.

4-3-1 Wiring to the Screwless Clamping Terminal Block

NX-series Analog I/O Units User’s Manual for Analog Input Units and Analog Output Units (W522)

4 - 17

4 Installation and Wiring

2 Leave the flat-blade screwdriver pressed into the release hole and insert the twisted wire or the

solid wire into the terminal hole.

Insert the twisted wire or the solid wire until the stripped portion is no longer visible to prevent shorting.

3 Remove the flat-blade screwdriver from the release hole.

Twisted wire/Solid wire

After you make a connection, make sure that the twisted wire or the solid wire is securely connected to the terminal block.

4 - 18

NX-series Analog I/O Units User’s Manual for Analog Input Units and Analog Output Units (W522)

4 Installation and Wiring

Precautions for Safe Use

• Do not press the flat-blade screwdriver straight into the release hole. Doing so may break the terminal block.

• When you insert a flat-blade screwdriver into a release hole, press it down with a force of 30 N max. Applying excessive force may damage the terminal block.

• Do not tilt or twist the flat-blade screwdriver while it is pressed into the release hole. Doing so may break the terminal block.

• Make sure that all wiring is correct.

• Do not bend the cable forcibly. Doing so may sever the cable.

4-3 Wiring the Terminals

4-3-1 Wiring to the Screwless Clamping Terminal Block

NX-series Analog I/O Units User’s Manual for Analog Input Units and Analog Output Units (W522)

4 - 19

4 Installation and Wiring

Hole for securing wires

Cable tie

z Securing Wires

It is necessary to secure wires to the screwless clamping terminal block depending on the wire types that are used or the current flows on the wires.

The following table gives the necessity for securing wires.

Ter min als

Classifica-

tion

All terminals except ground terminals

Ground terminals

Twi st ed wi re s Solid wire

Current

capacity

2 A max. No No No No No Greater than

2 A and 4 A or less Greater than 4 A

--- No No No No

Ferrule

Plated Unplated Plated Unplated

Yes Not Possible

Wire type

Not Possible Yes Not Possible

Use the following procedure to secure the wires.

1 Prepare a cable tie.

A cable tie can be used with a width of 4 mm or less and a thickness of 1.5 mm or less.

Select a cable tie correctly for the operating environment.

1.5 mm or less

4.0 mm or less

2 Pass a cable tie through the hole for securing wires on the bottom of the screwless clamping ter-

minal block.

4 - 20

NX-series Analog I/O Units User’s Manual for Analog Input Units and Analog Output Units (W522)

4 Installation and Wiring

3 Bundle the wires with a cable tie and secure them to the screwless clamping terminal block.

4-3 Wiring the Terminals

Secure wires within the range of 30 mm from the screwless clamping terminal block.

30 mm

4-3-1 Wiring to the Screwless Clamping Terminal Block

NX-series Analog I/O Units User’s Manual for Analog Input Units and Analog Output Units (W522)

4 - 21

4 Installation and Wiring

10 to 15

Flat-blade screwdriver

z Removing Wires

Use the following procedure to remove the wires from the terminal block.

The removal method is the same for ferrules, twisted wires, and solid wires.

If wires are secured firmly to the terminal block, release them first

1 Press the flat-blade screwdriver diagonally into the release hole.

Press at an angle of 10° to 15°.

If you press in the screwdriver correctly, you will feel the spring in the release hole.

2 Leave the flat-blade screwdriver pressed into the release hole and pull out the wire.

Wire

3 Remove the flat-blade screwdriver from the release hole.

4 - 22

NX-series Analog I/O Units User’s Manual for Analog Input Units and Analog Output Units (W522)

4 Installation and Wiring

Precautions for Safe Use

• Do not press the flat-blade screwdriver straight into the release hole. Doing so may break the terminal block.

• When you insert a flat-blade screwdriver into a release hole, press it down with a force of 30 N max. Applying excessive force may damage the terminal block.

• Do not tilt or twist the flat-blade screwdriver while it is pressed into the release hole. Doing so may break the terminal block.

• Make sure that all wiring is correct.

• Do not bend the cable forcibly. Doing so may sever the cable.

4-3 Wiring the Terminals

4-3-1 Wiring to the Screwless Clamping Terminal Block

NX-series Analog I/O Units User’s Manual for Analog Input Units and Analog Output Units (W522)

4 - 23

4 Installation and Wiring

Lock lever

Terminal block

GuideHook

Removing a Terminal Block

1 Press the lock lever on the terminal block and pull out the top of the terminal block to remove it.

Attaching a Terminal Block

1 Mount the terminal block hook on the guide at the bottom of the NX Unit, lift up the terminal

block, and press in on the top of the terminal block until you hear it engage.

The terminal block will click into place on the Unit.

After you mount the terminal block, make sure that it is locked to the Unit.

4 - 24

Mount a terminal block that is applicable to each Unit model.

Refer to Applicable Terminal Blocks for Each Unit Model on page 3-5 for the applicable terminal blocks.

NX-series Analog I/O Units User’s Manual for Analog Input Units and Analog Output Units (W522)

4 Installation and Wiring

Terminal block

Unit

Cannot be attached.

For terminal block For Unit

Coding Pins (Use this part.)

Runners

Preventing Incorrect Attachment of Terminal Blocks

In order to prevent unintentionally installing the wrong terminal block, you can limit the combination of a Unit and a terminal block.

Insert three Coding Pins (NX-AUX02) into three of the six incorrect attachment prevention holes on the Unit and on the terminal block. Insert these pins into positions so that they do not interfere with each other when the Unit and terminal block are connected to each other.

You can use these pins to create a combination in which the wrong terminal block cannot be attached because the pin patterns do not match.

4-3 Wiring the Terminals

z Types of Coding Pins

There are two types of Coding Pins, both with their own unique shape: one for terminal blocks and one for Units.

Three pins come with each runner.

4-3-1 Wiring to the Screwless Clamping Terminal Block

Use the following Coding Pins.

Name Model Specification

Coding Pin NX-AUX02 For 10 Units

NX-series Analog I/O Units User’s Manual for Analog Input Units and Analog Output Units (W522)

(Terminal block: 30 pins, Unit: 30 pins)

4 - 25

4 Installation and Wiring

Pin locations for terminal block

○: Pin inserted

Terminal block Unit

123 45 6

○No.1 ○ ○ ○No.2 ○ ○ ○No.3 ○ ○ ○No.4 ○ ○ ○No.5 ○ ○ ○No.6 ○ ○ ○No.7 ○ ○ ○No.8 ○ ○ ○No.9 ○ ○

○No.10 ○ ○ No.11 ○ ○ ○ No.12 ○ ○ ○ No.13 ○ ○ ○ No.14 ○ ○ ○ No.15 ○ ○ ○ No.16 ○ ○ ○ No.17 ○ ○ ○ No.18 ○ ○ ○ No.19 ○ ○ ○ No.20 ○ ○ ○

123456

○○○

○○○ ○○○

○○○

○○○ ○○○ ○○○

○○○

○○○ ○○○ ○○○

○○○

○○○ ○○○

Holes used by OMRON

Holes for incorrect attachment prevention (pin locations)

Pin locations for Unit

Pattern

Holes used by OMRON

Holes for incorrect attachment prevention (pin locations)

z Insertion Locations and Patterns of Coding Pins

Insert three Coding Pins of each on the terminal block and on the Unit at the positions designated by the numbers 1 through 6 in the figure below.

As shown in the following table, there are 20 unique pin patterns that can be used.

4 - 26

NX-series Analog I/O Units User’s Manual for Analog Input Units and Analog Output Units (W522)

4 Installation and Wiring

Precautions for Correct Use

Terminal block Unit

Terminal block

To make the maximum of 20 patterns, purchase two sets of NX-AUX02 Pins. (One set for 10 Units.)

• OMRON uses the holes other than No. 1 to 6 in the figure on the previous page. If you insert a Coding Pin into one of the holes used by OMRON on the terminal block side, this makes it impossible to mount the terminal block on a Unit.

• Do not use Coding Pins that have been attached and removed.

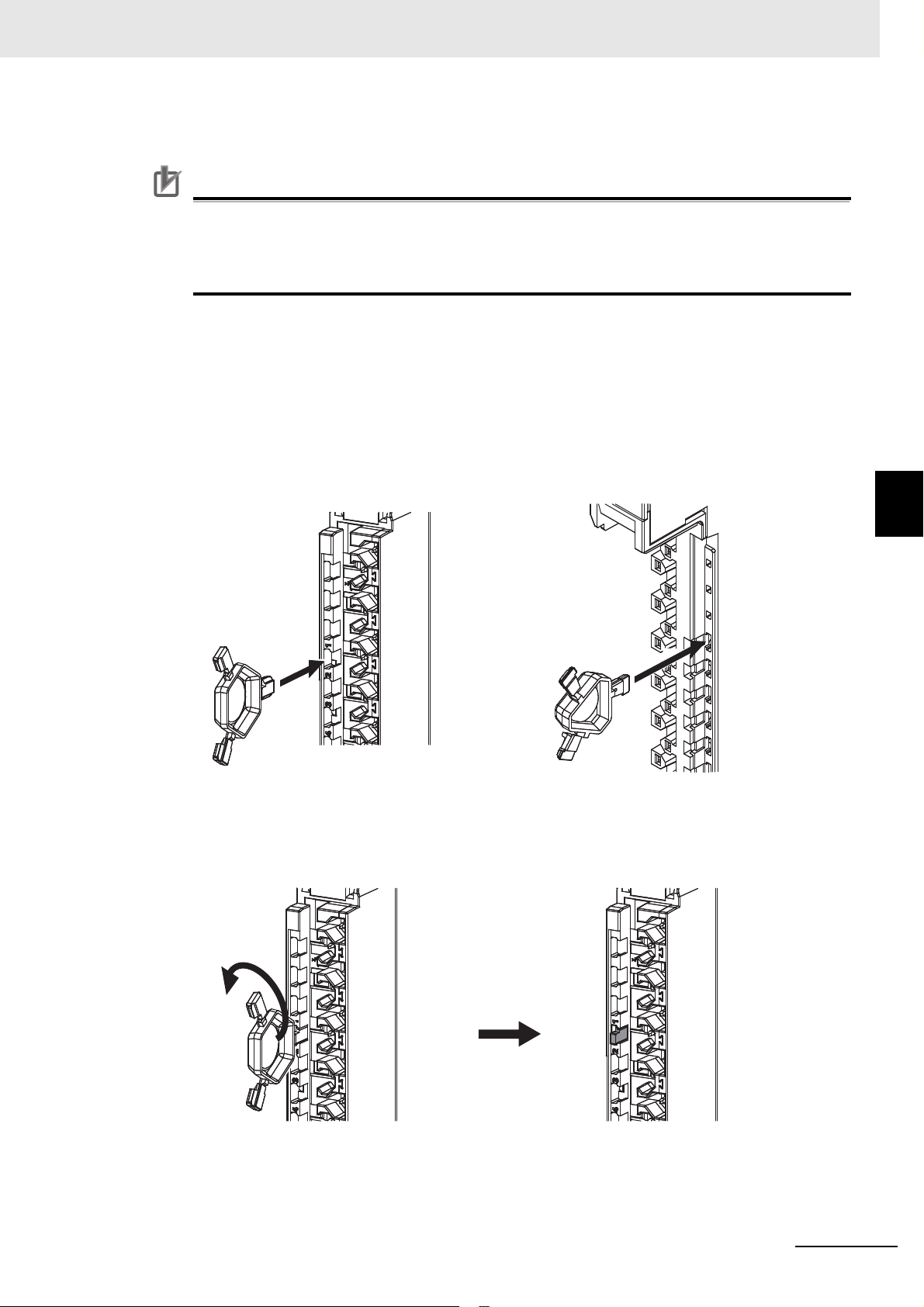

z Inserting the Coding Pins

1 Hold the pins by the runner and insert a pin into one of the incorrect attachment prevention

holes on the terminal block or on the Unit.

4-3 Wiring the Terminals

2 Rotate the runner to break off the Coding Pins.

4-3-1 Wiring to the Screwless Clamping Terminal Block

NX-series Analog I/O Units User’s Manual for Analog Input Units and Analog Output Units (W522)

4 - 27

4 Installation and Wiring

Additional Information

Unit

4-3-2 Checking the Wiring

Check the wiring by reading input data or writing output data from Slave Terminals using the Watch Tab Page of the Support Software.

For Input Units, you can turn ON/OFF the inputs from external devices that are connected to the target Units and monitor the results.

For Output Units, you can execute the I/O outputs of the target Units and check the operation of the connected external devices.

For details on monitoring and I/O output operations using the Support Software, refer to the operation manual for the Support Software that you are using.

• In the Sysmac Studio, you can check the wiring from the I/O Map or Watch Tab Page. If you use the I/O Map, you can also monitor and perform forced refreshing even if the variables are not defined or the algorithms are not created. Therefore, you can easily check the wiring. Refer to the Sysmac Studio Version 1 Operation Manual (Cat. No. W504) for details on monitoring and forced refreshing operations.

• Some Communications Coupler Units support I/O checking that allows you to check wiring with only the Slave Terminal. Refer to the user’s manual of the Communications Coupler Unit for detailed information on the support and functionality of I/O checking for your Communications Coupler Unit.

4 - 28

NX-series Analog I/O Units User’s Manual for Analog Input Units and Analog Output Units (W522)

4-4 Wiring Examples

Input +

24 V (Sensor power supply +)

0 V (Sensor power supply − / Input −)

Three-wire sensor

IOV

IOG

IOV

IOG

IOV

IOG

IOV

IOG

Additional I/O

Power Supply Unit

NX-PF0630

Input1+

IOG

IOV

A1 B1

A8 B8

IOG

Input2+

IOG

IOV

IOG

Voltage Input Unit

NX-AD3603

24 VDC

A1 B1

A8 B8

Input3+ Input4+

Input +

Input −

Input1+

Input2+

A1 B1

A8 B8

Input3+ Input4+

Input5+ Input6+

Input7+ Input8+

Input1−

Input2−

Input3− Input4−

Input5− Input6−

Input7− Input8−

Current Input Unit

NX-AD4204

This section gives wiring examples for the Analog Input Units and Analog Output Units and precautions for wiring.

4 Installation and Wiring

4-4-1 Wiring the Analog Input Units

z Wiring Example 1 (Input method: Single-ended input)

z Wiring Example 2 (Input method: Differential input)

4-4 Wiring Examples

4-4-1 Wiring the Analog Input Units

NX-series Analog I/O Units User’s Manual for Analog Input Units and Analog Output Units (W522)

4 - 29

4 Installation and Wiring

Precautions for Correct Use

Input +

Input −

Current Input Unit

NX-AD4204

Shield Connection

Unit

NX-TBX01

A1 B1

A8 B8

A1 B1

A8 B8

Output device

SHLD

Input1+

Input2+

Input3+ Input4+

Input5+ Input6+

Input7+ Input8+

Input1−

Input2−

Input3−

Input4−

Input5− Input6−

Input7− Input8−

Shield

Ground of 100 Ω or less

Do not ground the shield on the output device.

It is not necessary to connect the shield normally. However, if noise affects the Unit, ground the end of the shield on the Input Unit side. In this case, do not connect the end of the shield anywhere on output device.

You can use the NX-TBX01 Shield Connection Unit to ground more than one shield.

Connect the shield of the cable to the SHLD terminal. And ground the functional ground terminal to 100 Ω or less.

To ensure this NX Unit is kept in the best operating condition, observe the following points when wiring to avoid the effects of the noise.

• Use a shield wire (2 conductors, twisted wire) or a shield wire (3 conductors) as the input connection line for each input. Use the shield without connecting to anything normally.

• Wire the input connection lines and power lines (e.g., AC power supply lines or power lines) separately. Do not place such lines in the same duct.

• Insert a noise filter into the power supply input section if noise comes from power supply lines when using the same power supply to power an electrical welder or an electric discharge machine, or there is a high-frequency source nearby.

4 - 30

NX-series Analog I/O Units User’s Manual for Analog Input Units and Analog Output Units (W522)

Precautions for Correct Use

4-4-2 Wiring the Analog Output Units

Voltage output +

Voltage output −

IOV

IOG

IOV

IOG

IOV

IOG

IOV

IOG

V1+

IOG

IOV

A1 B1

A8 B8

IOG

V2+

IOG

IOV

IOG

24 VDC

A1 B1

A8 B8

V3+ V4+

Additional I/O

Power Supply Unit

NX-PF0630

Voltage Output Unit

NX-DA3603

4 Installation and Wiring

4-4 Wiring Examples

To ensure this NX Unit is kept in the best operating condition, observe the following points when wiring to avoid the effects of the noise.

• Use a shield wire (2 conductors, twisted wire) or a shield wire (3 conductors) as the input connection line for each output. Connect the shield according to the specifications of the input device.

• Wire the output connection lines and power lines (e.g., AC power supply lines or power lines) separately. Do not place such lines in the same duct.

4-4-2 Wiring the Analog Output Units

NX-series Analog I/O Units User’s Manual for Analog Input Units and Analog Output Units (W522)

4 - 31

4 Installation and Wiring

Analog Input Unit

Voltage

generated

Internal

circuits

Input

device

Input

device

Power

supply

Input n+

Input n

−

Input n+

Input n

−

4-4-3 Precautions when Using Common Power Supply for Input

Devices of Analog Input Units

If you use Analog Input Units that take differential input, when more than one input device is using the same power supply, and voltage input is being supplied, a disconnection will occur as follows.

If a disconnection occurs in section A in the figure above, unwanted voltage paths occur as indicated by the arrow. As a result, about 1/3 to 1/2 of the voltage between C and D, which is normally connected, is generated between A and B. The same applies when B is disconnected.

When this kind of voltage is generated, disconnection detection may not work.

When voltage input is being supplied, either set up the input devices so that they are not using the same power supply, or use isolators for each input.

This does not apply when current input is being supplied.

4 - 32

NX-series Analog I/O Units User’s Manual for Analog Input Units and Analog Output Units (W522)

I/O Refreshing

This section describes the types and functions of I/O refreshing for the NX Units.

5-1 I/O Refreshing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2

5-1-1 I/O Refreshing from CPU Units to NX Units . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-2

5-1-2 I/O Refreshing from CPU Units or Industrial PCs to Slave Terminal . . . . . . . . . 5-3

5-2 I/O Refreshing Methods . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-5

5-2-1 Types of I/O Refreshing Methods . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-5

5-2-2 Setting the I/O Refreshing Methods . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-7

5-2-3 Selecting NX Units . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-8

5-2-4 Free-Run Refreshing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-8

5-2-5 Synchronous Input Refreshing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-12

5-2-6 Synchronous Output Refreshing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5-16

NX-series Analog I/O Units User’s Manual for Analog Input Units and Analog Output Units (W522)

5 - 1

5 I/O Refreshing

CPU Unit

(b) Refresh cycle of the NX bus

NX UnitNX Unit

NX Unit

(a) Primary period in CPU Unit

Data exchange between the user program and I/O Units

5-1 I/O Refreshing

This section describes I/O refreshing for NX Units.

5-1-1 I/O Refreshing from CPU Units to NX Units

An NX-series NX1P2 CPU Unit cyclically performs I/O refreshing with the NX Units.

The following period and two cycles affect operation of the I/O refreshing between the CPU Unit and the NX Units.

(a) Primary period in CPU Unit

(b) Refresh cycle of the NX bus

The following operation occurs.

• The refresh cycle of the NX bus in item (b) is automatically synchronized with the primary period of the CPU Unit in item (a).

• The refresh cycle of each NX Unit in item (c) depends on the I/O refreshing method which is given below.

Refer to the NJ/NX-series CPU Unit Software User's Manual (Cat. No. W501-E1-16 or later) for detailed information on I/O refreshing between the NX1P2 CPU Unit and the NX Units.

Refer to the NJ/NX-series CPU Unit Software User's Manual (Cat. No. W501-E1-16 or later) for the I/O response times of NX Units in a CPU Rack.

5 - 2

NX-series Analog I/O Units User’s Manual for Analog Input Units and Analog Output Units (W522)

5 I/O Refreshing

Data exchange between the user program and I/O Units

Communications Master Unit

CPU Unit or Industrial PC

(a) Cycle time

(b) Communications cycle of the host network

Communications Coupler Unit

NX UnitNX UnitNX Unit

Communications path

Other communications slaves

(d) Refresh cycle of each NX Unit

Slave Terminal

5-1-2 I/O Refreshing from CPU Units or Industrial PCs to Slave Termi-

nal

The CPU Unit or Industrial PC cyclically performs I/O refreshing with the Slave Terminal through the Communications Master and Communications Coupler Units.

The following four cycles affect operation of the I/O refreshing between the NX Unit on a Slave Terminal and the CPU Unit or Industrial PC.

(a) Cycle time of the CPU Unit or Industrial PC

(b) Communications cycle of the host network

(d) Refresh cycle of each NX Unit

5-1 I/O Refreshing

5-1-2 I/O Refreshing from CPU Units or Industrial PCs to Slave Terminal

The cycle time of the CPU Unit or Industrial PC and communications cycle of the host network and the I/O refresh cycle of the NX bus are determined by the CPU Unit or Industrial PC types and the communications types.

The following explains operations when the built-in EtherCAT port on the NJ/NX-series CPU Unit or NY-series Industrial PC is used for communications with an EtherCAT Slave Terminal, with symbols in the figure.

Refer to the user’s manual for the connected Communications Coupler Unit for details on the operation of I/O refreshing on Slave Terminals other than EtherCAT Slave Terminals.

NX-series Analog I/O Units User’s Manual for Analog Input Units and Analog Output Units (W522)

5 - 3

5 I/O Refreshing

Operation of I/O Refreshing with NX-series CPU Units

The following shows the operation of I/O refreshing when the built-in EtherCAT port on the NX-series CPU Unit is used for communications with an EtherCAT Slave Terminal.

• The process data communications cycle in item (b) and the refresh cycle of the NX bus in item (c) are automatically synchronized with the primary period or the task period of the priority-5 periodic task of

the CPU Unit in item (a).

• The refresh cycle of each NX Unit in item (d) depends on the I/O refreshing method which is given below.

*1. This applies when the distributed clock is enabled in the EtherCAT Coupler Unit.

The priority-5 periodic task must be supported by the connected CPU Unit model. Refer to the NJ/NX-series CPU Unit Software User's Manual (Cat. No. W501-E1-16 or later) for the periodic tasks supported by each model of NX-series CPU Unit.

Operation of I/O Refreshing with NJ-series CPU Units or NY-series Industrial PCs

The following shows the operation of I/O refreshing when the built-in EtherCAT port on the NJ-series CPU Unit or NY-series Industrial PC is used for communications with an EtherCAT Slave Terminal.

• The process data communications cycle in item (b) and the refresh cycle of the NX bus in item (c) are automatically synchronized with the primary period of the CPU Unit or Industrial PC in item (a).

• The refresh cycle of each NX Unit in item (d) depends on the I/O refreshing method which is given below.

*1. This applies when the distributed clock is enabled in the EtherCAT Coupler Unit.

Refer to the NX-series EtherCAT Coupler Unit User's Manual (Cat. No. W519-E1-08 or later) for detailed information on I/O refreshing between the built-in EtherCAT port and EtherCAT Slave Terminals.

In addition, refer to the user's manual for the connected Communications Coupler Unit for the I/O response times of NX Units on Slave Terminals.

5 - 4
