INSTRUCTION MANUAL
Ultra Premium
Blood Pressure Monitor
TM
featuring ComFit
Model HEM-775
Cuff
ESPAÑOL
ENGLISH
TABLE OF CONTENTS
Before Using the Monitor
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Safety Information . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Operating the Device . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Risk of Electrical Shock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .6
Care and Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7
Before Taking a Measurement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Operating Instructions
Know Your Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9
Unit Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10
Display Symbols . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Irregular Heartbeat Symbol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Movement Error Symbol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
USER ID Symbol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Morning Hypertension Symbol . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
Heartbeat Symbol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Average Value Symbol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Morning Average Symbol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Evening Average Symbol . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13
Battery Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14
Using the AC Adapter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16
Setting the Date and Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18
Applying the Arm Cuff . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22
2
TABLE OF CONTENTS
Taking a Measurement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Using the Guest Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26
Selecting the USER ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
Using the USER ID . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27
TM
Selecting the TruRead
Using the Single Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .30
Using the TruRead
TM
Special Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35

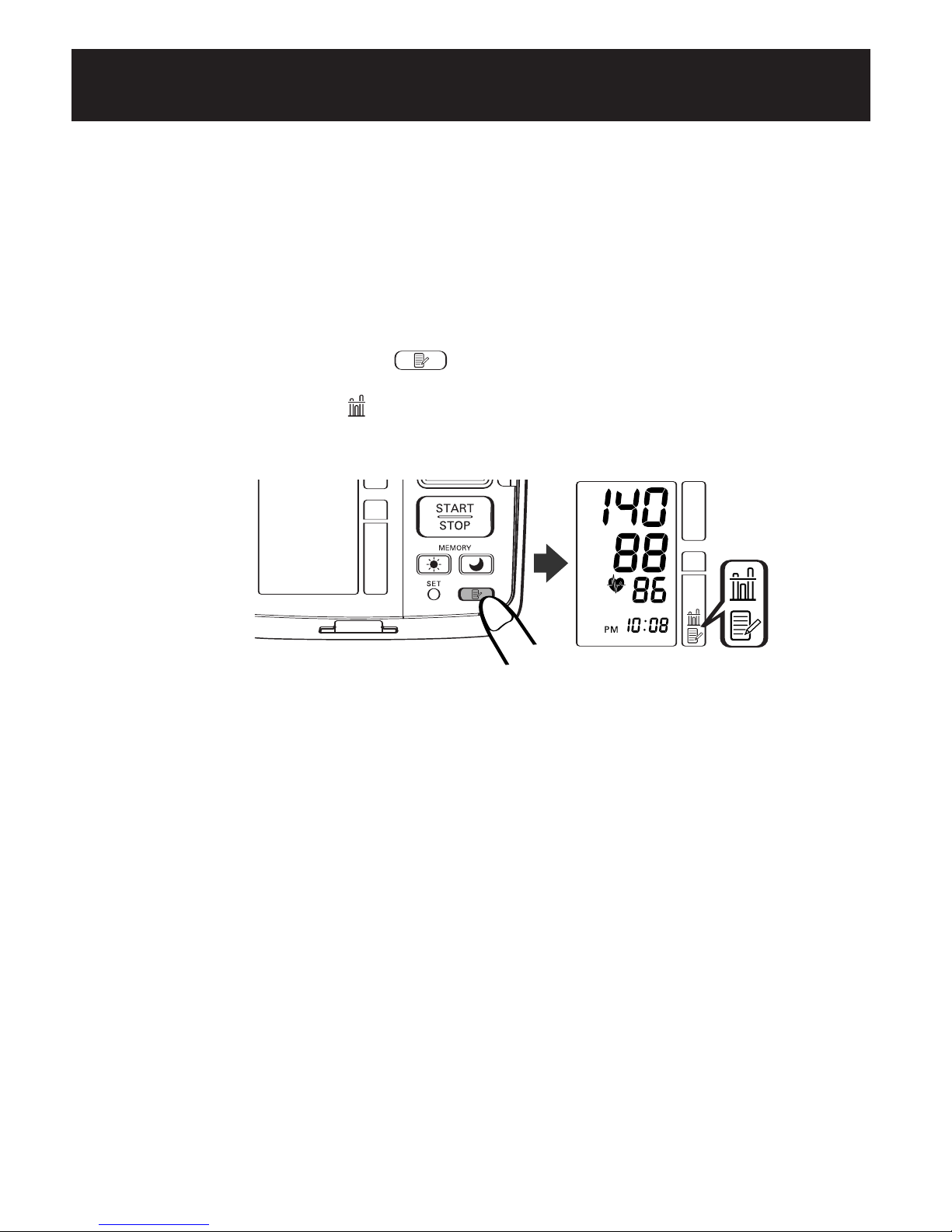

Using the Memory Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36
Averaging Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36
To Display the Measurement Values . . . . . . . . . . . . . . . . . . . . . . . .37
Morning and Evening Averages . . . . . . . . . . . . . . . . . . . . . . . . . . . .39
Morning Averages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39
Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28
Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33
Evening Averages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .39
To Display Morning and Evening Averages . . . . . . . . . . . . . . . . . .40
Display Combinations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41
To Delete All Values Stored in the Memory . . . . . . . . . . . . . . . . . .42
Care and Maintenance
Care and Maintenance . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .43

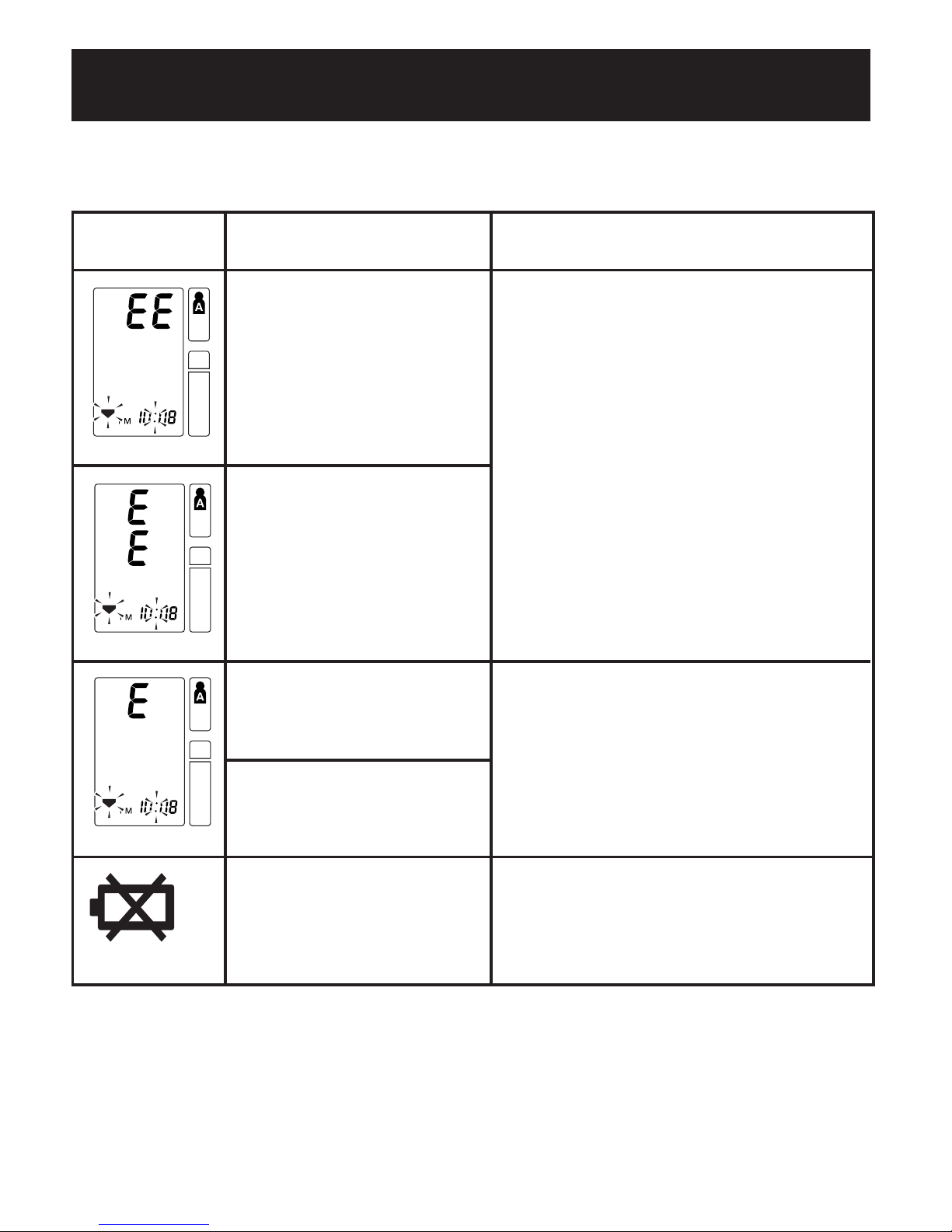

Error Indicators and Troubleshooting Tips . . . . . . . . . . . . . . . . . . . . . . . . .45
FCC Statement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .49
Notes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .50
3

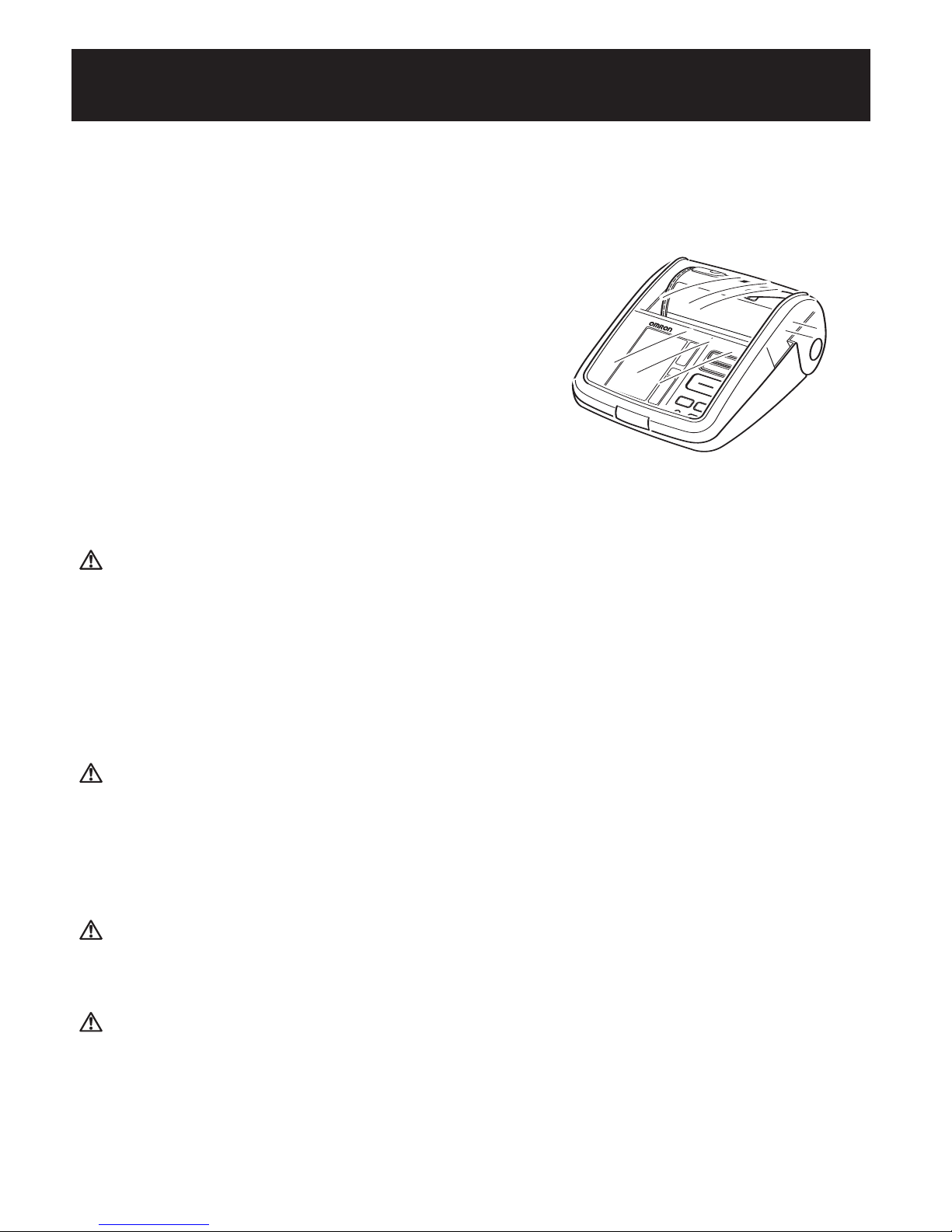

Before Using the Monitor
INTRODUCTION
Thank you for purchasing the Omron®HEM-775 IntelliSense
®
Automatic Blood Pressure Monitor with ComFitTMCuff.
Fill in for future reference.
DATE PURCHASED: __________________
SERIAL NUMBER: ____________________
Staple your purchase receipt here
Your new digital blood pressure monitor uses the oscillometric method
of blood pressure measurement. This means the monitor detects your
blood’s movement through your brachial artery and converts the
movements into a digital reading. The monitor stores measurement
results for two people and features Morning and Evening Averages.
TM
TruRead
allows for three consecutive measurements with timed
intervals for an average reading.
The HEM-775 comes with the following components:
TM
• Monitor • ComFit
Cuff • AC Adapter
• 4 “AA” Batteries • Warranty Card
• Instruction Manual printed in English and Spanish
®
The HEM-775 IntelliSense
Automatic Blood Pressure Monitor is
intended for home use.
SAVE THESE INSTRUCTIONS
4
SAFETY INFORMATION
To assure the correct use of the product basic safety measures should
always be followed including the warnings and cautions listed in this
instruction manual.
SAFETY SYMBOLS USED IN THIS INSTRUCTION MANUAL
Indicates a potentially hazardous situation
WARNING
CAUTION
which, if not avoided, could result in death or
serious injury.
Indicates a potentially hazardous situation
which, if not avoided, may result in minor or
moderate injury to the user or patient or
damage to the equipment or other property.
OPERATING THE DEVICE
Contact your physician for specific information about your blood
pressure. Self-diagnosis and treatment using measured results may
be dangerous. Follow the instructions of your physician or licensed
healthcare provider.
If battery fluid should get in your eyes, immediately rinse with
plenty of clean water. Contact a physician immediately.
Read all of the information in the instruction manual and any other
literature in the box before operating the unit.
This device is intended for use in measuring blood pressure and
pulse rate in the adult population. Do not use this device on infants
or persons who cannot express their intentions.
5
SAFETY INFORMATION
OPERATING THE DEVICE (continued)
Read the Special Conditions section (page 35) of the instruction
manual if your systolic pressure is known to be more than 220
mmHg. Inflating to a higher pressure than necessary may result
in bruising where the cuff is applied.
Operate the device only as intended. Do not use the device for any
other purpose.
Dispose of the device, components and optional accessories
according to applicable local regulations. Unlawful disposal
may cause environmental pollution.
Do not use a cellular phone near the device. It may result in an
operational failure.
Use only Omron authorized parts and accessories. Parts and
accessories not approved for use with the device may damage
the unit.
Use only 1.5V manganese or alkaline batteries with this device.
Do not use other types of batteries. This may damage the unit.
RISK OF ELECTRICAL SHOCK
Do not plug or unplug the power cord into the electrical outlet with
wet hands.
Do not overload power outlets. Plug the device into the appropriate
voltage outlet.
6
SAFETY INFORMATION
CARE AND MAINTENANCE
Do not subject the monitor to strong shocks, such as dropping the
unit on the floor.
Do not submerge the device or any of the components in water.
Store the device and the components in a clean, safe location.
Changes or modification not approved by Omron Healthcare will
void the user warranty. Do not disassemble or attempt to repair the
unit or components.
Do not store the AC adapter in the cuff compartment. This may
damage the cuff.
7
BEFORE TAKING A MEASUREMENT
To ensure a reliable reading follow these recommendations:
1. Avoid eating, drinking alcohol, smoking, exercising, and bathing for
30 minutes before taking a measurement. Rest for at least 15
minutes before taking the measurement.
2. Stress raises blood pressure. Avoid taking measurements during
stressful times.
3. Measurements should be taken in a quiet place.
4. Remove tight-fitting clothing from your arm.
5. Sit in a chair with your feet flat on the floor. Rest your arm on
a table so that the cuff is at the same level as your heart.
6. Remain still and do not talk during the measurement.
7. Keep a record of your blood pressure and pulse readings for your
physician. A single measurement does not provide an accurate
indication of your true blood pressure. You need to take and record
several readings over a period of time. Try to measure your blood
pressure at about the same time each day for consistency.
8
Operating Instructions
KNOW YOUR UNIT
Main Unit:
Air Jack
Monitor Cover
Cuff
Compartment
USER ID
Symbol (A or B)
Display
USER ID
Selection Switch
Start/Stop Button
Morning/Evening Average
SET Button
( / ) Buttons
Memory ( ) Button
Battery Compartment
AC Adapter Jack
9
KNOW YOUR UNIT
Components:
Air Plug
(Connects to Air Jack)
Arm Cuff
Housing
Air Tube
Cord
AC Adapter
Four “AA” Batteries
Instruction Manual
Systolic Blood Pressure
Diastolic Blood Pressure
Heartbeat Symbol
Movement Symbol
Irregular Heartbeat Symbol
TruReadTMSymbol
Deflation Symbol
Low Battery Indicator
UNIT DISPLAY
USER ID Symbol (A or B)
Morning Hypertension Symbol
Morning Average Symbol
Evening Average Symbol
Average Value Symbol
Memory Symbol
Pulse Display
Week Display
Date/Time Display
10
DISPLAY SYMBOLS
IRREGULAR HEARTBEAT SYMBOL ( )
When the monitor detects an irregular rhythm two or more times during
the measurement, the Irregular Heartbeat Symbol ( ) will appear on
the display with the measurement values.
An irregular heartbeat rhythm is defined as
a rhythm that is more than 25% slower or
25% faster from the average rhythm
detected while the monitor is measuring the
Pulse
Blood
pressure
Normal Heartbeat
systolic blood pressure and the diastolic
Irregular Heartbeat
blood pressure.
If the irregular heartbeat symbol ( )
displays with your measurement results,
Pulse
Blood
pressure
Short Long
we recommend you consult your physician.
Follow the directions of your doctor.
MOVEMENT ERROR SYMBOL ( )
The Movement Error Symbol is displayed if you move your body during
the measurement. Please remove the arm cuff, and wait 2-3 minutes.
Take another measurement.
USER ID SYMBOL ( / )
The USER ID Symbol indicates USER A or USER B as selected by
the user to take a measurement or when using the memory function.
The USER ID Symbol is not displayed when using the Guest Mode
to take a measurement.
11
DISPLAY SYMBOLS
The American Heart Association1recommends the following guideline
for upper limit of normal for home blood pressure readings:
AHA Home Guideline for Upper Limit of Normal BP
Systolic Blood Pressure 135 mmHg
Diastolic Blood Pressure 85 mmHg
This is a general guideline because blood pressure depends on age
and morbidity. The AHA recommends a lower home blood pressure
goal for certain patients, including diabetic patients, pregnant women,
1
and patients with renal failure
The monitor is not intended to be a diagnostic device.
.
WARNING
Contact your physician for specific information about your blood
pressure. Self-diagnosis and treatment using measured results may
be dangerous. Follow the instructions of your physician or licensed
healthcare provider.
Omron Healthcare recommends you contact your physician if the
MORNING HYPERTENSION SYMBOL and/or the HEARTBEAT
SYMBOL appear on the display with your measurement values.
MORNING HYPERTENSION SYMBOL ( )
The Morning Hypertension Symbol is displayed if the morning average
reading for a week is above 135 for the Systolic Blood Pressure value
and/or 85 for the Diastolic Blood Pressure value when viewing the
Morning Averages and the Evening Averages in the memory.
1
American Heart Association Scientific Statement 2004
12
DISPLAY SYMBOLS
HEARTBEAT SYMBOL ( )
TAKING A MEASUREMENT
The Heartbeat Symbol flashes on the display during
the measurement.
The Heartbeat Symbol flashes at every heartbeat.
When the measurement is complete, the Heartbeat Symbol
flashes on the display with your blood pressure and pulse rate if
the reading is above 135 for the Systolic Blood Pressure value
and/or 85 for the Diastolic Blood Pressure value.
USING THE MEMORY FUNCTION
The Heartbeat Symbol flashes when the blood pressure reading
stored in the memory is above 135 for the Systolic Blood
Pressure value and/or 85 for the Diastolic Blood Pressure value.
AVERAGE VALUE SYMBOL ( )
The Average Value Symbol is displayed when you press the memory
button. The most recent average reading appears on the display screen.
MORNING AVERAGE SYMBOL ( )
The Morning Average symbol is displayed when viewing Morning
Averages using the Memory Function.
EVENING AVERAGE SYMBOL ( )
The Evening Average symbol is displayed when viewing Evening
Averages using the Memory Function.
13
BATTERY INSTALLATION
1. Press the ▼ indicator on the battery cover
and slide the cover off in the direction of
the arrow.
2. Install 4 “AA” size batteries so the +
(positive) and - (negative) polarities match
the polarities of the battery compartment
as indicated.
3. Replace the battery cover.
Battery Cover
14
BATTERY INSTALLATION
BATTERY REPLACEMENT
Low Battery Indicator
When the Low Battery Indicator appears on the display screen turn the
monitor off and remove all the batteries. Replace with four new batteries
at the same time. Longlife alkaline batteries are recommended.
CAUTION
If battery fluid should get in your eyes, immediately rinse with
plenty of clean water. Contact a physician immediately.
NOTES: • Turn the unit off before replacing the batteries. If the
batteries are removed while the unit is still on, the date and
time will be reset to that of the previous use. However, the
measurement results are not deleted.
• When the batteries are replaced, you may need to reset the
date and time. If the year is flashing on the display screen,
refer to page 21, RESETTING THE DATE AND TIME.
• The supplied batteries may have a shorter life.
CAUTION
Dispose of the device, components and optional accessories
according to applicable local regulations. Unlawful disposal may
cause environmental pollution.
15
USING THE AC ADAPTER
Use only the authorized Omron AC Adapter, Model Number
HEM-ADPT1,with this monitor.
We recommend you install the batteries even if the AC Adapter
is used. If no batteries are installed, you may need to reset the date
and time if the AC Adapter is disconnected. The measurement results
will not be deleted.
CAUTION
Use only Omron authorized parts and accessories. Parts and
accessories not approved for use with the device may damage
the unit.
16
USING THE AC ADAPTER
2
1
TO CONNECT THE AC ADAPTER
① Insert the AC Adapter Plug
Housing
into the AC Adapter Jack on
the back side of the monitor
as illustrated.
② Plug the AC Adapter into a
120V AC outlet (60 cycles).
TO DISCONNECT THE AC ADAPTER
① Hold and pull the Housing to remove the AC Adapter from the
electrical outlet. Do not remove by pulling on the cord.
② Remove the AC Adapter plug from the monitor.
Cord
WARNING
Do not plug or unplug the power cord into the electrical outlet with
wet hands.
CAUTION
Do not overload power outlets. Plug the device into the appropriate
voltage outlet.
17
SETTING THE DATE AND TIME
Set the monitor to the current date and time before taking a
measurement for the first time. If the date and time are not set correctly,
the measurement values stored in the memory and the average values
may not be correct.
The Blood Pressure Monitor automatically stores up to 84 individual
measurement values with the dates and times. The monitor also
calculates weekly averages for measurements in the morning and in the
evening. Morning and Evening averages are stored for this week and the
last seven weeks.
The monitor can also calculate an average reading based on the three
most recent measurements taken within 10 minutes of the last reading.
NOTE: • If only two readings are stored in the memory for the 10-
minute period, the average is based on the two readings.
• If one reading is stored in the memory for the 10-minute
period, this reading is displayed as the average.
1. TO START THE SETTING
Press and hold the SET button to
adjust the date and time.
The year flashes on the display.
18
SETTING THE DATE AND TIME
2. SETTING THE YEAR
The year can be set between 2007 and
2030. When the display reaches 2030,
it will return to 2007.
Press the Memory button ( ) to
advance by increments of one year.
Press the SET button to set the
current year.
The month flashes on the display.
NOTE: Press and hold the Memory button ( )
to advance the date and time values faster.
3. SETTING THE MONTH
Press the Memory button ( ) to advance by increments of one
month.
Press the SET button to set the current month.
The day flashes on the display.
19
SETTING THE DATE AND TIME
4. SETTING THE DAY
Press the Memory button ( ) to advance by increments
of one day.
Press the SET button to set the current day.
The hour flashes on the display.
5. SETTING THE HOUR
The time is set using AM or PM.
Press the Memory button ( ) to advance by increments of one
hour.
Press the SET button to set the current hour.
The minute flashes on the display.
6. SETTING THE MINUTE
Press the Memory button ( ) to advance by increments of one
minute.
Press the SET button to set the minute setting.
7. TO TURN THE MONITOR OFF
Press the START/STOP button.
NOTE: The monitor will automatically turn off after the minute has
been set after battery replacement.
20
SETTING THE DATE AND TIME
RESETTING THE DATE AND TIME
To adjust the date or time after it has been setup when you first
use the unit.
Start with the monitor in the off position.
1. Press and hold the SET button.
TM
The TruRead
will appear on the display for the USER ID selected.
symbol and the current setting (on or oFF)
To change the
on or oFF setting press the Memory button, then press
the SET button.
The interval time flashes on the display. Press the Memory button
to select the desired interval time, then press the SET button.
The year flashes on the display.
2. Refer to page 18, SETTING THE DATE AND TIME.
NOTE: If you need to change the Date and Time,
always adjust the Date and Time setting before taking
the next measurement.
21
APPLYING THE ARM CUFF
CAUTION
Read all of the information in the instruction manual and any other
literature in the box before operating the unit.
CAUTION
This device is intended for use in measuring blood pressure and
pulse rate in the adult population. Do not use this device on infants
or persons who cannot express their intentions.
APPLYING THE CUFF ON THE LEFT ARM
1. Make sure the air plug is securely inserted in the main unit.
2. Remove tight-fitting clothing from your upper left arm.
22
APPLYING THE ARM CUFF
3. Sit in a chair with your feet flat on the floor. Place your left arm on
a table so the cuff is level with your heart.
Thumb Grip
4. Hold the grip on the cuff securely with
your right hand, placing your thumb
on the thumb grip.
5. Turn the palm of your left
hand upward.
Cloth Strip
23
APPLYING THE ARM CUFF
6. Apply the cuff to your left upper arm so the blue strip is on the inside
of your arm and aligned with your middle finger. The air tube runs
down the inside of your arm. The bottom of the cuff should be
approximately 1/2" above your elbow.
Blue Strip
1/2 inch (1 - 2 cm)
Air Tube
7. Wrap the cuff firmly in place around your arm using the cloth strip.
24
APPLYING THE ARM CUFF
APPLYING THE CUFF ON THE RIGHT ARM
When taking a measurement using the right arm use this instruction
for Step 6 on page 24.
Apply the cuff to your right upper arm so the thumb grip is centered
on the inside of your inner arm. The bottom of the cuff should be
approximately 1/2'' above your elbow.
Thumb Grip
NOTE: Be careful not to rest your arm on the air tube. This will restrict
the flow of air to the cuff.
25
TAKING A MEASUREMENT
The monitor is designed to take measurements and store the
measurement values in the memory for two people using
USER ID A and USER ID B.
The monitor can also be used to take a single measurement for other
persons using the GUEST Mode. The USER ID symbol is not displayed
when using the GUEST Mode. Measurements taken using the GUEST
Mode are not stored in the memory.
CAUTION
Operate the device only as intended. Do not use the device for any
other purpose.
USING THE GUEST MODE
1. Press and hold the START/STOP button.
The A and B Symbols disappear from the display.
2. Release the START/STOP button.
The cuff starts to inflate automatically.
A and B Symbols disappear
NOTE: To stop the inflation press the START/STOP button.
The monitor will stop inflating, start deflation and turn off.
26
TAKING A MEASUREMENT
3. Inflation stops and the measurement is started. When the
measurement is completed, your blood pressure and pulse rate appear
on the display.
SELECTING THE USER ID
Select your USER ID. Always use the same USER ID when taking a
measurement. The monitor stores the measurement values in the
memory by the USER ID selected. These measurement values are used
to calculate the Morning Averages and Evening Averages.
Slide the USER ID Selection Switch up or down to select USER A or B.
USING THE USER ID
When you select a USER ID the monitor can be set to take one
measurement using the Single Mode or three consecutive measurements
TM
using the TruRead
NOTE: The default value is set to the Single Mode to take one
measurement.
The TruRead
TM
Mode takes three consecutive measurements. The
monitor will inflate, take a measurement, and deflate three times
separated by a short interval of time between each measurement.
Mode when you press the START/STOP button.
27
TAKING A MEASUREMENT
SELECTING THE TruRead
1. Select your USER ID (A or B).
2. Press and hold the SET button.
TM
The TruRead
on the display.
symbol and the oFF setting appears
TM
MODE
3. Press the Memory button ( )
to select
on.
NOTE: Press the Memory button to
alternate between
on and oFF.
28
TAKING A MEASUREMENT
4. Press the SET button to confirm the change.
The number of seconds between each measurement is displayed.
NOTE: The default value between each measurement is 60 seconds.
5. Press the MEMORY button ( ) to change the interval of time
between each measurement.
The interval can be set to 15 seconds, 30 seconds, 60 seconds or 120
seconds. Continue to press the MEMORY button until the desired
interval appears on the display.
6. Press the SET button to confirm
the setting.
The year flashes on the display.
29
TAKING A MEASUREMENT
7. If the date and time are correct, press the
START/STOP button to turn the monitor
off.
To change the date and time refer to page
18, SETTING THE DATE AND TIME.
CAUTION
Do not use a cellular phone near the device. It may result in an
operational failure.
USING THE SINGLE MODE
1. Select your USER ID (A or B).
30
Loading...
