Omron IA2 Instruction Manual

INSTRUCTION MANUAL

Automatic Blood Pressure Monitor

with Arm Cuff

=Arm Cuff= !"#$%

Model

 IA2

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Notes on Safety . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Know Your Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Quick Reference Guide . . . . . . . . . . . . . . . . . . . . . . . . .7

Initial Set-Up . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .9

How to Install and Replace Batteries . . . . . . . . . . . . . . . . . .9

How to Set the Date and Time . . . . . . . . . . . . . . . . . . . . . .10

Correct Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .13

How to Apply the Arm Cuff . . . . . . . . . . . . . . . . . . . . . . . .13

How to Take a Measurement . . . . . . . . . . . . . . . . . . . . . . .16

How to Use the Memory Function . . . . . . . . . . . . . . . . . . .20

Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

Care and Maintenance . . . . . . . . . . . . . . . . . . . . . . . . .24

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

Contents

1

Thank you for purchasing the IA2 Omron Automatic Blood Pressure
Monitor with IntelliSenseTM. Although your blood pressure fluctuates
throughout the day, no self adjustment is necessary as the monitor
intelligently adjusts to your changing conditions. The IntelliSense
monitor uses fuzzy logic intelligence to sense both your systolic and
diastolic blood pressure values, and the result is personalized inflation
for every reading. This virtually eliminates discomfort or incorrect
readings due to improper cuff inflation.

The IA2 also stores up to 90 sets of measurements in memory and
displays an average reading based on the three most recent
measurements..

Please read this instruction manual thoroughly before using the unit. For
specific information about your own blood pressure, consult your doctor.

Introduction

2

• The warning signs and the sample icons shown here are listed in order for you
to use the product safely and correctly, as well as to prevent the risk of damage
or injury to you and others from happening.

• The icons and meanings are as follows.

Notes on Safety

3

Warning Sign Contents

Indicates matters in which bodily harm or material damage*
may arise as a result of incorrect handling.

* Material damage refers to a wide range of damage involving your house,

household goods, domestic animals, and pets.

Examples of Signs

The icon indicates actions that are prohibited (what you cannot
do).

Matters involving prohibited actions are indicated by text or pictures
in or near the icon.

The icon indicates compulsory actions that must always be
followed.

Matters involving compulsory actions are indicated by text or pictures
in or near the icon. The icon indicates general compulsory
items.

Caution

Self-diagnosis of measured results and treatment are dangerous.
Please follow the instructions of your physician.

Do not use the unit on infants or persons who cannot express their
consent.

Do not use the unit for any purpose other than measuring blood
pressure.

Do not use a cellular phone near the unit. This may result in
incorrect operation of the unit.

Caution

4

Notes on Safety

Do not forcibly bend the arm cuff or bend the air tube excessively.

When removing the air tube, pull on the air plug at the connection with the
main unit not the tube itself.

Do not apply strong shocks and vibrations to or drop the main unit.

Do not inflate the arm cuff when it is not wrapped around your arm.

When using batteries, the battery liquid may leak and damage the main unit.
Please observe the following points.

• When you are not going to use the unit for a long period of time
(approximately three months or more), take out the batteries.

• Replace old batteries with new ones immediately.

• Do not use old and new batteries together.

• Do not insert the batteries with their polarities incorrectly aligned.

Caution

5

Know Your Unit

Air Jack

Main Unit:

Battery Compartment

Display:

START/STOP Button

MEMORY Button

Date/Time Setting Button

Display

AC Adapter Jack

Diastolic Blood Pressure

Systolic Blood Pressure

Memory Symbol

Pulse Display

Date/Time Display

Battery Low Symbol

Irregular Heartbeat Symbol

Average Value Symbol

Heartbeat Symbol

Deflation Symbol

Movement Error Symbol

6

Know Your Unit

Accessories:

Arm Cuff

Air Tube

Air Plug
(Connects to Air Jack)

Storage Case

Four “AA” batteries

7

To help ensure a reliable reading, avoid eating, smoking, exercising for
at least 30 minutes before taking a measurement. You should also try to
measure your blood pressure at the same time each day.

1. Remove any tight-fitting clothing from your upper arm.

2. Sit on a chair with your feet flat on the floor and place your arm on

a table so that the arm cuff will be at the same level as your heart.

3. Apply the arm cuff to your upper arm.

• Apply the arm cuff to your upper arm. The coloured marker should
be centered on the inner side of your arm and pointing towards
your palm, so that the air tube runs along your forearm and is in
line with the middle finger.

4. Secure the cuff around your arm using the velcro strip.

Quick Reference Guide

1 - 2 cm

Air Tube

Marker

5. Press the START/STOP button.

• The arm cuff will start to inflate
and the monitor will start the
measurement.

• Remain still and do not talk during
the measurement.

6. When measurement is complete, the monitor
displays your blood pressure and pulse rate,
and automatically deflates the cuff.

Notes:

• Always wait at least 2-3 minutes before taking another blood

pressure measurement.

You may require more rest time between readings depending
on your individual physiological characteristics.

• Only use the IA2 to measure your own blood pressure since the

results of measurements are stored in memory.

Quick Reference Guide

8

START

STOP

How to Install and Replace Batteries

1. Slide the battery cover down and lift it
off the main unit.

2. Install or replace four “AA” size batteries
so that the + (positive) and - (negative)
polarities match the polarities indicated
on the battery compartment, then replace
the battery cover.

Notes:

• If the battery low symbol ( ) appears

on the display, replace all four batteries
at the same time. Long-life alkaline
batteries are recommended.

• Remove the batteries if the monitor will not be used for three

months or more.

• If the batteries are removed for a long period of time, the

Date/Time setting will need to be reset. See “How to Set the Date
and Time” for details.

• Dispose of batteries according to applicable local regulations.

Initial Set-Up

9

How to Install and Replace Batteries

How to Set the Date and Time

Your blood pressure monitor automatically stores up to 90
measurements values in its memory and calculates an average value
based on the last three measurements. To make use of the memory and
average values functions, set the monitor to the correct date and time
before taking a measurement for the first time.

1. When the batteries are installed for
the first time, the year digits (2004)
will flash in the display when you
turn on the monitor.

Notes:

If you need to reset the date and time for some reason, press the

Date/Times setting button ( ) when the monitor is powered off.
then the year digit (2004) will flash in the display.

2. Press the MEMORY button to
advance the digits one at a time.

Initial Set-Up

10

How to Set the Date and Time

STOP

STOP

STOP

Note:

The range for the year setting is 2004 to 2030. If the year reaches
2030, it will return to 2004.

If you hold down the button, the digits will advance rapidly.

3. Press the Date/Time setting button to
confirm the setting when the desired
number appears on the display.

The year setting is set and the month
digits will flash.

4. Repeat steps 3 and 4 to set the month and date.

Initial Set-Up

11

How to Set the Date and Time

STOP STOP

STOP STOP

How to Set the Date and Time

12

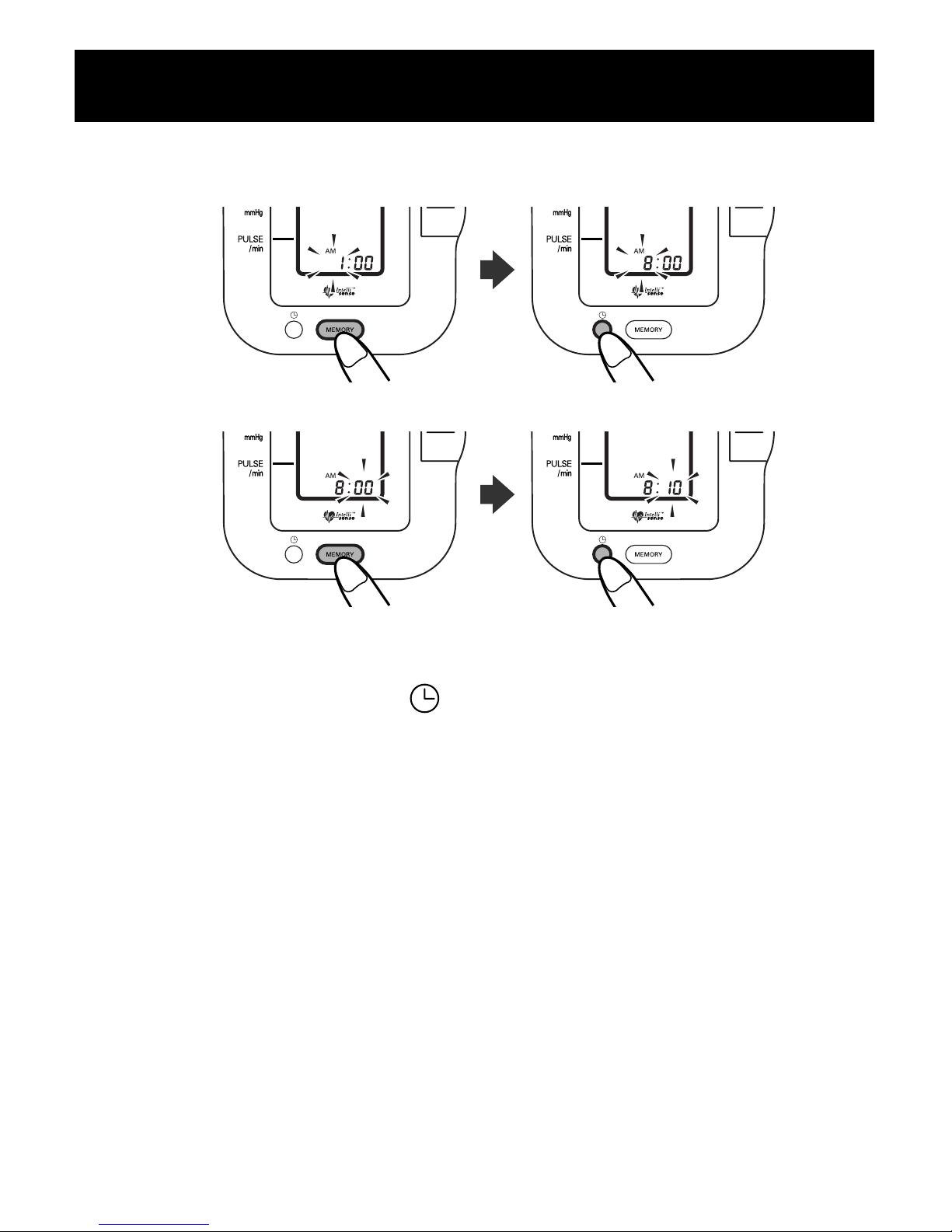

5. Repeat steps 3 and 4 to set the hour and minutes for the time.

6. The monitor will automatically turn itself off when you press the

Date/Time setting button ( ) after setting the time.

Note:

If you adjust the date and time during use, press the START/STOP
button to turn off the monitor after you have finished adjusting the
time.

Initial Set-Up

STOP STOP

STOP STOP

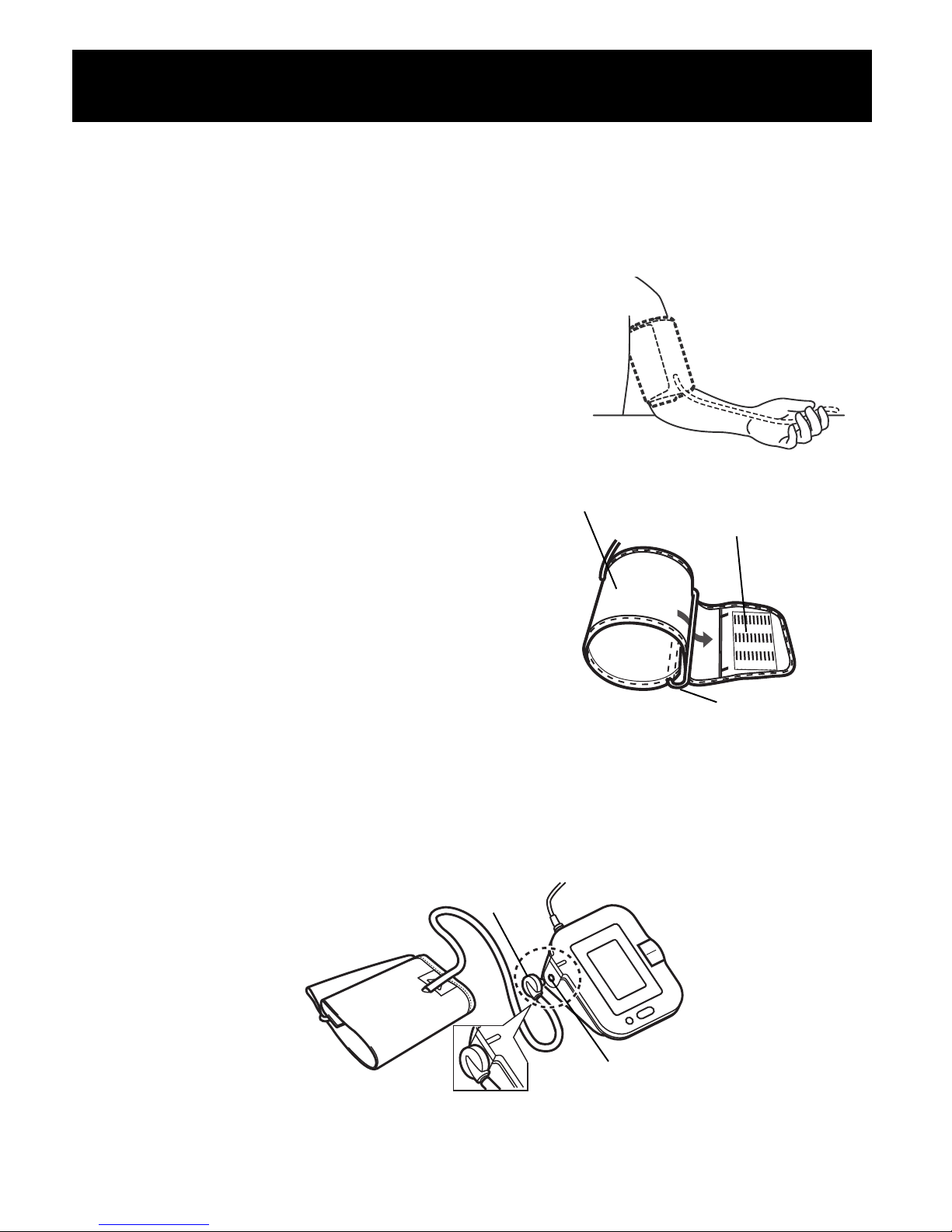

How to Apply the Arm Cuff

You can wrap the cuff either on your right or left arm.

Notes:

• Remove tight-fitting clothing from

your upper arm.

• Do not place the cuff over thick

clothes and do not roll up your
sleeve if it is too tight.

1. If the cuff is assembled correctly, the
hook material will be on the outside
of the cuff loop and the metal D-ring
will not touch your skin.

Note:

If the cuff is not assembled, pass the
end of the cuff furthest from the tubing through the metal D-ring to
form a loop. The smooth cloth should be on the inside of the cuff
loop.

2. Insert the air plug into the air jack (on the left side of the device).

How to Apply the Arm Cuff

13

Correct Usage

Sewn hook material

Pile side material

D-ring

Air Jack

Air Plug

The cuff must be fully deflated when the air plug is inserted into the
air jack.

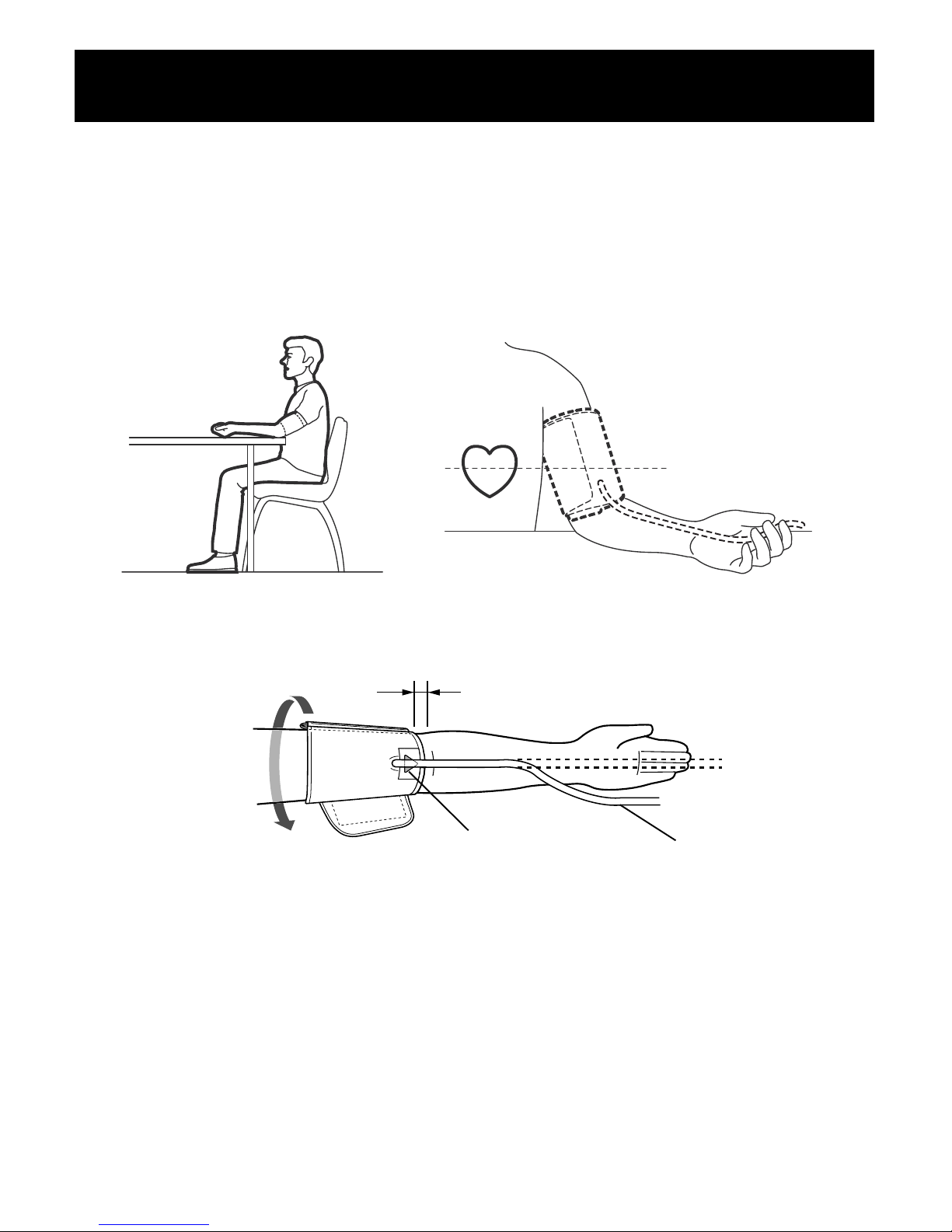

3. Sit in a chair with your feet flat on the floor and place your arm on a
table so that the cuff will be at the same level as your heart.

4. Put your arm through the cuff loop.

The bottom of the cuff should be approximately 1 - 2 cm above the
elbow.

Apply the cuff to your upper arm so that the colored marker is
centered on the middle of your inner arm and points towards your
middle finger. The air tube should run down your forearm and be in
line with the middle finger.

Correct Usage

14

How to Apply the Arm Cuff

1 - 2 cm

Air Tube

Marker

5. Pull the cuff so that the top and bottom edges
are tightened evenly around your arm.

6. When the cuff is positioned correctly, close
the fabric fastener FIRMLY.

Notes:

• Make certain the cuff fits snugly around

your arm.

• The cuff should make good contact with

your skin. You should be able to fit your
index finger between the cuff and your arm
easily, so you can pull the cuff off and on.

• Make sure that there are no kinks in the air tubing.

Taking measurements on the right arm

Please note the following points when
applying the cuff to your right arm.
Apply the cuff so that the air tube is at
the side of your elbow.

Notes:

• Be careful not to rest your arm on the air tube, otherwise it will

restrict the flow of air to the cuff.

• Apply the arm cuff so that no part of the cuff is positioned over the

elbow joint. The cuff should be 1 - 2 cm above the elbow.

Correct Usage

15

How to Apply the Arm Cuff

How to Take a Measurement

1. Press the START/STOP button and remain still, the cuff will start to
inflate automatically.

As the cuff begins to inflate, the monitor automatically determines
your ideal inflation level. Because this monitor detects the pulse
even during inflation, do not move your arm and remain still until
the entire measurement process has been completed.

Note:

Do not inflate the cuff if it is not wrapped around your arm.

2. Inflation stops automatically and measurement is started.

As the cuff slowly deflates, decreasing numbers appear on the

display and the Heartbeat Symbol ( ) flashes at every heartbeat.

In rare circumstances, a higher inflation may be necessary. In these
cases, the monitor automatically reinflates the cuff up to 40 mmHg
higher than the initial inflation and restarts the measurement.

Correct Usage

16

How to Take a Measurement

START

STOP

3. When the measurement is complete, the arm
cuff completely deflates and your blood
pressure and pulse rate are displayed.

Note:

The monitor automatically stores blood
pressure and pulse rate into its memory.

4. Press the START/STOP button to
turn the monitor off.

Note:

If you forget to turn the monitor off,
it will automatically shut itself off
after five minutes.

Important:

• Wait 2-3 minutes before taking another blood pressure

measurement. Waiting between readings allows the arteries to
return to the condition prior to taking the blood pressure
measurement.

• If you move during measurement, the movement error symbol

( ) may appear. Repeat the measurement and remain still
until the measurement is complete.

Correct Usage

17

How to Take a Measurement

START

STOP

• Your blood pressure monitor includes an irregular heartbeat
feature. Irregular heartbeats can influence the results of the
measurement. The irregular heartbeat feature automatically
determines if the measurement is usable or needs to be
repeated. If the measurement results are affected by irregular
heartbeats but the result is valid, the result is shown together
with the irregular heartbeat symbol ( ). If the irregular
heartbeats cause the measurement to be invalid, no result is
shown. If the irregular heartbeat symbol ( ) is shown after
you have taken a measurement, repeat the measurement. If the
irregular heartbeat symbol ( ) is shown frequently, please let
your doctor be aware of it.

Instructions for special conditions

If your systolic pressure is known to be more than 220 mmHg, press and
hold the START/STOP button until the monitor inflates 30 to 40 mmHg
higher than your suspected systolic pressure.

Notes:

• The monitor will not inflate above 299 mmHg.

• Do not apply more pressure than necessary.

Correct Usage

18

How to Take a Measurement

START

STOP

What is Irregular Heartbeat?

An irregular heartbeat is a
heartbeat rhythm that varies by
more than 25% from the average
heartbeat rhythm detected while
the unit is measuring the systolic
and diastolic blood pressure.
If such an irregular rhythm is
detected more than twice during
measurement, the irregular
heartbeat symbol ( ) appears on the display when the measurement
results are displayed.

What is Arrhythmia?

A heartbeat is stimulated by electrical signals that cause the heart to
contract.
Arrhythmia is a condition where the heartbeat rhythm is abnormal due
to flaws in the bio-electrical system that drives the heartbeat. Typical
symptoms are skipped heartbeats, premature contraction, an abnormally
rapid (tachycardia) or slow (bradycardia) pulse. This can be caused by
heart disease, aging, physical predisposition, stress, lack of sleep, fatigue
etc. Arrhythmia can only be diagnosed by a doctor through a special
examination.
Whether the appearance of the irregular heartbeat symbol ( ) in the
results indicates arrhythmia or not can only be determined by an
examination and diagnosis by your doctor.
If the irregular heartbeat symbol ( ) is shown frequently, please let
your doctor be aware of it. Self-diagnosis and treatment based on
measurement results is dangerous. Be sure to follow the instructions of
your doctor.

Correct Usage

19

How to Take a Measurement

Normal Heartbeat

Irregular Heartbeat

Pulse

Blood pressure

Pulse

Blood pressure

Short Long

How to Use the Memory Function

This monitor has a memory capable of storing 90 sets of readings. Every
time you complete the measurement, the monitor automatically stores
the blood pressure and pulse rate. The monitor also calculates an
average reading based on the measurements from the last three readings.

To ensure that the measurement results are recorded correctly, make sure
that the date and time are set correctly before taking a measurement.
When 90 sets of readings are stored in memory, the oldest set will be
deleted to store a new set.
The date and time of stored readings will be alternately displayed.

To View the Average Value

Press the MEMORY button.

The average values based on the three most recent measurements is
displayed.

Correct Usage

20

How to Use the Memory Function

STOP

To View Previous Measurement Values

Press the MEMORY button to view the values from previous
measurements. The date and time of each measurement is displayed
along with the measurement values.

Press the MEMORY button repeatedly to cycle through the previous
measurement values
Keep the button pressed down to cycle rapidly through the previous values.

To Delete All the Values Stored in Memory

Caution:
You cannot delete the stored readings partially, all the reading in
the monitor will be deleted.

To delete stored readings, press the MEMORY button and the
START/STOP button simultaneously, all the readings will be deleted.

Correct Usage

21

How to Use the Memory Function

Alternating display

STOP

START

STOP

22

Troubleshooting

Error Symbol Cause Correction

Cuff is under inflated.

Carefully read and repeat
the steps listed under “How
to Take a Measurement” on
p. 16.

Movement during
measurement.

Cuff over inflated.

This icon indicates
irregular or weak
pulses are detected, but
the result can be
considered reliable.

Remove the arm cuff. Wait
2-3 minutes and then take
another measurement.
Repeat the steps listed
under “How to Take a
Measurement” on p. 16.
If this error continues to
appear, consult your doctor.

Batteries have run
down.

Replace all four “AA”
batteries with new ones.

23

Troubleshooting

Problem Cause Remedy

The batteries are flat.

No display appears
when the
START/STOP button
is pressed.

Replace the batteries.

Cannot measure or
readings are too high.

Is the cuff wrapped
firmly around the
arm?

Attach the arm cuff
correctly.

The blood pressure is
different each time.
The reading is
extremely low (or
high).

Blood pressure readings constantly vary with
time of measurement and nervous condition.
Take deep breaths to relax before taking a
measurement.

Keep the monitor in its storage case
when not in use.

To protect your monitor from damage, please observe the following:

• Do not subject your monitor and cuff to extreme temperatures,
humidity, moisture or direct sunlight.

• Do not fold the cuff or tubing tightly.

• Do not inflate the monitor over 299 mmHg.

• Do not disassemble the monitor.

• Do not subject the monitor to strong shocks or vibrations (for example,
dropping the monitor on the floor).

• Do not use volatile liquids to clean the monitor. THE MONITOR
SHOULD BE CLEANED WITH A SOFT, DRY CLOTH.

• Do not wash the arm cuff or immerse it in water.

Care and Maintenance

24

Model: IA2
Display: LCD Digital Display
Measurement Range: Pressure: 0 to 299 mmHg, Pulse: 40-180 beats/min.
Memory: 90 measurements with date and time
Accuracy/Calibration: Pressure: ±3mmHg or 2% of reading

Pulse: ±5% of reading
Inflation: Automatic by electric pump
Deflation: Automatic pressure release valve
Rapid Air Release: Automatic exhaust valve
Pressure Detection: Capacitive pressure sensor
Measurement Method: Oscillometric method
Pulse Wave Detection: Capacitance type pressure sensor
Power Source: 4 “AA” batteries
Battery Life: Approx. 300 uses when used once a day for 2 minutes
Operating Temperature

/Humidity: 10ºC to 40ºC / 30 to 85% RH
Storage Temperature

/Humidity: -20ºC to 60ºC / 10 to 95% RH
Main Unit Weight: Approximately 355 g not including Arm Cuff and

Batteries
Main Unit Dimensions: Approx. 155 mm (l) x 84 mm (w) x 131 mm (h)
Cuff Size: Approximately 140 mm (w) x 480 mm (l)

Cuff tube 600 mm (l)
Cuff Circumference: Fits arm circumferences 220mm to 320mm
Contents: Main Unit, Arm Cuff, Four “AA” Batteries, Instruction

Manual, and Storage Case

NOTE: These specifications are subject to change without notice.

Specifications

25
