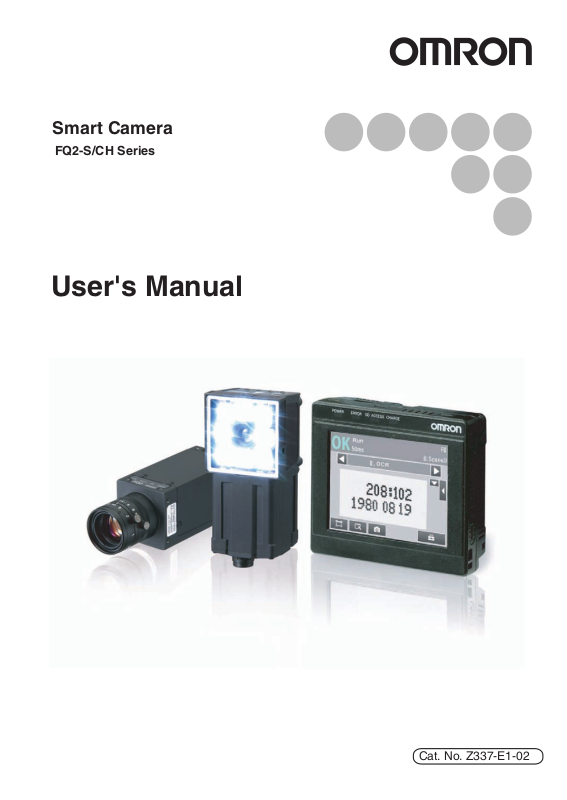

Omron FQ2-S, FQ2-CH, FQ2-S/CH User Manual

Smart Camera

FQ2-S/CH Series

User's Manual

Cat. No. Z337-E1-02

Introduction

Thank you for purchasing the FQ2-S/CH.
This manual provides information regarding functions, performance and operating methods that
are required for using the FQ2-S/CH.
When using the FQ2-S/CH, be sure to observe the following:

• The FQ2-S/CH must be operated by personnel knowledgeable in electrical engineering.

• To ensure correct use, please read this manual thoroughly to deepen your understanding of the
product.

• Please keep this manual in a safe place so that it can be referred to whenever necessary.

Terms and Conditions Agreement
(Please Read)

User's Manual

Introduction

Installation and Connections

Taking Images

Setting Up Inspections

Testing and Saving Settings

Operation

Convenient Functions

1

2

3

4

5

6

7

Smart Camera
FQ2-S/CH

Troubleshooting

Appendices

8

9

Terms and Conditions Agreement

Read and understand this Manual

Please read and understand this catalog before purchasing the products. Please consult your OMRON
representative if you have any questions or comments.

Warranty, Limitations of Liability

● Warranties

Exclusive Warranty

Omron's exclusive warranty is that the Products will be free from defects in materials and workmanship for a
period of twelve months from the date of sale by Omron (or such other period expressed in writing by Omron).
Omron disclaims all other warranties, express or implied.

Limitations

OMRON MAKES NO WARRANTY OR REPRESENTATION, EXPRESS OR IMPLIED, ABOUT NON­INFRINGEMENT, MERCHANTABILITY OR FITNESS FOR A PARTICULAR PURPOSE OF THE PRODUCTS.
BUYER ACKNOWLEDGES THAT IT ALONE HAS DETERMINED THAT THE PRODUCTS WILL SUITABLY
MEET THE REQUIREMENTS OF THEIR INTENDED USE.

Omron further disclaims all warranties and responsibility of any type for claims or expenses based on
infringement by the Products or otherwise of any intellectual property right.

Buyer Remedy

Omron’s sole obligation hereunder shall be, at Omron’s election, to (i) replace (in the form originally shipped
with Buyer responsible for labor charges for removal or replacement thereof) the non-complying Product, (ii)
repair the non-complying Product, or (iii) repay or credit Buyer an amount equal to the purchase price of the
non-complying Product; provided that in no event shall Omron be responsible for warranty, repair, indemnity or
any other claims or expenses regarding the Products unless Omron’s analysis confirms that the Products were
properly handled, stored, installed and maintained and not subject to contamination, abuse, misuse or
inappropriate modification. Return of any Products by Buyer must be approved in writing by Omron before
shipment. Omron Companies shall not be liable for the suitability or unsuitability or the results from the use of
Products in combination with any electrical or electronic components, circuits, system assemblies or any other
materials or substances or environments. Any advice, recommendations or information given orally or in
writing, are not to be construed as an amendment or addition to the above warranty.

See http://www.omron.com/global/ or contact your Omron representative for published information.

2

FQ2-S/CH User’s Manual

● Limitation on Liability; Etc

OMRON COMPANIES SHALL NOT BE LIABLE FOR SPECIAL, INDIRECT, INCIDENTAL, OR
CONSEQUENTIAL DAMAGES, LOSS OF PROFITS OR PRODUCTION OR COMMERCIAL LOSS IN ANY
WAY CONNECTED WITH THE PRODUCTS, WHETHER SUCH CLAIM IS BASED IN CONTRACT,
WARRANTY, NEGLIGENCE OR STRICT LIABILITY.

Further, in no event shall liability of Omron Companies exceed the individual price of the Product on which
liability is asserted.

Application Considerations Warranties

Suitability of Use

Omron Companies shall not be responsible for conformity with any standards, codes or regulations which
apply to the combination of the Product in the Buyer’s application or use of the Product. At Buyer’s request,
Omron will provide applicable third party certification documents identifying ratings and limitations of use which
apply to the Product. This information by itself is not sufficient for a complete determination of the suitability of
the Product in combination with the end product, machine, system, or other application or use. Buyer shall be
solely responsible for determining appropriateness of the particular Product with respect to Buyer’s application,
product or system. Buyer shall take application responsibility in all cases.

NEVER USE THE PRODUCT FOR AN APPLICATION INVOLVING SERIOUS RISK TO LIFE OR PROPERTY
WITHOUT ENSURING THAT THE SYSTEM AS A WHOLE HAS BEEN DESIGNED TO ADDRESS THE
RISKS, AND THAT THE OMRON PRODUCT(S) IS PROPERLY RATED AND INSTALLED FOR THE
INTENDED USE WITHIN THE OVERALL EQUIPMENT OR SYSTEM.

Programmable Products

Omron Companies shall not be responsible for the user’s programming of a programmable Product, or any
consequence thereof.

Disclaimers

Performance Data

Data presented in Omron Company websites, catalogs and other materials is provided as a guide for the user
in determining suitability and does not constitute a warranty. It may represent the result of Omron’s test
conditions, and the user must correlate it to actual application requirements. Actual performance is subject to
the Omron’s Warranty and Limitations of Liability.

Change in Specifications

Product specifications and accessories may be changed at any time based on improvements and other
reasons. It is our practice to change part numbers when published ratings or features are changed, or when
significant construction changes are made. However, some specifications of the Product may be changed
without any notice. When in doubt, special part numbers may be assigned to fix or establish key specifications
for your application. Please consult with your Omron’s representative at any time to confirm actual
specifications of purchased Product.

Errors and Omissions

Information presented by Omron Companies has been checked and is believed to be accurate; however, no
responsibility is assumed for clerical, typographical or proofreading errors or omissions.

FQ2-S/CH User’s Manual

3

Meanings of Signal Words

The following signal words are used in this manual.

Indicates a potentially hazardous situation which, if not avoided, will result in minor or
moderate injury, or may result in serious injury or death. Additionally there may be
significant property damage.

Meanings of Alert Symbols

The following alert symbols are used in this manual

Indicates general prohibitions for which there is no specific symbol.

Indicates the possibility of laser radiation.

Indicates the possibility of explosion under specific conditions.

Indicates prohibition when there is a risk of minor injury from electrical shock or other

source if the product is disassembled.

This product is not designed or rated for ensuring safety of persons.

Do not use it for such purposes.

The Sensor emits visible light, which may adversely affect the eyes in rare instances.

Do not look directly into the light emitted from the Sensor. When the subject is a specular

reflective object, protect your eyes from reflected light.

A lithium ion battery is built into the Touch Finder and may occasionally combust, explode, or

burn if not treated properly.

Dispose of the Touch Finder as industrial waste, and never disassemble, apply pressure that

would deform, heat to 100 °C or higher, or incinerate the Touch Finder.

High-voltage parts inside; danger of electrical shock. Do not open the product cover.

4

FQ2-S/CH User’s Manual

Precautions for Safe Use

The following points are important to ensure safety, so make sure that they are strictly observed.

1. Installation Environment

• Do not use the product in environments where it can be exposed to inflammable/explosive gas.

• To secure the safety of operation and maintenance, do not install the product close to high-voltage devices

and power devices.

• Install the product in such a way that its ventilation holes are not blocked.

• Tighten mounting screws at the torque specified in this manual.

2. Power Supply and Wiring

• The power supply voltage must be within the rated range (24 VDC ±10%), and an AC voltage must not be

used.

• Reverse connection of the power supply is not allowed. Do not short the load of the open collector output.

• The load must be within the rated range.

• High-voltage lines and power lines must be wired separately from this product. Wiring them together or

placing them in the same duct may cause induction, resulting in malfunction or damage.

• Use the products within the power supply voltages specified in this manual.

• Use the specified size of crimp terminals to wire connections. Do not connect wires that have been simply

twisted together directly to the power supply or terminal block.

• Use a DC power supply with safety measures against high voltages (safety extra low-voltage circuit).

• Use independent power sources for the products. Do not use a shared power source.

• Tighten mounting screws at the torque specified in this manual.

• Always turn OFF the power supply before connecting or disconnecting cables or the power supply wiring.

3. Battery

• Do not short the positive and negative terminals of the Battery.

• Do not use the Touch Finder in an environment that exceeds the operating temperature range of the Battery.

If the Touch Finder is used at temperatures that exceed the operating temperature range, the protective

device may activate and prevent charging.

• Do not connect the Battery directly to a power supply or car cigarette lighter socket.

• Do not use the Touch Finder with any other type of battery.

• Turn OFF the power supply immediately if the Battery leaks or produces an odor. Electrolyte leaked from the

Battery may ignite, possibly causing smoke, rupture, or fire.

• If during usage, charging, or storage, the Battery produces an odor, heats, becomes discolored, becomes

misshapen, or exhibits any other unusual conditions, remove it and do not use it. Continuing to use such a

Battery may result in the Battery heating, smoking, rupturing, or igniting.

• If the Touch Finder (FQ2-D31) will be installed permanently or semi-permanently, remove power supplies

other than the Battery (FQ-BAT1). If the rated temperature is exceeded with the Battery inserted, the

protective circuit may activate and stop the Touch Finder.

4. AC Adapter

• Use an AC cable that is suitable for the power supply and power voltage you are using.

• Do not touch the power plug with a wet hand. Doing so may result in electrical shock.

• If you notice an abnormal condition, such as smoke, abnormal heating of the outer surface, or a strange

odor, immediately stop using the AC Adapter, turn OFF the power, and remove the power plug from the

outlet.

Consult your dealer, as it is dangerous to attempt to repair the AC Adapter yourself.

• If the AC Adapter is dropped or damaged, turn OFF the power, remove the power plug from the outlet, and

contact your dealer. There is a risk of fire if you continue using the AC Adapter.

FQ2-S/CH User’s Manual

5

5. Handling

• Connector Cover

Always attach the connector cover when you disconnect the cable. If you do not attach the connector cover,

foreign matter may enter the connection, causing malfunctions or damage.

• Lens Cap

Always attach a C-mount lens cap to the lens mount when you remove the lens. If dust or dirt adhere to the

imaging elements, false detection or failure may occur.

• Sensor Waterproof Sheets

Do not remove or damage the waterproof sheets on the sides of the Sensor. Doing so may allow dust, dirt,

or water drops to enter the Sensor and damage it.

6. Other

• Do not use this product in safety circuits associated with nuclear power and human life.

• Do not disassemble, repair, modify, deform by pressure, or incinerate this product.

• Dispose of this product as industrial waste.

• If you notice an abnormal condition, such as a strange odor, extreme heating of any product, or smoke,

immediately stop using the product, turn OFF the power, and consult your dealer.

• The Sensor surfaces become hot during use. Do not touch them.

• Do not drop or subject the products to shock.

• Use the special Sensor (FQ2-S/CH), Touch Finder (FQ2-D), Sensor Data Unit (FQ-SDU), Cables (FQ-WN,

FQ-WD, FQ-WU, and FQ-VP), Battery (FQ-BAT1), and AC Adapter (FQ-AC). Using other than the specified

products may cause fire, burning, malfunction or failure.

• If the product has a lock mechanism, always make sure it is locked before using the product.

7. Laws and Regulations, Standards

• This product complies with the following EC Directives and EN Standards:

EC Directive No. IEC61010-1

EN Standards EN61326-1: 2006

6

FQ2-S/CH User’s Manual

Precautions for Correct Use

25 mm25 mm

25 mm25 mm25 mm

25 mm 25 mm

Water-proof Sheet

Waterproof sheet

Observe the following precautions to prevent failure to operate, malfunctions, or undesirable effects on product
performance.

1. Installation Site

Do not install this product in locations subjected to the following conditions:

• Ambient temperature outside the rating

• Rapid temperature fluctuations (causing condensation)

• Relative humidity outside the range of 35 to 85%

• Direct vibration or shock

• Strong ambient light (such as other laser beams, light from arc-welding machines, or ultraviolet light)

• Direct sunlight or near heaters

• Strong magnetic or electric field
Also, do not install this product in locations subjected to the following conditions to ensure its protective
performance as described in the specifications:

• Presence of corrosive or flammable gases

• Presence of dust, salt, or iron particles

• Water, oil, or chemical fumes or spray, or mist atmospheres
Installing and Using a Sensor with Built-in Lighting

• The front-panel plate may occasionally become fogged from the inside if the Sensor is used in location with

high humidity and the temperature changes drastically.

• Do not install any objects except for the special mounting brackets within the dotted lines in the following

figure. The front-panel plate may become fogged from the inside.

2. Power Supply, Connection, and Wiring

• When using a commercially available switching regulator, make sure that the FG terminal is grounded.

• If surge currents are present in the power lines, connect surge absorbers that suit the operating

environment.

• Before turning ON the power after the product is connected, make sure that the power supply voltage is

correct, there are no incorrect connections (e.g. load short-circuit) and the load current is appropriate.
Incorrect wiring may result in breakdown of the product.

• For cables, use only the special products specified in this manual.

• Do not subject the Cables to twisting stress. Doing so may damage the Cables.

• Always turn OFF the power supply before connecting or disconnecting Cables. The Sensor may fail if a

Cable is connected or disconnected while power is being supplied.

p.415, p.416, p.417

• Use only combinations of the Sensor and Touch Finder specified in this manual. Using other combinations

may cause malfunction or damage.

• Do not turn the power OFF in the following instances. Doing so will damage data that is in the process of

being saved.

FQ2-S/CH User’s Manual

7

- While data is being saved in internal memory

- While data is being saved on the SD card

• The LCD panel has been made using precision technology, and sometimes a few pixels are missing in the

panel. This is due to the structure of the LCD panel, and is not a malfunction.

• Influence of Temperature Changes on Optical Axis

Due to the characteristics of the materials that are used in the Sensor, changes in the ambient temperature

may cause the center of the optical axis to change by several pixels.

• Imaging Elements

Due to the specifications of the CMOS image sensors that are used in the Vision Sensor, lines may appear

in images for some measurement conditions or gain settings. These do not indicate defects or faults in the

Vision Sensor. Also, there may be some pixel defects, but these do not indicate defects or faults in the

Vision Sensor.

3. Battery

• Do not use or charge the Battery with other than the specified products.

• Do not charge the Battery with other than the specified AC adapter.

• When using the Touch Finder, the battery cover screw must be tightened.

4. AC Adapter

• During maintenance and when not using the Touch Finder for an extended time, remove the power plug

from the outlet.

• Do not bend the power cable past its natural bending radius.

• Do not use the AC Adapter with other than the specified products.

• If a voltage higher than 380 V is applied, there is a risk that the capacitor will be damaged, the pressure

valve will open, and vaporized gas will be emitted. If there is a possibility that a voltage higher than 380 V

will be applied, use a protective device.

5. Maintenance and Inspection

Do not use thinner, alcohol, benzene, acetone or kerosene to clean the Sensor and Touch Finder. If large dust
particles adhere to the Camera, use a blower brush (used to clean camera lenses) to blow them off. Do not use
breath from your mouth to blow the dust off. To remove dust particles from the Camera, wipe gently with a soft
cloth (for cleaning lenses). Do not use excessive force to wipe off dust particles. Scratches to the Camera
might cause error.

Product manuals

The information required to use the FQ2-S/CH Series is divided into two manuals by objective: “FQ2-S/CH
Series User’s Manual” and “FQ2-S/CH Series User's Manual for Communications Settings”. Read each
manual as appropriate for your objective.

Manual Description Contents

(This manual) FQ2-S/CH Series
User's Manual (Cat. No. Z337)

FQ2-S/CH Series User's Manual for
Communications Settings (Cat. No.
Z338)

Describes the product specifications,
basic settings, and other information
required to use the FQ2-S/CH Series.

Provides information required to oper­ate the sensor by remote control.

Product specifications
Connections, wiring
Camera, image adjustment
Inspection item settings
Test measurement, operation
Troubleshooting

System configuration
Sensor control method
Data input/output specifications
Connectable network types
Communication settings
Output data settings

8

FQ2-S/CH User’s Manual

Editor's Note

Important

Note

■ Meaning of Symbols

Menu items that are displayed on the Touch Finder LCD screen, and windows, dialog boxes and other GUI
elements displayed on the PC are indicated enclosed by brackets "[ ]".

■ Visual Aids

Indicates points that are important to achieve the full product performance,
such as operational precautions.

Indicates application procedures.

Indicates pages where related information can be found.

2-2 Par

FQ2-S1 FQ2-S2 FQ2-S3

FQ2-CH1

Shows the models that support the function being described.

FQ2-S1

FQ2-S2

FQ2-S3

FQ2-S4

FQ2-CH

Shows that the FQ2-S1 supports the function.
Shows that the FQ2-S2 supports the function.
Shows that the FQ2-S3 supports the function.
Shows that the FQ2-S4 supports the function.
Shows that the FQ2-CH supports the function.

FQ2-S/CH User’s Manual

9

MEMO

10

FQ2-S/CH User’s Manual

Table of Contents

Terms and Conditions Agreement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

Editor's Note . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 9

1. Introduction

1-1 FQ2-S/CH-series Vision Sensors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

1-2 Measurement Process . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

1-3 Basic Operational Flow. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

1-4 Startup Display and Display Elements . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Startup Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 28

Display Elements . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 29

2. Installation and Connections

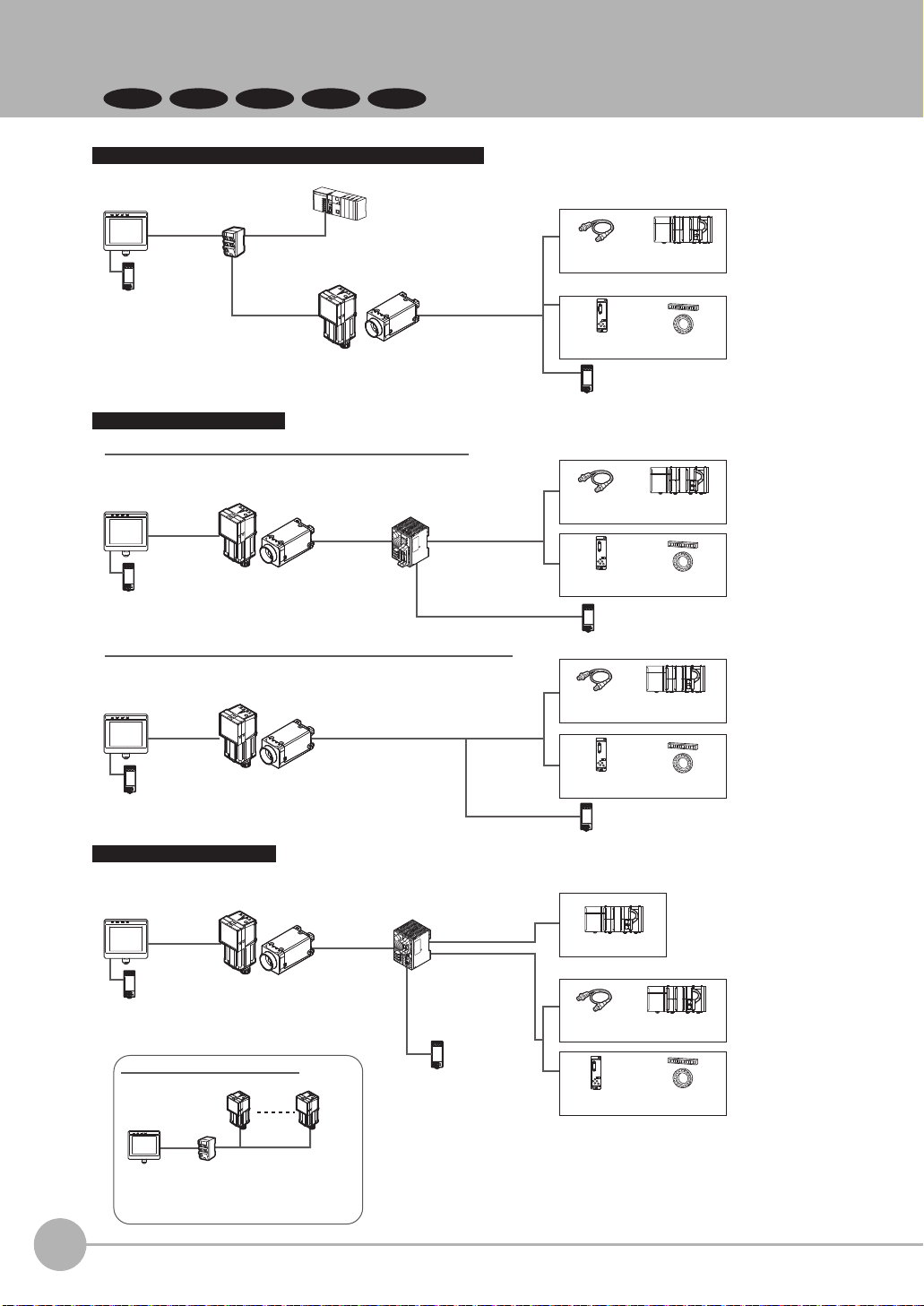

2-1 System Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

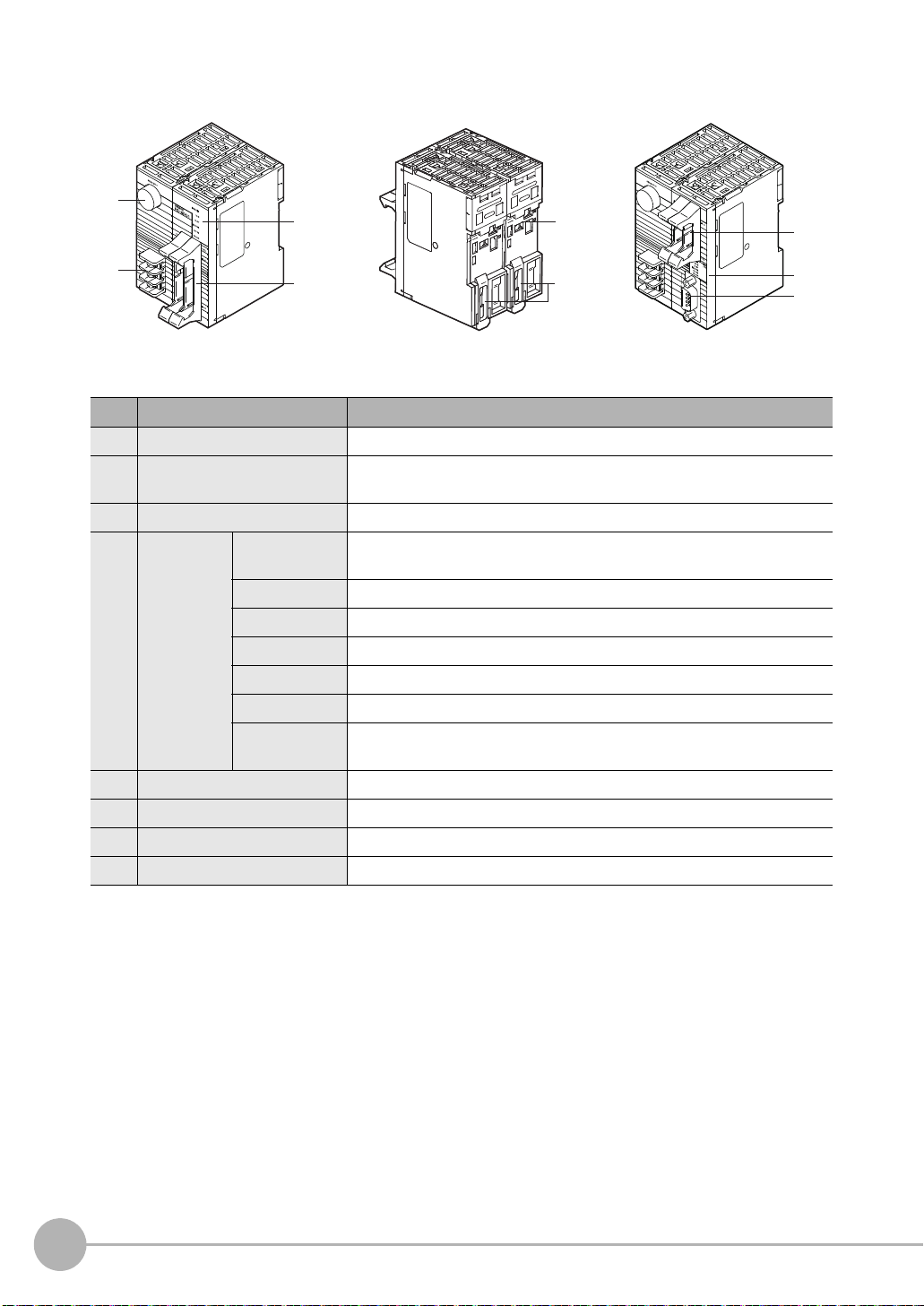

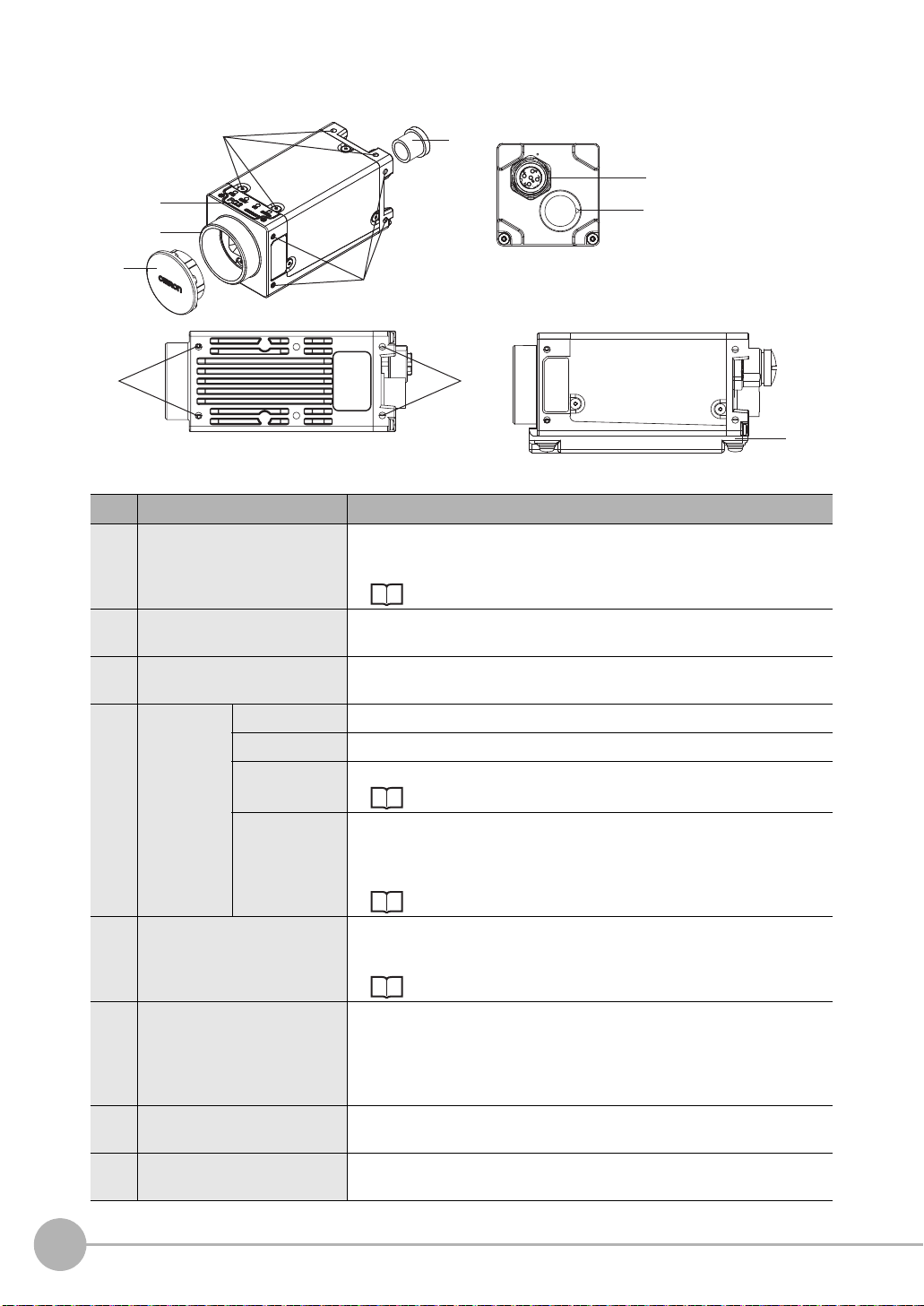

2-2 Part Names and Functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

2-3 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

FQ2-S@@@@@@/FQ2-CH1@@@@@-M (Sensors with Built-in Lighting) . . . . . 39

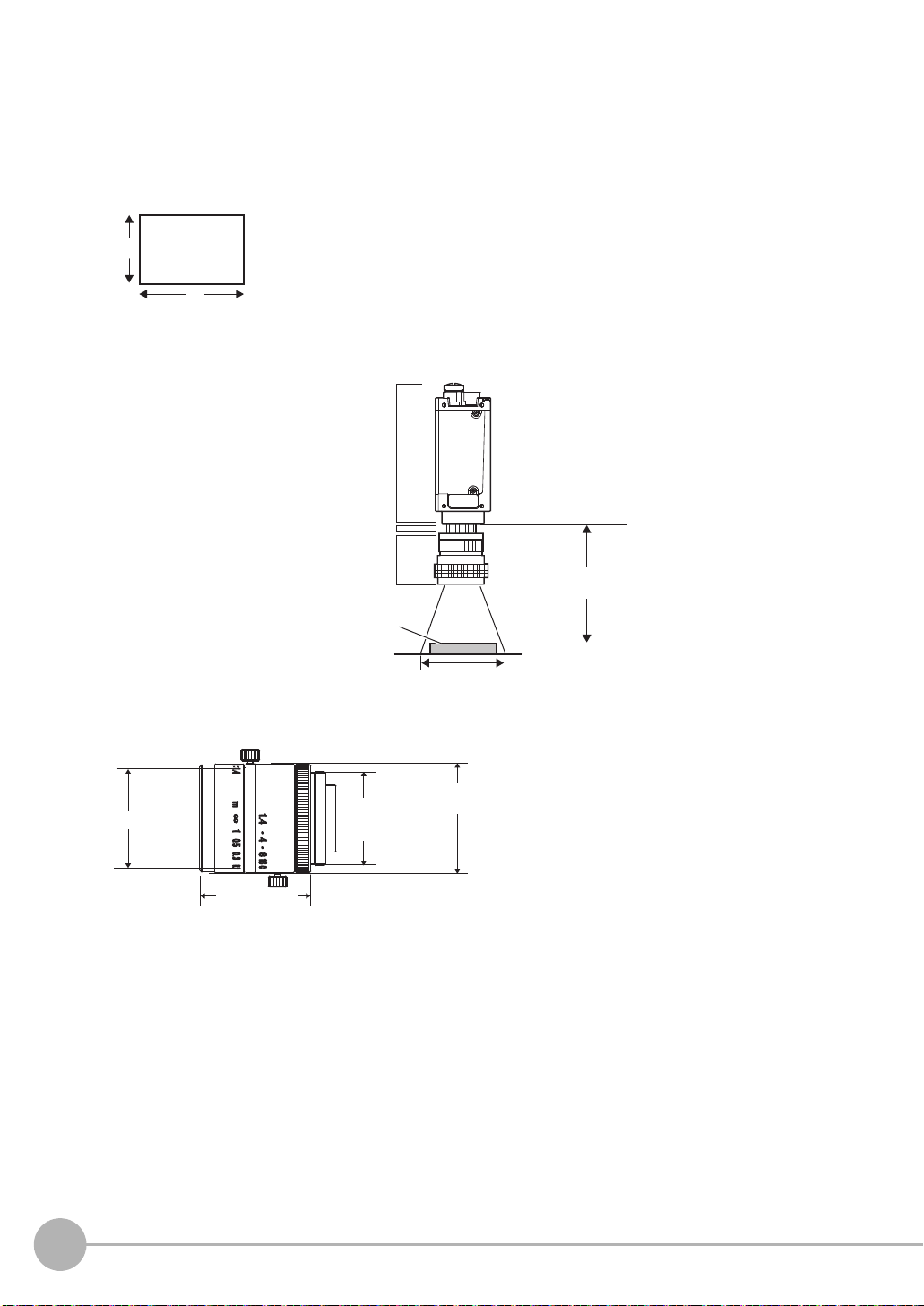

FQ2-S@@-@@@ (Sensors with C-mounts) . . . . . . . . . . . . . . . . . . . . . . . . . . . . 40

Installation Precautions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 44

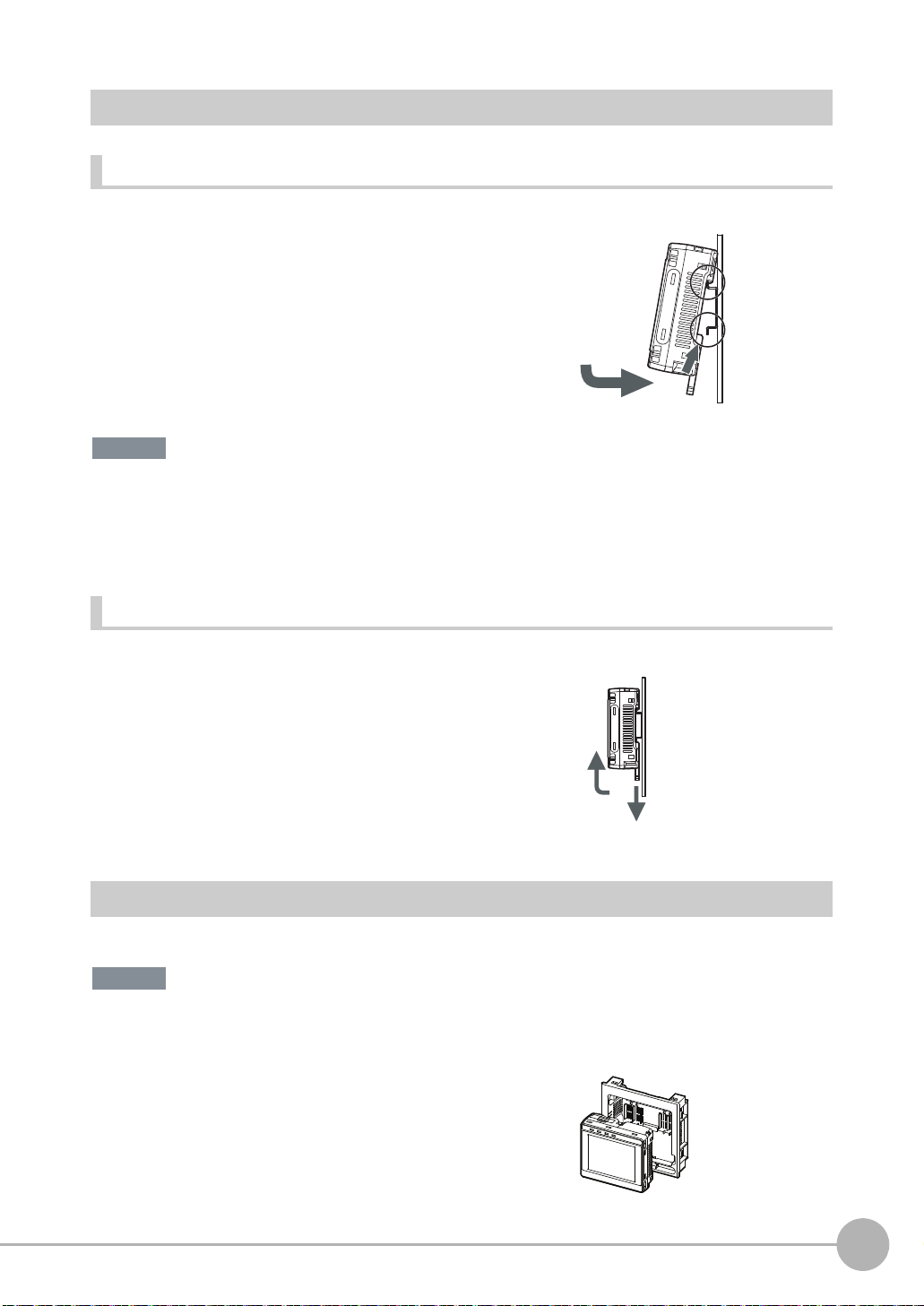

Mounting to DIN Track . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 45

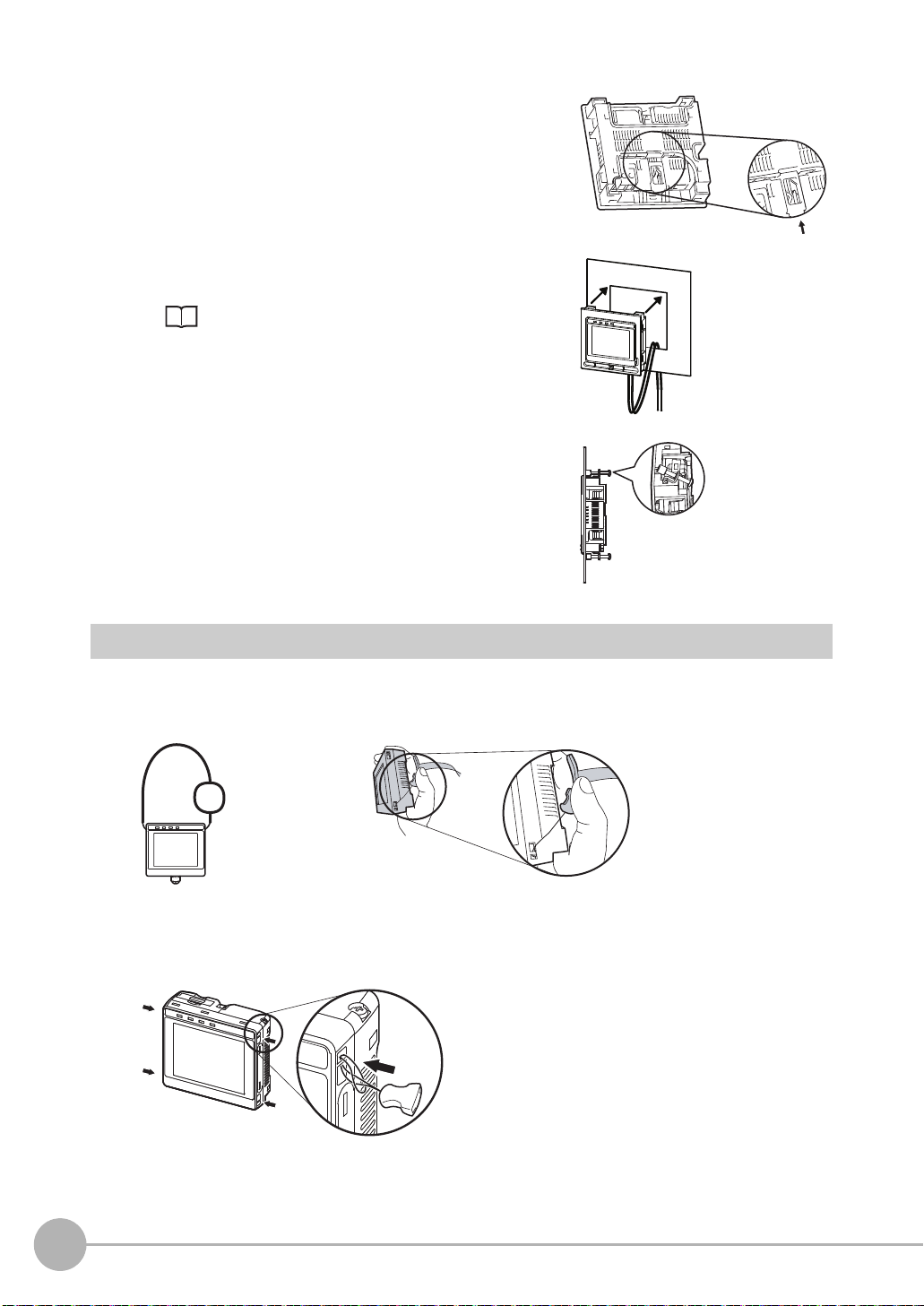

Mounting to a Control Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45

Using the Touch Finder as a Portable Device (with Battery) . . . . . . . . . . . . . . . 46

Mounting to DIN Track . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 47

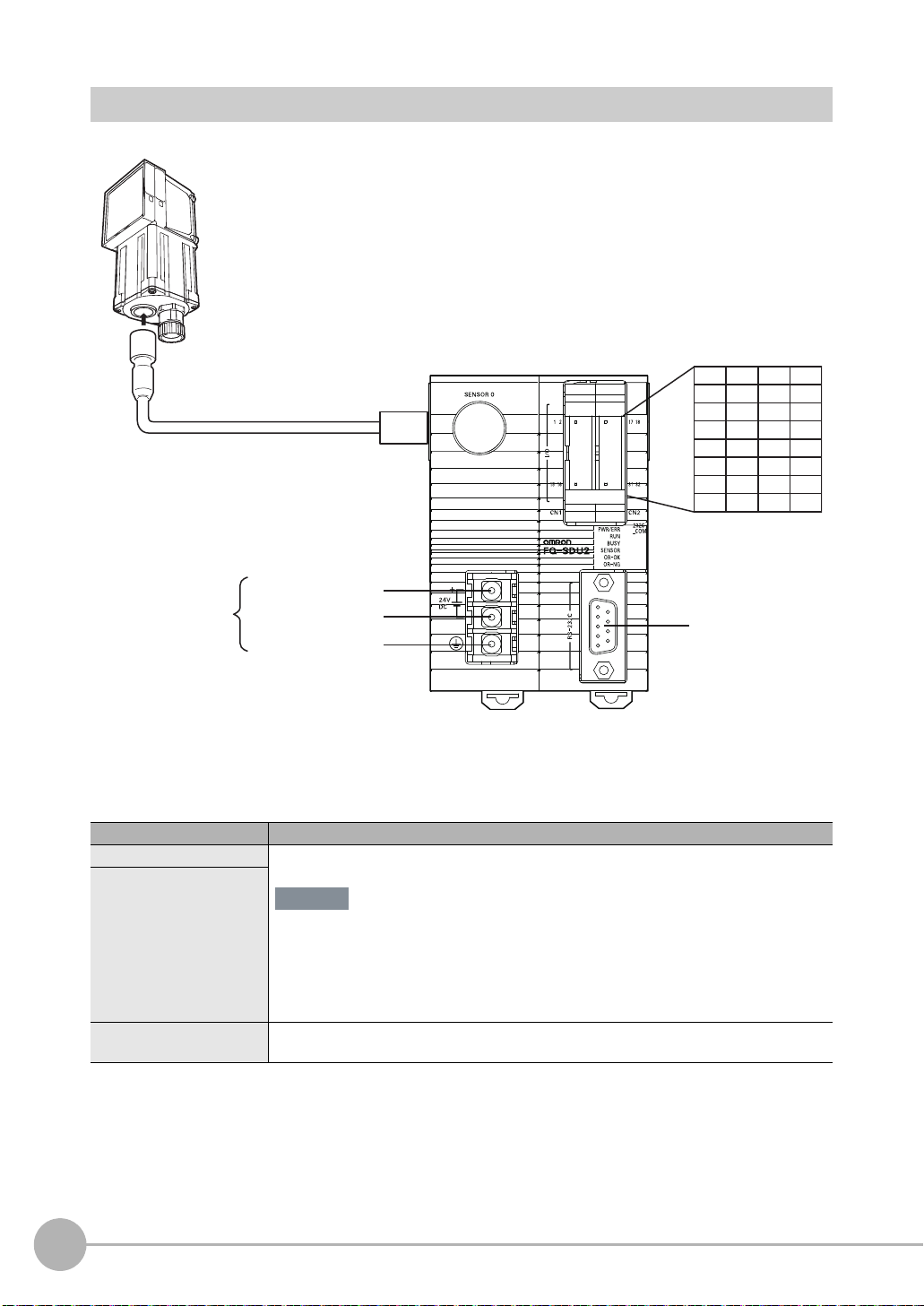

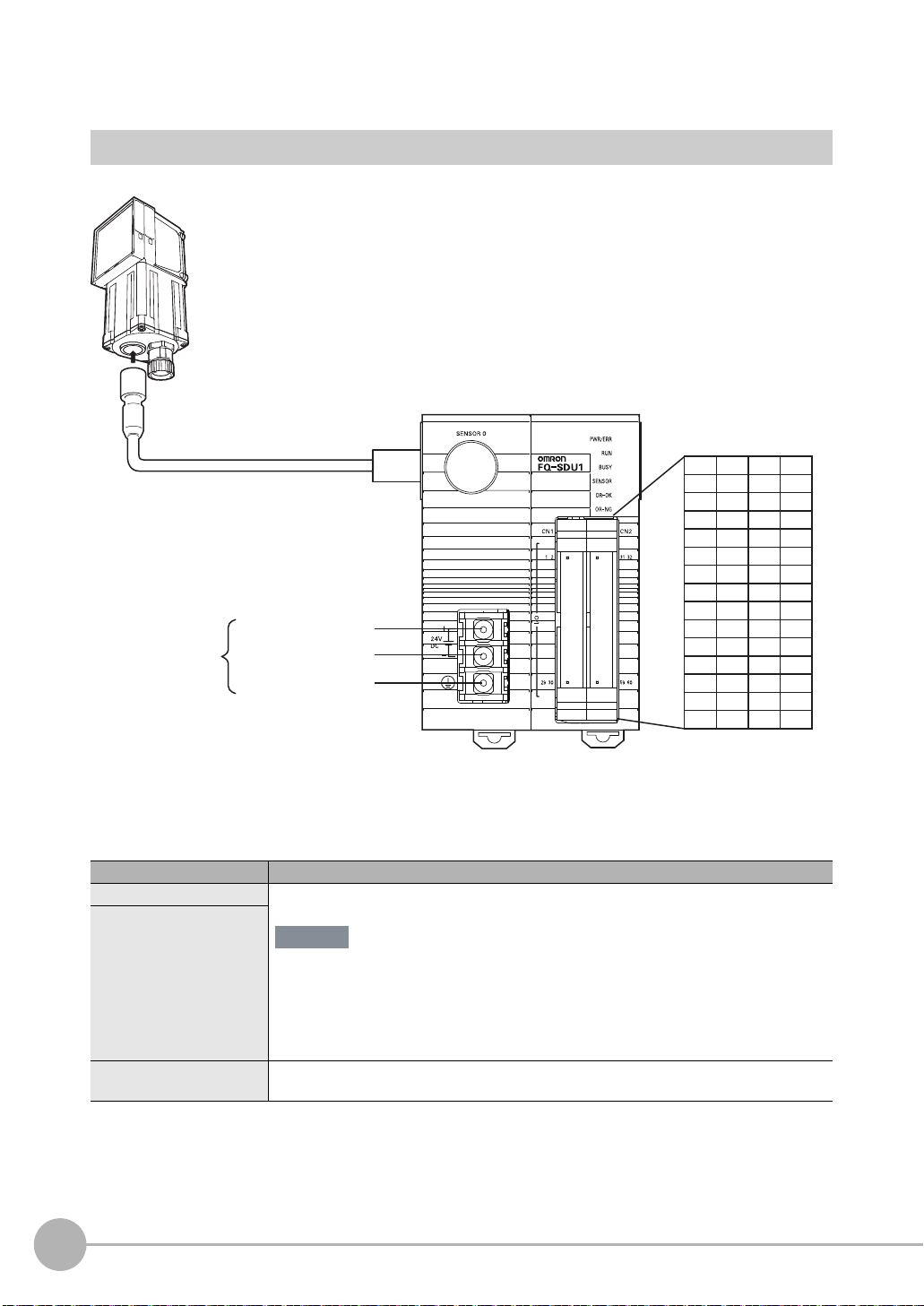

2-4 Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

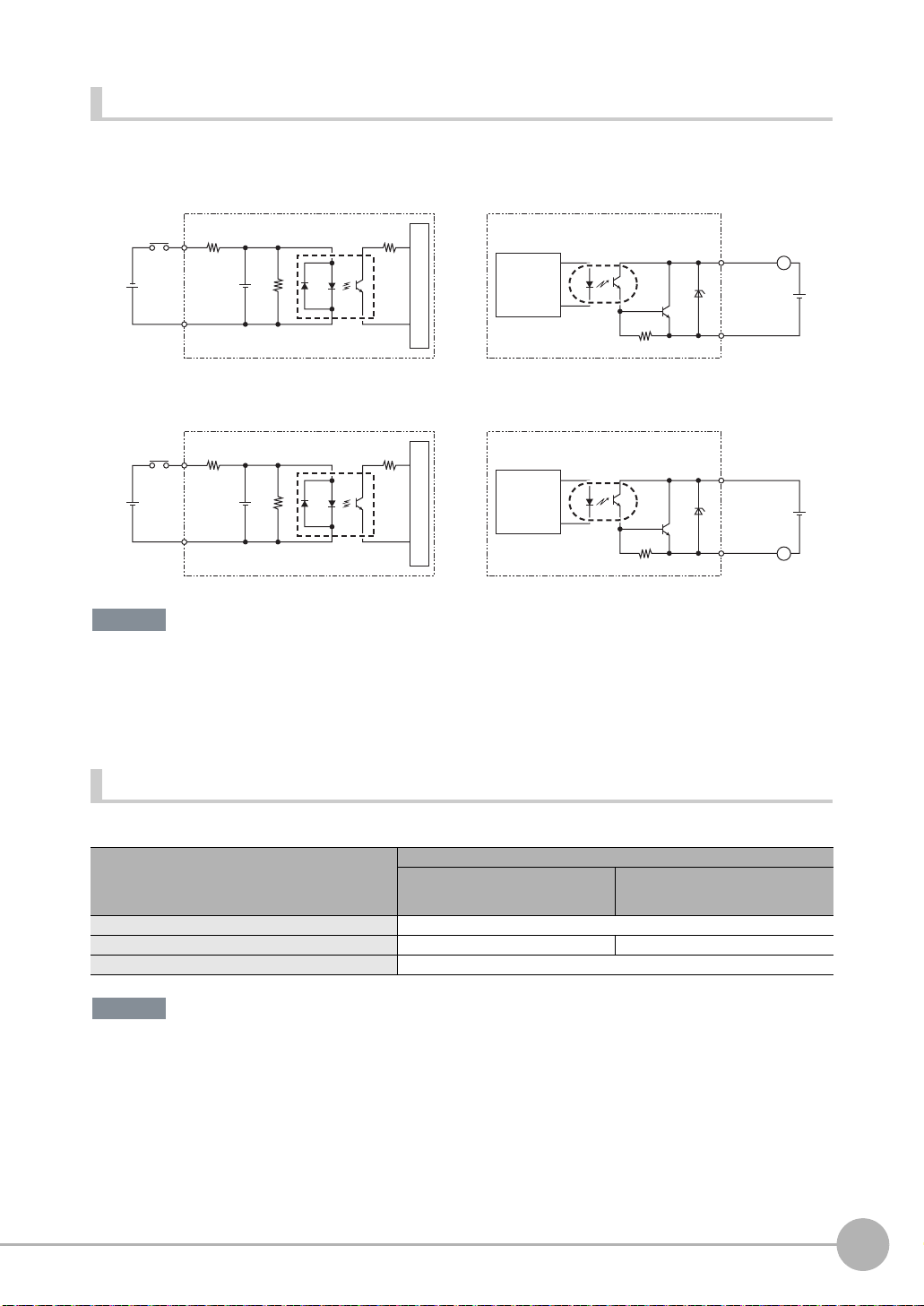

I/O Signal Circuit Diagrams . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 49

Power Supply Specifications When a Switching Regulator Is Connected . . . .49

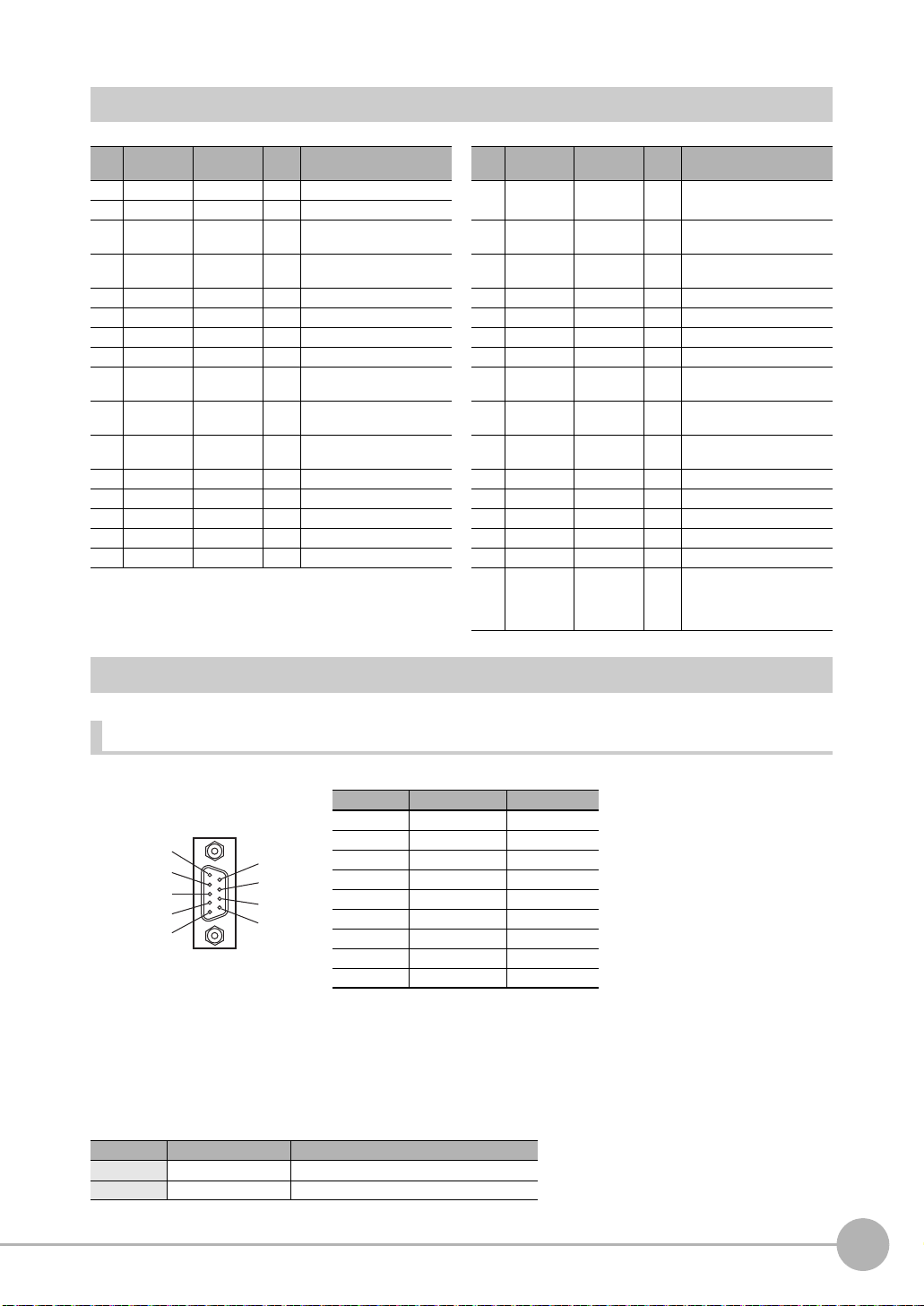

FQ-SDU20/SDU25 RS-232C Pin Signal Names . . . . . . . . . . . . . . . . . . . . . . . .53

2-5 Setting Up Ethernet. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

Connecting to Sensors from the Touch Finder . . . . . . . . . . . . . . . . . . . . . . . . . 59

Connecting to Sensors from External Devices Such as PLCs . . . . . . . . . . . . . 60

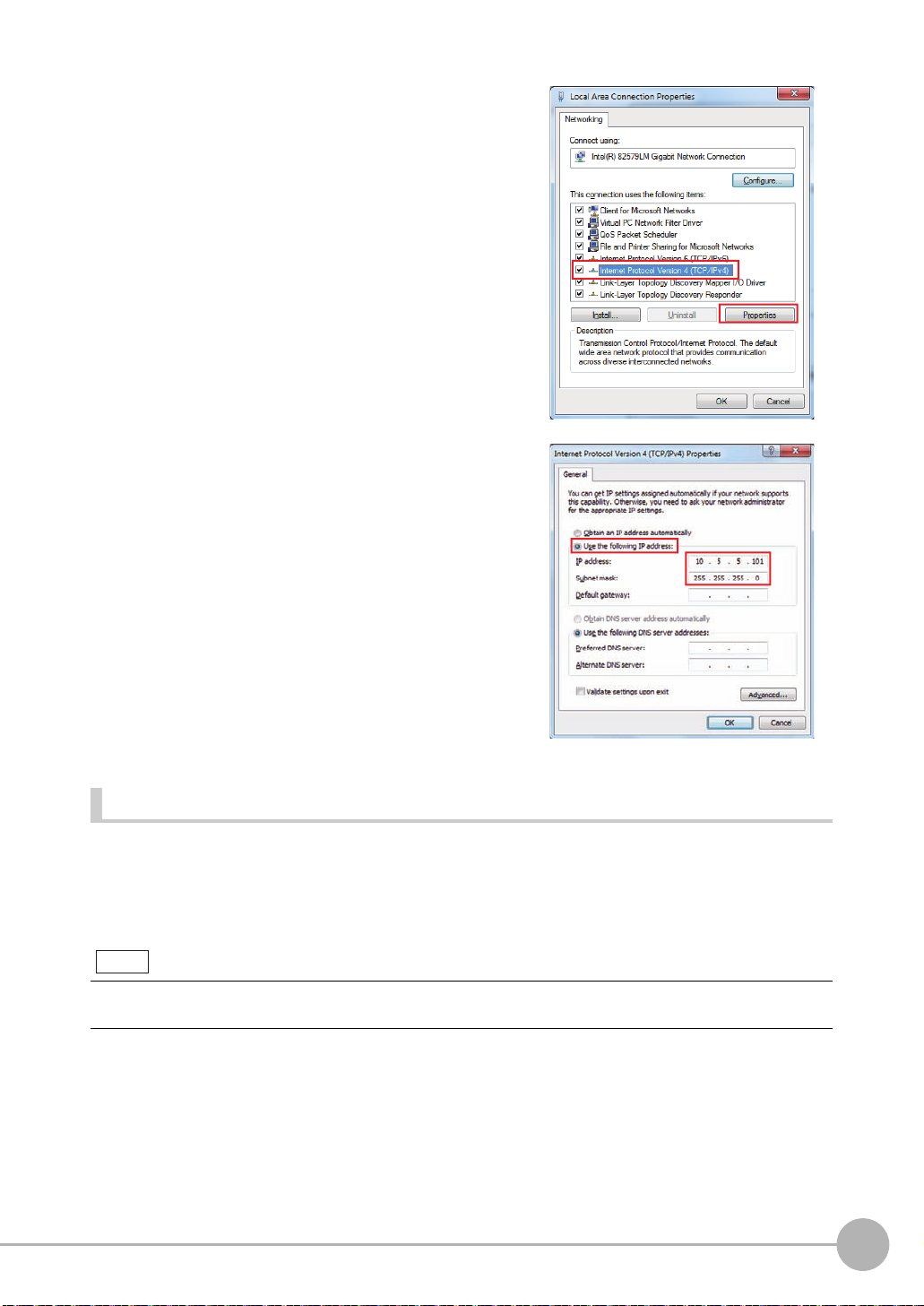

Connecting to Sensors from a Computer Using the PC Tool . . . . . . . . . . . . . . 60

Table of Contents

3. Taking Images

3-1 Selecting a Sensor for Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . 64

3-2 Setting Conditions for Taking Images. . . . . . . . . . . . . . . . . . . . . . . . . . . . 65

FQ2-S/CH User’s Manual

11

3-3 Adjusting Image Quality . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

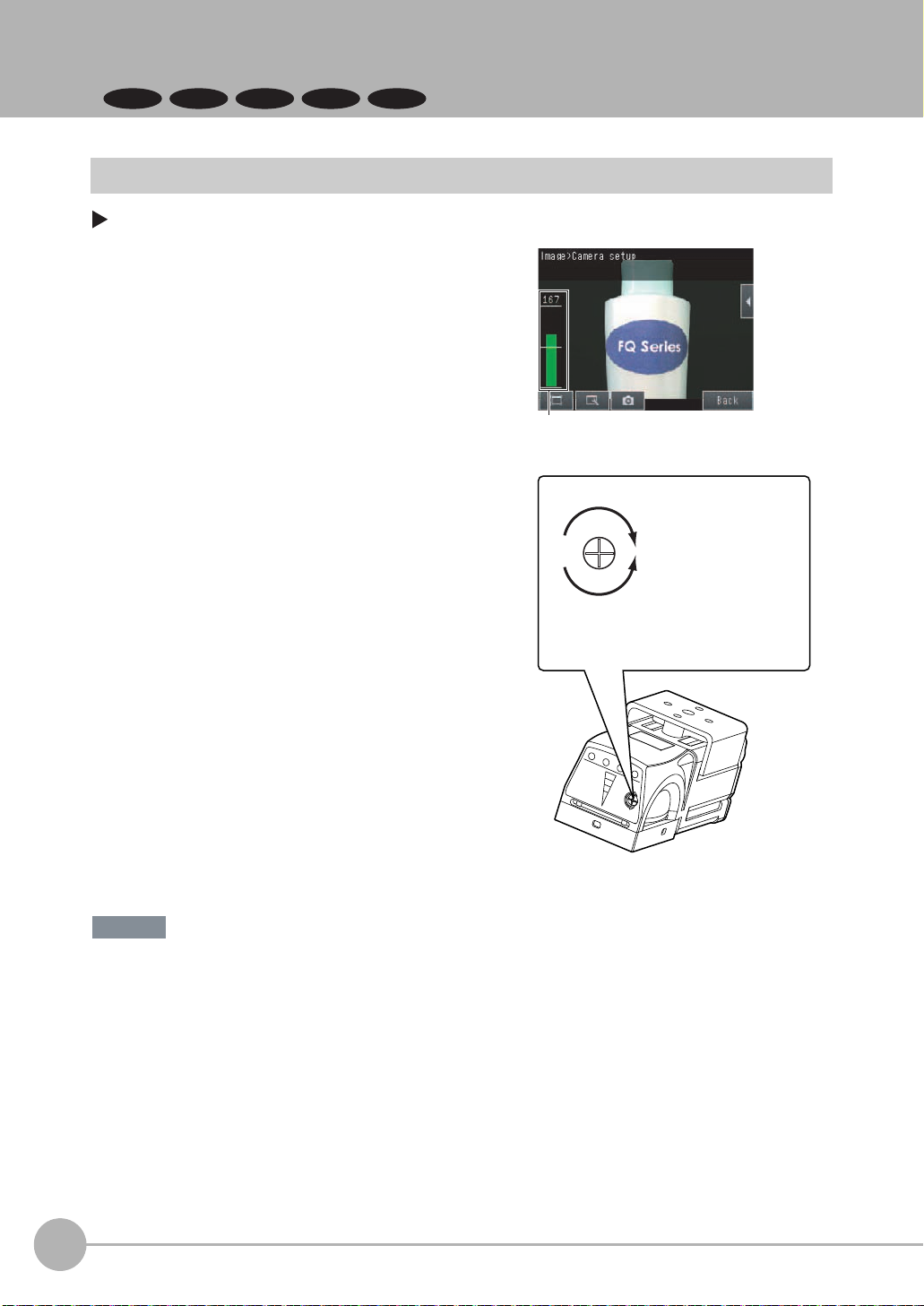

Adjusting the Focus . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

Adjusting Image Brightness with External Lighting . . . . . . . . . . . . . . . . . . . . . . 67

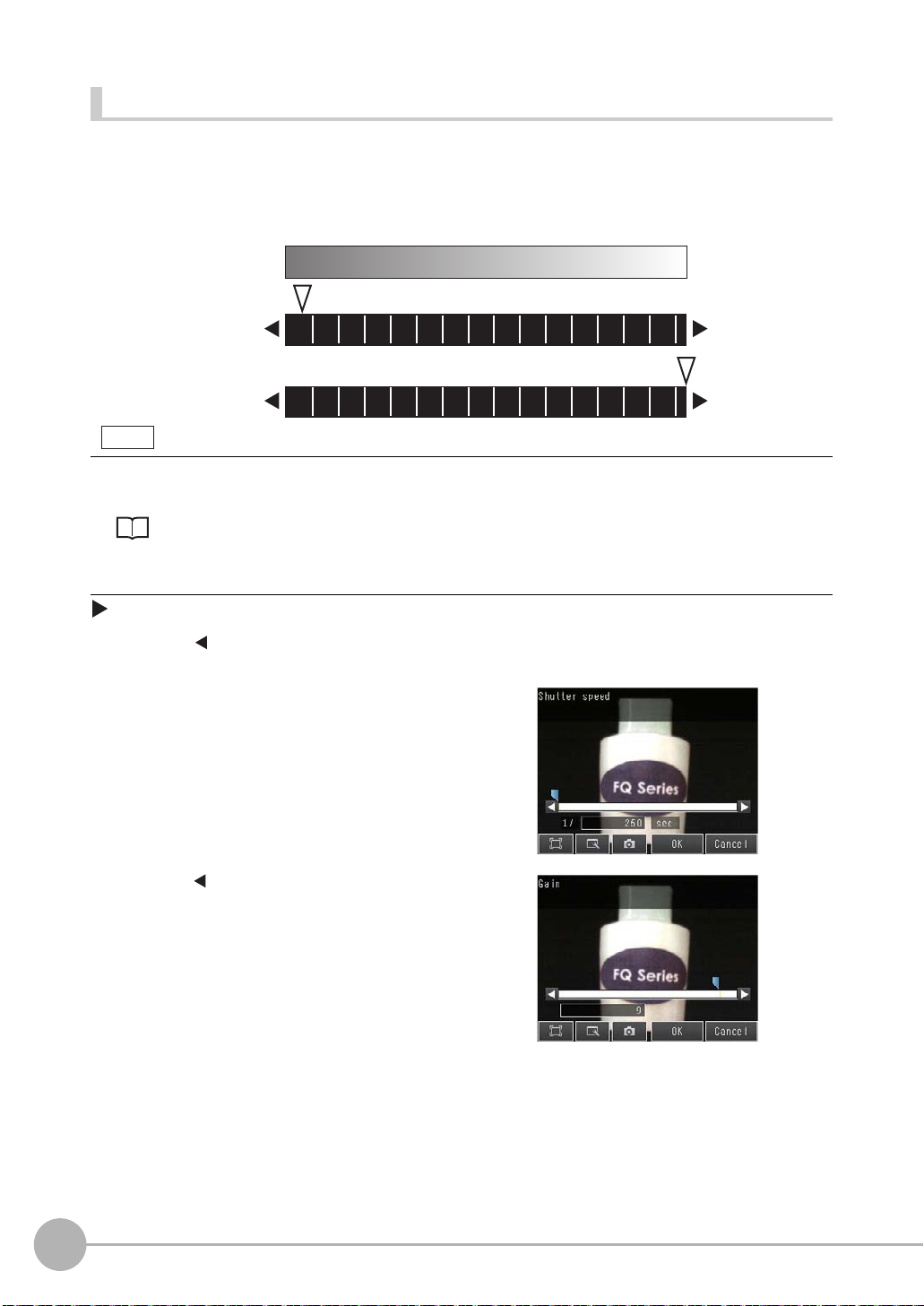

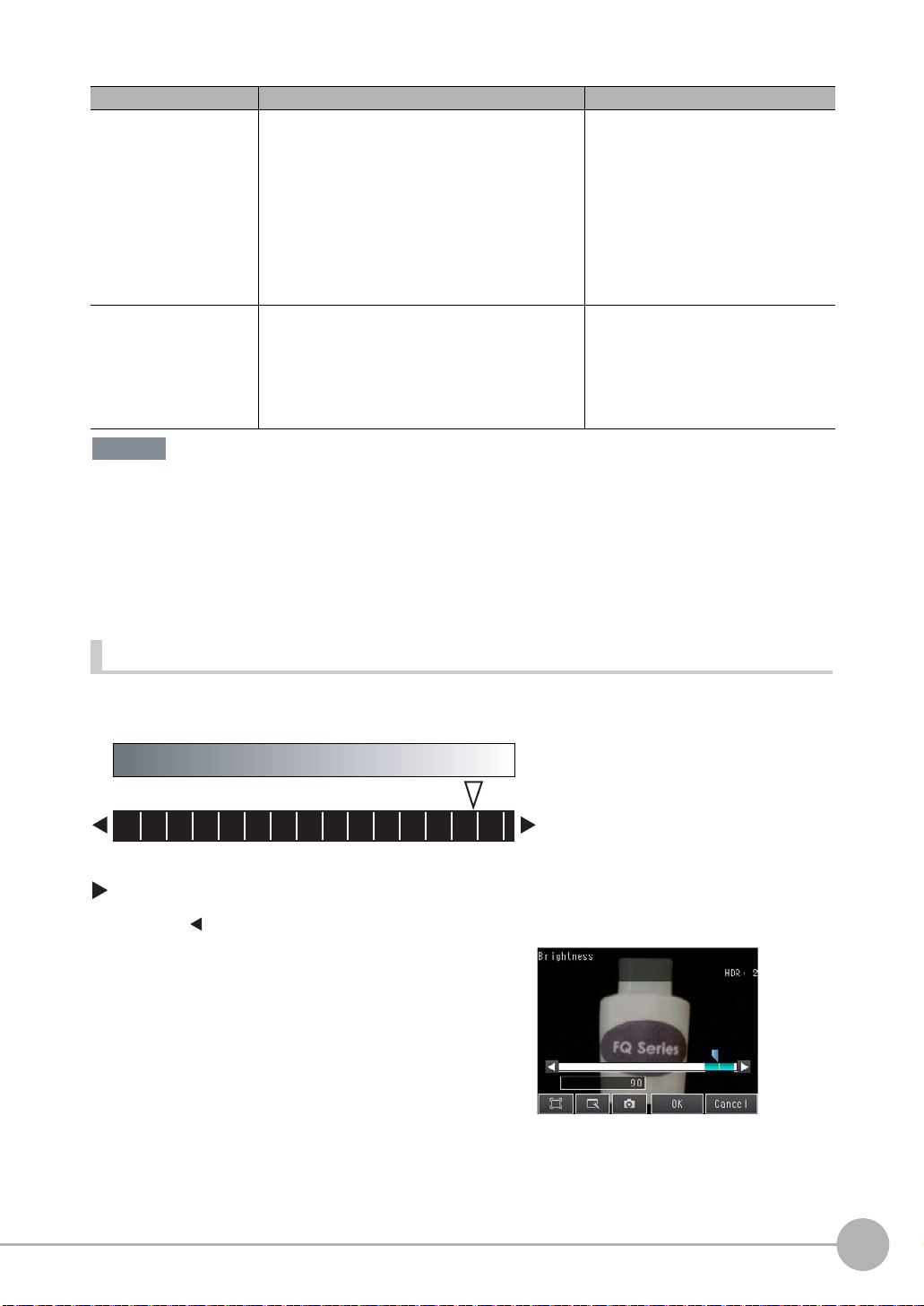

Adjusting the Brightness . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 67

Taking Clear Images of Moving Objects . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 70

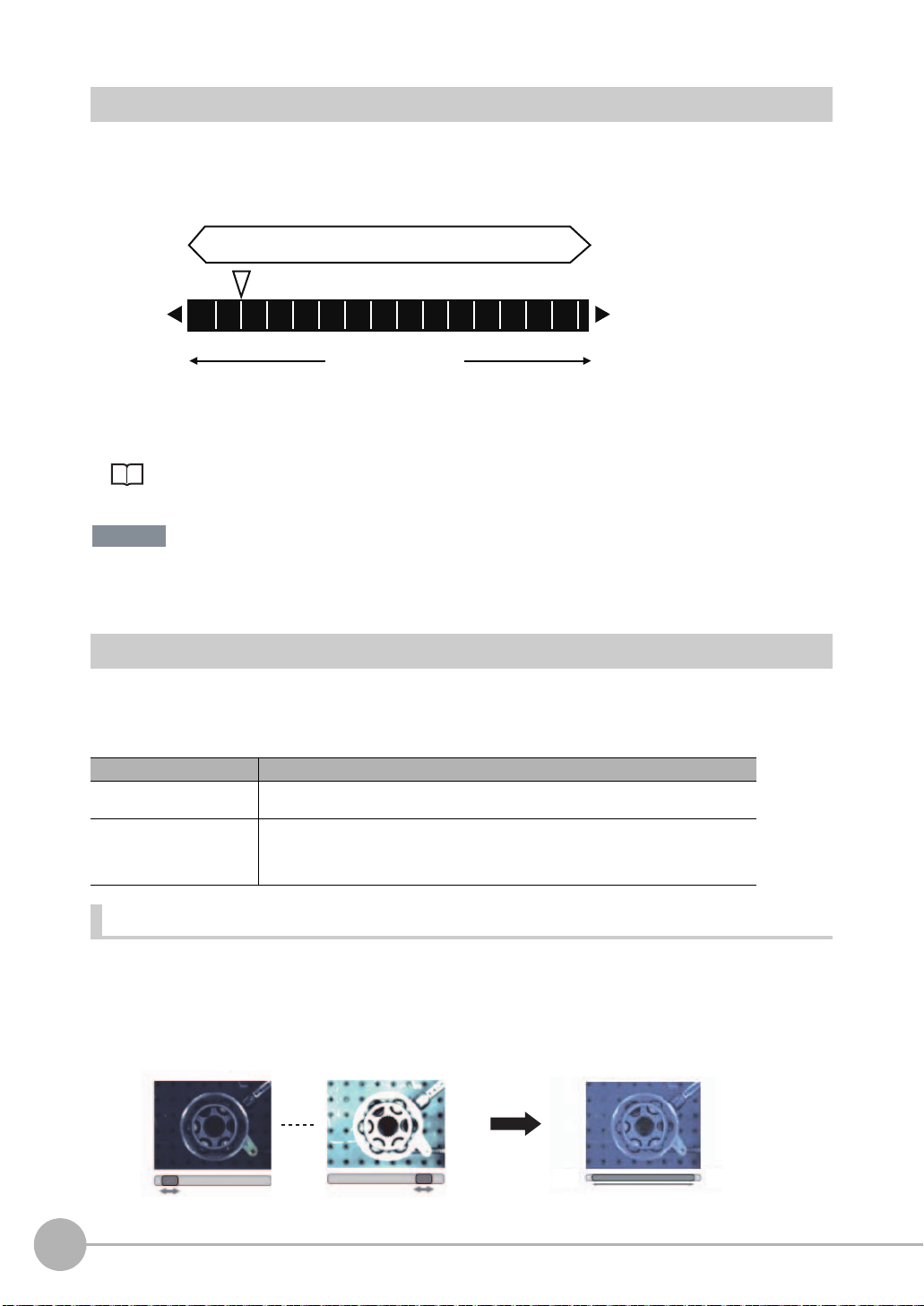

Improving the Image Quality of Metallic and other Shiny Surfaces . . . . . . . . . .70

Adjusting the Colors of the Image (White Balance)

(Only for Sensors with Color Cameras) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

Rotating the Touch Finder Image by 180× . . . . . . . . . . . . . . . . . . . . . . . . . . . . 72

3-4 Adjusting the Timing of Taking Images . . . . . . . . . . . . . . . . . . . . . . . . . . 73

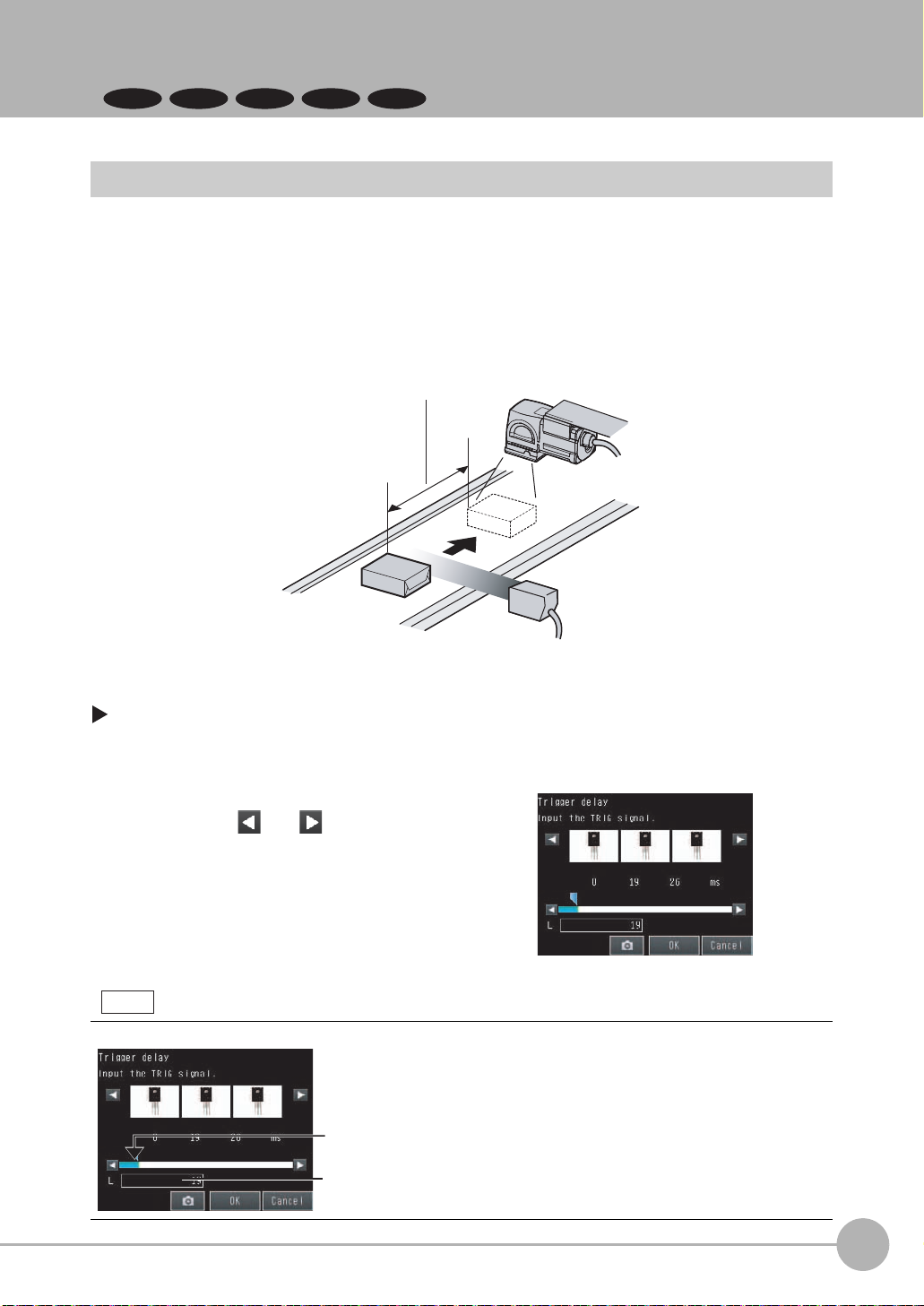

Delaying the Image Capture Timing from the Trigger Input . . . . . . . . . . . . . . .73

Adjusting External Lighting Timing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 74

Preventing Mutual Interference of Multiple Sensors . . . . . . . . . . . . . . . . . . . . . 74

3-5 Adjusting the Images That Were Taken . . . . . . . . . . . . . . . . . . . . . . . . . . 75

Image Adjustment . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 75

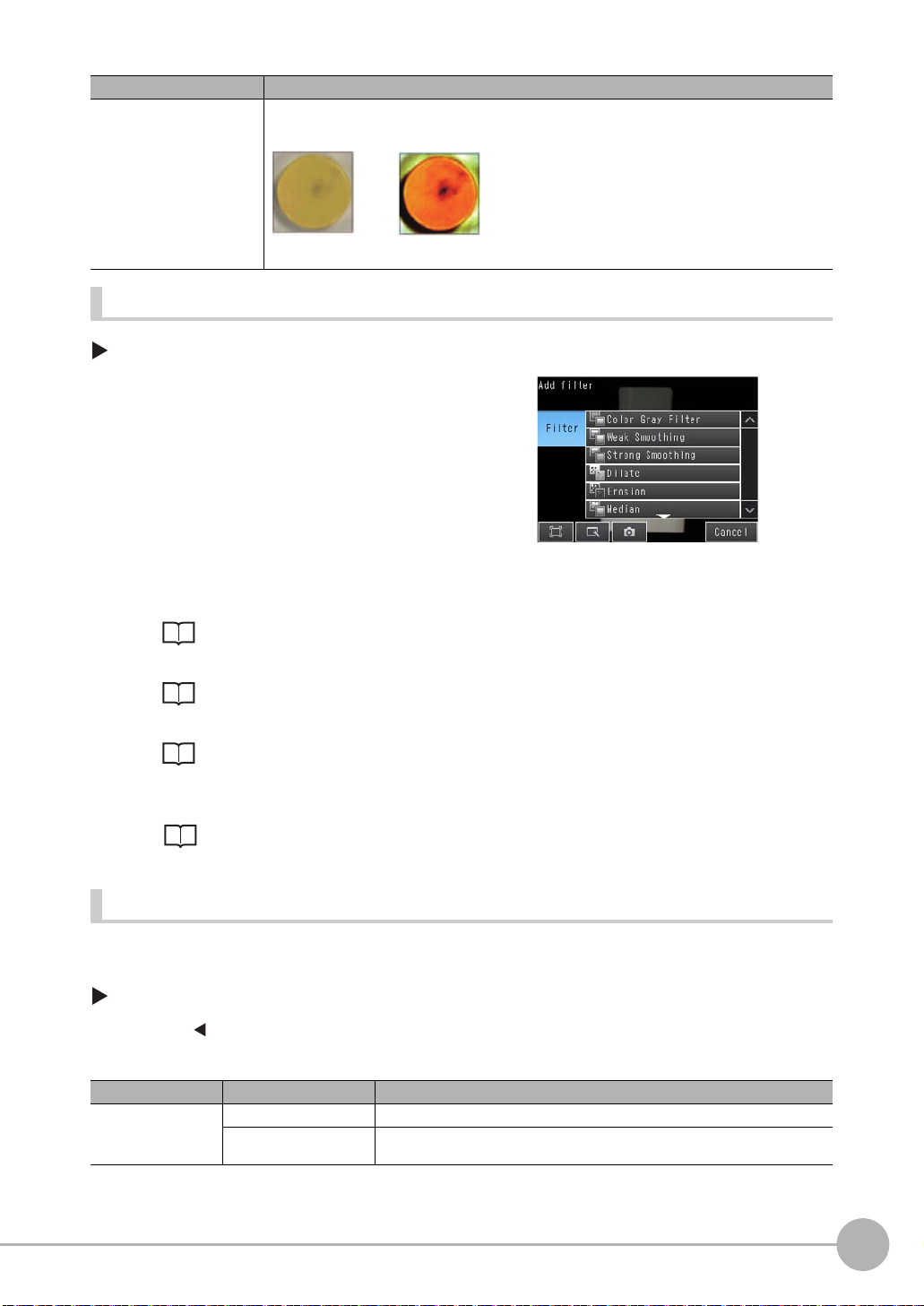

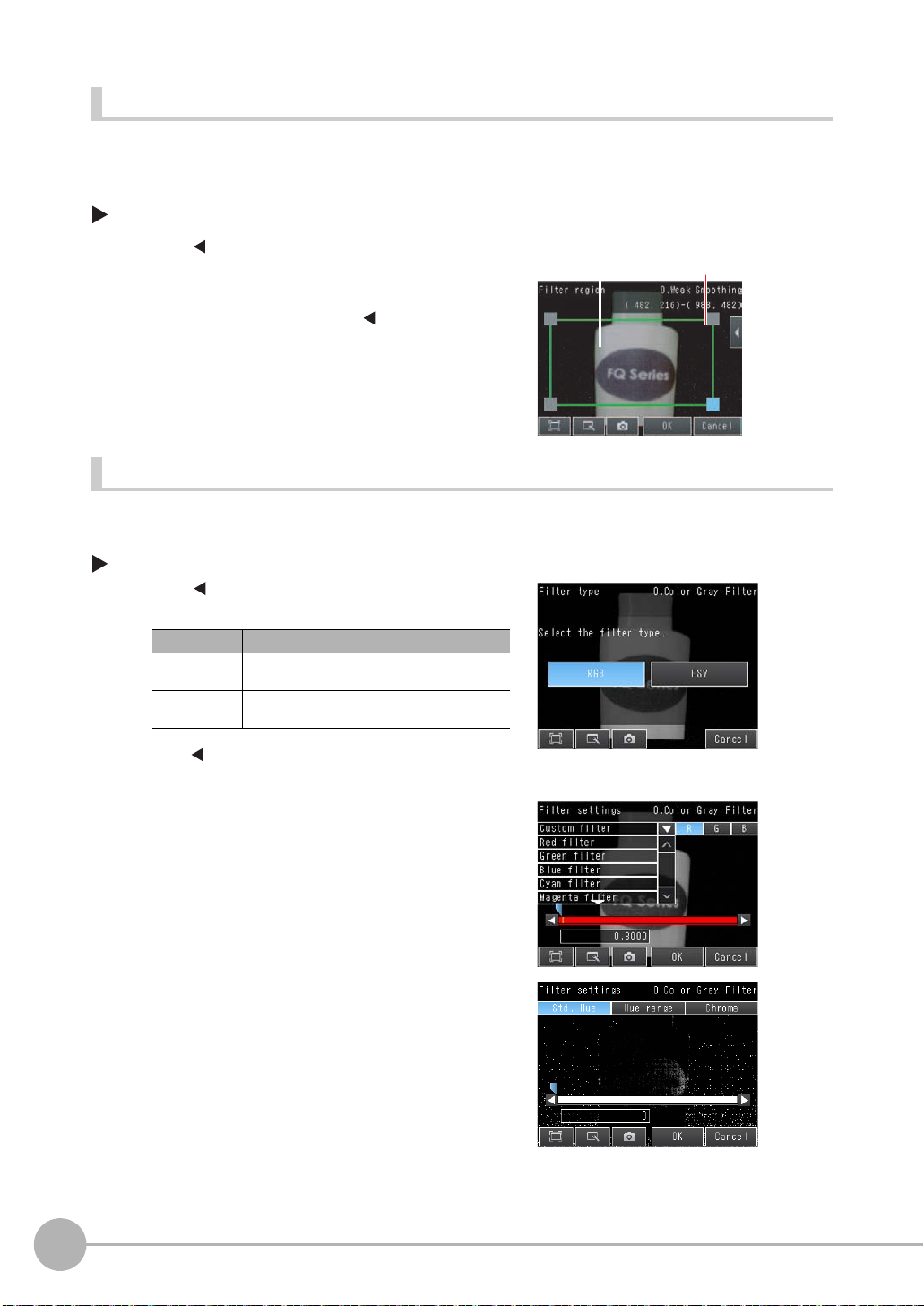

Filtering the Images (Filter Items) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .76

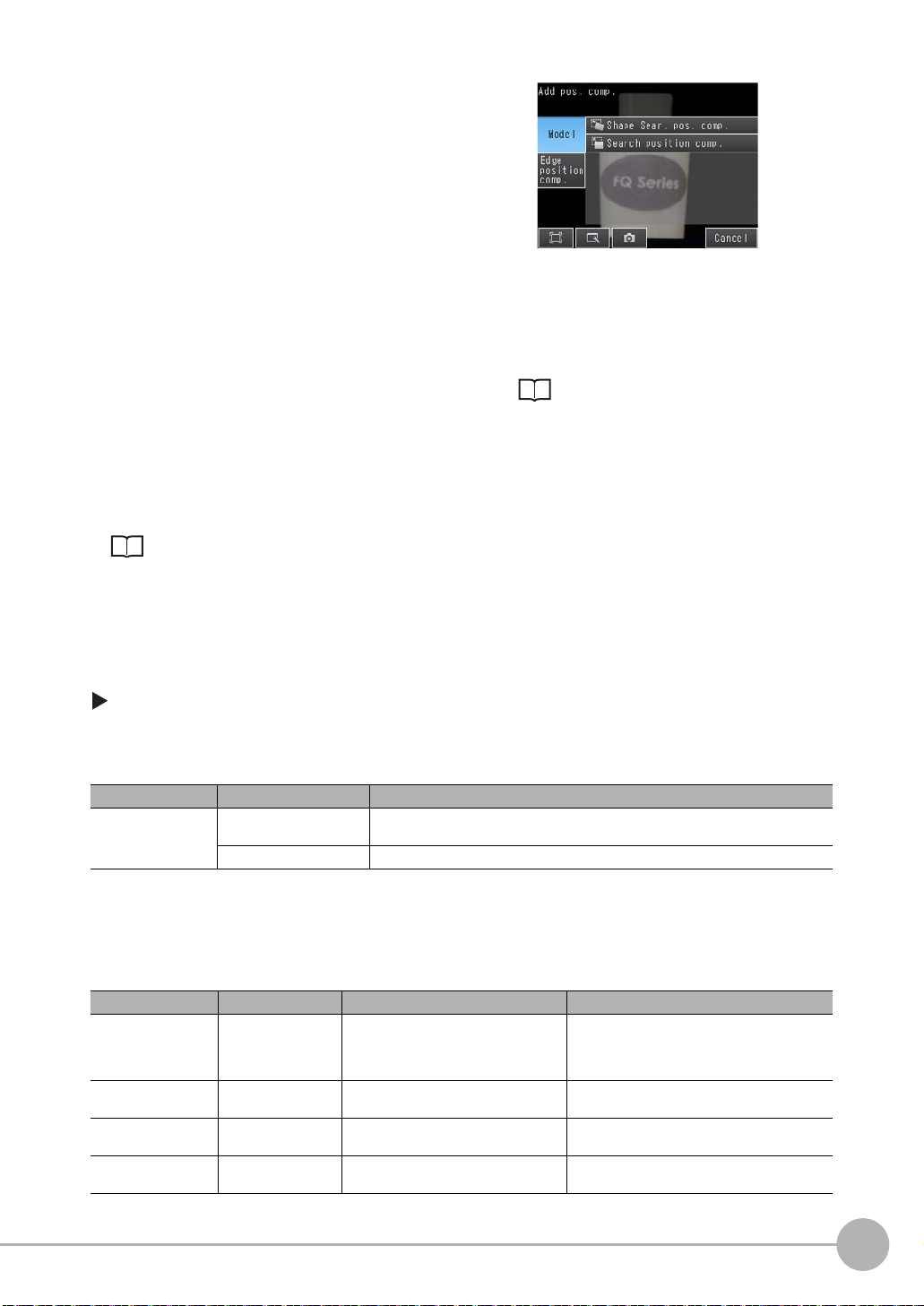

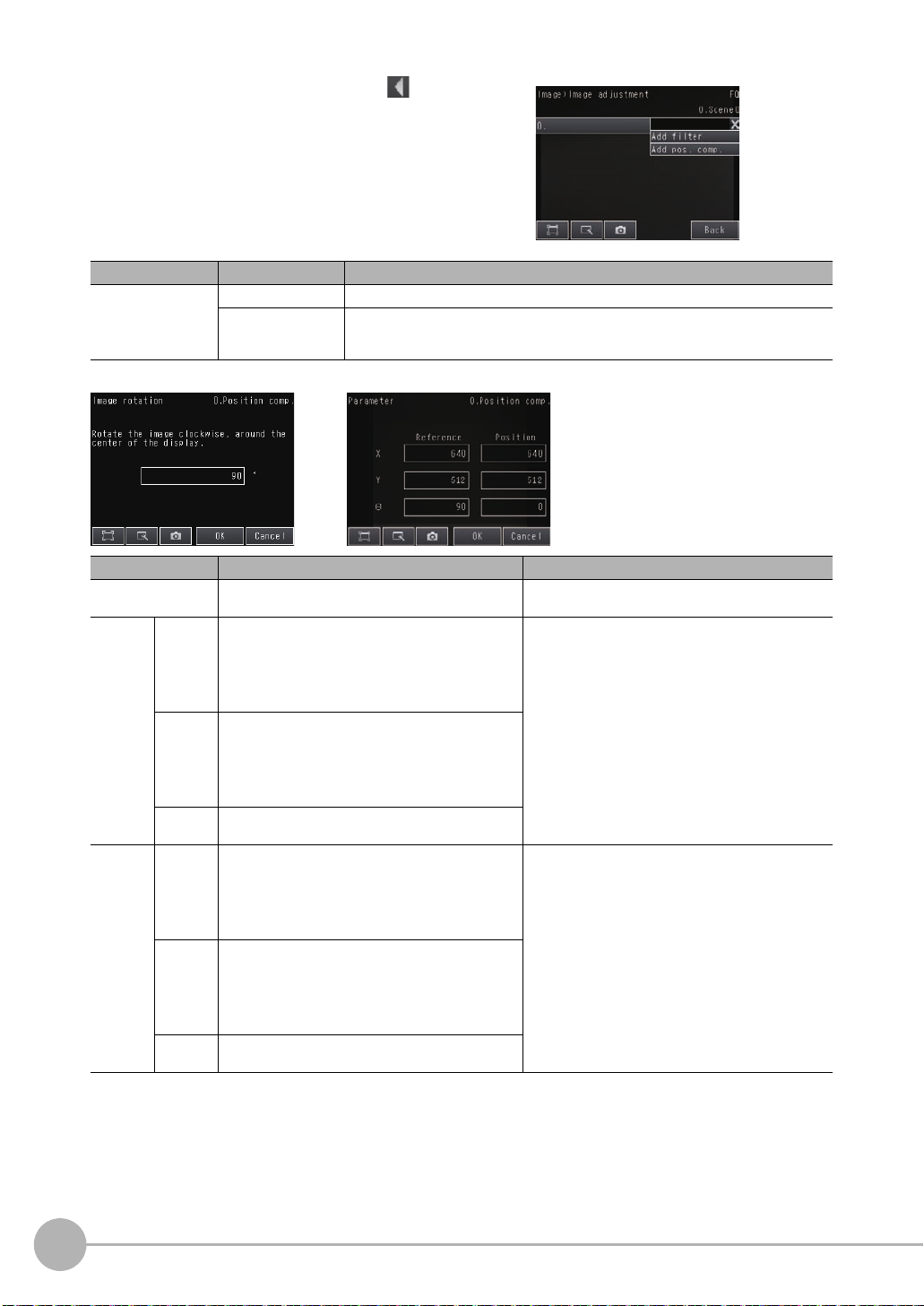

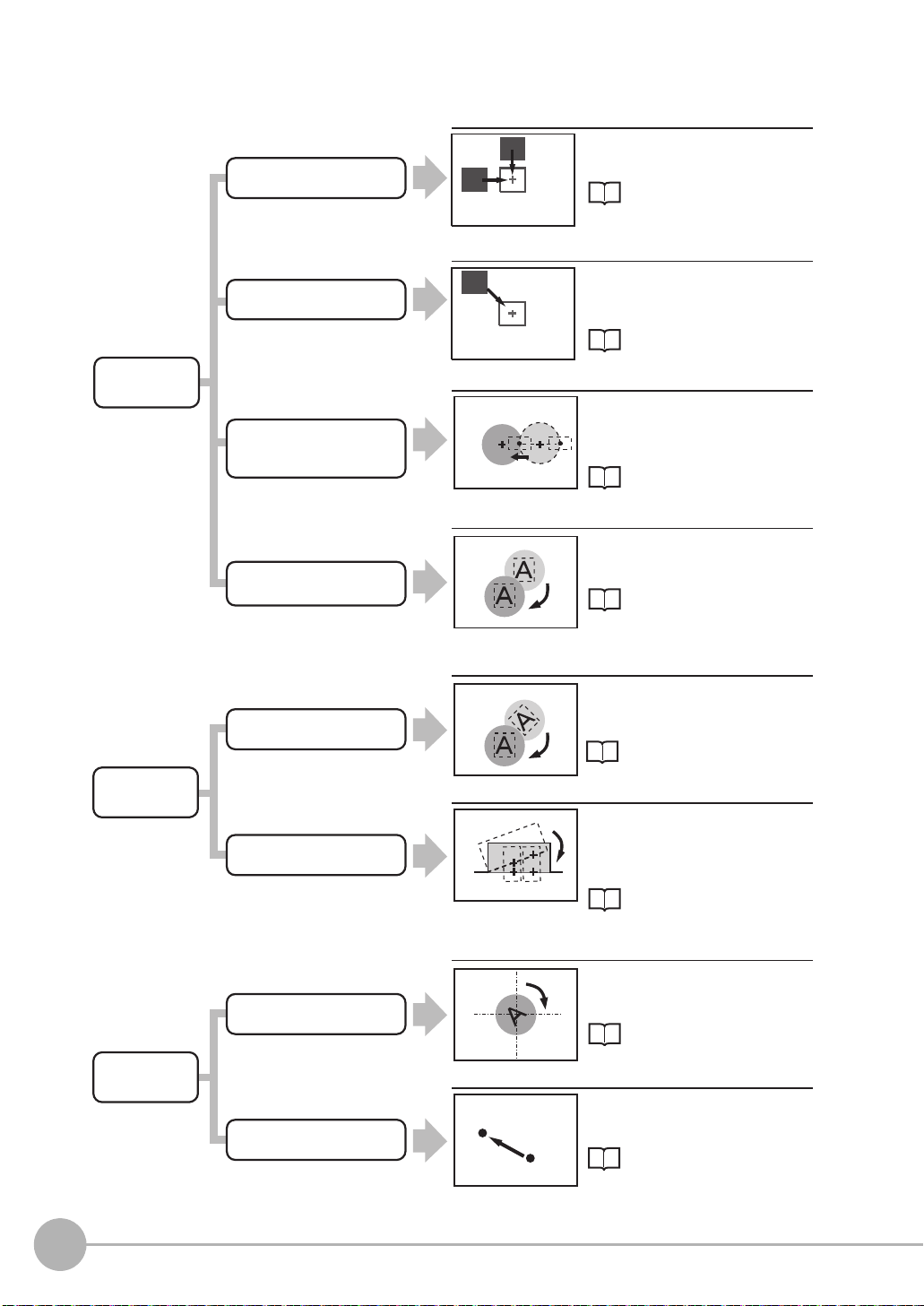

Compensating for Position Offset (Position Compensation Items) . . . . . . . . . . 81

4. Setting Up Inspections

4-1 Inspection Item Selection Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 102

4-2 Setup Procedure for Inspection Items . . . . . . . . . . . . . . . . . . . . . . . . . . 105

4-3 Configuring Inspection Items. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106

Adding New Inspection Items . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 106

Modifying Existing Inspection Items . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107

Deleting Inspection Items . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 107

4-4 Reading and Verifying Character Strings . . . . . . . . . . . . . . . . . . . . . . . . 108

Character String Recognition . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108

Characters That Can Be Recognized . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108

Setup Procedure for Character Recognition . . . . . . . . . . . . . . . . . . . . . . . . . .109

Setup Procedure for Character Recognition . . . . . . . . . . . . . . . . . . . . . . . . . .109

Setting the Measurement Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 115

Changing the Output Code for Errors (Default: NG) . . . . . . . . . . . . . . . . . . . .116

Troubleshooting Unstable Read Results . . . . . . . . . . . . . . . . . . . . . . . . . . . . .116

Using Model Dictionaries to Recognize Custom Characters . . . . . . . . . . . . . .116

Outputting Read Characters to an External Device . . . . . . . . . . . . . . . . . . . . 121

Measurement Data That Can Be Used for External Outputs

and Calculations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 121

Measurement Data That Can Be Logged for OCR . . . . . . . . . . . . . . . . . . . . . 122

Failure to Read Characters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 122

Reading a Variable Length Character String . . . . . . . . . . . . . . . . . . . . . . . . . .122

12

FQ2-S/CH User’s Manual

4-5 Reading Bar Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123

Bar Codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123

Setup Procedure for Bar Code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .124

Reflect in Total Judgement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127

Detail Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 127

Changing the Character String That Is Output for Read Errors . . . . . . . . . . . 128

Changing the Items That Are Displayed on the Test Measurement

and Run Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 128

Unstable Reading Results . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129

Outputting Read Characters to an External Device . . . . . . . . . . . . . . . . . . . . 129

Measurement Data That Can Be Used for External Outputs

and Calculations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 129

Measurement Data That Can Be Logged (Bar Code) . . . . . . . . . . . . . . . . . . .130

Errors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 130

4-6 Reading 2D-codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131

2D-codes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 131

Setup Procedure for 2D-code . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .132

Reflect in Total Judgement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135

Detail Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 135

Outputting Read Characters to an External Device . . . . . . . . . . . . . . . . . . . . 136

Changing the Character String That Is Output for Read Errors . . . . . . . . . . . 136

Changing the Items That Are Displayed on the Test Measurement

and Run Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137

Unstable Reading Results . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137

Measurement Data That Can Be Used for External Outputs

and Calculations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 137

Measurement Data That Can Be Logged (2D Code) . . . . . . . . . . . . . . . . . . .137

Errors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 138

4-7 Reading 2D Codes (DPM) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 139

2D Codes (DPM) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .139

Setup Procedure for 2D-code (DPM) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .139

Detailed Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 145

Outputting Read Characters to an External Device . . . . . . . . . . . . . . . . . . . . 146

Changing the Character String That Is Output for Read Errors . . . . . . . . . . . 146

Measurement Data That Can Be Used for External Outputs and Calculations 147

Inspection Data that Can be Logged . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .147

If an Error Occurs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 147

FQ2-S/CH User’s Manual

13

4-8 Inspecting with the Search Inspection Item . . . . . . . . . . . . . . . . . . . . . . 148

Search Inspection Item . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 148

Setup Procedure for the Search Inspection Item . . . . . . . . . . . . . . . . . . . . . .148

Increasing Measurement Position Accuracy . . . . . . . . . . . . . . . . . . . . . . . . . . 150

Obtaining Multiple Results Simultaneously . . . . . . . . . . . . . . . . . . . . . . . . . . .150

Select the Results to Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151

Reflect in Total Judgement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 151

Unstable Search Results . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 152

Increasing Processing Speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 153

Editing the Model and Measurement Regions . . . . . . . . . . . . . . . . . . . . . . . .153

Errors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 157

4-9 Inspecting with the Shape Search II Inspection Item. . . . . . . . . . . . . . . 158

Shape Search II Inspection Item . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 158

Setup Procedure for the Shape Search II Inspection Item . . . . . . . . . . . . . . .158

Obtaining Multiple Results Simultaneously . . . . . . . . . . . . . . . . . . . . . . . . . . .160

Select the Results to Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161

Reflect in Total Judgement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161

Unstable Shape Search II Results . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 162

Increasing Processing Speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 163

Editing the Model Regions and Measurement Region . . . . . . . . . . . . . . . . . . 163

Errors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 165

4-10 Inspecting with the Sensitive Search Inspection Item. . . . . . . . . . . . . . 166

Sensitive Search Inspection Item . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 166

Setup Procedure for the Sensitive Search Inspection Item . . . . . . . . . . . . . . . 166

Reflect in Total Judgement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 168

Increasing Measurement Position Accuracy . . . . . . . . . . . . . . . . . . . . . . . . . . 168

Select the Results to Output . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169

Changing the Number Region Divisions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169

Inspecting Plain Regions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .169

Unstable Search Results . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 169

Increasing Processing Speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 170

Editing the Model Regions and Measurement Region . . . . . . . . . . . . . . . . . . 171

Errors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 173

14

FQ2-S/CH User’s Manual

4-11 Inspecting with the Edge Position Inspection Item . . . . . . . . . . . . . . . . 174

Edge Position . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 174

Setup Procedure for Edge Position . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .174

Reflect in Total Judgement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 176

Changing Edge Detection Conditions

(Sensors with Monochrome Cameras Only) . . . . . . . . . . . . . . . . . . . . . . . . . .176

Unstable Edge Position Results . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 176

Increasing Processing Speed for Edge Position . . . . . . . . . . . . . . . . . . . . . . .180

Measurement Data That Can Be Used for External Outputs

and Calculations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 180

Measurement Data That Can Be Logged for Edge Position . . . . . . . . . . . . . . 180

Errors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 181

4-12 Inspecting with the Edge Width Inspection Item . . . . . . . . . . . . . . . . . . 182

Edge Width Inspection Item . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 182

Setup Procedure for Edge Width Inspection Item . . . . . . . . . . . . . . . . . . . . . . 182

Changing Edge Detection Conditions

(Sensors with Monochrome Cameras Only) . . . . . . . . . . . . . . . . . . . . . . . . . .184

Reflect in Total Judgement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 184

Unstable Edge Width Results (Sensors with Color Cameras) . . . . . . . . . . . .184

Increasing Edge Width Processing Speed . . . . . . . . . . . . . . . . . . . . . . . . . . .184

Measurement Data That Can Be Used for External Outputs

and Calculations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 185

Measurement Data That Can Be Logged for Edge Width . . . . . . . . . . . . . . . . 185

Errors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 185

4-13 Inspecting with the Edge Pitch Inspection Item. . . . . . . . . . . . . . . . . . . 187

Edge Pitch Inspection Item . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 187

Setup Procedure for Edge Width Inspection Item . . . . . . . . . . . . . . . . . . . . . . 187

Changing Edge Detection Conditions

(Sensors with Monochrome Cameras Only) . . . . . . . . . . . . . . . . . . . . . . . . . .189

Reflect in Total Judgement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 189

Unstable Edge Pitch Results (Sensors with Color Cameras Only) . . . . . . . . . 189

Increasing Edge Pitch Processing Speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . 189

Measurement Data That Can Be Used for External Outputs

and Calculations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 190

Measurement Data That Can Be Logged for Edge Pitch . . . . . . . . . . . . . . . .190

Errors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 191

4-14 Inspecting with Color Data Inspection Item . . . . . . . . . . . . . . . . . . . . . . 192

Color Data Inspection Item . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 192

Setup Procedure for Color Data Inspection Item . . . . . . . . . . . . . . . . . . . . . . .192

Reflect in Total Judgement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 194

Measurement Data That Can Be Used for External Outputs

and Calculations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 195

Measurement Data That Can Be Logged (Color Data) . . . . . . . . . . . . . . . . . .196

Increasing Processing Speed for Color Data . . . . . . . . . . . . . . . . . . . . . . . . . 196

FQ2-S/CH User’s Manual

15

4-15 Inspecting with the Area Inspection Item . . . . . . . . . . . . . . . . . . . . . . . . 197

Area Inspection Item . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 197

Setup Procedure for Area . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .197

Reflect in Total Judgement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 199

Unstable Area Results . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 200

Increasing Processing Speed for Area . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 202

Measurement Data That Can Be Used for External Outputs

and Calculations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 202

Measurement Data That Can Be Logged for Area . . . . . . . . . . . . . . . . . . . . . 203

Errors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 203

4-16 Inspecting with the Labeling Inspection Item. . . . . . . . . . . . . . . . . . . . . 204

Labeling . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 204

Setup Procedure for Labeling Inspection Item . . . . . . . . . . . . . . . . . . . . . . . . 204

Unstable Labeling Results . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 206

Changing the Label Detection Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . 208

Changing the Label Extraction Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . .209

Sorting Extracted Labels . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 210

Reflect in Total Judgement . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 210

Editing the Measurement Region . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 210

Increasing the Processing Speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 211

Measurement Data That Can Be Used for External Outputs

and Calculations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 211

Measurement Data That Can Be Logged for Labeling . . . . . . . . . . . . . . . . . . 212

Errors . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 212

4-17 Calculations and Judgements Using Inspection Item Data . . . . . . . . . 213

Calculation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 213

Examples for Calculation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 215

Procedure (Calculation) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 215

Function List . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 217

5. Testing and Saving Settings

5-1 Performing Test Measurements. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 228

Performing Test Measurements with Samples . . . . . . . . . . . . . . . . . . . . . . . . 228

Performing Test Measurements with Saved Images (Re-measuring) . . . . . . .228

5-2 Shortening the Measurement Takt Time. . . . . . . . . . . . . . . . . . . . . . . . . 230

Checking the Measurement Takt Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 230

Increasing Image Input Speed . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .231

Changing the Image Input Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 232

5-3 Adjusting the Judgement Parameters. . . . . . . . . . . . . . . . . . . . . . . . . . . 233

Adjusting Judgement Parameters While Looking at Measurement Results . . 233

Setting Up the Best Judgement Parameters Automatically . . . . . . . . . . . . . . .233

5-4 Checking a List of All Inspection Item Results . . . . . . . . . . . . . . . . . . . 235

5-5 Saving Data to the Sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 236

16

FQ2-S/CH User’s Manual

6. Operation

6-1 Starting Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 238

Run Mode Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 238

Moving to Run Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 238

6-2 Configuring the Run Mode Display . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 240

6-3 Checking the Trend of Measurement Results with Graphs . . . . . . . . . 243

Trend Monitor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .243

Histograms . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 244

6-4 Adjusting Judgement Parameters during Operation. . . . . . . . . . . . . . . 246

Preparations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 246

Changing the Judgement Parameters in Run Mode . . . . . . . . . . . . . . . . . . . . 246

6-5 Editing the Model Region / Measurement Region from Run Mode . . . 247

Preparations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 247

Editing the Model Region from Run Mode . . . . . . . . . . . . . . . . . . . . . . . . . . .247

7. Convenient Functions

7-1 Changing the Scene to Change the Line Process . . . . . . . . . . . . . . . . . 250

What Are Scenes? . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 250

Creating New Scenes . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .251

Changing Scene Names, Copying Scenes, and Deleting Scenes . . . . . . . . . 251

Switching Scenes from an External Device . . . . . . . . . . . . . . . . . . . . . . . . . . . 251

Setting the Startup Scene . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 252

7-2 Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 253

Calibration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 253

Setting the Calibration Pattern . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 254

Selecting the Calibration Pattern to Use . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 259

7-3 Display Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 260

Image Zoom . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 260

Displaying a Live Image . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 260

Displaying a Frozen Image . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 261

Displaying a Saved Image . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 261

Updating the Display and Measurement Results Only

for NG Measurement Results . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 262

Automatically Changing to the Display for Any Sensor with an NG Result . . . 262

Hiding the Menu . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 262

Turning ON/OFF the Touch Finder Backlight . . . . . . . . . . . . . . . . . . . . . . . . . 263

Changing the Brightness of the Touch Finder . . . . . . . . . . . . . . . . . . . . . . . . . 263

7-4 Monitoring the Signal I/O Status . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 264

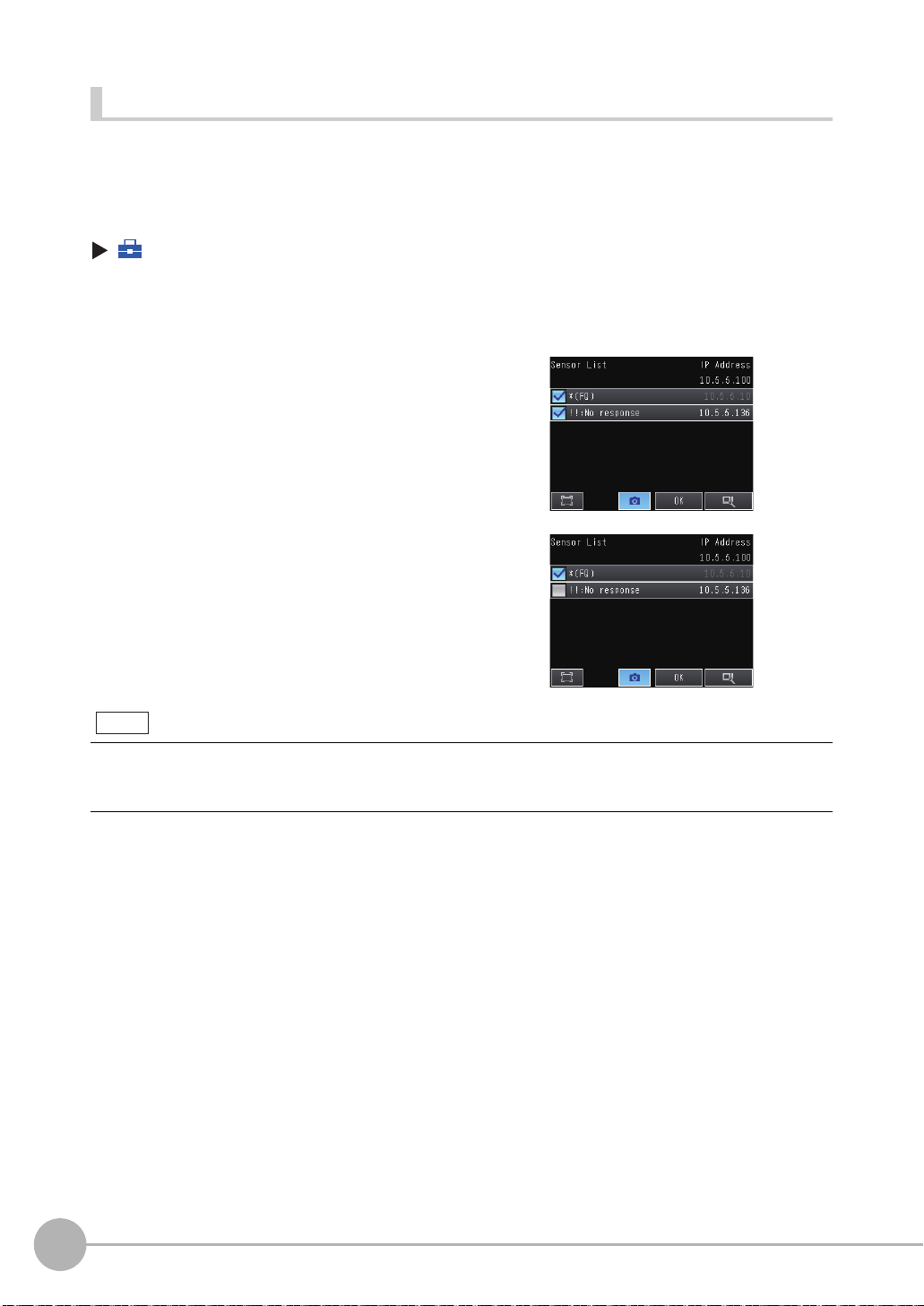

7-5 Connecting to More Than One Sensor . . . . . . . . . . . . . . . . . . . . . . . . . . 265

Setting the Sensors to Connect . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 265

Selecting the Display When More Than One Sensor Is Connected . . . . . . . .267

FQ2-S/CH User’s Manual

17

7-6 Logging Measurement Data and Image Data . . . . . . . . . . . . . . . . . . . . . 269

Logging Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .269

Logging All Data (File Logging) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .270

Checking Recent Measurement Trends (Recent Results Logging) . . . . . . . . 275

7-7 Saving Sensor Settings . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 278

Backing Up Settings in External Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . 278

Restoring Data to the Sensor from External Memory . . . . . . . . . . . . . . . . . . . 279

7-8 SD Card Operations . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 280

Inserting and Removing SD Cards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 281

Checking the Available Space on the SD Card . . . . . . . . . . . . . . . . . . . . . . . . 282

Formatting an SD Card . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 282

7-9 Convenient Functions for Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . 283

Setting a Password to Prevent Unwanted Changes . . . . . . . . . . . . . . . . . . . .283

Capturing the Displayed Image . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 284

Saving the Currently Displayed Camera Image . . . . . . . . . . . . . . . . . . . . . . . 284

Setting the Startup Run Display Pattern . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 285

Specifying the Sensors to Connect Continuously . . . . . . . . . . . . . . . . . . . . . .285

Monitoring and Setting Up a Sensor from Two Touch Finders . . . . . . . . . . . .285

Checking the cause of a sensor NG from the multisensor display . . . . . . . . . 287

7-10 Convenient Functions for Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 288

Making Settings with Stored Images . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 288

7-11 Setting the Retry Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 290

Retry Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 290

7-12 Functions Related to the System. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 294

Turning OFF the Integrated Sensor Lighting

(Only Sensors with Built-in Lighting) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 294

Switching the Display Language . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .294

Setting the Time on the Touch Finder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 294

Initializing the Sensor and Touch Finder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 294

Restarting the Sensor and Touch Finder . . . . . . . . . . . . . . . . . . . . . . . . . . . . 294

Checking Versions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 294

Checking the Touch Finder Battery Level . . . . . . . . . . . . . . . . . . . . . . . . . . . . 295

Changing the Sensor Name . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 295

Checking Available Memory in the Sensor . . . . . . . . . . . . . . . . . . . . . . . . . . .295

Correcting the Touch Screen Positions of the Touch Finder . . . . . . . . . . . . . .295

Setting the Resolution of Measurement Objects Displayed

on the PC Tool . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 295

Changing the Sensor’s BUSY Indicator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 295

Setting the Inspection Timeout Time

(FQ2-S4 series or FQ2-CH series only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 295

18

FQ2-S/CH User’s Manual

8. Troubleshooting

8-1 Error Histories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 298

8-2 Error Messages . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 300

8-3 Basic Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 301

Restoring a Sensor Connection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .302

9. Appendices

9-1 Menu Tables. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 304

Image Tab Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .304

Inspect Tab Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 307

In/Out Tab Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 320

Test Tab Page . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .324

Run Tab Page (from Setup Display) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 324

Tool . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 325

Common Menu Commands . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 334

9-2 External Reference Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 335

Color Gray Filter (Color type only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 335

Weak Smoothing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 336

Strong Smoothing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 336

Dilate . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 336

Erosion, Median, Extract Edges, Extract Horizontal Edges, Extract . . . . . . . . 337

Background Suppression . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 337

Shape Search Position Compensation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 338

Search Position Compensation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 340

Edge Position Compensation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 342

Two-edge Position Compensation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 344

Two-edge Midpoint Compensation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .347

Edge Rotation Position Compensation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .350

Position Compensation (Image Rotation, Parameter) . . . . . . . . . . . . . . . . . . . 353

OCR (FQ2-S4 or FQ2-CH series only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 354

Bar code (FQ2-S4 series only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 364

2D-code (FQ2-S4 series only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 366

2D Codes (DPM) (FQ2-S4 series only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 368

Search (FQ2-S1/S2/S3 series or FQ2-S4 series only) . . . . . . . . . . . . . . . . . . 371

Sensitive Search (FQ2-S1/S2/S3 series or FQ2-S4 series only) . . . . . . . . . . 373

Shape Search II (FQ2-S1/S2/S3 series or FQ2-S4 series only) . . . . . . . . . . .376

Edge Position (FQ2-S1/S2/S3 series or FQ2-S4 series only) . . . . . . . . . . . . .379

Edge Width (FQ2-S1/S2/S3 series or FQ2-S4 series only) . . . . . . . . . . . . . . 380

Edge Pitch (FQ2-S1/S2/S3 series or FQ2-S4 series only) . . . . . . . . . . . . . . . 382

Area (FQ2-S1/S2/S3 series or FQ2-S4 series only) . . . . . . . . . . . . . . . . . . . . 383

Color Data (FQ2-S1/S2/S3 series or FQ2-S4 series only) . . . . . . . . . . . . . . . 386

Labeling (FQ2-S1/S2/S3 series or FQ2-S4 series only) . . . . . . . . . . . . . . . . 388

FQ2-S/CH User’s Manual

19

9-3 Specifications and Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 392

Sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 392

Touch Finder . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 406

Sensor Data Units . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 410

System Requirements for PC Tool for FQ . . . . . . . . . . . . . . . . . . . . . . . . . . . .413

Options . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 413

9-4 Updating the Software . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 418

9-5 Connecting a Previous Touch Finder (FQ-D30/D31)

to the FQ2-S Sensor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 419

Index. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 424

Revision History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 430

20

FQ2-S/CH User’s Manual

Introduction

1-1 FQ2-S/CH-series Vision Sensors. . . . . . . . . . . . . . . . . . . . . . . . . . . . . 22

1-2 Measurement Process . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 25

1-3 Basic Operational Flow. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 26

1-4 Startup Display and Display Elements . . . . . . . . . . . . . . . . . . . . . . . . 28

1

Introduction

1-1 FQ2-S/CH-series Vision Sensors

FQ2-S1

FQ2-S2

FQ2-CH

FQ2-S3 FQ2-S4

Overview of FQ2-S/CH Series

The FQ2-S/CH Series features Vision Sensors with integrated cameras and controllers. They can be used to
easily achieve simple inspections
You can use parallel controls, no-protocol communications on Ethernet, PLC Link communications on Ethernet,
and EtherNet/IP communications on Ethernet as standard features. You can also use a Data Unit to enable
control with full-scale parallel communications or RS-232C communications.
To set up and monitor the Vision Sensor, you can use either the Touch Finder or the PC Tool running on a
computer. For actual operation, you can use the Vision Sensor on a stand-alone basis.

*1: FQ2-S1/S2/S3/S4 series only
*2: FQ2-S4/CH series only

*1

and measurements*1 and to easily read and verify IDs*2.

FQ2 Vision Sensor

Sensor Data Unit

Sensor with

(Parallel Interface)

Built-in Lighting

Sensor Data Unit
(RS-232C Interface)

Sensor with C-mount

(FQ2-S3/S4 series only)

After the Sensor has been
set up, it can be operated
alone to perform measurements
without the Touch Finder
or PC Tool.

Sensor Data Unit

A variety of parameters
such as judgment results,
measurement data of
each inspection item and
calculation results can be
output by parallel communication.

Connection to external devices
via the Sensor Data Unit is
possible by RS-232C cable.

Setup, Image Confirmation, and Logging Tools

Touch Finder

Used to check images and set the
judgement parameters. It can also be
used to save measurement results and
check status during operation.

PC Tool

The same functions as those that are
provided by the Touch Finder can be
performed from a computer. The PC Tool
is available free of charge.

22

FQ2-S/CH-series Vision Sensors

FQ2-S/CH User’s Manual

FQ2-S/CH Series types

The FQ2-S Series sensor comes in a C-mount type that allows you to change the lens, and an integrated
lighting type with built-in lighting. The FQ2-S/CH Series consists of the following lineup.

• FQ2-S1/S2/S3 Series

A standard full-function type to an easy-to-use single-functional type are available.

Models Single-function Standard High-resolution

Ty pe Sensors with Built-in Lighting Sensors with C-mounts

Model number FQ2-S1@@@@@ FQ2-S2@@@@@-M FQ2-S3@@@@@-08 FQ2-S3@-13@

Number of
simultaneous
measurements

Number of reg­istered scenes

Partial input Horizontally only Horizontally and vertically

Lens mount --- C-mount

Image process­ing method

Connection to
Sensor Data
Unit

Processing
resolution

132

832

Real color Real color or monochrome (Model numbers for Mono-

chrome Sensors end in “M.”)

Not possible. Possible.

752 × 480 928 × 828 1,280 × 1,024

1

Introduction

• FQ2-S4 Series

A standard type (350,000 pixels) to high-resolution types with substantially increased resolution (760,000 pixel
type and 1.3 million pixel type) are available.

Pixels 350,000 760,000 1,300,000

Ty pe Sensors with Built-in Lighting Sensors with C-mounts

Model FQ2-S4@@@@@

Number of
simultaneous
measurements

Number of reg­istered scenes

Partial input Horizontally only Horizontally and vertically

Lens mount --- C-mount

Image process­ing method

Connection to
Sensor Data
Unit

Processing
resolution

32

32

Real color Monochrome Real color Monochrome Real color Monochrome

Possible.

752 × 480 928 × 828 1,280 × 1,024

FQ2-S4

@@@@@

-M FQ2-S4

@@@@@

-08

FQ2-S4

@@@@@

-08M

FQ2-S4@-13 FQ2-S4@-13M

FQ2-S/CH User’s Manual

FQ2-S/CH-series Vision Sensors

23

• FQ2-CH Series

This model is specialized for ID verification and reading.

Models Single-function

Ty pe Sensors with Built-in Lighting

Model FQ2-CH10@@@@-M, FQ2-CH15@@@@-M

Number of
simultaneous
measurements

Number of reg­istered scenes

Partial input Horizontally only

Lens mount ---

Image process­ing method

Connection to
Sensor Data
Unit

Processing
resolution

32

32

Monochrome

Possible.

752 × 480

• Comparison of functions by FQ2 Series model

❍: Yes, ✕: No

Function Model

FQ2-S1/S2 FQ2-S3 FQ2-S4 FQ2-CH

Inspection item OCR ✕✕❍❍

Bar code ✕✕❍✕

2D-code ✕✕❍✕

2D-code (DPM) ✕✕❍✕

Search ❍❍❍✕

Sensitive Search ❍❍❍✕

Shape Search II ❍❍❍✕

Edge Position ❍❍❍✕

Edge Width ❍❍❍✕

Edge Pitch ❍❍❍✕

Area ❍❍❍✕

Color Data ❍❍❍✕

Labeling ❍❍❍✕

Main functions Partial input function Horizontal only Both horizontal and

Retry Function ✕✕❍❍

I/O expansion ✕ ❍❍❍

RS-232C ✕ ❍❍❍

vertical

Both horizontal and
vertical

Horizontal only

24

FQ2-S/CH-series Vision Sensors

FQ2-S/CH User’s Manual

1-2 Measurement Process

FQ2-S1

FQ2-S2

FQ2-CH

Logging

FQ2-S3 FQ2-S4

This section describes the basic flow of the measurement process.

Trigger input

Take image

Measurement

Output

• The measurement is started by inputting a trigger signal from an external
device.

• Images are taken according to the trigger.

• The image is measured to see if it matches the configured settings.

• You can also perform calculations based on the measurement results from
inspection items.

• The overall judgement of all inspection items are output.

• You can output detailed measurement result from the inspection items.

• Measurement data and image data can be logged in memory in the Sensor or
in an SD card.

1

Introduction

FQ2-S/CH User’s Manual

Measurement Process

25

1-3 Basic Operational Flow

FQ2-S1

FQ2-S2

FQ2-CH

Calibration Settings

Image Adjustment

Filtering the images

(filter items)

Compensating for position offset

(position compensation items)

Calculation Settings ([Inspect] Tab Page)

Connections and Wiring

Operation

*2

Starting Operation (Run Mode)

Saving the Settings

Adjusting Judgement

Parameters

Test Measurement and

Results Verification

Testing ([Test] Tab Page)

Output Settings ([In/Out] Tab Page)

Setup

Evaluation

*1

Setting Judgement

Parameters

Inspection Setup

([Inspect] Tab Page)

Teaching

Registering

Inspection Items

Image Setup ([Image] Tab Page)

Starting the Sensor

Inspection

Retry Details ([Inspect] Tab Page)

Section 2 Installation and
Connections

Section 1
1-4 Startup Display and Display
Elements

Section 3 Taking Images

Section 4 Setting Up Inspections

Vision Sensor FQ2-S/CH Series User's Manual
for Communications Settings (Cat No. Z338).

Section 2 Controlling
Operation and Outputting Data
with a Parallel Connection
Section 3 Controlling
Operation and Outputting Data
with an Ethernet Connection
Section 4 Controlling Operation
and Outputting Data with an RS­232C Connection

Section 6 Operation

Section 7
7-2 Calibration

Section 3
3-5 Adjusting the Images That
Were Taken

Section 4 Setting Up Inspections

Section 7
7-11 Setting the Retry Function
(FQ2-S4/CH only)

FQ2-S3 FQ2-S4

The following flow shows the basic operation of FQ2-S/CH-series Vision Sensors.

26

*1: In Setup Mode, the Sensor can be set up and adjusted, but it does not output signals on the I/O lines.
*2: In Run Mode, the Sensor performs measurements and outputs signals on the I/O lines.

Basic Operational Flow

Section 5 Testing and Saving
Settings

FQ2-S/CH User’s Manual

Note

Even when a Touch Finder is not connected, you can monitor parallel I/O signals and control output states using only
communication commands.
The following commands are used for this purpose:

• Run Mode settings

• Terminal information get/set commands

For details on each command, refer to the following.

FQ2-S/CH Series User's Manual for Communications Settings (Cat. No. Z338)
5-1 Command Control

1

Introduction

FQ2-S/CH User’s Manual

Basic Operational Flow

27

1-4 Startup Display and Display Elements

FQ2-S1

FQ2-S2

FQ2-CH

FQ2-S3 FQ2-S4

Startup Display

1 When the Sensor and Touch Finder are powered on,

the language selection display appears and then the
Sensor List.

Select the Sensor you want to connect, and press [OK].

2 Sensor connection processing takes place.
3 If the Sensor is not detected, press the [Sensor List]

button to move to the Sensor List, and check the con­nection settings.

Selecting the Sensors to Connect: p.266

Note

In the following cases, the Sensor List will not appear.

• The Sensor to be connected is already set

• "Auto sensor detection" is set to ON

• "Specify sensor" is set to ON

4 When the Sensor is detected, the following display will appear.

• The Setup Mode will appear if a Sensor that has not been
set up is connected.

• The Run Mode will appear if a Sensor that has been set
up is connected.

Note

When the Touch Finder is started, IP addresses are automatically set for each Sensor.
To allocate specific IP addresses, set the IP address of each Sensor and the Touch Finder.

2-5 Setting Up Ethernet: p.59

28

Startup Display and Display Elements

FQ2-S/CH User’s Manual

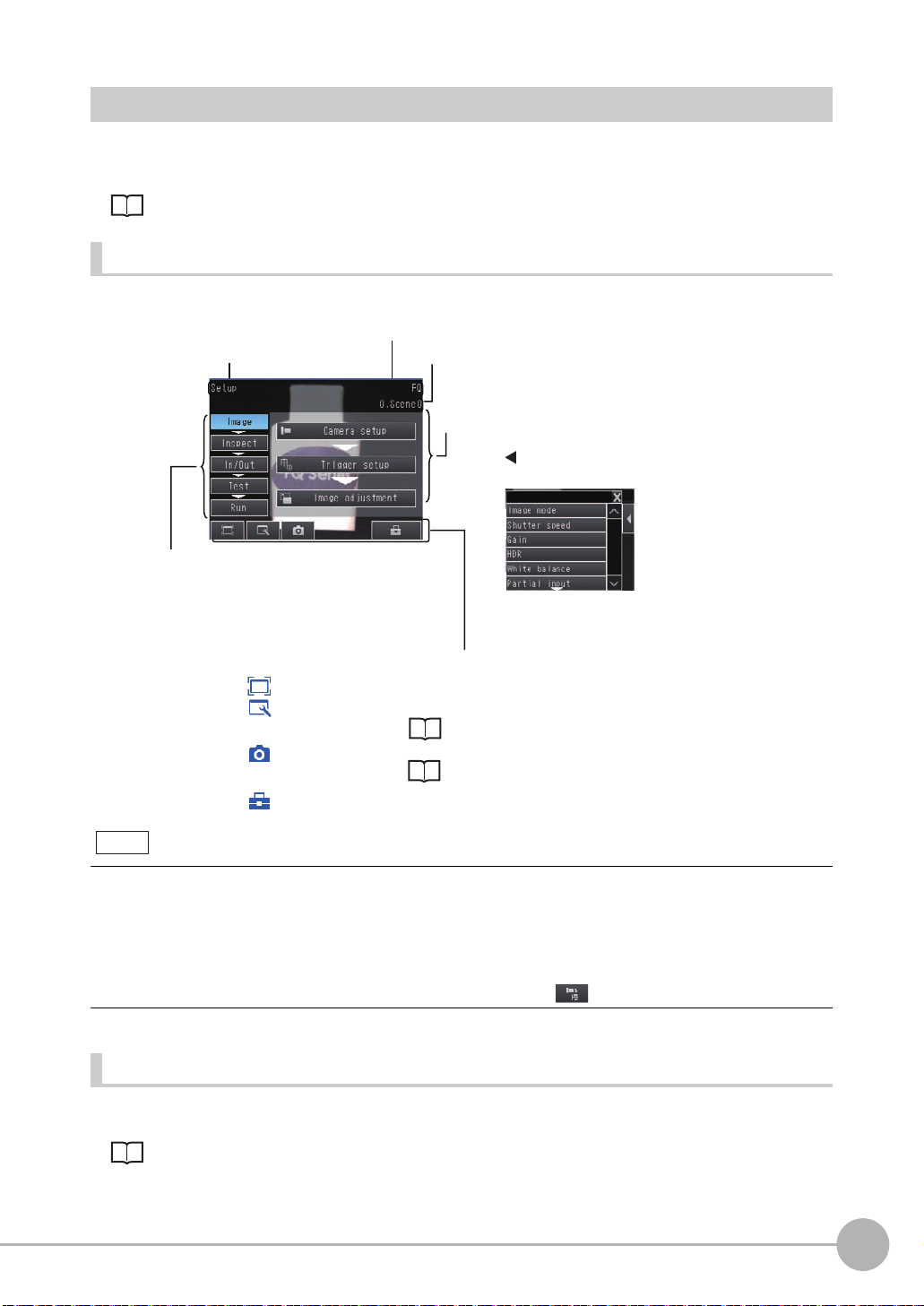

Display Elements

Capturing the Displayed Image: p. 284

Display Functions: p. 260

This Sensor has a Setup Mode and a Run Mode.
Refer to the following information for menu items.

9-1 Menu Tables: p. 304

Setup Mode

In Setup Mode, you can set the image conditions, judgement parameters, and I/O settings for the Sensor.

The name of the mode or the
menu hierarchy is displayed.

The setup flow is shown by these five tabs.

[Image]: Used to adjust the image.
[Inspect]: Used to set the inspection items.
[In/Out]: Used to set the I/O.
[Test]: Used to test and adjust the set measurements.
[Run]: Used to switch to Run Mode.

Only-image Button: Used to temporarily hide the menu.

Display Button: Used to select the source of the image or to zoom the image.

Capture Button: Used to capture the current screen to the SD card.

The name of the Sensor being set up is displayed.

The selected scene number is displayed.

The menu changes according to the selected tab page.

• Buttons will appear on the right according to the mode.

• If the [ ] Button appears, pressing it will display the

sub-menu or commands.

This button menu is always displayed.

1

Introduction

Tool Button: Used to call functions, such as saving data or select scenes.

Note

The Display Button can be used to switch between the following images.

• Camera: The image taken by the camera is displayed.
Live: The live image is displayed.
Freeze: The image that was taken last is displayed.

• Log: A log image saved in internal memory is displayed.

• Logging image file: A log image saved in external memory is displayed.

• Camera image file: An image that was saved in external memory with (Log Image Button) is displayed.

Run Mode

In Run Mode, measurements are performed, and measurement results are output.

Section 6 Operation: p. 237

FQ2-S/CH User’s Manual

Startup Display and Display Elements

29

MEMO

30

Startup Display and Display Elements

FQ2-S/CH User’s Manual

Installation and Connections

2-1 System Configuration . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 32

2-2 Part Names and Functions. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 35

2-3 Installation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 39

2-4 Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 48

2-5 Setting Up Ethernet. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 59

2

Installation and Connections

2-1 System Configuration

FQ2-S1

FQ2-S2

FQ2-CH

FQ2-S3 FQ2-S4

Ethernet (EtherNet/IP, No-protocol, or PLC Link) Connection

Setup Tool
Touch Finder
or PC Tool

Standard
Ethernet cable

24-V power supply

Industrial EtherNet/IP or
Ethernet Switching Hub

Standard Ethernet cable

Special Ethernet Cable

(RJ45/M12)

Control PLC

FQ2-S

@@@@@@-@@@

FQ2-S@@­FQ2-CH1

@@@

@@@@@

-M

I/O cable

FL-STC

Lighting Controller

I/O control PLCTrigger sensor

FL-series

External Lighting

Parallel Interface Connection

Connection through a Parallel Interface Sensor Data Unit

FQ2-S3

@@@@@-@@@

FQ2-S4

Setup Tool
Touch Finder
or PC Tool

Special
Ethernet Cable
(RJ45/M12)

24-V power supply

FQ2-S@@­FQ2-CH1

@@@@@-@@@

@@@

-M

@@@@@

Parallel Interface Sensor Data Unit

Sensor Data
Unit cable

Parallel cable
for FQ-SDU1

Connection with Standard Parallel Interface of the Vision Sensor

FQ2-S

@@@@@@-@@@

FQ2-S@@-

Setup Tool
Touch Finder
or PC Tool

Special Ethernet
Cable
(RJ45/M12)

24-V power supply

FQ2-CH1

@@@

@@@@@

-M

I/O cable

RS-232C Serial Connection

FQ2-S3

@@@@@-@@@

FQ2-S4

Setup Tool
Touch Finder
or PC Tool

Special Ethernet
Cable (RJ45/M12)

@@@@@-@@@

FQ2-S@@­FQ2-CH1

@@@

@@@@@

-M

RS-232C Interface Sensor Data Unit

Sensor Data
Unit cable

RS-232C cable

Parallel cable
for FQ-SDU2

24-V power supply

Trigger sensor

FL-STC

Lighting Controller

24-V power supply

Trigger sensor

FL-STC

Lighting Controller

24-V power supply

Sensor control PLC

Sensor control PLC

I/O control PLC

FL-series

External Lighting

Sensor control PLC

I/O control PLC

FL-series

External Lighting

24-V power supply

Connecting More Than One Sensors

Setup Tool
Touch Finder
or PC Tool

The Setup Tool can detect up to 32 Sensors and
it can connect to up to eight Sensors at the same time.
A combined total of two Touch Finder / PC Tool
units can be connected on the same network.

32

System Configuration

FQ2 Vision Sensors (8 max.)

Special Ethernet Cable

Switching Hub

(RJ45/M12)

24-V power supply

Trigger sensor

FL-STC

Lighting Controller

Sensor control PLC

I/O control PLC

FL-series

External Lighting

FQ2-S/CH User’s Manual

Product Model number Remarks

Important

FQ Vision Sensor FQ2-S@@@@@@-@@@

Touch Finder FQ2-D@@ This is a setup console.

PC Tool --- The PC Tool can be used instead of the Touch Finder. If you register as a member,

Parallel Interface
Sensor Data Unit

RS-232C Interface
Sensor Data Unit

FQ Ethernet Cable FQ-WN0@@ Connects the Sensors to external devices such as the Touch Finder, computers, and

Standard RJ45
Ethernet Cable

I/O Cable FQ-WD0@@ Connects the Sensor to the power supply and external devices.

Switching Hub W4S1-0@@ Used to connect multiple Sensors to one Touch Finder or PC Tool.

Sensor Data Unit
cable

Parallel cable for
FQ-SDU1

Parallel cable for
FQ-SDU2

RS-232C cable
(to connect to a
PLC)

*1: FQ2-S1@@@@@ and FQ2-S2@@@@@ are not supported.
*2: The shape and dimensions of the Ethernet connector plug and jack are specified in ISO/IEC8877:1992 (JIS X 5110:1996) and RJ-45 of

the FCC regulations. To prevent connector connection failures, the structure of the jack of this product does not allow insertion of plugs that
do not comply with the standard. If a commercially available plug cannot be inserted, it is likely that the plug is non-compliant.

FQ2-S@@-@@@
FQ2-CH1@@@@@-M

FQ-SDU1@ You can connect a Sensor Data Unit to the I/O cable connector on the Vision Sensor

*1

FQ-SDU2@ You can connect a Sensor Data Unit to the I/O cable connector on the Vision Sensor

*1

--- Connects the Switching Hub to the Touch Finder, computers, and PLCs. Use a con-

*2

FQ-WU0@@ This cable connects the FQ2-S3/S4/CH Sensor to the Sensor Data Unit.

FQ-VP1@@@ This cable connects the Parallel Interface Sensor Data Unit to an external device.

FQ-VP2@@@ This cable connects the RS-232C Interface Sensor Data Unit to an external device.

Recommended:
XW2Z-200S-V (2 m) or
XW2Z-500S-V (5 m)

This is the Vision Sensor.

you can download the free PC Tool as a special service to purchasers.
Refer to the Member Registration Sheet that is enclosed with the Sensor for the
member registration procedure and the download procedure for special member soft-
ware.

and connect the Parallel Interface Sensor Data Unit to an external device. This allows
you to output the results of judgement conditions, measurements from inspection
items, and the results of expressions with parallel communications.

and connect the RS-232C Interface Sensor Data Unit to an external device. This
allows you to use no-protocol communications to send and receive commands,
inspection item parameters, and other data between the Sensor and the external
control device that is connected with the RS-232C cable. You can also use the ACK
signal (parallel command normal completion signal) for a parallel output from the
Sensor Data Unit.

PLCs.

nector that complies with the FCC RJ45 standard. (STP (shielded twisted-pair) cable,
category 5e or 6, impedance: 100 Ω)

This cable connects the RS-232C Interface Sensor Data Unit to an external device.

2

Installation and Connections

Do not connect network devices other than PLCs on the same network as the Touch Finder or computer. If another
device is connected, the responsiveness of displays and settings of the Touch Finder or computer may become slow.

FQ2-S/CH User’s Manual

System Configuration

33

Connection Compatibility

Yes: Supported, No: Not supported

Type of connection to
FQ2-S/CH

EtherNet/IP --- No No Yes Yes Yes Yes Yes Yes

PLC Link on Ethernet No --- No Yes Yes Yes Yes Yes Yes

PROFINET No No --- Yes Yes Yes Yes Yes Yes

TCP no-protocol communi­cations on Ethernet

UDP no-protocol communi­cations on Ethernet

FINS/TCP no-protocol com­munications on Ethernet

RS-232C

Parallel
communi­cations

*1: This applies when an RS-232C Interface Sensor Data Unit is connected.
*2: This applies when a Parallel Interface Sensor Data Unit is connected.

*1

Sensor’s stan­dard parallel
communica­tions

Parallel Inter-

*2

face

Other connection

EtherNet/IPPLC Link

Yes Yes Yes --- No No No Yes Yes

Yes Yes Yes No --- No No Yes Yes

Ye s Ye s Ye s N o N o - - - N o Ye s Ye s

YesYesYesNoNoNo--- YesNo

Yes Yes Yes Yes Yes Yes No --- No

Yes Yes Yes Yes Yes Yes No No ---

on Ether­net

PROFI­NET

TCP no­protocol
communi­cations on
Ethernet

UDP no­protocol
communi­cations
on Ether­net

FINS/
TCP no­protocol
communi­cations on
Ethernet

RS-232C *1Parallel communica-

tions

Sensor’s
standard
parallel
communi­cations

Parallel
Inter-

*2

face

Note

Connections Across Network Routers
You can connect to a Sensor on a different network than the Touch Finder or PC Tool through a router.

• If you are connecting to the Sensor from the Touch Finder / PC Tool, directly specify the IP address of the Sensor

to connect. Auto Sensor Connection cannot be used to connect to a sensor on a different network over a router
because the Sensor cannot be detected.

• Set a fixed IP address for the Sensor.

• When connected over a router, the connection recovery function cannot be used.

34

System Configuration

FQ2-S/CH User’s Manual

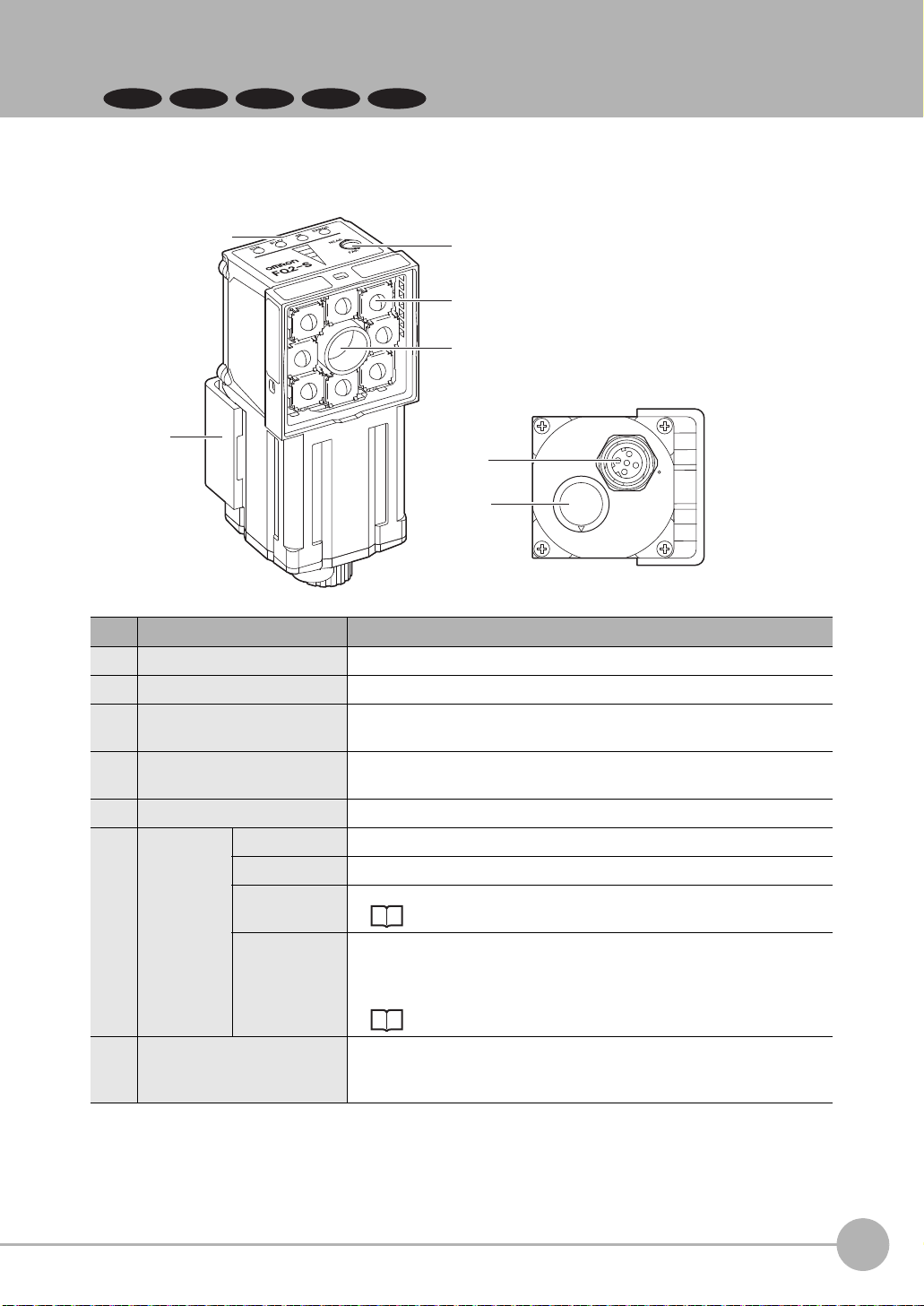

2-2 Part Names and Functions

FQ2-S1

FQ2-S2

FQ2-CH

(2)

(3)

(5)

(1)

(6)

(7)

(4)

FQ2-S3 FQ2-S4

FQ2-S@@@@@@-@@@ (Sensors with Built-in Lighting)
FQ2-CH1@@@@@-M (Sensors with Built-in Lighting)

2

Installation and Connections

No. Name Description

(1) Lighting LEDs for illumination

(2) Camera lens This lens can be focused.

(3) I/O Cable connector An FQ-WD or FQ-WU I/O Cable is used to connect the Sensor to the power

supply and external I/O.

(4) Ethernet cable connector An FQ-WN Ethernet Cable is used to connect the Sensor to external

devices such as PLCs, the Touch Finder, or computers.

(5) Focus adjustment screw Used to adjust the focus of the image.

(6) Operation

indicators

(7) Mounting Bracket Used to mount the Sensor.

OR Lights orange when the overall judgement output (OR) signal turns ON.

ETN Lights orange during Ethernet communications.

ERROR Lights red when an error occurs.

8-1 Error Histories: p.298

BUSY Lights green when the Sensor is executing a process.

* You can change the BUSY indicator to a RUN indicator.

This indicator is set by default to a BUSY indicator, but if you change it to a
RUN indicator, it will light green during operation.

Changing the Sensor’s BUSY Indicator: p.295

The Mounting Bracket can be attached to the front, left side, right side, or
back of the Sensor.

FQ2-S/CH User’s Manual

Part Names and Functions

35

(1)

(4)

(7)

(8)

(3)

(2)

(6)

(5)

(5)

(5)

(5)

Bottom

Sensor Mounted to Base

FQ2-S@@-@@@ (Sensors with C-mounts)

No. Name Description

(1) C-mount lens mounting surface The C-mount lens and macro ring are attached here. Determine the appro-

priate CCTV lens (C-mount lens) to use based on the field of view required
for the size of the measurement object.

Optical Diagrams: p. 41

(2) I/O Cable connector An FQ-WD or FQ-WU I/O Cable is used to connect the Sensor to the power

supply, external I/O, and Data Unit.

(3) Ethernet Cable connector An FQ-WN Ethernet Cable is used to connect the Sensor to external

devices such as the Touch Finder or computers.

(4) Operation

indicators

(5) Mounting holes These mounting holes for M3 screws are used to mount the Camera and to

(6) Mounting base (enclosed) The mounting base has 1/4-20UNC threads and is used to mount the Sen-

(7) C-mount cover This cover is attached to the C-mount lens fitting when a lens is not

(8) Connector cover This cover is attached to the connection when an Ethernet Cable is not con-

OR Lights orange when the overall judgement output (OR) signal turns ON.

ETN Lights orange during Ethernet communications.

ERROR

BUSY Lights green when the Sensor is executing a process.

Lights red when an error occurs.

8-1 Error Histories: p.298

* You can change the BUSY indicator to a RUN indicator.

This indicator is set by default to a BUSY indicator, but if you change it to a
RUN indicator, it will light green during operation.

Changing the Sensor’s BUSY Indicator: p.295

mount to the base. There are mounting holes on the top, bottom, left, and
right surfaces.

Dimensions: p. 404

sor. The base can be attached to the bottom, top, left, or right side of the
Sensor.
* We recommend mounting the Sensor with the mounting screw holes. The

mounting base does not necessarily need to be used.

attached.

nected.

36

Part Names and Functions

FQ2-S/CH User’s Manual

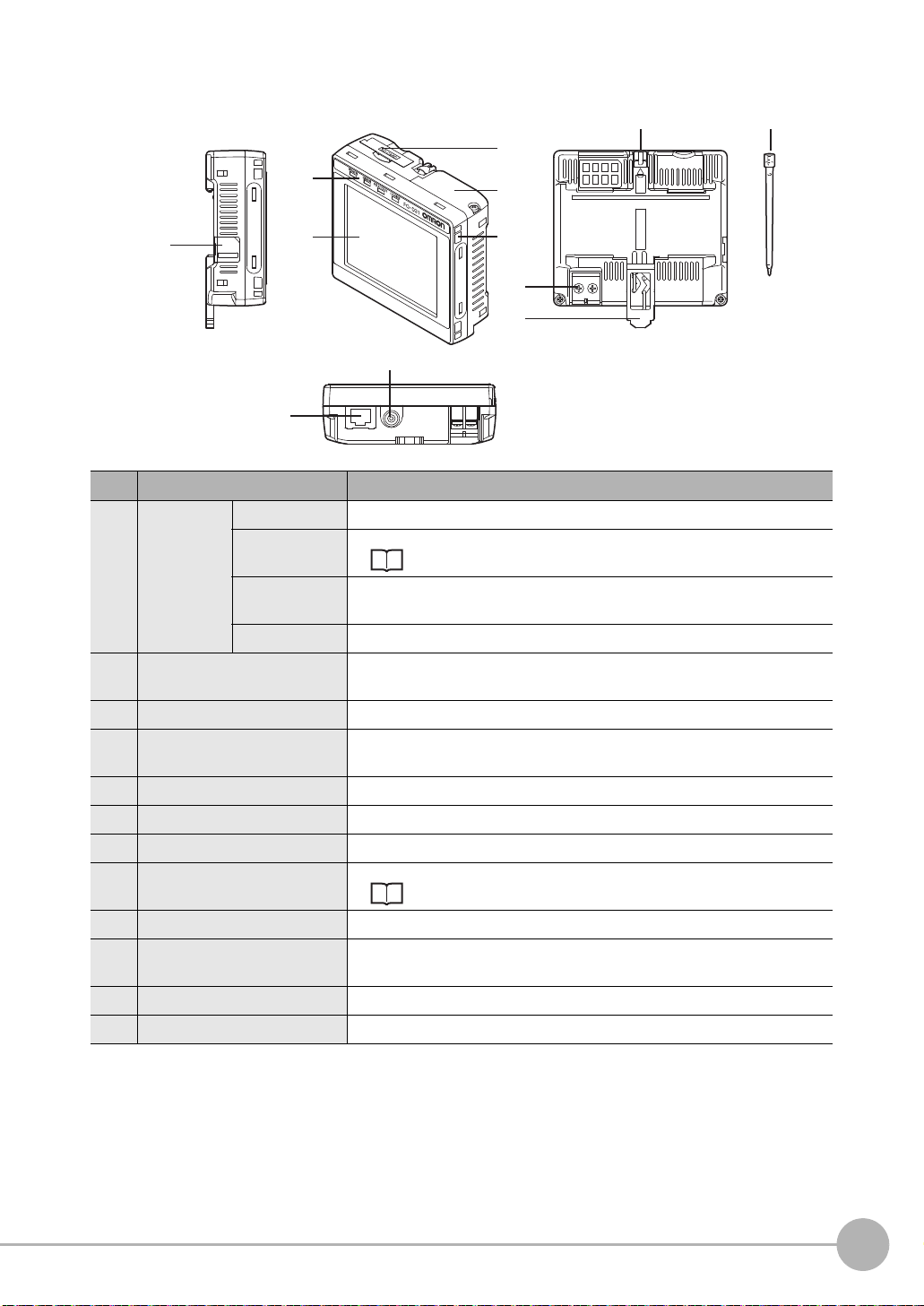

Touch Finder

(1)

(6) (7)

(3)

(4)

(5)

(2)

(12)

(10)

(11)

(8)

(9)

No. Name Description

(1) Operation

indicators

(2) LCD/touch panel Displays the setting menu, measurement results, and images input by the

(3) SD card slot An SD card can be inserted.

(4) Battery cover

(5) Power supply switch Used to turn the Touch Finder ON and OFF.

(6) Touch pen holder The touch pen can be stored here when it is not being used.

(7) Touch pen Used to operate the touch panel.

(8) DC power supply connector Used to connect a DC power supply.

(9) Slider Used to mount the Touch Finder to a DIN Track.

(10) Ethernet port Used when connecting the Touch Finder to the Sensor with an Ethernet

(11) Strap holder This is a holder for attaching the strap.

(12) AC power supply connector

*1: Applicable to the FQ2-D31 only.

POWER Lights green when the Touch Finder is turned ON.

ERROR Lights red when an error occurs.

8-1 Error Histories: p.298

SD ACCESS Lights yellow when an SD card is inserted.

Flashes yellow when the SD card is being accessed.

CHARGE

*1

*1

Lights orange when the Battery is charging.

camera.

The Battery is inserted behind this cover.
Remove the cover when mounting or removing the Battery.

Wiring the Touch Finder: p. 56

cable. Insert the connector until it locks in place.

*1

Used to connect the AC adapter.

2

Installation and Connections

FQ2-S/CH User’s Manual

Part Names and Functions

37

Sensor Data Units

Front Surface of Parallel Interface

Sensor Data Unit

Back Surface of Parallel Interface

Sensor Data Unit

RS-232C Interface

Sensor Data Unit

(1)

(4)

(4)

(8)

(7)

(5)

(3) (6)

(2)

No. Name Description

(1) Sensor connector Connects to the FQ2-S3/S4/CH.

(2) Power supply and ground termi-

nal block

(3) Parallel I/O connector Connects to the I/O connector.

(4) I/O indicators POWER/

ERROR

RUN Lights green during operation.

BUSY Lights yellow when the Sensor is executing a process.

SENSOR Lights yellow when the Sensor is connected.

OR-OK Lights green when the overall judgement result is OK.

OR-NG Lights red when the overall judgement result is OFF or an error occurs.

232C_COM Lights yellow during RS-232C communications. (Provided only on the FQ-

(5) DIN Track mounting section Mounts the Data Unit to a DIN Track.

(6) Slider Used to secure the Data Unit to a DIN Track.

(7) RS-232C connector Connects to the RS-232C connector.

(8) Parallel I/O connector Connects to the I/O connector.

Connects to the 24-V power source and the ground line.

Lights green when power is being supplied.
Lights red when an error occurs.

SDU2@.)

38

Part Names and Functions

FQ2-S/CH User’s Manual

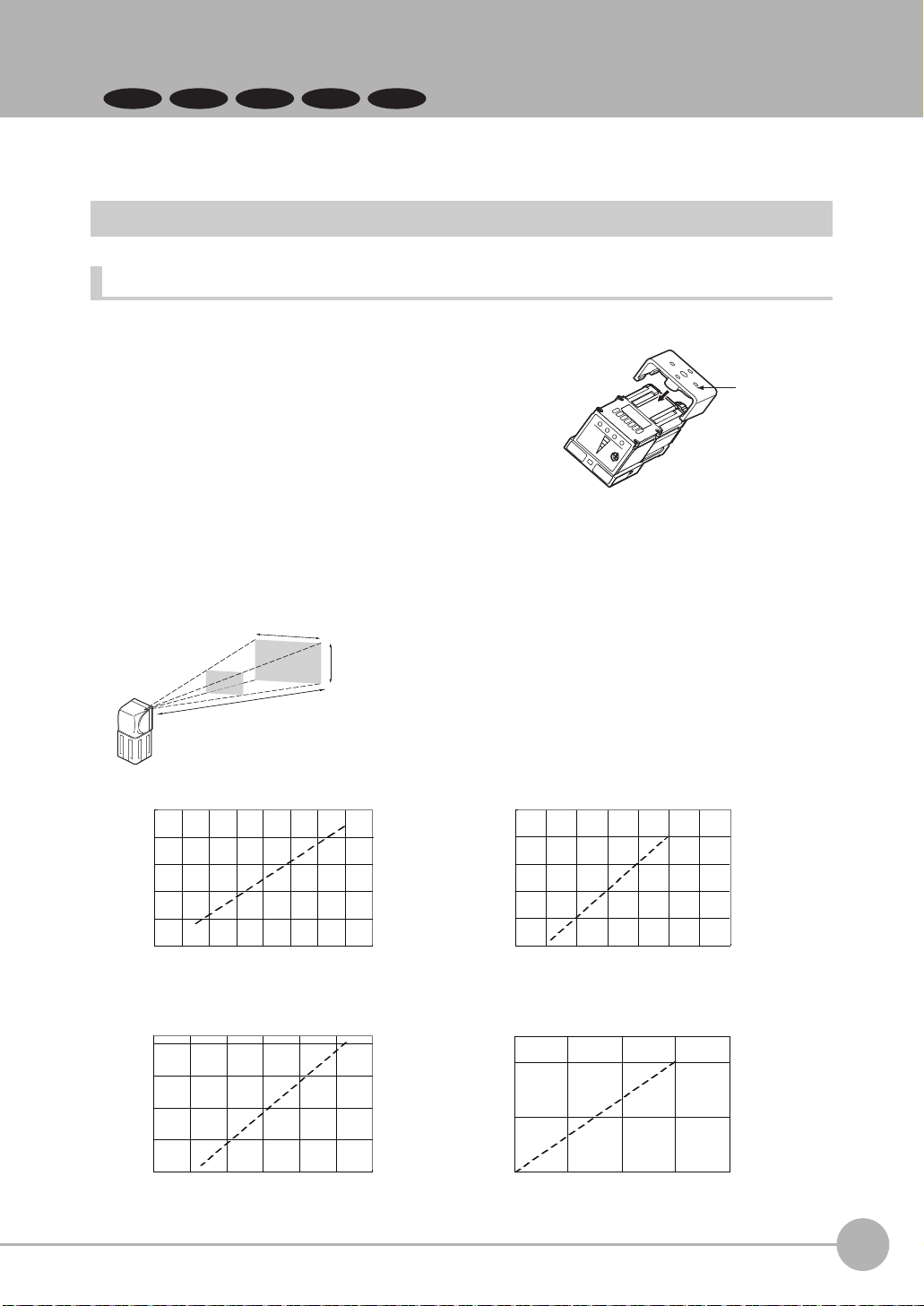

2-3 Installation

FQ2-S1

FQ2-S2

FQ2-CH

6

8 10 12 14

0 20 40 60

50

130

210

0 100 200 300

35

45

55

200

600

1,000

200 400

0

0

400

Horizontal field of view (mm)

Horizontal field of view (mm)

Installation distance (L) (mm)

Installation distance (L) (mm)

FQ2-S@@050F/FQ2-CH1@050F-M

FQ2-S@@100N/FQ2-CH1@100N-M

Horizontal field of view (mm)

Horizontal field of view (mm)

Installation distance (L) (mm)

Installation distance (L) (mm)

FQ2-S@@010F/FQ2-CH1@010F-M

FQ2-S@@100F/FQ2-CH1@100F-M

Installation distance (L)

Vertical field
of view

The optical chart indicates the horizontal field of
view. The vertical field of view depends on the
model as follows:
FQ2-S@@@@@@/FQ2-CH1@@@@@-M:
Approx. 60% of the horizontal field of view
FQ2-S@@@@@@-08@:
Approx. 90% of the horizontal field of view

Horizontal field of view

Note: The tolerance is ±10%.

FQ2-S3 FQ2-S4

Installing the Sensor

FQ2-S@@@@@@/FQ2-CH1@@@@@-M (Sensors with Built-in Lighting)

Installation Procedure

2

1 Align the tabs on one side of the Mounting Bracket with

the slot on the Sensor.

The FQ-XL Mounting Bracket can be attached to the back,
side, or front of the Sensor.

2 Press the Mounting Bracket onto the Sensor until the oth-

er tabs click into place.

3 Use the following optical charts to check the field of view

and installation distance of the Sensor so that it is mount­ed at the correct position.

Tightening torque (M4): 1.2 N·m

Installation and Connections

Mounting
Bracket

FQ2-S/CH User’s Manual

Installation

39

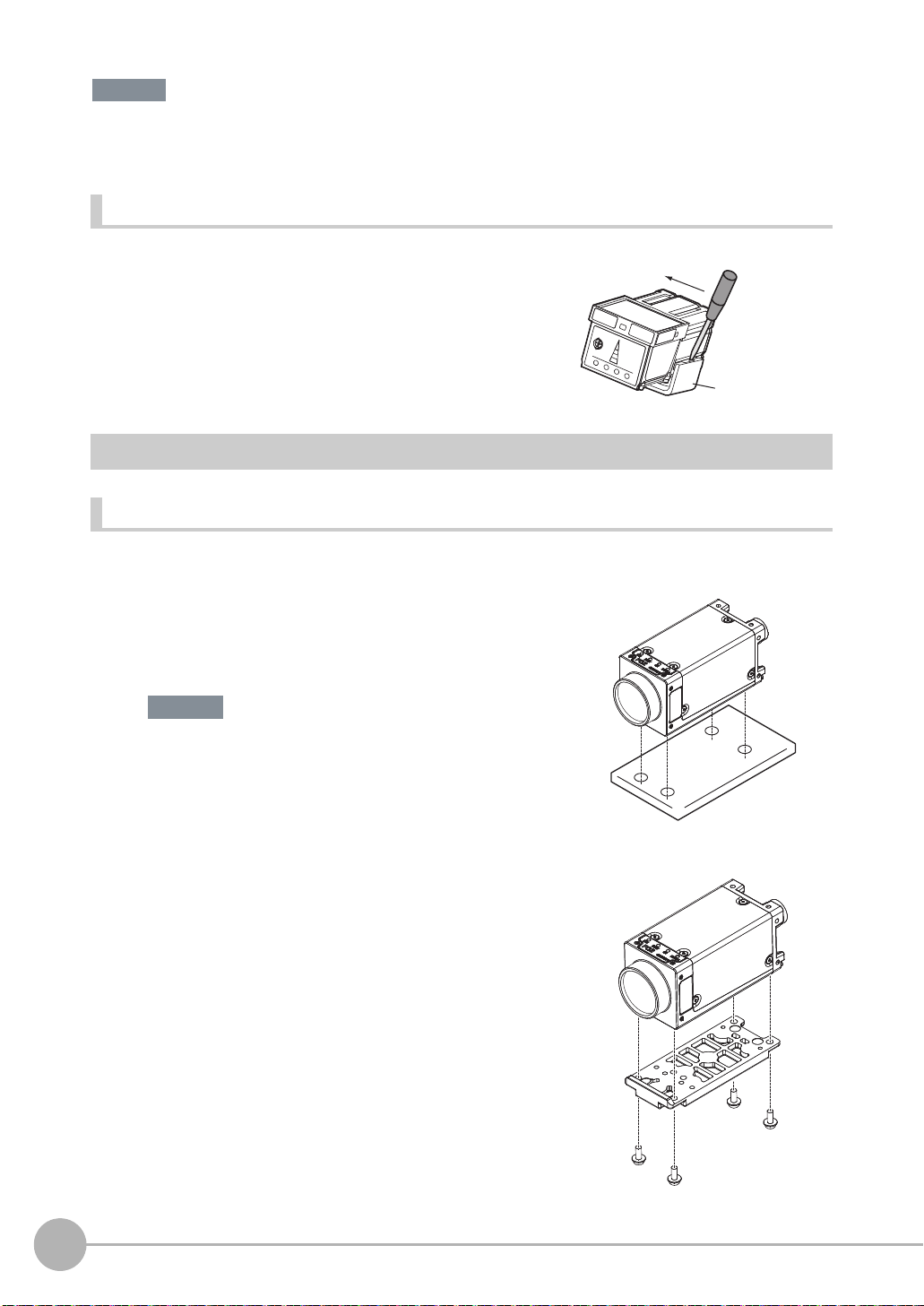

• There is a certain amount of deviation among Sensors in the center of the optical axis. For this reason, when install-

Important

Important

ing the Sensor, check the center of the image and the field of view on the LCD monitor of the Touch Finder and in
the PC Tool.

Removal Procedure

1 Insert a flat-blade screwdriver between the Mounting Brack-

et and the Sensor case on either side and remove the
Mounting Bracket.

Mounting
Bracket

FQ2-S@@-@@@ (Sensors with C-mounts)

Installation Procedure

Directly Mounting the Sensor

1 Mount the Sensor with M3 screws.

Tightening torque: 0.54 N·m

Effective depth of mounting holes: 4 mm

Refer to the dimension drawings in the appendix for the positions of
the screw holes.

Mounting the Sensor to the Base

1 You can attach the mounting base to the bottom, top, left,

or right surface.
(Recommended mounting screw tightening torque:

0.54 N·m)

Tightening torque: 0.54 N·m
Effective depth of mounting holes: 4 mm

2 Mount the Sensor with M3 screws.

Tightening torque: 0.54 N·m
Effective depth of mounting holes: 4 mm

40

Installation

FQ2-S/CH User’s Manual

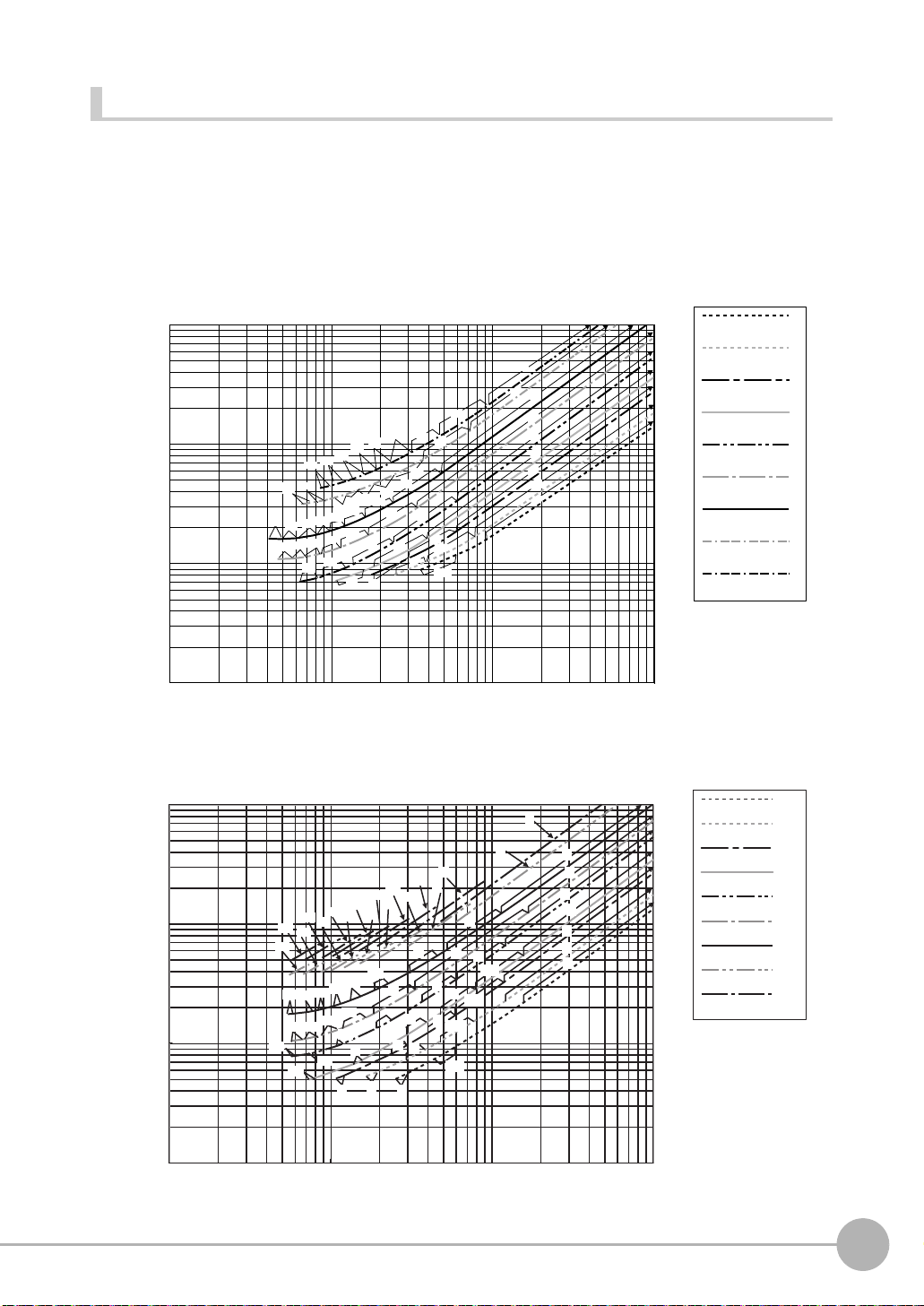

Lens Selection

Use the following optical diagrams to determine the Lens, camera installation distance, and detection range.

Optical Diagrams

The following values are estimates only. Adjustment is required after installing the camera.

3Z4S-LE SV-@@@@H High-resolution, Low-distortion Lenses

3Z4S-LE

10000

1000

100

Camera installation distance (mm)

10

t20

t25

t30

t40

t50

t40

t50

t50

t30

t40

t25

t30

t15

t20

t25

t10

t30

t15

t20

t25

t10

t15

t20

t5

t10

t5

t2

Y axis of field of view (mm)

t0

t0

t0

t5

t10

t15

t5

t10

t5

t15

t5

t2

t1

t2

t0.5

t1

t0.5

t0

t0

t0

t0

t0
t0

1000100101

SV-0614H

SV-0814H

SV-1214H

SV-1614H

SV-2514H

SV-3514H

SV-5014H

SV-7525H

SV-10028H

t: Macro ring
Examples

t0: Macro ring is

not required.

t5: A 5-mm macro

ring is required.

2

Installation and Connections

3Z4S-LE SV-@@@@V-series Lenses

10000

t30

t40

1000

100

Camera installation distance (mm)

t30

t50

t40

t50

t25

t40

t30

t15

t20

t25

t25

t15

t10

10

FQ2-S/CH User’s Manual

t5

t10

t5

t15

t20

t10

t15

t25

t20

t25

t10

t15

t20

t5

t10

t10

t5

t5

t2

t5

t2

t1

t2

t1

t2

t1

t5

t1

t2

t1

t0.5

t1

t0.5

t0.5

Y axis of field of view (mm)

t0.5

3Z4S-LE

t0

t0

t0

t0

t0

t0

t0

t0
t0

SV-0614V
SV-0813V
SV-1214V
SV-1614V
SV-2514V
SV-3518V
SV-5018V
SV-7527V
SV-10035V

t: Macro ring

Examples
t0: Macro ring is

not required.

t5: A 5-mm macro

ring is required.

1000100101

Installation

41

The X axis in the above optical diagrams represent field of view (mm)*1. The Y axis represents the camera

Field of view

Y

X

*1: The Y axis in the optical charts represents the height of the field of view.

Macro ring t@ (mm)

Camera

Camera lens

Measurement object

Camera installation distance (mm)

Field of view (mm)

Example: If you use an 3Z4S-LE SV-2514H Lens for a measurement object that requires field of view of 35

mm, the camera installation distance must be 200 mm and a 2-mm macro ring is required.

Filter threads

1-32 UNF
(C-mount threads)

Maximum outside
diameter

Total length

installation distance (mm) or WD (mm). These optical diagrams show the relationship between the detection
range and installation distance for different CCTV Lenses. The values vary for each Lens. Pay close attention
to the Lens that you are using when you refer to these optical diagrams. The macro ring thickness to be used is
given as, for example “t5.0,” on the graphs. “t0” means that a macro ring is not required. “t5.0” means that you
must use a 5-mm macro ring.

Lens Models and Dimensions

42

Installation

FQ2-S/CH User’s Manual

3Z4S-LE SV-@@@@H High-resolution, Low-distortion Lenses

Lens model Focal length Brightness Maximum out-

Total length Filter size

side diameter

3Z4S-LE SV-0614H 6.1 mm F1.4 42 mm 57.5 mm M40.5 P0.5

3Z4S-LE SV-0814H 8.0 mm F1.4 39 mm 52.5 mm M35.5 P0.5

3Z4S-LE SV-1214H 12.3 mm F1.4 30 mm 51.0 mm M27 P0.5

3Z4S-LE SV-1614H 16.2 mm F1.4 30 mm 47.5 mm M27 P0.5

3Z4S-LE SV-2514H 25.0 mm F1.4 30 mm 36.0 mm M27 P0.5

3Z4S-LE SV-3514H 35.01 mm F1.4 44 mm 45.5 mm M35.5 P0.5

3Z4S-LE SV-5014H 50.0 mm F1.4 44 mm 57.5 mm M40.5 P0.5

3Z4S-LE SV-7525H 75 mm F2.5 36 mm 49.5 mm M34.0 P0.5

3Z4S-LE SV-10028H 100 mm F2.8 39 mm 66.5 mm M37.5 P0.5

3Z4S-LE SV-@@@@V-series Lenses

Lens model Focal length Brightness Maximum out-

Total length Filter size

side diameter

3Z4S-LE SV-0614V 6.20 mm F1.4 29 mm 30.0 mm M27 P0.5

3Z4S-LE SV-0813V 8.05 mm F1.3 28 mm 34.0 mm M25.5 P0.5

3Z4S-LE SV-1214V 12.43 mm F1.4 29 mm 29.5 mm M27 P0.5

3Z4S-LE SV-1614V 16.34 mm F1.4 29 mm 24.0 mm M27 P0.5

3Z4S-LE SV-2514V 25.17 mm F1.4 29 mm 24.5 mm M27 P0.5

3Z4S-LE SV-3518V 34.75 mm F1.8 29 mm 33.5 mm M27 P0.5

3Z4S-LE SV-5018V 47.97 mm F1.8 32 mm 37.0 mm M30.5 P0.5

3Z4S-LE SV-7527V 76.71 mm F2.7 32 mm 42.0 mm M30.5 P0.5

3Z4S-LE SV-10035V 95.4 mm F3.5 32 mm 43.9 mm M30.5 P0.5

2

Installation and Connections

FQ2-S/CH User’s Manual

Installation

43

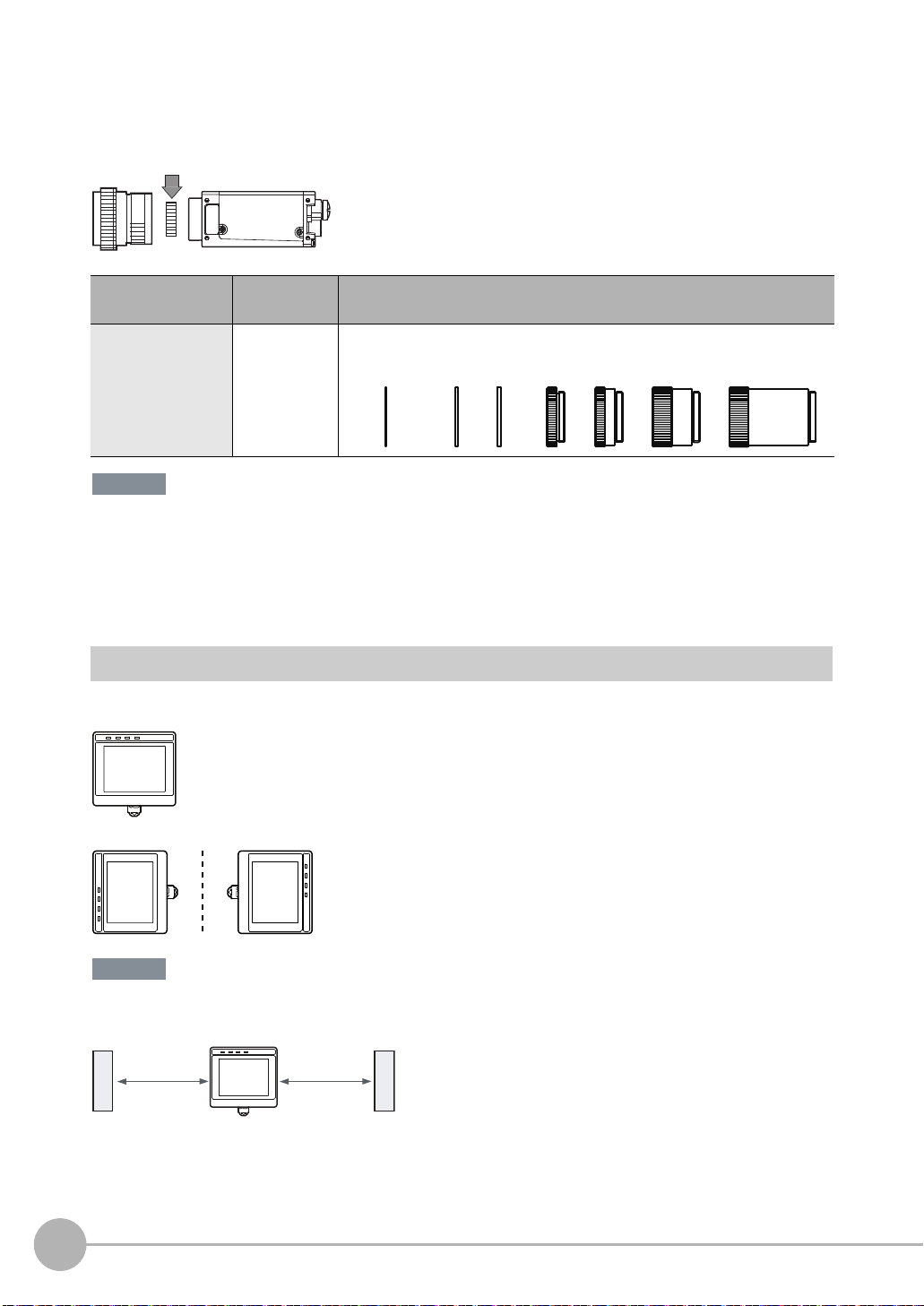

Macro Rings

Important

Important

15 mm min.

15 mm min.

Macro rings are inserted between the Lens and the camera to adjust the focus. You can use up to seven macro
rings to achieve the required thickness.

Macro ring

Model Maximum out-

Thickness

side diameter

3Z4S-LE SV-EXR 31 mm 7-piece set

Thickness:

0.5 mm

10mm

• Do not stack 0.5 mm, 1.0 mm, and 2.0 mm macro rings. These sizes fit between the Lens and the threaded portion
of other macro rings. If two or more are stacked together, the screw cannot be tightened securely.

• The macro rings may need to be reinforced depending on the vibration conditions if over 30 mm is used.

20mm

40 mm20 mm10 mm5 mm1 mm 2 mm

40mm

Installing the Touch Finder

Installation Precautions

Install the Touch Finder in the following orientation to allow sufficient heat dissipation.

44

Do not mount it in the following orientations.

• To improve ventilation, leave space on both sides of the Touch Finder. The distance between the Touch Finder and
other devices should be at least that shown in the following diagram.

• Make sure that the ambient temperature is 50°C or lower. If it exceeds 50°C, install an cooling fan or an air condi­tioner and maintain the temperature at 50°C or lower.

• To prevent interference by noise, do not mount the Sensor on panels which contain high-voltage devices.

• To keep the level of noise from the surrounding environment to a minimum, install the Sensor and Touch Finder at
least 10 m away from power lines.

Installation

FQ2-S/CH User’s Manual

Mounting to DIN Track

Important

Important

Installation Procedure

1 Press the slider on the Touch Finder to the top.
2 Hook the clip at the top of the Touch Finder on to the DIN

Track.

3 Press the Touch Finder onto the DIN Track until the bottom

clip clicks into place.

3

• Attach End Plates (sold separately) on the sides of the Touch Finder on the DIN Track.

• If other devices will be installed next to the Touch Finder on the same DIN Track, make sure that sufficient space is
kept between the devices as indicated on previous page.

•Always hook the clip at the top of the Touch Finder on the DIN Track first. If the lower clip is hooked on first, the
Touch Finder will not be mounted very securely.

Removal Procedure

2

3

1

1 Pull down on the slider on the Touch Finder.
2 Lift the Touch Finder at the bottom and remove it from the

DIN Track.

2

1

2

Installation and Connections

Mounting to a Control Panel

The Touch Finder can be mounted on a panel using the FQ-XPM Panel Mounting Adapter.

•Always turn OFF the Touch Finder power before attaching or detaching the Panel Mount Adapter. Attaching or
detaching with the power turned ON may cause a failure.

1 Set the Touch Finder in the Panel Mount Adapter.

FQ2-S/CH User’s Manual

Installation

45

2 Press the slider up on the Touch Finder.

Hand Strap

Neck Strap

3 Create holes in the panel for mounting.

Refer to the following page for hole dimensions.

Dimensions: p.408

4 Connect the cable to the Touch Finder.
5 Mount the Touch Finder with the Panel Mount Adapter from

the front of the panel.

6 Hook the hooks on the Mounting Bracket in the four holes

of the Panel Mount Adapter and secure them with screws.
(Tightening torque: 1.2 N·m)

7 Check that the Touch Finder is attached properly to the

Panel.

Mounting
Bracket

Using the Touch Finder as a Portable Device (with Battery)

The Touch Finder with a Battery can be used as a portable device. Use the strap when carrying it to prevent
dropping it.

There are two types of straps (FQ-XH, sold separately), a Neck Strap and a Hand Strap.

1 Attach the Mini-strap to the Touch Finder.

There are a total of four holes for attaching the Mini-strap on the left and on the right of the Touch Finder.

46

Installation

FQ2-S/CH User’s Manual

2 Connect the Neck Strap or Hand Strap to the Mini-strap.

Mini-strap

Neck Strap or Hand

Strap

Important

2

1

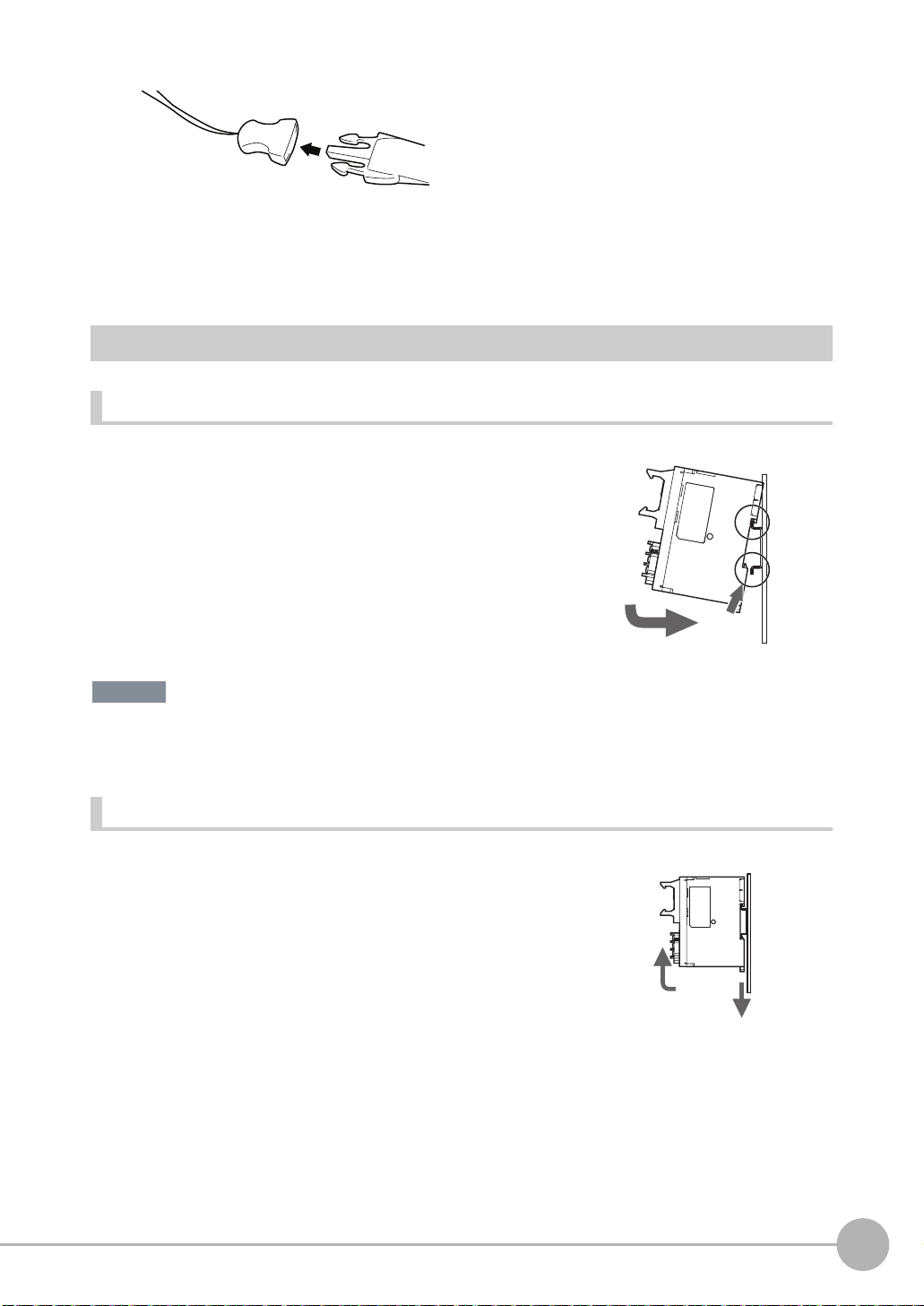

Mounting Sensor Data Units

Mounting to DIN Track

Installation Procedure

1 Lock the sliders at the top and bottom of the Sensor Data

Unit.

2 Press the slider on the Sensor Data Unit to the top.
3 Hook the clip at the top of the Sensor Data Unit on to the DIN

Track.

4 Press the Sensor Data Unit onto the DIN Track until the bot-

tom clip clicks into place.

• Attach End Plates (sold separately) on the sides of the Sensor Data Unit on the DIN Track.

•Always hook the clip at the top of the Sensor Data Unit on the DIN Track first. If the lower clip is hooked on first, the
Touch Finder will not be mounted very securely.

3

2

3

1

2

Installation and Connections

Removal Procedure

1 Pull down on the slider on the Sensor Data Unit.
2 Lift the Sensor Data Unit at the bottom and remove it from

FQ2-S/CH User’s Manual

the DIN Track.

Installation

47

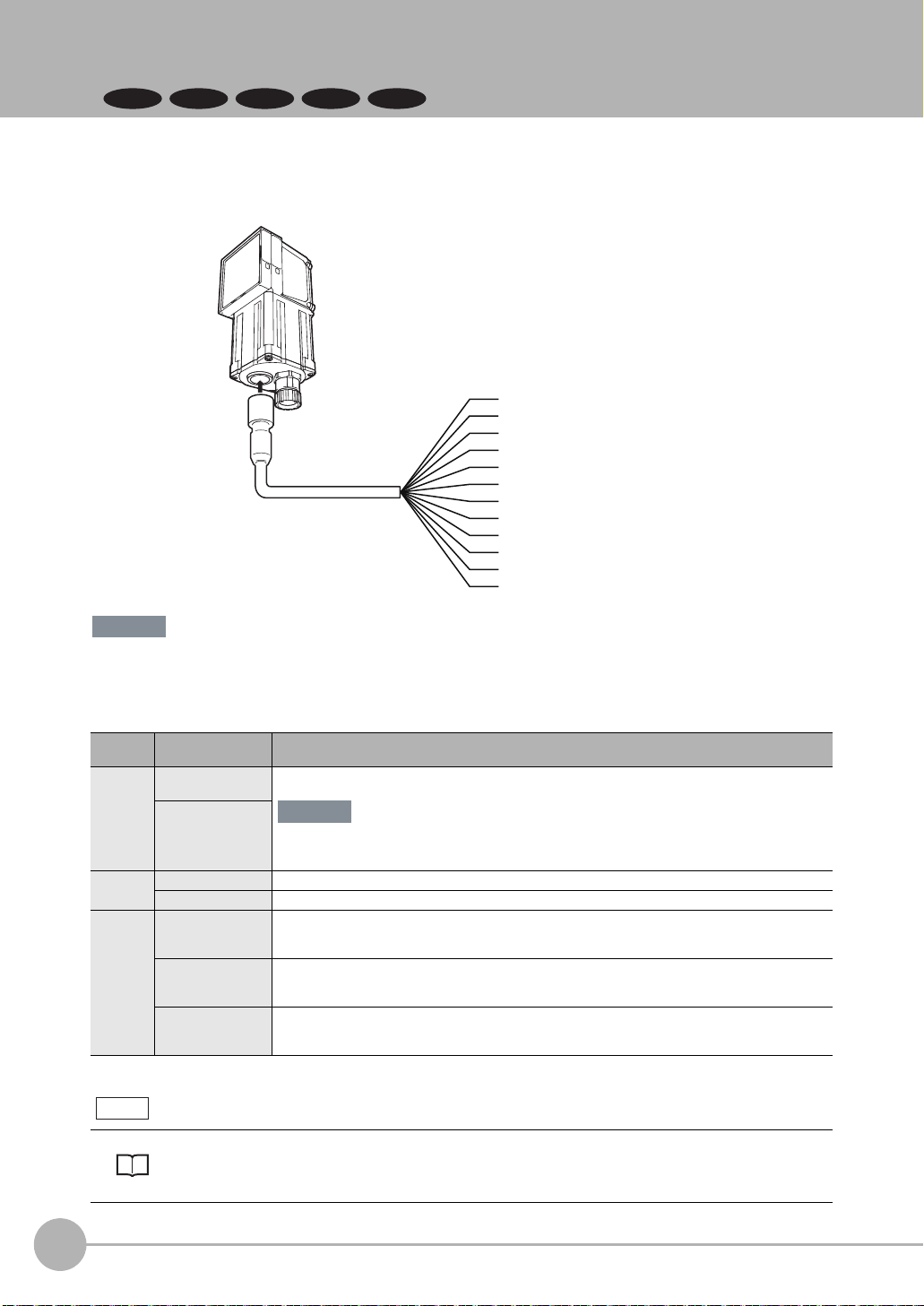

2-4 Wiring

FQ2-S1

FQ2-S2

FQ2-CH

GND
OUT0 (OR)
OUT1 (BUSY)
OUT2 (ERROR)

IN0

TRIG

IN1
IN2
IN3
IN4
IN5

Yellow

Purple

White

Red

Green

FQ-WD0@@
I/O Cable

Gray

Pink

Light blue

Orange

Black

Blue

Power supply

Brown

FQ2-S

@@@@@@

/FQ2-CH1

@@@@@

-M
(Sensors with Built-in Lighting or Sensors with
C-mounts)

Important

Important

FQ2-S3 FQ2-S4

Wiring the Sensor

Connect the I/O Cable to the I/O Cable connector located at the bottom of the Sensor.

48

• Cut off lines that are not required so that they do not come into contact the other signal lines.

• Do not allow the load current to exceed 50 mA. The output circuit may be damaged if the load current exceeds 50
mA.

Classifi­cation

Power
supply

Inputs TRIG This terminal is the trigger signal input.

Outputs OUT0 (OR) By default, this is the OR output signal (overall judgement).

The assignments of I/O signals can be changed.

Wiring

Signal Application

Power supply
(24 V)

GND

IN0 to IN5 These are the command input terminals.

OUT1 (BUSY) By default, this is the BUSY output signal.

OUT2 (ERROR) By default, this is the ERROR output signal.

Note

FQ2-S/CH Series User's Manual for Communications Settings (Cat. No. Z338)

Section 2 Controlling Operation and Outputting Data with a Parallel Connection

These terminals are for the external power supply (24 V).

Wire the power supply separately from other devices. If the wiring for other devices is placed
together or in the same duct as the wiring for the Vision Sensor, the influences of electromagnetic
induction may cause the Sensor to malfunction or may damage it.

The assignment can be changed to RUN, READY, an individual judgement signal from OR0 to
OR31, the STGOUT (strobe trigger output), or an expression judgement from 0 to 31.

The assignment can be changed to RUN, READY, an individual judgement signal from OR0 to
OR31, the STGOUT (strobe trigger output), or an expression judgement from 0 to 31.

The assignment can be changed to RUN, READY, an individual judgement signal from OR0 to
OR31, the STGOUT (strobe trigger output), or an expression judgement from 0 to 31.

FQ2-S/CH User’s Manual

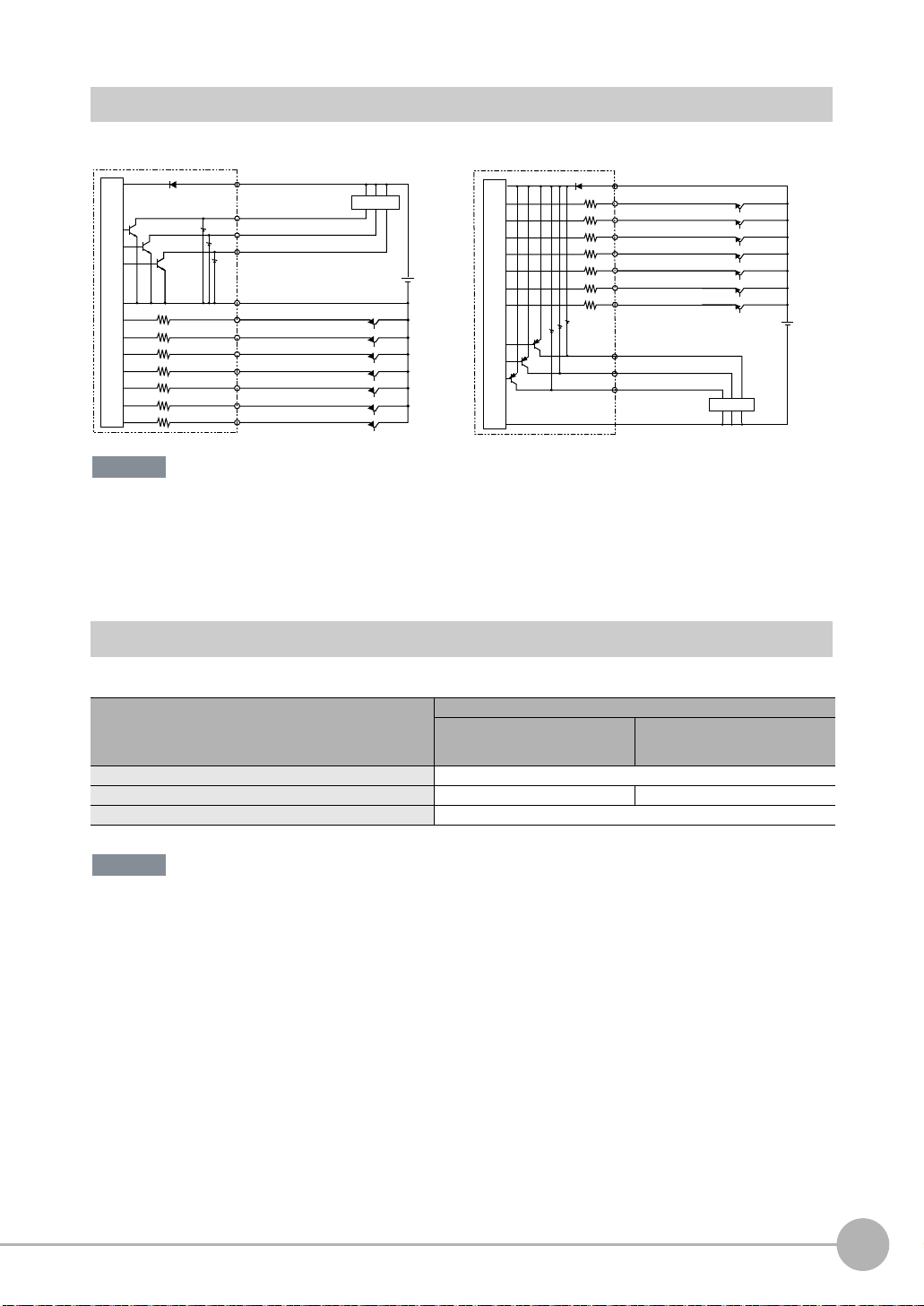

I/O Signal Circuit Diagrams

GND (0V)

OUT0 (OR)

OUT1 (BUSY)

OUT2 (ERROR)

TRIG
IN0
IN1
IN2
IN3

IN4
IN5

IN0
IN1
IN2

IN3
IN4
IN5

TRIG

GND (0V)

OUT0 (OR)

OUT1 (BUSY)

OUT2 (ERROR)

PNPNPN

Brown

Power supply (24 VDC)

24 VDC

Yellow

Blue

Load

Purple

White

Black

Red

Orange

Light blue

Green

Gray

24 VDC

Pink

Blue

Yellow

Internal circuits

Internal circuits

Purple

White

Light blueRed

Green

Orange

Black

Gray

Load

Pink

Brown

Power supply (24 VDC)

Important

Important

Preventing Chattering

• The Sensor is equipped with an anti-chattering function, but if the chattering is 100 μs or longer, a faulty input may
occur. (Input signals of 99 μs or shorter are ignored. Signals of 100 μs or longer are treated as input signals.)

• Use no-contact output devices (e.g., SSR or PLC transistor output) for the input signals. If contacts (e.g., relay) are
used, chattering may cause the trigger to be input again during execution of a measurement.

2

Installation and Connections

Power Supply Specifications When a Switching Regulator Is Connected

Use a power supply that meets the following specifications. (The power supply is sold separately.)

Item Description

When connected to
FQ2-S@@@@@@-@@@ or
FQ2-CH1@@@@@-M

Power supply voltage 24 VDC (21.6 to 26.4 V)
Recommended Power Supply S8VS-06024@ (24 VDC, 2.5 A) S8VS-01524@ (24 VDC, 0.65 A)
External power supply terminal screws M4 (tightening torque: 1.2 N·m)

Supply power from a DC power supply for which measures have been applied to prevent high voltages (e.g., a safety
extra low voltage circuit).

If UL certification is required for the overall system, use a UL Class II DC power supply.

FQ2-S/CH User’s Manual

When connected to
FQ2-S@@-@@@

Wiring

49

Wiring Sensor Data Units

FQ2-S3

@@@@@

/

FQ2-S4

@@@@@

/

FQ2-CH1

@@@@@

-M

(Sensors with Built-in Lighting or Sensors with C-mounts)

Power supply (24 V)

Power supply (0 V)

Frame ground

1 2 31 32
3 4 33 34
5 6 35 36
7 8 37 38

9 103940
11 12 41 42
13 14 43 44
15 16 45 46
17 18 47 48
19 20 49 50
21 22 51 52
23 24 53 54
25 26 55 56
27 28 57 58
29 30 59 60

(Screw size: M3,

Tightening torque:

0.54 N·m)

FQ-WU0@@
Sensor Data Unit Cable

Parallel Interface Sensor Data Unit (FQ-SDU1@)

For the I/O connector harness, use an FQ-VP1@@@ Parallel Cable for the FQ-SDU1 or a MIL-standard
harness, such as the OMRON XZ2F. (The Cables are sold separately.)

Pins 1 to 30 and pins 31 to 60 are for separate connectors. One FQ-VP1@@@ is required for each connector.

Signal Application
Power supply (24 V)
Power supply (0 V)

50

Frame ground

Wiring

These terminals are for the external power supply (24 V).

Important

• Wire the power supply separately from other devices. If the wiring for other devices is
placed together or in the same duct as the wiring for the Vision Sensor, the influence
of electromagnetic induction may cause the Sensor to malfunction or may damage it.

• Do not allow the load current to exceed 50 mA. The output circuit may be damaged if
the load current exceeds 50 mA.

This is the frame ground terminal. Connect the ground wire by a D-type ground (ground
resistance of 100Ω or less).

FQ2-S/CH User’s Manual

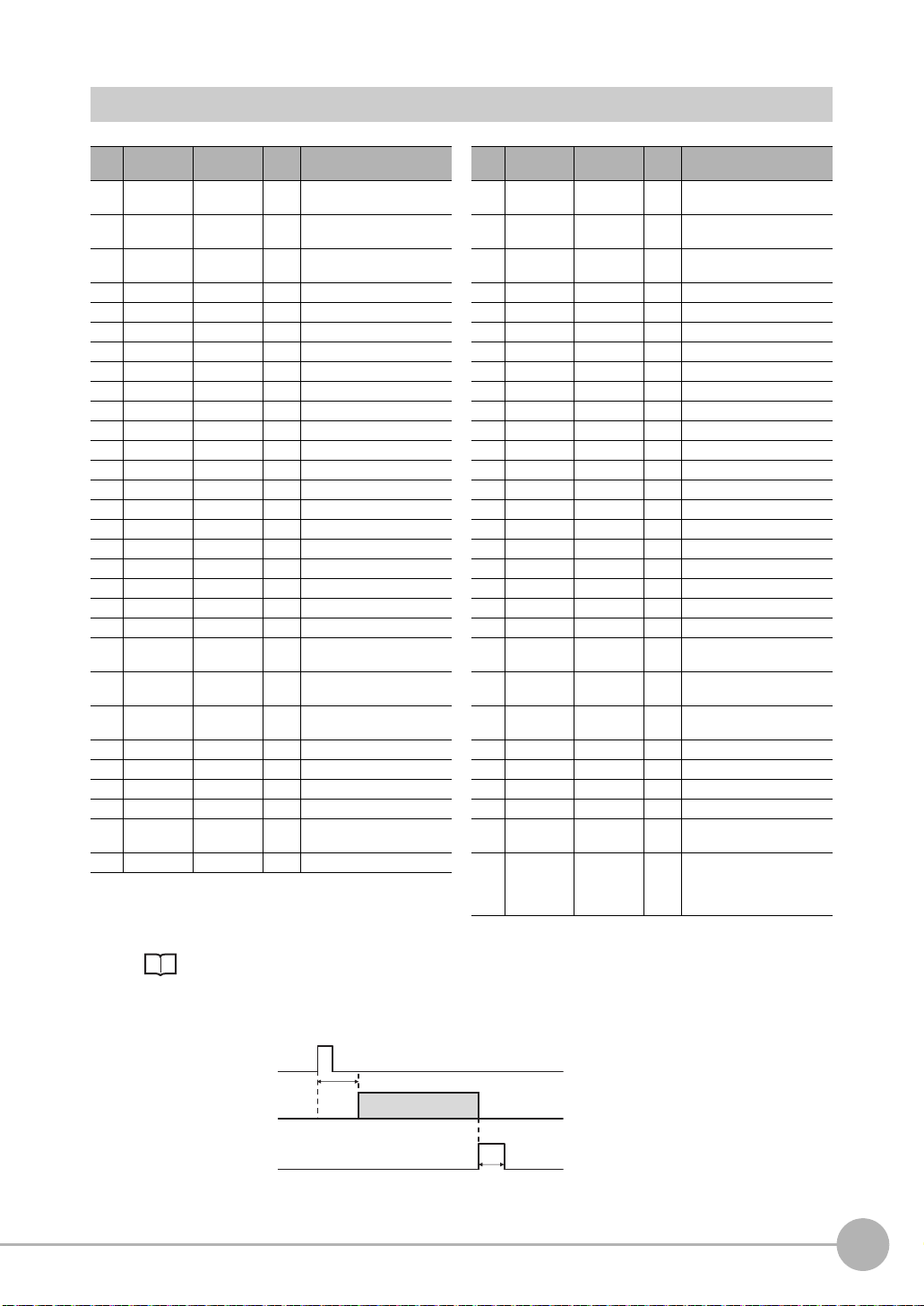

FQ-SDU10/SDU15 Terminal Signal Names

Pin Signal FQ-VP1

Wire color

1 COMOUT1Brown - Output signal common

*1

2NC

Red - 32 COMIN1 Red - Input signal common

IN/

Function Pin Signal FQ-VP1

OUT

(DO0 to DO15)

31 COMIN0 Brown - Input signal common (all

Wire color

IN/

Function

OUT

inputs except TRIG)

(TRIG)

3 D0 Orange OUT Data output 33 TRIG Orange IN Measurement trigger

input

*1

4 D1 Yellow OUT Data output 34 NC
5 D2 Green OUT Data output 35 NC

*1

Yellow -

Green ­6 D3 Blue OUT Data output 36 RESET Blue IN Reset input
7 D4 Purple OUT Data output 37 IN0 Purple IN Command input
8 D5 Gray OUT Data output 38 IN1 Gray IN Command input
9 D6 White OUT Data output 39 IN2 White IN Command input
10 D7 Black OUT Data output 40 IN3 Black IN Command input
11 D8 Brown OUT Data output 41 IN4 Brown IN Command input
12 D9 Red OUT Data output 42 IN5 Red IN Command input
13 D10 Orange OUT Data output 43 IN6 Orange IN Command input
14 D11 Yellow OUT Data output 44 IN7 Yellow IN Command input

*1

15 D12 Green OUT Data output 45 NC
16 D13 Blue OUT Data output 46 NC

*1

Green -

Blue ­17 D14 Purple OUT Data output 47 DSA Purple IN Data send request signal

*1

18 D15 Gray OUT Data output 48 NC

*1

19 NC
20 NC
21 NC
22 NC

White - 49 NC

*1

Black - 50 NC

*1

Brown- 51NC*1Brown-

*1

Red - 52 ACK Red OUT Command execution

*1

*1

Gray -

White -

Black -

completed flag

*1

23 NC

24 NC

25 NC
26 NC
27 NC
28 NC
29 NC

30 NC

*1: Leave all signal terminals that are labeled “NC” open.
*2: You can select whether to turn the external lighting ON (Positive) or OFF (Negative) when the signal turns ON. (The setting is called the

strobe output polarity.)

*3: This control signal is used to turn ON external lighting when an image is taken. Connect this signal to external lighting.
*4: This signal is output to an external device when exposure of the imaging elements is completed. If you want to move the Sensor to the next

measurement location after a measurement is completed, move the Sensor only after this signal turns ON.
Shutter Output Signal (SHTOUT)

Trigger input (TRIG)

Imaging element
shutter signal

SHTOUT

The SHTOUT signal turns ON for approximately 10 ms (fixed) when the shutter time (exposure period) elapses after
the trigger is input from an external device.

Orange - 53 RUN Orange OUT ON during measurement

*1

Yellow - 54 BUSY Yellow OUT ON during process exe-

*1

Green - 55 OR Green OUT Overall judgement result

*1

Blue - 56 ERROR Blue OUT ON during error

*1

Purple - 57 STGOUT Purple OUT Strobe trigger output

*1

Gray - 58 SHTOUT Gray OUT Shutter trigger output

*1

White - 59 GATE White OUT ON during the set output

*1

Black - 60 COMOUT0Black - Output signal common

FQ2-S/CH Series User's Manual for Communications Settings (Cat. No. Z338)

Section 2 Controlling Operation and Outputting Data with a Parallel Connection

ON

OFF
ON

OFF

ON

OFF

Trigger delay

Shutter time

10 ms

mode

cution

time.

(ACK, RUN, BUSY, OR,
ERROR, STGOUT,
SHTOUT, and GATE)

*2, *3

*4

2

Installation and Connections

FQ2-S/CH User’s Manual

Wiring

51

RS-232C Interface Sensor Data Unit (FQ-SDU2@)

FQ2-S3

@@@@@-@@@

FQ2-S4

@@@@@-@@@

FQ2-CH1

@@@@@

-M
(Sensors with Built-in Lighting or Sensors with
C-mounts)

Power supply (24 V)

Power supply (0 V)

Frame ground

RS-232C connector

1 2 17 18
3 4 19 20
5 6 21 22
7 8 23 24

9 10 25 26
11 12 27 28
13 14 29 30
15 16 31 32

(Screw size: M3,

Tightening torque:

0.54 N·m)

FQ-WU0@@
Sensor Data Unit Cable

For the I/O connector harness, use an FQ-VP2@@@ Parallel Cable for the FQ-SDU2 or a MIL-standard
harness, such as the OMRON XZ2F. (The Cables are sold separately.)

Pins 1 to 16 and pins 17 to 32 are for separate connectors. One FQ-VP2@@@ is required for each connector.

Signal Application
Power supply (24 V)
Power supply (0 V)

Frame ground

52

Wiring

These terminals are for the external power supply (24 V).

Important

• Wire the power supply separately from other devices. If the wiring for other devices is
placed together or in the same duct as the wiring for the Vision Sensor, the influence
of electromagnetic induction may cause the Sensor to malfunction or may damage it.

• Do not allow the load current to exceed 50 mA. The output circuit may be damaged if
the load current exceeds 50 mA.

This is the frame ground terminal. Connect the ground wire by a D-type ground (ground
resistance of 100Ω or less).

FQ2-S/CH User’s Manual

FQ-SDU20/SDU25 Parallel Pin Signal Names

Pin No. Signal name Function
1 NC Not connected
2 RD For RS-232C
3 SD For RS-232C
4 NC Not connected
5 GND Signal ground
6 NC Not connected
7 NC Not connected
8 NC Not connected
9 NC Not connected

Pin Signal FQ-VP2

1IN0 Brown IN Command input 17 COMIN0 Brown - Input signal common
2 IN1 Red IN Command input
3 IN2 Orange IN Command input 18 COMIN1 Red - Input signal common

4 IN3 Yellow IN Command input 19 TRIG Orange IN Measurement trigger

5 IN4 Green IN Command input 20 NC
6 IN5 Blue IN Command input 21 NC
7NC
8NC
9NC

10 NC

11 NC

12 NC
13 NC
14 NC
15 NC
16 NC

*1: Leave all signal terminals that are labeled “NC” open.

Wire color

*1

Purple - 22 RESET Blue IN Reset input

*1

Gray - 23 NC

*1

White - 24 ACK Gray OUT Command execution

*1

Black - 25 RUN White OUT ON during measurement

*1

Brown - 26 BUSY Black OUT ON during process exe-

*1

Red - 27 OR Brown OUT Overall judgement result

*1

Orange - 28 ERROR Red OUT ON during error

*1

Yellow - 29 STGOUT Orange OUT Strobe trigger output

*1

Green - 30 SHTOUT Yellow OUT Shutter trigger output

*1

Blue - 31 NC

IN/

Function Pin Signal FQ-VP2

OUT

*1

*1

*1

*1

32 COMOUT0Blue - Output signal common

Wire color

Yellow -
Green -

Purple -

Green -

IN/

Function

OUT

(RESET and IN0 to IN5)

(TRIG)

input

completed flag

mode

cution

(ACK, RUN, BUSY, OR,
ERROR, STGOUT, and
SHTOUT)

2

Installation and Connections

FQ-SDU20/SDU25 RS-232C Pin Signal Names

RS-232C Connector

5
4
3
2
1

Pin numbers will depend on the external device being connected. Refer to the manual for the personal
computer or PLC being connected.

Use a compatible connector.

• Recommended items

Manufacturer Model
Socket OMRON Corporation XM3D-0921
Hood OMRON Corporation XM2S-0911

FQ2-S/CH User’s Manual

9

8

7
6

Wiring

53

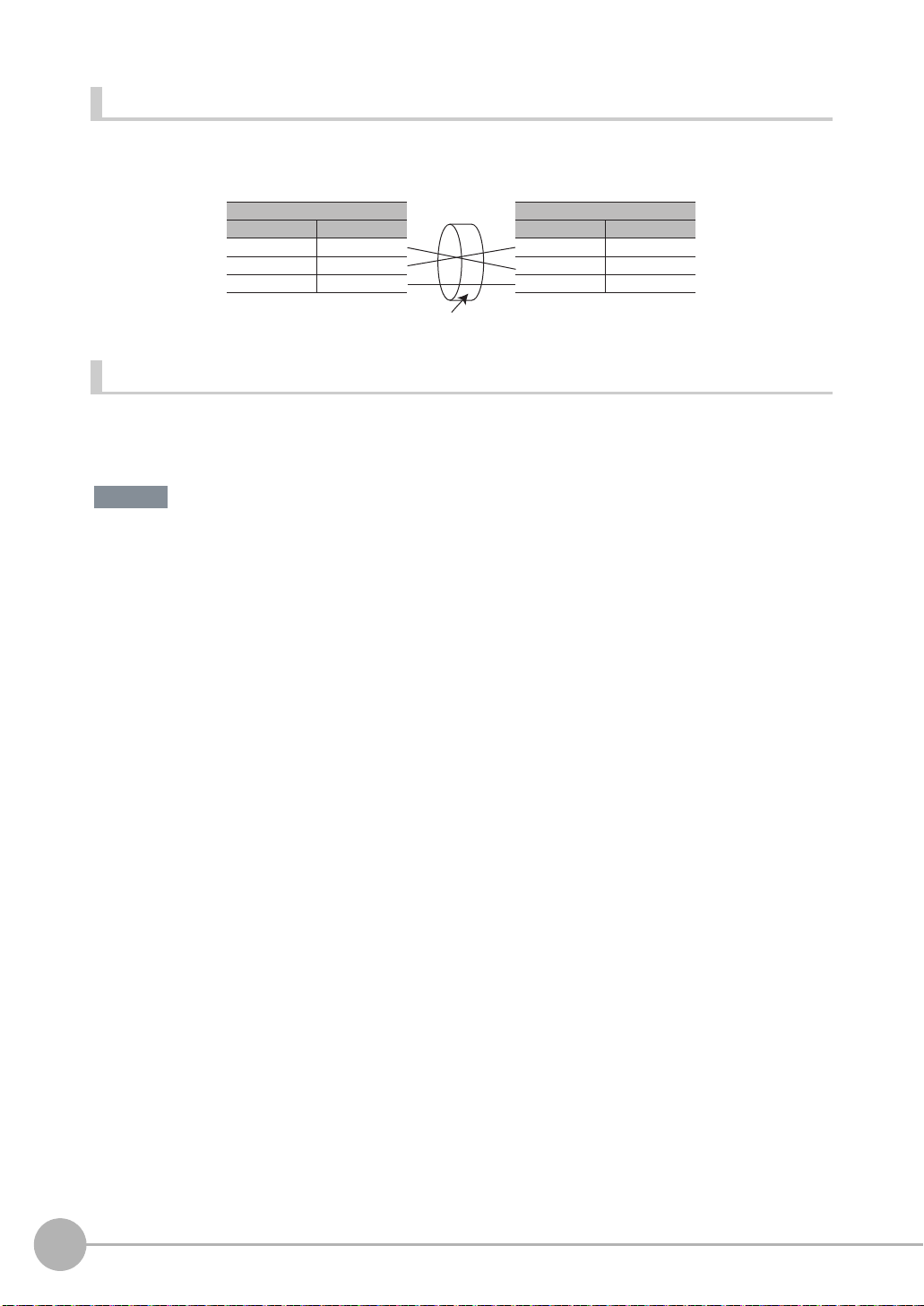

Wiring

Use a shielded cable.

Controller

Pin No.
*
*
*

External device to be connected

RS/CS control cannot be used.

Pin No.

2
3
5

Signal name
RD
SD
GND

Signal name
RD
SD
GND

Important

The maximum cable length is 15m.

• RS-232C

Connection Method

Align the connector with the socket and press it straight into place, then fix it with the screws on both sides of
the connector.

Turn OFF the power supply before connecting or disconnecting a Cable. Peripheral devices may be damaged if the
cable is connected or disconnected with the power ON.

54

Wiring

FQ2-S/CH User’s Manual

I/O Signal Circuit Diagrams

Important

Important

NPN

Input Circuit

Input terminal

+

COM_IN

3 KΩ

1000 pF

910 Ω

Internal circuits

Output Circuit

Internal
circuits

Output terminal

L

Load

COM_OUT

+

PNP

Input Circuit

Input terminal

+

3 KΩ

COM_IN

1000 pF

910 Ω

Internal circuits

Output Circuit

Internal
circuits

COM_OUT

+

Load

L

Output terminal

Preventing Chattering

• The Sensor is equipped with an anti-chattering function, but if the chattering is 100 μs or longer, a faulty input may
occur. (Input signals of 99 μs or shorter are ignored. Signals of 100 μs or longer are treated as input signals.)

• Use no-contact output devices (e.g., SSR or PLC transistor output) for the input signals. If contacts (e.g., a relay)
are used, chattering may cause the trigger to be input again during execution of a measurement.

2

Installation and Connections

Power Supply Specifications When a Switching Regulator Is Connected

Use a power supply that meets the following specifications. (They are sold separately.)

Item Description

When connected to
FQ2-S@@@@@@-@@@ or
FQ2-CH1@@@@@-M

Power supply voltage 24 VDC (21.6 to 26.4 V)
Recommended Power Supplies S8VS-06024@ (24 VDC, 2.5 A) S8VS-03024 (24 VDC, 1.3 A)
External power supply terminal screws M4 (tightening torque: 1.2 N·m)

Supply power from a DC power supply for which measures have been applied to prevent high voltages (e.g., a safety
extra-low-voltage circuit).

If UL certification is required for the overall system, use a UL Class II DC power supply.

FQ2-S/CH User’s Manual

When connected to FQ2-S@@-@@@

Wiring

55

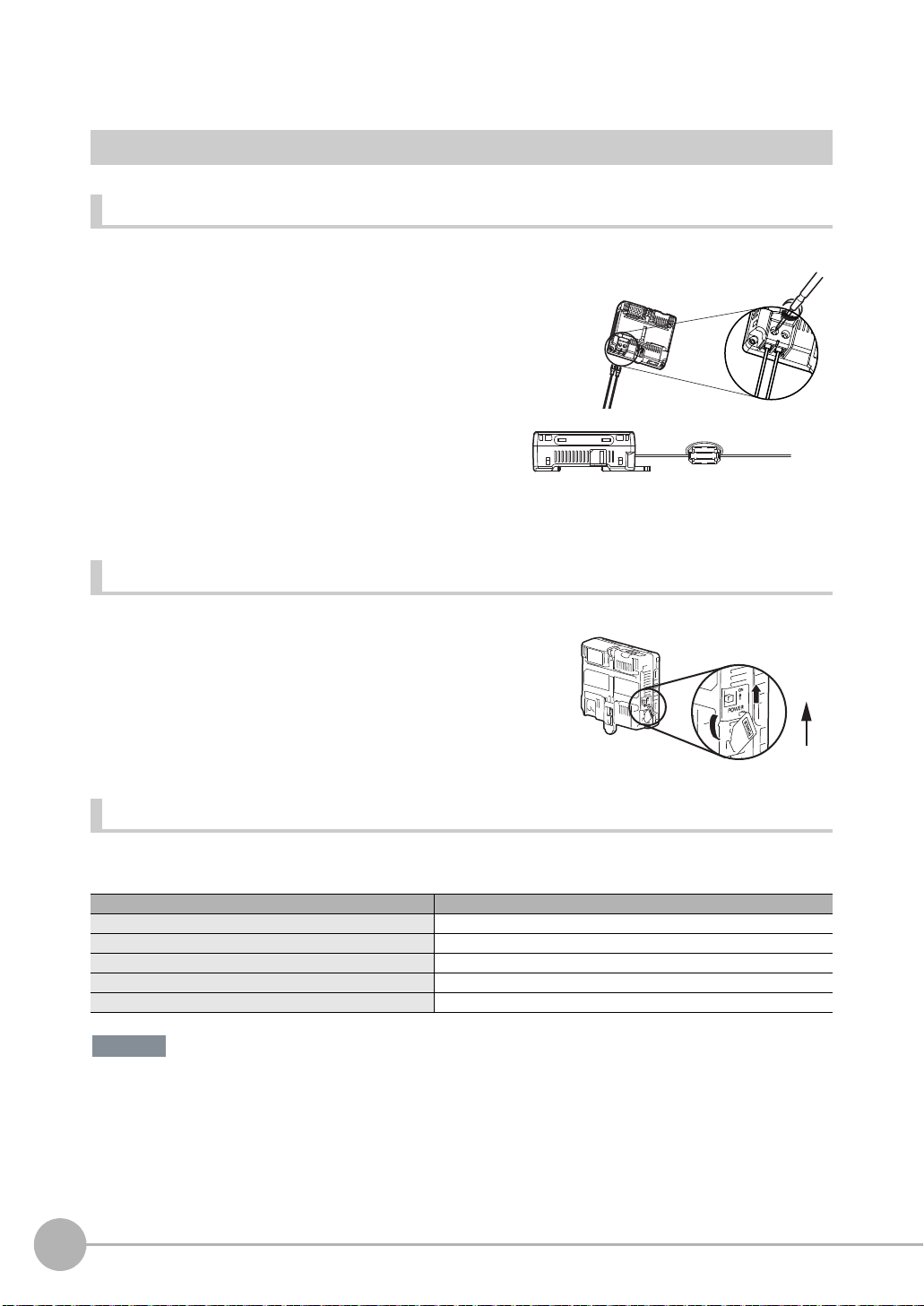

Wiring the Touch Finder

1

2

ON

OFF

Important

Power Supply Wiring

Connecting the Power Supply

1 Loosen the two terminal screws using a Phillips

screwdriver.

2 Attach crimp terminals to the power lines.

Secure the positive and negative lines as indicated
using M3 screws.

Power supply tightening torque: 0.54 N⋅m

3 In environments where there is excessive noise, at-

tach a ferrite core (ZCAT1730-0730 from TDK or the
equivalent) to the power supply cable.

Turning ON the Touch Finder

24 VDC

When you attach the ferrite core to

the power supply cable, wrap the
cable only one time.

+

−

1 Remove the cover from the power switch on the left side of

the Touch Finder.

2 Press the switch toward ON.

Power Supply Specifications

Use a power supply that meets the following specifications. (The power supply is sold separately.)

Item Description
Power supply voltage 24 VDC (21.6 to 26.4 V)
Output current 0.65 A min.
Recommended Power Supply S8VS-01524@ (24 VDC, 0.65 A)
External power supply terminal screws M3.5 (tightening torque: 1.0 N⋅m)
Recommended power line wire size AWG16 to AWG22 (length of 5 m max.)

• Supply power from a DC power supply for which measures have been applied to prevent high voltages (e.g., a
safety extra-low-voltage circuit).
If UL certification is required for the overall system, use a UL Class II DC power supply.

• When using the FQ2-D31, do not connect a switching regulator and AC Adapter (FQ-AC@) at the same time.

56

Wiring

FQ2-S/CH User’s Manual

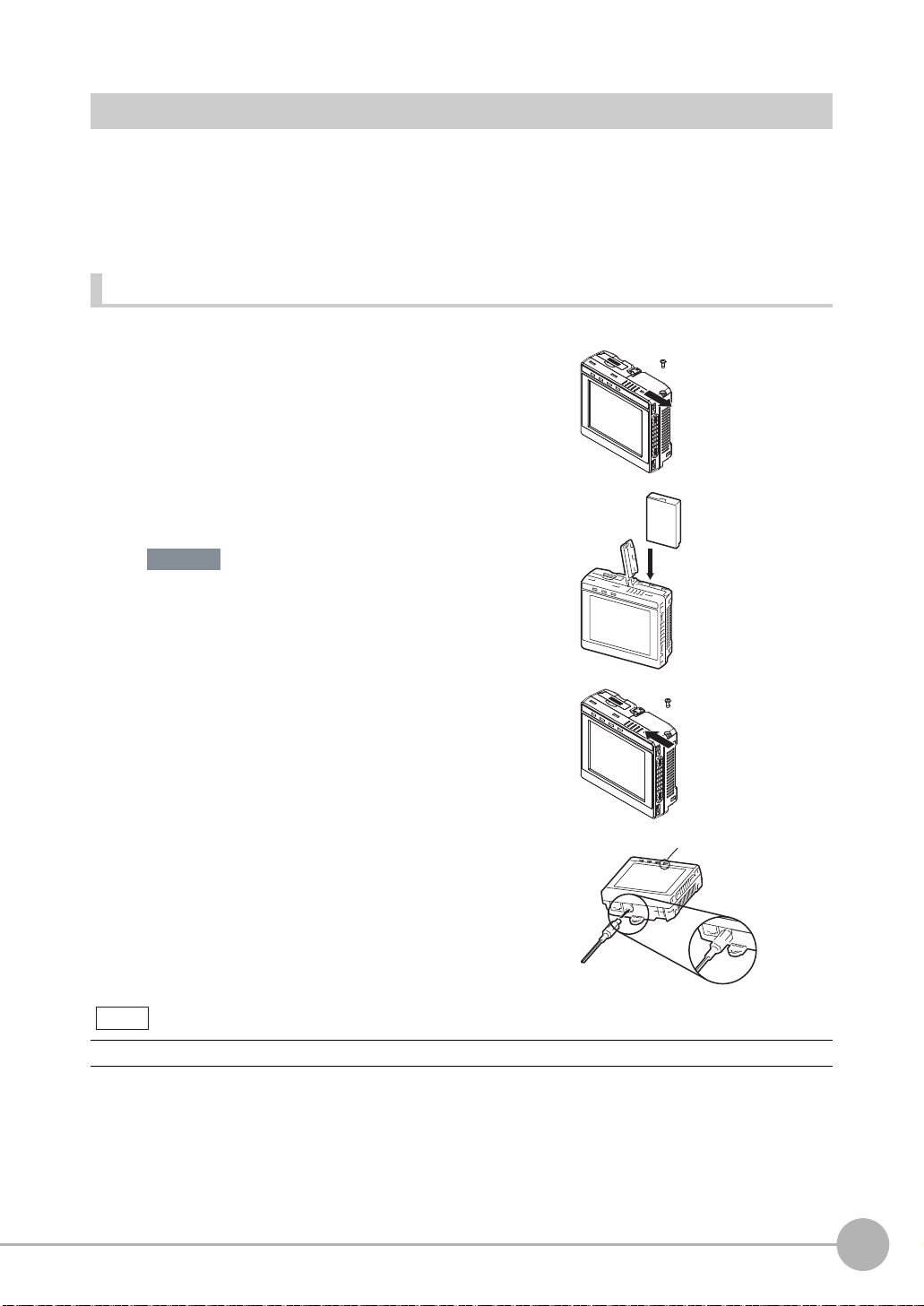

Charging the Battery

This section describes how to charge and install the FQ2-D31 Battery and provides applicable precautions.

Charge the Battery while it is attached to the Touch Finder.

Use the AC adapter to charge the battery.

Mounting the Battery in the Touch Finder

1 Remove the screw from the battery cover on the top of the

Touch Finder, slide the cover in the direction of the arrow,
and open the battery cover.

2 Face the rounded side of the battery toward the back of the

Touch Finder and insert the battery.

Important

Do not insert the battery in the wrong orientation.

3 Close the battery cover, slide the battery cover in the direc-

tion of the arrow, and tighten the screw on the battery cov­er.

2

Installation and Connections

4 Attach the AC adapter to the Touch Finder to start changing

the battery.

The CHARGE indicator will be lit while the battery is being
charged.

Note

The Touch Finder will operate even if the AC adapter is connected when no battery is mounted in the Touch Finder.

FQ2-S/CH User’s Manual

CHARGE indicator

Wiring

57

• If the Touch Finder (FQ2-D31) will be installed permanently or semi-permanently, remove the Battery (FQ-BAT1). If

Important

the rated temperature is exceeded with the Battery inserted, the protective circuit may activate and stop the Touch
Finder.

• The battery complies with the following recycling regulation.

Japan Taiwan

EU

Li-ion00

• California regulations concerning perchlorate:
This product is a lithium battery that contains perchlorate, which is regulated by the State of California. Please com­ply with these regulations. For details see the following URL:
www.dtsc.ca.gov/hazardouswaste/perchlorate/

58

Wiring

FQ2-S/CH User’s Manual

2-5 Setting Up Ethernet

FQ2-S1

FQ2-S2

FQ2-CH

FQ2-S3 FQ2-S4

Connecting to Sensors from the Touch Finder

Configurations Consisting of Only Sensors and the Touch Finder

When only Sensors and a Touch Finder are used, IP addresses are automatically assigned. No settings are
required to use Ethernet.

Connections on Existing Networks

If a Sensor or Touch Finder is connected to a network where a PLC or computer is already connected, the
Ethernet settings must be made compatible with the existing network.

Set the IP addresses with one of the following methods.

● Setting Fixed IP Addresses

• Sensor

(Setup Mode) − [Sensor settings] − [Network] − [Ethernet] − [IP address setting]

2

Installation and Connections

1 Press [Fixed].
2 Set the IP address and subnet mask according to the network settings.

Note

• If you connect the Touch Finder or PC Tool to a Sensor on a different network through a router, set fixed IP
addresses.

• When connecting by EtherNet/IP or PROFINET, set fixed IP addresses for the Sensors.

• Touch Finder

(Setup Mode) − [TF settings] − [Ethernet] − [AUTO]

1 Press [OFF].
2 Set the IP address and subnet mask according to the network settings.

● Using a DHCP Server

• Sensor

(Setup Mode) − [Sensor settings] − [Network] − [Ethernet] − [IP address setting]

1 Press [DHCP].

• Touch Finder

(Setup Mode) − [TF settings] − [Ethernet]] − [AUTO]

1 Press [ON].

FQ2-S/CH User’s Manual

Setting Up Ethernet

59

Connecting to Sensors from External Devices Such as PLCs

Set the IP address of the Sensor according to the network where the external devices, such as PLCs, are
connected.

(Setup Mode) − [Sensor settings] − [Network] − [Ethernet] − [IP address setting]

1 Press [Fixed].
2 Set the IP address and subnet mask according to the network where the external devices, such

as PLCs, are connected.

Note

If you connect OMRON CS/CJ-series PLCs to the Ethernet, the following default IP addresses are assigned to the
PLCs.

• IP address: 192.168.250.node_address

Connecting to Sensors from a Computer Using the PC Tool

Configurations Consisting of Only Sensors and a Computer (PC Tool)

If the configuration consists only of Sensors and a Touch Finder, set the network settings on the computer as
described below.

(No IP address settings are required on the Sensors.)

The following procedure is for Windows 7.

1 Select [Control Panel] from the Windows Start.
2 Click [Network and Internet] on Control Panel.
3 Click [Network and Sharing Center].
4 Click [Change adapter settings] on the left side of [Net-

work and Sharing Center].

5 Click the [Local Area Connection] icon in the Network

connection window.

60

Setting Up Ethernet

FQ2-S/CH User’s Manual

6 Select [Internet Protocol Version 4 (TCP/IPv4)] in [Local

Area Connection Properties], and click [Properties].

7 Select the Use the following IP address Option and en-

ter the following IP address and subnet mask.

• IP address: 10.5.5.101

• Subnet mask: 255.255.255.0

8 Click the [OK] Button. This completes the settings.

2

Installation and Connections

Connections on Existing Networks

Set the Ethernet settings of the Sensors and the computer (PC Tool) to the same settings as the existing
network. Refer to Connecting to Sensors from the Touch Finder on page 59 for the IP address settings in the
Sensors.

Note

• If you connect the PC Tool to a Sensor on a different network through a router, set fixed IP addresses.

• When connecting by EtherNet/IP or PROFINET, set fixed IP addresses for the Sensors.

FQ2-S/CH User’s Manual

Setting Up Ethernet

61

Select the IP address to be used by PC Tool

The computer IP address, subnet address, and default gateway that are used by the PC Tool are displayed. If
multiple IP addresses (network cards) exist in the computer, the IP address to be used for the PC Tool can be
selected.

(Setup Mode or Run Mode) − [TF settings] − [Ethernet] − [IP address]

1 A list of the computer IP addresses that can be used by

the PC Tool appears. Touch the list to select an IP ad­dress.

2 The Sensor List appears.

The connected sensor is temporarily disconnected. To re­fresh the list, touch [Update list] of any sensor.

3 Select the sensor that you want to connect and touch

[OK]. (The sensor is reconnected.)

Note

• If you want to change the IP address, change the network settings of the computer and then select the IP address
using the above procedure.

• If the list does not appear, check if the LAN is correctly connected.

62

Setting Up Ethernet

FQ2-S/CH User’s Manual

Taking Images

3-1 Selecting a Sensor for Configuration . . . . . . . . . . . . . . . . . . . . . . . . . 64

3-2 Setting Conditions for Taking Images . . . . . . . . . . . . . . . . . . . . . . . . . 65

3-3 Adjusting Image Quality . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 66

3-4 Adjusting the Timing of Taking Images. . . . . . . . . . . . . . . . . . . . . . . . 73

3-5 Adjusting the Images That Were Taken. . . . . . . . . . . . . . . . . . . . . . . . 75

3

Taking Images

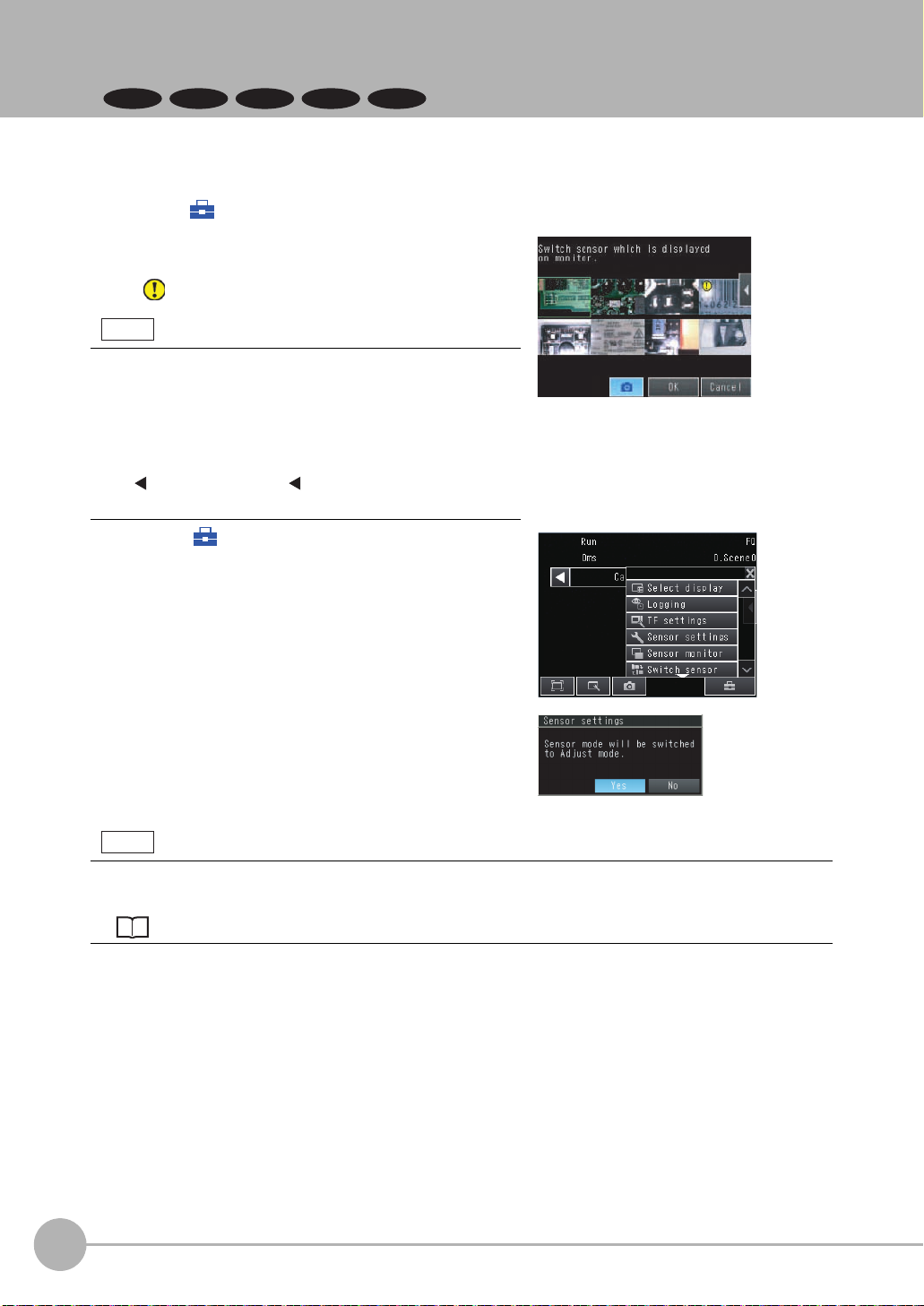

3-1 Selecting a Sensor for Configuration

FQ2-S1

FQ2-S2

FQ2-CH

FQ2-S3 FQ2-S4

If multiple Sensors are connected to a single Touch Finder or computer, a list of the Sensors that are connected
is displayed by default. Use the following procedure to change to the Sensor to set up.

1 Press − [Switch Sensor].
2 Touch the image of the sensor to be set, and touch

[OK].

will be displayed for Sensors that are not yet set.

Note

Once the Touch Finder detects and records a Sensor, the display or­der for showing more than one Sensor is fixed. Even if the system
configuration is changed to reduce the number of Sensors, the pre­vious display location will remain for Sensors that were removed.
To update the displays of multiple Sensors to the current connection
status, go to Run display - [Sensor monitor] - [Multi sensor], and

touch [ ] - [Display position] - [ ] - [Auto position] on the right of the
display.

3 Press − [Sensor settings] to return to Setup

Mode.

4 Press [Yes].

Note

There are different methods that you can use to connect the Sensors. For example, you can automatically connect to
the Sensors that are recognized by the Touch Finder, or you can manually register the Sensors to connect.

7-5 Connecting to More Than One Sensor: p. 265

64

Selecting a Sensor for Configuration

FQ2-S/CH User’s Manual

3-2 Setting Conditions for Taking Images

FQ2-S1

FQ2-S2

FQ2-CH

Taking Clear Images (Camera Setup)

Adjusting the Focus

Adjust the focus of the Lens.

Taking Bright Images of Dark Objects and Taking Clear Images of Moving Objects

Adjust the shutter speed and gain.

Adjusting the Colors of the Image (White Balance)

Adjust the white balance so that the colors match those of the actual measurement object.

Improving the Image Quality of Metallic and Other Shiny Surfaces (HDR)

Make adjustments for shiny objects or metallic surfaces.
For a Sensor with built-in lighting, attach a polarizing filter to cut specular reflections.

Adjusting the Images That Were Taken (Image Adjustment)

Filtering the Images (Filter Items)

Apply filters to adjust the images that were taken.

Compensating for Position Offset (Position Compensation Items)

Recognize measurement objects that are not in a consistent location and move them to the center of the image.

Adjusting the Timing of Taking Images (Trigger Setting)

Trigger Delay

Adjust the timing of taking an image with the Sensor.

p. 67

p. 66

p. 70

p. 72

p. 73

p. 76

p. 81

FQ2-S3 FQ2-S4

You can set the conditions for taking images to use in inspections.
To enable accurate judgements, the following adjustments are made for the conditions for taking images and
the images themselves.

3

Taking Images

FQ2-S/CH User’s Manual

Setting Conditions for Taking Images

65

3-3 Adjusting Image Quality

FQ2-S1

FQ2-S2

FQ2-CH

Focus Level

(The field of view will widen.)

Turn the screw counterclockwise
to focus on objects at a distance.

(The field of view will
narrow.)

Turn clockwise to focus on closer objects.

Focus adjustment screw

Sensor with Built-in Lighting

Important

FQ2-S3 FQ2-S4

Adjusting the Focus

[Image] − [Camera setup]

1 Display the Camera Setup Display.

The focus can be seen as a numerical value. The higher
the value, the better the focus.

2 Adjust the focus of the Sensor while checking the im-

age and focus value on the Touch Finder.

For a Sensor with Built-in Lighting, manually adjust the
focus using the focus adjustment screw on the Sensor.
In the default settings, the field of view is set to the nar­rowest setting. For a Sensor with a C-mount, use the fo­cus ring on the lens to adjust the focus of the image.

3 Press [Back].

• Turn the focus adjustment screw clockwise or counterclockwise a little bit to make sure that it has not already
reached the dead stop. Do not force the screw if it does not rotate anymore. This will damage the Sensor.

• Do not turn the focus adjustment screw with a force that is greater than 0.1 N·m. This may damage it.

66

Adjusting Image Quality

FQ2-S/CH User’s Manual

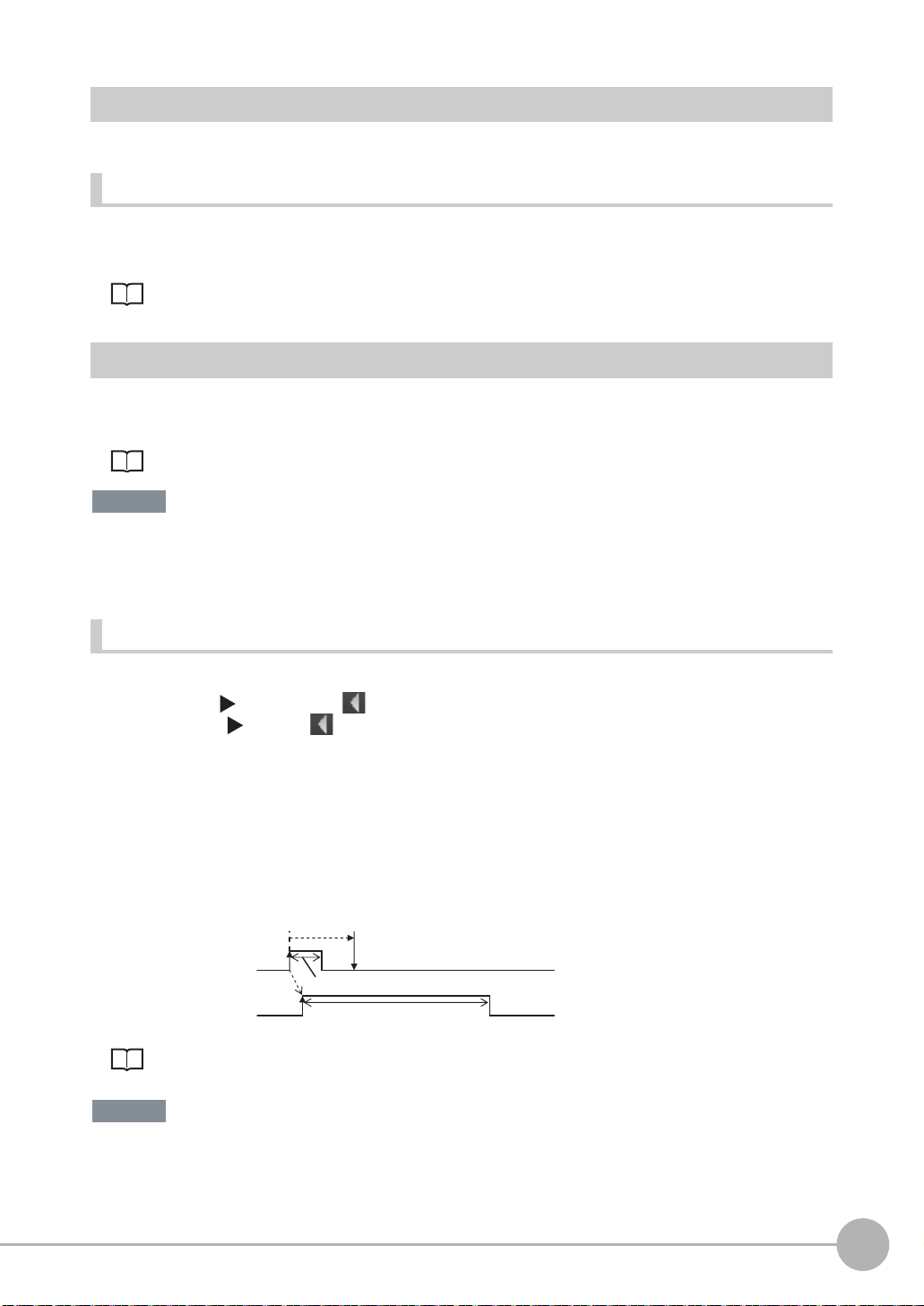

Adjusting Image Brightness with External Lighting

Important

OFF

ON

TRIG signal
(Brightness

Correction ON)

OFF

ON

BUSY signal

Timing Chart When the Brightness Correction Mode Is ON

ON for 1 ms min.

Taking images begins 25 ms
after the TRIG signal is input.

ON while the measurement
process is being executed.

Important

You can adjust image brightness with external lighting or by setting the Sensor sensitivity.

Using a Strobe Trigger Signal to Control External Lighting

If a Data Unit is connected, you can change the output time of the strobe trigger signal (STGOUT) to adjust the
brightness.

FQ2-S/CH Series User's Manual for Communications Settings (Cat. No. Z338)

Section 2 Controlling Operation and Outputting Data with a Parallel Connection

Adjusting the Brightness

You can adjust the shutter speed/gain or the brightness to make images brighter. The setting method depends
on whether HDR Mode is ON or OFF. The setting methods are described below.

HDR Function: p. 70

The exposure time will be longer for higher values of the shutter speed or brightness. This may cause the image to
blur if the object is moving fast. If the Sensor is used on a high-speed line, check that the images are not blurred under
actual operating conditions.

Brightness Correction Mode (FQ2-S1

If the brightness changes inconsistently with each image, turn ON the Brightness Correction Mode.
When HDR is ON: [Brightness] − − [Brightness correction]
When HDR is OFF: [Gain] − − [Brightness correction]
When Brightness Correction Mode is ON, the brightness will be consistent but the timing of image capture will
be delayed by 25 ms (when the shutter speed is 1/250 or higher).
When built-in lighting is OFF and the shutter speed is less than 1/250, the image capture timing will be further
delayed.
Make sure that appropriate images of the measured objects are captured when Brightness Correction Mode is
ON.

@@@@@

/FQ2-S2

@@@@@

/FQ2-S4

@@@@@

/FQ2-S4

@@@@@

-M)

3

Taking Images

FQ2-S/CH Series User's Manual for Communications Settings (Cat. No. Z338)

Section 2 Controlling Operation and Outputting Data with a Parallel Connection

If the gain is increased, the brightness will not be stable and measurement values may be inconsistent. We recom­mend that you turn ON the Brightness Connection Mode.

FQ2-S/CH User’s Manual

Adjusting Image Quality

67

When HDR Is OFF

The brightness of the image is adjusted by adjusting the shutter speed. If the brightness cannot be improved by
adjusting the shutter speed, the gain is adjusted.

Relationship between the Shutter Speed/Gain and the Image Brightness (For FQ2-S3/S4 series)

Dark

Brightness of image

1/60,000
or 1/4,155

Shutter
speed

Bright

1/1

0

Gain

Note

• Adjust the shutter speed not only to adjust the brightness of the image, but also to adjust for the travel speed of
the measurement object.

Taking Clear Images of Moving Objects: p. 70

• Increasing the gain will make the image brighter, but it will also reduce image quality to the point that the noise
component in the images will stand out. Select a suitable factor for the inspection.

10

[Image] − [Camera setup]

1 Press [ ] − [Shutter speed] on the right of the dis-

play.

2 Move the bar to the left or right to adjust the shutter

speed.

Moving it to the left will make the shutter speed slower
and the image brighter. Moving it to the right will make the
shutter speed faster and the image darker.

3 Press [OK].

If you cannot obtain the required brightness by adjusting
the shutter speed, adjust the gain

4 Press [ ] − [Gain] on the right of the display.
5 Move the bar to the left or right to adjust the gain.

Moving it to the right will increase the gain and make the
image brighter. Moving it to the left will reduce the gain
and make the image darker.

6 Press [OK].
7 Press [Back].

68

Adjusting Image Quality

FQ2-S/CH User’s Manual

Parameter Setting Description

Important

100

0

Brightness of image

Bright

Dark

Shutter speed Range:

Gain For FQ2-S3@@@@@-08@, FQ2-S3@-@@@, FQ2-

For FQ2-S3@-@@@, FQ2-S4@-@@@

1/1 to 1/4,155

For FQ2-S3@@@@-08@, FQ2-S4@@@@-08@

Built-in lighting off: 1/1 to 1/4,155
Built-in lighting on: 1/250 to 1/60,000 (control by light-

For FQ2-S1@@@@@, FQ2-S2@@@@@, FQ2­S4@@@@@,
For FQ2-S4@@@@@-M, FQ2-CH1@@@@@-M

Built-in lighting off: 1/1 to 1/50,000
Built-in lighting on: 1/250 to 1/50,000

Default: 1/250

S4@@@@@-08@, FQ2-S4@-@@@
Range: 0 to 10
Default: 0
For FQ2-S1
S4
Range: 16 to 64
Default: 16

@@@@@@

@@@@@

, FQ2-S4

ing emission time)

, FQ2-S2

@@@@@

@@@@@@

-M, FQ2-CH1

, FQ2-

@@@@@

If the shutter speed is slow, the image will be
bright. If the shutter speed is fast, the image
will be dark.

If the gain is high, the image will be bright. If
the gain is low, the image will be dark.

-M

3

Taking Images

• To ensure stable operation when the FQ2-S1

@@@@@

/FQ2-S2

@@@@@

/FQ2-S4

@@@@@

/FQ2-S4

@@@@@

-M is

connected, we recommend that you set the gain to 16.

• If the recommended value is exceeded, the brightness will not be stable and measurement values may be
inconsistent. We recommend that you turn ON the Brightness Connection Mode.

•If a slow shutter speed (1/1 to 1/10) and a high gain are set, fixed-pattern noise (fleck and striped noise) will
sometimes occur. Be sure to thoroughly check the images and the measurement results when you set the
shutter speed and gain.

When HDR Is ON

Set the brightness adjustment value. The higher the brightness adjustment value, the brighter the image.

[Image] − [Camera setup]

1

Press [ ] − [Brightness] on the right side of the display.

2 Move the bar to the left or right to adjust the bright-

ness.

Moving it to the right will make the image brighter, while
moving it to the left will reduce the brightness of the im­age.

3 Press [OK].

FQ2-S/CH User’s Manual

Adjusting Image Quality

69

Takin g Clear Images of Moving Objects

Important

Inputting Images with a Limit Range of Brightness

Combining Images to Create an Image
with a Wide Dynamic Range

Dark

Bright

For quick moving objects, the effect of blurring can be reduced by decreasing the shutter speed.
In HDR Mode, set the brightness value to a low setting.

• Relationship between Shutter Speed and the Brightness Adjustment Value in HDR Mode

Fast

1/60,000, 1/50,000,
or 1/4,155

Moving speed

Brightness

Shutter speed

Slow

1000

1/250

Refer to the following page for the setting methods for the shutter speed and brightness.

Adjusting the Brightness: p. 67

The lower the shutter speed/gain and brightness settings are, the darker the image becomes. If the Sensor is
used in a dark environment, make sure that the darkness of the image does not cause the measurements to be
unstable.

Improving the Image Quality of Metallic and other Shiny Surfaces

When objects with shiny surfaces are being measured, the lighting may be reflected off the surface and affect
the image.
To remove reflections, one of the following two functions can be used.

Function Description

HDR (High Dynamic Range) If objects have contrasting light and dark areas, the dynamic range can be made wider to

Polarizing filter (for Sensors
with Built-in Lighting)

improve the quality of the images.

Specular reflections can be eliminated from an image by attaching a polarizing filter to the
Sensor.
If the measurement object must be moving, use a polarizing filter. Also, if reflections can­not be sufficiently removed by using the HDR function, use a polarizing filter as well.

HDR Function

The HDR function is used for objects that have a large difference between light and dark areas. For this kind of
object, clear images cannot be achieved with the standard brightness setting. The HDR function combines
several images of different brightnesses (shutter speed) so that the resulting image has a lower degree of
contrast and can be measured stably for the desired characteristic.

70

Adjusting Image Quality

FQ2-S/CH User’s Manual

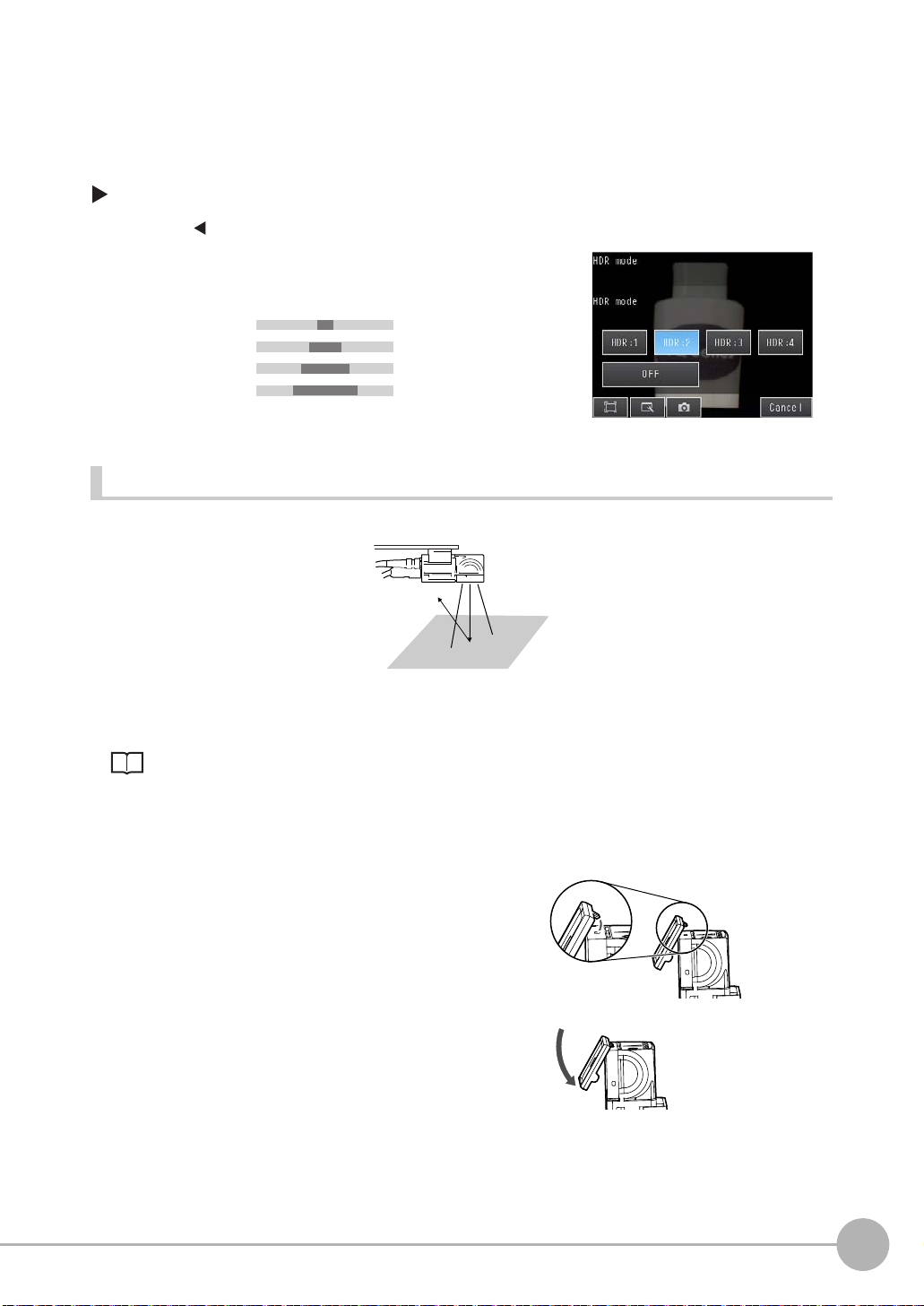

Observe the following precautions.

• Use the HDR function only for objects that are not moving to avoid image blurring.
Several images are taken with different shutter speeds and combined. If the object moves while the image
is being taken, the image will become blurred.

• Images with different brightnesses are combined, so the resulting image will have a lower degree of con­trast.

[Image] − [Camera setup]

1 Press [ ] − [HDR] on the right side of the display.
2 Set the best level for the HDR Mode.

As shown below, the higher the level, the wider the combined dy­namic range will be.

Level 1
Level 2
Level 3
Level 4

Dark

Using a Polarizing Filter (Only for Sensors with Built-in Lighting)

Specular reflections can be eliminated from an image by attaching an FQ-XF1 Polarizing Filter to the Sensor.

Bright

3

Taking Images

Observe the following precautions.

• The image will be darker compared to when no filter is used.

• If the image becomes too dark, adjust the brightness.

Adjusting the Brightness
When HDR Is OFF: p. 68
When HDR Is ON: p. 69

• Mounting the Filter

1 Hook the filter in the hole at the top of the Sensor.

2 Using the top section as a pivot point, pull down the

filter so that it attaches to the Sensor.

FQ2-S/CH User’s Manual

Adjusting Image Quality

71

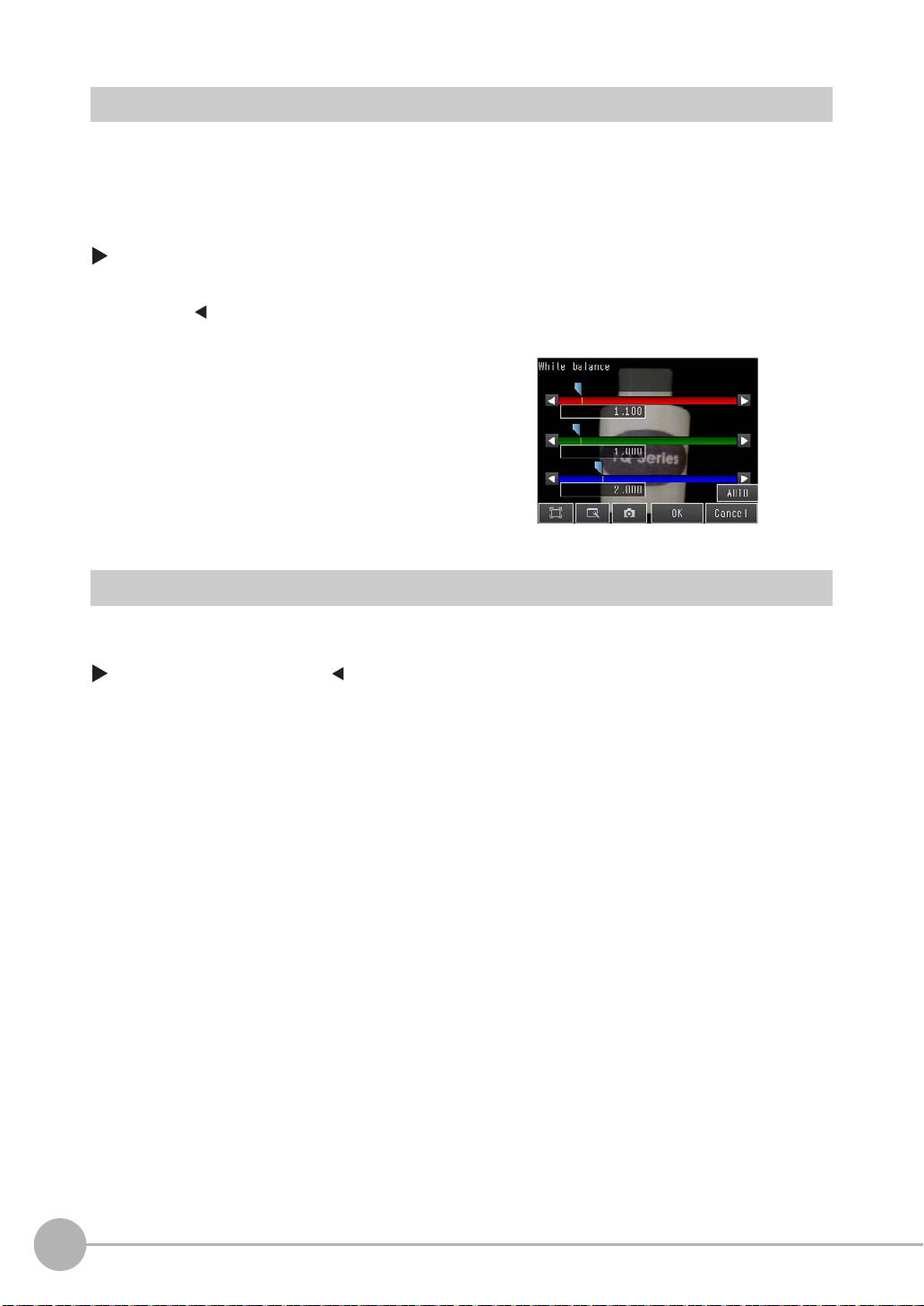

Adjusting the Colors of the Image (White Balance) (Only for Sensors with Color Cameras)

If external lighting is used, the image may appear as having different colors than the actual object. If this is the
case, adjust the white balance.
If the lighting built in to the Sensor is used, the white balance is already adjusted. No setting is required in this
case.

[Image] − [Camera setup]

1 Input a picture of white paper or cloth.
2 Press [ ] – [White balance] on the right side of the

display.

3 Press the [Auto] Button. The Sensor will automatical-

ly adjust the colors.

4 Move the bar to the left (light) or right (dark) to fine-

tune the colors.

5 Press [OK].

Rotating the Touch Finder Image by 180°

You can rotate the Camera image by 180°.
This setting also applies to re-measurement of logged images.

[Image] − [Camera setup] − [] − [Rotate 180]

72

Adjusting Image Quality

FQ2-S/CH User’s Manual

3-4 Adjusting the Timing of Taking Images

FQ2-S1

FQ2-S2

FQ2-CH

FQ2-S3 FQ2-S4

Delaying the Image Capture Timing from the Trigger Input

If the measurement object is moving, the position in the image of the feature that is to be measured will depend
on the timing of the trigger signal. A delay can be applied from when the trigger (i.e., the TRIG signal) is input
until when the image is taken to synchronize the timing of image capture with the speed of moving objects. If
the object position varies in the image, this delay cannot be used to make the object position more stable.
When you use a trigger delay with external lighting, you will also need to adjust the timing to turn ON external
lighting.

Delay time

Delay from when the trigger is input until
when Sensor input is started.

3

Taking Images

Trigger input Sensor

[Image] − [Trigger setup] − [Trigger delay]

1 A TRIG signal is input.

Images are input continuously.

2 Select the image with the measurement object in the

center using and .

3 Press the image.
4 Press [OK].

Note

The delay time can be set using the adjustment bar or by directly entering a value.

Move the bar to the left or right.

Or

Directly input the delay time.

FQ2-S/CH User’s Manual

Adjusting the Timing of Taking Images

73

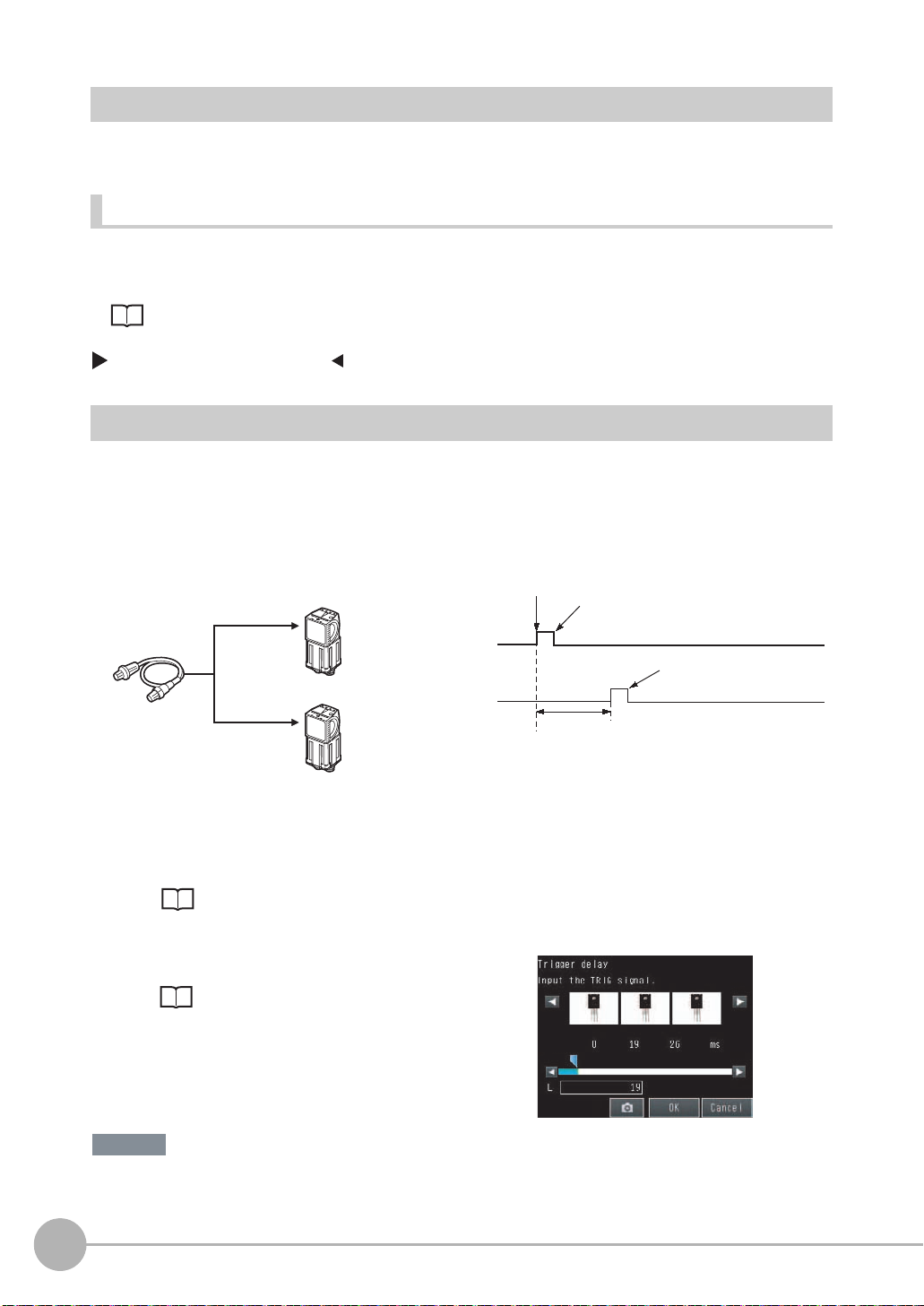

Adjusting External Lighting Timing

Sensor 0

Sensor 1

Trigger Sensor

Important

When you use a trigger delay, you must adjust the timing to turn ON external lighting so that it matches the
trigger delay timing.

Using a Strobe Trigger Signal to Control External Lighting

If a Sensor Data Unit is connected, you can change the output time of the strobe trigger signal (STGOUT) to
adjust the timing of the external lighting.

FQ2-S/CH Series User's Manual for Communications Settings (Cat. No. Z338)

Section 2 Controlling Operation and Outputting Data with a Parallel Connection

[Image] − [Camera setup] − [ ] − [Lightning control]

Preventing Mutual Interference of Multiple Sensors

When the same trigger signal is input to multiple Sensors, the lighting from one Sensor may affect the
measurements of the other Sensors. This is called mutual interference. This kind of interference can be
prevented offsetting the image input timing of each Sensor from when the trigger signal is received.
Example:
A trigger (i.e., the TRIG signal) is input to Sensor 0 and Sensor 1 at the same time.

TRIG signal

Timing of taking the image

Sensor 0

Sensor 1

Sensor 0 immediately begins image input when the trigger is input.
Sensor 1 begins image input after the specified time has passed.

1 Change to the setup for to Sensor 1.

3-1 Selecting a Sensor for Configuration: p. 64

2 Press [Image] – [Trigger setup] – [Trigger delay].
3 Set the trigger input delay time for Sensor 1.

Delaying the Image Capture Timing from the

Trigger Input: p. 73

No trigger delay

Sensor 1

trigger delay

Timing of taking the image

The delay time for preventing mutual interference must be longer than the shutter time.
When the lighting built into the Sensor is used, the shutter time is 4 ms max. Therefore make the delay at least 4 ms.

74

Adjusting the Timing of Taking Images

FQ2-S/CH User’s Manual

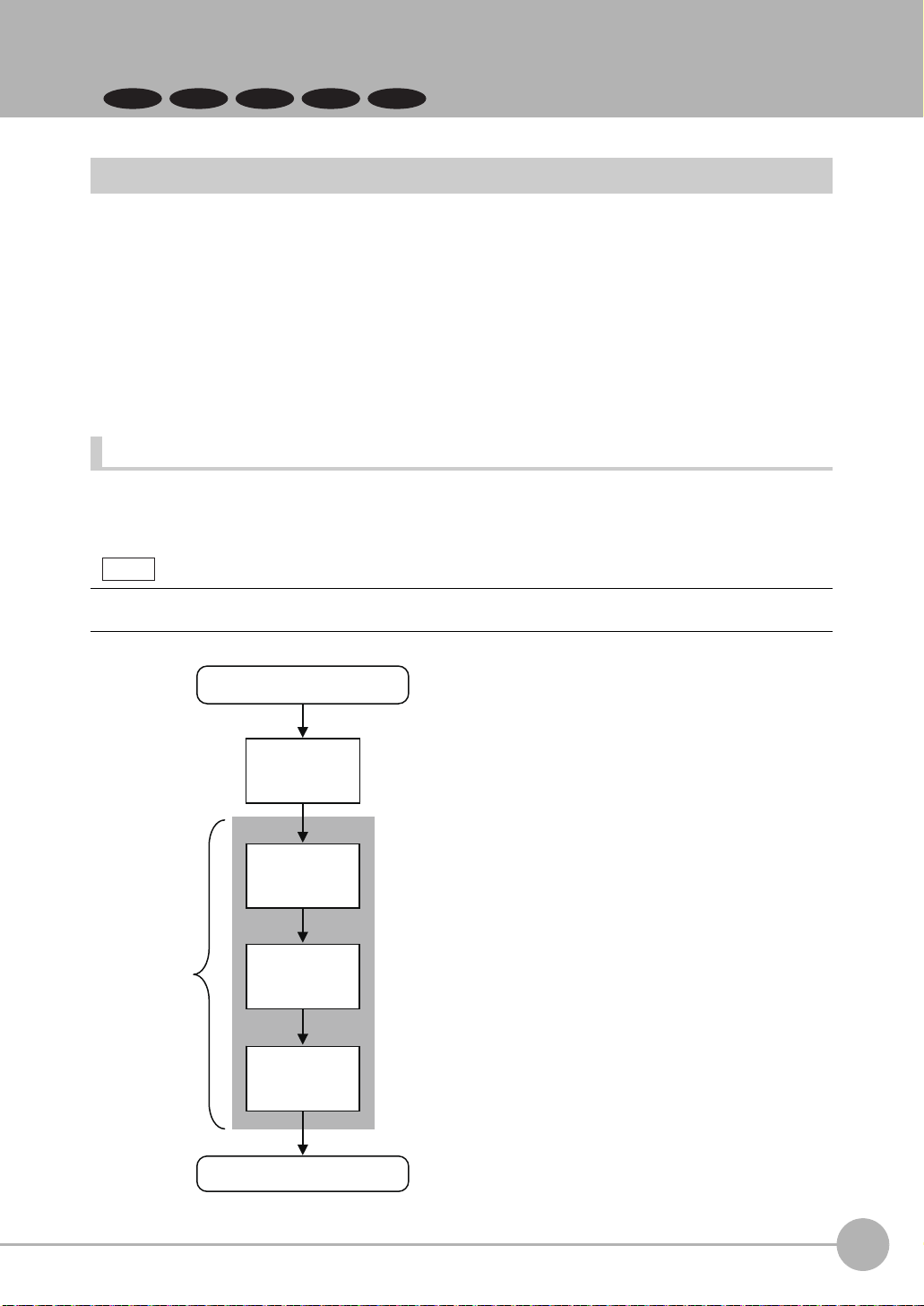

3-5 Adjusting the Images That Were Taken

FQ2-S1

FQ2-S2

FQ2-CH

Note

FQ2-S3 FQ2-S4

Image Adjustment

You can adjust the image that is taken by the Sensor to make it easy to measure.
There are mainly the following two types of items that you can use to adjust the image.

• Filtering the Images (Filter Items)
These items filter the image by eliminating image noise with filters to make them suitable for measurement.

• Compensating for Position Offset (Position Compensation Items)
These items compensate for offset in the position or orientation of the image.

You can combine several filter items and position compensation items to adjust the image that was taken. (You
can use a total of up to eight filter and position compensation items combined.)

3

Flow of Image Adjustment

The image that is taken by the Camera (called the Camera image) is adjusted in the order that the filter and
position compensation items are registered.

You can specify the order of image adjustment by registering the items in the desired order, but you cannot change
the order of the items after you register them.

Image is taken on TRIG signal.

Camera image

Processed


(process 0)

(The image that is taken by the Camera.)

0: Median (filter item)

Source image: Camera image [Camera]

Taking Images

Image adjustment

Measurements are performed

FQ2-S/CH User’s Manual

Processed image
(processes 0 and

1)

Processed image

(processes 0, 1,

and 2)

with inspection items.

1: Dilate (filter item)

Source image: Previous image [Prev.]

2: Search Position Compensation (position compensation item)

Source image: Previous image [Prev.]

Adjusting the Images That Were Taken

75

Specify the Camera image for the first filter item for image processing.

Note

→

• This inspection item cannot be used for monochrome images. An NG (image error)
will result if you use it for a monochrome image.

• All inspection items after the Color Gray Filter item will be performed in the same way
as when a Monochrome Camera is connected.

If you execute more than one filter item for the image, set the source image for the other filter items to the previous
image.
Also, you can perform image processing with filter items only to enable processing with position compensation
items.
In that case, only the position information from position compensation is applied to the image to be measured.
For details, refer to Using Filter Items for Processing with Position Compensation Items on page 84.

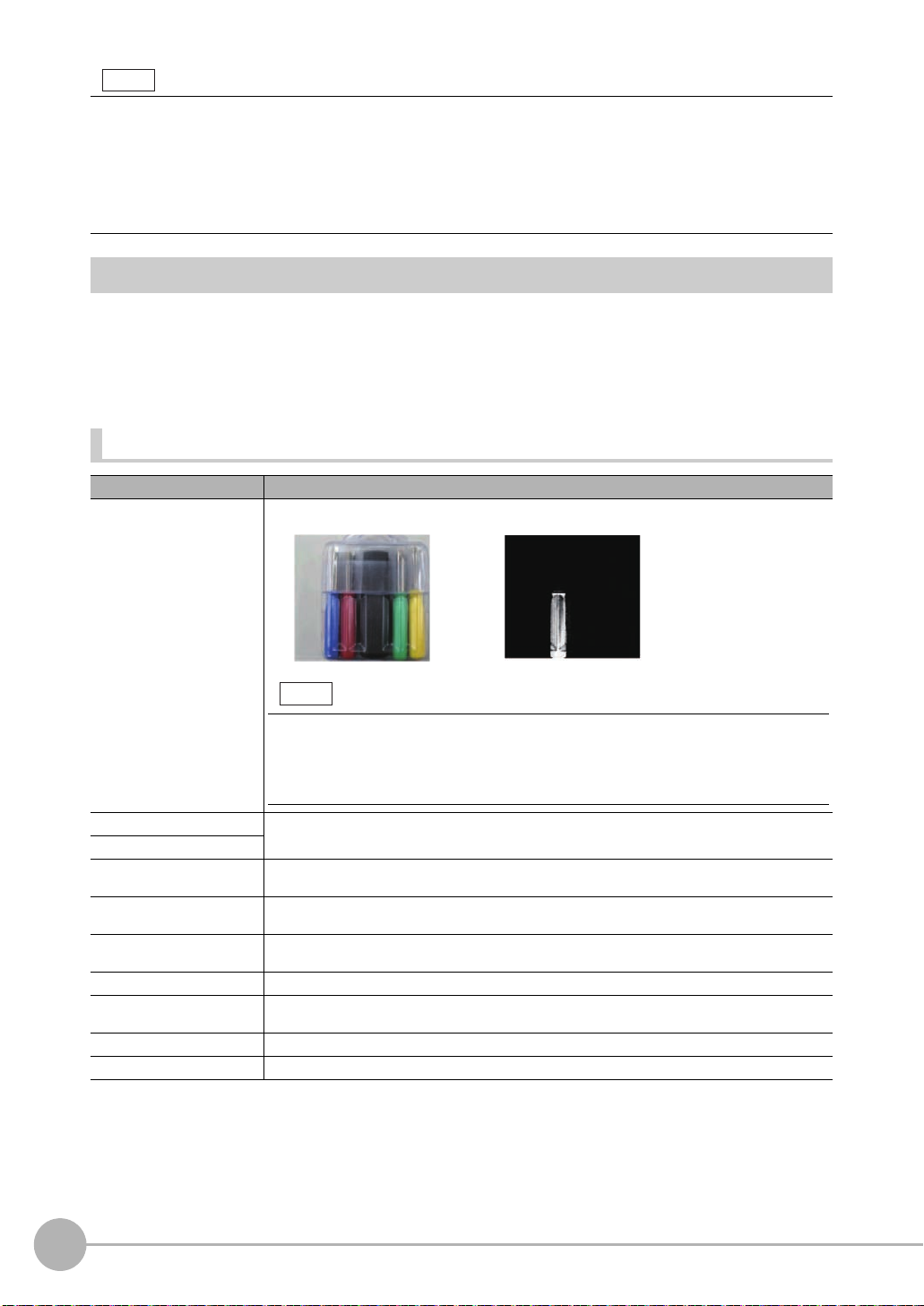

Filtering the Images (Filter Items)

You can filter the images that are taken by the Camera to make them easier to measure.
This is used in the following cases.

• To cut unnecessary backgrounds so that they are not measured

• To remove noise

• To stably find the edges of marks when other edges have been clearly extracted

Applicable Filters

Selected filter item Description

Color Gray Filter (only for Sen­sors with Color Cameras)

Converts an image that was input from a Color Camera to a monochrome image.
Example: You can extract an image that contains only a specific color.

Extracting an Image That Contains Only Red

Note

Weak Smoothing Used when there are minor irregularities in the measurement object.

Strong Smoothing

Dilate Used when there is dark noise.

Erosion Used when there is bright noise.

Median Used when there are minor irregularities in the measurement object.

Extract Edges Extracts image edges between light and dark.

Extract Horiz. Edges
(extract horizontal edges)

Extract vertical edges Extracts vertical edges between light and dark in the image.

Enhance edges Enhances image edges between light and dark.

The image is feathered to reduce unevenness.

Dark noise is removed by dilating bright places.

Bright noise is removed by eroding bright places.

Unevenness is reduced while maintaining outlines.

Extracts horizontal edges between light and dark in the image.

76

Adjusting the Images That Were Taken

FQ2-S/CH User’s Manual

Selected filter item Description

→

Background Suppression Extracts a specific range of brightness to increase the image contrast and suppress the unnecessary

background.
Example: Increasing Contrast

Any areas that are outside of the specified range of brightness are removed as the background.
Also, the brightness within the specified range is converted to 256 levels to enhance the contrast.

Setting Filter Items

[Image] − [Image adjustment]

1 Press an unused number and then press [Add filter].
2 Press the filter item to use.
3 Make any detailed settings as required for the filter.

Refer to the detailed settings for each of the following fil­ter items.

4 Press [OK].
5 Press [Back].

6 Make any the following settings as required for each

filter item.

• Setting the Source Image for Filtering

p. 77

• Setting the Region to Filter

p. 78

• Setting the Filter Type (for Color Gray Filter Only)

p. 78

• Setting the Brightness Range to Extract (for Back­ground Suppression Item Only)

p. 79

3

Taking Images

Setting the Image to Filter (Source Image)

You must set the image to which the filter is to be applied.

[Image] − [Image adjustment] − [Add filter] − (Filter item to select)

1 Press [ ] − [Source image] on the right of the display.
2 Set the source image to [Camera] or [Prev.].

Parameter Setting Description

Source image Camera (camera image) The filter is applied to the image that is taken by the Camera.

FQ2-S/CH User’s Manual

Prev. (previous image) The filter is applied to the image that resulted from the previous filter items or posi-

tion compensation items in the processing order.

Adjusting the Images That Were Taken

77

Setting the Region to Filter

Drag to move the region.

Drag a corner to size the rectangle.

Parameter Description

RGB (default) The red, green, and blue extraction ranges are

specified.

HSV The extracted color ranges are specified with

the hue and chroma (saturation).

You can specify the region to which to apply the filter.
This setting does not exist in the Color Gray Filter item.

[Image] − [Image adjustment] − [Add filter] − (Filter item to select)

1 Press [ ] − [Filter region] on the right of the display.
2 Adjust the size and position of the region to which

the filter is to be applied.

To fine-tune the region, press [ ]
right of the display to display the console. This will allow
you to change the coordinates of the rectangle at the pix­el level.

− [Console] on the

Setting the Filter Type (for Color Gray Filter Only)

You can specify the ranges of colors to which the Color Gray Filter item is applied.

[Image] − [Image adjustment] − [Add filter] − [Color Gray Filter]

1 Press [ ] − [Filter type] on the right of the display.
2 Set the filter type to either [RGB] or [HSV].

3

Press [ ] − [Filter settings] on the right of the display.

4 Make the detailed filter settings.

•RGB
Select the type of color filter to use.
If you select [Custom filter], set the gains for red, green,
and blue.

•HSV
Set the following ranges: [Std. Hue], [Hue range], and
[Chroma].

5 Press [OK].
6 Press [Back].

78

Adjusting the Images That Were Taken

FQ2-S/CH User’s Manual

•RGB

255

255

Output value

Input value

0

0

Lower limit

Upper limit

Parameter Setting Description

Filter settings • Red filter (default)

R Range: 0.0001 to 9.9999

G Range: 0.0001 to 9.9999

B Range: 0.0001 to 9.9999

• Green filter

• Blue filter

• Cyan filter

• Magenta filter

• Yellow filter

• Brgt.F (brightness filter) (R+G+B)

• Brgt.F (brightness filter) (R+2G+B)

• Custom filter

Default: 0.3000

Default: 0.5900

Default: 0.1100

These filters achieve the same effect as when using the selected optical
filter.

These are the RGB gain settings for a custom filter.
Increase the gain to increase the density of that color component.
You can set the gains only if [Custom filter] is selected in the filter set­tings.

•HSV

Parameter Setting Description

Std. Hue (standard
hue)

Hue range Range: 10 to 180

Chroma (saturation) Range: 0 to 255

Range: 0 to 359
Default: 0

Default: 90

Defaults: Lower limit: 0, Upper limit:
255

Sets the standard hue for the HSV filter.
The density will decrease as the difference between the hue and the
standard hue increases.

Sets the hue range for the HSV filter.
The hue range centered on the standard hue is divided into 255 levels to
find the difference in the hue. Hues that are outside the hue range will
have a density of 0.

Set the upper and lower limit values for the chroma (saturation).

3

Taking Images

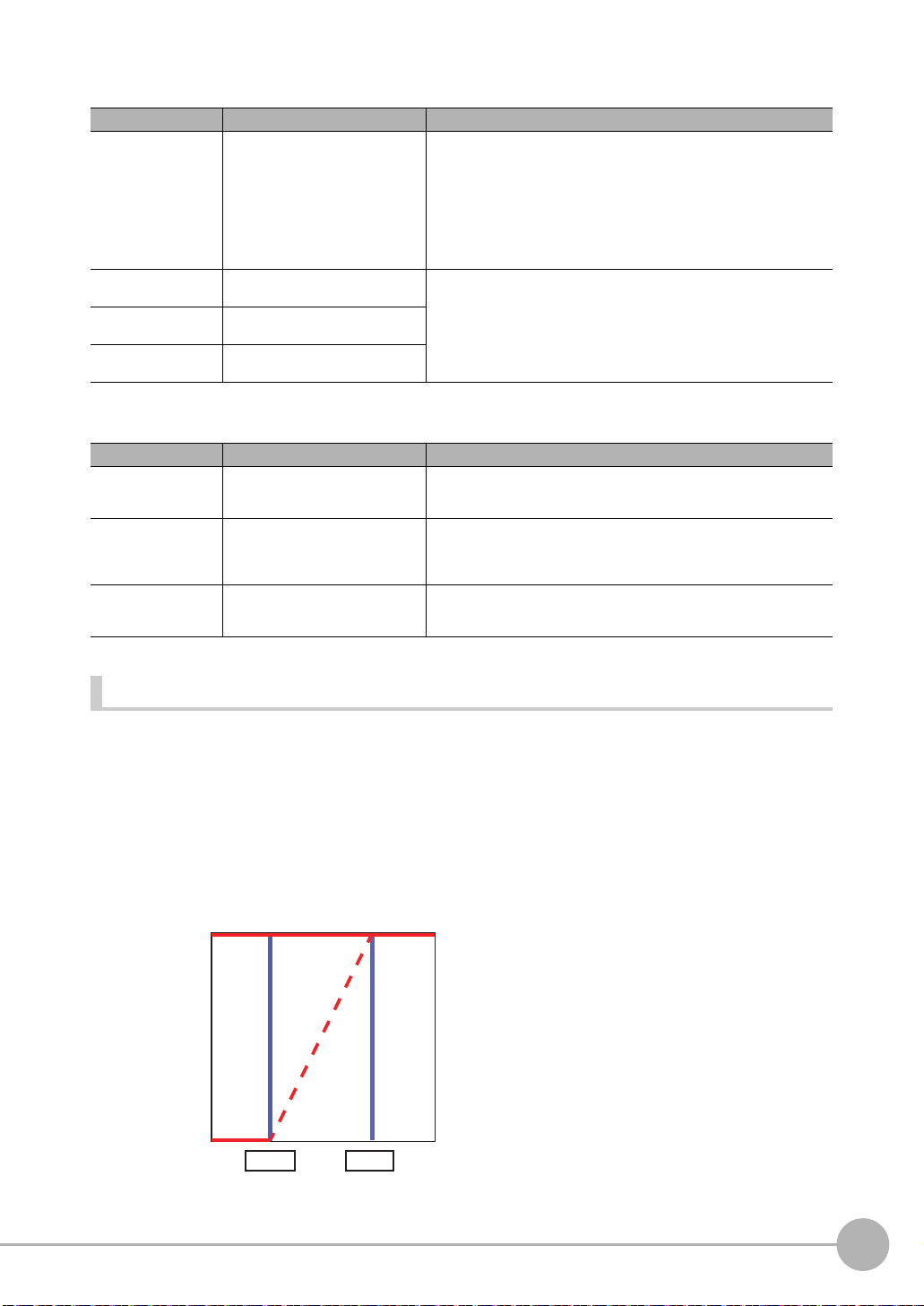

Setting the Brightness Range to Extract (for Background Suppression Item Only)

The range in which to enhance the contrast and the brightness range to extract are set for the Background
Suppression item. The Background Suppression item works as described below to suppress the background
for the specified brightness range.

• Enhancing Contrast
The range of the input brightness that is within the specified brightness range (0 to 255) is converted to 255 levels
to enhance the contrast.

• Background Suppression
Input values from 0 to the lower limit are converted to level 0 and input values between the upper limit and 255 are
converted to level 255 to remove as the background any places that are not within the specified brightness range.

You can use either of the following methods to set the upper and lower limits of the brightness range to extract

FQ2-S/CH User’s Manual

Adjusting the Images That Were Taken

79

with the Background Suppression item.

Lower limit

Upper limit

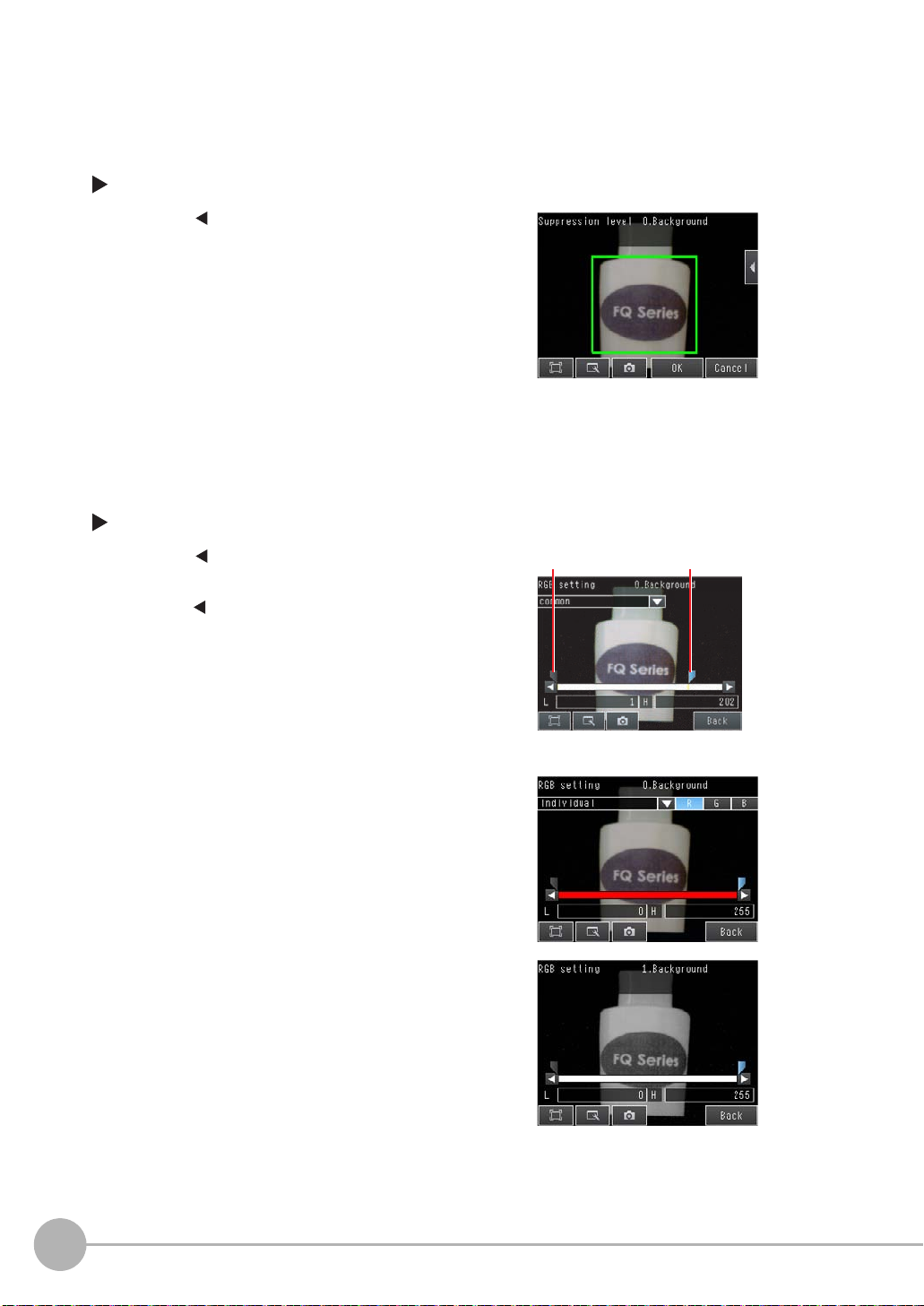

• Enhancing the Contrast of a Specific Area

You specify the location on the image to enhance the contrast.

[Image] − [Image adjustment] − [Background Suppression] − [Modify]

1 Press [ ] − [Suppression level] on the right of the

display.

2 Drag on the image to specify the location to empha-

size the contrast.

The contrast in the specified range will be reset to be­tween 0 and 255.

3 Press [OK].
4 Press [Back].

• Extracting Only a Specified Range of Brightness

You set the upper and lower limits of the brightness range to extract with the Background Suppression item.

[Image] − [Image adjustment] − [Background suppression] − [Modify]

1 Press [ ] − [Suppression level] on the right of the

display.

2 Press [ ] − [RGB setting] on the right of the display.
3 Select the method to use to specify the brightness

range. (This setting applies to Sensors with Color
Cameras only.)

• Common RGB Settings
Set the upper and lower limit values of the brightness
range. The same limits will be used for all RGB colors.

• Individual RGB Settings
Set the upper and lower limit values of the brightness
range for each RGB color. Press [R], [G], and [B] and
set the upper and lower limits for each of them.

80

4 Set the upper and lower limit values of the brightness

range. (for Sensors with Monochrome Cameras (or
after a Color Gray Filter))

5 Press [Back].
6 Press [OK].
7 Press [Back].

Adjusting the Images That Were Taken

FQ2-S/CH User’s Manual

Parameter Setting Description

Common (common
RGB setting)

Individual (individual
RGB settings)

Brightness range (for
Sensors with Mono­chrome Cameras)

Range: 0 to 255
Defaults: Lower limit: 0, Upper limit:
255

Range: 0 to 255
Defaults: Lower limit: 0, Upper limit:
255

Range: 0 to 255
Defaults: Lower limit: 0, Upper limit:
255

Set the upper and lower limit values of the background suppression level.
The same limits will be used for all RGB colors.
The range from the specified lower to upper limits is converted to 0 to

255.

Set the upper and lower limit values of the background suppression level
for each RGB color.
The range from the specified lower to upper limits is converted to 0 to

255.

The specified range is converted to 0 to 255.

Measurement Data That Can Be Used for External Outputs and Calculations

The following values can be used as measurement data and output to external devices via Ethernet or used in
calculations. Measurement data can be specified for each filter item.

Expression text string Data name Description Data range

JG Judgement This is the judgement

result.

−2: No judgement (not measured),
0: Judgement is OK,

−1: Judgement is NG

Compensating for Position Offset (Position Compensation Items)

Use position compensation items if the position or orientation of the measurement object is not consistent.
When you use a position compensation item, the offset between the reference position and the position of the
object is calculated and the position of the measurement region is corrected before measurements are
performed.

Applicable Position Compensation Items

There are three position compensation items as indicated below. These items vary by detection method.

Ty pe Description

Model (model position compensa­tion)

Edge position comp. (edge position
compensation)

Numerical position compensation Position is corrected based on entered values.

A search is made for a characteristic pattern to detect and correct the position.

• Shape Sear. pos. comp. (Shape Search Position Compensation)

• Search position comp. (Search Position Compensation)

The color distribution or density changes in the object are used to detect and correct the position.

• Edge position comp. (Edge Position Compensation)

• 2Edge position comp. (Two-edge Position Compensation)

• 2Edge midpoint comp. (Two-edge Midpoint Compensation)

• Edge rot. pos. comp. (Edge Rotation Position Compensation)

• Position comp. (Image rotation, Parameter)

3

Taking Images

FQ2-S/CH User’s Manual

Adjusting the Images That Were Taken

81

• Features of the Position Compensation Items

Edge Position

Compensation: p. 88

Two-edge Position

Compensation: p. 90

Two-edge Midpoint Com-
pensation

: p. 93

Search Position

Compensation: p. 86

Edge Rotation Position

Compensation: p. 95

Shape Search Position

Compensation: p. 84

Position Compensation:

p. 97

Position Compensation:

p. 97

The position is offset in
only one direction.

The position is offset in
two directions.

Edge Position Compensation

The position is corrected in either
the X or Y direction.

Two-edge Position Compensation

The position is corrected at the
same time in both the X and Y
directions.

The measure­ment object is
not at an angle.

The measure­ment object is
at an angle.

The position needs to be
corrected to the midpoint
between two edges.

There is a characteristic
pattern.

There is a characteristic
pattern.

There is no characteristic
pattern.

Two-edge Midpoint Compensation

The positions of two edges are detected and

Search Position Compensation

Shape Search Position Compensation

Edge Rotation Position Compensation

then the coordinates of the midpoint between
those two positions is used to correct the
position in either the X or Y direction.

An image pattern is recognized to
detect and correct the position.

An image pattern is recognized to
detect and correct the position.

The positions of two edges are
detected and the angle of the line
that connects those positions is
used to correct the position.

Rotate around the center
of the screen

I want to move
the position by
a set value

Rotation + Move

82

Adjusting the Images That Were Taken

Position Compensation (Image rotation)

Position Compensation (Parameter)

Reference position (X,Y,TH)

Measurement position (X,Y,TH)

The position is corrected centering
on the center of the screen.

The position is corrected by entry of the
reference position and measurement position.

FQ2-S/CH User’s Manual

Applying the Results of Position Compensation

You can apply the results of position compensation either to the Camera image or to the previous image from
before position compensation was applied.
If you apply the results of position compensation to the Camera image, only the position information from
position compensation is applied to the image to be measured.

Using Filter Items for Processing with Position Compensation Items: p. 84

• Setting the Image for Position Compensation

You can select the image to which to apply the results of position compensation processing.
You can set the image for position compensation for each position compensation item.

[Image] − [Image adjustment] − (Position compensation item name) − [Modify]

1 Press [Details] − [Scroll parameter]
2 Set the source image to [Camera] or [Prev.].

Parameter Setting Description

Source image Camera (camera image) The results of processing the position compensation item is applied to

Prev. (previous image) (default) This setting is used when the processing results of the current position

the image that is taken by the Camera.
This setting is used when filter items or other position compensation
items have been used specifically for the position compensation item.

Using Filter Items for Processing with Position Compensation

Items: p. 84.

item are to be applied to the image that results from previous filter items
or other position compensation items.

3

Taking Images

FQ2-S/CH User’s Manual

Adjusting the Images That Were Taken

83

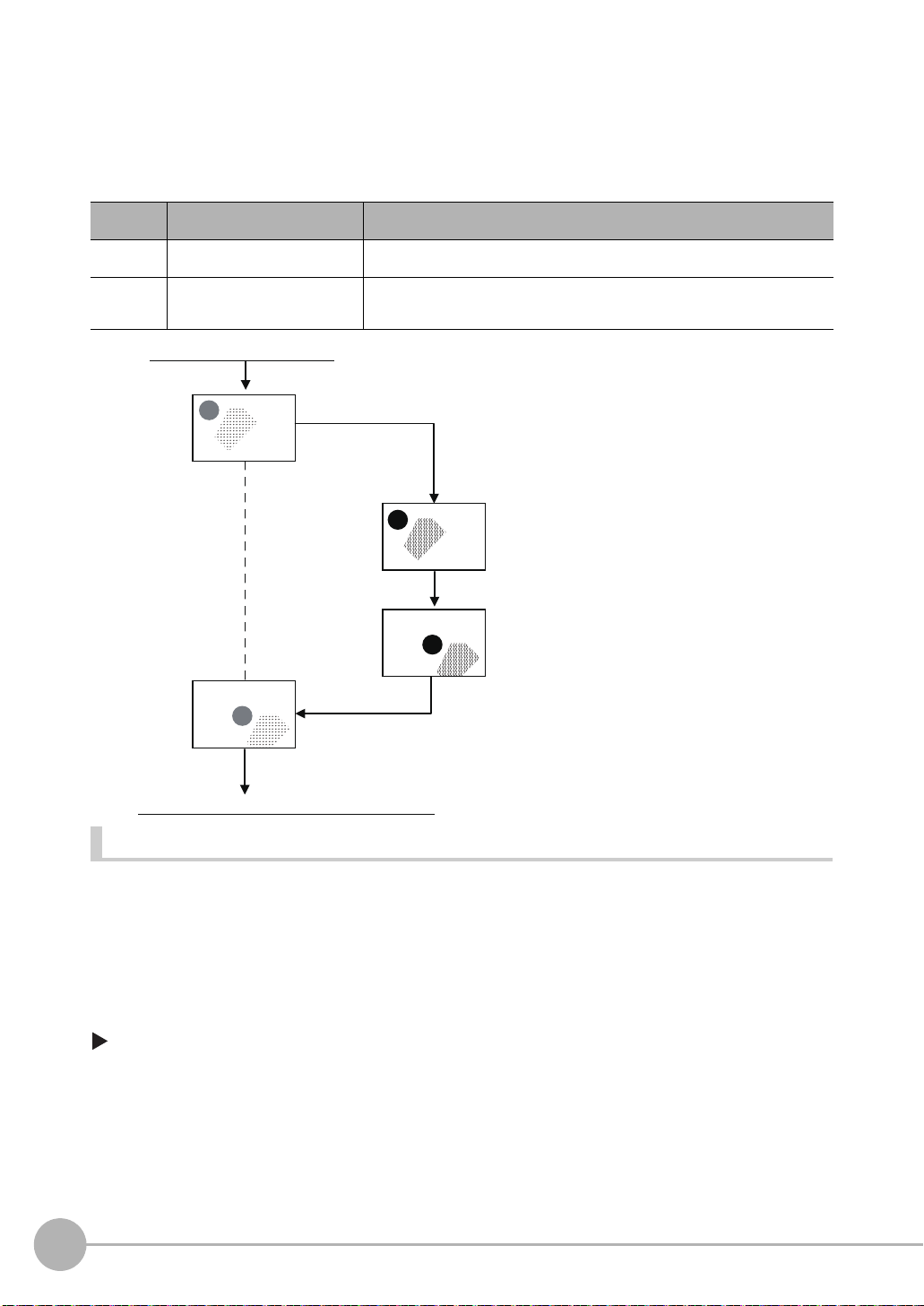

• Using Filter Items for Processing with Position Compensation Items

To more effectively perform position compensation, filter items can be used to create an image specifically for
position compensation and then apply only the results of processing the position compensation to the image
that will be measured. The processing order of filter and position compensation items and the settings of the
source images are set up as shown below.

Processing

order

1 0: Enhance edges (Edge

2 1: Search position comp. (Search

Camera image
(no processing)

Camera image
with results of
Search Position
Compensation
item

Image processing item Source image setting

Enhancement) (filter item)

Position Compensation) (position
compensation item)

Image is taken on TRIG signal.

If the source image is set to the camera image.
the results of position compensation are applied to the
Camera image.

Source image: Camera image
Camera image (image for processing) → Processed image (results of processing)

Source image: Camera image
Previous image (image for processing) → Camera image (results of processing)

0: Edge Enhancement (filter item)

1: Search Position Compensation
(position compensation item)

Measurements are performed with inspection items.

Shape Search Position Compensation

With this position compensation item, an image pattern is registered in advance. When the registered image
pattern is detected, the image is adjusted so that the image pattern is in the same position as when it was
registered.
This position compensation item performs the same type of processing as the Search Position Compensation
item, but it performs special processing for the shape of the image pattern.
Use this position compensation item to correct the position of a rotated image pattern.

[Image] − [Image adjustment]

1 Press an unused number and then press [Add pos.

comp.].

84

Adjusting the Images That Were Taken

FQ2-S/CH User’s Manual

2 Press [Model] − [Shape Sear. pos. comp.]
3 Make any detailed settings as required for the posi-

tion compensation processing.

Refer to Detailed Settings for Shape Search Position
Compensation, below.

4 Press [OK].
5 Press [Back].

• Detailed Settings for Shape Search Position Compensation

The settings for the Shape Search Position Compensation item are almost the same as those for the Shape
Search II inspection item. (Only the [Sorting method] settings of the Search item are not included in the settings
of the Shape Search Position Compensation item.) Configure the settings for teaching and the judgement
conditions in the same way as for the Shape Search II item. ( 4-9 Inspecting with the Shape Search II
Inspection Item: p. 158)
Also, the following settings are included only in the Shape Search Position Compensation Item.

• Source Image

You can select the image to which to apply the results of position compensation processing.

Applying the Results of Position Compensation: p. 83

3

Taking Images

• Interpolation

You can select the precision of position compensation.
If you select [Bilinear], the precision of position compensation will increase.

[Image] − [Image adjustment] − [Shape Sear. pos. comp.] − [Modify]

1 Press [Details] − [Scroll parameter] − [Interpolation]
2 Set the interpolation to [Bilinear] or [None].

Parameter Setting Description

Interpolation Bilinear Points are connected with lines to find approximations. This create smoother

None (default) Position compensation is performed at the pixel level.

• Measurement Data That Can Be Used for External Outputs and Calculations

The following values can be used as measurement data and output to external devices via Ethernet or used in
calculations.

Expression text string Data name Description Data range

JG Judgement This is the judgement result. −2: No judgement (not measured),

DX Scroll X This is the amount of position compen-

DY Scroll Y This is the amount of position compen-

DT Scroll θ This is the amount of angular compen-

images. When [Bilinear] is selected, the processing time increases.

0: Judgement is OK,

−1: Judgement is NG

−15: Out of range error

sation for the X coordinate.

sation for the Y coordinate.

sation, θ.

−99,999.9999 to 99,999.9999

−99,999.9999 to 99,999.9999

−180 to 180

FQ2-S/CH User’s Manual

Adjusting the Images That Were Taken

85

Expression text string Data name Description Data range

Note

X Position X This is the X coordinate of the position

Y Position Y This is the Y coordinate of the position

TH Angle This is the angle at which the model

SX Reference X This is the X coordinate of the position

SY Reference Y This is the Y coordinate of the position

ST Reference angle This is the angle when the model was

CR Correlation This is the correlation. 0 to 100

where the model was found.

where the model was found.

was found.

where the model was registered.

where the model was registered.

registered.

−99,999.9999 to 99,999.9999

−99,999.9999 to 99,999.9999

−180 to 180

−99,999.9999 to 99,999.9999

−99,999.9999 to 99,999.9999

−180 to 180

• Measurement Data That Can Be Logged

The values below can be logged as measurement data.

Parameter Setting Description

Judgement −2: No judgement (not measured),

Scroll X −99,999.9999 to 99,999.9999 This is the amount of position compensation for the X coordinate.

Scroll Y −99,999.9999 to 99,999.9999 This is the amount of position compensation for the Y coordinate.

Scroll θ−180 to 180 This is the amount of angular compensation, θ.

Correlation 0 to 100 This is the correlation.

Position X −99,999.9999 to 99,999.9999 This is the X coordinate of the position where the model was found.

Position Y −99,999.9999 to 99,999.9999 This is the Y coordinate of the position where the model was found.

Angle −180 to 180 This is the angle at which the model was found.

0: Judgement is OK,

−1: Judgement is NG

This is the judgement result.

Search Position Compensation

With this position compensation item, an image pattern is registered in advance. When the registered image
pattern is detected, the image is adjusted so that the image pattern is in the same position as when it was
registered.
This position compensation item performs the same type of processing as the Shape Search Position
Compensation item, but it performs processing to detect differences in colors and patterns in addition to
processing for image pattern shapes.

To perform position compensation for a rotated image pattern, use the Shape Search Position Compensation item.

[Image] − [Image adjustment]

1 Press an unused number and then press [Add pos. comp.].
2 Press [Model] − [Search position comp.]
3 Make any detailed settings as required for the position compensation processing.

Refer to Detailed Settings for Search Position Compensation, below.

4 Press [OK].
5 Press [Back].

86

Adjusting the Images That Were Taken

FQ2-S/CH User’s Manual

• Detailed Settings for Search Position Compensation

The settings for the Search Position Compensation item are almost the same as those for the Search
inspection item. (The [Multi-point output] and model parameter settings of the Search inspection item are not
included in the Search Position Compensation settings.) Make the settings for teaching and the judgement
conditions in the same way as for the Search item. ( 4-8 Inspecting with the Search Inspection Item: p.

148)

Also, the following settings are included only in the Search Position Compensation Item.

• Source Image

You can select the image to which to apply the results of position compensation processing.

Applying the Results of Position Compensation: p. 83

• Interpolation

You can select the precision of position compensation.
If you select [Bilinear], the precision of position compensation will increase.

[Image] − [Image adjustment] − [Search position comp.] − [Modify] − [Details] −
[Scroll parameter] − [Interpolation]

The settings are the same as those for the Shape Search Position Compensation item.

Interpolation: p. 85

• Measurement Data That Can Be Used for External Outputs and Calculations

The following values can be used as measurement data and output to external devices via Ethernet or used in
calculations.

Expression text string Data name Description Data range

JG Judgement This is the judgement result. −2: No judgement (not measured),

DX Scroll X This is the amount of position com-

DY Scroll Y This is the amount of position com-

X Position X This is the X coordinate of the position

Y Position Y This is the Y coordinate of the position

SX Reference X This is the X coordinate of the position

SY Reference Y This is the Y coordinate of the position

CR Correlation This is the correlation. 0 to 100

pensation for the X coordinate.

pensation for the Y coordinate.

where the model was found.

where the model was found.

where the model was registered.

where the model was registered.

0: Judgement is OK,

−1: Judgement is NG,

−15: Out of range error

−99,999.9999 to 99,999.9999

−99,999.9999 to 99,999.9999

−99,999.9999 to 99,999.9999

−99,999.9999 to 99,999.9999

−99,999.9999 to 99,999.9999

−99,999.9999 to 99,999.9999

3

Taking Images

FQ2-S/CH User’s Manual

Adjusting the Images That Were Taken

87

• Measurement Data That Can Be Logged

The values below can be logged as measurement data.

Parameter Setting Description

Judgement −2: No judgement (not measured),

Scroll X −99,999.9999 to 99,999.9999 This is the amount of position compensation for the X coordinate.

Scroll Y −99,999.9999 to 99,999.9999 This is the amount of position compensation for the Y coordinate.

Correlation 0 to 100 This is the correlation.

Position X −99,999.9999 to 99,999.9999 This is the X coordinate of the position where the model was found.

Position Y −99,999.9999 to 99,999.9999 This is the Y coordinate of the position where the model was found.

0: Judgement is OK,

−1: Judgement is NG,

−15: Out of range error

This is the judgement result.

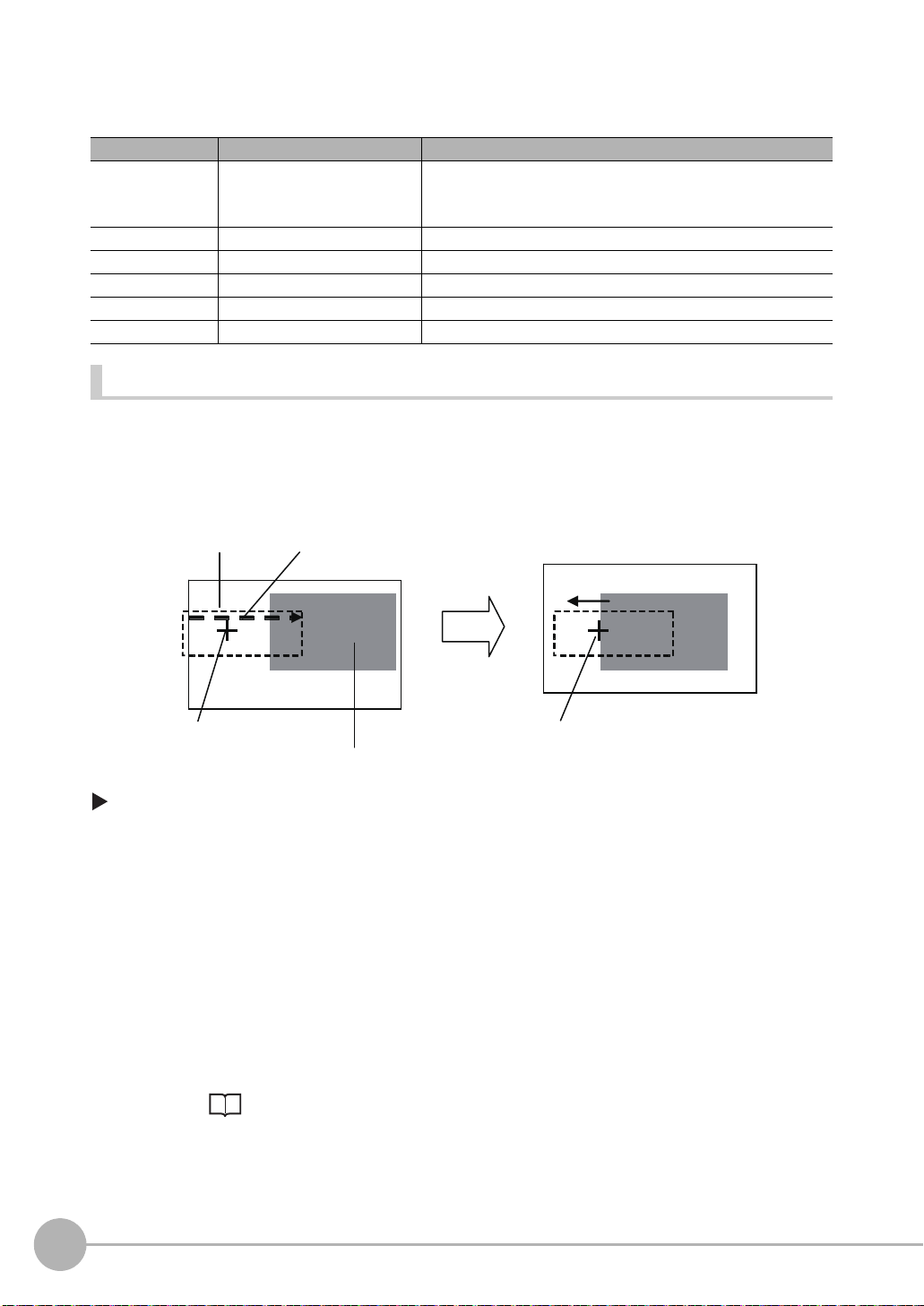

Edge Position Compensation

This position compensation item detects an edge in the set direction.
If the specified color is detected (or the specified density is detected for a Sensor with a Monochrome Camera),
it is recognized as an edge.
When an edge is recognized, the image is adjusted so that the edge appears at the position it was in when it
was registered.

Measurement region

Edge search direction

Registered position of the edge

Color of edge to be found

The image is adjusted so that the edge
appears at the position it was in when it
was registered.

[Image] − [Image adjustment]

1 Press an unused number and then press [Add pos. comp.].
2 Press [Edge] − [Edge position comp.].
3 Make any detailed settings as required for the position compensation processing.

Refer to Detailed Settings for Edge Position Compensation, below.

4 Press [OK].
5 Press [Back].

• Detailed Settings for Edge Position Compensation

The settings for the Edge Position Compensation item are almost the same as those for the Edge Position
inspection item.
Make the settings for teaching and the judgement conditions in the same way as for the Edge Position
inspection item. ( 4-11 Inspecting with the Edge Position Inspection Item: p. 174)

However, the following settings are included only in the Edge Position Compensation Item.

88

Adjusting the Images That Were Taken

FQ2-S/CH User’s Manual

• Source Image

You can select the image to which to apply the results of position compensation processing.

Applying the Results of Position Compensation: p. 83

• Interpolation

You can select the precision of position compensation.
If you select [Bilinear], the precision of position compensation will increase.

[Image] − [Image adjustment] − [Edge position comp.] − [Modify] − [Details] - [Scroll parameter]

− [Interpolation]

The settings are the same as those for the Shape Search Position Compensation item.

Interpolation: p. 85

• Measurement Data That Can Be Used for External Outputs and Calculations

The following values can be used as measurement data and output to external devices via Ethernet or used in
calculations.

Expression text string Data name Description Data range

JG Judgement This is the judgement result. −2: No judgement (not measured),

DX Scroll X This is the amount of position com-

pensation for the X coordinate.

DY Scroll Y This is the amount of position com-

pensation for the Y coordinate.

X Position X (edge position X)This is the X coordinate of the mea-

sured edge position.

Y Position Y (edge position Y)This is the Y coordinate of the mea-

sured edge position.

SX Reference X This is the X coordinate of the edge

position when it was registered.

SY Reference Y This is the Y coordinate of the edge

position when it was registered.

0: Judgement is OK,

−1: Judgement is NG

−99,999.9999 to 99,999.9999

−99,999.9999 to 99,999.9999

−99,999.9999 to 99,999.9999

−99,999.9999 to 99,999.9999

−99,999.9999 to 99,999.9999

−99,999.9999 to 99,999.9999

3

Taking Images

• Measurement Data That Can Be Logged

The values below can be logged as measurement data.

Parameter Setting Description

Judgement −2: No judgement (not measured),

Scroll X −99,999.9999 to 99,999.9999 This is the amount of position compensation for the X coordinate.

Scroll Y −99,999.9999 to 99,999.9999 This is the amount of position compensation for the Y coordinate.

Position X (edge posi­tion X)

Position Y (edge posi­tion Y)

FQ2-S/CH User’s Manual

0: Judgement is OK,

−1: Judgement is NG

−99,999.9999 to 99,999.9999 This is the X coordinate of the measured edge position.

−99,999.9999 to 99,999.9999 This is the Y coordinate of the measured edge position.

This is the judgement result.

Adjusting the Images That Were Taken

89

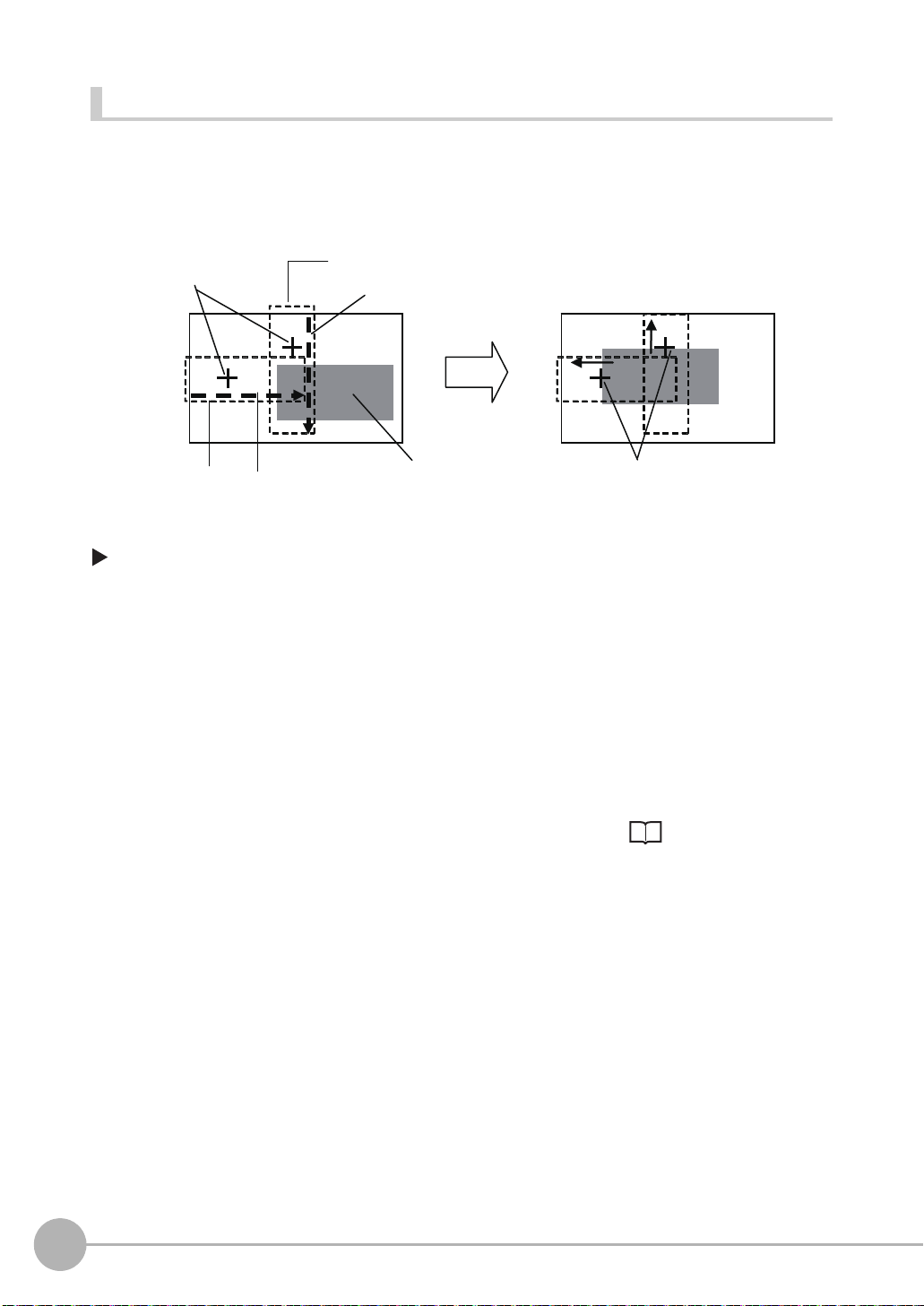

Two-edge Position Compensation

Measurement region for edge 1

Edge search direction for edge 1

Measurement
region for edge 0

Edge search
direction for edge 0

Color of edge to be found

Registered position
of the edge

The image is adjusted so that the edge
appears at the position it was in when it
was registered.

This position compensation item detects edges in two directions.
If the specified color is detected (or the specified density is detected for a Sensor with a Monochrome Camera),
it is recognized as an edge.
When an edge is recognized, the image is adjusted so that the edge appears at the position it was in when it
was registered.

[Image] − [Image adjustment]

1 Press an unused number and then press [Add pos. comp.].
2 Press [Edge] − [2Edge position comp.]
3 Make any detailed settings as required for the position compensation processing.

Refer to Detailed Settings for Two-edge Position Compensation, below.

4 Press [OK].
5 Press [Back].

• Detailed Settings for Two-edge Position Compensation

The settings for the Two-edge Position Compensation item are almost the same as those for the Edge Position
inspection item.
Make the settings in the same way as for the Edge Position inspection item. ( 4-11 Inspecting with the
Edge Position Inspection Item: p. 174)
However, the following settings are included only in the Edge Position Compensation Item.

90

Adjusting the Images That Were Taken

FQ2-S/CH User’s Manual

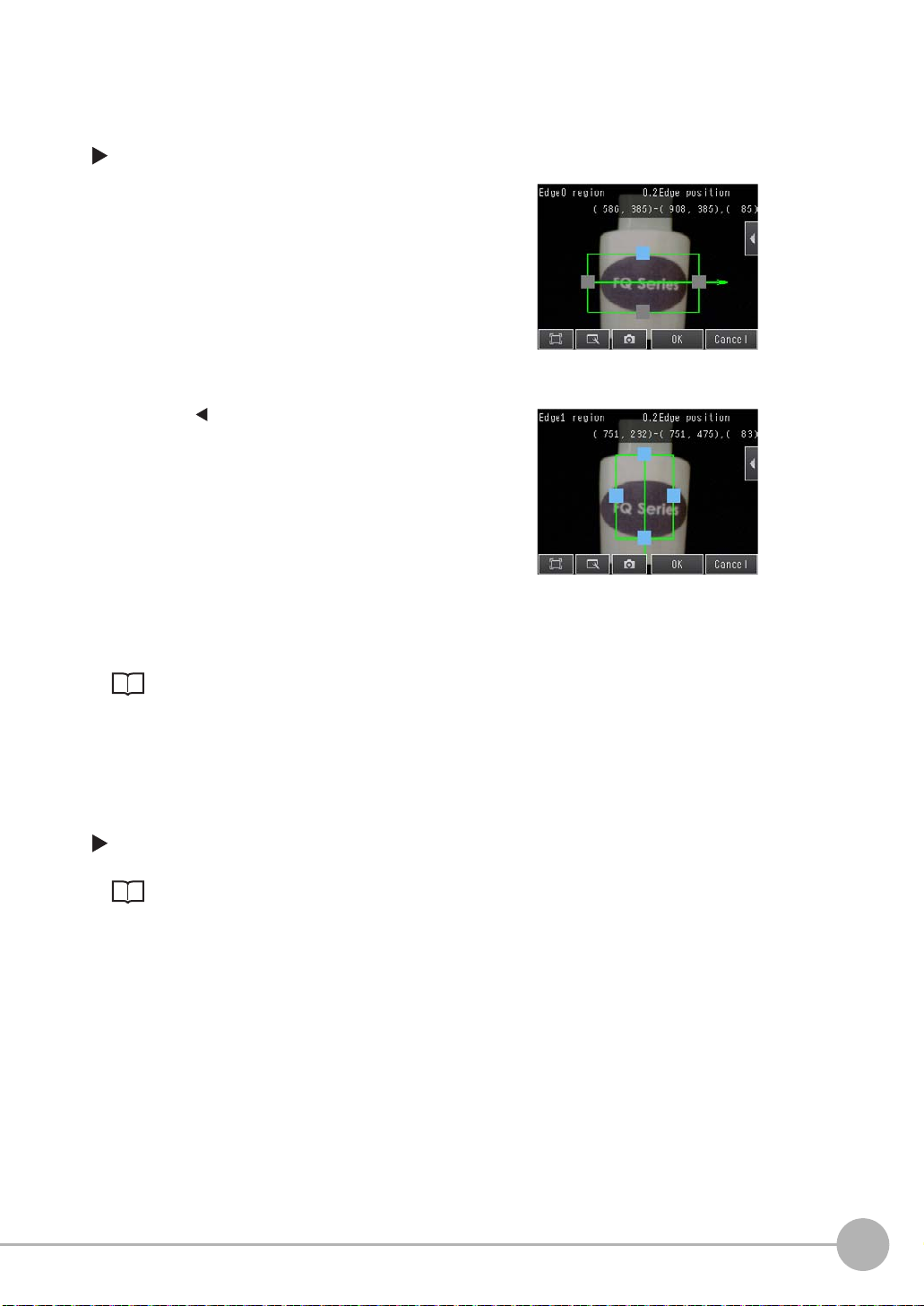

• Teaching

Set the measurement regions and measurement directions for both edge 0 and edge 1.

[Image] − [Image adjustment] − [2Edge position comp.] − [Modify] − [Basic]

1 Press [Teach].
2 Place the object that is to be used as the measure-

ment reference in front of the camera.

3 Move the rectangle to the location to be measured,

and then press [OK].

This concludes setting the measurement region and
edge search direction for edge 0.

Next, go to step 4 to set the measurement region and
edge search direction for edge 1.

4 Press [ ] − [Edge1 region] on the right of the dis-

play, move the rectangle to the location to be mea­sured, and then press [OK].

5 Press [TEACH] on the lower right of the display.

The basic settings will be registered when teaching has
been completed.

6 Press [Back] to end teaching.

3

Taking Images

• Source Image

You can select the image to which to apply the results of position compensation processing.

Applying the Results of Position Compensation: p. 83

• Interpolation

You can select the precision of position compensation.
If you select [Bilinear], the precision of position compensation will increase.

[Image] − [Image adjustment] − [2Edge position comp.] − [Modify] − [Details] − [Interpolation]

The settings are the same as those for the Shape Search Position Compensation item.

Interpolation: p. 85

FQ2-S/CH User’s Manual

Adjusting the Images That Were Taken

91

• Measurement Data That Can Be Used for External Outputs and Calculations

The following values can be used as measurement data and output to external devices via Ethernet or used in
calculations.

Expression text string Data name Description Data range

JG Judgement This is the judgement result. −2: No judgement (not measured),

DX Scroll X This is the amount of position compen-

DY Scroll Y This is the amount of position compen-

X0 Edge 0 position X This is the X coordinate of the mea-

Y0 Edge 0 position Y This is the Y coordinate of the mea-

X1 Edge 1 position X This is the X coordinate of the mea-

Y1 Edge 1 position Y This is the Y coordinate of the mea-

SX0 Edge0 ref. position X

SY0 Edge0 ref. position Y

SX1 Edge1 ref. position X

SY1 Edge1 ref. position Y

(edge 0 reference
position X)

(edge 0 reference
position Y)

(edge 1 reference
position X)

(edge 1 reference
position Y)

sation for the X coordinate.

sation for the Y coordinate.

sured edge 0 position.

sured edge 0 position.

sured edge 1 position.

sured edge 1 position.

This is the X coordinate of the edge 0
position when it was registered.

This is the Y coordinate of the edge 0
position when it was registered.

This is the X coordinate of the edge 1
position when it was registered.

This is the Y coordinate of the edge 1
position when it was registered.

0: Judgement is OK,

−1: Judgement is NG,

−15: Out of range error

−99,999.9999 to 99,999.9999

−99,999.9999 to 99,999.9999

−99,999.9999 to 99,999.9999

−99,999.9999 to 99,999.9999

−99,999.9999 to 99,999.9999

−99,999.9999 to 99,999.9999

−99,999.9999 to 99,999.9999

−99,999.9999 to 99,999.9999

−99,999.9999 to 99,999.9999

−99,999.9999 to 99,999.9999

• Measurement Data That Can Be Logged

The values below can be logged as measurement data.

Parameter Setting Description

Judgement −2: No judgement (not measured),

Scroll X −99,999.9999 to 99,999.9999 This is the amount of position compensation for the X coordinate.

Scroll Y −99,999.9999 to 99,999.9999 This is the amount of position compensation for the Y coordinate.

Edge 0 position X −99,999.9999 to 99,999.9999 This is the X coordinate of the measured edge 0 position.

Edge 0 position Y −99,999.9999 to 99,999.9999 This is the Y coordinate of the measured edge 0 position.

Edge 1 position X −99,999.9999 to 99,999.9999 This is the X coordinate of the measured edge 1 position.

Edge 1 position Y −99,999.9999 to 99,999.9999 This is the Y coordinate of the measured edge 1 position.

92

Adjusting the Images That Were Taken

0: Judgement is OK,

−1: Judgement is NG,

−15: Out of range error

This is the judgement result.

FQ2-S/CH User’s Manual

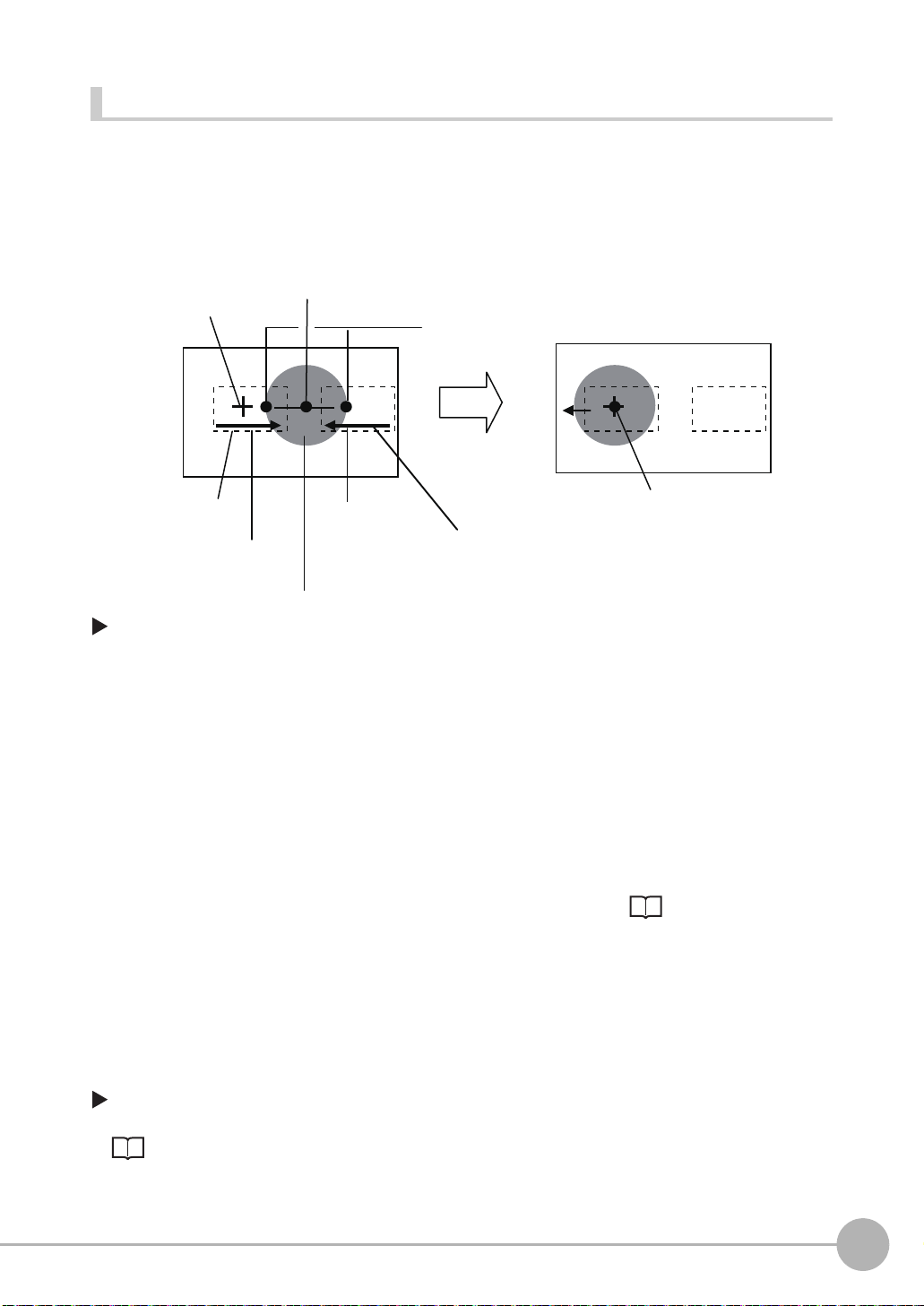

Two-edge Midpoint Compensation

This position compensation item detects edges in two directions.
If the specified color is detected (or the specified density is detected for a Sensor with a Monochrome Camera),
it is recognized as an edge. Two edge positions are detected.
The image is adjusted so that the coordinates of the midpoint position of a line that connects the two detected
edge positions matches the position when the edges were registered.

Midpoint position

Registered position
of the edge

(center of a line that connects positions 1 and 2)

Detected edge positions (positions 1 and 2)

3

Taking Images

Measurement
region for edge 0

Edge search
direction for edge 0

Color of edge to be found

[Image] − [Image adjustment]

Measurement
region for edge 1

Edge search
direction for edge 1

The image is adjusted so that the
midpoint appears at the position it
was in when it was registered.

1 Press an unused number and then press [Add pos. comp.].
2 Press [Edge] − [2Edge midpoint comp.]
3 Make any detailed settings as required for the position compensation processing.

Refer to Detailed Settings for Two-edge Midpoint Compensation, below.

4 Press [OK].
5 Press [Back].

• Detailed Settings for Two-edge Midpoint Compensation

The settings for the Two-edge Midpoint Compensation item are almost the same as those for the Edge Position
inspection item.
Make the settings in the same way as for the Edge Position inspection item. ( 4-11 Inspecting with the
Edge Position Inspection Item: p. 174)

However, the following settings are included only in the Edge Position Compensation Item.

• Teaching

Set the measurement regions and measurement directions for both edge 0 and edge 1.

[Image] − [Image adjustment] − [2Edge midpoint comp.] − [Modify] − [Basic] − [Teach]

The settings are the same as those for the Two-edge Position Compensation item.

Teaching: p. 91

FQ2-S/CH User’s Manual

Adjusting the Images That Were Taken

93

• Source Image

You can select the image to which to apply the results of position compensation processing.

Applying the Results of Position Compensation: p. 83

• Interpolation

You can select the precision of position compensation.
If you select [Bilinear], the precision of position compensation will increase.

[Image] − [Image adjustment] − [2ed. midp. comp.] − [Modify] − [Details] − [Scroll parameter] −
[Interpolation]

The settings are the same as those for the Shape Search Position Compensation item.

Interpolation: p. 85

• Measurement Data That Can Be Used for External Outputs and Calculations

The following values can be used as measurement data and output to external devices via Ethernet or used in
calculations.

Expression text string Data name Description Data range

JG Judgement This is the judgement result. −2: No judgement (not measured),

DX Scroll X This is the amount of position com-

DY Scroll Y This is the amount of position com-

X0 Edge 0 position X This is the X coordinate of the mea-

Y0 Edge 0 position Y This is the Y coordinate of the mea-

X1 Edge 1 position X This is the X coordinate of the mea-

Y1 Edge 1 position Y This is the Y coordinate of the mea-

MX Midpoint X This is the X coordinate of the mea-

MY Midpoint Y This is the Y coordinate of the mea-

SX0 Edge0 ref. position X

SY0 Edge0 ref. position Y

SX1 Edge1 ref. position X

SY1 Edge1 ref. position Y

SMX Ref. Midpoint X (refer-

SMY Ref. Midpoint Y (refer-

(edge 0 reference
position X)

(edge 0 reference
position Y)

(edge 1 reference
position X)

(edge 1 reference
position Y)

ence midpoint X)

ence midpoint Y)

pensation for the X coordinate.

pensation for the Y coordinate.

sured edge 0 position.

sured edge 0 position.

sured edge 1 position.

sured edge 1 position.

sured edge midpoint position.

sured edge midpoint position.

This is the X coordinate of the edge 0
position when it was registered.

This is the Y coordinate of the edge 0
position when it was registered.

This is the X coordinate of the edge 1
position when it was registered.

This is the Y coordinate of the edge 1
position when it was registered.

This is the X coordinate of the mid­point of the two edges when they were
registered.

This is the Y coordinate of the mid­point of the two
registered.

edges

when they were

0: Judgement is OK,

−1: Judgement is NG,

−15: Out of range error

−99,999.9999 to 99,999.9999

−99,999.9999 to 99,999.9999

−99,999.9999 to 99,999.9999

−99,999.9999 to 99,999.9999

−99,999.9999 to 99,999.9999

−99,999.9999 to 99,999.9999

−99,999.9999 to 99,999.999

−99,999.9999 to 99,999.999

−99,999.9999 to 99,999.9999

−99,999.9999 to 99,999.9999

−99,999.9999 to 99,999.9999

−99,999.9999 to 99,999.9999

−9,999.9999 to 99,999.9999

−9,999.9999 to 99,999.9999

94

Adjusting the Images That Were Taken

FQ2-S/CH User’s Manual

• Measurement Data That Can Be Logged

The values below can be logged as measurement data.

Parameter Setting Description

Judgement −2: No judgement (not measured),

Scroll X −99,999.9999 to 99,999.9999 This is the amount of position compensation for the X coordinate.

Scroll Y −99,999.9999 to 99,999.9999 This is the amount of position compensation for the Y coordinate.

Midpoint X −99,999.9999 to 99,999.999 This is the X coordinate of the measured edge midpoint position.

Midpoint Y −99,999.9999 to 99,999.999 This is the Y coordinate of the measured edge midpoint position.

Edge 0 position X −99,999.9999 to 99,999.9999 This is the X coordinate of the measured edge 0 position.

Edge 0 position Y −99,999.9999 to 99,999.9999 This is the Y coordinate of the measured edge 0 position.

Edge 1 position X −99,999.9999 to 99,999.9999 This is the X coordinate of the measured edge 1 position.

Edge 1 position Y −99,999.9999 to 99,999.9999 This is the Y coordinate of the measured edge 1 position.

0: Judgement is OK,

−1: Judgement is NG,

−15: Out of range error

This is the judgement result.

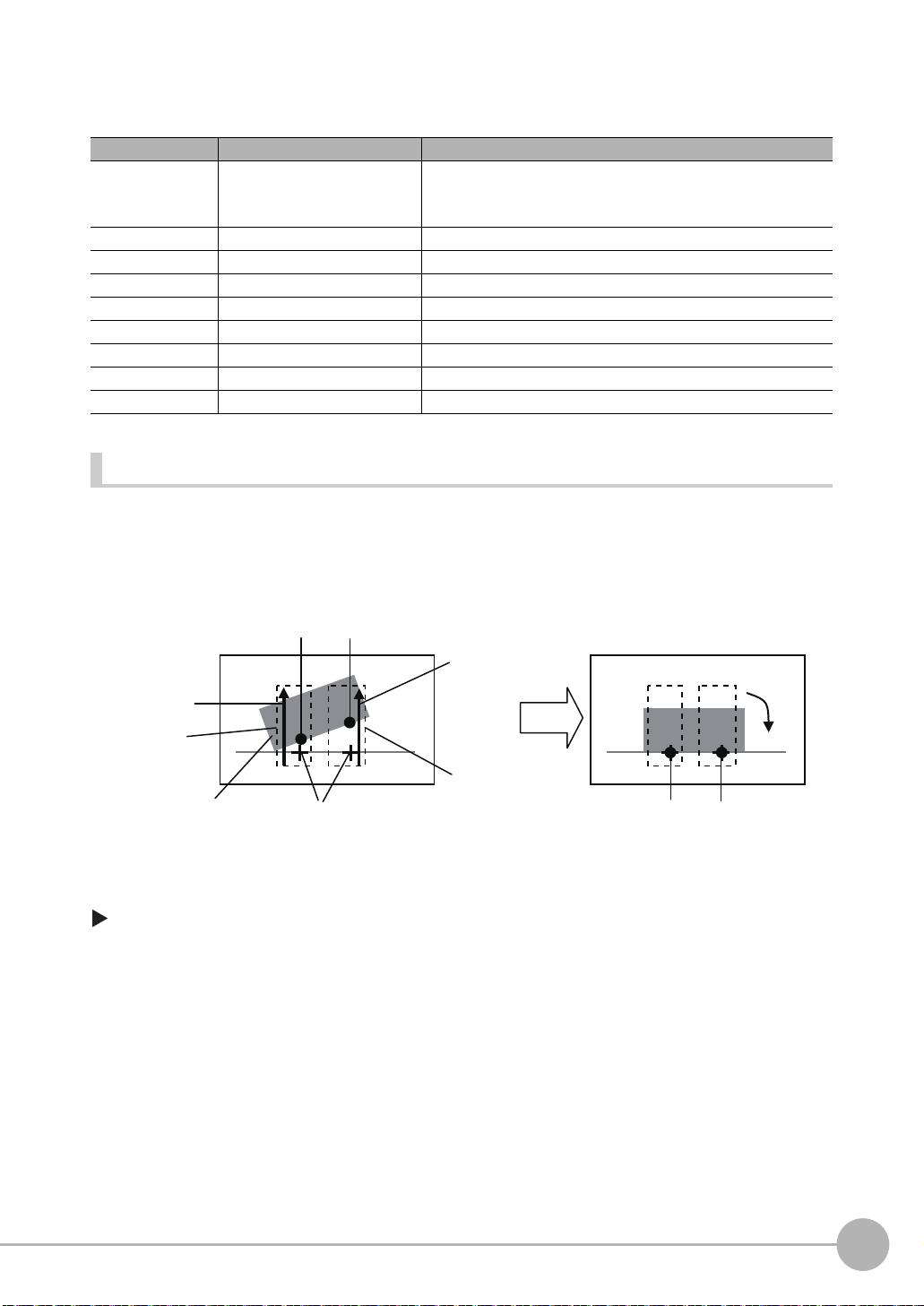

Edge Rotation Position Compensation

This position compensation item detects an edge in two directions.
If the specified color is detected (or the specified density is detected for a Sensor with a Monochrome Camera),
it is recognized as an edge. Two edge positions are detected.
The image is adjusted so that the two edge positions match the positions when the edge positions were
registered.

Two detected edge positions

Edge search
direction
for edge 0

Edge search
direction for edge 1

3

Taking Images

Measurement
region for edge 0

Measurement

Color of edge
to be found

Registered position of the edge

region for edge 1

The image is adjusted so that the two
detected edge positions appear at the
positions they were in when the edge
was registered.

[Image] − [Image adjustment]

1 Press an unused number and then press [Add pos. comp.].
2 Press [Edge] − [Edge rot. pos. Comp.]
3 Make any detailed settings as required for the position compensation processing.

Refer to Detailed Settings for Edge Rotation Position Compensation, below.

4 Press [OK].
5 Press [Back].

FQ2-S/CH User’s Manual

Adjusting the Images That Were Taken

95

• Detailed Settings for Edge Rotation Position Compensation

The settings for the Edge Rotation Position Compensation item are almost the same as those for the Edge
Position inspection item.
Make the settings in the same way as for the Edge Position inspection item. ( 4-11 Inspecting with the
Edge Position Inspection Item: p. 174)

However, the following settings are included only in the Edge Position Compensation Item.

• Teaching

• Measurement Regions and Measurement Directions

Set the measurement regions and measurement directions for both edge 0 and edge 1.

[Image] − [Image adjustment] − [Edge rot. pos. Comp.] − [Modify] − [Basic] − [Teach]

The settings are the same as those for the Two-edge Position Compensation item.

Teaching: p. 91

• Reference Angle

Set the reference angle.
Press [ ]

− [Edit Ref. angle] on the right of the display and set the angle.

• Source Image

You can select the image to which to apply the results of position compensation processing.

Applying the Results of Position Compensation: p. 83

• Interpolation

You can select the precision of position compensation.
If you select [Bilinear], the precision of position compensation will increase.

[Image] − [Image adjustment] − [2Edge position comp.] − [Modify] − [Details] − [Interpolation]

The settings are the same as those for the Shape Search Position Compensation item.

Interpolation: p. 85

• Measurement Data That Can Be Used for External Outputs and Calculations

The following values can be used as measurement data and output to external devices via Ethernet or used in
calculations.

Expression text string Data name Description Data range

JG Judgement This is the judgement result. −2: No judgement (not measured),

DT Scroll θ This is the amount of position compensa-

X0 Edge 0 position X This is the X coordinate of the measured

Y0 Edge 0 position Y This is the Y coordinate of the measured

X1 Edge 1 position X This is the X coordinate of the measured

Y1 Edge 1 position Y This is the Y coordinate of the measured

tion.

edge 0 position.

edge 0 position.

edge 1 position.

edge 1 position.

0: Judgement is OK,

−1: Judgement is NG,

−15: Out of range error

−180 to 180

−99,999.9999 to 99,999.9999

−99,999.9999 to 99,999.9999

−99,999.9999 to 99,999.9999

−99,999.9999 to 99,999.9999

96

Adjusting the Images That Were Taken

FQ2-S/CH User’s Manual

Expression text string Data name Description Data range

TH Angle (edge angle) This is the measured angle. −180 to 180

SX0 Edg0 ref. pos. (edge 0

SY0 Edg0 ref. pos. Y (edge

SX1 Edg1 ref. pos. X (edge

SY1 Edg1 ref. pos. Y (edge

STH Reference angle This is the angle when the edge was reg-

reference position X)

0 reference position
Y)

1 reference position
X)

1 reference position
Y)

This is the X coordinate of the edge 0
position when it was registered.

This is the Y coordinate of the edge 0
position when it was registered.

This is the X coordinate of the edge 1
position when it was registered.

This is the Y coordinate of the edge 1
position when it was registered.

istered.

−99,999.9999 to 99,999.9999

−99,999.9999 to 99,999.9999

−99,999.9999 to 99,999.9999

−99,999.9999 to 99,999.9999

−180 to 180

• Measurement Data That Can Be Logged

The values below can be logged as measurement data.

Parameter Setting Description

Judgement −2: No judgement (not measured),

Scroll θ−180 to 180 This is the amount of position compensation.

Angle (edge angle) −180 to 180 This is the measured angle.

Edge 0 position X −99,999.9999 to 99,999.9999 This is the X coordinate of the measured edge 0 position.

Edge 0 position Y −99,999.9999 to 99,999.9999 This is the Y coordinate of the measured edge 0 position.

Edge 1 position X −99,999.9999 to 99,999.9999 This is the X coordinate of the measured edge 1 position.

Edge 1 position Y −99,999.9999 to 99,999.9999 This is the Y coordinate of the measured edge 1 position.

0: Judgement is OK,

−1: Judgement is NG,

−15: Out of range error

This is the judgement result.

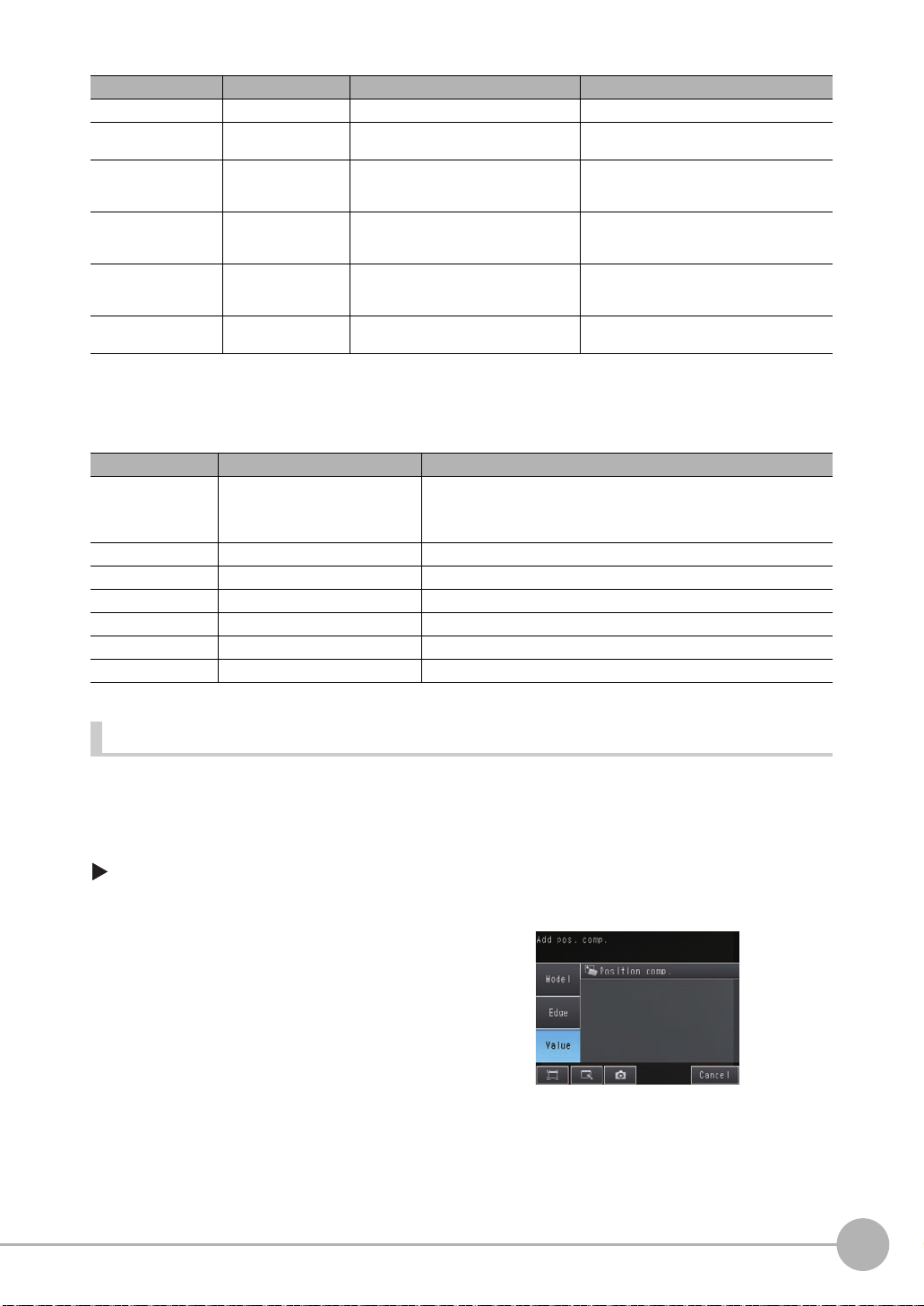

Position Compensation

The position is corrected based on the entered numeric values.
This is used to correct the position by rotating the captured image around the center of the screen or entering
numeric values.

[Image] − [Image adjustment]

1 Press a free number, and press [Add pos. comp.].
2 Press [Value] − [Position comp.]

3

Taking Images

FQ2-S/CH User’s Manual

Adjusting the Images That Were Taken

97

3 At the right of the screen, press − [Image rota-

tion] or [Parameter] to open the settings screen.

Parameter Setting Description

Position Compensa­tion

Image rotation Select to correct the position by rotating the image around the center of the screen.

Parameter Select to specify the amount of position compensation from the reference position and

the measurement position. The displacement between the measurement position and
the reference position is the amount of the position compensation.

When [Image rotation] is selected When [Parameter] is selected

Parameter Setting Description

Angle Range: −180 to 180

Reference
position
[Reference]

Measure­ment posi­tion
[Position]

X Range: −99,999 to 99,999

Y Range: −99,999 to 99,999

θ Range: −180 to 180

X Range: −99,999 to 99,999

Y Range: −99,999 to 99,999

θ Range: −180 to 180

Default: 90

Defaults:

376 on the FQ2-S1@@@@@, FQ2-S2@@@@@,
FQ2-S4@@@@@, FQ2-S4@@@@@-M, FQ2-CH
640 on the FQ2-S3@@@@@-08@, FQ2­S4@@@@@-08@, FQ2-S3@-13@, FQ2-S4@-13@

Defaults:

240 on the FQ2-S1@@@@@, FQ2-S2@@@@@,
FQ2-S4@@@@@, FQ2-S4@@@@@-M, FQ2-CH
512 on the FQ2-S3@@@@@-08@, FQ2­S4@@@@@-08@, FQ2-S3@-13@, FQ2-S4@-13@

Default: 90

Defaults:

376 on the FQ2-S1@@@@@, FQ2-S2@@@@@,
FQ2-S4@@@@@, FQ2-S4@@@@@-M, FQ2-CH
640 on the FQ2-S3@@@@@-08@, FQ2­S4@@@@@-08@, FQ2-S3@-13@, FQ2

Defaults:

240 on the FQ2-S1@@@@@, FQ2-S2@@@@@,
FQ2-S4@@@@@, FQ2-S4@@@@@-M, FQ2-CH
512 on the FQ2-S3@@@@@-08@, FQ2­S4@@@@@-08@, FQ2-S3@-13@, FQ2-S4@-13@

Default: 0

-S4@-1

Rotates the image clockwise around the center of the
screen. To rotate 90° counterclockwise, enter −90.

Sets the reference position.

Sets the measurement position.

3@

4 Press [OK].
5 Press [Finish].

98

Adjusting the Images That Were Taken

FQ2-S/CH User’s Manual
