Omron F3SJ-A User Manual

Page 1

F3SJ-AooooPoo-TS Series

Courtesy of CMA/Flodyne/Hydradyne ▪ Motion Control ▪ Hydraulic ▪ Pneumatic ▪ Electrical ▪ Mechanical ▪ (800) 426-5480 ▪ www.cmafh.com

User's Manual

Safety Light Curtain

Cat. No. SCHG-720D

Page 2

Introduction

Courtesy of CMA/Flodyne/Hydradyne ▪ Motion Control ▪ Hydraulic ▪ Pneumatic ▪ Electrical ▪ Mechanical ▪ (800) 426-5480 ▪ www.cmafh.com

Thank you for purchasing the F3SJ Series Safety Light Curtain (hereinafter referred to as the "F3SJ" ). This is the instruction Manual describing the use of F3SJ. Always heed the following points when using the F3SJ:

Be sure to have F3SJ be handled by a "Responsible Person" who is well aware of and familiar with the machine to be installed. The term "Responsible Person" used in this Instruction Manual means the person qualified, authorized and responsible to secure "safety" in each process of the design, installation, operation, maintenance services and disposition of the machine. It is assumed that F3SJ will be used properly according to the installation environment, performance and function of the machine. Responsible Person should conduct risk assessment on the machine and determine the suitability of this product before installation. Read this Manual thoroughly to understand and make good use of the descriptions before installing and operating the product. Keep this Manual at the place where the operator can refer to whenever necessary.

Page 3

Introduction

Courtesy of CMA/Flodyne/Hydradyne ▪ Motion Control ▪ Hydraulic ▪ Pneumatic ▪ Electrical ▪ Mechanical ▪ (800) 426-5480 ▪ www.cmafh.com

Legislation and Standards

1. Application of a F3SJ-A sensor alone cannot receive type approval provided by Article 44-2 of the Labour Safety and Health Law of Japan. It is necessary to apply it in a system. Therefore, when using the F3SJ-A in Japan as a "safety system for pressing or shearing machines" prescribed in Article 42 of that law, the system must receive type approval.

2. The F3SJ-A is electro-sensitive protective equipment (ESPE) in accordance with European Union (EU) Machinery Directive Index Annex IV, B, Safety Components, Item 1.

3. The F3SJ-A complies with the following legislation and standards:

(1) EU legislation

Machinery Directive 98/37/EC EMC Directive 89/336/EEC

(2) European standards

EN61496-1 (Type 4 ESPE), prEN61496-2 (Type 4 AOPD), EN61508-1 through -7 (SIL3)

(3) International standards

IEC61496-1 (Type 4 ESPE), IEC61496-2 (Type 4 AOPD), IEC61508-1 through -7 (SIL3)

(4)JIS standards

JIS B 9704-1 (Type 4 ESPE), JIS B 9704-2 (Type 4 AOPD)

(5) North American Standards:

UL61496-1(Type 4 ESPE), UL61496-2(Type 4 AOPD), UL508, UL1998, CAN/CSA 22.2 No.14, CAN/ CSA 22.2 No.0.8

Introduction

The F3SJ-A received the following approvals from the EU accredited body, TÜV SÜD Product Service GmbH:

•EC Type-Examination in accordance with the EU Machinery Directive, Type 4 ESPE (EN61496-1), Type 4 AOPD (prEN61496-2)

•EMC Competent Body Certificate (Power supply for test: OMRON S82K)

•TÜV SÜD Product Service Type Approval, Type 4 ESPE (EN61496-1), Type 4 AOPD (prEN61496-2), SIL1, 2, 3 (EN61508-1 through -7), Application: EN954-1 Category B,1,2,3,4

5. The F3SJ-A received the certificates of UL listing for US and Canadian safety standards from the Third Party Assessment Body UL.

•Both are: Type 4 ESPE (UL61496-1), Type 4 AOPD (UL61496-2)

6. The F3SJ-A is designed according to the standards listed below. To make sure that the final system complies with the following standards and regulations, you are asked to design and use it in accordance with all other related standards, laws, and regulations. If you have any questions, consult with specialized organizations such as the body responsible for prescribing and/or enforcing machinery safety regulations in the location where the equipment is to be used.

•European Standards: EN415-4, EN692, EN693

•U.S. Occupational Safety and Health Standards: OSHA 29 CFR 1910.212

•U.S. Occupational Safety and Health Standards: OSHA 29 CFR 1910.217

•American National Standards: ANSI B11.1 to B11.19

•American National Standards: ANSI/RIA 15.06

•Canadian Standards Association CSA Z142, Z432, Z434

•SEMI Standards SEMI S2

•Ministry of Health, Labour and Welfare "Guidelines for Comprehensive Safety Standards of Machinery", Standard Bureau's Notification No. 501 dated June 1, 2001.

* For date of effect for these standards, see Related Standards.

Related Standards p.126

F3SJ-A

User’s Manual

Page 4

Introduction

Courtesy of CMA/Flodyne/Hydradyne ▪ Motion Control ▪ Hydraulic ▪ Pneumatic ▪ Electrical ▪ Mechanical ▪ (800) 426-5480 ▪ www.cmafh.com

Introduction

READ AND UNDERSTAND THIS DOCUMENT

Please read and understand this document before using the products. Please consult your OMRON representative if you have any questions or comments.

WARRANTY

OMRON’s exclusive warranty is that the products are free from defects in materials and workmanship for a period of one year (or other period if specified) from date of sale by OMRON.

OMRON MAKES NO WARRANTY OR REPRESENTATION, EXPRESS OR IMPLIED, REGARDING NONINFRINGEMENT, MERCHANTABILITY, OR FITNESS FOR PARTICULAR PURPOSE OF THE PRODUCTS. ANY BUYER OR USER ACKNOWLEDGES THAT THE BUYER OR USER ALONE HAS DETERMINED THAT THE PRODUCTS WILL SUITABLY MEET THE REQUIREMENTS OF THEIR INTENDED USE. OMRON DISCLAIMS ALL OTHER WARRANTIES, EXPRESS OR IMPLIED.

LIMITATIONS OF LIABILITY

OMRON SHALL NOT BE RESPONSIBLE FOR SPECIAL, INDIRECT, OR CONSEQUENTIAL DAMAGES, LOSS OF PROFITS OR COMMERCIAL LOSS IN ANY WAY CONNECTED WITH THE PRODUCTS, WHETHER SUCH CLAIM IS BASED ON CONTRACT, WARRANTY, NEGLIGENCE, OR STRICT LIABILITY.

In no event shall responsibility of OMRON for any act exceed the individual price of the product on which liability is asserted.

IN NO EVENT SHALL OMRON BE RESPONSIBLE FOR WARRANTY, REPAIR, OR OTHER CLAIMS REGARDING THE PRODUCTS UNLESS OMRON’S ANALYSIS CONFIRMS THAT THE PRODUCTS WERE PROPERLY HANDLED, STORED, INSTALLED, AND MAINTAINED AND NOT SUBJECT TO CONTAMINATION, ABUSE, MISUSE, OR INAPPROPRIATE MODIFICATION OR REPAIR.

SUITABILITY FOR USE

OMRON shall not be responsible for conformity with any standards, codes, or regulations that apply to the combination of products in the customer’s application or use of the product.

At the customer’s request, OMRON will provide applicable third party certification documents identifying ratings and limitations of use that apply to the products. This information by itself is not sufficient for a complete determination of the suitability of the products in combination with the end product, machine, system, or other application or use.

The following are some examples of applications for which particular attention must be given. This is not intended to be an exhaustive list of all possible uses of the products, nor is it intended to imply that the uses listed may be suitable for the products:

• Outdoor use, uses involving potential chemical contamination or electrical interference, or conditions or uses not described in this document.

• Nuclear energy control systems, combustion systems, railroad systems, aviation systems, medical equipment, amusement machines, vehicles, and installations subject to separate industry or government regulations.

• Systems, machines, and equipment that could present a risk to life or property.

Please know and observe all prohibitions of use applicable to the products. NEVER USE THE PRODUCTS FOR AN APPLICATION INVOLVING SERIOUS RISK TO LIFE OR PROPERTY WITHOUT ENSURING THAT THE SYSTEM AS A WHOLE HAS BEEN DESIGNED TO ADDRESS THE RISKS, AND THAT THE OMRON PRODUCT IS PROPERLY RATED AND INSTALLED FOR THE INTENDED USE WITHIN THE OVERALL EQUIPMENT OR SYSTEM.

F3SJ-A

User’s Manual

Page 5

Introduction

Courtesy of CMA/Flodyne/Hydradyne ▪ Motion Control ▪ Hydraulic ▪ Pneumatic ▪ Electrical ▪ Mechanical ▪ (800) 426-5480 ▪ www.cmafh.com

PERFORMANCE DATA

Performance data given in this document is provided as a guide for the user in determining suitability and does not constitute a warranty. It may represent the result of OMRON’s test conditions, and the users must correlate it to actual application requirements. Actual performance is subject to the OMRON Warranty and Limitations of Liability.

CHANGE IN SPECIFICATIONS

Product specifications and accessories may be changed at any time based on improvements and other reasons.

It is our practice to change model numbers when published ratings or features are changed, or when significant construction changes are made. However, some specifications of the product may be changed without any notice. When in doubt, special model numbers may be assigned to fix or establish key specifications for your application on your request. Please consult with your OMRON representative at any time to confirm actual specifications of purchased products.

DIMENSIONS AND WEIGHTS

Dimensions and weights are nominal and are not to be used for manufacturing purposes, even when tolerances are shown.

ERRORS AND OMISSIONS

The information in this document has been carefully checked and is believed to be accurate; however, no responsibility is assumed for clerical, typographical, or proofreading errors, or omissions.

Introduction

PROGRAMMABLE PRODUCTS

OMRON shall not be responsible for the user’s programming of a programmable product, or any consequence thereof.

This document shall not be copied for sales or promotions without permission.

This document is protected by copyright and is intended solely for use in conjunction with the product. Please notify us before copying or reproducing this document in any manner, for any other purpose. If copying or transmitting this document to another, please copy or transmit it in its entirety.

F3SJ-A

User’s Manual

iii

Page 6

Introduction

Courtesy of CMA/Flodyne/Hydradyne ▪ Motion Control ▪ Hydraulic ▪ Pneumatic ▪ Electrical ▪ Mechanical ▪ (800) 426-5480 ▪ www.cmafh.com

Introduction

Precautions on Safety

Regarding the alert symbols and meanings used for the safe uses

In order to use the F3SJ safely, the precautions listed in this manual indicated by alert symbols and descriptions must be followed. Failure to follow all precautions and alerts may result in an unsafe use or operation. The following indictions and symbols are used for the descriptions.

Indicates a potentially hazardous situation which, if not avoided, will result in minor or moderate injury, or may result in serious injury or death. Additionally there may be significant property damage.

Meanimgs of Alert Symbols

Indicates prohibited actions.

Alert Statements in this Manual

For users

The F3SJ must be installed, configured, and incorporated into a machine control system by a sufficiently trained and qualified person. An unqualified person may not be able to perform these operations properly, which may cause a person to go undetected, resulting in serious injury.

For machines

Do not use this sensor for machines that cannot be stopped by electrical control. For example, do not use it for a pressing machine that uses full-rotation clutch. Otherwise, the machine may not stop before a person reaches the hazardous part, resulting in serious injury.

Do not use the auxiliary output or external indicator output for safety applications. Human body may not be detected when F3SJ fails, resulting in serious injury.

F3SJ-A

User’s Manual

Page 7

Introduction

Courtesy of CMA/Flodyne/Hydradyne ▪ Motion Control ▪ Hydraulic ▪ Pneumatic ▪ Electrical ▪ Mechanical ▪ (800) 426-5480 ▪ www.cmafh.com

For installation

Make sure to test the operation of the F3SJ after installation to verify that the F3SJ operates as intended. Make sure to stop the machine until the test is complete. Unintended function settings may cause a person to go undetected, resulting in serious injury.

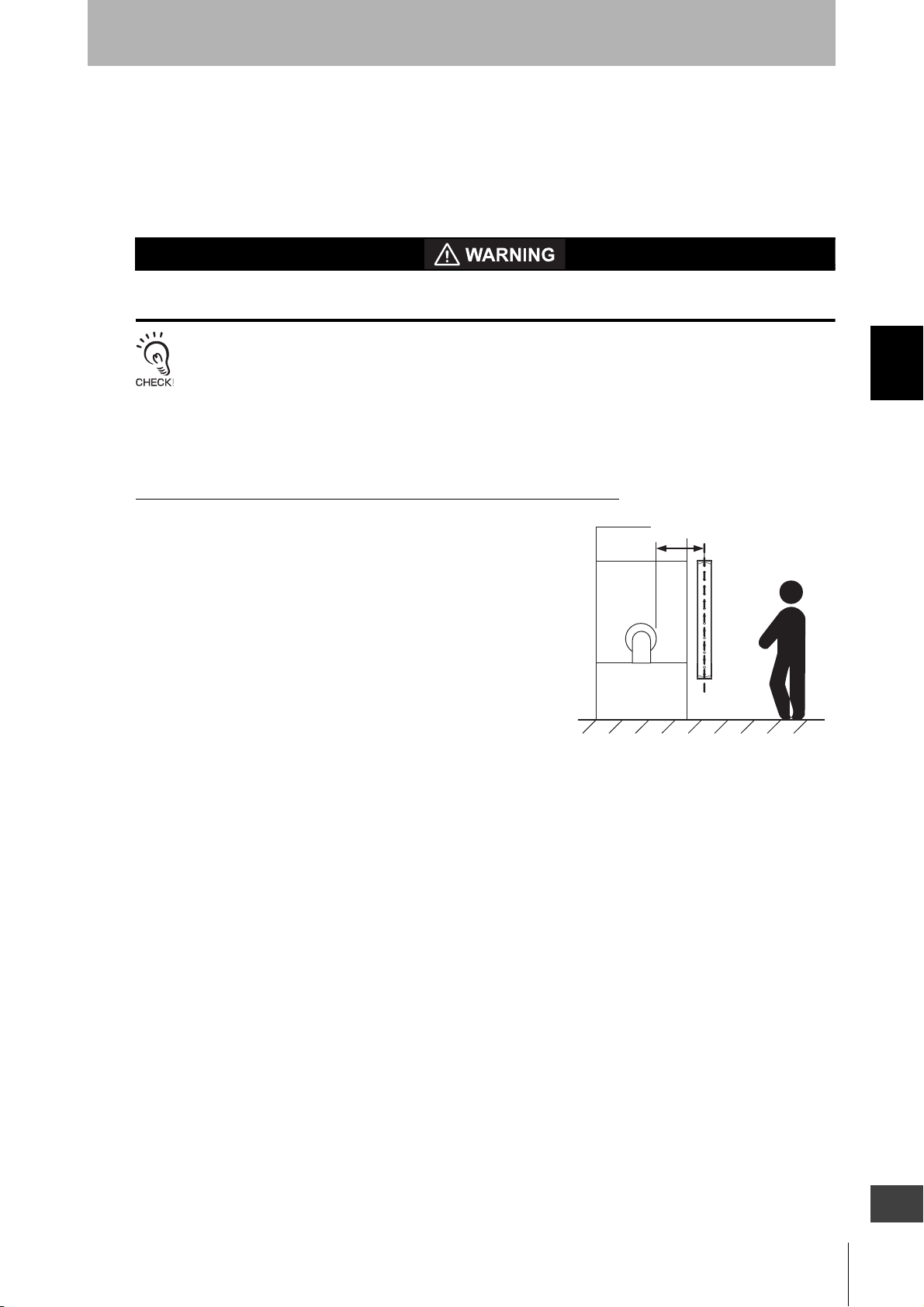

Make sure to install the F3SJ at the safe distance from the hazardous part of the equipment. Otherwise, the machine may not stop before a person reaches the hazardous part, resulting in serious injury.

Install a protective structure so that the hazardous part of a machine can only be reached by a person that passes through the sensor's detection zone. Install the sensors so that part of the person is always present in the detection zone when working in a machine's hazardous zones. If a person is able step into the hazardous zone of a machine and remain behind the F3SJ's detection zone, configure the system with an interlock function that prevents the machine from being restarted. Failure to do so may result in serious injury.

Install the interlock reset switch in a location that provides a clear view of the entire hazardous zone and where it cannot be activated from within the hazardous zone.

The F3SJ cannot protect a person from a projectile exiting the hazardous zone. Install protective cover(s) or fence(s).

Introduction

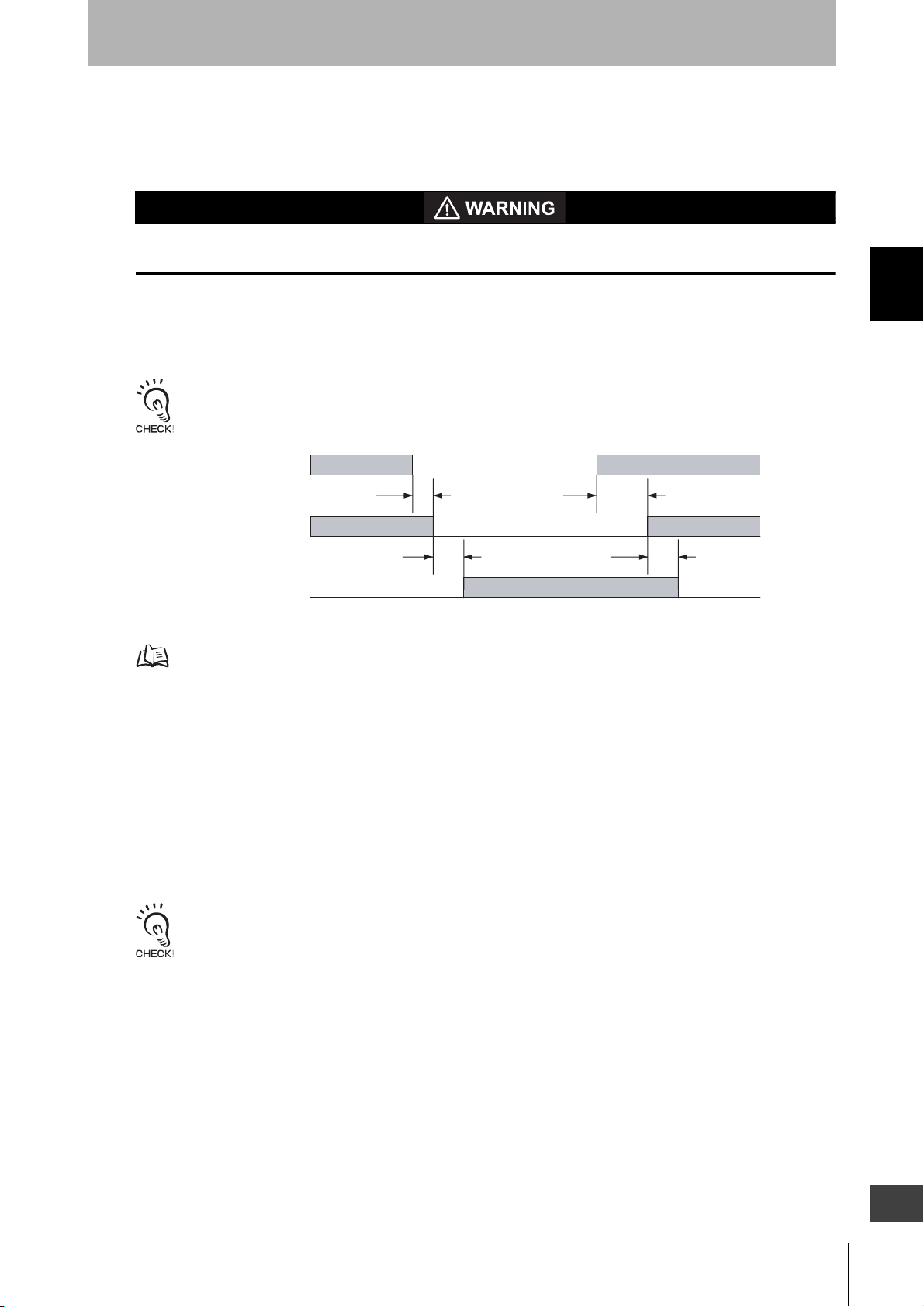

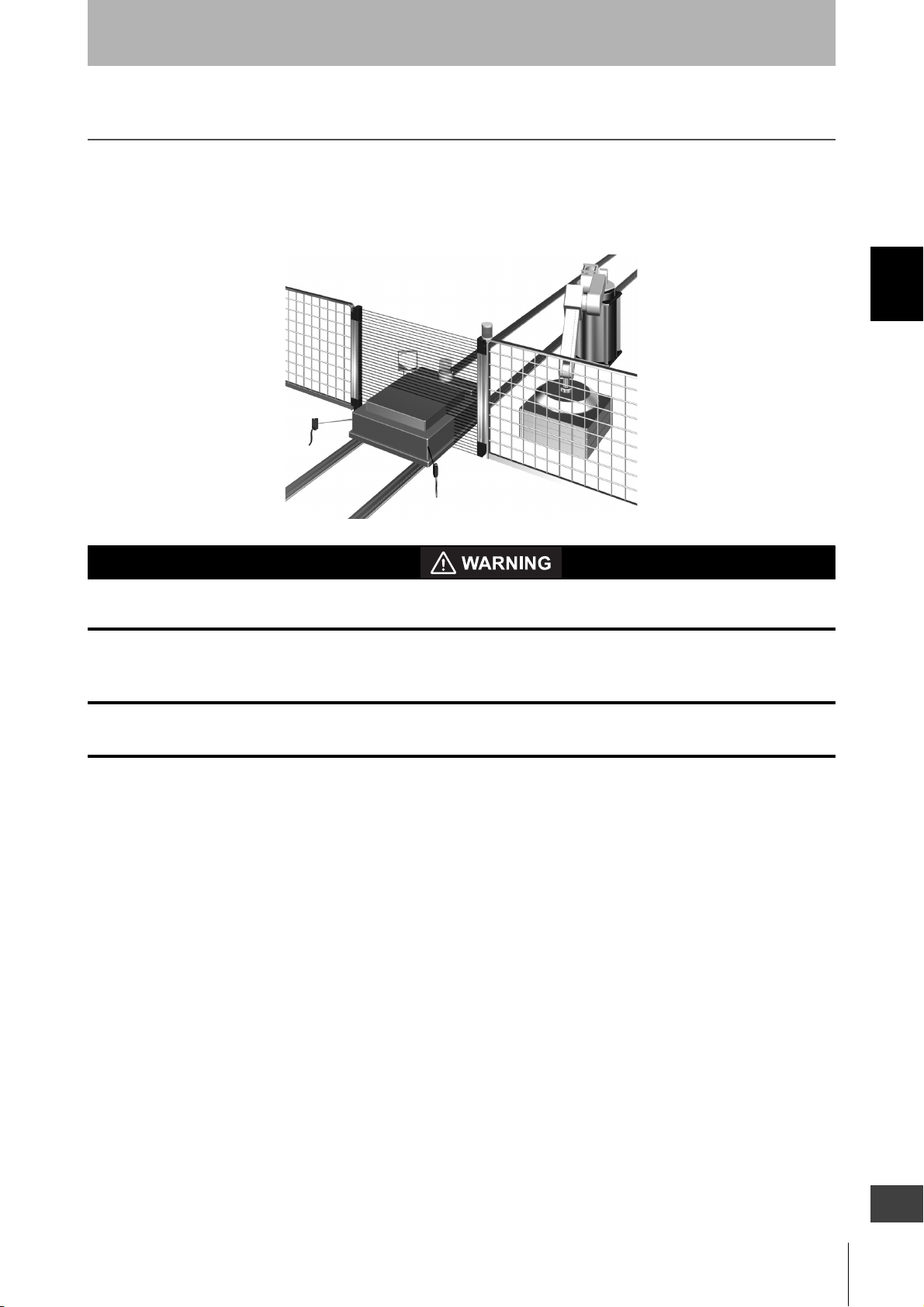

The muting and override functions disable the safety functions of the device. You must ensure safety using other method when these functions are operating.

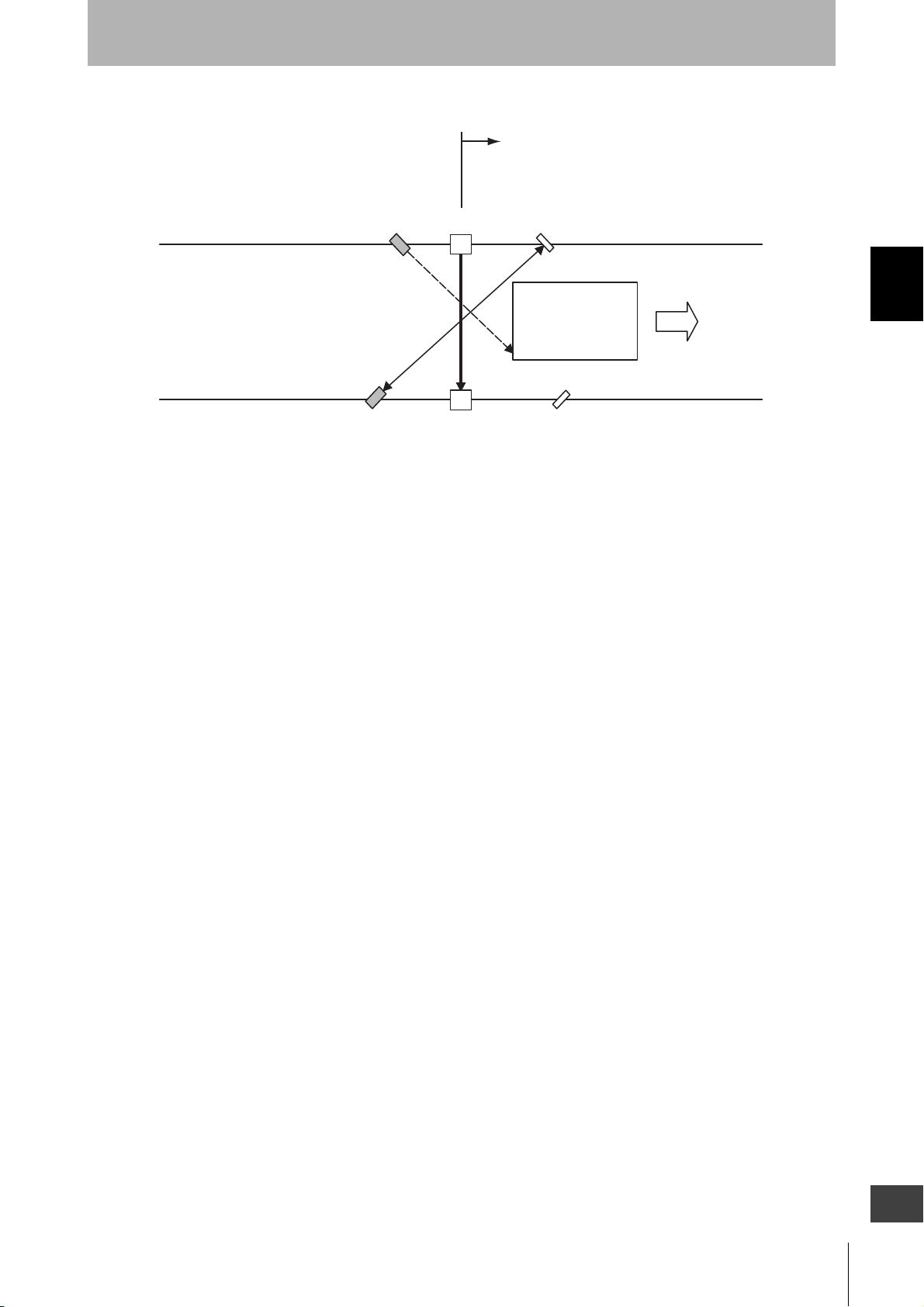

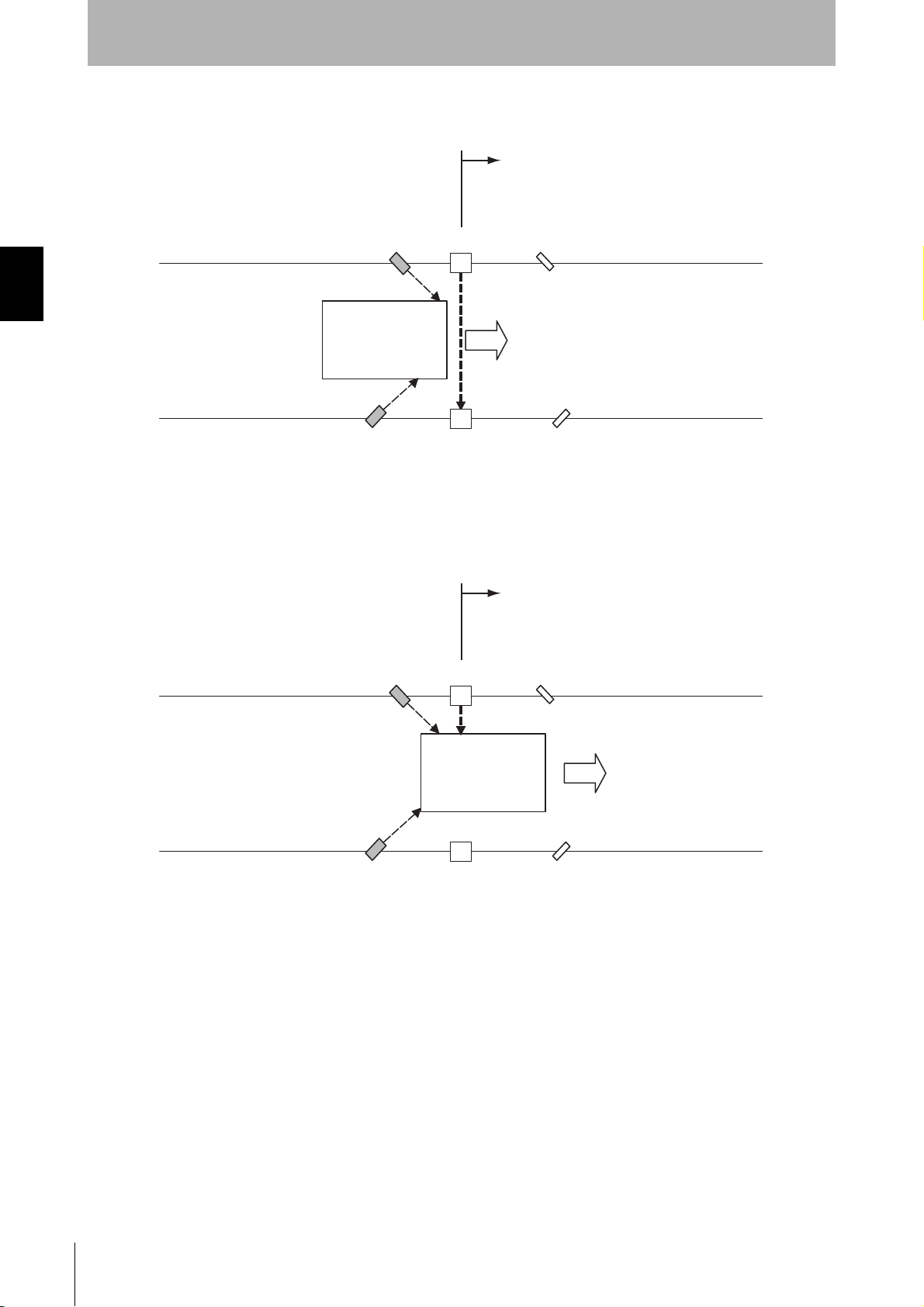

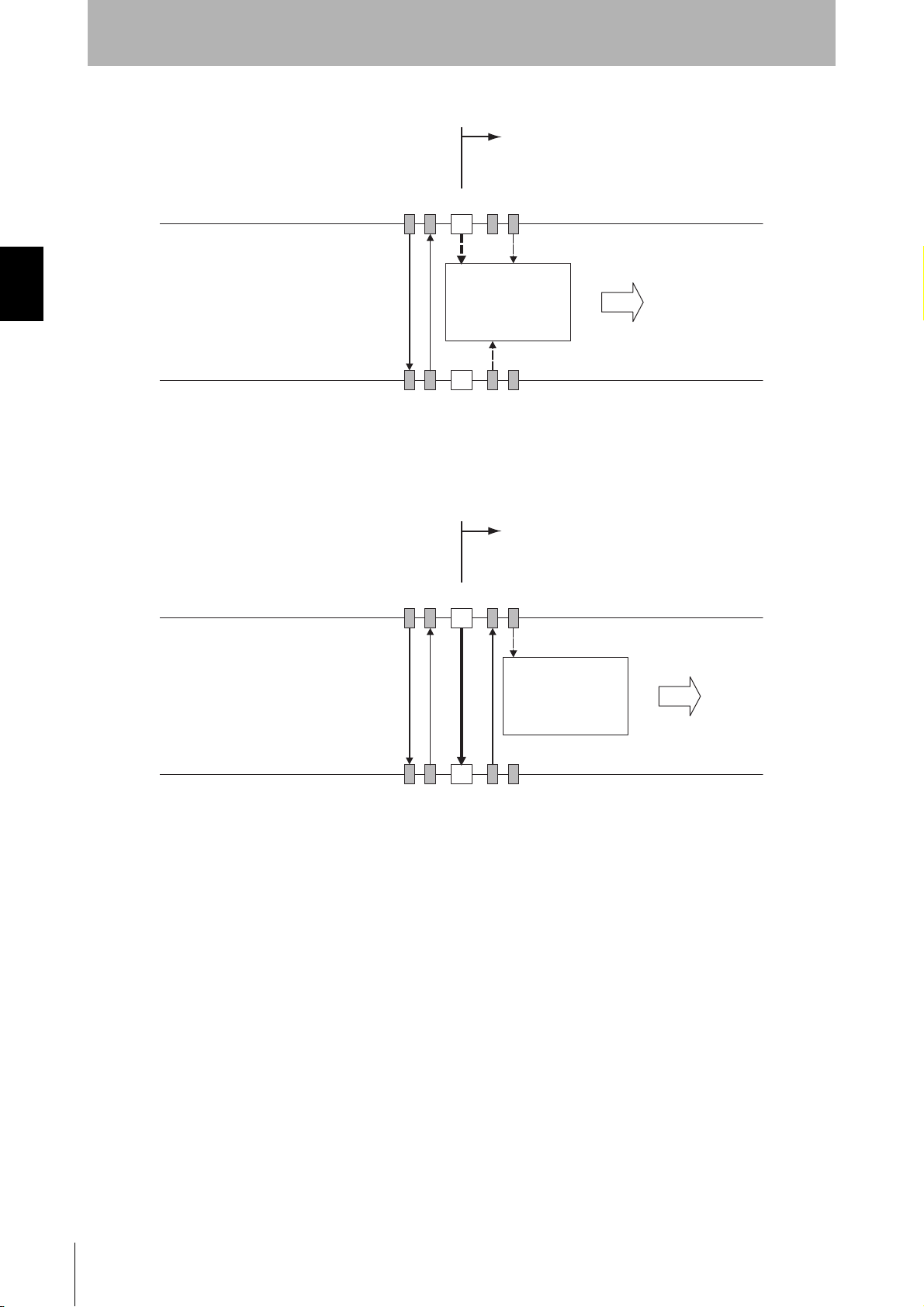

Install muting sensors so that they can distinguish between the object that is being allowed to pass through the detection zone and a person. If the muting function is activated by the detection of a person, it may result in serious injury.

Muting lamps (external indicators) that indicate the state of the muting and override functions must be installed where they are clearly visible to workers from all the operating positions.

Use independent 2 input devices for muting inputs.

You must install F3SJ, muting sensor, and physical barrier so that an operator should not enter hazardous zone.

Install the switch that activates the muting override function in a location that provides a clear view of the entire hazardous zone and where it cannot be activated from within the hazardous zone. Make sure that nobody is in the hazardous zone before activating the override function.

Install the sensor system so that it is not affected by the reflective surface of the F3SJ.

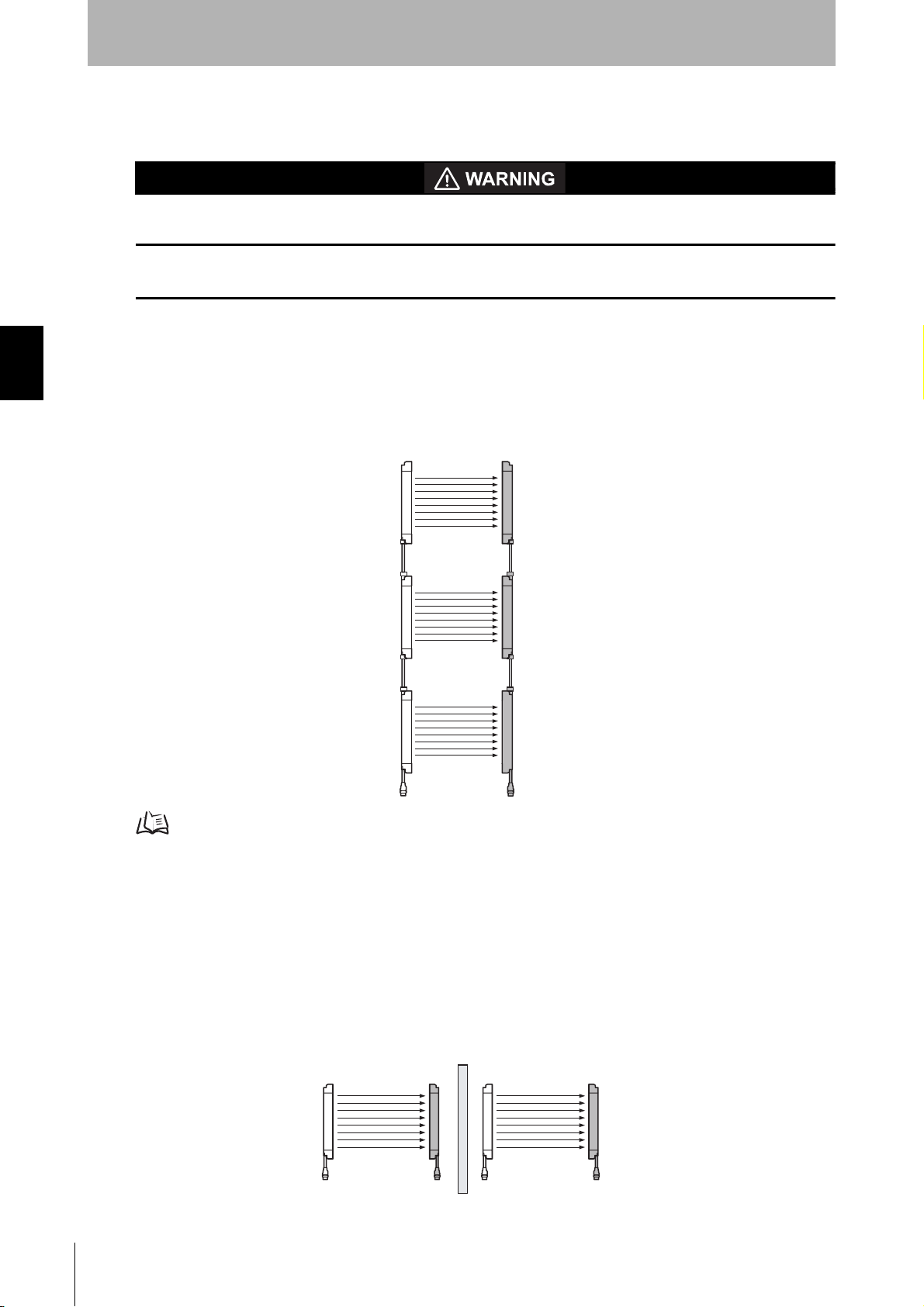

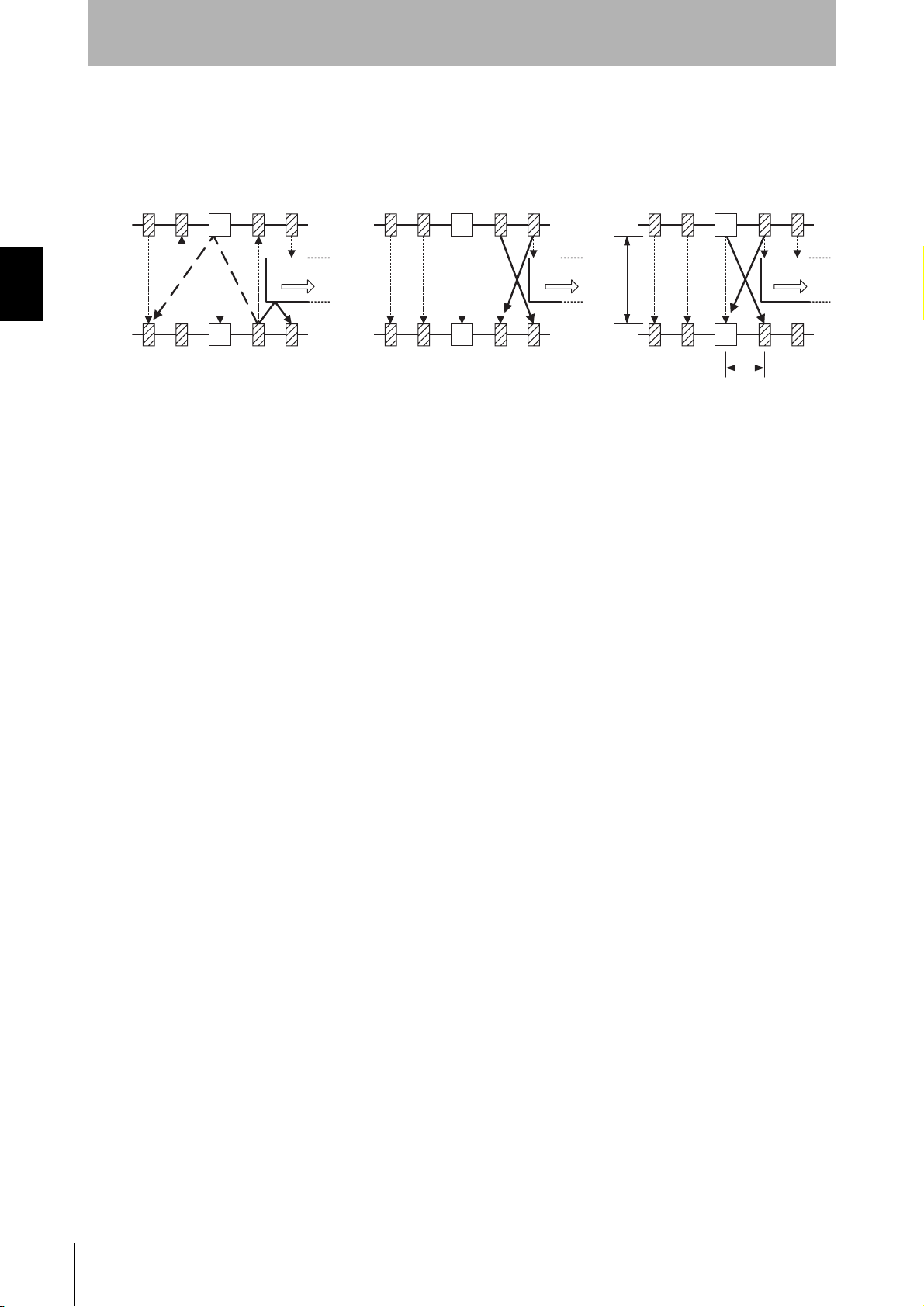

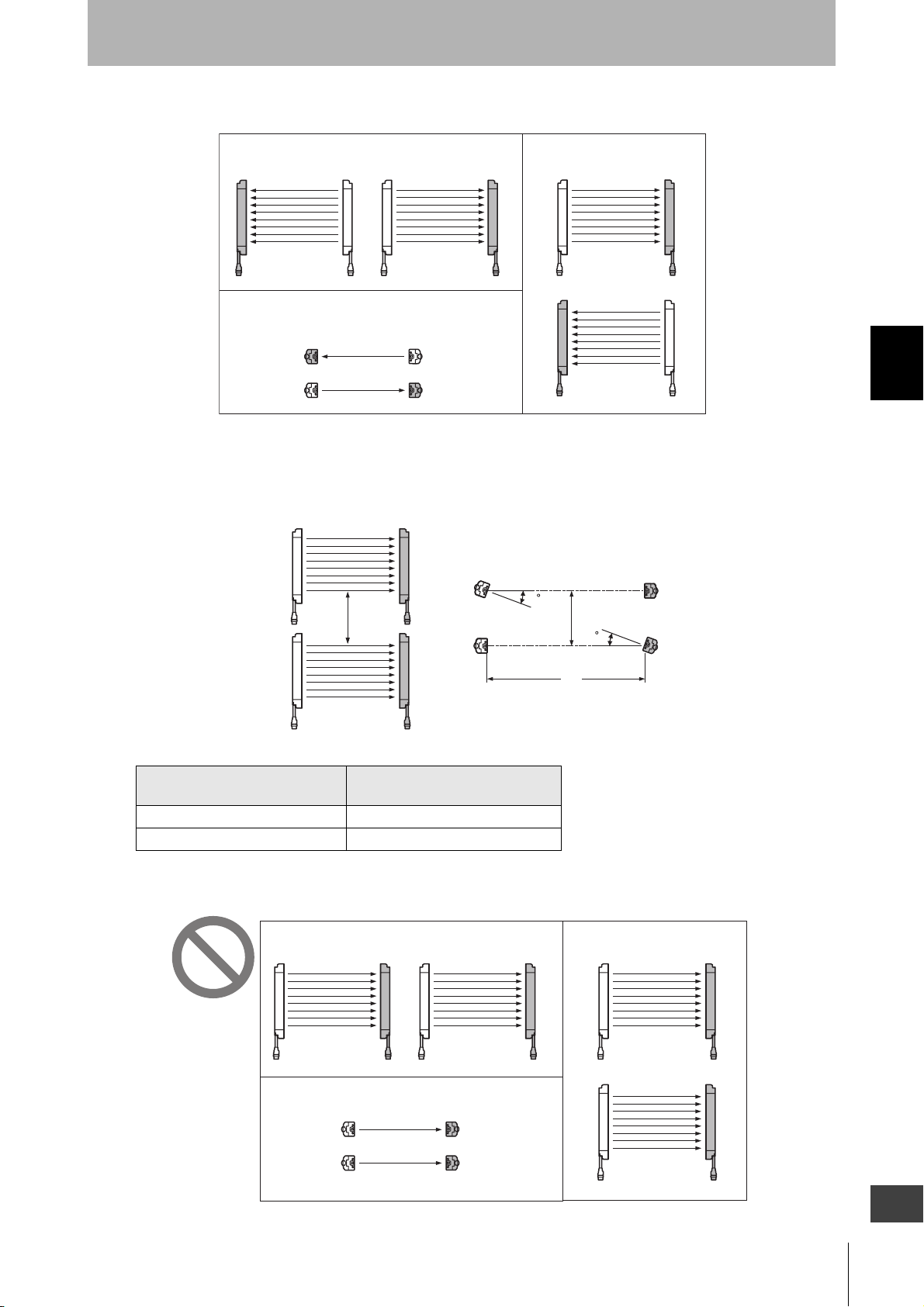

When using more than 1 set of F3SJ, install them so that mutual interference does not occur, such as by configuring series connections or using physical barriers between adjacent sets.

Make sure that the F3SJ is securely mounted and its cables and connectors are properly secured.

Make sure that foreign material such as water, oil, or dust does not enter the F3SJ or the connector while the cap is removed.

F3SJ-A

User’s Manual

Page 8

Introduction

Courtesy of CMA/Flodyne/Hydradyne ▪ Motion Control ▪ Hydraulic ▪ Pneumatic ▪ Electrical ▪ Mechanical ▪ (800) 426-5480 ▪ www.cmafh.com

Introduction

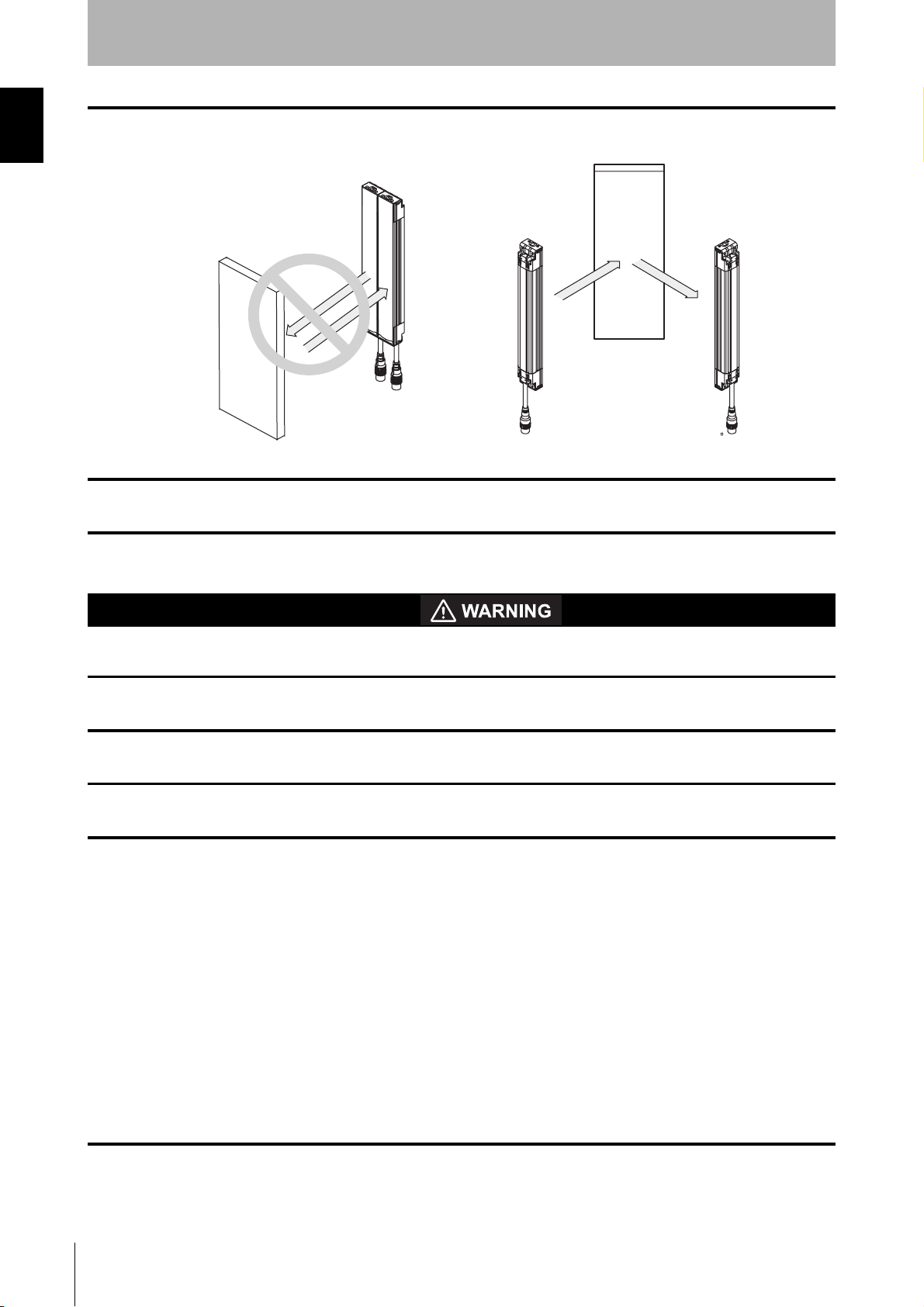

Do not use the sensor system with mirrors in a retro-reflective configuration as shown below.Doing so may hinder detection. It is possible to use mirrors to "bend" the detection zone to a 90-degree angle.

Reflector

Position with retro-reflection

Position with detection zone bent at 90

Perform an inspection for all F3SJ as described in "Chapter 5 Checklists". When using series connections, perform inspections for every connected F3SJ.

For wiring

Connect the load between the output and 0V line (PNP output). Connecting the load between the output and +24V line will result in a dangerous condition because operation is reversed to "ON when blocked".

Do not short-circuit the output line to the +24V line. Otherwise, the output is always ON. Also, the 0V of the power supply must be grounded so that output does not turn ON due to grounding of the output line.

Configure the system by using the optimal number of safety outputs that satisfy the requirements of the necessary safety category.

Do not connect each line of F3SJ to a DC power supply of more than 24VDC+20%. Also, do not connect to an AC power supply. Failure to do so may result in electric shock.

For the F3SJ to comply with IEC 61496-1 and UL 508, the DC power supply unit must satisfy all of the following conditions:

• Must be within the rated power voltage (24V DC

± 20%)

• Must have tolerance against the total rated current of devices if it is connected to multiple devices

• Must comply with EMC directives (industrial environment)

• Double or reinforced insulation must be applied between the primary and secondary circuits

• Automatic recovery of overcurrent protection characteristics (reversed L sagging)

• Output holding time must be 20ms or longer

• Must satisfy output characteristic requirements for class 2 circuit or limited voltage current circuit defined by UL508

• Must comply with laws and regulations, regarding EMC and electrical equipment safety, of the country or region where the F3SJ is used (Ex: In EU, the power supply must comply with the EMC Directive and the Low Voltage Directive.)

F3SJ-A

User’s Manual

Page 9

Introduction

Courtesy of CMA/Flodyne/Hydradyne ▪ Motion Control ▪ Hydraulic ▪ Pneumatic ▪ Electrical ▪ Mechanical ▪ (800) 426-5480 ▪ www.cmafh.com

Double or reinforced insulation from hazardous voltage must be applied to all input and output lines. Failure to do so may result in electric shock.

Extension of the cable must be within a specified length. If it isn't, safety function may not work properly, resulting in danger.

Other

To use the F3SJ in PSDI mode (Reinitiation of cyclic operation by the protective equipment), you must configure an appropriate circuit between the F3SJ and the machine. For details about PSDI, refer to OSHA1910.217, IEC61496-1, and other relevant standards and regulations.

Do not try to disassemble, repair, or modify this product. Doing so may cause the safety functions to stop working properly.

Do not use the F3SJ in environments where flammable or explosive gases are present. Doing so may result in explosion.

Introduction

Perform daily and 6-month inspections for the F3SJ. Otherwise, the system may fail to work properly, resulting in serious injury.

F3SJ-A

User’s Manual

vii

Page 10

Introduction

Courtesy of CMA/Flodyne/Hydradyne ▪ Motion Control ▪ Hydraulic ▪ Pneumatic ▪ Electrical ▪ Mechanical ▪ (800) 426-5480 ▪ www.cmafh.com

Introduction

Precautions for Safe Use

Make sure to observe the following precautions that are necessary for ensuring safe use of the product.

• Thoroughly read this manual and understand the installation procedures, operation check procedures, and maintenance procedures before using the product.

• Loads must satisfy both of the following conditions:

-Not short-circuited

-Not used with a current that is higher than the rating

• Do not drop the product.

• Dispose of the product in accordance with the relevant rules and regulations of the country or area where the product is used.

Precautions for Correct Use

Observe the precautions described below to prevent operation failure, malfunctions, or undesirable effects on product performance.

 Installation environment

Do not install the F3SJ in the following types of environments:

•Areas exposed to intense interference light, such as direct sunlight

•Areas with high humidity where condensation is likely to occur

•Areas where corrosive gases are present

•Areas exposed to vibration or shock levels higher than in the specification provisions

•Areas where the product may come into contact with water

•Areas where the product may get wet with oil that can solve adhesive

Do not use radio equipment such as cellular phones, walkie-talkies, or transceivers near the F3SJ.

 Wiring and installation

•Make sure to perform wiring while the power supply is OFF. Otherwise, the F3SJ may fail to operate due to the diagnosis function.

•Do not short-circuit output lines to +24V line. Otherwise a fault of F3SJ may occur.

•When extending the communication line with a cable (twisted-pair wire) other than the dedicated cable (F39-JC), use a cable with the same or superior specifications.Connect the shield to the 0V line.

Cable specification (extension cable) p.10

•When replacing the cable connectors with other types of connectors, use connectors that provide a protection grade of IP54 or higher.

•Properly perform the wiring after confirming the signal names of all the terminals.

•Do not operate the control system until 2 seconds or more (2.2 seconds or more in case of series connection) after turning ON the power of the F3SJ.

•Be sure to route the F3SJ cable separate from high-potential power lines or through an exclusive conduit.

•When using a commercially available switching regulator power supply, make sure to ground the FG terminal (frame ground terminal).

•Install the emitter and receiver so that their vertical direction should match.

F3SJ-A

User’s Manual

viii

Page 11

Introduction

Courtesy of CMA/Flodyne/Hydradyne ▪ Motion Control ▪ Hydraulic ▪ Pneumatic ▪ Electrical ▪ Mechanical ▪ (800) 426-5480 ▪ www.cmafh.com

 Cleaning

Do not use thinner, benzene, or acetone for cleaning, because they affect the product's resin parts and paint on the case.

 Object detection

The F3SJ cannot detect transparent and/or translucent objects.

Introduction

F3SJ-A

User’s Manual

Page 12

Introduction

Courtesy of CMA/Flodyne/Hydradyne ▪ Motion Control ▪ Hydraulic ▪ Pneumatic ▪ Electrical ▪ Mechanical ▪ (800) 426-5480 ▪ www.cmafh.com

Introduction

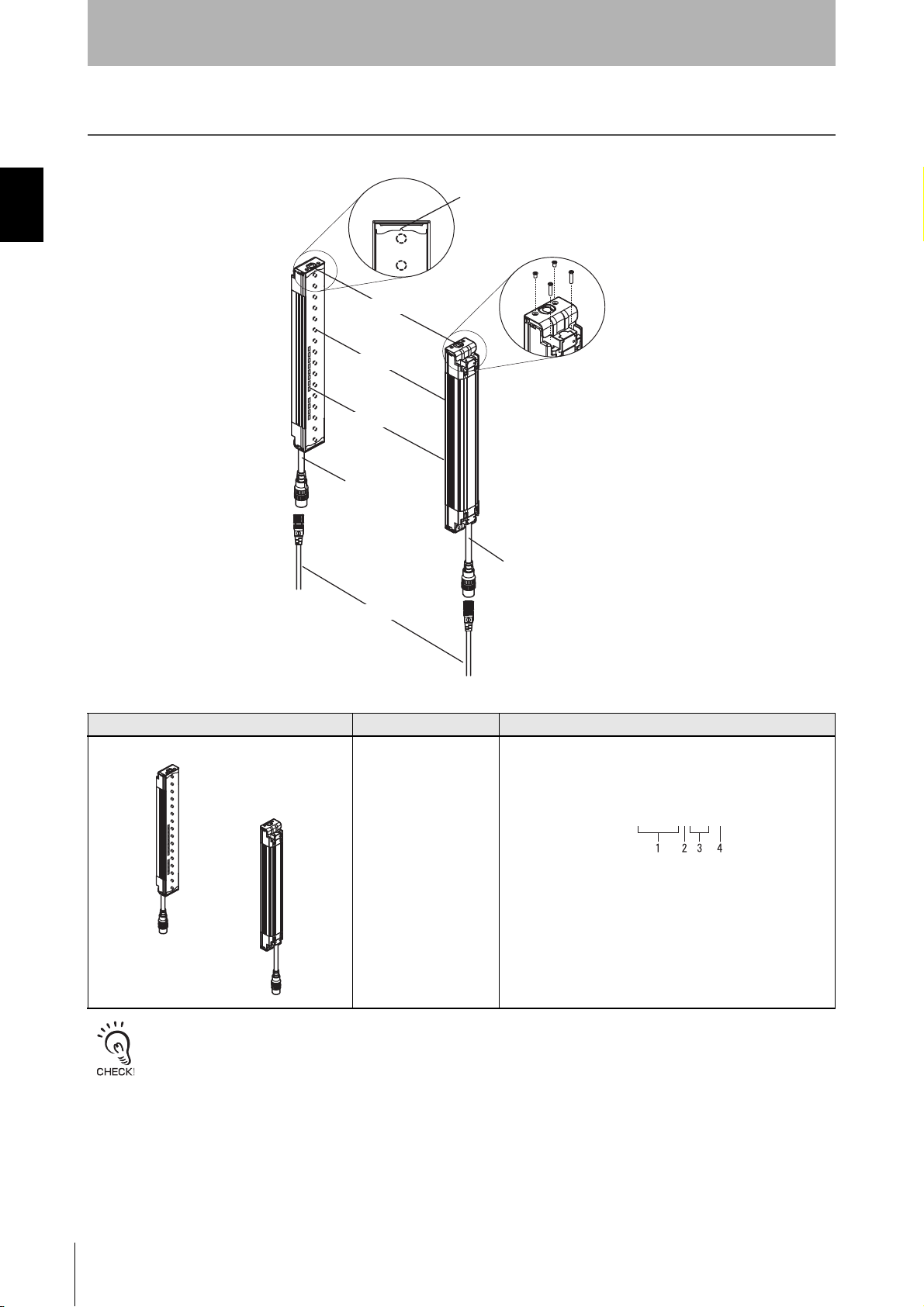

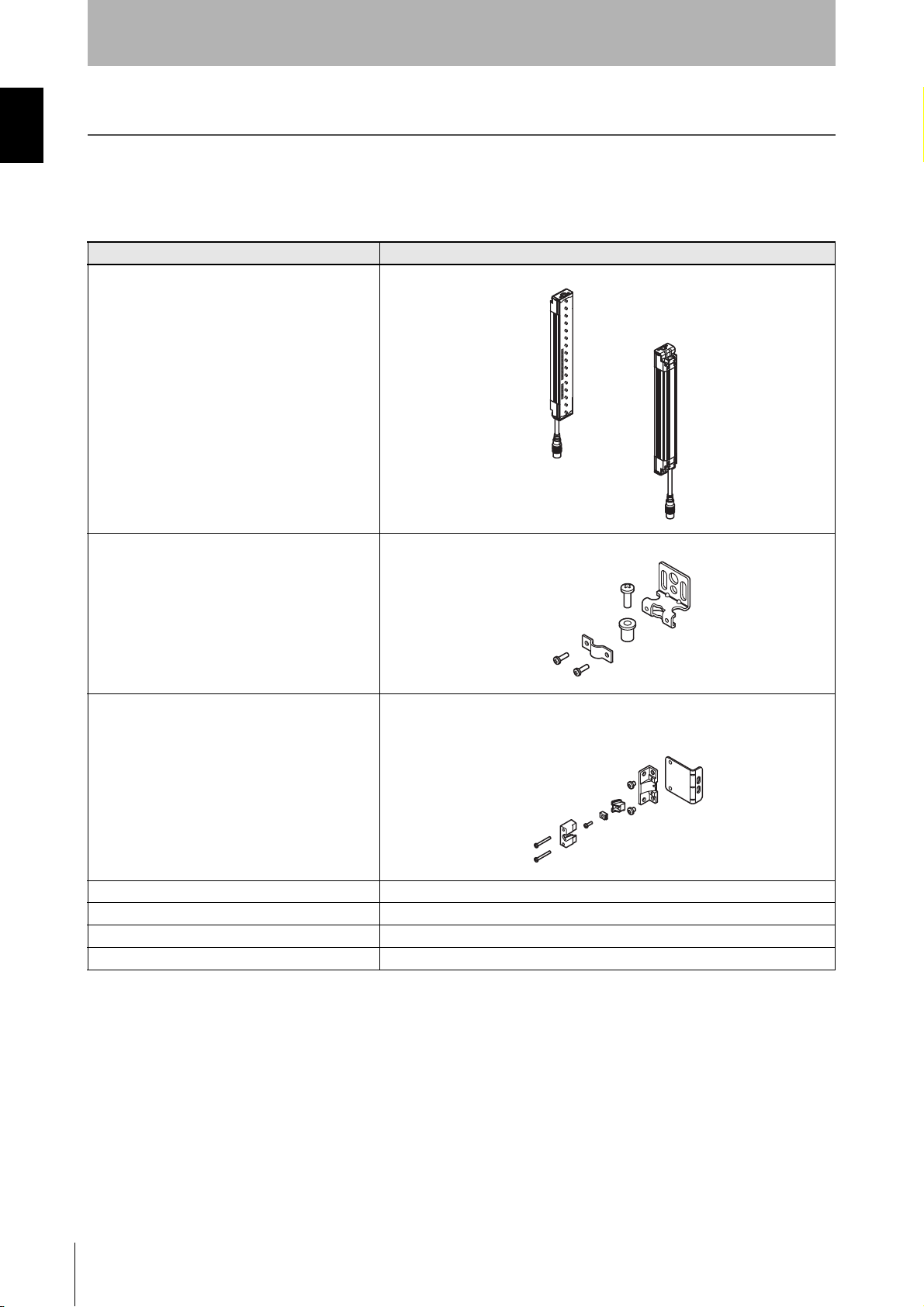

Checking the Contents

Before use, confirm that the items below were shipped with the product. If you find that an item is missing, please contact your local branch office or distributor.

Product Quantity

F3SJ-AP-TS main unit Emitter x 1, Receiver x 1

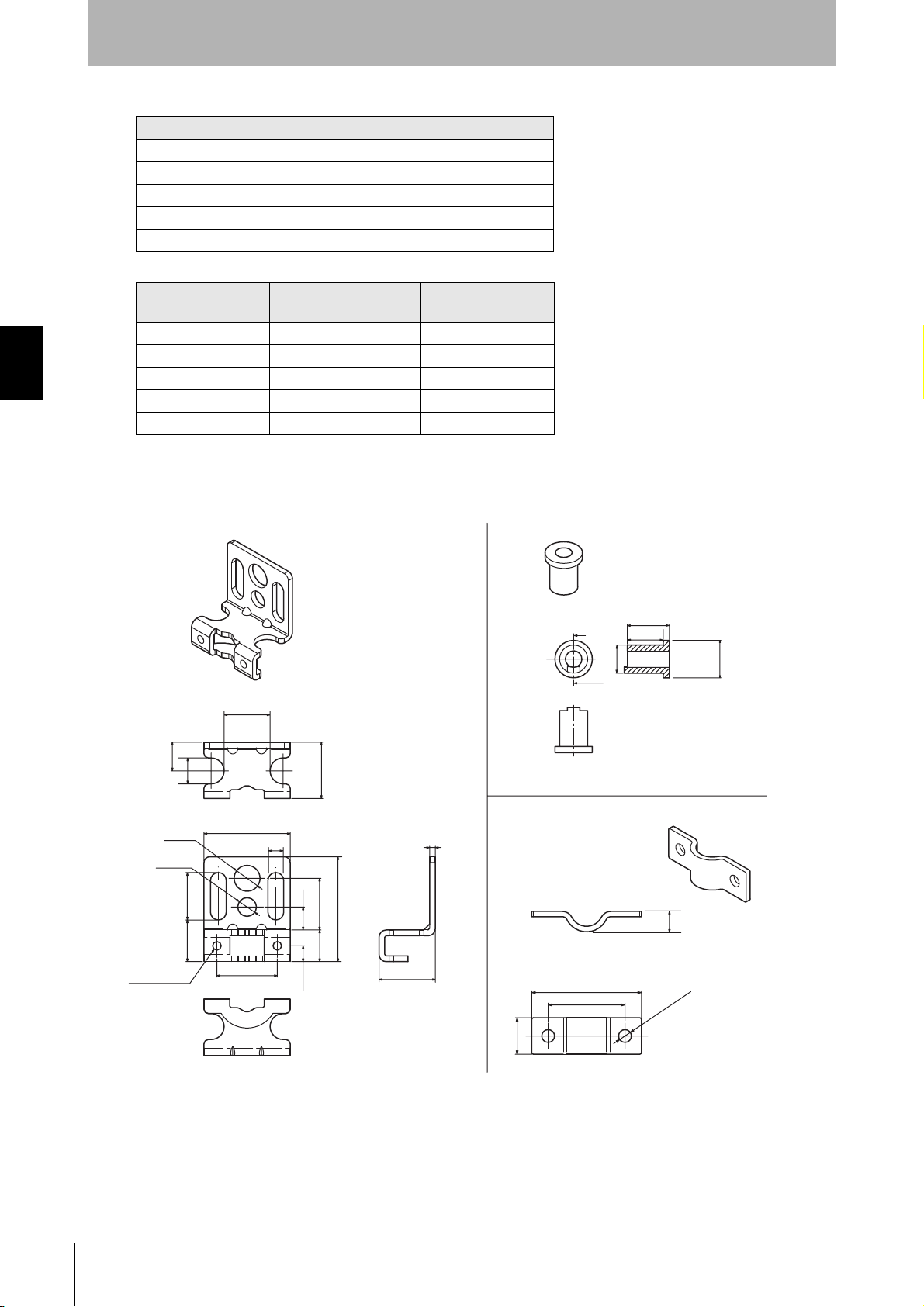

Top/bottom mounting brackets 4 sets

Intermediate mounting brackets Intermediate brackets are included when the protective height of the F3SJ is

600mm or longer. The number of brackets included depends on the total length of the F3SJ. (4 sets maximum for each emitter/receiver)

Test rod 1 (Diameter 20mm)

Error mode label 1 (includes Japanese and English)

Instruction sheet 1 pair of Japanese and English

User's manual (CD-ROM) 1 (for F3SJ-AP-TS (Japanese/English), Adobe Reader)

F3SJ-A

User’s Manual

Page 13

Introduction

Courtesy of CMA/Flodyne/Hydradyne ▪ Motion Control ▪ Hydraulic ▪ Pneumatic ▪ Electrical ▪ Mechanical ▪ (800) 426-5480 ▪ www.cmafh.com

How to Read This Manual (Explanation of Symbols)

Introduction

Indicates the description of an essential point regarding a function, such as an important point regarding operation or advice on how to use it.

Indicates the page number for related content.

Indicates a reference for when there is trouble, or an explanation of difficult words.

How to Read This Manual (Explanation of Symbols)

F3SJ-A

User’s Manual

Page 14

Introduction

Courtesy of CMA/Flodyne/Hydradyne ▪ Motion Control ▪ Hydraulic ▪ Pneumatic ▪ Electrical ▪ Mechanical ▪ (800) 426-5480 ▪ www.cmafh.com

How to Read This Manual (Explanation of Symbols)

Introduction

F3SJ-A

User’s Manual

xii

Page 15

Courtesy of CMA/Flodyne/Hydradyne ▪ Motion Control ▪ Hydraulic ▪ Pneumatic ▪ Electrical ▪ Mechanical ▪ (800) 426-5480 ▪ www.cmafh.com

Introduction

Legislation and Standards i READ AND UNDERSTAND THIS DOCUMENT ii

Precautions on Safety iv Precautions for Safe Use viii

Precautions for Correct Use viii Checking the Contents x

How to Read This Manual (Explanation of Symbols) xi

Chapter1 Overview and Specifications 1

Basic Configuration and Names 2

Application Examples 4

Detect the Approach to a Hazardous Zone 4

Using Multiple Sets in Combination 5 For a System in which a Workpiece Crosses Detection Zone (Muting Function) 5

Features 6

Protective Height Available in Incremental Sizes 6

Easy-to-Read Light Level and Error Mode Display 6

Contents

Additional Safety Functions 6

Enhanced Mutual Interference Prevention 6 Muting/Override Function are Provided 6

Indicator Display Patterns 7

Internal Indicator for Basic System 7

Internal Indicator for Muting System 8

Display Patterns of the Incident Light Level Indicator 8

Ratings 9

Ratings/Specifications 9 Model Name List/Response Times 11

Power Cable Length 15

Chapter2 System Configuration and Functions 17

How to Select a System 18

System Selection 18

Function List 18

Basic System 19

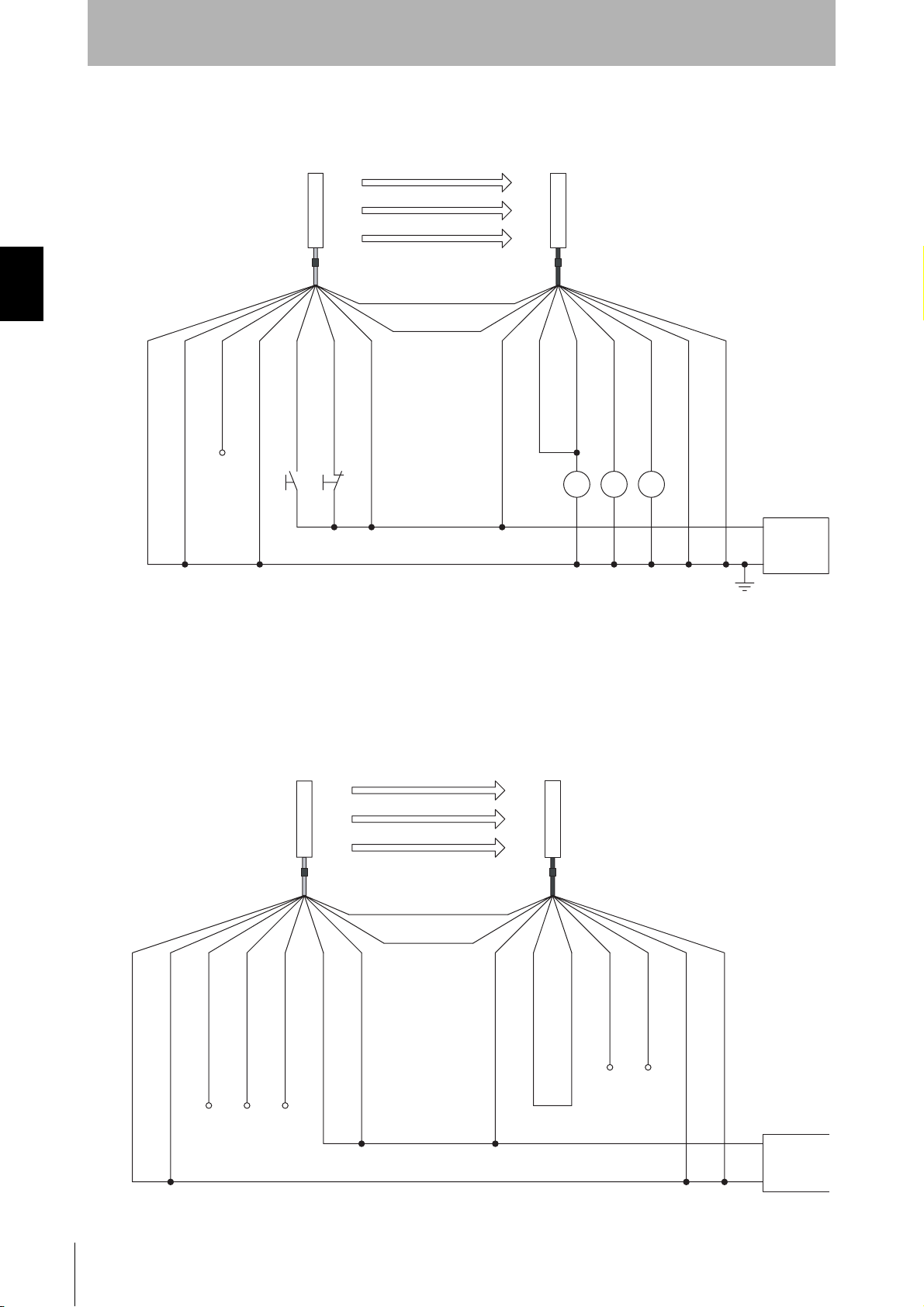

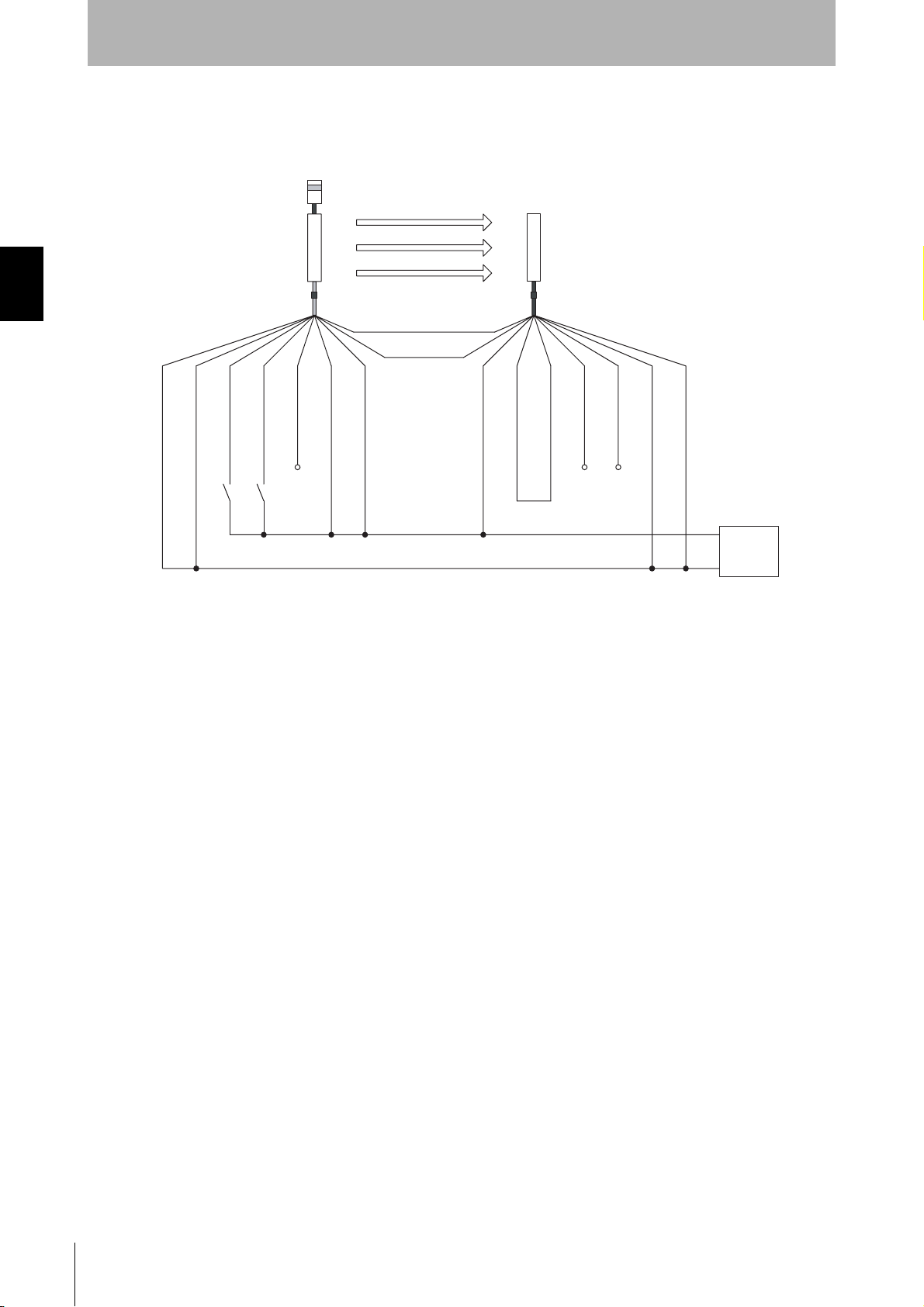

Wiring Diagrams 19

External Test Function 21 Self-Test Function 21

Auxiliary Output (Non-Safety Output) 23 Resetting Lockout 23

F3SJ-A

User’s Manual

xiii

Page 16

Introduction

Courtesy of CMA/Flodyne/Hydradyne ▪ Motion Control ▪ Hydraulic ▪ Pneumatic ▪ Electrical ▪ Mechanical ▪ (800) 426-5480 ▪ www.cmafh.com

Introduction

External Device Monitoring Function 24

Muting System 25

Contents

Upgrading F3SJ for Muting System 26 Standard Muting Mode 27

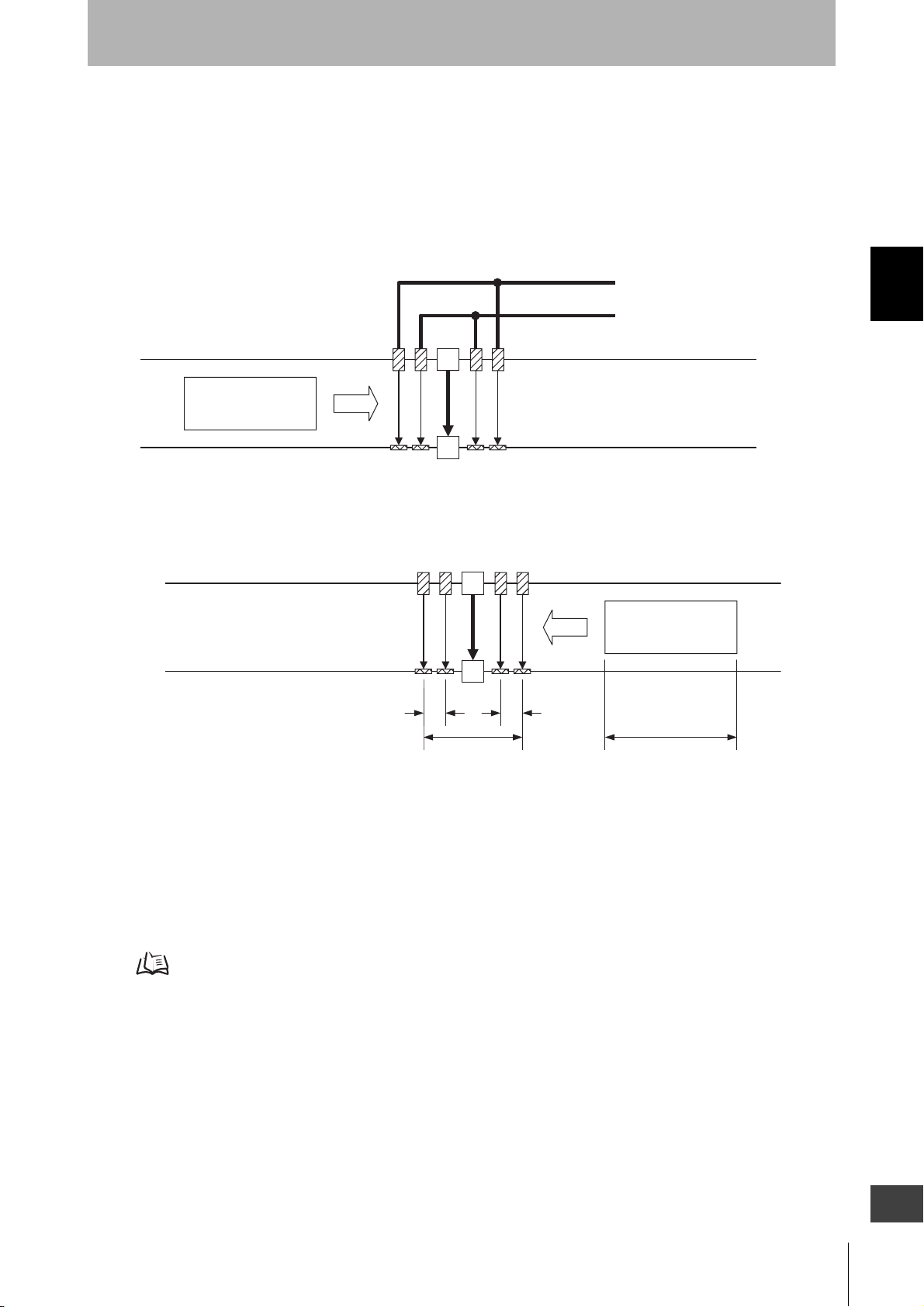

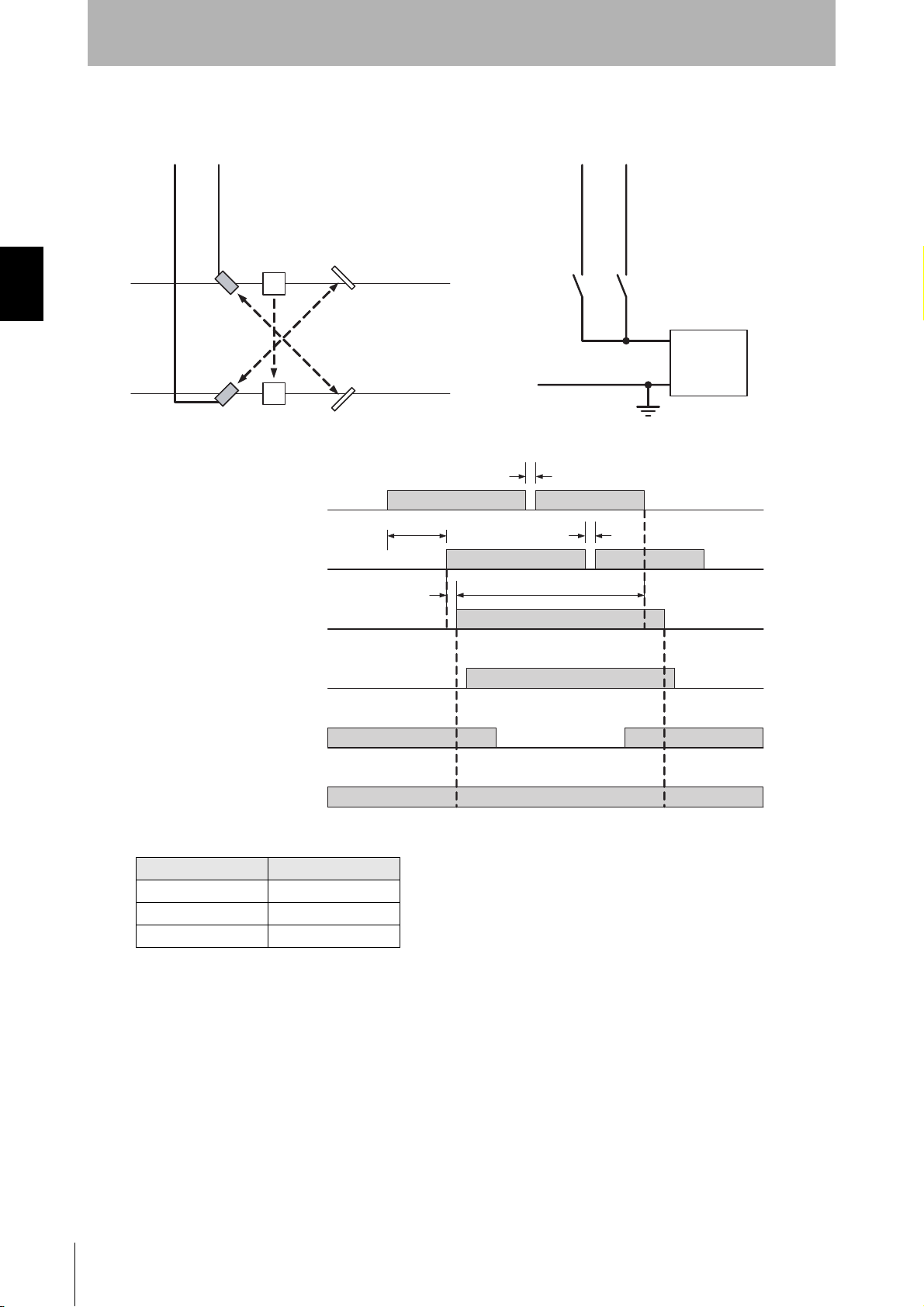

Wiring Diagrams 29 Installation Standard for Muting Sensors 31

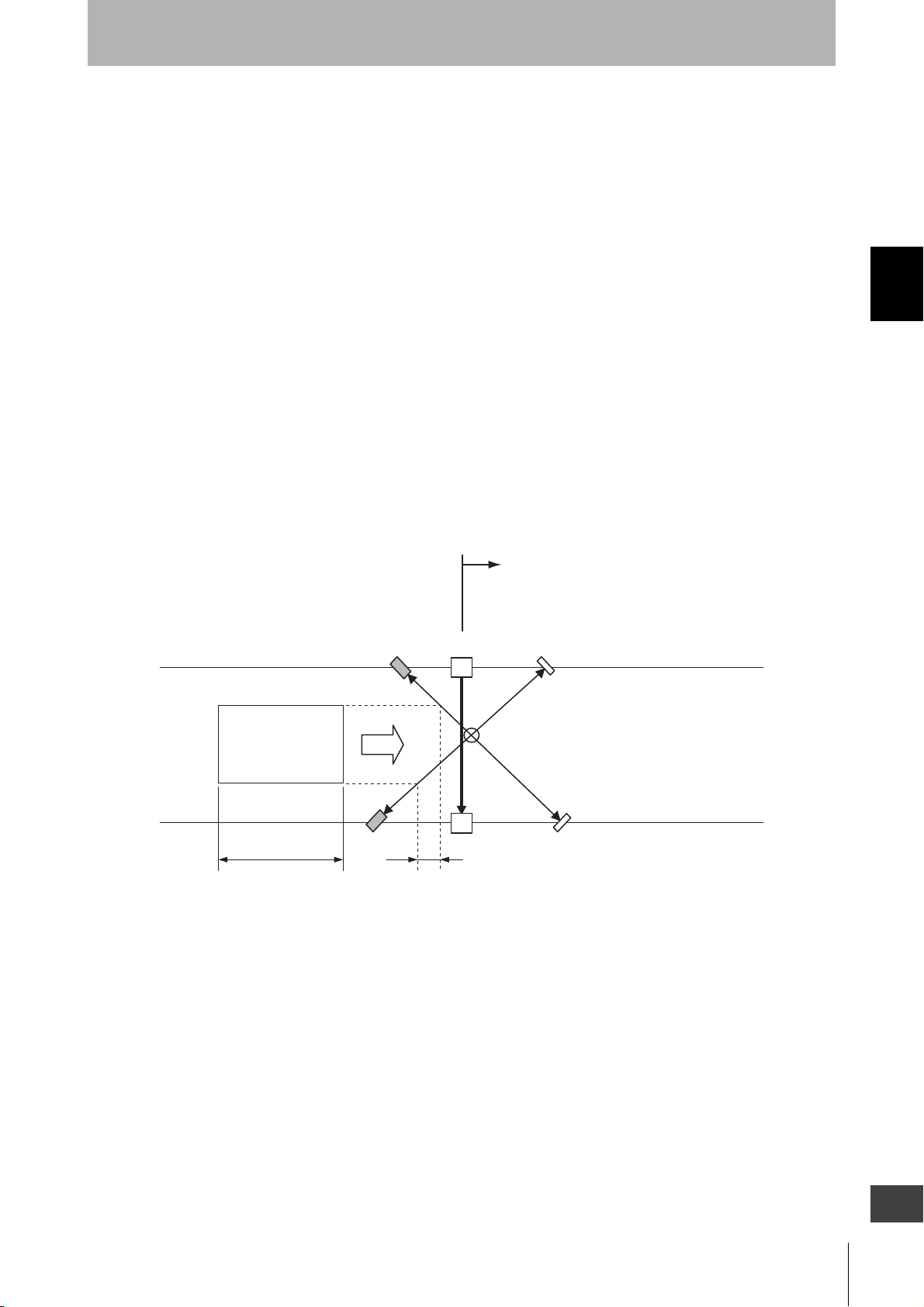

Installation Example 1 of Standard Muting Mode (using 2 muting sensors) 31

Installation Example 2 of Standard Muting Mode (using 4 muting sensors) 35 Override Function 41

External Test Function 43 Self-Test Function 43

Auxiliary Output (Non-Safety Output) 44 Resetting Lockout 44

External Device Monitoring Function (EDM) 44

Chapter3 Wiring/Installation 45

Installation Conditions 46

Detection Zone and Approach 46 Safety Distance 47

Distance from Reflective Surfaces 49 Mutual Interference Prevention 50

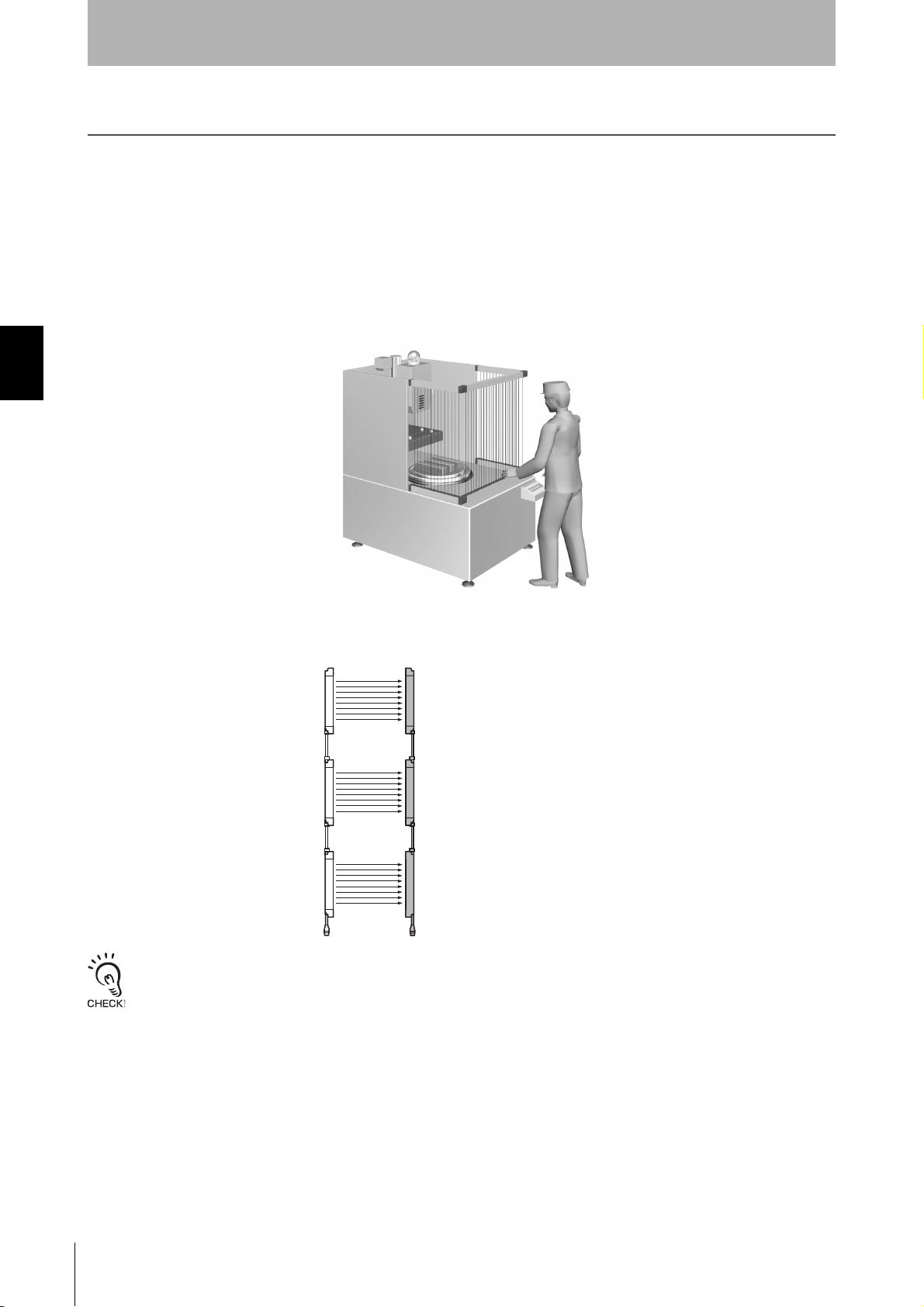

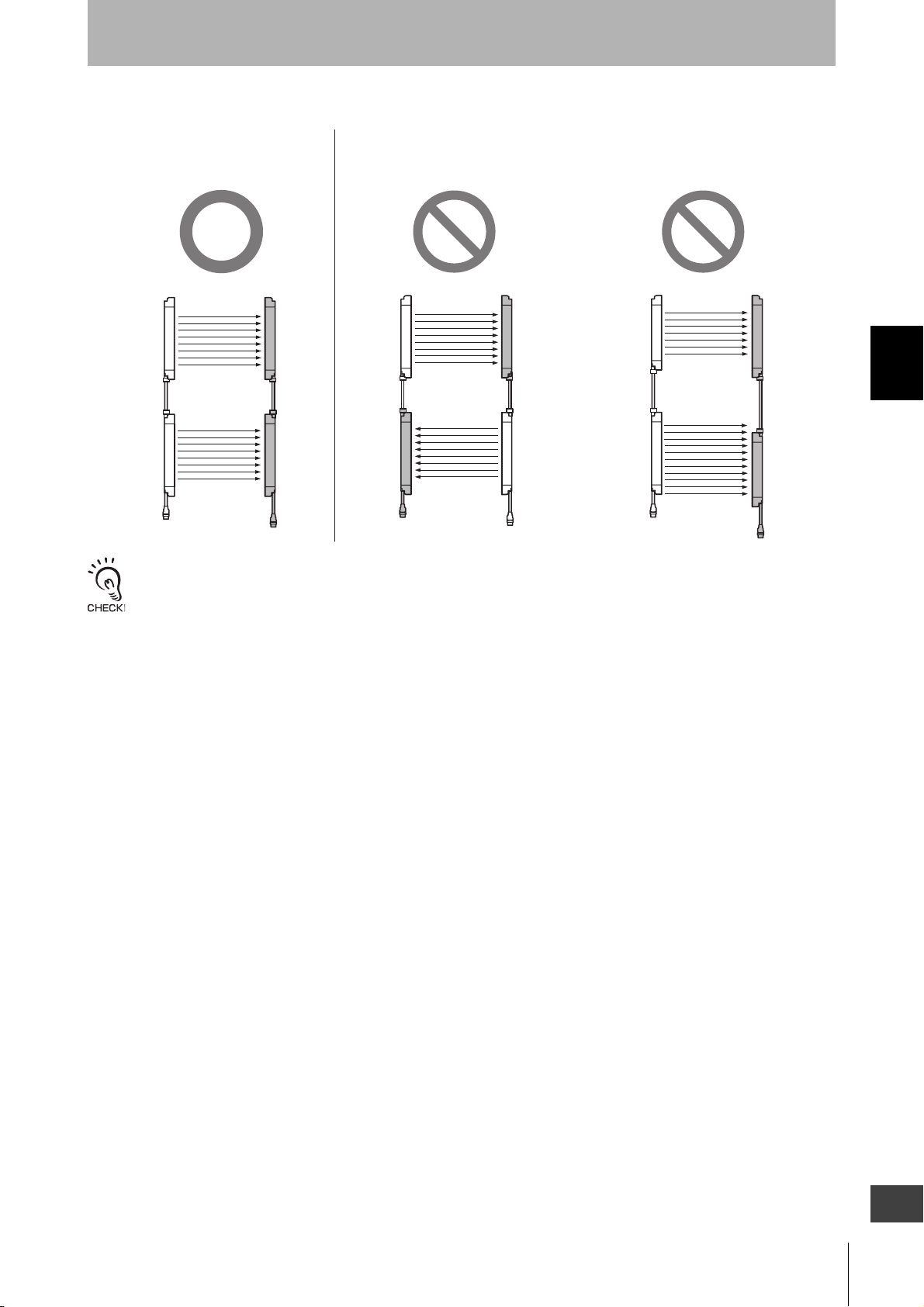

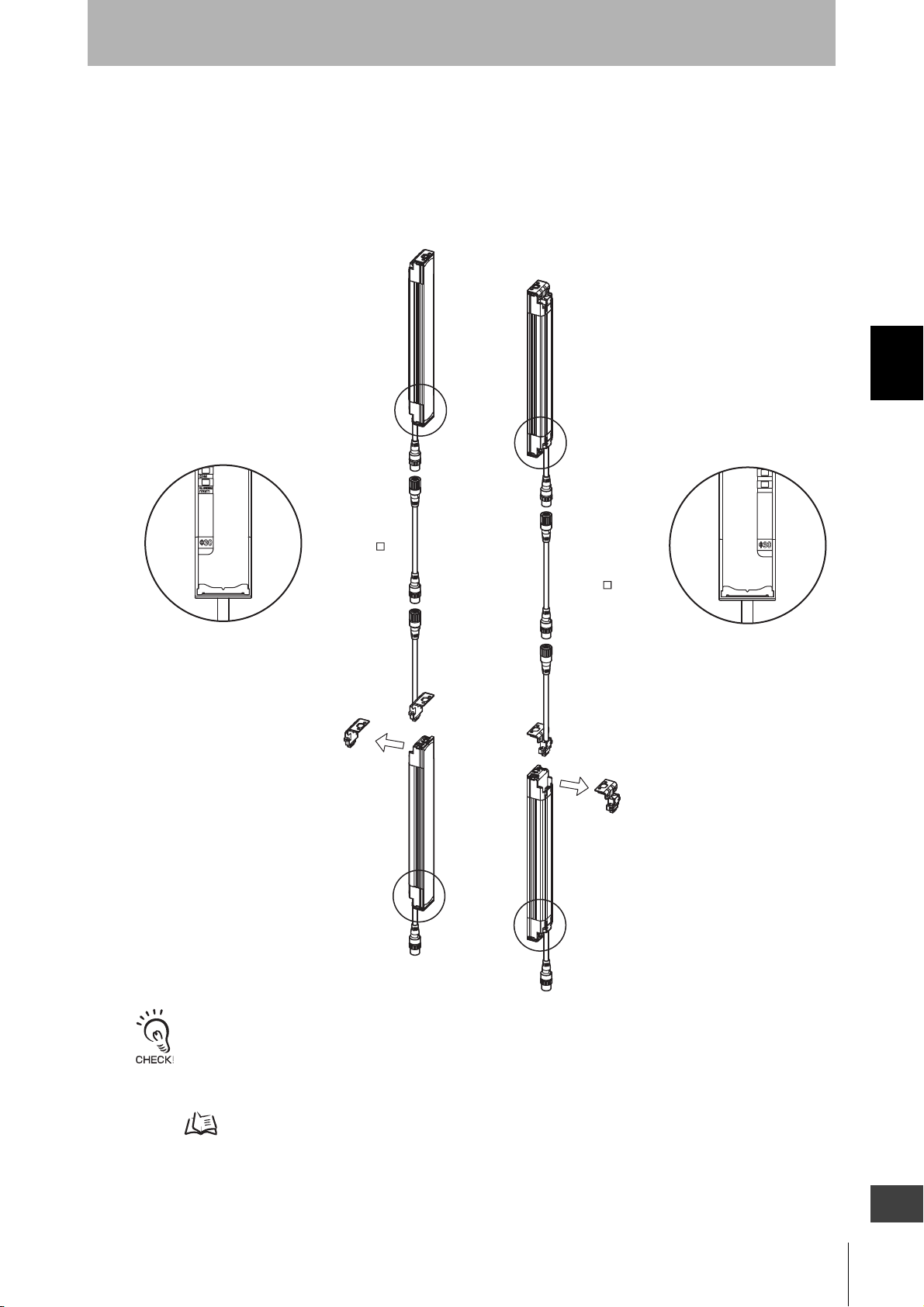

Series Connection 52

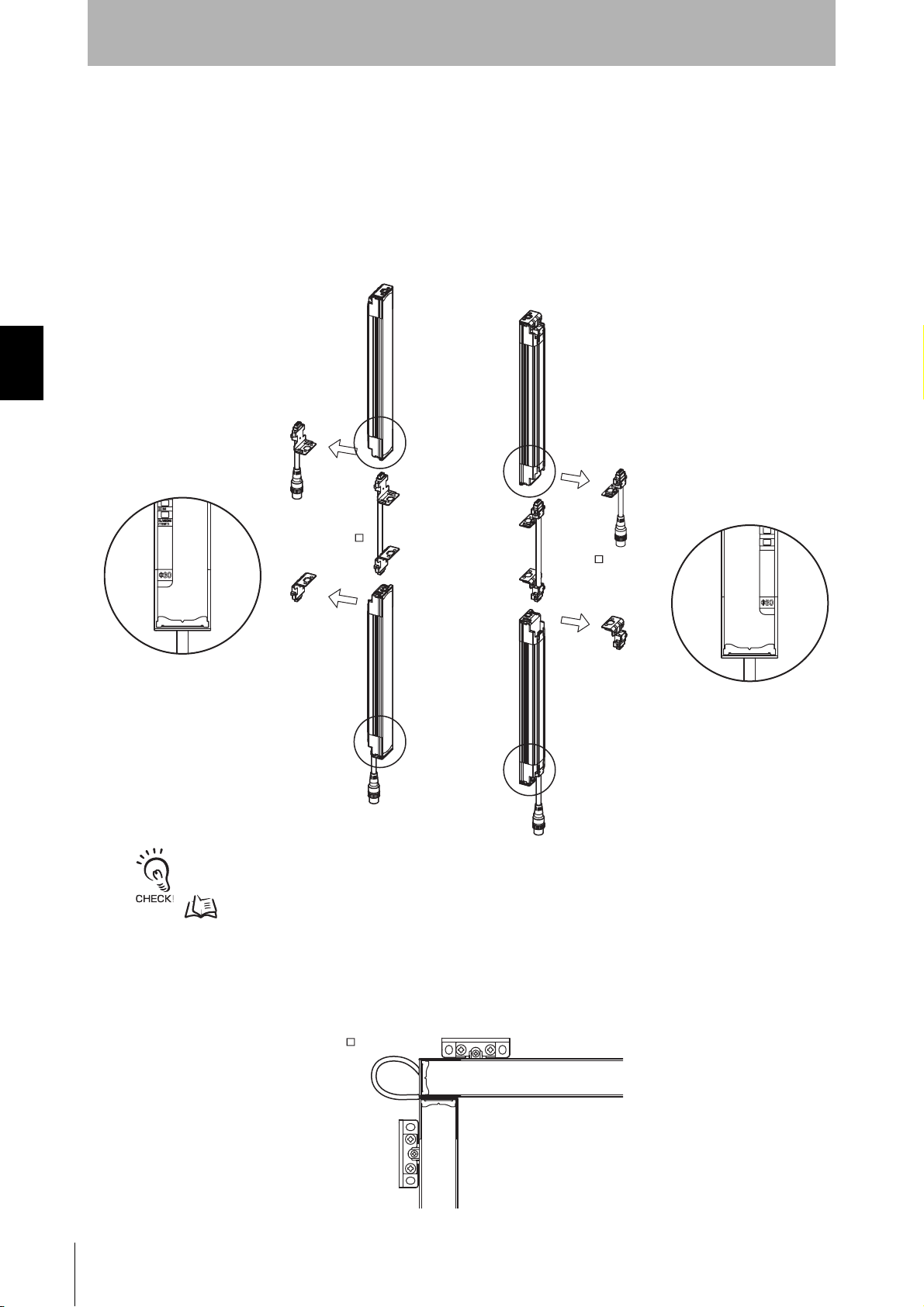

Connection Procedure 54

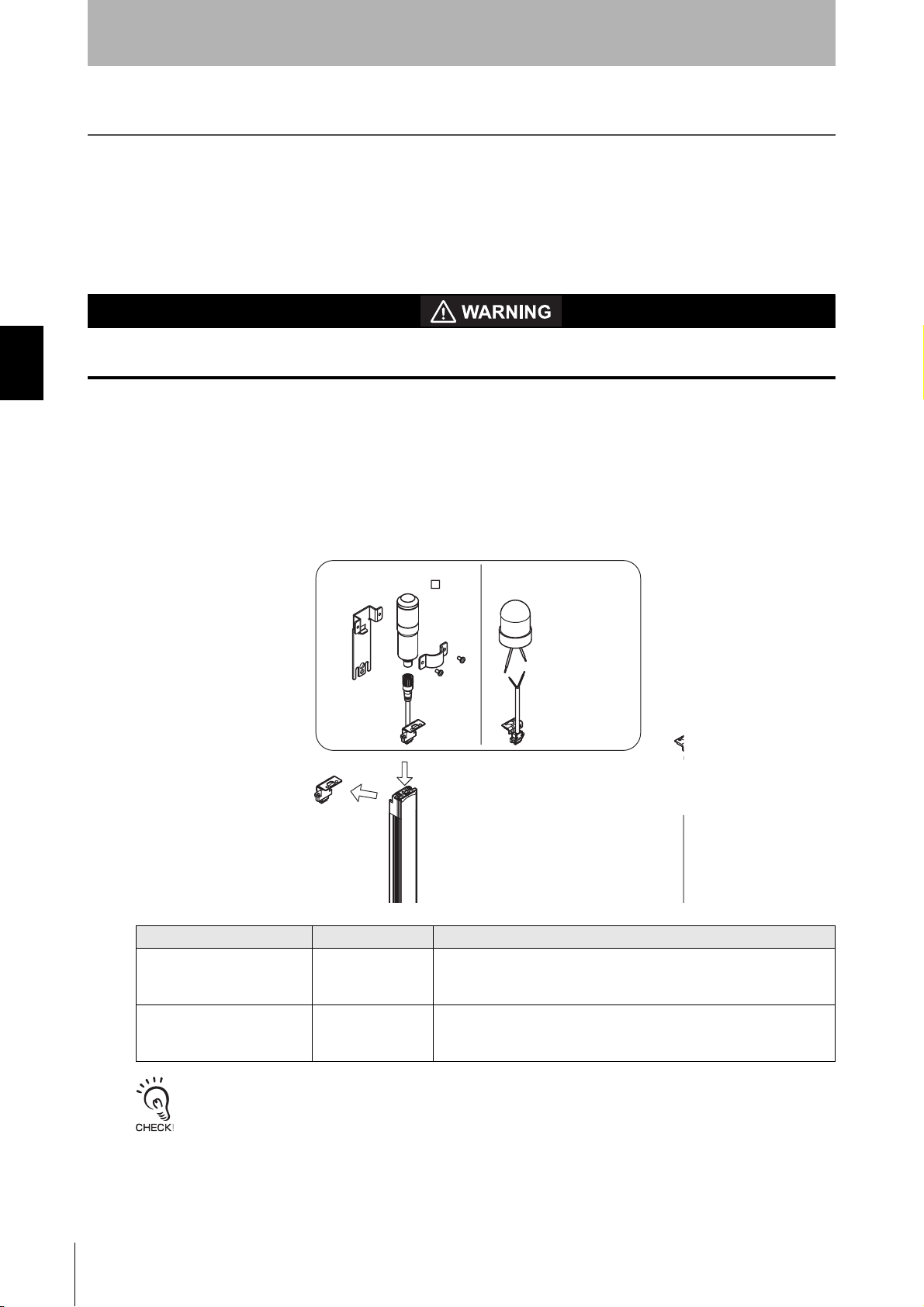

Attaching External Indicators 56

Connection Procedure 56

Output Operation 57

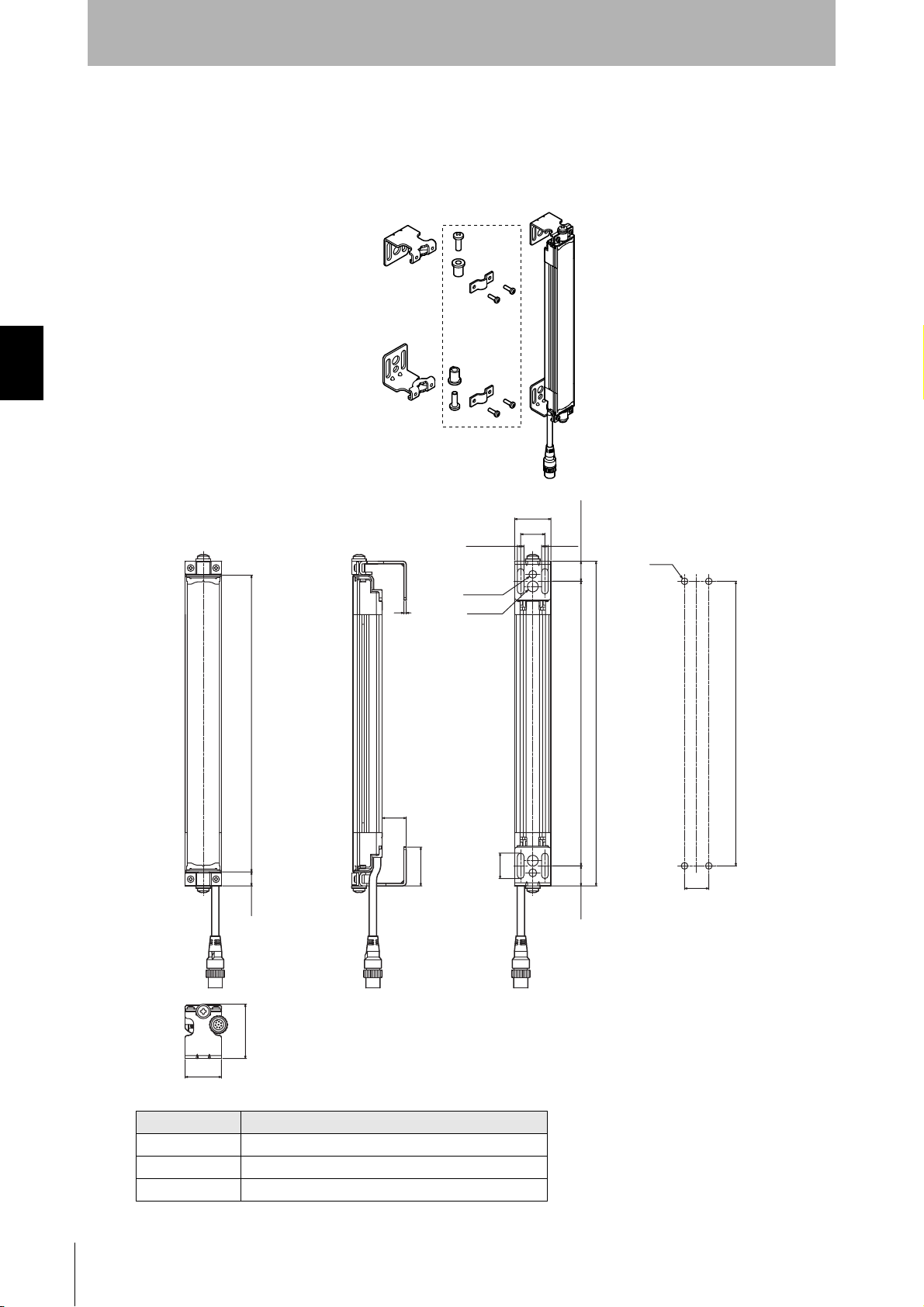

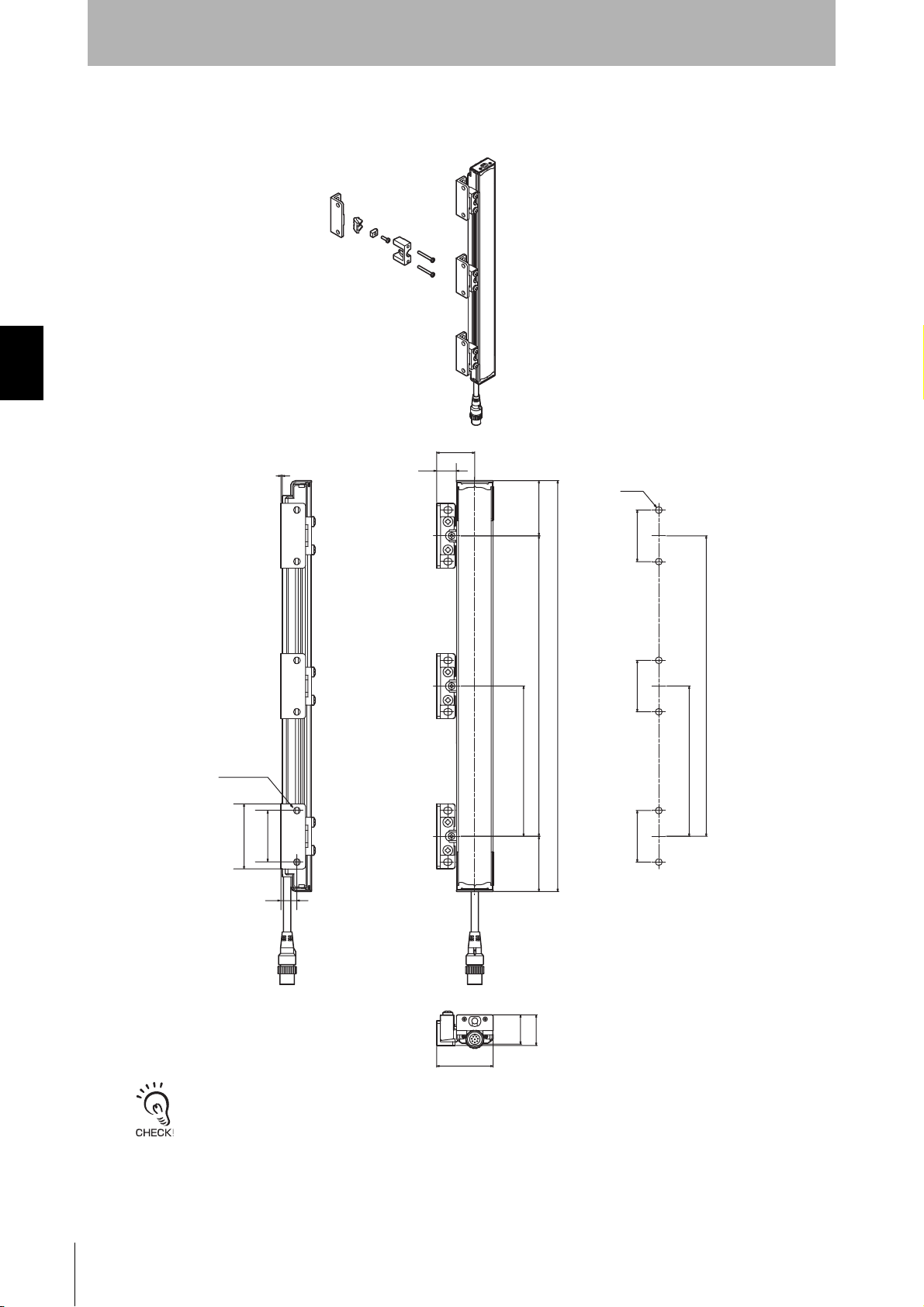

Dimensions 58

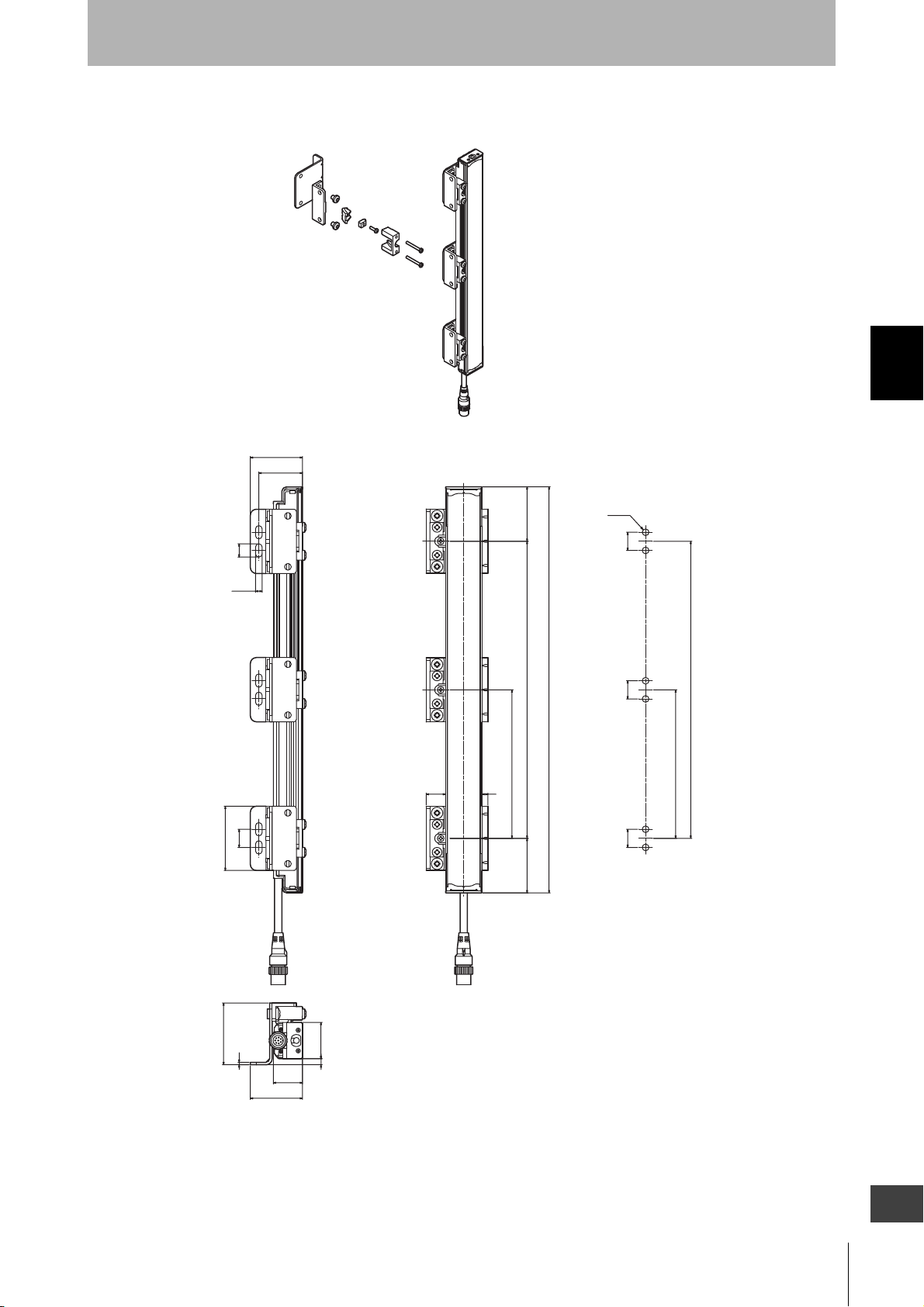

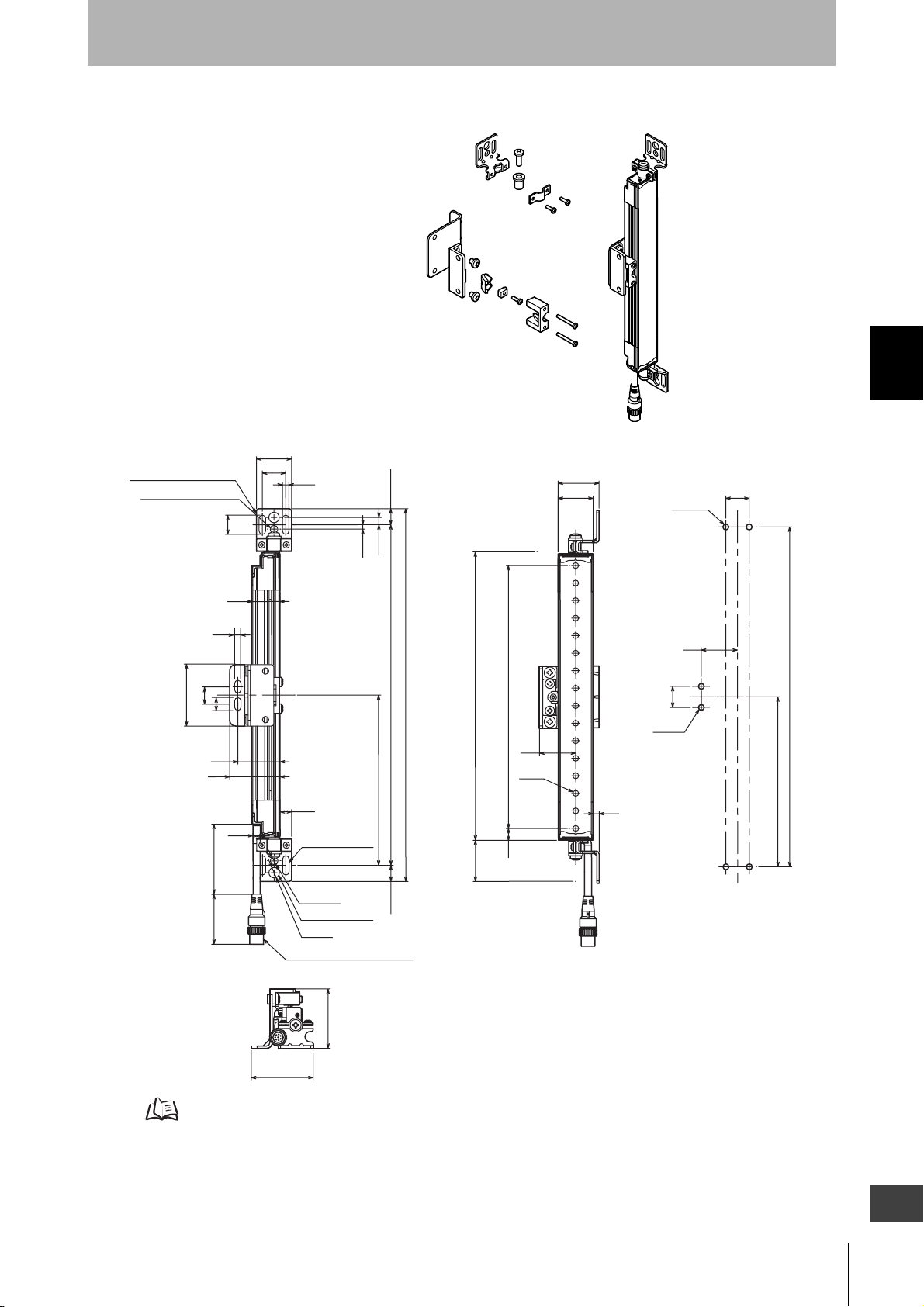

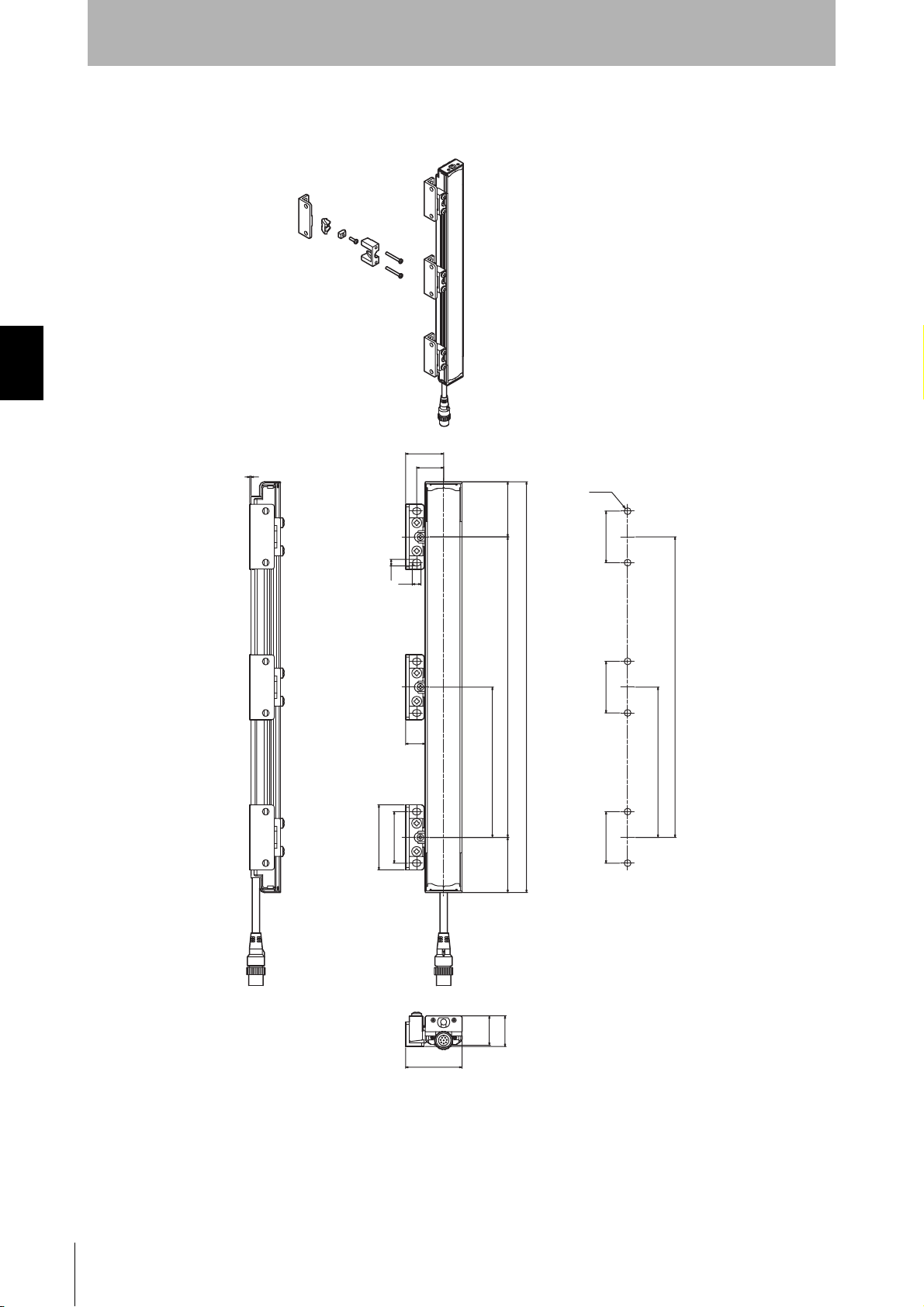

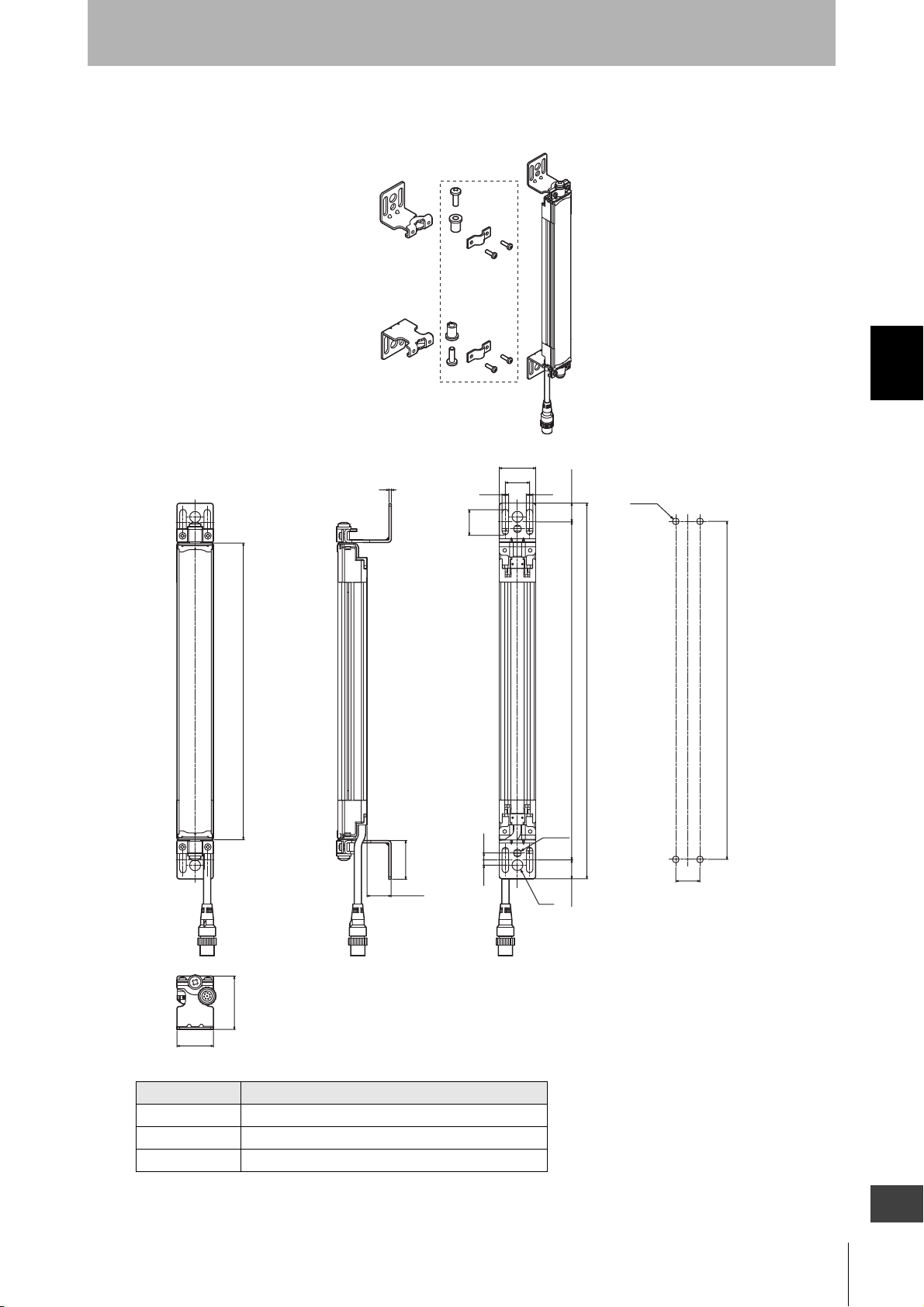

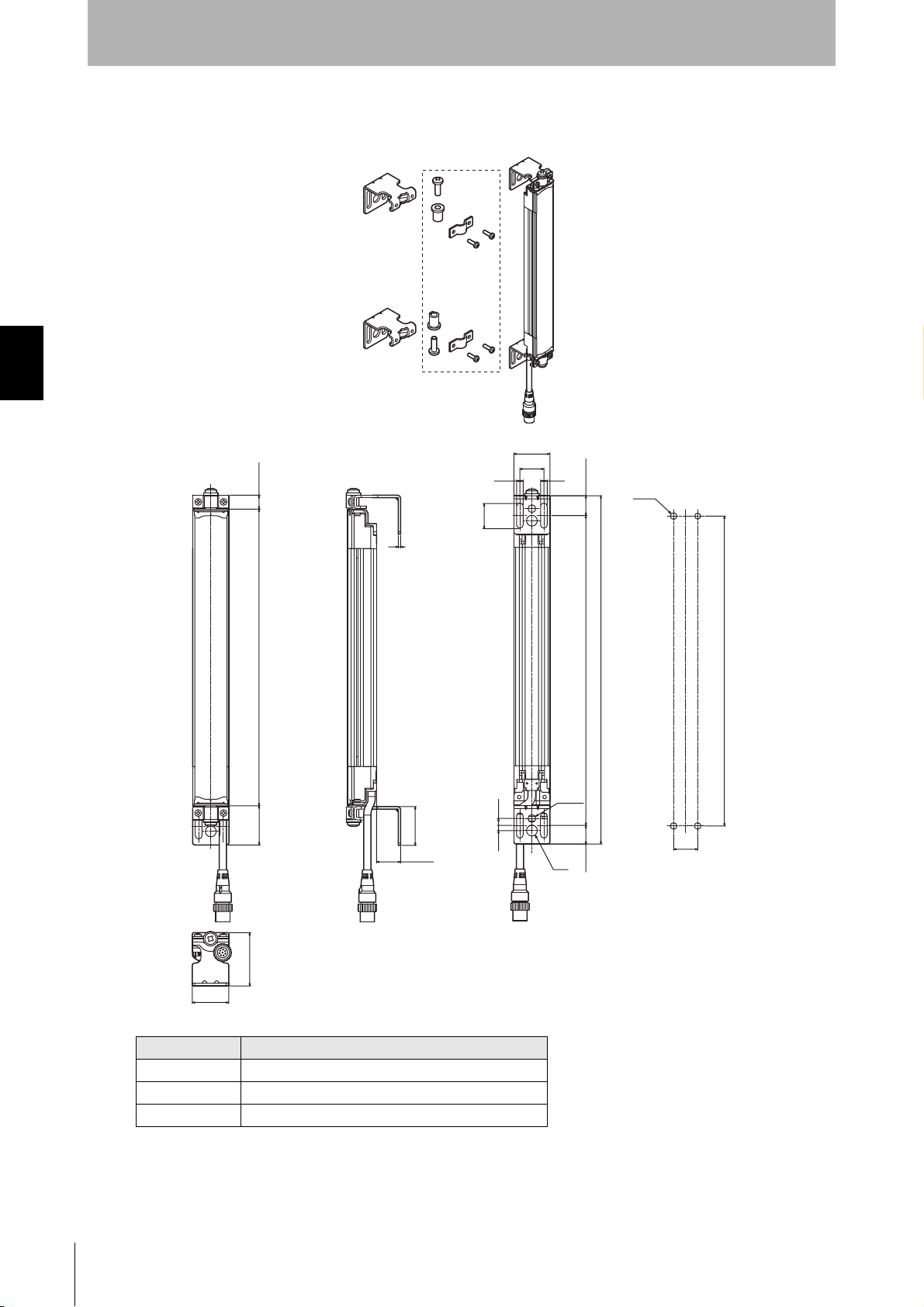

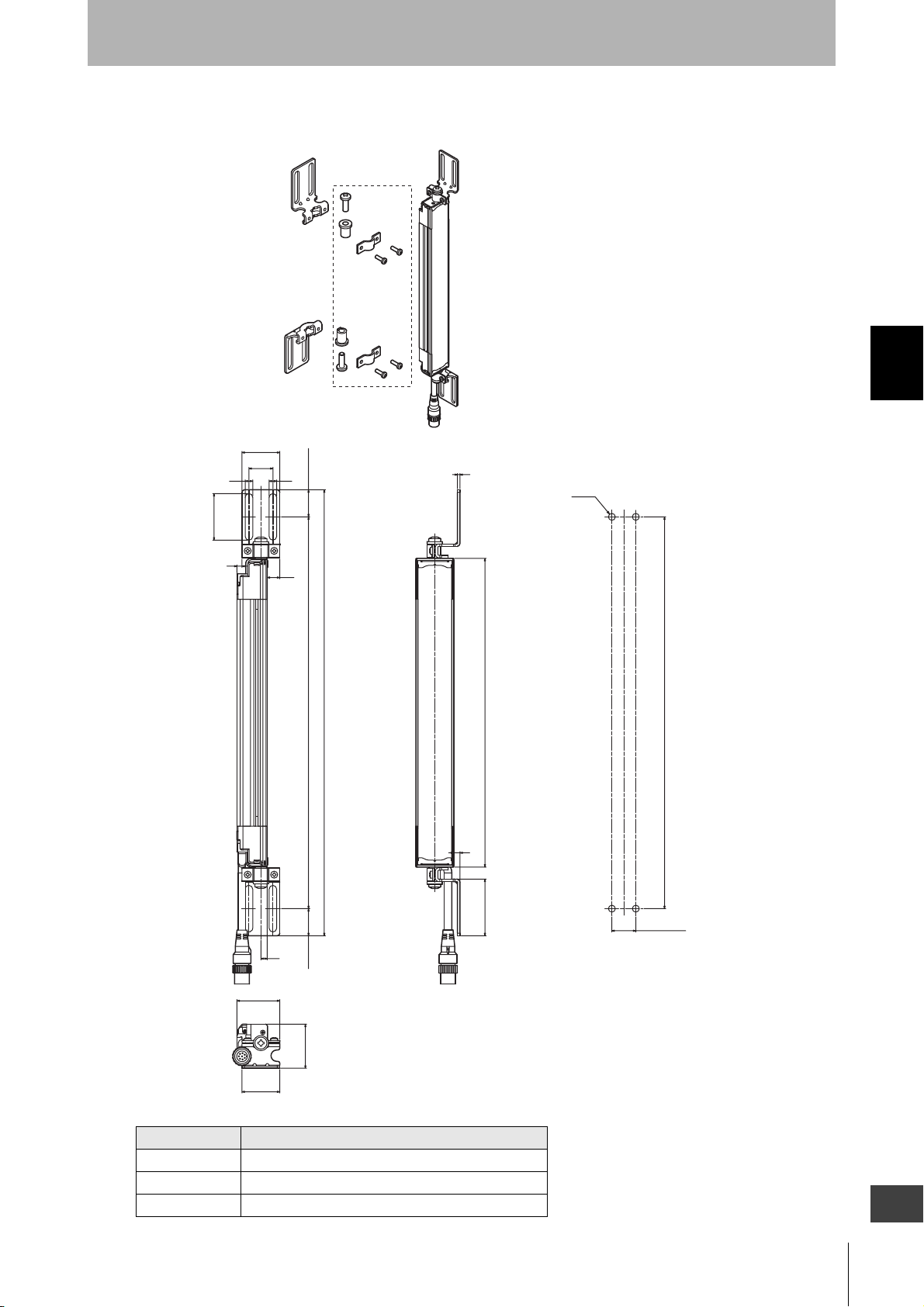

When Using Standard Mounting Brackets 58 When Using Optional Mounting Brackets 61

F39-A01Po-PAC External Indicator Set 74 When Using Spatter Protection Covers 74

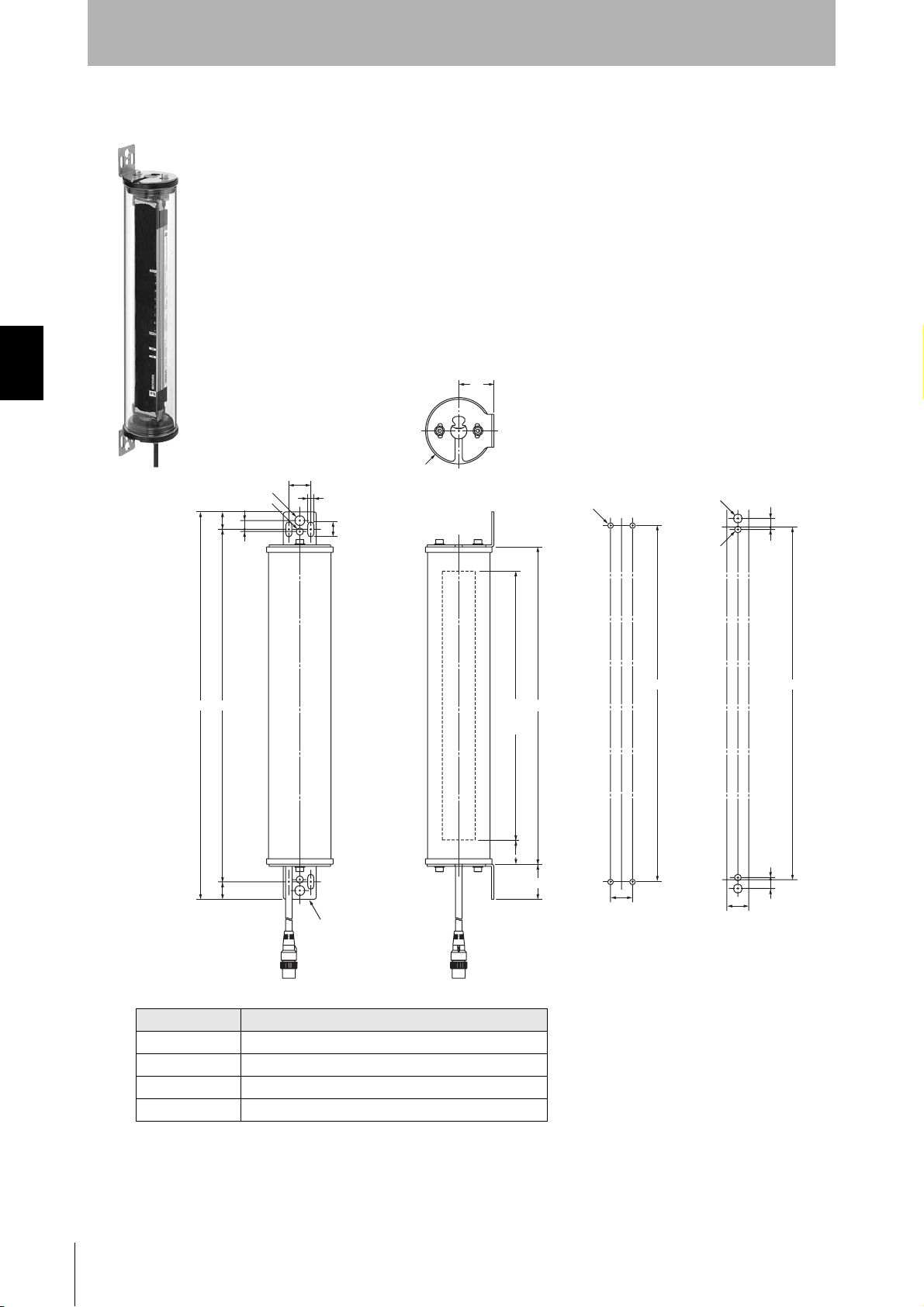

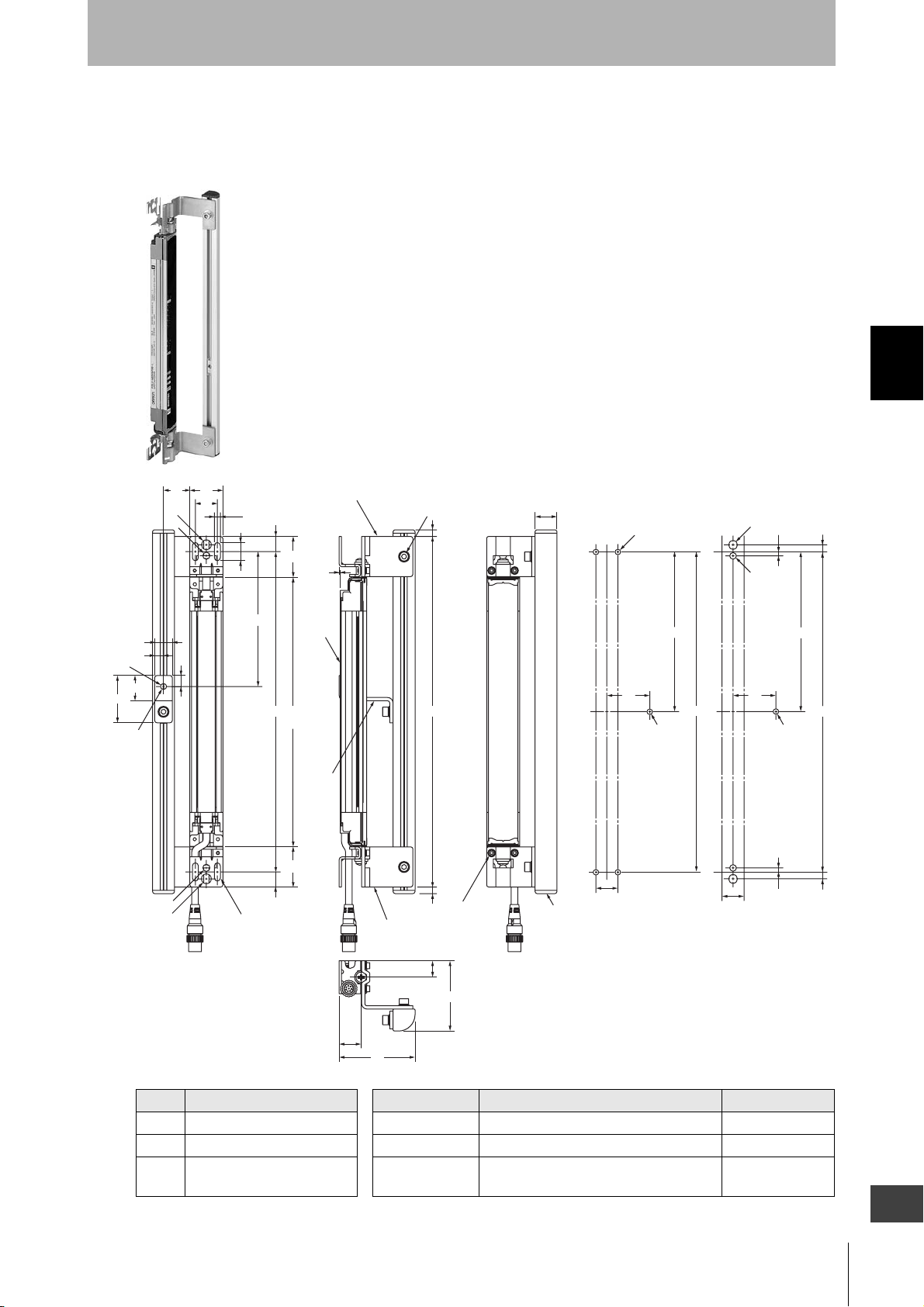

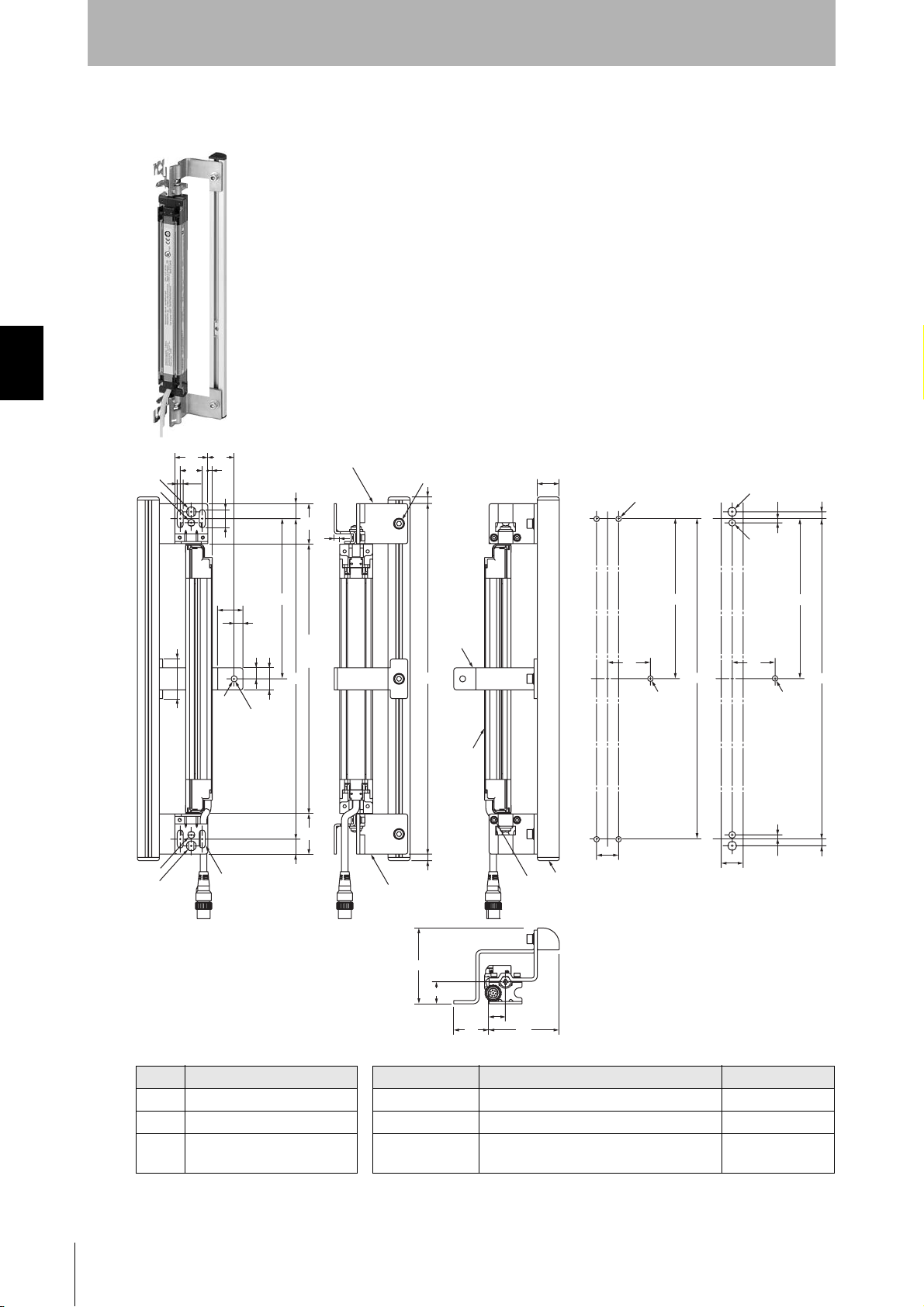

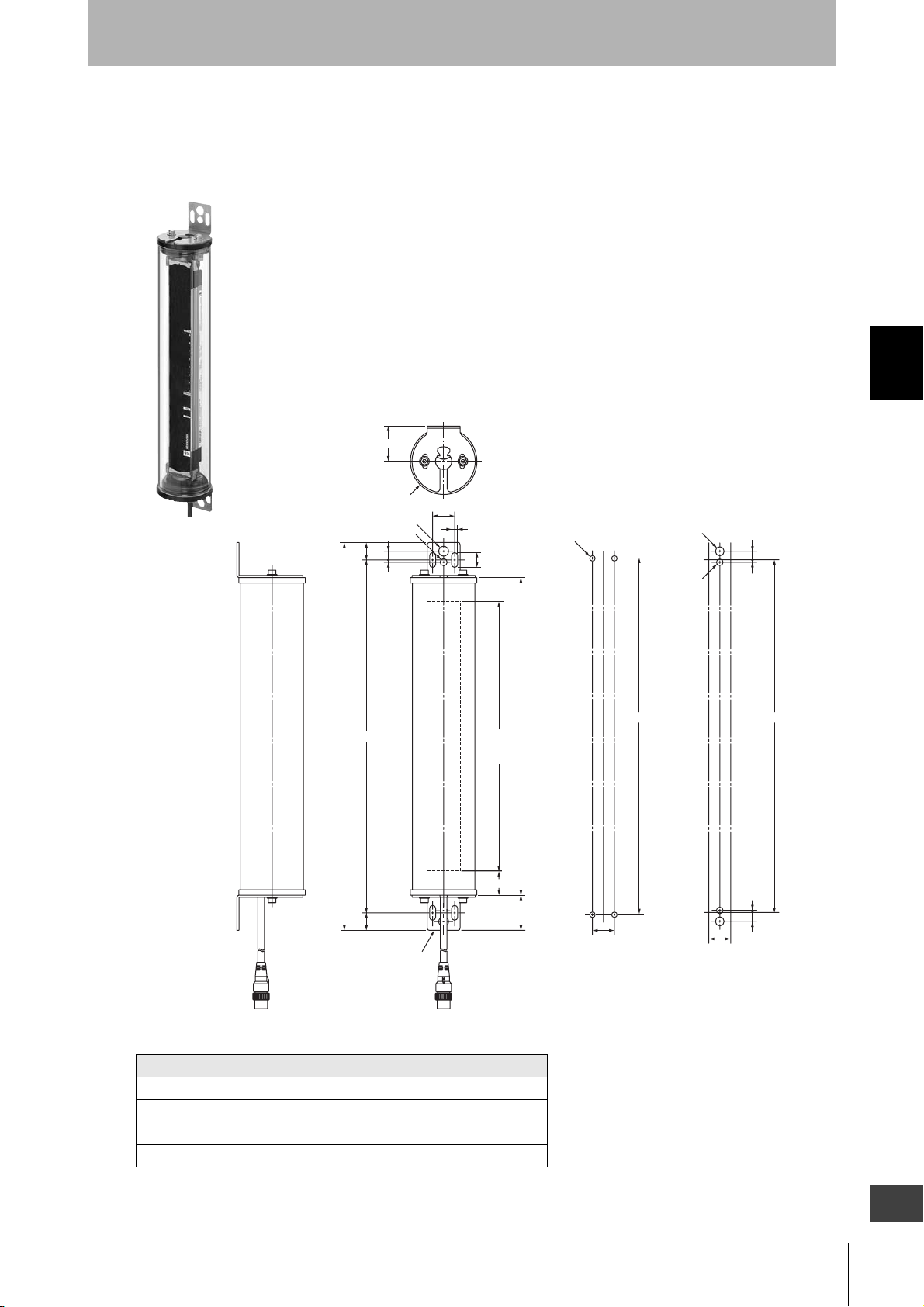

Mounting a Protect Bar 75 Mounting an Environment-Resistant Case 77

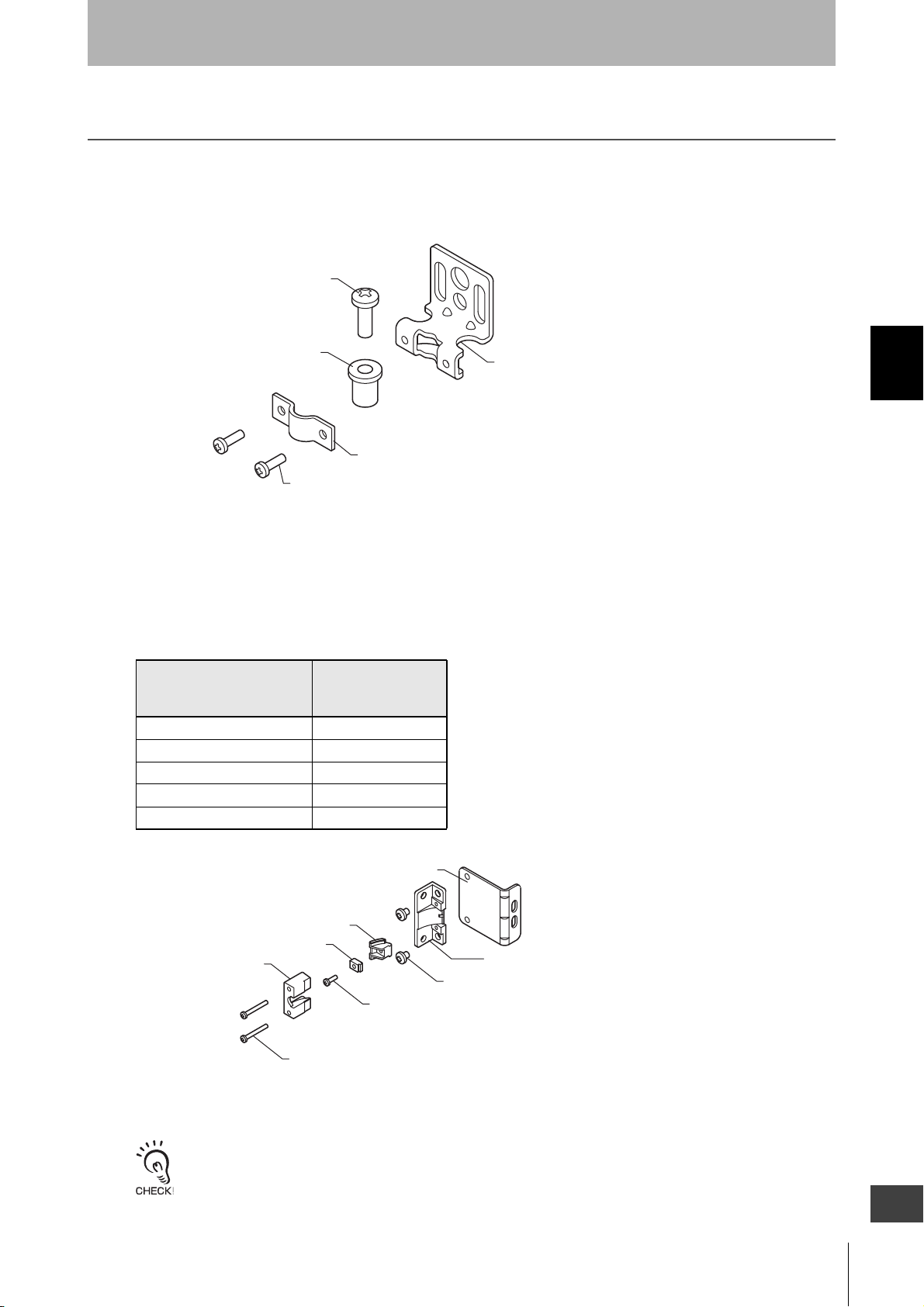

Mounting 79

Top/Bottom Mounting Brackets 79

Intermediate Mounting Brackets 79

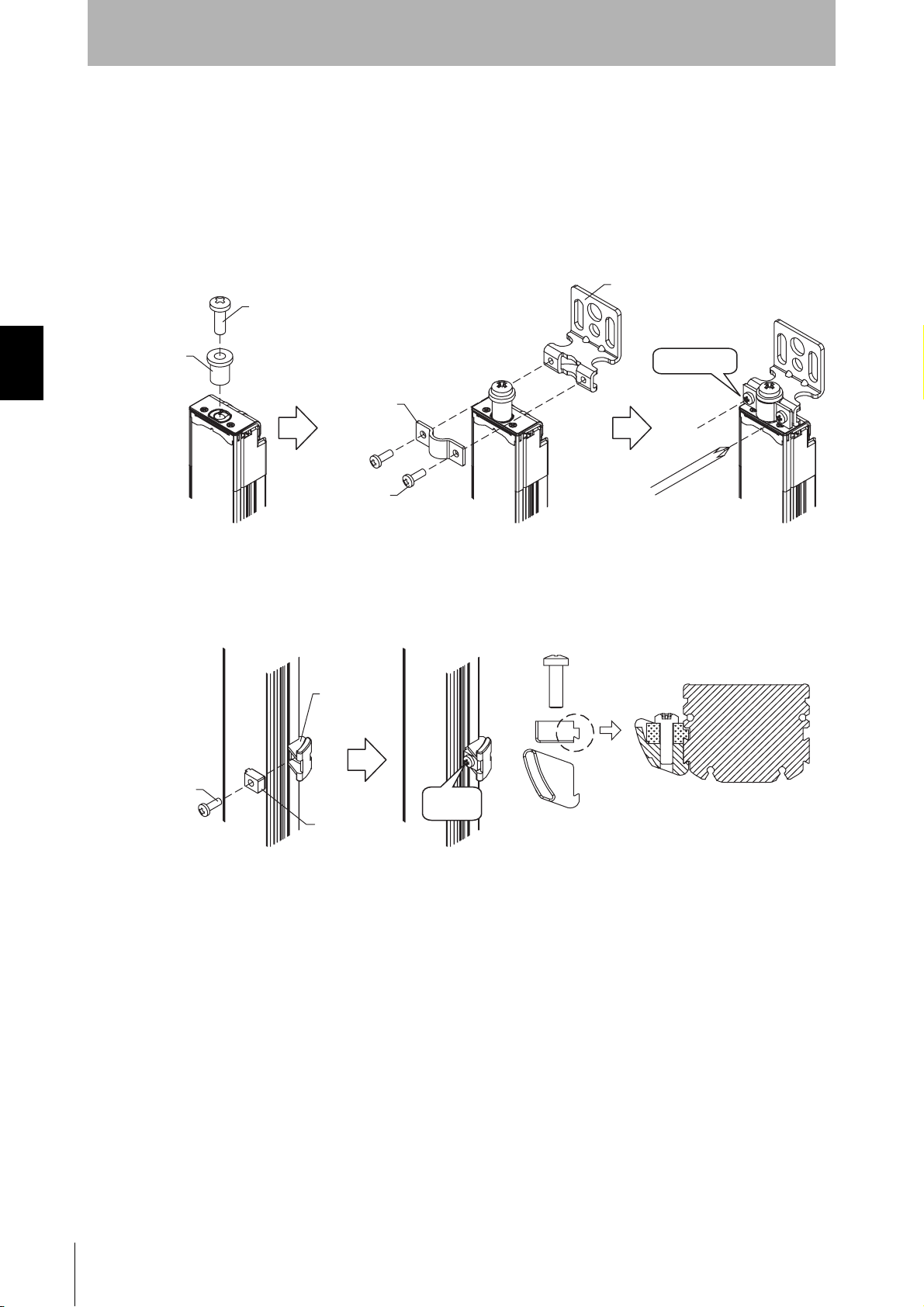

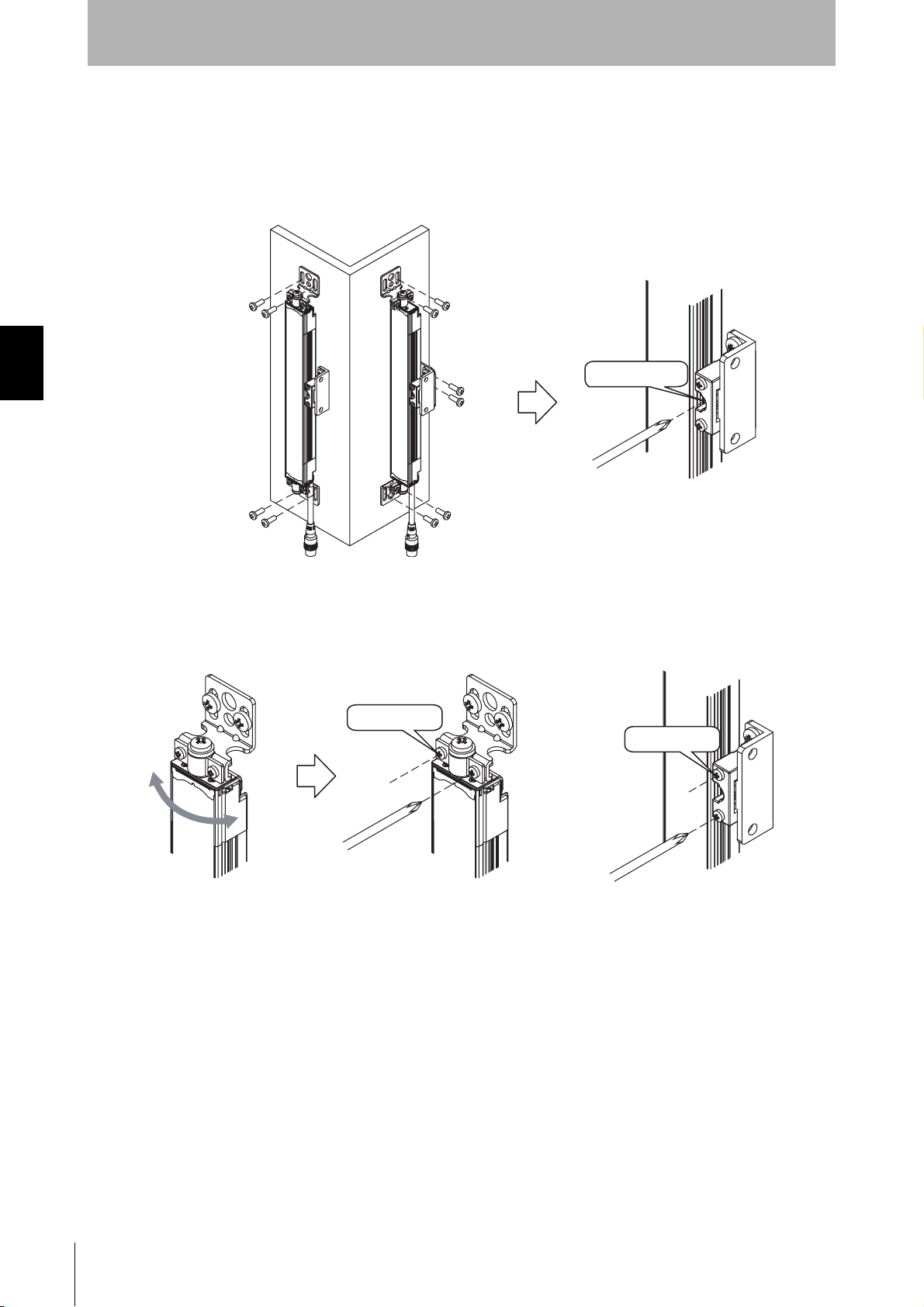

Mounting Procedure 80 Adjustment Procedure 83

Wiring 84

Wiring Precautions 84

Power Supply Unit 85

F3SJ-A

User’s Manual

xiv

Page 17

Introduction

Courtesy of CMA/Flodyne/Hydradyne ▪ Motion Control ▪ Hydraulic ▪ Pneumatic ▪ Electrical ▪ Mechanical ▪ (800) 426-5480 ▪ www.cmafh.com

Wiring Procedure 86

Introduction

Chapter4 Input/Output Circuit and Applications 93

Input/Output Circuit 94 Wiring Examples 95

Using only F3SJ 95 Connecting 2 Muting Sensors 96

Connecting 4 Muting Sensors 97 Connecting to an F3SP-B1P 98

Connecting to an F3SX-E-L2R 99 Connecting to a G9SA-301 101

Connecting to a G9SA-300-SC 102

Connecting to a G9SB-301-D 103 Connecting to a G9SX-AD322-T15 104

Chapter5 Checklists 105

Pre-Operation Checklists 106

Checklists 106

Contents

Maintenance Checklists 108

Checklists 108

Chapter6 Appendix 111

Troubleshooting 112

Lockout State 112 Problem under other state than lockout 116

Accessories (Sold Separately) 118 Glossary 125

Related Standards 126

International Standards 126

European Standards 126 U.S. Federal Regurations 126

U.S. Standards 126 Canadian Standards 127

Revision History 128

F3SJ-A

User’s Manual

Page 18

Introduction

Courtesy of CMA/Flodyne/Hydradyne ▪ Motion Control ▪ Hydraulic ▪ Pneumatic ▪ Electrical ▪ Mechanical ▪ (800) 426-5480 ▪ www.cmafh.com

Contents

Introduction

F3SJ-A

User’s Manual

xvi

Page 19

Chapter1 Overview and Specifications

Courtesy of CMA/Flodyne/Hydradyne ▪ Motion Control ▪ Hydraulic ▪ Pneumatic ▪ Electrical ▪ Mechanical ▪ (800) 426-5480 ▪ www.cmafh.com

Basic Configuration and Names 2

Application Examples 4

Features 6

Indicator Display Patterns 7

Ratings 9

Ratings/Specifications 9 Model Name List/Response Times 11 Power Cable Length 15

Chapter1 Overview and Specifications

F3SJ-A

User’s Manual

Page 20

Overview and Specifications

Emitter

Receiver

Cap

Indicator

Beam

Extension cable

Beam center-line mark

Connection cable (Grey)

Connection cable (Black)

To attach or detach the cap and power cable, remove 4 screws shown above.

Courtesy of CMA/Flodyne/Hydradyne ▪ Motion Control ▪ Hydraulic ▪ Pneumatic ▪ Electrical ▪ Mechanical ▪ (800) 426-5480 ▪ www.cmafh.com

Basic Configuration and Names

Chapter1 Basic Configuration and Names

This section describes the system configuration and part names of the F3SJ.

Component Model name Description

Emitter, receiver F3SJ-AP-TS Select a model name based on the required protective

height and detection capability. (Cap and connection cable are included.) The model name can be understood as follows:

F3SJ-AP--TS

To distinguish between the emitter and receiver, find the labels attached to the front of the F3SJ. The label on the emitter reads "EMITTER" and the label on the receiver reads "RECEIVER". These words are printed on the side where the power supply connector is located.

1: Protective height (mm) 2: Output type (P=PNPoutput type) 3: Detection capability (mm) 4: L is emitter, D is receiver, blank is a set of an emitter and a receiver

F3SJ-A

User’s Manual

Page 21

Extension

Courtesy of CMA/Flodyne/Hydradyne ▪ Motion Control ▪ Hydraulic ▪ Pneumatic ▪ Electrical ▪ Mechanical ▪ (800) 426-5480 ▪ www.cmafh.com

cable

Overview and Specifications

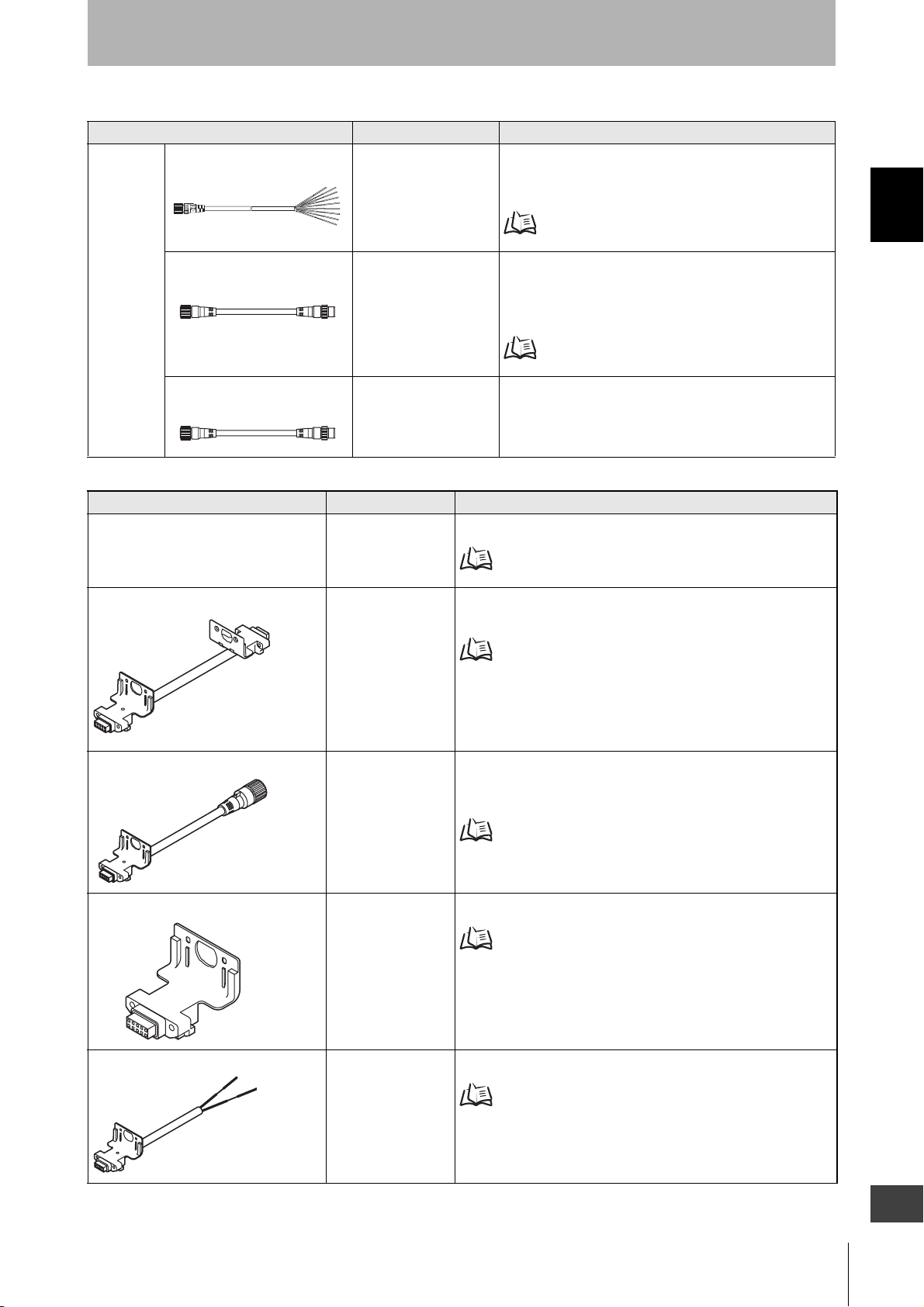

Component Model name Description

Cable with connector on one end

F39-JCA This extension cable is used to connect the F3SJ to a

controller with discrete terminals (e.g. F3SX, G9SA, G9SB, G9SX) or to a safety processing system (e.g. DeviceNet safety).

p.118

Chapter1 Basic Configuration and Names

Cable with connectors on both ends

F39-JCB This extension cable is used when the length of the

connection cable is insufficient or for plug and play connection to the F3SP-B1P controller. The length can be selected.

p.118

F39-JCC This connection cable is used for plug and play connection

to the G9SA-300-SC controller. The length can be selected.

Components to be selected if necessary

Component Model name Description

Optional bracket - Use this bracket (sold separately) for dedicated applications.

p.61

Series connection cable for close contact F39-JJR06L

F39-JJR15L

Required for connecting multiple sets of F3SJ in a series. It is used when you wish to perform series connection with minimum length.

Connection Procedure p.54

Series connection cable for extension F39-JJR3W Required for connecting multiple sets of F3SJ in a series. The F39-

JJR3W can be used for extension with cable with connectors on both ends(F39-JCB).

Connection Procedure p.55

Key cap for muting F39-CN6 Required when using muting function. (Case color : Orange)

Muting System p.25

Indicator cable F39-JJ3N

F39-A01P-PAC

Required when attaching external indicator(s) to the F3SJ.

Attaching External Indicators p.56

F3SJ-A

User’s Manual

Page 22

Overview and Specifications

Courtesy of CMA/Flodyne/Hydradyne ▪ Motion Control ▪ Hydraulic ▪ Pneumatic ▪ Electrical ▪ Mechanical ▪ (800) 426-5480 ▪ www.cmafh.com

Application Examples

Chapter1 Application Examples



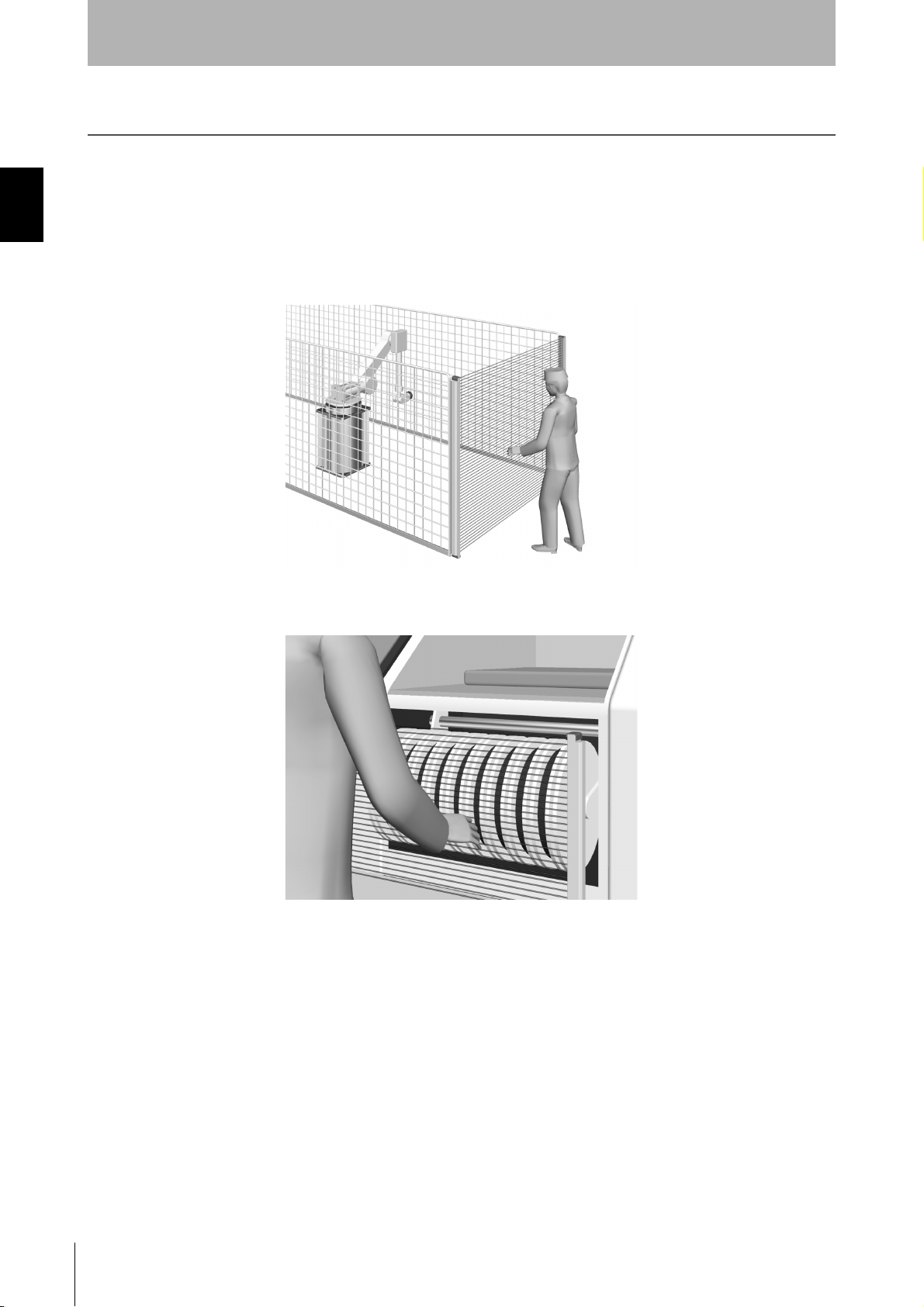

Detect the Approach to a Hazardous Zone

The F3SJ should be installed where workers require frequent access in order to perform tasks such as maintenance, and where physical barriers are difficult to install.

 Detect the Approach of a Person

 Detect a Person's Limbs

F3SJ-A

User’s Manual

Page 23

Overview and Specifications

Courtesy of CMA/Flodyne/Hydradyne ▪ Motion Control ▪ Hydraulic ▪ Pneumatic ▪ Electrical ▪ Mechanical ▪ (800) 426-5480 ▪ www.cmafh.com

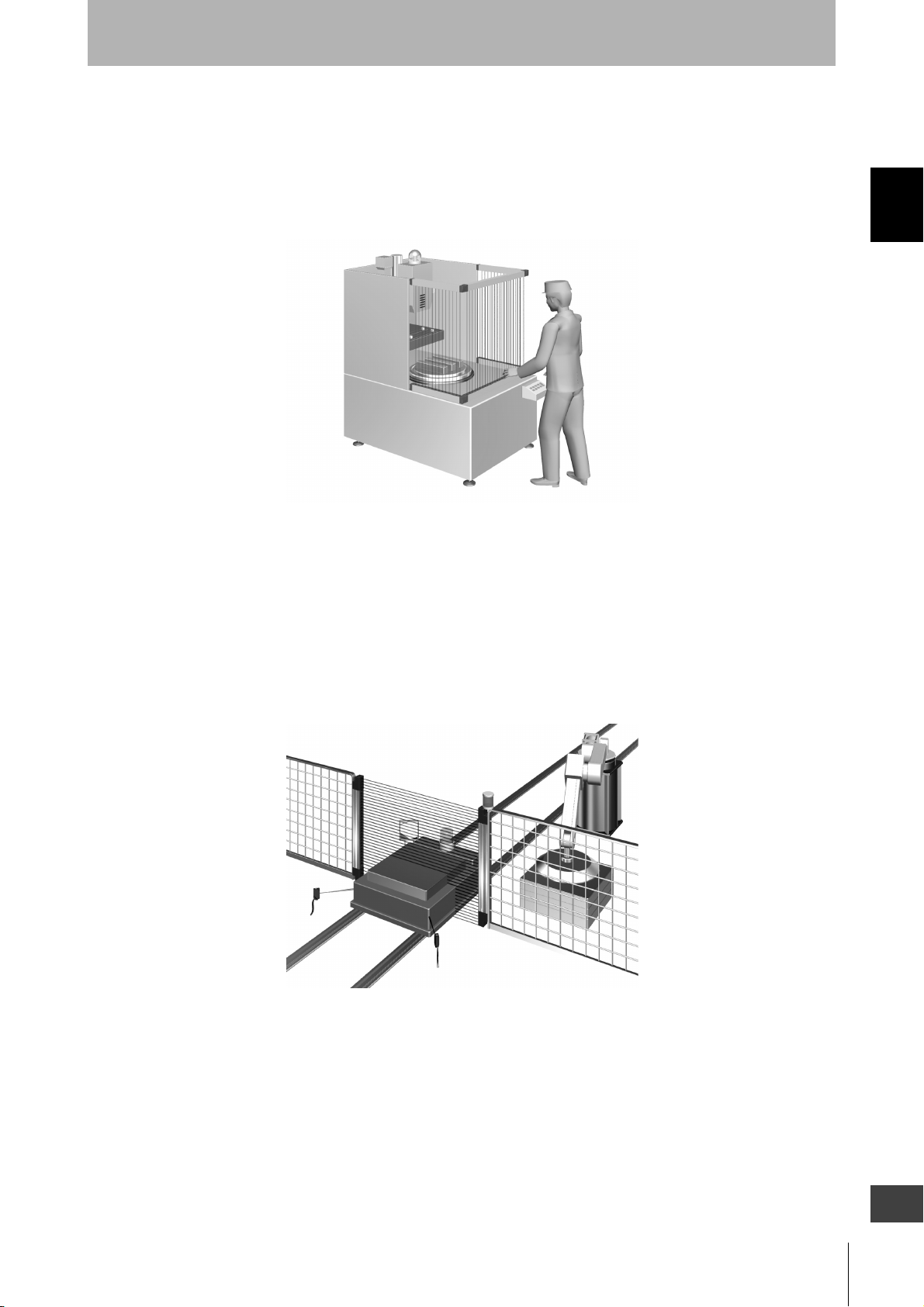

 Using Multiple Sets in Combination

By installing sensors on both sides of a machine as well as in front, you can move workpieces in and out more efficiently than when a physical barrier is installed. If the sensors are aligned in a U-shape, series-connection cables can be used between sets (up to 3 sets), so that only one control device is used, drastically reducing the amount of wiring in the panel.

Chapter1 Application Examples

 For a System in which a Workpiece Crosses Detection Zone

(Muting Function)

Enter of a workpiece can be detected by a sensor and the detection zone can be temporarily disabled only while the workpiece is crossing the whole zone. This function is called muting. Muting is when a work piece is allowed to enter into a dangerous zone without tripping the F3SJ and stopping the process. Muting sensors are installed and arranged as to detect the work piece and not a human entering the zone.

F3SJ-A

User’s Manual

Page 24

Overview and Specifications

Courtesy of CMA/Flodyne/Hydradyne ▪ Motion Control ▪ Hydraulic ▪ Pneumatic ▪ Electrical ▪ Mechanical ▪ (800) 426-5480 ▪ www.cmafh.com

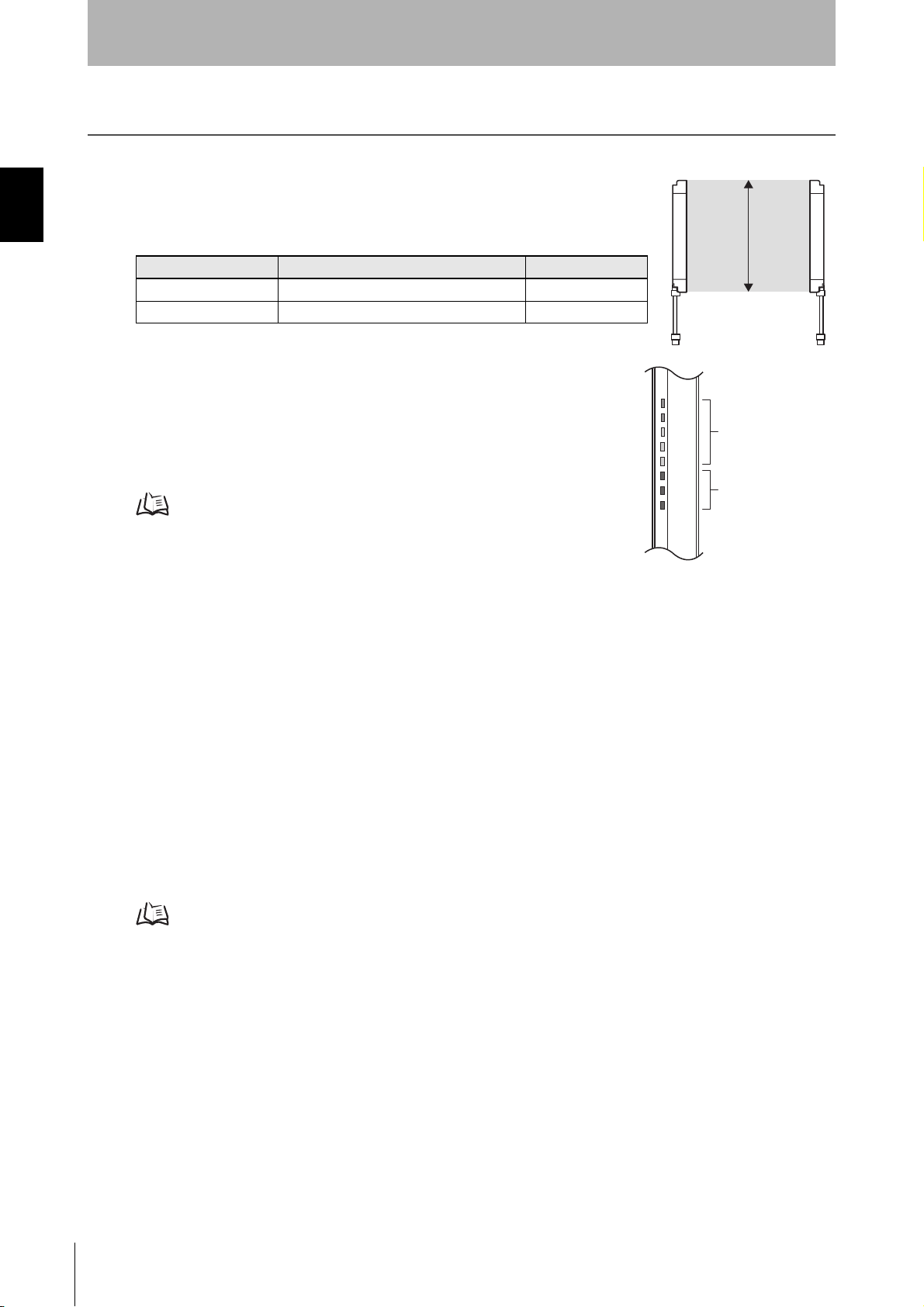

Features

Chapter1 Features



Protective Height Available in Incremental Sizes

Series Protective height Detection capability

F3SJ-AP20-TS 245mm to 2,495mm (in 15mm increments) Dia. 20mm

F3SJ-AP25-TS 260mm to 2,500mm (in 20mm increments) Dia. 25mm

 Easy-to-Read Light Level and Error Mode

Display

Beam alignment is simplified using 5 LEDs that display the incident light level. Error status is indicated on 3 additional LEDs when an error occurs.

Indicator Display Patterns p.7

 Additional Safety Functions

•External test (light emission stop)

•External device monitoring function

LEVEL

Protective height

Incident light level indicato

Error mode indicator

 Enhanced Mutual Interference Prevention

When the series connection function is used, mutual interference is prevented in up to 240 beams in 3 sets. When F3SJ are used individually, the newly designed interference light detection and cycle shift algorithm prevents mutual interference in up to 3 sets.

 Muting/Override Function are Provided

An F3SJ by itself can operate with muting or override function without using a controller.

Definition of muting function and override function p.125

F3SJ-A

User’s Manual

Page 25

Indicator Display Patterns

4. Lockout indicator (Yellow)

3. Power indicator (Green)

2. Error mode indicator

1. Incident light level indicator

EMITTER

LEVEL

POWER

ERROR ERROR

LOCKOUT

EDM

TEST

RECEIVER

LEVEL

OFF

LEVEL-5 (Green)

LEVEL-1 (Orange)

LEVEL-2 (Orange)

LEVEL-3 (Orange)

LEVEL-4 (Green)

ERROR-C (Red)

ERROR-B (Red)

ERROR-A (Red)

LEVEL-1 (Orange)

LEVEL-2 (Orange)

LEVEL-3 (Orange)

LEVEL-4 (Green)

LEVEL-5 (Green)

ERROR-B (Red)

ERROR-

(Red)

ERROR-C (Red)

1. Incident light level indicator

2. Error mode indicator

8. ON-state indicator (Green)

7. OFF-state indicator (Red)

Emitter Receiver

5. External device monitoring indicator (Green) [Muting input 1 indicator]

6. Test indicator(Green) [Muting input 2 indicator]

9. Not used (Green) [Muting error indicator]

10. Not used (Green) [Test indicator]

A set of square brackets, [ ], indicates name of an indicator under muting system. *1 This label comes with the F39-CN6 key cap for muting. Affix this label when a keycap is used.

Ǟ0

Ǟ20

Courtesy of CMA/Flodyne/Hydradyne ▪ Motion Control ▪ Hydraulic ▪ Pneumatic ▪ Electrical ▪ Mechanical ▪ (800) 426-5480 ▪ www.cmafh.com

Overview and Specifications

Chapter1 Indicator Display Patterns



Internal Indicator for Basic System

Shown below are indication statuses of F3SJ's internal indicator when you purchased.

No. Indicators

1 Incident light level

indicator

2 Error mode indicator ERROR-A to C ON/

3 Power indicator POWER ON Turns ON while the power is ON.

4 Lockout indicator LOCKOUT Blinking Blinks when in lockout.

5 External device

monitoring indicator

6 Test indicator TEST Blinking Blinks when external test is being performed.

7 OFF-state indicator OFF ON Turns ON when safety outputs are OFF.

8 ON-state indicator ON ON Turns ON when safety outputs are ON.

9– – – –

10 – – – –

LEVEL-1 to 5 ON Indication status of LEVEL-1 to 5 shows the incident light level

EDM ON Turns ON when an input is given to external device monitoring

ON/

Blinking

status of the F3SJ.

Turns ON or blinks only when the F3SJ enters lockout, and the

Blinking

cause of the error is indicated by the status of ERROR-A to C indicators.When F3SJ are series-connected, the error mode indicator lamps turn ON or blink according to the details of each error. Affix the error mode label (included) near the F3SJ to allow for quick troubleshooting when errors occur. For details of the error mode, see "Chapter 6 Troubleshooting".

input.

Blinking Blinks when in lockout.

Description

F3SJ-A

User’s Manual

Page 26

Overview and Specifications

Courtesy of CMA/Flodyne/Hydradyne ▪ Motion Control ▪ Hydraulic ▪ Pneumatic ▪ Electrical ▪ Mechanical ▪ (800) 426-5480 ▪ www.cmafh.com

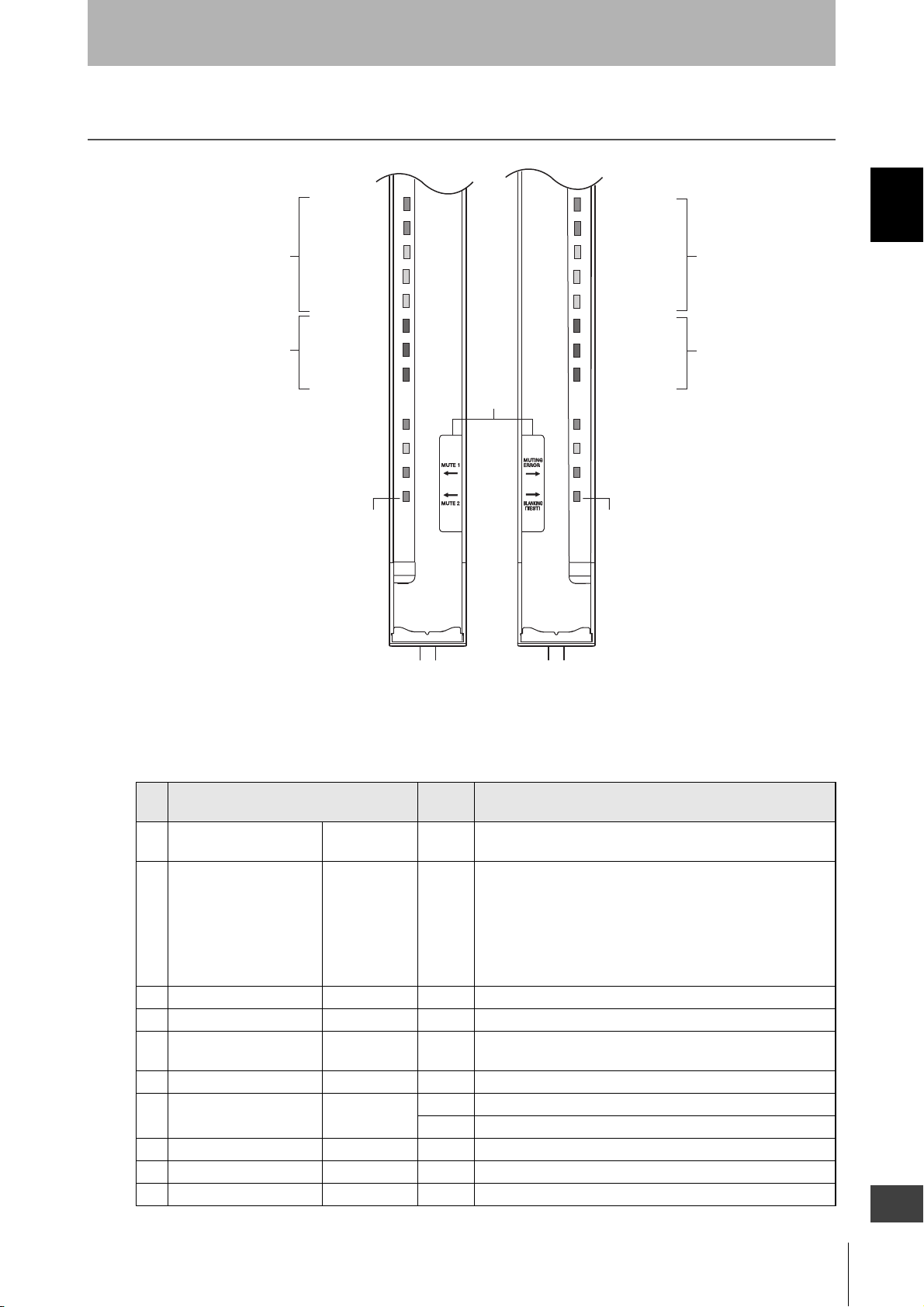

 Internal Indicator for Muting System

Shown below are internal indicator statuses while the keycap for muting is being attached.

Chapter1 Indicator Display Patterns

No. Indicators

1 Incident light level

LEVEL-1 to 5 ON Indication status of LEVEL-1 to 5 shows the incident light level

indicator

2 Error mode indicator ERROR-A to C ON/

3 Power indicator POWER ON Turns ON while the power is ON.

4 Lockout indicator LOCKOUT Blinking Blinks when in lockout.

5 Muting input 1 indicator MUTE1 ON Turns ON when an input is given to muting input 1.

6 Muting input 2 indicator MUTE2 ON Turns ON when an input is given to muting input 2.

7 OFF-state indicator OFF ON Turns ON when safety outputs are OFF.

8 ON-state indicator ON ON Turns ON when safety outputs are ON.

9 Muting error indicator MUTING

ERROR

10 Test indicator TEST Blinking Blinks when external test is being performed.

ON/

Blinking

Description

status of the F3SJ.

Turns ON or blinks only when the F3SJ enters lockout, and the

Blinking

Blinking Blinks during muting/override.

Blinking Blinks when in lockout.

ON Turns ON when a muting error occurs.

For an explanation of terminology such as function names, refer to the glossary.

Glossary p.125

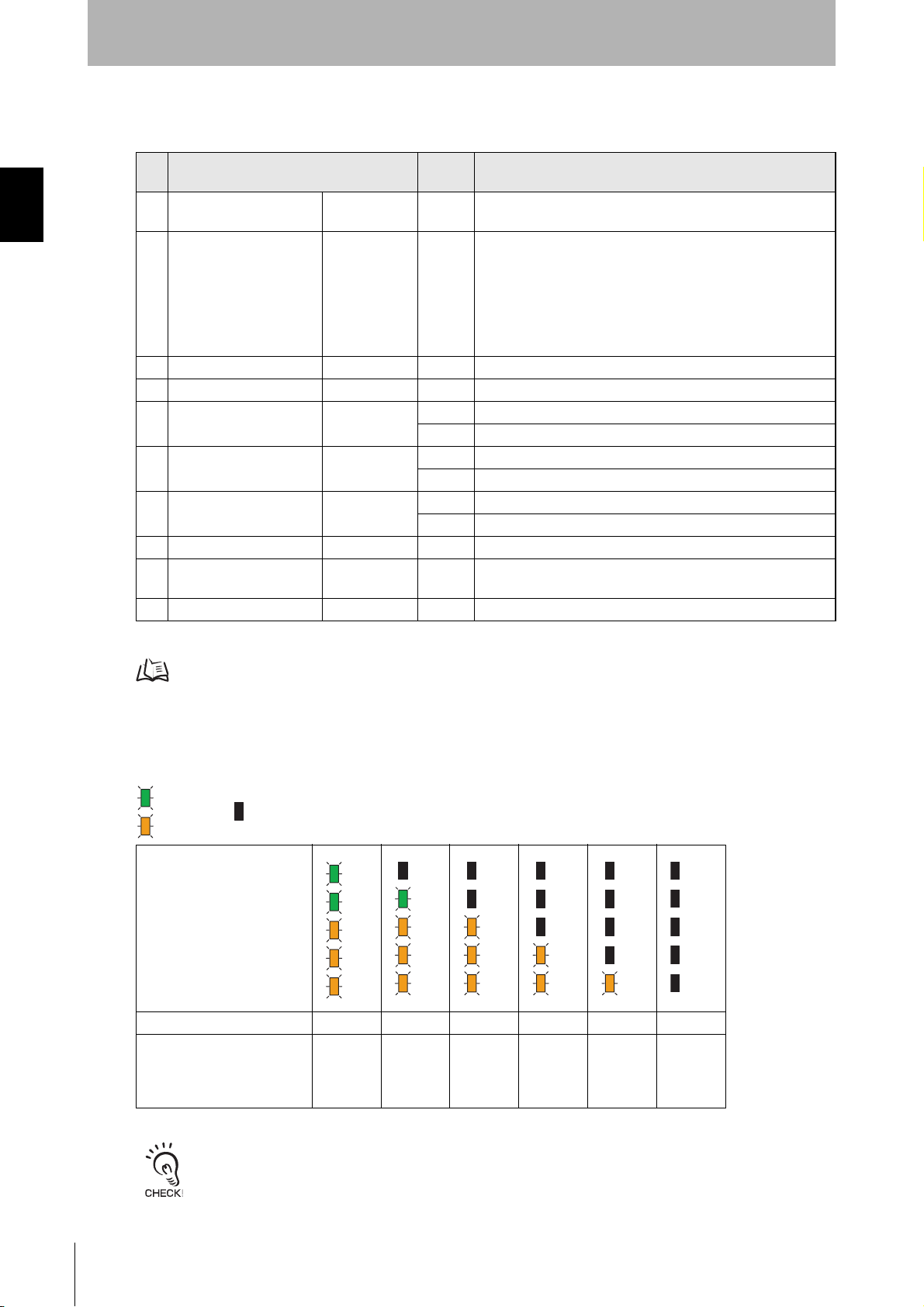

 Display Patterns of the Incident Light Level Indicator

ON OFF

Less than

50%

incident light level indicator

Safety Output ON ON ON OFF OFF OFF

Incident light level

170% or

higher

Less than 170% ~ 130%

Less than 130% ~

100%

Less than 100% ~

75%

Less than 75% ~

50%

Operation is possible with incident light level of 100% or more, but to ensure stability, operate when all incident light level indicators

F3SJ-A

User’s Manual

Page 27

Overview and Specifications

Courtesy of CMA/Flodyne/Hydradyne ▪ Motion Control ▪ Hydraulic ▪ Pneumatic ▪ Electrical ▪ Mechanical ▪ (800) 426-5480 ▪ www.cmafh.com

Ratings

Ratings/Specifications



In the model names in this table, the  contain the 4-digit number indicating the protective height (mm).

F3SJ-AP20-TS F3SJ-AP25-TS

Detection capability Opaque objects Opaque objects

Diameter 20mm Diameter 25mm

Beam gap 15mm 20mm

Number of beams 16 to 166 13 to 125

Protective height 245 to 2,495mm 260 to 2,500mm

Lens diameter Diameter 5mm

Operating range 0.2 to 9m (for protective height up to 1649 mm)

0.2 to 7m (for protective height 1655 mm or greater)

Response time ON to OFF: 10ms to 22.5ms max., OFF to ON: 40ms to 90ms max. (when incidence is stable).

Refer to p.11 for details.

Startup waiting time 2s max. (2.2s max in case of series connection)

Power supply voltage(Vs) 24VDC ± 20% (ripple p-p10% max.)

Current consumption (no load)

Light source Infrared LED (870nm wavelength)

Effective aperture angle (EAA) Within ±2.5 ° for the emitter and receiver at a detection distance of at least 3 m according to

Safety outputs(OSSD) PNP transistor outputs x 2, Load current 300mA max, Residual voltage 2V max. (except for

Auxiliary output 1 (Non-safety output) PNP transistor output x 1, Load current 300mA max., Residual voltage 2V max. (except for

External indicator output (Non-safety output)

Output operation mode Safety outputs : ON when receiving light

Input voltage Test input, reset input, and muting input are all:

Emitter

Receiver Up to 50 beams: 68 mA max., 51 to 100 beams: 90 mA max., 101 to 150 beams: 111 mA max.,

Up to 50 beams: 76 mA max., 51 to 100 beams: 106 mA max., 101 to 150 beams: 130 mA max., 151 to 166 beams: 153 mA max.

151 to 166 beams: 128 mA max.

IEC61496-2

voltage drop due to cable extension), Maximum capacity load 2.2 max. (This may be different from previously used logic (ON/OFF) because safety circuit is used.)

voltage drop due to cable extension), leakage current 1mA max.

Connectable external indicator

- Incandescent lamp : 24VDC, 3 to 7W

- LED lamp : Load current 10 to 300mA max. Leakage current 1mA max. (An indicator cable F39-JJ3N or F39-A01P-PAC is required when using an external indicator.)

Auxiliary output 1 : Reverse output of safety output External indicator output 1: Reverse output of safety output (for basic system), ON during muting/override (for muting system) External indicator output 2: ON in lockout (for basic system), ON during muting/override (for muting system)

ON voltage: 9 to 24Vs (sink current 3mA max.) OFF voltage: 0 to 1.5V , or open External device monitoring input is: ON voltage: 9 to 24Vs (sink current 5mA max.) OFF voltage: 0 to 1.5V , or open

µF, leakage current 1 mA

Chapter1 Ratings

F3SJ-A

User’s Manual

Page 28

Chapter1 Ratings

Courtesy of CMA/Flodyne/Hydradyne ▪ Motion Control ▪ Hydraulic ▪ Pneumatic ▪ Electrical ▪ Mechanical ▪ (800) 426-5480 ▪ www.cmafh.com

Overview and Specifications

F3SJ-AP20-TS F3SJ-AP25-TS

Indicators Emitter Incident light level indicators (green LED x 2, orange LED x 3): ON based on the amount of

incident light Error mode indicators (red LED x 3): Blink to indicate error details Power indicator (green LED x 1): ON while power is ON Lockout indicator (yellow LED x 1): Blinks when in lockout External device monitoring indicator (muting input 1 indicator), Test indicator (muting input 2 indicator) (green LED x2): ON/Blink according to function

Receiver Incident light level indicators (green LED x 2, orange LED x 3): ON based on the amount of

incident light Error mode indicators (red LED x 3): Blink to indicate error details OFF-statet indicator (red LED x 1): ON when safety outputs are OFF/ Blinks when in lockout ON-state indicator (green LED x 1): ON when safety outputs are ON Muting error indicator, Test indicator (green LED x 2): ON/Blink according to function

Mutual interference prevention function

Series connection Time division emission by series connection

Test function - Self-test (After power ON, and during operation)

Safety-related functions - External device monitoring

Connection method Connector method (M12, 8-pin)

Protection circuit Output short-circuit protection, and power supply reverse polarity protection

Ambient temperature During operation: -10 to 55°C (without freezing), During storage: -30 to 70°C

Ambient humidity During operation: 35 to 85%RH (no condensation), During storage: 35 to 95%RH

Ambient light intensity Incandescent lamp: receiving-surface light intensity of 3,000 Ix max., Sunlight: receiving-

Insulation resistance 20MΩ or higher (500VDC)

Dielectric strength voltage 1, 000VAC, 50/60Hz, 1min

Degree of protection IP65 (IEC60529)

Vibration resistance Malfunction: 10 to 55Hz, Multiple amplitude of 0.7mm, 20 sweeps each in X, Y, and Z directions

Shock resistance Malfunction: 100m/s

Connection cable, Series connection cable (F39-JJRL, JJR3W)

Extension cable (F39-JCA, JCB,JCC)

Interference light avoidance algorithm

- Number of connections: Up to 3 sets

- Total number of beams: Up to 240

- Maximum cable length between 2 sets of sensors: 15m Lockout occurs when:

- Number of connected sensors or total number of beams of them exceed the limits described above

- Other sensor than -TS type is attached to the series connection

- External test (light emission stop function by test input)

- Muting (Includes override functions. F39-CN6 key cap for muting is required)

surface light intensity of 10,000 Ix max.

, 1,000 times each in X, Y, and Z directions

Dia. 6 mm, 8-wire (0.15mm

Dia. 6.6 mm, 8-wire (0.3mm Allowable bending radius of R36mm. (To extend a cable, use an equivalent or higher-performance cable (twisted-pair wire) , and do not use the cable in the same duct as that for high-voltage cables or power cables)

x 8) with braided shield, Allowable bending radius R5mm

x 4P, conductor resistance 0.058 ohm/m), with braided shield,

For details about extension lengths (power cable length) p.15

For details about twisted pair wire (single connector cable)

Material Casing (including metal parts on both ends): Aluminum, zinc die-cast

Cap: ABS resin Optical cover: PMMA resin (acrylic) Cable: Oil resistant PVC

p.86

F3SJ-A

User’s Manual

Page 29

Overview and Specifications

Courtesy of CMA/Flodyne/Hydradyne ▪ Motion Control ▪ Hydraulic ▪ Pneumatic ▪ Electrical ▪ Mechanical ▪ (800) 426-5480 ▪ www.cmafh.com

F3SJ-AP20-TS F3SJ-AP25-TS

Weight (packaged) - F3SJ-AP20-TS/F3SJ-AP25-TS

Weight (g)=(protective height) x 1.5+ α The values for α are as follows: When protective height is between 245 and 596mm, α=1100 When protective height is between 600 and 1130mm, α=1500 When protective height is between 1136 and 1658mm, α=2000 When protective height is between 1660 and 2180mm, α=2400 When protective height is between 2195 and 2500mm, α=2600

Accessories Test rod, instruction sheet, top and bottom mounting brackets, intermediate mounting brackets

(*), error mode label, user’s manual (CD-ROM) * The number of intermediate mounting brackets depends on the total length of the F3SJ.

- F3SJ total length is from 600 to 1,130mm: 1 set for each the emitter and receiver is included

- F3SJ total length is from 1136 to 1,658mm: 2 sets for each the emitter and receiver are included

- F3SJ total length is from 1660 to 2,180mm: 3 sets for each the emitter and receiver are included

- F3SJ total length is from 2195 to 2500mm: 4 sets for each the emitter and receiver are included

Applicable standards IEC61496-1, EN61496-1, UL61496-1 Type 4ESPE (Electro-Sensitive Protective Equipment)

IEC61496-2, prEN61496-2, UL61496-2 Type 4AOPD (Active Opto-electronic Protective Devices) IEC61508, EN61508 SIL3

Chapter1 Ratings

 Model Name List/Response Times

F3SJ-AP20-TS F3SJ-AP25-TS Number of beams

- F3SJ-A0260P25-TS 13 beams 10ms 40ms

- F3SJ-A0280P25-TS 14 beams 10ms 40ms

- F3SJ-A0300P25-TS 15 beams 10ms 40ms

F3SJ-A0245P20-TS F3SJ-A0320P25-TS 16 beams 10ms 40ms

F3SJ-A0260P20-TS F3SJ-A0340P25-TS 17 beams 11ms 44ms

F3SJ-A0275P20-TS F3SJ-A0360P25-TS 18 beams 11ms 44ms

F3SJ-A0290P20-TS F3SJ-A0380P25-TS 19 beams 11ms 44ms

F3SJ-A0305P20-TS F3SJ-A0400P25-TS 20 beams 11ms 44ms

F3SJ-A0320P20-TS F3SJ-A0420P25-TS 21 beams 11ms 44ms

F3SJ-A0335P20-TS F3SJ-A0440P25-TS 22 beams 11ms 44ms

F3SJ-A0350P20-TS F3SJ-A0460P25-TS 23 beams 11ms 44ms

F3SJ-A0365P20-TS F3SJ-A0480P25-TS 24 beams 11ms 44ms

F3SJ-A0380P20-TS F3SJ-A0500P25-TS 25 beams 11ms 44ms

F3SJ-A0395P20-TS F3SJ-A0520P25-TS 26 beams 11ms 44ms

F3SJ-A0410P20-TS F3SJ-A0540P25-TS 27 beams 11ms 44ms

F3SJ-A0425P20-TS F3SJ-A0560P25-TS 28 beams 11ms 44ms

F3SJ-A0440P20-TS F3SJ-A0580P25-TS 29 beams 11ms 44ms

F3SJ-A0455P20-TS F3SJ-A0600P25-TS 30 beams 12ms 48ms

F3SJ-A0470P20-TS F3SJ-A0620P25-TS 31 beams 12ms 48ms

F3SJ-A0485P20-TS F3SJ-A0640P25-TS 32 beams 12ms 48ms

F3SJ-A0500P20-TS F3SJ-A0660P25-TS 33 beams 12ms 48ms

F3SJ-A0515P20-TS F3SJ-A0680P25-TS 34 beams 12ms 48ms

F3SJ-A0530P20-TS F3SJ-A0700P25-TS 35 beams 12ms 48ms

F3SJ-A0545P20-TS F3SJ-A0720P25-TS 36 beams 12ms 48ms

F3SJ-A0560P20-TS F3SJ-A0740P25-TS 37 beams 12ms 48ms

Response time

(ON to OFF)

Response time

(OFF to ON)

F3SJ-A

User’s Manual

Page 30

Overview and Specifications

Courtesy of CMA/Flodyne/Hydradyne ▪ Motion Control ▪ Hydraulic ▪ Pneumatic ▪ Electrical ▪ Mechanical ▪ (800) 426-5480 ▪ www.cmafh.com

Chapter1 Ratings

F3SJ-AP20-TS F3SJ-AP25-TS Number of beams

F3SJ-A0575P20-TS F3SJ-A0760P25-TS 38 beams 12ms 48ms

F3SJ-A0590P20-TS F3SJ-A0780P25-TS 39 beams 12ms 48ms

F3SJ-A0605P20-TS F3SJ-A0800P25-TS 40 beams 12ms 48ms

F3SJ-A0620P20-TS F3SJ-A0820P25-TS 41 beams 12ms 48ms

F3SJ-A0635P20-TS F3SJ-A0840P25-TS 42 beams 12ms 48ms

F3SJ-A0650P20-TS F3SJ-A0860P25-TS 43 beams 13ms 52ms

F3SJ-A0665P20-TS F3SJ-A0880P25-TS 44 beams 13ms 52ms

F3SJ-A0680P20-TS F3SJ-A0900P25-TS 45 beams 13ms 52ms

F3SJ-A0695P20-TS F3SJ-A0920P25-TS 46 beams 13ms 52ms

F3SJ-A0710P20-TS F3SJ-A0940P25-TS 47 beams 13ms 52ms

F3SJ-A0725P20-TS F3SJ-A0960P25-TS 48 beams 13ms 52ms

F3SJ-A0740P20-TS F3SJ-A0980P25-TS 49 beams 13ms 52ms

F3SJ-A0755P20-TS F3SJ-A1000P25-TS 50 beams 13ms 52ms

F3SJ-A0770P20-TS F3SJ-A1020P25-TS 51 beams 13ms 52ms

F3SJ-A0785P20-TS F3SJ-A1040P25-TS 52 beams 13ms 52ms

F3SJ-A0800P20-TS F3SJ-A1060P25-TS 53 beams 13ms 52ms

F3SJ-A0815P20-TS F3SJ-A1080P25-TS 54 beams 13ms 52ms

F3SJ-A0830P20-TS F3SJ-A1100P25-TS 55 beams 13ms 52ms

F3SJ-A0845P20-TS F3SJ-A1120P25-TS 56 beams 14ms 56ms

F3SJ-A0860P20-TS F3SJ-A1140P25-TS 57 beams 14ms 56ms

F3SJ-A0875P20-TS F3SJ-A1160P25-TS 58 beams 14ms 56ms

F3SJ-A0890P20-TS F3SJ-A1180P25-TS 59 beams 14ms 56ms

F3SJ-A0905P20-TS F3SJ-A1200P25-TS 60 beams 14ms 56ms

F3SJ-A0920P20-TS F3SJ-A1220P25-TS 61 beams 14ms 56ms

F3SJ-A0935P20-TS F3SJ-A1240P25-TS 62 beams 14ms 56ms

F3SJ-A0950P20-TS F3SJ-A1260P25-TS 63 beams 14ms 56ms

F3SJ-A0965P20-TS F3SJ-A1280P25-TS 64 beams 14ms 56ms

F3SJ-A0980P20-TS F3SJ-A1300P25-TS 65 beams 14ms 56ms

F3SJ-A0995P20-TS F3SJ-A1320P25-TS 66 beams 14ms 56ms

F3SJ-A1010P20-TS F3SJ-A1340P25-TS 67 beams 14ms 56ms

F3SJ-A1025P20-TS F3SJ-A1360P25-TS 68 beams 15ms 60ms

F3SJ-A1040P20-TS F3SJ-A1380P25-TS 69 beams 15ms 60ms

F3SJ-A1055P20-TS F3SJ-A1400P25-TS 70 beams 15ms 60ms

F3SJ-A1070P20-TS F3SJ-A1420P25-TS 71 beams 15ms 60ms

F3SJ-A1085P20-TS F3SJ-A1440P25-TS 72 beams 15ms 60ms

F3SJ-A1100P20-TS F3SJ-A1460P25-TS 73 beams 15ms 60ms

F3SJ-A1115P20-TS F3SJ-A1480P25-TS 74 beams 15ms 60ms

F3SJ-A1130P20-TS F3SJ-A1500P25-TS 75 beams 15ms 60ms

F3SJ-A1145P20-TS F3SJ-A1520P25-TS 76 beams 15ms 60ms

F3SJ-A1160P20-TS F3SJ-A1540P25-TS 77 beams 15ms 60ms

F3SJ-A1175P20-TS F3SJ-A1560P25-TS 78 beams 15ms 60ms

F3SJ-A1190P20-TS F3SJ-A1580P25-TS 79 beams 15ms 60ms

F3SJ-A1205P20-TS F3SJ-A1600P25-TS 80 beams 15ms 60ms

F3SJ-A1220P20-TS F3SJ-A1620P25-TS 81 beams 17.5ms 70ms

F3SJ-A1235P20-TS F3SJ-A1640P25-TS 82 beams 17.5ms 70ms

F3SJ-A1250P20-TS F3SJ-A1660P25-TS 83 beams 17.5ms 70ms

F3SJ-A1265P20-TS F3SJ-A1680P25-TS 84 beams 17.5ms 70ms

F3SJ-A1280P20-TS F3SJ-A1700P25-TS 85 beams 17.5ms 70ms

Response time

(ON to OFF)

Response time

(OFF to ON)

F3SJ-A

User’s Manual

Page 31

Overview and Specifications

Courtesy of CMA/Flodyne/Hydradyne ▪ Motion Control ▪ Hydraulic ▪ Pneumatic ▪ Electrical ▪ Mechanical ▪ (800) 426-5480 ▪ www.cmafh.com

F3SJ-AP20-TS F3SJ-AP25-TS Number of beams

F3SJ-A1295P20-TS F3SJ-A1720P25-TS 86 beams 17.5ms 70ms

F3SJ-A1310P20-TS F3SJ-A1740P25-TS 87 beams 17.5ms 70ms

F3SJ-A1325P20-TS F3SJ-A1760P25-TS 88 beams 17.5ms 70ms

F3SJ-A1340P20-TS F3SJ-A1780P25-TS 89 beams 17.5ms 70ms

F3SJ-A1355P20-TS F3SJ-A1800P25-TS 90 beams 17.5ms 70ms

F3SJ-A1370P20-TS F3SJ-A1820P25-TS 91 beams 17.5ms 70ms

F3SJ-A1385P20-TS F3SJ-A1840P25-TS 92 beams 17.5ms 70ms

F3SJ-A1400P20-TS F3SJ-A1860P25-TS 93 beams 17.5ms 70ms

F3SJ-A1415P20-TS F3SJ-A1880P25-TS 94 beams 17.5ms 70ms

F3SJ-A1430P20-TS F3SJ-A1900P25-TS 95 beams 17.5ms 70ms

F3SJ-A1445P20-TS F3SJ-A1920P25-TS 96 beams 17.5ms 70ms

F3SJ-A1460P20-TS F3SJ-A1940P25-TS 97 beams 17.5ms 70ms

F3SJ-A1475P20-TS F3SJ-A1960P25-TS 98 beams 17.5ms 70ms

F3SJ-A1490P20-TS F3SJ-A1980P25-TS 99 beams 17.5ms 70ms

F3SJ-A1505P20-TS F3SJ-A2000P25-TS 100 beams 17.5ms 70ms

F3SJ-A1520P20-TS F3SJ-A2020P25-TS 101 beams 17.5ms 70ms

F3SJ-A1535P20-TS F3SJ-A2040P25-TS 102 beams 17.5ms 70ms

F3SJ-A1550P20-TS F3SJ-A2060P25-TS 103 beams 17.5ms 70ms

F3SJ-A1565P20-TS F3SJ-A2080P25-TS 104 beams 17.5ms 70ms

F3SJ-A1580P20-TS F3SJ-A2100P25-TS 105 beams 17.5ms 70ms

F3SJ-A1595P20-TS F3SJ-A2120P25-TS 106 beams 17.5ms 70ms

F3SJ-A1610P20-TS F3SJ-A2140P25-TS 107 beams 17.5ms 70ms

F3SJ-A1625P20-TS F3SJ-A2160P25-TS 108 beams 17.5ms 70ms

F3SJ-A1640P20-TS F3SJ-A2180P25-TS 109 beams 17.5ms 70ms

F3SJ-A1655P20-TS F3SJ-A2200P25-TS 110 beams 17.5ms 70ms

F3SJ-A1670P20-TS F3SJ-A2220P25-TS 111 beams 17.5ms 70ms

F3SJ-A1685P20-TS F3SJ-A2240P25-TS 112 beams 17.5ms 70ms

F3SJ-A1700P20-TS F3SJ-A2260P25-TS 113 beams 20.0ms 80ms

F3SJ-A1715P20-TS F3SJ-A2280P25-TS 114 beams 20.0ms 80ms

F3SJ-A1730P20-TS F3SJ-A2300P25-TS 115 beams 20.0ms 80ms

F3SJ-A1745P20-TS F3SJ-A2320P25-TS 116 beams 20.0ms 80ms

F3SJ-A1760P20-TS F3SJ-A2340P25-TS 117 beams 20.0ms 80ms

F3SJ-A1775P20-TS F3SJ-A2360P25-TS 118 beams 20.0ms 80ms

F3SJ-A1790P20-TS F3SJ-A2380P25-TS 119 beams 20.0ms 80ms

F3SJ-A1805P20-TS F3SJ-A2400P25-TS 120 beams 20.0ms 80ms

F3SJ-A1820P20-TS F3SJ-A2420P25-TS 121 beams 20.0ms 80ms

F3SJ-A1835P20-TS F3SJ-A2440P25-TS 122 beams 20.0ms 80ms

F3SJ-A1850P20-TS F3SJ-A2460P25-TS 123 beams 20.0ms 80ms

F3SJ-A1865P20-TS F3SJ-A2480P25-TS 124 beams 20.0ms 80ms

F3SJ-A1880P20-TS F3SJ-A2500P25-TS 125 beams 20.0ms 80ms

F3SJ-A1895P20-TS - 126 beams 20.0ms 80ms

F3SJ-A1910P20-TS - 127 beams 20.0ms 80ms

F3SJ-A1925P20-TS - 128 beams 20.0ms 80ms

F3SJ-A1940P20-TS - 129 beams 20.0ms 80ms

F3SJ-A1955P20-TS - 130 beams 20.0ms 80ms

F3SJ-A1970P20-TS - 131 beams 20.0ms 80ms

F3SJ-A1985P20-TS - 132 beams 20.0ms 80ms

F3SJ-A2000P20-TS - 133 beams 20.0ms 80ms

Response time

(ON to OFF)

Response time

(OFF to ON)

Chapter1 Ratings

F3SJ-A

User’s Manual

Page 32

Overview and Specifications

Courtesy of CMA/Flodyne/Hydradyne ▪ Motion Control ▪ Hydraulic ▪ Pneumatic ▪ Electrical ▪ Mechanical ▪ (800) 426-5480 ▪ www.cmafh.com

Chapter1 Ratings

F3SJ-AP20-TS F3SJ-AP25-TS Number of beams

F3SJ-A2015P20-TS - 134 beams 20.0ms 80ms

F3SJ-A2030P20-TS - 135 beams 20.0ms 80ms

F3SJ-A2045P20-TS - 136 beams 20.0ms 80ms

F3SJ-A2060P20-TS - 137 beams 20.0ms 80ms

F3SJ-A2075P20-TS - 138 beams 20.0ms 80ms

F3SJ-A2090P20-TS - 139 beams 20.0ms 80ms

F3SJ-A2105P20-TS - 140 beams 20.0ms 80ms

F3SJ-A2120P20-TS - 141 beams 20.0ms 80ms

F3SJ-A2135P20-TS - 142 beams 20.0ms 80ms

F3SJ-A2150P20-TS - 143 beams 20.0ms 80ms

F3SJ-A2165P20-TS - 144 beams 20.0ms 80ms

F3SJ-A2180P20-TS - 145 beams 22.5ms 90ms

F3SJ-A2195P20-TS - 146 beams 22.5ms 90ms

F3SJ-A2210P20-TS - 147 beams 22.5ms 90ms

F3SJ-A2225P20-TS - 148 beams 22.5ms 90ms

F3SJ-A2240P20-TS - 149 beams 22.5ms 90ms

F3SJ-A2255P20-TS - 150 beams 22.5ms 90ms

F3SJ-A2270P20-TS - 151 beams 22.5ms 90ms

F3SJ-A2285P20-TS - 152 beams 22.5ms 90ms

F3SJ-A2300P20-TS - 153 beams 22.5ms 90ms

F3SJ-A2315P20-TS - 154 beams 22.5ms 90ms

F3SJ-A2330P20-TS - 155 beams 22.5ms 90ms

F3SJ-A2345P20-TS - 156 beams 22.5ms 90ms

F3SJ-A2360P20-TS - 157 beams 22.5ms 90ms

F3SJ-A2375P20-TS - 158 beams 22.5ms 90ms

F3SJ-A2390P20-TS - 159 beams 22.5ms 90ms

F3SJ-A2405P20-TS - 160 beams 22.5ms 90ms

F3SJ-A2420P20-TS - 161 beams 22.5ms 90ms

F3SJ-A2435P20-TS - 162 beams 22.5ms 90ms

F3SJ-A2450P20-TS - 163 beams 22.5ms 90ms

F3SJ-A2465P20-TS - 164 beams 22.5ms 90ms

F3SJ-A2480P20-TS - 165 beams 22.5ms 90ms

F3SJ-A2495P20-TS - 166 beams 22.5ms 90ms

Response time

(ON to OFF)

Response time

(OFF to ON)

For series connections, use the calculations below.

When 2 sets are series-connected:

•Response time (ON to OFF) :Response time of primary sensor + Response time of secondary sensor 1 -1 (ms)

•Response time (OFF to ON) :Response time (ON to OFF) x 4 (ms)

When 3 sets are series-connected:

•Response time (ON to OFF) :Response time of primary sensor + Response time of secondary sensor 2 + Response time of 3rd unit - 5 (ms)

•Response time (OFF to ON) : Smaller value of response time (ON to OFF) x 5 (ms) or 200ms

Designation of F3SJ in series connection: p.52

F3SJ-A

User’s Manual

Page 33

Overview and Specifications

Courtesy of CMA/Flodyne/Hydradyne ▪ Motion Control ▪ Hydraulic ▪ Pneumatic ▪ Electrical ▪ Mechanical ▪ (800) 426-5480 ▪ www.cmafh.com

 Power Cable Length

Extension of power cable must be the length shown below or shorter:

In case F3SJ is directly connected to external power supply, or connected to G9SA-300-SC

Condition Single 2 connected 3 connected

Incandescent display lamps are used by auxiliary output and/or external indicator output

Incandescent display lamps are not used 100m 60m 45m

When connected to F3SP-B1P

Condition Single 2 connected 3 connected

Incandescent display lamps are - used by external indicator output 2

Incandescent display lamps are

- used by external indicator output 1and/or,

- used by auxiliary output 1

Incandescent display lamps are not used 100m 60m 45m

Extension of the cable must be within a specified length. If it isn't, safety function may not work properly, resulting in danger.

45m 40m 30m

40m 30m 25m

60m 45m 30m

Chapter1 Ratings

F3SJ-A

User’s Manual

Page 34

Chapter1 Ratings

Courtesy of CMA/Flodyne/Hydradyne ▪ Motion Control ▪ Hydraulic ▪ Pneumatic ▪ Electrical ▪ Mechanical ▪ (800) 426-5480 ▪ www.cmafh.com

Overview and Specifications

F3SJ-A

User’s Manual

Page 35

Chapter2 System Configuration and

Courtesy of CMA/Flodyne/Hydradyne ▪ Motion Control ▪ Hydraulic ▪ Pneumatic ▪ Electrical ▪ Mechanical ▪ (800) 426-5480 ▪ www.cmafh.com

Functions

How to Select a System 18

Basic System 19

Muting System 25

Chapter2 System Configuration and Functions

System Selection 18 Function List 18

Wiring Diagrams 19 External Test Function 21 Self-Test Function 21 Auxiliary Output (Non-Safety Output) 23 Resetting Lockout 23 External Device Monitoring Function 24

Upgrading F3SJ for Muting System 26 Standard Muting Mode 27 Wiring Diagrams 29 Installation Standard for Muting Sensors 31 Installation Example 1 of Standard Muting Mode (using 2

muting sensors) 31 Installation Example 2 of Standard Muting Mode (using 4

muting sensors) 35 Override Function 41 External Test Function 43 Self-Test Function 43 Auxiliary Output (Non-Safety Output) 44 Resetting Lockout 44 External Device Monitoring Function (EDM) 44

F3SJ-A

User’s Manual

Page 36

Chapter2 How to Select a System

Courtesy of CMA/Flodyne/Hydradyne ▪ Motion Control ▪ Hydraulic ▪ Pneumatic ▪ Electrical ▪ Mechanical ▪ (800) 426-5480 ▪ www.cmafh.com

System Configuration and Functions

How to Select a System



System Selection

The required system configuration depends on the functions to be used. Decide the system to use based on the following:

When not using the muting function ... Basic system When using the muting function ... Muting system

 Function List

3: Available

–: Unavailable

Function Basic system (Factory settings) Muting system

External test function

Auxiliary output

External indicator output External device monitoring function 3 (p.24) 3 (p.44)

Muting function

Override function

3 (p.21) 3 (p.43) 3 (p.23) 3(p.44) 33

– 3 (p.27) – 3(p.41)

F3SJ-A

User’s Manual

Page 37

System Configuration and Functions

S1 S2 K1, K2 K3

: External test switch (connect to 0V if a switch is not required) : Lockout reset switch (connect to 24V if a switch is not required) : Relay or other device that controls hazardous parts of the machine : Load or PLC, etc. (for monitoring)

*1 Use a switch for micro loads (Input specifications: 24V, 1.8mA) *2 F3SJ can operate even if K3 and K4 are not connected

(White)

0V(Blue)

Shield

Test input(Green)

Reset input(Yellow)

24V(Brown)

External device monitoring input (Red)

Auxiliary output 1(Yellow)

Safety output 1(Green)

Safety output 2(White)

(Red)

Power supply

+24V DC

S1 S2

K3 K1 K2

Open

(Grey) Communication line (+)

(Pink) Communication line (-)

Emitter

Receiver

Courtesy of CMA/Flodyne/Hydradyne ▪ Motion Control ▪ Hydraulic ▪ Pneumatic ▪ Electrical ▪ Mechanical ▪ (800) 426-5480 ▪ www.cmafh.com

Basic System

Basic system indicates the F3SJ with its default factory settings. The basic system provides basic safety light curtain functions. Most functions can be used without performing additional configuration.

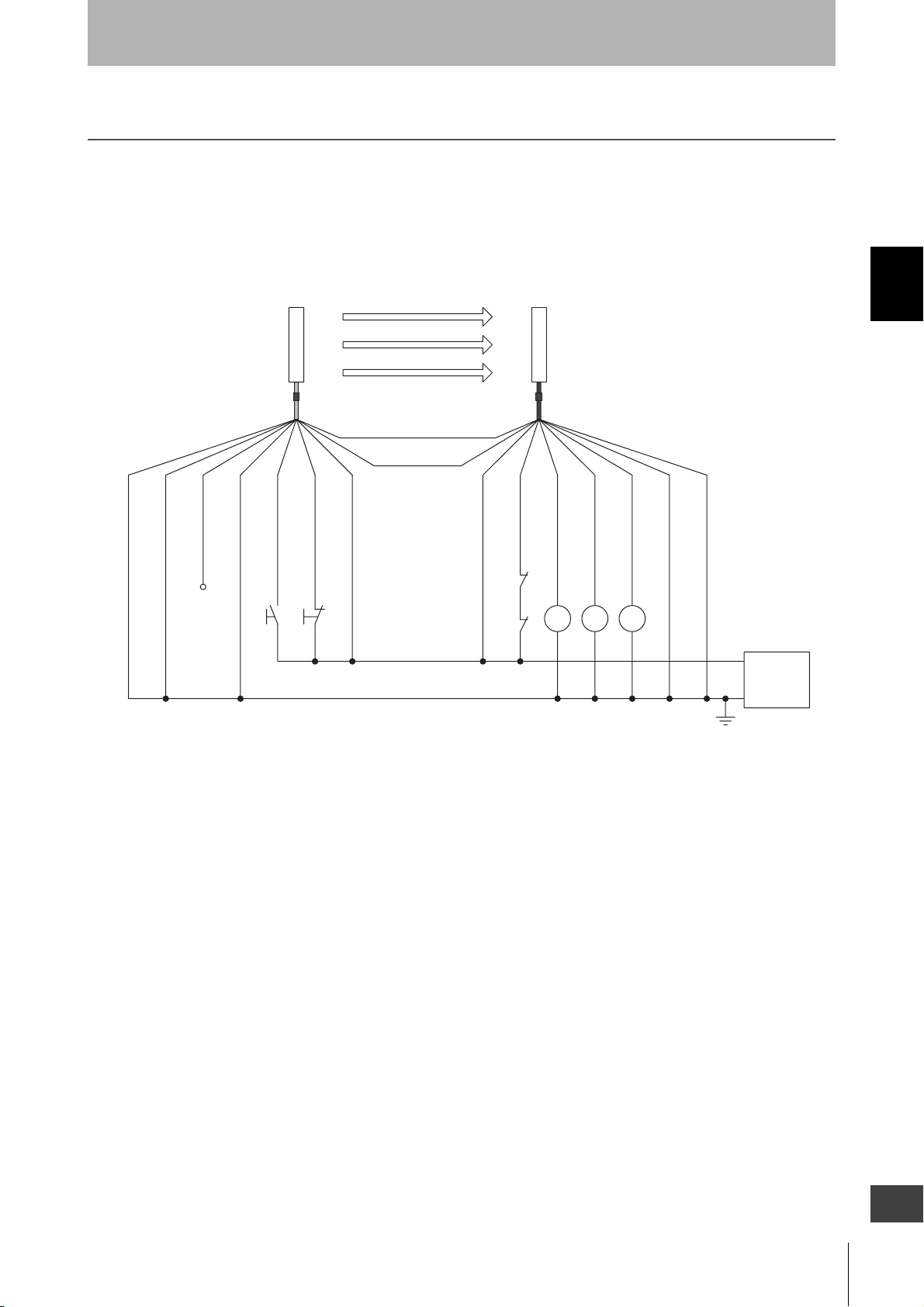

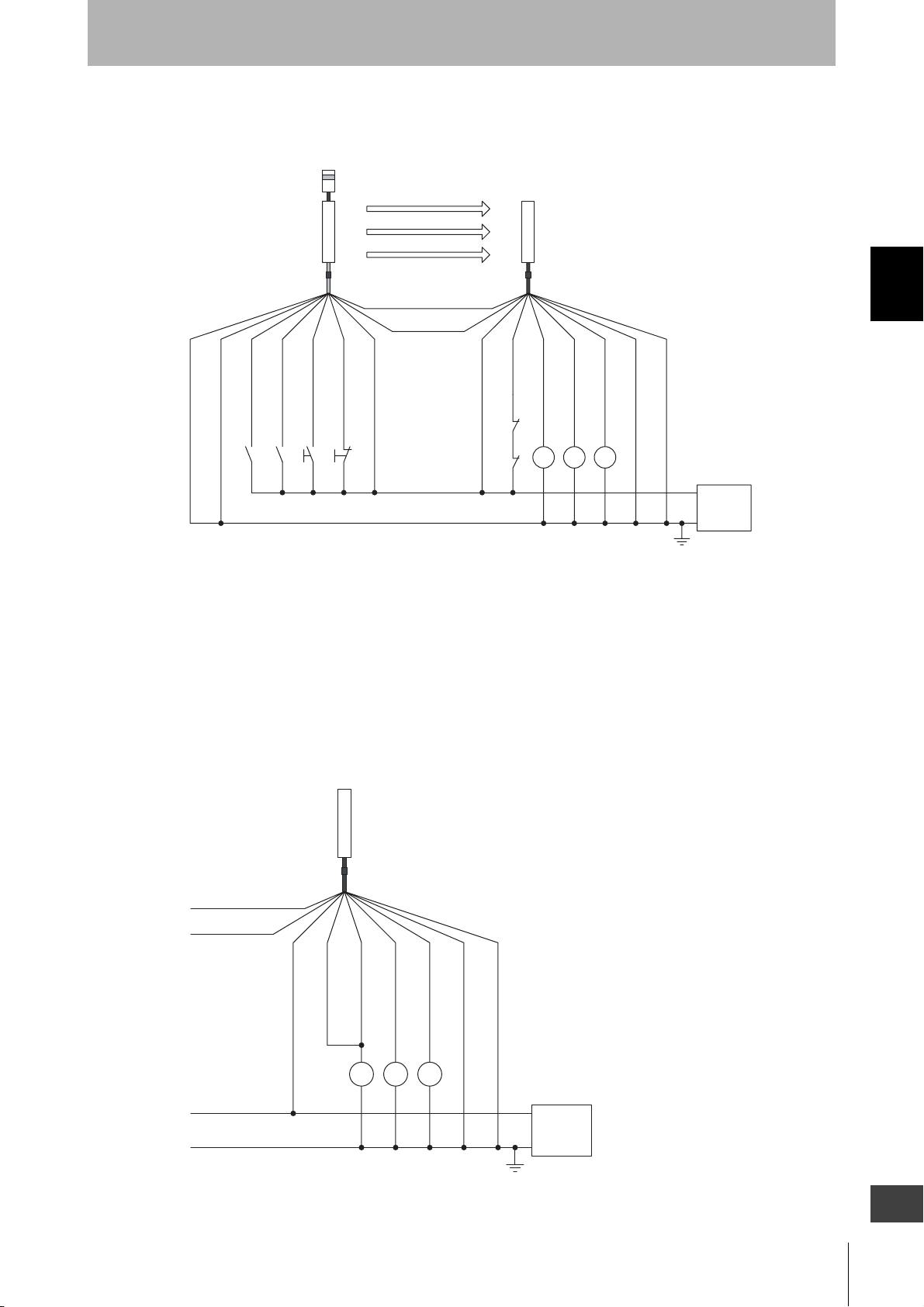

 Wiring Diagrams

 Wiring using external device monitoring function

Chapter2 Basic System

F3SJ-A

User’s Manual

Page 38

Chapter2 Basic System

Power supply

S1 S2

K3 K1 K2

S1 S2 K1, K2 K3

*1 Use a switch for micro loads (Input specifications: 24V, 1.8mA) *2 F3SJ can operate even if K3 is not connected. If K3 is not required, connect auxiliary output 1 to external device monitoring input only.

(White)

0V(Blue)

Shield

Test input(Green)

Reset input(Yellow)

24V(Brown)

External device monitoring input (Red)

Auxiliary output 1(Yellow)

Safety output 1(Green)

Safety output 2(White)

(Red)

+24V DC

Open

(Grey) Communication line (+)

(Pink) Communication line (-)

Emitter

Receiver

Courtesy of CMA/Flodyne/Hydradyne ▪ Motion Control ▪ Hydraulic ▪ Pneumatic ▪ Electrical ▪ Mechanical ▪ (800) 426-5480 ▪ www.cmafh.com

System Configuration and Functions

 Wiring When External Device Monitoring Function Is Not Used

The external device monitoring function is disabled by connecting auxiliary output 1 and external device monitoring input as shown below.

 Ref.: Minimum Wiring Required to Check the Operation of the F3SJ

(Wiring for deactivated external device monitoring function)

Shield

F3SJ-A

User’s Manual

(Red)

0V(Blue)

(White)

Open

Emitter

(Grey) Communication line (+)

24V(Brown)

Test input(Green)

Reset input(Yellow)

Open

(Pink) Communication line (-)

24V(Brown)

External device monitoring input (Red)

Receiver

Auxiliary output 1(Yellow)

Safety output 1(Green)

Open

Shield

0V(Blue)

Safety output 2(White)

Open

+24V DC

Power supply

Page 39

System Configuration and Functions

Courtesy of CMA/Flodyne/Hydradyne ▪ Motion Control ▪ Hydraulic ▪ Pneumatic ▪ Electrical ▪ Mechanical ▪ (800) 426-5480 ▪ www.cmafh.com

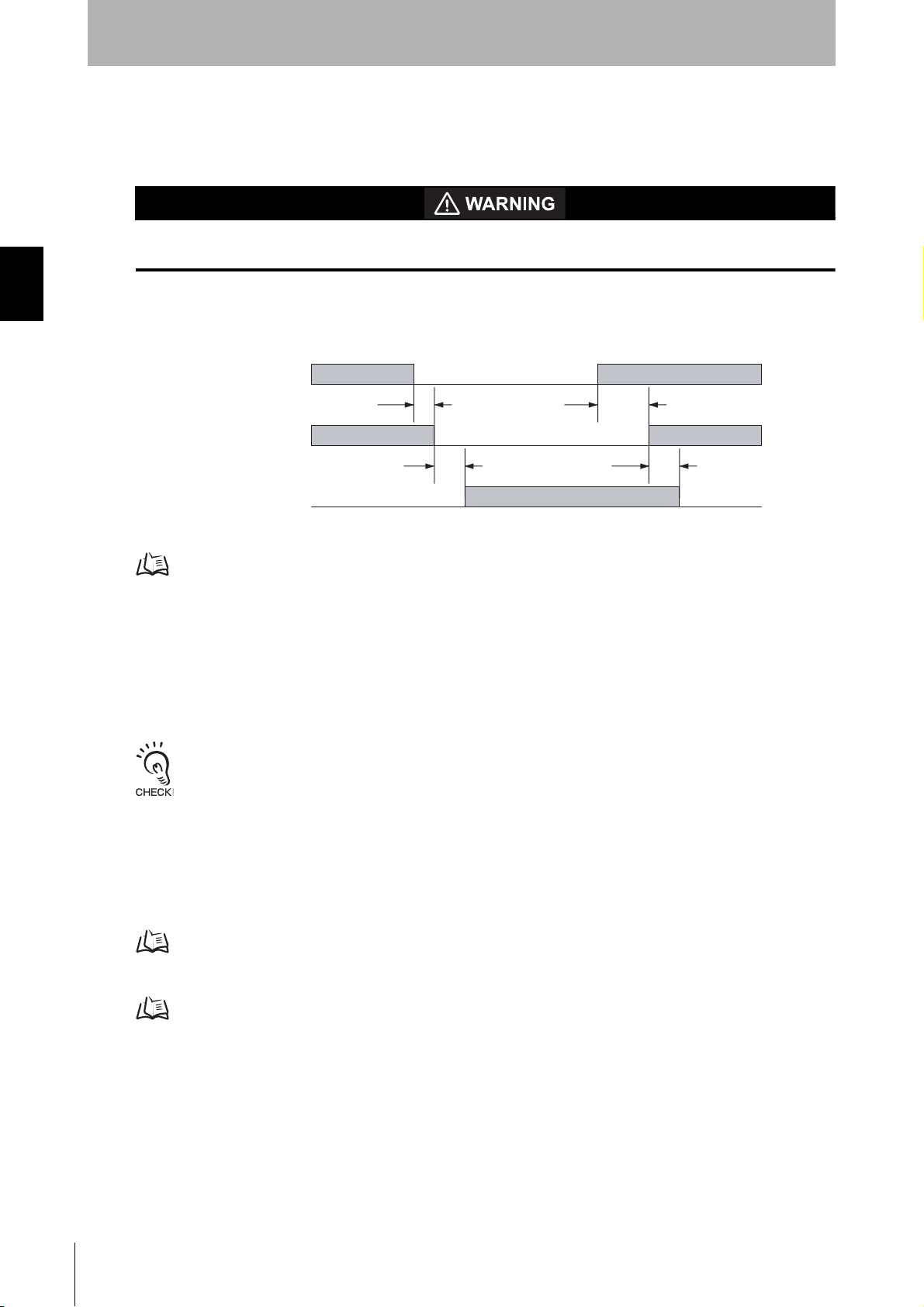

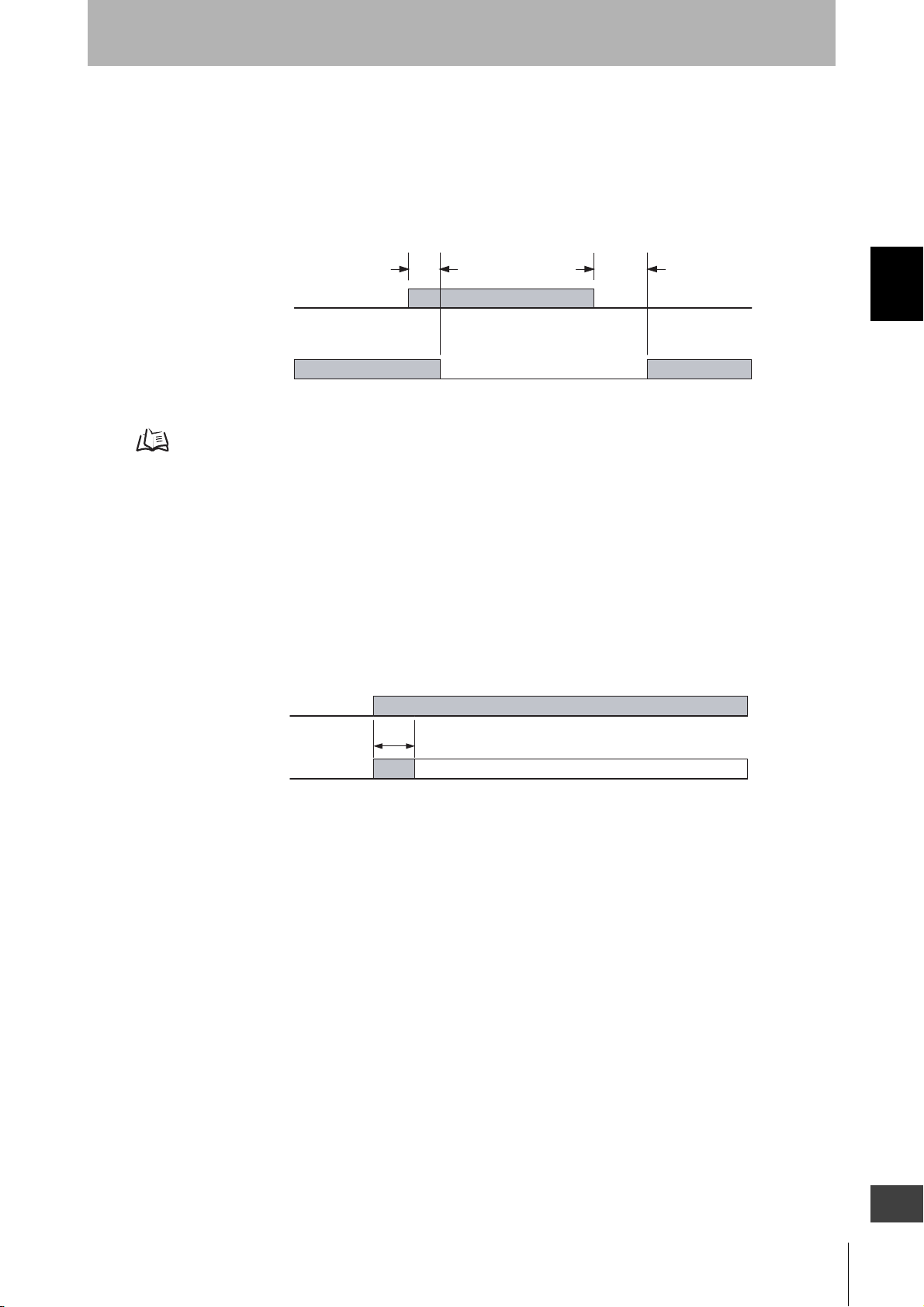

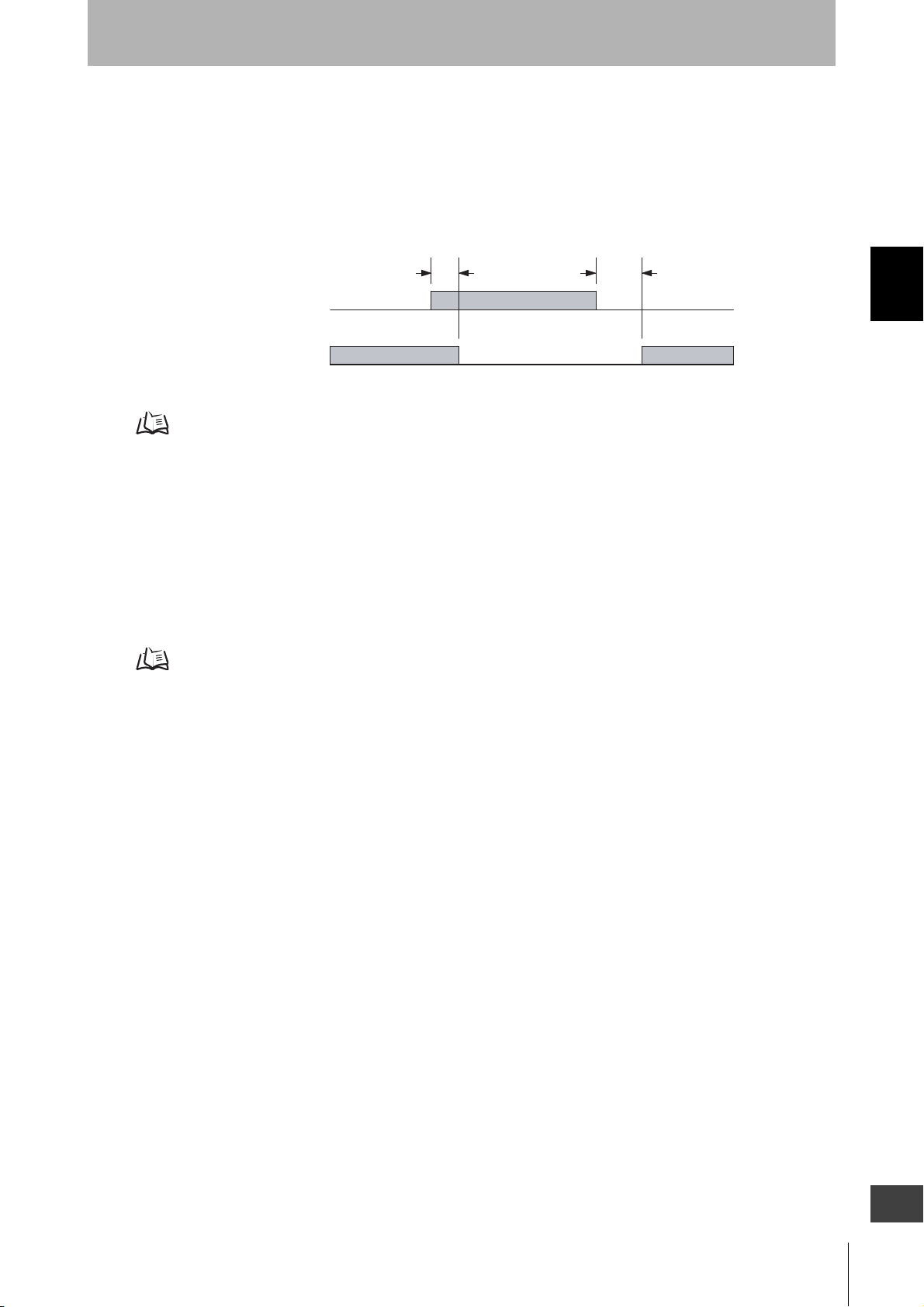

 External Test Function

This function forcibly stops the emission using an external signal. It can be used to verify that a safety system should properly stop when F3SJ is interrupted. To stop the emission, apply 9 to 24V to the emitter's test input line. The voltage must be applied for a period 4 times that of Toff or longer.

Toff x 4 or less

Ton x 2 or less

Chapter2 Basic System

Test input

Safety output

OFF

Ton: Response time of safety output's OFF to ON, Toff: Response time of safety output's ON to OFF

Response time p.11

 Operation of the F3SJ's Indicators When External Test Function is Performed

Test indicator blinks when voltage is applied to the test input.

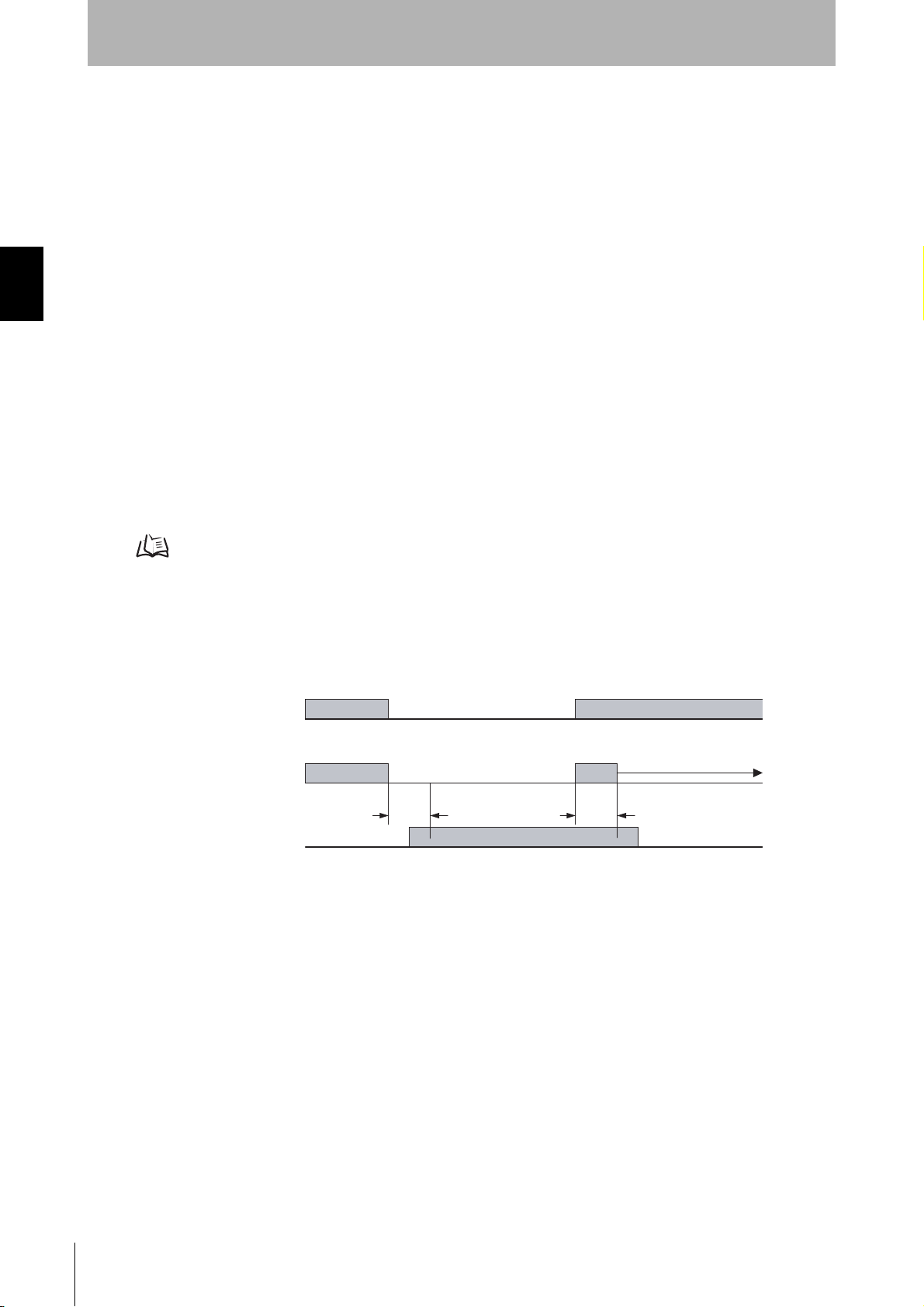

 Self-Test Function

Power supply

Self-test

OFF

Within 2 s (Within 2.2 s)

OFF

Subsequently performs periodic test

If an error is found in the self-test, the F3SJ enters lockout state, keeps the safety outputs in the OFF state, and indicates the error at the same time.

 Self-Test Details

The self-test detects the types of errors described below.

Emitter

•Failure of emitter element or circuit

•CPU failure

•Broken or short-circuited cable

Receiver

•Abnormal external power supply voltage

•Failure of internal power supply circuit

•Failure of receiver element or detection circuit

•CPU failure

•Memory failure

•Incidence of disturbance light

F3SJ-A

User’s Manual

Page 40

Chapter2 Basic System

Safety output 1,2

OFF signal

OFF

About 65 s

About 140 s

About 15ms

Courtesy of CMA/Flodyne/Hydradyne ▪ Motion Control ▪ Hydraulic ▪ Pneumatic ▪ Electrical ▪ Mechanical ▪ (800) 426-5480 ▪ www.cmafh.com

System Configuration and Functions

•Failure of safety output circuit

•Broken or short-circuited cable

Error indication patterns and causes of errors p.112

How to reset lockout: See p.23 for basic system and p.44 for muting system

For information about lockout, see p.125

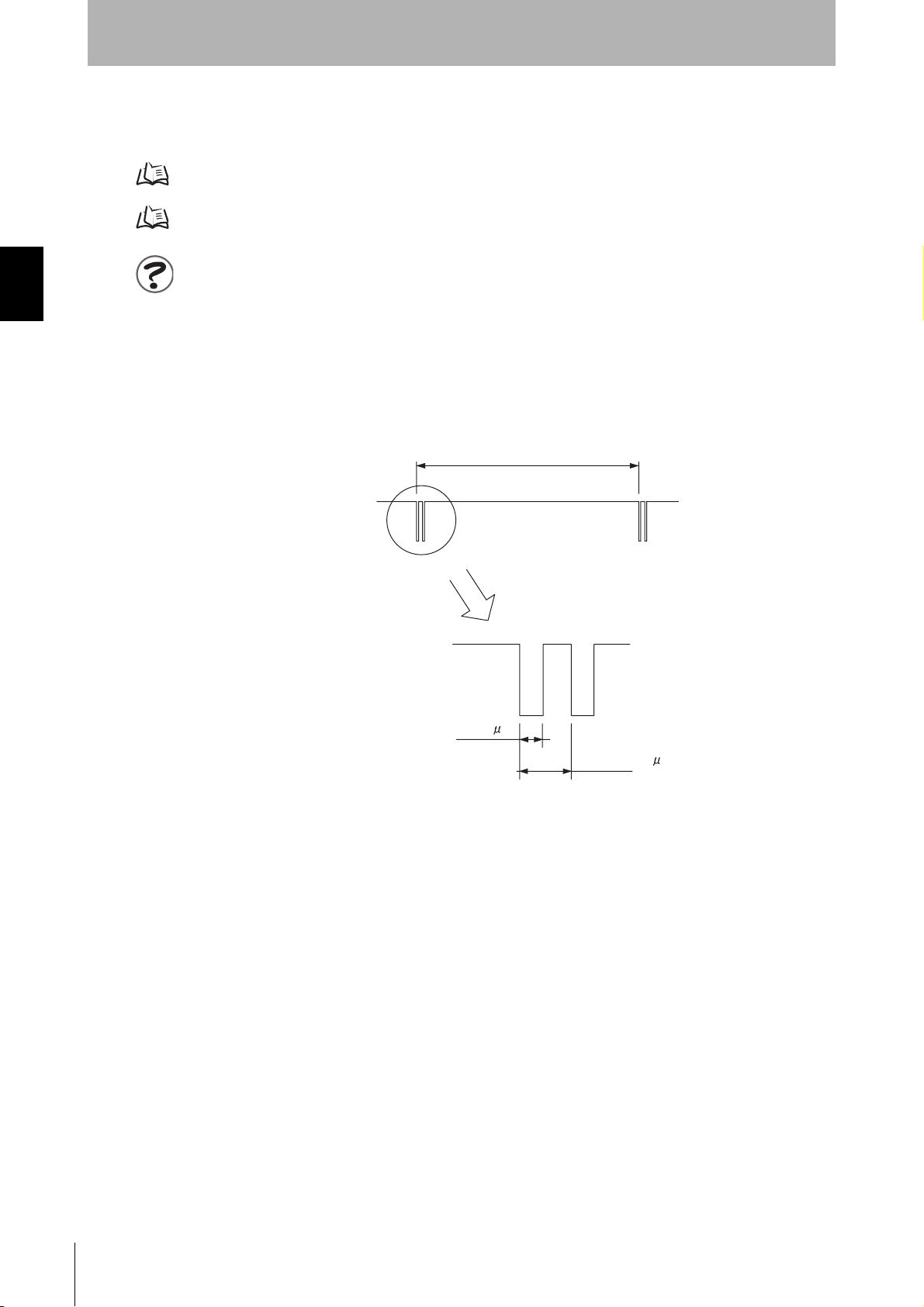

 Waveform of Safety Outputs

When the F3SJ is receiving light, the safety outputs cyclically turn OFF as shown below to test the output circuit. When this OFF signal is fed back, the output circuit is diagnosed as normal. If the output signal does not include an OFF pulse signal, the receiver diagnoses a failure in the output circuit or wiring, and it enters lockout state. (See the table below.)

F3SJ-A

User’s Manual

Page 41

System Configuration and Functions

Courtesy of CMA/Flodyne/Hydradyne ▪ Motion Control ▪ Hydraulic ▪ Pneumatic ▪ Electrical ▪ Mechanical ▪ (800) 426-5480 ▪ www.cmafh.com

 Auxiliary Output (Non-Safety Output)

The auxiliary output is used to monitor the status of the F3SJ. This output can be connected to a device such as a relay, indication lamp, programmable controller, etc.

Do not use the auxiliary output or external indicator output for safety applications. Human body may not be detected when F3SJ fails, resulting in serious injury.

The output operation mode for auxiliary output is as follows:

•Auxiliary output 1: Inverse of safety output signals

Auxiliary output 1 is load current 300mA max.

Unblocked

/Blocked

Safety output

uxiliary output 1

Unblocked

Blocked

OFF

x2 or less

To ff

To n

To ff x2 or less

Ton: Response time of safety output's OFF to ON, Toff: Response time of safety output's ON to OFF

See p.11 for response time

Chapter2 Basic System

 Resetting Lockout

When the cause of the lockout is removed, the lockout condition can be released by using either of the following methods.

•Cycle the power back ON

•Reset input

Set the reset line open or to 0 to 1.5V for 100ms or longer, and then apply 9 to 24V again (pin 4/ yellow).

Lockout due to an emitter A blinking error and an emitter/receiver ABC blinking error may not be released by a reset input.

F3SJ-A

User’s Manual

Page 42

Chapter2 Basic System

Courtesy of CMA/Flodyne/Hydradyne ▪ Motion Control ▪ Hydraulic ▪ Pneumatic ▪ Electrical ▪ Mechanical ▪ (800) 426-5480 ▪ www.cmafh.com

System Configuration and Functions

 External Device Monitoring Function

This function detects malfunctions, such as welding, in external relays (or contactors) that control the hazardous zone of a machine. This function constantly monitors that a specified voltage is applied to the receiver's external device monitoring input line, and enters lockout state when an error occurs. The relay's operational delay can be up to 0.3s without being evaluated as an error. For example, if the (N.C.) contact is not closed and a specified voltage is not applied to the external device monitoring line within 0.3s after the safety outputs turn from ON to OFF, it is evaluated as an error and enters a lockout state. To utilize this function properly, use safety relays and contactors that have forcibly guided or mechanically linked contact structure.

 Wiring

Perform wiring so that 9 to 24V is applied to the external device monitoring line via the external relay's normally closed (N.C.) contact. When external device monitoring function is not being used, apply auxiliary output 1 to the external device monitoring input.

- Wiring when external device monitoring function is used p.19

- Wiring when external device monitoring function is not used p.20

 Timing Chart

The F3SJ reads out a device monitoring input value 0.5s or later after the power of the F3SJ is turned ON. If the status of the safety outputs is changed back to the original status within the allowable delay time, the F3SJ will not enter the lockout state.

Unblocked /Blocked

Safety output

External device monitoring input

Unblocked Blocked

OFF

Lockout

T1=0.3s T1=0.3s

T1: Allowable delay time

 Operation of the F3SJ's Internal Indicators When External Device Monitoring

Function is Performed

When an input is applied to the external device monitoring input, the external device monitoring indicator turns ON.

F3SJ-A

User’s Manual

Page 43

System Configuration and Functions

Courtesy of CMA/Flodyne/Hydradyne ▪ Motion Control ▪ Hydraulic ▪ Pneumatic ▪ Electrical ▪ Mechanical ▪ (800) 426-5480 ▪ www.cmafh.com

Muting System

The muting function temporarily disables the safety function of the F3SJ, keeping the safety outputs ON even if beams are blocked. This makes it possible to install safety light curtains for AGV passage, enabling both safety and productivity. When muting, the muting indicator blinks to notify people in the surrounding zone that the safety functions are disabled.

Chapter2 Muting System

The muting and override functions disable the safety functions of the device. You must ensure safety using other method when these functions are operating.

Muting sensors must be installed so that they can distinguish between the object that is being allowed to pass through the detection zone and a person. If the muting function is activated by detection of a person, it may result in serious injury.

Muting lamps (external indicators) that indicate the state of the muting and override functions must be installed where they are clearly visible to workers from all the operating positions.

F3SJ-A

User’s Manual

Page 44

Chapter2 Muting System

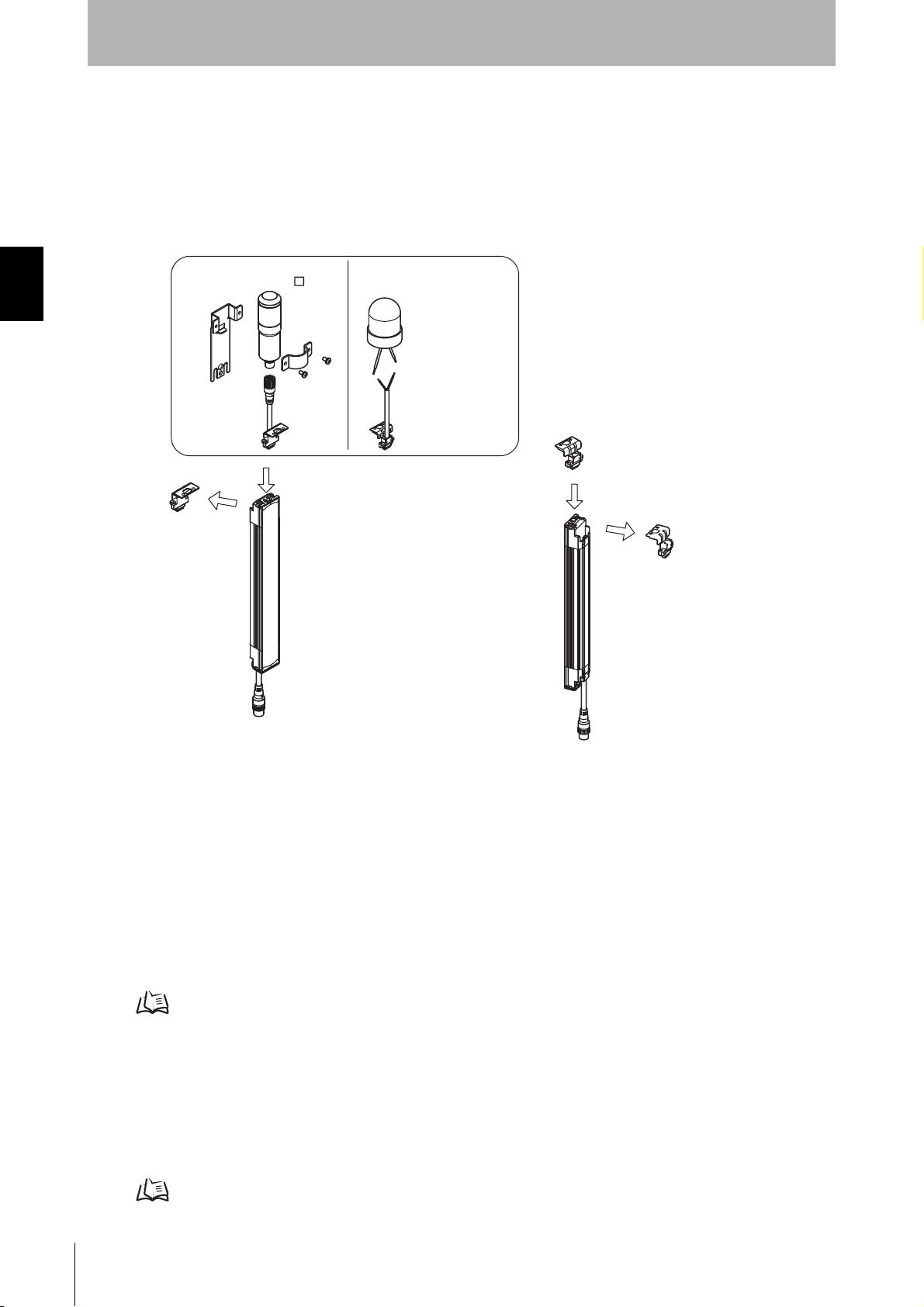

Key cap for muting Model F39-CN6 (Case color : Orange)

External indicator set Model F39-A01P -PAC

Model F39-JJ3N

1.1.

2.2.

3.3.

Commercially available indicator

Universal indicator cable

Muting lamp (external indicator)

Cap (Case color : Black)

Brown: +, Blue: -

Courtesy of CMA/Flodyne/Hydradyne ▪ Motion Control ▪ Hydraulic ▪ Pneumatic ▪ Electrical ▪ Mechanical ▪ (800) 426-5480 ▪ www.cmafh.com

System Configuration and Functions

 Upgrading F3SJ for Muting System

1. Remove the caps of the emitter and receiver.(driver comes with key cap for muting)

2. Install a muting lamp (external indicator) on either the emitter or the receiver.

3. Attach the key cap for muting to the emitter/receiver on which the muting lamp (external indicator) was

not installed.

 Muting Sensor

The muting sensor is the sensor that is the trigger for temporarily disabling the F3SJ's safety functions. Through-beam or retro-reflective photoelectric sensors, proximity sensors, or limit switches can be used as muting sensors. (recommendation: OMRON E3Z series, E2E series, D4N series)Use those with PNP outputs or N.O. type contacts.

 Muting Lamp (External Indicator)

Because it notifies workers that the muting function is operational, the muting lamp (external indicator) must be installed. Use the F39-A01P-PAC or an F39-JJ3N universal indicator cable and a commercially available external indicator.

Recommended External Indicators p.56

 F3SJ's Indicators

•Muting input 1 indicator turns ON when an input is applied to muting input 1.

•Muting input 2 indicator turns ON when an input is applied to muting input 2.

•Muting input 1 and 2 indicators blink while muting overriding.

•Receiver's muting error indicator turns ON when a muting error occurs.

Wiring Diagrams p.29

F3SJ-A

User’s Manual

Page 45

System Configuration and Functions

Courtesy of CMA/Flodyne/Hydradyne ▪ Motion Control ▪ Hydraulic ▪ Pneumatic ▪ Electrical ▪ Mechanical ▪ (800) 426-5480 ▪ www.cmafh.com

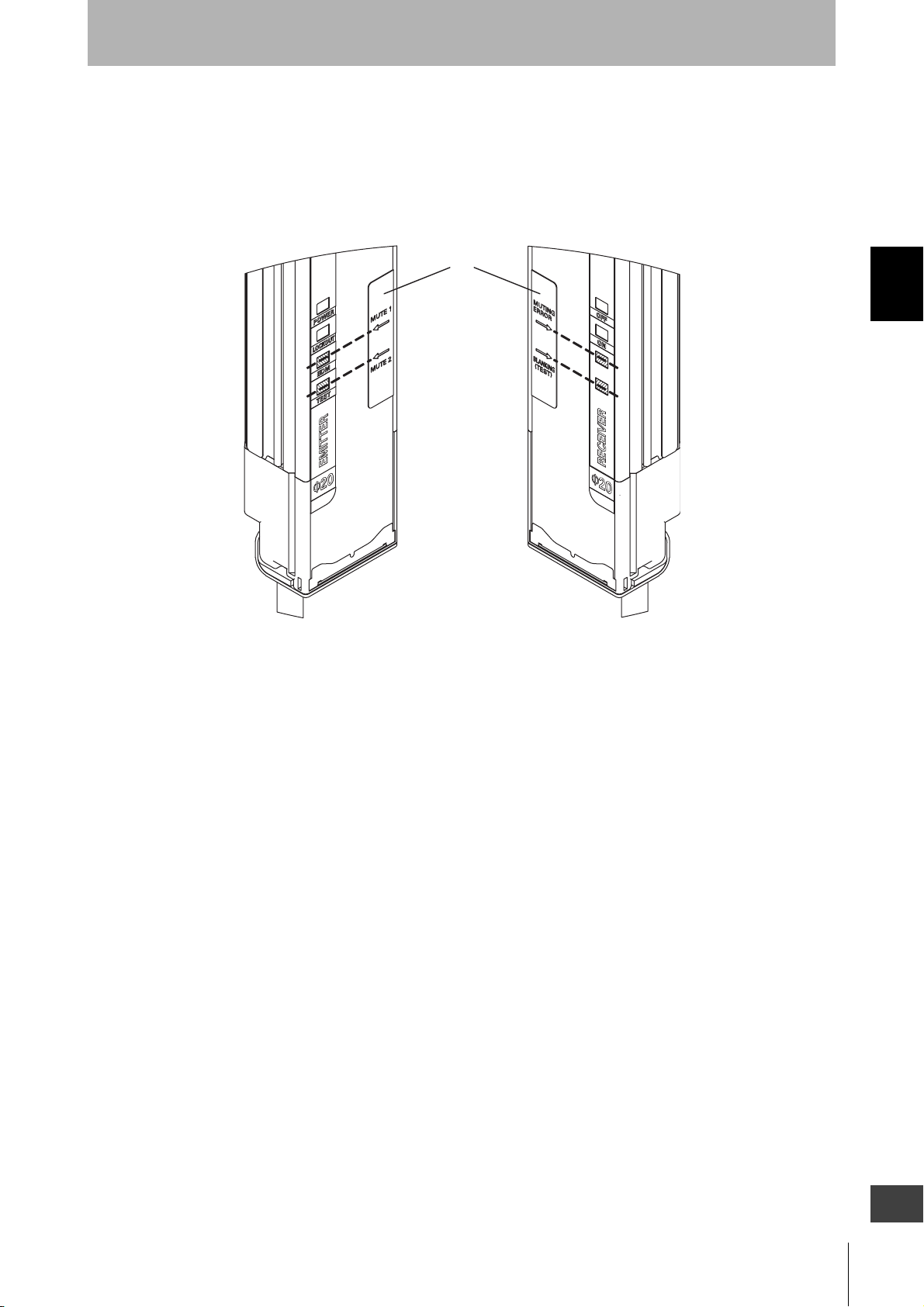

• Where to attach the included labels

F39-CN6 key cap for muting includes internal indicator label (1). When muting system is used, affix the label (1) in a location so that the arrows are aligned with the portion of the internal indicator display indicated by the shaded zones.

Emitter

(1)

Receiver

Chapter2 Muting System

 Standard Muting Mode

Turning muting inputs 1 and 2 ON with time difference enables muting function.

 Start Conditions

If both of the following 2 conditions are present for the F3SJ, muting is activated.

1. No interrupting object is found in the F3SJ's detection zone, and safety outputs are ON.

2. After muting input 1 is turned ON (connected to 9 to 24V), muting input 2 is turned ON (connected to

9 to 24V) within the muting input time limit of T1min to T1max (0.03 to 3s).

Muting function can be enabled in up to 0.15s satisfied but the time requirement of condition 2 is not, a muting error occurs, and the receiver's muting error indicator turns ON. However, when there is a muting error, the F3SJ safety function operates and normal operation continues. Muting error can be released by any of following conditions:

•When muting is started by the proper muting sequence (start conditions 1 and 2 are performed in order).

•Power cycle under muting input 1 and 2 OFF state.

after the condition 2 is satisfied. If condition 1 is

F3SJ-A

User’s Manual

Page 46

Chapter2 Muting System

Courtesy of CMA/Flodyne/Hydradyne ▪ Motion Control ▪ Hydraulic ▪ Pneumatic ▪ Electrical ▪ Mechanical ▪ (800) 426-5480 ▪ www.cmafh.com

System Configuration and Functions

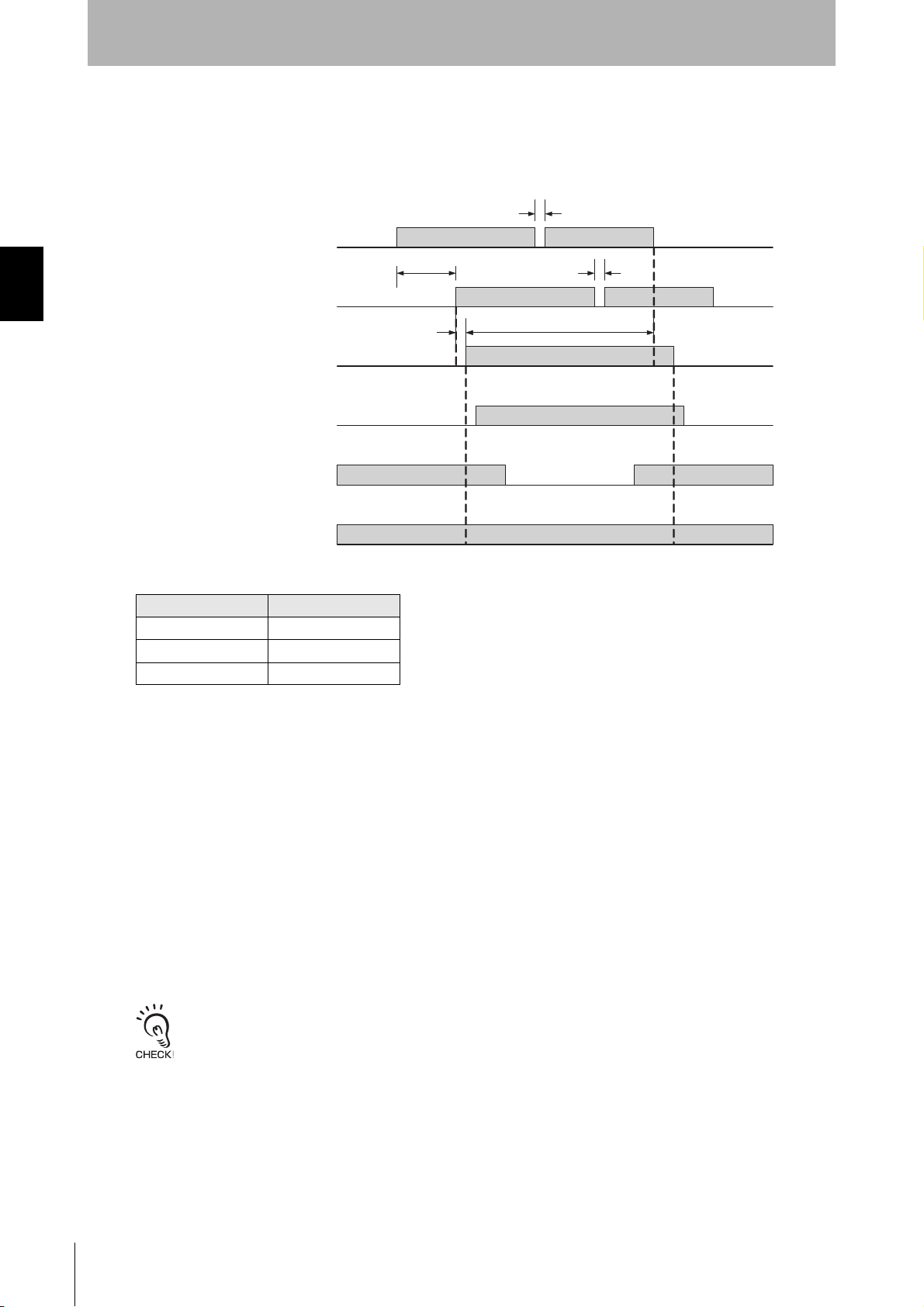

 End Conditions

If either of the following conditions are satisfied, the muting state is released.

•Muting input 1 or 2 turns OFF at T3 or later (0.1s or later).

•The muting continuation time exceeds the muting time limit of T2 (60s).

T3(0.1s) max.

Muting input 1

Muting input 2

Muting state

OFF

Enabled

Disabled

T1min to T1max

0.15s max. *1

T3(0.1s) max.

T2 max.

Muting lamp

(external indicator)

F3SJ Unblocked

/Blocked

Safety output

Blinking

OFF

Unblocked Blocked

OFF

*1 The value is applied to a single sensor. Values for connected sensors are:

# of connections *1 Value (s)

Single 0.15

2 connected 0.26

3 connected 0.29

• T1min: Muting input time limit (minimum value)

This is set to 0.03 sec., the minimum value for the input time difference between muting input 1 and 2. A muting error occurs when the input time difference between muting input 1 and 2 is less than this value.

•T1max: Muting input time limit (maximum value)

This is set to 3 sec., the maximum value for the input time difference between muting input 1 and 2.

•T2: Muting time limit

This is set to 60 sec., the muting function continuation time. When this muting state exceeds this time, muting is released.

•T3: Muting input time with allowable waveform cracks

This is the maximum value for the waveform cracks allowed for muting input 1 and 2 when muting is in effect. It is set to 0.1 sec.

Muting state can be released if a sensor transitions to lockout as well.

F3SJ-A

User’s Manual

Page 47

System Configuration and Functions

S1 : External test switch

(connect to 0V if a switch is not required)

S2 : Lockout reset switch(connect to 24V if a switch is not required) A1 : Contact by muting sensor A1 B1 : Contact by muting sensor B1 K1,K2 : Relay or other device that controls hazardous parts of the machine

M1 : Muting lamp

Muting input 1 (White)

Muting input 2 (Red)

Load or PLC, etc. (for monitoring)

*1 Use a switch for small loads (input specifications: 24V, 1.8mA) *2 F3SJ operates even when K3 is not connected. *3 Connect a muting lamp to external indicator output of an emitter or a receiver.

(Grey) Communication line (+)

(Pink) Communication line (-)

0V(Blue)

Power supply

Shield

Test input(Green)

Reset input(Yellow)

24V(Brown)

External device monitoring input (Red)

Auxiliary output 1(Yellow)

Safety output 1(Green)

Safety output 2(White)

-

-

5



5

#$

/ 



- --

8&%

8



Receiver

Emitter

Courtesy of CMA/Flodyne/Hydradyne ▪ Motion Control ▪ Hydraulic ▪ Pneumatic ▪ Electrical ▪ Mechanical ▪ (800) 426-5480 ▪ www.cmafh.com

 Wiring Diagrams

 Wiring When Using Muting and External Device Monitoring Function

Chapter2 Muting System

 Wiring When External Device Monitoring Function Is Not Required

The external device monitoring function is disabled by connecting auxiliary output 1 and external device monitoring input as shown below.

(Grey) Communication line (+)

(Pink) Communication line (-)

24V(Brown)

Receiver

Auxiliary output 1(Yellow)

External device

monitoring input (Red)

Safety output 1(Green)

K1, K2K3: Relay or other device that controls

Shield

0V(Blue)

*1 F3SJ can operate even if K3 is not connected. If K3 is not required, connect auxiliary output 1 to external device monitoring input only.

Safety output 2(White)

hazardous parts of the machine : Load or PLC, etc. (for monitoring)

+24V D C

Power supply

F3SJ-A

User’s Manual

Page 48

Chapter2 Muting System

Open

A1B1

*1*1

M1 * 1 *2

+24 V D C

A1 : Contact by muting sensor A1 B1 : Contact by muting sensor B1 M1 : Muting lamp

Muting input 1 (White)

Muting input 2 (Red)

When the muting function's operation check is not performed, it can work if this is open.

*2 Connect either the emitter or receiver to the muting lamp.

Emitter

Receiver

(Grey) Communication line (+)

(Pink) Communication line (-)

0V(Blue)

Power supply

Shield

Test input(Green)

Reset input(Yellow)

24V(Brown)

External device

monitoring input (Red)

Auxiliary output 1(Yellow)

Safety output 1(Green)

Safety output 2(White)

Courtesy of CMA/Flodyne/Hydradyne ▪ Motion Control ▪ Hydraulic ▪ Pneumatic ▪ Electrical ▪ Mechanical ▪ (800) 426-5480 ▪ www.cmafh.com

System Configuration and Functions

 Ref.: Minimum Wiring Required to Check the Operation of the F3SJ When Using the

Muting Function

(Wiring that does not use the external device monitoring function)

F3SJ-A

User’s Manual

Page 49

System Configuration and Functions

F3SJ

d1=D1

Workpiece

Hazardous zone

Reflector

The crossover point of muting sensors A1 and B1 must be located within the hazardous zone

L: Length of workpiece d1: Maximum distance required for the muting sensor to keep the muting function enabled D1: Minimum distance required for the muting sensor to keep the muting function enabled

Courtesy of CMA/Flodyne/Hydradyne ▪ Motion Control ▪ Hydraulic ▪ Pneumatic ▪ Electrical ▪ Mechanical ▪ (800) 426-5480 ▪ www.cmafh.com

 Installation Standard for Muting Sensors

•Set the muting sensors so that they can detect all of the passing detection objects (palettes, automobiles, etc.). Do not install in a position so that only the front or rear end of the detection object is detected.

•Set the muting sensors so that they detect the objects even when they are loaded on palettes or other transport devices.

•Also, install the F3SJ and muting sensors so that each object passes through all muting sensors before the next object arrives at the first muting sensor. Also, install all F3SJ and muting sensors so that no person is able to accidentally enter the hazardous zone while the muting function is enabled.

 Installation Example 1 of Standard Muting Mode (using 2

muting sensors)

This is an example of 2 retro-reflective type photoelectric sensors used as muting sensors installed in a cross pattern. Use 2 sensors when the length L of the workpieces are not constant or are insufficient.

Chapter2 Muting System

1. Before a workpiece passes through

The output state of muting sensors A1 and B1 are both OFF (contacts A1 and B1 are open due to muting output), and the safety function of the F3SJ is working. In this example where 2 muting sensors are used, the crossover point of muting sensors A1 and B1 must be located in the hazardous zone. This configuration prevents the muting function from being enabled by a person passing through the crossover point.

F3SJ-A

User’s Manual

Page 50

System Configuration and Functions

F3SJ

Workpiece

Reflector

Hazardous zone

Courtesy of CMA/Flodyne/Hydradyne ▪ Motion Control ▪ Hydraulic ▪ Pneumatic ▪ Electrical ▪ Mechanical ▪ (800) 426-5480 ▪ www.cmafh.com

2. The muting sensor outputs are turned ON (muting inputs are HIGH) and the safety function of the F3SJ

is disabled.

Hazardous zone

Chapter2 Muting System

Workpiece

F3SJ

Reflector

When muting sensors A1 and B1 are turned ON in this order, the muting function is enabled. In this state, the safety function of the F3SJ is disabled.

3. The muting sensor outputs are turned ON (muting inputs are HIGH) and the safety function of the F3SJ

is disabled.

The F3SJ is blocked but the safety function is disabled by the muting function, and safety outputs 1 and 2 are turned ON.

F3SJ-A

User’s Manual

Page 51

4. The muting function is released

Courtesy of CMA/Flodyne/Hydradyne ▪ Motion Control ▪ Hydraulic ▪ Pneumatic ▪ Electrical ▪ Mechanical ▪ (800) 426-5480 ▪ www.cmafh.com

System Configuration and Functions

Hazardous zone

F3SJ

Reflector

Workpiece

Reflector

Muting sensor A1 is turned OFF, the muting function is released, and the safety function of the F3SJ is enabled.

 Installation Distance

The minimum distance, D1 [ m ], required for muting sensors to keep the muting function enabled is

< L . . . . . Formula (1)

L [ m ] : Length of a workpiece

The maximum distance, d1 [ m ], required for muting sensors to keep the muting function enabled is

V x T1min V [ m/s ] : Approach speed of a workpiece T1min [ s ] : Muting input time limit value (minimum). 0.03s. T1max [ s ] : Muting input time limit value (maximum). 3s.

< d1 < V x T1max . . . . . Formula (2)

Chapter2 Muting System

To enable the muting function, D1 and d1 must satisfy formulas (1) and (2), respectively. This distance must prevent the muting function from being enabled by a person passing through the muting sensors. Also, install the F3SJ and muting sensors so that a workpiece passes through all muting sensors before the next workpiece arrives at the muting sensors.

F3SJ-A

User’s Manual

Page 52

System Configuration and Functions

Muting sensor A1

OFF

Muting sensor B1

OFF

Safety output

OFF

Blinking

OFF

Enabled

Disabled

Muting lamp

(external indicator)

F3SJ Unblocked

/Blocked

Unblocked Blocked

T3(0.1s) max.

0.15s max. *1

T2 max.

Muting state

T1min to T1max

Courtesy of CMA/Flodyne/Hydradyne ▪ Motion Control ▪ Hydraulic ▪ Pneumatic ▪ Electrical ▪ Mechanical ▪ (800) 426-5480 ▪ www.cmafh.com

 Wiring Diagrams

Using a photoelectric switch as a muting sensor Using an N.O contact type switch as a muting sensor

Chapter2 Muting System

(White)

Muting Input 2(Red)

Muting Input 1

 Timing Chart

F3SJ

Reflector

A1, B1: Regressive reflection photoelectric switch

- PNP Output

- ON when Interrupted

Reflector

(White)

Muting Input 2(Red)

Muting Input 1

B1A1

A1, B1: N.O contact type switch

+24V DC

Power supply

*1 The value is applied to a single sensor. Values for connected sensors are:

Single 0.15

2 connected 0.26

3 connected 0.29

•T1min: Muting input time limit (minimum value)

•T1max: Muting input time limit (maximum value)

This is set to 3 sec., the maximum value for the input time difference between muting input 1 and 2.

•T2: Muting time limit

This is set to 60 sec., the muting function continuation time. When this muting state exceeds this time, muting is released.

F3SJ-A

User’s Manual

# of connections *1 Value (s)

Page 53

System Configuration and Functions

F3SJA2B2

Workpiece

Hazardous zone

d2: Maximum distance required for the muting sensor to keep the muting function enabled D2, D3: Minimum distances required for the muting sensor to keep the muting function enabled

Courtesy of CMA/Flodyne/Hydradyne ▪ Motion Control ▪ Hydraulic ▪ Pneumatic ▪ Electrical ▪ Mechanical ▪ (800) 426-5480 ▪ www.cmafh.com

•T3: Muting input time with allowable waveform cracks

This is the maximum value for the waveform cracks allowed for muting input 1 and 2 when muting is in effect. It is set to 0.1 sec.

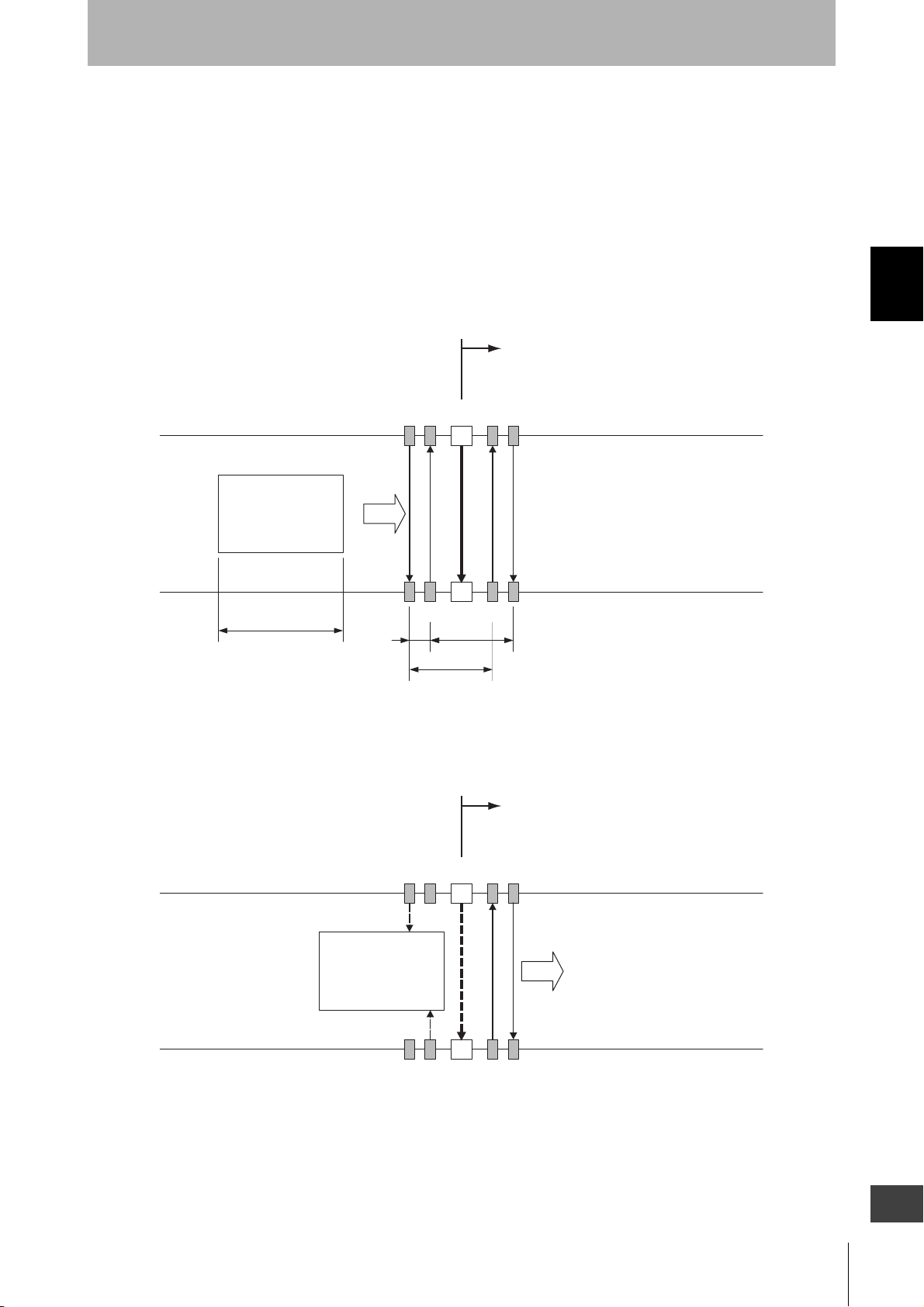

 Installation Example 2 of Standard Muting Mode (using 4

muting sensors)

This installation example uses 4 through-beam type photoelectric sensors as muting sensors. The use of 4 muting sensors is useful when the length of the workpieces (L) is constant or longer.

1. Before a workpiece passes through

Chapter2 Muting System

All muting sensors are turned OFF and the safety function of the F3SJ is working.

2. The muting sensors are blocked and the safety function of the F3SJ is disabled

Hazardous zone

A1 F3SJ B2

Workpiece

When muting sensors A1 and B1 are turned ON in this order, the muting function is enabled. In this state, the safety function of F3SJ is disabled.

B1 A2

F3SJ-A

User’s Manual

Page 54

Chapter2 Muting System

F3SJA2B2

Workpiece

Hazardous zone

Courtesy of CMA/Flodyne/Hydradyne ▪ Motion Control ▪ Hydraulic ▪ Pneumatic ▪ Electrical ▪ Mechanical ▪ (800) 426-5480 ▪ www.cmafh.com

System Configuration and Functions

3. The muting sensors are blocked and the safety function of the F3SJ is disabled

Hazardous zone

A1 F3SJ B2

Workpiece

B1 A2

Muting sensors A1 and B1 are turned OFF but A2 and B2 are ON, so the muting function is still working. Safety outputs 1 and 2 are turned ON.

4. The muting function is released

Muting sensor A2 is turned OFF and the muting function is released, and the safety function of the F3SJ is working.

 Installation Distance

The minimum distances, D2 [ m ] and D3 [ m ], required for the muting sensors to keep the muting function enabled are

< L . . . . . Formula (3)

< L . . . . . Formula (4)

L [ m ] : Length of a workpiece

The maximum distance, d2 [ m ], required for muting sensors to keep the muting function enabled is

V x T1min V [ m/s ] : Approach speed of a workpiece T1min [ s ] : Muting input time limit value (minimum). 0.03s. T1max [ s ] : Muting input time limit value (maximum). 3s.

To enable the muting function, D2, D3, and d2 must satisfy formulas (3), (4), and (5), respectively.

F3SJ-A

User’s Manual

< d2 < V x T1max . . . . . Formula (5)

Page 55

System Configuration and Functions

+24V DC

A2A1 B2B1

A1 B2

F3SJ

Muting Input 1

(White)

Muting Input 1

(White)

Muting Input 2(Red)

Power supply

Using a photoelectric switch as a muting sensor Using an N.O contact type switch as a muting sensor

A1, B1, A2, B2 : Regressive reflection photoelectric switch

- PNP Output

- ON when Interrupted

A1, A2, B1, B2: N.O contact type switch

Courtesy of CMA/Flodyne/Hydradyne ▪ Motion Control ▪ Hydraulic ▪ Pneumatic ▪ Electrical ▪ Mechanical ▪ (800) 426-5480 ▪ www.cmafh.com

This distance must prevent the muting function from being enabled by a person passing through the muting sensors. Also, install the F3SJ and muting sensors so that a workpiece passes through all muting sensors before the next workpiece arrives at the first muting sensor.

Workpiece Workpiece Workpiece Workpiece

Moving direction Moving direction

 Wiring Diagrams

Chapter2 Muting System

F3SJ-A

User’s Manual

Page 56

System Configuration and Functions

Courtesy of CMA/Flodyne/Hydradyne ▪ Motion Control ▪ Hydraulic ▪ Pneumatic ▪ Electrical ▪ Mechanical ▪ (800) 426-5480 ▪ www.cmafh.com

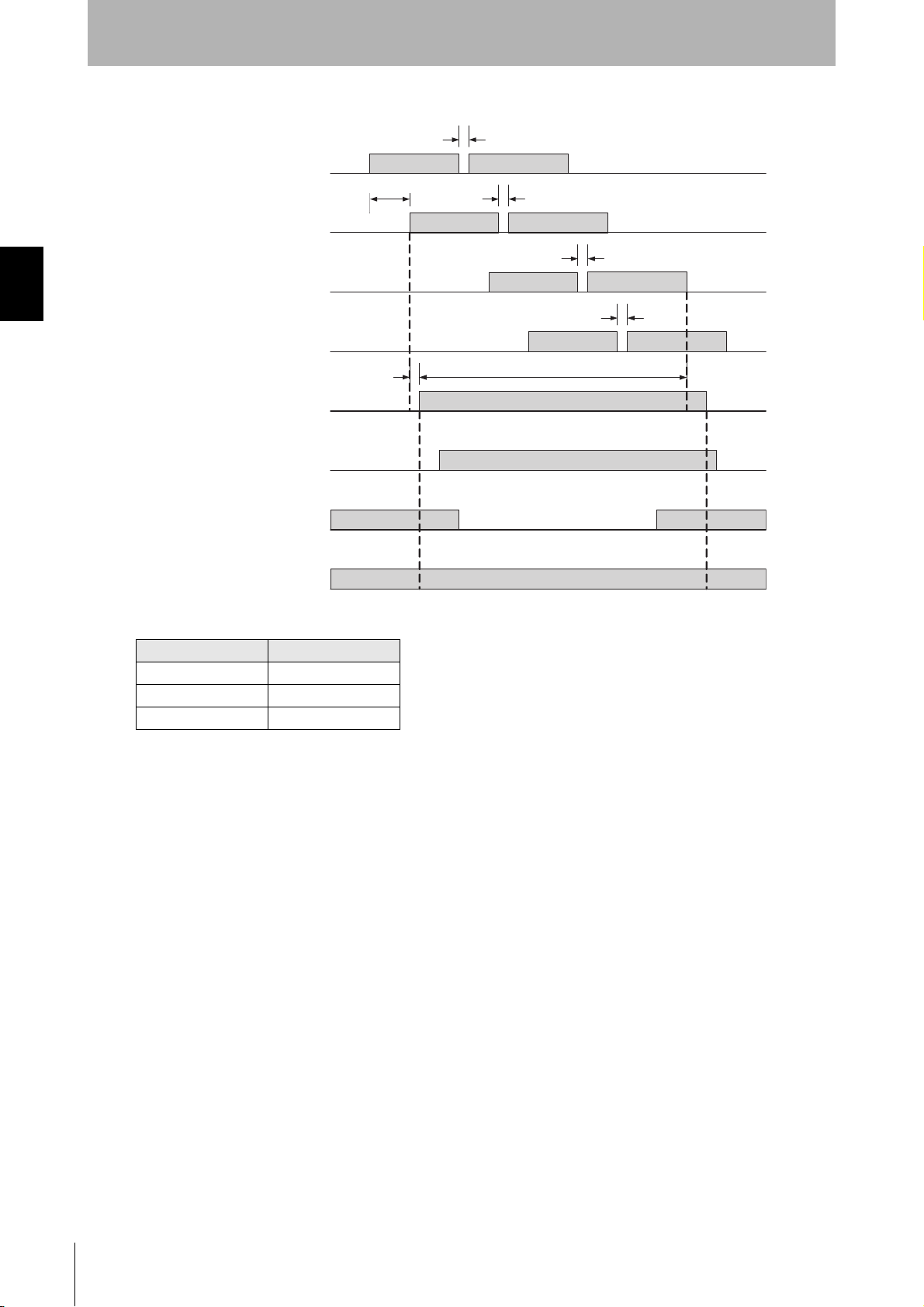

 Timing Chart

Chapter2 Muting System

Muting sensor A1

Muting sensor B1

Muting sensor A2

Muting sensor B2

Muting state

Muting lamp

(External indicator)

F3SJ Unblocked

/Blocked

Safety output

OFF

ON OFF

Enabled

Disabled

Blinking

OFF

Unblocked Blocked

OFF

T3(0.1s ) max.

T1min to T1max

0.15s max. *1

T3(0.1s ) max.

T2 max.

*1 The value is applied to a single sensor. Values for connected sensors are:

# of connections *1 Value (s)

Single 0.15

2 connected 0.26

3 connected 0.29

•T1min: Muting input time limit (minimum value)

•T1max: Muting input time limit (maximum value)

This is set to 3 sec., the maximum value for the input time difference between muting input 1 and 2.

•T2: Muting time limit

This is set to 60 sec., the muting function continuation time. When this muting state exceeds this time, muting is released.

•T3: Muting input time with allowable waveform cracks

This is the maximum value for the waveform cracks allowed for muting input 1 and 2 when muting is in effect. It is set to 0.1 sec.

F3SJ-A

User’s Manual

Page 57

System Configuration and Functions

D3 L

A1 B1 B2 A2

F3SJ

d2 d2

Workpiece

Turning muting sensors ON in an order from A2 to B2 sets F3SJ to a muting status.

Courtesy of CMA/Flodyne/Hydradyne ▪ Motion Control ▪ Hydraulic ▪ Pneumatic ▪ Electrical ▪ Mechanical ▪ (800) 426-5480 ▪ www.cmafh.com

 Reference: Bidirectional Muting

Shown below is an example of bidirectional muting with 4 retro-reflective photoelectric sensors. It can be used for applications of workpiece approaching from both directions. Connect outer muting sensors A1 and A2 to the muting input 1 and inner muting sensors B1 and B2 to the muting input 2.

1. Workpiece approaching from the left

A1 B1 B2 A2

Workpiece

F3SJ

A1, A2, B1, B2: Retro-reflective photoelectric senso

2. Muting from an opposite direction is available as well

Chapter2 Muting System

Connect to muting Input 1

Connect to muting Input 2

Turning muting sensors ON in an order from A1 to B1 sets F3SJ to a muting status.

This arrangement example uses regressive reflection type E3Z-R series as a muting sensor. Arrangement must take mutual interference into account. Muting sensors must be installed so that a distance D3 between muting sensors A1 and A2 should be smaller than workpiece length L. As a muting sensor, a transmission or regressive reflection type photoelectric switch, proximity switch, or limit switch can be used.

Distances d2 & D2 between muting sensors: p.36

F3SJ-A

User’s Manual

Page 58

Chapter2 Muting System

Courtesy of CMA/Flodyne/Hydradyne ▪ Motion Control ▪ Hydraulic ▪ Pneumatic ▪ Electrical ▪ Mechanical ▪ (800) 426-5480 ▪ www.cmafh.com

System Configuration and Functions

 Reference: Preventing light interference of muting sensor

When a photoelectric sensor is used as a muting sensor, light interference may cause a muting error of F3SJ. Light interference may occur due to:

Reflected light Direct light Light from other F3SJ

F3SJ B2A2A1 B1 A1 B1 A2 B2 A1 B1 A2 B2

F3SJ F3SJ

WorkpieceWorkpieceWorkpiece

(1)

(3)

(2)

(1) Interference between muting sensors

• Use sensors with mutual interference prevention (such as retro-reflective E3Z-R series)

• Use laser-type sensors (such as laser-type E3Z-LR series)

• Take distance from a sensor causing the interference Displace beams for each other to prevent interference (change installation height or place them crosswise)

•

• Install a barrier

• Attach interference prevention filter (provided for E3Z series as accessories)

• Attach a slit to reduce light intensity (provided for E3Z series as accessories)

• Lower the sensitivity

•

Reduce a distance between a workpiece and a muting sensor to prevent reflected light from a workpiece

(2) Interference to a muting sensor from F3SJ

• Configure an operating range of F3SJ by the setting tool

• Take distance (D) from a sensor causing the interference

•

Displace beams for each other to prevent interference (change installation height or place them crosswise)

• Install a barrier

• Arrange sensors in alternation

• Lower the sensitivity

(3) Interference from a muting sensor to F3SJ

• Use a red LED type sensor (such as retro-reflective E3Z-R series)

• Use laser-type sensors (such as laser-type E3Z-LR series)

• Take distance (D) from a sensor causing the interference

•

Displace beams for each other to prevent interference (change installation height or place them crosswise)

• Install a barrier

• Arrange sensors in alternation

• Attach a slit to reduce light intensity (provided for E3Z series as accessories)

Mutual interference between a muting sensor and F3SJ in (2) and (3) above can be prevented by configuring D satisfying a formula shown below:

• If L = 0.2 to 3m D = 0.26m or larger

• If L = 3m or larger D = L x tan5° = L x 0.088m or larger

L : Distance between an emitter and a receiver of F3SJ D : Distance between a muting sensor and F3SJ

F3SJ-A

User’s Manual

Page 59

System Configuration and Functions

Courtesy of CMA/Flodyne/Hydradyne ▪ Motion Control ▪ Hydraulic ▪ Pneumatic ▪ Electrical ▪ Mechanical ▪ (800) 426-5480 ▪ www.cmafh.com

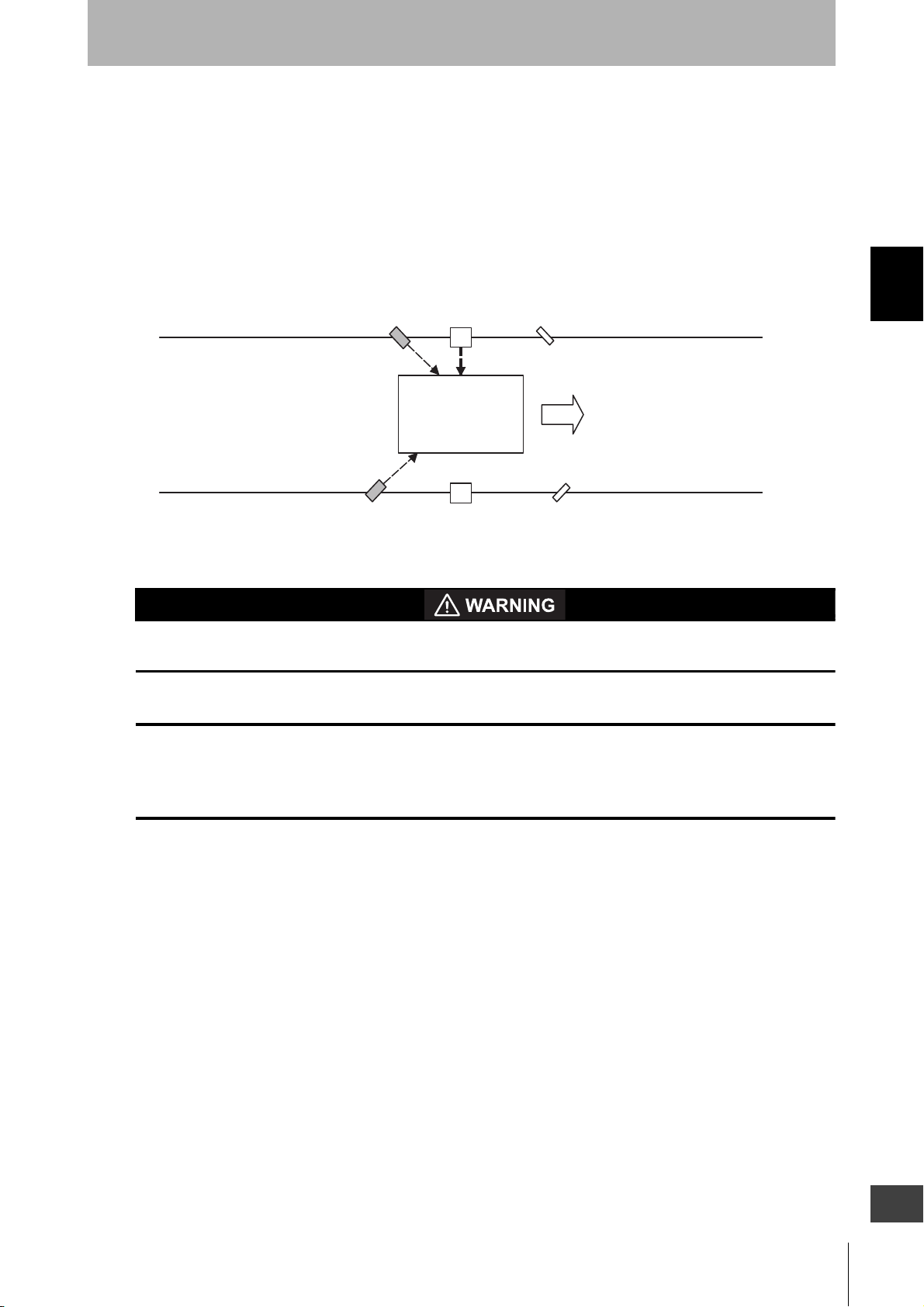

 Override Function

The override function forcibly turns the safety outputs ON when the muting start condition is not satisfied. If a workpiece stops while passing through the detection zone of the F3SJ, as shown below, causing a muting error, the normal state cannot be recovered unless the workpiece is removed from the muting sensors and the detection zone of the F3SJ. However, the override function will mute the safety outputs of the F3SJ so that the conveyor can be restarted to move the workpiece out of the muting sensors and F3SJ detection zone.

Chapter2 Muting System

The override function can be enabled for up to 60s. The muting lamp (external indicator) blinks while overriding.

The muting and override functions disable the safety functions of the device. You must ensure safety using other method when these functions are operating.

Muting lamps (external indicators) that indicate the state of the muting and override functions must be installed where they are clearly visible to workers from all the operating positions.

Install the switch that uses hold-to-run device such as a spring-return key switch and is installed in a location that provides a clear view of the entire hazardous zone and where it cannot be activated from within the hazardous zone. Make sure that nobody is in the hazardous zone before activating the override function.

F3SJ

Workpiece

F3SJ

Reflector

 Override Start Conditions

If all of the following conditions are present in the F3SJ, the override function starts. The override function can be put into effect even when there is a muting error.

1. If either muting input 1 or 2 is ON (1 or more muting sensors are turned ON by a workpiece)

2. The F3SJ is blocked and the output is OFF

3. Under the conditions of 1 and 2 shown above, the reset input changes from ON to OFF and the test input changes from OFF to ON at the same time. The changing time of these 2 inputs must be 0.3s or less.

F3SJ-A

User’s Manual

Page 60

Chapter2 Muting System

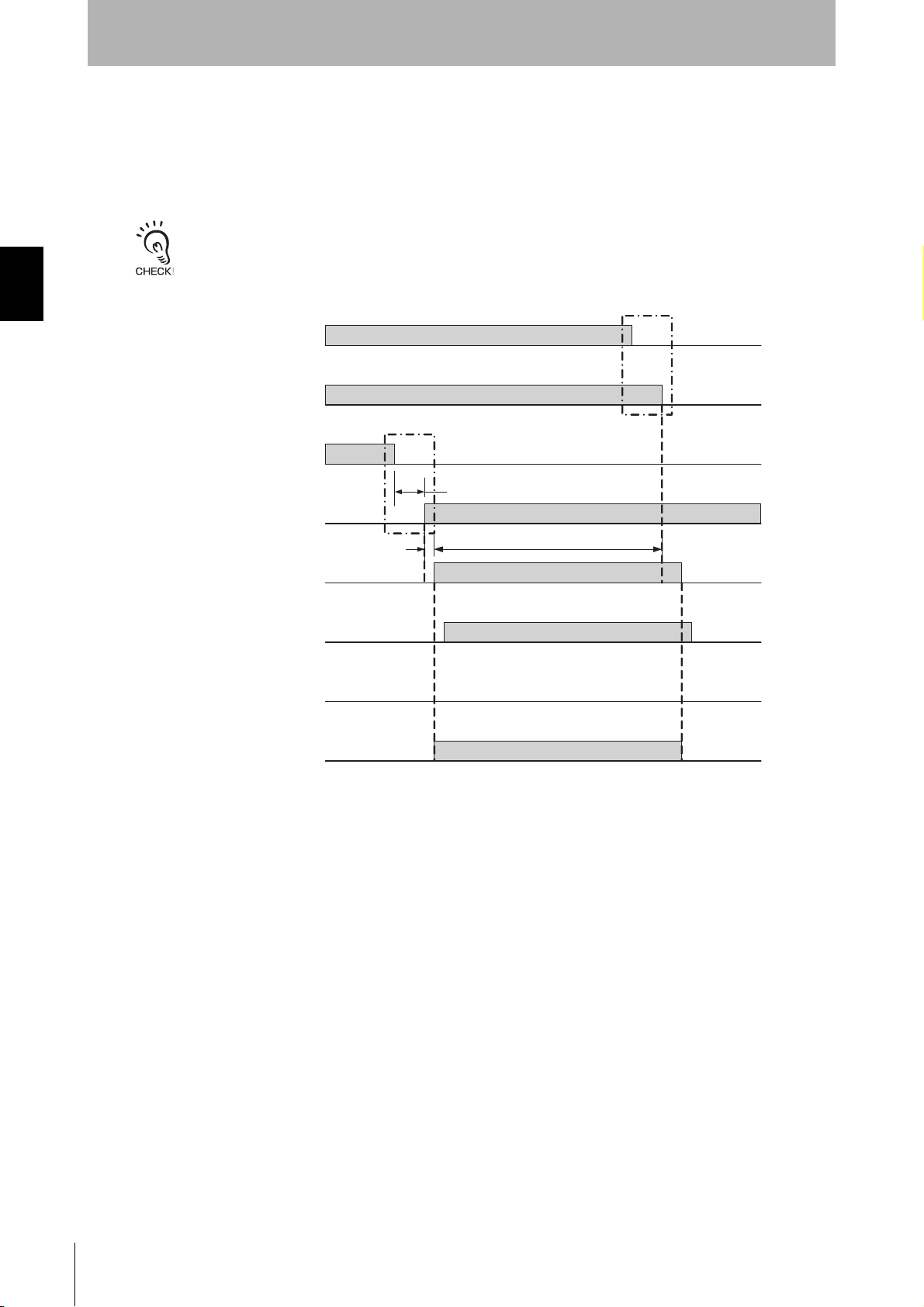

Reset input

OFF

Muting input 1

OFF

Muting input 2

OFF

Enabled

Disabled

Test input

OFF

Safety output

OFF

blinking

OFF

Muting lamp

(External indicator)

Override state

F3SJ Unblocked

/Blocked

Unblocked Blocked

*1 Order of reset input ON -> OFF and test input OFF -> ON can be arbitrary for override start conditions. (Switching time difference must be within 0.3s) *2 There are 3 override end conditions. For details, see override end conditions.

- T1: Override Input Time Limit Maximum value of input time difference between reset input ON -> OFF and test input OFF -> ON It is set as 0.3s.

- T2: Override Time Limit Continuance time is set at 60s in the overriding condition. If override state exceeds this time, the function is canceled.

T2 max.

0.1s max.

T1 (0.3s max.)

Courtesy of CMA/Flodyne/Hydradyne ▪ Motion Control ▪ Hydraulic ▪ Pneumatic ▪ Electrical ▪ Mechanical ▪ (800) 426-5480 ▪ www.cmafh.com

System Configuration and Functions

 Override End Conditions

When either of the following conditions is satisfied, the function is released.

•When 60 seconds has elapsed under the override state

•All muting sensors are turned OFF

•When the reset input is turns from OFF to ON and/or the test input turns from ON to OFF

Override state can be released if a sensor transitions to lockout as well.

 Operation of the F3SJ's Internal Indicators When Override Function Is Performed

•Muting input 1 indicator turns ON when an input is applied to muting input 1.

•Muting input 2 indicator turns ON when an input is applied to muting input 2.

•Muting input 1 and 2 indicators blink while muting overriding

•Muting error indicator turns ON when a muting error occurs.

F3SJ-A

User’s Manual

Page 61

System Configuration and Functions

Courtesy of CMA/Flodyne/Hydradyne ▪ Motion Control ▪ Hydraulic ▪ Pneumatic ▪ Electrical ▪ Mechanical ▪ (800) 426-5480 ▪ www.cmafh.com

 External Test Function

This function forcibly stops the emission using an external signal. It can be used to verify that the safety system should stop properly when the F3SJ is interrupted. To stop the emission, apply 9 to 24V to the emitter's test input line. The voltage must be applied for a period 0.3s plus 4 times of Toff or longer.

Within 0.3s + Toff x 4 Within Ton x 2

Chapter2 Muting System

Test input

Safety output

Ton: Response time of safety output's OFF to ON, Toff: Response time of safety output's ON to OFF

Response time p.11

ON OFF

OFF

 Operation of the F3SJ's Internal Indicators When External Test Function Is Performed

Test indicator blinks when voltage is applied to the test input.

 Self-Test Function

The F3SJ performs the self-test when power is turned ON (within 2 second, or 2.2 seconds in case of series connection) to check for errors. Also, it regularly performs the self-test (within a response time) while operating. The timing chart is the same as the one for the basic system. For details, see the following the page.

p.21

F3SJ-A

User’s Manual

Page 62

System Configuration and Functions

Courtesy of CMA/Flodyne/Hydradyne ▪ Motion Control ▪ Hydraulic ▪ Pneumatic ▪ Electrical ▪ Mechanical ▪ (800) 426-5480 ▪ www.cmafh.com

 Auxiliary Output (Non-Safety Output)

The auxiliary output is used to monitor the status of the F3SJ. This output can be connected to a device such as a relay, indication lamp, programmable controller, etc.

Chapter2 Muting System

Do not use the auxiliary output or external indicator output for safety applications. Human body may not be detected when F3SJ fails, resulting in serious injury.

Auxiliary output 1 provides an inverted signal of the safety output.

Unblocked

/Blocked

Safety output

uxiliary output 1

Unblocked

Blocked

OFF

x2 or less

To ff

To n

To ff x2 or less

Ton: Response time of safety output's OFF to ON, Toff: Response time of safety output's ON to OFF

Response time p.11

 Resetting Lockout

When the cause of the lockout is removed, the lockout condition can be released by using either of the following methods.

•Cycle the power back ON

•Set the reset input line open or to 0 to 1.5V for 100ms or longer, and then apply 9 to 24V again.

Lockout due to a muting wiring error and an ABC blinking error may not be released by a reset input.

 External Device Monitoring Function (EDM)

This function detects malfunctions, such as welding, in external relays (or contactors) that control the hazardous zone of a machine. The timing chart is the same as that for the basic system. For details, refer to the page shown below.

External Device Monitoring Function p.24

For the wiring diagram, refer to the page shown below.

Wiring Diagrams p.29



Operation of the F3SJ's Internal Indicator When Using the External Device Monitoring Function

The internal indicator cannot be used to check the input to the external device monitoring input.

F3SJ-A

User’s Manual

Page 63

Chapter3 Wiring/Installation

Courtesy of CMA/Flodyne/Hydradyne ▪ Motion Control ▪ Hydraulic ▪ Pneumatic ▪ Electrical ▪ Mechanical ▪ (800) 426-5480 ▪ www.cmafh.com

Installation Conditions 46

Detection Zone and Approach 46 Safety Distance 47 Distance from Reflective Surfaces 49 Mutual Interference Prevention 50

Series Connection 52

Connection Procedure 54

Attaching External Indicators 56

Connection Procedure 56 Output Operation 57

Dimensions 58

Chapter3 Wiring/Installation

When Using Standard Mounting Brackets 58 When Using Optional Mounting Brackets 61 When Using Spatter Protection Covers 74 Mounting a Protect Bar 75 Mounting an Environment-Resistant Case 77

Mounting 79

Top/Bottom Mounting Brackets 79 Intermediate Mounting Brackets 79 Mounting Procedure 80 Adjustment Procedure 83

Wiring 84

Wiring Precautions 84 Power Supply Unit 85 Wiring Procedure 86

F3SJ-A

User’s Manual

Page 64

Wiring/Installation

Courtesy of CMA/Flodyne/Hydradyne ▪ Motion Control ▪ Hydraulic ▪ Pneumatic ▪ Electrical ▪ Mechanical ▪ (800) 426-5480 ▪ www.cmafh.com

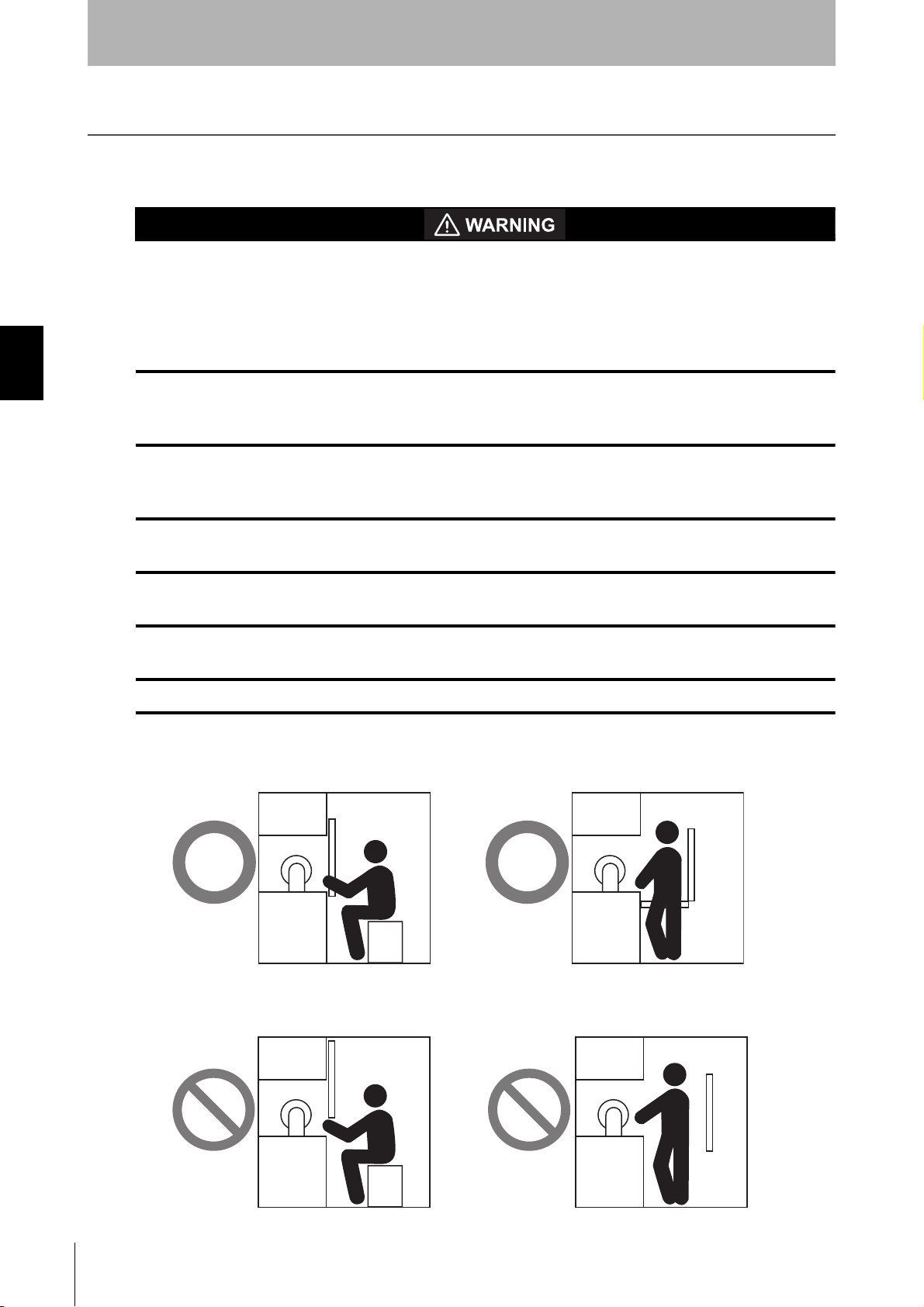

Installation Conditions



Detection Zone and Approach

Install a protective structure so that the hazardous part of a machine can only be reached by passing through the sensor's detection zone. Install the sensors so that part of the person is always present in the detection zone when working in a machine's hazardous zones.

Chapter3 Installation Conditions

If a person is able to step into the hazardous zone of a machine and remain behind the F3SJ's detection zone, configure the system with an interlock function that prevents the machine from being restarted. Failure to do so may result in serious injury.

Do not use this sensor for machines that cannot be stopped by electrical control. For example, do not use it for a pressing machine that uses a full-rotation clutch. Otherwise, the machine may not stop before a person reaches the hazardous part, resulting in serious injury.

Install the interlock reset switch in a location that provides a clear view of the entire hazardous zone and where it cannot be activated from within the hazardous zone.

Do not use the F3SJ in environments where flammable or explosive gases are present. Doing so may cause an explosion.

The

F3SJ

cannot protect a person from an object flying from a hazardous zone. Install protective cover(s) or

fence(s).

Make sure that the F3SJ is securely mounted and its cables and connectors are properly connected.

Correct installation

The hazardous zone of a machine can be reached only by passing through the sensor's detection zone.

Incorrect installation

It is possible to reach the hazardous zone of a machine without passing through the sensor's detection zone.

While working, a person is inside the sensor's detection zone.

A person is between the sensor's detection zone and the hazardous zone of a machine.

F3SJ-A

User’s Manual

Page 65

Wiring/Installation

Hazard

Safety distance (S)

Courtesy of CMA/Flodyne/Hydradyne ▪ Motion Control ▪ Hydraulic ▪ Pneumatic ▪ Electrical ▪ Mechanical ▪ (800) 426-5480 ▪ www.cmafh.com

 Safety Distance

The safety distance is the distance that must be set between the F3SJ and a machine's hazardous part to stop the hazardous part before a person or object reaches it. The safety distance varies according to the standards of each country and the individual specifications of each machine. Always refer to the relevant standards.

Make sure to secure the safety distance (S) between the F3SJ and the hazardous part. Otherwise, the machine may not stop before a person reaches the hazardous part, resulting in serious injury.

The response time of a machine is the time period from when the machine receives a stop signal to when the machine's hazardous part stops. Measure the response time on the actual system. Also, periodically check that the response time of the machine has not changed.

 How to calculate the safety distance specified by International Standard ISO 13855-

2002 (European standard EN999) (Reference)

If a person approaches the detection zone of the F3SJ perpendicularly S = K x T + C . . . Formula (1)

• S: Safety distance

• K: Approach speed to the detection zone

• T: Total response time of the machine and F3SJ

• C: Additional distance calculated by the detection capability

of the F3SJ

Chapter3 Installation Conditions

Use K = 2,000mm/s and C = 8 x (d - 14mm) in formula (1) for the calculation. S = 2,000mm/s x (Tm + Ts) + 8 x (d - 14mm)

•S = Safety distance (mm)

•Tm = Machine's response time (s)

•Ts = Response time of the F3SJ from ON to OFF (s)

•d = Detection capability of the F3SJ (mm)

If the result If the result exceeds 500mm, use the following expression where K = 1,600mm/s. S=1,600mm/s x (Tm + Ts) + 8 x (d - 14mm) . . . Formula (3)

If the result of this formula (3)

[Calculation example] When Tm = 0.05s, Ts = 0.01s, and d = 20mm: S=2,000mm/s x (0.05s + 0.01s) + 8 x (20mm - 14mm) = 168mm . . . Formula (2)

< 100mm, use S = 100mm.

< 500mm, use S = 500mm.

F3SJ-A

User’s Manual

Page 66

Wiring/Installation

Courtesy of CMA/Flodyne/Hydradyne ▪ Motion Control ▪ Hydraulic ▪ Pneumatic ▪ Electrical ▪ Mechanical ▪ (800) 426-5480 ▪ www.cmafh.com

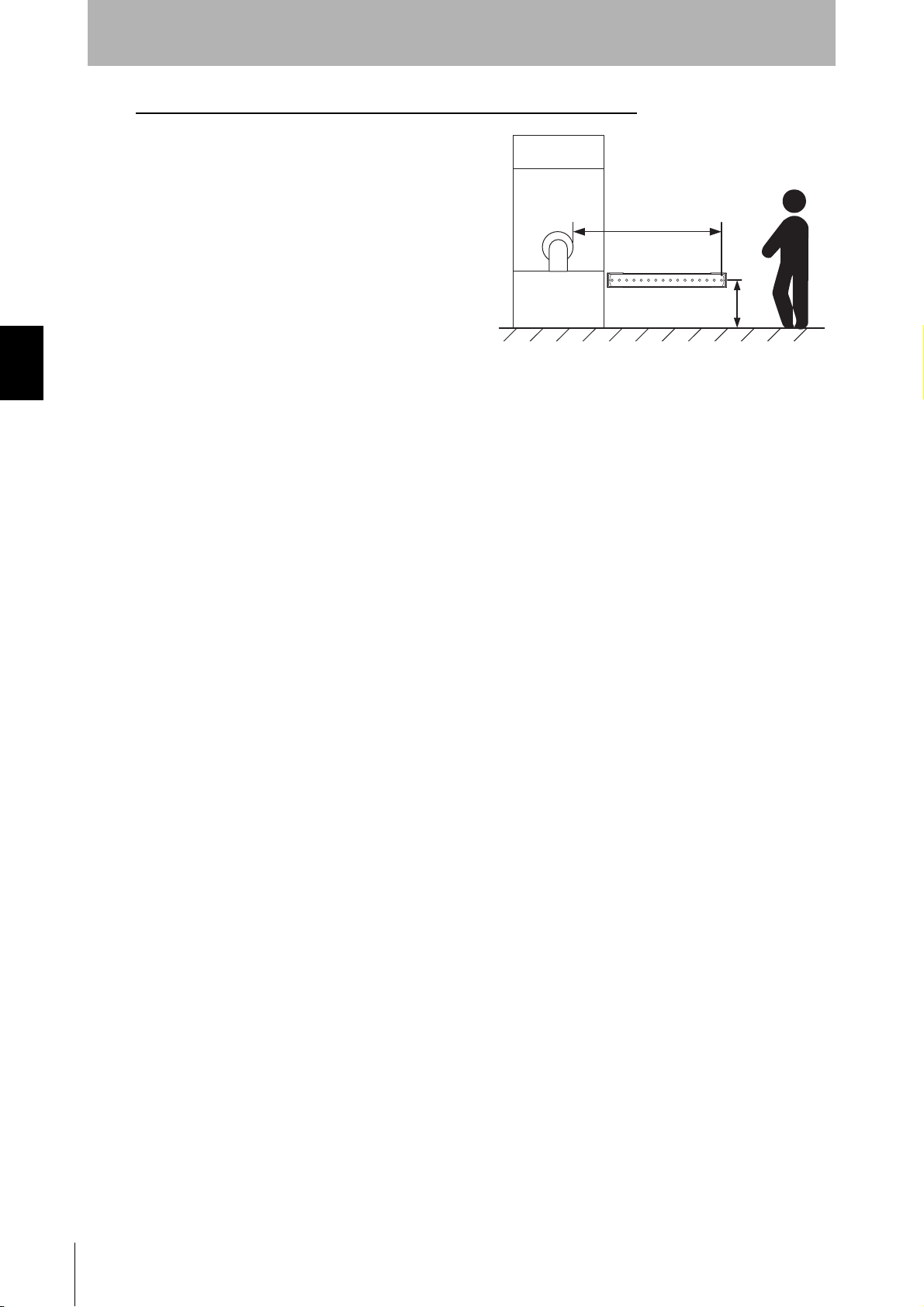

In case of horizontal approach of a human body to F3SJ's detection zone

Use K = 1,600mm/s and C = (1200 - 0.4 x H) in formula (1) for calculation.Note that C must not be less than 850mm. S = 1,600mm/s x (Tm + Ts) + 1200 - 0.4 x H

Hazard

Safety distance (S)

•S = Safety distance (mm)

•Tm = Machine's response time (s)

•Ts = Response time of F3SJ from ON to OFF (s)

Chapter3 Installation Conditions

•H = Installation height (mm)

Note that H must satisfy: 1000 >= H >= 15 (d - 50mm)

Also, you must include a hazardous condition under which a person may go through under a detection zone carelessly if it exceeds 300mm (200mm for other purpose than industrial use) into risk assessment.

[Calculation example] When Tm = 0.05s, Ts = 0.01s, and d = 20mm: S = 1,600mm/s x (0.05s + 0.01s) + 1200 - 0.4 x 500mm = 1096mm

 How to calculate the safety distance specified by American standard ANSI B11.19

(reference)

If a person approaches the detection zone of the F3SJ perpendicularly, calculate the safety distance as shown below. S = K x (Ts + Tc + Tr + Tbm) + Dpf

•S: Safety distance

•K: Approach speed to the detection zone (the value recommended by OSHA standard is 1,600mm/s)

Approach speed K is not specified in the ANSI B.11.19 standard. To determine the value of K to apply, consider all factors, including the operator's physical ability.

•Ts = Machine's stopping time (s)

•Tr = Response time of the F3SJ from ON to OFF (s)

•Tc = Machine control circuit's maximum response time required to activate its brake (s)

•Tbm = Additional time (s)

If a machine has a brake monitor, "Tbm= Brake monitor setting time - (Ts + Tc)". If it has no brake monitor, we recommend using 20% or more of (Ts + Tc) as additional time.

•Dpf = Additional distance

According to ANSI's formula, Dpf is calculated as shown below: Dpf = 3.4 x (d - 7.0): Where d is the detection capability of the F3SJ (unit: mm)

[Calculation example] When K = 1,600mm/s, Ts + Tc = 0.06s, brake monitor setting time = 0.1s, Tr = 0.01s, and d = 20mm: Tbm = 0.1 - 0.06 = 0.04s Dpf = 3.4 x (20 - 7.0) = 44.2mm S = 1,600 x (0.06 + 0.01 + 0.04) + 44.2 = 220.2mm

F3SJ-A

User’s Manual

Page 67

Wiring/Installation

Courtesy of CMA/Flodyne/Hydradyne ▪ Motion Control ▪ Hydraulic ▪ Pneumatic ▪ Electrical ▪ Mechanical ▪ (800) 426-5480 ▪ www.cmafh.com

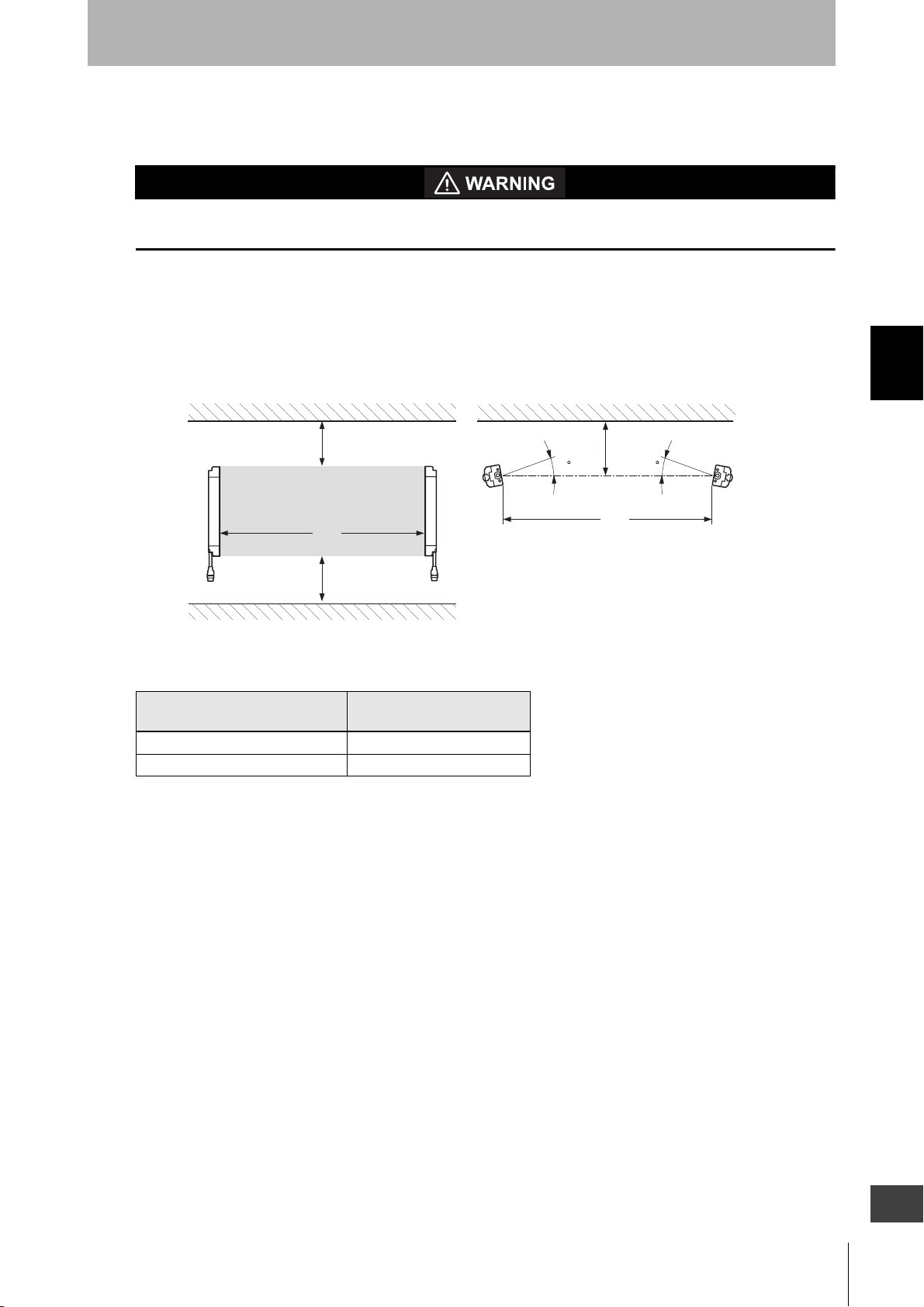

 Distance from Reflective Surfaces

Install the sensor system so that it is not affected by reflective surfaces. Failure to do so may hinder detection, resulting in serious injury.

Install the sensor system at distance D or further from highly reflective surfaces such as metallic walls, floors, ceilings, or workpieces, as shown below.

Chapter3 Installation Conditions

Reflective ceiling

Emitter

Distance between an emitter and a

receiver (operating range L)

For 0.2 to 3m 0.13m

For 3m or more L/2 x tan5 ° = L x 0.044 (m)

Detection zone

Reflective floor

Receiver

Allowable installation distance

Emitter

Reflective surface

Receive

F3SJ-A

User’s Manual

Page 68

Wiring/Installation

Emitter

Receiver

Emitter

Receiver

Emitter

Receiver

Courtesy of CMA/Flodyne/Hydradyne ▪ Motion Control ▪ Hydraulic ▪ Pneumatic ▪ Electrical ▪ Mechanical ▪ (800) 426-5480 ▪ www.cmafh.com

 Mutual Interference Prevention

Do not use the sensor system with mirrors in a retro-reflective configuration. Doing so may hinder detection. It is possible to use mirrors to "bend" the detection zone to a 90-degree angle.

When using more than 1 set of F3SJ, install them so that mutual interference does not occur, such as by configuring series connections or using physical barriers between adjacent sets.

Chapter3 Installation Conditions

 Series Connection

Series connection can prevent mutual interference when multiple sensors are used. Up to 3 sets, 240 beams, can be connected. The emission of series-connected F3SJ is time-divided, so mutual interference does not occur and safety is ensured.

How to perform series connection p.52

 No Connection

Mutual interference is prevented in up to 3 sets, using interference light avoidance algorithm. If 4 or more sets of F3SJ are installed and are not connected to each other, arrange them so that mutual interference does not occur. If 2 sets are installed near each other, reflection from the surface of the F3SJ may cause mutual interference. When mutual interference occurs, the F3SJ enters lockout. Combining countermeasures 1 to 4 shown below is effective.

1. Install a physical barrier between 2 sets

F3SJ-A

User’s Manual

Emitter

Receiver

Emitter

Receiver

Page 69

2. Alternate the direction of emission between 2 sets (alternation)

Receiver

Emitter Receiver

Emitter

Receiver

Emitter

Courtesy of CMA/Flodyne/Hydradyne ▪ Motion Control ▪ Hydraulic ▪ Pneumatic ▪ Electrical ▪ Mechanical ▪ (800) 426-5480 ▪ www.cmafh.com

Wiring/Installation

Aligned horizontally

Receiver

Receiver Emitter

Emitter Receiver

Emitter

Aligned fore and aft

Emitter

Receiver

Aligned vertically

Emitter

Receiver

Emitter

If 2 sets are installed near each other, reflection from the surfaces may cause mutual interference.

3. Keep sufficient distance between the F3SJs so that mutual interference does not occur

Chapter3 Installation Conditions

Distance between emitter and

receiver (operating range L)

For 0.2 to 3m 0.26m

For 3m or more L x tan5 ° = L x 0.088 (m)

When using 4 or more sets that are not series-connected, the installations shown below may cause mutual interference. When mutual interference occurs, the F3SJ enters lockout.

Allowable installation distance D

Aligned horizontally

Emitter Receiver Emitter Receiver

Aligned fore and aft

Emitter Receiver

Emitter

Receiver

Aligned vertically

Emitter Receiver

Emitter

Receiver

F3SJ-A

User’s Manual

Page 70

Chapter3 Series Connection

Courtesy of CMA/Flodyne/Hydradyne ▪ Motion Control ▪ Hydraulic ▪ Pneumatic ▪ Electrical ▪ Mechanical ▪ (800) 426-5480 ▪ www.cmafh.com

Wiring/Installation

Series Connection

From 2 to 3 sets of F3SJ can be series-connected. Series connection allows them to be used as a a safety light curtain, requiring only 1 set to be wired to a controller and preventing mutual interference. If any 1 set of series-connected F3SJ is blocked, both of the safety outputs turn OFF. The indication LED for each F3SJ turns ON separately.

• Number of connections: Up to 3 sets

• Total number of beams: Up to 240 beams

• Connection cable length between 2 F3SJ in series connection: 15m max. Ex.: Configuring an L- or U-shaped detection zone

The terms used in this document to describe each F3SJ in a series connection are shown below.

Secondary sensor 2 (3CH)

Secondary sensor 1 (2CH)

Primary sensor (1CH)

- When attaching a cable or cap, tightly fasten the screws (M2, in 4 places, recommended torque: 0.15Nxm). Failure to do so

may cause the cable/cap to come loose, leading to deterioration of the protective functions.

- F3SJ transitions to the lockout state if other sensor than F3SJ-AP-TS type is connected.

F3SJ-A

User’s Manual

Page 71

Wiring/Installation

Secondary sensor 1 (Emitter)

Secondary sensor 1 (Receiver)

Primary sensor (Emitter)

Primary sensor (Receiver)

Secondary sensor 1

(Emitter )

Secondary sensor 1

(Receiver)

Primary sensor

(Receiver)

Primary sensor

(Emitter)

Primary sensor 1

(Emitter)

Secondary sensor 1

(Receiver)

Secondary sensor

(Emitter)

Primary sensor

(Receiver)

Do not series-connect an emitter and receiver. They will enter lockout state.

Do not face different models of emitters and receivers toward each other. They will enter lockout state or will be unable to detect objects.

Courtesy of CMA/Flodyne/Hydradyne ▪ Motion Control ▪ Hydraulic ▪ Pneumatic ▪ Electrical ▪ Mechanical ▪ (800) 426-5480 ▪ www.cmafh.com

Connect an emitter to another emitter, and a receiver to another receiver, as shown below.

Chapter3 Series Connection

If caps and series connection cables are not connected properly, the F3SJ enters lockout (when power is turned ON).

F3SJ-A

User’s Manual

Page 72

Chapter3 Series Connection

2.2.

3.3.

1.1.

2.2.

3.3.

Power cable

Cap

F39-JJR L

Emitter

power supply

connector side

Emitter power supply

connector side

Receiver power supply

connector side

Receiver

power supply

connector side

Enlarged view of emitter

power supply connector side

Enlarged view of receiver

power supply connector side

EMITTER

RECEIVER

Series connection cable for close contact F39-JJR L

Courtesy of CMA/Flodyne/Hydradyne ▪ Motion Control ▪ Hydraulic ▪ Pneumatic ▪ Electrical ▪ Mechanical ▪ (800) 426-5480 ▪ www.cmafh.com

Wiring/Installation

 Connection Procedure

 When Using the F39-JJRL Series Connection Cable for Close Contact

(sold separately)

1. Remove the connection cable of the secondary-side F3SJ. (driver comes with F39-JJRL)

2. Remove the cap from the secondary-side F3SJ.

3. Use the F39-JJRL series connection cable for close contact to connect them.

- Attaching/detaching of a cap or a series-connection cable may cause misalignment of rubber grommet in a connector assembly. Press the grommet to the bottom of the connector and attach the connector F3SJ again.

- Use the F39-JJRL series connection cable for close contact when the connection distances between F3SJ are short for a L-shaped configuration, and use the F39-JJR3W (and F39-JCB) series connection cable for extension when the connection distances are long. Ex.: L-shaped configuration

F3SJ-A

User’s Manual

p.57

Page 73

Wiring/Installation

F39-JC B

1.1.

2.2.

3.3.

F39-JJR3W

Cap

Emitter power supply

connector side

Emitter power supply

connector side

Receiver power supply

connector side

Receiver power supply

connector side

Enlarged view of emitter

power supply connector side

Enlarged view of receiver

power supply connector side

EMITTER

RECEIVER

Courtesy of CMA/Flodyne/Hydradyne ▪ Motion Control ▪ Hydraulic ▪ Pneumatic ▪ Electrical ▪ Mechanical ▪ (800) 426-5480 ▪ www.cmafh.com

 When Using the F39-JJR3W Series Connection Cable for Extension (sold separately)

1. Remove the caps from the primary sensor. (driver comes with key cap for muting)

2. Use the F39-JJR3W series connection cable for extension to connect them.

3. When changing the connection distance between the F3SJ, connect a F39-JCB Cable with

connectors on both ends (sold separately).

Chapter3 Series Connection

- When attaching a cable or a cap, tightly fasten the screws (M2, in 4 places, recommended torque: 0.15Nxm). Failure to do so may cause the cable/cap to come loose, leading to deterioration of the protective functions.

p.57

F3SJ-A

User’s Manual

Page 74

Chapter3 Attaching External Indicators

External indicator set Model F39-A01P -PAC

Model F39-JJ3N

1.1.

2.2.

Commercially available indicator

Universal indicator cable

Muting lamp (external indicator)

Cap (Case color : Black)

Brown: +, Blue: -

Courtesy of CMA/Flodyne/Hydradyne ▪ Motion Control ▪ Hydraulic ▪ Pneumatic ▪ Electrical ▪ Mechanical ▪ (800) 426-5480 ▪ www.cmafh.com

Wiring/Installation

Attaching External Indicators

An external indicator can be connected and turned ON based on the operation of the F3SJ. Indicators can be attached to emitters and/or receivers. Example:

• Indicate that the F3SJ is in lockout

• Indicate that a machine is stopped (safety output is OFF)

• Indicate that the F3SJ is in muting or override

Do not use the auxiliary output or external indicator output for safety applications. Human body may not be detected when F3SJ fails, resulting in serious injury.

 Connection Procedure

1. Remove the cap from the side (emitter or receiver) to which you want to attach the external indicator.

(driver comes with F39-A01P-PAC, F39-JJ3N)

2. Attach the external indicator.

F3SJ-A

User’s Manual

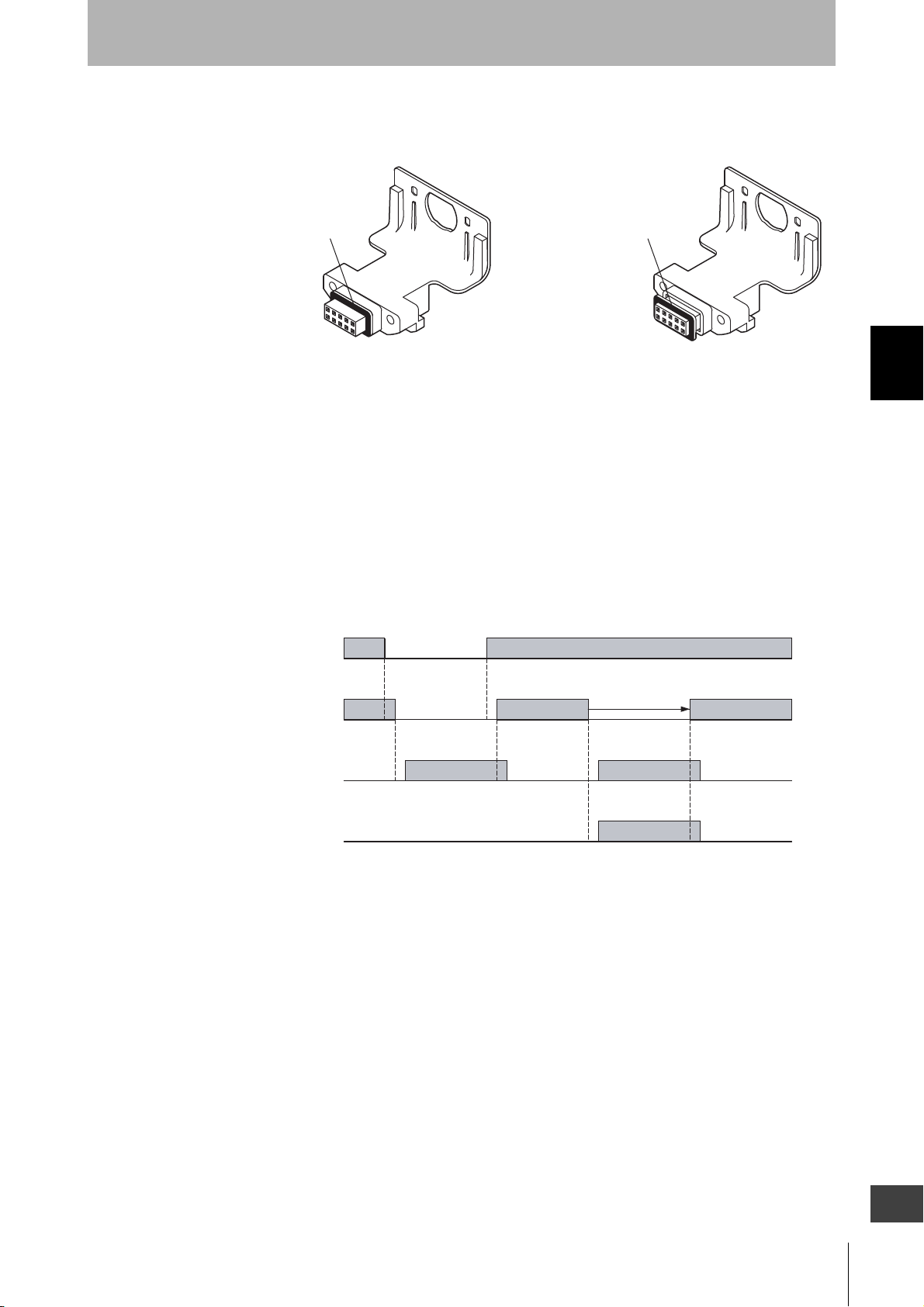

 Output Operation

The external indicator output 1 (on the receiver side) is configured as "safety output reverse output (ON when blocked)", while the external indicator output 2 (on the emitter side) is configured as "lockout output (ON during lockout)". When the muting function is used, both the emitter and receiver are configured as muting/override output (Blinking during muting and during override).

Chapter3 Attaching External Indicators

Timing chart of basic system

F3SJ-A

User’s Manual

Page 76

Chapter3 Dimensions

3.75

6.25E

13.75

5.5

16.5

2-M5

4-M5

30043

13.75

5.5

dia.15

dia. 6

dia. 9

dia. 6.5

2-Top/bottom mounting brackets

2-Mounting holes

M12 Waterproof connector

C (Protective height)

Intermediate mounting bracket

2-Mounting holes

4-Mounting holes

Beam

(Unit: mm)

Courtesy of CMA/Flodyne/Hydradyne ▪ Motion Control ▪ Hydraulic ▪ Pneumatic ▪ Electrical ▪ Mechanical ▪ (800) 426-5480 ▪ www.cmafh.com

Wiring/Installation

Dimensions



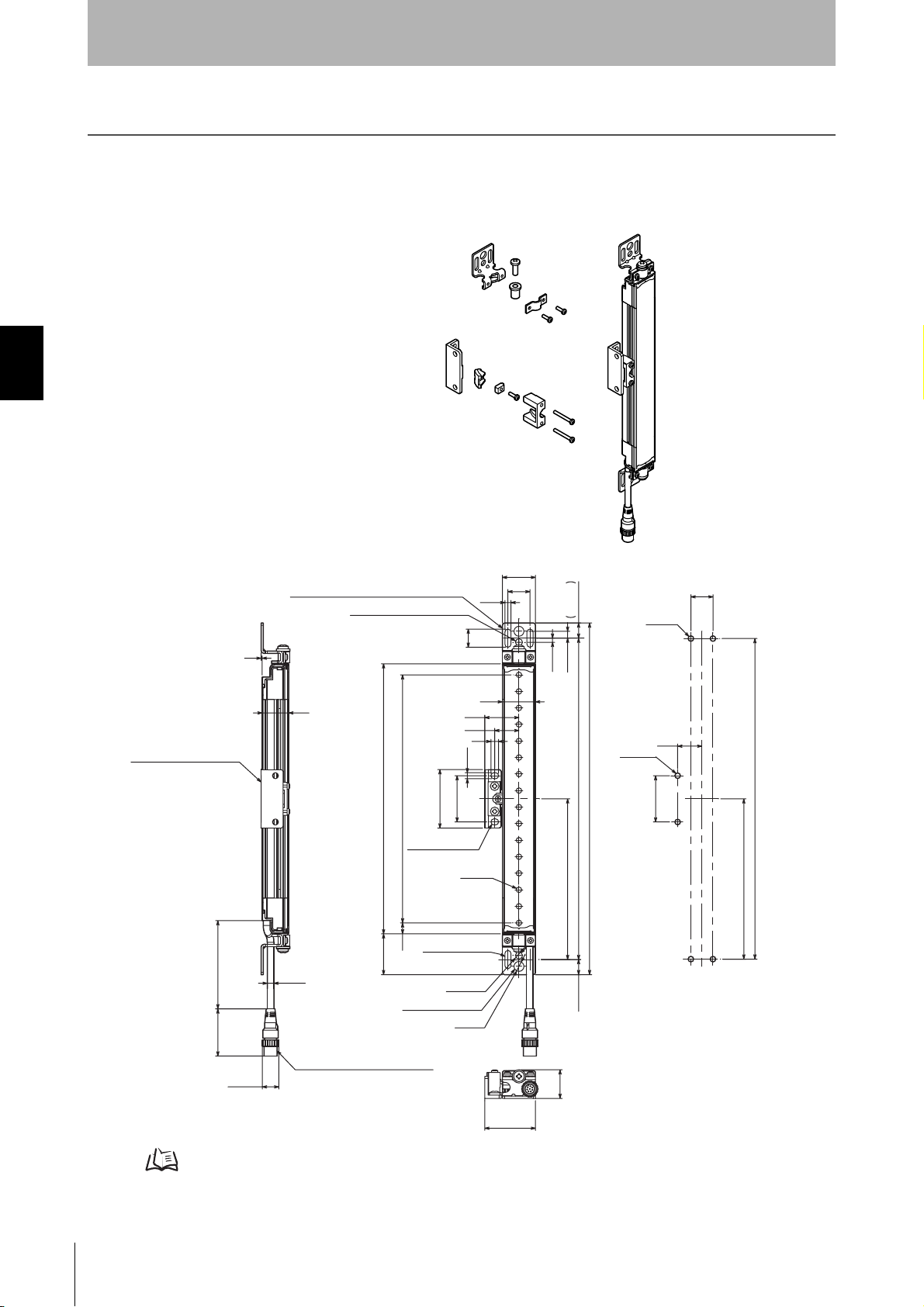

When Using Standard Mounting Brackets

 Backside Mounting

Top/bottom mounting bracket

Intermediate mounting bracket

Bracket mounting procedure (Mounting) p.79

F3SJ-A

User’s Manual

Page 77

 Side Mounting

2-M5

4-M5

3.75

6.25

(13.75)

13.75

30 20

16.5

5.5

300

5.5

dia. 6.5

dia. 9

dia. 6

2-Top/bottom mounting brackets

2-Mounting holes

4-Mounting holes

M12 Waterproof connector

C (Protective height)

(Unit: mm)

Beam

Courtesy of CMA/Flodyne/Hydradyne ▪ Motion Control ▪ Hydraulic ▪ Pneumatic ▪ Electrical ▪ Mechanical ▪ (800) 426-5480 ▪ www.cmafh.com

Wiring/Installation

Top/bottom mounting bracket

Intermediate mounting bracket

Chapter3 Dimensions

Bracket mounting procedure (Mounting) p.79

F3SJ-A

User’s Manual

Page 78

Chapter3 Dimensions

19.6

5.5

36.5

16.5

14.5

13.5

A-A

11. 5

2-M3 Through holes

(Unit: mm)

Material: Stainless steel

Material: Brass

5.6

5.5

dia. 9

dia. 6.5

2-dia. 3.5

Courtesy of CMA/Flodyne/Hydradyne ▪ Motion Control ▪ Hydraulic ▪ Pneumatic ▪ Electrical ▪ Mechanical ▪ (800) 426-5480 ▪ www.cmafh.com

Wiring/Installation

Dimensions A to E

AC + 74

B C + 46.5

C 4-digit number of the model name (protective height)

DC - 20

E Depends on the protective height. See the table below.

Dimension E

Protective height

0245 to 0596 0 -

0600 to 1130 1 B/2

1136 to 1658 2 B/3

1660 to 2180 3 B/4

2195 to 2500 4 B/5

*1. Use E = 530 or less when none of the E values shown above are used.

Number of intermediate

mounting brackets

E*1

 Dimensions of Standard Brackets (top/bottom mounting brackets)

F3SJ-A

User’s Manual

Page 79

 When Using Optional Mounting Brackets

275.5

25.5

17.25

(17.25)

4-M5

0.39.7

37.6

C (Protective height)

Material: Stainless steel

(Unit: mm)

dia. 6.5

dia. 9

Courtesy of CMA/Flodyne/Hydradyne ▪ Motion Control ▪ Hydraulic ▪ Pneumatic ▪ Electrical ▪ Mechanical ▪ (800) 426-5480 ▪ www.cmafh.com

 F39-LJ2 Side-mounting Optional Bracket

F39-LJ2

Use standard brackets

Wiring/Installation

Chapter3 Dimensions

Dimensions A to C

AC + 74

B C + 39.5

C 4-digit number of the model name (protective height)

F3SJ-A

User’s Manual

Page 80

Chapter3 Dimensions

5.5

6-M5

42 42 42

Backside mounting

(Unit: mm)

C (Protective height)

Material: Zinc die-cast

Courtesy of CMA/Flodyne/Hydradyne ▪ Motion Control ▪ Hydraulic ▪ Pneumatic ▪ Electrical ▪ Mechanical ▪ (800) 426-5480 ▪ www.cmafh.com

Wiring/Installation

 F39-LJ3 Free-location Mounting Bracket

F3SJ-A

User’s Manual

Page 81

5.5

6-M5

45 45

151515

Side mounting (when using intermediate brackets for side mounting)

(Unit: mm)

C (Protective height)

Material: Zinc die-cast/stainless steel

Courtesy of CMA/Flodyne/Hydradyne ▪ Motion Control ▪ Hydraulic ▪ Pneumatic ▪ Electrical ▪ Mechanical ▪ (800) 426-5480 ▪ www.cmafh.com

Wiring/Installation

Chapter3 Dimensions

F3SJ-A

User’s Manual

Page 82

Wiring/Installation

Side mounting (when not using intermediate brackets for side mounting)

(Unit: mm)

6-M5

42 42 42

2-dia. 5.5

C (Protective height)

Material: Zinc die-cast

Courtesy of CMA/Flodyne/Hydradyne ▪ Motion Control ▪ Hydraulic ▪ Pneumatic ▪ Electrical ▪ Mechanical ▪ (800) 426-5480 ▪ www.cmafh.com

Chapter3 Dimensions

When performing side mounting without using intermediate brackets for side mounting, F39-LJ3 brackets cannot be used in combination with standard brackets.

F3SJ-A

User’s Manual

Page 83

Dimensions B, C, and F

Courtesy of CMA/Flodyne/Hydradyne ▪ Motion Control ▪ Hydraulic ▪ Pneumatic ▪ Electrical ▪ Mechanical ▪ (800) 426-5480 ▪ www.cmafh.com

BC - 90

C 4-digit number of the model name (protective height)

F Depends on the protective height. See the table

below.

Dimension F

Protective height

245 to 440 2 -

443 to 785 3 B/2

794 to 1140 4 B/3

1145 to 1490 5 B/4

1495 to 1840 6 B/5

1845 to 2180 7 B/6

2195 to 2500 8 B/7

*1. Use F = 350 or less when none of the F values shown above are used.

Number of intermediate

mounting brackets

F*1

Wiring/Installation

Chapter3 Dimensions

When only F39-LJ3 free-location mounting brackets are used without standard brackets, allow a space of at least 350mm between the brackets. The number of brackets required varies according to the protective height. For details about the number of required brackets, refer to the table below. The intermediate mounting brackets shipped with the product are the same as the F39-LJ3 freelocation mounting brackets. Purchase brackets as necessary if there are fewer intermediate mounting brackets than required. When intermediate mounting brackets are included, they can be used as freelocation mounting brackets.

Required number of F39-LJ3 free-location mounting brackets (2 pieces are included with F39-LJ3) for 1 F3SJ set (emitter/receiver)

Number of free-location

mounting brackets included

Protective height

intermediate mounting

245 to 440 0 4 2 sets

443 to 596 0 6 3 sets

600 to 785 2 6 2 sets

794 to 1130 2 8 3 sets

1136 to 1140 4 8 2 sets

1145 to 1490 4 10 3 sets

1495 to 1658 4 12 4 sets

1660 to 1840 6 12 3 sets

1845 to 2180 6 14 4 sets

2195 to 2500 8 16 4 sets

brackets

Number of free-location

mounting brackets required

for mounting F3SJ

Number of additional free-

location

mounting brackets that need

to be purchased

F3SJ-A

User’s Manual

Page 84

Chapter3 Dimensions

F39-LJ4

19(*1)

4-M5

21.5

(21.5)

Backside mounting

Use standard brackets

C (Protective height)

(Unit: mm)

*1 A mounting width of 18 to 20 can be supported when mounting with M5 screws.

Material: Stainless steel

Courtesy of CMA/Flodyne/Hydradyne ▪ Motion Control ▪ Hydraulic ▪ Pneumatic ▪ Electrical ▪ Mechanical ▪ (800) 426-5480 ▪ www.cmafh.com

Wiring/Installation

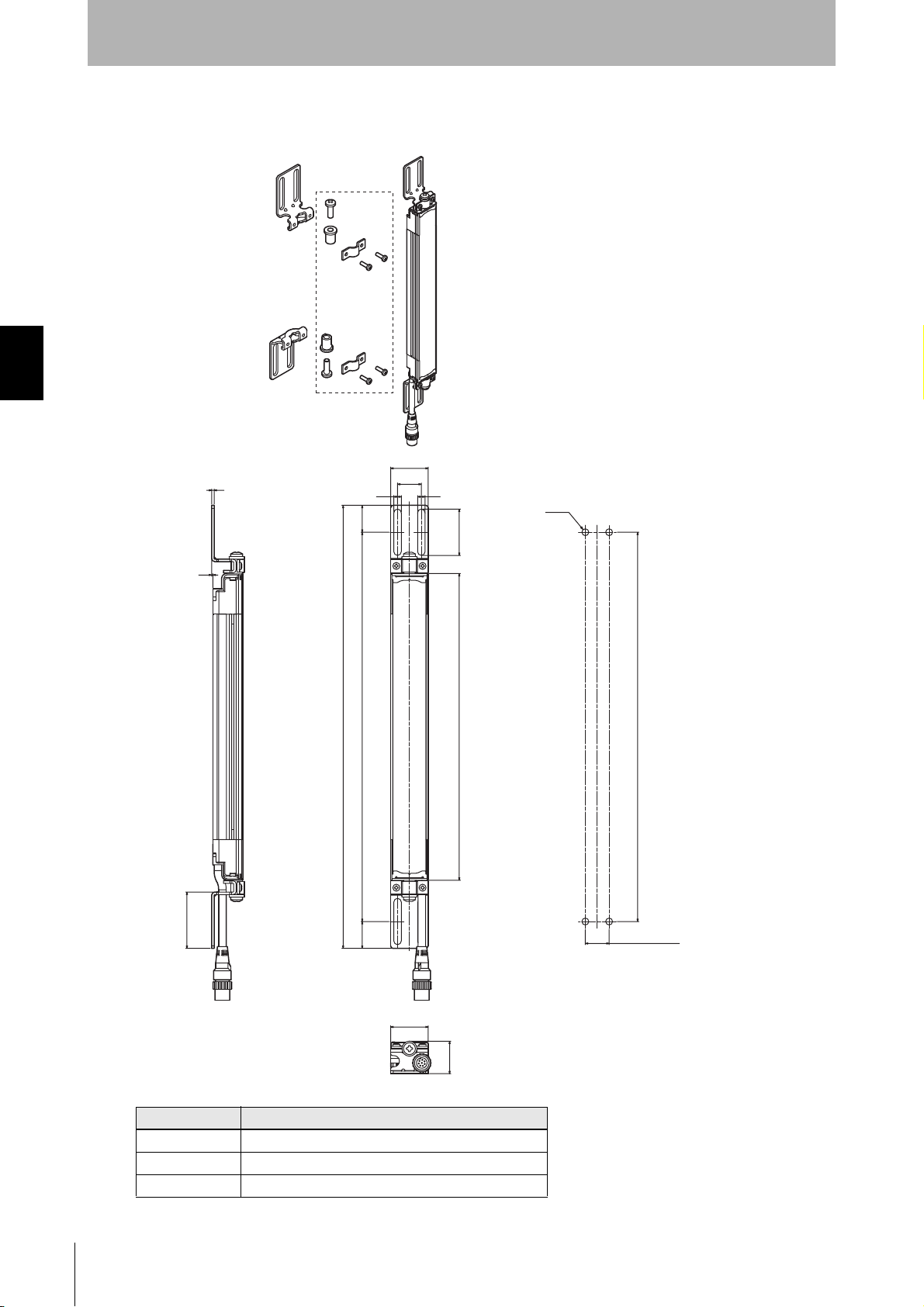

 F39-LJ4 Top/bottom Mounting Bracket B

Dimensions A to C

A C + 109

BC + 66

C 4-digit number of the model name (protective height)

F3SJ-A

User’s Manual

Page 85

F39-LJ4

4-M5

19(*1)

21.5

(21.5)

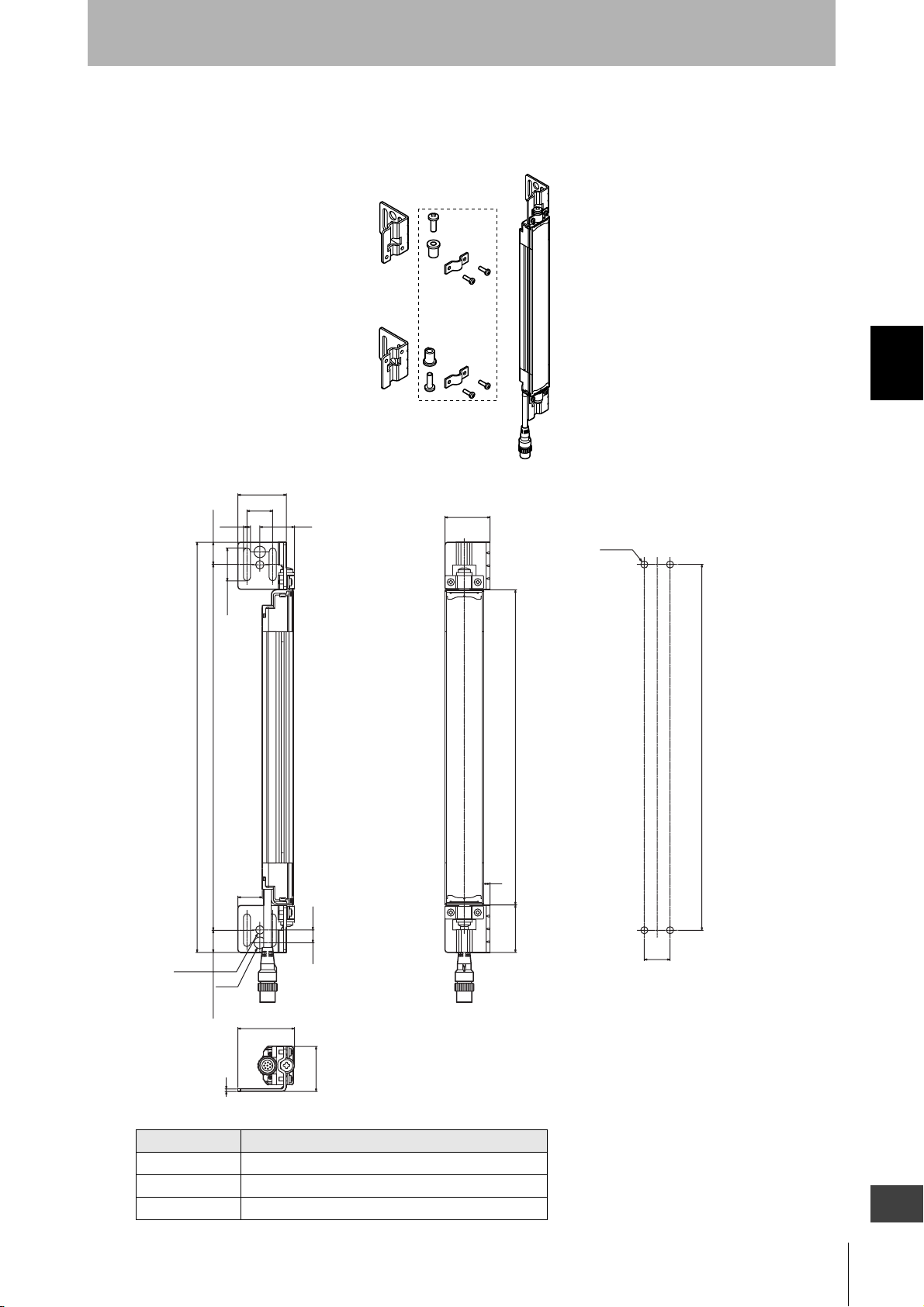

Side mounting

Use standard brackets

C (Protective height)

(Unit: mm)

Material: Stainless steel

*1 A mounting width of 18 to 20 can be supported when mounting with M5 screws.

Courtesy of CMA/Flodyne/Hydradyne ▪ Motion Control ▪ Hydraulic ▪ Pneumatic ▪ Electrical ▪ Mechanical ▪ (800) 426-5480 ▪ www.cmafh.com

Wiring/Installation

Chapter3 Dimensions

Dimensions A to C

A C + 109

BC + 66

C 4-digit number of the model name (protective height)

F3SJ-A

User’s Manual

Page 86

Chapter3 Dimensions

5.5

19.9

44.9

4-M5

16.5

(16.5)

11.5

C (Protective height)

(Unit: mm)

Material: Stainless steel

dia. 6.5

dia. 9

Courtesy of CMA/Flodyne/Hydradyne ▪ Motion Control ▪ Hydraulic ▪ Pneumatic ▪ Electrical ▪ Mechanical ▪ (800) 426-5480 ▪ www.cmafh.com

Wiring/Installation

 F39-LJ5 Replacement Bracket for F3SN

Use these replacement brackets for an F3SN with a small protective height. (These brackets are designed for use with the F3SN's mounting holes.)

Inward-facing mounting

Use standard

F39-LJ5

brackets

Dimensions A to C

AC + 23

BC - 10

C 4-digit number of the model name (protective height)

F3SJ-A

User’s Manual

Page 87

Outward-facing mounting

4-M5

5.55.5

5.84.2

15.5

(15.5)

19.9

C (Protective height)

(Unit: mm)

Material: Stainless steel

dia. 6.5

dia.9

Courtesy of CMA/Flodyne/Hydradyne ▪ Motion Control ▪ Hydraulic ▪ Pneumatic ▪ Electrical ▪ Mechanical ▪ (800) 426-5480 ▪ www.cmafh.com

Use standard

F39-LJ5

brackets

Wiring/Installation

Chapter3 Dimensions

Dimensions A to C

AC + 65

BC + 34

C 4-digit number of the model name (protective height)

F3SJ-A

User’s Manual

Page 88

Chapter3 Dimensions

19.9

32.5

(11.5)

5.84.2

15.5

(16.5)

5.5 5.5

4-M5

C (Protective height)

(Unit: mm)

Material: Stainless steel

dia. 6.5

dia.9

Courtesy of CMA/Flodyne/Hydradyne ▪ Motion Control ▪ Hydraulic ▪ Pneumatic ▪ Electrical ▪ Mechanical ▪ (800) 426-5480 ▪ www.cmafh.com

Wiring/Installation

Inward + outward-facing mounting

F39-LJ5

Use standard brackets

Dimensions A to C

AC + 44

BC + 12

C 4-digit number of the model name (protective height)

F3SJ-A

User’s Manual

Page 89

Wiring/Installation

Courtesy of CMA/Flodyne/Hydradyne ▪ Motion Control ▪ Hydraulic ▪ Pneumatic ▪ Electrical ▪ Mechanical ▪ (800) 426-5480 ▪ www.cmafh.com

F3SN replacement correspondence table (F3SN mounting holes can be used without modification)

•When replacing F3SN-P25 with F3SJ-AP25-TS

F3SN Replacement F3SJ

Model name Protective height Model name Protective height

F3SN-0187P25 187 - - -

F3SN-0217P25 217 F3SJ-A0260P25-TS 260 Inward-facing mounting

F3SN-0232P25 232 F3SJ-A0260P25-TS 260 Inward + outward-facing

F3SN-0247P25 247 F3SJ-A0260P25-TS 260 Inward + outward-facing

F3SN-0262P25 262 F3SJ-A0260P25-TS 260 Outward-facing mounting

Replacement method

using F39-LJ5

mounting

For lengths greater than the F3SN-0277P25: Subtract a number, ranging from 7 to 22, from the F3SN's 4-digit number and apply it as the F3SJ's 4digit number, and then replace with the standard brackets included with the product. [Selection example] F3SN-A0322P25 becomes F3SJ-A0300P25-TS (replace with standard brackets)

The formula shown above is recommended for mounting in the center of a mounting hole. If a mounting position is unmatched, another mounting hole must be drilled.

Chapter3 Dimensions

- The protective height becomes shorter by 7 to 22mm.

- Replace with outward-facing mounting of F39-LJ5 when you want to set the detection surface height to be same as the F3SN. However, the F39-LJ5 and intermediate mounting brackets cannot be mounted simultaneously, so set the protective height to 600mm or less.

F3SJ-A

User’s Manual

Page 90

Chapter3 Dimensions

C (Protective height)

(Unit: mm)

Material: Stainless steel

11.5

25.65

16.65

B16.65

30 20

5.5

4-M5

Courtesy of CMA/Flodyne/Hydradyne ▪ Motion Control ▪ Hydraulic ▪ Pneumatic ▪ Electrical ▪ Mechanical ▪ (800) 426-5480 ▪ www.cmafh.com

Wiring/Installation

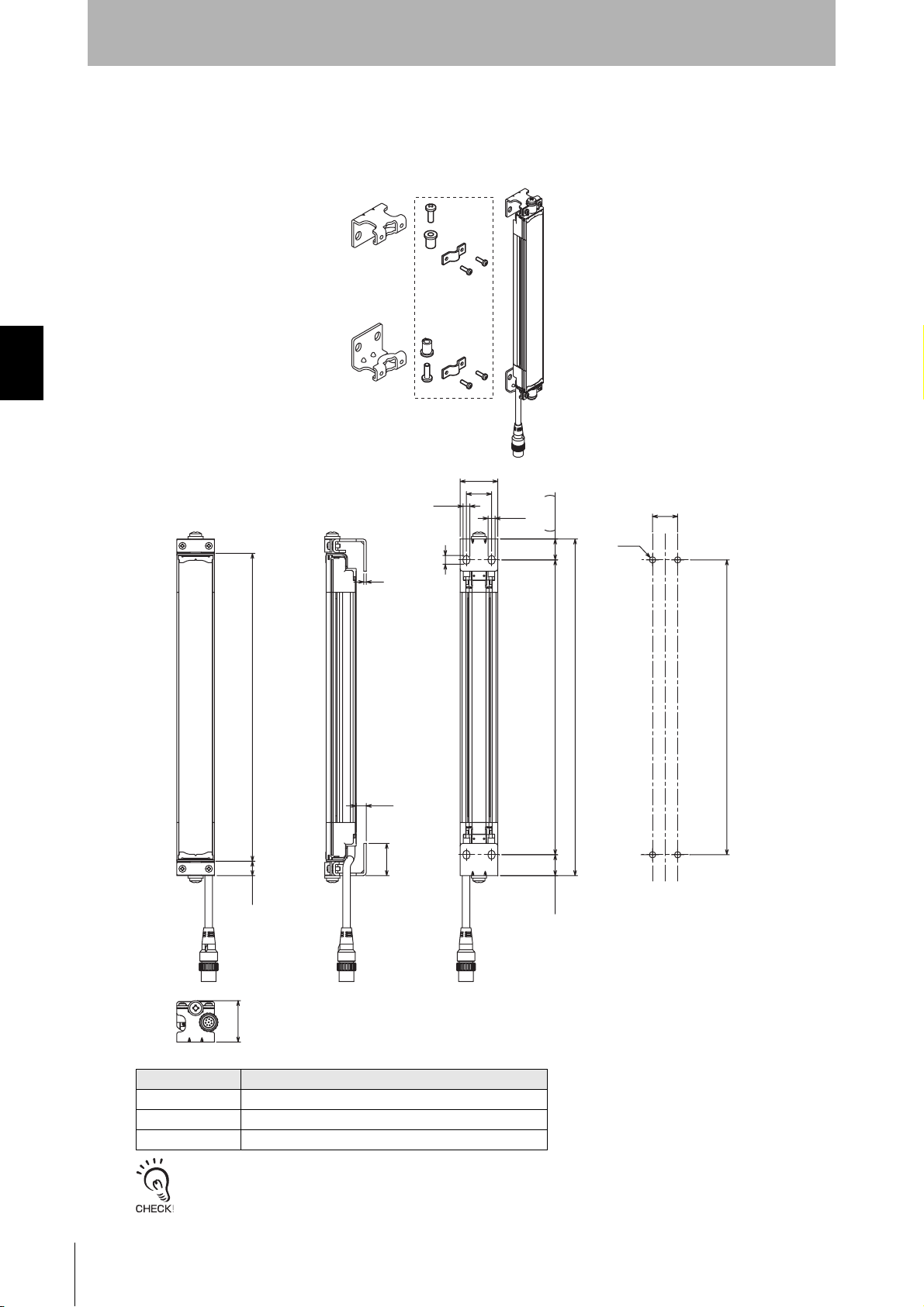

 F39-LJ8 Space-saving Mounting Bracket

Brackets that can save mounting space for top and bottom

Backside mounting

F39-LJ8

Use standard brackets

Dimensions A to C

AC + 23 B C - 10.3 C 4-digit number of the model name (protective height)

The F39-LJ8 and intermediate mounting brackets cannot be mounted simultaneously, so set the protective height to 600mm or less.

F3SJ-A

User’s Manual

Page 91

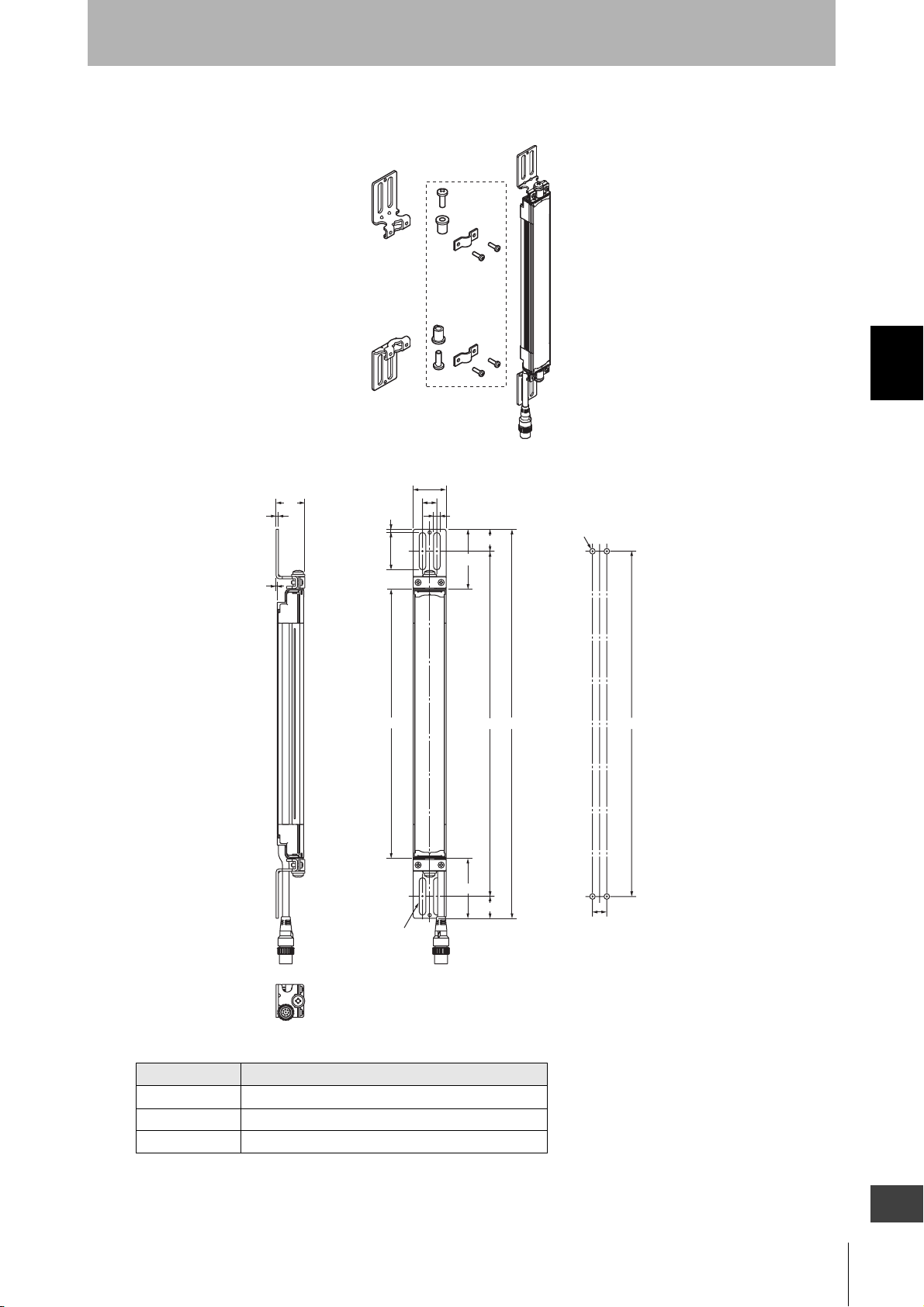

 F39-LJ11 Top/bottom Mounting Bracket C

㧔20㧕

㧔54.5㧕

54.5

ABB

4-M5

Hole size for mounting

4-Mounting holes

Material: Stainless steel

(Unit: mm)

C (Protective height)

Courtesy of CMA/Flodyne/Hydradyne ▪ Motion Control ▪ Hydraulic ▪ Pneumatic ▪ Electrical ▪ Mechanical ▪ (800) 426-5480 ▪ www.cmafh.com

Use standard brackets

Wiring/Installation

Chapter3 Dimensions

Dimensions A to C

A C + 109

BC + 69

C 4-digit number of the model name (protective height)

F3SJ-A

User’s Manual

Page 92

Wiring/Installation

L= -10 mm

(Unit: mm)

Material: PC (protective cover)

Courtesy of CMA/Flodyne/Hydradyne ▪ Motion Control ▪ Hydraulic ▪ Pneumatic ▪ Electrical ▪ Mechanical ▪ (800) 426-5480 ▪ www.cmafh.com

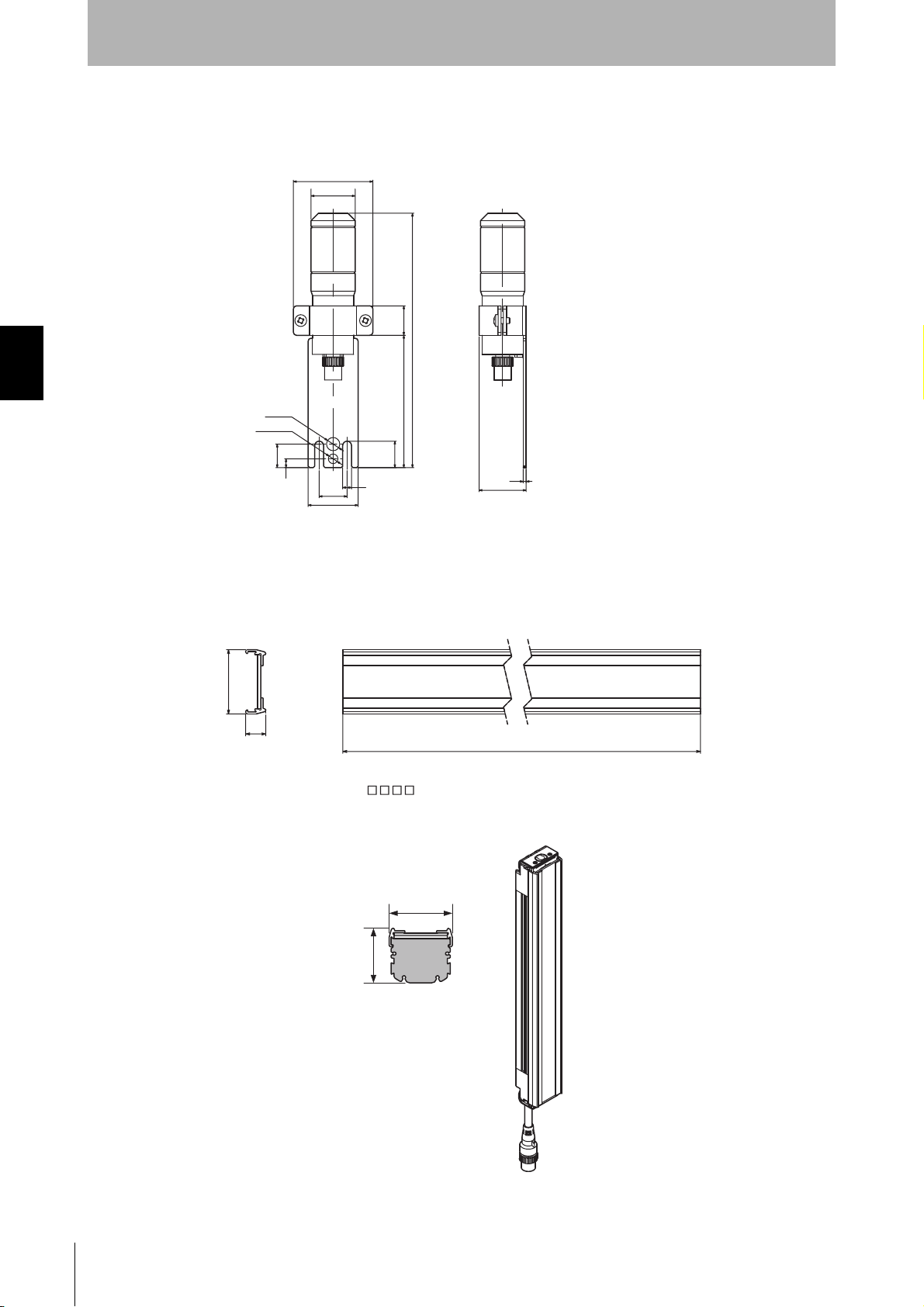

 F39-A01P-PAC External Indicator Set

•F39-A01P-PAC

Chapter3 Dimensions

dia. 30

173

dia. 9

dia. 6.5

Material: Stainless steel

 When Using Spatter Protection Covers

 Dimensions of the Spatter Protection Cover F39-HJ

(Unit: mm)

 Assembly Dimensions

F3SJ-A

User’s Manual

(Unit: mm)

29.5

Page 93

 Mounting a Protect Bar

16.5

5.5

(37)

(13.75)

(6)

3024

dia.9

dia.6.5

(37)

6.25

2-M8

2-M6

3.75

6.25

4-M5

C(Protective height)

dia.5.5

(6)

Hole size for mounting

Protection Bracket (2)

Protection Bracket (3)

Protection Bracket (1)

Mounting hole

Backside mounting

(Unit: mm)

Using M5 Using M6 and M8

3-M5 Hex. Bolt with Washer and Hole

Sensor

4-Mounting holes

2-Mounting holes

4-M3 Hex. Bolt with Washer and Hole

Protection Support

Material: Stainless steel and aluminum

Courtesy of CMA/Flodyne/Hydradyne ▪ Motion Control ▪ Hydraulic ▪ Pneumatic ▪ Electrical ▪ Mechanical ▪ (800) 426-5480 ▪ www.cmafh.com

 External Dimensions of Protect Bar F39-PJ

Wiring/Installation

Chapter3 Dimensions

Dimensions A to C Dimension D

A C+74 245 to 1000 0 -

B C+46.5 1001 to 2000 1 B/2

C 4-digit number of the model

name (protective height)

Protective height Number of used protection brackets (3) D *1

2009 to 2495 2 B/3

*1 D is for reference and must be a length that should not affect intermediate mounting bracket

F3SJ-A

User’s Manual

Page 94

Chapter3 Dimensions

16.5

5.5

10 20

6432

(6)

30 24

6.25

2-M8

2-M6

3.75

6.25

4-M5

(37)

(13.75)

dia.5.5

(6)

dia.9

dia.6.5

Side mounting

C (Protective height)

Hole size for mounting

Protection Bracket (4) *1

Protection Bracket (2)

Protection Bracket (1)

Mounting hole

(Unit: mm)

Using M5 Using M6 and M8

3-M5 Hex. Bolt with Washer and Hole

Sensor

4-Mounting holes

2-Mounting holes

Protection Support

Material: Stainless steel and aluminum

4-M3 Hex. Bolt with Washer and Hole

*1 Protection Bracket (4) (F39-PJ-MS) is not included.

Courtesy of CMA/Flodyne/Hydradyne ▪ Motion Control ▪ Hydraulic ▪ Pneumatic ▪ Electrical ▪ Mechanical ▪ (800) 426-5480 ▪ www.cmafh.com

Wiring/Installation

Dimensions A to C Dimension D

Protective height Number of used protection brackets (4) D *2

A C+74 245 to 1000 0 -

B C+46.5 1001 to 2000 1 B/2

C 4-digit number of the model

name (protective height)

2009 to 2495 2 B/3

*2 D is for reference and must be a length that should not affect intermediate mounting bracket

F3SJ-A

User’s Manual

Page 95

13.5

5.5

dia.6.5

dia. 9

dia. 60.5

2-M8

2-M6

4-M5

Backside mounting

Hole size for mounting

(Unit: mm)

Using M5 Using M6 and M8

Material: Acrylic resin, nitrile rubber, stainless steel

2-Mounting brackets

(F39-EJ-R) *1

(Protective

height)

*1 Mounting Bracket (F39-EJ-R) is not included.

Courtesy of CMA/Flodyne/Hydradyne ▪ Motion Control ▪ Hydraulic ▪ Pneumatic ▪ Electrical ▪ Mechanical ▪ (800) 426-5480 ▪ www.cmafh.com

Wiring/Installation

 Mounting an Environment-Resistant Case

 External Dimensions of Environment-Resistant Case F39-EJ

Chapter3 Dimensions

Dimensions A to D

A C+108

BC+76

C 4-digit number of the model name (protective height)

DC+44

F3SJ-A

User’s Manual

Page 96

Chapter3 Dimensions

13.5

5.5

dia. 6.5

dia. 9

DBA

dia. 60.5

2-M8

2-M6

4-M5

Side mounting

Hole size for mounting

(Unit: mm)

Using M5 Using M6 and M8

Material: Acrylic resin, nitrile rubber, stainless steel

2-Mounting brackets

(F39-EJ-S) *1

(Protective

height)

*1 Mounting Bracket (F39-EJ-S) is not included.

Courtesy of CMA/Flodyne/Hydradyne ▪ Motion Control ▪ Hydraulic ▪ Pneumatic ▪ Electrical ▪ Mechanical ▪ (800) 426-5480 ▪ www.cmafh.com

Wiring/Installation

Dimensions A to D

A C+108

BC+76

C 4-digit number of the model name (protective height)

DC+44

F3SJ-A

User’s Manual

Page 97

Wiring/Installation

)

Courtesy of CMA/Flodyne/Hydradyne ▪ Motion Control ▪ Hydraulic ▪ Pneumatic ▪ Electrical ▪ Mechanical ▪ (800) 426-5480 ▪ www.cmafh.com

Mounting

The procedures for using standard mounting brackets (included) are explained in this section.

 Top/Bottom Mounting Brackets

Mounting screws (M5x18) x 4

Chapter3 Mounting

Top/bottom mounting bracket (2) x 4

Top/bottom mounting bracket (3) x 4

Mounting screws (M3x8) x 8

Top/bottom mounting bracket (1) x 4

*1 The quantities shown here are the number of parts included in 1 top/bottom mounting bracket set

Material: Stainless steel (top/bottom mounting bracket (1), (3)) Brass (top/bottom mounting bracket (2)) Iron (mounting screws)

 Intermediate Mounting Brackets

The number of intermediate mounting brackets included with F3SJ of various protective heights is shown below.

Number of

Protective height

0245 to 0596 0

600 to 1130 1

1136 to 1658 2

1660 to 2180 3

2195 to 2500 4

intermediate mounting

brackets

Side mounting intermediate brackets x 2

Intermediate brackets (2) x 2

Intermediate brackets (3) x 2

Intermediate brackets (4) x 2

Mounting screws (M3x10) x 2

Mounting screws (M4x25) x 4

To use other mounting bracket or bolt than those for F3SJ, you must confirm that their sizes should match F3SJ. Especially when you do not use top/bottom mounting brackets (2), you may need screws with appropriate length because the standard mounting screws (M5 x 18) may be too long.

* The quantities shown here are the number of parts included in1 intermediate mounting bracket set

Intermediate brackets (1) x 2

Mounting screws (M5x10) x 4

Material: Stainless steel (intermediate mounting bracket Zinc die-cast (Intermediate mounting brackets (1) to (4)) Iron (mounting screws)

F3SJ-A

User’s Manual

Page 98

Chapter3 Mounting

Mounting

screw

(M3x10)

Intermediate

mounting

bracket (2)

Intermediate

mounting

bracket (3)

Attach so that the tooth shown in the dotted circle is facing downward.

Tighten

lightly

Courtesy of CMA/Flodyne/Hydradyne ▪ Motion Control ▪ Hydraulic ▪ Pneumatic ▪ Electrical ▪ Mechanical ▪ (800) 426-5480 ▪ www.cmafh.com

Wiring/Installation

 Mounting Procedure

1. Attach the top/bottom mounting brackets.

Place top/bottom mounting bracket (2) in the screw hole at the top/bottom of the F3SJ, and fasten it using the included screw (M5x18). Insert the bracket's protrusion into the groove on the case when attaching. Next, attach top/bottom mounting brackets (3) and (1) to top/bottom mounting bracket (2), and fasten them lightly using the included screws (M3x8).

Top/bottom mounting

Mounting screw

(M5x18)

bracket (1)

Top/bottom

mounting

bracket (2)

Top/bottom

mounting

bracket (3)

Mounting screw

(M3x8)

Tighten lightly

2. Attach the intermediate mounting brackets.

Insert intermediate brackets (2) and (3) into the grooves on the side of the case, and use the included mounting screws (M3x10) to lightly fasten the brackets so that they are able to slide up and down the case.

F3SJ-A

User’s Manual

Page 99

Wiring/Installation

Intermediate

mounting

bracket (1)

Intermediate

mounting

bracket (4)

Mounting screw

(M4x25)

Intermediate mounting

bracket for

side mounting

Mounting screw

(M5x10)

Tighten lightly

Courtesy of CMA/Flodyne/Hydradyne ▪ Motion Control ▪ Hydraulic ▪ Pneumatic ▪ Electrical ▪ Mechanical ▪ (800) 426-5480 ▪ www.cmafh.com

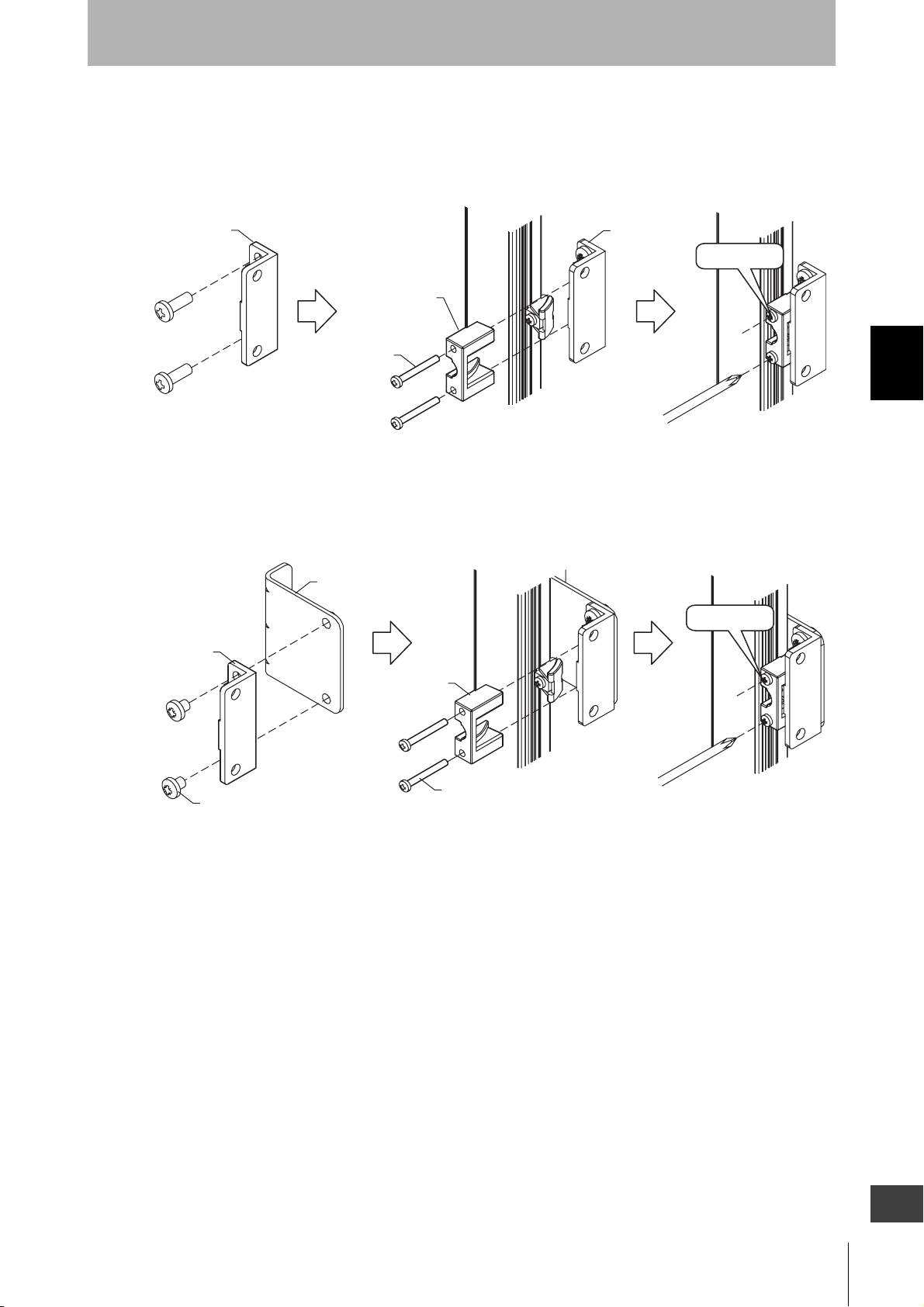

3. Attach the intermediate mounting brackets (for backside mounting).

For backside mounting, first lightly attach intermediate mounting bracket (1) to the equipment, wall surface, etc. Then, attach intermediate brackets (1) and (4) to the bracket that was lightly attached to the case in step 2 above, and lightly tighten them using the included mounting screws (M4x25).

Intermediate

mounting

bracket (1)

Intermediate

mounting

bracket (4)

Mounting screw

(M4x25)

Intermediate

mounting

bracket (1)

Tighten lightly

4. Attach the intermediate mounting brackets (for side mounting).

When performing side mounting, first attach the intermediate mounting bracket for side mounting to intermediate mounting bracket (1), using the included mounting screws (M5x10). Then, lightly attach intermediate mounting bracket (4) to the bracket that was lightly attached to the case in step 2 above, using the included mounting screws (M4x25).

Chapter3 Mounting

F3SJ-A

User’s Manual

Page 100

Chapter3 Mounting

Courtesy of CMA/Flodyne/Hydradyne ▪ Motion Control ▪ Hydraulic ▪ Pneumatic ▪ Electrical ▪ Mechanical ▪ (800) 426-5480 ▪ www.cmafh.com

Wiring/Installation

5. Fasten to equipment.

Attach top/bottom mounting bracket (1) to the equipment, wall surface, etc. If you are using an intermediate mounting bracket for side mounting, also attach the side-mounting intermediate bracket to the equipment, wall surface, etc. After the F3SJ is mounted, securely tighten the mounting screws (M3x10) that were lightly tightened in step 2 above.

Backside mounting Side mounting

Tighten securely

6. Adjust the beams.

Move the F3SJ from side to side to align it to a center position where the 5 lamps of the incident light level indicator are turned ON. After each screw is securely tightened after beam adjustment, make sure that the 5 lamps of the incident light level indicator are turned ON.

Tighten securely

Mounting is complete.For adjustment of beams and tightening torque, see "Adjustment Procedure" in the next page.

F3SJ-A

User’s Manual

Omron F3SJ-A User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual

Checking the Contents

How to Read This Manual (Explanation of Symbols)

Contents

Chapter1 Overview and Specifications

Basic Configuration and Names

Application Examples

Detect the Approach to a Hazardous Zone

 Detect the Approach of a Person

 Detect a Person's Limbs

 Using Multiple Sets in Combination

Features

Protective Height Available in Incremental Sizes

 Additional Safety Functions

 Enhanced Mutual Interference Prevention

 Muting/Override Function are Provided

Indicator Display Patterns

Internal Indicator for Basic System

 Internal Indicator for Muting System

 Display Patterns of the Incident Light Level Indicator

Ratings

Ratings/Specifications

 Model Name List/Response Times

 Power Cable Length

Chapter2 System Configuration and Functions

How to Select a System

System Selection

 Function List

Basic System

 Wiring Diagrams

 Wiring using external device monitoring function

 Wiring When External Device Monitoring Function Is Not Used

 Ref.: Minimum Wiring Required to Check the Operation of the F3SJ

 External Test Function

 Operation of the F3SJ's Indicators When External Test Function is Performed

 Self-Test Function

 Self-Test Details

 Waveform of Safety Outputs

 Auxiliary Output (Non-Safety Output)

 Resetting Lockout

 External Device Monitoring Function

 Wiring

 Timing Chart

Muting System

Muting lamp (external indicator)

 Upgrading F3SJ for Muting System

 Muting Sensor

 F3SJ's Indicators

 Standard Muting Mode

 Start Conditions

 End Conditions

 Wiring Diagrams

 Wiring When Using Muting and External Device Monitoring Function

 Wiring When External Device Monitoring Function Is Not Required

 Installation Standard for Muting Sensors

 Installation Distance

 Wiring Diagrams

 Timing Chart

 Installation Distance

 Wiring Diagrams

 Timing Chart

 Reference: Bidirectional Muting

 Reference: Preventing light interference of muting sensor

 Override Function

 Override Start Conditions

 Override End Conditions

 Operation of the F3SJ's Internal Indicators When Override Function Is Performed

 External Test Function

 Operation of the F3SJ's Internal Indicators When External Test Function Is Performed

 Self-Test Function

 Auxiliary Output (Non-Safety Output)

 Resetting Lockout

 External Device Monitoring Function (EDM)

Operation of the F3SJ's Internal Indicator When Using the External Device Monitoring Function

Chapter3 Wiring/Installation

Installation Conditions

Detection Zone and Approach
