Omron E5CC-800, E5CC-B-800, E5CC-U-800, E5AC-800, E5DC-800 Installation Manual

New Product

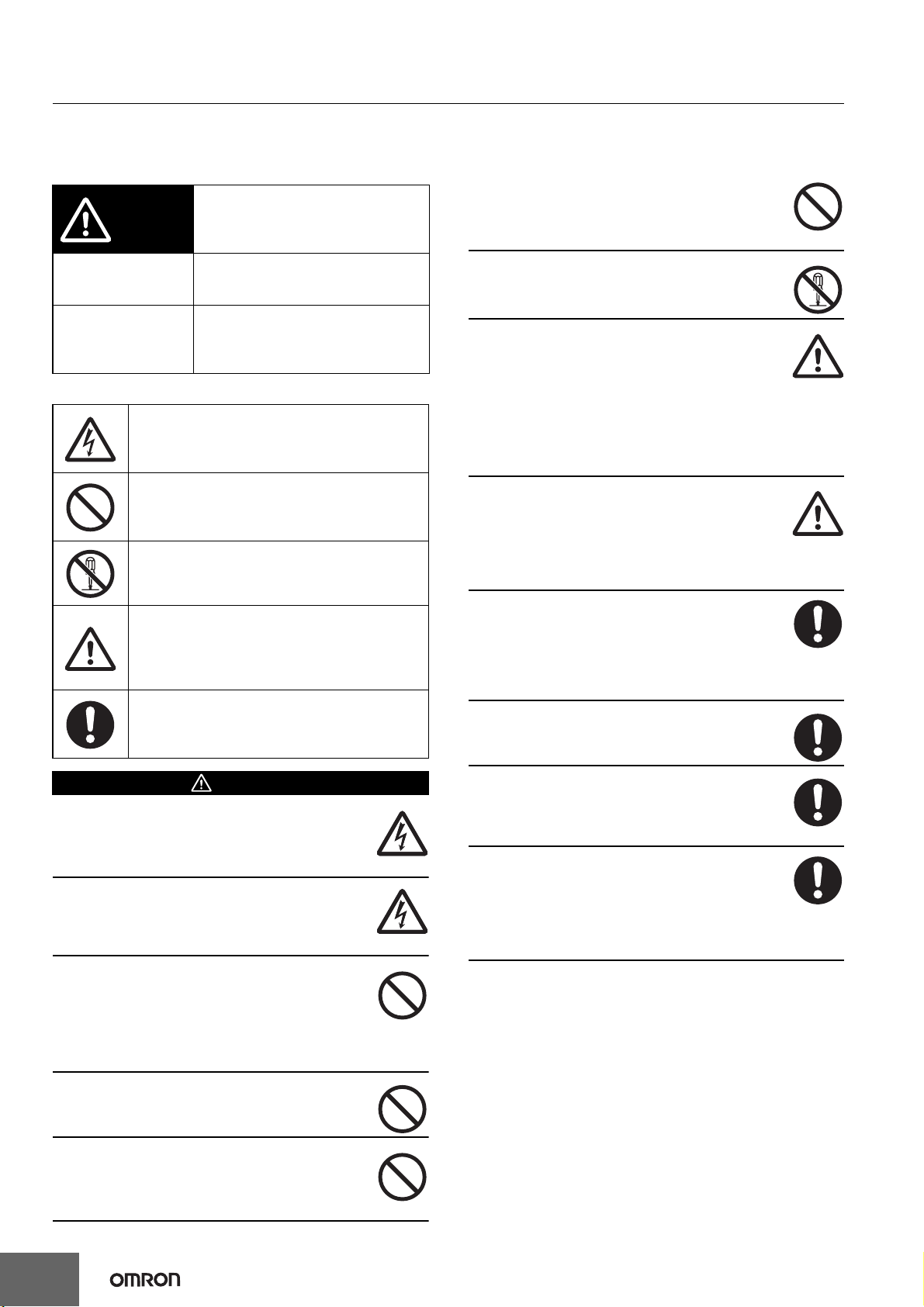

Refer to Safety Precautions on page 58.

Refer to your OMRON website for the most recent information on applicable safety standards.

* CSA conformance evaluation by UL.

48 × 48 mm

Screw Terminal

Blocks

E5CC-800

48 × 48 mm

Plug-in Models

E5CC-U-800

48 × 48 mm

Push-In Plus

Terminal Blocks

E5CC-B-800

Dual displays: PV/SV

4-digit displays

E5CC-800/E5CC-B-800/E5CC-U-800

Indication Accuracy

• Thermocouple input: <E5CC-800/E5CC-B-800>±0.3%PV <E5CC-U-800>±1%PV

• Pt input: ±0.2% of PV

• Analog input: ±0.2% of FS

Sampling Period

• 50 ms

Control Output 1

• PF (shift) Key

• Temperature status display

• Independent heating and

cooling PID control

• Changed parameter display

Auxiliary Outputs

• 2

Event Inputs

Sensor Input

Universal input

• Thermocouple

• Pt

• Analog current/voltage

Serial Communications <E5CC-800/E5CC-B-800>

• None

• RS-485

<E5CC-U-800>

• None

<E5CC-800/E5CC-B-800>

• None

• 2

<E5CC-U-800>

• None

• Relay output

• Voltage output

(for driving SSR)

• Linear current output

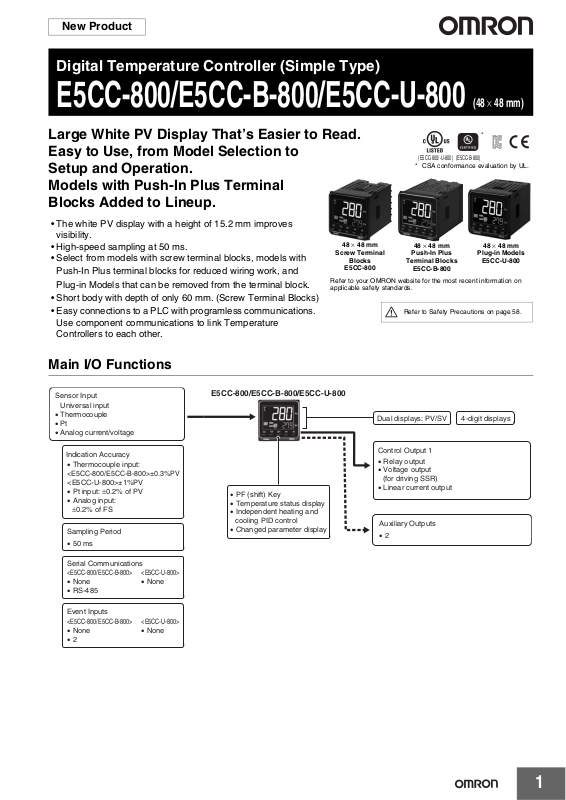

Digital Temperature Controller (Simple Type)

E5CC-800/E5CC-B-800/E5CC-U-800

Large White PV Display That’s Easier to Read. Easy to Use, from Model Selection to

(E5CC-800/-U-800) (E5CC-B-800)

(48 × 48 mm)

*

Setup and Operation. Models with Push-In Plus Terminal Blocks Added to Lineup.

• The white PV display with a height of 15.2 mm improves visibility.

• High-speed sampling at 50 ms.

• Select from models with screw terminal blocks, models with Push-In Plus terminal blocks for reduced wiring work, and Plug-in Models that can be removed from the terminal block.

• Short body with depth of only 60 mm. (Screw Terminal Blocks)

• Easy connections to a PLC with programless communications. Use component communications to link Temperature Controllers to each other.

Main I/O Functions

1

E5CC-800/E5CC-B-800/E5CC-U-800

Model Number Legend and Standard Models

Model Number Legend

●Models with Screw Terminal Blocks

E5CC-800 48 × 48 mm

Control output 1 Auxiliary output Communications Heater burnout Event inputs Power supply voltage Model

Relay output

Voltage output E5CC-QX2ASM-800

Linear current output E5CC-CX2ASM-800

Relay output

Voltage output E5CC-QX2DSM-800

Linear current output E5CC-CX2DSM-800

Relay output

Voltage output E5CC-QX2ASM-801

Relay output

Voltage output E5CC-QX2DSM-801

Relay output

Voltage output E5CC-QX2ASM-802

Relay output

Voltage output E5CC-QX2DSM-802

Linear current output

Linear current output 24 VAC/VDC E5CC-CX2DSM-804

Note: Draw-out-type models of the E5CC-800 are available. Ask your OMRON representative for details.

Two

-

RS-485

--

Two

One

-

-Two

100 to 240 VAC

24 VAC/VDC

100 to 240 VAC

24 VAC/VDC

100 to 240 VAC

24 VAC/VDC

100 to 240 VAC E5CC-CX2ASM-804

●Models with Push-In Plus Terminal Blocks

E5CC-B-800 48 × 48 mm

Control output 1 Auxiliary output Communications Heater burnout Event inputs Power supply voltage Model

Relay output

Voltage output E5CC-QX2ABM-800

Linear current output E5CC-CX2ABM-800

Relay output

Voltage output E5CC-QX2ABM-802

Linear current output - Two E5CC-CX2ABM-804

Two

--

RS-485

One

100 to 240 VAC

E5CC-RX2ASM-800

E5CC-RX2DSM-800

E5CC-RX2ASM-801

E5CC-RX2DSM-801

E5CC-RX2ASM-802

E5CC-RX2DSM-802

E5CC-RX2ABM-800

E5CC-RX2ABM-802

●Plug-in Models

E5CC-U-800 48 × 48 mm

Control output 1 Auxiliary output Communications Heater burnout Event inputs Power supply voltage Model

Relay output

Voltage output E5CC-QX2AUM-800

Relay output

Voltage output E5CC-QX2DUM-800

Two - - -

100 to 240 VAC

24 VAC/VDC

E5CC-RW2AUM-800

E5CC-RW2DUM-800

Heating and Cooling Control

● Using Heating and Cooling Control

A Control Output Assignment An auxiliary output is used as the cooling control output. B Control If PID control is used, you can set PID control separately for heating and cooling. This allows you to handle control systems with different heating and cooling response characteristics.

2

Optional Products (Order Separately)

Terminal Covers (for E5CC-800)

Model

E53-COV17

E53-COV23 (3pcs)

Note: The E53-COV10 cannot be used.

Refer to page 14 for the mounted dimensions.

Waterproof Packing

Model

Y92S-P8

Note: This Waterproof Packing is provided only with E5CC-800/

E5CC-B-800 Controllers. The E5CC-U-800 cannot be waterproofed even if the Waterproof Packing is attached.

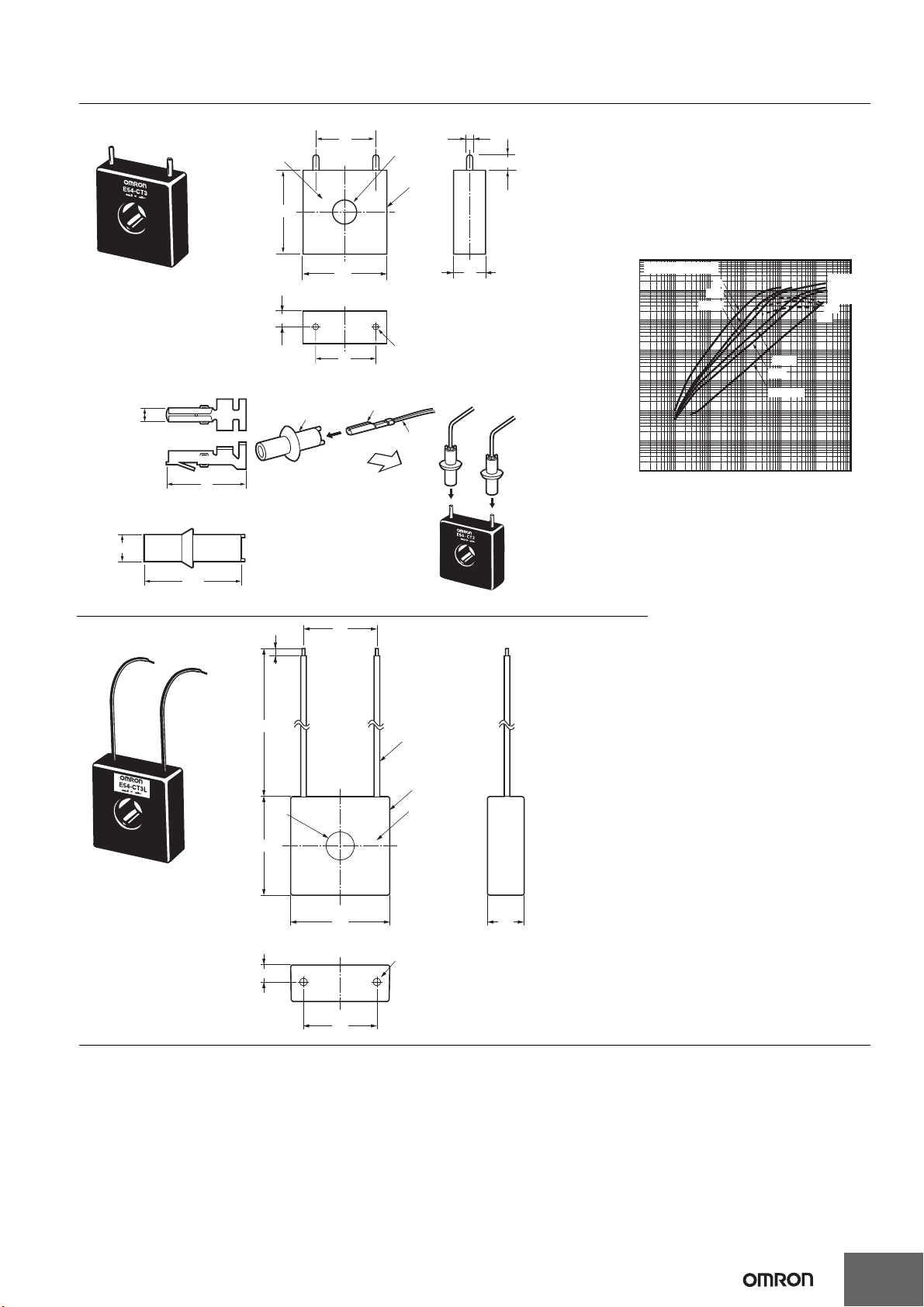

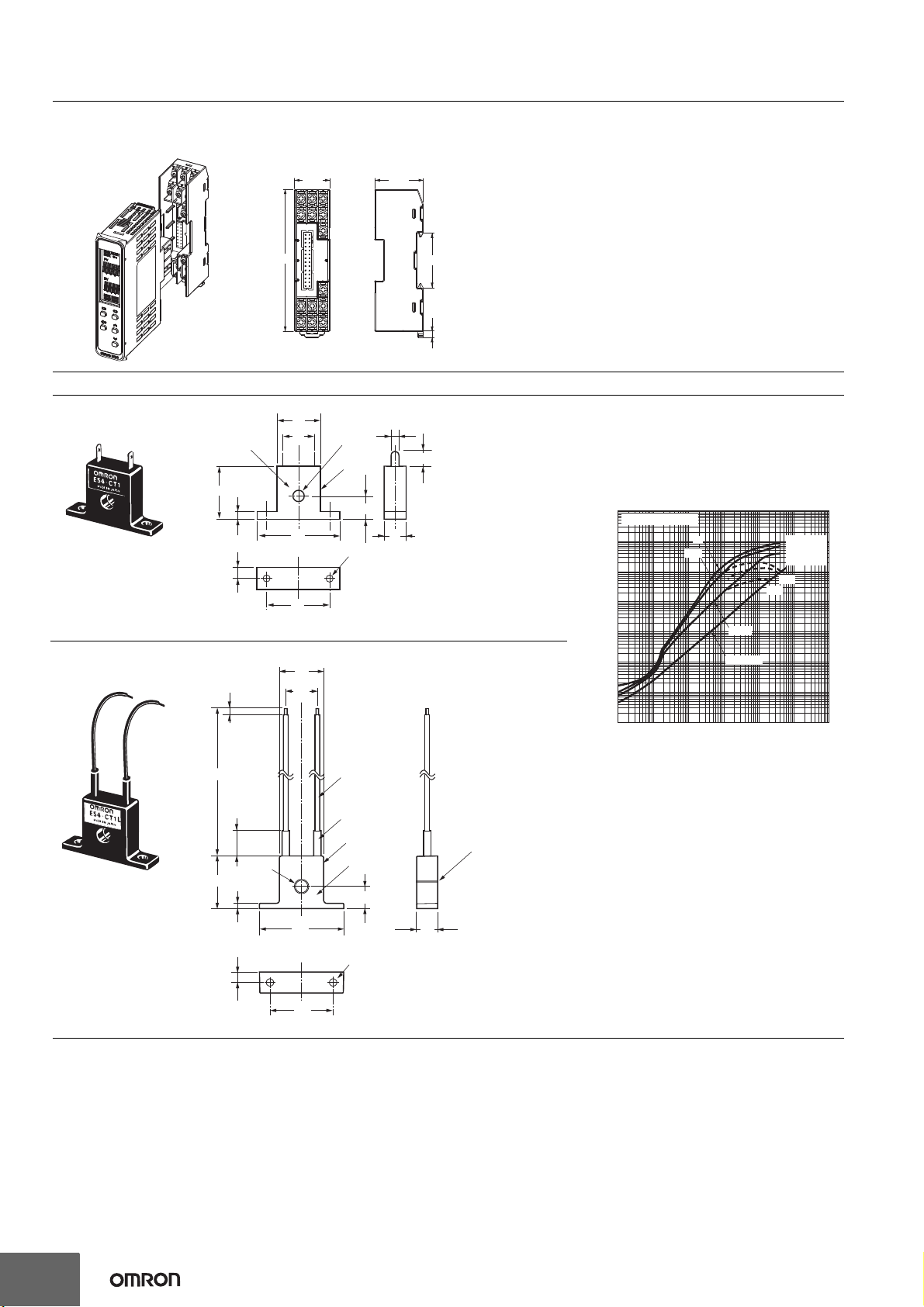

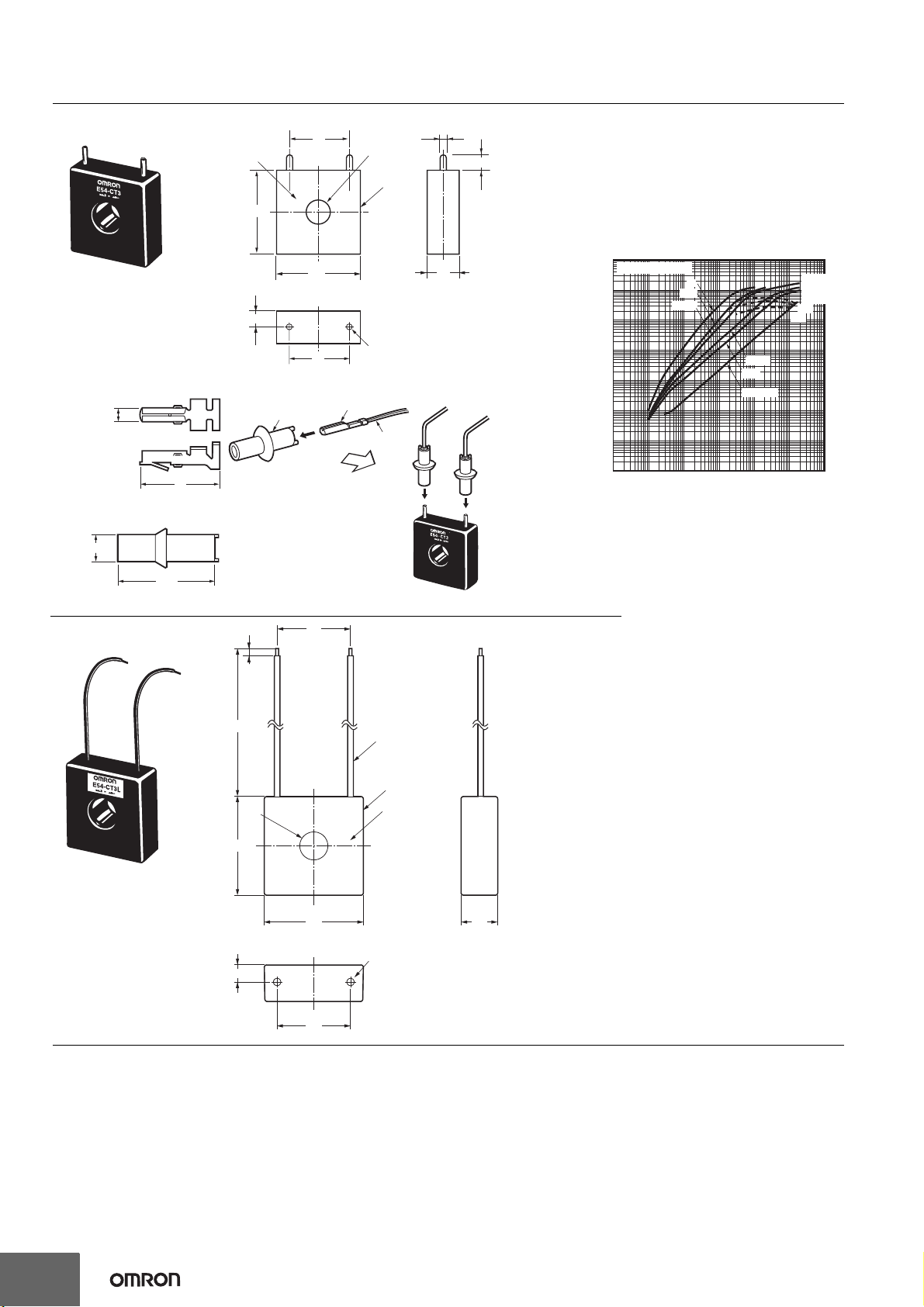

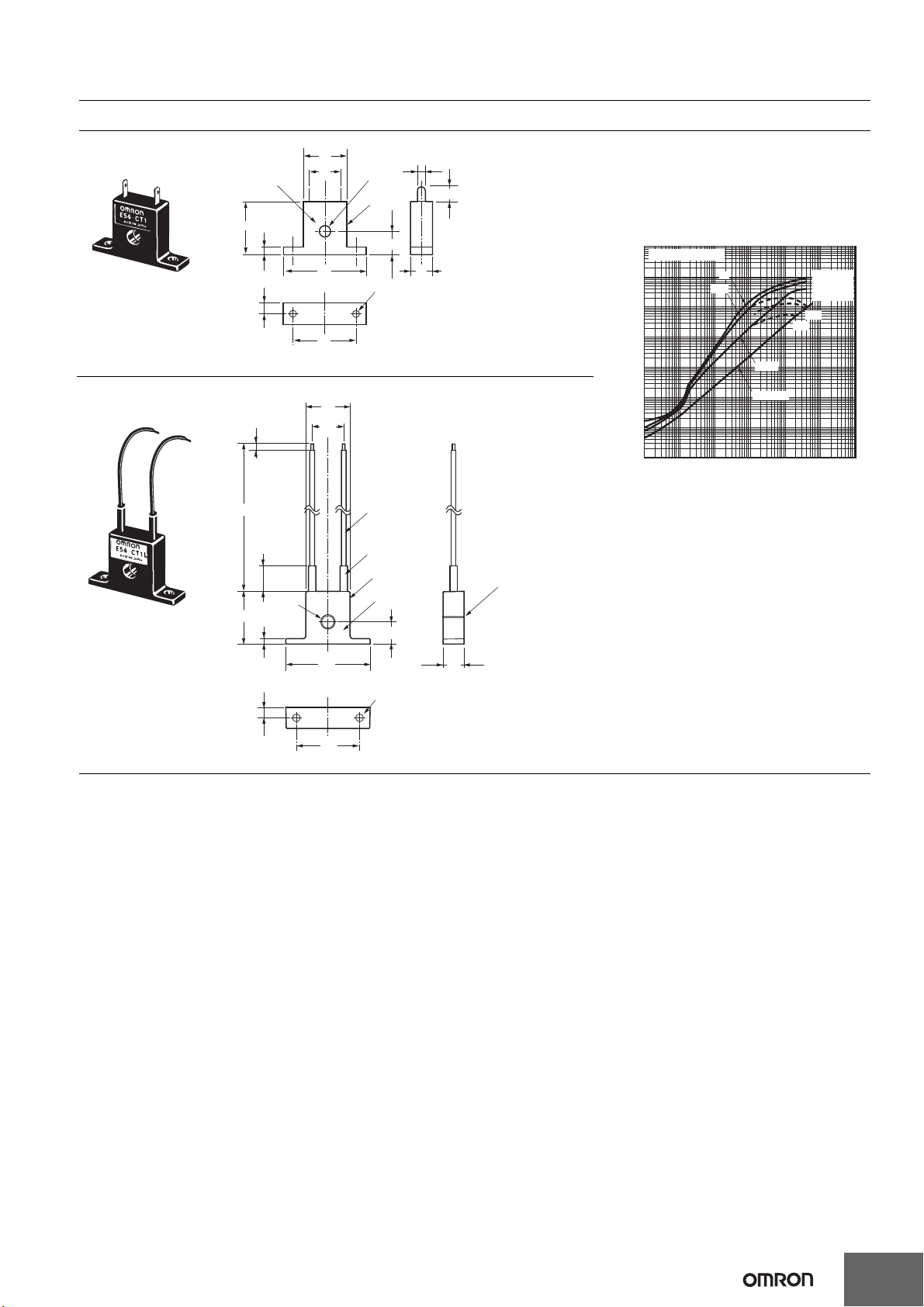

Current Transformers (CTs)

Hole diameter Model

5.8 mm E54-CT1

5.8 mm E54-CT1L *

12.0 mm E54-CT3

12.0 mm E54-CT3L *

* Lead wires are included with these CTs. If UL certification is

required, use these CTs.

Adapter

Model

Y92F-45

Note: Use this Adapter when the panel has already been prepared for

an E5B@ Controller.

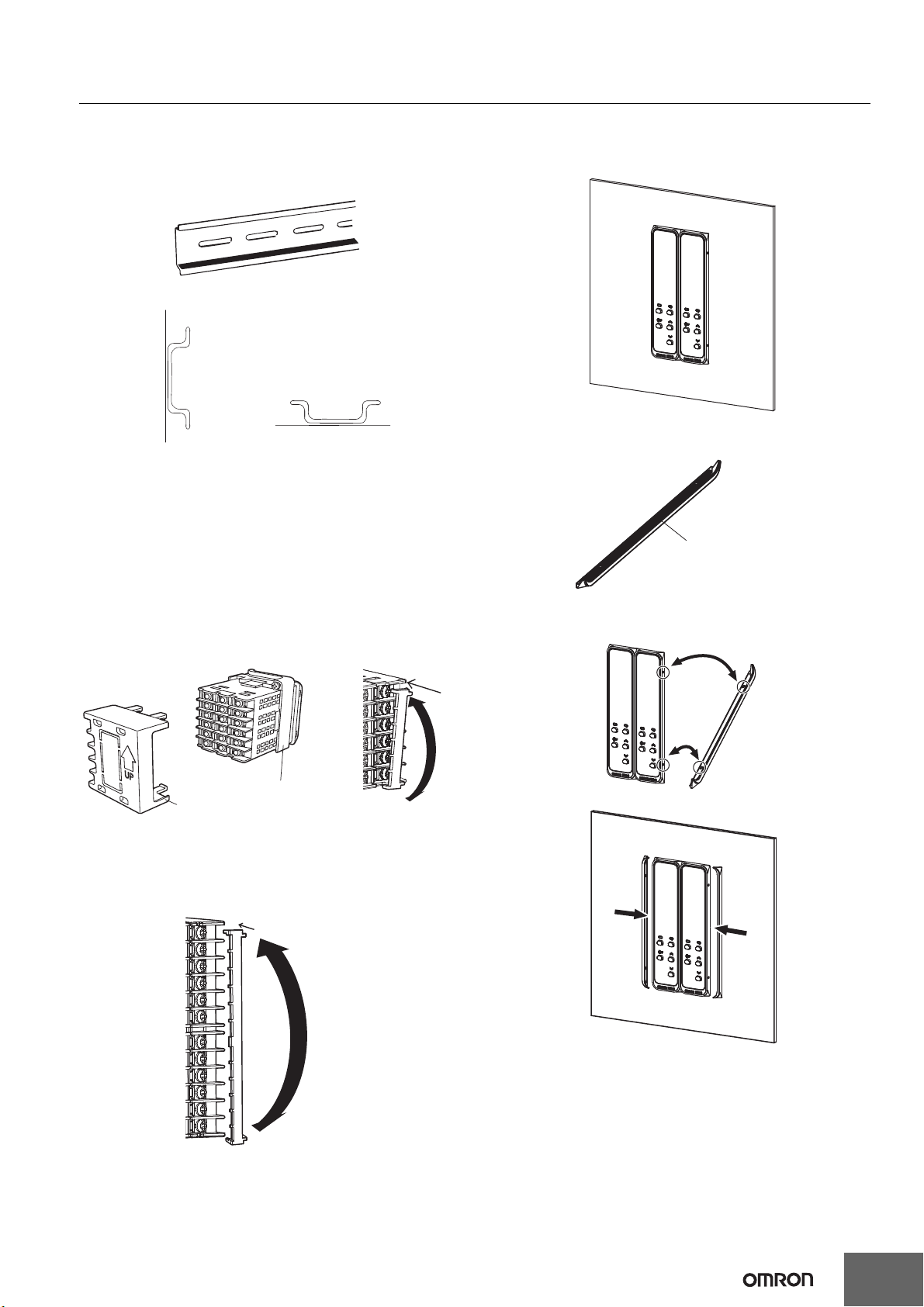

DIN Track Mounting Adapter (for E5CC-800)

Model

Y92F-52

E5CC-800/E5CC-B-800/E5CC-U-800

Sockets (for E5CC-U-800)

Type Model

Front-connecting Socket P2CF-11 Front-connecting Socket with Finger Protection P2CF-11-E Back-connecting Socket P3GA-11 Terminal Cover for Back-connecting socket

with Finger Protection

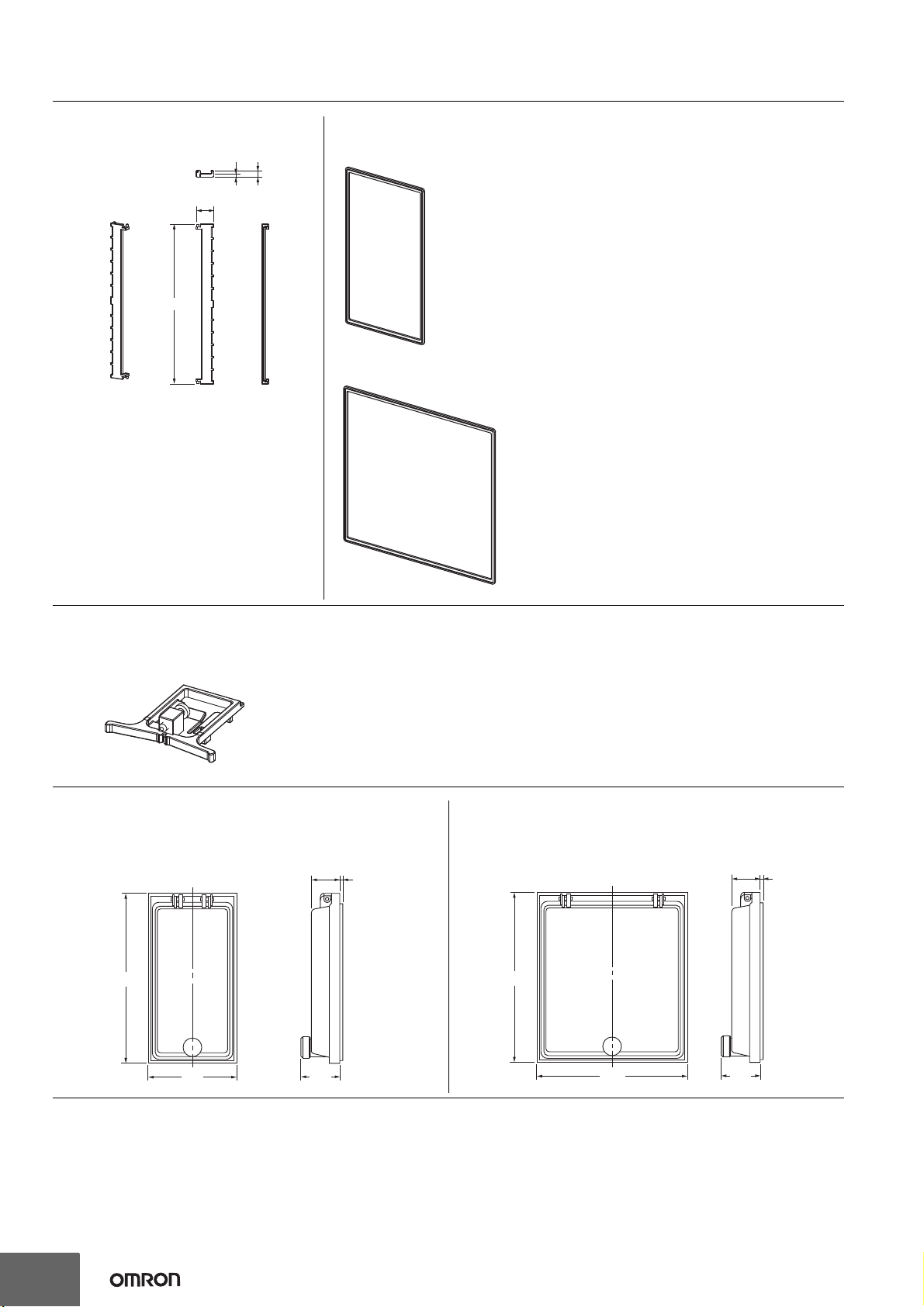

Waterproof Cover

Model

Y92A-48N

Mounting Adapter

Model

Y92F-49

Note: This Mounting Adapter is provided with the Digital Temperature

Controller.

Front Covers

Type Model

Hard Front Cover Y92A-48H Soft Front Cover Y92A-48D

Y92A-48G

3

E5CC-800/E5CC-B-800/E5CC-U-800

Specifications

Ratings

Power supply voltage

Operating voltage range 85% to 110% of rated supply voltage

Power consumption

Sensor input

Input impedance

Control method ON/OFF control or 2-PID control (with auto-tuning)

Relay output

Control output

Auxiliary output

Event input *1*2

Setting method Digital setting using front panel keys

Indication method

Multi SP

Other functions

Ambient operating temperature -10 to 55°C (with no condensation or icing) Ambient operating humidity 25% to 85% Storage temperature -25 to 65°C (with no condensation or icing) Altitude 2,000 m max. Recommended fuse T2A, 250 VAC, time lag, low-breaking capacity Installation environment Overvoltage category II, Pollution Degree 2 (EN/IEC/UL 61010-1)

*1 There are no optional functions for the E5CC-U-800. Refer to Model Number Legend on page 2. *2 There are no optional functions for the E5CC-B-800. Refer to Model Number Legend on page 2.

Voltage output (for driving SSR)

Linear current output *1 4 to 20 mA DC/0 to 20 mA DC, load: 500 Ω max., resolution: approx. 10,000 Number of outputs 2

Output specifications

Number of inputs 2 (depends on model)

External contact input specifications

A in model number: 100 to 240 VAC, 50/60 Hz D in model number: 24 VAC, 50/60 Hz; 24 VDC

Models with option selection of 800: 5.2 VA max. at 100 to 240 VAC, and 3.1 VA max. at 24 VAC or

All other models: 6.5 VA max. at 100 to 240 VAC, and 4.1 VA max. at 24 VAC or 2.3 W max. at 24 VDC Temperature input

Thermocouple: K, J, T, E, L, U, N, R, S, B, C/W, or PL II Platinum resistance thermometer: Pt100 or JPt100 Infrared temperature sensor (ES1B): 10 to 70°C, 60 to 120°C, 115 to 165°C, or 140 to 260°C

Analog input

Current input: 4 to 20 mA or 0 to 20 mA Voltage input: 1 to 5 V, 0 to 5 V, 0 to 10 V,or 0 to 50 mV (The 0 to 50 mV range applies to the E5CC-U-800 only for those manufactured in May 2014 or later.)

Current input: 150 Ω max., Voltage input: 1 MΩ min. (Use a 1:1 connection when connecting the ES2-HB-N/THB-N.)

E5CC-800/E5CC-B-800

E5CC-U-800: SPDT, 250 VAC, 3 A (resistive load), electrical life: 100,000 operations, minimum

Output voltage: 12 VDC ±20% (PNP), max. load current: 21 mA, with short-circuit protection circuit

SPST-NO relay outputs, 250 VAC, E5CC-800/E5CC-U-800 models with 2 output: 3 A (resistive load), E5CC-B-800 models with 2 outputs: 2 A (resistive load) Electrical life: 100,000 operations, Minimum applicable load: 10 mA at 5 V

Contact input: ON: 1 kΩ max., OFF: 100 kΩ min. Non-contact input: ON: Residual voltage: 1.5 V max., OFF: Leakage current: 0.1 mA max. Current flow: Approx. 7 mA per contact

11-segment digital display and individual indicators Character height: PV: 15.2 mm, SV: 7.1 mm

Up to eight set points (SP0 to SP7) can be saved and selected using event inputs, key operations, or serial communications.

Manual output, heating/cooling control, loop burnout alarm, SP ramp, other alarm functions, heater burnout (HB) alarm (including SSR failure (HS) alarm), 40% AT, 100% AT, MV limiter, input digital filter, self tuning, PV input shift, run/stop, protection functions, temperature status display, moving average of input value

: SPST-NO, 250 VAC, 3 A (resistive load), electrical life: 100,000 operations, min-

imum applicable load: 5 V, 10 mA (reference value)

applicable load: 5 V, 10 mA (reference value)

1.6 W max. at 24 VDC

4

E5CC-800/E5CC-B-800/E5CC-U-800

Temperature range (°C)

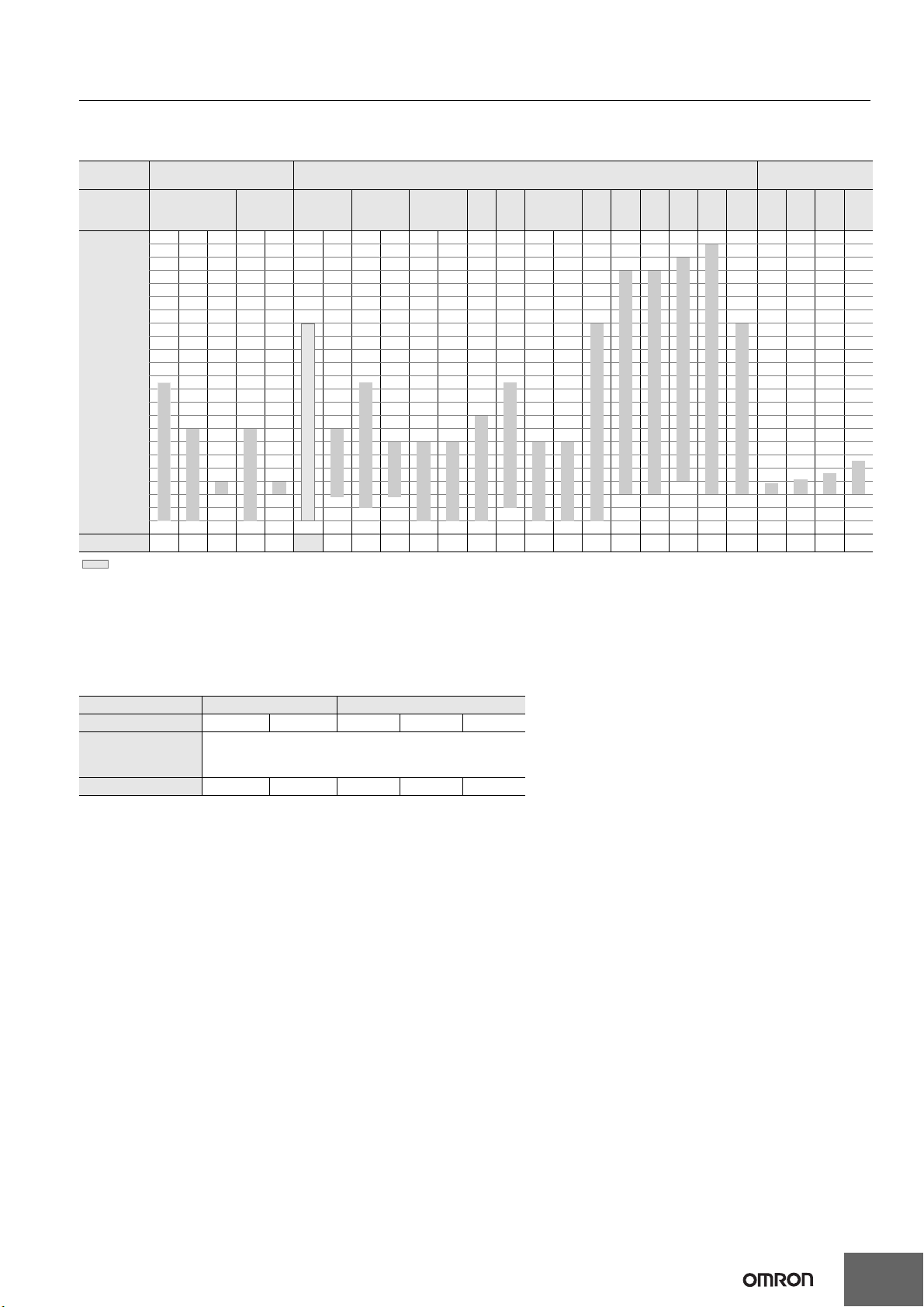

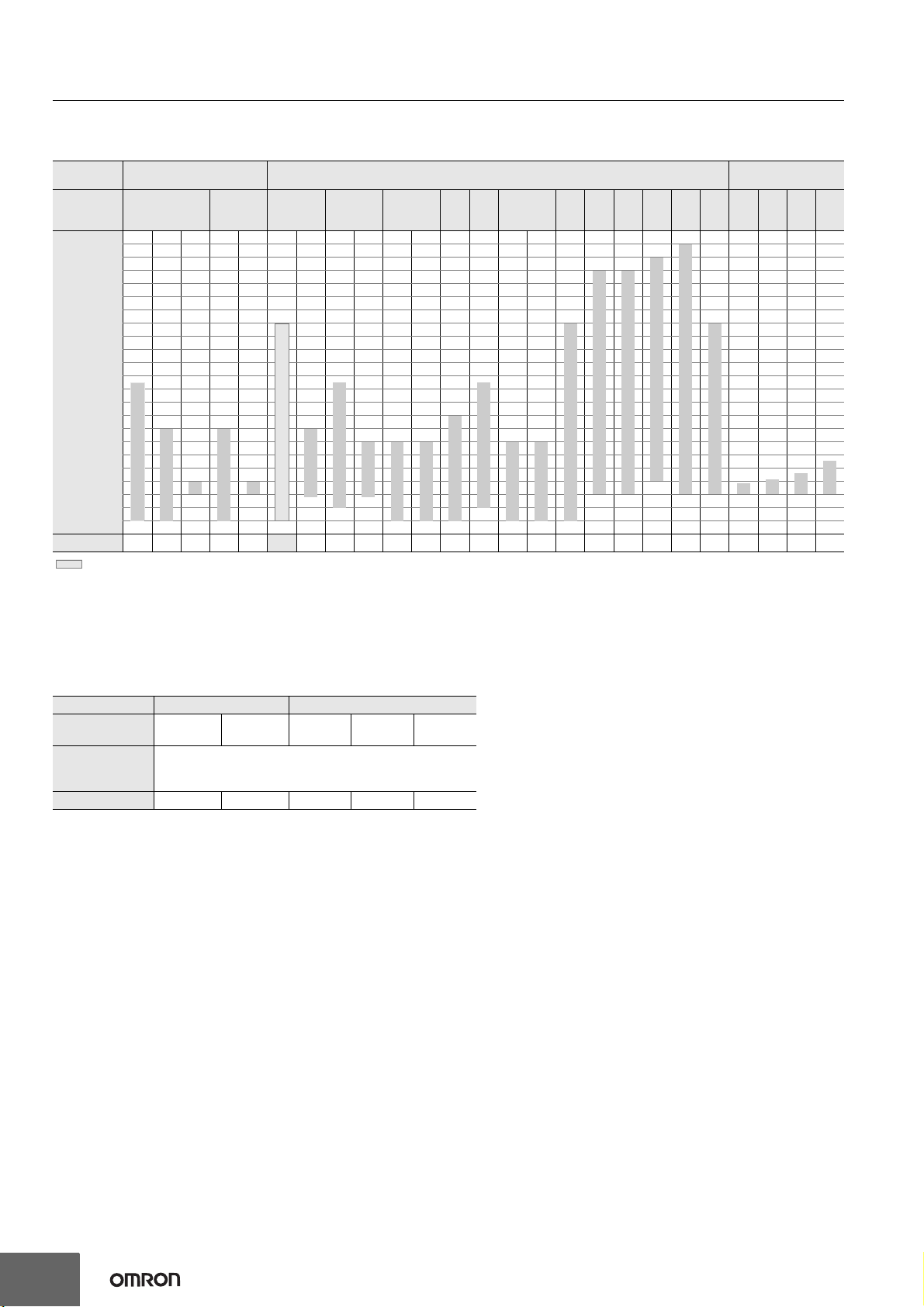

Input Ranges (Universal inputs)

●Thermocouple/Platinum Resistance Thermometer

Sensor

type

Sensor

specifica-

tion

Set value

Shaded settings are the default settings.

The applicable standards for the input types are as follows: K, J, T, E, N, R, S, B: JIS C 1602-2015, IEC 60584-1 JPt100: JIS C 1604-1989, JIS C 1606-1989 L: Fe-CuNi, DIN 43710-1985 Pt100: JIS C 1604-1997, IEC 60751 U: Cu-CuNi, DIN 43710-1985 PL II: According to Platinel II electromotive force charts from BASF (previously Engelhard) C/W: W5Re/W26Re, JIS C 1602-2015, ASTM E988-1990

Platinum resistance

thermometer

Pt100 JPt100 K J T E L U N R S B

2300

1800

1700

1600

1500

1400

1300

1200

1100

1000

850 850 850

900

800

700

600

500

400

300

200

100

-100

-200

500.0 500.0 500.0

100.0 100.0

0

-200

0.0 0.0 00 000000

-199.9 199.9

1300 1300 1300

400.0

400

-20.0

-100

-200 -200

-20.0

400.0

-199.9

Thermocouple

600

400

-100

-200 -200

400.0

-199.9

C/W

2300

1800

1700 1700

100

-200

Infrared temperature

sensor

10 to 70°C

90

60 to

120°C

120 165

PLII

0123456789101112131415161718192021222324

115 to 165°C

140 to 260°C

260

●Analog input

Input type Current Voltage

Input specification

Setting range

Set value 25 26 27 28 29 30

* The range applies to the E5CC-U-800 only for those manufactured in May 2014 or later.

4 to 20 mA 0 to 20 mA

1 to 5 V 0 to 5 V 0 to 10 V 0 to 50 mV *

Usable in the following ranges by scaling:

-1999 to 9999, -199.9 to 999.9,

-19.99 to 99.99 or -1.999 to 9.999

5

E5CC-800/E5CC-B-800/E5CC-U-800

*5

0

X

ON OFF SP

0

X

ON OFF SP

0

X

ON OFF SP

0

X

ON OFF SP

0

X

ON OFF MV

0

X

ON OFF MV

0

X

ON OFF MV

0

X

ON OFF MV

0

X

ON OFF MV

0

X

ON OFF MV

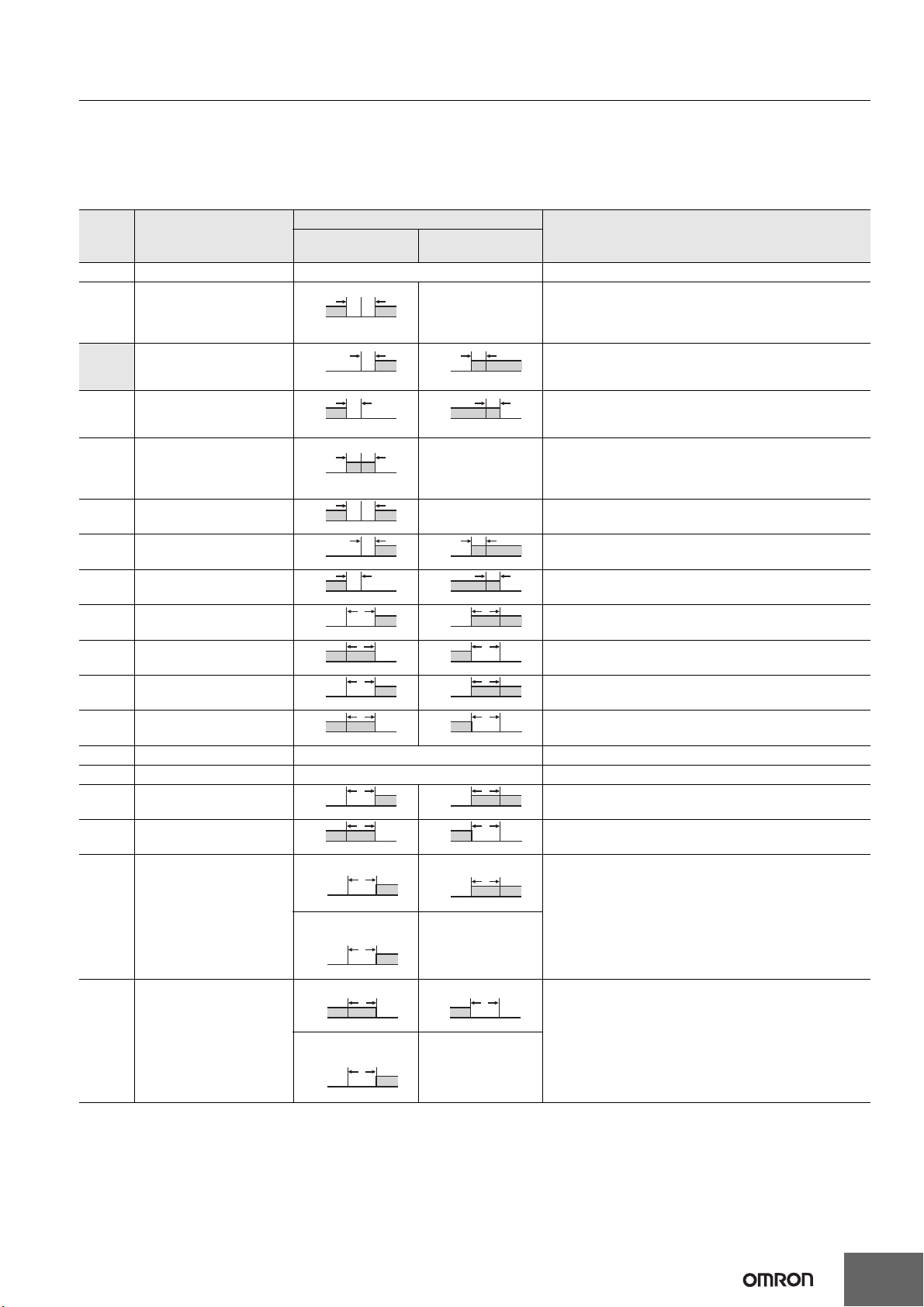

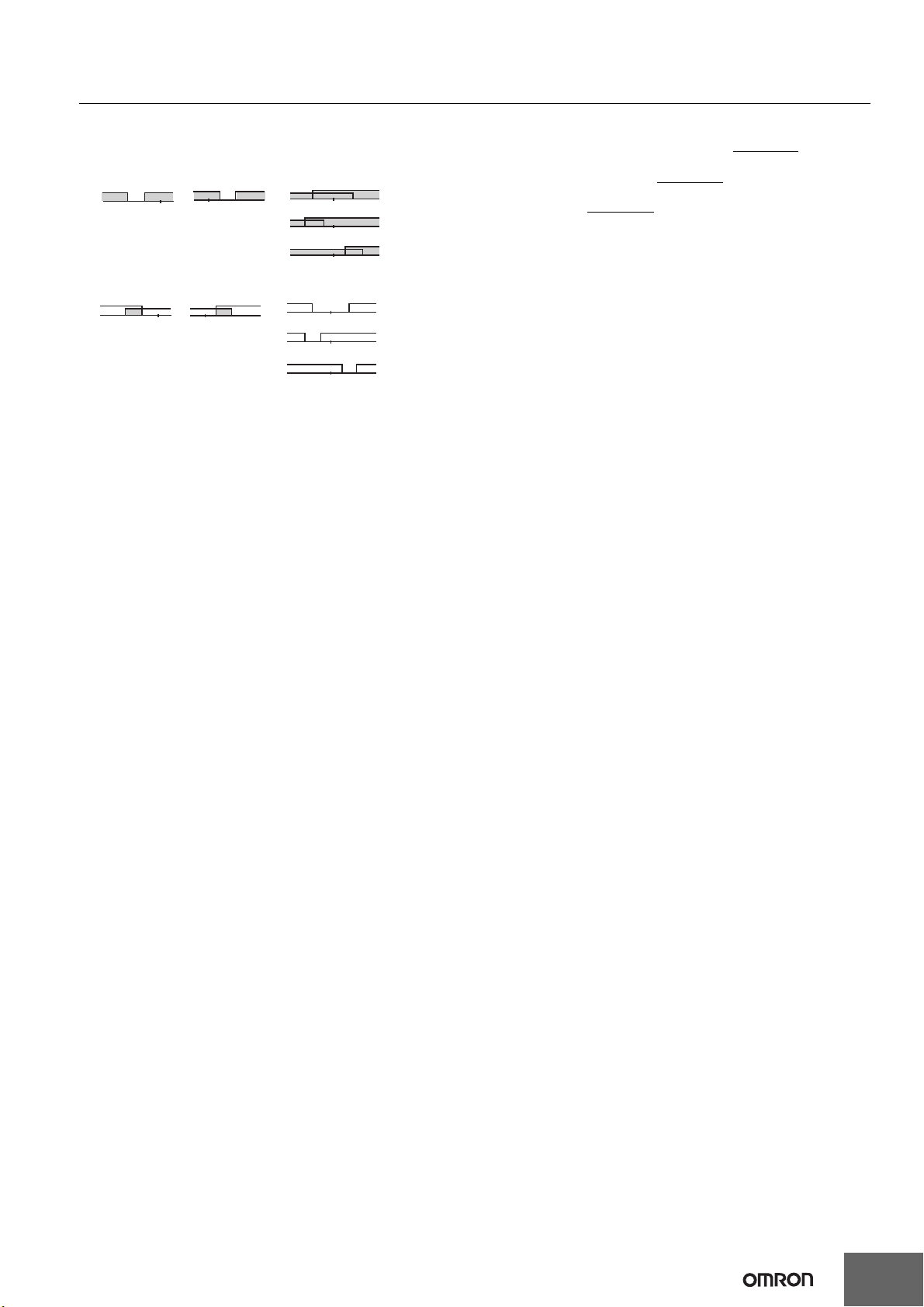

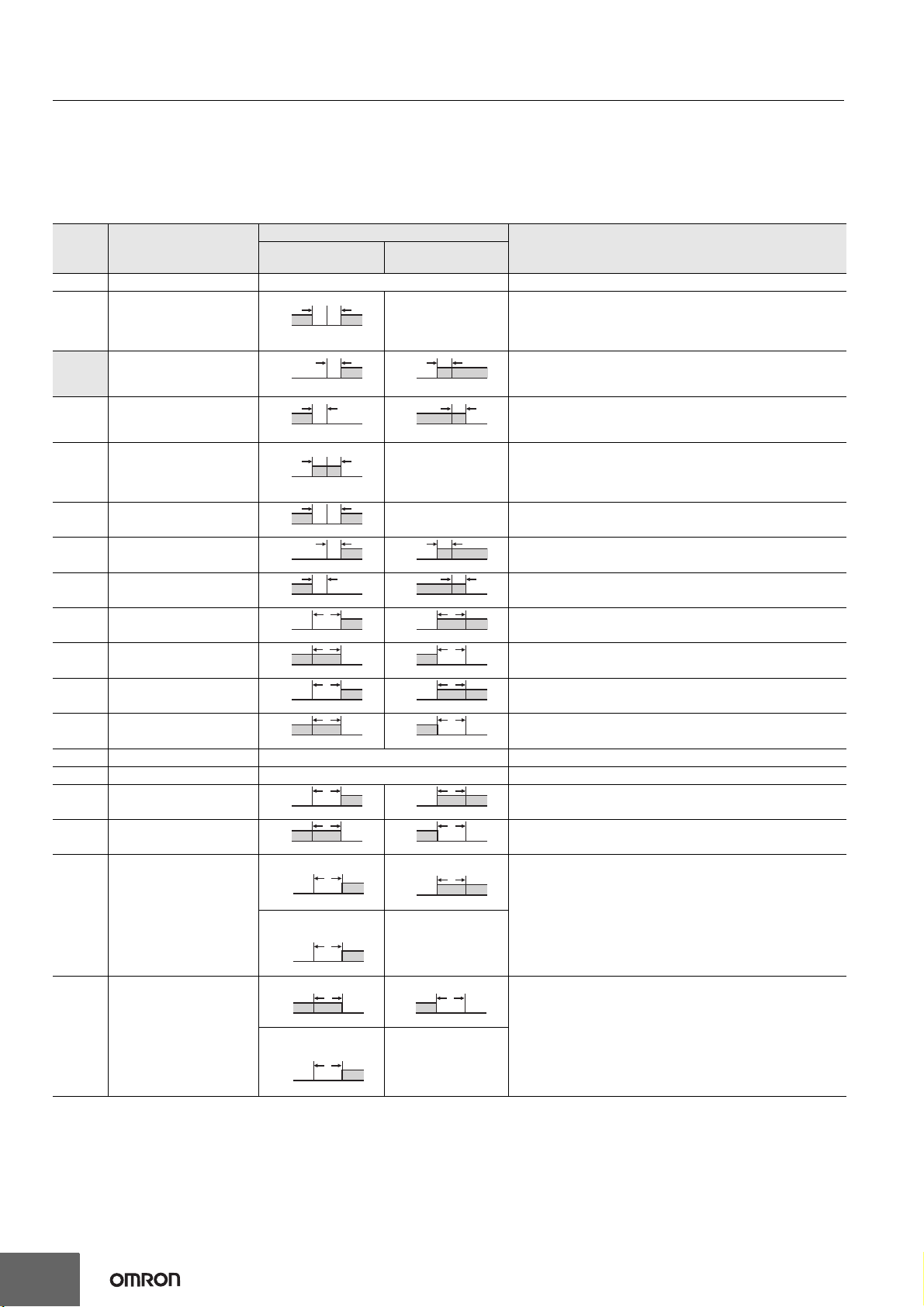

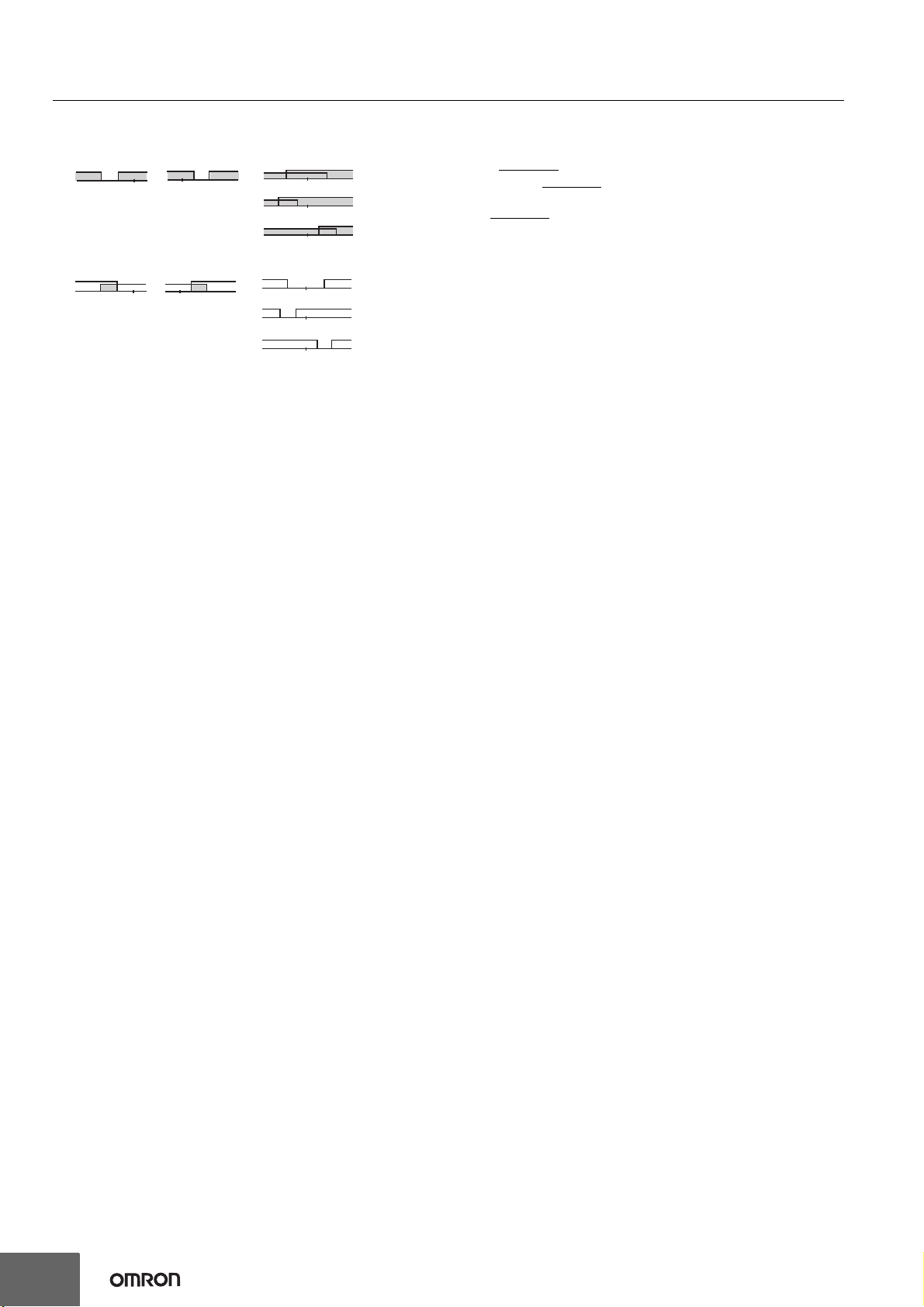

Alarm Outputs

Each alarm can be independently set to one of the following 19 alarm types. The default is 2: Upper limit. (see note.) Auxiliary outputs are allocated for alarms. ON delays and OFF delays (0 to 999 s) can also be specified.

Note:

In the default settings for models with HB or HS alarms, alarm 1 is set to a heater alarm (HA) and the Alarm Type 1 parameter is not displayed. To use alarm 1, set the output assignment to alarm 1.

Set

value

Alarm type

When alarm value X

Alarm output operation

When alarm value X

is positive

is negative

0 Alarm function OFF Output OFF No alarm

1 Upper- and lower-limit *1

2

(default)

Upper-limit

3 Lower-limit

Upper- and lower-limit

4

range *1

Upper- and lower-limit with

5

standby sequence *1

Upper-limit with standby

6

sequence

Lower-limit with standby

7

sequence

8 Absolute-value upper-limit

9 Absolute-value lower-limit

Absolute-value upper-limit

10

with standby sequence

Absolute-value lower-limit

11

with standby sequence

12

LBA (alarm 1 type only)

ON OFF PV

SP

X

SP

X

SP

LH

SP

LH

SP

X

SP

X

SP

X

0

X

0

X

0

X

0

*2

X

ON OFF PV

SP

X

SP

*3

*4

X

ON OFF PV

SP

X

SP

X

0

X

0

X

0

X

0

-*7

LH

13 PV change rate alarm - *8

SP absolute value

14

upper limit alarm

SP absolute value

15

lower limit alarm

Standard Control Standard Control

Description of function

Set the upward deviation in the set point for the alarm upper limit (H) and the lower deviation in the set point for the alarm lower limit (L). The alarm is ON when the PV is outside this deviation range.

Set the upward deviation in the set point by setting the alarm value (X). The alarm is ON when the PV is higher than the SP by the deviation or more.

Set the downward deviation in the set point by setting the alarm value (X). The alarm is ON when the PV is lower than the SP by the deviation or more.

Set the upward deviation in the set point for the alarm upper limit (H) and the lower deviation in the set point for the alarm lower limit (L). The alarm is ON when the PV is inside this deviation range.

A standby sequence is added to the upper- and lower-limit alarm (1). *6

A standby sequence is added to the upper-limit alarm (2). *6

A standby sequence is added to the lower-limit alarm (3). *6

The alarm will turn ON if the process value is larger than the alarm value (X) regardless of the set point.

The alarm will turn ON if the process value is smaller than the alarm value (X) regardless of the set point.

A standby sequence is added to the absolute-value upperlimit alarm (8). *6

A standby sequence is added to the absolute-value lowerlimit alarm (9). *6

This alarm type turns ON the alarm when the set point (SP) is higher than the alarm value (X).

This alarm type turns ON the alarm when the set point (SP) is lower than the alarm value (X).

16

17

6

MV absolute value upper limit alarm *9

MV absolute value lower limit alarm *9

Heating/Cooling Control (Heating MV)

Always ON

Standard Control Standard Control

Heating/Cooling Control (Cooling MV)

Always ON

This alarm type turns ON the alarm when the manipulated variable (MV) is higher than the alarm value (X).

This alarm type turns ON the alarm when the manipulated variable (MV) is lower than the alarm value (X).

E5CC-800/E5CC-B-800/E5CC-U-800

LH

H<0, L>0

|H| < |L|

SP

Case 1

LH

H>0, L<0

|H| > |L|

SP

Case 2

LH

H<0, L<0

SP

LH

H<0, L>0

|H| ≥ |L|

SP

LH

H>0, L<0

|H| ≤ |L|

SP

Case 3 (Always ON)

LH

H<0, L>0

|H| < |L|

SP

Case 1

LH

H>0, L<0

|H| > |L|

SP

Case 2

LH

H<0, L<0

SP

LLH

H<0, L>0

|H| ≥ |L|

SP

H

H>0, L<0

|H| ≤ |L|

SP

Case 3 (Always OFF)

*1 With set values 1, 4 and 5, the upper and lower limit values can be set

independently for each alarm type, and are expressed as “L” and “H.”

*2 Set value: 1, Upper- and lower-limit alarm

*3 Set value: 4, Upper- and lower-limit range

*4 Set value: 5, Upper- and lower-limit with standby sequence

For Upper- and Lower-Limit Alarm Described Above *2

• Case 1 and 2 Always OFF

when the upper-limit and lower-limit hysteresis overlaps.

• Case 3: Always OFF

*5. Set value: 5, Upper- and lower-limit with standby sequence

Always OFF

when the upper-limit and lower-limit hysteresis overlaps.

*6 Refer to the E5@C Digital Controllers User's Manual (Cat. No. H174) for

information on the operation of the standby sequence.

*7 Refer to the E5@C Digital Controllers User's Manual (Cat. No.H174) for

information on the loop burnout alarm (LBA).

*8 Refer to the E5@C Digital Controllers User's Manual (Cat. No. H174) for

information on the PV change rate alarm.

*9 When heating/cooling control is performed, the MV absolute upper limit

alarm functions only for the heating operation and the MV absolute lower limit alarm functions only for the cooling operation.

7

E5CC-800/E5CC-B-800/E5CC-U-800

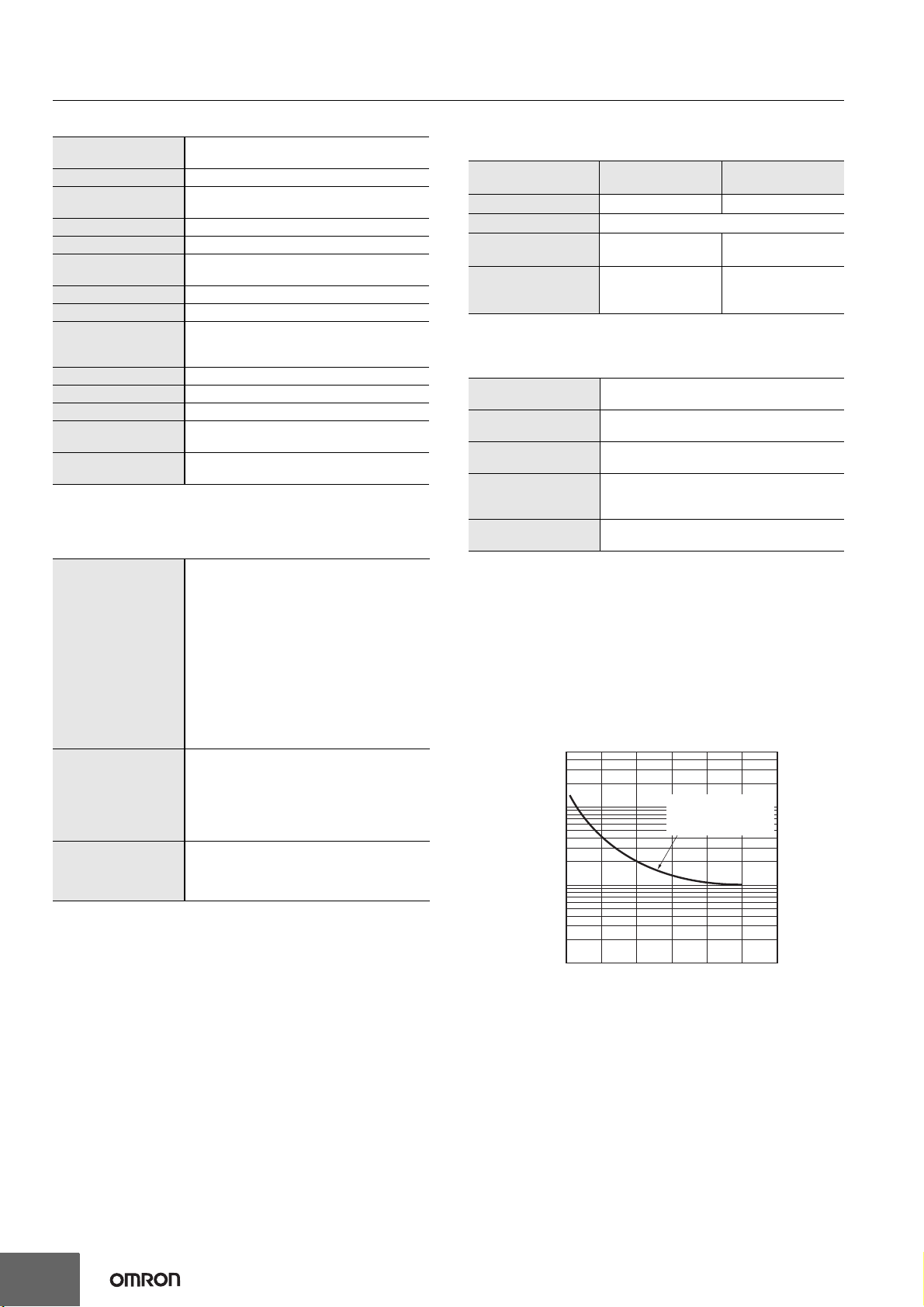

Characteristics

E5CC-800/E5CC-B-800 Thermocouple: (±0.3% of indication value or ±1°C, whichever is greater) ±1 digit max. *1 Platinum resistance thermometer: (±0.2% of indication value or ±0.8°C, whichever is greater) ±1 digit max.

Indication accuracy (at the ambient temperature of 23°C)

Simple transfer output accuracy ±0.3% FS max.*2

Influence of temperature *3

Influence of voltage *3

Influence of EMS. (at EN 61326-1)

Input sampling period 50 ms

Hysteresis

Proportional band (P)

Integral time (I) 0 to 9999 s (in units of 1 s), 0.0 to 999.9 s (in units of 0.1 s) *5

Derivative time (D) 0 to 9999 s (in units of 1 s), 0.0 to 999.9 s (in units of 0.1 s) *5

Proportional band (P) for cooling

Integral time (I) for cooling 0 to 9999 s (in units of 1 s), 0.0 to 999.9 s (in units of 0.1 s) *5

Derivative time (D) for cooling 0 to 9999 s (in units of 1 s), 0.0 to 999.9 s (in units of 0.1 s) *5

Control period 0.1, 0.2, 0.5, 1 to 99 s (in units of 1 s)

Manual reset value 0.0 to 100.0% (in units of 0.1%)

Alarm setting range -1999 to 9999 (decimal point position depends on input type)

Affect of signal source resistance

Insulation resistance 20 MΩ min. (at 500 VDC)

Dielectric strength 3,000 VAC, 50/60 Hz for 1 min between terminals of different charge

Vibration

Shock

Weight

Degree of protection

Memory protection Non-volatile memory (number of writes: 1,000,000 times)

Standards

EMC

*1 The indication accuracy of K thermocouples in the -200 to 1300°C range, T and N thermocouples at a temperature of -100°C max., and U and

L thermocouples at any temperatures is ±2°C ±1 digit max. The indication accuracy of the B thermocouple at a temperature of 400°C max. is not specified. The indication accuracy of B thermocouples at a temperature of 400 to 800° is ±3°C max. The indication accuracy of the R and S thermocouples at a temperature of 200°C max. is ±3°C ±1 digit max. The indication accuracy of C/W thermocouples is (±0.3% of PV or ±3°C,

whichever is greater) ±1 digit max. The indication accuracy of PL II thermocouples is ±0.3% of PV or ±2°C, whichever is greater, ±1 digit max. *2 However, the precision between 0 and 4 mA for a 0 to 20 mA output is ±1% FS max. *3 Ambient temperature: -10°C to 23°C to 55°C, Voltage range: -15% to 10% of rated voltage *4 K thermocouple at -100°C max.: ±10°C max. *5 The unit is determined by the setting of the Integral/Derivative Time Unit parameter. *6 The E5CC-U plug-in model is certified for UL listing only when used together with the OMRON P2CF-11 or P2CF-11-E Socket. The P3GA-11

is not certified for UL listing. *7 Access the following website for information on certified models. http://www.ia.omron.com/support/models/index.html *8 Refer to information on maritime standards in Shipping Standards on page 61 for compliance with Lloyd's Standards. *9 Industrial electromagnetic environment (EN/IEC 61326-1 Table 2)

Malfunction 10 to 55 Hz, 20 m/s2 for 10 min each in X, Y, and Z directions

Resistance 10 to 55 Hz, 20 m/s2 for 2 hrs each in X, Y, and Z directions

Malfunction 100 m/s2, 3 times each in X, Y, and Z directions

Resistance 300 m/s2, 3 times each in X, Y, and Z directions

Approved standards

Conformed standards EN 61010-1 (IEC 61010-1)

Analog input: ±0.2% FS ±1 digit max. CT input: ±5% FS ±1 digit max. E5CC-U-800 Thermocouple: (±1% of indication value or ±2°C, whichever is greater) ±1 digit max. *1 Platinum resistance thermometer: (±0.2% of indication value or ±0.8°C, whichever is greater) ±1 digit max. Analog input: ±0.2% FS ±1 digit max.

Thermocouple input (R, S, B, C/W, PL II): (±1% of indication value or ±10°C, whichever is greater) ±1 digit max. Other thermocouple input: (±1% of indication value or ±4°C, whichever is greater) ±1 digit max. *4 Platinum resistance thermometer: (±1% of indication value or ±2°C, whichever is greater) ±1 digit max. Analog input: ±1%FS ±1 digit max. CT input: ±5% FS ±1 digit max.

Temperature input: 0.1 to 999.9°C or °F (in units of 0.1°C or °F) Analog input: 0.01% to 99.99% FS (in units of 0.01% FS)

Temperature input: 0.1 to 999.9°C or °F (in units of 0.1°C or °F) Analog input: 0.1% to 999.9% FS (in units of 0.1% FS)

Thermocouple: 0.1°C/Ω max. (100 Ωmax.) Platinum resistance thermometer: 0.1°C/Ω max. (10 Ω max.)

E5CC-800/E5CC-B-800: Controller: Approx. 120 g, Adapter: Approx. 10 g E5CC-U-800: Controller: Approx. 100 g, Adapter: Approx. 10 g

E5CC-800/E5CC-B-800: Front panel: IP66, Rear case: IP20, Terminals: IP00 E5CC-U-800: Front panel: IP50, Rear case: IP20, Terminals: IP00

cULus: UL 61010-1/CSA C22.2 No.61010-1 *6, Korean wireless regulations (Radio law: KC Mark) (Some models only.) *7, Lloyd's standards *8

EMI: EN 61326-1 *9 Radiated Interference Electromagnetic Field Strength: EN 55011 Group 1, class A Noise Terminal Voltage: EN 55011 Group 1, class A EMS: EN 61326-1 *9 ESD Immunity: EN 61000-4-2 Electromagnetic Field Immunity: EN 61000-4-3 Burst Noise Immunity: EN 61000-4-4 Conducted Disturbance Immunity: EN 61000-4-6 Surge Immunity: EN 61000-4-5 Voltage Dip/Interrupting Immunity: EN 61000-4-11

8

E5CC-800/E5CC-B-800/E5CC-U-800

4

Communications Specifications

Transmission line connection method

Communications Synchronization

method Protocol CompoWay/F, or Modbus Baud rate *1 9600, 19200, 38400, or 57600 bps Transmission code ASCII Data bit length *1 7 or 8 bits Stop bit length *1 1 or 2 bits

Error detection

Flow control None Interface RS-485 Retry function None Communications

buffer Communications

response wait time

*1 The baud rate, data bit length, stop bit length, and vertical parity

can be individually set using the Communications Setting Level.

*2 Modbus is a registered trademark of Schneider Electric.

RS-485: Multidrop

RS-485 (two-wire, half duplex)

Start-stop synchronization

Vertical parity (none, even, odd) Block check character (BCC) with CompoWay/F or CRC-16 with Modbus *2

217 bytes

0 to 99 ms Default: 20 ms

Communications Functions

You can use the memory in the PLC to read and write E5@C parameters, start and stop operation, etc. The E5@C automatically performs communications with PLCs. No communications programming is required. Number of connected Temperature Controllers: 32 max. (Up to 16 for the FX Series)

Programless communications

Component Communications

*2

Copying

MELSEC is a registered trademark of Mitsubishi Electric Corporation. KEYENCE is a registered trademark of Keyence Corporation. *1 A Temperature Controller with version 1.1 or higher is required.

A Temperature Controller with version 2.1 or higher is required for the FX Series or the KV Series.

*2 Both the programless communications and the component

communications support the copying.

Applicable PLCs

*1

OMRON PLCs

CS Series, CJ Series, CP Series, NJ Series, or NX1P

Mitsubishi Electric PLCs

MELSEC Q Series, L Series, FX3 Series, or iQ-R Series

KEYENCE PLCs

KEYENCE KV Series

When Digital Temperature Controllers are connected, set points and RUN/STOP commands can be sent from the Digital Temperature Controller that is set as the master to the Digital Temperature Controllers that are set as slaves. Slope and offsets can be set for the set point. Number of connected Digital Temperature Controllers: 32 max. (including master)

When Digital Temperature Controllers are connected, the parameters can be copied from the Digital Temperature Controller that is set as the master to the Digital Temperature Controllers that are set as slaves.

Current Transformer (Order Separately) Ratings

E54-CT1 E54-CT3

Dielectric strength 1,000 VAC for 1 min 1,500 VAC for 1 min

Vibration resistance 50 Hz, 98 m/s

Weight

E54-CT1: Approx. 11.5 g, E54-CT3: Approx. 50 g

E54-CT3 Only

Accessories

Armatures (2) Plugs (2)

E54-CT1L E54-CT3L

2

E54-CT1: Approx. 14 g, E54-CT3: Approx. 57 g

None

Heater Burnout Alarms and SSR Failure Alarms

CT input (for heater current detection)

Maximum heater current

Input current indication accuracy

Heater burnout alarm setting range *1

SSR failure alarm setting range *2

*1 For heater burnout alarms, the heater current will be measured

when the control output is ON, and the output will turn ON if the heater current is lower than the set value (i.e., heater burnout detection current value).

*2 For SSR failure alarms, the heater current will be measured when

the control output is OFF, and the output will turn ON if the heater current is higher than the set value (i.e., SSR failure detection

current value). *3 The value is 30 ms for a control period of 0.1 s or 0.2 s. *4 The value is 35 ms for a control period of 0.1 s or 0.2 s.

Models with detection for single-phase heaters: One input

50 A AC

±5% FS ±1 digit max.

0.1 to 49.9 A (in units of 0.1 A) Minimum detection ON time: 100 ms *3

0.1 to 49.9 A (in units of 0.1 A) Minimum detection OFF time: 100 ms *4

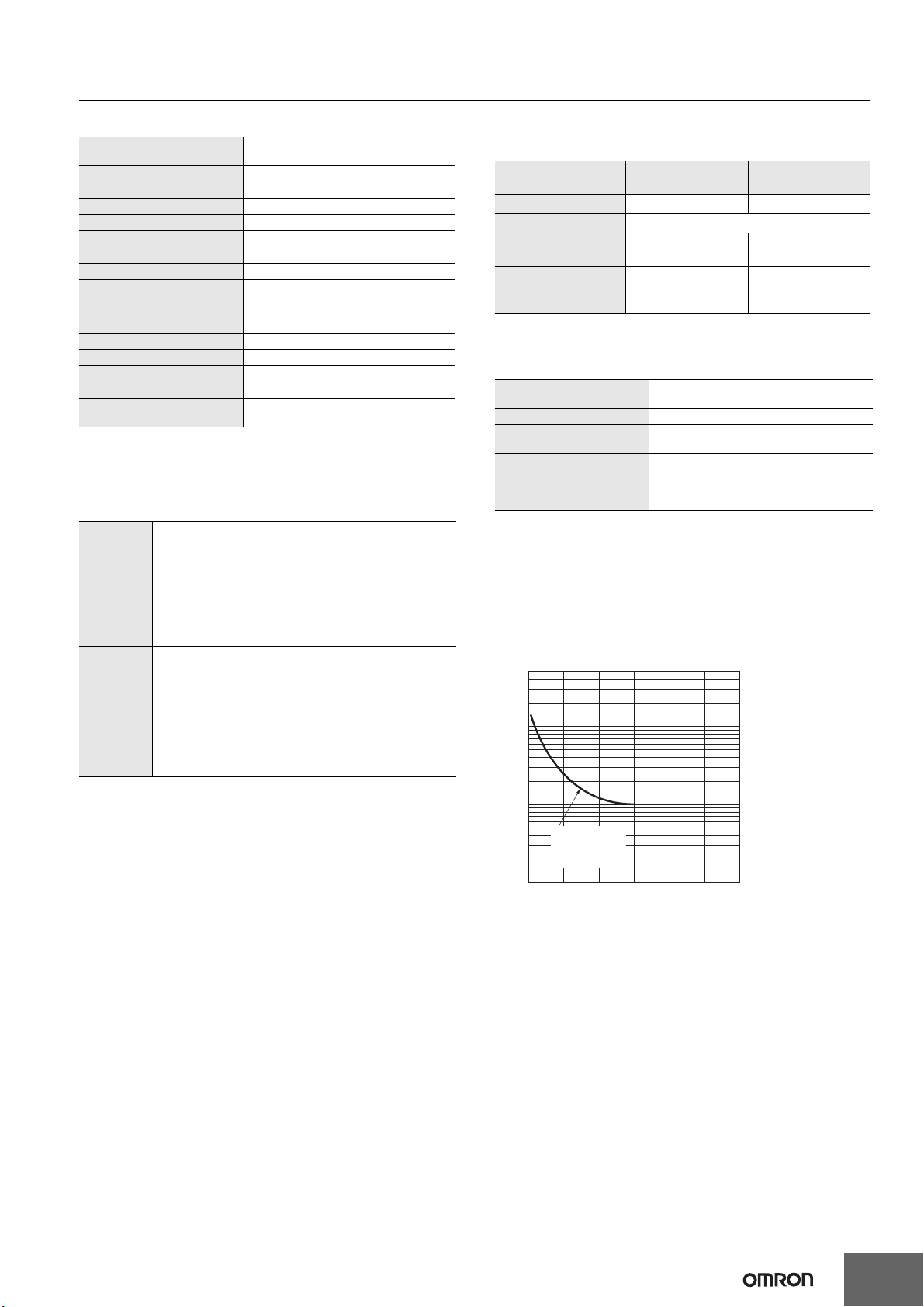

Electrical Life Expectancy Curve for Control output Relays (Reference Values)

500

300

operations)

100

50

Life (× 10

30

10

5

E5CC-800/E5CC-B-800 250 VAC, 30 VDC

3

(resistive load) cosφ = 1

1

0 1 2 3 4 5 6

Switching current (A)

9

E5CC-800/E5CC-B-800/E5CC-U-800

The E5CC-800 is set for a K-type thermocouple (input type = 5) by default. An input error (UGTT) will occur if the input type setting does not agree with the temperature sensor. Check the input type.

Control output 1

Relay output

250 VAC, 3A (resistive load)

Voltage output

(for driving SSR) 12 VDC, 21 mA

Linear current output

0 to 20 mA DC 4 to 20 mA DC Load: 500 Ω max.

Relay outputs

Models with 2 auxiliary outputs: 250 VAC, 3 A (resistive load)

17

18 12

15

16

1

2

13

14

3

11

4

6

7

8

9

10

5

6

4

5

6

5

6

Pt

A

B B

+

-

m

A

-

+

5

4

V

5

V

6

+

4

TC

4

I

(no polarity)

11

12

11

12

100 to 240 VAC 24 VAC/VDC

Auxiliary outputs 1, 2

7

8

9

10

Auxiliary output 2

Auxiliary output 1

804 Communications (RS-485), and Event Inputs 3 and 4

801 Event Inputs 1 and 2, and CT1

802 Communications (RS-485), CT1

B(+)

A(-)

RS-485

(2) Auxiliary Outputs

(3) Input Power Supply

(5) Sensor (Temperature/Analog) Input

(6) Options

+

-

3

1

2

3

1

2

-

Models with 1 Linear Current Output

Models with 1 Relay Output

3

(1) Control outputs 1, 2

OUT1 C

OUT1 Q

OUT1 R

1

2

Models with 1 Voltage Output (for Driving SSR)

+

RX QX CX

Auxiliary outputs 1, 2

E5CC-@@ 2 @ S M - 8@@

(1) (2) (3) (4) (5) (6)

↑

Terminal type

Use no-voltage inputs for the event inputs. The polarity for non-contact inputs is given in parentheses.

13

14

15

16

17

18

13

14

15

16

17

18

EV1

EV2

CT1

(-)

CT1

16

17

18

13

14

15

EV3

EV4

B(+)

A(-)

RS-485

(-)

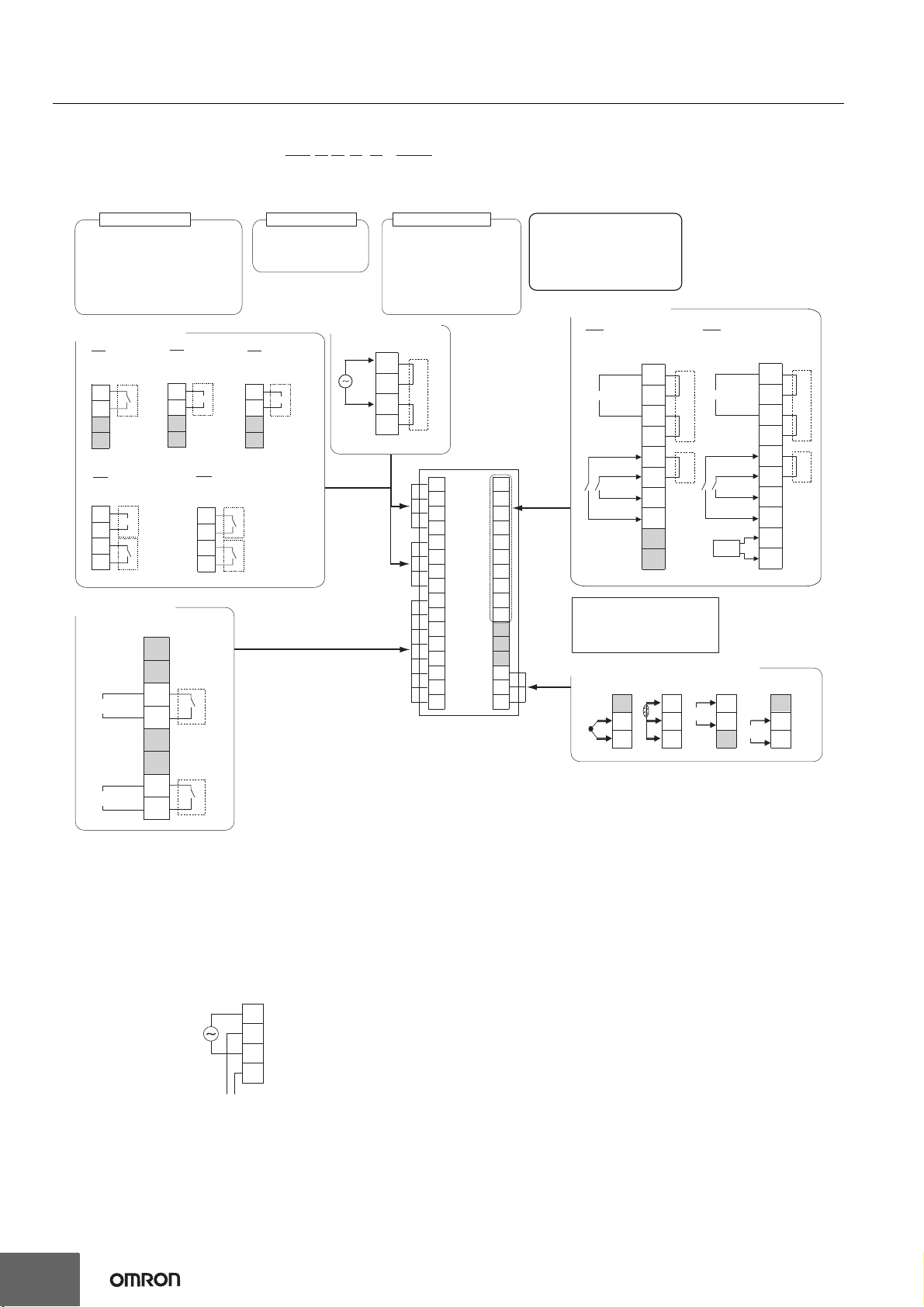

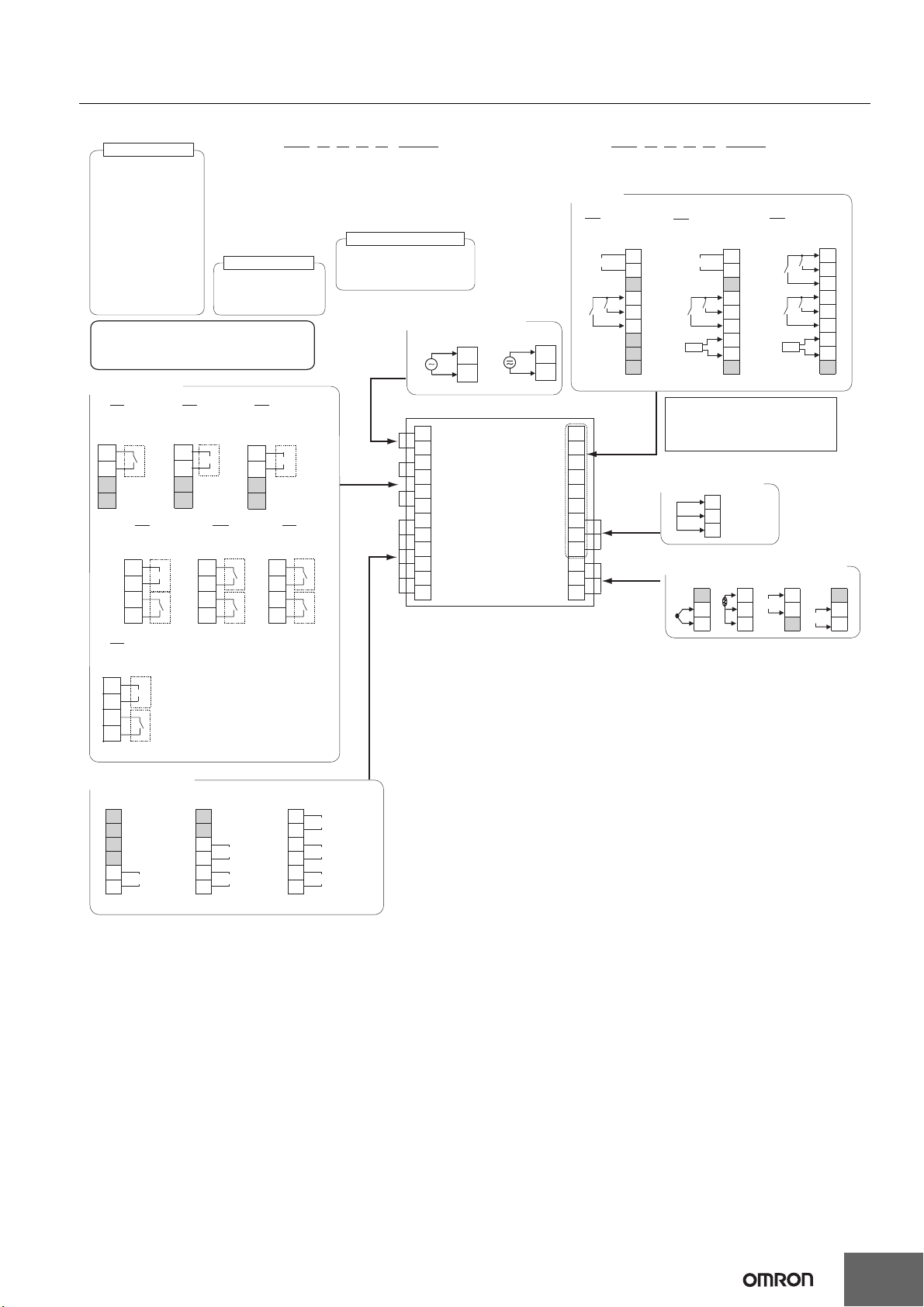

External Connections

E5CC-800 (Screw Terminal Blocks)

Note: 1. The application of the terminals depends on the model.

2. Do not wire the terminals that are shown with a gray background.

3. When complying with EMC standards, the cable that connects the sensor must be 30 m or less.

If the cable length exceeds 30 m, compliance with EMC standards will not be possible.

4. Connect M3 crimped terminals.

5. Due to UL Listing requirements, use the E54-CT1L or E54-CT3L Current Transformer with the factory wiring (internal wiring). Use a UL

category XOBA or XOBA7 current transformer that is UL Listed for field wiring (external wiring) and not the factory wiring (internal wiring).

10

E5CC-B-800 (Push-In Plus Terminal Blocks)

A

13

14

15

16

To another E5@C

Wiring Example:

Control output 1

Relay output

250 VAC, 3A (resistive load)

Voltage output

(for driving SSR) 12 VDC, 21 mA

(1) Control outputs 1

RX

Models with 1 Relay Output

1

2

(5) Sensor (Temperature/Analog) Input

(6) Options

OUT1 R

TC

A

6

7

8

+

Models with 1 Voltage Output (for Driving SSR)

1

2

Pt

6

B

m

7

B

8

QX

802 Communications (RS-485), CT1

B(+)

17

RS-485

A(-)

CT1

18

19

20

21

22

*

23

24

Auxiliary outputs 1, 2

Relay outputs

outputs: 250 VAC, 2 A (resistive load)

Models with 1 Linear Current Output

OUT1

+

-

I

+

6

7

88

1

Q

2

V

6

7

V

+

804 Communications (RS-485), and Event Inputs 3 and 4

B(+)

17

RS-485

A(-)

18

19

20

(-)

21

(-)

22

23

EV3

24

EV4

CX

OUT1

+

C

-

*

E5CC-800/E5CC-B-800/E5CC-U-800

E5CC-@@ 2 @ B M - 8@@

(1) (2) (3) (4) (5)

Terminal type

The E5CC is set for a K-type thermocouple (input type = 5) by default. An input error (s.err) will occur if the input type setting does not agree with the temperature sensor. Check the input type.

1

2

3

6

7

8

↑

17

18

19

204 12

215 13

22

23

24 16

(6)

9

10

11

14

15

(2) Auxiliary Outputs

Auxiliary output 2

9

10

13

14

15

16

11

12

*

Auxiliary output 1

(3) Input Power Supply

100 to 240 VAC

*

Note: 1. The application of the terminals depends on the model.

2. Do not wire the terminals that are shown with a gray background.

3. When complying with EMC standards, the cable that connects the sensor must be 30 m or less.

If the cable length exceeds 30 m, compliance with EMC standards will not be possible.

@

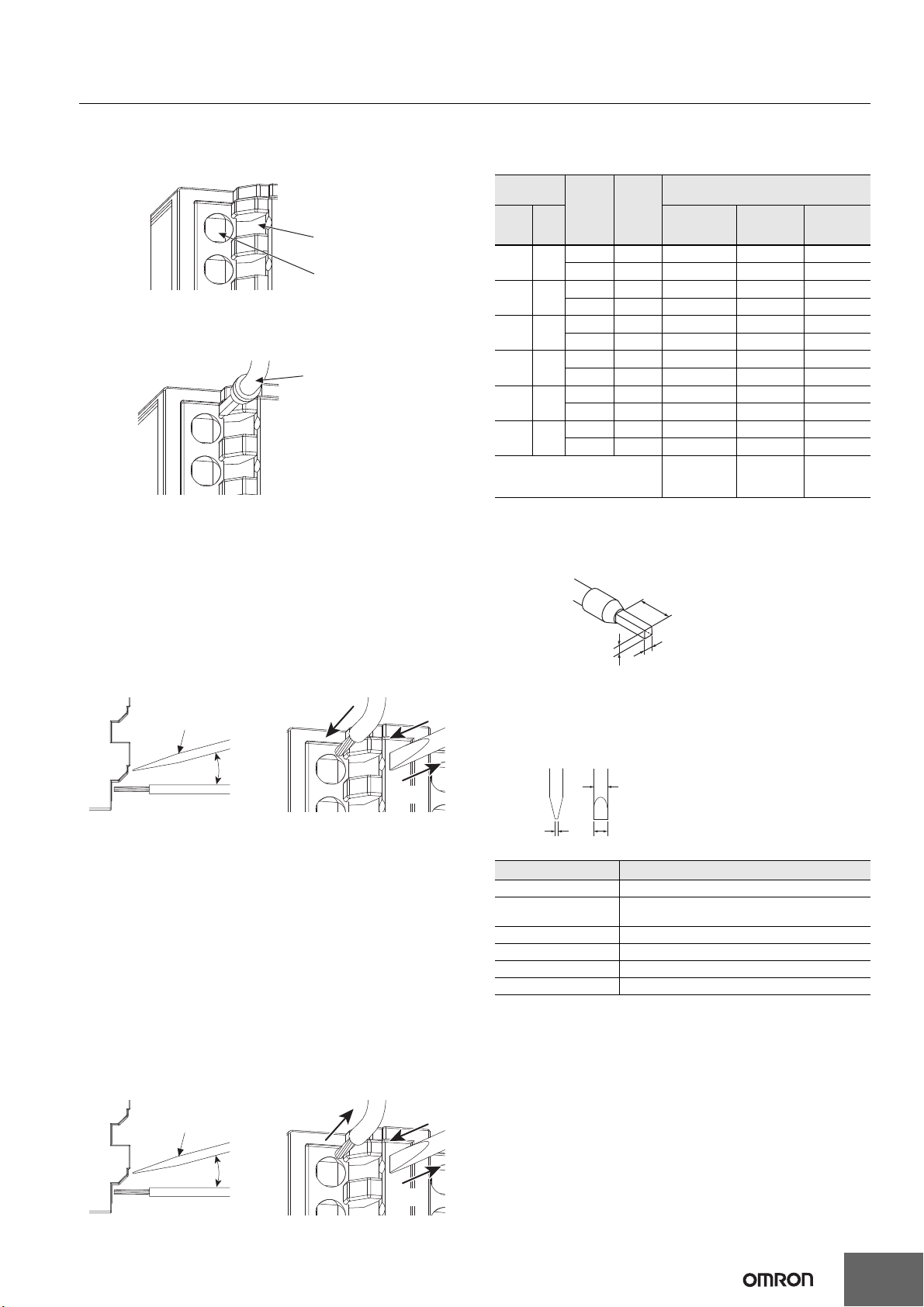

4. Refer to Wiring Precautions for E5

C-B (Controllers with Push-In Plus Terminal Blocks) on page 65 for wire specifications and wiring

methods.

5. Common terminals are indicated with asterisks (*). You can use the input power supply and communications common terminals for crossover wiring. Do not exceed the maximum number of Temperature Controllers given below if you use crossover wiring for the input power supply. 100 to 240 VAC Controllers: 16 max.

6. Due to UL Listing requirements, use the E54-CT1L or E54-CT3L Current Transformer with the factory wiring (internal wiring). Use a UL category XOBA or XOBA7 current transformer that is UL Listed for field wiring (external wiring) and not the factory wiring (internal wiring).

11

E5CC-800/E5CC-B-800/E5CC-U-800

A

B

+

−

250 VAC, 3 A (resistive load)

Control output 1

•

Auxiliary output 1

Relay output

−

+

V

−

mA

+

The E5CC-U is set for a K-type thermocouple (input type =

5) by default. An input error (s.err) will occur if the input type setting does not agree with the temperature sensor. Check the input type.

Sensor (temperature/analog) input

Auxiliary output 2: Control output (cooling side)

Control output 1:

Control output 1

100 to 240 VAC

24 VAC/DC (no polarity)

RW

Models with 1 Relya Output

QX

+

−

Models with 1 Voltage Output (for Driving SSR)

Output 1

Q

Output 1

R

E5CC-UM-800

Control output 1

Auxiliary outputs 1 and 2

Voltage output (for driving SSR) 12 VDC, 21 mA

Relay output (three terminals used) SPDT, 250 VAC, 3 A (resistive load)

Input power supply

I

V

TC

Pt

E5CC-U-800

Note: 1. The application of the terminals depends on the model.

2. Do not wire the terminals that are shown with a gray background.

3. When complying with EMC standards, the cable that connects the sensor must be 30 m or less.

If the cable length exceeds 30 m, compliance with EMC standards will not be possible.

4. Connect M3.5 crimped terminals for the E5CC-U-800.

12

Isolation/Insulation Block Diagrams

Communications and event inputs

Sensor input and CT input

Voltage output (for driving SSR) and linear current output

Relay output

Auxiliary output 1

Power supply

Auxiliary output 2

: Reinforced insulation

: Functional isolation

Sensor input

Voltage output (for driving SSR)

Relay output

Auxiliary outputs 1 and 2

: Reinforced insulation

: Functional isolation

Power

supply

E5CC-800 E5CC-B-800 E5CC-U-800

E5CC-800/E5CC-B-800/E5CC-U-800

• E5CC-800

Models with 2 Auxiliary Outputs

• E5CC-B-800

Models with 2 Auxiliary Outputs

Sensor input and CT input

Power supply

Voltage output (for driving SSR) and linear current output

: Reinforced insulation

: Functional isolation

Communications

Relay output

Auxiliary outputs 1, 2

Nomenclature

• E5CC-U-800

Models with 2 Auxiliary Outputs

Temperature unit

Front panel

Operation indicators

Press O Key once to go to Adjustment Level.

Press O Key for at least 3 seconds to go to Initial Setting Level.

Top View of E5CC-800

No. 1 display

PV or specified parameter

No. 2 display

SP or specified parameter value

Use the U D Keys to set the parameter.

Use S Key to change the digit (default setting).

Use the M Key to change to another parameter.

Top View of E5CC-B-800

Top View of E5CC-U-800

13

E5CC-800/E5CC-B-800/E5CC-U-800

48 × 48

4

1

73.1

60

Adapter (Accessory)

Terminal Cover (E53-COV17) (Sold separately)

5848.8

Waterproof Packing (Accessory)

44.8 × 44.8

E5CC-800

• Recommended panel thickness is 1 to 5 mm.

• Group mounting is not possible in the vertical direction. (Maintain the specified mounting space between Controllers.)

• To mount the Controller so that it is waterproof, insert the waterproof packing onto the Controller.

• When two or more Controllers are mounted, make sure that the surrounding temperature does not exceed the allowable operating temperature specified in the specifications.

E5CC-B-800

58

76.8

58.6

4

14.2

48 × 48

Adapter (Accessory)

44.8 × 44.8

E5CC-U-800

• Recommended panel thickness is 1 to 5 mm.

• Group mounting is not possible in the vertical direction. (Maintain the specified mounting space between Controllers.)

• When two or more Controllers are mounted, make sure that the surrounding temperature does not exceed the allowable operating temperature specified in the specifications.

Dimensions (Unit: mm)

Controllers

4

48 × 48

Waterproof Packing (Accessory)

Mounted Separately Group Mounted

60 min.

+0.6

45

0

+0.6

45

0

(71.4)

67.4

(1)

Adapter (Accessory)

Panel Cutout

(48 × number of units - 2.5)

0

44.8 × 44.8

45

44.8 × 44.8

58

+1.0

+0.6

0

14

+0.6

45

0

Panel Cutout

(48 × number of units - 2.5)

0

45

+1.0

+0.6

0

Mounted Separately Group Mounted

60 min.

+0.6

45

0

Accessories (Order Separately)

48

48.8

22

9.1

● Terminal Covers E53-COV17

● Terminal Covers E53-COV23 (Three Covers provided.)

● Terminal Cover (for the P3GA-11 Back-connecting Socket) Y92A-48G

Note: You can attach the P3GA-11 Back-connecting Socket for finger protection.

● Waterproof Packing Y92S-P8 (for DIN 48 × 48)

The Waterproof Packing is provided only with the E5CC-800/E5CC-B-800. It is not included with the E5CC-U-800. Order the Waterproof Packing separately if it becomes lost or damaged. The Waterproof Packing can be used to achieve an IP66 degree of protection. (Deterioration, shrinking, or hardening of the waterproof packing may occur depending on the operating environment. Therefore, periodic replacement is recommended to ensure the level of waterproofing specified in IP66. The time for periodic replacement depends on the operating environment. Be sure to confirm this point at your site. Consider three years as a rough standard.) The E5CC-U-800 cannot be waterproofed even if the Waterproof Packing is attached.

Twelve, 6.4-dia.

E5CC-800/E5CC-B-800/E5CC-U-800

2 3.8

10

Terminal Cover (E53-COV23)

44.8

34

Y92A-48G

47.4

47.7×47.7

UP

P C

16.5

24.6

48×48

27.6

15

E5CC-800/E5CC-B-800/E5CC-U-800

62.8

To back of the E5CC-800

72 × 72

48 × 48

Panel (1 to 8 mm)

Mounting Adapter Y92F-30 (Accessory)

2.2 4.7

Y92F-45

Mounted to E5CC-800

Note: 1. Use this Adapter when the Front Panel has already been prepared for the E5B@.

2. Only black is available.

Y92F-52

Mounted to E5CC-800

Note: 1. This Adapter cannot be used together with the Terminal Cover.

Remove the Terminal Cover to use the Adapter.

2. This Adapter cannot be used with the E5CC-B.

This Adapter is used to mount the E5CC-800 to a DIN Track. If you use the Adapter, there is no need for a plate to mount in the panel or to drill mounting holes in the panel.

● Adapter

72 × 72

4.7

76

69.6 to 77.6

Fixture (Accessory)

8767 × 67

● DIN Track Mounting Adapter

50

61

3.5

38

48

80.5

16

E5CC-800/E5CC-B-800/E5CC-U-800

67.6

69

12

21.9 14

(2)

79.2

87.7

28.9

The Mounting Adapter is provided with the Temperature Controller. Order this Adapter separately if it becomes lost or damaged.

This Protective Cover is soft type. It is able to operate the controller with using this cover.

Note: This Protective Cover cannot be used

if the Waterproof Packing is installed.

Y92A-48D

This Protective Cover is hard type. Please use it for the mis-operation prevention etc.

Note: 1. A model with finger protection (P2CF-11-E) is also available.

2. You cannot use the P2CF-11 or P2CF-11-E together with the Y92F-45.

Note: Can also be mounted

to a DIN track

5 6 7 8

4

3

2

9

10

11

1

25.6

27dia.

45

4.5 16.3 6.2

47

3

8.7

6

Terminal Layout/Internal Connections

(Bottom View)

Eleven, M3.5 sems screws

Note: 1. Using any other sockets will adversely affect accuracy. Use only the specified sockets.

2. A Protective Cover for finger protection (Y92A-48G) is also available.

3. You cannot use the P3GA-11 together with the Y92F-45.

● Watertight Cover

Y92A-48N

● Mounting Adapter

Y92F-49

● Protective Cover ● Protective Cover

Y92A-48H

● E5CC-U-800 Wiring Socket

Front-connecting Socket P2CF-11

Eleven, M3.5 × 7.5 sems screws

70 max.

4

50 max.

7.8

Two ,

4.5-dia. holes

3

31.2 max.

Terminal Layout/Internal Connections

4.5

35.4

Back-connecting Socket P3GA-11

(Top View)

8

9

10 11

567

4

3

21

Mounting Holes

Two, 4.5 dia. mounting holes

±0.2

40

17

E5CC-800/E5CC-B-800/E5CC-U-800

E54-CT1

Thru-current (Io) vs. Output Voltage (Eo) (Reference Values) E54-CT1 or E54-CT1L

Maximum continuous heater current: 50 A (50/60 Hz) Number of windings: 400

±2

Winding resistance: 18

±2 Ω

Thru-current (Io) A (r.m.s.)

1 10 100mA 1 10 100

1,000A

100V

Frequency: 50 Hz

Distortion factor 10%

3%

1%

100Ω

RL=10Ω

∞

10

1

100mV

10

1

100μV

10

1kΩ

Output voltage (Eo) V (r.m.s.)

E54-CT1L

5.8 dia.

Filler (epoxy)

Case (PBT)

Shrinkable tube

Two, 3.5 dia.

Cable (AWG18)

25

2.5

115±5

8

21

10.5

40

30

5

15

10

Mark (yellow)

(12)

● Current Transformers

Filler (epoxy)

25

2.5

5

21

15

5.8 dia.

Case

40

30

2.8

7.5

10.5

10

Two, 3.5 dia.

18

E5CC-800/E5CC-B-800/E5CC-U-800

E54-CT3 Accessories

• Armature

12 dia.

2.36 dia.

Two, M3 (depth: 4)

40 × 40

30

9

30

8

Filler (epoxy)

Case (PBT)

15

40

(22)

Approx. 6 dia.

E54-CT3

Connection Example

•Plug

Thru-current (Io) vs. Output Voltage (Eo) (Reference Values) E54-CT3 or E54-CT3L

Maximum continuous heater current: 120 A (50/60 Hz) (Maximum continuous heater current for an OMRON

Digital Temperature Controller is 50 A.) Number of windings: 400±2 Winding resistance: 8±0.8

Ω

Thru-current (Io) A (r.m.s.)

1 10 100mA 1 10 100

1,000A

100V

Frequency: 50 Hz

Distortion factor 10%

3%

1%

1kΩ

100Ω

50Ω

RL=10Ω

500Ω

∞

10

1

100mV

10

1

100μV

10

Output voltage (Eo) V (r.m.s.)

Filler (epoxy)

Case (PBT)

Cable (AWG18)

12.0 dia.

30

40

8

40 15

100±5

8

Two, M3 (depth: 4)

30

E54-CT3L

Approx. 3 dia.

Plug

18

Armature

Lead

19

MEMO

20

Digital Temperature Controller (Simple Type)

Refer to Safety Precautions on page 58.

Refer to your OMRON website for the most recent information on applicable safety standards.

*

(E5EC/AC-800) (E5EC-B-800)

* CSA conformance evaluation by UL.

48 × 96 mm

Screw Terminal

Blocks

E5EC-800

48 × 96 mm

Push-In Plus

Terminal

Blocks

E5EC-B-800

96 × 96 mm

Screw Terminal Blocks

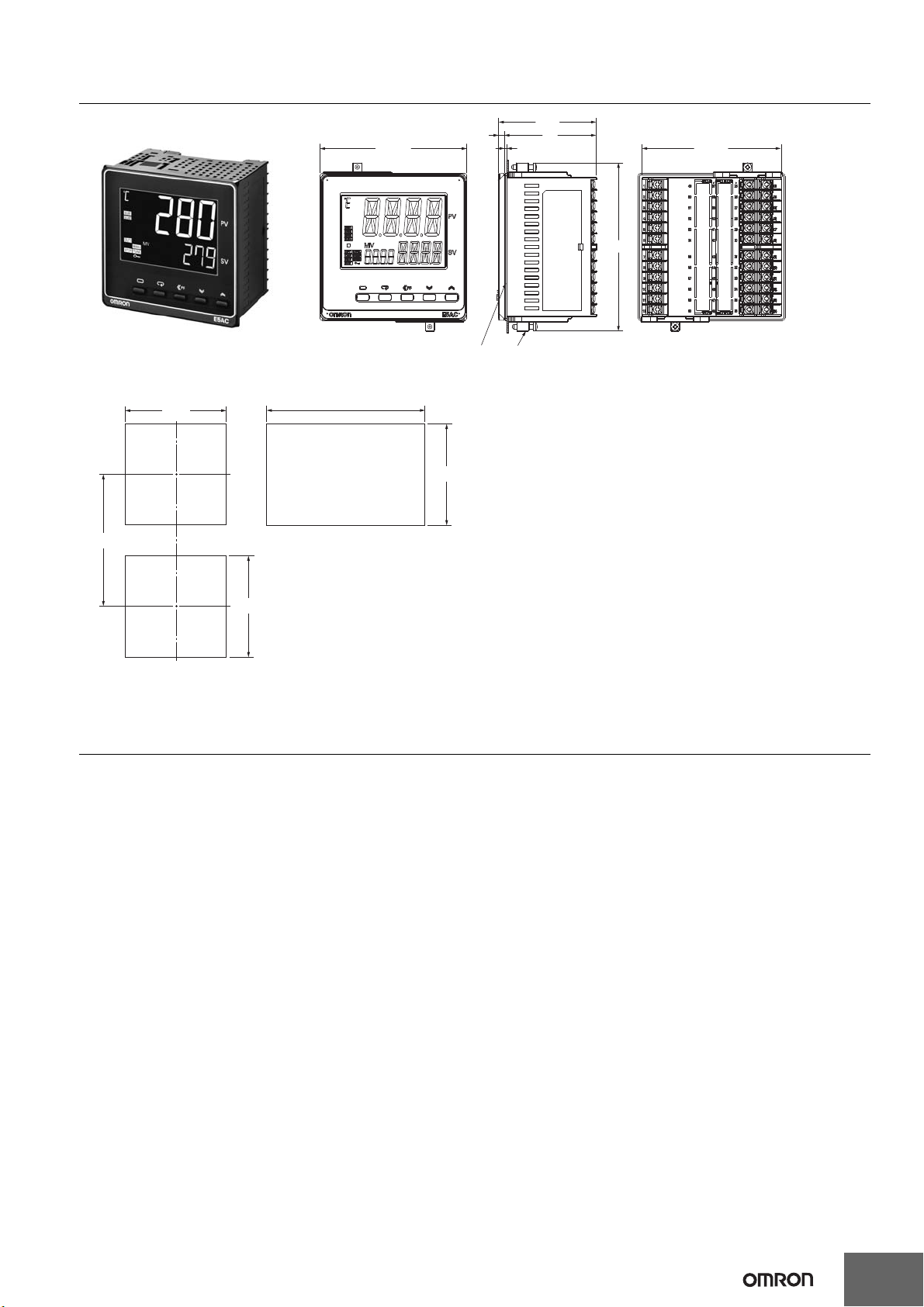

E5AC-800

E5EC-800/E5EC-B-800

4-digit displays

Sensor Input

Control Output 1

Auxiliary Outputs

• PF (shift) Key

• Temperature status display

• Independent heating and

cooling PID control

• Changed parameter display

Dual displays: PV/SV

E5AC-800

Control Output 2

• None

• Relay output

Universal input

• Thermocouple

• Pt

• Analog current/voltage

• Relay output

• Voltage output

(for driving SSR)

• Linear current output

<E5EC-800>

• None

• 2

<E5AC-800>

• None

• 1

• 2

• 3

<E5EC-B-800>

• 2

Indication Accuracy

• Thermocouple input: ±0.3% of PV

• Pt input: ±0.2% of PV

• Analog input: ±0.2% of FS

Sampling Period

• 50 ms

Serial Communications

• None

• RS-485

Event Inputs

<E5EC-800/E5AC-800>

• None

• 2

• 4

<E5EC-B-800>

• None

• 2

E5EC-800/E5EC-B-800/E5AC-800

(48 × 96 mm/96 × 96 mm)

Large White PV Display That’s Easier to Read. Easy to Use, from Model Selection to Setup and Operation. Models with Push-In Plus Terminal Blocks Added to 48 × 96-mm Lineup.

• A white LCD PV display with a height of approx. 18 mm for the E5EC/E5EC-B-800 and 25 mm for the E5AC-800 improves visibility.

• High-speed sampling at 50 ms.

• With 48 x 96-mm Controllers, you can select between screw terminal blocks or Push-In Plus terminal blocks to save wiring work.

• Short body with depth of only 60 mm. (Screw Terminal Blocks)

• Easy connections to a PLC with programless communications. Use component communications to link Temperature Controllers to each other.

Main I/O Functions

21

E5EC-800/E5EC-B-800/E5AC-800

Model Number Legend and Standard Models

Model Number Legend

●Models with Screw Terminal Blocks

E5EC-800 48 × 96 mm

Control output 1 Control output 2

Relay output -

Voltage output - E5EC-QX2ASM-800

Linear current output - E5EC-CX2ASM-800

Relay output Relay output E5EC-RR2ASM-800

Voltage output Relay output E5EC-QR2ASM-800

Linear current output Relay output E5EC-CR2ASM-800

Relay output -

Voltage output - E5EC-QX2DSM-800

Linear current output - E5EC-CX2DSM-800

Relay output Relay output E5EC-RR2DSM-800

Voltage output Relay output E5EC-QR2DSM-800

Linear current output Relay output E5EC-CR2DSM-800

Relay output Relay output

Voltage output Relay output E5EC-QR2ASM-808

Relay output Relay output

Voltage output Relay output E5EC-QR2DSM-808

Relay output Relay output

Voltage output Relay output E5EC-QR2ASM-810

Relay output Relay output

Voltage output Relay output E5EC-QR2DSM-810

Linear current output Relay output

Linear current output Relay output 24 VAC/VDC E5EC-CR2DSM-804

Relay output (Open)* Relay output (Close)* -

Relay output (Open)* Relay output (Close)*

Relay output (Open)* Relay output (Close)* RS-485 Two E5EC-PR2ASM-804

Auxiliary

output

Two

Communications

---

RS-485

- Four

RS-485 - Two

-

* Position proportional control model.

Note: Draw-out-type models of the E5EC-800 are available. Ask your OMRON representative for details.

Heater

burnout

One

-

Event

inputs

Two

-

Power supply

voltage

100 to 240 VAC

24 VAC/VDC

100 to 240 VAC

24 VAC/VDC

100 to 240 VAC

24 VAC/VDC

100 to 240 VAC E5EC-CR2ASM-804

100 to 240 VAC

Model

E5EC-RX2ASM-800

E5EC-RX2DSM-800

E5EC-RR2ASM-808

E5EC-RR2DSM-808

E5EC-RR2ASM-810

E5EC-RR2DSM-810

E5EC-PR0ASM-800

E5EC-PR2ASM-800

●Models with Push-In Plus Terminal Blocks

E5EC-B-800 48 × 96 mm

Control output 1 Control output 2

Relay output -

Voltage output - E5EC-QX2ABM-800

Linear current output - E5EC-CX2ABM-800

Relay output Relay output E5EC-RR2ABM-800

Voltage output Relay output E5EC-QR2ABM-800

Linear current output -

Relay output Relay output

Voltage output Relay output E5EC-QR2ABM-808

Auxiliary

output

Two

Communications

-

RS-485 Two

Heater

burnout

-

One

Event

inputs

-

Power supply

voltage

100 to 240 VAC

Model

E5EC-RX2ABM-800

E5EC-CX2ABM-804

E5EC-RR2ABM-808

22

E5EC-800/E5EC-B-800/E5AC-800

E5AC-800 48 × 96 mm

Control output 1 Control output 2

Relay output -

Voltage output - E5AC-QX1ASM-800

Linear current output - E5AC-CX1ASM-800

Relay output -

Voltage output - E5AC-QX3ASM-800

Linear current output - E5AC-CX3ASM-800

Relay output -

Voltage output - E5AC-QX1DSM-800

Linear current output - E5AC-CX1DSM-800

Relay output -

Voltage output - E5AC-QX3DSM-800

Linear current output - E5AC-CX3DSM-800

Relay output -

Voltage output - E5AC-QX3ASM-808

Relay output -

Voltage output - E5AC-QX3DSM-808

Relay output -

Voltage output - E5AC-QX3ASM-810

Relay output -

Voltage output - E5AC-QX3DSM-810

Linear current output -

Linear current output - 24 VAC/VDC E5AC-CX3DSM-804

Relay output (Open)* Relay output (Close)* -

Relay output (Open)* Relay output (Close)*

Relay output (Open)* Relay output (Close)* RS-485 Two E5AC-PR2ASM-804

Auxiliary

output

One

Three

One

Three

Two

Communications

---

RS-485

-Four

RS-485 - Two

-

* Position proportional control model.

Note: Draw-out-type models of the E5AC-800 are available. Ask your OMRON representative for details.

Heater

burnout

One

-

Event

inputs

Two

-

Power supply

voltage

100 to 240 VAC

24 VAC/VDC

100 to 240 VAC

24 VAC/VDC

100 to 240 VAC

24 VAC/VDC

100 to 240 VAC E5AC-CX3ASM-804

100 to 240 VAC

Model

E5AC-RX1ASM-800

E5AC-RX3ASM-800

E5AC-RX1DSM-800

E5AC-RX3DSM-800

E5AC-RX3ASM-808

E5AC-RX3DSM-808

E5AC-RX3ASM-810

E5AC-RX3DSM-810

E5AC-PR0ASM-800

E5AC-PR2ASM-800

23

E5EC-800/E5EC-B-800/E5AC-800

Heating and Cooling Control

●Using Heating and Cooling Control

A Control Output Assignment If there is no control output 2, an auxiliary output is used as the cooling control output. If there is a control output 2, the two control outputs are used for heating and cooling. (It does not matter which output is used for heating and which output is used for cooling.) B Control If PID control is used, you can set PID control separately for heating and cooling. This allows you to handle control systems with different heating and cooling response characteristics.

Optional Products (Order Separately)

Terminal Covers (for E5EC-800/E5AC-800)

Model

E53-COV24 (3pcs)

Waterproof Packing

Applicable Controller Model

E5EC-800/

E5EC-B-800

E5AC-800 Y92S-P10

Note: This Waterproof Packing is provided with the Digital

Temperature Controller.

Y92S-P9

Waterproof Cover

Applicable Controller Model

E5EC-800/

E5EC-B-800

E5AC-800 Y92A-96N

Y92A-49N

Front Port Cover

Model

Y92S-P7

Note: This Front Port Cover is provided with the Digital Temperature

Controller.

Mounting Adapter

Model

Y92F-51

(Two Adapters are included.)

Note: This Mounting Adapter is provided with the Digital Temperature

Controller.

Current Transformers (CTs)

Hole diameter Model

5.8 mm E54-CT1

5.8 mm E54-CT1L

12.0 mm E54-CT3

12.0 mm E54-CT3L

* Lead wires are included with these CTs. If UL certification is

required, use these CTs.

*

24

E5EC-800/E5EC-B-800/E5AC-800

Specifications

Ratings

Power supply voltage

Operating voltage range 85% to 110% of rated supply voltage

E5EC-800/ E5EC-B-800

Power consumption

E5AC-800

Sensor input

Input impedance

Control method ON/OFF control or 2-PID control (with auto-tuning)

Relay output

Control output

Auxiliary output

Event input

Potentiometer input * 100 Ω to 10 kΩ Setting method Digital setting using front panel keys

Indication method

Multi SP

Bank switching None

Other functions

Ambient operating temperature -10 to 55°C (with no condensation or icing) Ambient operating humidity 25% to 85% Storage temperature -25 to 65°C (with no condensation or icing) Altitude 2,000 m max. Recommended fuse T2A, 250 VAC, time lag, low-breaking capacity Installation environment Overvoltage category II, Pollution Degree 2 (EN/IEC/UL 61010-1)

* There are no optional functions for the E5EC-B-800. Refer to Model Number Legend on page 22.

Voltage output (for driving SSR)

Linear current output 4 to 20 mA DC/0 to 20 mA DC, load: 500 Ω max., resolution: approx. 10,000

Number of outputs

Output specifications

Number of inputs E5EC-800/E5AC-800: 2 or 4 (depend on model), E5EC-B-800: 2

External contact input specifications

A in model number: 100 to 240 VAC, 50/60 Hz D in model number: 24 VAC, 50/60 Hz; 24 VDC

Models with option selection of 800: 6.6 VA max. at 100 to 240 VAC, and 4.1 VA max. at 24 VAC or

2.3 W max. at 24 VDC

All other models: 8.3 VA max. at 100 to 240 VAC, and 5.5 VA max. at 24 VAC or 3.2 W max. at 24 VDC Models with option selection of 800: 7.0 VA max. at 100 to 240 VAC, and 4.2 VA max. at 24 VAC or

2.4 W max. at 24 VDC

All other models: 9.0 VA max. at 100 to 240 VAC, and 5.6 VA max. at 24 VAC or 3.4 W max. at 24 VDC Temperature input

Thermocouple: K, J, T, E, L, U, N, R, S, B, C/W, or PL II Platinum resistance thermometer: Pt100 or JPt100 Infrared temperature sensor (ES1B): 10 to 70°C, 60 to 120°C, 115 to 165°C, or 140 to 260°C Analog input Current input: 4 to 20 mA or 0 to 20 mA Voltage input: 1 to 5 V, 0 to 5 V, or 0 to 10 V

Current input: 150 Ω max., Voltage input: 1 MΩ min. (Use a 1:1 connection when connecting the ES2-HB-N/THB-N.)

SPST-NO, 250 VAC, 5 A (resistive load), electrical life: 100,000 operations, minimum applicable load: 5 V, 10mA (reference value)

Output voltage: 12 VDC ±20% (PNP), max. load current: 40 mA, with short-circuit protection circuit (The maximum load current is 21 mA for models with two control outputs.)

E5EC-800: 0 or 2 (depend on model), E5EC-B-800: 2 E5AC-800: 0, 1, 2 or 3 (depend on model)

SPST-NO relay outputs, 250 VAC, 3 A (resistive load), Electrical life: 100,000 operations, Minimum applicable load: 10 mA at 5V (reference value)

Contact input: ON: 1 kΩ max., OFF: 100 kΩ min. Non-contact input: ON: Residual voltage: 1.5 V max., OFF: Leakage current: 0.1 mA max. Current flow: Approx. 7 mA per contact

11-segment digital display and individual indicators Character height: E5EC-800/E5EC-B-800: PV: 18.0 mm, SV: 11.0 mm, MV: 7.8 mm

E5AC-800: PV: 25.0 mm, SV: 15.0 mm, MV: 9.5 mm

Up to eight set points (SP0 to SP7) can be saved and selected using event inputs, key operations, or serial communications.

Manual output, heating/cooling control, loop burnout alarm, SP ramp, other alarm functions, heater burnout (HB) alarm (including SSR failure (HS) alarm), 40% AT, 100% AT, MV limiter, input digital filter, self tuning, PV input shift, run/stop, protection functions, temperature status display, moving average of input value, FB moving average*

25

E5EC-800/E5EC-B-800/E5AC-800

Temperature range (°C)

Input Ranges (Universal inputs)

●Thermocouple/Platinum Resistance Thermometer

Sensor

type

Sensor

specifica-

tion

Set value

Shaded settings are the default settings.

The applicable standards for the input types are as follows: K, J, T, E, N, R, S, B: JIS C 1602-2015, IEC 60584-1 JPt100: JIS C 1604-1989, JIS C 1606-1989 L: Fe-CuNi, DIN 43710-1985 Pt100: JIS C 1604-1997, IEC 60751 U: Cu-CuNi, DIN 43710-1985 PL II: According to Platinel II electromotive force charts from BASF (previously Engelhard) C/W: W5Re/W26Re, JIS C 1602-2015, ASTM E988-1990

Platinum resistance

thermometer

Thermocouple

Pt100 JPt100 K J T E L U N R S B

2300

1800

1700

1600

1500

1400

1300

1200

1100

1000

850 850 850

900

800

700

600

500

400

300

200

100

-100

-200

500.0 500.0 500.0

100.0 100.0 90

0.0 0.0 00 000000

-200 -199.9 -199.9 -200 -200 -199.9 -200 -200 -199.9 -200

1300 1300 1300

600

400.0 400 400.0 400 400.0

-20.0 -100 -20.0 -100

C/W

2300

1800

1700 1700

100

Infrared temperature

10 to

PLII

70°C

012345 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24

sensor

60 to

120°C

120 165

115 to 165°C

140 to 260°C

260

●Analog input

Input type Current Voltage

Input specification

Setting range

Set value 25 26 27 28 29

4 to 20 mA 0 to 20 mA 1 to 5 V 0 to 5 V 0 to 10 V

Usable in the following ranges by scaling:

-1999 to 9999, -199.9 to 999.9,

-19.99 to 99.99 or -1.999 to 9.999

26

E5EC-800/E5EC-B-800/E5AC-800

ON OFF PV

SP

LH

SP

X

ON OFF PV

SP

X

ON OFF PV

SP

X

ON OFF PV

SP

X

ON OFF PV

SP

LH

ON OFF PV

SP

LH

ON OFF PV

*5

SP

X

ON OFF PV

SP

X

ON OFF PV

SP

X

ON OFF PV

SP

X

ON OFF PV

0

X

ON OFF PV

0

X

ON OFF PV

0

X

ON OFF PV

0

X

ON OFF PV

0

X

ON OFF PV

0

X

ON OFF PV

0

X

ON OFF PV

0

X

ON OFF PV

0

X

ON OFF MV

0

X

ON OFF MV

0

X

ON OFF MV

Alarm type

Each alarm can be independently set to one of the following 19 alarm types. The default is 2: Upper limit. (see note.) Auxiliary outputs are allocated for alarms. ON delays and OFF delays (0 to 999 s) can also be specified.

Note:

In the default settings for models with HB or HS alarms, alarm 1 is set to a heater alarm (HA) and the Alarm Type 1 parameter is not displayed. To use alarm 1, set the output assignment to alarm 1.

Set

value

Alarm type

When alarm value X

Alarm output operation

When alarm value X

is positive

is negative

0 Alarm function OFF Output OFF No alarm

1 Upper- and lower-limit *1

2

(default)

Upper-limit

*2

3 Lower-limit

Upper- and lower-limit

4

range *1

Upper- and lower-limit with

5

standby sequence *1

Upper-limit with standby

6

sequence

Lower-limit with standby

7

sequence

*3

*4

8 Absolute-value upper-limit

9 Absolute-value lower-limit

Absolute-value upper-limit

10

with standby sequence

Absolute-value lower-limit

11

with standby sequence

12

LBA (alarm 1 type only)

-*7

13 PV change rate alarm - *8

SP absolute value

14

upper limit alarm

SP absolute value

15

lower limit alarm

ON OFF SP

X

0

X

0

ON OFF SP

X

0

X

0

Standard Control Standard Control

MV absolute value

16

upper limit alarm *9

ON OFF MV

X

0

Heating/Cooling Control (Heating MV)

ON OFF MV

X

0

ON OFF MV

Heating/Cooling Control (Heating MV)

Always ON

X

0

Standard Control Standard Control

Description of function

Set the upward deviation in the set point for the alarm upper limit (H) and the lower deviation in the set point for the alarm lower limit (L). The alarm is ON when the PV is outside this deviation range.

Set the upward deviation in the set point by setting the alarm value (X). The alarm is ON when the PV is higher than the SP by the deviation or more.

Set the downward deviation in the set point by setting the alarm value (X). The alarm is ON when the PV is lower than the SP by the deviation or more.

Set the upward deviation in the set point for the alarm upper limit (H) and the lower deviation in the set point for the alarm lower limit (L). The alarm is ON when the PV is inside this deviation range.

A standby sequence is added to the upper- and lower-limit alarm (1).*6

A standby sequence is added to the upper-limit alarm (2). *6

A standby sequence is added to the lower-limit alarm (3).*6

The alarm will turn ON if the process value is larger than the alarm value (X) regardless of the set point.

The alarm will turn ON if the process value is smaller than the alarm value (X) regardless of the set point.

A standby sequence is added to the absolute-value upperlimit alarm (8). *6

A standby sequence is added to the absolute-value lowerlimit alarm (9). *6

This alarm type turns ON the alarm when the set point (SP) is higher than the alarm value (X).

This alarm type turns ON the alarm when the set point (SP) is lower than the alarm value (X).

This alarm type turns ON the alarm when the manipulated variable (MV) is higher than the alarm value (X).

MV absolute value

17

lower limit alarm *9

Heating/Cooling Control (Cooling MV)

Always ON

This alarm type turns ON the alarm when the manipulated variable (MV) is lower than the alarm value (X).

27

E5EC-800/E5EC-B-800/E5AC-800

LHSP

Case 1

LHSP

Case 2

LHSP

Case 3 (Always ON)

H<0, L<0

H<0, L>0

|H| ≥ |L|

H>0, L<0

|H| ≤ |L|

H<0, L>0

|H| < |L|

H>0, L<0

|H| > |L|

LHSP

Case 1

LHSP

Case 2

LHSP

LLHSP

HSP

Case 3 (Always OFF)

H<0, L>0

|H| < |L|

H>0, L<0

|H| > |L|

H<0, L<0

H<0, L>0

|H| ≥ |L|

H>0, L<0

|H| ≤ |L|

*1 With set values 1, 4 and 5, the upper and lower limit values can be set

independently for each alarm type, and are expressed as “L” and “H.”

*2. Set value: 1, Upper- and lower-limit alarm

*3. Set value: 4, Upper- and lower-limit range

*4. Set value: 5, Upper- and lower-limit with standby sequence

For Upper- and Lower-Limit Alarm Described Above *2

• Case 1 and 2 Always OFF

when the upper-limit and lower-limit hysteresis overlaps.

• Case 3: Always OFF

*5. Set value: 5, Upper- and lower-limit with standby sequence

Always OFF

when the upper-limit and lower-limit hysteresis overlaps.

*6. Refer to the E5@C Digital Temperature Controllers User's Manual (Cat. No.

H174) for information on the operation of the standby sequence.

*7. Refer to the E5@C Digital Temperature Controllers User's Manual (Cat. No.

H174) for information on the PV change rate alarm. This setting cannot be used with a position-proportional model.

*8. Refer to the E5@C Digital Temperature Controllers User's Manual (Cat. No.

H174) for information on the PV change rate alarm.

*9. When heating/cooling control is performed, the MV absolute upper limit

alarm functions only for the heating operation and the MV absolute lower limit alarm functions only for the cooling operation.

28

E5EC-800/E5EC-B-800/E5AC-800

Characteristics

Thermocouple: (±0.3% of indication value or ±1°C, whichever is greater) ±1 digit max. *1

Indication accuracy (at the ambient temperature of 23°C)

Influence of temperature *2

Influence of voltage *2

Influence of EMS. (at EN 61326-1)

Input sampling period 50ms

Hysteresis

Proportional band (P)

Integral time (I)

Derivative time (D) 0 to 9999 s (in units of 1 s), 0.0 to 999.9 s (in units of 0.1 s) *4

Proportional band (P) for cooling

Integral time (I) for cooling 0 to 9999 s (in units of 1 s), 0.0 to 999.9 s (in units of 0.1 s) *4 Derivative time (D) for cooling 0 to 9999 s (in units of 1 s), 0.0 to 999.9 s (in units of 0.1 s) *4 Control period 0.1, 0.2, 0.5, 1 to 99 s (in units of 1 s) Manual reset value 0.0 to 100.0% (in units of 0.1%) Alarm setting range -1999 to 9999 (decimal point position depends on input type)

Affect of signal source resistance

Insulation resistance 20 MΩ min. (at 500 VDC) Dielectric strength 3,000 VAC, 50/60 Hz for 1 min between terminals of different charge

Vibration

Shock

Weight

Degree of protection Front panel: IP66, Rear case: IP20, Terminals: IP00 Memory protection Non-volatile memory (number of writes: 1,000,000 times)

Standards

EMC

*1. The indication accuracy of K thermocouples in the -200 to 1300°C range, T and N thermocouples at a temperature of -100°C max., and U and L thermocouples at

any temperatures is is not specified. The indication accuracy of B thermocouples at a temperature of 400 to 800°C is at a temperature of 200°C max. is

The indication accuracy of PL II thermocouples is ( *2. Ambient temperature: -10°C to 23°C to 55°C, Voltage range: -15% to 10% of rated voltage *3. K thermocouple at -100°C max.: *4. The unit is determined by the setting of the Integral/Derivative Time Unit parameter. *5. Refer to your OMRON website for the most recent information on applicable models. *6. Refer to information on maritime standards in Shipping Standards on page 61 for compliance with Lloyd's Standards. *7. Industrial electromagnetic environment (EN/IEC 61326-1 Table 2)

Malfunction 10 to 55 Hz, 20 m/s2 for 10 min each in X, Y, and Z directions Resistance 10 to 55 Hz, 20 m/s2 for 2 hrs each in X, Y, and Z directions Malfunction 100 m/s2, 3 times each in X, Y, and Z directions Resistance 300 m/s2, 3 times each in X, Y, and Z directions

E5EC-800/ E5EC-B-800

E5AC-800 Controller: Approx. 250 g, Adapter: Approx. 4 g × 2

Approved standards

Conformed standards EN 61010-1 (IEC 61010-1)

±2°C ±1 digit max. The indication accuracy of the B thermocouple at a temperature of 400°C max.

±10°C max.

Platinum resistance thermometer: (±0.2% of indication value or ±0.8°C, whichever is greater) ±1 digit max. Analog input: ±0.2% FS ±1 digit max. CT input: ±5% FS ±1 digit max. Potentiometer input: ±5% FS ±1 digit max.

Thermocouple input (R, S, B, C/W, PL II): (±1% of indication value or ±10°C, whichever is greater) ±1 digit max. Other thermocouple input: (±1% of indication value or ±4°C, whichever is greater) ±1 digit max. *3 Platinum resistance thermometer: (±1% of indication value or ±2°C, whichever is greater) ±1 digit max. Analog input: ±1%FS ±1 digit max. CT input: ±5% FS ±1 digit max.

Temperature input: 0.1 to 999.9°C or °F (in units of 0.1°C or °F) Analog input: 0.01% to 99.99% FS (in units of 0.01% FS)

Temperature input: 0.1 to 999.9°C or °F (in units of 0.1°C or °F) Analog input: 0.1 to 999.9% FS (in units of 0.1% FS)

Standard, heating/cooling, or Position-proportional (Close) 0 to 9999 s (in units of 1 s), 0.0 to 999.9 s (in units of 0.1 s) Position-proportional (Floating) 1 to 9999 s (in units of 1 s), 0.1 to 999.9 s (in units of 0.1 s)

Temperature input: 0.1 to 999.9°C or °F (in units of 0.1°C or °F) Analog input: 0.1 to 999.9% FS (in units of 0.1% FS)

Thermocouple: 0.1°C/Ω max. (100 Ω max.) Platinum resistance thermometer: 0.1°C/Ω max. (10 Ω max.)

Controller: Approx. 210 g, Adapter: Approx. 4 g × 2

cULus: UL 61010-1/CSA C22.2 No.61010-1, Korean wireless regulations (Radio law: KC Mark) (Some models only.) *

EMI EN 61326-1 *7 Radiated Interference Electromagnetic Field Strength: EN 55011 Group 1, class A Noise Terminal Voltage: EN 55011 Group 1, class A EMS: EN 61326-1 *7 ESD Immunity: EN 61000-4-2 Electromagnetic Field Immunity: EN 61000-4-3 Burst Noise Immunity: EN 61000-4-4 Conducted Disturbance Immunity: EN 61000-4-6 Surge Immunity: EN 61000-4-5 Voltage Dip/Interrupting Immunity: EN 61000-4-11

±3°C ±1 digit max. The indication accuracy of C/W thermocouples is (±0.3 of PV or ±3°C, whichever is greater) ±1 digit max.

±0.3% of PV or ±2°C, whichever is greater) ±1 digit max.

5

, Lloyd's standards *6

±3°C max. The indication accuracy of the R and S thermocouples

29

E5EC-800/E5EC-B-800/E5AC-800

500

300

100

50

30

10

5

3

1

0123456

Switching current (A)

E5EC-800/E5EC-B-800/E5AC-800 250 VAC, 30 VDC (resistive load) cosφ = 1

Life (× 10

4

operations)

Communications Specifications

Transmission line connection method

Communications RS-485 (two-wire, half duplex) Synchronization

method Protocol CompoWay/F, or Modbus Baud rate *1 9600, 19200, 38400, or 57600 bps Transmission

code Data bit length *1 7 or 8 bits Stop bit length *1 1 or 2 bits

Error detection

Flow control None Interface RS-485 Retry function None Communications

buffer Communications

response wait time

*1 The baud rate, data bit length, stop bit length, and vertical parity can be

individually set using the Communications Setting Level.

*2 Modbus is a registered trademark of Schneider Electric.

RS-485: Multidrop

Start-stop synchronization

ASCII

Vertical parity (none, even, odd) Block check character (BCC) with CompoWay/F or CRC-16 with Modbus *2

217 bytes

0 to 99 ms Default: 20 ms

Communications Functions

You can use the memory in the PLC to read and write E5@C parameters, start and stop operation, etc. The E5@C automatically performs communications with PLCs. No communications programming is required. Number of connected Temperature Controllers:

Programless communications

Component Communications

*2

Copying

MELSEC is a registered trademark of Mitsubishi Electric Corporation. KEYENCE is a registered trademark of Keyence Corporation. *1 A Temperature Controller with version 1.1 or higher is required.

A Temperature Controller with version 2.1 or higher is required for the FX Series or the KV Series.

*2 Both the programless communications and the component

communications support the copying.

32 max. (Up to 16 for the FX Series) Applicable PLCs

*1

OMRON PLCs

CS Series, CJ Series, CP Series, NJ Series, or NX1P MELSEC Q Series, L Series, FX3 Series, or iQ-R Series

KEYENCE PLCs

KEYENCE KV Series

When Digital Temperature Controllers are connected, set points and RUN/STOP commands can be sent from the Digital Temperature Controller that is set as the master to the Digital Temperature Controllers that are set as slaves. Slope and offsets can be set for the set point. Number of connected Digital Temperature Controllers: 32 max. (including master)

When Digital Temperature Controllers are connected, the parameters can be copied from the Digital Temperature Controller that is set as the master to the Digital Temperature Controllers that are set as slaves.

Current Transformer (Order Separately) Ratings

E54-CT1 E54-CT3

Dielectric strength 1,000 VAC for 1 min 1,500 VAC for 1 min

Vibration resistance 50 Hz, 98 m/s

Weight

E54-CT1: Approx. 11.5 g, E54-CT3: Approx. 50 g

E54-CT3 Only

Accessories

Armatures (2) Plugs (2)

E54-CT1L E54-CT3L

2

E54-CT1: Approx. 14 g, E54-CT3: Approx. 57 g

None

Heater Burnout Alarms and SSR Failure Alarms

CT input (for heater current detection)

Maximum heater current

Input current indication accuracy

Heater burnout alarm setting range *1

SSR failure alarm setting range *2

*1. For heater burnout alarms, the heater current will be measured when the

control output is ON, and the output will turn ON if the heater current is lower than the set value (i.e., heater burnout detection current value).

*2. For SSR failure alarms, the heater current will be measured when the

control output is OFF, and the output will turn ON if the heater current is

higher than the set value (i.e., SSR failure detection current value). *3. The value is 30 ms for a control period of 0.1 s or 0.2 s. *4. The value is 35 ms for a control period of 0.1 s or 0.2 s.

Models with detection for single-phase heaters: One input

50 A AC

±5% FS ±1 digit max.

0.1 to 49.9 A (in units of 0.1 A) Minimum detection ON time: 100 ms *3

0.1 to 49.9 A (in units of 0.1 A) Minimum detection OFF time: 100 ms *4

Electrical Life Expectancy Curve for Control Output Relays (Reference Values)

30

External Connections

The E5EC-800/E5AC-800 is set for a K-type thermocouple (input type = 5) by default. An input error (UGTT) will occur if the inp ut t ype set ting does no t agree with the temperature sensor. Check the input type.

Relay output

250 VAC, 5 A (resistive load)

Voltage output

(for driving SSR) 12 VDC, 40 mA When There Is a Control Output 2: 21 mA

Linear current output

0 to 20 mA DC 4 to 20 mA DC Load: 500 Ω max.

2

1

2

100 to 240 VAC124 VAC/VDC

V

23

V

24

+

22

TC

22

+

-

m

A

-

+

23

22

23

24

Pt I

24

22

23

24

A

B B

↑

Terminal type

Auxiliary outputs 1, 2, 3

Control output 2

Control output 1

Relay output

250 VAC, 3 A (resistive load)

Relay output

250 VAC, 5 A (resistive load)

+

++

-

+

-

(1) Control output

Models with 1 Relay Output

Models with 1 Voltage Output (for Driving SSR)

Models with Voltage Output (for Driving SSR) and Relay Output

Models with 2 Relay Outputs

Models with Linear Current Output and Relay Output

Models with 1 Linear Current Output

3

4

5

6

3

4

5

6

3

4

5

6

3

4

5

6

3

4

5

6

3

4

5

6

RX

R

Q

OUT1

C

QR*

RR*

CR*

QX CX

R

(2) Auxiliary Outputs

(3) Input Power Supply

(6) Options

(5) Sensor (Temperature/Analog) Input

(no polarity)

E5EC-@@ @ @ S M - 8@@

(1) (2) (3) (4) (5) (6)

23

24

11

12

19

20

21

22

9

10

2

7

8

175

6

3

4

14

15

16

18

Potentiometer input

20

O

21

19

W

C

↑

Terminal type

E5AC-@@ @ @ S M - 8@@

(1) (2) (3) (4) (5) (6)

* E5EC-800 Only

OUT1

OUT2

OUT1

OUT2

7

8

11

12

Auxiliary outputs 1*

9

10

Auxiliary output 1

7

8

11

12

Auxiliary outputs 1 and 2

9

10

Auxiliary output 1

Auxiliary output 2

7

8

11

12

Auxiliary outputs 1, 2 and 3*

9

10

Auxiliary output 1

Auxiliary output 2

Auxiliary output 3

* E5AC-800 Only

19

20

21

13

14

15

16

17

18

808 Communications, 2 event inputs, and 1 CT input

804 Communications and 2 event inputs

19

20

21

13

14

15

17

18

16

EV1

EV2

EV1

EV2

B(+)

A(-)

RS-485

B(+)

A(-)

RS-485

19

20

21

13

14

15

16

17

18

810 Four event inputs and one 1 CT input

EV1

EV2

EV3

EV4

131

3

4

5

6

R

PR

Open

Close

Models with 2 Position-proportional Relay Output

(-) (-) (-)

(-)

Use no-voltage inputs for the event inputs. The polarity for non-contact inputs is given in parentheses.

CT1

E5EC/E5AC-800 (Screw Terminal Blocks)

E5EC-800/E5EC-B-800/E5AC-800

Note: 1. The application of the terminals depends on the model.

2. Do not wire the terminals that are shown with a gray background.

3. When complying with EMC standards, the cable that connects the sensor must be 30 m or less. If the cable length exceeds 30 m,

compliance with EMC standards will not be possible.

4. Connect M3 crimped terminals.

5. Due to UL Listing requirements, use the E54-CT1L or E54-CT3L Current Transformer with the factory wiring (internal wiring).

Use a UL category XOBA or XOBA7 current transformer that is UL Listed for field wiring (external wiring) and not the factory wiring (internal wiring).

31

E5EC-800/E5EC-B-800/E5AC-800

27

28

26

17

29

30

31

32

19

20

18

21

22

23

24

25

1

2

3

4

32

Pt

A

B

+

-

m

A

-

+

31

30

32

31

30

32

31

30

32

31

30

V

-

V

+

TC

I

11

12

9

10

2

1

7

8

5

6

3

4

13

14

15

16

*

↑

Terminal type

E5EC-@@ 2 A B M - 8@@

(1)

(2) (3) (4) (5) (6)

The E5EC-B-800 is set for a K-type thermocouple (input type = 5) by default. An input error (s.err) will occur if the input type setting does not agree with the temperature sensor. Check the input type.

Relay output

250 VAC, 5 A (resistive load)

Voltage output

(for driving SSR) 12 VDC, 40 mA 21 mA if there are two control outputs

Control output 1

Relay output

250 VAC, 5 A (resistive load)

Control output 2

Auxiliary outputs 1, 2

Relay output

Model with 2 auxiliary outputs: 250 VAC, 3 A (resistive load)

(1) Control output

100 to 240 VAC

(3) Input Power Supply

Auxiliary outputs 1, 2

(2) Auxiliary Outputs

9

10

11

12

13

14

15

16

Auxiliary output 1

Auxiliary output 2

(5) Sensor (Temperature/Analog) Input

(6) Options

Use no-voltage inputs for the event inputs. The polarity for non-contact inputs is given in parentheses.

808

18

17

19

20

21

22

23

25

26

24

CT1

EV2

EV1

B(+)

A(-)

RS-485

*

Communications, 2 event inputs, and 1 CT input

(-)

804

18

17

19

20

21

22

23

25

26

24

EV2

EV1

B(+)

A(-)

RS-485

*

Communications, 2 event inputs

(-)

Models with 1 Relay Output

Models with Voltage Output (for Driving SSR) and Relay Output

Models with 2 Relay Outputs

RX

QR

RR

+

-

5

6

7

8

5

6

7

8

5

6

7

8

R

Q

Models with 1 Linear current output

CX

+

-

5

6

7

8

C

OUT1

OUT2

OUT1

OUT2

Models with 1 Voltage Output (for Driving SSR)

QX

+

-

5

6

7

8

Q

OUT1

Note: 1. The application of the terminals depends on the model.

2. Do not wire the terminals that are shown with a gray background.

3. When complying with EMC standards, the cable that connects the sensor must be 30 m or less. If the cable length exceeds 30 m,

compliance with EMC standards will not be possible.

4. Refer to Wiring Precautions for E5

@

C-B (Controllers with Push-In Plus Terminal Blocks) on page 65 for wire specifications and wiring

methods.

5. Common terminals are indicated with asterisks (*). You can use the input power supply and communications common terminals for

crossover wiring. Do not exceed the maximum number of Temperature Controllers given below if you use crossover wiring for the input power supply. 100 to 240 VAC Controllers: 16 max.

6. Due to UL Listing requirements, use the E54-CT1L or E54-CT3L Current Transformer with the factory wiring (internal wiring). Use a UL category XOBA or XOBA7 current transformer that is UL Listed for field wiring (external wiring) and not the factory wiring (internal wiring).

1

2

3

4

To another E5@C

Wiring Example:

E5EC-B-800 (Push-In Plus Terminal Blocks)

32

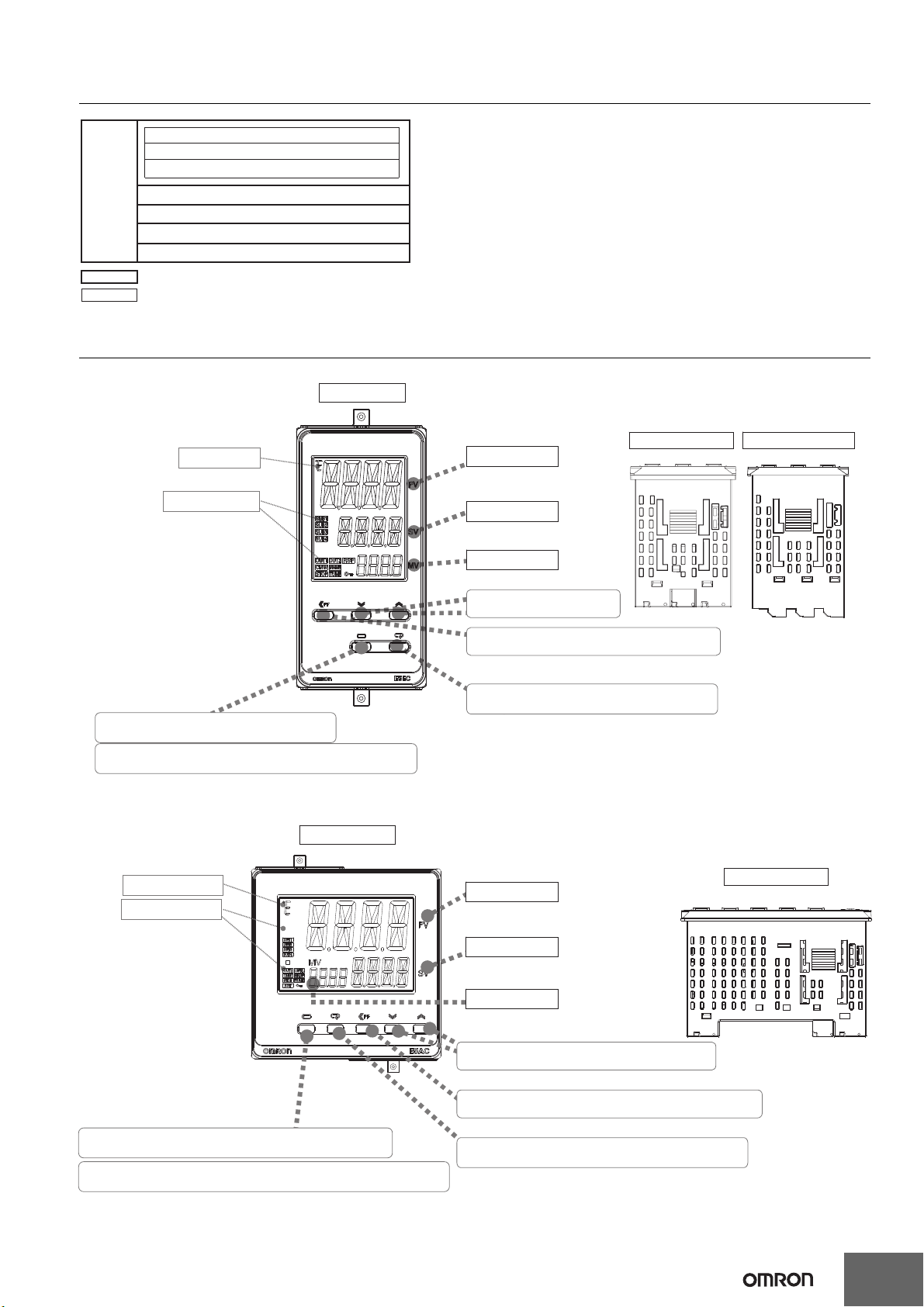

Isolation/Insulation Block Diagrams

Operation indicators

Temperature unit

Use S Key to change the digit (default setting).

Use the M Key to change to another parameter.

No. 1 display

No. 2 display

PV or specified parameter

SP or specified parameter value

No. 3 display

Manipulated value or other value

Top View of E5EC-800

Use the U D Keys to set the parameter.

Front panel

Press O Key once to go to Adjustment Level.

Press O Key for at least 3 seconds to go to Initial Setting Level.

Top View of E5EC-B-800

E5EC-800/E5EC-B-800 E5AC-800

Sensor input, CT input, and potentiometer input

Communications and event inputs

Voltage output (for driving SSR) and linear current output

Power Supply

: Reinforced insulation

: Functional isolation

Relay output

Auxiliary output 1

Auxiliary output 2

Auxiliary output 3

Nomenclature

E5EC-800/E5EC-B-800/E5AC-800

Temperature unit

Operation indicators

Press the O Key once to go to the Adjustment Level.

Press the O Key for at least 3 seconds to go to the Initial Setting Level.

Front Panel

No. 1 display

PV or specified parameter

No. 2 display

SP or specified parameter value

No. 3 display

Manipulated value or other value

Press the U or D Key to set the parameter.

Press the S Key to change the digit (default setting).

Press the M Key to change to another parameter.

Top View of E5AC-800

33

E5EC-800/E5EC-B-800/E5AC-800

E5EC-800

92

-0.8

0

92

+0.8

0

45

+0.6

0

120 min.

(48 × number of units − 2.5)

+1.0

0

Group mounting does not allow waterproofing.

Mounted Separately

Group Mounted

• Recommended panel thickness is 1 to 8 mm.

• Group mounting is not possible in the vertical direction. (Maintain the specified mounting space between Controllers.)

• To mount the Controller so that it is waterproof, insert the waterproof packing onto the Controller.

• When two or more Controllers are mounted, make sure that the surrounding temperature does not exceed the allowable operating temperature specified in the specifications.

E5EC-B-800

110

67.4

(71.4)

4

(1)

96

48

44

91

Adapter (Accessory)

Waterproof Packing (Accessory)

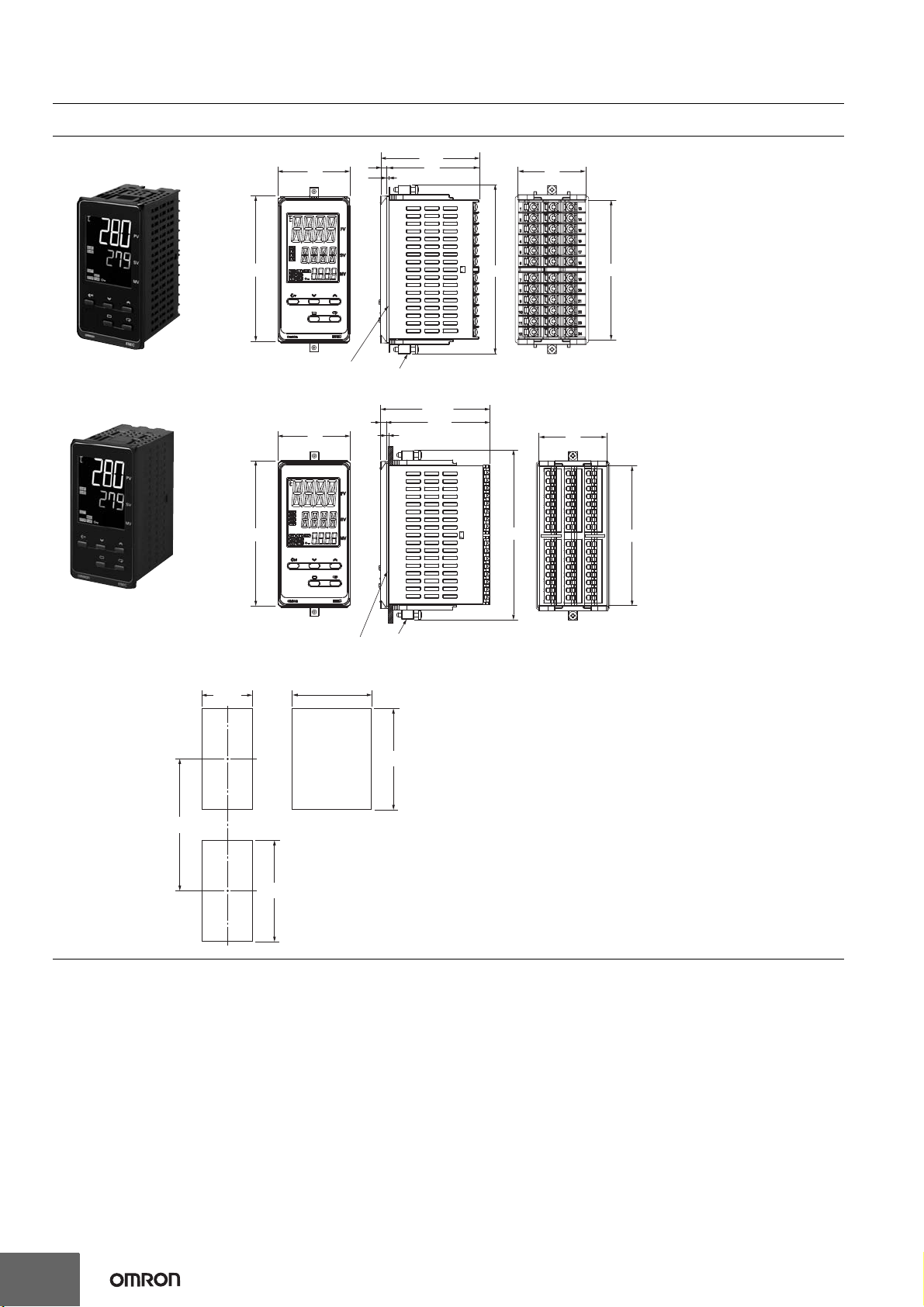

Dimensions (Unit: mm)

Controllers

48

96

Waterproof Packing (Accessory)

4 1

(64)

60

Adapter (Accessory)

110

44

91

34

E5EC-800/E5EC-B-800/E5AC-800

92

+0.8

0

92

+0.8

0

92

+0.8

0

120 min.

(96 × number of units − 3.5)

+1.0

0

Group mounting does not allow waterproofing.

Mounted Separately

Group Mounted

E5AC-800

• Recommended panel thickness is 1 to 8 mm.

• Group mounting is not possible in the vertical direction. (Maintain the specified mounting space between Controllers.)

• To mount the Controller so that it is waterproof, insert the waterproof packing onto the Controller.

• When two or more Controllers are mounted, make sure that the surrounding temperature does not exceed the allowable operating temperature specified in the specifications.

(64)

4

96 × 96 91 × 91

60

1

Waterproof Packing (Accessory)

Adapter (Accessory)

110

91

35

E5EC-800/E5EC-B-800/E5AC-800

10

91

2 3.8

● Terminal Covers E53-COV24 (Three Covers provided.)

● Waterproof Packing Y92S-P9 (for DIN 48 × 96)

The Waterproof Packing is provided with the Temperature Controller. Order the Waterproof Packing separately if it becomes lost or damaged. The degree of protection when the Waterproof Packing is used is IP66. To maintain an IP66 degree of protection, the Waterproof Packing and the Port Cover for the frontpanel Setup Tool port must be periodically replaced because they may deteriorate, shrink, or harden depending on the operating environment. The replacement period will vary with the operating environment. Check the required period in the actual application. Use 3 years or sooner as a guideline.

Y92S-P10 (for DIN 96 × 96)

● Mounting Adapter Y92F-51

(Two Adapters provided.)

One pair is provided with the Controller. Order this Adapter separately if it becomes lost or damaged.

131.7

115.6 28.9

21.9 (2)

● Watertight Cover Y92A-96N (96 × 96)

● Watertight Cover Y92A-49N (48 × 96)

131.7

67.6 28.9

21.9 (2)

Accessories (Order Separately)

36

● Current Transformers

5.8 dia.

Two, 3.5 dia.

30

21

15

25

2.5

40

10.5

2.8

7.5

5

10

Filler (epoxy)

Case

E54-CT1

Thru-current (Io) vs. Output Voltage (Eo) (Reference Values) E54-CT1 or E54-CT1L

Maximum continuous heater current: 50 A (50/60 Hz) Number of windings: 400

±2

Winding resistance: 18

±2 Ω

E54-CT1L

E5EC-800/E5EC-B-800/E5AC-800

100V

Frequency: 50 Hz

100mV

Output voltage (Eo) V (r.m.s.)

10

1

10

∞

1kΩ

100Ω

1%

Distortion factor 10%

3%

115±5

25

8

(12)

2.5

21

15

Cable (AWG18)

Shrinkable tube

Case (PBT)

5.8 dia.

40

5

Filler (epoxy)

10.5

Two, 3.5 dia.

Mark (yellow)

10

1

100μV

10

1 10 100mA 1 10 100

RL=10Ω

1,000A

Thru-current (Io) A (r.m.s.)

30

37

E5EC-800/E5EC-B-800/E5AC-800

E54-CT3 Accessories

• Armature

Approx. 3 dia.

18

(22)

Approx. 6 dia.

Plug

Armature

Lead

E54-CT3

Connection Example

•Plug

Thru-current (Io) vs. Output Voltage (Eo) (Reference Values) E54-CT3 or E54-CT3L

Maximum continuous heater current: 120 A (50/60 Hz) (Maximum continuous heater current for an OMRON

Digital Temperature Controller is 50 A.) Number of windings: 400±2 Winding resistance: 8±0.8

Ω

E54-CT3L

Filler (epoxy)

40 × 40

8

40

30

12 dia.

Case (PBT)

Two, M3 (depth: 4)

2.36 dia.

15

9

100V

100mV

Output voltage (Eo) V (r.m.s.)

Frequency: 50 Hz

10

1

10

1kΩ

500Ω

∞

1

100μV

10

1 10 100mA 1 10 100

Distortion factor 10%

3%

1%

100Ω

50Ω

RL=10Ω

1,000A

Thru-current (Io) A (r.m.s.)

8

30

100±5

12.0 dia.

40

8

Cable (AWG18)

Case (PBT)

Filler (epoxy)

40 15

Two, M3 (depth: 4)

30

38

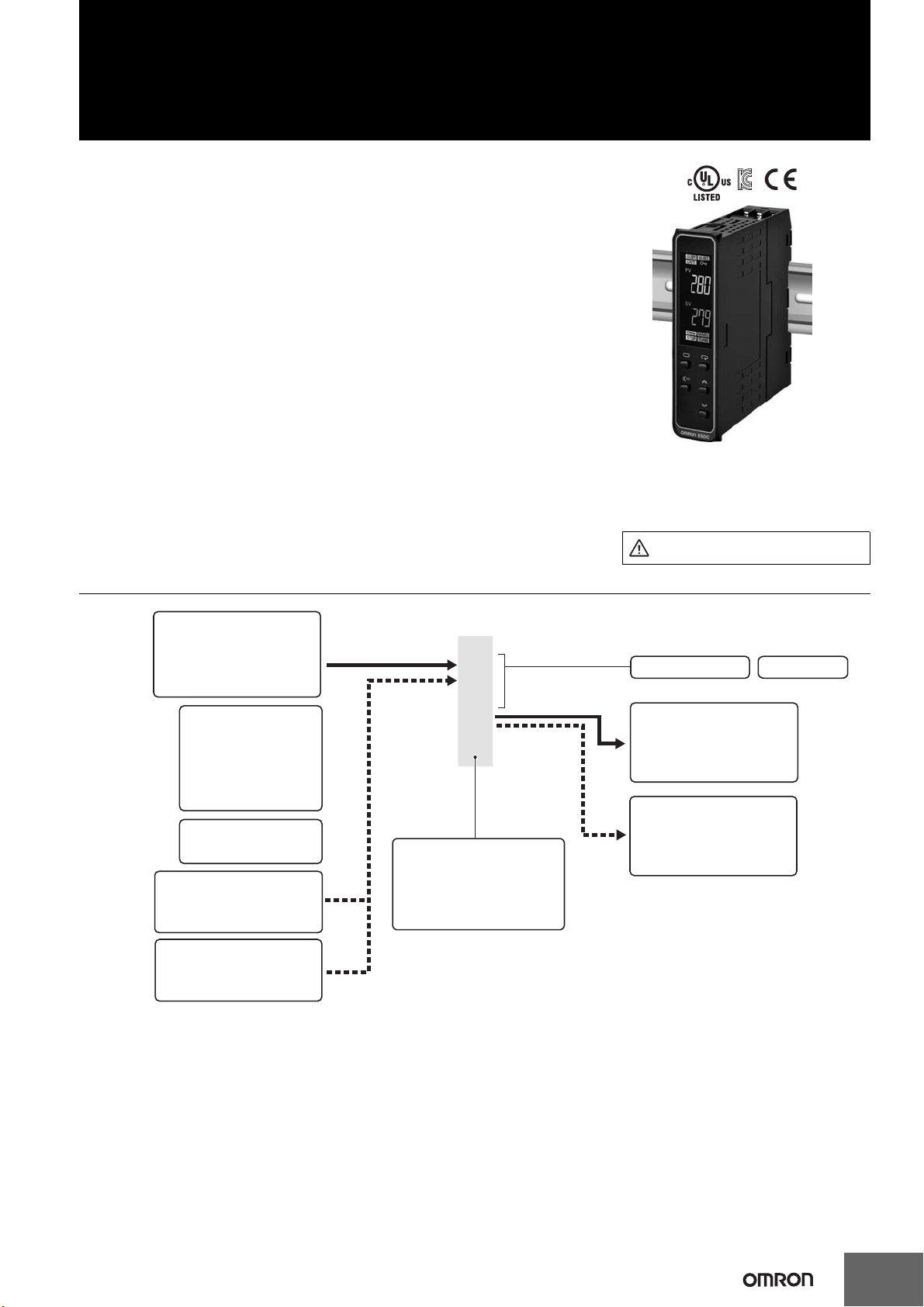

Digital Temperature Controller

22.5 mm Wide, and

DIN Track-mounting Type

E5DC-800

Refer to Safety Precautions on page 58.

Refer to your OMRON website for the most recent information on applicable safety standards.

E5DC-800

(22.5 mm Wide, and DIN Track-mounting Type)

The E5DC-800 Mounts to DIN Track and Is Ideal for Connections to HMIs and PLCs. It provides the Same Easy Operation and Advanced Performance as the Rest of the

E5@C-800 Series.

• A slim body at 85 × 22.5 mm (D × W) that fits into narrow control panels and mounts to DIN Track.

• Removable terminal block for easy replacement to simplify maintenance.

• High-speed sampling at 50 ms for applications with high-speed temperature increases.

• Easy connections to a PLC with programless communications.

• Models are available with up to 2 auxiliary outputs and 1 event input to complete basic functions.

• A white PV display (height: 8.5 mm) is easy to read when setting up, checking alarms, and making settings in a control panel.

Main I/O Functions

Sensor Input

Universal input

• Thermocouple

• Pt

• Analog current/voltage

Indication Accuracy

• Thermocouple input: ±0.3% of PV

• Pt input: ±0.2% of PV

• Analog input: ±0.2% of FS

Sampling Period

• 50 ms

Event Inputs

• None

• 1

Communications

• None

• RS-485

E5DC-800

• PF (shift) Key

• Temperature status display

• Independent heating and cooling PID control

• Changed parameter display

Dual displays: PV/SV

Control Output 1

• Relay output

•

Voltage output (for driving SSR)

• Linear current output

Auxiliary Outputs

• None

• 2

4-digit displays

39

E5DC-800

Model Number Legend and Standard Models

Model Number Legend

●Models with Screw Terminals

E5DC-800 22.5 × 96 mm

Control output Auxiliary output Communications Heater burnot Event inputs Power supply voltage Model *2

Relay output

Voltage output

Linear current output *1

--- RS-485

Relay output

Voltage output

Linear current output *1

Relay output

Voltage output

Linear current output *1

---

Relay output

Voltage output

Linear current output *1

Relay output

Voltage output

Linear current output *1 ---

Two

Relay output

Voltage output

Linear current output *1 ---

Relay output

Voltage output

Linear current output *1 ---

Relay output

Voltage output

Linear current output *1 ---

RS-485

---

Detection for Single-phase

heater

---

One

100 to 240 VAC

24 VAC/VDC

100 to 240 VAC

24 VAC/VDC

100 to 240 VAC

24 VAC/VDC

100 to 240 VAC

24 VAC/VDC

*1 The control output can be used as a simple transfer output for the Digital Temperature Controllers manufactured in July 2014 or later. *2 Option 000 can be selected only if two auxiliary outputs are selected.

Options 002 and 017 can be selected only if the control output is a relay output or voltage output and two auxiliary outputs are selected. Option 015 cannot be selected if the control output is a relay output or voltage output and two auxiliary outputs are selected. Options 016 can be selected only if the control output is a linear current output and two auxiliary outputs are selected.

E5DC-RX0ASM-815

E5DC-RX0AUM-815

E5DC-QX0ASM-815

E5DC-QX0AUM-815

E5DC-CX0ASM-815

E5DC-CX0AUM-815

E5DC-RX0DSM-815

E5DC-RX0DUM-815

E5DC-QX0DSM-815

E5DC-QX0DUM-815

E5DC-CX0DSM-815

E5DC-CX0DUM-815

E5DC-RX2ASM-800

E5DC-RX2AUM-800

E5DC-QX2ASM-800

E5DC-QX2AUM-800

E5DC-CX2ASM-800

E5DC-CX2AUM-800

E5DC-RX2DSM-800

E5DC-RX2DUM-800

E5DC-QX2DSM-800

E5DC-QX2DUM-800

E5DC-CX2DSM-800

E5DC-CX2DUM-800

E5DC-RX2ASM-802

E5DC-RX2AUM-802

E5DC-QX2ASM-802

E5DC-QX2AUM-802

E5DC-CX2ASM-815

E5DC-CX2AUM-815

E5DC-RX2DSM-802

E5DC-RX2DUM-802

E5DC-QX2DSM-802

E5DC-QX2DUM-802

E5DC-CX2DSM-815

E5DC-CX2DUM-815

E5DC-RX2ASM-817

E5DC-RX2AUM-817

E5DC-QX2ASM-817

E5DC-QX2AUM-817

E5DC-CX2ASM-816

E5DC-CX2AUM-816

E5DC-RX2DSM-817

E5DC-RX2DUM-817

E5DC-QX2DSM-817

E5DC-QX2DUM-817

E5DC-CX2DSM-816

E5DC-CX2DUM-816

40

Heating and Cooling Control

●Using Heating and Cooling Control

A Control Output Assignment An auxiliary output is used as the cooling control output. B Control If PID control is used, you can set PID control separately for heating and cooling. This allows you to handle control systems with different heating and cooling response characteristics.

Optional Products (Order Separately)

Terminal Unit

Model

E5DC-SCT1S

End Plate

Model

PFP-M

E5DC-800

Current Transformers (CTs)

Hole diameter Model

5.8 mm E54-CT1

5.8 mm E54-CT1L *

12.0 mm E54-CT3

12.0 mm E54-CT3L *

* Lead wires are included with these CTs. If UL certification is

required, use these CTs.

Mounting Adapters

Model

Y92F-53 (2pcs)

Short Bars

Model

Y92S-P11 (4pcs)

Spacer

Model PFP-S

DIN Tracks

Model

PFP-100N

PFP-50N

Unit Labels

Model

Y92S-L2

End Cover

Model

Y92F-54

41

E5DC-800

Specifications

Ratings

Power supply voltage

Operating voltage range 85% to 110% of rated supply voltage Power consumption 4.9 VA max. at 100 to 240 VAC, and 2.8 VA max. at 24 VDC or 1.5 W max. at 24 VDC

Sensor input

Input impedance

Control method ON/OFF control or 2-PID control (with auto-tuning)

Relay output

Control output

Auxiliary outputs

Event inputs

Setting method Digital setting using front panel keys

Indication method

Multi SP

Bank switching None

Other functions

Ambient operating temperature −10 to 55°C (with no condensation or icing) Ambient operating humidity 25% to 85% Storage temperature −25 to 65°C (with no condensation or icing) Altitude 2,000 m max. Recommended fuse T2A, 250 VAC, time lag, low-breaking capacity Installation environment Overvoltage category II, Pollution Degree 2 (EN/IEC/UL 61010-1)

*1 Only two set points are selectable for event inputs. *2 Usage is possible for the Digital Temperature Controllers manufactured in July 2014 or later.

Voltage output (for driving SSR)

Linear current output 4 to 20 mA DC/0 to 20 mA DC, load: 500 Ω max., resolution: Approx. 10,000 Number of outputs 2 (depends on model)

Output specifications

Number of inputs 1 (depends on model)

External contact input specifications

A in model number: 100 to 240 VAC, 50/60 Hz D in model number: 24 VAC, 50/60 Hz; 24 VDC

Temperature input

Thermocouple: K, J, T, E, L, U, N, R, S, B, C/W, or PL II Platinum resistance thermometer: Pt100 or JPt100 Infrared temperature sensor (ES1B): 10 to 70°C, 60 to 120°C, 115 to 165°C, or 140 to 260°C

Analog input

Current input: 4 to 20 mA or 0 to 20 mA Voltage input: 1 to 5 V, 0 to 5 V, or 0 to 10 V

Current input: 150 Ω max., Voltage input: 1 MΩ min. (Use a 1:1 connection when connecting the ES2-HB-N/THB-N.)

SPST-NO, 250 VAC, 3 A (resistive load), electrical life: 100,000 operations, minimum applicable load: 5 V, 10 mA (reference value)

Output voltage 12 VDC ±20% (PNP), max. Load current: 21 mA, with short-circuit protection circuit

SPST-NO relay outputs: 250 VAC, 2 A (resistive load), Electrical life: 100,000 operations, Minimum applicable load: 10 mA at 5 V (reference value)

Contact input ON: 1 kΩ max., OFF: 100 kΩ min. Non-contact input ON: Residual voltage 1.5 V max.; OFF: Leakage current 0.1 mA max. Current flow: approx. 7 mA per contact

11-segment digital displays and individual indicators Character height: PV: 8.5 mm, SV: 8.0 mm

Up to eight set points (SP0 to SP7) can be saved and selected using the event inputs, key operations, or serial communications.*1

Manual output, heating/cooling control, loop burnout alarm, SP ramp, other alarm functions, heater burnout (HB) alarm (including SSR failure (HS) alarm), 40% AT, 100% AT, MV limiter, input digital filter, self tuning, PV input shift, run/stop, protection functions, temperature status display, moving average of input value, simple transfer output,*2 and work bit message*2

42

E5DC-800

Temperature range (°C)

Input Ranges

●Thermocouple/Platinum Resistance Thermometer (Universal inputs)

Sensor

type

Sensor

specifica-

tion

Set value

Shaded settings are the default settings.

The applicable standards for the input types are as follows: K, J, T, E, N, R, S, B: JIS C 1602-2015, IEC 60584-1 JPt100: JIS C 1604-1989, JIS C 1606-1989 L: Fe-CuNi, DIN 43710-1985 Pt100: JIS C 1604-1997, IEC 60751 U: Cu-CuNi, DIN 43710-1985 PL II: According to Platinel II electromotive force charts from BASF (previously Engelhard) C/W: W5Re/W26Re, JIS C 1602-2015, ASTM E988-1990

Platinum resistance

thermometer

Thermocouple

Pt100 JPt100 K J T E L U N R S B

2300

1800

1700

1600

1500

1400

1300

1200

1100

1000

850 850 850

900

800

700

600

500

400

300

200

100

-100

-200

500.0 500.0 500.0

100.0 100.0 90

0.0 0.0 00 00 0000

-200 -199.9 -199.9 -200 -200 -199.9 -200 -200 -199.9 -200

1300 1300 1300

600

400.0 400 400.0 400 400.0

-20.0 -100 -20.0 -100

C/W

2300

1800

1700 1700

100

Infrared temperature

10 to 70°C

60 to

120°C

120 165

PLII

sensor

0123456789101112131415161718192021222324

115 to 165°C

140 to 260°C

260

●Analog input

Input type Current Voltage

Input specification 4 to 20 mA 0 to 20 mA 1 to 5 V 0 to 5 V 0 to 10 V

Setting range

Set value 25 26 27 28 29

Usable in the following ranges by scaling:

-1999 to 9999, -199.9 to 999.9,

-19.99 to 99.99 or -1.999 to 9.999

43

E5DC-800

ON OFF PV

SP

LH

SP

X

ON OFF PV

SP

X

ON OFF PV

SP

LH

ON OFF PV

*5

SP

X

ON OFF PV

SP

X

ON OFF PV

SP

X

ON OFF PV

0

X

ON OFF PV

0

X

ON OFF PV

0

X

ON OFF PV

0

X

ON OFF PV

0

X

ON OFF SP

0

X

ON OFF SP

0

X

ON OFF SP

0

X

ON OFF MV

0

X

ON OFF MV

0

X

ON OFF MV

0

X

ON OFF MV

Alarm Types

Each alarm can be independently set to one of the following 17 alarm types. The default is 2: Upper limit. (See note.) Auxiliary outputs are allocated to alarms. ON delays and OFF delays (0 to 999 s) can also be specified. Note: In the default settings for models with HB or HS alarms, alarm 1 is set to a heater alarm (HA) and the Alarm Type 1 parameter is not

displayed. To use alarm 1, set the output assignment to alarm 1.

Set

value

Alarm type

When alarm value X

Alarm output operation

When alarm value X

is positive

is negative

0 Alarm function OFF Output OFF No alarm

1 Upper- and lower-limit *1

2

(default)

Upper-limit

3 Lower-limit

Upper- and lower-limit

4

range *1

Upper- and lower-limit

5

with standby sequence *1

Upper-limit with standby

6

sequence

Lower-limit with standby

7

sequence

Absolute-value upper-lim-

8

it

9 Absolute-value lower-limit

Absolute-value upper-lim-

10

it with standby sequence

Absolute-value lower-limit

11

with standby sequence

12

LBA (alarm 1 type only)

ON OFF PV

X

SP

X

SP

LH

SP

X

SP

X

0

X

0

X

0

X

0

*2

*3

*4

-*7

13 PV change rate alarm - *8

SP absolute-value

14

upper-limit alarm

SP absolute-value

15

lower-limit alarm
