Omron E3M-V DATASHEET
Mark Sensor
E3M-V
• Detects laminated or light-dispersing
objects in stable operation without being influenced by mirror reflection.
• Double indication of the detection level
and threshold level allows easy grasp
of the operating status and easy adjustment.
• Automatically sets to the optimum
threshold level while sensing objects
are being conveyed and incorporates
an auto-teaching function that discriminates between the mark and background and turns ON when the mark is
detected.
• IP67 watertight construction with M12
rotary connector
• High response speed of 50 s and half
the size of OMRON's conventional
models.
E3M-V
Applications
Dependably Detects Marks on Laminated Sheets
The coaxial optical system ensures a long sensing distance and
stable sensing characteristics over a wide angle range, even for
objects that are distance-fluctuating or leaning at an angle, or for
laminated objects with marks, which conventional models have
difficulty in detecting

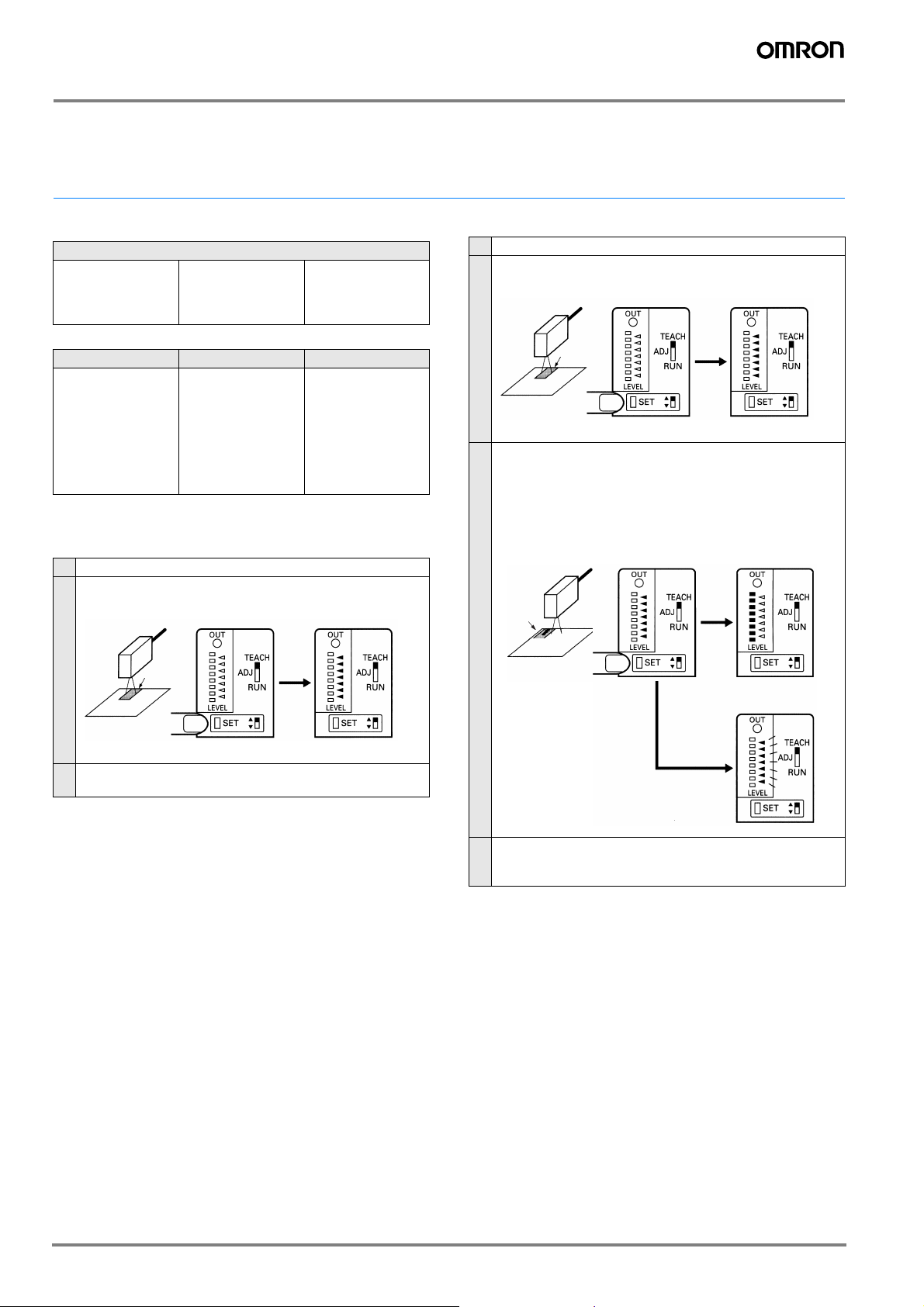

Auto-Teaching
An auto-teaching function automatically sets the threshold value
upon a Remote Control input while the workpiece is moving.
There is no need to position the mark at the optical spot.
A-133E3M-V
Ordering Information
Sensors
Shape Connection method Setting distance Spot diameter
1 x 4 mm E3M-VG11 E3M-VG16
Connector type
Pre-wired
1.
Possible to switch between vertical or horizontal connection using the M12 rotary connector
1
4 x 1 mm E3M-VG21 E3M-VG26
10+3 mm
1 x 4 mm E3M-VG12 E3M-VG17
4 x 1 mm E3M-VG22 E3M-VG27

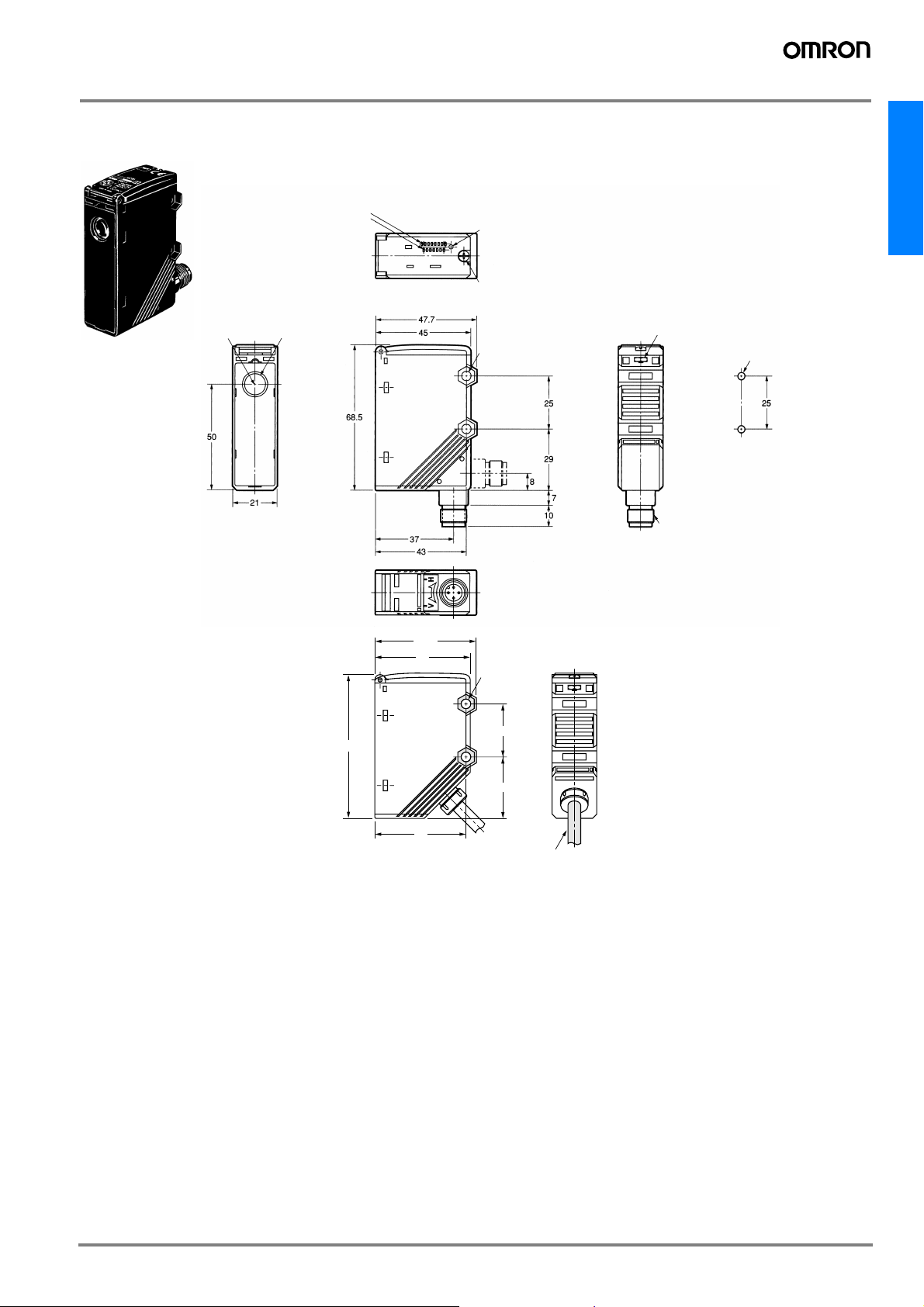

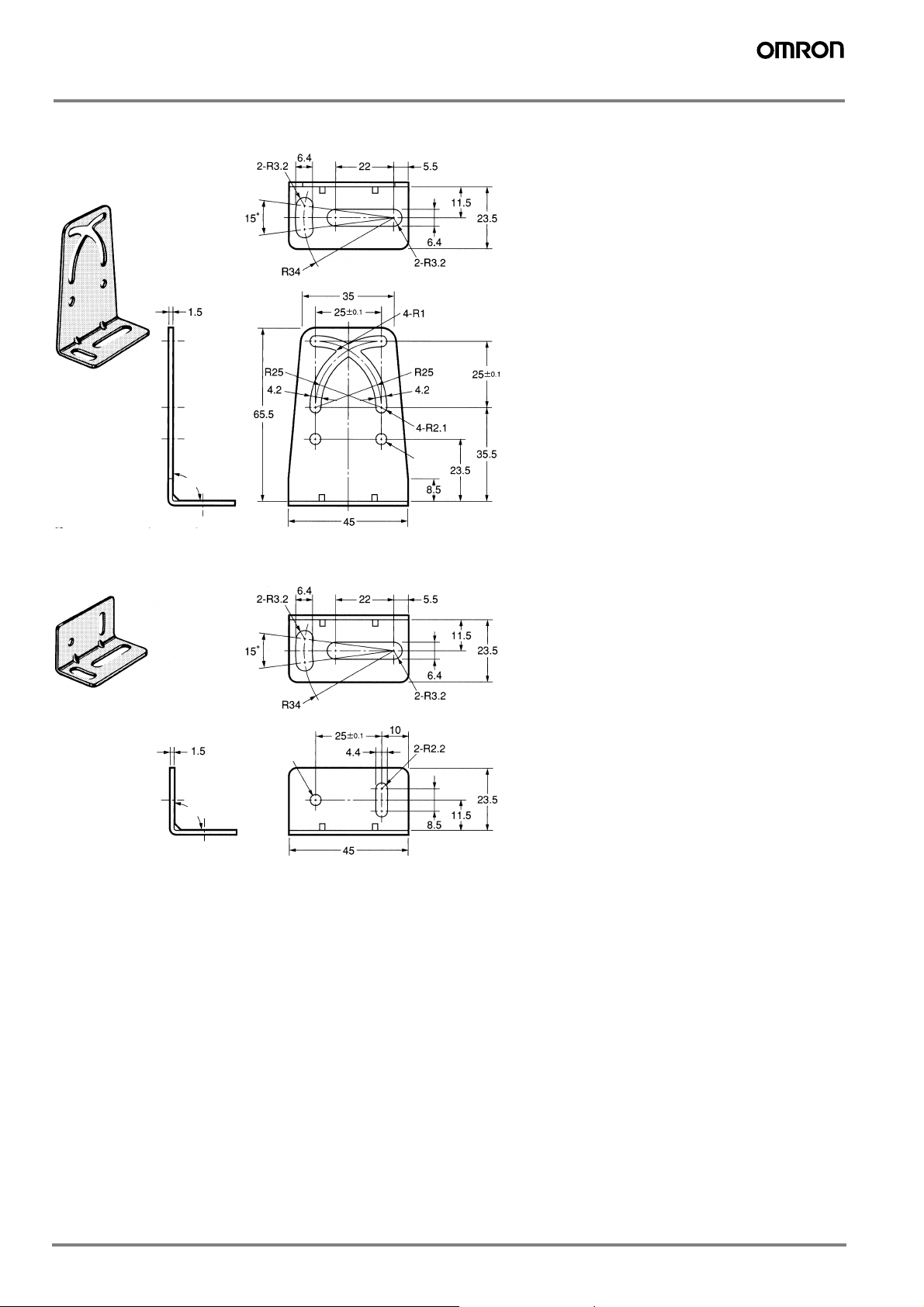

Mounting Brackets
Shape Model Quantity Remarks
E39-L131 1
Model
NPN output PNP output
E39-L132 1 For rear mounting

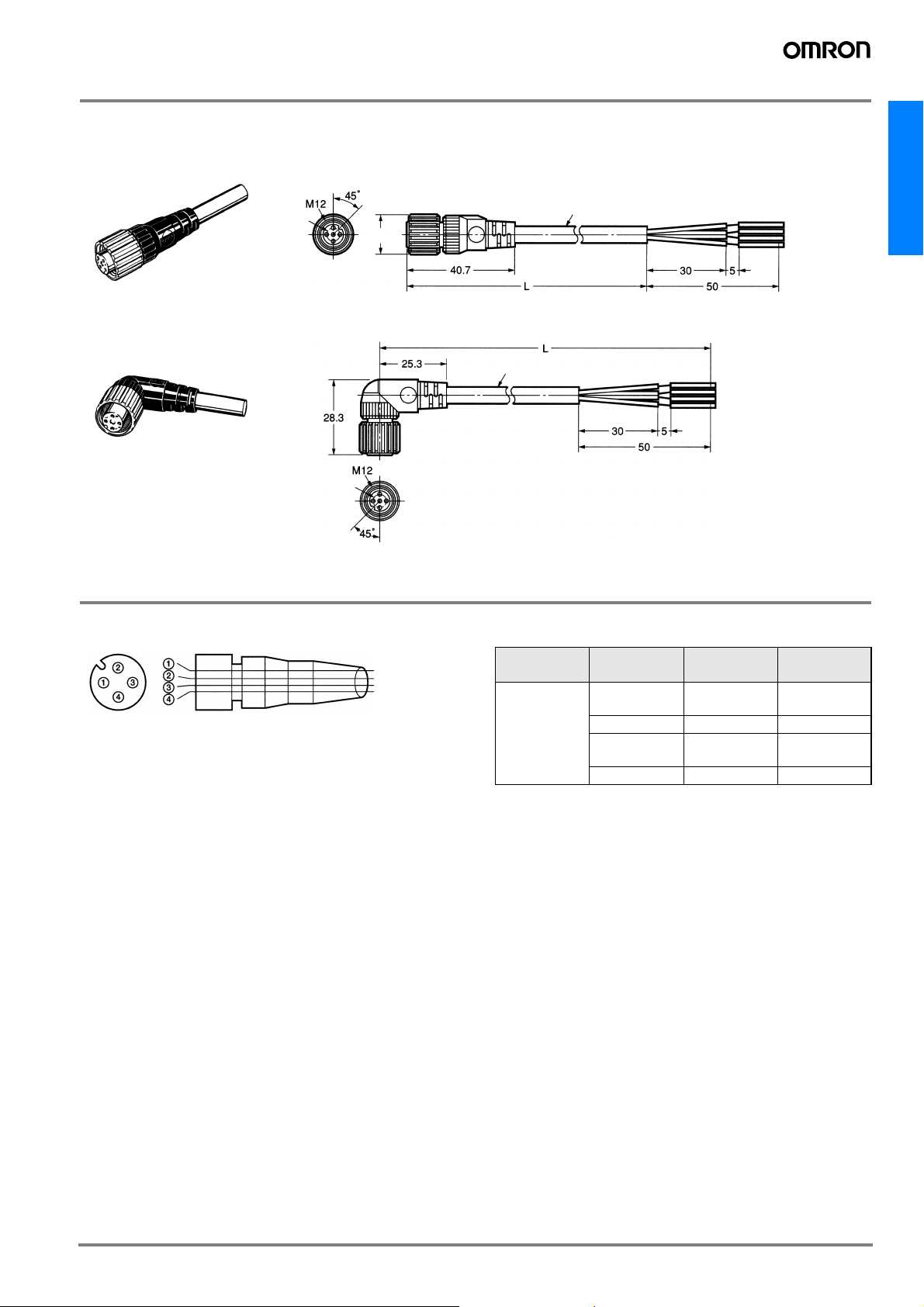

Sensor I/O Connectors
Shape Type Cord type Model
Single-end connector
(Straight)
Single-end connector
(L-shaped)
2 m
5 m XS2F-D421-G80-A
4-wire cord
2 m XS2F-D422-D80-A
5 m XS2F-D422-G80-A
XS2F-D421-D80-A
A-134 Standard Photoelectric Sensors
Specifications
Ratings/Characteristics
Item E3M-VG11 E3M-VG12 E3M-VG21 E3M-VG22 E3M-VG16 E3M-VG17 E3M-VG26 E3M-VG27
Sensing distance 10±3 mm
Spot size (W x H) 1 x 4 mm 4 x 1 mm 1 x 4 mm 4 x 1 mm
Light source (wave-
length)
Power supply voltage 10 to 30 VDC, ripple (p-p) 10% max.
Current consumption 100 mA max.

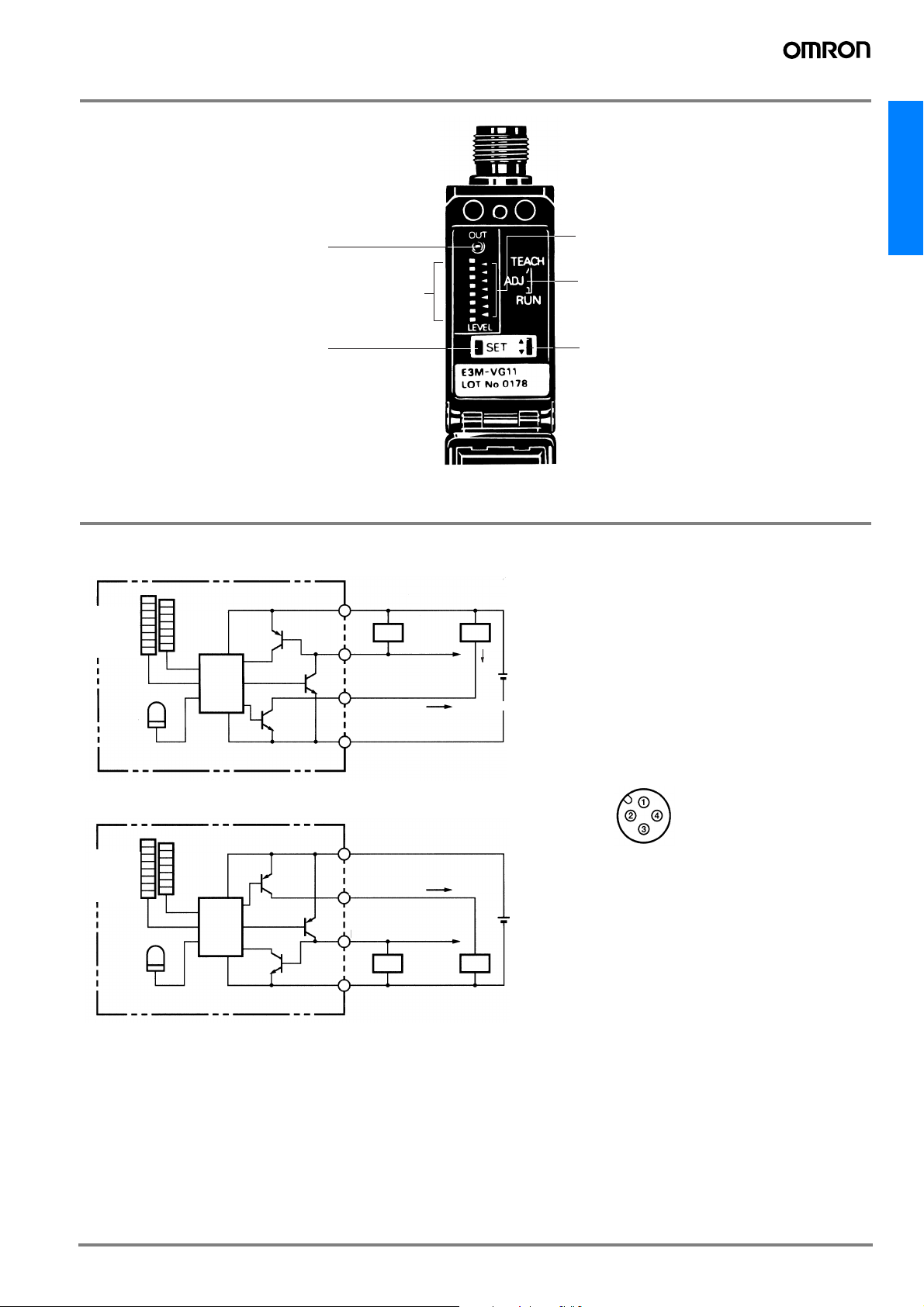

Control output

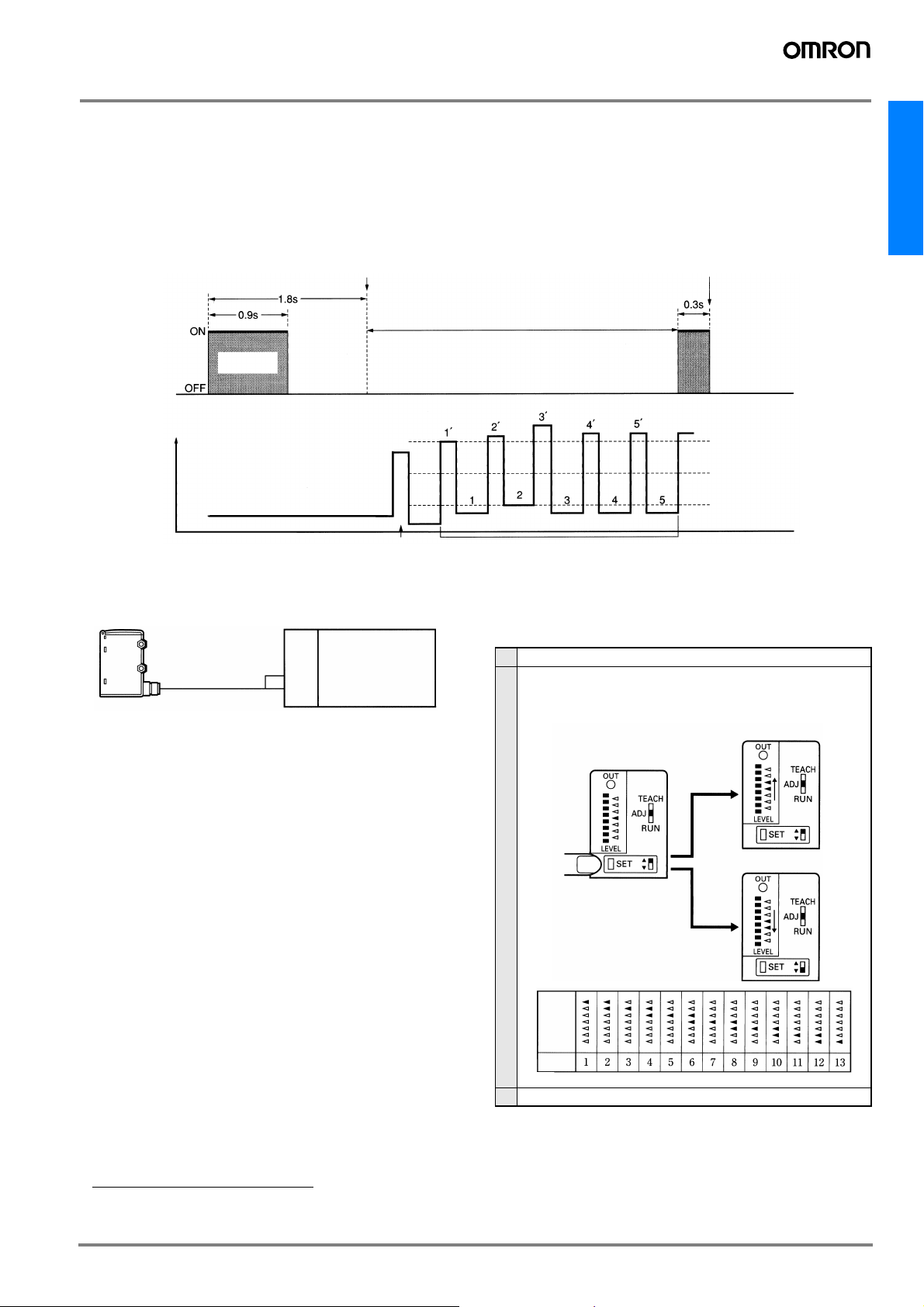

Remote control input
Remote control
1
output

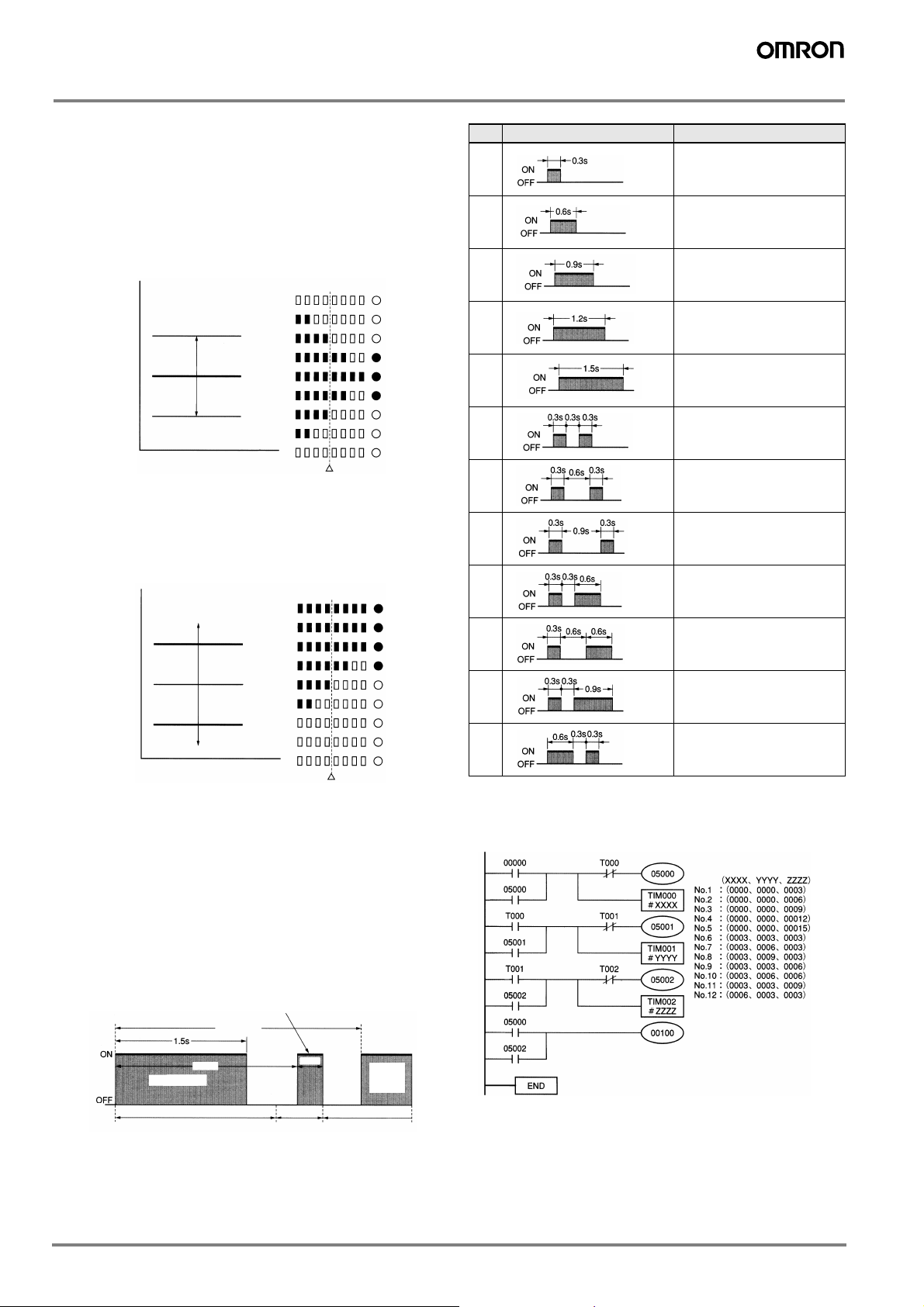

Bank selection Two banks selectable. Available for remote control only. (Refer to Remote Control Function.)
Circuit protection Protection from reversed power supply connection and load short-circuit
Response time
Ambient illumination
(on receiver lens)
Ambient temperature
Ambient humidity
Insulation resistance 20 M min. (at 500 VDC)
Dielectric strength 1,000 VAC, 50/60Hz, 1 min.
Vibration resistance
Shock resistance
Degree of protection IEC60529 IP67 (with protective cover)
Connection method Connector Pre-wired Connector Pre-wired Connector Pre-wired Connector Pre-wired
Weight with package
box
Material
Others Instruction manual
1.
Remote controll input and answer-back output share the same signal line.
2.
The Sensor withstands 0.75 mm double amplitude or 100 m/s² if the mounting bracket is attached to the sensor
3.
The Sensor withstands 300 m/s² if the mounting bracket is attached to the sensor.
Green LED (525 nm)
Load power supply voltage: 30 VDC max.
Load current: 100 mA max.
(Residual voltage: 1.2 V max.)
NPN open collector output type
ON: Short-circuited to 0 or 1.5 V max.
(with a flow current of 1 mA max.)
1
OFF: Open or V
CC - 1.5 V to VCC
(with a leakage current of 0.1 mA max.)
Load power supply voltage: 30 VDC max.
Load current: 100 mA max.
(Residual voltage: 1.2 V max.)
NPN open collector output type
Load power supply voltage: 30 VDC max.
Load current: 100 ma max.
(Residual voltage: 2 V max.)
PNP open collector output type
ON: V
CC - 1.5 V to VCC
(with an absorption current of 3 mA max.)
OFF: Open or 1.5 V max.
(with a leakage of 0.1 mA max.)
Load power supply voltage: 30 VDC max.
Load current: 100 ma max.
(Residual voltage: 2 V max.)
PNP open collector output type
ON: 50 µs max.
OFF: 70 µs max.
Incandescent lamp: 3,000 lx max.
Sunlight: 10,000 lx max.
Operating: -20°C to 55°C/Storage: -30°C to 70°C
(with no icing)
Operating: 35% to 85%/Storage: 35% to 95°C
(with no condensation)
2
Destruction: 10 to 55 Hz, 1-mm double amplitude or 150 m/s2 for 2 hrs each in X, Y, and Z directions
3
Destruction: 500 m/s2 3 times each in X, Y, and Z directions
Approx. 100 g
Case: Polybutylene terephthalate
Lens: Acrylic (PMMA)
E3M-V
A-135E3M-V
Engineering Data
Sensing Distance vs. Incident
Characteristics (Typical)
E3M-VG1@
Incidence (%)
Distance (mm)
Color Sensing Capacity
E3M-VG@@
Yellow
Yellow
@@@
@
@
@
@
@
@
Green
green
@
@
@
@
@
@
@
@
@
@
@@
@@@ @
White
Red
Yellow
red
Yellow
Green
yellow
Green
Blue
green
Blue
Purple
Red
purple
Black
Red
Yellow
red
White
@@@@@@@@@@
@
@
@
@
@
@
@
@
@
@@@@@@@
@
@
@
@
@
@
@
@
@
@
@
X
@
X
@@@@@@@
∆
Angle vs. Incident
Characteristics (X Direction)
E3M-VG1@/VG2@
Incidence (%)
Blue
green
@
@
@
@
∆
@
Blue
@
@
@
∆
∆
@
Purple
X
@
@
@
@
∆
Red
purple
X
@@@
@
@
@
@
@
@
X
Black
∆
@
@
@
@
@
@
X
Angle vs. Incident
Characteristics (Y Direction)
E3M-VG1@/VG2@
Incidence (%)
Angle (˚) Angle (˚)
Differences in Incident by Color
Incidence (%)
White
Red
Yellow red
Yellow
Yellow green
Green
Blue green
Blue
Purple
Red purple
Color
Black
@
: Detectable
∆: Detectable but unstable X: Not detectable
Technical Guide
Glossy Sensing Objects
Incline the Sensor to detect glossy objects so that the Sensor will not
be influenced by the mirror reflection of light and to ensure the stable
sensing operation of the E3M-V.
5 to 155
Sensing object
5 to 155
Sensing object
Standard Sensing Object (Color vs. Munsell)
Japan Color Enterprises Standard Color Card 230
11 standard colors Munsell color notation
White N9.5
Red 4R, 4.5/12.0
Yellow red 4YR, 6.0/11.5
Yellow 5Y, 8.5/11.0
Yellow green 3GY, 6.5/10.0
Green 3G, 6.5/9.0
Blue green 5BG, 4.5/10.0
Blue 3PB, 5.0/10.0
Purple 7P, 5.0/10.0
Red purple 6RP, 4.5/12.5
Black N2.0
