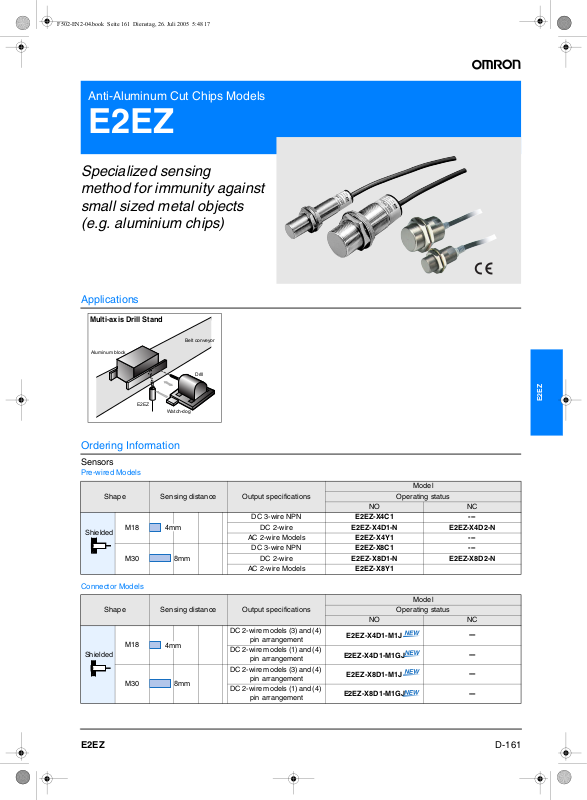

Omron E2EZ DATASHEET
Anti-Aluminum Cut Chips Models
E2EZ
Specialized sensing
method for immunity against
small sized metal objects
(e.g. aluminium chips)
Applications
Multi-axis Drill Stand
Belt conveyor
Aluminum block
Drill
E2EZ
Watch-dog
Ordering Information
Sensors
Pre-wired Models
Shape Sensing distance Output specifications
DC 3-wire NPN E2EZ-X4C1 ---
Shielded
Connector Models
Shielded
M18
M30
Shape Sensing distance Output specifications
M18
M30
4mm
8mm
4mm
8mm
AC 2-wire Models E2EZ-X4Y1 ---
DC 3-wire NPN E2EZ-X8C1 ---
AC 2-wire Models E2EZ-X8Y1
DC 2-wire models (3) and (4)
pin arrangement
DC 2-wire models (1) and (4)
pin arrangement
DC 2-wire models (3) and (4)
pin arrangement
DC 2-wire models (1) and (4)
pin arrangement
Model
Operating status
NO NC
DC 2-wire E2EZ-X4D1-N E2EZ-X4D2-N
DC 2-wire E2EZ-X8D1-N E2EZ-X8D2-N
Model
Operating status
NO NC
E2EZ-X4D1-M1J
E2EZ-X4D1-M1GJ
E2EZ-X8D1-M1J
E2EZ-X8D1-M1GJ
---
---
---
---
E2EZ
D-161E2EZ
Accessories (Order Separately)
Sensor I/O Connectors
Shape
Straight type
L type
Straight type
L type
Cable
length
Sensor I/O Connectors
2 m XS2F-D421-DD0
5 m XS2F-D421-GD0
2 m XS2F-D422-DD0
5 m XS2F-D422-GD0
2 m XS2F-D421-DA0-A
5 m XS2F-D421-GA0-A
2 m XS2F-D422-DA0-A
5 m XS2F-D422-GD0-A
Characteristic data (typical)
Sensing Distance vs. Sensing Object
E2EZ-X4@ E2EZ-X8@
Sensing distance X (mm)
10
#d
t
=1
8
X
mm
Sensing distance X (mm)
10
#d
8
Applicable proximity sensor
models
E2EZ-X4D@-M1J
E2EZ-X8D@-M1J
E2EZ-X4D@-M1GJ
E2EZ-X8D@-M1GJ
t
mm
=1
X
Mild steel
Brass
6
Mild
Aluminum
steel
4
2
Brass
Stainless steel
(SUS304)
10 20 30 40 50 600
Side length of sensing object d (mm)
Copper
6
4
2
Stainless steel
(SUS304)
10 20 30 40 50 600
Side length of sensing object d (mm)
Copper
Aluminum
D-162 Inductive Sensors
