Page 1
INSTRUCTION MANUAL
COMPRESSOR
NEBULIZER SYSTEM
MODEL NE-C18
Page 2
TABLE OF CONTENTS
Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2
Important Safeguards . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3
Quick Reference Guide . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4
Know Your Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5
Unit Assembly and Usage . . . . . . . . . . . . . . . . . . . . . . . . . . . .6, 7
Thermal Protector . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .8
Cleaning and Storage Instructions . . . . . . . . . . . . . . . . . . .8, 9, 10
Filter Change and Pump Maintenance . . . . . . . . . . . . . . . . . . .10
Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11
Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12
2
INTRODUCTION
The Omron CompAir®XL Compressor Nebulizer System is a
portable medical device designed to efficiently deliver physician
prescribed medication to the bronchial lung passages.
This product was developed in conjunction with respiratory
therapists for the successful treatment of asthma, allergies and
other respiratory disorders. Omron's compressor creates a stream
of air that travels through clear tubing to the nebulizer. When the
air enters the nebulizer it will convert the prescribed medication
into a mist of microscopic droplets that are inhaled.
CAUTION: Federal law (USA) restricts this device to sale by or
on the order of a physician. Operate this unit only as instructed by
your physician and/or respiratory therapist. Thoroughly read and
understand the information contained in these instructions on the
use and care of this unit before operating. Save these instructions
for future reference. Any use of this product other than the purpose for which it is intended shall void the warranty.
Page 3
IMPORTANT SAFEGUARDS
3
READ ALL INSTRUCTIONS BEFORE USING
When using an electrical product, especially when children are
present, basic safety precautions should always be followed,
including the following:
CAUTION: Failure to read and observe all precautions could
result in personal injury or equipment damage.
DANGER: To reduce risk of electrocution:
1. Always unplug the unit immediately after using.
2. Do not use while bathing.
3. Do not place or store the unit where it can fall or be pulled
into a tub or sink.
4. Do not place or drop into water or other liquid
5. Do not reach for a product that has fallen into water.
Unplug immediately.
WARNING: To reduce the risk of burns, electrocution, fire or injury:
1. Do not run the unit unattended.
2. Close supervision is necessary when this product is used on,
by or near children or invalids.
3. Use this product for its intended use only as described in
this manual. Do not use any attachment not recommended
by the manufacturer.
4. Never operate the unit if it has a damaged cord or plug, if it is
not working properly, if it has been dropped, damaged or has
fallen into water. Return the product to a service center for
examination and repair.
5. Keep the cord away from heated surfaces.
6. Never block the air openings of the unit or place it where the
air openings may be obstructed.
7. Never use while sleeping or drowsy.
8. Never drop or insert any object into any air openings or hose.
9. Connect this unit to the appropriate voltage outlet
for your model.
10. Unplug the unit before filling the nebulizer. See "UNIT
ASSEMBLY AND USAGE."
SAVE THESE INSTRUCTIONS
Page 4
QUICK REFERENCE GUIDE
Read the instruction manual thoroughly
before operating.
Be sure the unit is turned off and
unplugged.
Add the prescribed medication to the
nebulizer cup. Twist top and bottom
sections together.
Attach the air tubing to the base of the
nebulizer and to the air tubing connector
on the compressor.
Attach the mouthpiece or mask
to nebulizer.
Plug the compressor in and turn on.
Take treatment as instructed.
Turn the unit off when treatment is
completed.
Disconnect, clean and store as described
in the Cleaning and Storage section of
this manual.
4
T
M
R
5
1
2
3
4
5
6
1
2
3
4
5
6
1
2
3
4
5
6
7
8
9
1
2
3
4
5
6
1
2
3
4
5
6
1
2
3
4
5
6
Page 5

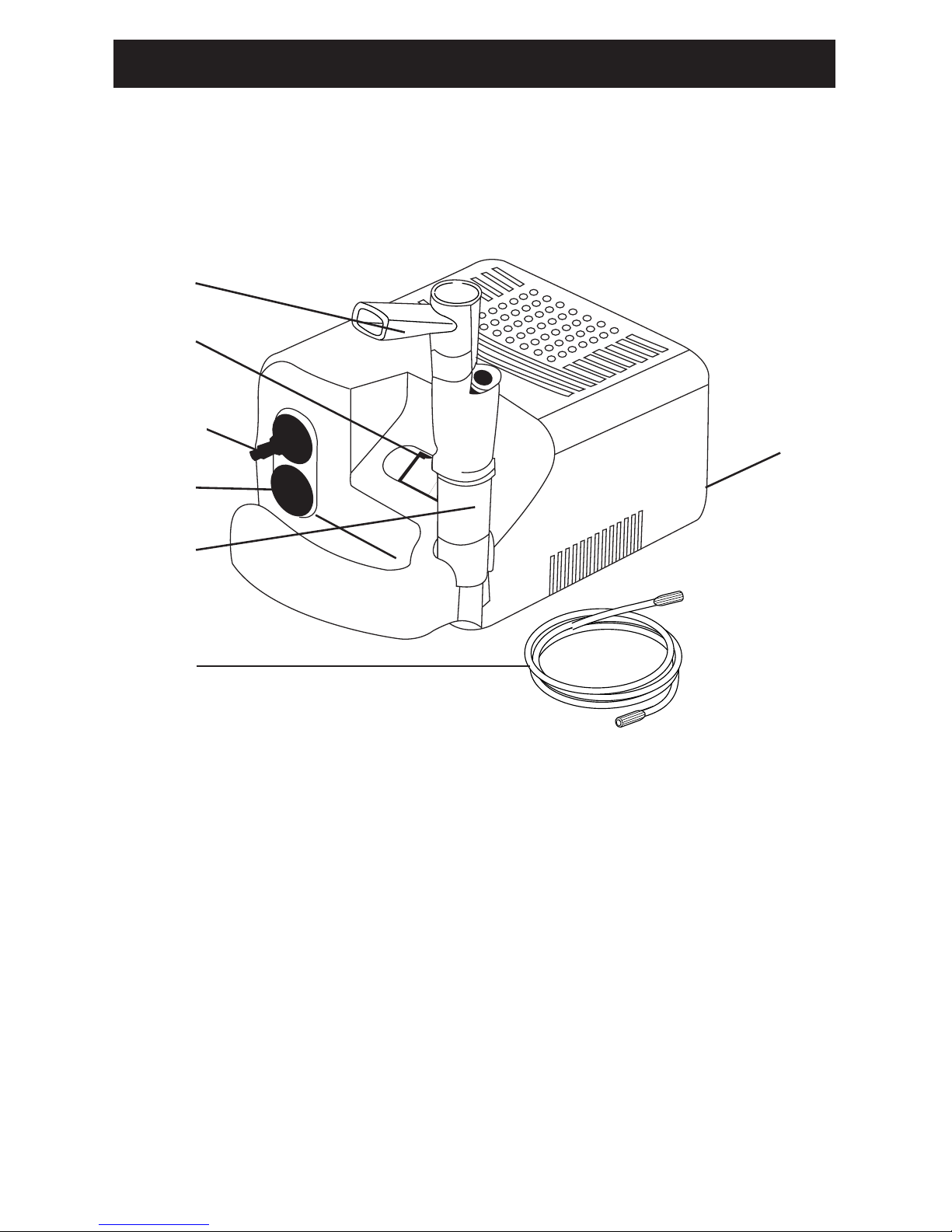

KNOW YOUR UNIT
5
1. MOUTHPIECE
2. POWER SWITCH
3. AIR TUBING CONNECTOR
4. PUMP FILTER
5. JetAir™ NEBULIZER (MEDICATION CUP)
6. AIR TUBING
7. AC POWER CORD (Not shown - in storage recess)
2
7
5
4
1
6
3
Page 6
UNIT ASSEMBLY AND USAGE
1. Place the Omron CompAir®XL on a table or other flat, stable
surface. Be sure you can easily reach the controls when you are
seated.
2. Remove the Jet-Air™ nebulizer kit (nebulizer, mouthpiece and
air tubing) from the carrying case.
NOTE: Prior to initial operation, the nebulizer should be
thoroughly cleaned (Use steps 1-3 in the DISINFECTANT
procedure in the CLEANING AND STORAGE section
of this manual).

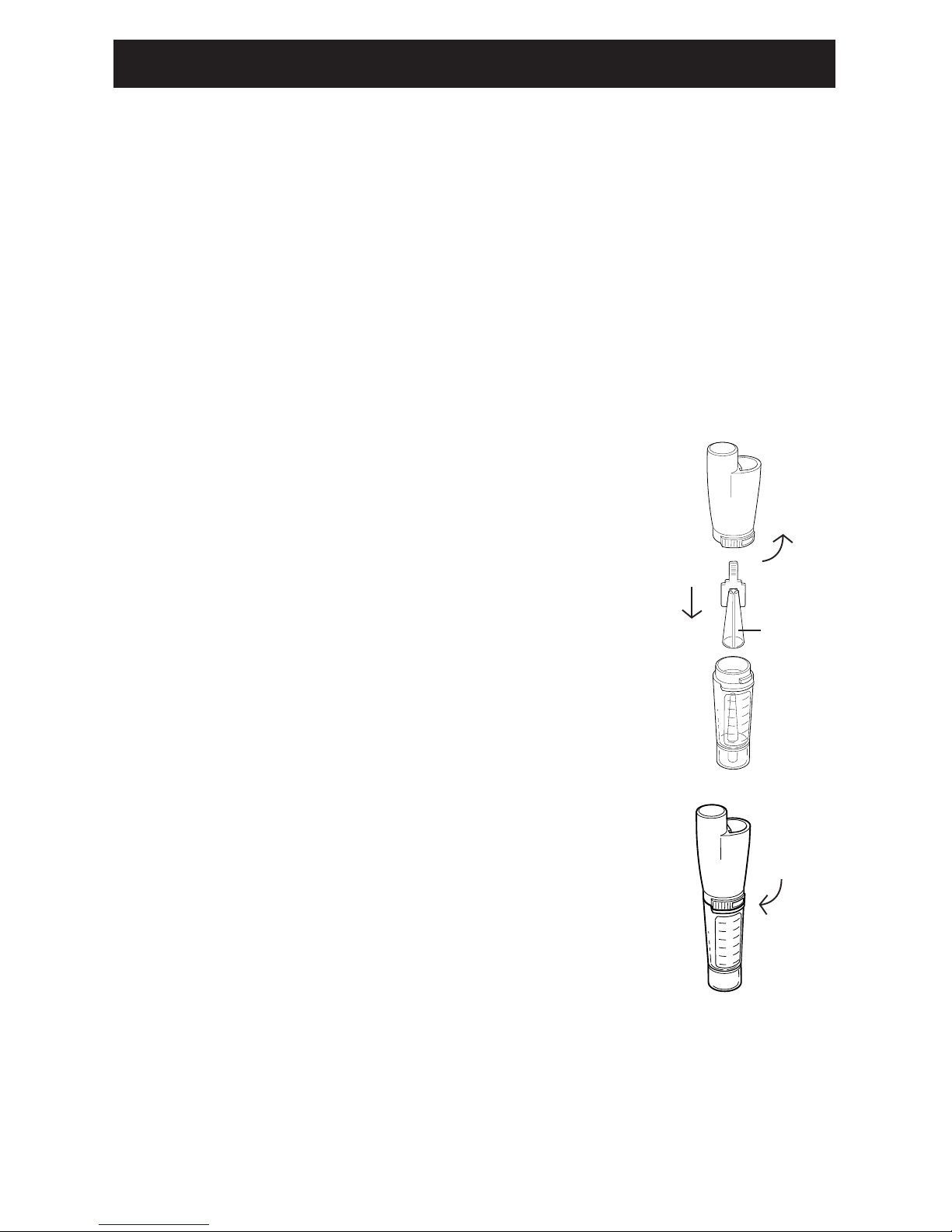

3. Gently twist the nebulizer to separate it into
two sections. Be sure the pick-up funnel is in
place in bottom section of nebulizer. Add the
correct amount of prescribed medication to
the nebulizer medication cup (bottom
section of nebulizer).
4. Gently twist the top and bottom sections
together to assemble the nebulizer. Be sure
the two sections fit securely.
6
1
2
3
4
5
6
1
2
3
4
5
6
Funnel
JetAir Nebulizer
Page 7
UNIT ASSEMBLY AND USAGE
7

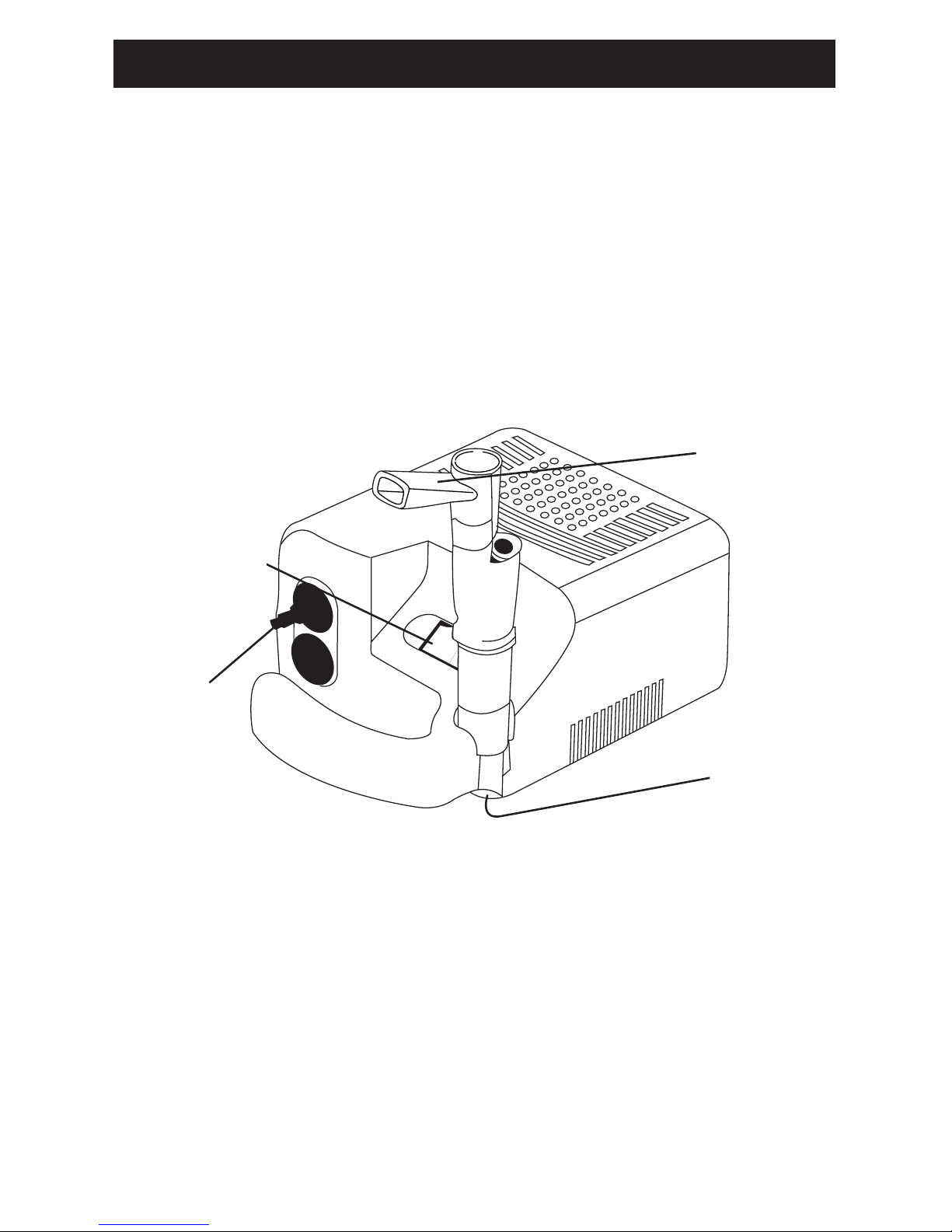

5. Attach one end of the air tubing to the air tubing connector
located on the front of the compressor.
6. Attach the other end of the air tubing to the base of the nebulizer.
7. Attach the mouthpiece or mask to the top section of the nebulizer.
8. With the power switch off, plug the power cord into an
appropriate electrical outlet.
9. Turn the unit on.
10. Begin treatment according to your physician's and/or
respiratory therapist's instructions.
11. When treatment is complete, turn the unit off and unplug unit
from the electrical outlet.
POWER
SWITCH
5
6
7
Page 8
THERMAL PROTECTOR
The compressor pump motor has a thermal protector which will
turn the power off before the unit overheats. If the
thermal protector shuts the power off:
1. Turn the unit off.
2. Unplug the power cord from the electrical outlet.
3. Make certain the air slots on the unit are not obstructed.
4. Wait 30 minutes for the motor to cool.
5. Restart the compressor.
6. If you are still experiencing problems, contact your
healthcare dealer for assistance.
8
CLEANING AND STORAGE INSTRUCTIONS
It is recommended that the Jet-Air™ disposable nebulizer, and
mouthpiece or mask are thoroughly rinsed with hot tap water after
each use and cleaned with a mild detergent after the last treatment
of the day. The same pieces must also be disinfected daily by
soaking in a vinegar/water solution or a commercially available
disinfectant. If your physician or respiratory therapist specifies a
different cleaning procedure, follow their instructions.
RINSING
(After Each Treatment)
1. Disconnect mouthpiece or mask from nebulizer.
2. Disconnect air tubing from nebulizer.
3. Gently twist the nebulizer so it separates into two sections.
4. Pull the funnel out of the bottom section.
5. Rinse nebulizer and mouthpiece or mask with hot tap water.
6. Dry with clean paper towels or let air dry.
7. Reassemble nebulizer when completely dry and put the parts
in a dry, sealed container.
Page 9
CLEANING AND STORAGE INSTRUCTIONS
9
DISINFECTION
(After The Last Treatment Of The Day)
Below are two different methods of disinfecting the nebulizer.
Either of these methods may be used, however, it is only necessary
to use one of these methods daily.
A. VINEGAR METHOD
1. Mix one (1) part white vinegar to three (3) parts distilled
water (enough to submerge nebulizer and mouthpiece or mask).
2. Complete RINSING Steps 1-4.
3. Wash nebulizer, mouthpiece or mask in warm water and a
mild detergent and then rinse in hot tap water, or wash
in the dishwasher.
4. Submerge parts in the vinegar and water solution
for thirty minutes.
5. Complete RINSING Steps 5-7.
B. MEDICAL DISINFECTANT METHOD
IT IS RECOMMENDED THAT YOU CONSULT YOUR
PHYSICIAN OR RESPIRATORY THERAPIST REGARDING
USE OF MEDICAL DISINFECTANT CLEANERS AND
CAREFULLY FOLLOW INSTRUCTIONS SUPPLIED BY
THE MANUFACTURER.
Page 10
CLEANING AND STORAGE INSTRUCTIONS
CLEANING THE COMPRESSOR
1. Wipe daily with a damp cloth.
2. Do not use any powdered cleaners or soap pads which may
damage the finish.
STORAGE
1. Put the nebulizer and mouthpiece or mask in a clean, dry,
sealed container or bag and place in the storage pocket of
the carrying case.
2. Coil the air tubing and place in the storage pocket.
3. Wrap the AC cord in a coil and place in its
storage compartment.
10
FILTER CHANGE AND PUMP MAINTENANCE
Change Filter Every 30 Days Or
When Filter Turns Gray
1. Slide the filter cover out to expose the filter compartment.
2. Remove dirty filter with a small, pointed object.
3. Replace with a clean Omron filter from the filter storage area.
4. Close the filter cover by sliding in.
CAUTION
DO NOT USE COTTON OR ANY OTHER MATERIAL. DO NOT WASH OR
CLEAN THE FILTER. USE ONLY OMRON FILTERS. DO NOT OPERATE
WITHOUT A FILTER.
DANGER
ELECTRICAL SHOCK HAZARD. DO NOT DISASSEMBLE UNIT HOUSING.
PUMP MAINTENANCE MUST BE PERFORMED BY A QUALIFIED
SERVICE TECHNICIAN.
1. Do not try to open or disassemble the unit. THERE ARE NO USER
SERVICEABLE PARTS.
2. This unit does not require oil. Do not attempt to lubricate any internal parts.
IMPORTANT:
UNAUTHORIZED SERVICE VOIDS THE WARRANTY
Page 11
SPECIFICATIONS
11
1. MODEL 9973 – Replacement Nebulizer Kit, includes:
(A) Nebulizer
(B) Mouthpiece
(C) Air Tubing
2. MODEL 9920 – Adult Mask
3. MODEL 9921 – Pediatric Mask
4. MODEL 9930 – Replacement Filters (5)
Specifications and appearance are subject to change without notice for purposes of improvement.
COMPRESSOR
Dimensions: Approx. 5
3
/
4''
(w) x 8
1
/
2''
(l) x 3
3
/
4''
(h)
(146mm x 220mm x 95mm)
Weight: 3.75 lbs (1.7 Kg)
Sound Level: 53 dBa
Electrical: 110V Model: 1.2 amps, 115V AC, 60Hz, double insulated
220V Model: 1.0 amps, 220V AC, 50Hz, double insulated
Power Consumption: 100 watts
COMP-AIR®COMPRESSOR NEBULIZER SYSTEM (Compressor and JetAir™ Nebulizer)
Pressure Range: 30-36 psi
Liter Flow Range: 4-8 lpm
Particle Size Range: 0.5 to 5 microns
Medication Capacity: 6 ml (cc)
Operating Temperature/Humidity: 50°F to 104°F (10°C to 40°C)
10% to 90% RH
Storage Temperature/Humidity: -13°F to 158°F (-25°C to 70°C)
10% to 95% RH
Contents: Compressor, nebulizer, air tubing, mouthpiece,
extra filters, instruction manual
ACCESSORIES
Page 12
FIVE YEAR LIMITED WARRANTY
Your Omron CompAir®XL Nebulizer is warranted to the original retail purchaser
to be free from defects in material and workmanship for a period of 5 years
from the date of purchase. This warranty does not cover failures resulting from
misuse, abuse, alteration of the Omron Nebulizer System, use of improper
components or failure to comply with the operating instructions. This warranty
does not include the nebulizer system tubing or accessories.
To make a warranty claim, return your Omron Nebulizer System, freight
prepaid and insured (or assume the risk of loss or damage during shipment) to
OMRON HEALTHCARE, INC., 300 Lakeview Parkway, Vernon Hills, IL
60061, Attention: Service Department, together with $5.00 for return shipping
and insurance. All requests for warranty service should include the model
number of your Omron Nebulizer System, proof of purchase (including date of
purchase), your phone number and the nature of your service request. OMRON
will either repair or at its option replace free of charge any parts necessary to
correct defects in material or workmanship covered by this limited warranty.
THIS LIMITED WARRANTY IS IN LIEU OF ALL OTHER WARRANTIES,
WHETHER ORAL, WRITTEN, EXPRESS OR IMPLIED. THERE ARE NO
WARRANTIES OF MERCHANTABILITY OR FITNESS FOR A PARTICULAR
PURPOSE, EXCEPT FOR THOSE IMPLIED WARRANTIES ARISING BY
OPERATION OF LAW WHICH ARE LIMITED IN DURATION TO THE 5
YEAR TERM OF THIS WARRANTY. OMRON'S LIABILITY, WHETHER
BASED ON CONTRACT, TORT, WARRANTY, STRICT LIABILITY, OR
ANY OTHER THEORY, SHALL NOT EXCEED THE PRICE OF THE
INDIVIDUAL OMRON NEBULIZER SYSTEM WHICH IS THE BASIS OF
THE CLAIM. IN NO EVENT SHALL OMRON BE LIABLE FOR ANY
LOSS OF PROFITS, FACILITIES, EQUIPMENT OR OTHER INCIDENTAL,
CONSEQUENTIAL OR SPECIAL DAMAGES.
Some states do not allow limitations on how long an implied warranty lasts, or
allow the exclusion or limitation of incidental, consequential, or special damages,
so the above limitations or exclusions may not apply to you. This warranty
gives you specific legal rights. You may also have other rights which vary
from state to state.
OMRON HEALTHCARE, INC.
300 Lakeview Parkway
Vernon Hills, Illinois 60061
1-800-634-4350
www.omronhealthcare.com
©2/2002
#C5016
Loading...
