Omron CJ2H, CPU64 DATASHEET

SYSMAC CJ-series CJ2H CPU Units

CJ2H-CPU6@

Setting new standards in high-speed
machine control

• Small, Fast, Flexible:
Inheriting and improving CJ1 features, the CJ2 CPU Units
is the best choice for the machine control with high-speed
and high-capacity.

CSM_CJ2H-CPU_DS_E_3_1

CJ2H-CPU64

Features

• Even more program memory and data memory.

• Superior high-speed control performance: LOAD instructions execute in 16 ns, SINE instructions in 0.59 μs.

• Maximum throughputs with High-speed interrupt function

• Efficient debugging through highly improved Data tracing

• Secure system from memory error brought by Memory Self-restoration Function

• The more advanced motion control by the lower cost: Synchronous Unit Operation

• Increased I/O throughput speed by Immediate refreshing instructions with direct processing.

1

CJ2H-CPU6@

Ordering Information

International Standards

• The standards are abbreviated as follows: U: UL, U1: UL (Class I Division 2 Products for Hazardous Locations), C: CSA, UC: cULus,

UC1: cULus (Class I Division 2 Products for Hazardous Locations), CU: cUL, N: NK, L: Lloyd, and CE: EC Directives.

• Contact your OMRON representative for further details and applicable conditions for these standards.

CJ2H CPU Units

Specifications

Product

name

CJ2H
CPU Units

I/O capacity/Mountable

Units (Expansion Racks)

2,560 points / 40 Units
(3 Expansion Racks max.)

Program
capacity

400K steps

250K steps

150K steps

100K steps

50K steps

Data memory capacity

832K words
DM: 32K words
EM: 32K words × 25 banks

512K words
DM: 32K words
EM: 32K words × 15 banks

352K words
DM: 32K words
EM: 32K words × 10 banks

160K words
DM: 32K words
EM: 32K words × 4 banks

160K words
DM: 32K words
EM: 32K words × 4 banks

* Add 0.15 A per Adapter when using NT-AL001 RS-232C/RS-422A Adapters.

Add 0.04 A per Adapter when using CJ1W-CIF11 RS-422A Adapters.

LD

instruction

execution

time

0.016 μs0.42 * −

Current consumption

(A)

Model Standards

5 V 24 V

CJ2H-CPU68

CJ2H-CPU67

CJ2H-CPU66

CJ2H-CPU65

CJ2H-CPU64

UC1, N, L,
CE

Accessories

The following accessories come with CPU Unit:

Item Specification

Battery CJ1W-BAT01

End Cover CJ1W-TER01 (necessary to be mouned at the right end of CPU Rack)

End Plate PFP-M (2 pcs)

Serial Port (RS-232C) Connector Connector set for serial port connection (D-SUB 9-pin male connector)

2

General Specifications

CJ2H-CPU6@

Item

Enclosure Mounted in a panel

Grounding Less than 100 Ω

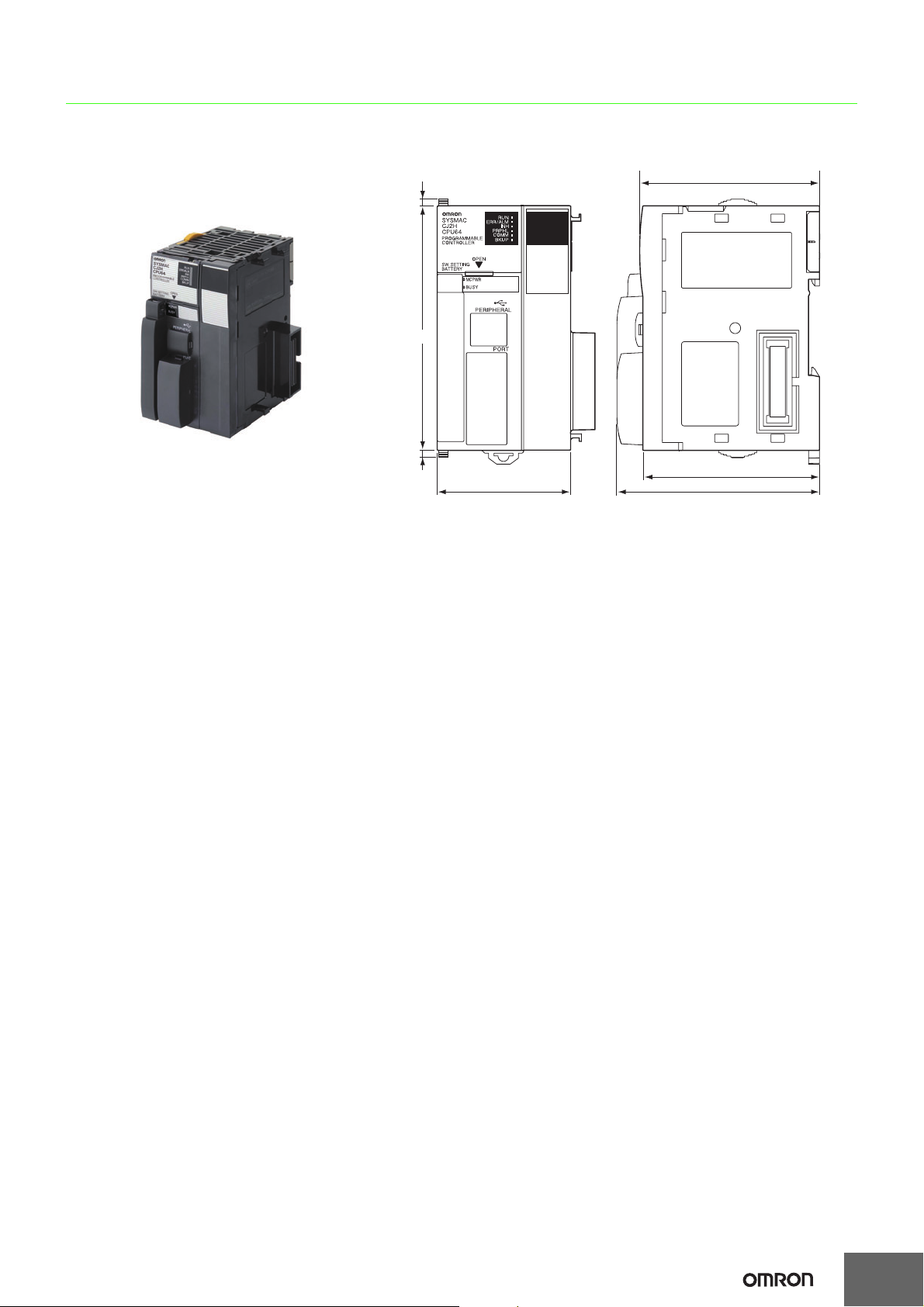

CPU Rack Dimensions 90 mm × 65 mm × 49 mm (H × D × W)

Weight 190 g or less

Current Consumption 5 VDC, 0.42 A

Ambient Operating Temperature 0 to 55°C

Ambient Operating Humidity 10% to 90%

Atmosphere Must be free from corrosive gases.

Ambient Storage Temperature −20 to 70°C (excluding battery)

Altitude 2,000 m or less

Pollution Degree 2 or less: Conforms to JIS B3502 and IEC 61131-2.

Use Environment

Battery

Applicable Standards Conforms to cULus and EC Directives.

Noise Immunity 2 kV on power supply line (Conforms to IEC 61000-4-4.)

Overvoltage Category Category II: Conforms to JIS B3502 and IEC 61131-2.

EMC Immunity Level Zone B

Vibration Resistance

Shock Resistance

Life 5 years at 25°C

Model CJ1W-BAT01

CPU64 CPU65 CPU66 CPU67 CPU68

Conforms to JIS C60068-2-6.
5 to 8.4 Hz with 3.5-mm amplitude, 8.4 to 150 Hz
Acceleration of 9.8 m/s
100 min total)

Conforms to JIS C60068-2-27.

2

147 m/s

, 3 times in X, Y, and Z directions (100 m/s2 for Relay Output Units)

2

for 100 min in X, Y, and Z directions (10 sweeps of 10 min each =

CJ2H-

3

Performance Specifications

CJ2H-CPU6@

Items

User Memory 50K steps 100K steps 150K steps 250K steps 400K steps

I/O Bits 2,560 bits

Overhead Processing Time Normal Mode: 100 μs

Execution Time

Processing
Speed

Interrupts

Maximum Number of Connectable Units

Maximum Number of Expansion Racks 3 max.

I/O Area 2,560 bits (160 words): Words CIO 0000 to CIO 0159

Link Area 3,200 bits (200 words): Words CIO 1000 to CIO 1199

Synchronous Data Refresh Area 1,536 bits (96 words): Words CIO 1200 to CIO 1295

CIO Area

Work Area

Holding Area

Auxiliary Area

Temporary Area 16 bits: TR0 to TR15

Timer Area 4,096 timer numbers (T0000 to T4095 (separate from counters))

Counter Area 4,096 counter numbers (C0000 to C4095 (separate from timers))

DM Area

EM Area

Index Registers

Cyclic Task Flag Area 128 flags

Memory Card 128 MB, 256 MB, or 512 MB

Operating Modes

Execution Mode Normal Mode

CPU Bus Unit Area 6,400 bits (400 words): Words CIO 1500 to CIO 1899

Special I/O Unit Area 15,360 bits (960 words): Words CIO 2000 to CIO 2959

DeviceNet Area 9,600 bits (600 words): Words CIO 3200 to CIO 3799

Internal I/O Area

Force-S/R
Enabled
Banks

I/O Interrupts and
External Interrupts

Scheduled
Interrupts

When EM force-S/R
function is used *3

When automatic
address allocation
is specified

CPU64 CPU65 CPU66 CPU67 CPU68

Basic Instructions: 0.016 μs min.;
Special Instructions: 0.048 μs min.

Interrupt task startup time : 26 μs or 17 μs *
Return time to cyclic task : 11 μs or 8 μs *
* When High-speed interrupt function is used

Interrupt task startup time : 22 μs or 13 μs *
Return time to cyclic task : 11 μs or 8 μs *
* When High-speed interrupt function is used

Total per CPU Rack or Expansion Rack: 10 Units max.;
Total per PLC: 40 Units max.

3,200 bits (200 words): Words CIO 1300 to CIO 1499
37,504 bits (2,344 words): Words CIO 3800 to CIO 6143
Cannot be used for external I/O.

8,192 bits (512 words): Words W000 to W511
Cannot be used for external I/O.

8,192 bits (512 words): Words H000 to H511
Bits in this area maintain their ON/OFF status when PLC is turned OFF or operating mode is changed.
Words H512 to H1535: These words can be used only for function blocks. They can be used only for function
block instances (i.e., they are allocated only for internal variables in function blocks).

Read-only: 31,744 bits (1,984 words)

• 7,168 bits (448 words): Words A0 to A447

• 24,576 bits (1,536 words): Words A10000 to A11535 *

Read/write: 16,384 bits (1,024 words) in words A448 to A1471 *
* A960 to A1471 and A10000 to A11535 cannot be accessed by CPU Bus Units, Special I/O Units, PTs, and

Support Software that do not specifically support the CJ2 CPU Units.

32k words *
DM Area words for Special I/O Units: D20000 to D29599 (100 words × 96 Units)
DM Area words for CPU Bus Units: D30000 to D31599 (100 words × 16 Units)
* Bits in the EM Area can be addressed either by bit or by word. These bits cannot be addressed by CPU Bus

Units, Special I/O Units, PTs, and Support Software that do not specifically support the CJ2 CPU Units.

32k words/bank × 25 banks max.: E00_00000 to E18_32767 max. *1 *2
*1. Bits in the EM Area can be addressed either by bit or by word. These bits cannot be addressed by CPU

Bus Units, Special I/O Units, PTs, and Support Software that do not specifically support the CJ2 CPU
Units.

*2. EM banks D to 18 cannot be accessed by CPU Bus Units, Special I/O Units, PTs, and Support Software

that do not specifically support the CJ2 CPU Units.

*3. Force-set/reset to the EM Area is enabled by specifying a start bank in parameter settings. (unit version

1.2 or higher)

32K words × 4
banks

Bank 0 to 3 Bank 0 to 3 Bank 0 to 9 Bank 0 to E Bank 0 to 18

Bank 3 Bank 3 Bank 6 to 9 Bank 7 to E Bank 11 to 18

IR0 to IR15
These are special registers for storing PLC memory addresses for indirect addressing. (Index Registers can
be set so that they are unique in each task or so that they are shared by all tasks.)

PROGRAM Mode: Programs are not executed. Preparations can be executed prior to program execution in

MONITOR Mode: Programs are executed, and some operations, such as online editing, and changes to

RUN Mode: Programs are executed. This is the normal operating mode.

32K words × 4
banks

this mode.

present values in I/O memory, are enabled in this mode.

CJ2H-

32K words × 10
banks

32K words × 15
banks

32K words × 25
banks

4

CJ2H-CPU6@

Items

Programming Languages

Function
Blocks

Tasks

Symbols
(Variables)

Data
Tracing

File Memory

Source/
Comment
Memory

Communi­cations

Maximum number of definitions 2,048

Maximum number of instances 2,048

Type of Tasks

Number of Tasks

Type of Symbols

Data Type of Symbols

Maximum Size of Symbol 32k words

Array Symbols (Array Variables) One-dimensional arrays

Number of Array Elements 32,000 elements max.

Memory Capacity

Number of Samplings Bits = 31, one-word data =16, two-word data = 8, four-word data = 4

Sampling Cycle 1 to 2,550 ms (Unit: 1 ms)

Trigger Conditions

Delay Value −32,768 to +32,767 ms

Program sources, comments,
program indexes, symbol tables

Logical Ports
for Commu­nications

CIP Commu­nications
Specification

Peripheral (USB) Port USB 2.0-compliant B-type connector

Baud Rate 12 Mbps max.

Transmission Distance 5 m max.

Serial Port Interface: Conforms to EIA RS-232C.

Communications Method Half-duplex

Synchronization Method Start-stop

Baud Rate 0.3, 0.6, 1.2, 2.4, 4.8, 9.6, 19.2, 38.4, 57.6, or 115.2 (kbps)

Transmission Distance 15 m max.

CJ2H-

CPU64 CPU65 CPU66 CPU67 CPU68

Ladder Logic (LD),
Sequential Function Charts (SFC),
Structured Text (ST), and
Instruction Lists (IL)

Cyclic tasks
Interrupt tasks (Power OFF interrupt tasks, scheduled interrupt tasks, I/O interrupt tasks, and external interrupt
tasks)

Cyclic tasks: 128
Interrupt tasks: 256
(Interrupt tasks can be defined as cyclic tasks to create extra cyclic tasks. Therefore, the total number of cyclic
tasks is actually 384 max.)

• Local symbols: Can be used only within a single task in the PLC.

• Global symbols: Can be used in all tasks in the PLC.

• BOOL (bit)

• UINT (one-word unsigned binary)

• UDINT (two-word unsigned binary)

• ULINT (four-word unsigned binary)

• INT (one-word signed binary)

• DINT (two-word signed binary)

• LINT (four-word signed binary)

• UINT BCD (one-word unsigned BCD) *1

• UDINT BCD (two-word unsigned BCD) *1

• ULINT BCD (four-word unsigned BCD) *1

• REAL (two-word floating-point)

• LREAL (four-word floating-point)

• CHANNEL (word) *1

• NUMBER (constant or number) *1

• WORD (one-word hexadecimal)

• DWORD (two-word hexadecimal)

• LWORD (four-word hexadecimal)

• STRING (1 to 255 ASCII characters)

• TIMER (timer) *2

• COUNTER (counter) *2

*1. Cannot be used in Function blocks
*2. Can be used only in Function blocks

8,000 words 16,000 words 32,000 words

(Up to 32k words × 25 banks when EM is specified in CX-Programmer)

ON/OFF of specified bit
Data comparison of specified word
Data size: 1 word, 2 words, 4 words
Comparison Method: Equals (=), Greater Than (>), Greater Than or Equals (≥), Less Than (<), Less Than or
Equals (≤), Not Equal (≠)

Memory Card (128, 256, or 512 Mbytes) (Use the Memory Cards provided by OMRON.)
EM file memory (Part of the EM Area can be converted for use as file memory.)

Capacity: 3.5 Mbytes

Logical Ports 8 ports (Used for SEND, RECV, CMND, PMCR, TXDU, and RXDU instructions.)

Extended Logical
Ports

Class 3 (Number of
Connections)

UCMM
(Non-connection
Type)

64 ports (Used for SEND2, RECV2, CMND2, and PMCR2 instructions.)

Number of connections: 64

Maximum number of clients that can communicate at the same time: 32
Maximum number of servers that can communicate at the same time: 40

5

Function Specifications

Functions Description

Minimum Cycle Time

Cycle Time
Management

Unit (I/O)
Management

Memory
Management

Memory
Cards

Cycle Time Monitoring

Background Processing

Basic I/O
Units, Special
I/O Units, and
CPU Bus
Units

Basic I/O
Units

Special I/O
Units and
CPU Bus
Units

Configuration
Management

Holding I/O Memory when Changing Operating Modes

File Memory

Built-in Flash Memory

EM File Function Parts of the EM Area can be treated as file memory.

Storing Comments

EM Configuration EM Area can be set as trace memory or EM file memory.

Automatic File Transfer at Startup

Program Replacement during PLC Operation The whole user program can be read from a Memory Card to CPU Unit during operation.

Function for Reading and Writing Data from a Memory
Card

I/O
Refreshing

Unit Recognition at Startup The number of units recognized when the power is turned ON is displayed.

Input Response Time Setting

Load OFF Function

Basic I/O Unit Status Monitoring

Unit Restart Bits to Restart Units A Special I/O Unit or CPU Bus Unit can be restarted.

Synchronous Unit Operation

Automatic I/O Allocation at Startup

I/O Table Creation

Rack/Slot First Word Settings The first words allocated to a Units on the Racks can be set.

Cyclic Refreshing Cyclic refreshing of Basic I/O Units, Special I/O Units, and CPU Bus Units

Immediate Refreshing I/O refreshing by immediate refreshing instructions

Refreshing by IORF I/O refreshing by IORF instruction

CJ2H-CPU6@

A minimum cycle time can be set.
(0.2 to 32,000 ms; Unit: 0.1 ms)
The minimum cycle time setting can be changed in MONITOR mode.

The cycle time is monitored.
(0.01 to 40,000 ms; Unit: 0.01 ms)

Instructions with long execution times can be executed over multiple cycles to prevent
fluctuations in the cycle time.

The input response times can be set for Basic I/O Units. The response time can be
increased to reduce the effects of chattering and noise at input contacts. The response
time can be decreased to enable detecting shorter input pulses.

All of the outputs on Basic I/O Units can be turned OFF when an error occurs in RUN or
MONITOR mode.

Alarm information can be read from Basic I/O Units and the number of Units recognized
can be read.

The start of processing for all the specified Units can be synchronized at a fixed interval.
Maximum number of Units: 10 Units
(Only Units that support Synchronous Operation Mode can be used.)
Synchronous operation cycle: 0.5 to 10ms (default: 2 ms)
Maximum number of words for synchronous data refreshing: 96 words (total of all Units)

I/O words can be automatically allocated to the Basic I/O Units that are connected in the
PLC to start operation automatically without registering Units into I/O tables.

The current unit configuration can be registered in I/O tables to prevent it from being
changed, to reserve words, and to set words.

The status of I/O memory can be held when the operating mode is changed or power is
turned ON. The forced-set/reset status can be held when the operating mode is changed
or power is turned ON.

Files (such as program files, data files, and symbol table files) can be stored in Memory
Card, EM File Memory, or Comment Memory.

The user program and Parameter Area can be backed up to an internal flash memory
when they are transferred to the CPU Unit.

I/O comments can be stored as symbol table files in a Memory Card, EM file memory,
or comment memory.

A program file and parameter files can be read from a Memory Card when the power is
turned ON.

Data in I/O memory in the CPU Unit can be written to a Memory Card in CSV/TXT format.
Data in CSV/TXT format in the Memory Card can be read to I/O memory in the CPU Unit.

6

Function Description

Communications −

Peripheral (USB)
Port

Serial Port −

Host Link (SYSWAY) Communications

No-protocol Communications

NT Link Communications

Peripheral Bus

Serial Gateway This gateway enables receiving and automatically converting FINS to the CompoWay/F.

Scheduled Interrupts

Power OFF Interrupts A task can be executed when CPU Unit's power turns OFF.

Interrupt

Clock

Power
Supply
Management

Function Blocks Standard programming can be encapsulated as function blocks.

Debugging

I/O Interrupt Tasks A task can be executed when an input signal is input to an Interrupt Input Unit.

External Interrupt Tasks

High-speed Interrupt Function Improves performance for executing interrupt tasks with certain restrictions.

Clock Function

Operation Start Time Storage The time when operating mode was last changed to RUN mode or MONITOR mode is stored.

Operation Stop Time Storage

Startup Time Storage The time when the power was turned ON is stored.

Power Interruption Time Storage The time when the power is turned OFF is stored.

Total Power ON Time Calculation The total time that the PLC has been ON is stored in increments of 10 hours.

Power ON Clock Data Storage A history of the times when the power was turned ON is stored.

User Program Overwritten Time Storage The time that the user program was last overwritten is stored.

Parameter Date Storage The time when the Parameter Area was overwritten is stored.

Memory Protection

Power OFF Detection Time Setting

Power OFF Detection Delay Time

Number of Power Interruptions Counter The number of times power has been interrupted is counted.

Languages in Function Block Definitions Ladder programming or structured text

Online Editing

Force-Set/Reset

Differentiate Monitoring ON/OFF changes in specified bits can be monitored.

Data Tracing

Storing Location of Error when an Error Occurs The location and task number where execution stopped for a program error is recorded.

Program Check

Peripheral Bus

Bus for communications with various kinds of Support Software running on a personal
computer. High-speed communications are supported.

Host Link commands or FINS commands placed between Host Link headers and terminators
can be sent from a host computer or PT to read/write I/O memory, read/control the operating
mode, and perform other operations for PLC.

I/O instructions for communications ports (such as TXD/RXD instructions) can be used for
data transfer with peripheral devices such as bar code readers and printers.

I/O memory in the PLC can be allocated and directly linked to various PT functions, including
status control areas, status notification areas, touch switches, lamps, memory tables, and
other objects.

Bus for communications with various kinds of Support Software running on a personal
computer. High-speed communications are supported.

Tasks can be executed at a specified interval (minimum of 0.2 ms or 0.1 ms *, Unit: 0.1 ms).
* When High-speed interrupt function is used.

A task can be executed when interrupts are requested from a Special I/O Unit or a CPU Bus
Unit.

Clock data is stored in memory.
Accuracy (Accuracy depends on the temperature.)
Ambient temperature of 55°C: −3.5 to +0.5 min error per month
Ambient temperature of 25°C: −1.5 to +1.5 min error per month
Ambient temperature of 0°C: −3 to +1 min error per month

The last time a fatal error occurred or the last time the operating mode was changed to
PROGRAM mode is stored.

Holding Area data, DM Area data, EM Area data, Counter Completion Flags, and counter
present values are held even when power is turned OFF. CIO Area, Work Area, some Auxiliary
Area data, and Timer Completion Flags, timer present values, index registers, and data
registers can be protected by turning ON the IOM Hold Bit in the Auxiliary Area, and by also
setting the IOM Hold Bit to “Hold” in the PLC Setup.

The detection time for power interruptions can be set.
AC power supply: 10 to 25 ms (variable)
DC power supply: 2 to 5 ms (CJ1W-PD022) or 2 to 20 ms (CJ1W-PD025)

The detection of power interruptions can be delayed: 0 to 10 ms
(Not supported by the CJ1W-PD022.)

The program can be changed during operation (in MONITOR or PROGRAM mode), except for
block programming areas.

Specified bits can be set or reset.
Force-set/reset to the EM Area is enabled by specifying a start bank in parameter setting.
(unit version 1.2 or higher)

The specified I/O memory data can be stored in the trace memory in the CPU Unit. The
triggers can be set.

• The trace data can be uploaded during data tracing using CX-Programmer, which enables
continuously logging the data by constantly uploading the trace data (trace data uploading
during tracing).

• Data tracing can be automatically started when operation is started (i.e., when the operating
mode is changed from PROGRAM mode to MONITOR or RUN mode).

The programs can be checked for items such as no END instruction and FALS/FAL errors at
startup.

CJ2H-CPU6@

7

Self­diagnosis
and
Restoration

CJ2H-CPU6@

Function Description

Error Log

CPU Error Detection CPU Unit WDT errors are detected.

User-defined Failure Diagnosis

Load OFF Function This function turns OFF all outputs from Output Units when an error occurs.

RUN Output

Basic I/O Load Short-circuit Detection

Failure Point Detection The time and logic of an instruction block can be analyzes using the FPD instruction.

CPU Standby Detection

System FAL Error Detection
(User-defined non-fatal error)

Duplicate Refreshing Error
Detection

Basic I/O Unit Error Detection This function detects the errors in Basic I/O Units.

Backup Memory Error
Detection

Non-fatal Error
Detection

Fatal Error
Detection

Fatal Error
Detection
(Continued from
previous page)

Memory Self-restoration Function This function performs a parity check on the user program area and self-restoration data.

PLC Setup Error Detection This function detects setting errors in the PLC Setup.

CPU Bus Unit Error Detection

Special I/O Unit Error
Detection

Battery Error Detection

CPU Bus Unit Setting Error
Detection

Special I/O Unit Setting Error
Detection

Memory Error Detection This function detects errors that occur in memory of the CPU Unit.

I/O Bus Error Detection

Unit/Rack Number
Duplication Error

Too Many I/O Points Error
Detection

I/O Setting Error Detection

Program Error Detection This function detects errors in programs.

Instruction Processing
Error Detection

Indirect DM/EM BCD
Error Detection

Illegal Area Access Error
Detection

No END Error Detection This function detects an error when there is no END instruction at the end of the program.

Task Error Detection

Differentiation Overflow
Error Detection

Invalid Instruction Error
Detection

User Program Area
Overflow Error Detection

Cycle Time Exceeded Error
Detection

System FALS Error Detection
(User-defined Fatal Error)

Version Error Detection

Memory Card Transfer Error
Detection

A function is provided to store predefined error codes in CPU Unit, error information, and time
at which the error occurred.

Errors can be generated for user-specified conditions: Non-fatal errors (FAL) and fatal errors
(FALS).
Program section time diagnosis and program section logic diagnosis are supported (FPD
instruction).

The RUN output from the CJ1W-PA205R turns ON while CPU Unit is in RUN mode or
MONITOR mode.

This function provides alarm information from Basic I/O Units that have load short-circuit
protection.

This function indicates when the CPU Unit is on standby because all Special I/O Units and
CPU Bus Units have not been recognized at the startup in RUN or MONITOR mode.

This function generates a non-fatal (FAL) error when the user-defined conditions are met in
program.

This function detects an error when an immediate refreshing Instruction in an interrupt task is
competing with I/O refreshing of a cyclic task.

This function detects errors in the memory backup of the user programs and parameter area
(backup memory).

This function detects an error when there is an error in data exchange between the CPU Unit
and a CPU Bus Unit.

This function detects an error when there is an error in data exchange between the CPU Unit
and a Special I/O Unit.

This function detects an error when a battery is not connected to the CPU Unit or when the
battery voltage drops.

This function detects an error when the model of a CPU Bus Unit in the registered I/O tables
does not agree with the model that is actually mounted in the PLC.

This function detects an error when the model of a Special I/O Unit in the registered I/O tables
does not agree with the model of Unit that is actually mounted.

This function detects when an error occurs in data transfers between the Units mounted in
Rack slots and the CPU Unit and detects when the End Cover is not connected to the CPU
Rack or an Expansion Rack.

This function detects an error when the same unit number is set for two or more Units, the
same word is allocated to two or more Basic I/O Units, or the same rack number is set for two
or more Racks.

This function detects an error when the total number of I/O points set in the I/O tables or the
number of Units per Rack exceeds the specified range.

This function detects an error when the number of Units in the registered I/O tables does not
agree with the actual number of Units that is mounted, or an Interrupt Unit has been connected
in the wrong position, i.e., not in slot 0 to 3.

This function detects an error when the given data value is invalid when executing an
instruction, or execution of instruction between tasks was attempted.

This function detects an error when an indirect DM/EM address in BCD mode is not BCD.

This function detects an error when an attempt is made to access an illegal area with an
instruction operand.

This function detects an error when there are no tasks that can be executed in a cycle, there
is no program for a task, or the execution condition for an interrupt task was met but there is
no interrupt task with the specified number.

This function detects an error when too many differentiated instructions are entered or deleted
during online editing (131,072 times or more).

This function detects an error when an attempt is made to execute an instruction that is not
defined in the system.

This function detects an error when instruction data is stored after the last address in user
program area.

This function monitors the cycle time (10 to 40,000 ms) and stops the operation when the set
value is exceeded.

This function generates a fatal (FALS) error when the user-defined conditions are met in
program.

This function detects an error when a user program includes a function that is not supported
by the current unit version.

This function detects an error when the automatic file transfer from Memory Card fails at
startup.

8

Simple Backup Function

Unsolicited Communications

Maintenance

Security

Remote Programming and Monitoring

Automatic Online Connection via
Network

Read Protection using Password

FINS Write Protection This function prohibits writing by using FINS commands sent over the network.

Unit Name Function

Hardware ID Using Lot Numbers

Unit Versions

Function Description

This function collectively backs up the data in CPU Unit (user programs, parameters, and I/O
memory) and internal backup data in the I/O Units.

A function that allows the PLC to use Network Communications Instruction to send required
FINS commands to a computer connected via a Host Link

Host Link communications can be used for remote programming and remote monitoring
through a Controller Link, Ethernet, DeviceNet, or SYSMAC LINK Network. Communications
across network layers can be performed.
Controller Link or Ethernet: 8 layers
DeviceNet or SYSMAC LINK: 3 layers

Direct
Serial
Connection

This function enables automatically connecting to the PLC online when the CX-Programmer
is directly connected by a serial connection (peripheral (USB) port or serial port).

This function protects reading and displaying programs and tasks using passwords.
Write protection: Set using the DIP switch.
Read protection: Set a password using the CX-Programmer.

This function allows the users to give any names to the Units. Names are verified at online
connection to prevent wrong connection

This function sets operation protection by identifying hardware using the user programs
according to lot numbers stored in the Auxiliary Area.

CJ2H-CPU6@

Units Models Unit version

CJ2H CPU Units CJ2H-CPU6@

Unit version 1.2
Unit version 1.1 *

* Although the product of unit version 1.0 does not exist for the CJ2H CPU unit (CJ2H-CPU6@ ), this unit version 1.1 means that the functions are

added based on the same functionality as CJ2H-CPU6@-EIP unit version 1.0.

Function Support by Unit Version

Unit Version 1.2 or Later

CX-Programmer version 8.3 or higher must be used to enable using the functions added for unit version 1.2.

Unit CJ2H CPU Unit

Model CJ2H-CPU6@

Unit version

Item

EM force-set/reset function Supported. Not supported.

Note: User programs that use functions of CJ2H CPU Units with unit version 1.2 or later cannot be used with CJ2H CPU Units with unit version

1.1 or earlier. If an attempt is made to transfer a program that uses any of these functions from the CX-Programmer to a CPU Unit with unit
version 1.1 or earlier , an error will be displayed and it will not be possible to download to the CPU Unit.

Unit Version 1.1 or Later

CX-Programmer version 8.1 or higher must be used to enable using the functions added for unit version 1.1.
Note: Although the product of unit version 1.0 does not exist for the CJ2H CPU unit (CJ2H-CPU6@), it describes here assuming that the functions

are added with unit version 1.1 to the unit version 1.0 functions as well as CJ2H-CPU6@-EIP.

Unit CJ2H CPU Unit

Model CJ2H-CPU6@

Unit version

Item

High-speed interrupt function
Decreased overhead time for interrupt tasks
Minimum interval setting of 0.1 ms for Scheduled Interrupt Task

Changing the minimum cycle time setting in MONITOR mode Supported.

Synchronous unit operation function Supported.

Addition of Immediate refreshing instruction only for specific Special I/O Units and CPU Bus Units
For CJ1W-AD042 : Analog Input Direct Convert AIDC (216)
For CJ1W-DA042V : Analog Output Direct Convert AODC (217)
For CJ1W-SCU22/32/42 :
Direct Receive Via Serial Communications Unit DRXDU (261)
Direct Transmit Via Serial Communications Unit DTXDU (262)

Unit version 1.2 or higher Other unit versions

Unit version 1.1 or higher

Supported.

Supported.

9

CJ2H-CPU6@

Unit Versions and Programming Devices

The following tables show the relationship between unit versions and CX-Programmer versions.

Unit Versions and Programming Devices

Required Programming Device

CPU Unit Functions

CJ2H-CPU6@
Unit version 1.2

CJ2H-CPU6@
Unit version 1.1

Functions
added for unit
version 1.2

Functions
added for unit
version 1.1

Functions for unit version 1.0 *1 −−OK *2OK

Using new functions −−−OK *3

Not using new
functions

Using new functions −−OK *2OK

Not using new
functions

Ver. 7.1 or

lower

−−OK *2OK

−−OK *2OK

*1. Although the product of unit version 1.0 does not exist for the CJ2H CPU unit (CJ2H-CPU6@), the same functionality as CJ2H-CPU6@-EIP

unit version 1.0 is indicated here.

*2. CX-Programmer version 8.1 or higher is required to use CJ2 CPU Units (CJ2H-CPU6@). However the functions of unit version 1.0 and only

High-speed interrupt function and Changing the minimum cycle time setting in MONITOR mode are supported in CX-Programmer version 8.02.

*3. CX-Programmer version 8.3 or higher is required to use the added functions in CJ2H CPU Units (CJ2H-CPU6@) with unit version 1.2.
*4. A Programming Console cannot be used with a CJ2H CPU Unit.

Device Type Setting

The unit version does not affect the setting made for the device type on the CX-Programmer. Select the device type as shown in the following table
regardless of the unit version of the CPU Unit.

CX-Programmer

Ver.8.0 Ver.8.1/Ver.8.2

Ver. 8.3 or

higher

Programming

Console

− *4

Series CPU Unit group CPU Unit model

CJ Series CJ2H CPU Units CJ2H-CPU6@ CJ2H

Device type setting on

CX-Programmer Ver. 8.0 or higher

10

CJ2H-CPU6@

External Interface

A CJ2H CPU Unit (CJ2H-CPU6@) provides two communications ports for external interfaces: a peripheral (USB) port and a serial port.

Battery Compartment

Simple Backup/Memory Card
Power Supply Switch

Used to back up Memory
Card data or turn OFF the
power when removing the
Memory Card.
Also, press the Memory Card
Power Supply Switch to
perform an easy backup
operation.

Memory Card Connector

Connects the Memory Card
to the CPU Unit.

Memory Card Eject Button

Press the eject button to
remove the Memory Card
from the CPU Unit.

LED Indicators

Peripheral (USB) Port

Item Specification

Baud Rate 12 Mbps max.

Transmission Distance 5 m max.

Interface USB 2.0-compliant B-type connector

Protocol Peripheral Bus

DIP Switch

(inside the battery compartment)

Memory Card Indicators

Indicates the Memory Card status
(access and power supply).

Peripheral (USB) Port

Connected to Programming Devices,
such as the CX-Programmer

Serial Port

Connected to Programming Devices, Host
Computers, general-purpose external devices,
Programmable Terminals, and other devices.

Serial Port

Item Specification

Communications method Half duplex

Synchronization Start-stop
Baud rate 0.3/0.6/1.2/2.4/4.8/9.6/19.2/38.4/57.6/115.2 kbps *

Transmission distance 15 m max.

Interface EIA RS-232C

Protocol Host Link, NT Link, 1:N, No-protocol, or Peripheral Bus

* Baud rates for the RS-232C are specified only up to 19.2 kbps. The CJ Series supports serial communications from 38.4 kbps to 115.2 kbps,

but some computers cannot support these speeds. Lower the baud rate if necessary.

Pin No. Signal Name Direction

1 FG Protection earth −

2 SD (TXD) Send data Output

1

5

6

9

Note: Do not use the 5-V power from pin 6 of the RS-232C port on the CPU Unit for anything but the NT-AL001-E Link Adapter. The external

device or the CPU Unit may be damaged.

3 RD (RXD) Receive data Input

4 RS (RTS) Request to send Output

5 CS (CTS) Clear to send Input

6 5 V Power supply −

7 DR (DSR) Data set ready Input

8 ER (DTR) Data terminal ready Output

9 SG (0 V) Signal ground −

Connector hood FG Protection earth −

11

CJ2H-CPU6@

Dimensions (Unit: mm)

CJ2H CPU Unit
CJ2H-CPU6@

2.7

90

2.7

66.2

65

48.8 74.5

12

Related Manuals

Cat. No. Model Manual Application Description

Describes the following for CJ2 CPU Units:

• Overview and features

• Basic system configuration

• Part nomenclature and functions

• Mounting and setting procedure

• Remedies for errors

• Also refer to the Software User’s Manual (W473).

Describes the following for CJ2 CPU Units:

• CPU Unit operation

• Internal memory

• Programming

• Settings

• Functions built into the CPU Unit

Also refer to the Hardware User’s Manual (W472)

Describes each programming instruction in detail.
Also refer to the Software User’s Manual (W473) when you
do programming.

Describes C-mode commands and FINS commands
Refer to this manual for a detailed description of commands
for communications with the CPU Unit using C mode
commands or FINS commands.
Note: This manual describes the communications

commands that are addressed to CPU Units. The
communications path that is used is not relevant and
can include any of the following: serial ports on CPU
Units, communications ports on Serial
Communications Units/Boards, and Communications
Units. For communications commands addressed to
Special I/O Units or CPU Bus Units, refer to the
operation manual for the related Unit.

Describes operating procedures for the CX-Programmer.
Also refer to the Software User’s Manual (W473) and
Instructions Reference Manual (W474) when you do
programming.

Provides an overview of the CX-One FA Integrated Tool
Package and describes the installation procedure.

W472

W473

W474

W342

W446

W447

W469

W464

W463

CJ2H-CPU6@-EIP
CJ2H-CPU6@

CJ2H-CPU6@-EIP
CJ2H-CPU6@

CJ2H-CPU6@-EIP
CJ2H-CPU6@
CS1G/H-CPU@@H
CS1G/H-CPU@@-V1
CJ1G/H-CPU@@H
CJ1G-CPU@@
CJ1M-CPU@@
NSJ@-@@@@(B)-G5D
NSJ@-@@@@(B)-M3D

CJ2H-CPU6@-EIP
CJ2H-CPU6@
CS1G/H-CPU@@H
CS1G/H-CPU@@-V1
CS1D-CPU@@H
CS1D-CPU@@S

CU@@-V1

CS1W-S
CS1W-SCB@@-V1
CJ1H-CPU@@H-R
CJ1G/H-CPU@@H
CJ1G-CPU@@P
CJ1M-CPU@@
CJ1G-CPU@@
CJ1W-SCU@@-V1
CP1H-X@@@@-@
CP1H-XA@@@@-@
CP1H-Y@@@@-@
NSJ@-@@@@(B)-G5D
NSJ@-@@@@(B)-M3D

WS02-CX@@-V@

CXONE-AL@@C-V@/
CXONE-AL

CXONE-AL@@C-V@/
AL@@D-V@

@@D-V@

CJ-series CJ2 CPU Unit
Hardware User’s
Manual

CJ-series CJ2 CPU Unit
Software User’s Manual

CS/CJ/NSJ-series
Instructions Reference
Manual

CS/CJ/CP/NSJ-series
Communications
Command Reference
Manual

CX-Programmer
Operation Manual

CX-Programmer
Operation Manual
Functions Blocks

CX-Programmer
Operation Manual SFC
Programming

/CJ/CP/NSJ-series

CS
CX-Integrator Network
Configuration Software
Operation Manual

CX-One Setup Manual

Hardware specifications for CJ2
CPU Units

Software specifications for CJ2
CPU Units

Information on instructions

Information on communications
for CS/CJ/CP-series CPU Units
and NSJ-series Controllers

Support Software for Windows
computers

CX-Programmer operating
procedure

Network setup and monitoring Describes the operating procedures for the CX-Integrator.

Installing software from the CX­One

CJ2H-CPU6@

13

Read and Understand This Catalog

Please read and understand this catalog before purchasing the products. Please consult your OMRON representative if you have any questions or
comments.

Warranty and Limitations of Liability

WARRANTY

OMRON's exclusive warranty is that the products are free from defects in materials and workmanship for a period of one year (or other period if specified)
from date of sale by OMRON.

OMRON MAKES NO WARRANTY OR REPRESENTATION, EXPRESS OR IMPLIED, REGARDING NON-INFRINGEMENT, MERCHANTABILITY, OR
FITNESS FOR PARTICULAR PURPOSE OF THE PRODUCTS. ANY BUYER OR USER ACKNOWLEDGES THAT THE BUYER OR USER ALONE HAS
DETERMINED THAT THE PRODUCTS WILL SUITABLY MEET THE REQUIREMENTS OF THEIR INTENDED USE. OMRON DISCLAIMS ALL OTHER
WARRANTIES, EXPRESS OR IMPLIED.

LIMITATIONS OF LIABILITY

OMRON SHALL NOT BE RESPONSIBLE FOR SPECIAL, INDIRECT, OR CONSEQUENTIAL DAMAGES, LOSS OF PROFITS OR COMMERCIAL LOSS
IN ANY WAY CONNECTED WITH THE PRODUCTS, WHETHER SUCH CLAIM IS BASED ON CONTRACT, WARRANTY, NEGLIGENCE, OR STRICT
LIABILITY.

In no event shall the responsibility of OMRON for any act exceed the individual price of the product on which liability is asserted.
IN NO EVENT SHALL OMRON BE RESPONSIBLE FOR WARRANTY, REPAIR, OR OTHER CLAIMS REGARDING THE PRODUCTS UNLESS

OMRON'S ANALYSIS CONFIRMS THAT THE PRODUCTS WERE PROPERLY HANDLED, STORED, INSTALLED, AND MAINTAINED AND NOT
SUBJECT TO CONTAMINATION, ABUSE, MISUSE, OR INAPPROPRIATE MODIFICATION OR REPAIR.

Application Considerations

SUITABILITY FOR USE

OMRON shall not be responsible for conformity with any standards, codes, or regulations that apply to the combination of products in the customer's
application or use of the products.

At the customer's request, OMRON will provide applicable third party certification documents identifying ratings and limitations of use that apply to the
products. This information by itself is not sufficient for a complete determination of the suitability of the products in combination with the end product,
machine, system, or other application or use.

The following are some examples of applications for which particular attention must be given. This is not intended to be an exhaustive list of all possible
uses of the products, nor is it intended to imply that the uses listed may be suitable for the products:

•

Outdoor use, uses involving potential chemical contamination or electrical interference, or conditions or uses not described in this catalog.

•

Nuclear energy control systems, combustion systems, railroad systems, aviation systems, medical equipment, amusement machines, vehicles,

safety equipment, and installations subject to separate industry or government regulations.

•

Systems, machines, and equipment that could present a risk to life or property.
Please know and observe all prohibitions of use applicable to the products.
NEVER USE THE PRODUCTS FOR AN APPLICATION INVOLVING SERIOUS RISK TO LIFE OR PROPERTY WITHOUT ENSURING THAT THE

SYSTEM AS A WHOLE HAS BEEN DESIGNED TO ADDRESS THE RISKS, AND THAT THE OMRON PRODUCTS ARE PROPERLY RATED AND
INSTALLED FOR THE INTENDED USE WITHIN THE OVERALL EQUIPMENT OR SYSTEM.

PROGRAMMABLE PRODUCTS

OMRON shall not be responsible for the user's programming of a programmable product, or any consequence thereof.

Disclaimers

CHANGE IN SPECIFICATIONS

Product specifications and accessories may be changed at any time based on improvements and other reasons.
It is our practice to change model numbers when published ratings or features are changed, or when significant construction changes are made.

However, some specifications of the products may be changed without any notice. When in doubt, special model numbers may be assigned to fix or
establish key specifications for your application on your request. Please consult with your OMRON representative at any time to confirm actual
specifications of purchased products.

DIMENSIONS AND WEIGHTS

Dimensions and weights are nominal and are not to be used for manufacturing purposes, even when tolerances are shown.

PERFORMANCE DATA

Performance data given in this catalog is provided as a guide for the user in determining suitability and does not constitute a warranty. It may represent the
result of OMRON’s test conditions, and the users must correlate it to actual application requirements. Actual performance is subject to the OMRON
Warranty and Limitations of Liability.

ERRORS AND OMISSIONS

The information in this document has been carefully checked and is believed to be accurate; however, no responsibility is assumed for clerical,
typographical, or proofreading errors, or omissions.

In the interest of product improvement, specifications are subject to change without notice.

OMRON Corporation

Industrial Automation Company

http://www.ia.omron.com/

(c)Copyright OMRON Corporation 2009 All Right Reserved.

2009.10
