Omron 3G3HV-series, 3G3HV-A2075-E, 3G3HV-A2110-E, 3G3HV-A2150-E, 3G3HV-B2185-E User Manual

...

Thank you for choosing this SYSDRIVE 3G3HV-series product. Proper use and handling of the product will ensure proper product performance, will length product life, and may prevent possible accidents. Please

read this manual thoroughly and handle and operate the product with care.

NOTICE

1. This manual describes the functions of the product and relations with other products.

ou should assume that anything not described in this manual is not possible.

2. Although care has been given in documenting the product, please contact your OMRON representative if you have any suggestions on improving this manual.

3. The

product contains potentially dangerous parts under the cover. Do not attempt

open the cover

under any circumstances. Doing so may result in injury or death

and

may damage the product. Never attempt to repair or disassemble the product.

4. We

recommend that you add the following precautions to any instruction manuals

you prepare for the system into which the product is being installed.

S Precautions on the dangers of high-voltage equipment. S Precautions

on touching the terminals of

the product even after power has been

turned off. (These terminals are live even with the power turned off.)

5. Specifications and functions may be changed without notice in order to improve product performance.

Items to Check Before Unpacking

1. Check the following items before removing the product from the package: S Has

the correct product been delivered (i.e., the correct model number and speci

fications)?

S Has the product been damaged in shipping? S Are any screws or bolts loose?

High-capacity General-purpose Inverter

USER’S MANUAL

SYSDRIVE 3G3HV SERIES

Notice:

OMRON products are manufactured for use according to proper procedures by a qualified operator and only for the purposes described in this manual.

The following conventions are used to indicate and classify precautions in this manual. Always heed the information provided with them. Failure to heed precautions can result in injury to people or damage to property.

DANGER Indicates

an imminently hazardous situation which, if not avoided, will

result in death

or serious injury.

WARNING Indicates

a potentially hazardous situation which, if not avoided, could result in death

or serious injury.

Caution Indicates

a potentially hazardous situation which, if not avoided, may result in minor

or moderate injury, or property damage.

OMRON Product References

All OMRON products are capitalized in this manual. The word “Unit” is also capitalized when it refers to an OMRON product, regardless of whether or not it appears in the proper name of the product.

The abbreviation “Ch,” which appears in some displays and on some OMRON products, often means “word” and is abbreviated “Wd” in documentation in this sense.

The abbreviation “PC” means Programmable Controller and is not used as an abbreviation for anything else.

Visual Aids

The following headings appear in the left column of the manual to help you locate different types of information.

Note Indicates information of particular interest for efficient and convenient operation of the product.

 OMRON, 1996

All rights reserved. No part of this publication may be reproduced, stored in a retrieval system, or transmitted, in any form, or by any means, mechanical, electronic, photocopying, recording, or otherwise, without the prior written permission of OMRON.

No patent liability is assumed with respect to the use of the information contained herein. Moreover

, because OMRON is constantly striving to improve its high-quality products, the information contained in this manual is subject to change without notice. Every precaution has been taken in the preparation of this manual. Nevertheless, OMRON assumes no responsibility for errors or omissions. Neither is any liability assumed for dam

ages resulting from the use of the information contained in this publication.

General Precautions

Observe the following precautions when using the SYSDRIVE Inverters and peripheral devices.

This manual may include illustrations of the product with protective covers removed in order to describe the components of the product in detail. Make sure that these protective covers are on the product before use.

Consult your OMRON representative when using the product after a long period of storage.

WARNING Do not touch the inside of the Inverter. Doing so may result in electrical shock. WARNING Operation, maintenance, or inspection must be performed after turning OFF the

power

supply, confirming that the CHARGE indicator (or status indicators) are OFF

and after waiting for the time specified on the front cover

. Not doing

may result in

electrical shock.

WARNING Do

not damage, pull on, apply stress to, place heavy objects on, or pinch the cables.

Doing so may result in electrical shock.

WARNING Do

not touch the rotating parts of the motor under operation. Doing so may result in

injury.

WARNING Do

not modify the product. Doing so may result in injury or damage to the

product.

Caution Do not store, install, or operate the product in the following places. Doing so may

result in electrical shock, fire or damage to the product.

S Locations subject to direct sunlight. S Locations subject to temperatures or humidity outside the range specified in the

specifications.

S Locations

subject to condensation as the result of severe changes in temperature.

S Locations subject to corrosive or flammable gases. S Locations subject to exposure to combustibles. S Locations subject to dust (especially iron dust) or salts. S Locations subject to exposure to water, oil, or chemicals. S Locations subject to shock or vibration.

Caution Do not touch the Inverter radiator, regenerative resistor, or Servomotor while the

power

is being supplied or soon after the

power is turned OFF

. Doing so may result in

a skin burn due to the hot surface.

Caution Do not conduct a dielectric strength test on any part of the Inverter. Doing so may

result in damage to the product or malfunction.

Caution Take

appropriate and suf

ficient

countermeasures when installing systems in the fol

lowing locations. Not doing so may result in equipment damage.

S Locations subject to static electricity or other forms of noise. S Locations subject to strong electromagnetic fields and magnetic fields. S Locations subject to possible exposure to radioactivity. S Locations close to power supplies.

Transportation Precautions

Caution Do

not hold by front cover or panel , instead, hold by the radiation fin (heat sink) while

transporting the product. Doing so may result in injury.

Caution Do

not pull on the cables. Doing so may result in damage to the product or malfunc

tion.

Caution Use

the eye-bolts only for transporting the Inverter

. Using them for transporting the

machinery may result in injury or malfunction.

Installation Precautions

WARNING Provide an appropriate stopping device on the machine side to secure safety. (A

holding

brake is not a stopping device

for securing safety

.) Not doing so may result in

injury.

WARNING Provide

an external emergency stopping device that allows an instantaneous stop

operation and power interruption. Not doing so may result in injury.

Caution Be sure to install the product in the correct direction and provide specified clear-

ances between the Inverter and control panel or with other devices. Not doing so may result in fire or malfunction.

Caution Do

not allow foreign objects to enter inside the product.

Doing so may result in fire or

malfunction.

Caution Do not apply any strong impact. Doing so may result in damage to the product or

malfunction.

Wiring Precautions

WARNING Wiring must be performed only after confirming that the power supply has been

turned OFF. Not doing so may result in electrical shock.

WARNING Wiring must be performed by authorized personnel. Not doing so may result in

electrical shock or fire.

WARNING Be

sure to confirm operation only after wiring the emergency stop circuit. Not doing

so may result in injury.

WARNING Always

connect the ground terminals to a ground of 100 Ω or less for the 200-V AC

class,

or 10 Ω or less for the 400-V AC class. Not connecting to a proper ground may

result in electrical shock.

Caution Install

external breakers and take other safety measures against short-circuiting in

external wiring. Not doing so may result in fire.

Caution Confirm

that the rated input voltage of the Inverter is the same as the AC power sup

ply voltage. An incorrect power supply may result in fire, injury, or malfunction.

Caution Connect

the Braking Resistor and Braking Resistor Unit as specified in the manual.

Not doing so may result in fire.

Caution Be

sure to wire correctly and securely

. Not doing so may result in injury or damage

the product.

Caution Be

sure

to firmly tighten the screws on the terminal block. Not doing so may result in

fire, injury, or damage to the product.

Caution Do

not connect an AC power to the U, V

, or W output. Doing so may result in

damage

to the product or malfunction.

Operation and Adjustment Precautions

WARNING Turn

ON the input power supply only after mounting the front cover

, terminal covers, bottom cover, Operator, and optional items. Not doing so may result in electrical shock.

WARNING Do

not remove the front cover

, terminal covers, bottom cover

, Operator

, or optional

items

while the power is being supplied. Not doing so may result in electrical shock or

damage to the product.

WARNING Do not operate the Operator or switches with wet hands. Doing so may result in

electrical shock.

WARNING Do not touch the inside of the Inverter. Doing so may result in electrical shock.

WARNING Do

not come close to the

machine when using the error retry function because the

machine

may abruptly start when stopped by an alarm. Doing so may result in injury

WARNING Do not come close to the machine immediately after resetting momentary power

interruption

to avoid an unexpected restart (if operation is set to be continued in the

processing

selection function after momentary power interruption is reset). Doing

may result in injury.

WARNING Provide

a separate emergency stop switch because the ST

OP Key on the Operator

valid

only when function settings are performed. Not doing so may result in injury

WARNING Be sure confirm that the RUN signal is turned OFF before turning ON the power

supply, resetting the alarm, or switching the LOCAL/REMOTE selector. Doing so while the RUN signal is turned ON may result in injury.

Caution Be sure to confirm permissible ranges of motors and machines before operation

because the Inverter speed can be easily changed from low to high. Not doing so may result in damage to the product.

Caution Provide

a separate holding brake when necessary

. Not doing so may result in injury

Caution Do

not perform a signal check during

operation. Doing so may result in injury or dam

age to the product.

Caution Do not carelessly change settings. Doing so may result in injury or damage to the

product.

Maintenance and Inspection Precautions

WARNING Do not touch the Inverter terminals while the power is being supplied.

WARNING Maintenance or inspection must be performed only after turning OFF the power

supply, confirming that the CHARGE indicator (or status indicators) is turned

OFF

and

after waiting for the time specified on the front cover

. Not doing so may result in

electrical shock.

WARNING Maintenance, inspection, or parts replacement must be performed by authorized

personnel. Not doing so may result in electrical shock or injury.

WARNING Do not attempt to take the Unit apart or repair. Doing either of these may result in

electrical shock or injury.

Caution Carefully handle the Inverter because it uses semiconductor elements. Careless

handling may result in malfunction.

Caution Do not change wiring, disconnect connectors, the Operator, or optional items, or

replace

fans while power is being supplied. Doing so may result in injury

, damage to

the product, or malfunction.

Warning Labels

Warning labels are pasted on the product as shown in the following illustration. Be sure to follow the instructions given there.

H Warning Labels

Warning

label

H Contents of Warning

Checking Before Unpacking

H Checking the Product

On delivery, always check that the delivered product is the SYSDRIVE 3G3HV Inverter that you ordered.

Should you find any problems with the product, immediately contact your nearest local sales representative.

D Checking the Nameplate

Inverter

model

Input specifications Output specifications

D Checking the Model

3G3HV-A2037-CUE

Applicable standards Maximum applicable motor capacity Voltage class

Enclosure rating Series name: 3G3HV Series

Specification

(non) Japanese models

-E English models

-CE Conforms to EN standards

-CUE Conforms to EN and UL/cUL standards

Maximum Applicable Motor Capacity

037 3.7 kW 055 5.5 kW 075 7.5 kW 110 11 kW 150 15 kW 185 18.5 kW 220 22 kW 300 30 kW 370 37 kW 450 45 kW 550 55 kW 750 75 kW 11K 110 kW 16K 160 kW 18K 185 kW 22K 220 kW 30K 300 kW

Voltage Class

2 Three-phase 200-V AC input (200-V class) 4 Three-phase 400-V AC input (400-V class)

Enclosure Rating

A Panel-mounting (IP10 min.) or closed wall-mounting model B Panel-mounting (IP00)

D Checking for Damage

Check

the overall appearance and check for damage or scratches resulting from transportation.

Check

that parts connected by screws are securely fastened.

H Checking the Accessories

Note

that this manual is the only accessory provided with the 3G3HV. Set screws and other necessary

parts must be provided by the user.

About this Manual

This manual is divided into the chapters described in the following table. Information is organized by application area to enable you to use the manual more efficiently.

Chapter Contents

Chapter 1 Introduction Describes functions and nomenclature. Chapter 2 Installation Provides dimensions, installation methods, and wiring methods. Chapter 3 Preparing for Operation Describes procedures required for preparing the Inverter and Digital

Operator for operation. It is divided into the following areas: Preparation Procedure

Outlines the procedures required to use the Inverter from purchase right up to actual operation.

Using the Digital Operator Describes the nomenclature, operating methods, such as Digital Operator key operations, and monitor functions.

Test Run Describes how to perform a test run using the Digital Operator to confirm operation for the Inverter and the system in which it is to be used.

Basic Operation Describes the functions used for the basic control. The functions described here are the minimum required for running a motor with an Inverter.

Applied Operation Describes all the applied functions that are available with the Inverter. This includes explanations for functions that can be used to improve the responsiveness (torque characteristic) and the speed accuracy, as well as additional functions such as PID control and overtorque detection.

Chapter 4 Operation Provides information related to Inverter maintenance. This includes

possible causes and countermeasures for errors, as well as inspection procedures.

Chapter 5 Specifications Provides Inverter specifications, as well as the specifications and

dimensions of peripheral devices.

Chapter 6 Appendix Provides notes on using the Inverter on a motor and gives a list of

standard models. It also provides ordered lists of parameters for easy reference. The parameter lists include page references.

Table of Contents

Chapter 1. Introduction .

. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1-1 Function . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1-2 Nomenclature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

1-3 Additional Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Chapter

2. Installation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2-1 Mounting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2-1-1 Dimensions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2-1-2 Installation Conditions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2-2 Wiring . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2-2-1 Removing and Mounting the Front Cover . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2-2-2 Terminals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2-2-3 Standard Connection Diagram . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2-2-4 Wiring Around the Main Circuit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

2-2-5 Wiring Control Circuit Terminals . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Chapter 3. Pr

eparing for Operation. . . . . . . . . . . . . . . . . . . . . . . . . . .

3-1 Preparation Procedure . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3-2 Using the Digital Operator . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3-2-1 Nomenclature . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3-2-2 Summary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3-3 Test Run . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3-4 Basic Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3-5 Applied Operation . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3-5-1 Energy-saving Mode . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3-5-2 PID Control . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3-5-3 List of Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

3-5-4 Parameters in Detail . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Chapter

4. Operation. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4-1 Protective and Diagnostic Functions . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4-2 Troubleshooting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

4-3 Maintenance and Inspection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Chapter

5. Specifications. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5-1 Specifications of Inverters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5-2 Specifications of Peripheral Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5-2-1 Peripheral Devices . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5-2-2 3G3HV-PCMA2 Voltage/Current Conversion Card . . . . . . . . . . . . . . . . . . . . . . . . . . .

5-2-3 K3TJ-V11j Scaling Meter . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5-2-4 3G3IV-PJVOP96j Analog Operator (Standard Model with Steel Casing) . . . . . . . .

5-2-5 3G3IV-PJVOP95j Analog Operator (Miniature Model with Plastic Casing) . . . . . .

5-2-6 3G3IV-PCDBRjB Braking Unit (Yaskawa Electric) . . . . . . . . . . . . . . . . . . . . . . . . .

5-2-7 3G3IV-PLKEBj Braking Resistor Unit . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5-2-8 3G3HV-PUZDABjAjMH DC Reactor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5-2-9 3G3IV-PUZBABjAjMH AC Reactor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5-2-10 Simple Input Noise Filter and Input Noise Filter . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

5-2-11 3G3IV-PLFj Output Noise Filter (Tokin Corp.) . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Table of Contents

Chapter

6. Appendix. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

6-1 Notes on Using the Inverter for a Motor . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

6-2 List of Parameters . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Revision History . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .

Chapter 1

Introduction

1-1 Function 1-2 Nomenclature 1-3 Additional Functions

1-2

1-1 Function

The

3G3HV High-capacity General-purpose Inverter is an easy-to-use inverter that has

advanced features, such as PID control and energy-saving operations.

H SYSDRIVE 3G3HV Inverter Models

• The following 200- and 400-V class 3G3HV Inverter models are available.

• A

total of 21 types of Inverter are available for maximum applicable

motor capacities of 0.4 to 300 kW

Voltage class Protective structure Maximum applied motor

capacity

Model

200-V Class

NEMA1 type

3.7 kW 3G3HV-A2037-E

(3-phase)

5.5 kW 3G3HV-A2055-E

7.5 kW 3G3HV-A2075-E 11 kW 3G3HV-A2110-E 15 kW 3G3HV-A2150-E

Open chassis type

18.5 kW 3G3HV-B2185-E

22 kW 3G3HV-B2220-E 30 kW 3G3HV-B2300-E 37 kW 3G3HV-B2370-E 45 kW 3G3HV-B2450-E 55 kW 3G3HV-B2550-E 75 kW 3G3HV-B2750-E

400-V Class

NEMA1 type

3.7 kW 3G3HV-A4037-E

(3-phase)

5.5 kW 3G3HV-A4055-E

7.5 kW 3G3HV-A4075-E 11 kW 3G3HV-A4110-E 15 kW 3G3HV-A4150-E

Open chassis type

18.5 kW 3G3HV-B4185-E

22 kW 3G3HV-B4220-E 30 kW 3G3HV-B4300-E 37 kW 3G3HV-B4370-E 45 kW 3G3HV-B4450-E 55 kW 3G3HV-B4550-E 75 kW 3G3HV-B4750-E 110 kW 3G3HV-B411K-E 160 kW 3G3HV-B416K-E 185 kW 3G3HV-B418K-E 220 kW 3G3HV-B422K-E 300 kW 3G3HV-B430K-E

Introduction Chapter 1

1-3

H Energy-saving Operation

• The rotation speed of a three-phase induction motor does not decrease when the supply voltage drops

if the motor has a light load. The 3G3HV Inverter in energy-saving operation automatically de

tects

the current consumption of the motor connected to the Inverter

, estimates its load, and drops the

output voltage, thus saving the power consumption of the motor efficiently.

• Use

the auto-tuning function of the Inverter in energy-saving mode to reduce the power consumption

of the motor most efficiently if the ratings of the motor are unknown.

• The Inverter in energy-saving mode is ideal for the following applications.

S Rotation control of fans and blowers S Flow control of pumps S Control of machines with variable loads, such as metal-working machines, wood-working ma-

chines, and food-processing machines

S Control of machines that mainly operate with light loads

H PID Control

• The Inverter has a PID control function, thus performing follow-up control with ease.

• Follow-up control is a control method in which the Inverter uses a sensor and senses the rotation

speed of the motor and changes the output frequency to control the rotation speed of the motor.

• Follow-up control can be applied to a variety of control operations.

• PID control is ideal for the following applications.

S Speed control: With a speed sensor, such as a tachometric generator, the Inverter regu-

lates

the rotation speed of the motor regardless of the load of the motor or

synchronizes the rotation speed of the motor with that of another motor.

S Pressure control: With a pressure sensor, the Inverter performs constant pressure control. S Current control: With a current sensor, the Inverter performs precise current control. S Temperature control: With

a temperature sensor and fan,

the Inverter performs temperature con

trol.

H Frequency Reference

• The

following three types of frequency references

are possible to control the output frequency of the

Inverter.

S Numeric input from the Digital Operator of the Inverter S Voltage input within a range from 0 to 10 V S Current input within a range from 4 to 20 mA

The Inverter can use one of the above if it is designated with parameters.

• A

maximum of four frequency references can be registered with the Inverter

. With remote multi-step

input, the Inverter can be in multi-step speed operation with a maximum of four speed steps.

H Frequency Jump

• The

frequency jump function prevents the Inverter from generating any frequency that causes the ma

chine to resonate.

Introduction Chapter 1

1-4

H Acceleration/Deceleration Time Settings

• The

acceleration time and deceleration time of the Inverter can be set independently within a range of

0.0 to 3,600 s.

• Two

acceleration times and two deceleration times can be

set with the Inverter

, any of which can be

selected with remote output.

H V/f Settings

• Select a V/f pattern out of the 15 V/f patterns preset with the Inverter according to the application.

• An optional V/f pattern can be set with the Inverter.

H Monitor Function

• The following items can be monitored with the Digital Operator.

Frequency

reference, output frequency

, output current, output voltage, DC voltage, output power

, status of input terminals, inverter status, power interruption error, PROM number, total operating time, and PID feedback value

H Low Noise (3.7- to 160-kW Models)

• The

output transistor of the Inverter is an IGBT (insulated gate bipolar transistor). Using a sine-wave

PWM method with a high-frequency carrier, the motor does not generate metallic noise.

H High Torque at Low Output Frequency Range

• A

torque rate of 150% can be achieved even in a low

speed range where output frequency is only 3 Hz.

H Automatic Torque Boost

• The

Inverter automatically adjusts the output according to the required torque of the motor that is

rotat

ing at constant or accelerative speed, thus ensuring the powerful rotation of the motor.

H Harmonic Countermeasures (3.7- to 160-kW Models)

• DC reactors (optional) can be connected to 3.7- to 15-kW models.

• Models of 18.5- to 160-kW have a built-in DC reactor and also employ 12-pulse rectification, which

suppresses harmonics better than a reactor.

Introduction Chapter 1

1-5

1-2 Nomenclature

H Panel

Protection cover (top and bottom)

Mounting hole

Heat sink

Digital Operator

Front cover

Terminals

Introduction Chapter 1

1-6

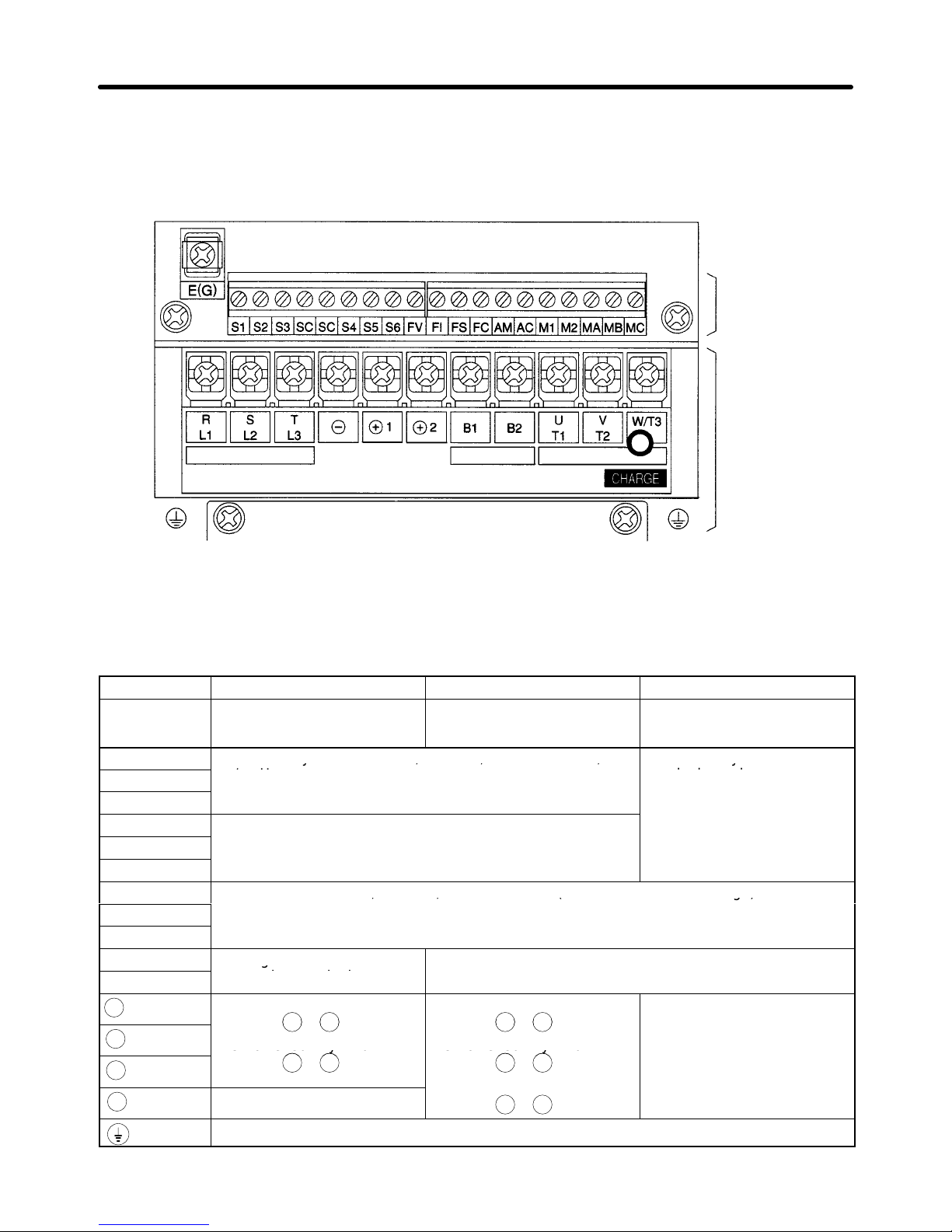

D Terminals (with Front Cover Removed)

Example: 200-V Class Inverter with 3.7-kW Output

Power

input

Braking

Resistor

Motor

output

Control circuit terminals

Main circuit terminals

H Digital Operator

Easy-setting

indicators

Displays basic parameter constants and monitor items.

Mode Key

Switches basic parameter constant and monitor items.

Operation Mode Selection Key

Switches between operation by the Digital Operator and operation specified in the operation mode selection parameter (n002).

Run Key

Starts the Inverter

Operation Mode Indicators

External Operation: Lit when operating references from exter

nal terminals are in ef

fect. Analog Input: Lit when high-frequency references from external analog terminals are in ef

fect.

Data Display

Displays frequency reference, out

put frequency

, output current, constant set values, Inverter status, etc.

Enter Key

Enters set value when pressed after constant has been set.

Increment Key

Increments numbers when pressed during setting of constant number and constant data.

Decrement Key

Decrements numbers when pressed during setting of constant number and constant data.

Stop/Reset Key

Stops the Inverter

. Also resets after

alarm has been generated. (See note.)

DIGITAL OPERATOR PJVOP131E

Fref Fout Iout kWout

F/R Montr Accel Decel

Vmtr V/F Fgain Fbias

FLA PID kWsav PRGM

LOCAL

REMOTE

RUN

STOP

RESET

REMOTE

SEQ REF

Note For

safety reasons, the reset function cannot be

used while the run command (forward/reverse) is

being input. Turn the run command OFF before using the reset function.

Introduction Chapter 1

1-7

1-3 Additional Functions

New functions have been added to the following versions, for which production was started in April 1997.

3.7 to 15-kW models: Software version S2011 (VSP102011) or later

18.5 to 55-kW models: Software version S3012 (VSP103012) or later

Note:

The software version can be confirmed by viewing the 4-digit PROM number with the monitor function. This number is set to the number of the software version. The

functions that have been added with these versions and outlines of these functions

are given below. For details of the functions, refer to

Section 4 Operation

H Independent Initialization for Motor Rotation Direction

Although

the functionality of the forward/reverse rotation selection parameter (n005) itself has not been

changed,

with new models it will not be initialized when the parameter write prohibit selection/parame

ter initialization parameter (n001) is set to 6 or 7.

H V/f Default Settings Changed (Inverters of 55 kW or More)

The

default settings for V/f patterns have been changed for

the Inverters of 55 kW or more as shown

below.

Model Intermediate output frequency

voltage (n016)

Minimum output frequency

voltage (n018)

3G3HV-A2550 12.0 V 6.0 V 3G3HV-A4550 24.0 V 12.0 V

H Output Frequency Upper Limit Changed

The upper limit of the setting range for the output frequency upper limit parameter (n030) has been changed.

The addition of a slip compensation function means that frequencies greater than the maxi

mum frequency (n012) may occur (because the frequency reference is added to the compensation value).

For this reason, the upper limit of the setting range of the output frequency upper limit parameter

(n030) has been increased from 100% to 109%.

H PID Input Characteristic Selection Function (n039)

PID input characteristic selection input (set value: 27) function has been added to the multi-function

input 5 parameter (n039) that determines the function of terminal S6.

H Carrier Frequency Settings Increased (n050)

The setting 7.0 Hz (set value: 10) has been added to the available carrier frequency settings.

H Minimum Baseblock Time Setting Range Increased (n053)

The

setting range for the minimum baseblock time has been increased from the range 0.5 to 5.0 s to the

range 0.5 to10.0 s for increased motor responsiveness.

H Slip Compensation Function (n109 to n111)

function that compensates for motor slip, a characteristic of induction motors, has been added. Using

this

function, the amount of slip is estimated

from the output current of the Inverter

, and the output fre

Introduction Chapter 1

1-8

quency

is compensated accordingly

. By using the slip compensation function, speed fluctuations of the

load can be reduced more effectively than with previous models.

H Changing Parameters while Inverter is Running

is now possible to change some

parameters and, related to this, monitor and set the items in the bot

tom

two lines of

easy-setting indicators while the Inverter is running. Using this feature, set values for

some

parameters can be adjusted while monitoring operation. For details of which parameters can be

changed while the Inverter is running, refer to the parameter lists.

H Operation Selection at Digital Operator Interruption Function (n112)

function that detects communications errors between the Digital Operator and the Inverter itself, and

interrupts Inverter outputs has been added.

H Settable Detection Width (n113)

The

detection width of the optional frequency agreement and

the optical frequency detection can be set

with parameters. With previous models this setting was fixed.

H Operation Selection at Operation Mode Switching (Local/Remote

Switching) (n114)

Using

the Operation Mode Selection Key on the Digital Operator or operation mode selection input set using the multi-function input parameters (set value: 5), it is possible to switch between operation from the

Digital Operator and operation according

to the setting of the operation mode selection parameter (n002). A function that selects whether run signals input while the operation mode is switching are enabled or disabled after the mode has changed, has been added.

Note If

this setting is set to enable run commands, when the operation mode changes the Inverter will

start running immediately. Take steps to ensure safety for such operation.

Introduction Chapter 1

Chapter 2

Installation

2-1 Mounting 2-2 Wiring

2-2

2-1 Mounting 2-1-1 Dimensions

H 3G3HV-A2037/-A4037

D External Dimensions D Mounting Dimensions

Two,

5.5-dia. Four, M5

H 3G3HV-A2055/-A2075/-A4055/-A4075

D External Dimensions D Mounting Dimensions

Two,

7-dia.

Four, M5

Installation Chapter 2

2-3

H 3G3HV-A2110/-A2150/-A4110/-A4150

D External Dimensions D Mounting Dimensions

Two,

7-dia.

Four, M5

Note *The dashed lines apply only to the A2150.

H 3G3HV-B2185/-B2220/-B4185/-B4220/-B4300/-B4450

D External Dimensions D Mounting Dimensions

Four, M5

Voltage class

Model 3G3HV-

Dimensions (mm)

H H1 D1

200-V B2185/B2220 450 435 174.5 400-V

B4185/B4220 450 435 174.5 B4300/B4370/B4450 526 610 175

Installation Chapter 2

2-4

H 3G3HV-B2300/-B2370/-B2450/-B2550/-B4550/-B4750

D External Dimensions D Mounting Dimensions

Two,

12-dia.

Four

, M10

Voltage class Model 3G3HV-

Dimensions (mm)

W H W1 H1

200-V

B2300/B2370 425 675 320 650 B2450/B2550 475 800 370 775

400-V B4550/B4750 455 820 350 795

Installation Chapter 2

2-5

H 3G3HV-B2750/-B411K/-B416K

Two,

14 dia.

Four

, M12

D External Dimensions D Mounting Dimensions

Voltage

class

Model 3G3HV-

Dimensions (mm)

D D2 W2

200-V B2750 400 max. 158 695 400-V

B411K 375 max. 130 695 B416K 400 max. 158 695

Installation Chapter 2

2-6

H 3G3HV-B418K/-B422K

Six,

14 dia.

Six, M12

D External Dimensions D Mounting Dimensions

H 3G3HV-B430K

D External Dimensions D Mounting Dimensions

Six,

14 dia.

Six, M12

Installation Chapter 2

2-7

D Digital Operator Installation

Panel cutout (for cables)

Two, 4 dia.

Panel face

Front side of panel

Back side of panel

30 min.

125

18.8

2-1-2 Installation Conditions

H Cautions and Warnings

WARNING Provide an appropriate stopping device on the machine side to secure safety. (A

holding

brake is

not a stopping device for securing safety

.) Not doing so may result in

injury.

WARNING Provide

an external emergency stopping device that

allows an instantaneous stop of

operation and power interruption. Not doing so may result in injury.

Caution Be sure to install the product in the correct direction and provide specified clear-

ances between the Inverter and control panel or with other devices. Not doing so may result in fire or malfunction.

Caution Do

not allow foreign objects to

enter inside the product. Doing so may result in fire or

malfunction.

Caution Do not apply any strong impact. Doing so may result in damage to the product or

malfunction.

Installation Chapter 2

2-8

H Direction and Space

• Install

the Inverter on a vertical surface so that the characters on the nameplate are oriented upward.

• When

installing the Inverter

, always provide the following installation space to allow normal heat dis

sipation from the Inverter.

W = 30 mm min.

Inverter Inverter Inverter

120 mm min.

Air

Side

Air

H Installation Site

• Install the Inverter under the following conditions.

NEMA1 Type

Ambient temperature for operation: –10 to 40°C Humidity: 90% RH or less (no condensation)

Open Chassis Type

Ambient temperature for operation: –10 to 45°C Humidity: 90% RH or less (no condensation)

Note A

protection cover is attached to the top and bottom of the Inverter

. Be sure to remove the protec

tion

covers before installing the 200- or 400-V Class Inverter that has an output of 15 kW or less to

a panel.

• Install

the Inverter in a clean location free from oil mist and dust. Alternatively

, install it in a totally en

closed panel that is completely shielded from floating dust.

• When

installing or operating the Inverter, always take special care so that metal powder

, oil, water

, or

other foreign matter does not get into the Inverter.

• Do not install the Inverter on inflammable material such as wood.

H Ambient Temperature Control

• To

enhance operation reliability

, the Inverter should be installed in an environment free from extreme

temperature rises.

• If

the Inverter is installed in an enclosed environment such as a box, use a cooling fan or air conditioner

to maintain the internal air temperature below 45°C.

Installation Chapter 2

2-9

H Protecting Inverter from Foreign Matter during Installation

• Place a cover over the Inverter during installation

to shield it from metal power produced by drilling.

• Upon

completion of installation, always remove the cover from the Inverter

. Otherwise, ventilation will

be affected, causing the Inverter to overheat.

Installation Chapter 2

2-10

2-2 Wiring

WARNING Wiring must be performed only after confirming that the power supply has been

turned OFF. Not doing so may result in electrical shock.

WARNING Wiring must be performed by authorized personnel. Not doing so may result in

electrical shock or fire.

WARNING Be

sure to confirm operation only after wiring the emergency stop circuit. Not doing

so may result in injury.

WARNING Always

connect the ground terminals to a ground of 100 Ω or less for

the 200-V AC

class,

or 10 Ω or less for the 400-V AC class. Not connecting to a

proper ground may

result in electrical shock.

Caution Install

external breakers and take other safety measures

against short-circuiting in

external wiring. Not doing so may result in fire.

Caution Confirm

that the rated input voltage of the Inverter is the same as the AC power sup

ply voltage. An incorrect power supply may result in fire, injury, or malfunction.

Caution Connect

the Braking Resistor and Braking Resistor Unit as specified

in the manual.

Not doing so may result in fire.

Caution Be

sure to wire correctly and securely

. Not doing so may result

in injury or damage to

the product.

Caution Be

sure to firmly tighten the screws on the terminal block. Not doing so may result in

fire, injury, or damage to the product.

Caution Do

not connect an AC power to the U, V

, or W output. Doing

so may result in damage

to the product or malfunction.

Installation Chapter 2

2-11

2-2-1 Removing and Mounting the Front Cover

Remove

the front cover

to wire the terminals. Remove the Digital Operator from the front

cover

before removing the front cover

. Do not remove or mount the front cover without first removing the Digital Operator, otherwise Digital Operator may malfunction due to imperfect contact.

H Removing the Digital Operator

• Press

the lever on the side of the Digital Operator in the arrow 1 direction to unlock the Digital Opera

tor and lift the Digital Operator in the arrow 2 direction to remove the Digital Operator as shown in the following illustration.

H Removing the Front Cover

• Press

the left and right sides of the front cover in

the arrow 1 directions and lift the bottom of the cover

in the arrow 2 direction to remove the front cover as shown in the following illustration.

Installation Chapter 2

2-12

H Mounting the Front Cover

• Mount

the front cover to the Inverter

by taking in reverse order to the steps to remove the front cover

after wiring the terminals.

• Do not mount the front cover with the Digital Operator attached to the front cover, otherwise Digital Operator may malfunction due to imperfect contact.

• Insert

the tab of the

upper part of the front cover into the groove of the Inverter and press the lower part

of the front cover onto the Inverter until the front cover snaps shut.

H Attaching the Digital Operator

• Hook

the Digital Operator on clicks A of the front cover in the arrow 1 direction as shown

in the follow

ing illustration.

• Press the Digital Operator in the arrow

direction until it snaps shut with clicks B.

Clicks A

Clicks B

Note Do

not remove or attach the

Digital Operator or mount or remove the front cover using methods

other

than those mentioned above, otherwise the Inverter may malfunction due to imperfect con

tact or break.

H Removing the Front Cover of the Inverter with 18.5-kW Output or More

• The

front cover can be removed without removing the Digital Operator from the Inverter provided that

the Inverter is a model with an output of 18.5 kW or more.

• Loosen

the four screws of the front cover and move the front cover slightly upwards to remove the front

cover.

Installation Chapter 2

2-13

2-2-2 Terminals

H Terminal Block Configuration (200-V Class with 3.7-kW Output)

Power

input

Braking

Resistor

Motor

output

Control circuit terminals

Main circuit terminals

H Main Circuit Terminals

D 200-V Class

Model 3G3HV- A2037 to A2075 A2110 to A2150 B2185 to B2750

Maximum

applied motor

capacity

3.7 to 7.5 kW 11 to 15 kW 18.5 to 75 kW

L1 (R)

Power supply input terminals, 3-phase, 200 to 230 VAC,

Power supply input

L2 (S)

y,, ,

50/60 Hz

terminals, 3-phase, 200 to

L3 (T)

230 VAC, 50/60 Hz

L11 (R1)

--L21 (S1) L31 (T1) T1 (U)

Motor output terminals, 3-phase, 200 to 230 VAC (correspond to input voltage)

T2 (V)

,, ( g)

T3 (W) B1

Braking Resistor Unit

---

connection terminals

DC reactor connection

---

terminal ( 1-2)

DC power supply input

+ +

terminal ( 1-2)

DC power supply input

+ +

–

DC ower su ly in ut

terminal ( 1- )

+ –

DC ower su ly in ut

terminal ( 1- )

+ –

---

BrakingUnit

connection

terminal ( 3- )

+ –

Ground the terminal at a resistance of less than 100 Ω.

Installation Chapter 2

2-14

D 400-V Class

Model 3G3HV- A4037 to A4150 B4185 to B416K B418K to B430K

Maximum

applied motor

capacity

3.7 to 15 kW 18.5 to 160 kW 185 to 300 kW

L1 (R)

Power supply input Power supply input Power supply input

L2 (S)

terminals, 3-phase, 380 to

L3 (T)

460 VAC, 50/60 Hz 460 VAC, 50/60 Hz 460 VAC, 50/60 Hz

L11 (R1)

--- --L21 (S1) L31 (T1) T1 (U)

Motor output terminals, 3-phase, 380 to 460 VAC (correspond to input voltage)

T2 (V)

,, ( g)

T3 (W) B1

Braking Resistor Unit

---

connection terminals

DC reactor connection terminal ( 1- 2)

+ +

---

DC power supply input terminal ( 1- )

+ –

()

DC power supply input

---

–

terminal ( 1- )

+ –

Braking Unit connection

---

terminal ( 3- )

+ –

Ground the terminal at a resistance of less than 10 Ω.

Installation Chapter 2

2-15

H Control Circuit Terminals for All 3G3HV Models

Symbol Name Function Signal

level

Input

S1 Forward run/Stop Stops at OFF.

Photocoupler

S2 Multi-function input 1 (S2) Set by constant n035 (reverse run/stop).

24 VDC, 8 mA

S3 Multi-function input 2 (S3) Set by constant n036 (external error a). S4 Multi-function input 3 (S4) Set by constant n037 (error reset). S5 Multi-function input 4 (S5) Set by constant n038 (multi-step speed

reference 1).

S6 Multi-function input 5 (S6) Set by constant n039 (multi-step speed

reference 2). SC Sequence input common Common for S1 to S6. FS Frequency reference power supply DC power supply for frequency reference. 15 VDC, 20 mA FV Frequency reference input (voltage) Voltage input terminal for frequency refer-

ence.

0 to 10 VDC (Input impedance: 20 kΩ)

FI Frequency reference input (current) Current input terminal for frequency refer-

ence.

4 to 20 mA (Input impedance:

250 kΩ) FC Frequency reference input common Common for FV, F1. --E

(G)

Shielded wire connection ground Shielded terminal for sequence and fre-

quency reference inputs. (see note 2)

---

Output

MA Multi-function contact output 1 (normally

open)

Set by constant n040 (error) Contact output

30 VDC, 1 A MB Multi-function contact output 1 (normally

closed)

max.

250 VAC, 1 A MC Multi-function contact output 1 common Common for MA, MB

max. M1 Multi-function contact output 2 (normally

open)

Set by constant n041 (running)

M2 Multi-function contact output 2 common Common for M1 AM

Multi-function analog output

Set by constant n048 (output frequency)

0 to 10 VDC, AC Multi-function analog output common Common for AM

2 mA

Note 1. Parameter

settings can be used

to select various functions for multi-function inputs 1 to 5 and the multi-function contact output. The functions in parentheses are the default settings.

Note 2. Do not connect a grounding wire to the E (G) terminal. Connect the grounding wire to the

ground terminal of the main circuit terminals.

Installation Chapter 2

2-16

2-2-3 Standard Connection Diagram

D For Inverter Models of 200- to 400-V Class with 3.7- to 15-kW Output

Three-phase, 200 (400) VAC

DC reactor (External connection possible)

Forward rotation/Stop

Multi-function input

Multi-function input 2

Multi-function input 4 Multi-function input 5

Multi-function input 3

Common

Shielded wire

Variable resistor for frequency reference (voltage input) (2 kΩ, 1/4 W min.)

Frequency

reference

(current input)

Note: These terminals of the 3G3HV-A2110 and 3G3HV-A2150

connect to the Braking Unit and Braking Resistor Unit.

Braking Resistor Unit (see note) (optional)

Three-phase induction motor

Multi-function contact output 1 (Normally open contact) (Normally closed contact)

Common

Multi-function contact output 2

Common

Multi-function analog output

Voltmeter

L1 (R) L2 (S)

L3 (T)

T1 (U) T2 (V)

T3 (W)

D Example of Wiring for 3-wire Sequential Operation

Stop switch

(NC)

Operation switch

(NO)

Run command (Operates when the operation switch is closed)

Stop command (Stops when the stop switch is open)

Forward/Reverse rotation command

Installation Chapter 2

2-17

D For Inverter Models of 200- to 400-V Class with 18.5- to 300-kW Output

Three-phase, 200 (400) VAC

Forward rotation/Stop

Multi-function input

Multi-function input 2

Multi-function input 4

Multi-function input 5

Multi-function input 3

Common

Shielded wire

Variable resistor for frequency reference (voltage input)

Frequency

reference

(current input)

Note 1. The Braking Unit or Braking Resistor Unit cannot be connected to the Inverter

(18.5 kW to 160 kW). However, 185-kW to 300-kW models can be connected.

Note 2. Make sure that terminals R and R1, S and S1, and T and T1 are short-circuited.

These terminals are short-circuited

with short bars before shipping. Be sure to re

move the short bars, however, when using 12-pulse rectification.

Note 3. Terminals

1 (R1), L21 (S1), and L31 (T1) are not available on the 185- to 300-kW

Inverters.

Note 4. The

185- to 300-kW Inverters do not have built-in DC

reactors, nor can DC reactors

be externally connected.

Three-phase induction motor

Multi-function contact output 1 (Normally open contact) (Normally closed contact)

Common

Multi-function contact output 2

Common

Multi-function analog output

Voltmeter

L1 (R)

L2 (S)

L3 (T)

T1 (U) T2 (V)

T3 (W)

1 (R1)

L21 (S1)

L31 (T1)

See note 3

D Example of Wiring for 3-wire Sequential Operation

Stop switch

(NC)

Operation switch

(NO)

Run command (Operates when the operation switch is closed)

Stop command (Stops when the stop switch is open)

Forward/Reverse rotation command

Installation Chapter 2

2-18

2-2-4 Wiring Around the Main Circuit

System

reliability

and noise resistance are af

fected by the wiring method used. There

fore,

always follow the instructions given below when connecting the Inverter to periph

eral devices and other parts.

H Wire Size and Round Solderless Terminal

For the main circuit and ground, always use 600-V polyvinyl chloride (PVC) cables. If

the cable is long and may cause voltage drops, increase the wire size

according to the cable length.

D Wire Sizes

Voltage class Model Terminal Terminal

screw

Wire

thickness

(mm2)

200-V Class 3G3HV-A2037

L1, L2, L3, (–), (+)1, (+)2, B1, B2, T1, T2, T3

M4 5.5

3G3HV-A2055

L1, L2, L3, (–), (+)1, (+)2, B1, B2, T1, T2, T3

5.5 to 8

3G3HV-A2075

L1, L2, L3, (–), (+)1, (+)2, B1, B2, T1, T2, T3

5.5 to 8

3G3HV-A2110

L1, L2, L3, (–), (+)1, (+)2, (+)3, T1, T2, T3

22 8

3G3HV-A2150

L1, L2, L3, (–), (+)1, (+)2, (+)3, T1, T2, T3 M8 30

M6 8

3G3HV-B2185

L1, L2, L3, L11, L21, L31, T1, T2, T3

30 14

3G3HV-B2220

L1, L2, L3, L11, L21, L31, T1, T2, T3

38 14

3G3HV-B2300

L1, L2, L3, L11, L21, L31, T1, T2, T3 M10 100

M8 22

3G3HV-B2370

L1, L2, L3, L11, L21, L31, T1, T2, T3 M10 60 x 2P

M8 22

3G3HV-B2450

L1, L2, L3, L11, L21, L31, T1, T2, T3 M10 60 x 2P

M8 22

3G3HV-B2550

L1, L2, L3, L11, L21, L31, T1, T2, T3 M10 60 x 2P

M8 30

3G3HV-B2750

L1, L2, L3, L11, L21, L31, T1, T2, T3 M12 100 x 2P

M8 50

Installation Chapter 2

2-19

Voltage class Model Terminal Terminal

screw

Wire

thickness

(mm

)

400-V Class 3G3HV-A4037

L1, L2, L3, (–), (+)1, (+)2, B1, B2, T1, T2, T3

2 to 5.5

3.5 to 5.5

3G3HV-A4055

L1, L2, L3, (–), (+)1, (+)2, B1, B2, T1, T2, T3

M4 3.5 to 5.5

3G3HV-A4075

L1, L2, L3, (–), (+)1, (+)2, B1, B2, T1, T2, T3

M4 5.5

3G3HV-A4110

L1, L2, L3, (–), (+)1, (+)2, B1, B2, T1, T2, T3 M5 8 to 14

M6 8

3G3HV-A4150

L1, L2, L3, (–), (+)1, (+)2, B1, B2, T1, T2, T3 M5 8 to 14

M6 8

3G3HV-B4185

L1, L2, L3, L11, L21, L31, T1, T2, T3 M6 14

M8 8

400-V Class 3G3HV-B4220

L1, L2, L3, L11, L21, L31, T1, T2, T3 M6 22

M8 8

3G3HV-B4300

L1, L2, L3, L11, L21, L31, T1, T2, T3

22 8

3G3HV-B4370

L1, L2, L3, L11, L21, L31, T1, T2, T3

30 14

3G3HV-B4450

L1, L2, L3, L11, L21, L31, T1, T2, T3

50 14

3G3HV-B4550

L1, L2, L3, L11, L21, L31, T1, T2, T3 M10 100

M8 22

3G3HV-B4750

L1, L2, L3, L11, L21, L31, T1, T2, T3 M10 60 x 2P

M8 22

3G3HV-B411K

L1, L2, L3, L11, L21, L31, T1, T2, T3 M10 60 x 2P

M8 30

3G3HV-B416K

L1, L2, L3, L11, L21, L31, T1, T2, T3 M12 100 x 2P

M8 50

3G3HV-B418K

L1, L2, L3, (–), (+)1, (+)3, T1, T2, T3 M16 325 x 2P

M8 50

3G3HV-B422K

L1, L2, L3, (–), (+)1, (+)3, T1, T2, T3 M16 325 x 2P

M8 60

3G3HV-B430K

L1, L2, L3, (–), (+)1, (+)3, T1, T2, T3 M16 325 x 2P

M8 60

Note The wire thickness is set for copper wires at 75°C.

Installation Chapter 2

2-20

D Round Solderless Terminals and Tightening Torque

Wire thickness

(mm

)

Terminal

screw

Size Tightening

torque (NSm)

0.5 M4 1.25 – 4 1.2

0.75 M4 1.25 – 4 1.2

1.25 M4 1.25 – 4 1.2 2

M4 2 – 4 1.2 M5 2 – 5 2.0 M6 2 – 6 2.5 M8 2 – 8 6.0

3.5/5.5

M4 5.5 – 4 1.2 M5 5.5 – 5 2.0 M6 5.5 – 6 2.5 M8 5.5 – 8 6.0

M5 8 – 5 2.0 M6 8 – 6 2.5 M8 8 – 8 6.0

M6 14 – 6 2.5 M8 14 – 8 6.0

M6 22 – 6 2.5

M8 22 – 8 6.0 30/38 M8 38 – 8 6.0 50/60

M8 60 – 8 6.0

M10 60 – 10 10.0 80

M10

80 – 10 10.0 100 100 – 10 10.0 100

M12

100 – 12 14.0 150 150 – 12 14.0 200 200 – 12 14.0 325

M12 x 2 325 – 12 14.0 M16 325 – 16 25.0

Note Determining Wire Size

Determine

the wire size for

the main circuit so that line voltage drop is within 2% of the rated volt

age.

Line voltage drop is calculated as follows: Line voltage drop (V) = √3 x wire resistance (Ω/km) x wire length (m) x current (A) x 10

–3

Installation Chapter 2

2-21

H Wiring on the Input Side of the Main Circuit

D Installing a Molded-case Circuit Breaker

Always

connect

the power input terminals (R/L1, S/L2, and T/L3) and power supply via a molded case

circuit breaker (MCCB) suitable to the Inverter.

• Install one wiring circuit breaker per Inverter.

• Choose an MCCB with a capacity of 1.5 to 2 times the Inverter’s rated current.

• For

the MCCB’

s time characteristics, be sure to consider the Inverter’s overload protection (one min

ute at 150% of the rated output current).

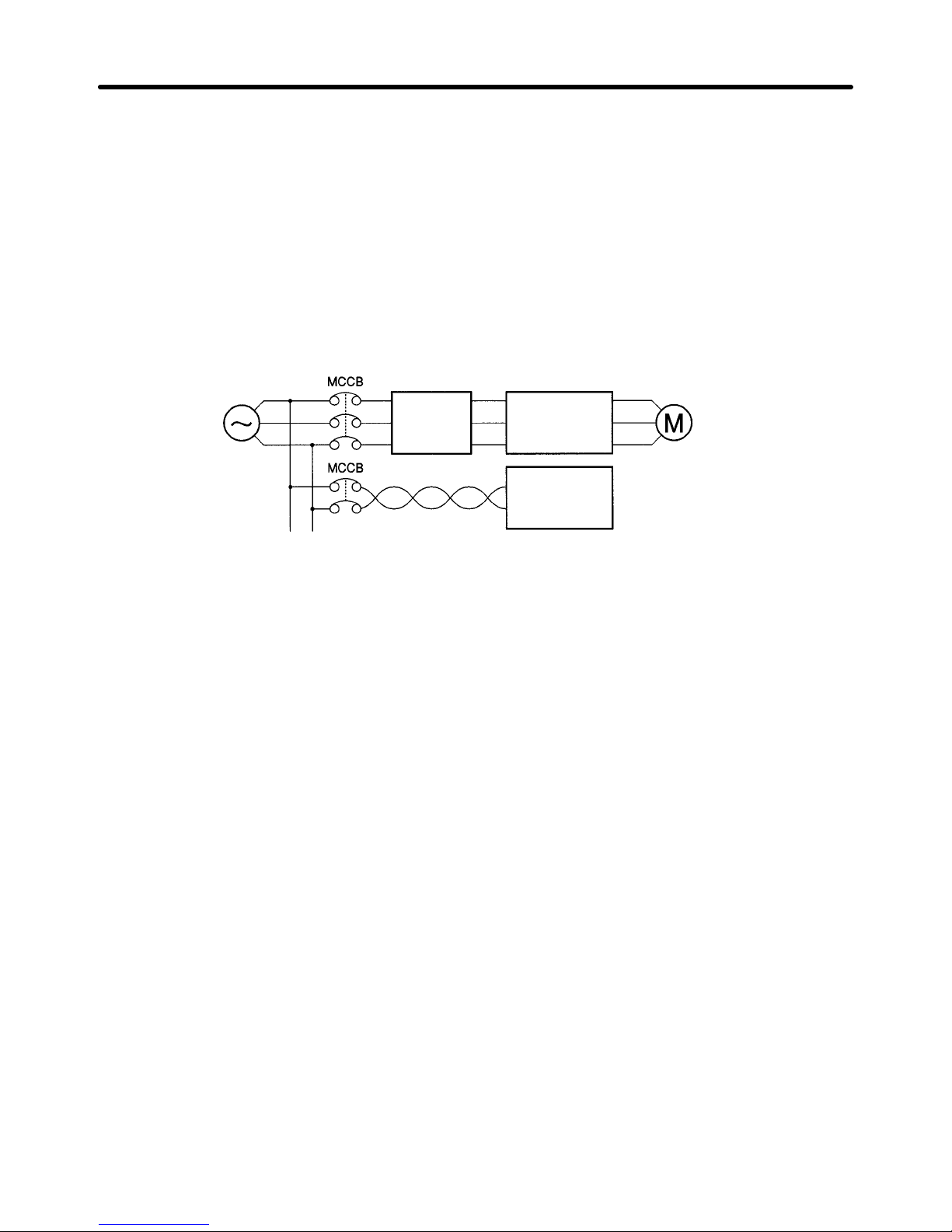

• If

the MCCB is

to be used in common among multiple Inverters, or other devices, set up a sequence

such that the power supply will be turned OFF by a fault output, as shown in the following diagram.

3-phase/ Single-phase 200 V AC 3-phase 400 V AC

Power supply

Inverter

Fault output (NC)

(See note.)

Note Use a 400/200 V transformer for a 400-V model.

D Installing a Ground Fault Interrupter

Inverter outputs use high-speed switching, so high-frequency leakage current is generated. In general, a leakage current of approximately 100 mA will occur for each Inverter (when the power

cable is 1 m) and approximately 5 mA for each additional meter of power cable. Therefore,

at the power supply input area, use

a special-purpose breaker for Inverters, which detects only the leakage current in the frequency range that is hazardous to humans and excludes high-frequency leakage current.

• For the special-purpose breaker for Inverters, choose a ground fault interrupter with a sensitivity

amperage of at least 10 mA per Inverter.

• When

using a general leakage breaker

, choose a ground fault interrupter with a sensitivity amperage

of 200 mA or more per Inverter and with an operating time of 0.1 s or more.

Installation Chapter 2

2-22

D Installing a Magnetic Contactor

the power supply of the main circuit is to be shut of

f because of the sequence, a magnetic

contactor

can be used instead of a molded-case circuit breaker. When a magnetic contactor is installed on the primary side of the main circuit to stop a load forcibly,

however, the regenerative braking does not work and the load coasts to a stop.

• A

load can be started and stopped

by opening and closing the magnetic contactor on the primary side. Frequently opening and closing the magnetic contactor, however, may cause the Inverter to break down.

o maintain the service life of the Inverter’s internal

relays and electrolytic capacitors, it is rec

ommended that this operation be performed no more than once every 30 minutes.

• When the Inverter is operated with the Digital Operator, automatic operation cannot be performed after recovery from a power interruption.

• When

using the Braking Resistor Unit, be sure to arrange a sequence

in which the thermal relay of the

Unit turns the magnetic contactor OFF.

D Connecting Input Power Supply to the Terminal Block

Input power supply can be connected to any terminal on the terminal block because the phase sequence of input power supply is irrelevant to the phase sequence (R/L1, S/L2, and T/L3).

D Installing an AC Reactor

If the Inverter is connected to a large-capacity power transformer (660 kW or more) or the phase advance capacitor is switched, an excessive peak current may flow through the input power circuit, causing the converter unit to break down.

To prevent this, install an optional AC reactor on the input side of the Inverter. This also improves the power factor on the power supply side.

D Installing a Surge Absorber

Always

use a surge absorber or diode for the inductive loads near

the Inverter

. These inductive loads

include

magnetic contactors, electromagnetic

relays, solenoid valves, solenoid, and magnetic brakes.

Installation Chapter 2

2-23

D Installing a Noise Filter on the Power Supply Side

The

Inverter’s outputs utilize high-speed switching, so noise may be transmitted from the Inverter to the power line and adversely affect other devices in the vicinity. It is recommended that a Noise Filter be installed at the Power Supply to minimize this noise transmission. Conversely, noise can also be reduced from the power line to the Inverter.

Wiring Example 1

Power supply

3G3HV

SYSDRIVE

SYSMAC or other control

device

Noise Filter

Input Noise Filters

Simple Input Noise Filter: 3G3EV-PLNFDj Input Noise Filter: 3G3IV-PFNj EMC-conforming Input Noise Filter: 3G3FV-PFSj

Note Use

a noise filter designed for Inverters. A general-purpose noise filter will be less ef

fective and

may not reduce noise.

D Calculating the Inverter ’s Input Power Supply Capacity

The power supply capacity for the Inverter can be calculated in the way shown below. The value obtained should only be as a reference; allow for some degree of variation.

Input

power supply capacity (kV

A) = Motor output (kW)/(Motor ef

ficiency× Inverter ef

ficiency× Inverter input power factor) Motor efficiency = 0.8 (typ.) Inverter efficiency = 0.9 (typ.) Inverter input power factor = 0.65 to 0.9

Note The Inverter’s input power factor varies with the impedance. If an AC reactor is used, take the

value to be 0.9, and if an AC reactor is not used, take the value to be 0.65.

calculate the input current, divide the input power supply capacity obtained

above by the input volt

age.

The Inverter has an overload capacity of 150%, and so set to a value 1.5 times the result of this calculation. Example: 3-phase 200-V: 1.5 × Input power supply capacity/(√3 × 200 V)

Single-phase 200-V: 1.5 × Input power supply capacity/200 V

D Setting the Power Supply Voltage Short Pin (400-V Class Inverters of 18.5 kW or

More)

Set the power supply voltage short pin for 400-V Class Inverters with a capacity of 18.5 kW or more.

Short Pin Setting Procedure

1. Turn

OFF the power supply and wait for at least one minute (three minutes for

Inverters of 30 kW or

more) before removing the front panel.

Installation Chapter 2

2-24

2. Insert the short pin mounted on the board into the voltage connector nearest to the actual power supply voltage. The default setting is 440 V.

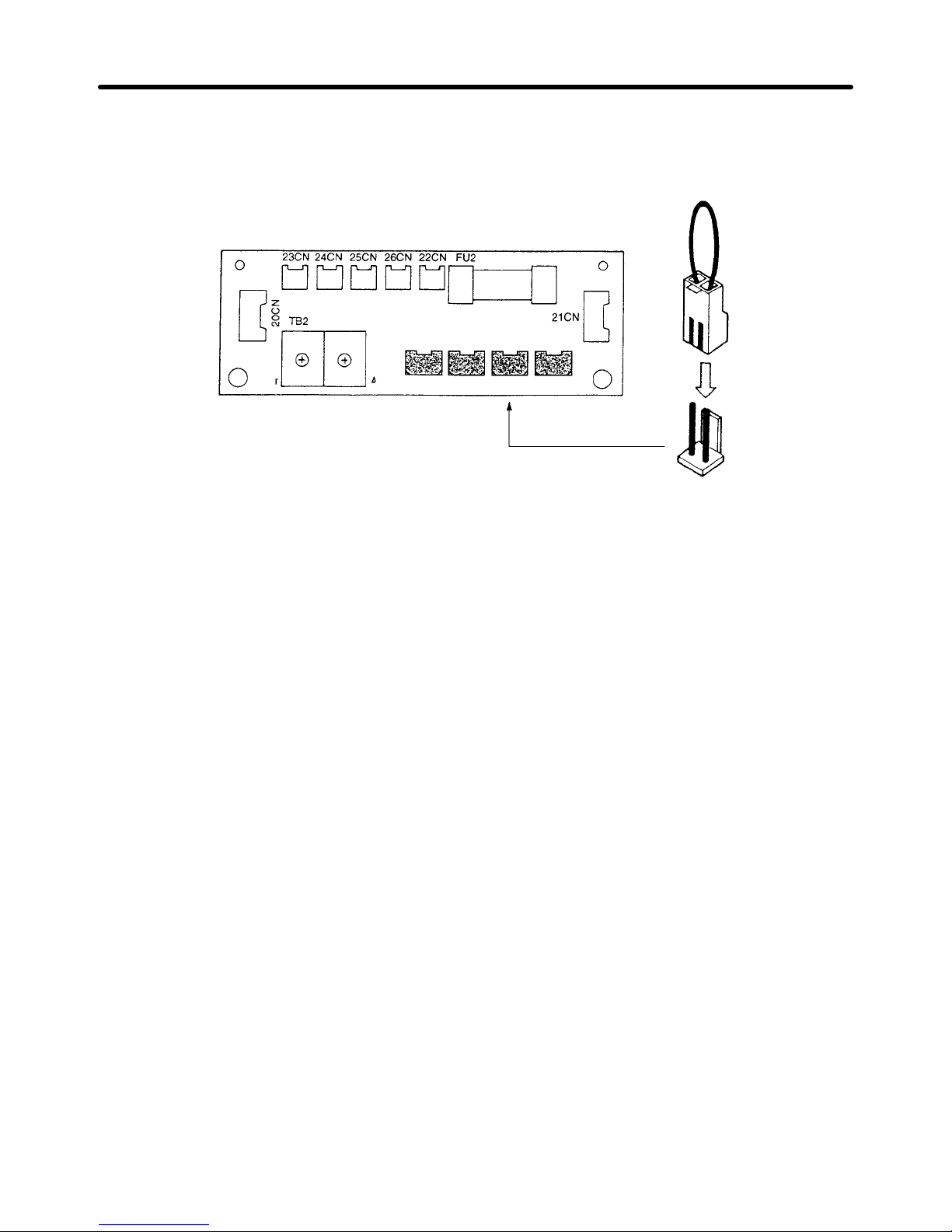

The following example shows board of a 400-V Class Inverter of 18.5 to 45 kW.

380 V 400/415 V 440 V 460 V

3. Put the front panel to its original position.

H Wiring on the Output Side of Main Circuit

D Connecting the Terminal Block to the Load

Connect output terminals T1 (U), T2 (V), and T3 (W) to motor lead wires T1 (U), T2 (V), and T3 (W), respectively.

Check that the motor rotates forward with the

forward command. Switch over any two of

the output terminals to each other and reconnect if the motor rotates in reverse with the forward com

mand.

D Never Connect a Power Supply to Output Terminals

Never

connect a power supply to output terminals T1 (U), T2 (V), and T3 (W). If voltage is applied to the

output terminals, the internal circuit of the Inverter will be damaged.

D Never Short or Ground Output Terminals

the output terminals are touched with bare hands or the output wires come into contact with the Invert

casing, an electric shock or grounding will occur

. This is extremely hazardous. Also, be careful not to

short the output wires.

D Do Not Use a Phase Advancing Capacitor or Noise Filter

Never

to connect a phase advance capacitor or LC/RC noise filter to the output circuit. Doing so may

result in damage to the Inverter or cause other parts to burn.

D Do Not Use an Electromagnetic Switch or Magnetic Contactor

not connect an electromagnetic switch or magnetic contactor to the output circuit. If a load is con

nected

to the Inverter during running, an inrush current will actuate the overcurrent protective circuit in

the Inverter.

Installation Chapter 2

2-25

D Installing a Thermal Relay

This Inverter has an electronic thermal protection function to protect the motor from overheating. If, however,

more than one motor is operated with one Inverter or multi-polar motor is used, always install a thermal relay (THR) between the Inverter and the motor and set n033 to 0 (no thermal protection). In

this case, program the sequence so that the magnetic contactor on the input side

of the main circuit is

turned off by the contact of the thermal relay.

D Installing a Noise Filter on Output Side

Connect a noise filter to the output side of the Inverter to reduce radio noise and induction noise.

Noise

filter

Power supply

Signal line

Controller

Induction noise

Radio noise

AM radio

3G3HV

Induction Noise: Electromagnetic

induction generates noise

on the signal line, causing the controller

to malfunction.

Radio Noise: Electromagnetic waves from the Inverter and cables cause the broadcasting radio

receiver to make noise.

D Countermeasures Against Induction Noise

described previously

, a noise filter

can be used to prevent induction noise from being generated on

the

output side. Alternatively

, cables can be routed through a grounded metal pipe to prevent induction

noise.

Keeping the metal pipe at least 30 cm away from the signal line considerably reduces induction

noise.

Controller

30 cm min.

Signal line

Power supply

Metal pipe

3G3HV

Installation Chapter 2

2-26

D Countermeasures Against Radio Interference

Radio

noise is generated from the Inverter as well as the input

and output lines. T

o reduce radio noise,

install

noise filters on both input and output sides, and also install the Inverter in a totally enclosed steel

box. The cable between the Inverter and the motor should be as short as possible.

Power supply

Noise filter

Steel box

Metal pipe

3G3HV

D Cable Length between Inverter and Motor

the cable length between the Inverter and the motor

is increased, the floating capacity between the

Inverter

outputs and the ground is increased proportionally

. The increase in floating capacity at the In

verter outputs causes the high-frequency leakage current to increase, and this may adversely affect peripheral

devices and the current detector in the Inverter’s output section. T

o prevent this from occur

ring,

use a cable of no more than 100 meters between the Inverter and the motor

. If the cable must

longer

than 100

meters, take measures to reduce the floating capacity by not wiring in metallic ducts, by

using a separate cable for each phase, and so on. Also

adjust the carrier frequency according to the cable length between the Inverter and the motor

, as

shown in the table below.

Cable length 50 m max. 100 m max. More than 100 m

Carrier frequency (n050) 15 kHz max (6 max.) 10 kHz max. (4 max.) 5 kHz max. (2 max.)

Note The carrier frequency setting range varies depending on the Inverter capacity.

200-V class, 22 kW max.; 400-V class, 22 kW max.: 0.4 to 15.0 kHz 200-V class, 30 to 75 kW; 400-V class, 30 to 160 kW: 0.4 to 10.0 kHz 400-V class, 185 to 300 kW: 0.4 to 2.5 kHz

D Single-phase Motors Cannot Be Used

The Inverter is not suited for the variable speed control of single-phase motors. Single-phase

motors are either capacitor start motors or split-phase start

motors. (The method for de

termining

rotation direction at startup is dif

ferent.) If a capacitor start motor is used, the capacitor may be

damaged

by a sudden electric discharge caused by Inverter output. If a split-phase start motor is used,

the starting coil may burn because the centrifugal switch does not operate.

Installation Chapter 2

2-27

H Ground Wiring

• Always

use the ground terminal of the 200-V Inverter with a ground resistance of less than 100 Ω and

that of the 400-V Inverter with a ground resistance of less than 10 Ω.

• Do not share the ground wire with other devices such as welding machines or power tools.

• Always use a ground wire that complies with technical standards on electrical equipment and mini-

mize the length of the ground wire. Leakage

current flows through the Inverter

. Therefore, if the distance between the ground electrode

and

the ground terminal is too long, potential on the ground terminal of the Inverter will become unsta

ble.

• When using more than one Inverter, be careful not to loop the ground wire.

Installation Chapter 2

2-28

H Countermeasures against Harmonics

With

the continuing development of electronics, the generation of harmonics from industrial machines

has

been causing problems recently

. Refer to the following for the definition of harmonics (i.e., harmonic

currents with voltages) and countermeasures against the generation of harmonics from the Inverter.

D Harmonics (Harmonic Currents with Voltages)

• Definition

Harmonics

consist of electric power produced

from AC power and alternating at frequencies that are integral multiples of the frequency of the AC power. The following are the harmonic frequencies of a 60- or 50-Hz commercial power supply. Second harmonic: 120 (100) Hz Third harmonic: 180 (150) Hz

Basic frequency (60 Hz)

Second harmonic (120 Hz)

Third harmonic (180 Hz)

• Problems Caused by the Harmonics Generation

The

waveform

of commercial power supply will be distorted if the commercial power supply contains excessive harmonic currents. Machines with such a commercial power supply will malfunction or generate excessive heat.

Third harmonic (180 Hz)Basic frequency (60 Hz)

Distorted current waveform

D Causes of Harmonics Generation

• Usually,

electric machines have built-in circuitry that converts commercial AC power

supply into DC

power.

Such AC power

, however

, contains harmonics due to the dif

ference in current flow between AC

and DC.

• Obtaining DC from AC using Rectifiers and Capacitors

voltage is obtained by converting AC voltage into a pulsating one-side voltage with rectifiers

and

smoothing the pulsating one-side voltage with capacitors. Such AC, however, contains harmonics.

Installation Chapter 2

2-29

• Inverter

The

Inverter as well as normal electric machines has an output current containing harmonics because the Inverter converts AC into DC. The

output current of the Inverter

is comparatively high. Therefore, the ratio of harmonics in the output

current of the Inverter is higher than that of any other electric machine.

Voltage

Current

Time

Rectified

Smoothed

A current flows into the capacitors. The current is different from the voltage in waveform.

D Countermeasures with Reactors against Harmonics Generation

• DC/AC Reactors

The

DC reactor and AC reactor suppress harmonics and currents that change suddenly and greatly

The

DC reactor suppresses harmonics better than the AC reactor

. The DC reactor used with the AC reactor suppresses harmonics more effectively. The

input power factor of the Inverter is improved by suppressing the harmonics in the input current of

the Inverter.

Note 18.5- to 160-kW Inverters have a built-in DC reactor.

185- to 300-kW Inverters cannot use a DC reactor.

• Connection

Connect the DC reactor to the internal DC power supply of the Inverter after shutting off the power supply to the Inverter and making sure that the charge indicator of the Inverter turns off.

WARNING Do

not touch the internal circuitry of the Inverter in operation, otherwise an electric

shock or a burn injury may occur.

Installation Chapter 2

2-30

• Wiring Method With DC Reactor

3G3HV

200 VAC (400 V)

DC reactor (optional)

L1 (R) L2 (S)

L3 (T)

T1 (U)

T2 (V)

T3 (W)

Note Be sure to remove the short bar on terminals +1 and +2 before connecting the DC reactor.

With DC and AC Reactors

3G3HV

200 VAC (400 V)

DC reactor (optional)

AC reactor (optional)

L1 (R) L2 (S)

L3 (T)

T1 (U)

T2 (V)

T3 (W)

Note Be sure to remove the short bar on terminals +1 and +2 before connecting the DC reactor.

• Reactor Effects

Harmonics

are ef

fectively suppressed when the DC reactor is used with the AC reactor as shown in

the following table.

Harmonic suppres-

Harmonic generation rate (%)

sion method

5th har-

monic

7th har-

monic

11th

harmon-

13th

harmon-

17th

harmon-

19th

harmon-

23th

harmon-

25th

har-

monic

No reactor 65 41 8.5 7.7 4.3 3.1 2.6 1.8 AC reactor 38 14.5 7.4 3.4 3.2 1.9 1.7 1.3 DC reactor 30 13 8.4 5 4.7 3.2 3.0 2.2 DC and AC reactors 28 9.1 7.2 4.1 3.2 2.4 1.6 1.4

Installation Chapter 2

2-31

D Countermeasures with 12-pulse Rectification against Harmonics Generation

• 12-pulse Rectification

The

3G3HV

-series Inverter

with an output of 18.5 to 160 kW can employ 12-pulse rectification, which suppresses harmonics better than reactors. The 3G3HV-series Inverter with an output of 15 kW or less and 185 kW or more cannot employ 12-pulse rectification.

• Wiring Method

1. Terminals

L1 (R) and L1

1 (R1), L2 (S) and L21 (S1), and L3 (T) and L31 (T1) are short-circuited with

short

bars before shipping.

Be sure to remove the short bars when employing 12-pulse rectification,

otherwise the Inverter will break down.

2. Do not ground the secondary winding side of the transformer, otherwise the Inverter may break down.

With Input Transformer for 12-pulse Rectification

200 VAC (400 V)

Input transformer for 12-pulse rectification

3G3HV

L1 (R) L2 (S) L3 (T)

T1 (U)

T2 (V)

T3 (W)

L11 (R1) L21 (S1) L31 (T1)

With Standard Transformers for 12-pulse Rectification

200 VAC (400 V)

Star-star insulating transformer

3G3HV

Star-delta insulating transformer

L1 (R) L2 (S) L3 (T)

T1 (U) T2 (V)

T3 (W)

L11 (R1) L21 (S1) L31 (T1)

Note Use insulating transformers.

Installation Chapter 2

2-32

• Input Transformers for 12-pulse Rectification

Refer

to the following table to select the input transformer for 12-pulse rectification. Refer to the mini

mum

currents on the secondary winding side in the table

when selecting two standard transformers

used in combination for 12-pulse rectification.

Inverter model

3G3HV-

Input voltage (V) Minimum current on

the primary winding

side (A)

Minimum current on

the secondary winding

side (A)

B2185

I/O voltage ratio: 1:1

100 50

B2220

200 to 230 V ±10%/

120 60

B2300

200 to 230 V ±10% at

164 82

B2370

50/60 Hz

200 100 B2450 230 115 B2550 280 140 B2750

380 190 B4185

I/O voltage ratio: 1:1

52 26 B4220

380 to 460 V ±10%/

66 33 B4300

380 to 460 V±10% at

82 41 B4370

50/60 Hz

100 50 B4450 120 60 B4550 180 80 B4750 206 103 B411K 280 140 B416K 380 190

• 12-pulse Rectification Effect

Harmonics are suppressed effectively with 12-pulse rectification as shown in the following table.

Harmonic suppres-

Harmonic generation rate (%)

sion method

5th har-

monic

7th har-

monic

11th

harmon-

13th

harmon-

17th

harmon-

19th

harmon-

23th

harmon-

25th

har-

monic

No reactor 65 41 8.5 7.7 4.3 3.1 2.6 1.8 12-pulse rectification 5.43 5.28 5.40 5.96 0.69 0.19 1.49 1.18

H Braking Resistor Unit and Braking Unit

• Connect the Braking Resistor Unit and Braking Unit to the Inverter as shown in the following.

• Set

n079 to 0 (i.e., no overheating protection of the Braking Resistor Unit) and n070 to 0 (i.e., no decel

erating stall prevention) before using the Inverter with the Braking Resistor Unit connected.

Note 1. Set n079 to 0 before operating the Inverter with the Braking Resistor Unit without thermal

relay trip contacts.

Note 2. The

Braking Resistor Unit cannot be used and the deceleration time cannot be shortened by

the Inverter if n070 is set to 1 (i.e., decelerating stall prevention).

• To

prevent the Unit from overheating, make a power supply sequence as shown below or connect the thermal relay trip output of the Unit to the remote error input terminal of the Inverter to interrupt the operation of the Inverter.

• The Braking Resistor Unit or Braking Unit cannot be connected to the Inverter with an output of

18.5 kW to 160 kW.

Installation Chapter 2

2-33

D 200-V Class with 3.7- to 7.5-kW Output and 400-V Class with 3.7- to 15-kW Output

Inverter

Braking Resistor Unit

Thermal relay trip contact

D 200-V Class with 11- to 15-kW Output and 400-V Class with 185- to 300-kW Output

Inverter

Thermal relay trip contact

Control Unit

Braking Resistor Unit

Thermal relay trip contact

D Connecting Braking Units in Parallel

When connecting two or more Braking Units in parallel, use the wiring and connectors shown in the following diagram.

There are connectors for selecting whether each Braking Unit is to be a Master or

Slave.

Select “Master” for the first Braking Unit only; select “Slave” for all other Braking Units (i.e., from

the second Unit onwards).

Inverter

Thermal relay trip contact

Braking Resistor Unit

Braking Unit #1

Braking Unit #2

Braking Unit #3

Thermal relay trip contact

Braking Resistor Unit

Thermal relay trip contact

Braking Resistor Unit

Thermal relay trip contact

Installation Chapter 2

2-34

D Power Supply Sequence

200-V class:

Three-phase, 200 to 230 V

AC (50/60 Hz)

400-V class:

Three-phase, 380 to 460 V

AC (50/60 Hz)

Power supply

Inverter

(See note)

Note Use a transformer with 200- and 400-V outputs for the power supply of the 400-V Inverter.

2-2-5 Wiring Control Circuit Terminals

control signal line must be 50 m maximum and separated from power lines. The fre

quency reference must be input to the Inverter through twisted-pair wires.

H Wire Size and Solderless Terminals

Use thick wires to prevent voltage drops if the wires are long.

D Wires for All Inverter Models

Terminal Terminal

screw

Wire thickness (mm2) Type

S1, S2, S3, S4, S5, S6, SC, FV, FI, FS, FC, AM, AC, M1, M2, MA, MB, MC

--- Stranded wire: 0.5 to 1.25 Single wire: 0.5 to 1.25

Shielded, twisted-pair wire Shielded, polyethylene-covered, vinyl

E (G) M3.5 0.5 to 2

yy ,y

sheath cable

D Solderless Terminals for Control Circuit Terminals

The use of solderless terminals for the control circuit terminals is recommended because solderless terminals are easy to connect securely.

Wire thickness Model d1 d2 Manufacturer

0.5 mm

A1 0.5-8WH 1.00 2.60

Phoenix Contact

0.75 mm

A1 0.75-8GY 1.20 2.80

1 mm

A1 1-8RD 1.40 3.00

1.5 mm

A1 1.5-8BK 1.70 3.50

Installation Chapter 2

dia.

d2 dia.

2-35

Note Do

not solder wires with the control circuit terminals if wires are used instead of solderless termi

nals. Wires may not contact well with the control circuit terminals or the wires may be disconnected from the control circuit terminals due to vibration if the wires are soldered.

D Round Solderless Terminals for Ground Terminal

Wire thickness

(mm2)

Terminal

screw

Size

0.5

M3.5

1.25 to 3.5

0.75 1.25 to 3.5

1.25 1.25 to 3.5 2 2 to 3.5

H Wiring Control Circuit Terminals

D Wiring Method

1. Loosen the terminal screws with a thin-slotted screwdriver.

2. Insert the wires from underneath the terminal block.

3. Tighten the terminal screws firmly.

Note 1. Always

separate the control signal line from the main circuit cables and other power cables.

Note 2. Do

not solder the wires to the control circuit terminals. The wires may not contact well with the

control circuit terminals if the wires are soldered.

Note 3. The

end of each wire connected to the control circuit terminals must be

stripped for approxi

mately 7 mm.

Note 4. Use a shielded wire for the ground terminal. Note 5. Insulate the shield with tape so that the shield will not touch any signal line or device.

Strip

the end for 7 mm if no solderless terminal is used.

Wires

Thin-slotted screwdriver

Control circuit terminal block

Solderless terminal or wire without soldering

Blade of screwdriver

3.5 mm max.

Blade thickness: 0.6 mm max.

Note Tighten

screws to a torque between 0.5 and 0.6 NSm. T

ightening to a torque greater than this may

cause

the terminal block to be damaged. Tightening to a torque less than this may result in mal

function or short-circuiting.

Installation Chapter 2

Chapter 3

Preparing for Operation

3-1 Preparation Procedure 3-2 Using the Digital Operator 3-3 Test Run 3-4 Basic Operation 3-5 Applied Operation

3-2

H Cautions and Warnings

WARNING Turn

ON the input power supply only after mounting the front cover

, terminal covers, bottom cover, Operator, and optional items. Not doing so may result in electrical shock.

WARNING Do

not remove the front cover

, terminal covers, bottom cover

, Operator

, or optional

items

while the power is being supplied. Not doing so may result in electrical shock or

damage to the product.

WARNING Do not operate the Operator or switches with wet hands. Doing so may result in

electrical shock.

WARNING Do not touch the inside of the Inverter. Doing so may result in electrical shock.

WARNING Do

not

come close to the machine when using the error retry function because the

machine

may abruptly start when stopped by an alarm. Doing so may result in injury

WARNING Do not come close to the machine immediately after resetting momentary power

interruption

to avoid an unexpected restart (if operation is set to be continued in the

processing

selection function after momentary power

interruption is reset). Doing so

may result in injury.

WARNING Provide

a separate emergency stop switch because the ST

OP Key on the Operator

is valid only when function

settings

are performed. Not doing so may result in injury

WARNING Be sure confirm that the RUN signal is turned OFF before turning ON the power

supply, resetting the alarm, or switching the LOCAL/REMOTE selector. Doing so while the RUN signal is turned ON may result in injury.

Caution Be sure to confirm permissible ranges of motors and machines before operation

because the Inverter speed can be easily changed from low to high. Not doing so may result in damage to the product.

Caution Provide

a separate holding brake when necessary

. Not doing so may result in injury

Caution Do

not perform

a signal check during operation. Doing so may result in injury or dam

age to the product.

Caution Do not carelessly change settings. Doing so may result in injury or damage to the

product.

Preparing for Operation Chapter 3

3-3

3-1 Preparation Procedure

1. Installation Install the Inverter according to installation conditions. Refer to

page 2-7

S Check that all the installation conditions are met.

2. Wiring Connect the power supply and peripheral devices. Refer to

page 2-10

S Select peripheral devices that meet the specifications, and wire them correctly.

3. Turning the Power ON Check the necessary items, then turn the power ON. S Check

that the power voltage is correct and the power input terminals (L1 (R), L2 (S), and L3 (T)) are wired correctly. Supply three-phase, 200 to 230 VAC (50/60 Hz) to the 200-V Inverter and three-phase 380 to 460 VAC (50/60 Hz) to the 400-V Inverter.

S Check

that the motor output terminals (T1 (U), T2

(V), and T3 (W)) and motor are connected cor

rectly.

S Check that the control circuit terminals and controller are connected correctly.

4. Checking the Display Status Check the Inverter for errors. S If

everything is normal, the data display will show the

data selected with a monitor item indicator

If the Inverter is error

, the data display will show data indicating that the Inverter is error

. Refer to

Section 4 Operation

for details.

5. Setting the Parameters Use the Digital Operator to set parameters required for operation. Refer to

page 3-4

S Set each parameter as described in this manual.

6. Test RUN Use the Digital Operator to rotate the motor. Refer to

page 3-10

S Check that the motor is rotating normally.

7. Operation Basic operation (The Inverter operates with basic settings). Refer to

page 3-13

Applied

operation (The Inverter performs energy-saving control, PID

control, or other applied con

trol). Refer to

page 3-25

S Refer to

3-4 Basic Operation

for operation with basic parameters only.

S Refer to

3-4 Basic Operation

and

3-5 Applied Operation

for energy-saving control, PID control,

frequency jumping, error retrying, or S-shaped acceleration and deceleration.

S Refer to

3-5 Applied Operation

for parameters in detail.

Preparing for Operation Chapter 3

3-4

3-2 Using the Digital Operator

3-2-1 Nomenclature

Easy-setting

indicators

Displays basic parameter constants and monitor items. (See note 1.)

Mode Key

Switches basic parameter constant and monitor items.

Operation Mode Selection Key

Switches between operation by the Digital Operator and operation specified in the operation mode selection parameter (n002).

Run Key

Starts the Inverter

Operation Mode Indicators

External Operation: Lit when operating references from exter

nal terminals are in ef

fect. Analog Input: Lit when high-frequency references from external analog terminals are in ef

fect.

Data Display

Displays frequency reference, out

put frequency

, output current, constant set values, Inverter status, etc.

Enter Key

Enters set value when pressed after constant has been set.

Increment Key

Increments numbers when pressed during setting of constant number and constant data.

Decrement Key

Decrements numbers when pressed during setting of constant number and constant data.

Stop/Reset Key

Stops the Inverter

. Also resets after

alarm has been generated. (See note 2.)

DIGITAL OPERATOR PJVOP131E

Fref Fout Iout kWout

F/R Montr Accel Decel

Vmtr V/F Fgain Fbias

FLA PID kWsav PRGM

LOCAL

REMOTE

RUN

STOP

RESET

REMOTE

SEQ REF

Note 1. The

Inverter does not start while any indicator

on the bottom two lines is lit. T

o start the Invert

er,

press the Mode Key to light up an indicator on

the top two lines and press the RUN Key

Note 2. For safety reasons, the reset function cannot be used while the run command (forward/re-

verse) is being input. Turn the run command OFF before using the reset function.

Preparing for Operation Chapter 3

3-5

3-2-2 Summary

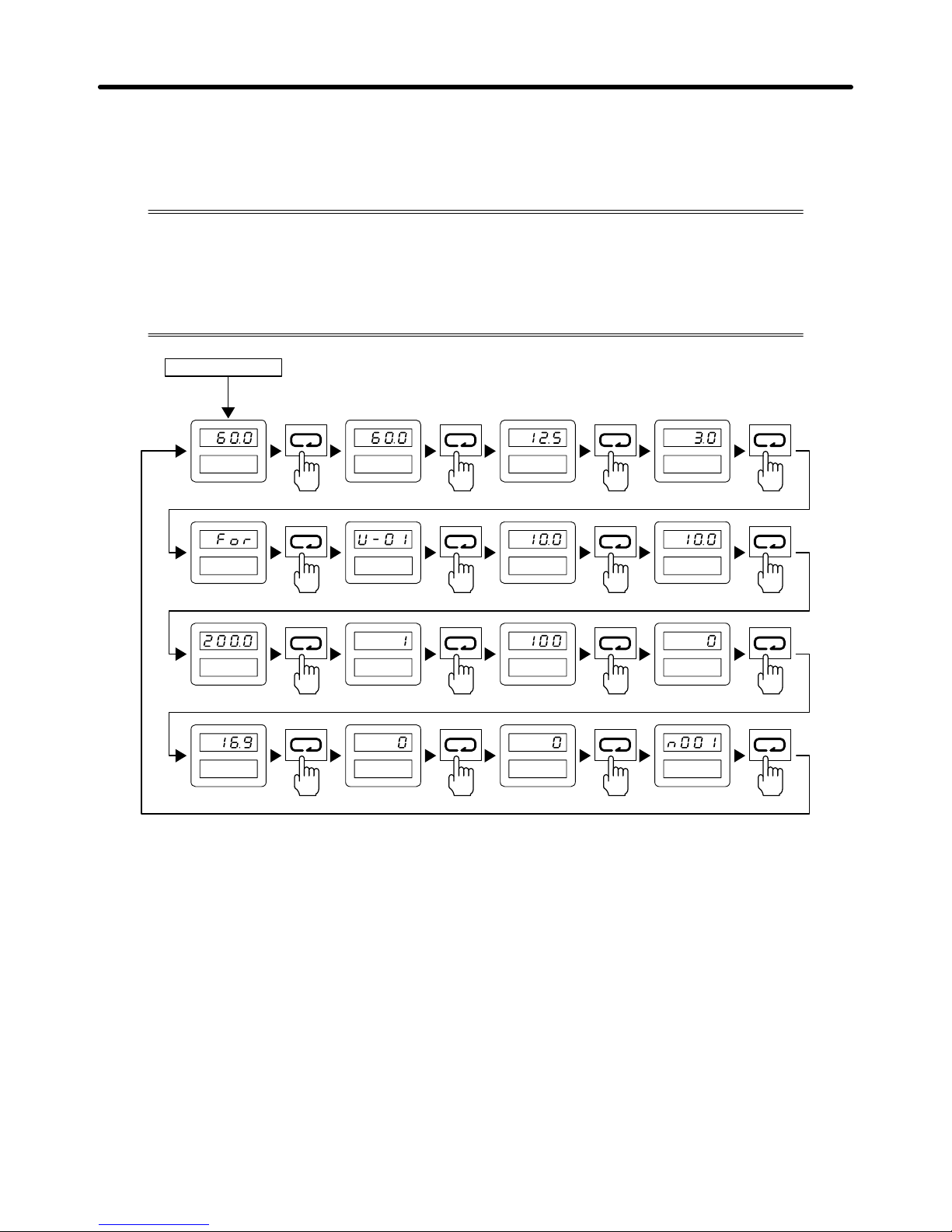

H Data Display

Press the Mode Key to select the item displayed on the data display. The items on the first two lines of the monitor item indicators can be set or monitored while the Inverter is running. All

the items of the monitor item indicators can be set or monitored while the Inverter is

not running.

Speed

setting/Monitor

Output frequency

monitor

Output current monitor

Output power monitor

Operator forward/ reverse selection

Monitor selection

Acceleration time

setting

Deceleration time

setting

Motor rated

voltage setting

V/f pattern selection

Frequency reference

gain

Frequency reference

bias

Motor rated

current setting

PID control selection

Energy-saving control

selection

Constant setting mode

Power supply ON

Fref Fout Iout kWout

F/R Montr Accel Decel

Vmtr V/F Fgain Fbias

FLA PID kWsav PRGM

Note The following items can be set or monitored with the monitor item indicators.

Preparing for Operation Chapter 3

3-6

Indicator Item Function

Fref Speed setting/Monitor The frequency reference can be set or monitored. The unit to

be used can be set with n024.

Fout Output frequency

monitor

The output frequency can be monitored. The setting unit can be set with n024.

Iout Output current

monitor

The output current can be monitored in 0.1-A units.

kWout Output power monitor The output power can be monitored in 0.1-kW units. F/R Operator

forward/reverse selection

The forward or reverse rotation of the motor can be set or checked. This item can be set with the Digital Operator only.

Montr Monitor selection Thirteen items can be monitored. Accel Acceleration time

setting

Acceleration time 1 can be set or checked with n019 in 1-s units if acceleration time 1 is set to 1,000 or a larger value and

0.1-s units if acceleration time 1 is set to a value less than 1,000.

Decel Deceleration time

setting

Deceleration time 1 can be set or checked with n020 in 1-s units if the deceleration time is set to 1,000 or a larger value and 0.1-s units if the deceleration time is set to a value less than 1,000.

Vmtr Motor rated voltage

setting

The rated input voltage of the motor can be set with n011 while the Inverter is not running.

V/F V/f pattern selection The V/f pattern can be set with n010 while the Inverter is not

running.

Fgain Frequency reference

gain

The frequency reference gain can be set with n046 while the Inverter is not running.

Fbias Frequency reference

bias

The frequency reference bias can be set with n047 while the Inverter is not running.

FLA Motor rated current

setting

The rated input current of the motor can be set with n032 while the Inverter is not running.

PID PID control selection The PID control function can be selected with n084 while the

Inverter is not running.

kWsav Energy-saving control

selection

The energy-saving control function can be selected with n095 while the Inverter is not running.

PRGM Constant setting

mode

All parameters can be set or checked.

Preparing for Operation Chapter 3

3-7

H Parameters

Parameters can be set with the monitor item indicators or by designating the corresponding

parameter numbers. Basic parameters can be set with the monitor item indica

tors. Parameter settings with the monitor item indicators are different in method from parameter settings by designating the corresponding parameter constants.

D Setting Parameter Constants with the Indicators

Example: Changing Acceleration Time From 10 s to 50 s

Acceleration time:

10 s

Change data

Data flashes during change

Enter data

Acceleration time: 50 s

o another

setting

Accel Accel Accel

D Setting Parameter Constants by Specifying Parameter Constant Number

Example: Setting Constant No. 025 (Frequency Reference 1)

Display constant

Change constant number

Display

constant no. 25

Return to constant number display

o another constant setting

Display contents of constant no. 25

Change data

Data flashes during change

Enter data

Displayed for approx. 1 s

PRGM PRGM PRGM

PRGM PRGM PRGM PRGM

Note There are some parameters that cannot be changed while the Inverter is running. To change

these parameter, stop the Inverter first.

H Checking Monitor Contents

Example: Checking Output Voltage (Monitor Item No. U-04)

Display monitor

Change monitor item

Display

U-04

Check monitor contents

Monitor output voltage

o another

monitor

Montr Montr Montr

Preparing for Operation Chapter 3

3-8

D Monitor Display Table

Monitor No. Monitor item Description

U-01 Frequency

reference

The frequency reference can be monitored. The display unit can be set with n024. The frequency reference can be monitored with the FREF indicator as well.

U-02 Output frequency The output frequency can be monitored. The display unit can be set

with n024. The output frequency can be monitored with the FREQUENCY indicator as well.

U-03 Output current The output current can be monitored in 0.1-A units. The output current

can be monitored with 0.1-A units with the IOUT indicator as well. U-04 Output voltage The output voltage can be monitored in 1-V units. U-05 DC voltage The DC voltage can be monitored in 1-V units. U-06 Output power The output power can be monitored in 0.1-kW units. The output power

can be monitored in 0.1-kW units with the POWER indicator as well. U-07 Input terminal

status

The statuses of input terminals S1 to S6 can be monitored.

Lit when S1 is ON. Lit when S2 is ON. Lit when S3 is ON. Lit when S4 is ON. Lit when S5 is ON. Lit when S6 is ON. Not used (Not lit).

U-08 Inverter status The status of the Inverter can be monitored.

Lit while the Inverter is running. Lit when the reverse rotation command is given. Lit when the Inverter is ready to operate. Lit when the Inverter is error. Not used (Not lit). Lit when MA, MB, and MC outputs are ON. Lit when outputs M1 and M2 are ON.

U-09 Error before

power interruption

The four most-recent errors before the power supplied to the Inverter is

turned OFF can be checked. U-10 PROM number For the manufacturer’s use. U-11 Total operating

time (rightmost 4 digits)

The accumulated operating time can be monitored with 1-h units. The

maximum value is 279,620 h.

Accumulated operating time (h) = U-12 value x 10,000 + U-11 value U-12 Total operating

time (leftmost 2 digits)

g() ,

U-13 PID feedback

value

The PID feedback can be monitored in 0.1-Hz units.

H Operation Mode Selection Key/Operation Mode Selection Input

The operation mode of the Inverter can be changed using the Operation Mode Selection Key on the Digital

Operator

. Using this key

, it is possible to switch between the two operation modes shown below

Preparing for Operation Chapter 3

3-9

The same kind of switching is also possible with control circuit terminals set using the multi-function input parameters 1 to 5 (set value: 5).

Operation mode Description Contents

Remote Inverter operates according to control

signals from a higher level control system.

Run commands and frequency references determined by the setting of the operation mode selection parameter (n002).

Local Inverter operates alone in order to check

operation directly related to the Inverter.

Run commands: RUN and STOP/RESET Keys. Frequency reference: Value set with the Digital Operator.

Note Performs operation for a operation

mode selection parameter value (n002) of 0.

Note 1. The

operation mode will always be

Remote mode when power is supplied. Therefore, to start

operation

immediately after power is supplied, set n002 to the required settings in advance.

Note 2. If n002 is set to 0, there is no difference in the two modes. Note 3. Frequencies

set from the Digital Operator using the speed setting

will be entered in frequency reference parameters 1 to 4 (n025 to n028) or the inching frequency reference parameter (n029) regardless of whether the mode is Remote mode or Local mode.

Note 4. Multi-function

inputs 1 to 5 will be enabled regardless of whether the mode is Remote mode

Local mode. The following settings, however, will be disabled in Local mode.

S Reverse rotation/stop (2-wire sequence selection); Set value: 0 S Stop command (3-wire sequence selection); Set value: 1

Note 5. For

safety reasons, run signals input while changing

from Local mode to Remote mode are usually ignored. Input the run signal again after the mode has changed. It is possible, however,

to stop such run signals being ignored

by setting the Operation Selection at Operation

Mode

switching (Local/Remote switching) parameter (n1

14) to 1. If this setting is made, when

the

mode

changes from Local mode to Remote mode, the Inverter will start running immedi

ately. Take steps to ensure the safety of the system for such operation.

Preparing for Operation Chapter 3

3-10

3-3 Test Run

After

wiring is complete, perform a test run of the Inverter

. First, start the motor through

the

Digital Operator without connecting the motor to the mechanical system. Next, con

nect

the motor to the mechanical system and perform a test run. Finally

, operate the con

troller

to make sure that the sequence of operations

is correct. Refer to the following to

perform a test run of the Inverter.

1. Wiring S Check that power is connected to power input terminals L1 (R), L2 (S), and L3 (T).

Supply

three-phase, 200 to 230 V

AC (50/60 Hz) to the

200-V Inverter and three-phase 380 to 460

VAC (50/50 Hz) to the 400-V Inverter.

S Check

that terminals T1 (U), T2 (V), and T3 (W) are correctly connected to the motor power cables.

S Do not load the motor with a mechanical system. Check that the motor has no load. S Check

that the forward/stop and reverse/stop inputs are OFF before connecting signal lines to the

control circuit terminals.

2. Turning Power ON and Checking Indicator Display

S Supply power to the Inverter. S Check that the data display is not showing any error.

3. Parameter Initialization S Set n001 to 6 to initialize all parameters.

Key Indicator Data example Explanation

Mode Key PRGM n001 Press the Mode Key until the PRGM indicator is lit. Enter Key PRGM 1 Check that “n001” is displayed and press the Enter

Key so that the data of n001 will be displayed. If “n001” is not displayed, press the Increment Key or

Decrement Key so that “n001” will be displayed. Then press the Enter Key.

Up/Down Key PRGM 6

(Flashing)

Press the Increment Key or Decrement Key so that “6” will be displayed, in which case the data display will flash.

Enter Key PRGM end Press the Enter Key.

“End” will appear for approximately 1 s.

PRGM 1 After “End” appears, n001 will be initialized and “1”

will be displayed.

Mode Key PRGM n001 Press the Mode Key so that “n001” will be displayed.

4. Rated Input Voltage of Motor

S Set the rated input voltage of the motor with the Digital Operator. S The

200-V Inverter is set to 200.0 V and the 400-V Inverter is set to 400.0 V as rated input voltages

of motors before shipping.

Preparing for Operation Chapter 3

3-11

S Check the rated input voltage of the motor and set the rated input voltage of the motor.

Example: Motor with Rated Input Voltage of 180 V

Key Indicator Data example Explanation

Mode Key Vmtr 200.0 Press the Mode Key until the MOTOR VOLTAGE

indicator is lit.

Down Key Vmtr 180.0

(Flashing)

Press the Increment Key so that “180.0” will be displayed, in which case the data display will flash.

Enter Key Vmtr 180.0 Press the Enter Key.

5. Rated Input Current of Motor

S Set the rated input current of the motor with the Digital Operator. S The default-set value varies with the Inverter model. S Check the rated input current of the motor and set the rated input current.

Example: Motor with Rated Input Current of 8.5 A

Key Indicator Data example Explanation

Mode Key FLA 14.1 Press the Mode Key until the MOTOR CURRENT

indicator is lit.

Down Key FLA 8.5

(Flashing)

Press the Increment Key so that “8.5” will be displayed, in which case the data display will flash.

Enter Key FLA 8.5 Press the Enter Key.

6. Frequency Reference

S Set the frequency according to the rotation speed of the motor. S Press

the Mode Key until the FREF indicator is lit, press the Increment Key or Decrement Key

set the frequency, and press the Enter Key.

7. Operation With No Load

S Press the Operation Mode Selection Key. S Check

that the operation mode indicators (i.e., the remote RUN indicator and analog input indica

tor) are not lit.

S Press the RUN Key to start the motor. S To

change the rotation direction of the motor

, press the Mode Key until the F/R indicator is lit, press

the Increment Key or Decrement Key to set the rotation direction, and press the Enter Key.

Indicator Data example Explanation

F/R

f%r Forward rotation command reU Reverse rotation command

S Check that the motor is rotating without error vibration or noise after the frequency reference or

rotation direction is changed.

S To stop the motor, press the STOP/RESET Key.

8. Mechanical System

S Load the motor with the mechanical system after making sure that the motor rotates normally. S Before

the motor with the mechanical system, check that the output of the Inverter is inter

rupted and the motor stops by pressing the STOP/RESET Key.

9. V/f Pattern S Set the V/f pattern according to the characteristics of the mechanical system.

Preparing for Operation Chapter 3

3-12

S Press the Mode Key until the V/F indicator is lit. S The following two methods are available to set the V/f pattern.

S Select

one of the fixed 15

V/f patterns preset with the Inverter

, in which case set the V/f pattern

to 0, 1, 2, 3, 4, 5, 6, 7, 8, 9, A, b, C, d, or E.

S Set the V/f pattern to F for an optional V/f pattern.

S The

following are the fixed V/f patterns preset

with the Inverter

. Refer to

3-4 Basic Operation

for

details.

Characteristic Use Set

value

Specification

General These V/f patterns are mainly used for

0 50 Hz

purpose

general purposes, such as the control

1 60 Hz

of straight conveyor lines.Applythese

V/f patterns to the motor if the rotation speed of the motor must change in

2 60 Hz. Voltage saturation at

50 Hz.

s eed of the motor must change in

almost direct proportion to the load factor of the motor.

3 72 Hz. Voltage saturation at

60 Hz.

Reduced

These V/f patterns are mainly used for

4 50 Hz with cube reduction.

torque fan pumps. Apply these V/f patterns to

the motor if the rotation speed of the

5 50 Hz with square reduction.

the motor if the rotation s eed of the

motor must change in square or cube p

6 60 Hz with cube reduction.

proportiontotheloadfactor o

fth

motor.

7 60 Hz with square reduction.

High starting These V/f patterns are usually

8 50 Hz with low starting torque.

torque

unnecessary because the Inverter has

9 50 Hz with high starting torque.

afull automatic torque boost function to

A 60 Hz with low starting torque.

su ly enough ower to meet the

starting torque of the motor.

B 60 Hz with high starting torque.

Constant power operation

These V/f patterns are used to rotate the motor with an output at 60 Hz or

C 90 Hz. Voltage saturation at

60 Hz.

o e at o

t e oto t a out ut at 60 o

more. Apply these V/f patterns to the motor to impose a constant voltage at

D 120 Hz. Voltage saturation at

60 Hz.

60 Hz min. on the motor.

E 180 Hz. Voltage saturation at

60 Hz.

S Select a V/f pattern suited to the mechanical system from the above V/f patterns. S Set

the V/f pattern to F for an optional V/f pattern to be determined with n012 to n018. The optional V/f pattern set with the Inverter before shipping is the same as the V/f pattern obtained with the set value 1.

10. Operation with Actual Load

S Be ready to press the STOP/RESET Key for any error operation of the Inverter or the load. S Use

the Digital

Operator to operate the Inverter in the same way as the operation of the Inverter

with no load.

S Set

the frequency reference so that

the motor will rotate at an approximately 10% of the rotation

speed of the motor in actual operation.

S Set

the frequency reference according to the actual rotation speed of the motor after making sure that the mechanical system operates correctly and smoothly.

S Change the frequency reference and the rotation direction of the motor and check that the me-

chanical system operates without error vibration or noise.

Preparing for Operation Chapter 3

3-13

3-4 Basic Operation

Refer

to the following for the basic settings required to start and stop operating the In

verter. Only these settings are required for the Inverter in basic operation. These settings

as well as other settings are required by the Inverter for any applied operation, such

as energy-saving control or PID control.

H Parameter Write Prohibit Selection (n001)

S The parameters used by the Inverter are classified into the following three groups.

Group 1: n001 to n034 Group 2: n035 to n049 Group 3: n050 to n108 (Up to n102 can be used.)

S The

Inverter is default-set so that only parameters of group 1 can be set and checked and the pa

rameters of groups 2 and 3 can only be checked.

S The

Inverter in basic operation uses the parameters

of groups 1 and 2. Therefore, set n001 to 2 or

3 so that these parameters can be checked and set.

n001 Parameter Write Prohibit Selection/Parameter Initialization

Setting range 0, 1, 2, 3, 6, and7Unit --- Default setting 1

Set Values

Set value Description

0 The parameters n001 can be set and checked and the parameters n002 to n108 can be only

checked.

1 The parameters of group 1 (i.e., n001 to n034) can be set and checked and the parameters of

groups 2 and 3 (i.e., n035 to n049 and n050 to n108) can be only checked.

2 The parameters of groups 1 and 2 can be set and checked and the parameters of group 3 can

only be checked. 3 The parameters of groups 1, 2, and 3 can be set and checked. 6 All parameters will be set to default-set values. 7 All parameters will be initialized with a three-wire sequence.

Note Do not set n001 to any value other than the above.

H Operation Mode Selection (n002)

S The Inverter has four operation modes. Select one of the modes with n002.

n002 Operation Mode Selection

Setting range 0 to 3 Unit --- Default setting 3

Set Values

Set value Run command Frequency reference

0 Digital Operator (RUN/STOP Key) Digital Operator (Frequency reference 1) 1 Control circuit terminals

(Forward/reverse/stop input)

Digital Operator (Frequency reference 1)

2 Digital Operator (RUN/STOP Key) Control circuit terminals (Analog input) 3 Control circuit terminals

(Forward/reverse/stop input)

Control circuit terminals (Analog input)

Preparing for Operation Chapter 3

3-14

Note 1. Do not set n002 to any value other than the above. Note 2. The

frequency reference input according to the operation mode selection setting

will be used as frequency reference 1 in multi-step speed operation. If the frequency reference is determined

by control circuit terminals, the frequency reference input using the control circuit ter

minals’

analog input will be enabled and the frequency

reference 1 parameter setting (n025)

will

be ignored. (If, however

, the mode is changed to Local mode using the Digital Operator

then the value set in n025 will be enabled.)

Note 3. Frequency

references 2 to 4 (n026

to n028) and the inching frequency reference (n029) used

multi-step speed operation will be determined by the parameter settings, regardless of the

operation mode selection setting.

H Frequency Reference Type Selection (n042, n046, and n047) through

Control Circuit Terminal

S Select

the FV terminal to input the frequency reference within a voltage range from 0 to 10 VDC or

the

FI terminal to

input the frequency reference within a current range from 4 to 20 mA with n042.

n042 Analog Frequency Reference Voltage/Current Selection

Setting range 0, 1 Unit --- Default setting 0

Set Values

Set value Description

0 The FV terminal can be used for the analog frequency reference within a voltage range from 0

to 10 VDC.

1 The FI terminal can be used for the analog frequency reference. Set the input level with n043.

Note 1. The

FI terminal is a current input terminal for 4 to 20 mA. The FI terminal can be a voltage input

terminal

by changing

the FI input level with n043 and cutting jumper wire of the PCB. Do not,

however,

change the FI terminal to a voltage input terminal unless the Inverter is used for PID

control.

Note 2. Set n042 according to the type of frequency reference.

S Set the frequency reference gain with n046 and the frequency reference bias with n047.

n046 Frequency Reference Gain

Setting range 0 to 200 Unit % Default setting 100

n047 Frequency Reference Bias

Setting range –100 to 100 Unit % Default setting 0

Set Values

S n046: The

frequency for 10-V or 20-mA input can be

set in 1% units based on the maximum fre

quency set with n012 as 100%.

Preparing for Operation Chapter 3

3-15

S n047: The frequency for 0-V or 4-mA input can be set in 1% units based on the maximum fre-

quency set with n012 as 100%.

Maximum frequency x frequency reference gain/100

Maximum frequency x frequency reference bias/100

Items in parentheses apply when the frequency reference is input with current.

Frequency

reference

0 V (4 mA)

10 V (20 mA)

Note The frequency reference gain and frequency reference bias can be set with

the GAIN indicator

and BIAS indicator.

H Frequency Reference Selection (n024 to n029) through Digital

Operator

S Frequency

references can be input through the Digital Operator by setting the unit of the

frequency

references

with n024 and the values of the frequency references with

n025 to n028. The inching

frequency reference must be set with n029 if an inching frequency is required.

n024 Unit of Frequency Reference

Setting range 0 to 3,999 Unit --- Default setting 0

Set Values

Set value Description

0 0.1-Hz units 1 0.1% units based on the maximum frequency as 100%. 2 to 39 r/min (r/min = 120 x frequency/n024

Set n024 to the number of poles of the motor.

40 to 3,999

Determine the display method of the maximum frequency set with n012. A frequency less than the maximum frequency will be displayed proportionally.

Example: Set n024 to 1100 so that “10.0” will be displayed at the maximum frequency.

10.0 →1100 Value with no decimal point.

Decimal point position

Set frequency references 1 to 4 with n025 to n028. The multi-step speed command must be se

lected

to use frequency references 2 to 4. Refer to

page

3-17, Multi-function Input Selection (n035

to n039)

for details.

n025 Frequency Reference 1

Setting range 0 to maximum

frequency

Unit Set with n024 Default setting 6.0

n026 Frequency Reference 2

Setting range 0 to maximum

frequency

Unit Set with n024 Default setting 0.0

Preparing for Operation Chapter 3

3-16

n027 Frequency Reference 3

Setting range 0 to maximum

frequency

Unit Set with n024 Default setting 0.0

n028 Frequency Reference 4

Setting range 0 to maximum

frequency

Unit Set with n024 Default setting 0.0

S The inching frequency reference must be set with n029 if an inching frequency is required. The

inching

command must be selected to use the inching frequency reference. Refer to

page

3-17,

Multi-function Input Selection (n035 to n039)

for details.

n029 Inching Frequency Reference

Setting range 0 to maximum

frequency

Unit Set with n024 Default setting 6.0

H Acceleration/Deceleration Time Selection (n019 to n022)

S Acceleration time and deceleration time can be set with n019 to n022. S The

acceleration/deceleration time

switching command must be selected to use acceleration time

2 and deceleration time 2. Refer to

page 3-17, Multi-function Input Selection (n035 to n039)

for

details.

n019 Acceleration Time 1

Setting range 0.0 to 3,600 Unit s Default setting 10.0

n020 Deceleration Time 1

Setting range 0.0 to 3,600 Unit s Default setting 10.0

n021 Acceleration Time 2

Setting range 0.0 to 3,600 Unit s Default setting 10.0

n022 Deceleration Time 2

Setting range 0.0 to 3,600 Unit s Default setting 10.0

Set Values

S Acceleration time: The

time required for the output

frequency to be 100% from 0% of the maxi

mum frequency.

S Deceleration time: The

time required for the output

frequency to be 0% from 100% of the maxi

mum frequency.

S Acceleration time 2 and deceleration time 2 is available if the acceleration/deceleration time

switching command is set.

H Motor Rotation Direction Selection (n005 and n006)

S Set the rotation direction of the motor with n005 so that the motor will rotate in the set direction

when the forward rotation command is input.

Preparing for Operation Chapter 3

3-17

S Set the rotation direction of the motor with n006 so that the motor will rotate in the set direction

when

the reverse rotation command is input or set n006 so that

the reverse rotation command will

be ignored.

n005 Forward/Reverse Rotation Selection

Setting range 0, 1 Unit --- Default setting 0

Set Values

Set value Description

0 The motor seen from the load side rotates counterclockwise. 1 The motor seen from the load side rotates clockwise.

Note The

forward/reverse rotation selection

setting (n005) is not initialized when the parameter initial

ization is performed by setting the parameter write prohibit selection/parameter initialization parameter (n001) to 6 or 7. To change this setting, change the value of the parameter directly.

n006 Reverse Rotation-inhibit Selection

Setting range 0, 1 Unit --- Default setting 0

Set Values

Set value Description

0 The motor can rotate reversely. 1 The motor cannot rotate reversely.

H Multi-function Input Selection (n035 to n039)

S Set

n035 to n039 so that the Inverter can use multi-function input terminals 2 to 6 to perform the

following.

Three-wire sequential operation Multi-step operation Inching operation Operation using acceleration time 2 and deceleration time 2

S Refer to

3-5-3 List of Parameters

for details.

n035 Multi-function Input 1 (S2)

Setting range 0 to 24 Unit --- Default setting 0

n036 Multi-function Input 2 (S3)

Setting range 2 to 24 Unit --- Default setting 2

n037 Multi-function Input 3 (S4)

Setting range 2 to 24 Unit --- Default setting 4

n038 Multi-function Input 4 (S5)

Setting range 2 to 24 Unit --- Default setting 9

Preparing for Operation Chapter 3

3-18

n039 Multi-function Input 5 (S6)

Setting range 2 to 25 Unit --- Default setting 10

Set Values

Set value Description

0 Reverse rotation/Stop (2-wire sequence) 1 Stop command (3-wire sequence). S3 will be used for the forward/reverse rotation command

and the value set with n036 will be ignored. 9 Multi-step speed command 1 10 Multi-step speed command 2 11 Inching command 12 Acceleration/Deceleration time switching command

D Example of Wiring for 2-wire Sequential Operation (Set Value: 0)

Forward rotation/Stop Reverse rotation/Stop

D Example of Wiring for 3-wire Sequential Operation (Set Value: 1)

Stop switch

(NC)

Operation switch

(NO)

Run command (Operates when the operation switch is closed)

Stop command (Stops when the stop switch is open)

Forward/Reverse rotation command

D Example of Multi-step Operation (Set Values: 9 and 10)

Select

multi-step speed command 1 for the Inverter in two-step speed operation and multi-step

speed

commands 1 and 2 for the Inverter in four-step speed operation.

Forward rotation/Stop

Frequency reference

Frequency reference 2

Frequency reference 3

Frequency reference 4

Multi-step speed command 1

Multi-step speed command 2

Frequency reference

Preparing for Operation Chapter 3

3-19

D Example of Inching Operation (Set Value: 11)

Frequency reference

Forward rotation/Stop

Inching command

Inching

operation

reference

Inching operation

reference

Frequency reference

D Example of Acceleration/Deceleration Time Switching (Set Value 12)

Frequency reference

Forward rotation/Stop

Acceleration/ Deceleration time switching

Maximum frequency (n012)

Acceleration time

Deceleration time 1

Acceleration time 2

Deceleration time 2

Note The

acceleration time and deceleration time of the Inverter will be switched the

moment the accel

eration/deceleration

time

switching command is input while the Inverter is accelerating or decel

erating the motor.

H V/f Pattern Selection (n010 to n018)

S Set the V/f pattern according to the characteristics of the mechanical system. S Set

the rated input

voltage of the motor with n01

1 according to the rated input voltage of the motor before setting the V/f pattern. This set value will be used to calculate the voltage axis of the V/f pattern.

n011 Motor Rated Voltage

Setting range 150.0 to 255.0

(510.0)

Unit V Default setting 200.0 (400.0)

Note The figures in the parentheses apply to the 400-V Inverter.

S Set the V/f pattern.

n010 V/f Pattern Selection

Setting range 0 to F Unit --- Default setting 1

Set Values

S The following two methods are available to set the V/f pattern.

Preparing for Operation Chapter 3

3-20

S Select

one of the 15 V/f patterns preset with the Inverter

, in which case set n010 to 0, 1, 2, 3, 4, 5,

6, 7, 8, 9, A, b, C, d, or E.

S Set n010 to F for an optional V/f pattern.

S The following are the V/f patterns preset with the Inverter.

Characteristic Use Set

value

Specification

General p

These V/f patterns are mainly used for

0 50 Hz

purpose general purposes, such as the control of

straight conveyor lines. Apply these V/f

1 60 Hz

straight conveyor lines.A ly these V/f

patterns to the motor if the rotation speed

2 60 Hz. Voltage saturation at 50 Hz.

fth

e motor must changein almos

tdi

rec

proportion to the load factor of the motor.

3 72 Hz. Voltage saturation at 60 Hz.

Reduced These V/f patterns are mainly used for fan

4 50 Hz with cube reduction.

torque

pumps. Apply these V/f patterns to the

5 50 Hz with square reduction.

motor if the rotation speed of the motor

6 60 Hz with cube reduction.

must change in square or cube ro ortion

to the load factor of the motor.

7 60 Hz with square reduction.

High starting These V/f patterns are usually

8 50 Hz with low starting torque.

torque

unnecessary because the Inverter has a

9 50 Hz with high starting torque.

ull automatic torque boost function to

A 60 Hz with low starting torque.

su ly enough ower to meet the starting

torque of the motor.

B 60 Hz with high starting torque.

Constant p

These V/f patterns are used to rotate the

C 90 Hz. Voltage saturation at 60 Hz. power operation

motor w

ith

output a

t60H

z or more. Apply

these V/f patterns to the motor to impose a

D 120 Hz. Voltage saturation at 60 Hz.

constant voltage at 60 Hz minimum on the motor.

E 180 Hz. Voltage saturation at 60 Hz.

Note 1. Set n010 so that the Inverter will produce high starting torque only in the following cases.

S The wiring distance between the Inverter and the motor is approximately 150 m or more. S The

motor requires high

starting torque. The motor requires high starting torque if the motor

is connected a vertical-axis load.

S Power is input to or output from the Inverter through an AC or DC reactor.

Note 2. The set values of n012 to n018 will change automatically if any of the patterns listed in the

above table is selected.

Note 3. Refer to the following graphs for the characteristics of the V/f patterns.

The maximum voltage shown in each of the graphs is 200 V. The actual voltage, however, corresponds to the set value of n011 (i.e., the rated input voltage of the motor). All voltage values

will

change in proportion to the set value of n01

1. For example, the default-set value of

n011

the 400-V Inverter is 400 (V). Therefore, double all the voltage values when using the

400-V Inverter.

Preparing for Operation Chapter 3

3-21

Characteristics of V/f Patterns

D General Characteristics (Set Value: 0 to 3)

Set value 0 Set value 1 Set value 2 Set value 3

(12)

(6)

(12)

(6)

(12)

(6)

(12)

(6)

D Reduced Torque Characteristics (Set Value: 4 to 7)

Set value 4 Set value 5 Set value 6 Set value 7

(5) (5)

(6) (6)

D High Starting Torque Characteristics (Set Value: 8 to b)

Set value 8 Set value 9 Set value A Set value b

(15)

(7)

(15)

(7)

(20)

(9)

(20)

(11)

D Constant Power Operation Characteristics (Set Value: C to E)

Set value C Set value d Set value E

(12)

(6)

(12)

(6)

(12)

(6)

Note Figures in parentheses apply to 55-kW or higher Inverters.

Preparing for Operation Chapter 3

3-22

S An optional V/f pattern is available and n012 to n018 can be set if the V/f pattern is set to F.

n012 Maximum Frequency (FMAX)

Setting range 50.0 to 400.0 Unit Hz Default setting 60.0

n013 Maximum Voltage (VMAX)

Setting range 0.1 to 255.0

(510.0)

Unit V Default setting 200.0 (400.0)

n014 Maximum Voltage Frequency (FA)

Setting range 0.2 to 400.0 Unit Hz Default setting 60.0

n015 Intermediate Output Frequency (FB)

Setting range 0.1 to 399.9 Unit Hz Default setting 3.0

n016 Intermediate Output Frequency Voltage (VC)

Setting range 0.1 to 255.0

(510.0)

Unit V Default setting 15.0 (30.0)

(See note 2.)

n017 Minimum Output Frequency (FMIN)

Setting range 0.1 to 10.0 Unit Hz Default setting 1.5

n018 Minimum Output Frequency Voltage (VMIN)

Setting range 0.1 to 50.0

(100.0)

Unit V Default setting 10.0 (20.0)

(See note 2.)

Note 1. Figures in parentheses apply to the 400-V Inverter. Note 2. The default settings for 55-kW or higher Inverters are as follows:

200-V 55-kW or higher Inverters: n016 = 12.0 V, n018 = 6.0 V 400-V 55-kW or higher Inverters: n016 = 24.0 V, n018 = 12.0 V

Optional V/f Pattern in Detail

Voltage

Frequency (Hz)

Preparing for Operation Chapter 3

3-23

Note The

V/f pattern is a straight line if there is no dif

ference between n015 and n017 in set value, in

which case the set value of n016 will be ignored.

H Interruption Mode and Protective Function Selection (n003, n004,

n008, n032, and n033)

S Set the input voltage of the Inverter to determine the voltage protective level of the Inverter.

n003 Input Voltage Selection

Setting range 150.0 to 255.0

(510.0)

Unit V Default setting 200.0 (400.0)

S Set the stop mode of the Inverter with n004.

n004 Interruption Mode Selection

Setting range 0 to 3 Unit --- Default setting 0

Set Values

Set value Description

0 Deceleration stop (See notes 1 and 2.) 1 Free running stop (See note 3.) 2 Free running stop 1 with timer. The run command during acceleration time 1 or 2 will be ignored. 3 Free running stop 2 with timer. The constant run command is valid. The motor will start running

after deceleration time 1 or 2 passes.

Note 1. If multi-function inputs 1 to 5 (n035 to n039) are not set to acceleration/deceleration time

switching

command (set value: 12), the motor will decelerate to a stop according to the setting

deceleration time 1 (n020). If any one of the multi-function inputs is set to acceleration/de

celeration

time switching command, then the motor will decelerate according

to the decelera

tion time selected at the time the stop signal is input.

Note 2. If

a run signal is input while the motor is decelerating, deceleration will stop and the motor will

accelerate at the same rate.

Note 3. During

free running stop, do not input the run signal if the speed at

which the motor is rotating

has

not dropped suf

ficiently

. If

the run signal is input in this state, the motor will be decelerated to a low frequency very rapidly, and an overvoltage and overcurrent will be detected. In this case, use free running stop (1 or 2) with timer, and set deceleration times that will ensure

that the speed of the motor has reduced suf

ficiently

. (In either case, the motor will not start running before the deceleration time has passed.) To

start running

during free running stop, turn ON speed search for one of the multi-function inputs 1 to 5 (n035 to n039). Speed search will detect when the motor has reached an appropriate speed to start running.

S Set n008 so that the STOP/RESET Key will function properly.

n008 Stop Key Function Selection

Setting range 0, 1 Unit --- Default setting 1

Set Values

Set value Description

0 The STOP/RESET Key will function only when the Inverter is running with the run command

through the Digital Operator.

1 The STOP/RESET Key will be available anytime.

Preparing for Operation Chapter 3

3-24

S Set the rated input current of the motor with n032 and the electronic thermal protective function

with n033 to determine the motor protective characteristics.

n032 Motor Rated Current

Setting range See note 1 Unit --- Default setting 1

Note 1. The set value range is from 10% to 200% of the rated output current. Note 2. The default-set value varies with the Inverter model. Note 3. Be sure to set n032 after checking the rated input current of the motor.

n033 Electronic Thermal Protection Function Selection

Setting range 0 to 4 Unit --- Default setting 1

Set Values

Set value Description

0 No protection. 1 For standard motors with standard ratings (with a time constant of 8 min). 2 For standard motors with short-time ratings (with a time constant of 5 min). 3 For dedicated motors with standard ratings (with a time constant of 8 min). 4 For dedicated motors with short-time ratings (with a time constant of 5 min).

Preparing for Operation Chapter 3

3-25

3-5 Applied Operation

3-5-1 Energy-saving Mode

The

Inverter in energy-saving mode will automatically save unnecessary power supply to the motor if the load is light and the motor is a standard motor or dedicated motor for inverters. The Inverter in energy-saving mode will estimate the load factor

of the motor from the

current

consumption of the motor

and controls the output voltage to supply only neces

sary

power if the load is light. Energy-saving mode is appropriate for loads with little fluc

tuation.

It is not appropriate for control that requires a response time of less than 50 ms.

The

longer the energy-saving time of the Inverter is, the more ef

fectively the power sup

plied

to the load is saved.

The power supplied to the load will be hardly saved if the load exceeds 70% of the rated output torque of the motor. The

Inverter in energy-saving mode cannot save

unnecessary power supply to special motors, such as spindle motors and submersible motor. Refer

to the following for the settings of the Inverter enabling it

to perform energy-saving

control.

H Energy-saving Control

The following are the energy-saving control steps of the Inverter.

1. The Inverter starts accelerating the motor normally. The Inverter does not perform energy-saving control while the Inverter is accelerating the motor.

2. The

Inverter will perform energy-saving control when the output frequency corresponds to the fre

quency specified by the frequency reference.

3. The Inverter calculates the ideal output voltage from the running condition of the Inverter and the energy-saving coefficient K2 set with n096.

4. The output voltage is changed to the ideal output voltage.

5. The

Inverter uses the auto-tuning function (search operation) to find the minimum output power that

the Inverter supplies to the motor. Auto-tuning function (search operation):

Finds

the minimum output power that the Inverter supplies to the motor by changing the output

volt

age with the auto-tuning voltage steps set with n101 and n102.

6. The

Inverter starts decelerating the motor normally

. The Inverter does not perform energy-saving

control while the Inverter is decelerating the motor.

Preparing for Operation Chapter 3

3-26

The

most ef

ficient input voltage imposed on the motor varies with the load factor of the motor

. The In

verter

in energy-saving mode calculates the ideal output voltage and adjusts

the ideal output voltage so

that the actual power supplied to the motor can be minimized.

Power consumption

Load factor: 100%

Motor voltage

Load factor: 50%

H Energy-saving Control Settings

n095 Energy-saving Control Selection

Setting range 0, 1 Unit --- Default setting 0

Set Values

Set value Description

0 Inhibits the Inverter from performing energy-saving control. 1 Permits the Inverter to perform energy-saving control.

Note Set n095 to 1 so that the Inverter will perform energy-saving control.

n096 Energy-saving Coefficient K2

Setting range 0.00 to 655.0 Unit --- Default setting See note

Note The default-set value of n096 varies with the Inverter model.

Set Values

S Set the K2 value according to the capacity of the motor. S The

K2 value of each Inverter model is set to the following before shipping according to the maxi

mum capacity of the motor that can be connected to the Inverter model.

Preparing for Operation Chapter 3

3-27

200-V class 400-V class

Capacity of motor (kW) Energy-saving

coefficient K2 (n096)

Capacity of motor (kW) Energy-saving

coefficient K2 (n096)

0.4 288.2 0.4 576.4

0.75 223.7 0.75 447.4

1.5 169.4 1.5 338.8

2.2 156.8 2.2 313.6

3.7 122.9 3.7 245.8

5.5 94.75 5.5 189.5

7.5 72.69 7.5 145.4 11 70.44 11 140.9 15 63.13 15 126.3 18 57.87 18 115.7 22 51.79 22 103.6 30 46.27 30 92.54 37 38.16 37 76.32 45 35.78 45 71.56 55 31.35 55 67.20 75 23.10 75 46.20

--- --- 110 36.23

160 30.13 185 30.57 220 27.13 300 21.76

Note 1. The

above K2 values are for standard motors and dedicated motors for inverters. The Inverter

energy-saving mode cannot save unnecessary power supply to

high-speed motors (e.g.,

spindle

motors) or any other motor that has an ef

ficiency curve with more than one peak (e.g.,

any double squirrel-cage motor).

Note 2. The

Inverter performs energy-saving control at 15 to 120 Hz. The Inverter does not perform

energy-saving control at a frequency exceeding 120 Hz.

n100 Search Control Voltage Limit

Setting range 0 to 100 Unit % (Rated input

voltage ratio of motor)

Default setting 0

Set Values

S Set

the range of the variable voltage of the Inverter in search operation mode with 1% units based

on the rated input voltage of the motor set with n011 as 100%.

S The value of n100 is usually set to a range from 0 to 20%. Usually n100 is set to 10%. S The search operation will not be available if n100 is set to 0.

n097 Energy-saving Voltage Lower Limit for 60 Hz

Setting range 0 to 120 Unit % (Rated input

voltage ratio of motor)

Default setting 50

Preparing for Operation Chapter 3

3-28

n098 Energy-saving Voltage Lower Limit for 6 Hz

Setting range 0 to 25 Unit % (Rated input

voltage ratio of motor)

Default setting 12

Set Values

S Set the lower output voltage limits of the Inverter in energy-saving mode. S It is usually unnecessary to change the default-set values of n097 and n098. S The parameters n097 and n098 set the lower output voltage limits of the Inverter to prevent the

motor from stalling.

S Set n097 and n098 to values 5% to 10% larger than the default-set values if the motor stalls.

Output voltage lower limit (%)

n099 Mean Power Time

Setting range 1 to 200 Unit x 25 ms Default setting 1

Set Values

S Set time to calculate the mean output power of the Inverter in energy-saving mode. S It is usually not necessary to change the default-set value of n099. S The

Inverter calculates its mean

output power during the time set with n099 for the energy-saving

control of the motor.

S The time set with n099 is used as a search operation period, in which the output voltage of the

Inverter in search operation mode changes.

S Set

n099 to a value larger than the default-set value if the load factor of the motor changes greatly

or the friction factor of the load is large and the motor vibrates.

n101 Search Operation Control Voltage Step when 100%

Setting range 0.1 to 10.0 Unit % (Rated input

voltage ratio of motor)

Default setting 0.5

n102 Search Operation Control Voltage Step when 5%

Setting range 0.1 to 10.0 Unit % (Rated input

voltage ratio of motor)

Default setting 0.2

Set Values

S The

values set with n101 and n102 are used

as voltage change rates, at which the output voltage

of the Inverter in search operation mode changes.

S It is usually not necessary to change the default-set values of n101 and n102.

Preparing for Operation Chapter 3

3-29

S A voltage change rate can be set according to the output voltage of the Inverter. S Set

n101 and n102 to values smaller than the default-set values if it is necessary to minimize the

speed ripples of the motor.

Auto-tuning voltage step (%)

Inverter voltage output

H Effective Energy-saving Control

Take the following steps to check whether the Inverter in energy-saving mode is saving unnecessary power supply to the motor.

1. Output Power Press

the ENERGY SA

VE Key and POWER Key to check whether the output power of the Inverter

in energy-saving mode is lower than that of the Inverter not in energy-saving mode.

2. Motor Check

that the motor does not stall

or vibrate error when the Inverter performs energy-saving con

trol.

H Troubleshooting of Energy-saving Control Problems

If the Inverter in energy-saving mode stalls the motor, vibrates the motor, or does not save unnecessary power supply to the motor, refer to the following table to check the probable cause of the trouble and take countermeasures against the trouble. Running

conditions of the motor may inhibit the Inverter from performing ef

fective ener

gy-saving control.

Problem Probable cause Remarks

Output power does not change

Inverter is running at a frequency exceeding 120 Hz

The Inverter does not save unnecessary power supply to the motor while the Inverter is running at a frequency exceeding 120 Hz.

Preparing for Operation Chapter 3

3-30

Problem RemarksProbable cause

Inverter does not perform effective energy-saving control

Load factor of the motor is too large

The Inverter does not perform effective energy-saving control if the load factor of the motor is too large.

Reference: Energy-saving control of motor with 7.5-kW output

Energy saved (W)

Output frequency: 60 Hz

Load factor (%)

Constantly rotating motor drops its rotation speed for a moment

Value of the energy-saving coefficient K2 is too small and the ideal output voltage calculated by the Inverter is low

Set K2 with n096 according to the capacity of the motor.

Reset K2 to the value for the capacity of a motor one rank lower than the motor in use if the same trouble occurs after K2 is set according to the capacity of the motor.

Motor vibrates or does not rotate smoothly when the load is light

Mechanical system is resonating with the Inverter

Set the mean power time with n099 to a larger value.

Motor stalls Output voltage is too small Set the lower output voltage limits with

n097 and n098 to larger values. Set the energy-saving coefficient K2 with

n096 to a larger value. Reset K2 to the value for the capacity of a

motor one rank lower than the motor in use if the same trouble occurs after K2 is set according to the capacity of the motor.

Motor changes its rotation speed periodically in synchronization with the mean power time

Speed ripples are generated by the search operation voltage change rates

Set the values of n101 and n102 to smaller values.

Set the search operation voltage limit with n100 to 0 so that the search operation function will not work.

Motor is overloaded only when the Inverter performs energy-saving control although the weight of the load is the same as or less than the rated output torque of the motor

Search operation function is not working and the output voltage is high

Set the search operation voltage limit with n100 to a smaller value.

Set the search operation voltage limit with n100 to 0 so that the search operation function will not work.

Preparing for Operation Chapter 3

3-31

3-5-2 PID Control

PID

(proportional, integral, and derivative) control is a method to control a

mechanical

system

by making the feedback values obtained from the mechanical system agree with the set point that has been preset. This method makes it possible to control a mechanical system that has dead time. The

Inverter is not suitable for PID

control that requires a response time of 50 ms or less.

Refer

to the following for examples of PID control that can be performed

by the Inverter

well as the operation of PID control in detail and the settings and adjustments of the

parameters.

H Examples of PID Control

Refer to the following for examples of PID control that can be performed by the Inverter.

Application Control Required sensor

Speed control The Inverter uses the feedback of speed data of the

mechanical system and makes the operation speed of the mechanical system agree with the set point.

The Inverter controls the mechanical system in synchronization with another mechanical system that inputs its speed data as the set point to the Inverter.

Tachometric generator

Pressure control The Inverter performs constant pressure control with the

feedback of pressure data.

Pressure sensor

Flow control The Inverter performs flow control with the feedback of

flow data.

Flow sensor

Temperature control The Inverter performs temperature control using fans with

the feedback of temperature data.

Thermocouple Thermistor

H PID Control Operation

The

following graph shows control output (output frequency) changes with a constant

deviation (i.e., the

difference between the set point and feedback is constant).

Deviation

Time

Control output

Derivative control

PID control Integral control

Proportional control Time

D Proportional Control

Control

output in proportion to the deviation is obtained through proportional control. Proportional

control alone cannot make the deviation zero.

Preparing for Operation Chapter 3

3-32

D Integral Control

The

integrated deviation is obtained as control output from integral control. Integral control makes

the

feedback agree with the

set point ef

fectively

. Integral control, however

, cannot keep up with rap

id feedback changes.

D Derivative Control

The

dif

ferentiated deviation is obtained as control output from derivative control. Derivative control

can keep up with rapid feedback changes.

D PID Control

PID

control makes use of the merits of proportional

control, integral control, and derivative control to

perform ideal control.

H Types of PID Control

The

Inverter performs two types of PID control (i.e., derivative data PID

control and basic PID control).

The Inverter usually performs derivative data PID control.

D Derivative Data PID Control

Derivative

data PID control is a type of PID control which dif

ferentiates

the feedback of values and

keeps up with set point changes and control object changes.

Set

point

Control object

Feedback

D Basic PID Control

Basic

PID control may cause overshooting or undershooting when the set point changes if the re

sponse of derivative control is adjusted to keep up with object changes.

Set

point

Control object

Feedback

Preparing for Operation Chapter 3

3-33

H PID Control Function

Refer to the following block diagram for the PID control performed by the Inverter.

Set

point

Feedback

terminal

FI terminal

Feedback

justment gain

100%:

Feedback value corresponding to the maximum frequency (N012)

Inside the Inverter

Multi-function

input/PID input selection

Proportional gain

1/Integral

time

Derivative time

Upper

limit

of integral (I)

Internal

limit

±109%

PID of

fset

adjustment

PID primary

delay

time constant

PID

control

selection

Inverter

fre

quency refer

ence

Derivative time

H PID Control Settings

n084

PID Control Function Selection

Setting range 0, 1, and 2 Unit --- Default setting 0

Set Values

Set value Description

0 No PID control. 1 PID control with deviation derivative control. 2 PID control with feedback derivative control. 3 PID control with negative feedback characteristic control.

Note 1. Set n084 to 1, 2, or 3 to permit the Inverter to perform PID control. Note 2. Usually set n084 to 2 to change set points. Note 3. Set

n084 to

3 to perform PID control using the negative characteristic of the characteristic of

the

feedback value input from the sensor

. Using the negative characteristic means that [100%

–

feedback value] is used as the PID feedback value. This is ef

fective for negative characteris

tic control (control where the feedback value drops when the Inverter’s output frequency rises).

Preparing for Operation Chapter 3

3-34

• If

n084 is set to 1 or 2, the method to input the set point will be determined by the

operation mode set

with

n002 and the FI terminal will be used for feedback input. Set the FI input

level with n043 to select

current feedback input or voltage feedback input to the Inverter.

Input terminal

Operation mode selection (n002)

0 or 1 (Frequency reference: Digital

Operator)

2 or 3 (Frequency reference: Control

circuit terminals)

Set point input Frequency reference: n025 to n029 FV terminal: Voltage frequency reference

input

Feedback input FI terminal: Frequency reference input (default-set to current frequency reference input)

n043 FI Input Level Selection

Setting range 0, 1 Unit --- Default setting 1

Set Values

Set value Description

0 Voltage input within a range from 0 to 10 V. Be sure to cut jumper wire J1. 1 Current input within a range from 4 to 20 mA.

Note Do

not impose voltage on the Inverter without cutting jumper wire J1 if n043 is set to 0, otherwise

the input resistor of the Inverter will burn out.

D 200 V, 3.7 kW

Jumper wire

Power input

Braking

Resistor

Motor

output

Control circuit terminals

Main circuit terminals

n085 Feedback Adjustment Gain

Setting range 0.00 to 10.00 Unit Times Default setting 1.00

Preparing for Operation Chapter 3

3-35

Set Values

• Set the feedback adjustment gain with n085.

• The

feedback of the FI terminal multiplied by the feedback adjustment gain will be the feedback adjust

ment gain data of the Inverter.

n086 Proportional Gain (P)

Setting range 0.0 to 10.0 Unit Times Default setting 1.0

n087 Integral Time (I)

Setting range 0.0 to 100.0 Unit s Default setting 10.0

n088 Derivative Time (D)

Setting range 0.00 to 1.00 Unit s Default setting 0.00

Set Values

• The parameters n086, n087, n088 adjust PID control response.

• Set

n086, n087, and n088 to optimum values by operating the mechanical system. Refer to

page

3-36,

PID Adjustments

for details.

• Proportional

control or integral control will not be performed if n086 or n087 is set to

0.0 and derivative

control will not be performed if n088 is set to 0.00.

n089 PID Offset Adjustment

Setting range –109 to 109 Unit % (Maximum

frequency ratio)

Default setting 100

Set Values

• The parameter n089 adjusts the PID control offset of the Inverter.

• The

Inverter adjusts the of

fset of the voltage used to determine the set point and the of

fset of analog

input to the FI terminal according to the value set with n089.

• Set

n089 so that the output frequency of the Inverter will be 0 Hz when the set point and feedback are

both zero.

n090 Integral Upper Limit

Setting range 0 to 109 Unit % (Maximum

frequency ratio)

Default setting 100

Set Values

• The upper limit of integral control quotients is set with n090.

• It is usually unnecessary to change the default-set value of n090.

• Set

n090 to a small value if the response of the Inverter may damage the

load or allow the motor to go

out of control when the load factor of the motor varies greatly.

• The feedback will not agree with set point if n090 is set to a value that is too small.

n091 PID Primary Delay Constant

Setting range 0.0 to 2.5 Unit s Default setting 0.0

Preparing for Operation Chapter 3

3-36

Set Values

• The parameter n091 works as a low-pass filter for the PID control output.

• It is usually not necessary to change the default-set value of n091.

• If

the friction factor of the mechanical system is large and the mechanical system

resonates, set n091

a value larger than the resonance frequency

, in which case, however

, the

PID response of the In

verter will be low.

n092 Feedback Loss Detection Selection

Setting range 0, 1 Unit --- Default setting 0

Set Values

Set value Description

0 Feedback loss is detected. 1 Feedback loss is not detected.

• By

setting n092 to 1, the Inverter determines that the feedback line is disconnected if the Inverter re

ceives a feedback value that is too low.

• The

Inverter will

have PID feedback loss output as multi-function output if the Inverter detects feed

back loss. Therefore, program a sequence to interrupt the operation of the Inverter.

n093 Feedback Loss Detection Level

Setting range 0 to 100 Unit % (Maximum

frequency ratio)

Default setting 0

n094 Feedback Loss Detection Time

Setting range 0.0 to 25.5 Unit s Default setting 1.0

Set Values

• Set feedback loss detection conditions with n093 and n094.

• Feedback

loss will be detected if the Inverter receives feedback values lower than the feedback loss

detection level set with n093 for the time set with n094.

• Set n093 to a value based on the maximum frequency set with n012 as 100%.

H PID Adjustments

D Step Response

The

parameter values used by the Inverter to perform PID control can be adjusted according to the step

response of the control object.

1. Step Response Waveform Take the following steps to measure the step response waveform of the control object.

a) Connect

the load in the same way as the connection of the load to the Inverter in normal

opera

tion. b) Set n084 to 0 so that the Inverter will not perform PID control. c) Minimize the acceleration time and input step frequency reference. d) Measure the response waveform of the feedback.

Preparing for Operation Chapter 3

3-37

Note Measure the response waveform so that the timing of the step input will be known.

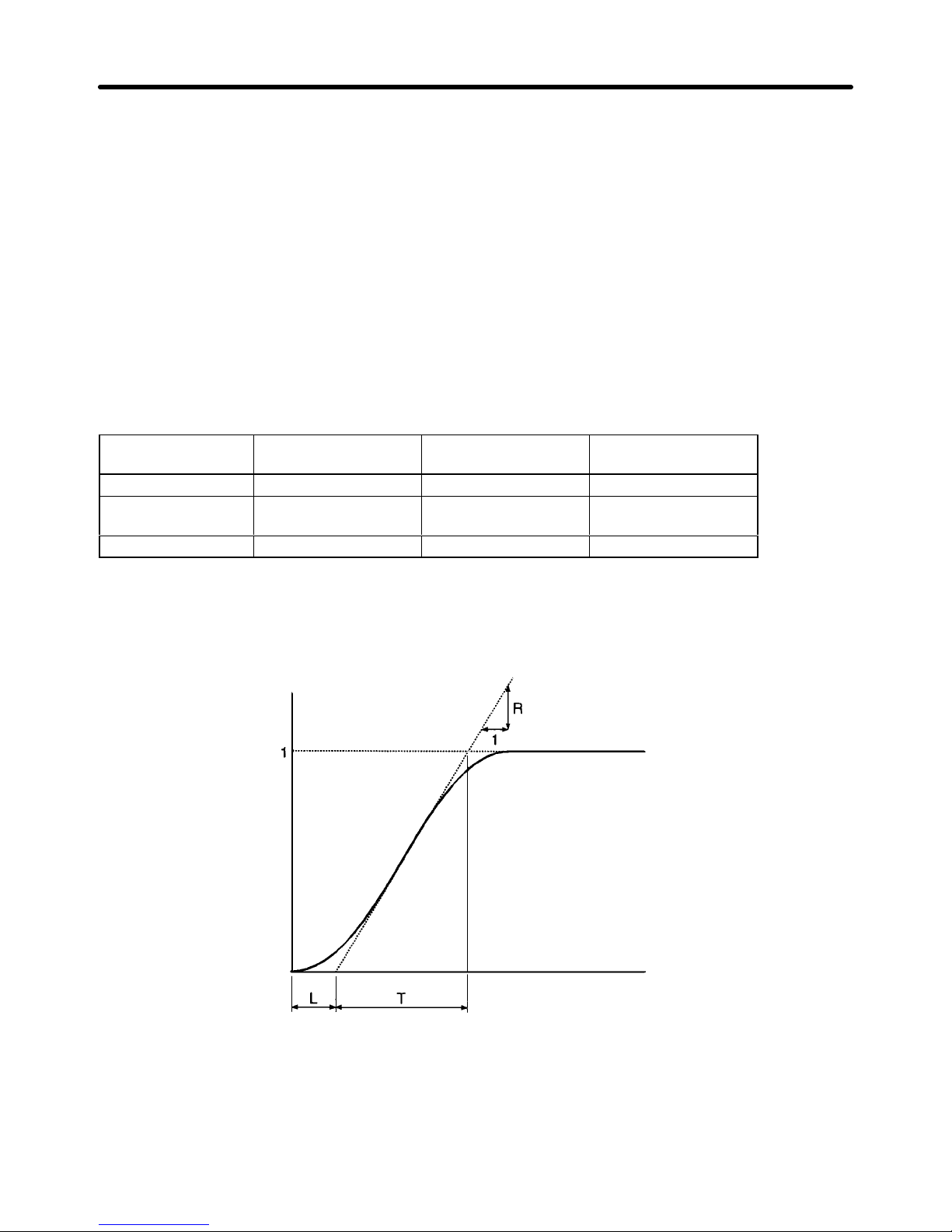

2. Calculation of PID Parameters

S Draw a tangent line contacting with the steepest inclining point of the response waveform. S Measurement of R

Measure the gradient of the tangent line provided that the set point is 1.

S Measurement of L

Measure

the required time (seconds) between the origin and the point of intersection of the tan

gent line and time axis.

S Measurement of T

Measure

the required

time (seconds) between the point of intersection of the tangent line and time

axis and the point of intersection of the tangent line and set point line.

S PID Parameters

The following can be calculated from the R, L, and T values as “rules of thumb.”

Control Proportional gain (P)

(n086)

Integral time (I)

(n087)

Derivative time (D)

(n088)

Proportional control 0.3/RL --- --Proportional/Integral

control

0.35/RL 1.2T ---

PID control 0.6/RL T 0.5L

Note 1. Obtain

PID parameter values from the above

method, set the PID parameters, and tune in the

PID parameter values exactly.

Note 2. PID

parameter values

obtained from the above method may not be optimum values if the fric

tion factor of the mechanical system is large.

Response

Time

Set

point

D Manual Adjustments

Take

the following steps

to adjust the PID parameter values of the Inverter performing PID control by

measuring the response waveform.

1. Set n084 to 2 or 1 so that the Inverter will perform PID control.

Preparing for Operation Chapter 3

3-38

2. Increase the proportional gain with n086 within a range causing no vibration.

3. Increase the integral time with n087 within a range causing no vibration.

4. Increase the derivative time with n088 within a range causing no vibration.

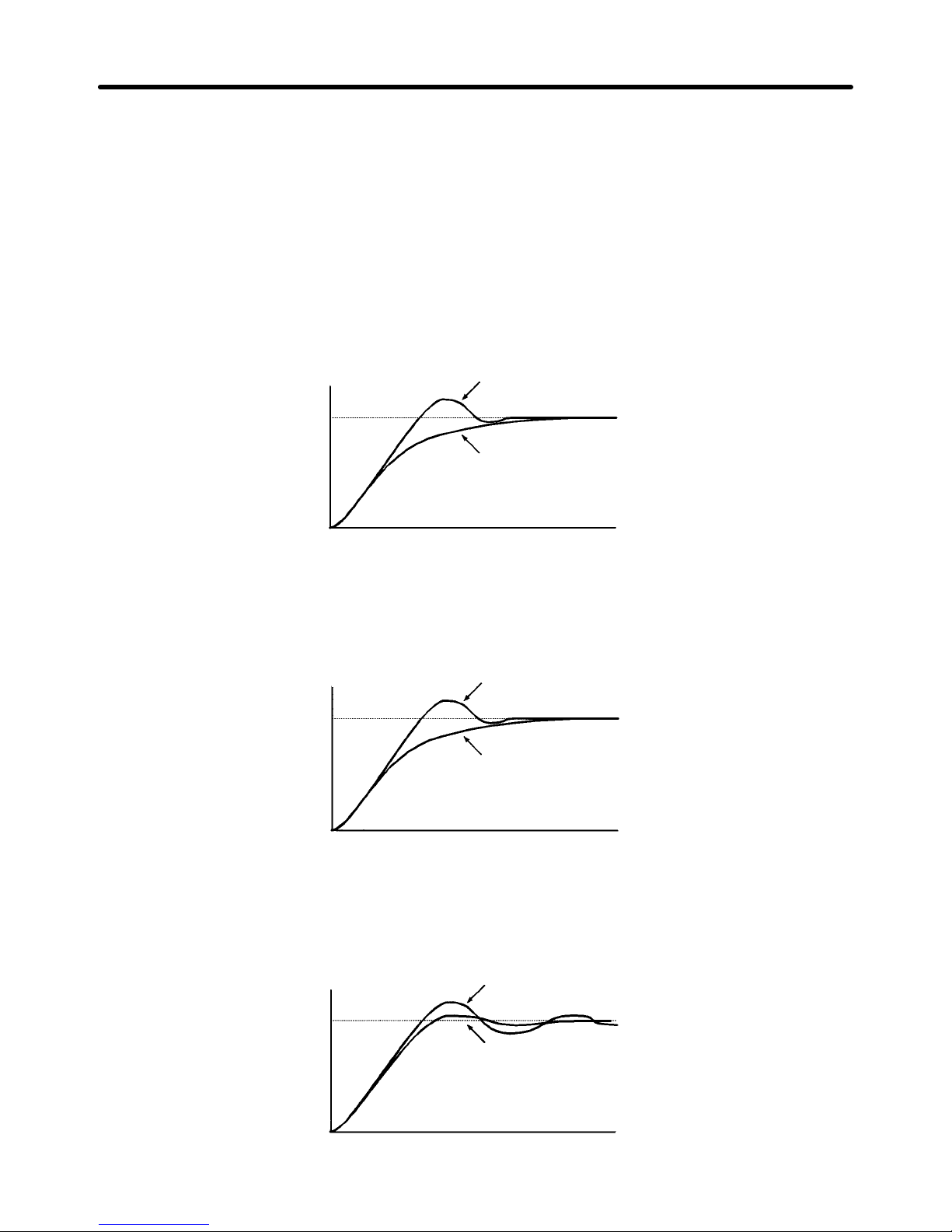

H PID Fine Tuning

Refer to the following to tune in PID parameters exactly.

D Suppression of Overshooting

Set

the derivative time to a smaller value and the integral time to a larger value if overshooting results.

Response

Before fine tuning

After fine tuning

Time

D Prompt Control

Set

the integral time to a smaller value and the derivative time to a large value for the prompt control of

overshooting.

Response

Before

fine tuning

After fine tuning

Time

D Suppression of Long-cycle Vibration

Vibration with a wavelength longer than the integral time results from excessive integral control. The vibration can be suppressed by setting the integral time to a larger value.

Response

Before

fine tuning

After fine tuning

Time

Preparing for Operation Chapter 3

3-39

D Suppression of Short-cycle Vibration

Vibration

with a wavelength almost as long as the derivative time results from

excessive derivative con

trol.

The vibration can be suppressed by setting the derivative time to a smaller value. Set the propor

tional

gain to a smaller value or the PID primary delay constant to a larger value if the vibration cannot be

suppressed after the derivative time is set to 0.00.

Response

Before

fine-tuning

After fine-tuning

Time

Preparing for Operation Chapter 3

3-40

3-5-3 List of Parameters

Values in brackets [ ] are default-set values. Note Parameters that can be changed while the Inverter is running are indicated in bold type.

H Group 1: n001 to n034

Function No. Name Description Setting

range

Refer-

ence page

Parameter group selection

n001 Parameter

write prohibit selection/Parameter initialization

0: The parameters n001 can be set and

checked and the parameters n002 to n108 can be only checked. The speed and direction of the Digital Operator can be set.)

1: The parameters of group 1 (i.e., n001

to n034) can be set and checked and the parameters of groups 2 and 3 (i.e., n035 to n049 and n050 to n108) can be only checked.

2: The parameters of groups 1 and 2 can

be set and checked and the parame-

0 to 7 [1]

3-13

Parameter initialization

ers of group 3 can onlybe checked.

3: The parameters of groups 1, 2, and 3

can be set and checked.

6: All parameters will be set to default-set

values.

7: All parameters will be initialized with a

three-wire sequence.

Note When parameter initialization is per-

formed by setting to 6 or 7, the Forward/Reverse rotation selection (n005) is not initialized. (It is only initialized when a CPF4 error is detected.)

Operation mode selection

n002 Operation

mode selection

Selects method to input run command and frequency reference.

Run command Frequency reference 0: Digital Operator Digital Operator 1:

Control

circuit terminals

Digital Operator 2: Digital Operator Control circuit terminals 3:

Control

circuit terminals

Control circuit terminals

0 to 3 [3]

3-13

Input voltage selection

n003 Input voltage

selection (see note)

Set Inverter input voltage in 1-V units. 150.0

255.0 [200.0]

3-23

Interruption mode selection

n004 Interruption

mode selection

0: Deceleration stop 1: Free running stop 2: Free running stop 1 with timer. The run

command during deceleration time 1 or 2 will be ignored.

3: Free running stop 2 with timer. The

constant run command is valid. The motor will start running after deceleration time 1 or 2 passes.

0 to 3 [0]

3-23

Note With

400-V Inverters, the setting range

upper limits and default settings are double those shown

in the table.

Preparing for Operation Chapter 3

3-41

Function No. Name Description Setting

range

Refer-

ence page

Motor rotation direction selection

n005 Forward/Re-

verse rotation selection

0: When the forward rotation command is

input, the motor seen from the load side rotates counterclockwise.

1: When the forward rotation command is

input, the motor seen from the load side rotates clockwise.

Note This

parameter is

not initialized when parameter initialization is performed by

setting n001 to 6 or 7. (It is only

ini

tialized when a CPF4 error is detected.)

0, 1 [0] 3-17

n006 Reverse rota-

tion-inhibit selection

0: The motor can rotate in reverse. 1: The motor cannot rotate in reverse.

0, 1 [0] 3-17

Preparing for Operation Chapter 3

3-42

Function No. Name Description Setting

range

Refer-

ence page

Digital Operator function selection

n007 Operation

direction selection key permit/inhibit

0: Inhibits Operation Mode Selection Key

from functioning.

1: Permits Operation Mode Selection Key

to function.

0, 1 [1] 3-57

n008 Stop Key func-

tion selection

0: The STOP/RESET Key will function

only when the Inverter is running with the run command through the Digital Operator.

1: The STOP/RESET Key will function

anytime.

0, 1 [1] 3-58

n009 Frequency ref-

erence setting selection

0: Permits frequency reference set with

the Digital Operator to be valid without Enter Key input.

1: Permits frequency reference set with

the Digital Operator to be valid with Enter Key input.

0, 1 [1] 3-58

V/f pattern selection

n010 V/f pattern

selection

0to E: Selects from 15 fixed V/f patterns. F: Selects optional V/f pattern with n012

to n018 settings.

0 to F [1] 3-58

n011 Rated input

voltage of motor (see note)

Set rated input voltage of motor with 1 V units.

150.0 to

255.0 [200.0]

3-60

V/f pattern selection

n012 Maximum fre-

quency (FMAX)

Voltage

(V)

50.0 to

400.0 [60.0]

3-60

n013 Maximum volt-

age (VMAX) (see note)

0.1 to 255.0 [200.0] (See note 1.)

3-60

n014 Maximum volt-

age frequency (FA)

The V/f pattern will be a straight line if

Frequency (Hz)

0.2 to 400.0 [60.0]

3-61

n015 Intermediate

output frequency (FB)

there is no difference between n015 and n017 in set value, in which case the set value of n016 will be ignored.

0.1 to 399.9 [3.0]

3-61

n016 Intermediate

output frequency voltage (VC) (see note)

0.1 to 255.0 [15.0] (See note 1, 2.)

3-61

n017 Minimum out-

put frequency (FMIN)

0.1 to 10.0 [1.5]

3-61

n018 Minimum out-

put frequency voltage (VMIN) (see note)

0.1 to 50.0 [10.0] (See note 1, 2.)

3-61

Note 1. With 400-V Inverters, the setting range upper limits and default settings are double those

shown in the table.

Note 2. The default settings for Inverters of 55 kW or more are as follows:

n016 = 12.0/24.0, n018 = 6.0/12.0

Preparing for Operation Chapter 3

3-43

Function No. Name Description Setting

range

Refer-

ence page

Acceleration/ Deceleration time selection

n019 Acceleration

time 1

The time required for the output frequency to be 100% from 0% of the maximum frequency.

0.0 to 3,600 [10.0]

3-61

n020 Deceleration

time 1

The time required for the output frequency to be 0% from 100% of the maximum frequency.

0.0 to 3,600 [10.0]

3-61

n021 Acceleration

time 2

Valid if acceleration/deceleration time switching command is selected for multifunction input.

0.0 to 3,600 [10.0]

3-61

n022 Deceleration

time 2

Valid if acceleration/deceleration time switching command is selected for multifunction input.

0.0 to 3,600 [10.0]

3-62

S-shaped characteristic time selection

n023 S-shaped char-

acteristic time selection

0: No s-shaped characteristic time 1: 0.2 s 2: 0.5 s 3: 1.0 s

0 to 3 [1]

3-62

Frequency reference selection

n024 Unit of frequen-

cy reference

0: 0.1-Hz units 1: 0.1% units 2to 39: r/min

(r/min = 120 x frequency/n024 Set n024 to the number of poles of the motor.)

40 to 3,999: Determine the display meth-

od of the maximum frequency set with n012. Example: Set n024 to 1100 so that “10.0” will be displayed at the maximum frequency.

0 to 3,999 [0]

3-62

Frequency reference selection

n025 Frequency ref-

erence 1

Set frequency reference using the unit set with n024.

0 to maximum frequency [6.0]

3-63

n026 Frequency ref-

erence 2

Frequency reference with multi-step speed command 1 turned ON.

0 to maxi-

3-63

n027 Frequency ref-

erence 3

Frequency reference with multi-step speed command 2 turned ON.

mum fre-

3-63

n028 Frequency ref-

erence 4

Frequency reference with multi-step speed command 1 and 2 turned ON.

quency [0.0]

3-63

n029 Inching fre-

quency reference

Frequency reference with inching command turned ON.

0 to maximum frequency [6.0]

3-63

Output frequency limit selection

n030 Output frequen-

cy upper limit

Set output frequency upper limit with 1% units based on max. frequency set with n012 as 100%.

0 to 109 [100]

3-63

n031 Output frequen-

cy lower limit

Set output frequency lower limit with 1% units based on max. frequency set with n012 as 100%.

0 to 100 [0]

3-63

Preparing for Operation Chapter 3

Omron 3G3HV-series, 3G3HV-A2075-E, 3G3HV-A2110-E, 3G3HV-A2150-E, 3G3HV-B2185-E User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
